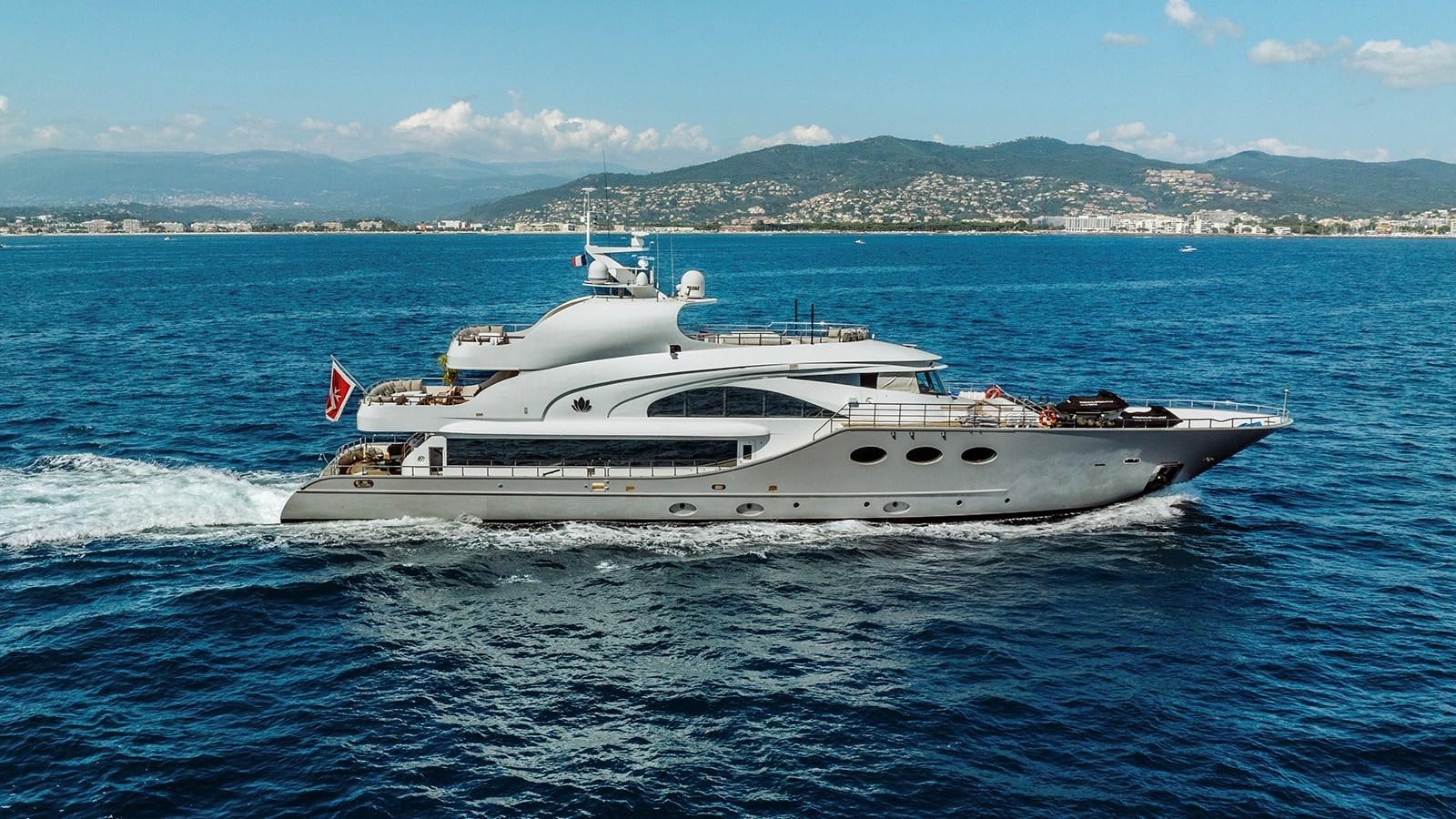

LOTUS Yacht for Sale

Length
147' (45m)
Builder
MISS TOR YACHTS
Build
2006
Cabins
5
Crew
10

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Amenities

  • At-Anchor Stabilizers
  • Deck Jacuzzi
  • Fishing Equipment
  • Gym
  • Jacuzzi
  • Kaleidescape
  • Personal Watercraft
  • Wi-Fi

Specifications

Builder MISS TOR YACHTS
Model 147'8"
Length (LOA) 147' (45m)
Year 2006
Gross Tonn. 417
Draft 10' (3m)
Beam 27' (8.5m)
Range 3,390 NM

Accommodations

Staterooms 5
Sleeps 12
Crew Cabins 10
Crew Sleeps 10

Dimensions & Capacity

LOA 147' (45m)
Max Draft 10' (3m)
Fuel Tank 15,533 g (58,800 L)
Fresh Water 4,227 g (16,000 L)
Gross Tonn. 417

Construction

Hull Material Steel
Hull Config Full Displacement
Int. Designer Mark Zeff Design of New York
Cruising Speed 10 Knots
Range 3,390 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Steering System: YMS Rota , model – RHS3000WDO, Hydraulic steering system comprising of 1 x dual power pack for steering and 2 x independent hydraulic cylinders and 1 x manual hand wheel
  • Fuel/water separator 1 x Alfa Laval MIB303,plus Racor fuel –water separators for each engine.
  • Oil/water separator: 1 x RWO .
  • Sewage treatment System: 1xTechnicomar 1200Ltr/Hrs
  • Watermakers: 2 x Technicomar watermakers capable of producing approximately 7200 litres per day
  • 28 x 200 amp hour house battery bank charged by 3 x 100 amp Mersan chargers
  • 10 x 200 amp hour engineering battery bank charged by 2 x 100 amp Mastervolt chargers
  • 150 amp hour emergency radio batteries charged by 25 amp Mastervolt charger

Accommodation

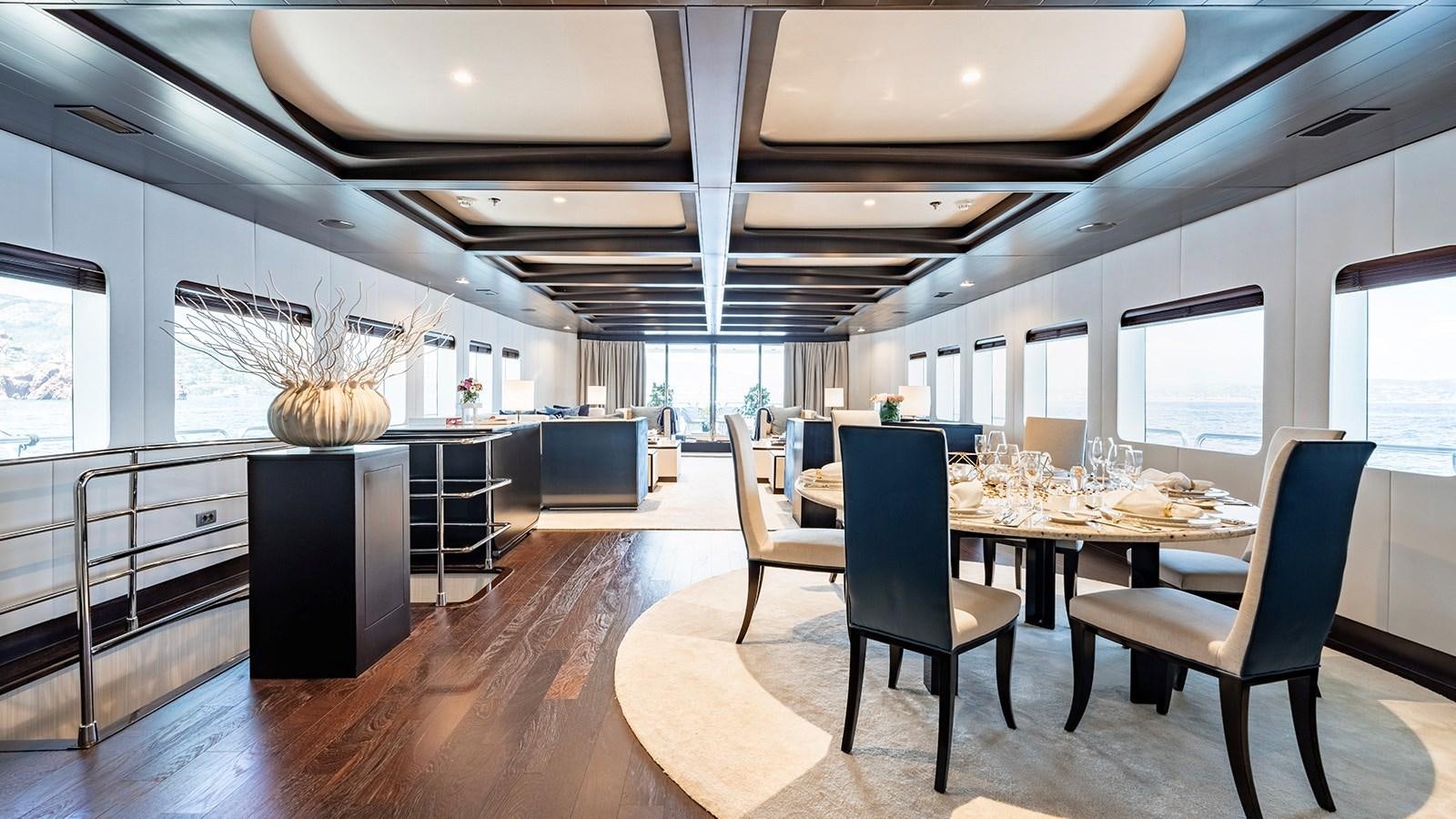

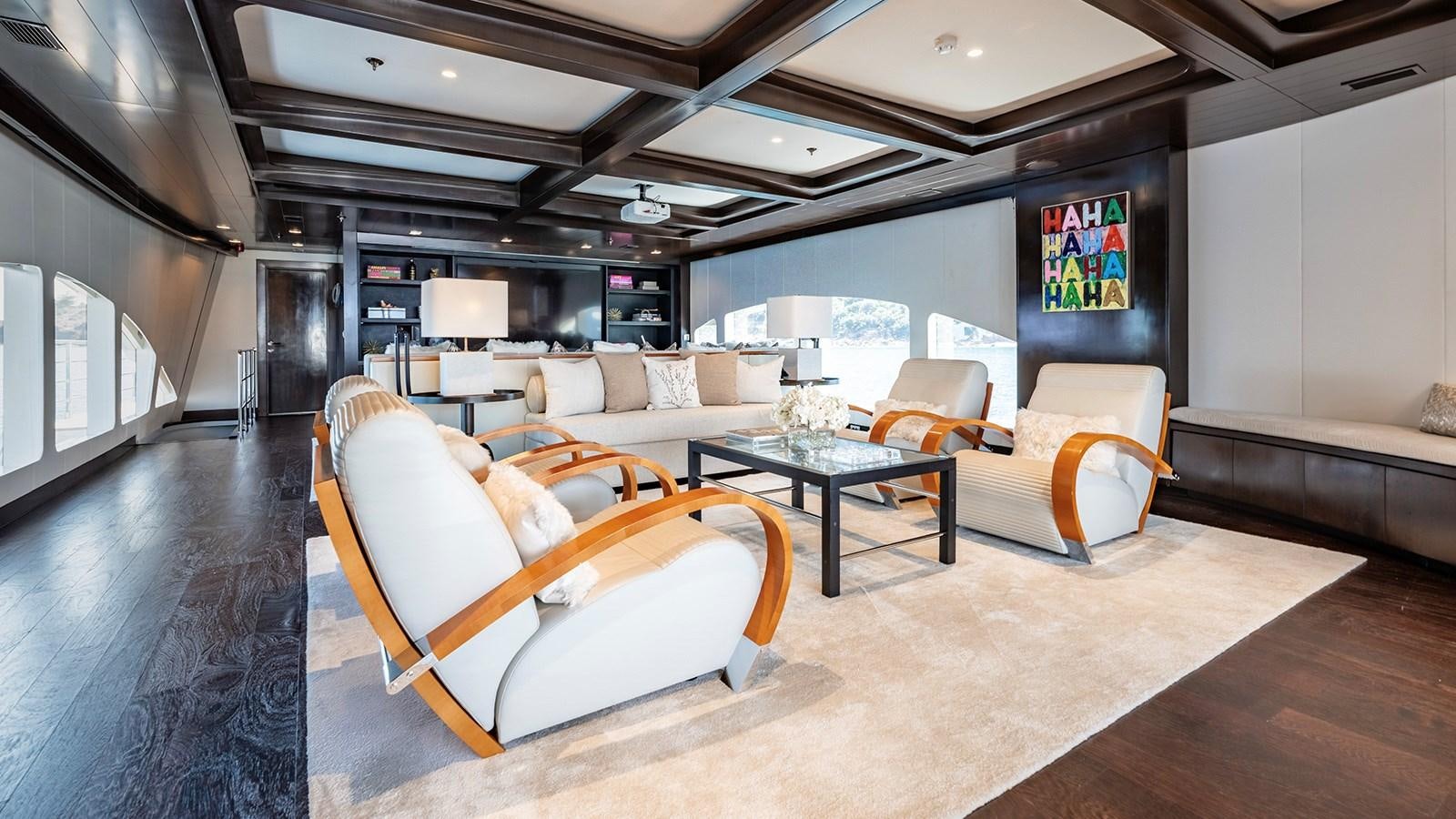

Main deck salon

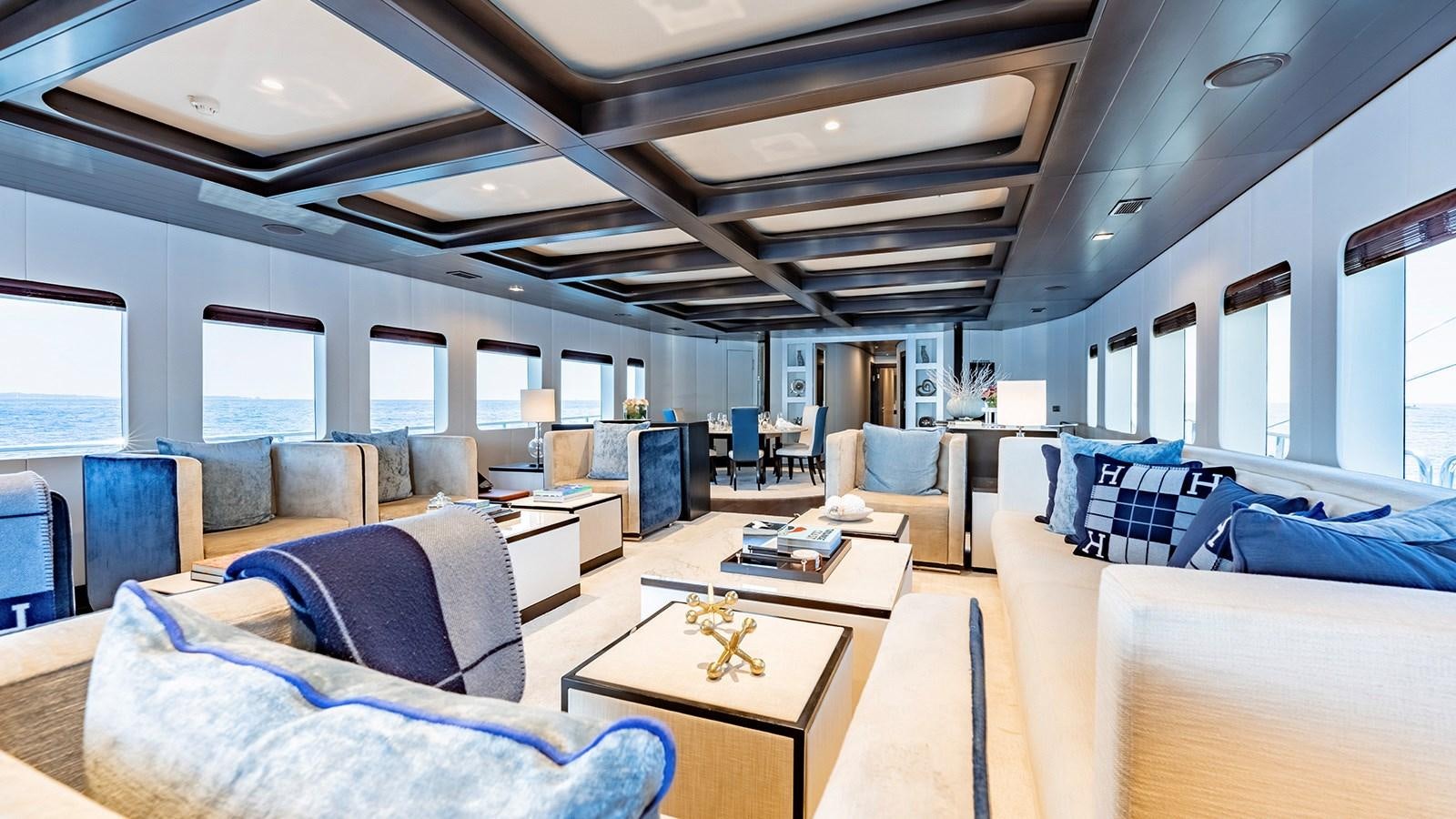

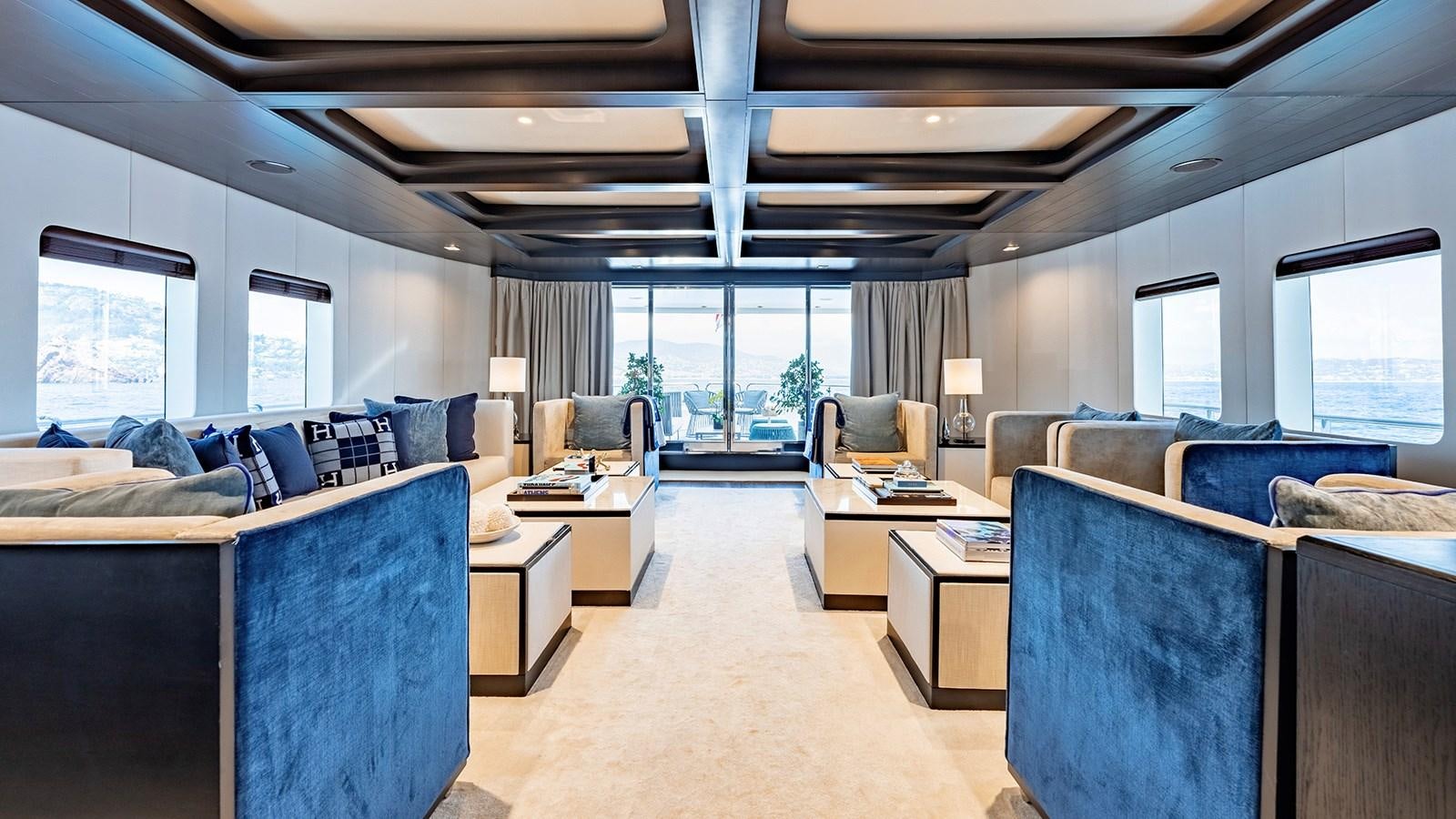

  • The main saloon features large side windows, a décor of silk wall panels and has an entertainment system including a large screen television along with a full-beam dining area offering formal dining for up to ten guests on seating upholstered in soft leathers and fine silks.

Master Stateroom

  • Full width master suite located forward on the main deck with en suite bathroom and dressing room. Stark Safe, mini drink refrigerator

Guest Staterooms

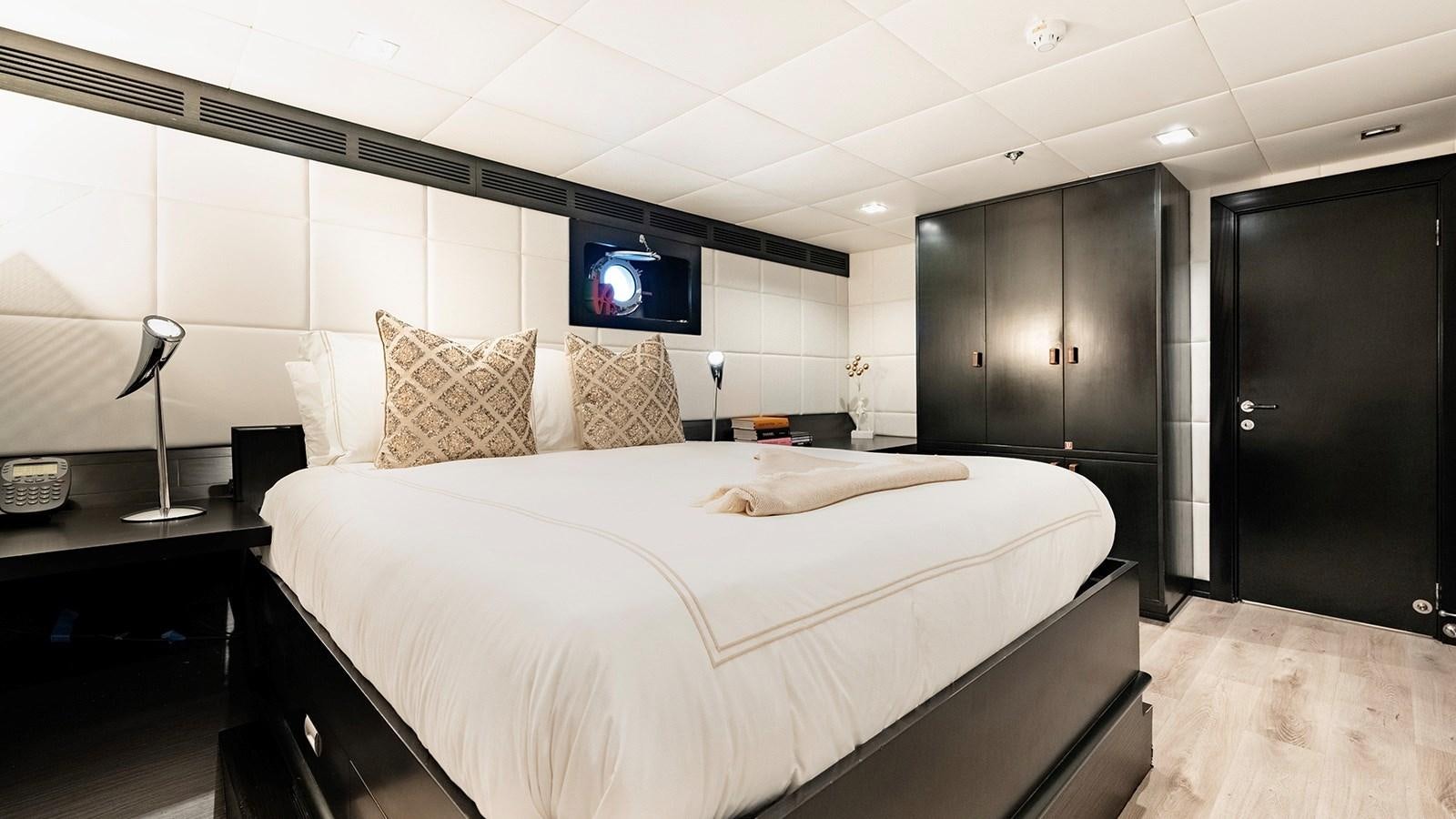

  • 2 x VIP Cabins located aft and amidships on the lower deck each with en suite shower rooms. Stark Safe
  • 1 x twin cabin + pullman bed (accommodation for 3 guests) located on the lower deck with en suite shower room.  Stark Safe
  • 1 x Staff cabin equipped with single bed with Pullman on the main deck

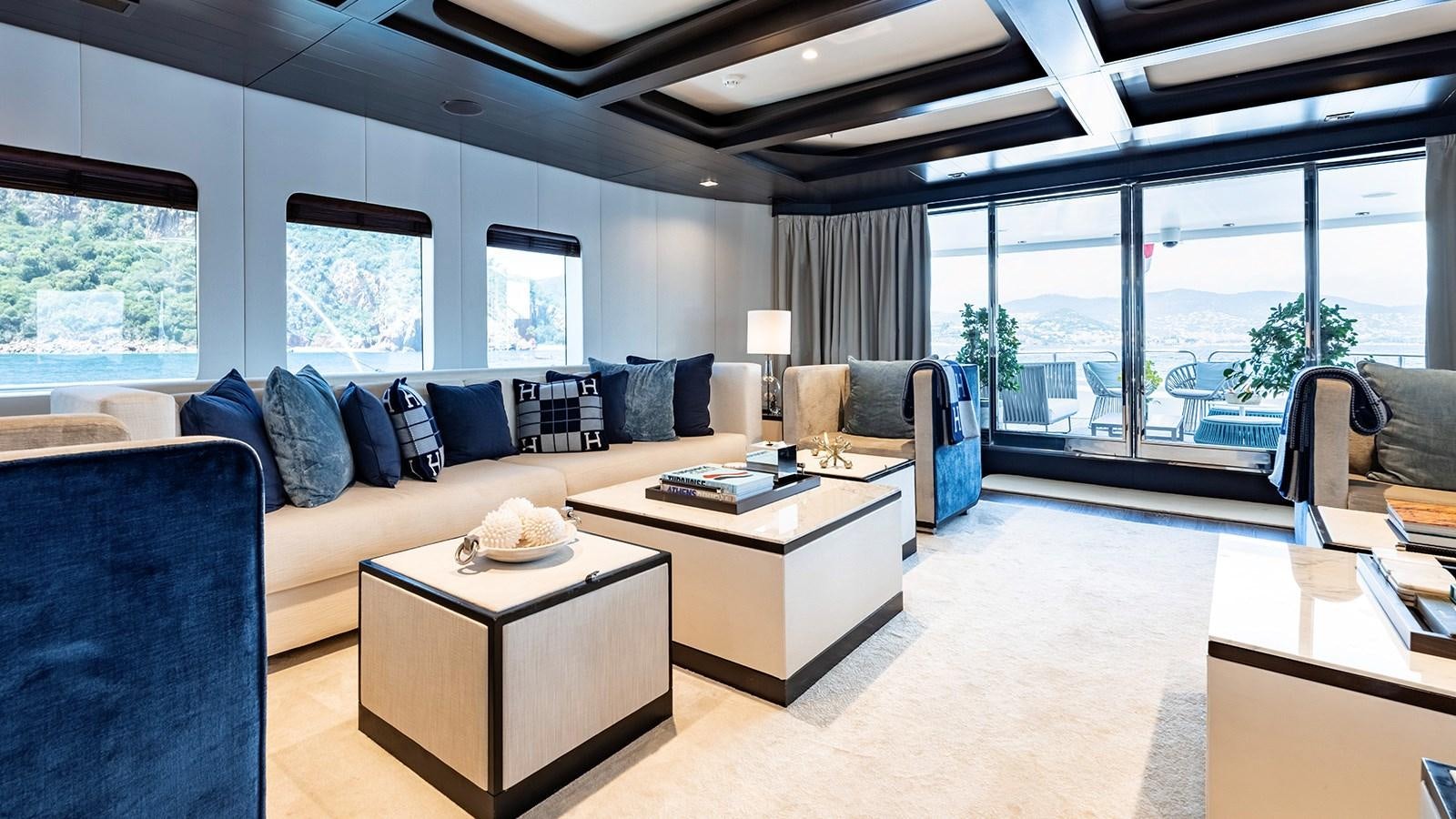

Skylounge

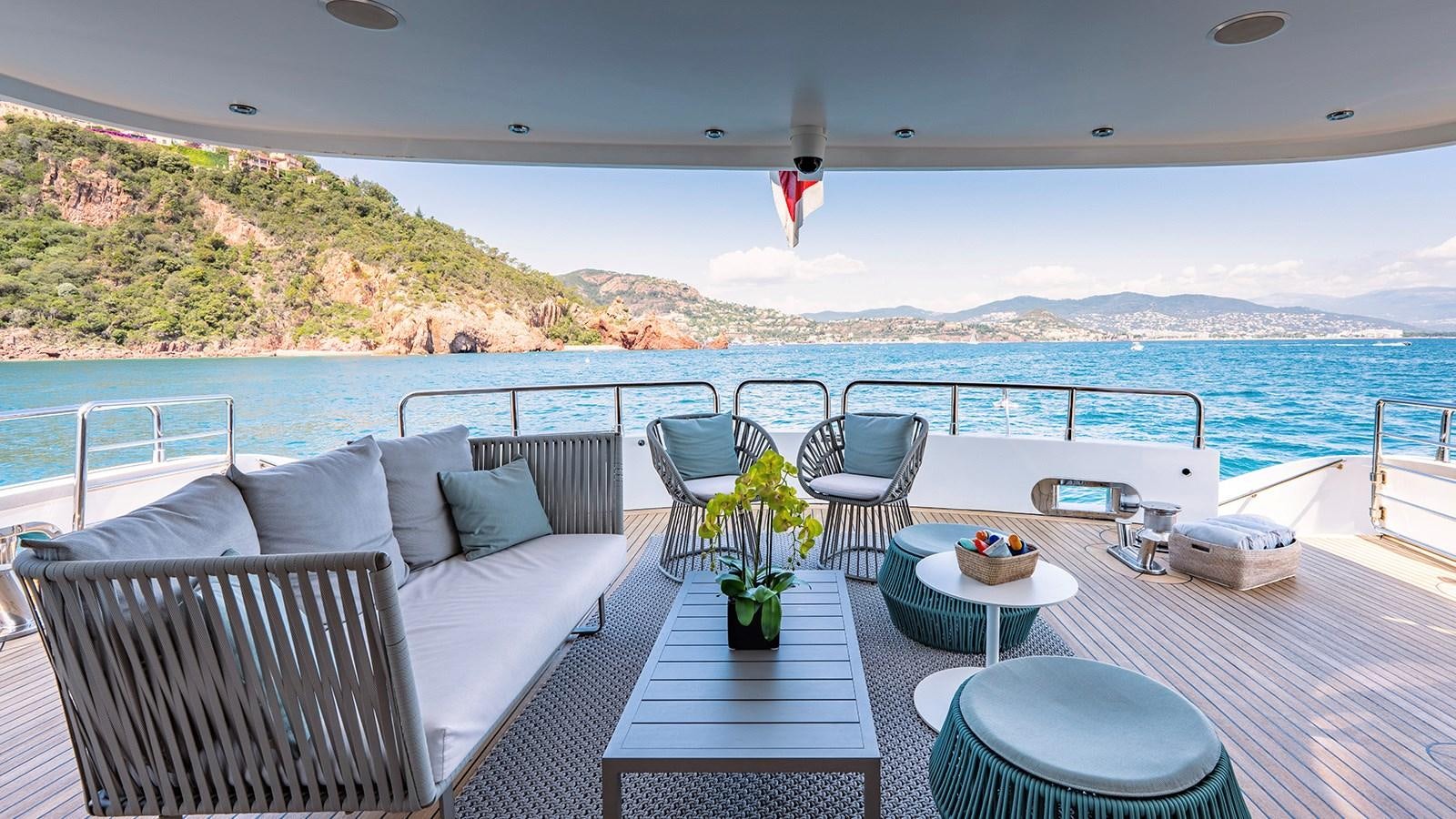

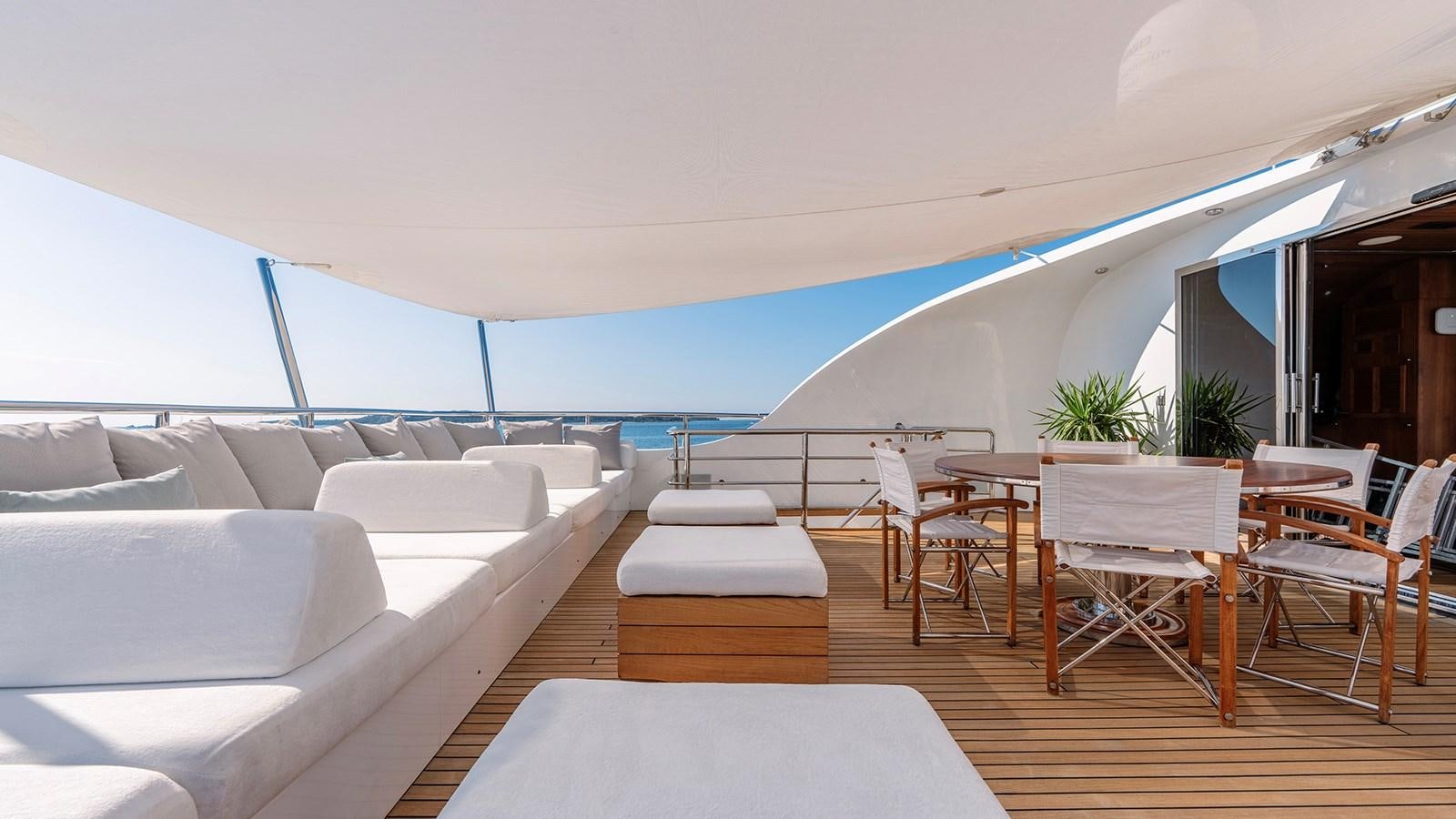

  • Al fresco entertaining is available on the full beam upper aft deck offering comfortable seating and coffee tables.

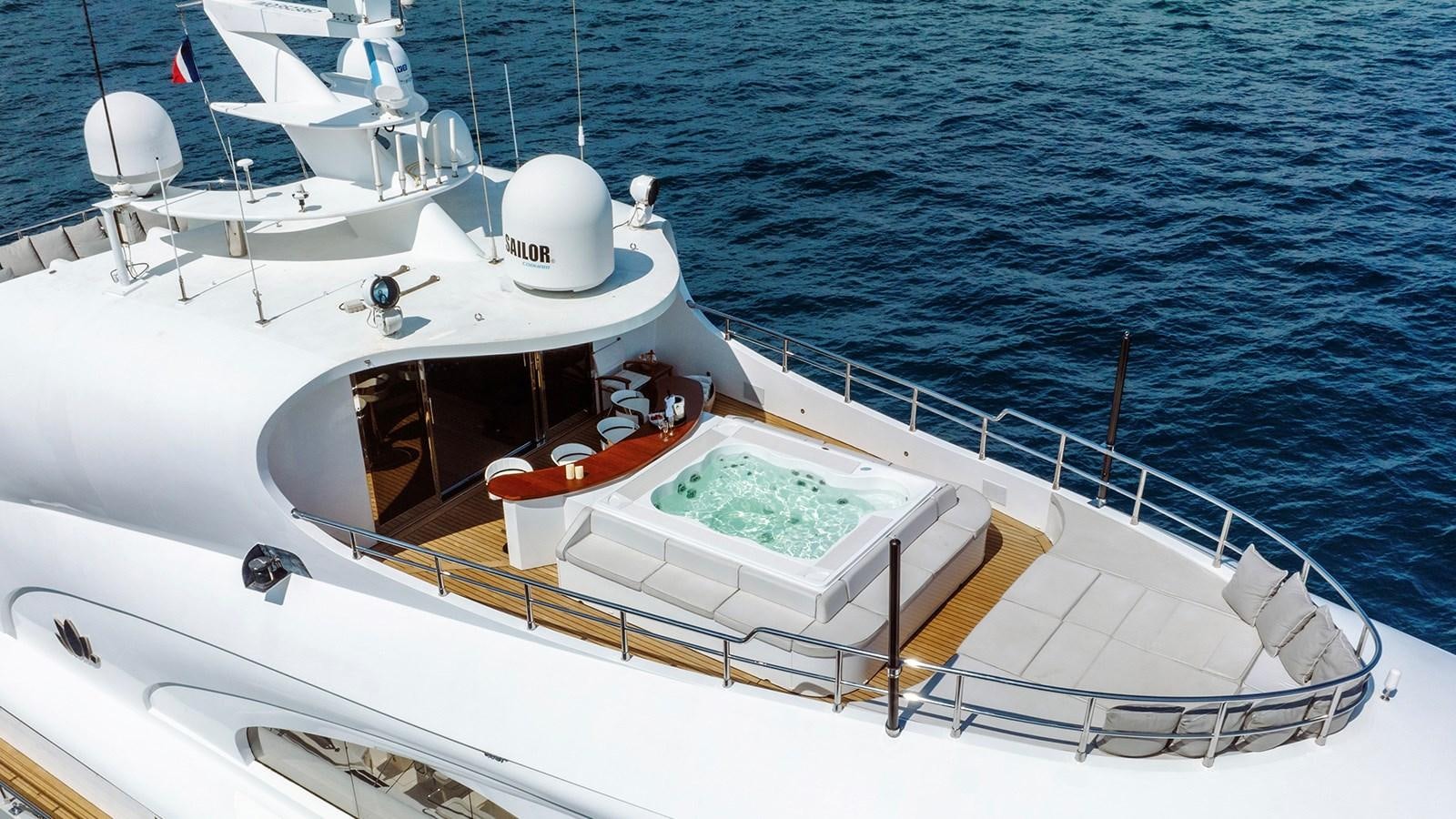

Sundeck

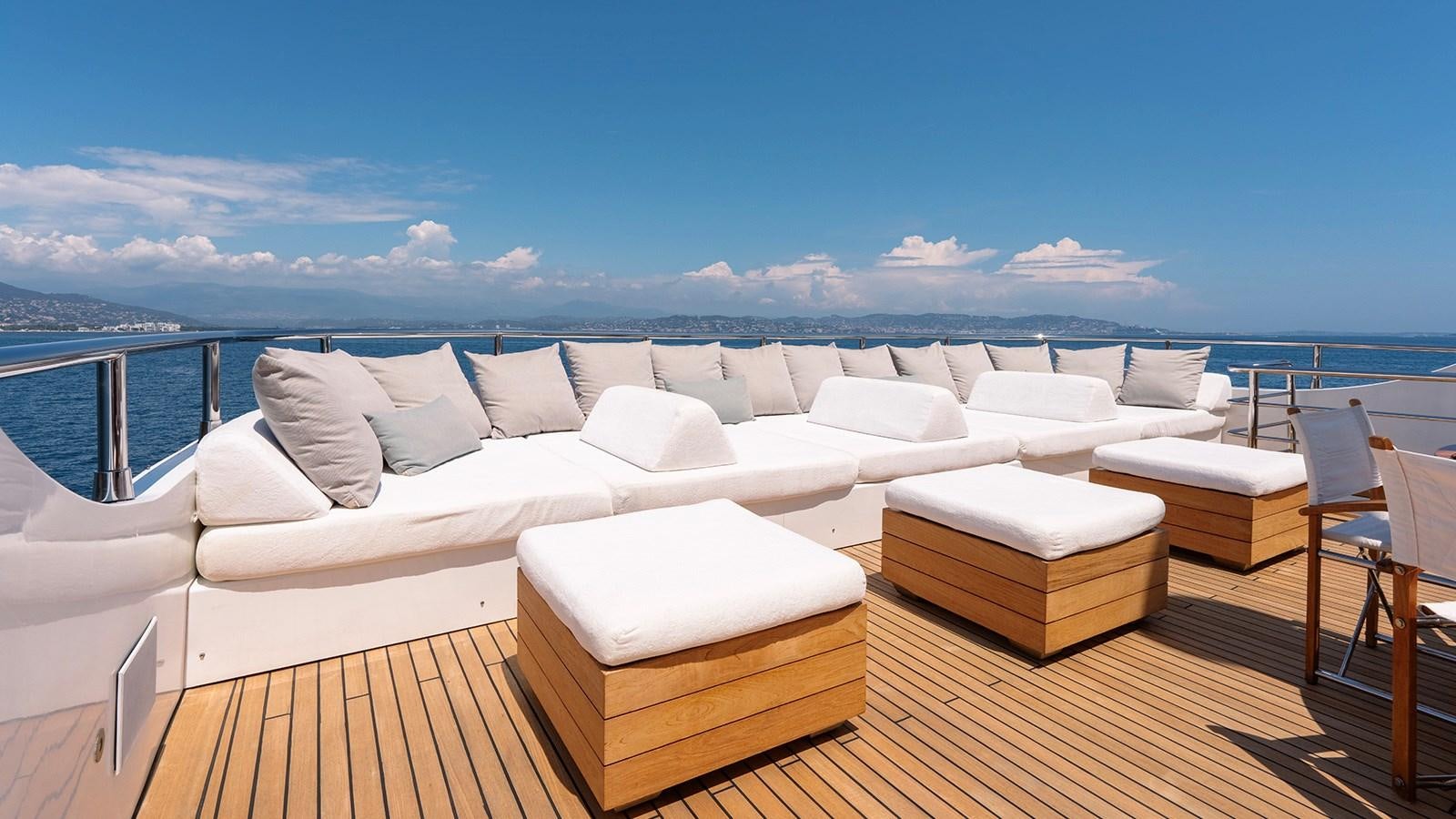

  • The sun deck features a gym amidship, sunpads and a 6 seater Jacuzzi forward and a barbecue and sun loungers aft.

Crew Quarters

  • Captain’s cabin located on the starboard side aft of the bridge on the bridge deck with shower room en suite and Stark safe.
  • Double crew cabin located on the lower deck with shower room en suite 4 x twin cabins located on the lower deck each with shower rooms en suite.
  • 1 Shower room for stb twin cabins (shared bathroom)


Galley & Laundry Equipment

  • 1 x Gaggenau Oven
  • 1 x Miele Oven
  • 1 x Gaggenau 5 ring Halogen Hob
  • 1 x LG Wavedom 1000W Microwave oven
  • 2 x Miele dishwasher
  • 1 x Magimix Nespresso coffee machine
  • 1x Krupps Nespresso coffee machine
  • 1 x Saeco Talea Ring Plus Espresso coffee machine

Refrigeration :

  • 2 x Fagor fridge units
  • 1 x Fagor Freezer unit
  • 1 x Miele Freestanding fridge/freezer including ice maker
  • 1 x Siemens Freestanding freezer
  • 2 x Freestanding fridge/freezer
  • 1 x Scotsman ice machine

Communication Equipment

  • Satcom: Fleet 77 Communication System
  • Cellular System: GSM Communication system (Europe/USA)
  • VHF Radiotelephones: 2 x Furuno Simplex VHF radiotelephones with DSC type FM-8800
  • SSB Radiotelephone: 1 x Furuno MF/HF SSB Radiotelephone with DSC type FS-1570 (150W)
  • 2 x President Handheld VHF Radiotelephone type PM-1000 WP
  • Wifi capability throughout the yacht
  • Integrated Telephone system throughout the yacht with page facility
  • Cobham sailor Vsat dome

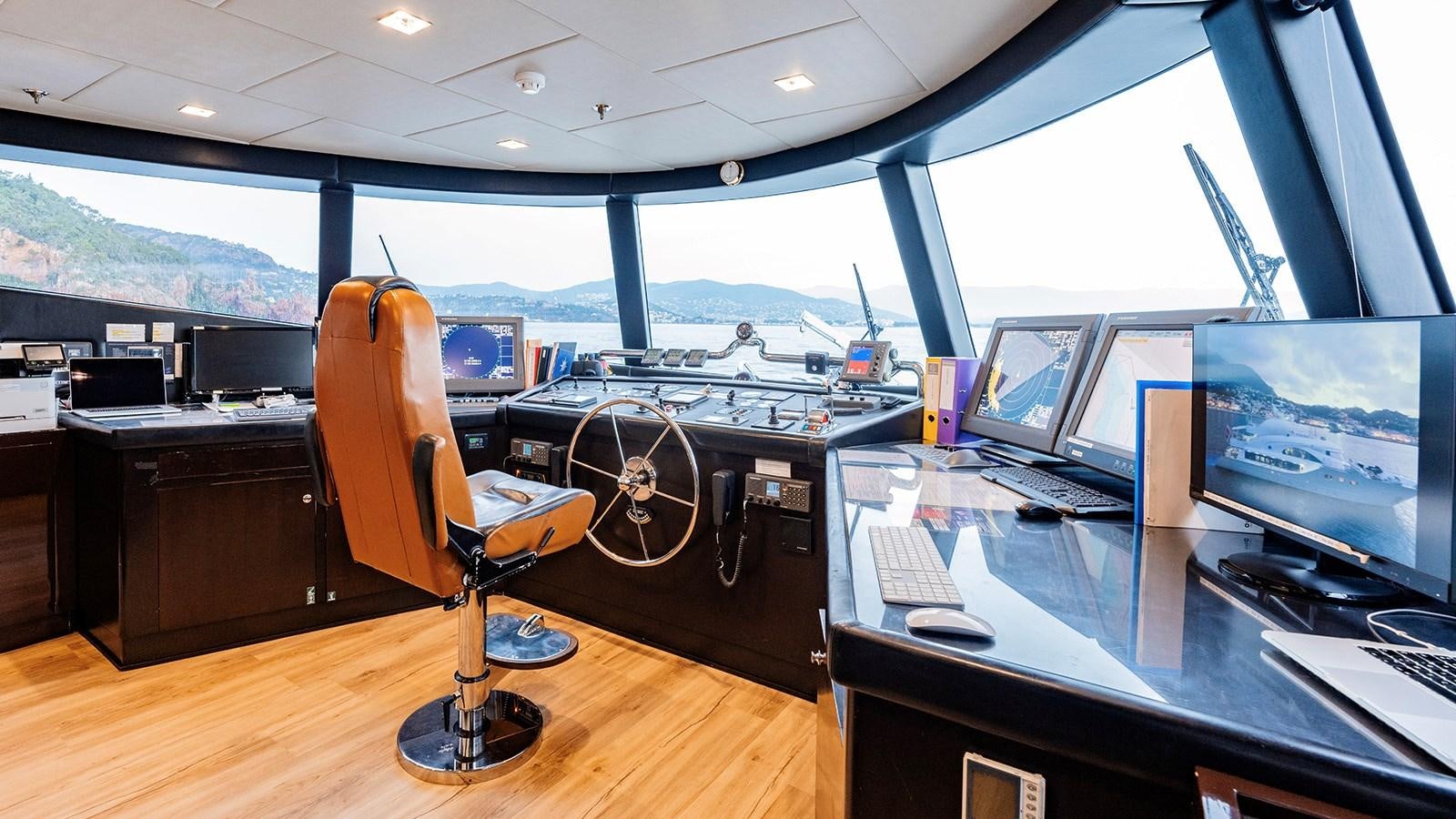

Navigation Equipment

  • Magnetic Compass: 1 x Plastimo magnetic compass
  • Gyro Compass: 1 x SIMRAD
  • Automatic Pilot: 1 x Anschutz Nautopilot NP60 autopilot
  • 1 x Navtex: Furuno
  • Log/wind speed: Furuno
  • Echo sounder: Furuno FE-700
  • Arpa Radar: Furuno (1 x S-Band, 1 x X-Band)
  • 1 x GPS: Furuno GP-32 Navigator
  • 1 x GPS Furuno Satellite Compass
  • Chart Plotter: using 1 x Transas Software on PC

Entertainment Equipment

  • Comprehensive Kaleidescape and Crestron system onboard Library exceeds 400 movies
  • Individual controls in Master cabin, each lower guest cabin and upper Salon
  • Sat receiver for each guest cabin ,upper salon gym ,office , Engineers and Captains cabins
  • 2 x KVH Satellite tv domes
  • Master cabin has a standalone Blu Ray player and DVD player as well
  • Music jacks from phone /pad in master cabin , upper and lower salon
  • Apple TV (Master cabin, Main deck salon, Upper deck salon)
  • Sonos (Gym, upper salon, Main salon)

Safety & Security Equipment

  • 2 x 12 person Viking liferafts SOLAS approved in glass fibre canisters
  • 2 x Hammar H20 hydrostatic release units
  • 2 x 9GHz Sailor SARTs (GMDSS approved)
  • 1 x 406MHz Inmarsat EPIRB
  • 24 x Remploy SOLAS approved adult lifejackets
  • 4 x KRU junior SOLAS approved child lifejackets
  • 4 x Commodore Auto SOLAS approved adult lifejackets
  • 5 x SOLAS approved lifebuoys
  • Smoke, handheld and rocket flares
  • Fire fighting: Hi-fog water mist system throughout accommodation. Extensive portable fire extinguishers throughout.
  • 2 x sets of fireman’s suits and breathing apparatus
  • Alarms: Extensive alarm monitoring systems for engine room, fire and bilge
  • 1 x Marinelec Athena fire detection system
  • Security: Pelco CCTV system comprising of
  • 7 x ceiling mounted flush domes and
  • 2 x LCD screen
  • 10 Immersion suits

Fire / Bilge

  • 2 x electric fire/bilge pumps and 1 x diesel emergency fire/bilge pump


Tenders & Toys

  • 430DL Nouvurania RIB with 60HP Yamaha ,new 2017
  • 6.5m BSC Colzani RIB with 150HP Yamaha, new 2019
  • 2022 Yamaha VX Cruiser HO 180hp
  • 2017 Yamaha VX Cruiser HO 180 hp
  • E-foil
  • Fishing: Comprehensive range of fishing equipment
  • Other: Extensive range of water skis/towables
  • Wake Board/Skis
  • Array of Towables for 1-4 riders
  • Paddle Boards
  • Kayaks
  • Snorkle Masks and Fins
  • Floating swim/beach platform
  • Trampoline
  • 6m Slide
  • Scooters

Deck Equipment

  • Anchor windlass: 2 x hydraulic Anchor windlass with vertical warping capstans and gypsies
  • 2 x Aft Warping Hydraulic Capstans with stainless steel finish
  • Ground tackle: Anchors 2 x 450kg anchors, Chains 2 x 120m
  • Swimming Platform: Integral aft swimming platform
  • Searchlights: 2 remote control searchlights
  • Mooring whips: 4 x pairs mooring whips
  • Passerelle: 1 x Opacmare electro-hydraulic retractable aft boarding passerelle Side Accommodation Ladders: 2 x sea stair swivel side boarding platforms Boat Cranes : 1 x Opacmare 1200kg electro-hydraulic telescoping luffing jib crane located on upper aft deck with 4.17m reach
  • 1 x Steelhead 630kg electro-hydraulic telescopeing luffing jib crane located on foredeck

Refit History

REFIT 2021-2022:

  • New caulking on exterior decks (2022)
  • Construction of 3 new fuel tanks in swim platform for increased bunkering capacity and stability of vessel.
  • Major hydraulic pump replaced on Quantum Stabs
  • All new engine mounts (2023)
  • Shaft serviced to Class (2022)
  • New A/V Meridian 5G Antenna
  • New Starlink Satellite internet antenna
  • Custom Swing door from the patry to dining room for easier service
  • New Grey Hull New Aqualuna 25 RGB underwater lighting package which choice of color

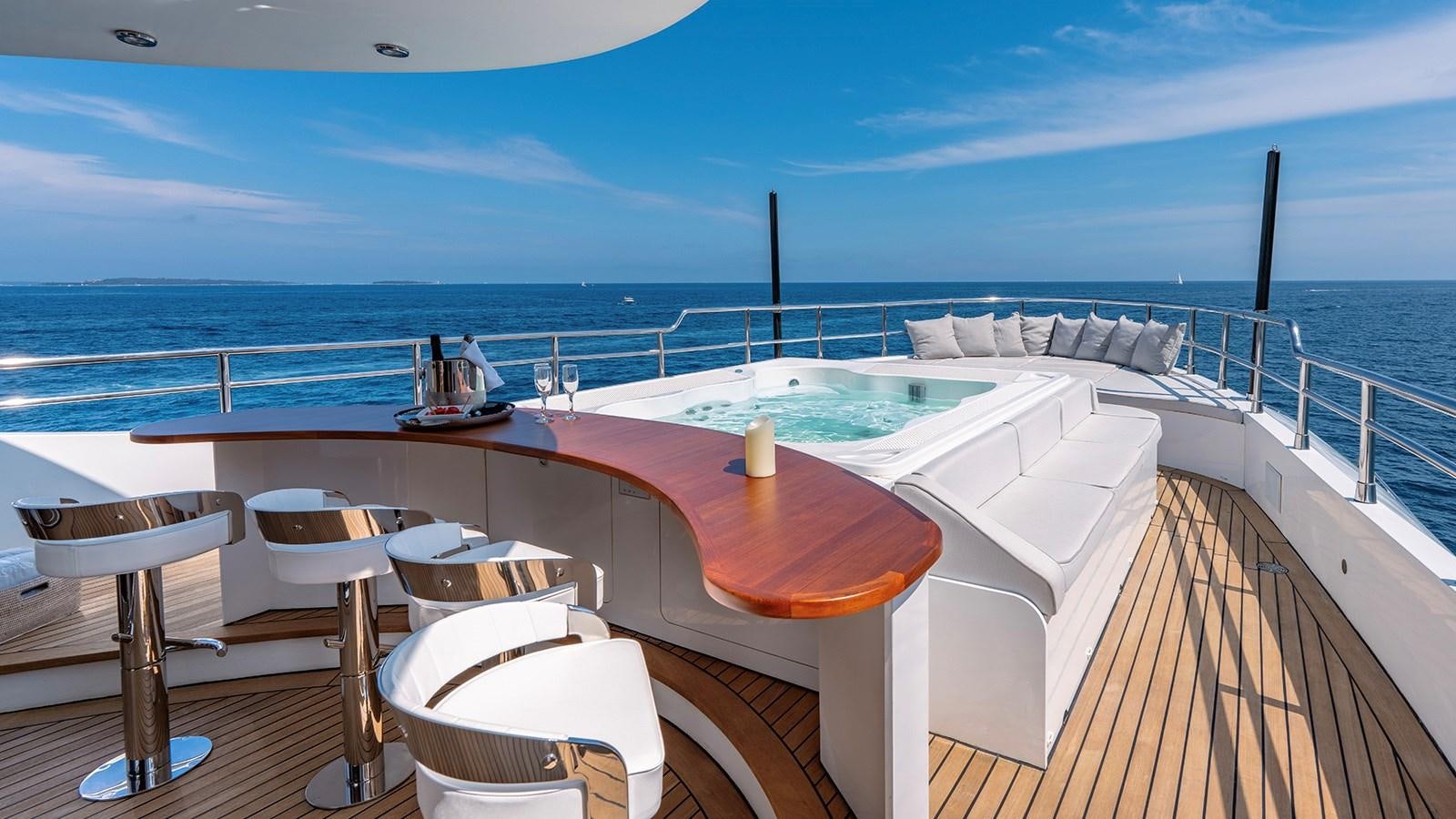

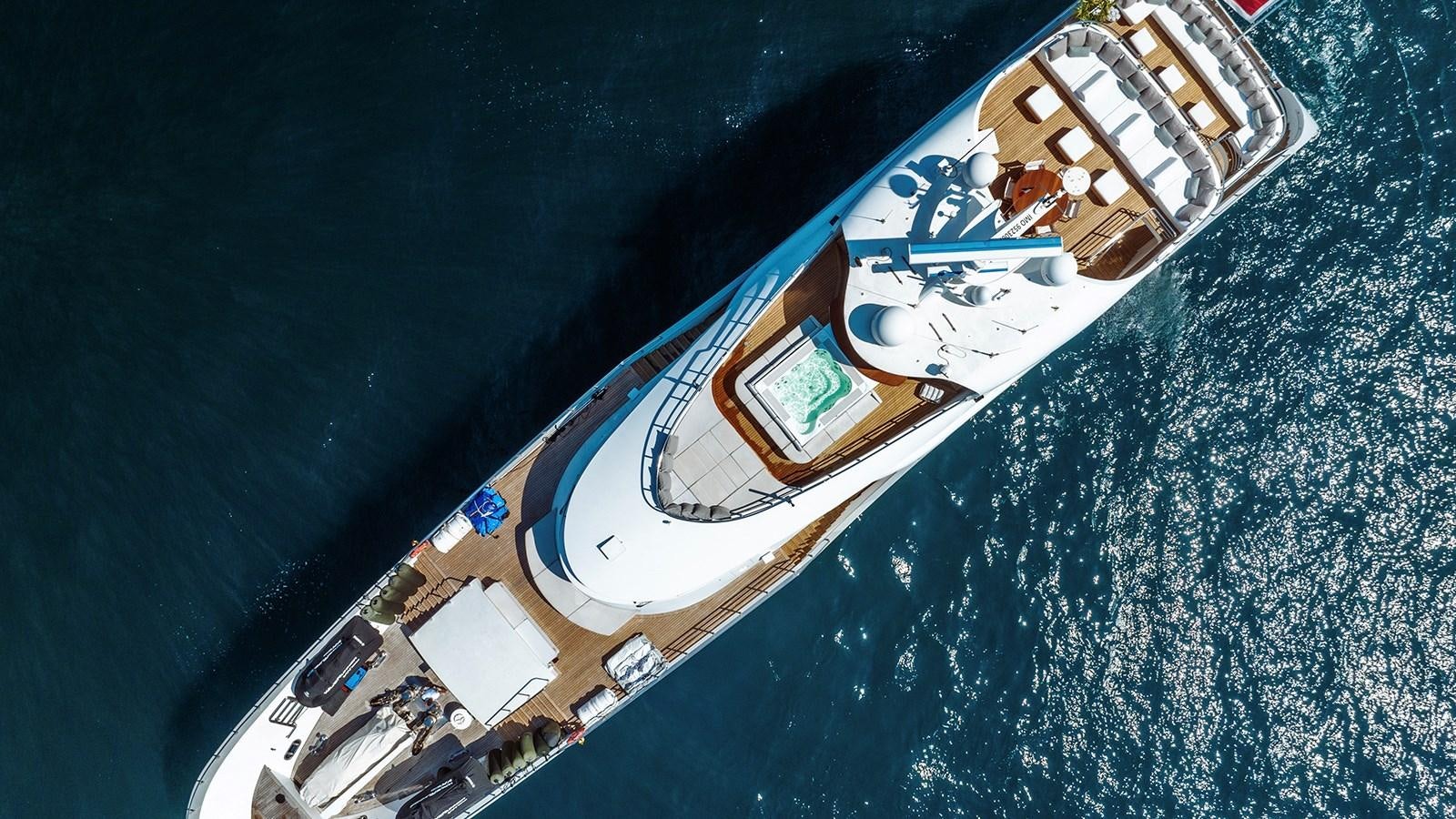

  • Totally redesigned sundeck with Jacuzzi 8 person pool
  • Newly designed sunbed forward with 2 electric adjustable loungers
  • New dry bar counter attached to jacuzzi with bar stools
  • New awning over jacuzzi with carbon fiber poles
  • New awning over sundeck aft
  • Extensive upgrade soft goods exterior
  • New exterior seating covers

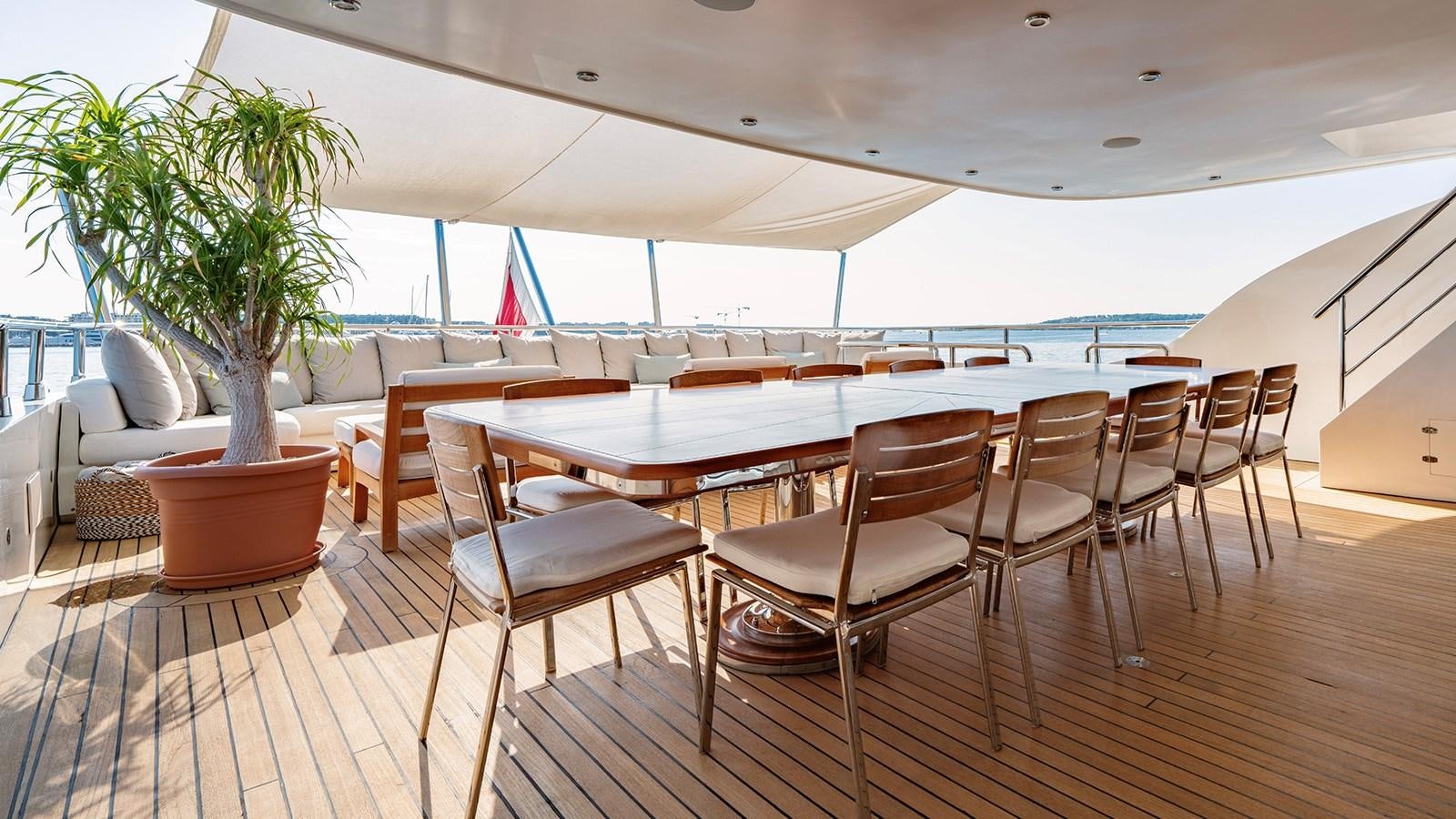

  • New teak dining / seating area on sundeck aft
  • New oversized teak table with seating for 14
  • No clutter and machinery on guest decks
  • New custom 6m slide
  • New Outdoor TV on main aft deck
  • New Kettal outdoor lounge furniture main deck aft
  • Floating swim / beach platform 5x6m with two jet ski docking stations and lounge chairs
  • Outdoor Golf
  • New Deck towels

Interior:

  • New soft goods throughout
  • New Fine China
  • New Fine Flatware
  • New Artwork and decor throughout
  • New Italian Mattresses
  • New designer bedding and sheets
  • New towels
  • New showers
  • New toilets
  • New flooring below deck and new bathroom flooring throughout
  • New galley flooring
  • New galley equipment & Miele oven (2022)
  • New dishwasher commercial short cycle wash&dry
  • New A/C system in Galley

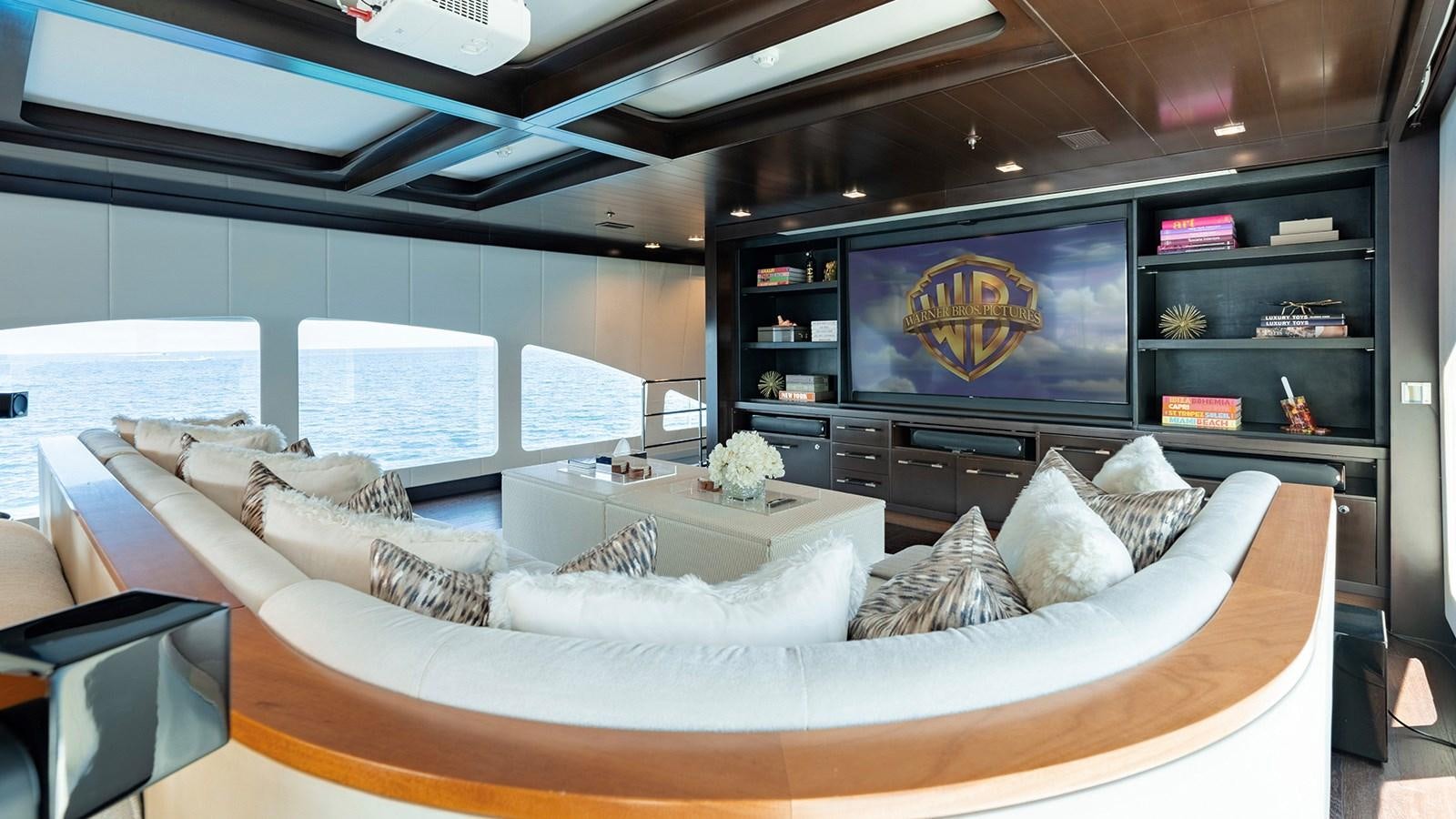

  • New retractable TV main salon
  • New metallic wood walls in Master
  • New Crestron Audio video with Internet TV
  • New Sonos system
  • Additional door created between main saloon and access corridor to Master cabin o create more privacy Additional door created between pantry and main saloon
  • Main saloon ceiling being made nicer
  • Bridge ceiling repaired
  • 2 new motors on Galley fridge and freezer + soundproofing of area to make it more efficient and less noisy
  • New crew uniforms
  • New laundry room with AC built for crew
  • Generators top-end service (Heads, valves, injectors)
  • Port generator's external control wiring loom replaced
  • Partial replacement of generator sound box insulation
  • Works done on the air conditioning plant
  • Grounding systems fitted to shafts
  • Passerelle overhaul/service
  • Anti-fouling on hull
  • Works on fire system main piping line
  • Works on air conditioning interior ducting
  • Some of the interior ceiling panels replaced with fabric
  • Wall panels in upper and lower salons replaced
  • Master cabin and 1 x guest cabin carpets professionally cleaned
  • Master bathroom feature window replaced
  • Seacock valves replaced and serviced
  • Fresh water tank service
  • Grey water tank service
  • Black water tank service
  • Works done on the air conditioning plant
  • Grounding systems fitted to shafts
  • Passerelle overhaul/service
  • Anti-fouling on hull
  • Works on fire system main piping line
  • Works on air conditioning interior ducting
  • Master bathroom feature window replaced
  • Some of the interior ceiling panels replaced with fabric
  • Wall panels in upper and lower salons replaced
  • Master cabin and 1 x guest cabin carpets professionally cleaned
  • Dining chairs reupholstered
  • Dining room carpet replaced
  • New crew mess flooring, seating
  • Crew mess overall refresh
