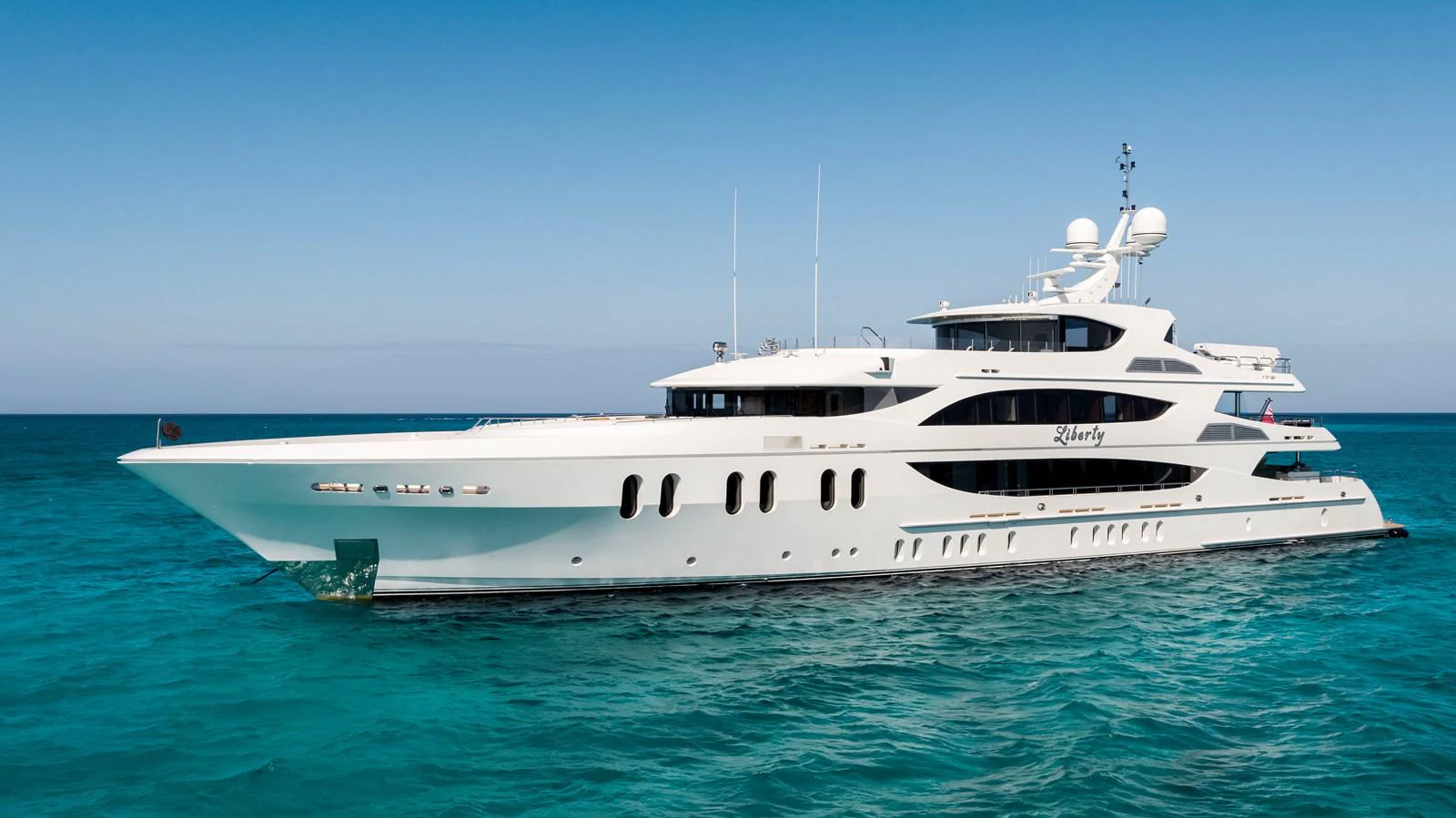

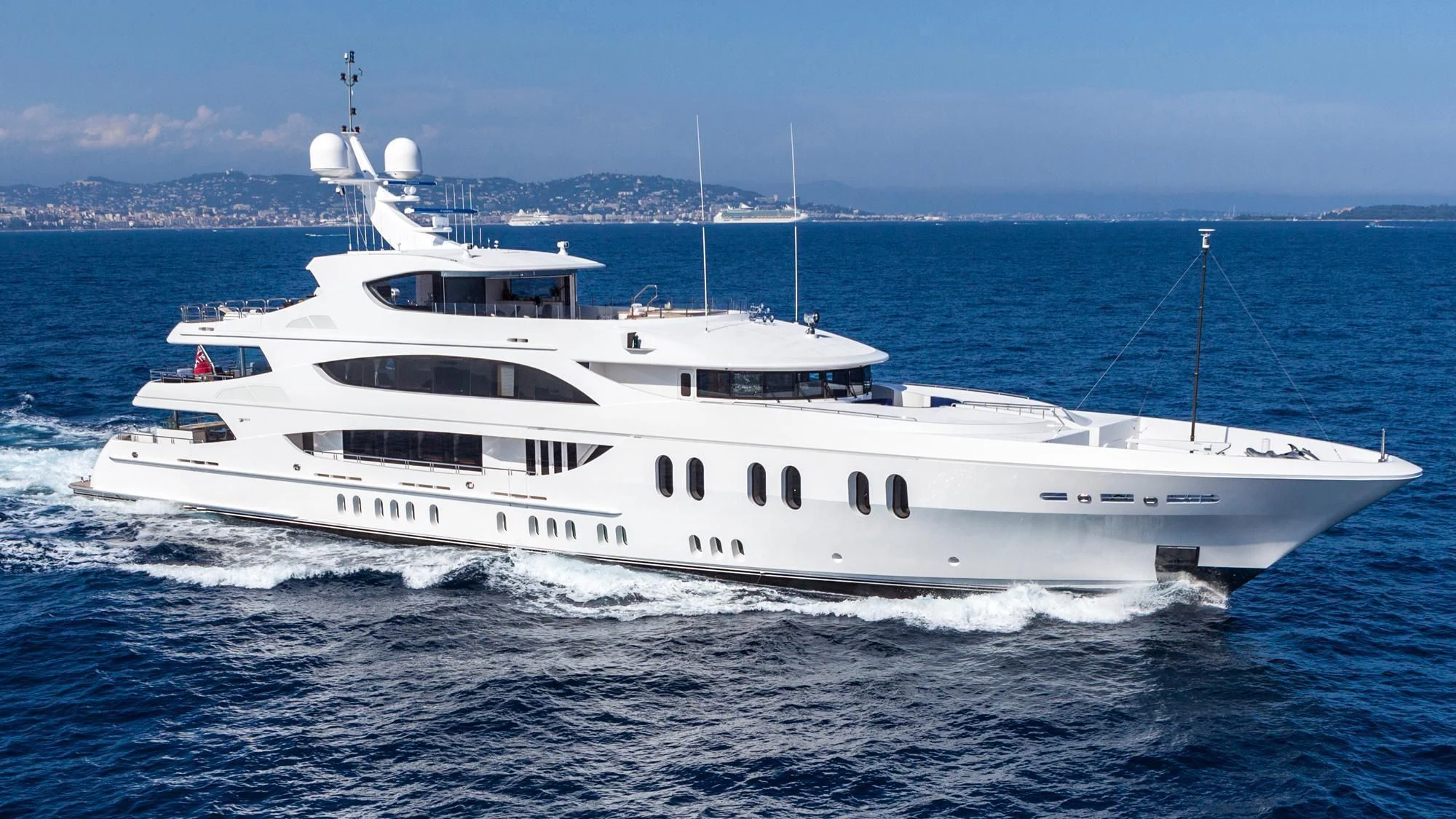

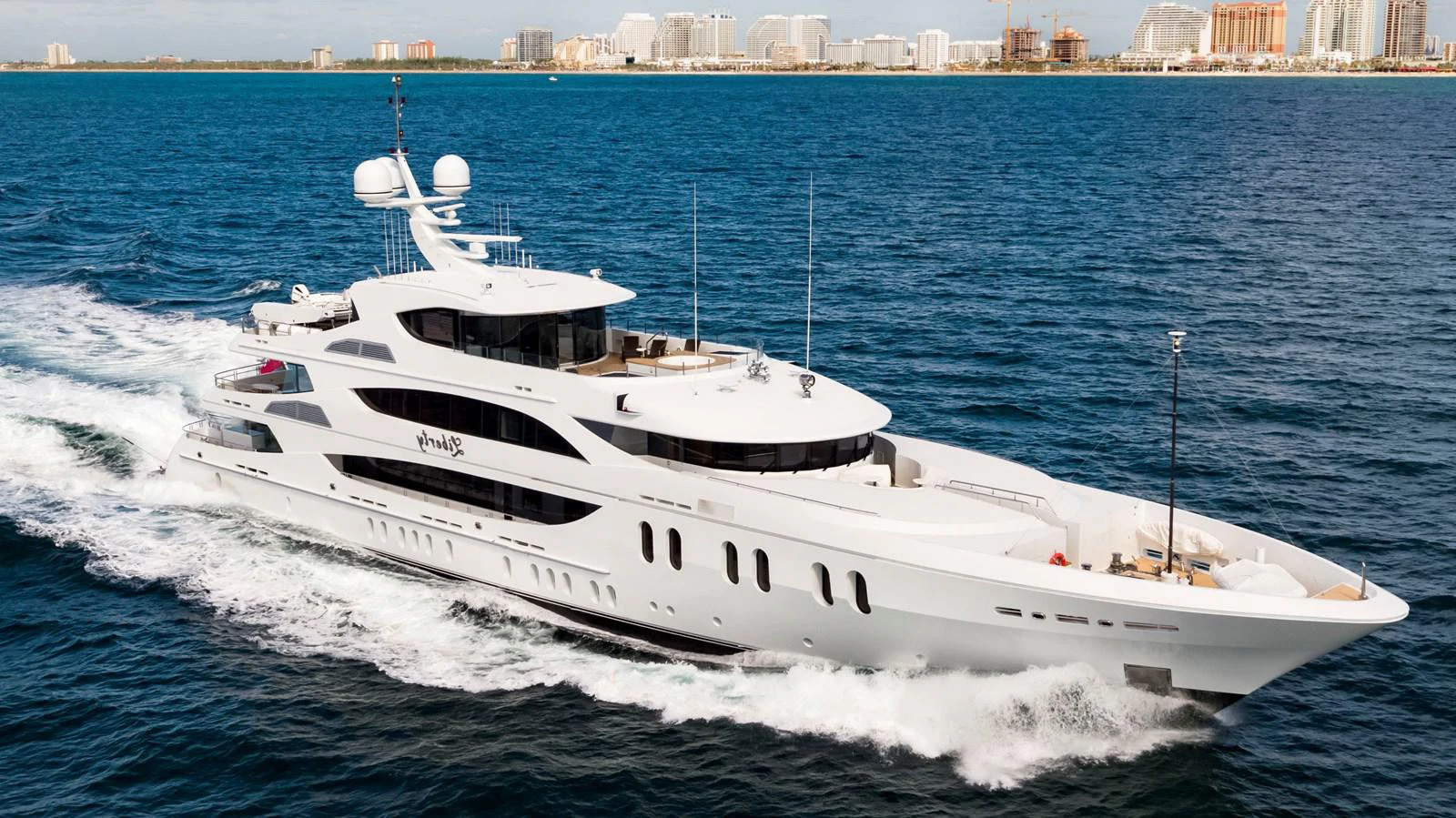

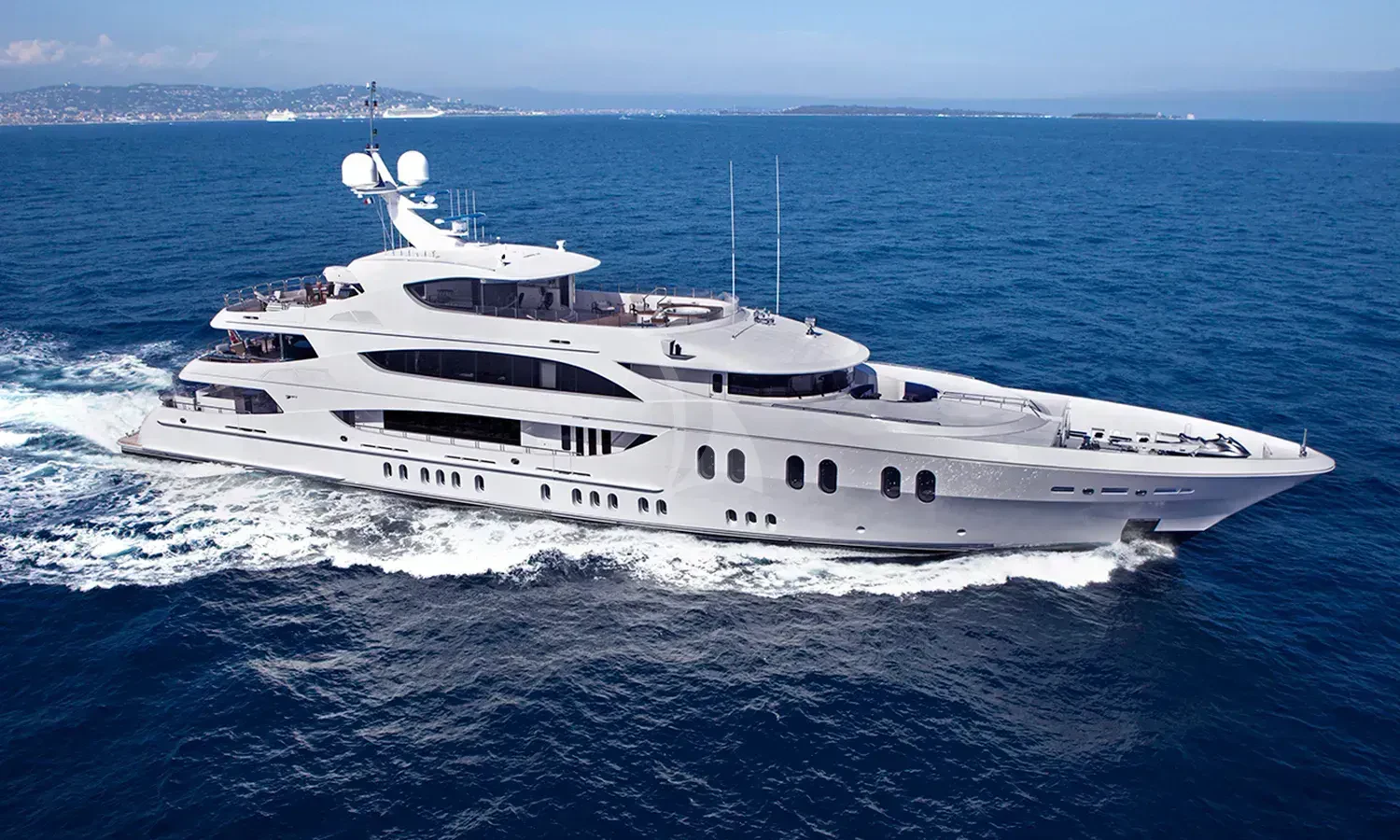

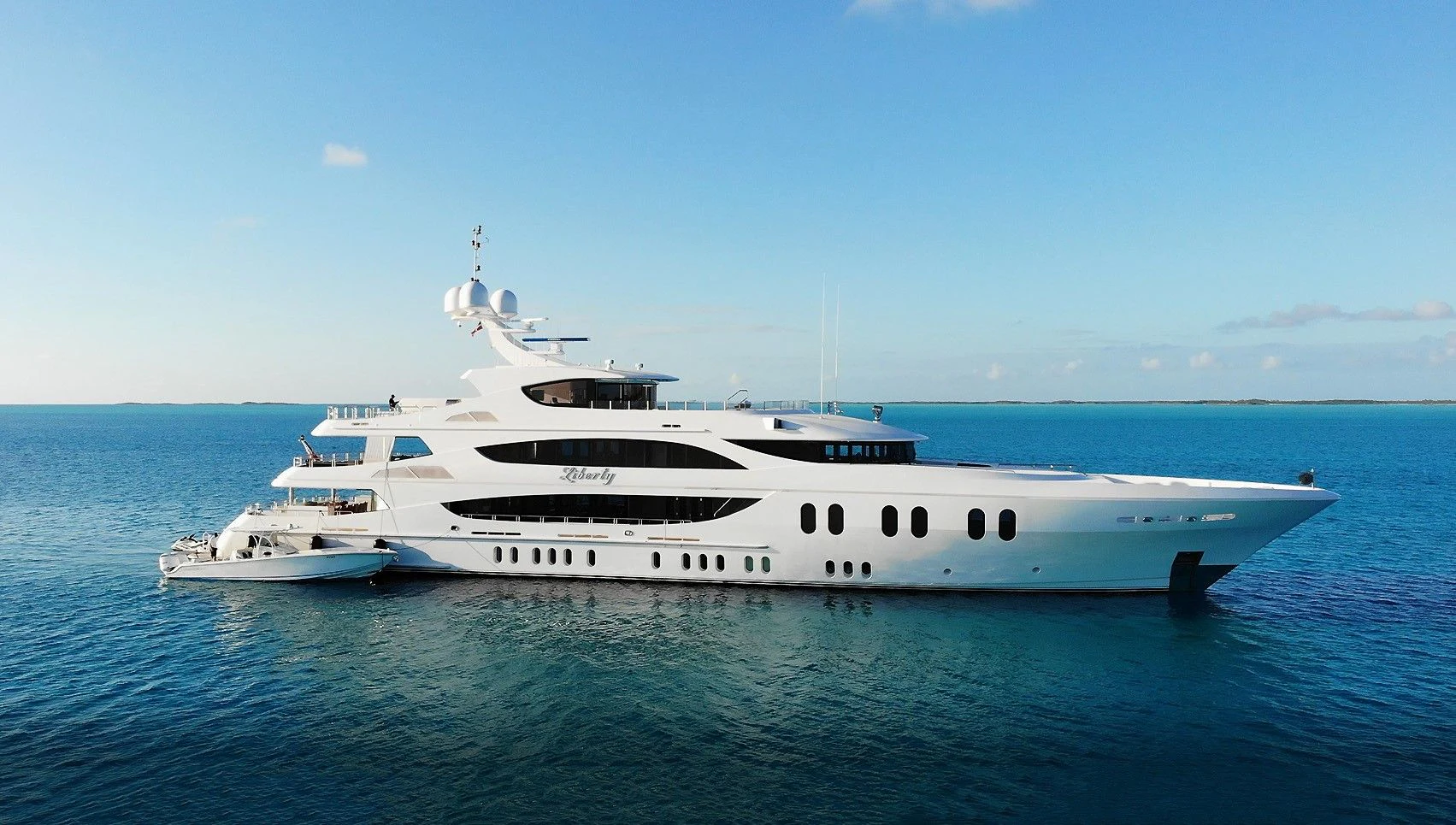

LIBERTY Yacht for Sale

Length
187' (57.04m)
Builder
TRINITY
Build
2012
Cabins
6
Crew
14

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Amenities

  • At-Anchor Stabilizers
  • Deck Jacuzzi

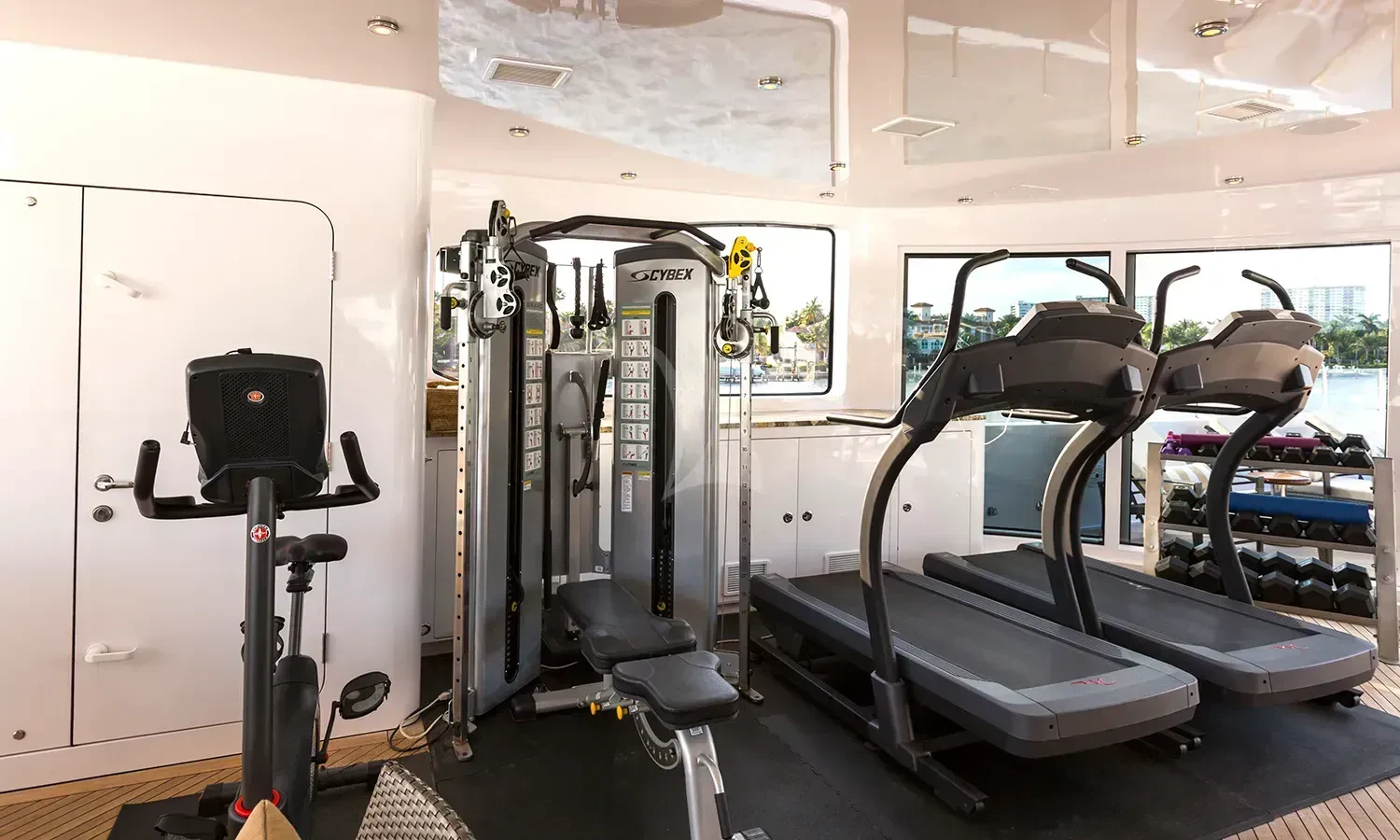

  • Gym
  • Jacuzzi
  • Kaleidescape
  • Masseuse
  • Personal Watercraft
  • Underwater lights
  • Wi-Fi

Specifications

Builder TRINITY
Length (LOA) 187' (57.04m)
Year 2012
Gross Tonn. 782
Draft 9' (2.46m)
Beam 33' (10.21m)

Accommodations

Staterooms 6
Sleeps 12
Heads 8
Crew Cabins 14
Crew Sleeps 14

Dimensions & Capacity

LOA 187' (57.04m)
Min Draft 9' (2.46m)
Max Draft 9' (2.46m)
Fuel Tank 23,000 g (23,000 L)
Fresh Water 4,000 g (4,000 L)
Holding Tank 2,550 g (9,652 L)
Gross Tonn. 782

Construction

Hull Material Aluminum
Ext. Designer Trinity
Int. Designer Evan Marshall
Cruising Speed 14 Knots
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Engine Controls: Rexroth
  • Shore Connection: One forward and one aft
  • Main Switchboard: Atlas
  • Batteries: 24V EnerSys
  • Chargers: Mastervolt Charge Master 60 Amp 24 volt
  • Fresh Air Filter or Make Up Air: Dometic
  • Air Compressor: 2 x CaompAri 5 HP 480 volt
  • Potable Water System: Headhunter model #AVF-8
  • Water Pumps: 2 x Headhunter Aqua-Box Multistage Pressure Pumps
  • Potable Water System Sterilizer: 2 x Sanitron UV & Hydrasility & Sterilization Treatment System
  • Fresh Water Filters: Shelco model #7FOS2
  • Fresh Water Heaters: 4 x Rheem model #ELD80-B 80-gallon, 12,000watt
  • Hot Water Circulation Pump: 2 x Grundfos
  • Fresh Water Pressure Pumps: Headhunter
  • Central Hydraulic System: Quantum?
  • Fuel Separator: Alfa Laval model MAB 104B
  • Fuel Transfer Pump: Oberdorfer 3 HP 480 volt
  • Fuel Transfer Back Up: Oberdorfer 24V DC
  • Fuel Filters: Racor R Model
  • Oily Water Separator: Recovered Energy #BOSS2T/Y107
  • Oil Pumps: Oberdorfer AC electric
  • Gray Water Pump: Oberdorfer
  • Bilge And Back Up Fire Pump: Grundfos 10 HP 480V three phase
  • Sewage Treatment System: Headhunter
  • Toilets: Headhunter
  • Crew Toilets: Headhunter
  • Toilet System: Headhunter
  • Underwater Lights: 8 x Sea Vision Underwater Lights
  • Navigation Lights: Perko / Lopolight
  • Wing Stations:
  • Rexroth clutches
  • Anschutz rudder control
  • Rudder angle indicator

Galley & Laundry Equipment

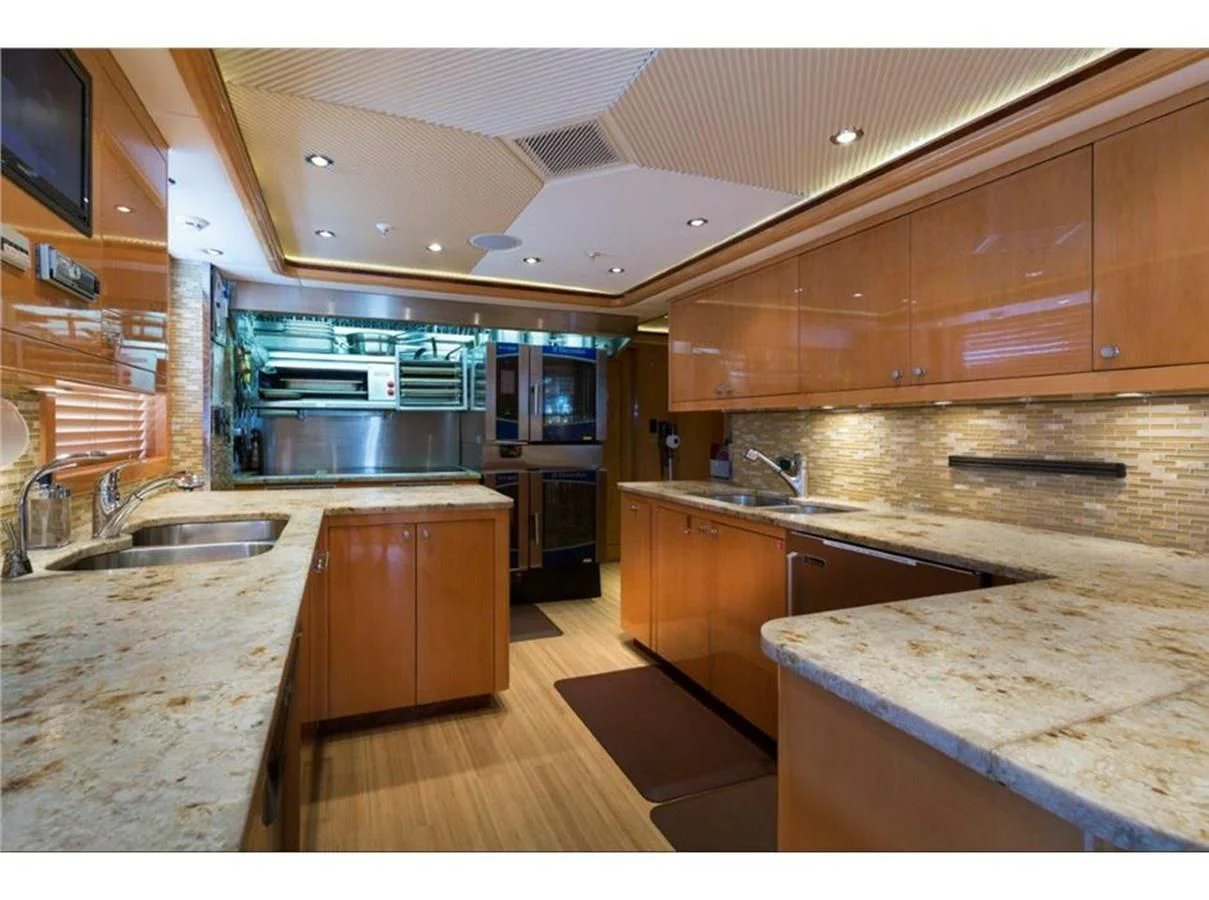

Main Galley Equipment:

  • Cooking Equipment - Vulcan/Hobart broiler
  • Wolf 5-burner ceramic cooktop
  • Wolf 2-burner ceramic cooktop
  • 2 x MKN Space Combi (2023)
  • Panasonic Pro II microwave oven
  • Refrigeration/Freezer - Sub Zero stainless steel side-by-side refrigerators
  • Sub Zero stainless steel side-by-side freezers
  • 2 x Delfield custom stainless steel refrigerator
  • Dishwasher - Miele model #G7859 dishwasher
  • Other - Hoshizaki bin type icemaker
  • Custom built-in hood ventilator with variable speed intake and
  • exhaust fans and fixed fire suppression system
  • EuroCave Wine Refrigerator

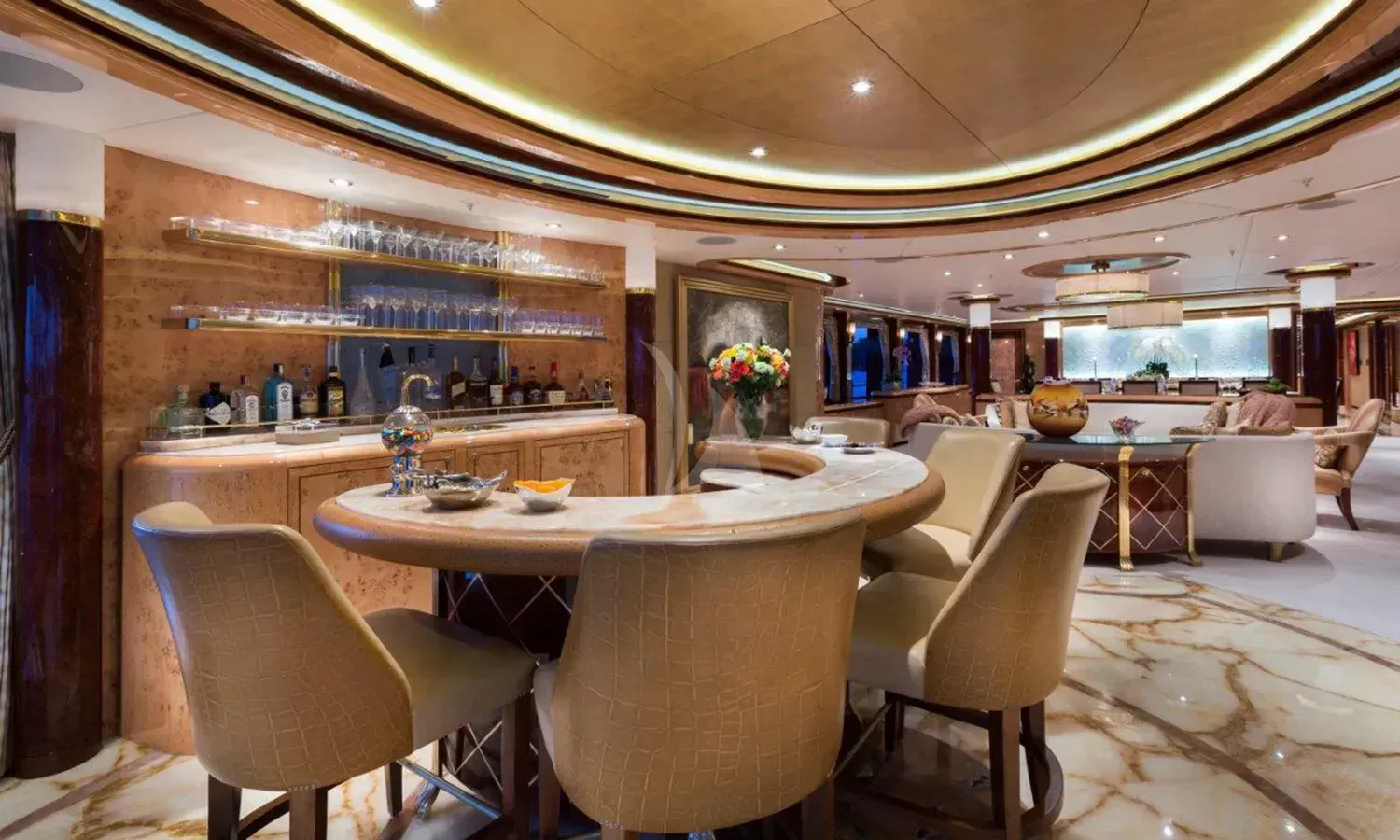

  • Main Salon Bar - Sink, Refrigerator & Ice maker
  • Sun Deck - Refrigerator & Ice maker
  • Crew Galley/Mess Equipment:
  • Panasonic Pro II model #NE32809 convection microwave oven
  • Miele model #G7859 dishwasher
  • Frigidaire refrigerator freezer

Laundry Equipment:

  • 3 x Miele Professional washer
  • 3 x Miele Professional dryer

Communication Equipment

  • Iridium Certus
  • VSAT: Seatel/Omni Access
  • Telephone System:
  • Panasonic model #KX-DT333 ship’s telephone
  • Panasonic model #KX-TD7685 ship’s multifunction wireless telephone
  • SSB
  • VHF Fixed: Furuno model #RB8810 remote VHF bay station with remote handset model #HS8800
  • VHF Handheld: 3 x Furuno model #IC-GM1600 GMDSS handheld emergency VHF radios
  • Cellular Phone System: Panasonic
  • Internal Ship’s Communication: Panasonic KX-DT33
  • Hailer: Standard Horizon model #VLH-3000 loud hailer with remote handset

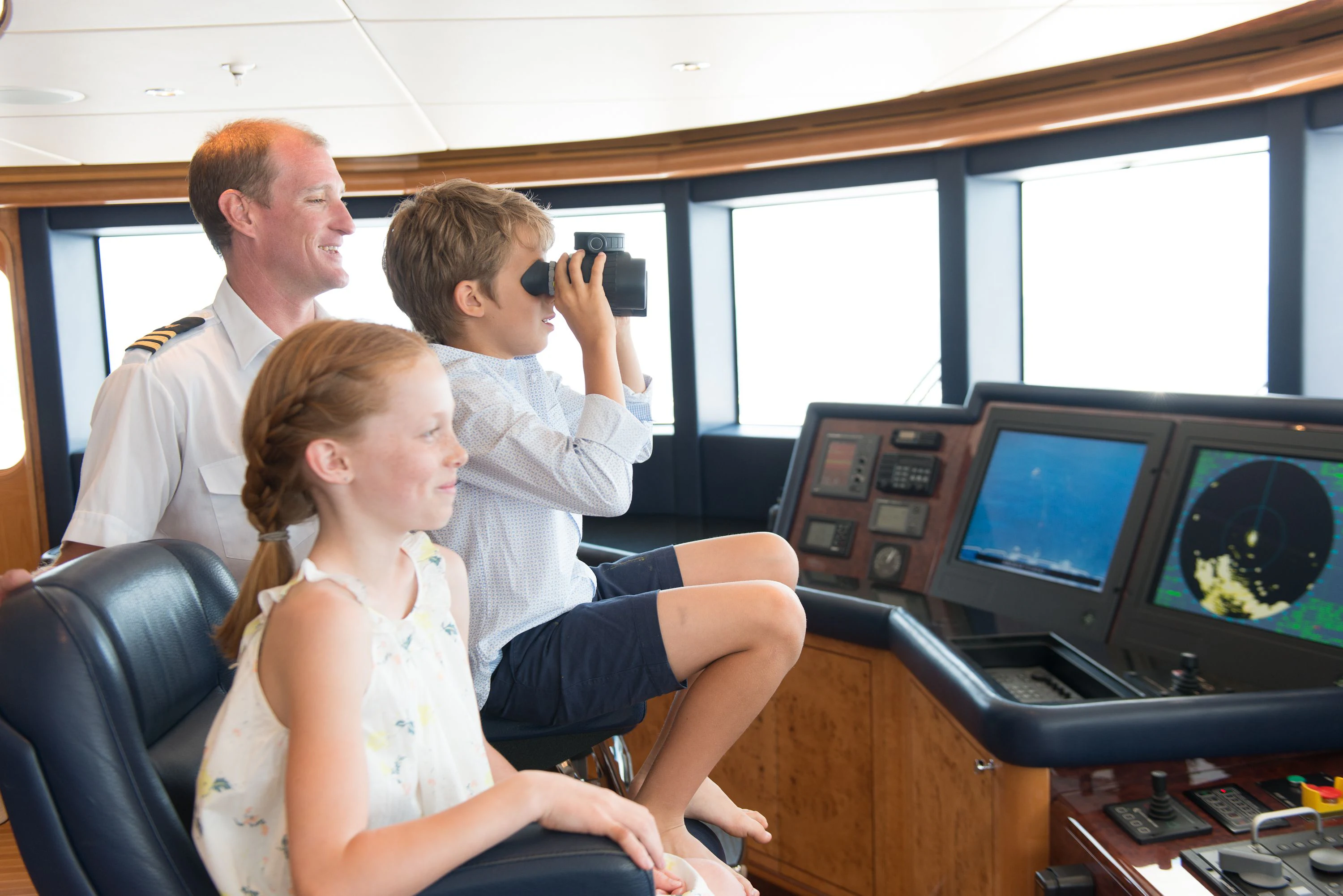

Navigation Equipment

Radar:

  • Furuno X-Band radar model #2127
  • Furuno S-Band radar model #2137
  • Gyrocompass: Anschutz
  • Magnetic Compass: Cassens & Plath
  • Auto Pilot: Anschutz
  • Depth Sounder: B & G analog
  • Video Sounder: Furuno model #FE800

GPS:

  • 2 x Furuno GPS Navigator (GP 170)
  • Wind Indicator Station: B & G
  • Speed Indicator: Brooks and Gatehouse
  • Navtex: Furuno
  • AIS: Furuno model #FA150

Entertainment Equipment

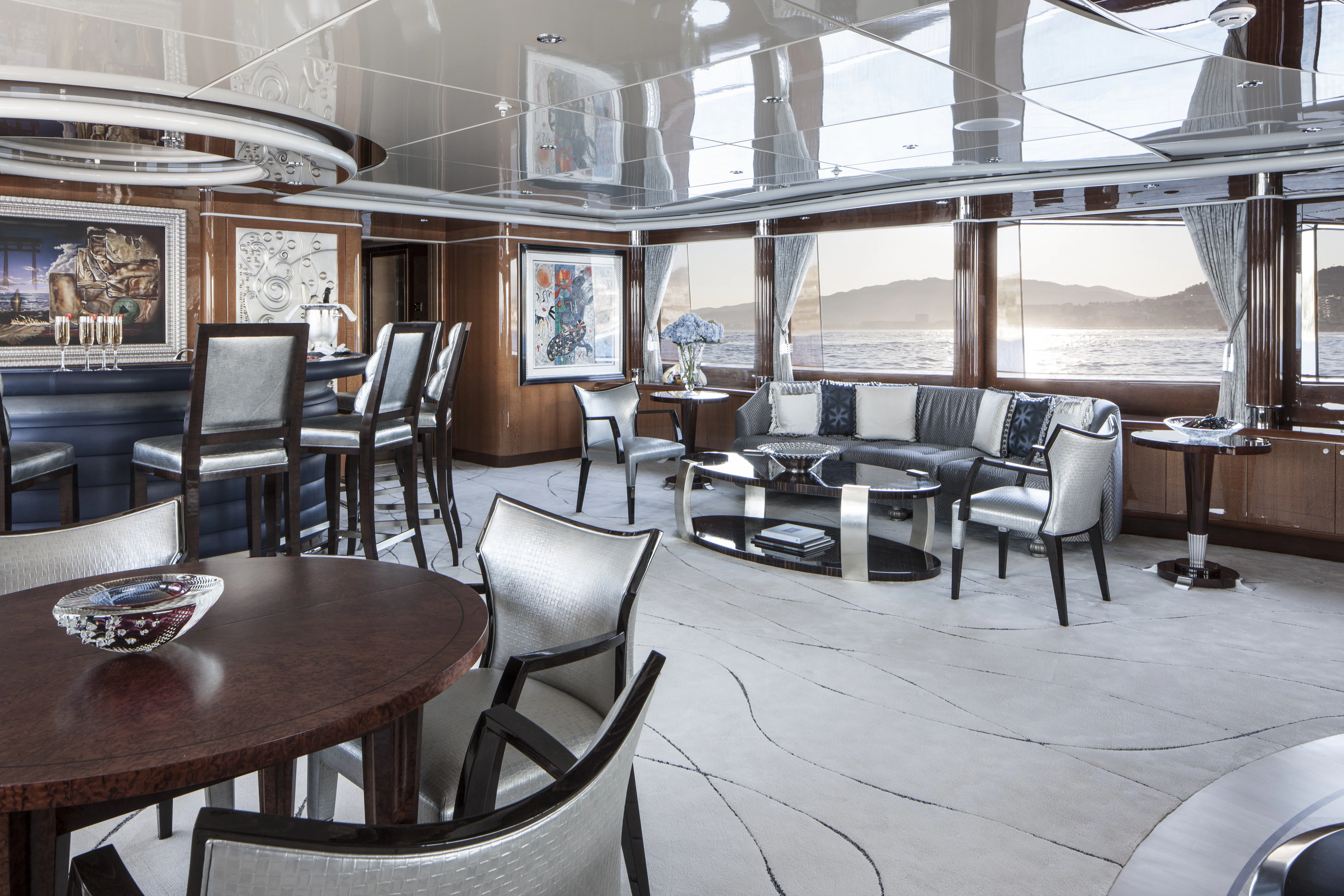

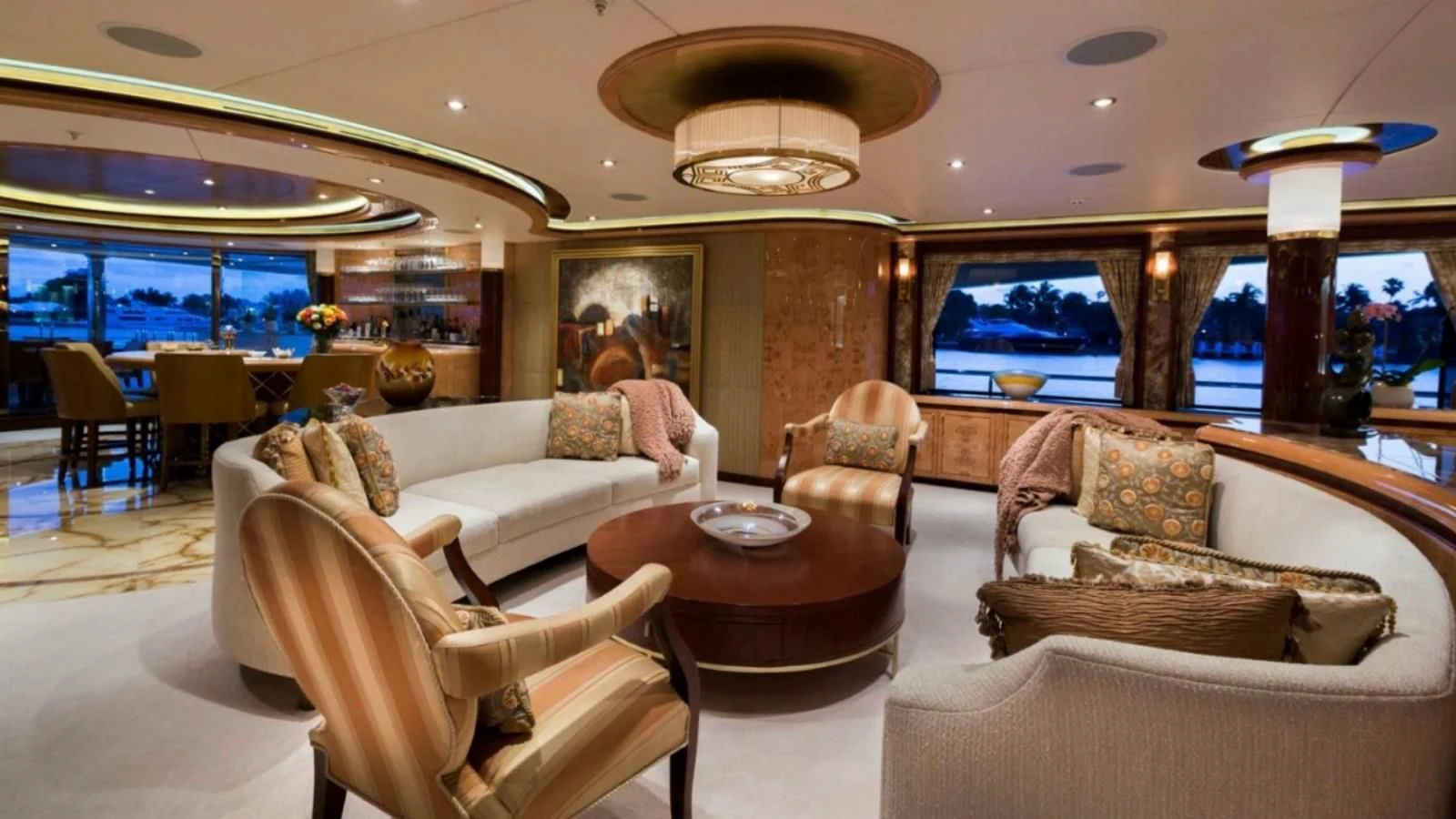

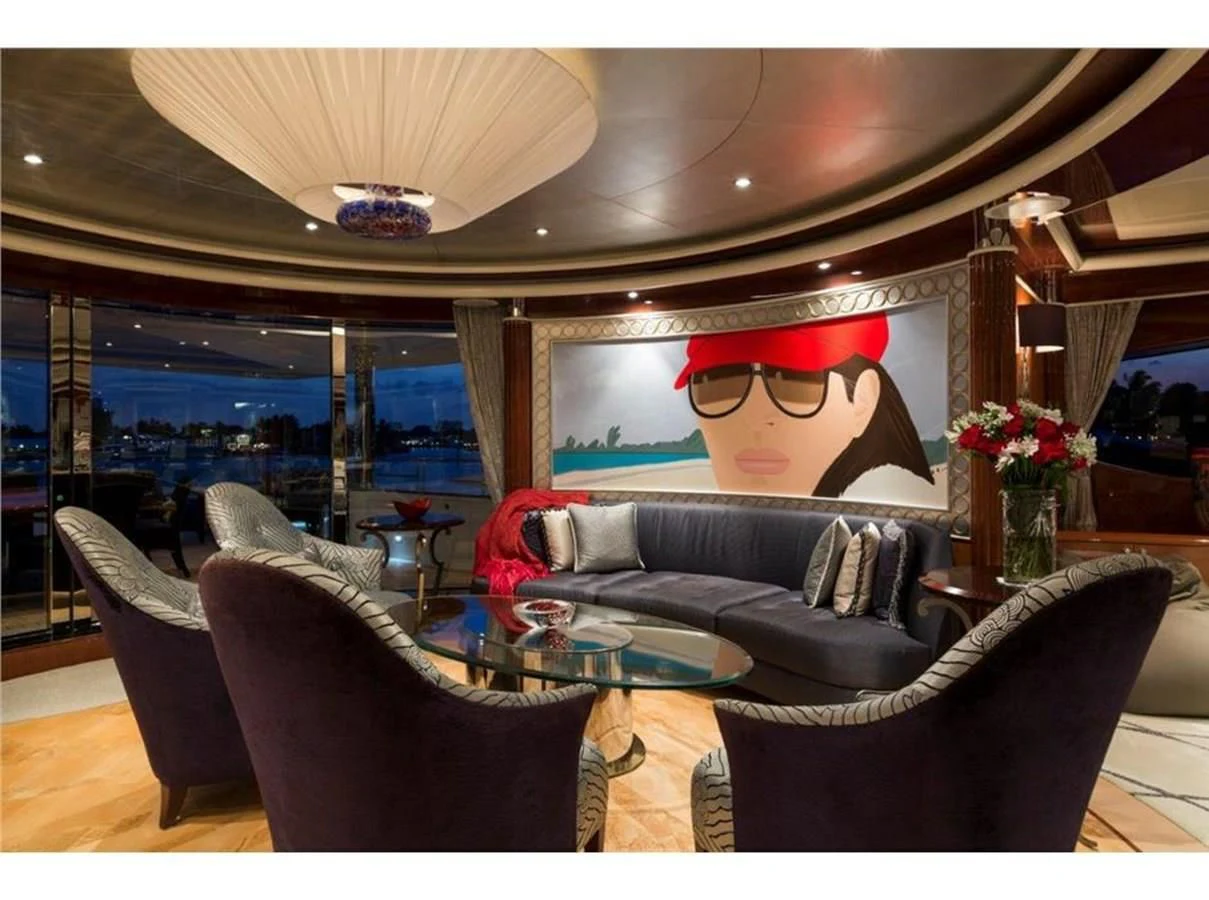

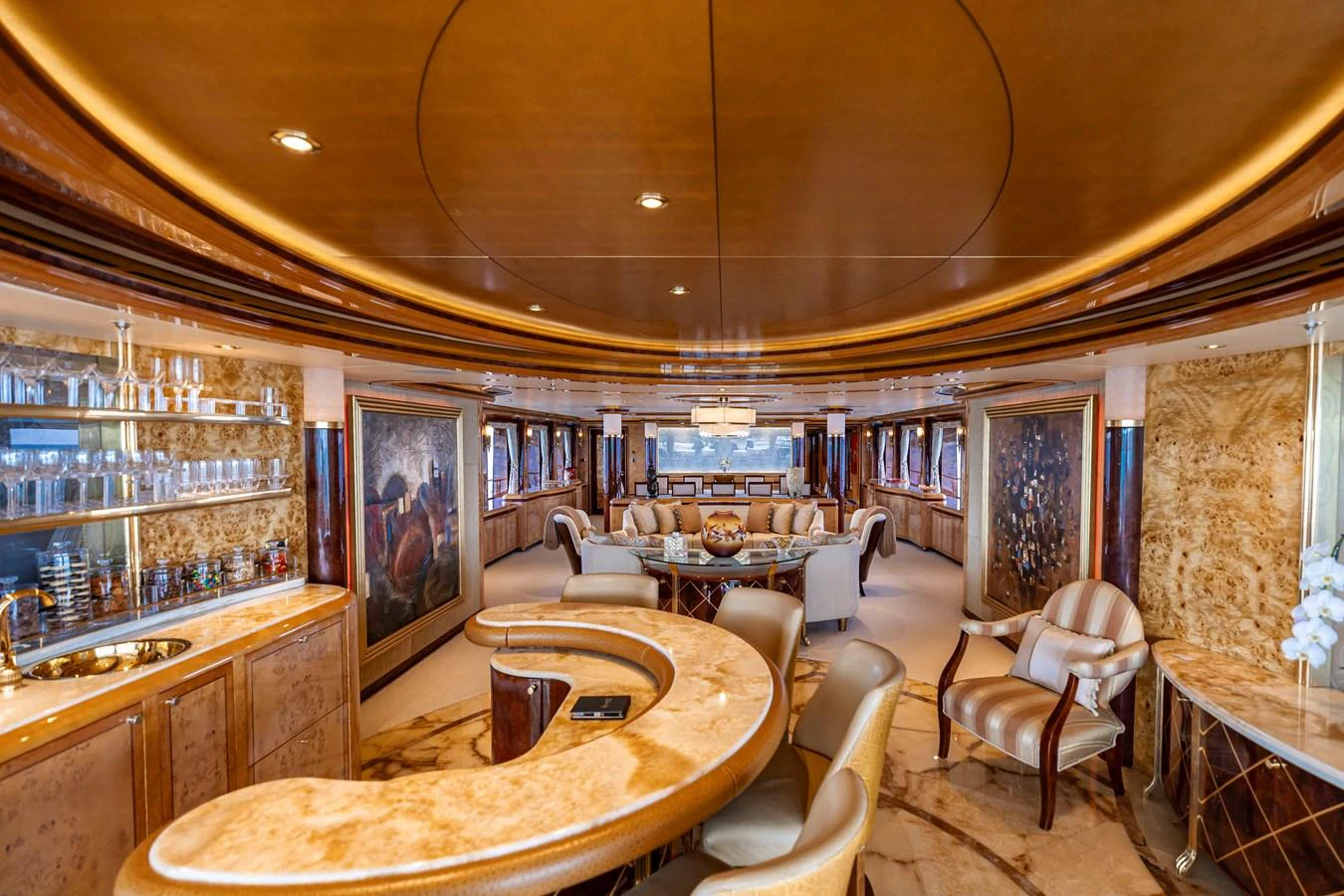

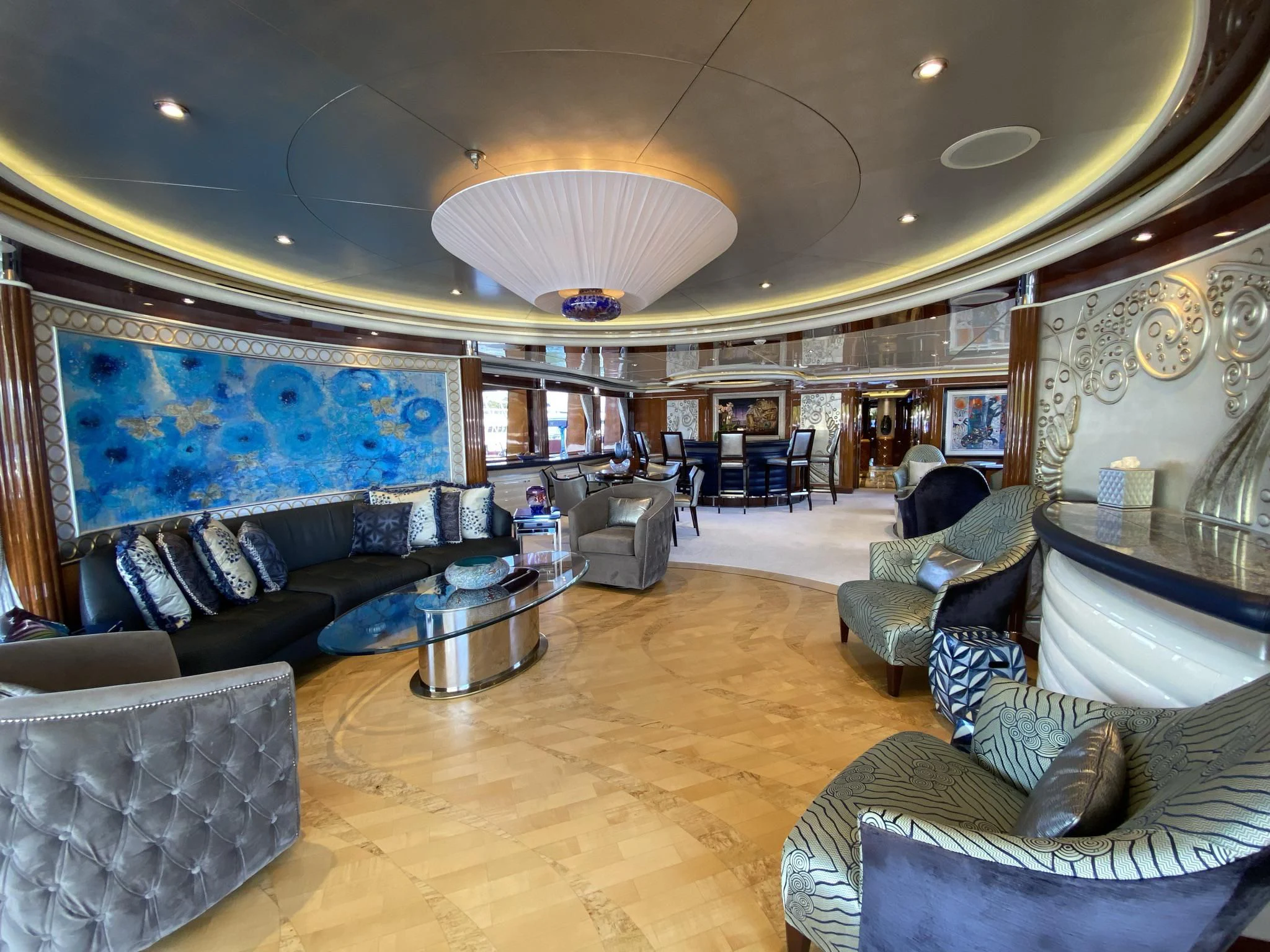

Main Salon:

  • 42” Samsung TV
  • Crestron stereo equipment
  • Kaleidescape System

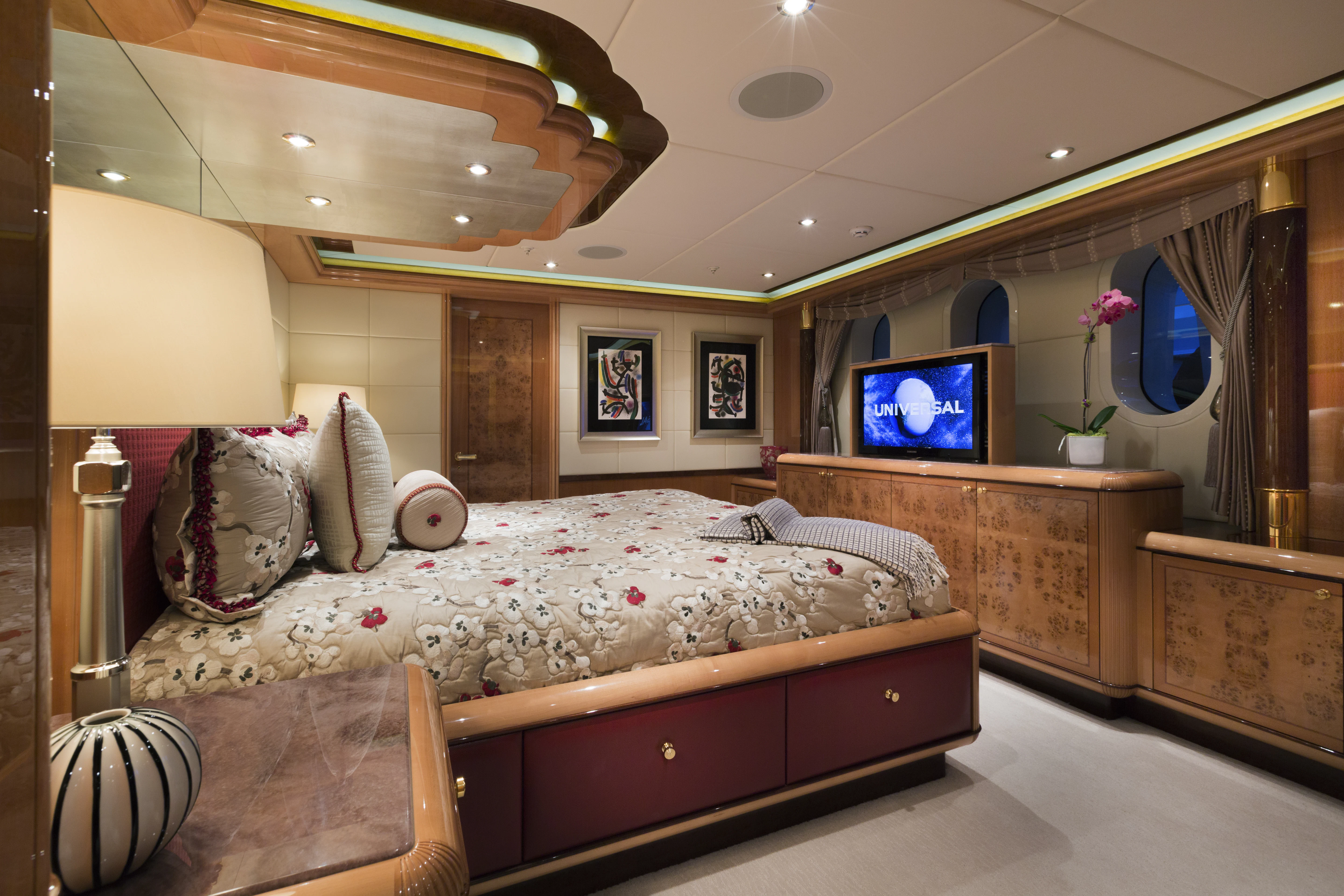

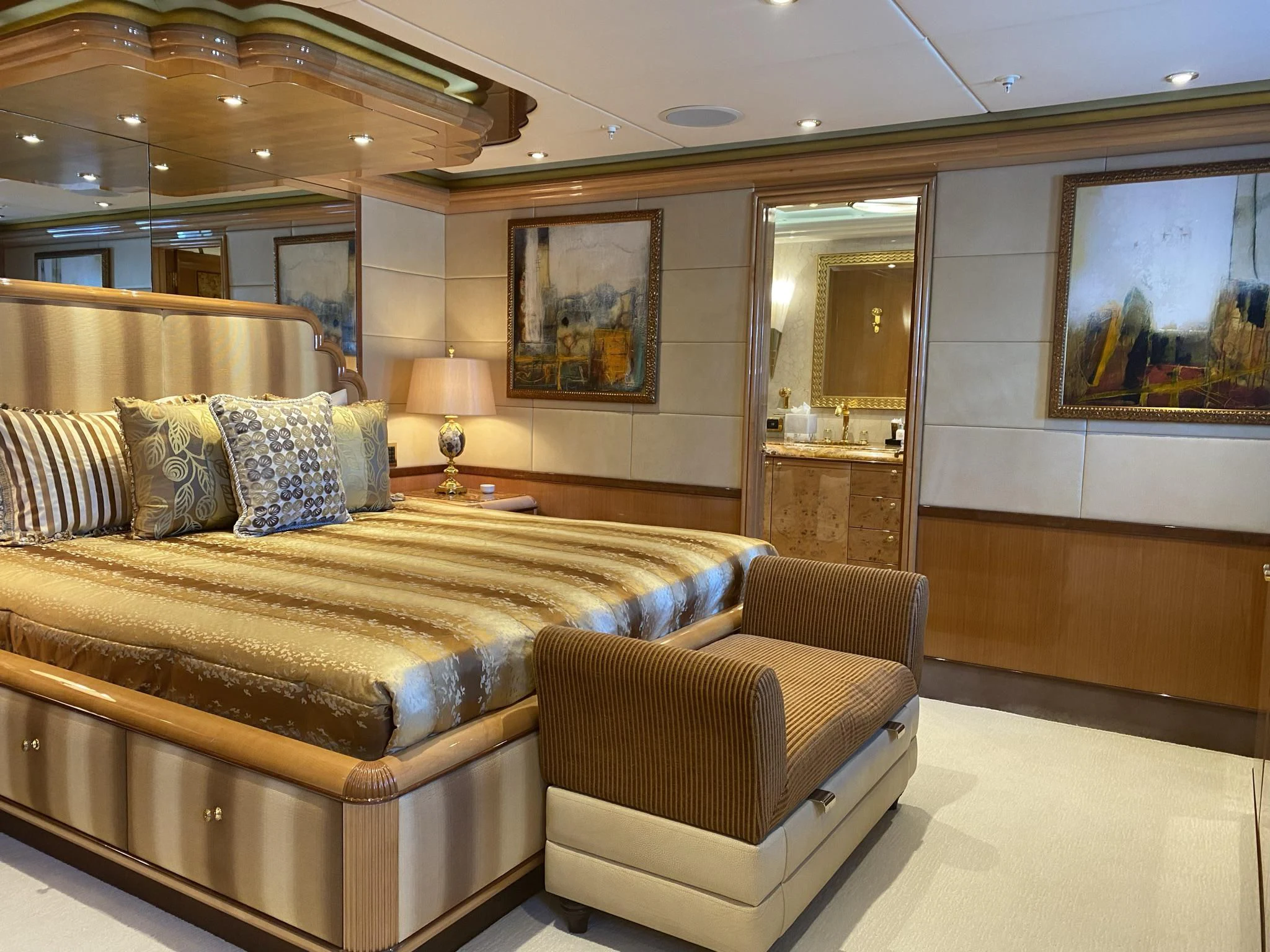

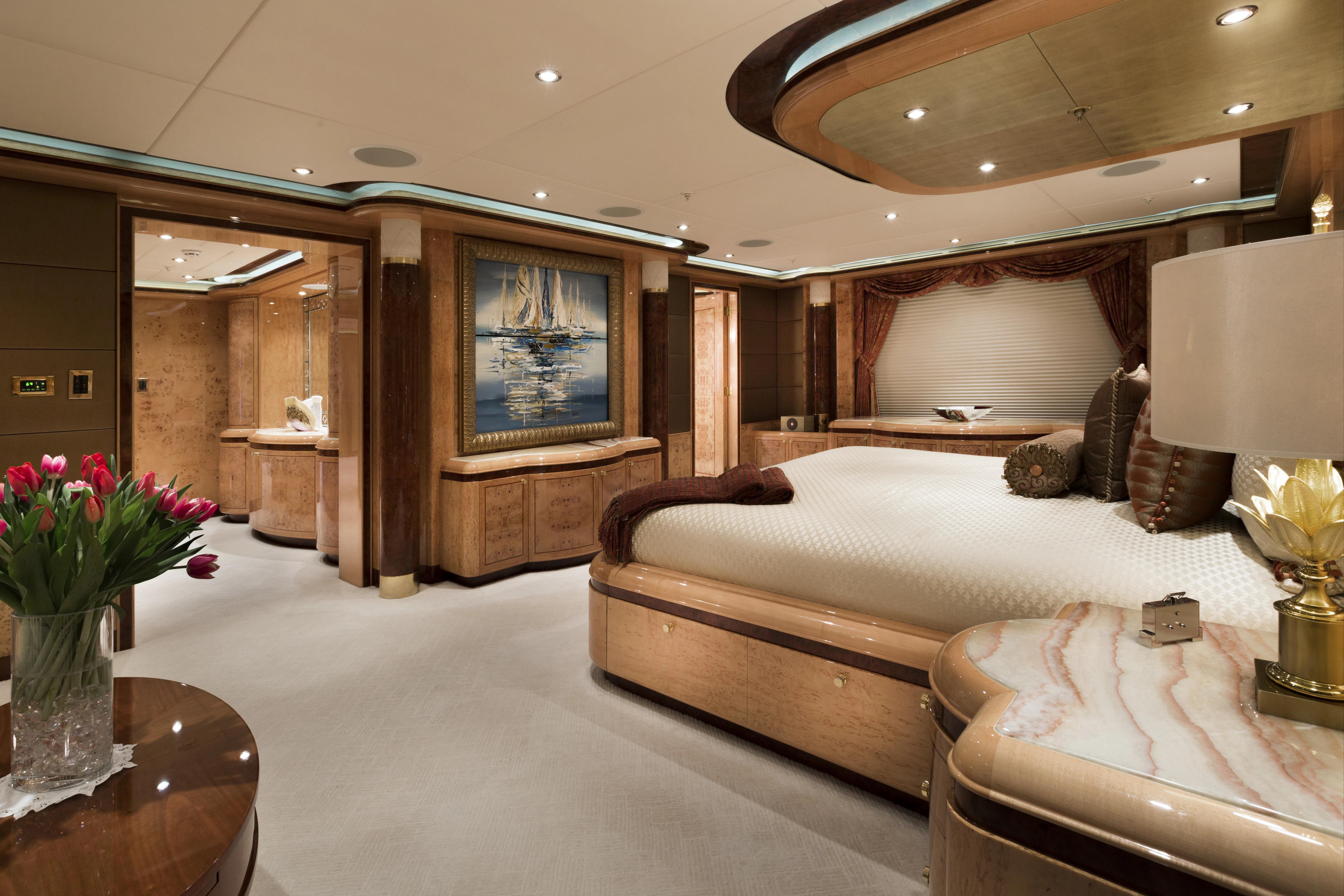

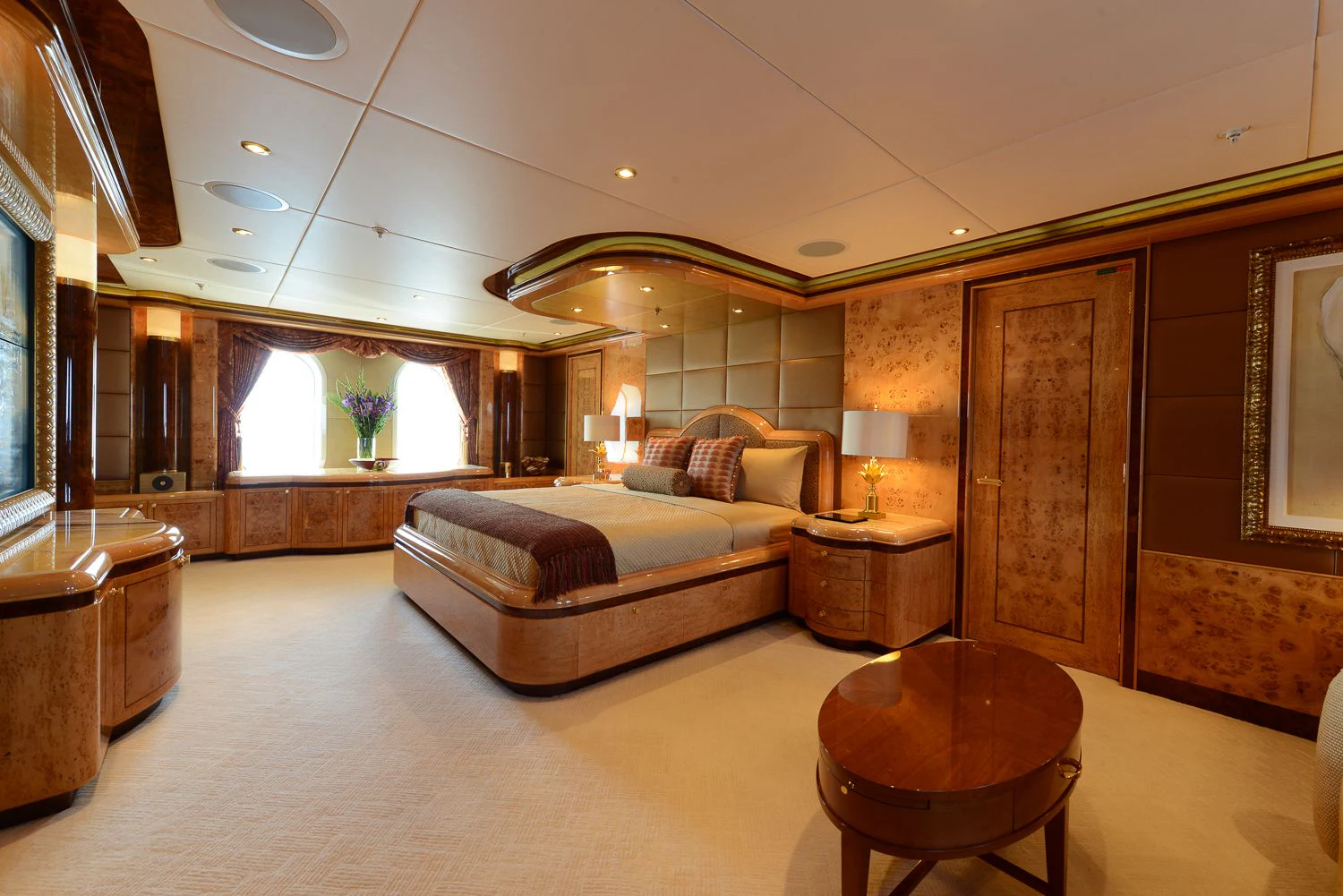

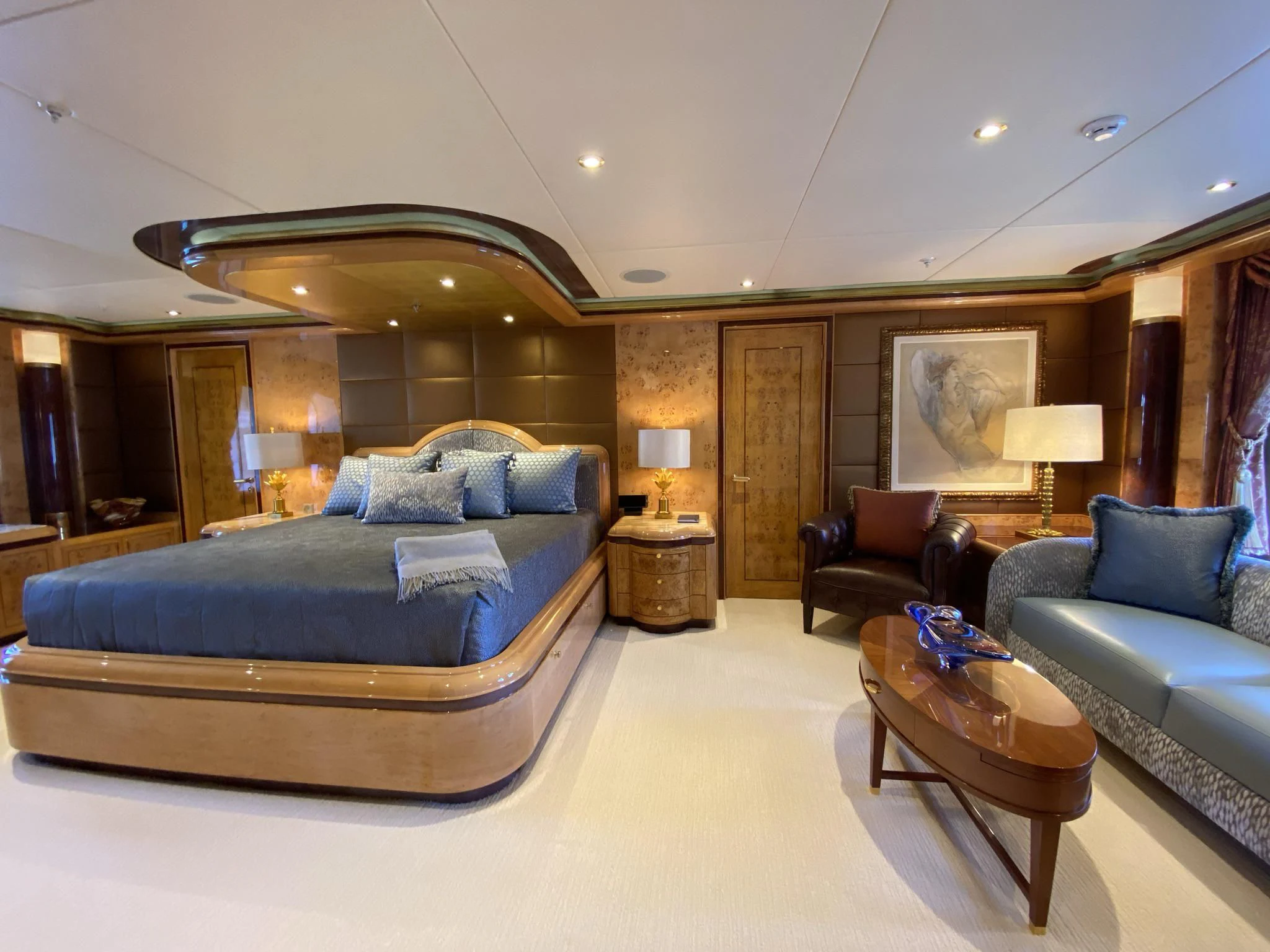

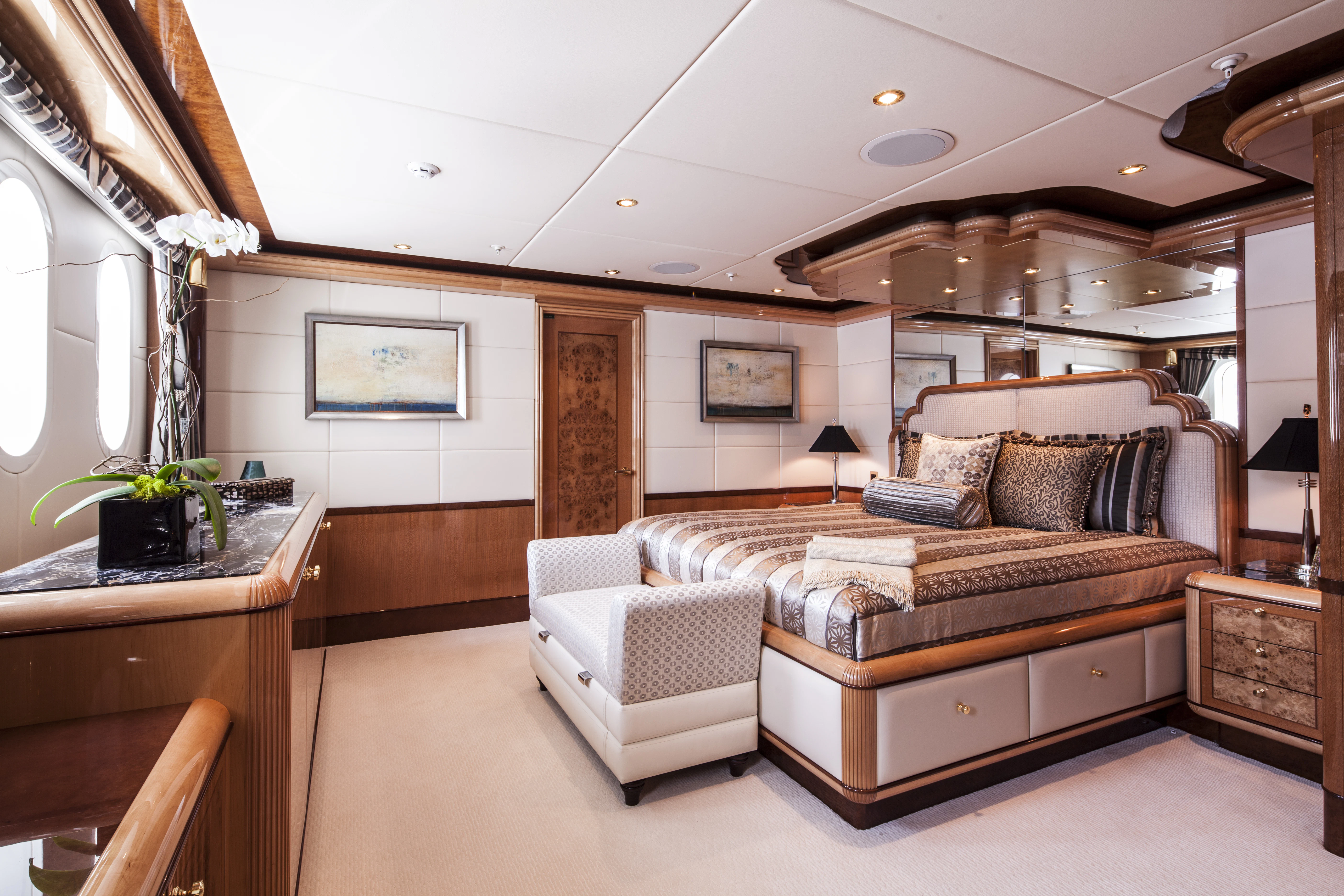

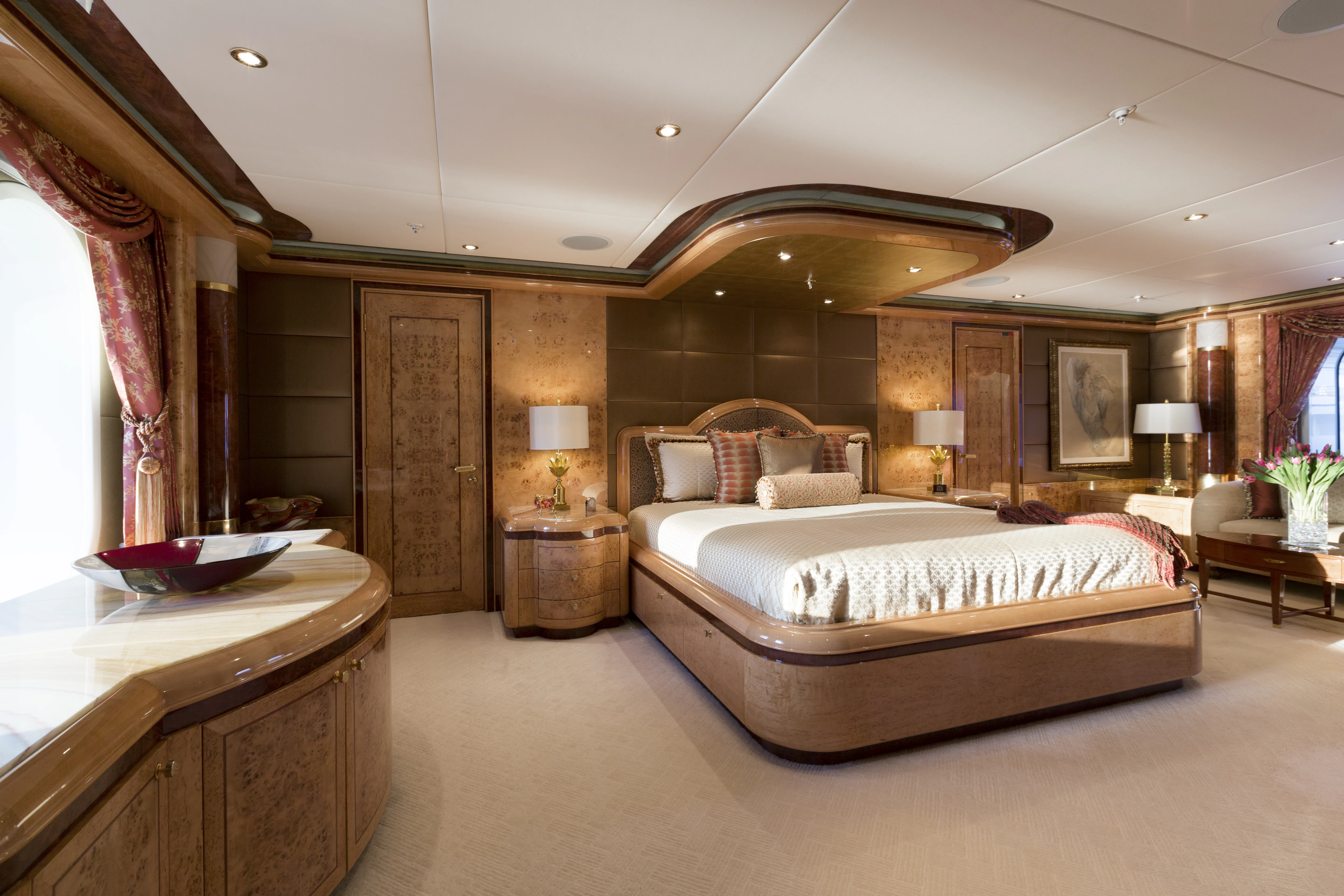

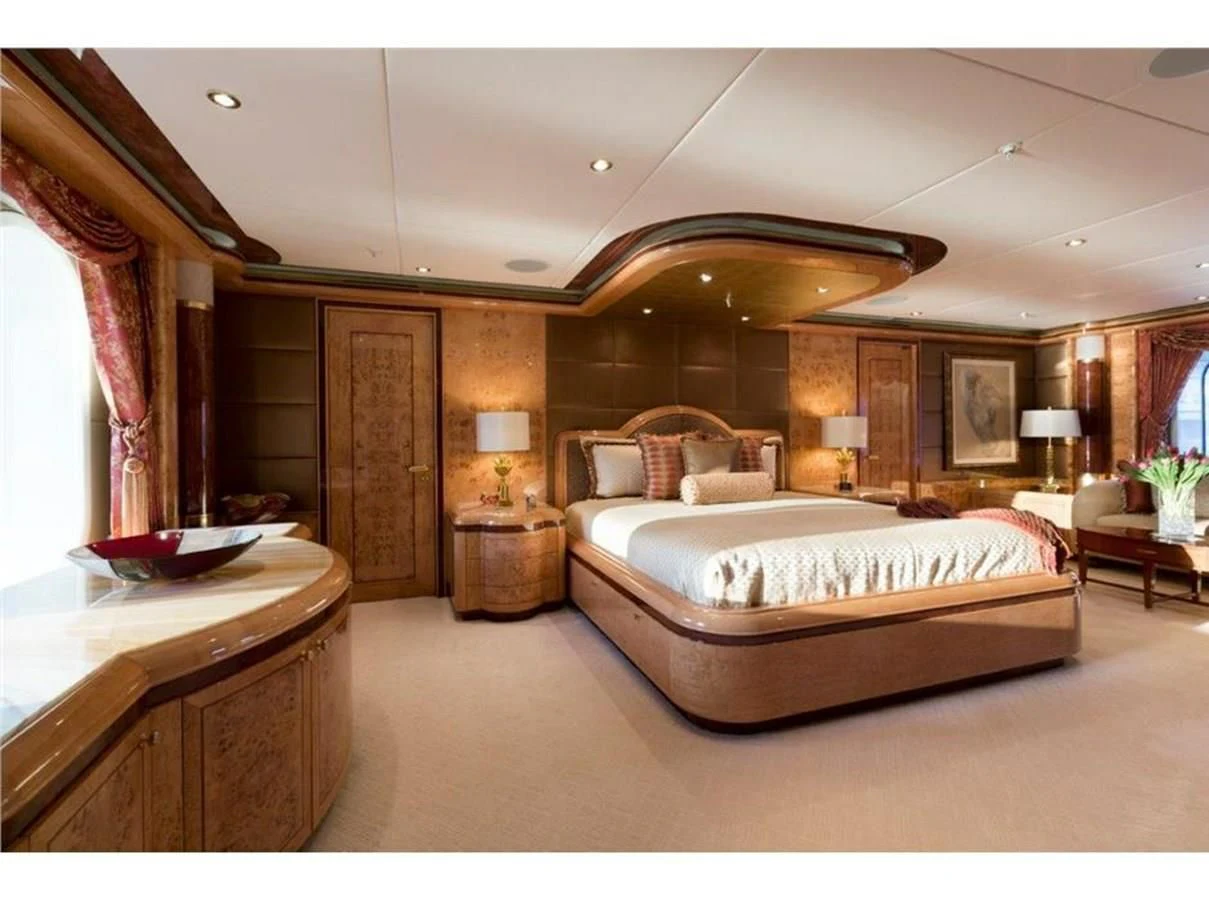

Master Stateroom:

  • 42” Samsung TV
  • 2 x 42” Toshiba Sierra – Vanity Mirror TVs
  • Kaleidescape System

VIP Cabin:

  • 32” Samsung TV in VIP guest stateroom
  • Crestron stereo equipment
  • Kaleidescape system

Guest Cabins:

  • 32” Samsung TV in port forward guest stateroom
  • 32” Samsung TV in starboard forward guest stateroom
  • 32” Samsung TV in port middle guest stateroom
  • 32” Samsung TV in starboard middle guest stateroom
  • Crestron stereo equipment in all staterooms
  • Kaleidescape system in all staterooms

Sky Lounge:

  • 42” Samsung TV
  • iPod docking station
  • Crestron stereo equipment
  • Kaleidescape system

Sky Lounge Bar:

  • 55" Samsung
  • Kaleidescape system

Sun Deck:

  • 42” SunBrite TV
  • Kaleidescape system
  • Crestron stereo equipment on sun deck and all exterior decks

Aft Deck:

  • Samsung TV
  • Crestron stereo equipment
  • Kaleidescape system

Captain’s Cabin:

  • 42” Samsung TV
  • Clarion stereo
  • Kaleidescape system

Engineer’s Cabin:

  • 42” Samsung TV
  • Clarion stereo
  • Kaleidescape system

Galley:

  • 13” Samsung TV

Crew Mess:

  • 32” Samsung TV
  • 50” Samsung TV
  • Kaleidescape system

Crew Cabins:

  • 2 x 13” LG Flip Down TV in each cabin
  • Clarion stereo in each cabin

Control Room:

  • 12” Dynex TV

Tenders & Toys

Tenders:

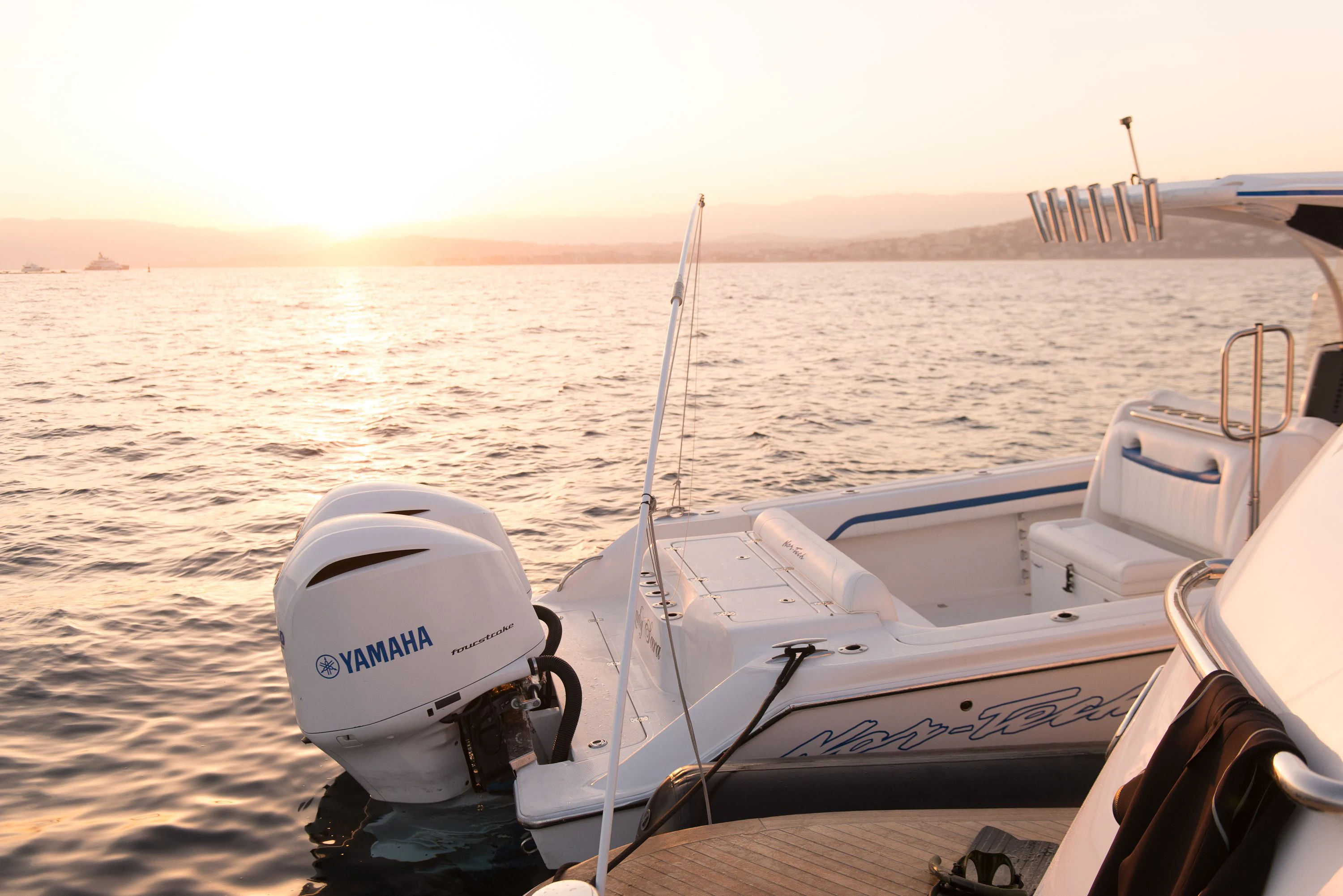

  • 2012 Novurania model “LAUNCH700” 7-meter fiberglass hard bottom inflatable tender with 2022 Honda 225hp motor

Rescue Boat:

  • 2019 NARWHAL model V420, 4.2 meter SOLAS Rescue tender with Yamaha 25 hp (2019) outboard

Toys:

  • 2 x Sea Bob Cayago F7 electric underwater scooters

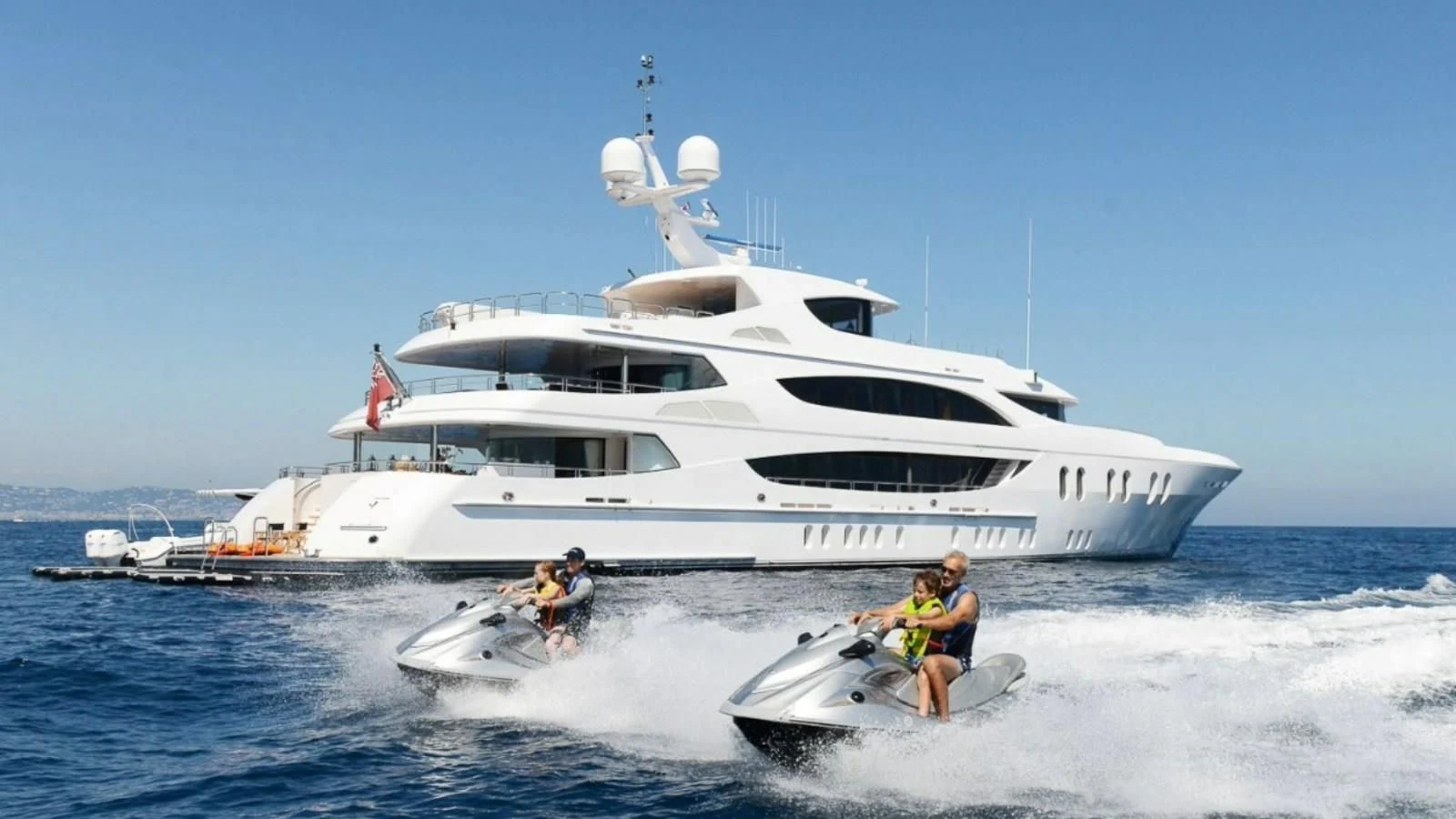

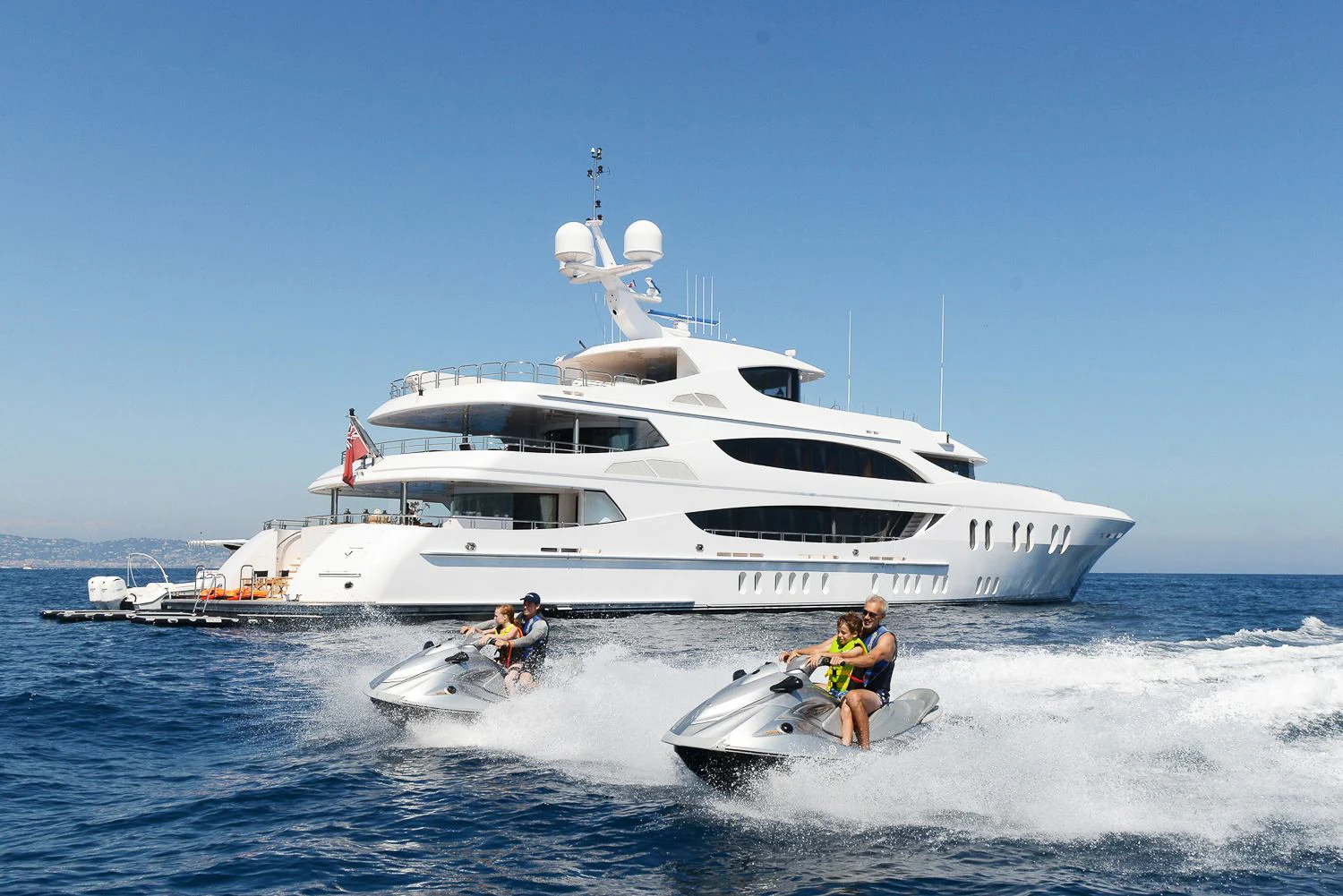

  • 2 x 2019 Yamaha FX Cruise Waverunners (3 man)
  • 1 x 2019 Yamaha FX SVHO Waverunner
  • 4 x F5 Sea Bobs (2018)

Dive Gear:

  • Dive compressor fill station with pressure gauge

Deck Equipment

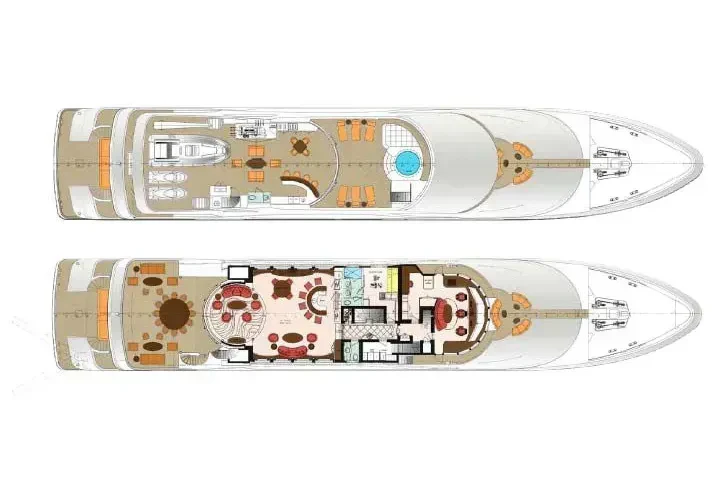

Exterior Arrangement:

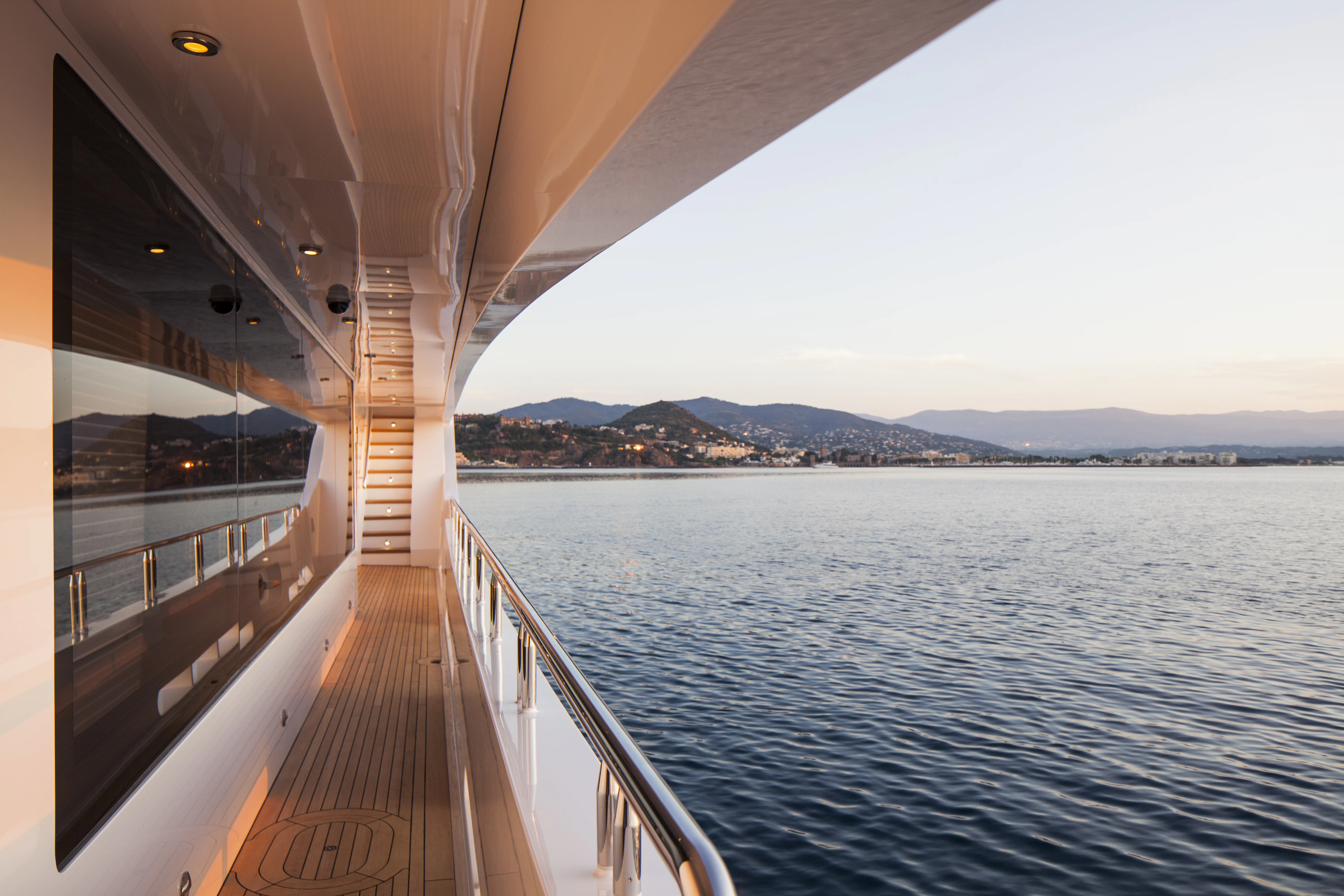

  • Exterior main deck in guest areas is finished in teak. At each mid ship boarding points on port and starboard are built in, slide out boarding steps. In the overhead is flush lighting and closed circuit security cameras.

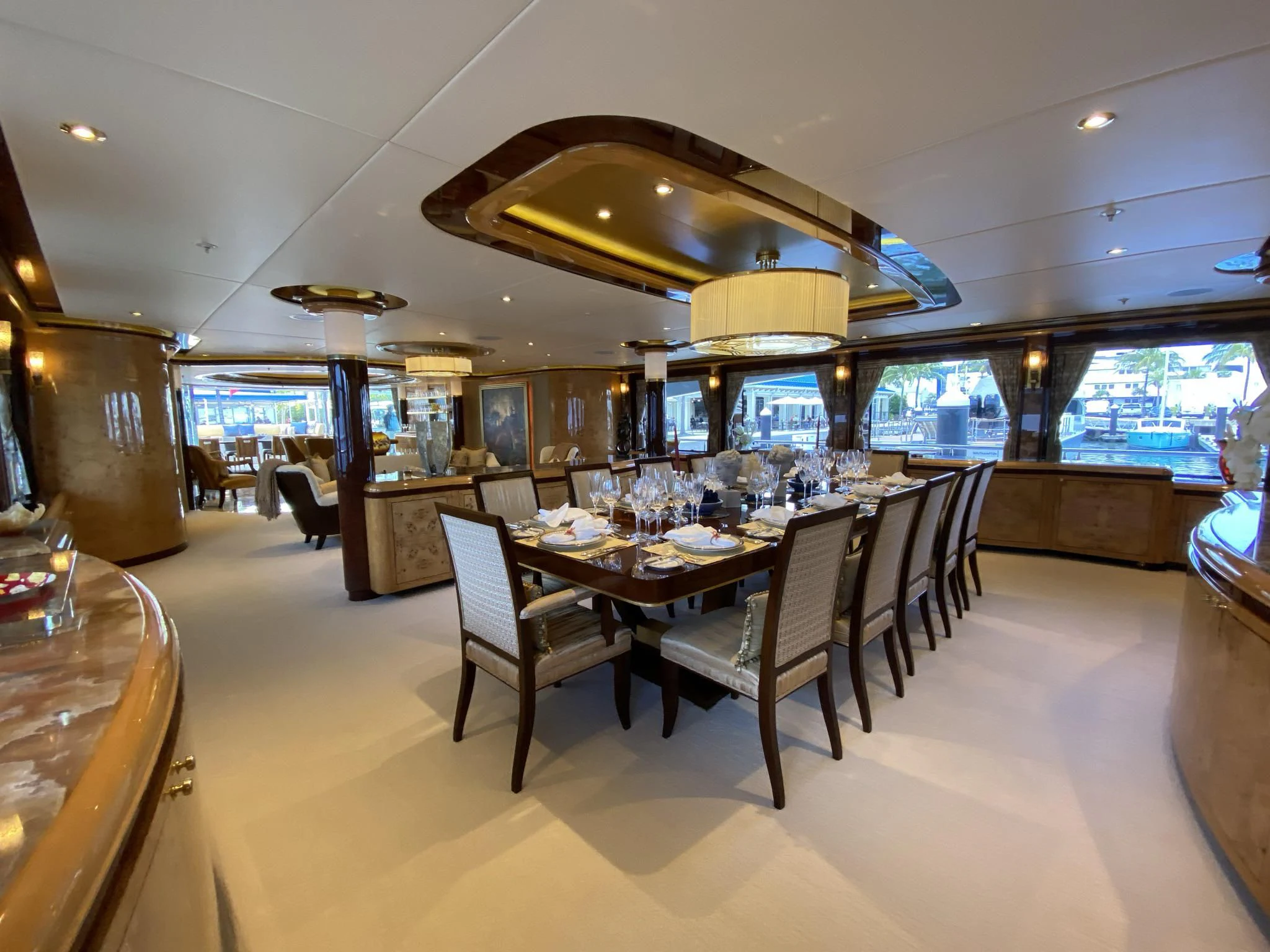

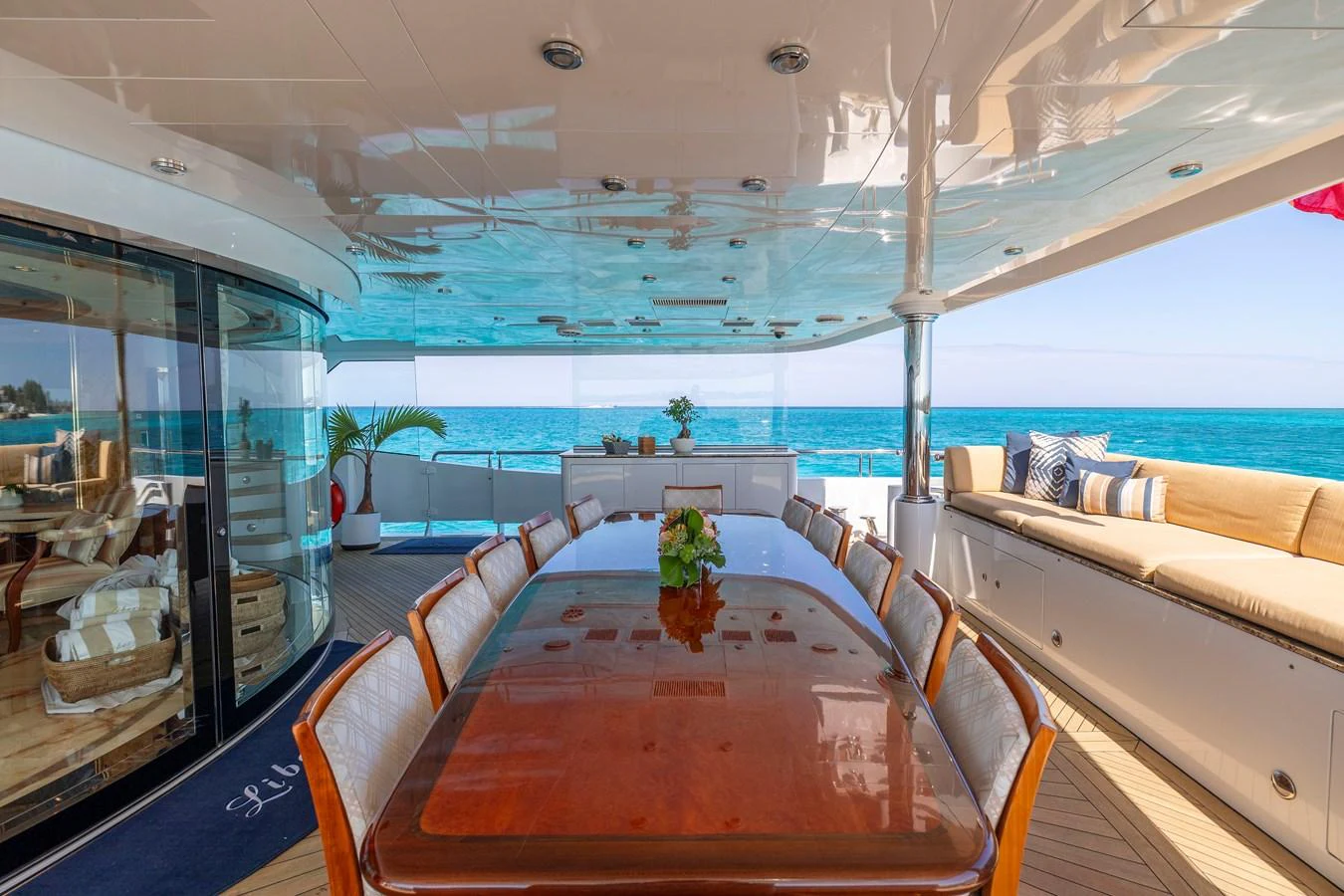

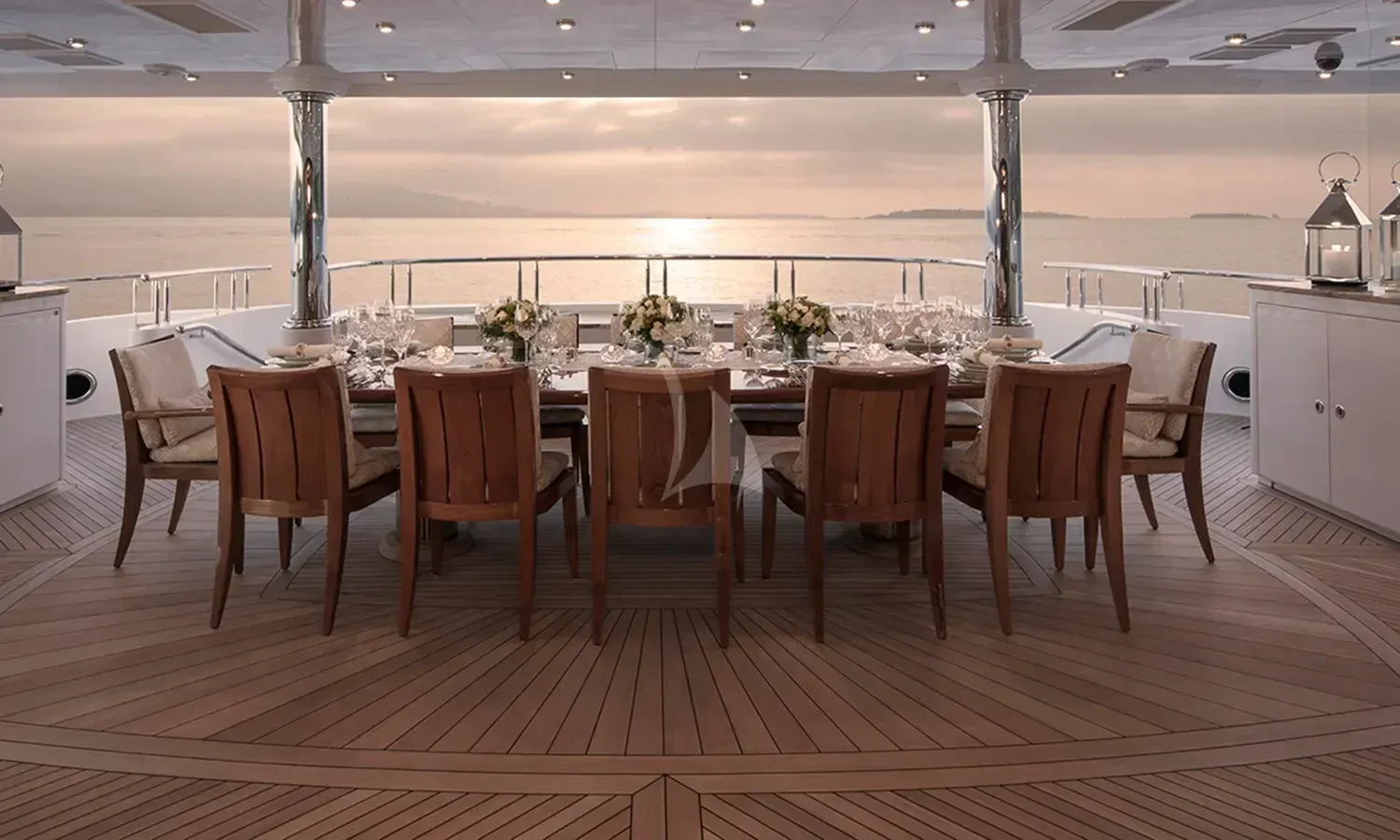

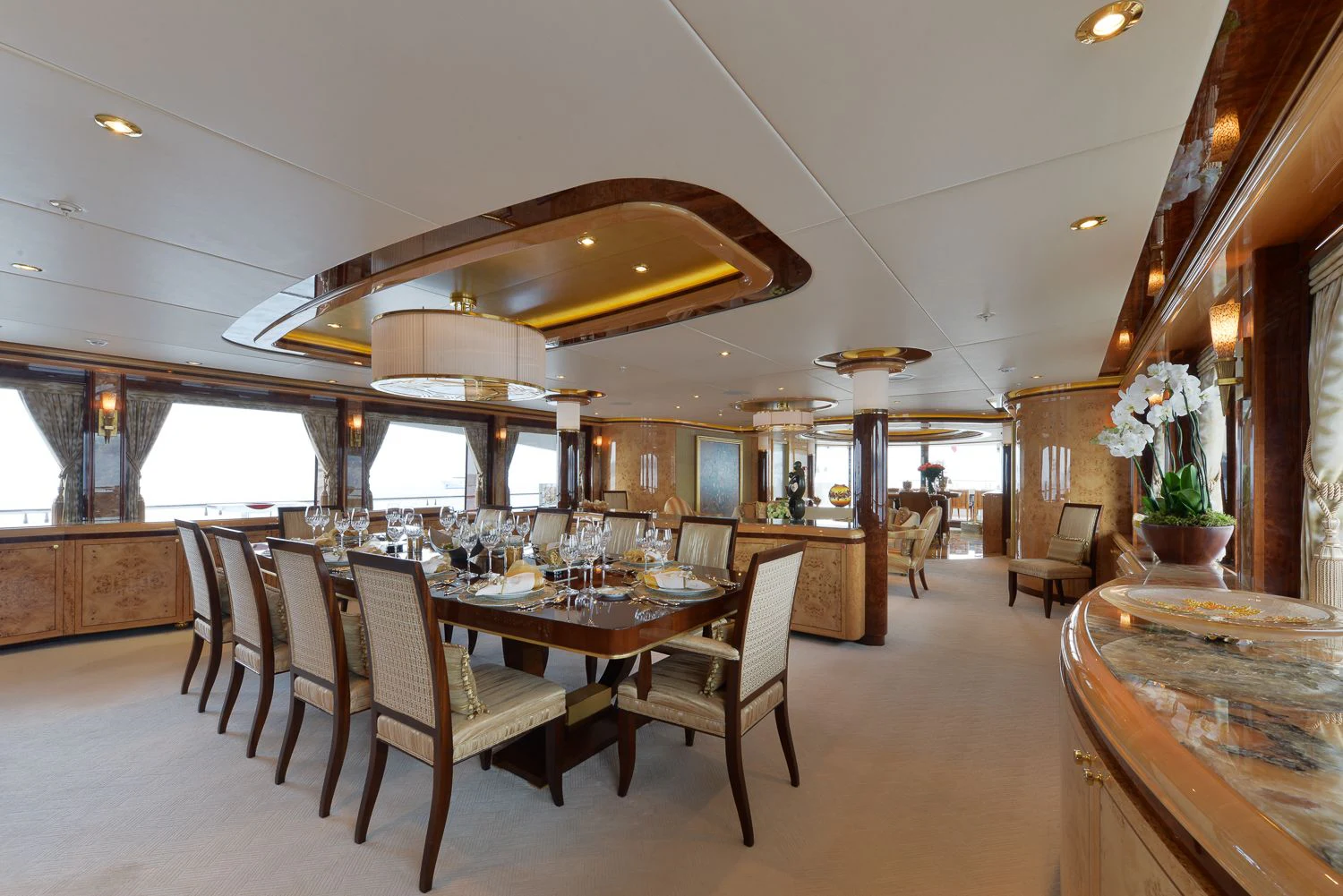

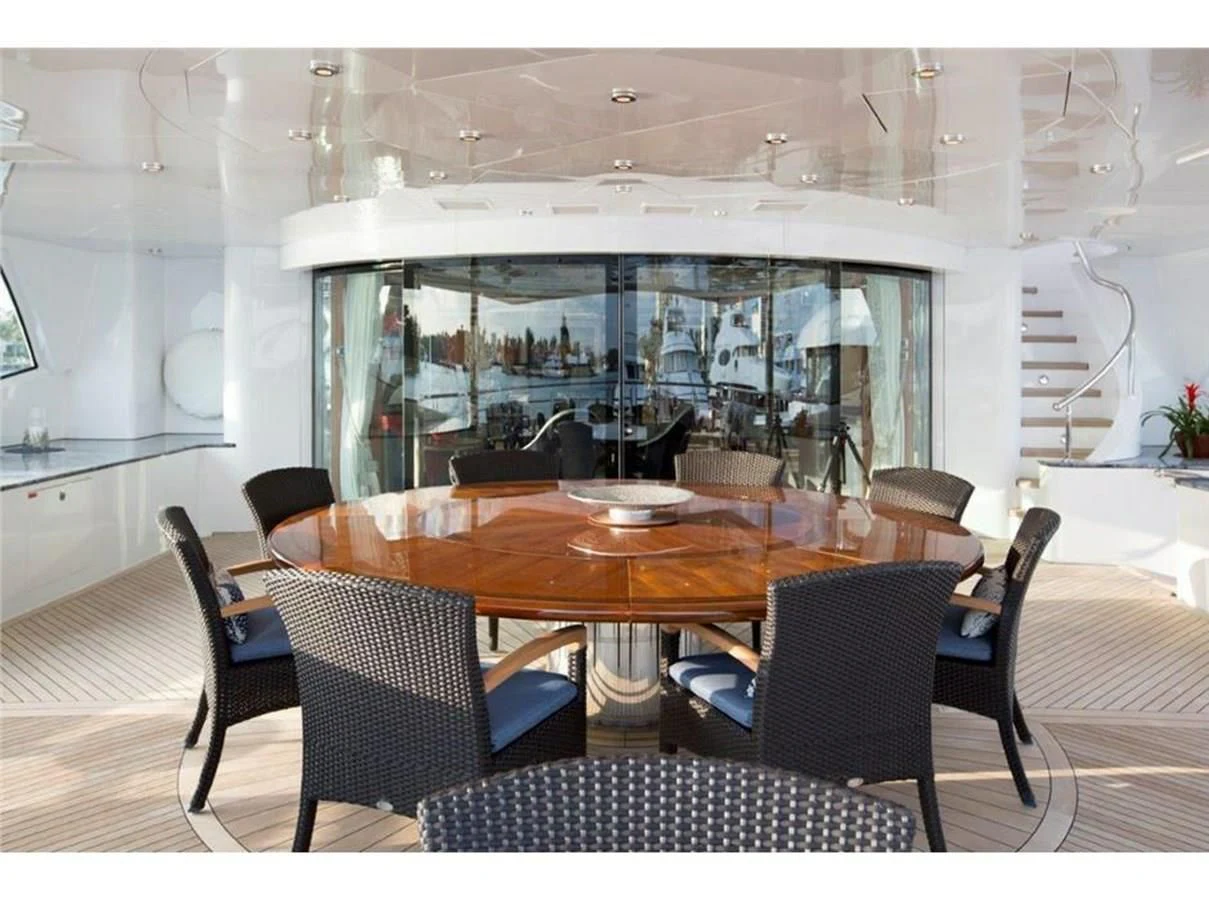

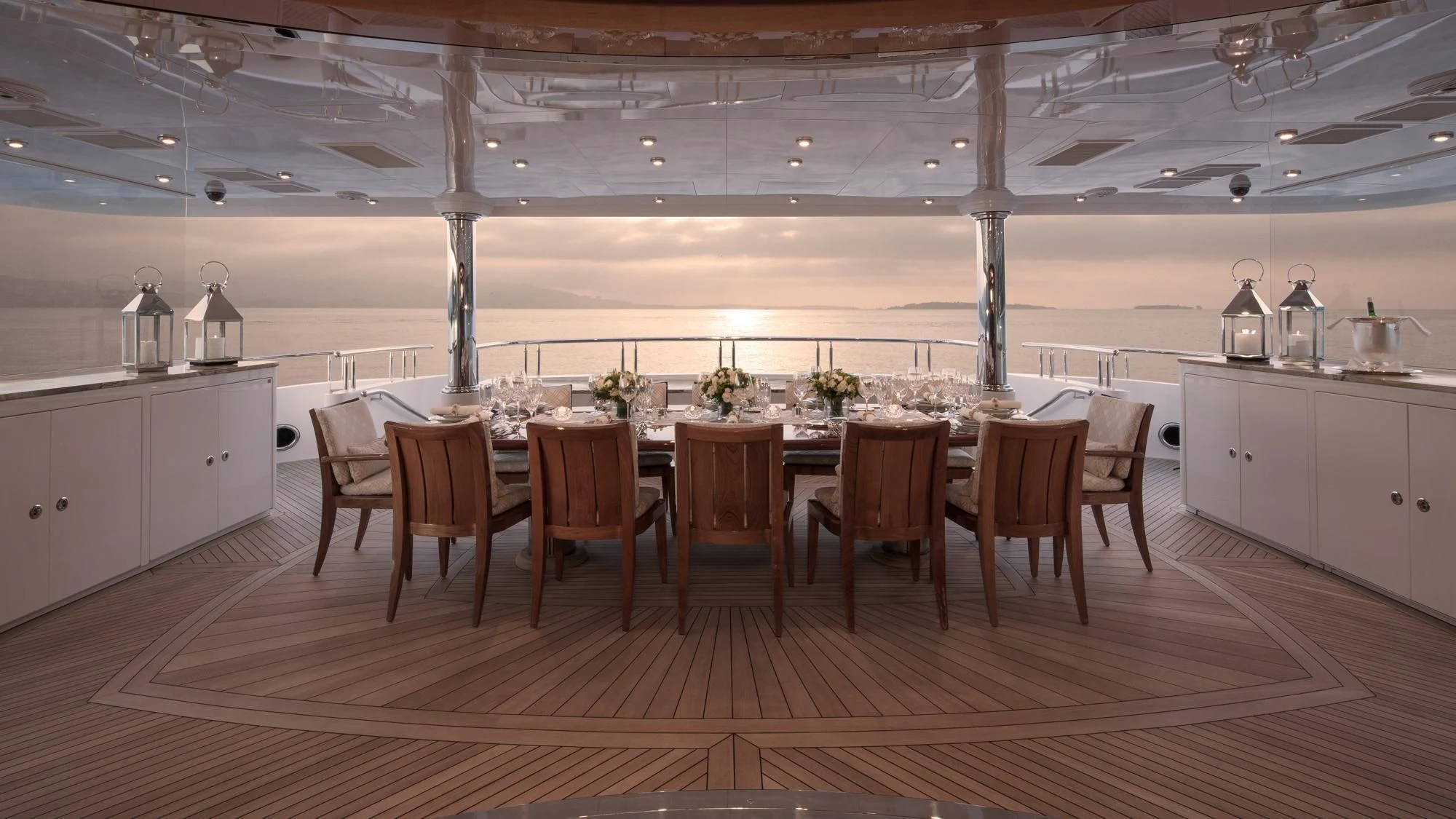

  • The main deck aft dining/lounge area overhead is fitted with radiant heating and air conditioning. There is a varnished wood dining table for 12. On port and starboard side are built in buffets with polished stone tops, on starboard side are curved stairs leading up to the aft deck of the sky lounge.
  • Going aft from here, down a set of stairs is the swim platform. It is fitted with tender mooring cleats, whips and hand shower.

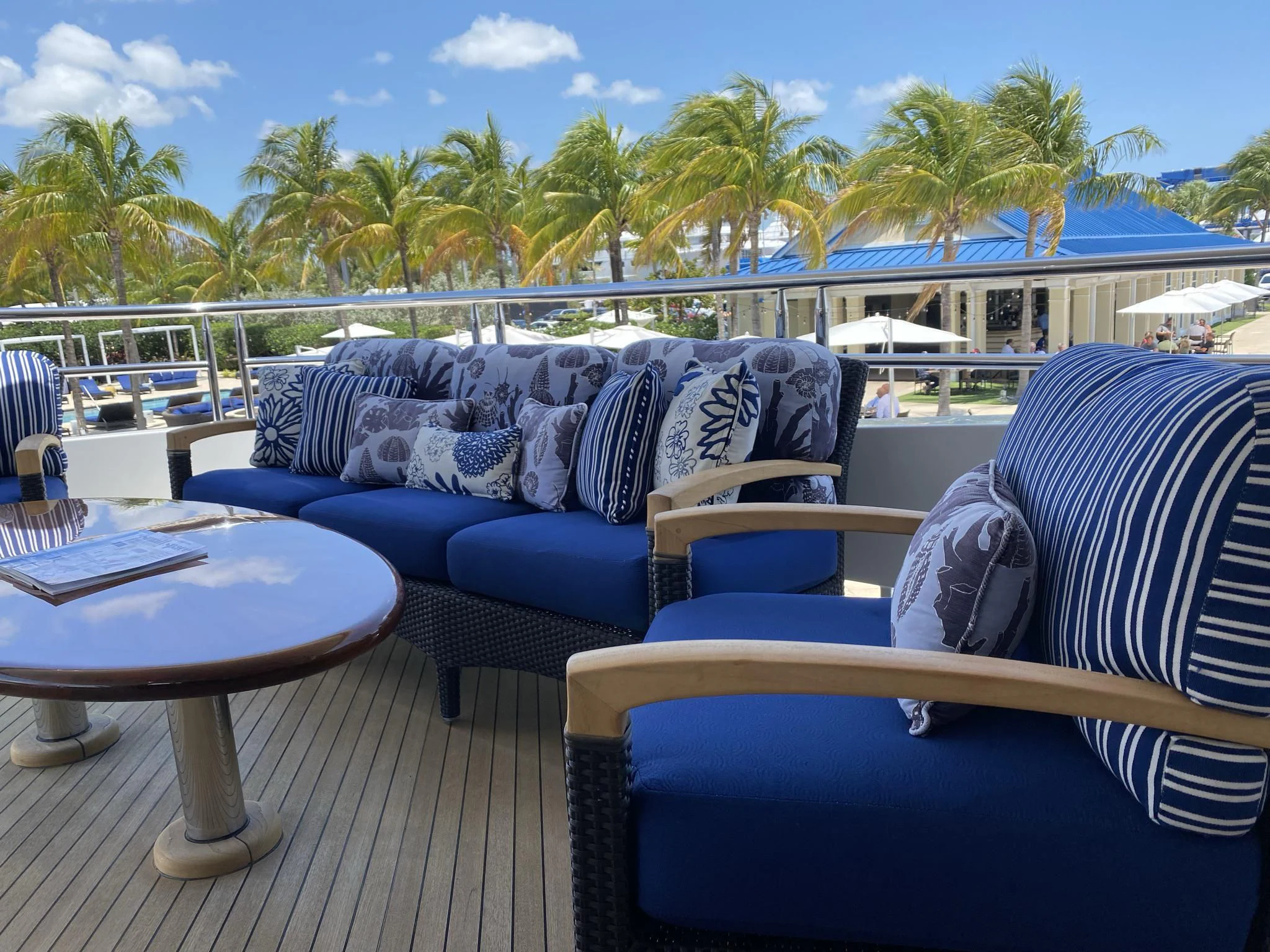

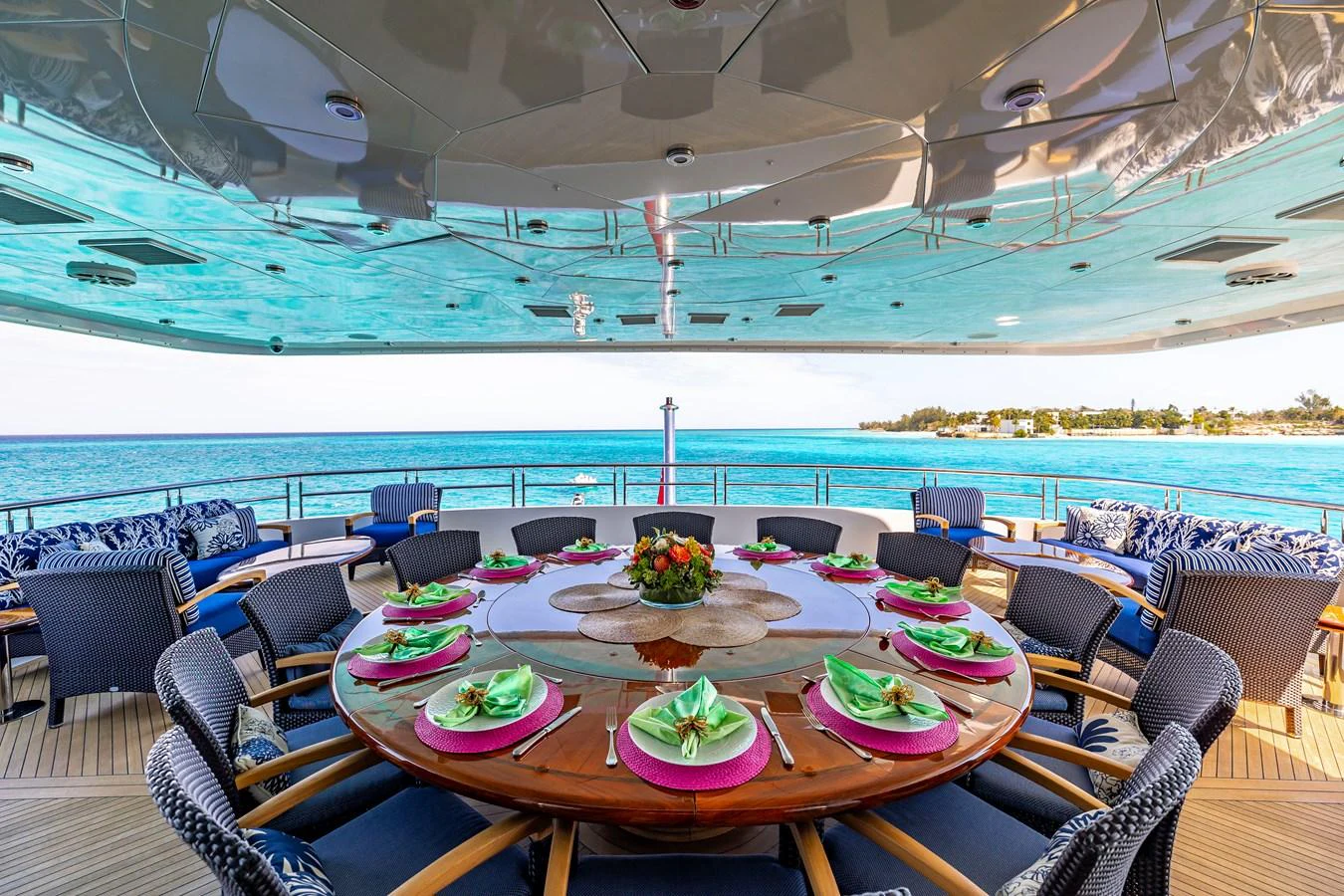

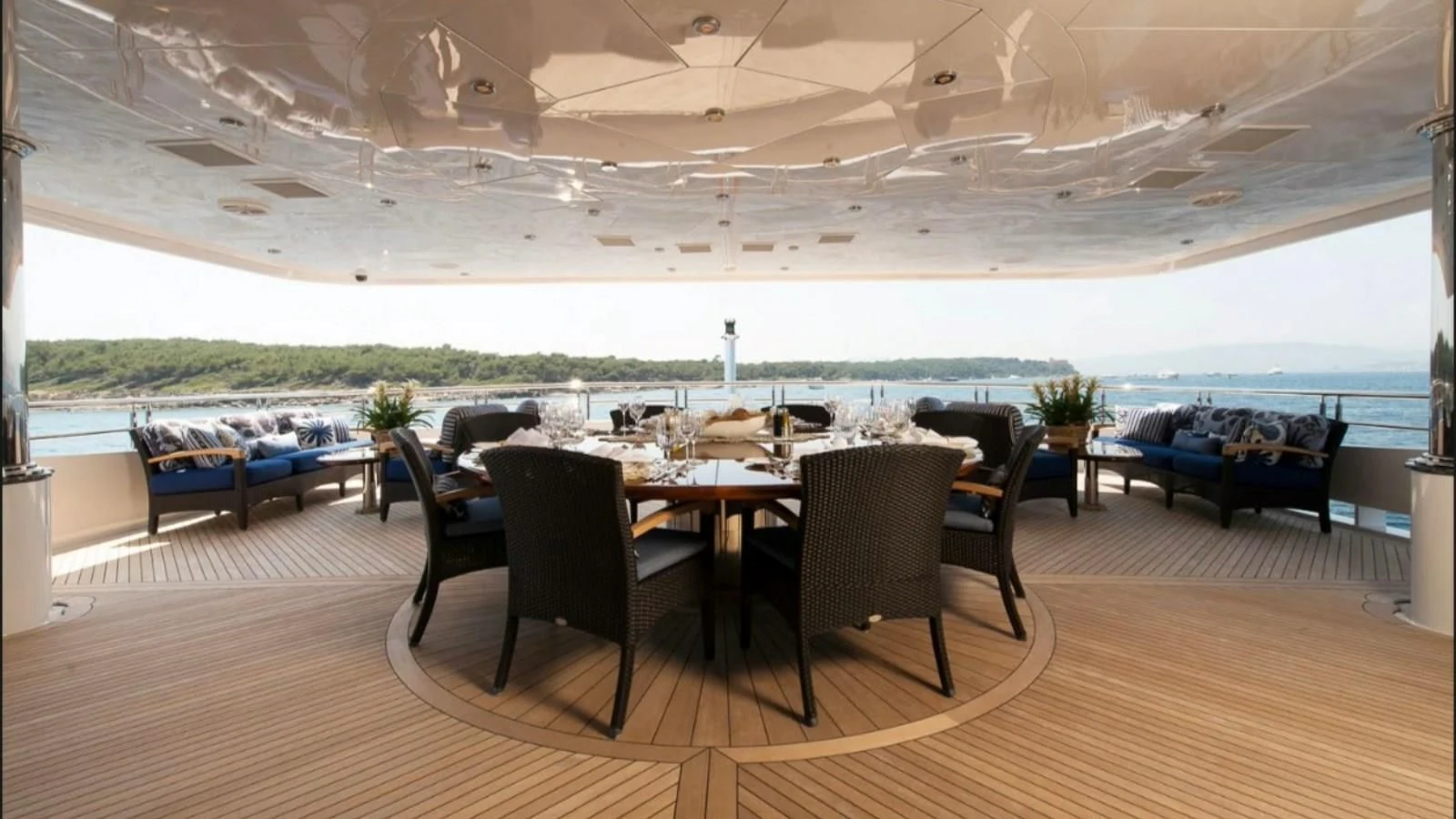

  • Sky lounge aft deck is finished with teak decking, overhead lighting, closed circuit security and service cameras. Also in the overhead is air conditioning supply and radiant heating. There is a table for 12 persons finished in varnished teak. To port and starboard are varnished teak cocktail tables with loose furniture surrounding them. On starboard side are stairs leading up to the sun deck. The top of the stairs can be closed off by a sliding hatch. Port side forward is a drop down TV.

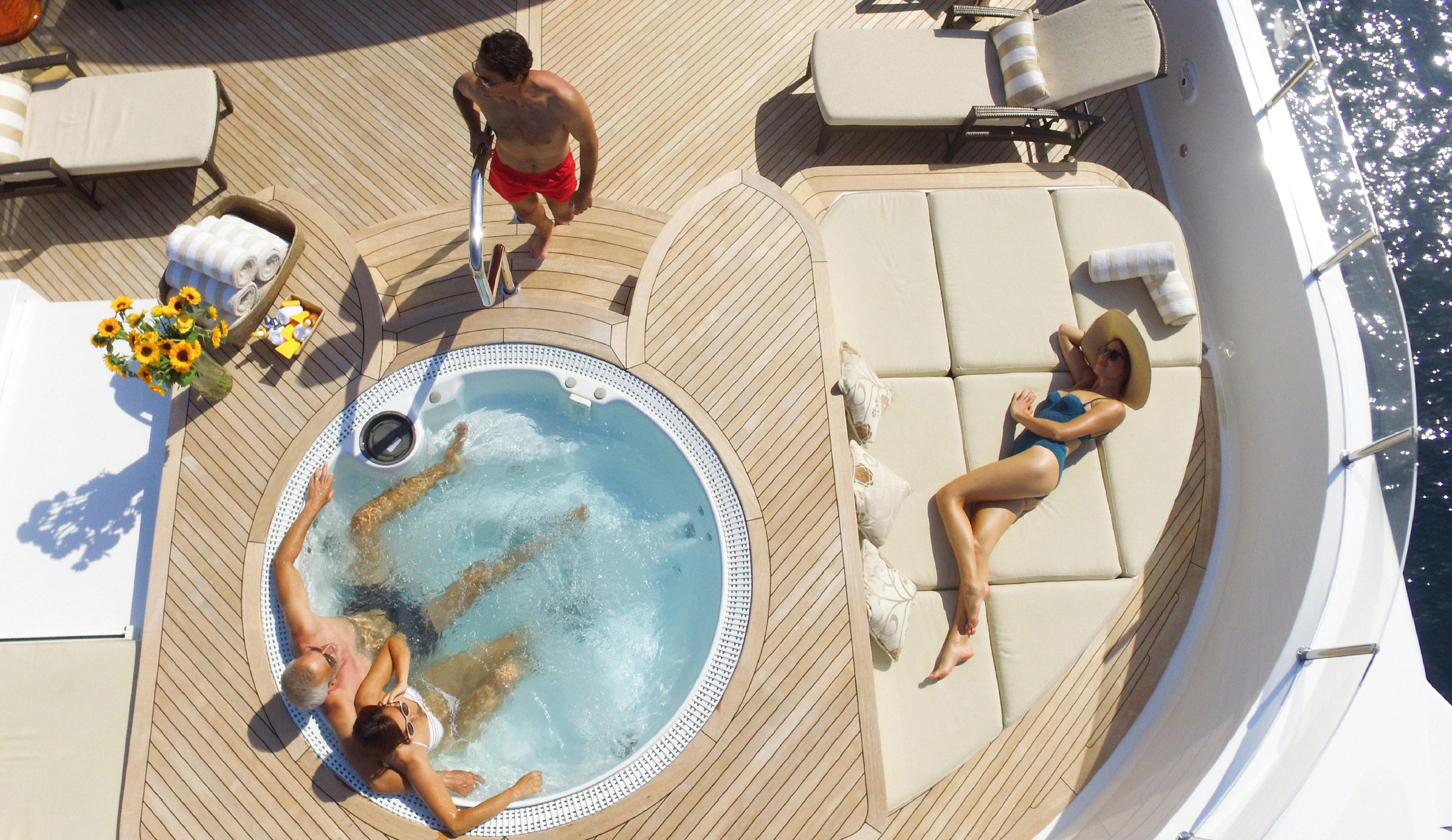

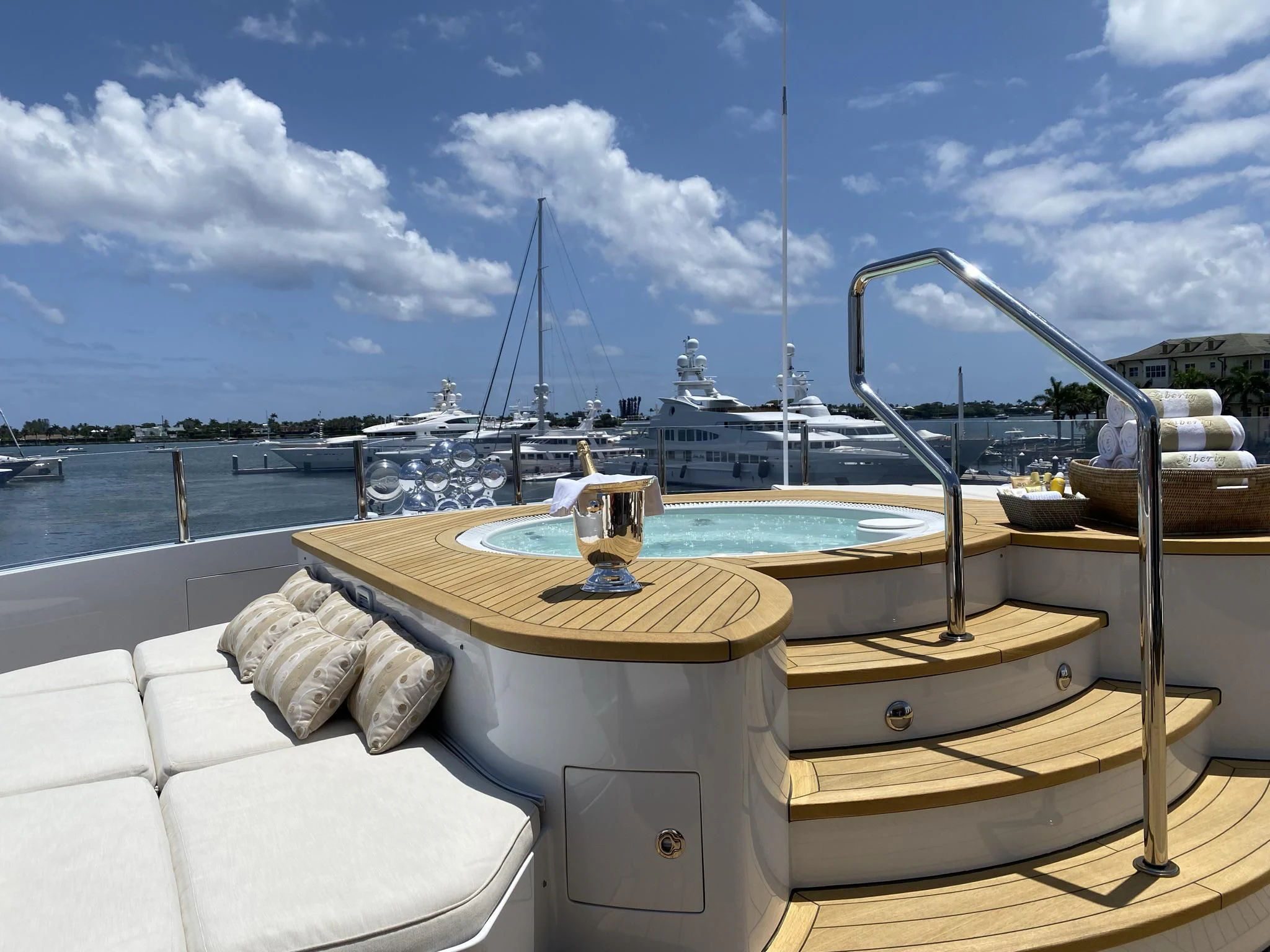

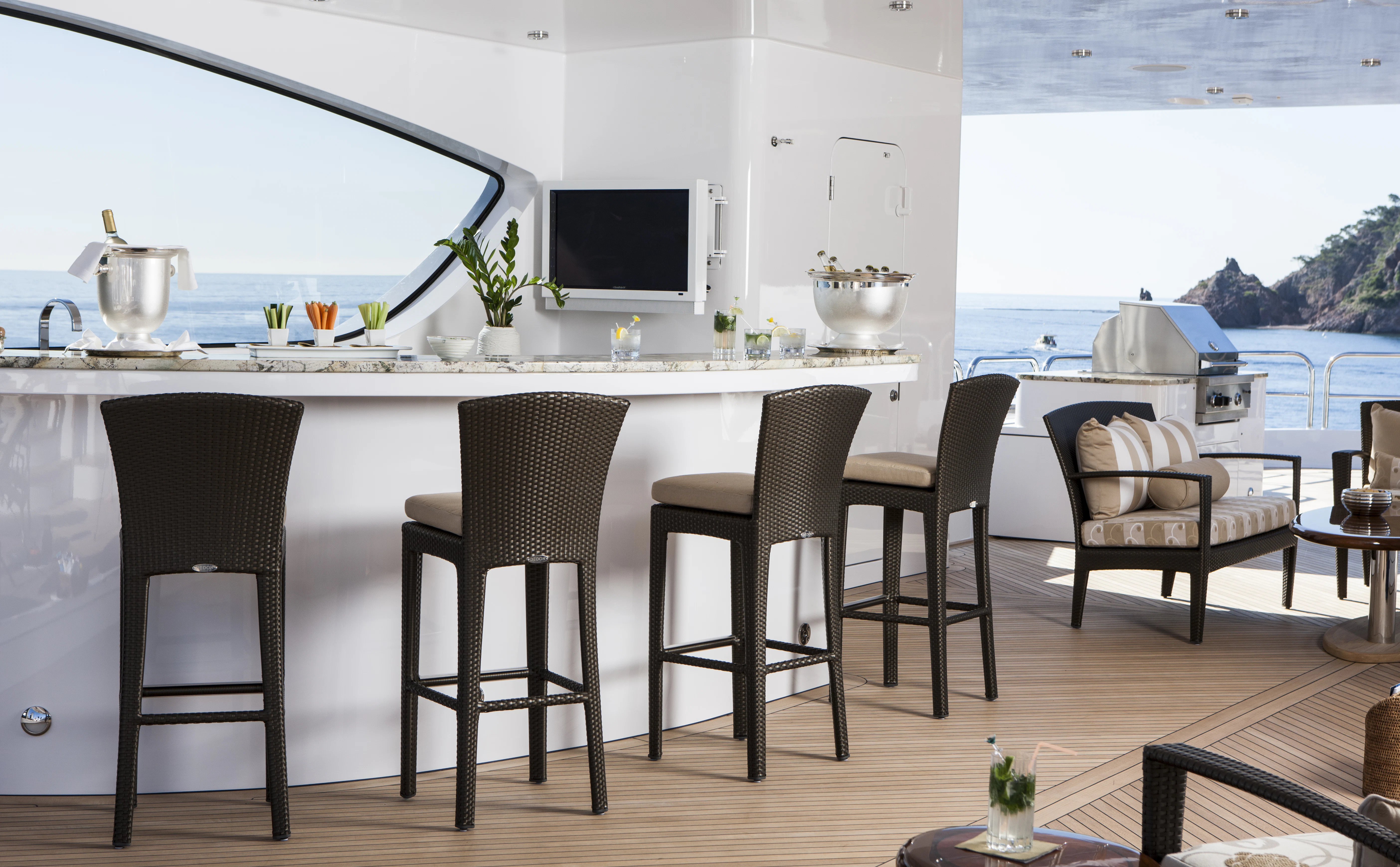

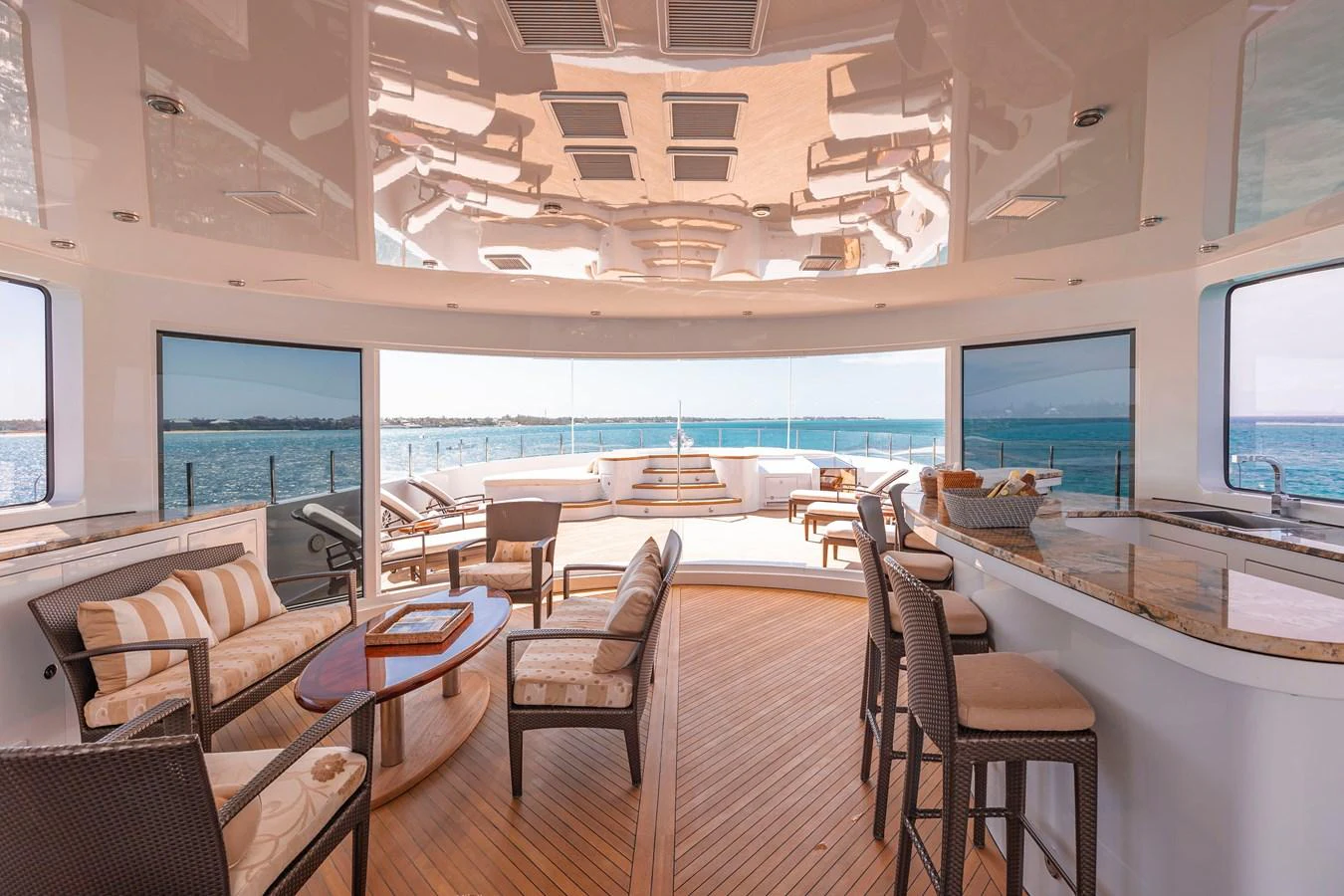

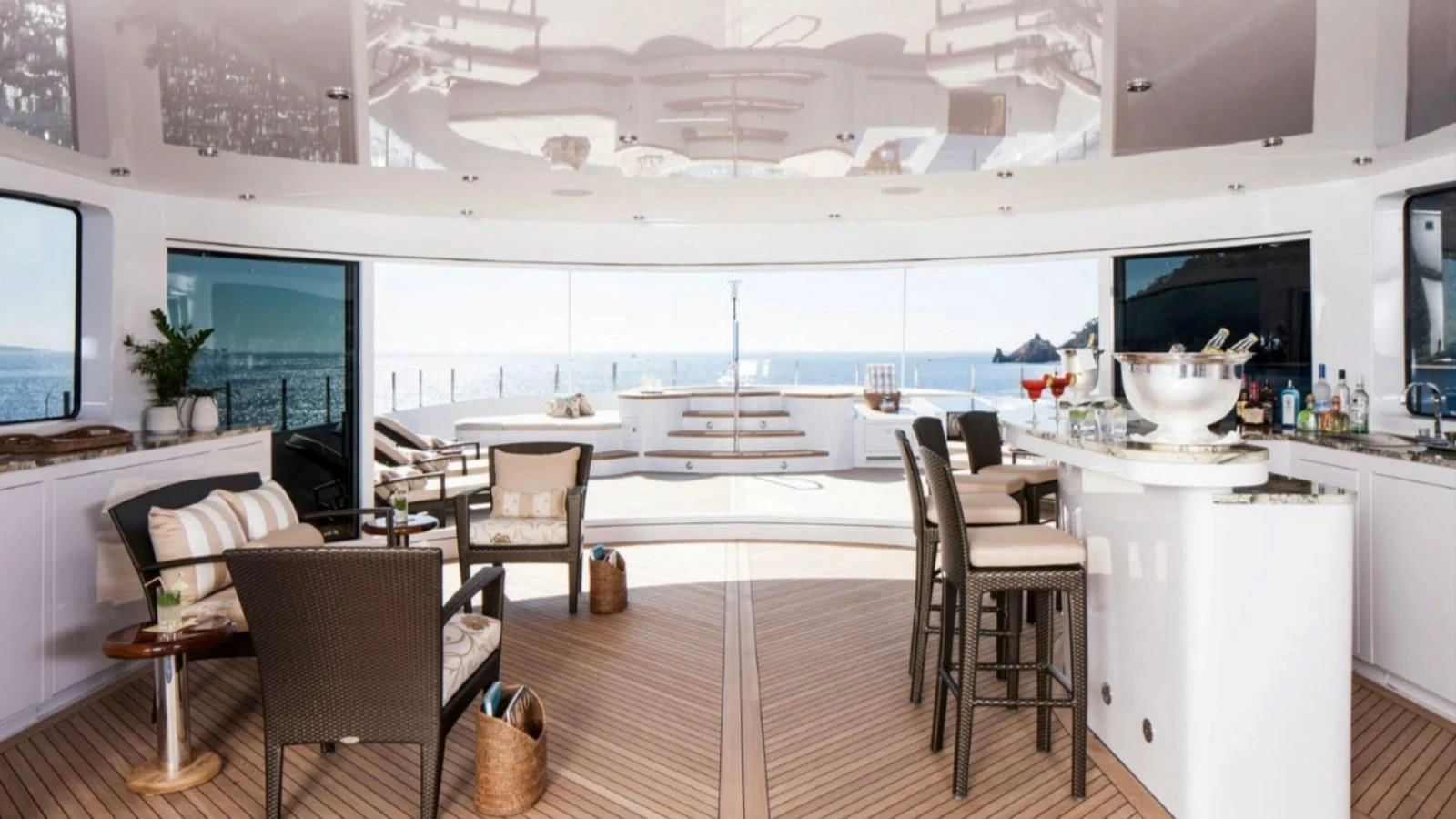

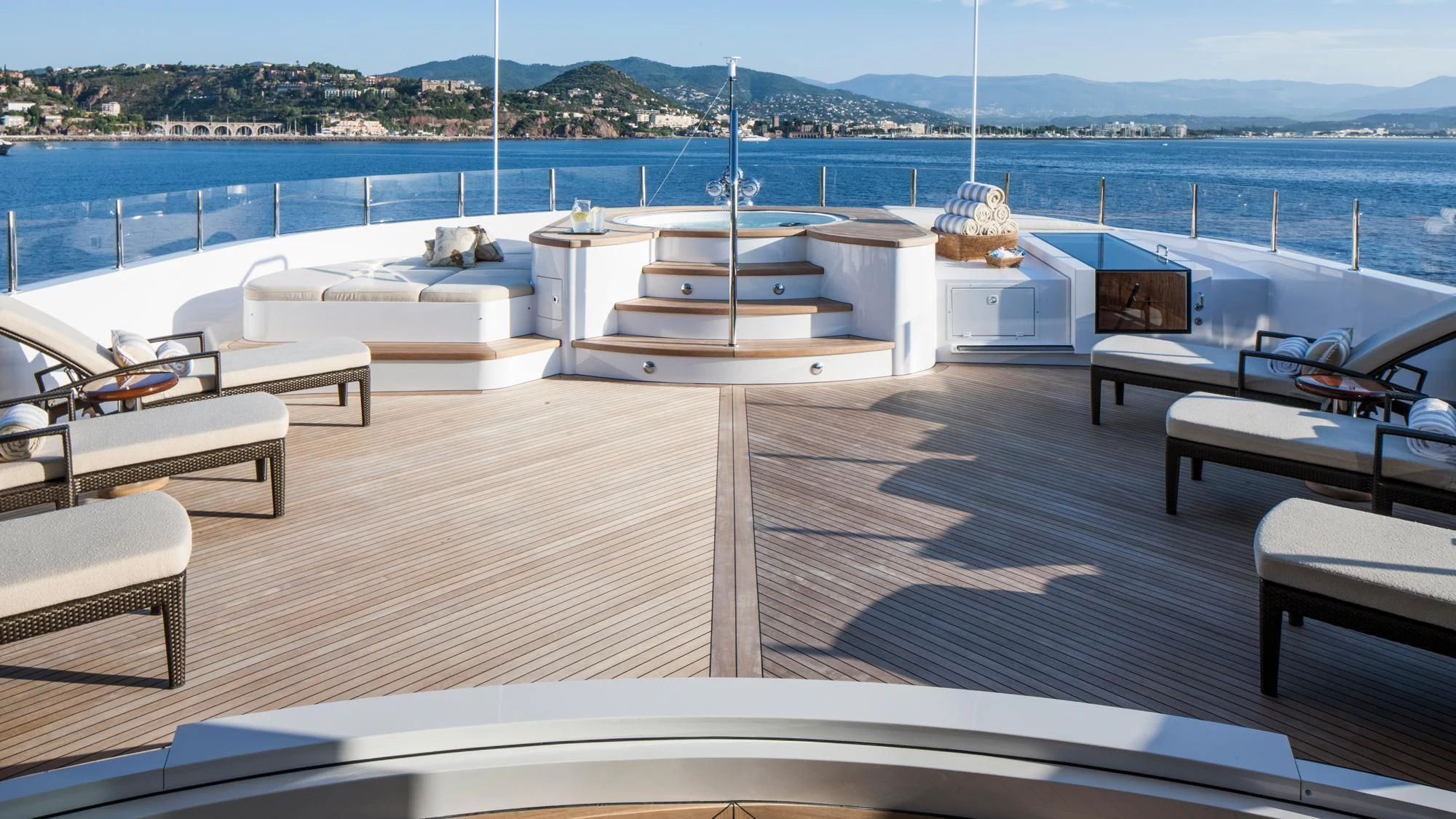

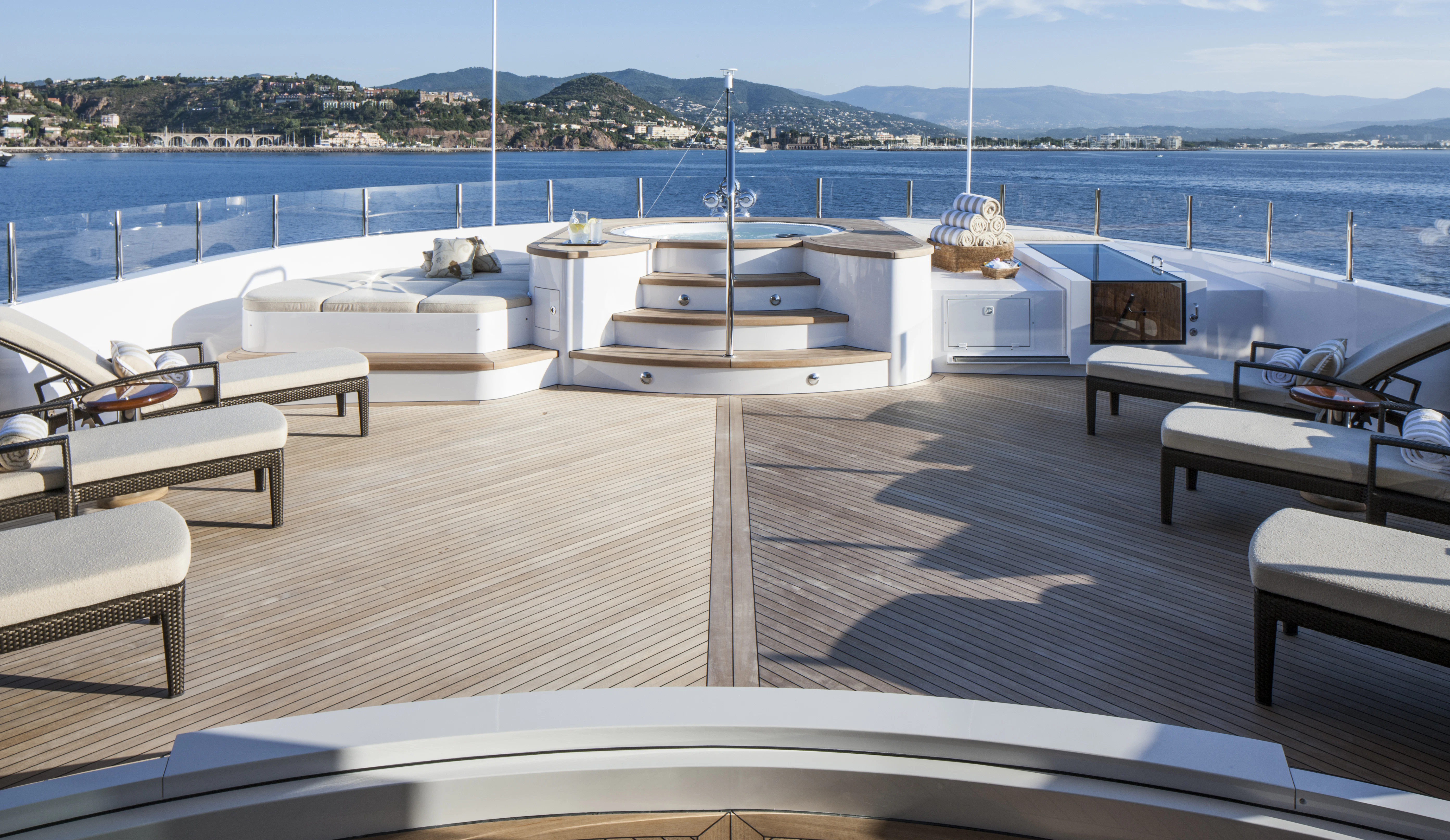

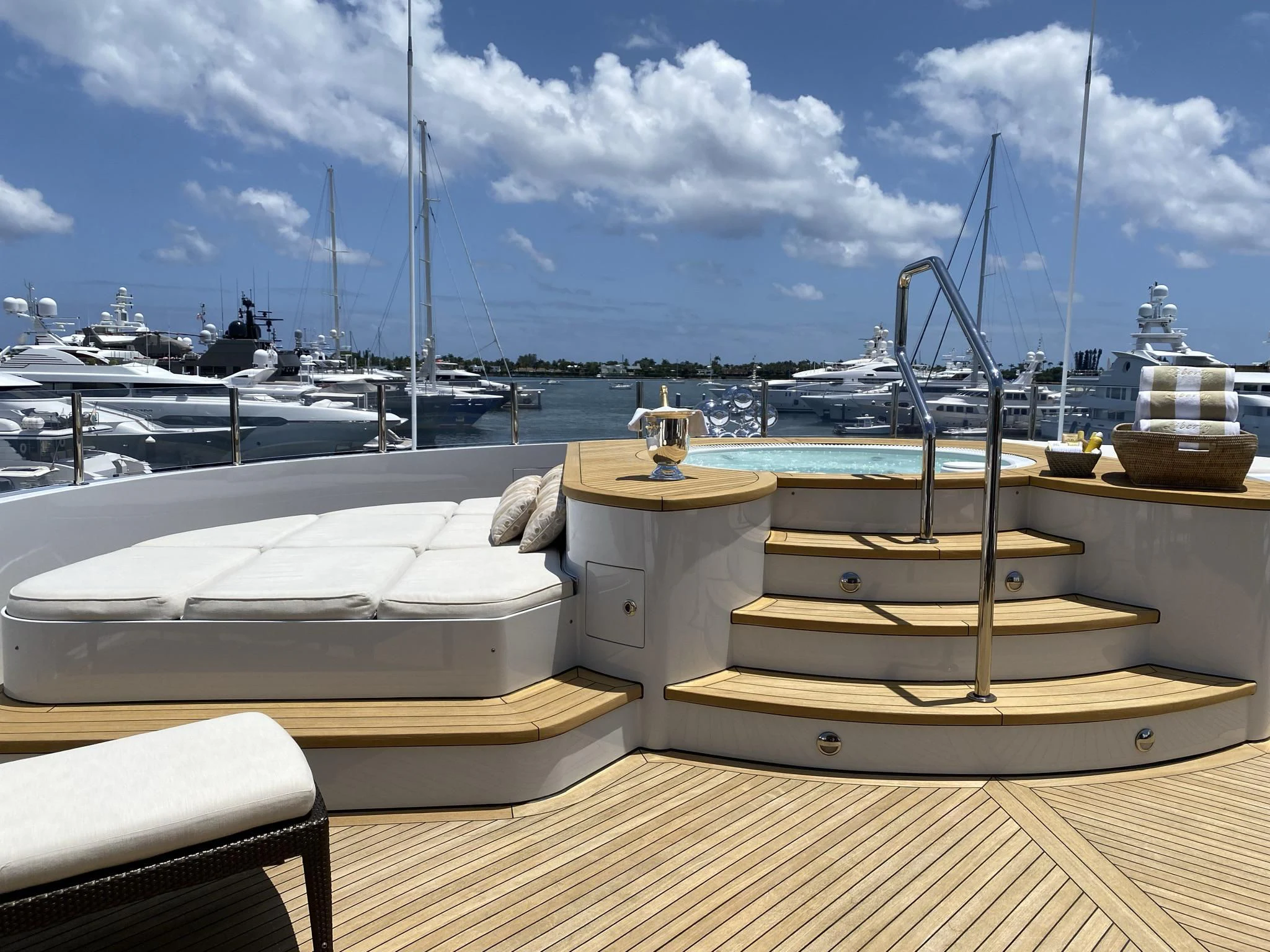

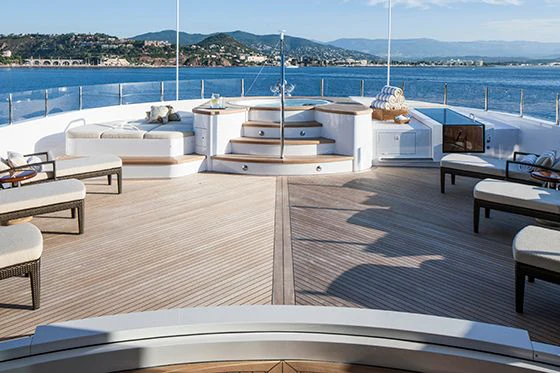

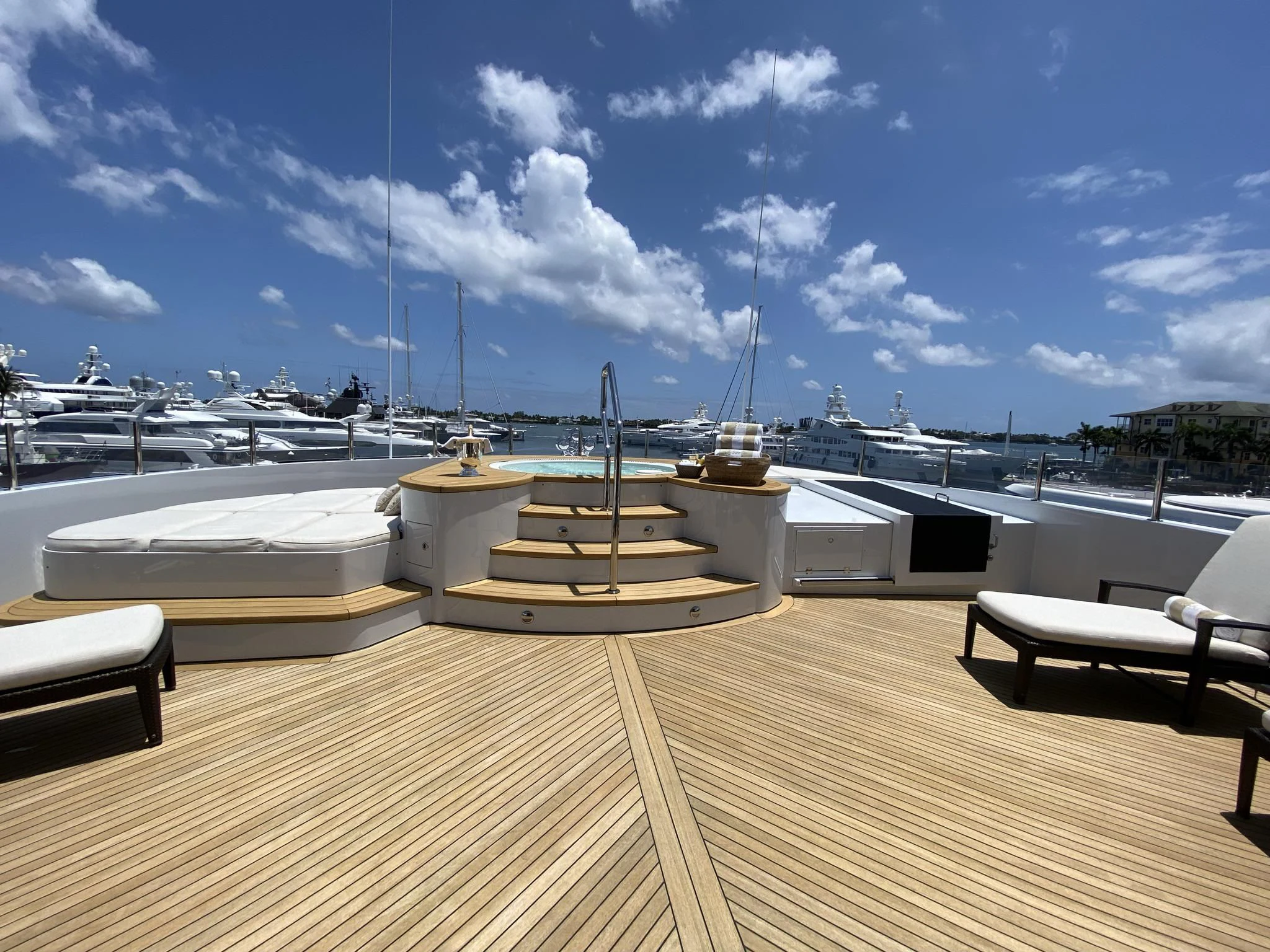

  • The sun deck is finished with teak decking. Forward section offers large Jacuzzi on center, to port is a sunbed and starboard are stairs which lead down to the bridge deck level. Further aft is a large open area with four chaise lounges. Next is a semi enclosed upper deck bar and lounge with fridge and ice maker, two large doors on forward portion can be opened or closed. In this area, under the hardtop to starboard, is an enclosed head and wash basin. Port side is the emergency generator. Aft of the bar is a Viking stainless steel liquid propane gas barbeque.

Deck Machinery & Equipment:

  • Anchors: 2 x David Talon 1,200 lb.
  • Anchor Chains: 630’ or 7 shots of 22.5 mm grade 3 U2 studlink
  • Anchor Windlass System: 2 x Muir model #VRC15000 18,000lb.
  • Aft Warping Capstans: 2 x Muir model #MVC8000 8,000lb.
  • Boat Crane/Davits: Nautical Structures model #MC1000-108-24V foredeck 1,000 lb. capacity
  • Nautical Structures EZ-6600-EX-172-258 SOLAS boat deck 6,600 lb. capacity
  • Passarelle: Marquipt electro hydraulic passerelle model AGPH-X0000 22’ with 30o rotation
  • Searchlights: 1 x Carlisle & Finch
  • 2 x ACR model #RCL600 remote searchlights
  • Horn: Kahlenberg model #F3
  • Fore and aft hailer horns
  • Jacuzzi: 6-person Jacuzzi
  • Paint Exterior: Awlgrip Matterhorn White (polyester urethane) paint with black and silver boot stripe with charcoal gray window bands.
  • Paint Interior: Full gloss
  • Paint Underwater: Seahawk Biocop Black

Refit History

  • Full paint job in 2020 (Luu Marine)
  • Main Engines rebuilt in 2018 (zero hour rebuild)
  • Generators replaced in April 2022
  • 10 year completed in January 2022
  • Complete AV/IT refit, including hardware and distribution, in 2019
