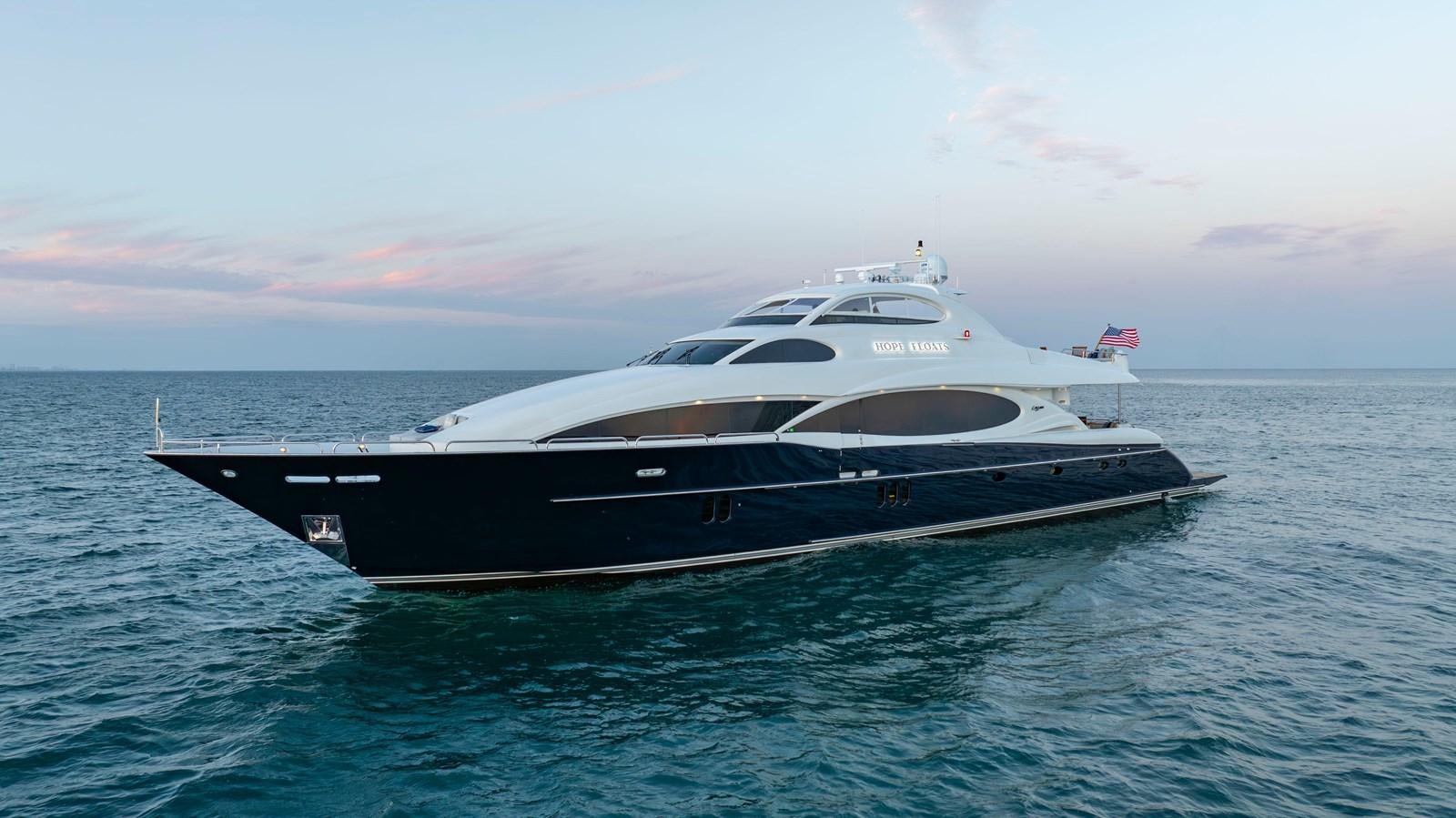

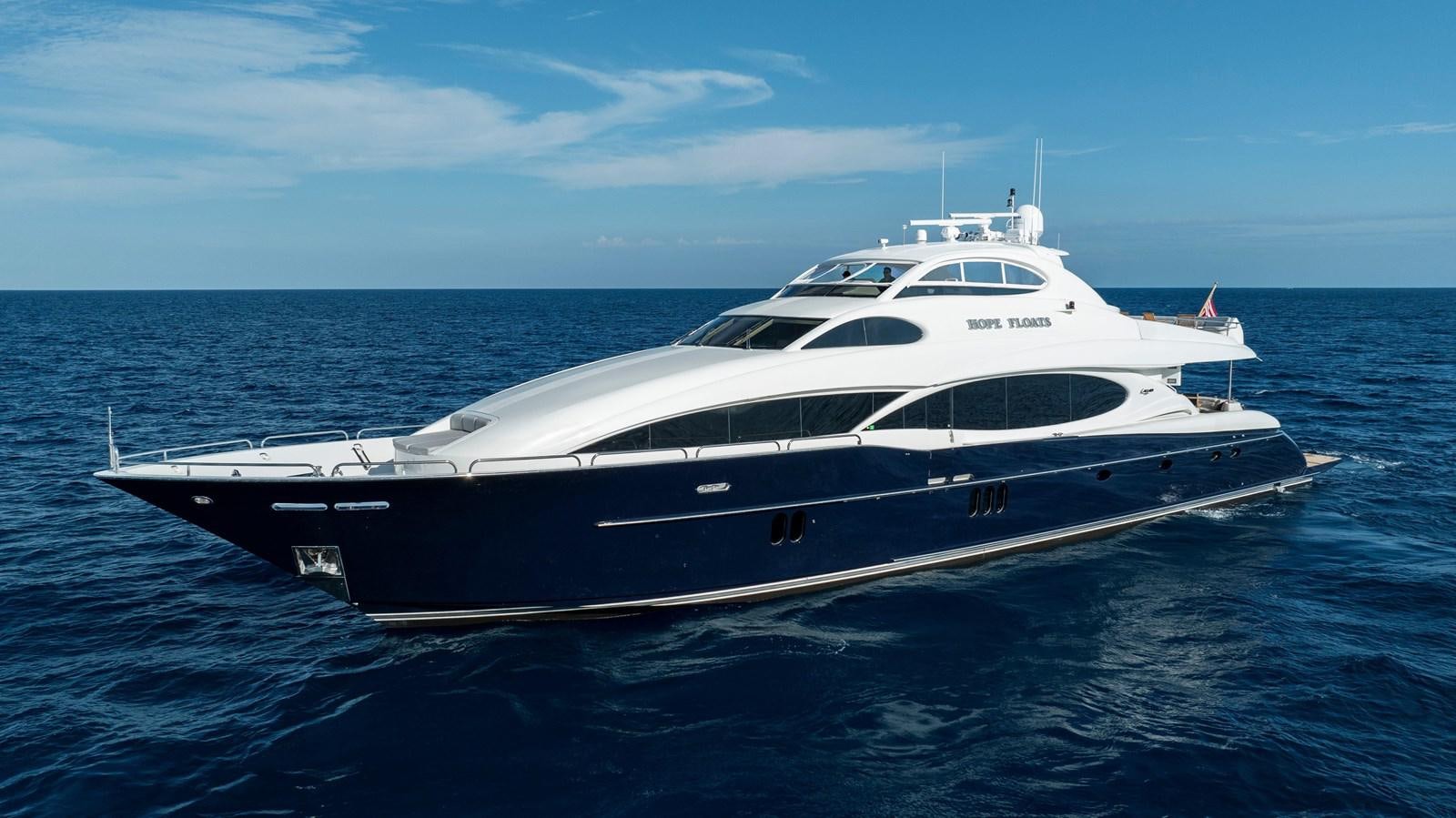

LAZZARA 116 OPEN BRIDGE Yacht for Sale

ALL TRADES WELCOME

EXTENSIVELY SERVICED RECENTLY |  BEST DEAL IN ITS CLASS

Our trade, heavily serviced & upgraded, ready to cruise!

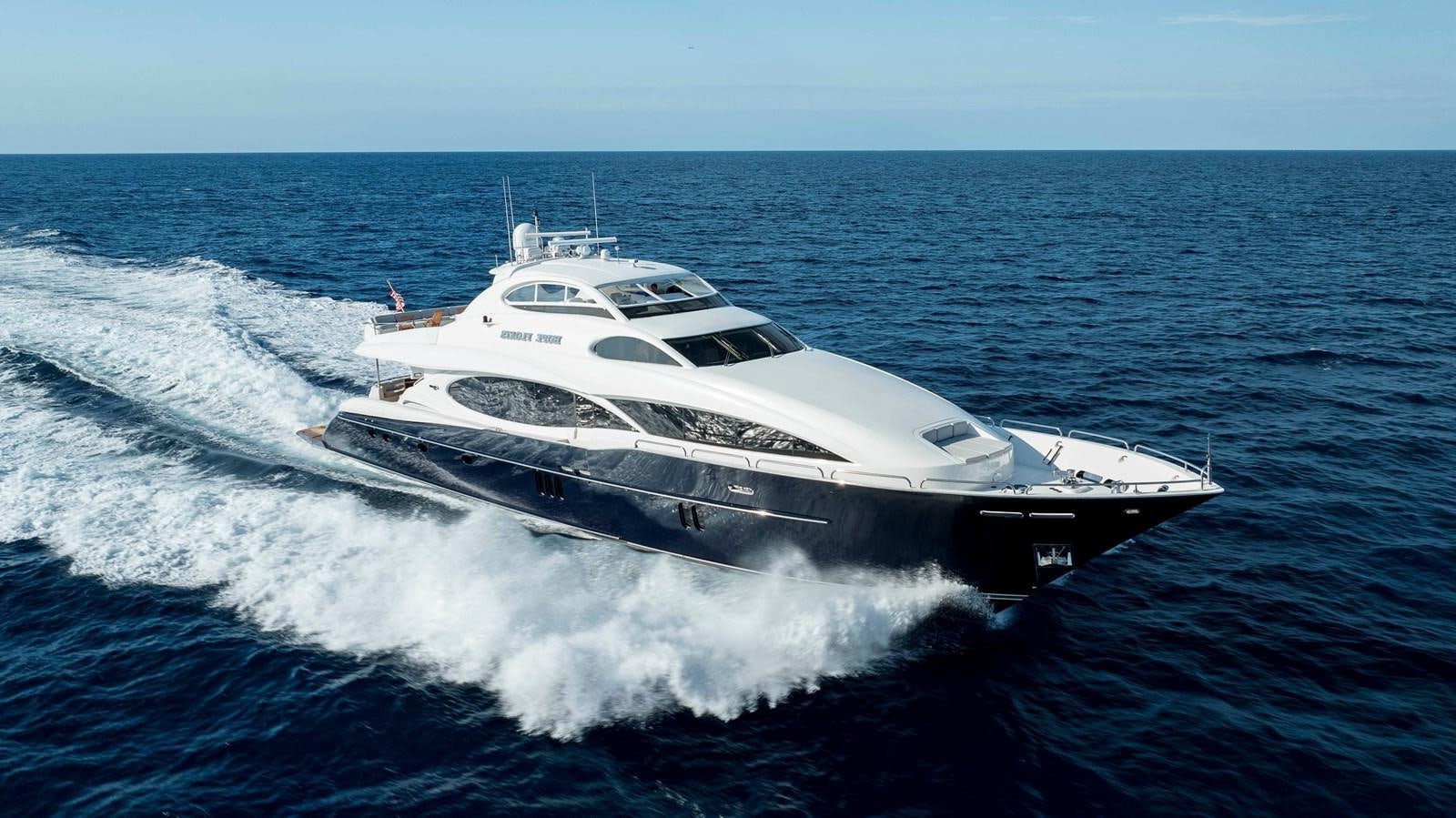

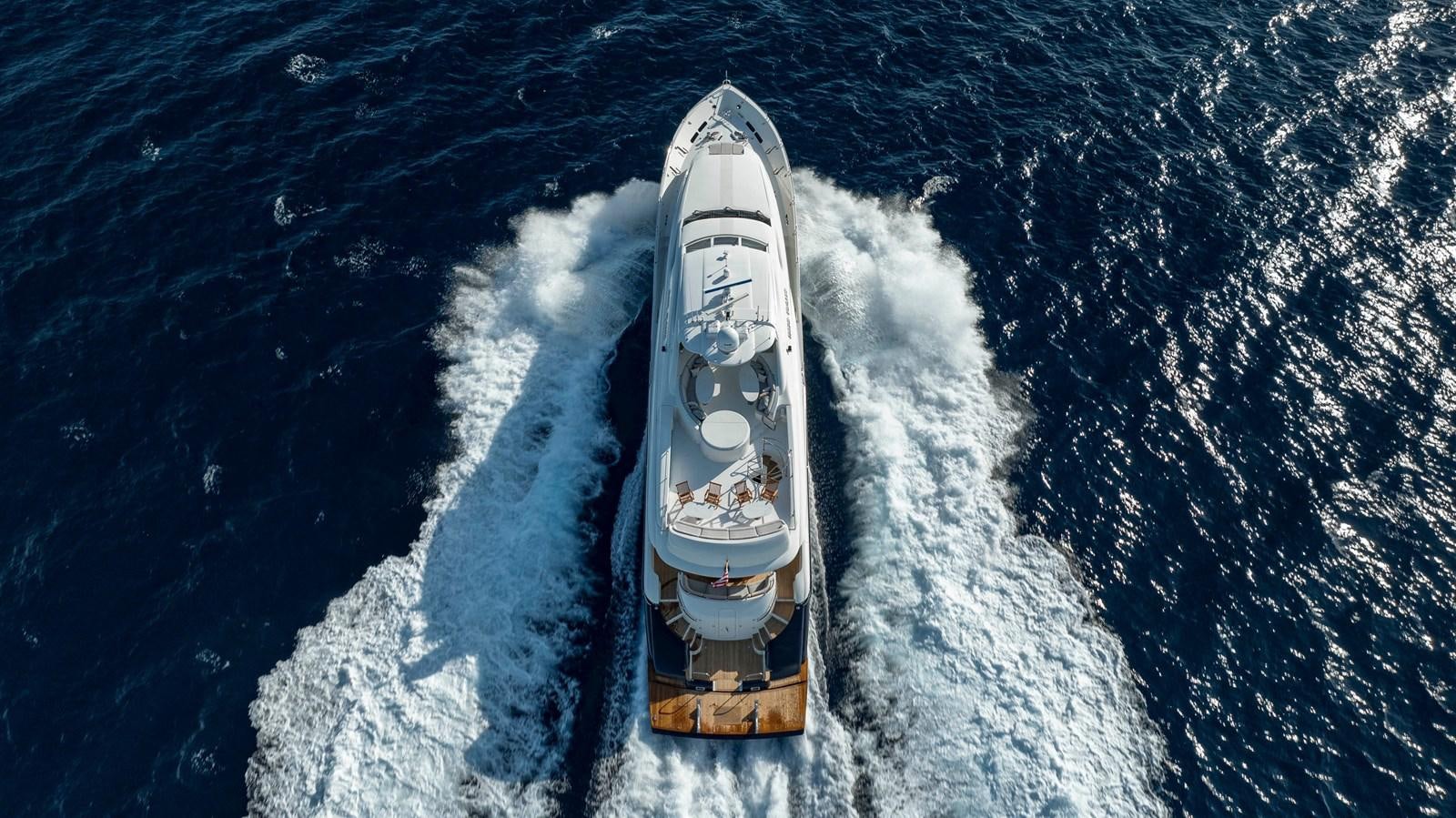

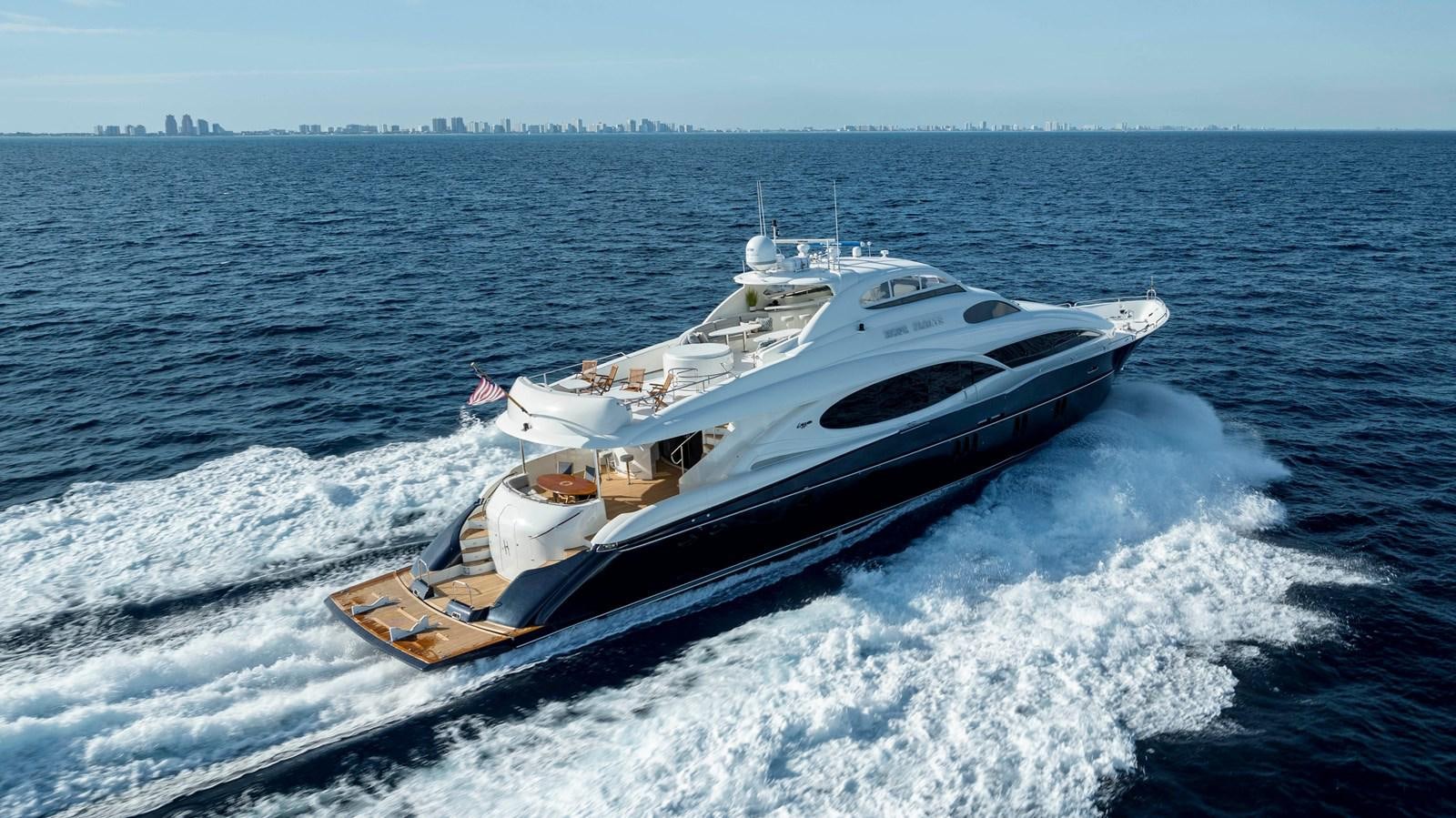

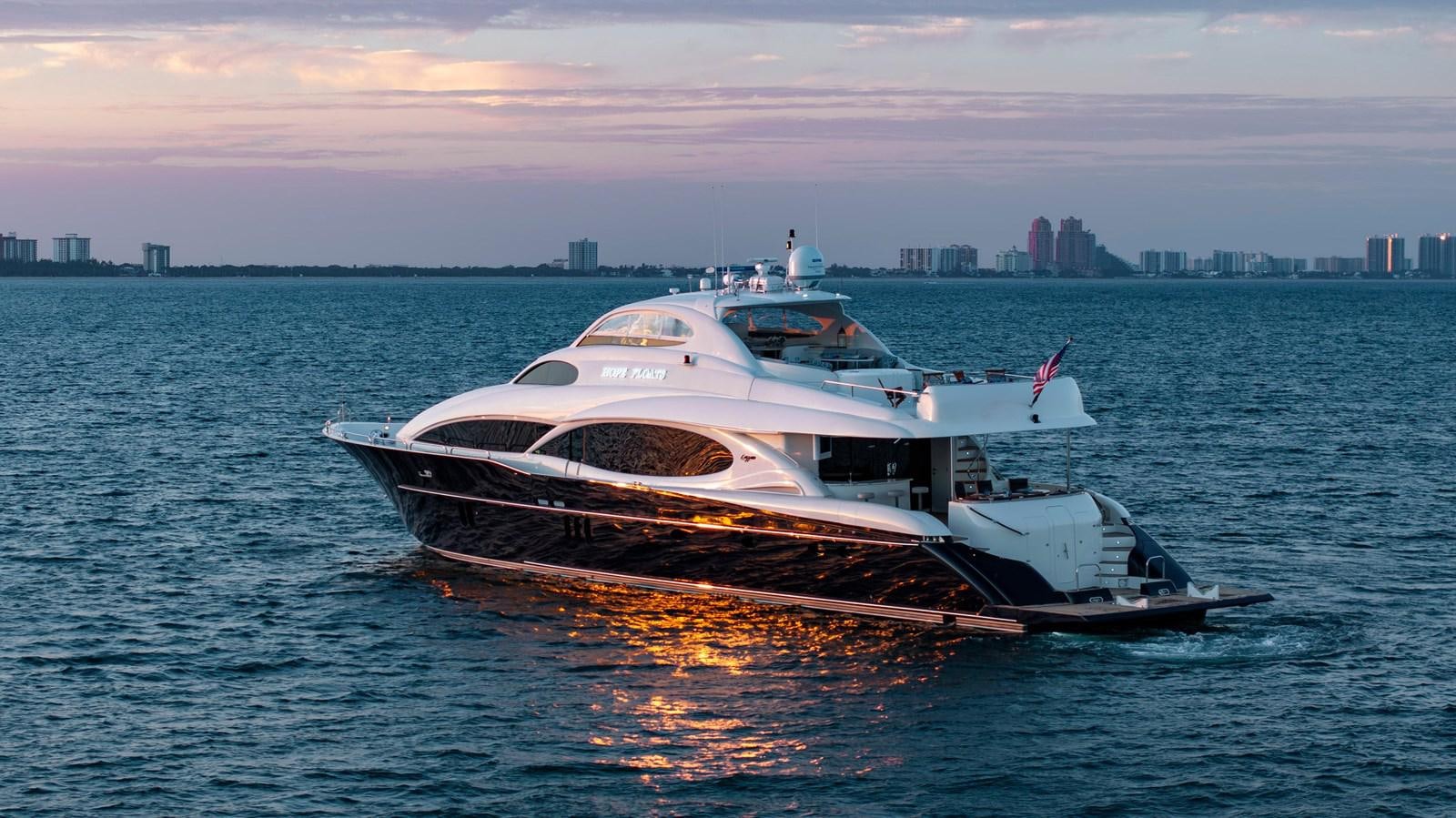

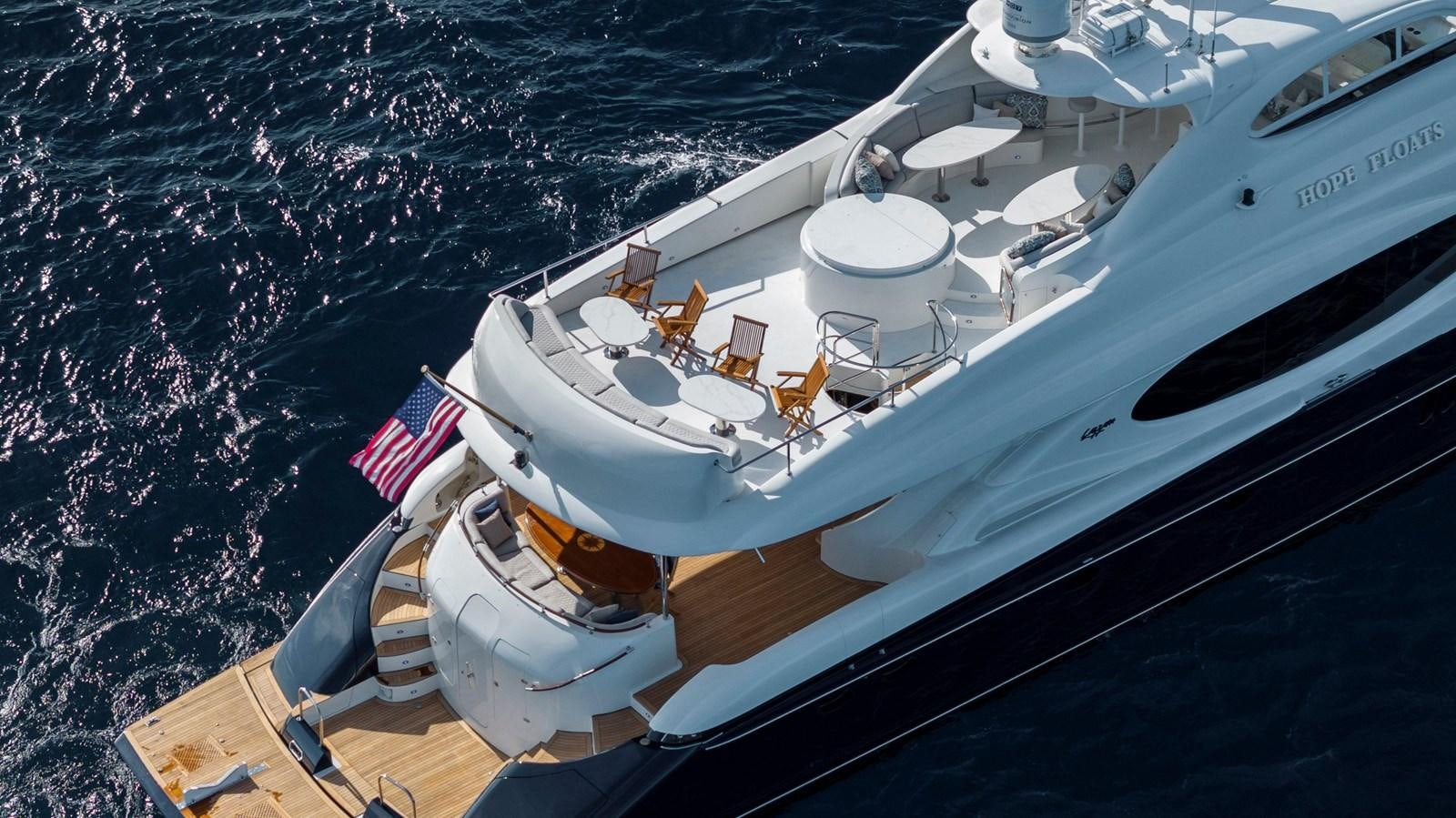

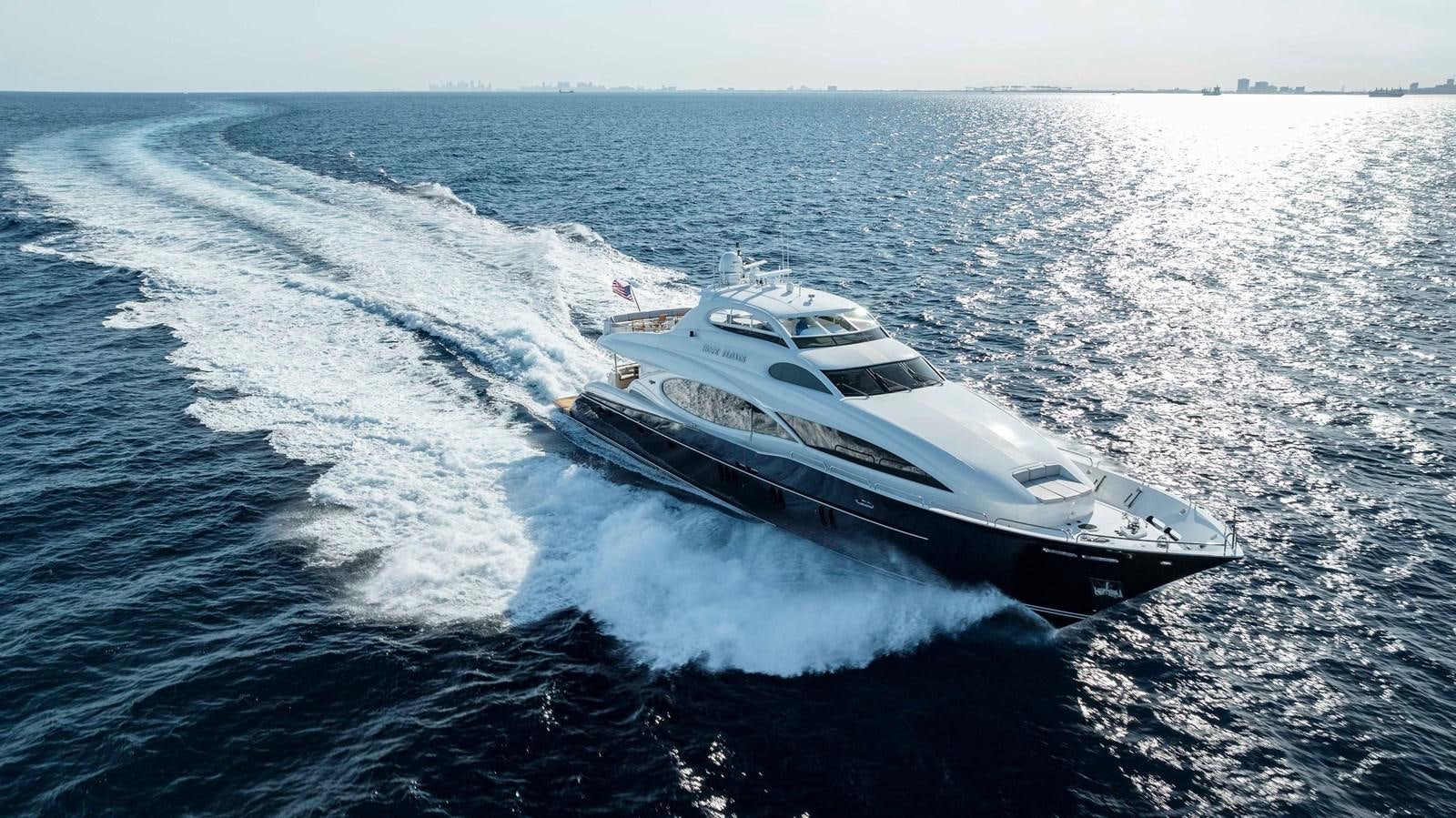

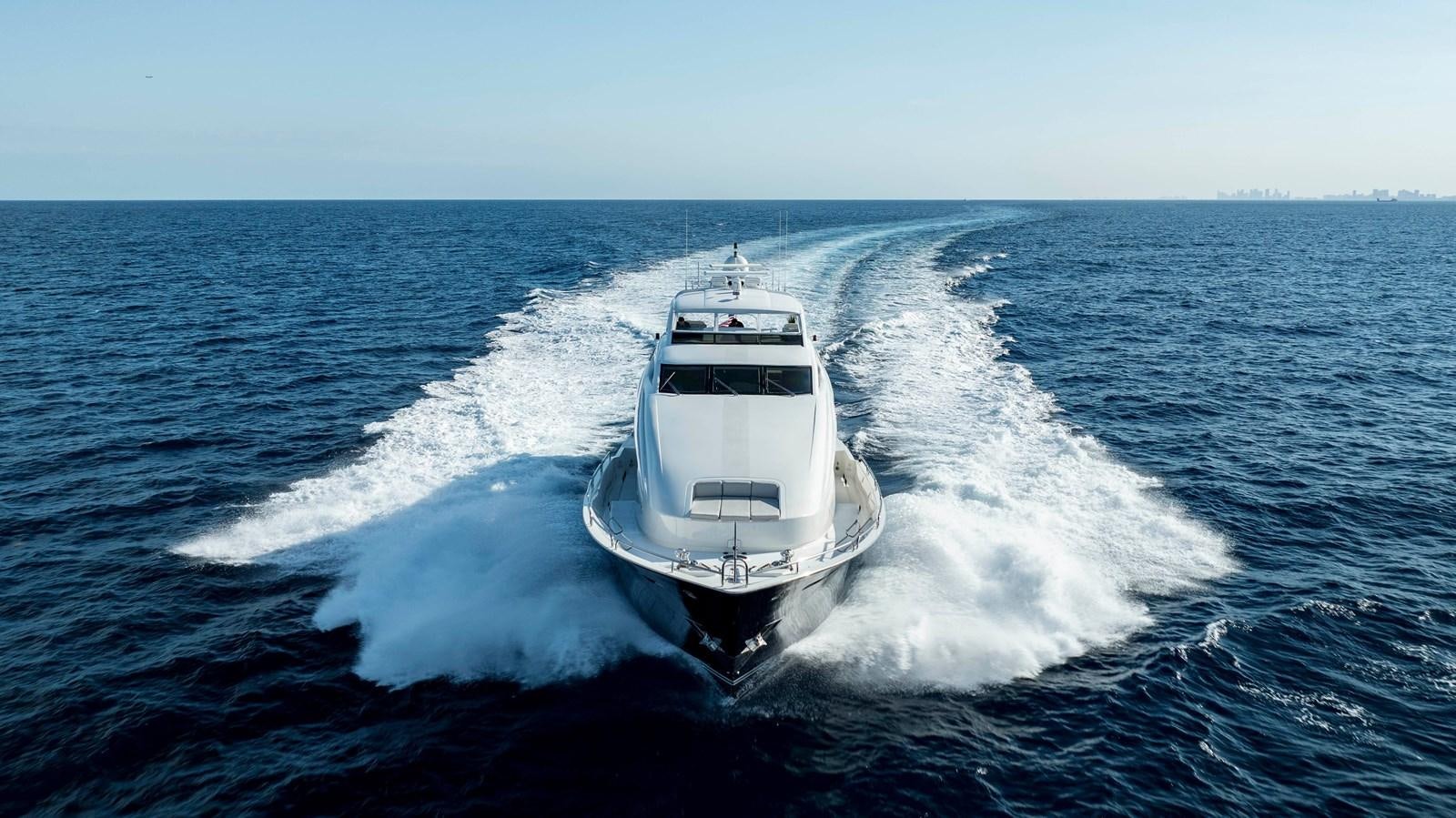

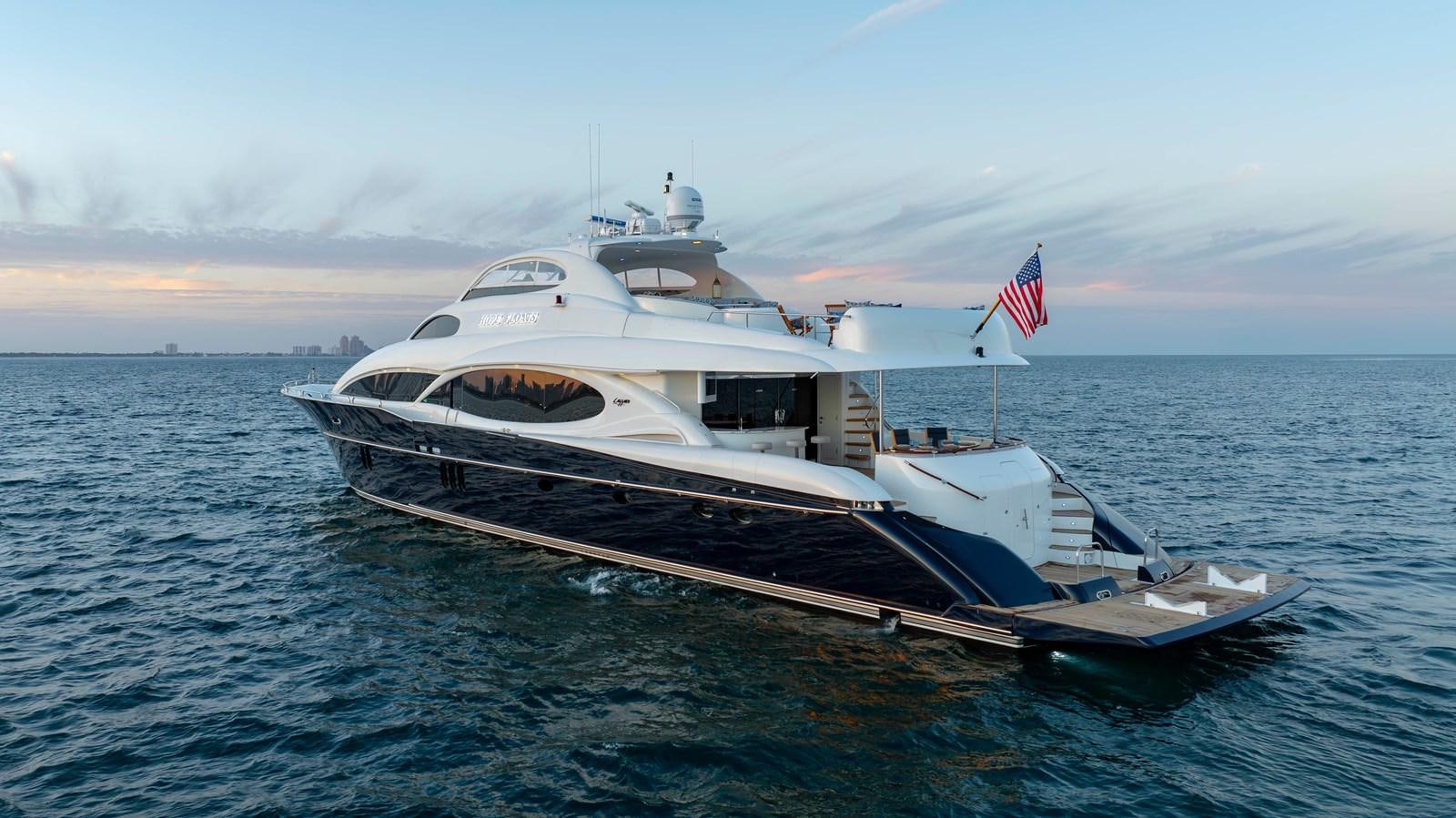

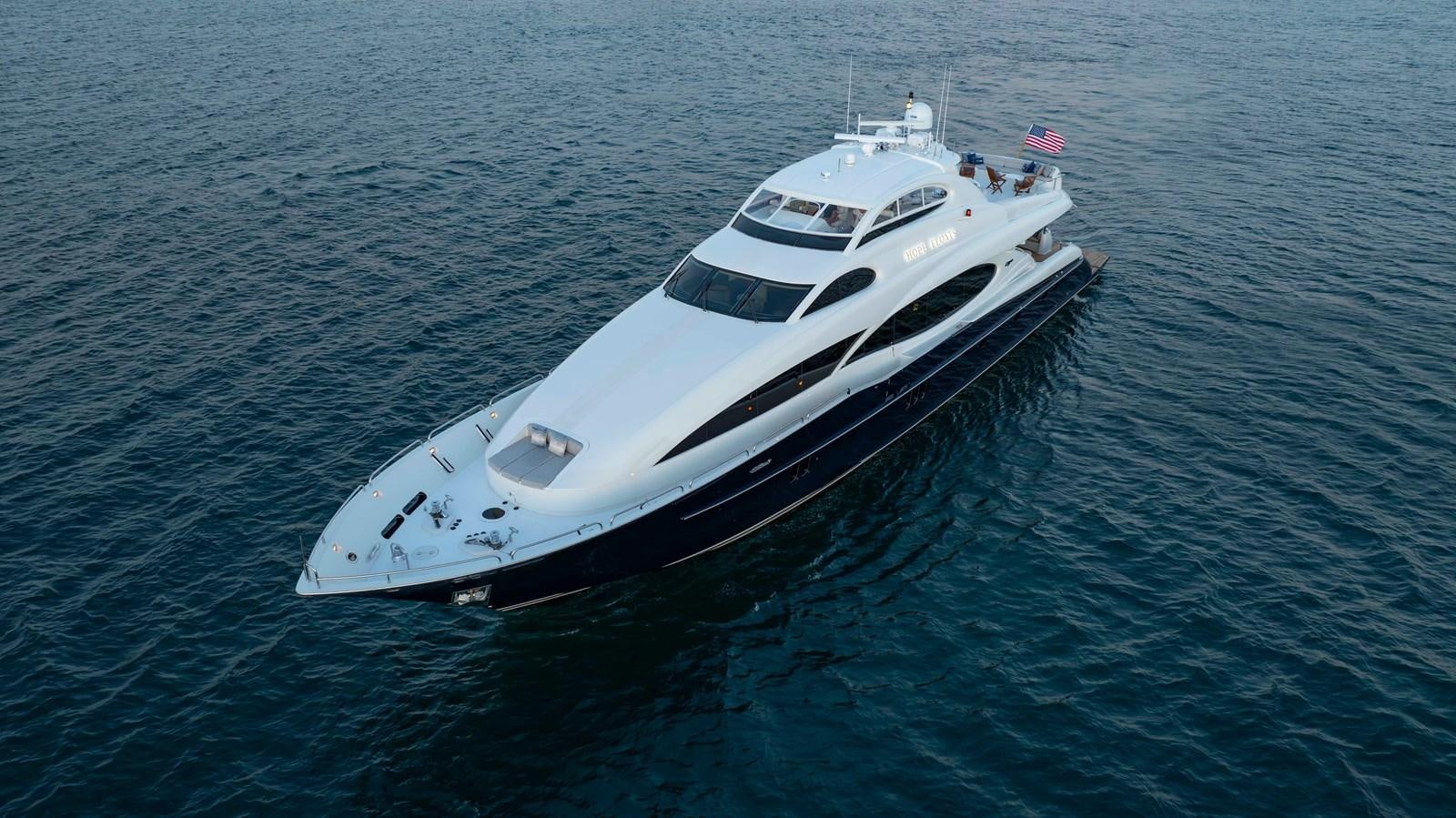

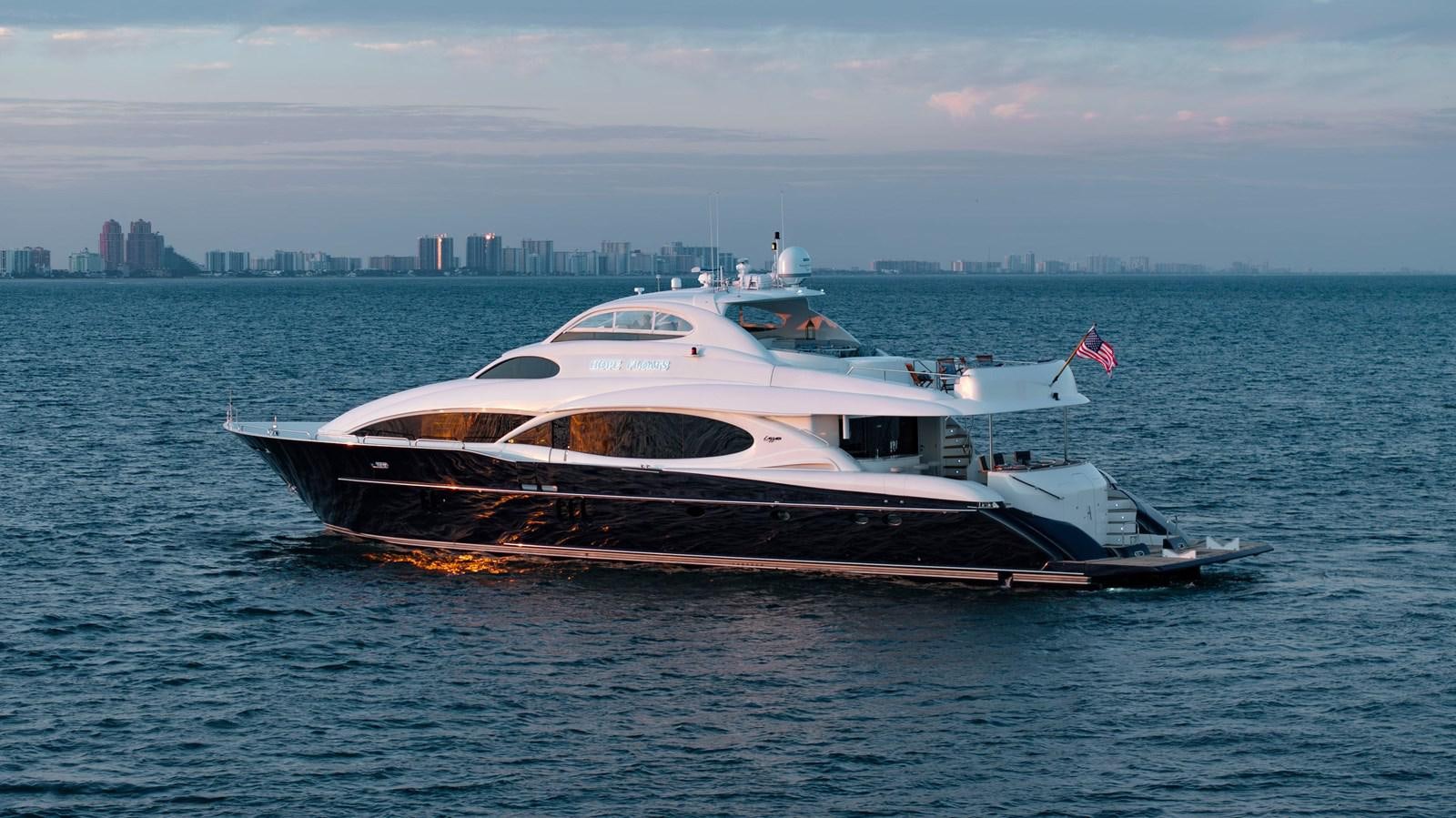

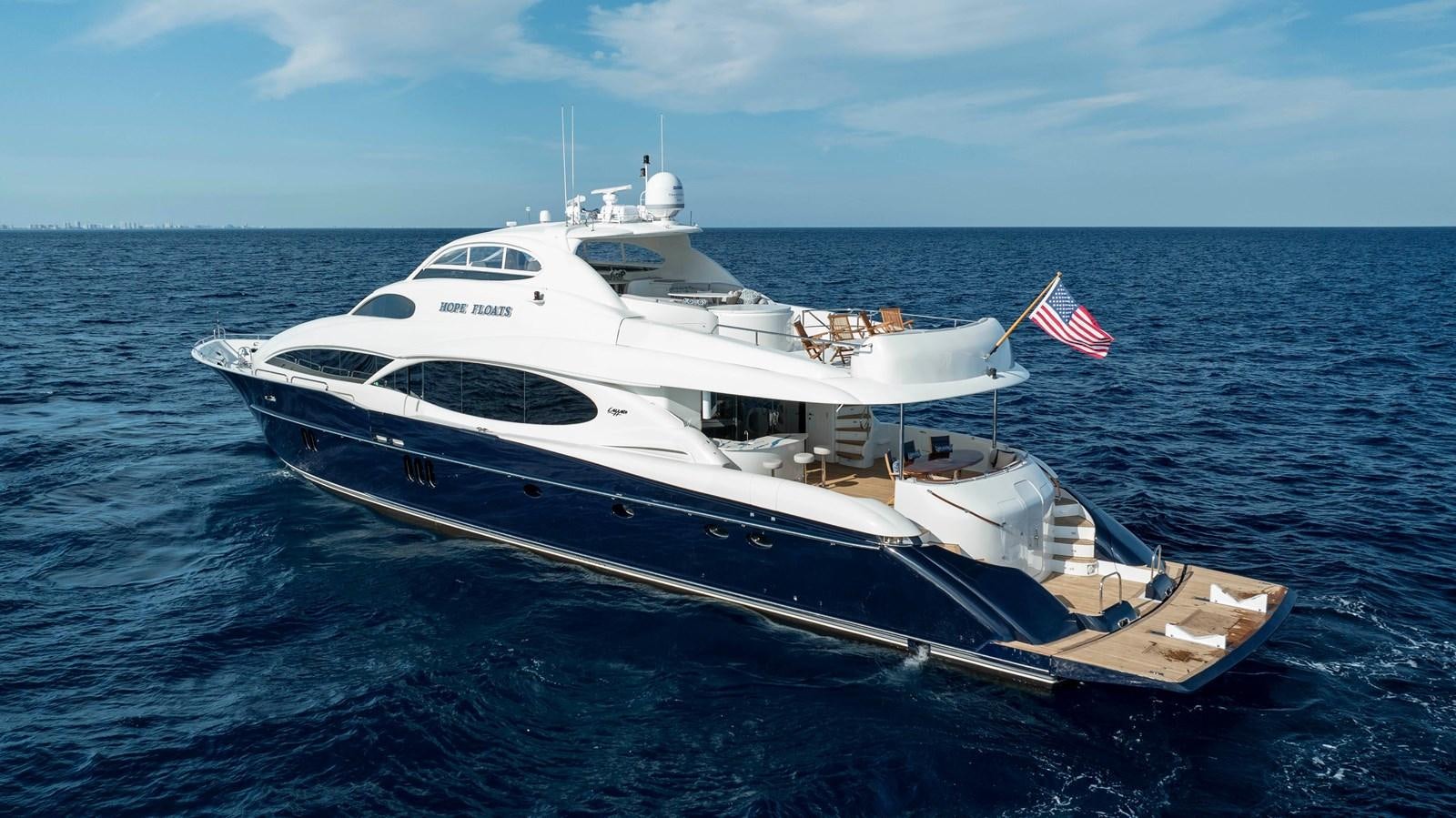

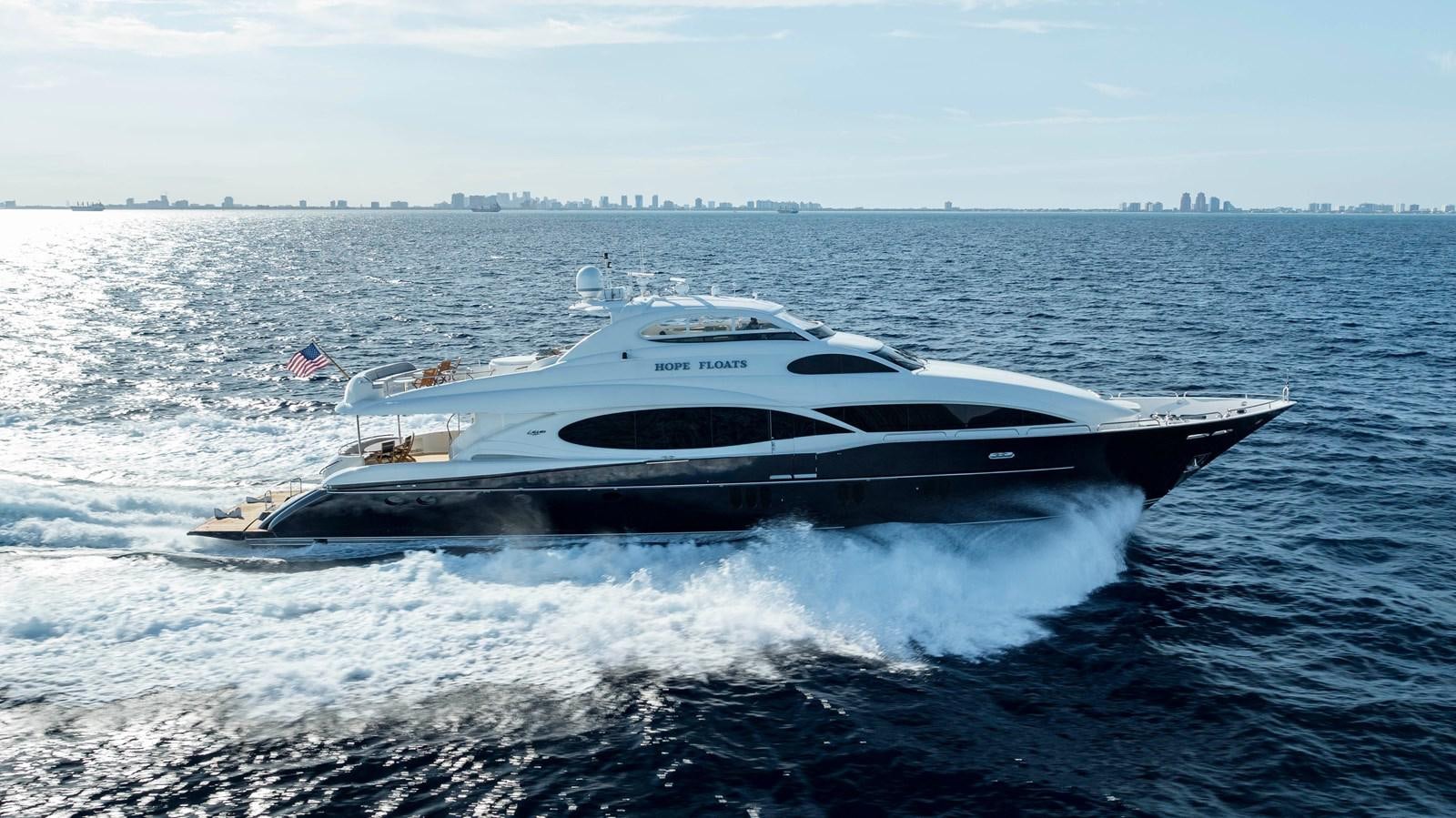

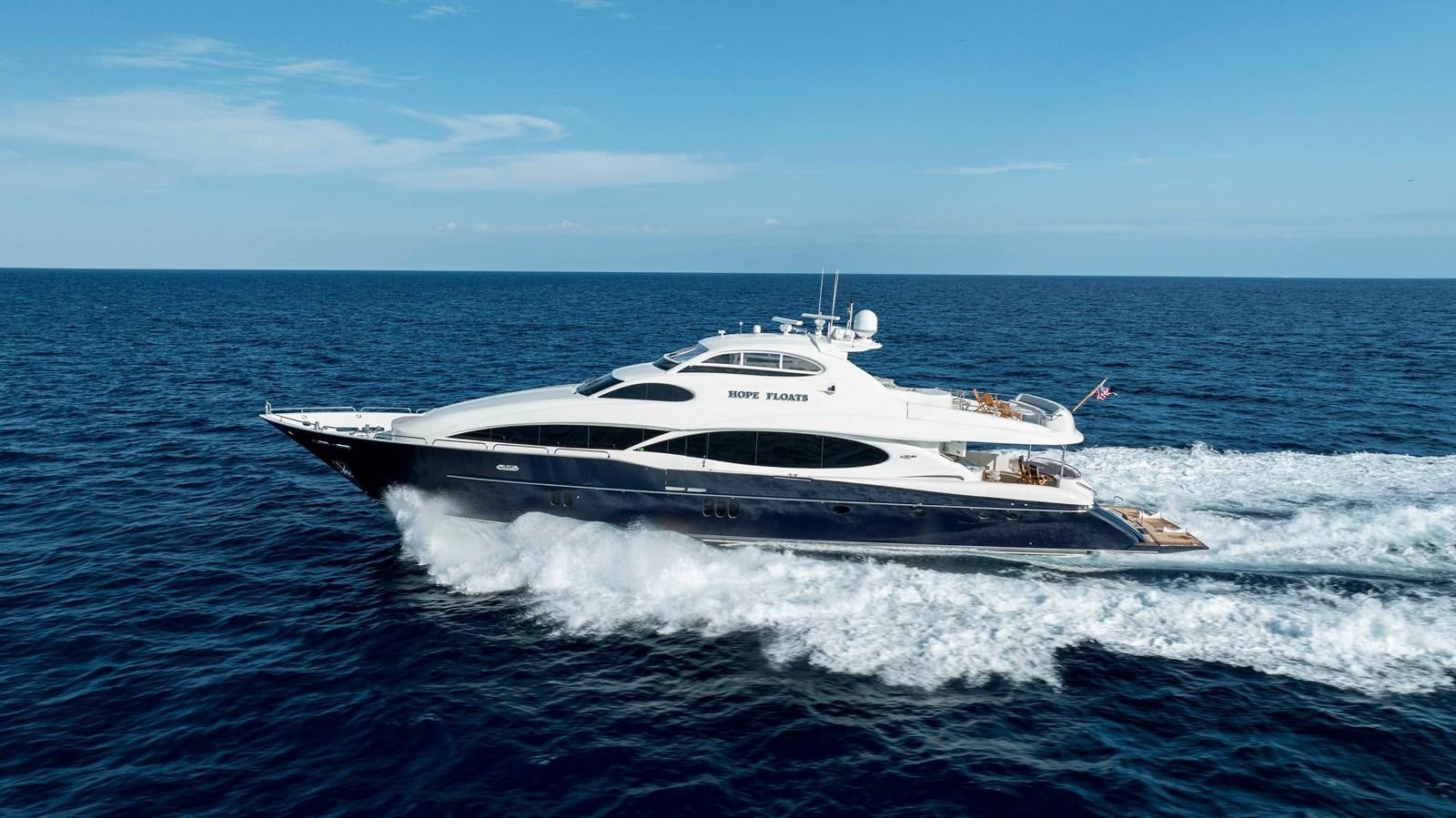

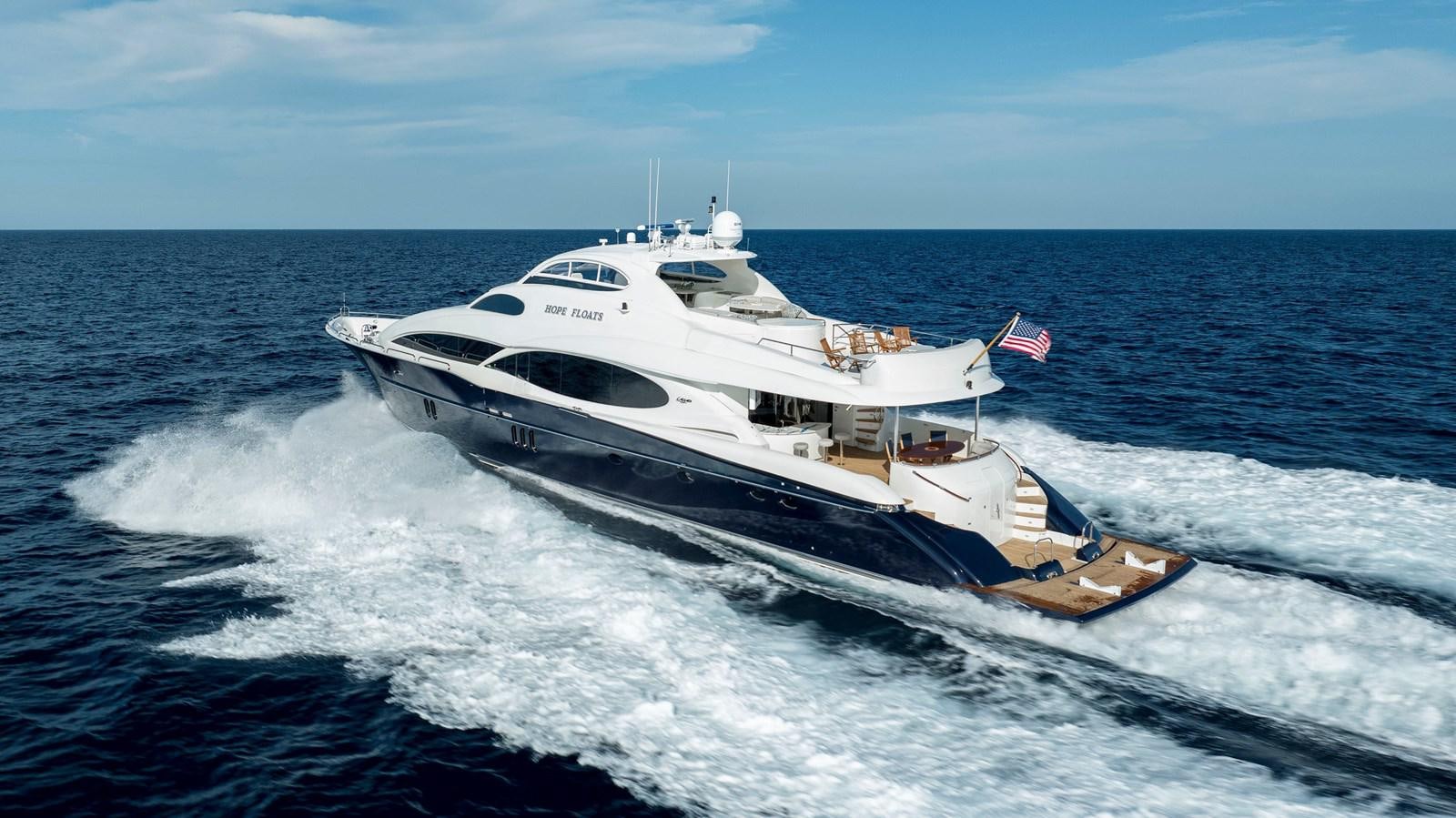

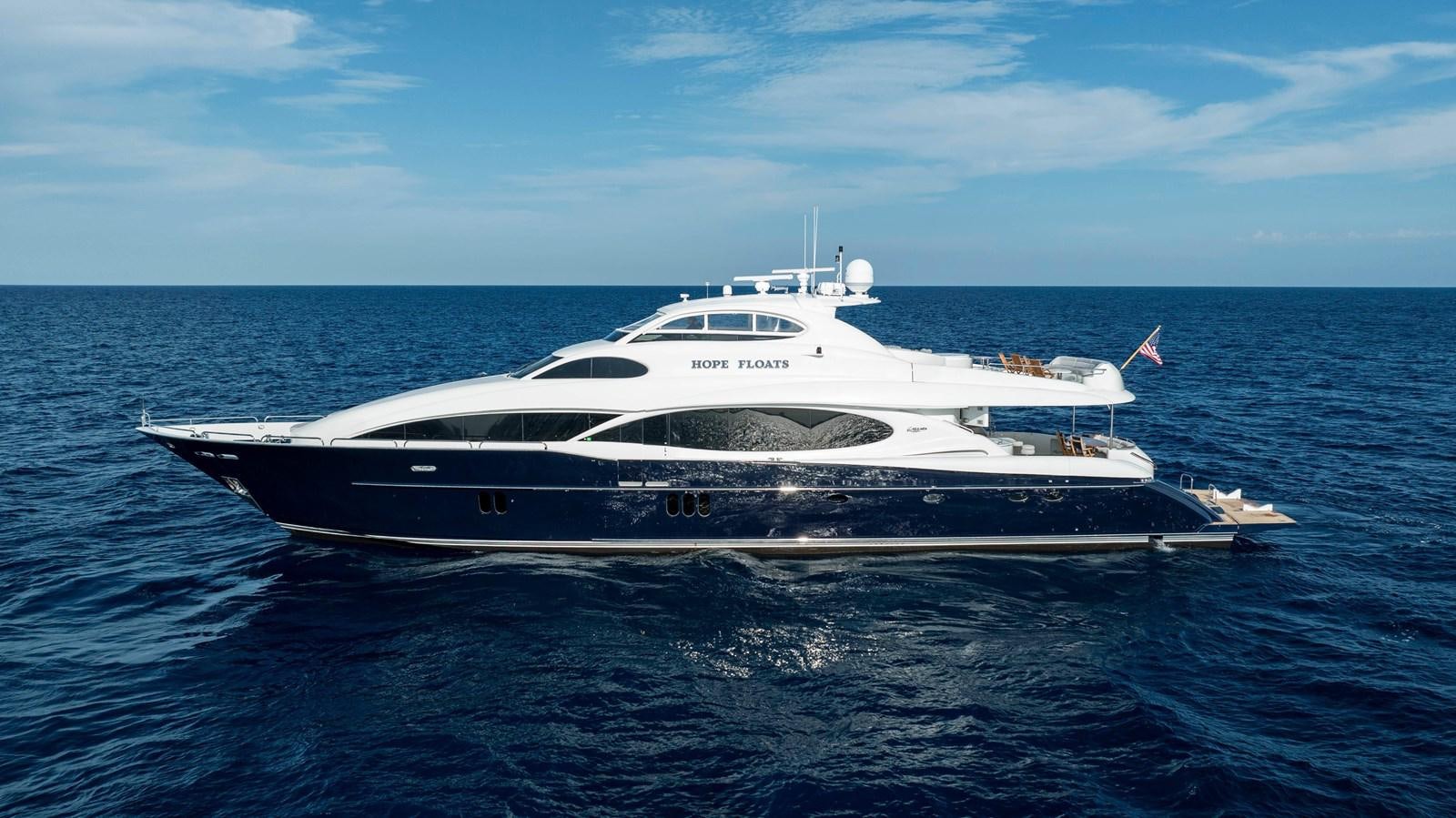

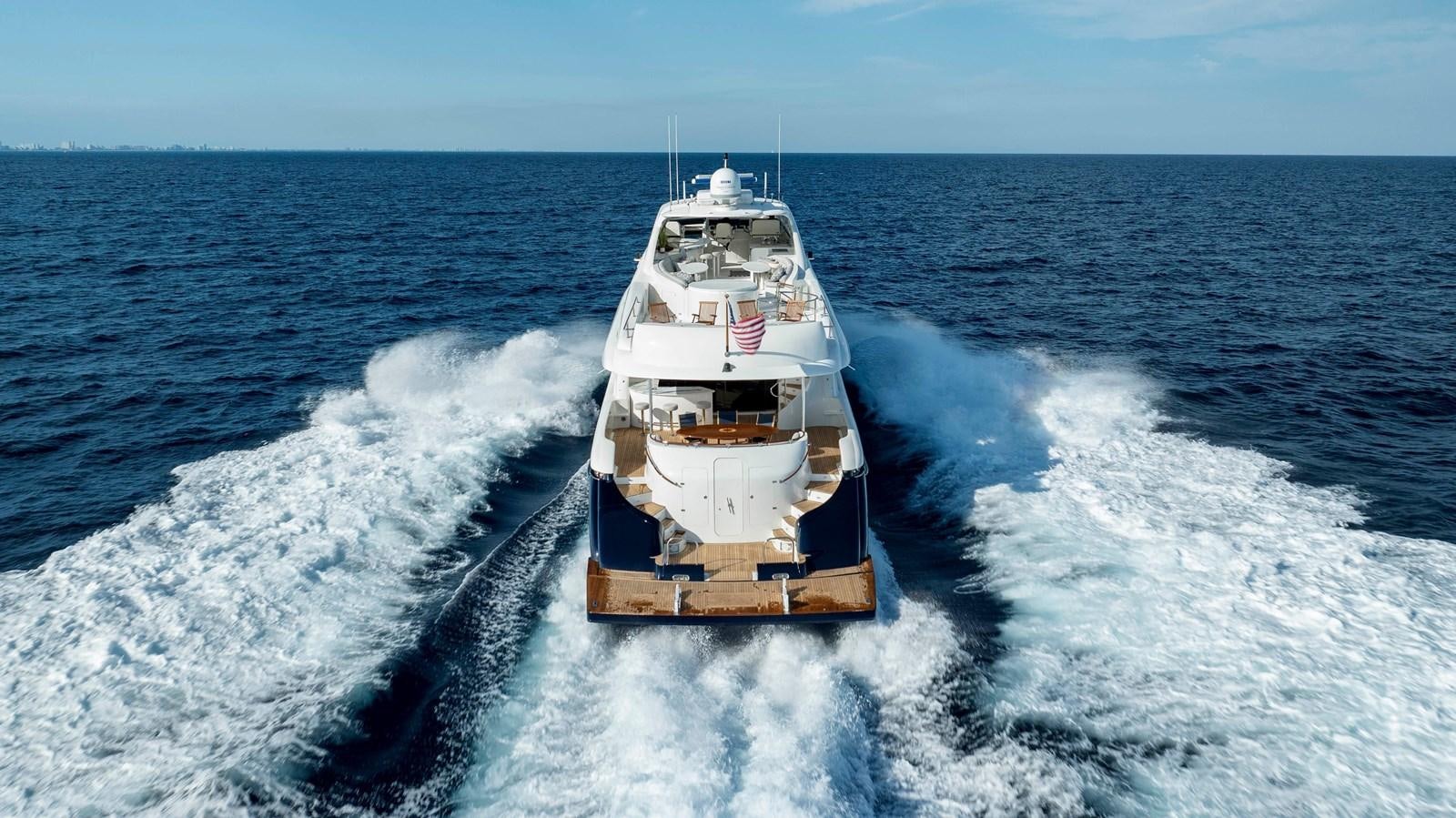

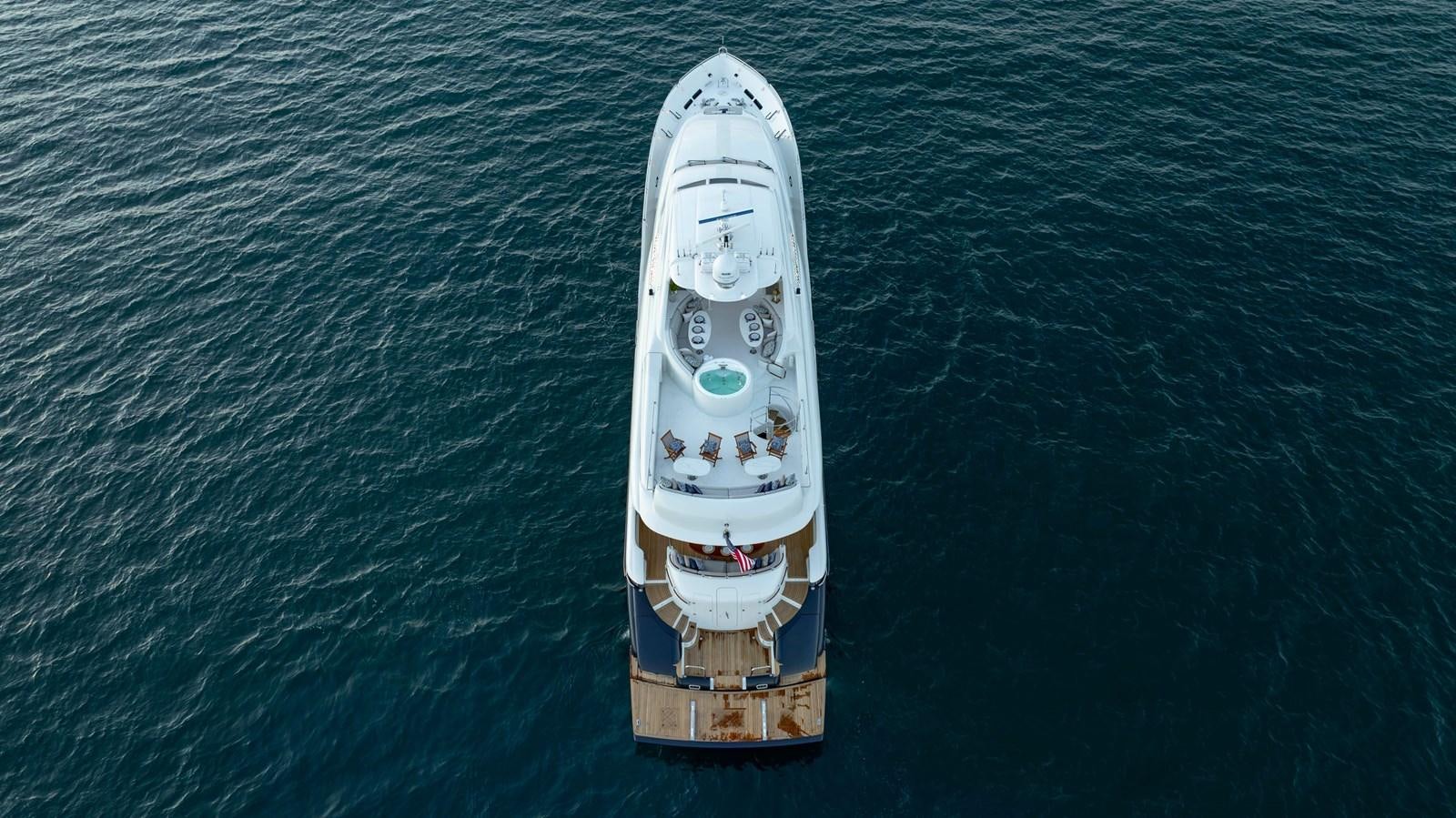

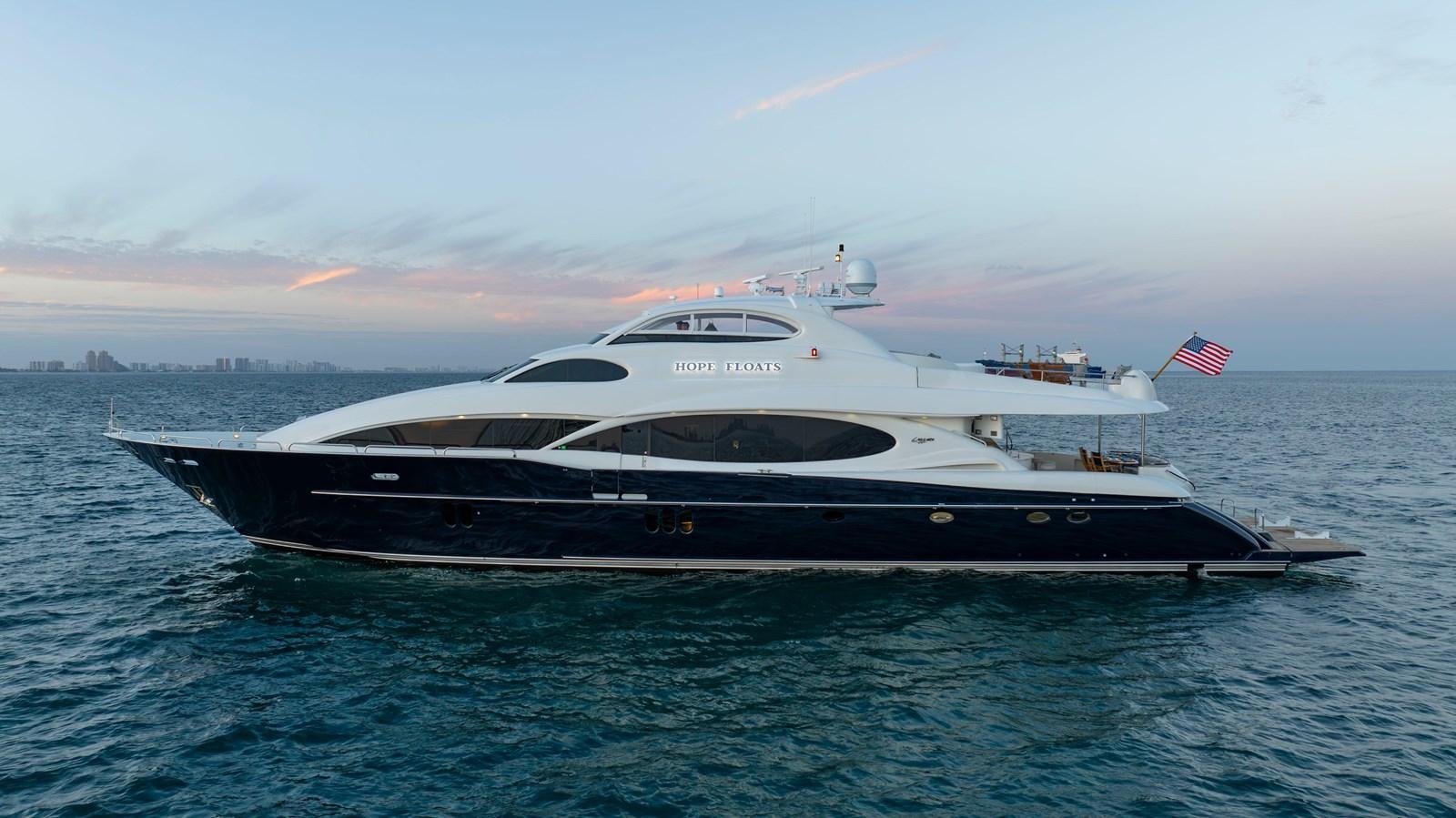

This one-of-a-kind 110’ Lazzara (116' w/ hydraulic platform), built in 2007, carries onboard all of the amenities one can expect from a yacht of her size, as well as many custom upgrades.

Different from other Lazzaras of this size and age range in that the master office space has been converted into a fifth stateroom, allowing room for additional friends or family. She can comfortably carry 10 guests, with the option for 12 via pullman bunks in the fifth stateroom. The crew area has also been modified to accommodate up to 5 crew, meaning the level of service onboard will be top-notch.

Don't miss out on this deal, our trade!  Lock up one of the years best now!

DELIVERY AVAILABLE | FINANCING AVAILABLE

Deck

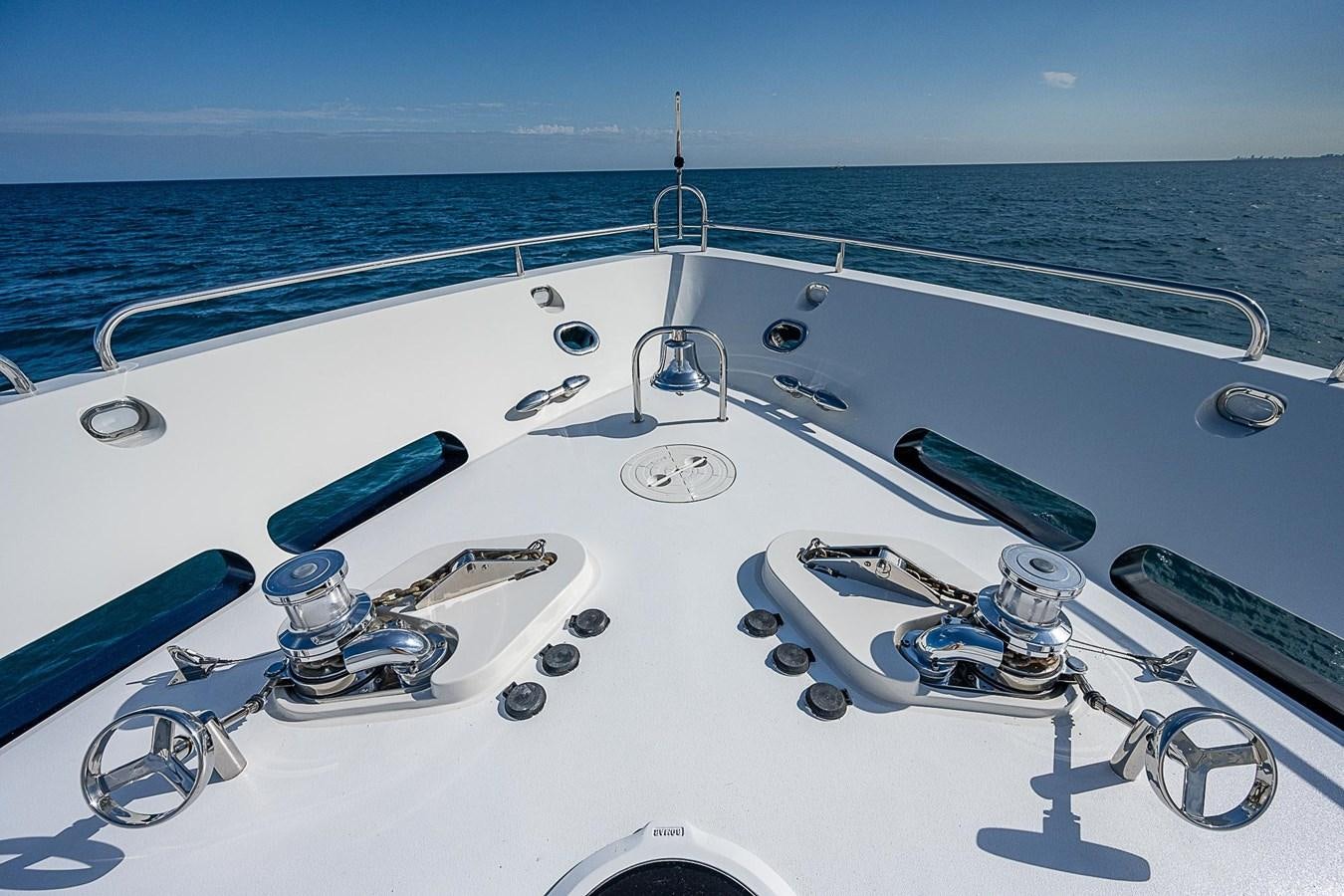

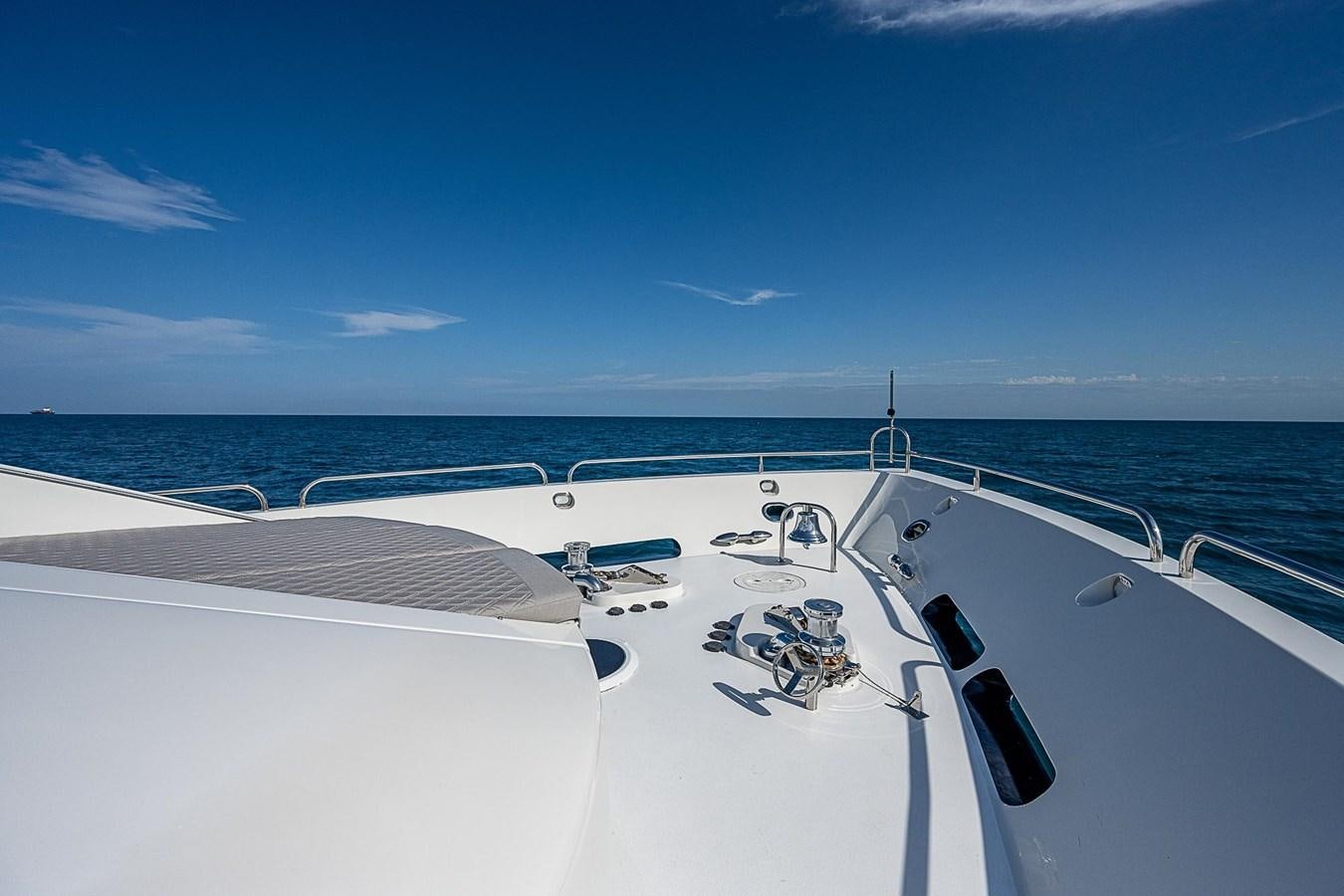

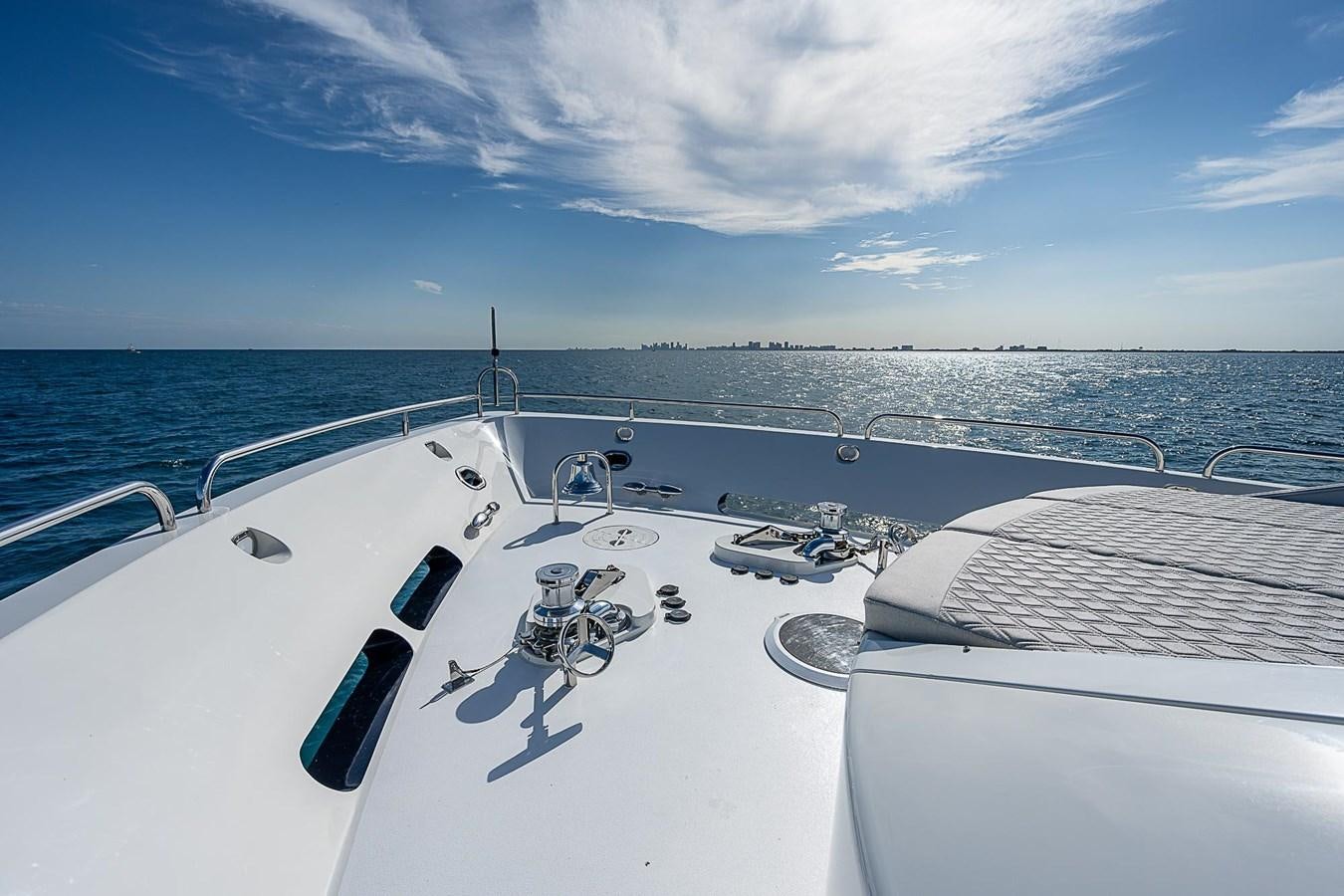

Anchor and Anchor Handling

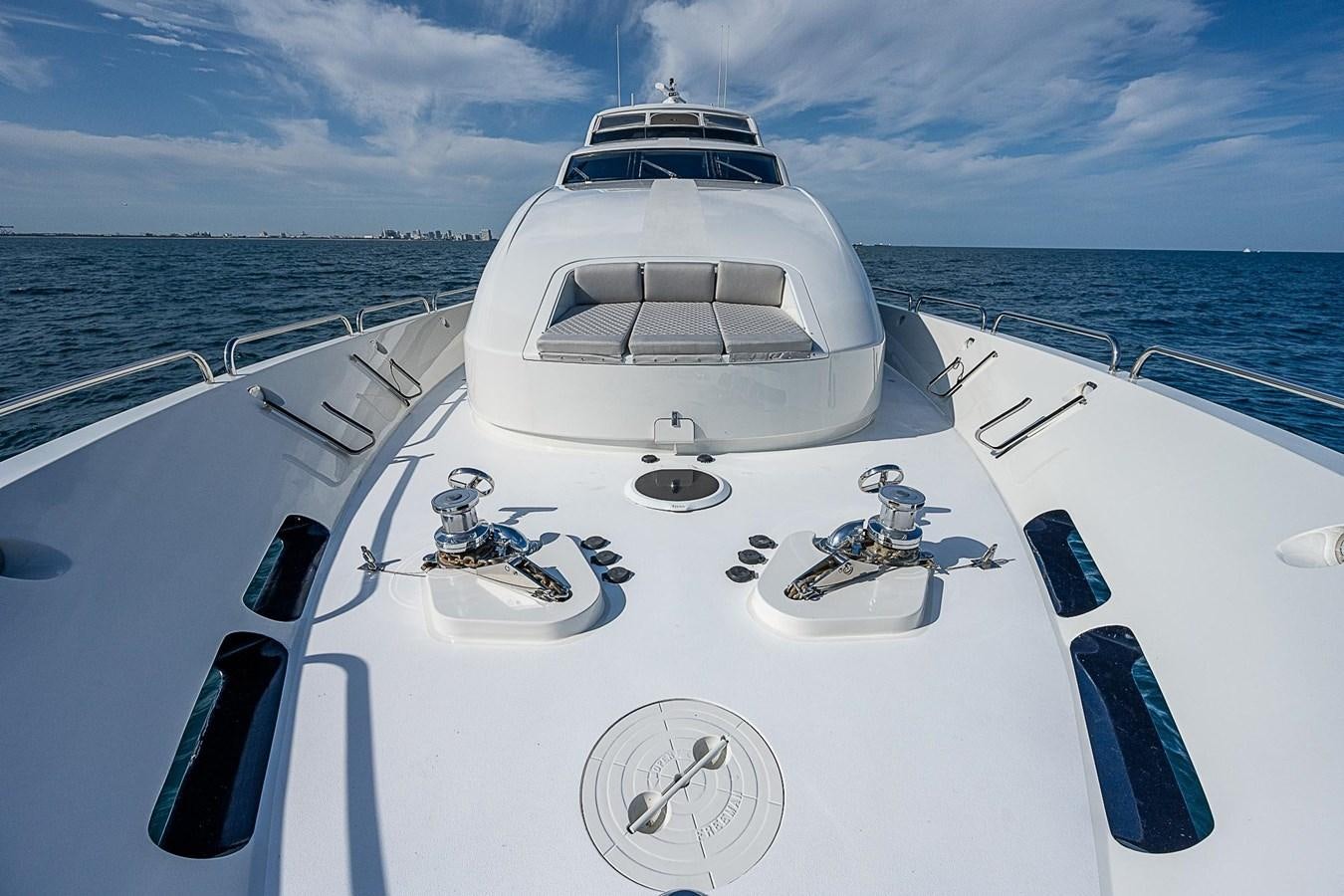

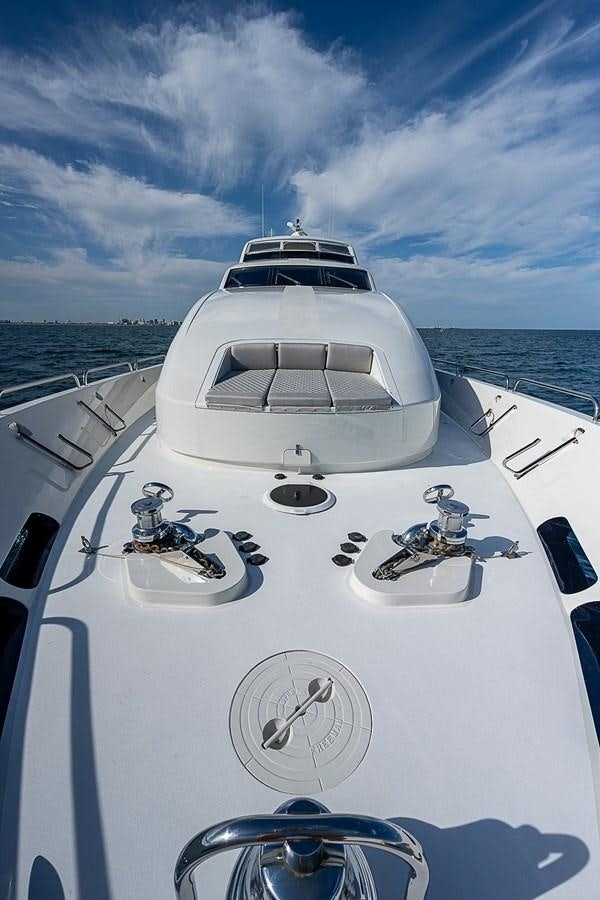

• Dual Maxwell vertical windlass with chain stopper and washdown
• Dual anchor pockets, stainless steel
• Two(2) stainless steel 200 lb.Poole anchors
• Two(2) anchor rode and chain, 300'and 200’of½”BBB highest galvanized steel
• Anchor Chain Washdown System

Deck Hardware

• Ships Air Horn:Kahlenberg T2 With Air reservoir
• Windshield wiper system 24VDC/ pantograph type
• Flagpole and Jackstaff,including:
• Teak 48" Flagpole with American flag
• Stainless steel Jackstaff
• Bow,spring and stern cleats,316L stainless steel
• Stainless 316L steel rails on main deck
• Burgee staff,custom stainless steel,with burgee flag
• Hawse Pipe With Stainless Steel Guide posts
• Forward hatch bow cabin
• Logo, stainless steel
• Sliding Fender Tracks

Doors, Hatches and Scuttles

• Doggie Doors: painted aluminum, including:
• Weathertight Engine Room Access door
• Foredeck Access Hatch
• Curved double stainless steel aft main salon weathertight sliding door
• Bypass Sliding Main Deck Doors

Mooring System

• Eight(8) custom cast and polished deck cleats
• Custom cast and polished Stainless Steel hawse rings
• Two(2) 200 lb mooring anchor with chain
• Two(2) Maxwell 22 wrapping winches, 24 volt,aft deck
• Telescoping boat hook with Mounting brackets

Port lights and Windows

• Main deck windows are tinted glass, laminated and chemically strengthened
• Helm windows are clear glass, laminated, and chemically strengthened, including: Pantograph Wipers with freshwater wash and intermittent speed

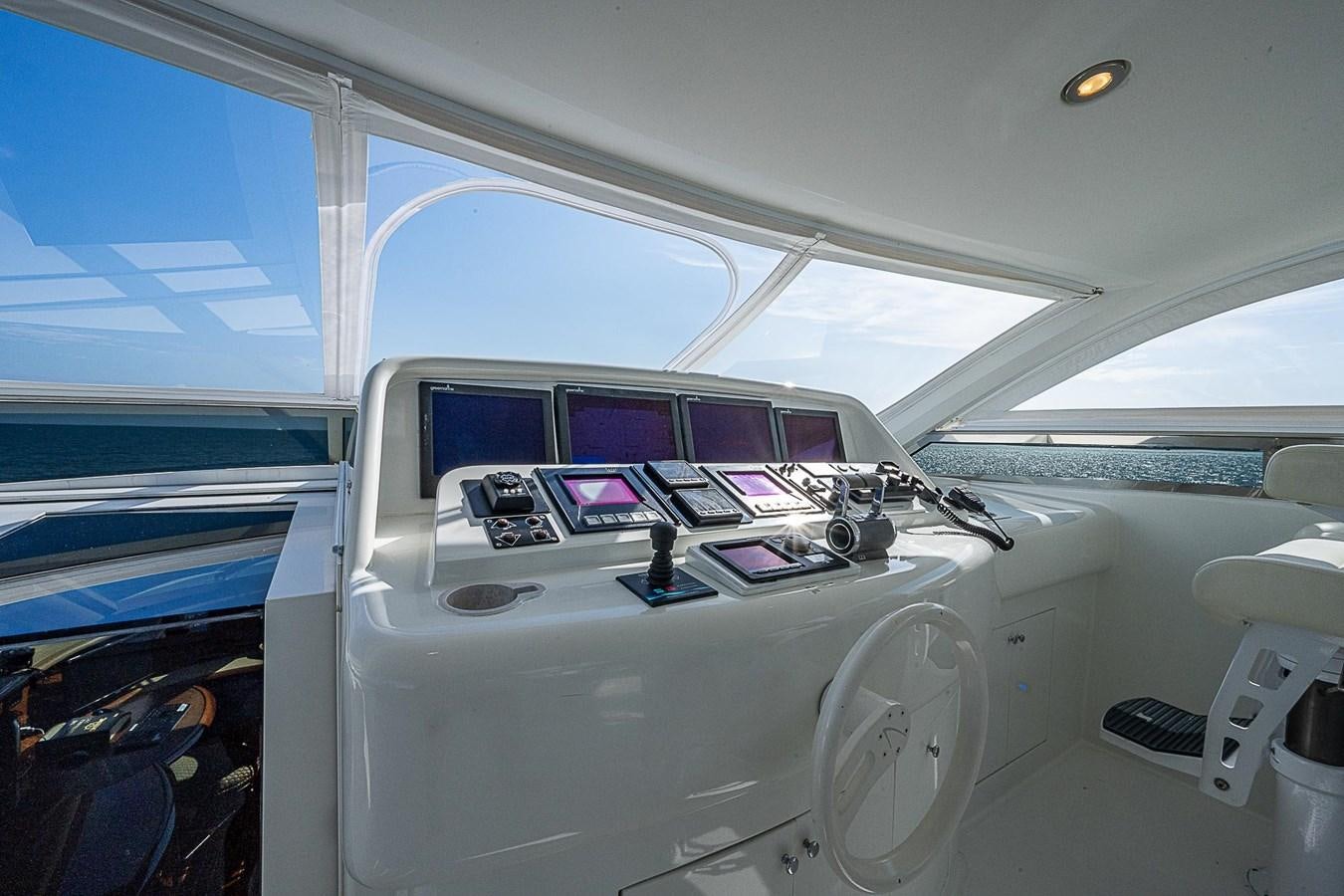

• Flybridge Windscreen with Polished stainless steel frame and tinted glass

Rails, Ladders and Gangways

• Stainless Steel (316L) hand rails on all exterior decks
• Handrails for all exterior stairs
• Seven(7) step boarding ladder with handrail: mounts to starboard
• Solid PVC rub rail with stainless steel insert

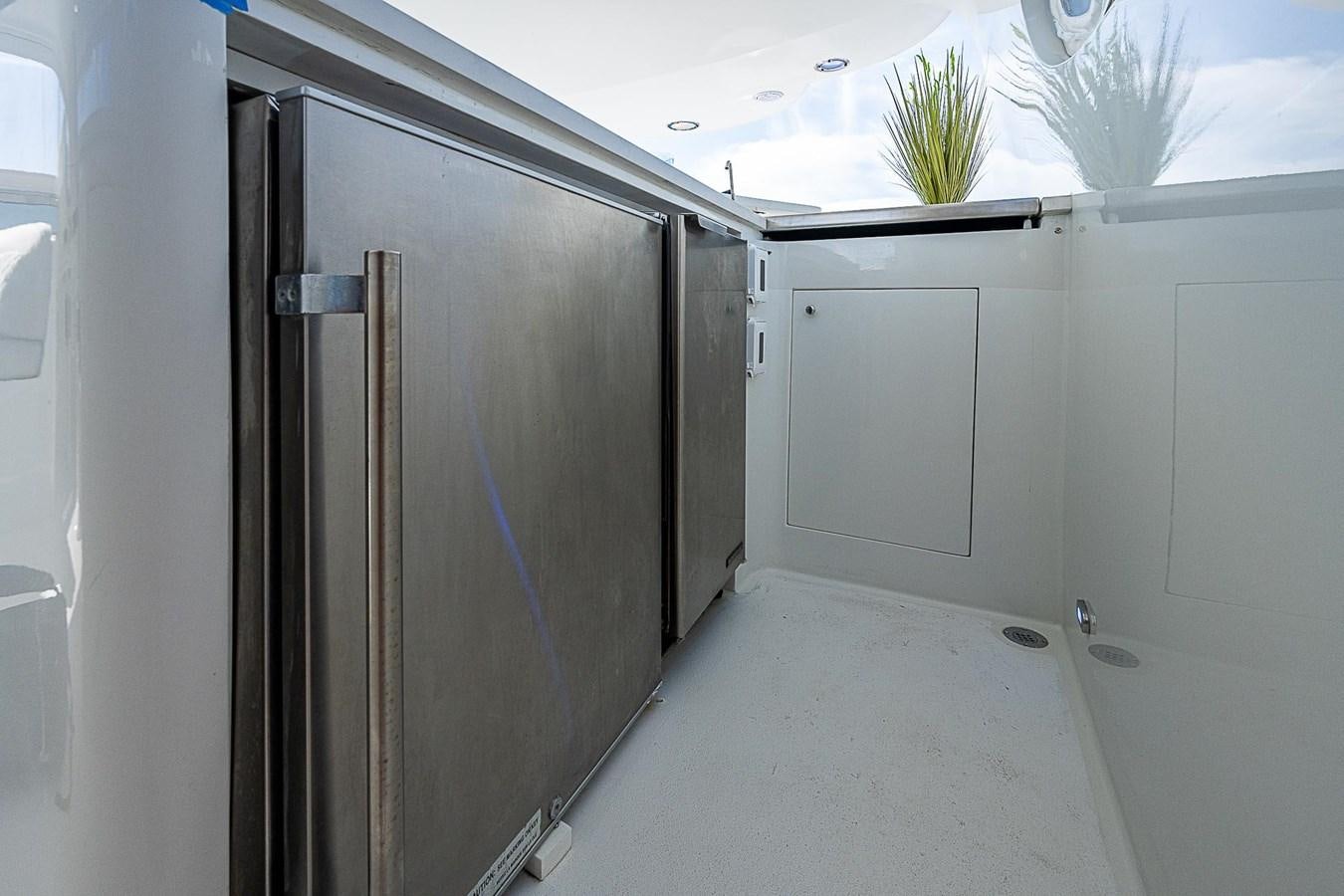

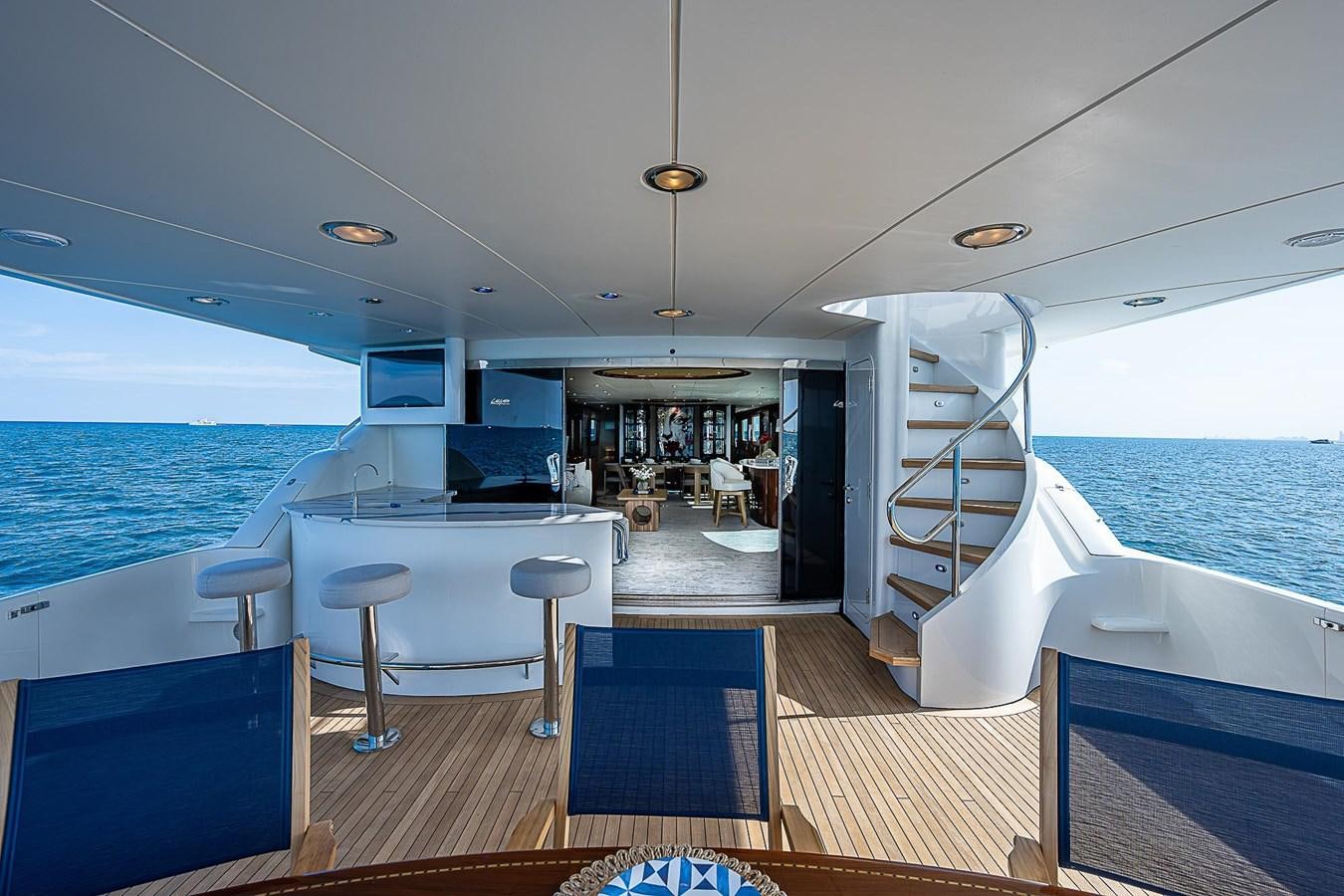

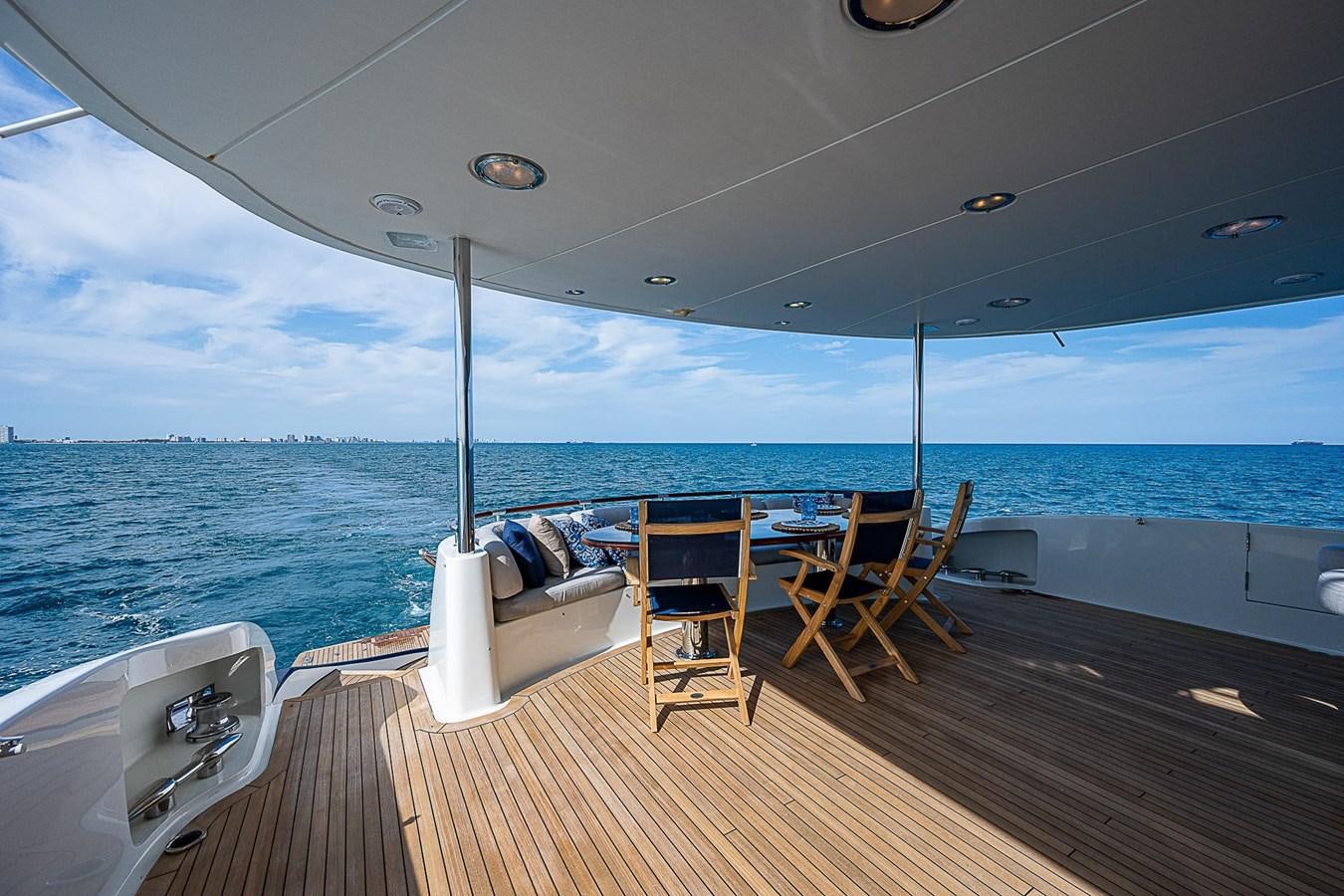

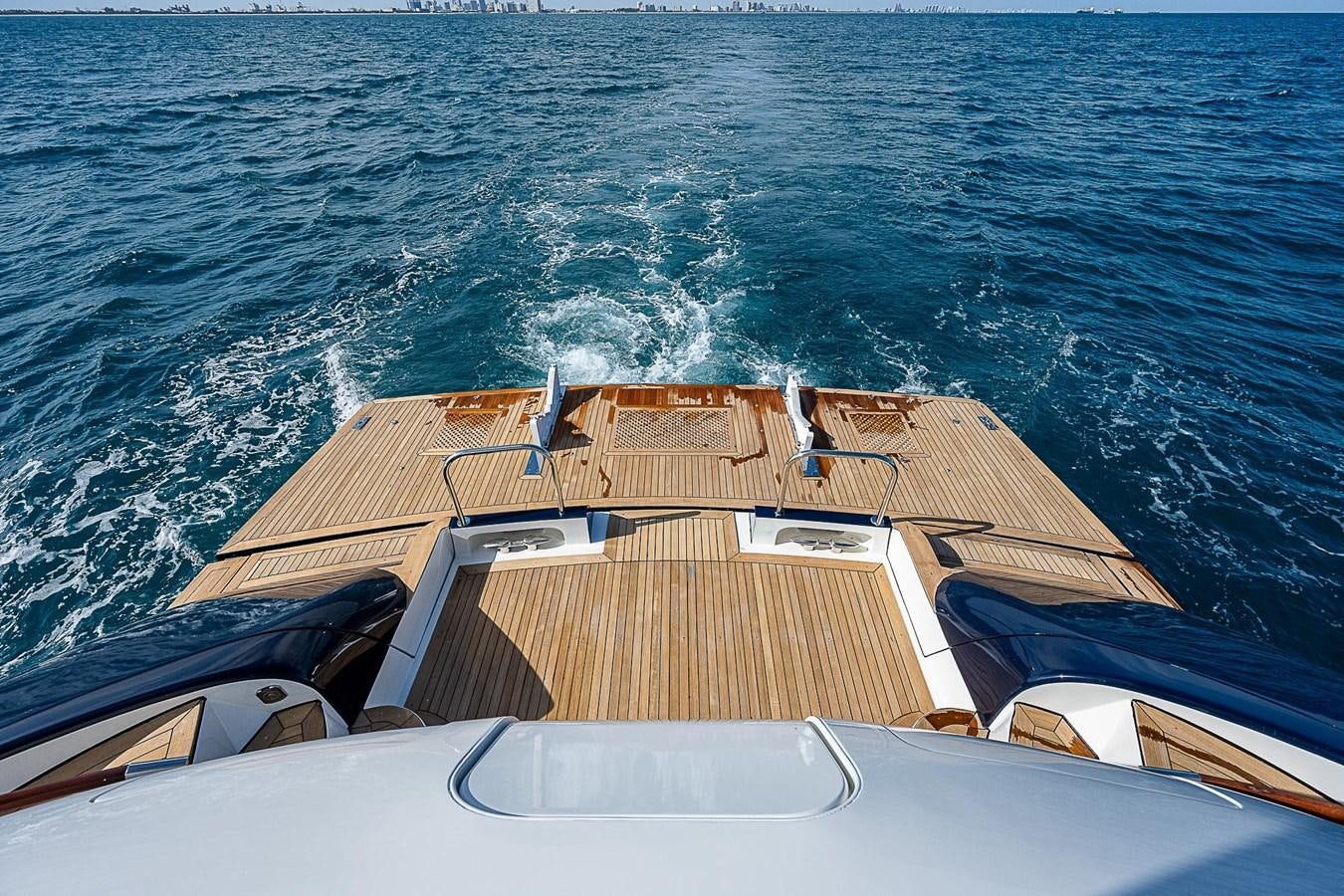

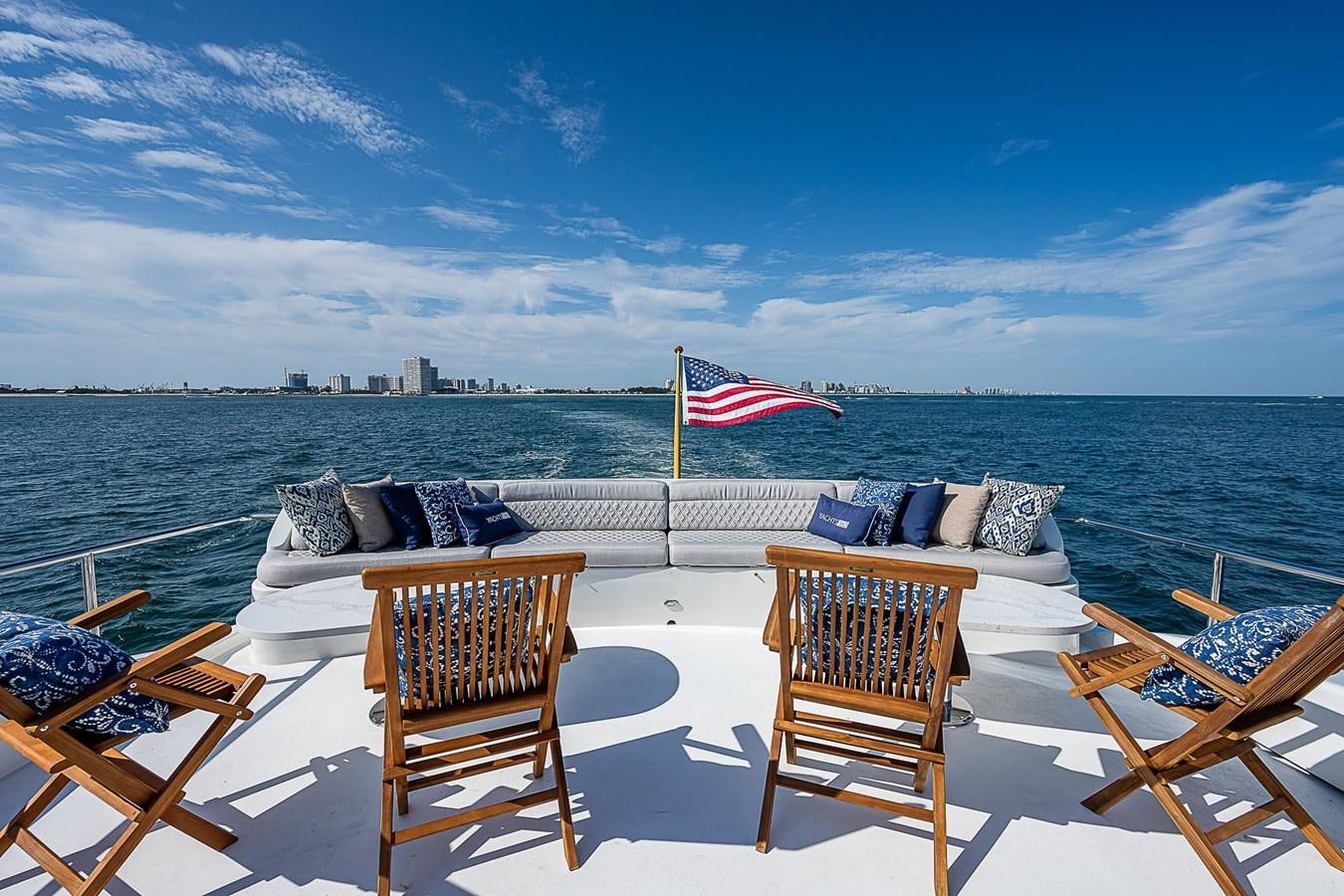

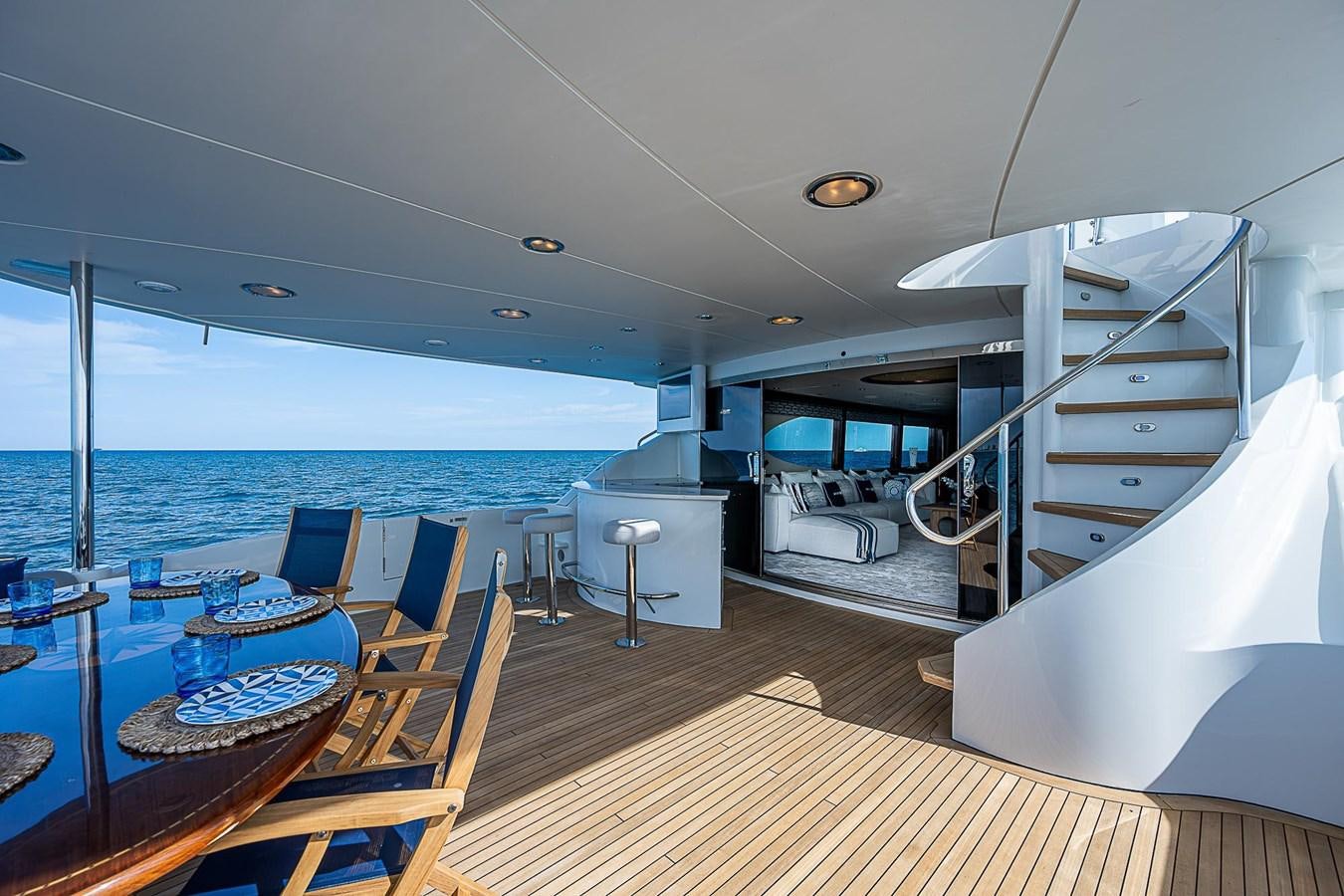

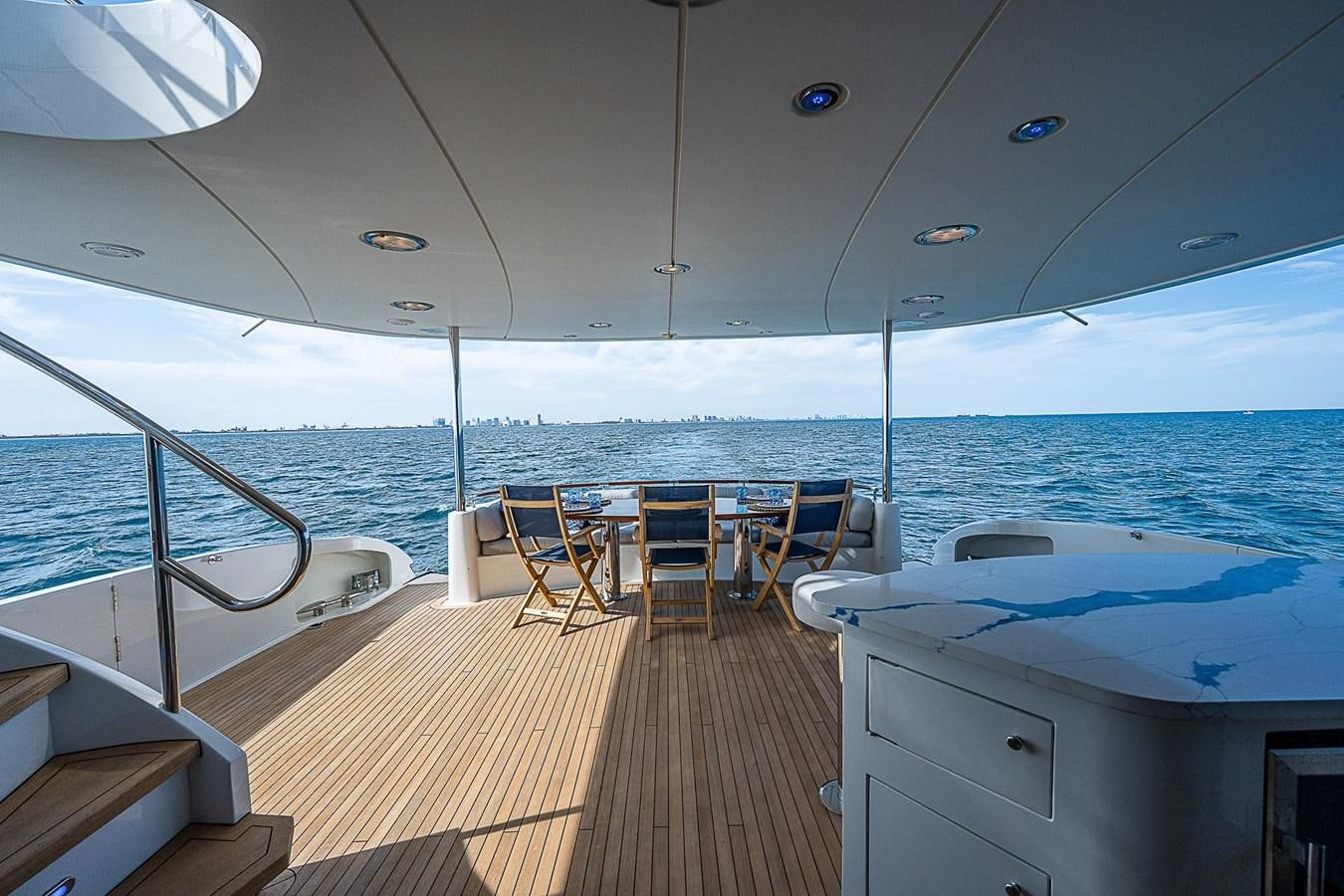

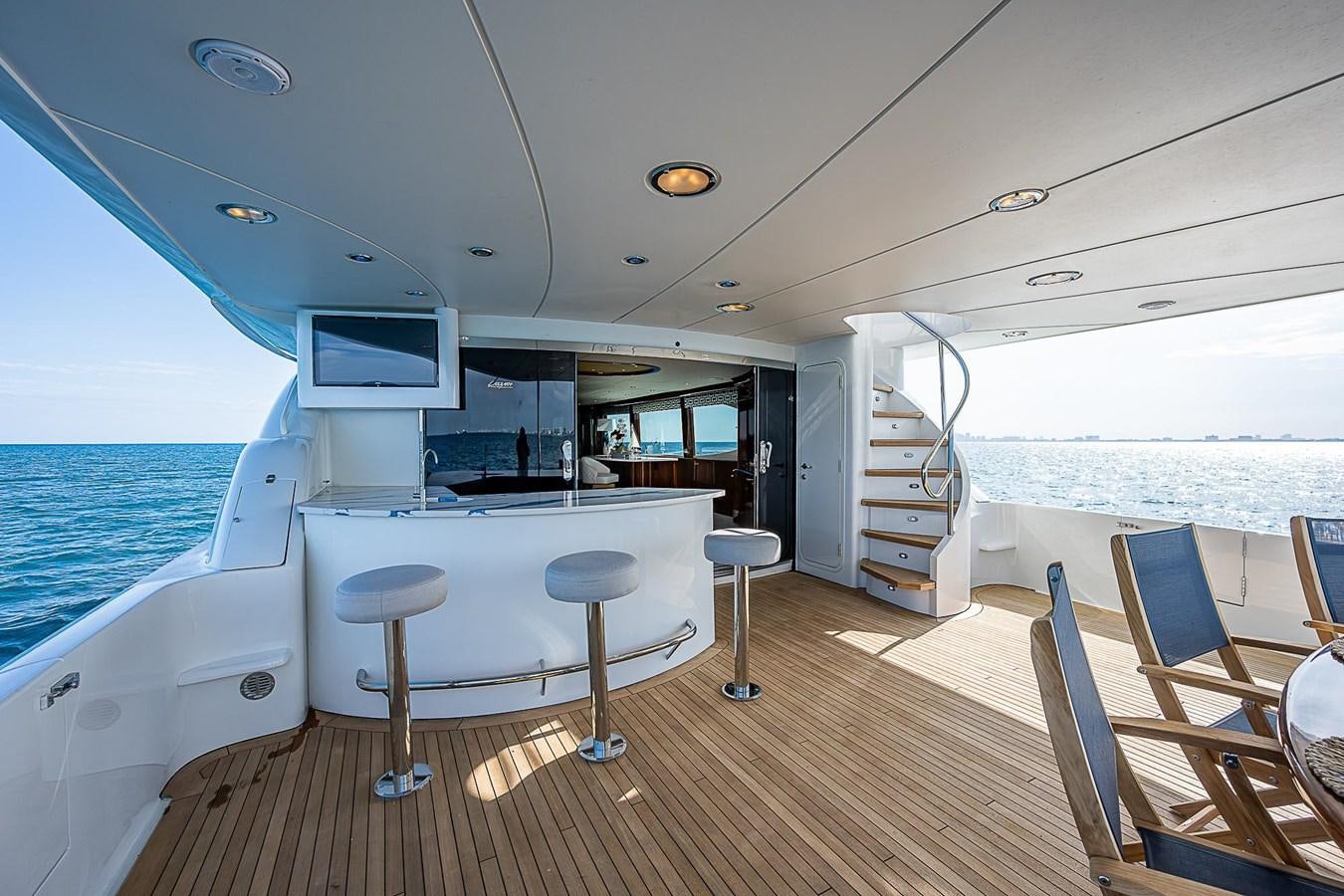

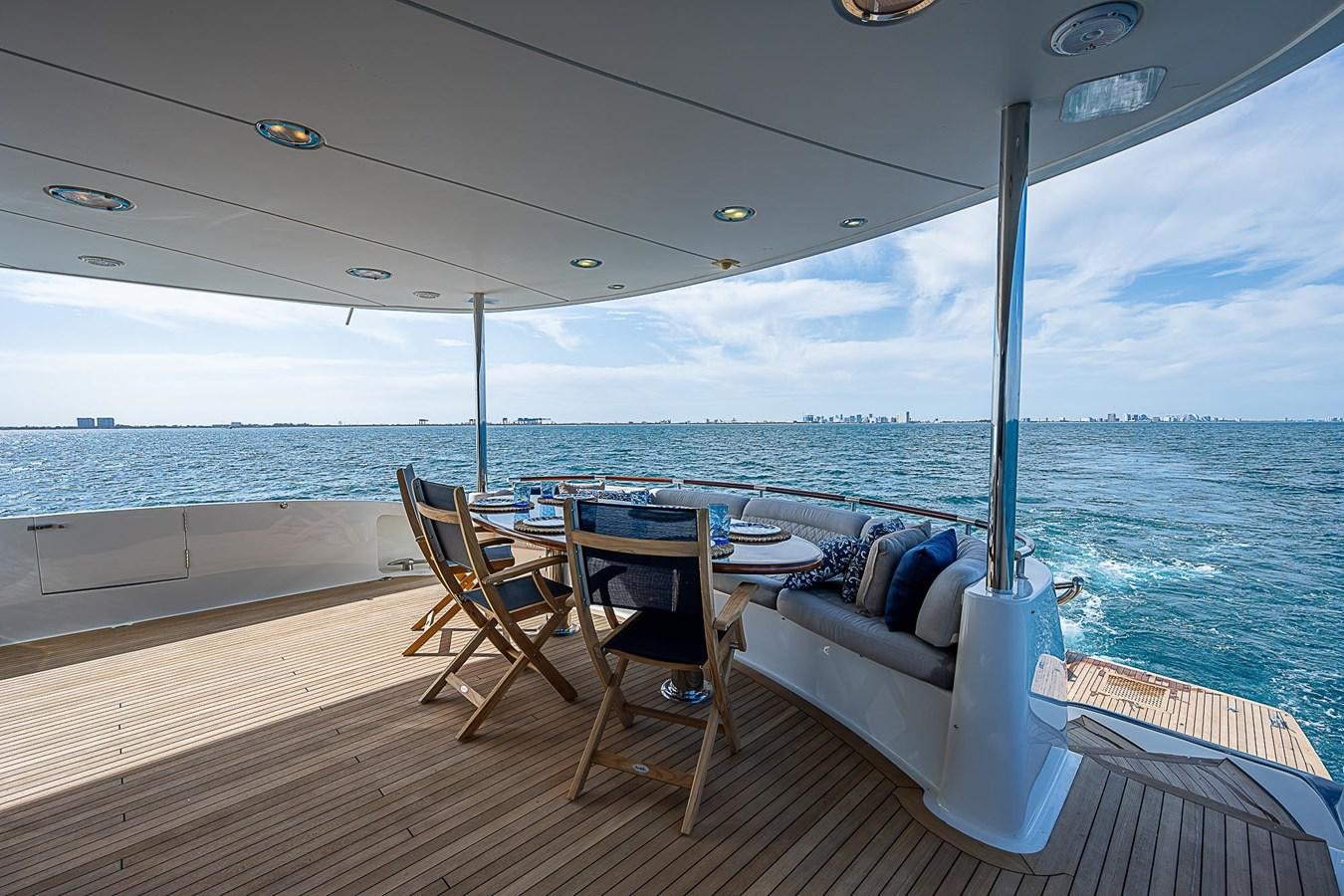

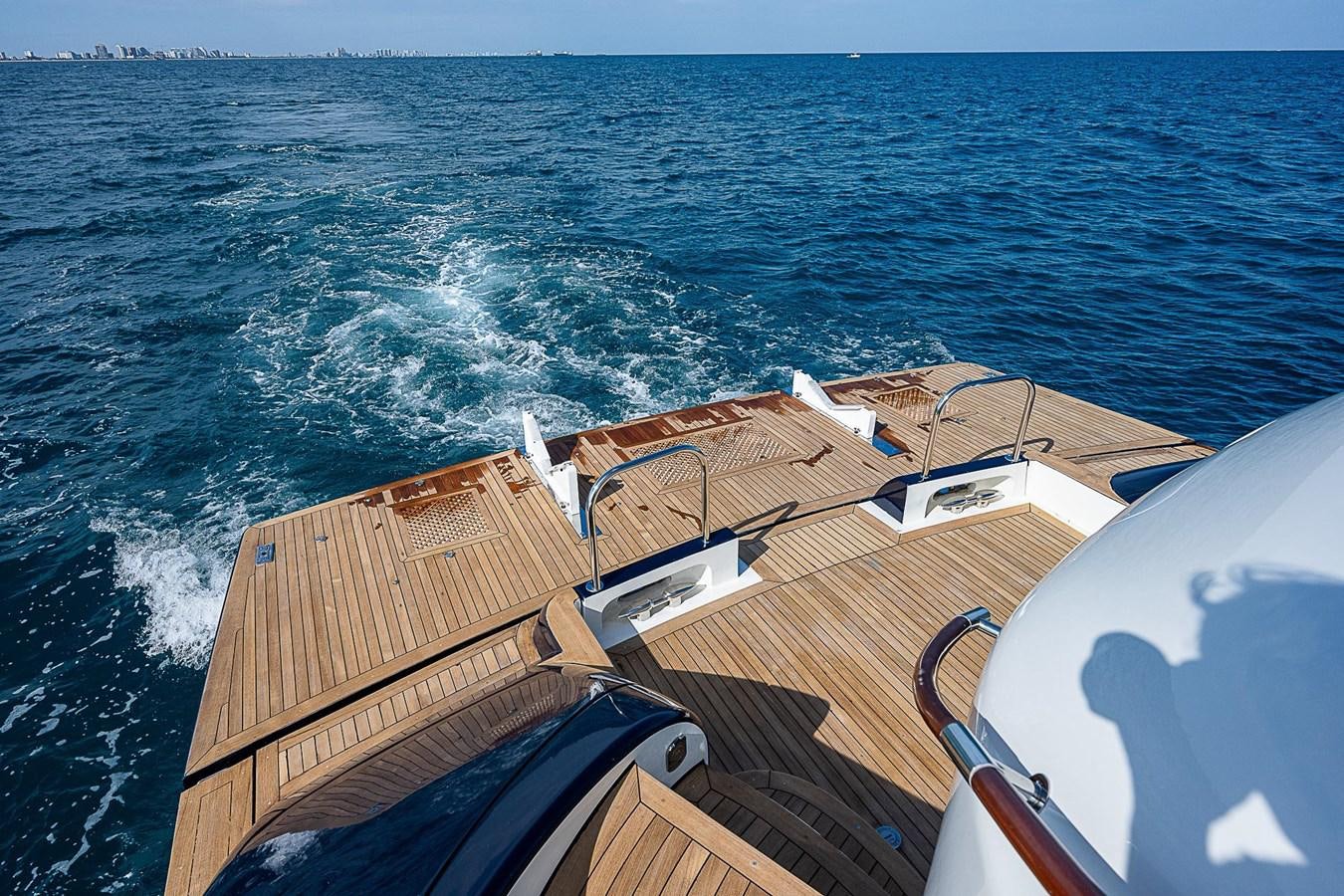

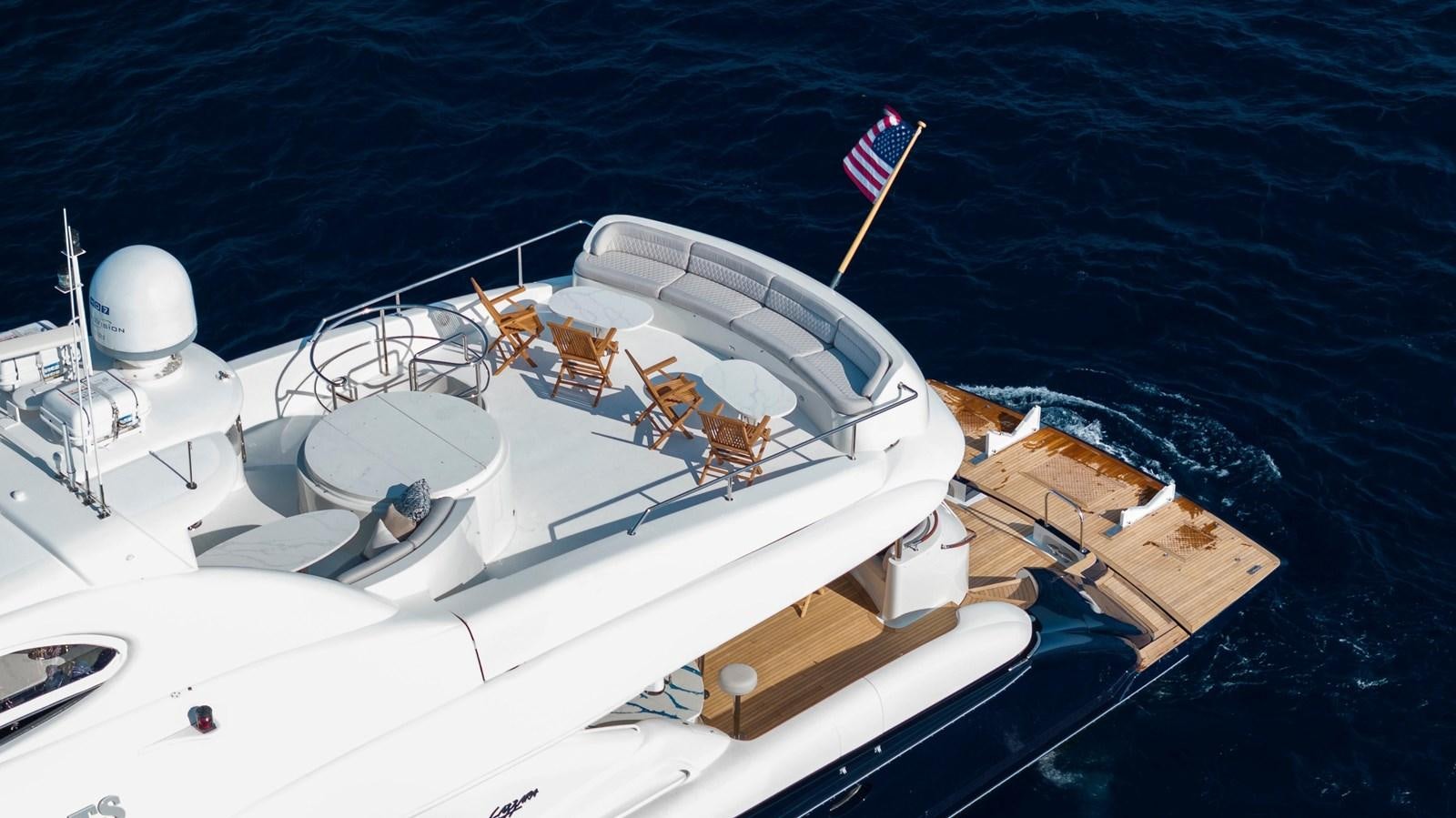

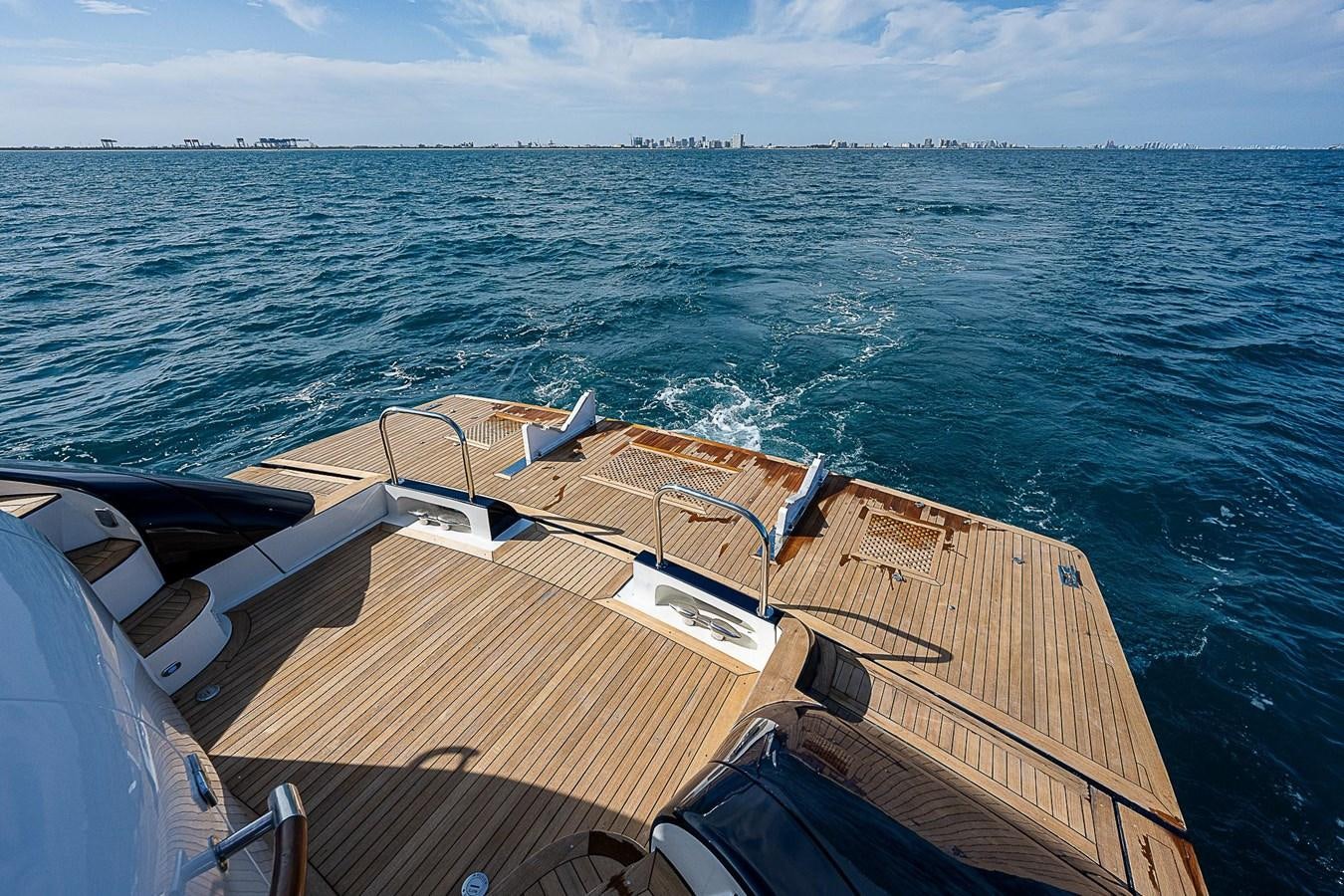

Aft Deck / Transom Outfitting

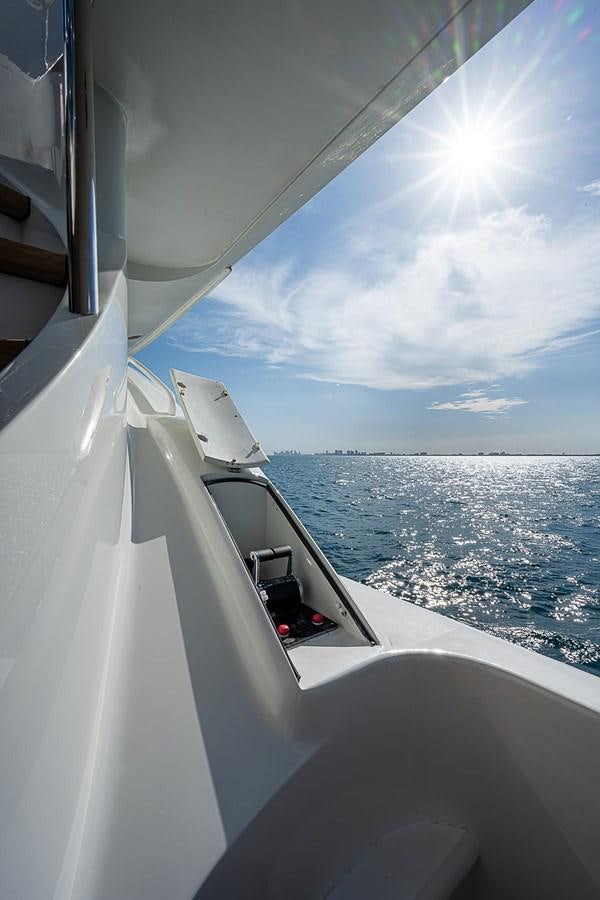

• Docking Control Station, including: Control For Thruster System and Electronic Engine Controls
• Table with teak top high gloss
• Teak cap rail with stainless steel standoffs above settee group seatback
• Built in settee group
• Access to sport transom deck with handrail
• Overhead built-in lighting and speakers
• Access to decks leading forward
• Teak decking systems terak aft deck stair treads
• Access to engine room Emergency Escape hatch
• 120 VAC duplex receptacle with ground fault breaker
• Stairway to Flybridge
• Two(2 )Maxwell 22 Wrapping Winches, 24 volt
• Access to crew quarters via Spiral Stairs
• Telephone Outlet
• Volume control station to Global Audio System With Two (2) overhead JL Audio

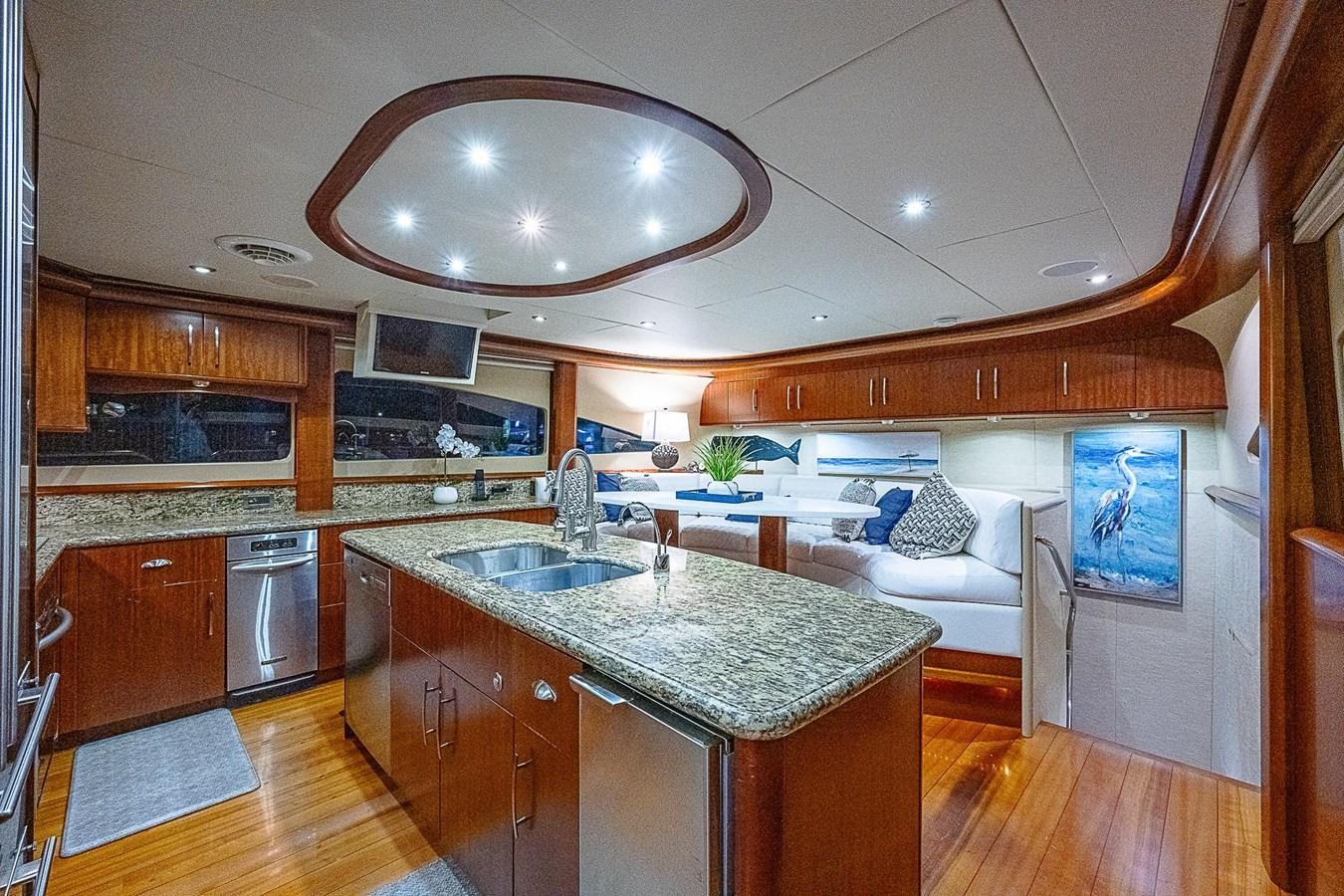

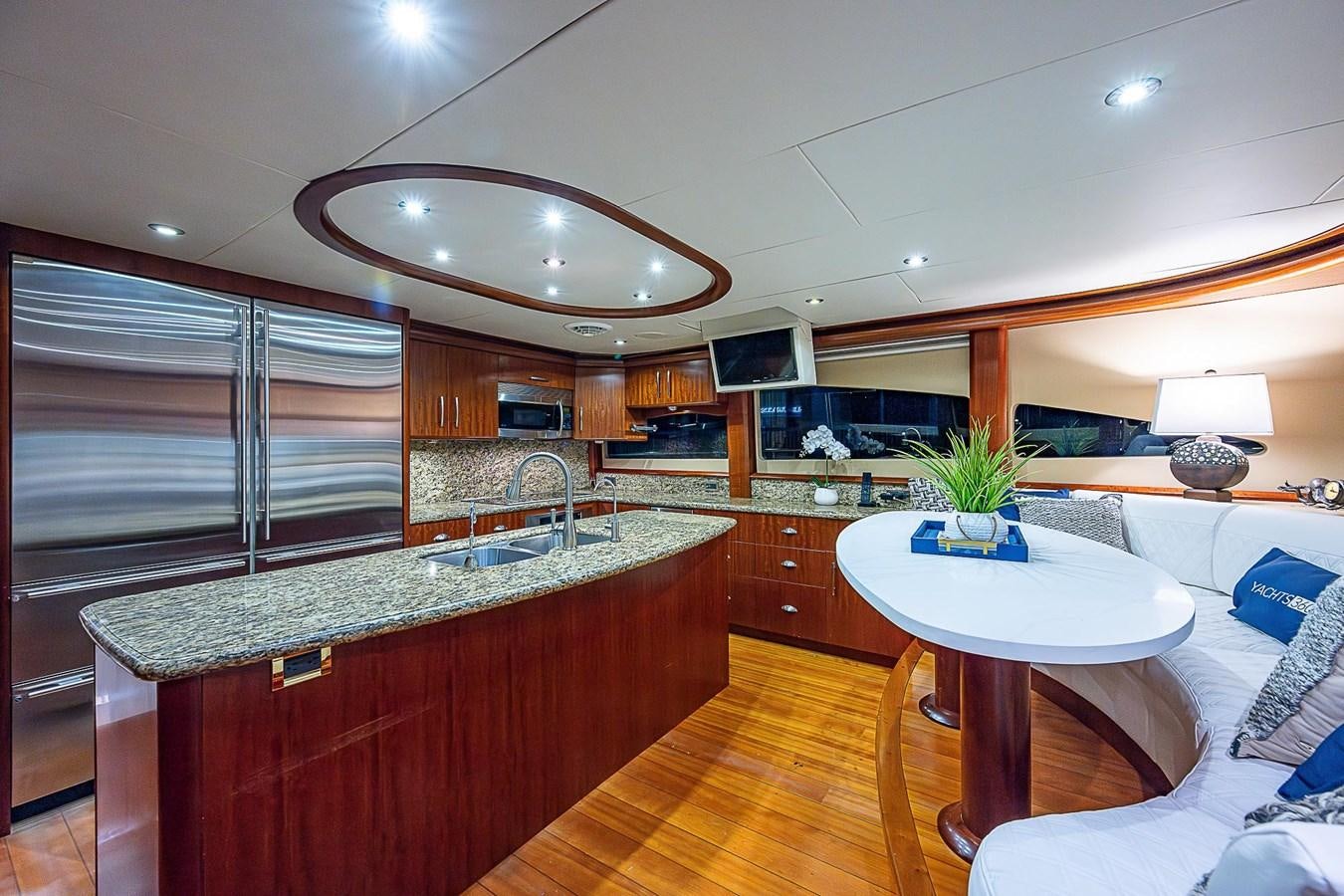

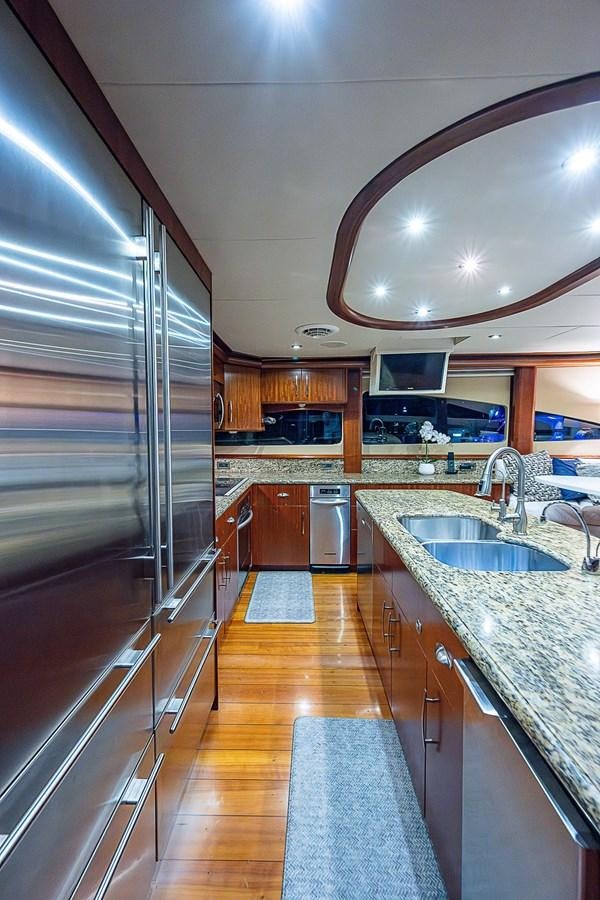

Galley

• Lazzara country kitchen with island sink
• Makore cherry veneer cabinets and lockers
• Stainless cabinet handles
• Granite countertops
• Stainless steel double sink with faucet and sprayer
• Cherry plank flooring
• Majilite overhead panels with foam backing
• Five burner electric built-in cooktop
• Stainless steel Microwave Oven

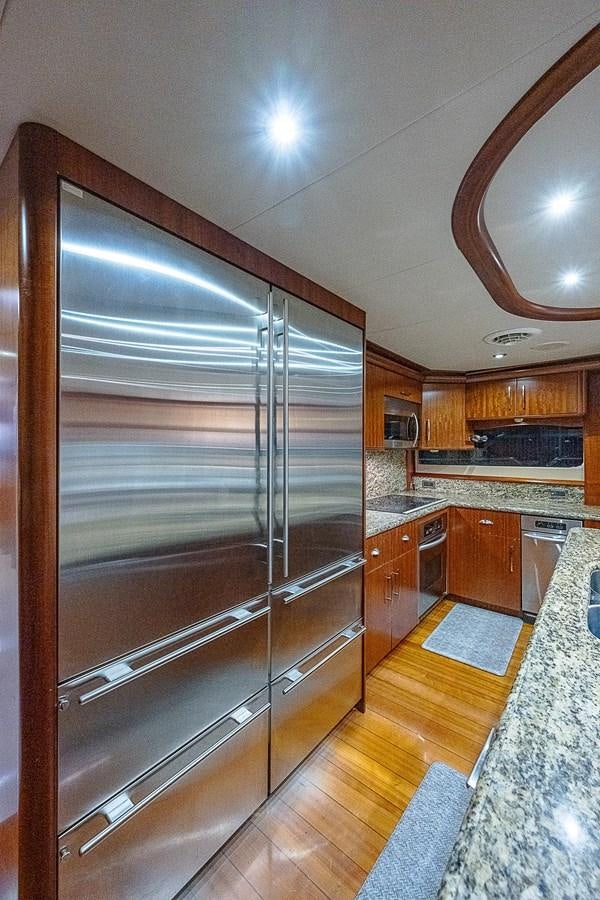

• Stainless steel side by side refrigerator and freezer drawers with ice maker
• Stainless steel dishwasher
• 27" built-in oven
• Telephone connection–one next to settee
• Instant hot water dispenser
• Water filter
• Recessed LED downlights

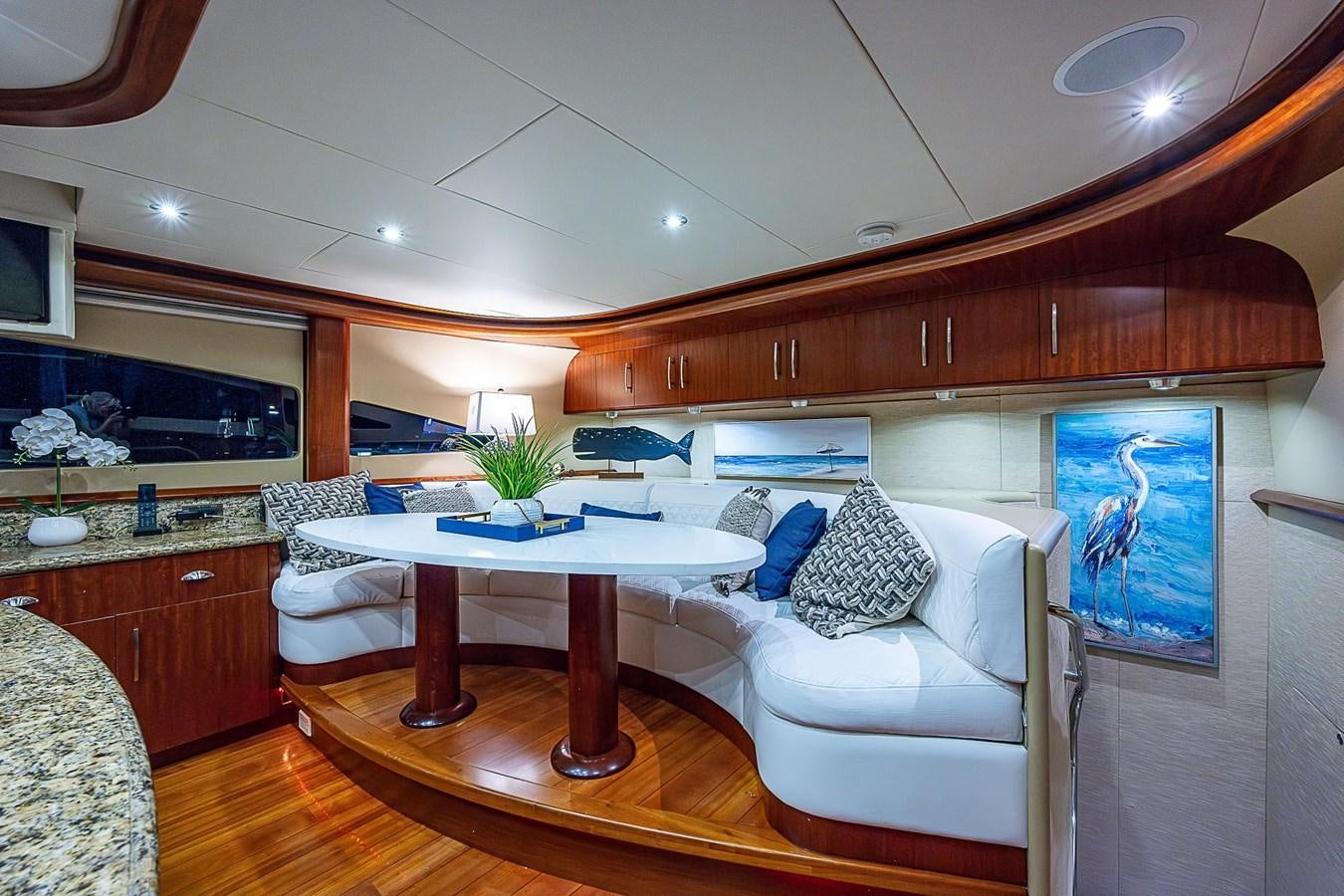

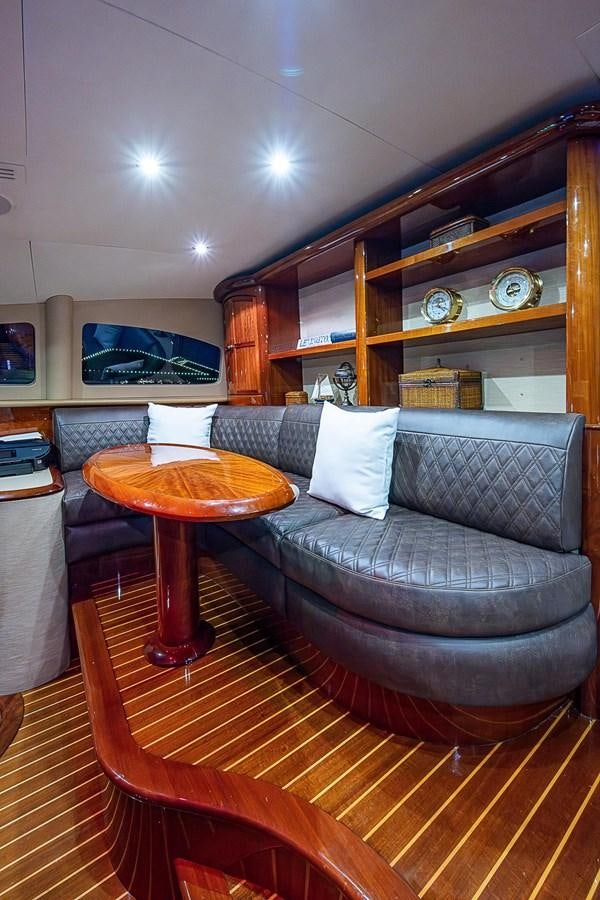

• Raised Dinette with curved seating for six (6)
• Large storage locker accessed from top of dash
• Stairwell down to Forward VIP Stateroom
• 120 VAC duplex receptacles
• Built-in pantry
• Cabinets forward of seating group
• Stairs leading up to Pilothouse
• Pull-out privacy door to salon
• Trash compactor

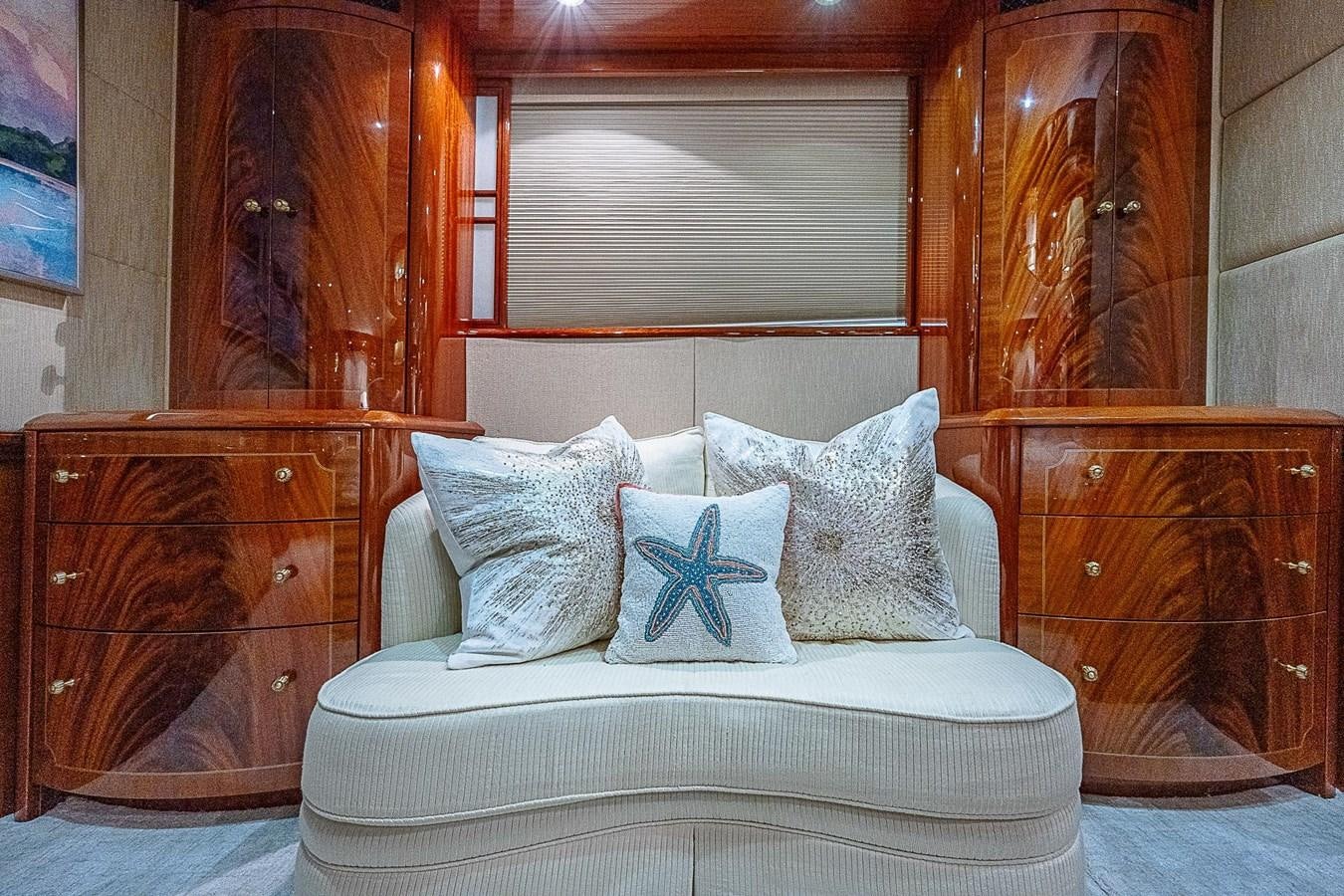

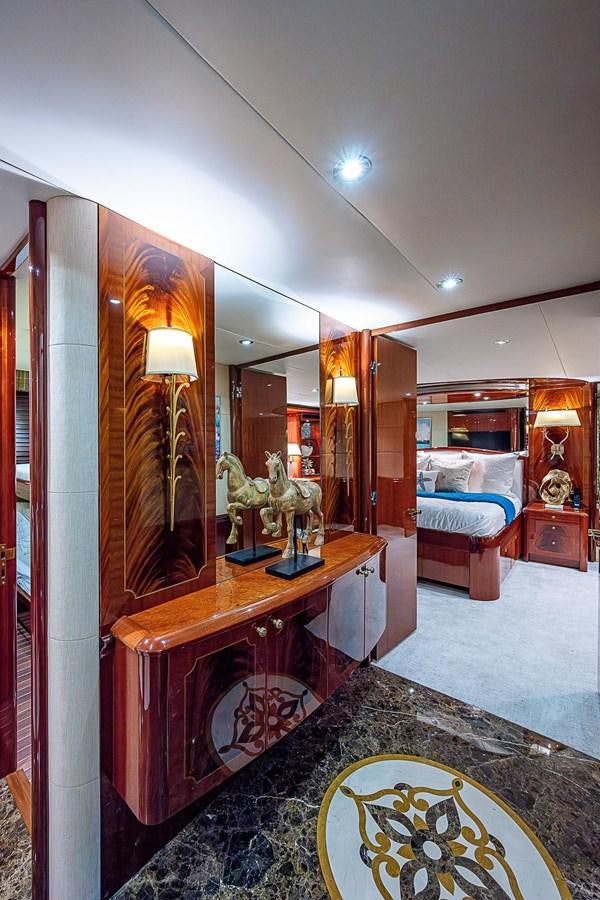

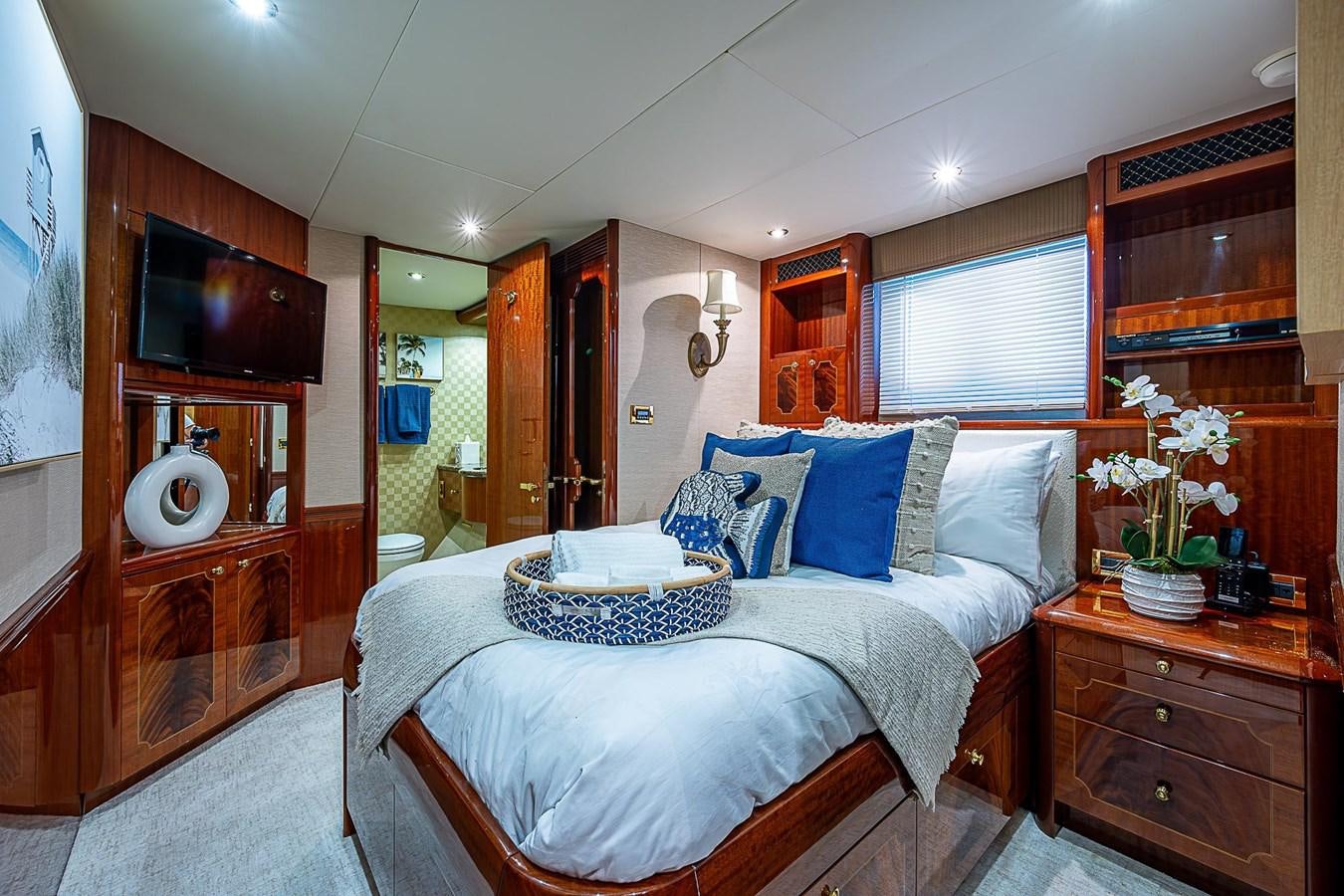

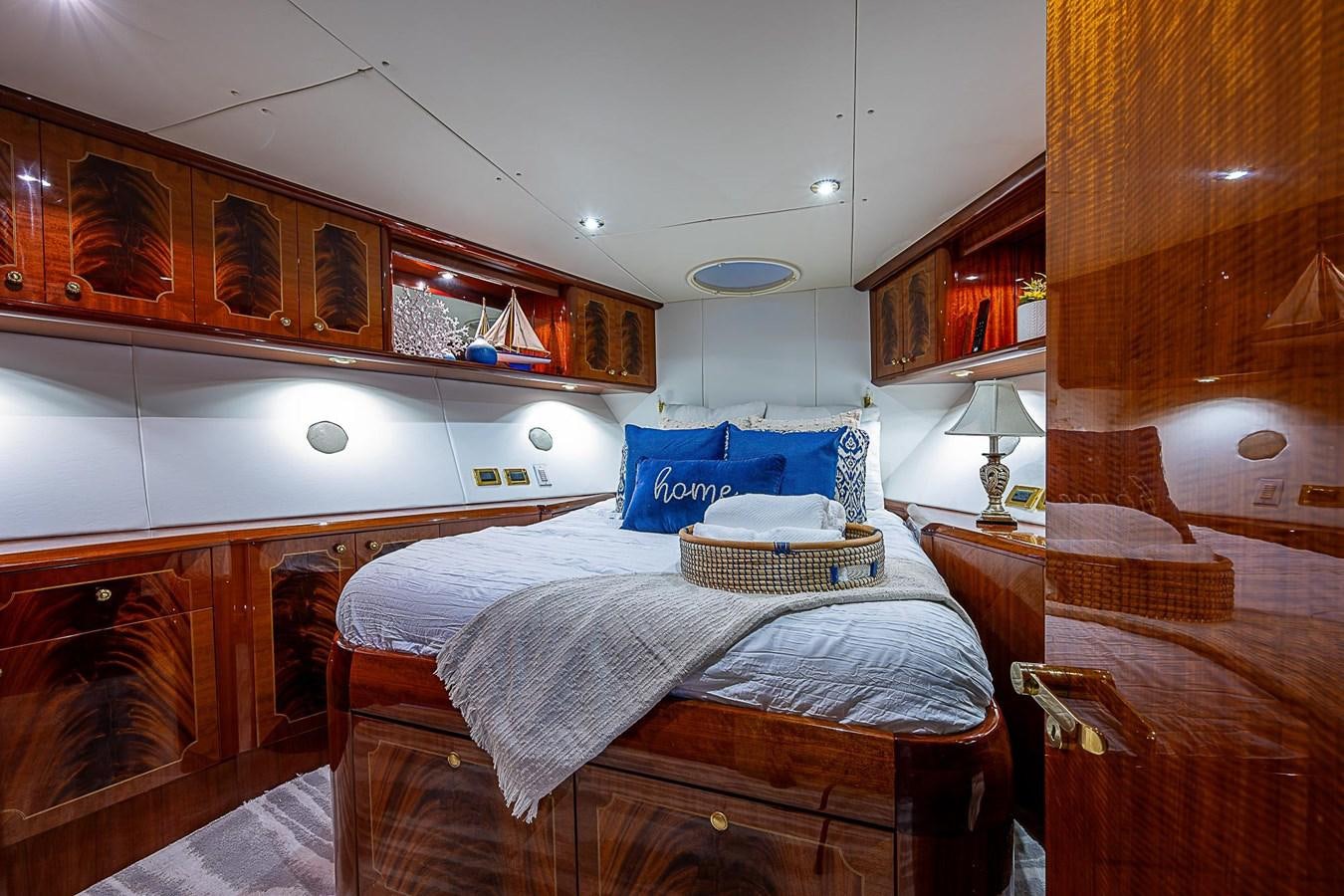

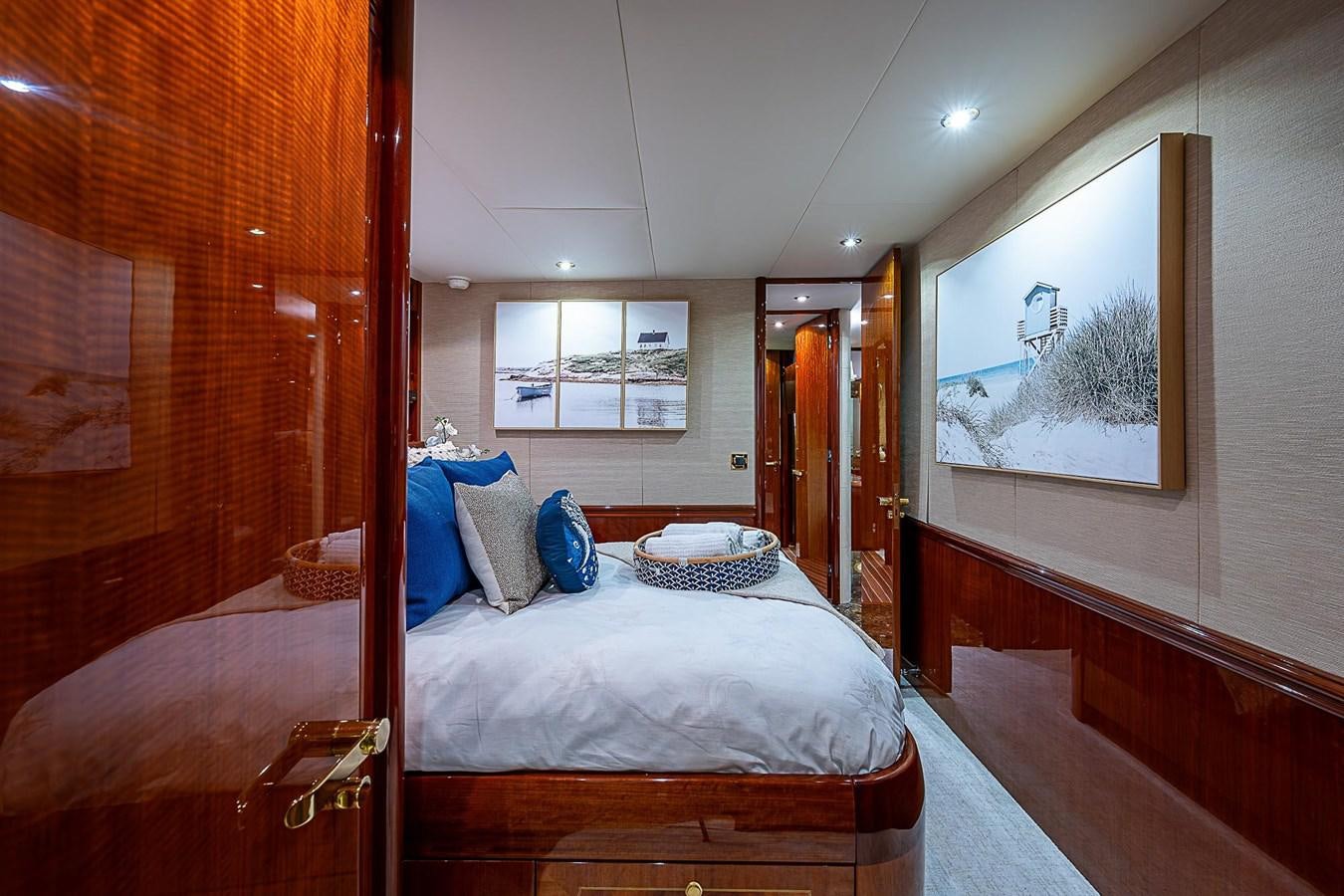

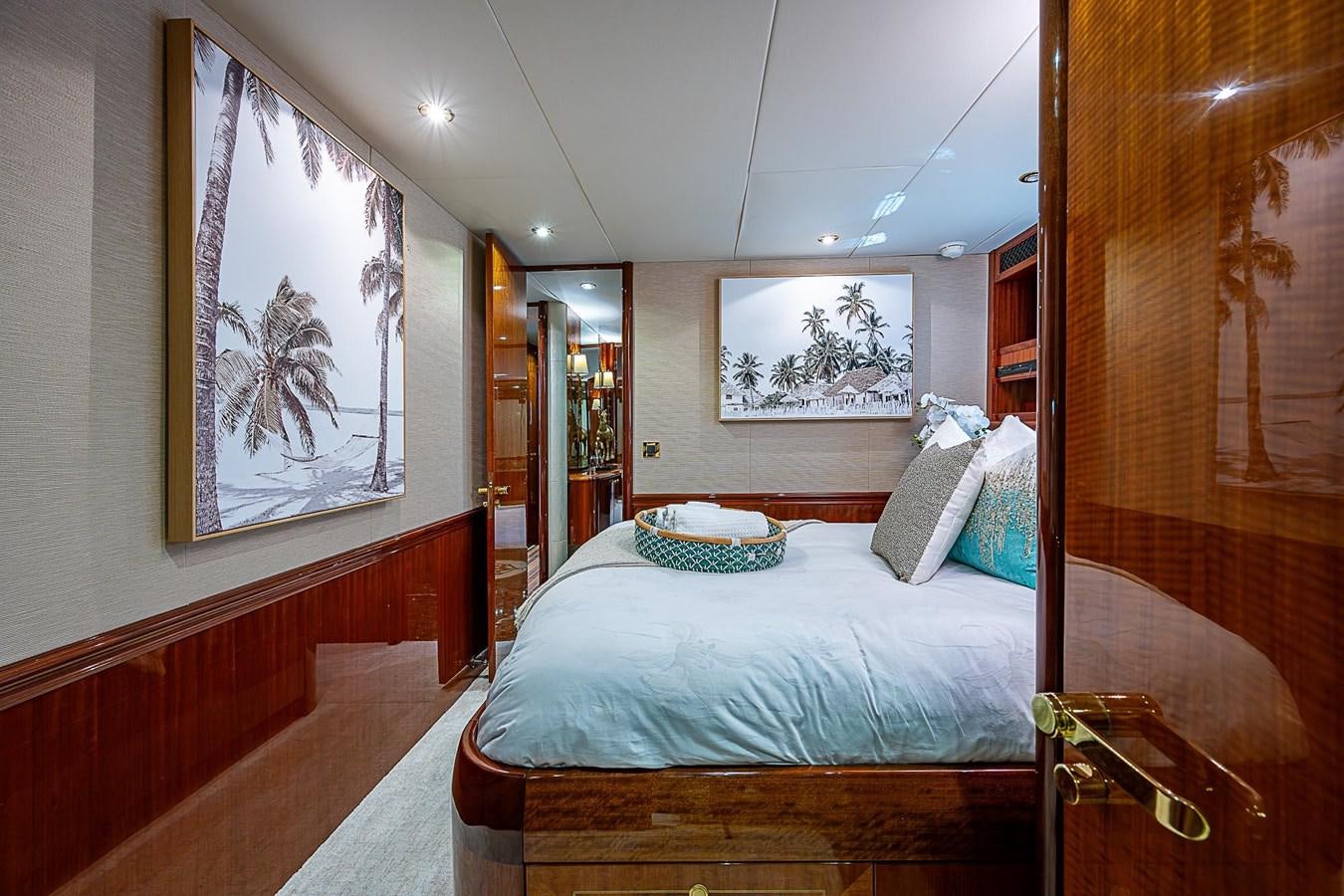

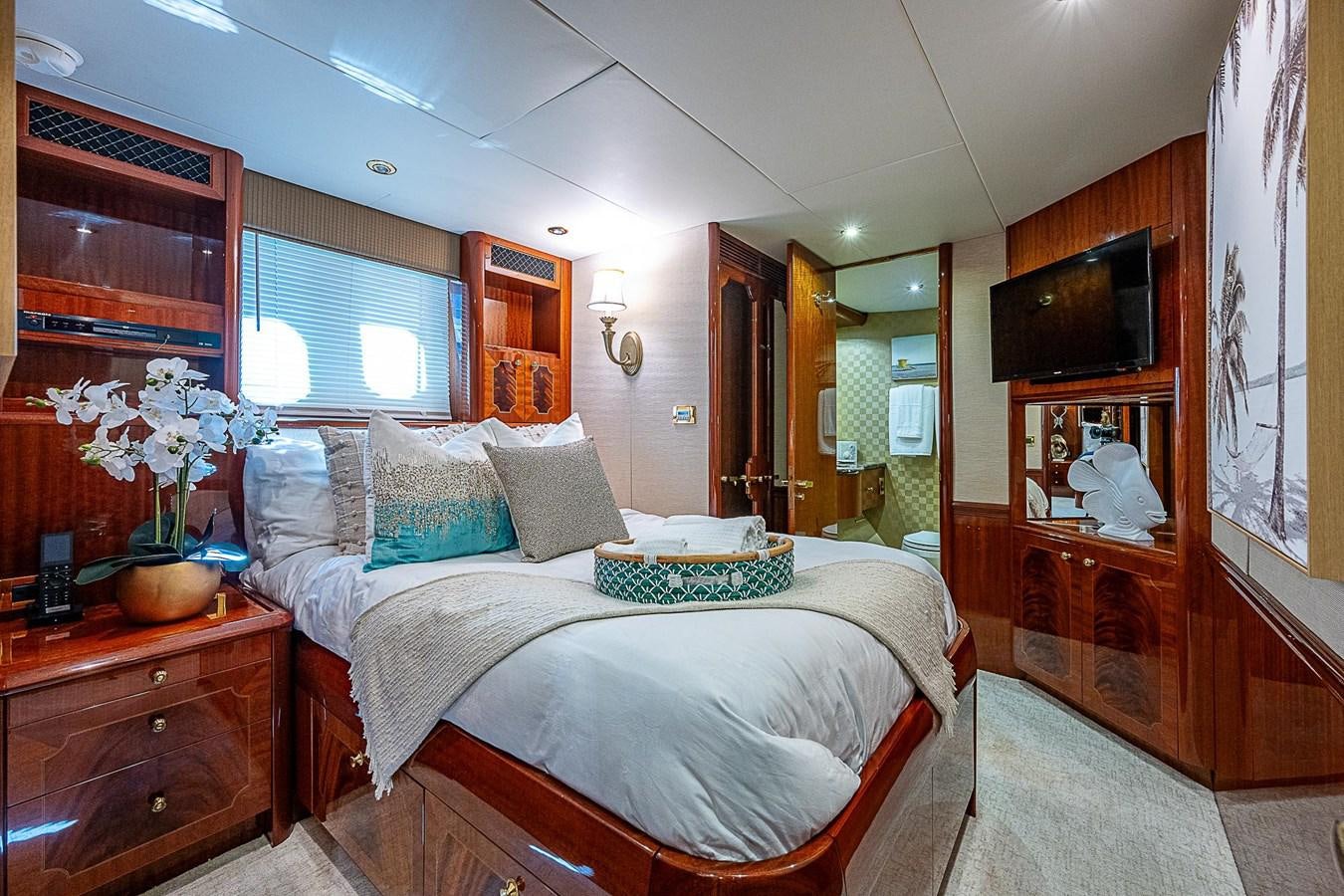

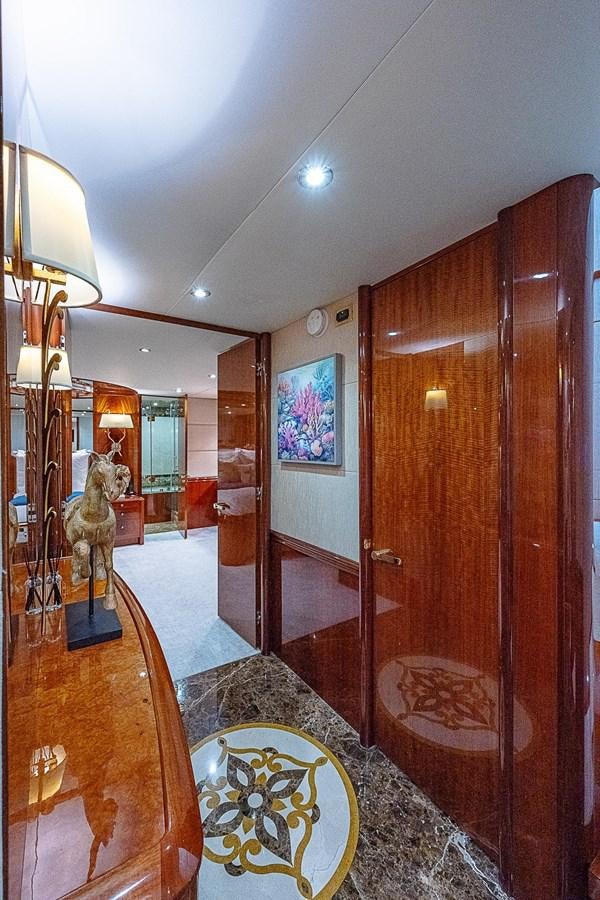

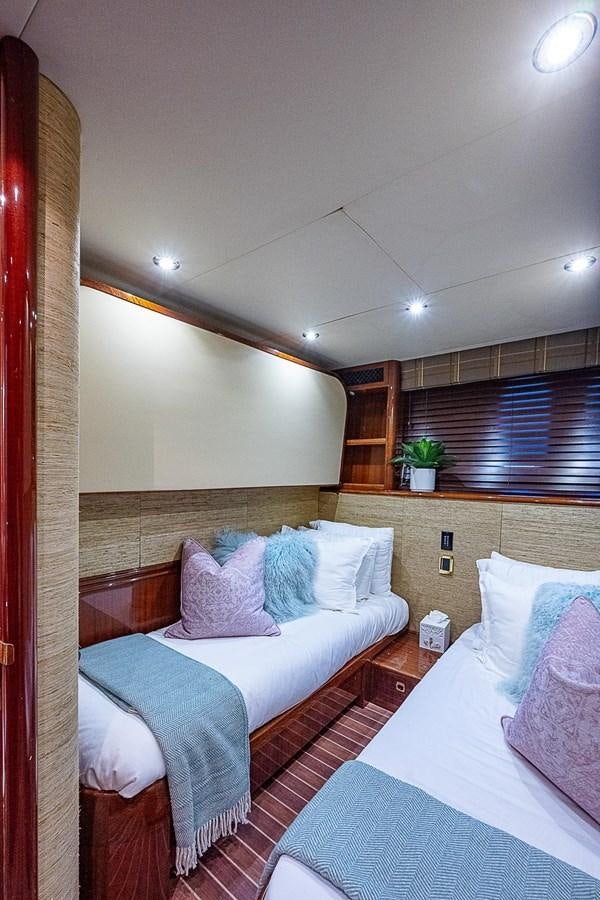

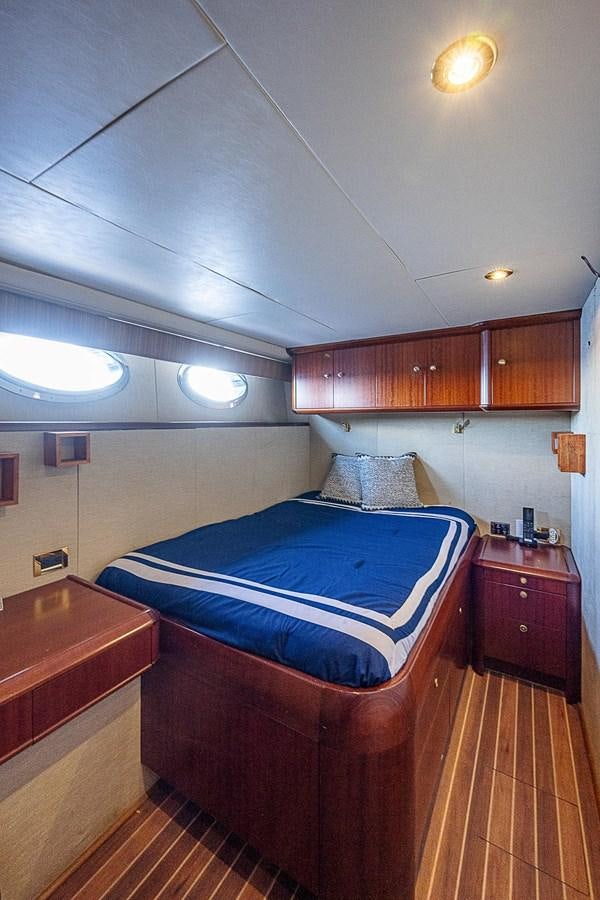

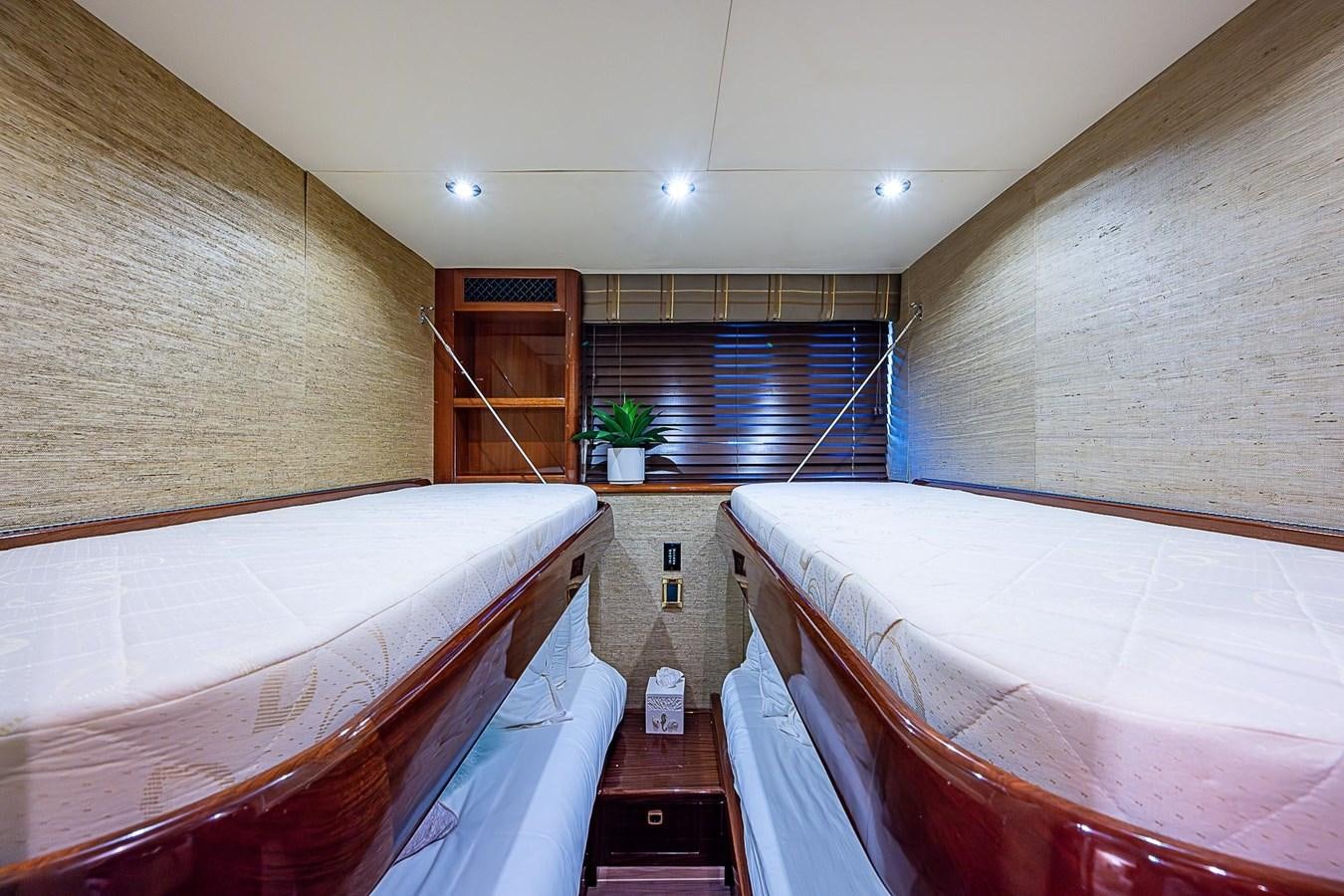

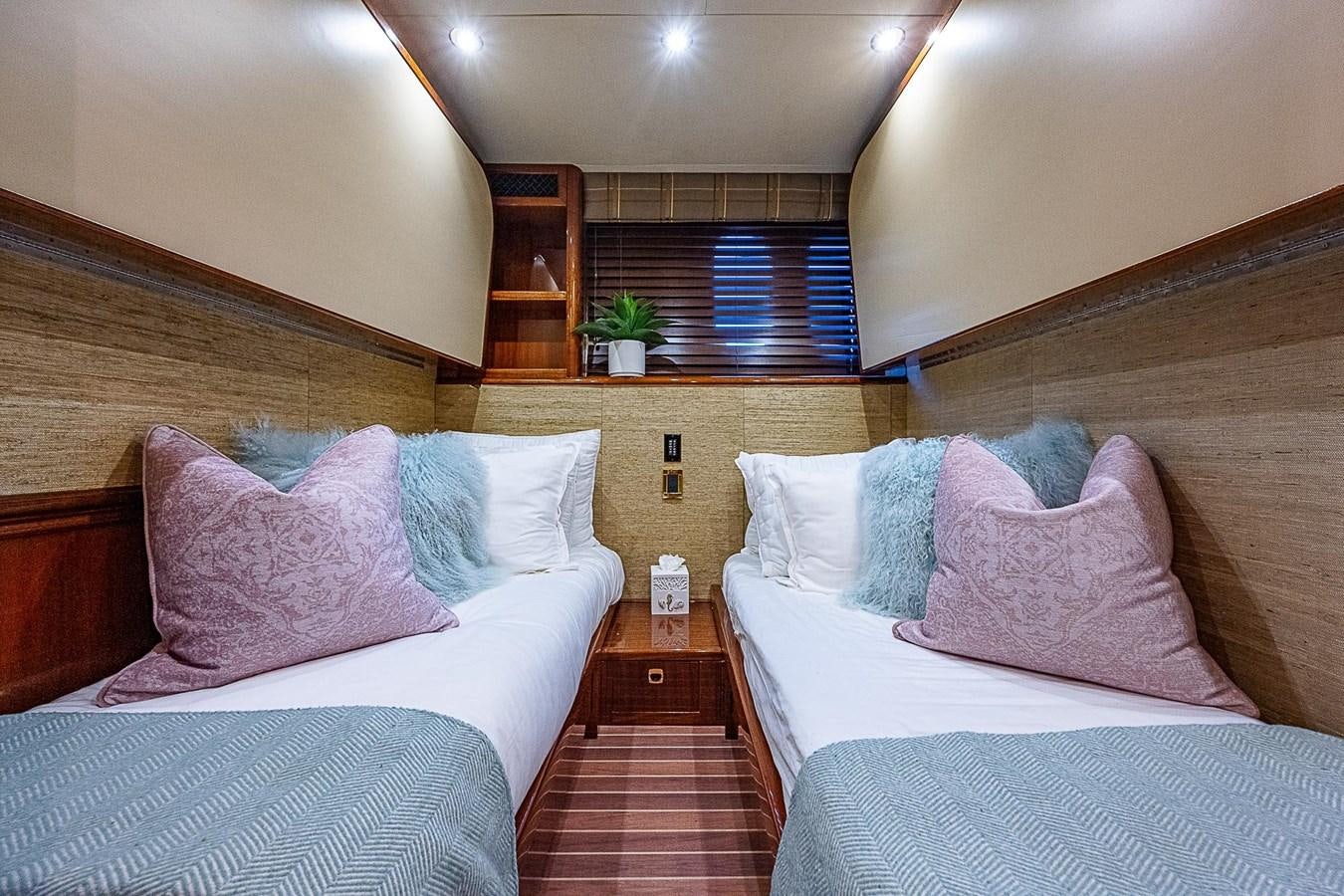

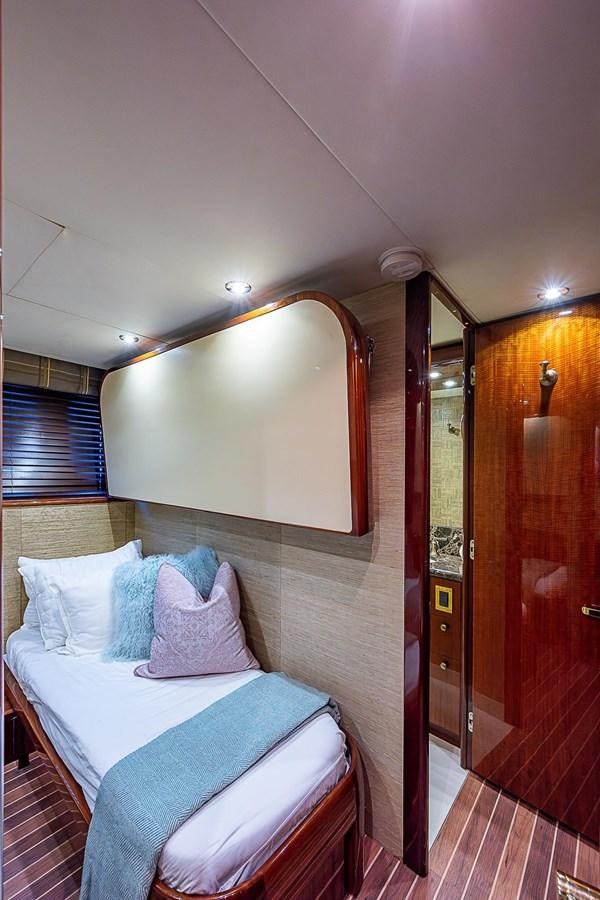

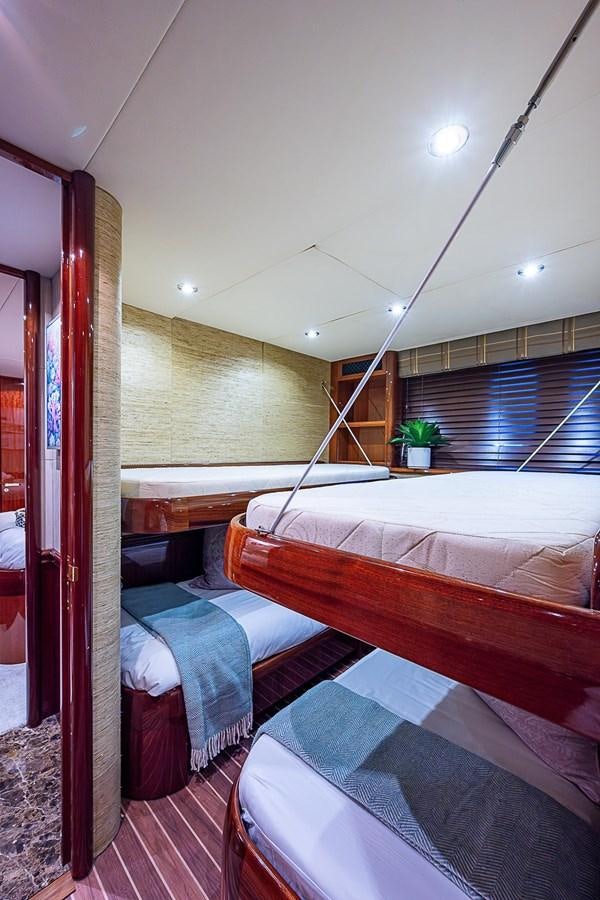

Accommodations

• She is different from other Lazzara's of this size and age range in that the master office space has been converted into a fifth stateroom (two beds w/ two pullman beds), allowing room for additional friends or family. She can comfortably carry 10 guests, with the option for 12 via pullman bunks in the fifth stateroom.

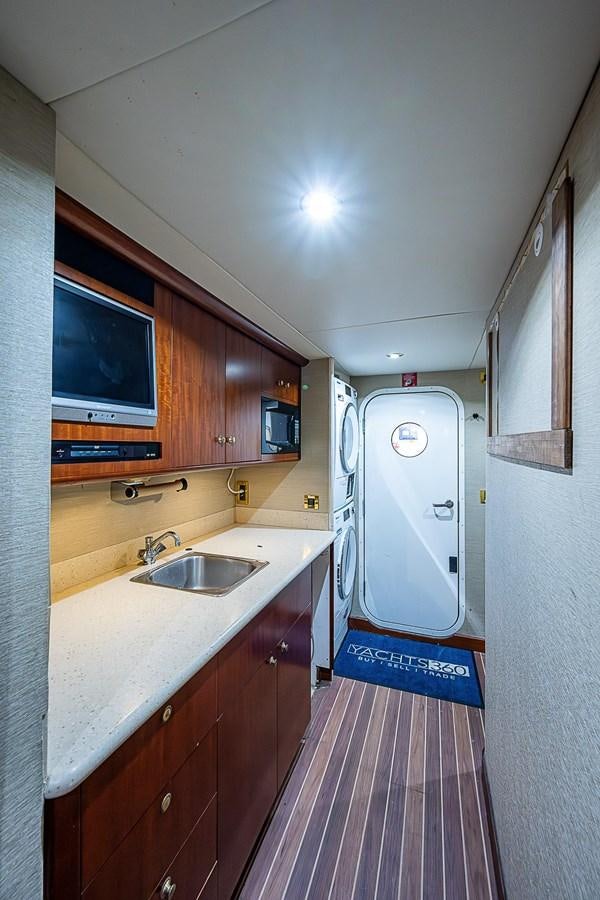

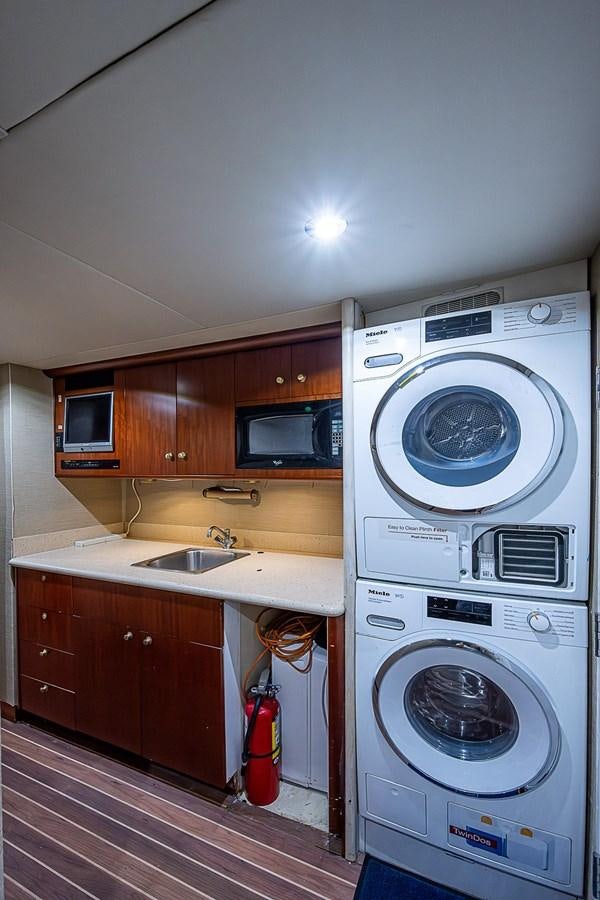

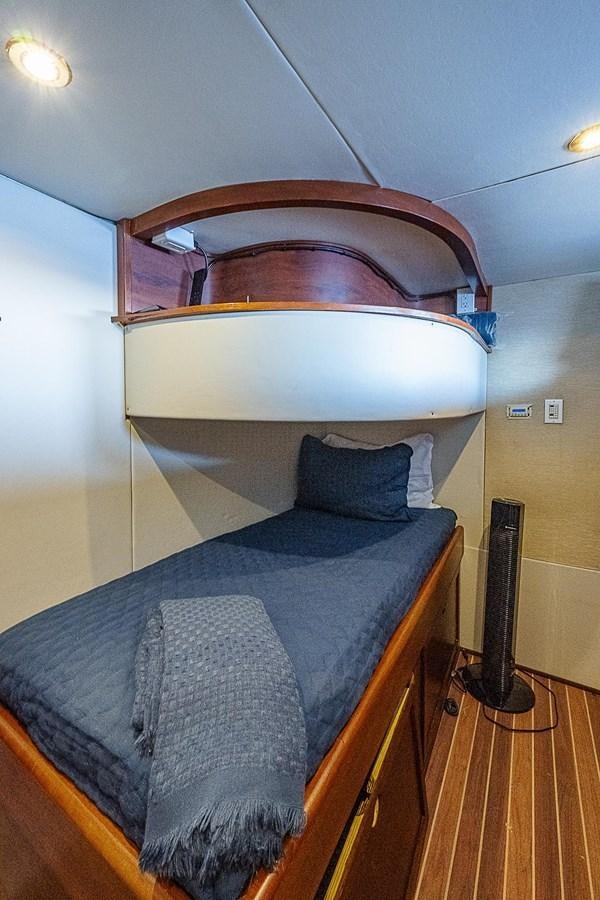

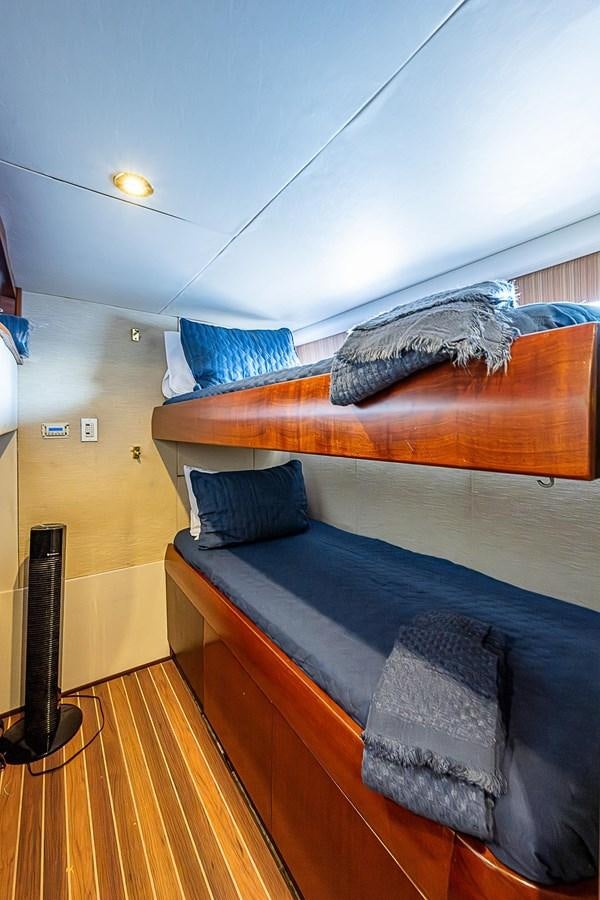

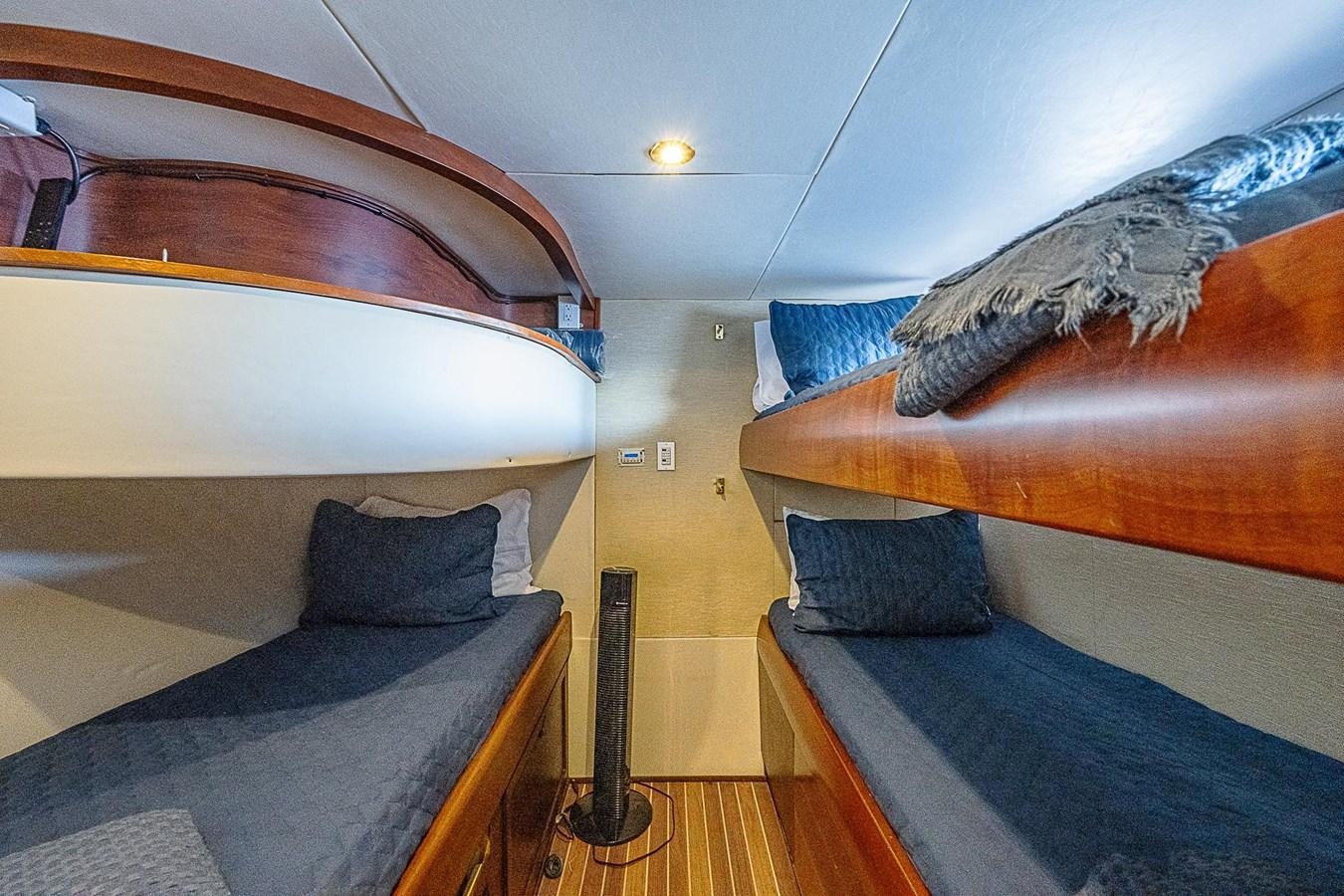

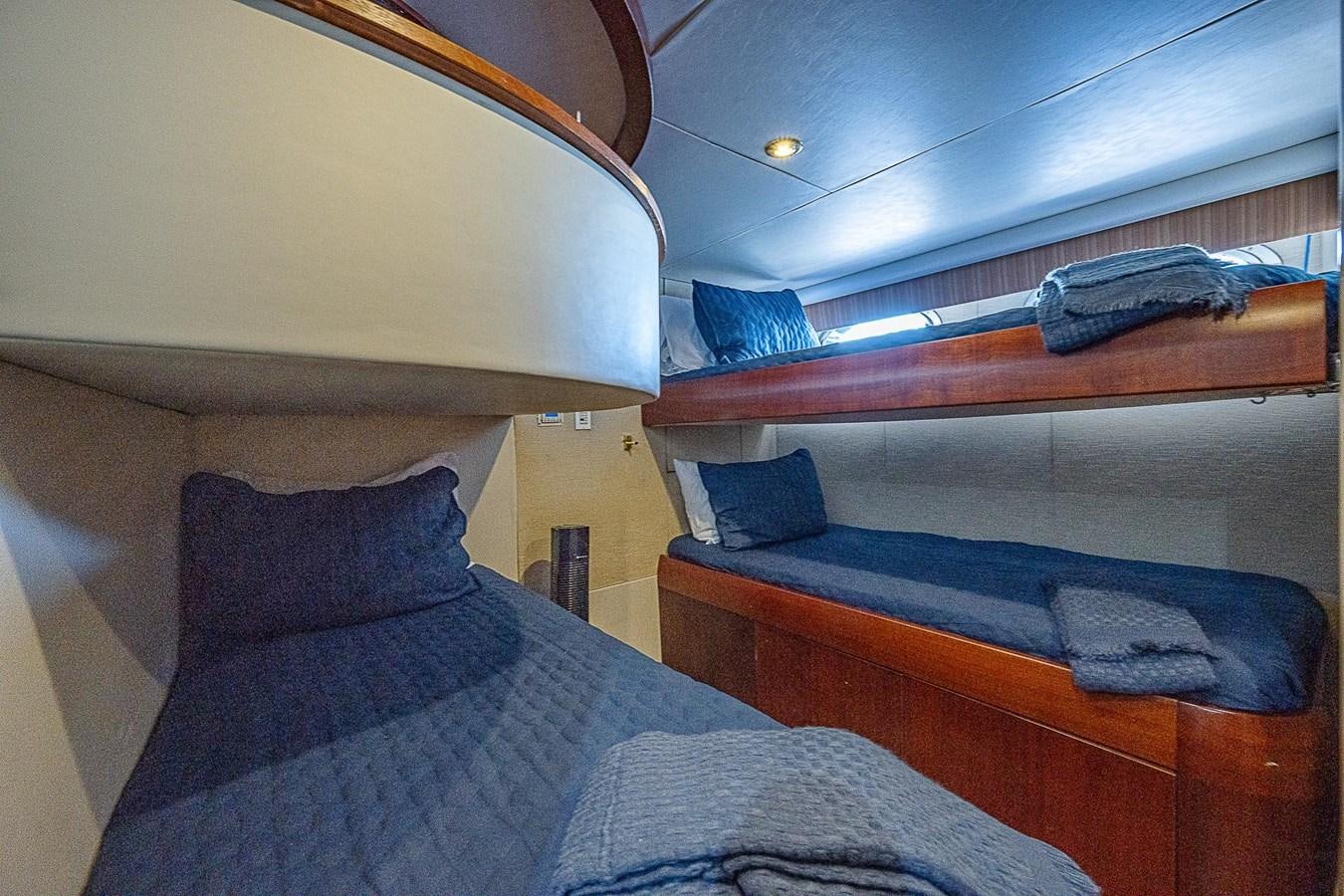

• The crew area has also been modified to accommodate up to 4-5 crew

Mechanical

Thruster/Bow

• Dual Joystick Control With Alarm indicator light @ three stations

Steering System

• Stainless Steel Hydraulic Lines
• Custom Designed stainless steel rudders

Air Conditioning System

• Chilled Water System
• 150,000 BTU (openbridge) / 174,000 BTU (SkyLounge) air conditioning system with air handlers and thermostats for each zone and chilled water system
• Insulated copper piping supply and return lines
• Individual head exhaust fans

Bilge System

• 3 HP 240 volt,Flomax,120 gallons per minute, manifold to five bilge compartments
• One Engine Room Direct Bilge Suction
• Bronze Bilge Manifold
• Copper Nickel Pipe For Bilge System In engine room
• Secondary Bilge Pump To Evacuate Each bilge, Rule 2000, 24 volt, 2,000 gallons per hour with Ultimate senior float switches
• Engine Driven Emergency Hydraulic Bilge pump, Flomax,120 gallons per minute
• Three(3) 8 GPM diaphragm emergency bilge pumps

Central Vacuum System

• Central Vacuum System,120 volt
• Controls and Instruments, Main Engines
• DDEC electronic engine controls and Monitoring System with controls at pilothouse, flybridge helm, and aft deck docking stations

DriveTrain

• CNC machined propellers
• Dripless Shaft Logs And Rudder Posts, Lasdrop
• Bronze “I”strut system
• Cast Stainless Steel Rudders

Engines & Transmissions

• DDEC electronic engine function displays programmable both English And Metric measure

Engine Room

• Overhead Handrails On Engine Room overhead
• Bronze sea cocks and under water thru hulls
• White Perforated Aluminum Hull Side, bulkhead FRP overhead panels
• Delta variable speed blowers,two(2)at 240 volts
• Compressed Air Service Outlet With One (1) 1000 Junair Oilless Compressor
• Freshwater Outlet
• Sink With Hot And Cold Running Water
• Two (2) workbenches with tools
• Removable Grating
• AC/DC lighting
• Air conditioned

Exhaust System, Main Engines

• Jacketed,stainless steel and FRP underwater exhaust system with idle bypass
• High Lift Mufflers For Generators

Fire Extinguishing System

• Fire Protection System,automatic and manual, USCG approved gas (FM200), both manual and automatic release of
• main engines generators:all with damper systems fans; manual and automatic shut down system
• on fuel to engines generators
• Fire Pump,230 volt,HALF 5hp, with two hose connections on deck (forward under bow deck sun pad naftin starboard
• side deck haunch) 66 gallons per minute at 60 psi, salt water output,1 ½”diameter, with 50 ft of hose at each location

Fresh Water System

• 600 US gallons total,two (2) linear polyethylene water tanks: FDA Approved
• Electronic Tank Level Indicator With Low level alarm
• Three (3) water heaters: total 100 gallons; to at 40 gallons (4500 watt high output fast recovery coils each for owners and
• guests), plus 20 gallon booster heater for master stateroom for redundancy and better water delivery circulation
• Pressurized 230 volt water system with dual Headhunter Mach pumps at 20 gallons per minute,50 psi (one pump is
• primary and other is backup with manual switch over)
• Two(2) dockside water connection with pressure regulators
• Water fill Station, forward port and starboard
• Freshwater Washdown: foredeck and aft deck, flybridge, engine room
• Sea Recovery1,800 GPD watermaker
• Water Filtration System

Fuel System

• Single Centerline Fiberglass (Hetron Fire retardant resin) fuel tank with 3,000 US gallons capacity
• Auxiliary Tank With 1,300 US gallon capacity
• ManuaFuellines, aircraft type, solid and flexible tubing, stainless steel grade
• Racor Fuel Filters (main engines)
• Racor Fuel Filters (generators)
• Stainless Steel Fuel Piping System
• Stainless Steel Fuel Fill Shaft (port and starboard for forward tank,starboard for auxiliary tank)
• Four(4) fuel priming pumps for each engine generator
• One(1) reversible transfer pump, Oberdorfer,10 gallons per minute with pressure relief valves,to transfer fuel from/to
• main fuel tank and from/to auxiliary fuel tank
• Emergency Fuel Shut-off outside engine room(tied into emergency fire release and shutdown system)

Lube Oil System

• Lubricating Oil Changer System, Oberdorfer Pump,120 volt reversible, with oil quantity gauge and selector valves for
• engines,gears,and generators
• 72 US gallon fresh oil storage tank
• 72 US gallon used oil storage tank
• One (1) main engine fuel oil back-up pump

Black Water System

• 380 total US gallon black water storage tank
• One holding tank forward,300 US gallons, and two 40 US gallon tanks for crew with tanks entry tied into ISIS
• Access For Pump Out

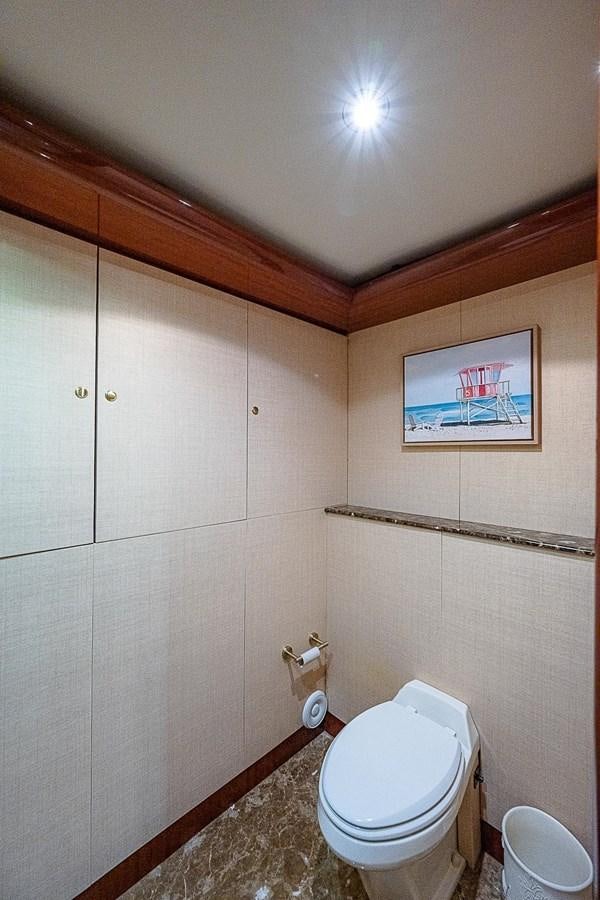

• Headhunters Gravity Marine Toilet System
• Three macerator pumps with overboard or deck discharge (international flange), with 240 volt mains pump, plus two(2)
• 24 volt auxiliary tank pumps
• Pressurized Gray Water Pump Out system for main accommodations, with separate high lift pump for draining master band engine room sink and dual sump pumps for crew quarters

Noise, Thermal and Vibration Control

• All Primary Machinery & Equipment resiliently mounted
• Engine Room Provided With Double thermal and acoustic insulation
• All Living Areas Acoustically Insulated
• Soundown Carpet Pad Used Throughout
• Lower Deck Soles Vibration Isolated With rubber discs
• High Lift Muffler For Generators

SeaWater Cooling System

• 6" Bronze Sea Strainer
• Copper Nickel seawater piping

Alarms

• Fire alarm system with emergency DC backup
• ISIS 700 ALY/SP custom vessel monitoring system,including:
• One(1)18”monitor power station;One(1)12”monitor (bright) upper station
• ECM output from engine monitor/alarm electronics
• Generator Systems alarm/monitoring
• Tank level readout alarms
• Free ZoneAlarm for engine room
• Bilge Alarm and pump run indication
• Autofire Discharge Alarm
• MTU engine control alarms
• Alarm For Reduction Gears

Electrical

Exterior System

• Over head lights and arch accent lights
• Navigation Lights 24V/dual element Aqua Signal Series 70, including:
• Forward steaming light
• Port/Starboard Side Running lights
• Stern Running Light
• Anchor light 24V
• NUC lights to color regulations, 24V
• Exterior Stairway Lights
• Aft Deck, transom, foredeck, arch and bulwark lights
• Boat Deck Lighting/Aqua Signal Series 1076
• Liferaft Embarkation Lights
• Emergency Lighting Teach Stairway
• ACR 100 searchlight with dual remote controls(single control on SkyLounge model)Grounding
• AC and DC Bonding and Grounding System
• Bonded Seawater Pipe, valves, thru-hulls, strainers
• Sacrificial Zincs:anodes on all running-rig components

Interior Lighting

• Low voltage AC with remote control dimming system
• Vimar Switches And Receptacles
• Public space lights with DC emergency circuits
• Fluorescent Lighting/engine room
• Three (3) zone lutron homeworks processor controlled automated scene
• lighting system

Shore Power

• Four (4) 100'-100 amp, 240VAC shore cords, Automatic Power Cable Reel/24 VDC;two (2) forward and two(2) aft
• Isolation Transformer
• Shore Power “smart” dockside voltage/phase combiner Switchboards, Load Banks and Control Panels
• AC and DC mastercontrol distribution panel located in engine room with secondary distribution subpanels (four AC,for
• DC) located throughout the yacht
• 240 volt/120 volt/60hz ship’s electrical system
• Emergency Batteries
• 1.4kW UPS backup power supply
• Two Charles Industries battery chargers, each 60 amps at 240 volt
• Vapor Proof Battery Switches
• Navigation Lights On Separate Distribution panel
• VHF on independent emergency battery

Wires and Cables

• All Cables Marked With Circuit Number
• Wirechase Runs Throughout
• Bonded Electrical System
• Color Coded Wiring System
