Asking
€24,995,000
LADY MAXINE Yacht for Sale
Length 157' 6" (48.77m) Builder Royal Hakvoort Shipyard Build 2010
- Guests
- 14
- Cabins
- 7
- Crew
- 11
- Asking Price
- €24,995,000
Not for sale or charter to U.S. residents while in U.S. waters.

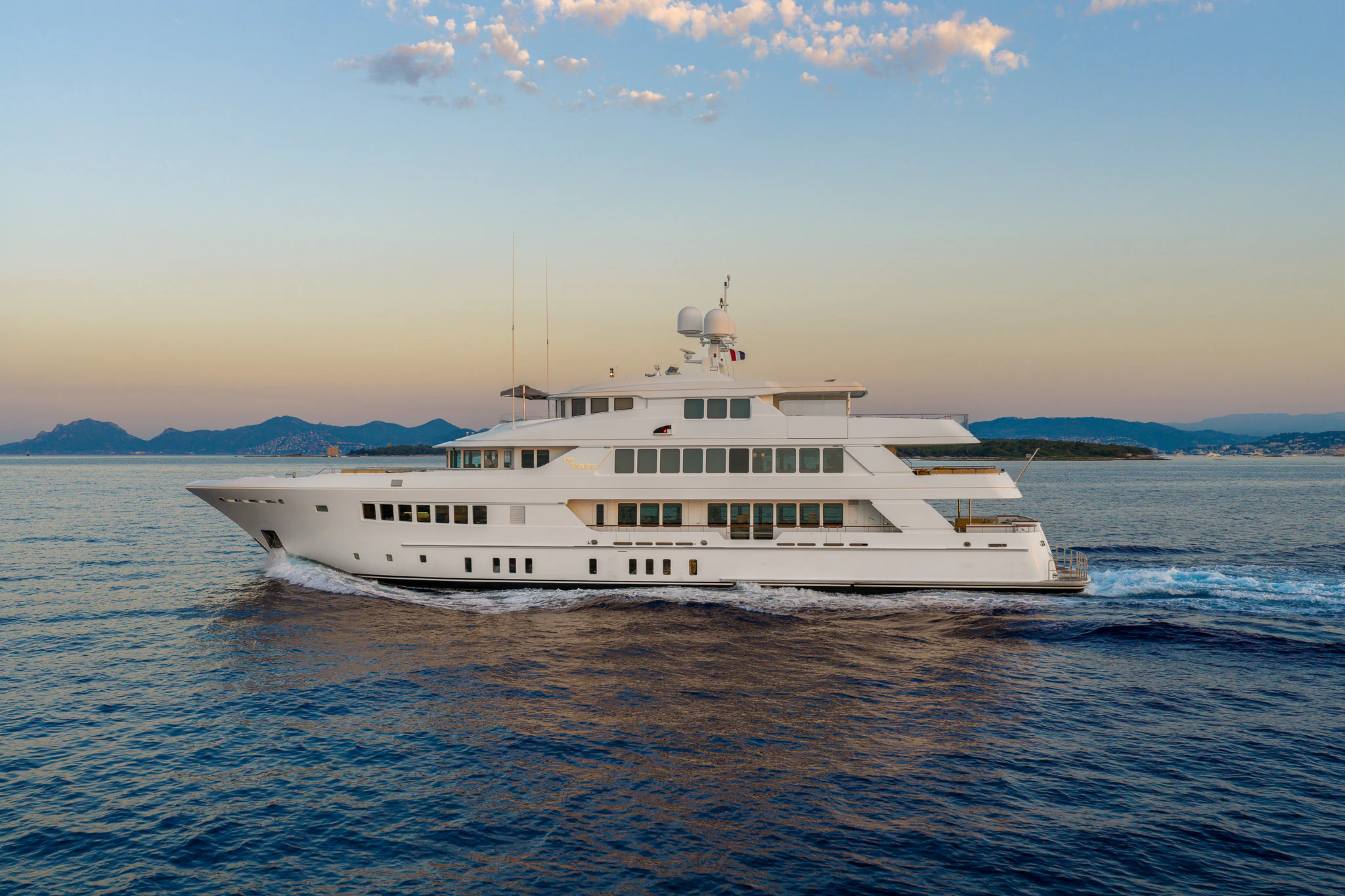

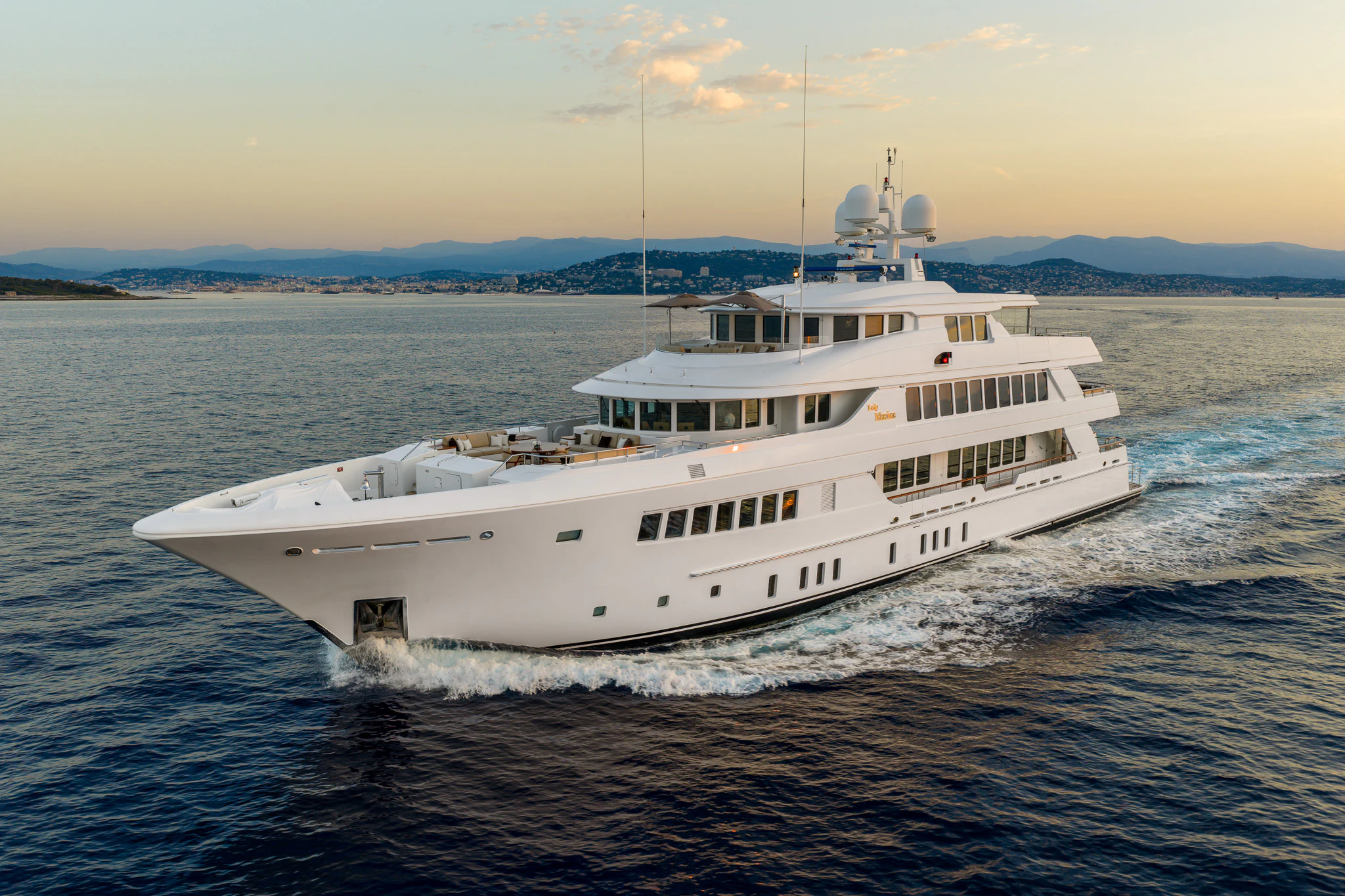

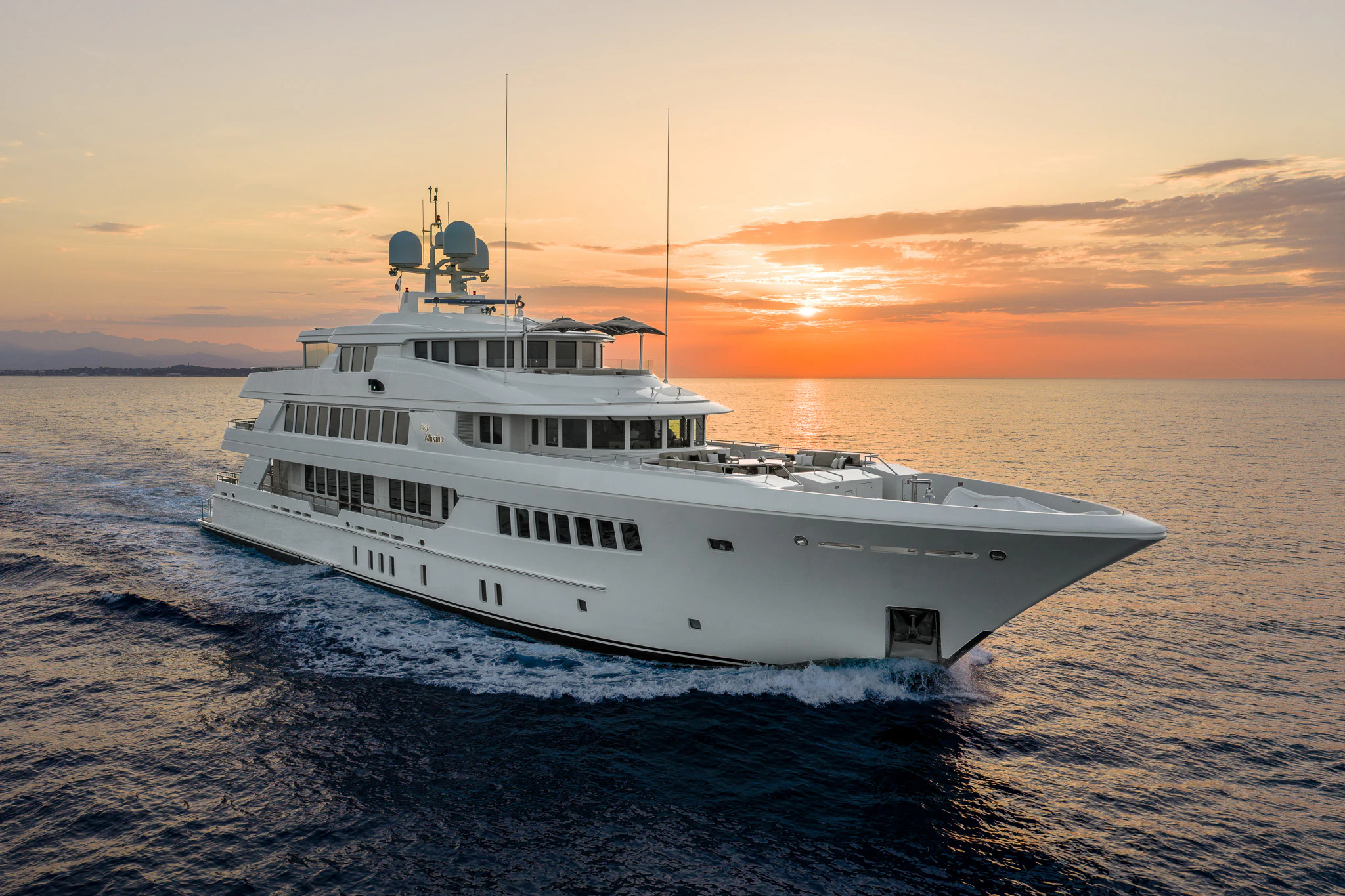

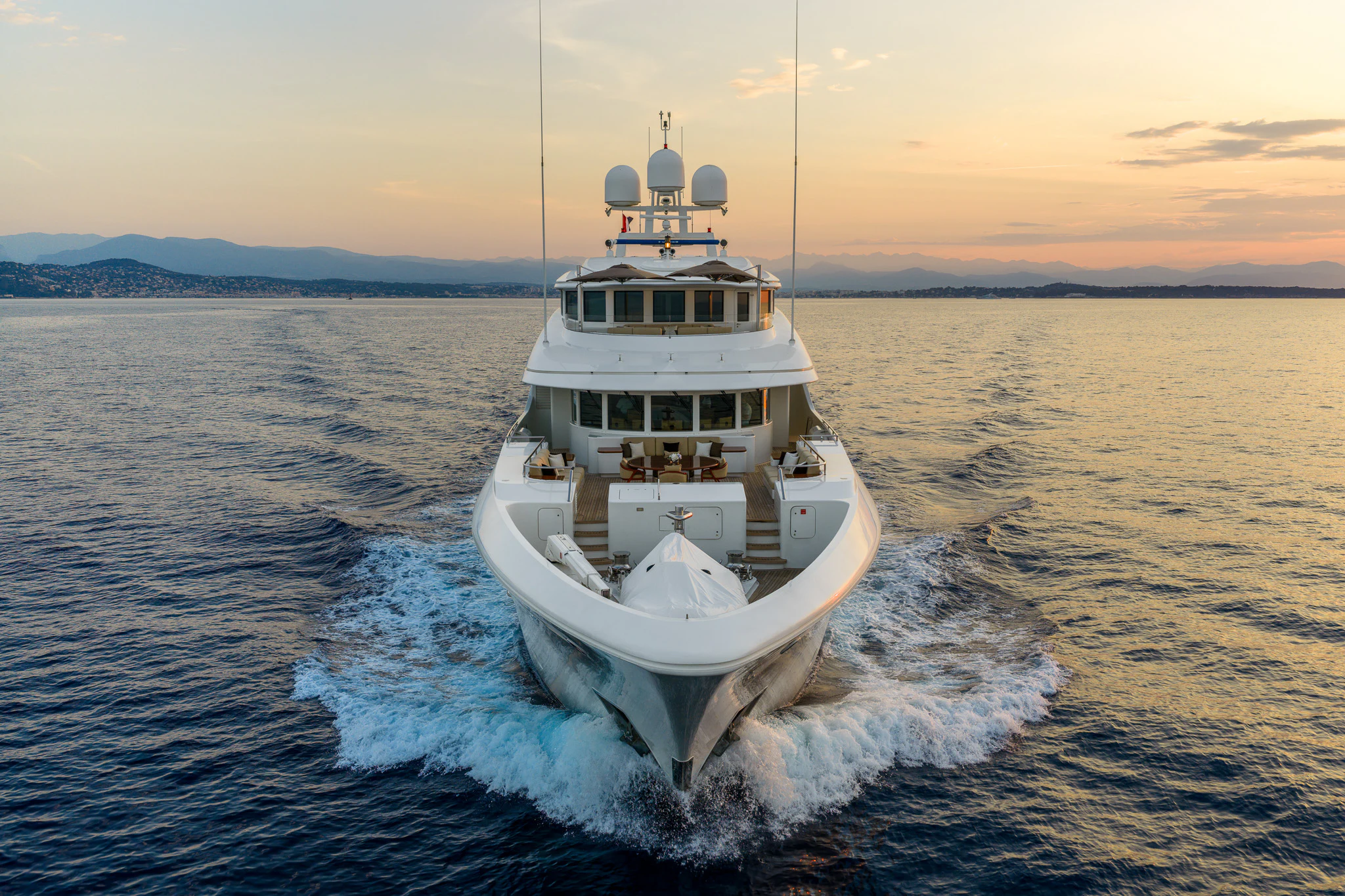

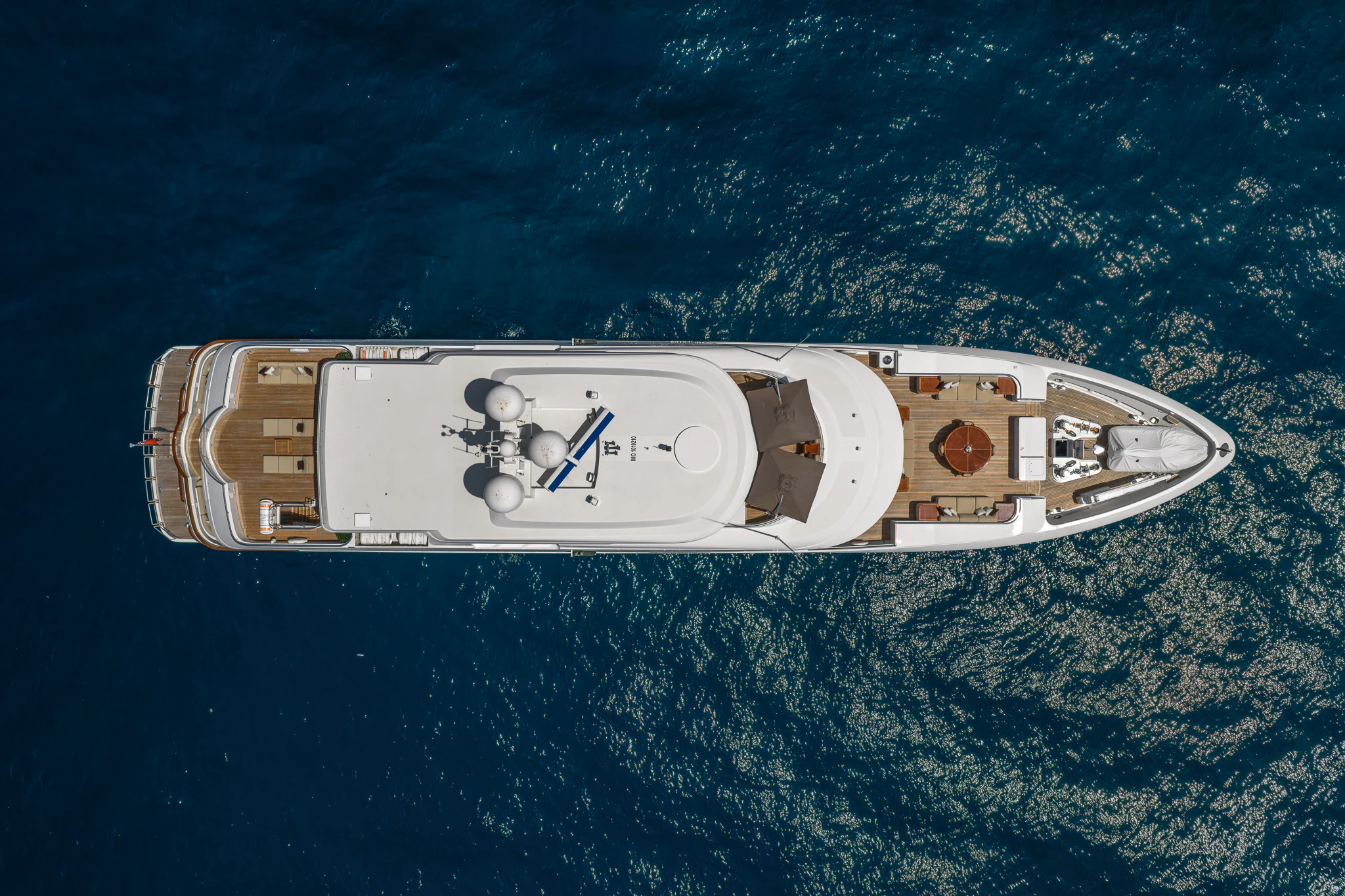

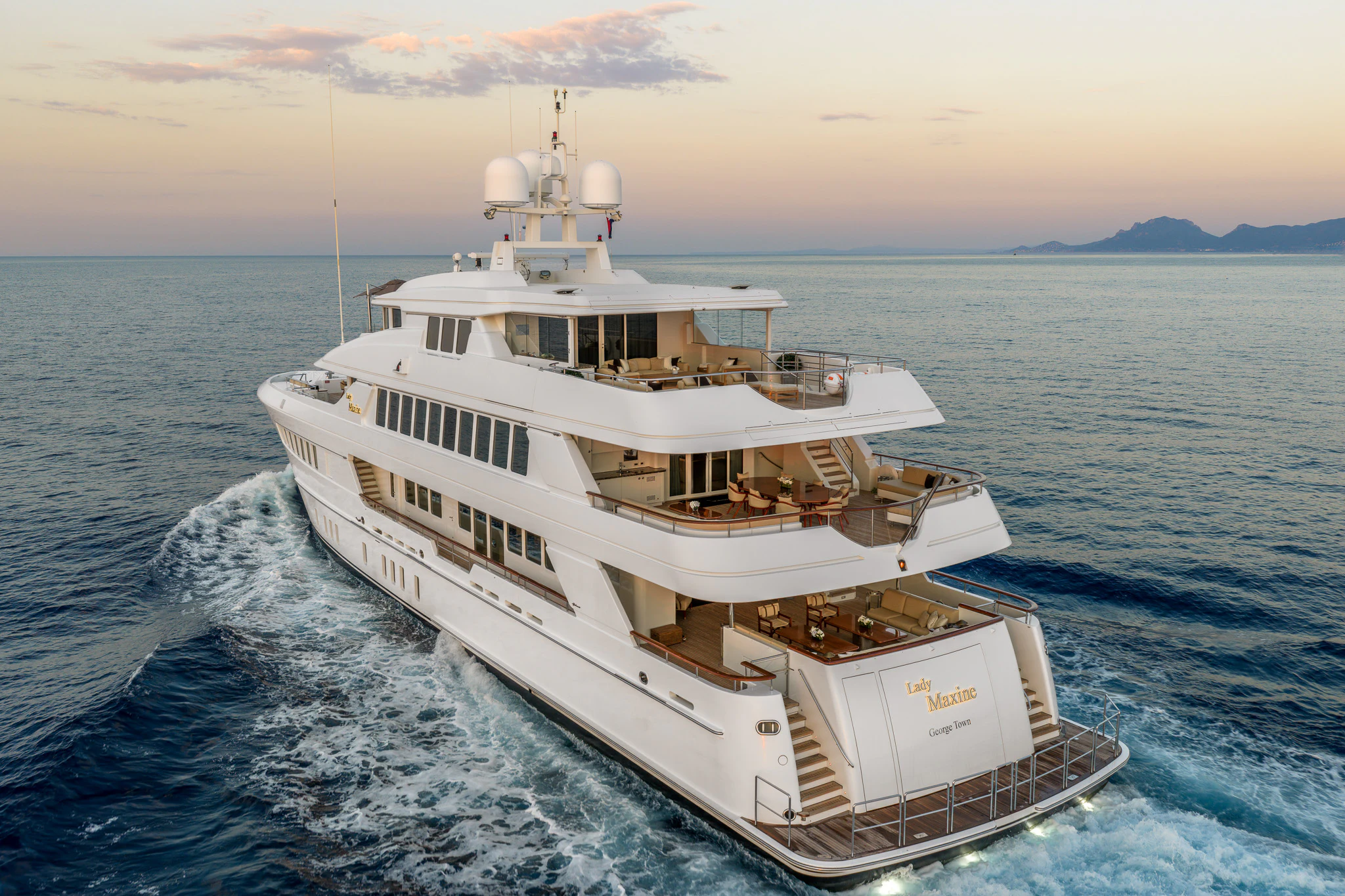

LADY MAXINE is a 160’ (48.77m) Hakvoort displacement motor yacht delivered in 2010. Created on the boards of Diana Yacht Design, Glade Johnson and Sinot for a highly experienced owner, she is beautifully proportioned. With 703GT of volume, a private owner’s deck, seven guest staterooms and an elevator serving all guest decks, LADY MAXINE offers the space, craftsmanship and presence of a much larger yacht.
Built by Royal Hakvoort, one of Holland’s leading custom superyacht builders, LADY MAXINE features a round-bilged displacement steel hull with good deadrise, a level keel and a flared bow with a fine entrance angle. Designed for long-range cruising in all conditions, she combines classic superyacht styling with comfort, stability and cruising performance. Quantum zero-speed stabilizers enhance comfort at anchor, while her generous ceiling heights and elevator improve the onboard experience for guests.
LADY MAXINE presents in excellent condition following a strong maintenance and refit history. Privately used since delivery, she has benefitted from significant refits in 2021, 2024 and most recently in 2026. In 2024, she completed an extensive mechanical refit and renewed her five-year special class survey. In 2026, she underwent a full AV/IT upgrade and an interior refit overseen by Sinot.
The interior is timeless, elegant and richly detailed. Stained Sapelli mahogany sets the decorative tone, complemented by gold-plated accents, fine materials and intricate mirror inlays. Large windows throughout flood the yacht with natural light. The main salon is grand yet inviting, with central sofas, armchairs and exquisite woodwork, while gold-inlay glass sliding doors separate the salon from the formal dining room. Here, a long marble top table seats 10 guests in an elegant setting supported by fine cabinetry and ample storage.
On the bridge deck, the full-beam lounge was redesigned during the 2026 refit and now offers an informal seating area to starboard, with a piano and games table to port. A striking glass elevator connects all four decks and is set within a sculptural staircase finished with a brass and leather handrail.
LADY MAXINE accommodates up to 14 guests in seven en-suite staterooms. The private owner’s deck is located on the sun deck and offers direct access to the aft terrace. The owner’s suite features an aft-facing king-size bed, lounge area, writing desk, dressing foyer, floor-to-ceiling panoramic glass doors and large windows. The en-suite honey onyx bathroom includes a bathtub, onyx basin and THG Art Deco crystal-line fittings.
Guest accommodation includes two spacious VIP suites on the bridge deck, each with queen beds, desks, wardrobes, mini fridges and large side windows. The port-side VIP bathroom also includes a shower/steam room. A flexible convertible double/captain cabin is located on the main deck, while four additional guest staterooms are found on the lower deck, including two doubles and two twins, each with refined finishes and en-suite bathrooms. There is a staff cabin located on the owner’s deck, ideal for additional crew or security as required.
Exterior living aboard LADY MAXINE is designed for al fresco dining, lounging and relaxation across multiple decks. The main deck aft offers a large U-shaped sofa, twin teak tables and a bar with fridge, icemaker and sink. The bridge deck aft is ideal for outdoor entertaining, with an extensible oval teak dining table for 12, elegant loose furniture, a full-service bar and a retractable awning.
Forward on the bridge deck, built-in sofas and a high-gloss varnished dining table create a peaceful retreat with excellent views. Above, the sun deck aft offers exceptional privacy beneath a hardtop-protected terrace, with sliding windbreak glass panels, sun lounging furniture and open views over the sea. The sun deck forward provides another quiet lounging area with three built-in sofas, ideal for sunset cocktails or private reflection.
At water level, a fixed swimming platform is recessed into the stern, while a large transom hatch opens to the garage for water toy storage.
Combining Royal Hakvoort build quality, timeless Sinot interiors, exceptional volume and a rare seven-stateroom layout, LADY MAXINE is a distinguished yacht for an owner seeking classic design, blue-water capability and refined comfort.
Highlights
- Seven guest staterooms accommodating up to 14 guests
- Private owner’s deck with direct access to the aft sundeck terrace
- Elevator serving all guest decks
- 703GT of impressive interior volume
- Extensive maintenance history including 2024 mechanical refit and 2026 AV/IT and interior refit
- Quantum zero-speed stabilizers
Amenities
-
Scuba Diving
-
Passarelle
-
Underwater lights
-
Jacuzzi
-
Gym
-
Personal Watercraft
-
Stabilizers
-
Wi-Fi
-
Elevator
-
Kaleidescape
-
Piano
-
Crane
In The News
Specifications
| Builder | Royal Hakvoort Shipyard |
|---|---|
| Model | Custom |
| Length (LOA) | 157' 6" (48.77m) |
| Year | 2010 |
| Gross Tonn. | 703 |
| Draft | 9' (2.94m) |
| Beam | 30' 7" (9.15m) |
| Location | Barcelona |
| Classification | RINA |
Accommodations
| Staterooms | 7 |
|---|
| Crew Sleeps | 11 |
|---|
Dimensions & Capacity
| LOA | 157' 6" (48.77m) |
|---|---|
| LWL | 136' 3" (41.55m) |
| Min Draft | 9' (2.94m) |
| Max Draft | 9' (2.94m) |
| Fuel Tank | 19,549 g (74,000 L) |
| Fresh Water | 3,461 g (13,100 L) |
| Gross Tonn. | 703 |
| Displacement | 500 |
Construction
| Hull Material | Steel |
|---|---|
| Hull Config | Displacement |
| Ext. Designer | Glade Johnson |
| Int. Designer | Sinot Yacht Architecture |
| Max Speed | 13.2 Knots |
| Cruising Speed | 12 Knots |
Complete the form below and one of our experienced sales brokers will be in touch soon.
Full Details
Main Characteristics
-
Name: Lady Maxine
-
Previous Names: Mirgab VI, Olmida
-
Builder: Royal Hakvoort
-
Type: Twin screw displacement motor yacht
-
Year: 2010
-
Refit: 2021 / 2024 / 2026
-
LOA: 48.77m / 160’/00”
-
LWL: 41.55m / 136’04”
-
Beam: 9.15m / 30’00”
-
Draft: 2.94m / 9’08”
-
Hull: Steel
-
Superstructure: Aluminium
-
Gross Tonnage: 703 GRT
-
Displacement: 279.9 T
-
Flag: Cayman Islands
-
Classification: RINA C ✠ Hull ✠ Mach Y Unrestricted
-
Naval Architecture: Diana Yacht Design
-
Interior Designer: Sinot
-
Exterior Designer: Glade Johnson
-
Main Engines: 2 x MTU V8 8V4000M60R (938 HP)
-
Max Speed: 13.2 knots
-
Cruising Speed: 12.5 knots
-
Range: Approx 3,500nm at 12 knots
-
Guest Accommodations: 14 guests in 7 staterooms
-
Crew Accommodations: 11 crew + staff bunk cabin
Introduction
Lady Maxine is a 48.77m Royal Hakvoort delivered in 2010, featuring naval architecture by Diana Yacht Design, exterior styling by Glade Johnson, and interiors by Sinot. Privately used since delivery, she has benefitted from a series of significant refits in 2021, 2024, and most recently in 2026 under her current ownership.
Distinguished within her class by an exceptionally versatile seven-stateroom layout, Lady Maxine accommodates guests across a highly functional arrangement that includes a private Owner’s deck on the sundeck and two VIP suites on the bridge deck. An elevator services all decks, ensuring seamless accessibility throughout.
Her 2026 refit, overseen by Sinot, included a comprehensive interior refresh alongside a full rebuild of the yacht’s AV/IT systems. With an impressive volume of 703 GT, Lady Maxine represents a rare opportunity to acquire a pedigree Dutch-built yacht presented in immaculate condition.
Unique Selling Points
-
7 guest staterooms including private owner’s deck
-
Elevator serving all decks
-
Timeless Sinot interior design
-
Extensive maintenance history including a 2026 refit
-
Incredible interior volume of 703 GRT
-
Exceptional build quality by Royal Hakvoort
-
Impressive ceiling heights throughout
Accommodations
Owner’s deck | Sun Deck

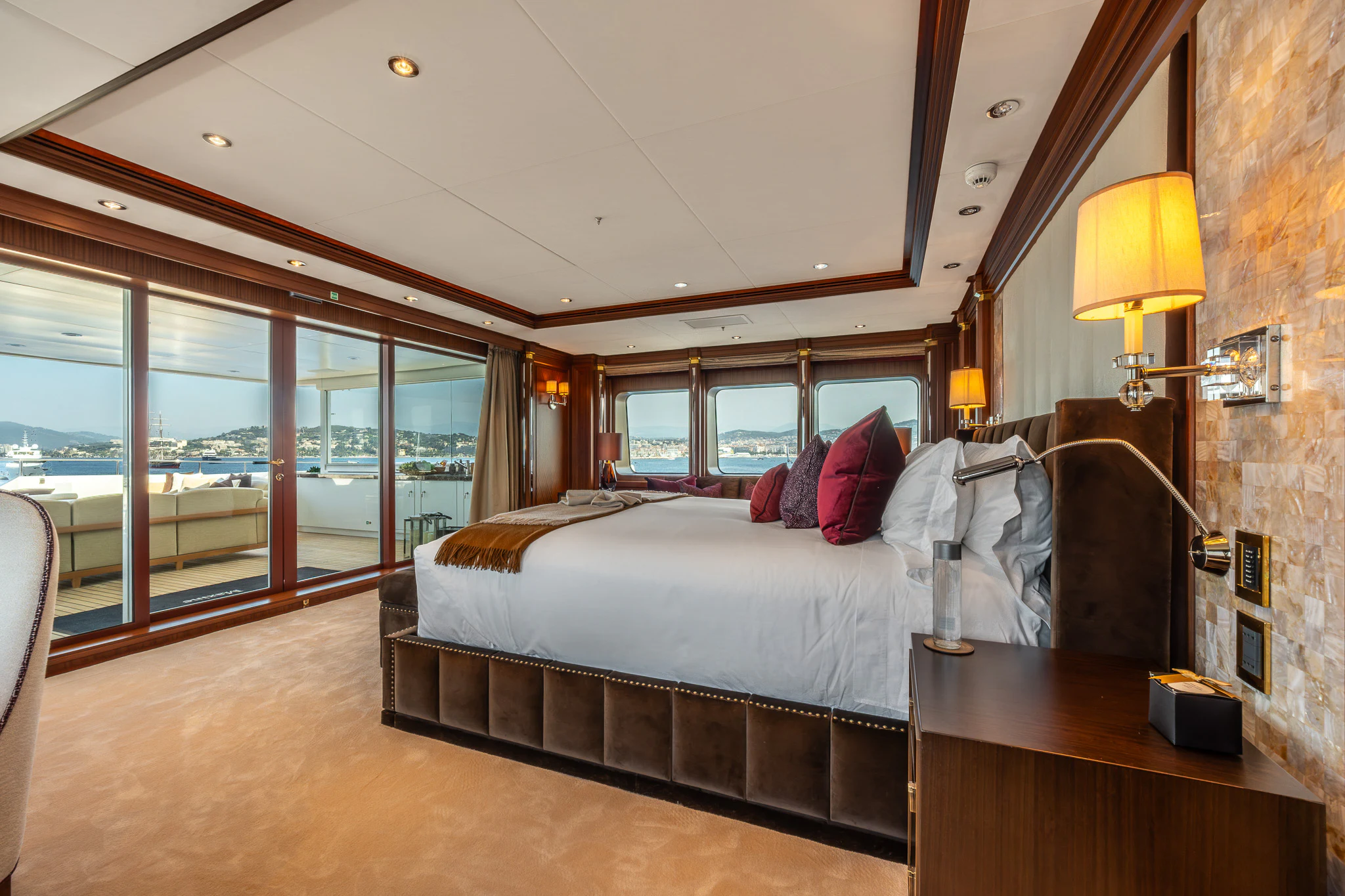

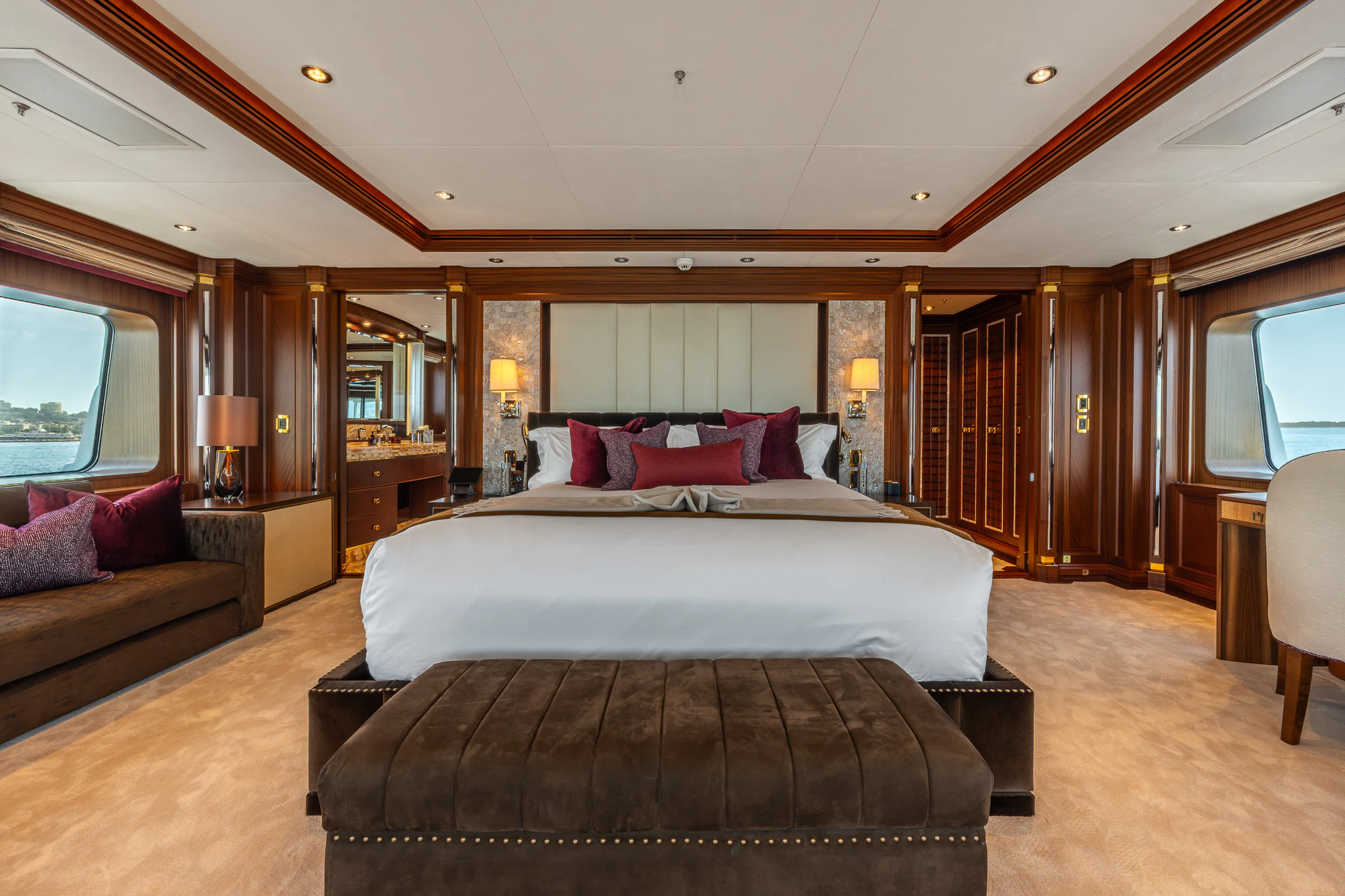

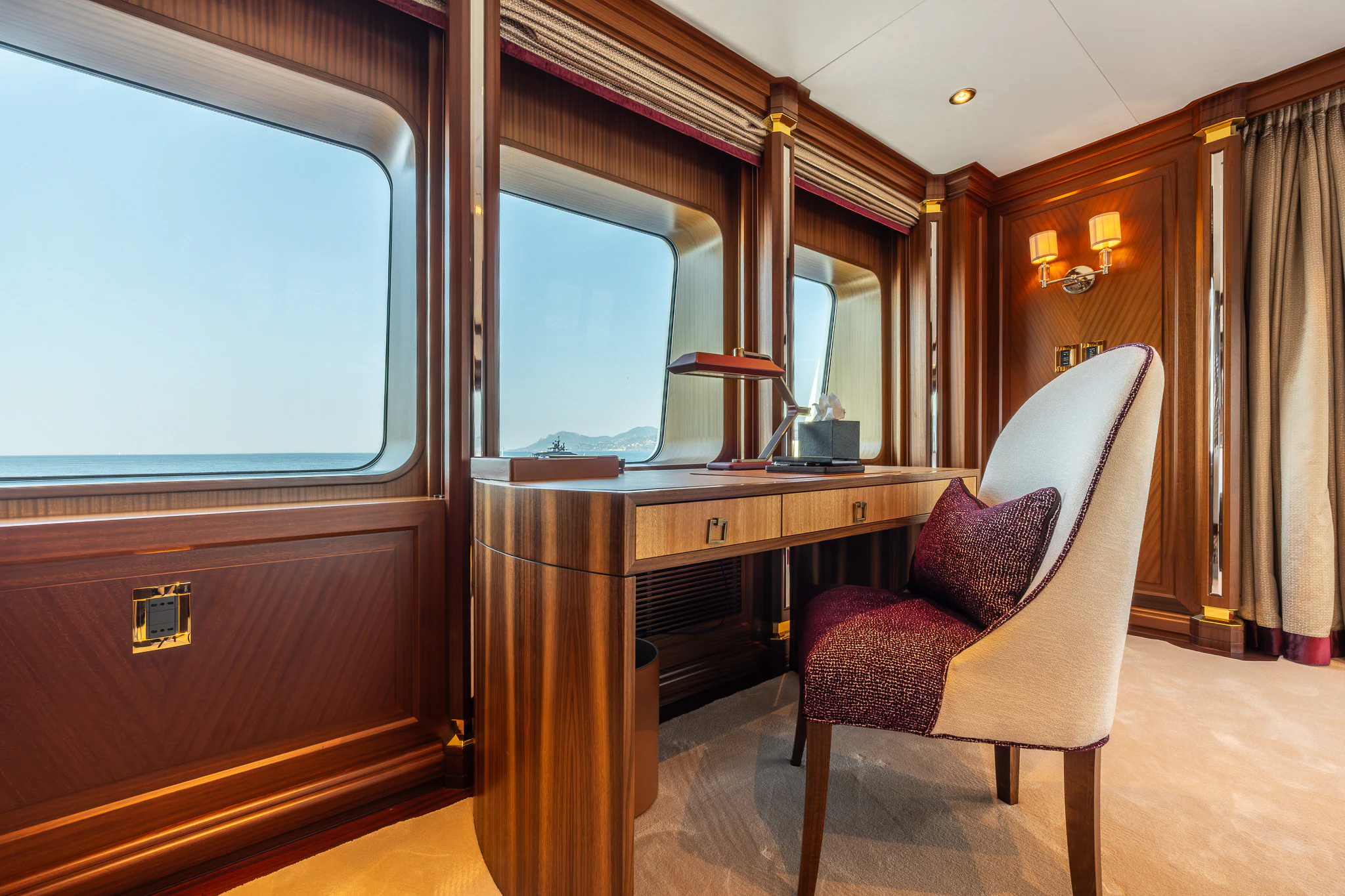

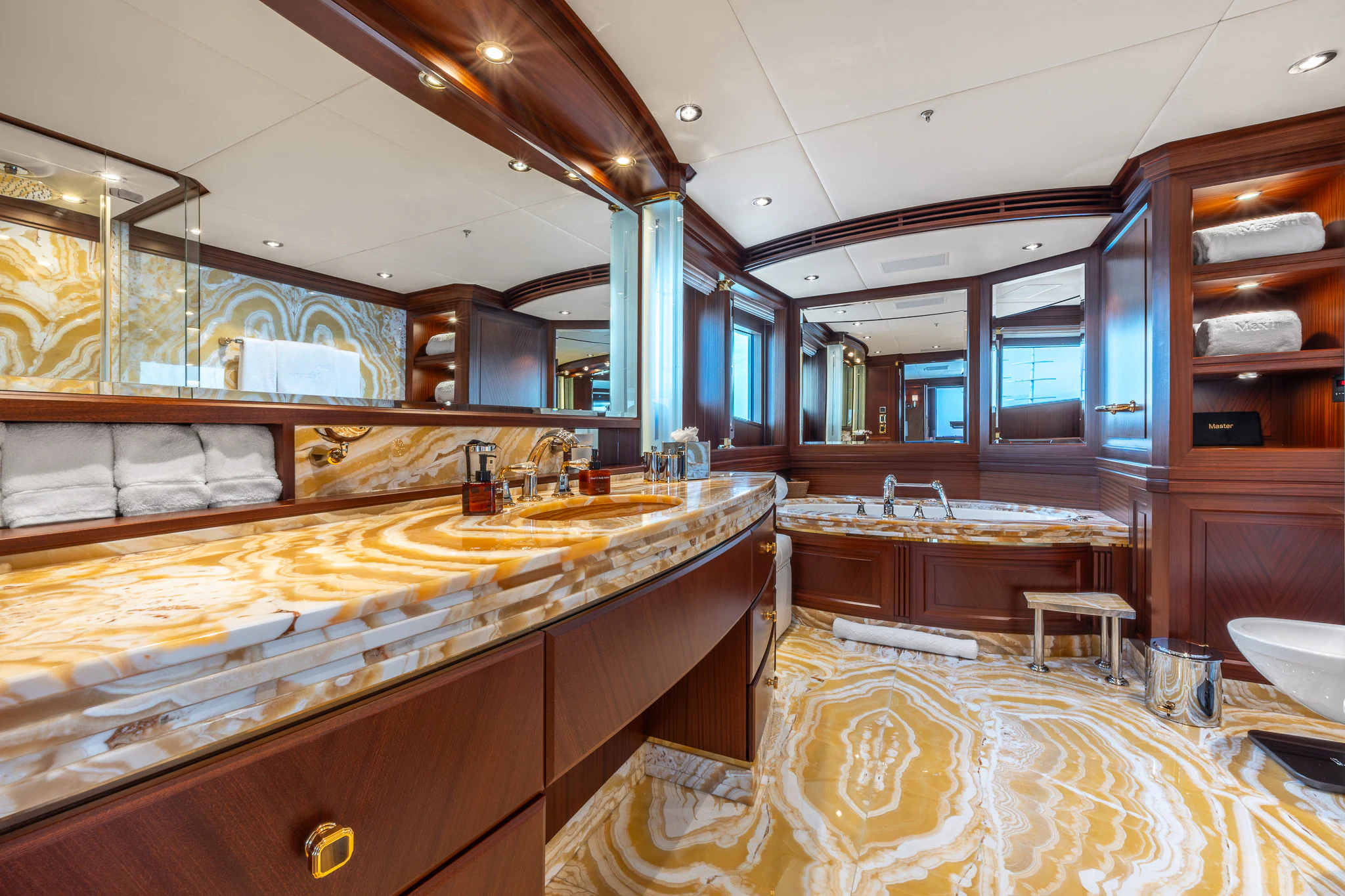

A private sanctuary with direct access to the aft Sun Deck terrace, preceded by a well-appointed staff cabin with upper and lower bunk beds. The suite features an aft-facing king-size bed, lounge with sofa and writing desk, and a dressing foyer. Floor-to-ceiling panoramic glass doors and large windows.
Interiors boast stained Sapelli mahogany, gold-plated accents, honey onyx, mother-of-pearl, and custom beige leather finishes. The ensuite Honey Onyx bathroom is a spa-like retreat with a bathtub, onyx basin, and THG. Art Deco crystal-line fittings.

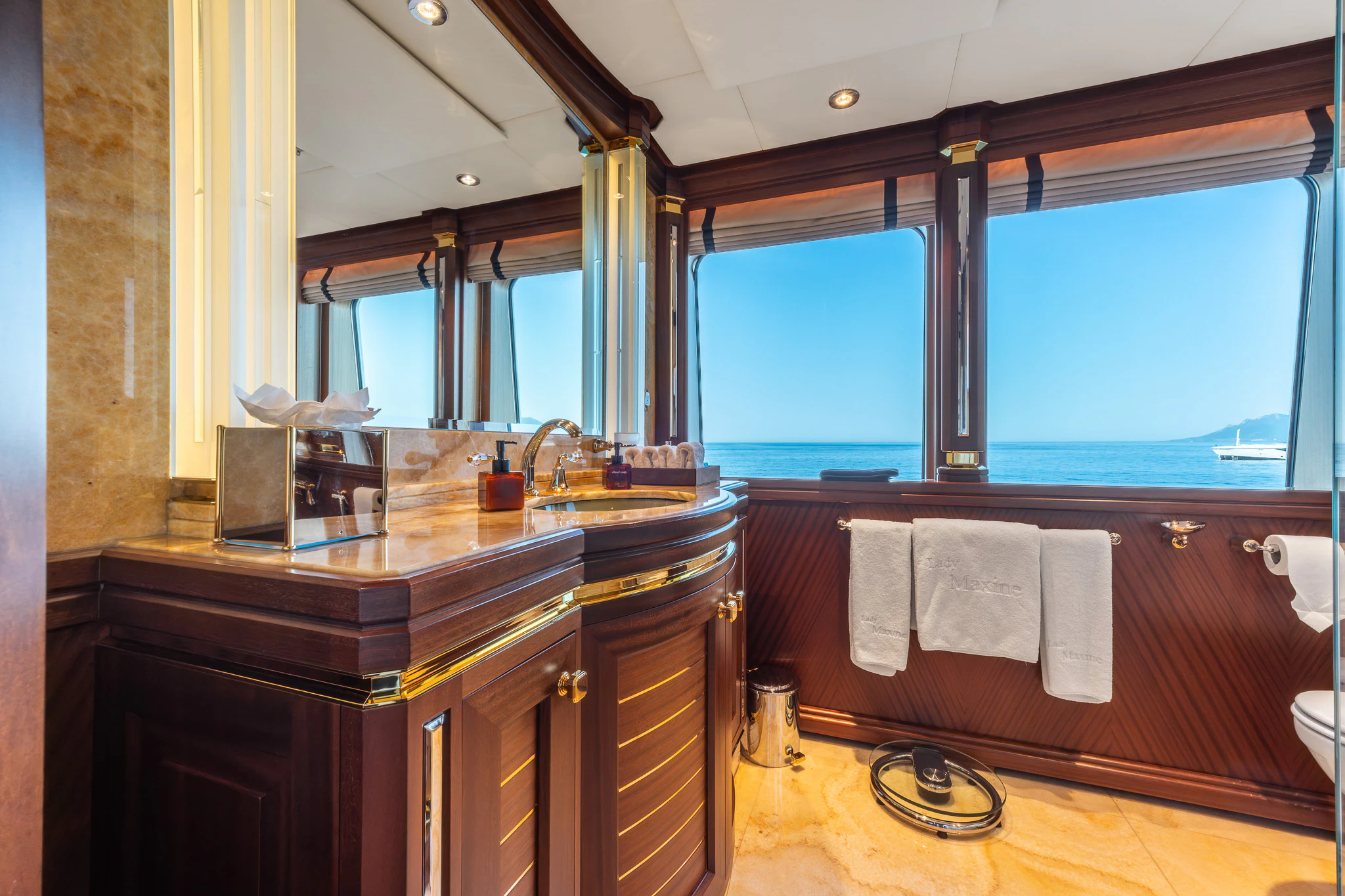

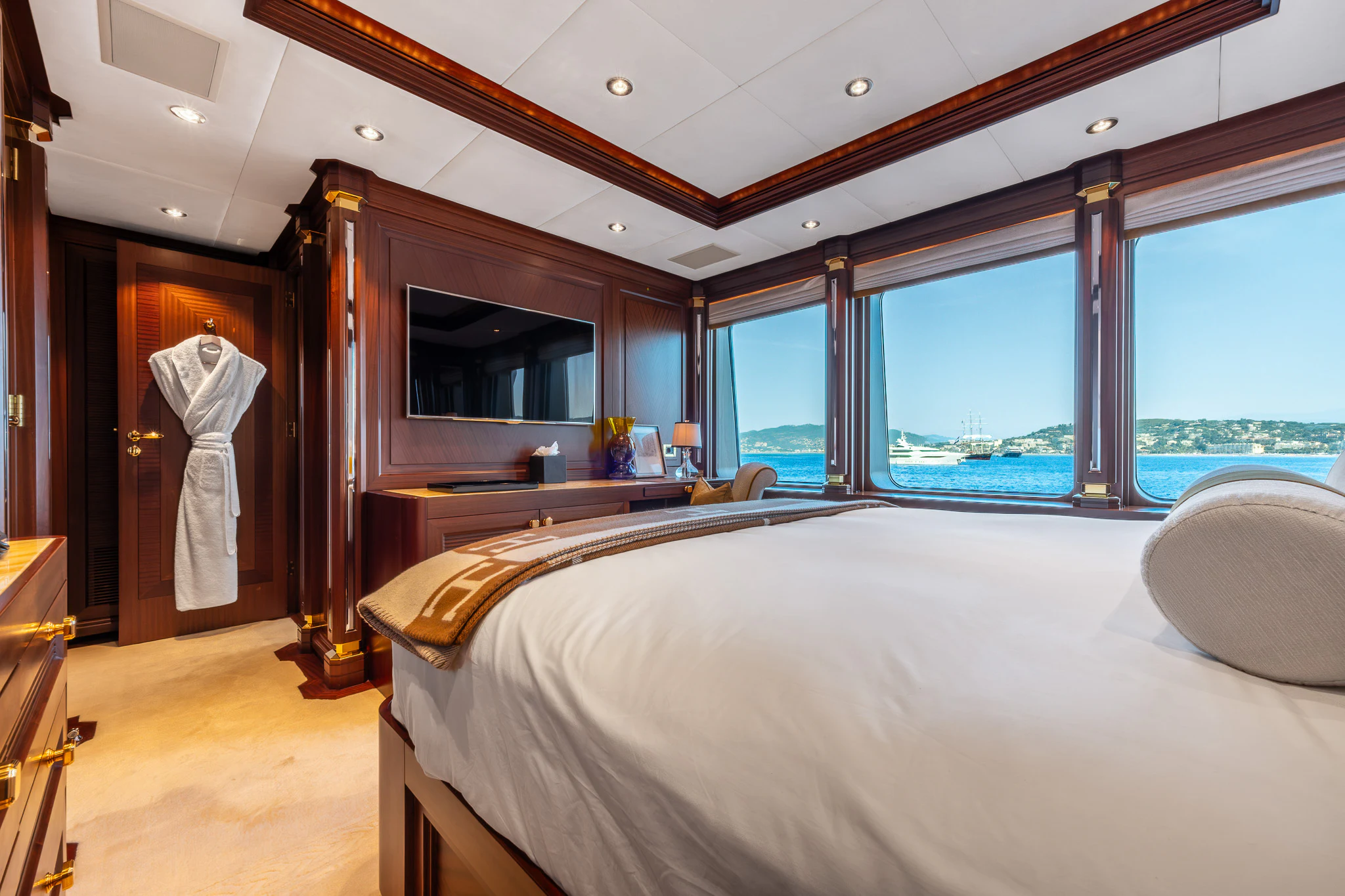

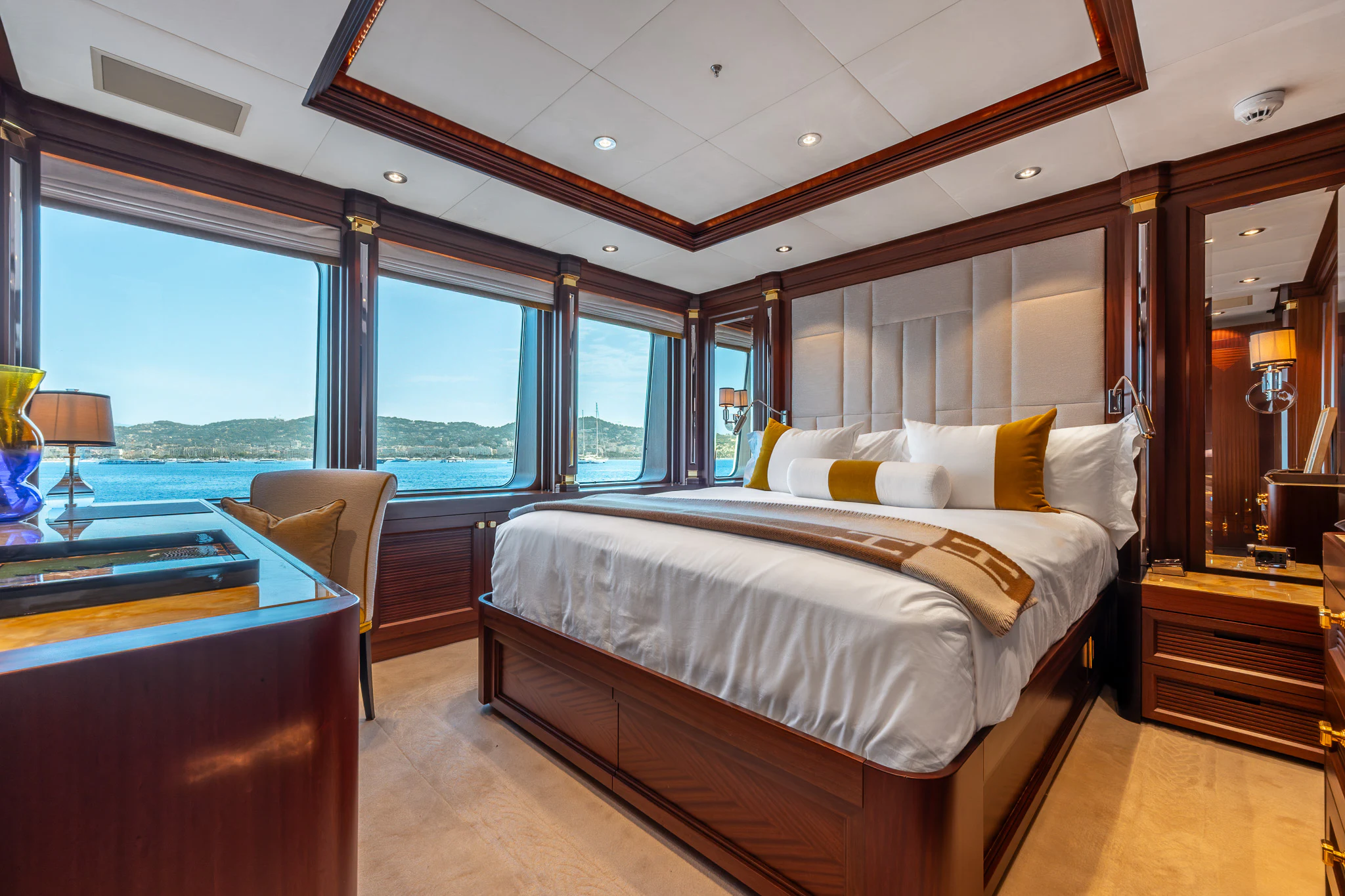

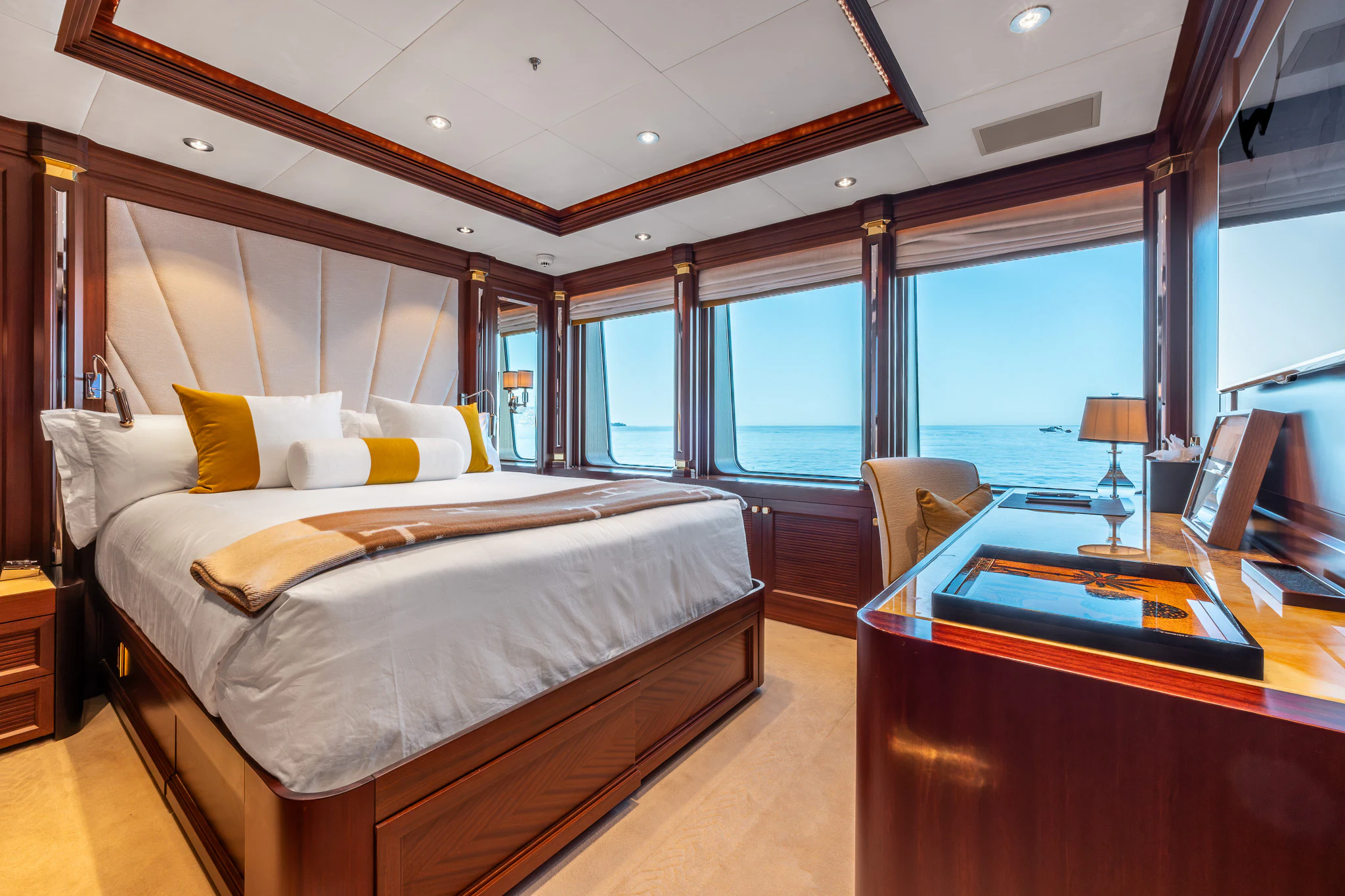

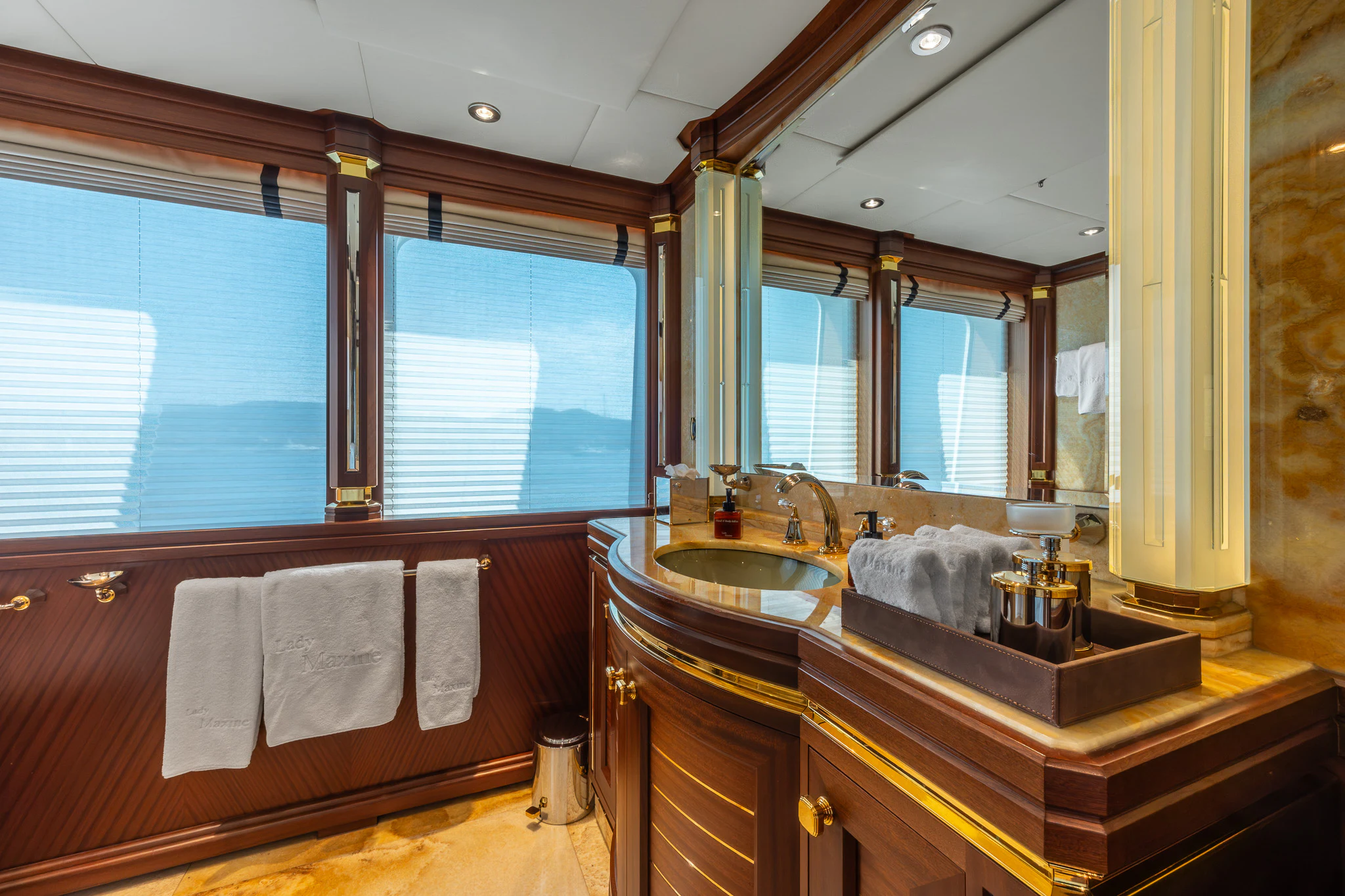

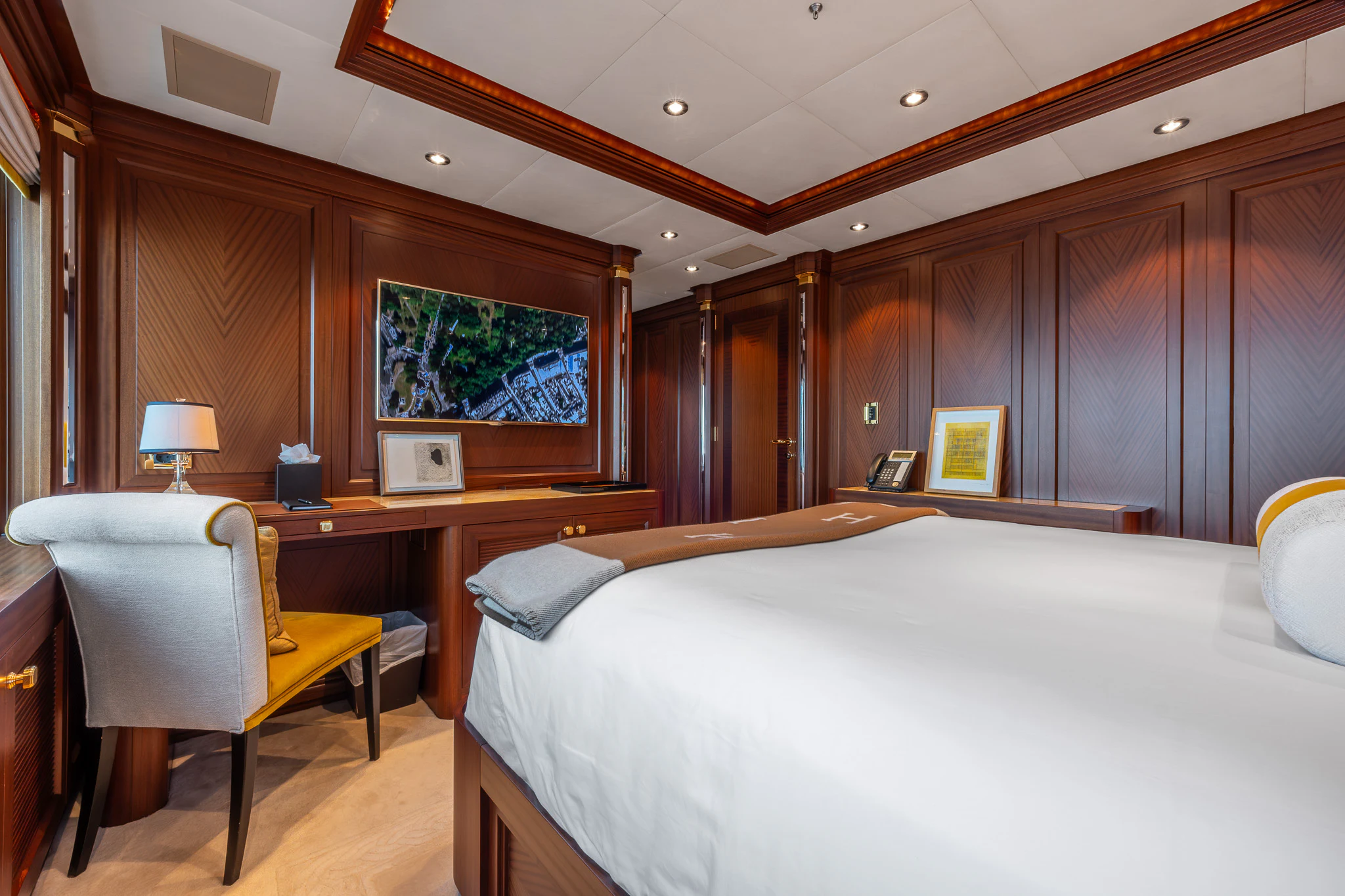

2 VIP Suites | Bridge Deck

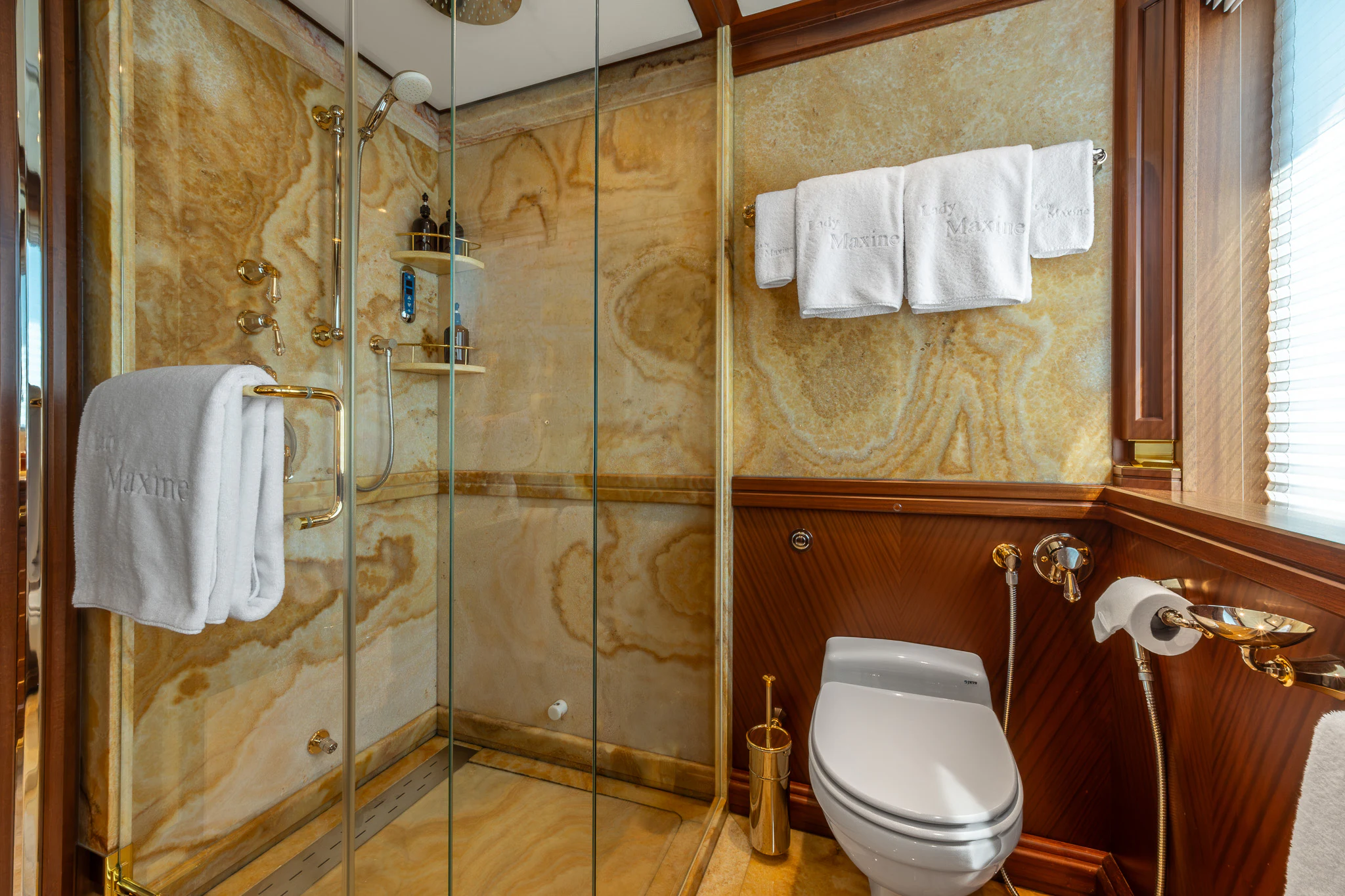

Spacious staterooms with queen bed and luxurious furnishings including 46” TVs, desks, wardrobes, and mini fridges. En-suites feature opulent honey onyx finishes; Port side bathroom includes a shower/steam room. Beautiful sea view atmosphere with large side windows.

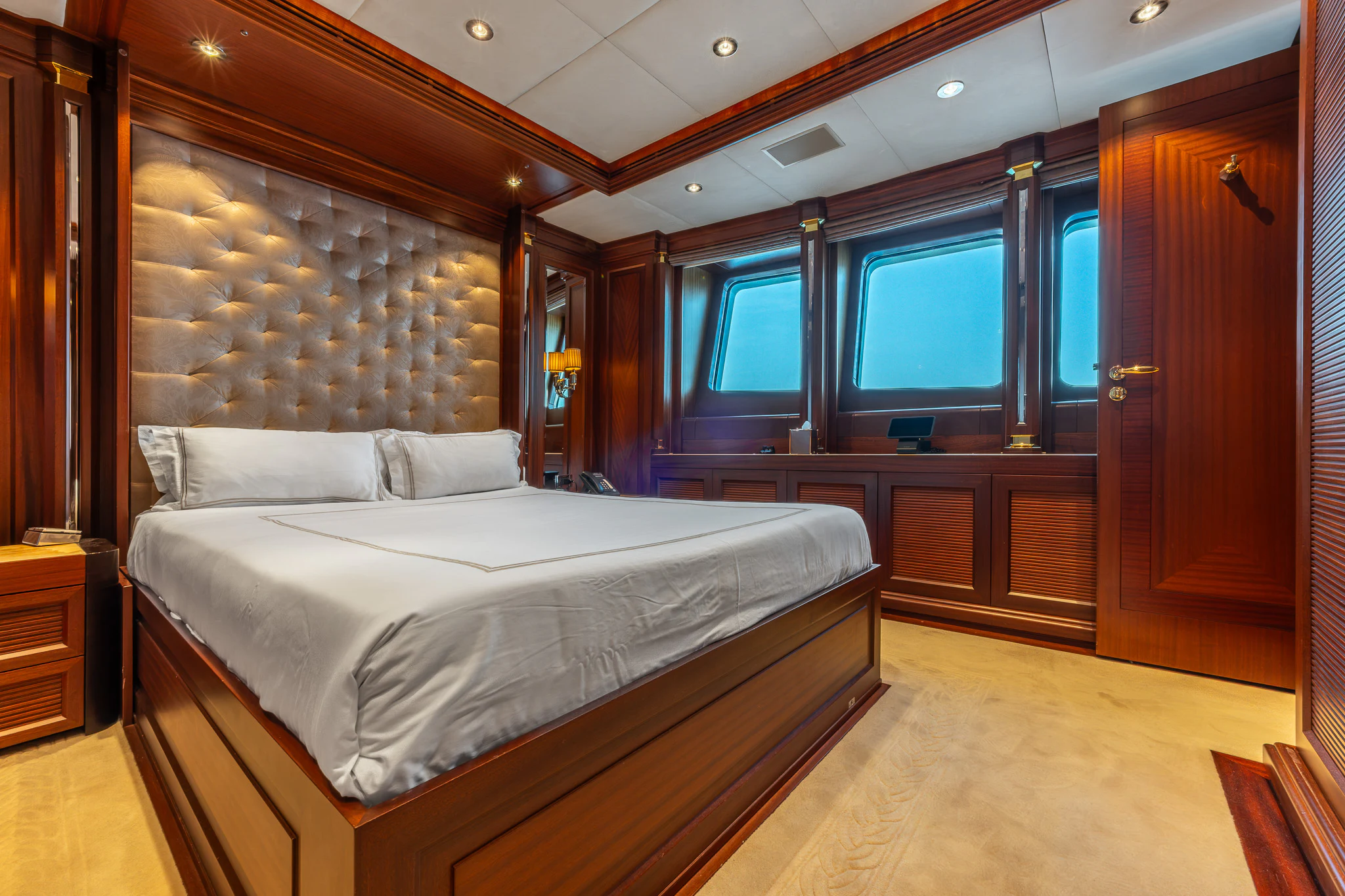

1 Convertible Double/captain Cabin | Main Deck
A flexible space with foldaway Murphy-bed and warm tones, ideal for Captain or extended family. Features a 32” TV, safe, mini fridge, and elegant ensuite bathroom.

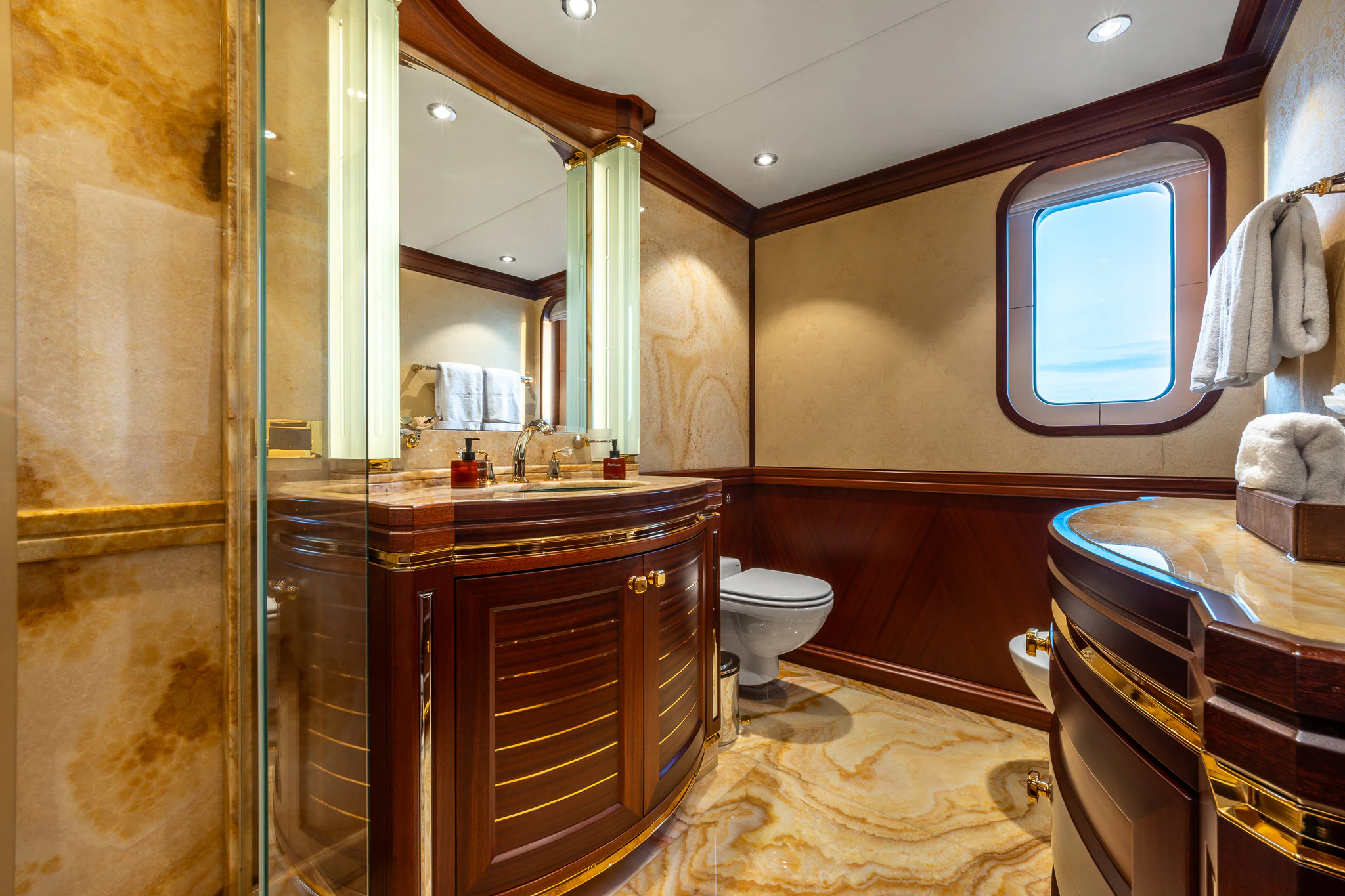

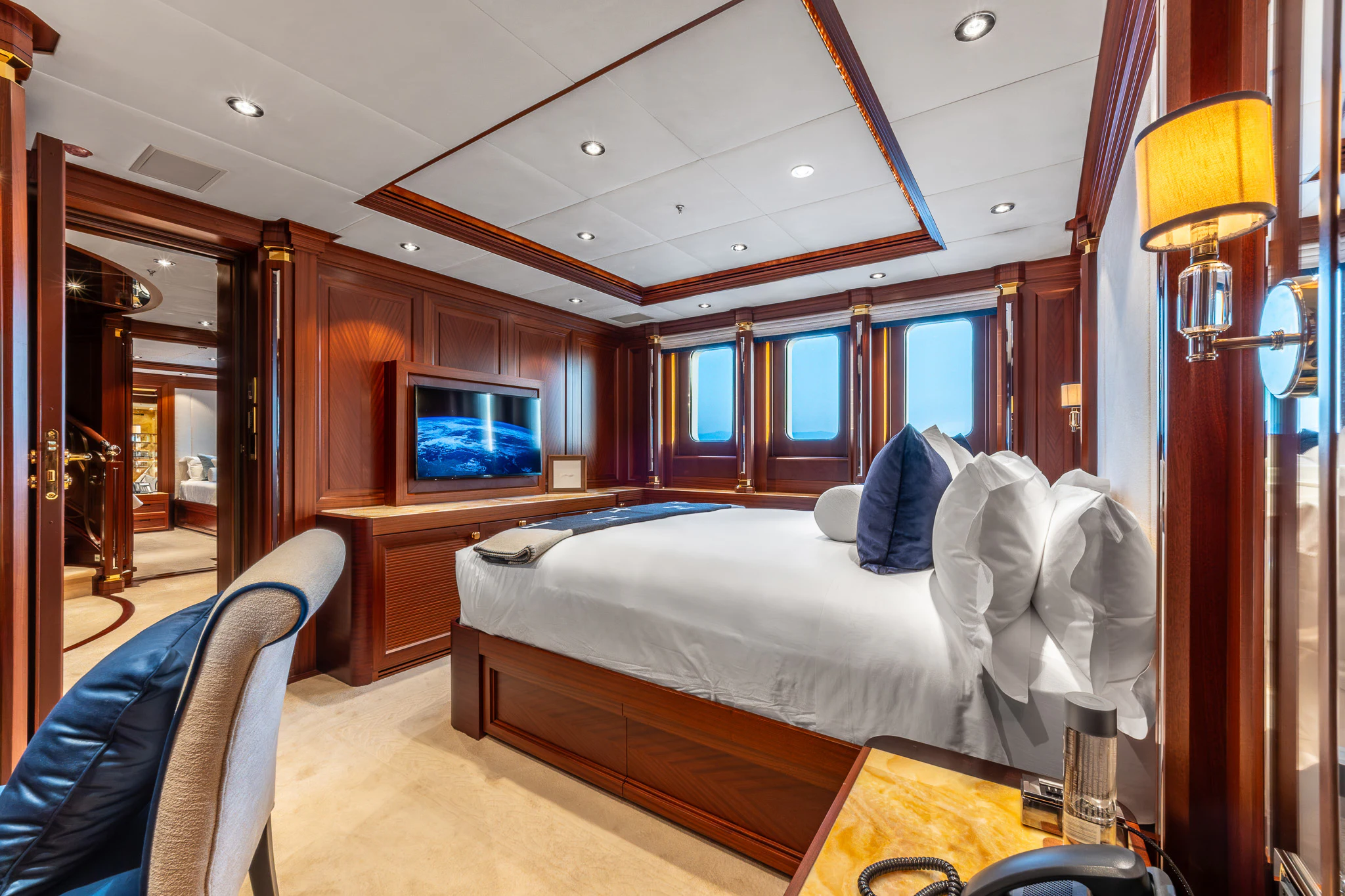

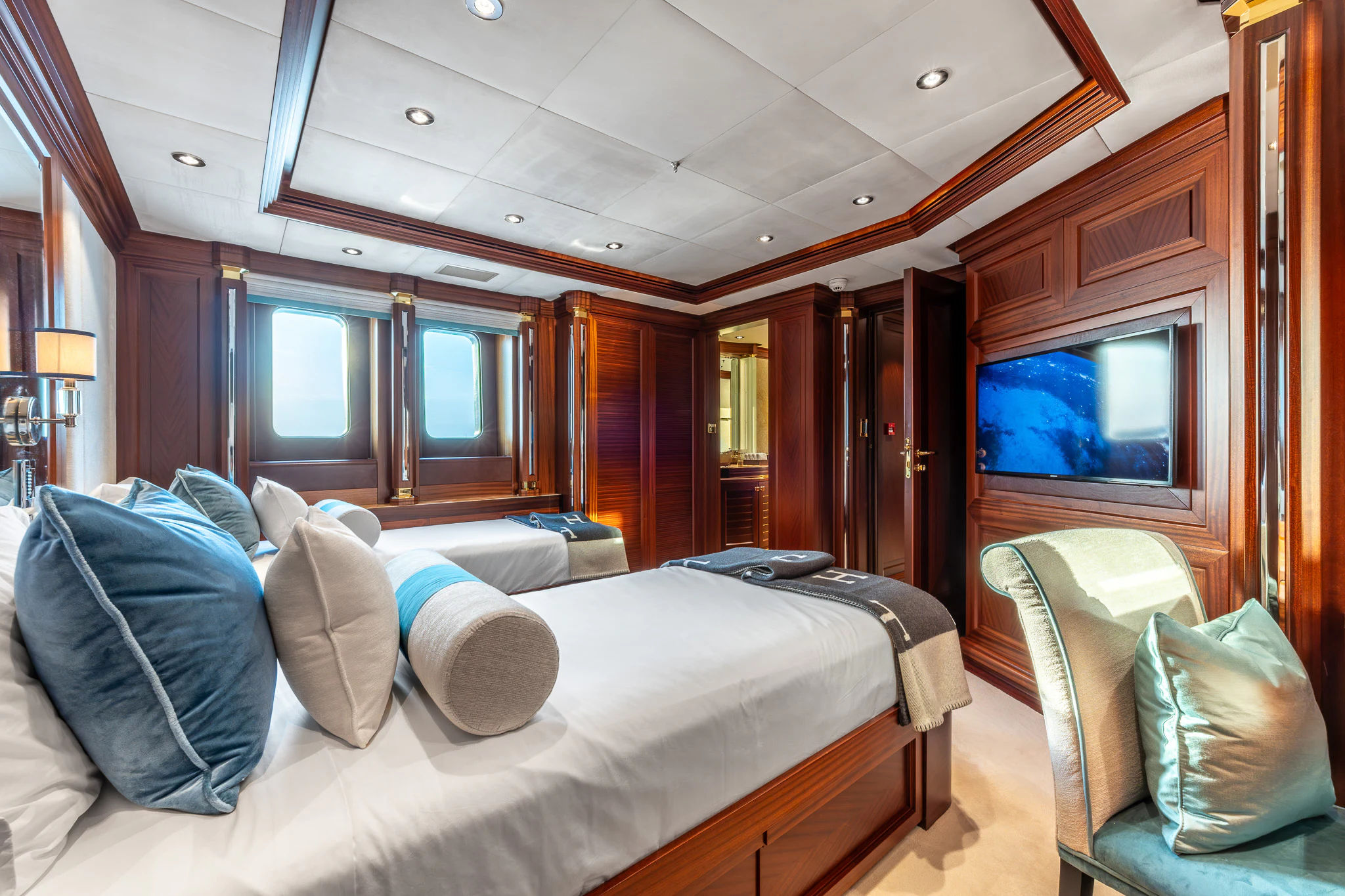

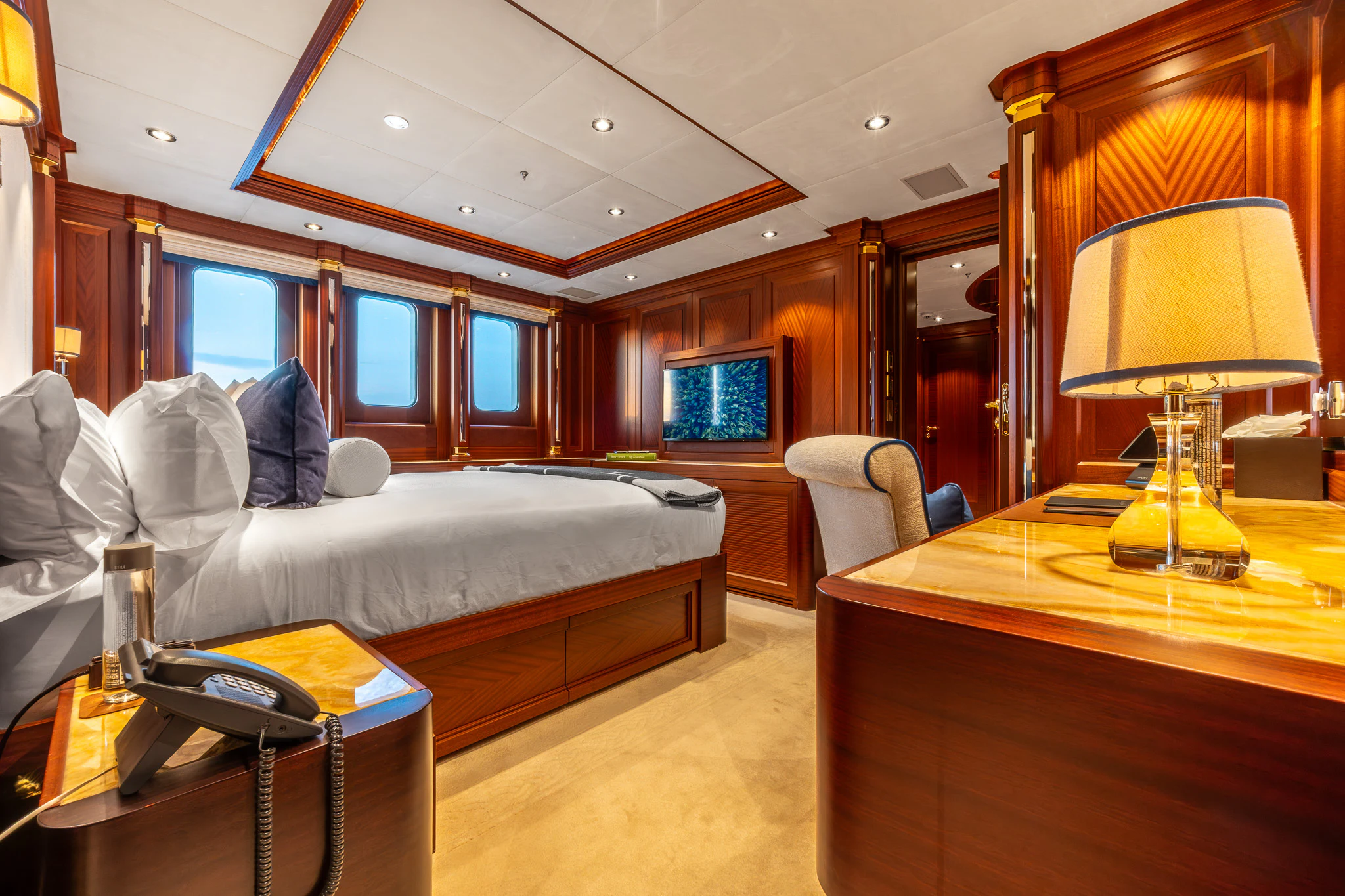

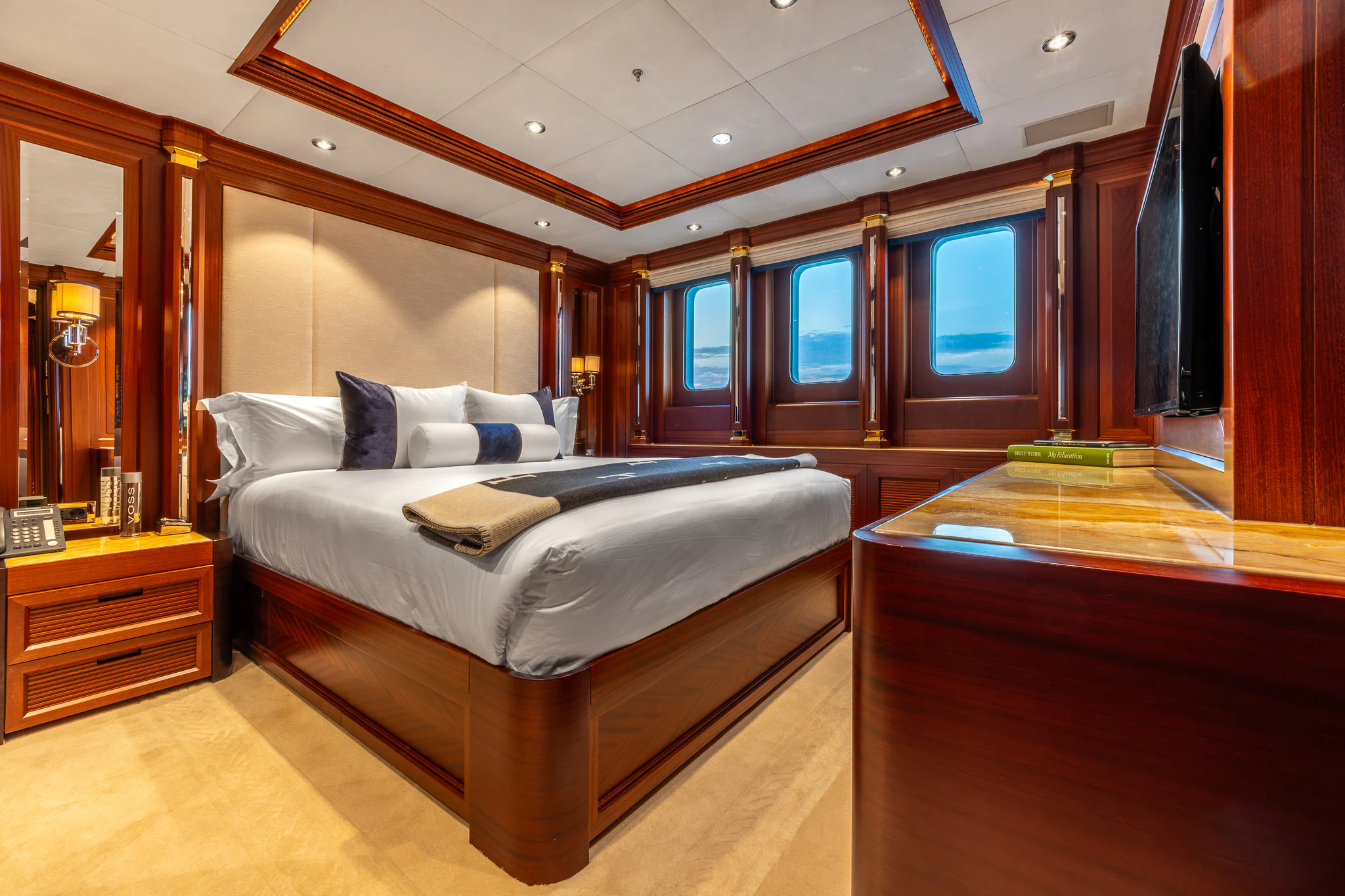

4 Guest Staterooms | Lower Deck

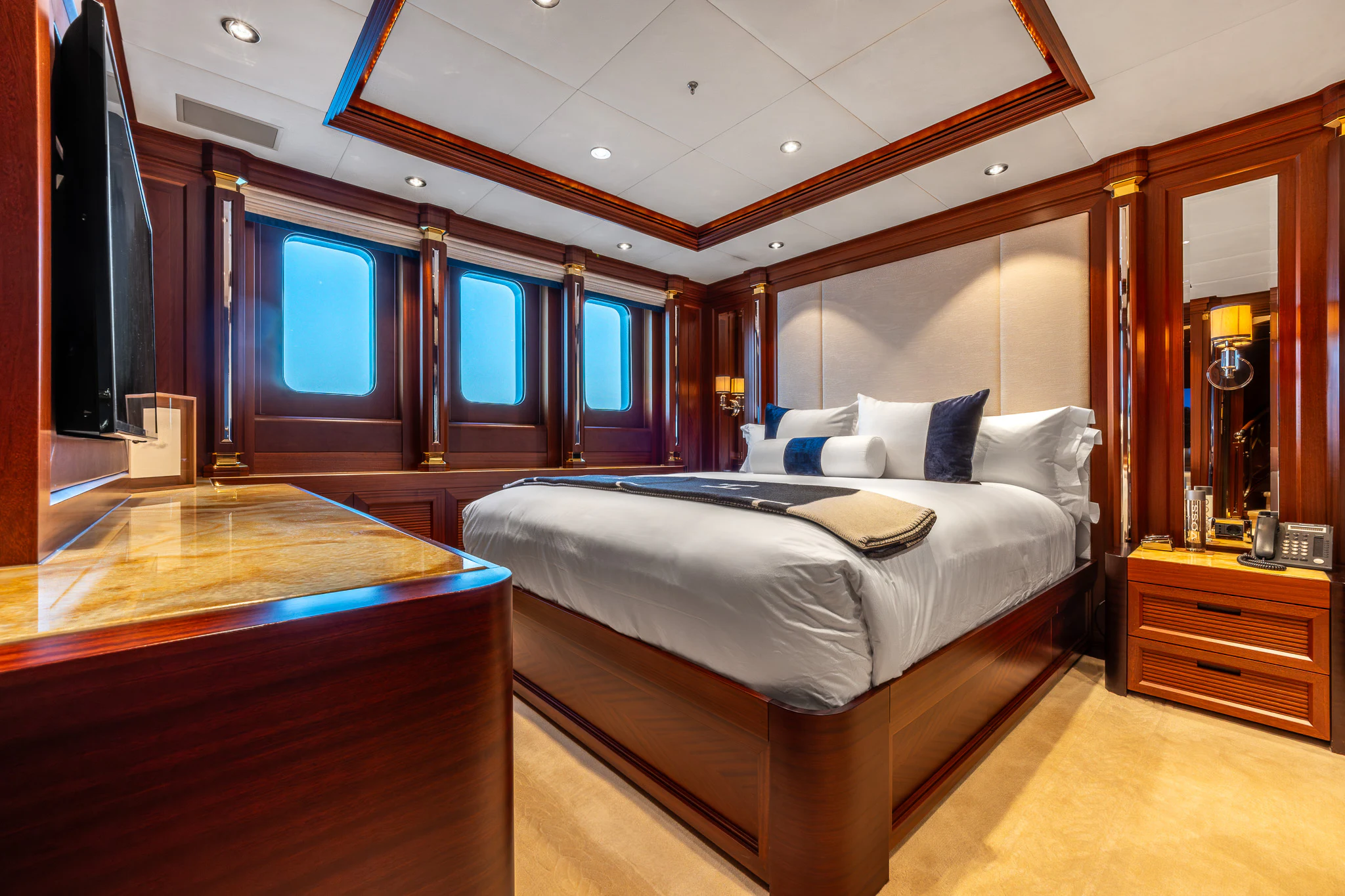

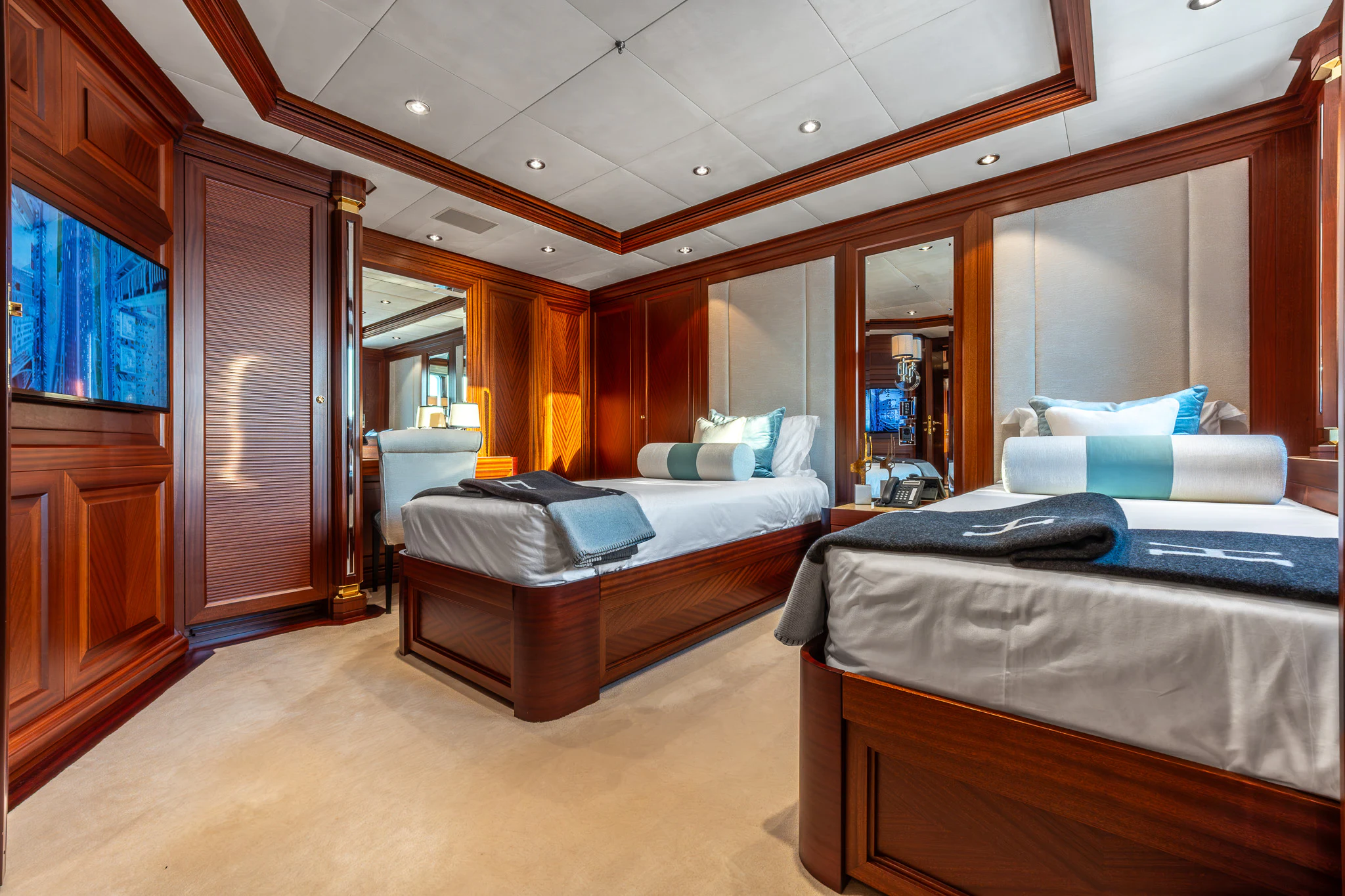

Two double and two twin staterooms each appointed with designer fabrics, built-in storage, 32” TVs, and refined wool carpets. Ensuite bathrooms feature polished honey onyx, gold accents, and refined fixtures throughout.
Guest Living Spaces

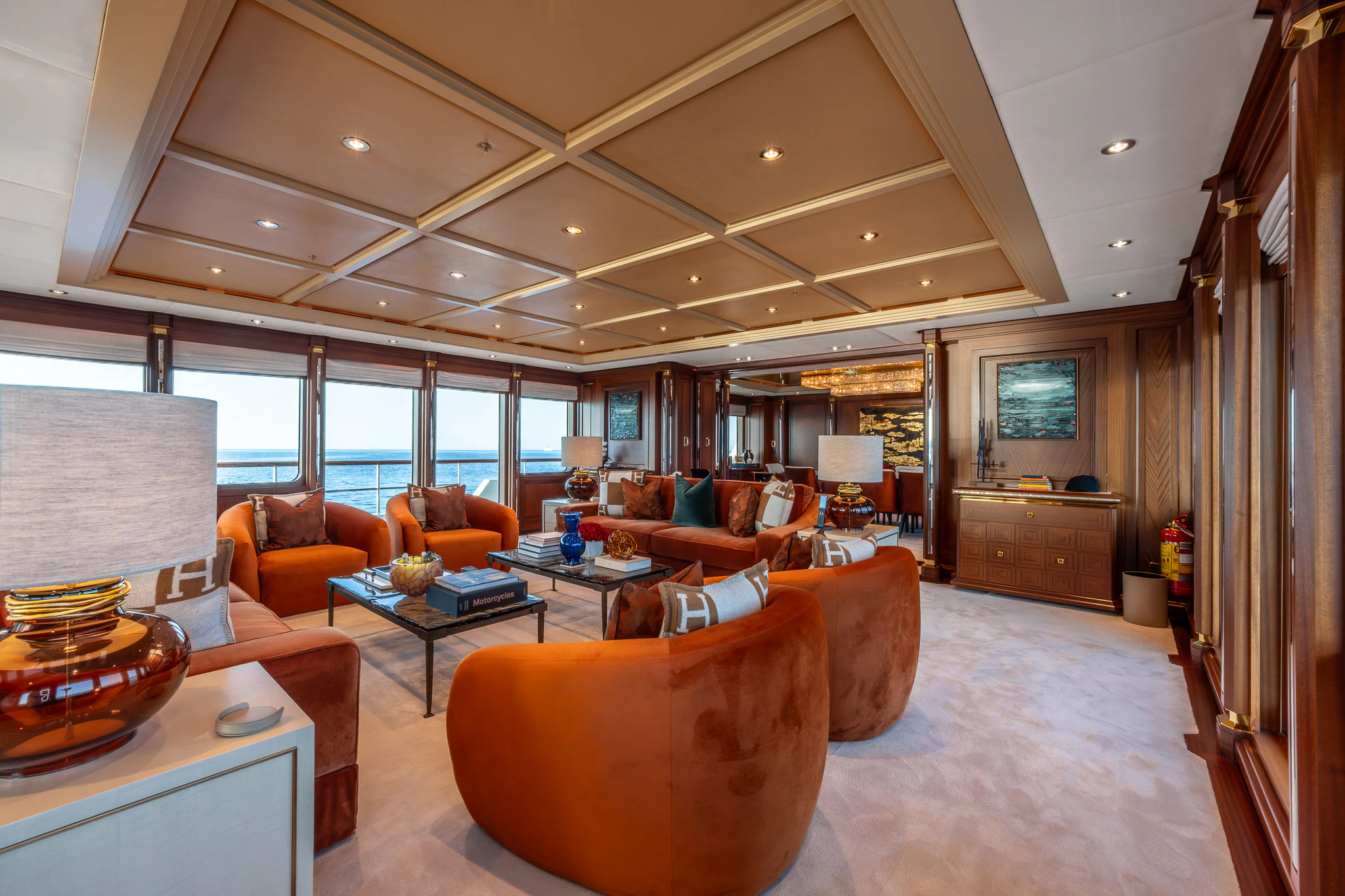

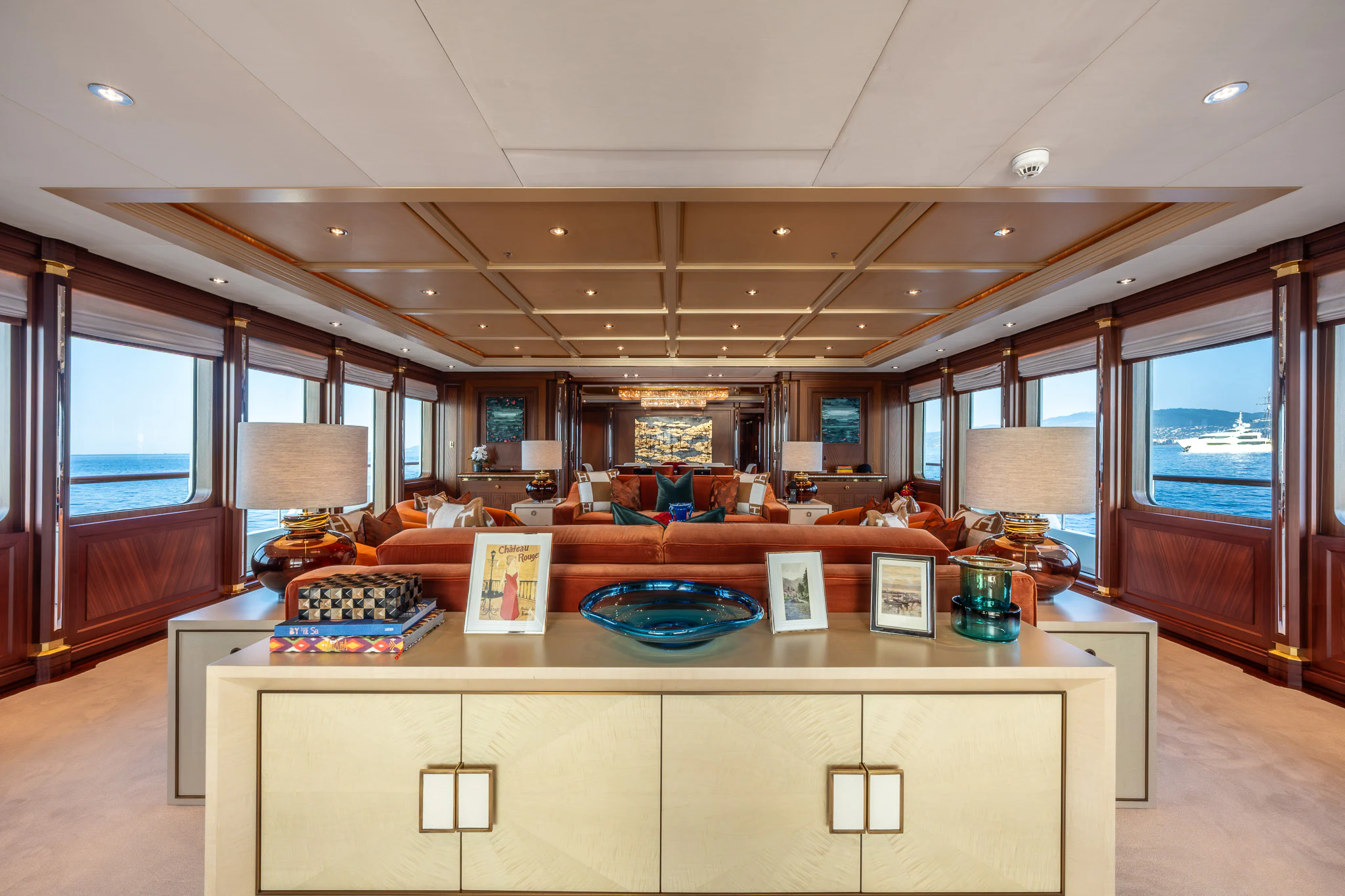

Main Salon
A grand yet inviting setting with two central sofas and armchairs to greet guests upon arrival. Surrounded by large windows, some floor-to-ceiling and exquisite woodwork, it’s perfect for both entertaining and relaxing. Divided from the dining area by gold-inlay glass sliding doors.

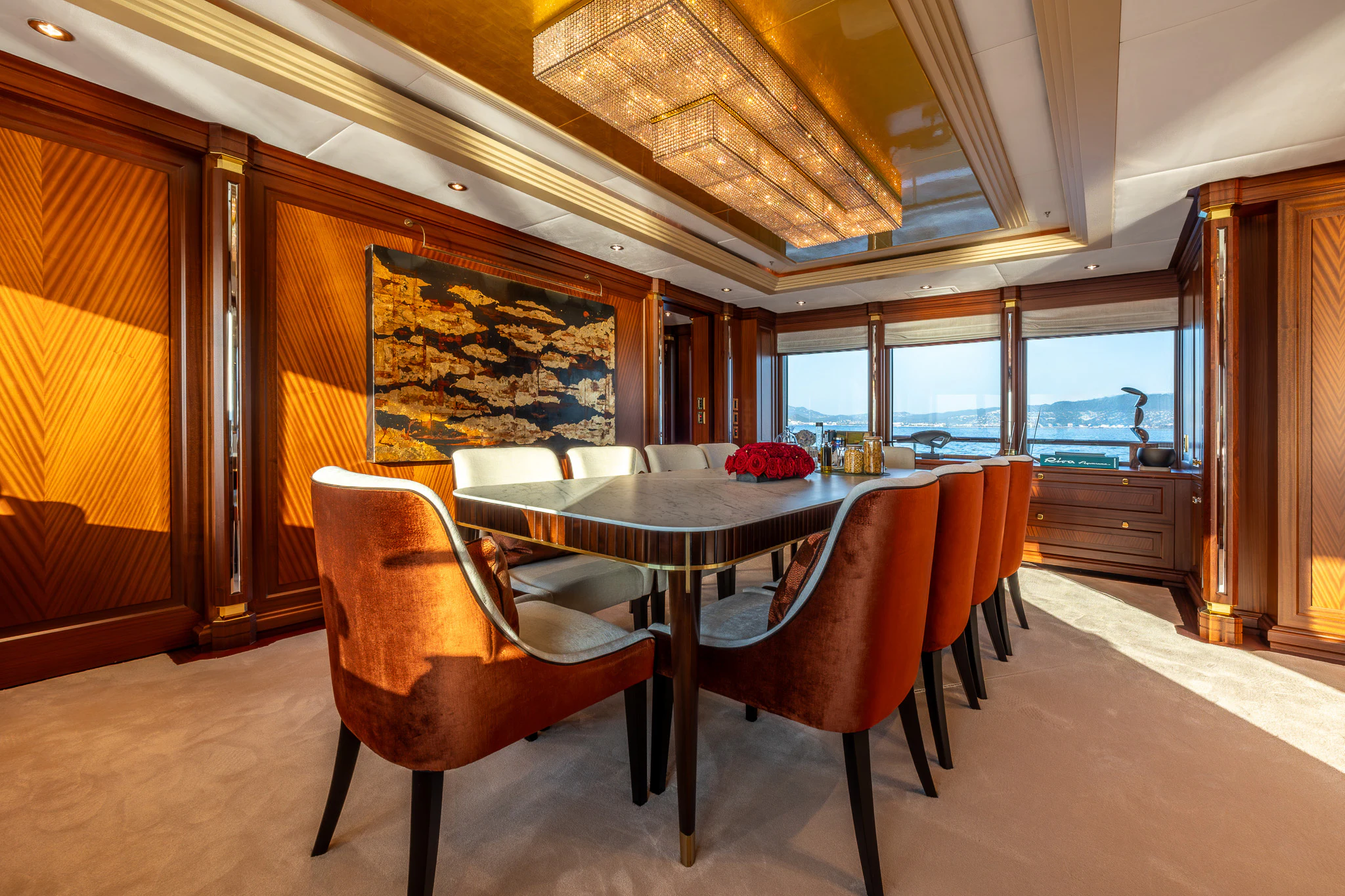

Formal Dining Room
An elegant setting with a long and elegant mahogany table to seat 10 guests, upholstered chairs, and fine cabinetry. Ample functional storage to create the most exquisite table dressing.

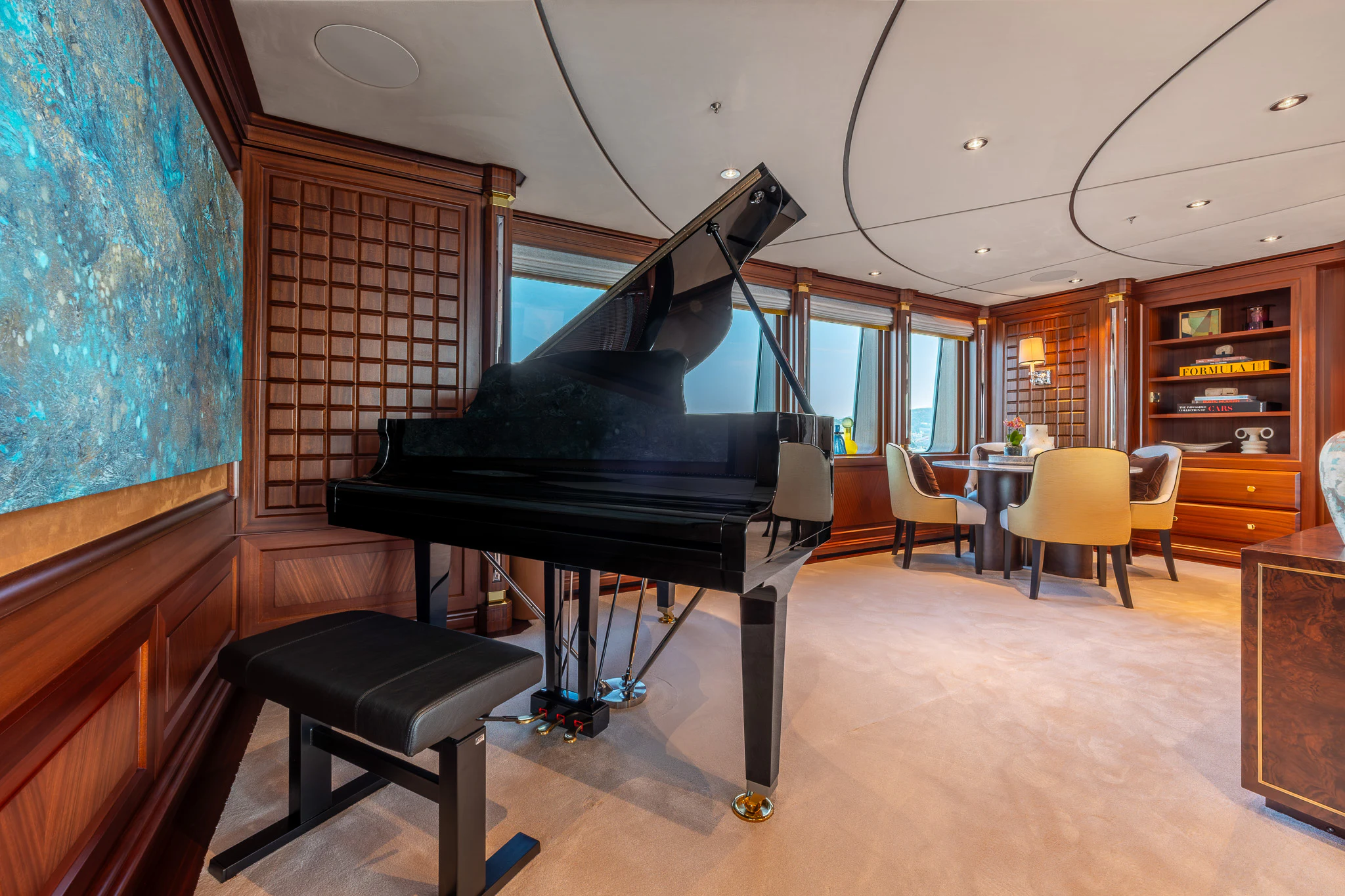

Bridge Deck Lounge Aft

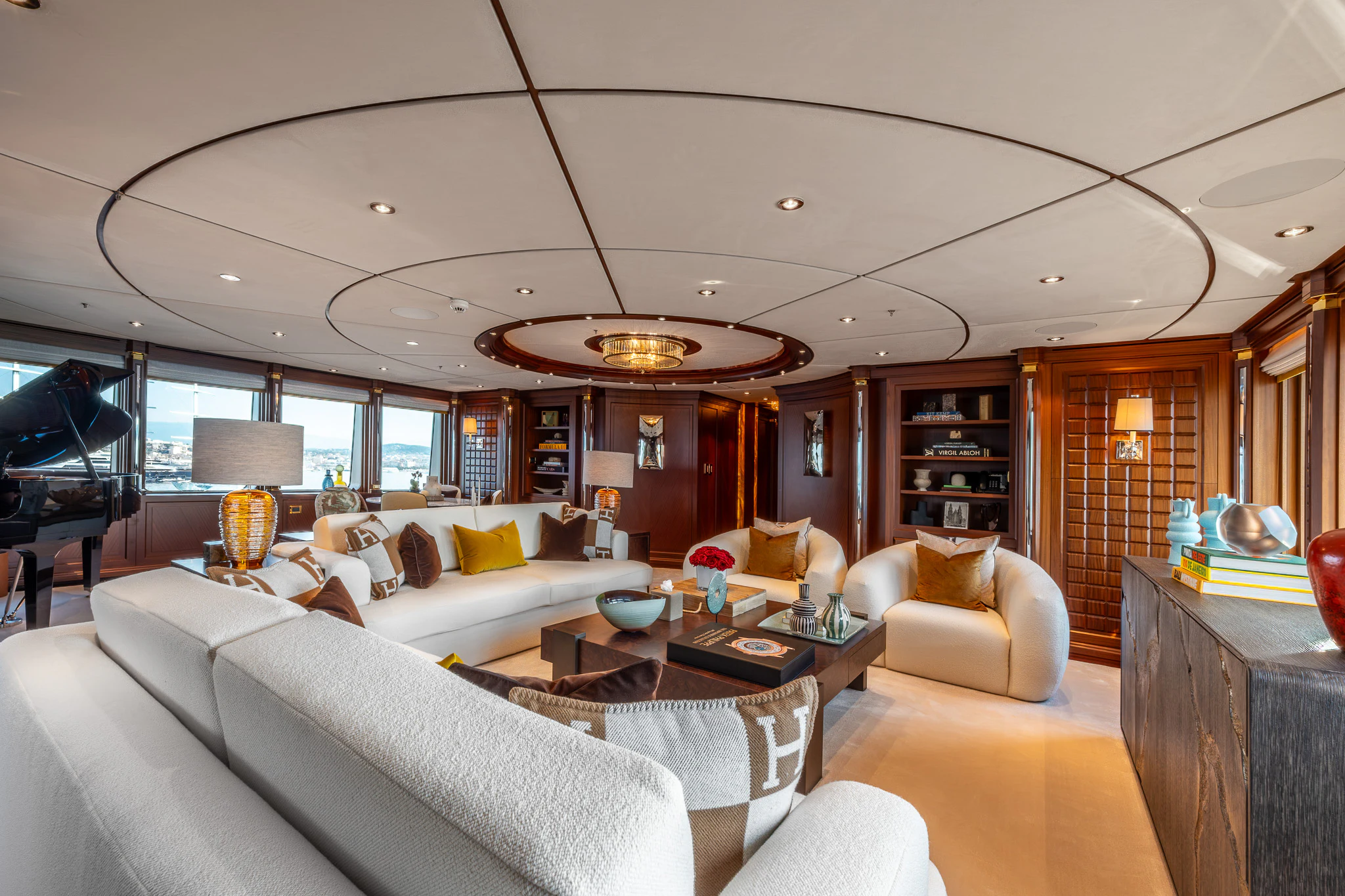

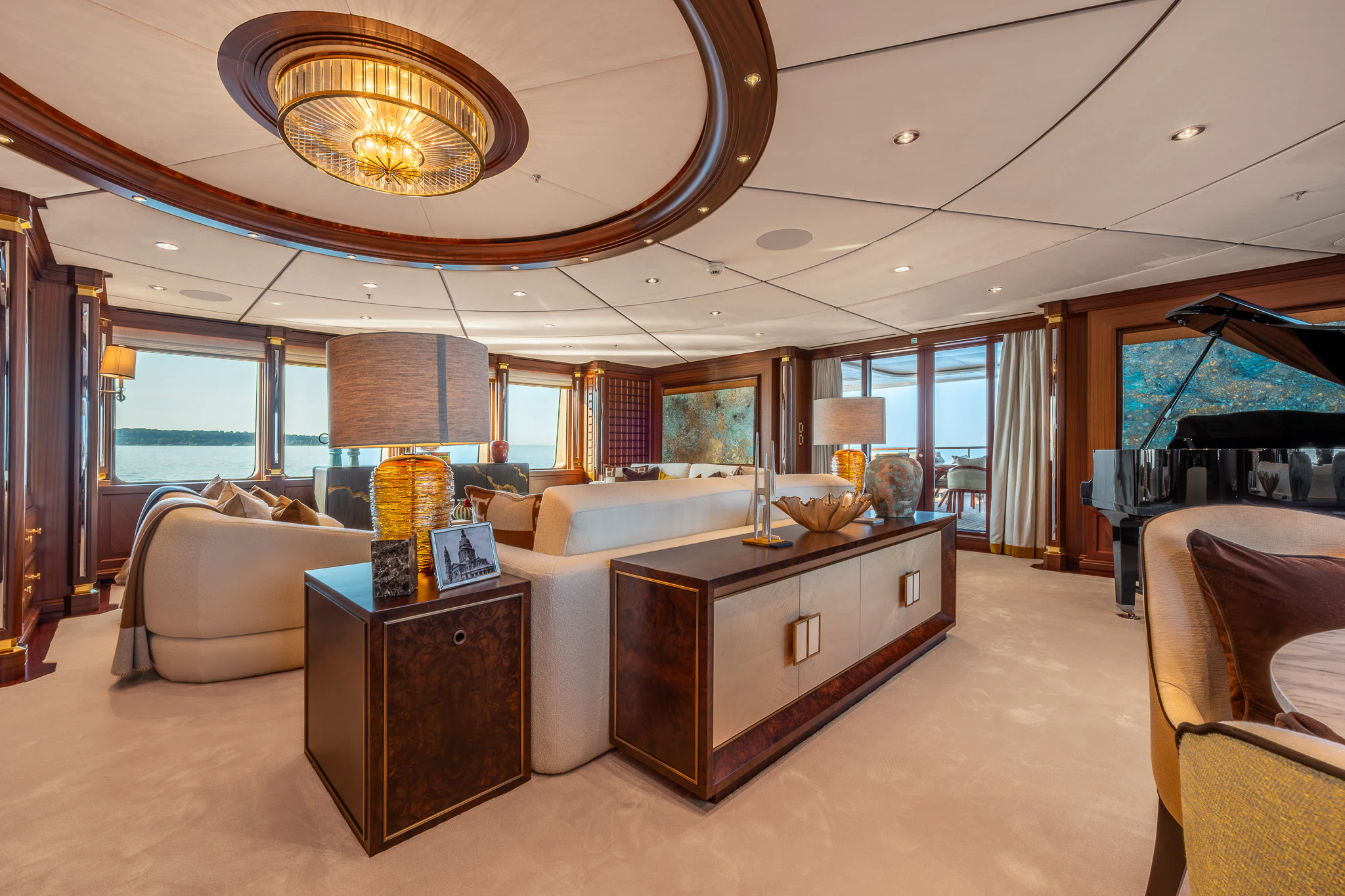

An informal yet plush full-beam lounge which has been fully redesigned during the 2026 refit, with an informal seating area to starboard with piano and games table to port.

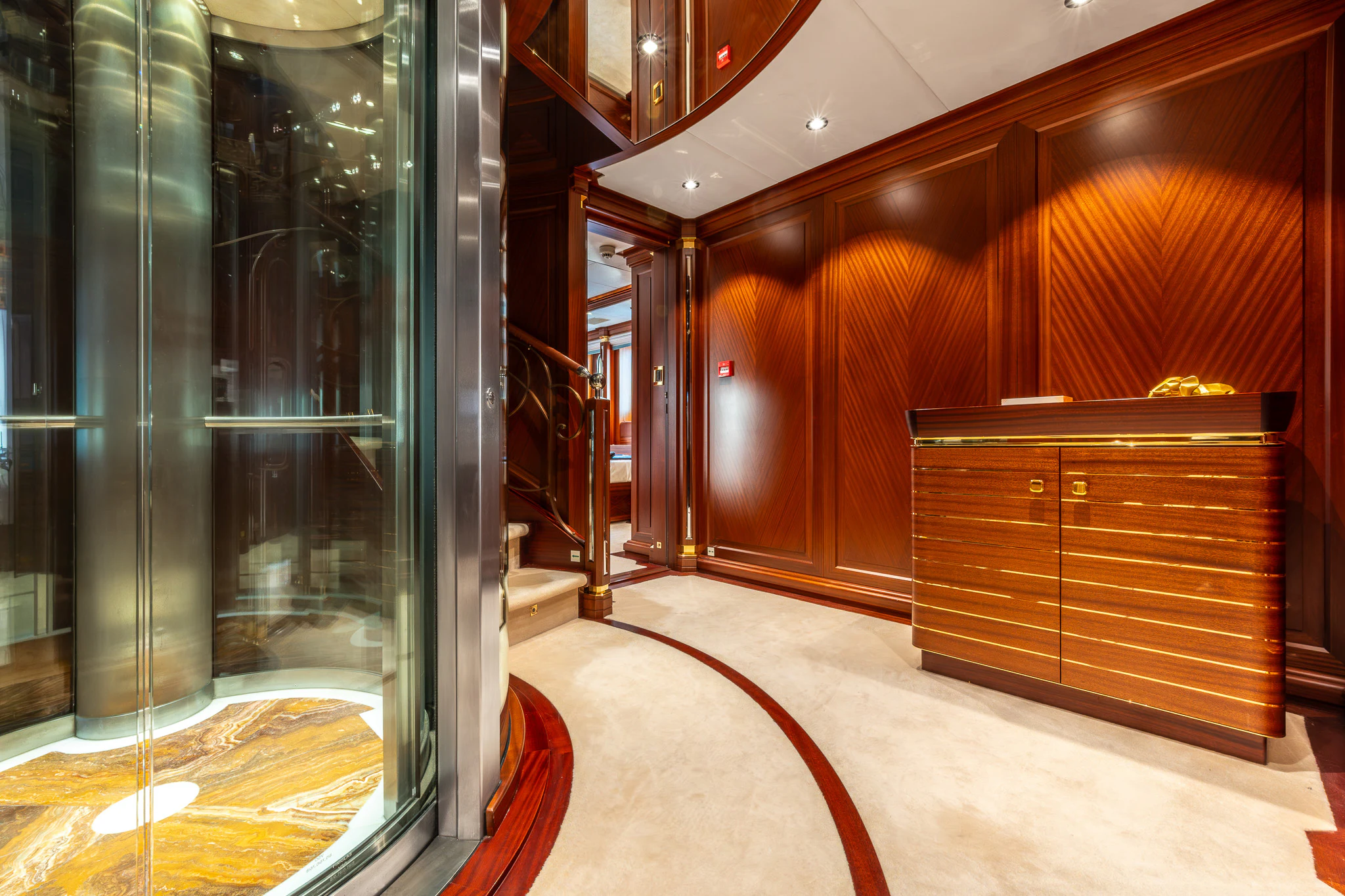

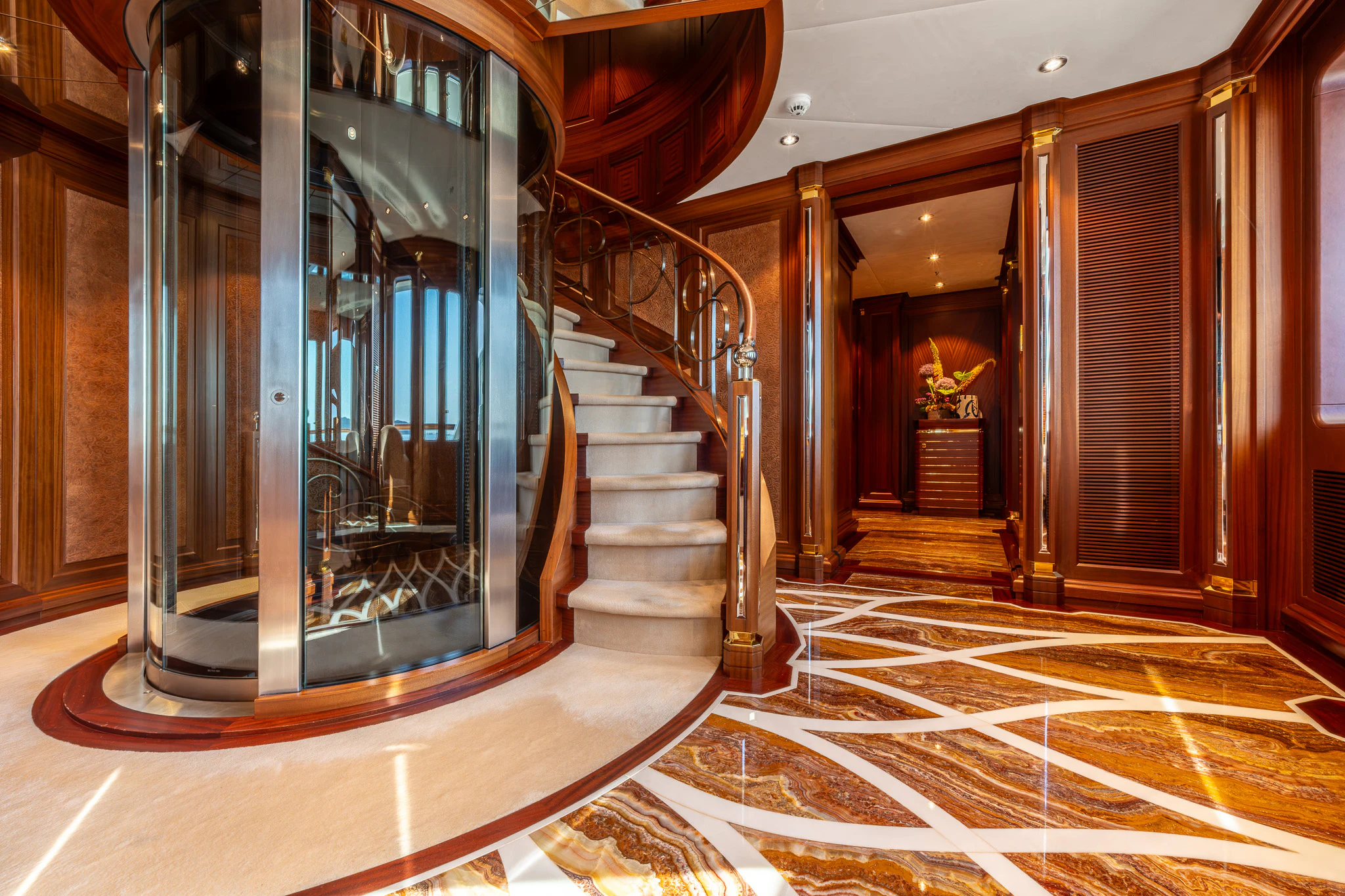

Elevator & Main Staircase
Connecting all four decks, the sculptural staircase features a brass and leather handrail encircling a round glass elevator—its floor finished in onyx and white marble. A striking centrepiece of the interior.

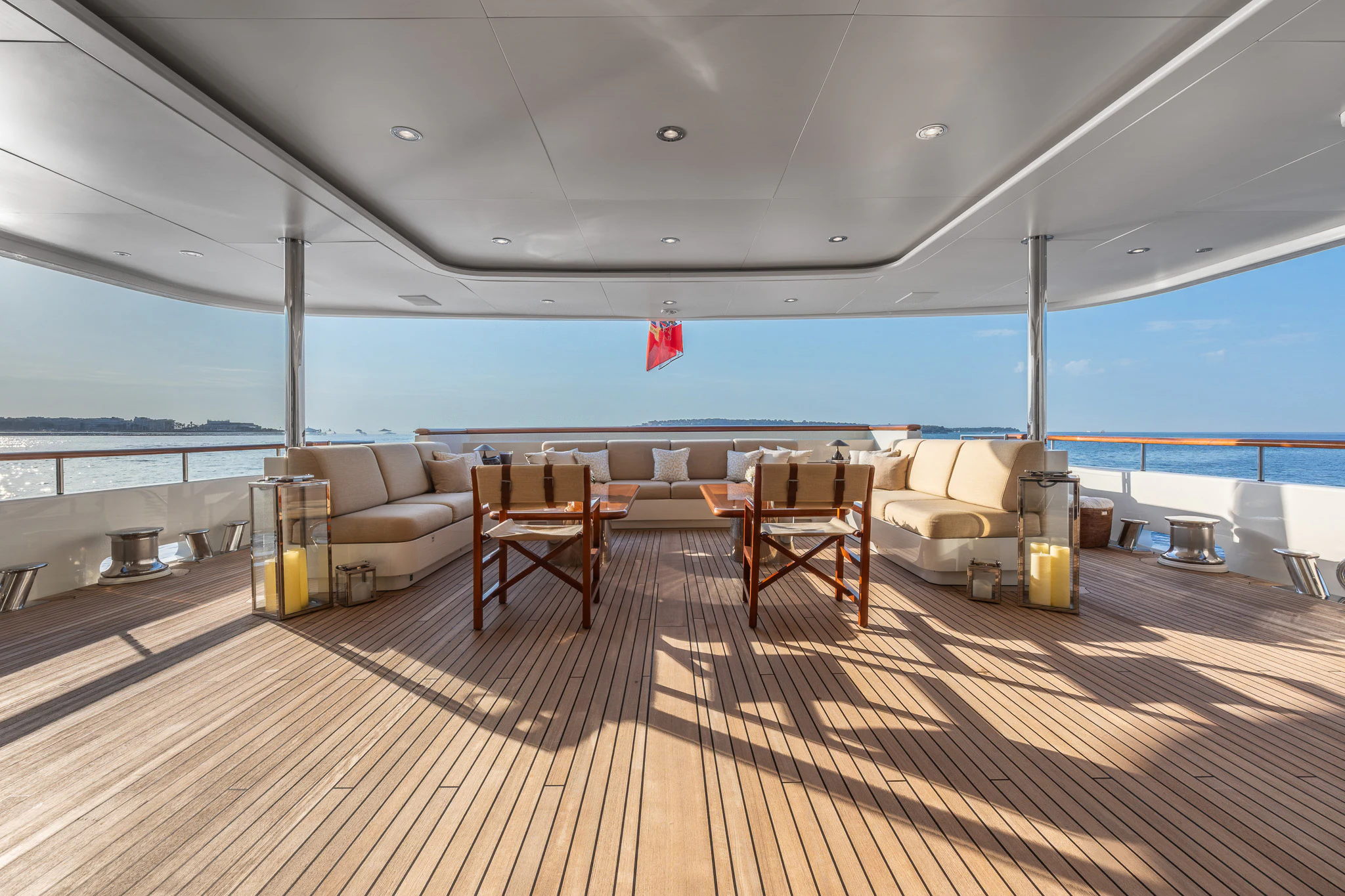

Main Deck Aft

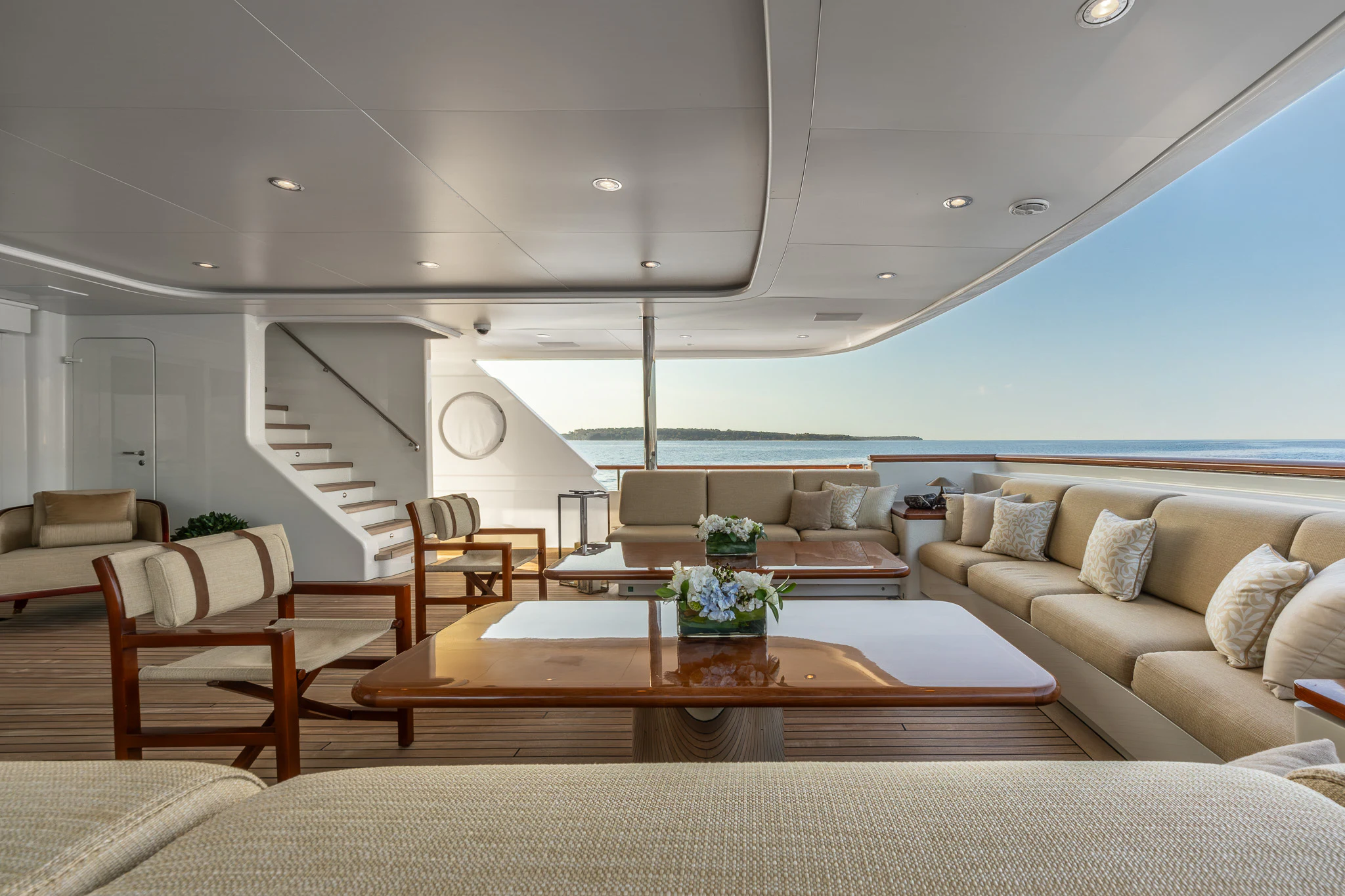

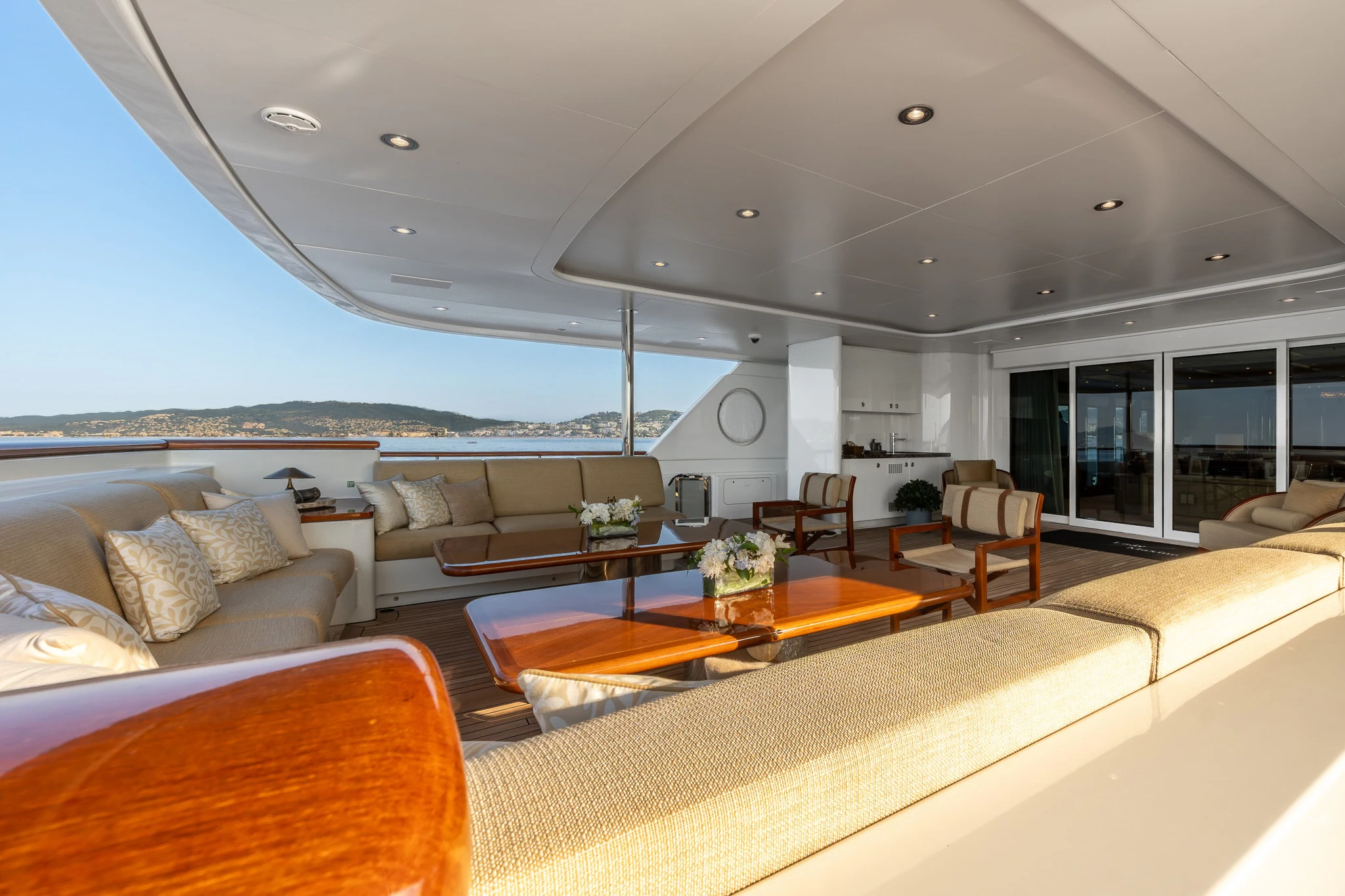

A chic social area with a large U-shaped sofa, twin teak tables, and a bar equipped with fridge, icemaker, and sink.

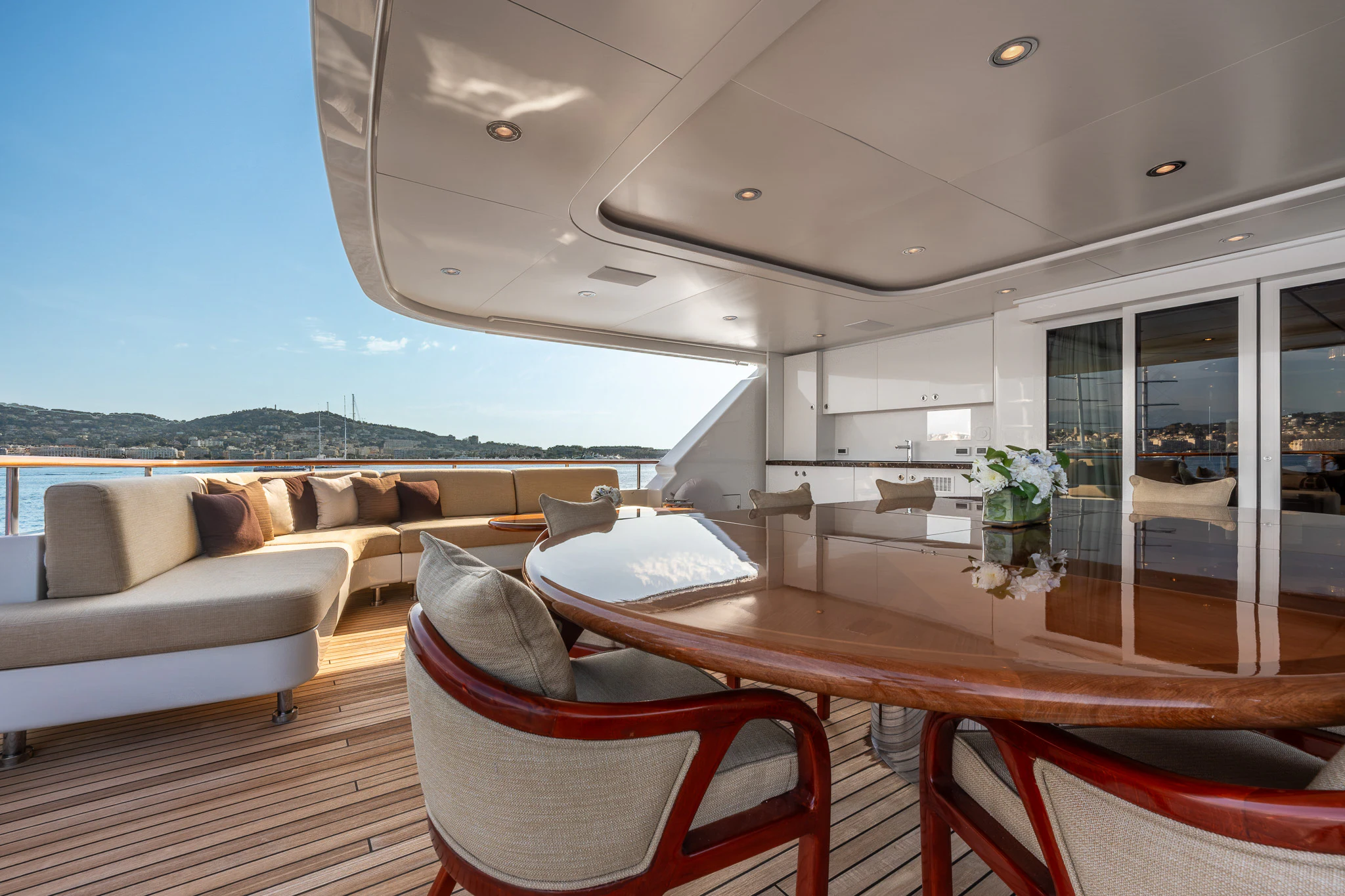

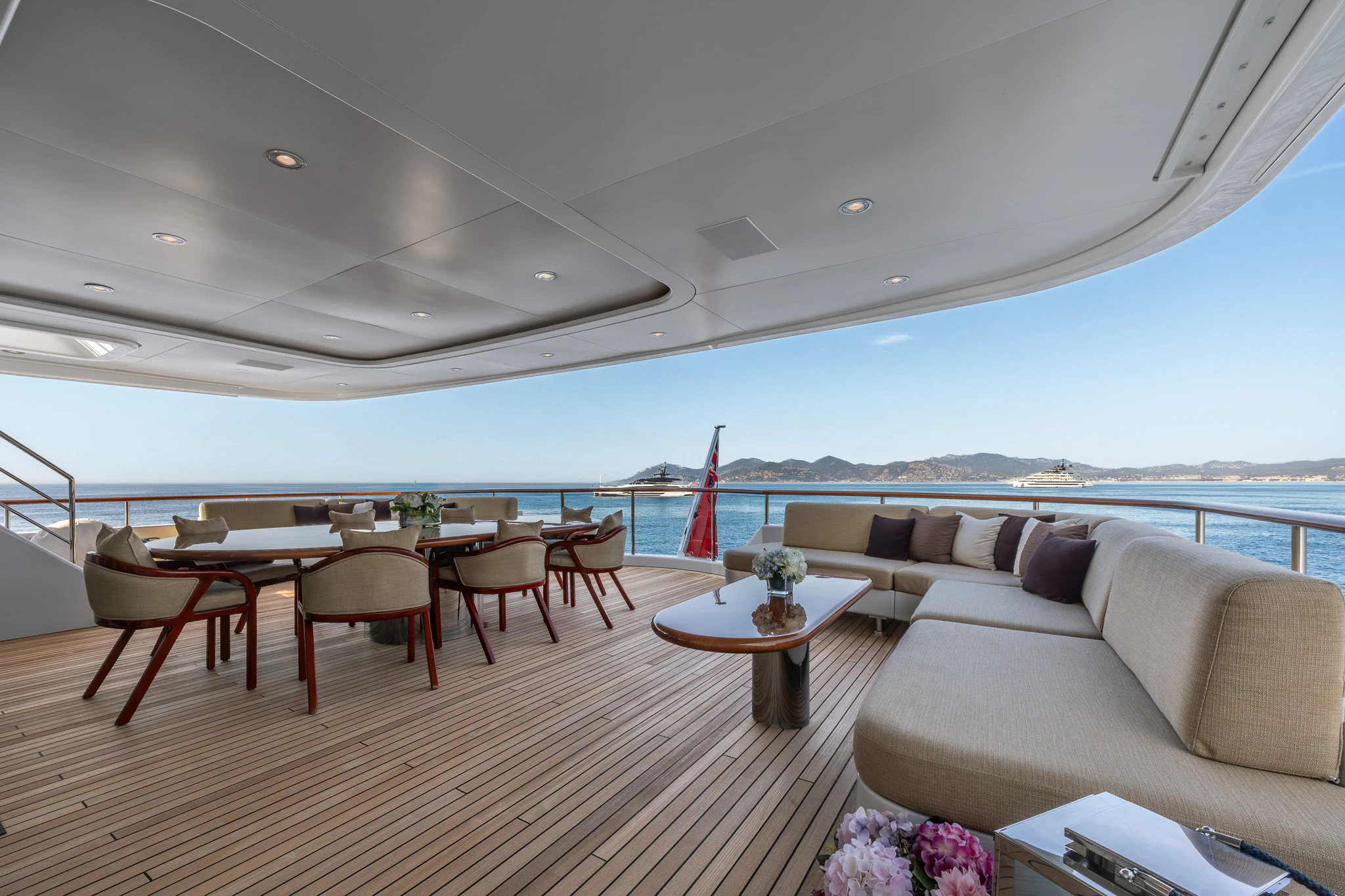

Bridge Deck Aft
An ideal space for outdoor dining or entertaining with an extensible oval teak alfresco dining table for 12, elegant loose furniture, and a full-service bar. A retractable awning provides shade at the touch of a button.

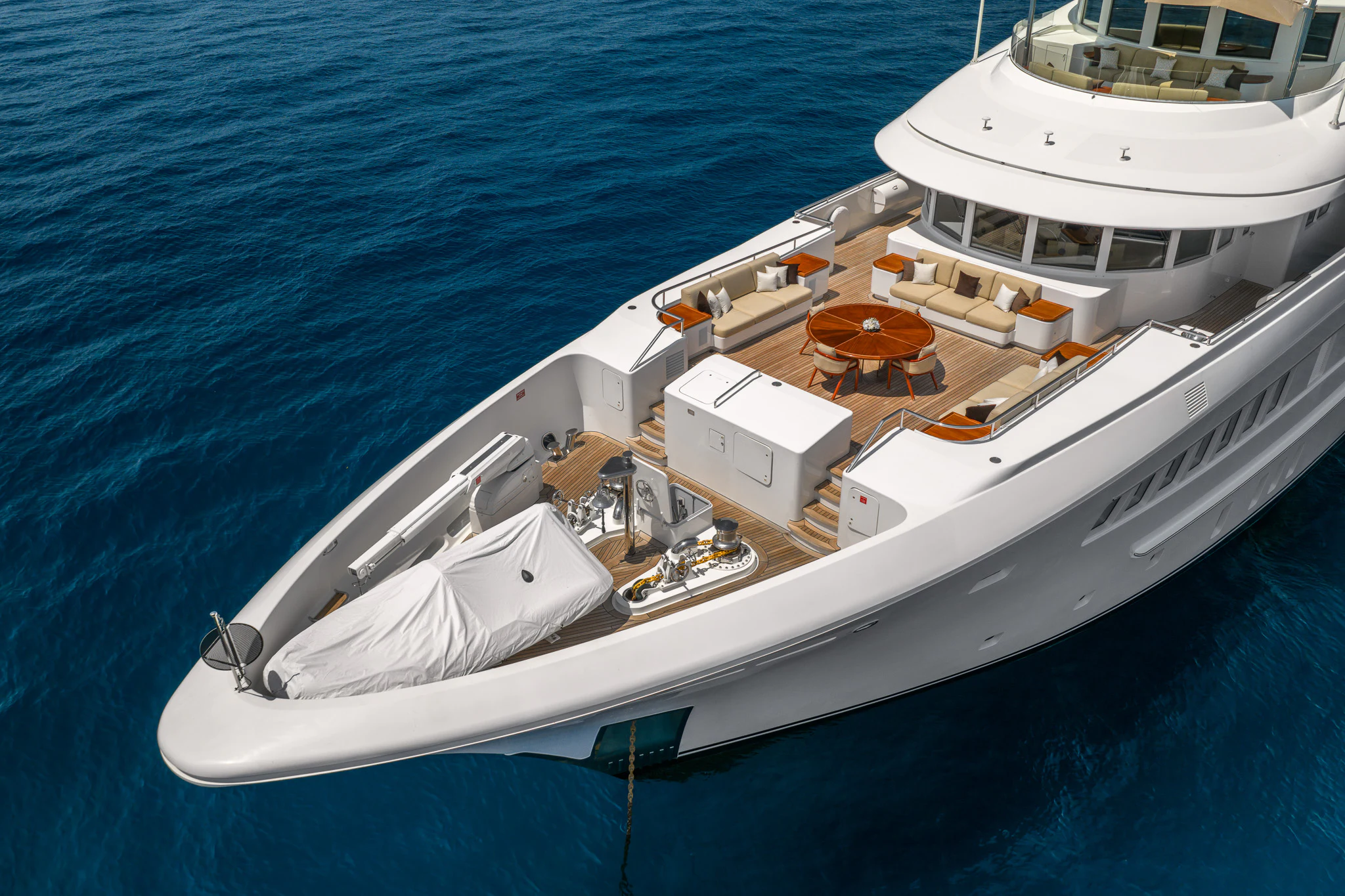

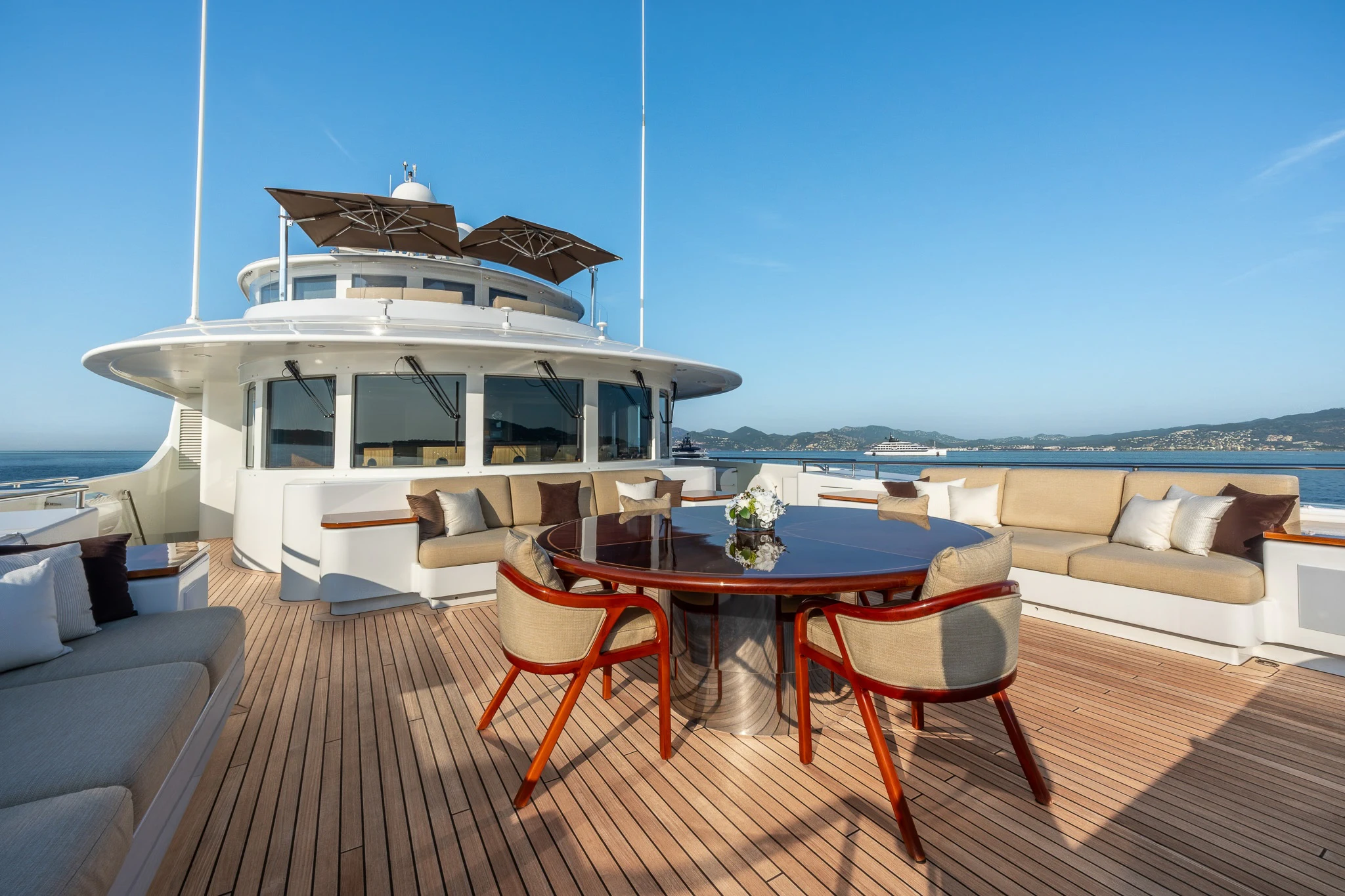

Bridge Deck Forward
Enjoy a peaceful retreat with three built-in sofas and a round high gloss varnished dining table with chairs.

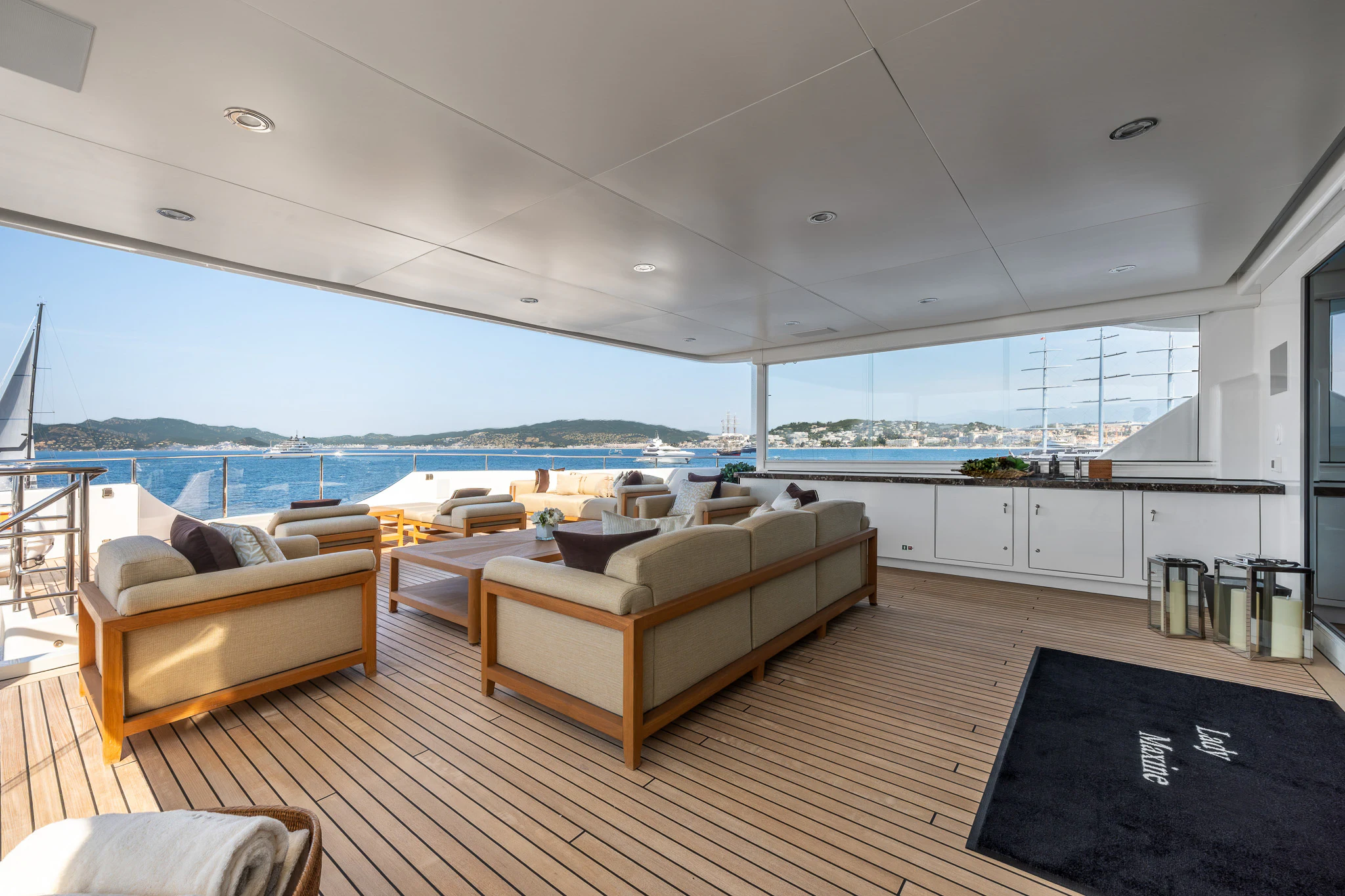

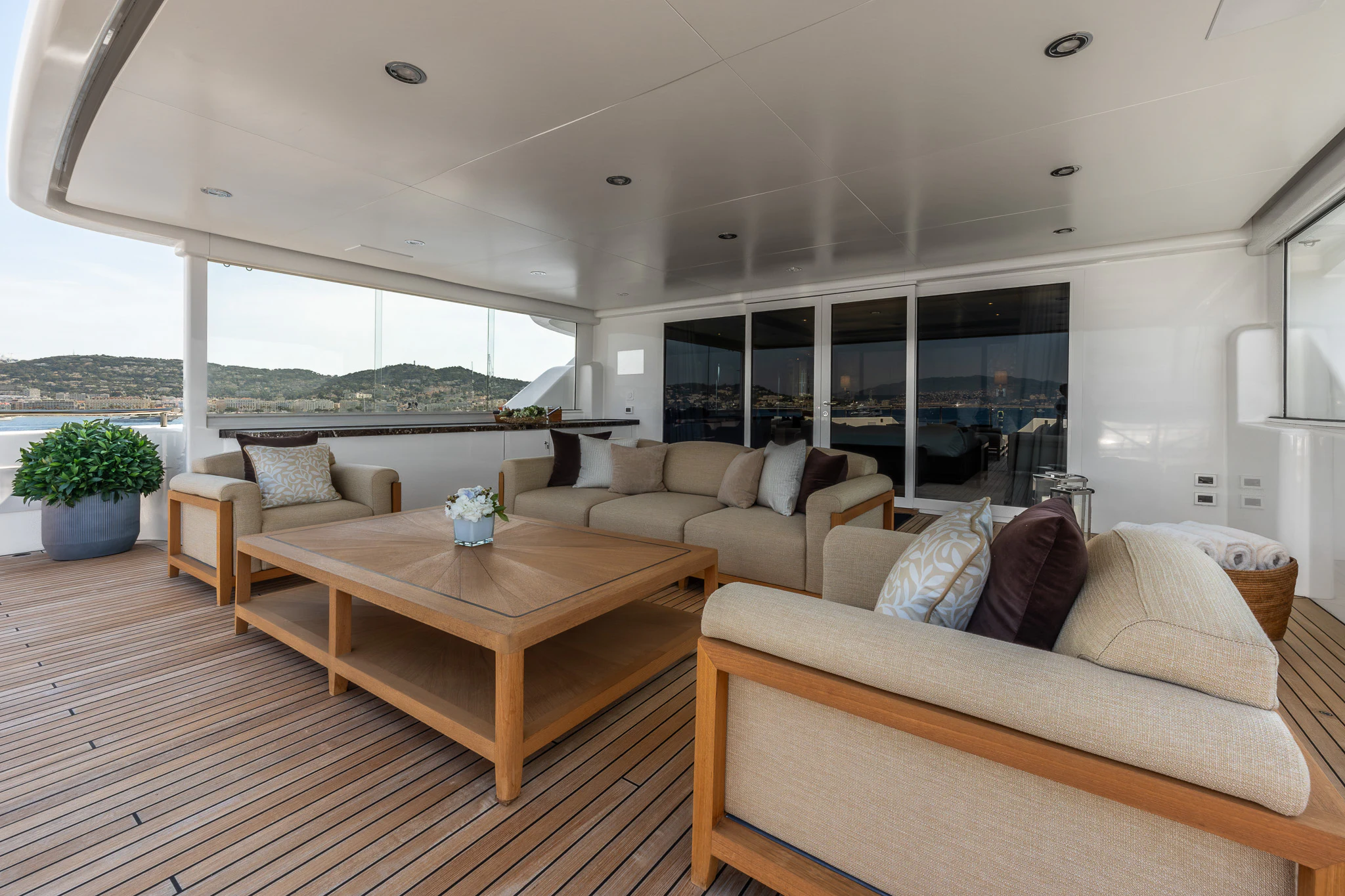

Sun Deck Aft
Ultimate and serene privacy under shady hardtop covered terrace for protection for relaxation or treadmill exercise with sliding protective side windbreak glass panels, or enjoying the sunny aft deck overlooking all decks and the sea wake, with elegant designer sun lounging furniture, cabinetry and privacy.
Sun Deck Forward

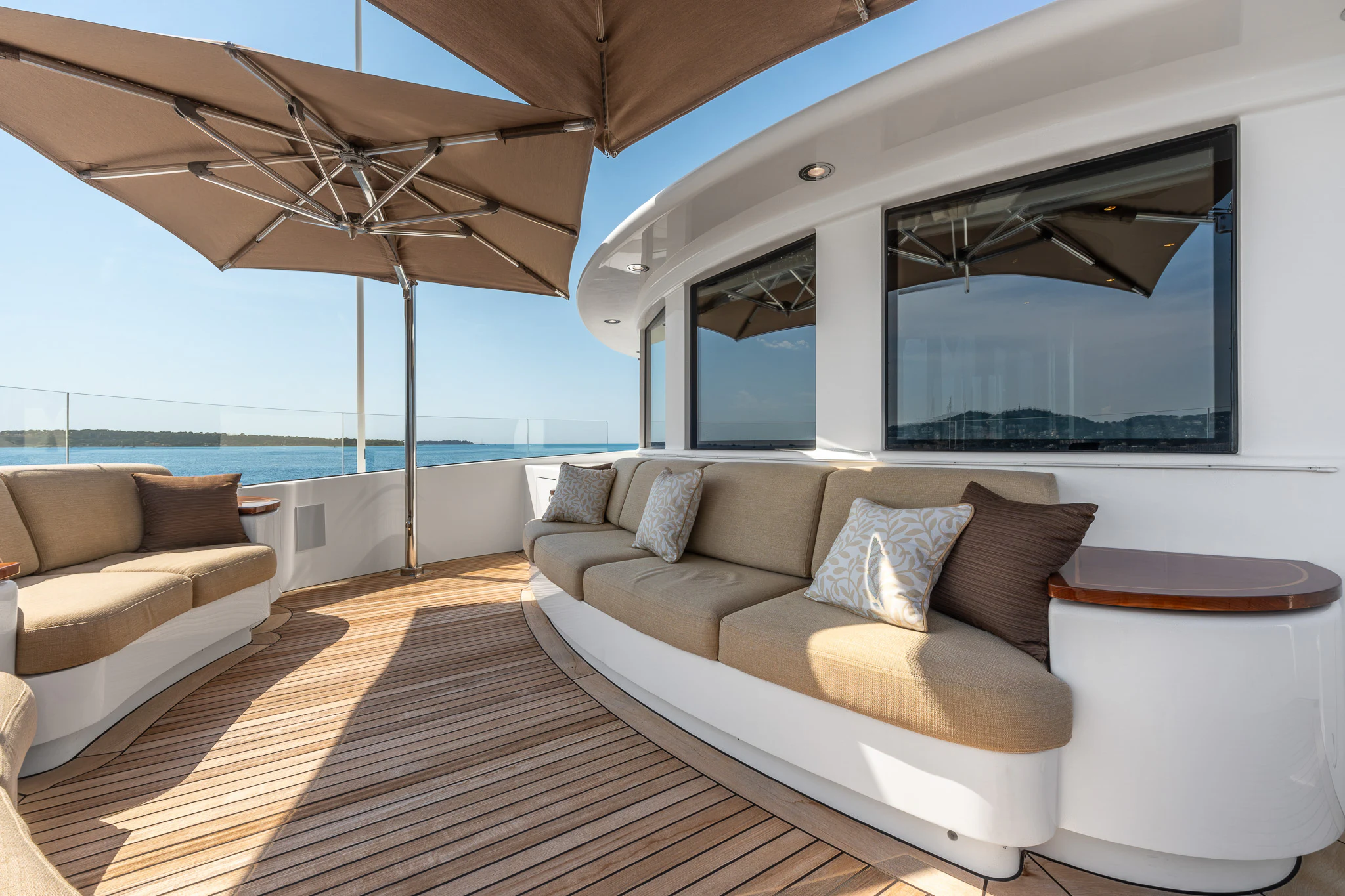

Designed lounging with three built-in sofas, perfect for sunset cocktails or quiet reflection.

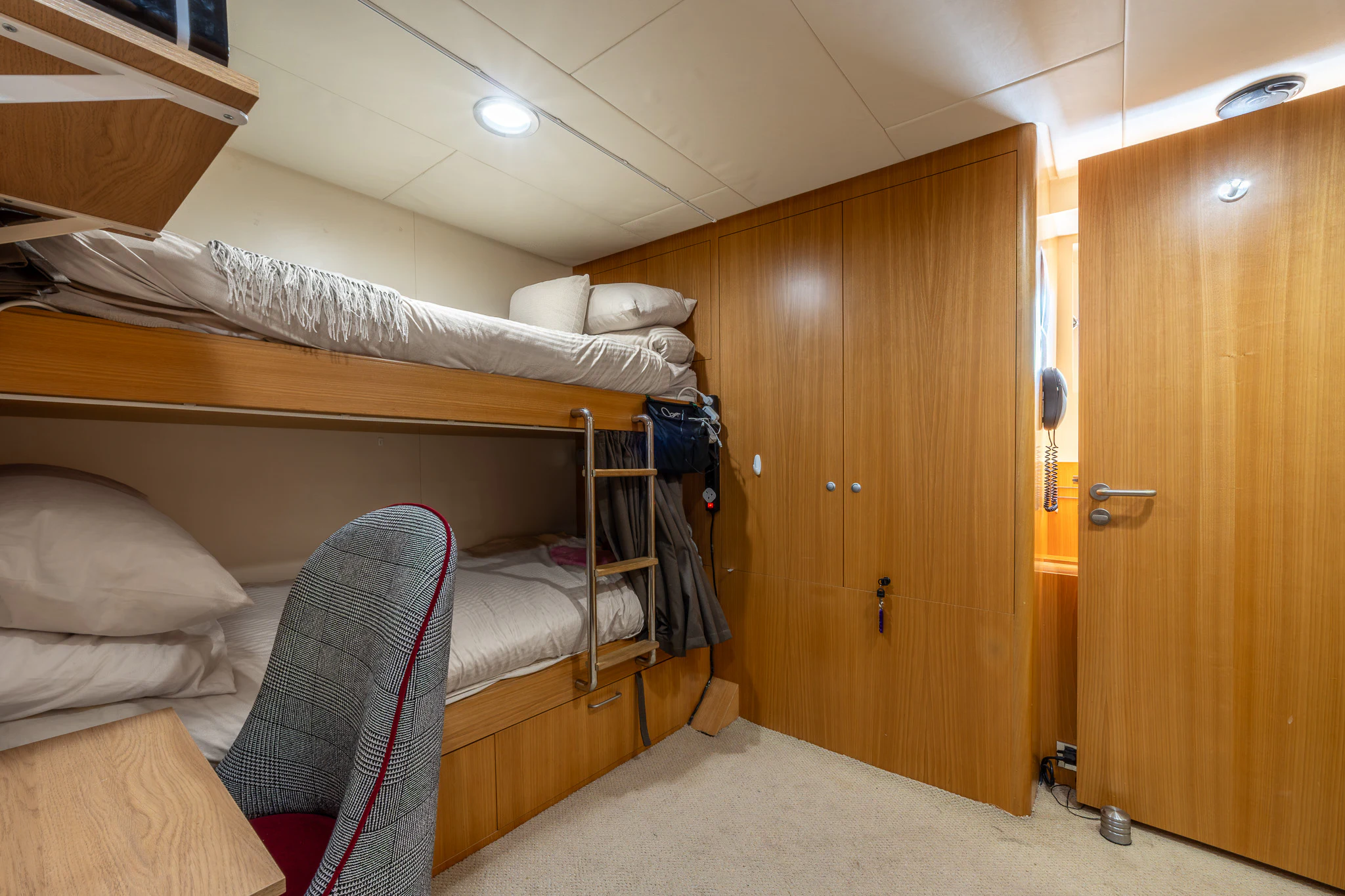

Crew & Service
Accommodation for 11 professional crew with Captain’s cabin conveniently located on the main deck. In addition, there is a Sun Deck Staff cabin with ensuite for two with upper and lower bunk.

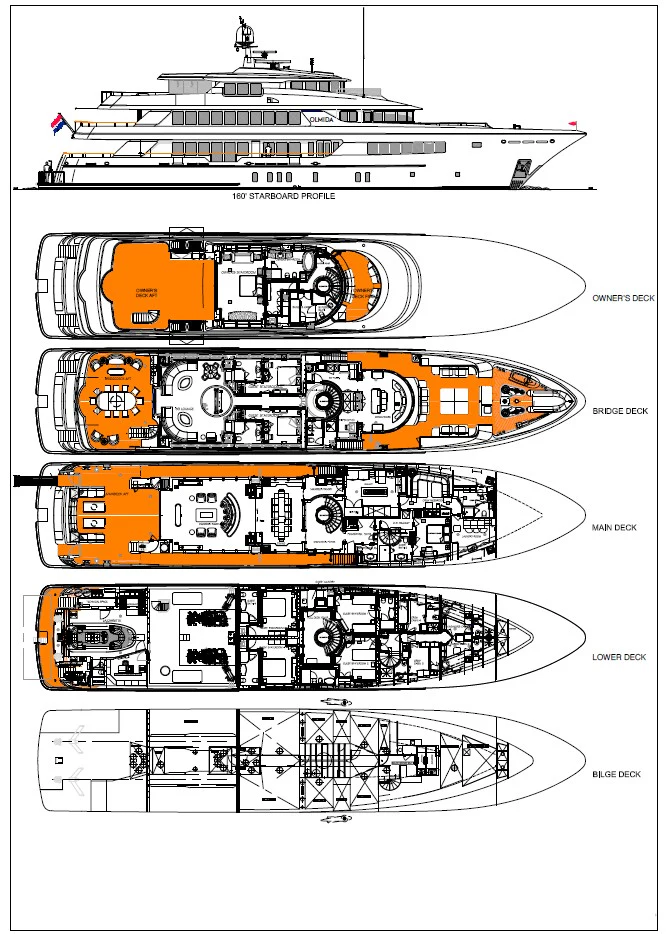

Floor Plan & Ceiling Heights
-
Total Interior Space: 329.4 m² / 3,545 ft²
-
Owner’s Deck: 45.6 m² / 490 ft²
-
Total Bridge Deck: 90.2 m² / 971 ft²
-
Bridge Deck Lounge: 44.0 m² / 473 ft²
-
VIP Stb Stateroom: 16.3 m² / 175 ft²
-
VIP Port Stateroom: 16.3 m² / 175 ft²
-
Bridge Deck Foyer & Day-head: 13.6m² / 146 ft²
-
Total Main Deck: 110.4 m² / 1,188 ft²
-
Main Deck Salon: 48.7 m² / 524 ft²
-
Main Deck Dining: 24.3 m² / 261 ft²
-
Main Deck Foyer & Day-head: 21.9 m² / 235 ft²
-
Captain’s Cabin: 15.5 m² / 167 ft²
-
Total Lower Deck: 83.2 m² / 895 ft²
-
Lower Deck Double Stb Stateroom: 19.4 m² / 209 ft²
-
Lower Deck Double Port Stateroom: 19.4 m² / 209 ft²
-
Lower Deck Twin Stateroom Stb: 17.0 m² / 183 ft²
-
Lower Deck Twin Stateroom Port: 17.7 m² / 190 ft²
-
Lower Deck Foyer: 9.7 m² /104 ft²
-
Main Salon (low / high): 218 cm (85.8 inches) / 229 cm (90.2 inches)
-
Sky lounge (low / high): 213 cm (83.9 inches) / 224 cm (88.2 inches)
-
Owner’s Stateroom (low / high): 214.5 cm (84.5 inches) / 224.5 cm (88.4 inches)
VIP Staterooms (low / high): 214 cm (84.3 inches) / 223 cm (87.8 inches) -
Lower Deck Staterooms (low / high): 212 cm (83.5 inches) / 222 cm (87.4 inches)

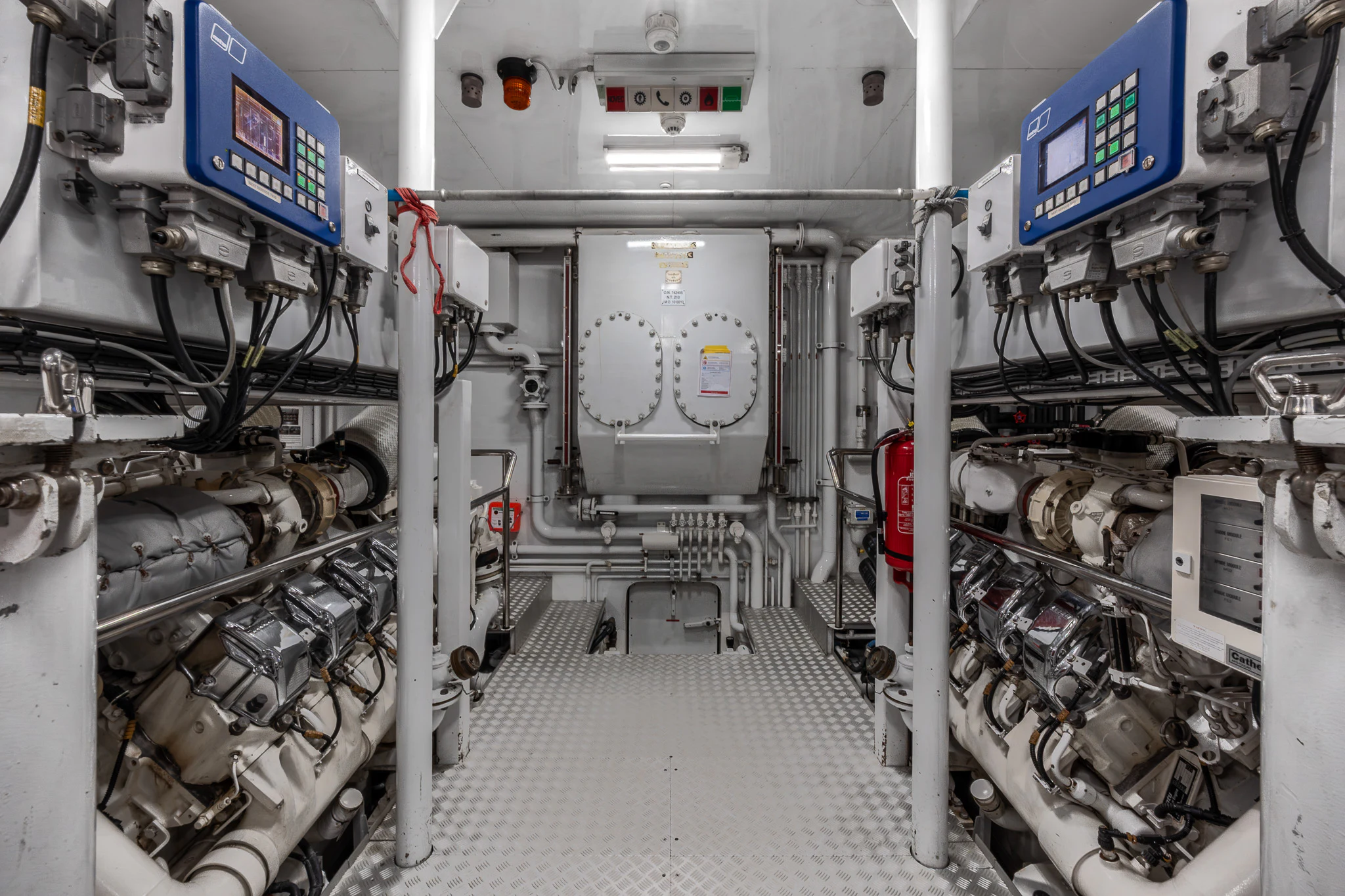

Main Machinery
Main Engines: 2 x MTU V8 8V4000M60R 700 kW (938 Hp) @ 1,600 Rpm
-
Port Engine Hours: 7,591
Starboard Engine Hours: 7,593 -
Main Engine Exhaust: Custom
-
Gear Boxes: 2 x Reintjes WAF 542L Ratio 3.955:1
-
Propellers: 2 x 5 blades Lima bronze, fixed pitch, 1550mm, Van Voorden
-
Shafts: 2 x 130 mm Steel C45-N, oil lubricated stern tubes & A-brackets
-
Thrust Bearings: 2 x Rubber Design, Type 135-OLS
-
Steering System: NACA, 2 Spade rudders (1.73 m²)
-
Steering Gear: Tenfjord JR2-130
-
Bow Thruster: Jastram Type BU20, 100 kW
-
Stabilisers: Quantum QC 1500 2 Zero Speed, 3.5 m²
Performance
-
Maximum Speed: 13.2 knots (1,600 Rpm)
-
Cruising Speed: 12.5 knots (1,450 Rpm)
-
Range: Approx 3,500 nm (12 knots)
-
Maximum Speed Consumption: 330 L/H
-
Cruising Speed Consumption: 280 L/H
Auxiliary Equipment & Electrical Systems
-
Generators: 2 x Northern Lights Type M1066H.51, 2 x 155 kW, 198 kVA 3 x 400 V - 50 Hz
-
Port Generator Hours: 17,105
Starboard Generator Hours: 17,097 -
Generator Exhaust: Halyard
-
Emergency Generator: Northern Lights Type M1064T2, 55 kW, 68 kVA 3x400 V – 50Hz
-
Electricity: 400v AC / 50 Hz 3 Phase – 220v AC / 50 Hz 1 Phase
-
Shore Power Cable: 30 metre Top Cable 4 Xtrem H07RN-F 450-750v 4G50 0.6-1kv
-
Shore Power Unit: Magnus Marine SP200 – Dual Cord 100A input – 40kVA – 400V output – Air Cooled
-
Main Engine Batteries: 4 x Mastervolt Gel/12v 200Ah Din 630 SAE1100
-
Generator Starter Batteries: 4 x Mastervolt Gel/12v 200Ah Din 630 SAE1100
-
Emergency Generator Batteries: 4 x Mastervolt Gel/12v 140Ah Din 630 SAE1100 Din 540 SAE1100
-
Service Batteries: 4 x Mastervolt Gel/12v 200Ah Din 630 SAE1100
-
Main Engine Starter Battery Charger: Mastervolt 24/75
-
Generator Starter Battery Charger: Mastervolt 24/75
-
Emergency Generator Battery Charger: Mastervolt 24/50-2
-
Service Battery Charger: Mastervolt 24/75
Tank Capacities
-
Fuel: 74,000 L / 19,550 US Gallons
-
Fresh Water: 13,100 L / 3,460 US Gallons
-
Black / Grey Water: 7,600 L / 2,008 US Gallons
-
Clean Oil: 2,500 L / 660 US Gallons
-
Dirty Oil: 3,100 L / 820 US Gallons
Fuel & Oil Systems
-
Fuel Filters: Engine filters double Separ, generators filter double Racor
-
Fuel Oil Separator: Non-self-cleaning centrifugal Alfa Laval MIB 303s, Flow Rate: 1.0 m³/h
-
Fuel Transfer Pump: Electrical self-priming, Speck SK 3301, Flow Rate: 6 m³/h at 1 bar
-
Day Tank Pump: Speck SK 3301, Flow Rate: 6 m³/h at 1 bar
-
Fuel Tender Filling Pump: Cube 56/33Piusi, flow rate: 3.48 m³/h at 2.9 bar
-
Bilge Water Pump: Self-priming Johnson, 36 m³/h at 2.6 bar
-
Bilge Level Alarm: EVE3/8-VU-L70-SB40A-V60-6PUR-GL, Kubler
-
Bilge Water Purifier: Facet, flow rate 0.5 m³/h
-
Dirty Oil Pump: Johnson SF 2/10, 0.9 m³/h
-
Lubrication Oil Pump: Johnson SF 2/10, 0.9 m³/h
Fire Fighting & Bilge System
-
Fire Fighting & Bilge Pumps: 2 x Electric driven Interconnected self-priming bilge & fire pumps Johnson/Stork, FRES50-205 & FRES65-155, Bilge 37 m³/h at 0.95 bar, Fi-Fi mode 25 m³/h at 5.7 bars
-
Emergency Fire Fighting & Bilge Pumps: 2 x Electric driven Interconnected self-priming bilge & fire pumps Johnson/Stork, FRES50-205 25 m³/h at 5.7 bars & FRES65-155 37 m³/h at 0.95 bar
Fresh Water System
-
Fresh Water Makers: 2 x Reverse osmosis HEM, 30 series/3100, 12 m³/day each
-
Watermaker No.1: 4,190hrs
-
Watermaker No.2: 4,184hrs
-
Fresh water treatment: 1 x MMF sand filter, 1 x HEM Silver Ioniser, 2 x HEM remineraliser, HEM active charcoal filter
-
Fresh water pressure: 2 x Pumps, Speck 4.5 m³/h at 4 bar, 300 l accumulation pressure tank
-
Hot & cold circulation pump: 2 x Pumps, Grundfos 5.0m³/h at 1.5bar, 2 circulation pumps
-
Hot water boilers: 2 x ACV E-Tech Electric Boilers, Type 22 (21.6Kw) Port & Type 15 (14.4Kw) Stbd
Black & Grey Water System
-
Black water Treatment: Hamann, 24 m³/day, type II USGC approved
-
WC's (toilets/bidets): Jets
-
Sanitary vacuum system: Jets unit with 2 x vacuum pumps
-
Grey water discharge pumps: 2 x BBA, 7.5 m³/h at 2.4 bar
Sea Water Cooling System
-
Air conditioning pumps: 2 x condenser cooling pumps, 1 running, 1 standby, Johnson CB40-200, 32m³/h
-
Fin stabilisers cooling pump: 1 x Cooling pump, Leeson, 2.2 m³/h at 1 bar
-
Water maker feeding pump: 1 x Pump, BNM 20/160AE, 3.8 m³/h at 2 bar
Air Pressure System
-
Tank: 150 l pressure tank
-
Compressors: 2 x Compressors, Kaeser, 3 kW, 10 bar
Ac & Ventilation System
-
Air Conditioning: Heinen & Hopman / Marine Air System
-
Cooling Capacity: Chilled water unit 220 kW
-
Fan Coils: 41 x MarineAir T 6 – 36HV
-
Fresh Air Handler: Sailor
-
Engine Room Ventilation: Variable speed fan HU80, Sailor
-
Engine Room Cooling: 2 x 40 kW, Heinen & Hopman
Hydraulic Systems
-
Stabilisers: 113L oil reservoir, dual 15 HP QP 15/15, 2 x 45cc pumps, 2 x 15 kW electric motors
-
Tender Crane Forward: 5L oil reservoir, 1.6 cc fixed displacement pump coupled to 24vDC electric motor
-
Aft Crane, Passerelle & Transom Door: 70L oil reservoir, 1 x submerged screw driven hydraulic pump, 4.6 kW electric motor
-
Steering Gear: 2 x 35L reservoirs, 2 x pumps, 2 x 2.2 kW electric motors
Safety & Security Equipment
-
Fixed Firefighting System: Novec 1230, Fixed CO2 galley range hood, Ultra-Fog, 3 x 9kW pumps, type PAH 32, feeder pump 1.5 kW type 603-XX-B, pump capacity 70 l/min at 100-120 bar
-
Firefighting equipment: Fixed High Fog/ Novac bottle for engine room, /Galley Range hood CO2
-

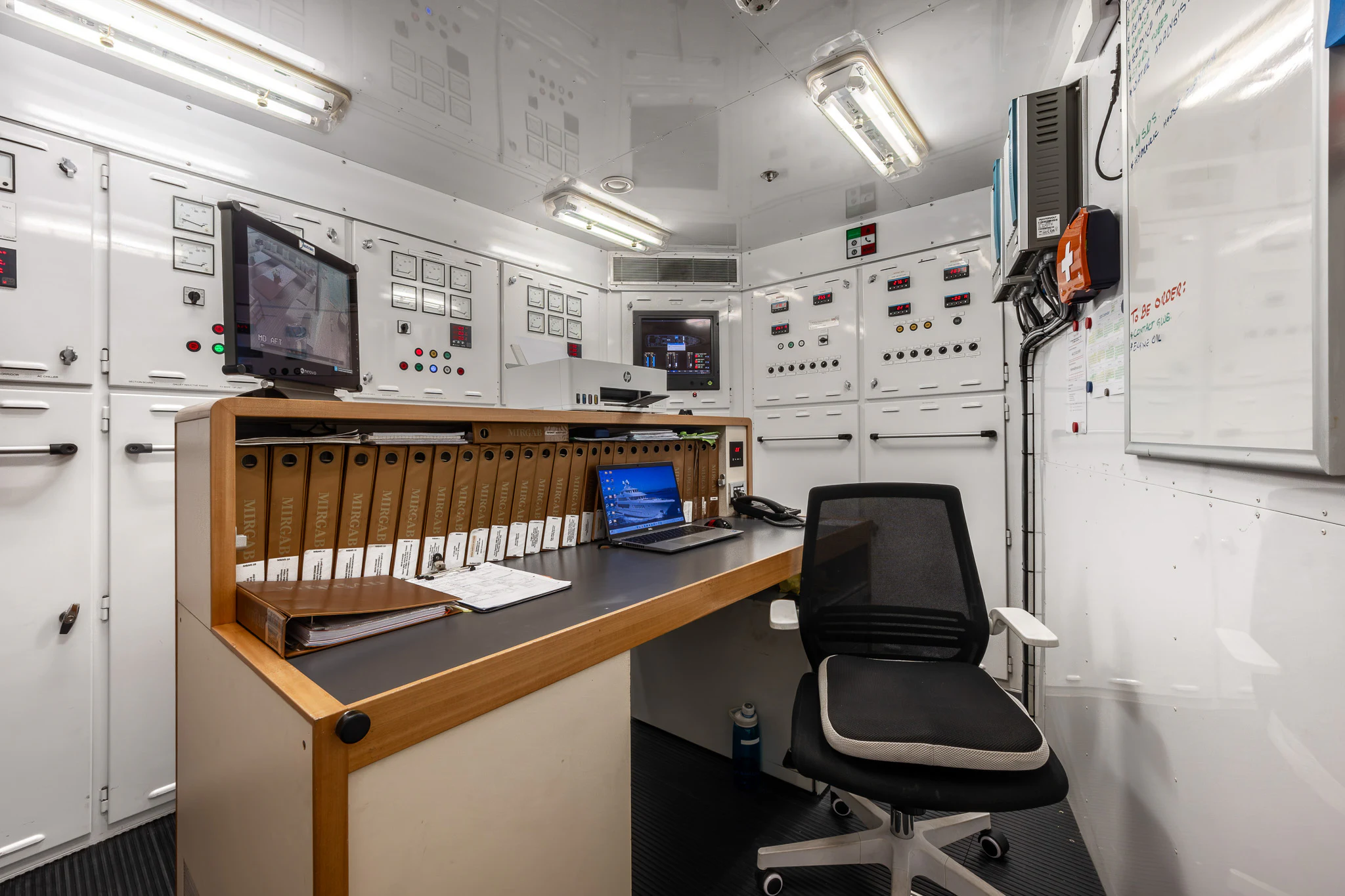

Alarms: Dekasis by De Keizer Ships Alarm System
-
Fixed & Smoke Sensors: 1 x Tyco Minerva T2000 Control Panel, 51 x Tyco 800 Series Smoke Detectors, 19 x Tyco 800 Series Call Point Panels, 5 x Tyco 800 Series Flame Detectors
-
Security System: 6 x Deck pressure pads intruder alarm
-
CCTV: 6 x fixed cameras, Panasonic, WV-CV480S
-
CCTV Screens: Bridge, crew mess, control room, Neovo Monitor SX Series
-
Life rafts: 4 x 16-person, 1 x 12-person self-inflating, Viking/ RFD
-
Life rings: 2 x Light / Smoke on BDFWD (Pain Wessex), 2 x BD Aft Light 2 x Main Deck, 2 x Sundeck aft
-
Breathing Apparatus: 12 x Draeger 11 Oceanco EEBD
-
Fireman outfit: 2 x FireBuddy Plus 2020 Suit Complete
-
Lifejackets:
-
12 x Guest BALTIC LEGEND 165N SOLAS/MED
-
4 x Guest BALTIC SOLAS Foam MK3 Child Lifejacket
-
2 x Guest LALIZAS Foam Lifejacket Advanced SOLAS Infant Lifejacket
-
17 x Crew VK Adult Foam Lifejackets, 7 x Crew Inflatable Lifejacket
-
-
Immersion suits:
-
30 x Adult Immersion Suit Intrepid/Hwyan/Imnasa,
-
6 x Child Scandia/Proteus Immersion Suit
-
Communication Equipment
-
Inmarsat-C: 1 x Sailor 6110 Inmarsat C GMDSS (C/LRIT and C/SSAS) Sailor 6015 (2024)
-
Satellite Internet: Starlink (dual antenna maritime package) (2024), Fleet FB-500, Sailor
-
Telecom Systems: 2 x VOIP lines over VSAT, 2 x GSM lines over GSM gateway, 1 x Shore Lines/PSTN, FBB voice line
-
VHF: 2 x SAILOR C4900 VHF, 1 x Sailor VHF/DSC RT5022, 1 x Sailor VHF CA951WP
-
Portable GMDSS VHF: 2 x Jotron (Tron TR20)
-
SSB Radio / MF/HF: 1 x Sailor MF/HF DSC CH5100
-
Intercom – Talk Back: CIS 3100 Command Intercom System, Phontech
-
Intercom – UHF: 12 x ICOM
-
EPRIB: 1 x Jotron EPIRB, beacon unit operating on 406 and 121.5 MHz
-
Radar Transponders: 2 x SAILOR SART II radar transponders operating in 9GHz band
-
Navtex Receiver: 1 x Furuno Navtex receiver NX700, with paper
-
GMDSS Battery Plant: 1 x 24V GMDSS Power Supply Unit, 2 GMDSS Charger Board
-
GMDSS Network: 1 x Sailor Sat C 6018Message Terminal (2024)

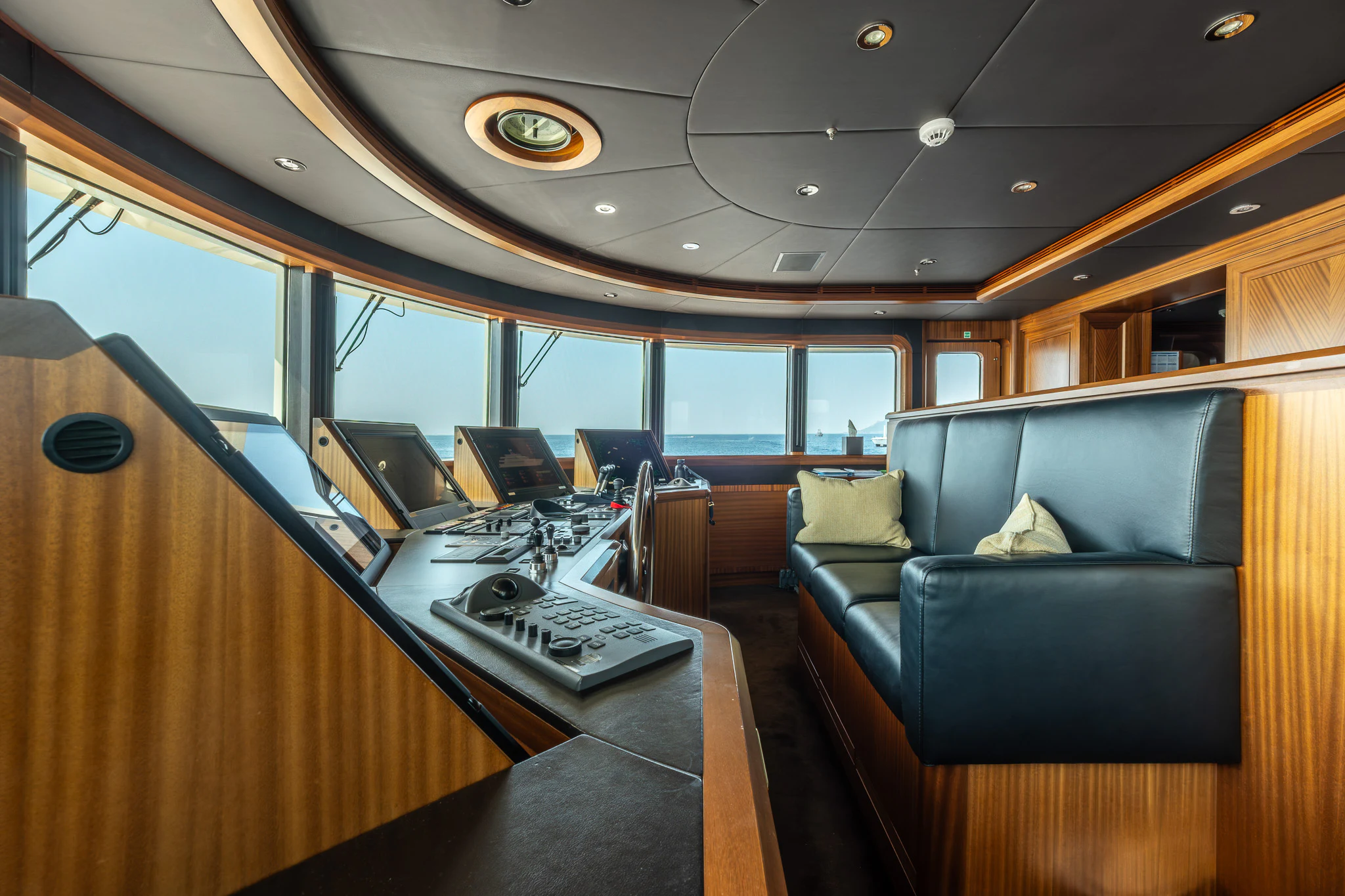

Navigation Equipment
-
Navigation Bridge: Dekasis Bridge Management System by De Keizer
-
Screens: 7 x 17” TFT Hatteland screens with dimmer/ function select
-
X-Band Radar: Furuno, Far 2117 (21X7) (12W) TR up 120nm, (Magnetron changed Sept 2024)
-
S-Band Radar: Furuno, Far 2137S 30KW TR, 120nm
-
Chart System: Transas Navi Pro Sailor 4000, ECDIS
-
Route Planning Workstation: 1 x 17” Master 1 17” x Slave
-
UPS: UPS 1500 AV, UPS 2500 IT
-
Magnetic Compass: Overhead Magnetic Compass, Cassens & Plath
-
Gyro Compass: Gyro/Magnetic Compass System Standard 22, Anschütz, Repeater Compass 360/10°, Anschütz, Digital Repeater, Anschütz
-
Autopilot: Nautopilot NP 2015 Anschutz
-
Rudder Angle Indicator System: 4 x Rudder Angle Indicator, Anschütz
-
Depth Echo Sounder: Furuno Navigational Echo Sounder, FE-700
-
Speed Log: Furuno Doppler DS 80
-
DGPS: 2 x Furuno GPS Navigator GP 150 Dual
-
GPS/AIS: Furuno Universal AIS FA-150, Anschütz
-
Wind Instruments: Vaisala Weather Station WXT536 (2024)
-
Horn: Three tone pneumatic horn, T-2, Kahlenberg
-
Searchlights: 1 x 10” dia. Search Light, Carlisle and Finch
-
Navigation Lights: DHR Den Ham Rotterdam
-
Bridge Navigational Watch Alarm: SM Electric BNWAS System, Dekasis
-
Intruder Alarm: Dekasis by De Keizer
-
Steering wheel: Stazo
Deck Equipment
-
Anchor Windlass: 2 x Vertical spindle yacht Type 23-9, Size 10, Steen
-
Warping Capstans: 2 x Type 59-9, Size 08, Steen
-
Ground Tackle: 2 x HHP galvanized anchors with self-centring flukes, 495 kg each
-
Anchor Chains: 2 x 165 m anchor chains, 24 mm galvanized stud link
-
Boat Crane: Hydraulic crane G311, SWL 600 kg at 4.3 m, Besenzoni
-
Tender Davit: Overhead gantry main tender crane, SWL 2200 kg, 1 beam, Cramm
-
Passerelle: Hydraulic telescopic Cramm
-
Boarding Ladder: Manual foldable aluminium gangplank, 2 m length, Marquipt
-
Swimming Ladder: Custom folding, manual on the swimming platform
Audio Visial / It (rebuilt 2026)
-
Video Equipment: Crestron NVX, Apple TVs, iPad 7 Mini’s and control GUI
-
Skylounge Audio: Wisdom Audio ICS-7a with Wisdom Audio SCS-2 subwoofer
-
Owner’s Cabin Audio: B&W 800 Series D
-
Main Salon Audio: 4 x B&W CCM8.5 D, 2 x CWM 8.5 D
-
Exterior Audio: James Loudspeaker VXQ68 / James Loudspeaker VXQ88
-
Master Cabin Controls: Lutron Keypads and Room-darkening Curtain Track
-
Master Cabin: Bluetooth Streaming Devices
-
Wifi: Cisco Catalyst 9800-L (Copper Uplink 2 x 10G) Wireless Controller - Max 250 APs
-
Router: SD-WAN
-
Wired Network: Cisco 9000 Series (including dedicated NVX switch stack)
-
Wireless LAN: Cisco 9000 Series Wireless Access Points
-
Steward Call System: 5 x GEST wireless buttons
-
TVRO: 2 x Sea Tel 100 TV TVRO antenna (not used)
-
VSAT: Sailor 900 VSAT Ku antenna (Priva) (not used)
-
Starlink: Dual antenna Maritime package (global High-speed internet)
-
Telephone system: Hybrid IP-PBX, KX-TDA200, Panasonic
-
Computers: 3 x HP, 1 x Dell (all in one)
-
Printer: HP Envy 7830
Domestic Equipment

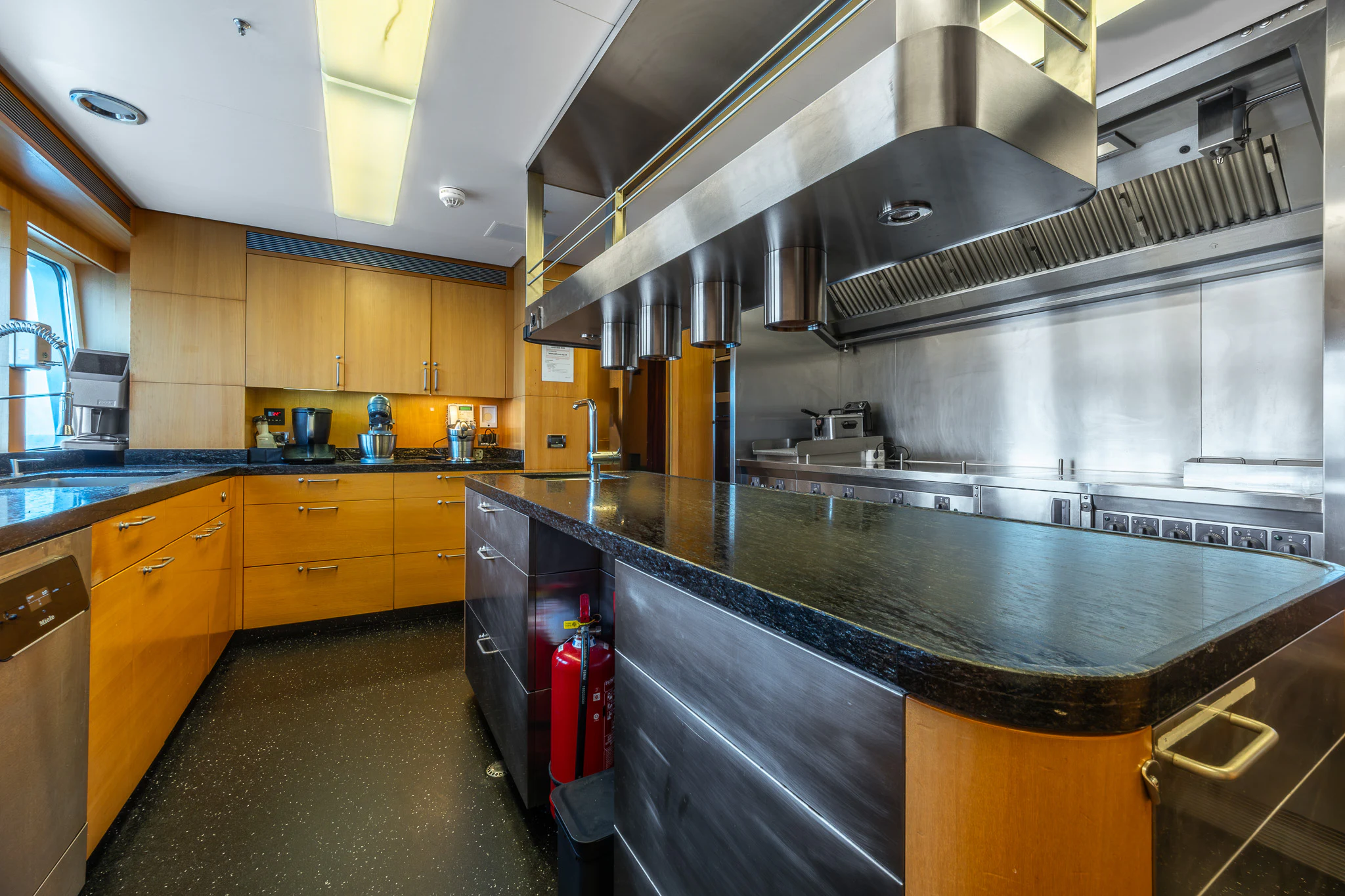

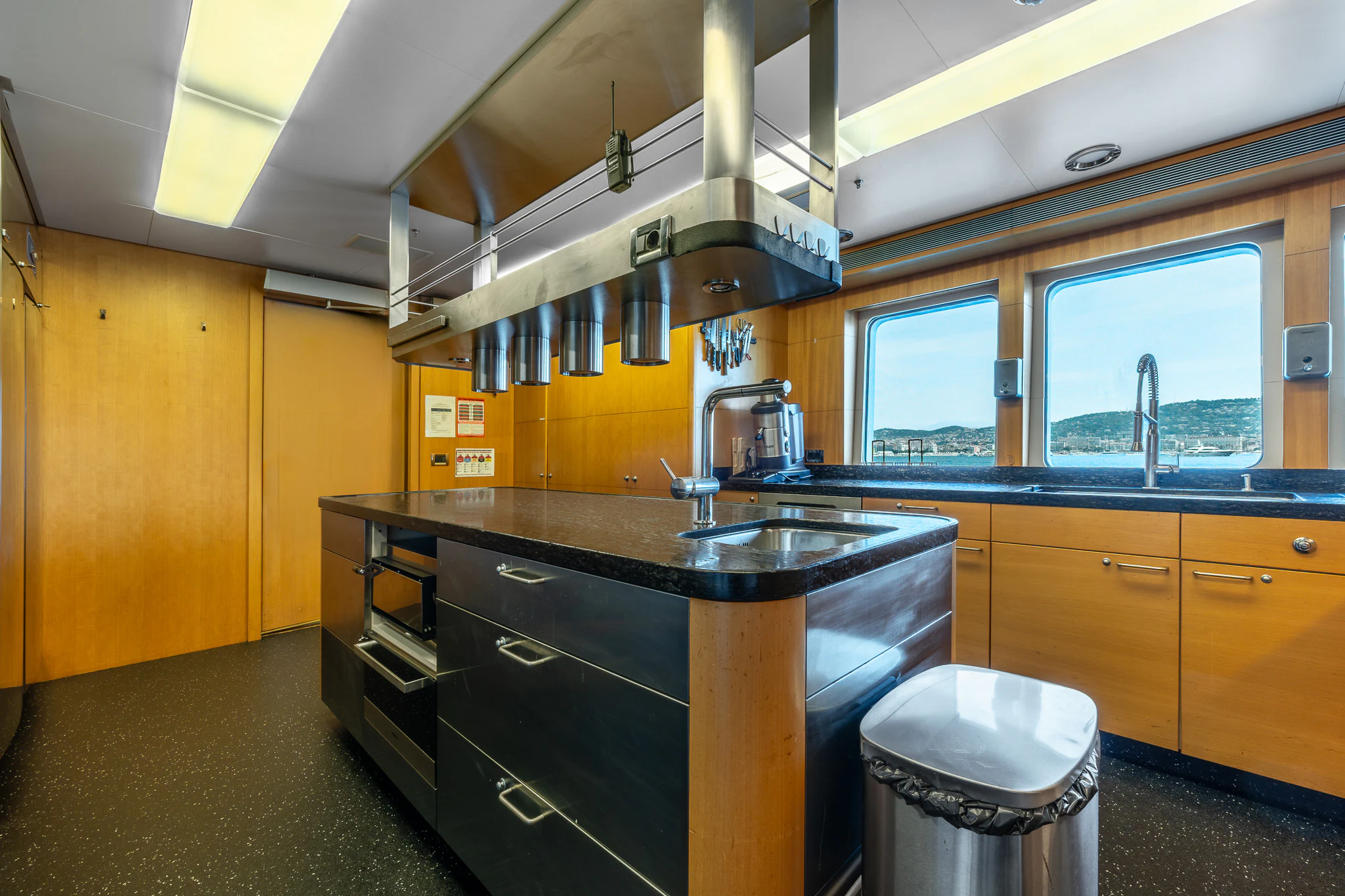

Galley
-
4-Plate induction stove top, L1259-35.3 HSFL, Electrolux
-
Griddle plate, Electrolux Professional
-
Deep fat fryer, LE 159-159.3, Electrolux Professional
-
2 x Electric built-in ovens, H5681BP, Miele
-
Steam oven, DG 5080, Miele
-
Heating lamps
-
Freezer (under counter), F9122UI-2, Miele
-
Full height double fridge -2/+10C, RH14RDZF, Electrolux
-
Dishwasher (Professional 440V), PFD 401U, Miele
-
Waste disposal unit, Type 75-2, In-Sink Erator
-
Stainless steel exhaust hoods
-
Warming drawer, ESW 5080-29, Miele
Main Deck Pantry
-
Ice-maker, RIMC024SW, Electrolux
-
Nespresso machine (small)
-
Fridge drawer Miele K622UI-1
-
Dumbwaiter
-
Hot water dispenser Type Pro3-VAR Quooker
Main Deck Exterior Aft
-
Ice-maker, RIMC024SW, Electrolux
-
Fridge, KURR 15A, Miele
Lower Deck Lobby
-
Mini-fridge under credenza MB20-60 Dometic
Lower Deck Aft Double Room
-
2 x Mini-fridge under credenza MB20-60 Dometic
Bridge Deck VIP’s
-
2 x Mini-fridge MB20-60 Dometic
Bridge Deck Exterior Aft
-
Ice-maker, RIMC024SW, Electrolux
-
Fridge, KURR 15A, Miele
-
Nespresso machine
Bridge Deck Pantry
-
Nespresso machine
-
Fridge drawer Miele K622UI-1
-
Dumbwaiter
-
Fridge, CR-0050, Waeco
Owner’s Cabin
-
Fridge, NRX 35C, Dometic
Sundeck Exterior
-
2 x Fridge, CR-0050, Waeco
Crew Mess
-
Microwave, M8161-1, Miele
-
Coffee machine, Phillips Café Aromis 8000
-
Dishwasher, PFD 101U, Miele Professional
-
Fridge/Freezer, PR06R1F, Electrolux
-
Hot water dispenser, Type Pro3-VAR, Quooker
Laundry
-
3 x 6.5 kg dryers, PW 6065 Vario, Miele Professional
-
3 x 6.5 kg washing machines, PT 7136 Vario, Miele Professional
-
Steam iron LauraStar
Other Equipment
-
Steam Shower: 6 kW, Helo in VIP port stateroom
-
Guest Elevator: Capacity 400 kg, Lutz, lower deck to sun deck
-
Dumbwaiter: Capacity 50kg, Lutz, lower deck to sun deck
-
Dive compressor: MCH-13/ET Standard, Aerotecnica Coltri, 4Kw
-
Ship's Safes: Located in all guests’ staterooms and in the bridge
-
Paint: Awlgrip, hull and superstructure Off White 2021 (ceramic coating 2024)
-
Underwater lights: 6 x underwater lights, Ocean LED
-
Sun awnings and Umbrellas: 2 x Retractable Griesser Sun awnings, 5 x Sun stainless steel awning poles with 3-piece fabric awning, 2 x Tucci umbrellas
Tender & Water Sports
-
6.37m Castoldi Jet 21 LC Yanmar 6BY-260260hp
-
4.3m Rib tender, 430DL, Novurania, Outboard Yamaha 60HP (new engine 2026)
-
2 x Scuba diving sets: regulators, bottles, BCDs, fins
Refit History
2026
-
Interior refit overseen by Sinot
-
New MD / OSR / BD furniture
-
New decorative blinds in MD / BD / VIP / Guest / OSR
-
New curtains in MD Salon, BD Salon, OSR
-
New headboards in guest cabins
-
New custom bed in master cabin
-
New Toto toilet in master stateroom
-
New lamps and soft finishes
-
New Carpets to MD Salon, MD Dining, BD Salon & Corridor, OSR
-
New exterior furniture covers
-
New upholstery and cushions on all exterior furniture
-
Replacement of exterior countertops
-
MTU Main engine service
-
Main engine discharge insulation replacement
-
Main engine exhaust works
-
Black & grey water tank cleaning
-
New shore power converter fitted
-
Dirty oil tank cleaning
-
Black & grey water piping disinfection
-
Jacuzzi bath repairs & upgrades
-
Full AV/IT upgrade with Icon Connect, including new speakers, Wifi networking, controllers, Crestron and GEST crew call system
-
Replacement of 9 x AC fan coils
-
Crew mess sofa reupholstered
-
New Yamaha baby grand piano
-
Swim platform stairs with teak & corrosion works
-
Reprogramme ECDIS
-
New name plates with modification works for installation
-
FFE & LSA service
-
New fire suits, Drager breathing apparatus, masks & tanks
-
New awning motors
-
New seawater cooling pipes
-
Chilled water system flushed
-
2 x Miele Dishwasher replacement
-
New artwork throughout vessel
-
New window in BD VIP cabin
-
Service of watertight & fire doors
-
Gyro annual service
-
New Sailor 7224 VHF Control Unit
-

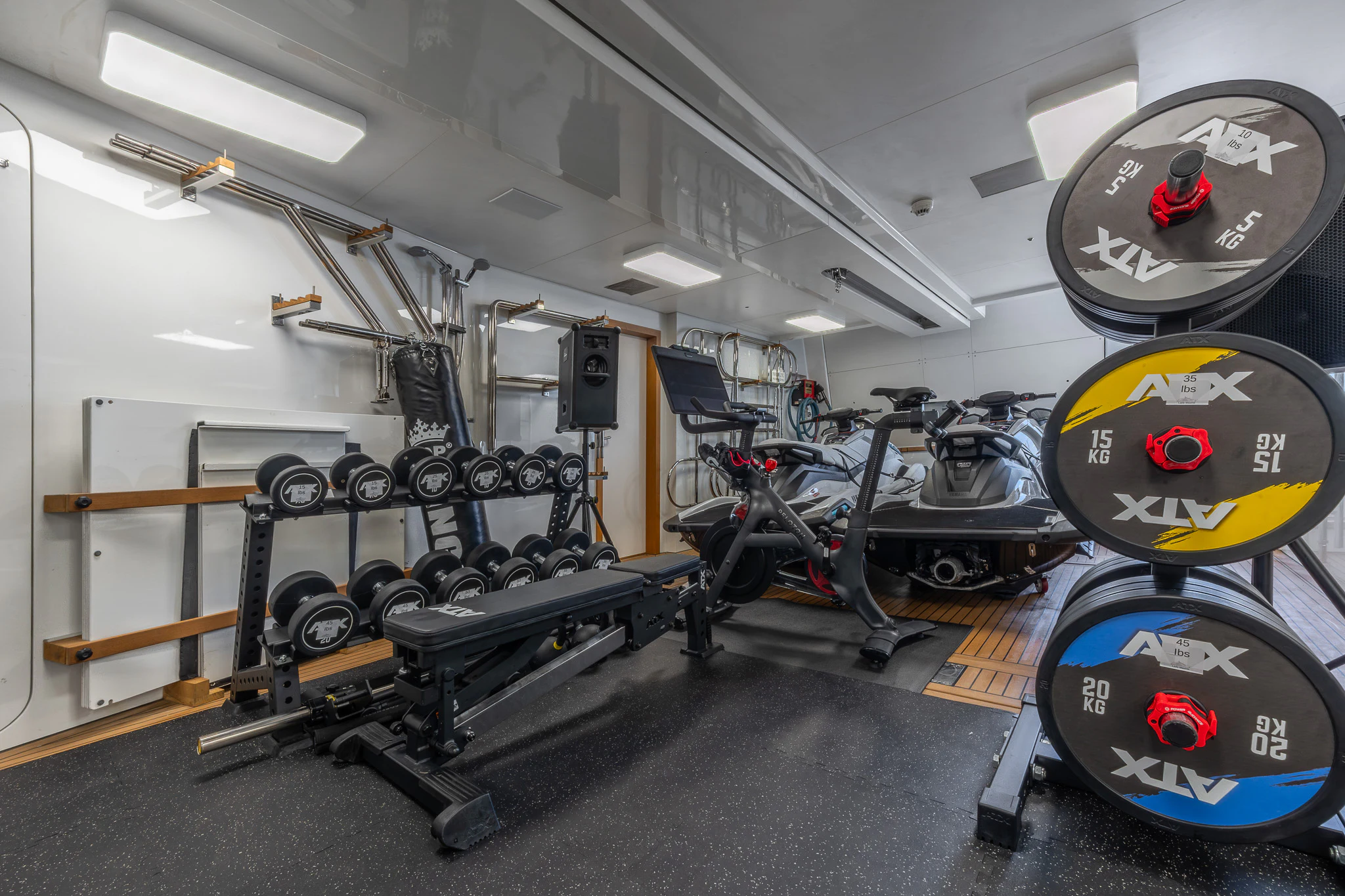

New ATX Gym Suite including barbell rack, bump plates and dumbbell set
-
Ultrafog service
-
New Yamaha 60HP outboard engine on tender
-
Control System Upgrade to LUTZ Elevator & annual certification
-
New Dometic NRX35C Fridge OSR
2025
-
Vessel hauled and new antifouling & anodes
2024
-
Vessel hauled out May and June 2024
-
5 Year Survey carried out by RINA June 2024
-
Engine Room overboard valves complete overhaul (x 24)
-
Full hull and superstructure polish and ceramic coating
-
Tail shafts Survey (Rubber Design)
-
New fabricated Stainless-Steel strainers for seachests (x 3)
-
Engine Room ventilation fan full overhaul
-
Starlink dual antenna Maritime package installed (global High-speed internet)
-
Anti-Fouling sand and 3 x new coats
-
All tanks (freshwater, grey water, black water, dirty oil) opened, cleaned, inspected
-
Water makers full overhaul and new Membranes
-
Passarelle removed, new hydraulic hoses, painted, re-installed
-
Gearboxes (Reintjes) service, inspection
-
Quantum Stabilisers 8,000hr service completed (including 2 x new shafts)
-
New 12/24V batteries throughout
-
All on board pumps (water, fire, bilge, sewage) overhauled
-
Bow thruster full major service (JASTRAM)
-
Switchboard Megger Test
-
Interior new soft furnishings and fabrics (Lower Deck, Main Deck, Bridge Deck)
-
Exterior new soft furnishings and assorted deck furniture
2023
-
Vessel hauled out July 2023
-
Hull bottom water blasted (WSJ4 to bare steel, new Primer and Antifouling system applied Sigma Ecofleet)
-
Main engines full heat exchanger cleaning
-
Diesel generators new vibration dampers, all new injectors, turbo overhauls
-
Airconditioning MC3 conversion (Heinen & Hopman) control system mandatory upgrade
-
Quantum Stabilisers 4000hr service
-
Castoldi tender new hypalon tubes
-
Steering gear rams removed, overhauled, re-installed
2021
-
Vessel hauled out June 2021
-
Bottom Survey carried out by Lloyds June 2021
-
Hull Soundings
-
Anti-Fouling
-
Hull and Superstructure A-Glaze polymer treatment for paintwork
-
New anodes June 2021
-
Main engine exhausts overboard discharge, belzona treatment
-
Rudder bearing measurements taken
-
Propellor shaft measurements taken
-
Switchboard megger tests undertaken
-
Switchboard thermal scans carried out
-
Grey water tanks cleaned and inspected
-
Blackwater tanks cleaned and inspected
-
Anchor box swivels replaced. LR approved and viewed by Lloyds Surveyor after installation
-
Windows Aglaze polymer treatment
-
LED lighting systems installed throughout guest accommodation
-
Anchor plates cut and polished
-
Prop Speed applied the propellors and bow thruster
-
Refrigeration systems flushed
-
Rudder blade void space drained and recoated with used engine oil
-
Port and starboard generators injectors, and high-pressure fuel pumps replaced
-
Renewing air handlers on aircon fan coils in 5 locations
-
Renewing insulations in air handler compartments
2020
-
ECDIS Navigation system upgraded
-
All batteries replaced on 19 PLC’s for Bridge/Engine room management system supplied by De Keizer
2019
-
10 years Lloyd’s special survey completed
-
Computer network completely upgraded
-
1 x VSAT antennas replaced
-
Entertainment system upgraded
-
2 x TVRO antennas replaced
-
4G Wi-Fi installed
-
Main engines 10 years’ service top end rebuild
-
Generators 10 years’ service top end rebuild
-
Freshwater/Grey and Blackwater tanks were all recoated
-
New paint hull and superstructure
-
Working overboard tracks were upgraded in 2019 to meet new Lloyd’s requirements and load tested every year for Lloyd’s certification
2018
-
Magnetrons replaced on both Radars X Band and S Band
2015
-
Washing machines and tumble dryers replaced
2012/2014
-
52 glass window panels changed from heat bonded to chemically bonded glass
2012/2013
-
Load Bank added
-
Extra TVRO antenna added for Arab TV
-
Foredeck sunbed replaced by round dining table on adjustable height electric pedestal
2011/2012
-
Sun Deck superstructure extended by 4 m aft providing a covered outdoor area from the owners, 4 tons ballast in the keel added, new stability book issued
Exclusions
A full list of exclusions will be provided at contract. All artwork and personal effects will be excluded from the sale.
Full Details
Main Characteristics
-
Name: Lady Maxine
-
Previous Names: Mirgab VI, Olmida
-
Builder: Royal Hakvoort
-
Type: Twin screw displacement motor yacht
-
Year: 2010
-
Refit: 2021 / 2024 / 2026
-
LOA: 48.77m / 160’/00”
-
LWL: 41.55m / 136’04”
-
Beam: 9.15m / 30’00”
-
Draft: 2.94m / 9’08”
-
Hull: Steel
-
Superstructure: Aluminium
-
Gross Tonnage: 703 GRT
-
Displacement: 279.9 T
-
Flag: Cayman Islands
-
Classification: RINA C ✠ Hull ✠ Mach Y Unrestricted
-
Naval Architecture: Diana Yacht Design
-
Interior Designer: Sinot
-
Exterior Designer: Glade Johnson
-
Main Engines: 2 x MTU V8 8V4000M60R (938 HP)
-
Max Speed: 13.2 knots
-
Cruising Speed: 12.5 knots
-
Range: Approx 3,500nm at 12 knots
-
Guest Accommodations: 14 guests in 7 staterooms
-
Crew Accommodations: 11 crew + staff bunk cabin
Introduction
Lady Maxine is a 48.77m Royal Hakvoort delivered in 2010, featuring naval architecture by Diana Yacht Design, exterior styling by Glade Johnson, and interiors by Sinot. Privately used since delivery, she has benefitted from a series of significant refits in 2021, 2024, and most recently in 2026 under her current ownership.
Distinguished within her class by an exceptionally versatile seven-stateroom layout, Lady Maxine accommodates guests across a highly functional arrangement that includes a private Owner’s deck on the sundeck and two VIP suites on the bridge deck. An elevator services all decks, ensuring seamless accessibility throughout.
Her 2026 refit, overseen by Sinot, included a comprehensive interior refresh alongside a full rebuild of the yacht’s AV/IT systems. With an impressive volume of 703 GT, Lady Maxine represents a rare opportunity to acquire a pedigree Dutch-built yacht presented in immaculate condition.
Unique Selling Points
-
7 guest staterooms including private owner’s deck
-
Elevator serving all decks
-
Timeless Sinot interior design
-
Extensive maintenance history including a 2026 refit
-
Incredible interior volume of 703 GRT
-
Exceptional build quality by Royal Hakvoort
-
Impressive ceiling heights throughout
Accommodations
Owner’s deck | Sun Deck
A private sanctuary with direct access to the aft Sun Deck terrace, preceded by a well-appointed staff cabin with upper and lower bunk beds. The suite features an aft-facing king-size bed, lounge with sofa and writing desk, and a dressing foyer. Floor-to-ceiling panoramic glass doors and large windows.
Interiors boast stained Sapelli mahogany, gold-plated accents, honey onyx, mother-of-pearl, and custom beige leather finishes. The ensuite Honey Onyx bathroom is a spa-like retreat with a bathtub, onyx basin, and THG. Art Deco crystal-line fittings.
2 VIP Suites | Bridge Deck
Spacious staterooms with queen bed and luxurious furnishings including 46” TVs, desks, wardrobes, and mini fridges. En-suites feature opulent honey onyx finishes; Port side bathroom includes a shower/steam room. Beautiful sea view atmosphere with large side windows.
1 Convertible Double/captain Cabin | Main Deck
A flexible space with foldaway Murphy-bed and warm tones, ideal for Captain or extended family. Features a 32” TV, safe, mini fridge, and elegant ensuite bathroom.
4 Guest Staterooms | Lower Deck
Two double and two twin staterooms each appointed with designer fabrics, built-in storage, 32” TVs, and refined wool carpets. Ensuite bathrooms feature polished honey onyx, gold accents, and refined fixtures throughout.
Guest Living Spaces
Main Salon
A grand yet inviting setting with two central sofas and armchairs to greet guests upon arrival. Surrounded by large windows, some floor-to-ceiling and exquisite woodwork, it’s perfect for both entertaining and relaxing. Divided from the dining area by gold-inlay glass sliding doors.
Formal Dining Room
An elegant setting with a long and elegant mahogany table to seat 10 guests, upholstered chairs, and fine cabinetry. Ample functional storage to create the most exquisite table dressing.
Bridge Deck Lounge Aft
An informal yet plush full-beam lounge which has been fully redesigned during the 2026 refit, with an informal seating area to starboard with piano and games table to port.
Elevator & Main Staircase
Connecting all four decks, the sculptural staircase features a brass and leather handrail encircling a round glass elevator—its floor finished in onyx and white marble. A striking centrepiece of the interior.
Main Deck Aft
A chic social area with a large U-shaped sofa, twin teak tables, and a bar equipped with fridge, icemaker, and sink.
Bridge Deck Aft
An ideal space for outdoor dining or entertaining with an extensible oval teak alfresco dining table for 12, elegant loose furniture, and a full-service bar. A retractable awning provides shade at the touch of a button.
Bridge Deck Forward
Enjoy a peaceful retreat with three built-in sofas and a round high gloss varnished dining table with chairs.
Sun Deck Aft
Ultimate and serene privacy under shady hardtop covered terrace for protection for relaxation or treadmill exercise with sliding protective side windbreak glass panels, or enjoying the sunny aft deck overlooking all decks and the sea wake, with elegant designer sun lounging furniture, cabinetry and privacy.
Sun Deck Forward
Designed lounging with three built-in sofas, perfect for sunset cocktails or quiet reflection.
Crew & Service
Accommodation for 11 professional crew with Captain’s cabin conveniently located on the main deck. In addition, there is a Sun Deck Staff cabin with ensuite for two with upper and lower bunk.
Floor Plan & Ceiling Heights
-
Total Interior Space: 329.4 m² / 3,545 ft²
-
Owner’s Deck: 45.6 m² / 490 ft²
-
Total Bridge Deck: 90.2 m² / 971 ft²
-
Bridge Deck Lounge: 44.0 m² / 473 ft²
-
VIP Stb Stateroom: 16.3 m² / 175 ft²
-
VIP Port Stateroom: 16.3 m² / 175 ft²
-
Bridge Deck Foyer & Day-head: 13.6m² / 146 ft²
-
Total Main Deck: 110.4 m² / 1,188 ft²
-
Main Deck Salon: 48.7 m² / 524 ft²
-
Main Deck Dining: 24.3 m² / 261 ft²
-
Main Deck Foyer & Day-head: 21.9 m² / 235 ft²
-
Captain’s Cabin: 15.5 m² / 167 ft²
-
Total Lower Deck: 83.2 m² / 895 ft²
-
Lower Deck Double Stb Stateroom: 19.4 m² / 209 ft²
-
Lower Deck Double Port Stateroom: 19.4 m² / 209 ft²
-
Lower Deck Twin Stateroom Stb: 17.0 m² / 183 ft²
-
Lower Deck Twin Stateroom Port: 17.7 m² / 190 ft²
-
Lower Deck Foyer: 9.7 m² /104 ft²
-
Main Salon (low / high): 218 cm (85.8 inches) / 229 cm (90.2 inches)
-
Sky lounge (low / high): 213 cm (83.9 inches) / 224 cm (88.2 inches)
-
Owner’s Stateroom (low / high): 214.5 cm (84.5 inches) / 224.5 cm (88.4 inches)
VIP Staterooms (low / high): 214 cm (84.3 inches) / 223 cm (87.8 inches) -
Lower Deck Staterooms (low / high): 212 cm (83.5 inches) / 222 cm (87.4 inches)
Main Machinery
Main Engines: 2 x MTU V8 8V4000M60R 700 kW (938 Hp) @ 1,600 Rpm
-
Port Engine Hours: 7,591
Starboard Engine Hours: 7,593 -
Main Engine Exhaust: Custom
-
Gear Boxes: 2 x Reintjes WAF 542L Ratio 3.955:1
-
Propellers: 2 x 5 blades Lima bronze, fixed pitch, 1550mm, Van Voorden
-
Shafts: 2 x 130 mm Steel C45-N, oil lubricated stern tubes & A-brackets
-
Thrust Bearings: 2 x Rubber Design, Type 135-OLS
-
Steering System: NACA, 2 Spade rudders (1.73 m²)
-
Steering Gear: Tenfjord JR2-130
-
Bow Thruster: Jastram Type BU20, 100 kW
-
Stabilisers: Quantum QC 1500 2 Zero Speed, 3.5 m²
Performance
-
Maximum Speed: 13.2 knots (1,600 Rpm)
-
Cruising Speed: 12.5 knots (1,450 Rpm)
-
Range: Approx 3,500 nm (12 knots)
-
Maximum Speed Consumption: 330 L/H
-
Cruising Speed Consumption: 280 L/H
Auxiliary Equipment & Electrical Systems
-
Generators: 2 x Northern Lights Type M1066H.51, 2 x 155 kW, 198 kVA 3 x 400 V - 50 Hz
-
Port Generator Hours: 17,105
Starboard Generator Hours: 17,097 -
Generator Exhaust: Halyard
-
Emergency Generator: Northern Lights Type M1064T2, 55 kW, 68 kVA 3x400 V – 50Hz
-
Electricity: 400v AC / 50 Hz 3 Phase – 220v AC / 50 Hz 1 Phase
-
Shore Power Cable: 30 metre Top Cable 4 Xtrem H07RN-F 450-750v 4G50 0.6-1kv
-
Shore Power Unit: Magnus Marine SP200 – Dual Cord 100A input – 40kVA – 400V output – Air Cooled
-
Main Engine Batteries: 4 x Mastervolt Gel/12v 200Ah Din 630 SAE1100
-
Generator Starter Batteries: 4 x Mastervolt Gel/12v 200Ah Din 630 SAE1100
-
Emergency Generator Batteries: 4 x Mastervolt Gel/12v 140Ah Din 630 SAE1100 Din 540 SAE1100
-
Service Batteries: 4 x Mastervolt Gel/12v 200Ah Din 630 SAE1100
-
Main Engine Starter Battery Charger: Mastervolt 24/75
-
Generator Starter Battery Charger: Mastervolt 24/75
-
Emergency Generator Battery Charger: Mastervolt 24/50-2
-
Service Battery Charger: Mastervolt 24/75
Tank Capacities
-
Fuel: 74,000 L / 19,550 US Gallons
-
Fresh Water: 13,100 L / 3,460 US Gallons
-
Black / Grey Water: 7,600 L / 2,008 US Gallons
-
Clean Oil: 2,500 L / 660 US Gallons
-
Dirty Oil: 3,100 L / 820 US Gallons
Fuel & Oil Systems
-
Fuel Filters: Engine filters double Separ, generators filter double Racor
-
Fuel Oil Separator: Non-self-cleaning centrifugal Alfa Laval MIB 303s, Flow Rate: 1.0 m³/h
-
Fuel Transfer Pump: Electrical self-priming, Speck SK 3301, Flow Rate: 6 m³/h at 1 bar
-
Day Tank Pump: Speck SK 3301, Flow Rate: 6 m³/h at 1 bar
-
Fuel Tender Filling Pump: Cube 56/33Piusi, flow rate: 3.48 m³/h at 2.9 bar
-
Bilge Water Pump: Self-priming Johnson, 36 m³/h at 2.6 bar
-
Bilge Level Alarm: EVE3/8-VU-L70-SB40A-V60-6PUR-GL, Kubler
-
Bilge Water Purifier: Facet, flow rate 0.5 m³/h
-
Dirty Oil Pump: Johnson SF 2/10, 0.9 m³/h
-
Lubrication Oil Pump: Johnson SF 2/10, 0.9 m³/h
Fire Fighting & Bilge System
-
Fire Fighting & Bilge Pumps: 2 x Electric driven Interconnected self-priming bilge & fire pumps Johnson/Stork, FRES50-205 & FRES65-155, Bilge 37 m³/h at 0.95 bar, Fi-Fi mode 25 m³/h at 5.7 bars
-
Emergency Fire Fighting & Bilge Pumps: 2 x Electric driven Interconnected self-priming bilge & fire pumps Johnson/Stork, FRES50-205 25 m³/h at 5.7 bars & FRES65-155 37 m³/h at 0.95 bar
Fresh Water System
-
Fresh Water Makers: 2 x Reverse osmosis HEM, 30 series/3100, 12 m³/day each
-
Watermaker No.1: 4,190hrs
-
Watermaker No.2: 4,184hrs
-
Fresh water treatment: 1 x MMF sand filter, 1 x HEM Silver Ioniser, 2 x HEM remineraliser, HEM active charcoal filter
-
Fresh water pressure: 2 x Pumps, Speck 4.5 m³/h at 4 bar, 300 l accumulation pressure tank
-
Hot & cold circulation pump: 2 x Pumps, Grundfos 5.0m³/h at 1.5bar, 2 circulation pumps
-
Hot water boilers: 2 x ACV E-Tech Electric Boilers, Type 22 (21.6Kw) Port & Type 15 (14.4Kw) Stbd
Black & Grey Water System
-
Black water Treatment: Hamann, 24 m³/day, type II USGC approved
-
WC's (toilets/bidets): Jets
-
Sanitary vacuum system: Jets unit with 2 x vacuum pumps
-
Grey water discharge pumps: 2 x BBA, 7.5 m³/h at 2.4 bar
Sea Water Cooling System
-
Air conditioning pumps: 2 x condenser cooling pumps, 1 running, 1 standby, Johnson CB40-200, 32m³/h
-
Fin stabilisers cooling pump: 1 x Cooling pump, Leeson, 2.2 m³/h at 1 bar
-
Water maker feeding pump: 1 x Pump, BNM 20/160AE, 3.8 m³/h at 2 bar
Air Pressure System
-
Tank: 150 l pressure tank
-
Compressors: 2 x Compressors, Kaeser, 3 kW, 10 bar
Ac & Ventilation System
-
Air Conditioning: Heinen & Hopman / Marine Air System
-
Cooling Capacity: Chilled water unit 220 kW
-
Fan Coils: 41 x MarineAir T 6 – 36HV
-
Fresh Air Handler: Sailor
-
Engine Room Ventilation: Variable speed fan HU80, Sailor
-
Engine Room Cooling: 2 x 40 kW, Heinen & Hopman
Hydraulic Systems
-
Stabilisers: 113L oil reservoir, dual 15 HP QP 15/15, 2 x 45cc pumps, 2 x 15 kW electric motors
-
Tender Crane Forward: 5L oil reservoir, 1.6 cc fixed displacement pump coupled to 24vDC electric motor
-
Aft Crane, Passerelle & Transom Door: 70L oil reservoir, 1 x submerged screw driven hydraulic pump, 4.6 kW electric motor
-
Steering Gear: 2 x 35L reservoirs, 2 x pumps, 2 x 2.2 kW electric motors
Safety & Security Equipment
-
Fixed Firefighting System: Novec 1230, Fixed CO2 galley range hood, Ultra-Fog, 3 x 9kW pumps, type PAH 32, feeder pump 1.5 kW type 603-XX-B, pump capacity 70 l/min at 100-120 bar
-
Firefighting equipment: Fixed High Fog/ Novac bottle for engine room, /Galley Range hood CO2
-
Alarms: Dekasis by De Keizer Ships Alarm System
-
Fixed & Smoke Sensors: 1 x Tyco Minerva T2000 Control Panel, 51 x Tyco 800 Series Smoke Detectors, 19 x Tyco 800 Series Call Point Panels, 5 x Tyco 800 Series Flame Detectors
-
Security System: 6 x Deck pressure pads intruder alarm
-
CCTV: 6 x fixed cameras, Panasonic, WV-CV480S
-
CCTV Screens: Bridge, crew mess, control room, Neovo Monitor SX Series
-
Life rafts: 4 x 16-person, 1 x 12-person self-inflating, Viking/ RFD
-
Life rings: 2 x Light / Smoke on BDFWD (Pain Wessex), 2 x BD Aft Light 2 x Main Deck, 2 x Sundeck aft
-
Breathing Apparatus: 12 x Draeger 11 Oceanco EEBD
-
Fireman outfit: 2 x FireBuddy Plus 2020 Suit Complete
-
Lifejackets:
-
12 x Guest BALTIC LEGEND 165N SOLAS/MED
-
4 x Guest BALTIC SOLAS Foam MK3 Child Lifejacket
-
2 x Guest LALIZAS Foam Lifejacket Advanced SOLAS Infant Lifejacket
-
17 x Crew VK Adult Foam Lifejackets, 7 x Crew Inflatable Lifejacket
-
-
Immersion suits:
-
30 x Adult Immersion Suit Intrepid/Hwyan/Imnasa,
-
6 x Child Scandia/Proteus Immersion Suit
-
Communication Equipment
-
Inmarsat-C: 1 x Sailor 6110 Inmarsat C GMDSS (C/LRIT and C/SSAS) Sailor 6015 (2024)
-
Satellite Internet: Starlink (dual antenna maritime package) (2024), Fleet FB-500, Sailor
-
Telecom Systems: 2 x VOIP lines over VSAT, 2 x GSM lines over GSM gateway, 1 x Shore Lines/PSTN, FBB voice line
-
VHF: 2 x SAILOR C4900 VHF, 1 x Sailor VHF/DSC RT5022, 1 x Sailor VHF CA951WP
-
Portable GMDSS VHF: 2 x Jotron (Tron TR20)
-
SSB Radio / MF/HF: 1 x Sailor MF/HF DSC CH5100
-
Intercom – Talk Back: CIS 3100 Command Intercom System, Phontech
-
Intercom – UHF: 12 x ICOM
-
EPRIB: 1 x Jotron EPIRB, beacon unit operating on 406 and 121.5 MHz
-
Radar Transponders: 2 x SAILOR SART II radar transponders operating in 9GHz band
-
Navtex Receiver: 1 x Furuno Navtex receiver NX700, with paper
-
GMDSS Battery Plant: 1 x 24V GMDSS Power Supply Unit, 2 GMDSS Charger Board
-
GMDSS Network: 1 x Sailor Sat C 6018Message Terminal (2024)
Navigation Equipment
-
Navigation Bridge: Dekasis Bridge Management System by De Keizer
-
Screens: 7 x 17” TFT Hatteland screens with dimmer/ function select
-
X-Band Radar: Furuno, Far 2117 (21X7) (12W) TR up 120nm, (Magnetron changed Sept 2024)
-
S-Band Radar: Furuno, Far 2137S 30KW TR, 120nm
-
Chart System: Transas Navi Pro Sailor 4000, ECDIS
-
Route Planning Workstation: 1 x 17” Master 1 17” x Slave
-
UPS: UPS 1500 AV, UPS 2500 IT
-
Magnetic Compass: Overhead Magnetic Compass, Cassens & Plath
-
Gyro Compass: Gyro/Magnetic Compass System Standard 22, Anschütz, Repeater Compass 360/10°, Anschütz, Digital Repeater, Anschütz
-
Autopilot: Nautopilot NP 2015 Anschutz
-
Rudder Angle Indicator System: 4 x Rudder Angle Indicator, Anschütz
-
Depth Echo Sounder: Furuno Navigational Echo Sounder, FE-700
-
Speed Log: Furuno Doppler DS 80
-
DGPS: 2 x Furuno GPS Navigator GP 150 Dual
-
GPS/AIS: Furuno Universal AIS FA-150, Anschütz
-
Wind Instruments: Vaisala Weather Station WXT536 (2024)
-
Horn: Three tone pneumatic horn, T-2, Kahlenberg
-
Searchlights: 1 x 10” dia. Search Light, Carlisle and Finch
-
Navigation Lights: DHR Den Ham Rotterdam
-
Bridge Navigational Watch Alarm: SM Electric BNWAS System, Dekasis
-
Intruder Alarm: Dekasis by De Keizer
-
Steering wheel: Stazo
Deck Equipment
-
Anchor Windlass: 2 x Vertical spindle yacht Type 23-9, Size 10, Steen
-
Warping Capstans: 2 x Type 59-9, Size 08, Steen
-
Ground Tackle: 2 x HHP galvanized anchors with self-centring flukes, 495 kg each
-
Anchor Chains: 2 x 165 m anchor chains, 24 mm galvanized stud link
-
Boat Crane: Hydraulic crane G311, SWL 600 kg at 4.3 m, Besenzoni
-
Tender Davit: Overhead gantry main tender crane, SWL 2200 kg, 1 beam, Cramm
-
Passerelle: Hydraulic telescopic Cramm
-
Boarding Ladder: Manual foldable aluminium gangplank, 2 m length, Marquipt
-
Swimming Ladder: Custom folding, manual on the swimming platform
Audio Visial / It (rebuilt 2026)
-
Video Equipment: Crestron NVX, Apple TVs, iPad 7 Mini’s and control GUI
-
Skylounge Audio: Wisdom Audio ICS-7a with Wisdom Audio SCS-2 subwoofer
-
Owner’s Cabin Audio: B&W 800 Series D
-
Main Salon Audio: 4 x B&W CCM8.5 D, 2 x CWM 8.5 D
-
Exterior Audio: James Loudspeaker VXQ68 / James Loudspeaker VXQ88
-
Master Cabin Controls: Lutron Keypads and Room-darkening Curtain Track
-
Master Cabin: Bluetooth Streaming Devices
-
Wifi: Cisco Catalyst 9800-L (Copper Uplink 2 x 10G) Wireless Controller - Max 250 APs
-
Router: SD-WAN
-
Wired Network: Cisco 9000 Series (including dedicated NVX switch stack)
-
Wireless LAN: Cisco 9000 Series Wireless Access Points
-
Steward Call System: 5 x GEST wireless buttons
-
TVRO: 2 x Sea Tel 100 TV TVRO antenna (not used)
-
VSAT: Sailor 900 VSAT Ku antenna (Priva) (not used)
-
Starlink: Dual antenna Maritime package (global High-speed internet)
-
Telephone system: Hybrid IP-PBX, KX-TDA200, Panasonic
-
Computers: 3 x HP, 1 x Dell (all in one)
-
Printer: HP Envy 7830
Domestic Equipment
Galley
-
4-Plate induction stove top, L1259-35.3 HSFL, Electrolux
-
Griddle plate, Electrolux Professional
-
Deep fat fryer, LE 159-159.3, Electrolux Professional
-
2 x Electric built-in ovens, H5681BP, Miele
-
Steam oven, DG 5080, Miele
-
Heating lamps
-
Freezer (under counter), F9122UI-2, Miele
-
Full height double fridge -2/+10C, RH14RDZF, Electrolux
-
Dishwasher (Professional 440V), PFD 401U, Miele
-
Waste disposal unit, Type 75-2, In-Sink Erator
-
Stainless steel exhaust hoods
-
Warming drawer, ESW 5080-29, Miele
Main Deck Pantry
-
Ice-maker, RIMC024SW, Electrolux
-
Nespresso machine (small)
-
Fridge drawer Miele K622UI-1
-
Dumbwaiter
-
Hot water dispenser Type Pro3-VAR Quooker
Main Deck Exterior Aft
-
Ice-maker, RIMC024SW, Electrolux
-
Fridge, KURR 15A, Miele
Lower Deck Lobby
-
Mini-fridge under credenza MB20-60 Dometic
Lower Deck Aft Double Room
-
2 x Mini-fridge under credenza MB20-60 Dometic
Bridge Deck VIP’s
-
2 x Mini-fridge MB20-60 Dometic
Bridge Deck Exterior Aft
-
Ice-maker, RIMC024SW, Electrolux
-
Fridge, KURR 15A, Miele
-
Nespresso machine
Bridge Deck Pantry
-
Nespresso machine
-
Fridge drawer Miele K622UI-1
-
Dumbwaiter
-
Fridge, CR-0050, Waeco
Owner’s Cabin
-
Fridge, NRX 35C, Dometic
Sundeck Exterior
-
2 x Fridge, CR-0050, Waeco
Crew Mess
-
Microwave, M8161-1, Miele
-
Coffee machine, Phillips Café Aromis 8000
-
Dishwasher, PFD 101U, Miele Professional
-
Fridge/Freezer, PR06R1F, Electrolux
-
Hot water dispenser, Type Pro3-VAR, Quooker
Laundry
-
3 x 6.5 kg dryers, PW 6065 Vario, Miele Professional
-
3 x 6.5 kg washing machines, PT 7136 Vario, Miele Professional
-
Steam iron LauraStar
Other Equipment
-
Steam Shower: 6 kW, Helo in VIP port stateroom
-
Guest Elevator: Capacity 400 kg, Lutz, lower deck to sun deck
-
Dumbwaiter: Capacity 50kg, Lutz, lower deck to sun deck
-
Dive compressor: MCH-13/ET Standard, Aerotecnica Coltri, 4Kw
-
Ship's Safes: Located in all guests’ staterooms and in the bridge
-
Paint: Awlgrip, hull and superstructure Off White 2021 (ceramic coating 2024)
-
Underwater lights: 6 x underwater lights, Ocean LED
-
Sun awnings and Umbrellas: 2 x Retractable Griesser Sun awnings, 5 x Sun stainless steel awning poles with 3-piece fabric awning, 2 x Tucci umbrellas
Tender & Water Sports
-
6.37m Castoldi Jet 21 LC Yanmar 6BY-260260hp
-
4.3m Rib tender, 430DL, Novurania, Outboard Yamaha 60HP (new engine 2026)
-
2 x Scuba diving sets: regulators, bottles, BCDs, fins
Refit History
2026
-
Interior refit overseen by Sinot
-
New MD / OSR / BD furniture
-
New decorative blinds in MD / BD / VIP / Guest / OSR
-
New curtains in MD Salon, BD Salon, OSR
-
New headboards in guest cabins
-
New custom bed in master cabin
-
New Toto toilet in master stateroom
-
New lamps and soft finishes
-
New Carpets to MD Salon, MD Dining, BD Salon & Corridor, OSR
-
New exterior furniture covers
-
New upholstery and cushions on all exterior furniture
-
Replacement of exterior countertops
-
MTU Main engine service
-
Main engine discharge insulation replacement
-
Main engine exhaust works
-
Black & grey water tank cleaning
-
New shore power converter fitted
-
Dirty oil tank cleaning
-
Black & grey water piping disinfection
-
Jacuzzi bath repairs & upgrades
-
Full AV/IT upgrade with Icon Connect, including new speakers, Wifi networking, controllers, Crestron and GEST crew call system
-
Replacement of 9 x AC fan coils
-
Crew mess sofa reupholstered
-
New Yamaha baby grand piano
-
Swim platform stairs with teak & corrosion works
-
Reprogramme ECDIS
-
New name plates with modification works for installation
-
FFE & LSA service
-
New fire suits, Drager breathing apparatus, masks & tanks
-
New awning motors
-
New seawater cooling pipes
-
Chilled water system flushed
-
2 x Miele Dishwasher replacement
-
New artwork throughout vessel
-
New window in BD VIP cabin
-
Service of watertight & fire doors
-
Gyro annual service
-
New Sailor 7224 VHF Control Unit
-
New ATX Gym Suite including barbell rack, bump plates and dumbbell set
-
Ultrafog service
-
New Yamaha 60HP outboard engine on tender
-
Control System Upgrade to LUTZ Elevator & annual certification
-
New Dometic NRX35C Fridge OSR
2025
-
Vessel hauled and new antifouling & anodes
2024
-
Vessel hauled out May and June 2024
-
5 Year Survey carried out by RINA June 2024
-
Engine Room overboard valves complete overhaul (x 24)
-
Full hull and superstructure polish and ceramic coating
-
Tail shafts Survey (Rubber Design)
-
New fabricated Stainless-Steel strainers for seachests (x 3)
-
Engine Room ventilation fan full overhaul
-
Starlink dual antenna Maritime package installed (global High-speed internet)
-
Anti-Fouling sand and 3 x new coats
-
All tanks (freshwater, grey water, black water, dirty oil) opened, cleaned, inspected
-
Water makers full overhaul and new Membranes
-
Passarelle removed, new hydraulic hoses, painted, re-installed
-
Gearboxes (Reintjes) service, inspection
-
Quantum Stabilisers 8,000hr service completed (including 2 x new shafts)
-
New 12/24V batteries throughout
-
All on board pumps (water, fire, bilge, sewage) overhauled
-
Bow thruster full major service (JASTRAM)
-
Switchboard Megger Test
-
Interior new soft furnishings and fabrics (Lower Deck, Main Deck, Bridge Deck)
-
Exterior new soft furnishings and assorted deck furniture
2023
-
Vessel hauled out July 2023
-
Hull bottom water blasted (WSJ4 to bare steel, new Primer and Antifouling system applied Sigma Ecofleet)
-
Main engines full heat exchanger cleaning
-
Diesel generators new vibration dampers, all new injectors, turbo overhauls
-
Airconditioning MC3 conversion (Heinen & Hopman) control system mandatory upgrade
-
Quantum Stabilisers 4000hr service
-
Castoldi tender new hypalon tubes
-
Steering gear rams removed, overhauled, re-installed
2021
-
Vessel hauled out June 2021
-
Bottom Survey carried out by Lloyds June 2021
-
Hull Soundings
-
Anti-Fouling
-
Hull and Superstructure A-Glaze polymer treatment for paintwork
-
New anodes June 2021
-
Main engine exhausts overboard discharge, belzona treatment
-
Rudder bearing measurements taken
-
Propellor shaft measurements taken
-
Switchboard megger tests undertaken
-
Switchboard thermal scans carried out
-
Grey water tanks cleaned and inspected
-
Blackwater tanks cleaned and inspected
-
Anchor box swivels replaced. LR approved and viewed by Lloyds Surveyor after installation
-
Windows Aglaze polymer treatment
-
LED lighting systems installed throughout guest accommodation
-
Anchor plates cut and polished
-
Prop Speed applied the propellors and bow thruster
-
Refrigeration systems flushed
-
Rudder blade void space drained and recoated with used engine oil
-
Port and starboard generators injectors, and high-pressure fuel pumps replaced
-
Renewing air handlers on aircon fan coils in 5 locations
-
Renewing insulations in air handler compartments
2020
-
ECDIS Navigation system upgraded
-
All batteries replaced on 19 PLC’s for Bridge/Engine room management system supplied by De Keizer
2019
-
10 years Lloyd’s special survey completed
-
Computer network completely upgraded
-
1 x VSAT antennas replaced
-
Entertainment system upgraded
-
2 x TVRO antennas replaced
-
4G Wi-Fi installed
-
Main engines 10 years’ service top end rebuild
-
Generators 10 years’ service top end rebuild
-
Freshwater/Grey and Blackwater tanks were all recoated
-
New paint hull and superstructure
-
Working overboard tracks were upgraded in 2019 to meet new Lloyd’s requirements and load tested every year for Lloyd’s certification
2018
-
Magnetrons replaced on both Radars X Band and S Band
2015
-
Washing machines and tumble dryers replaced
2012/2014
-
52 glass window panels changed from heat bonded to chemically bonded glass
2012/2013
-
Load Bank added
-
Extra TVRO antenna added for Arab TV
-
Foredeck sunbed replaced by round dining table on adjustable height electric pedestal
2011/2012
-
Sun Deck superstructure extended by 4 m aft providing a covered outdoor area from the owners, 4 tons ballast in the keel added, new stability book issued
Exclusions
A full list of exclusions will be provided at contract. All artwork and personal effects will be excluded from the sale.
