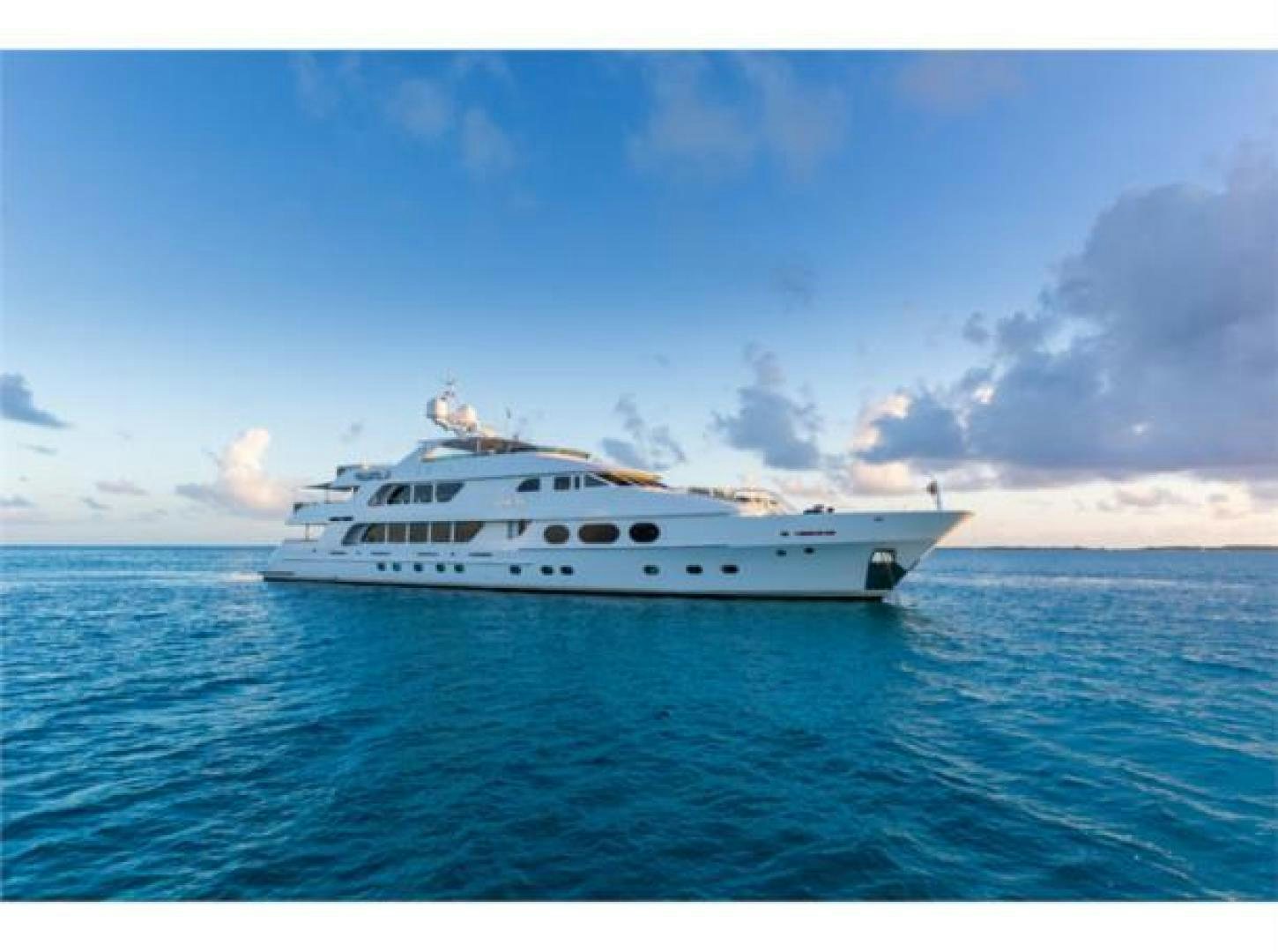

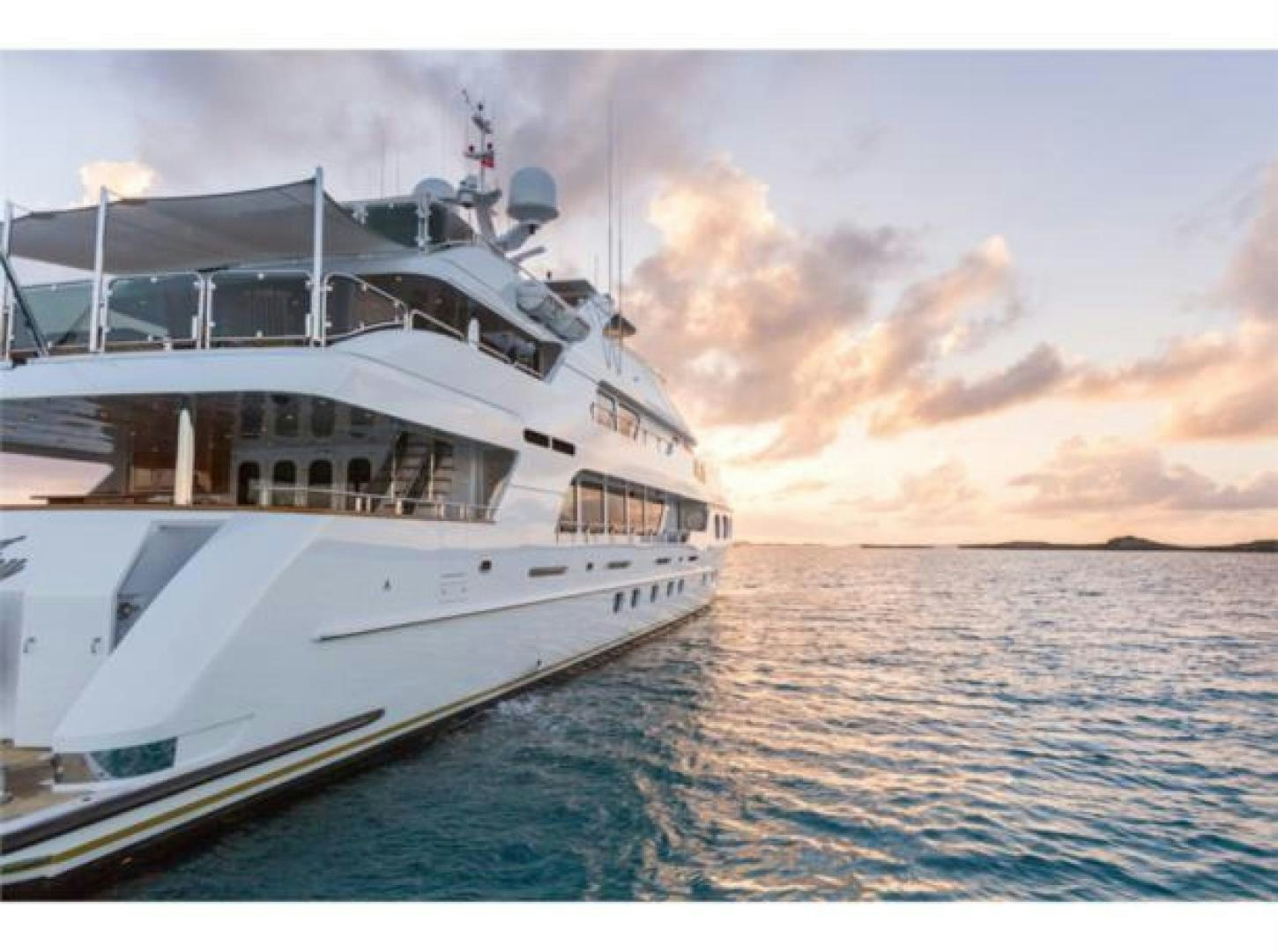

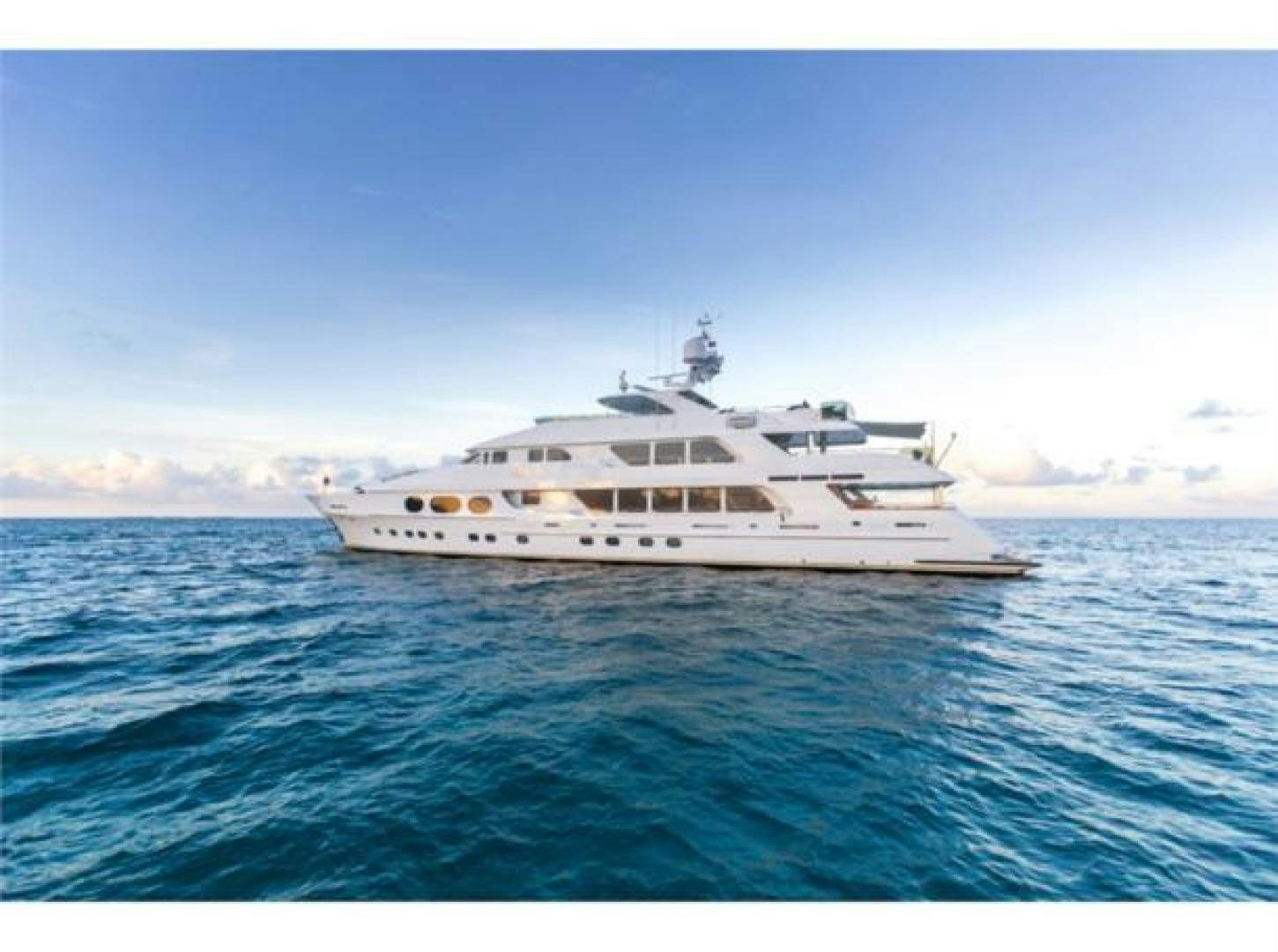

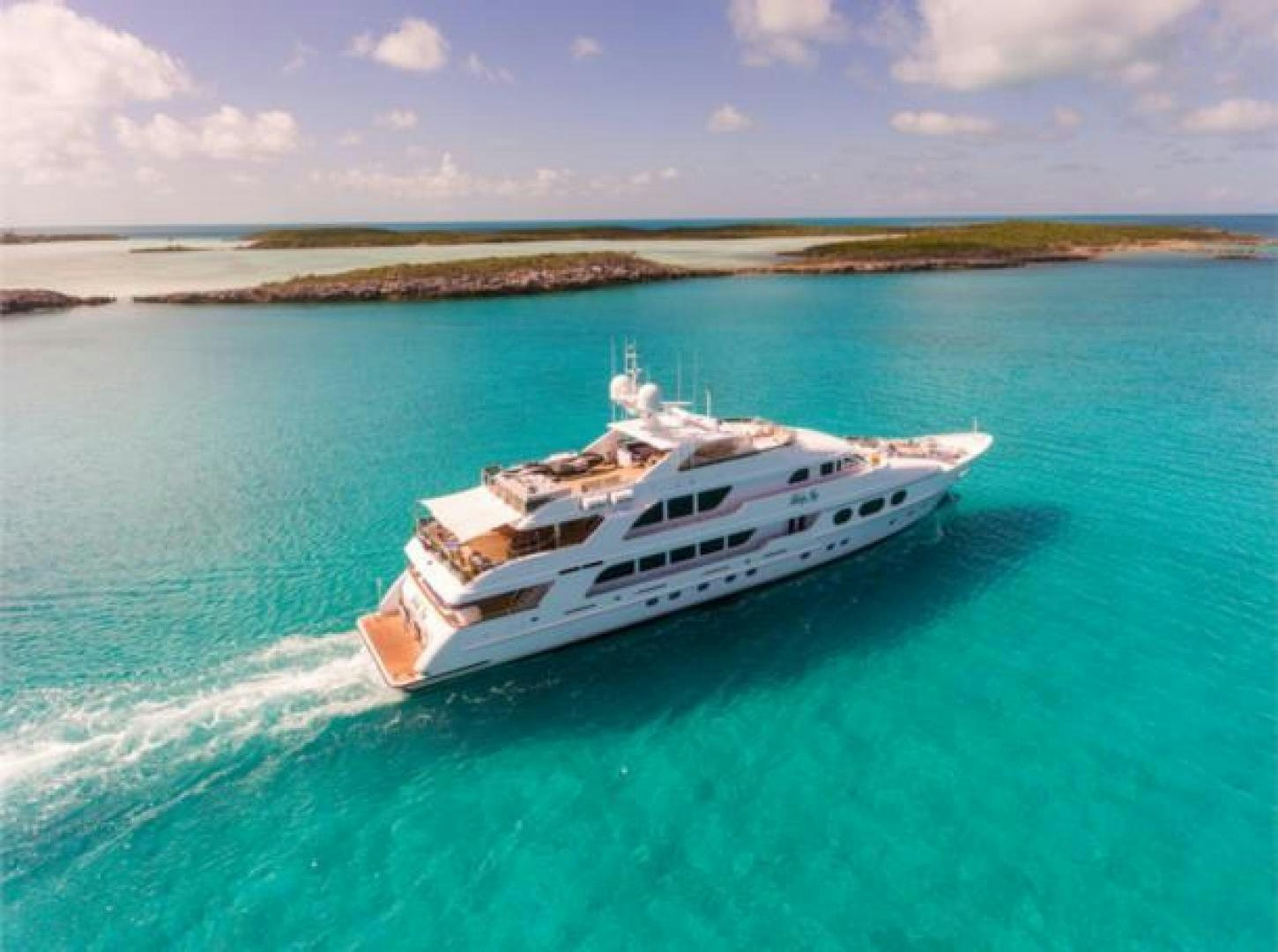

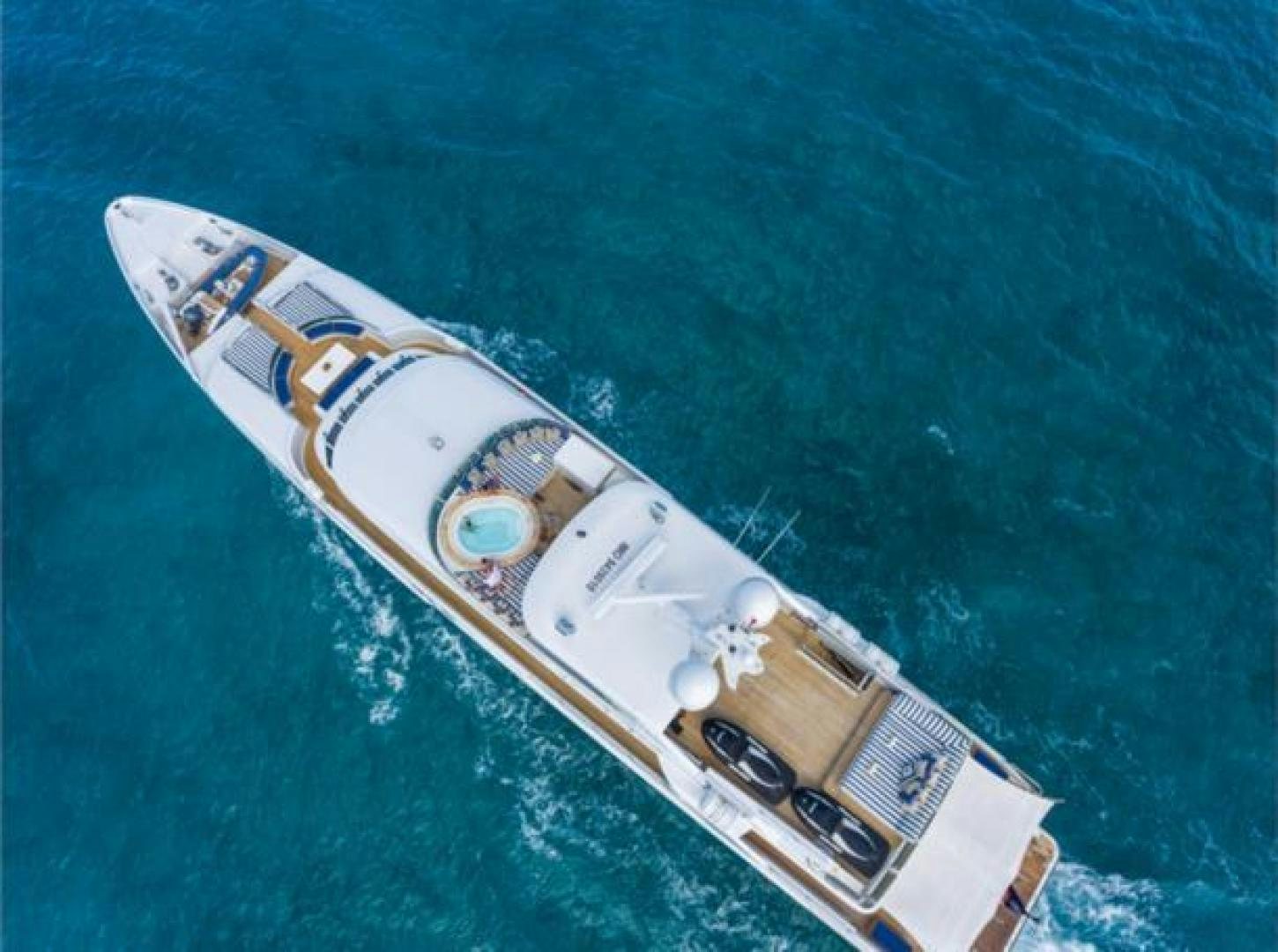

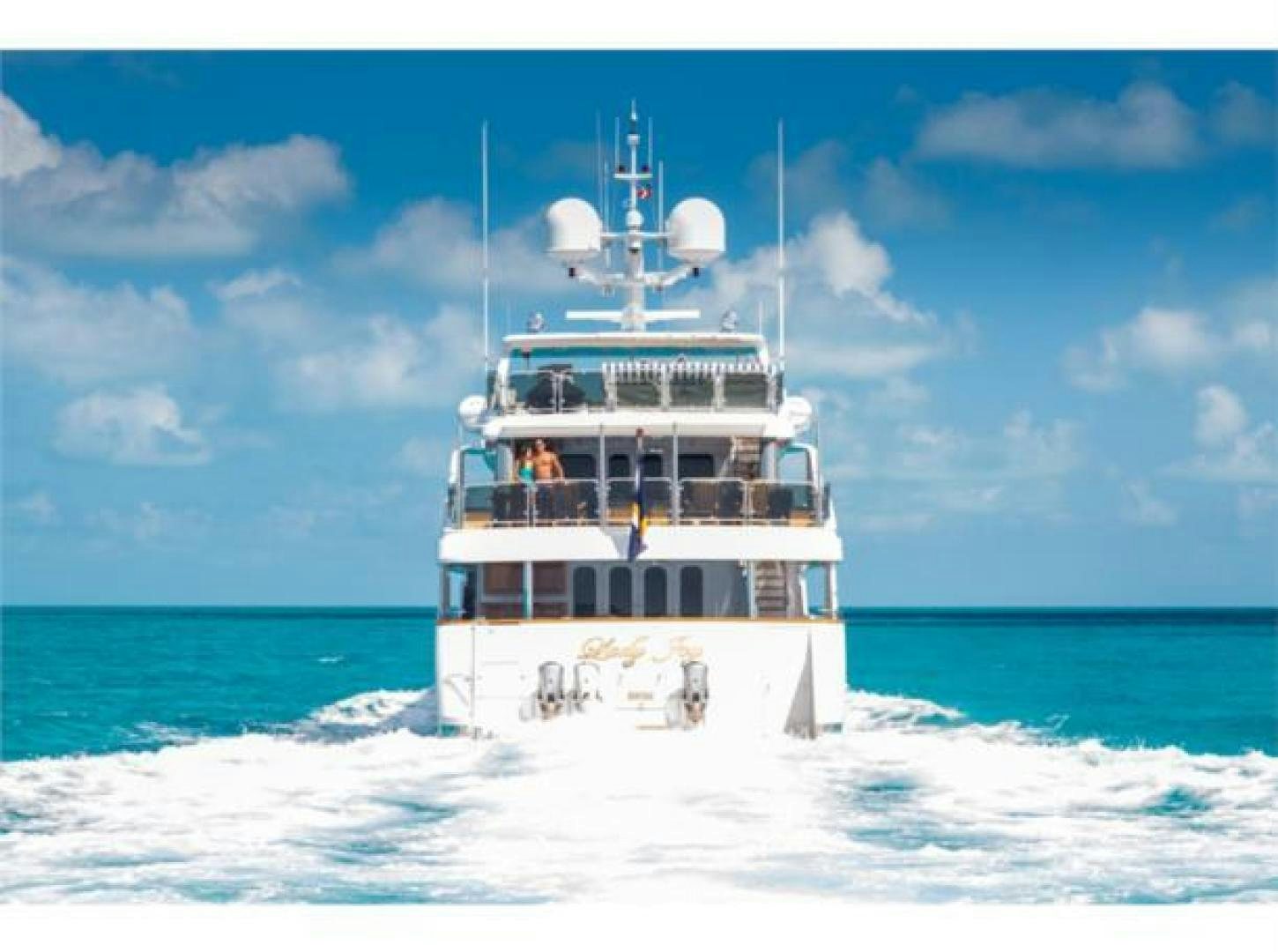

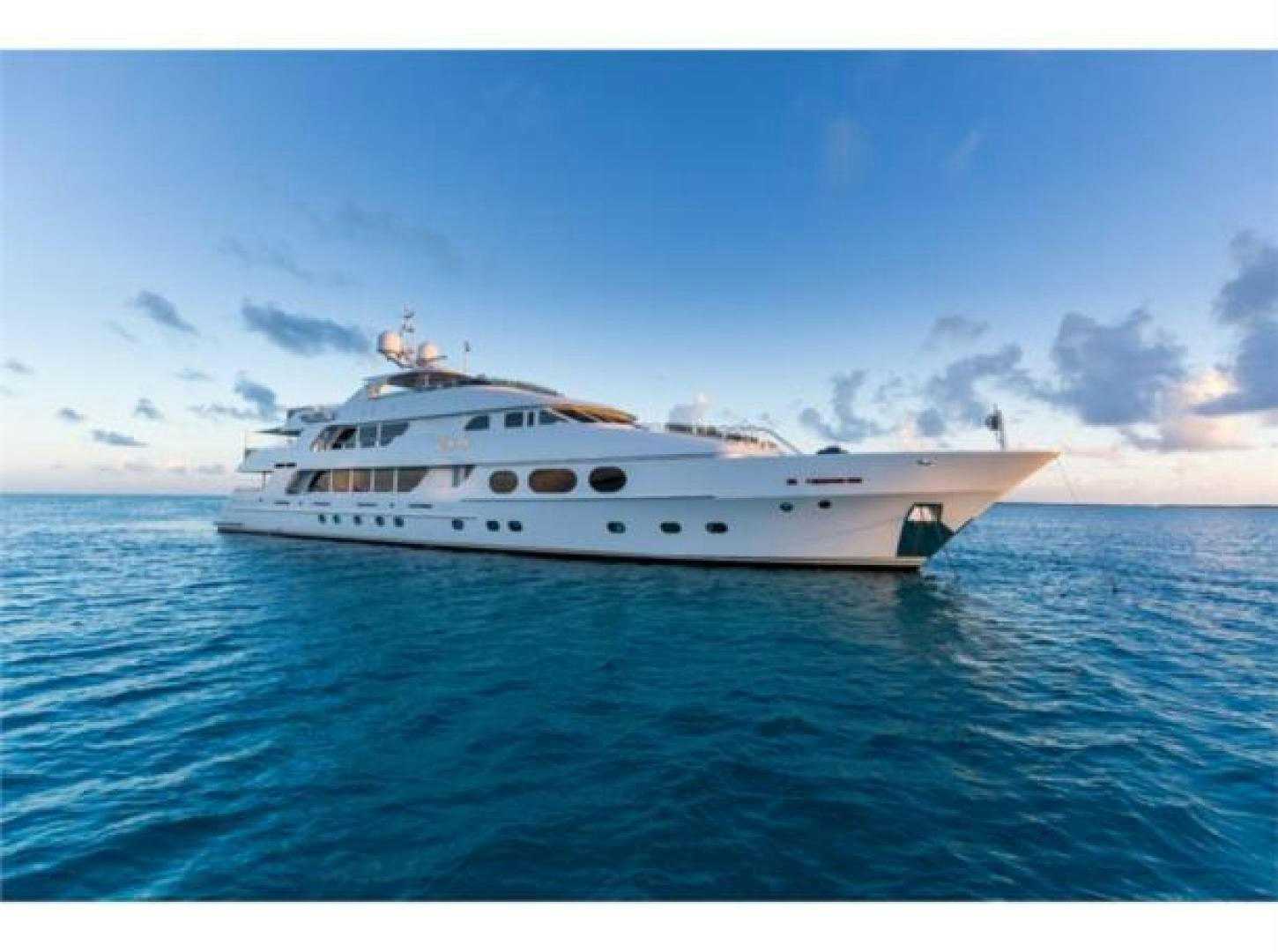

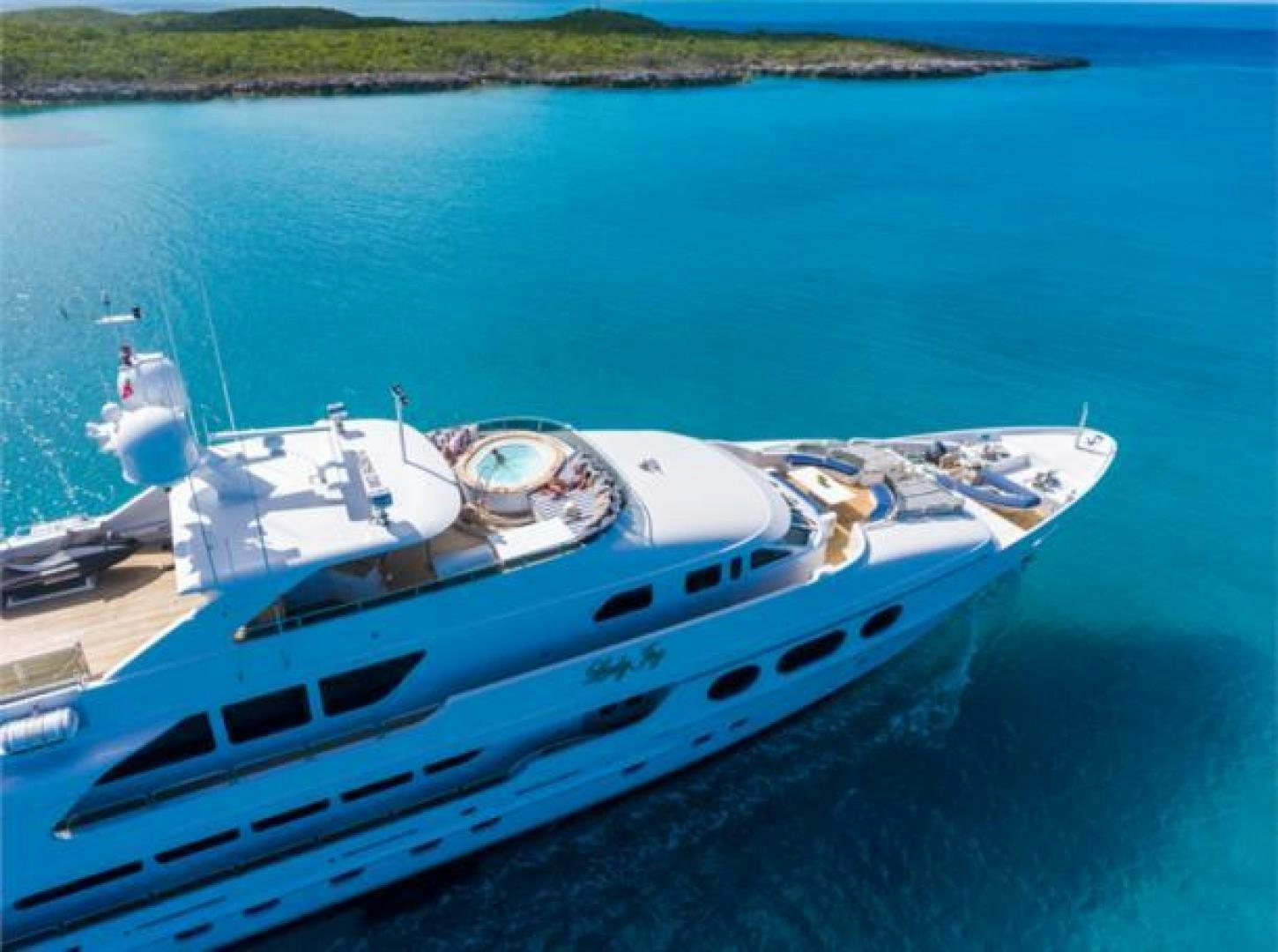

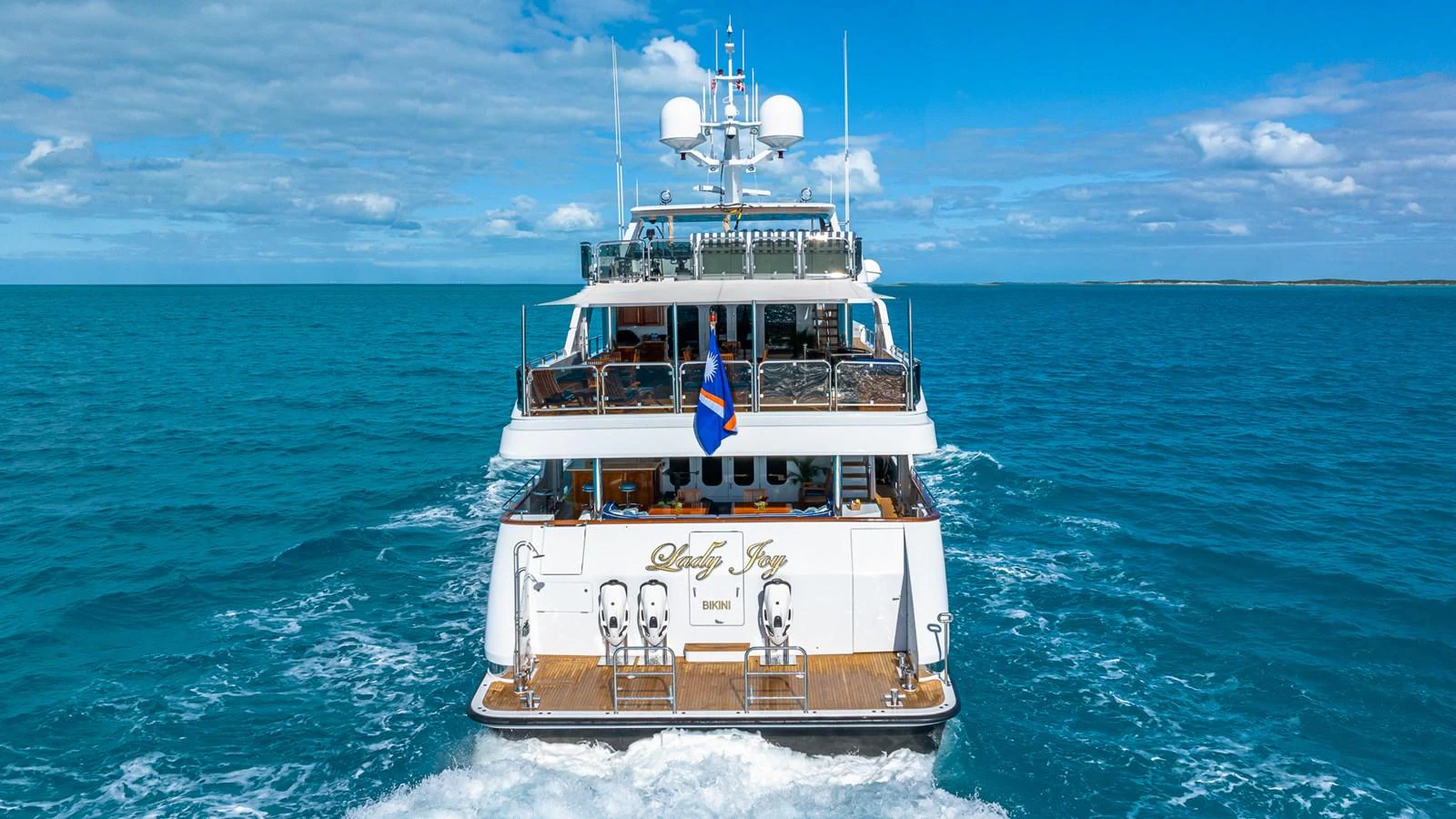

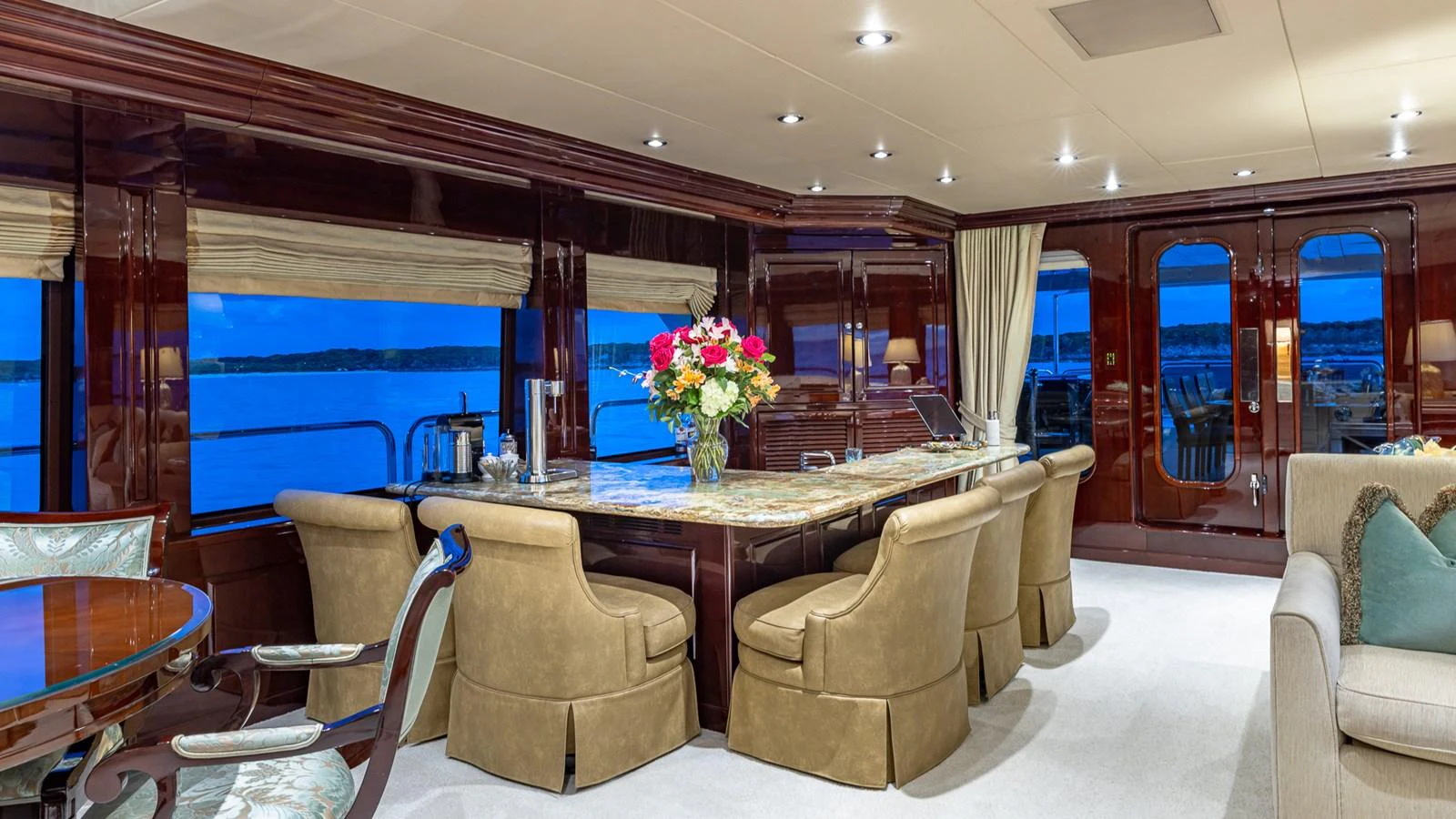

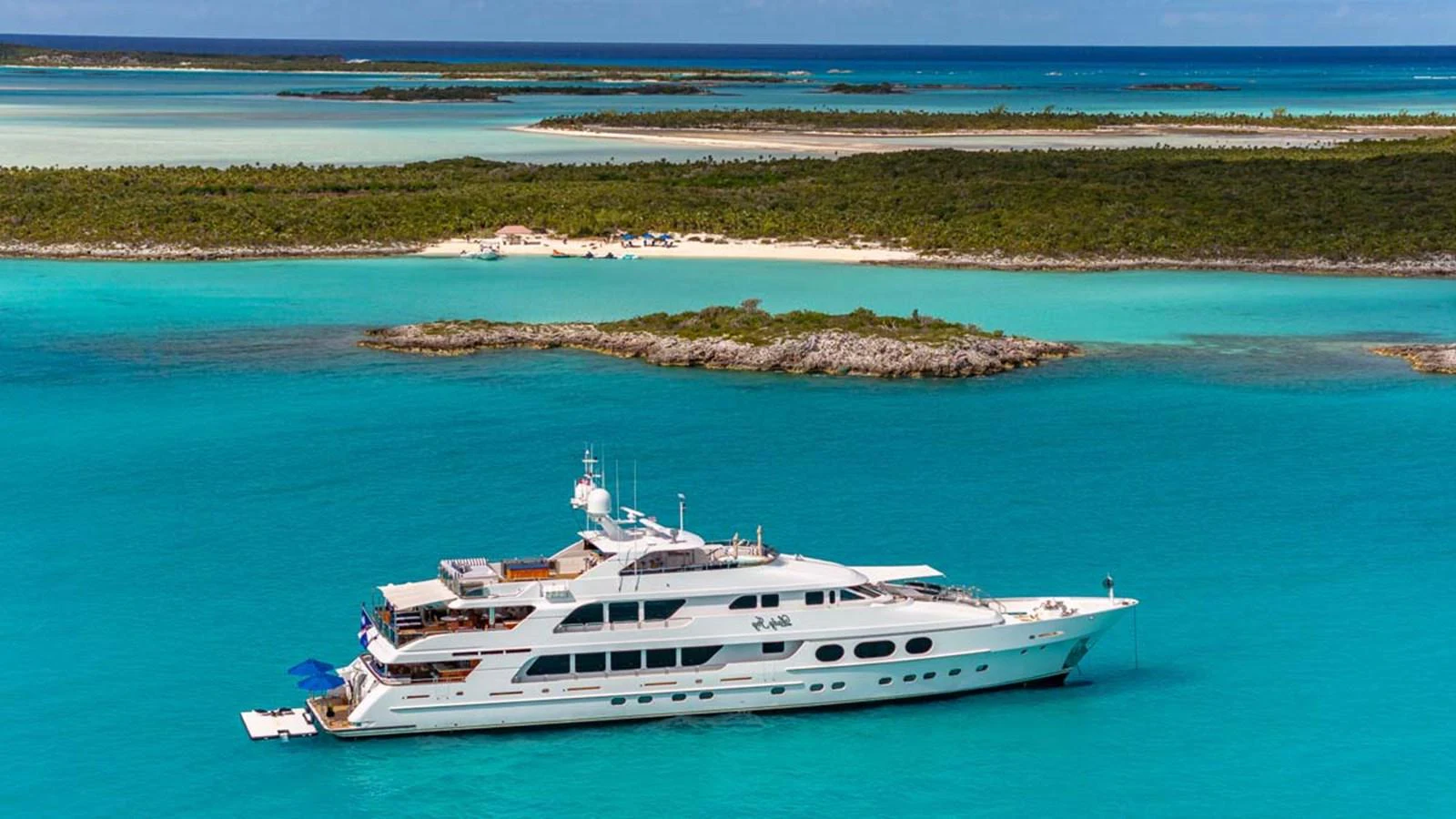

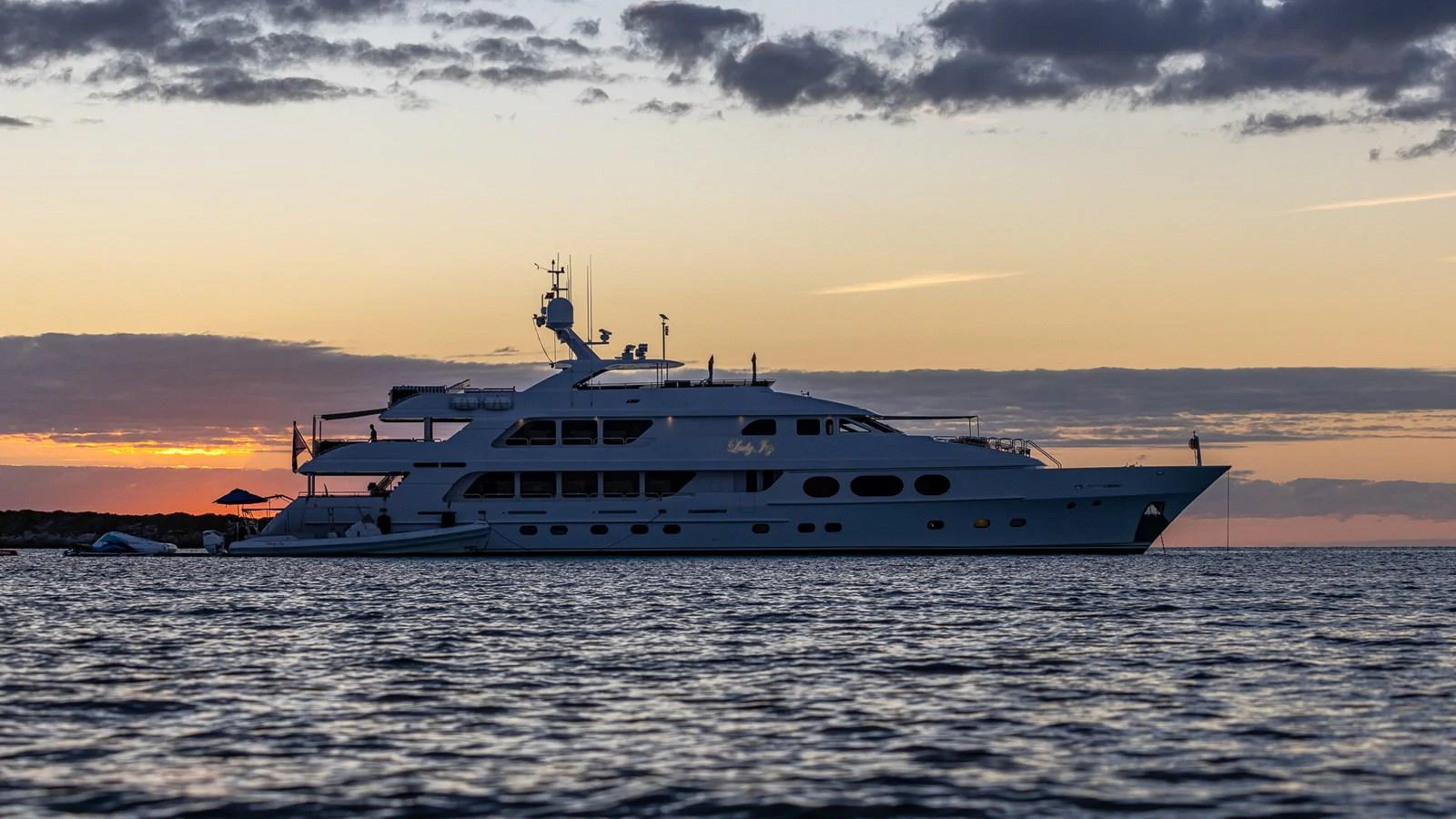

This tri-deck motor yacht is a member of the Christensen Custom Series. She was built in 2007 and benefited from a 2011 refit, which rendered her in like-new condition. LADY JOY offers signature high-gloss cherry woodwork, contemporary styling — which won a ShowBoats International Best Motor Yacht Interior award in 2008 — and spacious decks.

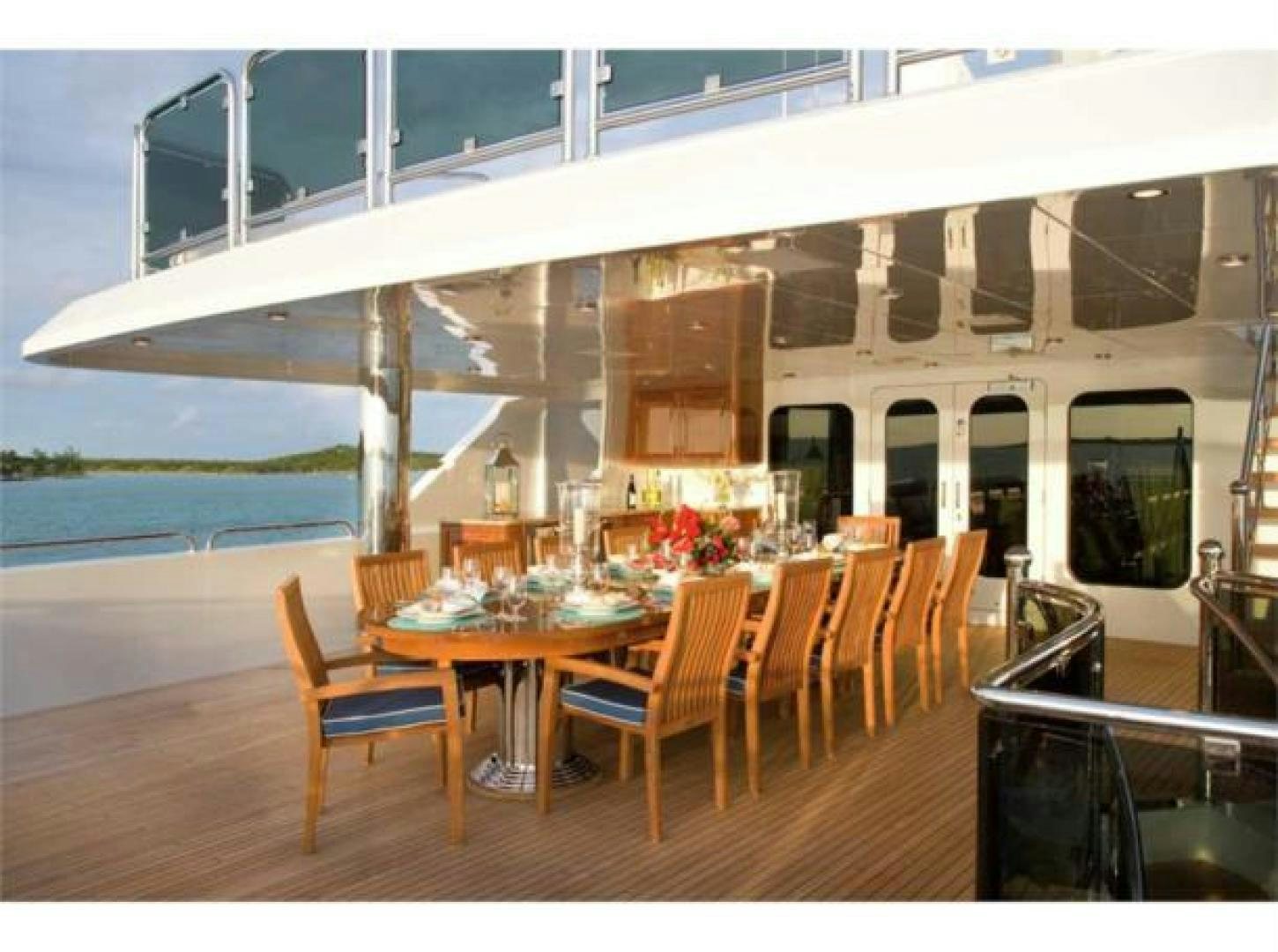

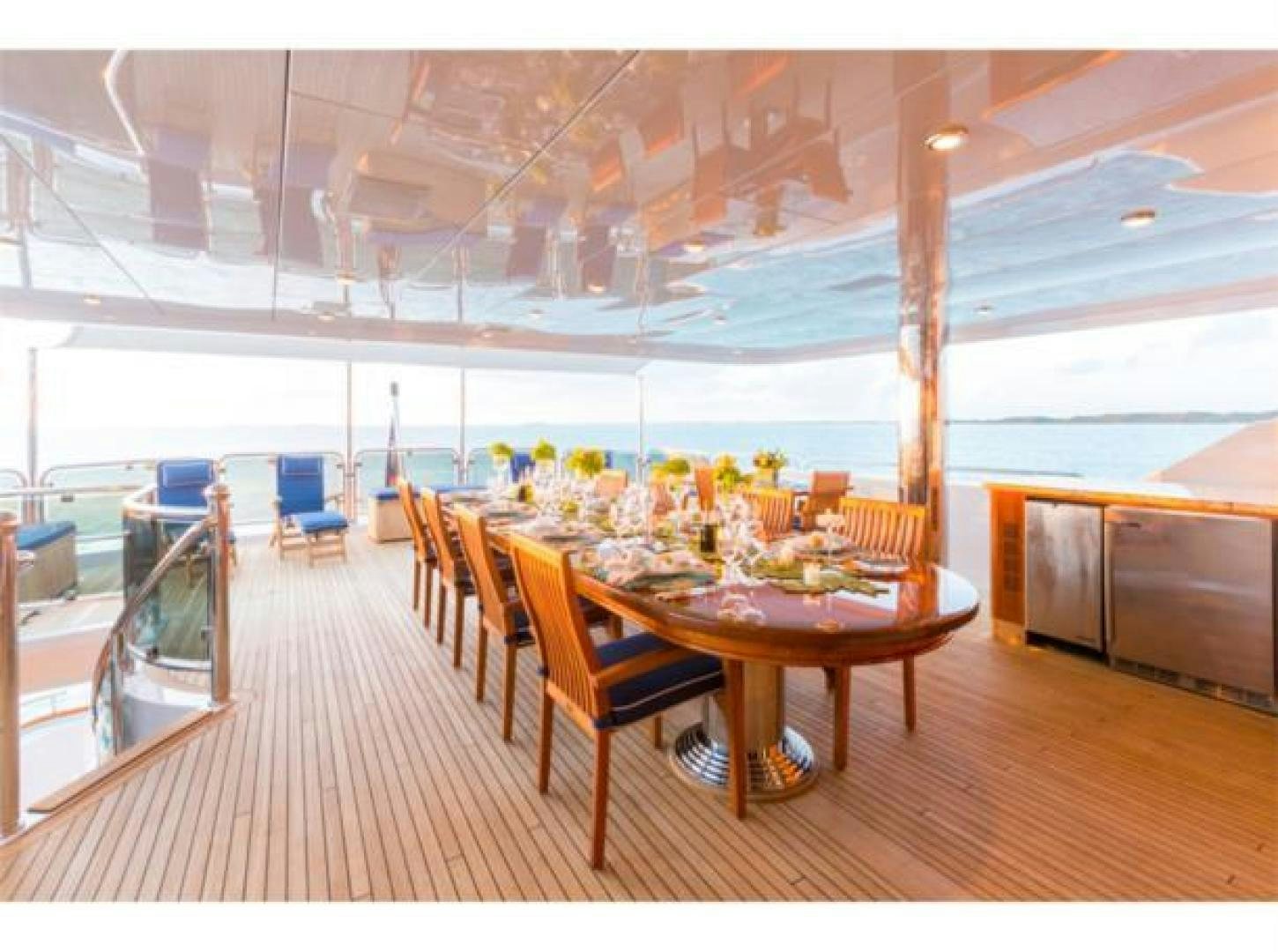

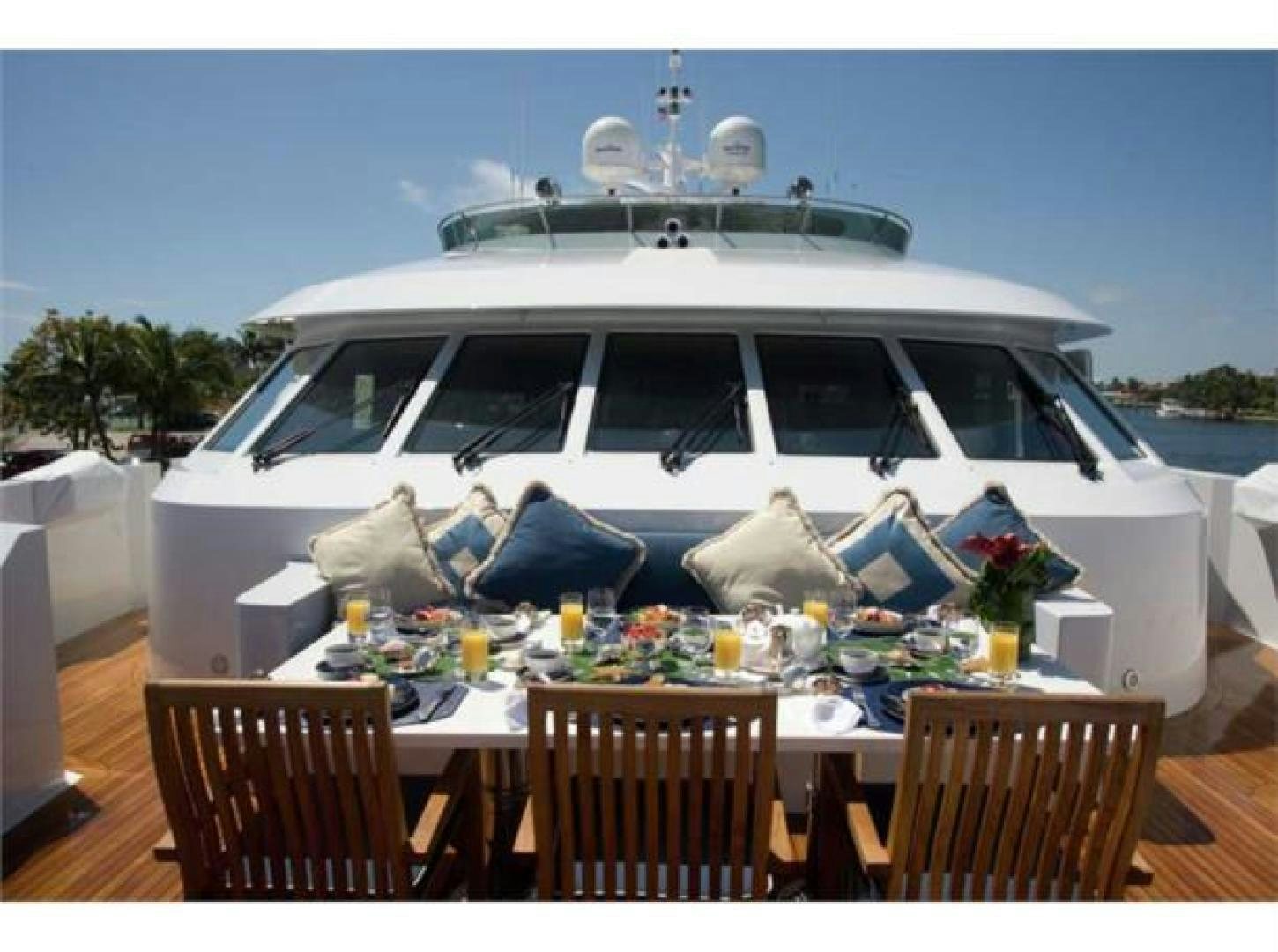

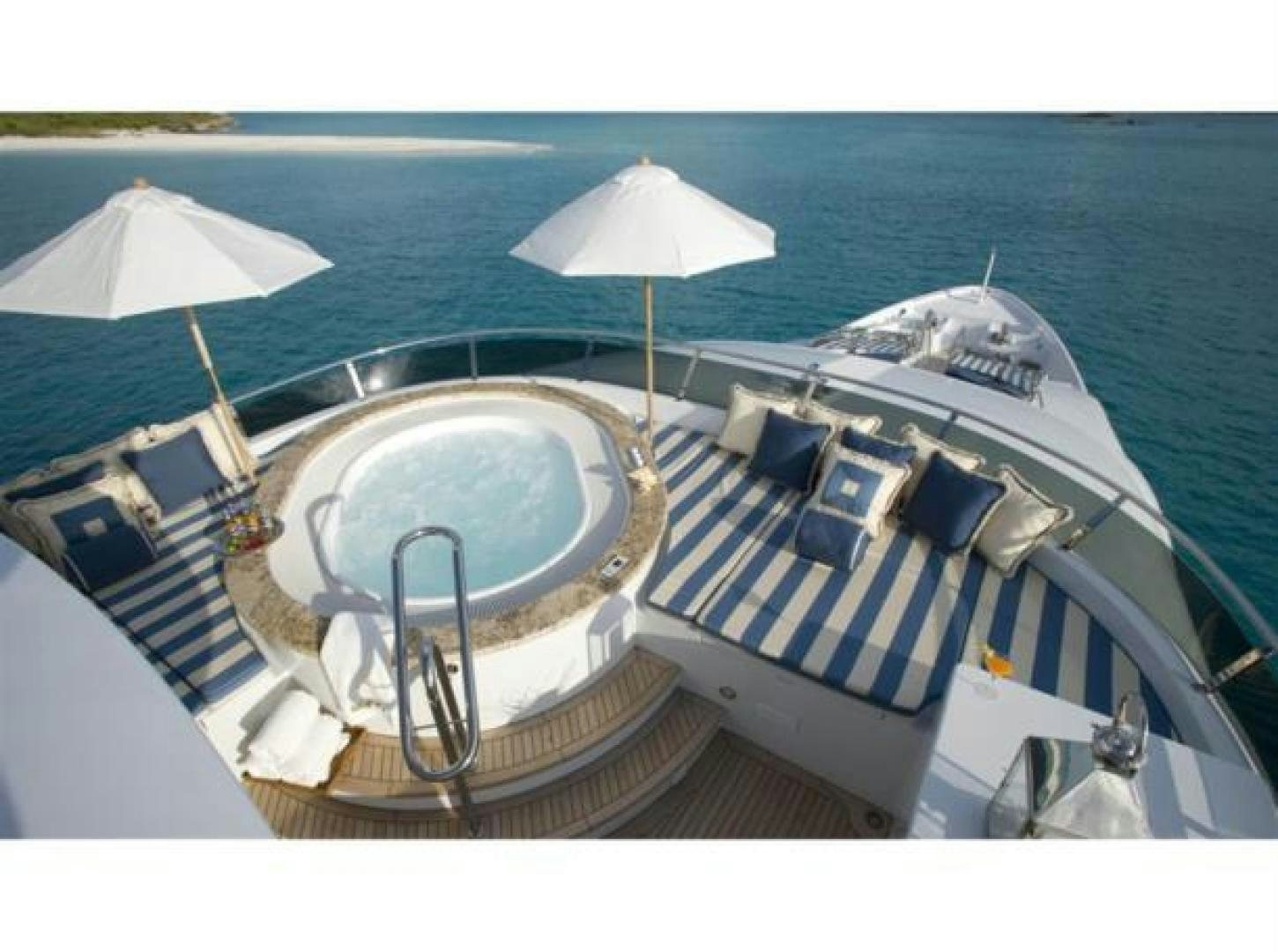

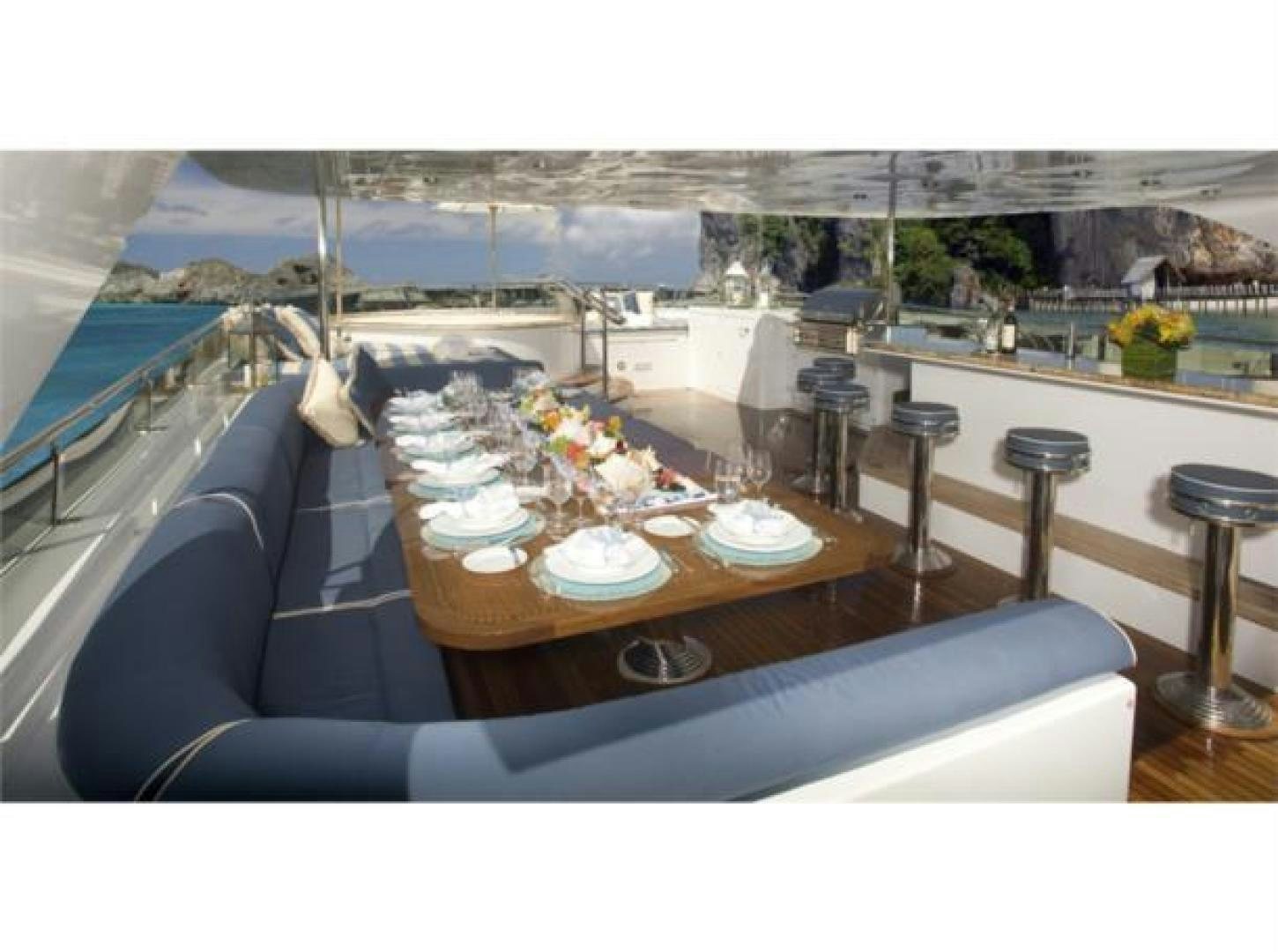

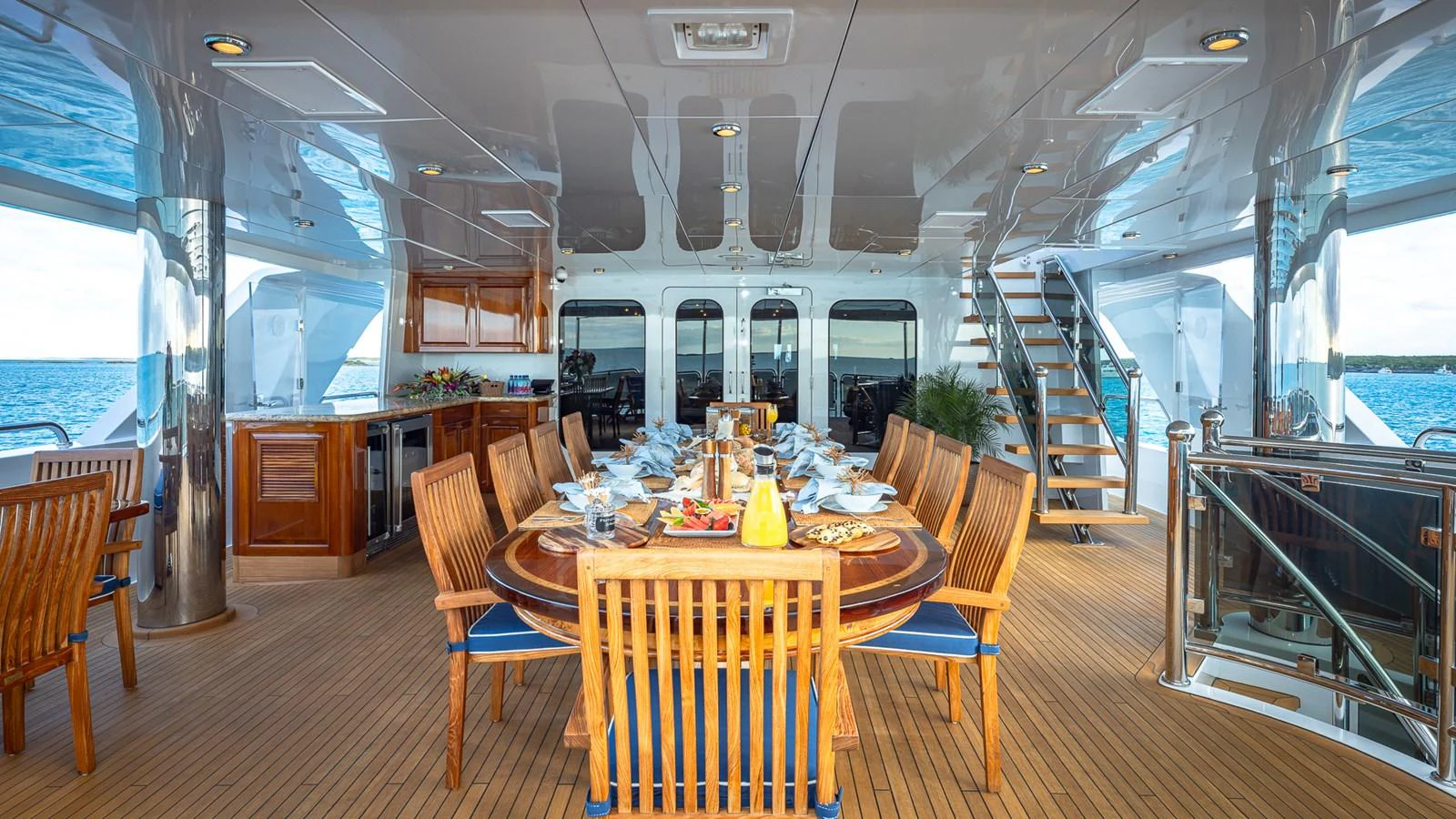

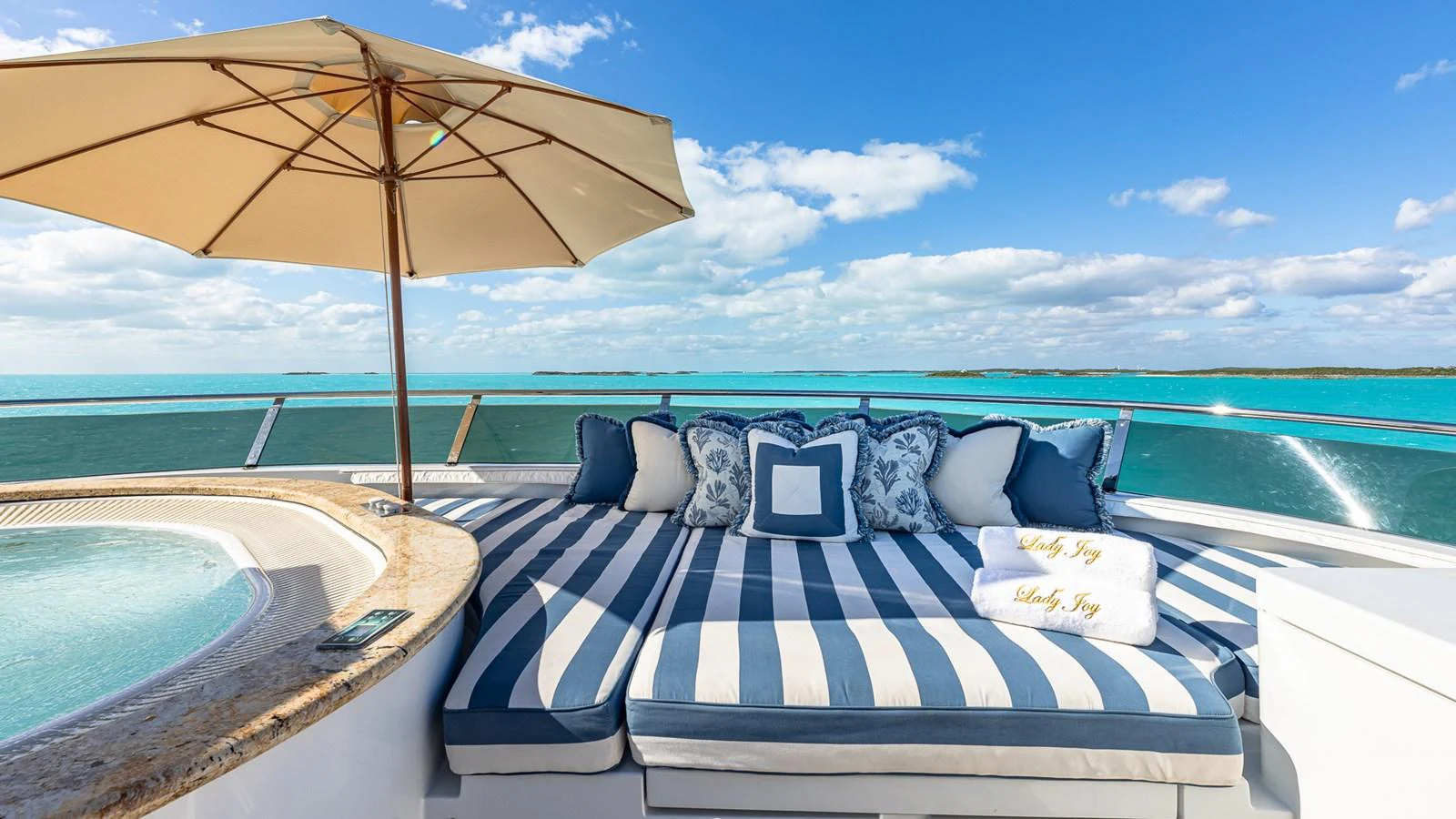

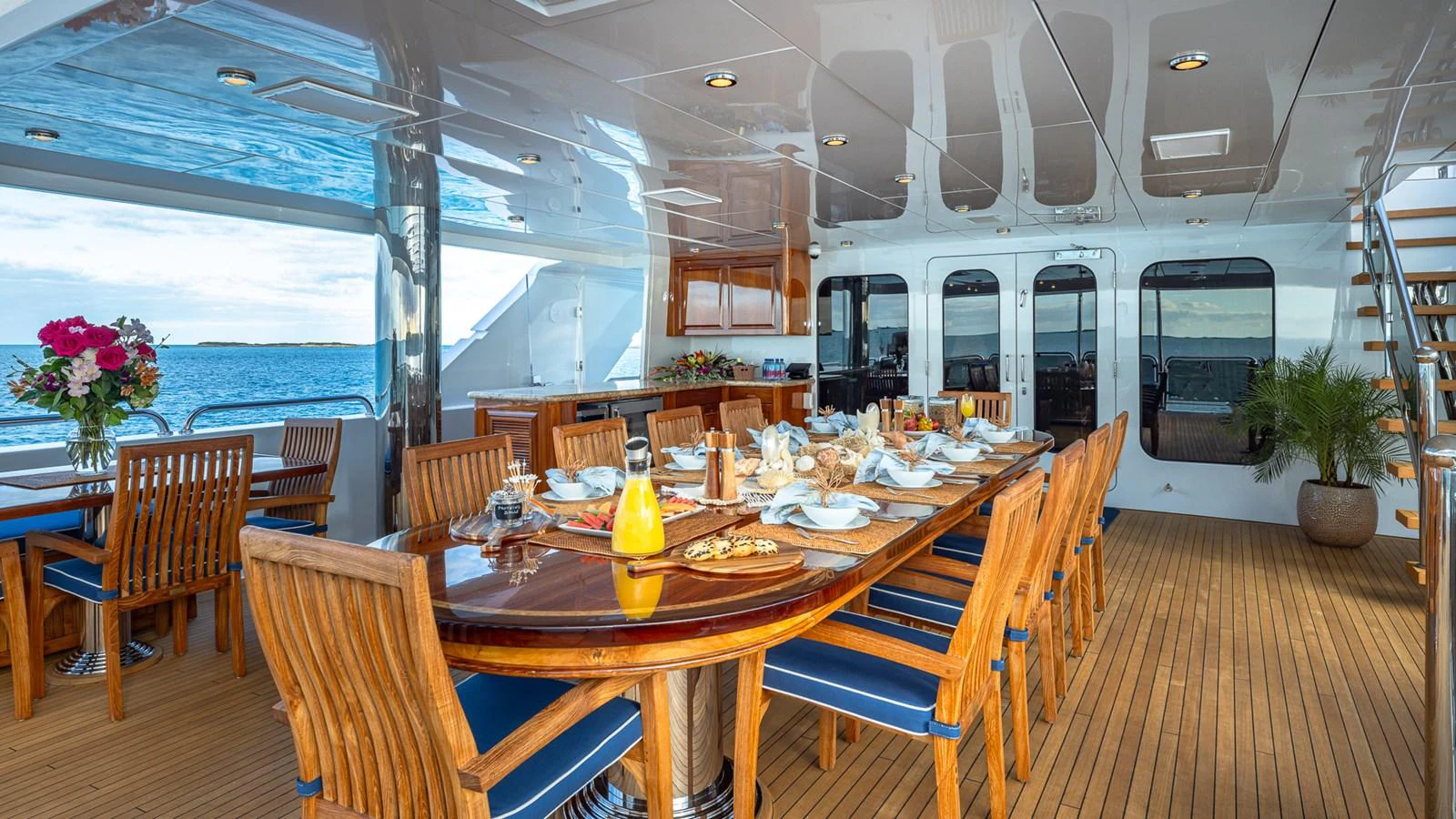

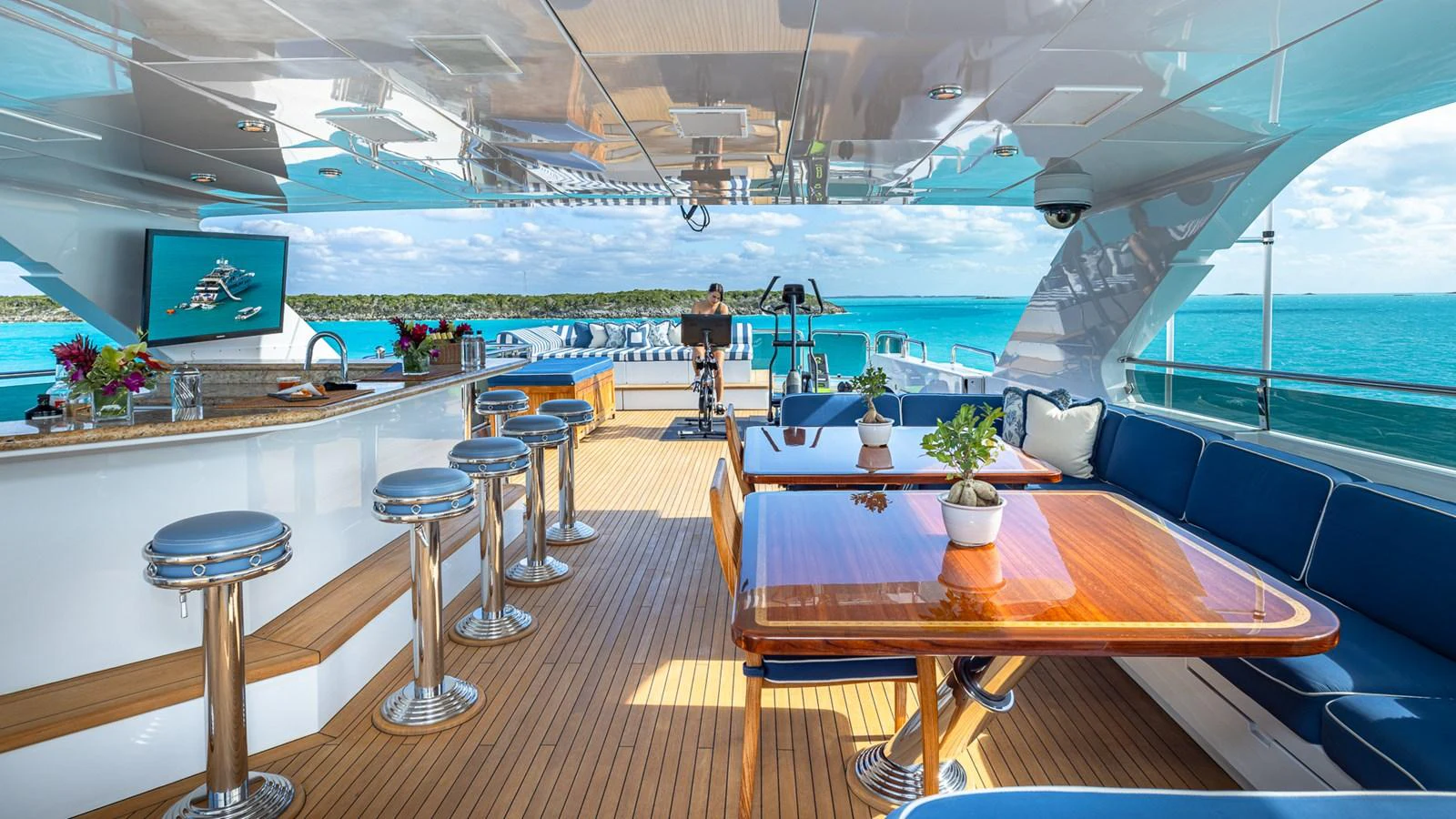

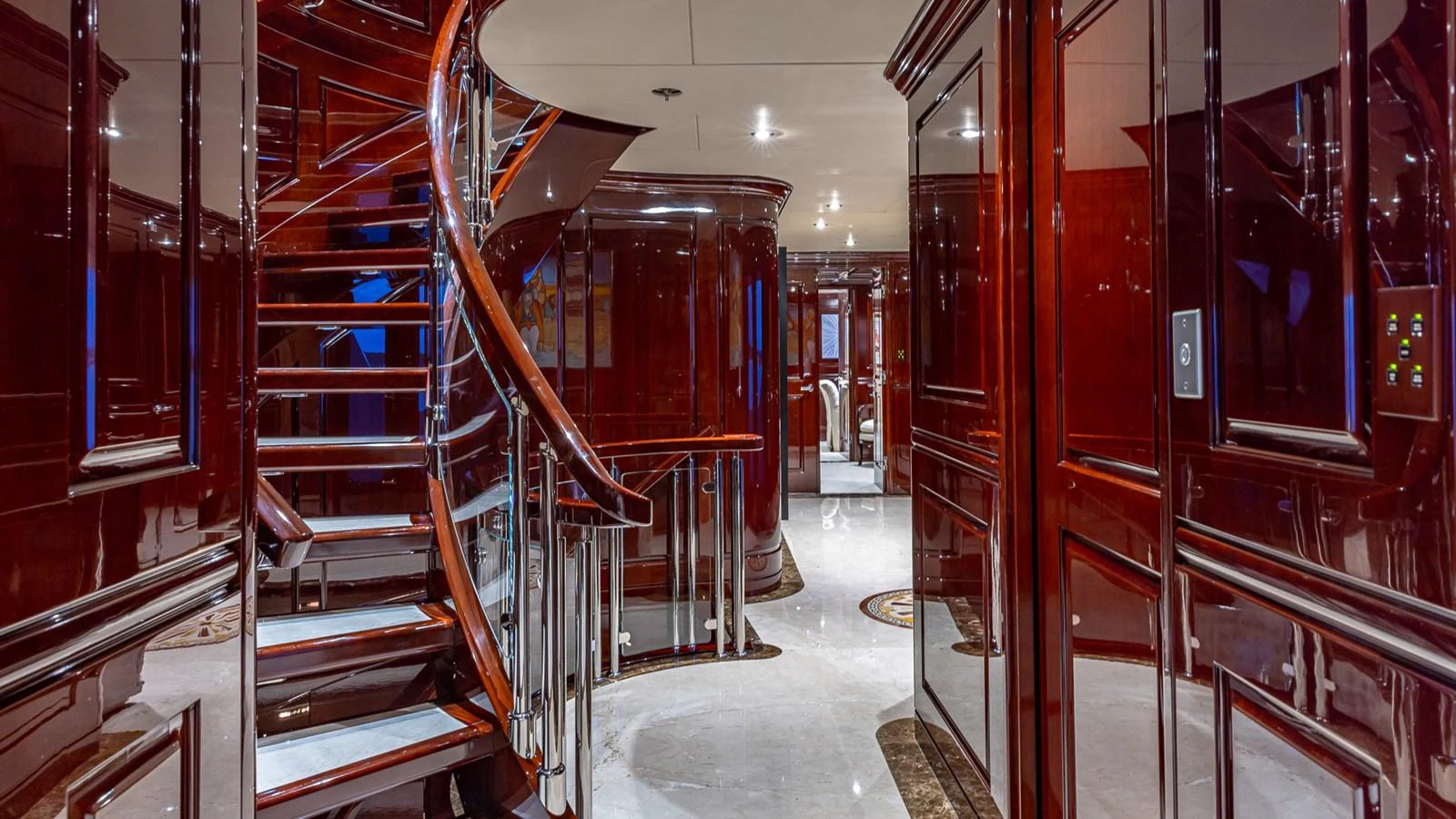

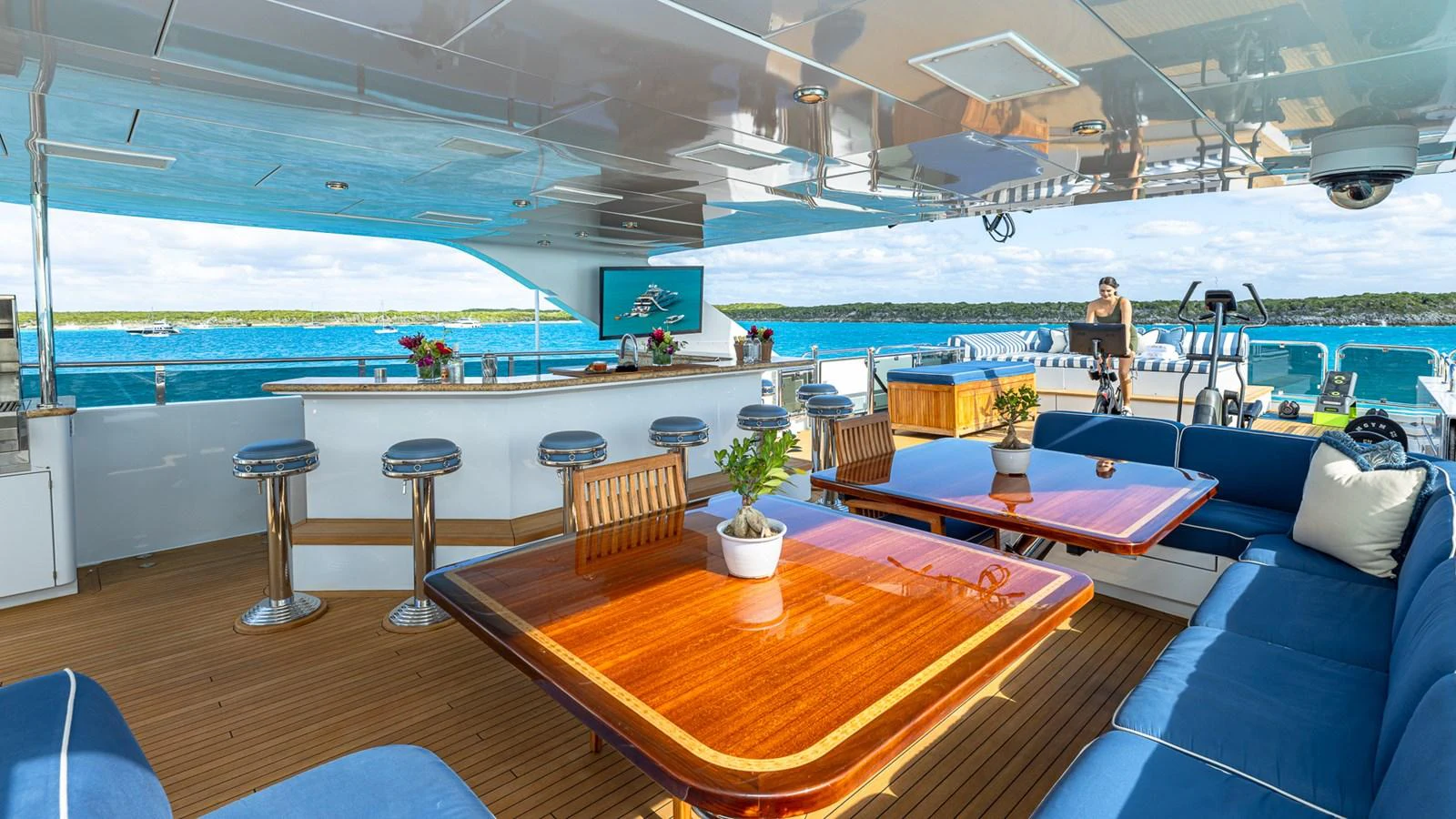

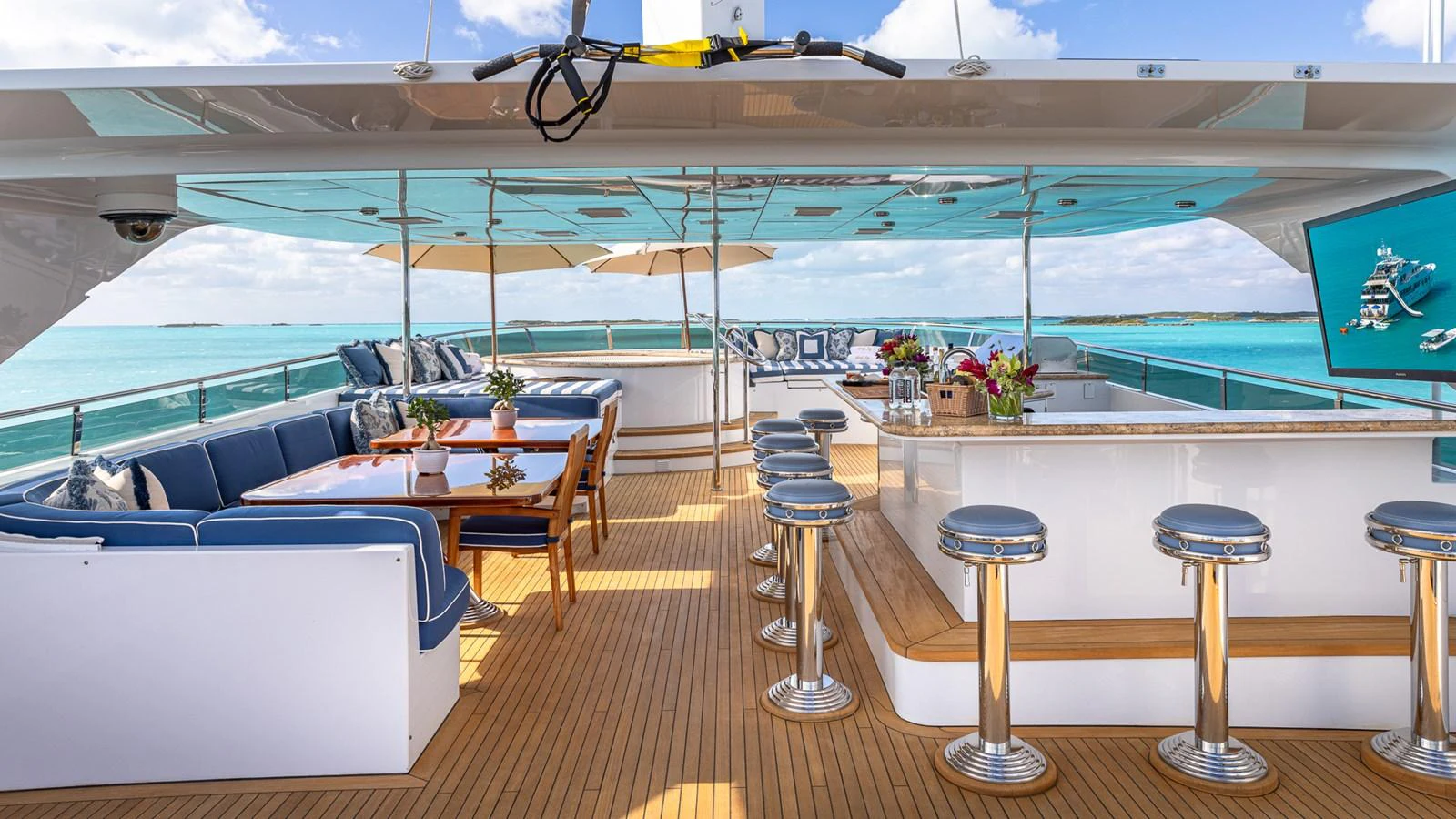

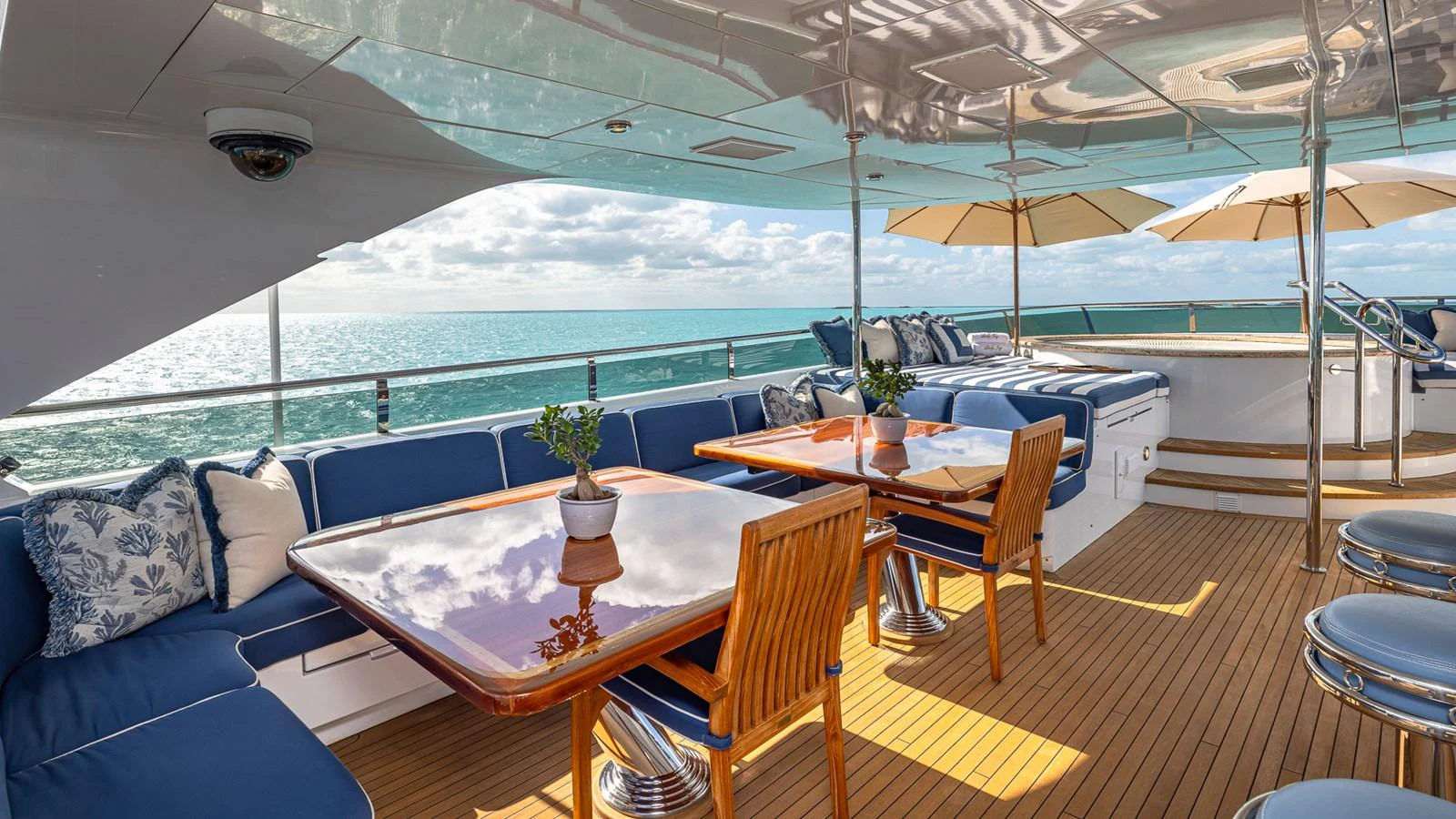

LADY JOY also has an elevator that accesses all four decks. LADY JOY offers accommodation for up to 14 guests. Her owner’s suite has a private office and an en-suite bathroom with a large spa hot tub; it is located on the main deck. All other staterooms are found below deck. The configuration is private and allows for discreet crew service. The deck spaces of LADY JOY are equally as impressive as the interior. Various alfresco dining options are available. The spacious sundeck has a comfortable lounge across from a full wet bar, sunpad and an eight-person Jacuzzi.

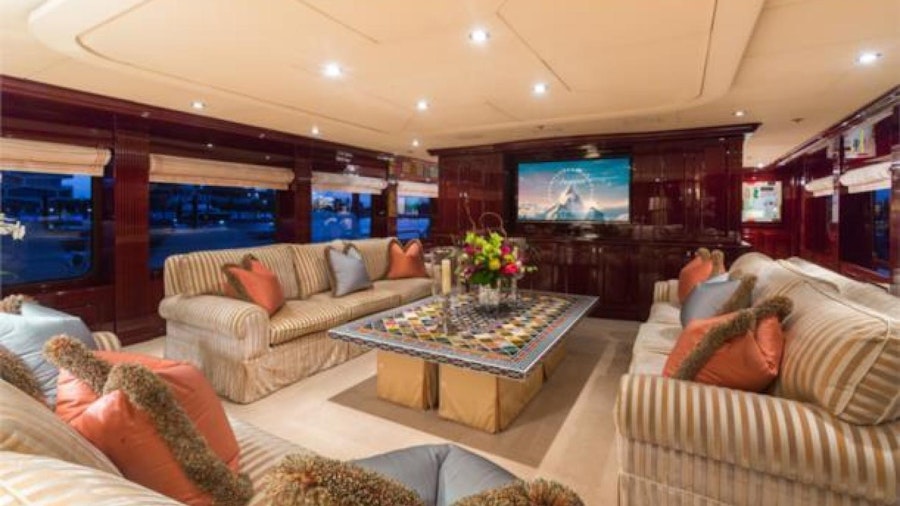

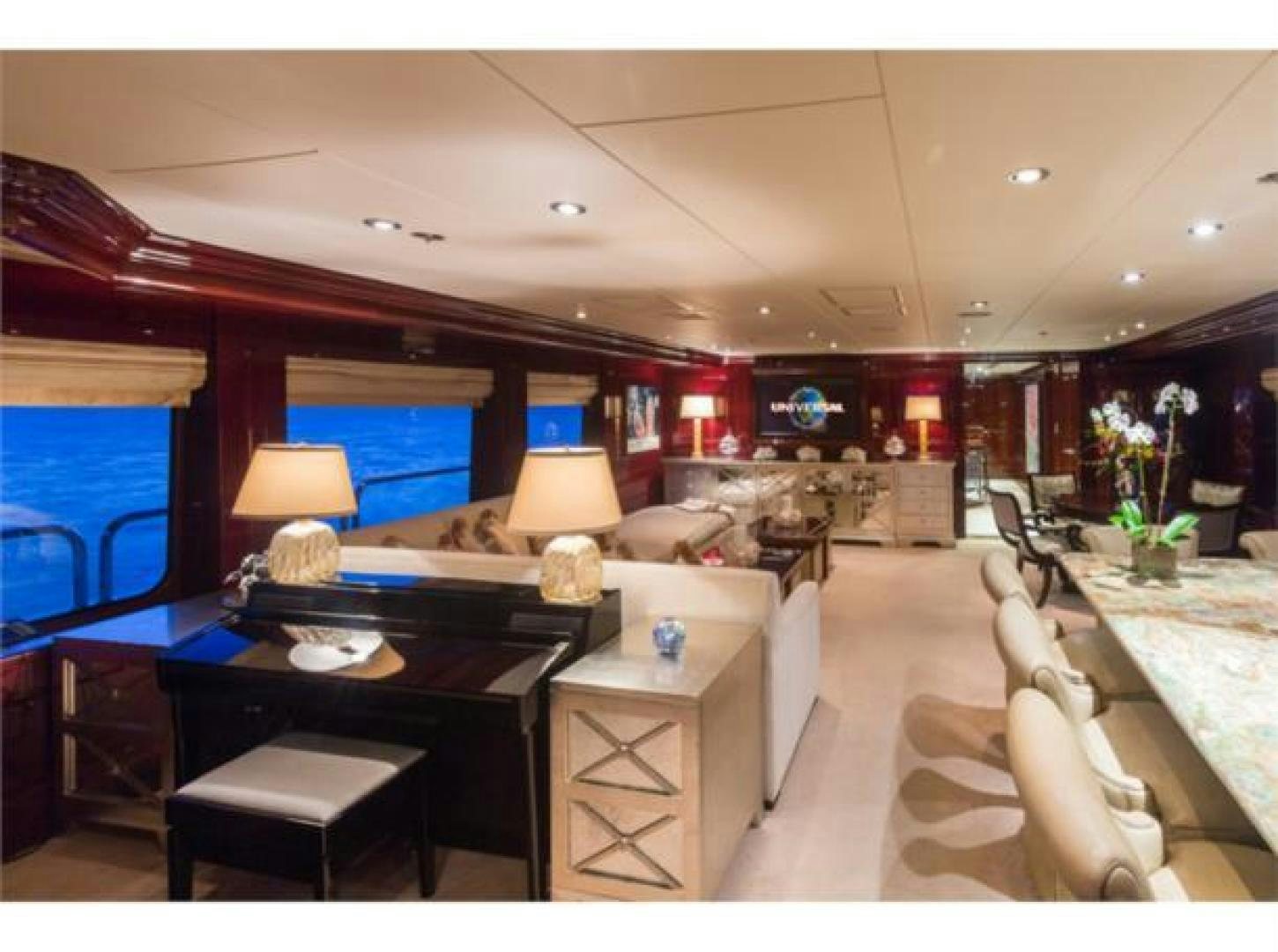

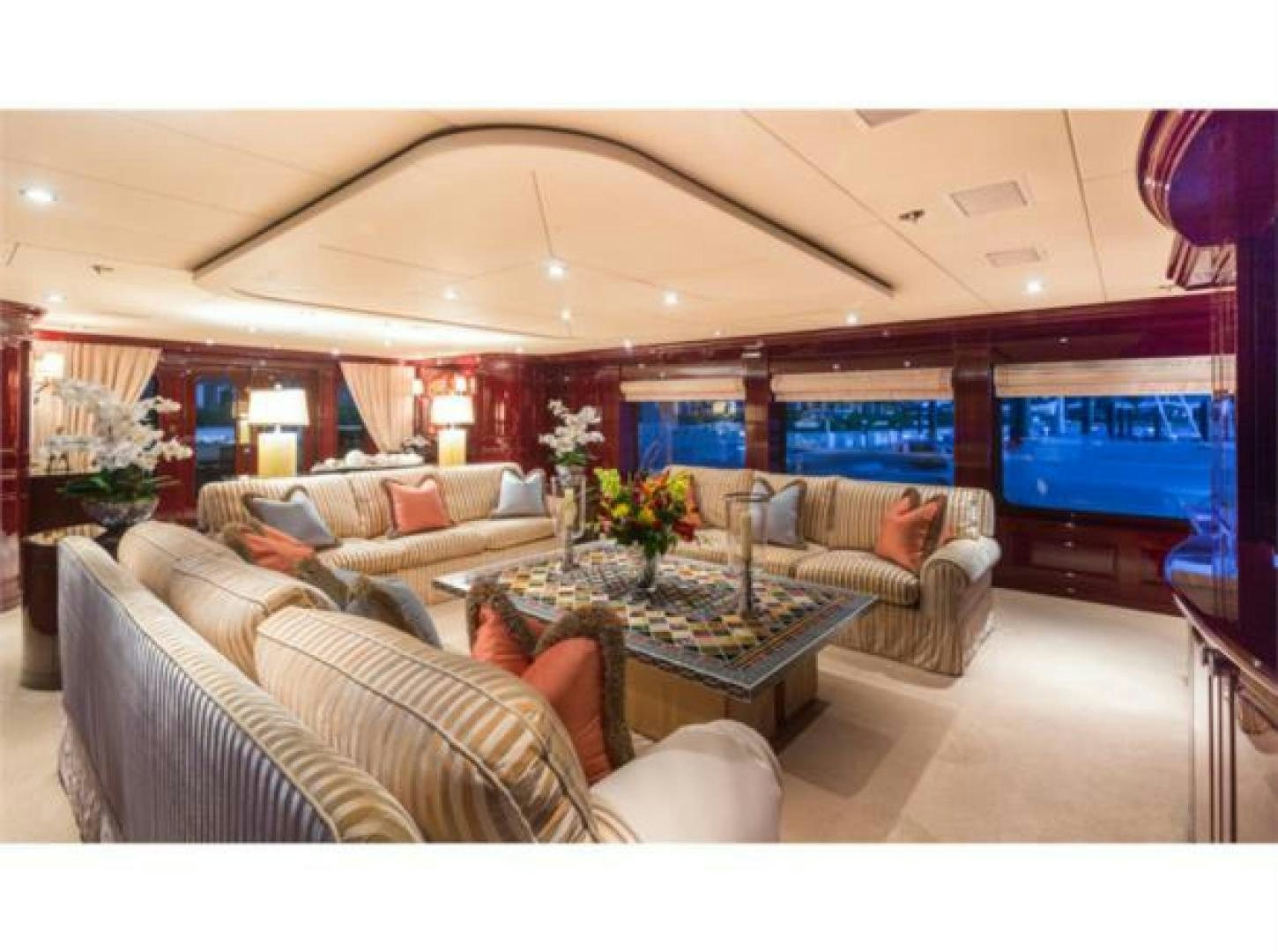

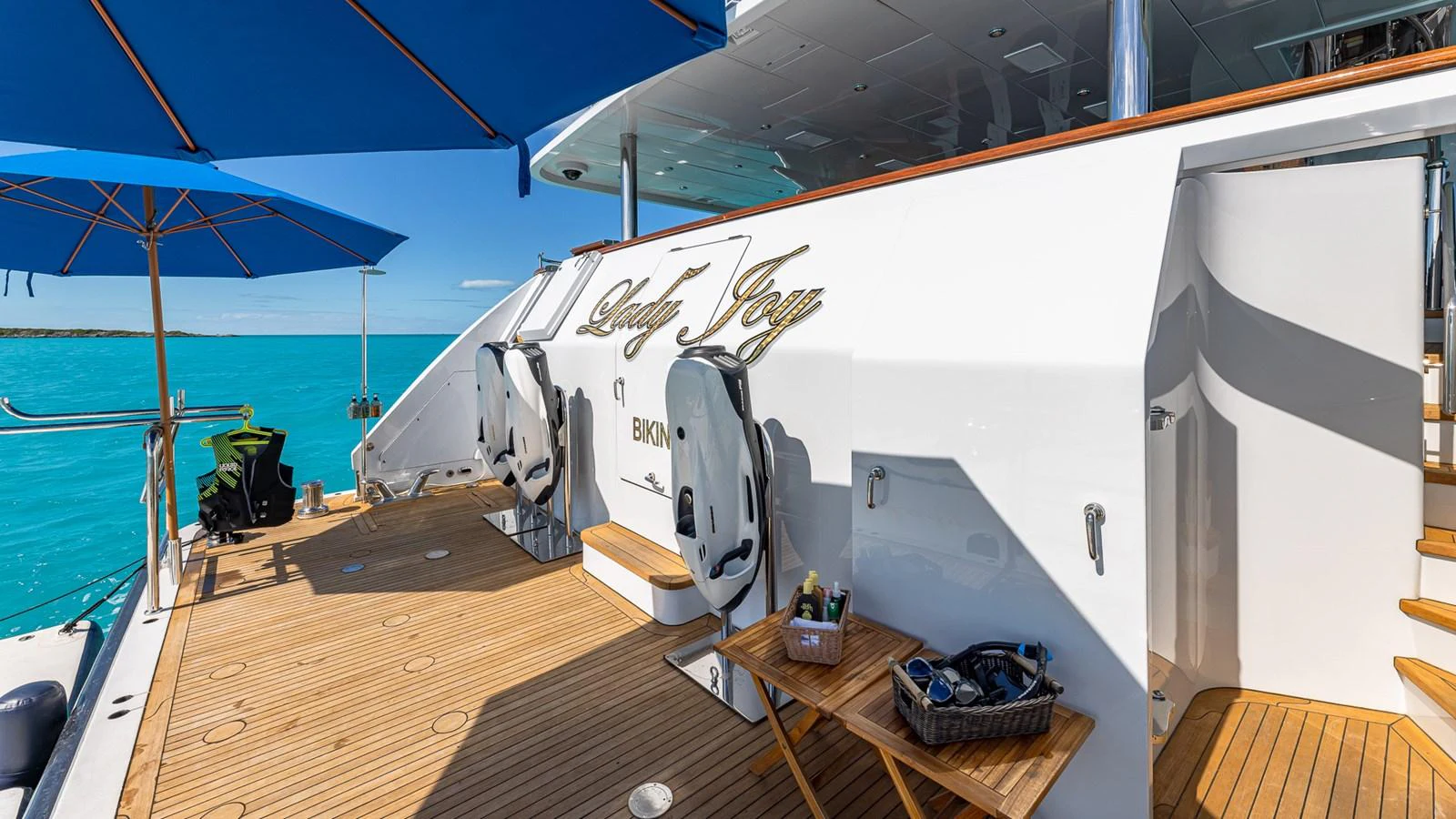

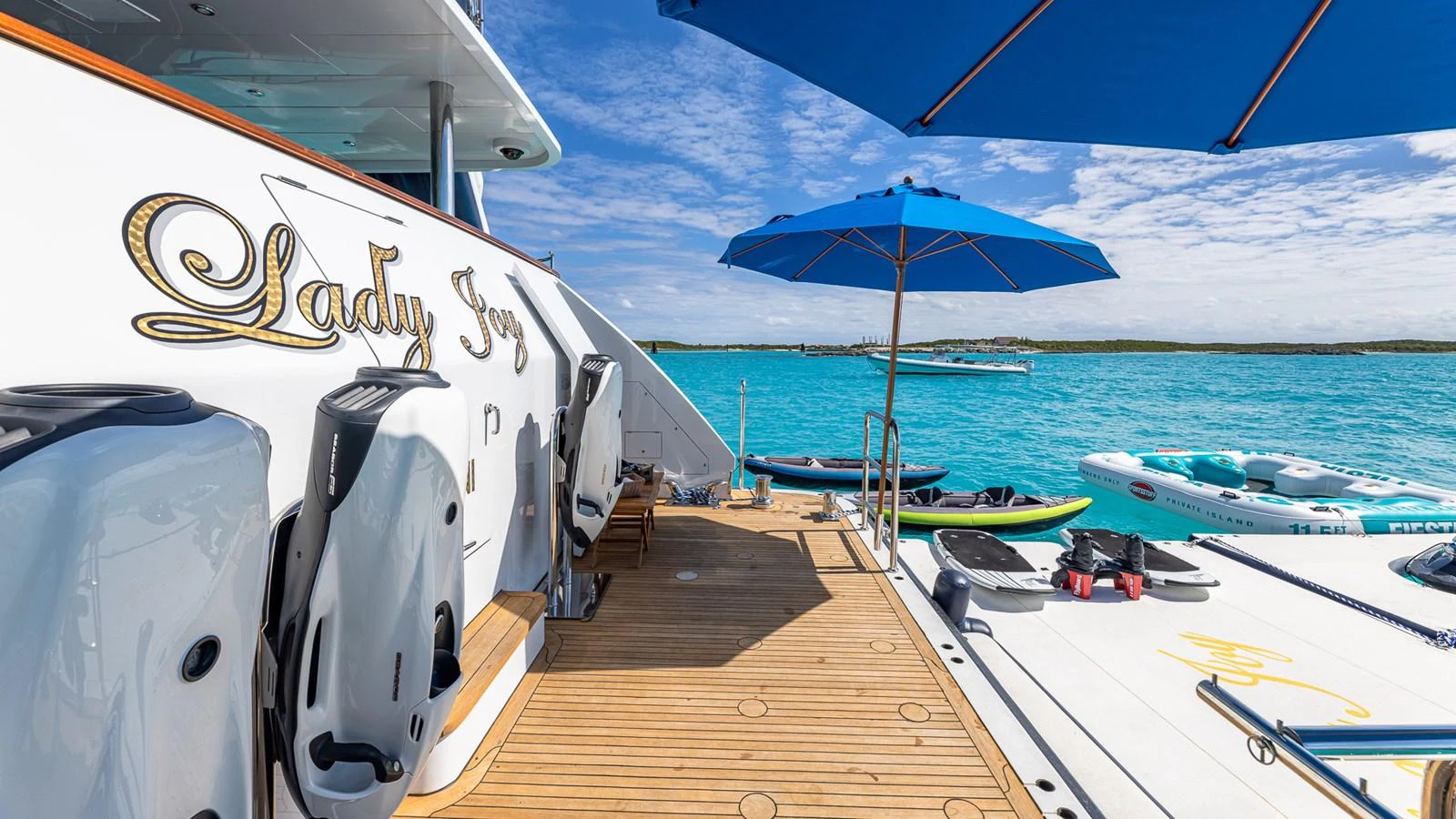

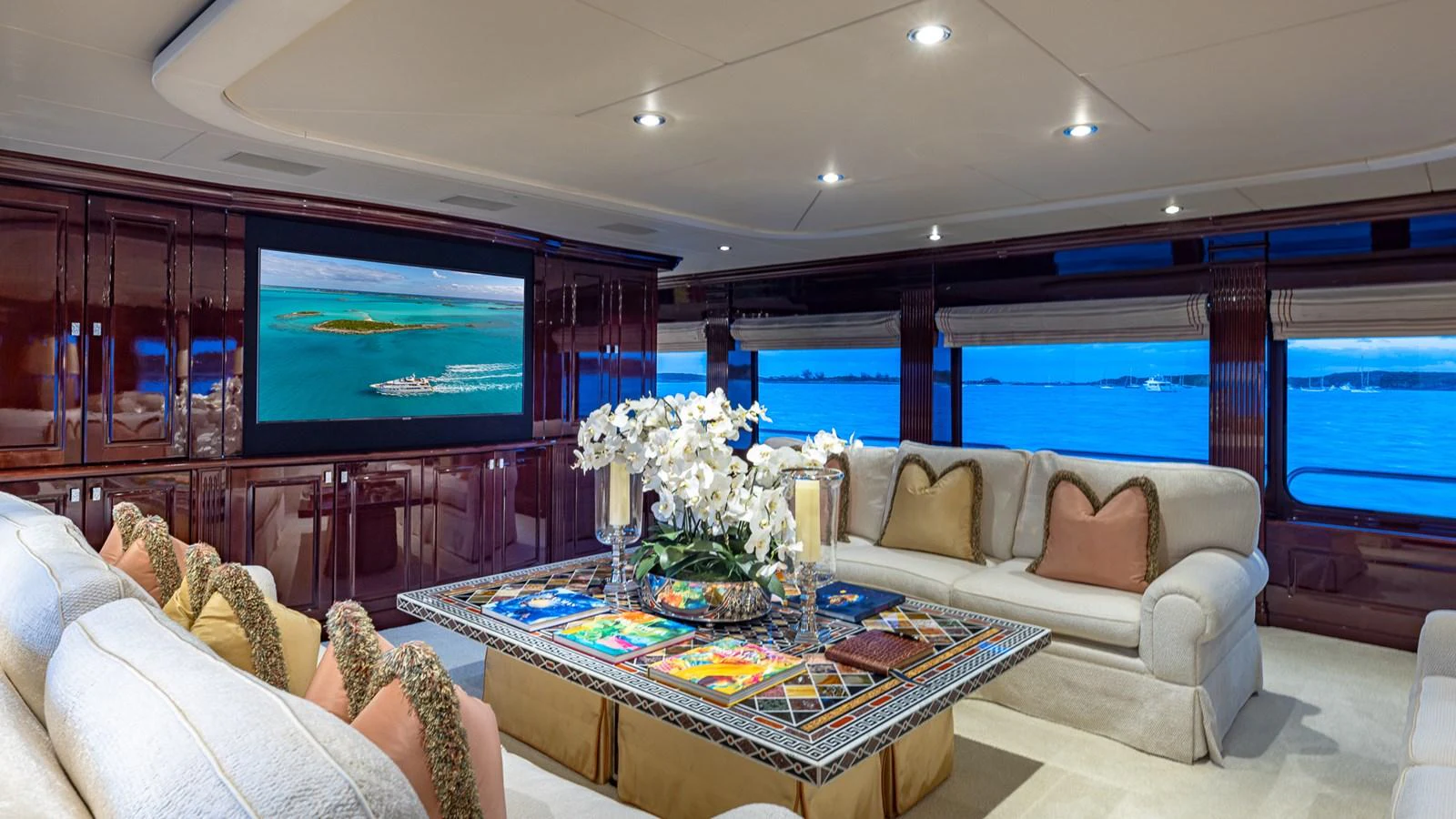

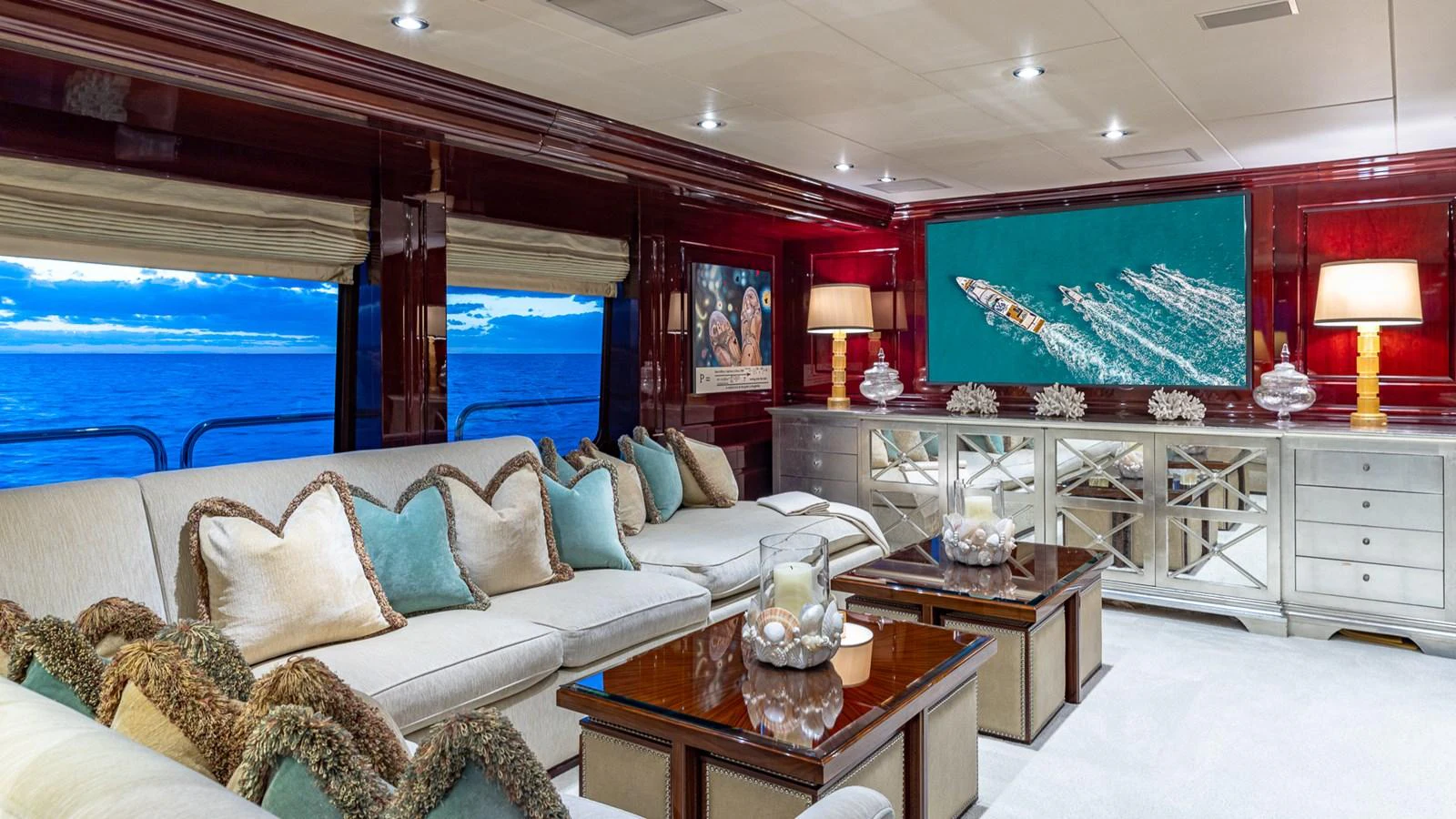

Additional onboard amenities include at-anchor stabilizers, fully updated state-of-the-art technology — such as Kaleidescape— a home theatre in the skylounge, a piano, a large swim platform and a fully stocked toy chest, including tenders, Sea-Doos, SeaBobs, diving gear, fishing gear, towables and more.
New exterior paint as of 2017 and 10 year ABS surveys complete.
Type: Semi Displacement, Twin Screw Diesel M/Y
Flag: Marshall Islands
Dimensions: Length O.A.: 157' (47.85m)
Length W.L.: 138' (42.06m)
Beam: 29'52" (9.00m)
Draft (full load): 8'0" (2.44m)
Tonnage: GT: 499
Net: 149
Displacement (light ship) 301.16 long tons
Year Built: 2007
Refit: 2011
Builder: Christensen Shipyard, USA
Naval Architect: Christensen Shipyard, USA
Exterior Designer: Christensen Shipyard, USA
Interior Designer: Carol Williamson, USA
Construction: Fiberglass hull and superstructure, teak decks
Classification: ABS, MCA Compliant
Accommodation for up to 14 guests in six cabins (4 double, 2 twin cabins) as follows:
OWNER

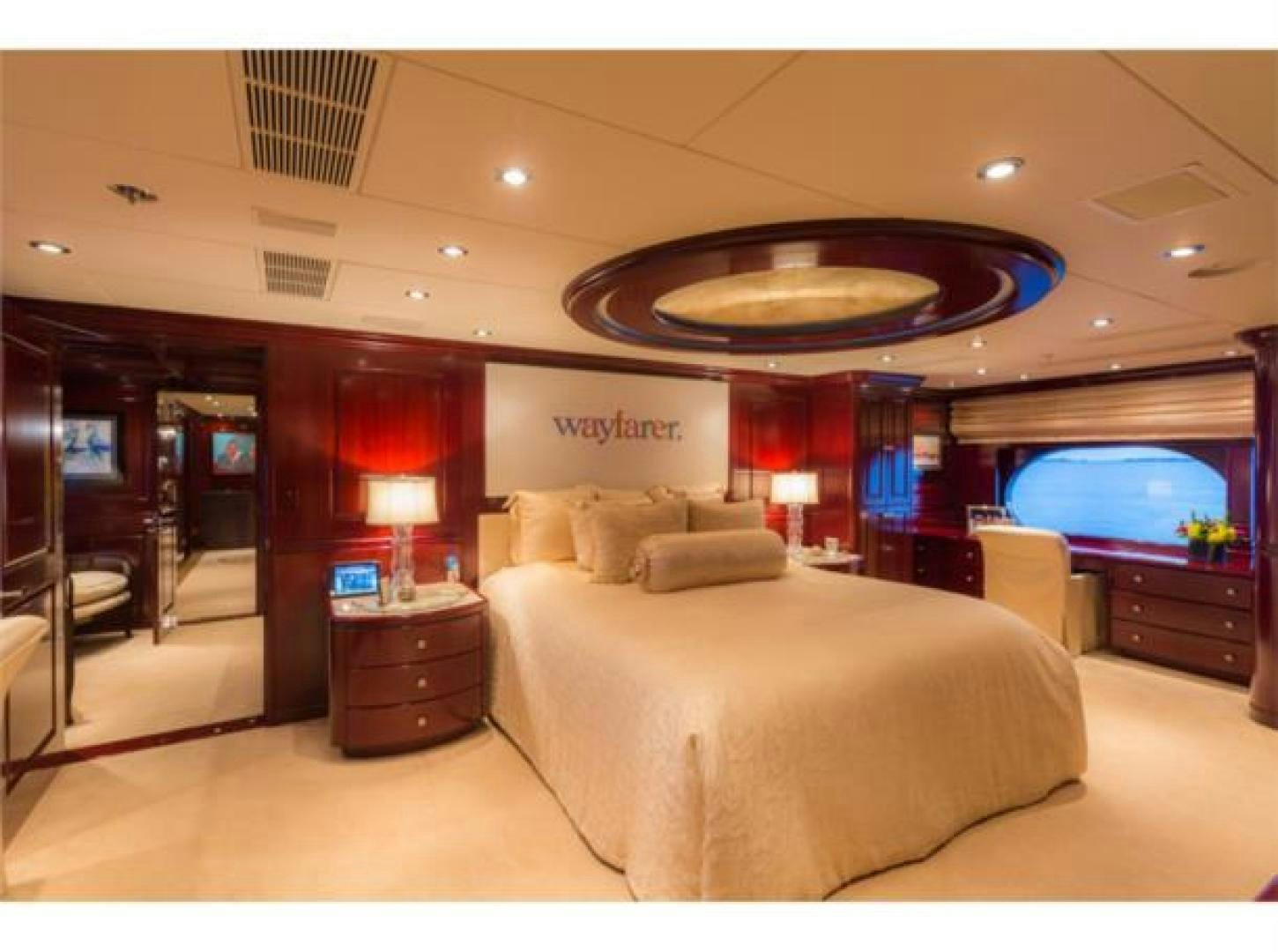

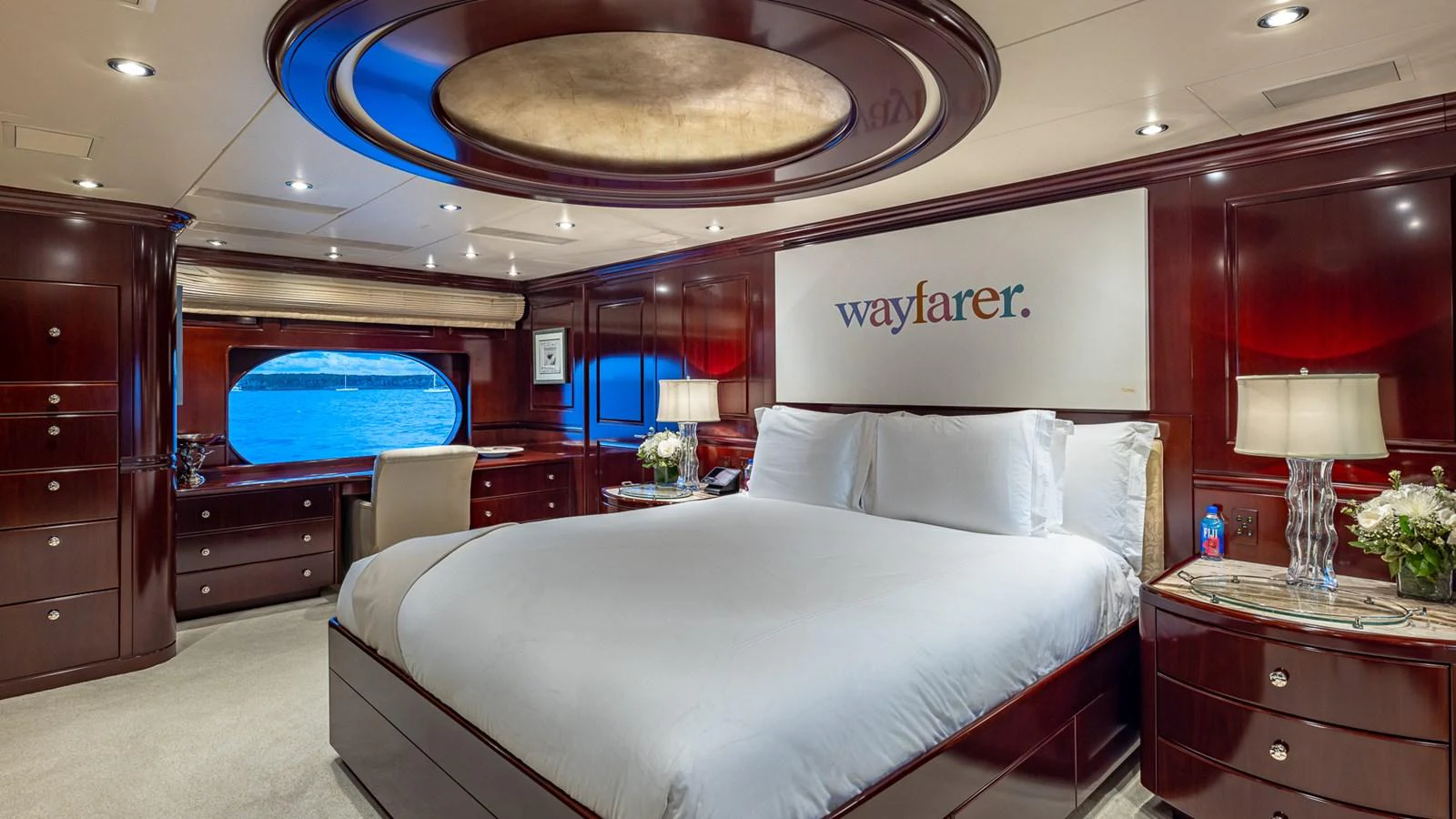

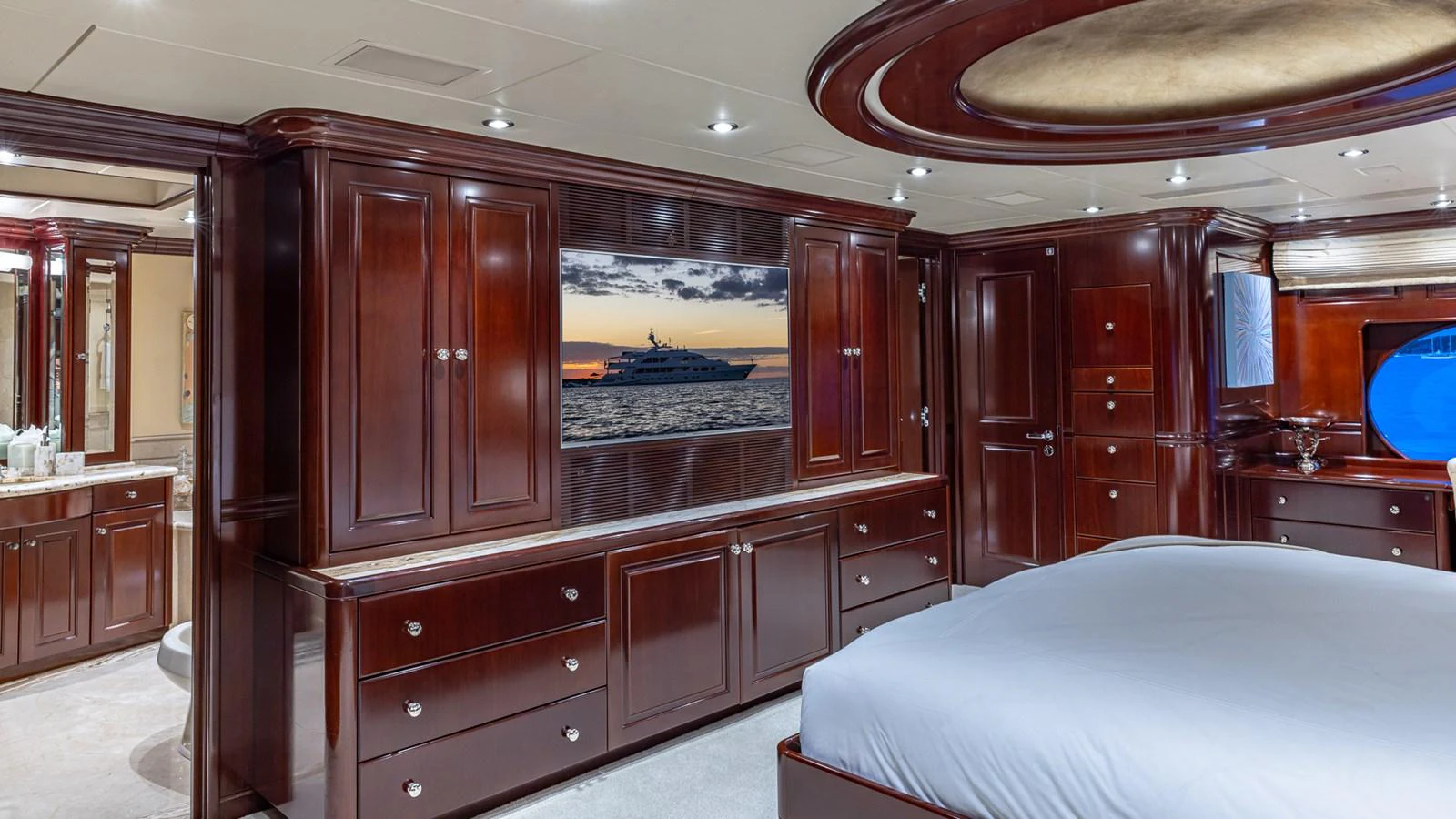

Owner’s suite is located forward on the main deck.

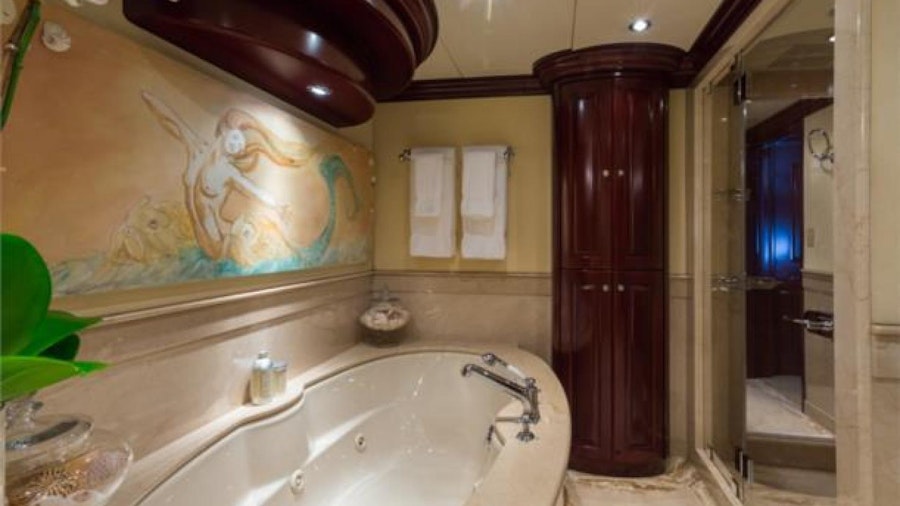

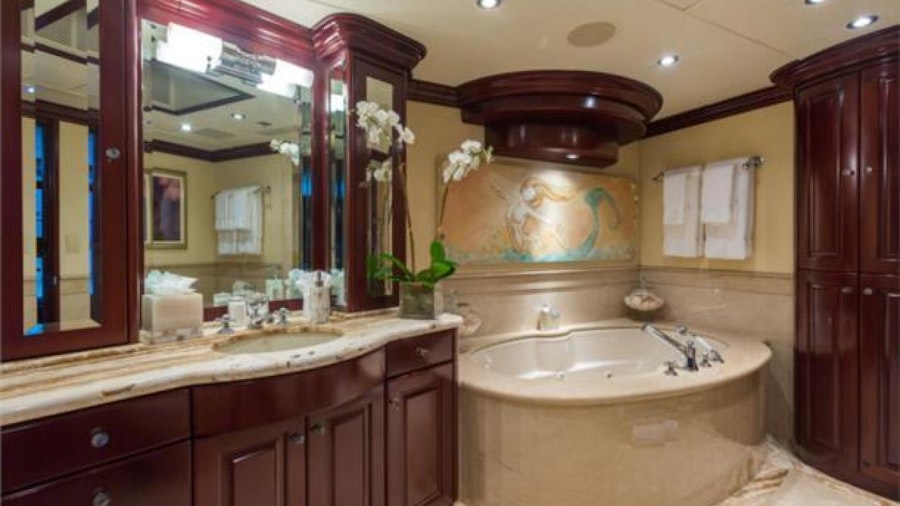

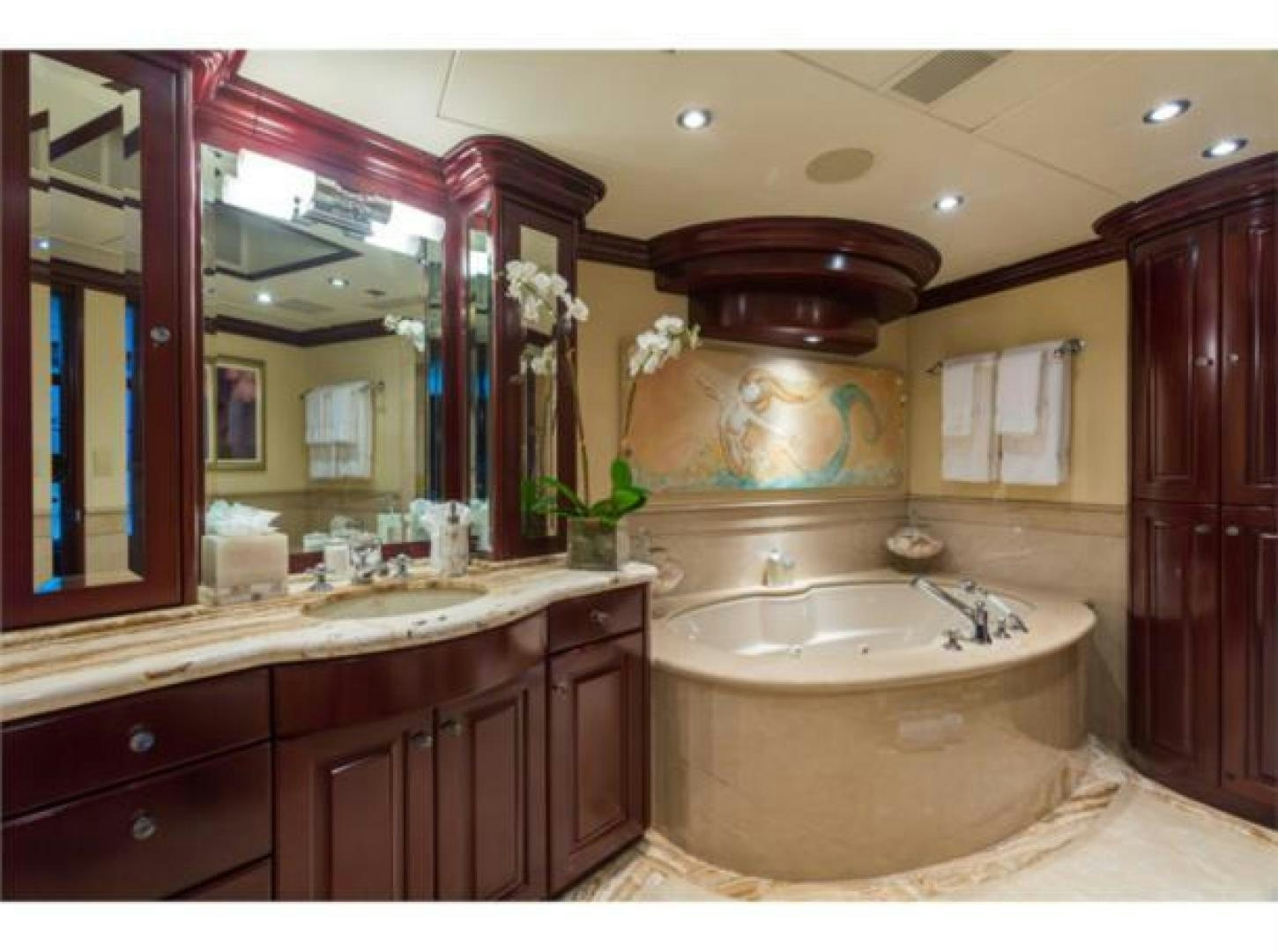

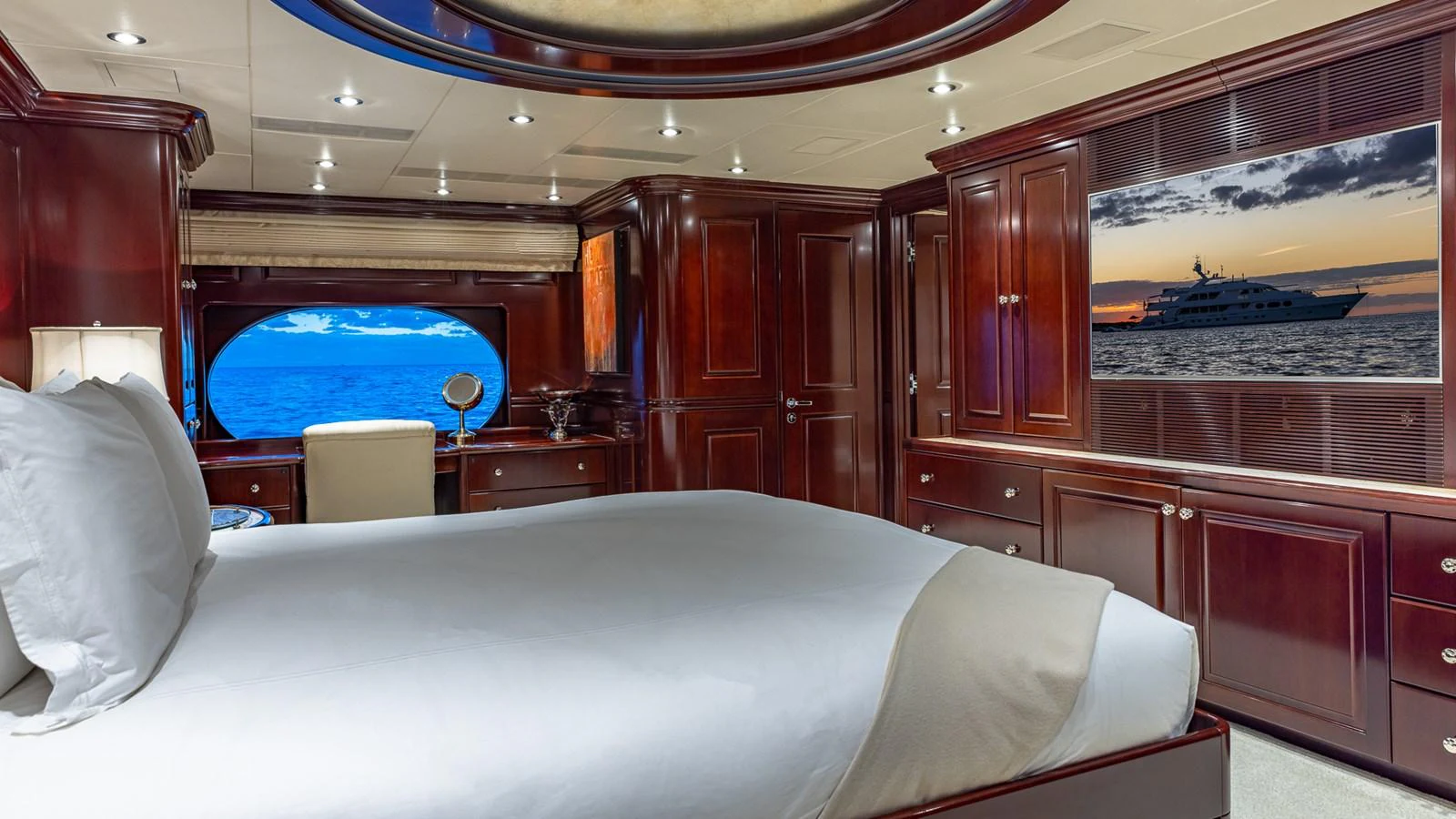

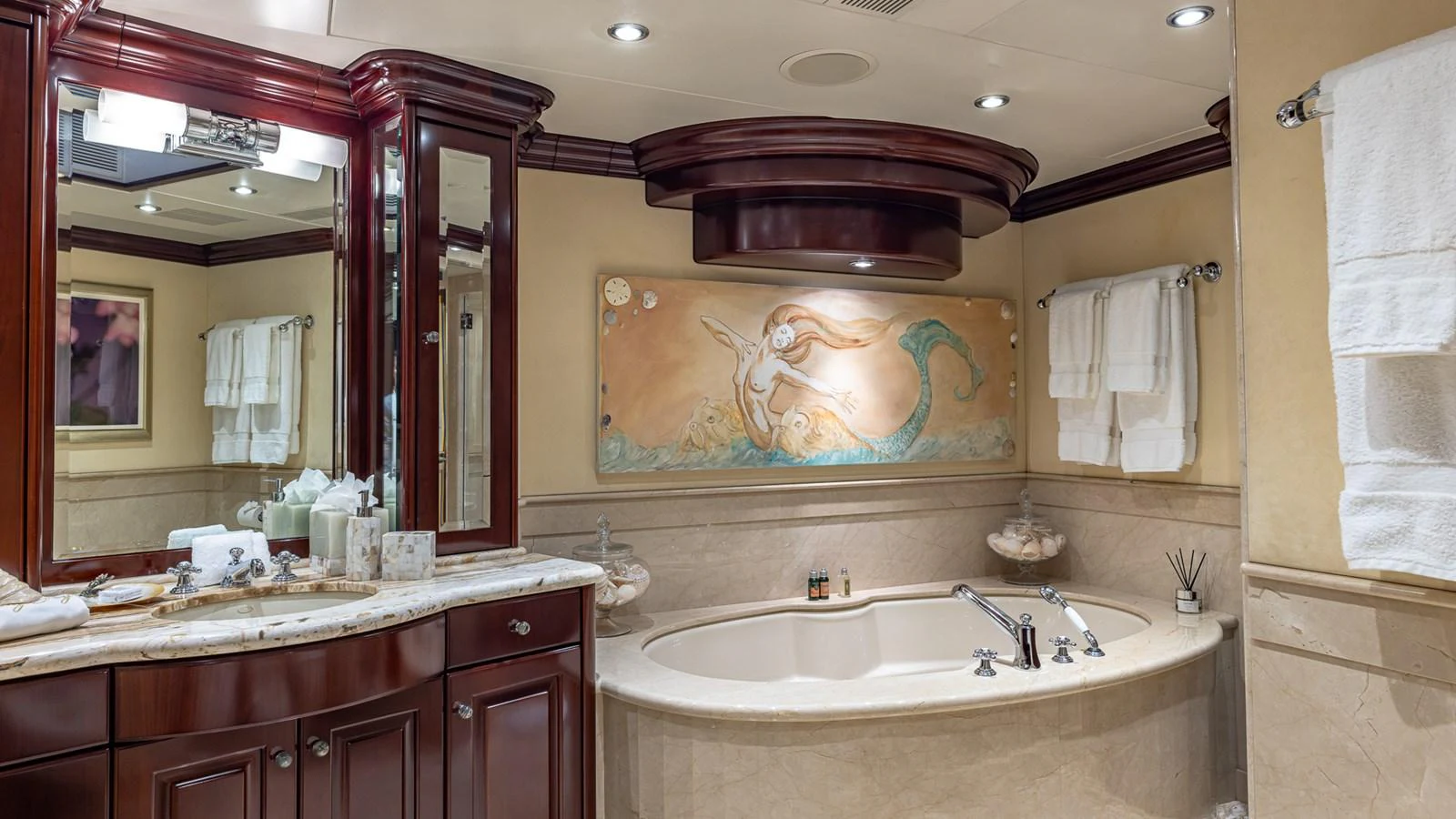

A king size bed facing forward leads through to a his/hers en suite with large spa hot tub and a central joining steam shower room. Ample closet space is located port and starboard of the en suite bathrooms.

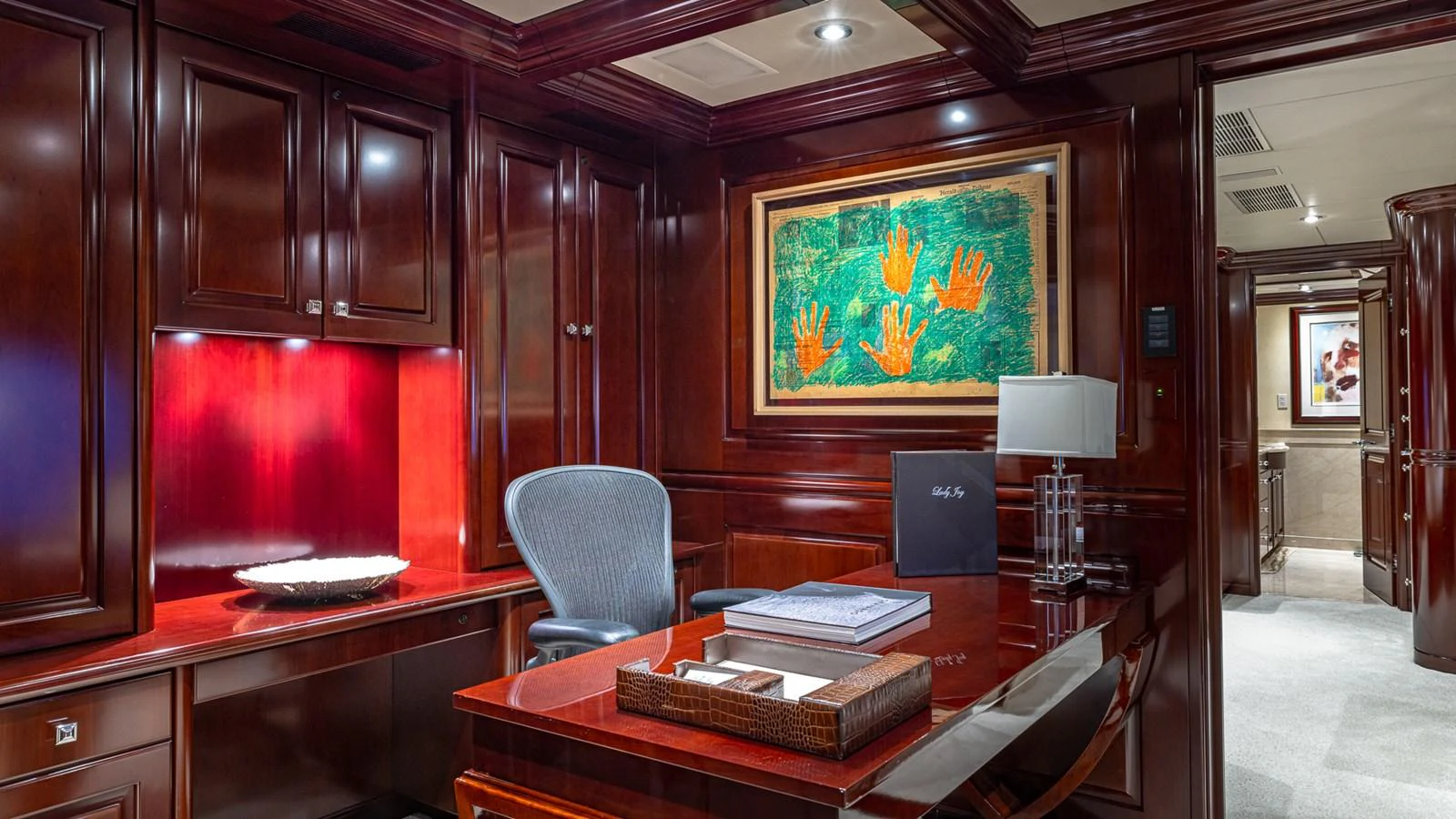

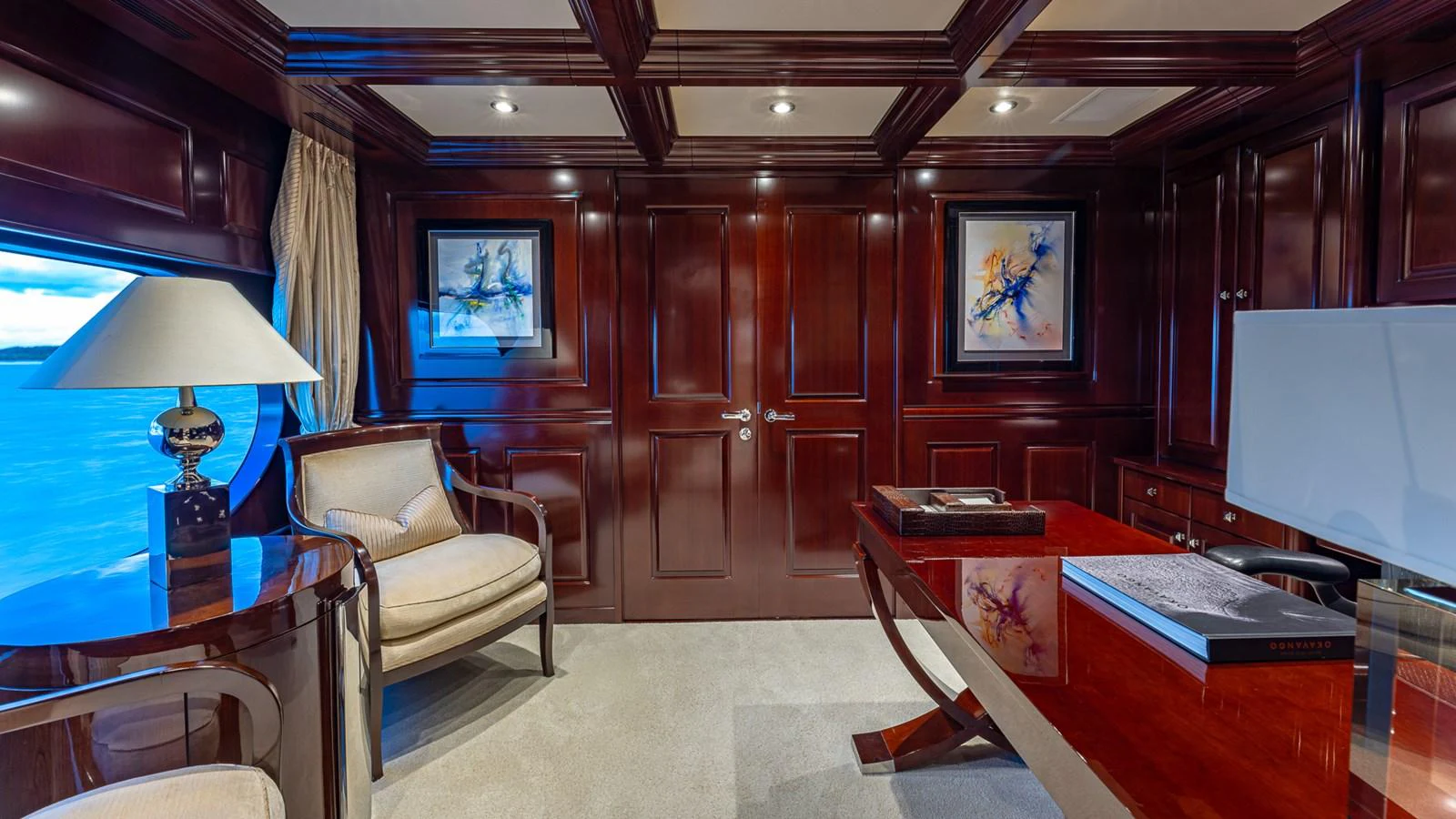

Private office to starboard
GUESTS

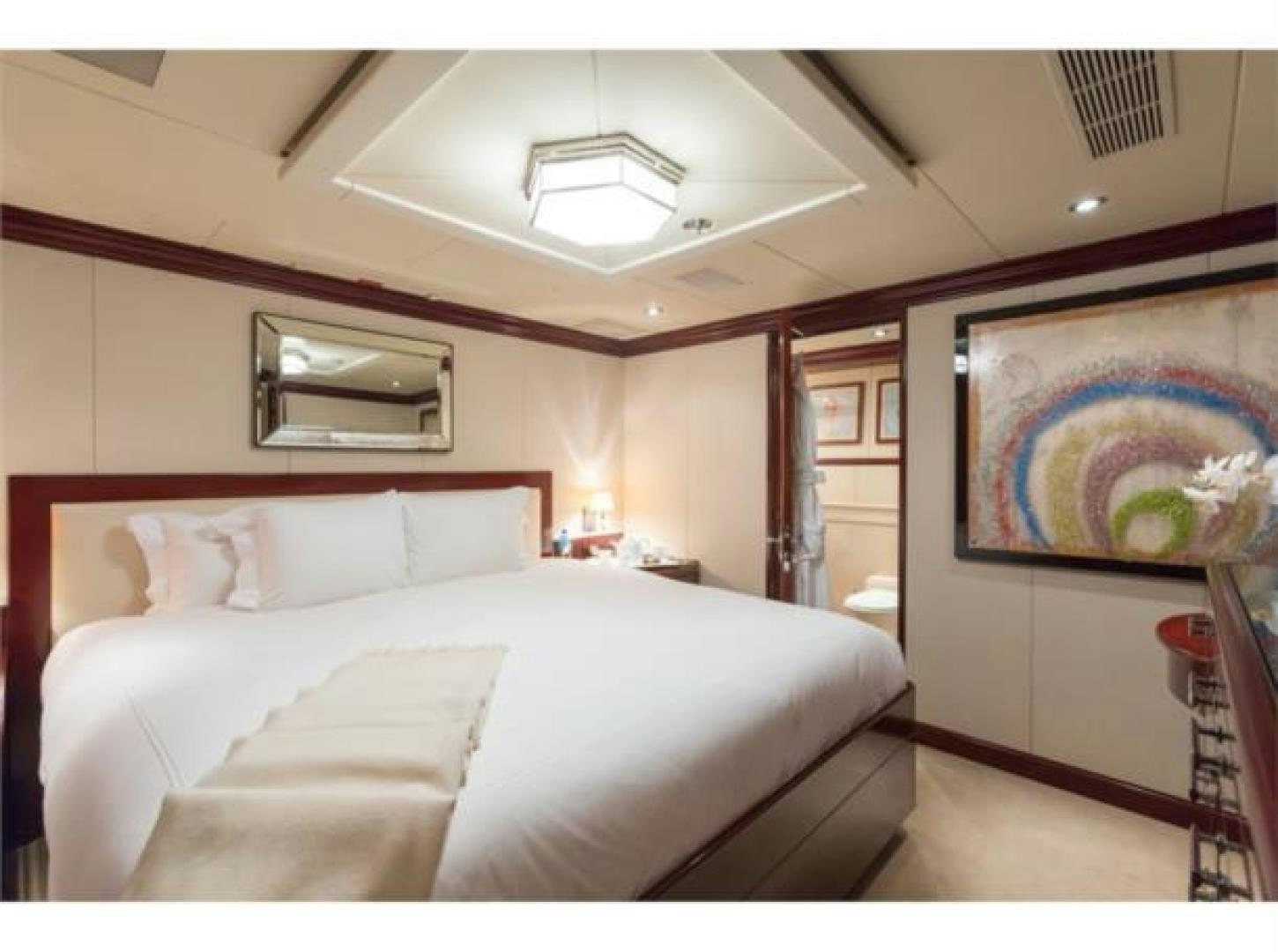

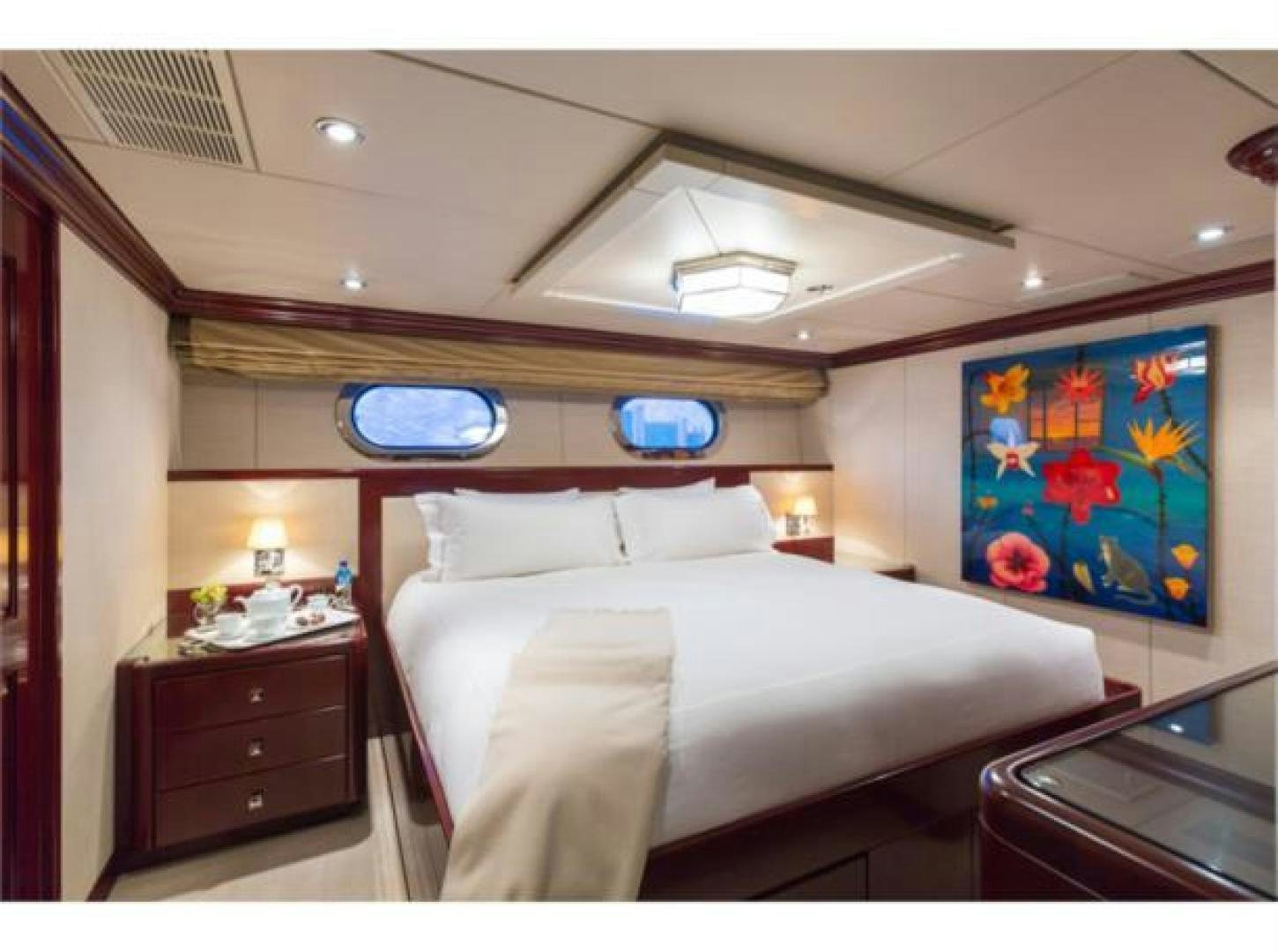

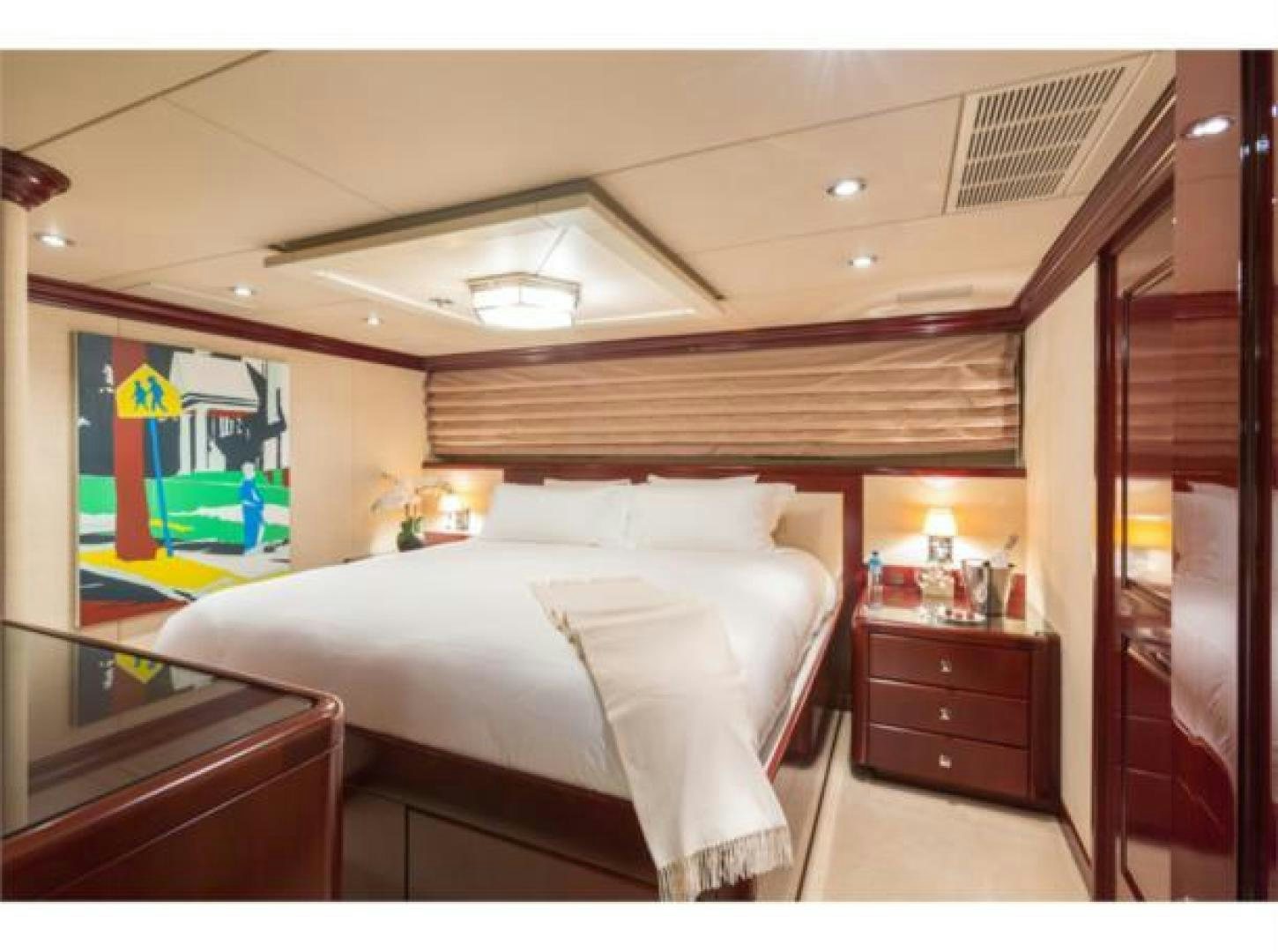

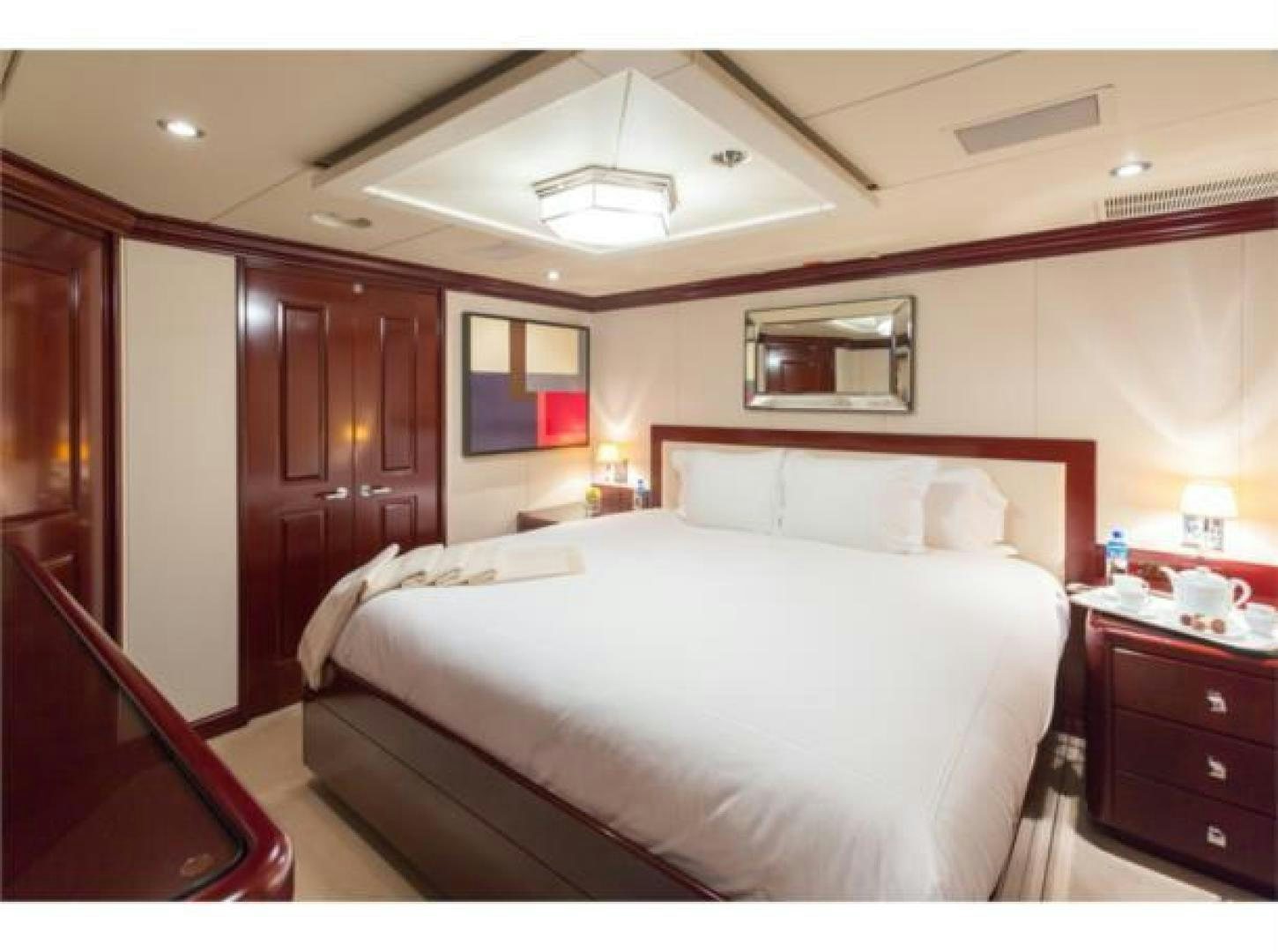

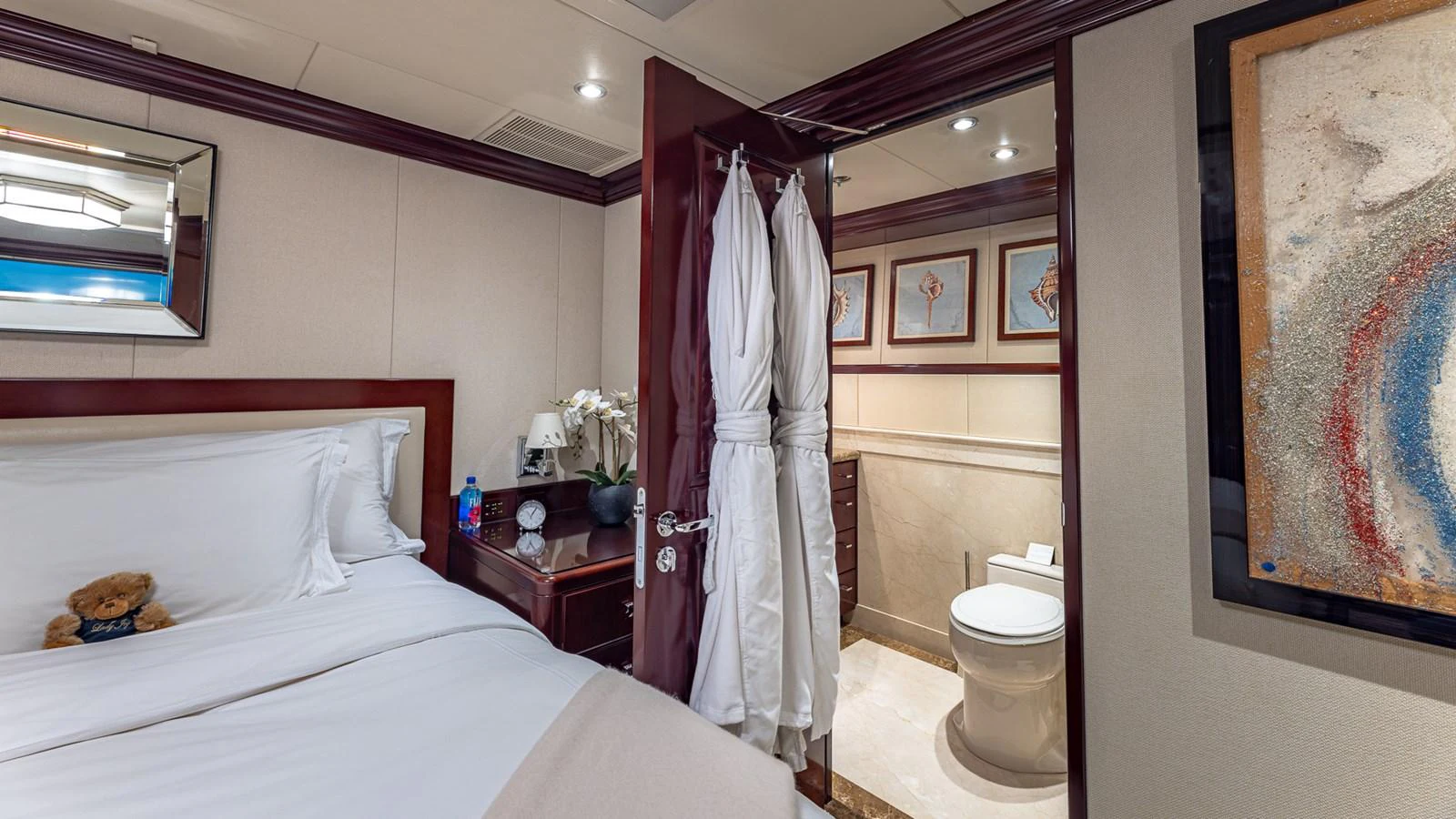

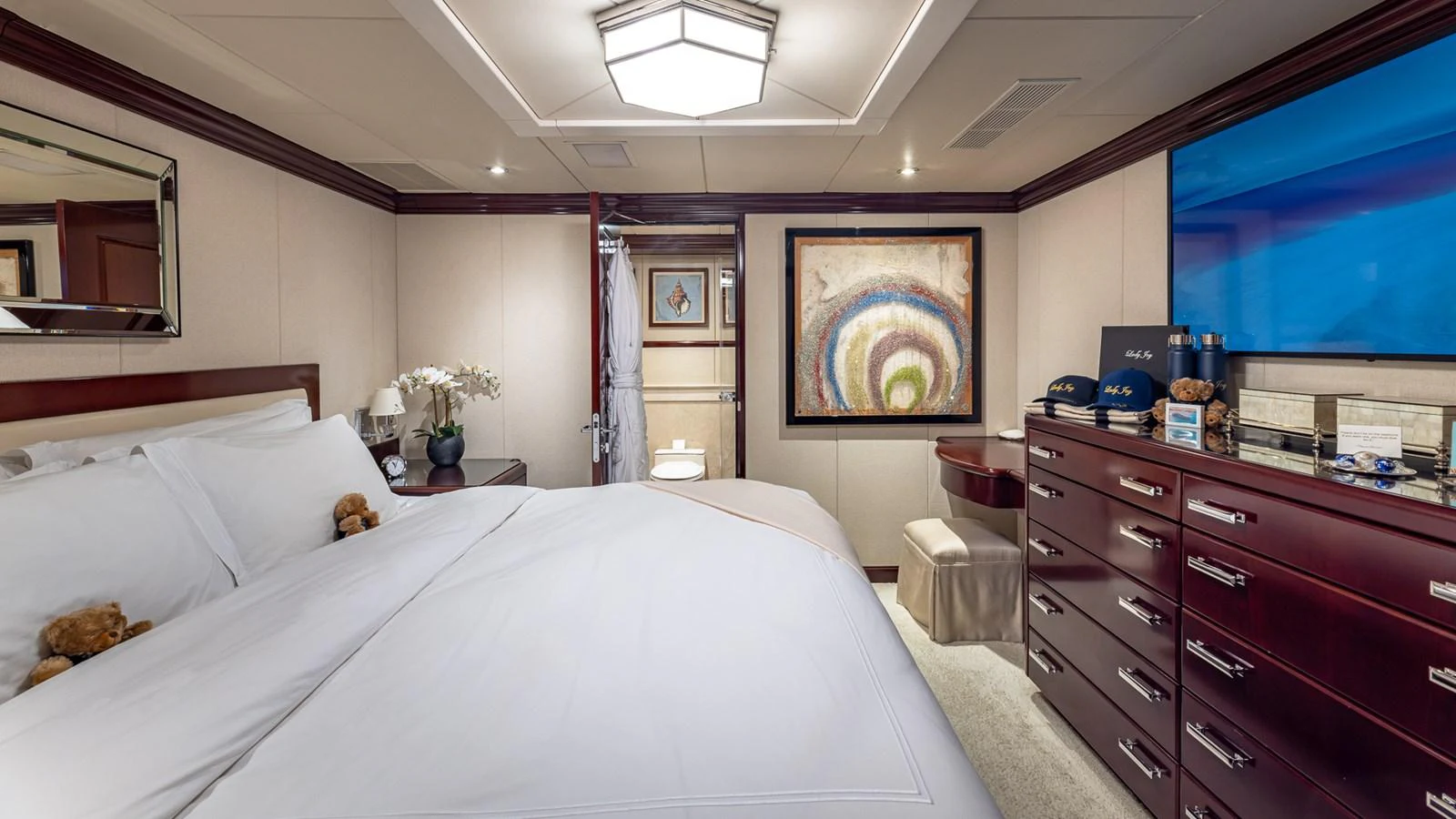

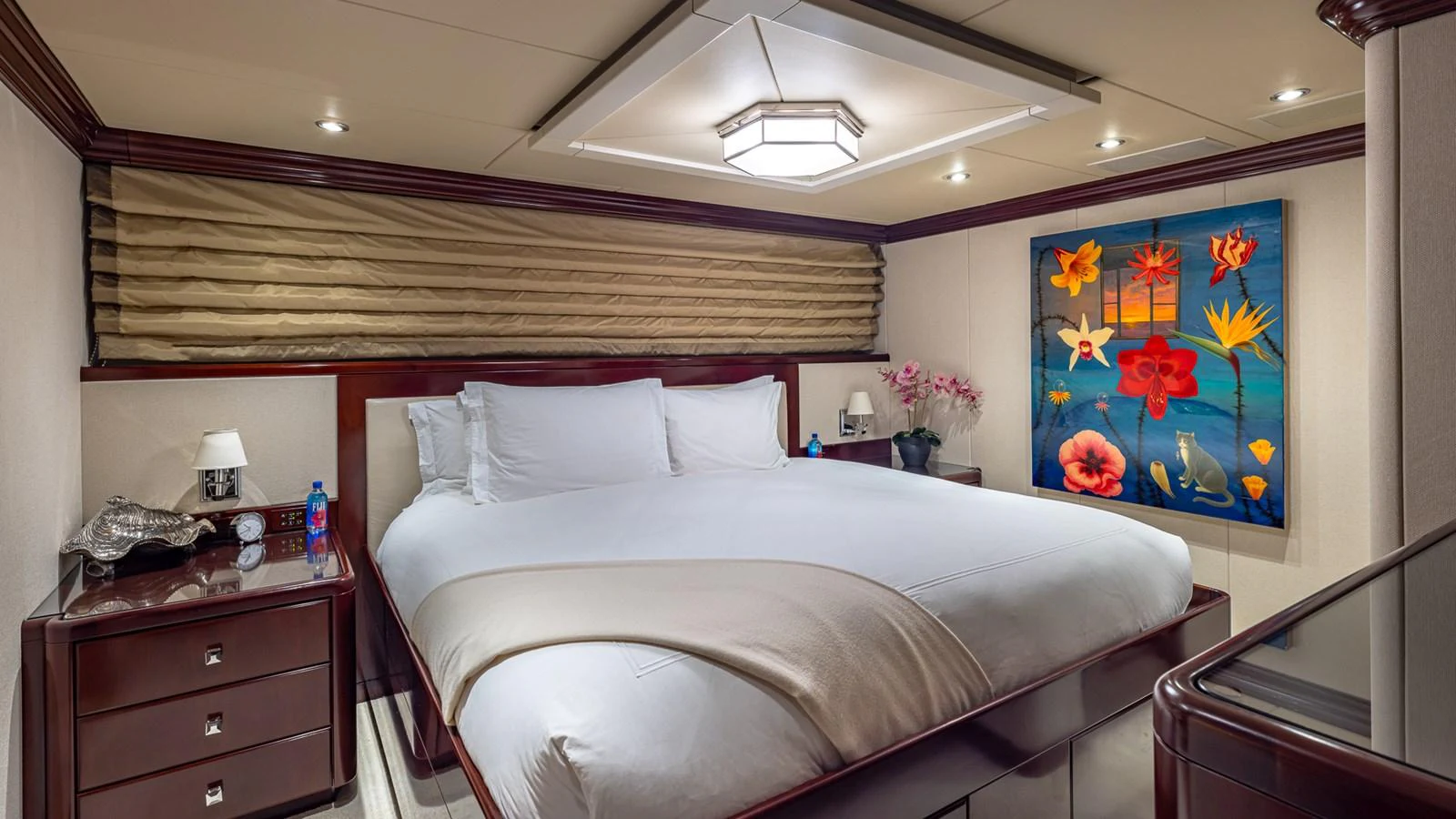

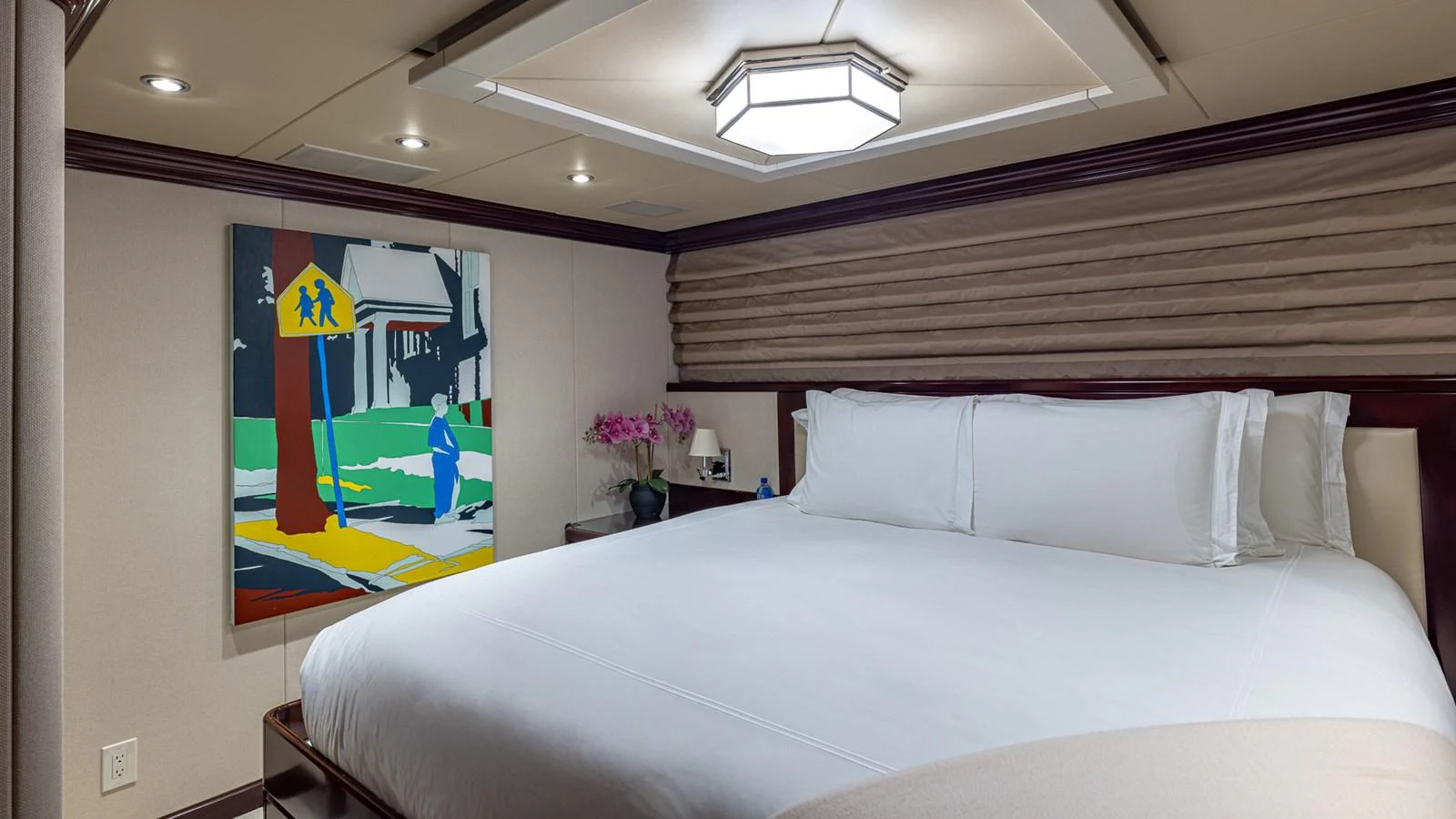

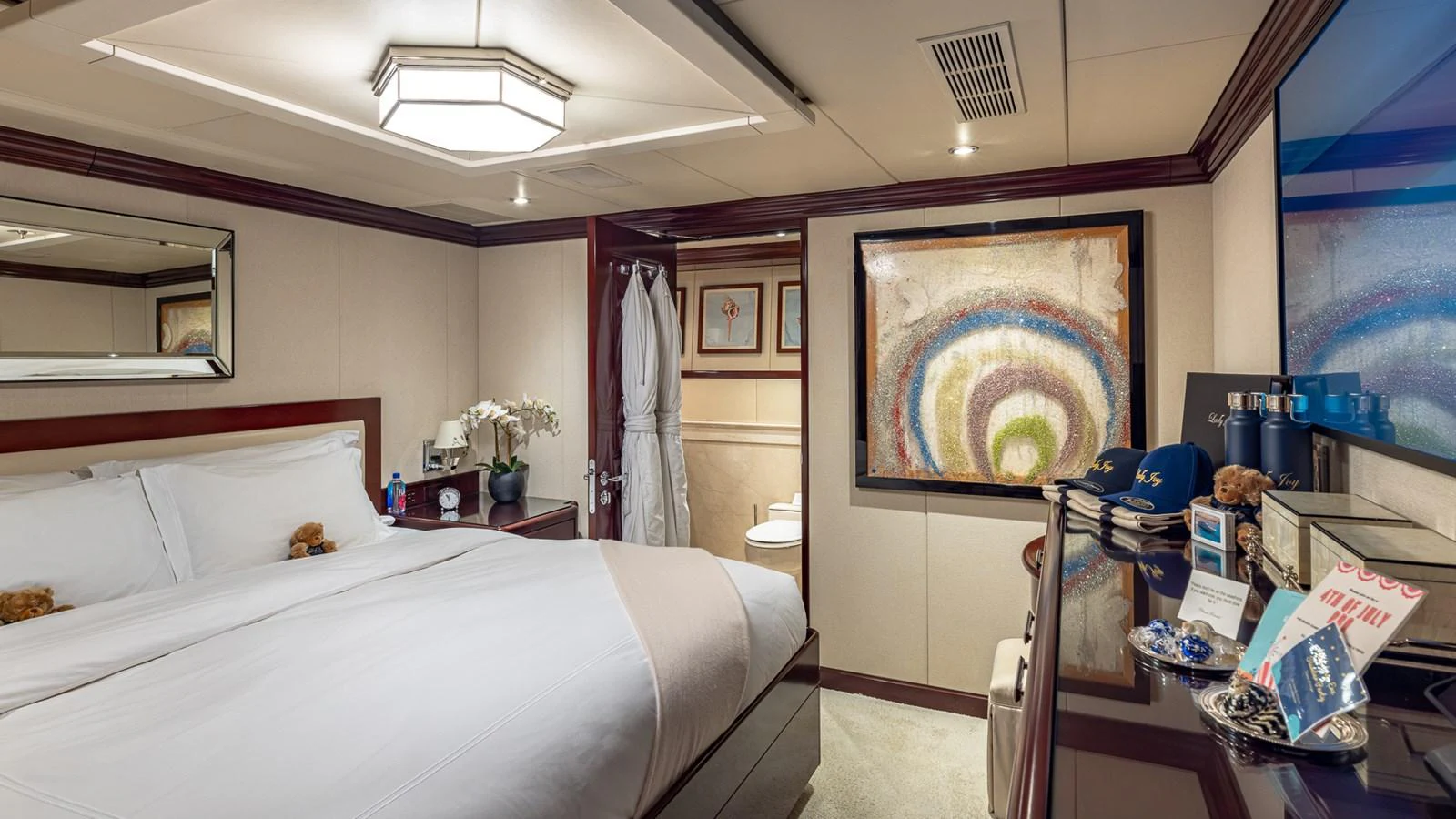

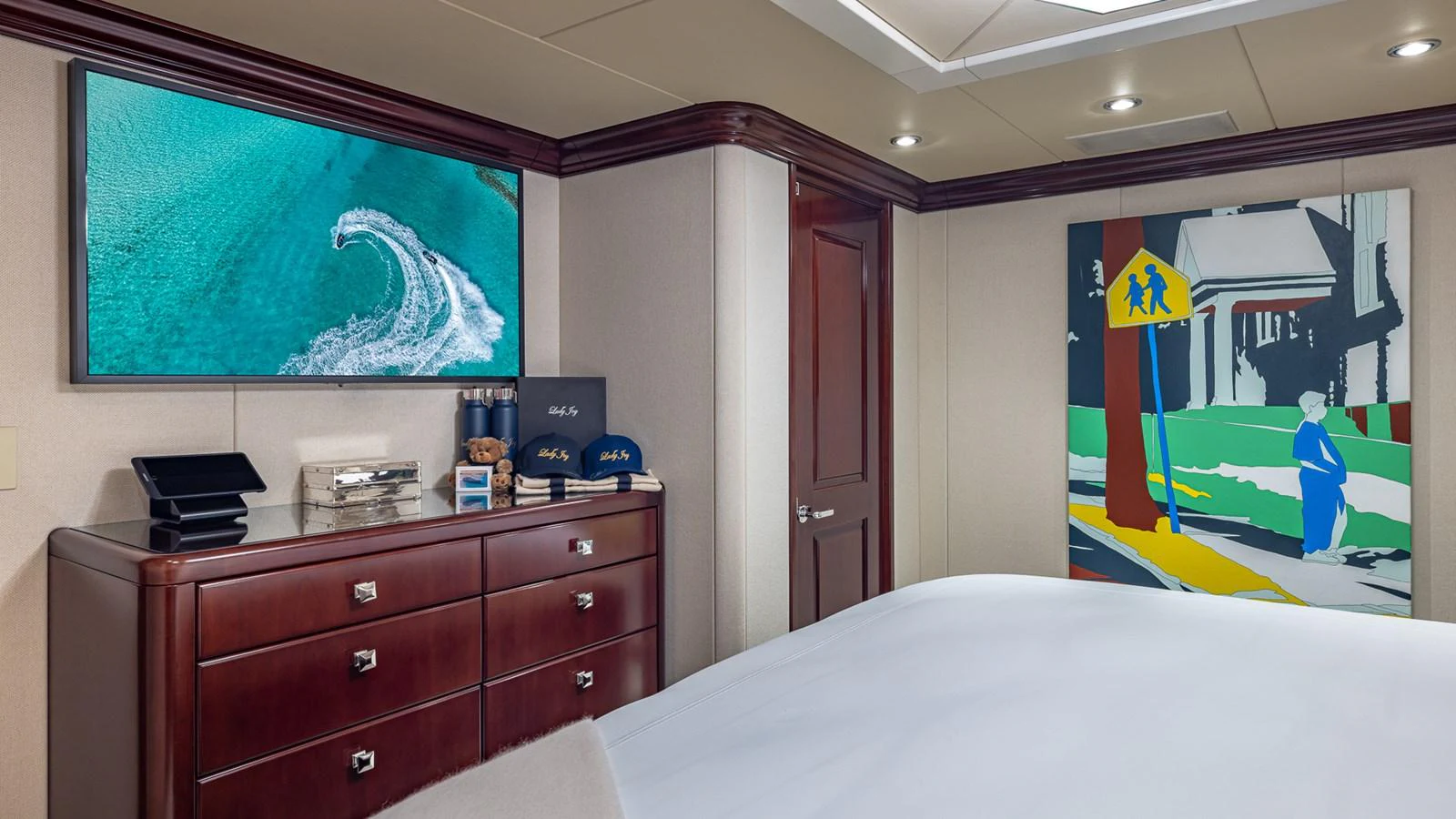

3x Double (queen) cabins aft on the lower deck

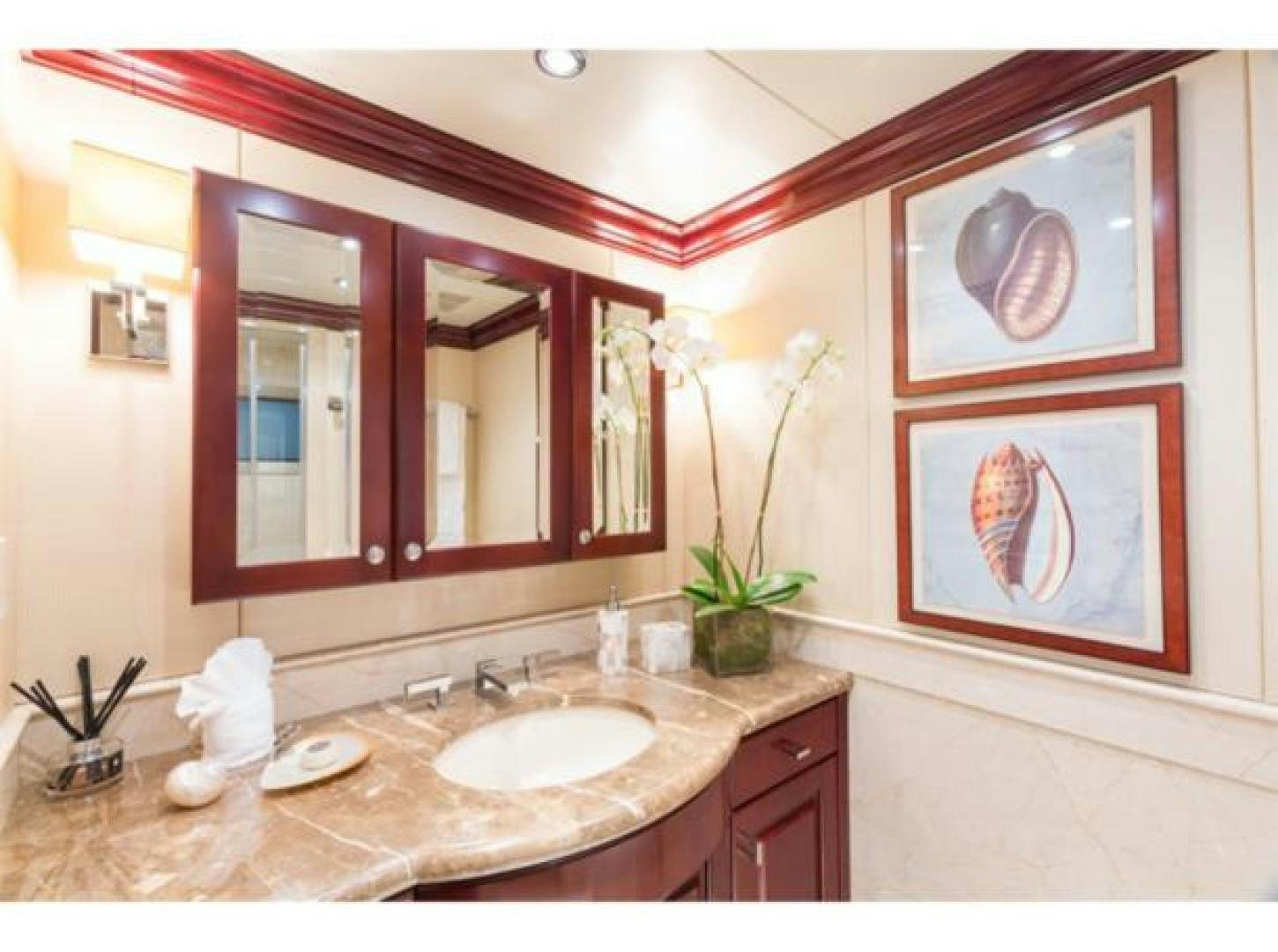

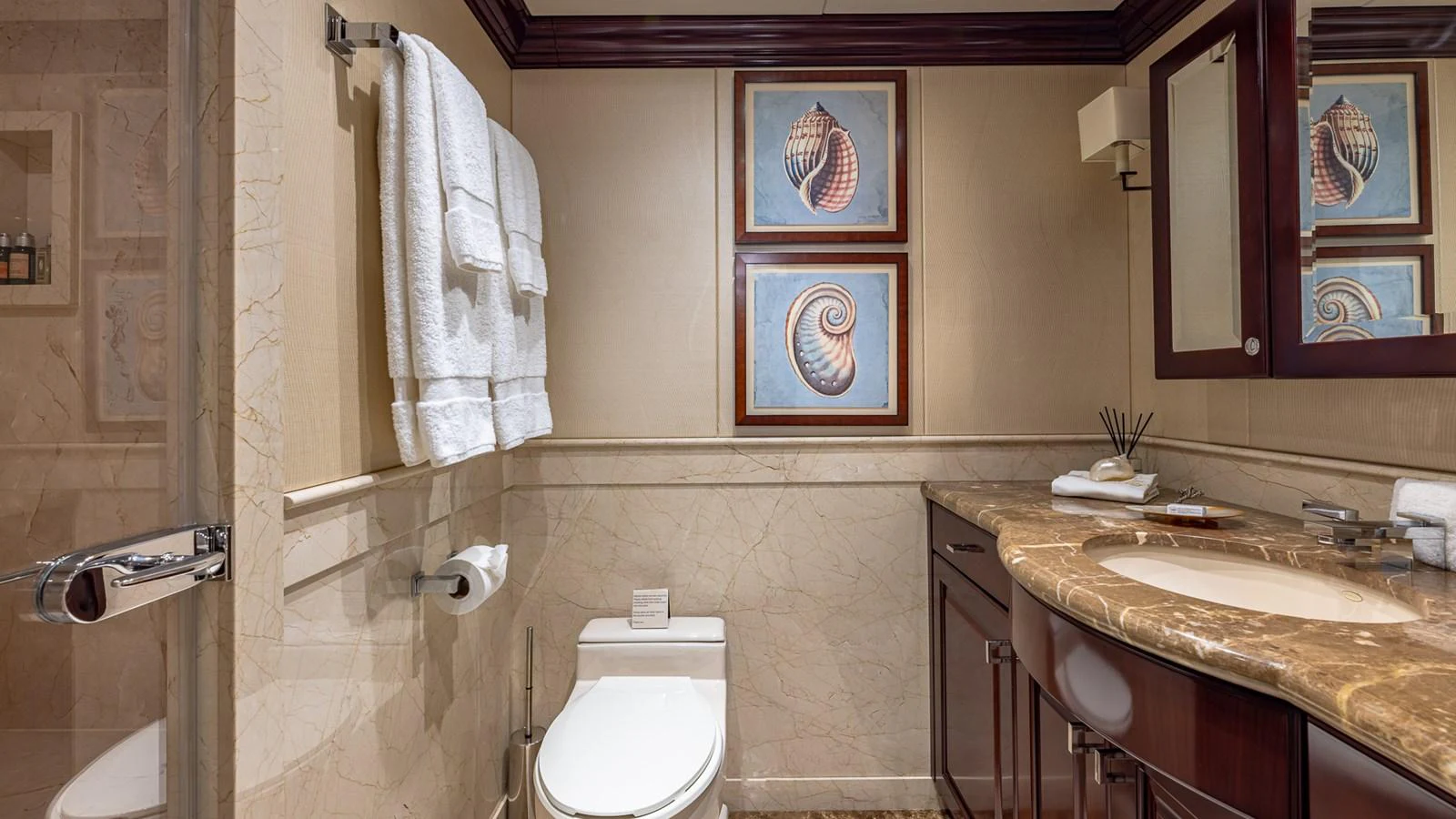

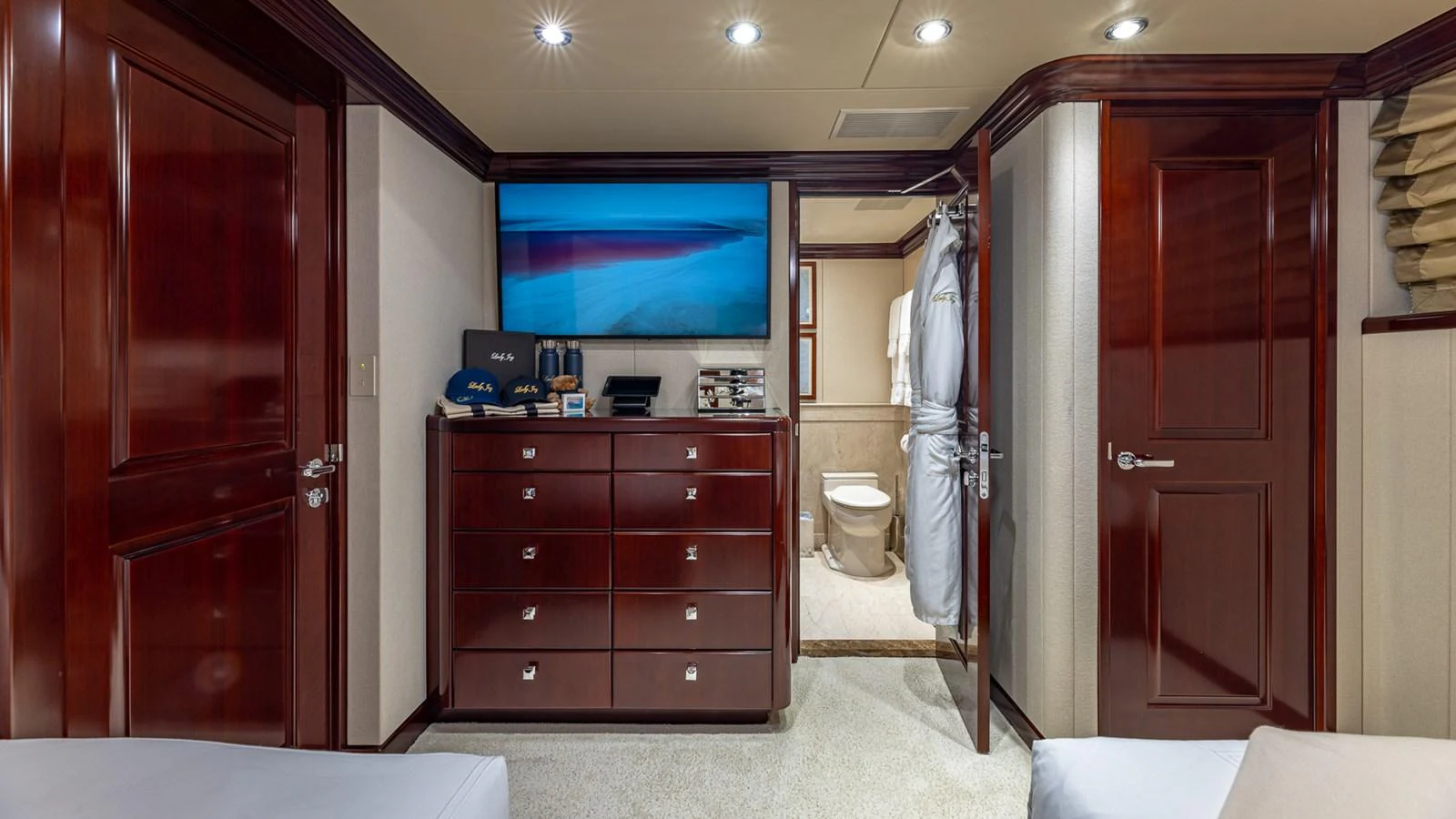

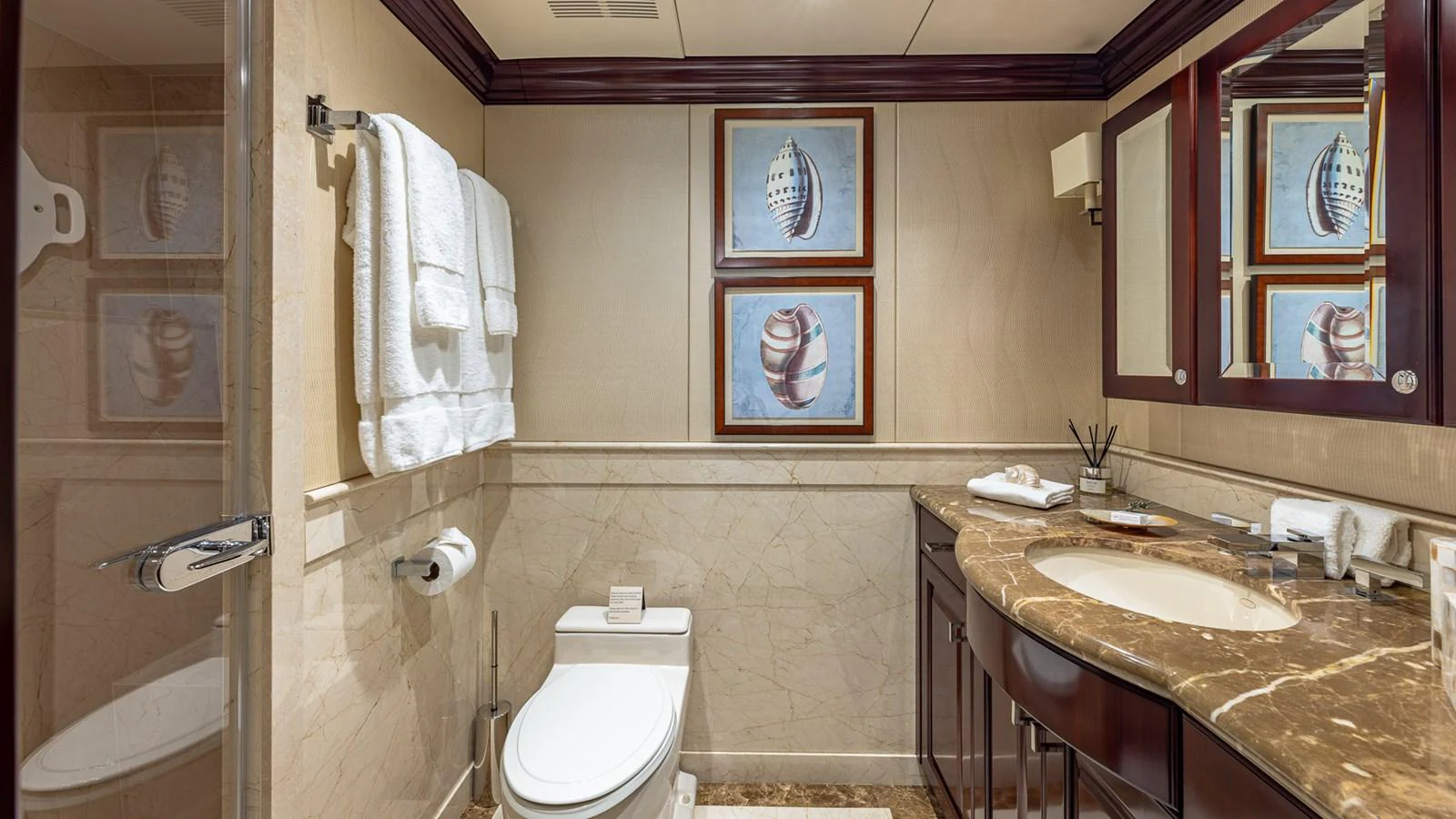

All with en suite bathrooms

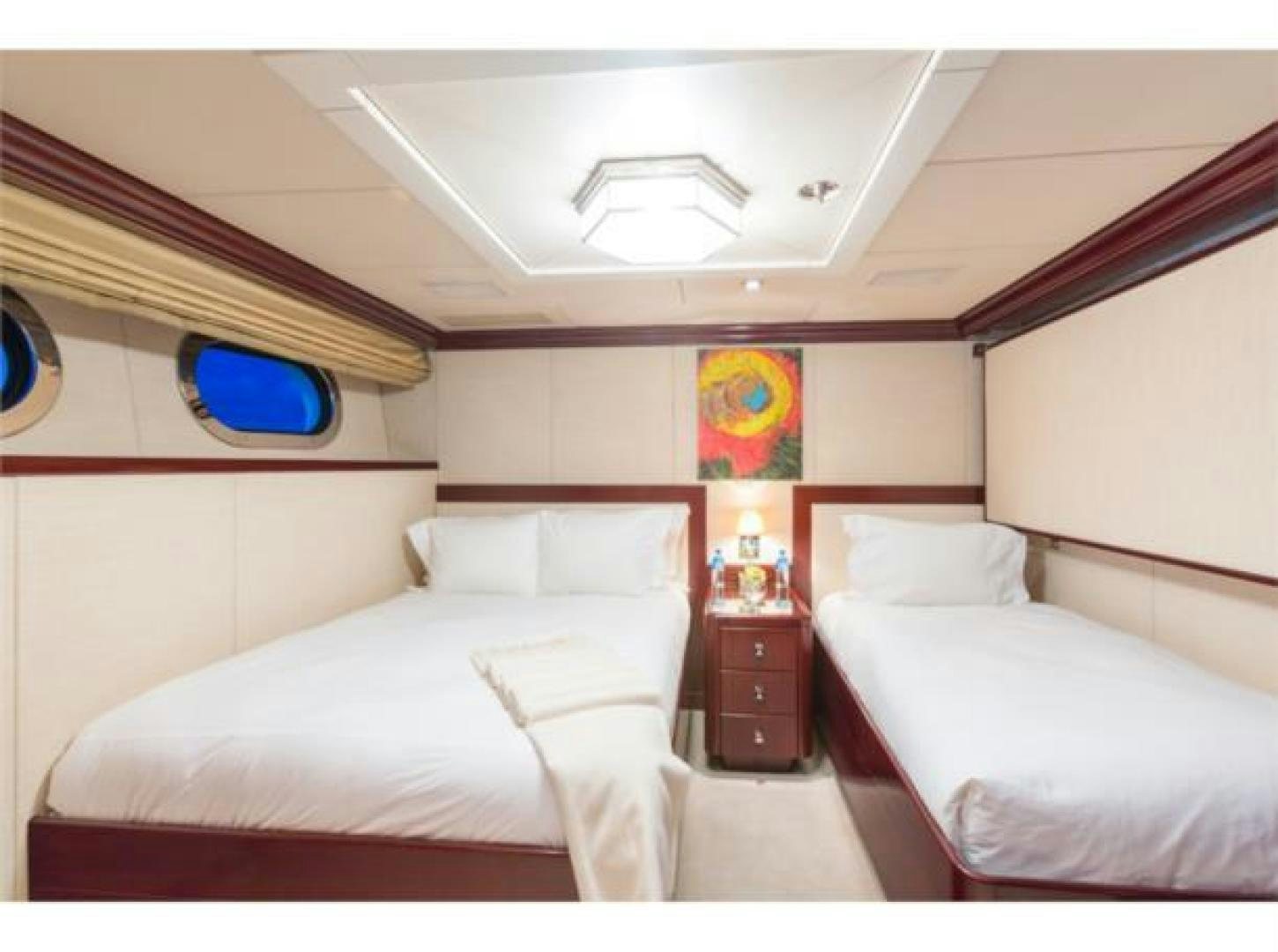

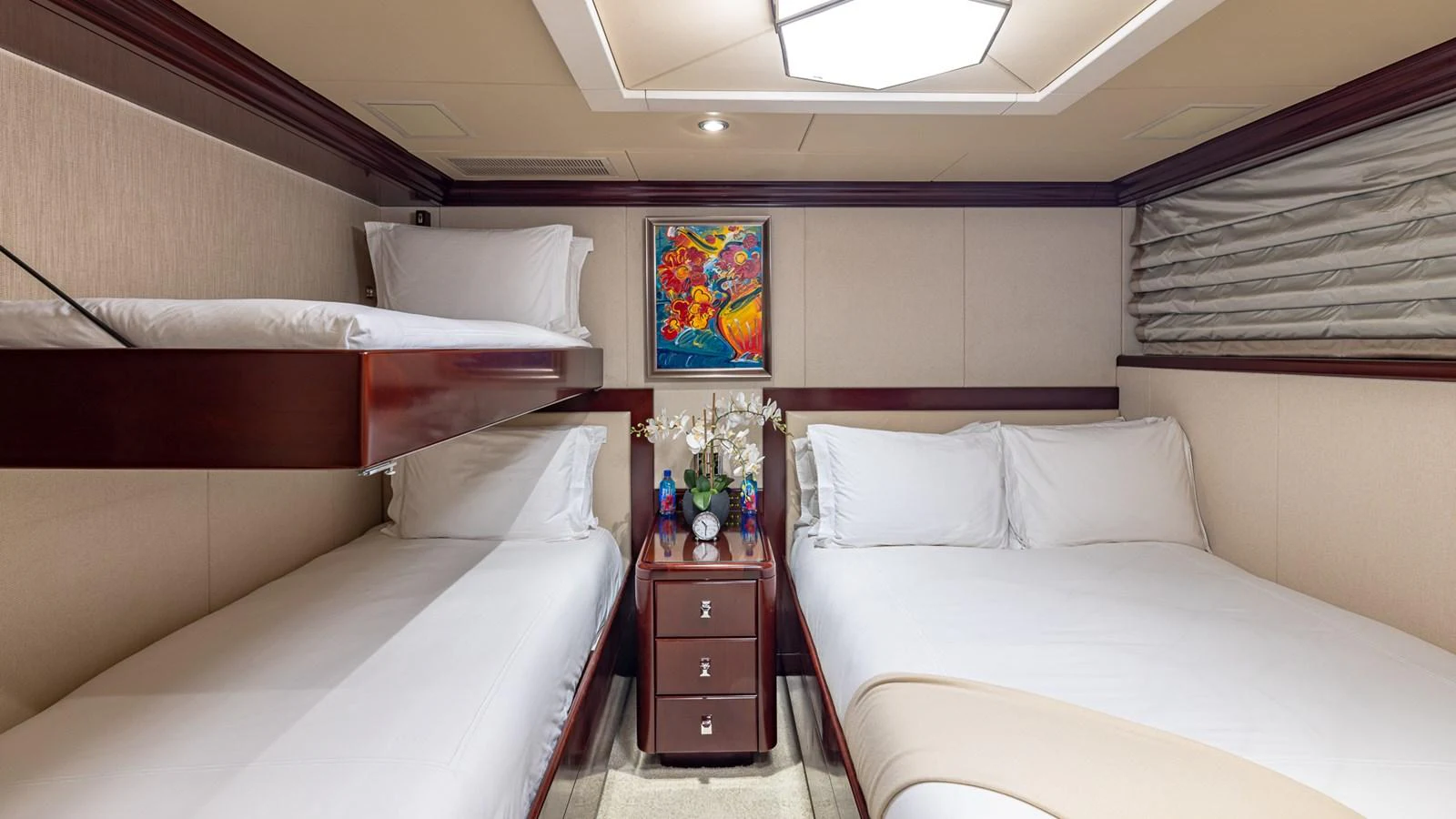

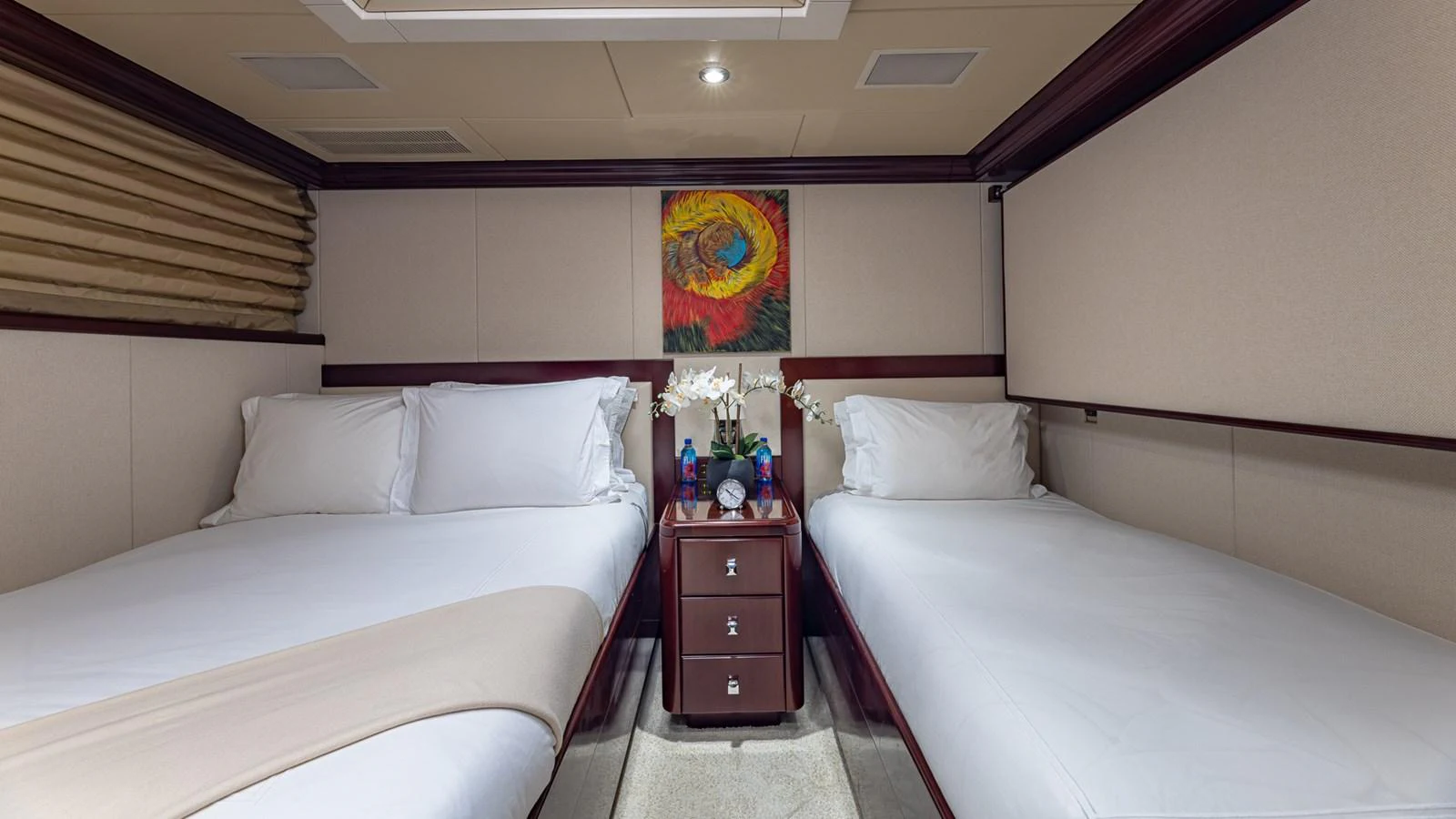

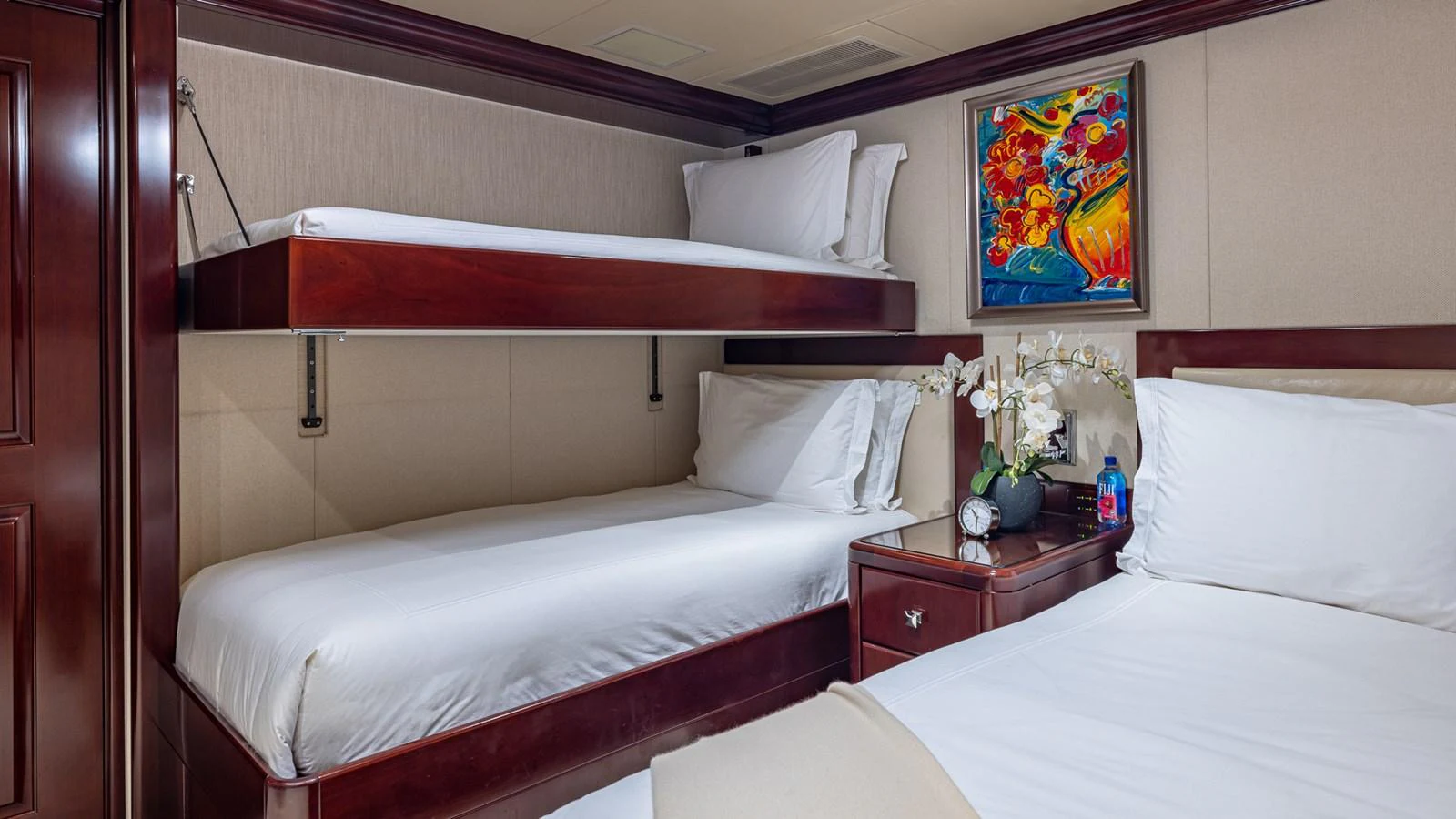

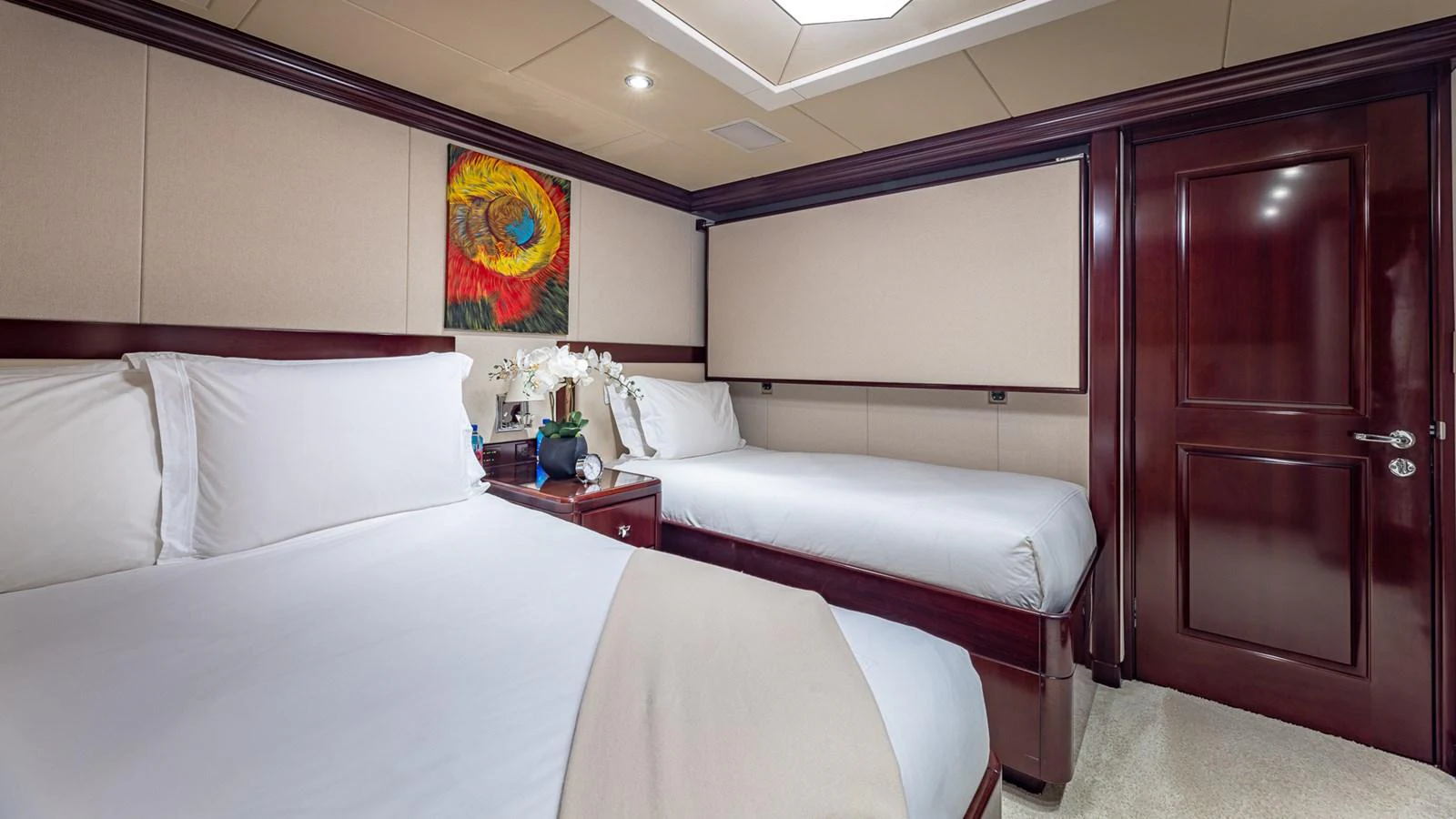

2x twin cabins are located forward with single beds and Pullman berths.
CREW
Accommodation for a total of 11 crew
1x captain cabin
10x crew in five cabins
Main Engines: 2xMTU 12V4000 diesels @ 1,800hp each
Engine Hours: Port: 9,900 hrs / Stbd: 9,900 hrs as of January 2016
Gear Boxes: Reduction ZF 4650-A
Shaft & Props: Wartsilla shafts with Veem Star LC 5BLH V*LC propellers
Speeds: Maximum speed: 17.5 knots
Cruising speed: 16.0 knots
Economical speed: 12.5 knots
Fuel Consumptions: 85 gallons/hr @ 12.1 knots
150 gallons/hr @ 14.3 knots
Range: 1,800nm @ 12 knots
1,159nm @ 14 knots
Generators: 115/208V/3 Phase/60 Hz
2 x 125 kW Kohler generators
1 x 65 kW Kohler generator
Hours: Port 125KW genset: 16,318 hrs
Stbd 125KW genset: 16,067 hrs
Aft 65KW genset: 3,796 hrs
Electricity: 120/208v 3 phase 60Hz
Shore Power: 2 x Hyak shore power convertors
1 Phase/3 Phase, 208-480V inputs
Batteries: 12V and 24V 8D Marine batteries
Fuel: 54,125 litres (14,300 US gallons)
Water: 8,327 litres (2,200 US gallons)
Watermakers: 2x watermakers: 7,571 litres (2,000 US gallons)
Lub Oil: 567 litres (150 US gallons)
Dirty Lube Oil: 757 litres (200 US gallons)
Grey Water: 2,752 litres (727 US gallons)
Black Water: 2,812 litres (743 US gallons)
Steering System: Jastram S-Model
Rudder Angle Indicator: Hamilton Jet
Bow Thruster: 100hp American Bow Thruster, Trac 24
Stabilizers: Quantum QC1800 Zero speed
Fuel Filters: Racor fuel/water separators
Fuel Separator: Alfa Laval MAB-103-24
Oil/Water Separator: “Recovered Energy” oily water separator Boss 2TY/107
Fire/Bilge Pumps: 2x MP 29618
Boilers: RHEEM MR35245
Sewage Treatment: FAST biological treatment plant MX-25
WC's: Microphor Microjet LF-710
Air-Conditioning: Cruiseair 30 ton Chilled Water
Ventilation: Cruise Air
Fire-Fighting: Hi-fog fire suppression throughout vessel,
CO2 and foam extinguishers
Alarms: Temperate and smoke alarms
Security: 7x Surveillance cameras
3x split-screen monitors
Satcom: Furuno Inmarsat C Felcom 15
Cellular System: 2x Telular SX5E GSM
VHF Radiotelephones: 2x Icom
Telephone Exchange: 1x Panasonic Hybrid PBX
Intercom System: 1x Panasonic PBX
Magnetic Compass: 1x Delta
Gyrp Compass: 1x Anschutz 2405 Gyrostar II IMO wet
Automatic Pilot: 1x Anschutz 2405
Log: 1x B&G Hercules 2000
Echo Sounder: Furuno Color LCD Sounder FCV-1200L
Radar: 1x Furuno FAR 2137 S-Band
1x Furuno FAR 2117 X-Band
Chart Plotter: Transas Navi-sailor 4000 ECS
GPS: 1x Northstar 6K6 6000i/Plotter
with 6.4 color display, with WASS
Navtex: 1x Furuno NX700A receiver with printer
Wind Instruments: B&G Hurcules 2000
Anchor Windlass: 2x Maxwell windlass
Aft Warping Capstans: 2x Maxwell 4000 capstans
Ground Tackle: 2x 500ft x 20.5mm Galvanized Chain (New 2015)
Boat Crane & Davits: Steelhead Marine CT-4500
Passerelle: Sanguineti, 20’ (6.1m)
Side Boarding Ladders: Marquipt Sea Stair plus retractable
tide rise ladder on Starboard quarter.
Searchlights: 2x Carlisle & Finch
Awning: Brand new Canvas Designers Bridge Deck aft sun shade
State-of-the-art A/V technology throughout:
Computers: 4x Lenovo L530 Laptop
Photocopier/Printer: HP Office Jet Pro 8600

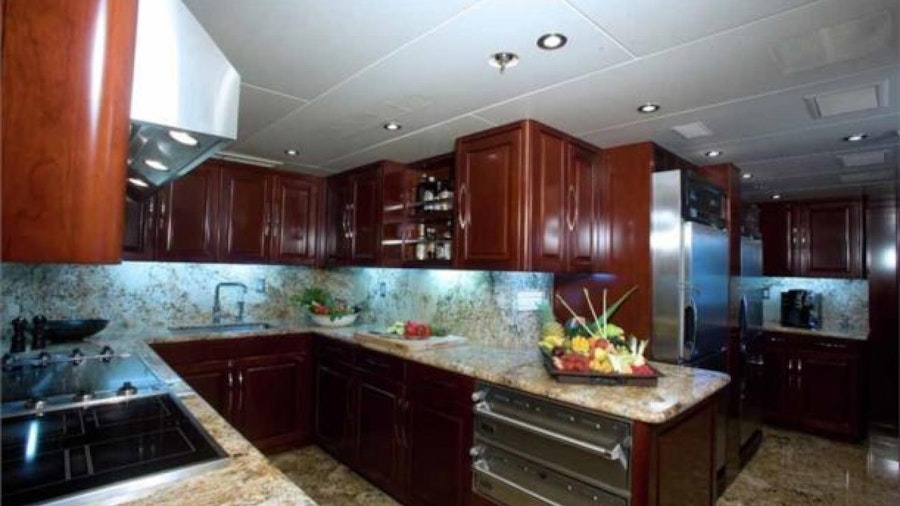

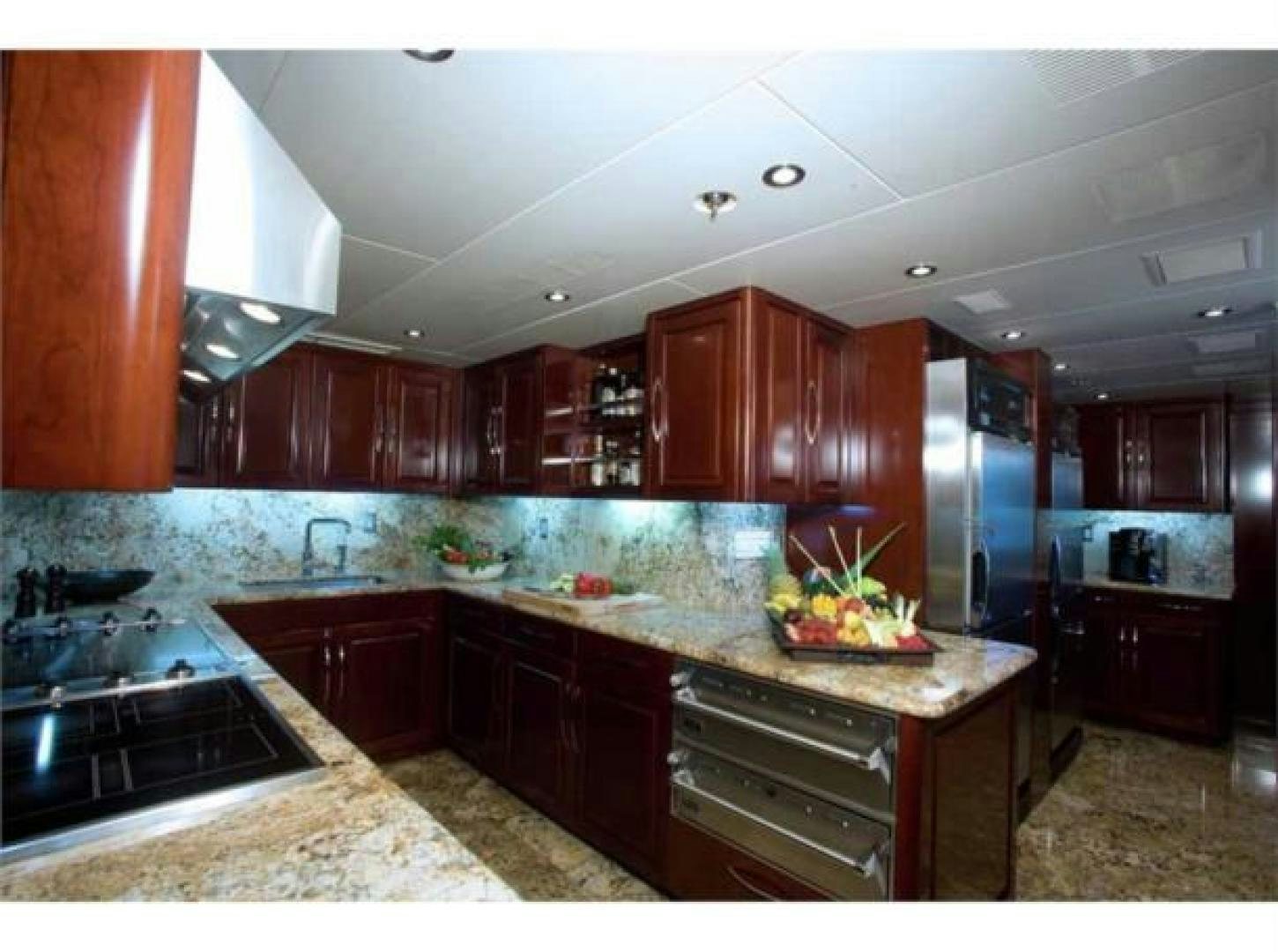

Main Galley: 2x Miele induction stoves
2x Miele ovens, microwave
1x Coldtech, GE and walk-in cooler
2x Viking dishwashers
Laundry: 3x Speed Queen washer/dryers
1x Miele washer/dryer
Jacuzzi: 6-person Jacuzzi Dip Pool
Ship's Safes: Elsafe, in captain’s cabin and guest cabins
Barbeque: Electric Chef Outdoors Grill 4400EC1056
Gym Equipment: Weight bench, dumbbells and assorted loose equipment
Tenders: 1x 12m Custom SACS Stratos Tender with twin 350hp engines
4.6m Nautica with 90hp outboard engine
2x Sea-Doo waverunners
Watersports: 6x SCUBA tanks, snorkel and dive gear
3x F5 SeaBobs (new)
Paddle boards
Waterskis
Flyboard, wakeboard & tows
Diving equipment
Snorkeling gear
Fishing gear
2x inflatable kayak
