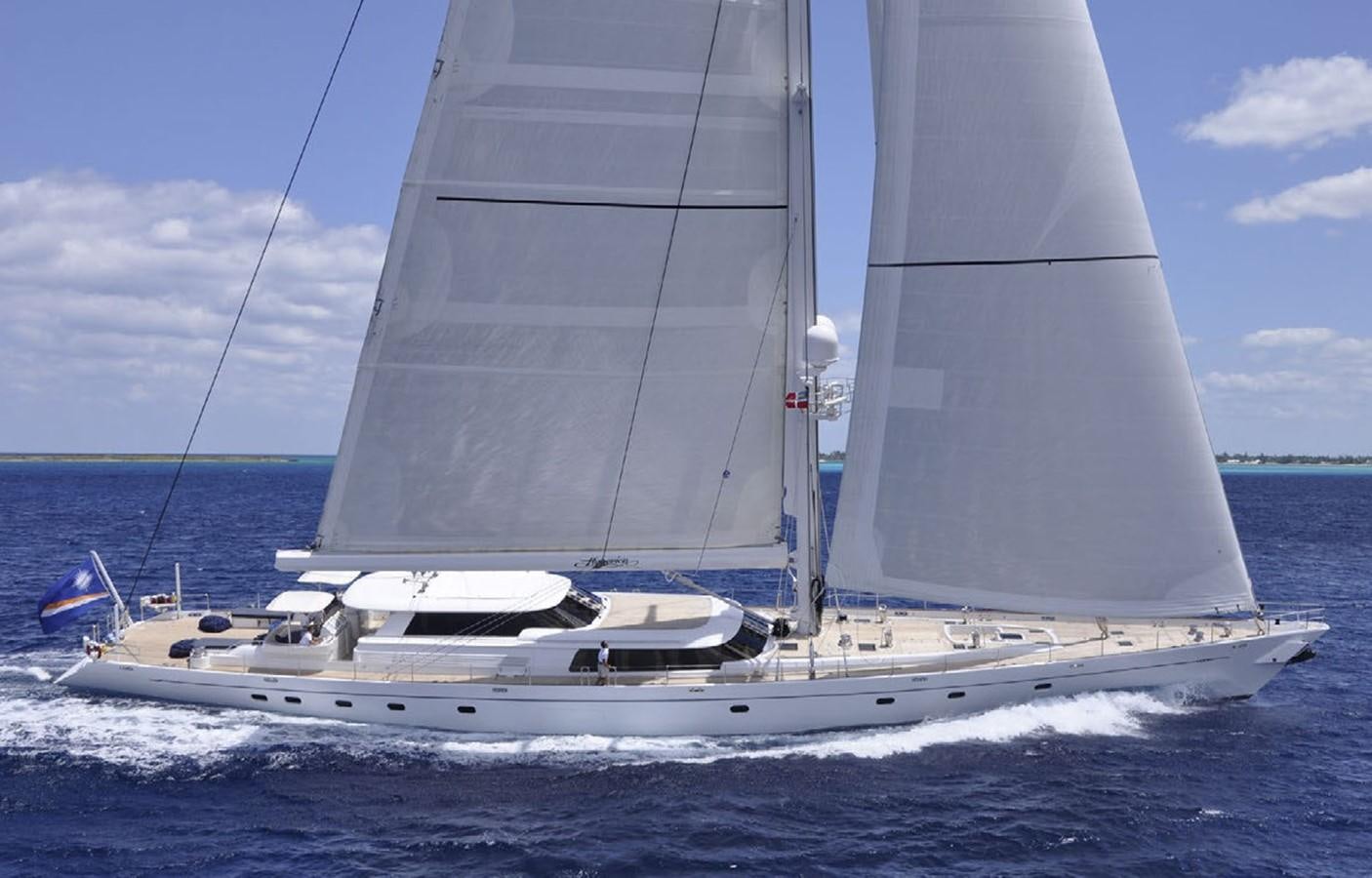

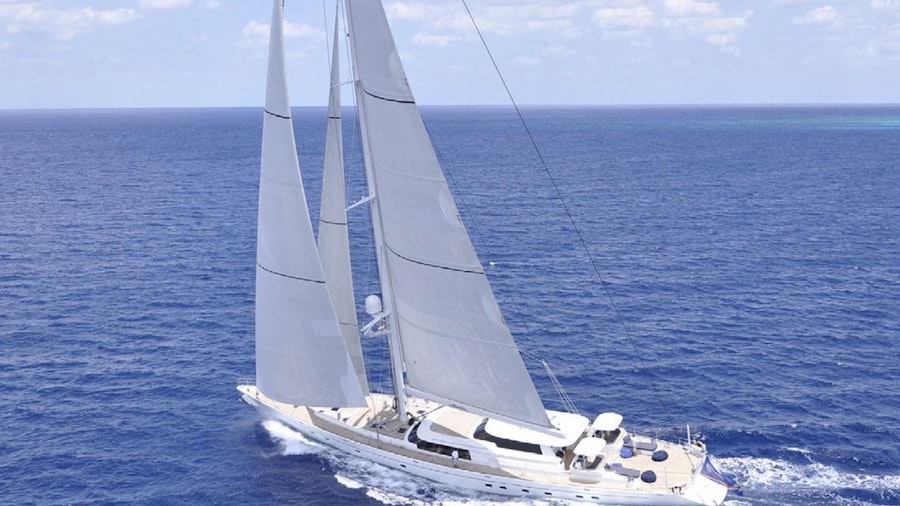

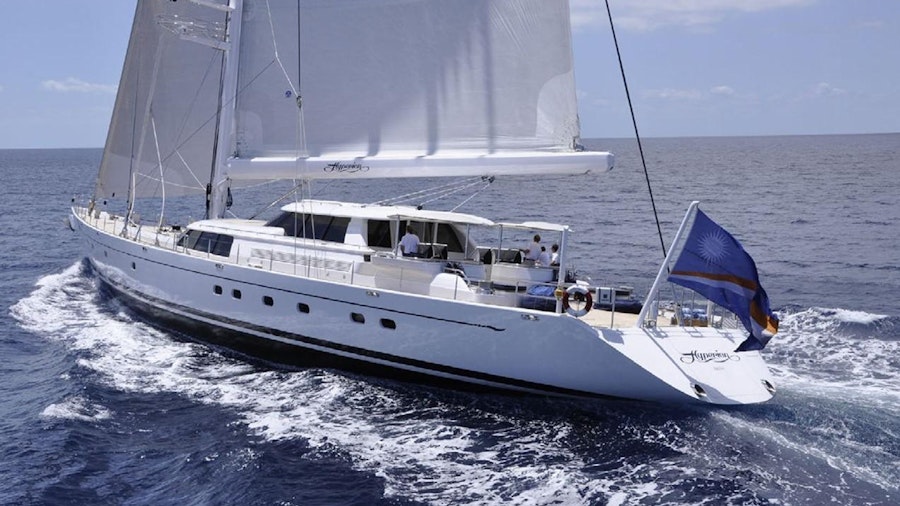

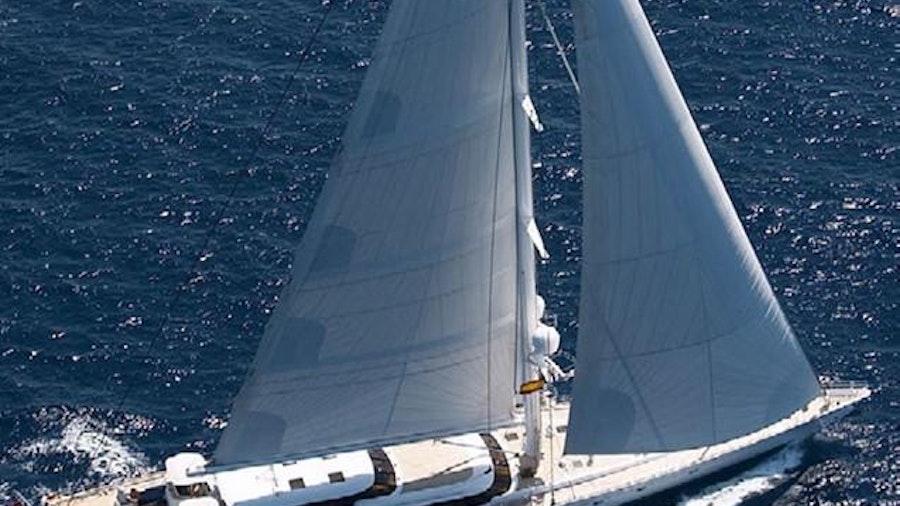

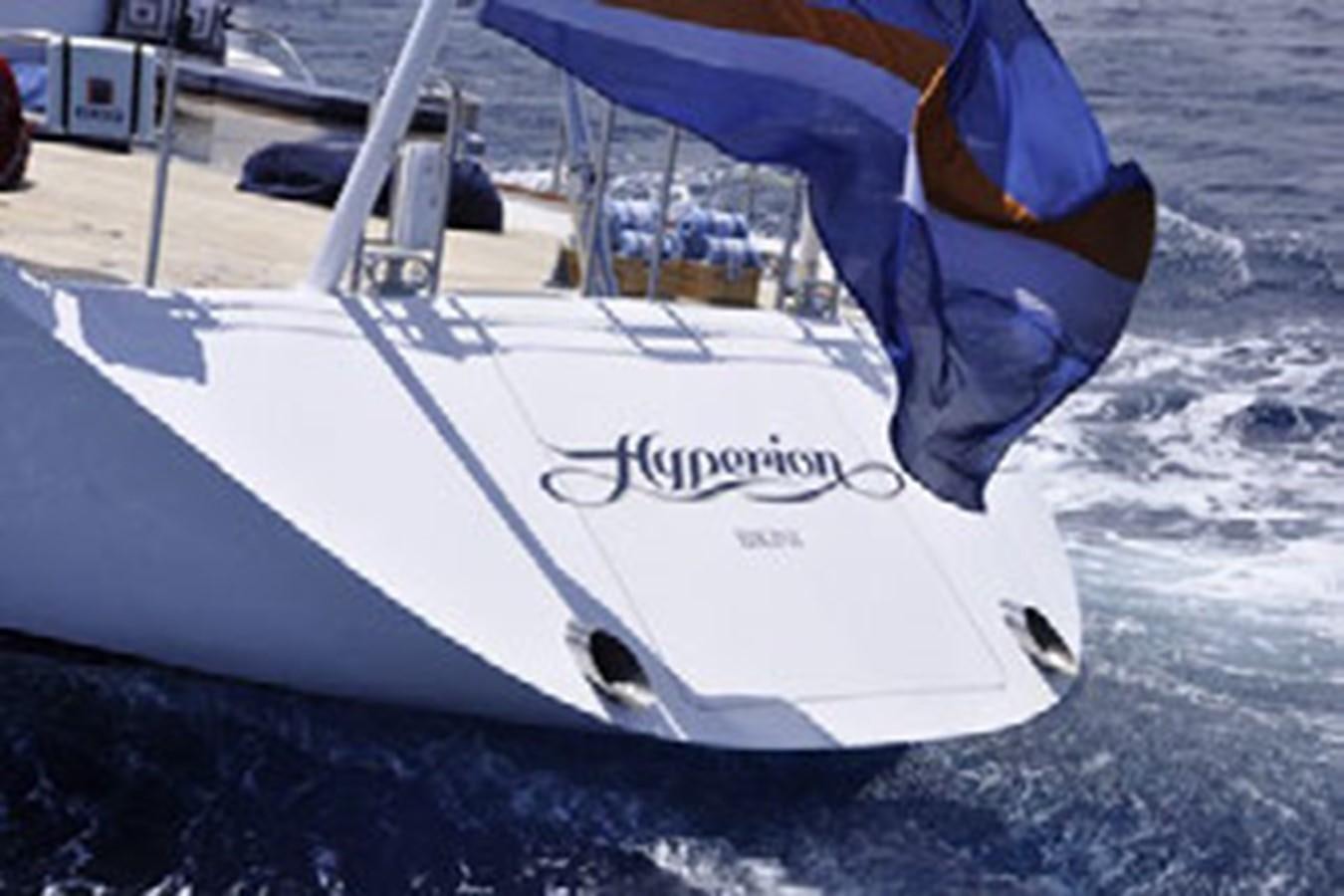

HYPERION Yacht for Sale

155' (47.42m)
ROYAL HUISMAN
1998

Not for sale or charter to U.S. residents while in U.S. waters.

Length 155 FT (47.42 M)
Beam 31 FT (9.56 M)
Draft 24 FT (7.2 M)
Gross Tonnage 305 Ton
Guests 6
Crew 6
Builder ROYAL HUISMAN
Designer German Frers
Year Built 1998
Construction Aluminum
Cruising Speed 11 Knots
LOA 155 FT (47.42 M)
LWL 128 FT (38.8 M)
Beam 31 FT (9.56 M)
Min Draft 16 FT (4.8 M)
Max Draft 24 FT (7.2 M)
Cruising Speed 11 Knots
Max Speed 14 Knots
Gross Tonnage 305 Ton
Water Capacity 3,170 Liters
Fuel Capacity 5,548 Liters
Hull Material Aluminum
Designer German Frers

Full Specifications


  1. MAIN CHARACTERISTICS

    TYPE
    • Sailing Yacht
    RIG
    • Cutter Rigged Auxiliary Sloop
    IMO
    • 1006104
    MMSI
    • 538080020
    BUILDER
    • Royal Huisman, The Netherlands
    NAVAL ARCHITECT
    • German Frers
    EXTERIOR DESIGN
    • German Frers
    INTERIOR DESIGN
    • Pieter Beeldsnijder Design
    YEAR BUILT
    • 1998
    REFIT
    • 2015, 2019-2020
    CLASSIFICATION
    • ABS, Lloyds A1 commercial
    CONSTRUCTION
    • Aluminium Hull & Superstructure, Carbon Fibre daggerboard, Teak laid decks, Carbon Fibre Rig
    CREW
    • Up to 8
    FLAG
    • Marshall Islands
    ENGINES
    • 1 x 800Hp MTU V12 2000 M61 (2013) Diesel
    GT
    • 305
    NT
    • 91
    DISPLACEMENT
    • 285 tons light ship
    BALLAST
    • 80 tons
  2. DIMENSIONS

    LOA
    • 47.42m / 155'6''
    LWL
    • 38.80m / 127'3''
    BEAM
    • 9.56m / 31'4''
    DRAFT
    • 4.80m / 15'8'' keel up
    • 7.20m / 23'7'' keel down
  3. SPEED & RANGE UNDER POWER

    MAXIMUM SPEED
    • 15 knots
    CRUISING SPEED
    • 10 knots
    FUEL CONSUMPTION
    • 100 litres (26 USG) per hour @ 11 knots
    RANGE
    • 2,600 miles approx. @ 10 knots
  4. CAPACITIES

    ACCOMMODATION
    • 6 x Guests in 3 cabins
    CREW
    • 6 x Crew in 2 cabins and up to 2 in Captain's cabin
    FUEL
    • 21,000 litres / 5,550 US gallons
    FRESH WATER
    • 12,000 litres / 3,170 US gallons
    LUBE OIL
    • 300 litres / 80 US gallons
    DIRTY OIL
    • 200 litres / 53 US gallons
    GREY WATER
    • 1,475 litres / 389 US gallons
    BLACK WATER
    • 1,475 litres / 389 US gallons

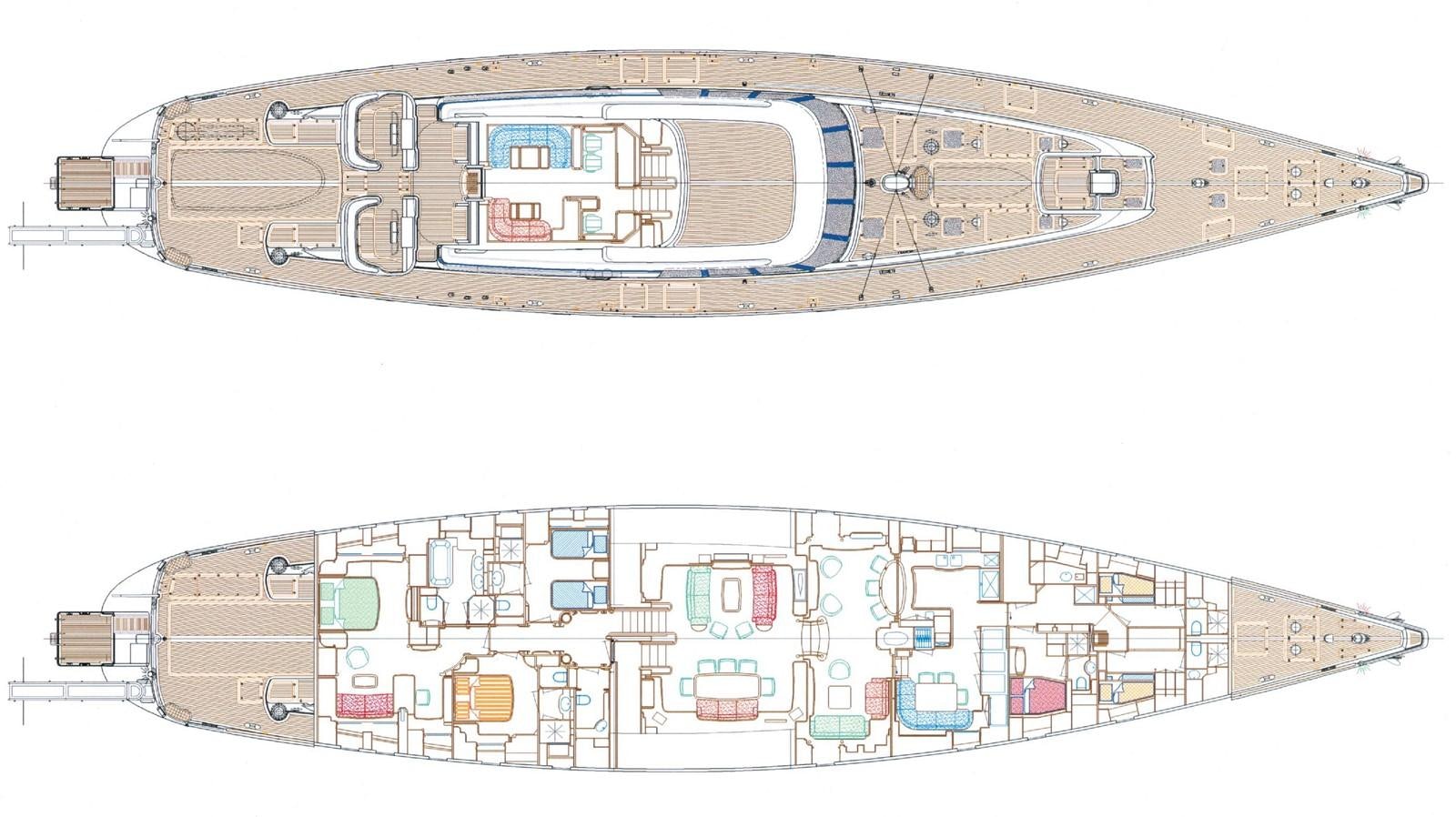

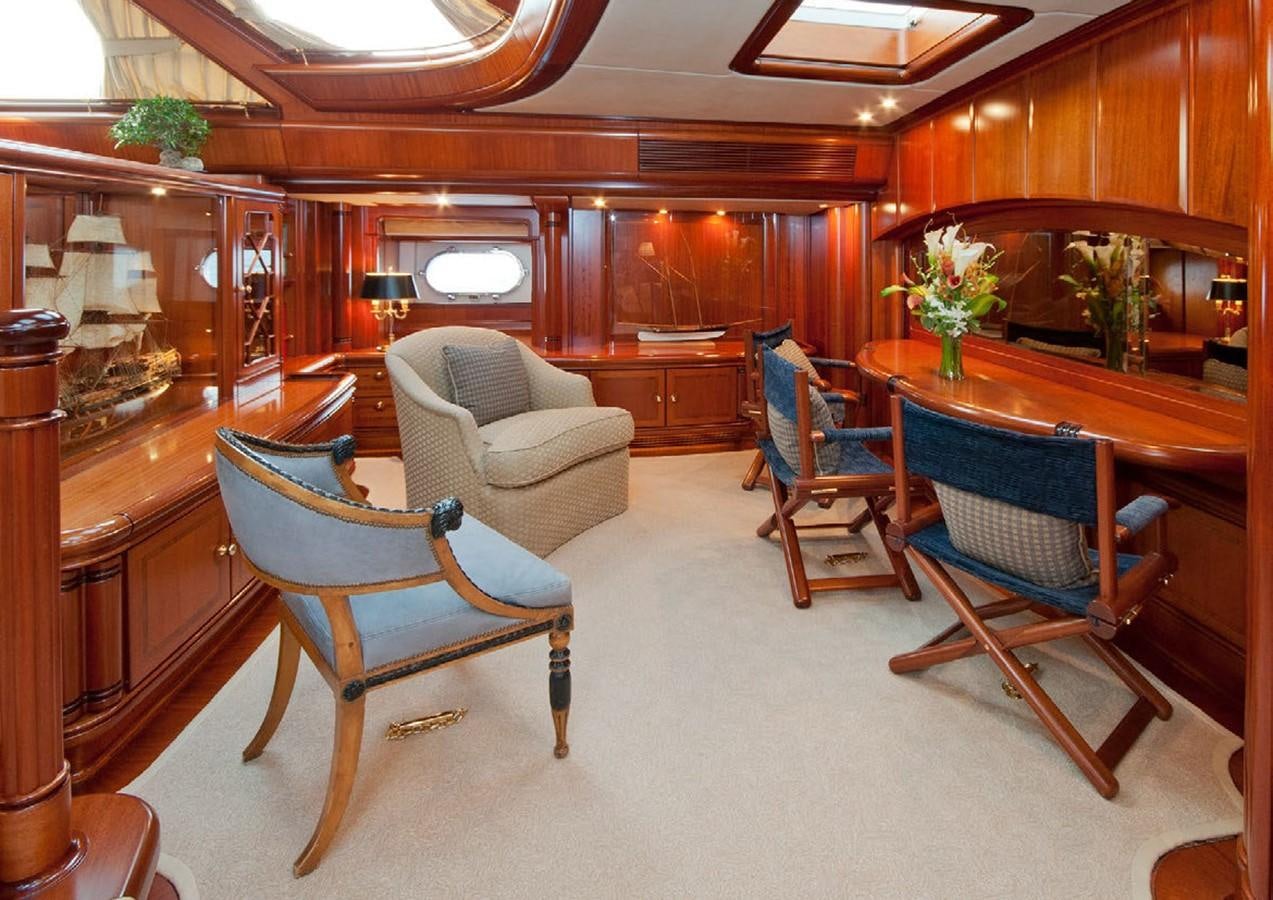

  5. ACCOMMODATION

    OWNER

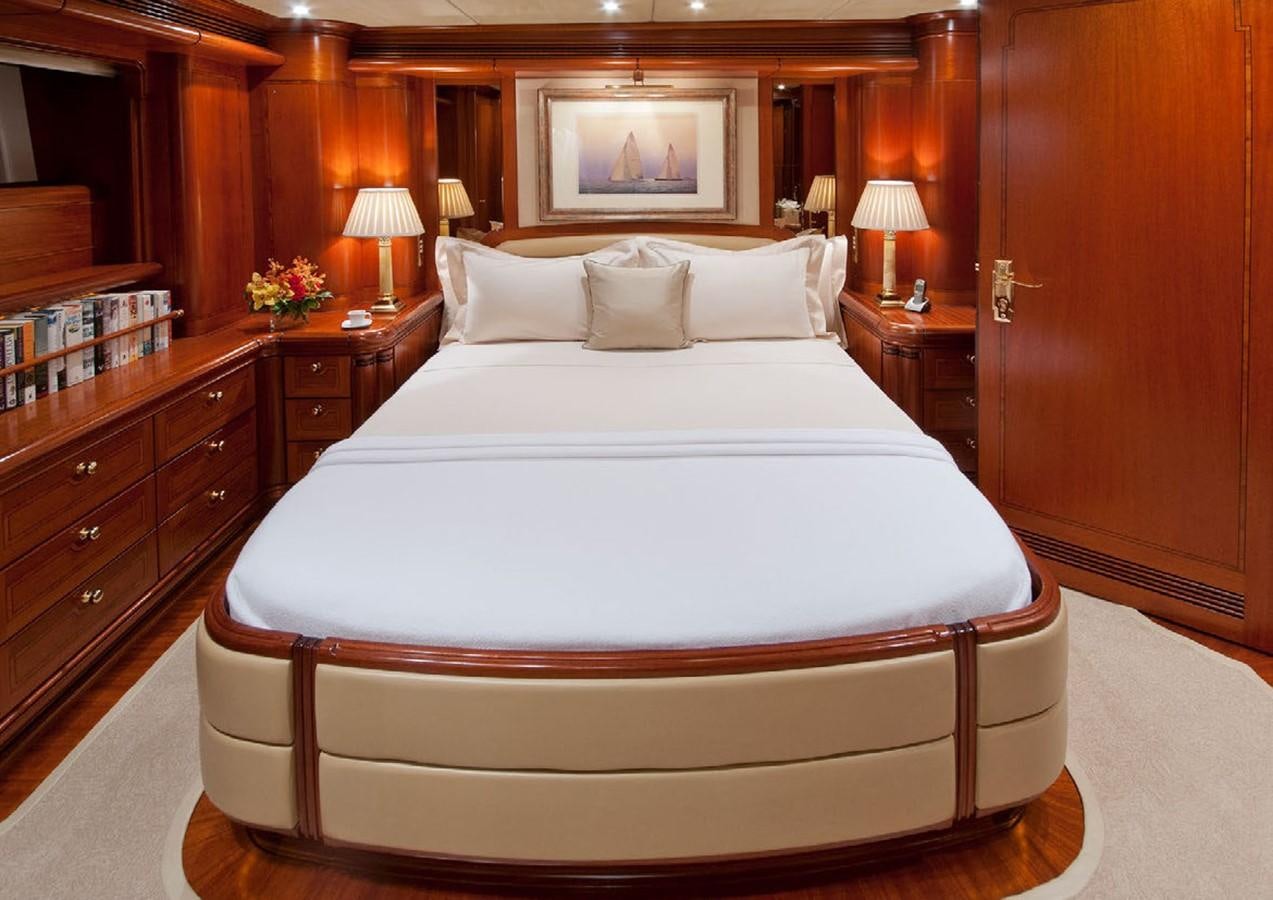

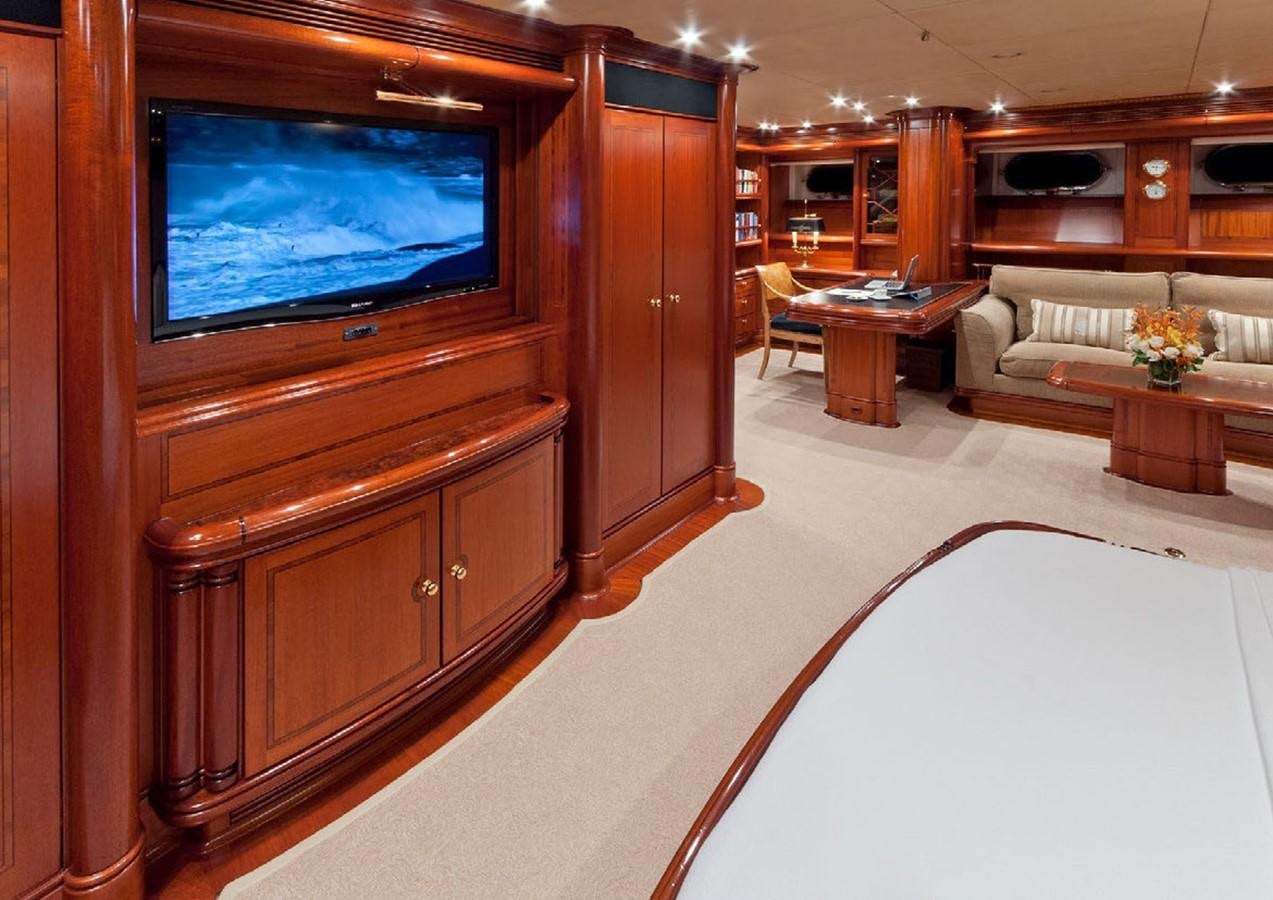

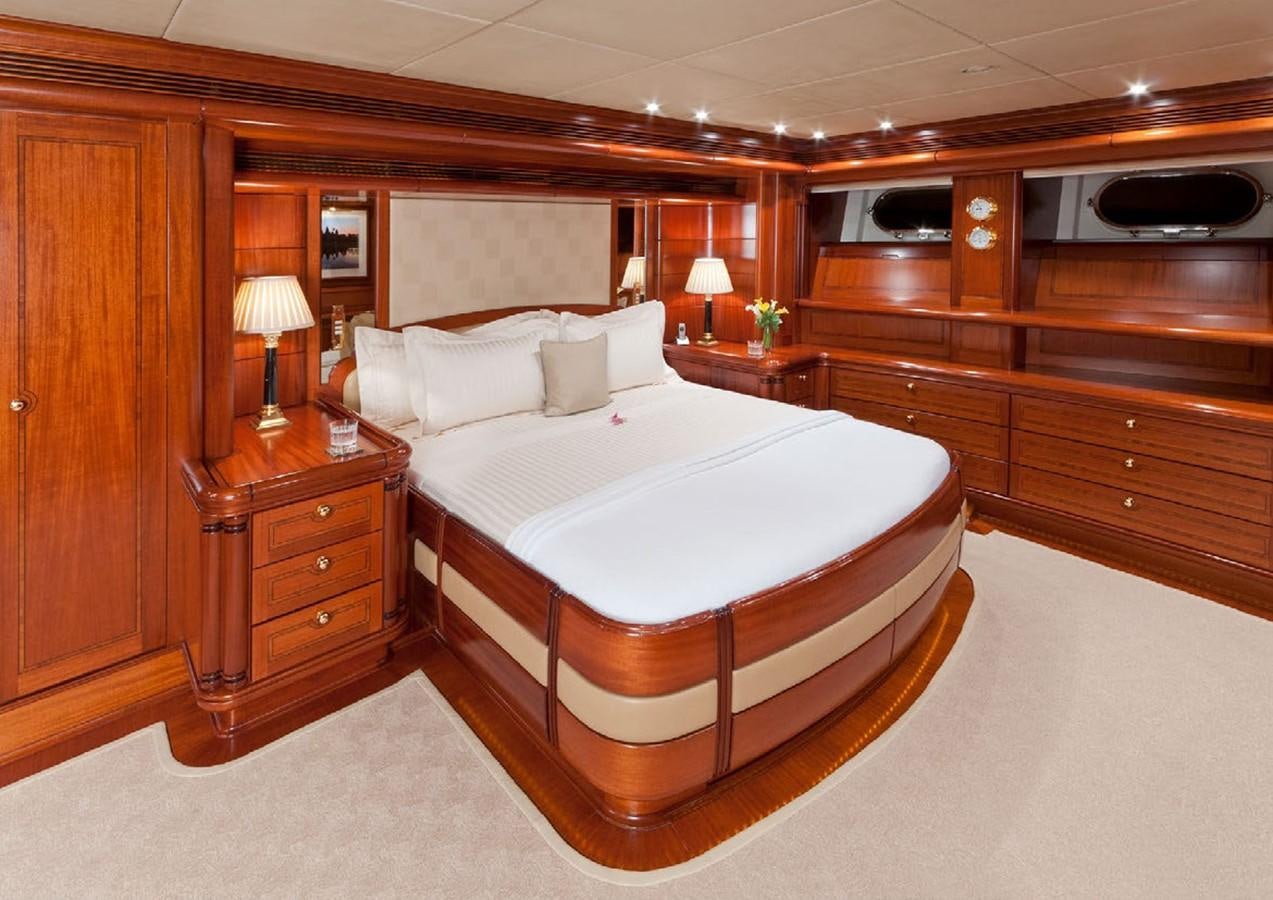

    • 1 x Full width King Master cabin aft with study area, bathroom en suite
    GUESTS
    • 1 x Queen double cabin, starboard aft, shower room en suite
    • 1 x Twin bedded cabin on port side aft, shower room en suite
    CREW
    • 1 x Captain's cabin, forward, double/twin bed, shower room en suite
    • 2 x Triple berthed crew cabins, forward, shower rooms en suite
  6. MECHANICAL EQUIPMENT

    ENGINES
    • 1 x 800Hp / 600kW MTU V12-2000 M61 (2013), Diesel
    ENGINE HOURS
    • As of Dec 2020:
    • 6,644 hours
    GEARBOX
    • 1 x ZF3000A reduction (2013)
    PROPELLER / SHAFT
    • 1 x Hundestad CPP, 1,200mm diam, 4-blade, high skew custom propeller with s/s shaft (2015)
    STEERING SYSTEM
    • Hydraulic Tenfjord SR562, AC & DC back up pumps
    • Rondal hydraulic manual steering port & starboard wheels
    BOWTHRUSTER
    • 1 x 100Hp Vosper Thornycroft retractable
    STERNTHRUSTER
    • 1 x 100Hp Vosper Thornycroft retractable
    GENERATORS
    • 2 x 70kW Northern Lights M1063A Diesel
    GENERATOR HOURS
    • As of Dec 2020:
    • Stbd: 9,973, Port: 9,956 (New 2015)
    ELECTRICITY
    • 220/380V AC – 3-Phase 50Hz ; 24V DC
    SHORE POWER
    • 100 A
    SHORE POWER CONVERTERS
    • 110-480 Magnus
    BATTERIES
    • Itegrated battery, chargers & inverters change seamlessly from generators to batteries only
    • 3 x 24V Banks Sonnenschein of total 7,500 amp hours
    • 15 x 70 A Victron combi units
    WATER MAKERS
    • 2 x HEM reverse osmosis - 24,000 litres (6,349 US gallons) per day
    AIR CONDITIONING
    • Copeland reverse cycle ZR90K3E TWD 551, total 25 ton with 4 x Atlas Copco compressors
    • LE 15 10S (21.5 litres per second)
    • Air handling units in all guest & crew areas
    TOILET SYSTEM
    • Altena water flush system
    SEWAGE SYSTEM
    • Hamann HL, type 11
    FUEL SEPARATOR / FILTERS
    • 1 x Facet MV11 – AG with 1,200 litres / 317 USG per hour
    • 5 x Racor fuel / oil filter systems
    PUMPS
    • 1 x Speck fire pump type 32/200 4MI
    • 2 x Spate bilge pumps type 75
    • 1 x ECO bilge pump type MV44
  7. SAILS & RIGGING

    SAIL WARDROBE
    • All by North Sails (2016 3di)
    • New North main sail (2020)
    • New North MPS (2019)
    • New 3Di Ocean Grey main & jib will be installed in Feb 2022, currently in build with North USA
    UPWIND SAIL AREA
    • 1,116 sqm total
    MAINSAIL
    • 516 sqm
    HEADSAIL
    • 449 sqm
    STAYSAIL
    • 151 sqm (2019, colour matched 2021)

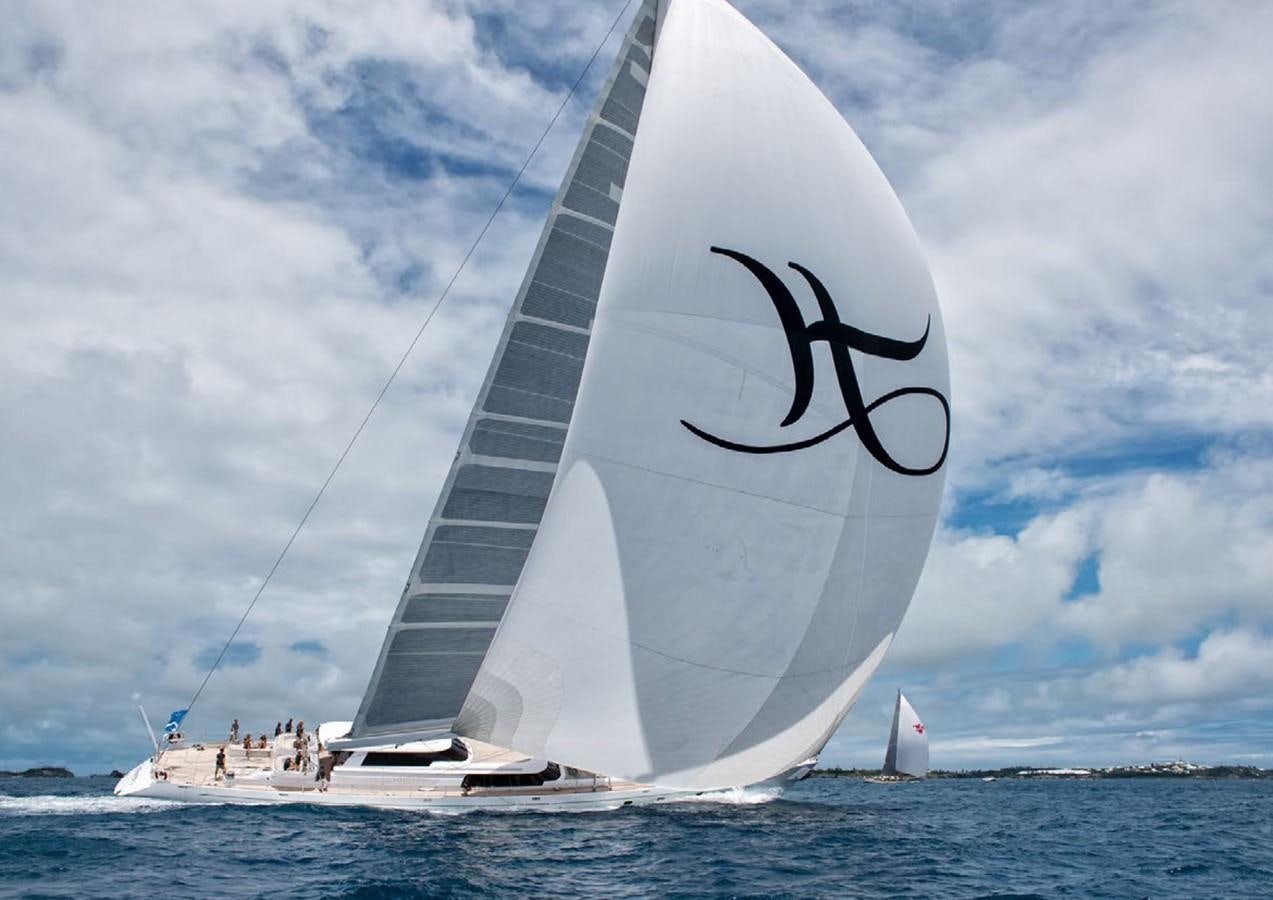

    DOWNWIND SAIL AREA
    • 2,161 sqm total
    CODE 0
    • 884 sqm
    A2
    • 1,494 sqm V-Series Black (2019)
    A3
    • For heavier winds (2011)
    A1.5
    • 1,381 sqm
    MAST MATERIAL
    • Rondal tapered carbon fibre mast
    BOOM MATERIAL
    • Rondal carbon fibre boom with Rollway slab reef furling
    MAST HEIGHT
    • 59.00m / 193.57ft
    STANDING RIGGING
    • Ocean Yacht Systems rod and EC6 carbon rigging
    • Rig pulled, serviced and spars re-sprayed (2018)
    RUNNING RIGGING
    • Gleistein: Vectran and Dyneema
    FURLING SYSTEM
    • Rondal
    WINCHES
    • Captive winches
  8. NAVIGATION EQUIPMENT

    NAVIGATION SCREENS
    • Equipment integrated & distributed through Scada to all 14 x screens in the yacht
    MAGNETIC COMPASSES
    • 1 x Brookes & Gatehouse flux gate
    • 1 x C Plath, with Deviation card
    GYRO COMPASS
    • 2 x Magnetron compass type Optical
    AUTOMATIC PILOT
    • 3 x Simrad AP70 automatic pilots
    ECHO SOUNDERS
    • 3 x Brookes & Gatehouse
    RADARS
    • 2 x Furuno type RCU 15
    TRANSIT SATNAV
    • 1 x SA – C transit SAT navigation system
    AIS
    • 1 x Sailor 6280 class A
    GPS
    • 2 x Simrad GPS type GN70
    CHARTS
    • Transas ECS4000 World portfolio,
    • Expedition Race tactician software
    NAVTEX
    • 1 x Sailor, type: 6391
    LOG
    • 2 x Brookes & Gatehouse logs
    WIND INSTRUMENTS
    • B&G on masthead - 5000 series
  9. COMMUNICATION EQUIPMENT

    SATCOM
    • 2 x Sailor V-sat 900
    TRANSCEIVER SATCOM
    • 1 x Thrane & Thrane Sat C
    • communication Sailor 6110
    VHF
    • 1 x Sailor VHF type
    • 1 x Simrad VHF
    • 6 x Icom handheld VHF type IC – M1V
    • 10 x Icom UHF
    SSB
    • 1 x Sailor VHF type MF/HF 6310
    CELLULAR SYSTEM
    • 2 x Siemens cellular GSM Terminal
    TELEPHONE EXCHANGE
    • 1 x Panasonic wireless Panasonic
    • IP NS700 28 extensions throughout, POE
    AUTOMATION
    • 11 x Programmable Logical Controllers (PLC) for system automation
    • 14 x Custom Intel Solid state PCs systems under Data Acquisition system (SCADA)
    SOFTWARE
    • Scada custom built software for documentation & manuals
    • Programming software for PLCs
    COMPUTERS
    • 5 x Lenovo laptop computers running windows for crew departments
    • 2 x Office PCs (computer room)
    • 7 x iPads for AV use
    PRINTERS / SCANNER
    • 1 x Epson 830 (bridge)
    • 1 x HP Colour Laser Jet (computer room)
  10. DECK EQUIPMENT

    ANCHOR WINDLASSES
    • 2 x Steen SS
    AFT WARPING CAPSTANS
    • 2 x Steen S
    ANCHORS
    • 2 x 600lbs CQR
    • 1 x Fortress collapsible anchors
    ANCHOR CHAINS
    • 2 x 140m/459ft (5.10 shackles) 19mm stud linked in SS Rondal
    • Anchor whips recessed under deck
    BOAT CRANE & DAVITS
    • 1 x Royal Huisman custom hydraulic boat crane, aft deck
    PASSERELLE
    • 1 x Hydraulic Mediterranean style on aft
    SIDE BOARDING LADDER
    • 1 x Hydraulic
    SWIMMING PLATFORM
    • 1 x Hydraulic on aft
    AWNINGS
    • 2 x Helm station biminis
    • 1 x Aft deck Awning sail, 3Di sail
  11. ENTERTAINMENT EQUIPMENT

    • 42" Plasma Screens in saloon & owner’s cabin
    • 20" Screen in Guest Cabins
    • Sony Independent DVD Player
    • Seascape stereo music system throughout: 9-independent zones, access to 2,000 CD albums in MP3 format from a central hard disc
    • 800 x movies to choose from via computer & touch system
    • WiFi
  12. GALLEY & LAUNDRY EQUIPMENT

    MAIN GALLEY
    • 1 x Jura espresso / cappuccino
    • 5 x Gaggenau gas cooking hobs VC 223/VG 230
    • 1 x Gaggenau grill type VR 332
    • 1 x Gaggenau electric oven type EB 388
    • 1 x Miele Microwave
    REFRIGERATION
    • 7 x Fridges: Total capacity: 1,896 litres / 521 USG
    • 4 x Freezers: Total capacity: 1,314 litres / 347 USG
    DISHWASHER
    • 1 x Miele GG66 Professional (2015)
    VACUUM CLEANER
    • 1 x Beam 2250 central vacuum cleaner, ducted throughout boat (2015)
    ICE MAKERS
    • 2 x U–Line ice makers (2015)
    LAUNDRY
    • 2 x Miele washing machines, Pro series (2015)
    • 2 x Miele tumble dryers, Pro series (2015)
  13. SECURITY & SAFETY EQUIPMENT

    SAFETY
    • 2 x 12-person Solas approved Survival RFD life rafts
    • 2 x MOM modules
    • Extensive personal life saving equipment
    FIRE FIGHTING
    • 4 x FM 200 fixed firefighting systems (engine room, control room, computer room)
    SECURITY
    • 1 x DE RAA Techno-max electronic safes
    • 3 x Yale Safes
    • Sada RHS alarm monitoring system, for alarm handling, controlling & monitoring of all systems onboard
    • 8 x Security cameras onboard
  14. TENDERS & WATERSPORTS EQUIPMENT

    TENDERS
    • 1 x 17' - 5.40m Mcmullen Wing custom RIB with Volvo D3 170Hp diesel stern drive, Garmin GPS & sounder (stowed below deck in aft deck tender bay)
    • 1 x Zodiac inflatable tender with Yamaha 40Hp 2 stroke o/b (stowed below deck in fwd port & stbd tender bays)
    WATER SPORTS
    • 2 x Sea bobs, jet shooters
    • 2 x e-Foils, flight boards
    • 2 x Solid foam core paddle boards
    • Water skis
    • Wake boards
    • Kids tube and towable toys
    • Selection of fins masks wetsuits and rash vests
  15. REFIT NOTES

    • 2019-2020

      • Complete repaint – hull and superstructure
      • Complete overhaul – all piping, solenoids, valves and hoses (Huisman)
      • Rudder, centre board, bow thruster – dropped and serviced
      • Interior re-vanish
    • 2014-2015

      • Refit completed at Royal Huisman shipyard
      • Upgrading propulsion shaft and propeller
      • Replacement and installation of new gensets
      • New main switchboard
      • Upgrading of navigation and communication electronics
      • Upgrading of PLC hardware and Alarm and Monitoring software
      • Maintenance, overhaul and painting of hull and superstructure
      • New teak decking

    Full details of HYPERION’s refit can be supplied upon request

  16. COMMENTS

    With a hull from German Frers, an interior by Peter Beeldsnijder and built by the world renowned Dutch shipyard Royal Huisman, HYPERION is a class act with a legacy to match. She was built for a technology pioneer and experienced yachtsman. Her design incorporates many high tech features and ideas, even down to her carbon dagger board. When she was launched, she had the tallest ever single rig.
    Still only in her second ownership, she has always been maintained in first class order from day one. Her most recent refit saw her return to her build yard in 2014/15 where all the machinery (including generators, air conditioning & refrigeration) down to the teak decks, paint and much more were completely renewed. Subsequently, she has seen a new suit of North Sails in 2016, rig pulled / serviced, spars re-sprayed. She really is ready to go! If required, she is also charter compliant.
    HYPERION is a timeless comfortable performer, capable of collecting silver at SuperYacht Bucket regattas or simply exploring the world in style.
