HORIZON FD90 Yacht for Sale
Not for sale or charter to U.S. residents while in U.S. waters.
Horizon FD90 Split-Use Skylounge
The \n most popular model in the acclaimed FD Series, the FD90 embodies the \nspace, layout and performance that define the Fast Displacement range. \n The FD90 features an expansive 23’ 3” beam, spacious on-deck Master \nwith four guest staterooms and two crew cabins below deck, and large \nwindows in the salon. Fitted throughout with ingenious amenities and \nendless options for customization, the FD90 is quickly becoming one of \nthe world’s most sought-after mid-range motor yachts.
In The News
Specifications
| Builder | HORIZON YACHTS |
|---|---|
| Model | Horizon FD90-234 |
| Length (LOA) | 90' (27.43m) |
| Year | 2025 |
| Draft | 6' (1.82m) |
| Beam | 23' (7.08m) |
Accommodations
| Staterooms | 5 |
|---|---|
| Sleeps | 9 |
| Heads | 5 |
| Capt. Quarters | Yes |
|---|
Dimensions & Capacity
| LOA | 90' (27.43m) |
|---|---|
| LWL | 82' (24.79m) |
| Min Draft | 6' (1.77m) |
| Max Draft | 6' (1.82m) |
| Fuel Tank | 3,480 g (3,480 L) |
| Fresh Water | 400 g (400 L) |
| Holding Tank | 200 g (757 L) |
Construction
| Hull Material | Fiberglass |
|---|---|
| Hull Config | Fast Displacement Hull |
| Ext. Designer | Cor D Rover |
| Int. Designer | Horizon Yachts |
Complete the form below and one of our experienced sales brokers will be in touch soon.
Full Details
Specifications
ABS/DNV type-approved fiber/resin & sandwich core material applied
White gelcoat finish for hull above water line,exterior decks, and furniture
One-piece hull and superstructure utilizing SCRIMPTM technology with Horizon patented 6Dinfusion, incl. longitudinal and transverse stingers
Hull, deck & superstructure are built with licensed process SCRIMPTM for improved strength and less weight
Hybrid design hull bottom with sandwich construction and solid fiberglass
High-density Divinycell or equivalent foam cored hull sides, decks, and superstructure
Stringers with high-density foam coring
Interior structural components are all properly bonded to the hull
Strong collision bulkhead structure for extra safety
International anti-fouling bottom paint with anti-osmosis treatment
PropSpeed/PropGold metal paint for underwater appendages
Tunnels for reduced draft
High Performance Piercing Bow (HPPB) with S/S protection plates
Upper deck with bump out design at PORT and STBD side
Asymmetrical open-skylounge design (STBD side wide body, incl. a non-skid ledge and grab rail above
Exterior Deck & Equipment
[if gte mso 9]>
Teak aft deck, teak swim platform, teak open skylounge and teak steps to upper deck and swim platform. Non-skid for the rest
FRP cap rail
Maxwell VWC3500 vertical hydraulic anchor winches (x2) with local foot switches and remote
Maxwell VC2500 electrical rope capstan on aft deck (x2)
ACCO 300ft High tensile 1/2” anchor chains (x2)
100 Kg S/S anchors (x2)
S/S rollers (x2) and chain stopper
Chain counter (x2, one per windlass) at pilothouse
Heavy-duty 316 S/S cleats and fairlead with rollers
Aft deck corner hawsers (x2)
Bulwarks with flush-mounted courtesy lights
Bulwark side doors (x2) at aft deck for boarding
MarQuipt 7-step aluminum side boarding sea stair (incl. FRP storage box)
Freshwater/seawater anchor chain washdown system by manual operation
1-3/4” handrail with 1-1/2” S/S stanchions and steel cable around the entire boat
S/S flagpole at bow
Standard lines and ProStock fenders PF7 (x4) & PF36x48 (x1), incl. Horizon logo covers
Portuguese bridge with sofa seats as per the layout
Foredeck sunbathing cushion with cup holders and pop-up lights (x2)
One hidden sink to the FWD PORT sidewalk
Frameless windows, slightly tinted tempered laminated Low-E glass for the windshield
Frameless windows, tinted tempered laminated glass for side windows
Stairs from aft deck to swim platform with S/S gate doors and handrails
Salon local-made S/S electric sliding entrance door
Deckhouse sliding side doors with inflatable seal around door frame (x2, one at each side)
A wind door on each side of the aft deck to its side walkway
Aft deck full set seating (incl. a Hi-Lo & slidable table with two leaves, a rear sofa with backrest and side countertop)

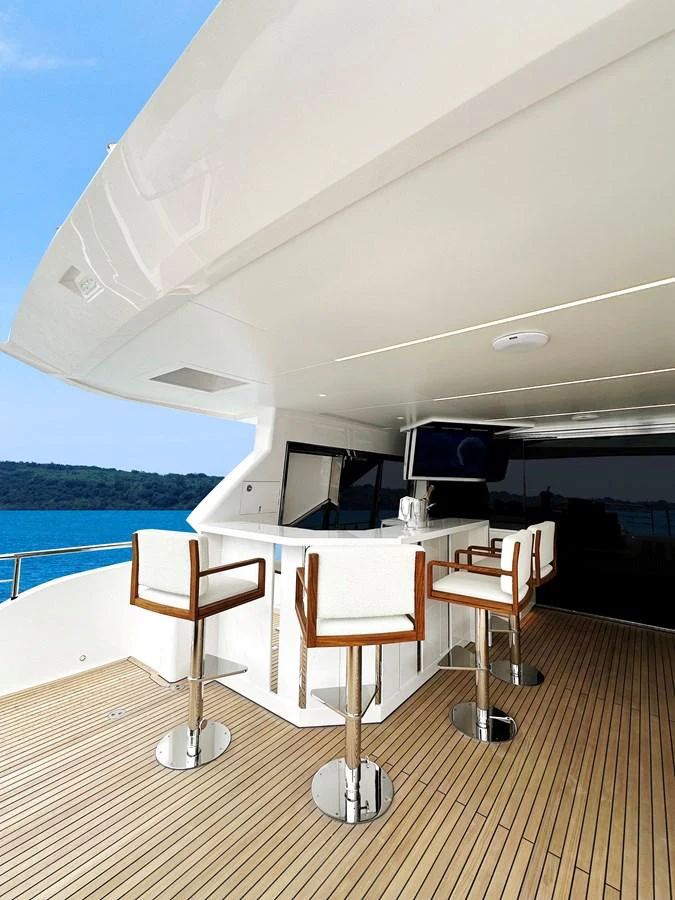

Aft deck bar with a sink, a Vitrifrigo refrigerator, and an ice maker (C85IXD4X & IMHYDIXN1-X)
One integrated stair from the aft deck to the upper deck
Hydraulic Hi-Lo swim platform with a function as a tender lift to max 2500 lbs /1130 kg
Two pop-up cleats on the Hi-Lo swim platform
Boat hooks (x2)
Built-in shower with hot/cold water above the swim platform
One extractable or foldable swim ladder
Sun awning to Foredeck & upper deck (total 2 sets)
Rub rail around hull sides
S/S portholes (incl. two openable portholes in the master stateroom and one in galley)
Exterior LED step lights
Two 2” Removable corner rails on the swim platform (with extra 4 sockets on fixed platform)
Prewire LED boat name on PORT, STBD, and stern (3 sets, max. 8 letters/set)
Doors to exterior area with screen if applicable (except curved door, L-shaped hatch door, and pantograph door)
Garage
[if gte mso 9]>
Non-skid floor
Hydraulic stern door with a pantograph door in the middle
Storage as per layout
A set of Miele washer and dryer (WXF660, TXD160WP)
Open Skylounge & Boat Deck
OPEN SKYLOUNGE
Custom asymmetric open skylounge with a PORT two-level bar (incl. 4 stools, a sink, a Vitrifrigo C85IXD4X-1 refrigerator & IMHYDIXN1-X ice maker, and a SUMMIT SCR611GLOSHLHD wine cooler) and a STBD U-shaped seat with a table as per the layout
Teak floor
Pre-wire for future fans installing at the open skylounge ceiling
Hatch on the hardtop with a ship loose retractable ladder

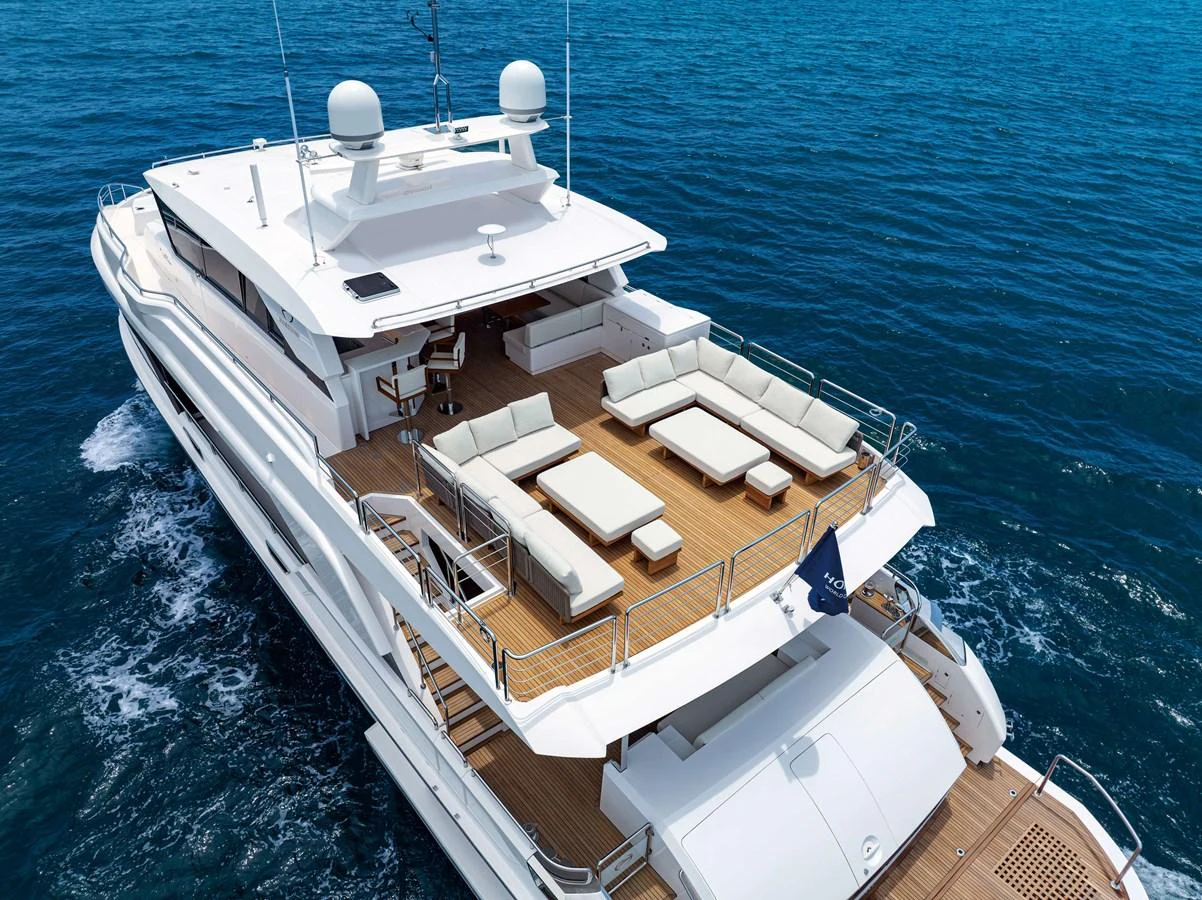

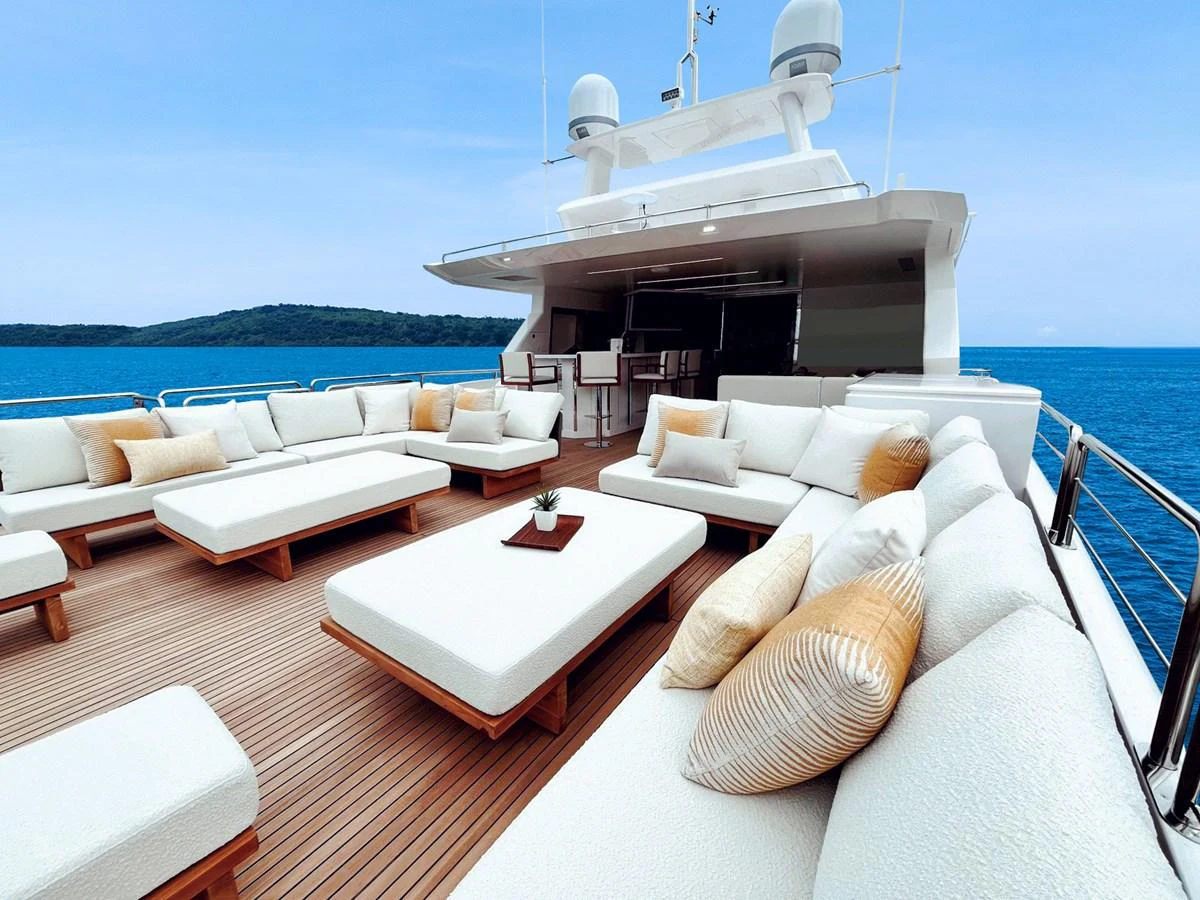

BOAT DECK
Teak floor (excl. side walkways)
Upper deck arrangement as per layout:
1 ) L-shaped sofa (x2) with side tables,
2 ) Pre-wire & pre-engineer with structure reinforcement for a davit (2500 lbs) and hot tub (JNJ Spa-543) to install in the future
Andari/Trend/4 Spaces/Fabrica fabrics for exterior cushions and sunpad
Stamoid covers (“Smart 1” or equivalent, White color) for upper deck loose furniture, helm seats, aft deck seats, and foredeck sunpads and seats
One hidden Propane 24" BBQ with manual Hi-Lo
Oversized drains with strainers on each corner of the upper deck and internal overboard drains
Radar arch with antenna bracket
Tokai Sanshin LED search lights (x2)
Lumitec flooding lights (x4; 2 for mast and 2 for upper deck)
Chrome-plated Buell air horns on top of the radar arch
S/S flagpole at stern
LED warm white lights for Horizon logo on PORT & STBD side
8-person life raft with bracket (A pack, 2 units)
Engine & Propulsion Details
[if gte mso 9]>
Twin diesel engines with reduction gears
Live SAE-C PTO on gearboxes for thrusters/windlass & stabilizer power
SAE-A PTO on engines for hydraulic steering gear
Seatorque shaft system (incl. Seatorque Bolt On Shaft System, "BOSS", model no. M4B: AQ22HS s/s shaft, Cardan shaft, QuicKutter line cutters)
High-performance VEEM Superyacht 6-blade propellers
Bronze struts with backing plates
Rudder packing glands with Tides Marine dripless seals
ZF Mathers engine controls with chrome control head at helm (each) station
One remote handheld control (with throttles, gears, and thrusters) with two plugs (one at the aft deck and one in the pilothouse)
Yacht controller (Supremo, STL wireless control, incl. acceleration, thrusters, and windlass buttons, and digital cone antenna)
FRP foil balanced blade rudder with S/S rudder stock (x2)
Hypro power steering system
S/S emergency tiller in rudder cabin
24” S/S steering wheel(s)
Underwater exhaust system for engines with bypass mufflers
Side-Power hydraulic stabilizer system SPS93B
VF1650 (1.65 square meters) with “At Anchor” function
Side-Power hydraulic bow thruster SH550 (550 kg) and stern thruster SH420 (420 kg)
Zipwake interceptor system
Mechanical Systems
GENERAL DESCRIPTION
[if gte mso 9]>
Marine-grade pipes applied throughout the boat
Color-coded piping system for easy identification
Engine room strainer plumbing with crossover line, freshwater flush, and an extra custom cap
Prewire and pre-plumb for a diving compressor
FUEL OIL SYSTEM
Fuel tanks with sight & electric gauges and capacity specified in Principal Dimension above
ISO grade fuel hose through the entire system
Dual Racor 75/1000 MA fuel filters/water separator for each engine
Racor 500 MA fuel filters (x2), one on each generator
Oberdorfer electric fuel transfer pumps (x2)
Oil change pump system for engines, gears, and generators
Reverso FPS210 fuel polishing system
FRESHWATER SYSTEM
FRP water tank, capacity specified in Principal Dimension above
Fresh water hose bibbs on foredeck, aft deck, and upper deck
30-gal water heaters (x2)
High-volume Headhunter AC freshwater pressure pump and one DC pump for backup
Spot Zero watermaker (SeaXchange XTCII 1800 & ZTC II 2000)
Freshwater outlet & hose for filling the engine and generator expansion tanks
Charcoal filters are plumbed into the freshwater line: shore water inlet and galley
Hot water circulation pump
AIR CONDITIONING SYSTEM
Marine Air Dometic Smart Start chilled water air conditioning system
Air handlers for interior, incl. engine room (18K BTU, incl. controller)
Honeywell dehumidification system (Honeywell DR65A3000 x 5 units, including T10 Pro smart thermostat control panel per unit)
One backup Side Power seawater cooling pump for stabilizer
Ship loose a backup air conditioning seawater circulation pump
SANITARY SYSTEM
Headhunter and Tecma toilet system
200-gal holding tank with deck fitting for dockside pump out
100-gal sump tank with pump for each shower & washer drainage area
Headhunter sanitary treatment system (TW-HMX 6001LP)
Electric level indicators for holding tank and sump tank
BILGE WATER SYSTEM
Electric Rule Bilge Pumps
Manual bilge pumps (x2) in engine room and forward staterooms
High water level bilge alarm
Bilge exhaust ventilation fans
Deck wash-down pump with outlets at chain lockers and transom
FIRE SAFETY SYSTEM
Fire insulation in the engine room
Fire-resistant treatment for pipe penetrations
Fixed fire extinguisher for the engine room with a remote pull station
Automatic/manual shutdown system
Automatic fire damper system
Portable fire extinguishers (x5)
Ship loose fire blankets (x3)
Integrated fire alarm system in pilothouse, with CO and smoke detector in accommodation space, heat detector in galley, and Engine Room
Marine-grade pipes are applied throughout the boat
Electrical Systems
GENERAL DESCRIPTION
Color-coded wiring for easy identification
AC & DC main electric panel with circuit breakers
Sub-panel design with circuit breakers in each zone for electrical distribution
Emergency power package & lighting system
AC volt receptacles located throughout, including the engine room
GFI protection for all AC outlets in exterior, heads, galley, and engine room
Fiberglass water/exhaust separator for generators
Electrolysis bonding system
Cathodic protection with zinc anodes for shafts, struts, etc
Indirect lighting under the valance in the salon, staterooms, open-skylounge, and galley
Dimmer system for LED ceiling lights on aft deck and open-skylounge
Dimmer system for LED ceiling lights in salon, pilothouse, master, and VIP staterooms
Italian Vimar outlets & switches for lighting system
Motion detection light at the guest foyer close to staircase
Underwater lights (x8)
Pre-wire & pre-engineer for FLIR M364C night vision future installation
AC/DC MAIN POWER SYSTEM
AC electrical system: 240V/120V, Single-Phase 3-Wire, 60Hz
255 Ah 12V AGM start batteries (x4) for engines/generators with battery chargers (x2)
210 Ah AGM batteries(x8) for ship‘s DC 24V service power with a combined inverter/charger (x2)
210 Ah emergency batteries(x2) above main deck with a dedicated independent battery charger (x1)
All batteries are enclosed with proper fixtures
Ignition-protected battery switch
Octoplex multiplexing power distribution system
Maretron monitoring and control system
SHORE POWER SYSTEM
Glendinning shore power Cablemasters (x2)
100Amp with 75’ power cable each
Shore power connection with 100Amp ISO boost polarization transformer and galvanic isolator (x2)
Shore power 100Amp plug (x2) and 100Amp bow inlet (x2)
Interior Decor & Equipment
[if gte mso 9]>

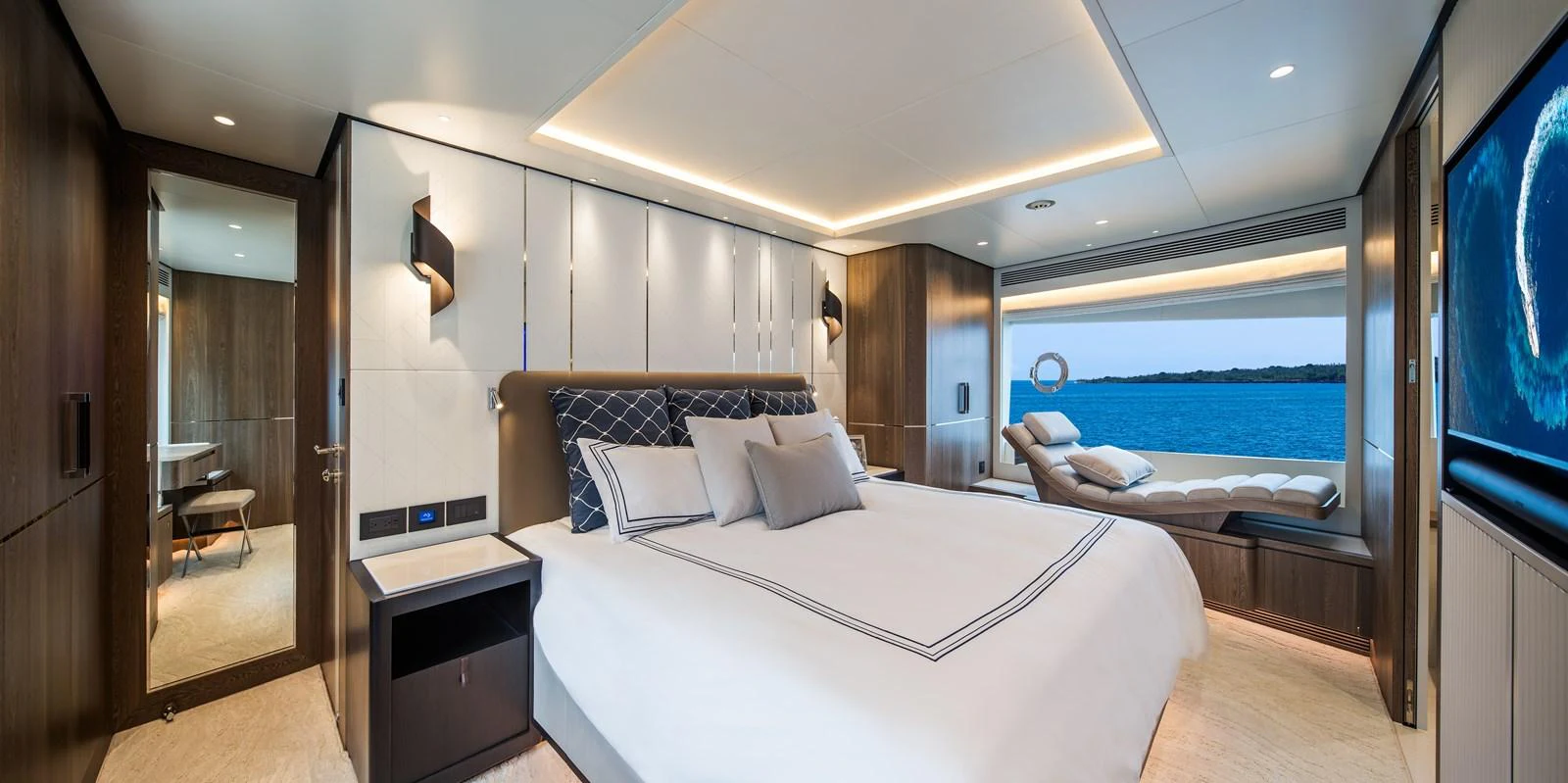

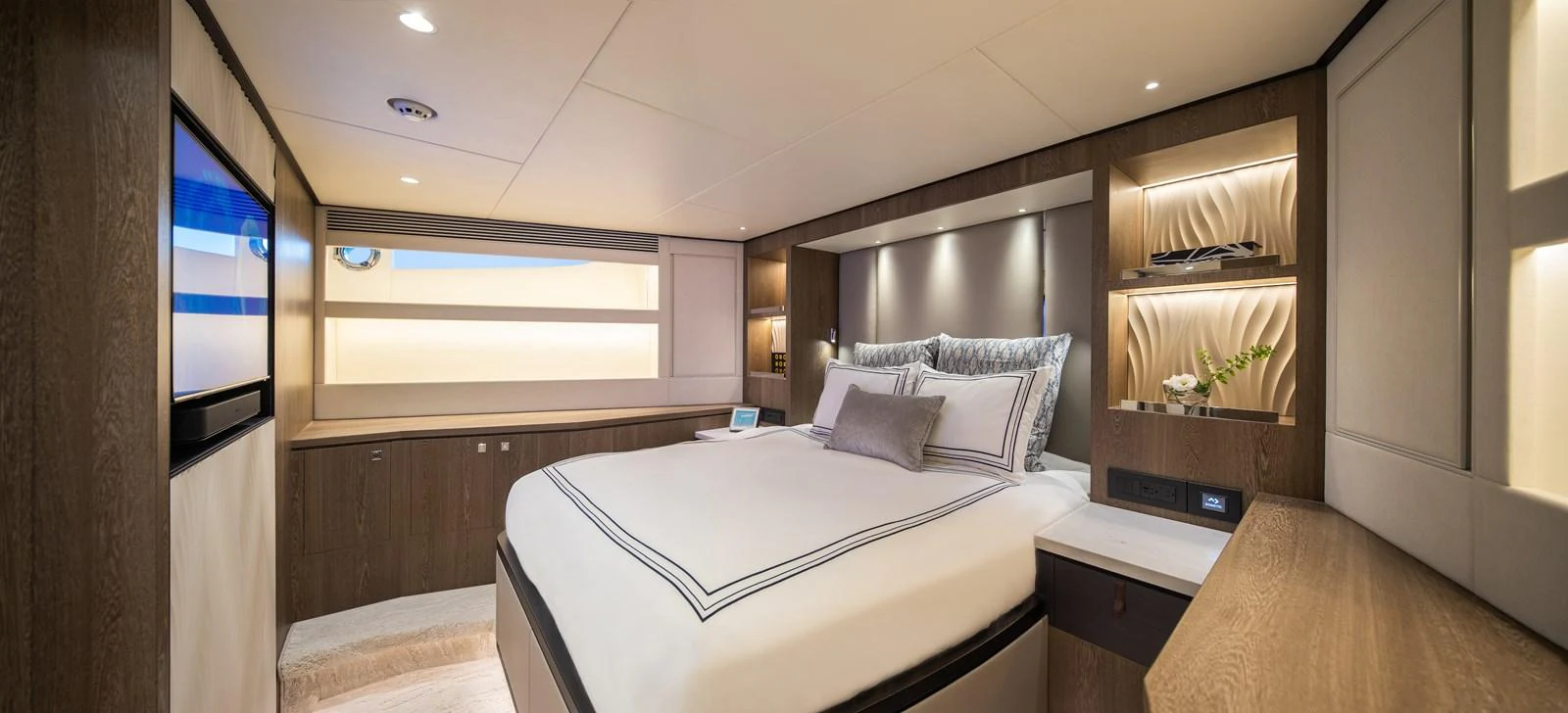

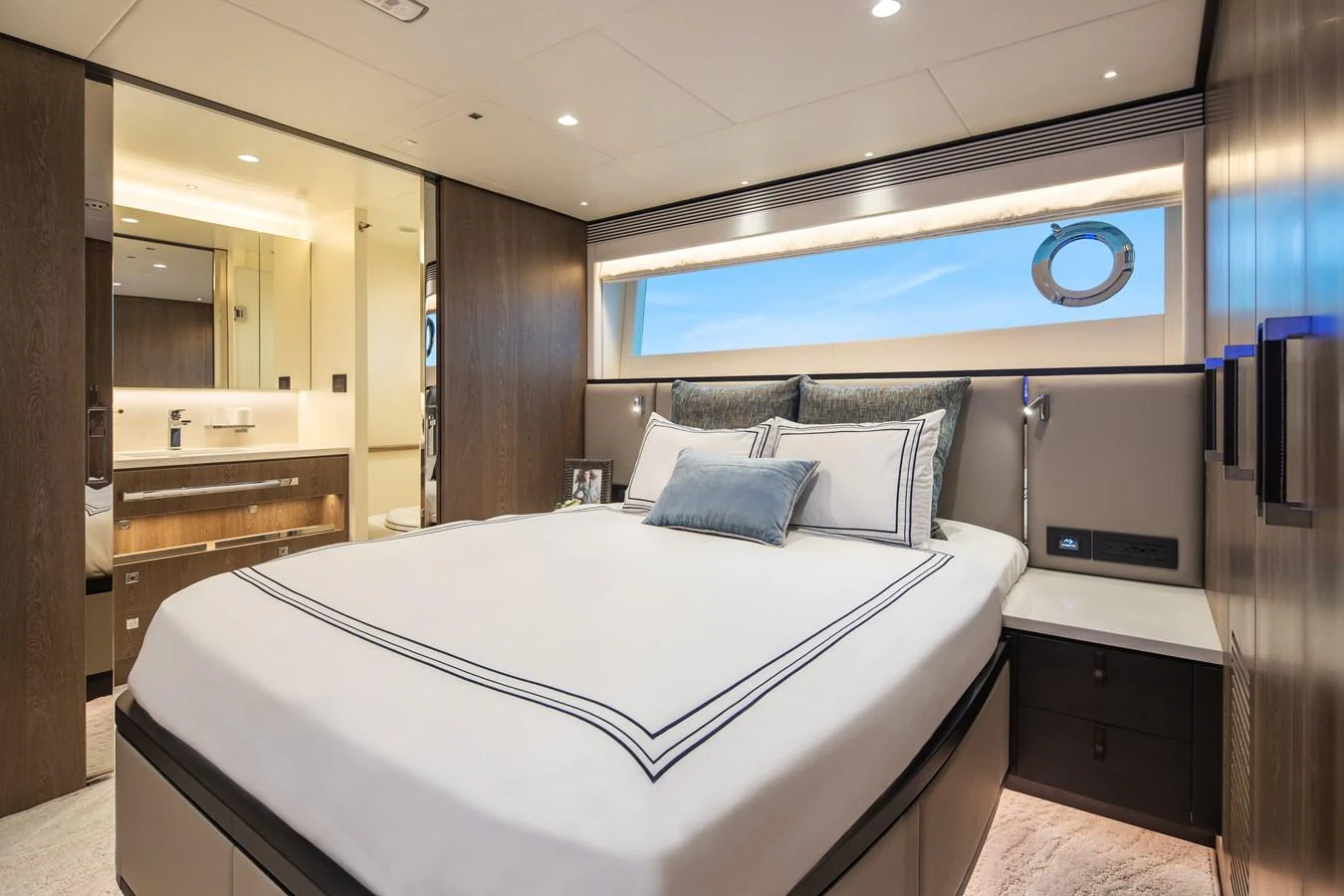

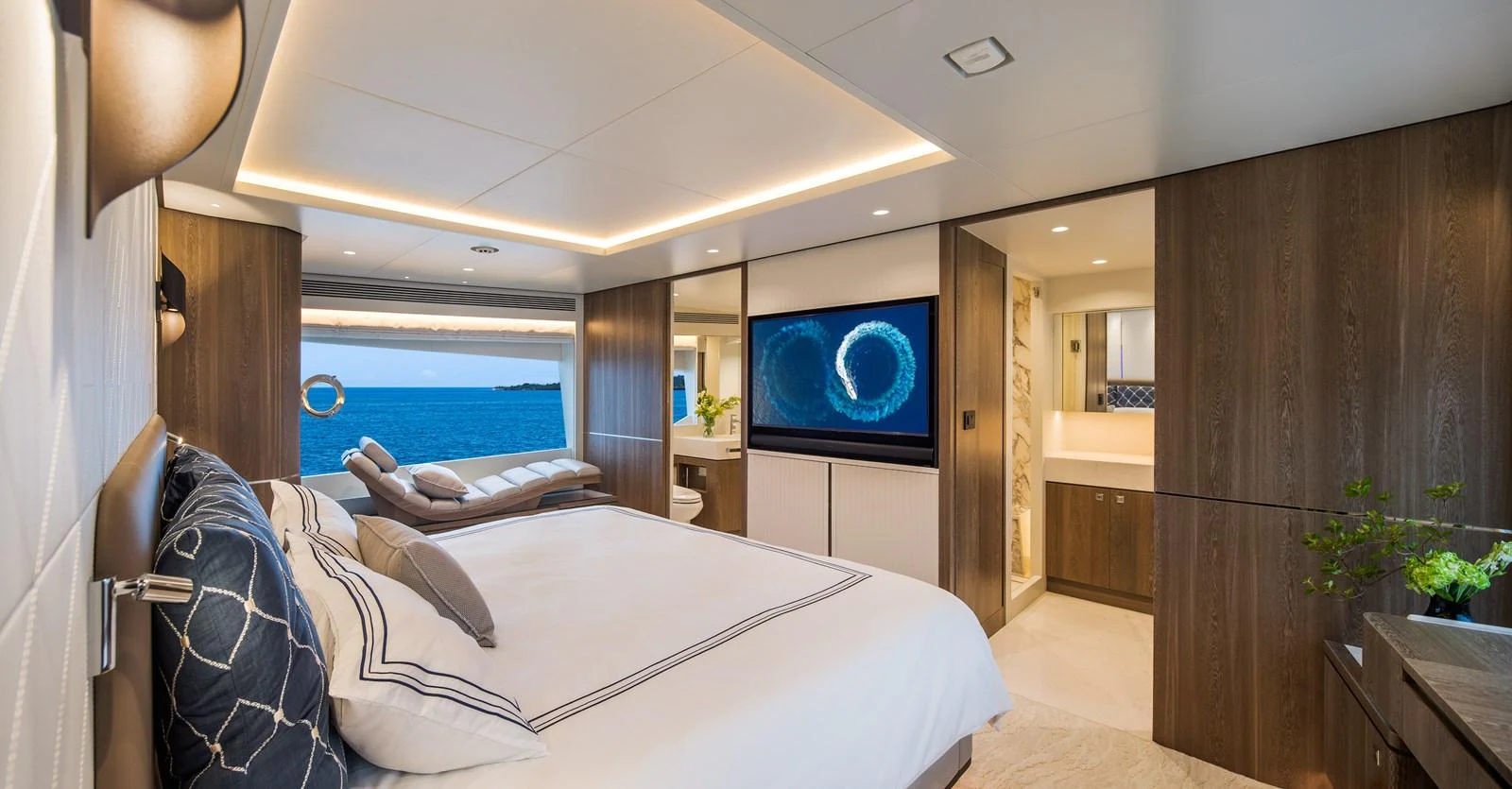

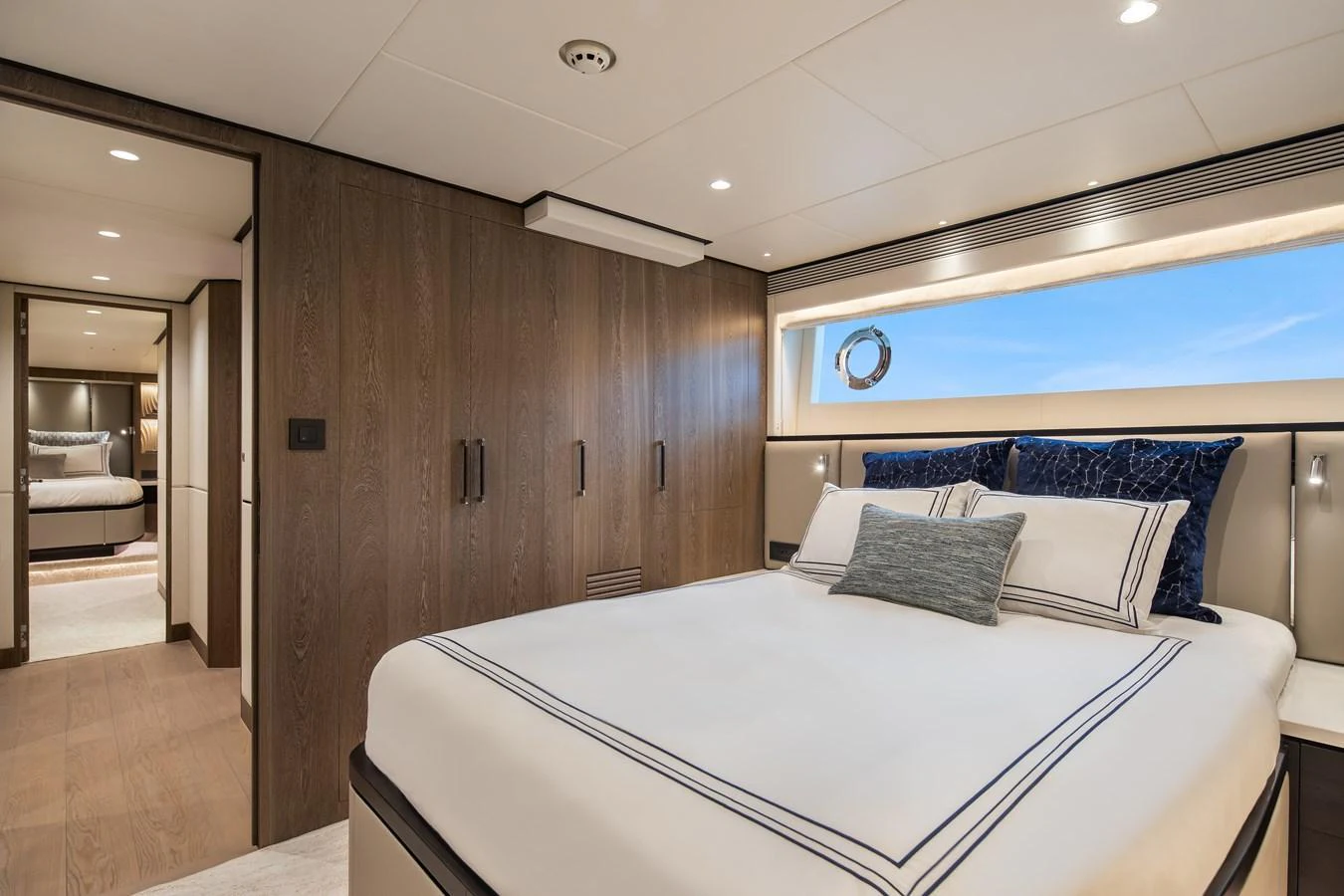

Guest accommodations include an on-deck master stateroom, fwd. VIP stateroom, stbd. VIP stateroom, port VIP stateroom, & convertible laundry room, all ensuite

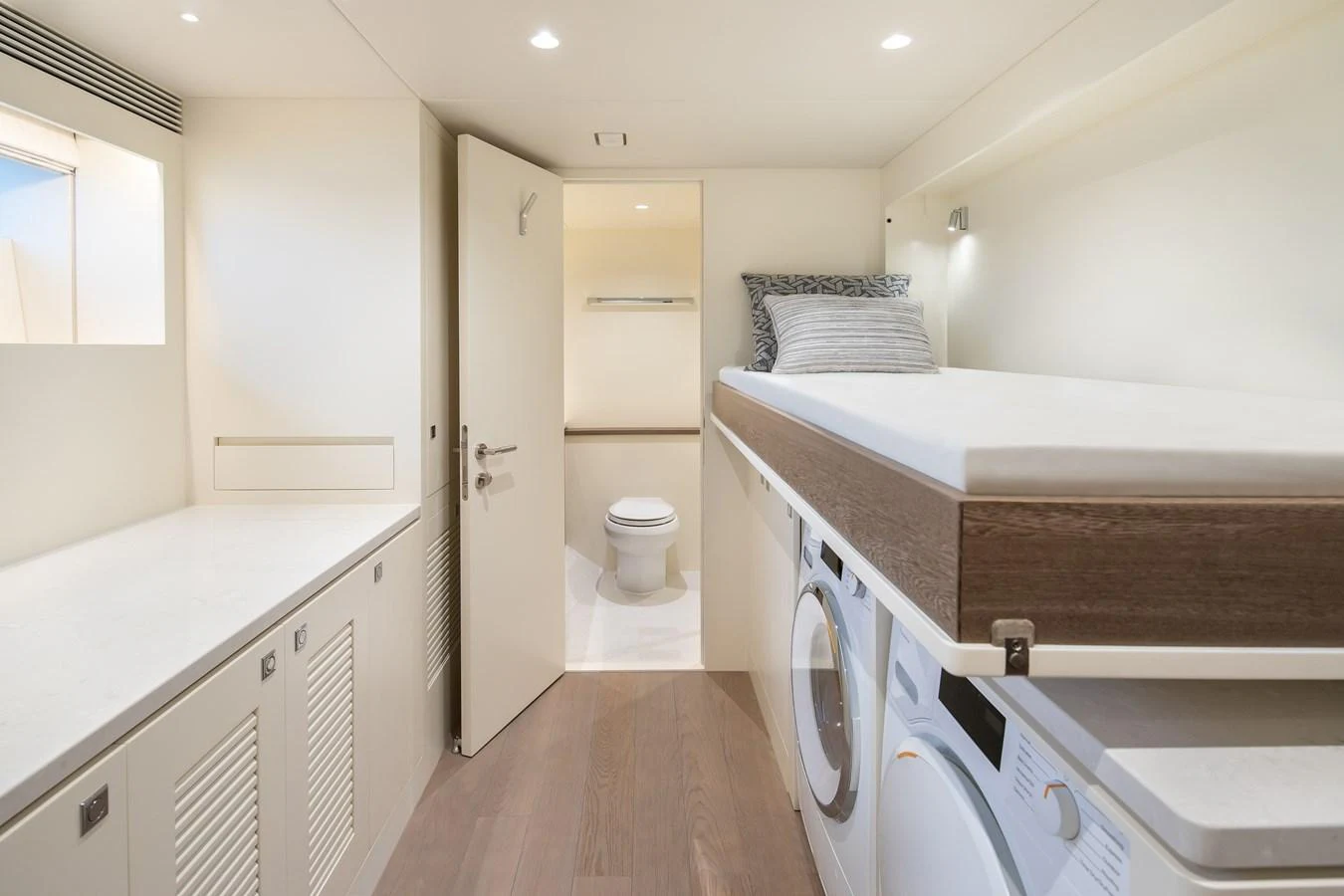

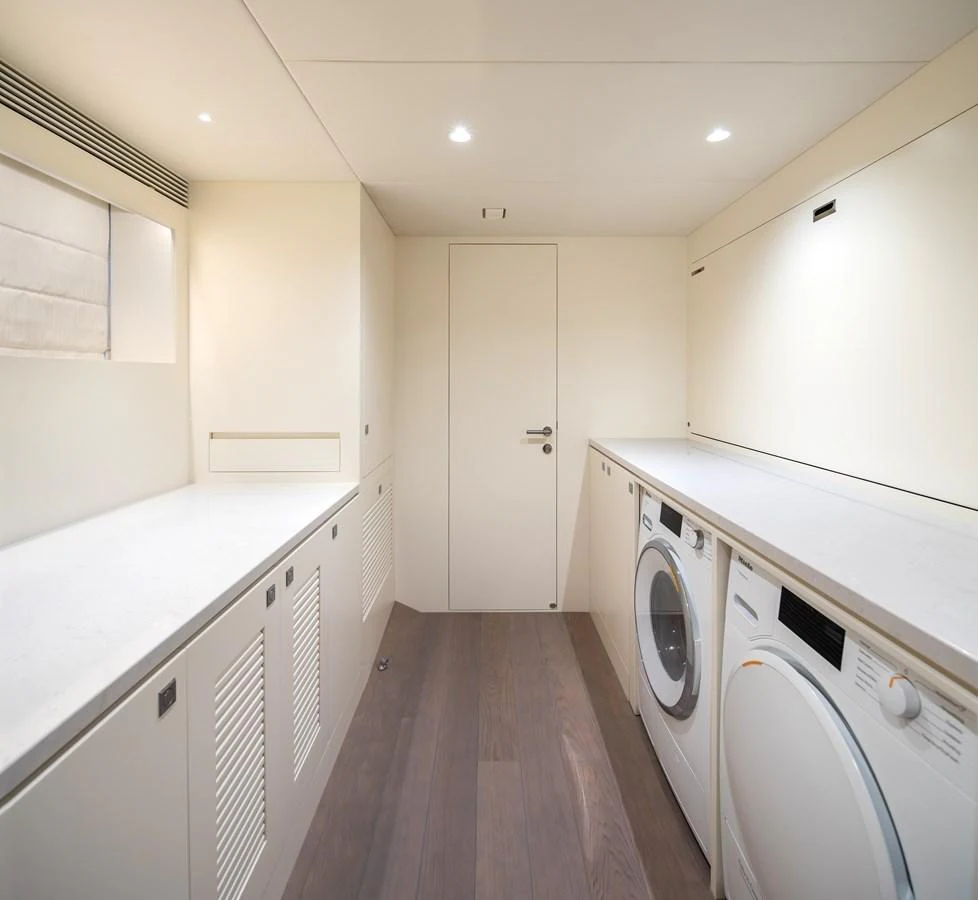

Convertible laundry room includes: Pullman bed, hanging lockers, ensuite head w/ sink, shower, and toilet, set of Miele washer and dryer, ironing board & linen locker
Built-in ironing board
Crew area has 2 crew cabins, full head w/ access from aft deck
Main wood: Washed Wenge
Flooring: European Oak Brushed Grey Sand Varnished flooring in salon, guest foyer & pilot house; carpet flooring in guest staterooms
and Cambria Weybourne flooring in Master head, guest heads & day heads
Customized interior package for interior décor & lighting
Full set of Wedgwood galley tableware for 10, including dish holder, pot/pans, dishes, plates, knives, forks, glasses, etc.
Miele washer/dryer (x2, stacked unit at forward cabin & Garage)

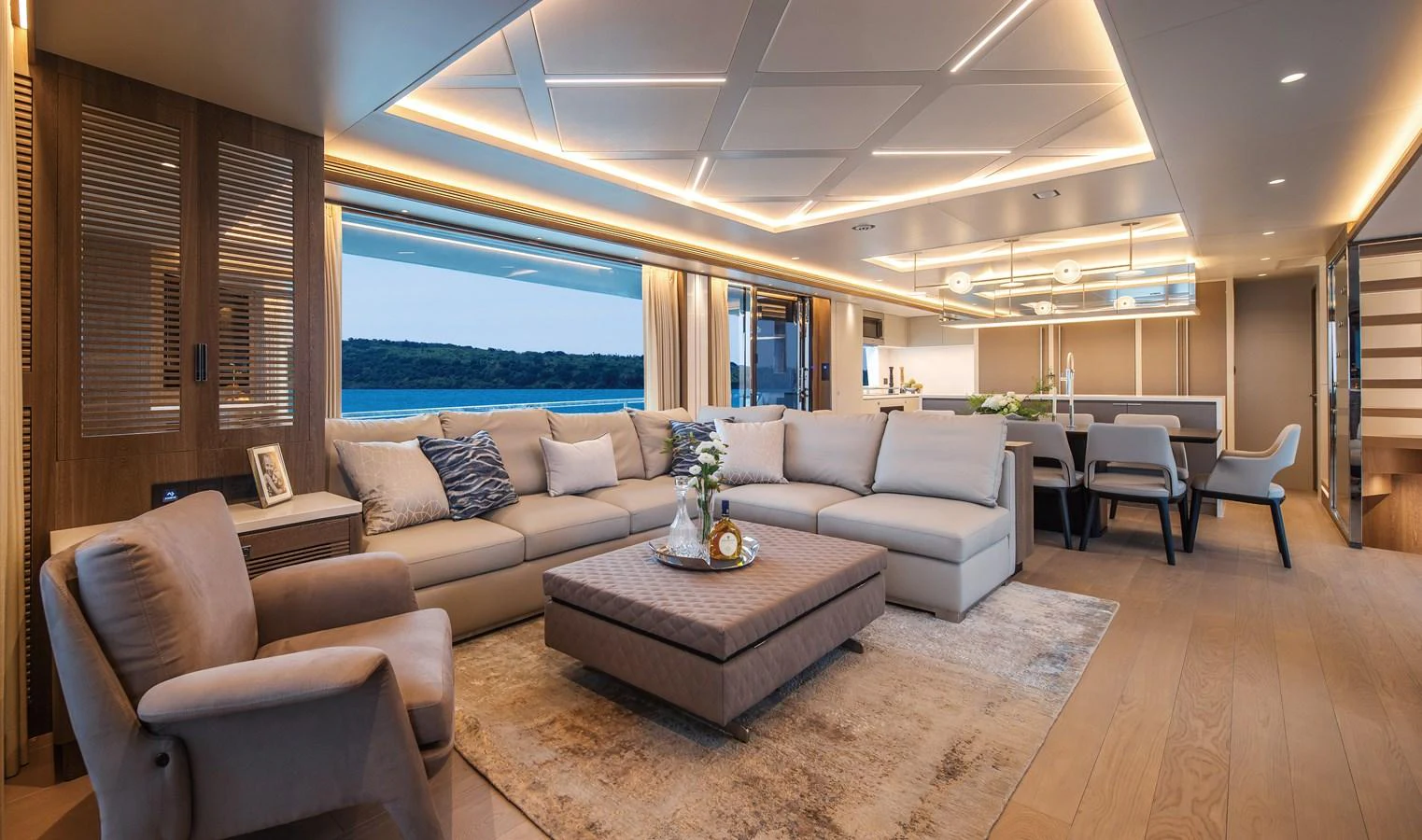

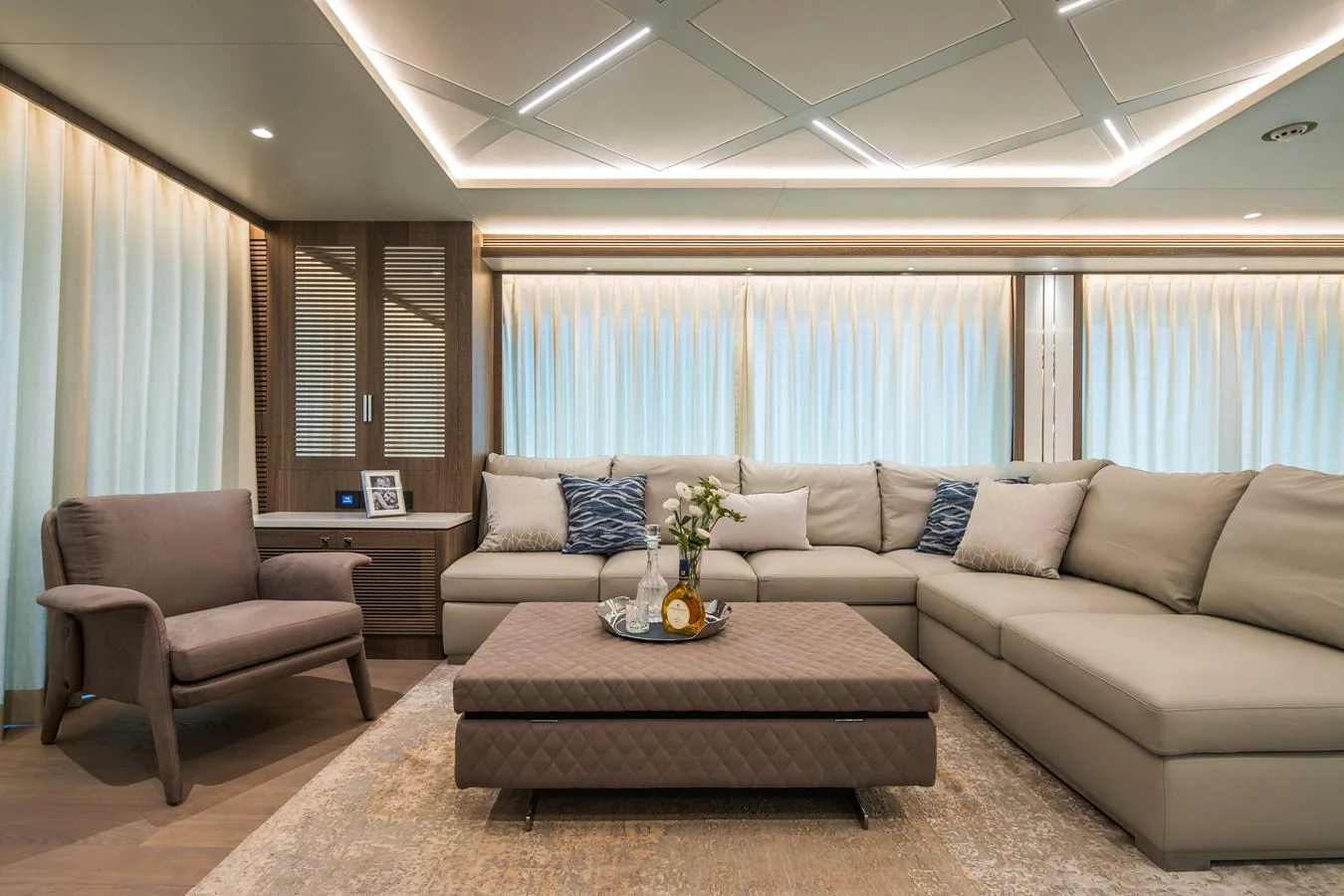

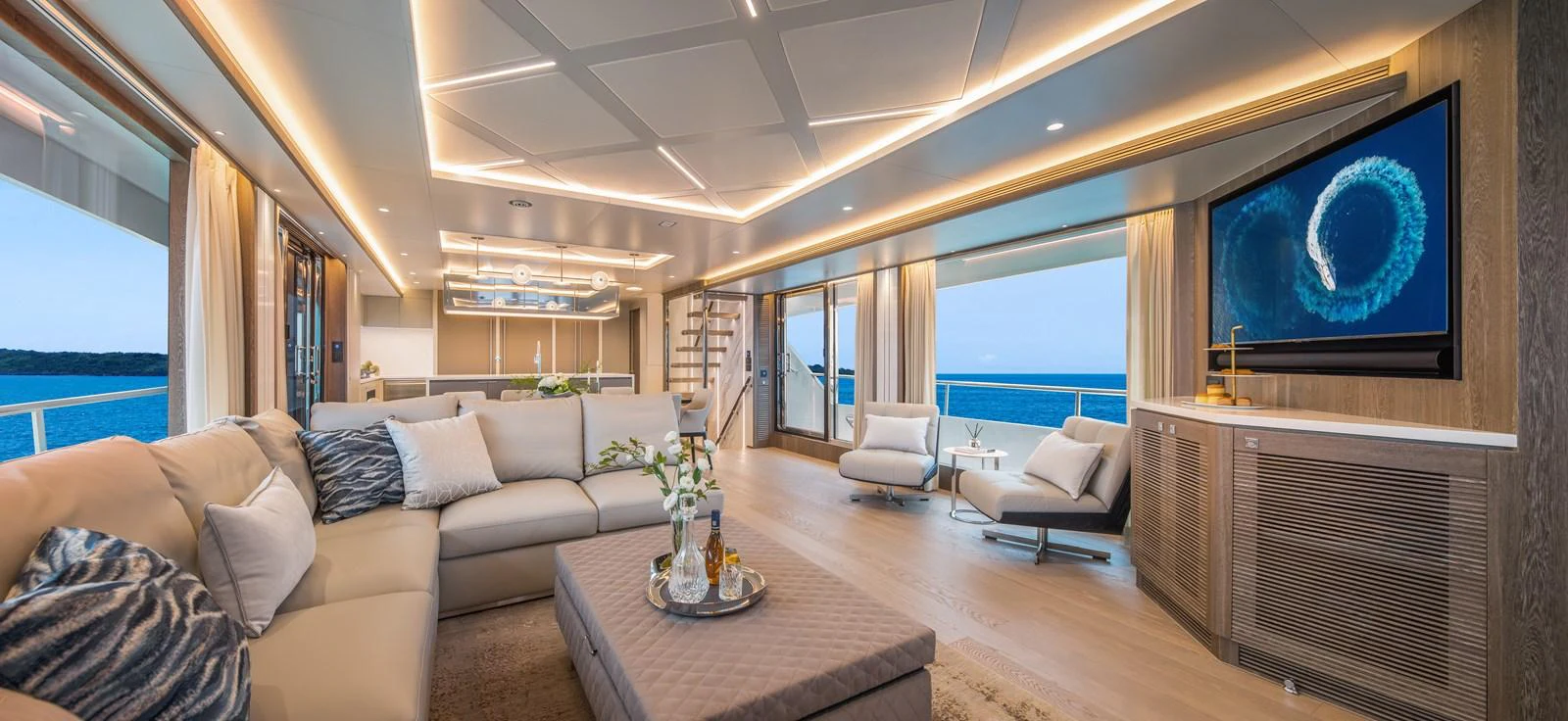

Salon
Dayhead in the main salon aft
L-shaped sofa w/ coffee table, per layout
(2) Armchairs & side table to stbd
Custom area rug

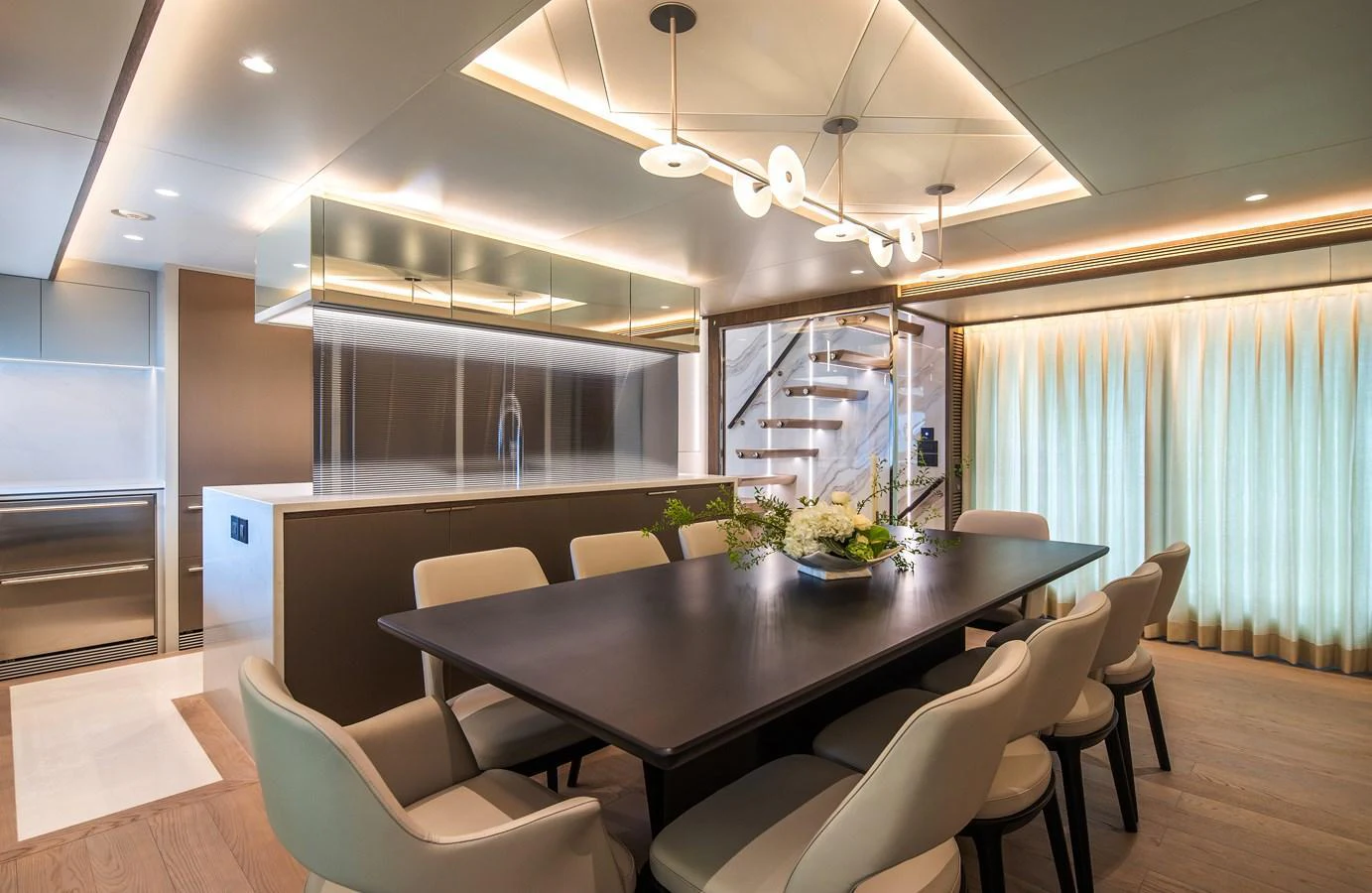

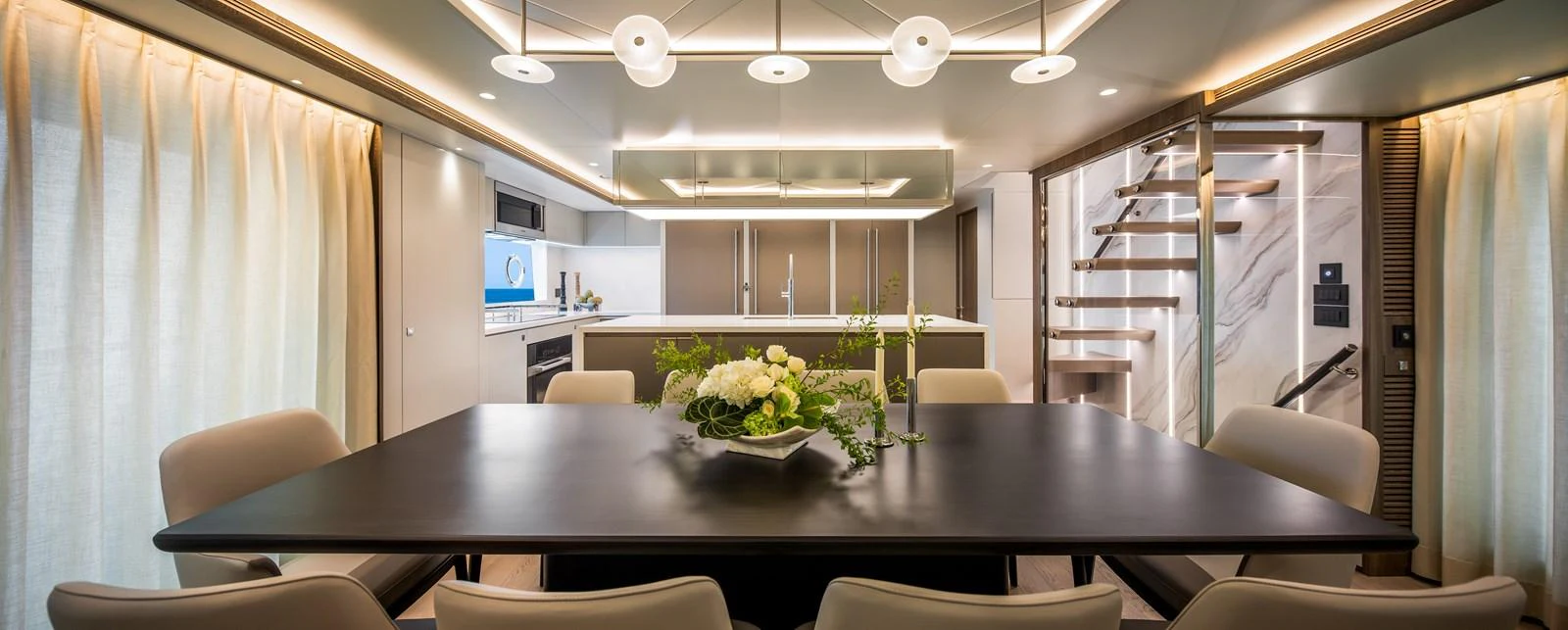

Formal dining table w/ 10 chairs, per layout
Free-standing custom storage cabinet
Custom pendant light over dining
Custom wine glass locker to port
Electric curtains
Sliding doors to both stbd and port of main salon
55" QLED 4K TV with SONOS Entertainment Set, subwoofer & soundbar

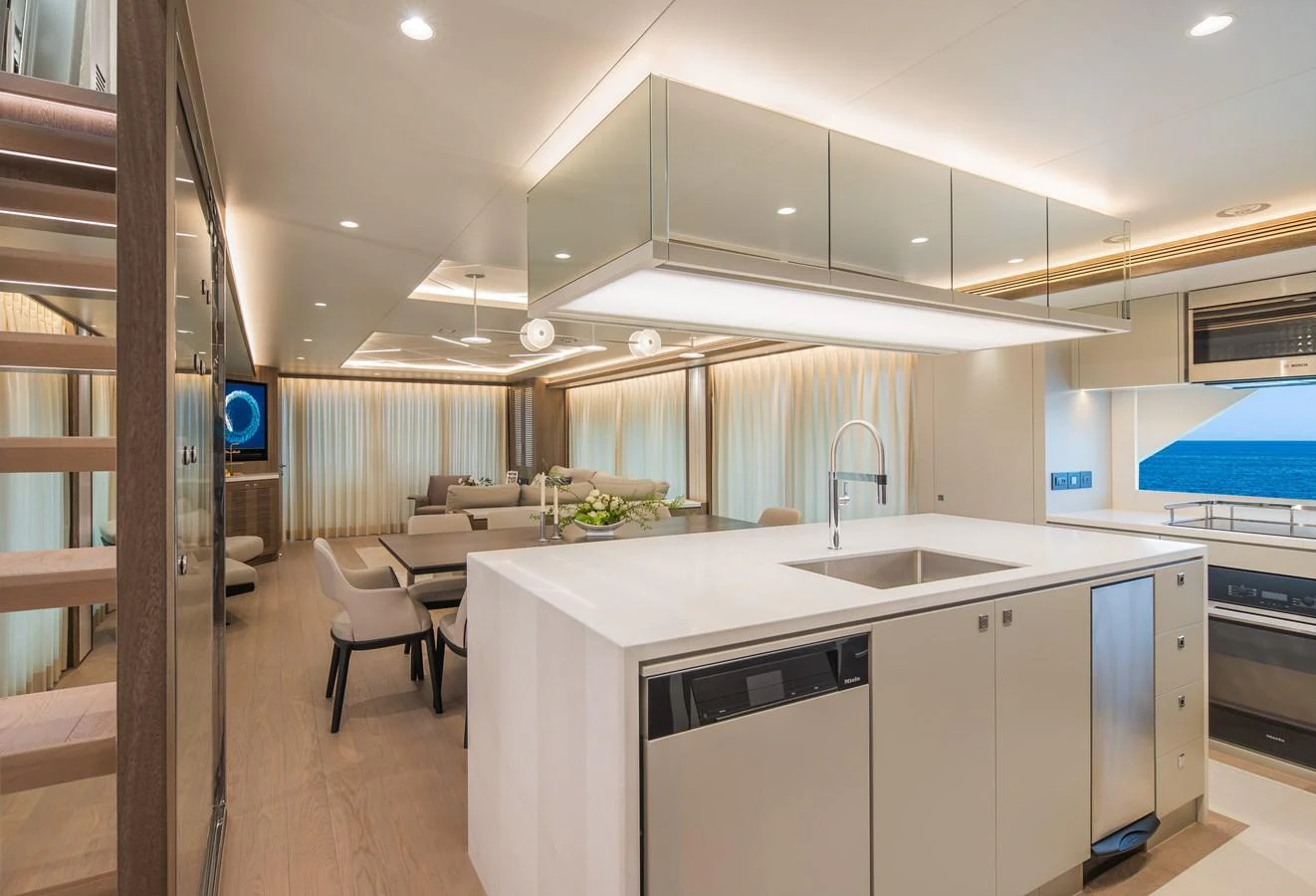

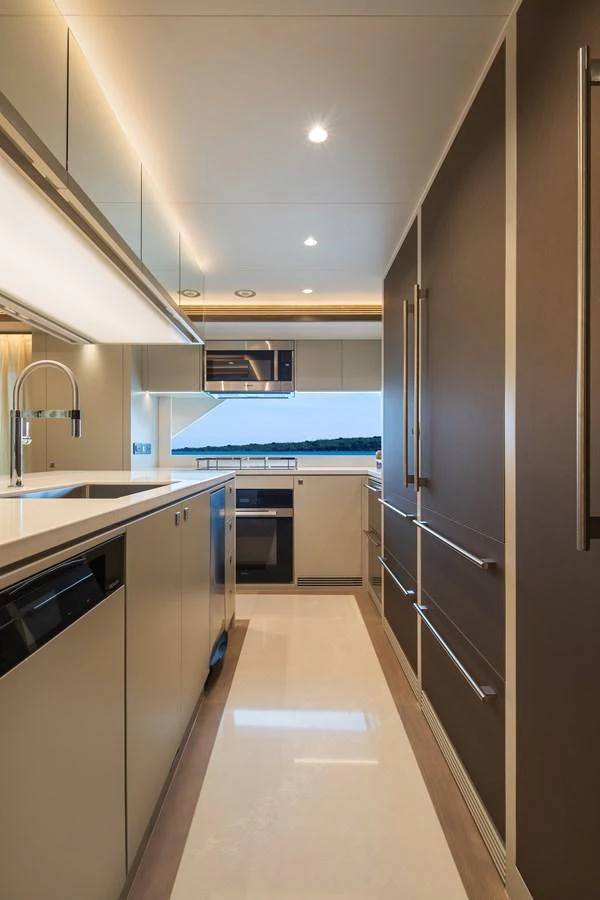

Galley
[if gte mso 9]>
S/S sink per layout
A InSinkErator Garbage disposal (Contractor 333, 3/4 HP)
A Sub-Zero full-height 30" freezer (DET3050FI-LH) and a 30” refrigerator (DET3050R-RH) in the galley
Sub-Zero drawer-type freezer (ID-24F) under the galley counter
Miele electric induction cooktop with exhaust blower above (KM 6365)
Miele dishwasher (G 7916 Sci)
Miele oven (H2880 BP) and a BOSCH microwave oven (HMVP053U)
GE Trash compactor (UCG1520NSS)
Stove S/S pot & pane holders over the cooktop in the galley
Full set of Wedgwood (GIO) galley tableware for 10, incl. dish holder, pot/pan, dishes, plates, knives, forks, glasses, etc.
Master Stateroom
King bed w/ storage drawers & nightstands

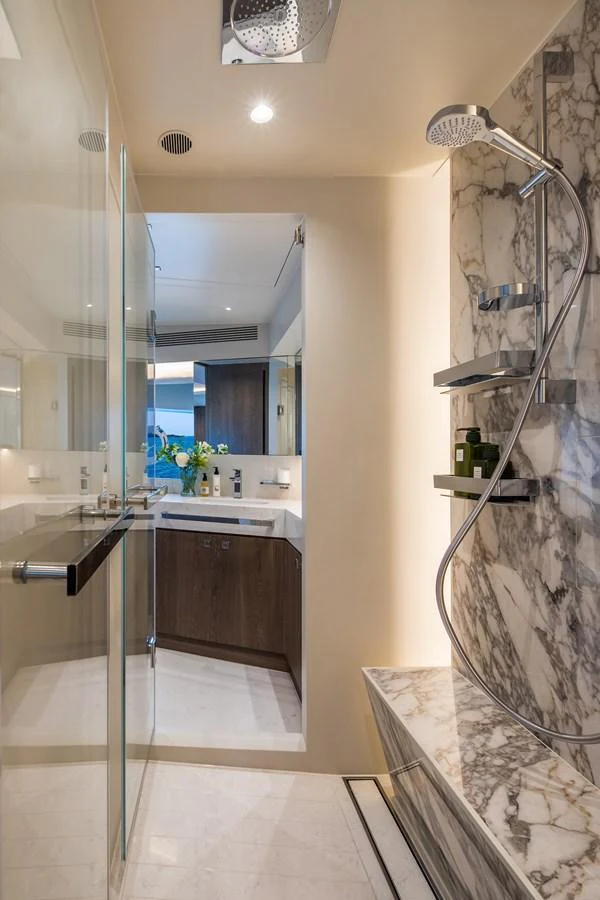

Ensuite head w/sink, rain shower & toilet
Electric Roman shades
(2) Opening portholes on port & stbd. sides
50" TV
Escape hatch in the Master with ladder
Fwd Vip Stateroom
Queen bed w/ nightstands
Ensuite head w/ sink, shower & toilet
43" TV
Mirror Vip Staterooms
Queen bed w/ nightstands
Ensuite head w/ sink, shower & toilet
43" TV
Escape hatch up to salon with ladder to Port
Multi-use Laundry Room
Pullman bed
Hanging lockers
Ensuite head w/ sink, shower & toilet
Dyson vacuum
Washer, dryer & linen locker
Built-in ironing board
Crew Quarters
[if gte mso 9]>
Pullman in the captain's cabin
Rear accommodation arrangement as per layout, incl. aft quarters, efficiency galley (with KENYON two-burner cook top, a WOLF MC24 convection microwave, a sink, and SUMMIT CP972SSLHD full height fridge & freezer), head and shower, closets, bunks, storage, and A/C
Silver Oak for crew main timber for walls, PVC vinyl floor for cabins, and Hanex ST-303 Volare stone for head floor
Head hardware in Justime collection
Telephone And Stereo System
[if gte mso 9]>
SAT TV antenna with a symmetric dummy dome (KVH TracVision UHD7) & prewire for SAT phone with KVH TracNet H60 dummy dome
SAT TV decoder/ receiver (DIRECTV) with RF remote control kit for each TV (x9)
TV antenna on top of radar arch
5G Cellular Router System with Wi-Fi on boardOpen skylounge 43" QLED 4K electric flip-down TV with SONOS amplifier (x1) and FUSION speakers (x2)
Pilothouse SONOS amplifier (x1) and FUSION speakers (x2)
Foredeck SONOS amplifier (x1) and FUSION speakers (x2)
Entertainment Set, subwoofer (x1) and soundbar (x1)
Control 4 system for AV system (incl. following areas: foredeck, open skylounge, upper deck, aft deck, Salon, galley and master stateroom)
Exterior connector for shore phone and cable TV Panasonic PBX Telephones (x5) with intercom features in salon, pilothouse, master stateroom, VIP stateroom, and crew mess; remaining cabins with a telephone outlet
Reserve flexible conduits, power supply, and a breaker for a future Starlink system
Navigation
Garmin GPS 24xd and MSC 10 Marine Satellite
Compass
Garmin GMR 1236 xHD3 (6-foot/ 12kW/ 96nm) open array radar
Garmin GMR Fantom 54 (4-foot/ 50W/ 2nm) open array radar
Garmin GPSMAP 9224 MFD 24" multifunction displays (x4)
Garmin GRID 20 remote input device (x1)
Garmin GSD™ 25 Premium Sonar Fish Finder Module
Garmin Reactor 40 Autopilot system with Reactor
AP Remote Control
Garmin Wind/ Speed/ Temp transducers
Garmin AIS 800 Class B Transceiver
Garmin VHF (x2) with built-in loudhailer
Maretron MBB300C for connecting to GARMIN network/display

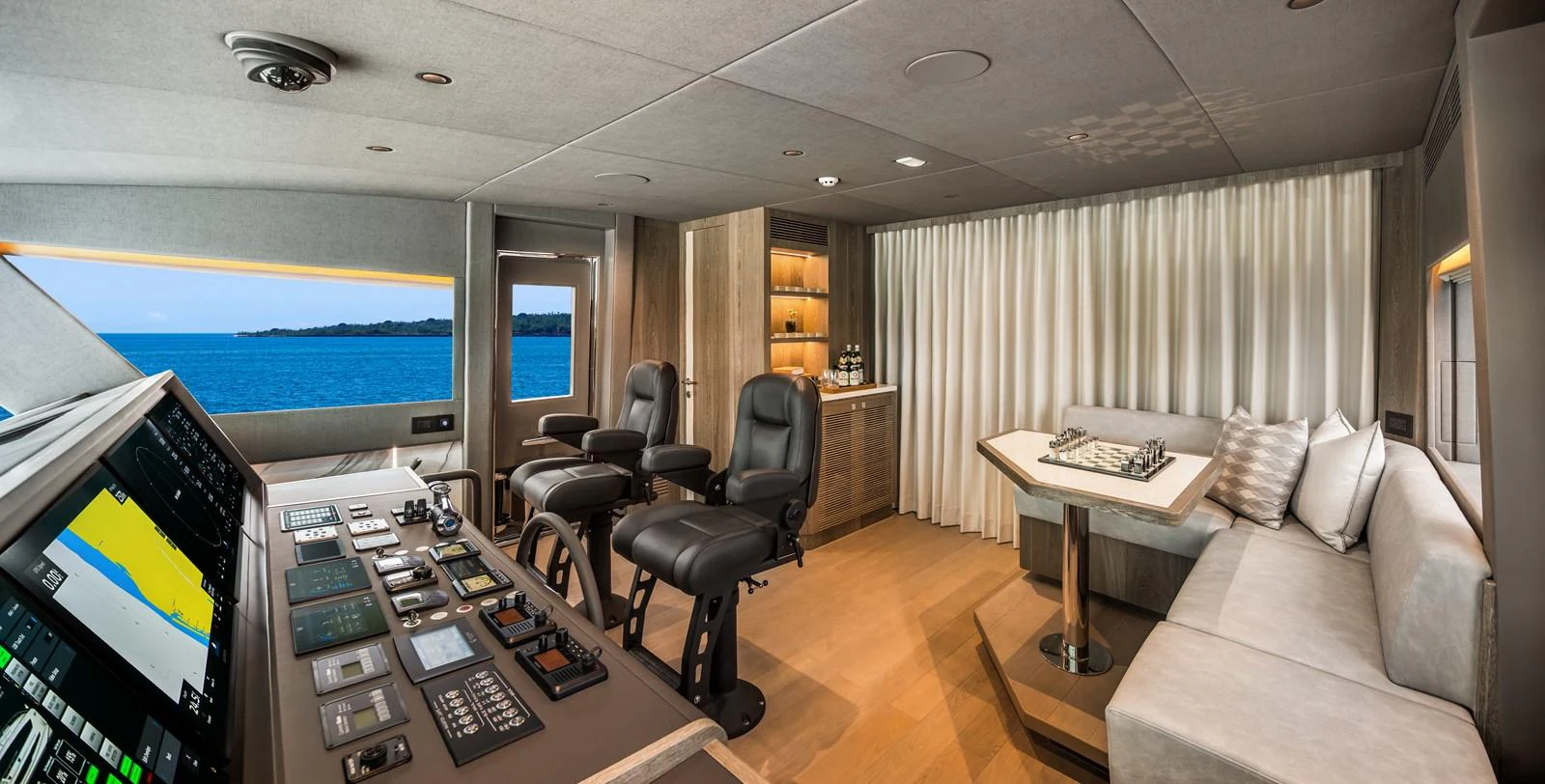

Pilothouse And Instruments
[if gte mso 9]>
Enclosed pilothouse design with an S/S manual sliding door to open-skylounge with self-lock
Stidd Slimline 500N-MX2 manual pilot chairs (x2)
Integrated instrument panel on helm station with leather counter
L-shaped sofa with a pull-out platform to make sofa into a bed for one person (incl. a table) as per layout
Heavy-duty Speich S/S wipers with wiper wash system
Variable speed control on each windshield wiper
Phifertex Leisure fabric black mesh for windshield
Ritchie magnetic compass at helm
International LED navigation lights (incl. 180 degree Lopolights anchor x2, masthead, stern, PORT and STBD side light, total 6 units)
Full set of engine gauges at the helm
Electric fuel and water level gauges
Monitoring system for importation equipment (bilge pumps, blowers, navigation lights)
Surveillance camera system (TWO PTZ cameras; one at aft deck & one in engine room)
A day head
USB charger (x3)
Chart drawer
Full Details
Specifications
ABS/DNV type-approved fiber/resin & sandwich core material applied
White gelcoat finish for hull above water line,exterior decks, and furniture
One-piece hull and superstructure utilizing SCRIMPTM technology with Horizon patented 6Dinfusion, incl. longitudinal and transverse stingers
Hull, deck & superstructure are built with licensed process SCRIMPTM for improved strength and less weight
Hybrid design hull bottom with sandwich construction and solid fiberglass
High-density Divinycell or equivalent foam cored hull sides, decks, and superstructure
Stringers with high-density foam coring
Interior structural components are all properly bonded to the hull
Strong collision bulkhead structure for extra safety
International anti-fouling bottom paint with anti-osmosis treatment
PropSpeed/PropGold metal paint for underwater appendages
Tunnels for reduced draft
High Performance Piercing Bow (HPPB) with S/S protection plates
Upper deck with bump out design at PORT and STBD side
Asymmetrical open-skylounge design (STBD side wide body, incl. a non-skid ledge and grab rail above
Exterior Deck & Equipment
[if gte mso 9]>
Teak aft deck, teak swim platform, teak open skylounge and teak steps to upper deck and swim platform. Non-skid for the rest
FRP cap rail
Maxwell VWC3500 vertical hydraulic anchor winches (x2) with local foot switches and remote
Maxwell VC2500 electrical rope capstan on aft deck (x2)
ACCO 300ft High tensile 1/2” anchor chains (x2)
100 Kg S/S anchors (x2)
S/S rollers (x2) and chain stopper
Chain counter (x2, one per windlass) at pilothouse
Heavy-duty 316 S/S cleats and fairlead with rollers
Aft deck corner hawsers (x2)
Bulwarks with flush-mounted courtesy lights
Bulwark side doors (x2) at aft deck for boarding
MarQuipt 7-step aluminum side boarding sea stair (incl. FRP storage box)
Freshwater/seawater anchor chain washdown system by manual operation
1-3/4” handrail with 1-1/2” S/S stanchions and steel cable around the entire boat
S/S flagpole at bow
Standard lines and ProStock fenders PF7 (x4) & PF36x48 (x1), incl. Horizon logo covers
Portuguese bridge with sofa seats as per the layout
Foredeck sunbathing cushion with cup holders and pop-up lights (x2)
One hidden sink to the FWD PORT sidewalk
Frameless windows, slightly tinted tempered laminated Low-E glass for the windshield
Frameless windows, tinted tempered laminated glass for side windows
Stairs from aft deck to swim platform with S/S gate doors and handrails
Salon local-made S/S electric sliding entrance door
Deckhouse sliding side doors with inflatable seal around door frame (x2, one at each side)
A wind door on each side of the aft deck to its side walkway
Aft deck full set seating (incl. a Hi-Lo & slidable table with two leaves, a rear sofa with backrest and side countertop)
Aft deck bar with a sink, a Vitrifrigo refrigerator, and an ice maker (C85IXD4X & IMHYDIXN1-X)
One integrated stair from the aft deck to the upper deck
Hydraulic Hi-Lo swim platform with a function as a tender lift to max 2500 lbs /1130 kg
Two pop-up cleats on the Hi-Lo swim platform
Boat hooks (x2)
Built-in shower with hot/cold water above the swim platform
One extractable or foldable swim ladder
Sun awning to Foredeck & upper deck (total 2 sets)
Rub rail around hull sides
S/S portholes (incl. two openable portholes in the master stateroom and one in galley)
Exterior LED step lights
Two 2” Removable corner rails on the swim platform (with extra 4 sockets on fixed platform)
Prewire LED boat name on PORT, STBD, and stern (3 sets, max. 8 letters/set)
Doors to exterior area with screen if applicable (except curved door, L-shaped hatch door, and pantograph door)
Garage
[if gte mso 9]>
Non-skid floor
Hydraulic stern door with a pantograph door in the middle
Storage as per layout
A set of Miele washer and dryer (WXF660, TXD160WP)
Open Skylounge & Boat Deck
OPEN SKYLOUNGE
Custom asymmetric open skylounge with a PORT two-level bar (incl. 4 stools, a sink, a Vitrifrigo C85IXD4X-1 refrigerator & IMHYDIXN1-X ice maker, and a SUMMIT SCR611GLOSHLHD wine cooler) and a STBD U-shaped seat with a table as per the layout
Teak floor
Pre-wire for future fans installing at the open skylounge ceiling
Hatch on the hardtop with a ship loose retractable ladder
BOAT DECK
Teak floor (excl. side walkways)
Upper deck arrangement as per layout:
1 ) L-shaped sofa (x2) with side tables,
2 ) Pre-wire & pre-engineer with structure reinforcement for a davit (2500 lbs) and hot tub (JNJ Spa-543) to install in the future
Andari/Trend/4 Spaces/Fabrica fabrics for exterior cushions and sunpad
Stamoid covers (“Smart 1” or equivalent, White color) for upper deck loose furniture, helm seats, aft deck seats, and foredeck sunpads and seats
One hidden Propane 24" BBQ with manual Hi-Lo
Oversized drains with strainers on each corner of the upper deck and internal overboard drains
Radar arch with antenna bracket
Tokai Sanshin LED search lights (x2)
Lumitec flooding lights (x4; 2 for mast and 2 for upper deck)
Chrome-plated Buell air horns on top of the radar arch
S/S flagpole at stern
LED warm white lights for Horizon logo on PORT & STBD side
8-person life raft with bracket (A pack, 2 units)
Engine & Propulsion Details
[if gte mso 9]>
Twin diesel engines with reduction gears
Live SAE-C PTO on gearboxes for thrusters/windlass & stabilizer power
SAE-A PTO on engines for hydraulic steering gear
Seatorque shaft system (incl. Seatorque Bolt On Shaft System, "BOSS", model no. M4B: AQ22HS s/s shaft, Cardan shaft, QuicKutter line cutters)
High-performance VEEM Superyacht 6-blade propellers
Bronze struts with backing plates
Rudder packing glands with Tides Marine dripless seals
ZF Mathers engine controls with chrome control head at helm (each) station
One remote handheld control (with throttles, gears, and thrusters) with two plugs (one at the aft deck and one in the pilothouse)
Yacht controller (Supremo, STL wireless control, incl. acceleration, thrusters, and windlass buttons, and digital cone antenna)
FRP foil balanced blade rudder with S/S rudder stock (x2)
Hypro power steering system
S/S emergency tiller in rudder cabin
24” S/S steering wheel(s)
Underwater exhaust system for engines with bypass mufflers
Side-Power hydraulic stabilizer system SPS93B
VF1650 (1.65 square meters) with “At Anchor” function
Side-Power hydraulic bow thruster SH550 (550 kg) and stern thruster SH420 (420 kg)
Zipwake interceptor system
Mechanical Systems
GENERAL DESCRIPTION
[if gte mso 9]>
Marine-grade pipes applied throughout the boat
Color-coded piping system for easy identification
Engine room strainer plumbing with crossover line, freshwater flush, and an extra custom cap
Prewire and pre-plumb for a diving compressor
FUEL OIL SYSTEM
Fuel tanks with sight & electric gauges and capacity specified in Principal Dimension above
ISO grade fuel hose through the entire system
Dual Racor 75/1000 MA fuel filters/water separator for each engine
Racor 500 MA fuel filters (x2), one on each generator
Oberdorfer electric fuel transfer pumps (x2)
Oil change pump system for engines, gears, and generators
Reverso FPS210 fuel polishing system
FRESHWATER SYSTEM
FRP water tank, capacity specified in Principal Dimension above
Fresh water hose bibbs on foredeck, aft deck, and upper deck
30-gal water heaters (x2)
High-volume Headhunter AC freshwater pressure pump and one DC pump for backup
Spot Zero watermaker (SeaXchange XTCII 1800 & ZTC II 2000)
Freshwater outlet & hose for filling the engine and generator expansion tanks
Charcoal filters are plumbed into the freshwater line: shore water inlet and galley
Hot water circulation pump
AIR CONDITIONING SYSTEM
Marine Air Dometic Smart Start chilled water air conditioning system
Air handlers for interior, incl. engine room (18K BTU, incl. controller)
Honeywell dehumidification system (Honeywell DR65A3000 x 5 units, including T10 Pro smart thermostat control panel per unit)
One backup Side Power seawater cooling pump for stabilizer
Ship loose a backup air conditioning seawater circulation pump
SANITARY SYSTEM
Headhunter and Tecma toilet system
200-gal holding tank with deck fitting for dockside pump out
100-gal sump tank with pump for each shower & washer drainage area
Headhunter sanitary treatment system (TW-HMX 6001LP)
Electric level indicators for holding tank and sump tank
BILGE WATER SYSTEM
Electric Rule Bilge Pumps
Manual bilge pumps (x2) in engine room and forward staterooms
High water level bilge alarm
Bilge exhaust ventilation fans
Deck wash-down pump with outlets at chain lockers and transom
FIRE SAFETY SYSTEM
Fire insulation in the engine room
Fire-resistant treatment for pipe penetrations
Fixed fire extinguisher for the engine room with a remote pull station
Automatic/manual shutdown system
Automatic fire damper system
Portable fire extinguishers (x5)
Ship loose fire blankets (x3)
Integrated fire alarm system in pilothouse, with CO and smoke detector in accommodation space, heat detector in galley, and Engine Room
Marine-grade pipes are applied throughout the boat
Electrical Systems
GENERAL DESCRIPTION
Color-coded wiring for easy identification
AC & DC main electric panel with circuit breakers
Sub-panel design with circuit breakers in each zone for electrical distribution
Emergency power package & lighting system
AC volt receptacles located throughout, including the engine room
GFI protection for all AC outlets in exterior, heads, galley, and engine room
Fiberglass water/exhaust separator for generators
Electrolysis bonding system
Cathodic protection with zinc anodes for shafts, struts, etc
Indirect lighting under the valance in the salon, staterooms, open-skylounge, and galley
Dimmer system for LED ceiling lights on aft deck and open-skylounge
Dimmer system for LED ceiling lights in salon, pilothouse, master, and VIP staterooms
Italian Vimar outlets & switches for lighting system
Motion detection light at the guest foyer close to staircase
Underwater lights (x8)
Pre-wire & pre-engineer for FLIR M364C night vision future installation
AC/DC MAIN POWER SYSTEM
AC electrical system: 240V/120V, Single-Phase 3-Wire, 60Hz
255 Ah 12V AGM start batteries (x4) for engines/generators with battery chargers (x2)
210 Ah AGM batteries(x8) for ship‘s DC 24V service power with a combined inverter/charger (x2)
210 Ah emergency batteries(x2) above main deck with a dedicated independent battery charger (x1)
All batteries are enclosed with proper fixtures
Ignition-protected battery switch
Octoplex multiplexing power distribution system
Maretron monitoring and control system
SHORE POWER SYSTEM
Glendinning shore power Cablemasters (x2)
100Amp with 75’ power cable each
Shore power connection with 100Amp ISO boost polarization transformer and galvanic isolator (x2)
Shore power 100Amp plug (x2) and 100Amp bow inlet (x2)
Interior Decor & Equipment
[if gte mso 9]>
Guest accommodations include an on-deck master stateroom, fwd. VIP stateroom, stbd. VIP stateroom, port VIP stateroom, & convertible laundry room, all ensuite
Convertible laundry room includes: Pullman bed, hanging lockers, ensuite head w/ sink, shower, and toilet, set of Miele washer and dryer, ironing board & linen locker
Built-in ironing board
Crew area has 2 crew cabins, full head w/ access from aft deck
Main wood: Washed Wenge
Flooring: European Oak Brushed Grey Sand Varnished flooring in salon, guest foyer & pilot house; carpet flooring in guest staterooms
and Cambria Weybourne flooring in Master head, guest heads & day heads
Customized interior package for interior décor & lighting
Full set of Wedgwood galley tableware for 10, including dish holder, pot/pans, dishes, plates, knives, forks, glasses, etc.
Miele washer/dryer (x2, stacked unit at forward cabin & Garage)
Salon
Dayhead in the main salon aft
L-shaped sofa w/ coffee table, per layout
(2) Armchairs & side table to stbd
Custom area rug
Formal dining table w/ 10 chairs, per layout
Free-standing custom storage cabinet
Custom pendant light over dining
Custom wine glass locker to port
Electric curtains
Sliding doors to both stbd and port of main salon
55" QLED 4K TV with SONOS Entertainment Set, subwoofer & soundbar
Galley
[if gte mso 9]>
S/S sink per layout
A InSinkErator Garbage disposal (Contractor 333, 3/4 HP)
A Sub-Zero full-height 30" freezer (DET3050FI-LH) and a 30” refrigerator (DET3050R-RH) in the galley
Sub-Zero drawer-type freezer (ID-24F) under the galley counter
Miele electric induction cooktop with exhaust blower above (KM 6365)
Miele dishwasher (G 7916 Sci)
Miele oven (H2880 BP) and a BOSCH microwave oven (HMVP053U)
GE Trash compactor (UCG1520NSS)
Stove S/S pot & pane holders over the cooktop in the galley
Full set of Wedgwood (GIO) galley tableware for 10, incl. dish holder, pot/pan, dishes, plates, knives, forks, glasses, etc.
Master Stateroom
King bed w/ storage drawers & nightstands
Ensuite head w/sink, rain shower & toilet
Electric Roman shades
(2) Opening portholes on port & stbd. sides
50" TV
Escape hatch in the Master with ladder
Fwd Vip Stateroom
Queen bed w/ nightstands
Ensuite head w/ sink, shower & toilet
43" TV
Mirror Vip Staterooms
Queen bed w/ nightstands
Ensuite head w/ sink, shower & toilet
43" TV
Escape hatch up to salon with ladder to Port
Multi-use Laundry Room
Pullman bed
Hanging lockers
Ensuite head w/ sink, shower & toilet
Dyson vacuum
Washer, dryer & linen locker
Built-in ironing board
Crew Quarters
[if gte mso 9]>
Pullman in the captain's cabin
Rear accommodation arrangement as per layout, incl. aft quarters, efficiency galley (with KENYON two-burner cook top, a WOLF MC24 convection microwave, a sink, and SUMMIT CP972SSLHD full height fridge & freezer), head and shower, closets, bunks, storage, and A/C
Silver Oak for crew main timber for walls, PVC vinyl floor for cabins, and Hanex ST-303 Volare stone for head floor
Head hardware in Justime collection
Telephone And Stereo System
[if gte mso 9]>
SAT TV antenna with a symmetric dummy dome (KVH TracVision UHD7) & prewire for SAT phone with KVH TracNet H60 dummy dome
SAT TV decoder/ receiver (DIRECTV) with RF remote control kit for each TV (x9)
TV antenna on top of radar arch
5G Cellular Router System with Wi-Fi on boardOpen skylounge 43" QLED 4K electric flip-down TV with SONOS amplifier (x1) and FUSION speakers (x2)
Pilothouse SONOS amplifier (x1) and FUSION speakers (x2)
Foredeck SONOS amplifier (x1) and FUSION speakers (x2)
Entertainment Set, subwoofer (x1) and soundbar (x1)
Control 4 system for AV system (incl. following areas: foredeck, open skylounge, upper deck, aft deck, Salon, galley and master stateroom)
Exterior connector for shore phone and cable TV Panasonic PBX Telephones (x5) with intercom features in salon, pilothouse, master stateroom, VIP stateroom, and crew mess; remaining cabins with a telephone outlet
Reserve flexible conduits, power supply, and a breaker for a future Starlink system
Navigation
Garmin GPS 24xd and MSC 10 Marine Satellite
Compass
Garmin GMR 1236 xHD3 (6-foot/ 12kW/ 96nm) open array radar
Garmin GMR Fantom 54 (4-foot/ 50W/ 2nm) open array radar
Garmin GPSMAP 9224 MFD 24" multifunction displays (x4)
Garmin GRID 20 remote input device (x1)
Garmin GSD™ 25 Premium Sonar Fish Finder Module
Garmin Reactor 40 Autopilot system with Reactor
AP Remote Control
Garmin Wind/ Speed/ Temp transducers
Garmin AIS 800 Class B Transceiver
Garmin VHF (x2) with built-in loudhailer
Maretron MBB300C for connecting to GARMIN network/display
Pilothouse And Instruments
[if gte mso 9]>
Enclosed pilothouse design with an S/S manual sliding door to open-skylounge with self-lock
Stidd Slimline 500N-MX2 manual pilot chairs (x2)
Integrated instrument panel on helm station with leather counter
L-shaped sofa with a pull-out platform to make sofa into a bed for one person (incl. a table) as per layout
Heavy-duty Speich S/S wipers with wiper wash system
Variable speed control on each windshield wiper
Phifertex Leisure fabric black mesh for windshield
Ritchie magnetic compass at helm
International LED navigation lights (incl. 180 degree Lopolights anchor x2, masthead, stern, PORT and STBD side light, total 6 units)
Full set of engine gauges at the helm
Electric fuel and water level gauges
Monitoring system for importation equipment (bilge pumps, blowers, navigation lights)
Surveillance camera system (TWO PTZ cameras; one at aft deck & one in engine room)
A day head
USB charger (x3)
Chart drawer
