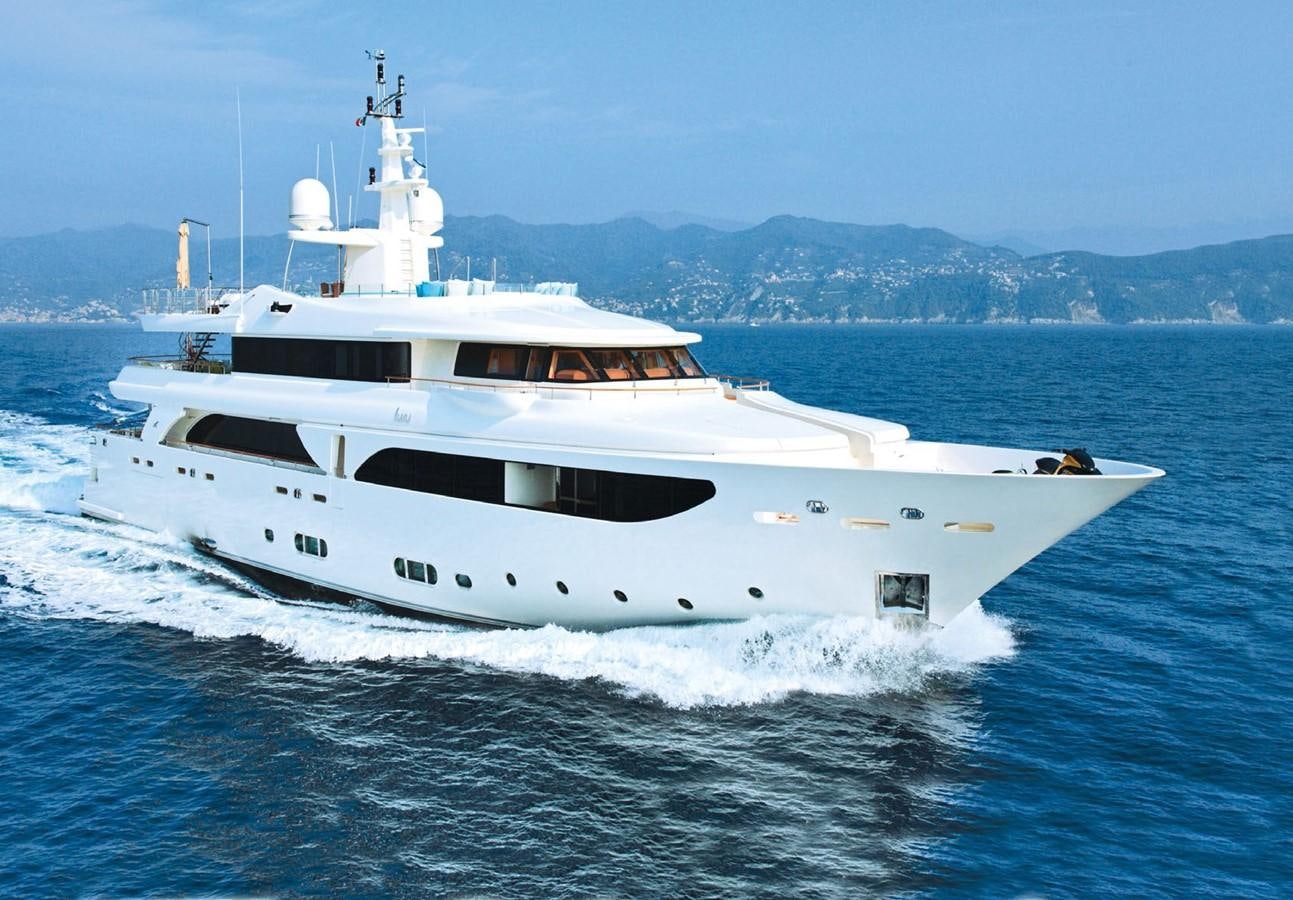

HANA Yacht for Sale

ENGINES

• 2 x 1,420 hp CAT C-32 C, Diesel

ENGINE HOURS

• Port: 9,454 / Stbd: 9,448 hours as of 16th May 2022

PROPULSION

• Prop Shaft

GENERATORS

• 2 x 100 kW Kohler, GM24463-GA28, Diesel

GENERATOR HOURS

• Port: 18,199 / Stbd: 17,461 hours as of 16th May 2022

WATER MAKERS

• 2 x Idromar MC3J

SEWAGE SYSTEM

• Hamann

FUEL TREATMENT

• Alfa Laval

FUEL FILTER PRIME

• John Deere RE 503676

FUEL FILTER FINE

• John Deere RE 506428

FUEL SEPARATOR

• Racor 3616 2010 PM, 30 Micron T800-344-3285

LUBE OIL FILTER

• Kohler 223673

Accommodation is for 11 guests in 5 cabins all with en-suite bathrooms
MASTER CABIN

• 1 x Full width master cabin with Owner's private terrace and balcony

GUEST CABINS

• 3 x Double cabins with king size beds
• 1 x Twin cabin with additional Pullman berth

GENERAL

• Digital safe in every cabin
• Day toilet/shower inside sun deck mast with A/C system

EXTERIOR

• Shower in beach area aft
• External bar on sun deck in teak
• Dimmer lights on each exterior deck
• Double spotlights on all exterior steps
• 16 x Megaled Plus underwater lights 2 stern, 6 port side, 6 stud side, 2 bow
• 2 x Additional Megaled Plus lights on each side

• Gaggenau oven
• Hobart Ecomax Dishwasher
• 1 x 4 Burner and 2 burner hobs
• Stewardess pantry
• Sub Zero wine cooler in UD pantry
• EuroCave wine fridge in the MD pantry
• Fan coil air conditioning
• Gaggenau barbecue on sun deck

SATCOM

• VSAT Tel 4006 Internet
• Antenna for dock WIFI connection

V-SAT SYSTEM

• Seatel 06 Series 8W

GSM

• Yes

VHF DSC

• 2 x Sailor VHF DSC

INTERCOM

• Carlisle Finch Intercom

TELEPHONE SYSTEM

• Digital PBAX

PRINTER

• HP7280 plus Wi-Fi

SAT TV

• Navisystem MST 95NTT Satellite TV

RADARS

• 2 x Furuno

GPS

• 2 x Furuno Navigator GP150

AUTOPILOT

• Sperry Marine

LOG

• Sperry Naviknot III

GYRO COMPASS

• Sperry

NAVTEX

• Furuno NX700

SALOON / GENERAL

• Panasonic Plasma 42” on SD - w/ up/down mechanism from ceiling with 180 degree rotation
• Sky TV access in saloons and cabins
• Multi-area DVD player
• Linn tuner amplifier
• Linn loudspeakers
• Touch screen colour remote control
• Sat receiver
• Apple TV with direct access via internet to over 8000 songs, and + 100 TV episodes
• Apple TV with direct access via internet, over 8,000 songs, + 100 TV episodes and a range of films.
• Upgrade of Philips Pronto remote controls (13 x units), w/ programming software for Apple TVs and iPod docking stations, installed and connected to Apple TVs.

GYM

• Sharp TV LCD 26” in LD gym - w/ multi-area DVD player
• Linn tuner amplifier
• Touch screen colour remote control
• Sat receiver
• Linn loudspeakers

CAPTAIN

• Sharp TV LCD 20” in LD captain's cabin w/ multi area DVD player
• Linn tuner amplifier
• Touch screen colour remote control
• Sat receiver
• Linn loudspeakers

TENDERS

• 1 x 5.40m/18ft Castoldi - 125Hp - splash guards, bimini top & teak decking and stereo system
• 1 x 3.50m RIB with 25hp o/b

WATERSPORTS

• 1 x 1300cc Wave Runner
• 1 x Kawasaki stand-up jetski - 2021
• 1 x Seabob
• 2 x Stand-Up Paddleboards
• Water skis
• Wake-boards
• Variety of Inflatables and tow-ables - 2 new donuts 2021
• Jobe sea trampoline
• New masks and snorkelling equipment 2021

GYM

• TechnoGym Forma Run Treadmill
• Adjustable Dumbbells
• Skipping Ropes
• Adjustable Resistance Bands
• Mats for Yoga and Core Training
• Adjustable Exercise Bench

• 2 x Life rafts for 25 people each

• CCTV-Monitor from gallery to captain's cabin

WINTER WORKS 2021 / 2022

• Top end overhaul of both generators
• Engines serviced
• New galley equipment
• New Kawasaki jetski
• New watertoys
• Overhaul of AV/IT system (new 5TB ONAP hard drive, with upgraded system architecture for improved performance)

REFIT WINTER 2018 / 2019:
ENGINEERING

• Installed brand-new main engine exhausts
• Gearboxes serviced
• Shaft bearings replaced and realignment
• Propellers balanced
• Main Engine shafts re-aligned and checked for vibration (reports before & after)
• Bilge and Fire Pumps serviced
• Stabiliser cooling system serviced
• Domestic water filtration system replaced
• New underwater lights
• New VSAT installed ( Sea Tel 4009 )
• New SSB radio installed
• New VHF radios purchased
• New Inmarsat C system
• New GMDSS battery system
• New GPS system installed
• New Echo sounder installed
• New Fleet Broadband installed (Sailor 250 )
• Repaired and updated Auto pilot, Gyro Compass and Speed Log
• AV - IT system renewed (Kerio, Unifi and a new server installed)
• New TV’s installed in all the guest areas
• Swim platform hydraulics replaced and painted

INTERIOR REFIT

• All wooden interior floors re-varnished
• New Carpets throughout
• New Washing machines and dryers installed
• New flooring installed in tender garage
• New bridge console
• Bridge seat leather replaced
• Crew living spaces refurbished
• All guest soft furnishings renewed

EXTERIOR REFIT

• Brand new tender purchased
• Brand new rescue boat
• New SeaBob
• New stand-up jetski - most powerful available
• Hull and paintwork re-protected with Awl Care
• New Umbrellas for the Sundeck
• New TV’s on Sundeck
• New audio Speakers on Sundeck
• Teak decks sanded
• All exterior cushion covers replaced

REFIT WINTER 2017 / 2018:

• Hull Inspection dry docked
• Ten year MCA and Class (RINA) inspections completed
• Main engines tested, inspected, and serviced according to Caterpillar service schedule
• Main Engine exhausts spray rings and overboard delivery pipes re made and new valves fitted
• Main Engine exhaust laggings replaced
• Gearboxes lifted and fully serviced, new bearings inserted and gear teeth checked for excessive wear
• Gearboxes newly aligned with shafts
• Stabilisers fully re-built with new yokes and hydraulic rams, all hoses changed
• Shafts removed and fully inspected
• Shaft seals replaced
• Cutlass Bearings replaced and shafts re-lined to -3˚ angle offset down
• Steering ram and associated hoses serviced
• Propellers removed, cleaned and balanced, prop speed applied
• Generators inspected and tested and electrical windings cleaned and repair made
• Rudder bearings inspected and checked
• Underwater exhaust repairs where required
• Underwater-lights replaced where broken
• Bow thruster fully serviced
• Engine room ventilation system removed serviced and cleaned
• All AC fan coils replaced
• All extraction fans replaced
• All tanks cleaned inspected and checked
• Bulbous bow serviced and checked for water penetration
• Some underwater sensors replaced
• Above waterline hull washed and Awlcare applied
• Sea chest valves removed and re-ground and the pipes interior anti fouled
• All seawater valves under the waterline removed cleaned inspected, pressure tested and either replaced or serviced
• Cathelco system fully serviced
• Owner’s balcony window re-lined and re-sealed as new
• Both anchor windlasses removed and re-built, new seals, new motors and gearboxes checked
• New heavy-duty cables run for anchor windlass motors
• Teak deck around the anchor winches repaired
• All interior floors re-varnished
• Crew interior fully refitted
• Galley equipment upgraded
• Galley fully refitted
• Anchor Chain inspected and re-painted
• AV system upgraded and improved
• Engine room plates re-anodised
• New Sat TV dish and cabling
• New bedding and mattresses throughout
• New exterior cushions and covers throughout
• New loose furniture on sun deck
• New Castoldi guest tender
• New Rescue Boat
• New Sea Bob
• New Jetski
• New Wave runner
• New Computers for the crew office

SHIPYARD WORKLIST & REFIT 2016 / 2017:
MAJOR WORKS MARCH / APRIL 2017

• New Castoldi Jet Tender 18 ordered (2017)
• New Kawasaki Stand-Up Jetski ordered SX-R 4 Stroke (2017)
• 2 x New Miele professional Dryers
• 2 x New Miele Professional Washing Machines installed
• 1 x New Miele Dishwasher Installed
• All Safety Equipment Inspected and Serviced
• All exterior paintwork professionally touched up for scratches and dings
• Deep Clean of All Bilge Spaces and Steering Flat
• ER Overhaul for Fresh Water Maker and Main Fire & Bilge Pumps
• In Class with RINA as a Commercially Registered Yacht carrying no deficiencies and is fully complaint with all the regulations for British Flag & MCA
• Mega Yacht Solutions provides mini-ISM for M/Y Hana where she has passed her recent audit

MAJOR WORKS MARCH / APRIL 2016

• M/Y Hana Dry Docked – La Ciotat – Composite Works
• Stbd. Generator 10,000 HRS service – Full Rebuild
• All overboard valves and intakes inspected and serviced
• Shaft & Rudder Clearances measured
• Grey & Black Water Tanks cleaned and inspected
• 4 x Windlasses inspected and serviced
• New Coat of Anti-fouling
• Prop-speed on props
• Galley and Laundry Ducts inspected and cleaned
• All Safety Equipment inspected and serviced

MAJOR WORKS OCTOBER / NOVEMBER 2016

• 15 x Windows replaced due to delamination by Tilse Glass – Germany – now better than original glass specification
• Port Generator 10,000 hours service – Full Rebuild
• All exterior paintwork professionally touched up for scratches and dings.
• Audio Visual Upgrade – Full New System with iPad user interface to control all AV functions, Music-TV-Internet-Phone-DVD
• Main Engines serviced
• Restoration of all interior leather
• New Name Sign and Lights on stern
• Air Conditioning Service
• New Miele Pantry Fridge Installed

SHIPYARD WORKS - REFIT LIST 2014 / 2015:

• Full paint job carried out on hull and superstructure including sanding, 545 primer and 2 x Awlgrip top coats, better than new
• Over 20 x windows entirely replaced throughout vessel (those suffering from delamination)
• New windbreaker panels installed
• Caterpillar engine parts serviced and exhaust leaks repaired
• Propellers and shaft seals removed and re-installed
• Cutlass bearings and stern tubes replaced
• Rudders and spare anchors sandblasted
• Fiberglass damage repaired and re-laminated
• Shore converter serviced
• Balance propellers revised
• Propspeed applied to propellers
• Acoustic sound insulation (30mm thick) installed in various areas to improve guest noise insulation
• Swim platform teak re-caulked
• Acoustic insulation material for generator sound boxes installed
• Furuno Radar and Furuno depth sounder serviced
• New Furuno Echo sounder installed
• Furuno magnetron replaced
• Sperry speed log and Sperry gyro serviced
• New Sperry speed sensor and pre-amp installed
• Batteries for fire alarm system replaced
• Grey water tank inspected and cleaned
• Cooling fans for shore converter replaced
• Valve on deck drain repositioned
• Ball valves on watermaker replaced and leaks repaired
• Potable water analysis for legionella bacteria, air microbiolic analysis carried out
• B&G speed sensor replaced and installed
• 2 x Fresh water circulation pumps replaced and installed
• Miele dryer serviced and broken shelves in refrigerator replaced
• Fresh water and air duct microbiologic analysis for legionella carried out
• Sea chest maintenance carried out
• Bilge and fire system valves tested and repaired
• Spare parts for generators ordered
• Anchors and chains re-galvanized
• Stainless anchor pockets cleaned and polished
• Black and grey stainless piping replaced
• Boot top re-painted
• Foredeck crane re-painted with Awlgrip Oyster white top coat paint
• Fresh air handlers replaced
• Covers and cushions for upper aft deck seating replaced
• Zinc anodes replaced
• Stainless table legs and passarelle stanchions polished
• Tender launching system repaired
• Antifouling applied on V brackets
• Owner's balcony frame repaired
• Sea water pumps serviced
• 2 x Anchor wash valves replaced
• New gaskets for exterior doors and hatches, balcony and passarelle installed
• Life rafts inspected
• Fan coil replaced
• Fire Alarm panel repaired
• Shower head for swim platform replaced
• Delamination around the exhausts repaired
• Access hatch to access name lettering
• Supply macerator pump for Hamann unit repaired
• Stainless exhaust cover installed
• 1 x Transformer for fire system and rectifier board installed
• Hatch cover replaced
• Aft deck table re-veneered

She is hull No. 2 of the popular CRN 43m series, launched in July 2008. Designed with a light, modern interior for a family of experienced yacht owners and supervised carefully throughout her construction by an experienced Project Manager, she remains in the same original ownership and is run extremely professionally to a high commercial standard. A popular charter yacht, she generates a very constant income for her owners and never struggles to fill her calendar. Offered now to the market, she represents a great opportunity for a Buyer looking for a well-maintained yacht that largely pays her way on the charter market.
