ELENA Yacht for Sale

86' (26.21m)

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

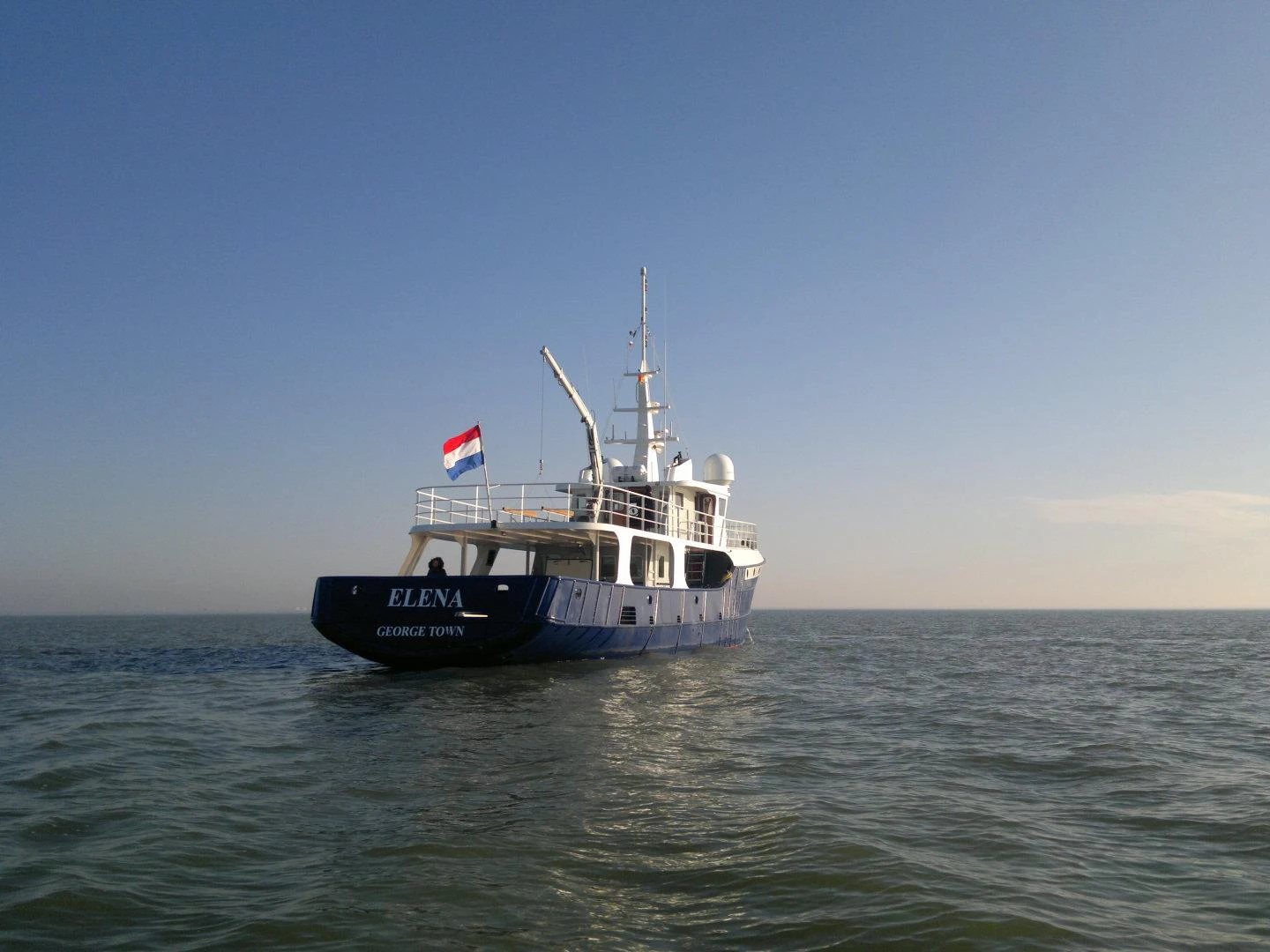

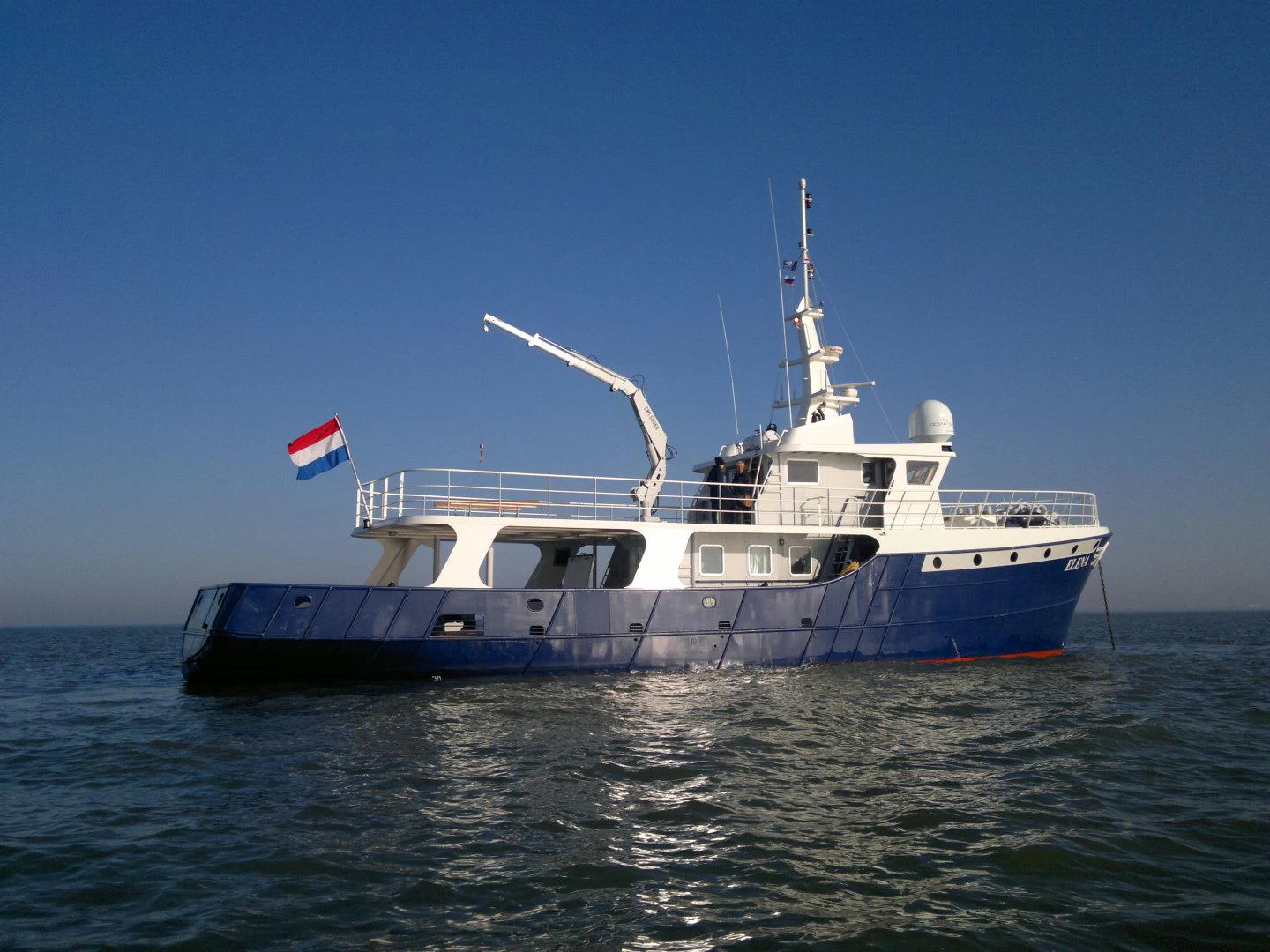

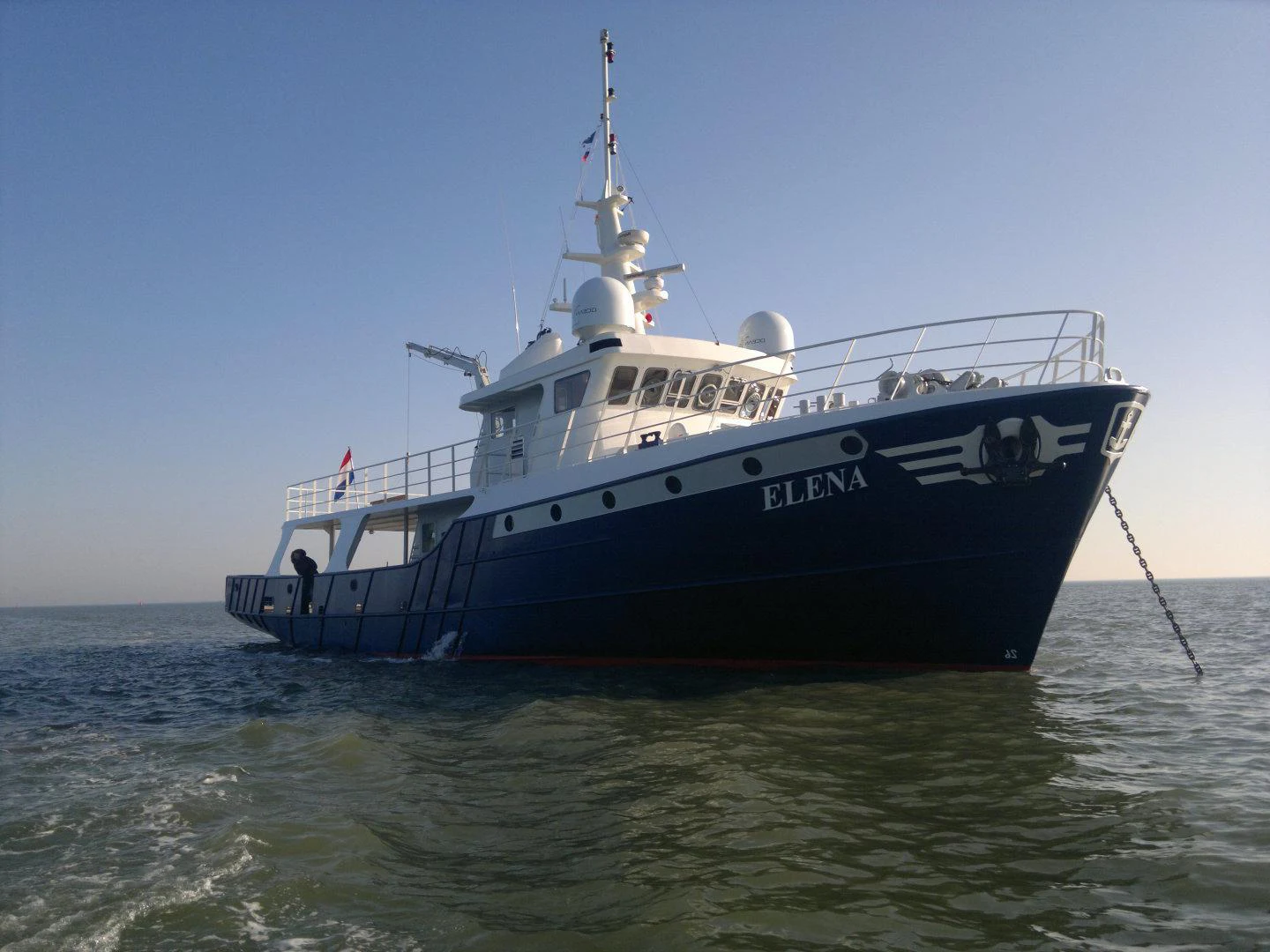

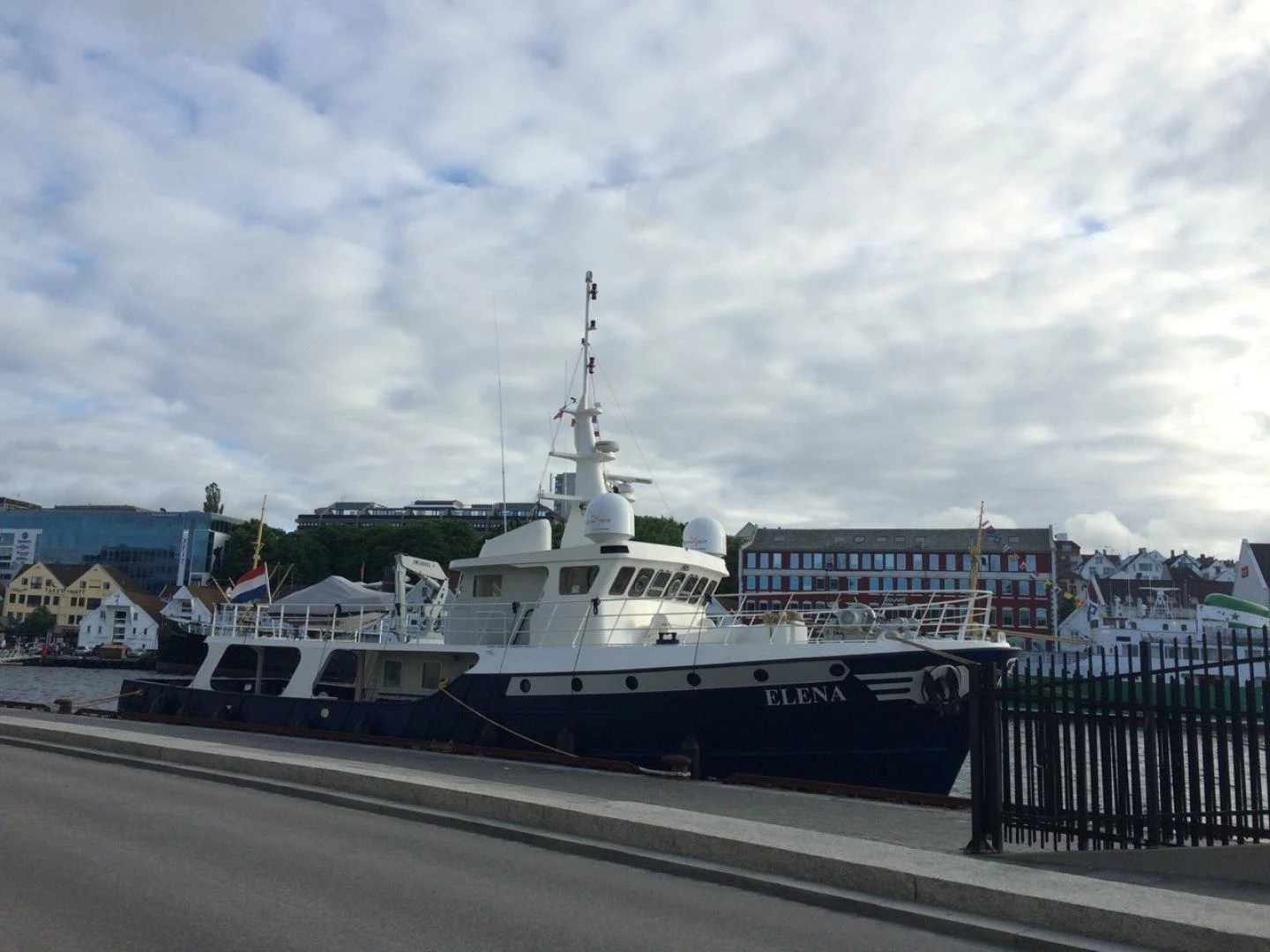

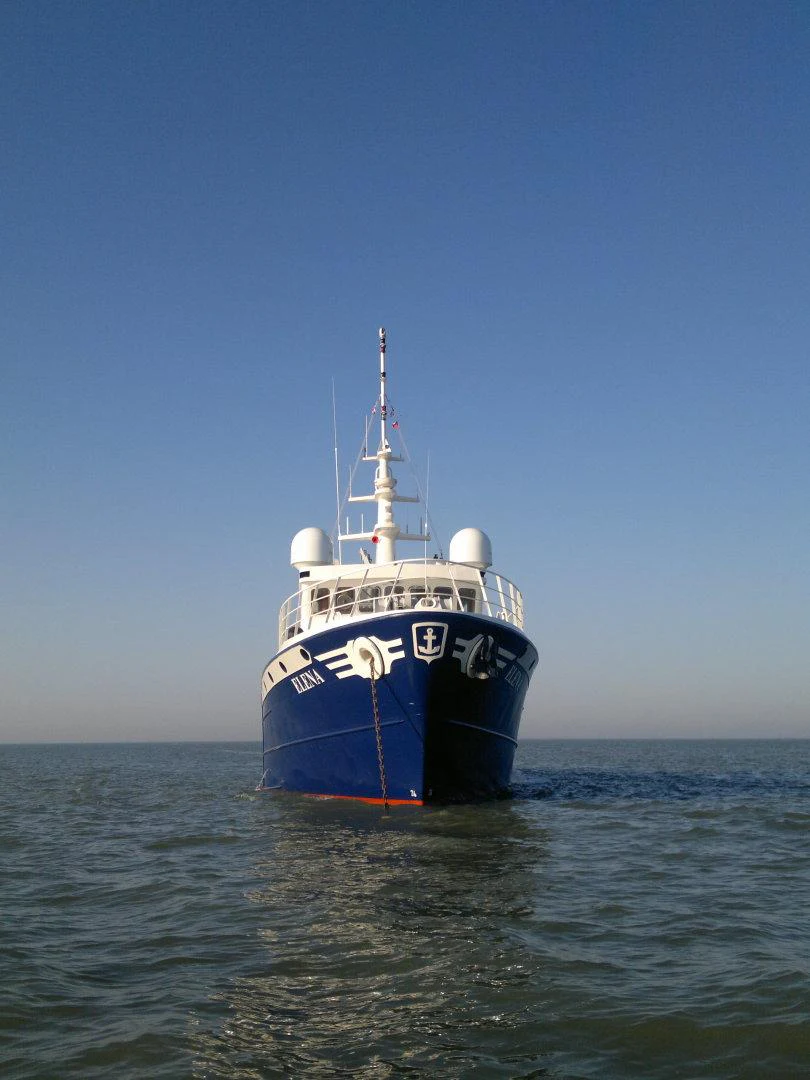

The 85-foot (26.2m) ELENA is a classic, traditional expedition-style yacht, which offers an exceptional platform for cruising.

ELENA is a former fishing vessel that has been converted and fully renovated into a private yacht, ideal for diving. While currently under private use, she would be perfect as a commercial dive vessel.

The motor yacht has a steel hull, making her ideal for cruising anywhere in the world, including expeditions to exotic islands such as the South Pacific.

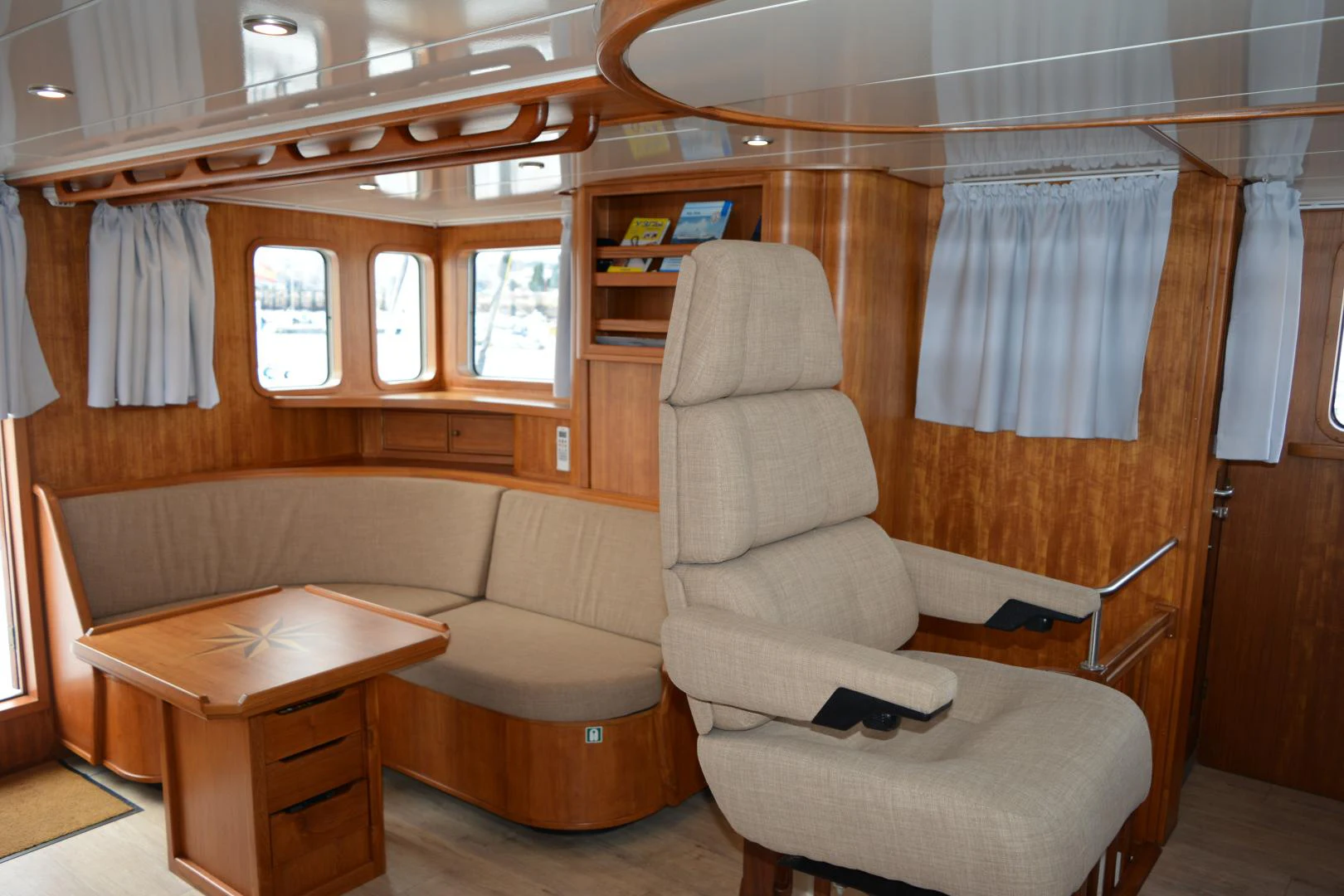

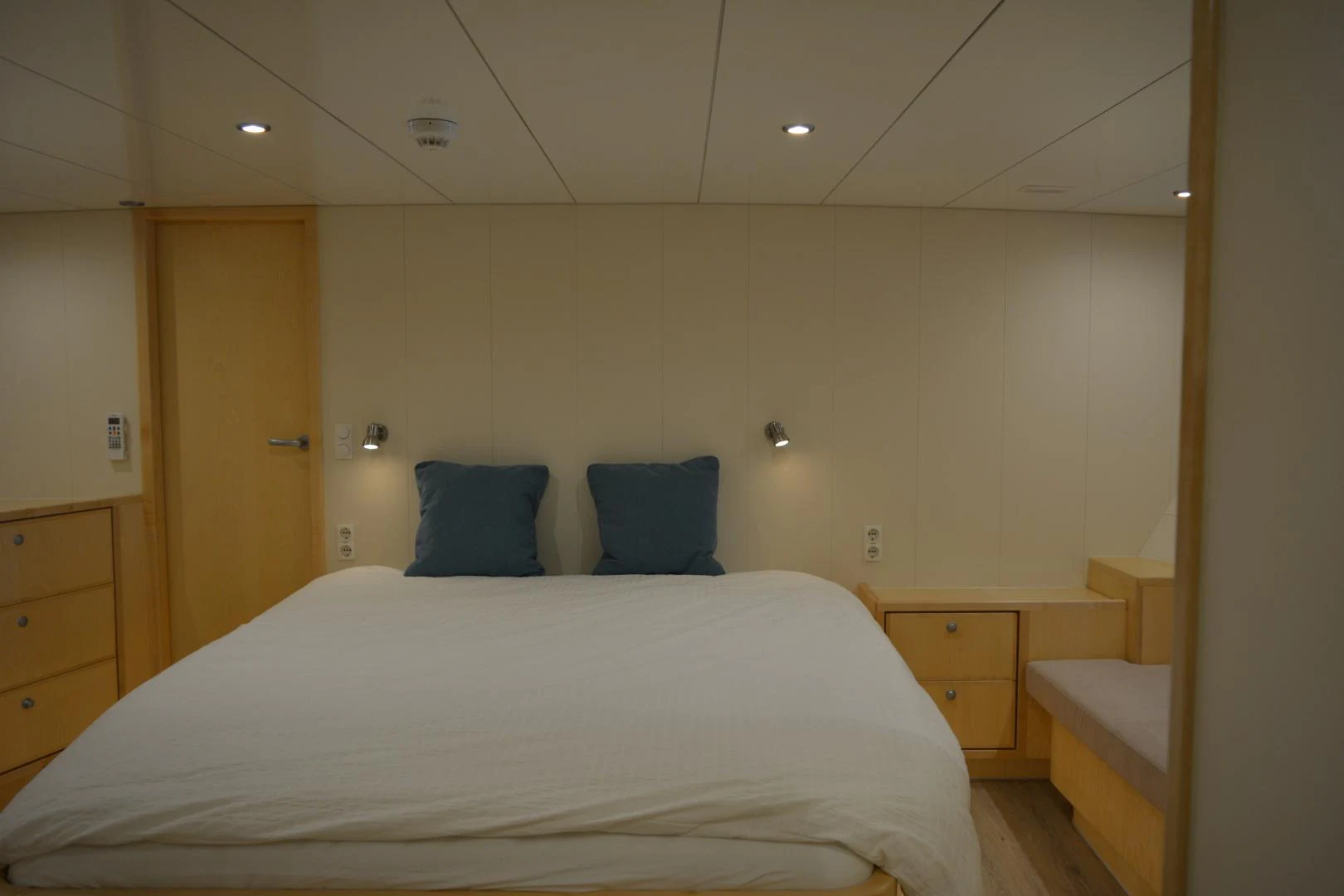

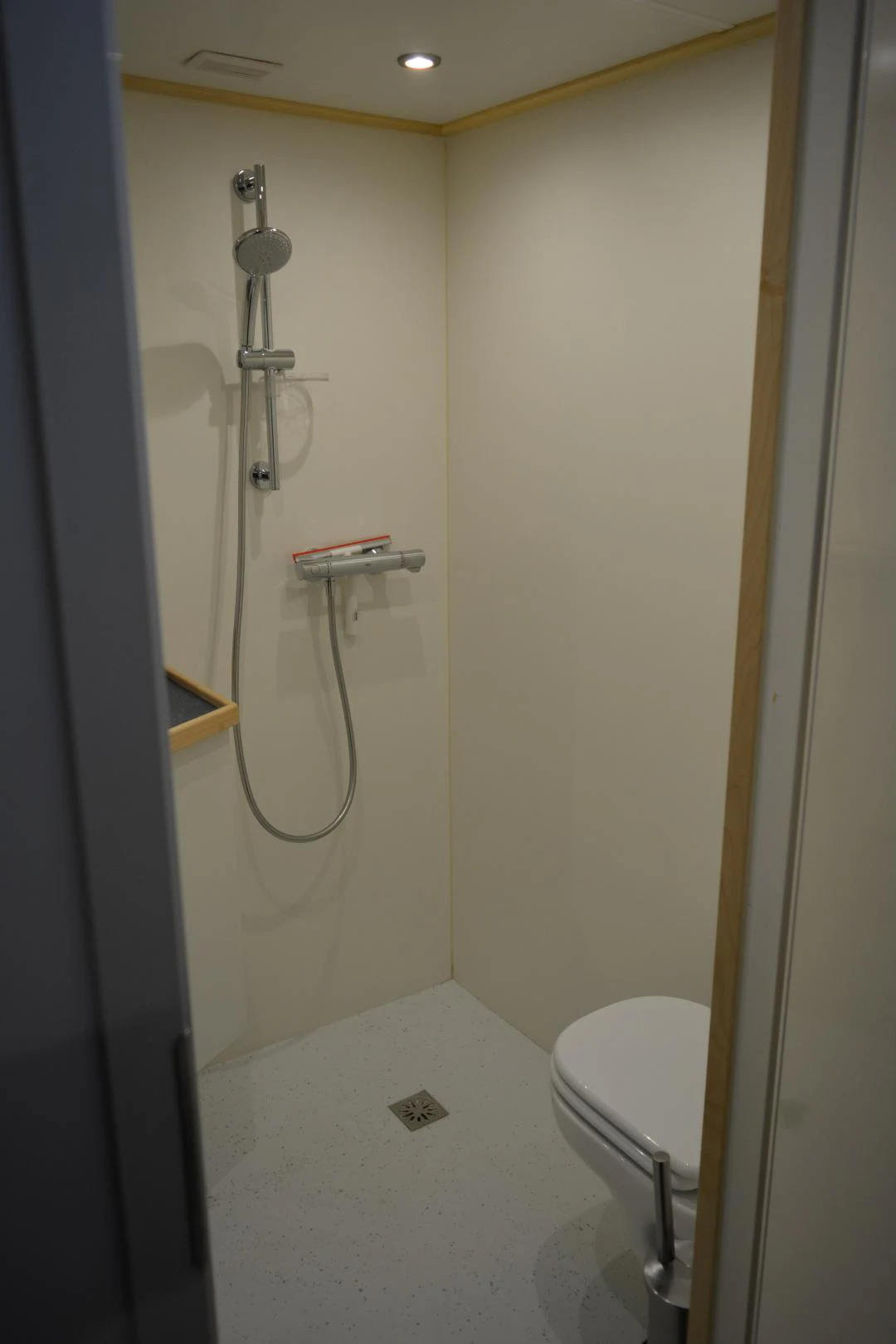

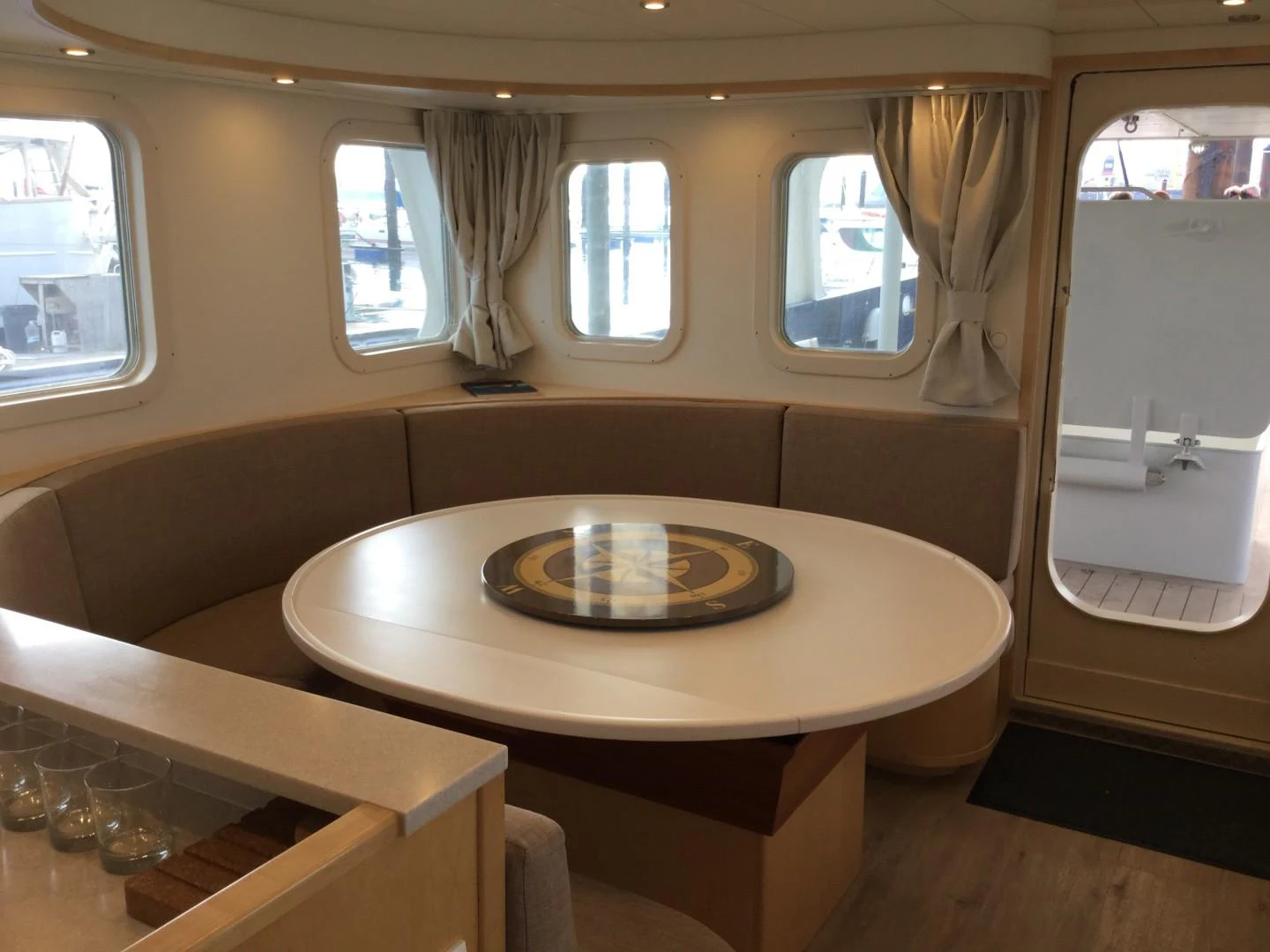

The luxury yacht has a simple interior, which provides the perfect place for relaxing after a day on the water. It boasts a fully equipped galley, allowing for easy cooking. ELENA accommodates six guests overnight and up to 30 for day cruises. She features three staterooms, which include a main deck master suite and two lower deck guest staterooms. Each guest stateroom is complete with en-suite bathrooms with shower stalls. ELENA also accommodates four crew in two staterooms — if desired one stateroom can be used for guests.

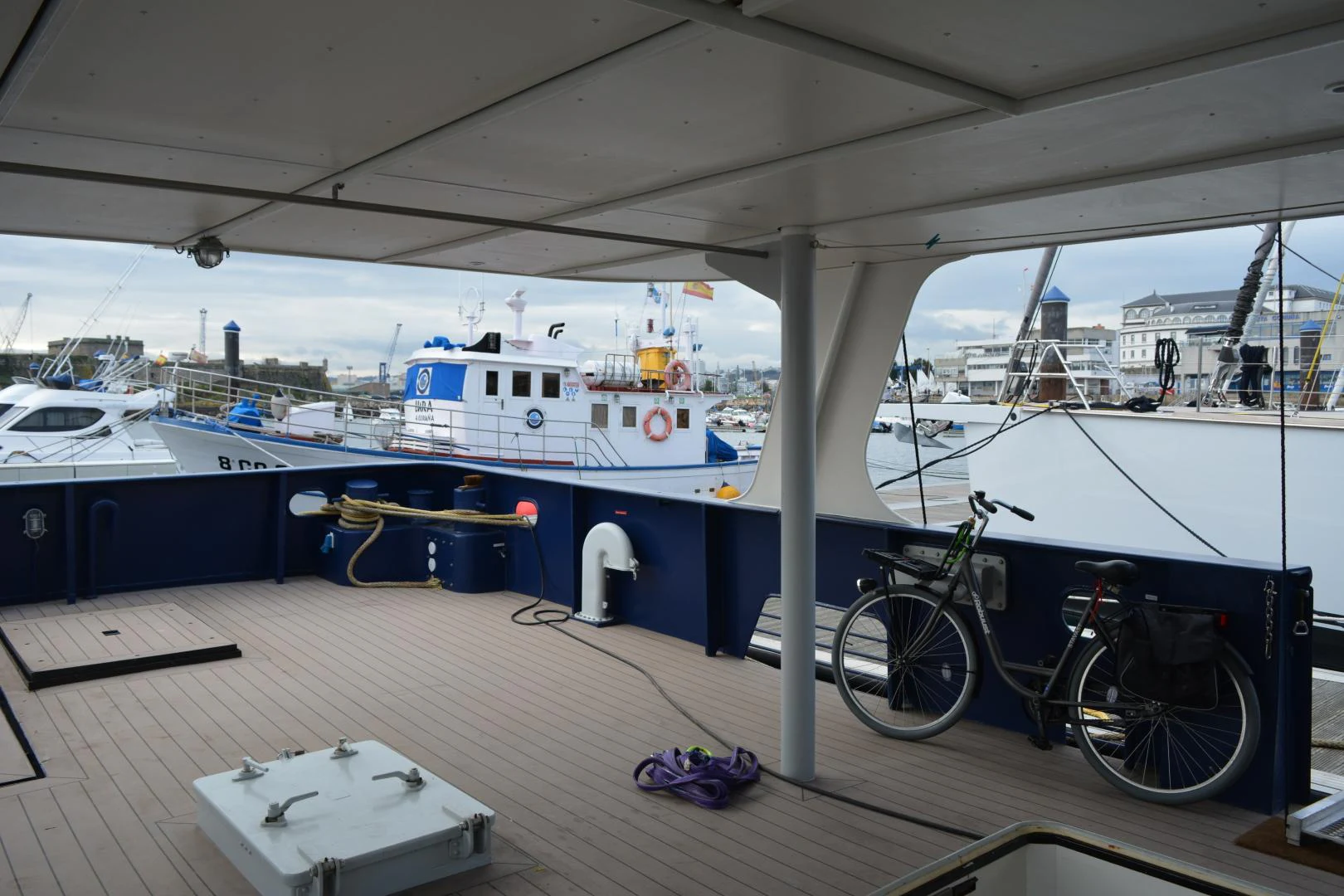

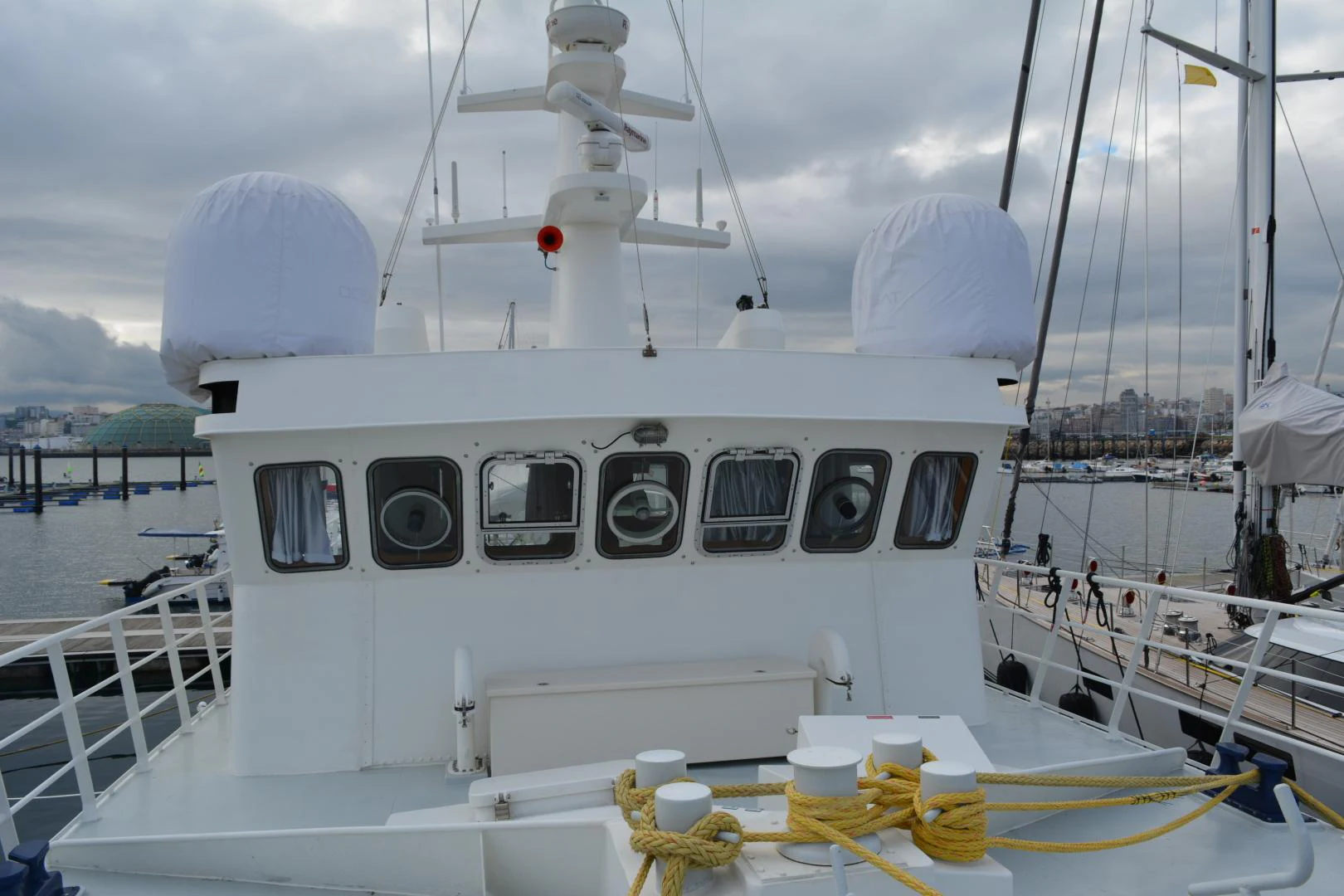

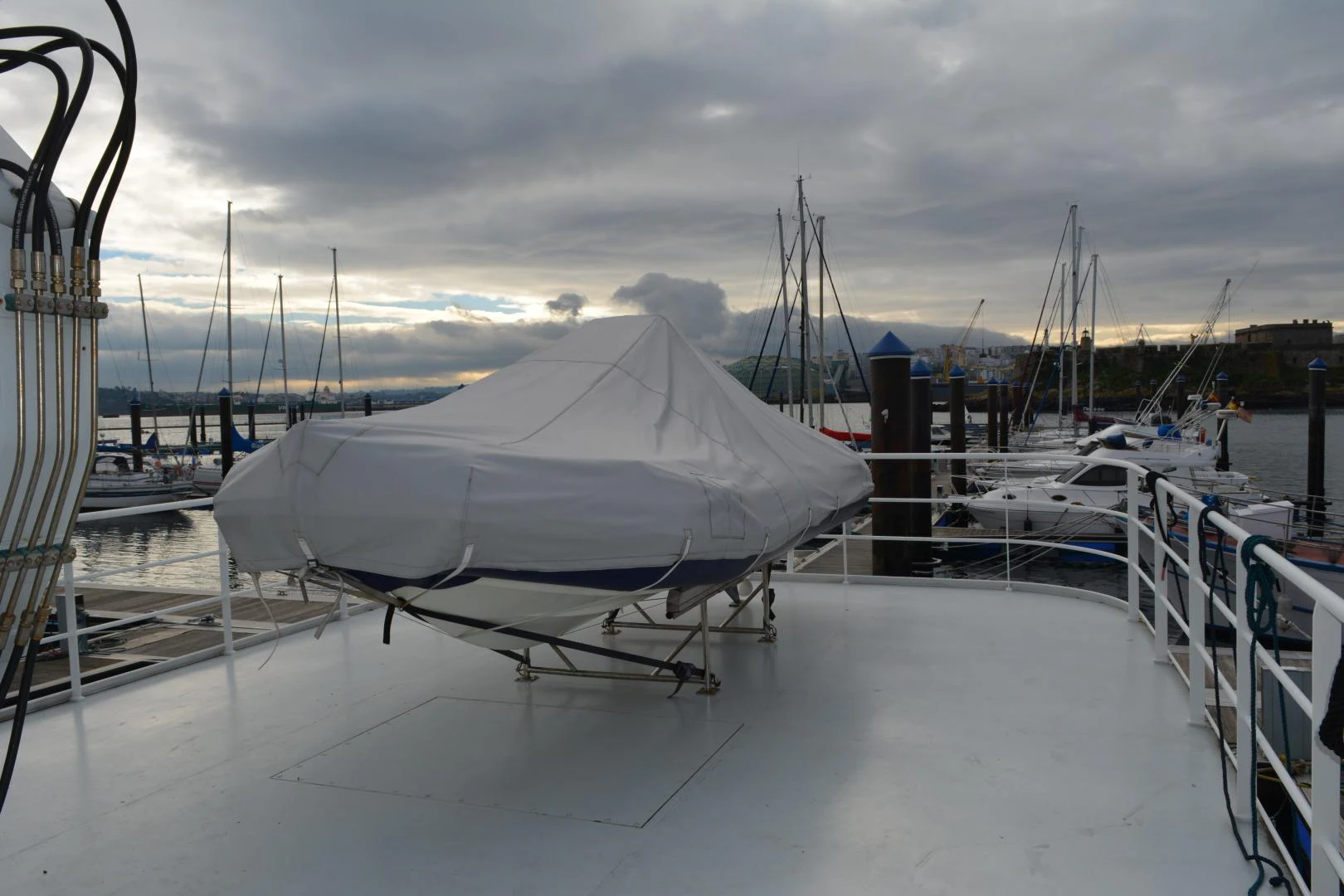

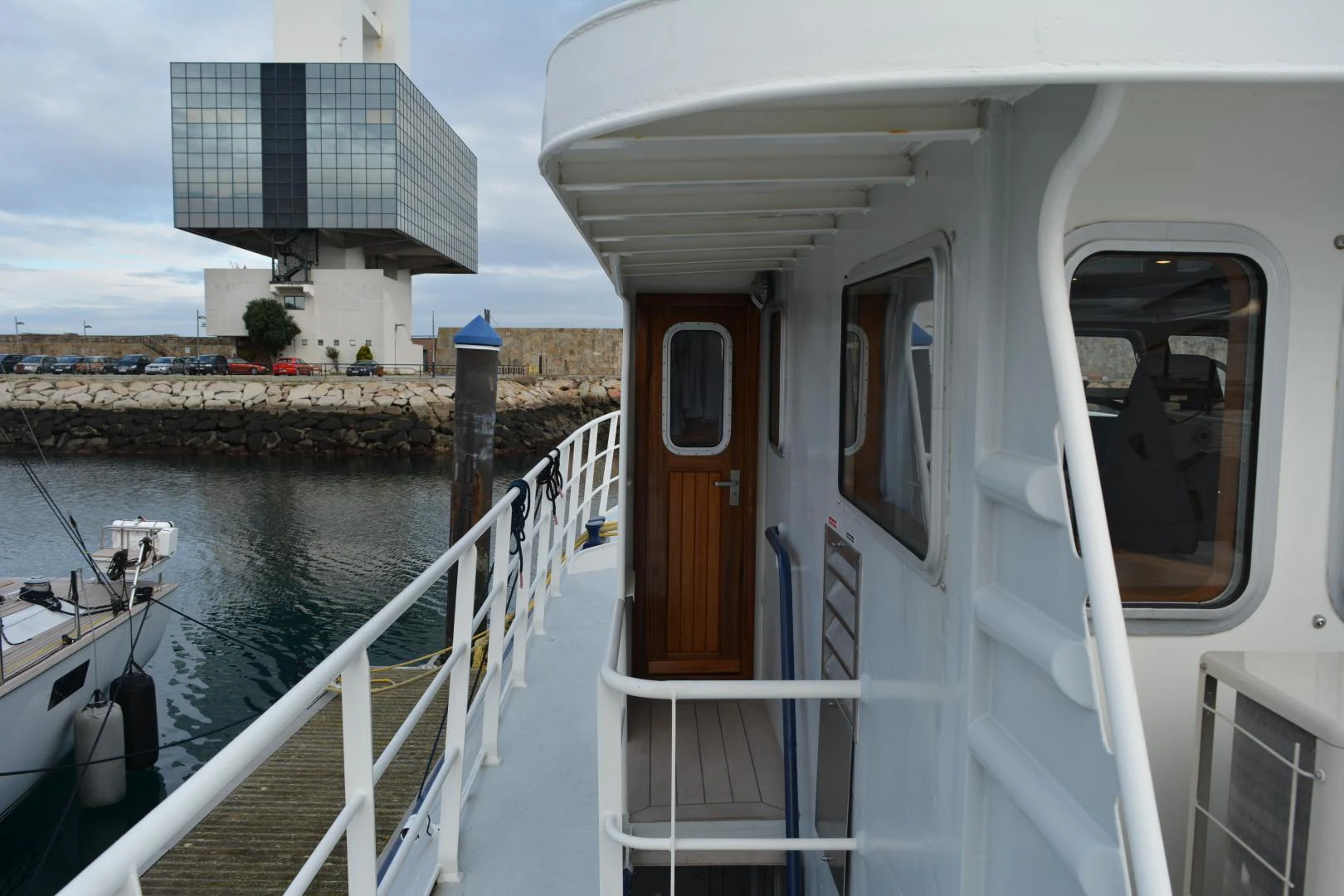

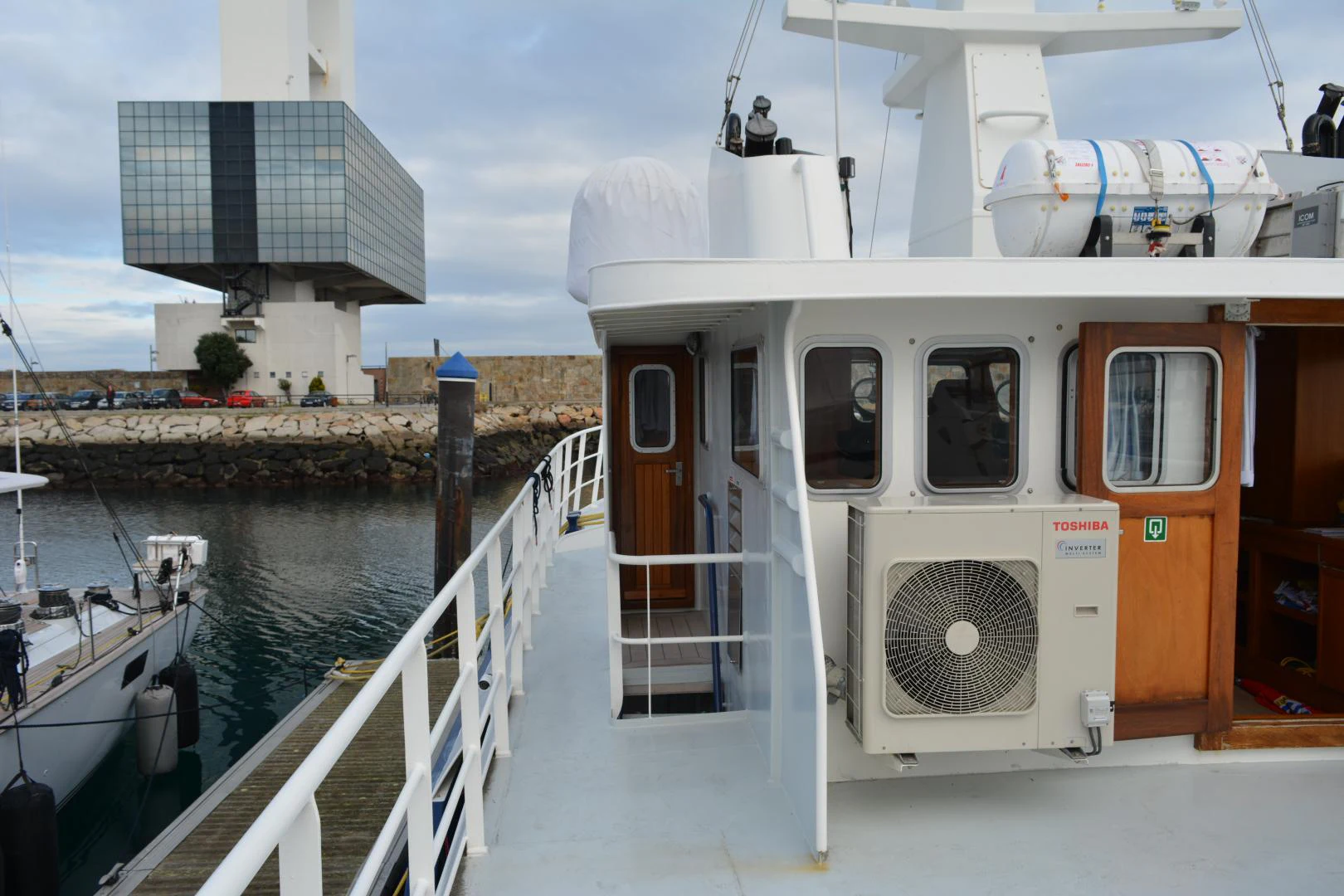

Motor yacht ELENA boasts a large sundeck. It houses the 16-foot (5m) Zodiac tender and is perfect for entertaining. The yacht also has a shaded lower aft deck and easy walk-around decks.

Last MCA inspection in Spain December 2018

Last Dry-dock (Netherlands) November 2016


  • Extremely seaworthy vessel
  • Very low fuel consumption
  • Able to be used as a commercial dive vessel
  • 30 guests for day cruising
  • Small Commercial Vessel Certificate until 08/12/2021
  • Excellent maneuverability
  • Thermal imaging equipment


Builder Custom
Model kramer & booy 86'
Length (LOA) 86' (26.21m)
Year 1968
Year Refit 2017
Gross Tonn. 138
Draft 9' 67" (4.45m)
Beam 22' 4" (6.81m)
Range 4,500 NM
Location A Coruña, Spain


Staterooms 5
Sleeps 10
Heads 5
Crew Sleeps 2
Capt. Quarters No

Dimensions & Capacity

LOA 86' (26.21m)
LWL 75' (22.85m)
Min Draft 9' 67" (4.45m)
Max Draft 9' 67" (4.45m)
Fuel Tank 7,925 g (30,000 L)
Fresh Water 793 g (3,000 L)
Holding Tank 4,227 g (16,000 L)
Gross Tonn. 138


Hull Material Steel
Hull Config Displacement
Max Speed 10 Knots
Cruising Speed 8 Knots
Range 4,500 NM
Stabilizers None


Engine Make Deutz
Engine Model SA8M528 (# 47857**) V8
Engine Type Inboard
Power HP 400
Power KW 0
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details


This former fishing vessel was converted and fully renovated into a private pleasure dive yacht.  The extensive re-build and be viewed at http://elenavessel.com/

 The full rebuilt of the interiors and exteriors was finished in March 2017,  by SRF shipyard (Scheepsbouw & Reparatie Frislandia) which is a highly professional shipyard with great staff and have extensive experience in this kind of works.

Along with the 5 staterooms comprising of 3 Guest staterooms, accommodating 6 guests, and 2 crew cabins, accommodating 4 crew ELENA also has a fully equipped galley, upper sun deck, lower shade deck, RIB boat, surf boards, full snorkeling gear and dive compressor "Bauer mariner 200 E profi-line II", flat-screen TVs and much more.  She also has the capacity to take 30 guests for daytime cruising.

With her steel construction and sold build, ELENA is the perfect vessel to cruise anywhere (Area category 2) on expeditions or exotic islands.  She is ideal for dive holidays as she can provide dorm-living for weeks at a time.

ELENA is currently used as a private pleasure dive yacht cruising the waters of Europe.

Last MCA inspection (Netherlands) December 2018

Last Dry-dock (Netherlands) November 2016


Hydraulic system with additional emergency/spare hydraulic system.
1x motor Mitsubishi 6D 16T (203hp) with 2700 rpm for hydraulic system.
Hydraulic driven:

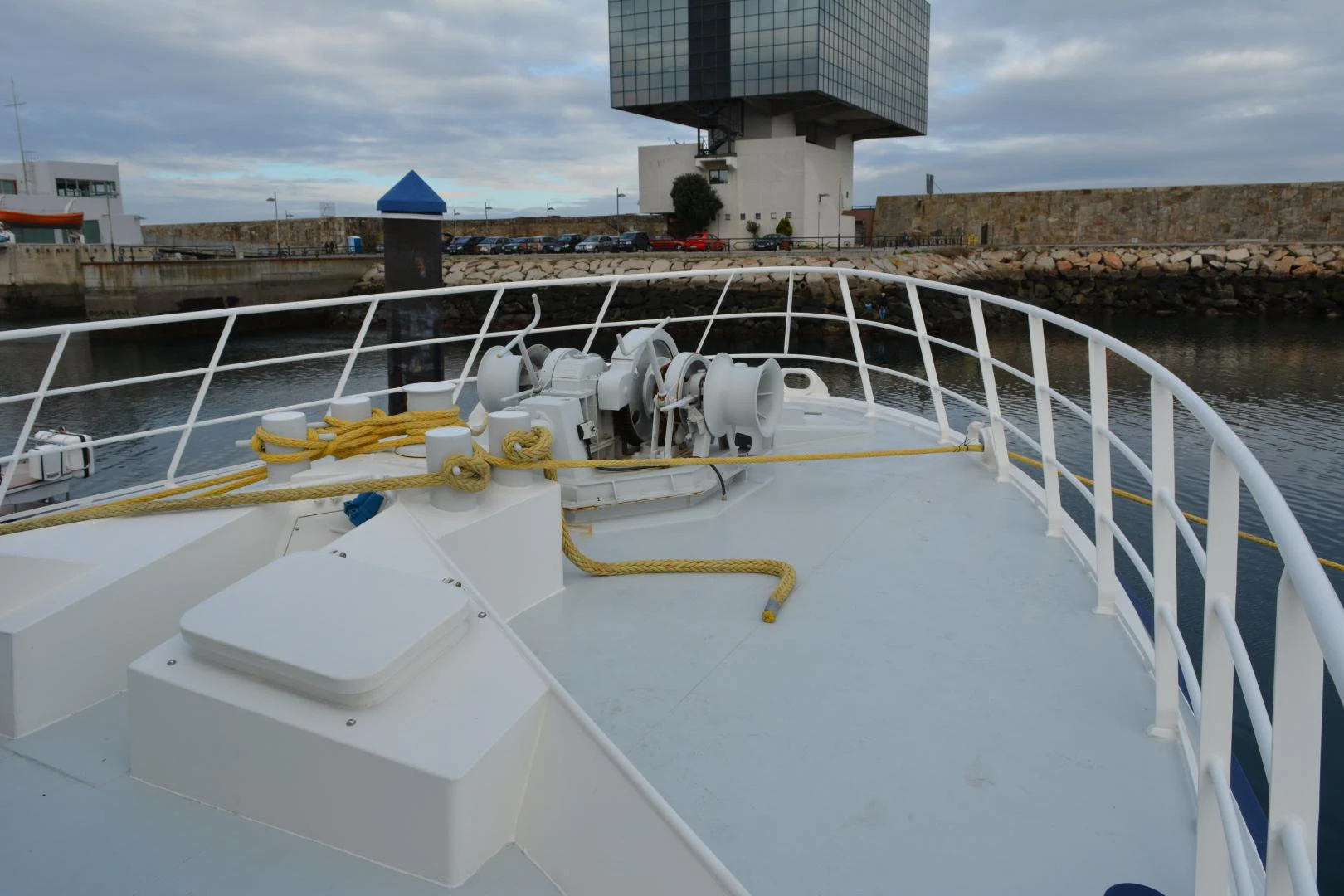

- Anchor winch fore ship;
- 3x Capstan winches;
- Hydraulic knuckle boom crane;
- Hydraulic gangway stern;
- Bow thruster; 1 x 29,42Kw Type 2
- Stern thruster; 1 x 11,3 Kw
- Steering.
Hydraulic knuckle boom crane with 6 mtons/2m or 600 kg on 9,5 m (SWL 600)
Fully hydraulic driven retractable gangway (8 m) in stern.
2x Anchors , Type: Speck, 420 kg each with 110 m chains, Diameter: 23 mm.
New smart 100s220/24 digital Water Maker (2016)
Main deck: 9,5*6,5 m = 61,75 m²
Sun deck: 50 m²
Bilge pumps: 2
Deck wash pump: with fire pumps (sea water) or from water system (fresh water).

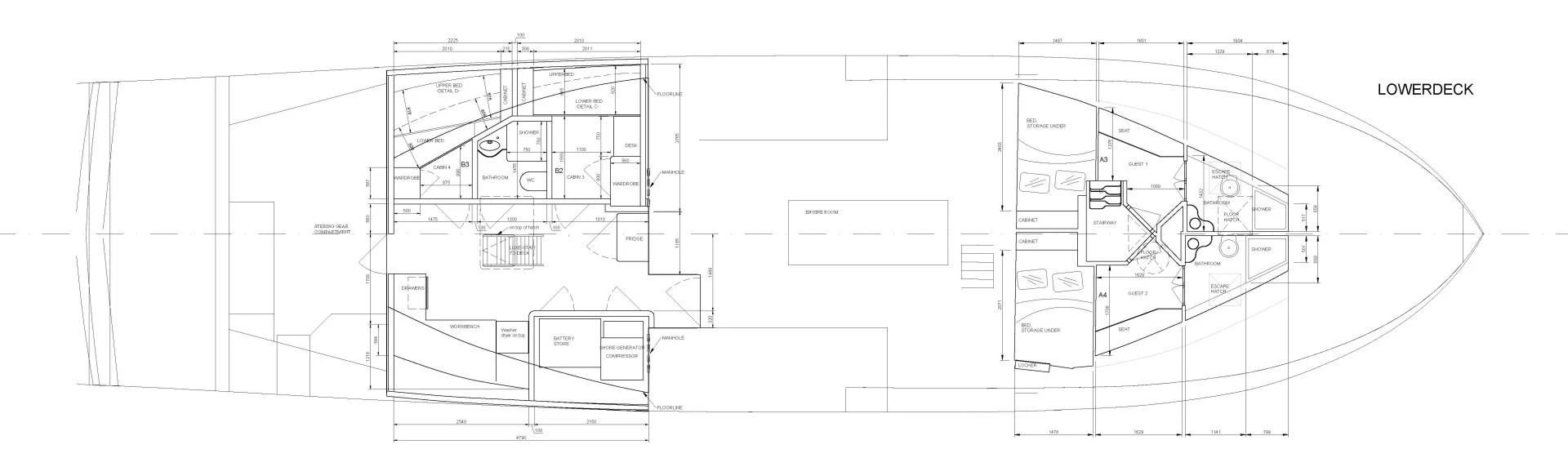

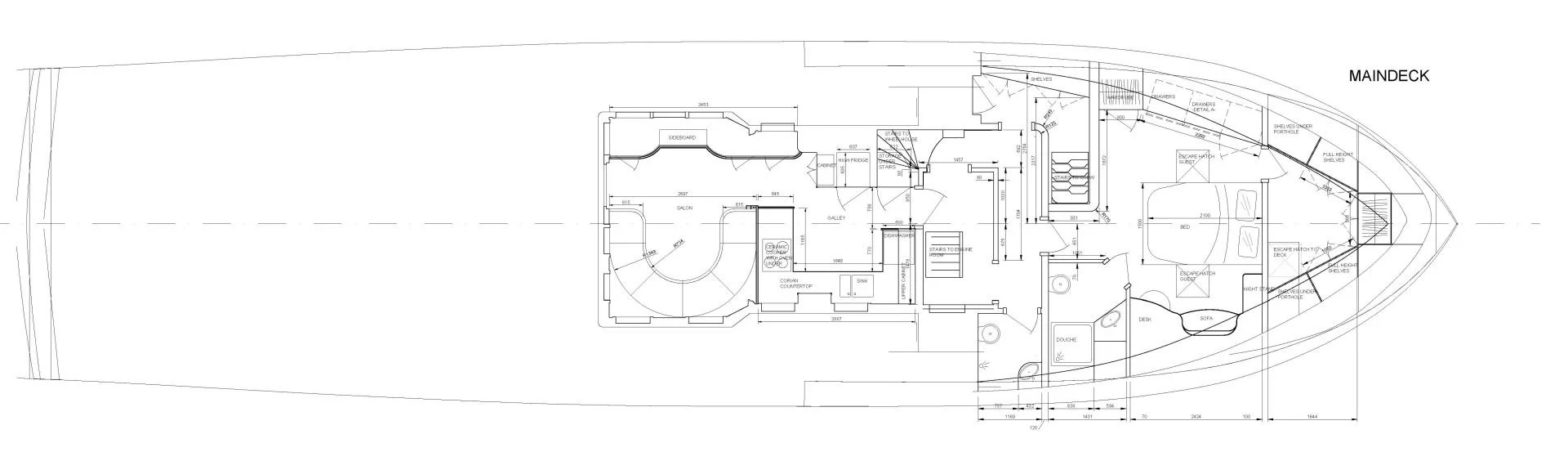

Living Areas

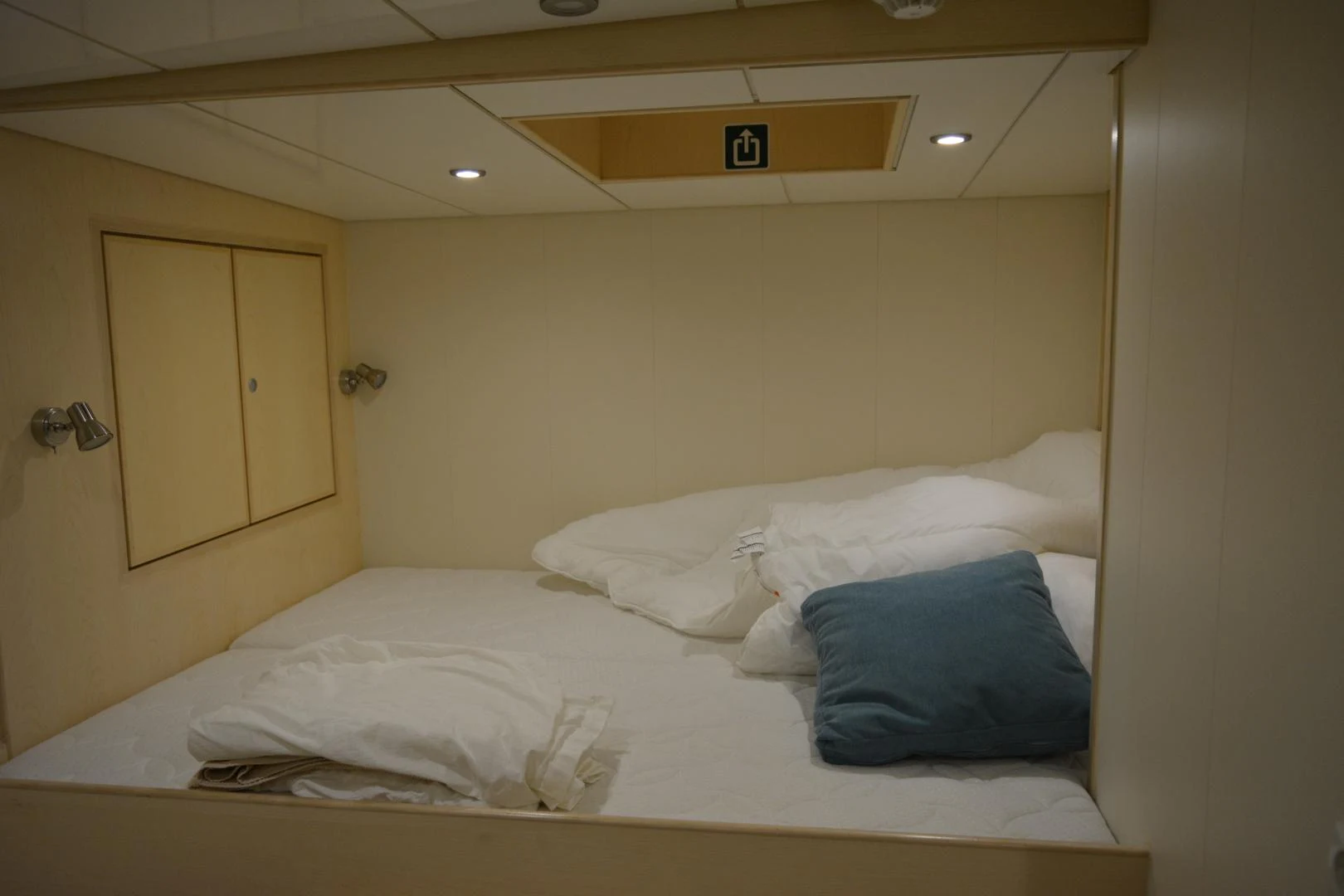

5x Staterooms in total which can be re-arranged

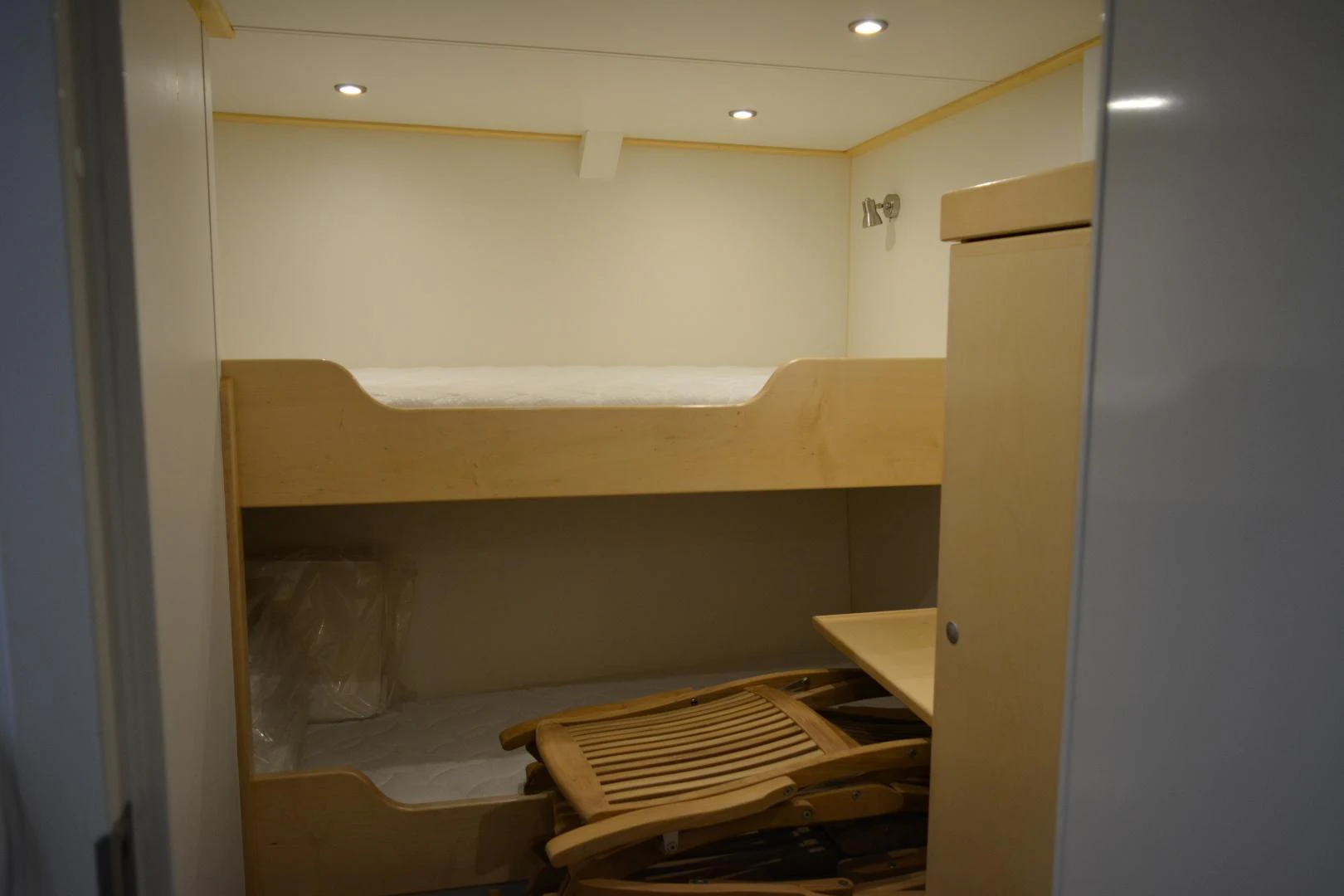

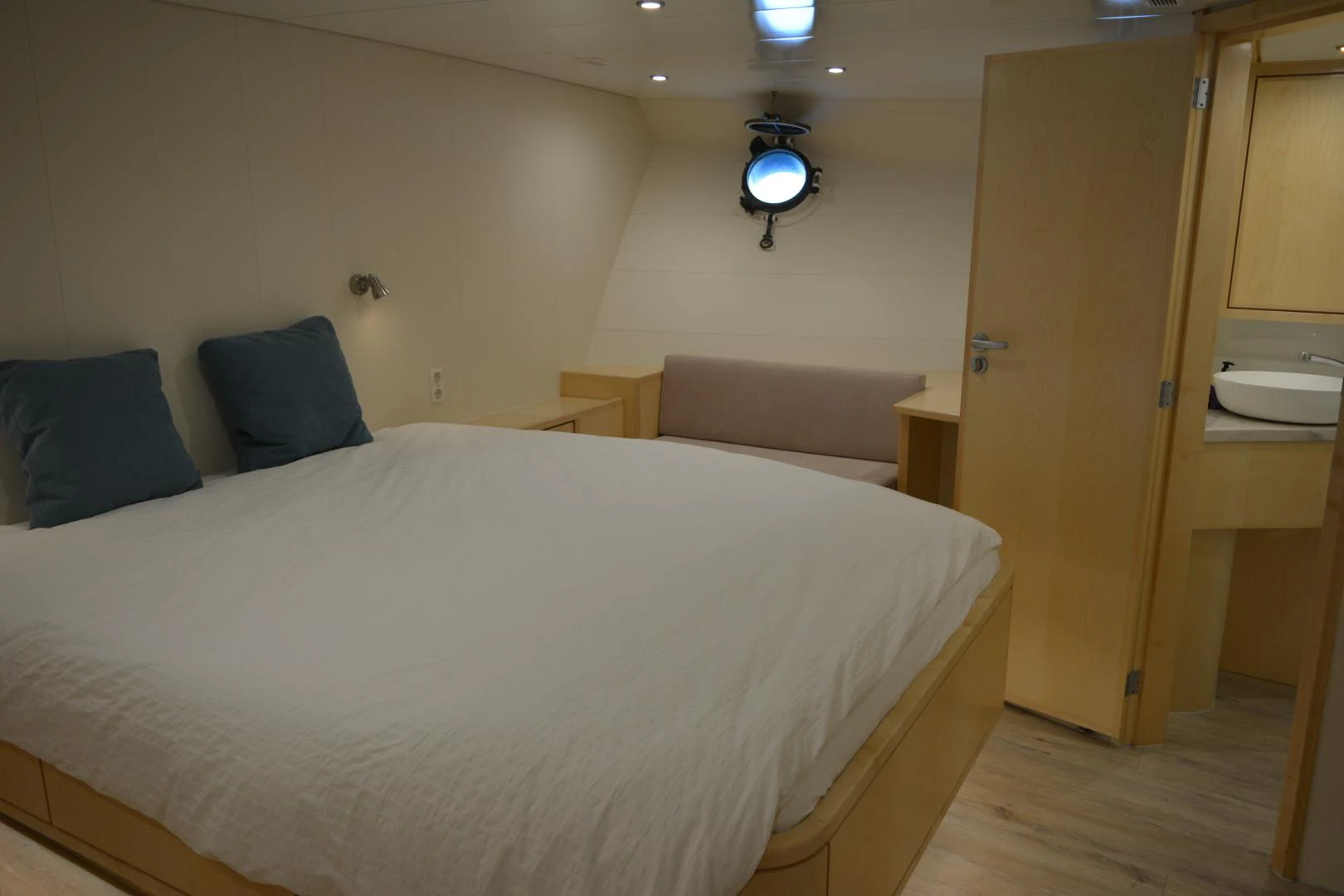

3 en-suite guest cabins for 6 guests and 2 crew cabins for 4 crew
4 en-suite guest cabins for 8 guests and 1 crew cabin for 2 crew.

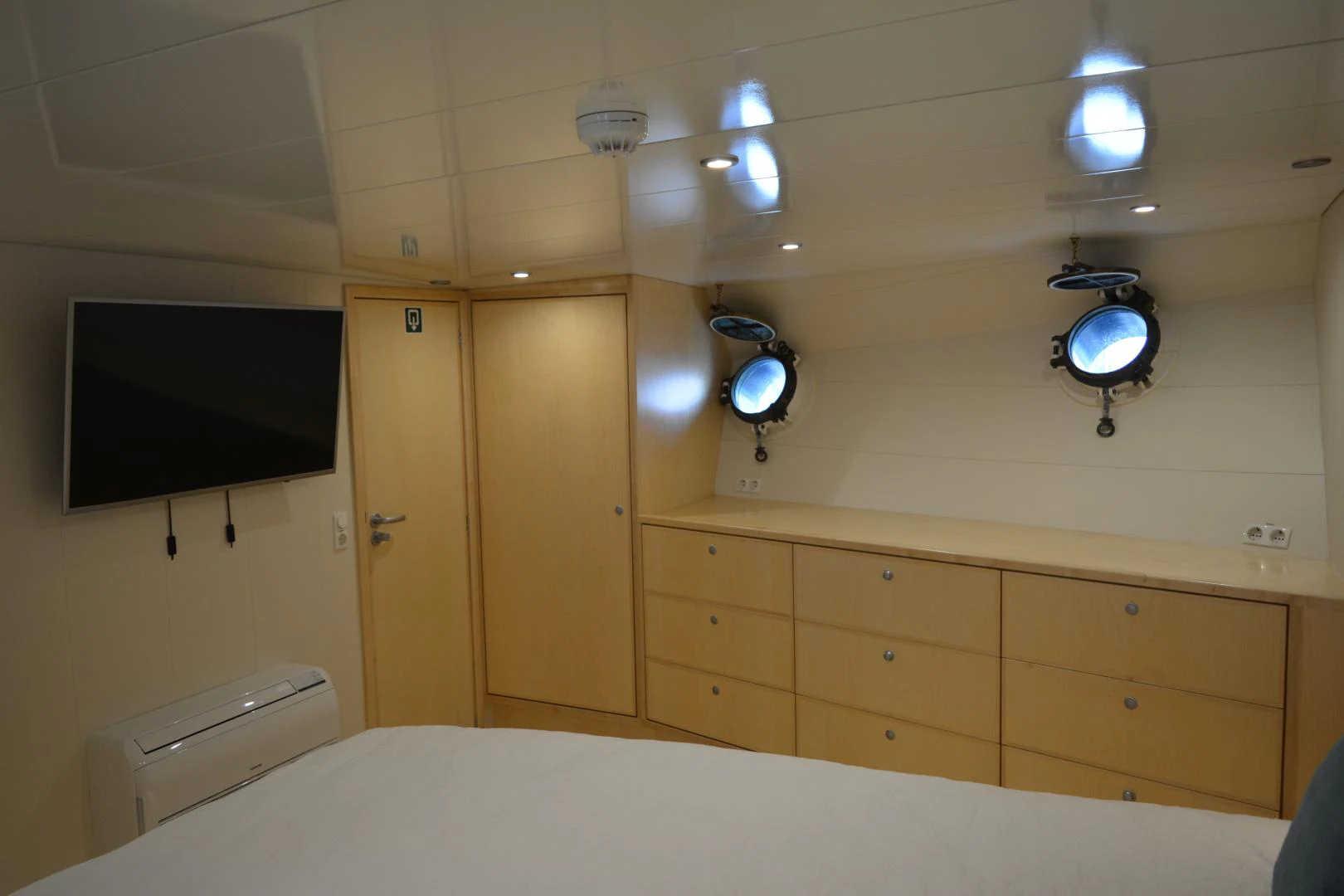

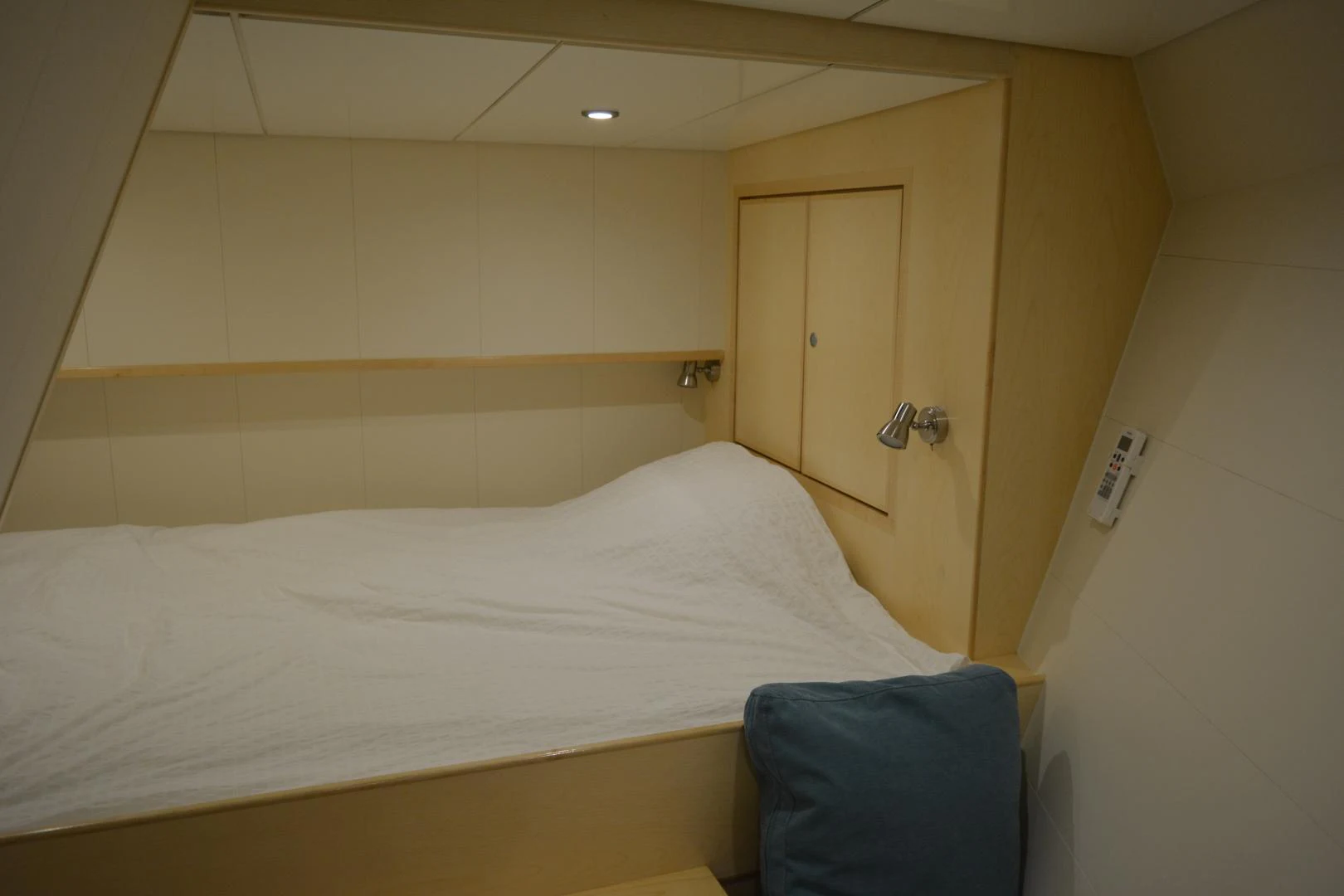

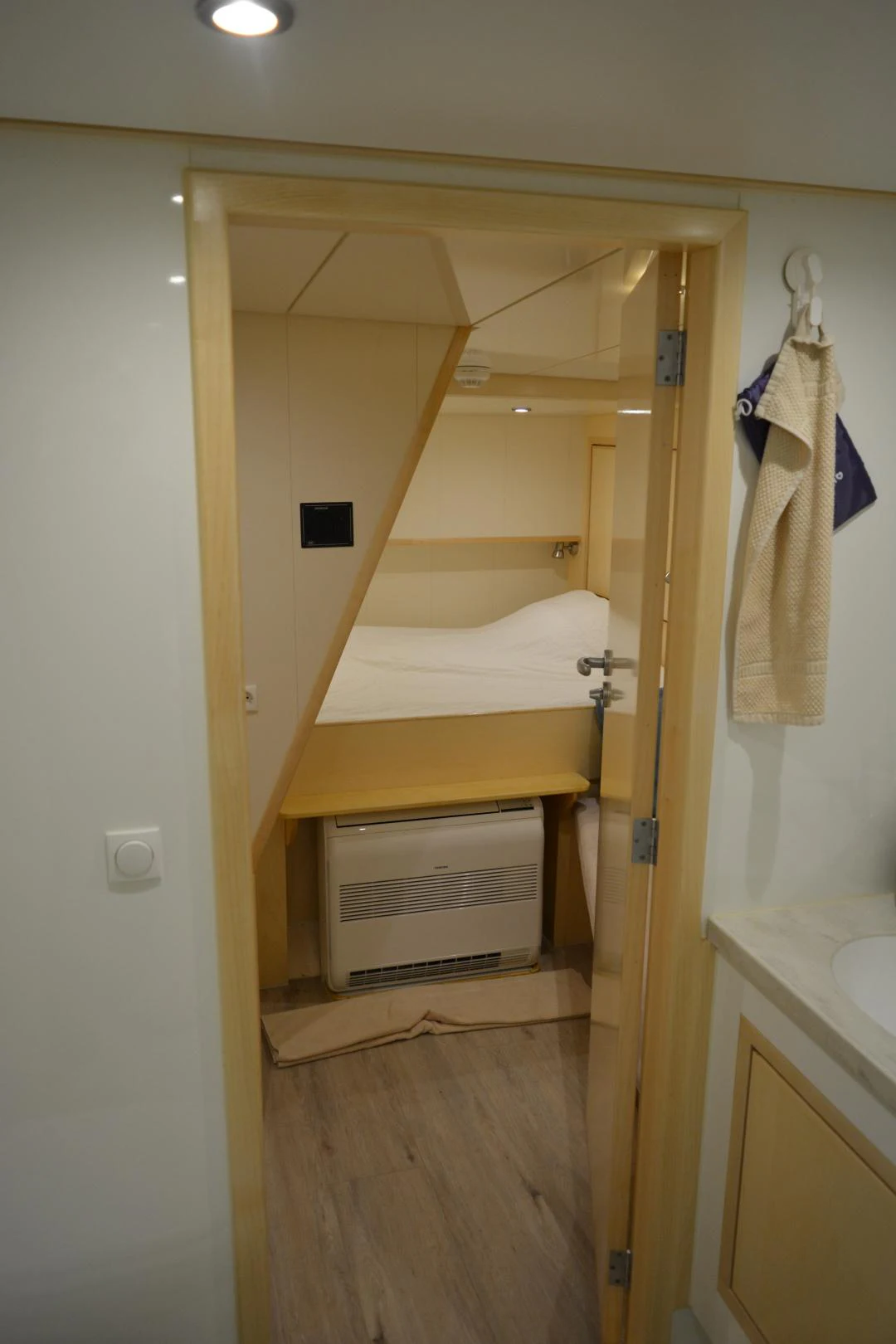

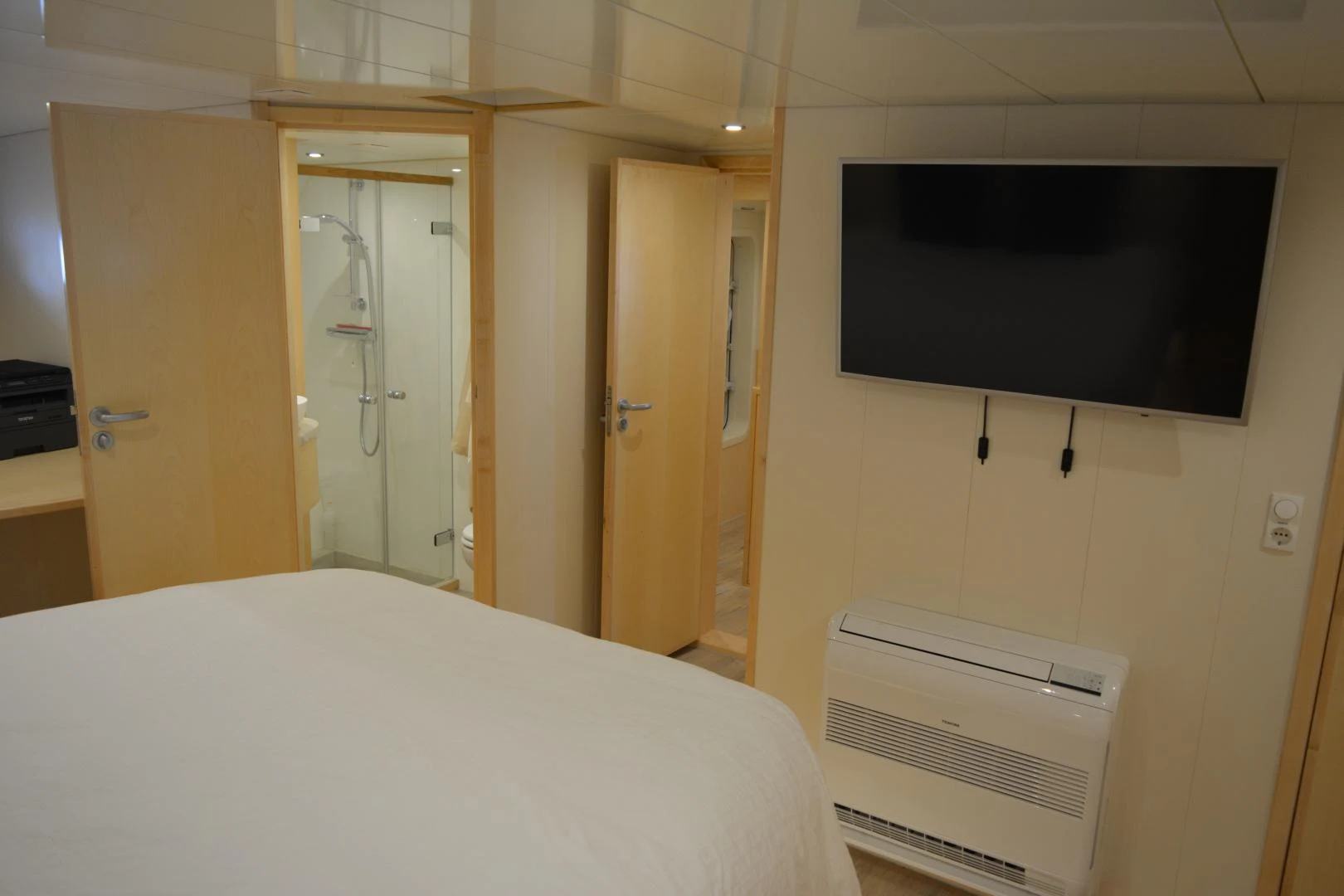

All staterooms are air-conditioned cabins with twin berths and suite facilities, a complete Inventory of all linens and other materials on-board.

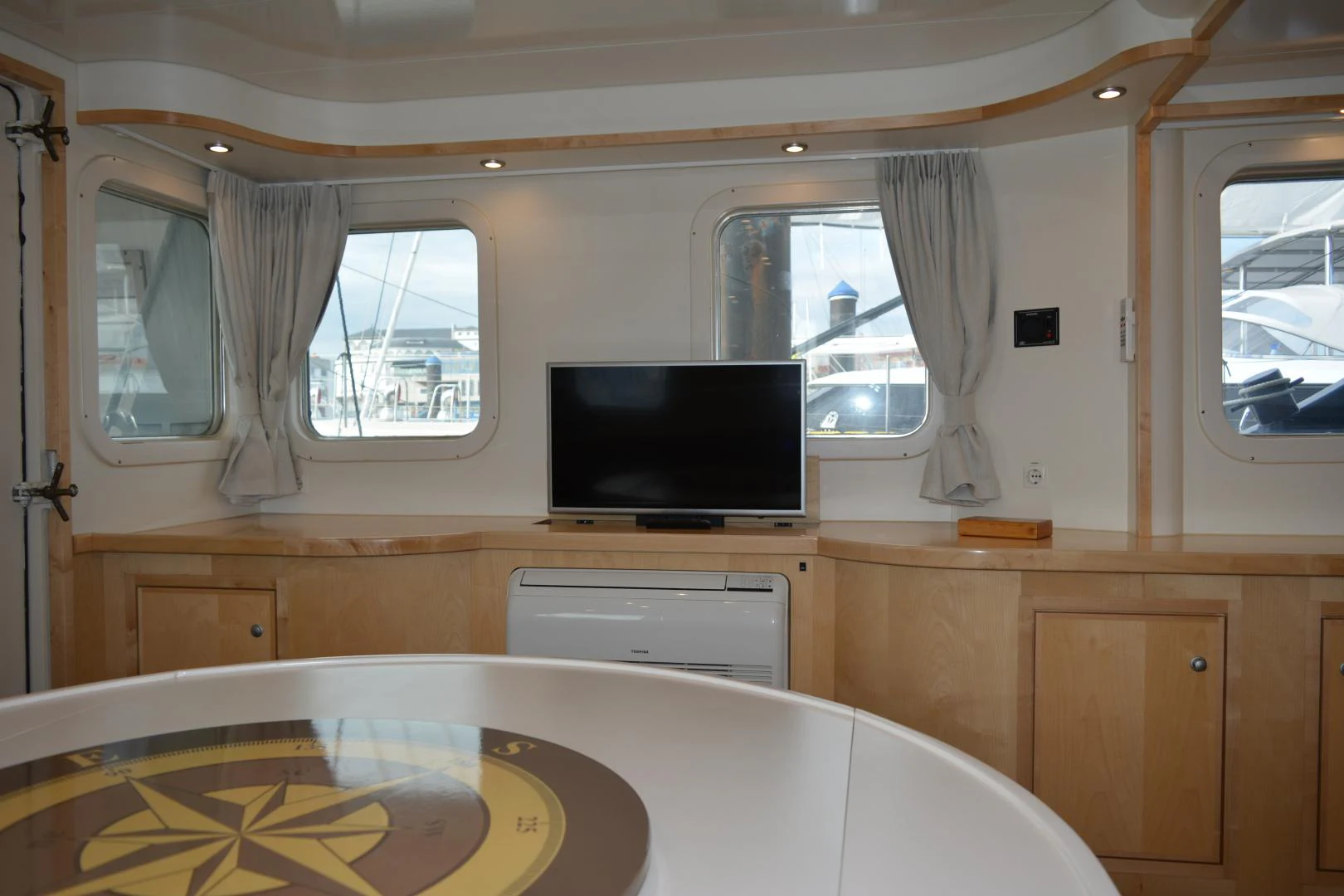

Air-condition In cabins and salon.
2x Electric fired hot water boiler (300 L each).

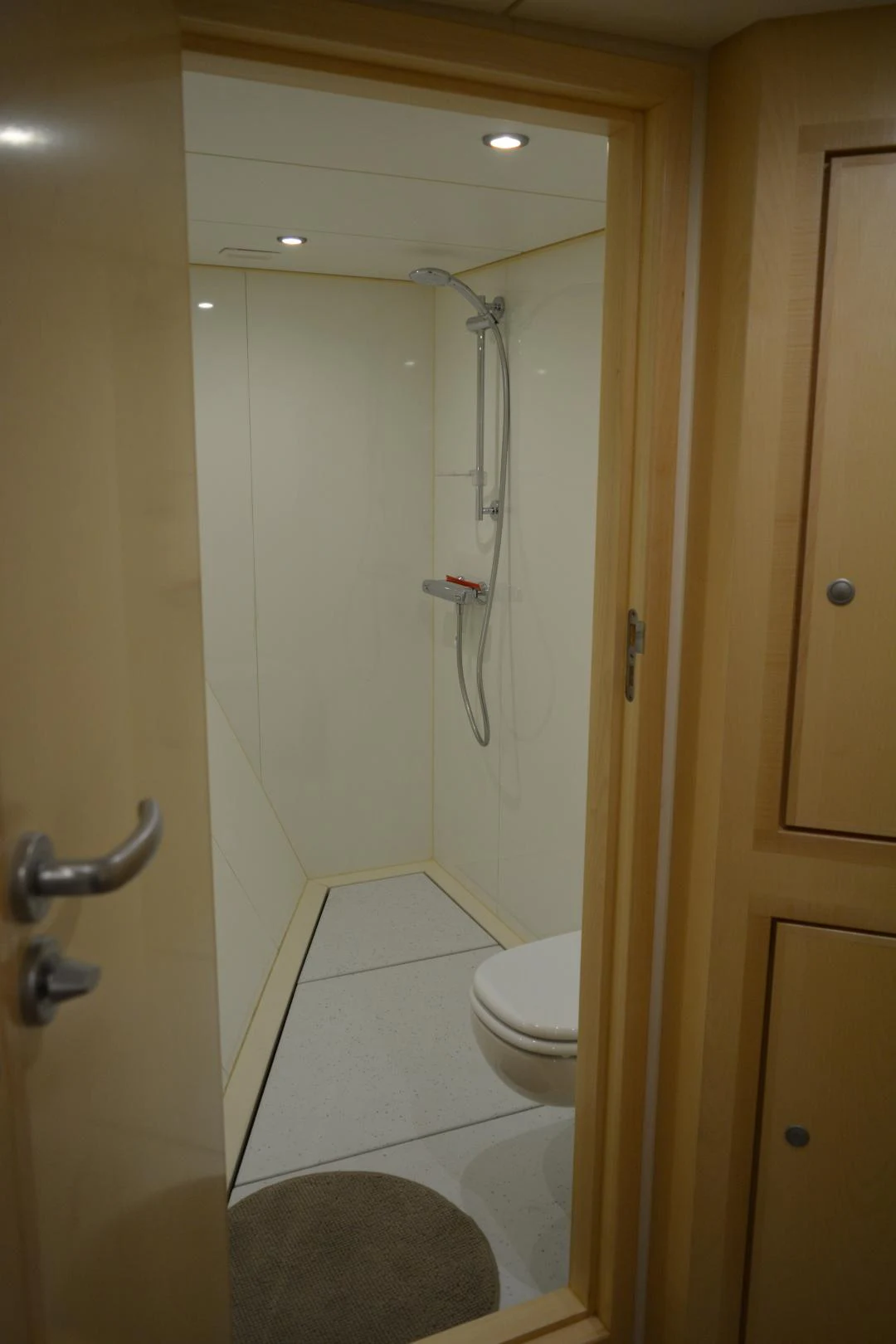

All Sanitary Systems on board have been completely rebuilt.

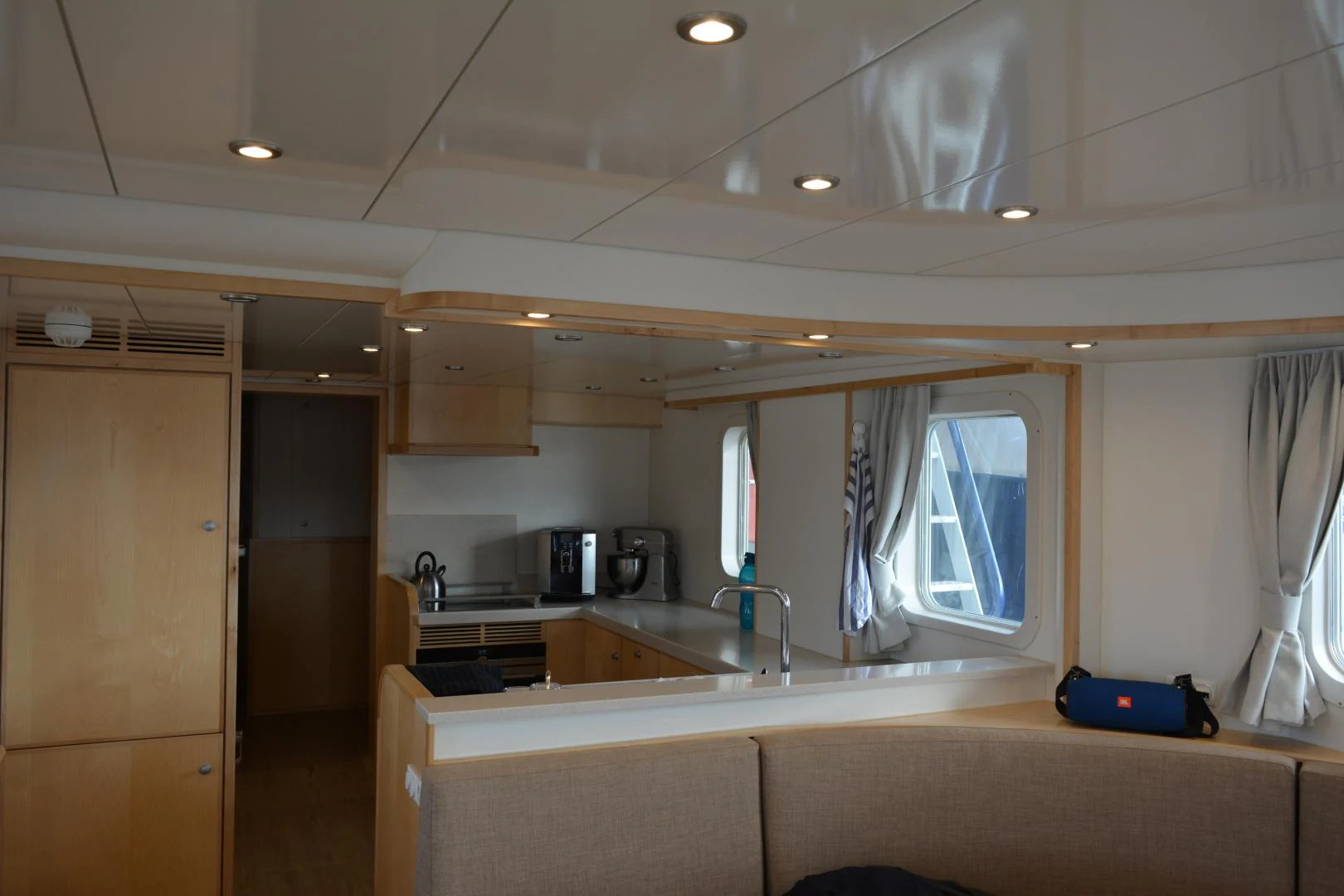

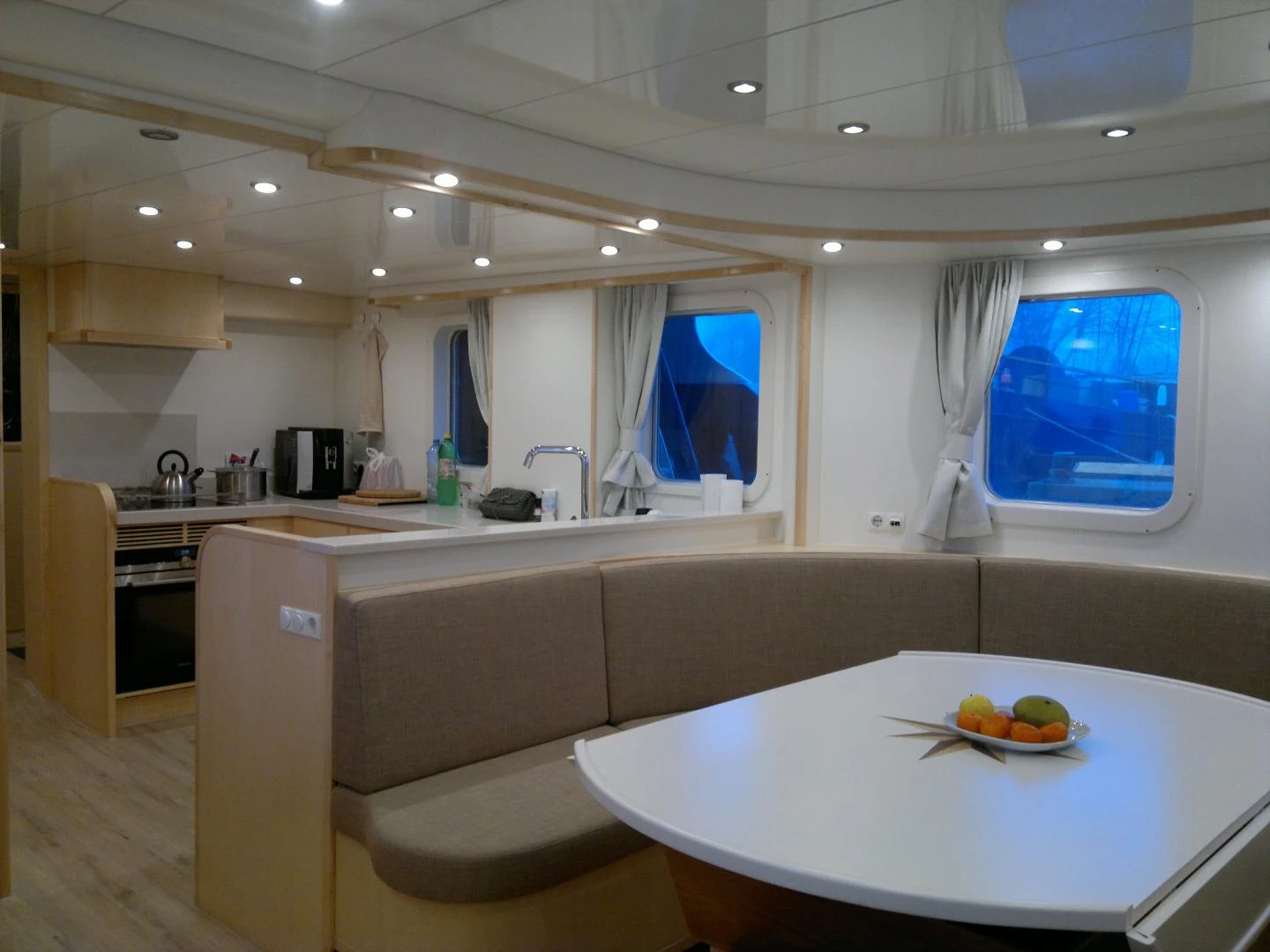

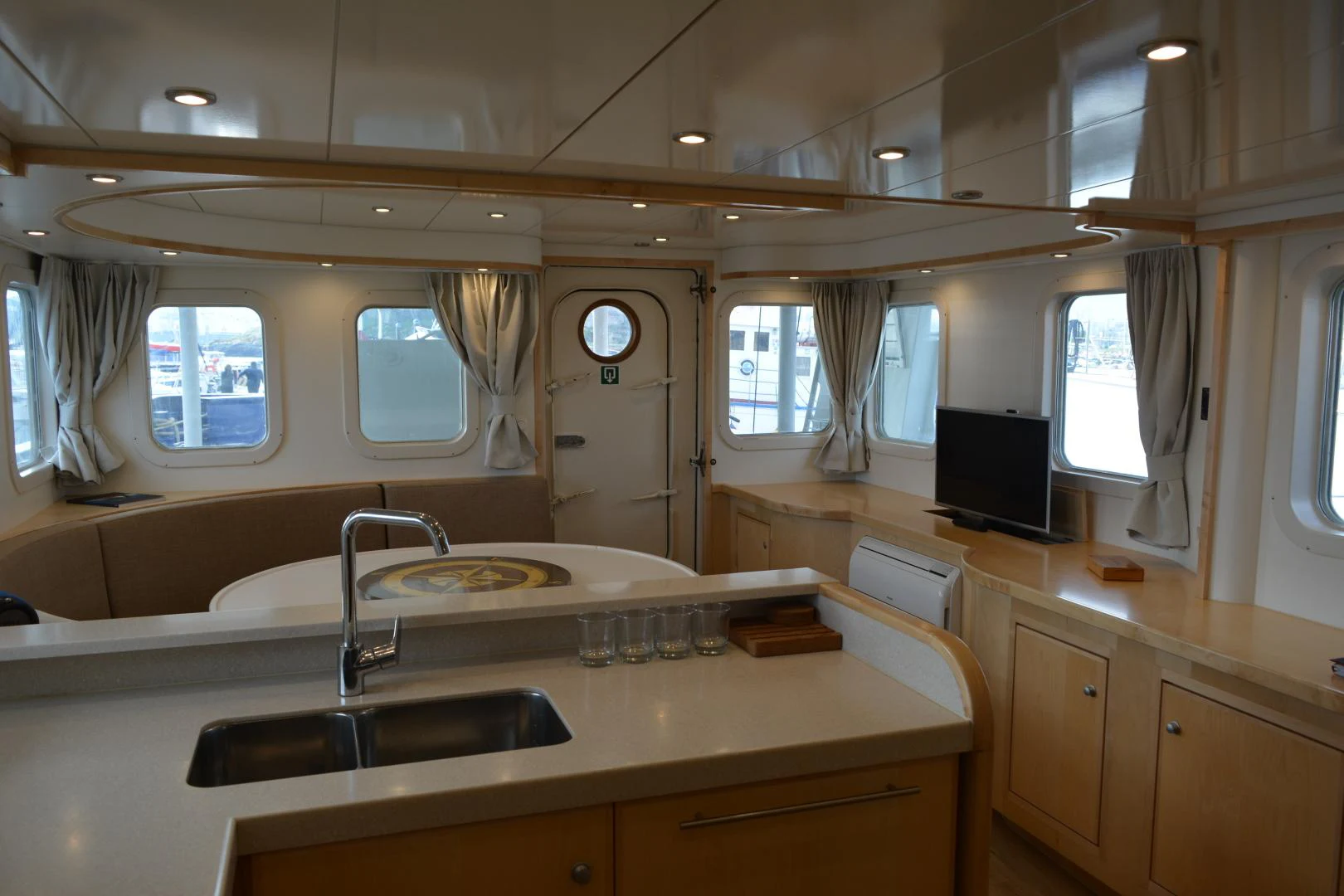

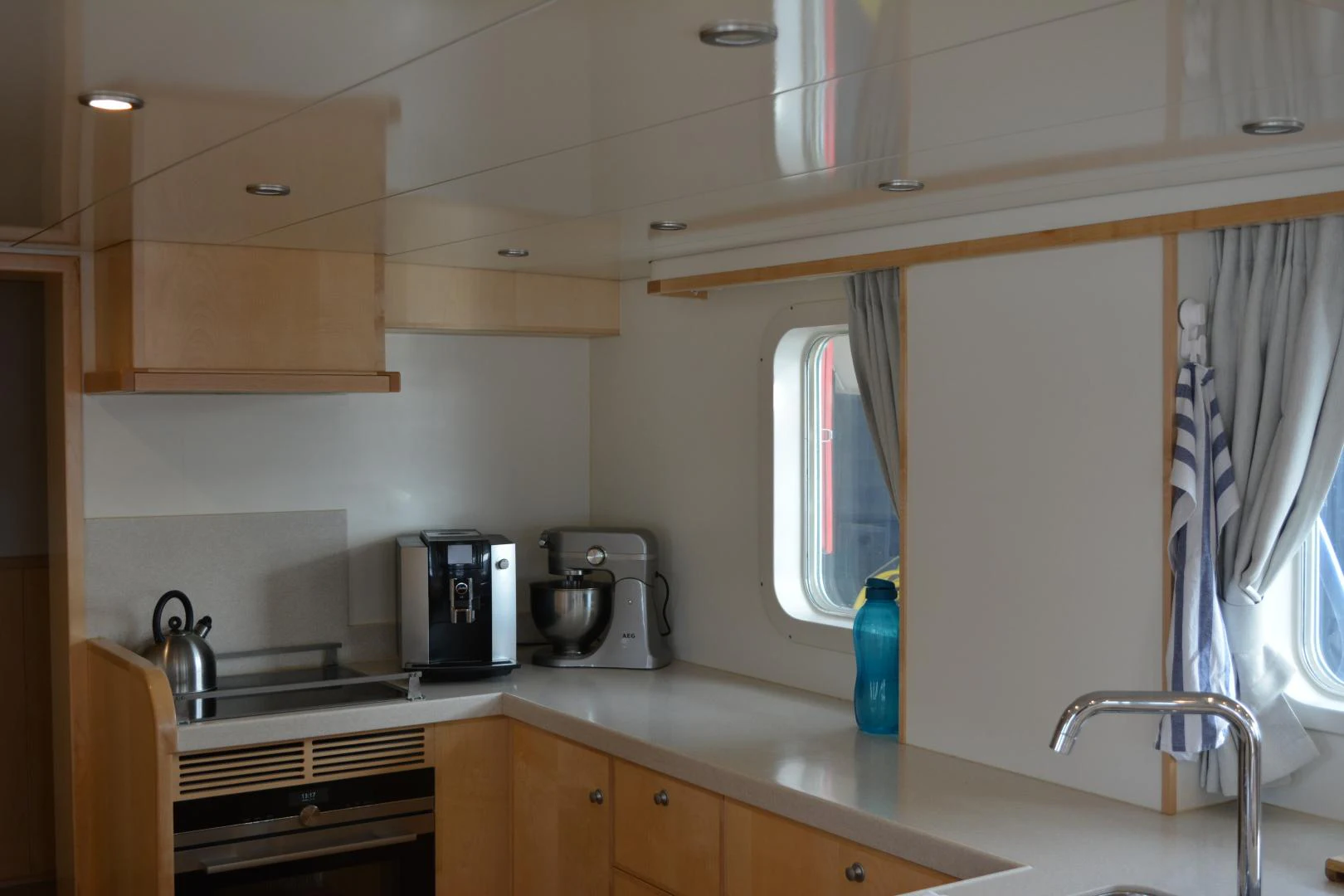

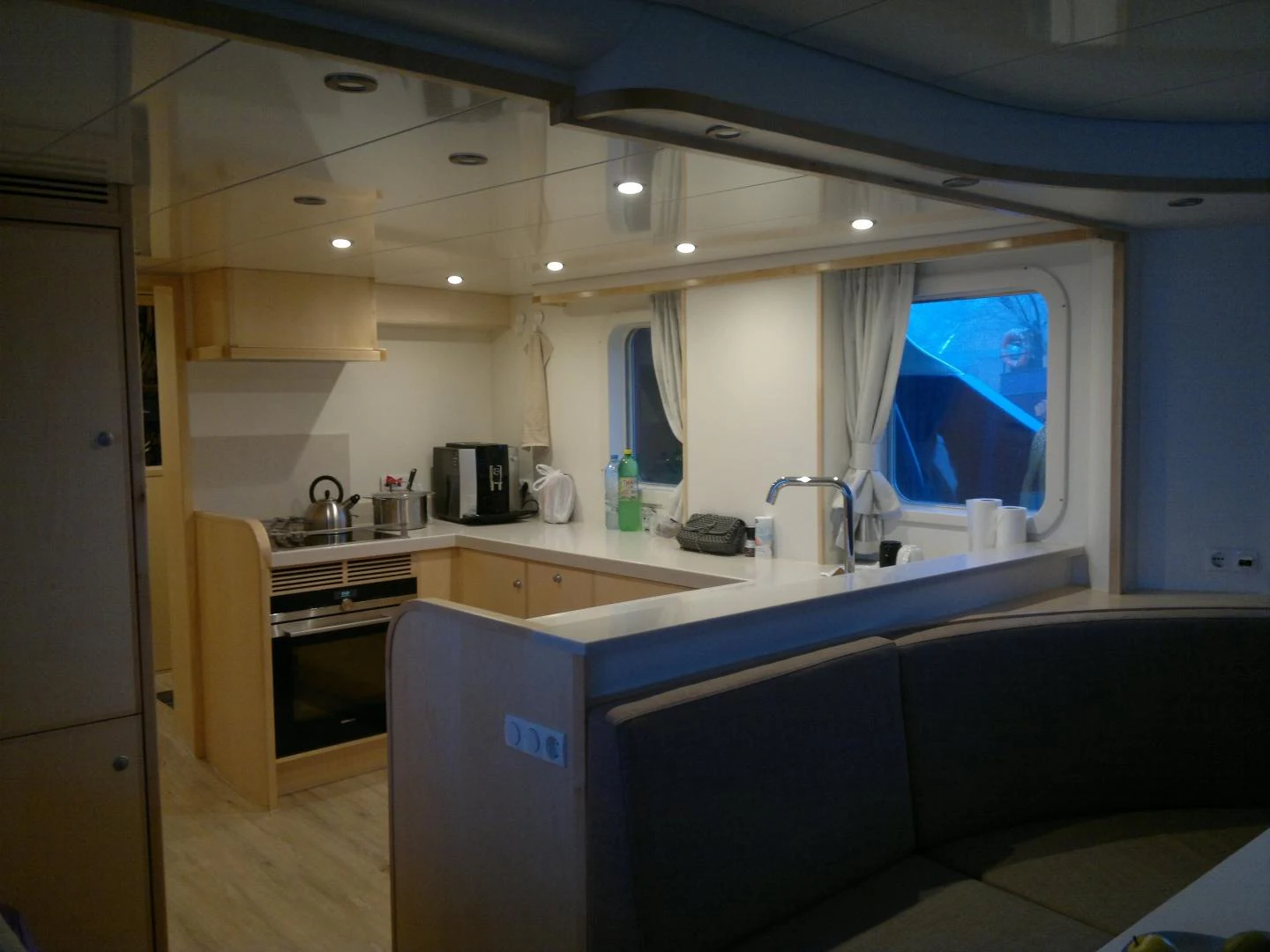

The Galley went through a complete rebuilt with upgraded commercial grade appliances, cabinetry and cookware.
The modern glass ceramic cooktop: Siemens iQ300 ET645HF17E black glass with stainless steel trim (2016).
The microwave oven: Siemens HM836GPS1 (2016).
Dishwashers: Siemens SN69M001NL (2016).
The Built-in fridge freezer, bottom freezer: Siemens KI34VV50 (2016).
The Built-under cooker hood 90 cm wide: Siemens LU29250 (2016).
The trash compactor models 15SSEXF 38.1 cm wide (2016).

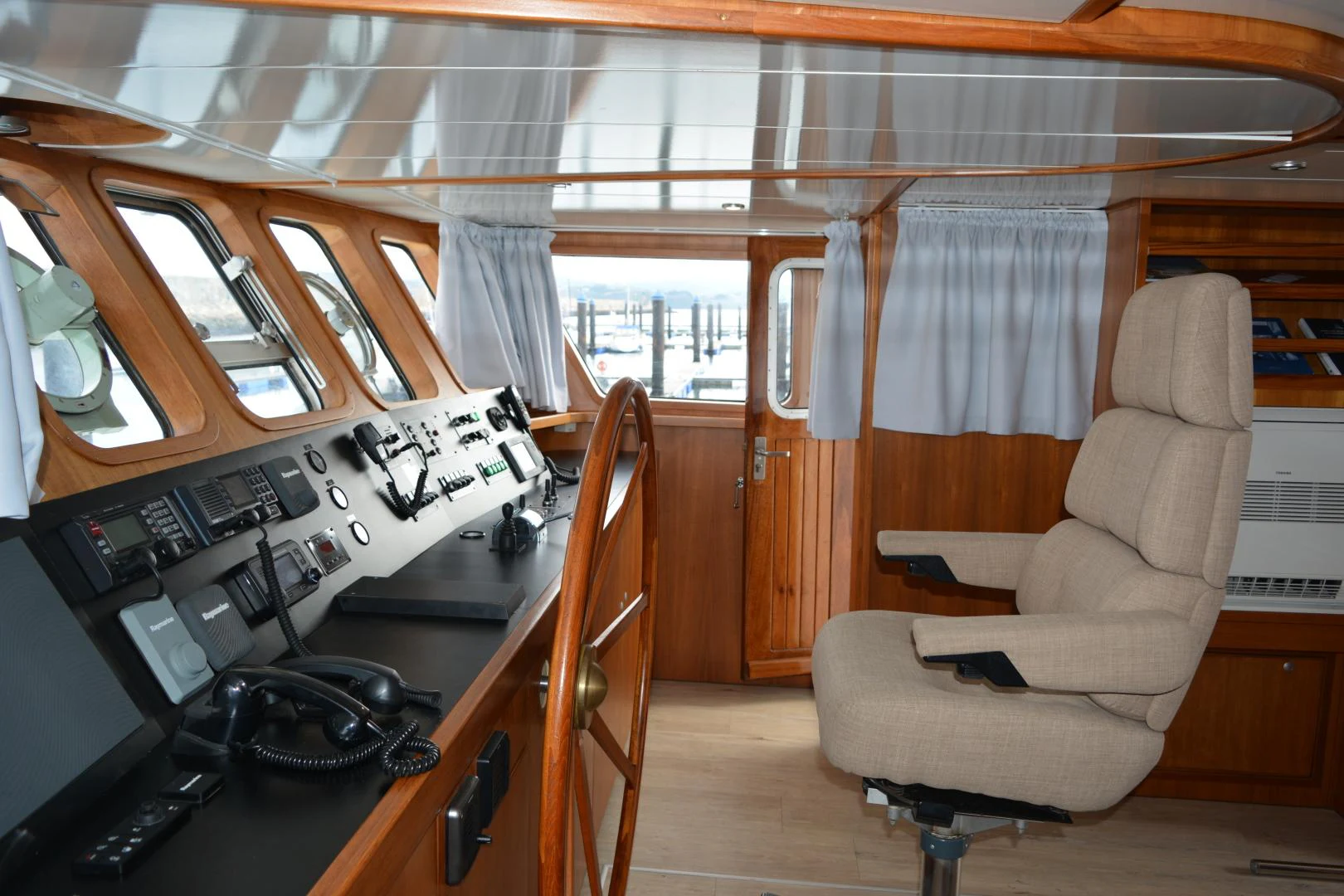

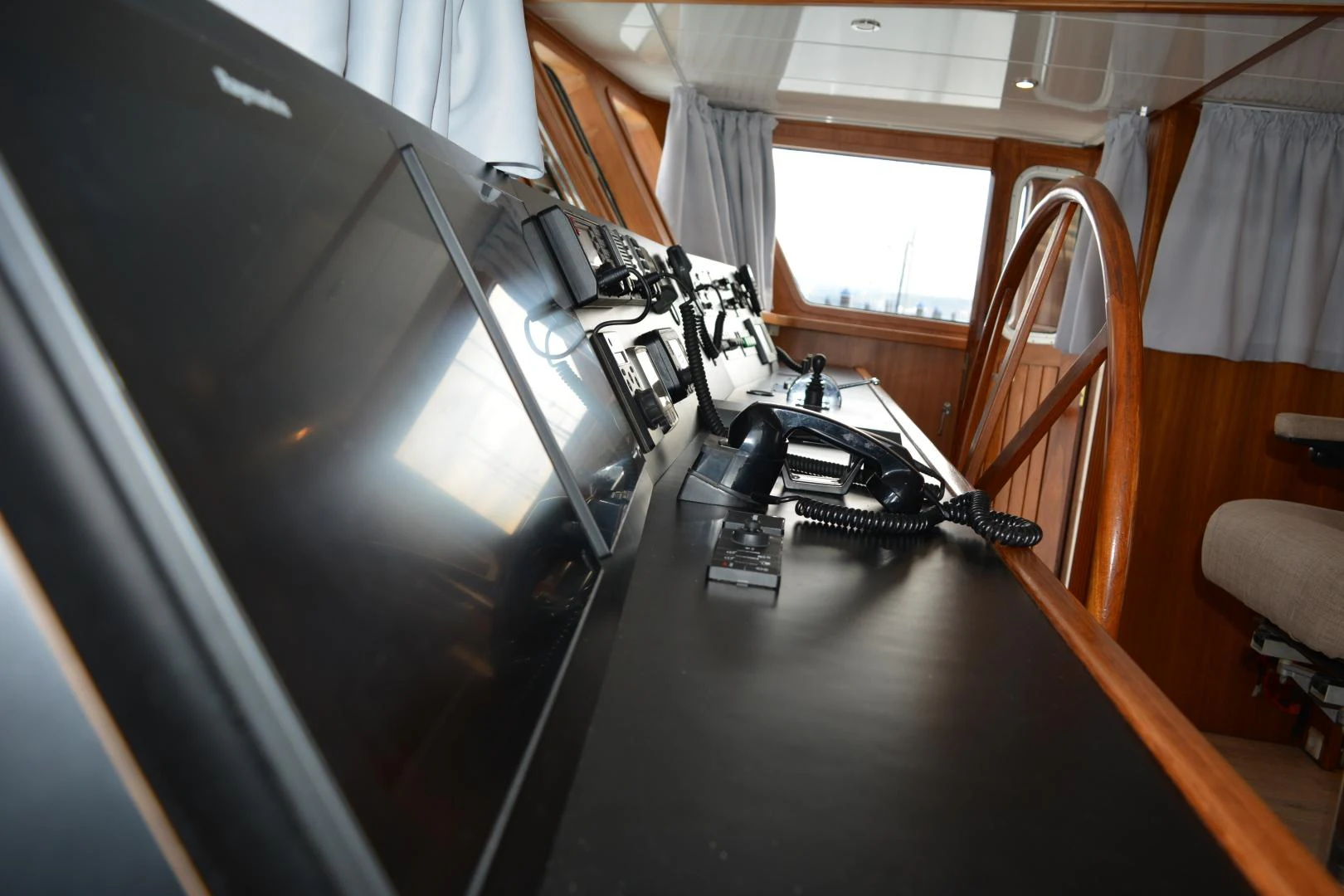

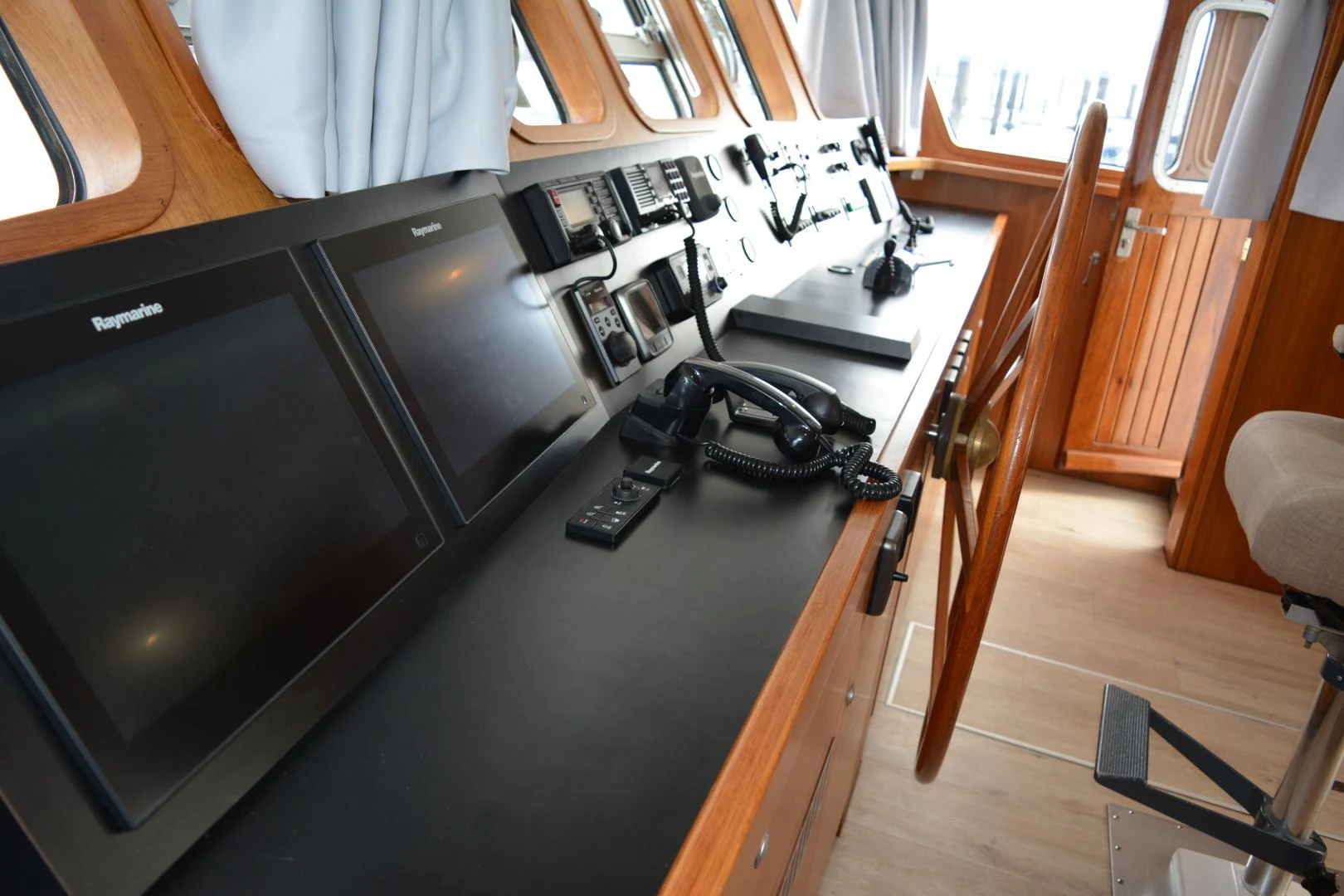

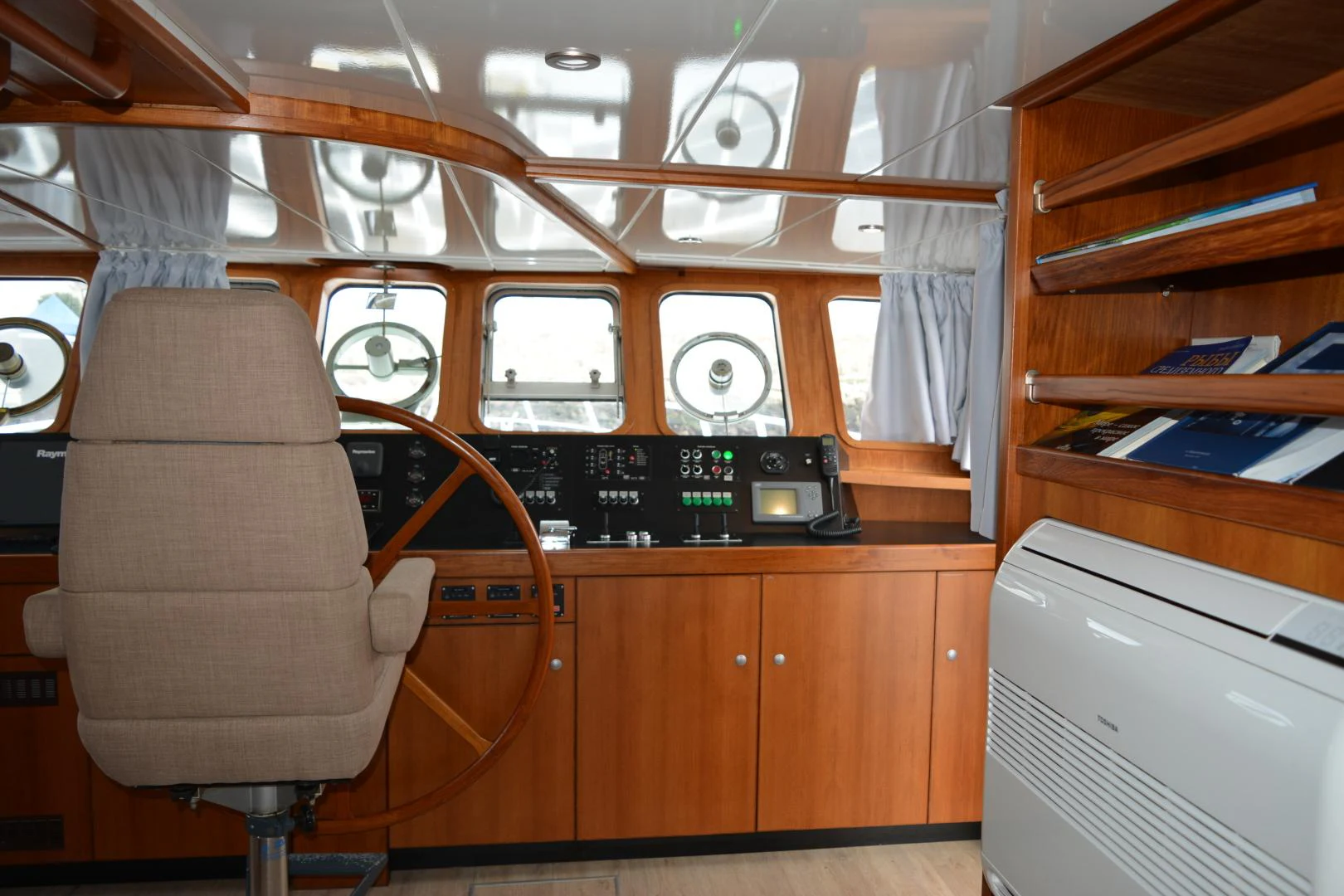

Navigation Equipment

Raymarine Navigation Equipment (2016)
1. gS165-15.4" Glass Bridge Dual Display Bundle, RMK-9&RS130 GPS&STNG Stater kit (E70126-DDB)
2. RA3048SHD 12 kW 48"(122 cm) Color Open Array scanner (T70176)
3. RD424 HD 4kW 24"(60,8 cm) HD Color Radome scanner (T70169)
4. CP370 ClearePulse 1 kW Sonar Module (E70297)
5. B744 VL Depth/Speed/Temperature-600W Through Hull Retractable Transducer (A66092)
6. T463 Thermal Camera(640x480, 25 Hz, Pal, 12 degree FOV) & Low Light with Joystick Control Kit (T70102-PAL)
7. Evolution Solenoid Autopilot with p70R control head and ACU-300 (T70156)
8. Instruments i70 Multifunction Color Display (E22172)
9. 3x CAM50 CCTV Internal Reverse Image Camera (Pal) (E03019)
10. 3x CAM200 CCTV ExternalDay & Night Camera (IP Connected) (E70262)
11. AIS950 Class A Transceiver (E70050)
12. RAY260Fixed Mount VHF with Active Speaker (E700253)
13. Intellian V80G VSAT Marine Antenna System
14. Intellian i9 34" Worldwide LNB HD System with Dual Output LNB for Wordwide Coverage B3-911W2


All Generators are new (2016).
Main BW generators - 2x Mitsubishi S6S motor with 45 kVa/36 kW three-phase 400 / 230V. 50Hz. 1500 rpm;
Auxiliary generator - 1x Mitsubishi S4L2 motor with 13,5 kVa/l0,8 kW 1 of three-phase 400 / 230 V. 50Hz. 1500rpm.


RIB boat – Zodiac PRO 500 Classic with outboard engine YAMAHA 70 AETL (2016)
Dive compressor "Bauer mariner 200 E profi-line II".
Diver access ladder.

Safety Equipment

1x 12 man inflatable life raft w/ hydrostatic releases
4 - 36" life rings
12 adult life jackets
Bilge/ fire electric fire pump, numerous hydrants and hoses
Main compartment work bench with drawers. Tool drawers and parts storage bins

Recreational Toys

Upper sun deck, lower shade, RIB boat Zodiac boat 5 m with Yamaha 4 stroke 70 hp, full scuba diving gear and dive compressor "Bauer mariner 200 E profi-line II".


The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Mechanical Disclaimer

Engine hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
