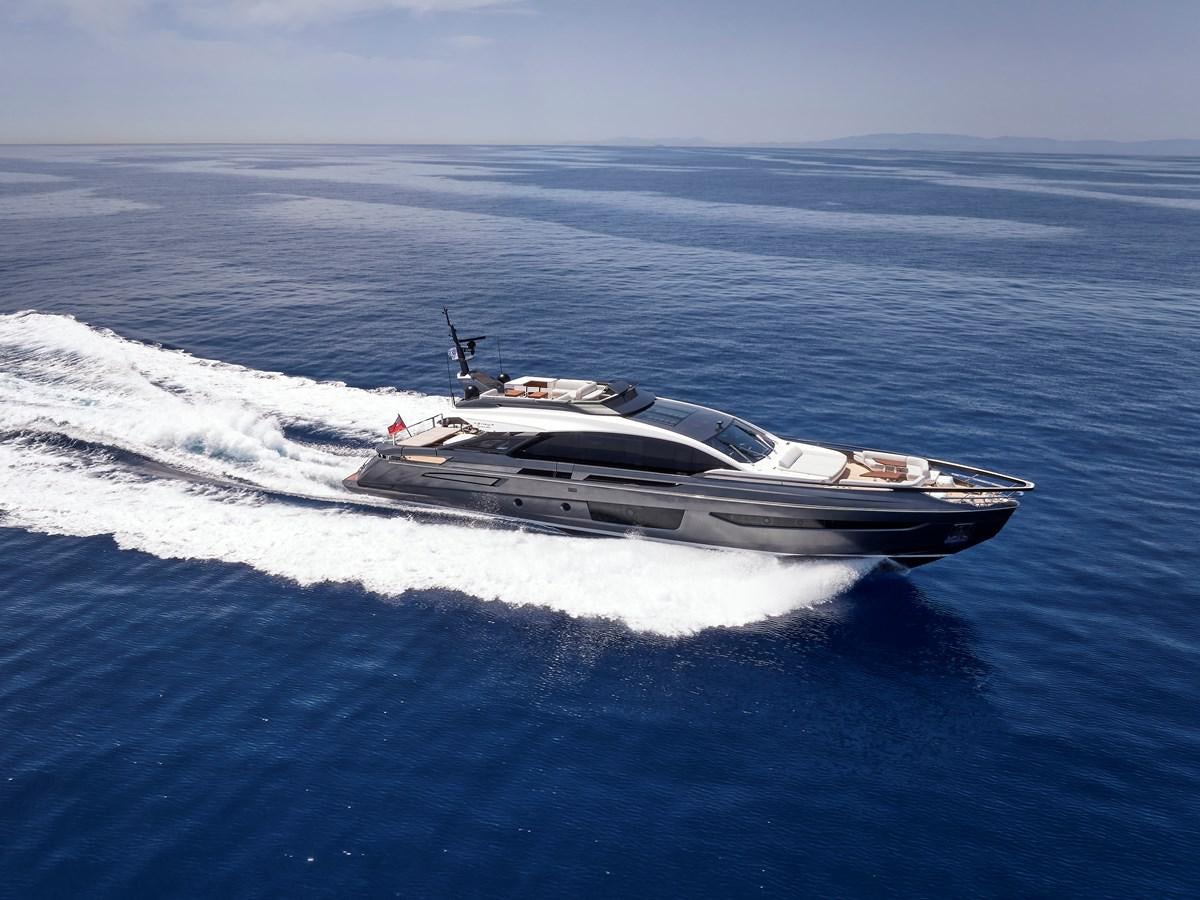

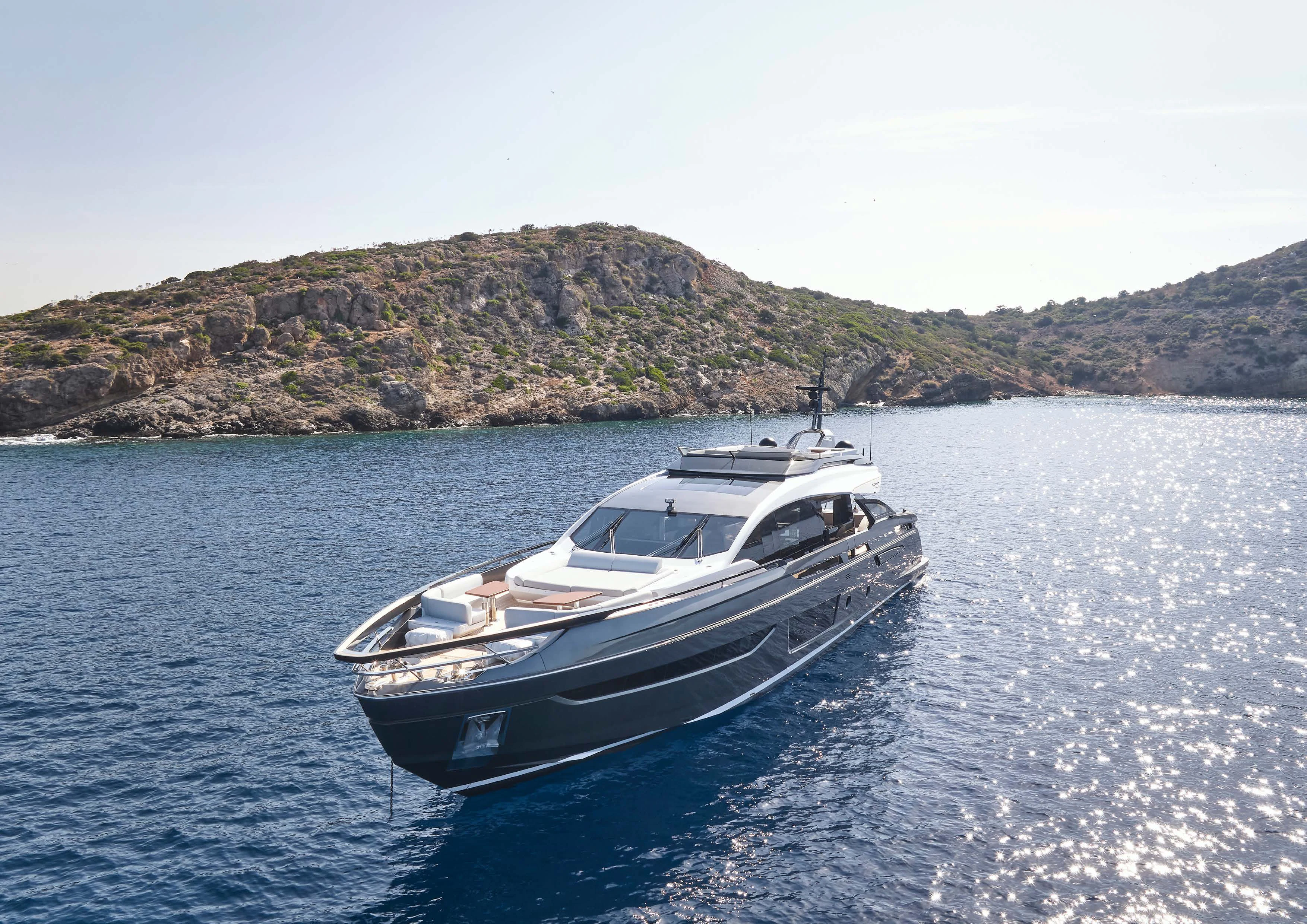

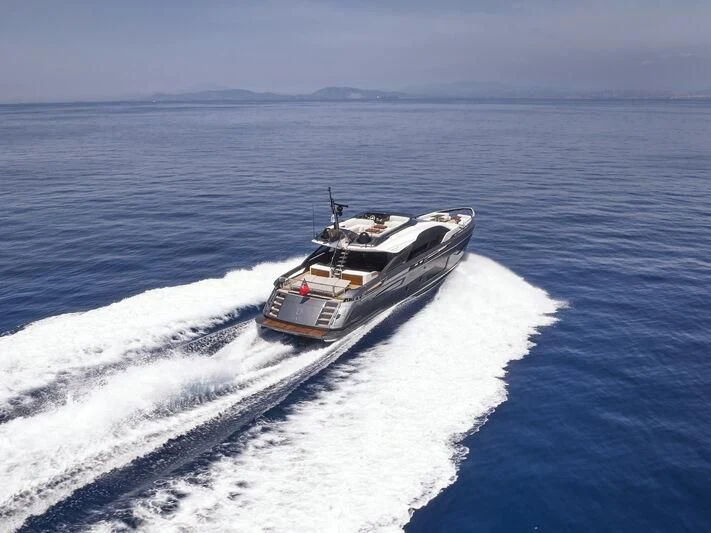

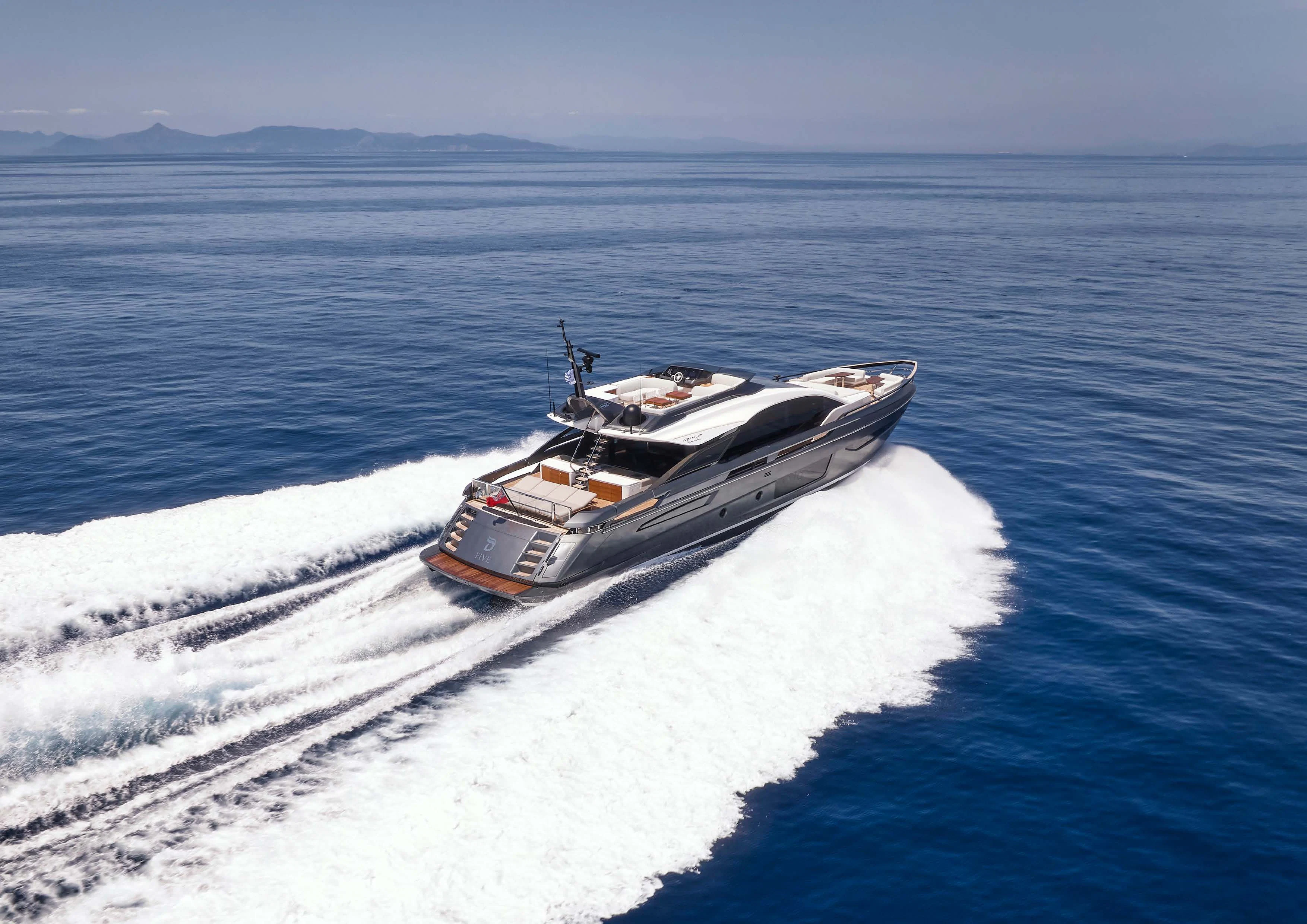

D FIVE Yacht for Sale

Length
94' (28.72m)
Builder
AZIMUT YACHTS
Build
2021
Cabins
4

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Specifications

Builder AZIMUT YACHTS
Model S10
Length (LOA) 94' (28.72m)
Year 2021
Gross Tonn. 155
Draft 7' (2.03m)
Beam 20' (6.34m)

Accommodations

Staterooms 4

Dimensions & Capacity

LOA 94' (28.72m)
Max Draft 7' (2.03m)
Fuel Tank 2,510 g (9,500 L)
Fresh Water 462 g (1,750 L)
Holding Tank 280 g (1,060 L)
Gross Tonn. 155
Displacement 96

Construction

Hull Material GRP
Cruising Speed 28 Knots
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

Custom option :

  • Panasonic cameras CCTV (nr. 4)
  • Bathing stepladder for garage door (hydraulic version) (option)
  • Underwater lights Oceanled (nr. 4 in total, 2 for each side) (option)
  • Underwater lights Oceanled on transom (nr. 4) (option)
  • Seakeeper stabiliser 35 (option)
  • Watermaker 250 lt/h5 (option)

Batteries:

  • All batteries are of the AGM type
  • Services: total capacity 540 Ah - 24 V
  • Engines: two 180 Ah - 24 V battery sets
  • Engine electronics: one 180 Ah - 24 V battery set
  • Generators: two 90 Ah - 12 V battery sets
  • Battery charger for services / services and engine backup / engine
  • electronics: two Mastervolt 80 Ah - 24 V DC
  • Engine battery charger: one Mastervolt 30 Ah - 24 V DC
  • Generator battery charger: one Mastervolt 15 Ah - 12 V DC
  • Air Conditioning: A/C system type: the system is of the thermally-treated water circulation
  • type, with fancoils located in various areas
  • Compressor unit in engine room, 144,000 total BTU/h with inverter technology
  • One 230 V - 50 Hz single phase seawater pump, 0.75 kW
  • One 230 V - 50 Hz single phase fresh water pump, 0.75 kW
  • One 2" seawater intake with filter and valve
  • Air conditioning control panel in each area (see interior description)

Distribution:

  • Owner’s cabin: two 0.18 BTU at 230V AC single phase fan coils
  • VIP cabin: one 0.18 kW at 230V AC single phase fan coil
  • Port guest cabin: one 0.13 BTU at 230V AC single phase fan coil
  • Starboard guest cabin: one 0.13 BTU at 230V AC single phase fan coil
  • Crew area: two 0.11 kW at 230 V AC single phase fan coils
  • Saloon and Dinette: five 0.18 kW at 230V AC single phase fan coils
  • Windscreen: two 0.18 BTU at 230 V AC single phase fan coils
  • Galley: one 0.13 BTU at 230 V AC single phase fan coil

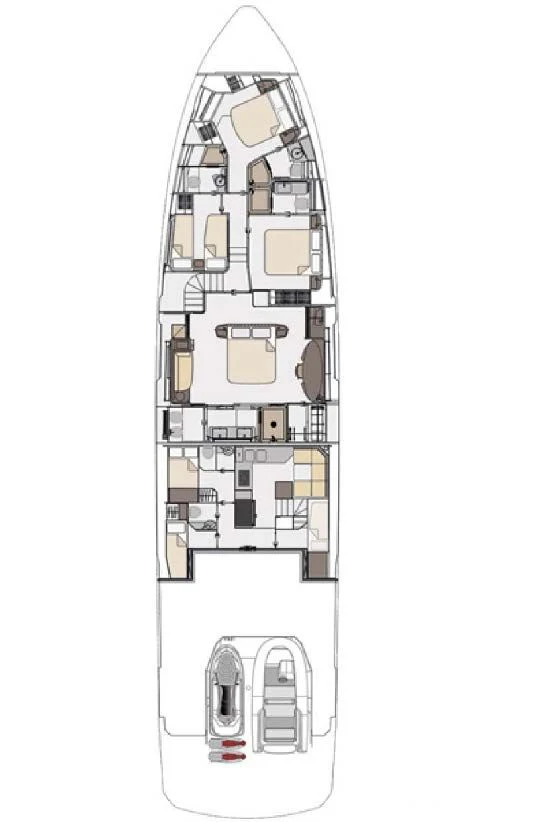

Accommodation

Perla nera interior style

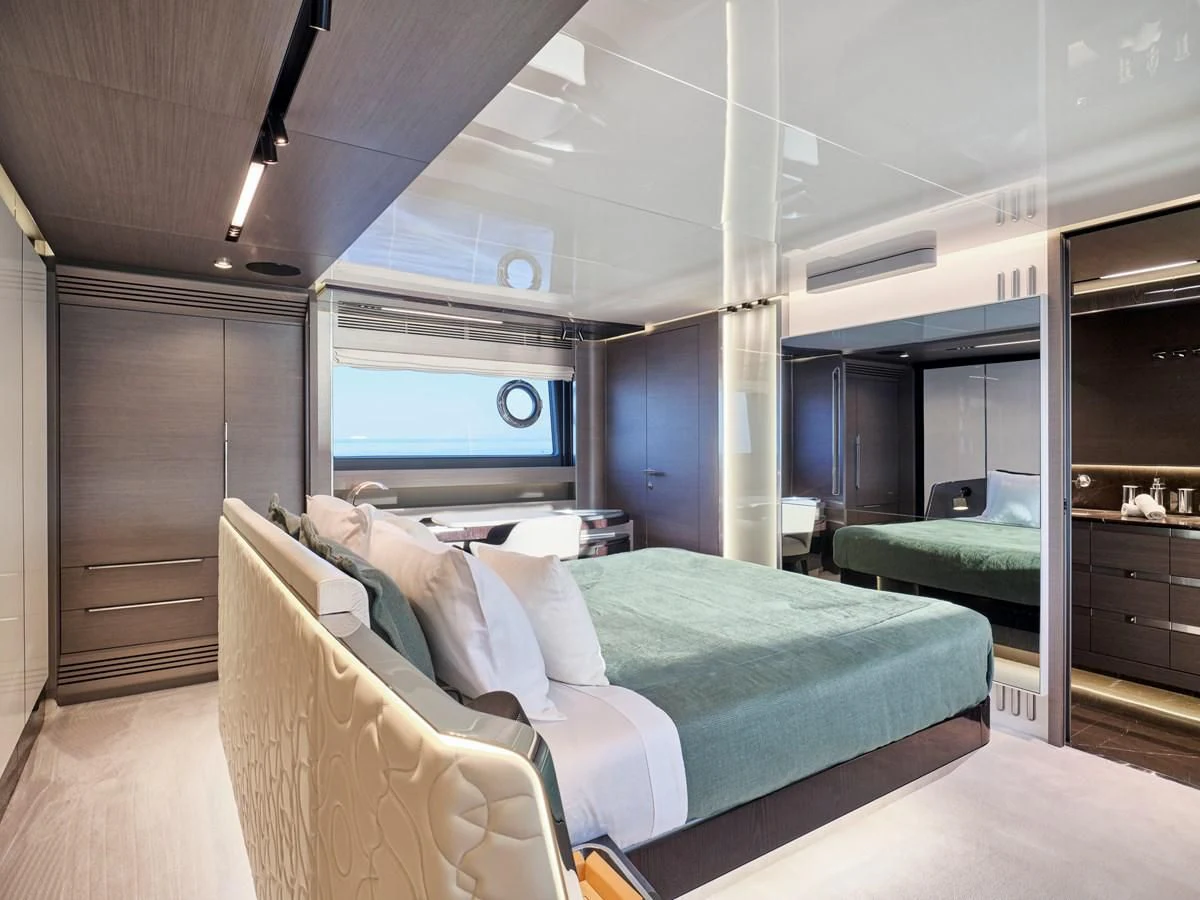

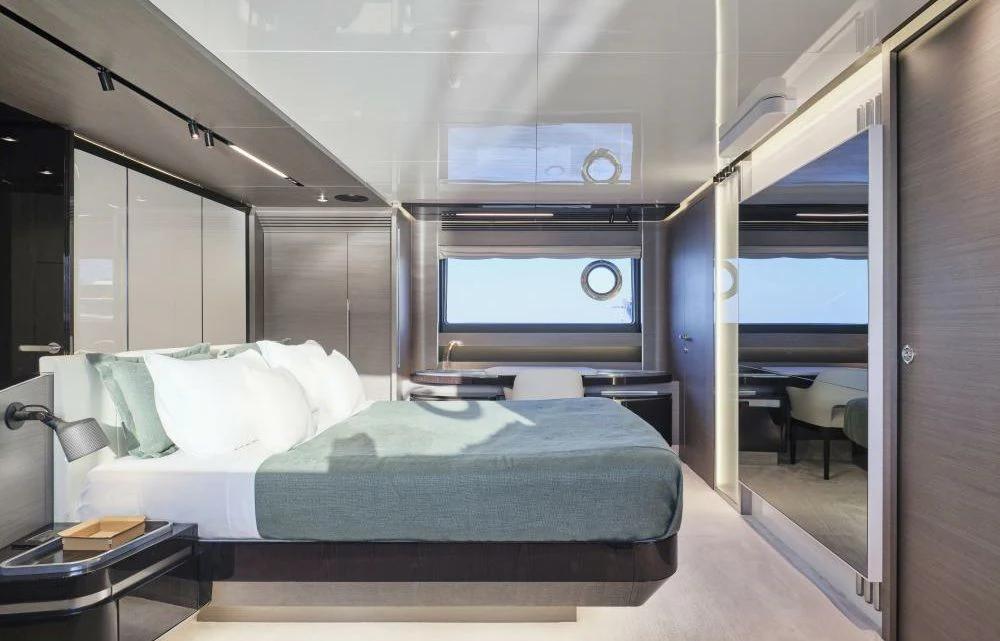

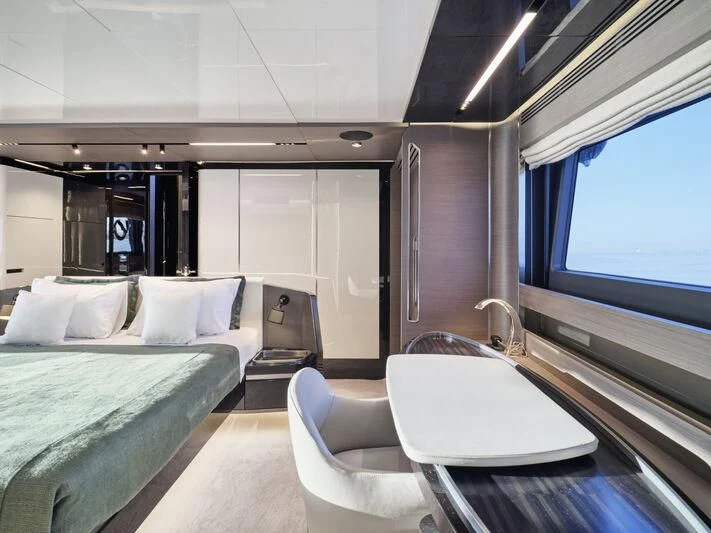

Owner’s cabin

  • Island-type bed located at the center of the cabin with foldaway bed plane and storage locker
  • Headboard and bedside tables built into the island bed
  • Two bedside tables with drawer and reading lights
  • Two fixed panoramic windows
  • Two openable round portlights built-in the panoramic windows
  • Wardrobe on starboard side
  • Vanity located on starboard bulwark
  • Direct access to the dressing through hinged door aft of the cabin, starboard side

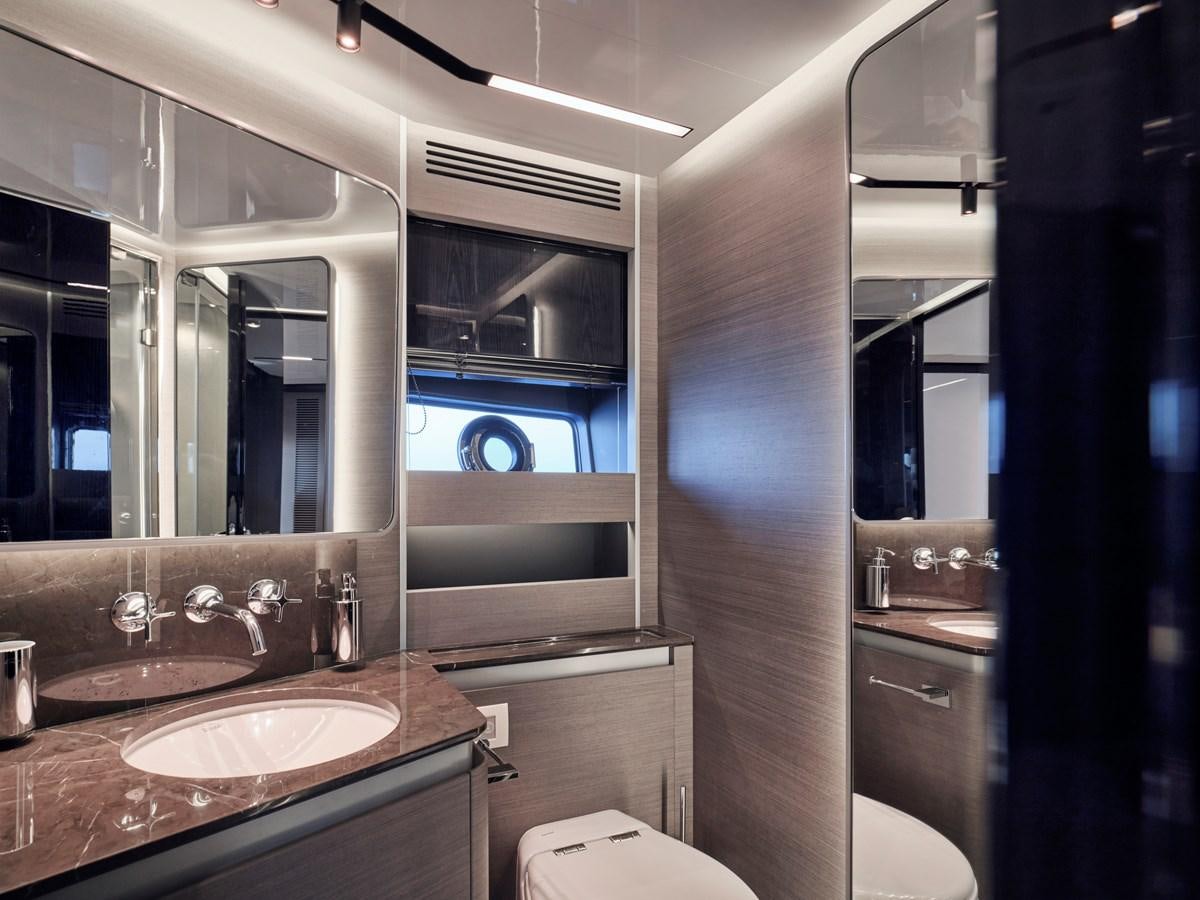

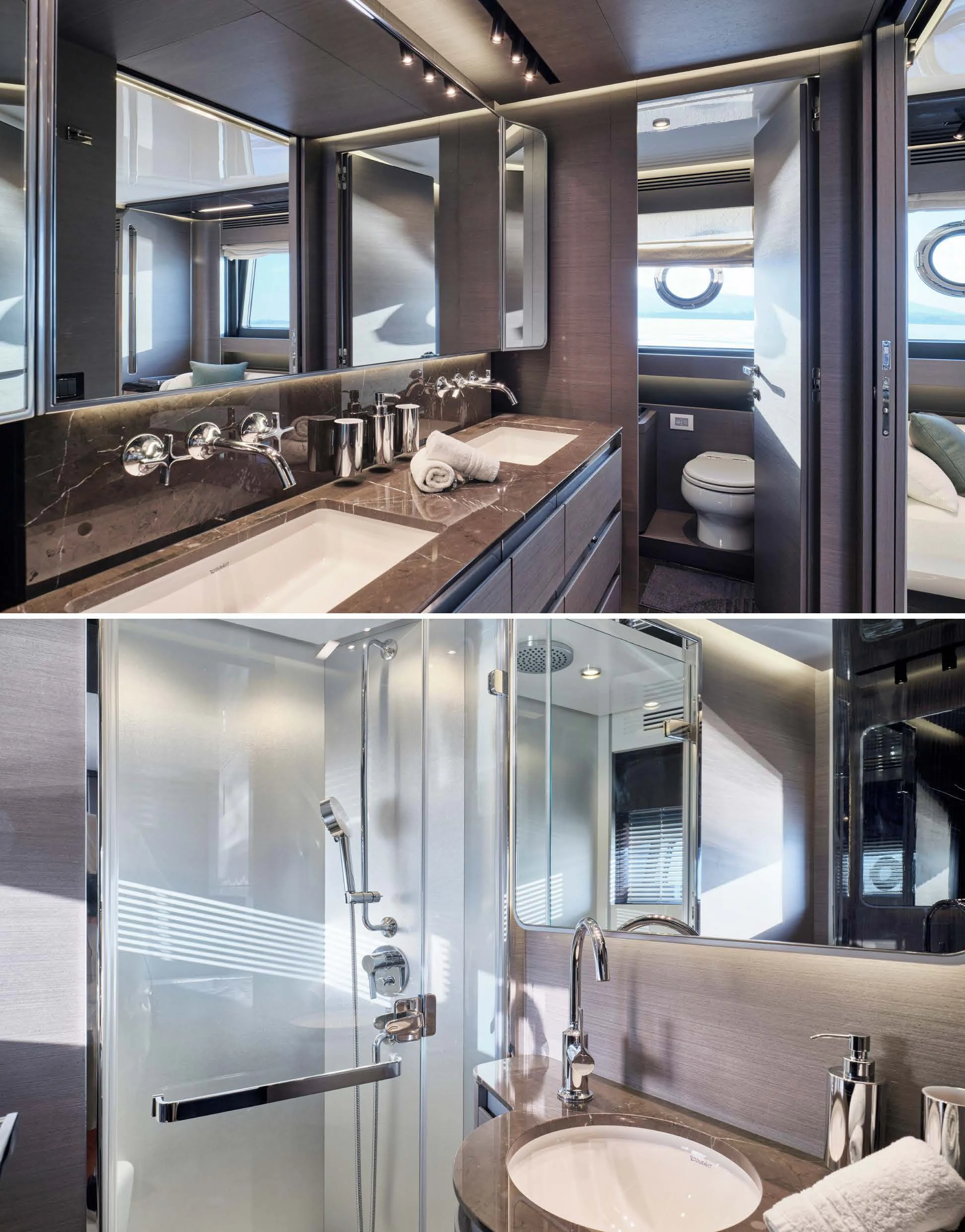

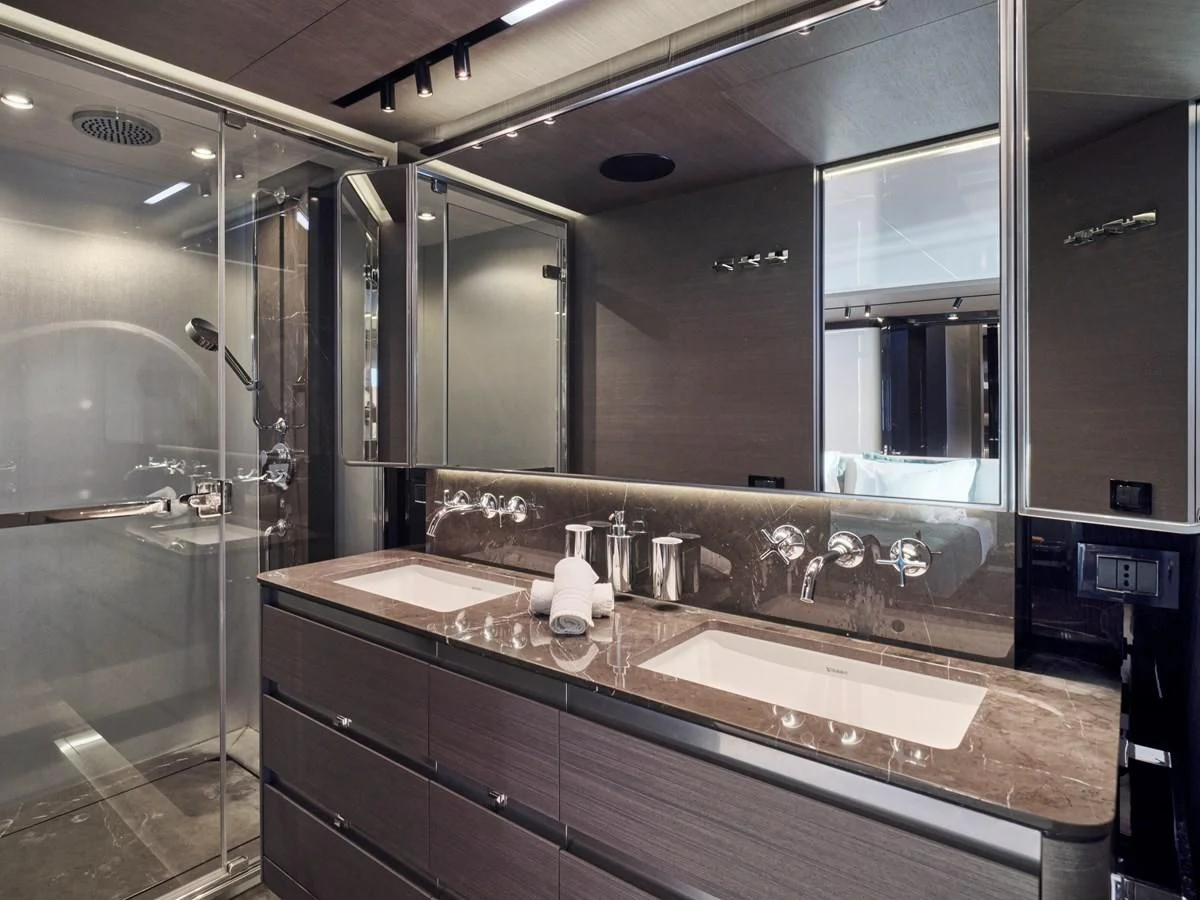

  • Double washbasin under top
  • Washbasin top in marble
  • Custom option : Custom full closet inlieu of bar, stbd side, in master
  • Custom option : Longer sofa in master for possible bed transformation / chaise long
  • Custom option : Splitted drawers in masters dressing for better usability
  • Custom option : Custom storage in lieu of masters bidet: cupboard with shelves, drawers / loundry basket
  • Custom option : WCs with integrated bidet faucets
  • Custom option : New closet on port side master / new A/V technical arrangement
  • Safe in master cabin (option)

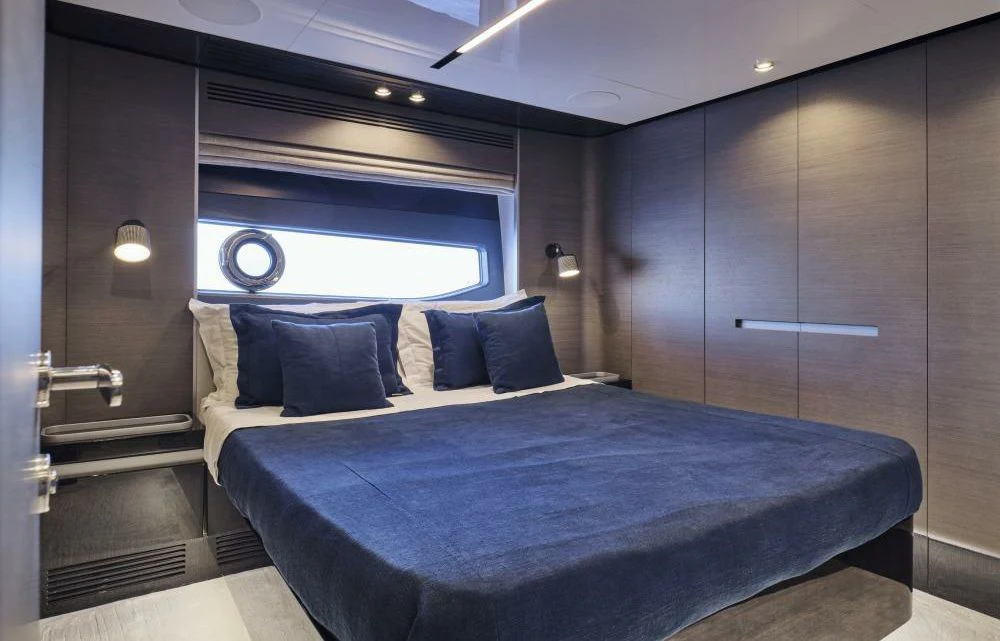

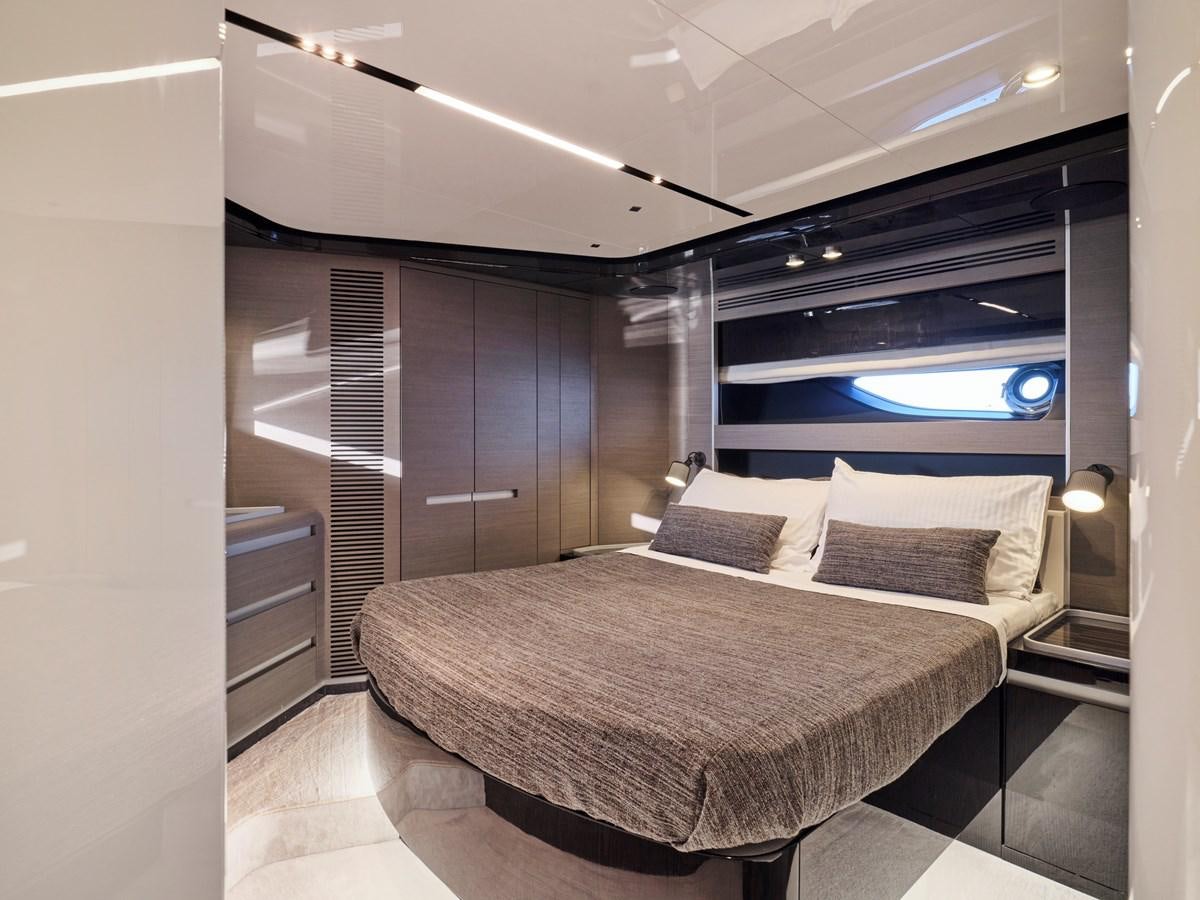

Starboard side guest cabin

  • Double bed with headboard on the bulwark, with foldaway bed plane and storage locker
  • Mattress, pillows and bedspread
  • Two bedside tables with drawer underneath and reading lights
  • One fixed panoramic window
  • One round openable portlight, built in the panoramic window
  • One three-panel wardrobe with hanger bars and shelves located by the cabin's aft bulkhead
  • Wood-upholstered bulwarks
  • Carpeted floor
  • Air conditioning system control panel
  • Air conditioning outlet grid built in the internal furnishing

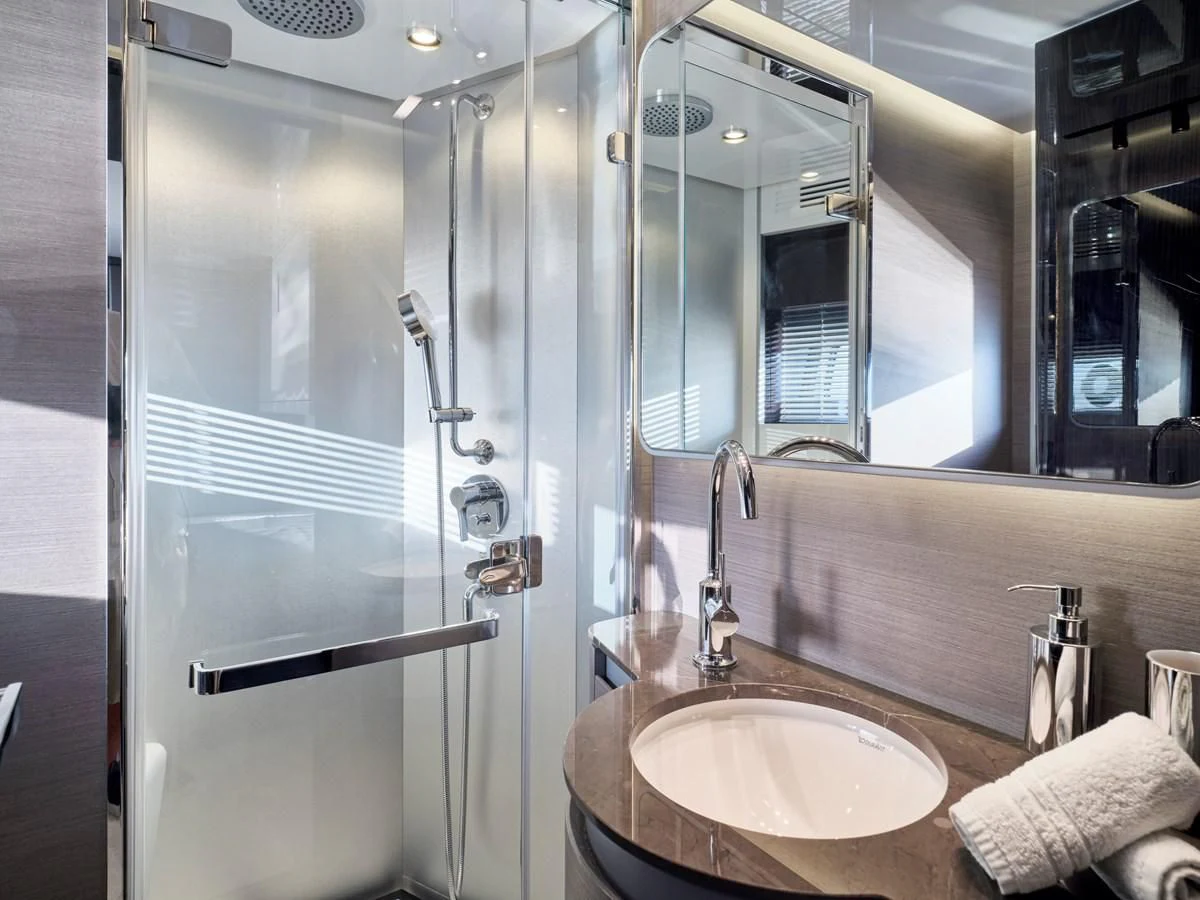

  • Washbasin under top
  • Washbasin top in marble
  • Custom option : WCs with integrated bidet faucets

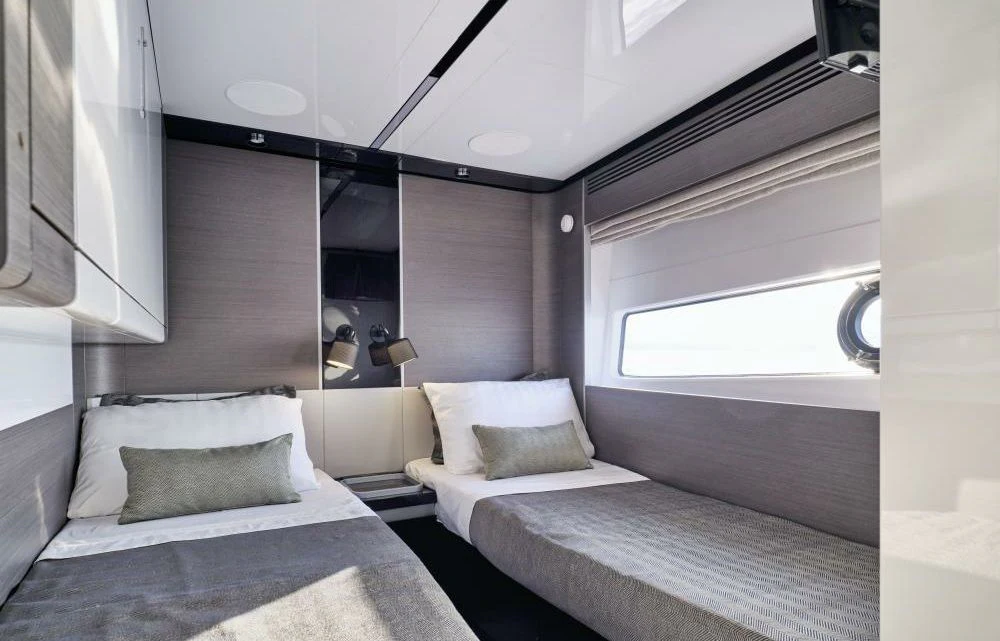

Port side guest cabin

  • Two fixed single beds
  • Custom option : 3rd bed in guest cabin port side
  • One central bedside table with drawer and reading lights
  • One fixed panoramic window
  • One round openable portlight, built in the panoramic window
  • One wardrobe with hanger bar and shelves located on the bulwark
  • Wood-upholstered bulwarks
  • Carpeted floor
  • Air conditioning system control panel
  • Air conditioning outlet grid built in the internal furnishing
  • Washbasin under top
  • Washbasin top in marble
  • Custom option : WCs with integrated bidet faucets

VIP cabin

  • Foldaway double bed located at an angle from the longitudinal axis of the boat, with foldaway
  • bed plane and locker
  • Two bedside tables with drawer underneath and reading lights
  • Two fixed panoramic windows
  • Two openable round portlights built-in the panoramic windows
  • One wardrobe with hanger bar and shelves located on port side
  • One wardrobe with hanger bar and shelves located on the fore side
  • Chest of drawers on port side of the cabin
  • Wood-upholstered bulwarks
  • Carpeted floor
  • Air conditioning system control panel
  • Air conditioning outlet grid built in the internal furnishing
  • Washbasin under top
  • Washbasin top in marble
  • Custom option : WCs with integrated bidet faucets

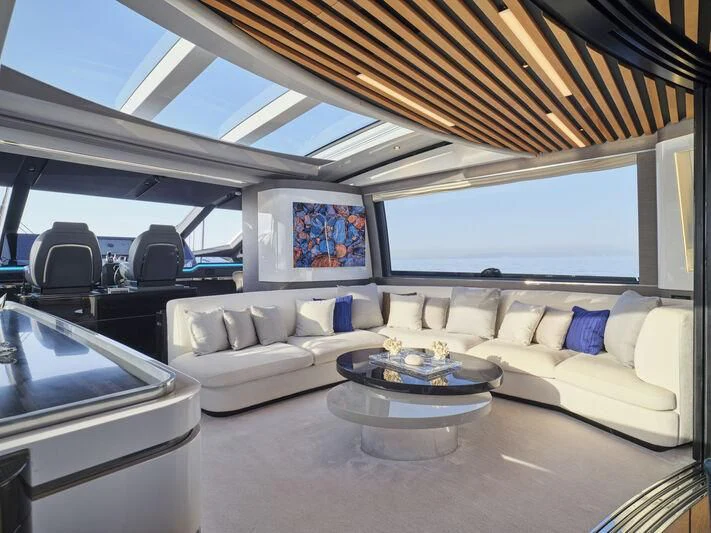

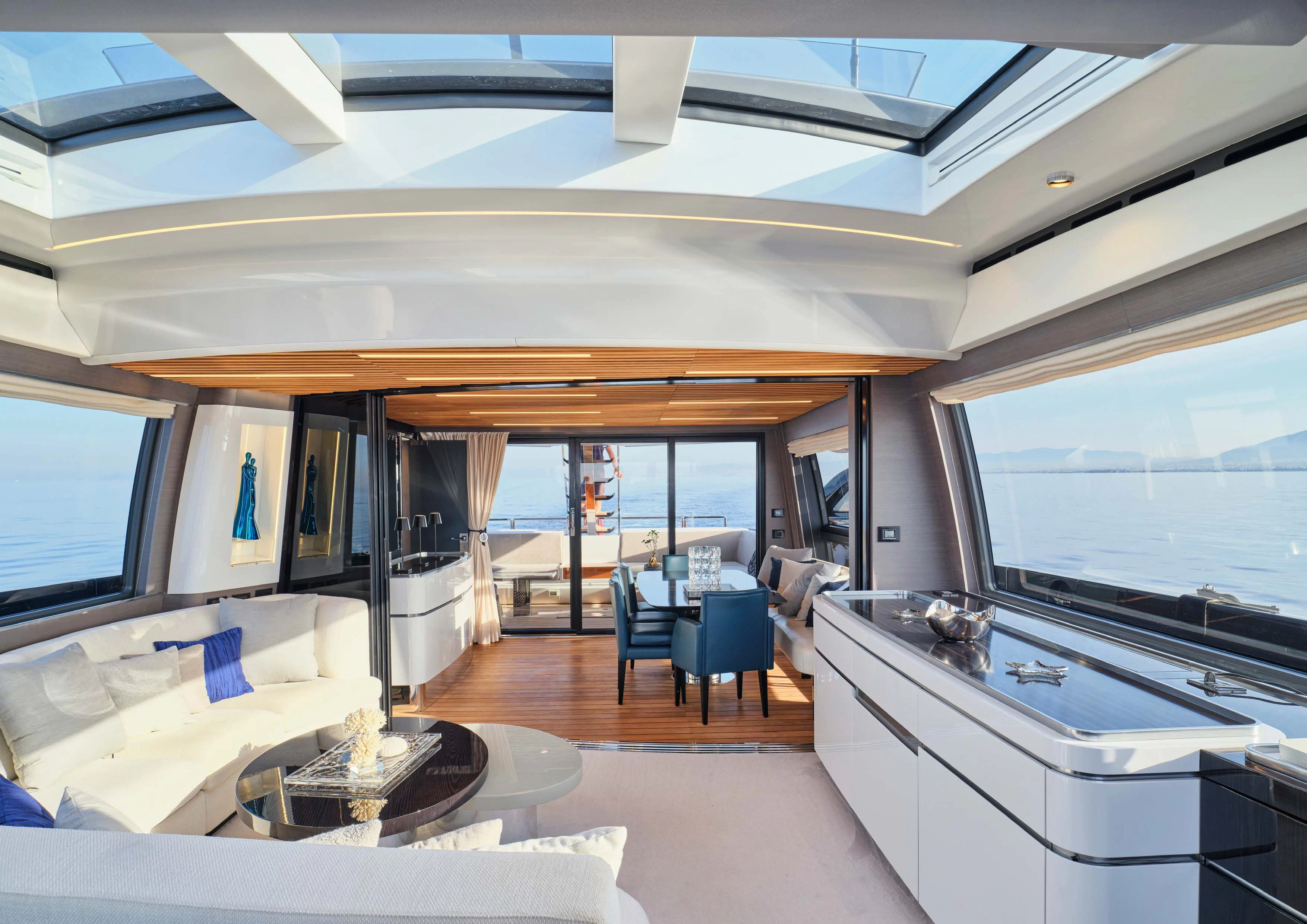

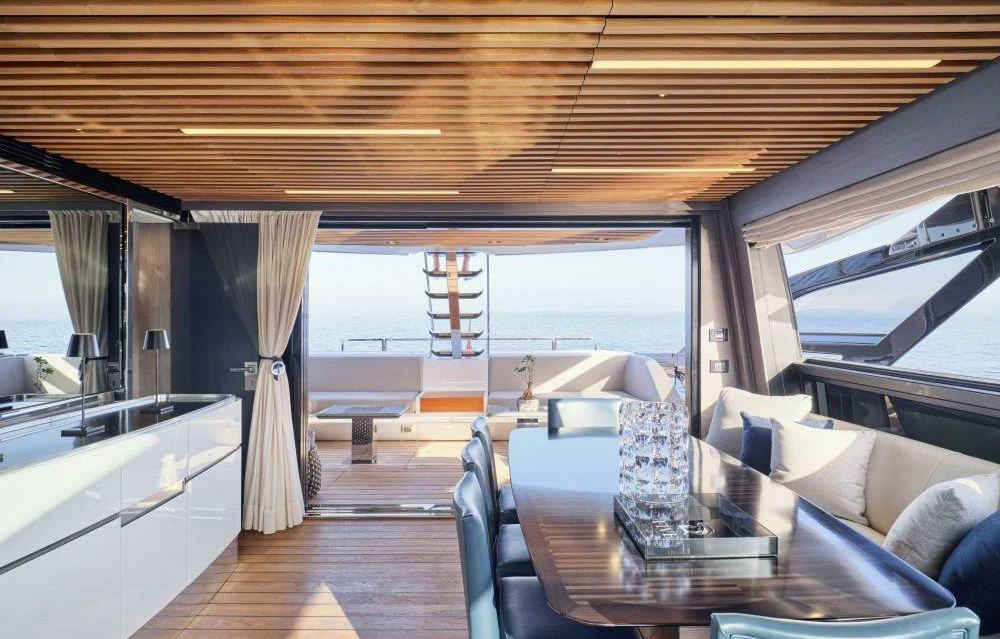

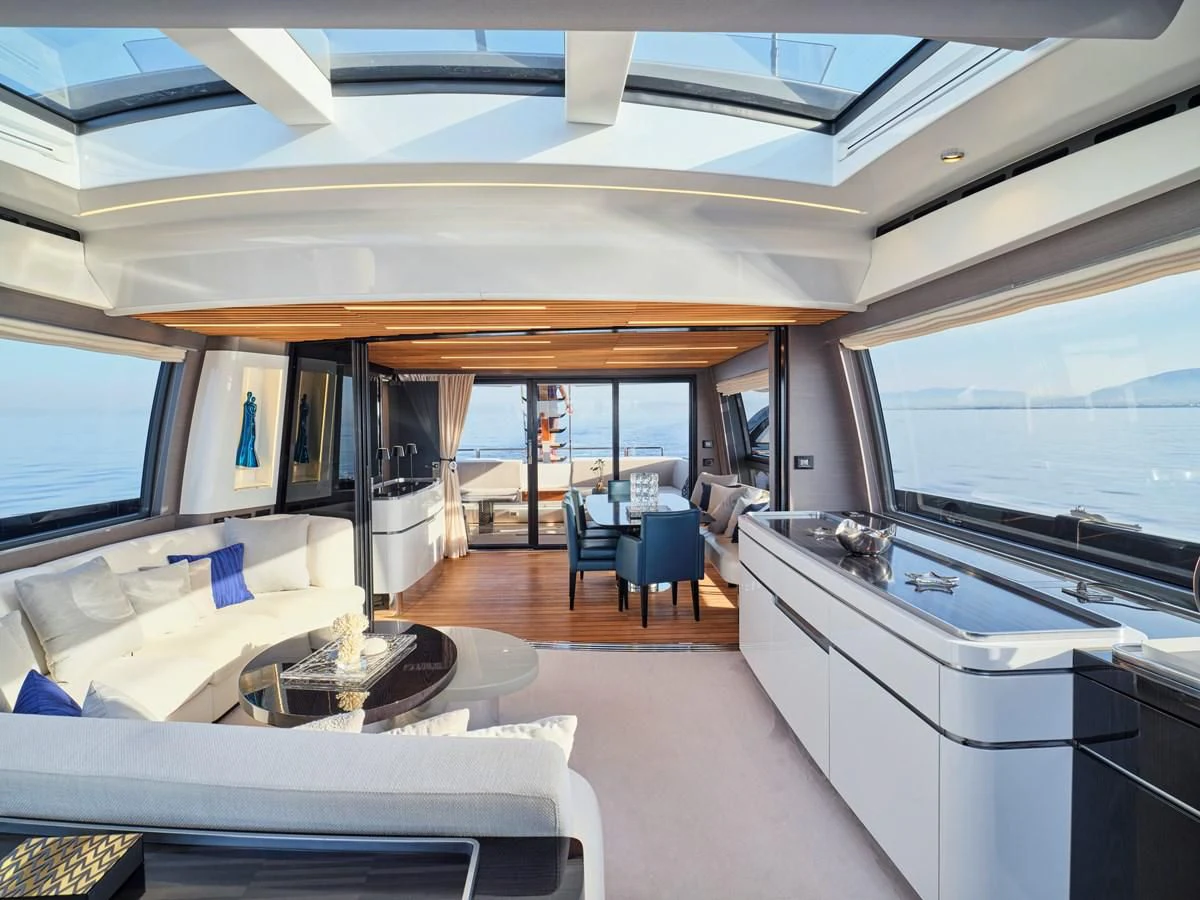

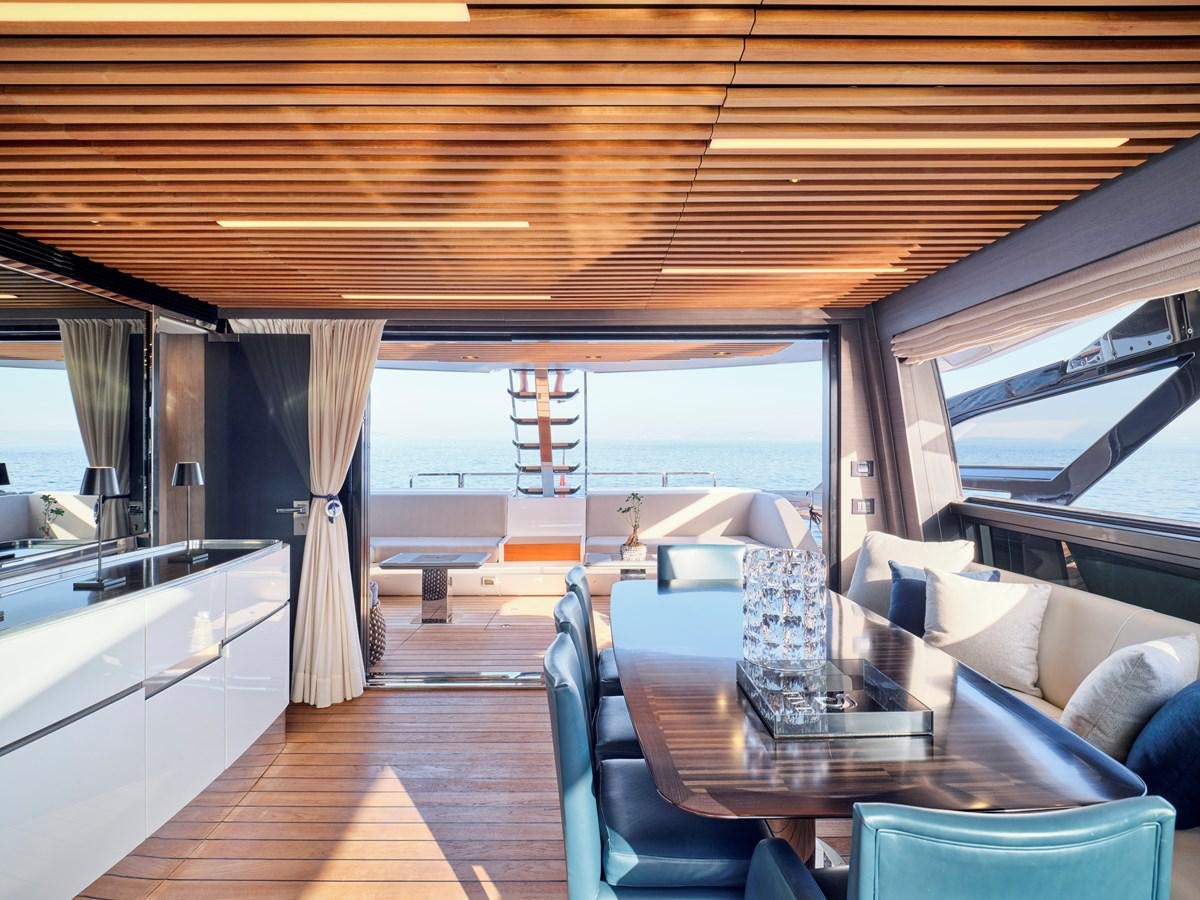

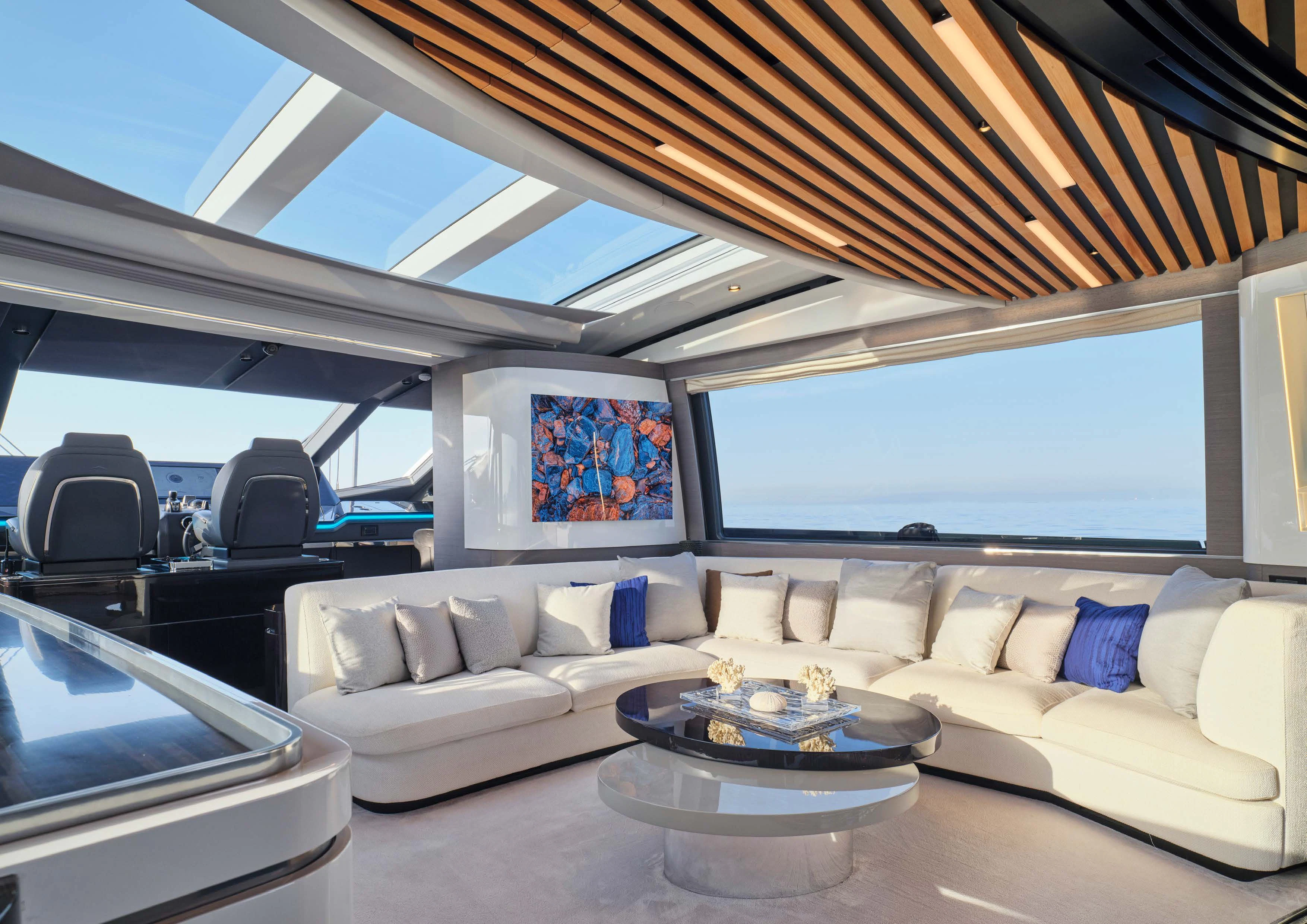

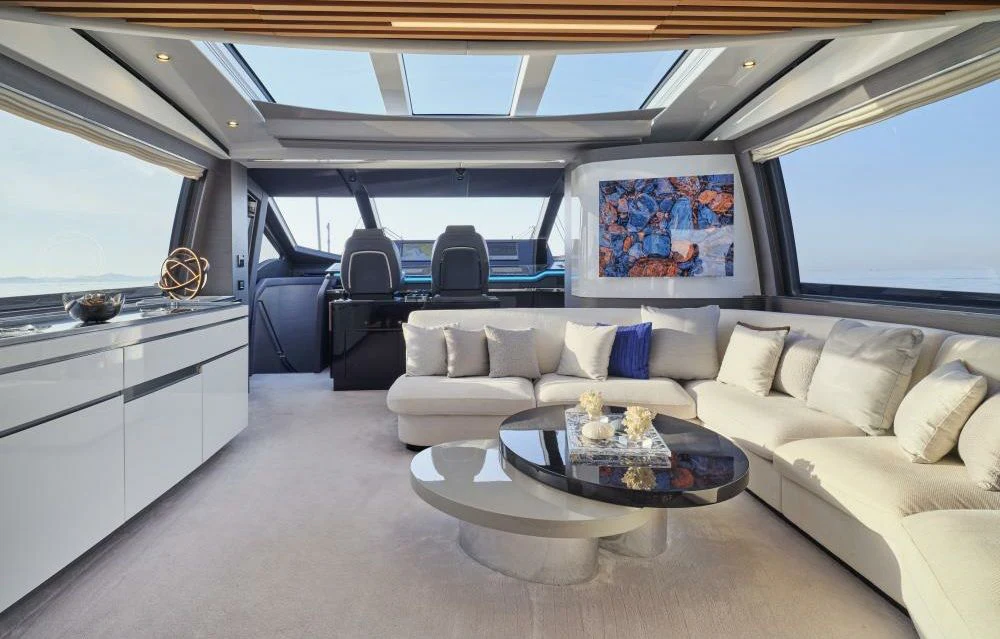

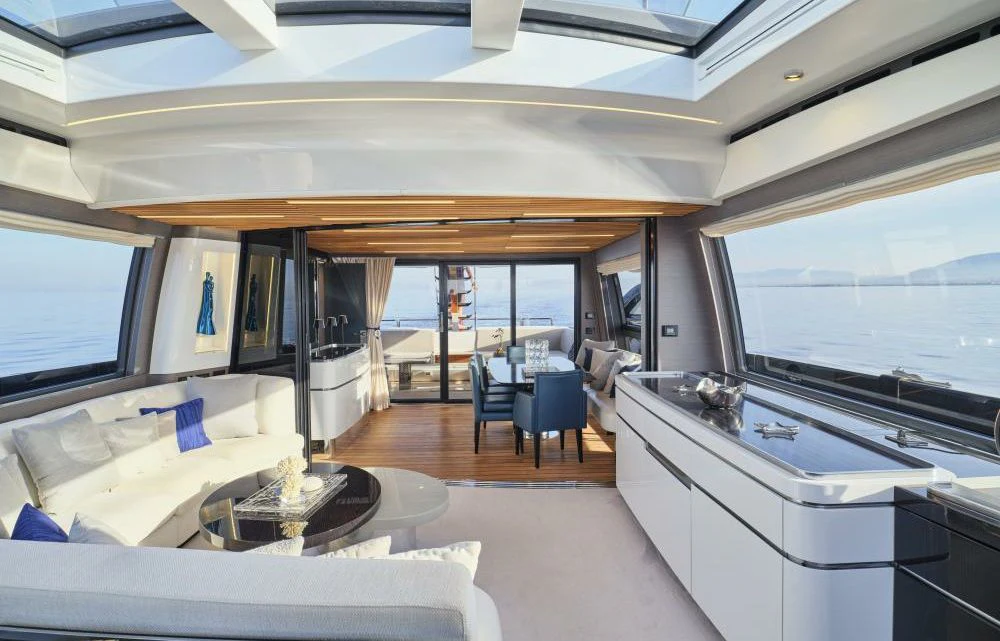

Interior areas

  • Custom option : Captain fly sofa with armrest on port side to cope with gap. Custom option : Longer sofa dining table in salon confortable for 4
  • Custom option : Bigger salon table (20cm longer) for 4+4+1+1
  • Custom option : Salon table chairs without armrests (4) + 2 with armrests type Perla Nera
  • Custom option : Larger fixed sofa setee 10cm wider including storage underneath
  • Custom option : Copilot electric up& down seat as per pilot
  • Custom option : Special Dashboard
  • Custom option : Full black out manual rollers if fitting or blackout stiched to roman blinds
  • Custom option : Salon internal door
  • Custom option : Mosquito nets for portholes
  • Custom option : Teak floor for dining area
  • Custom option : Wine cooler in the salon

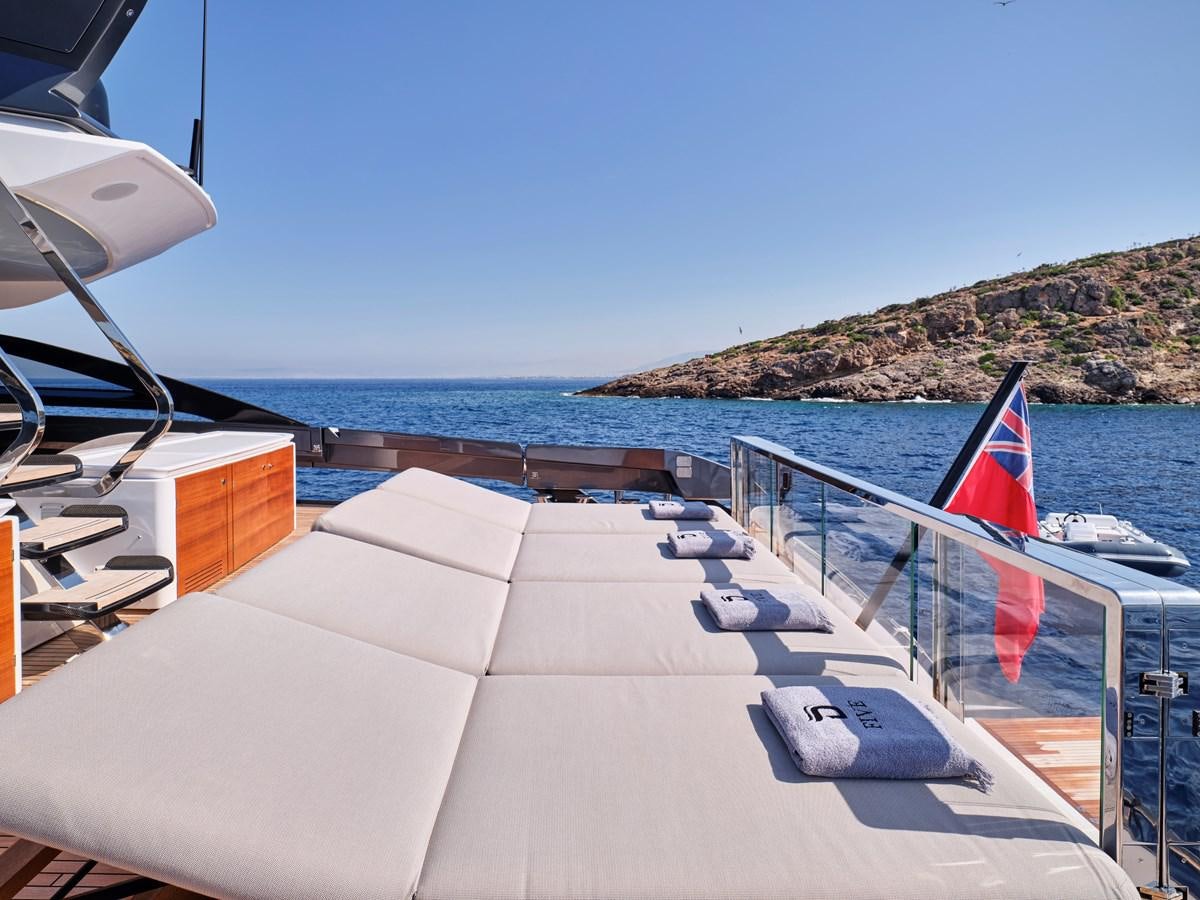

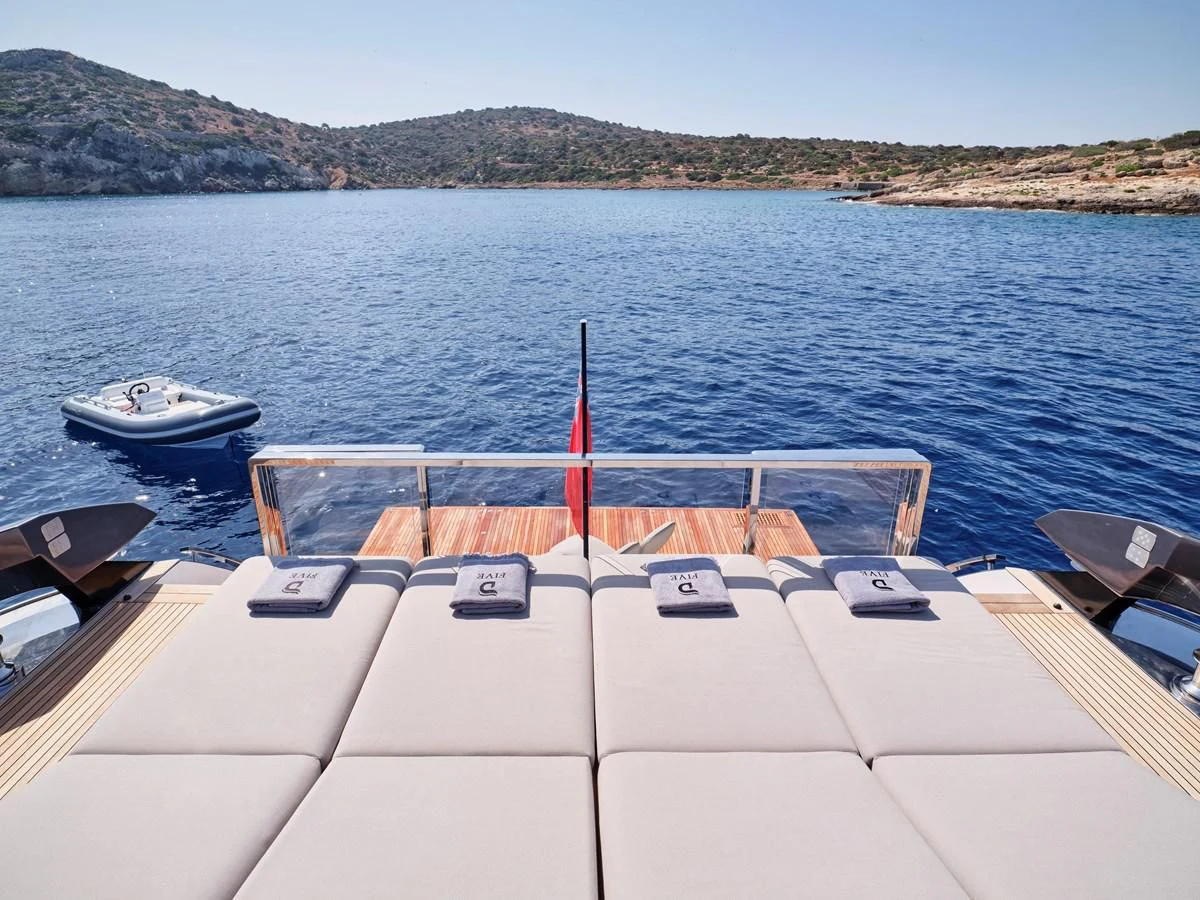

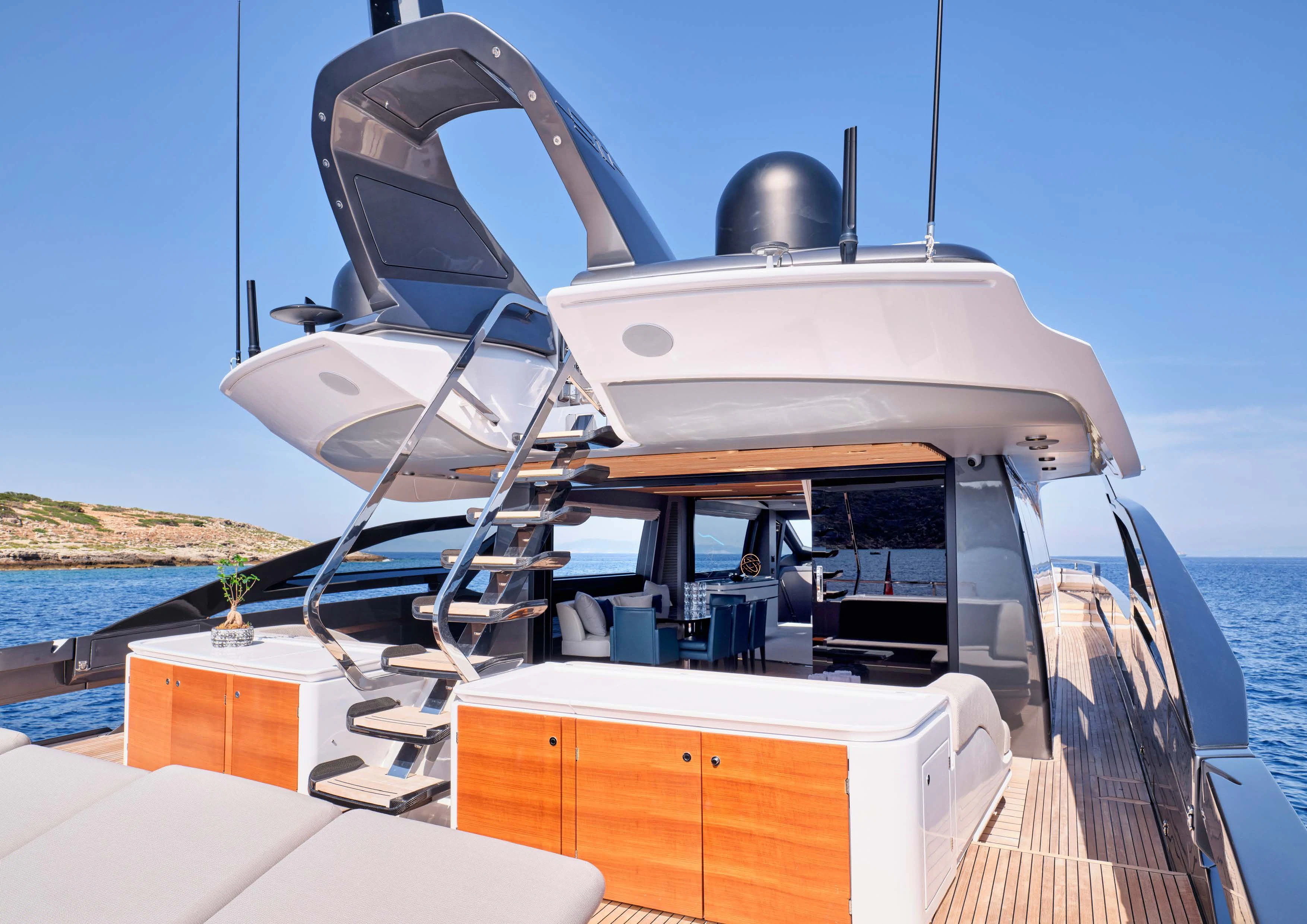

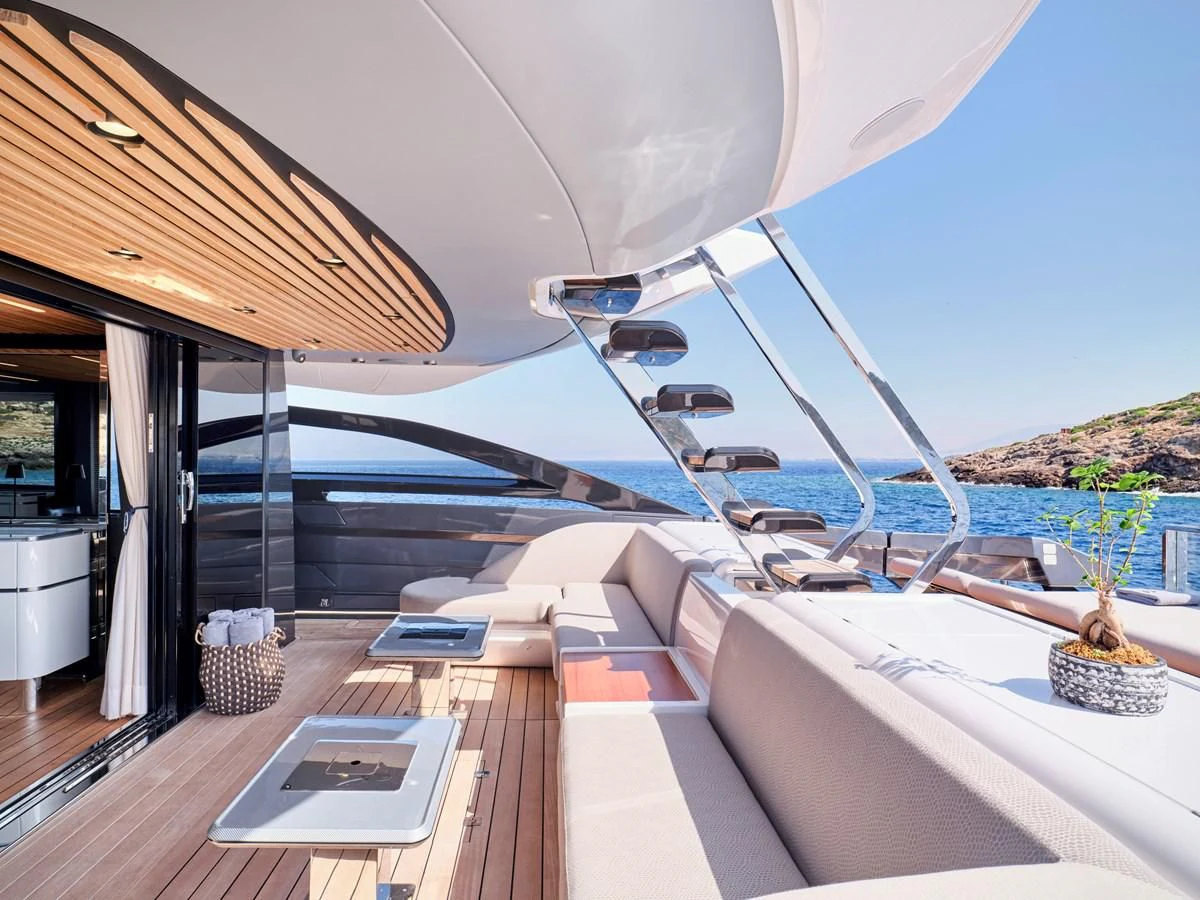

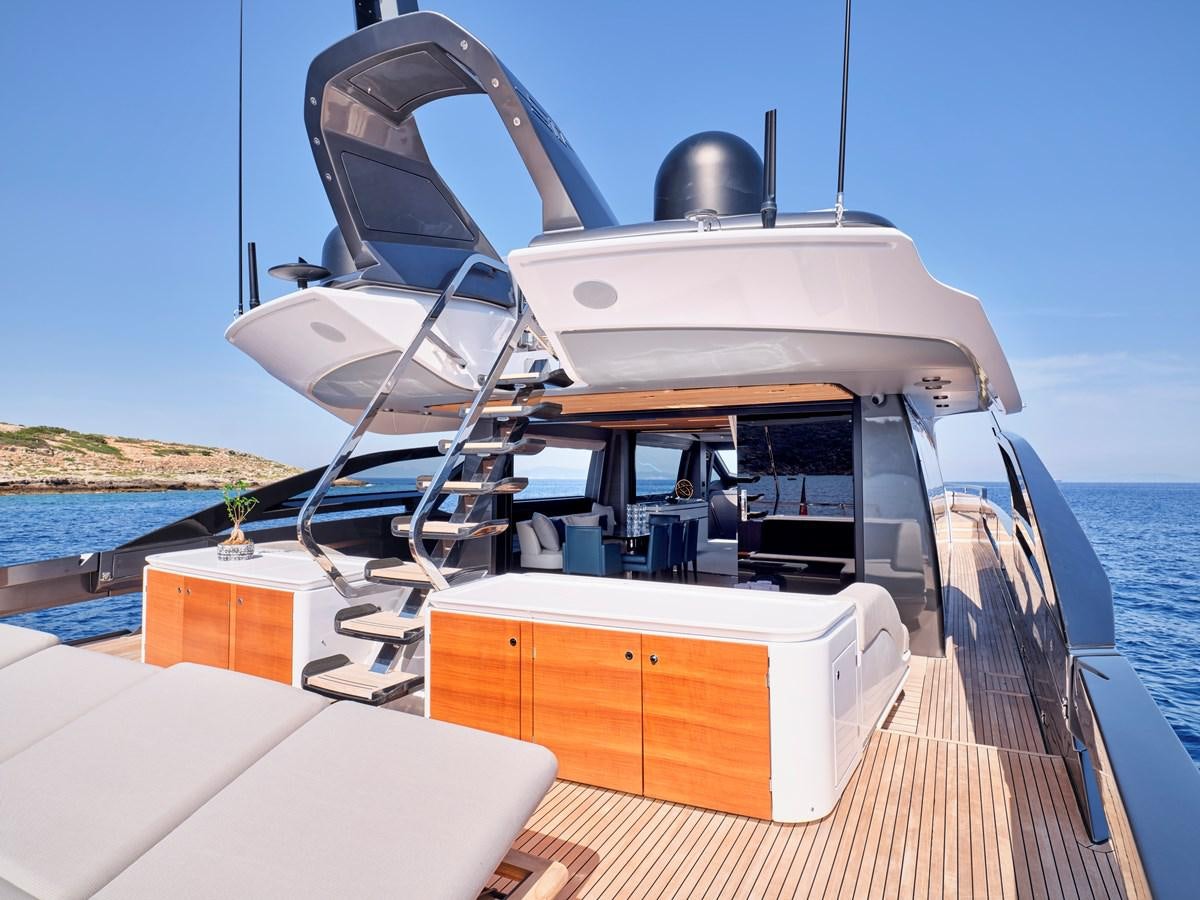

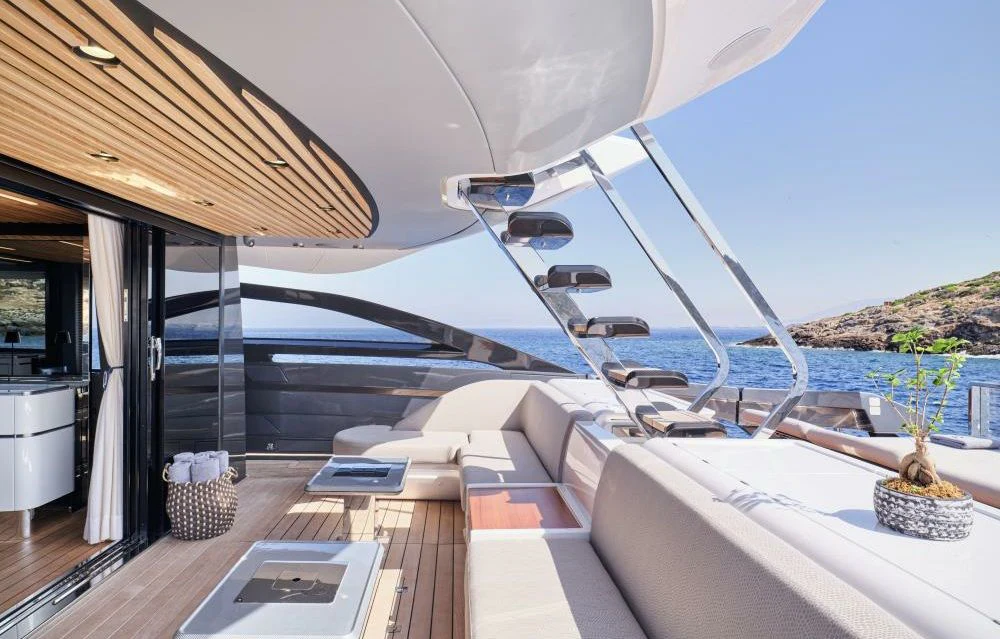

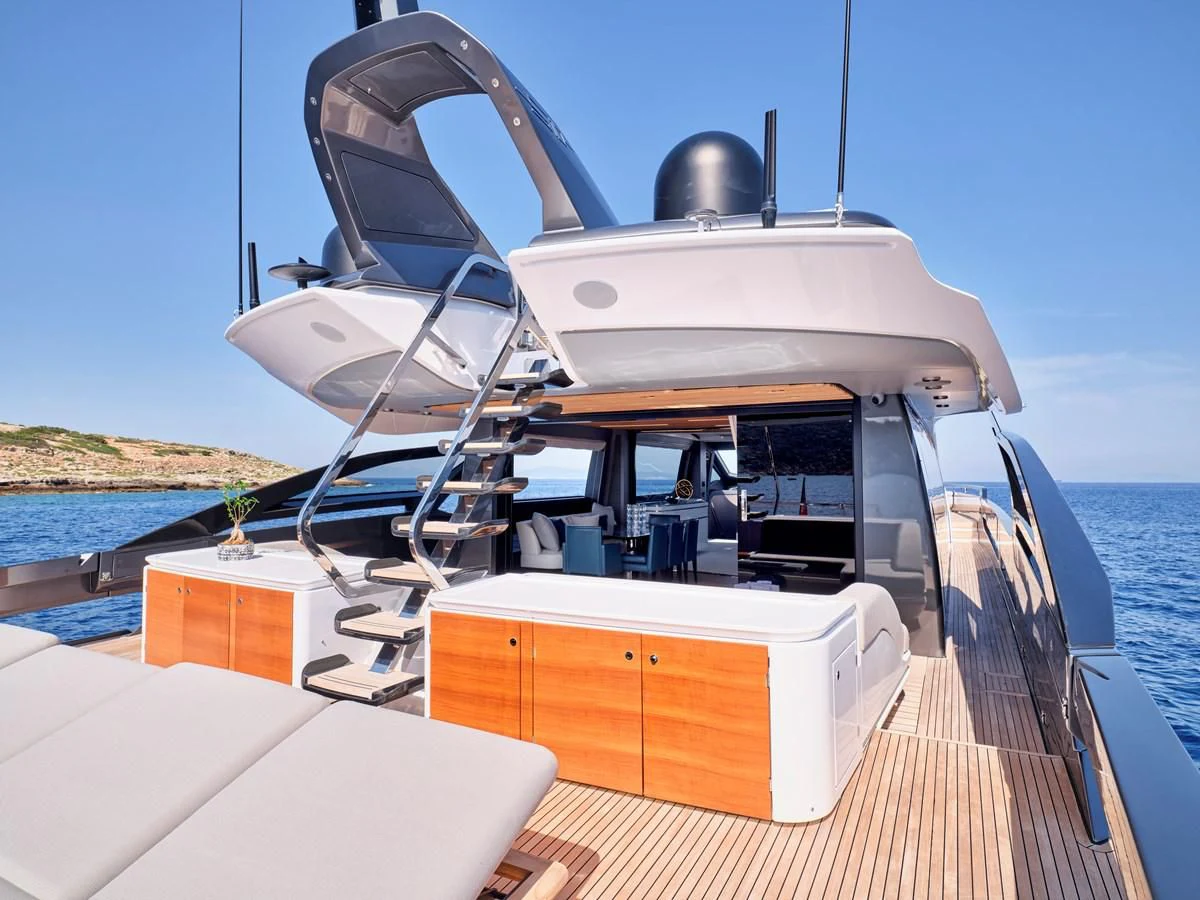

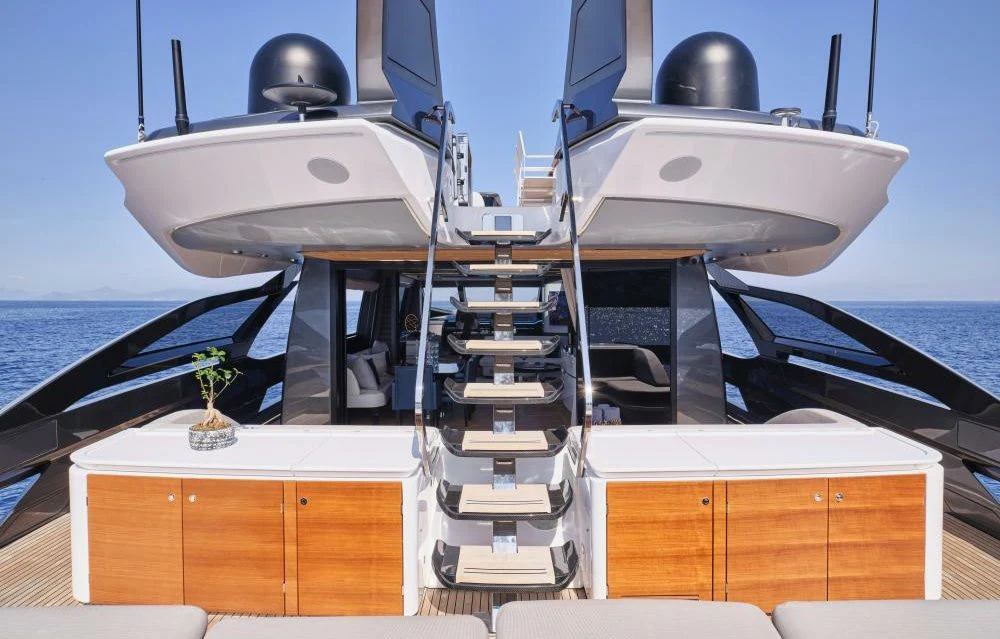

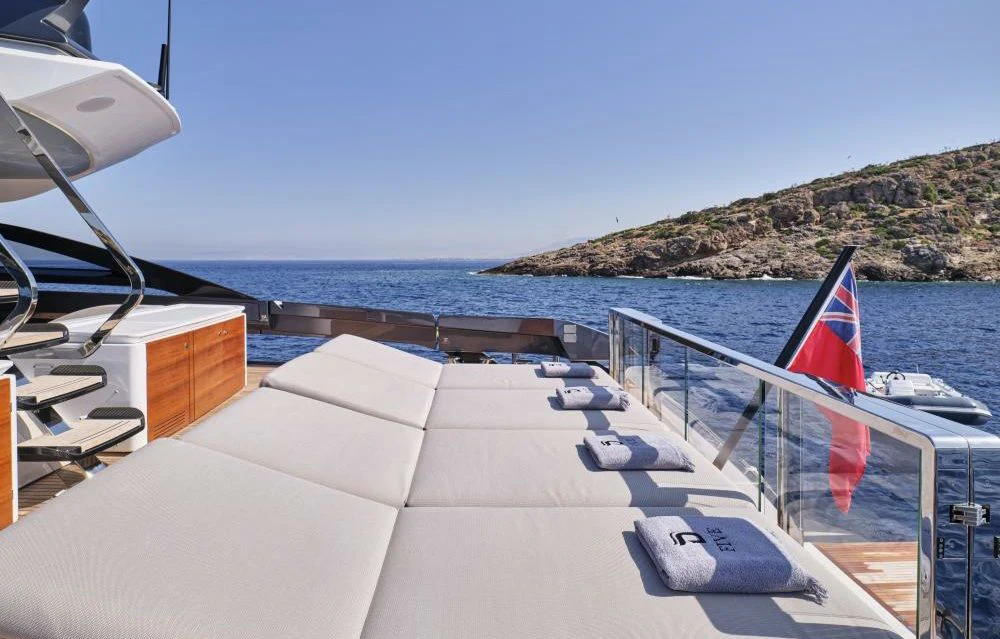

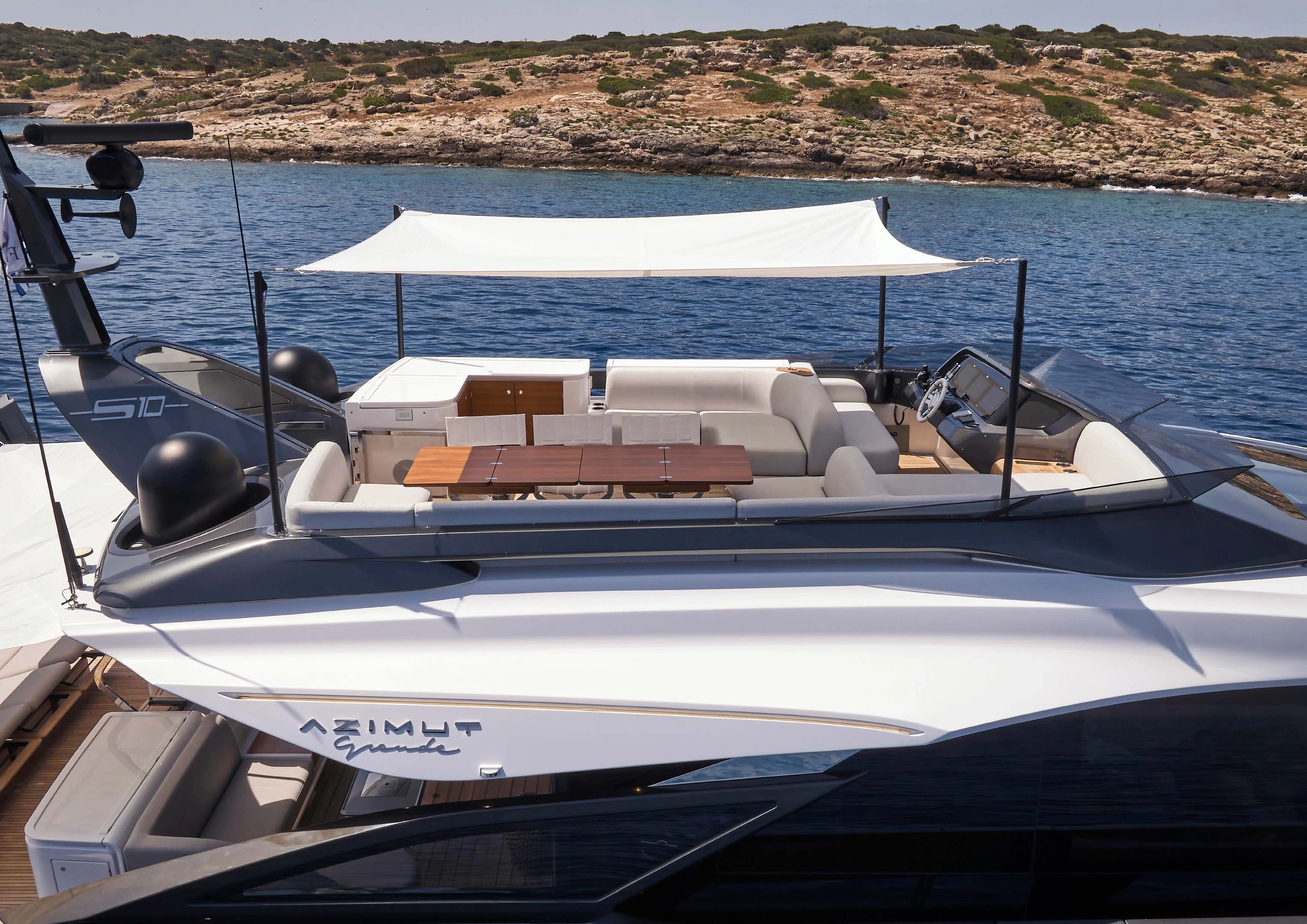

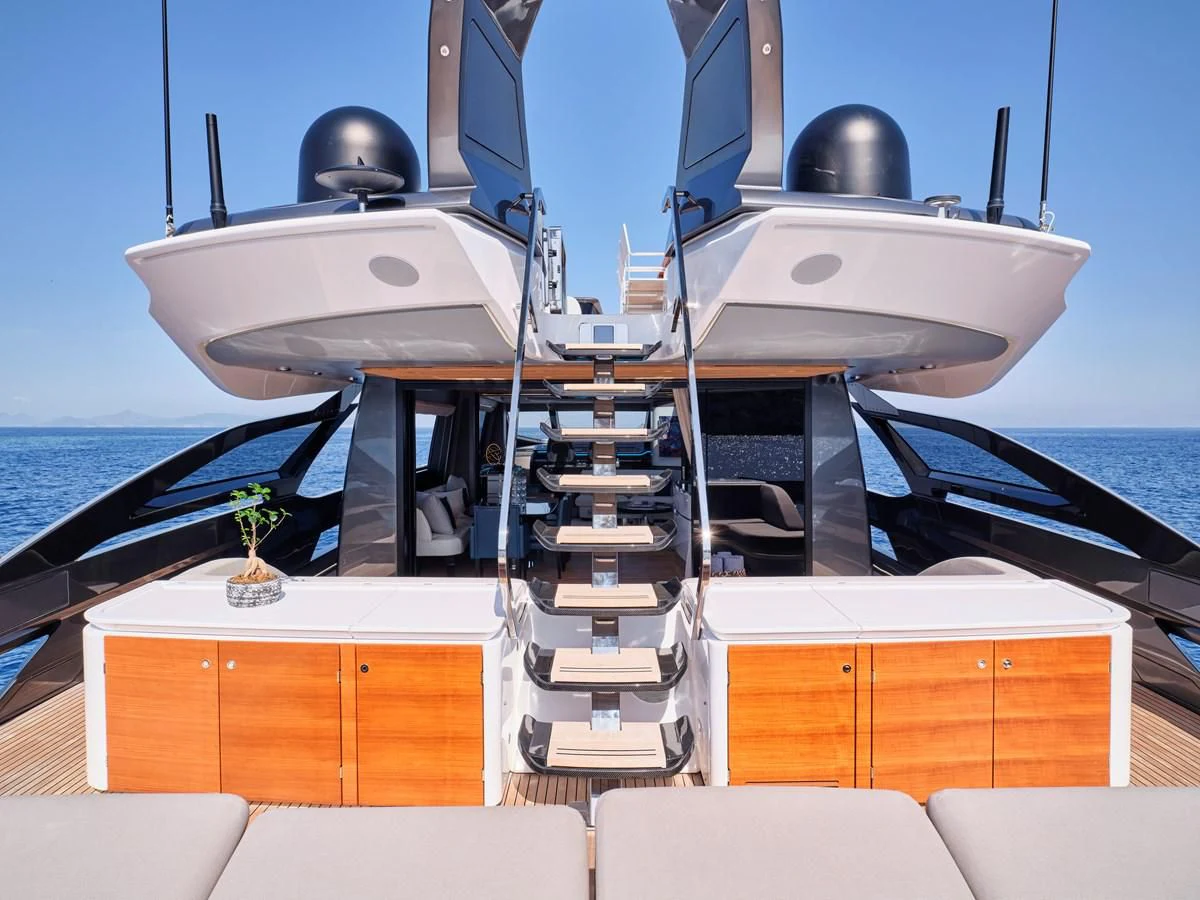

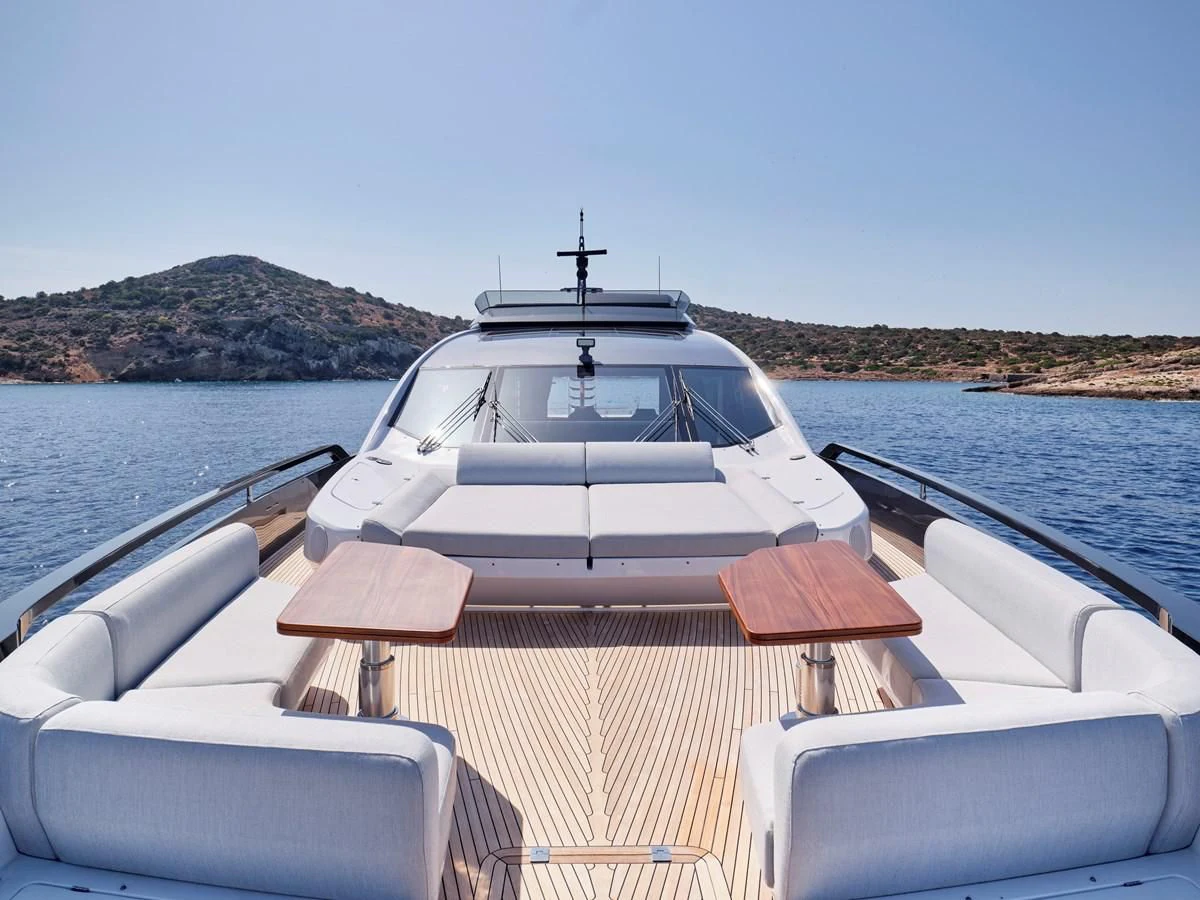

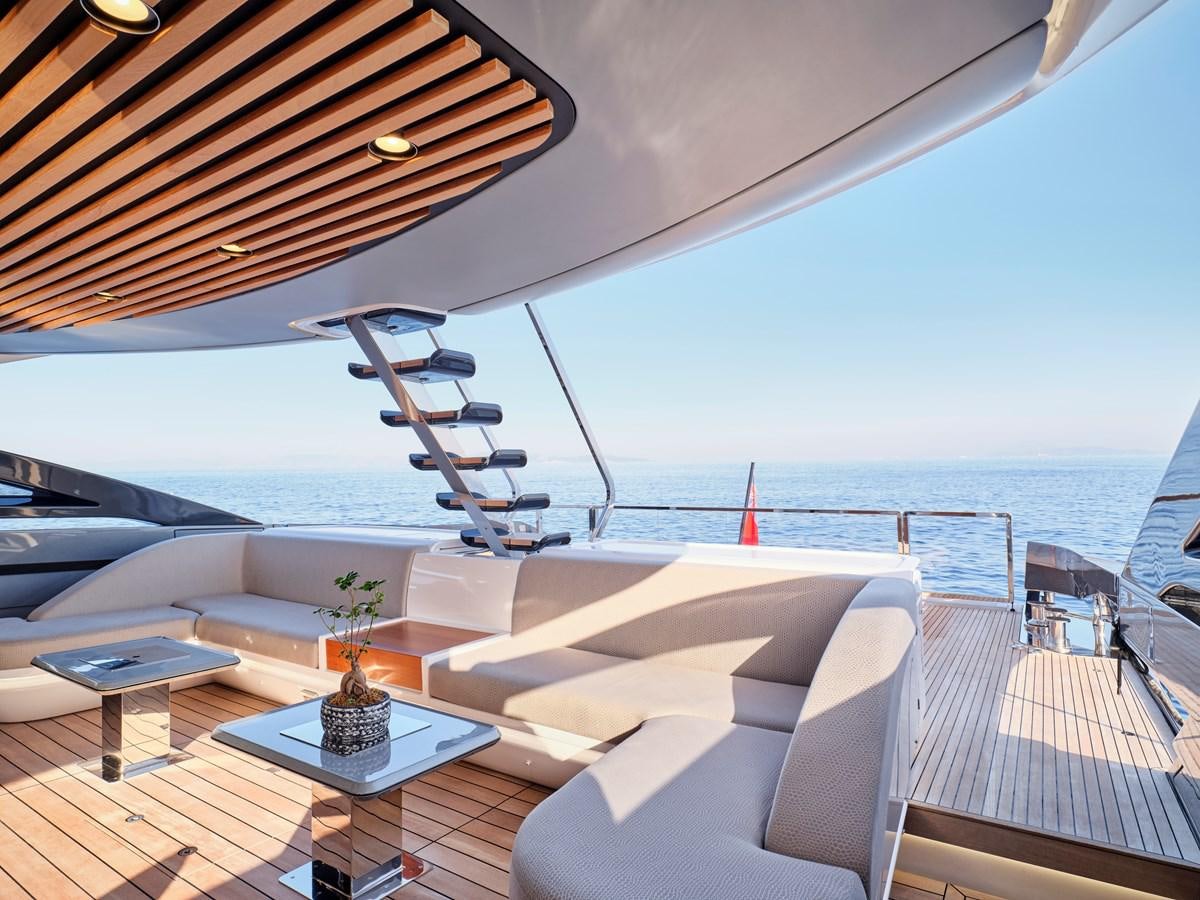

Exterior areas

  • Custom option : Cockpit layout solutions for sunbeds + eating area. Custom option : Electric up & down tables on fly
  • Custom option : Automatic hi lo tables on bow with sunbathing cushion
  • Custom option : L shape sofa on portside flybridge

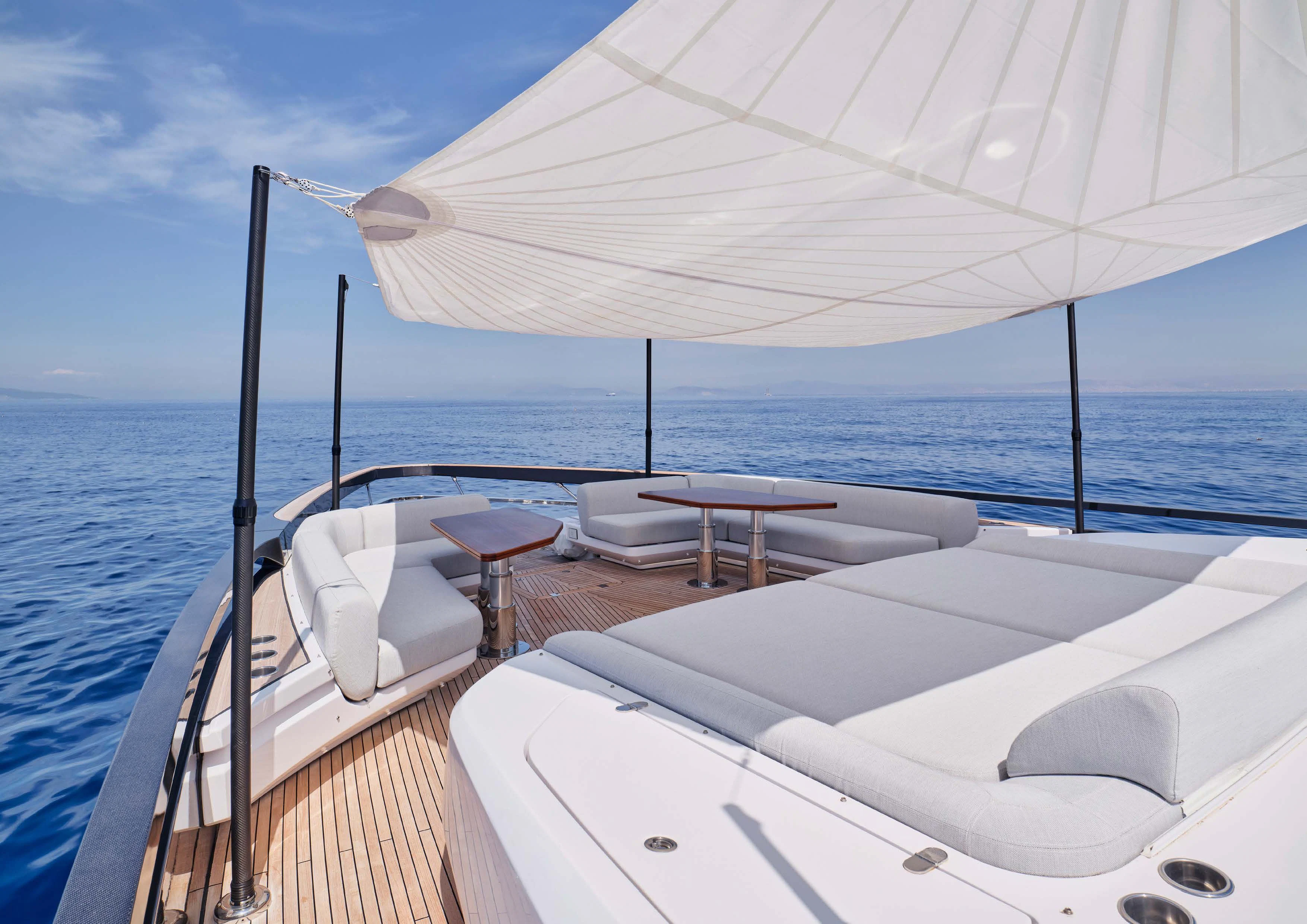

  • Sun shade sail on bow with removable poles (option)

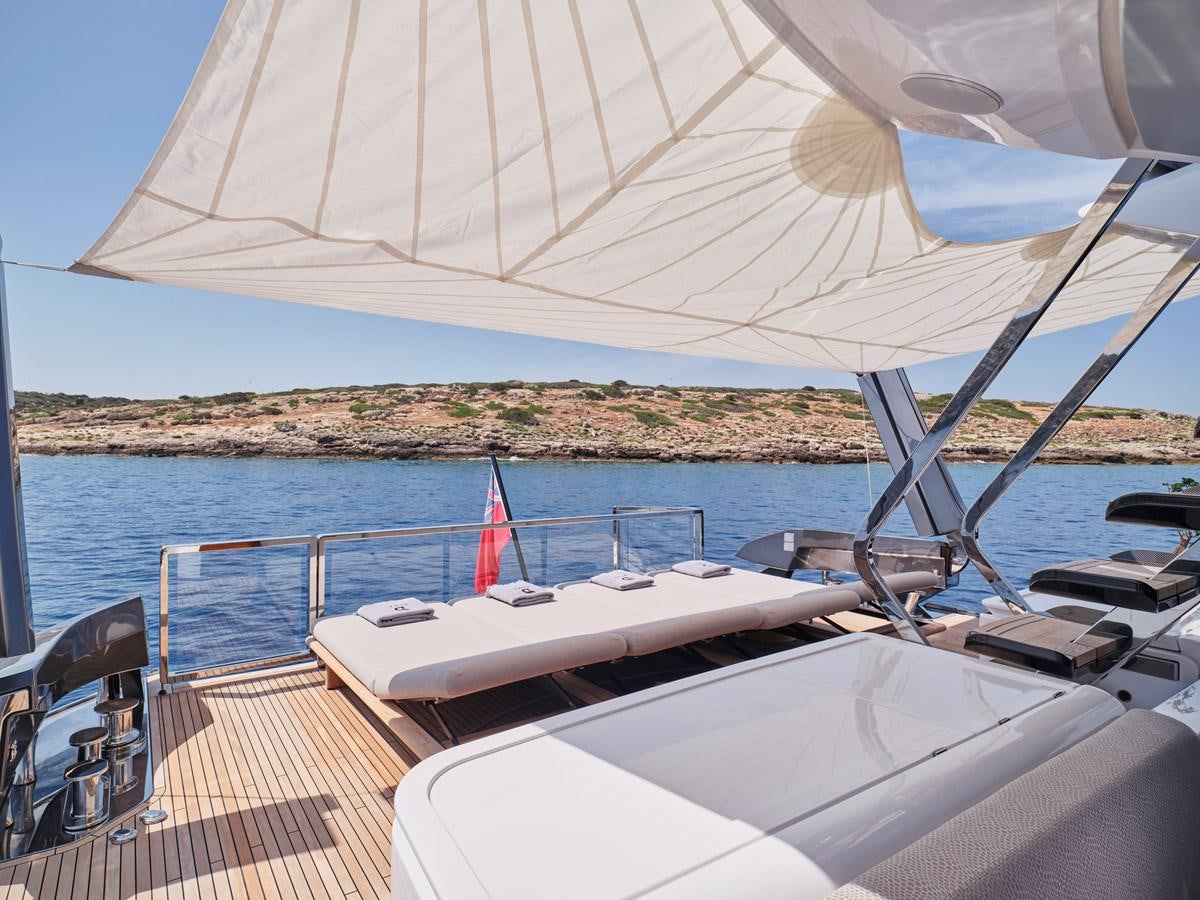

  • Sun shade sail on flybridge with removable poles (option)
  • Bimini in cockpit (option)
  • Teak floor for flybridge (option)
  • Luxury lights package for exteriors (option)
  • L shape sofa on portside flybridge (option)
  • Automatic hi lo tables on bow with sunbathing cushion (option)
  • Two spotlights installed on aft fly (option)
  • Two flood lights installed on bow (option)

Crew areas

  • Custom option : Additional bed in captain cabin: lower captain bed, plus sliding mid hight bed
  • Custom option : Additional bed in dinette: up&down table with extra cushion
  • Fourth folding bed in crew area (option)

Galley & Laundry Equipment

Galley and dinette

  • Miele Appliances (upgrade for oven and cooktop)
  • Sliding access door that separates the galley from the laundry / crew area
  • Laminated floor Composite material worktop
  • Double stainless steel sink Induction type four-hob range
  • Silicone pot holder Extractor hood with outwards extraction
  • Dishwasher 419 l (14.8 cu.ft) fridge + 247 l (8.7 cu.ft) freezer
  • Custom option : Freezer with lateral vertical door not drawer
  • 76 l (2.68 cu.ft) oven
  • Storage wall cabinets Four-seater “C” shaped sofa
  • Table LED lighting
  • Sockets Air conditioning system control panel
  • Air conditioning outlet grid built in the internal furnishing
  • Dumbwaiter in galley
  • Additional fridge in crew area

Laundry

  • Hinged access door Washer and dryer in crew area
  • Storage compartment with shelf above the washer-dryer (which can be used for the installation of the dryer (OPT) when required)
  • Cabinet under the ladder, with panels and shelves
  • Laminated floor Portlight
  • LED lighting Socket
  • Aspirator for hot air extraction, outwards

Exterior areas

  • Custom option : 2 vertical door fridges on
  • STBD side cockpit storage (next to STD icemaker, STBD side of stairs to fly)
  • Custom option : BBQ + double electrical plates on fly
  • Custom option : Icemaker on flybridge Refrigerator in cockpit (option)

Communication Equipment

  • Communication systems (VHF) SAT TV6 EU
  • SAT TV decoder installation: 1 decoder for same signal in Salon, Fly, cockpit

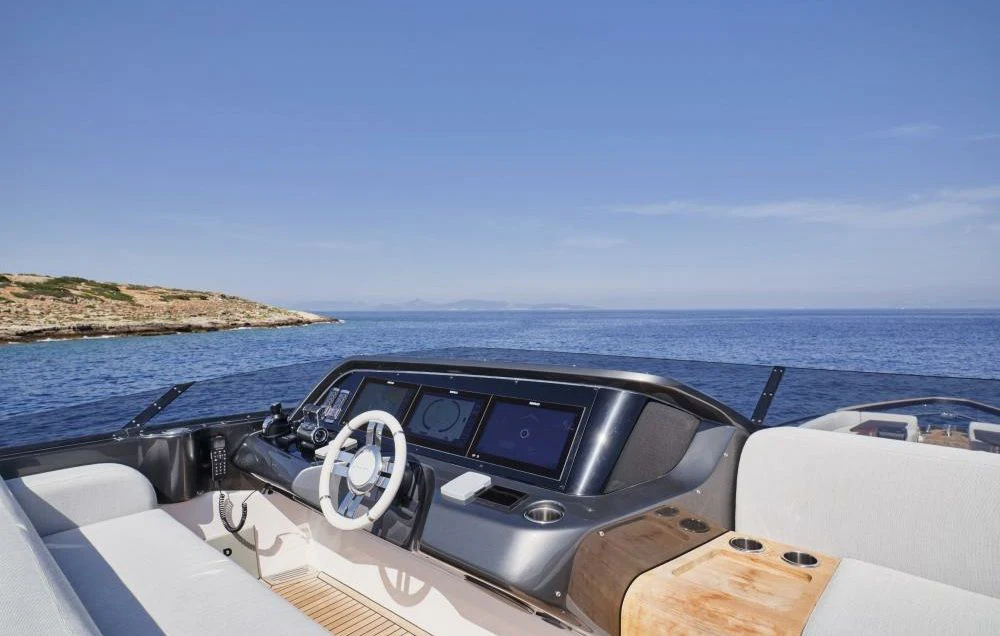

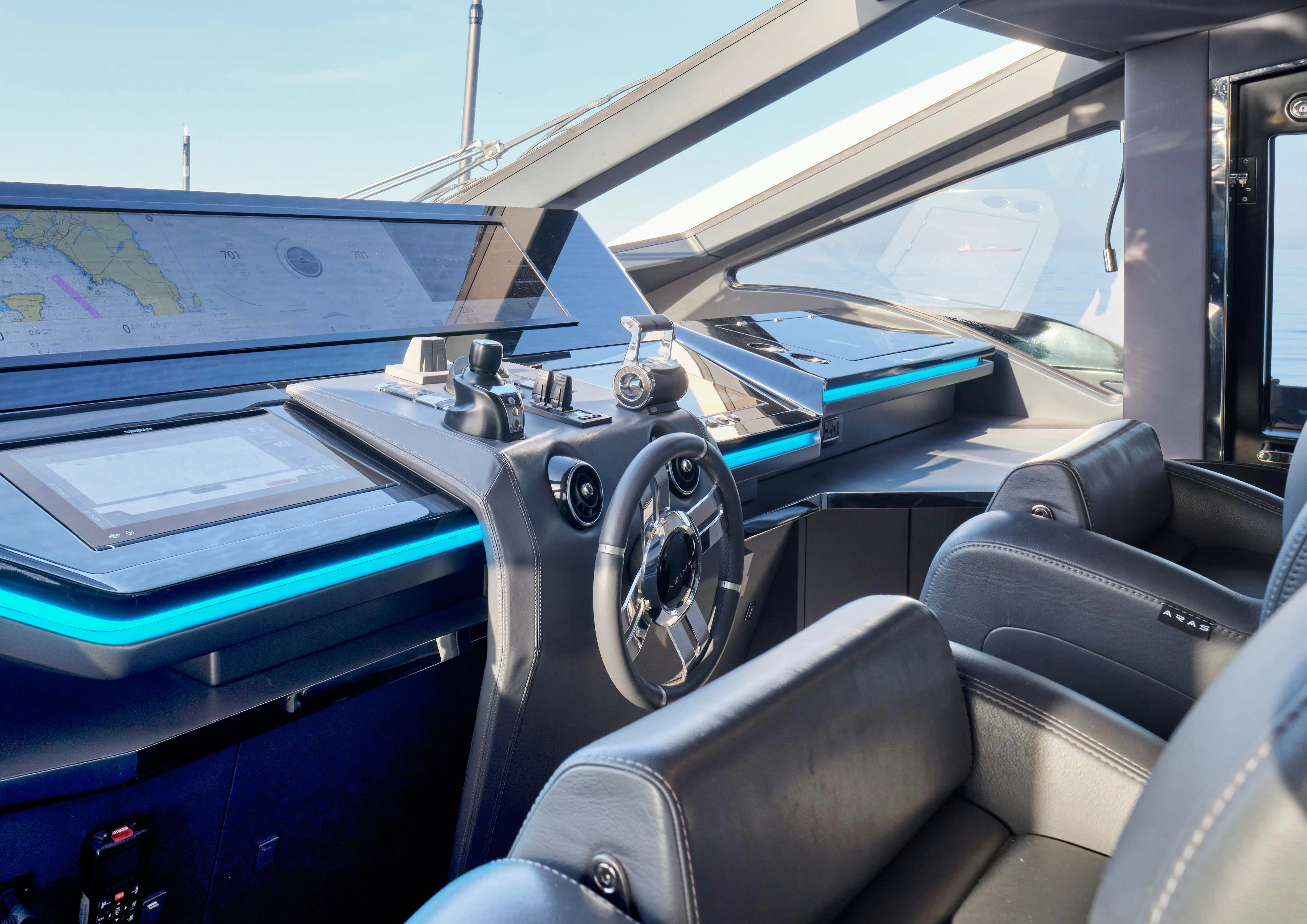

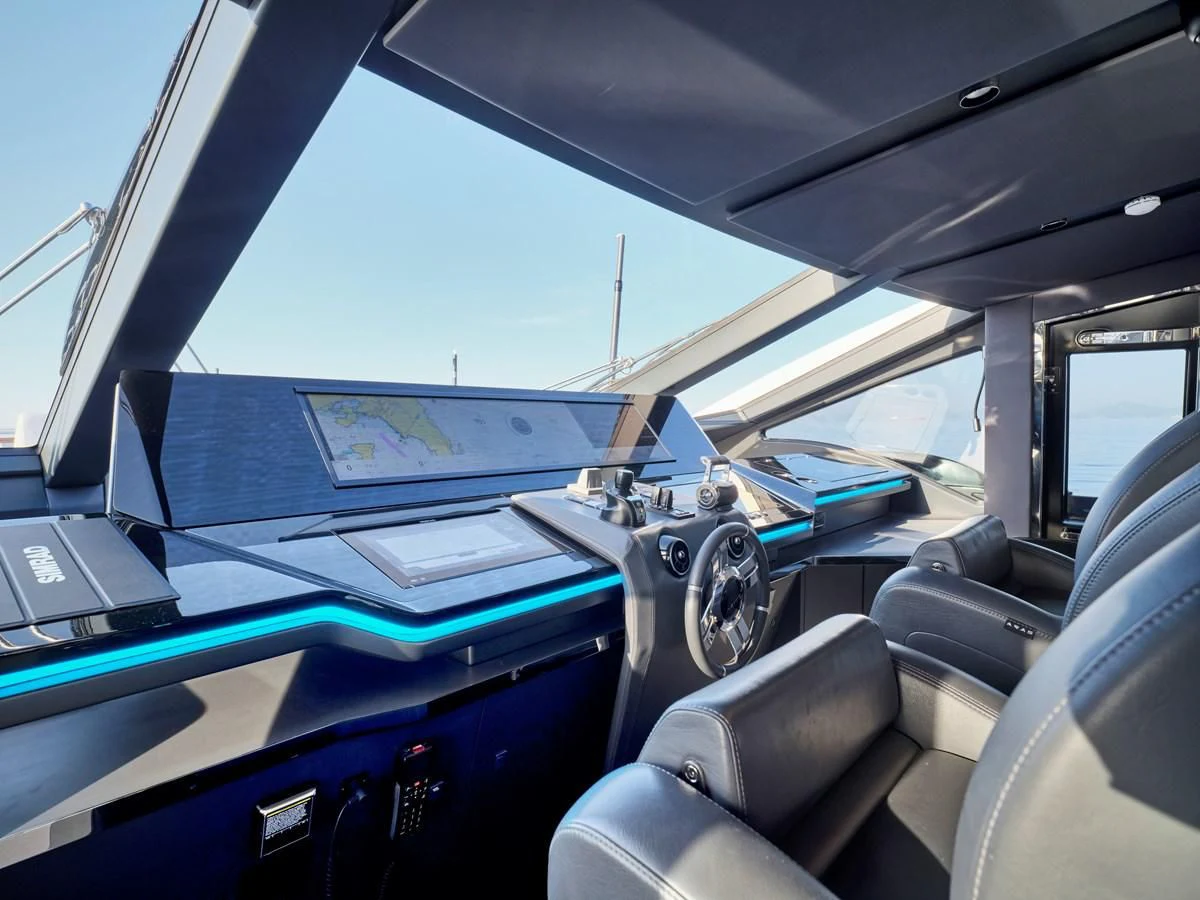

Navigation Equipment

Simrad Platinum package (option)

  • Radar Halo 4 3x VHF HS90
  • 3x NSO EVO3 16 Screen Full integrated bridge screen with Azimut technology
  • 1x OP50 controller 1x NSO EVO3 19 Screen
  • 1x OP50 controller
  • Custom option : 3rd station wire remote control for engines, thrusters and anchor
  • Custom option : New layout port side instruments: throttle and thrusters more left, including engine joysticks
  • Custom option : MTU Joysticks with DPS in fly and main helm, for engine, bow and stern thruster controll
  • Simrad AIS (option)
  • Electric searchlight (option) Predisposition for SAT antenna TV6/TV8 (option)

Entertainment Equipment

Audio and video system
Flybridge :

  • SONOS CONNECT AMP55W
  • ALTOPARLANTE COAX 230W
  • SUBWOOFER FUSION MARINO SG-S10W 10" 450W
  • Parasound - ZoneMaster Model 250 Universal 2

Main deck:

  • SONOS CONNECT AMP. 55 W
  • ALTOPARLANTE COAX 230W
  • LG 55" SMART TV 4K
  • SONOS PLAYBAR Black
  • SONOS SUBWOOFER NERO LUCIDO
  • SONANCE ALTOPARLANTE VP52R UTL 80W

Lower deck :

  • SONOS CONNECT AMP. 55 W
  • LG 55" SMART TV 4K (owner's cabin)
  • SONOS BEAM White
  • SONOS SUBWOOFER NERO LUCIDO (inside the bed)
  • LG 32" SMART TV 50/60HZ (guests cabins)
  • SONANCE ALTOPARLANTE VP52R UTL 80W
  • ALTOPARLANTE MS-CL602 DA 6"
  • LG 24” SMART TV 50/60HZ (twin cabin only)

Network

  • Wi-Fi Simultaneous Dual-Band New Apple IPAD 16 GB

Tenders & Toys

  • Williams SJ 435 150 HP Rotax engine, with custom colors and name
  • SEA DOO Jetski
  • Custom option : Bauer compressor and Scuba Diving bottles : Bauer Junior II-W (100
  • l/min)
  • Two Seabobs

Deck Equipment

  • Two telescopic boat hooks Six mooring lines
  • Line for fenders: 24 m (78' 9") Two anchor chain stoppers
  • Eight fenders Eight fender covers
  • One cover for external cushions Two anchor, Weight 60 kg (132.3 lb), material: galvanized steel
  • Hauling/launching system for tender in garage (option)
  • Shore water plug on bow (option)
  • Automatic system (hydraulic) for side boarding gates (option)
  • Cover for garage door (option)
  • Custom option : 120 m chains Custom option : Fresh cold water plugs for deck wash (one aft / platform area, one at bow)

Safety & Security Equipment

Fire extinguishing system
Automatic control system with:

  • One 106 l (3.74 cu.ft) extinguishing gas cylinder, in the engine room, with mechanical handle activation and remote activation fuel delivery shut-off to engines and generators through solenoid valves

Manual control system with:

  • Emergency engine/generator switchoff control in cockpit
  • Gianneschi ACB-431 / 24 V pump alarm relay panel in crew cabin two hoses located in the cockpit and in the chain locker at the bow
  • The manual fire extinguishing system is connected in parallel to the auxiliary bilge system, therefore in case of fire extinguishing pump fault it is possible to operate special three-way valves and use the bilge pump.
  • The fire extinguishing system is also equipped with:
  • Three smoke detectors (one in the engine room, one in the crew area)
  • Two Sea Fire display panels (one in the internal wheelhouse, one in the flybridge wheelhouse)
  • Other equipments :
  • All other safety equipment are according to class and flag
  • Alarm system with Cameras for remote surveilance
How to Buy a Yacht Our experienced brokers will assist you throughout your yacht buying journey

Similar Yachts for Sale

View All

AZIMUT YACHTS Yachts for Sale

View More
Northrop & Johnson
Hi there!
Would you like to get more information about D FIVE? Our brokers are standing by to help.
