Asking
$ 999,500

AZURE Yacht for Sale

Length
80' (24.38m)
Builder
Azimut
Build
2004
Cabins
5
Asking Price
$ 999,500

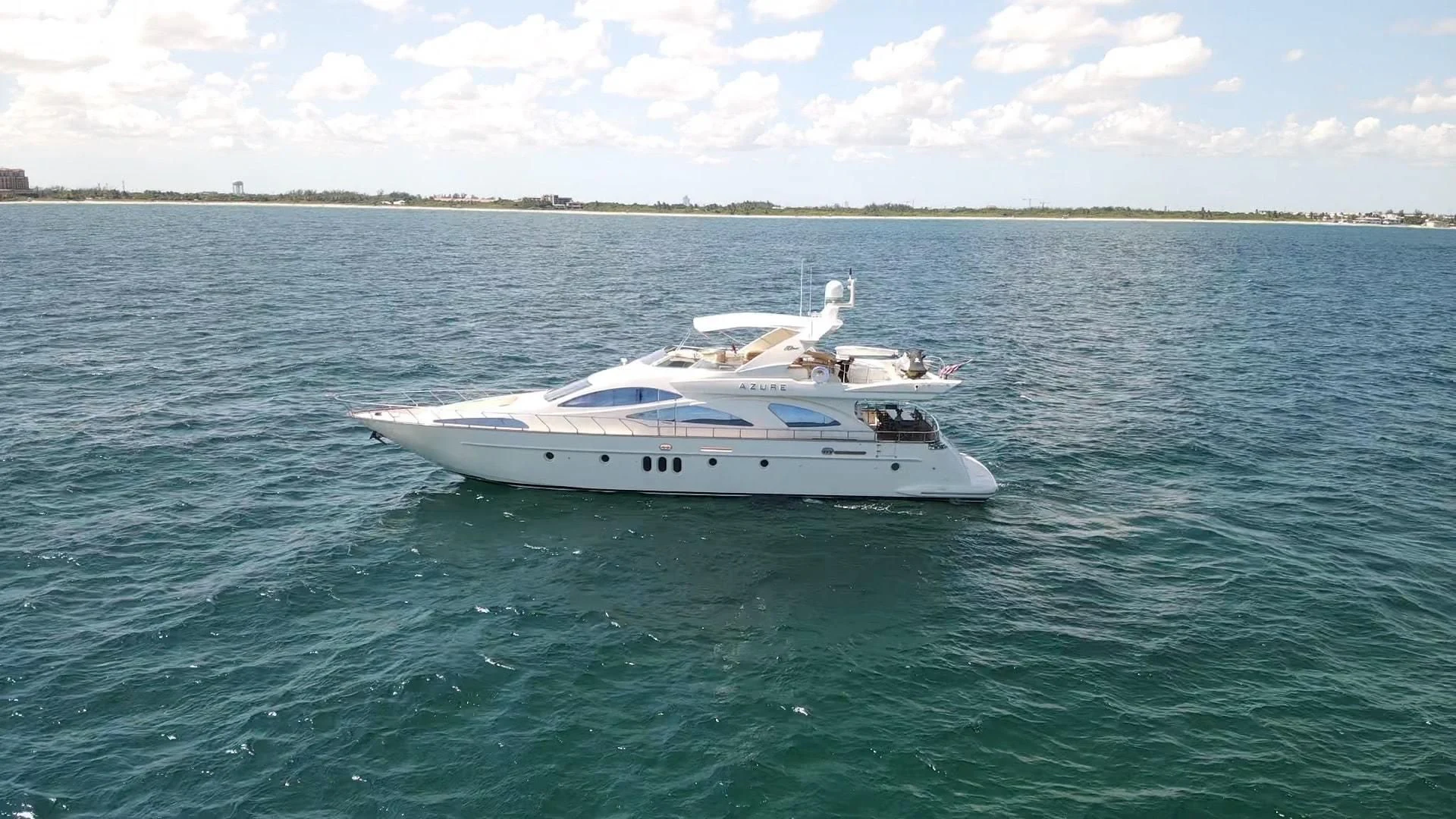

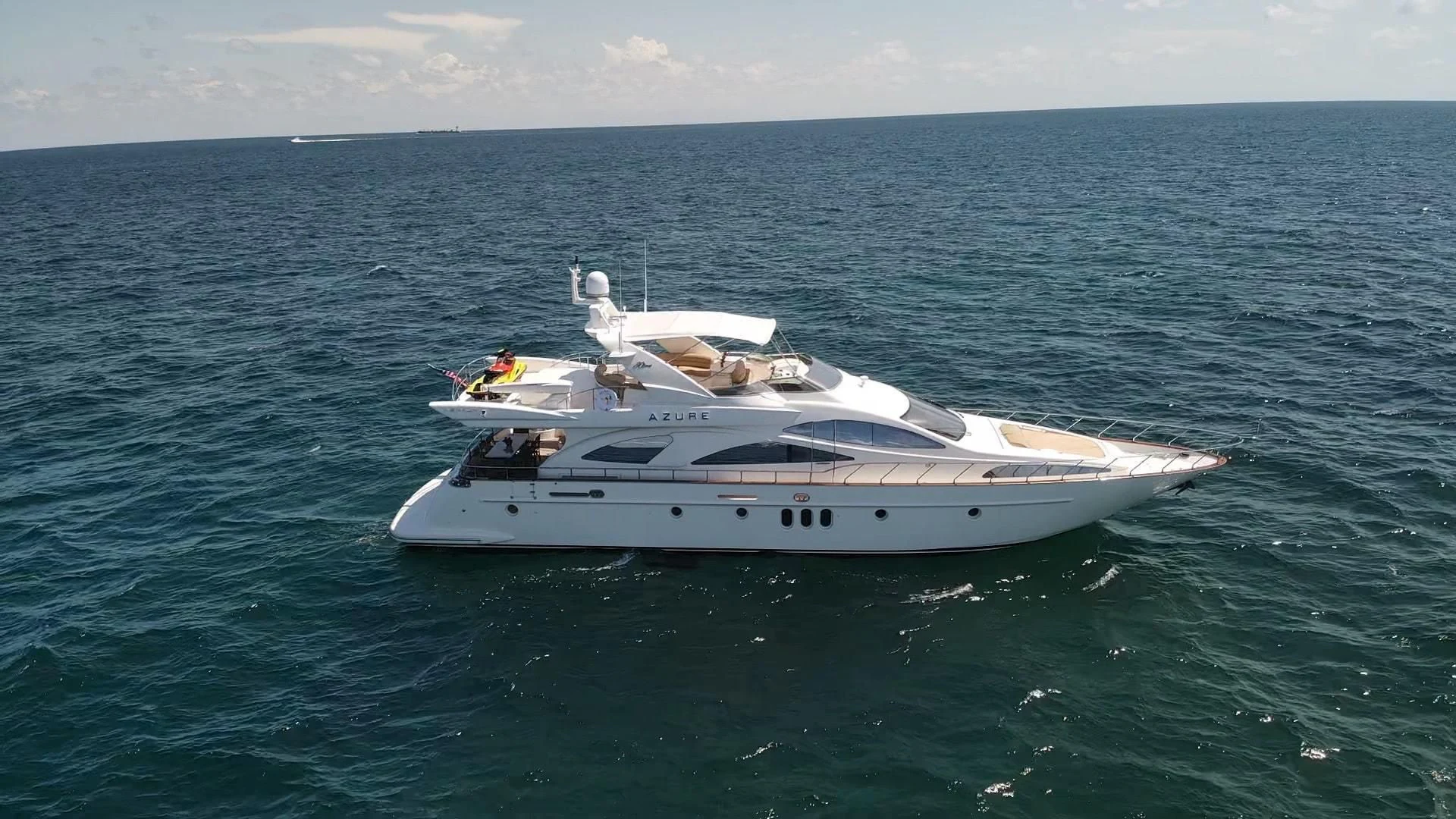

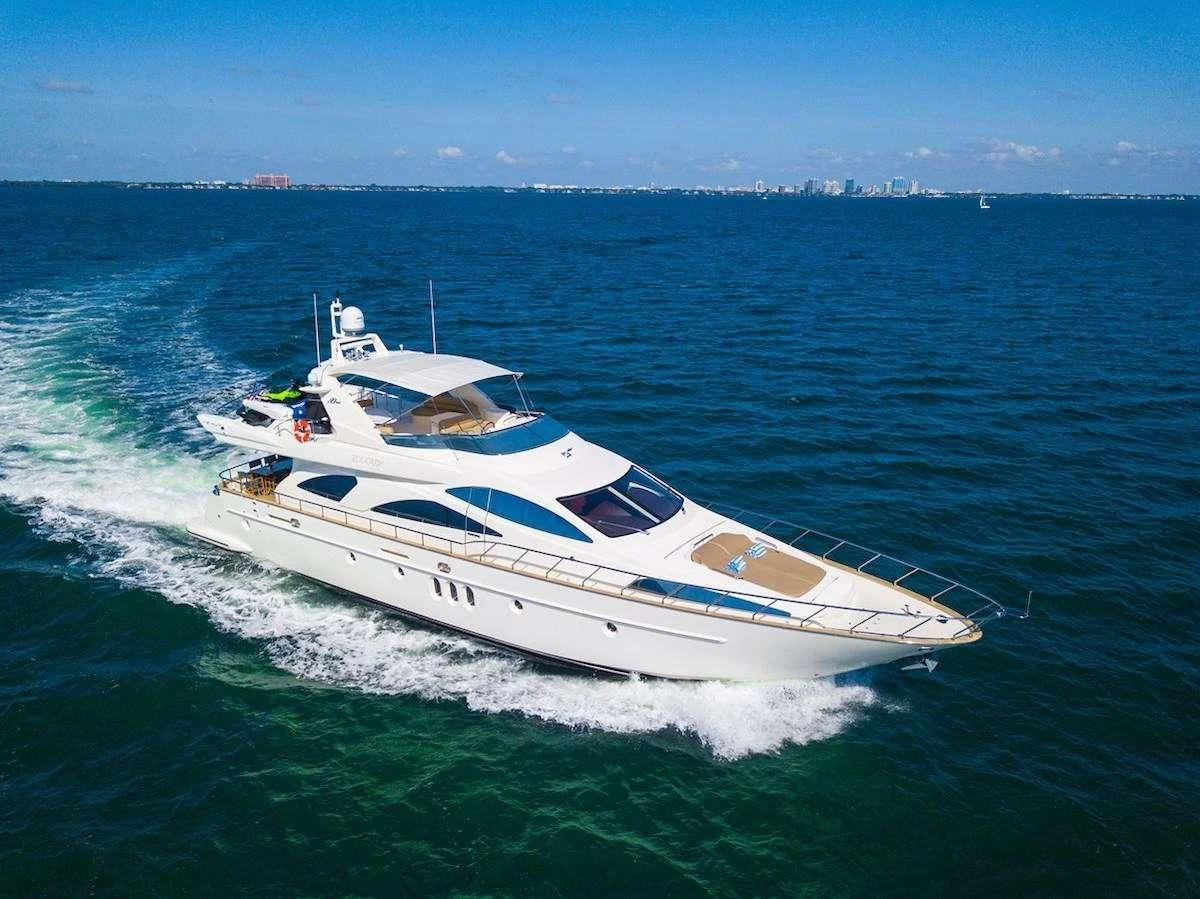

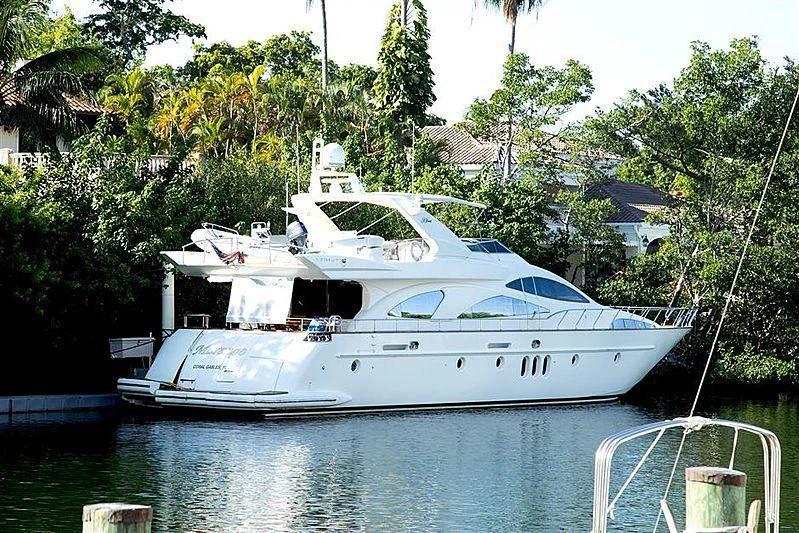

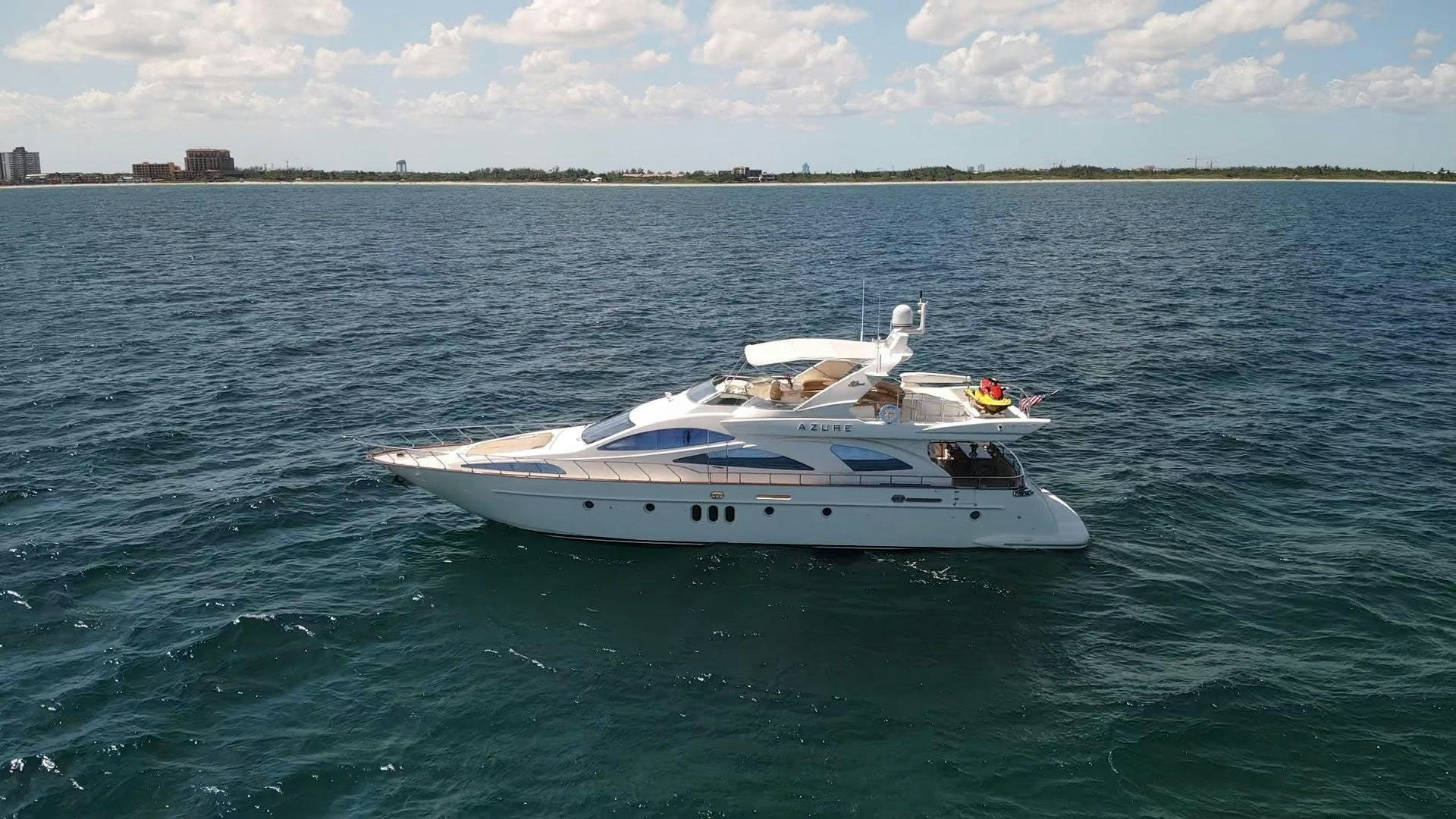

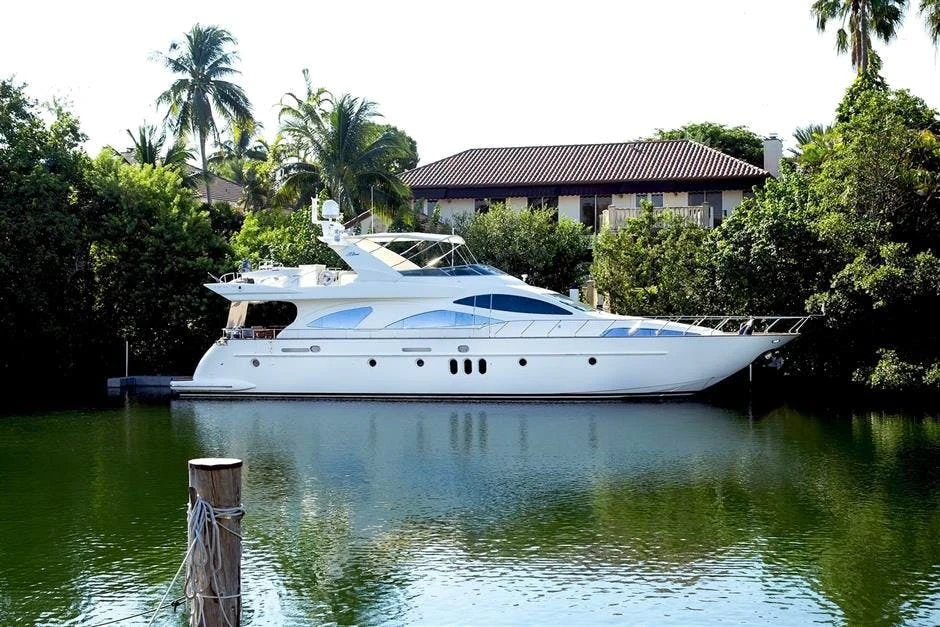

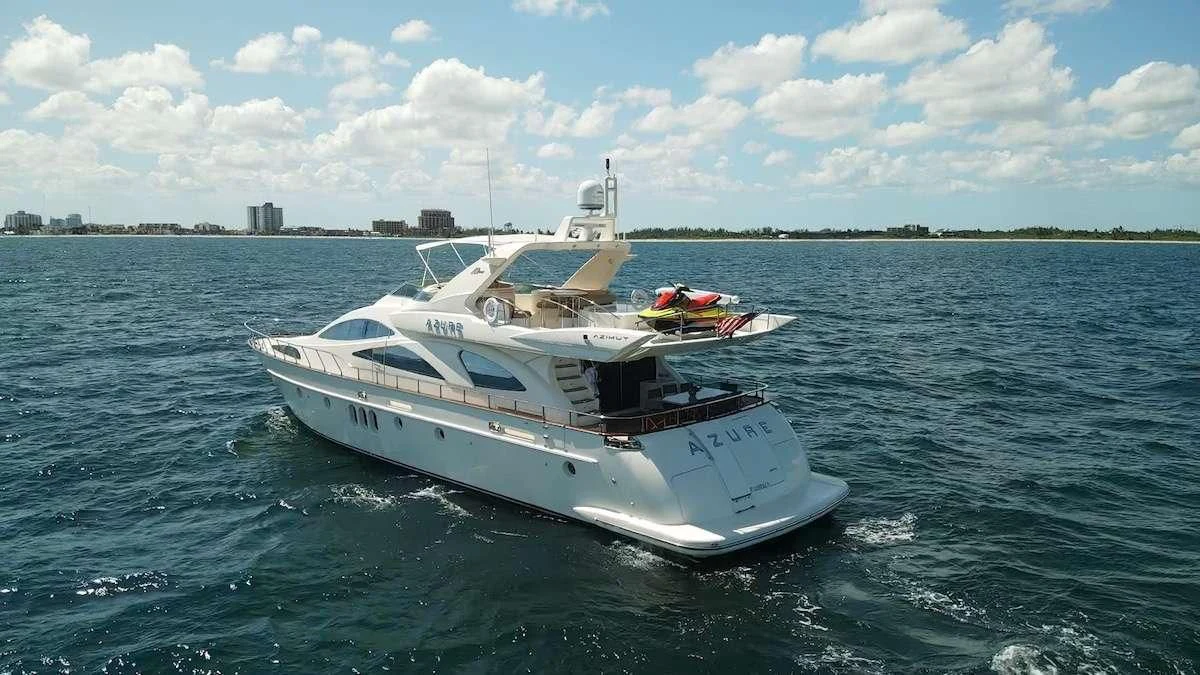

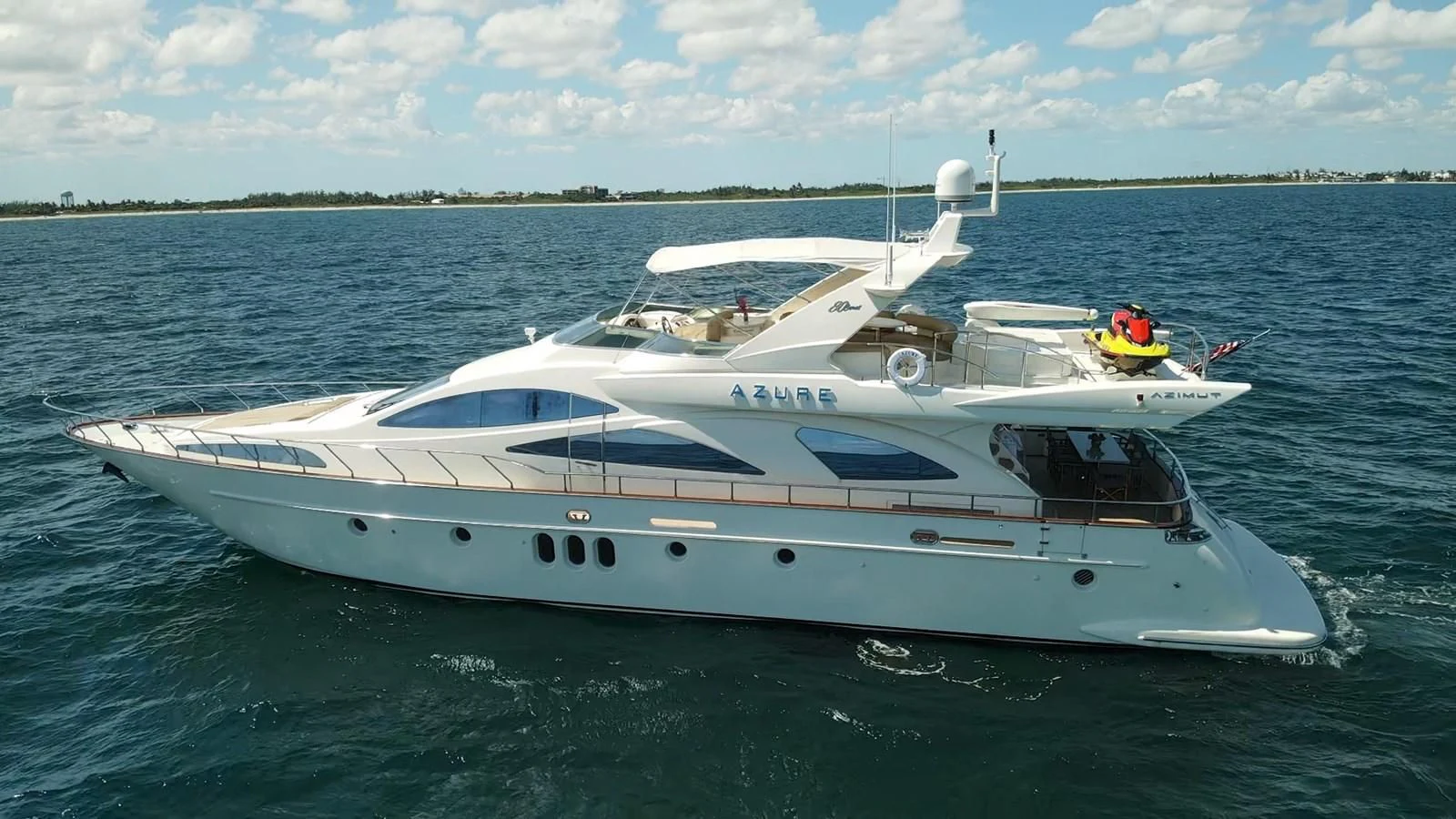

This Azimut Carat with zero-speed stabilizer is located in Fort Lauderdale, FL. The Azimut 80 Carat is an open and largely informal family yacht, a trait she shares with other models in the Azimut line. Her informality does not imply any lack of quality in her finish, however. Cherry bulkheads, cabinetry, and overhead accents are highly detailed, well fitted, and recently refinished in high-gloss lacquer that twinkles with clear reflections of recessed overhead lights. Upholstered furniture, new carpet throughout, soft bulkhead panels, and dramatically shaped overheads are in neutral hues that nicely complement the woodwork. Her countertops are granite. The master head sole is marble, while wood is used in other heads. The sole of the in-line galley is upgraded to marble and is easy to clean and comfortable on the feet.

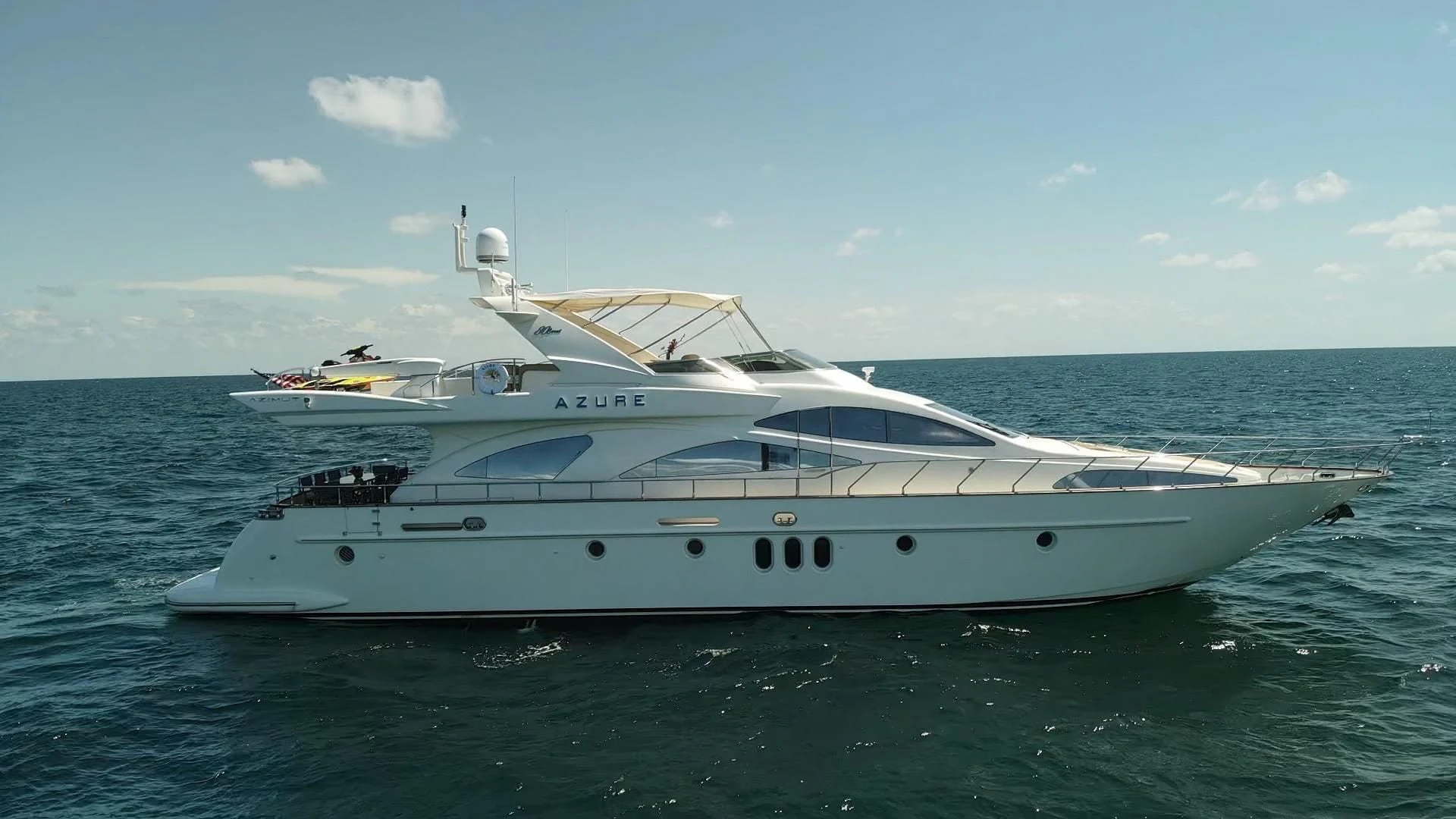

The Carat's profile, from the talented hand of stylist Stephano Righini, identifies her as a sister to other Azimut yachts, both larger and smaller. Yet unlike Azimut’s that have a large, continuous oval pattern in the deckhouse window, the Carat's window is divided by a sizable "dorsal fin” post. It eases the earlier look's boldness and blends nicely into the curves of the pilothouse and flying bridge. This boat's size puts her on the cusp of that point between owner-operated and crewed yacht, maybe a little past it. Only the most capable family will want to cruise her alone. Most will carry at least a captain, perhaps a mate, too.

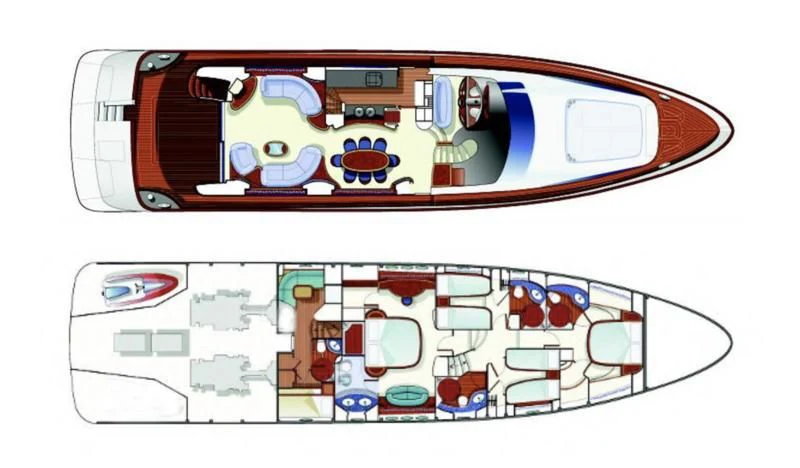

The full-beam master is near amidships, where pitch will be minimal. The master has a vanity and a large walk-in locker to port, and a comfortable settee to starboard. The head includes a spacious shower, a bidet, and two sinks. VIP guests are accommodated in a bow stateroom with an island queen berth. The remaining four guests occupy two twin-berth cabins, port, and starboard between the master and VIP staterooms. Though more compact, the twin cabins are finished and outfitted as nicely as the two main staterooms. For example, the VIP and twin cabins have nearly identical heads: All have circular showers with water outlets overhead that provide the rain-showering equivalent of surround sound. Curved acrylic shower doors rotate out of the way when not in use, allowing extra floor space in front of the toilet and sink.

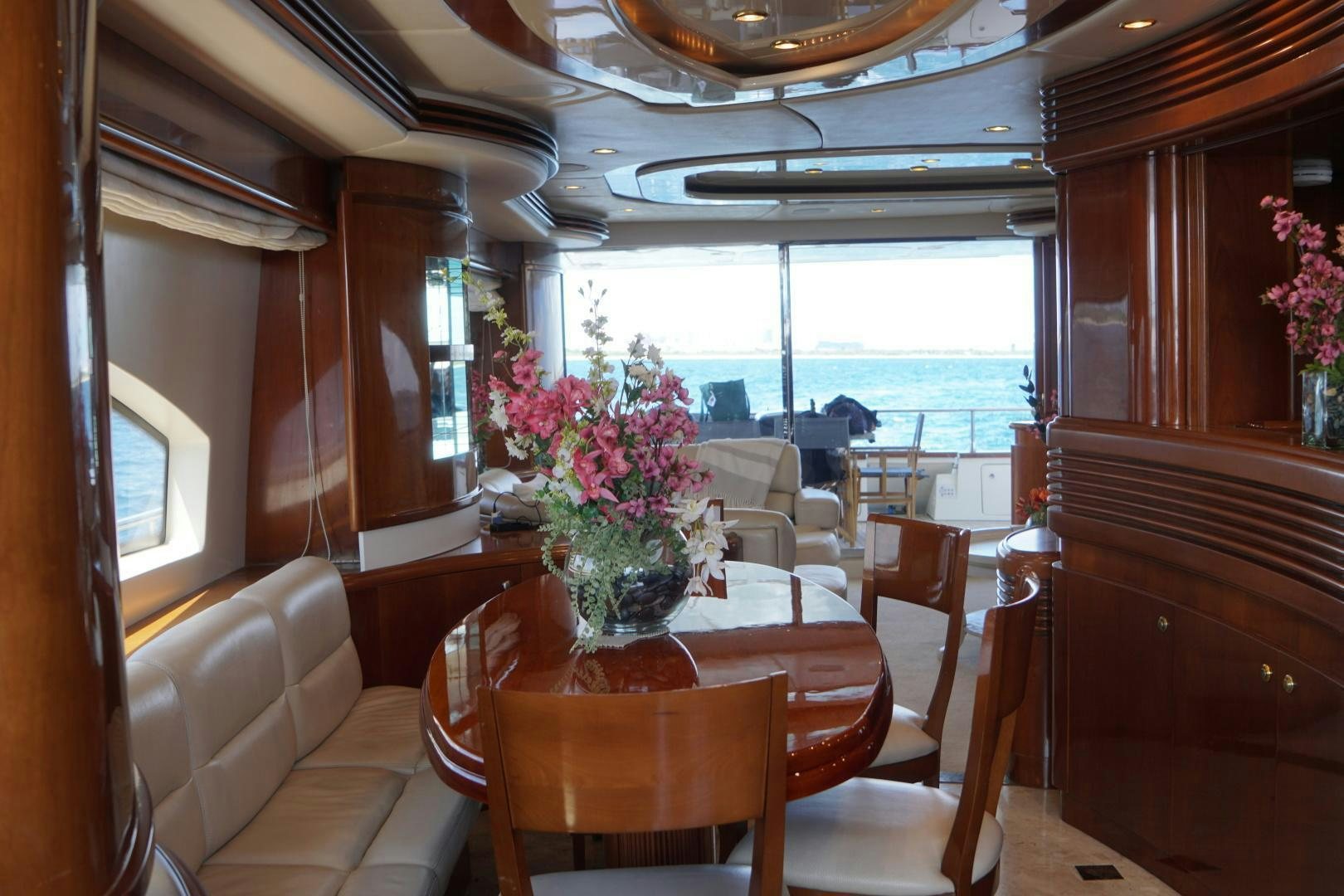

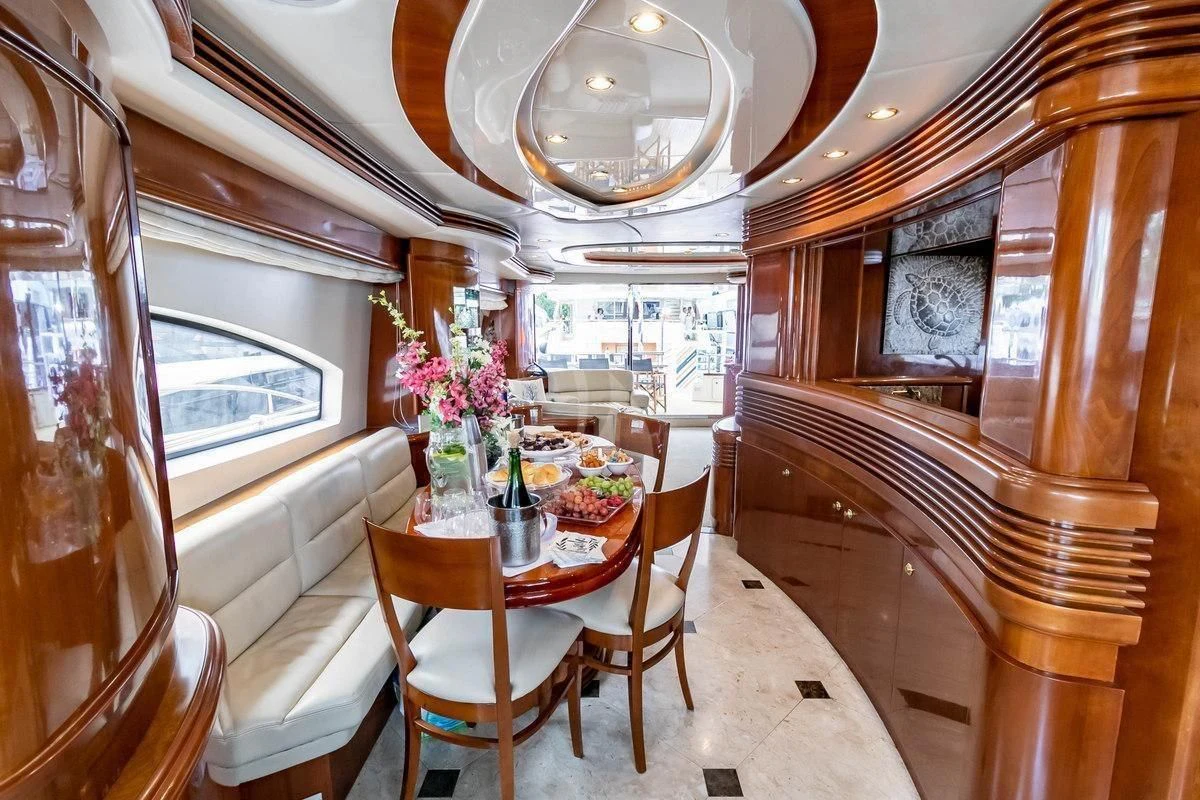

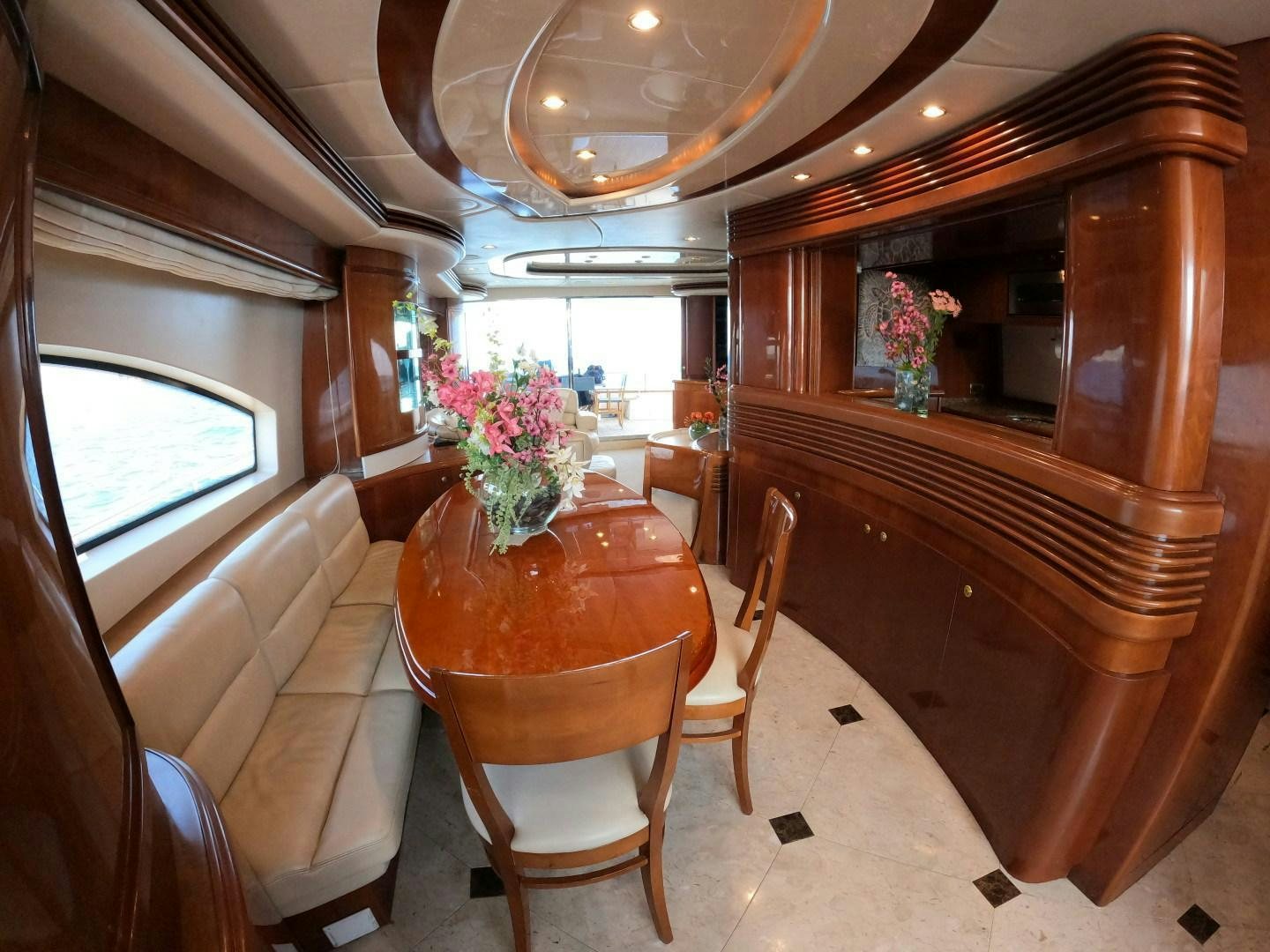

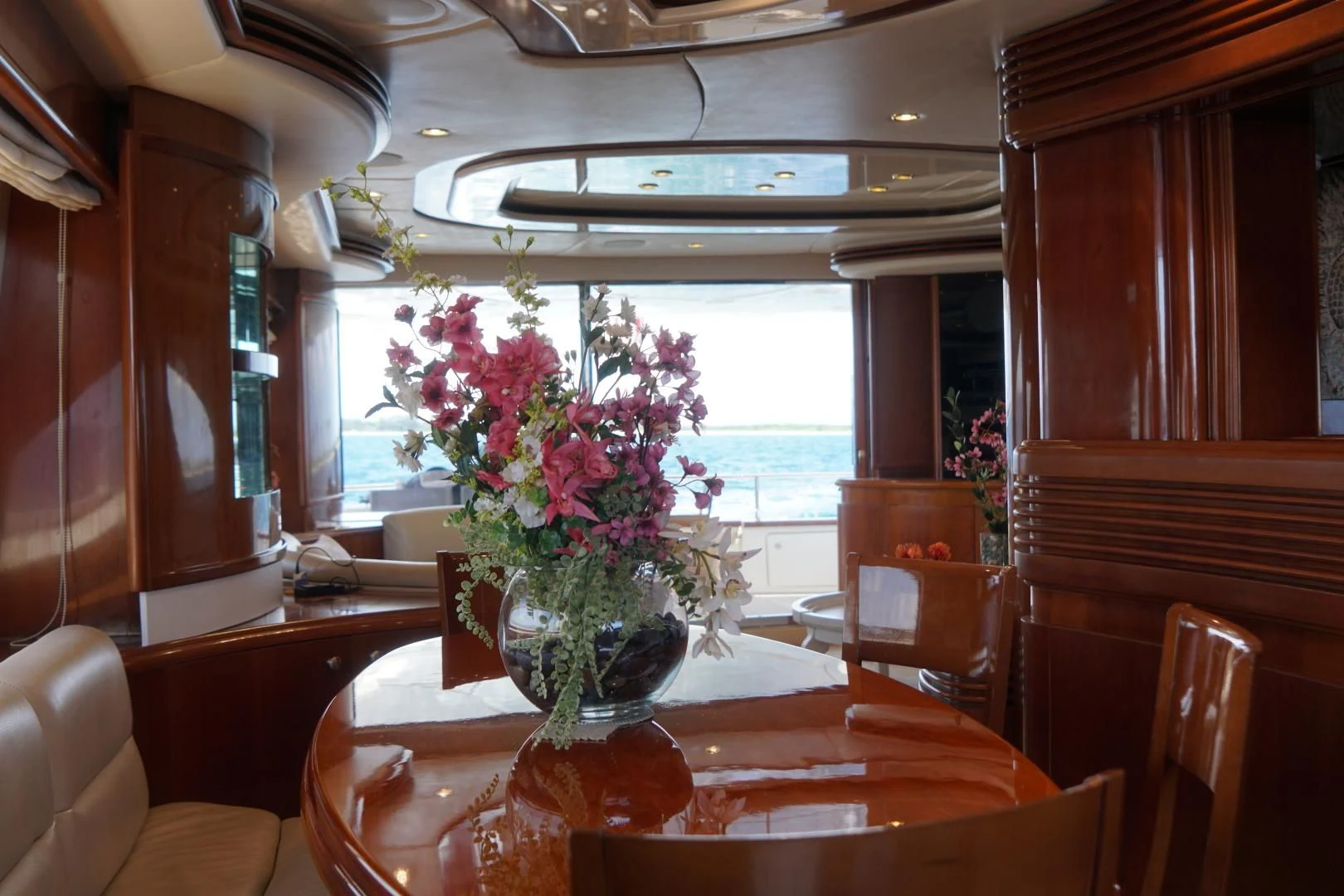

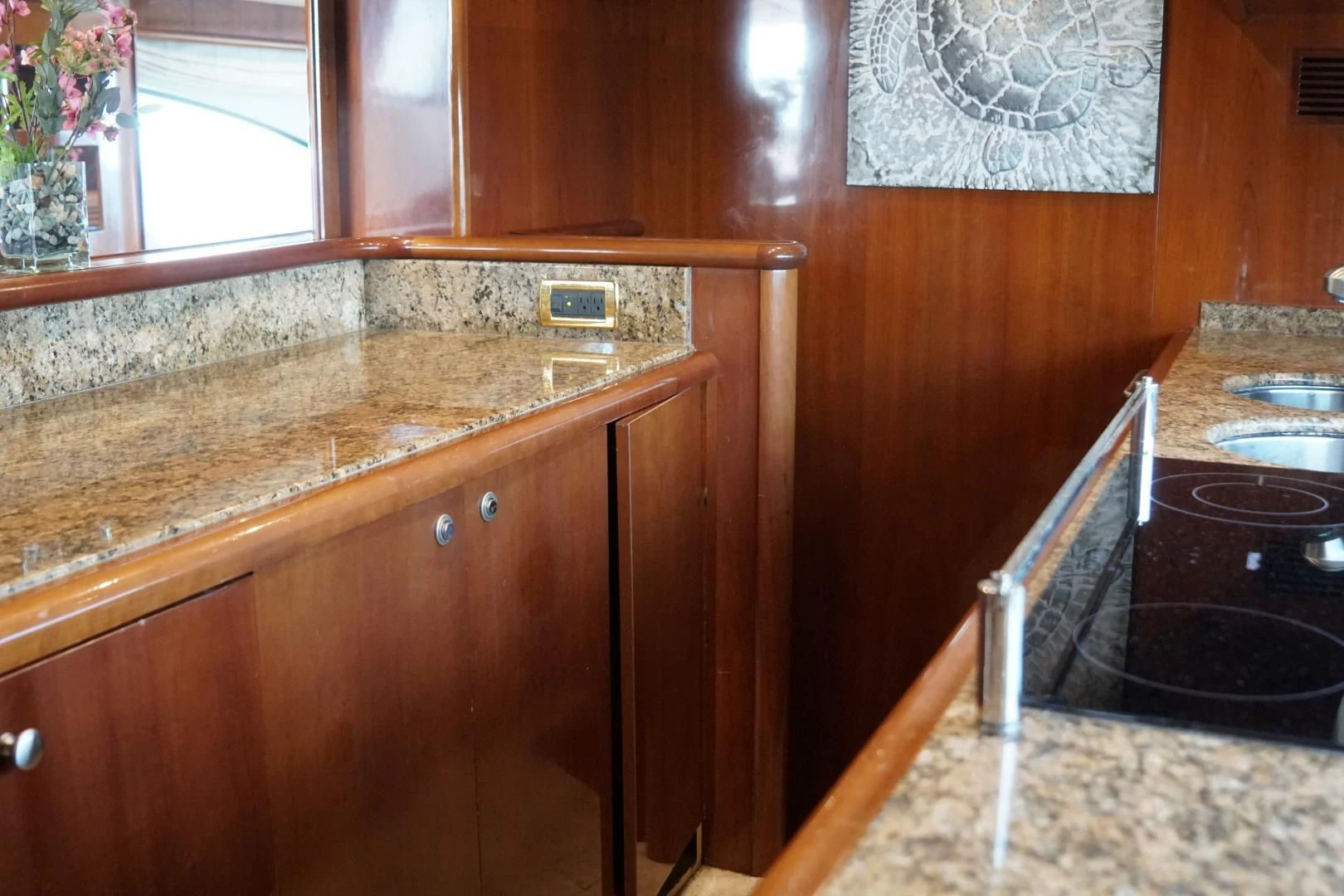

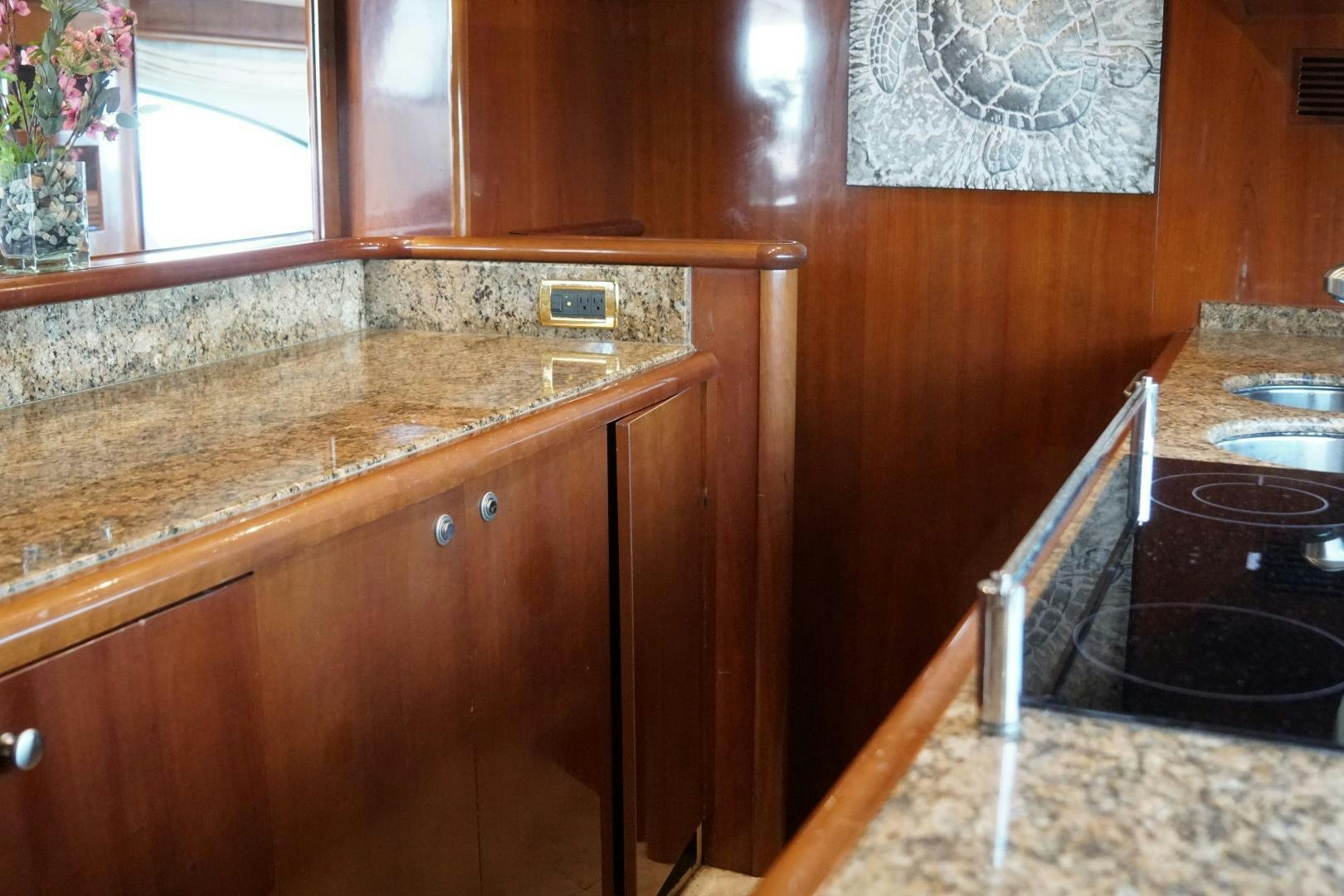

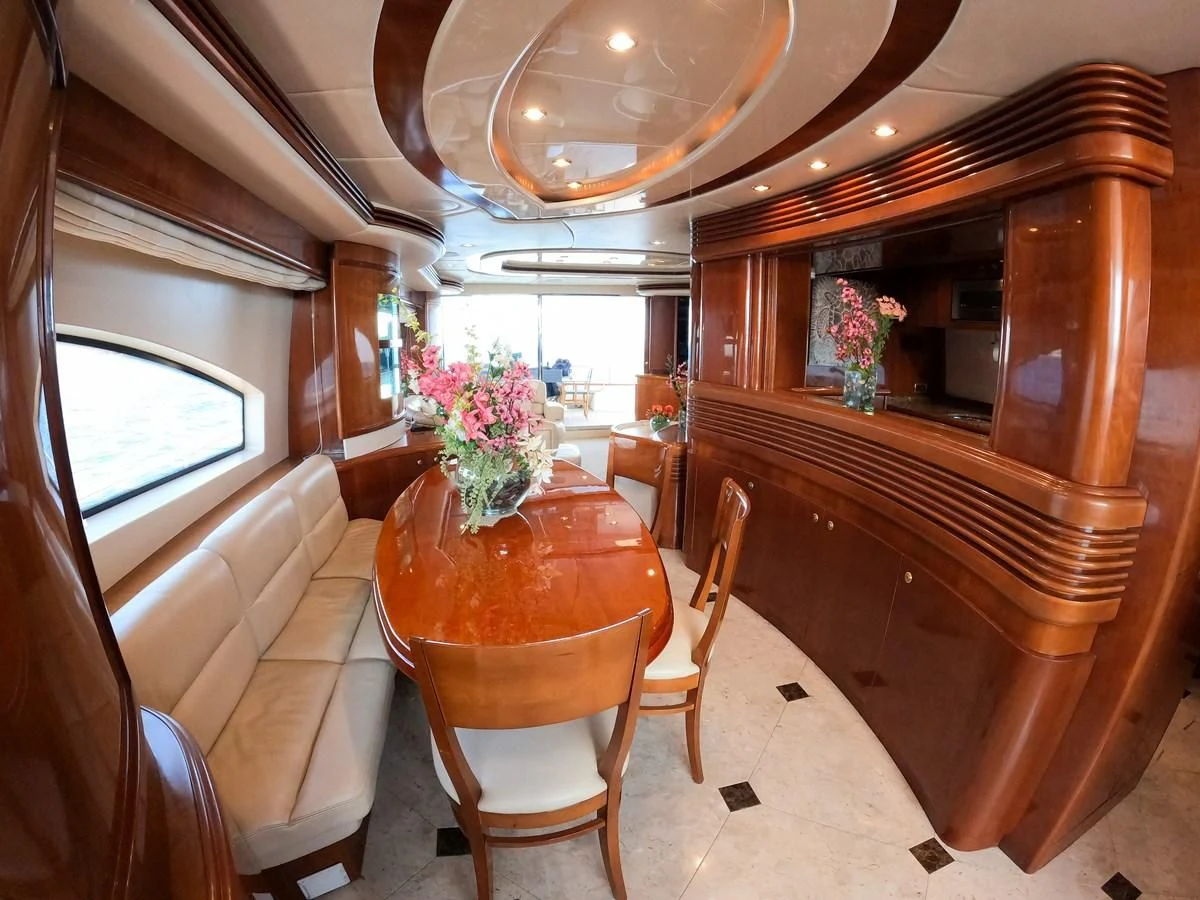

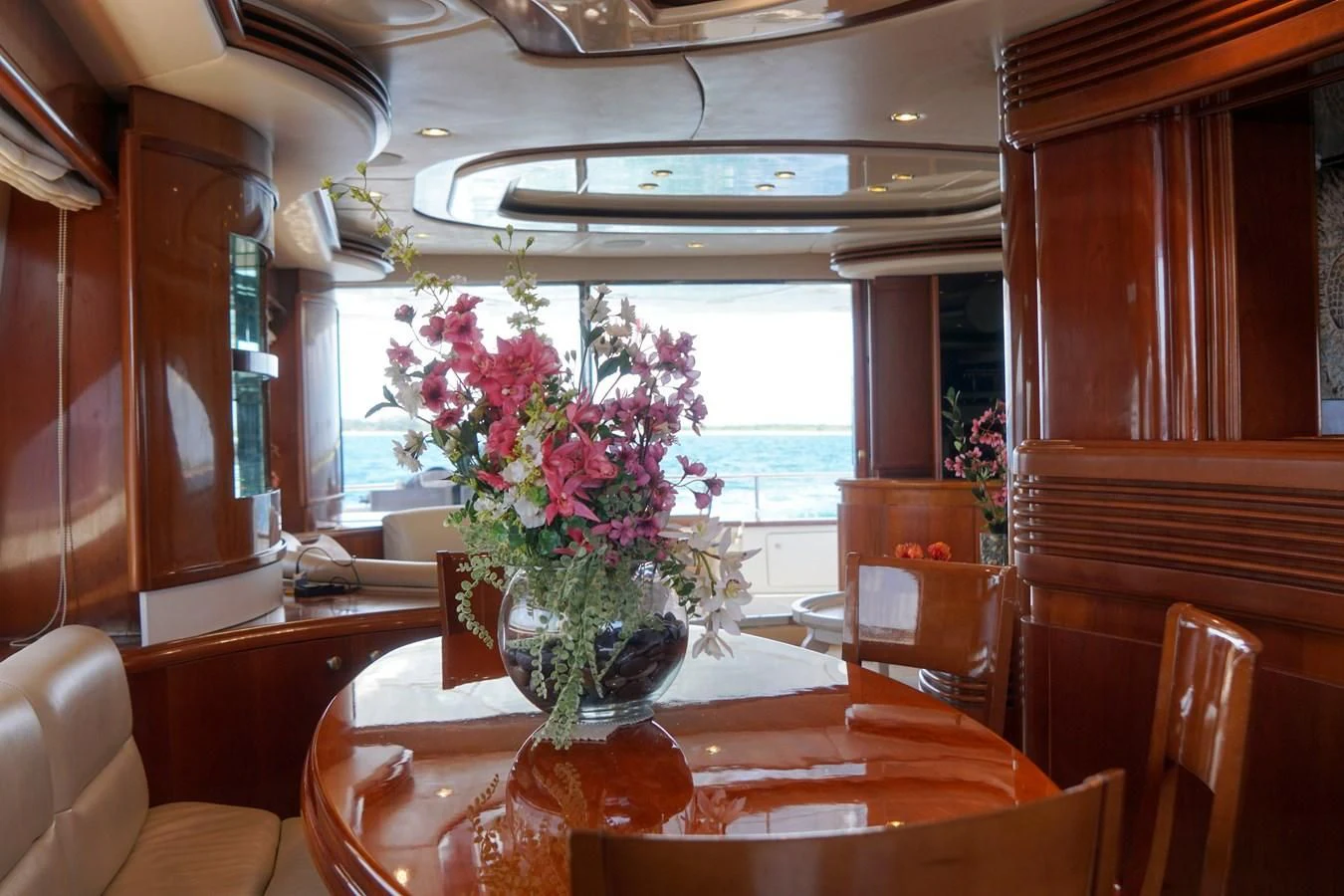

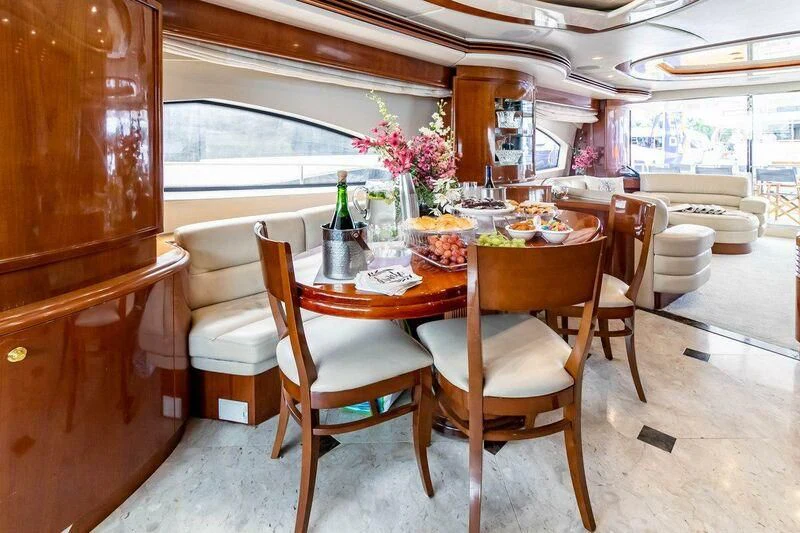

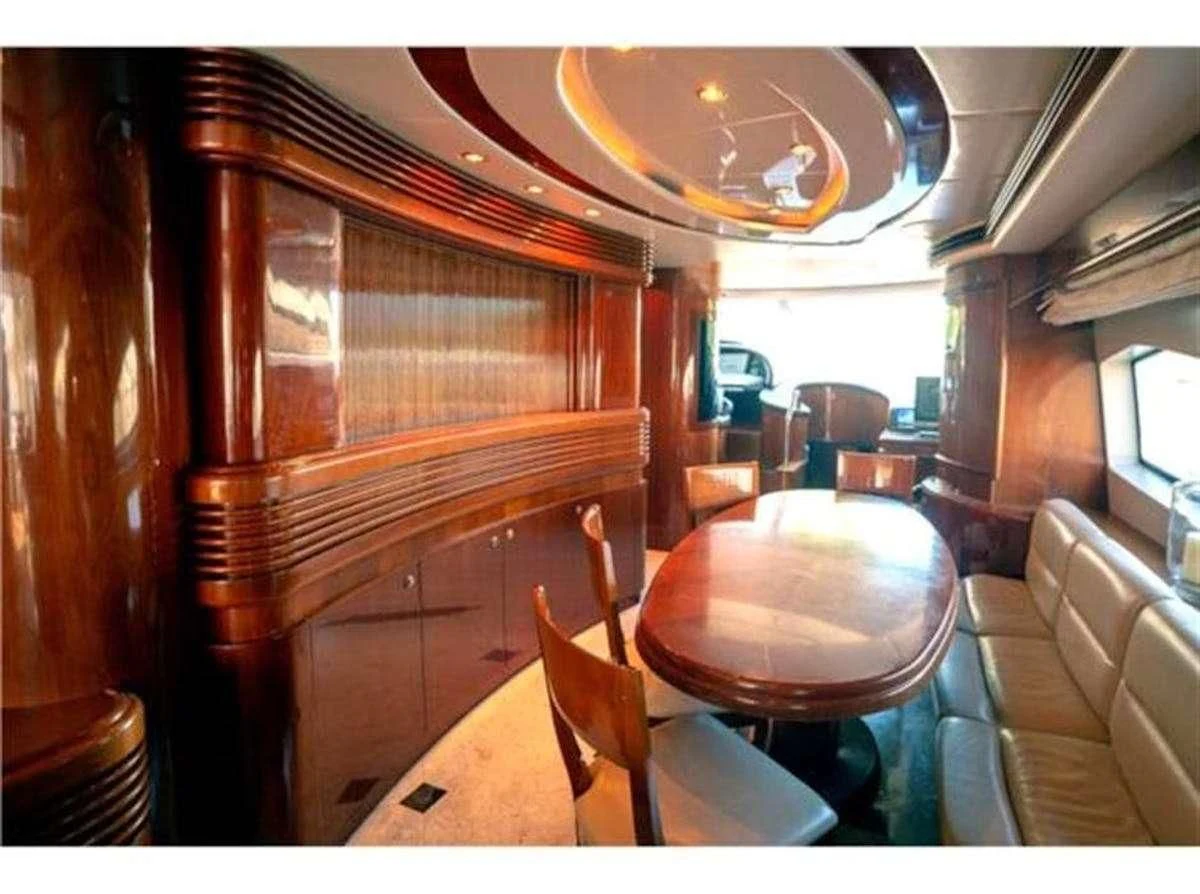

 The Carat's dining arrangement lies on the main deck's starboard side. The layout includes an oval dining table surrounded by four chairs inboard, and a large banquette outboard. The galley lies to port, facing the table with a beautifully built tambour panel which allows the galley to remain open as a buffet for informal dinners and cocktail parties. During more formal meals, the panel can be closed for privacy. A lower helm is forward of the galley. Aft, the salon has fixed seating on two settees facing an entertainment center in the after corner of the room. Like many yachts, the Carat has a power sliding glass door in a glass bulkhead aft, but unlike many other such doors, Azimut's is weathertight. It includes an innovative system that offsets as it closes, sealing tightly against a gasket. The afterdeck is spacious and fully protected from sun and rain by the extended flying-bridge deck above. Full-length side teak decks and aft mooring stations with raised capstans, cleats, and roller fairleads make docking a snap. A single stairway leads to an integral swim platform. In port or at anchor, a transom door provides entry to the engine room and, through it, access to the crew's quarters. Stern stowage lockers large enough for personal watercraft flank the door. Accessibility in the engine room is good outboard of the engines, excellent in all other areas. Additional safety features include emergency fire dampers on the ventilation ducts and a structural cage around the V-drive shaft, features too often omitted in similar class vessels.

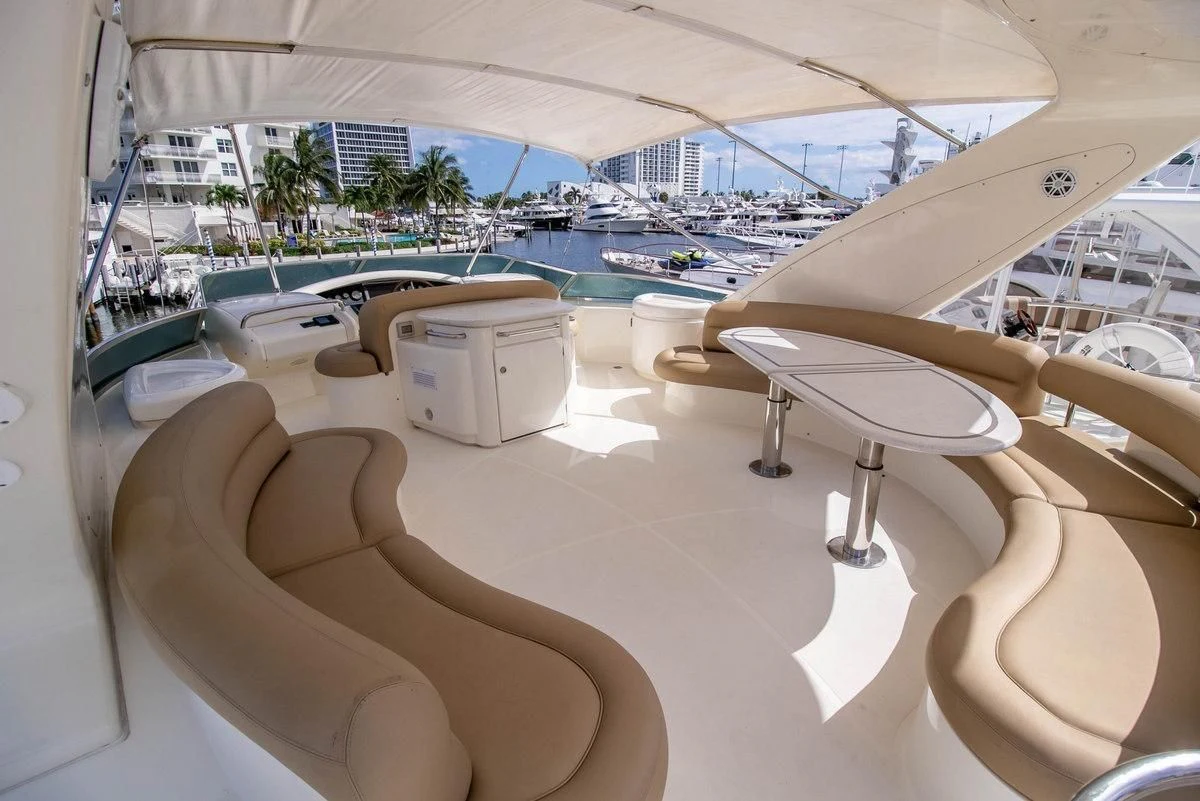

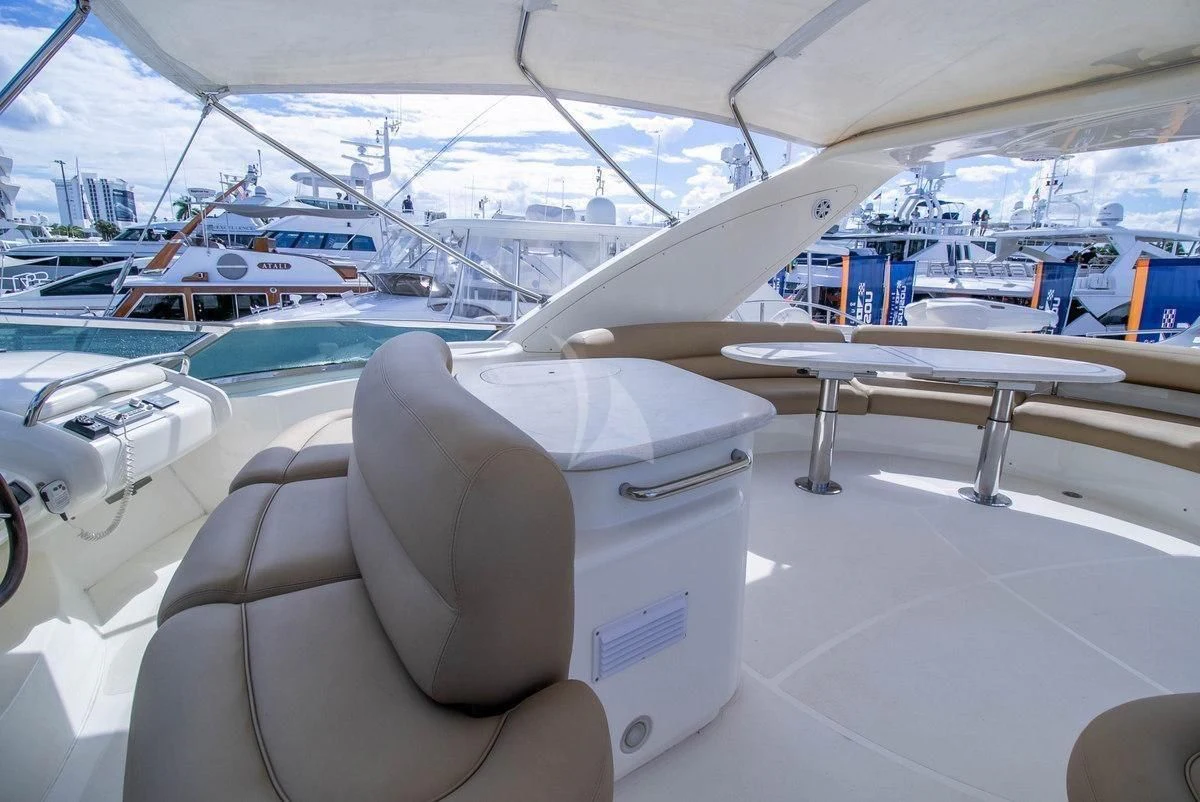

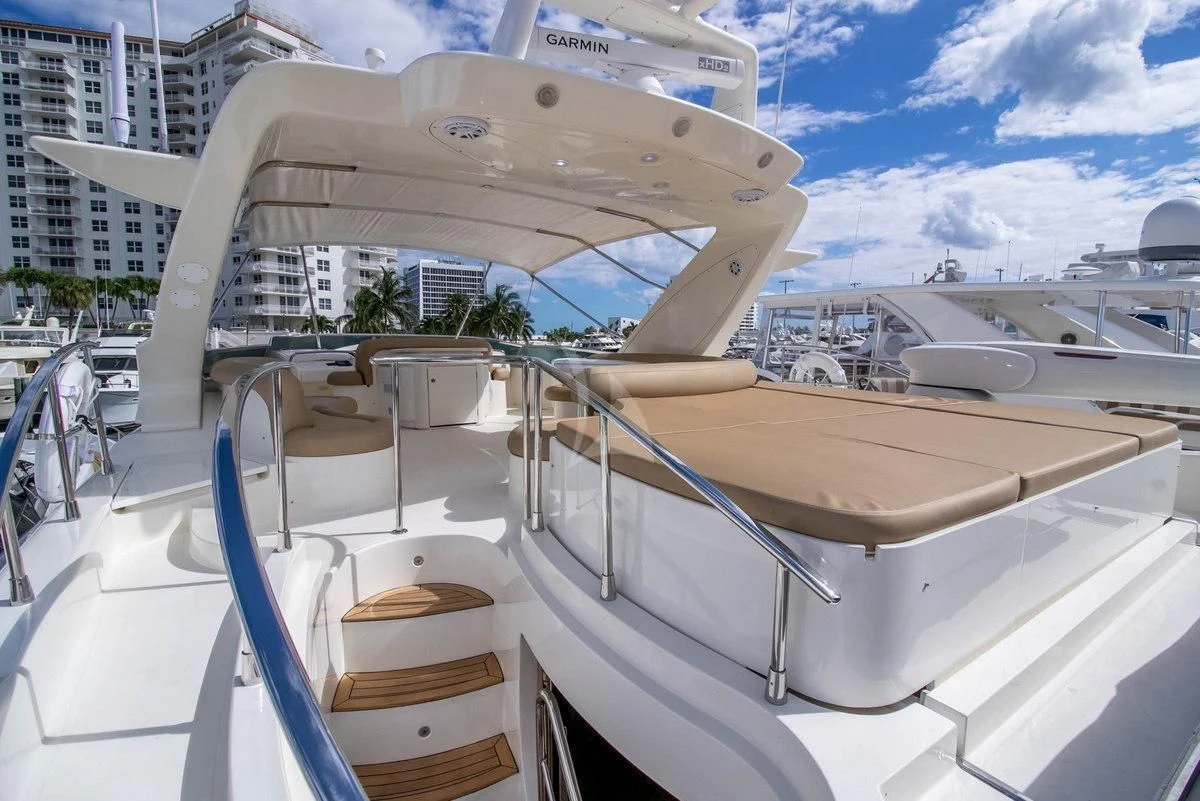

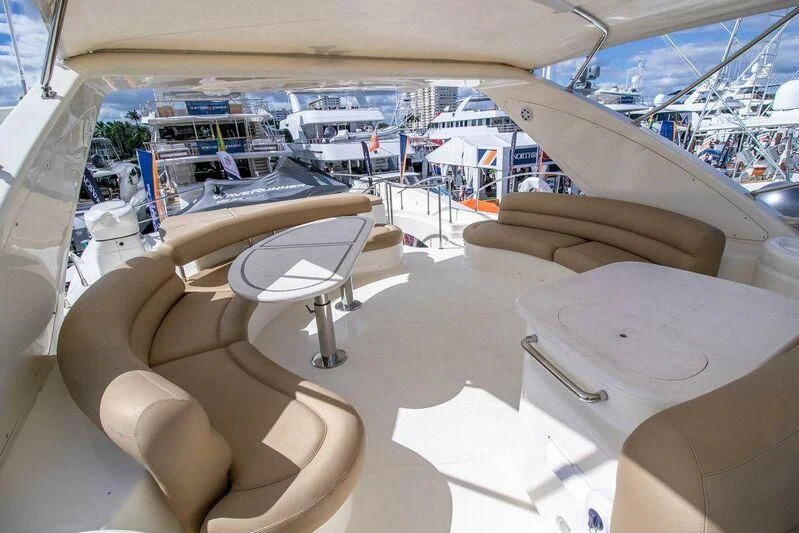

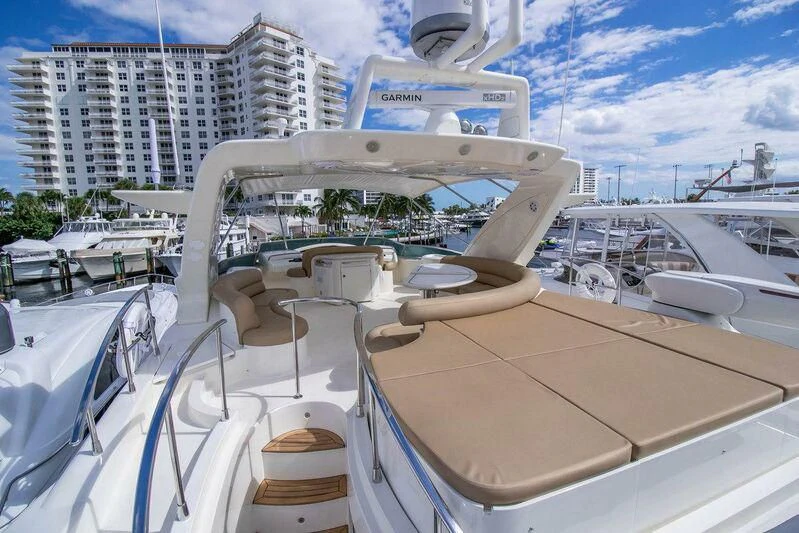

The flying-bridge deck is huge. Even with a tender stowed aft and a new large sun pad, there is still plenty of room for socializing. The driver's pod at the centerline helm has enough space for a companion on either side. Abaft, curved settees flank a small table with what Azimut calls a perimeter leaf. This expands the table by wrapping around, rather than inserting in, the smaller top. In addition to an open aft stair, an innovative alternating- tread wood stair accesses the flying bridge from the galley. Steeper than most stairs to preserve space, it has footpads rather than full-width treads. It is a clever design that has proved safer than inclined ladders in applications afloat and ashore. Performance and Handling She tracks true and is good in turns, with moderate inboard banking, little loss of speed, and no noticeable bow drop. In moderate seas, the ride is easy with no pounding or slap, and inside, the boat is quiet enough for normal conversation at the helm. Encountering a combination of swells and small chop is not the same as running in heavy weather, but the Carat's V-hull with a fine entry and 12 degrees of deadrise at the transom takes on the seas with ease.

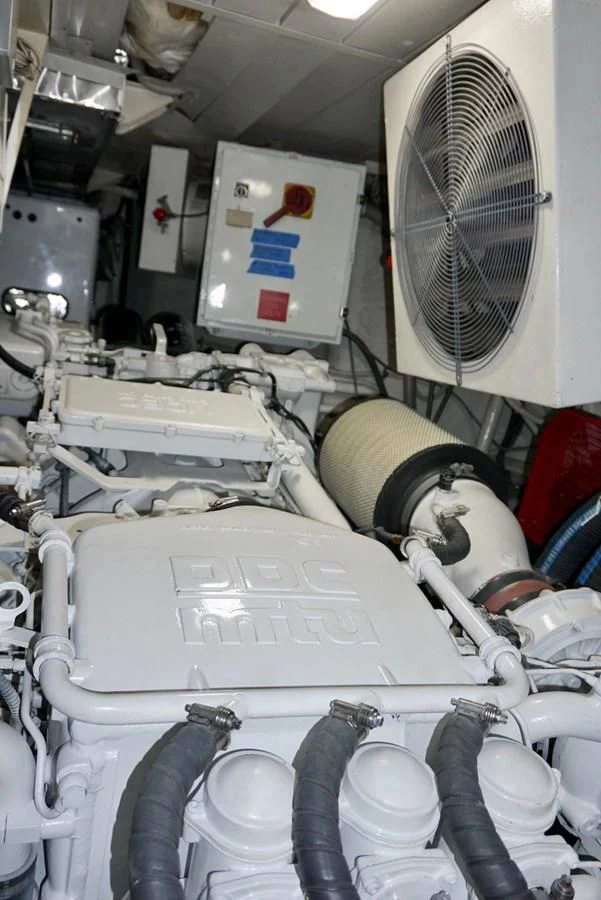

Navigational controls are straightforward and easy to operate, and response to the wheel and throttles is immediate and predictable. She tops out at 31.4 knots at 2300 rpm, being equipped with MTU series 2000 M-91 developing 1,500 hp each. Engine service up to date. The Azimut 80 Carat's combination of reliable composite construction, interior and exterior comfort, smart yet subdued styling, and excellent performance make her a jewel worthy of consideration. She is suitable for formal or informal entertaining, day-tripping or extended cruising.

Amenities

  • Personal Watercraft
  • Wi-Fi

Specifications

Builder Azimut
Length (LOA) 80' (24.38m)
Year 2004
Draft 6' 6" (1.98m)
Beam 21' 6" (6.55m)
Location Fort Lauderdale , United States

Accommodations

Staterooms 5
Heads 5
Capt. Quarters No

Dimensions & Capacity

LOA 80' (24.38m)
Max Draft 6' 6" (1.98m)
Fuel Tank 1,484 g (5,617 L)
Fresh Water 410 g (1,552 L)
Holding Tank 172 g (651 L)
Displacement 125,400

Construction

Hull Material Fiberglass
Max Speed 28 Knots
Cruising Speed 25 Knots
Stabilizers None

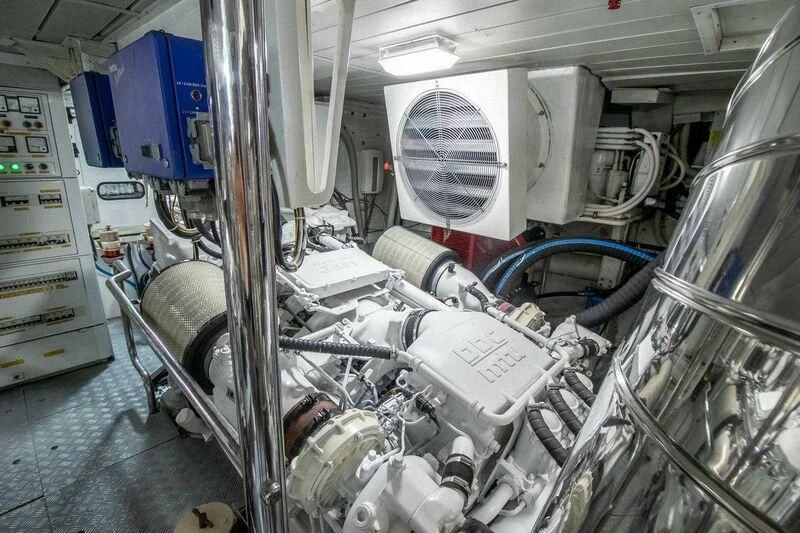

Engines (x2)

Engine Make MTU
Engine Model 12V 2000M91
Engine Year 2004
Engine Type Inboard
Power HP 1,500
Power KW 0
Fuel Type Diesel
Engine Location Port
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • 2000 hr service Completed September 2021**
  • Filter: dual Racor
  • Controls: MTU / electronic
  • Watermaker: Sea Recovery
  • Bilge Pumps: 3 electric/automatic, 2 sump, 220-volt electric to compartment manifold
  • Freshwater Pressure System: Two 24 VDC
  • Hydraulics to davit, swim ladder, pod hatches, and step door, trim tabs, steering
  • Main circuit panel
  • Two fiberglass mufflers to generators with water separators
  • Two 24-volt freshwater system pumps with accumulator tank, filter, and pressure gauge
  • Water heater
  • Dripless shaft seals, port and starboard
  • 24-volt fuel transfer pump
  • Manual fuel transfer
  • Circuit panel to crew quarters
  • Bilge pump to six compartment manifold with shut-off valves
  • Battery switches to each generator, each engine, ship’s service, and
  • Fuel shut-off valves, centerline forward below decks
  • Electric/automatic bilge pump
  • Craftsman toolbox
  • Mastervvolt 24-volt 75-amp battery charger to house service batteries (2)
  • 230-Volt fire pump
  • Six 12-volt batteries to ship’s service
  • Emergency steering wheel and valves
  • Air conditioning raw water circulating pump
  • A.C. and D.C. circuit panel
  • Two 12-volt batteries to engines
  • Engine emergency stop buttons
  • Sea Recovery watermaker

Accommodation

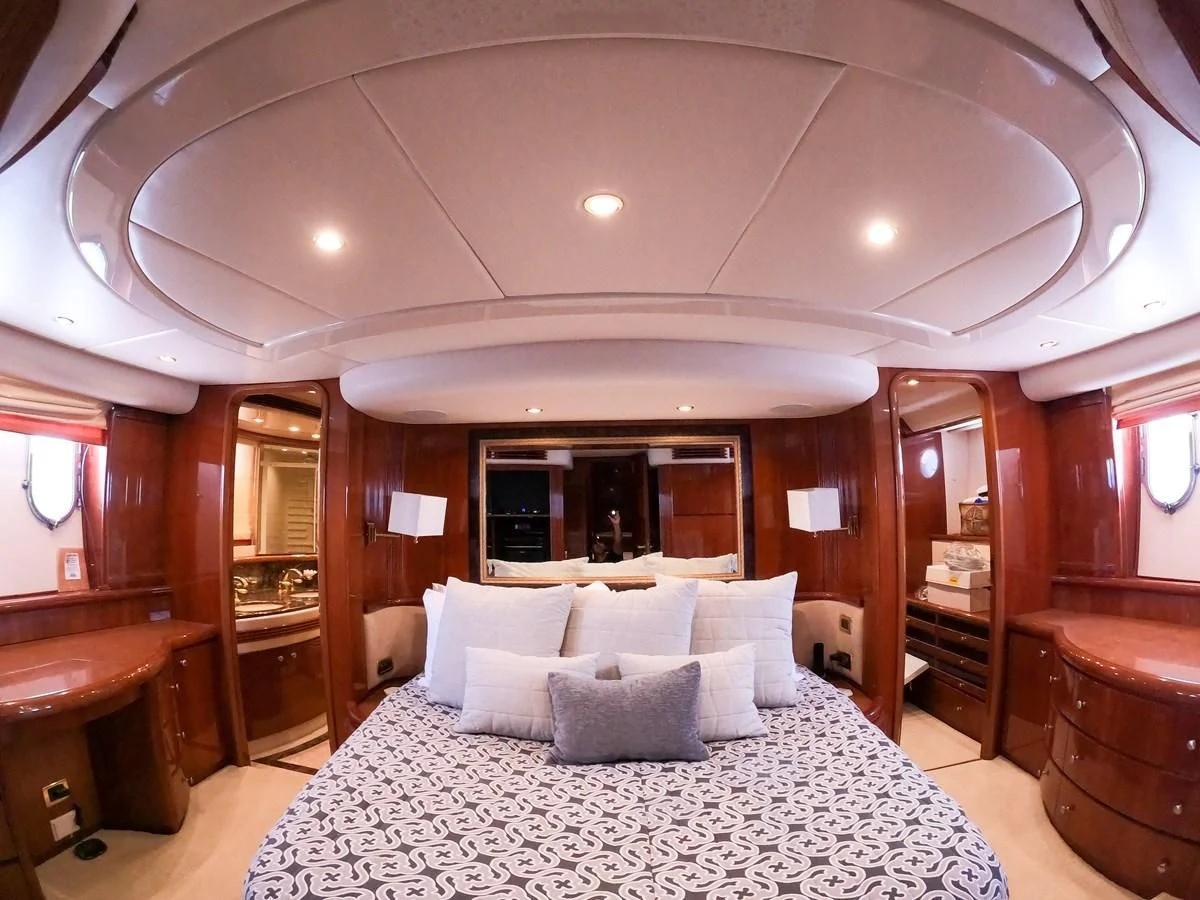

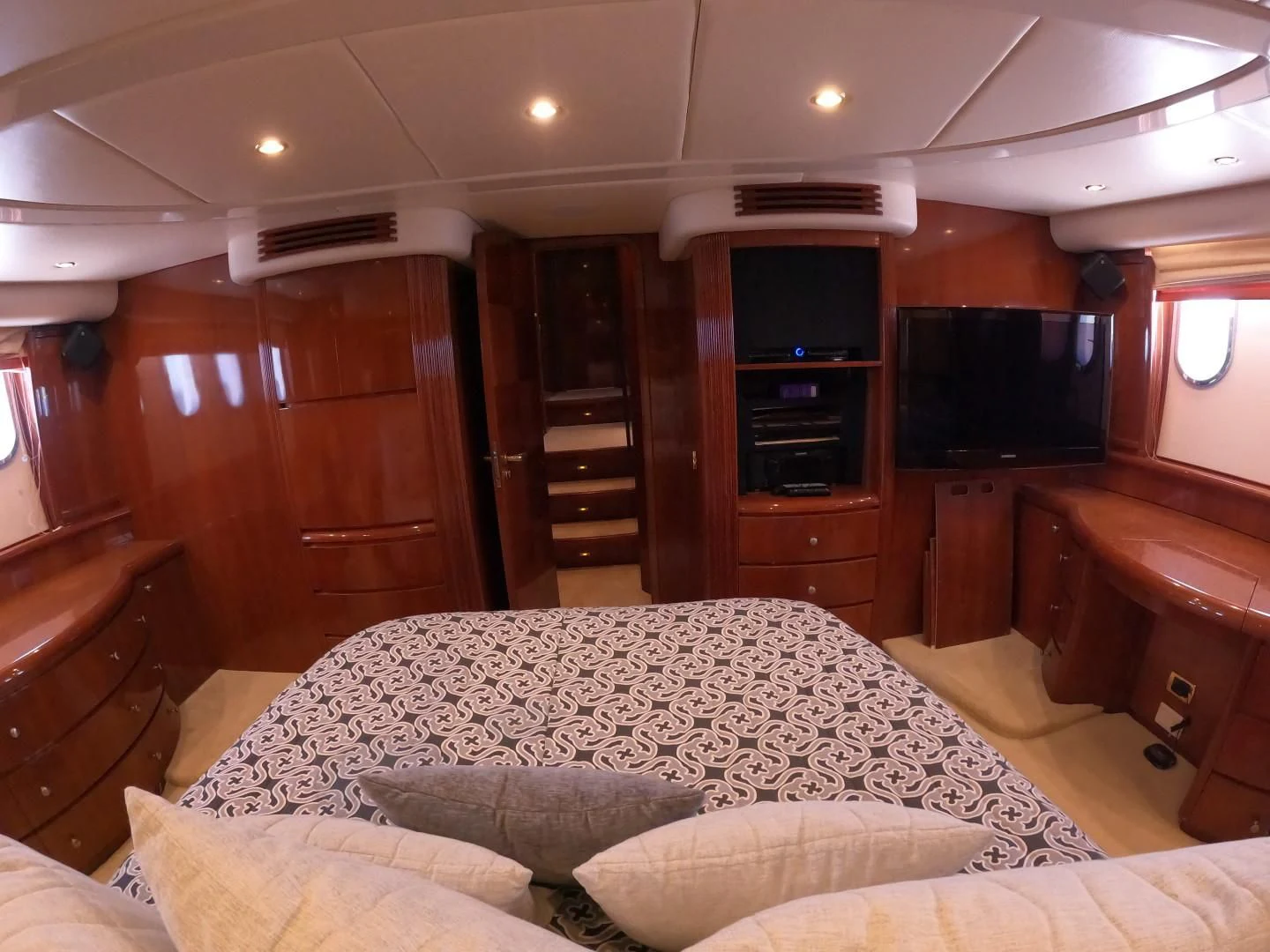

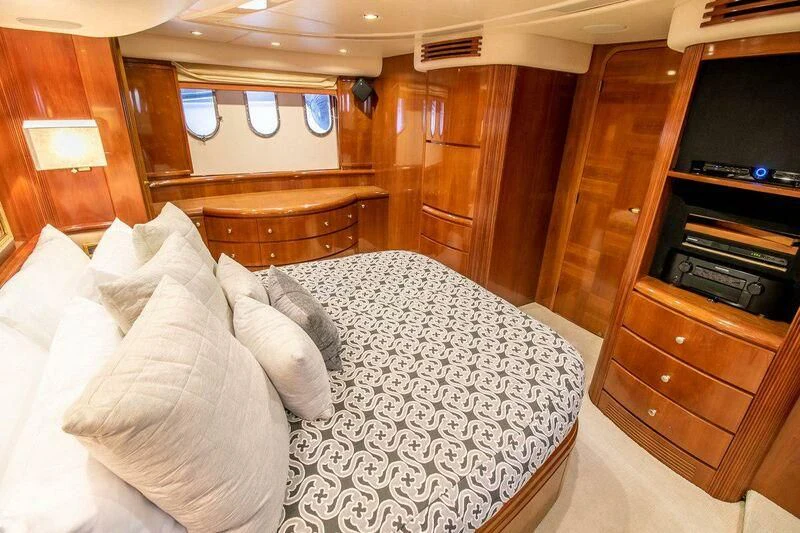

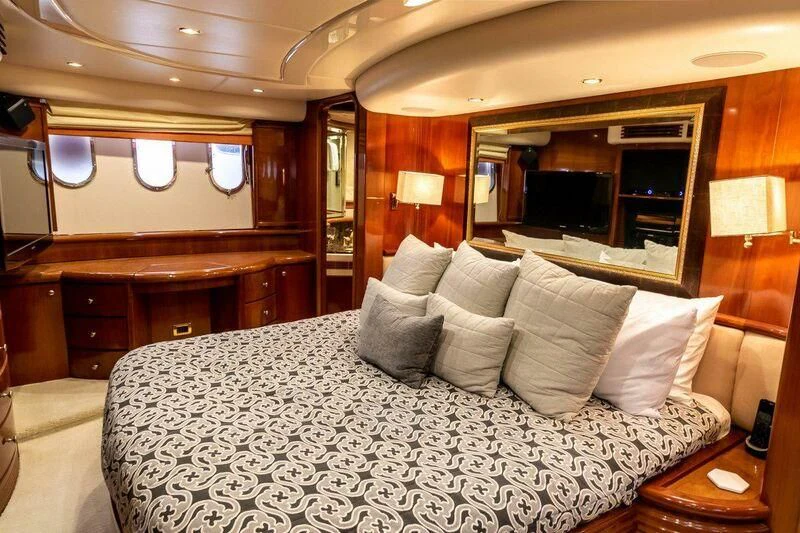

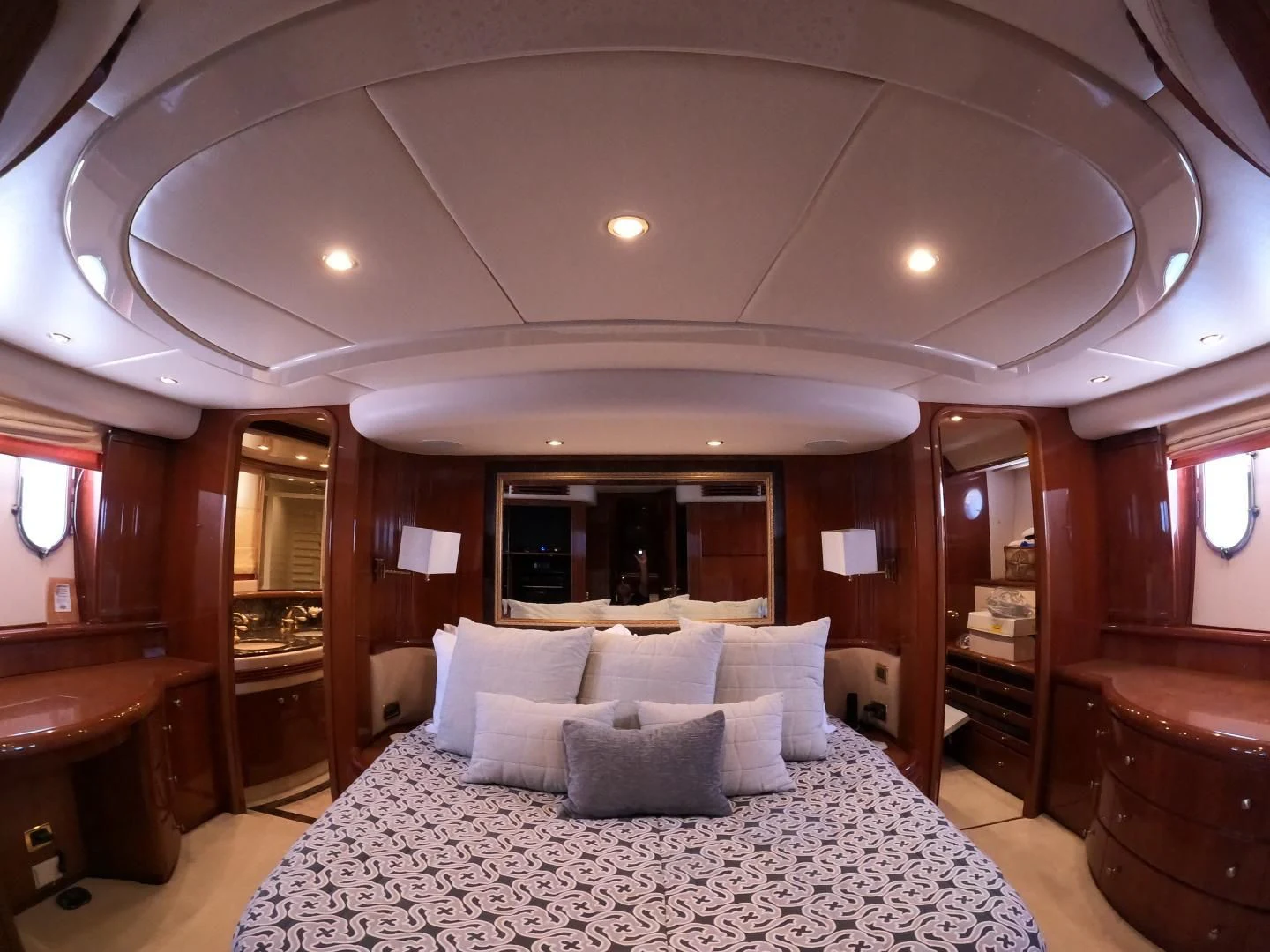

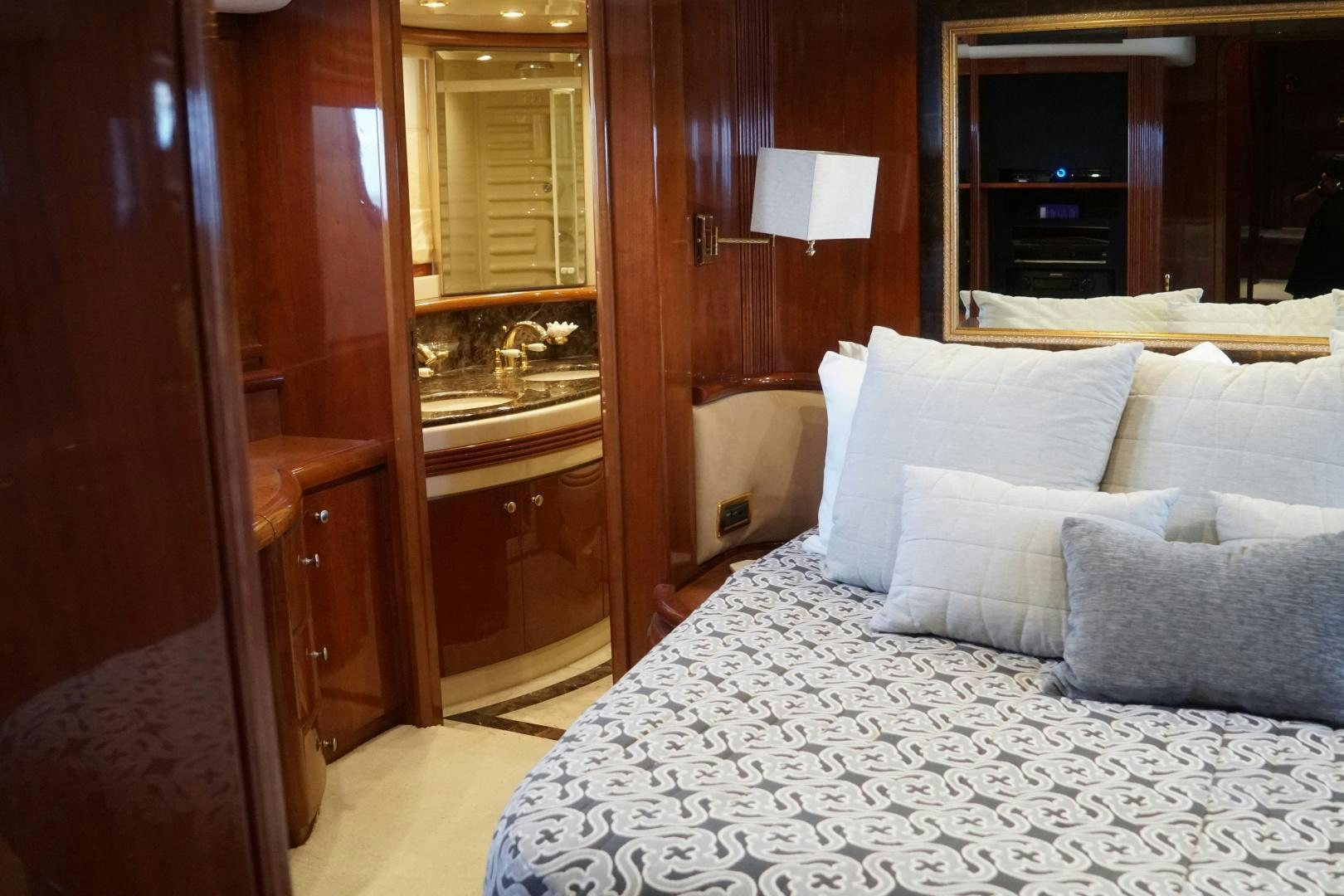

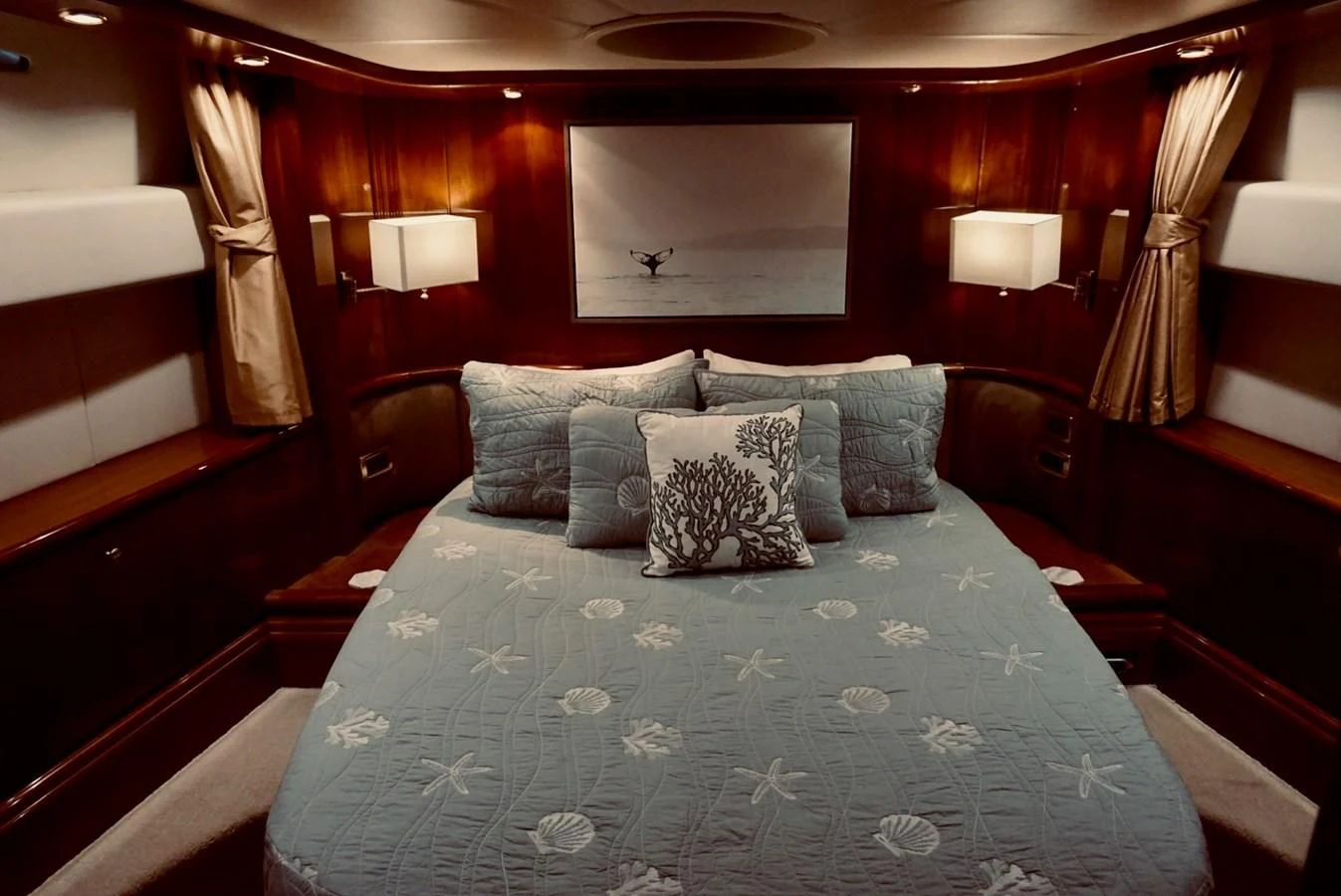

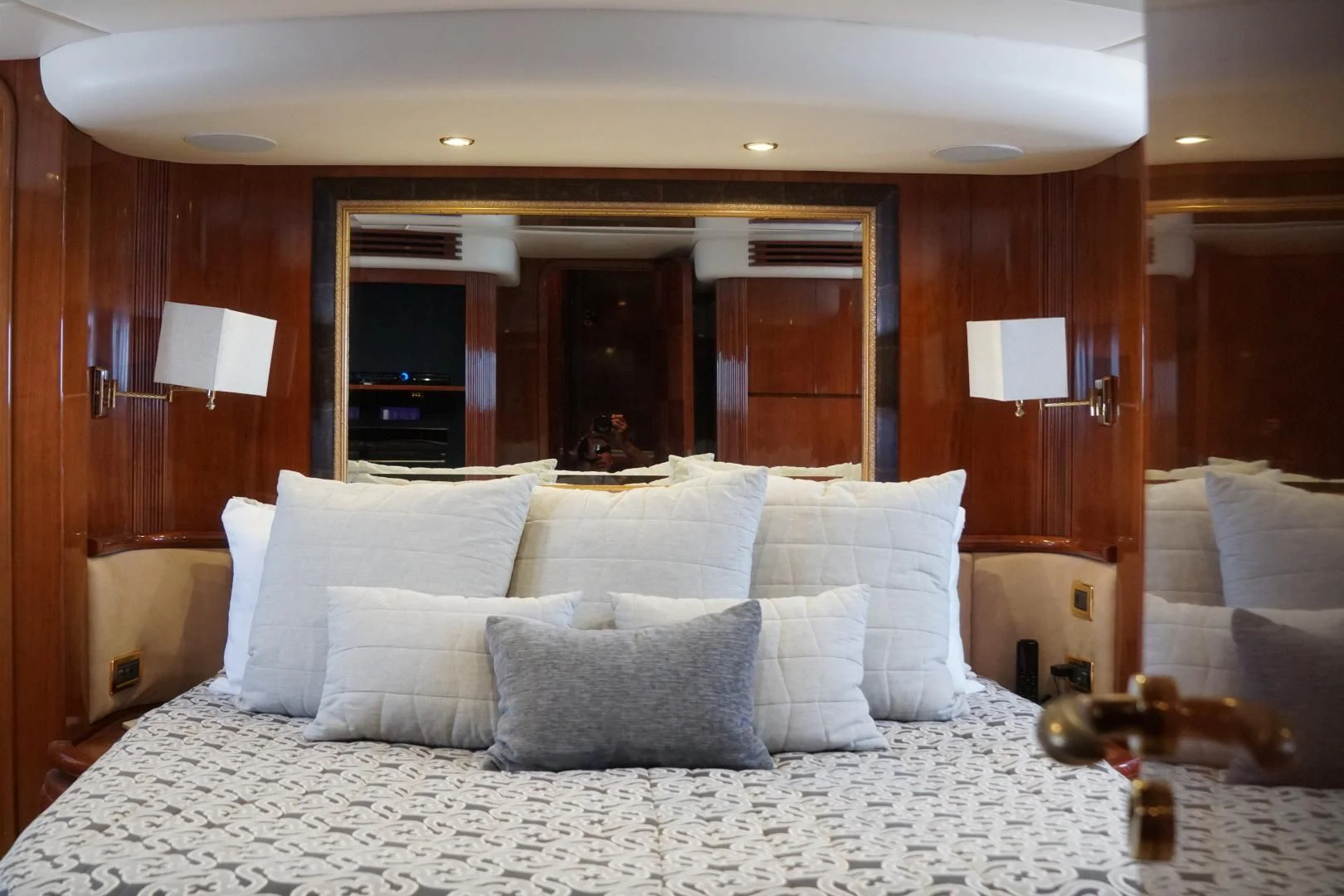

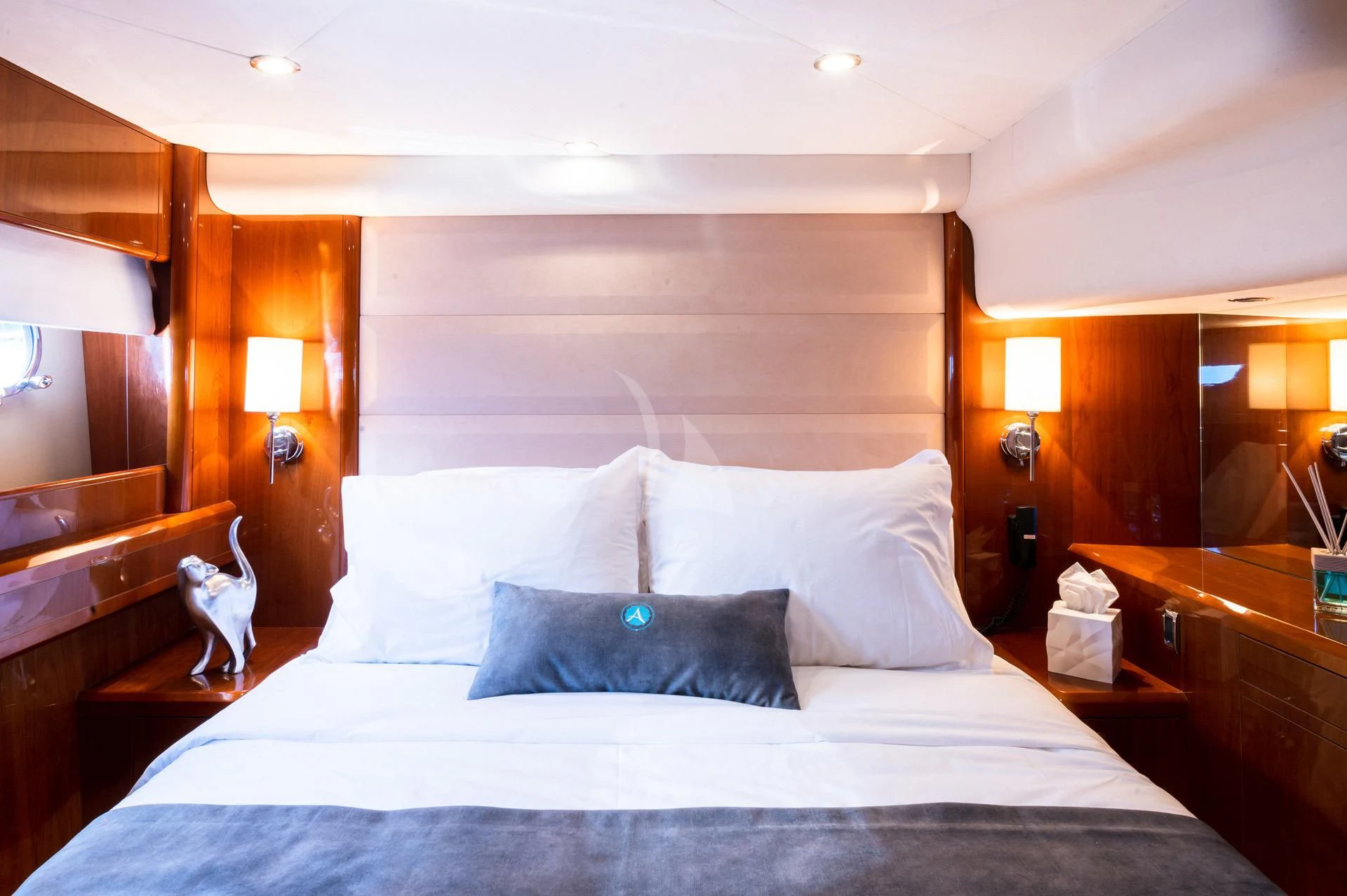

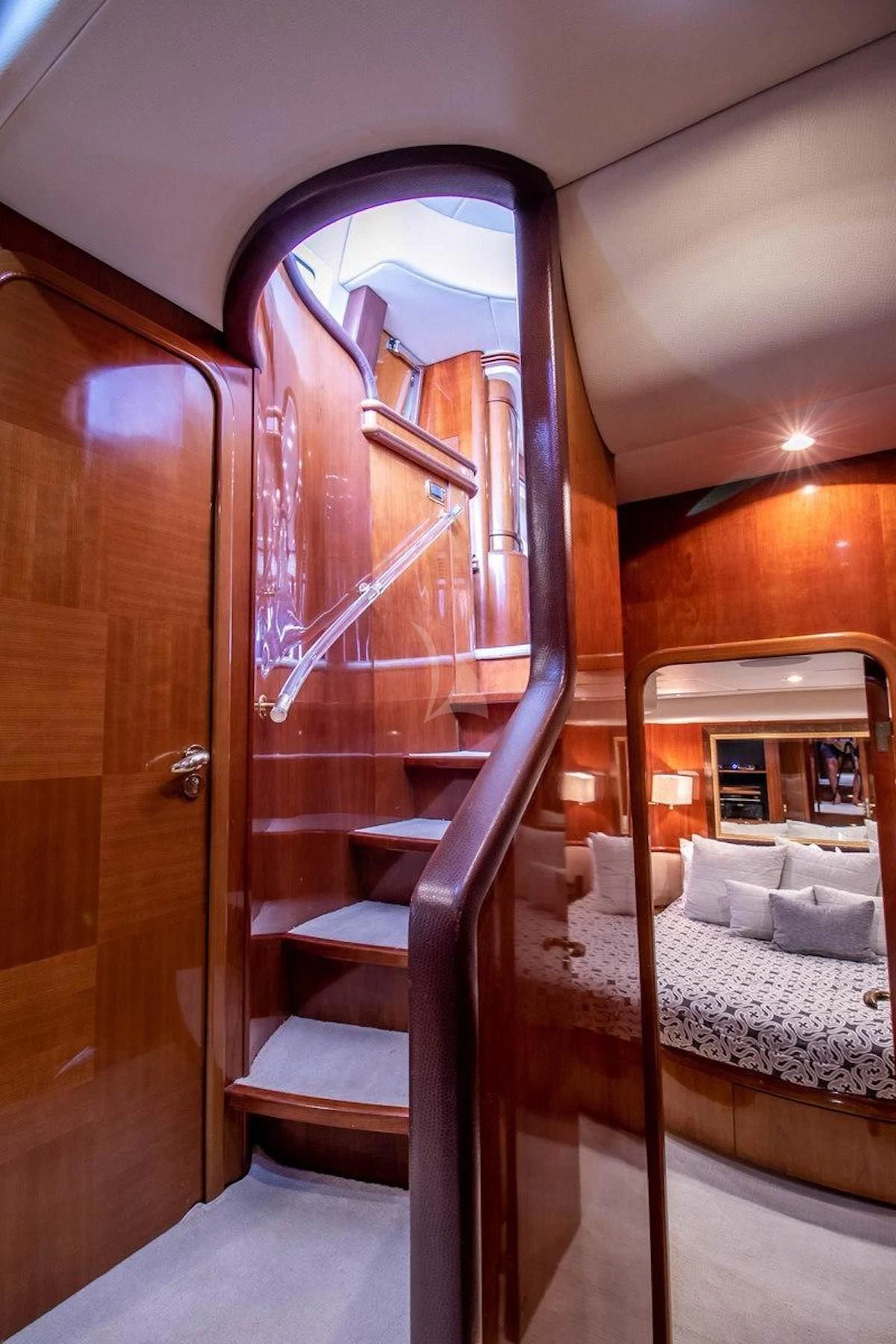

MASTER STATEROOM

  • Ultra-suede overhead with six lights
  • Fiberglass inlay with three recessed lights
  • King Size Island berth- five drawers below, built-in
  • Nightstands with drawers below
  • Two swing-arm reading lamps
  • Mirror on aft bulkhead
  • Overhead soffit with two recessed lights
  • LED lights, three port, and three starboard, with drop shades and curtains;

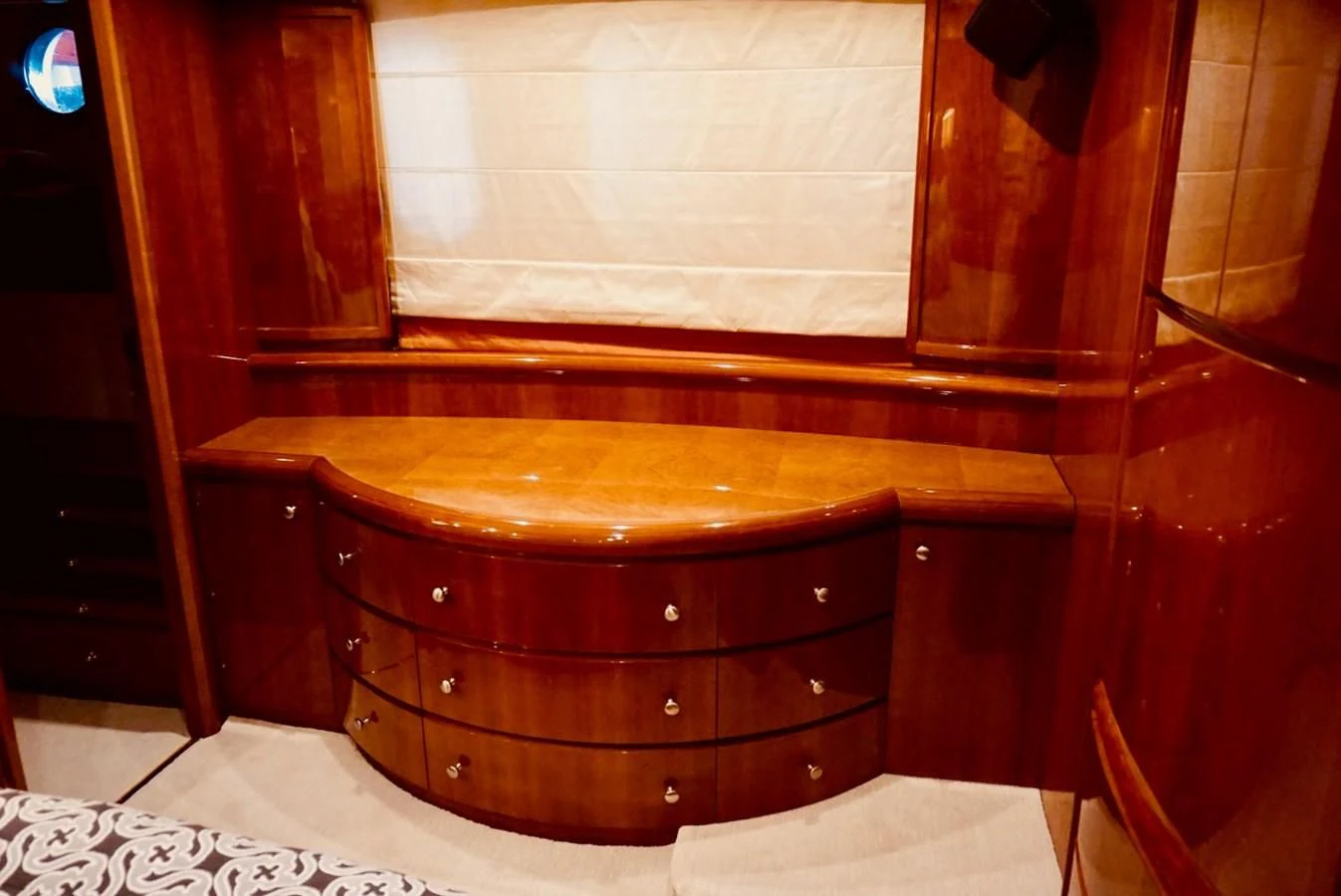

  • Built-in dresser, port, with nine drawers and two cabinets
  • Built-in drawers with entertainment center, starboard, with:
  • 42" Samsung television
  • Samsung Blu Ray player
  • Built-in vanity, starboard, with mirror, stool; six drawers; two cabinets

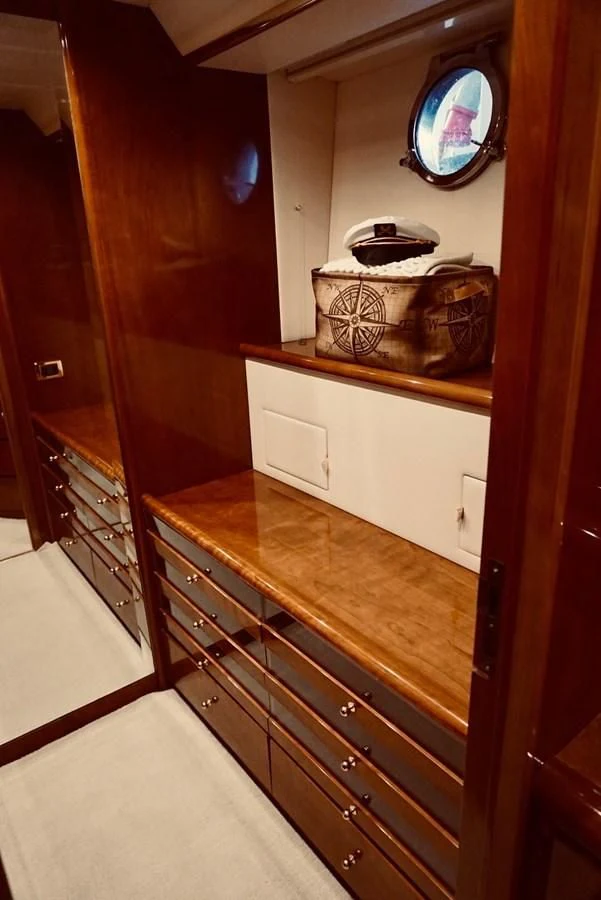

  • Walk-in closet with full-length mirror; built-in drawers; three recessed lights
  • SSBC Speaker selector volume control Rotel amplifier

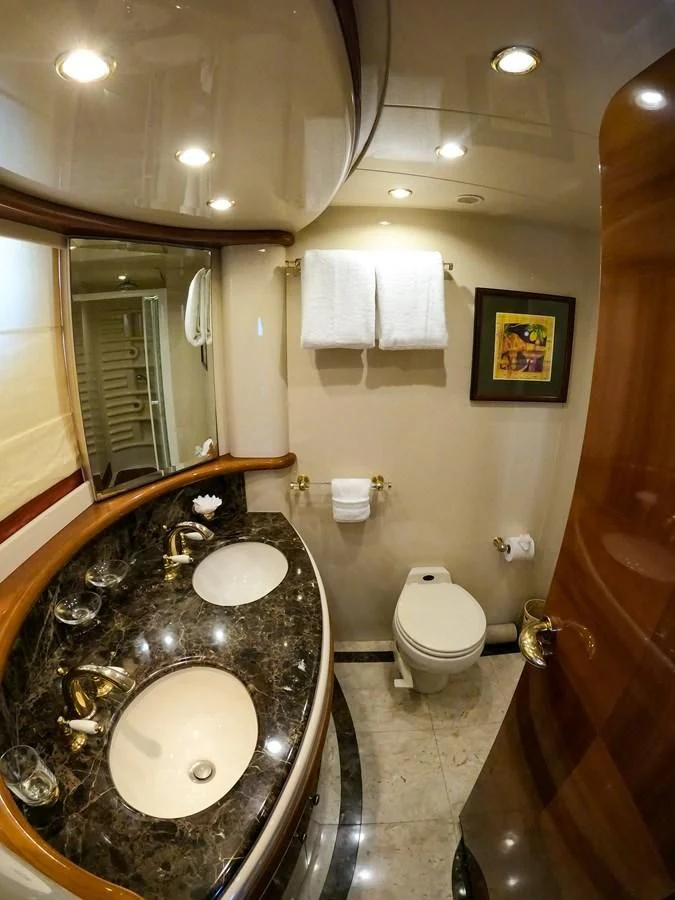

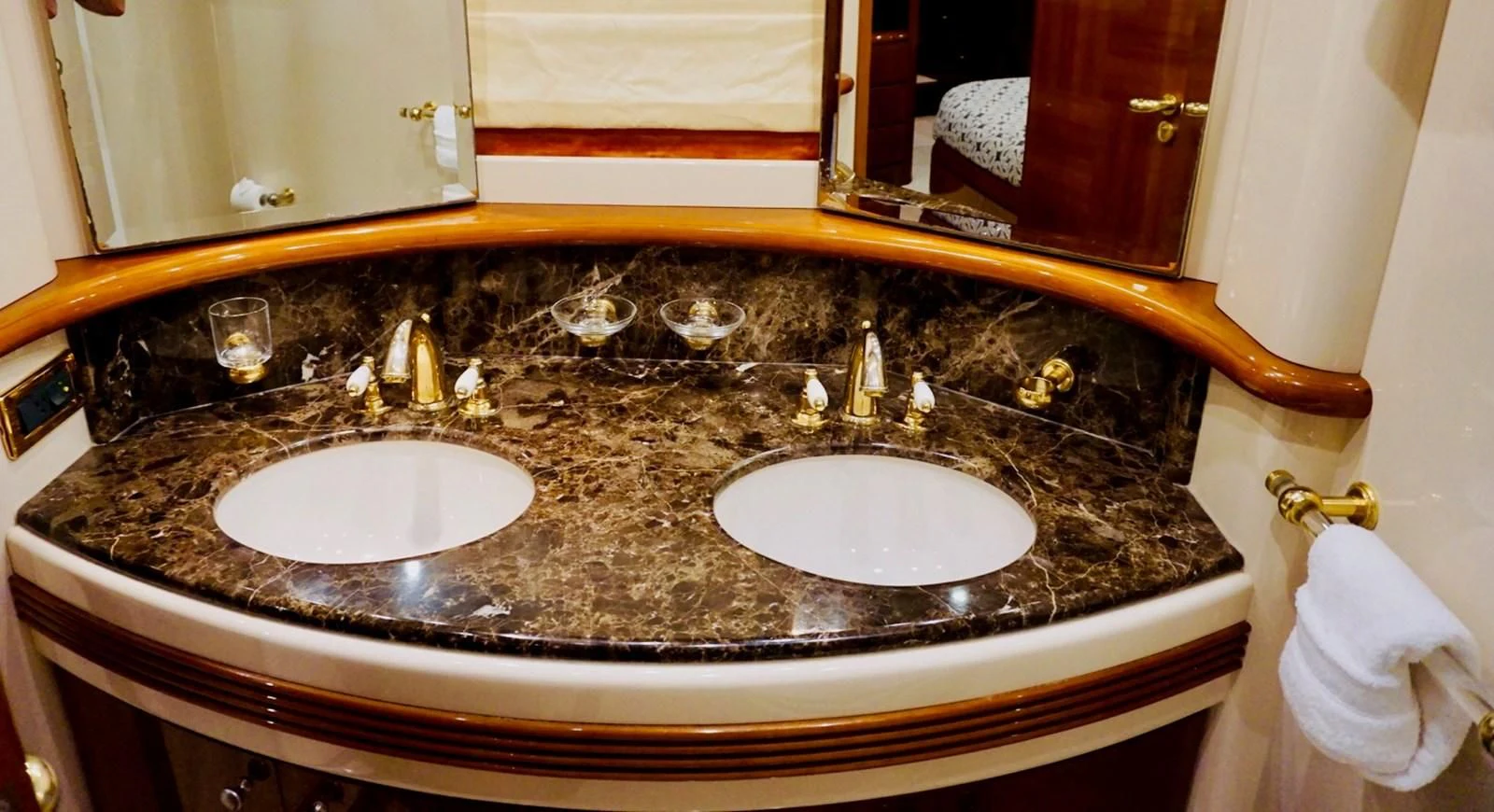

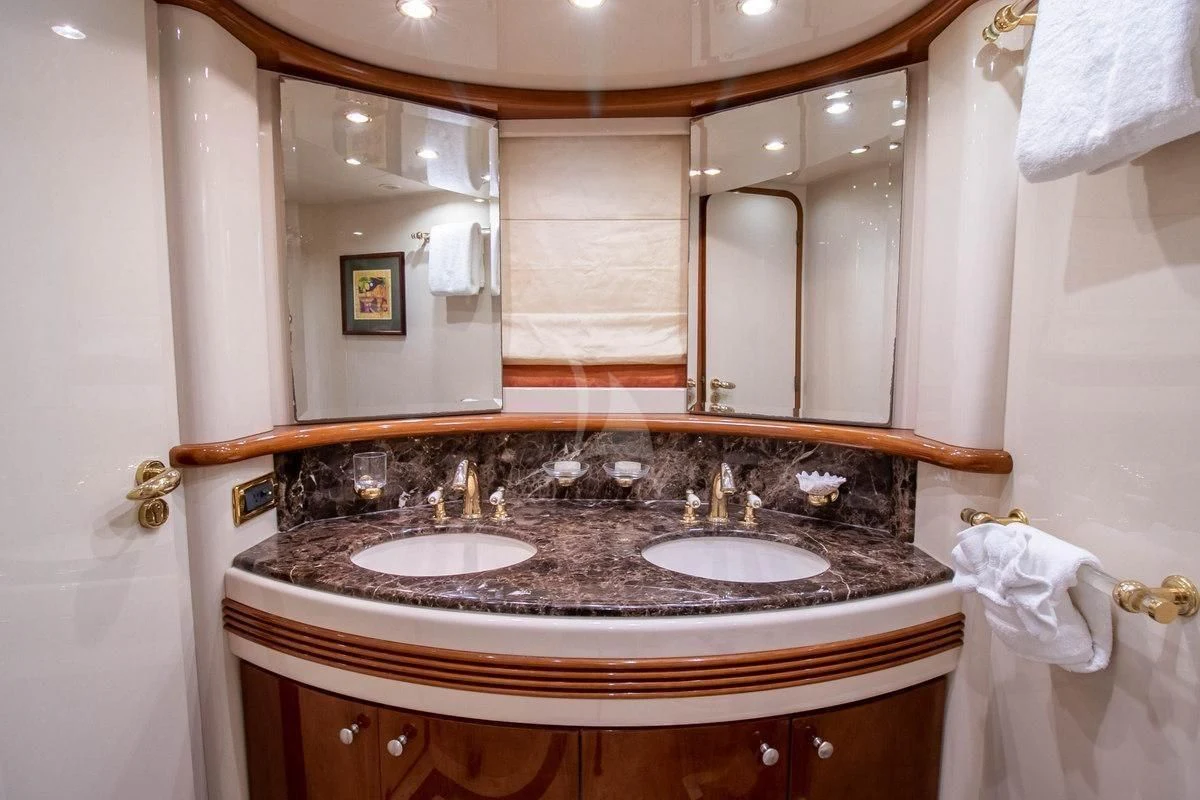

MASTER HEAD

  • Marble sole
  • Fiberglass overhead with four recessed lights
  • Fiberglass soffit over countertop with three recessed lights
  • Built-in vanity, outboard, with marble countertop and two sinks
  • Two mirrored medicine cabinets
  • Porthole with shades
  • Vacuflush head
  • Walk-in shower with overhead light, showerhead on hose; horizontal shower nozzles; hot/cold faucet

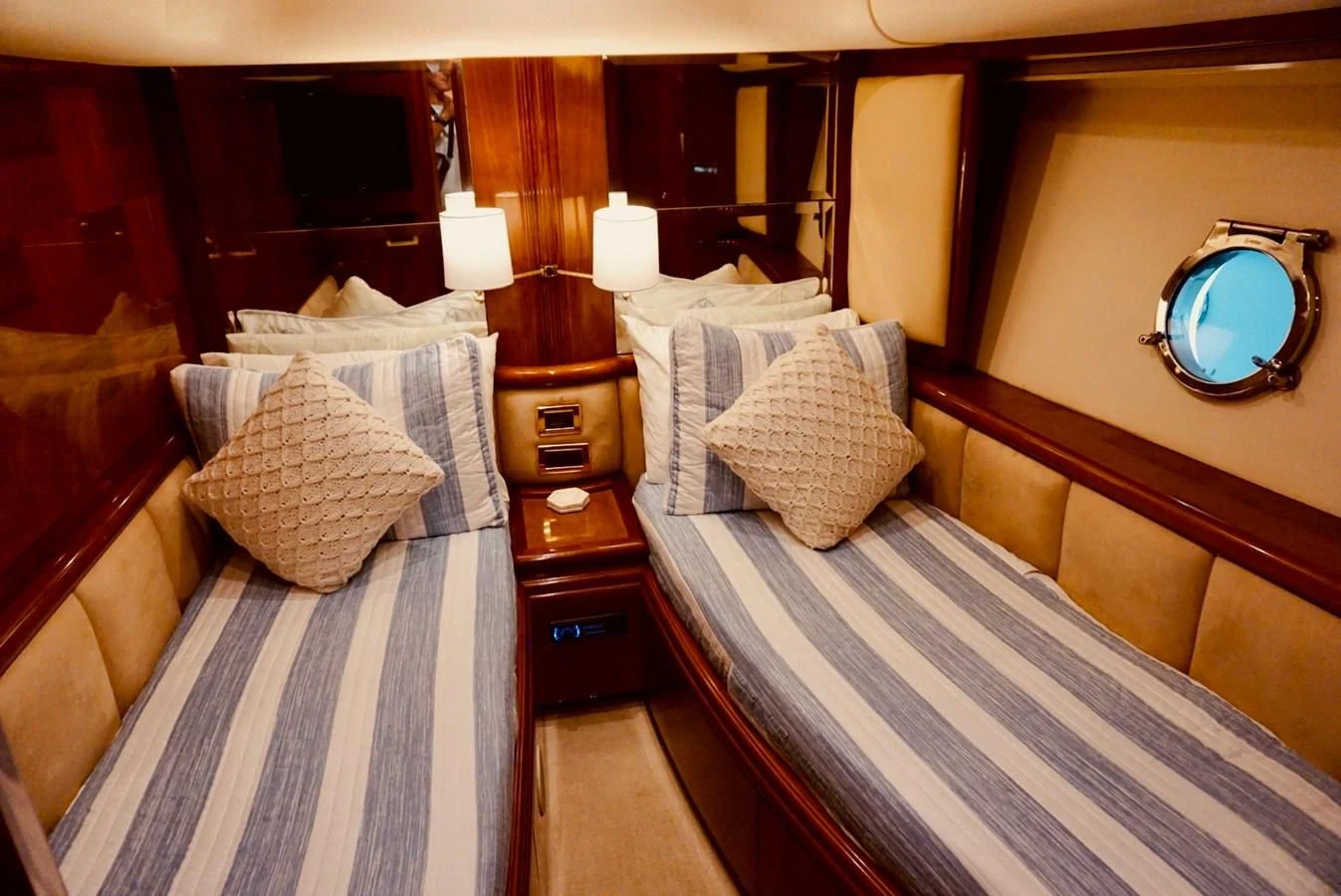

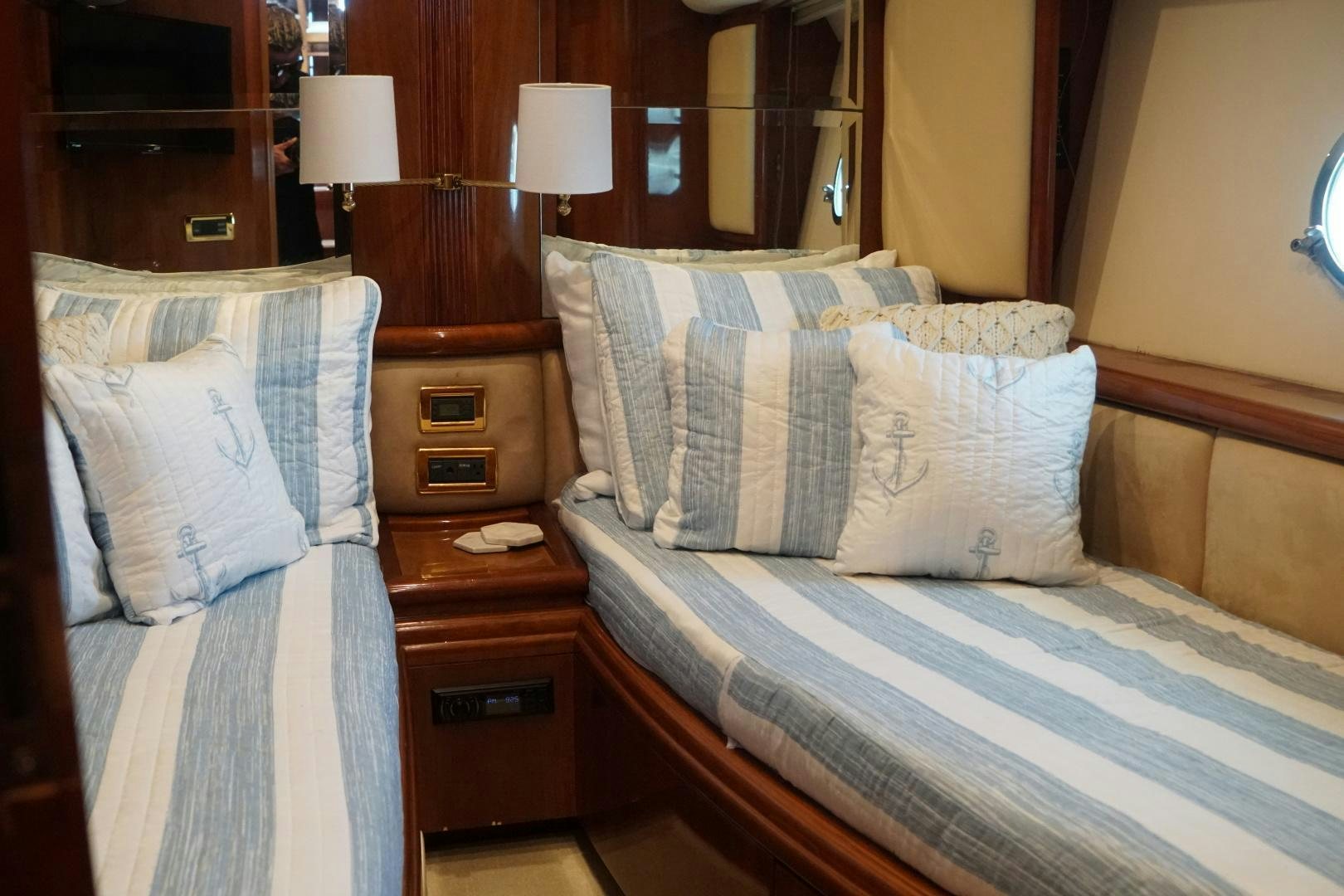

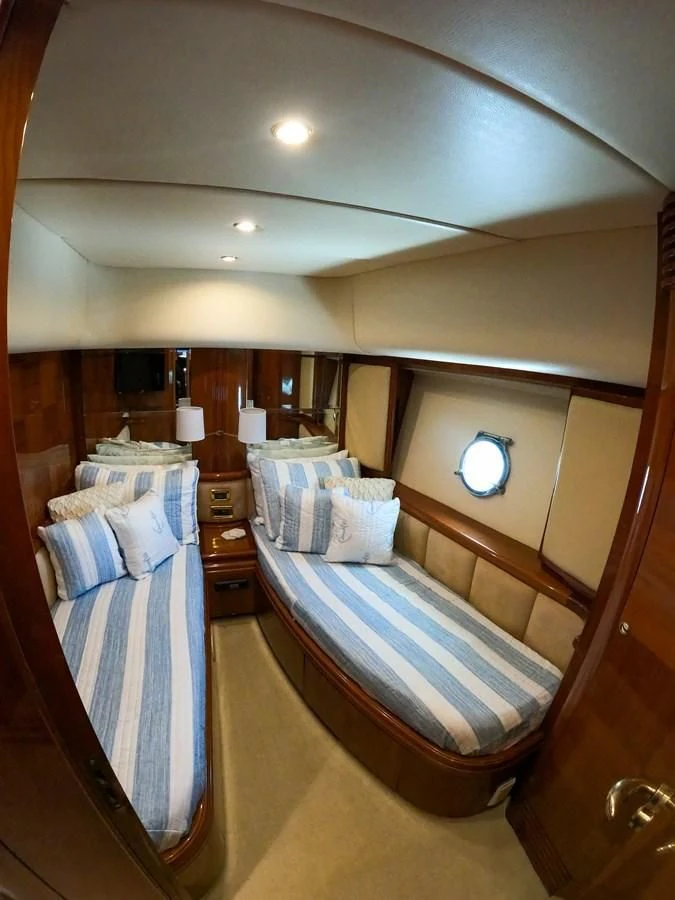

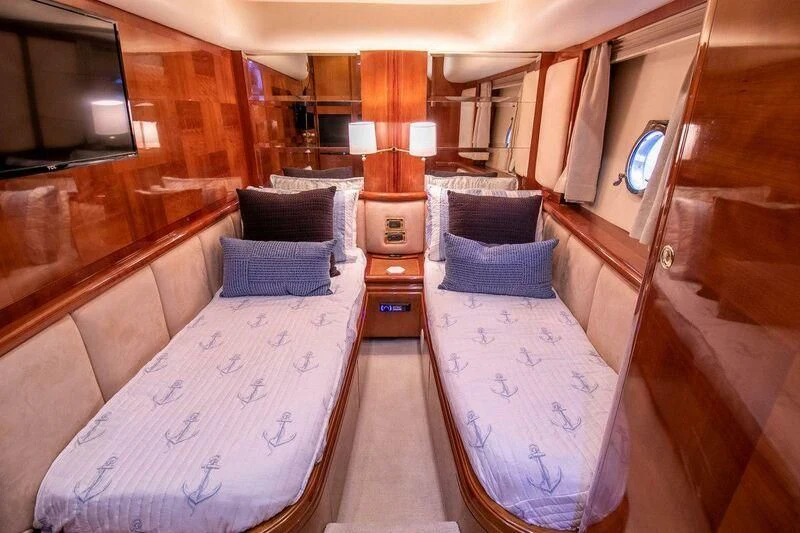

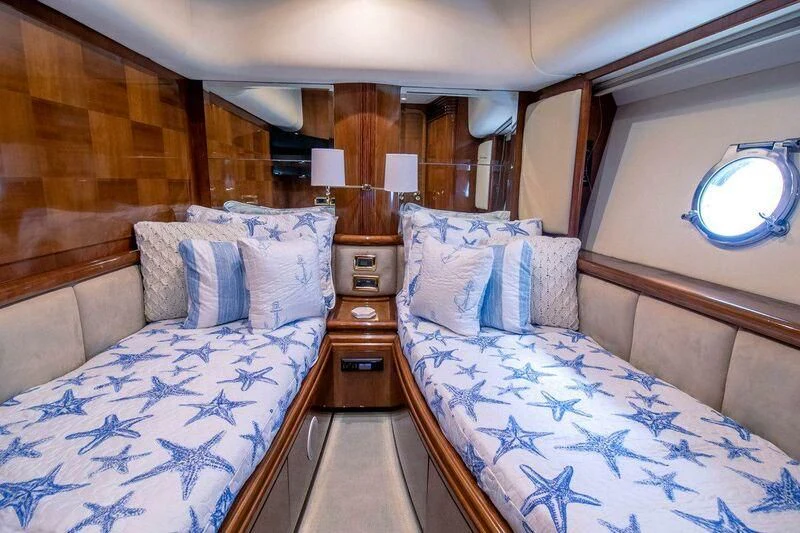

STARBOARD STATEROOM

  • Ultra-suede overhead with four recessed lights

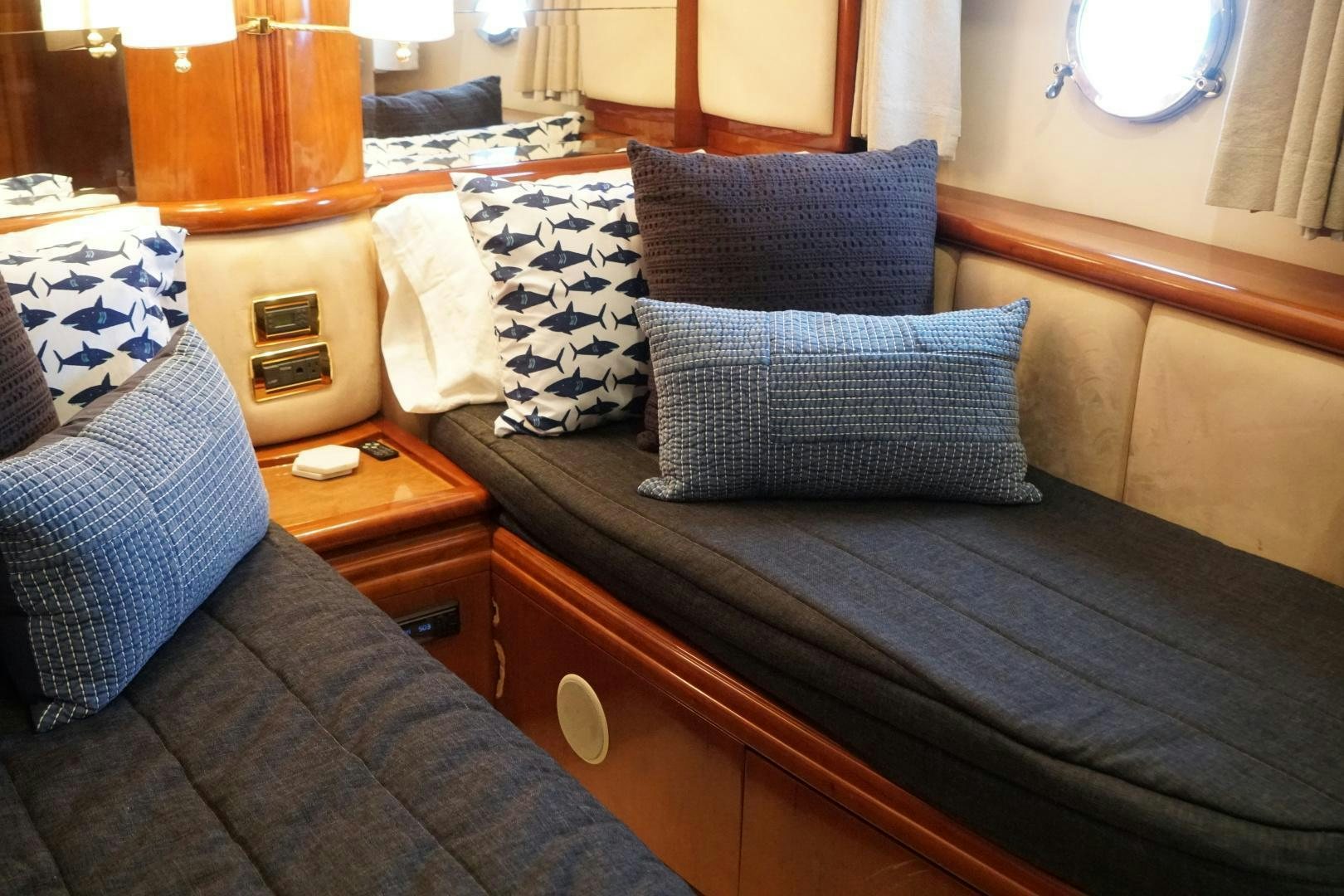

  • Twin berths
  • Curtains
  • Portlight
  • Built-in nightstand between berths
  • Sony AM-FM/CD player with two stereo speakers
  • Four mirrored panels on forward bulkhead
  • Two swing-arm reading lamps
  • Two air conditioning units, one under each berth
  • Hanging locker
  • 12' Samsung Flatscreen TV

STARBOARD HEAD

  • Entry via companionway and starboard stateroom
  • Fiberglass overhead with four recessed lights
  • Built-in vanity with marble countertop and sink
  • Mirrored panels above sink
  • Storage locker, outboard
  • Vacuflush head
  • Portlight with drop shade
  • Shower with Lexan circular door
  • Shower stall with circular door

PORT STATEROOM

  • Ultra-suede overhead with four recessed lights
  • Double berth
  • Six mirrored panels, aft
  • Hanging locker, port, with light
  • Cruisair SMX air conditioning control
  • Porthole with shade
  • Sony AM-FM/CD player
  • 12" Samsung Flatscreen TV

PORT HEAD

  • Wood flooring
  • Fiberglass overhead with three recessed lights
  • Built-in cabinet, port forward, with marble countertop sink and faucet
  • Mirrored vanity
  • Storage locker
  • Vacuflush head
  • Portlight
  • Drop shade
  • Shower area with circular Lexan door

BOW STATEROOM

  • Ultra-suede overhead with one recessed light
  • Cherry wood overhead soffit with eight recessed lights
  • Curtains

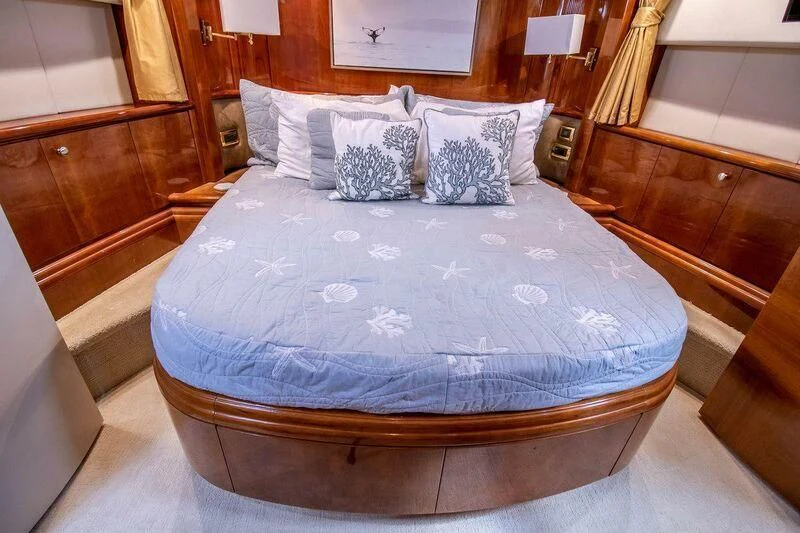

  • Queen Island berth, centerline
  • Two drawers below berth, aft
  • Built-in countertops, port, and starboard outboard
  • Sony stereo
  • Cruisair SMX II air conditioning control
  • 14" Samsung Flatscreen TV
  • Walk-in closet, starboard, with overhead recessed lights

BOW HEAD

  • Fiberglass overhead with four recessed lights
  • Built-in curved wood cabinet, port, with marble countertop and backsplash, sink with faucet
  • Storage locker
  • Wood frame mirror over sink
  • Vacuflush head
  • Circular Lexan door to shower area

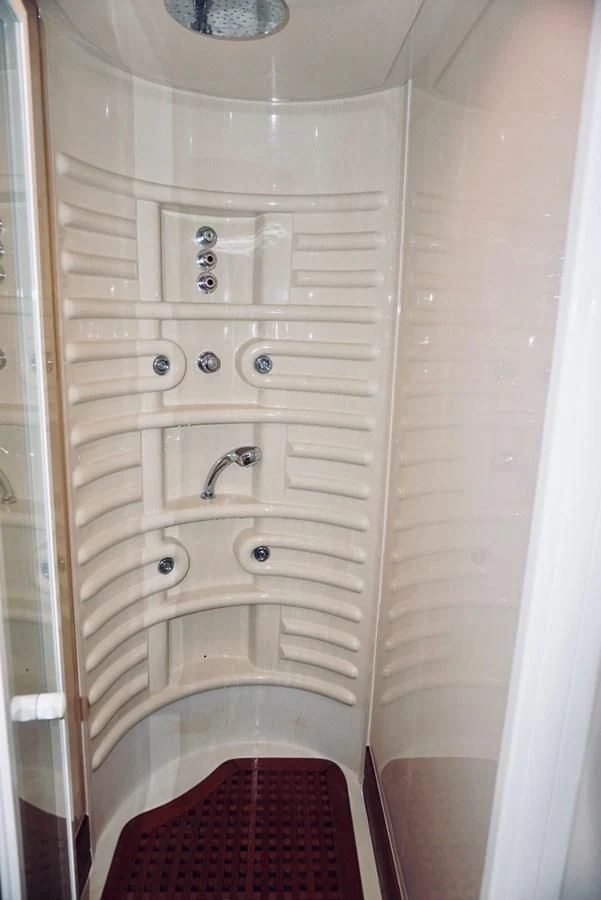

  • Showerhead on hose, overhead showerhead, four shower nozzles

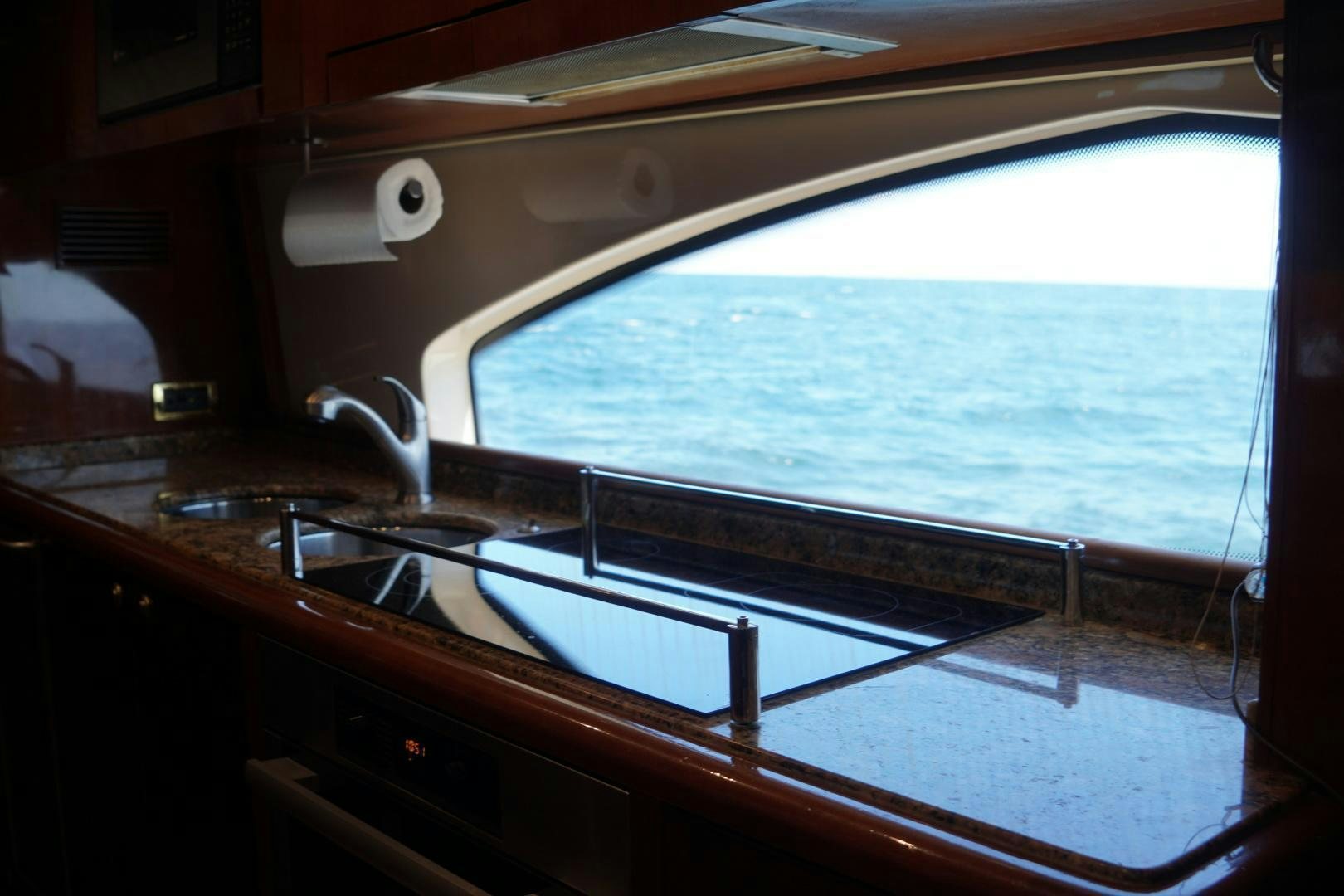

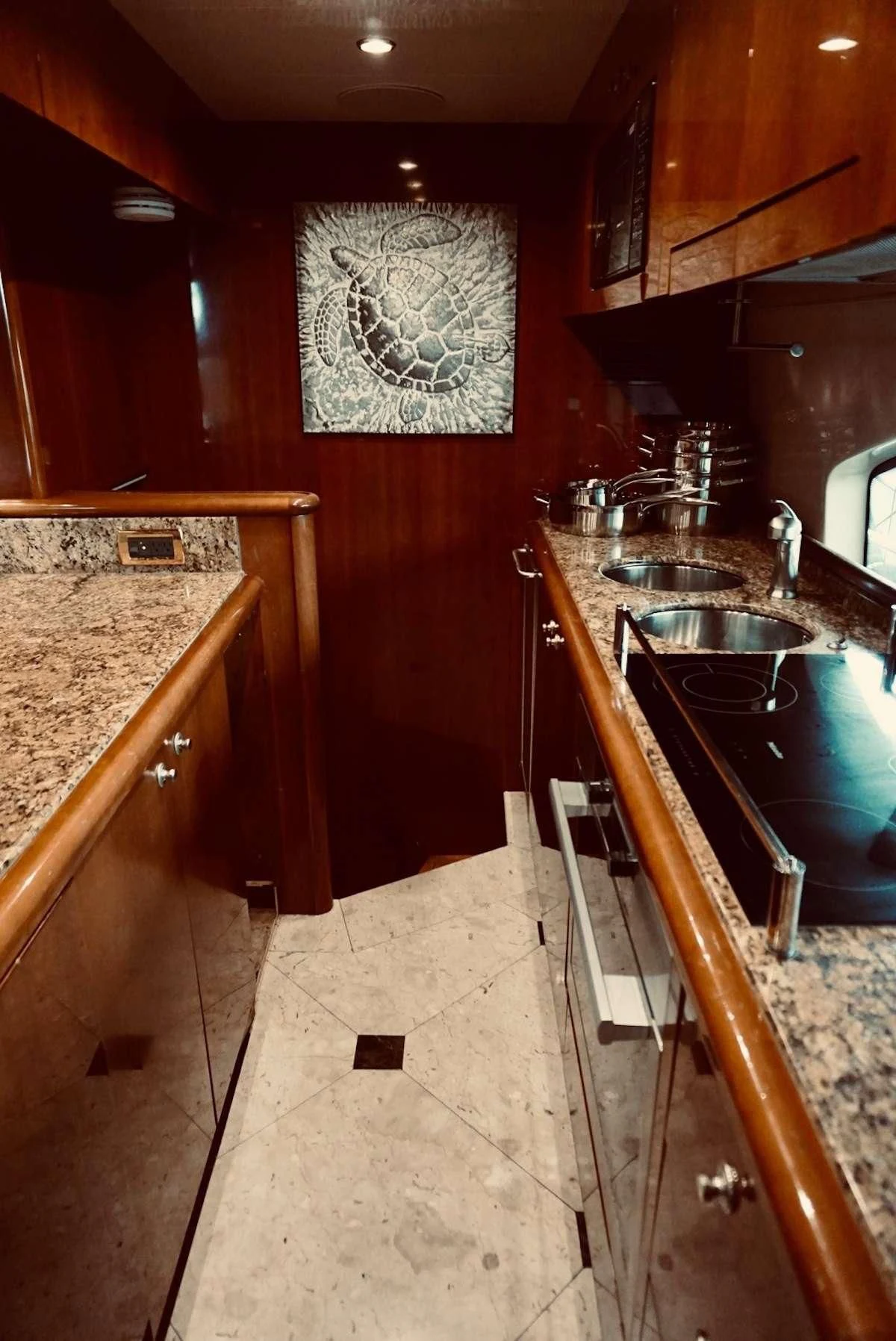

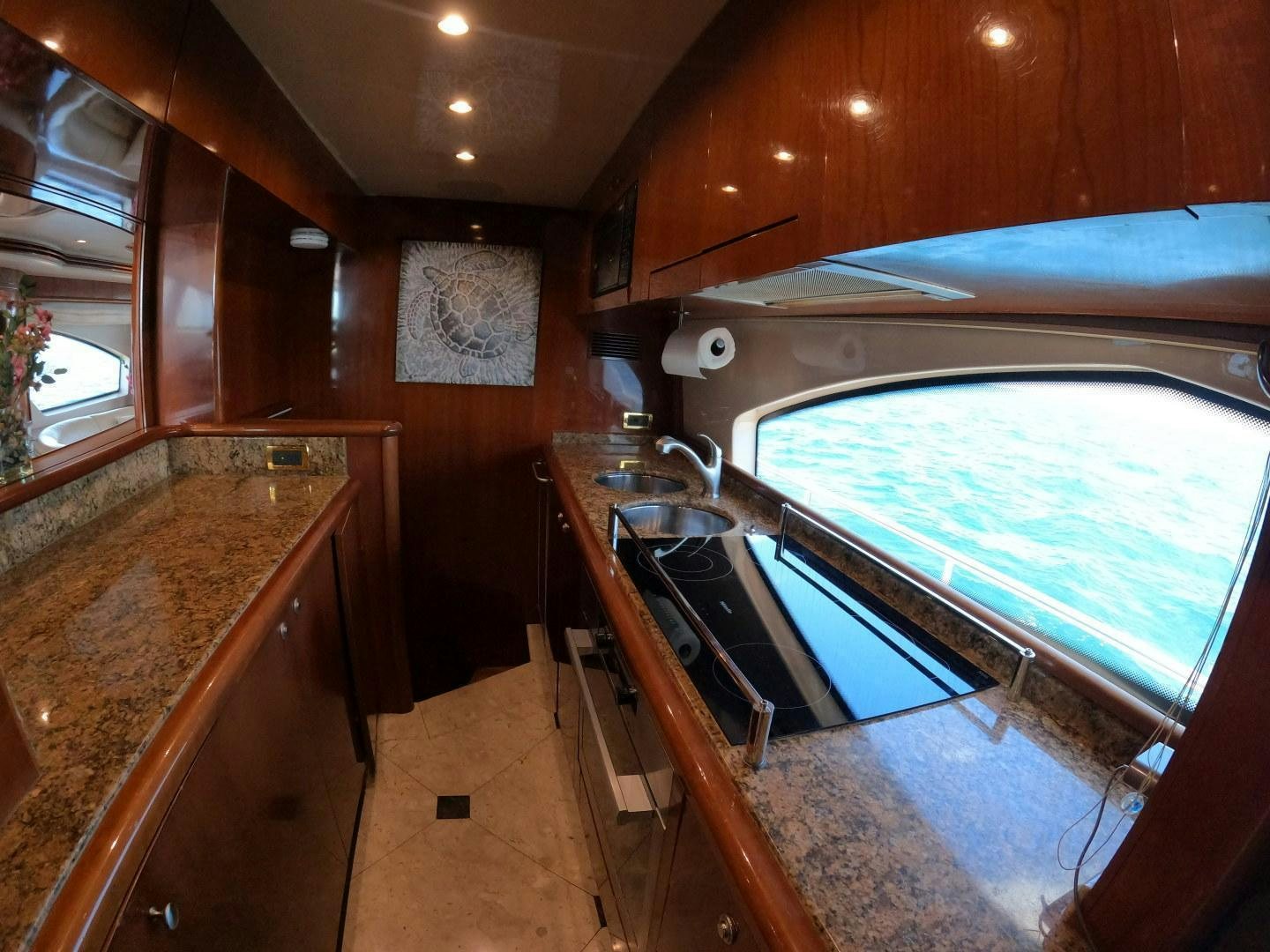

Galley & Laundry Equipment

  • Frigidaire refrigerator and freezer
  • Pantry, forward
  • Inboard Hoshizaki Ice Maker
  • Exit door to portside deck
  • Two cherry wood cabinets, port outboard, and centerline inboard, with granite countertops
  • Miele 4-burner smooth surface stovetop
  • Miele oven
  • General Electric Profile microwave oven
  • Two round stainless-steel sinks
  • Miele Incognito dishwasher
  • Single-lever faucet
  • Built-in cabinets overhead, port outboard and centerline inboard
  • Stairway to crew quarters and engine room, aft

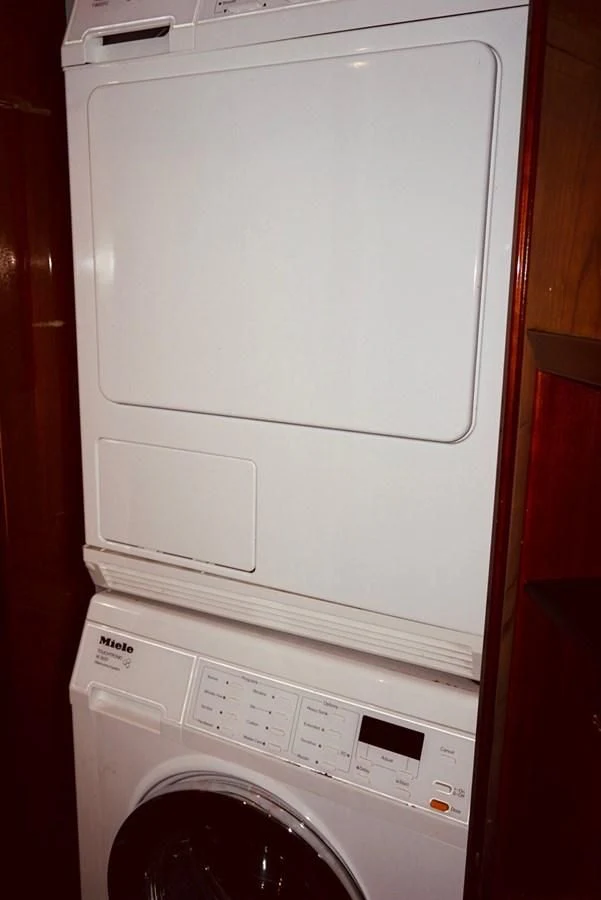

  • Miele Novotronic T1565C clothes dryer
  • Miele Novotronic W1918 clothes washer

Communication Equipment

  • Icon M504 VHF

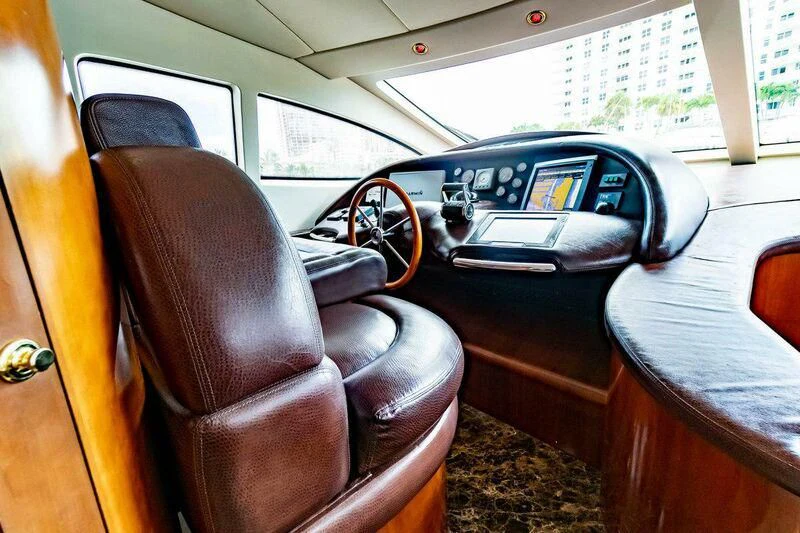

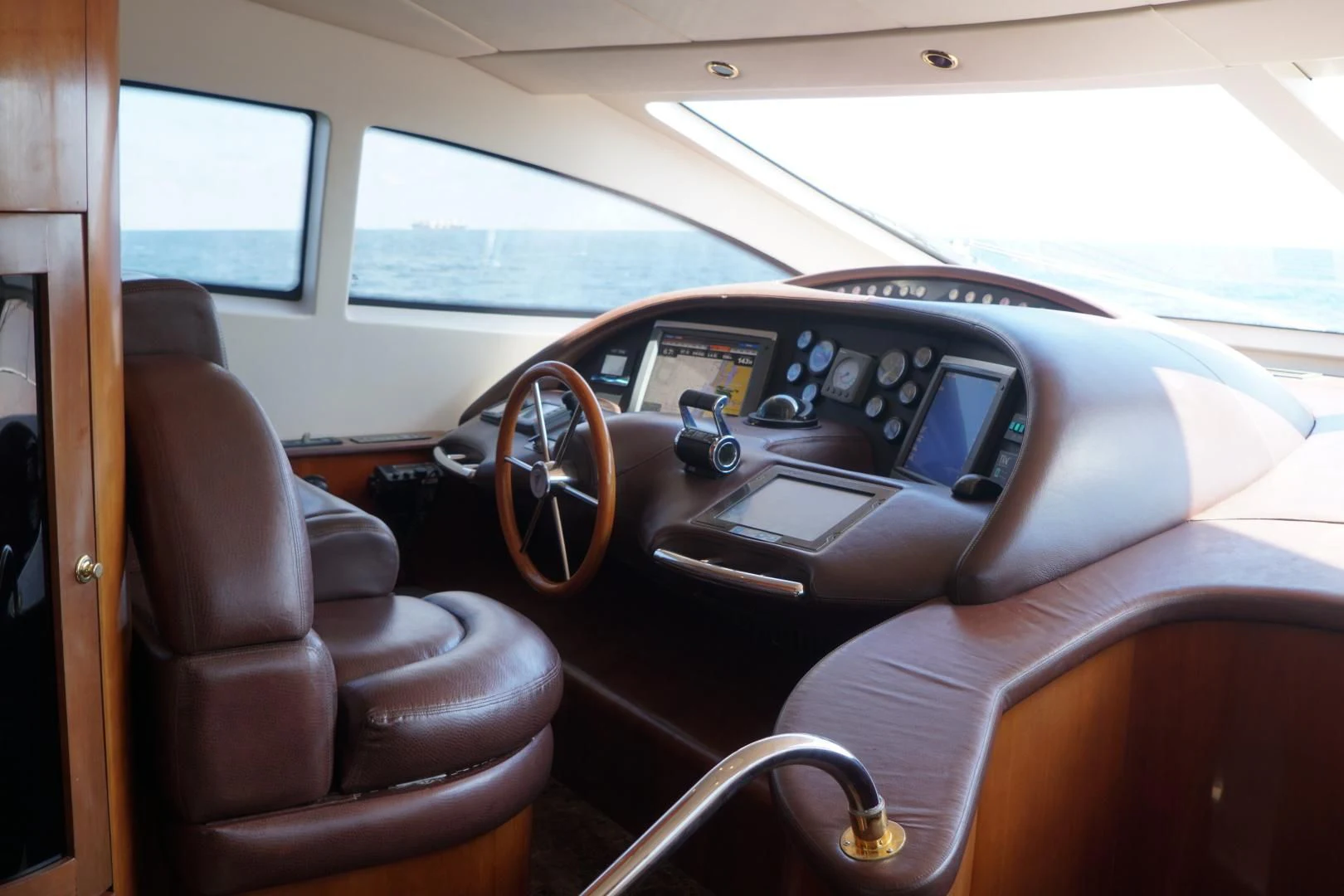

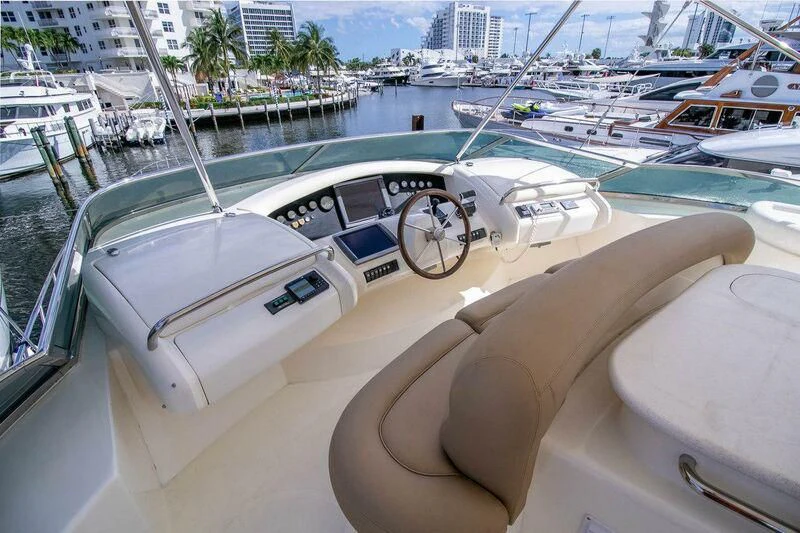

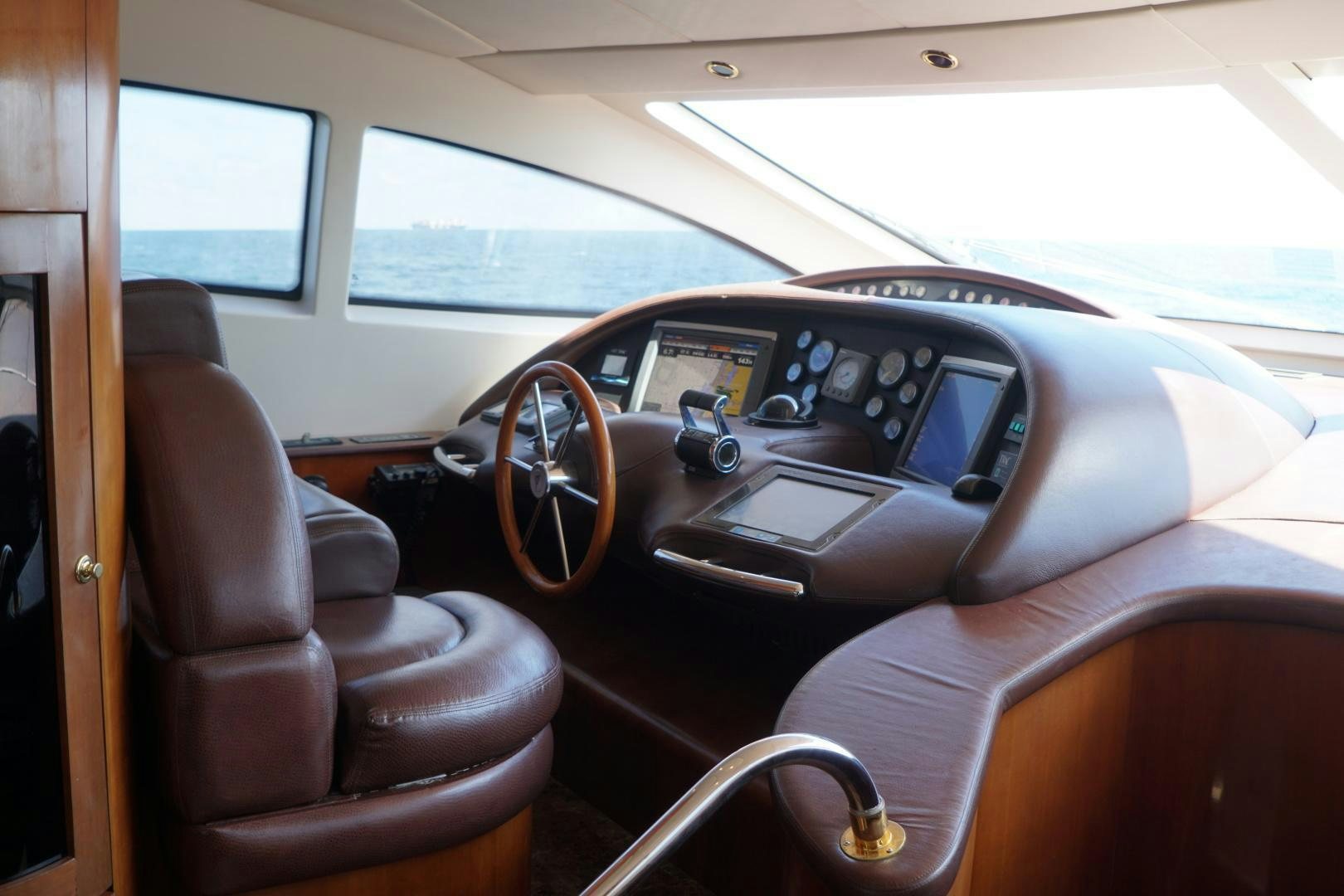

Navigation Equipment

  • Cruisair SMX II air conditioning control
  • Two recessed red lights over helm area
  • Wood steering wheel
  • Single-lever MTU controls
  • Touch-screen control panel to computer system
  • White Star compass
  • American Bow thruster (Bow & Stern)
  • Full VDO engine instrumentation
  • Raymarine ST 290 ABT Trac Zero Speed Stabilizer
  • Raymarine Rudder Indicator
  • Simrad AP28 Autopilot
  • Garmin 7215 GPS Plotter
  • Garmin 7015 GPS Plotter
  • Raymarine RL70 radar

Entertainment Equipment

  • Samsung Blue Ray player
  • Creston Integrated System
  • Direct TV
  • Sony FM/AM Receiver
  • Sony AV Multichannel Receiver
  • WiFi Router

Tenders & Toys

  • Nouvarania 14' inflatable tender with 60 HP Yamaha outboard with only 40 hours

Deck Equipment

  • New teak deck
  • Ceramic wax

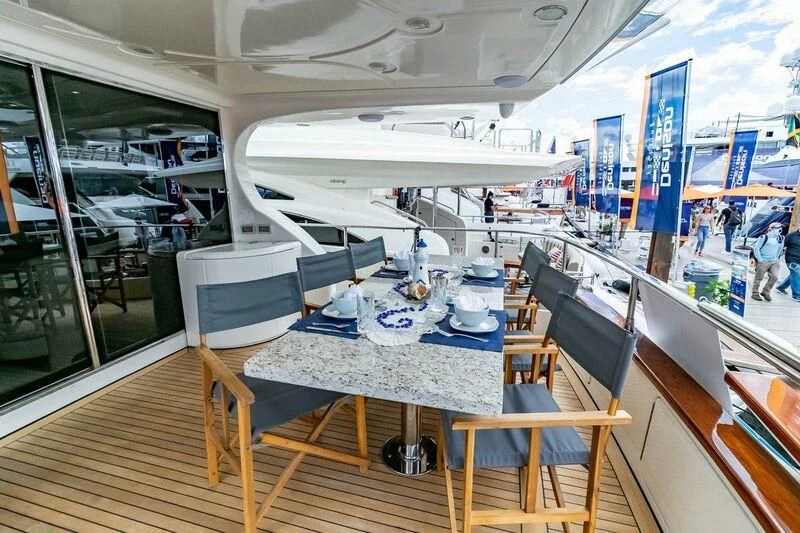

  • Cockpit table
  • Boarding doors, port, and starboard, to cabin

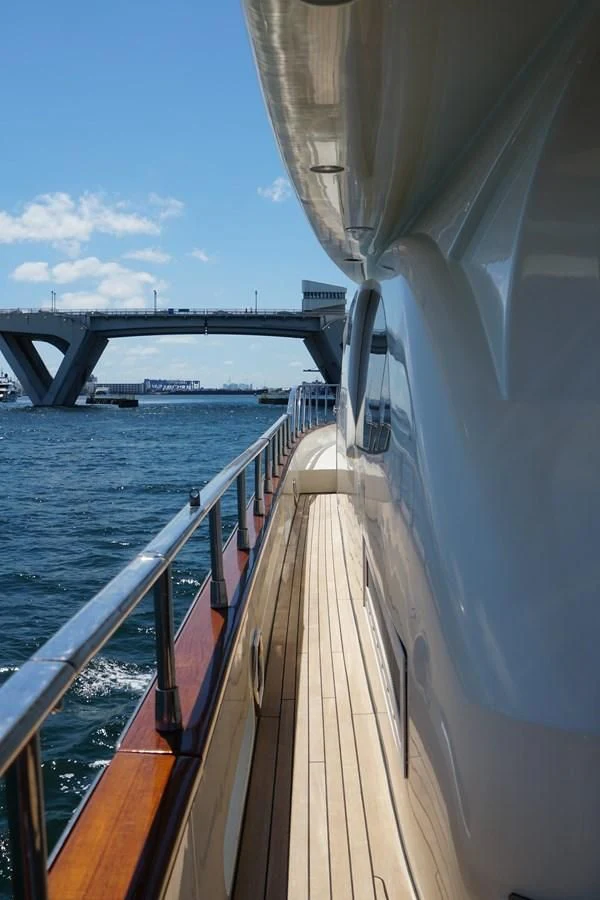

  • Teak decks, non-skid halfway forward
  • Teak cap rail
  • Lights in foredeck step-up
  • Two windshield wipers with washers
  • Sun lounge area
  • Overhead deck lights, four port, and four starboard
  • Approximately 90-lb stockless anchor with 250’ of chain
  • Electric/hydraulic passerelle

Refit History

  • Transmission rebuild with existing clutches and gears
  • New Radar
  • Rebuilt Passarele with remote control
  • Rebuilt black and Gray water systems
  • Rebuilt chiller cooling towers and air handler
  • New raw water pump
  • New sea strainers
  • Rebuilt fuel shut-off valves
  • New underwater lighting
  • New teak on aft deck and flybridge stairs
  • New 2021 Yamaha EXR 3 person jet ski
  • New life rafts
  • New matching exterior covers
  • Flybridge cushions are new 2020
  • New U-line flybridge refrigerator with icemaker
  • New Pepwave wireless system with iPad controlled AV system
  • All new TVs
  • Galley has wine cooler, new beverage cooler, French door refrigerator freezer
  • Crew has new refrigerator/freezer and new ceramic cooktop. All counter surfaces are granite or marble.
  • All soft goods are custom made new last summer 2021
  • Newly fabricated Bunny-pad on flybridge
  • Serviced ABT Stabilizers
  • Refinished veneer on dining table & entertainment center
  • Serviced fire systems CO2 cylinders and extinguishers
  • Shafts pulled and aligned
  • Fresh varnish on cap rails
  • Serviced both MTU 12V 2000 main engines: Replace fuel injectors, rebuild EUP’s, removed and ultrasonically cleaned heat exchangers and charge air coolers then reinstall.
  • All thru-hulls replaced
  • New light up name board
  • Rebuilt stern thruster
  • New KVA auto boost transformers
  • Bottom painted
  • Propspeed shafts & props
  • Dial indicated shafts & balanced props
  • New tide seals & cutlass bearings
  • New shafts seals & spares on shafts
  • Added Pullman bunk in crew
