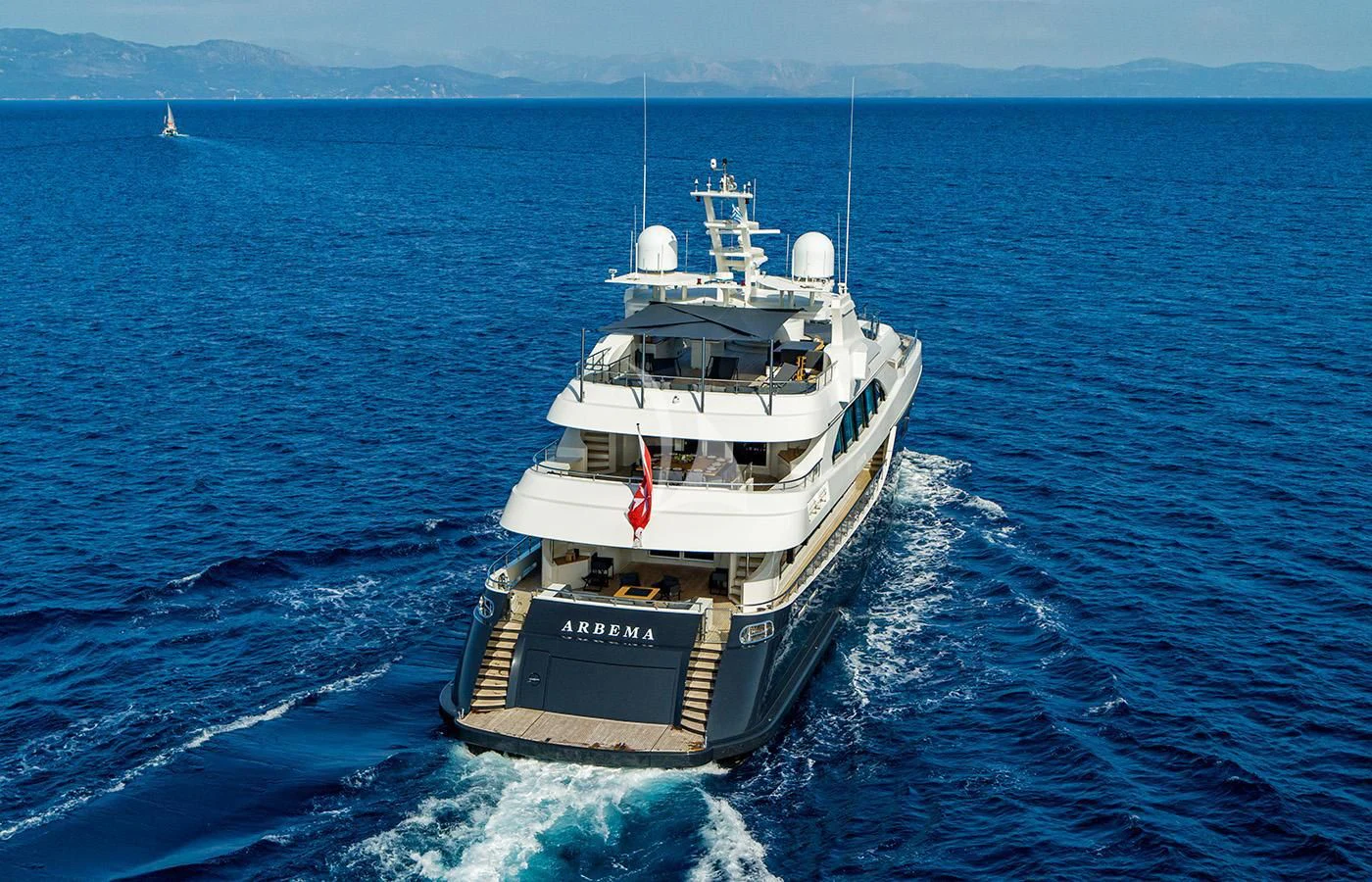

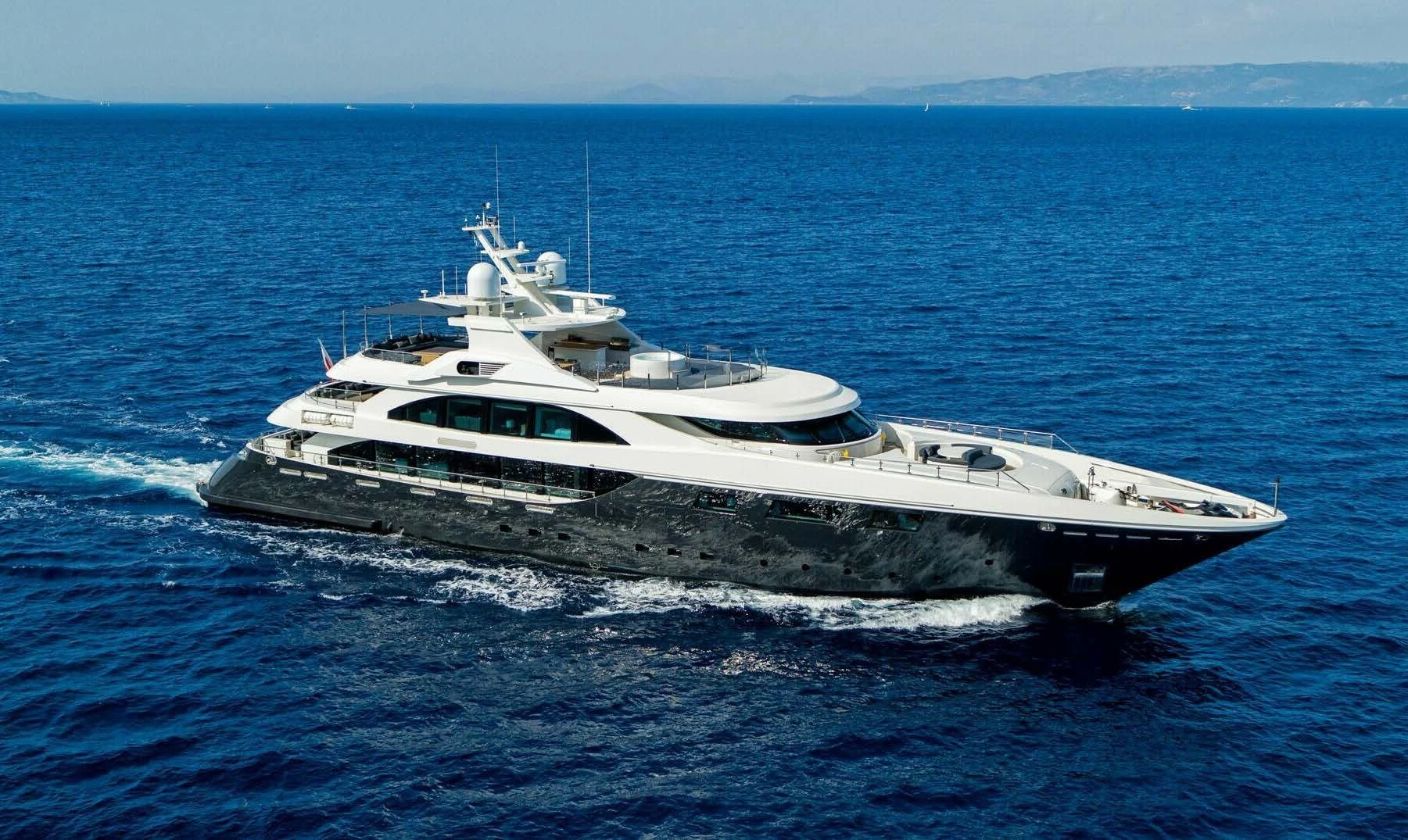

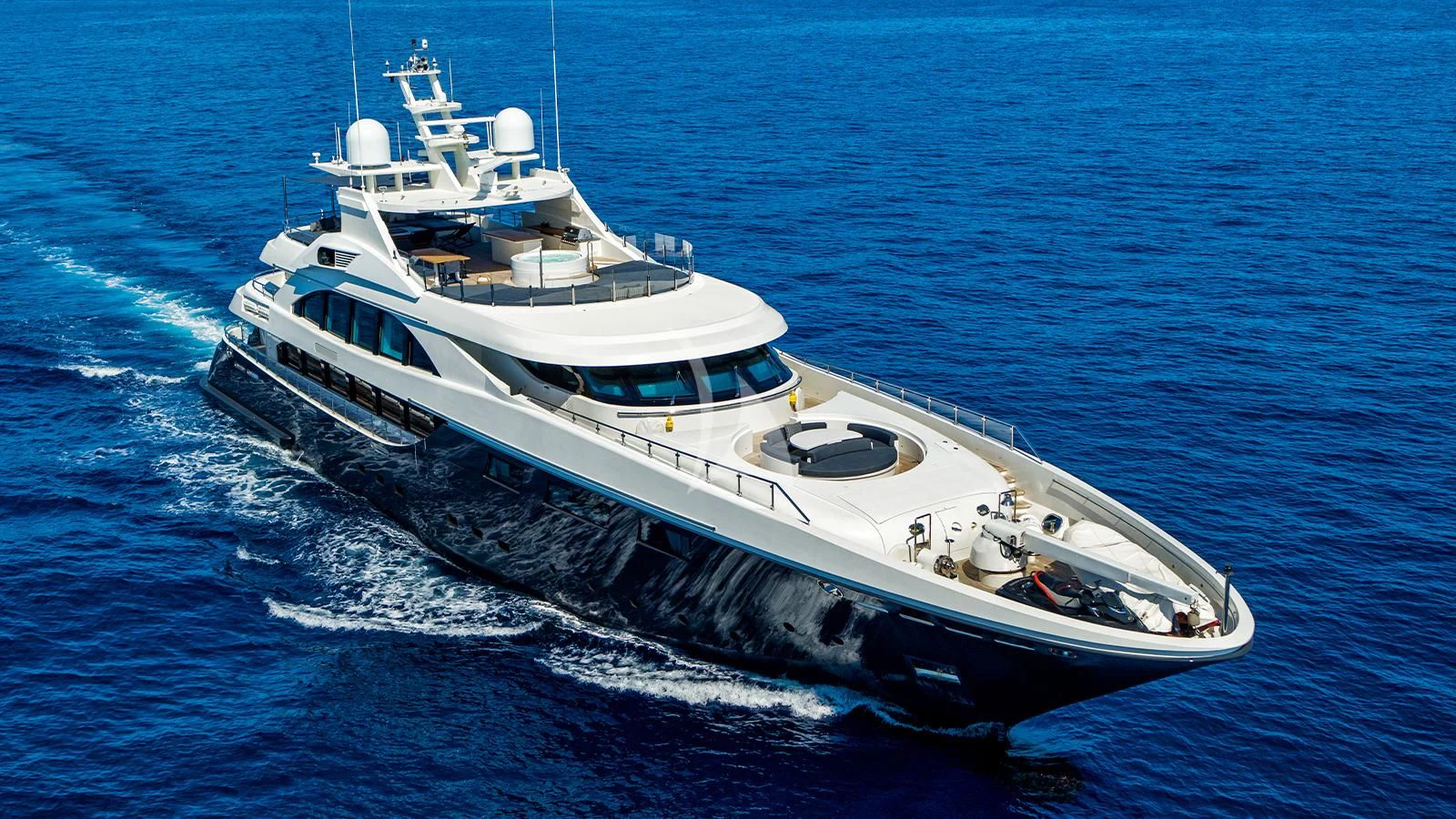

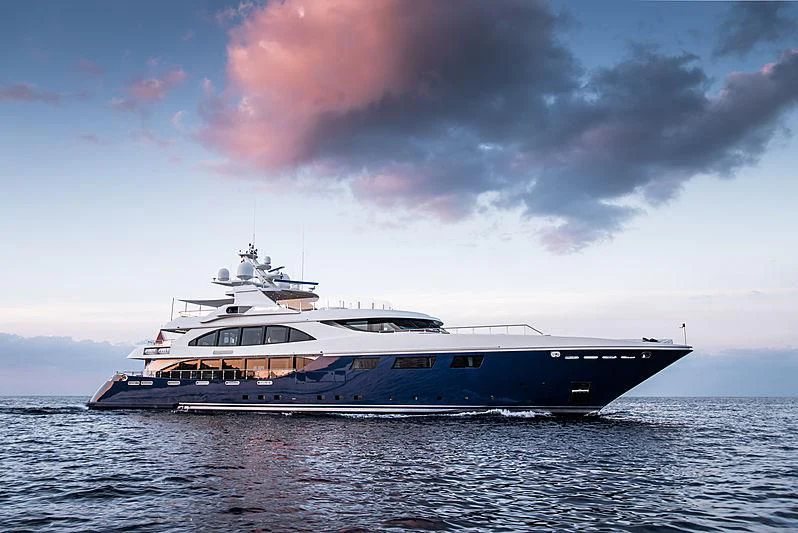

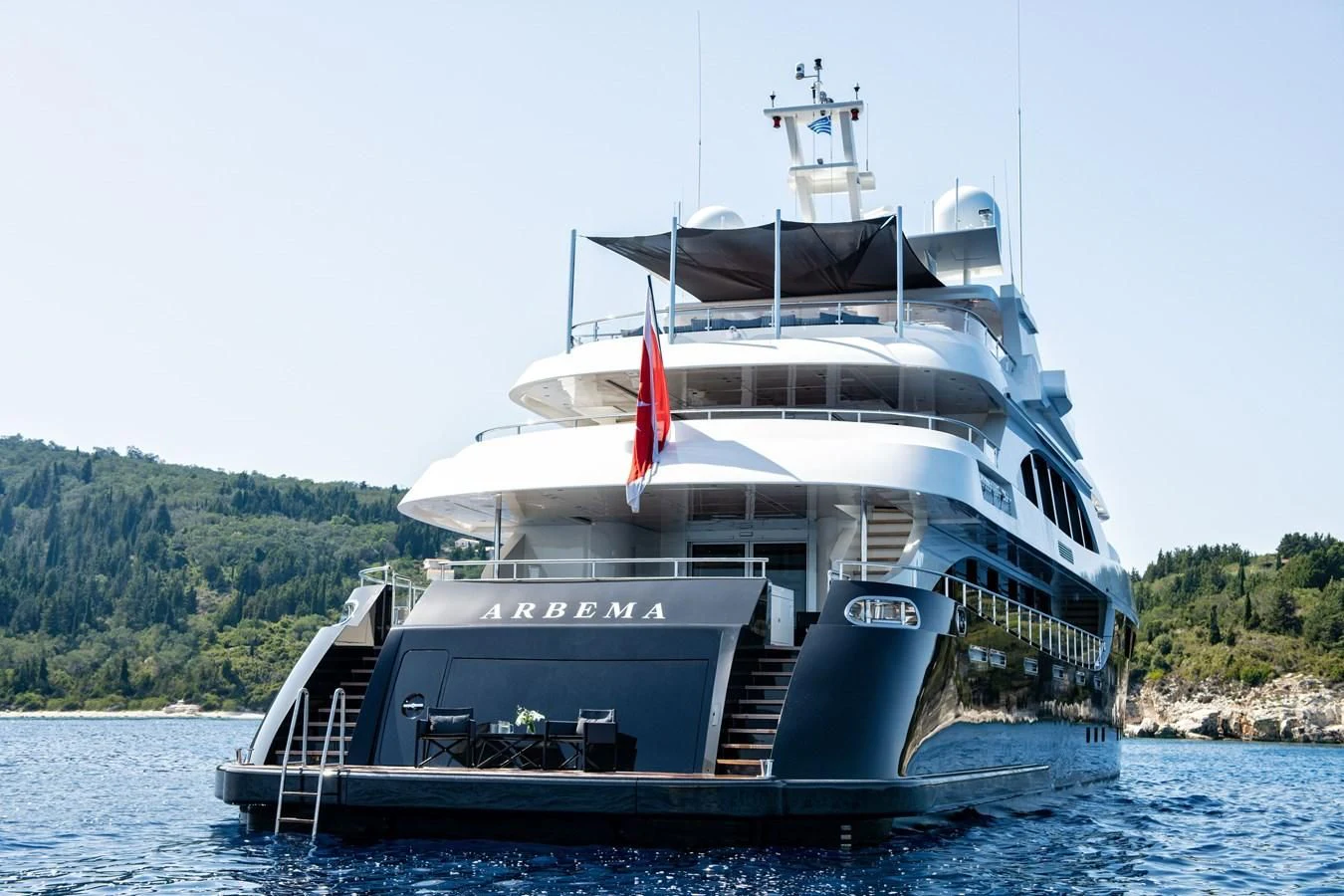

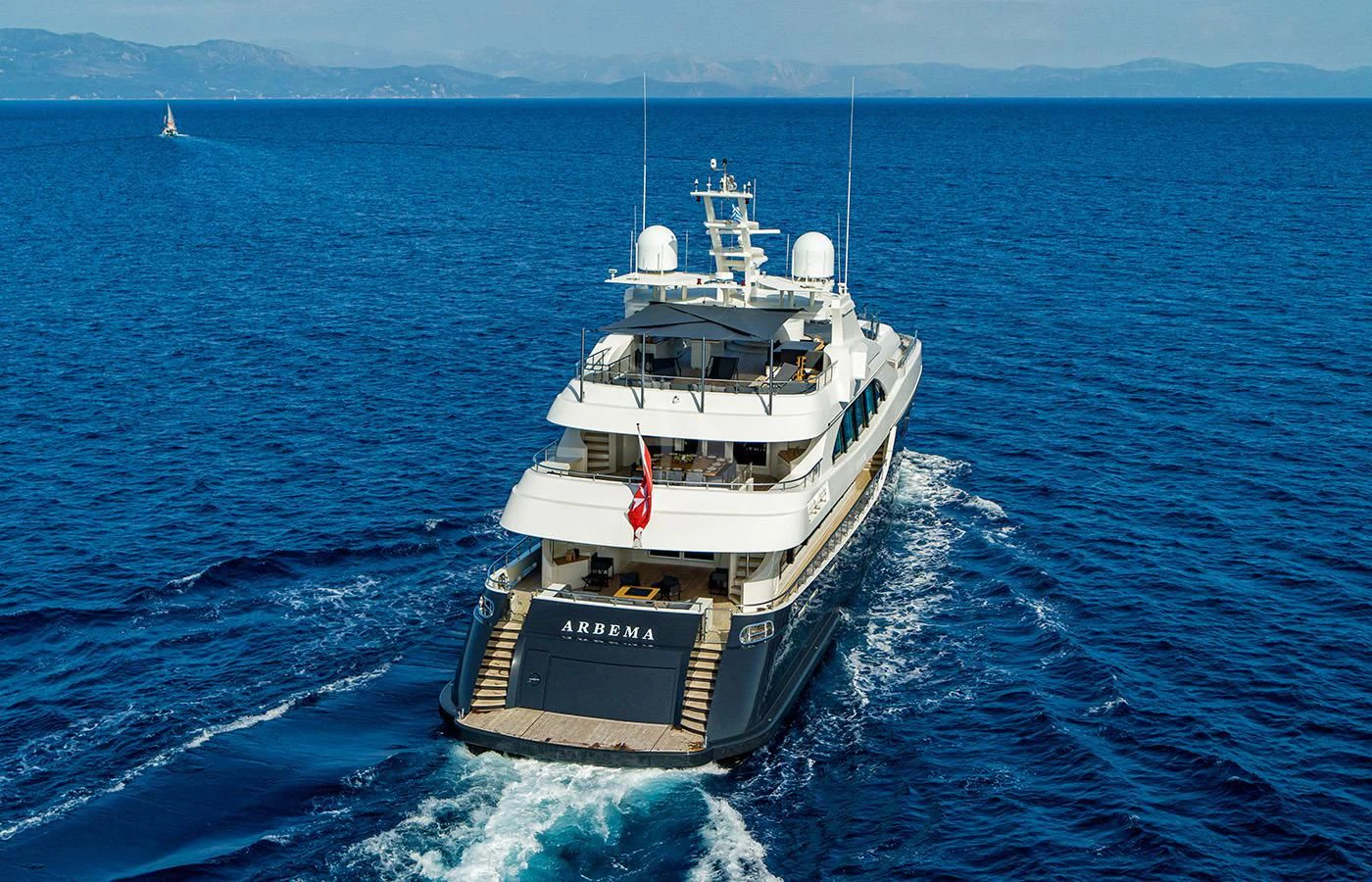

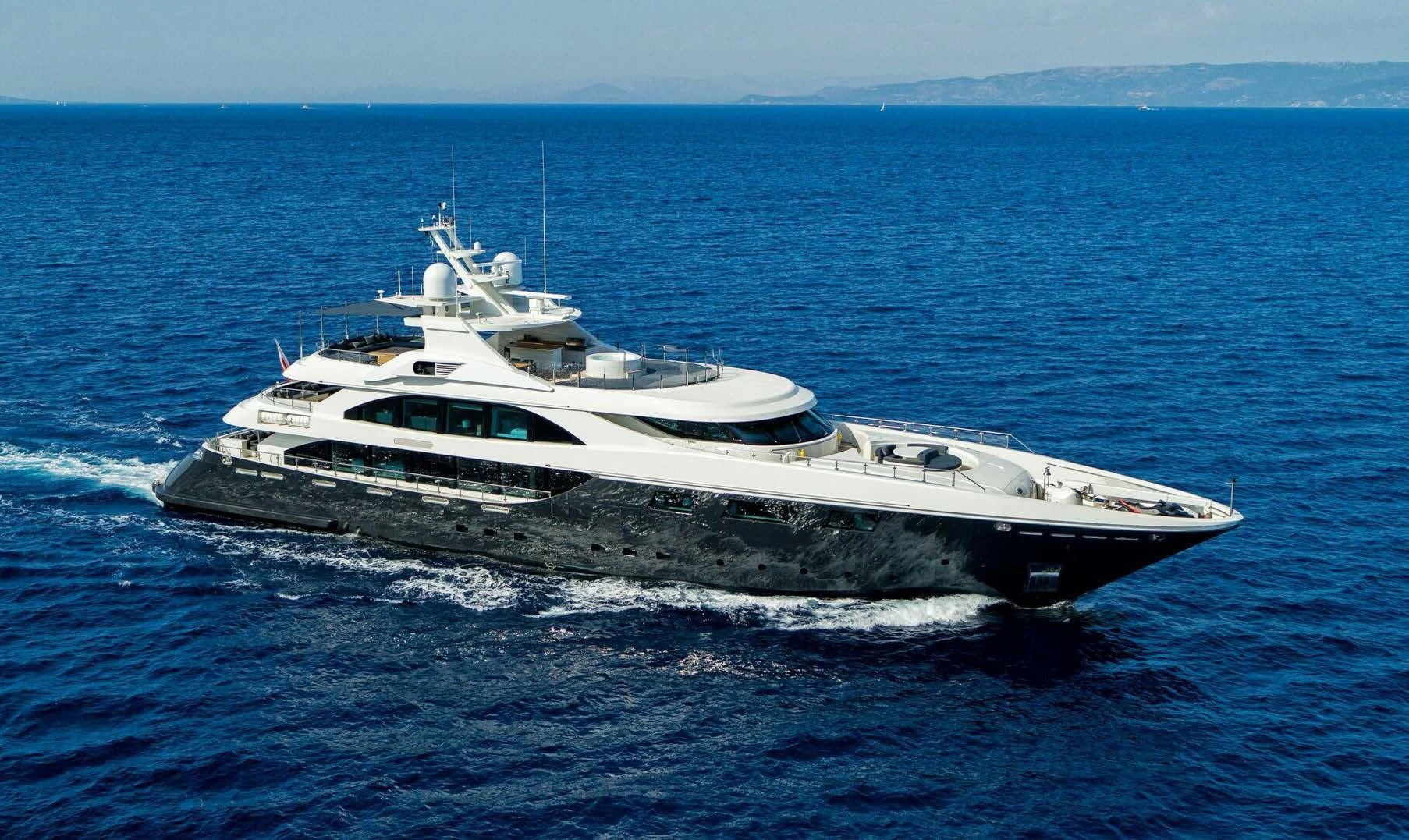

ARBEMA Yacht for Sale

Length
163' (49.9m)
Builder
ORTONA NAVI
Build
2008/2022
Cabins
6

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Amenities

  • At-Anchor Stabilizers
  • Deck Jacuzzi
  • Gym
  • Jacuzzi
  • Passarelle
  • Personal Watercraft
  • Tender Garage
  • Wi-Fi

Specifications

Builder ORTONA NAVI
Length (LOA) 163' (49.9m)
Year 2008
Year Refit 2022
Gross Tonn. 591
Beam 30' (9.19m)
Range 4,300 NM
Location France

Accommodations

Staterooms 6
Sleeps 12

Dimensions & Capacity

LOA 163' (49.9m)
Fuel Tank 17,863 g (67,617 L)
Fresh Water 5,219 g (19,755 L)
Gross Tonn. 591

Construction

Hull Material Steel
Hull Config Full Displacement
Ext. Designer Progetti & Associati
Int. Designer Vincent Van Duysen
Cruising Speed 13 Knots
Range 4,300 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Accommodation

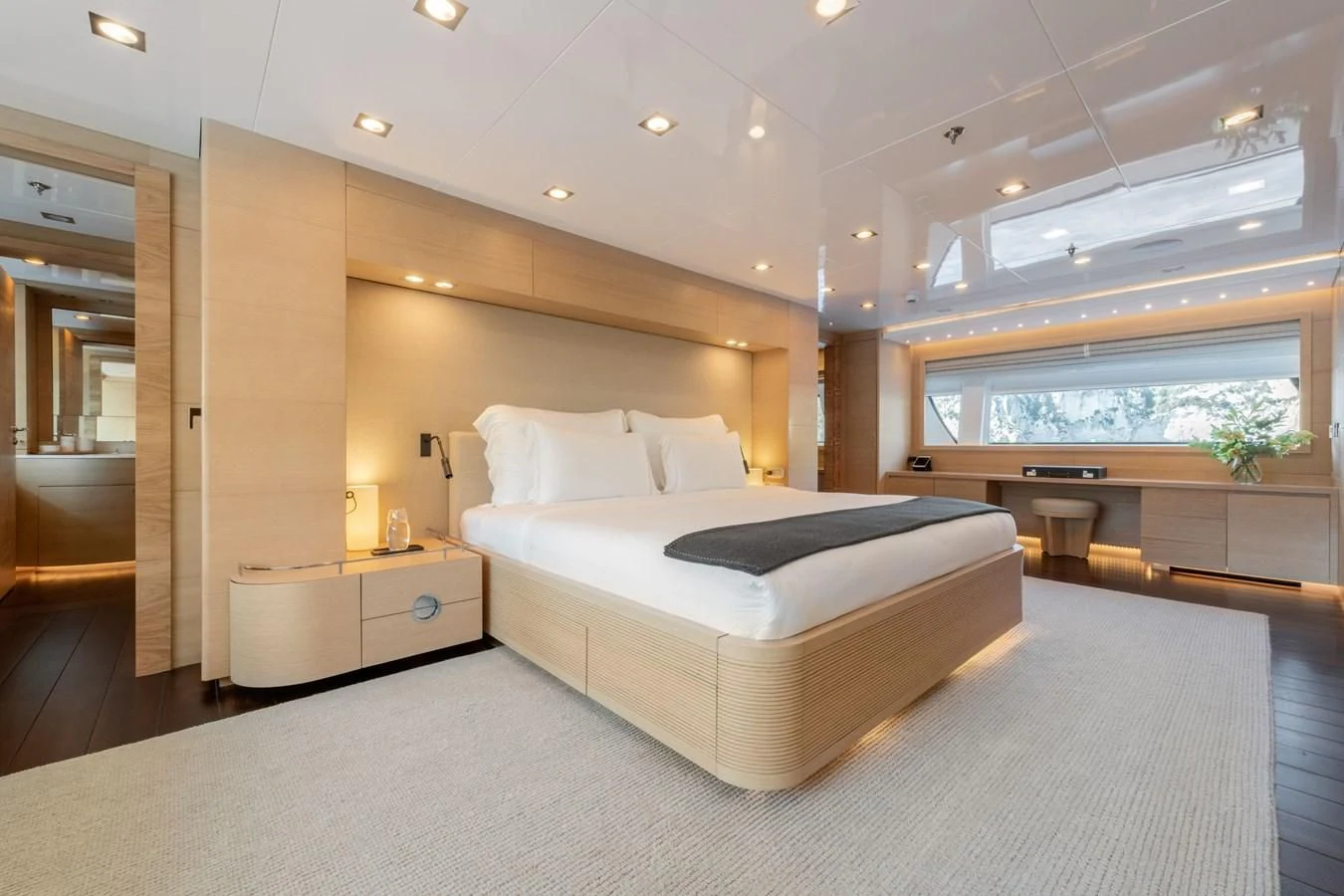

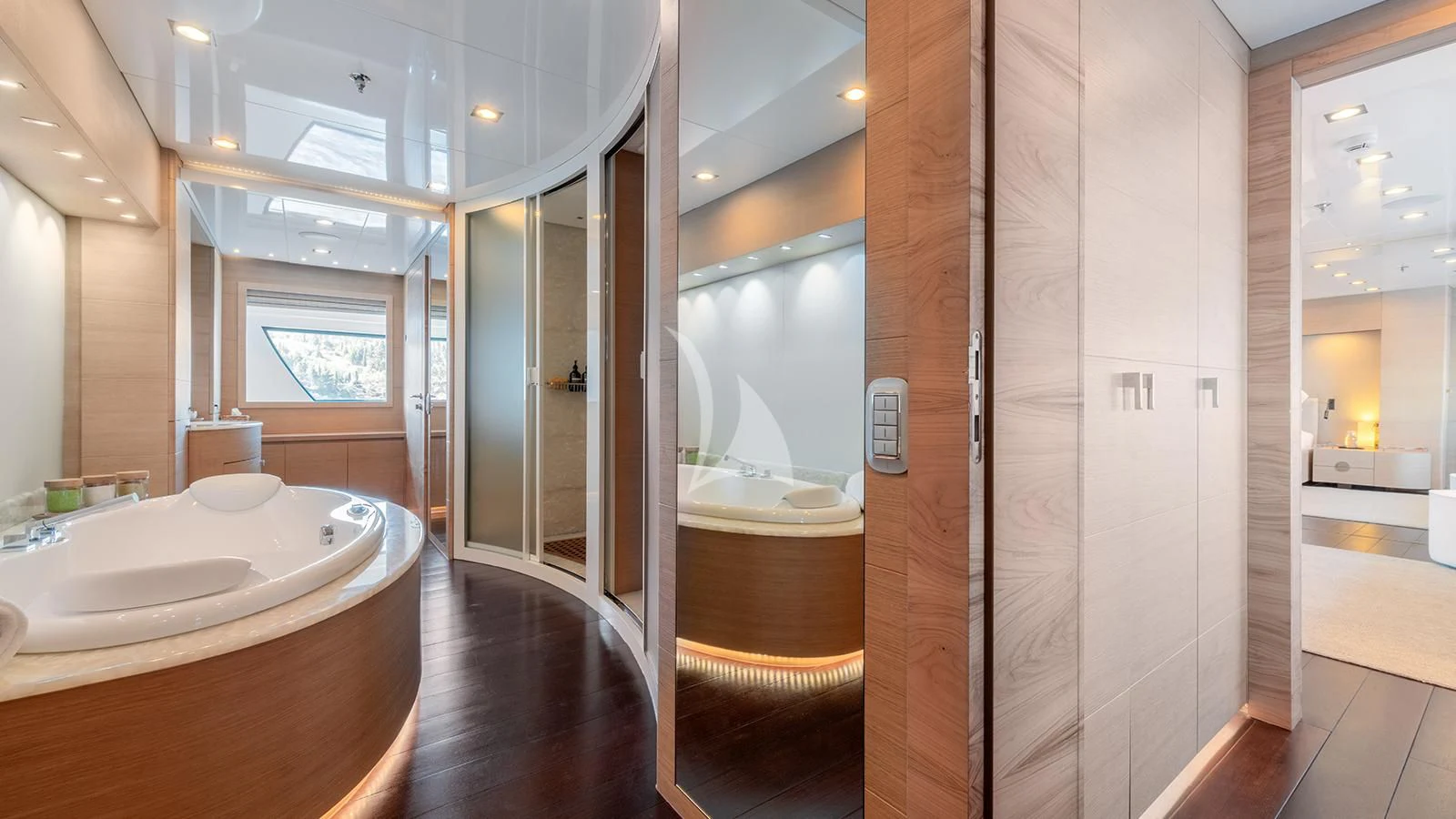

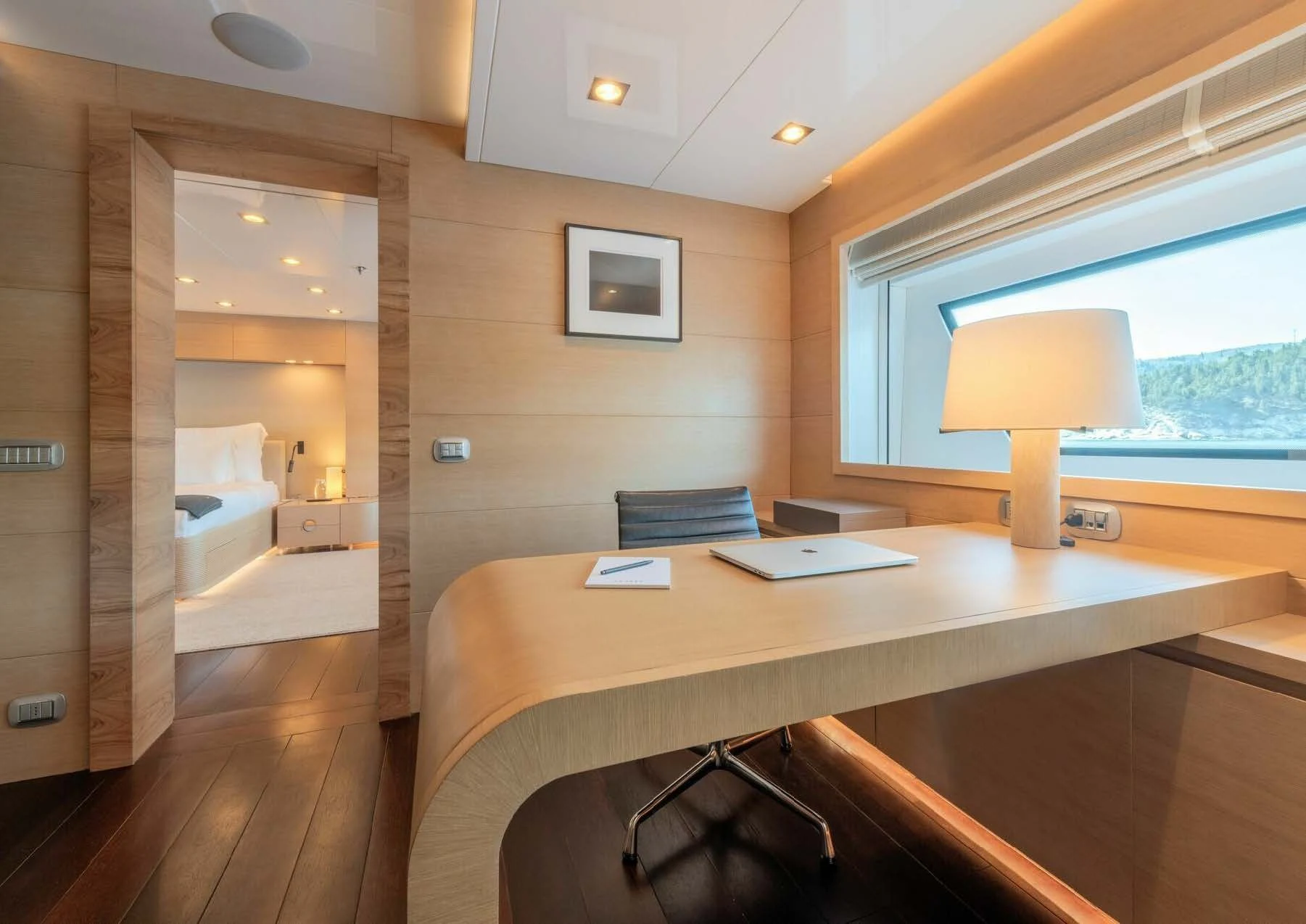

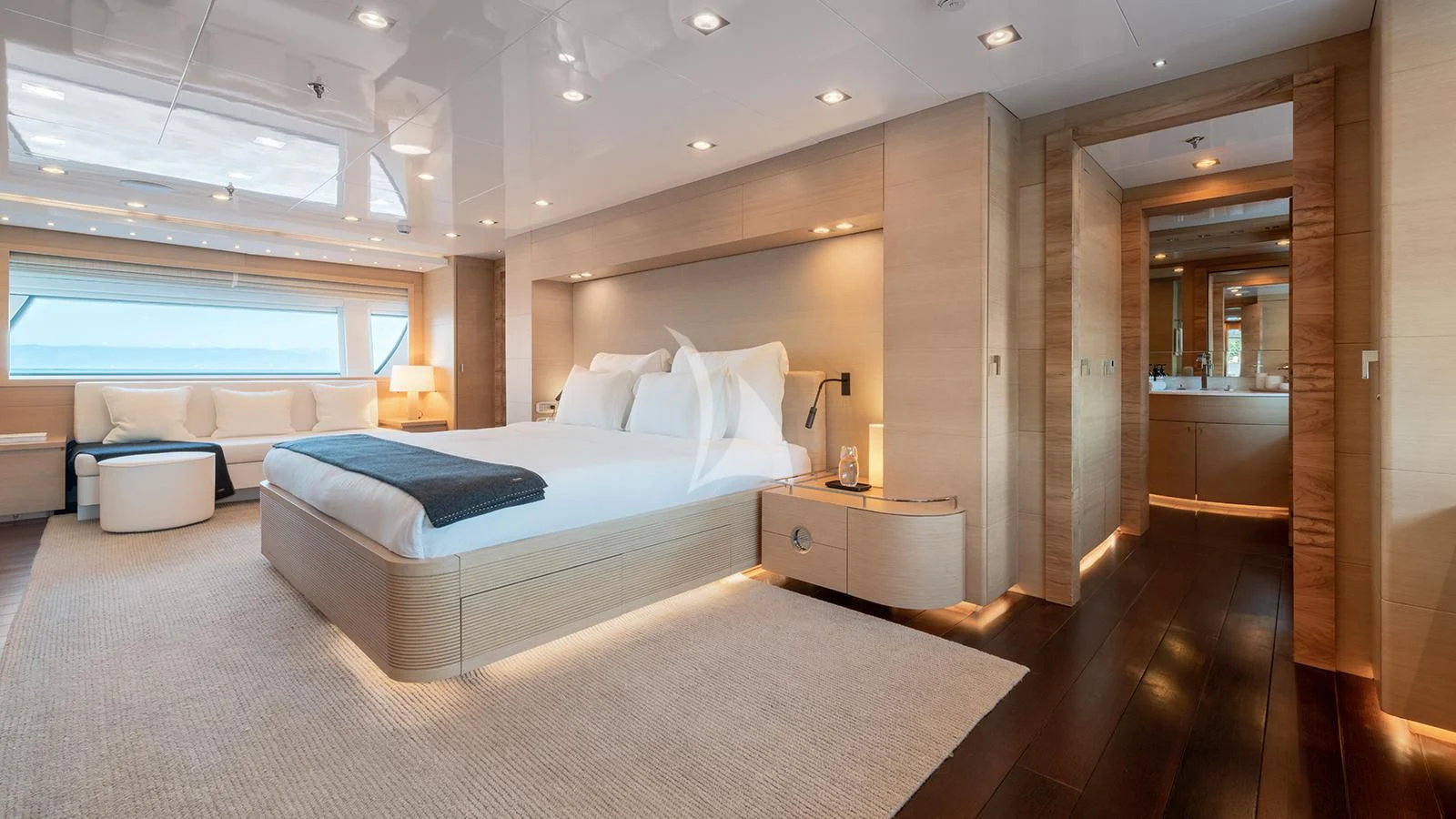

MAIN DECK OWNER’S SUITE

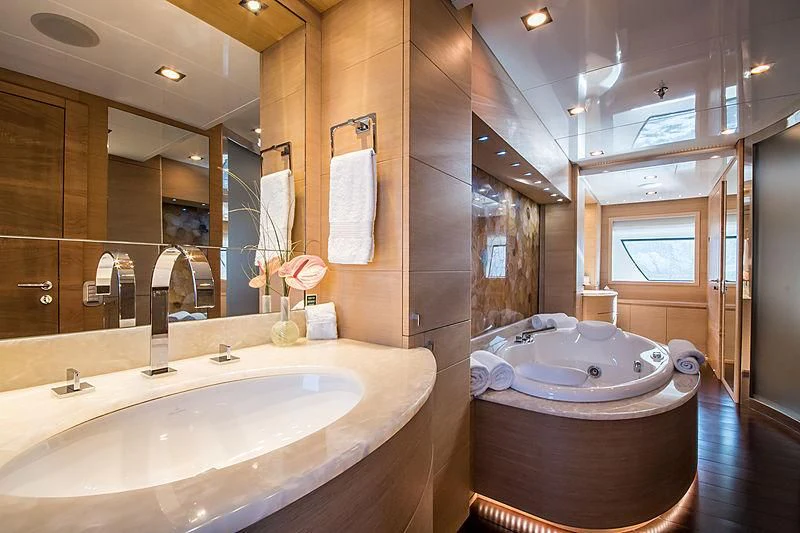

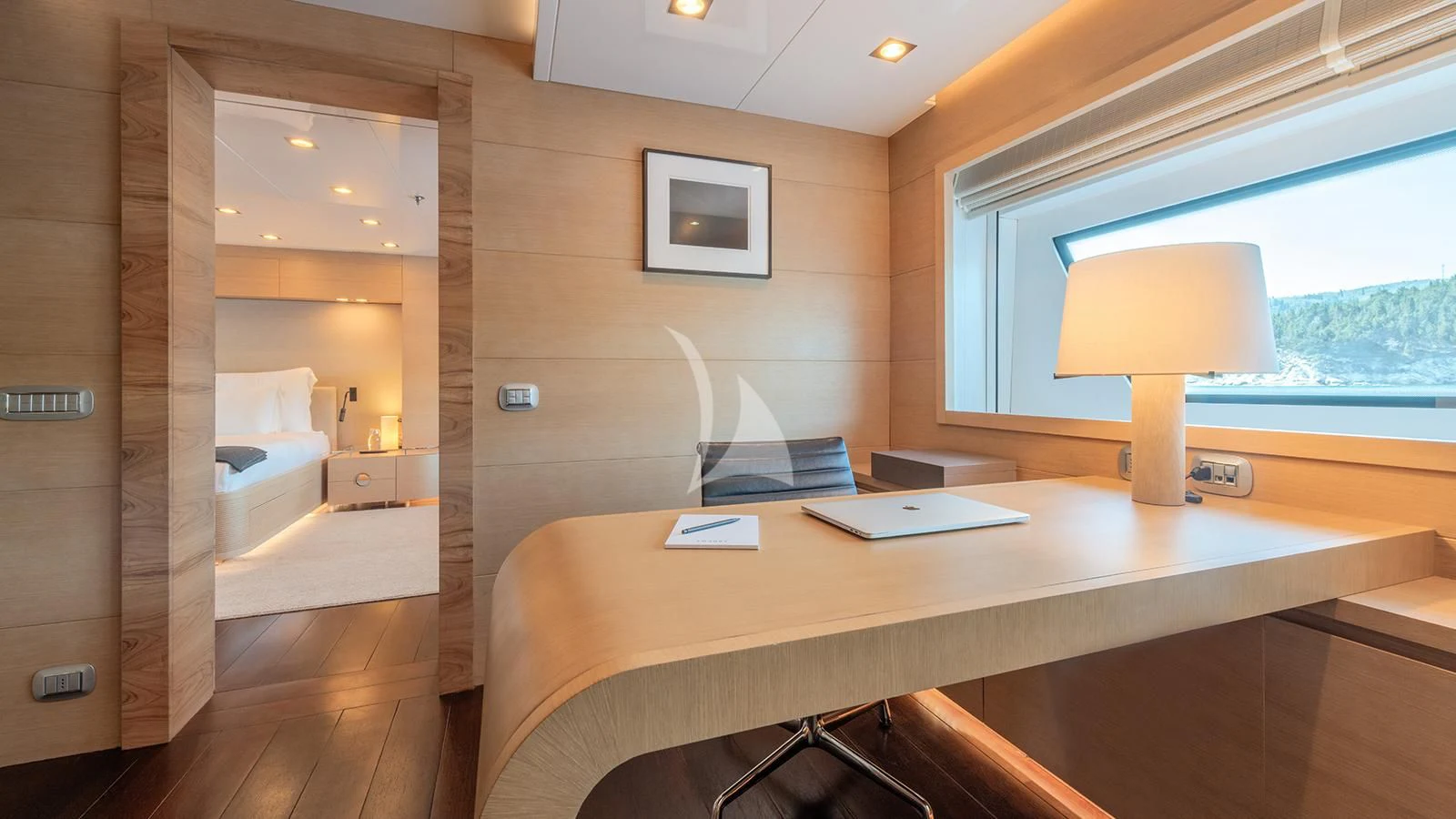

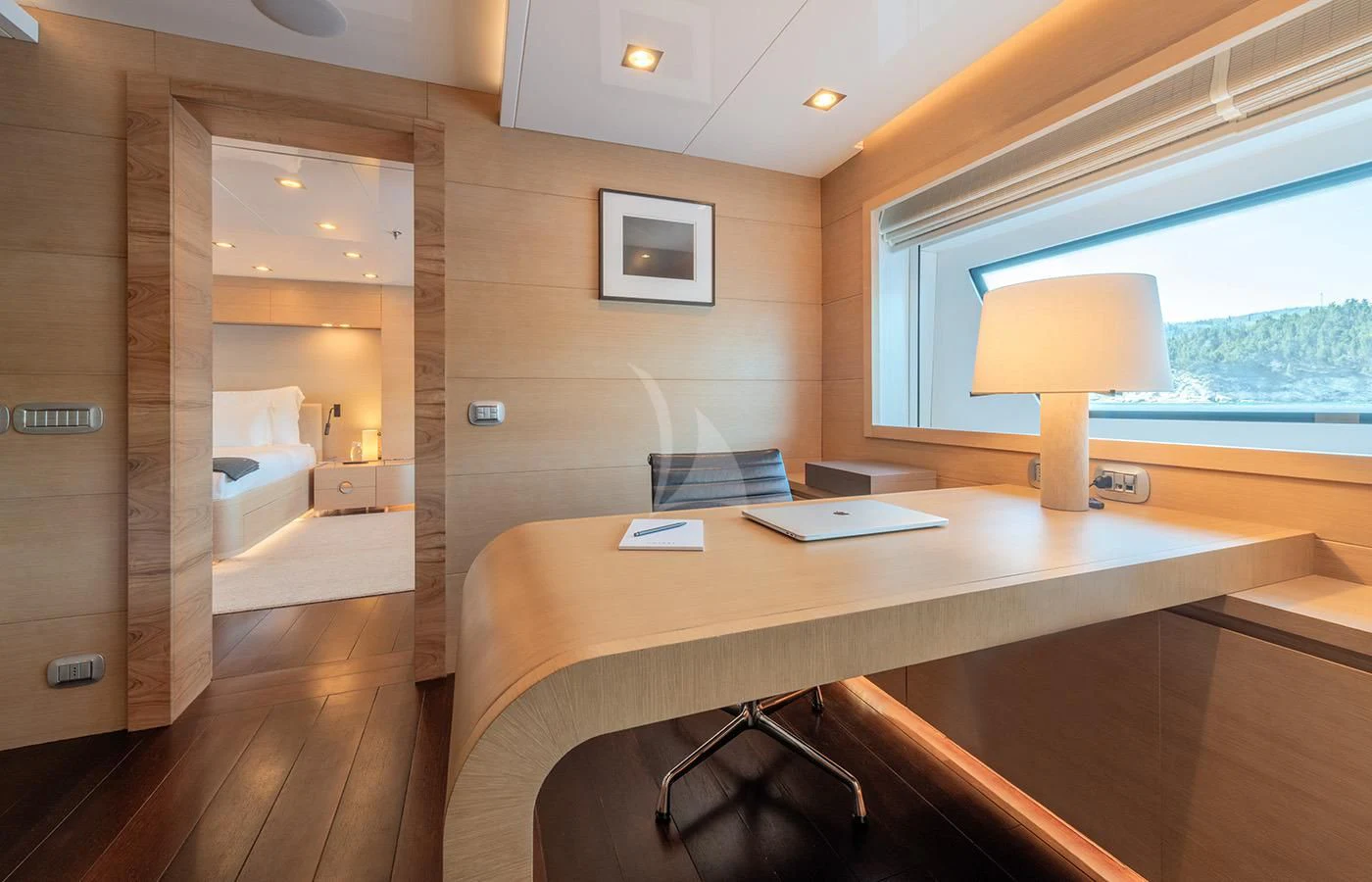

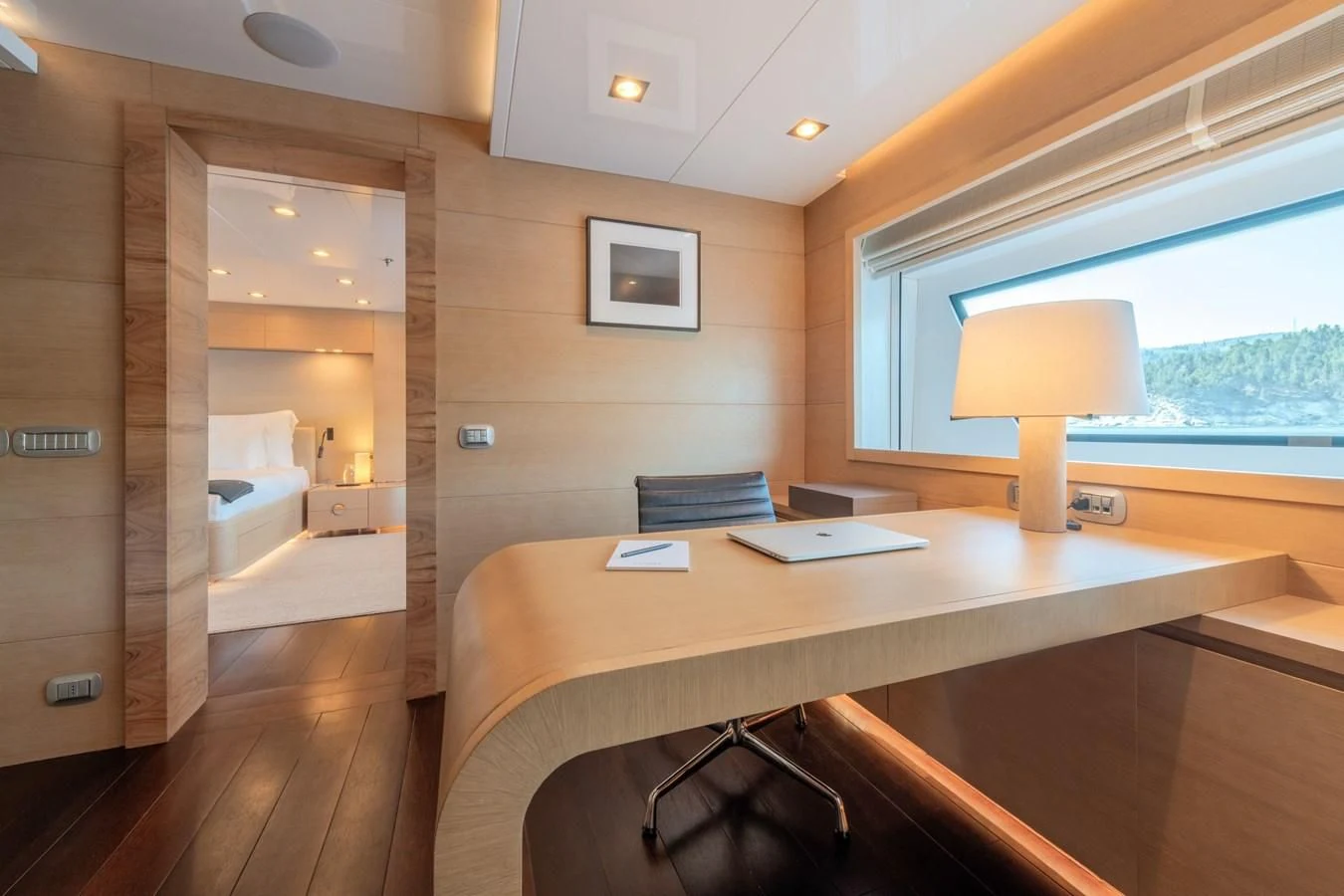

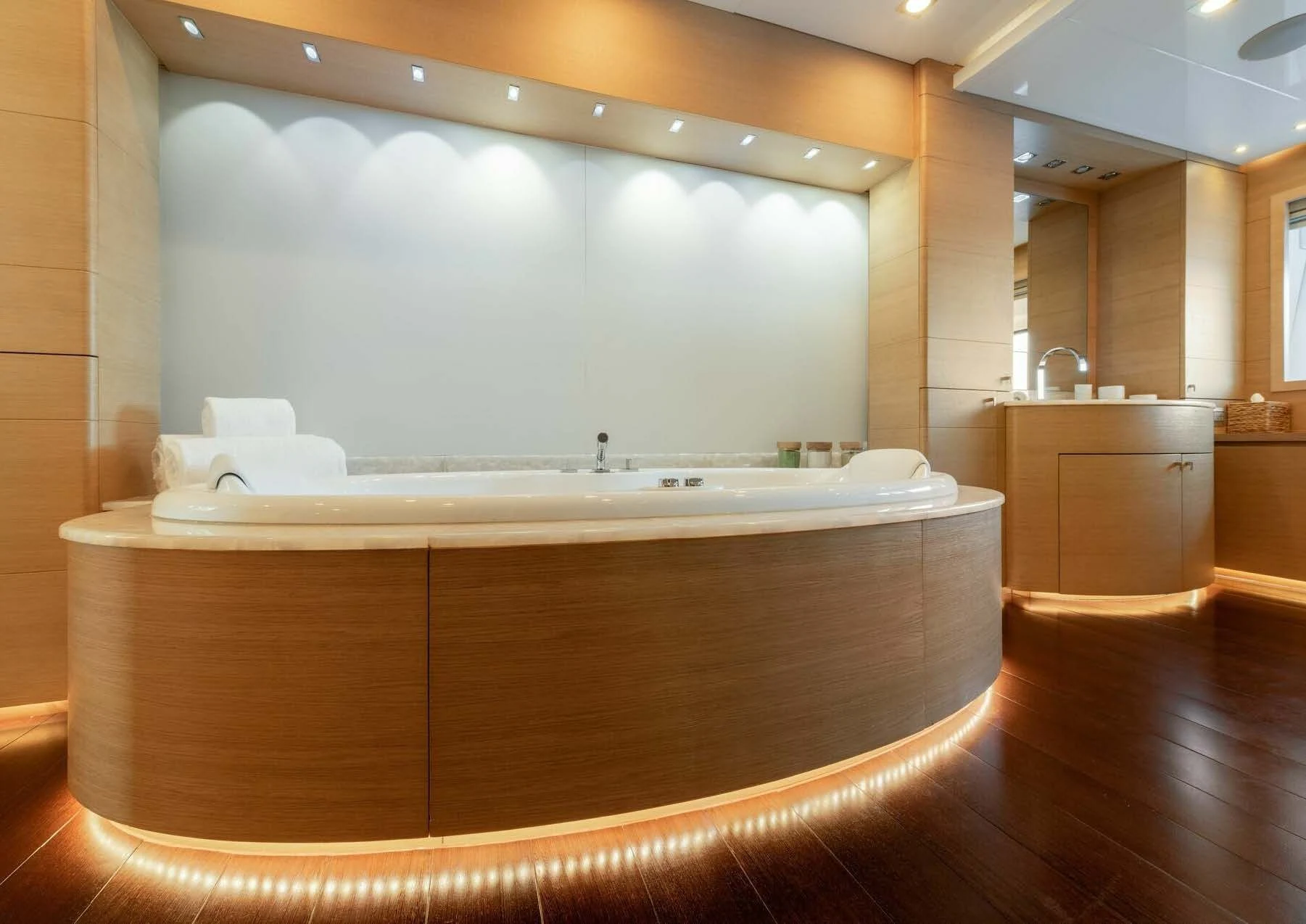

Master Suite (main deck): Very spacious and situated on the main deck, it has a
private corridor and is linked to the study. The master suite has a very large en-suite

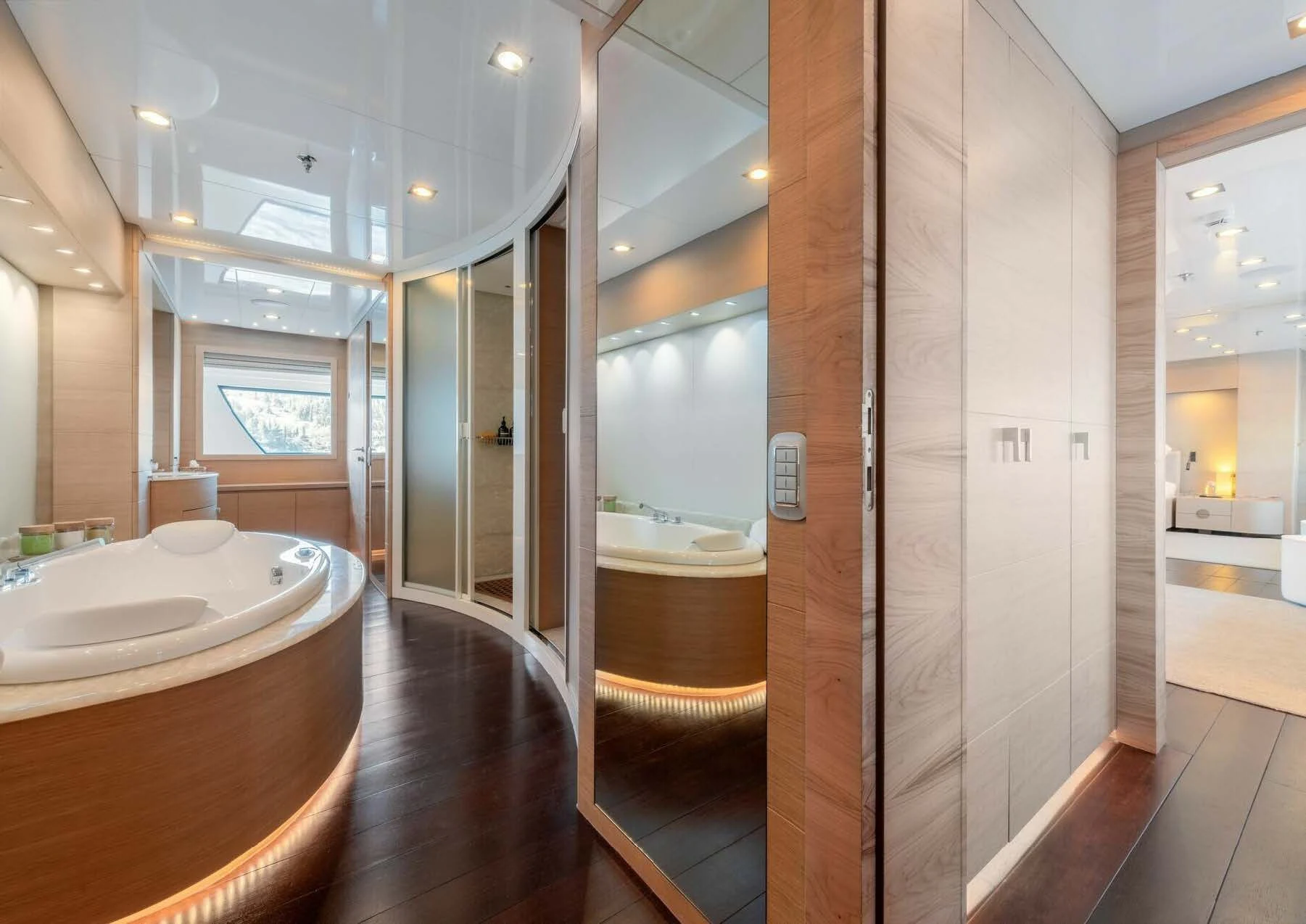

shower room clad in onyx with a double entrance for his and hers, and a large Jacuzzi
bathroom in the middle. The wall is encrusted in Quartz Fossile Nautilus. There is a
further separate shower room and separate WC.

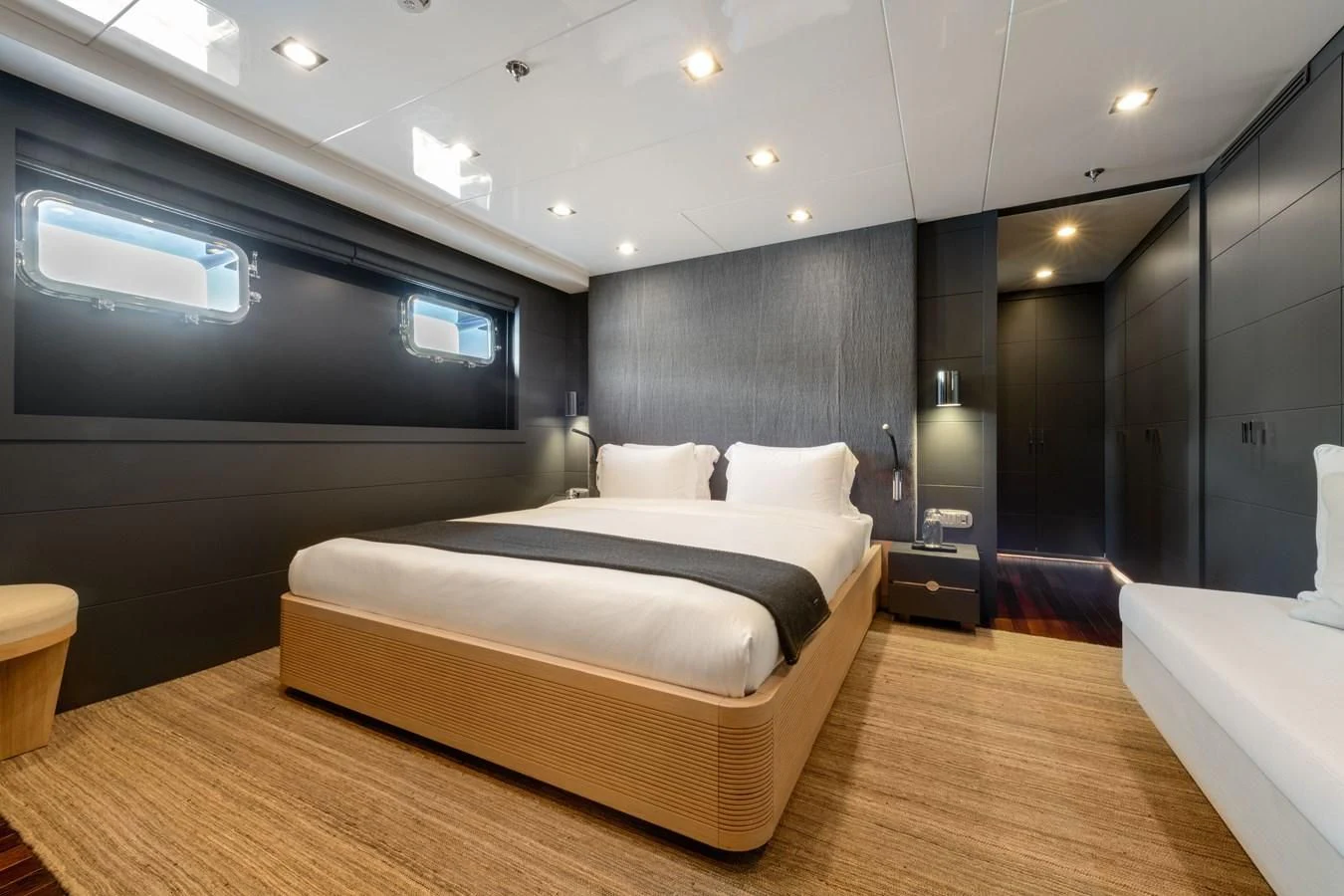

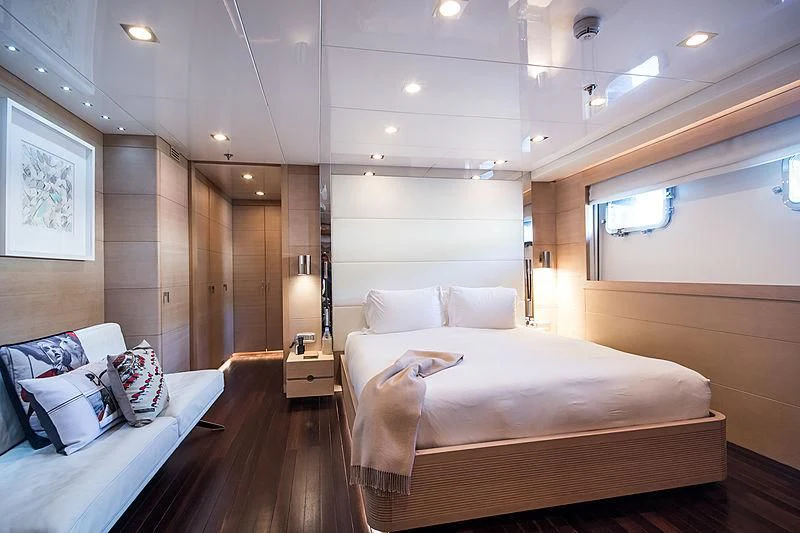

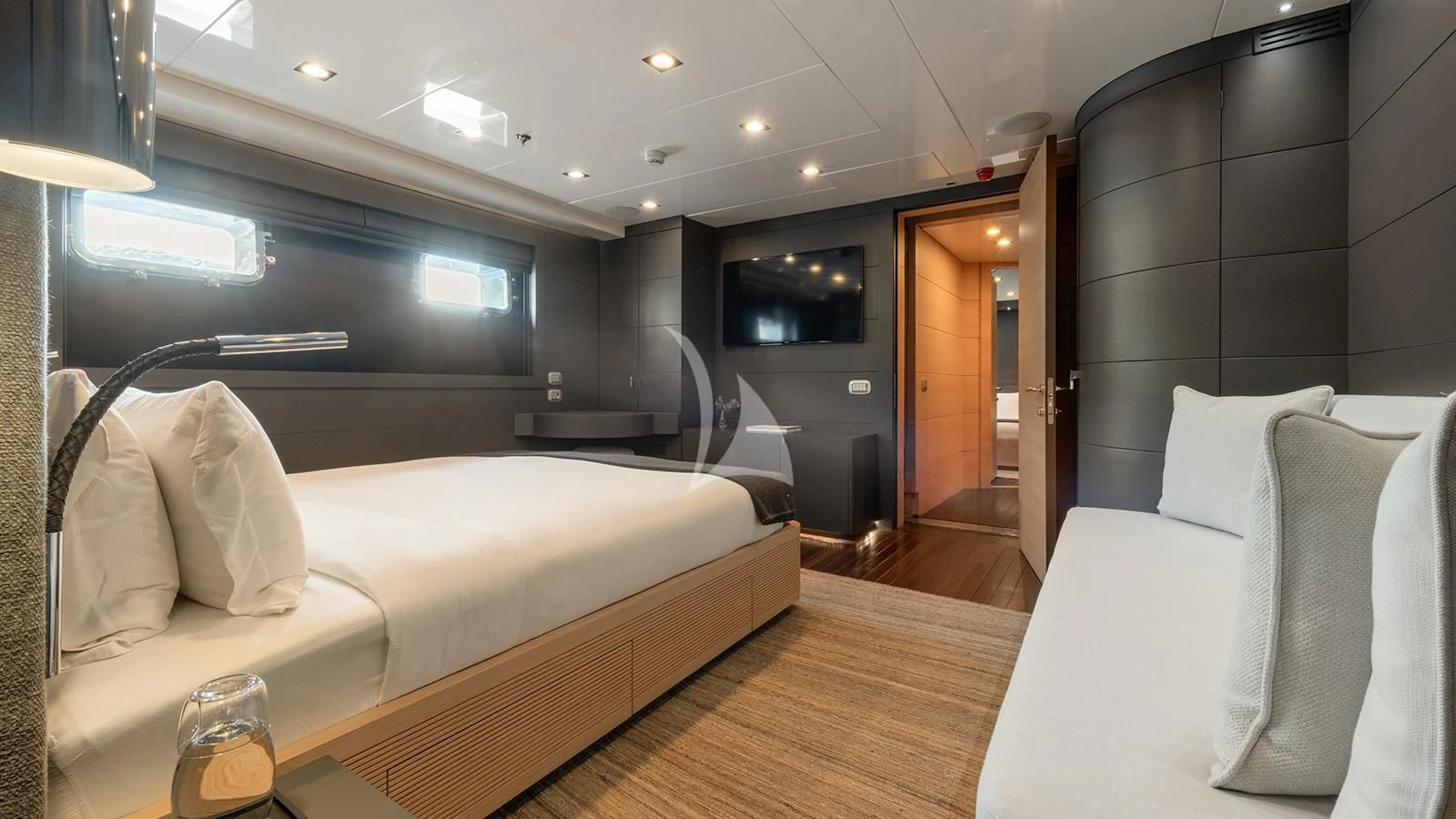

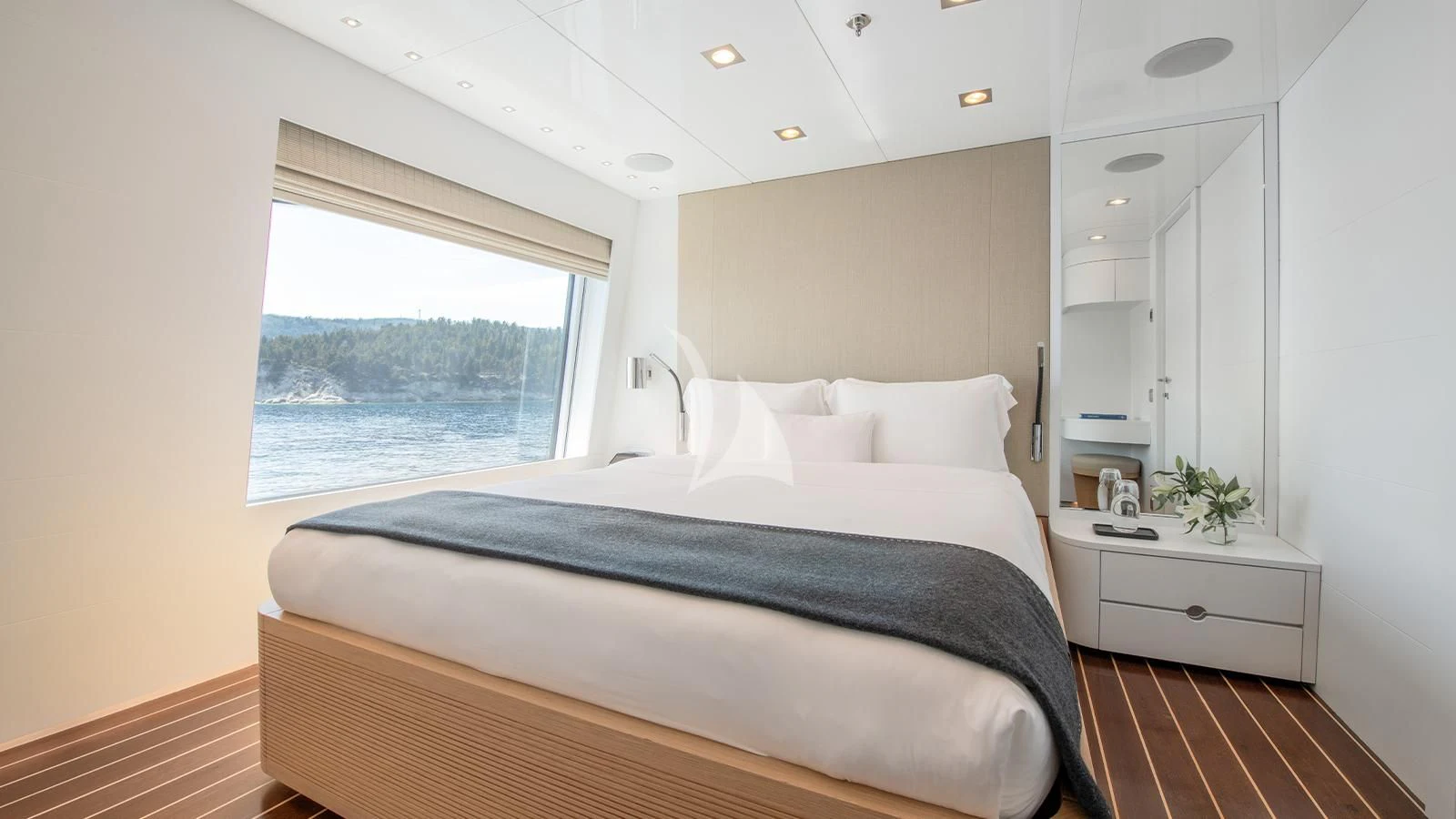

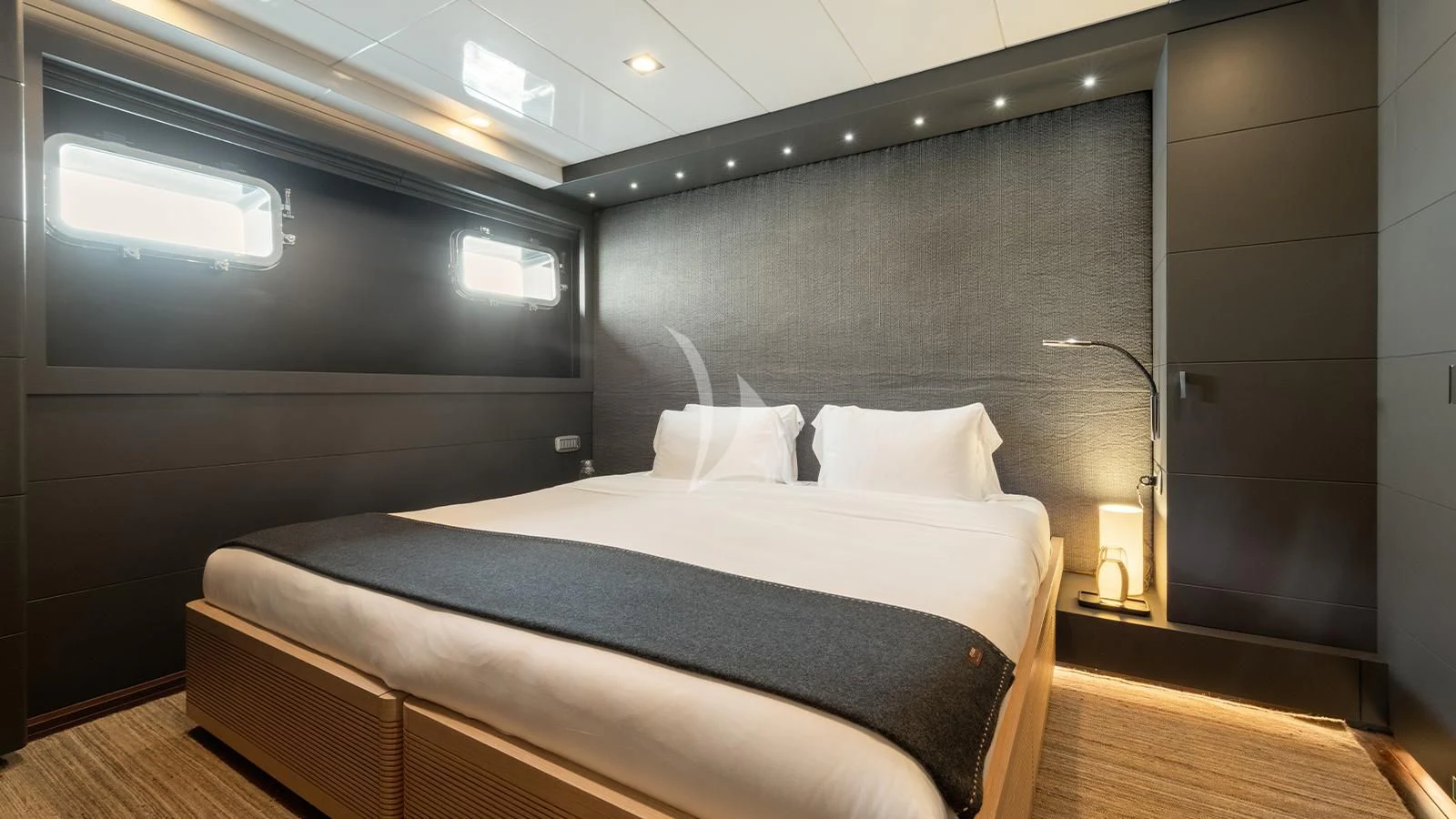

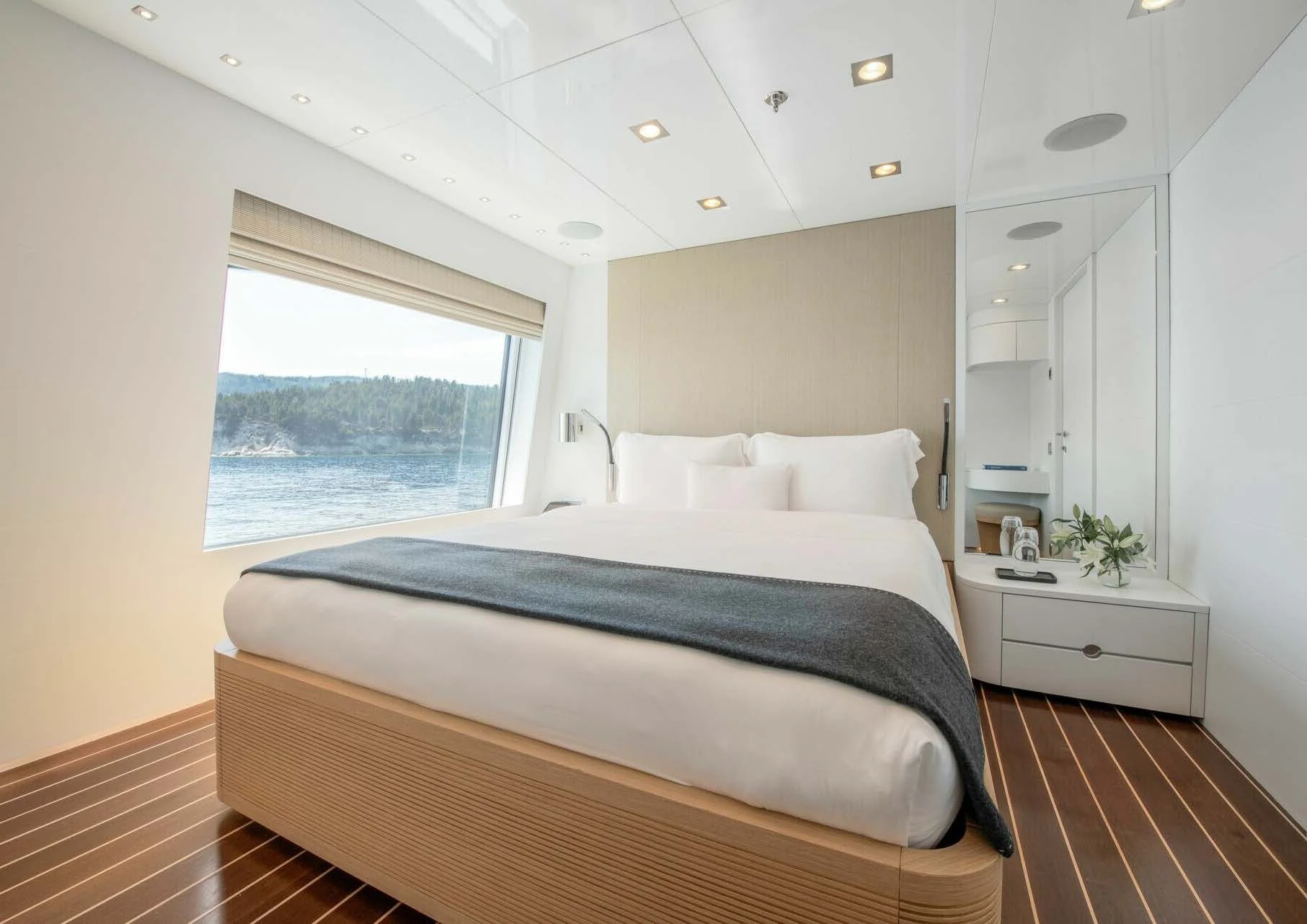

VIP CABIN

  • On the upper deck, this is a double cabin with panoramic views and an en suite
  • shower room in blue mosaique tiling. The bed is 1.65m x 1.94m.

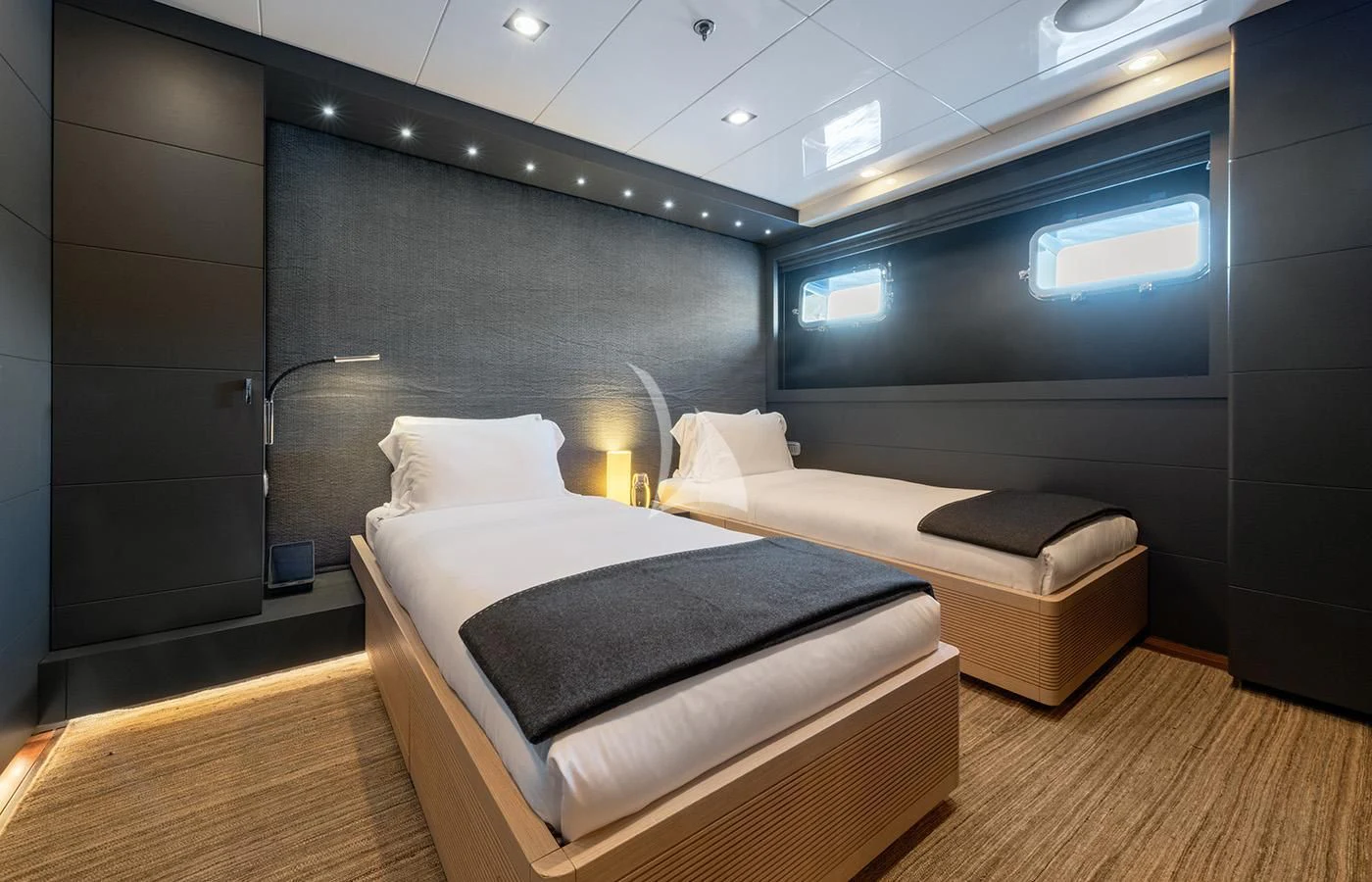

LOWER DECK GUEST CABINS (4)

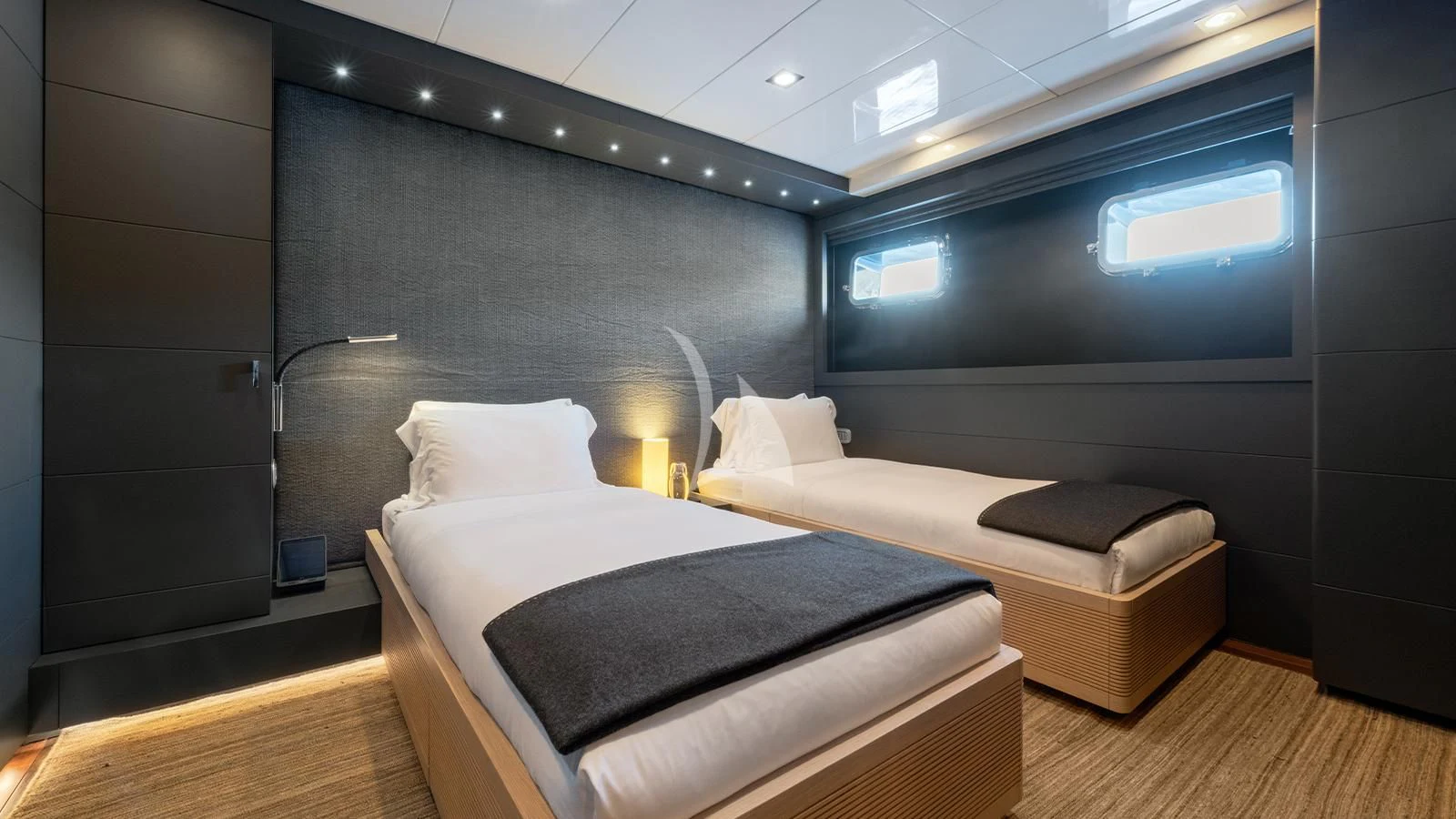

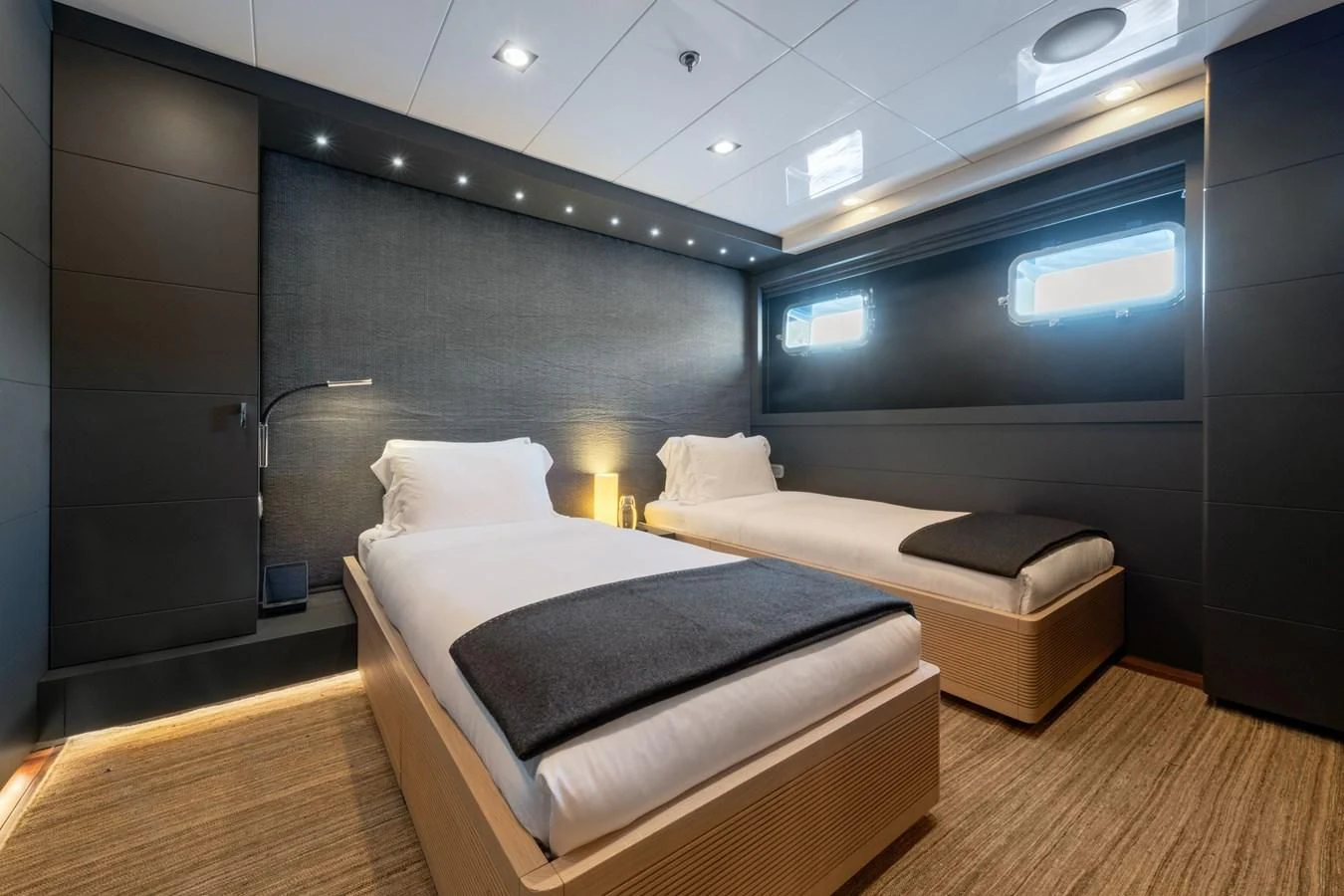

  • 2 x twin cabins that can be converted into double cabins (double bed size: 2m x

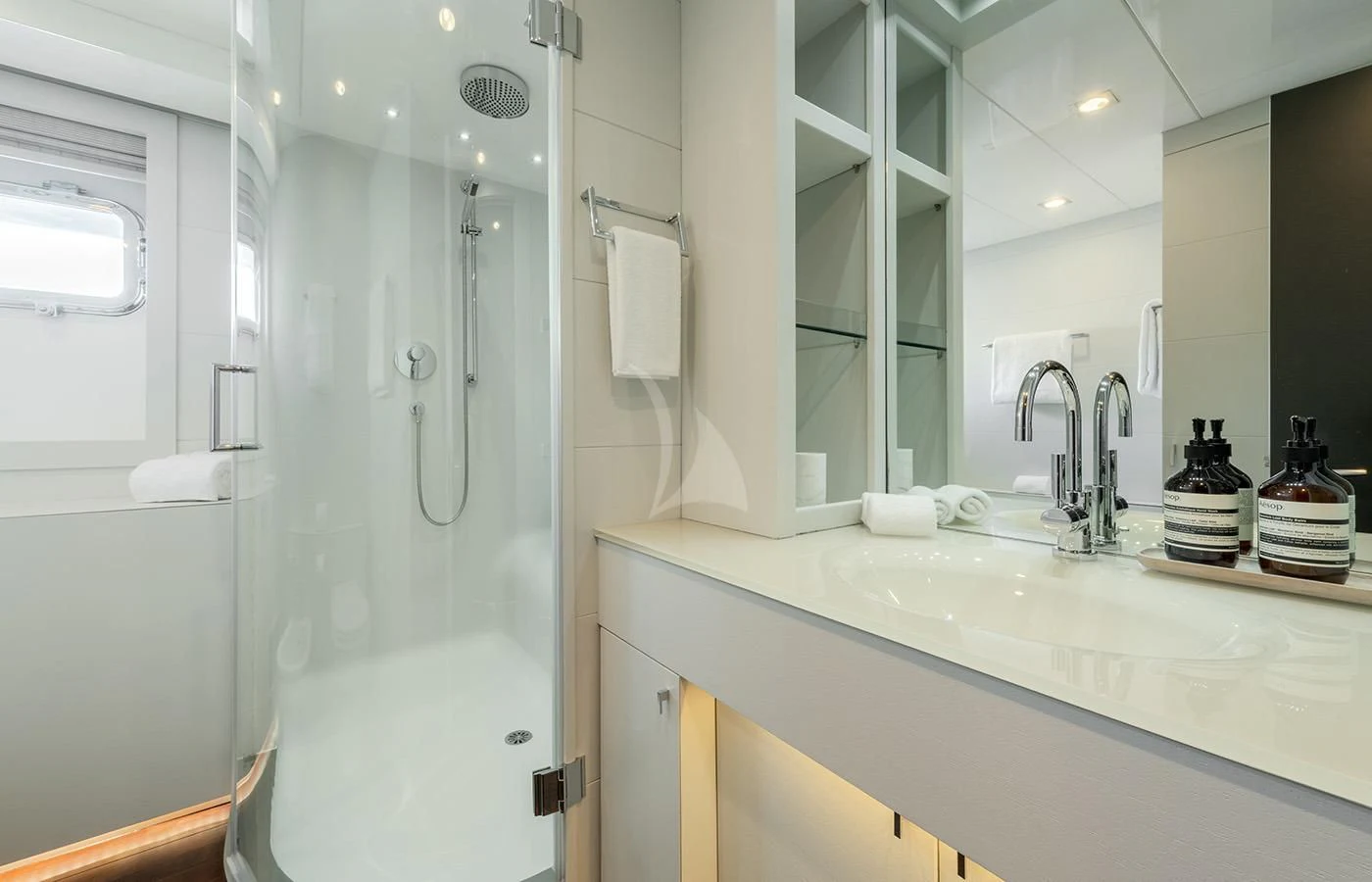

  • 1.65m) with a small office. Both cabins have en-suite shower rooms, with the shower
  • cabins decorated in mosaique tiling.
  • 2 x spacious double cabins with en suite shower rooms with silver mosaique, & open
  • dressing areas (bed size: 2m x 1.8m/ 2m x 1.74m).
  • All cabins have safes (master has two), lots of wardrobe space, LCD TVs and Sky TV
  • with independent decoders for every cabin, DVD, radio and CD player. Each deck has
  • its own independent music system.

CREW ACCOMMODATION

  • Up to 12 x crew in 6 cabins (total including Captain’s cabin)
  • Captain’s cabin on bridge deck
  • 5 x Twin bunk cabins on fwd lower deck with crew mess, laundry and dry stores

GENERAL

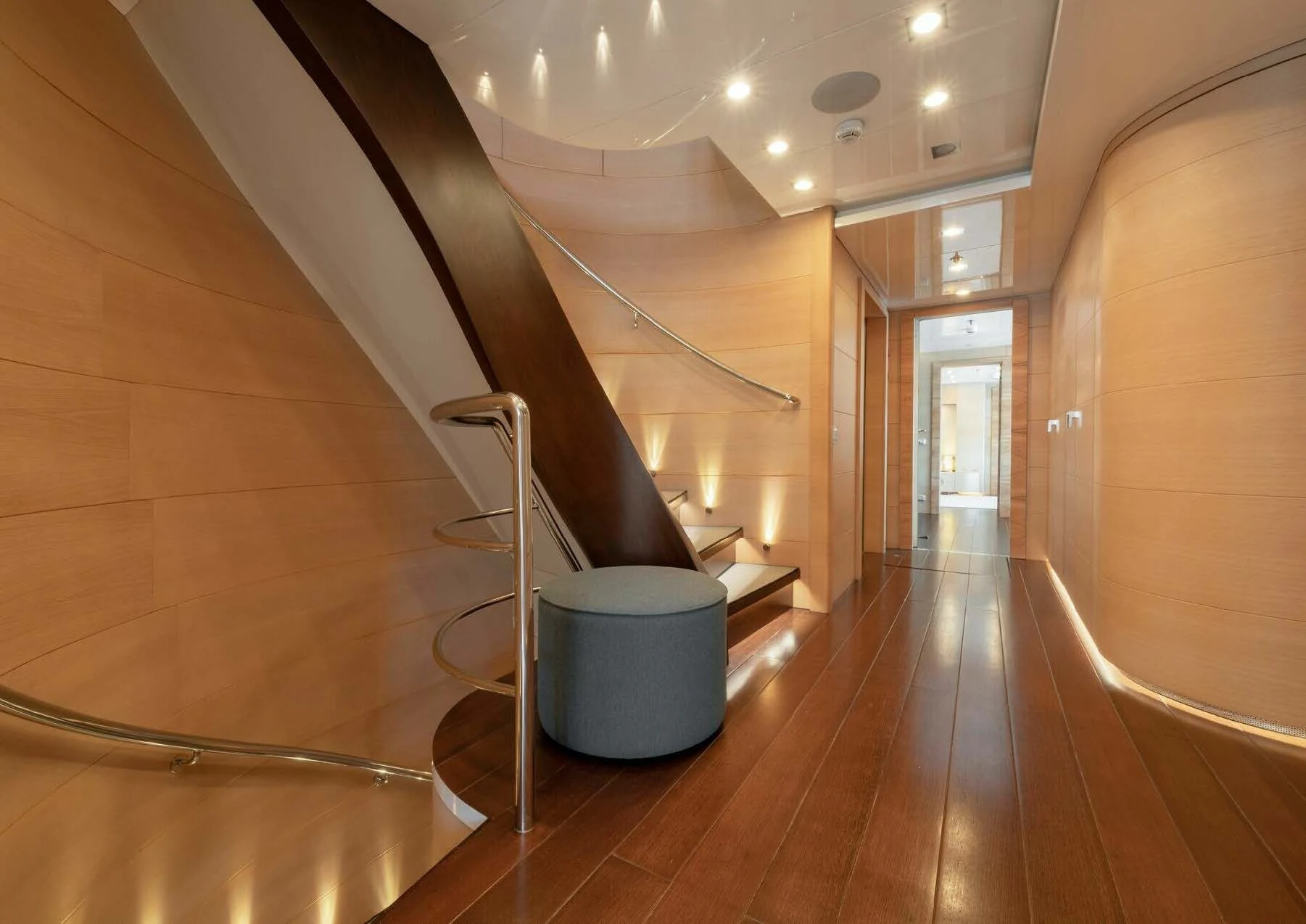

  • All interiors are decorated in oak wood panelling (Rovere/light wood) with wooden
  • flooring in Wenge.
  • All cabins have safes (2 x in Master), lots of wardrobe space, LCD TVs and Sky TV with
  • independent decoders for every cabin, DVD, radio and CD player. Each deck has its
  • own independent music system.

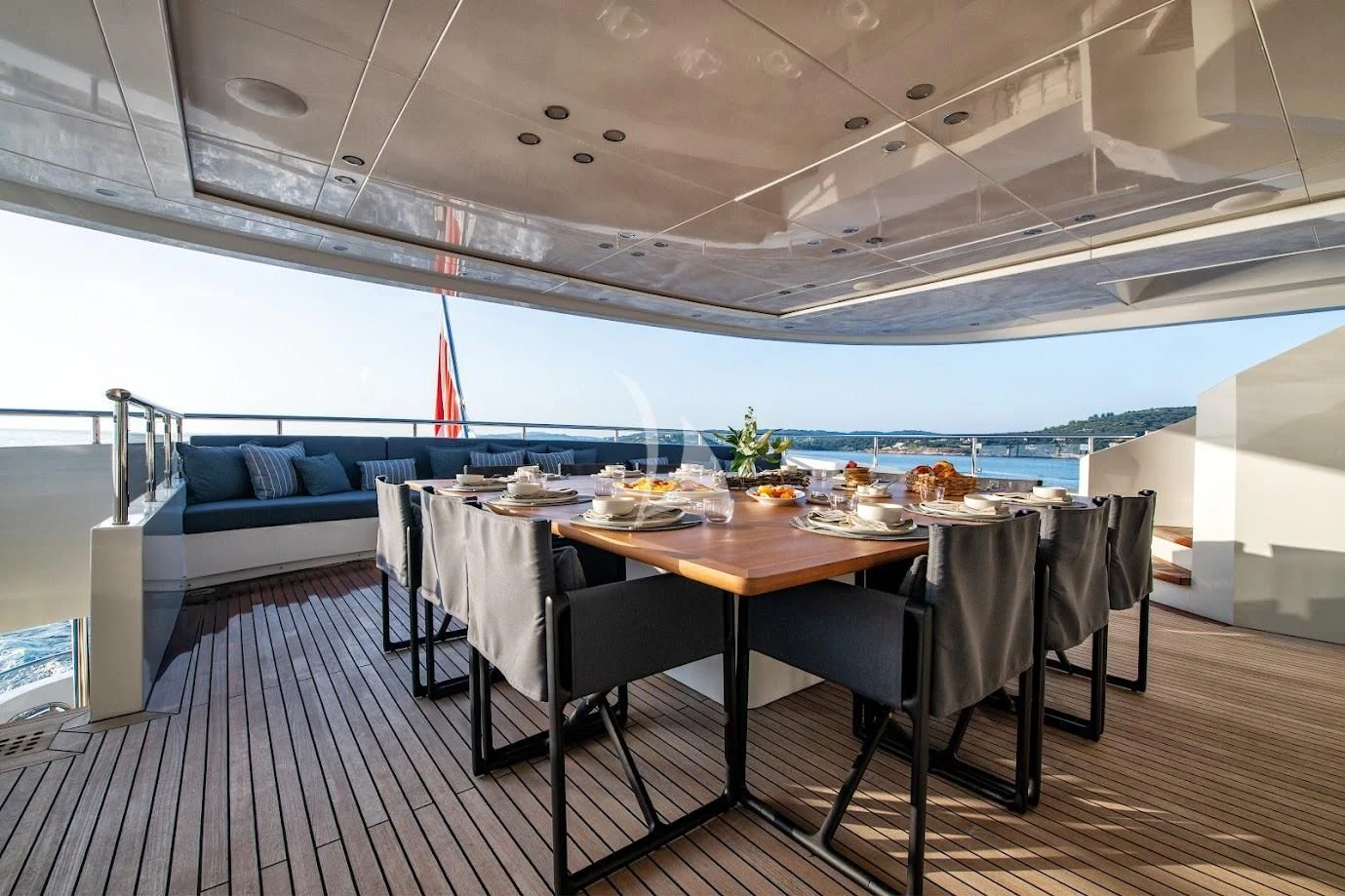

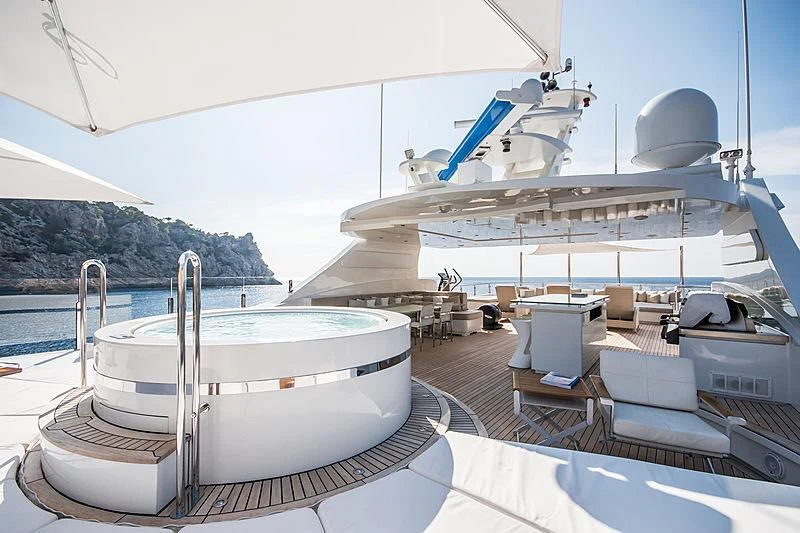

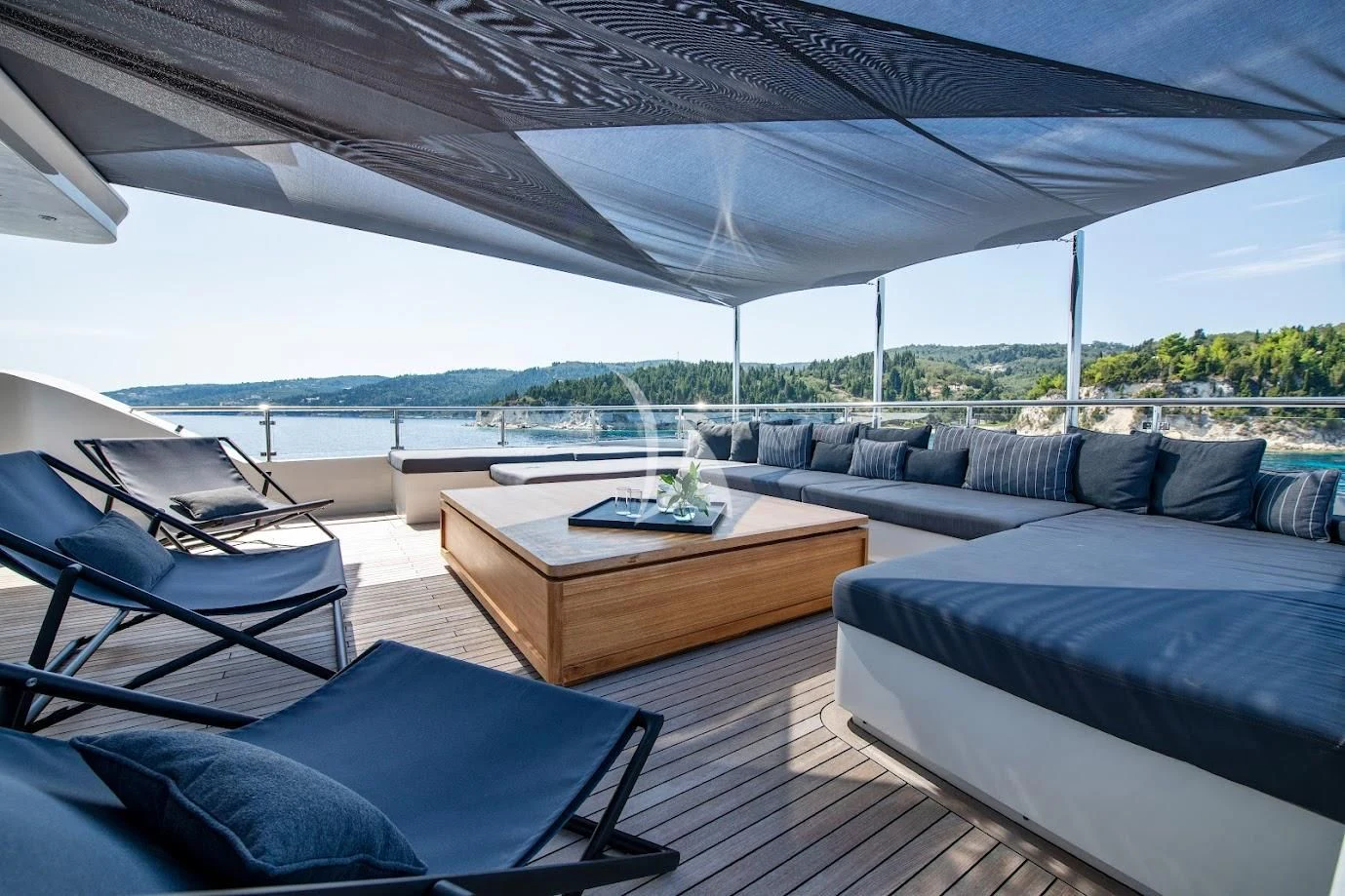

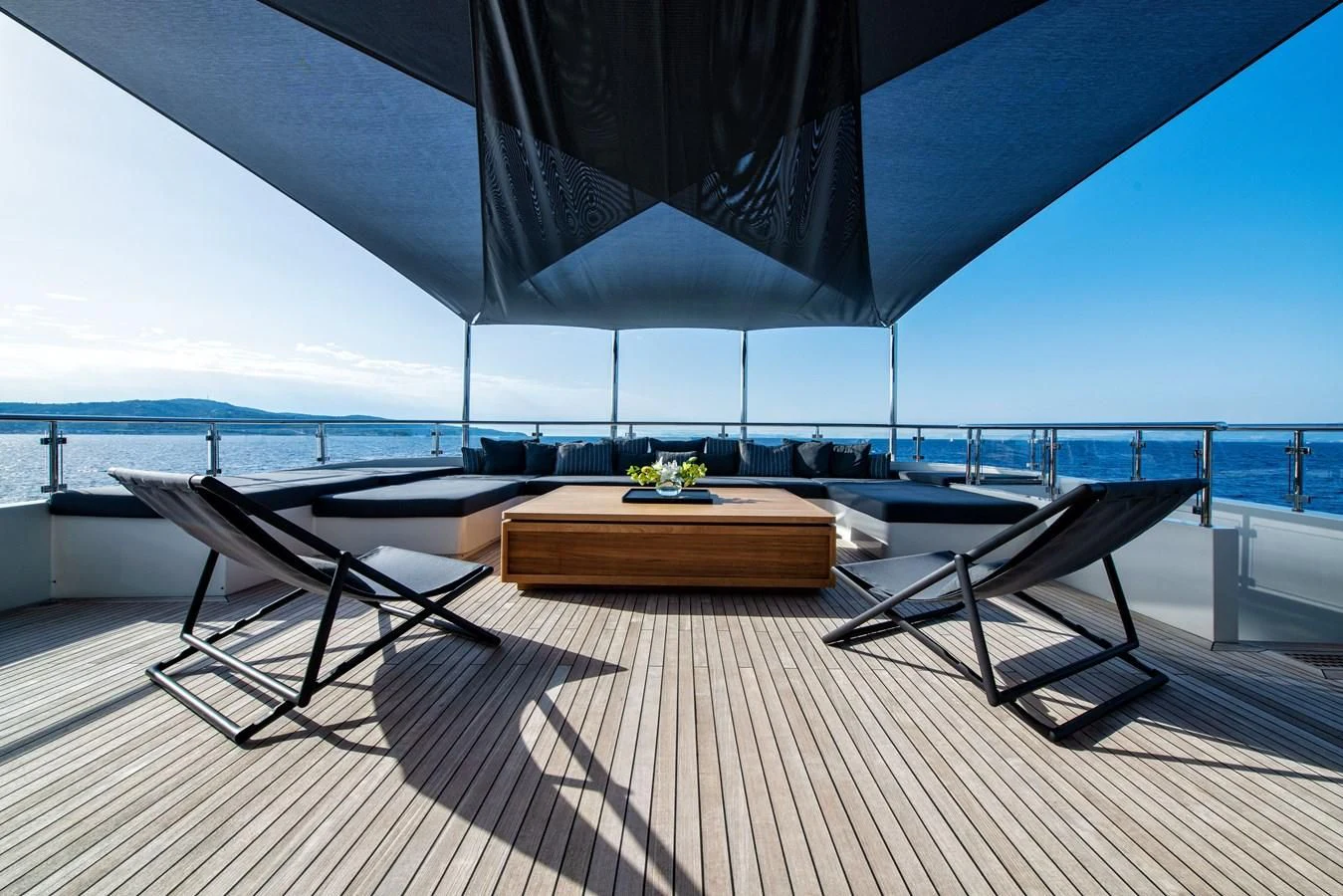

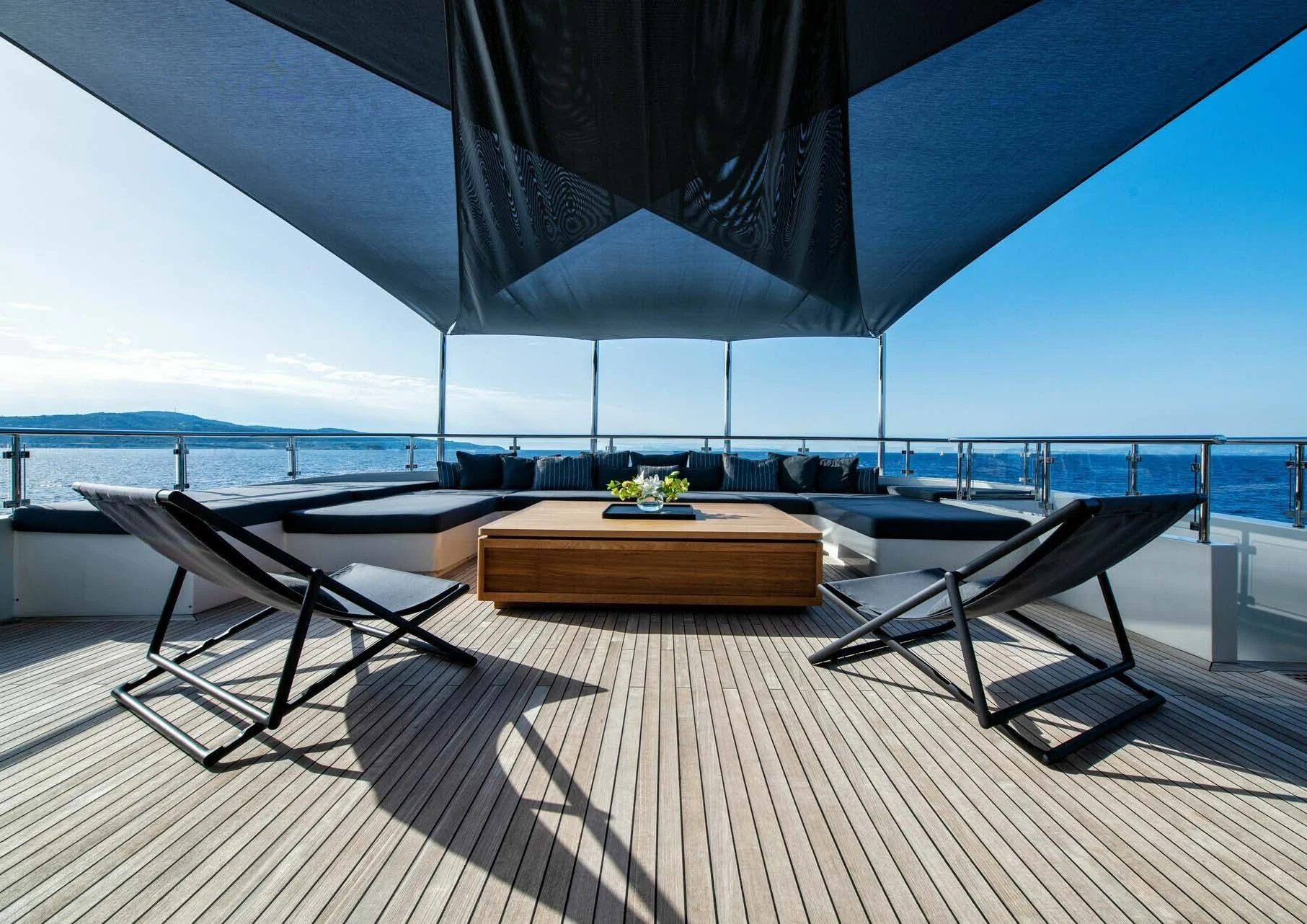

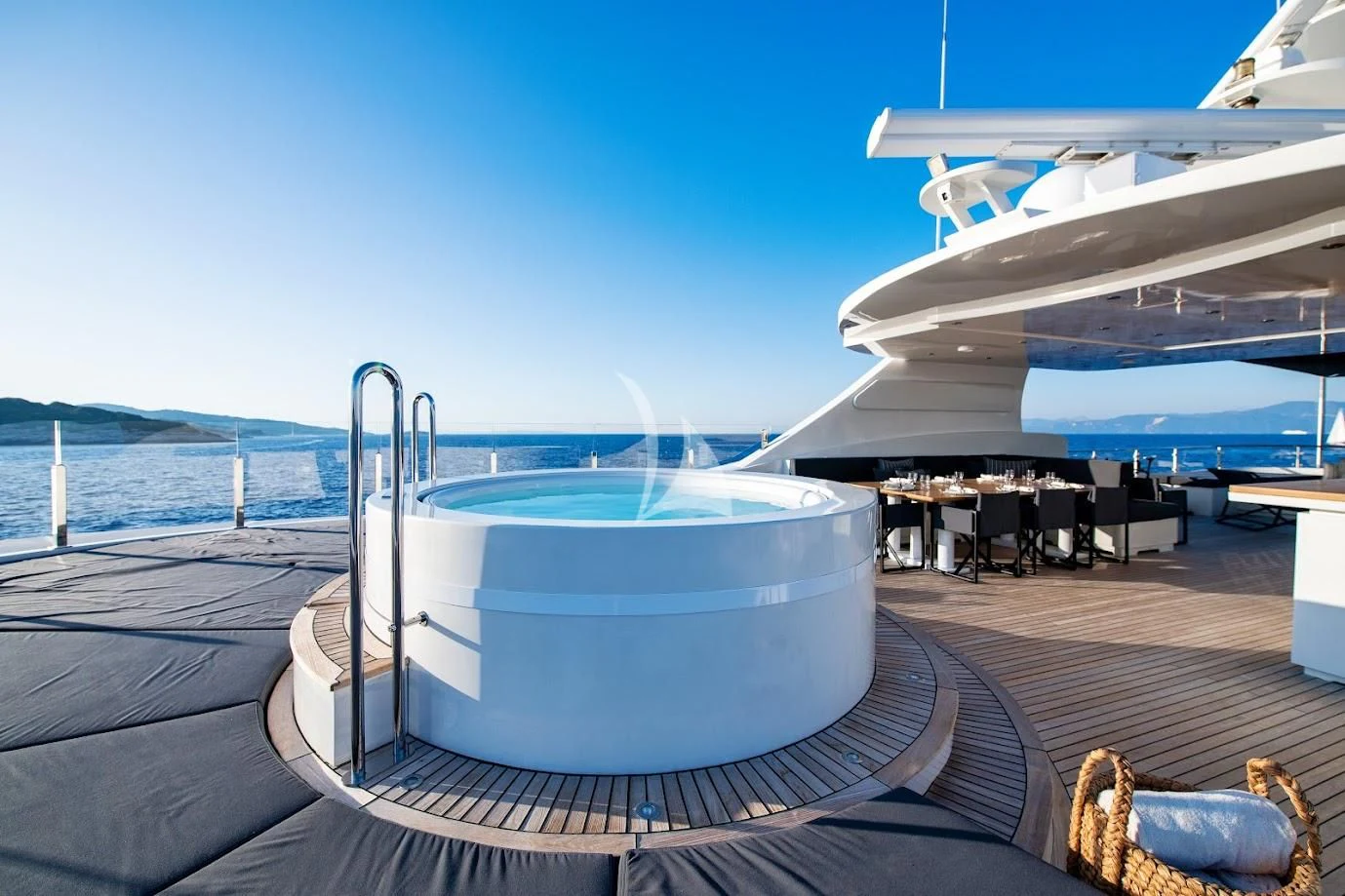

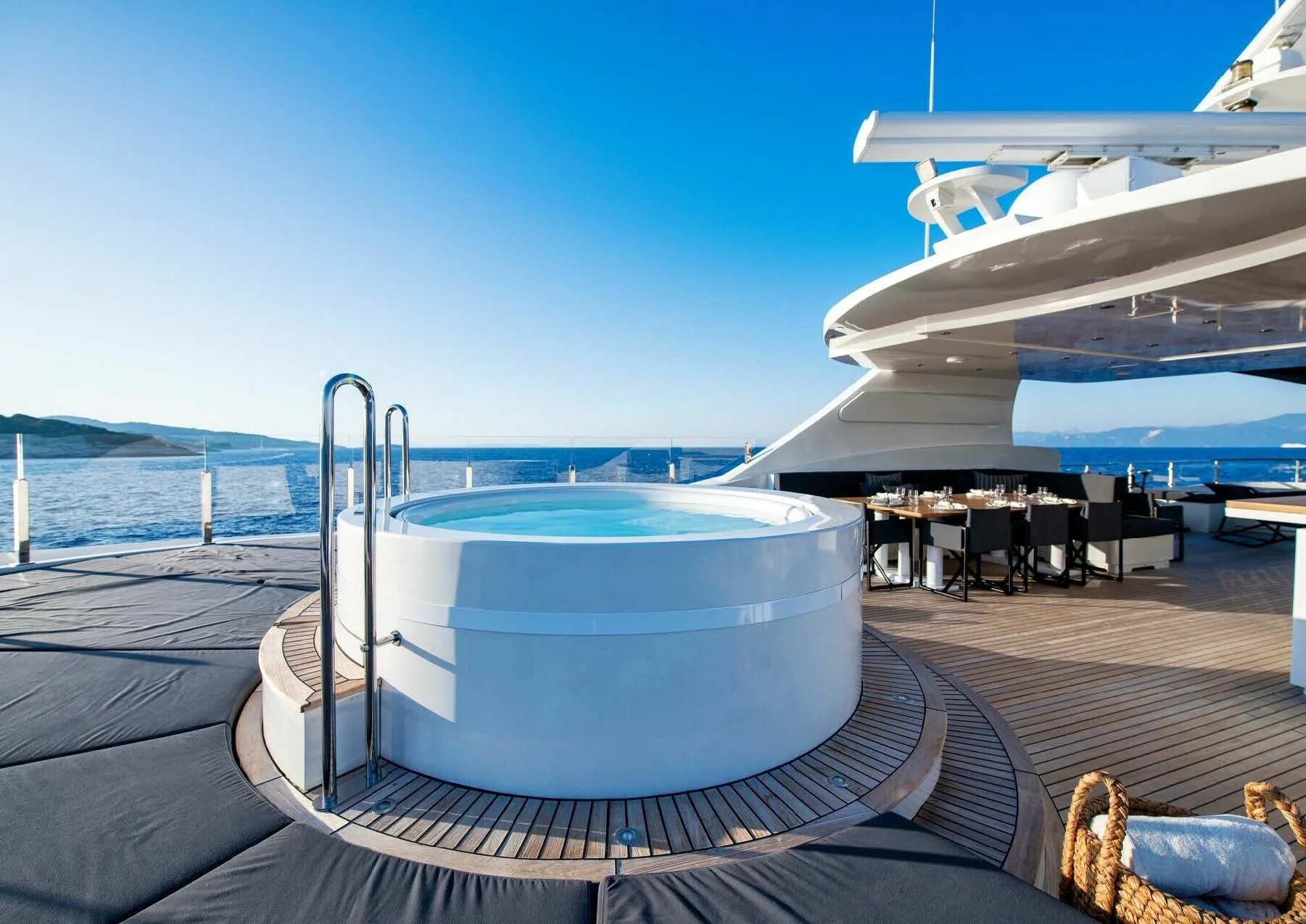

  • Large sunbathing area with Jacuzzi for six. Sundeck table sits 12, although 10
  • comfortably, Bridge deck table seats 12 comfortably.

DESCRIPTION

  • The interior layout is highly practical for larger groups, and she sleeps up to 12 guests
  • in 6 cabins, including a VIP cabin on the bridge deck, a very large master suite on main deck, and 2 double cabins and 2 twin cabins on the lower deck. Overall this is a tried
  • and tested layout perfect for family or charter use. She is also capable of carrying up to
  • 12 crew to ensure that guests have a genuine superyacht 1:1 guest to crew ratio. Her
  • contemporary interior is very comfortable and luxurious but has also been designed
  • to be hard wearing and therefore robust enough for the charter season.

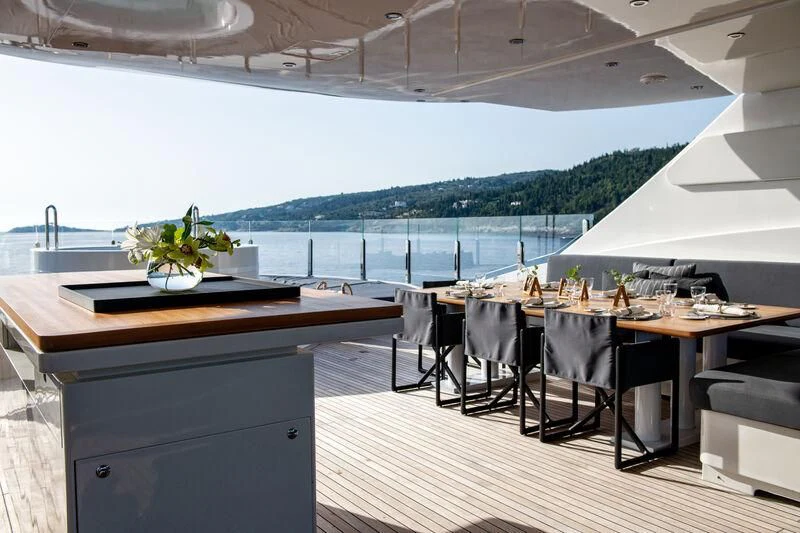

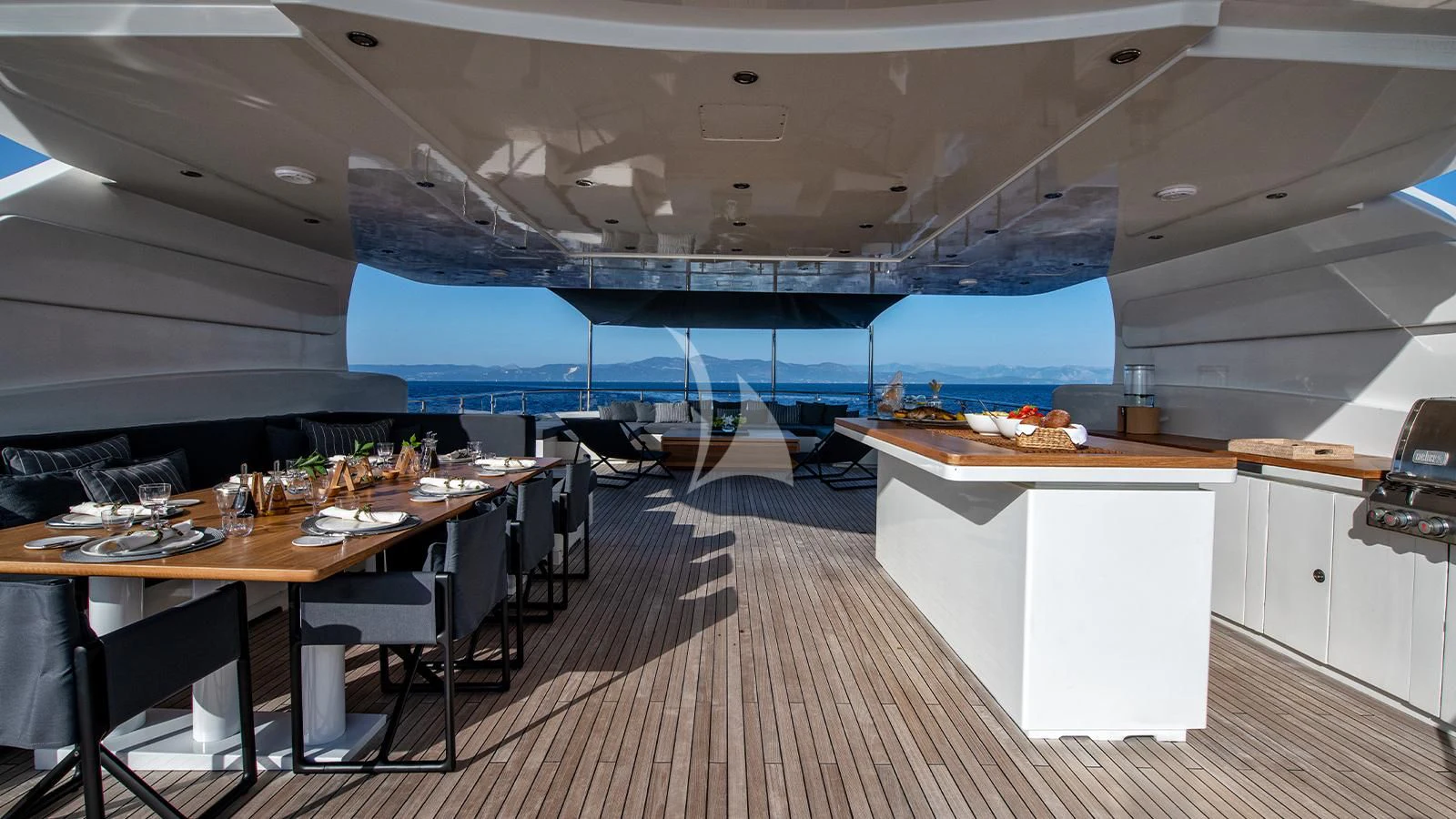

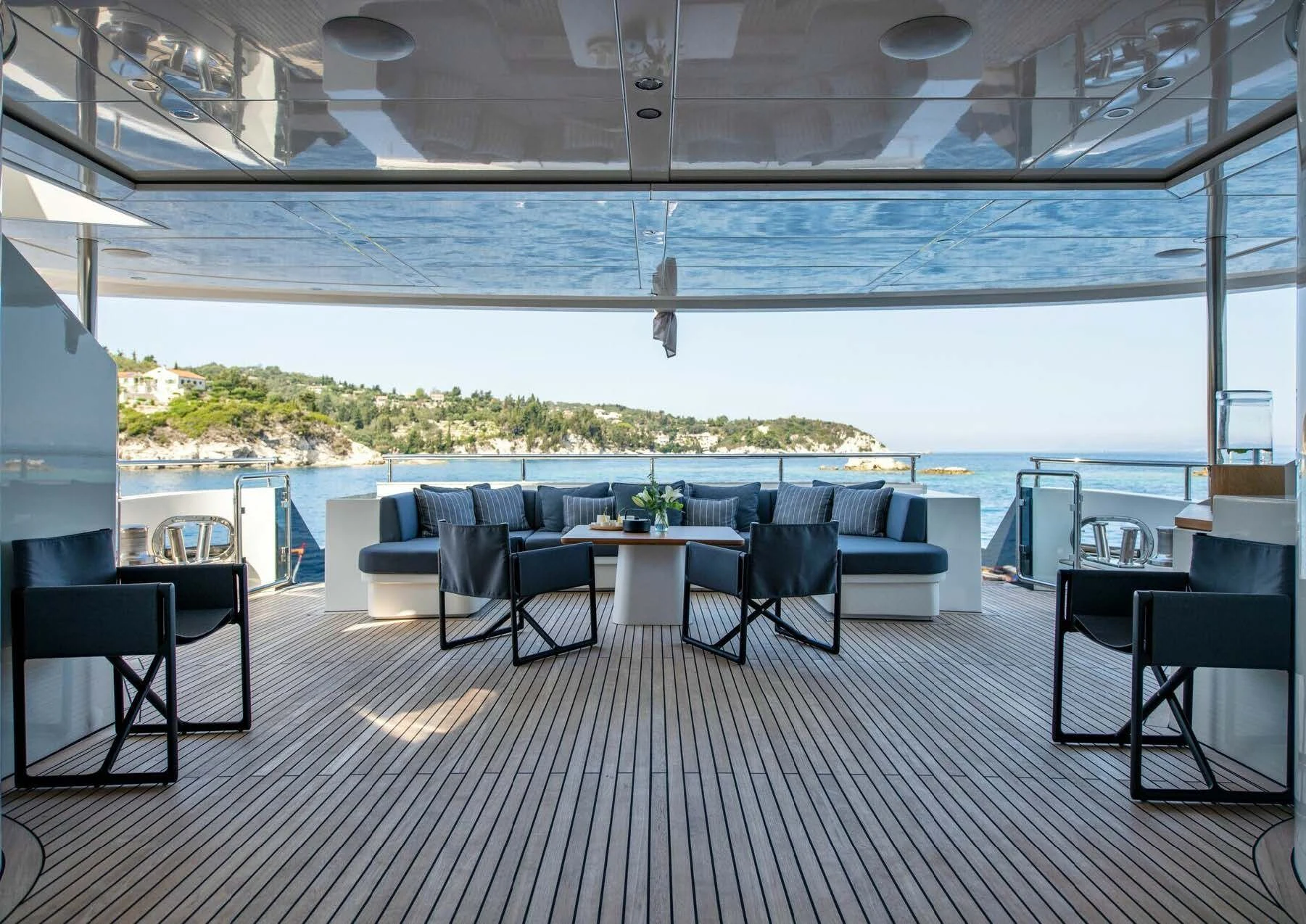

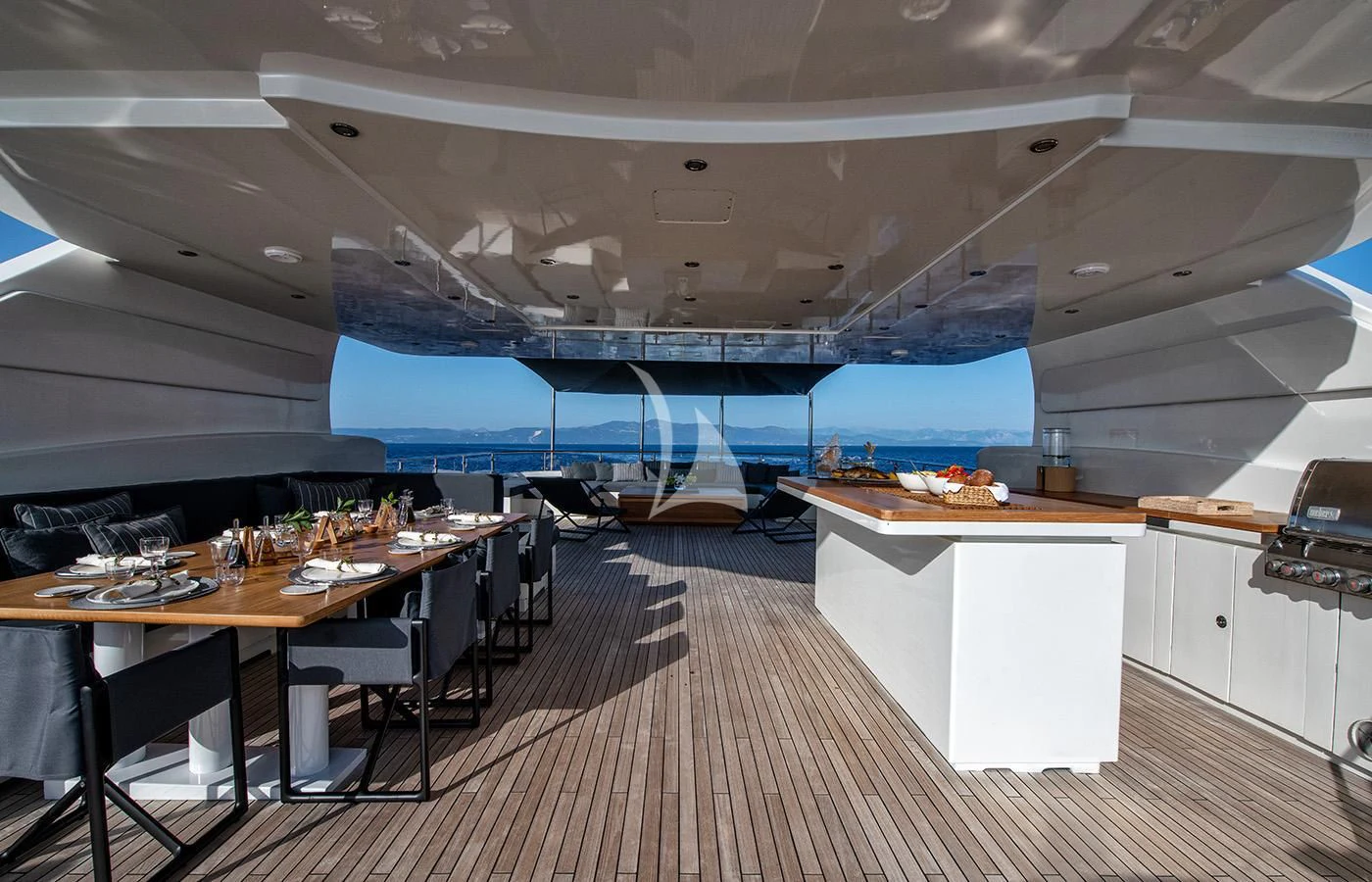

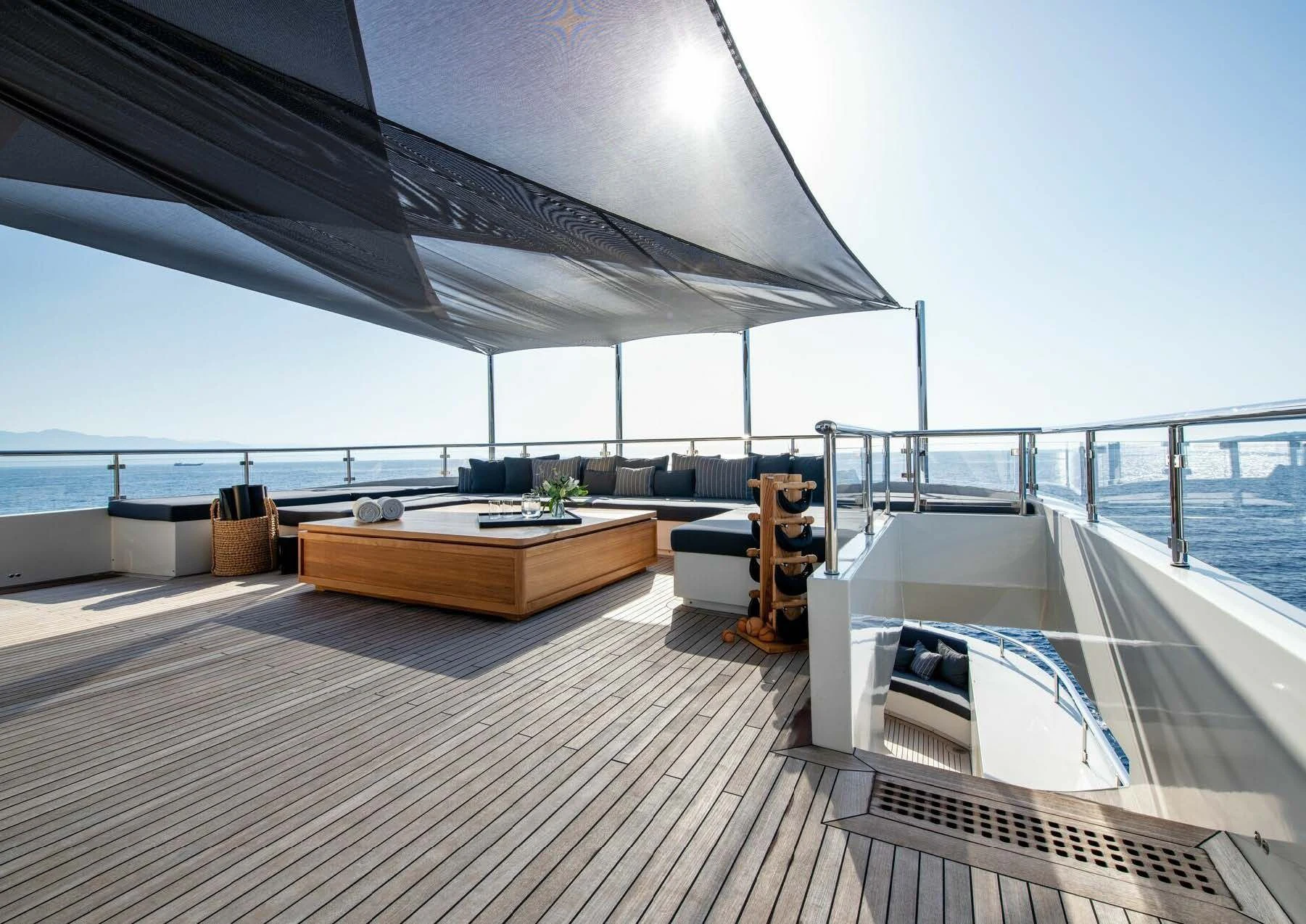

  • On deck, four completely different social areas can be enjoyed, the highlight of which
  • is her generous 140m2 sundeck, with luxuries including a large custom Jacuzzi, huge
  • sun pads and a dining area complete with a bar and large gas-fired BBQ for casual

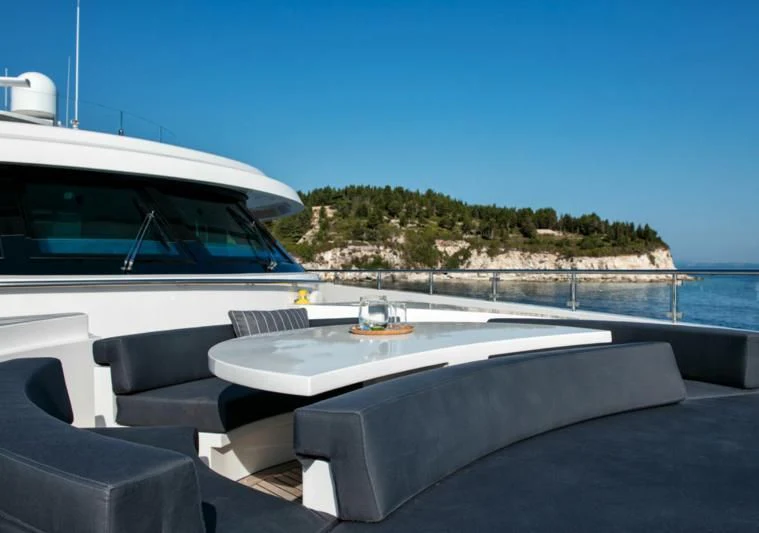

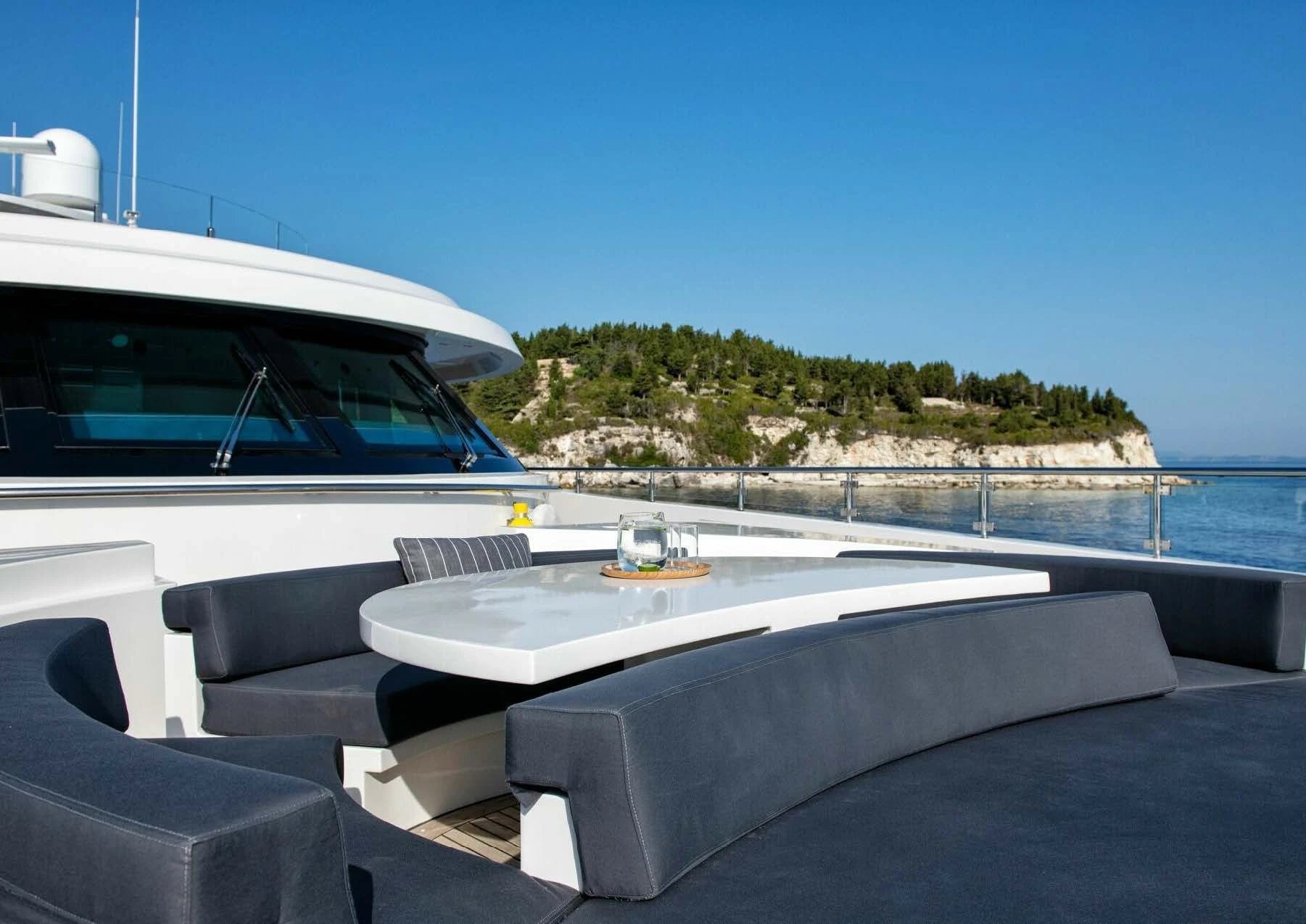

  • al-fresco dining. The forward cockpit benefits from a circular enclosure of sofas, with
  • two further and distinct al fresco dining areas found on the upper and main deck aft.

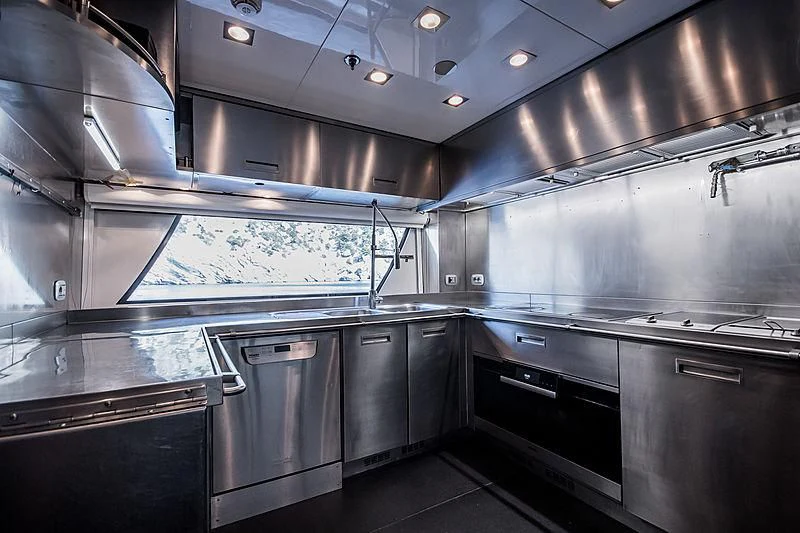

Galley And Laundry Equipment

REFRIGERATOR

  • 8 x Refrigerators

FREEZER

  • 4 x Freezers

STOVE

  • 1 x Miele

MICROWAVE

  • 2 x Miele M 8261

ICEMAKER

  • 3 x Brema

DISHWASHER

  • 3 x Miele G 1232 SCi

WASHING MACHINE

  • 3 x MielE Professional

CLOTHES DRYER

  • 3 x Miele Professional

Communication Equipment

SATCOM

  • Inmarsat Fleet 77 Thrane & Thrane
  • Satellite Internet Antenna Seatel 4003
  • Satellite TV Antenna Seatel 4004E

TVRO

  • 4004 Seatel System
  • VSAT 3612 Seatel System

INMARSAT

  • C 2 x Sailor TT – 3020 C transceivers
  • 2 x Sailor TT – 3606E message terminals

BROADBAND INTERNET

  • iswall Integrated System
  • WIFI WiFi throughout yacht

GSM

  • Panasonic KX-T7636

VHF

  • Sailor VHF RT 5022 DSC
  • Sailor RT 5022 DSC Duplex
  • Sailor VHF C 4901 DSC

TELEPHONE EXCHANGE

  • GSM PABX c/w antenna, Panasonic TDA30

PRINTER / FAX HP

  • Laserjet Pro 200

Navigation Equipment

GYRO COMPASS

  • Sperry Marine MK compensated

MAGNETIC COMPASS

  • Northrop Grumman

LOG

  • Furuno. Doppler Speed Log. DS-80

RADAR

  • Furuno Far 2117 ver. B Radar
  • Furuno Far 2137 S S-band Radar

TRANSPONDER

  • 2 x GMDSS SART Transponder McMurdo

DEPTH SOUNDER

  • Furuno FE-700

SONAR

  • Furuno CH - 250

AUTOPILOT

  • Sperry Marine, Navipilot V HSC
  • GPS Furuno GP150 (X2)

NAVTEX

  • Furuno Navtex NX - 700

WEATHER FAX

  • Furuno Fax 207
  • AIS Furuno FA-150

Entertainment Equipment

UPPER DECK
• 3 x Zones: Saloon, Aft, Sun Deck
• Vidabox Media Server (Music Library- iTunes compatible)
• iPod Docking Station + iPod
• Airplay player 4.5 CDs Changer
• Radio Tuner FM
• Controlled By Crestron System using mini iPad
• Large Projector & Screen on Upper Deck Aft
UPPER DECK SALOON
• 65” 3D Led Display 2.3D BD player
• Vidabox Media Server (Movies Library)
• Satellite Receiver Sky UK & Sky Italia
• Controlled By Crestron System using mini iPad
MAIN DECK
• 2 x Zones: Saloon & Aft Deck
• Vidabox Media Server (Music Library- iTunes compatible)
• iPod Docking Station
• Airplay player 4.5 CDs Changer
• Radio Tuner FM 6.Controlled By Crestron System using mini iPad

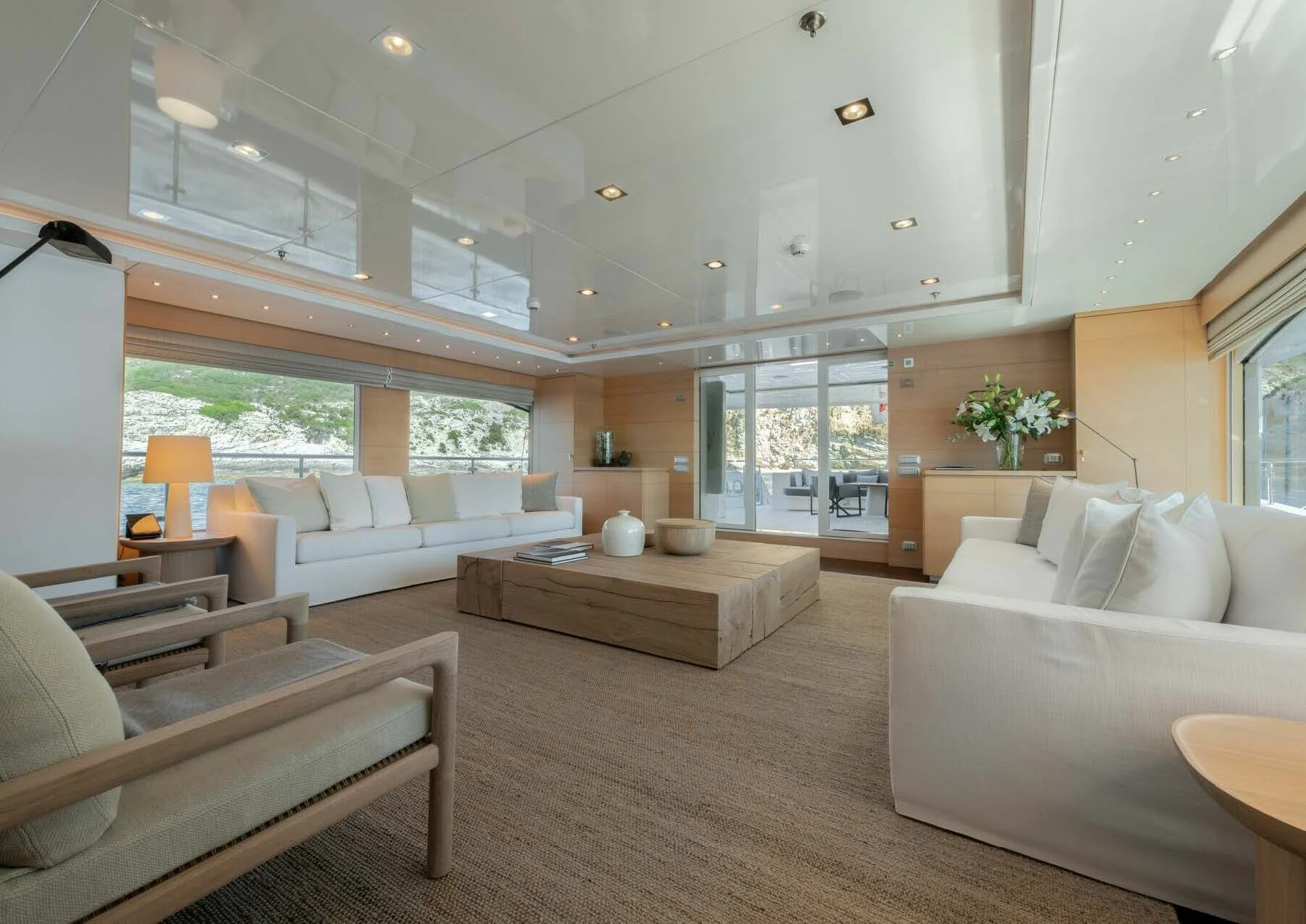

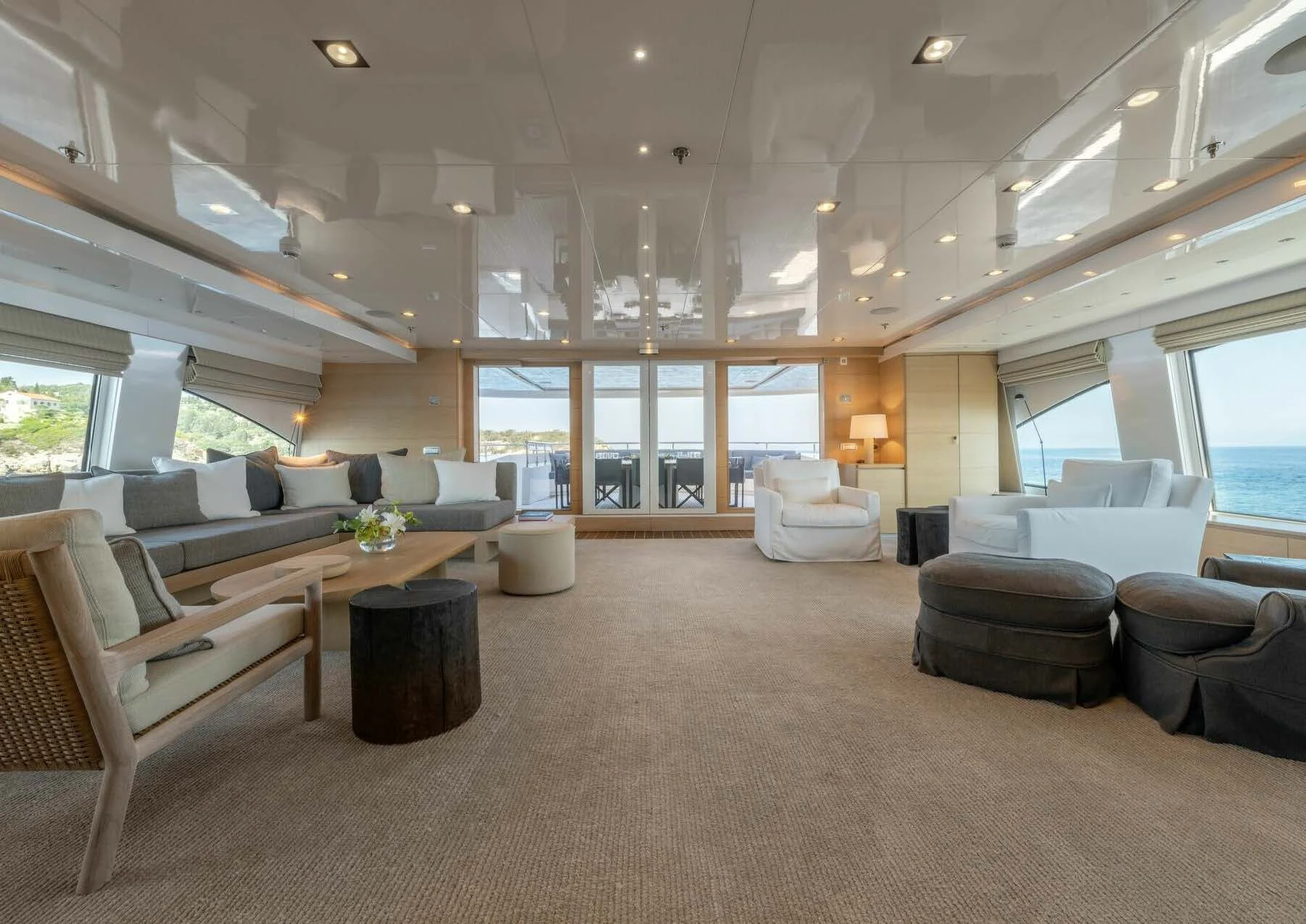

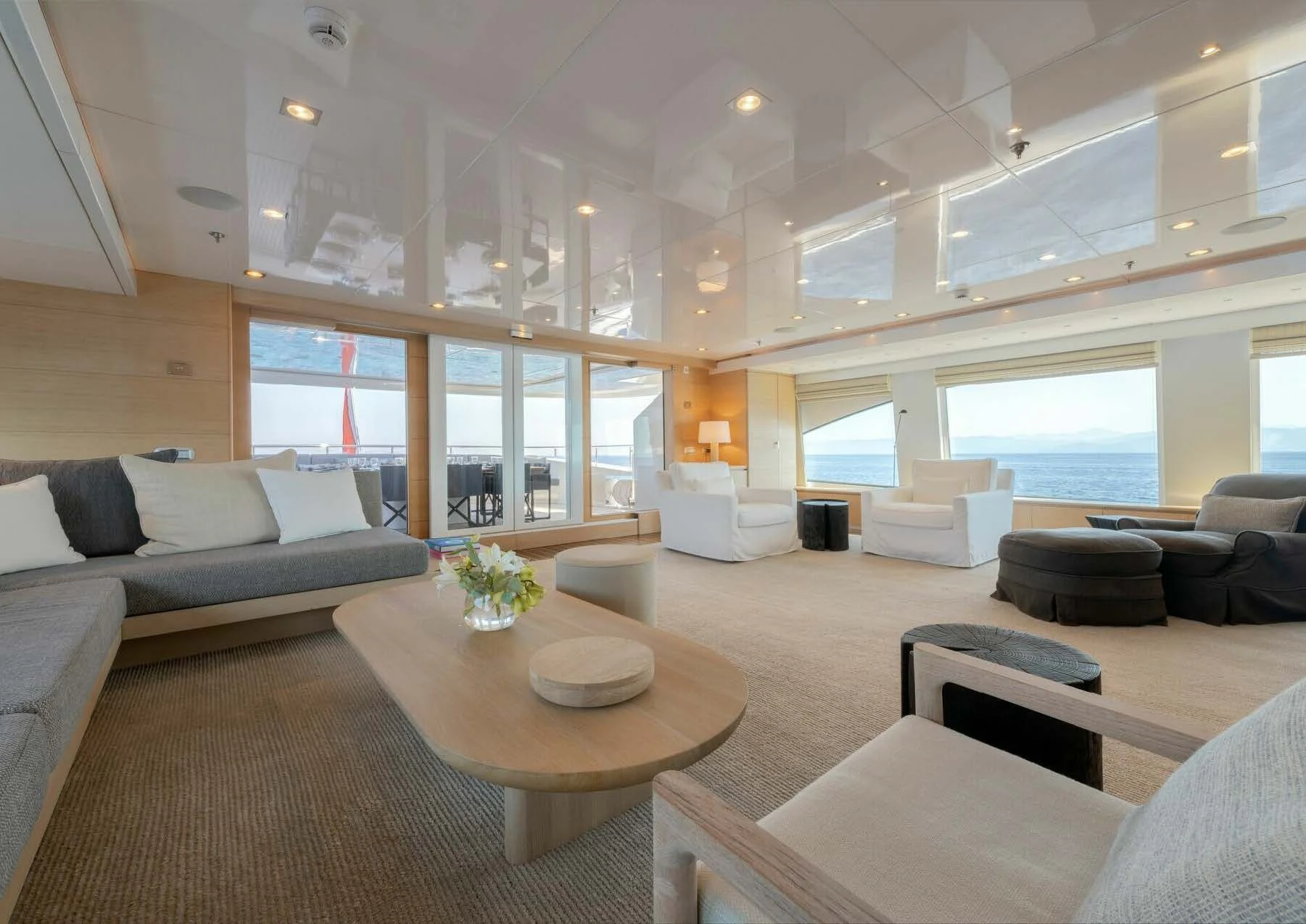

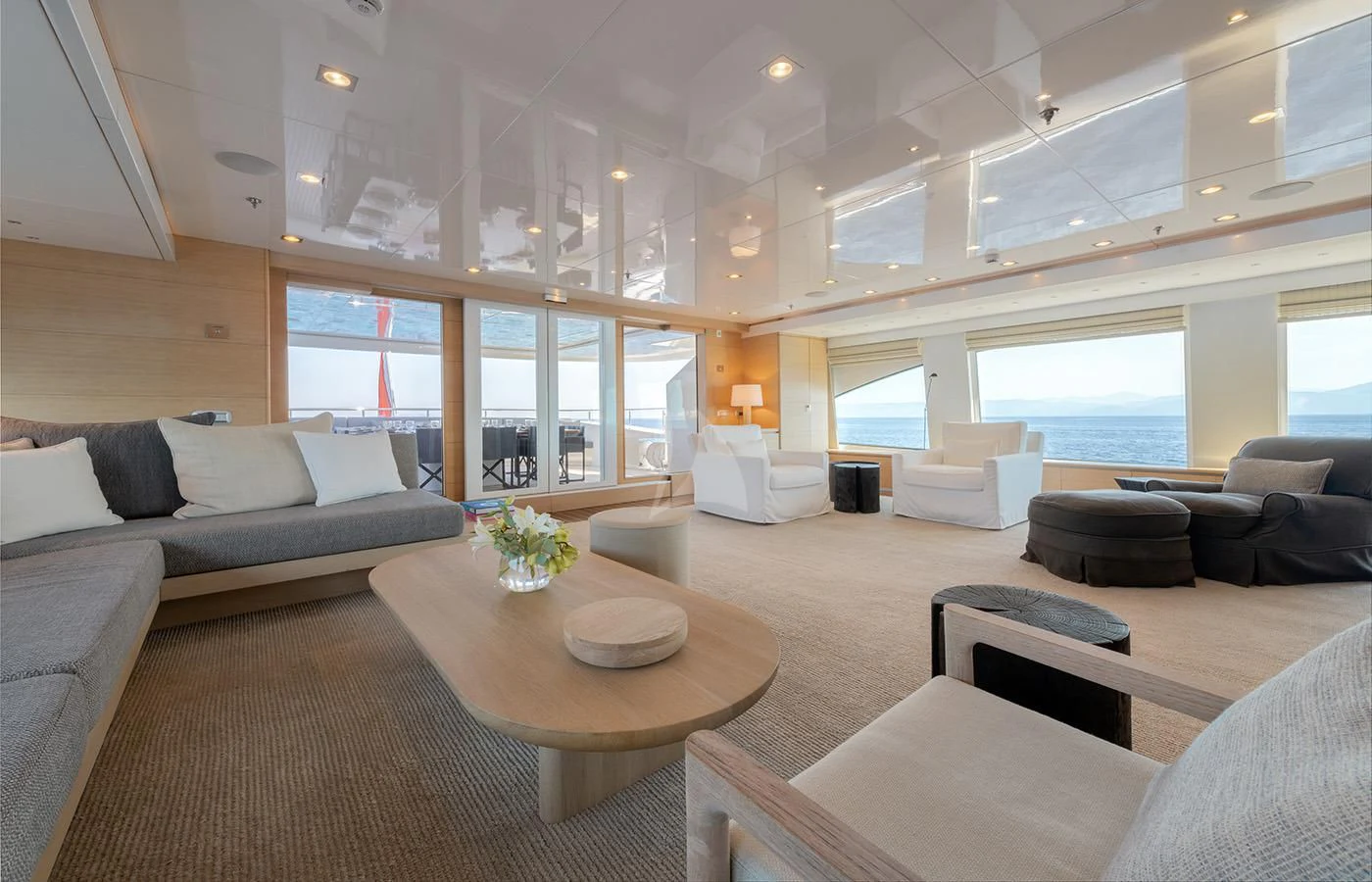

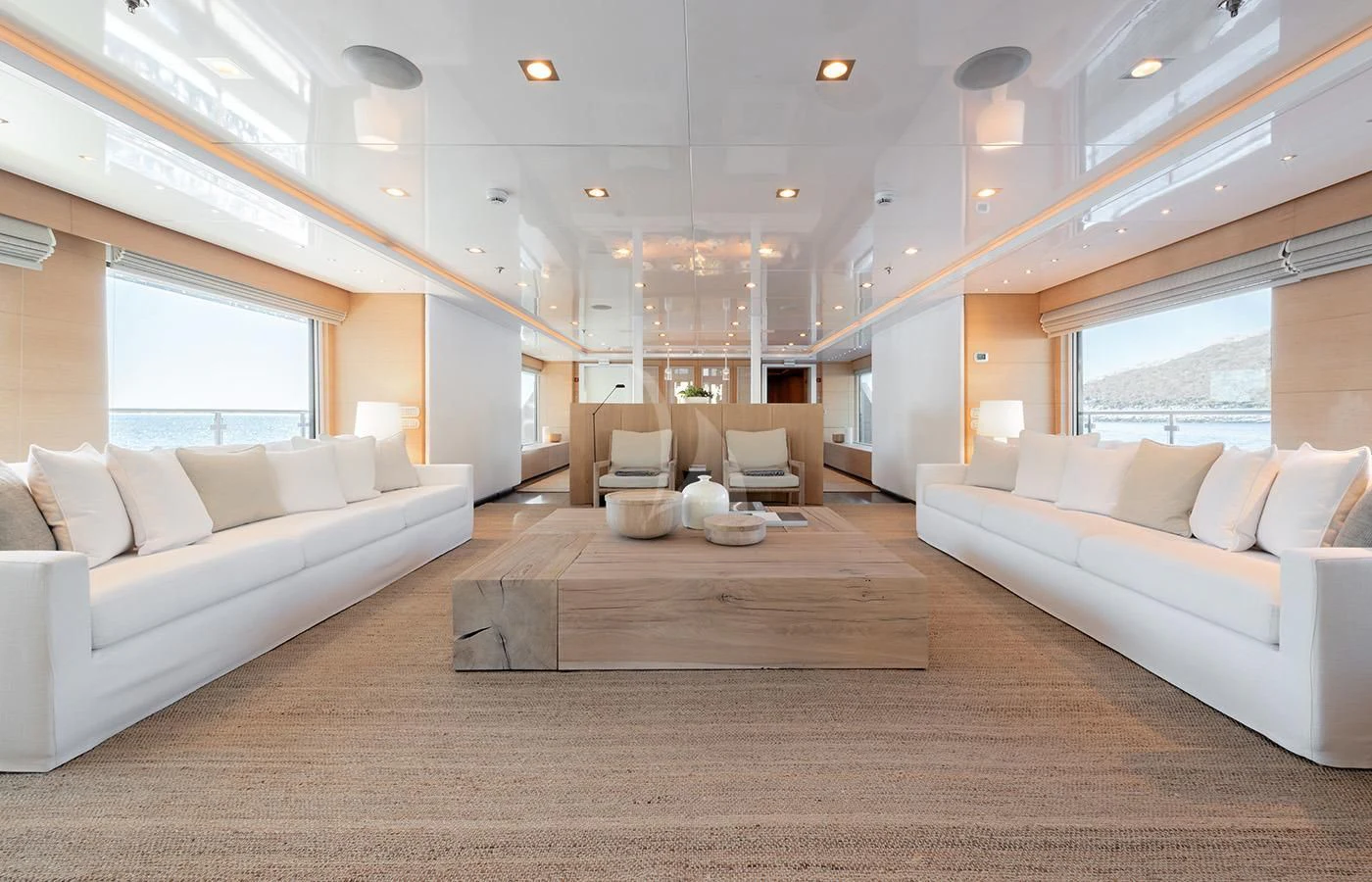

MAIN SALOON
• 65” 3D Led Display
• 3D BD player
• Vidabox Media Server (Movies Library)
Satellite Receiver Sky UK & Sky Italia
• Controlled By Crestron System using mini iPad
MASTER SUITE
• 2 x Zones: Bedroom & Bathroom
• Vidabox Media Server (Music Library- iTunes compatible)
• iPod Docking Station
• Airplay player
• Radio Tuner FM
• Controlled by Crestron System using mini iPad
BEDROOM
• 46” 3D Led Display 2.3D BD player
• Vidabox Media Server (Movies Library)
• Satellite Receiver Sky UK & Sky Italia
• Controlled by Crestron System using mini iPad
GUEST CABINS - VIP CABIN
• 48” 3D Led Display
• 3D BD player
• Vidabox Media Server (Movies & Music Library- iTunes compatible)
• Satellite Receiver Sky UK & Sky Italia
• Mini Audio System including: Radio Tuner, Airplay, ipod compatible
• Controlled by Crestron System using mini iPad
NETWORK
• Wi-Fi Network in all areas
• Hi Speed internet thru VSAT, 4G, Hot Spot and Shore Cable

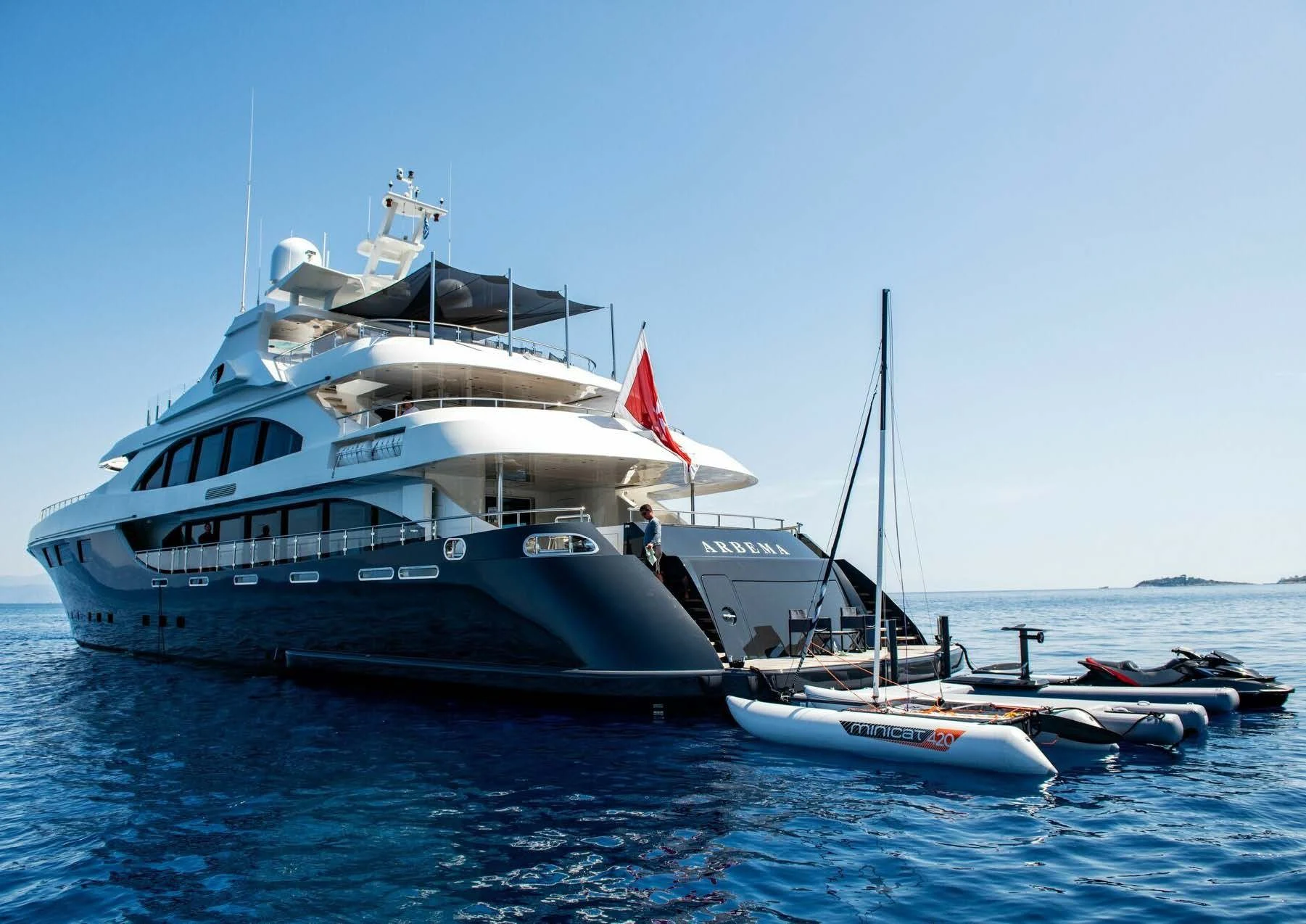

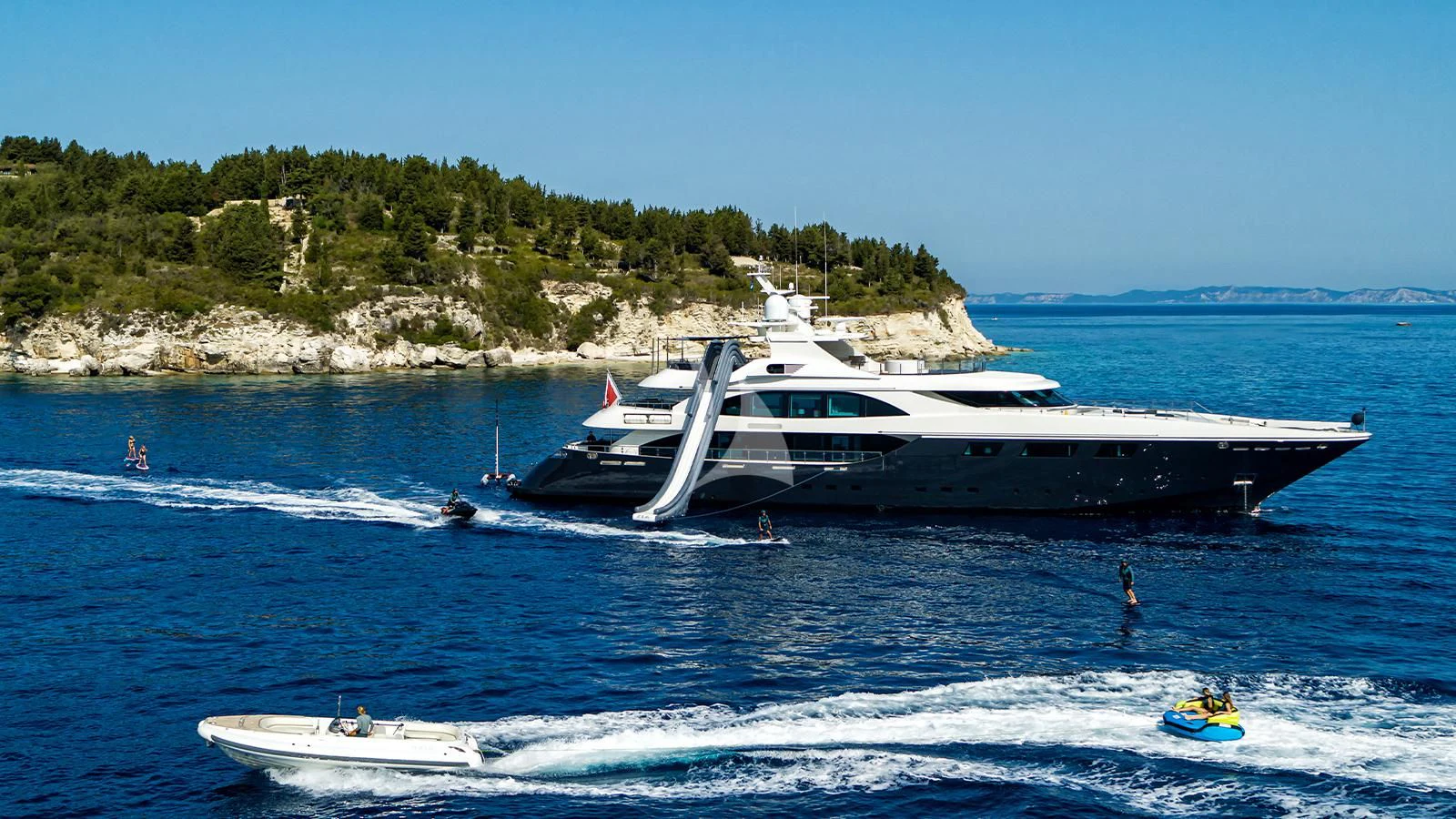

Tenders & Toys

TENDERS

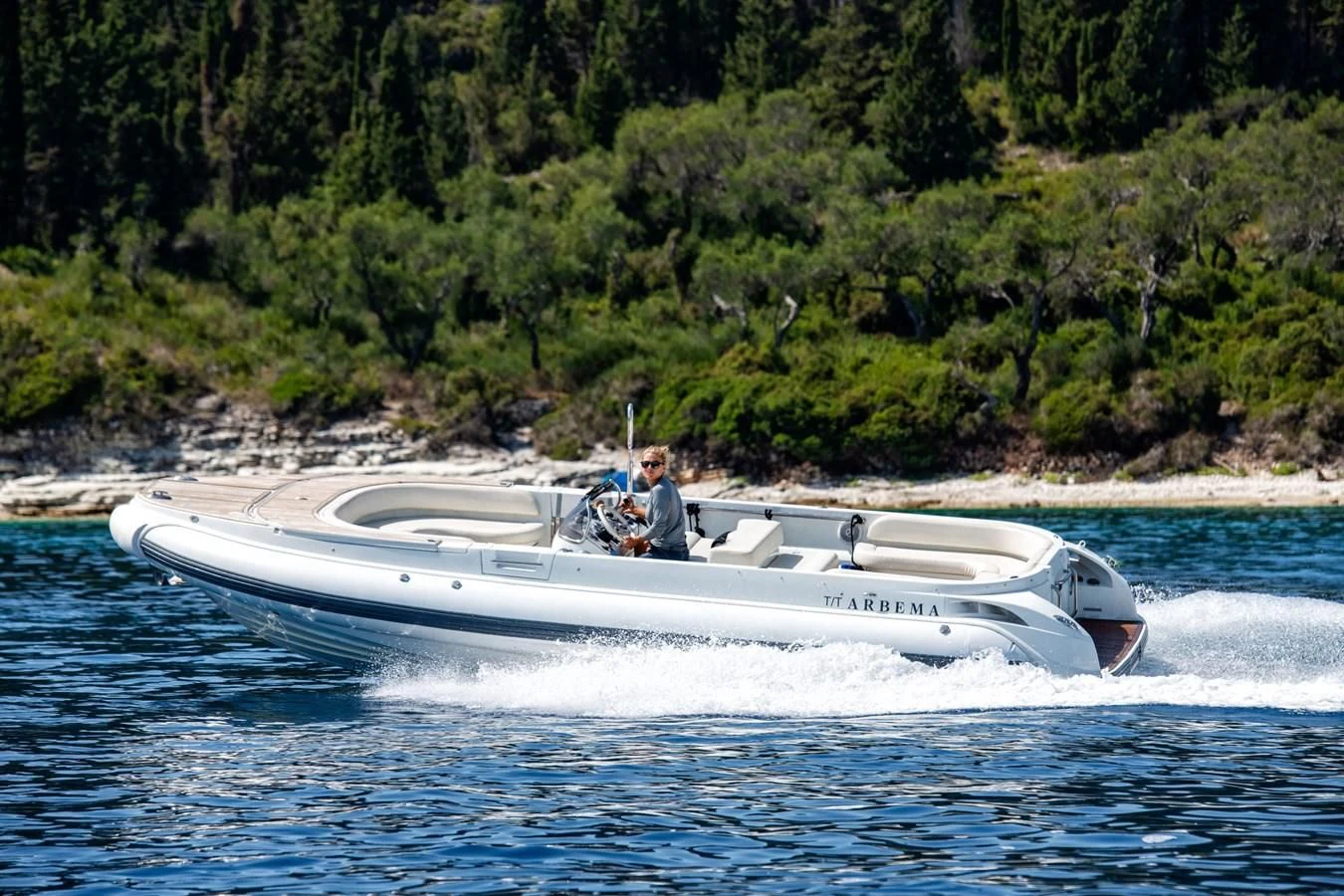

  • 1 x Castoldi 23ft 265Hp Yanmar (2014)

JETSKIS

  • 2 x Seadoo Limited 265, Wake Pro 215 (Intelligent
  • Brake & Reverse System)
  • 1 x FunAir Jetski dock

WATERSPORTS EQUIPMENT

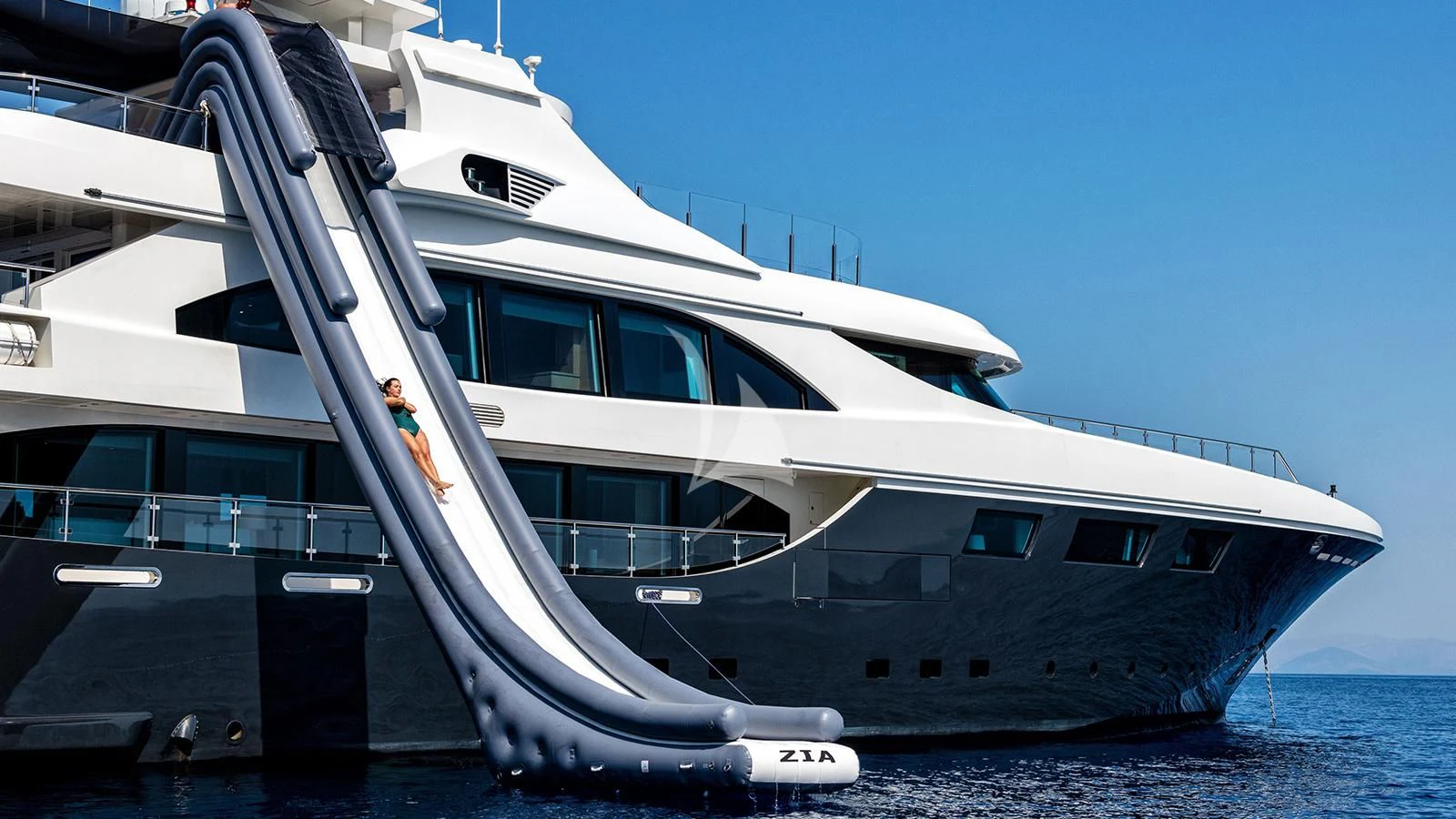

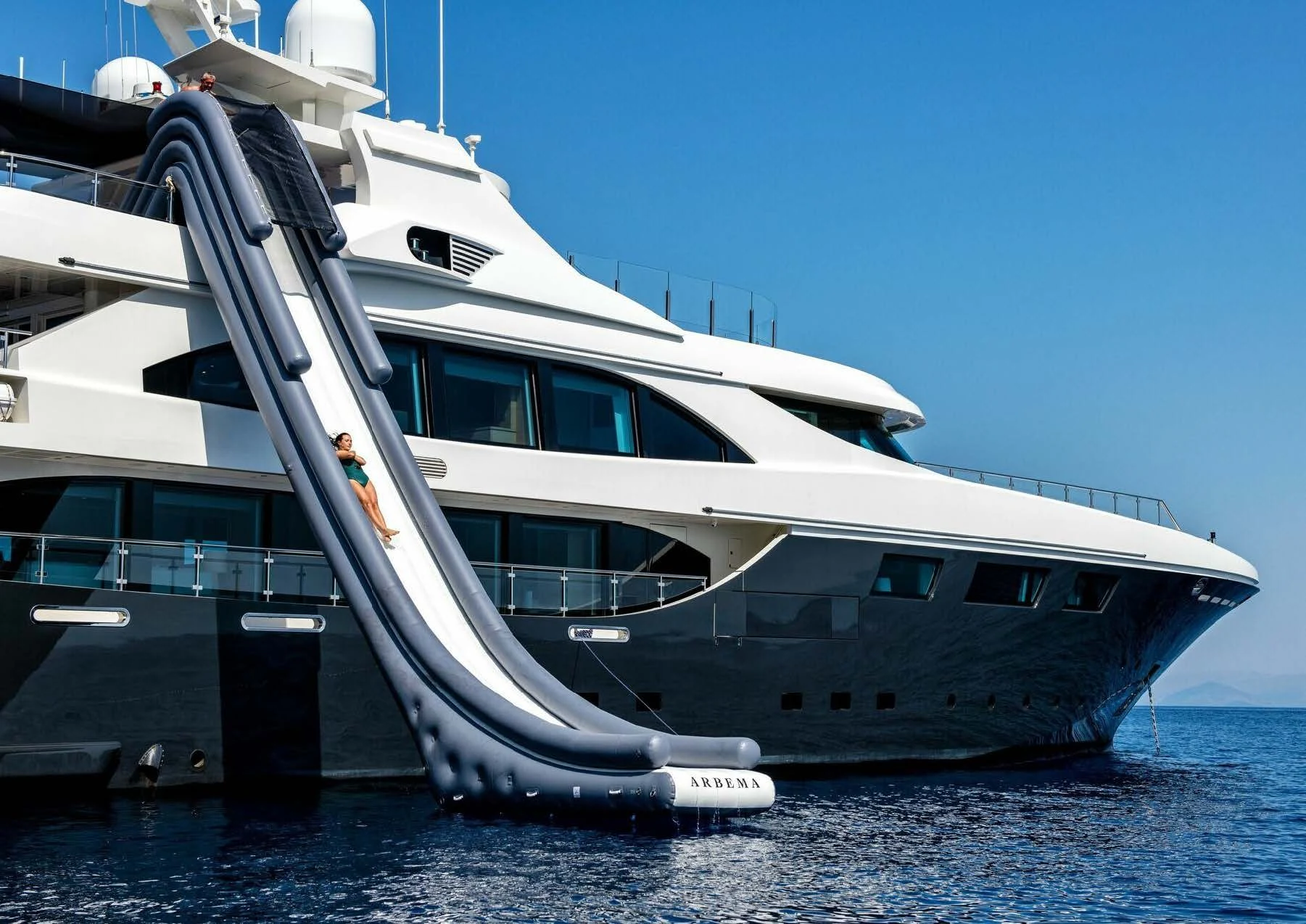

  • 1 x FunAir Sundeck Slide
  • 4 x Stand Up Paddelboards
  • 1 x Subwing
  • 2 x Inflatable double handed kayaks
  • 1 x Mini-Cat 420 Evoque

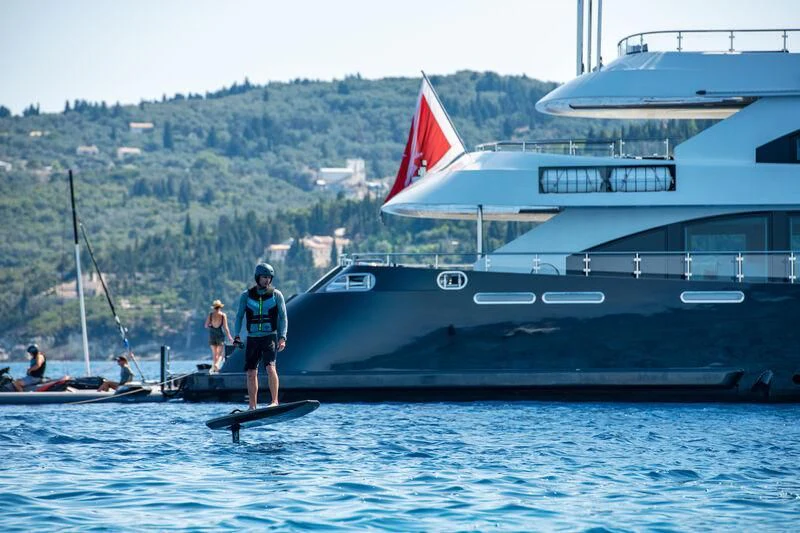

  • 1 x Lite efoil W/200 Classic
  • 1 x Radin G2X e-surfboard

TOWABLES

  • 1 x Connelly Orbiter 3 Seater
  • 2 x Connelly Big O Single Seaters
  • 1 x Connelly 2 Seater
  • 1 x Connelly 2 person Fly Tube
  • Jobe Dolphi Trainer (Ski Trainer and Towable)
  • Cadet Child Slide ADJ

DIVING

  • Complete sets of water gear:
  • Diving Masks
  • Fins
  • Snorkels
  • Swimming Goggles
  • Water/ Swimming Shoes

SKIS & BOARDS

  • 1 x Connelly Odyssey (Double Skis)
  • 1 x Kneeboard
  • 1 x Single Ski Radar P-Six
  • 1 x Connelly Super Sport Kids Skis
  • 1 x Adult Wakeboard
  • 1 x Kids Wakeboard

SAFETY GEAR

  • 3 x Headgear for Fly & Hover boards
  • PFD's (S, M, L, XL, XXL)

Deck Equipment

ANCHORS 2 x 360 kg
ANCHOR CHAINS 2 x 137,15m of 19mm chain
CRANE Hydraulic crane on foredeck
WINDLASSES 2 x Lewmar 26 cm diameter electric
PASSARELLE 1 x Bitecnomare
BATHING LADDER 1 x Stainless steel
STERN CAPSTANS 2 x Lewmar 22 cm diameter
UNDERWATER LIGHTING Furlanetto

Security And Safety Equipment

EPIRB

  • Ocean Signal LTD Safe SGA E100G

LIFE RAFTS

  • 4 x RFD 12 pax
  • 2 x Zodiac 12 pax

LIFE JACKETS

  • 56 x Solas approved

FIRE–FIGHTING EQUIPMENT

  • 2 x Firemen outfit
  • 2 x Breathing apparatus
  • 4 x Spare air bottles

FIRE FIGHTING ALARM

  • Notifier Italia AM – 4000

HI FOG

  • In engine room

ULTRA FOG

  • All interior, engine room and foam system

BILGE & FIRE PUMPS

  • Centralised manifold type with monitoring alarms

SEARCHLIGHT

  • 4 x Sanshin HR – 1012

SECURITY CAMERAS CCTV

  • integrated system with cameras

SHIPS SAFES

  • 8 in total

Refit History

2021-2022
• Full paint of superstructure
• Repainting of the exterior deck head panels
• Partial replacement of teak decks
• Flexiteak installed around the jacuzzi
• All 4 Stabilisers removed and overhauled
• Tail shafts removed and inspected, new bearings
• New stern seals and carriers and shaft earthing
• Full Rebuild of foredeck crane
• Full rebuild of passerelle including new power pack
• Hot water boilers replaced
• Bilge water tank replaced
• Main engine cooling circuits flushed
• New quick closing valves installed on fuel tanks
• Service of tender launching system
• New Cat A fire door installed on Emergency generator room
• Castoldi tender serviced
• Jetskis serviced
• Watertight doors inspected by manufacturer
Full year 2020
• Full interior refit by Vincent Van Duysen at Monaco Marine Toulon
• Full Hull paint job
• Teak upgrades throughout
• New exterior furniture and tables throughout
• New sun pads
• New toys and inflatables
• Various Bridge upgrades
• Various AV upgrades
• Upgraded the VSAT domes as part of the AV Upgrade with Sona and Axxess
marine
• All new crockery and glassware
WINTER 2017-18
• 10 Year survey completed at MB92, Barcelona
• New freezer compressor installed
• All through hull valves overhauled or replaced
• Main engine and generator exhaust valves replaced
• Sea water crossover valves overhauled/replaced
• Engine room ventilation fan motors overhauled
• Engine room fan cowlings installed
• Fwd exhaust space entry hatch installed
• Shafts removed and alignment checked
• Gearbox height adjust on Port Engine
• Shaft pitting repaired
• New shaft seals installed
• Rudder clearances checked
• Starboard main engine exhaust silencer weld repair
• Fwd Crane full hydraulic maintenance
• Tender garage cradle Hydraulic rams replaced
• Fwd jet-ski garage Hydraulic rams/hoses replaced
• Starboard side gangway Hydraulic Maintenance, New hoses, power pack & valve
block overhauled, adjustable return valve installed to stop ‘bouncing’
• Stern door and swim platform Hydraulic Rams replaced/overhauled
• Sea Bob charging points installed
• Ultra-fog 10 Year maintenance and survey
• Overhaul JETS pumps. New seals and motor bearings
• Hot water boiler #2 lagging replaced
• AC pipework/manifold lagging replaced in ER
• Black/Grey water tanks – Hull plating replaced due to corrosion
• Fresh water tanks inspected/cleaned/painted
• Tank cleaning – Bilge, dirty oil, Fuel overflow, Sludge
• AC sea water pipework replaced with copper nickel
• Fuel Tank #6 centre – Repair carried out on corrosion
• Fresh water Carbon filter bypass pipework installed
• Bow and Stern thruster oil change, Oil analysis good
• OWS annual maintenance and filter change
• Sewage treatment plant tank replaced
• Main bilge pump – Overhauled
• Installed 2 new boiling water taps
• Starboard Generator – New HUEI fuel pump installed and 6 new injectors
• New silver ion water treatment unit installed
• New UV water sterilizer unit installed
• ‘Resilience’ name light LED’s changed
• Port FWD capstan motor replaced
• Stabilizer cooling water pump replaced
• Hydraulic Ram Starboard aft stabilizer – Seals replaced
• Stern repainted by Pinmar in MB92
• Forepeak hatch modified
• Deck scatter cushion inserts all replaced
• New cushion covers for Sundeck Forward
• Technical spaces fully repainted – Bulb compartment, Forepeak, forward garage,
after tender garage
• All new watersports life jackets (Jobe)
• New snorkel masks sets
• New swimming fins (complete sets)
• 6 x New swimming goggles
• 2 x New rigid kayaks (Hobie Quest 11)
• 6 x New watersports Helmets (Jobe)
• Jetskis serviced by authorised dealer
• Jet 23m hose for Flyboard
• New varnish teak drinks tables for Sundeck forward area
• New rescue boat rain cover
• 4 x New mooring lines
WINTER 2016-17
• Steering and stern thruster hatches replaced with alloy/seal type
• Ultrafog system annual maintenance
• Crew/galley dumb waiter removed
• Crew mess – Full refit
• Ultrafog flushing valves installed
• Bridge/ER/Wing station Kobelt controls – Potentiometers replaced
• Port/Starboard generators – Silencers installed
• Port/Starboard generators – Hull cowlings installed
• New steering control board installed. 2 new additional boards ordered
• Shore power comm. Module repaired
• Black/grey tank level sensors installed
• Galley exhaust fan and ducting installed
• Galley fan frequency drive installed
• Galley exhaust quick closing damper installed (Heinen and Hopman)
• Full yacht duct cleaning carried out (Heinen and Hopman)
• Tender fuel filling system installed (Marine metal works, Barcelona)
• Tank cleaning – Bilge, dirty oil, Fuel overflow, Sludge, Black and grey water
• Tank cleaning – Fresh water tanks. Paint touch ups
• New Hull Anti fouling applied
• Hull plate repair – Fuel tank #5
• Refrigeration system pipework replaced with copper pipe. (Marine metal works,
Barcelona)
• Main sea water inlet valves overhauled – 2 main SW crossover, AC intake, ultra-fog
and Refrigeration
• Passerelle Hydraulic Flow valve installed to stop ‘bouncing’ motion
• Major service on all 4 CMC Stabilisers – Fins removed, shafts inspected, damaged
shafts repaired, damaged rams replaced, hyd oil system flushed, filters changed,
seals replaced, bushing replaced, new seal covers installed
• Hot water boilers opened, inspected, cleaned, faulty elements replaced, top cover
plates replaced due to corrosion, temp gauges replaced
• Hot water circulation pump replaced
• OWS annual maintenance and filter change
• LED exterior step lighting replaced
• Refrigeration SW pumps replaced
• New stainless Stern fenders
• New stainless Swim ladder
• New Sundeck awning
• New Sundeck umbrellas (Tucci)
• New custom made fender hooks Set
• New Passerelle stations
• New Varnish inserts on Maindeck and Bridge deck aft
• Varnish tables sent off for coats of varnish
• 2 x New seabobs (F5)
• Jetskis serviced by authorised dealer
• Rescue boat engine sent off for service and prop seals replaced
• New rescue boat anchor points fitting to foredeck
• Swim platform teak recaulked
• New Henrikson hook for Rescue boat Crane
New lifting harness for Rescue boat
• Glass table top on Bridge Deck Aft remade
• New cushion covers for Sundeck Forward
• Pyrotechnics replaced
• Locker door latches replaced
WINTER 2015-16
• Generator 10000 Hr. services carried out (Port and Starboard)
• Bow thruster and Stern thruster given full rebuilds. Electronic control card replaced
• Installed new fresh water pumps, frequency drives and pipe work
• Installed new HEM water maker
• Installed Cathelco Anode system
• Hull plating around Generator exhausts (Port and Starboard) replaced due to
corrosion
• Tender cradle Hydraulic Rams rebuilt
• Tender garage doors Hydraulic Rams rebuilt, new hoses
• Steering gear Hydraulic Rams rebuilt, all new hoses installed (HMC, France)
• FWD Crane Hydraulic Hoses replaced (HMC, France)
• AC compressors #1 and #3 replaced, New filters and Exp. Valves (Penguin Marine,
France)
• Sun deck void space exhaust fan replaced
• New Fresh water softener installed
• New hot water circulation pumps installed
• Sewage treatment plant – 5 pumps replaced, new level switches
FULL YEAR 2014
• Full paint job out of water
• Full interior redesign
• Sun deck completely re-styled
• Every technical area of the yacht was refurbished
• All equipment was fully serviced
• Totally new interior and exterior furniture
• New toys
• New soft furnishings throughout - linens/curtains etc.

Comments

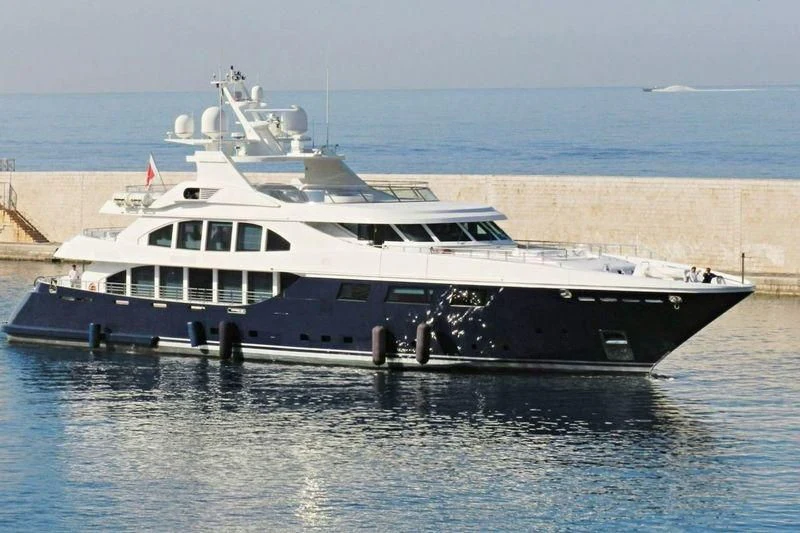

A high volume yacht of nearly 600 GT,  she was built in 2008 in Italy by Ortona
Navi International with steel hull and aluminium superstructure, and benefits from a
very stable full displacement hull with a beam of more than 9 metres. Her natural
stability is further enhanced with a very effective zero speed stabilisation system,
reducing the roll motion effect and resulting in increased passenger comfort under
way. Cruising speed is a comfortable and relatively rapid 13 knots and she has a
maximum speed of 15 knots. She also has a better than transatlantic range of over
4,500nm at economic speeds.
Over the last 2.5 years of this ownership, she has benefited from huge investment and brought up to a level
that not many yachts her age could equal. This condition has been obtained via an
extensive refit program which took place in early 2020 and is currently having a huge
refit over the 2021/22 winter period expected to be completed at the end of May.
While she cruised once to the Caribbean, she has been based in the Mediterranean
for the summer seasons. It is fair to say without any exaggeration at all, that she is a
much better yacht today than she was in 2019.

On the charter side she possesses an excellent charter record over the last 7 years,
and she consistently books at least 10+ weeks charter with many repeat bookings –
she is a very well-known and well-regarded yacht on the charter market.
KEY FEATURES
• Turnkey condition following multimillion-euro refit
• 6 Cabins with the master on main deck
• Large Sundeck
• Modern contemporary interior from 2020
• Hull paint completed 2020
• Superstructure paint completed 2022
• Great charter record
• Ready for summer 2022
• All out of water elements for 5 yeah survey completed

How to Buy a Yacht Our experienced brokers will assist you throughout your yacht buying journey

Similar Yachts for Sale

View All

ORTONA NAVI Yachts for Sale

View More
Northrop & Johnson
Hi there!
Would you like to get more information about ARBEMA? Our brokers are standing by to help.
