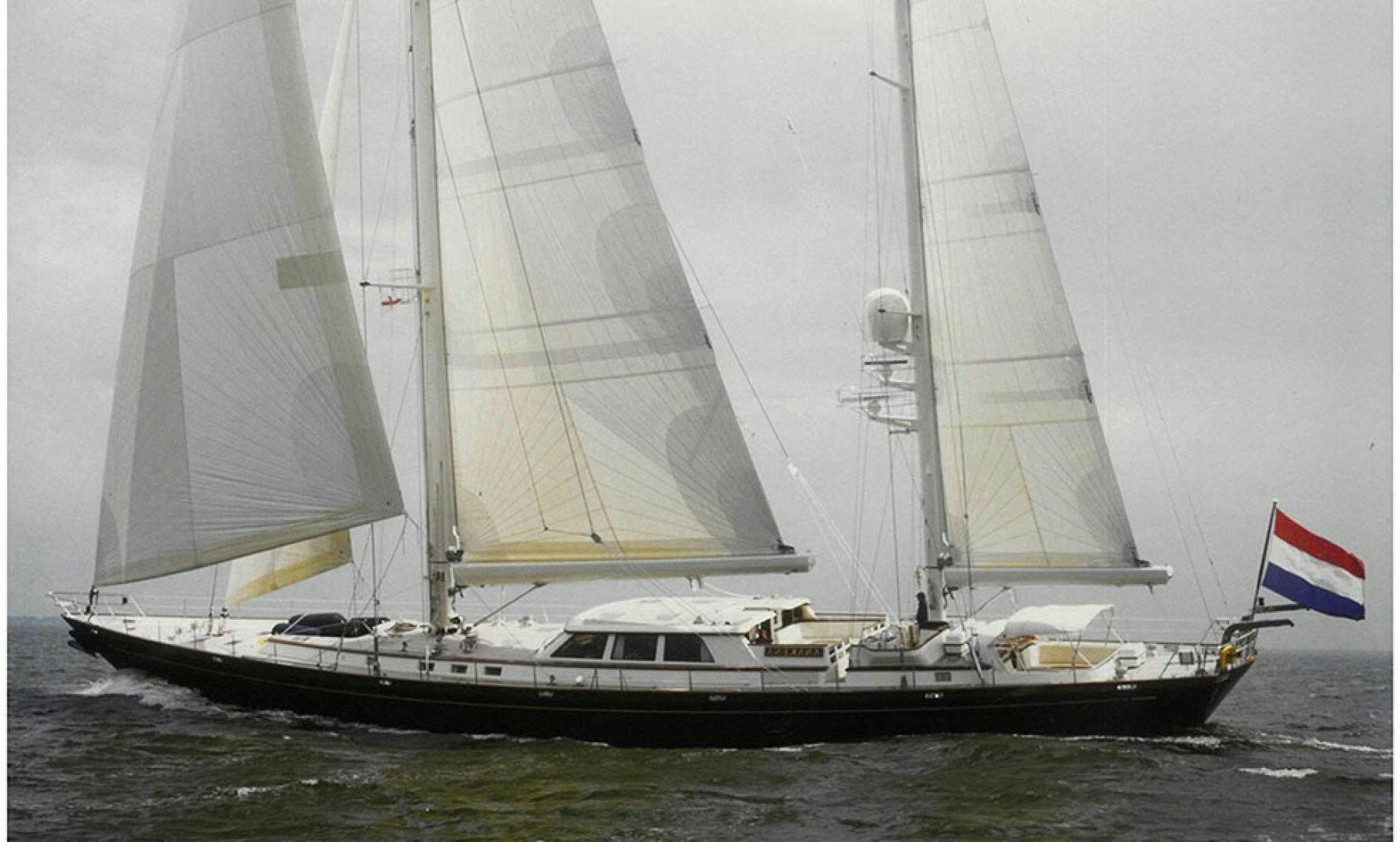

The 132-foot (40.28m) Royal Huisman sailing yacht ANAKENA is breathtaking. Built for an experienced owner, who also is a sailing enthusiast, the premise behind ANAKENA was to perfectly marry a land-based lifestyle with an on-water experience. As such, the yacht can carry a great number of books as well as wines. The yacht also features an exemplary level of security and the highest possible level of safety, courtesy of her builder. In order to ensure this, the yacht has a high degree of redundancy, allowing her to cruise off the grid for quite a long time. Outfitted with a reinforced bow, ANAKENA is able to travel virtually anywhere in the world. ANAKENA is no stranger to the winner’s circle, having taken home both “Best Sailing Yacht” from the ShowBoats awards and International Super Yacht Award for “Best Sailing Yacht over 36 Meter.” ANAKENA has been through various refits during her life, including a 2006 refit in Pendennis.
The yacht’s interior and exterior spaces are welcoming and beautiful, featuring traditional style. Entering from the cockpit, guests will find a large high table seating eight to port. To starboard, another high table seats six. A large L-shaped leather sofa also is found here. This space is highlighted by large windows throughout. This space also has a full bar where guests can enjoy a cocktail. Forward of the deck salon is the yacht’s piloting. From the deck salon, guests will enter the salon where books line the stunning beautiful teak walls, which are perfected with delicate details. The library theme is truly remarkable.
ANAKENA sleeps from six to 10 guests in three staterooms. The yacht’s full-beam master is found aft. It features two double beds and a his-and-hers en-suite bathroom. Further forward, ANAKENA features twin-bed staterooms, each with two Pullmans, en-suite bathrooms in lovely Onyx. In the forward part of ANAKENA, there is space for six crewmembers in three staterooms, separated from the owners and guests by the salon. This is where we find the engine room access, companionway to the deck and great galley to take care of all on board. All staterooms are equally fine detailed, and, in all bathrooms, soft-colored Onyx is used.

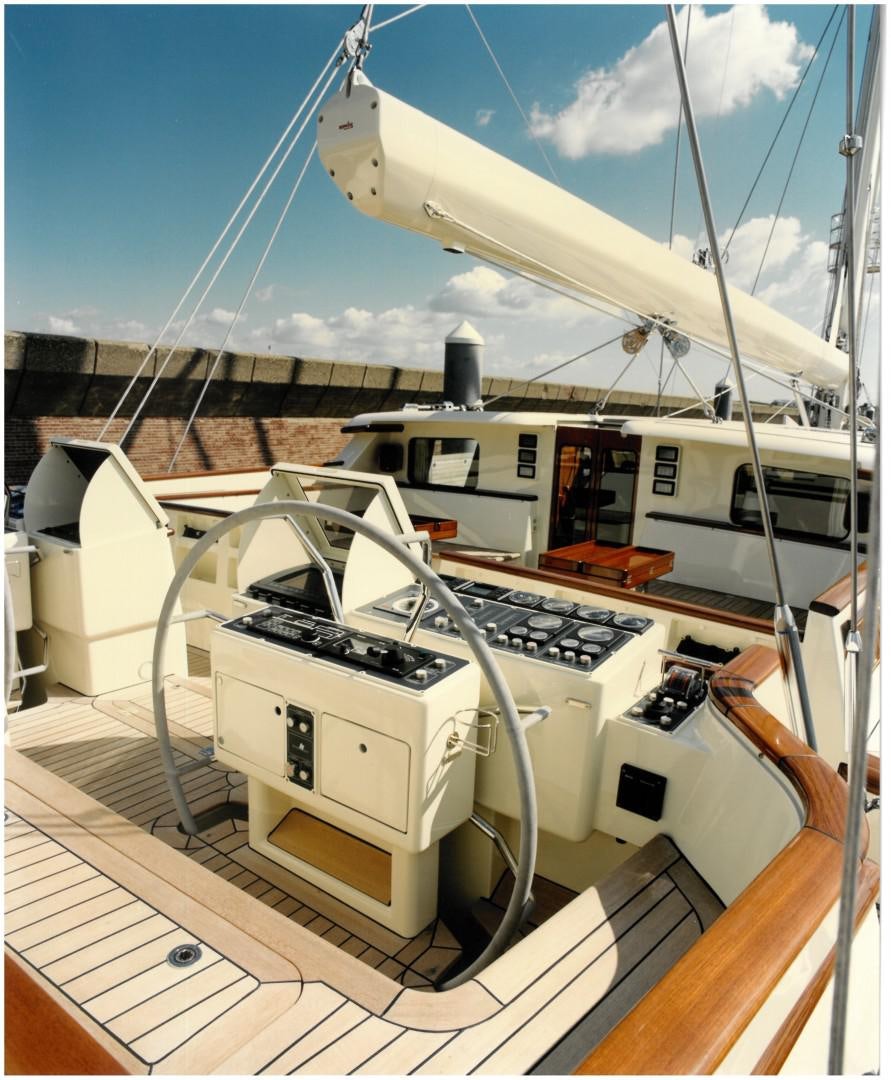

The exterior spaces are impressive. The cockpit aft of the pilothouse is ideally suited for enjoying alfresco dining. Behind the owners’ cabin, we find a private cockpit area with Bimini. Unobstructed views of the sea and total calm makes this no doubt a unique feature on a sailing yacht. This space is exclusive and inviting to have a drink under the stars and breakfast away from the action.
Name: Anakena
Type: Sailing Ketch
Builder: Royal Huisman
Year: 1996
Hull No: 365
LOA: 40.28 (132’02”)
LWL: 30.72 (100’09”)
Beam: 8.82 (28’11”)
Draft (Max): 6.94m (22’9”)
Draft (Min): 2.91m (9’7”)
Hull Material: Aluminium
Superstructure: Aluminium
Decks: Teak
Flag: Cayman Islands
Naval Architect: Ted Hood / Ted Fountaine
Exterior Designer/Stylist: Ted Hood Design Group, USA
Interior Designer: John Munford Design, England
Main Engines: 2x MTU/Mercedes 6R 183 TE 93
Displacement (Fully Loaded): 271 (596,200 LBS)
Gross Tonnage: 213
Guest Accommodations: 6 to 10 guests in 3 staterooms
Crew Accommodation: 6 crew in 3 cabins

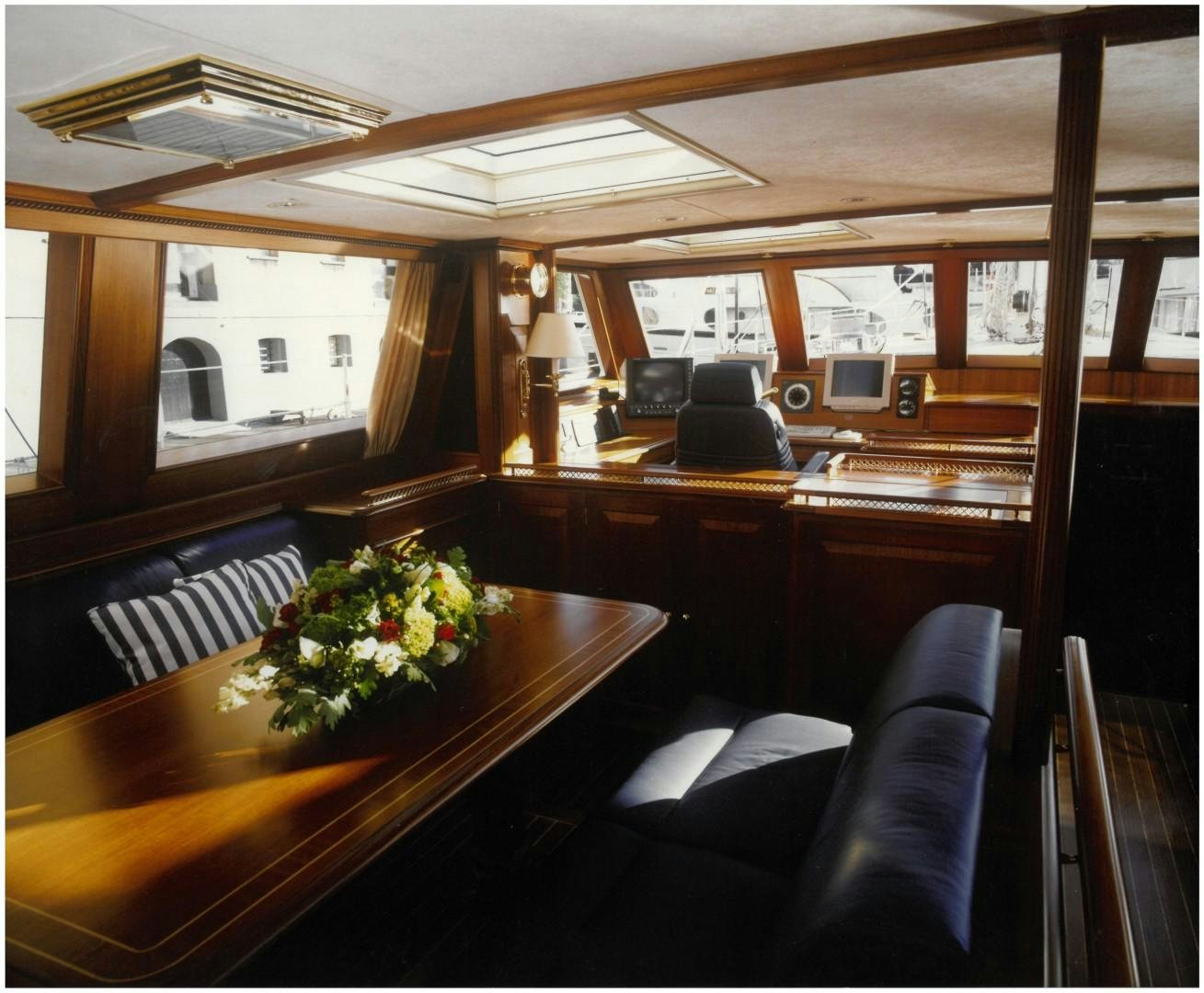

Deck salon
We enter the deck salon from the cockpit by stepping two steps down. We see immediately the large windows on either side, daylight being one of the key-points on the list of comfort.
On the port side we have a large high table, seating 8. Due to the centre line bench. On starboard we notice another high table seating some 6 people, with the L shaped leather covered sofa.
This light flooded luxurious deck salon offers a drinks fridge, ice cube machine, wet bar, and glass cabinet.

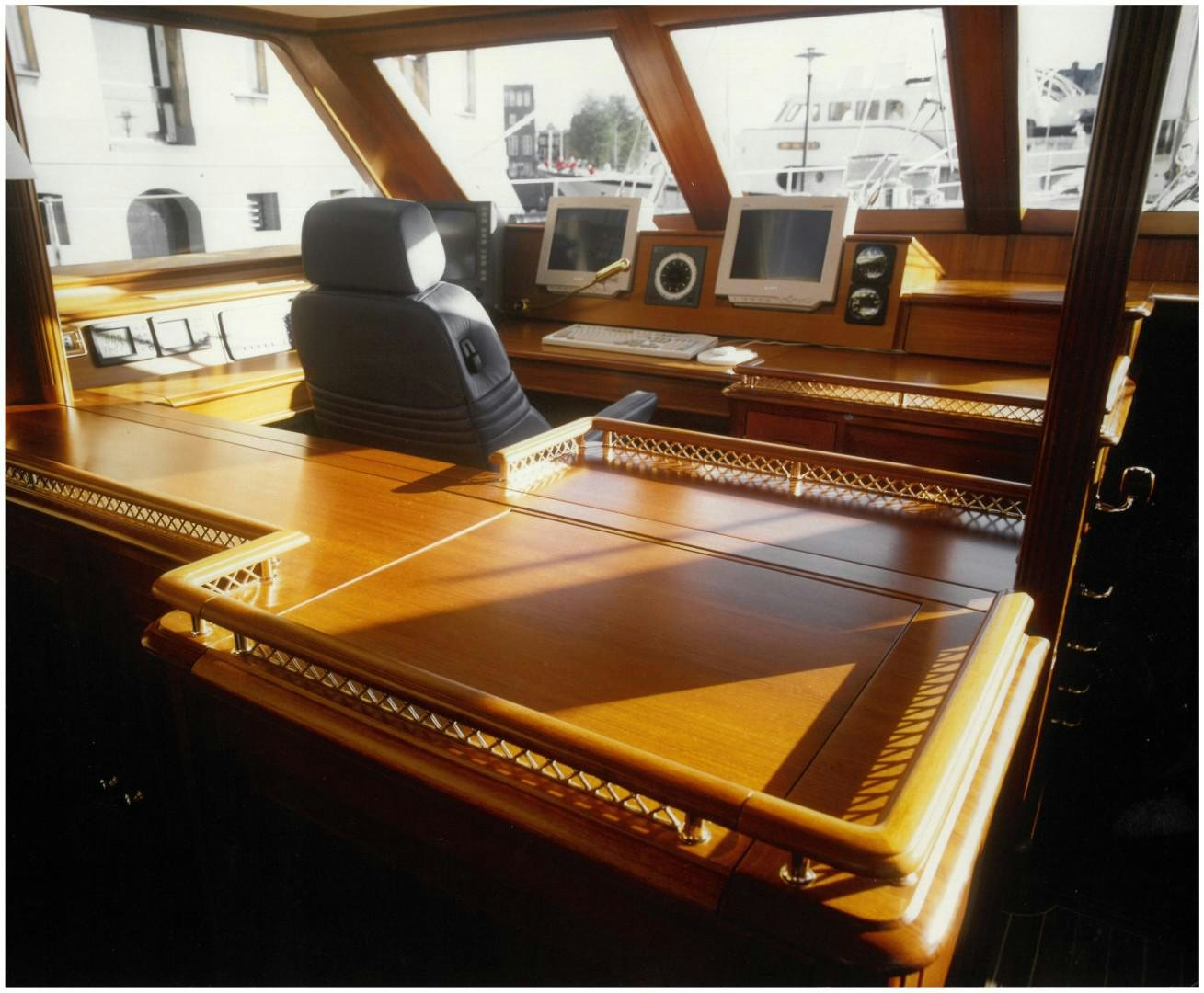

The forward part of the deck salon is exclusively laid out for piloting the yacht. Joystick steering is possible and starboard and port show practically the same nav equipment. There are hidden partition walls that can separate the pilot house from the lounge / dinging area when required.

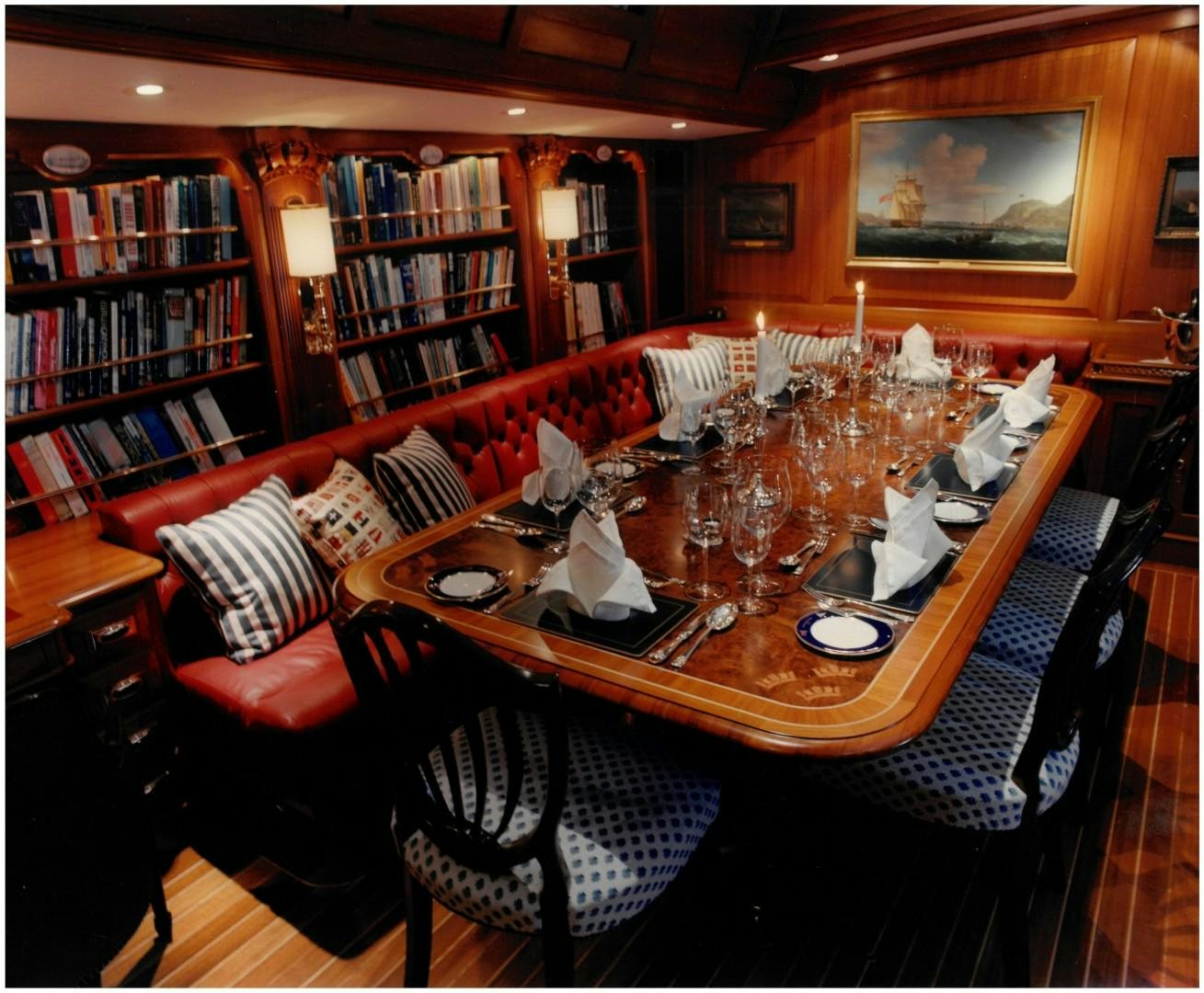

Going down to the salon we are immediately struck by the theme of the yacht, beautifully crafted classic teak wood interior with perfect detailing. Hundreds of books line both sides of the wonderful salon that breaths a serene peace and the highest of quality in yacht carpentry ever seen worldwide. There are some 2000 books onboard and should an interested party like to know if the “Library Theme” can be reduced, indeed and this would not be too elaborate in my opinion.
There are numerous wonderfully crafted artifacts on board, from the tiny carved royal crowns in various places throughout the boat to table tops that can be turned to double as gameboard or coffee table with trim. The port side of the yacht features a very comfortable lower seating arrangement where, on starboard we see a large dinging table that slides out electrically inboard so that the people who are seated on the inside can comfortably leave the table.
Exterior light comes through portholes in the coamings and prisms.
Forward of the salon we enter the yacht’s crew area. From here forward we have the galley over port, pantry over starboard and the crew companionway to the deck in between. A good size crew dinette and three cabins, each with ensuite shower rooms. The engine room entrance is in this same area.
Aft of the salon we find the luxurious undisturbed owners and guest areas.
On port and starboard ANAKENA offers twin bedded cabins, each with 2 Pullmans. Adjacent to the salon, each cabin has its own ensuite bathroom. All bathrooms have stall showers. Onyx is the stone used in all bathrooms throughout the yacht.
The full beam master cabin is located at the stern of ANAKENA, featuring two double beds and real openable port holes at pillow level as well as a repeater station (wind, speed, etc) located on starboard.
A desk on the forward bulkhead and plenty of hanging and drawer cupboard space completing this phenomenal owners’ cabin that also has his & hers ensuite bathrooms which are located a few steps up from the owners’ cabin going aft where a hall gives access to these bathrooms. Starboard has a stall shower, towel dryer, ac connection and all again in beautiful soft tinted Onyx while the other offers the same features, yet with a bathtub with jets and again made in the same soft coloured onyx.
The owners’ cockpit at the stern of the yacht is recessed which add to the safety and comfort. This private cockpit offers two tables that can be opened. The aft coaming hides the bimini and the dodger covers the owners’ companionway.
ANAKENA is a statement. Words like high quality are not quite enough to describe the amazing love for craftsmanship that this yacht and her Dutch Royal Shipyard represent. These superlatives go for all stages of the build of this super yacht. The crew that has worked on the yacht in the past are well impressed with the quality and some of these people worked here for over 10 years and maintained her, so a lot of knowledge is available. There is a large ships’ library where all manuals are stored, and her 26 years of maintenance are well documented. There are numerous details that I can mention, and it is better that you come and see them. ANAKENA speaks for herself.
Hull: Aluminium
Superstructure: Aluminium
Decks: Teak
Hul finish: Paint
Fuel Capacity: : 21.500 Liters / 4730 UK/ 5676 US Gallons. Each tank has dedicated graphic alarm. (x 6 aluminium tanks)
Water Capacity: 5.860 Liters 1290 UK/ 1548 US Gallons (x 4 aluminium tanks)
Each tank has own filling point on deck. Graphic read outs and alarm.
Pressure test point fitted
Inspection holes on last tanks
1 480L day tank in engine room
Pumps: Speck – BS25 Bronze with 110L pressure ball. Max 3Bar system stop automatically at 0,5Bar
Watermakers: 625 Liters/hr - 165 US Gallons/ hr
Lube Oil: 400 Liters - 105.6 US Gallons
Waste Oil: 400 Liters - 105.6 US Gallons
All tanks have inspection holes, suction lines, fitted pressure line for pressure testing.

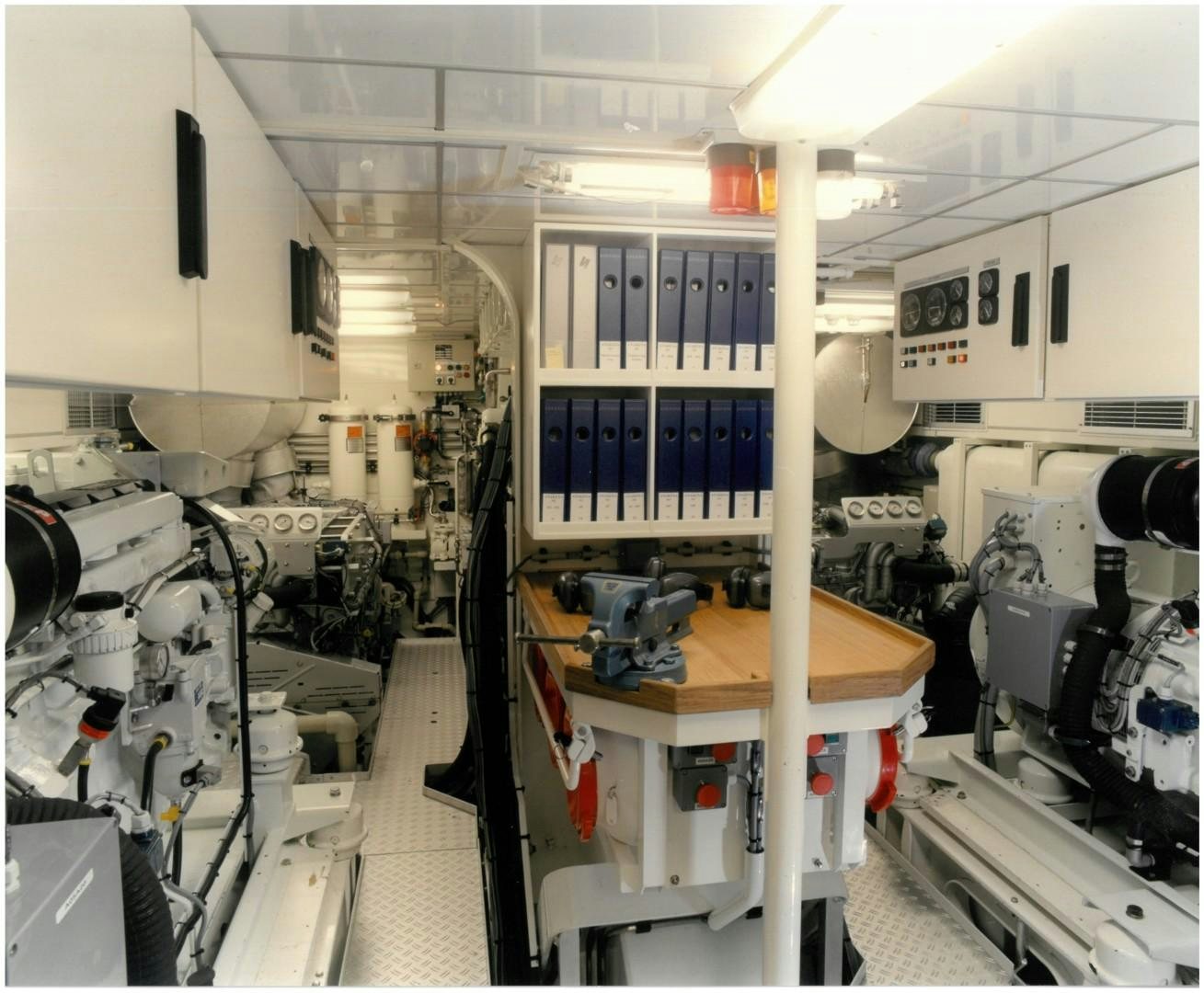

Main Engines: 2x MTU/Mercedes 6R 183 TE 93
PTO: 2x Rexroth PTO’s
Shafting: Variable pitch
Propellers: LIPS – 4 Blade DIA – 1,000 m
Output: 50 KW Per gen set
Generators: Northern Lights M 668 D @ 1.500 RPM
Shore Power
Batteries: ouse batteries are 5x banks of 12x2v cells. Total 60x
Chargers: 10x100Amp Victron charges (2x for each house battery bank): 2x in the pump room and the remaining 8x in the lazarette
Air Conditioning: Dometic Marine Air System with air handlers in all spaces
Air Compressor: Yes
Bow Thruster: 80 HOP (60 KW) Vosper Vosper Thornycroft VT 60
Fresh Water Filters: Yes
Fresh Water Heaters; Yes.
Boilers
Fresh Water Maker: HEM 35/4000
Shore Power Transformer: Magnus Sp200 80Kva input 180-520V. Freq. 47/04 Herz
Toilet System: Waterflush 2003 toilets

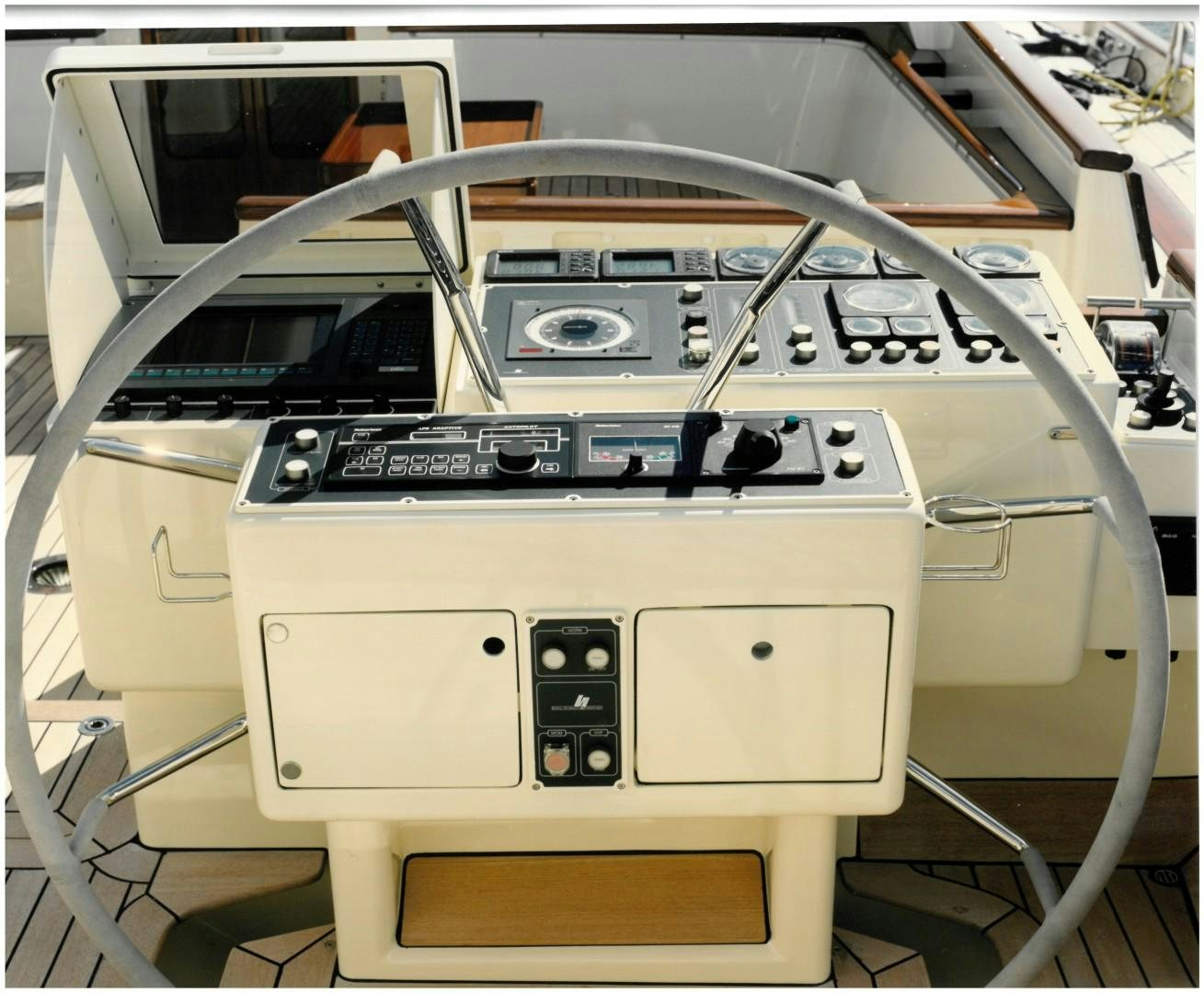

Steering System: Hydraulic CH70 + joystick I pilot house
Helm/Control Stations: X 2
Anchors X 2: 480 KG CQR
Anchor Chains: 19 MM Stud Link. 2 x 140m
Anchor Windlass System: Rondal 3 phase 380 VAC 12 inch electric anchor
Boat Crane: Danfos Hydraulics
Davits: Yes
Passarelle: Retractable, hydraulic
Accommodation Ladders: Royal side hydraulic boarding ladder
Security Equipment: Axis
Cameras: 2 x engine room; 2 x pump room, 1 x crew cabin, 1 x crew mess, 1 x saloon deck, 2 x lazarette, 1 x mizzen, 1 x aft deck, 1 x mizzen stbd, 1 x main deck.
Monitors: 1 x piliot house , 1 x captain’s cabin (controlling all cameras)
Ship’s Safe: In all guest cabins + captain’s cabin
Fire Fighting Equipment: FM-200TM “Thorn” – Apollo smoke & heat detectors
Fire Control System: Yes
Portable CO2: Yes
Fire Extinguishers
Fire hoses: Tested 2020
Foam & Co2 x 20 extinguishers
Alarms: Citect alarm system
Life Jackets: 40 life jackets + 2 infant life jackets
Safety Equipment:
Life Rafts: 3 x 8 pax
Life Rings: Yes
EPIRBS: Yes (in date 2021)
Flares: Yes
Medical Equipment: Yes
Smoke/heat detectors: x 20

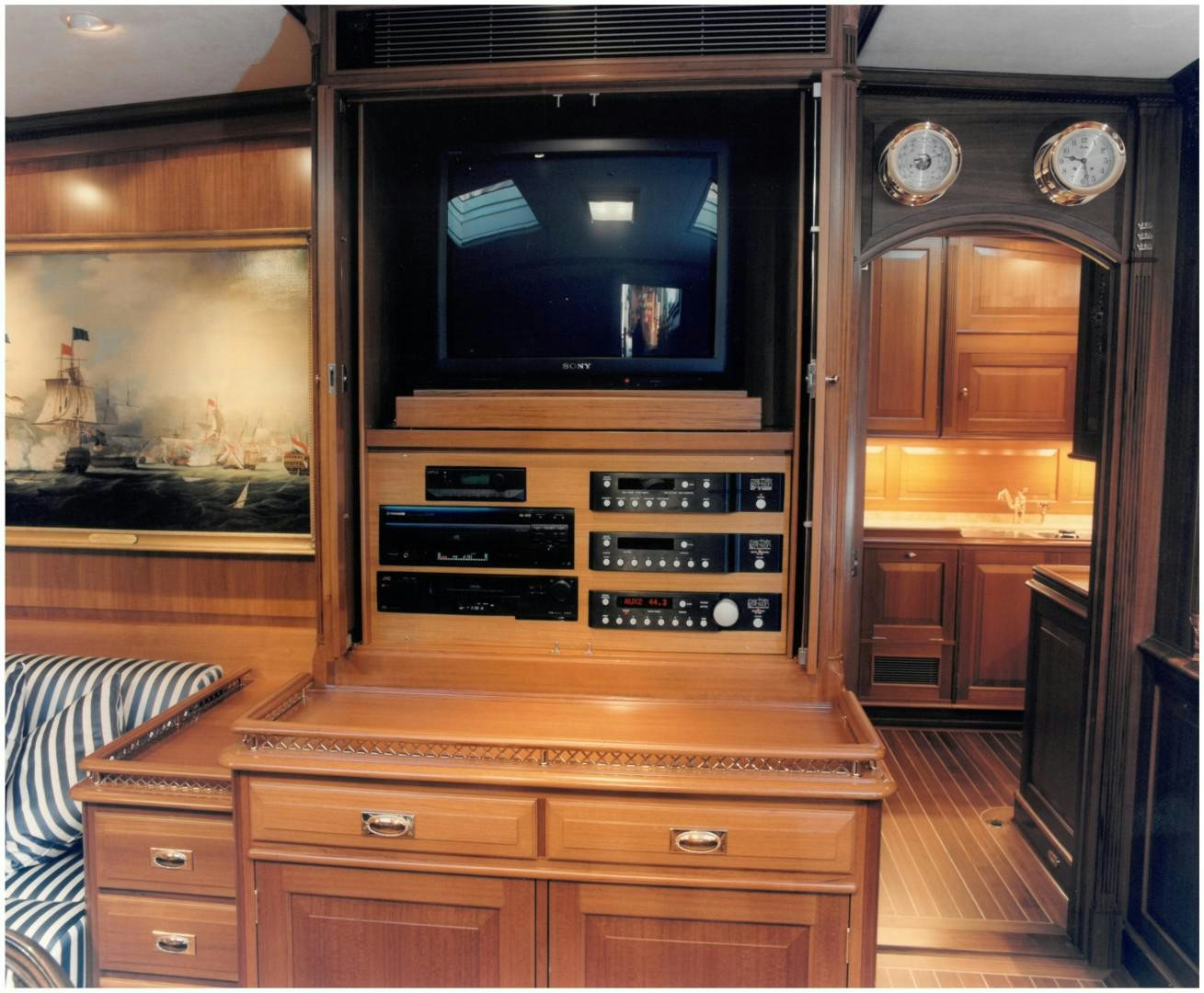

Central Ship’s Audio
Saloon
TV: LG TV
DVD: LG BlueRay Disc
Stereo: Cyrus Radio Tuner & Mark Levinson audio system
Ipod station: Yes
Master Cabin
TV: LG TV (LG PC Screen Trinitron)
DVD: LG BlueRay Disc
Stereo: Mark Levinson amplifier player and CD player + speakers
VIP Cabins (x 2)
TV: LG TV
DVD: LG BlueRay Disc
Stereo
Crew Area
TV: Sony TV
DVD: LG BlueRay Disc
Stereo
CD player
Communication Systems
Telephone System: Panasonic KX T7433
VHF Fixed: Simrad RS87
VHF Handheld: Icom BC210 handheld VHFx5
Cellular Phone System
Navigation Systems
Radar: JRC 96 miles
Gyrocompass: Anshutz 0735-04
Magnetic Compass: Yes
Auto Pilot: Simrad Autopilot
Multiple displays: 2 x B&G Hercules 790 (depth sounder, wind indicator, speed indicator)
GPS: Simrad Mx512 Nav System
Weather FA: Furuno Fax 207
Ships Computer: Home PC HP Proliant ML30
AIS: Simrad MX512 incl AIS 2x

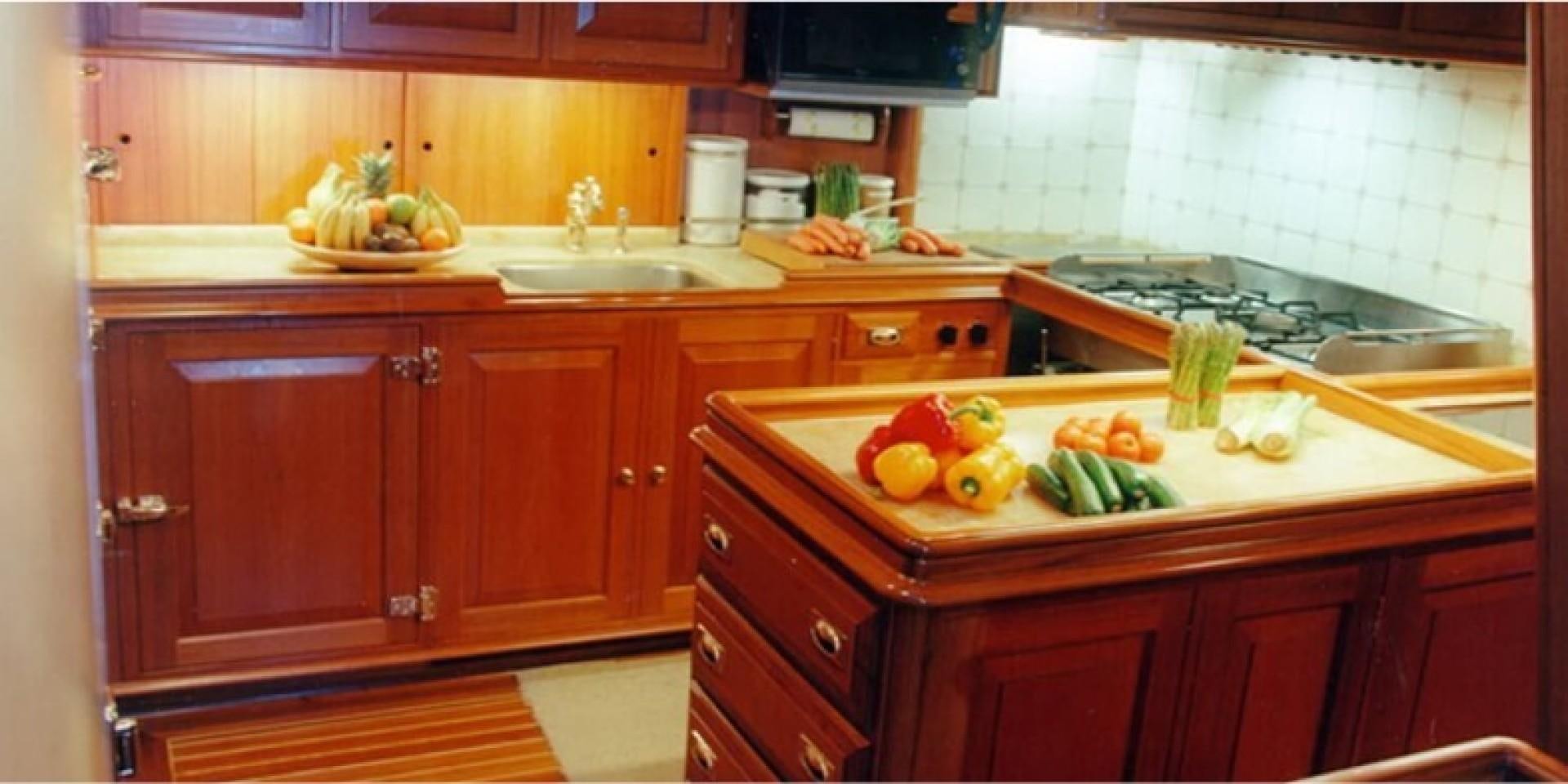

Main Galley Equipment: Fully equipped galley for professional use
Cooking Equipment
Whirlpool Procombi 840 Mircowave
Gaggenau Professional Oven
Gaggenau Professional Hob
Refrigeration/Freezer: 4 x fridges + 2 x freezers – Custom made
Dishwasher: Miele Professional G7856 Dishwasher
Other: Drinks fridge in lounge
Crew Galley/Mess Equipment
Refrigeration/Freezer
Fridge in crew mess – custom made
Other: Fridge in captain’s cabin
Laundry Equipment
Main Laundry Equipment
Miele Professional WS5446 Laundry machine 2x
Miele Professional T5206 Dryer 2x
Tender:
Williams 595 + 195Hp diesel inboard engine (44mph) (2016/2017 – Tested 2020)
ANAKENA was built for a very experienced sailing yacht owner who wanted to fuse the on-land living experience with the on the water lifestyle. A very large number of books can be stored on board as well as good wines. Safety and security wise this was Royal Huisman’s highest-level achievement at the time.
The enormous level of redundancy and large tanks as well as ample fridge space guarantees the opportunity to be autonomous for a very long time. The Architect had the brief to provide machinery and cold storage for 16 guests and crew for 60 days, not a small task!
Her very strong build offers the opportunity to travel less chartered waters almost anywhere in the world.
ANAKENA’s elaborate teakwood interior offers ample space for 6 to 10 owners and guests in great comfort. This beautiful interior is crafted by the best carpenters in the world and an absolute work of art which today can only be copied at astronomical prices.
The owner of ANAKENA takes a serious interest in finding a new owner for ANAKENA before Summer 2021! The client that has enough capital to purchase a dream yacht that will bring her/his family safely across the oceans is lucky to be aware of the fact that investing in Brand value is the intelligent choice. The future owner invests in: Pedigree, “Royal Huisman “is world famous for building the most exquisite sailing yachts in the world. This Dutch shipyard has been in existence since 1884 and has constructed the most exclusive superyachts ever that win prize after prize. ANAKENA was given the Show Boat prize for “Best Sailing Yacht” and the prestigious International Super Yacht Award: “Best Sailing Yacht over 36 Meter.
ANAKENA offers redundancy, safety, and freedom due to her “double/triple” systems and tankage for every piece of equipment imaginable. She will cost money every year and when the yacht is run professionally this will guarantee enjoyment and quality time away from the hustle and bustle on land. There has never been a better time to realize this. Contact us for a visit, it is worth the effort.
S/Y ANAKENA was in Pendennis shipyard twice for refit works.
Below the summarized lists.
2004 – 2005 (In dry dock alongside Antarctica the classic Feadship they owned at the time which had the lions share of the works done)
· Strip out of much of the aft interior furniture for access
· Removal and complete replacement with design improvements of the water jacketed dry CUNi M/E exhaust system port & stb
· Hydraulics system overhaul
· Thrusters overhaul
· Pitch control system overhaul
· Tank Cleaning & repairs
· General system maintenance, replacements & overhauls
2005 – 2006 (hauled out in to build shed and much larger refit)
· Complete exterior re-paint inc rigs
· Rigs service including re-wire
· Complete new teak deck
· Main deck aluminium plating fully sand blasted and re-faired
· Main engines removed and rebuilt
· Powertrain removed, serviced and re-installed
· Generators removed and replaced with new units
· Daggerboards serviced, aft one which was non-functional fully removed and rebuilt
· Rudder & steering system removed and serviced
· New custom chiller plant
· Anchor chains replaced
· Modified stanchion arrangement
