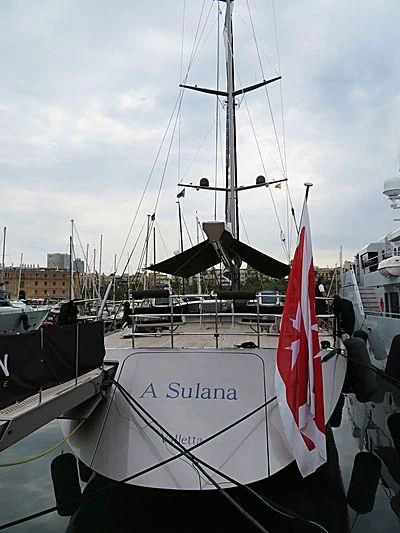

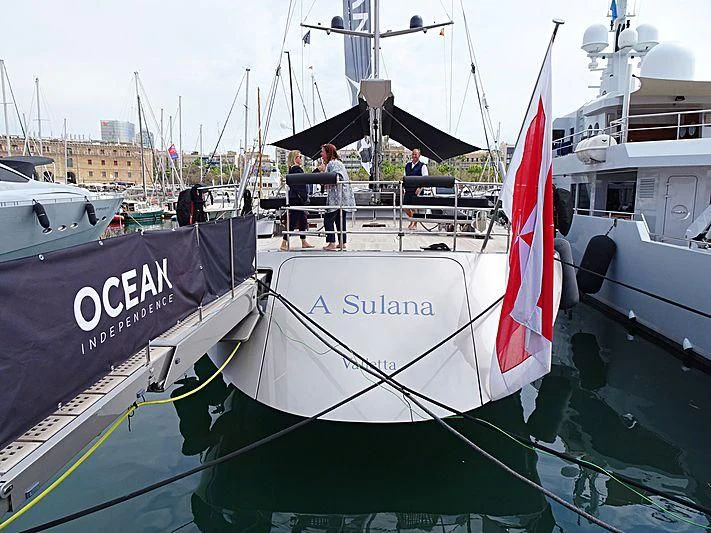

A SULANA Yacht for Sale

Furling Systems

• Marten ‘Leisure Furl’ Mainsail
• Reckmann Headsail Furlers

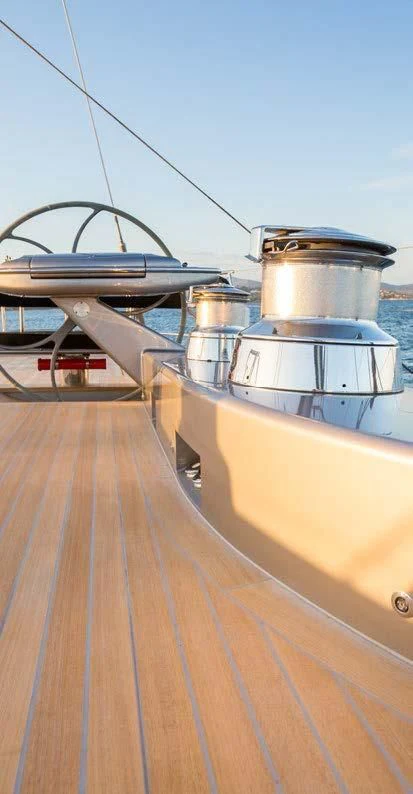

Winches

• Lewmar deck and captive winches

Hydraulic System

• Upgraded 2020 MHC PLC Controlled System

Water makers

• HEM

Sewage System

• Hamann Wassertechnnik
• Mini M Frame
• 750 Litres Black and Grey Water

Entertainment Systems

• Flare Tech

Passserelle

• Hydromar

Fire Control System

• Tyco Novec 1230

Electrical and Monitoring System

• De Keiser ACMS PLC

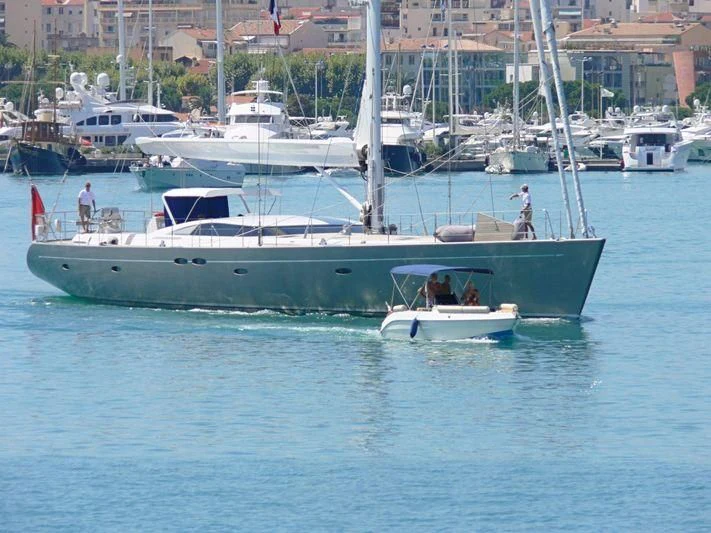

Tender

• Castoldi JT 14 RIB with 110Hp Diesel Jet,
•  Bimini with limo enclosure

Toys

• Inflatable Kayaks
• Seabob
• Waterski’s

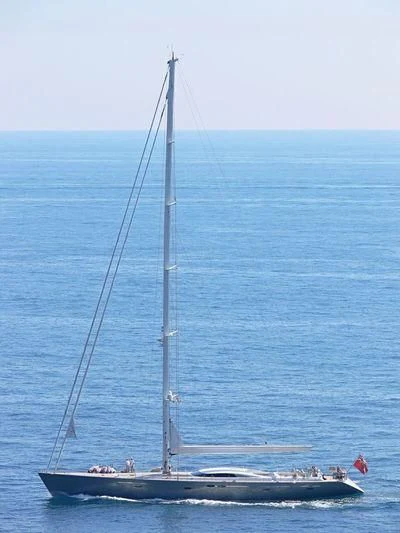

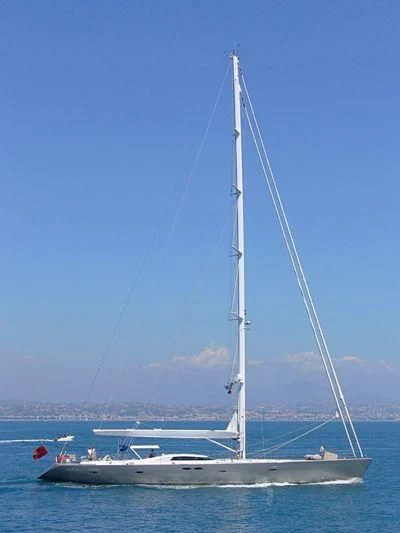

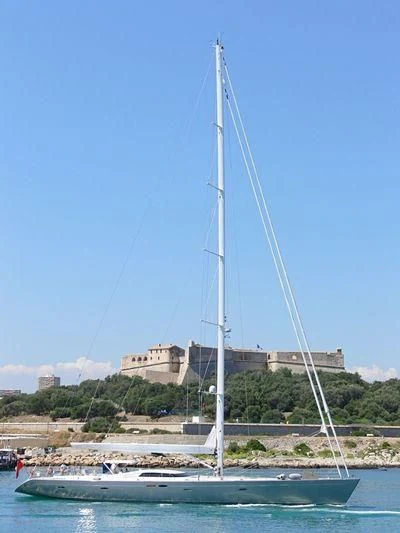

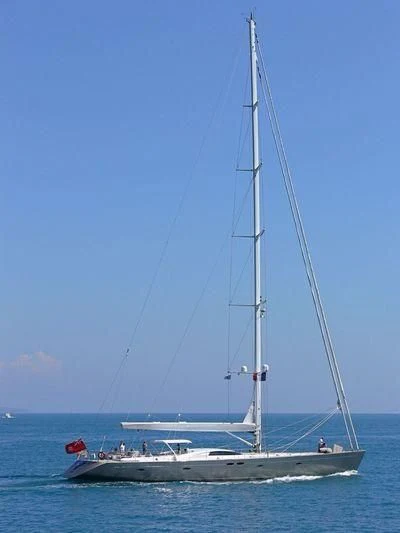

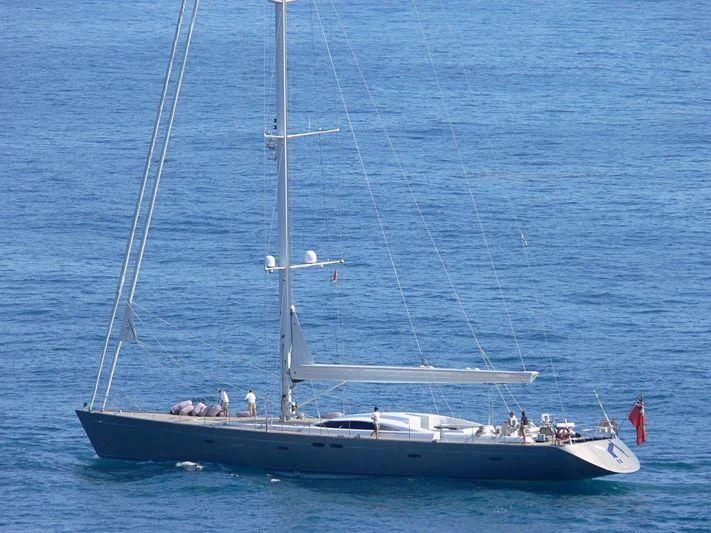

Rig

• Sloop, Marten Spars (Now part of Southern Spars)
• Carbon Mast and furling main boom

Sails

• Mainsail 370 m2
• Reacher 457 m2
• Blade Jib 298 m2
• MPS 956 m2

Sail Maker

• North Sails 3Di Main, Reacher, Blade

Sail Material

• 3Di Main, Reacher, Blade

2017 Refit List

• Sand blasting and painting of black tanks
• Antifouling of hull below water line
• Repainting of the super structure, cock pit, cock pit coamings and helm stations
• Repainting of the boom
• Main engine and gear box service Generator PORT service
• Generator STARBOARD service
• Replace all 6-cylinder liners on the main engine
• Fuel injection pump service and fuel pipes change
• Hull valves maintenance
• New butterfly valves for exhaust system and others
• Bow and stern thruster inspection
• Galley refit
• Freezer system overhaul
• A/C plant complete replacement
• Owners’ office conversion
• Re-varnishing of guest area floors
• Furniture varnishing
• External and internal upholstery
• Guest area marble polishing
• New teak decks with grey caulking
• Standing rigging refit
• Installation of new pad eyes on the rail for tender operations
• New Inner Forestay (Baby Stay) and Runners
• B&G System replacement
• New monitors and computers
• 10-year survey complete

2021/22 Refit & Key Items of Maintenance Undertaken
Generators

• Sampling of Oil, laboratory testing
• Sampling of Coolant, onboard strip testing
• Inspect turbo oil return, replace piping
• Replace coolant level indicator gauge
• Coolant header tank caps replaced
• Generator servicing (2000hrs and additional serving undertaken

 1. Crankcase breather (AirSep) units replaced
 2. Generator spray heads replaced
 3. Starboard water pump inspection / timing gear cover
 4. Port Generator belt and spare replaced
 5. Port Generator Timing gear cover replaced
 6. Port Generator Injectors replaced
 7. Zinc electrodes replaced
 8. Batteries clean, health checked
 9. Liners inspect with borescope
 10. Heat exchangers replaced
 11. Oil coolers replaced
 12. Port raw water pump replaced
 13. Port coolant pump replaced

Main Engine

• Complete overhaul, finished 10/2021
• Sampling of Oil, laboratory testing
• Sampling of Coolant, onboard strip testing
• Spray head replaced
• Exhaust/Water separator replastered and installed
• New Exhaust/Water separator ordered, to be assembled
• Engine servicing (750hrs + extra services done below)

 1. Crankcase breather (AirSep) unit replaced
 2. Zinc electrodes replaced
 3. Batteries clean, health checked, new cables installed
 4. Liners inspect with borescope
 5. Stator inspected
 6. Alternator inspected
 7. Heat exchangers inspected; gaskets changed
 8. Injector inspected

Pneumatics

• Compressor replaced
• Compressor overhauled
• Replaced Port laz pneumatic line
• Crew hatch seal Replaced
• Saloon hatch pneumatic seal replaced
• Compressor manifold replaced
• Condenser overhauled

Black water system

• Chlorine dosing plant serviced
• Hamann Pumps serviced
• Black/Grey tank overhauled
• Aft Black pipeline descaled

Grey water system

• Owner and Galley sump pumps replaced

Propulsion shaft

• Shaft replaced
• Deep sea seal overhauled
• Original hub and blades overhauled
• Shaft, hub, blades dynamically balanced

Hydraulics

• Changed hydraulic filters
• Transom door rams have been serviced
• Rigging hoses inspected and 2 hoses changed
• ER manifold plug o-ring changed
• Bow and Stern thrusters serviced

Fresh water

• HEM watermaker system overhauled
• Watermaker low feed pump replaced
• Fresh water pumps inspected/serviced
• Fresh water system and tanks, shock treated with hydrasil
• Water softener overhauled
• 1/3 Boiler replaced

Sea chest

• Manifold overhauled
• Replaced manifold isolating and intermediate valves
• Through hull valves replaced
• Sea chest, through hull box overhauled


Bilge and Fire pumps

• Both pumps overhauled

Air-conditioning system

• Raw water pump replaced
• Fancoil units serviced / inspected
• Ducting inspected

Fresh Air Make-up Unit

• Inspection / serviced

AVIT

• Complete software update

Mast Boom and Rigging

• Removed Mast
• All rod rigging and terminations NDT’d
• Mast NDT’d
• Mast D1 and D2 delamination repaired by RigPro
• Reckmann Furler inspection and service

1. Boom mandrel serviced
2. Outhaul ram serviced and rod replaced
3. Anchor light re-wire
4. Mast paint touch ups
5. Mast Meggar Tested

Deck Hardware

• Anchor windlass service and painted
• All Deck winch serviced
• Mooring capstan serviced
• Painted anchor chain markings
• Blade sheet captive winch brake seal replaced

Hull Maintenance

• Hull paint spot repairs
• Hull antifouled
• All hull anodes replaced
• 90% of through hull valves replaced
• Forward Fuel tanks opened and cleaned
• Gasket of fuel tanks changed
• Rudder delamination repaired
• Polished waterline and protective coat applied
