XPLO BV-30 Yacht for Sale

98' (30m)
EXPLORER
1

Not for sale or charter to U.S. residents while in U.S. waters.

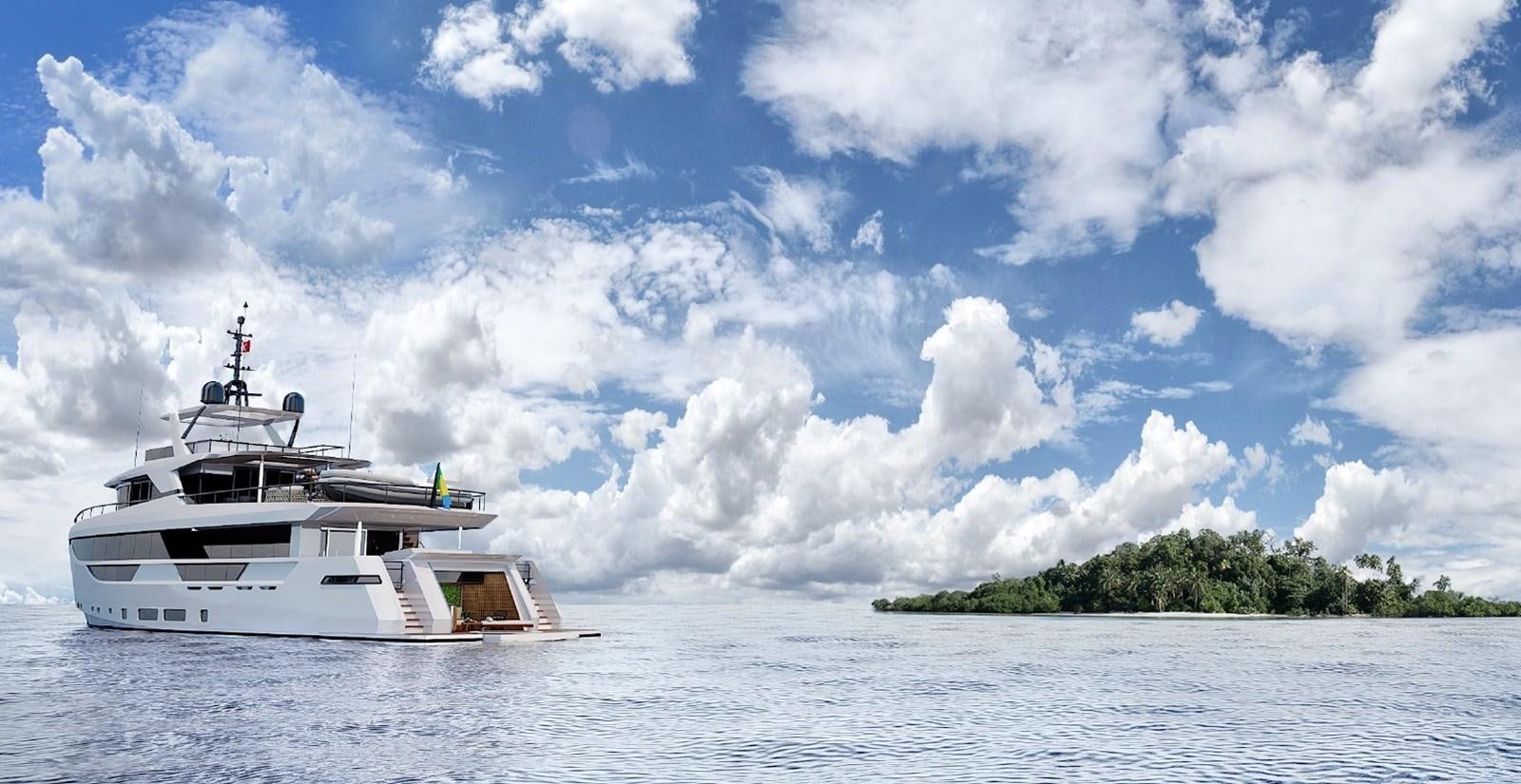

This 30 meters Expedition Yacht is soon completed.

She is a steel / aluminum construction, and its unit #01 is nearly completed.

Built \n under the international classification Rina, in compliance with LY3, \nthis yacht full-files the highest level of international requirements \nfor luxury yachts.

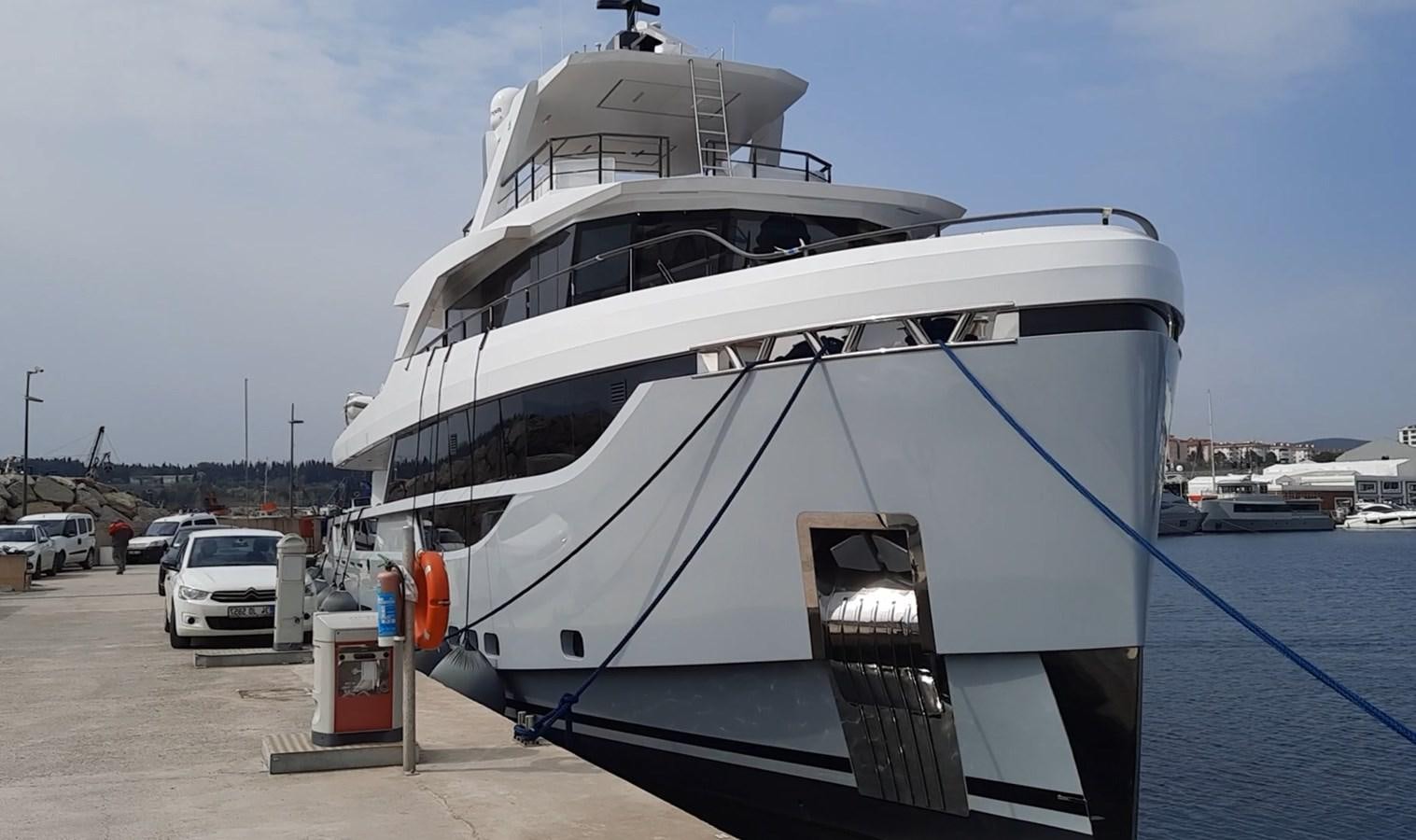

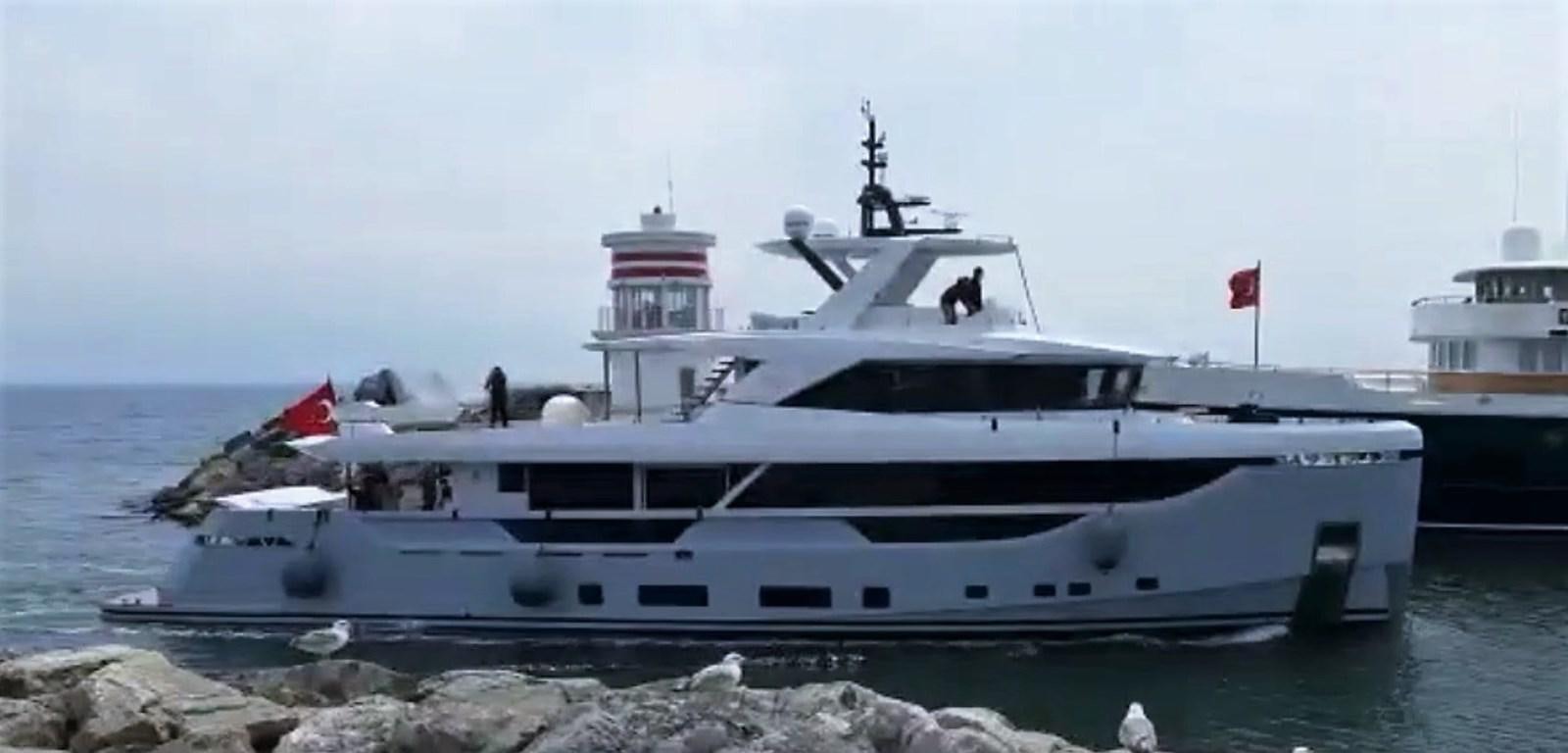

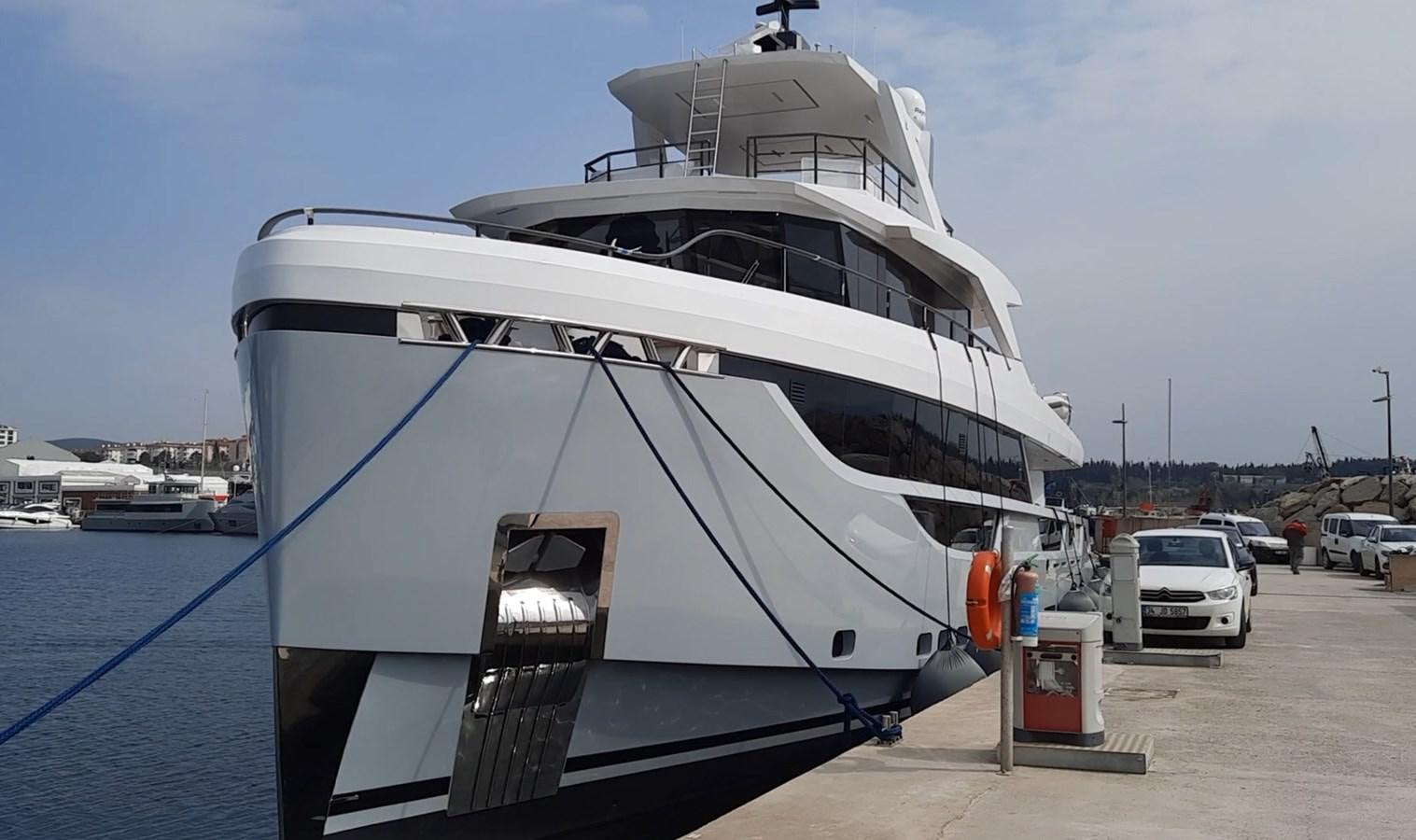

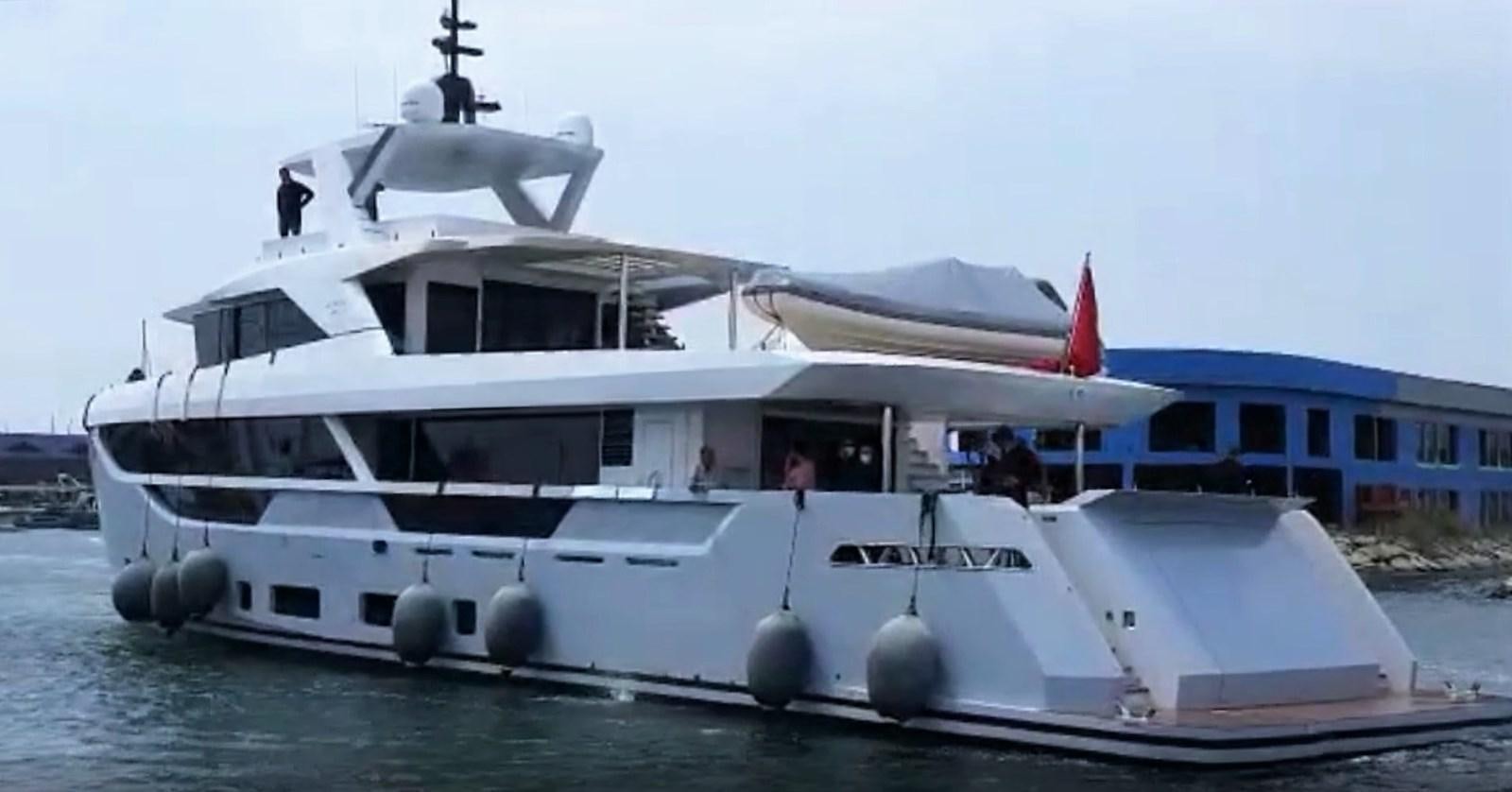

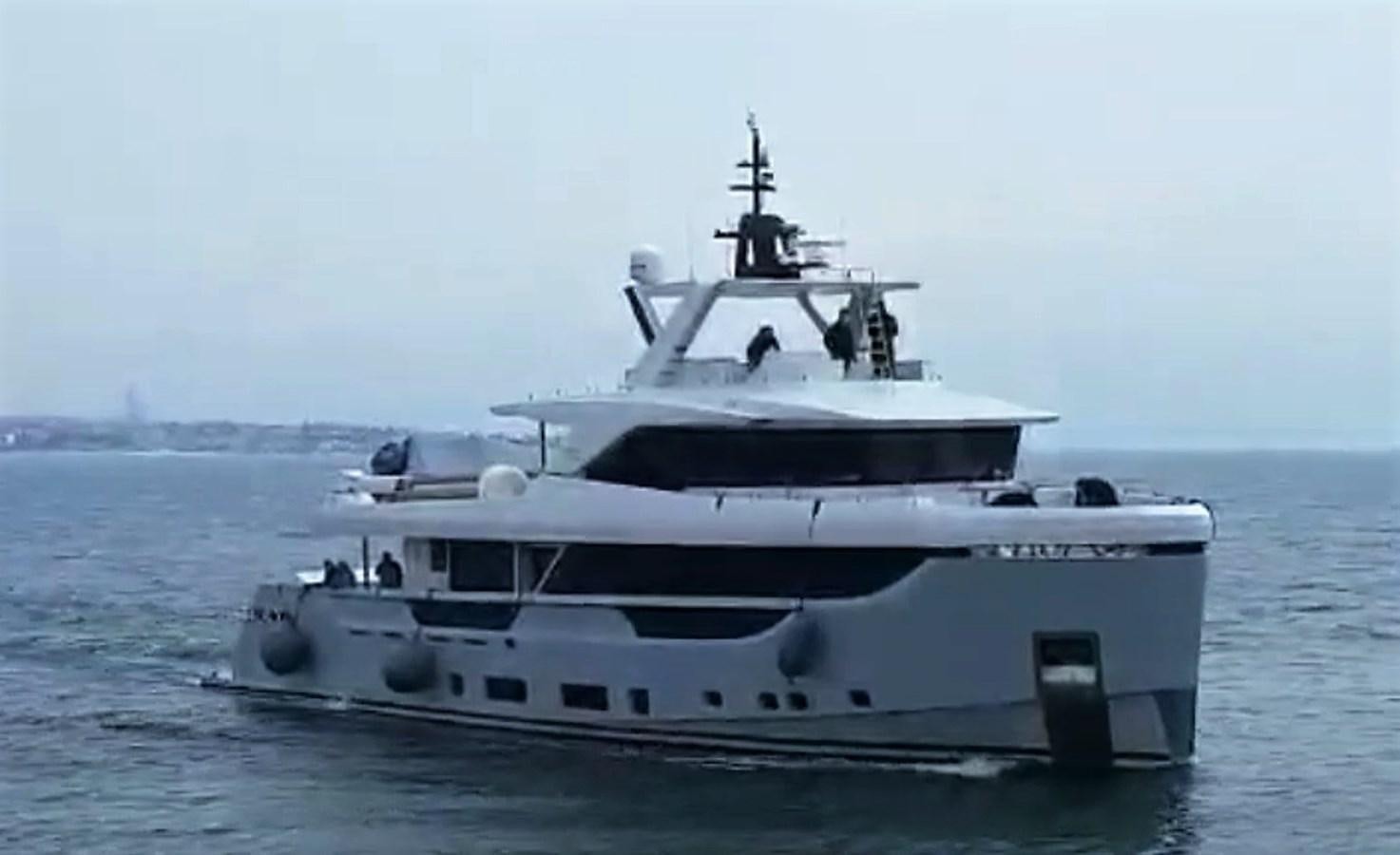

Unit #01 is now in the water and her interior \nis under completion. The actual owner is to looking at upgrading to a \n37m sistership.

Meantime, unit #02 has its hull and superstructure \n built already, available for sale and fully customizable by her new \nowner. She can be ready in 12 months after deposit.

Inquire Now

Details

Length 98 FT (30 M)
Beam 23 FT (7.04 M)
Draft 8 FT (2.25 M)
Gross Tonnage 290 Ton
Guests 10
Crew 5
Builder EXPLORER
Year Built 1
Construction Steel
Cruising Speed 11 Knots
LOA 98 FT (30 M)
LWL 91 FT (27.6 M)
Beam 23 FT (7.04 M)
Max Draft 8 FT (2.25 M)
Cruising Speed 11 Knots
Max Speed 13 Knots
Gross Tonnage 290 Ton
Water Capacity 6,649 Liters
Fuel Capacity 27,059 Liters
Hull Material Steel
Details for XPLO BV-30 Private Luxury Yacht For sale

Full Specifications


Hull material : Steel &Aluminum
Classification Societies : RINA C+ HULL ●MACH “Ych” charter short Range Navigation,EFP, COMPLIANCE LY3
Flag: St. Vincent

MAIN DIMENSIONS
LOA 30 M
LWL 27,599 M AT FULL LOAD
BMAX 7,035 M
DEPTH AT MIDSHIP 3,83 M
DRAUGHT, AT FULLLOAD 2,25 M ABT AT FULL LOAD
DISPLACEMENT, FULL LOAD 220 T ABT
Gross Tonnage(Expected) (GT) 290 T
Cabin Configuration 2 Masters / 3 Guests

TANKS CAPACITY
FUELOIL 27,059 m3
FRESH WATER 66,490 m3
GREY WATER 2,312 m3
BLACK WATER 1,004 m3
BILGE WATER 0,364 m3

PROPULSION
Propeller (Minumum Noise & Vibration) : CJR / UK
MAIN ENGINES : MANN 2 x D2676 LE245, Medium Duty
2 x 478 kW (650 mhp) @ 2,100 rpm
2 x ZF 3350 2 x GEAR RATID 4:1

ELECTRICAL GENERATING PLANT
MAIN GENSET 1pcs x 55kW + 1pcs x 45 kW Kohler
380 V/50 Hz/Three Phase

DESALINATION PLANT
2x [email protected] MAXI 7.000 water - 220V AC / 3 KW - membranes 2x4"x40"

THRUSTERS
SP 420 (U37) hydraulic / 39 hp
Pressure pulses on the hull(related to vibrations) : 420 kgf. (Minumum Noise & Vibration) 30 kW/ Norwegian

PERFORMANCES
MAXIMUM CONTINUOUS SPEED (100 %MCR) 13,5 KNOTS
CRUISING SPEED 11 KNOTS
RANGE AT CRUISING SPEED 4500 Nm

STABILIZER
CMC Marine SE60.5.4.140 / 50 Hz-380 V
