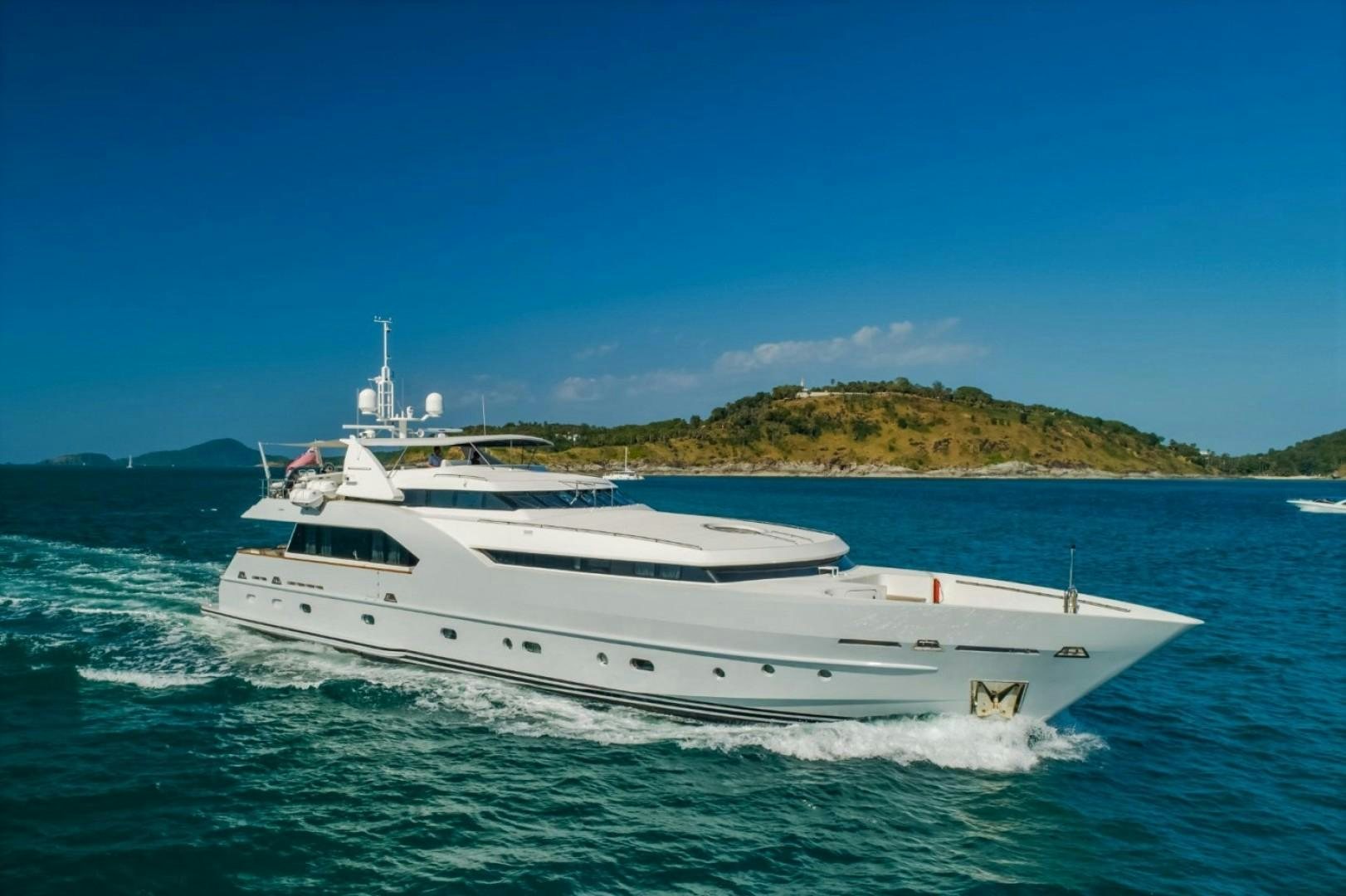

XANADU OF LONDON Yacht for Sale

TYPE MOTOR YACHT

BUILDER: MOONEN SHIPYARD

DESIGNER: F. NEUBELT / NEWCRUISE

MODEL: MOONEN 34M

YEAR: 1997

REFITS: 2022

CLASSIFICATION: ABS

HULL MATERIAL: STEEL

SUPERSTRUCTURE: ALUMINIUM

FLAG: MALTA

SLEEP: 8

DISPLACEMENT: 200 MT

GROSS TONNAGE: 248 GT

MAX SPEED: 12 KNOTS

CRUISING SPEED: 10 KNOTS

RANGE AT MAX SPEED: 1,600 NM

RANGE AT CRUISING SPEED 2,000 NM

HULL CONFIGURATION: FULL DISPLACEMENT

EXTERIOR PAINT: ALEXSEAL WHISPER GREY AND STARK WHITE

LOA: 34 / 111'07"

BEAM: 7.6 / 24'11"

DRAFT: 2.3 / 7'07"

FUEL: 34,000 LT 5X STORAGE TANKS AND 1 X DAY TANK

FRESHWATER: 6,000 LT 2X STORAGE TANKS PORT & STARBOARD

BLACKWATER: 1,000 LT 1X STORAGE TANK

GREY WATER: 1,500 LT FORWARD TANK 700 LT AFT TANK

WATERMAKER: HEM 30/8,000 LT P/DAY

CLEAN OIL: 1,000 LT

WASTE OIL: 750 LT

FUEL AND WATER TANK MATERIAL - STEEL

1600 RPM 12 KTS = 87X2 L/H

1500 RPM 11.5 KTS = 74X2 L/H

1400 RPM 10.8 KTS = 68X2 L/H

1300 RPM 10 KTS = 50X2 L/H

Example @ 1300 RPM 100 L per hour X 24 hours = 2400 L divided by 10

kts is 240 nm for the day. 33,000 L divided by 2400 = 13.75 days, 13 days

X 240 nm = 3300 nm. The fuel curve takes genset use into account, however,

generator approx. 200 L per day.

CABINS

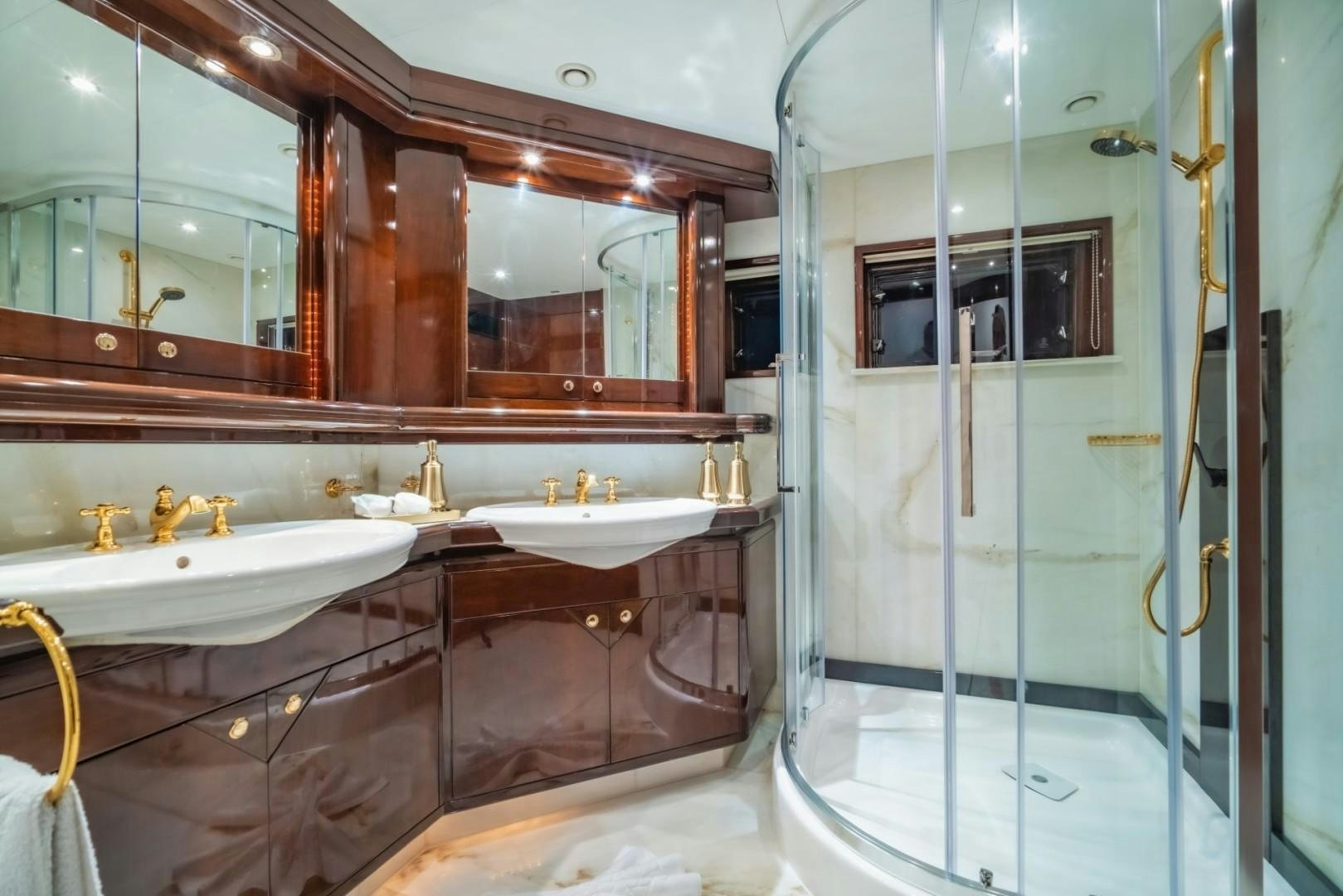

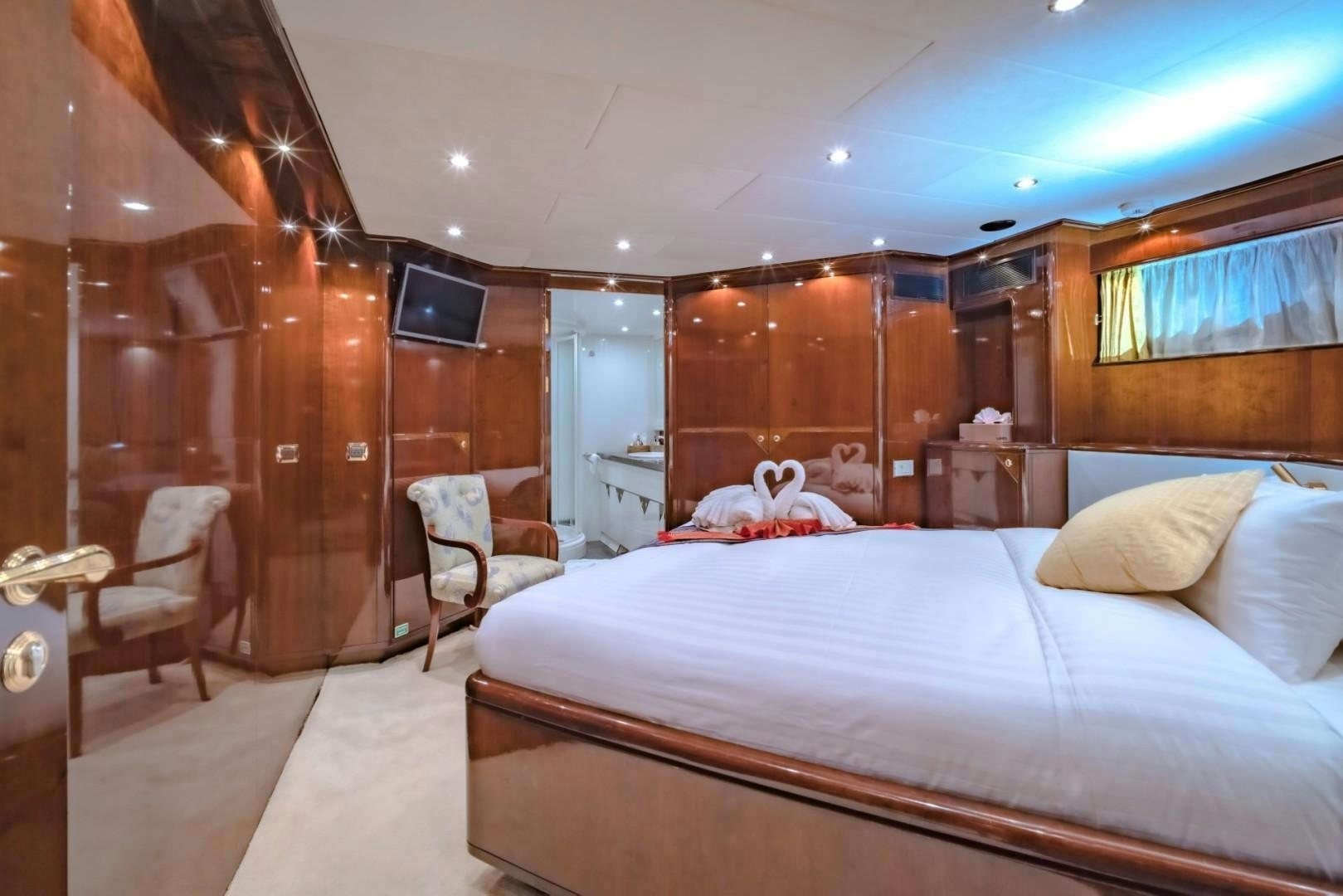

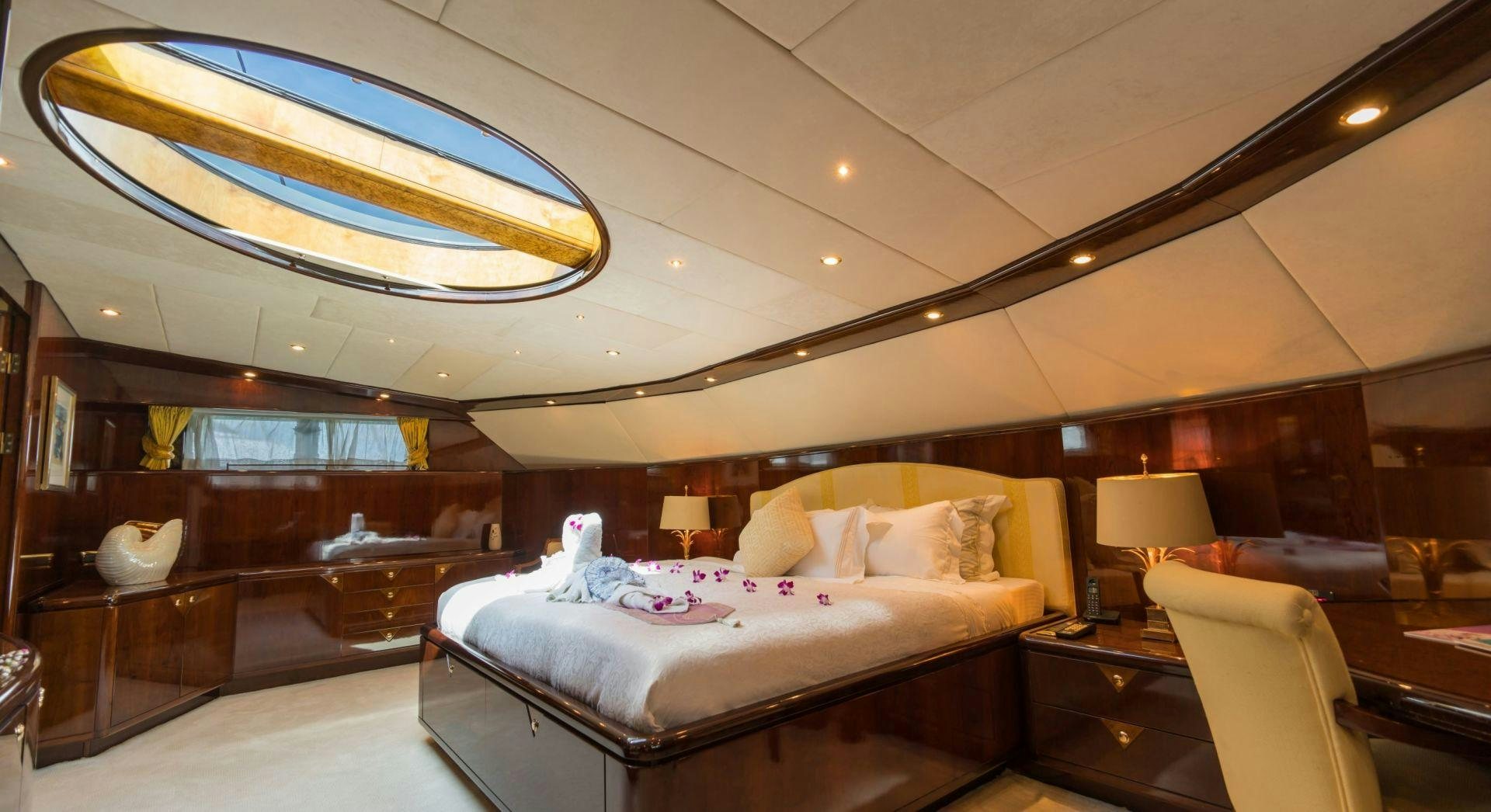

• MASTER STATEROOM WITH KING-SIZE BED AND EN-SUITE

• BATHROOM

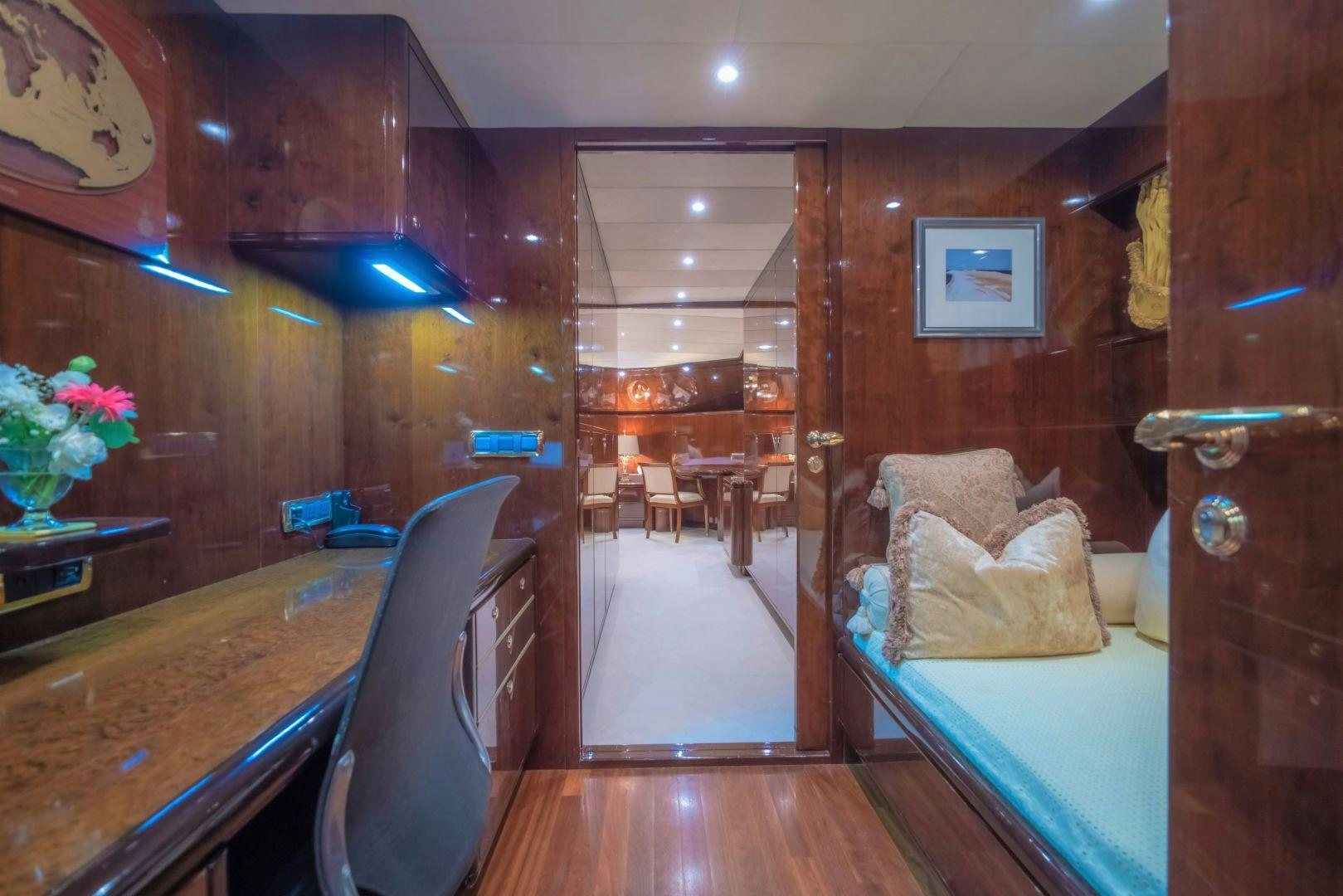

• OWNER’S OFFICE

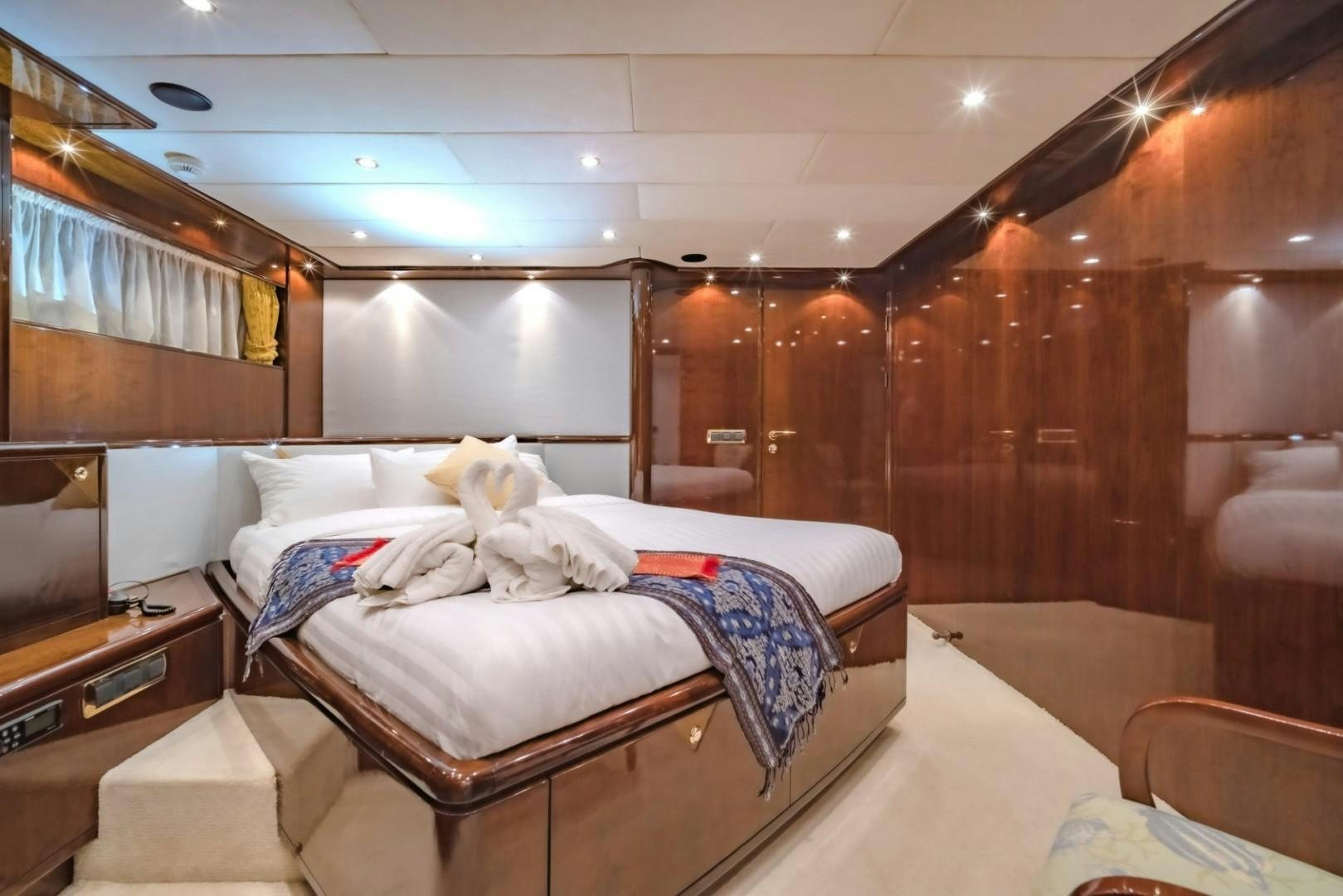

• 1 X VIP STATEROOM WITH EN-SUITE BATHROOM

• 2 X DOUBLE STATEROOMS WITH EN-SUITE BATHROOM

• FORWARD 3 X CREW CABINS 2 X SINGLE AND 1 X DOUBLE

• ENGINEER’S CABIN 2 X SINGLE STARBOARD SIDE AFT

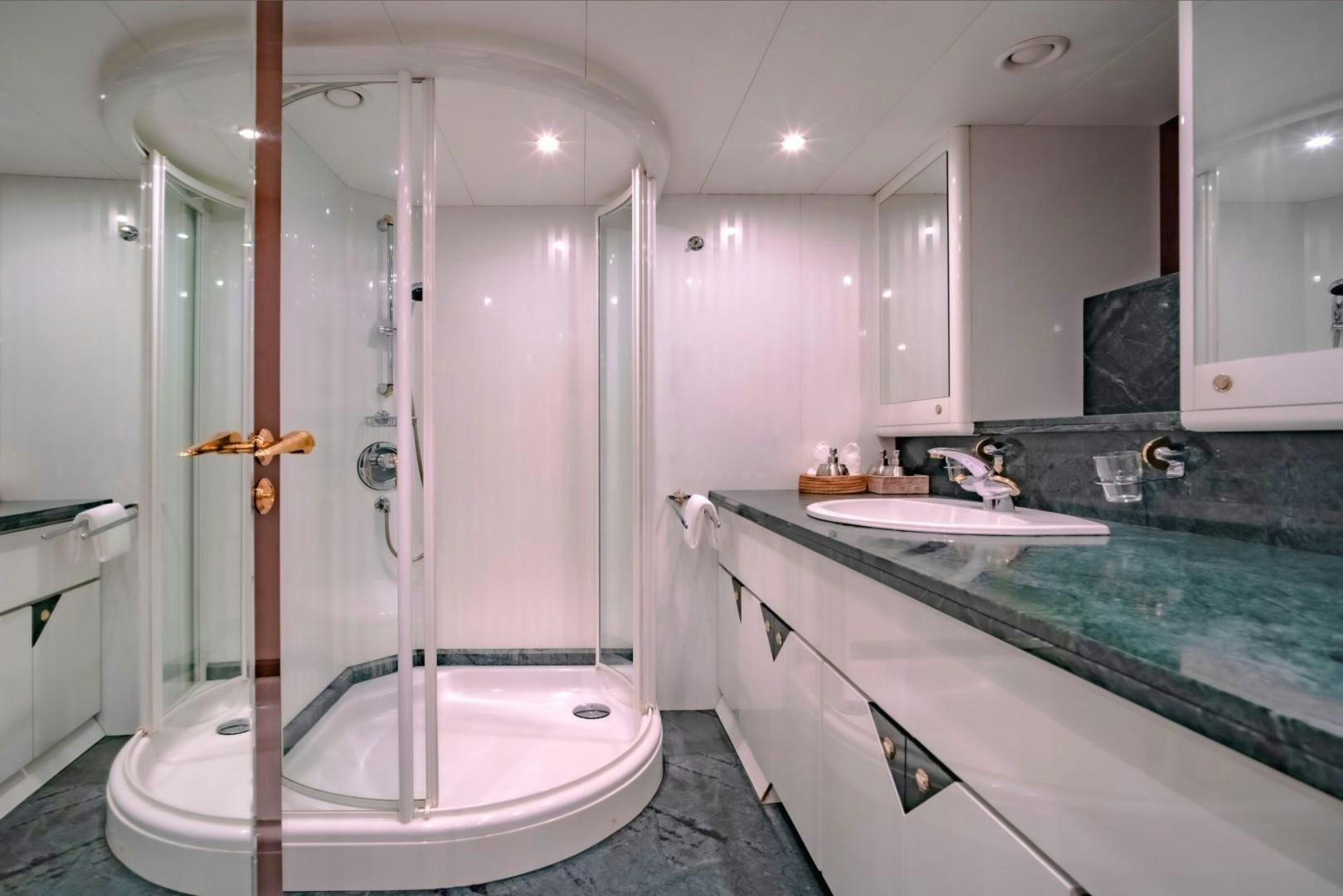

BATHROOM

• DAY HEAD ON MAIN DECK STARBOARD SIDE LOBBY

• ALL GUEST CABINS WITH ENSUITES

• AFT CREW CABINET FWD CREW CABINS WITH ENSUITE

MAIN ENGINE STBD: CATERPILLAR 3412-635,

SERIAL NO: 60M06600, PERF.SPEC.2T-7306

YEAR: 1997

MAIN ENGINE PORT: CATERPILLAR 3412-635,

SERIAL NO: 60M06603, PERF.SPEC.2T-7306

YEAR: 1997

ENGINE HOURS PORT: 4,441 (06/04/22)

ENGINE HOURS STBD: 6,464 (06/04/22)

GEARBOX TYPE: RENJIES WAF 340

GENERATOR STBD: NORTHERN LIGHTS: 65 KW

SERIAL NO: T06068 T 534391

GENERATOR HOURS: 13,666 HRS (06/04/22)

GENERATOR PORT: NORTHERN LIGHTS: 65 KW

SERIAL NO: T06068 T 535101

GENERATOR HOURS: 14,118 HRS (06/04/22)

ALTERNATOR STBD: NORTHERN LIGHTS

SERIAL NO: 6684-16621

ALTERNATOR PORT: NORTHERN LIGHTS

SERIAL NO: 6684-16622

BOW THRUSTER: CRAMM 50KW / 68 HP CBSF 500

ALL UPGRADED GAGGENAU EQUIPMENT

HOB

DISHWASHER

3 X FRIDGES

3 X FREEZERS

1 X ICEMAKER.

LAUNDRY IS LOCATED AFT OF THE ENGINE ROOM STARBOARD SIDE.

LAUNDRY HAS MIELE HEAVY DUTY TYPE

2 X WASHERS

2 X DRYERS

• COMMERCIALLY NEW BRIDGE LAYOUT AND ELECTRONICS 2021

• COMMERCIALLY APPROVED ELECTRONICS AND MONITORING SYSTEMS

• AUTROPRIME FIRE DETECTION SYSTEM

• VDO CATERPILLAR ANALOGUE RPM GAUGES

• REXROTH MICRO-COMMANDER CONTROLS

• BOW THRUSTER JOYSTICK ( NO STERN THRUSTER INSTALLED )

• SIMRAD AUTOPILOT AND RUDDER INDICATOR

• SIMRAD GPS TYPE APPROVED

• SIMRAD NSS EVO3 16" X 2

• SIMRAD X BAND RADAR R3016 12U/6X

• C - ZONE YACHT MONITORING AND ALARM SYSTEM

• NEW CCTV SYSTEM THROUGHOUT, VIEWABLE ON MOBILE

• ALPHATRON BRIDGE AND NAVIGATIONAL WATCH ALARM SYSTEM

• FIRE BOY FM200 ENGINEROOM FIRE SUPPRESSION SYSTEM

• KVH VSAT WITH 60CM DISH

• INMARSAT C SAILOR 6018

• IMC NAVTEX DUAL-FREQUENCY NT 1800

• NAIAD DYNAMIC STABILIZER HEAD UNIT

• UNDERWAY AND ZERO SPEED

• SAILOR 6222 VHF WITH DSC TYPE APPROVED

• GRANDSTREAM VOIP INTERCOM / PHONE

• UPGRADED UNIVERSAL GPO AND USB CHARGING POINTS

• HEPWORTH WIND SCREEN WIPER SYSTEM

• SHIPS CLOCK AND BAROMETER

• ALL-NEW LOPO NAV LIGHTS HTTPS://WWW.LOPOLIGHT.COM

• TWIN SIMRAD NSS CHART PLOTTERS 9"

• VDO CATERPILLAR ANALOGUE RPM GAUGES

• BOW THRUSTER JOYSTICK ( NO STERN THRUSTER INSTALLED )

• SIMRAD RS 35 VHF

• FUSION MS - RA70 CONTROL HEAD

• ALPHATRON BNWAS ALARM REPEATER

• 2 X SANSHIN SEARCHLIGHT CONTROLS

• SIMRAD AUTOPILOT

• SIMRAD WIND/DIRECTION DISPLAY

• REXROTH MICRO COMMANDER CONTROLS

• NEW BIMINI STAINLESS STEEL CUSTOM FRAME WITH AFT AWNING

• ELECTRIC CHEF BBQ WITH OVEN HOOD BEHIND BAR

• TWIN BAR FRIDGES WITH GLASS DOORS

• ISOTHERM ICE MAKER

• STAINLESS STEEL SINK WITH MIXER

• FILTERED WATER FAUCET FILLING STATION

• COMPRESSED AIR SUPPLY UNDER STARBOARD FWD BENCH SEAT

• CALL BUTTON FOR GALLEY AT DINING SEATING.

• CRAMM DAVIT 1750 KG FOR JET SKI AND TENDER

• MASSAGE TABLE STOWED UNDER DAY BED

• REMOVABLE CRADLE FOR TENDER AND JET SKI

• CUSTOM STAINLESS STEEL POLES FOR AFT AWNING

• PIANO CASIO/C. BECHSTEIN ELECTRIC BABY GRAND PIANO

• SALON HAS SONOS AMPLIFIER AND 4 SPEAKERS MOUNTED IN-CEILING

• 5-CHANNEL CINEMA SOUND

• POP-UP LG TV 60" BEHIND PIANO WITH SONOS SOUND BAR, SUB WOOFER AND SURROUND SOUND.

• YACHT INTERCOM/PHONE

• CREW CALL BUTTON AT DINING TABLE

• 8 PAX DINING TABLE

• 2 X 3 PERSON SETTEE IN SALON AND SINGLE SETTEE

• ALL OF THE SALONS IN FINE CARPET IN GOOD CONDITION

• FUSION CONTROL HEAD

• STORAGE CABINETS FOR DINNERWARE AND LINEN

• BATTERIES SERVICE 4 X 220AH AGM

• BATTERIES ENGINE START. 6X GPL-4DL 210 AH AGM DEEP CYCLE LIFELINE

• BATTERIES GENSETS

• BATTERIES EMERGENCY WITH INDEPENDENT MASTERVOLT CHARGEMASTER 12/35-3

• AIR-CONDITIONING AND CHILLER SYSTEM

• 4 CHILLER UNITS WITH BACK UP WATER PUMP 40000 BTU EACH

• ENGINE ROOM BATTERY CHARGERS

• CENTAUR 24V 60 AMP

• MASTERVOLT 24V / 100C

• ENGINE ROOM CCTV 3 CAMERAS 1 PTZ

• ALFA LAVAL FUEL POLISHING

• COMPRESSED AIR SYSTEM

• GRASTREAM SHIPS PHONE /INTERCOM

• NAFS 227 FIRE SUPPRESSION IN LOWER AFT DECK ETC ROOM COMMERCIAL COMPLIANCE

• ENGINE AND GENSET SPARE

• MAIN ENGINES FITTED WITH DOUBLE JACKET INJECTOR LINES FOR CLASS COMPLIANCE.

• PADDLE BOARDS

• JET SKI YAMAHA FX CRUISER SVHO 3 PERSON 2018 HIN US -YAMA1389L718

• WAKE BOARD

• TUBING

• SEA BIKES X2

• UNDERWATER SCOOTERS

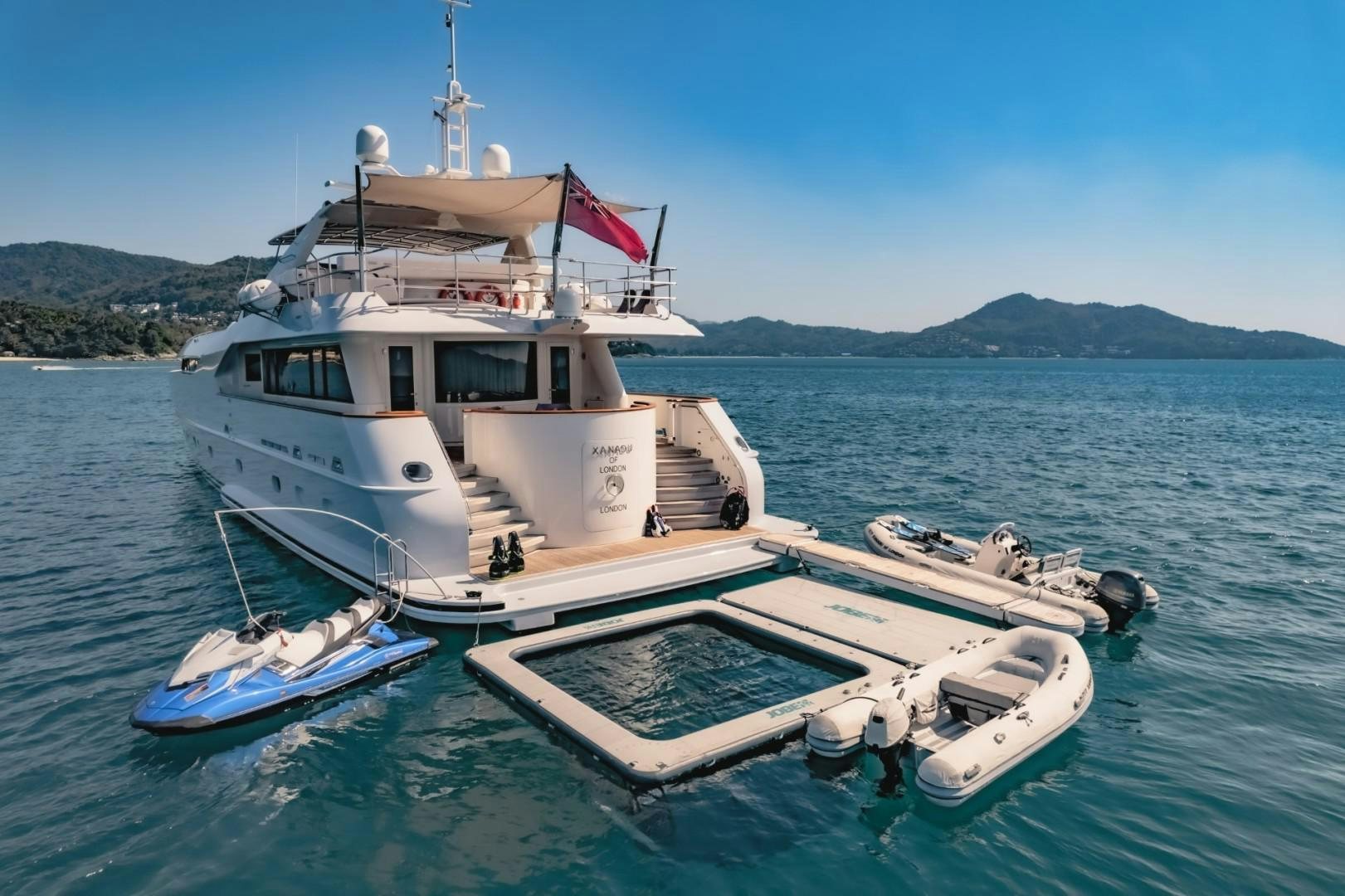

• JET SKI AND TENDER, TOYS TIED TO INFLATABLE DOCK

• SNORKLING

• DIVING

• ALL INFLATABLES SET UP

• MAIN TENDER HIGHFIELD DL 460 HYPERLON WITH SPONSON COVERS WITH YAMAHA 60 HP OUTBOARD WITH PROP GUARD NINE PERSON MAX CAPACITY

• GARMIN GPS ELECTRIC STARTHIN CN -HFM07487G819

• CREW TENDER/RESCUE TENDER HIGHFIELD CL 340 HYPERLON SIX PERSON 20 HP SUZUKI 4 STROKE WITH PROP GUARD HIN CN-HFM05964D819

• HURLEY MARINE TENDER LAUNCH WITH REMOVABLE DAVIT.

• TENDER WHIPS

• BAUER JUNIOR 2 ELECTRIC DIVE COMPRESSOR

• 4 X VIKING LIFE RAFTS SOLAS A 10 PERSON NEXT SERVICE 0922 LOCATED PORT AND STARBOARD FLYBRIDGE

• JOETRON 406/1211.5 MHZ EPIRB

• 2 LIFE RINGS WITH LIGHT

• COMET LIGHT SMOKE SIGNAL 918-1600
