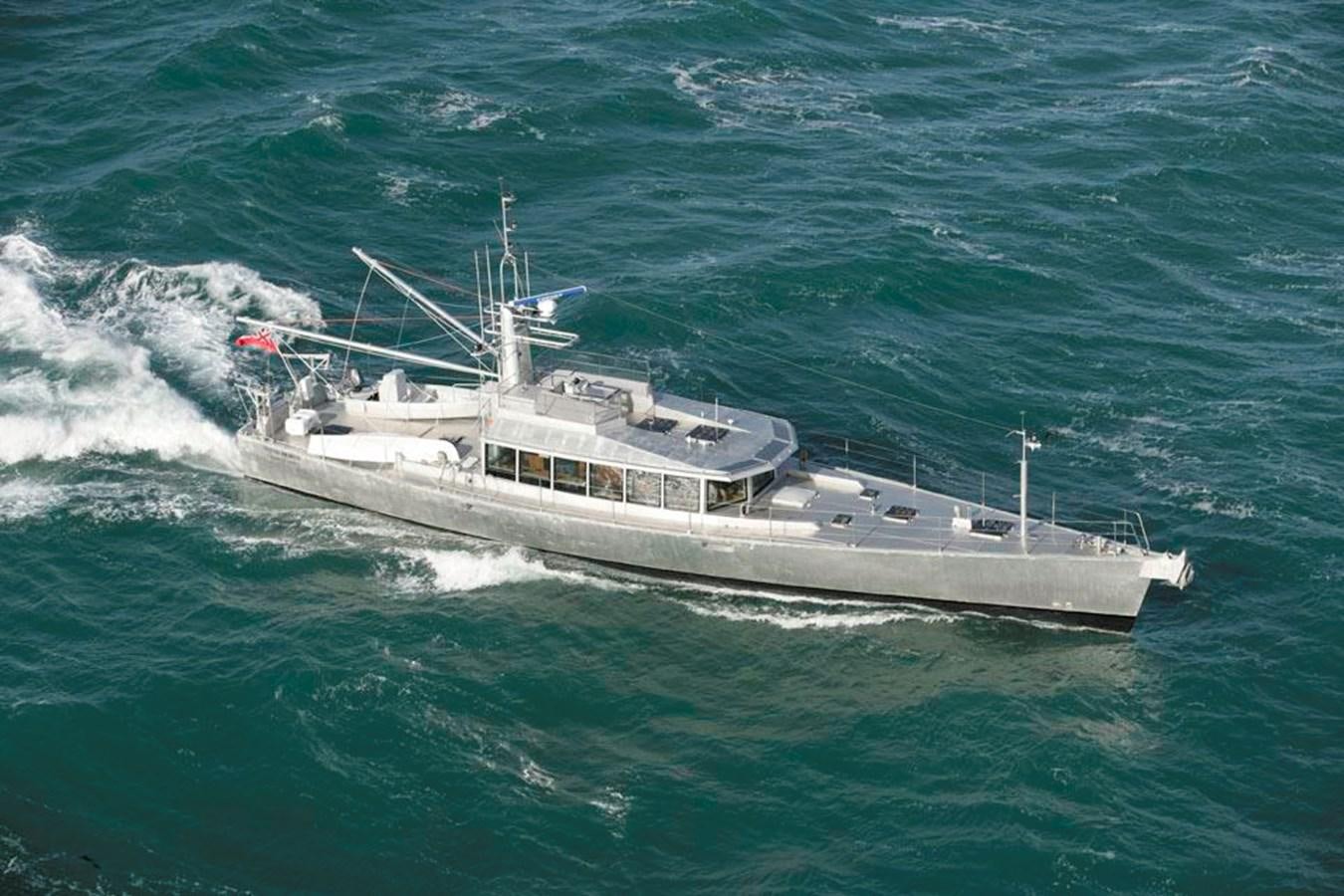

WIND HORSE Yacht for Sale

Length
83' (25.45m)
Builder
KELLY ARCHER
Build
2005
Cabins
3

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Specifications

Builder KELLY ARCHER
Model FPB 83
Length (LOA) 83' (25.45m)
Year 2005
Beam 17' (5.46m)
Range 6,000 NM
Location United States

Accommodations

Staterooms 3
Sleeps 6
Heads 3

Dimensions & Capacity

LOA 83' (25.45m)
LWL 82' (24.84m)
Min Draft 5' (1.52m)
Fuel Tank 3,672 g (13,900 L)
Fresh Water 2,021 g (7,650 L)
Displacement 45,462

Construction

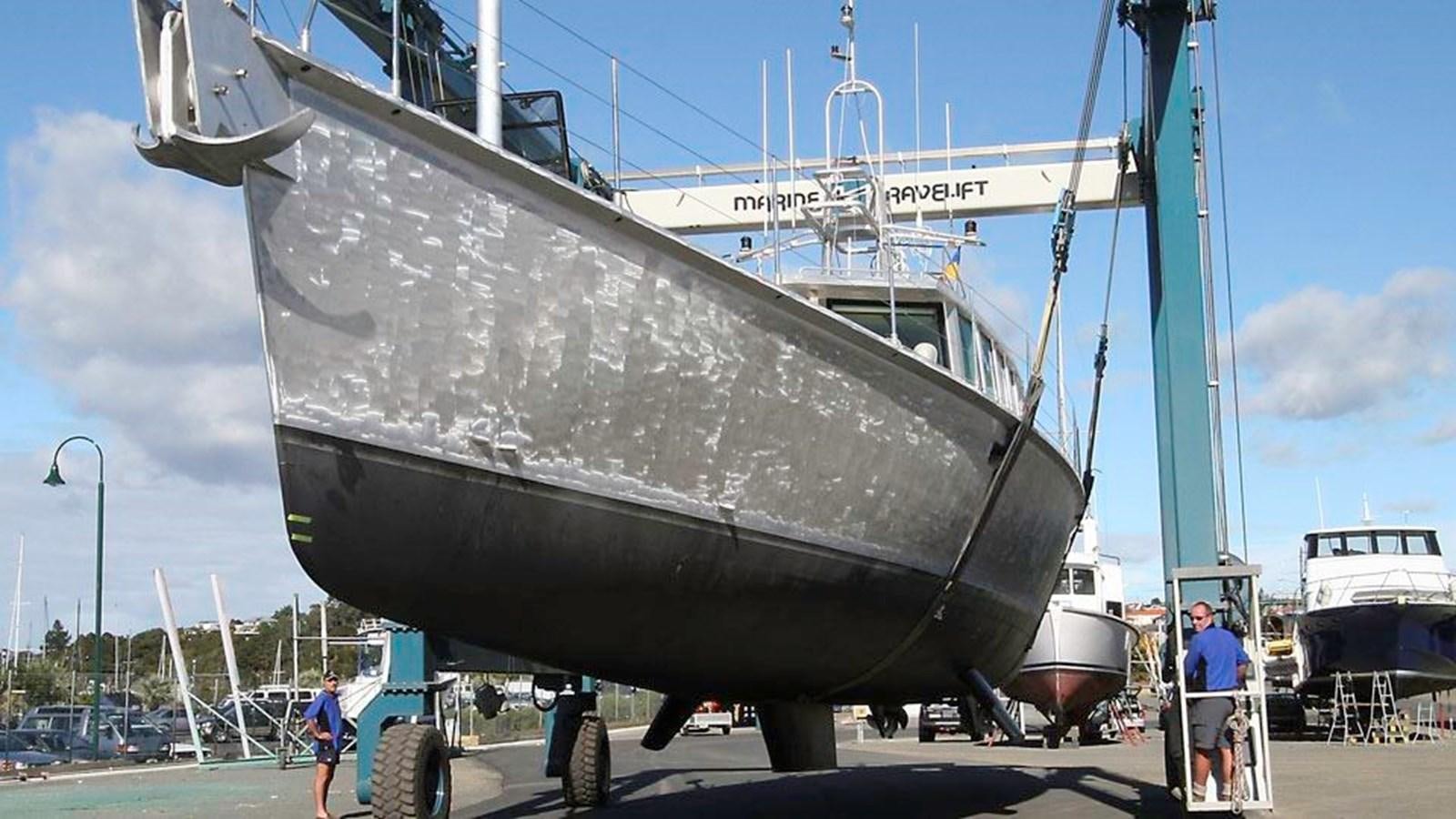

Hull Material Aluminum
Cruising Speed 12 Knots
Range 6,000 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

Fresh Water & Water Heating System

  • 2 x Headhunter X-Caliber pressure pumps for redundancy.
  • 55 liter stainless water heater with dual 2000 watt elements with heat exchanger that is part of the Kabola diesel boiler/engine waste heat circuit for hot water. System permits hot water and boat heating to be made from engine heat underway or at rest by electricity or Kabola heater.
  • The deck fills are t’d into the fresh water tanks to catch rain. The deck fills just aft of frame 43 to the single aft tank through a commonly connected 2” line. Mouse holes in breakwaters are plugged with a rag or sponge when collecting rainwater.

Watermaker

  • Village Marine NF800 (33 GPH).

Bilge Pumps

  • Electric bilge pumping systems; 2 x Johnson/SPX/Viking diaphragm pumps with float switches in each space: Engine room: 2; Forepeak: 1; Port and starboard amidships: 2 Emergency bilge pumping systems; 2” Pacer hydraulic damage control crash pump, powered via the main engines PTO hydraulic pumps. Manifold valves to each space onboard. Manual an automatic controls. Hydraulic reservoir integral to port engine room hull.


Accommodation

  • Interior finish is high gloss Burmese teak with high gloss teak soleboards.
  • Ultra-leather headliner and hull panels.
  • Striated vinyl wall covering on bulkheads.
  • Hi Mac solid surface counter tops.
  • Ultra-suede seating cushions.
  • Stidd helm chair.
  • Full set of seat covers, salon table cover and exterior canvas covers.

Description of layout from forwards

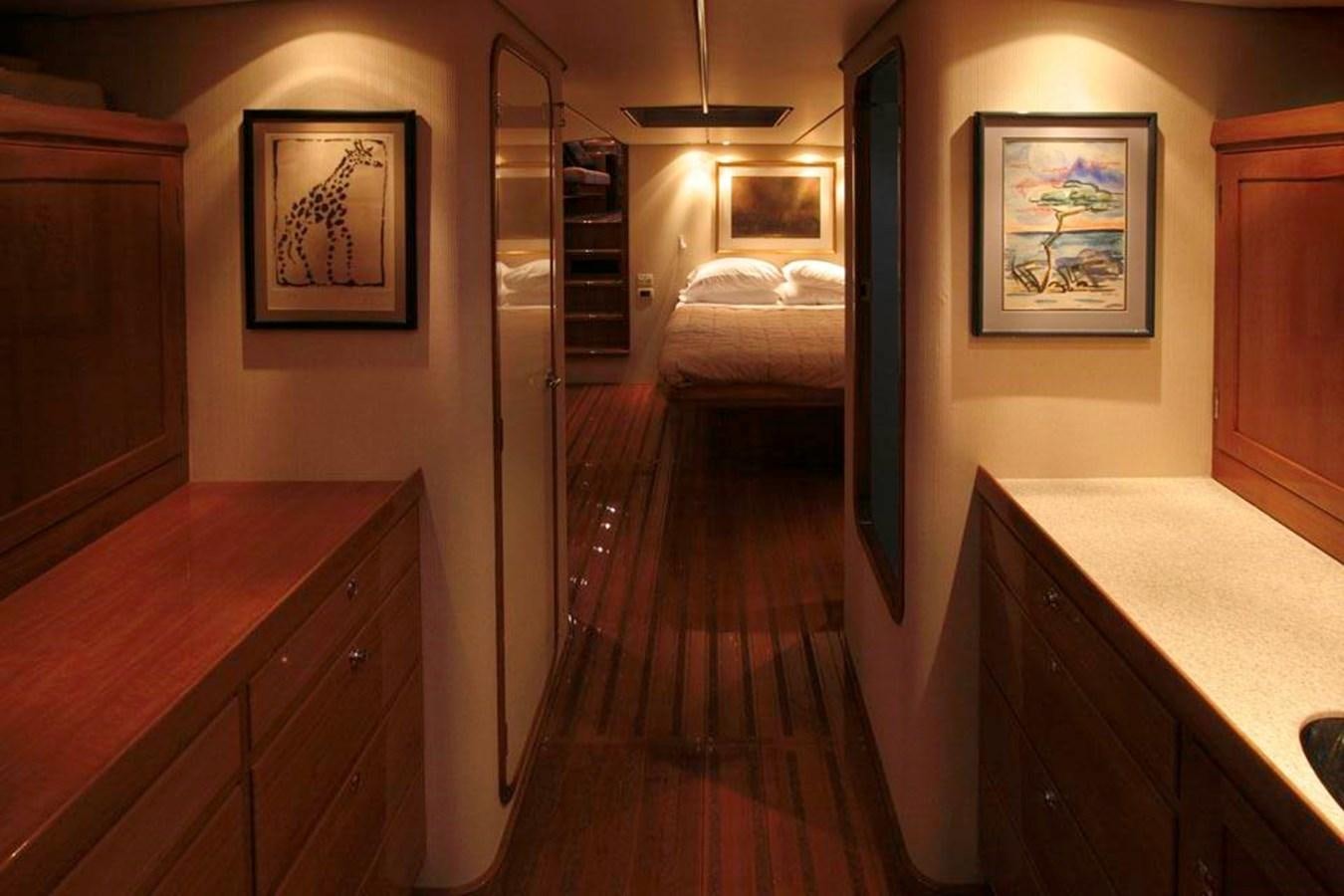

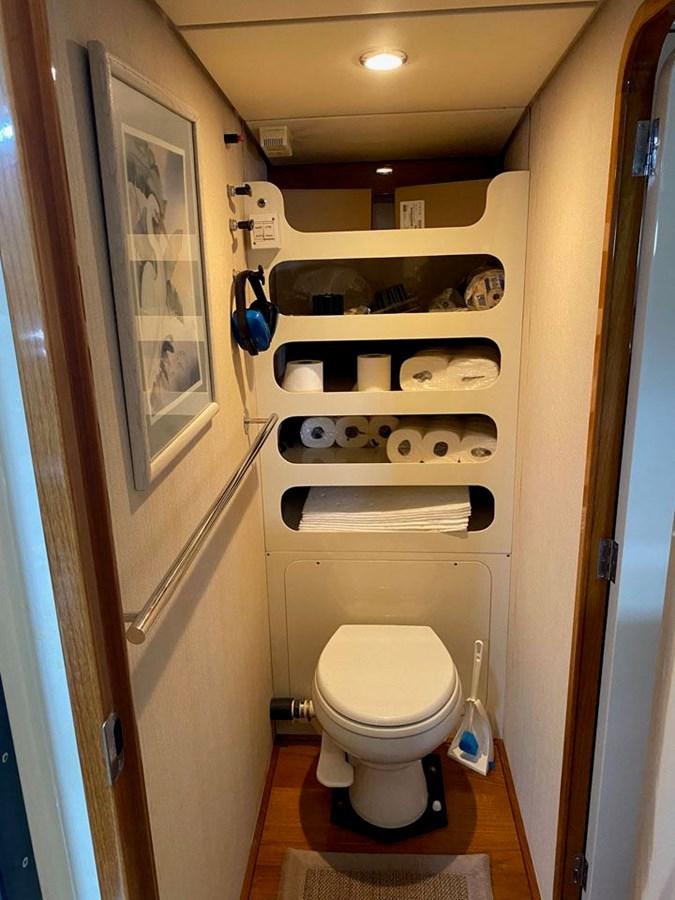

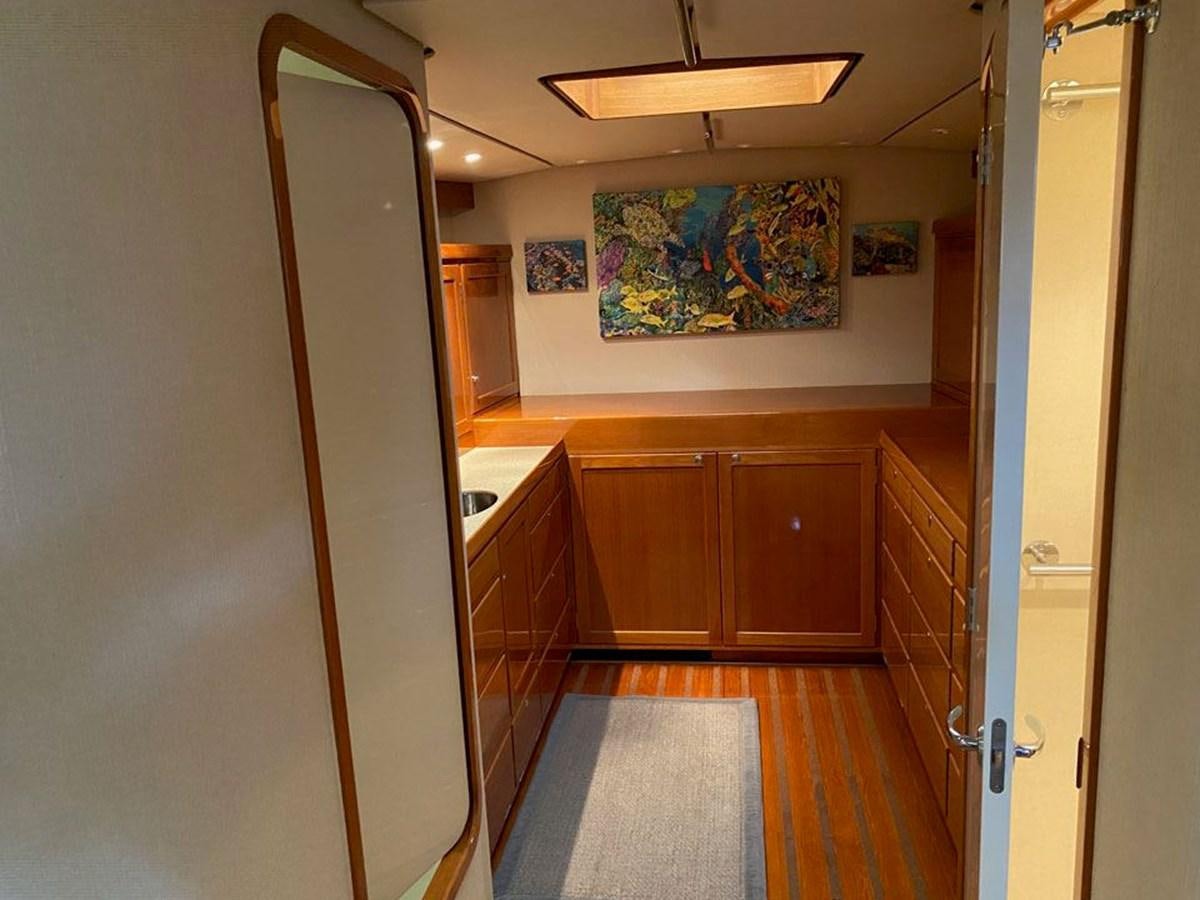

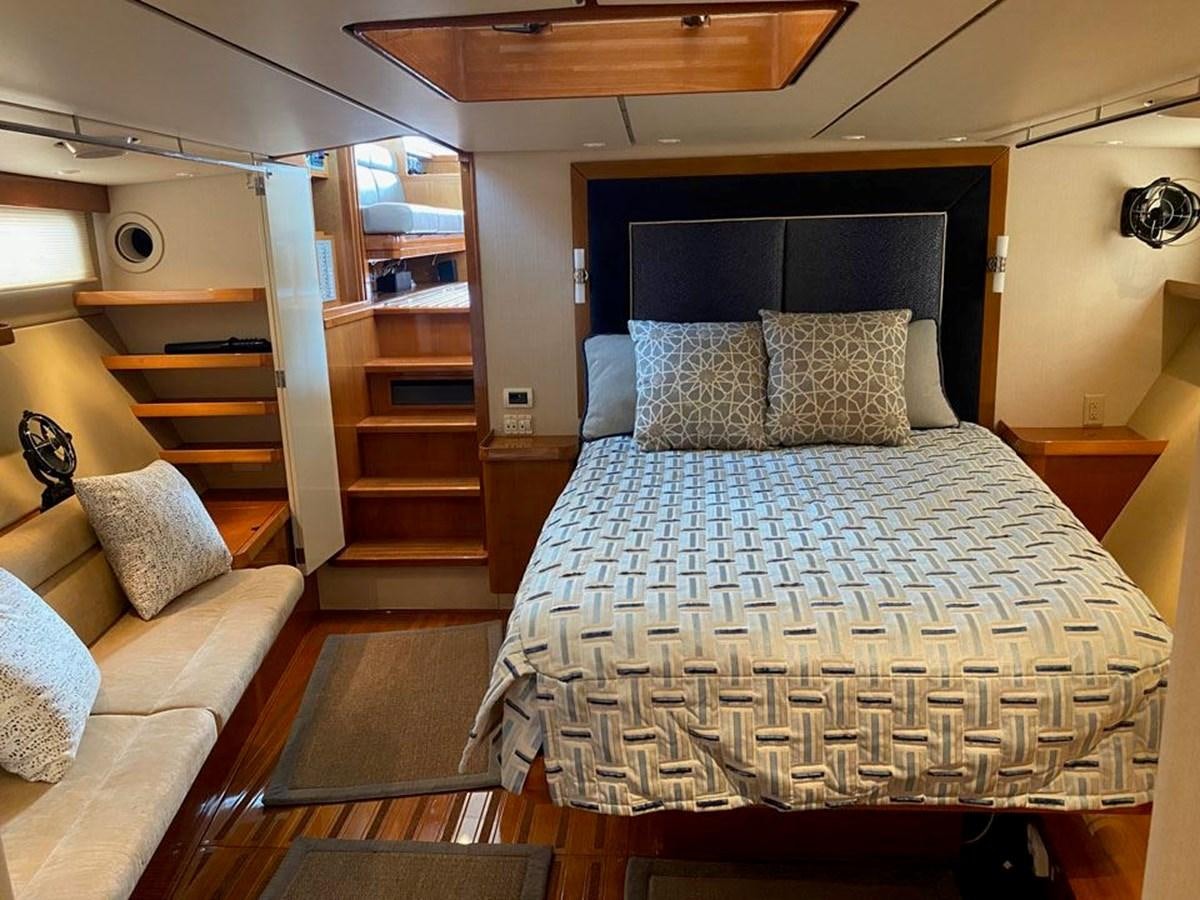

  • She has a large forepeak forward, which is separated by a crash bulkhead. The Owner’s Stateroom is aft of this with a vanity and storage area forward, separated shower/bath compartment and heads compartment to port. On the starboard side there are capacious lockers and there is a king sized double berth forward facing with access to both sides. A hatch arrangement separates this cabin from the Great Room, which is accessed via steps.

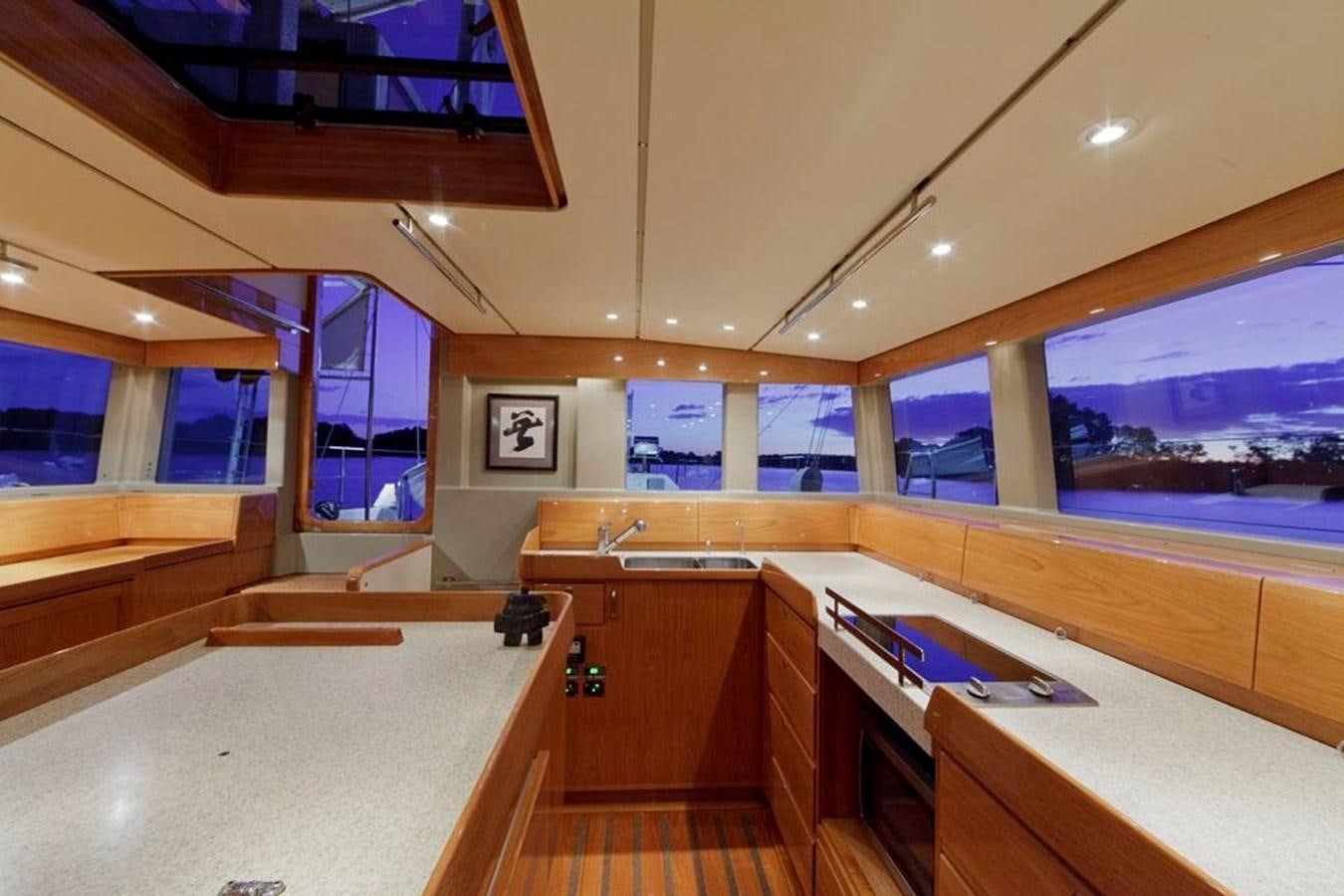

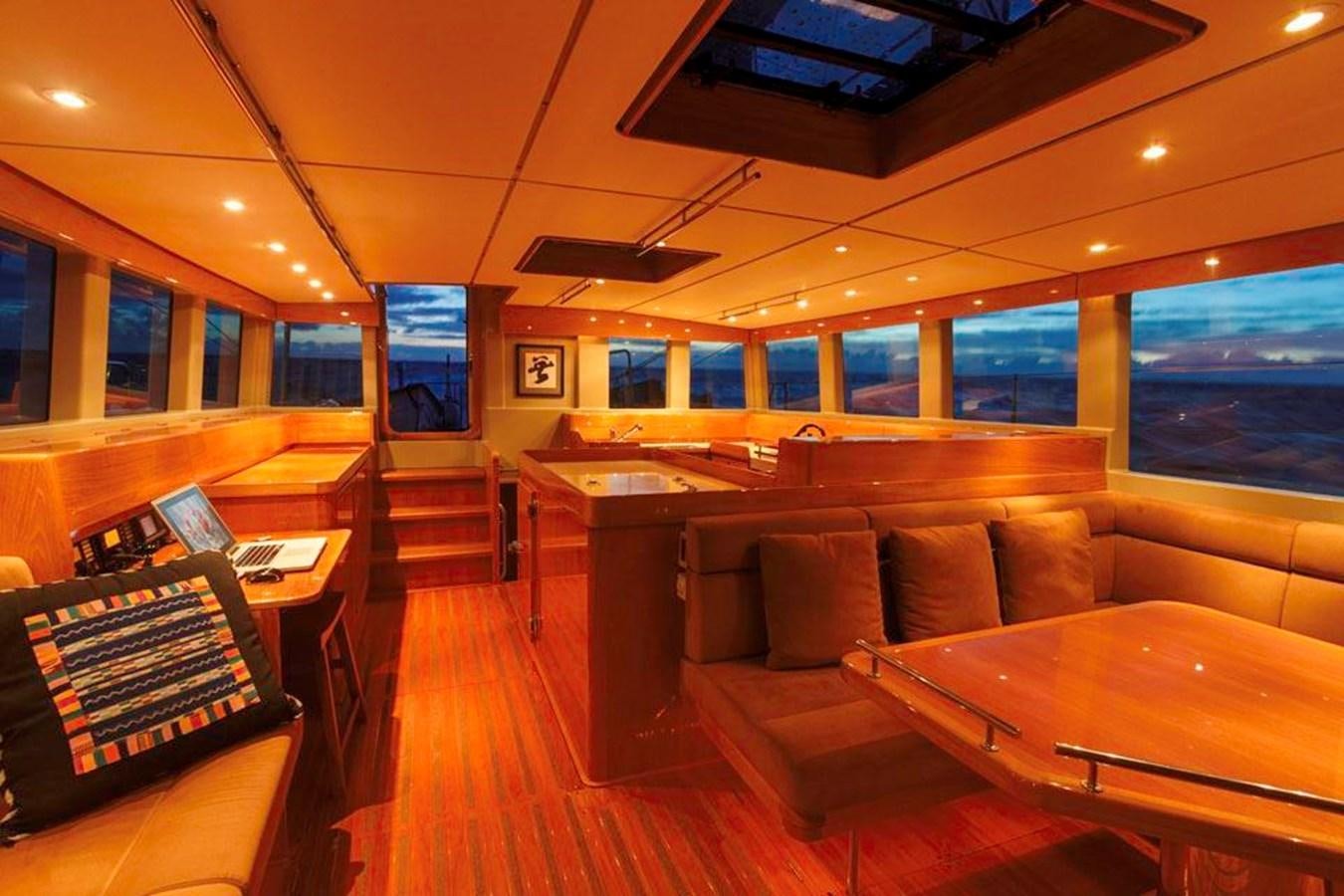

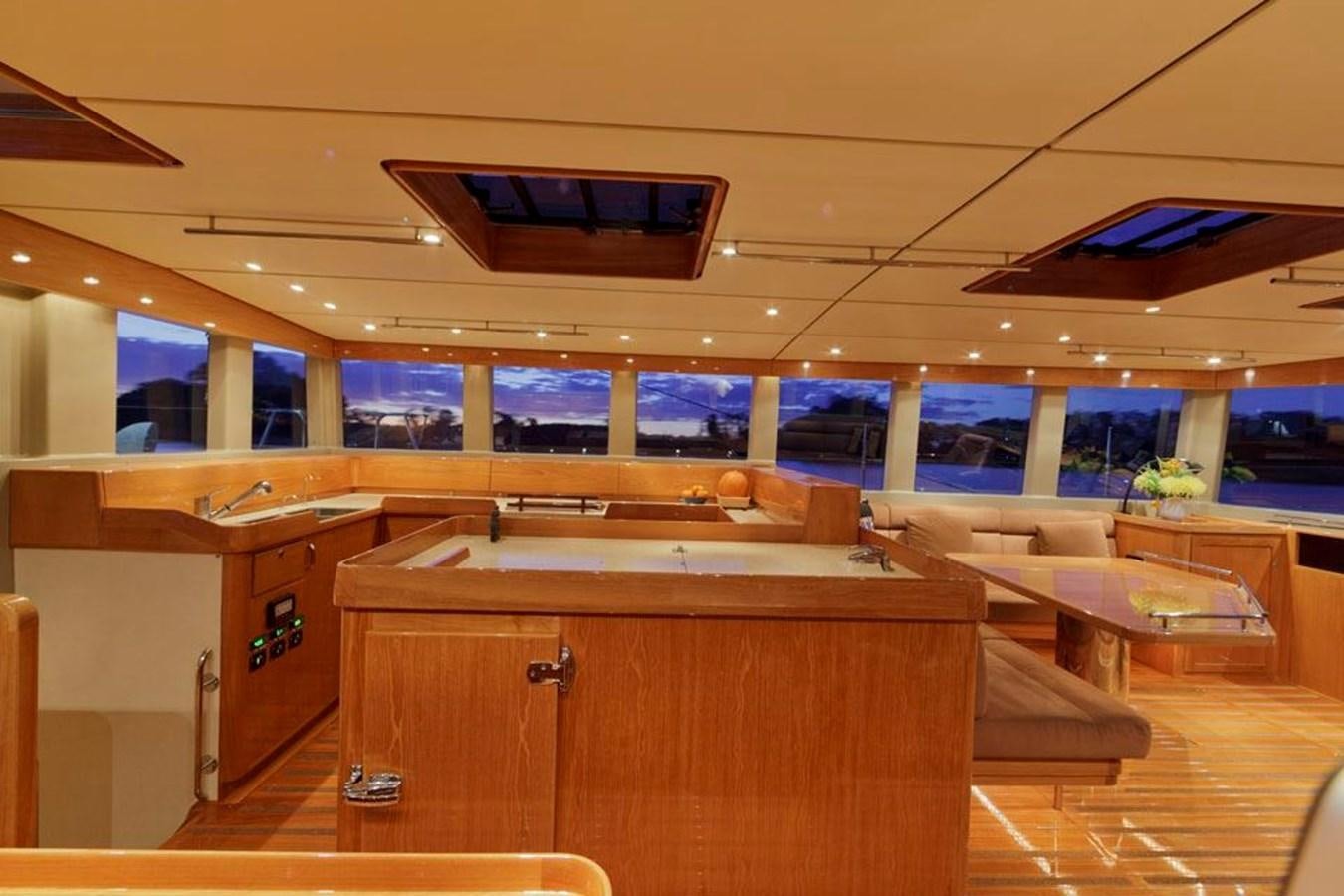

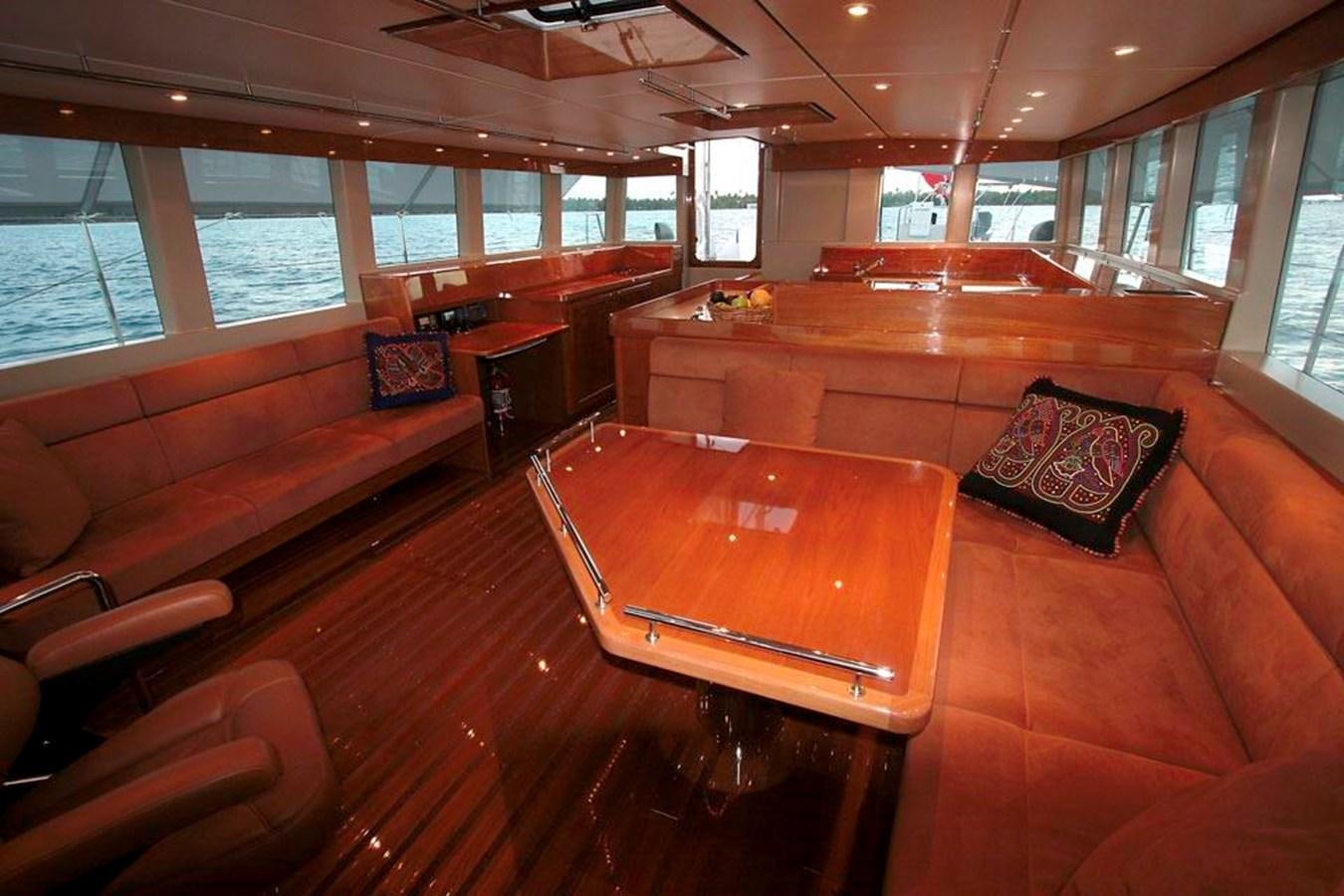

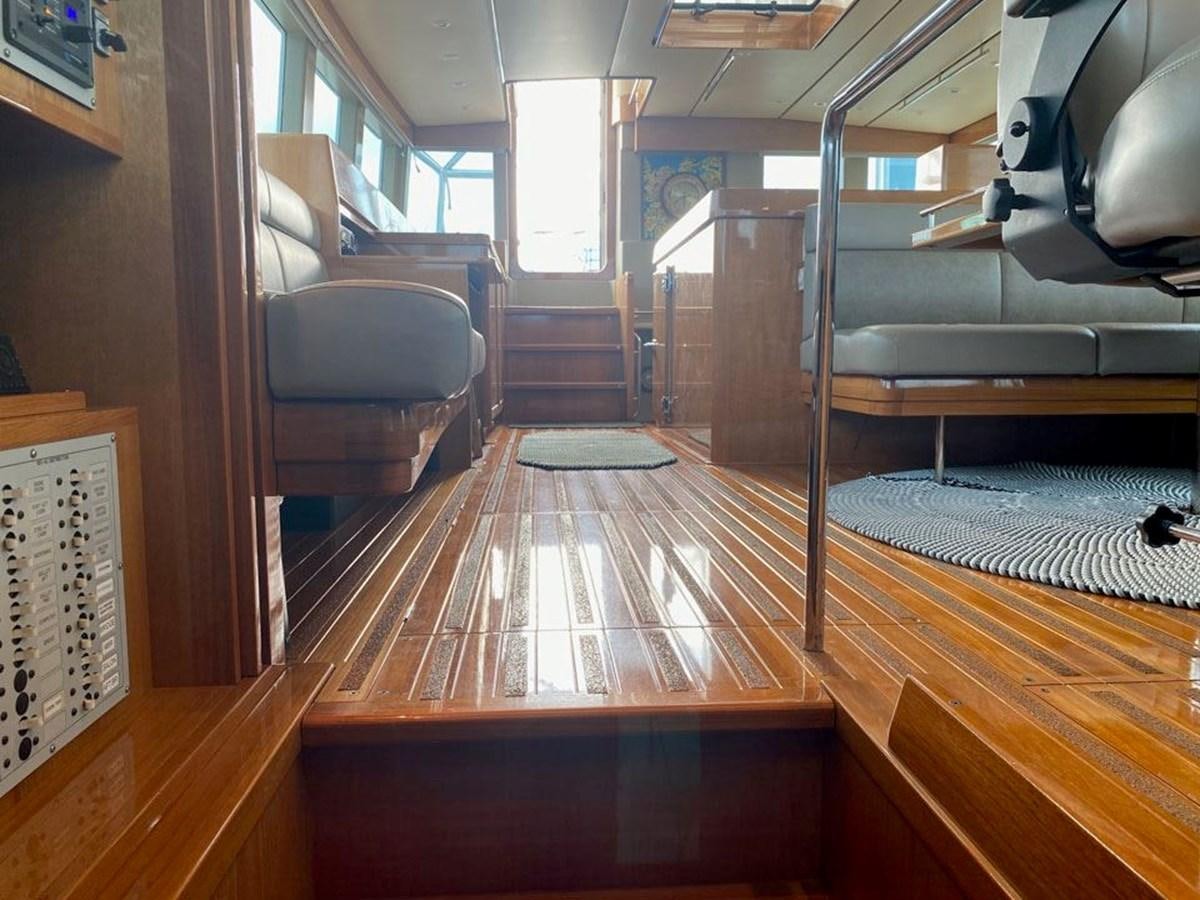

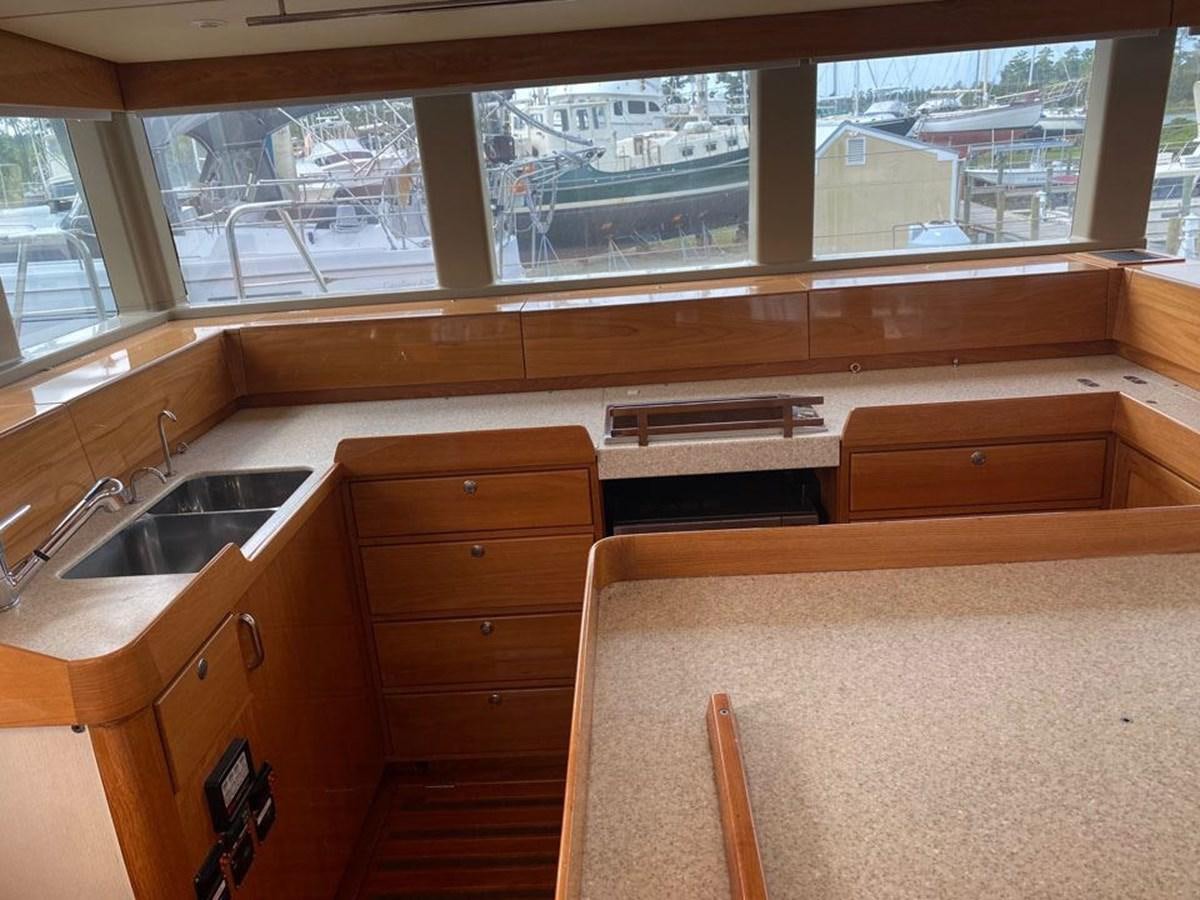

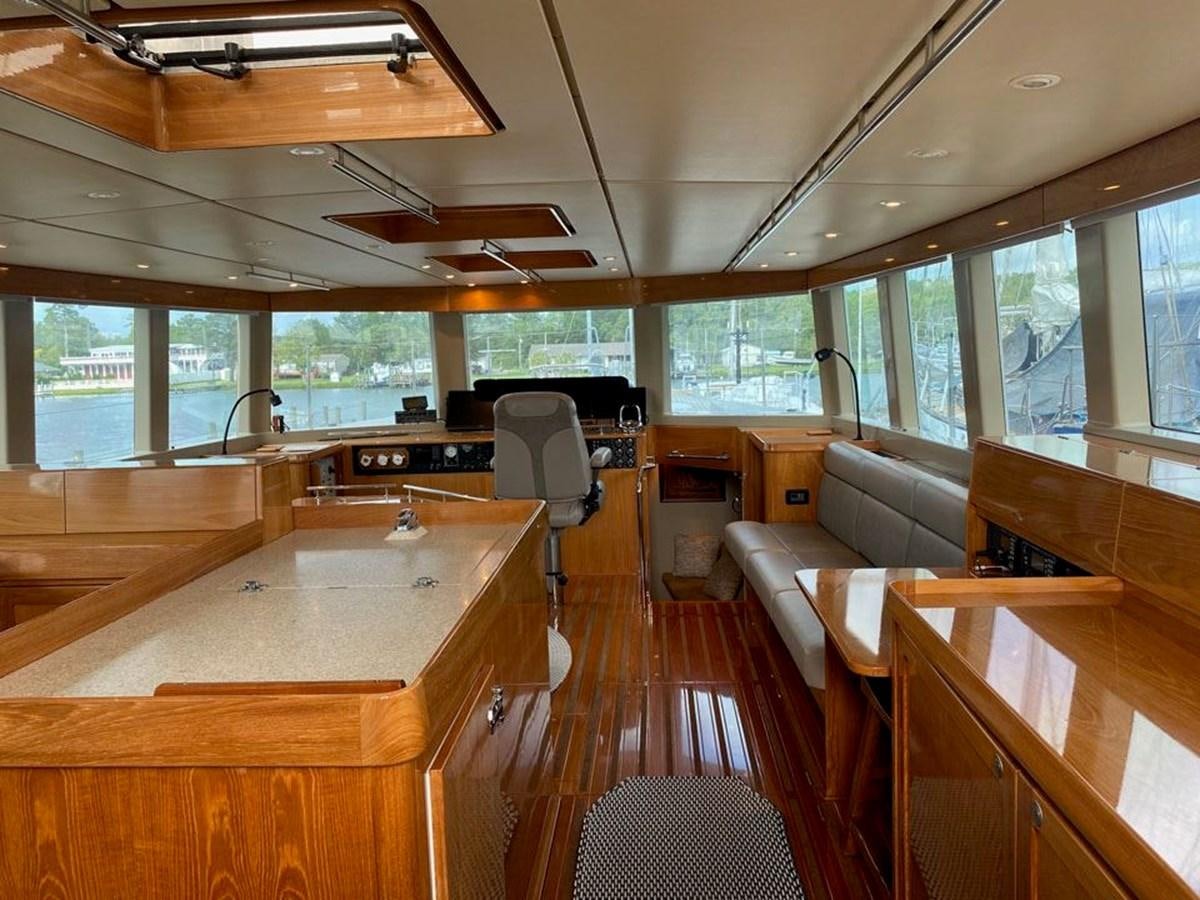

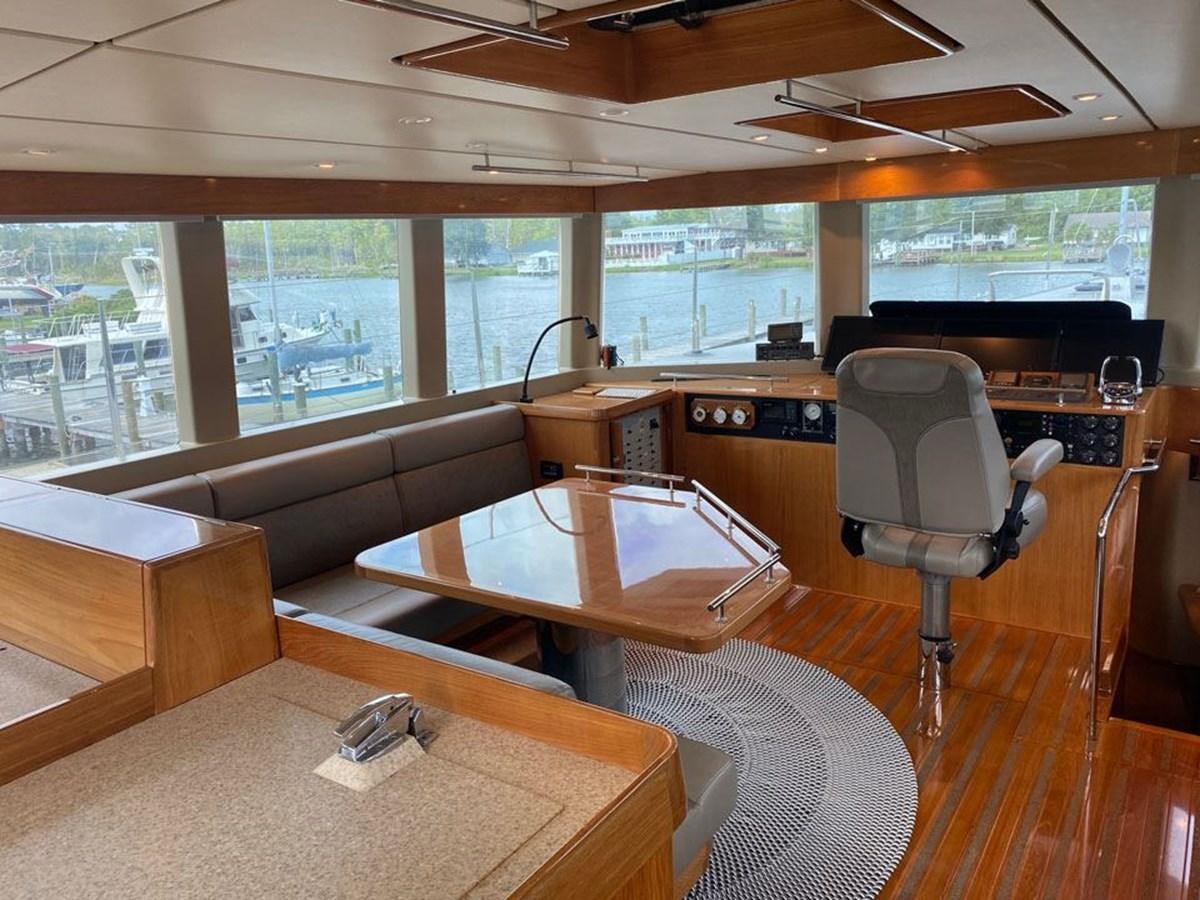

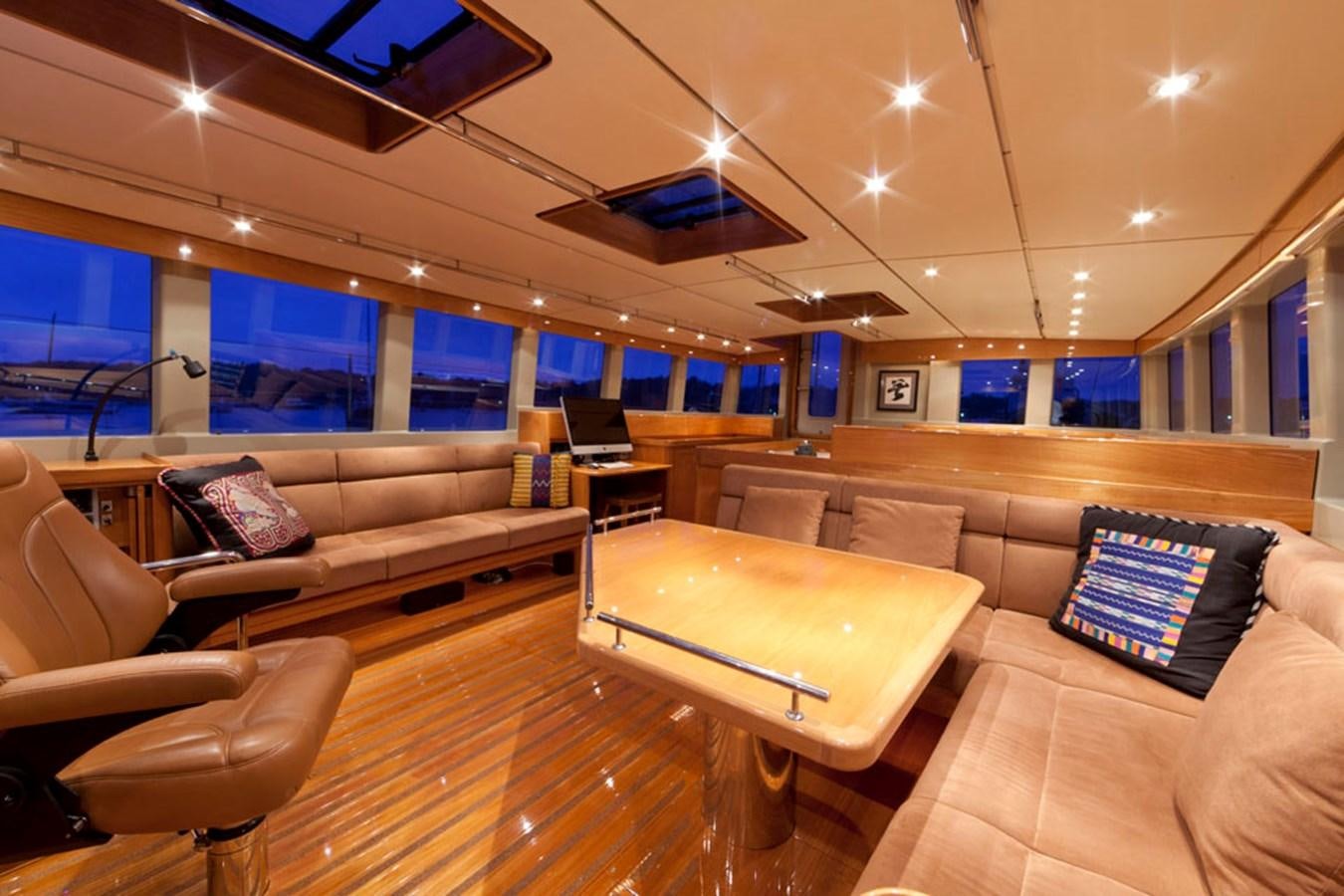

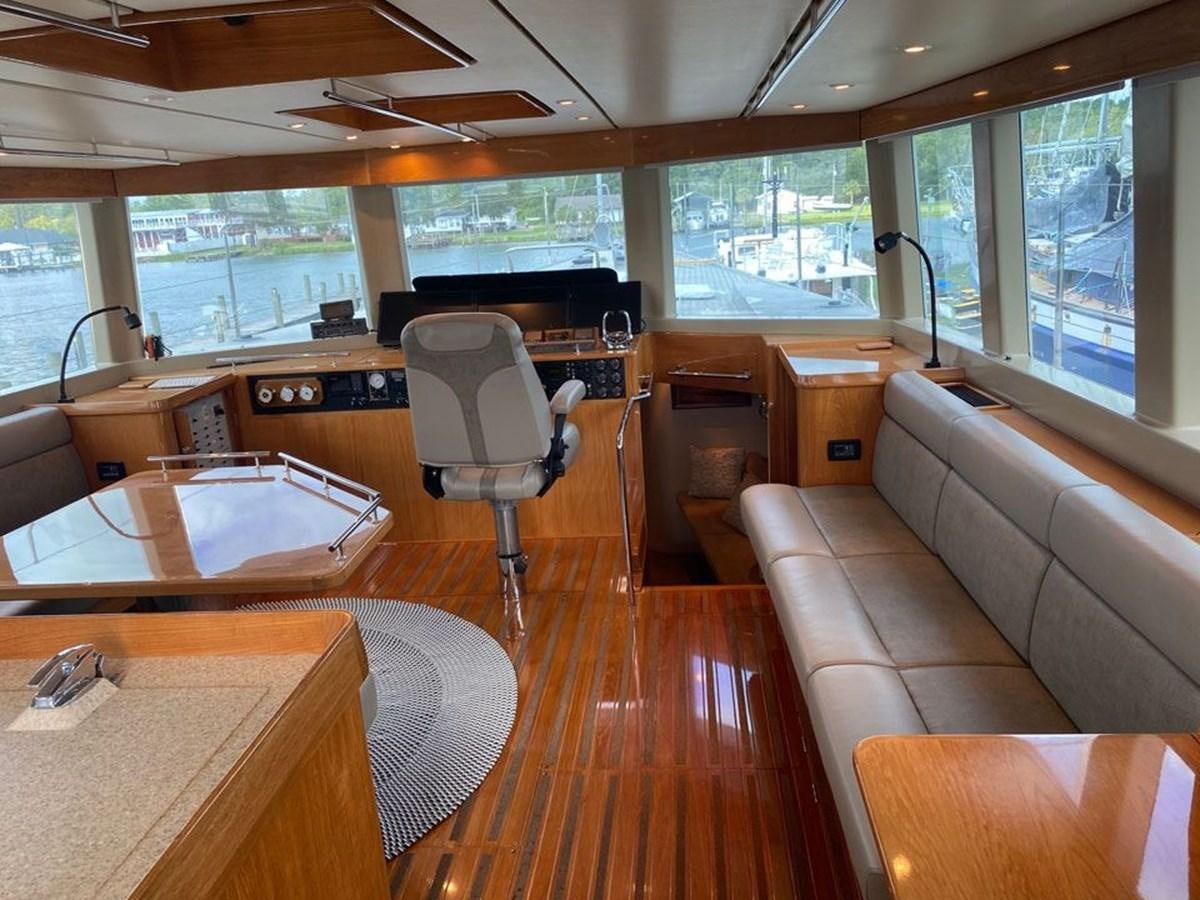

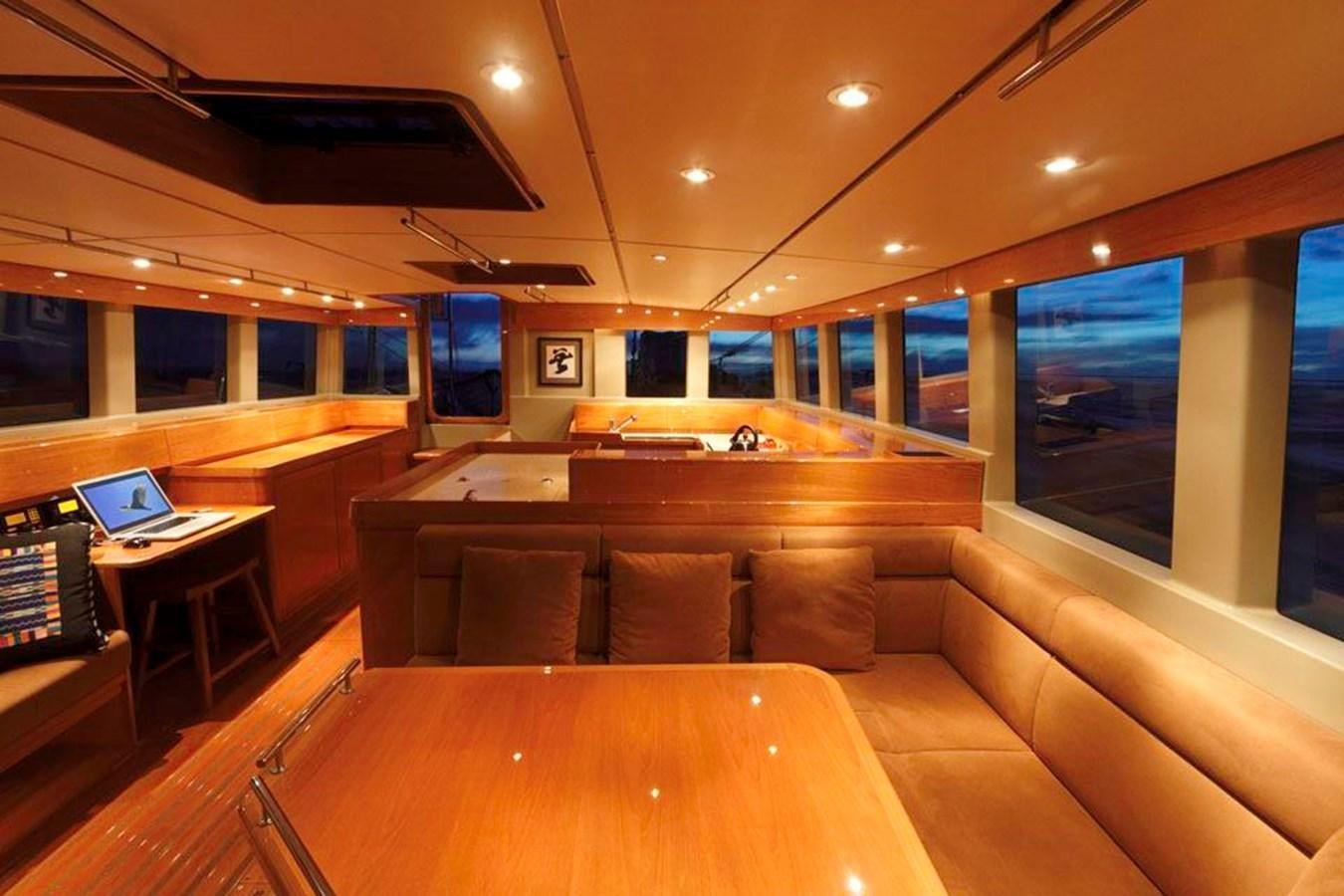

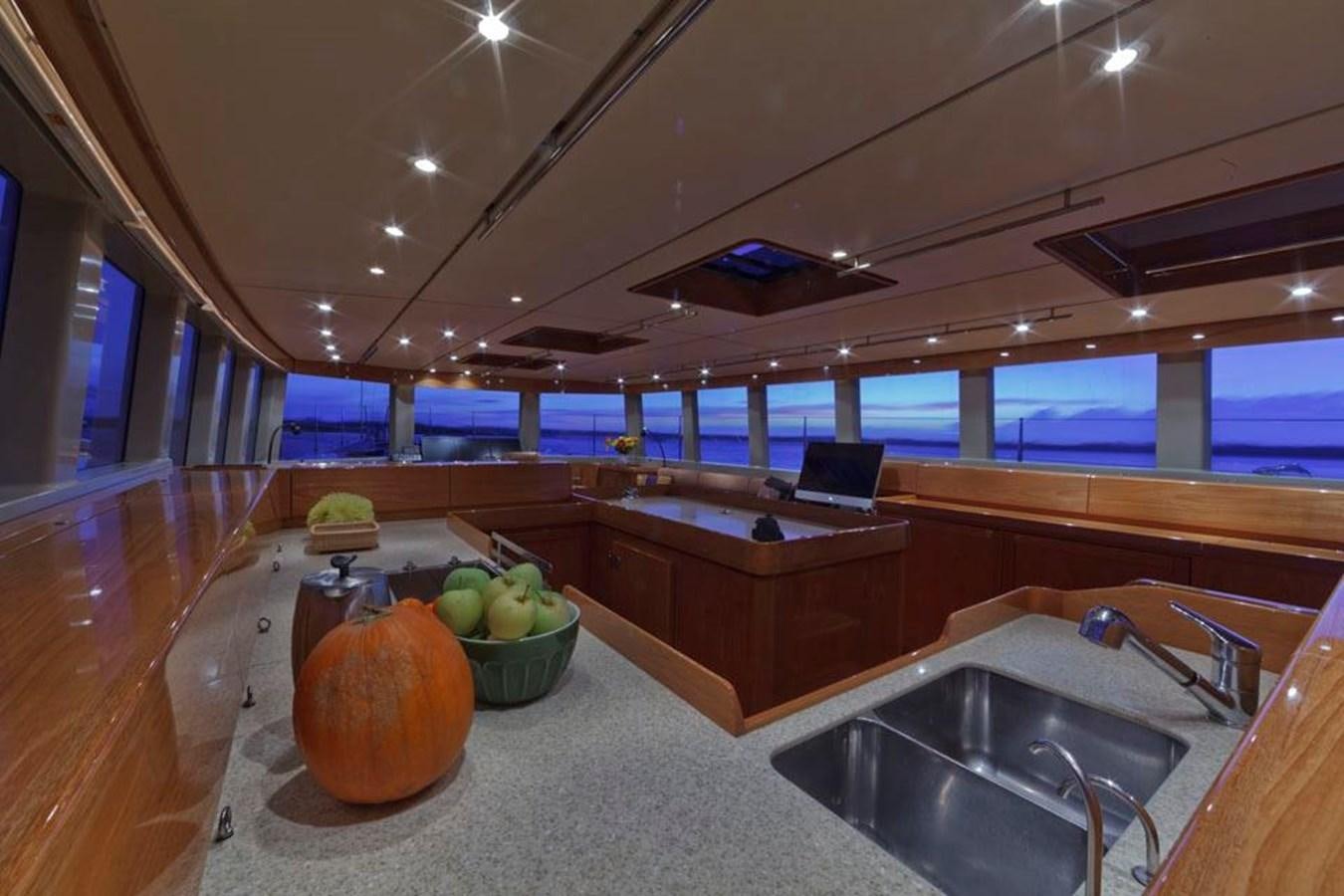

  • The Great Room has a full bridge area with an L shaped seating and dining area to port and a sofa to starboard. This area is fitted with seat belts for use during passages. Aft of this is a U shaped galley area to port with a very full array of kitchen equipment and refrigeration. To port is further storage and space for the washing machine and dryer.
  • Beneath the sole boards is a huge storage area known as the basement with ample space for storing equipment and spares.

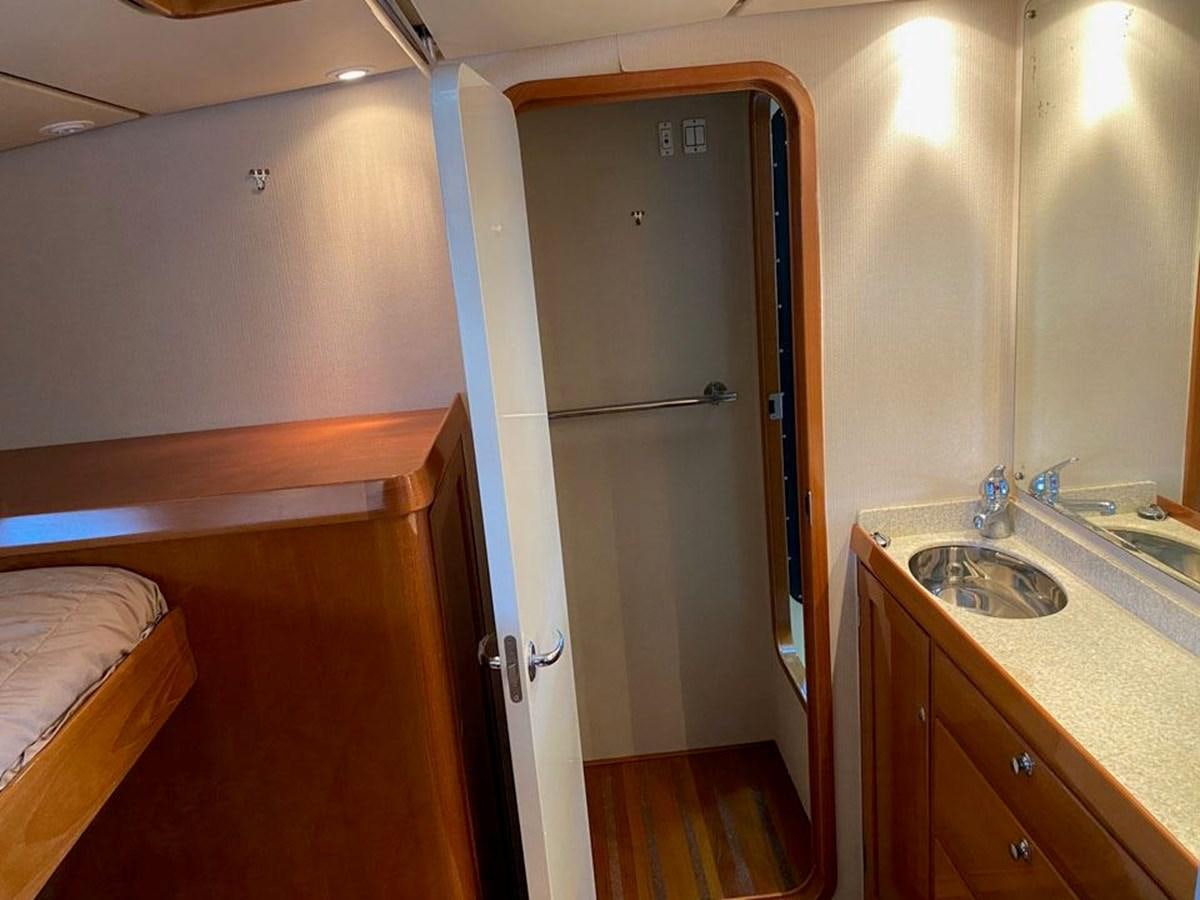

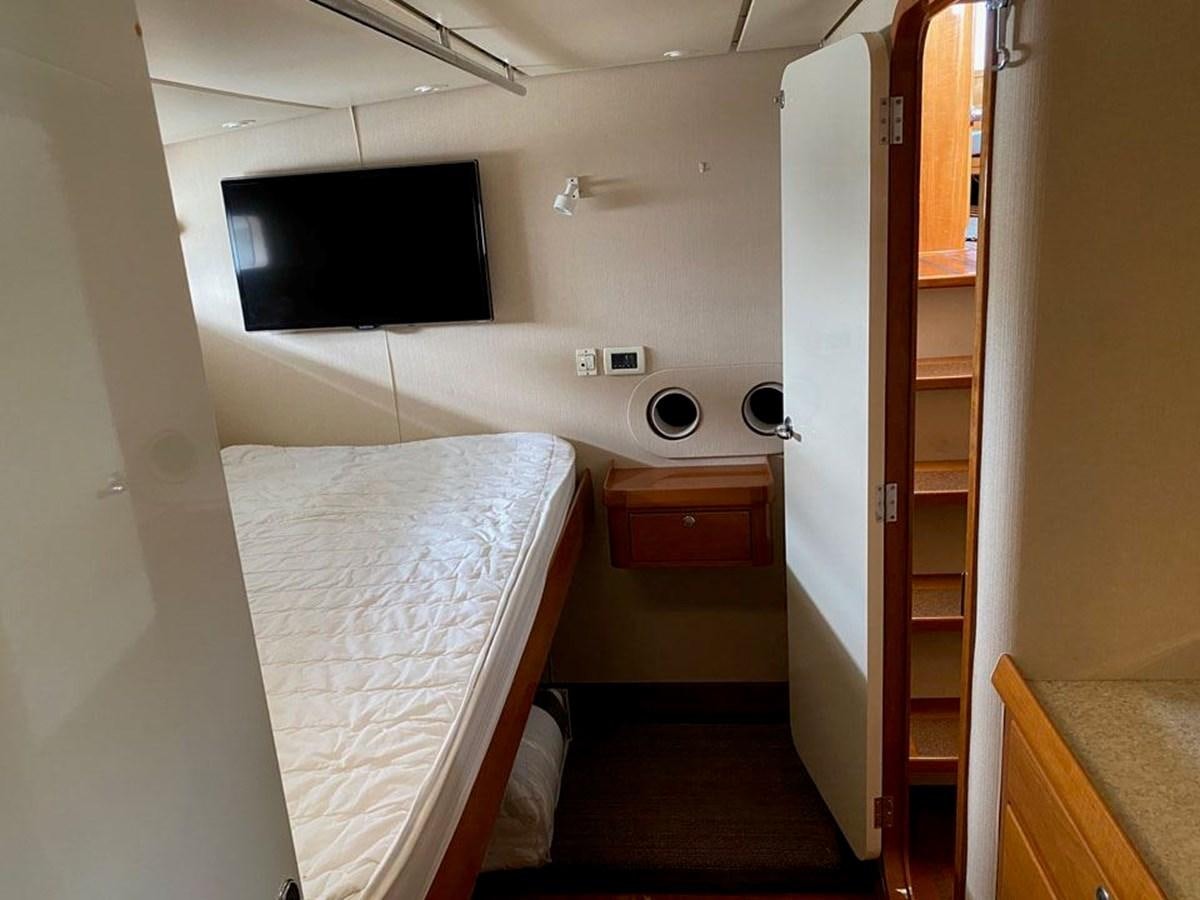

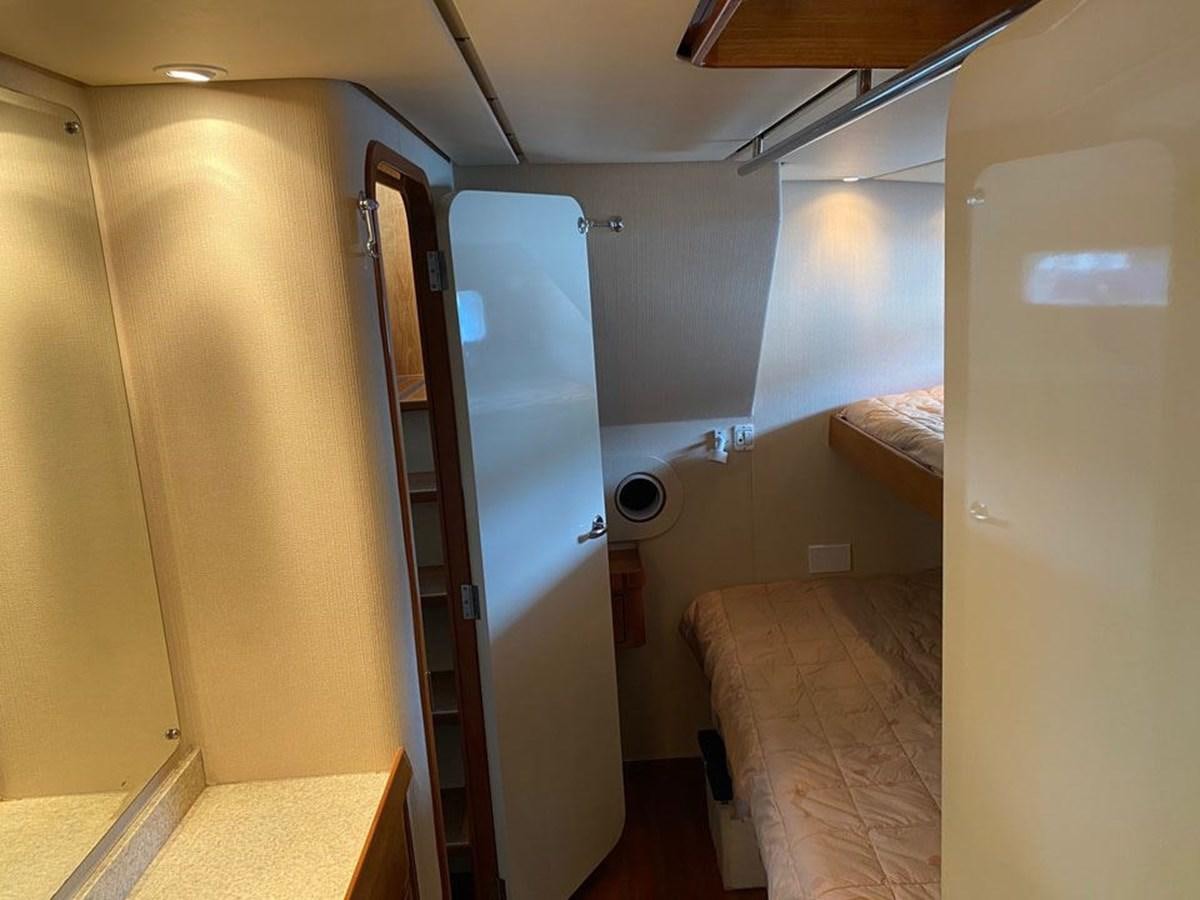

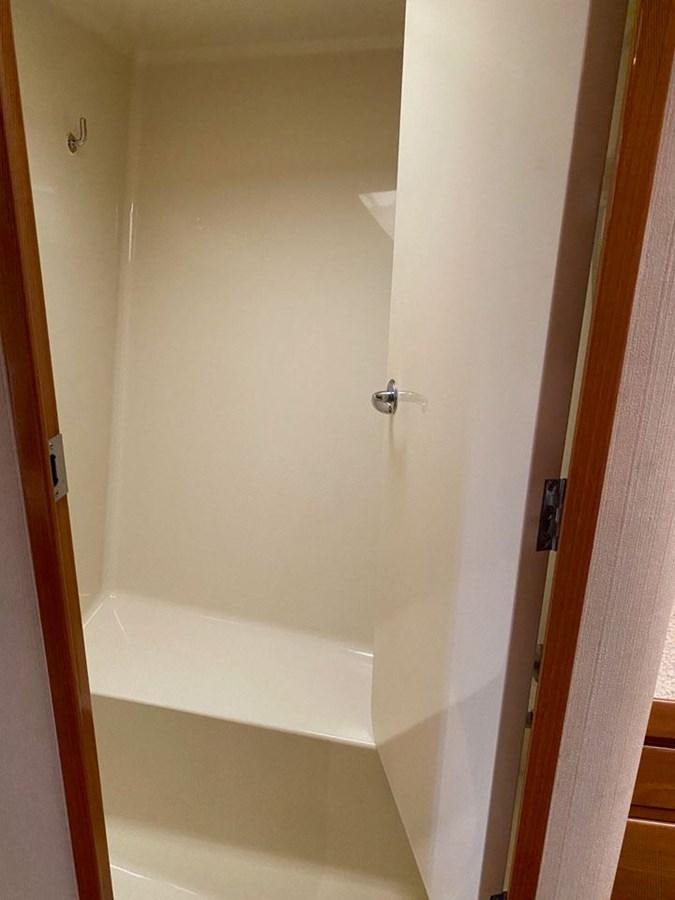

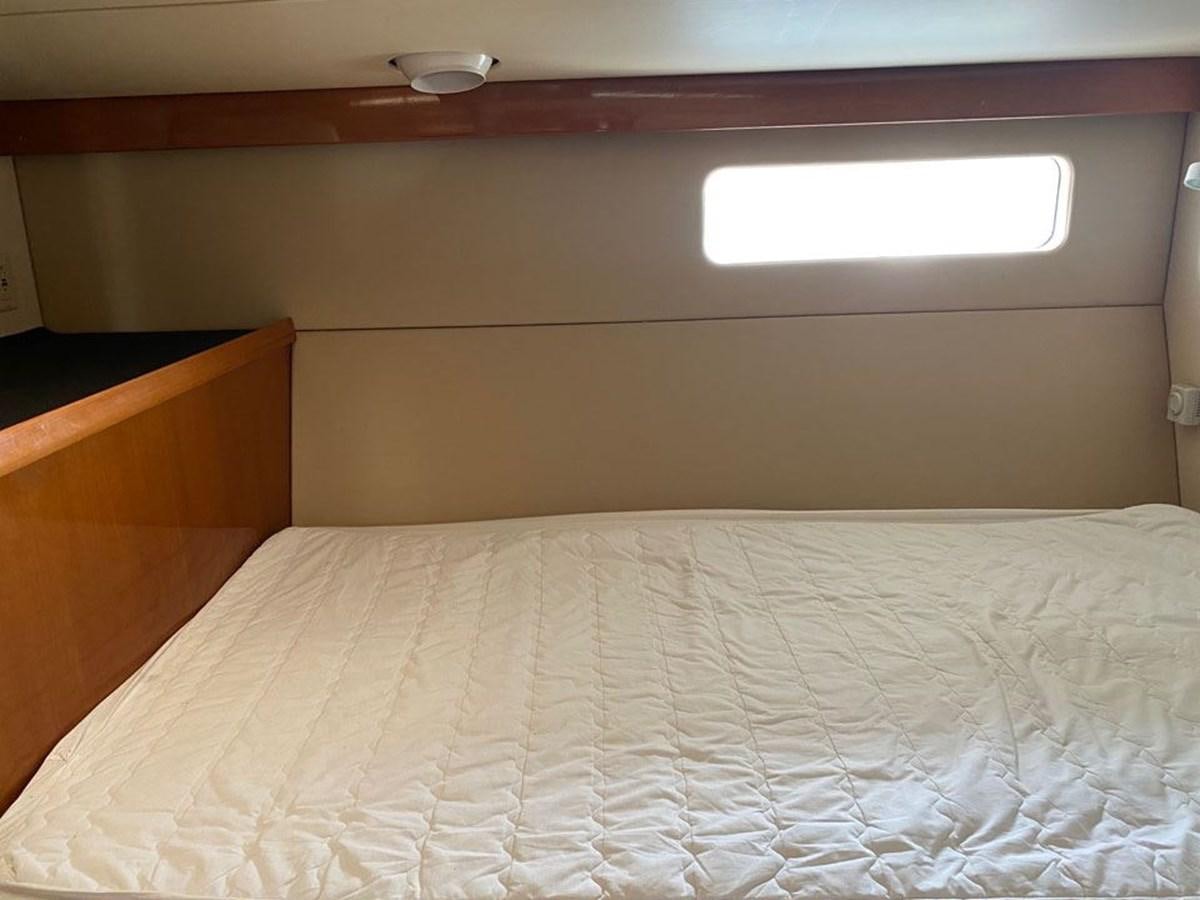

  • Down steps aft to 2 twin cabins each with their own en-suite heads compartment and a shared shower stall. These are comfortable and spacious cabins with ample storage.

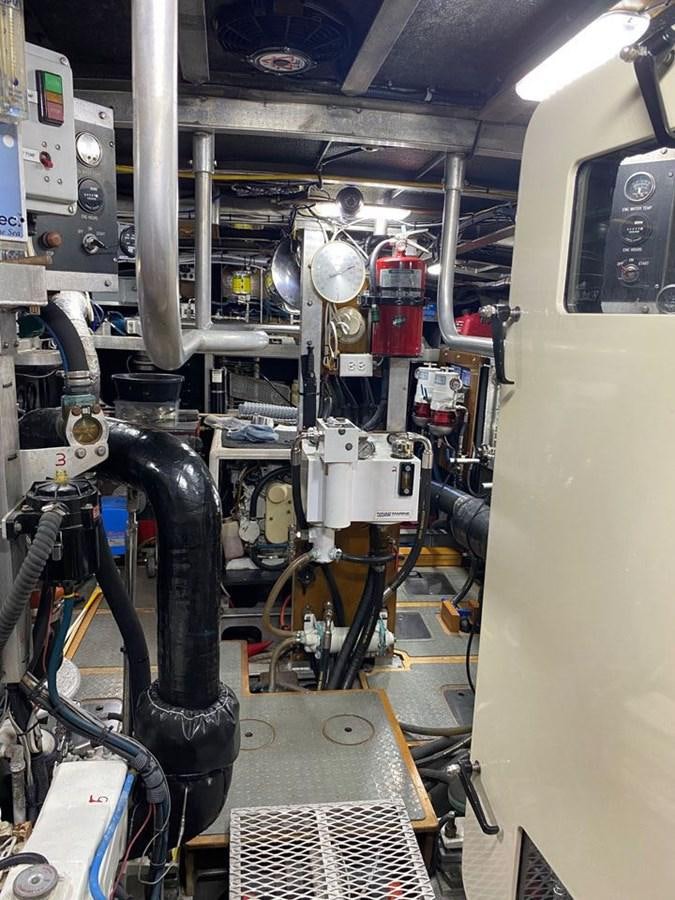

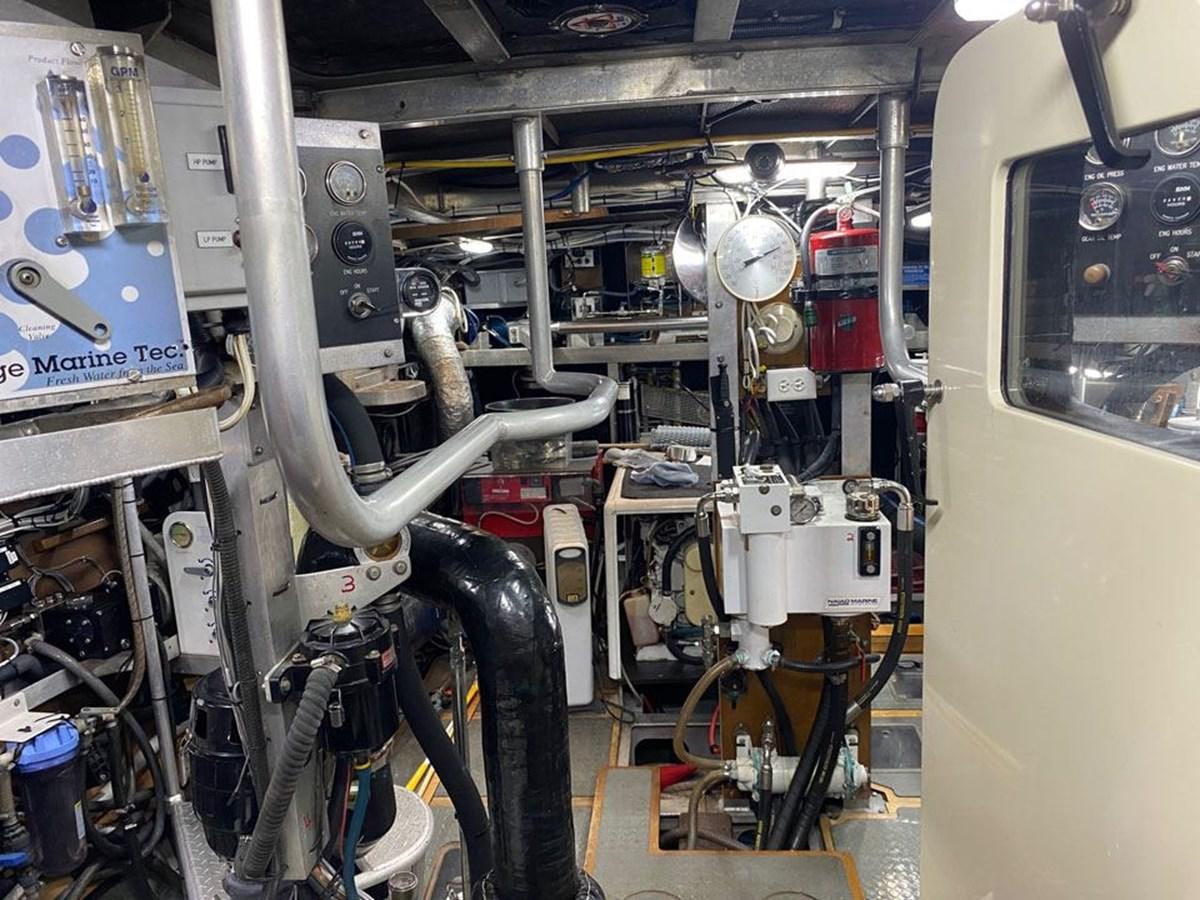

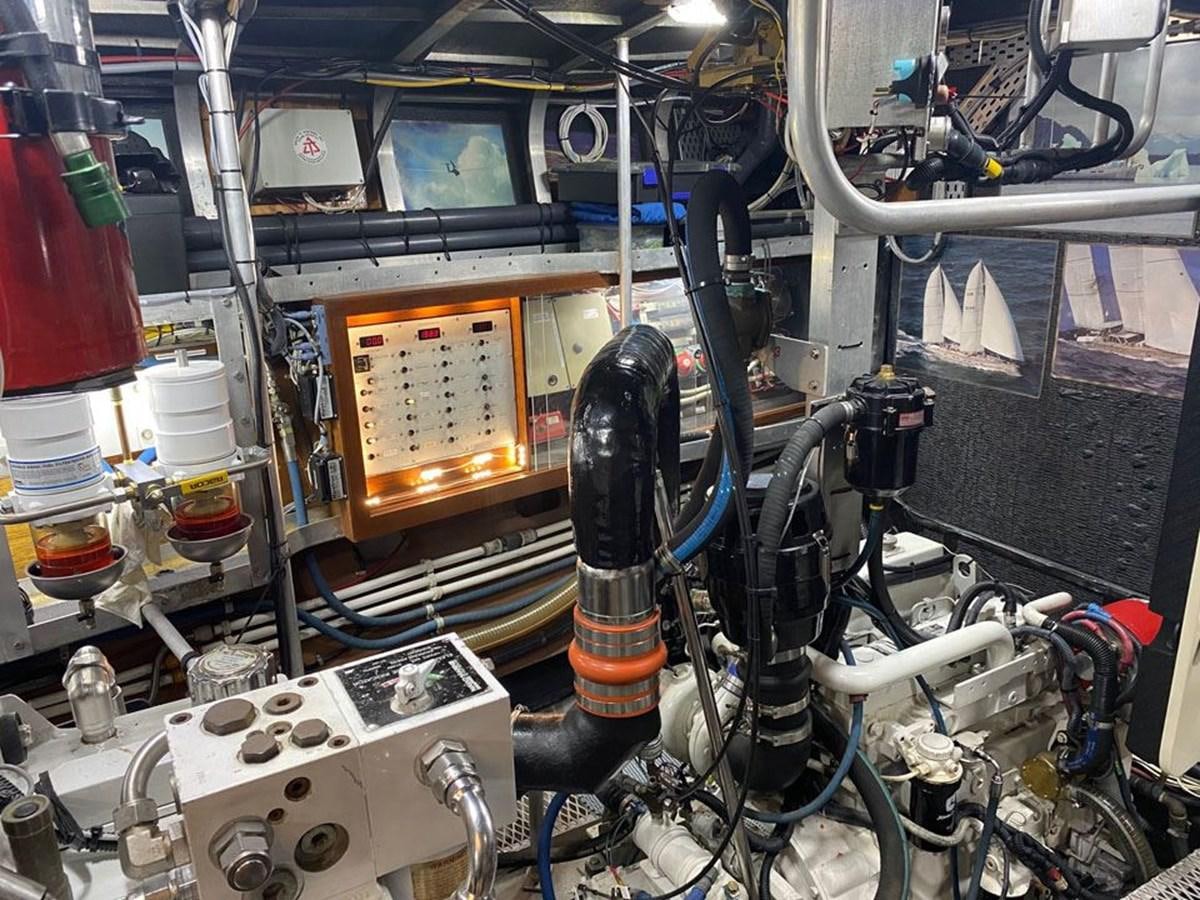

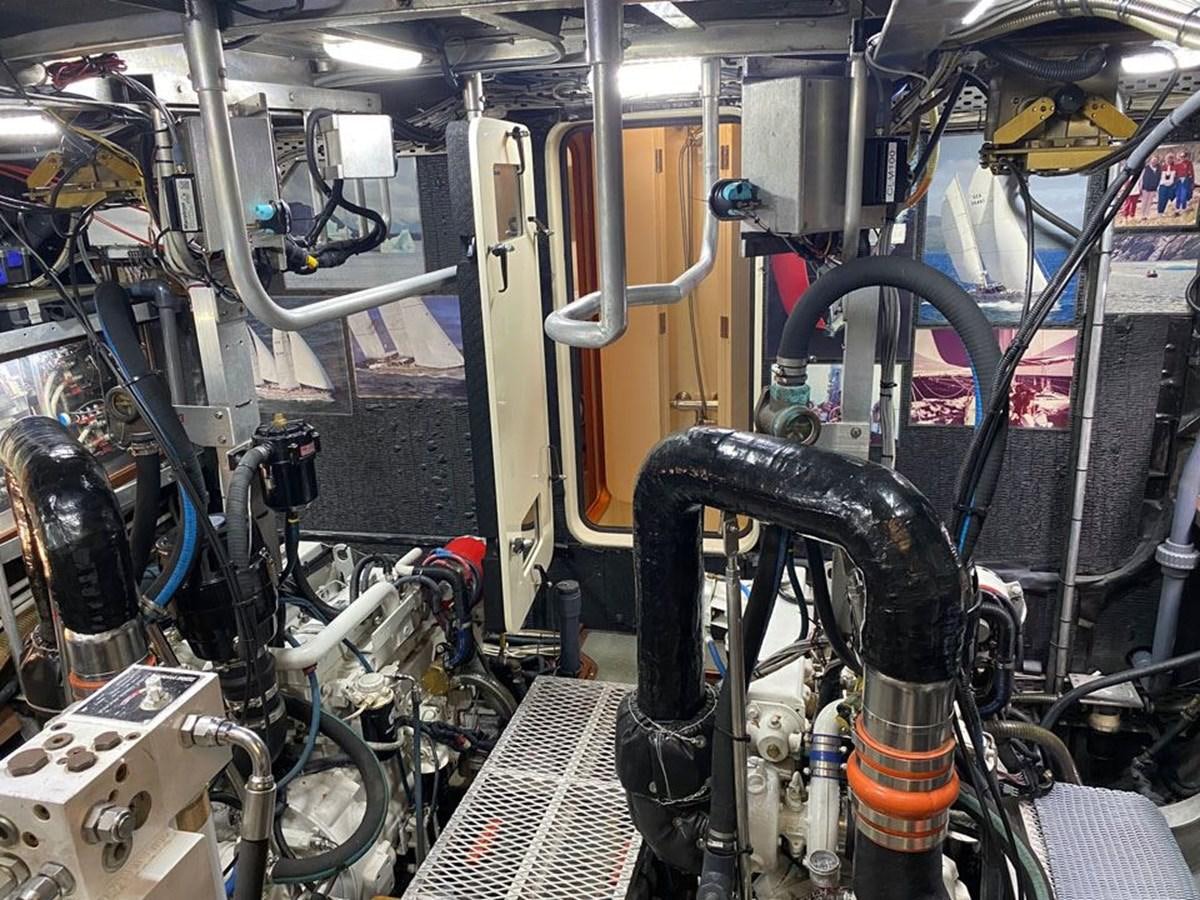

  • The engine room is accessed through the shared shower and offers great access to all the systems and is easy to move around in. There is plenty of room for tools and spares.

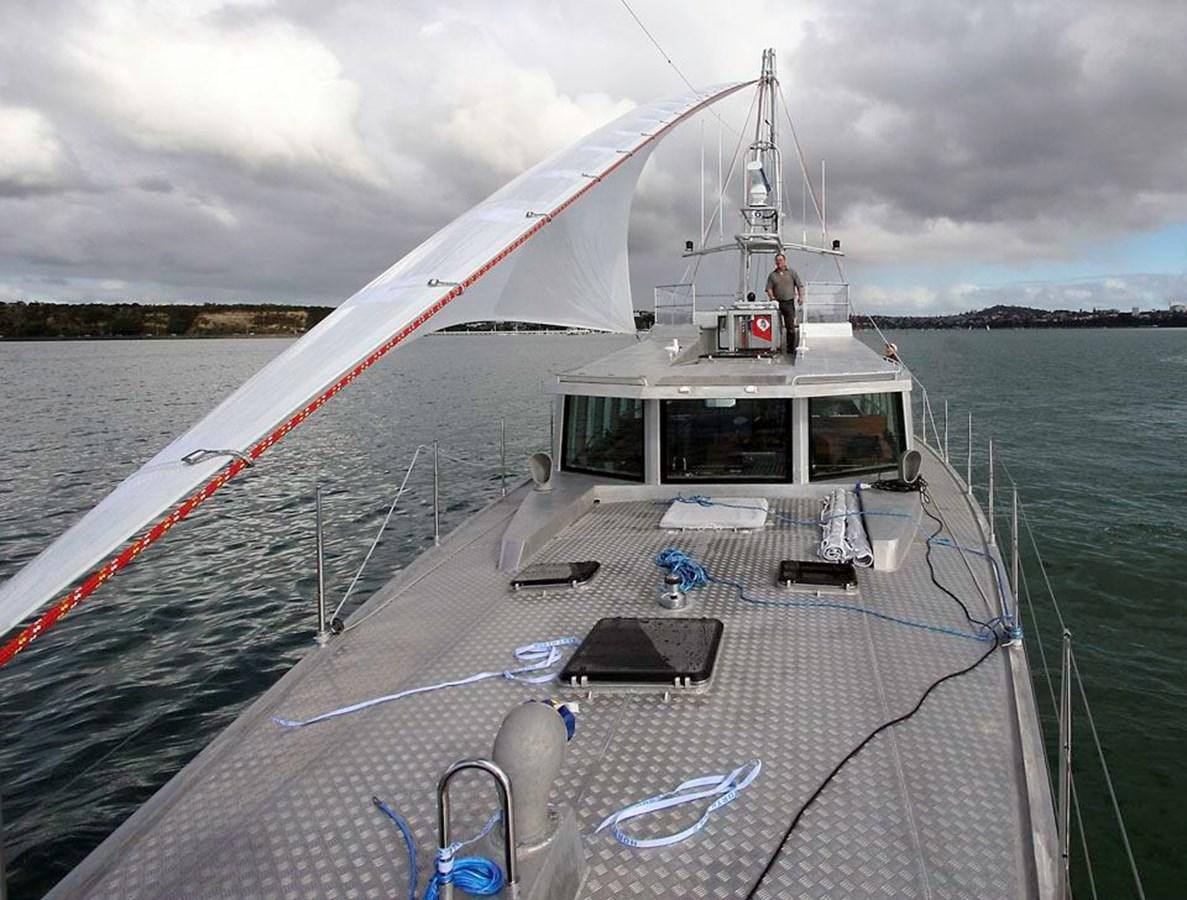

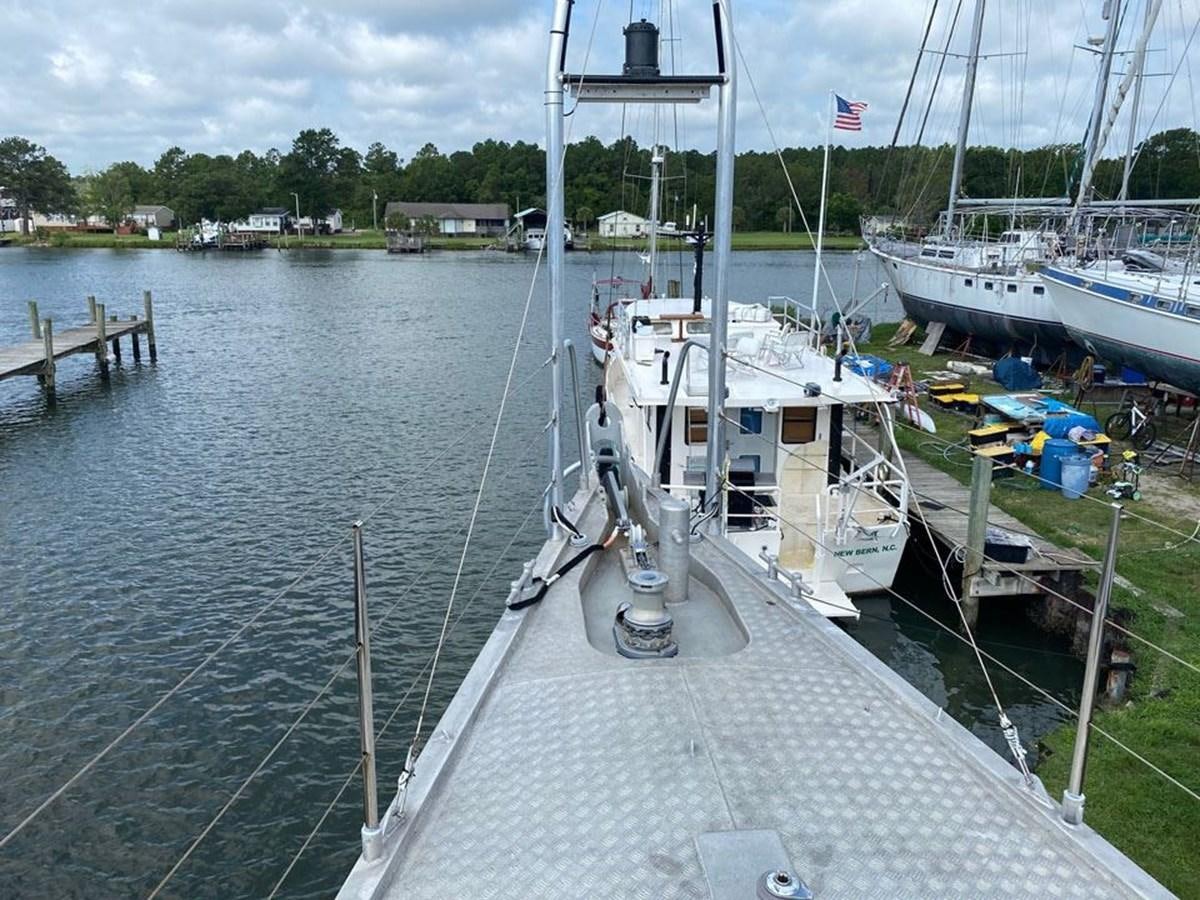

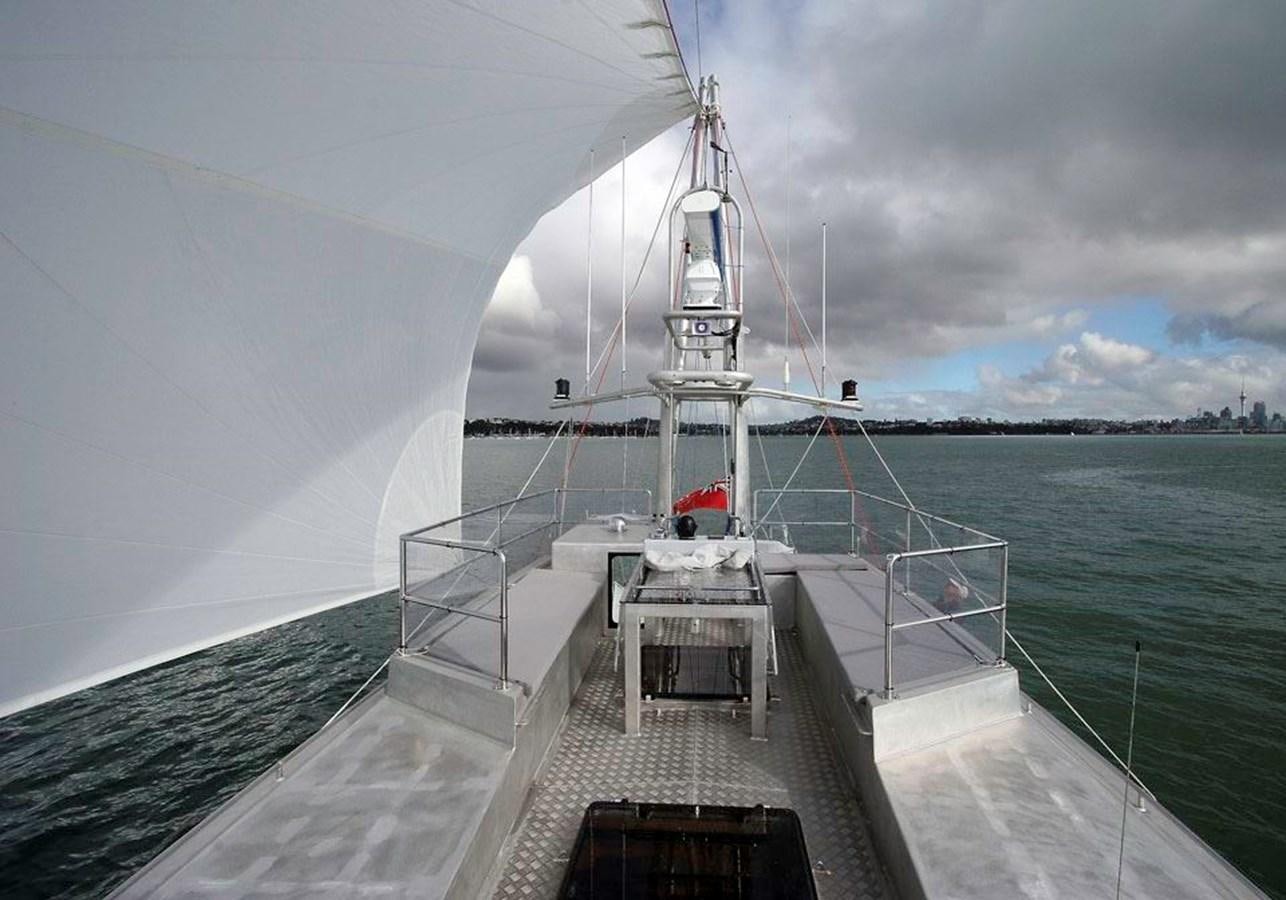

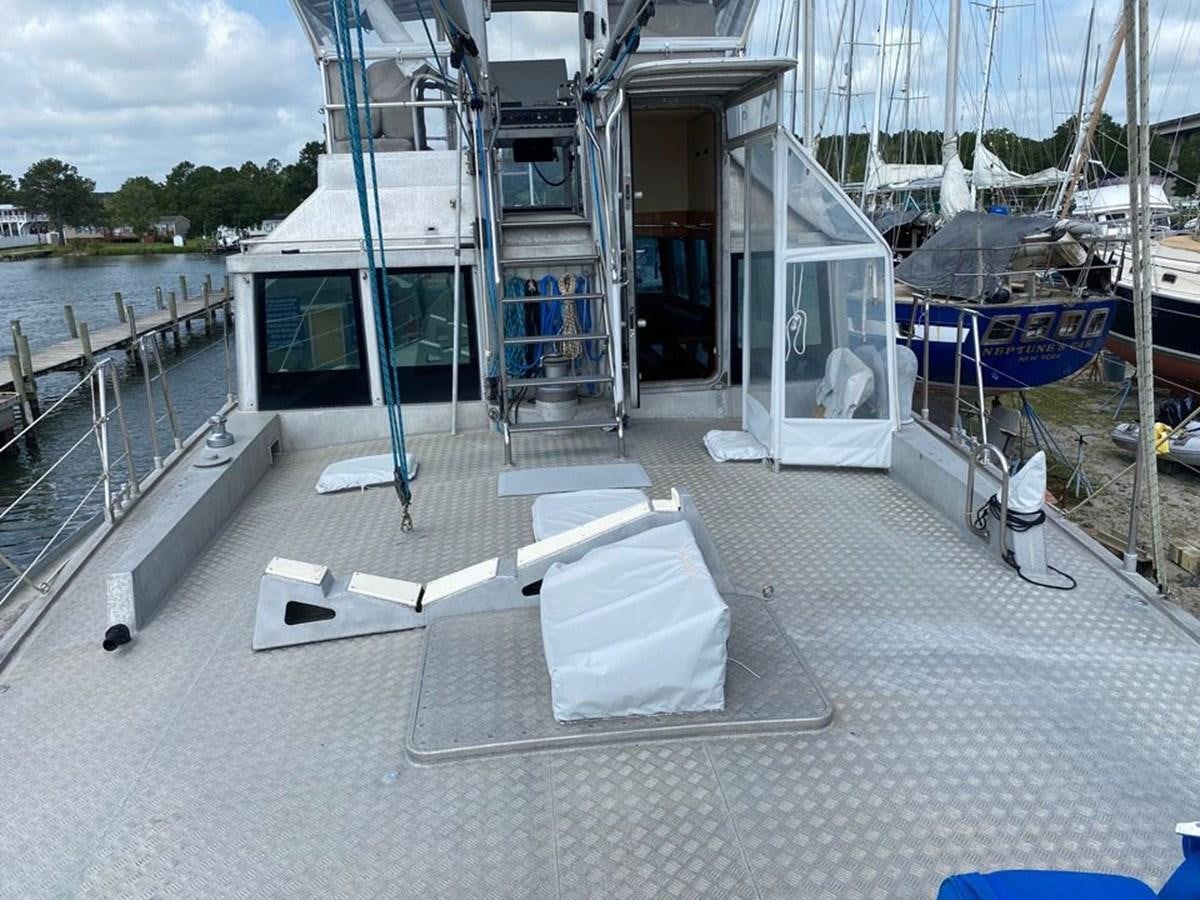

  • Back in the Great Room there are steps up onto the aft deck which has plenty of room for 2 dinghies which can be deployed using the mast booms. Steps down to the large bathing platform for easy boarding. The side decks are wide and there is a large foredeck area.

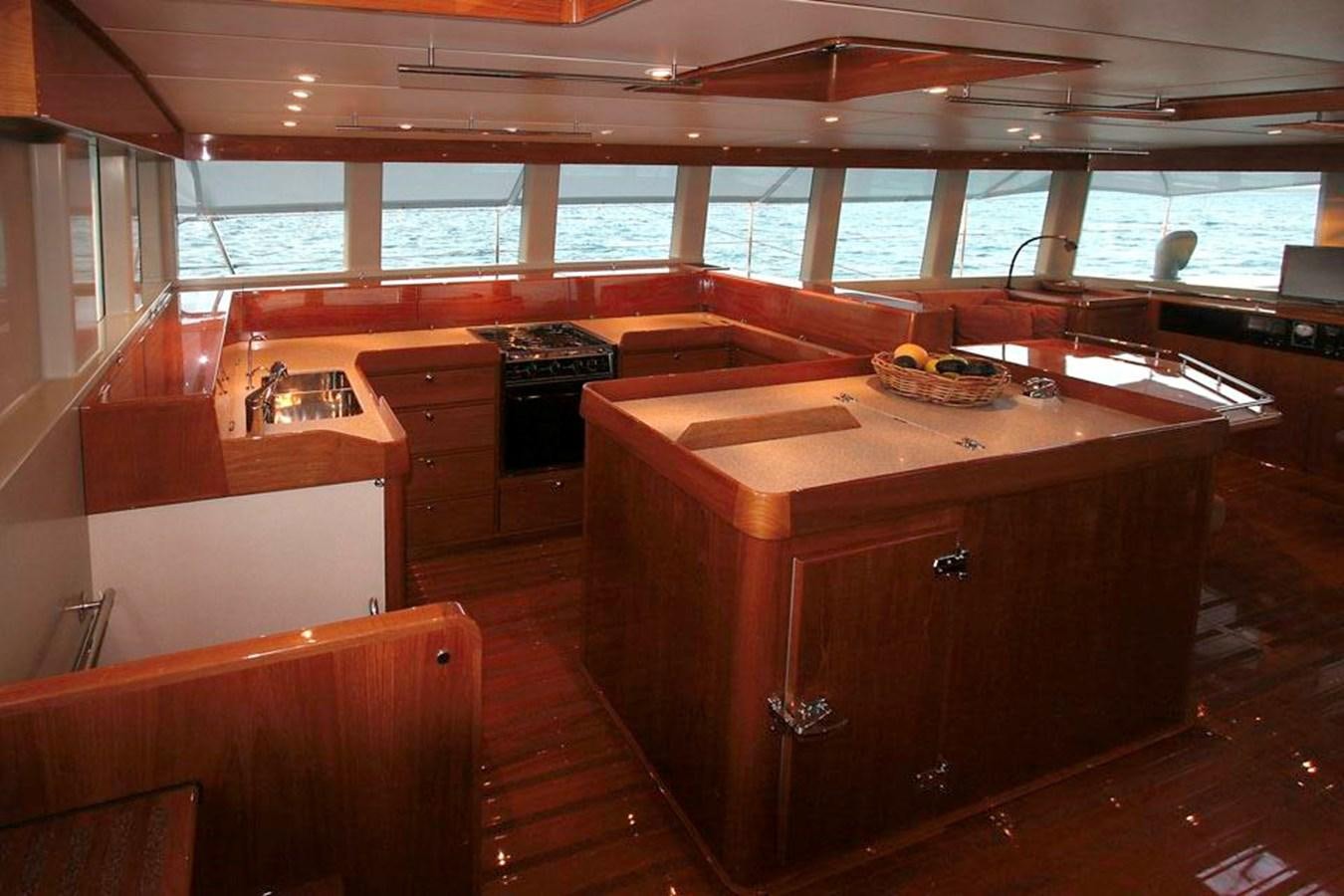

Galley & Laundry Equipment

  • Miele speed oven (convection, conventional, microwave).
  • Diva three-burner induction cook top.
  • Trash compactor.
  • Custom refrigerator (roughly 348 Liters) and freezer (roughly 240 liters) in galley and second custom freezer in basement (roughly 162 liters).
  • Each box cooled by a 24 volt Danfoss compressor with controls in the ship’s office and full soft-start modules.

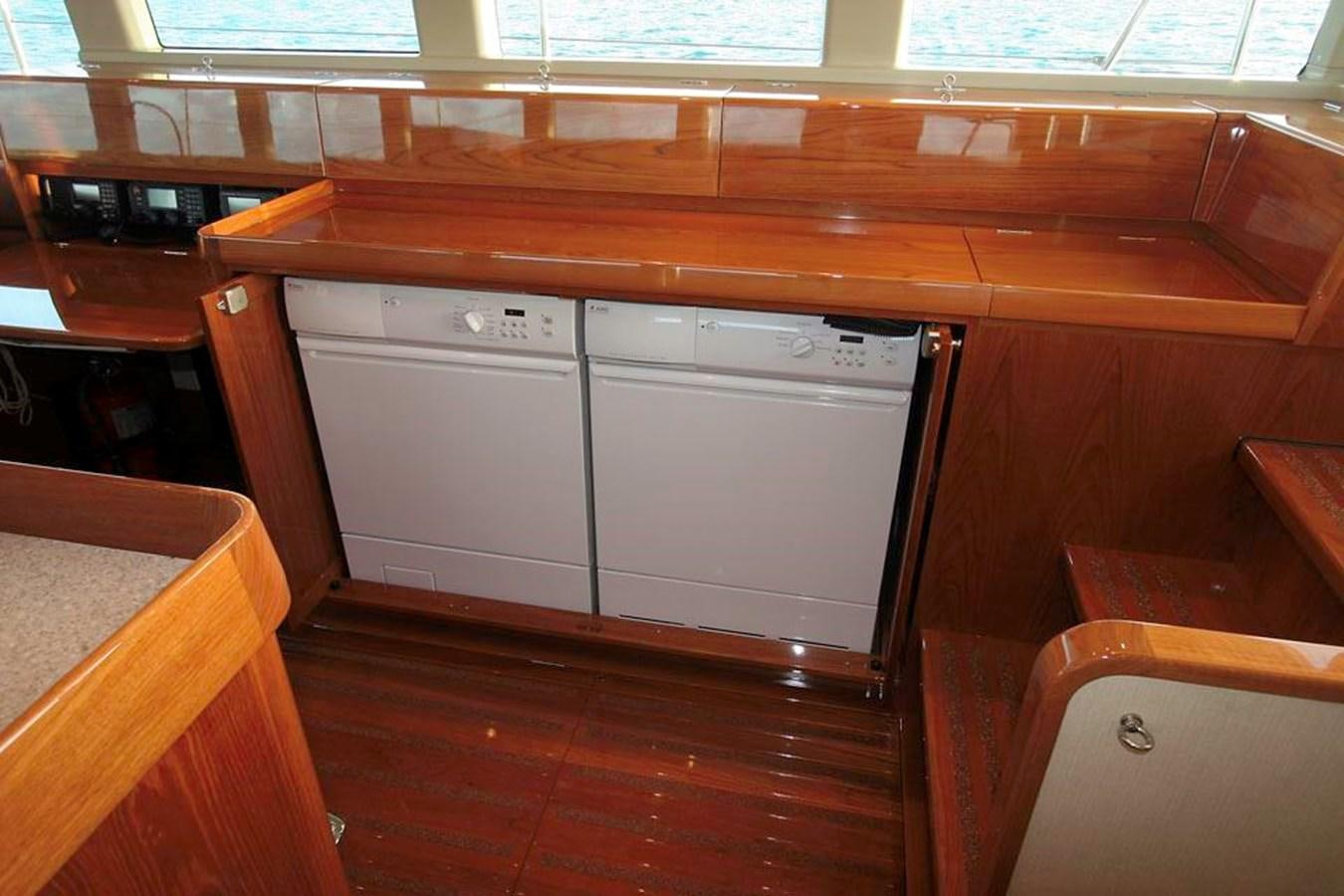

  • Asko washing machine and Asko dryer.

Communication Equipment

  • 3 x Icom IC34 hand held VHFs.
  • Loud hailer.
  • ICOM IC-M802 and IC-M805 SSBs.

Navigation Equipment

  • Sirius XM radio.
  • Iridium Satellite telephone.
  • Iridium Satellite hot spot.
  • Furuno SC 70 Satellite compass.
  • Multifunctional navigational displays at each helm.
  • Furuno FA 170 Universal AIS.
  • Satellite Marine Weather Receiver.
  • Simrad AP70 autopilots.
  • Furuno 12kW commercial grade open array Radar.
  • Furuno NXT closed array radar.
  • Furuno GPS.
  • Furuno through hull transducers.
  • Furuno 8” searchlight.
  • Maretron N2K Vessel Monitoring systems. MBB solid state driver computers, Pressure sensors for tankage and levels, pump duration and cycle count, temperature, individual battery cell voltages, fluid levels, power monitoring, bilge pumps, high water alarms, weather, environmental and electrical loads. DSM 150 display screens. 2 19” displays, colour changing graphic outputs. All user programmable.
  • Airmar weather sensor.
  • Barometer.
  • Dual autopilots – each completely redundant on separate hydraulic circuits with dual Kobelt cylinders.
  • W H Autopilot system.
  • W-H AP4 back-up autopilot system with controls at lower helm.
  • Teleflex manual helm pump with wheel for emergency use.
  • Normal operation is by fly by wire or autopilot mode.
  • Engine room emergency manual tiller control.

Entertainment Equipment

  • Fusion stereo head unit connected to Sony amplifier serves four ceiling-mounted speakers in main salon headliner plus subwoofer.
  • Stereo also supports a second zone of wired speakers on the flybridge although no speakers are currently installed.
  • All stereo functions can be controlled via smartphone app from anywhere in the boat.
  • 55’ TV on electric lift behind starboard settee in the Great Room.

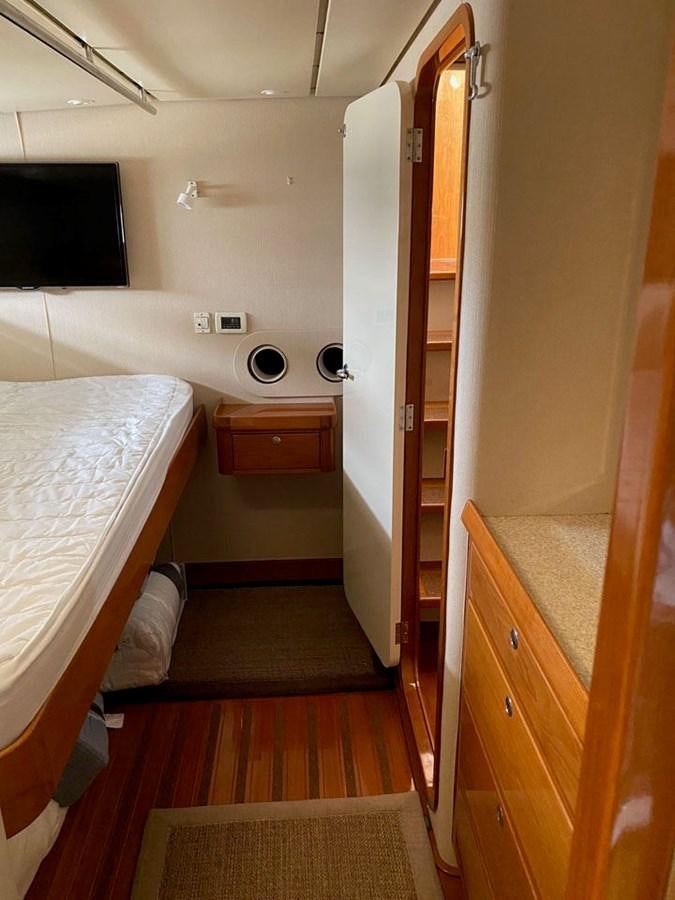

  • Both the Owner’s Stateroom and the 2 Guest Staterooms have bulkhead mounted TVs.
  • WiFi Receiver with Wireless Router – external bullet antennas.

Tenders & Toys

  • Launch and retrieve via booms and aft deck electric winch.
  • Assorted recreational-style PFDs for dinghy and water toys.
  • Rigid bottomed RIB with a 40hp Yamaha outboard (2020).
  • Dive compressor in engine room for replenishing scuba tanks.

Deck Equipment

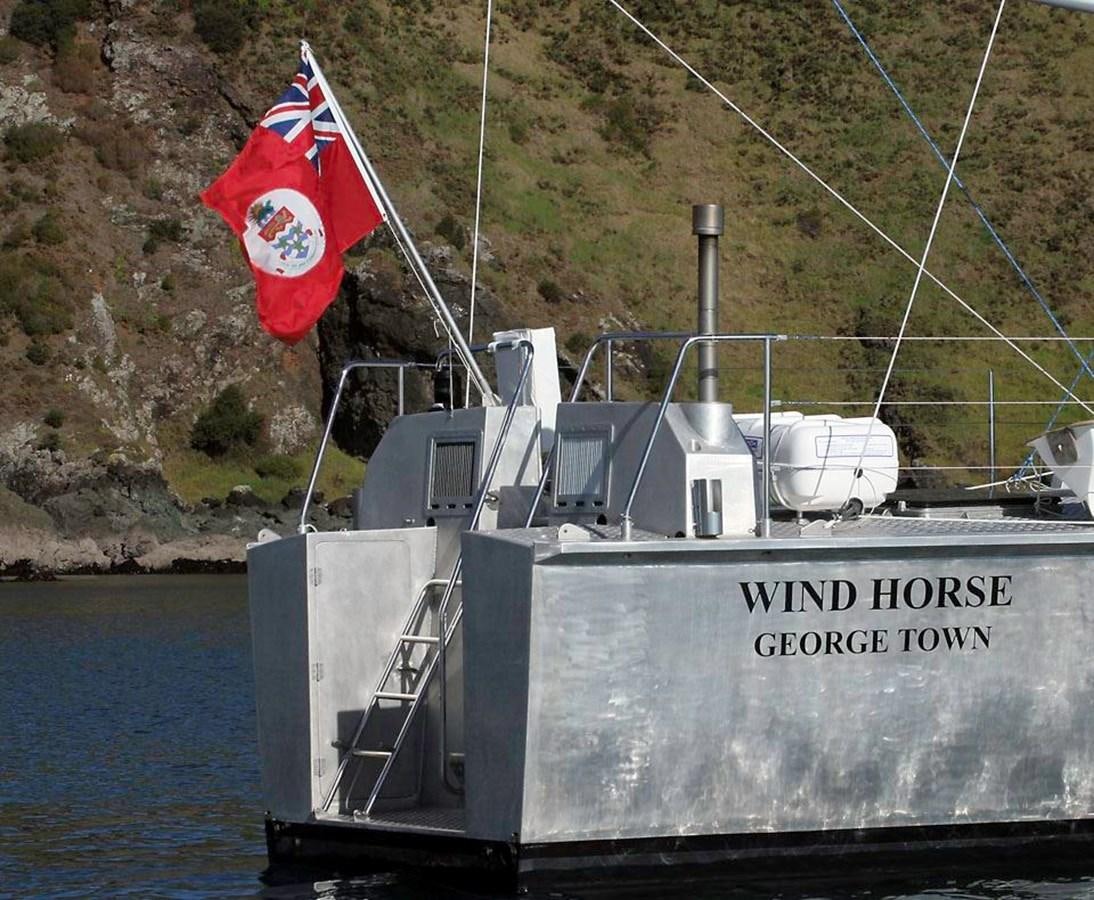

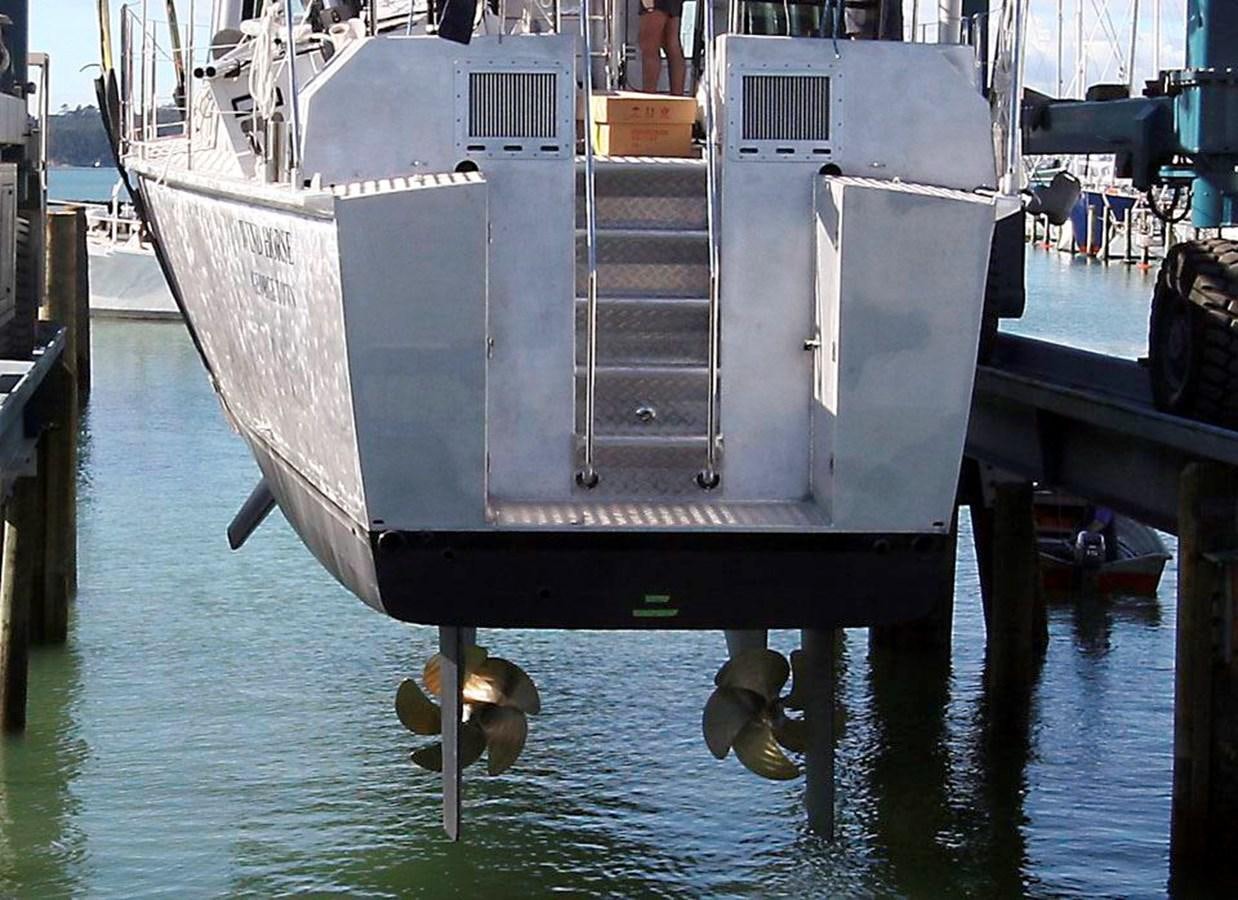

  • Large integrated swim platform aft with steps from aft deck.
  • Stainless swim ladder.
  • Aft deck freshwater shower (hot and cold with mixer valve).
  • Lifelines on pelican clips for easy access to dinghy/docks.
  • Fishing rod holder.
  • LED square lights on foremast and in house corners.
  • Deck wash (salt and freshwater wash down spigots) in forepeak and BBQ locker on aft deck.
  • Stainless deck stanchions with stainless lifeline system.

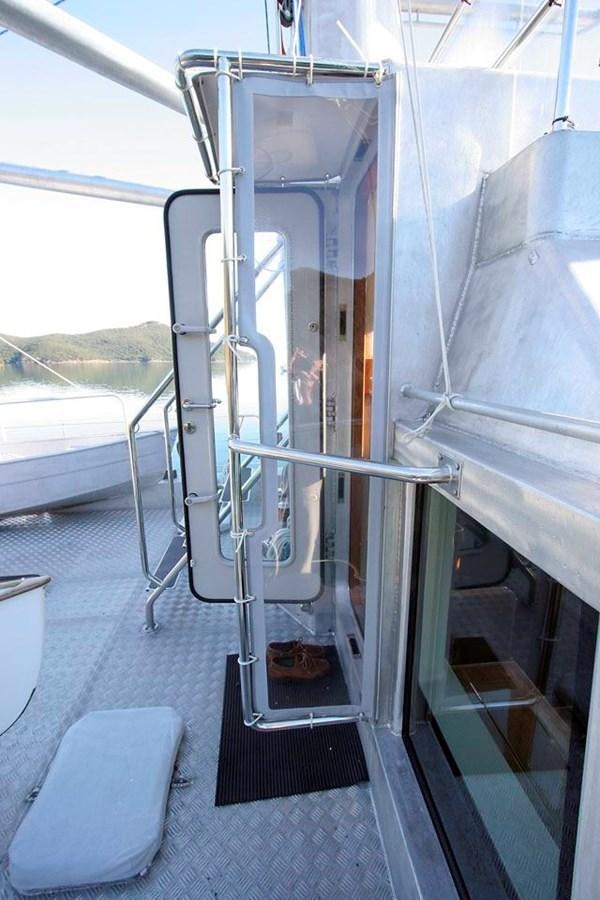

  • Boarding gates port and starboard on aft deck, and port and starboard onto the swim platform.
  • Aft deck propane BBQ with freshwater sink.
  • Large ventilated storage lockers on either side of the swim platform.
  • Luke aluminum Dorade cowls: two five inch unit’s forward cabin, two six inch unit’s aft cabin. One four inch unit for forepeak. Sealing deck plates at each deck penetration. Down pipes have seals adjustable from inside the boat. Air Concepts eyeballs for directing air inside the boat.
  • 2 x Stainless “flopper stoppers” for use at anchor.
  • 2 x Kolstrand “fish” for use in the event of stabilizer failure.
  • The above deployed from the booms on separate pennants with rope clutches.
  • Large integrated swim platform aft with steps from aft deck.

Anchoring & Mooring Equipment

  • Primary ground tackle consists of a 110 kg / 240 lb Bruce anchor with ACCO grade 70 chain 350’ long, 3/8s for the main anchor (new 2022).
  • Maxwell VWC 4000 24V windlass (with 2000W 24V motor and reversing solenoid). An Auto Anchor 500C up and down chain counter is located in the inside the bridge area. There is a remote up and down control station located on the Matrix deck. Chain stopper.
  • Fortress F125 anchor for kedging/storm use.
  •  Lewmar 24 VDC #66 chrome bronze 2 speed ST winch (including control box and foot switch).
  • 4 x Lewmar manual two speed #40 aluminium winches.

Covers, Canvas & Cushions

  • Canvas covers for BBQ/sink console and flybridge helm/eating area.
  • Side awnings and awning over master cabin hatch for sun protection.
  • Insulated storm/sun covers for all hatches.

Security & Safety Equipment

Safety Equipment

  • USCG-required safety equipment and placards.
  • ISCG/SOLAS range 6 person-pack A liferaft (2022).
  • Global Fix EPIRB.

Fire-fighting equipment

  • Fireboy automatic shut down system located in the navigation area which will shut down each engine, genset, and diesel heater. There is also a manual trigger located on the engine room bulkhead in the starboard head.
  • Fireboy engine room unit and shut down.
  • Engine room heat sensors, complete engine alarms along with other monitoring integrated to the Maretron system.
  • Carbon Monocide Detector single station alarm renewed 2022.
