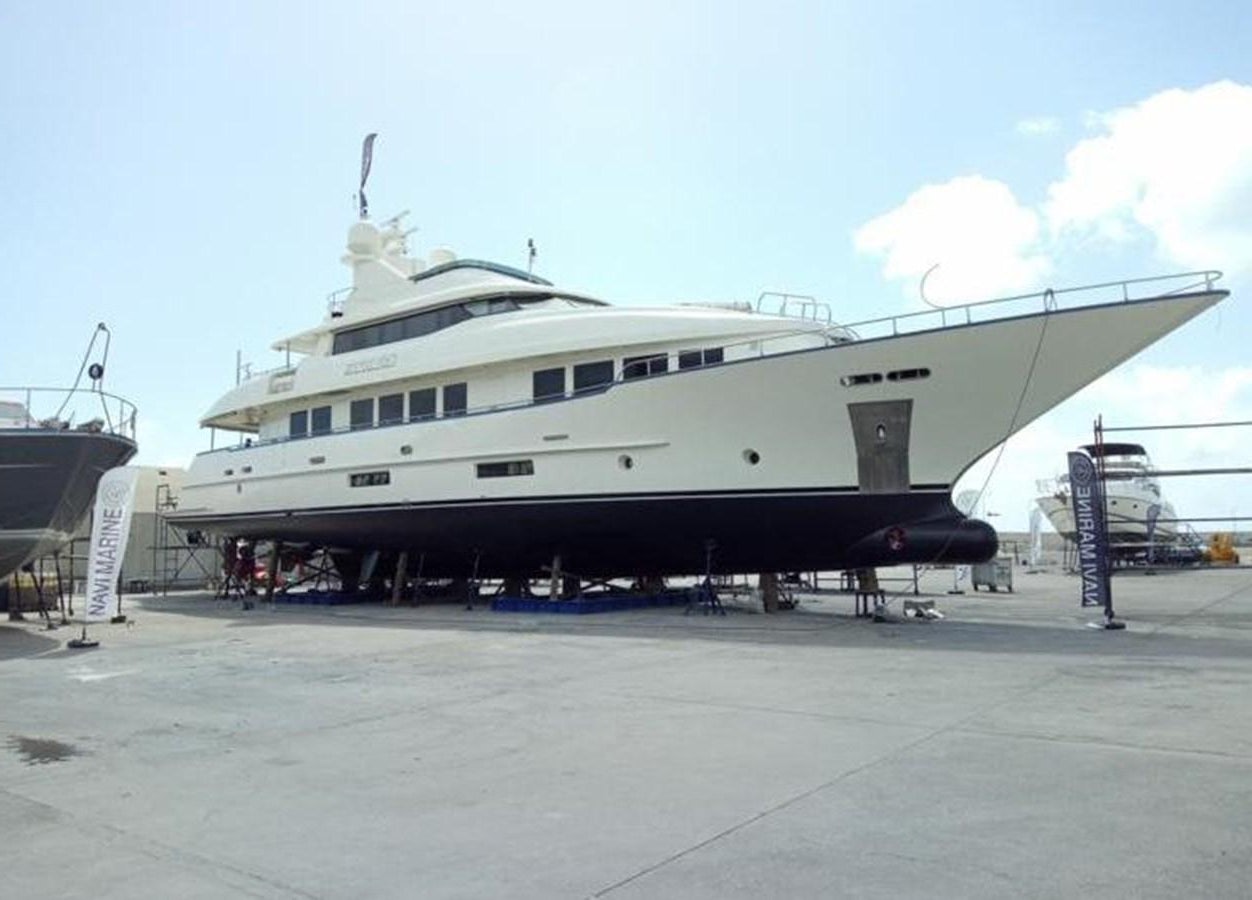

WHISPER Yacht for Sale

LOA: 114'10''/35M
BEAM: 6.9M
DRAFT: 1.9M
REFIT: 2019
GRT: 197
CLASS: RINA
FLAG: CAYMAN ISLANDS

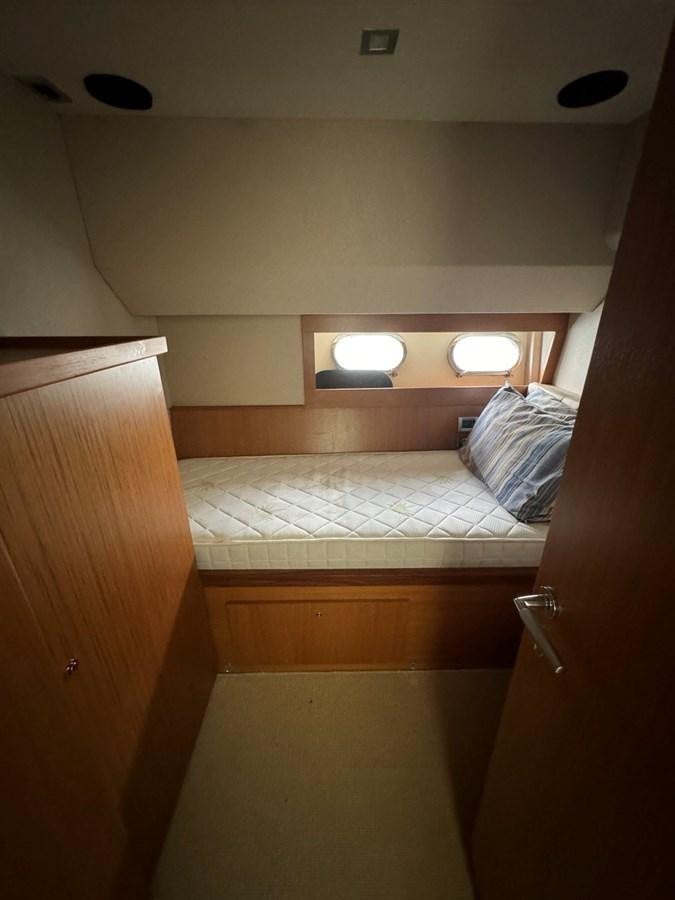

ACCOMMODATION: 10+1 PULLMAN BERTH IN 5 CABINS

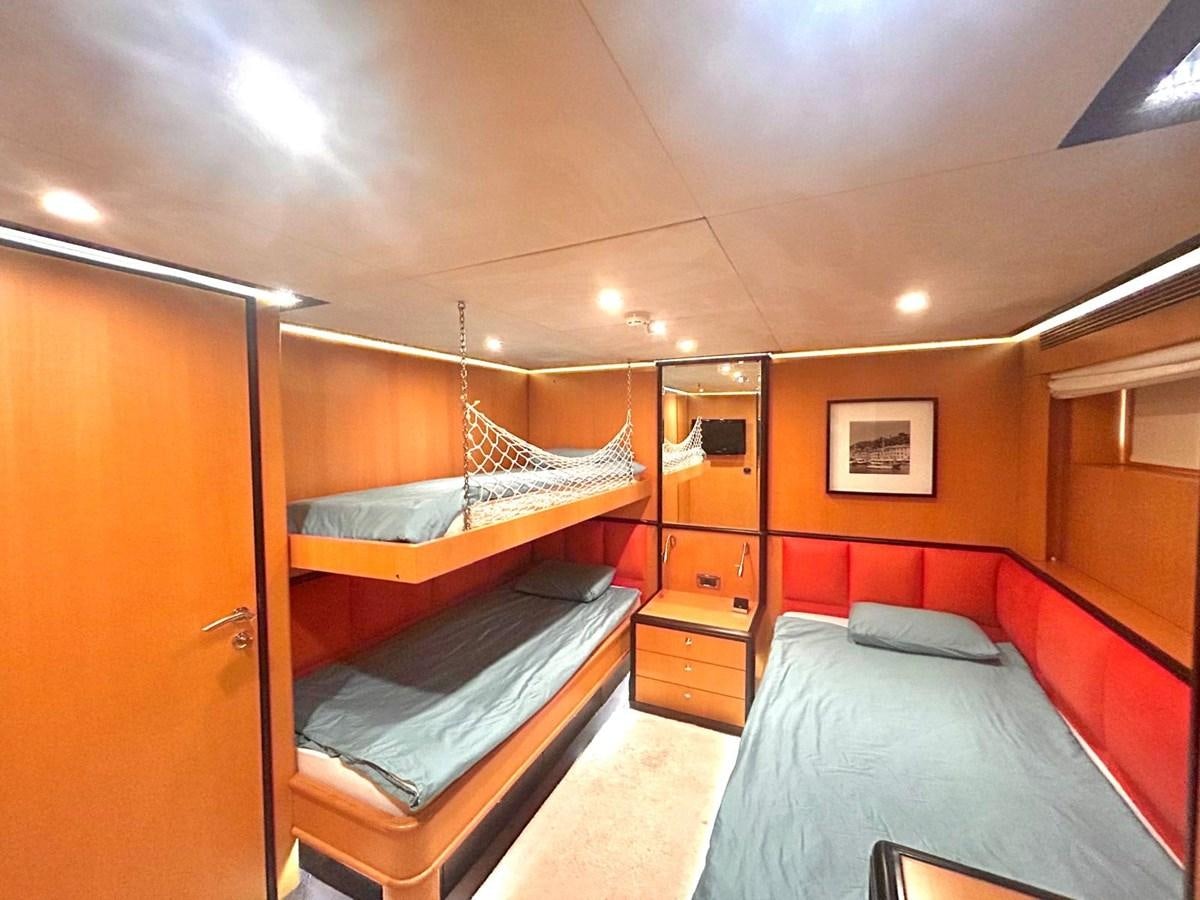

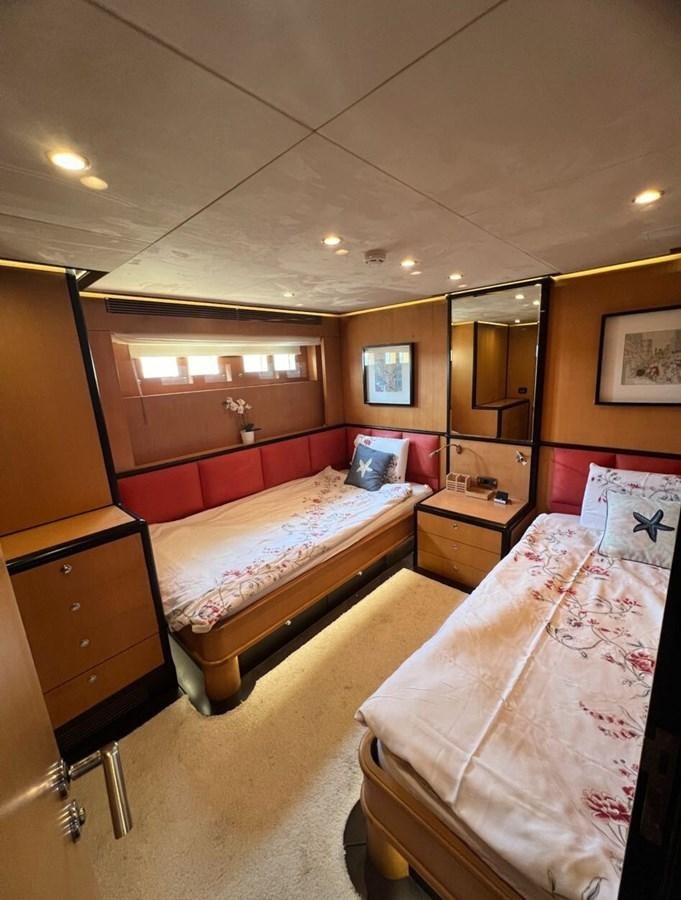

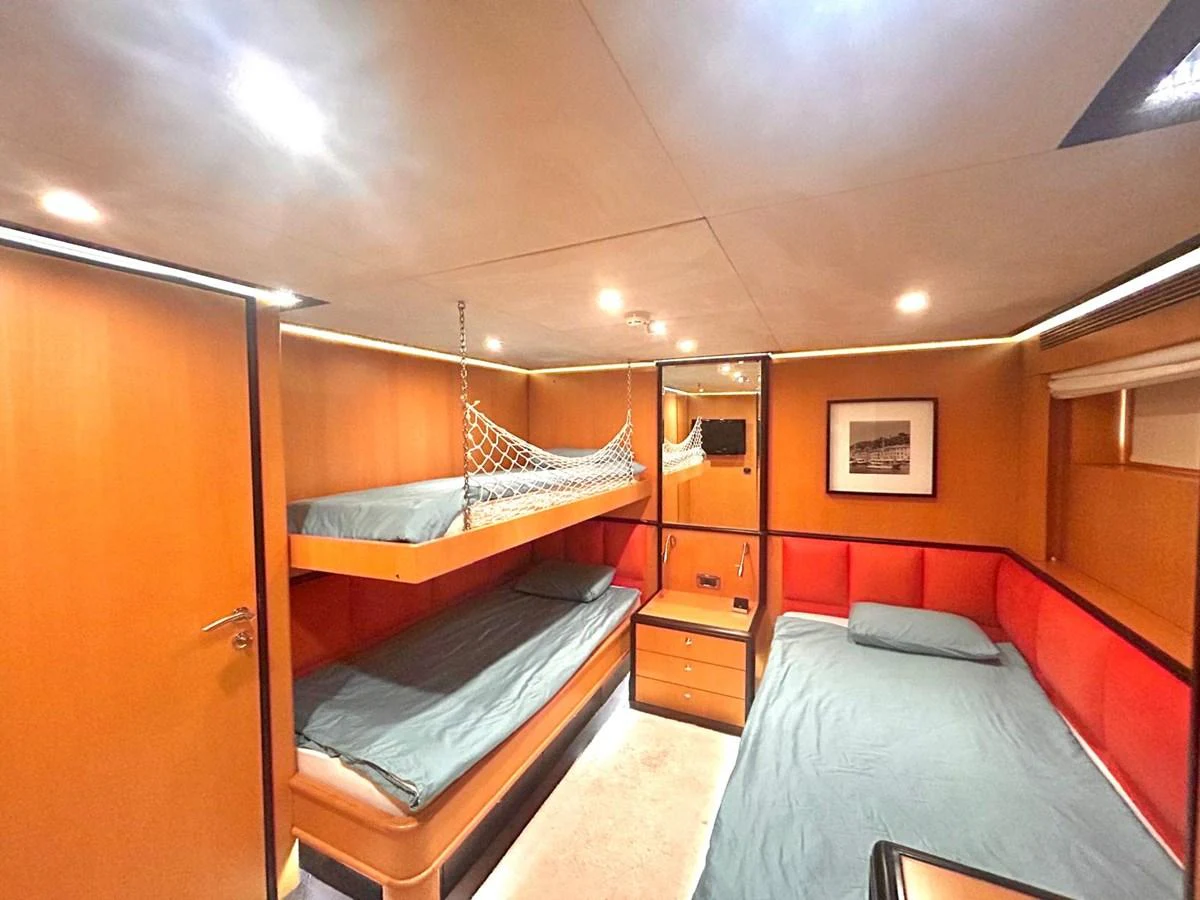

2 QUEEN BEDDED, 1 DBL, 2 TWINS ONE OF THEM WITH A PULLMAN BERTH
CREW CABINS FOR CAPTAIN + 4 CREW MEMBERS
ENGINES: Caterpillar C18  2x600hp
Generators: Onan 2 x 50Kwa

Dimensions and General Specifications

Length overall: 35m

Length on waterline: 28m

Beam Moulded: 7.1m

Beam overall: 7.3m

Depth: 3m

Draft to the base of props: 2.6m

Displacement: 145T
GRT: 197

Fuel capacity: 28000 liters

Fresh water capacity: 4320 liters

Speed-maximum (at half load): 13.0 Knots

Speed-maximum (at light load): 13.5 Knots

Range@12 Knots 1800NM

Number of passengers: 10

Number of crew: Captain + 4

Flag: Cayman Islands

Brief description:
A ground-breaking 35m yacht ideal for persons with disability and accessibility at all areas in the main deck, upper deck, and sun deck. One of the few yachts of its size equipped with an array of cutting-edge amenities designed for persons with disabilities, Whisper stands in a class of her own. Elevator connecting the main deck with the upper deck and the sun deck, innovative cranes, and transfer systems that allow safe access in and out of the water.

Teaser:

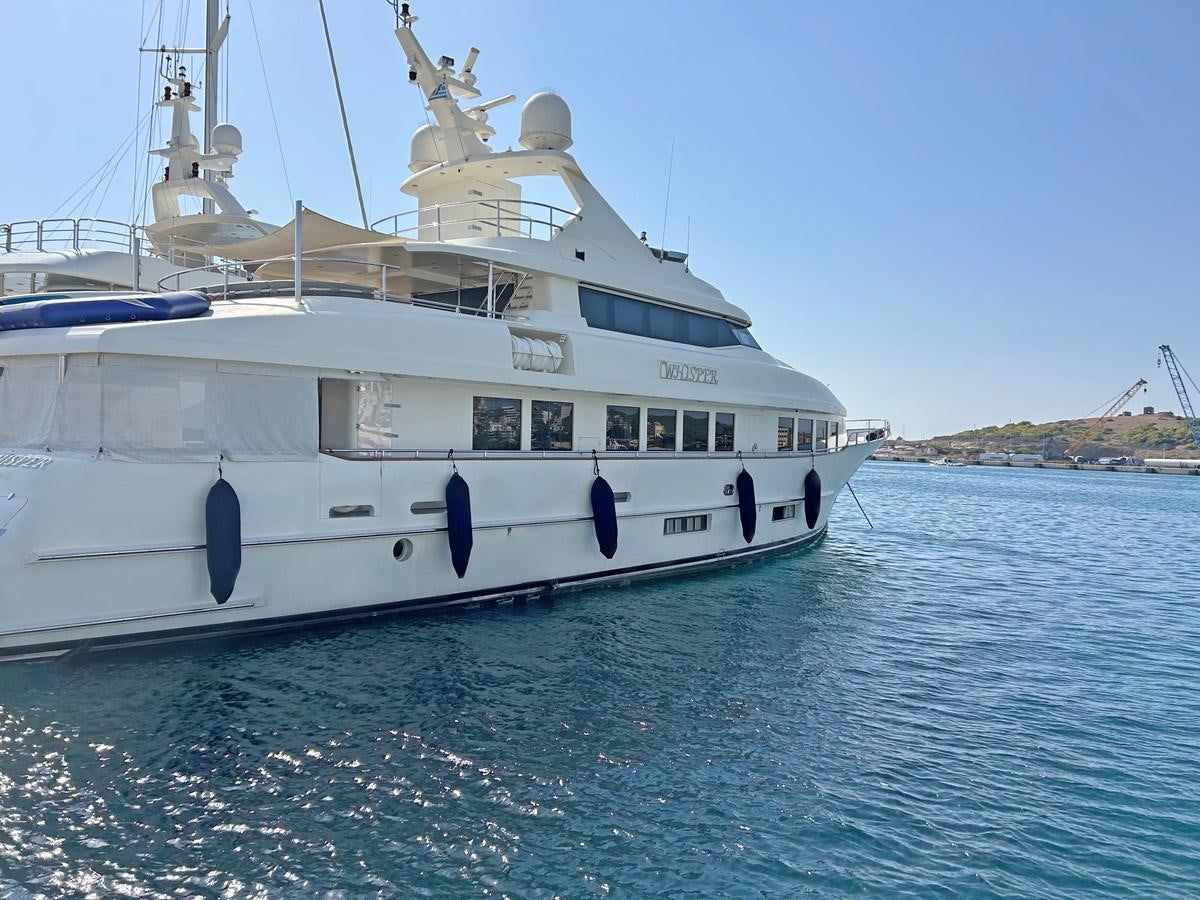

We are delighted to introduce Whisper, a truly groundbreaking 35m (115') motor yacht ideal for persons with disability and accessibility at all areas in the main deck, upper deck and sun deck.  As one of the few yachts of its size equipped with an array of cutting-edge amenities designed for persons with disabilities, Whisper stands in a class of her own. Her impressive features include a seamless elevator that connects the main deck with the upper deck and the sun deck, offering effortless mobility throughout the yacht, and innovative cranes and transfer systems that allow safe and comfortable access in and out of the water.

Built by Nedship and delivered in 2010, Whisper combines sophisticated design with thoughtful engineering to create an exceptional experience for all guests. Whether relaxing on her teak decks or enjoying the freedom of the water, Whisper ensures that every moment is elevated to extraordinary levels of comfort and freedom, making her truly unmatched in accessibility and fun in total independence.

CONSTRUCTION
Full Displacement Epoxy L135-H137, Stitched Multiaxial E-glass Fiber, Divinycell H 60/80/100 PVC Core

PROPULSION: TS Diesel, 2 x Caterpillar C18 (448 kw at 1800 rpm) diesel engines, with 2 4 blade France Helice propellers

Design and Construction

Interior Styling and Exterior profile is by Hoek Design B.V.

Development and Construction by TSMM Yacht Builders, Antalya, Turkey

The yacht has been designed and built to allow wheelchair bound persons to have maximum access on and around the yacht, without compromising normal use and comfort.

Classification

RINA Charter Class for Yachts

Large commercial yacht code (LY2) enforced 24 September 2004, previously called "Code of practice for safety of large commercial sailing and motor vessels, 1997, for vessels less than 50m and less than 500GT registry in the Cayman Islands. Short Range Navigation.

Certification

Builder's Certificate

Certificate of Class

International Suez Tonnage Certificate

International Tonnage Certificate

International Load Line Certificate

Manufacturer Certificate for Anchor Chain and Chain Cable fittings

Navigation light type approval Certificate

Compass Adjustment Certificate

AIS Approval Certificate

Approved Stability Booklet

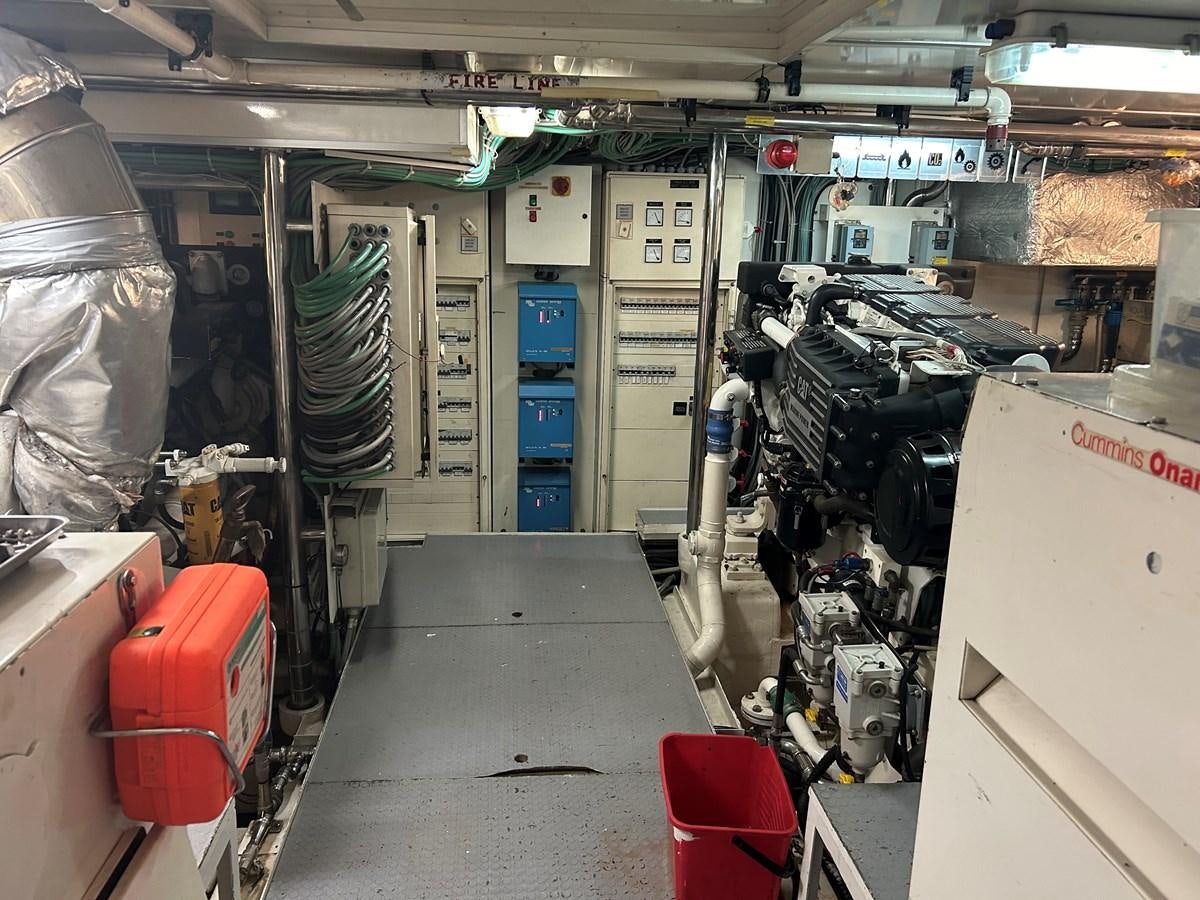

Propulsion

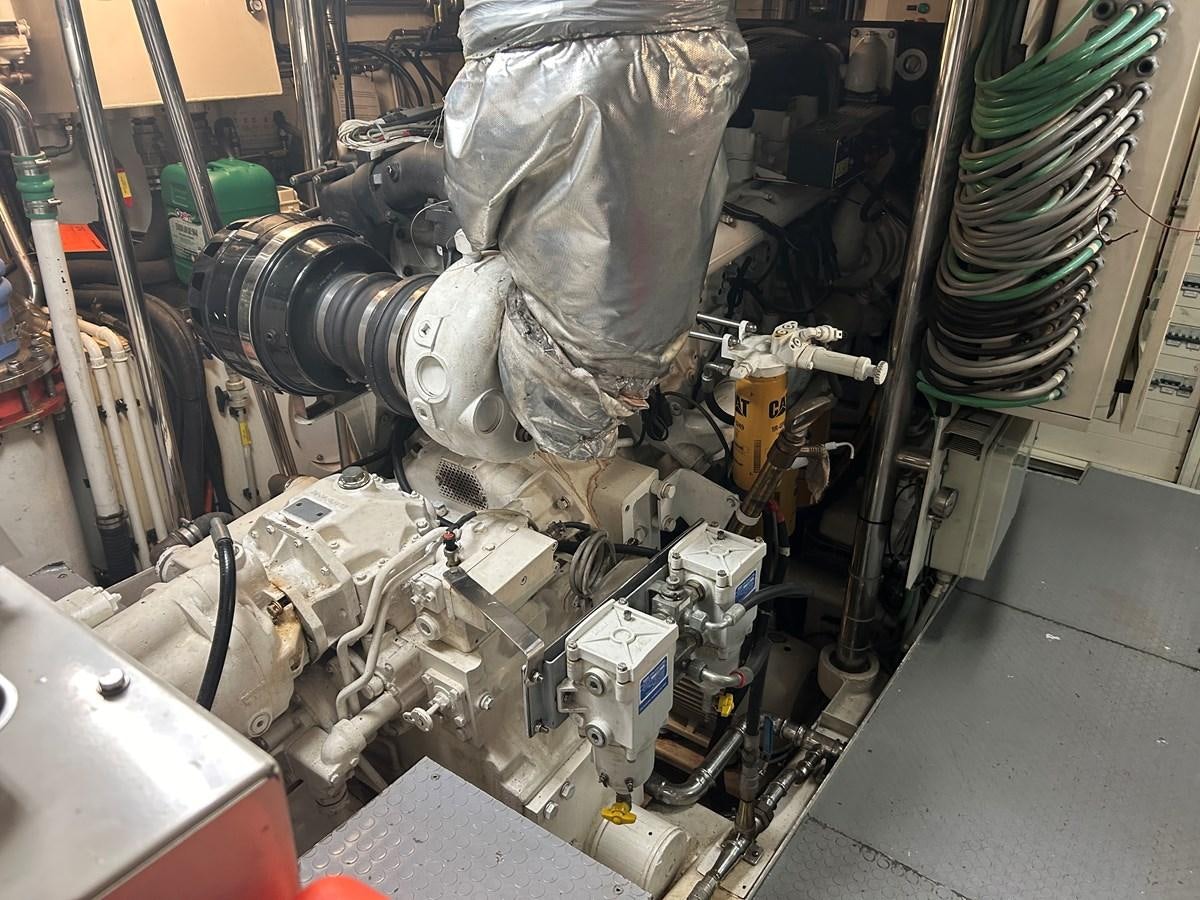

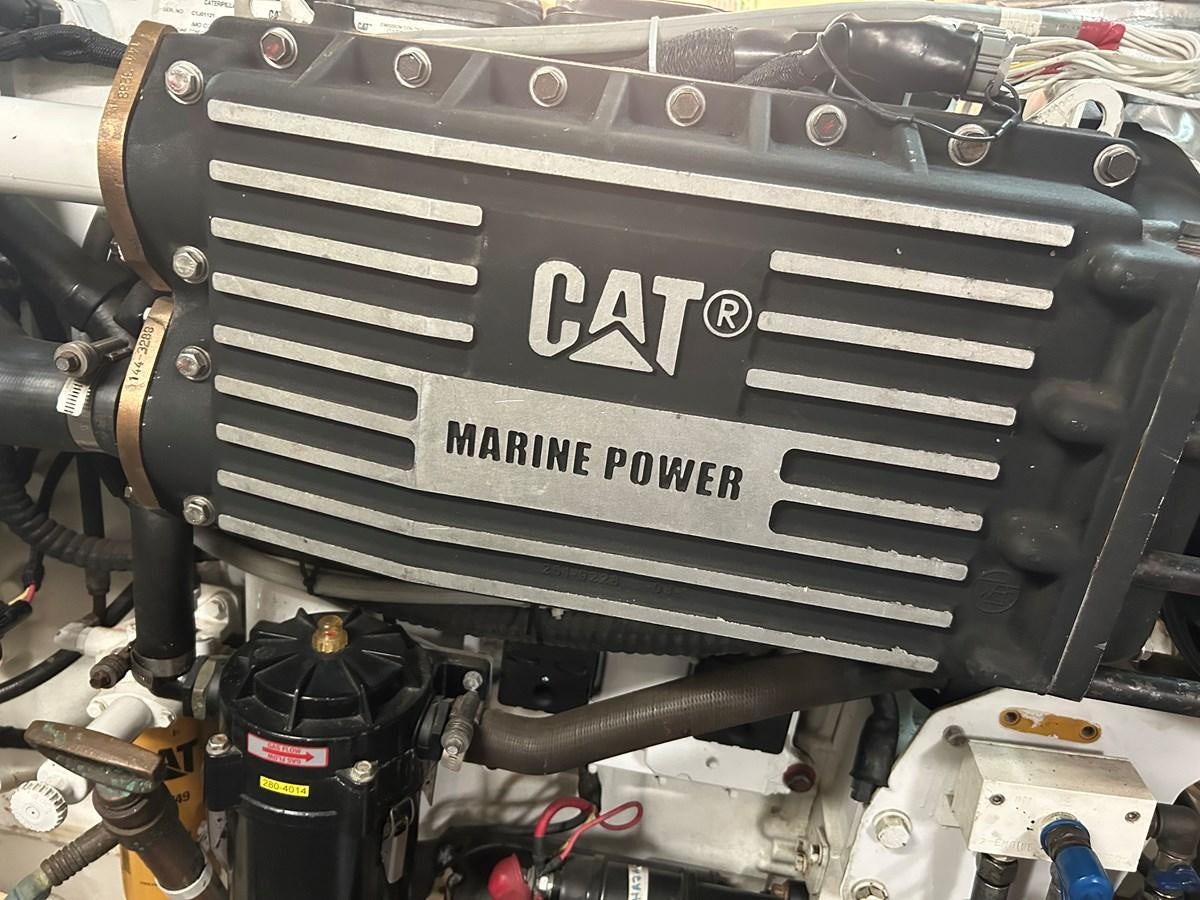

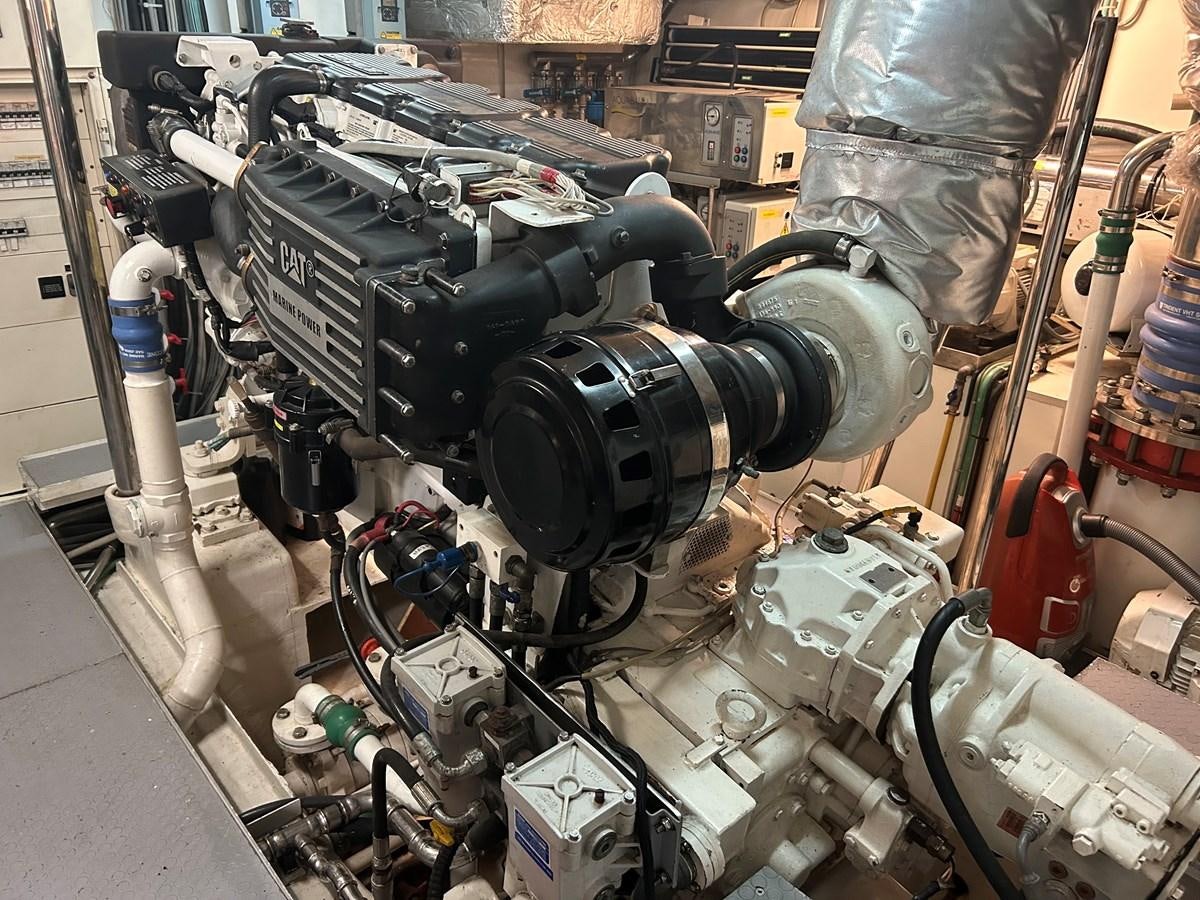

Main Engines: Cat C18 2 x 448 kw @ 1800rpm (600hp each)

Port Serial # CIJO1123
Starboard Serial # CIJ01121
Gear Boxes ZF W650

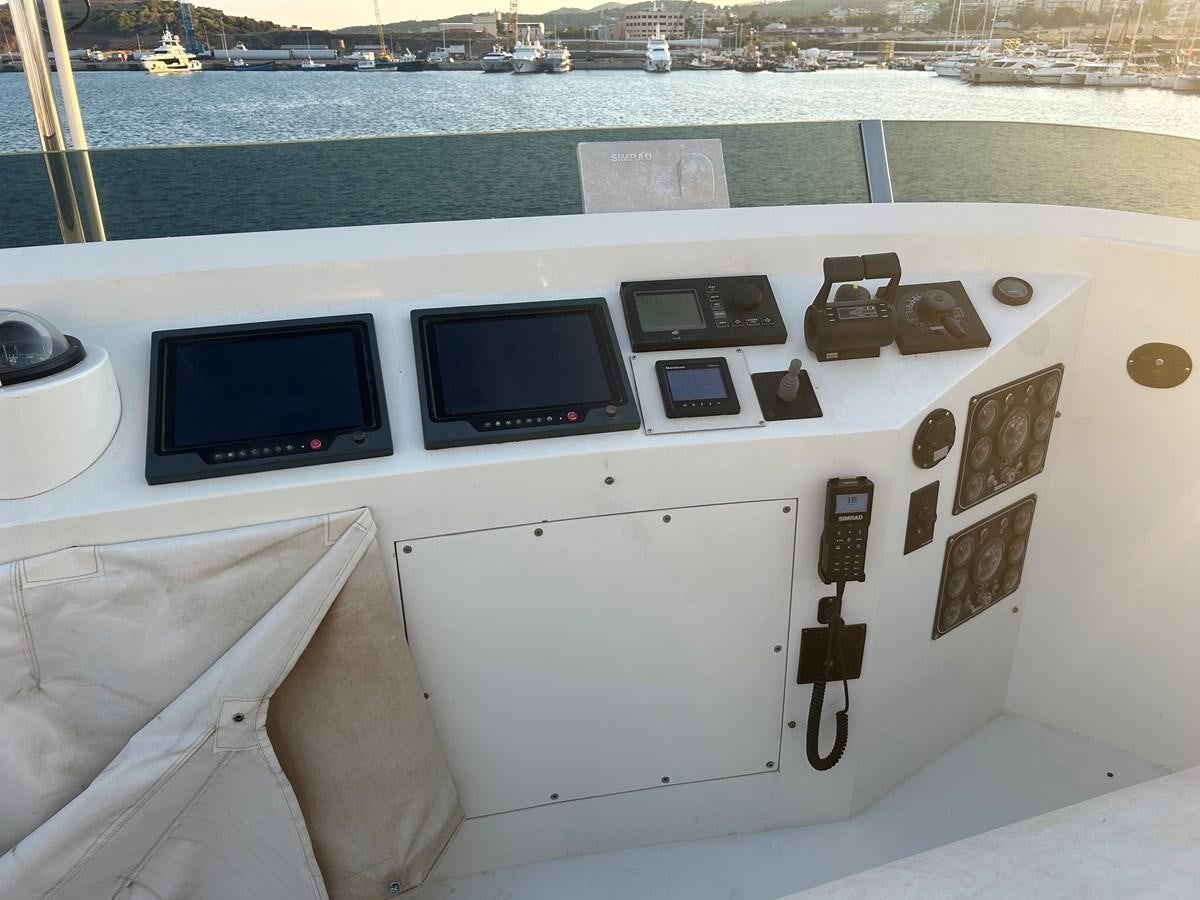

Engine Controls: Bridge, Sundeck, Aft Deck

Propellers:  France Helices 4 Blade

Shaft: France Helices Marinemet 25

Couplings: France Helices Mild Steel

Stern Tube: France Helices

Cutlass Bearings: France Helices

Shaft Seal: France Helices

P brackets: France Helices AB2

Main Exhaust System: TSMM Stainless Steel
Main Exhaust Insulation: Fibre-tech Ceramic Fiber

Power & Hydraulics

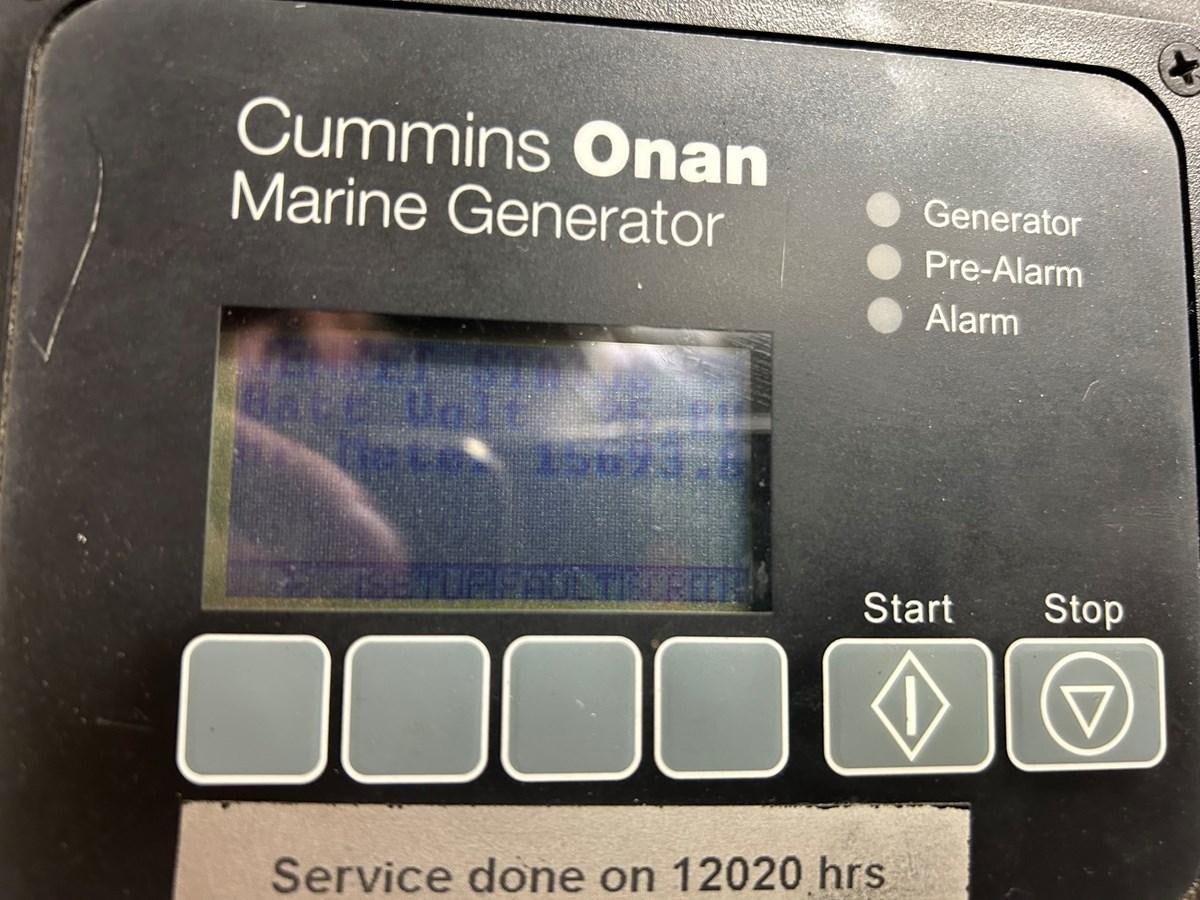

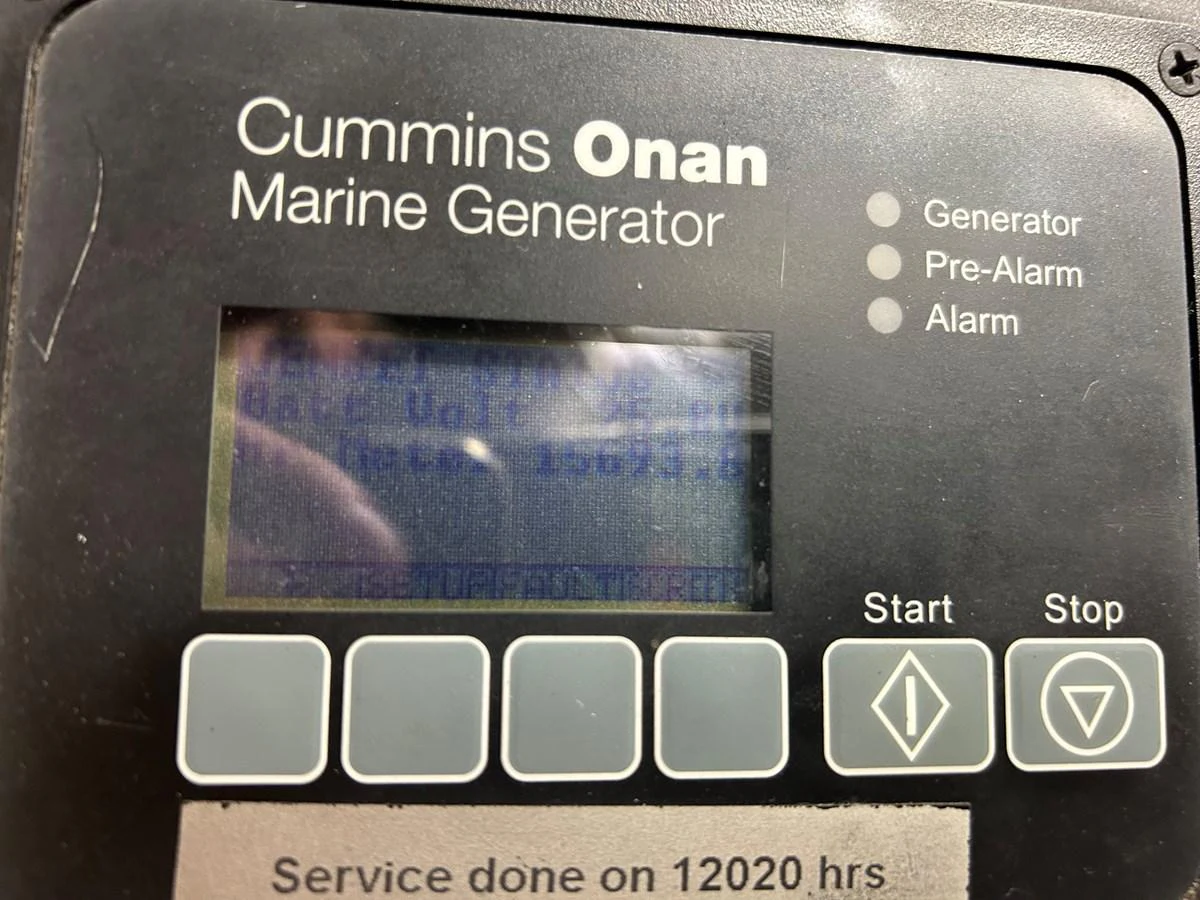

Generator Port: ONAN 50kw 1500 rpm Serial # G080183688

Generator Starboard: ONAN 50kw 1500 rpm Serial # G080193690

Generator exhaust TSMM Epoxy Composite
Bow Thruster: Wesmar100hp

Windlass: Muir 6000

Anchors S/S Muir and Chain 2 X 137m Galvanized, Stud link

Chain RCL Assembly:  TSMM
Windlass: Control Muir

Capstans: Muir VC 6000

Stabilizers: Wesmar RS1200 12 sq ft fins
Steering System

Rudders France Helices

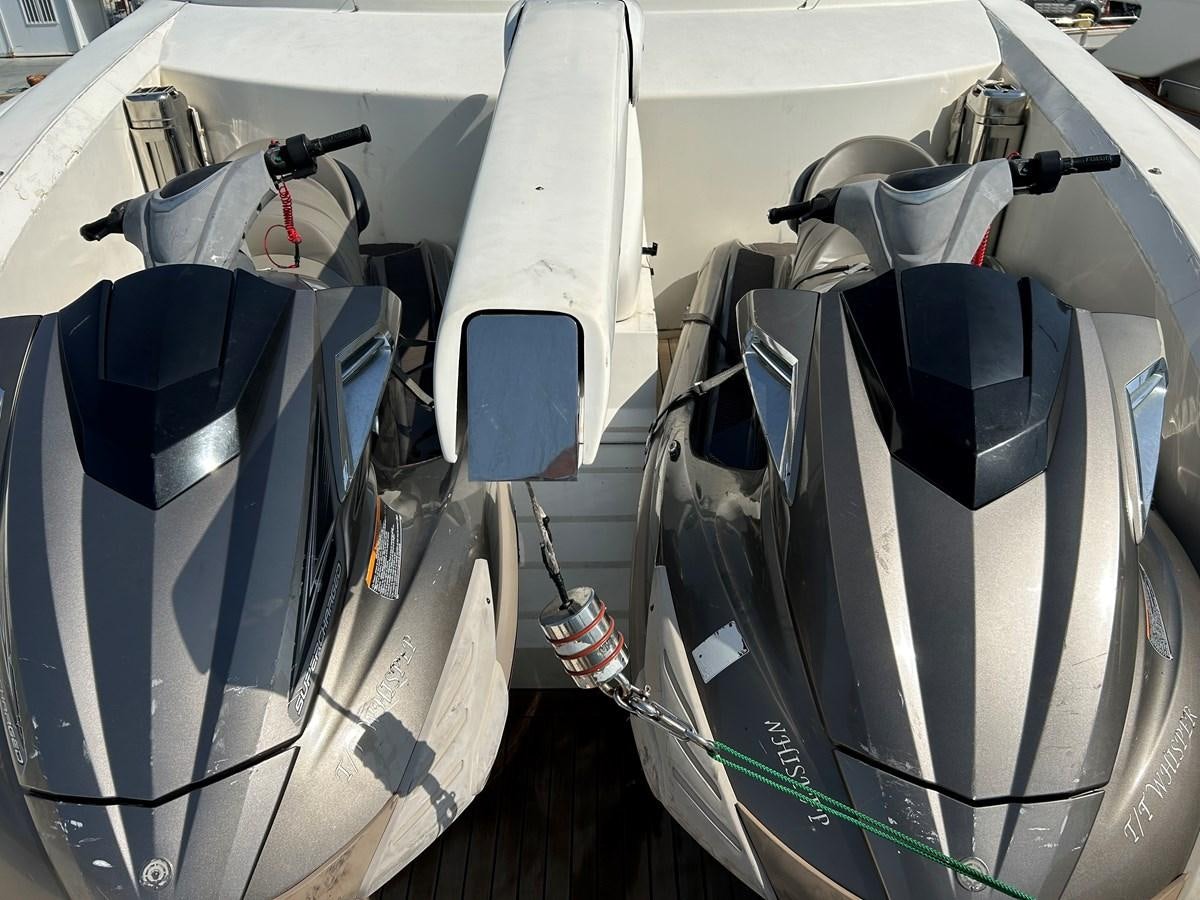

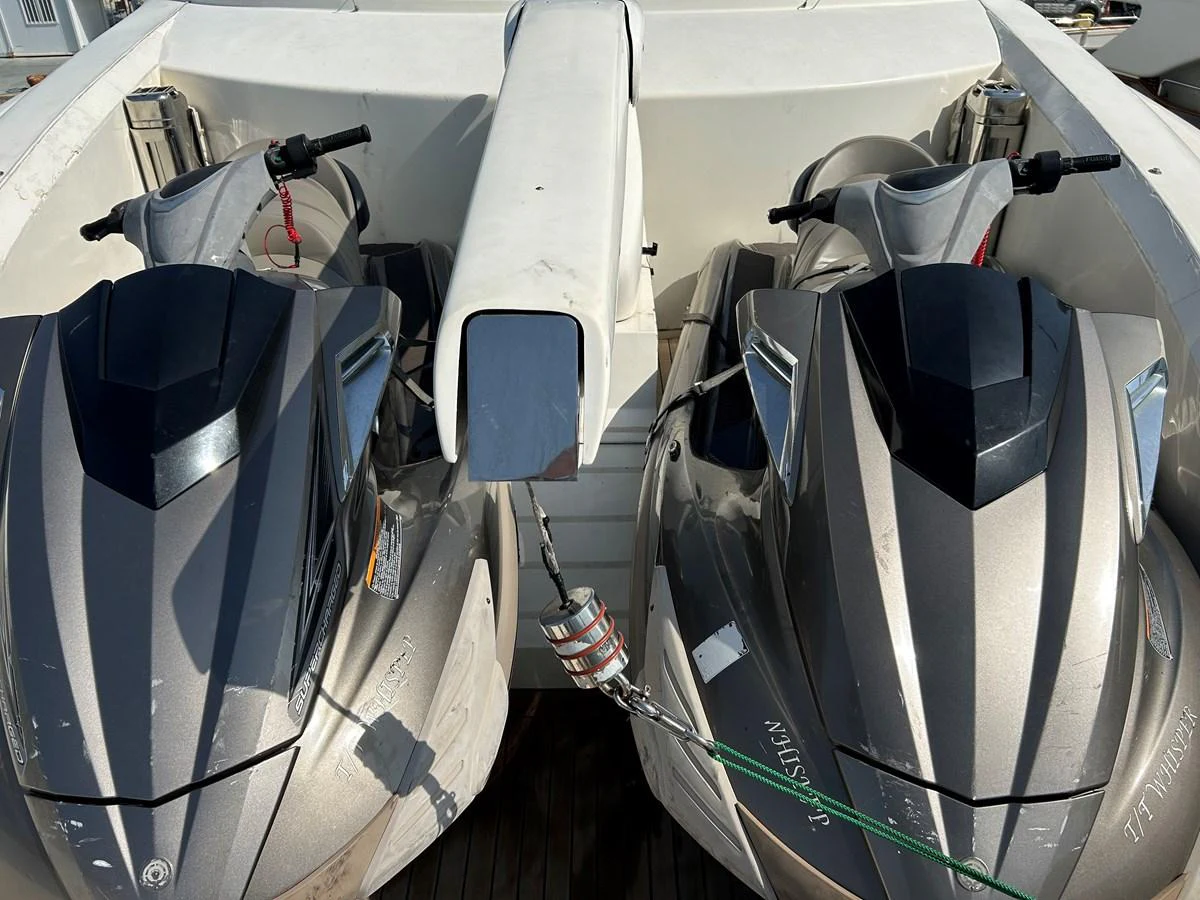

Jet ski Crane On Foredeck: Opacmare Hydraulic

Deck Equipment & Fittings

Anchor Windlasses: Muir VRC 6000 With Brake & Roller Chainlock/Devils Claw

Anchors: 2 x Muir 180kg Stainless Steel Pool Anchor

Anchor Chain: 2 150m lengths of 16.5mm U2 Studlink Chain

Capstan:  Muir VC6000

Passarelle:  Ezberci Marine Hydraulic Custom 800mm width

Deck Crane: Opacmare

Jacuzzi: Nedship custom design- composite 2.6m x 1.6m x 0.7m with circulation pump, heater, filtration, jets, control panel, LED Lighting

Mooring Bollards: Nedship design 8 x AISI 316L Stainless Steel

Fairleads: Nedship Design 6 AISI 316L Stainless Steel

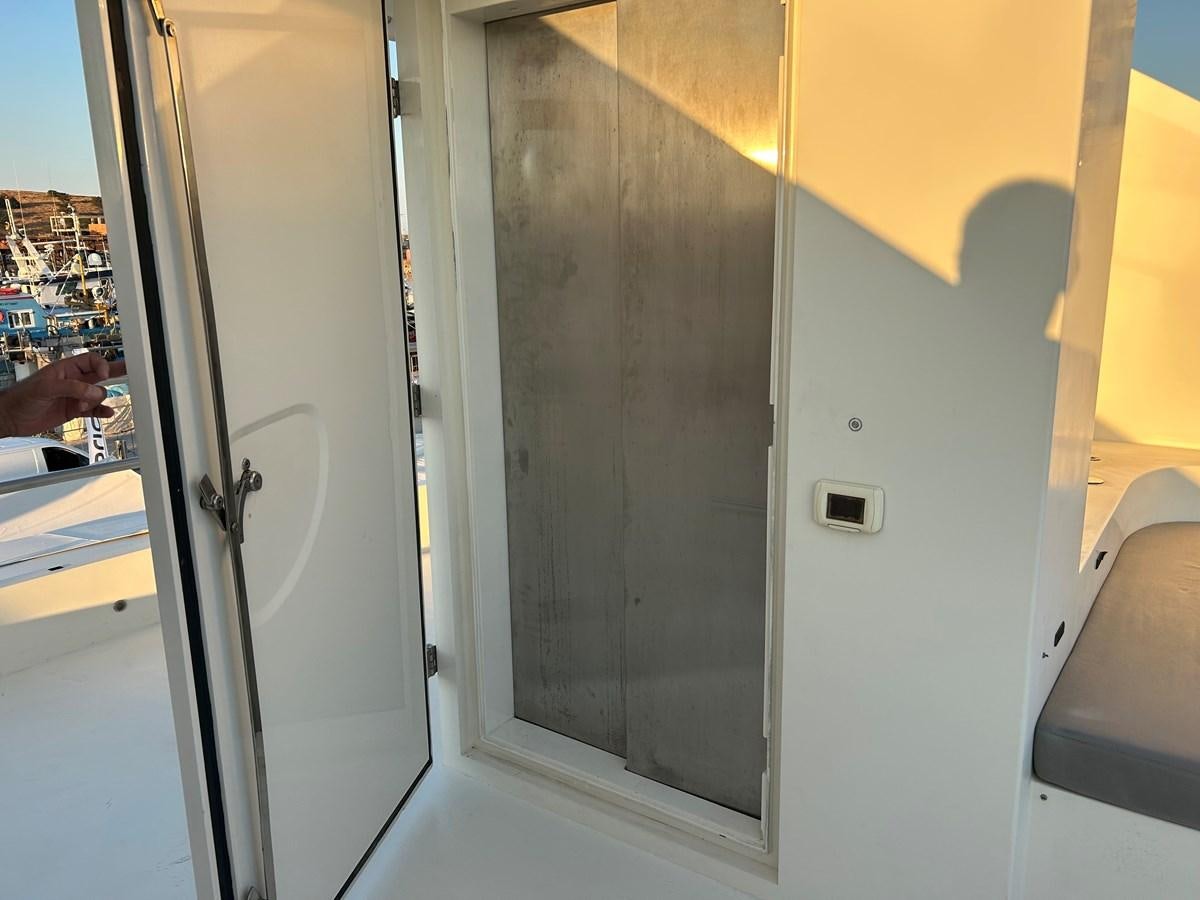

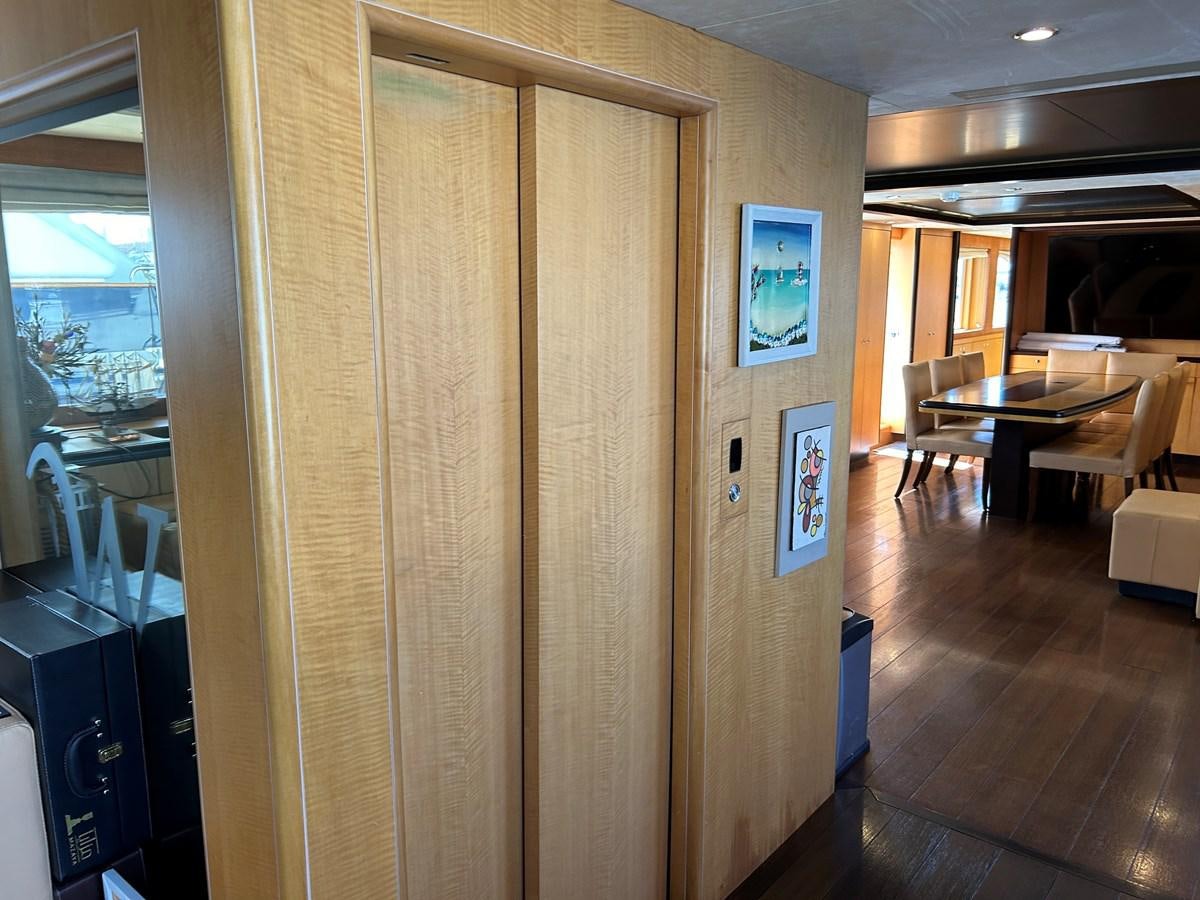

Lift System: Megalift Servicing 3 deck levels including main deck, bridge deck and sundeck

Underwater Lights: 8 x Aqualuma

Teak Decking: Golden Burmese Natural Teak On all Exterior decks except sundeck & Foredeck

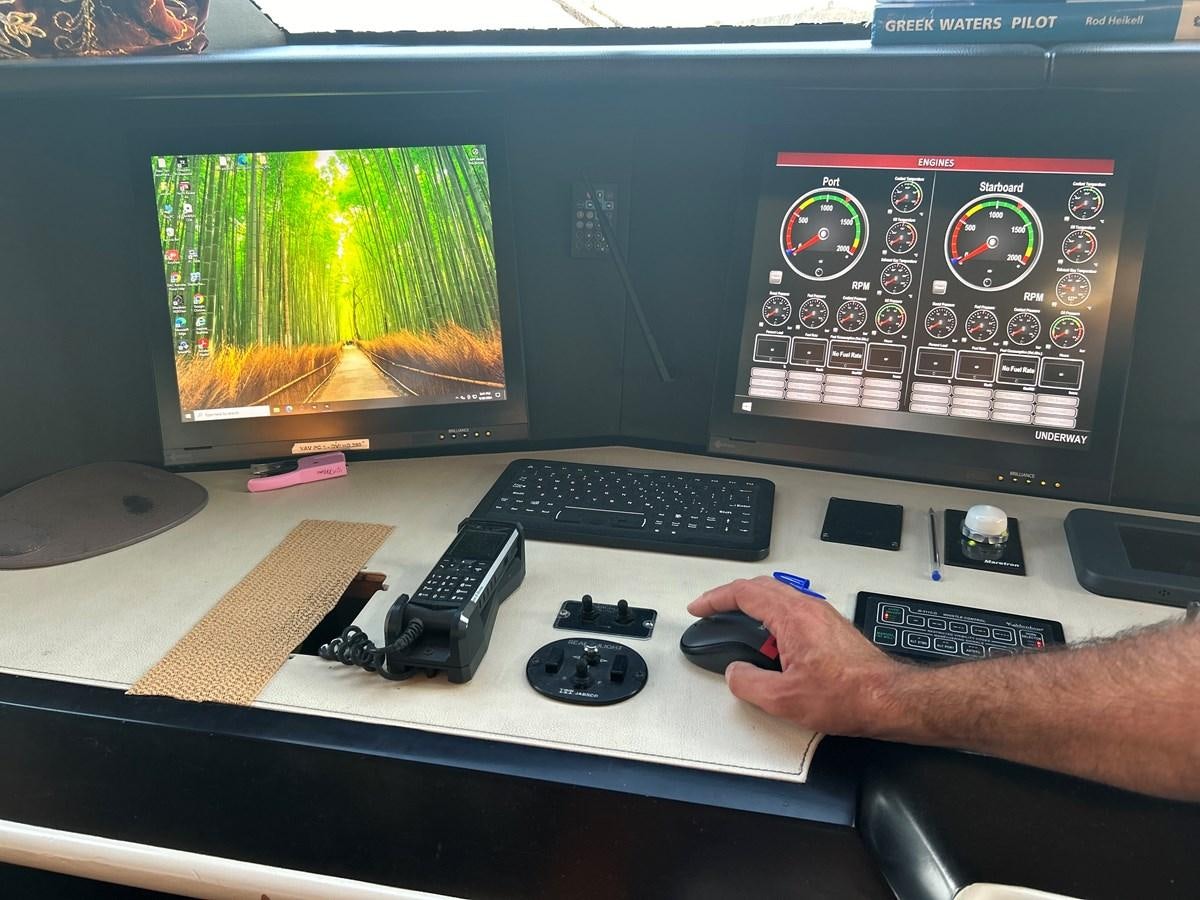

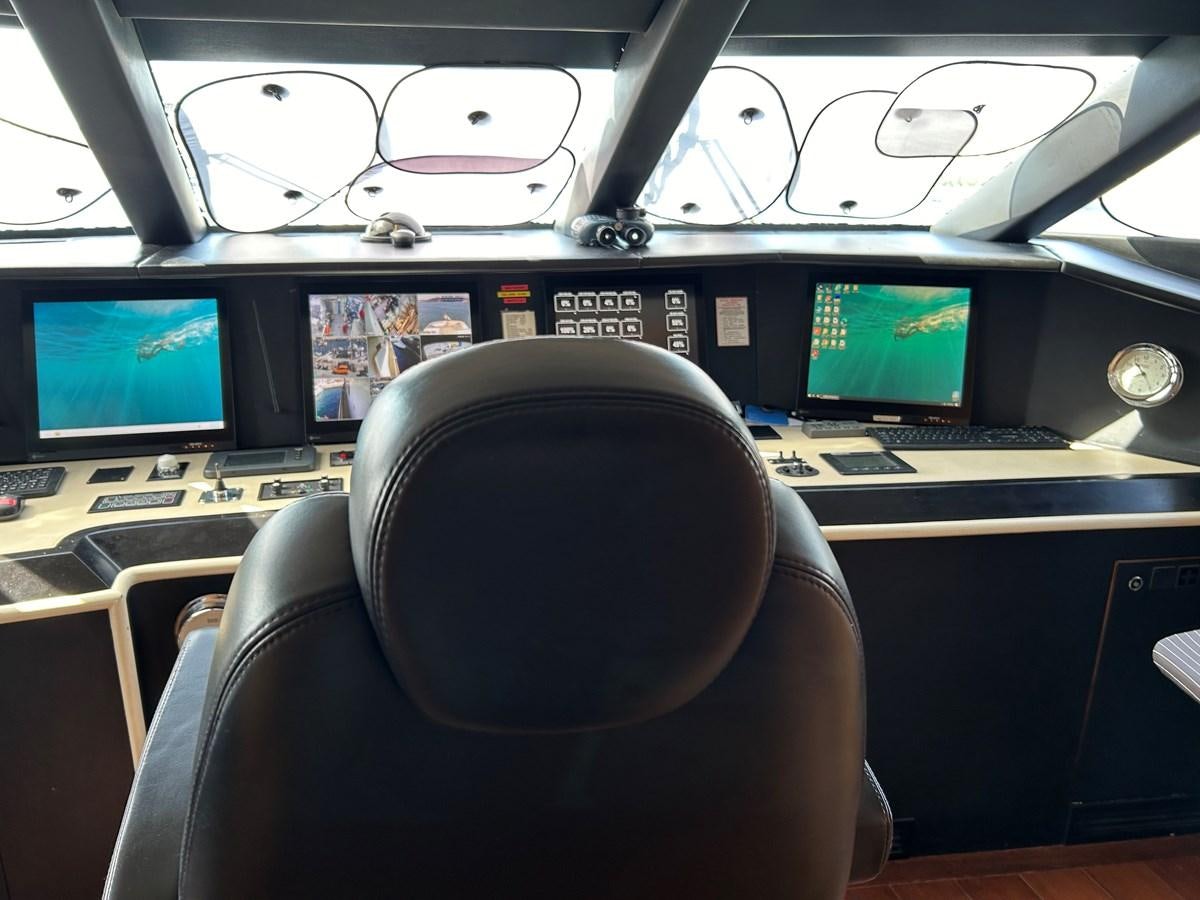

Navigational Equipment

Echo Sounder: Nobeltec Insight Sounder integrates with Nobeltec Navigation software & displayed on any of Nav LCD screens Using Nobeltec B260 IKW thru-hull transducer.

Sonar: Interphase SE-200 forward looking sonar, using dual Interphase FLS marine transducers One transducer either side of keel.

Depth/Speed/Temp Transducer: Maretron DST100 NMEA 2000

Thermal Imaging Camera: FLIR Navigator 2 thermal imaging camera, No light required with pan and tilt capability

Portable Touchscreen Display:  Panasonic wireless touchscreen display Capable of showing nav info, alarm panel info

Communication Equipment

VHF SIMRAD RS87 With DSC, Handset style operation: One unit in the bridge and another unit on the sundeck at command station. Local intercom also located in garage and foredeck bell.
Satellite Communication: FleetBroadband Sailor 500 Unit by Thrane& Thrane, IP connection, Voice and data, IP handset on bridge.
GMDSS Satellite System: Thrane& Thrane Sailor TT-3000E Mini-C GMDSS System, Also features SSAS (Ship Security Alert System)

CCTV System

The onboard CCTV system has been installed by Omnix Media Networks and consists of the following components:

Sundeck/Mast: 2 Scamoon Low Light Tube Cameras

Port Side Deck: 1 Seamoon CL Dome Camera

Starboard Side Deck: 1 Seamoon CL Dome Camera

Main Aft Deck: 1 Seamoon CL Dome Camera.

Engine Room: 2 Seamoon CL Dome Camera

Life Saving Appliances

The vessel has been outfitted with safety equipment according to MCA - LY2 requirements for 'Short Range Yachts and includes the following equipment listed below:

2 Viking DK+ 10 Person Square (B Pack) Liferafts With Hydrostatic Release Unit 2 Viking DK+ 10 Person Round (B Pack) Liferafts With Hydrostatic Release Unit 20 Viking Immersion Suits

22 Viking Adult Inflatable Lifejackets, 2 Viking Child Inflatable Lifejackets, 2 Lifebuoy With Automatic Light/Smoke Device, 2 Lifebuoy With Floating Line, 1 Search And Rescue Transponder, 2 Emergency Portable GMDSS Radios Including Chargers, & Emergency Batteries. 1 Emergency Position Indicating Radio Beacon, 4 Line Throwing Devices, 6 Rocket Parachute Flares, 4 Hand Signal Flares, 2 Smoke Signals, 1 Man Overboard Device.

I MCA Category B Medical Kit; Including Medications Grab Bag, Equipment Grab Bag, Vacuum Splints Grab Bag, Oxygen Kit With 2 Bottles, Pediatric Medical Kit, Crew Medical Kit, Defibrillator, Stretcher With Immobilization Straps, 2 Full Fire Fighting Suits, 2 Self Contained Breathing Devices (with bottles), 2 SCBA Spare Bottles

2 Emergency Escape Breathing Devices, 20 Smoke Hoods, 1 Fire Blanket, Foam Extinguisher,

Dry Chemical Extinguisher, CO2 Extinguisher, 1 Engine Room Fire Suppression System (FM 200 by Seafire), 1

Fire Alarm Control Panel (by Marinelec).

INTERIOR
Safes: Mounted digital combination safes has been provided for all guest cabins and Captain cabin.

Sea fastening supports for glassware & China set: Sea fastening and stowage for the glassware and china has been built in each cabinet where necessary.

Interior loose furniture

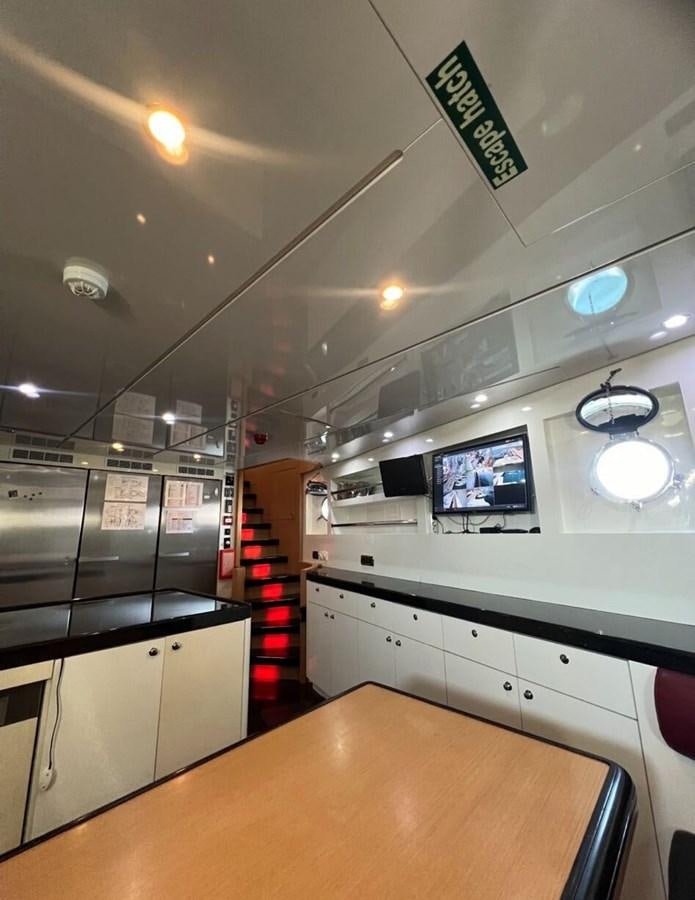

Crew mess: 3 crew dining stool

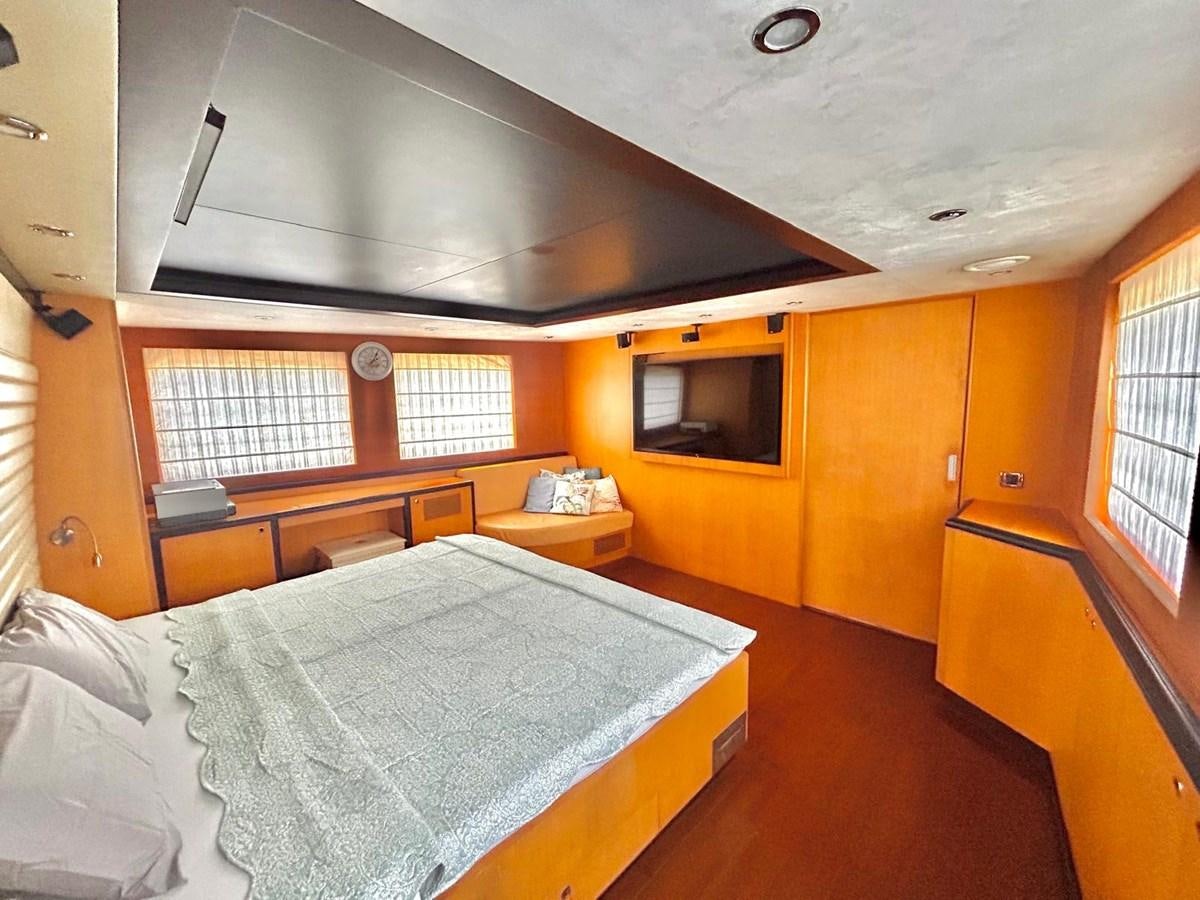

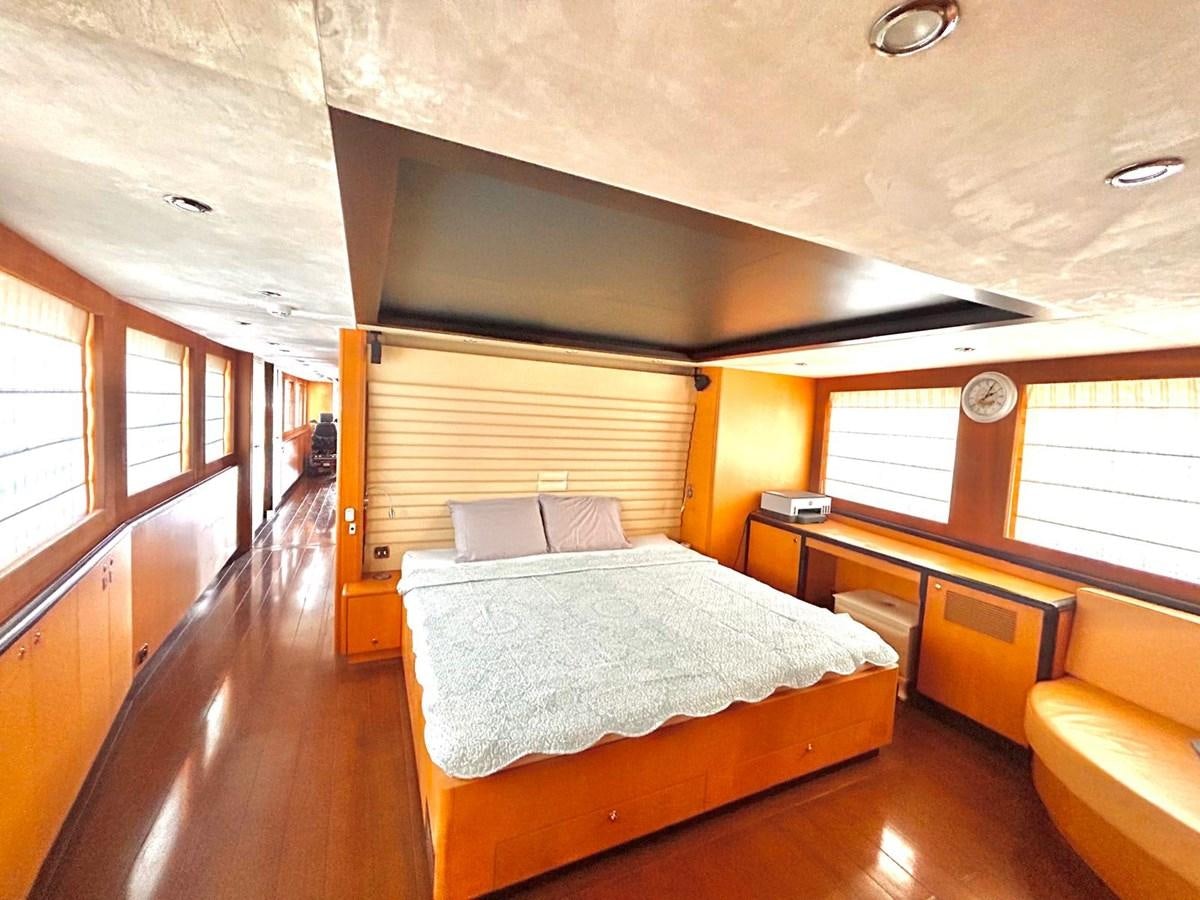

Owner's cabin: 1pouf and 1 Love seat

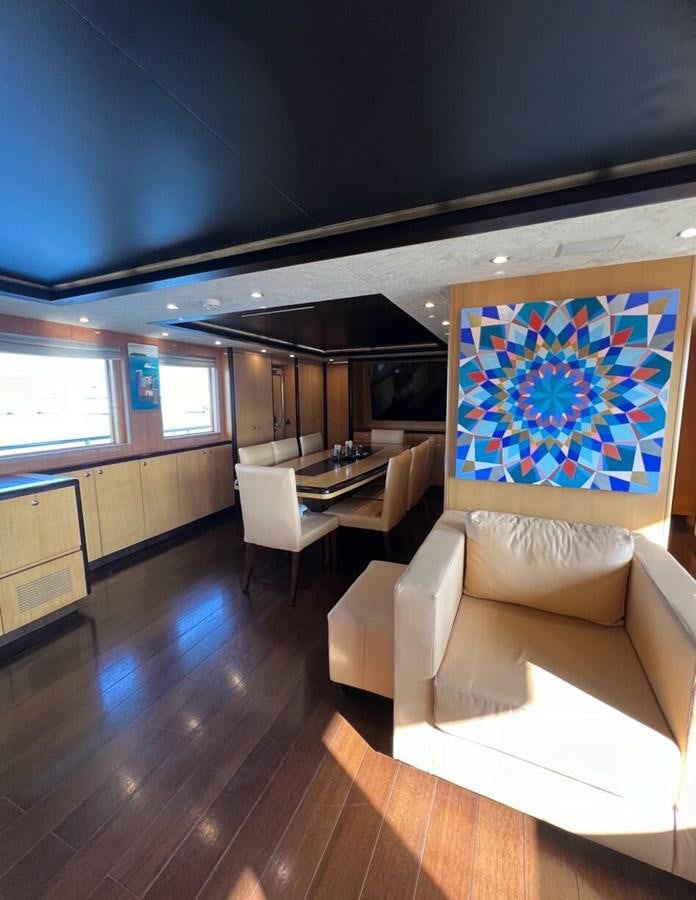

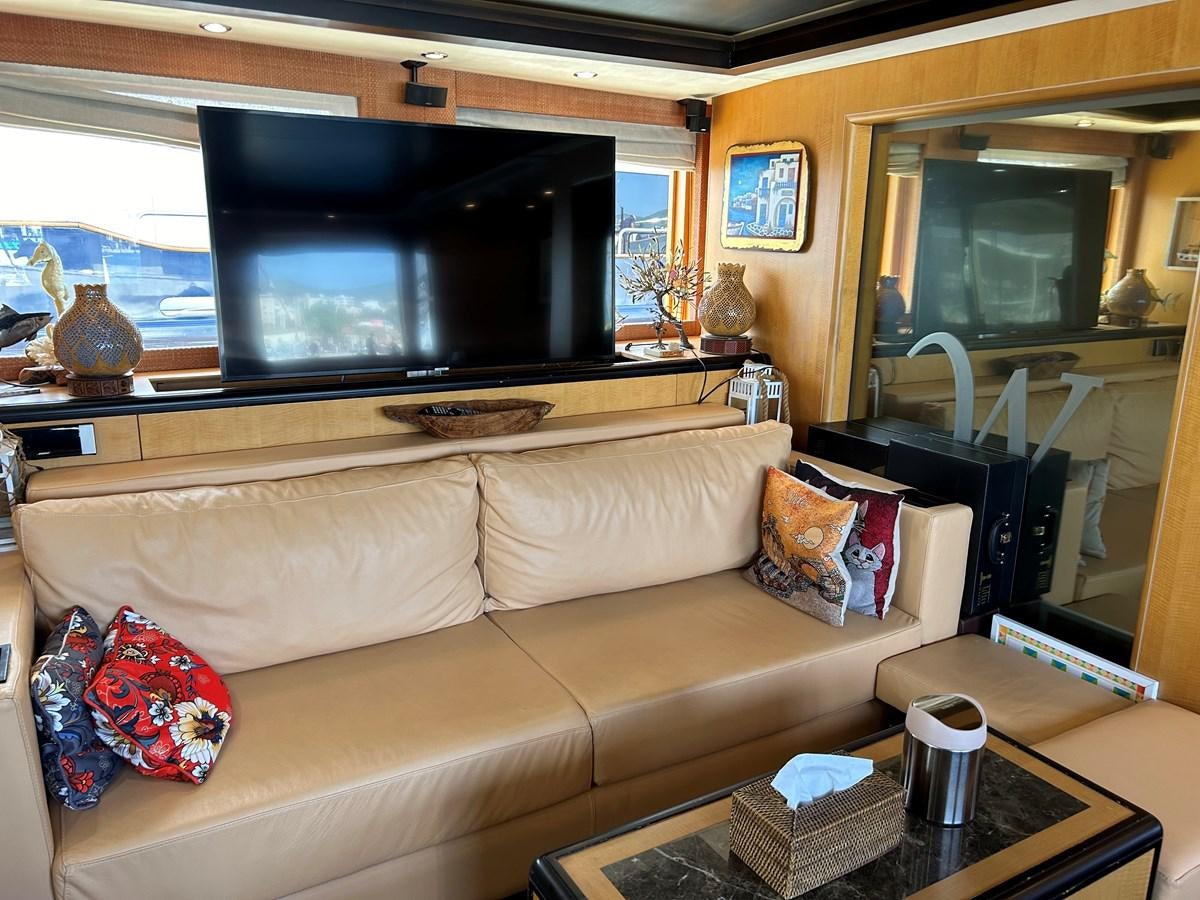

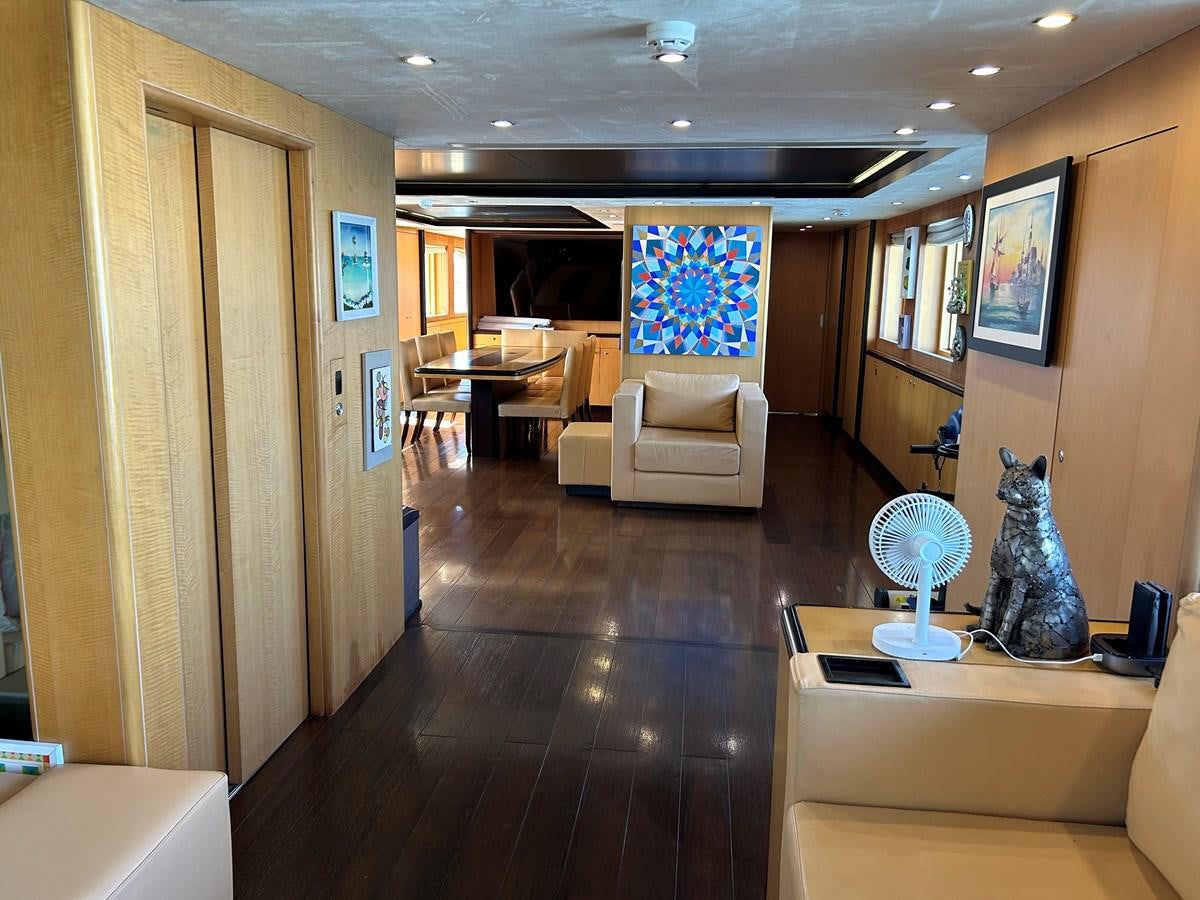

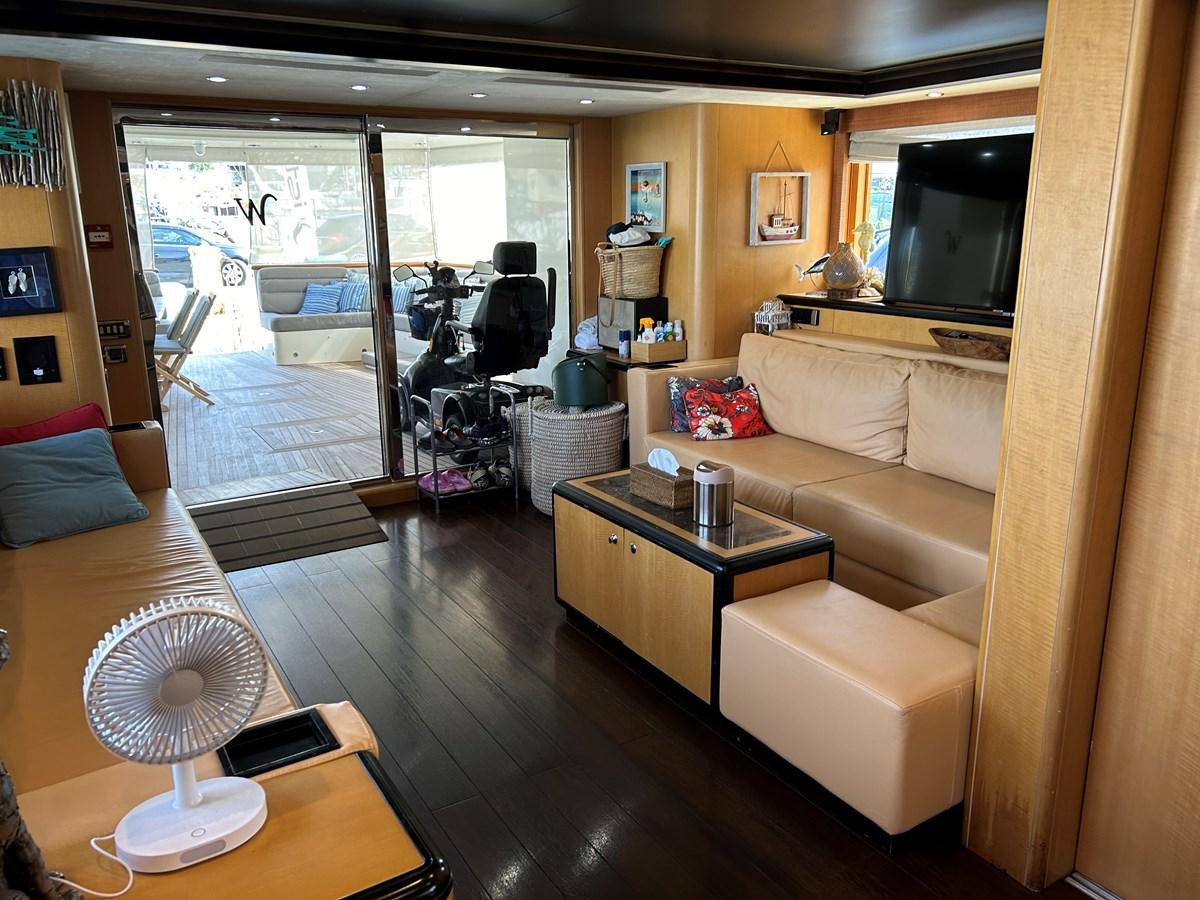

Main Salon: 3 Loose coffee tables and 3 Sofa (double)

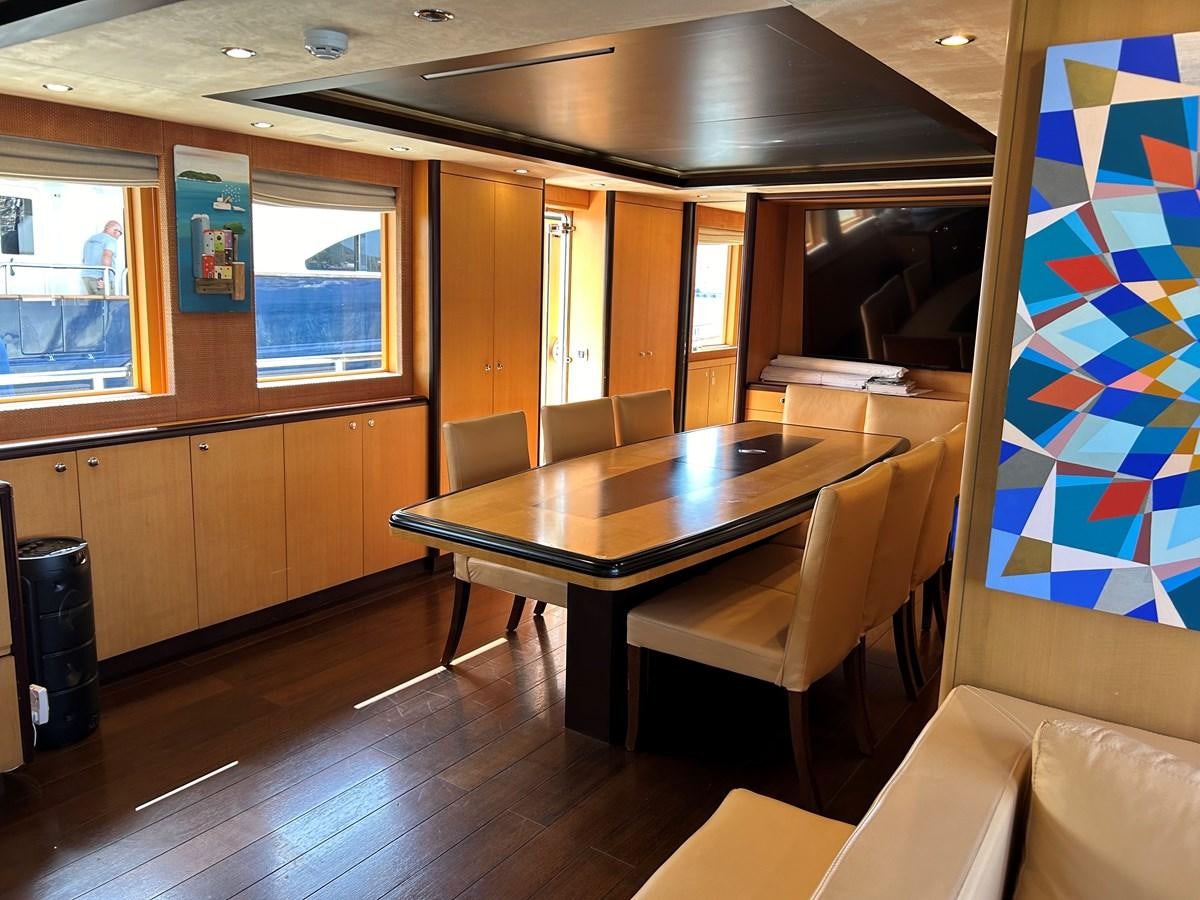

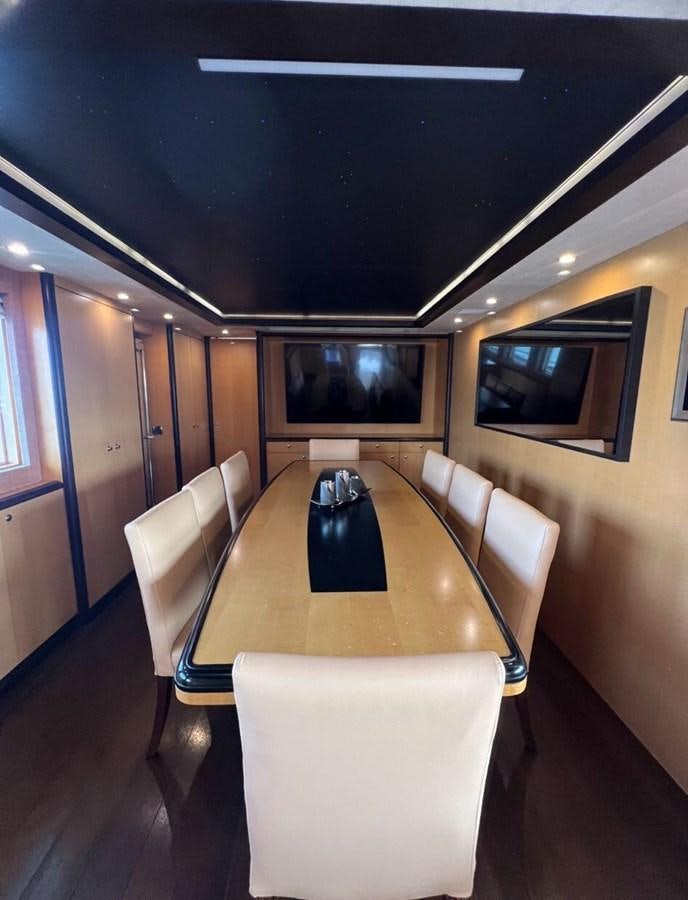

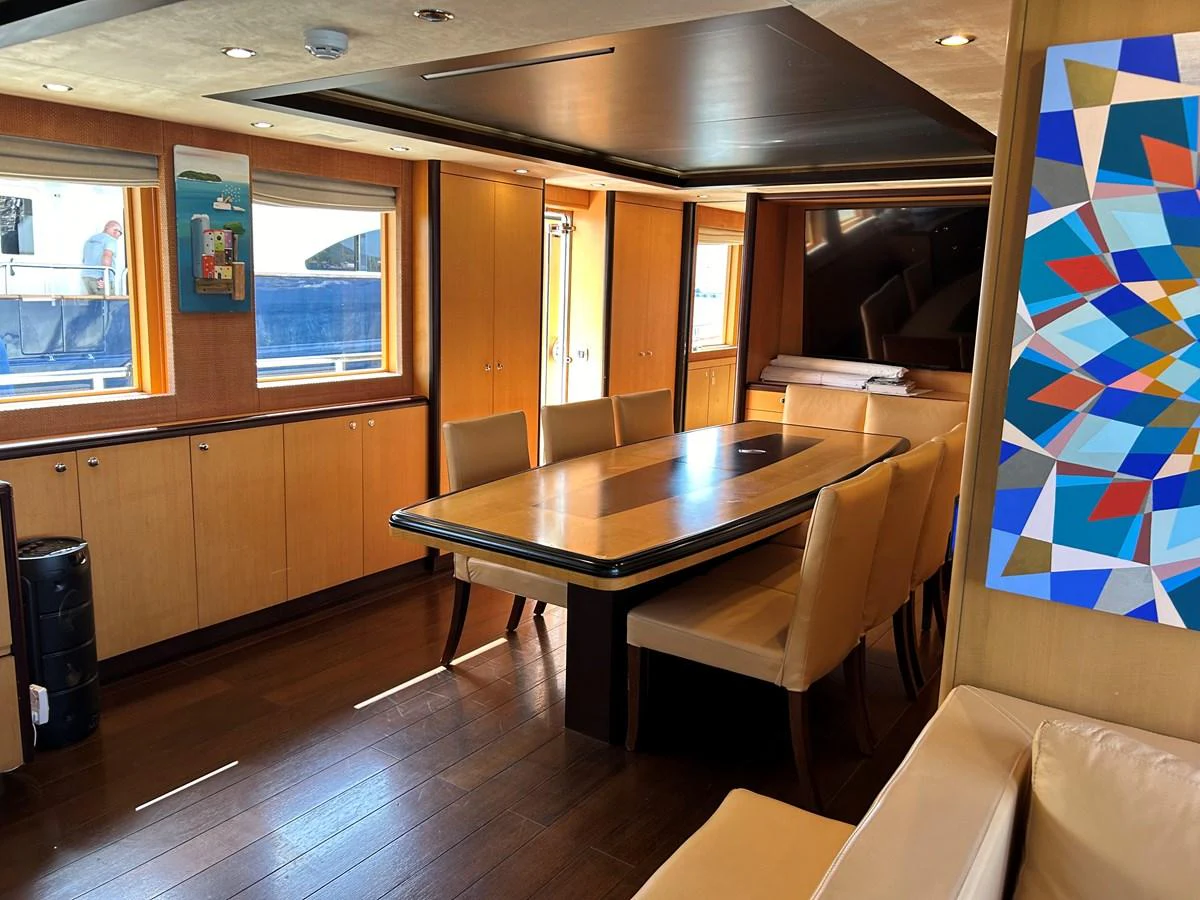

Dining: 11 Dining chair in leathers

V.I.P Cabin:  1 Vanity chair (also use in dining room to complete the set)

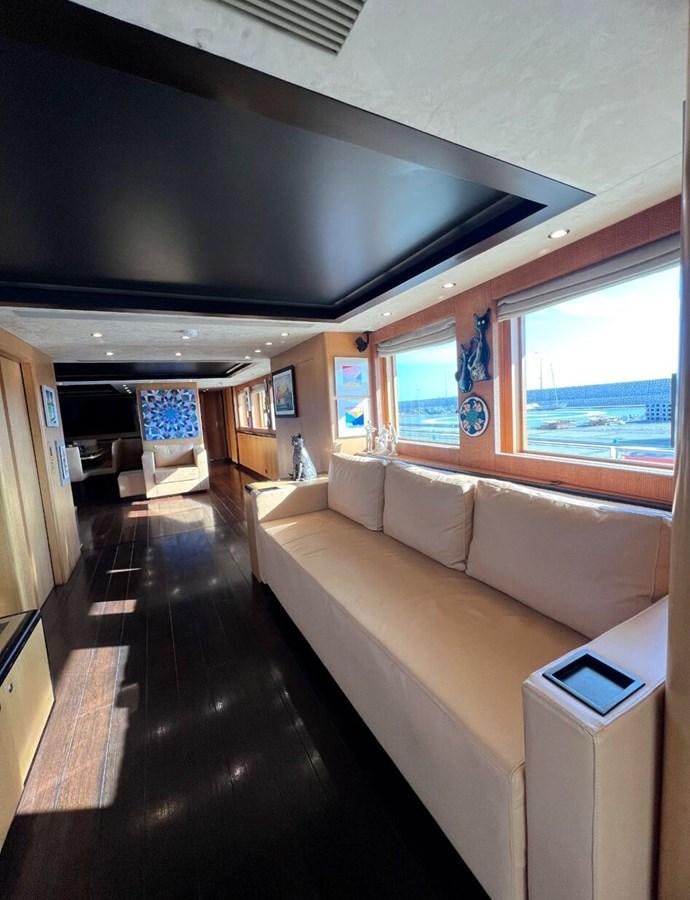

Sky lounge: 1 loose coffee table

All other furniture, such as the dining table, night tables, and other storage cabinets are fixed.

Exterior loose furniture

The yacht has not been supplied with loose exterior furniture to allow and facilitate easy wheel chair movement throughout the exterior decks of the yacht.

Exterior fixed furniture:

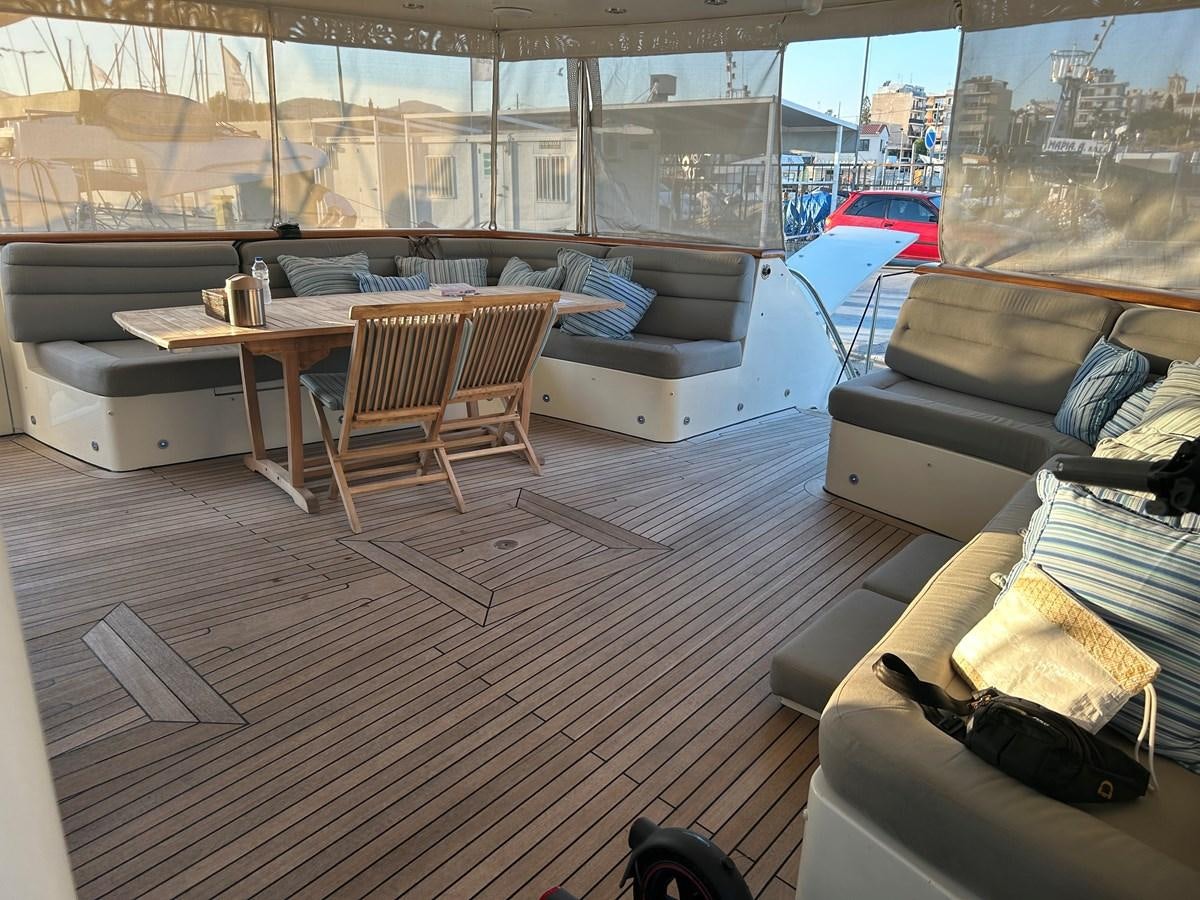

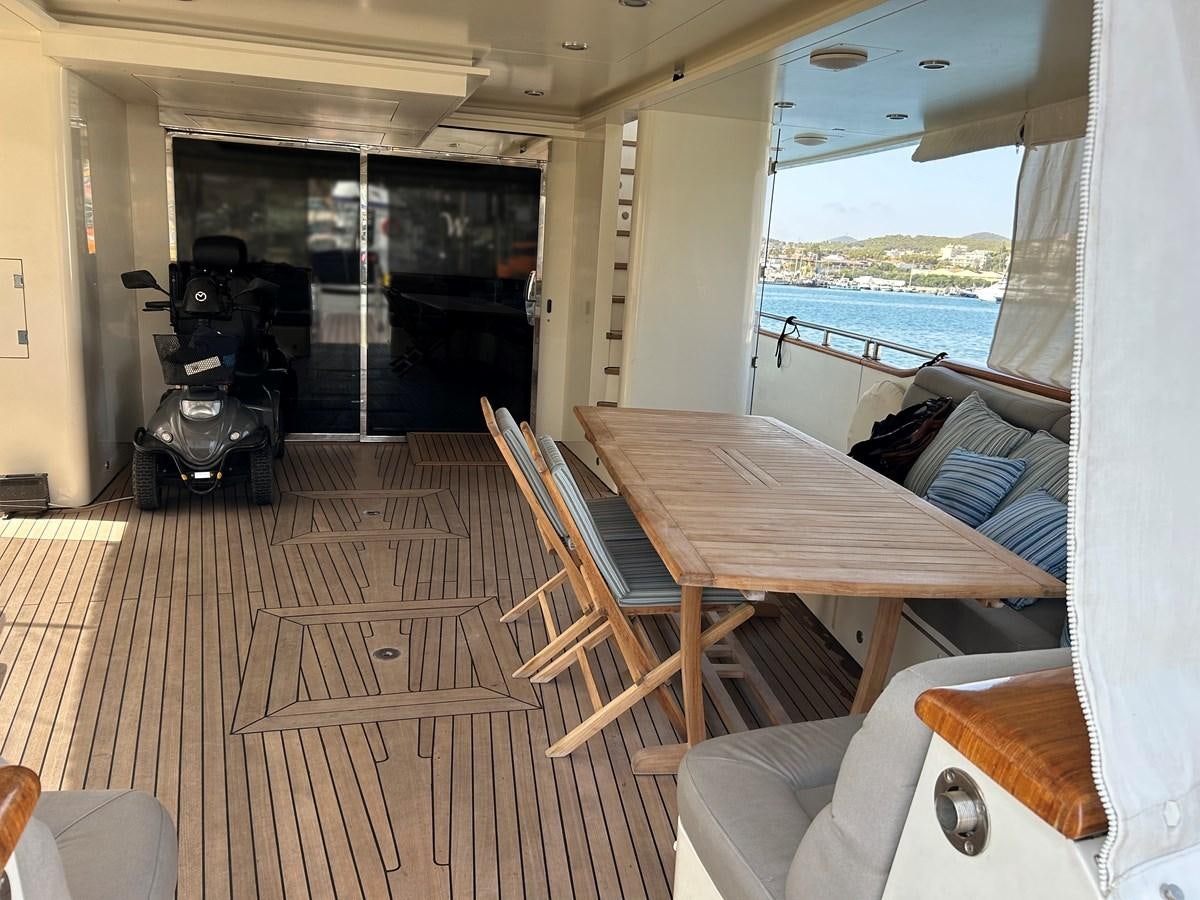

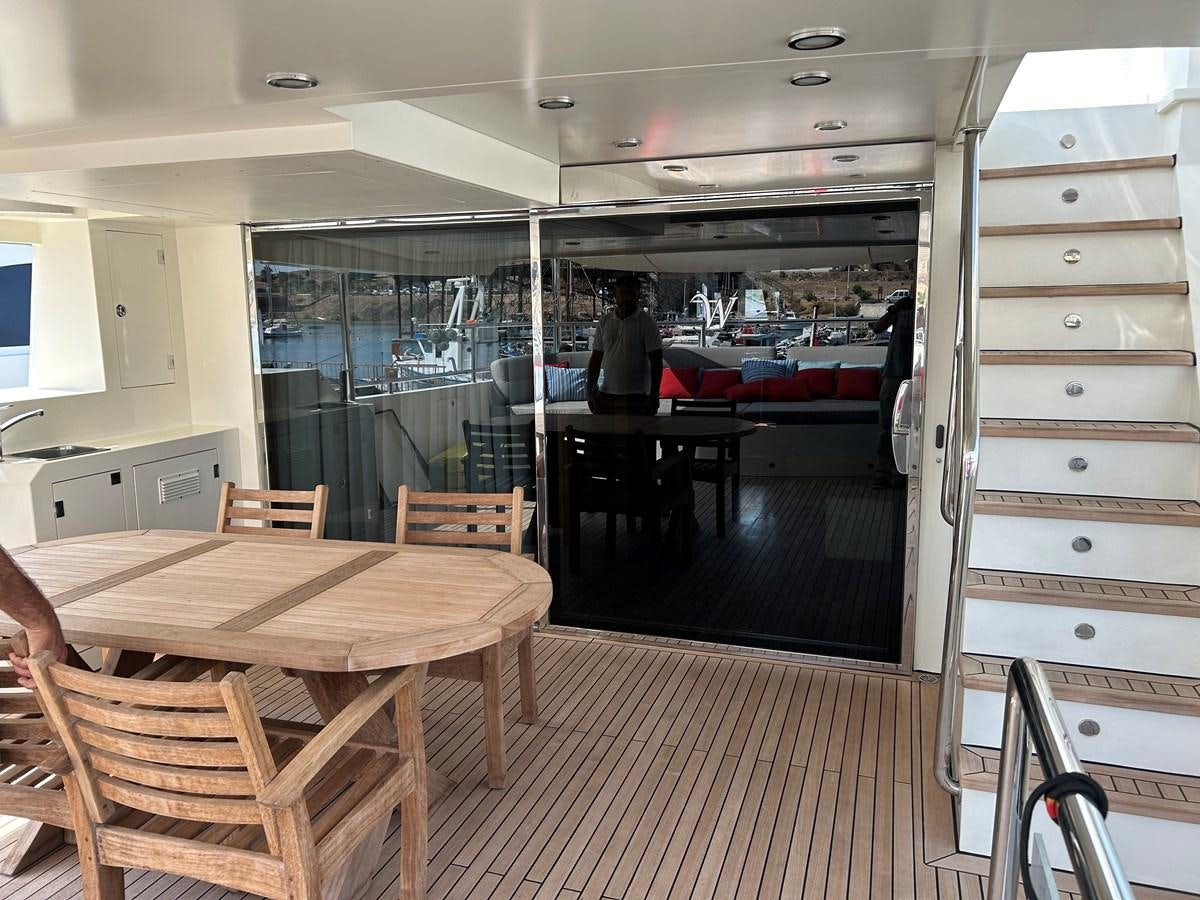

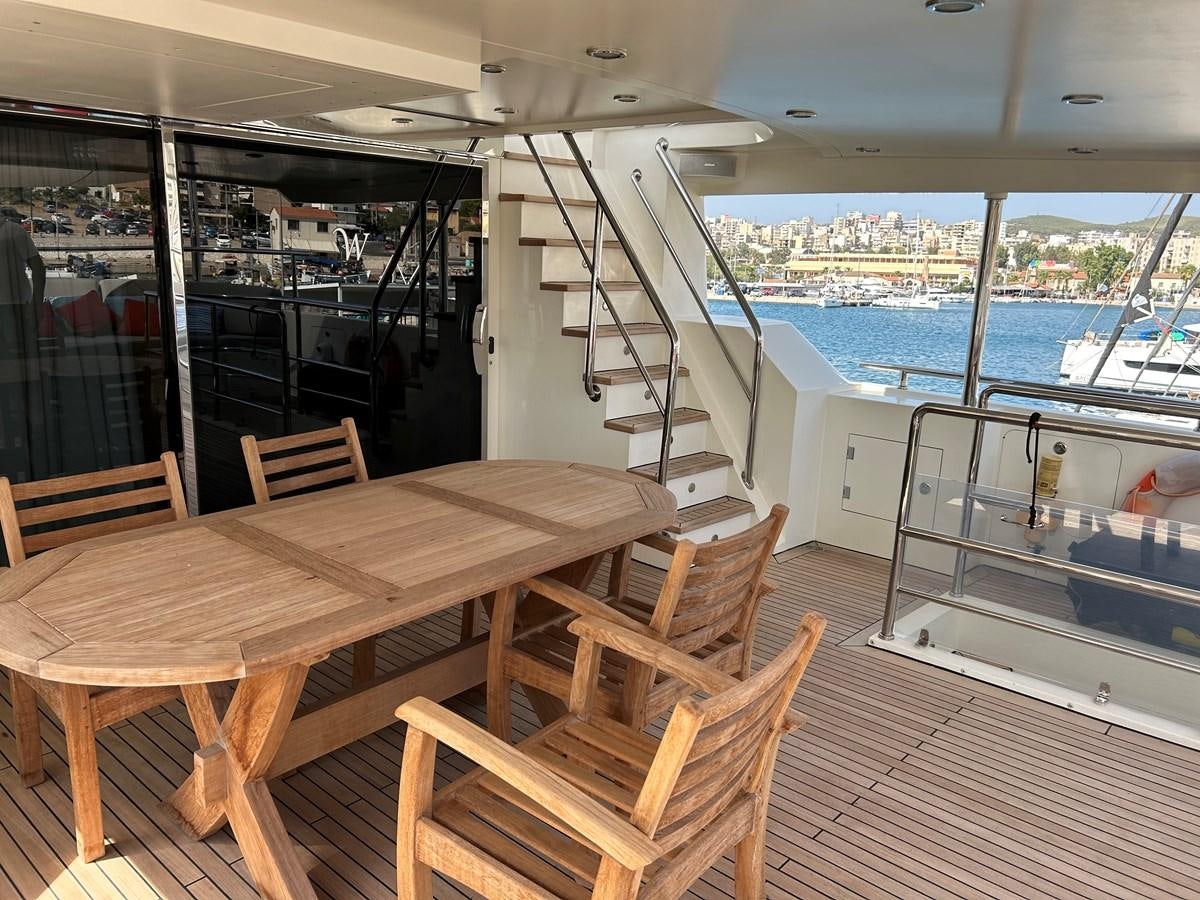

Main deck:  2 Dining tables

Wheelhouse deck:  1 Furniture for appliances (Ice maker)

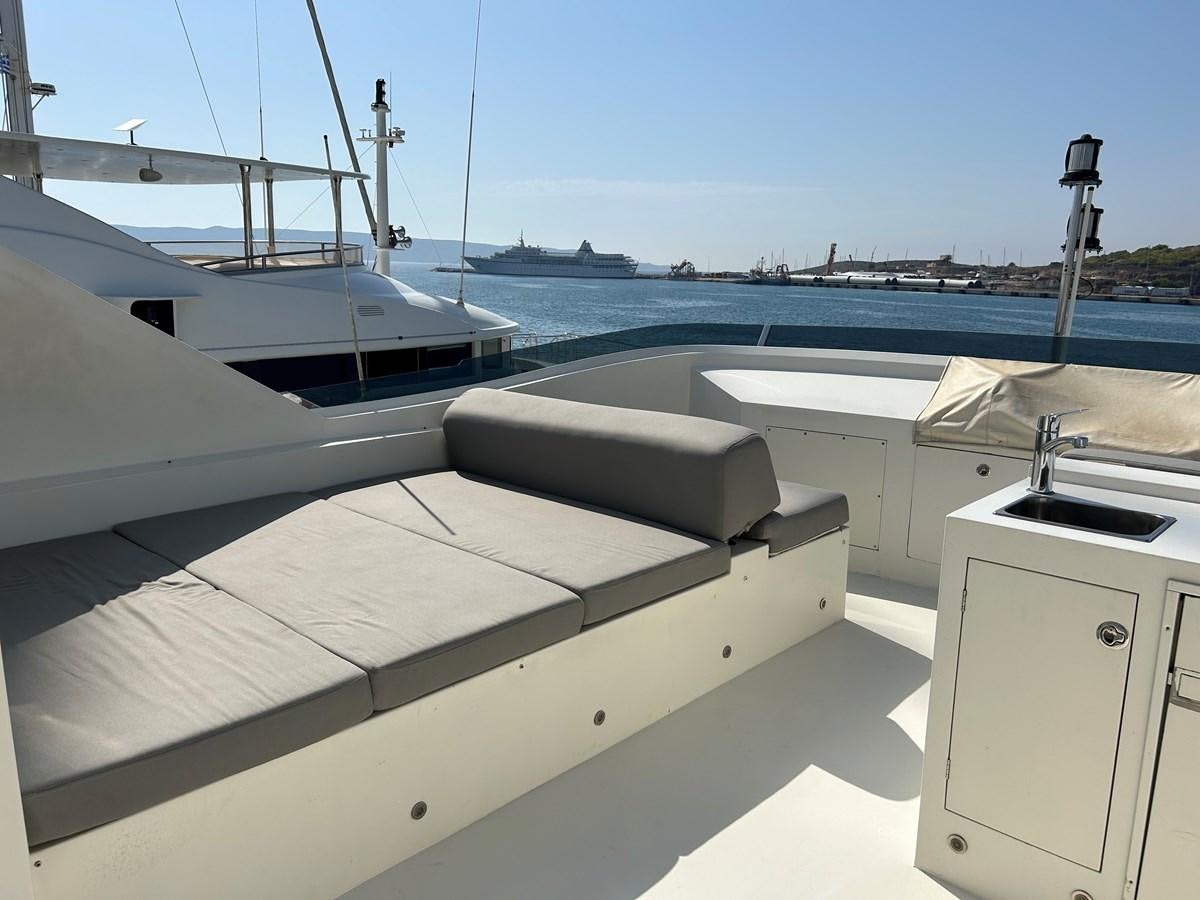

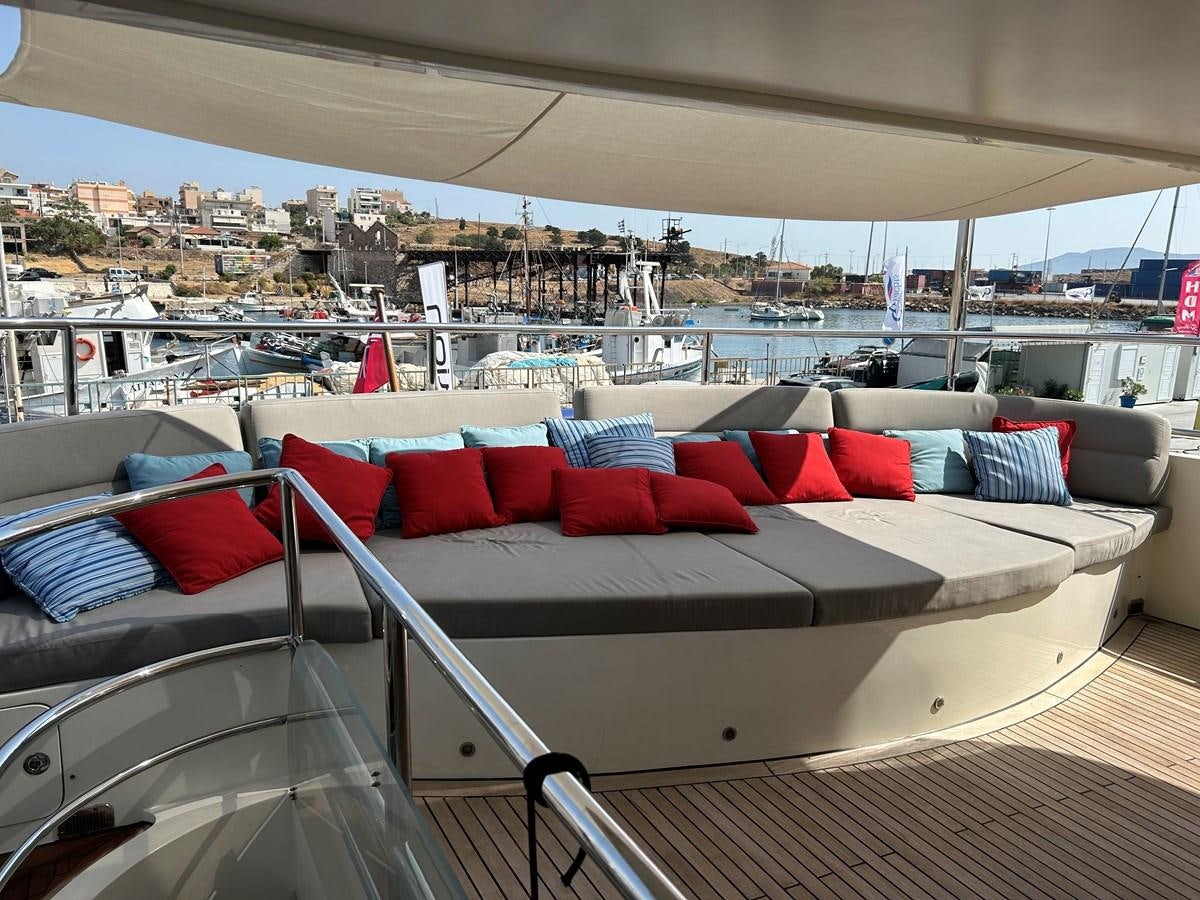

Fly bridge: 2 Seating area, 1 Large Sun lounge (4 pers), 1 Bar furniture with sink and fridge

Wall finishing and Ceiling finishing

All visible walls in guest areas have been finished in Anegre with Wenge wood profile or leather fabrics.

All ceiling panels in general guest areas have been finished in suede. All bathroom ceiling panels have been finished lacquer and to match the color of the suede.

Doors

All doors are finished with anegre veneer to match adjacent woodwork and complemented with a Wenge door frame.

All doors have been fitted with a door stop for holding the door in the open position.

Doors have been equipped with anti vibration type closing gasket to insure an acoustic seal.

External and internal doors have been provided with a lock and keys and master keys for emergency.

Hardware

Interior hardware for doors, furniture, drawers and cabinet are stainless steel brush or chrome polish.

Wardrobes have been fitted with a chrome polish hanging rails.

Flooring

Guest area flooring on the main deck and wheel house deck are engineered Wenge, with a satin varnish. Lower guest cabins are carpeted. Crew areas are Antico mahogany effect.

Stairs

Interior guest stairways are of composite and plywood sub-construction and faced with Wenge wood and have been equipped with a railing or grab handles in the case of the crew stairs.

More Specs

Swim Ladder: Removable AISI 316L Stainless Steel

Main Aft Deck And Bridge Aft Deck Sliding Stainless Door: Electric Stainless Steel Framed

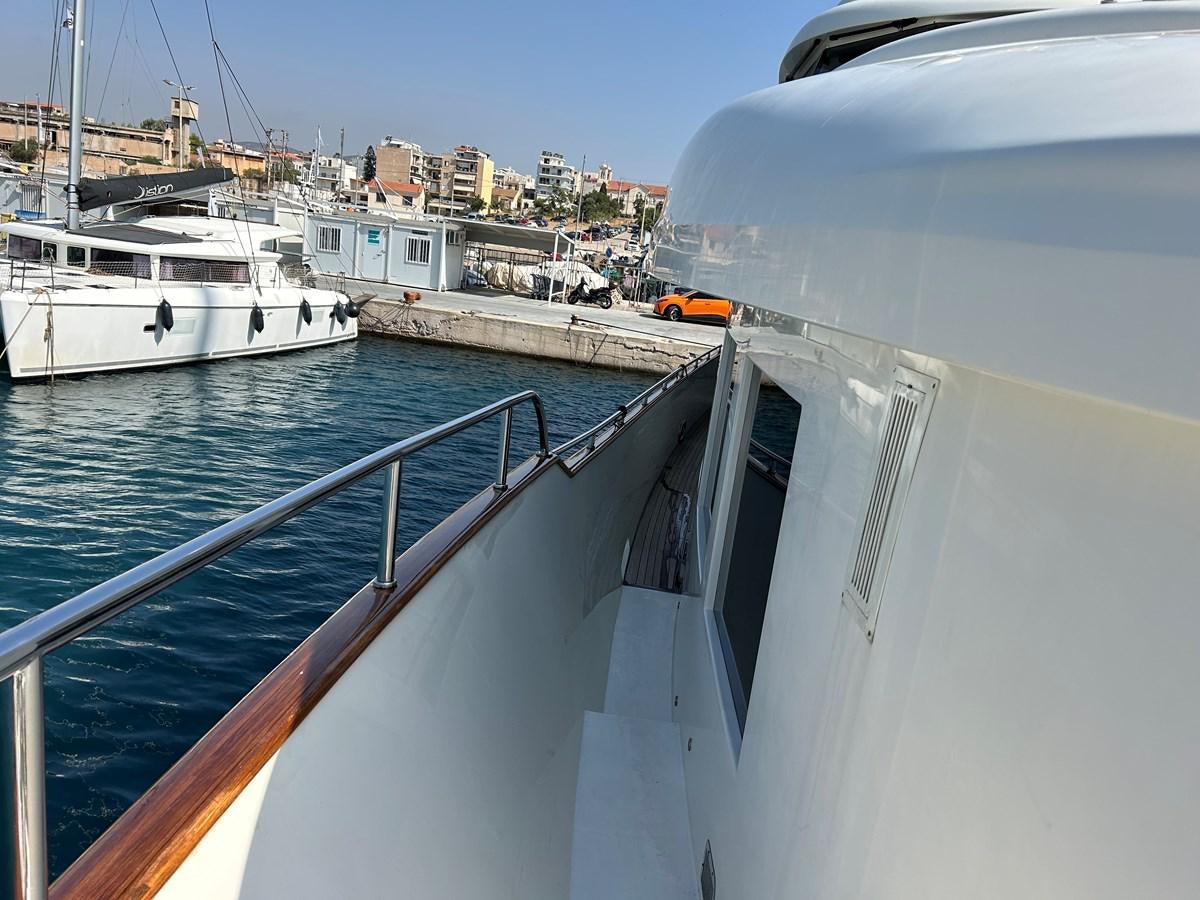

Exterior Railing: 42 mm Diameter AISI 316L Stainless Steel

Capping Rail: Teak on Main deck, Painted upper decks

Stainless Steel Deck Fittings: All AISI 316L

Watertight Deck Hatches: Alufertempester, Aluminium

Windows: Class approved tempered safety glass inted except Wheelhouse

Deadlights For Portholes: Nedship

Navigation Lights: DHR 55-anchor, masthead, side, NUC Lopolight stern COLREGS Compliant
Awnings: Sundeck Central and fwd area and bridge Aft Deck Custom design Stamoid Sail Shade

Flag Pole: Stainless Steel

Main Side Deck Glass Doors: Tempered Safety Glass

Lowering Swim Platform System: Hydraulic allowing wheelchair submersion

Accommodation Details:

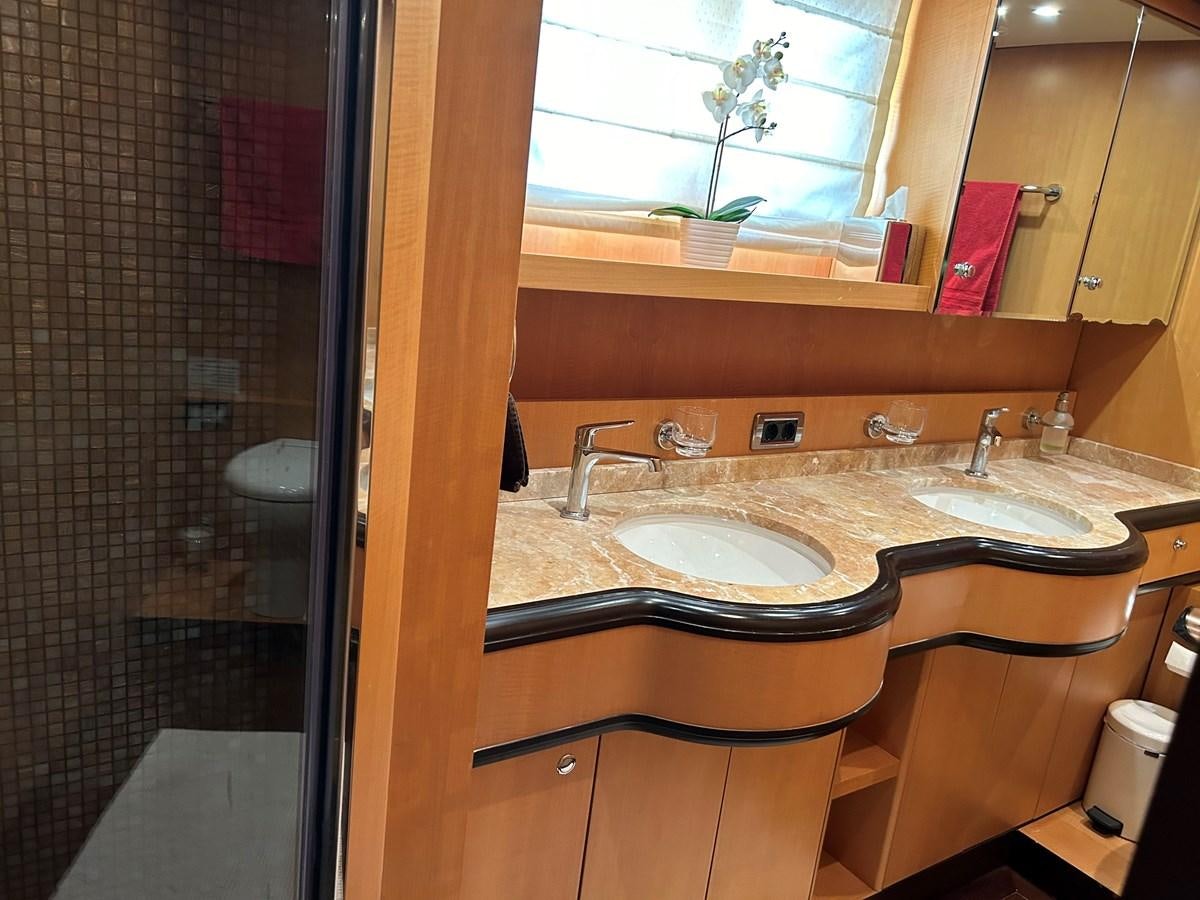

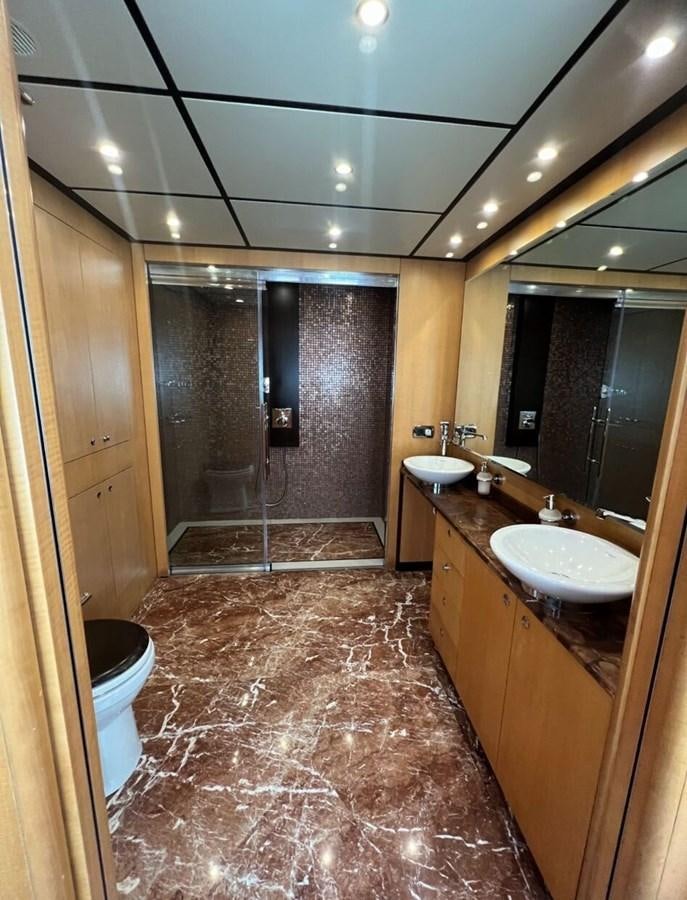

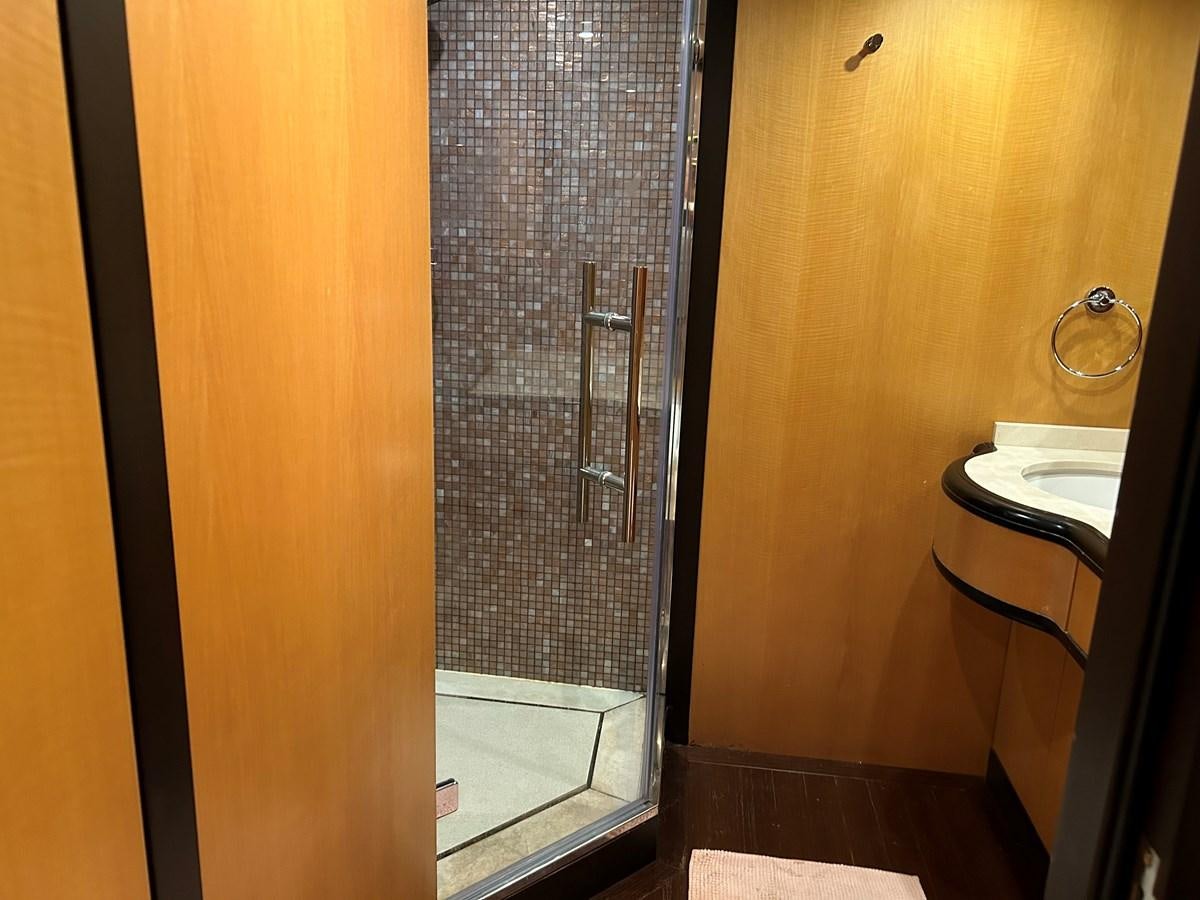

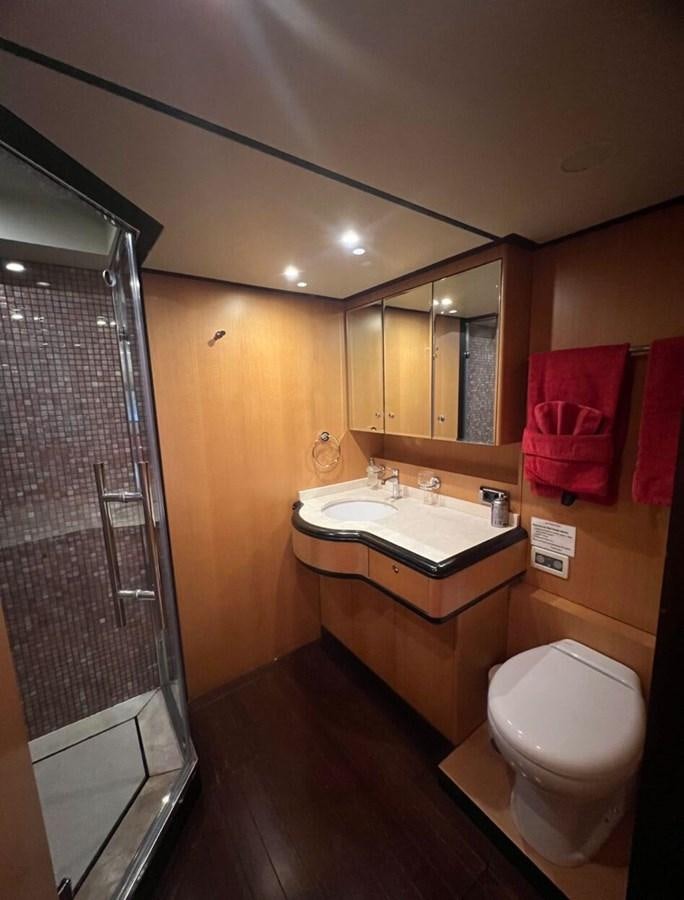

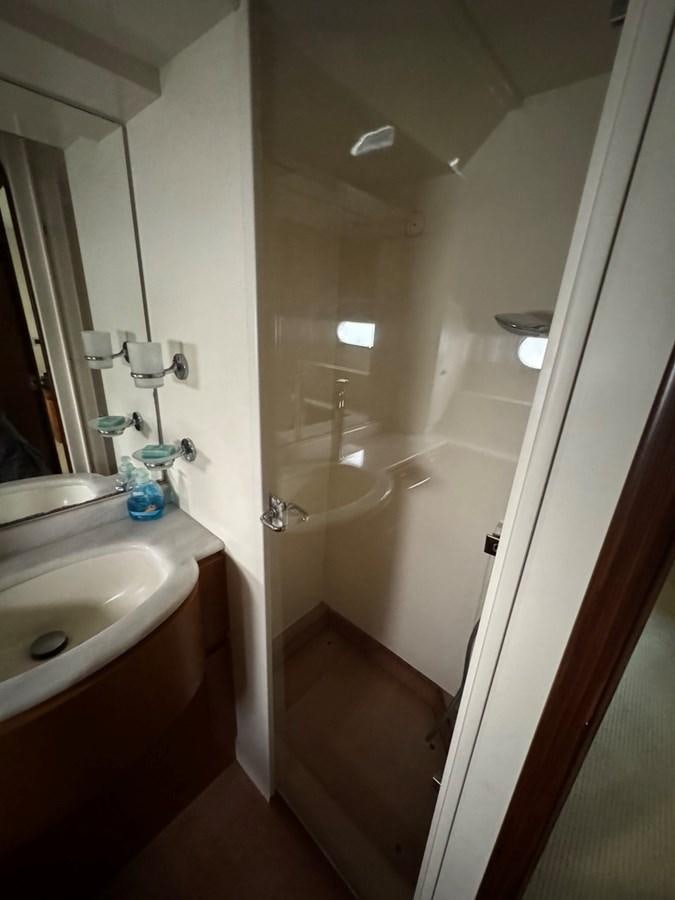

Shower doors are clear glass with a stainless steel frame. Shower walls are mosaic tiles and floors are marble.

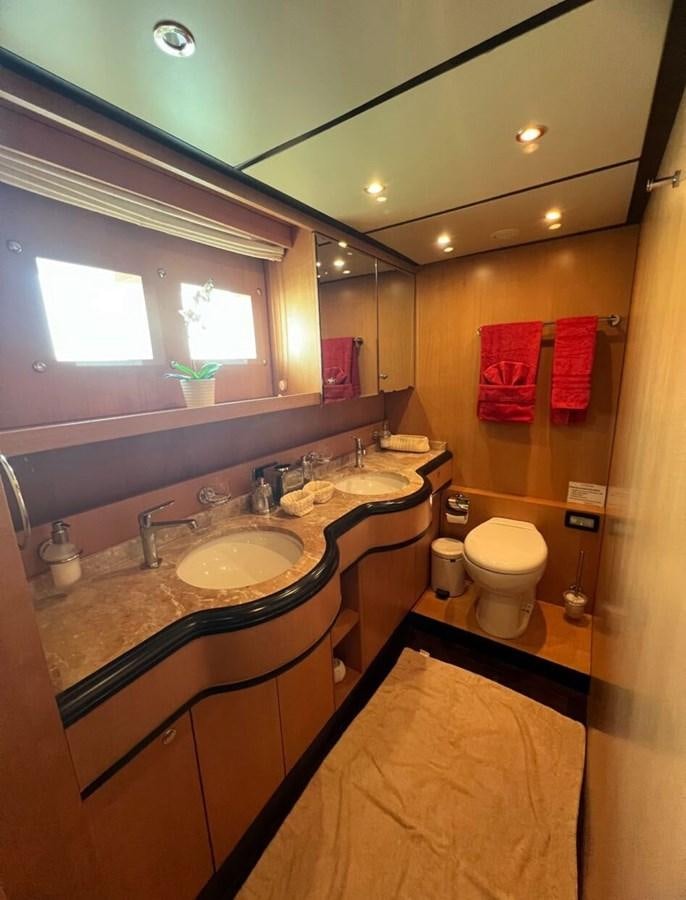

Mirrors: Mirrors have been placed above all bathroom vanity, and a full length mirror has been located in each guest cabins.

Furniture and soft furnishing & Upholstery: All sofa's and dining chairs have been design with high quality leather. Other loose furniture such as salon coffee tables are made of a combination of anegre, Wenge and marble.

Curtains are electrically operated in the main salon, upper salon and Master cabin, controlled by AMX touch screens. Manually operated Curtains in the lower deck guest cabins.

The window frames in the main area and Owner's stateroom have been upholstered with high quality leather.

All fabric onboard has been treated with fire retardant as per MCA and Class requirements.

Marble and granite: All marble and granite onboard as been engineered according to a lightweight and strengthened method, to ensure longevity.

Lighting: The yacht has been equipped with high quality light fixtures for both interior and exterior from"Cantaloupe" and "Palagi". A combination of LED and/or halogen, with changeable colours for exterior courtesy lighting. Fiber Optic lighting is also provided in the ceilings of main, upper deck salons and Master cabin for lighting mood effects. Lighting on the Main deck and upper salon controlled by AMX touch screens.

Internal Phone System

The phone system has been installed by Omnix Media Networks. It is a full featured Wireless PABX system, VOIP and IP capable. The system consists of the following components:

Sundeck: 3 Nortel Handset 6140, 1 Aruba 61 Wireless Access Device

Wheelhouse: 1 Nortel 1000E CPPM Communication Server ,1 Aruba 800 Wireless LAN Controller, 1 Aruba 61, 1 Nortel Handset

Skylounge: 1 Nortel Handset, 1 Aruba 61

Master Cabin: 2 Nortel Handset, 1 Aruba 61

Dining Area (forward of lift): 2 Nortel Handset, 2 Aruba 61

Main Salon (aft of lift): 2 Nortel Handset, 1 Aruba 61

Main Aft Deck: 2 Nortel Handset, 1 Aruba 61

VIP Guest Cabin: 2 Nortel Handset, 1 Aruba 61

Guest Cabin Foyer: 1 Aruba 61

Port Aft Guest Cabin: 1 Nortel Handset

Interior Audio Visual Equipment

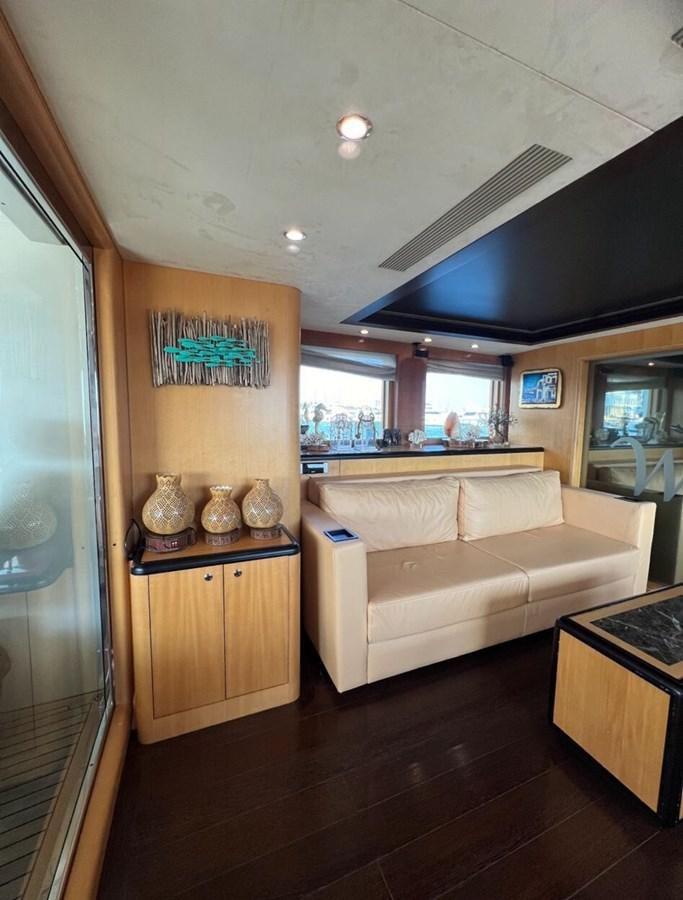

Sky Lounge: 1 Samsung 46" LCD TV, 1 Pop-Up Lift For LCD TV, 1 Kaleidescape Mini 1080 Movie Player

!, 1 SAT/STB, 1 Extron MLS 100A (4 input stereo audio medialink switcher), 1 IPOD in wall docking station

I AMX docking station, 1 AMX 250G Wireless Access Point, 2 Bose ceiling speaker 131

Sky Lounge AV Rack
Bridge Aft Deck: 1 Samsung 40" LCD TV, 1 Flip-Down Panel For LCD TV, 1 Kaleidescape Mini 1080 Movie Player, 1 SAT/STB, 1 AMX Repeater, 1 Extron MLS 100A, 1 AMX Modero R4, 1 AMX NXG Gateway

2 Bose Wall Mount Speakers

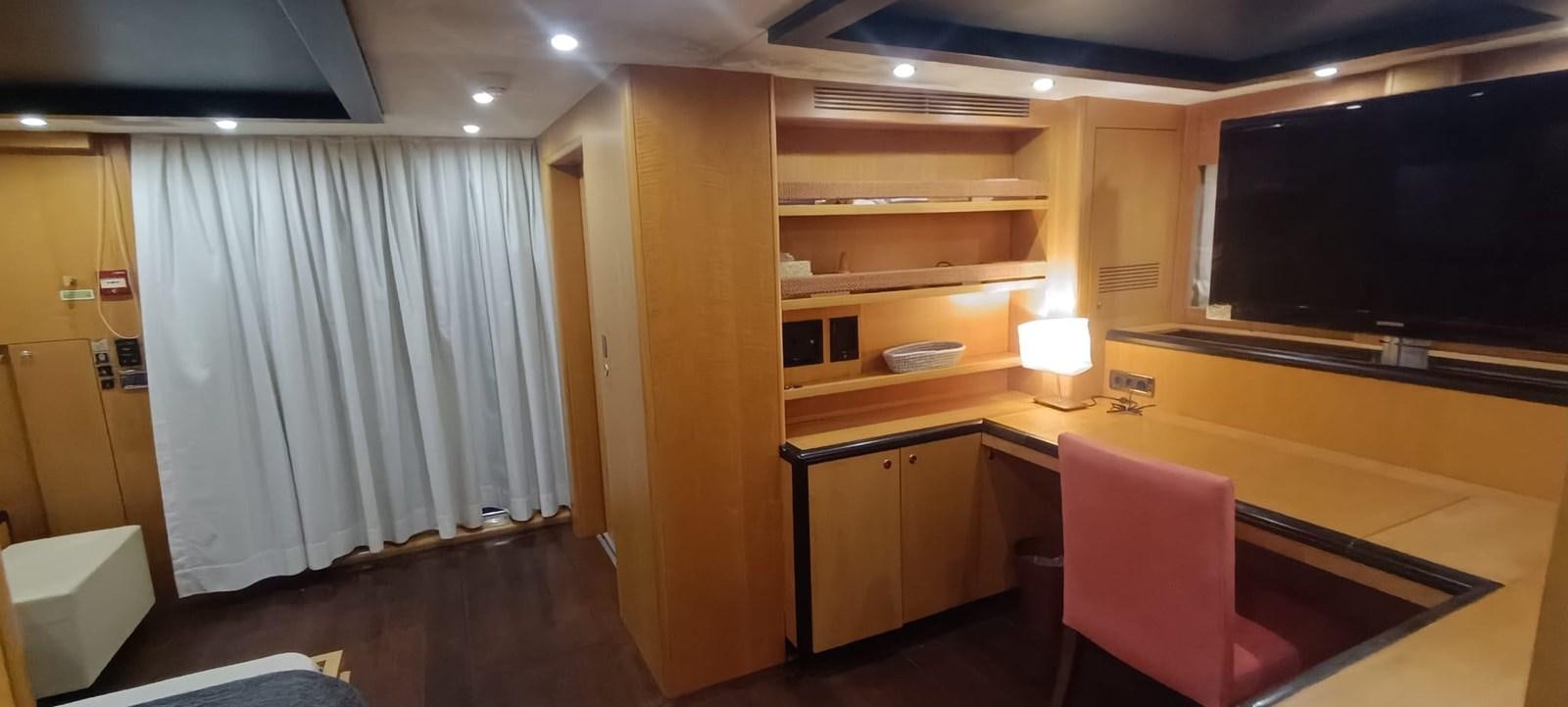

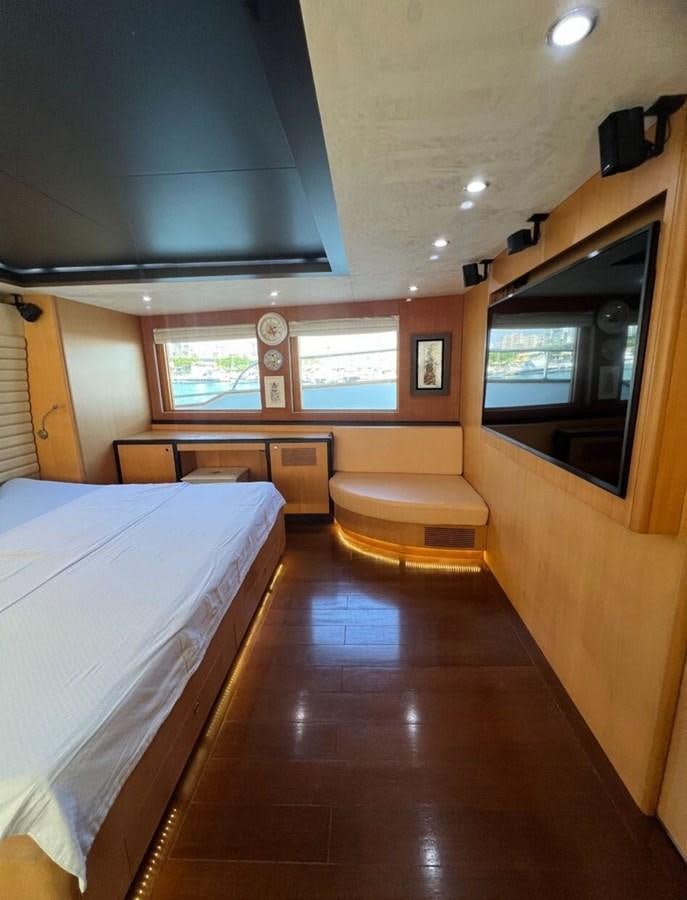

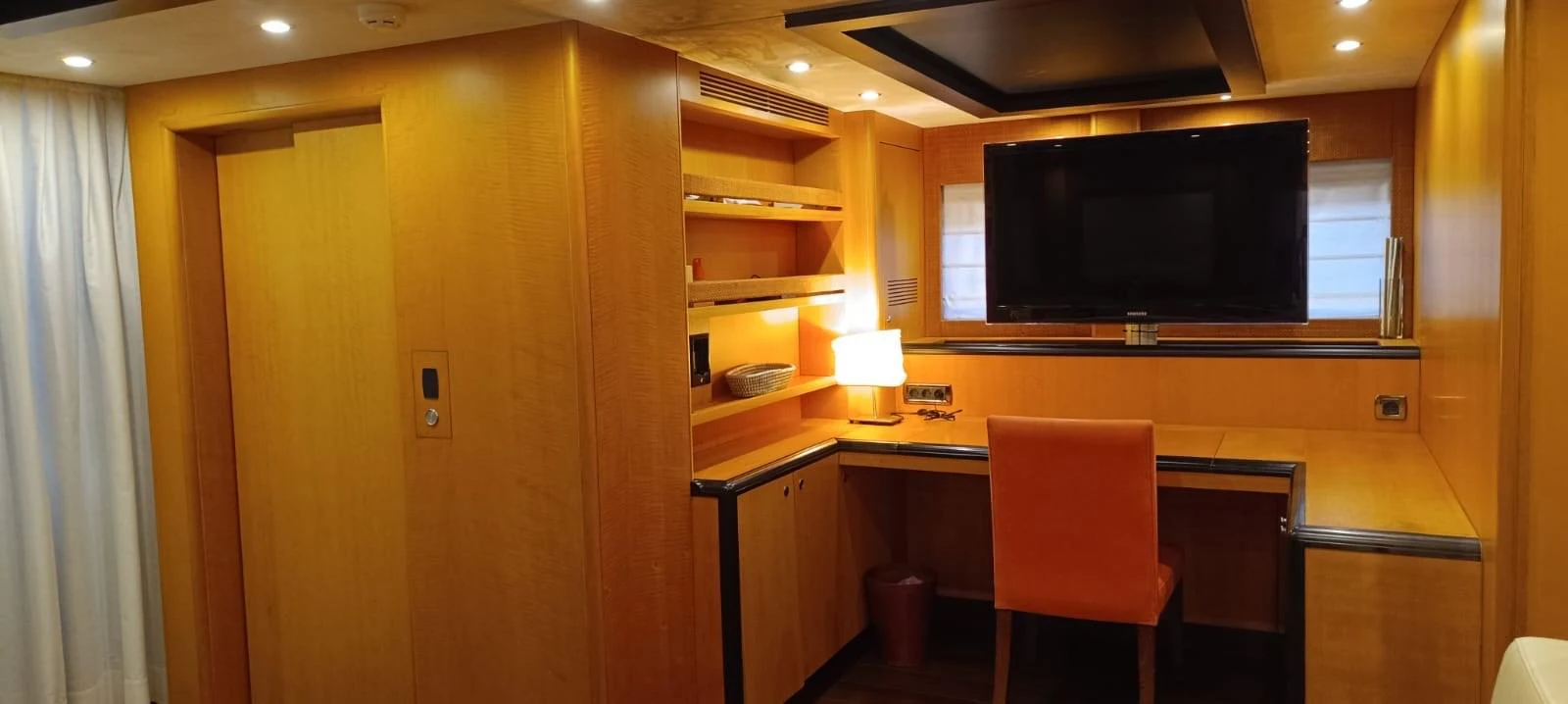

Master Cabin: 1 Samsung 52" LCD TV, 1 Wireless AMX Touch Panel MVP-52001GB, 2 Side TV Cube Speakers

1 Subwoofer

Master Cabin AV Rack: 1 Kaleidescape Mini 1080 Movie Player, 1 Sony Blu Ray DVD Player, 1

Bose-V30 LED MON (home theater system), 1 SAT/STB, 1 Extron MLS 100A, 1 AMX NXI

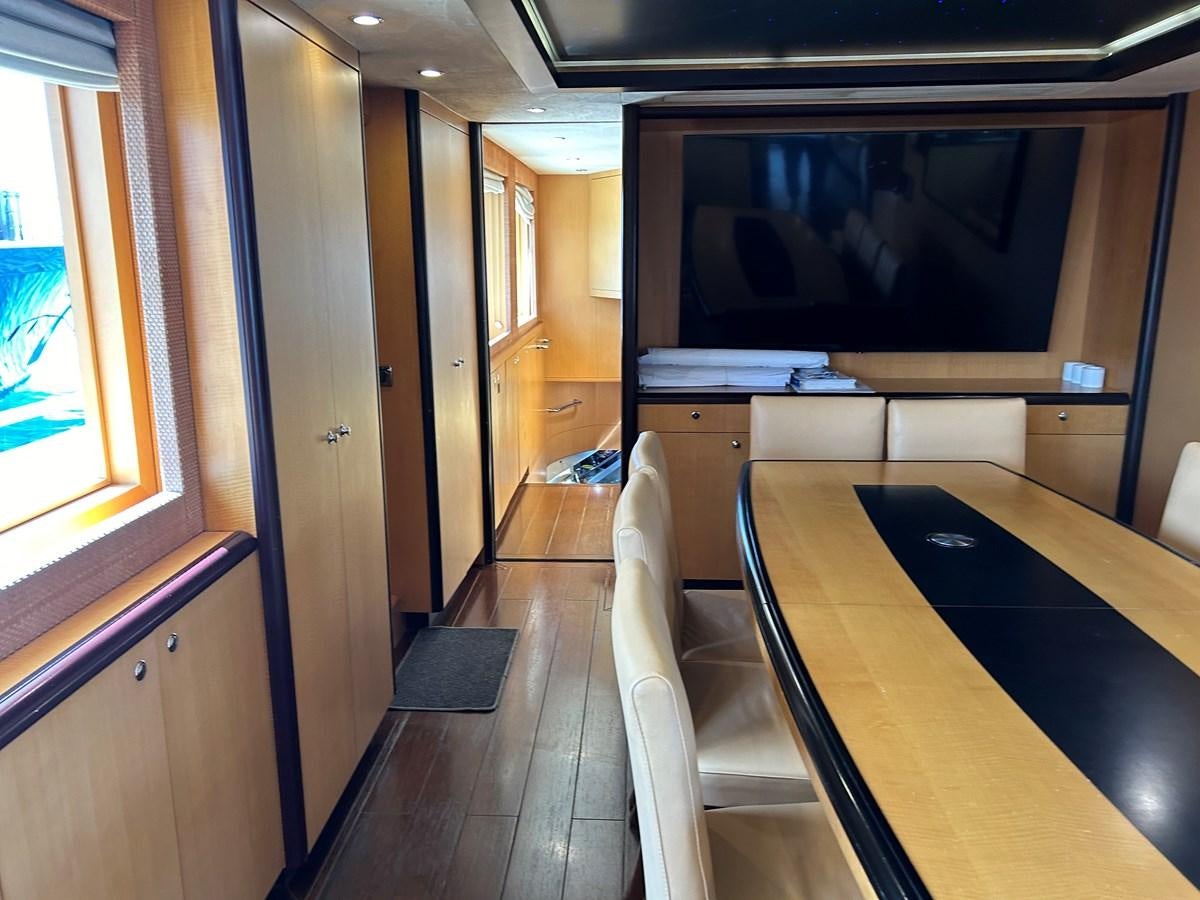

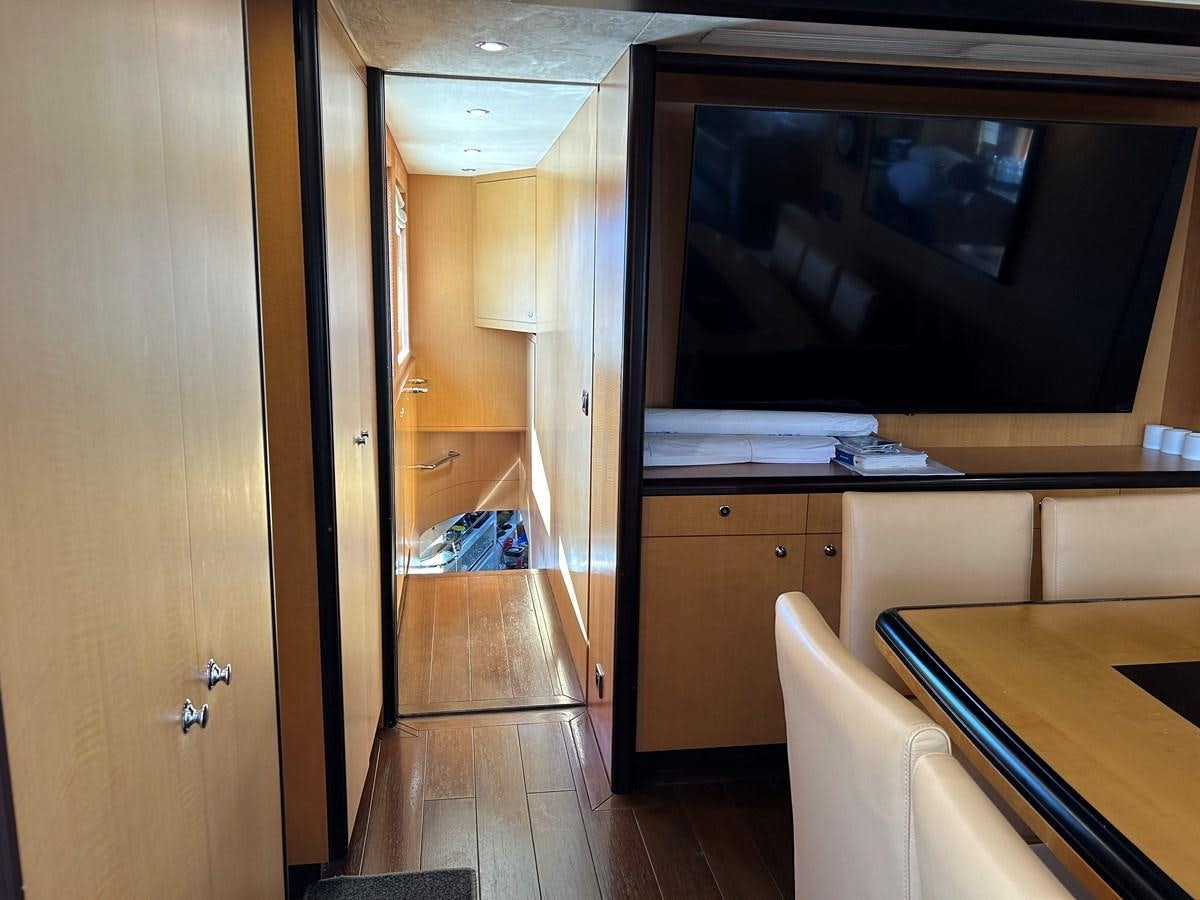

Dining Area (forward of lift): 1 Samsung 52" LCD TV, 1 Kaleidoscape Mini 1080 Movie Player, 1 SAT/STB

1 Sony BLU Ray DVD Player, 1 AMX Docking Station, 1 AMX Wireless Touch Panel MVP-52001GB
