Not for sale or charter to U.S. residents while in U.S. waters.

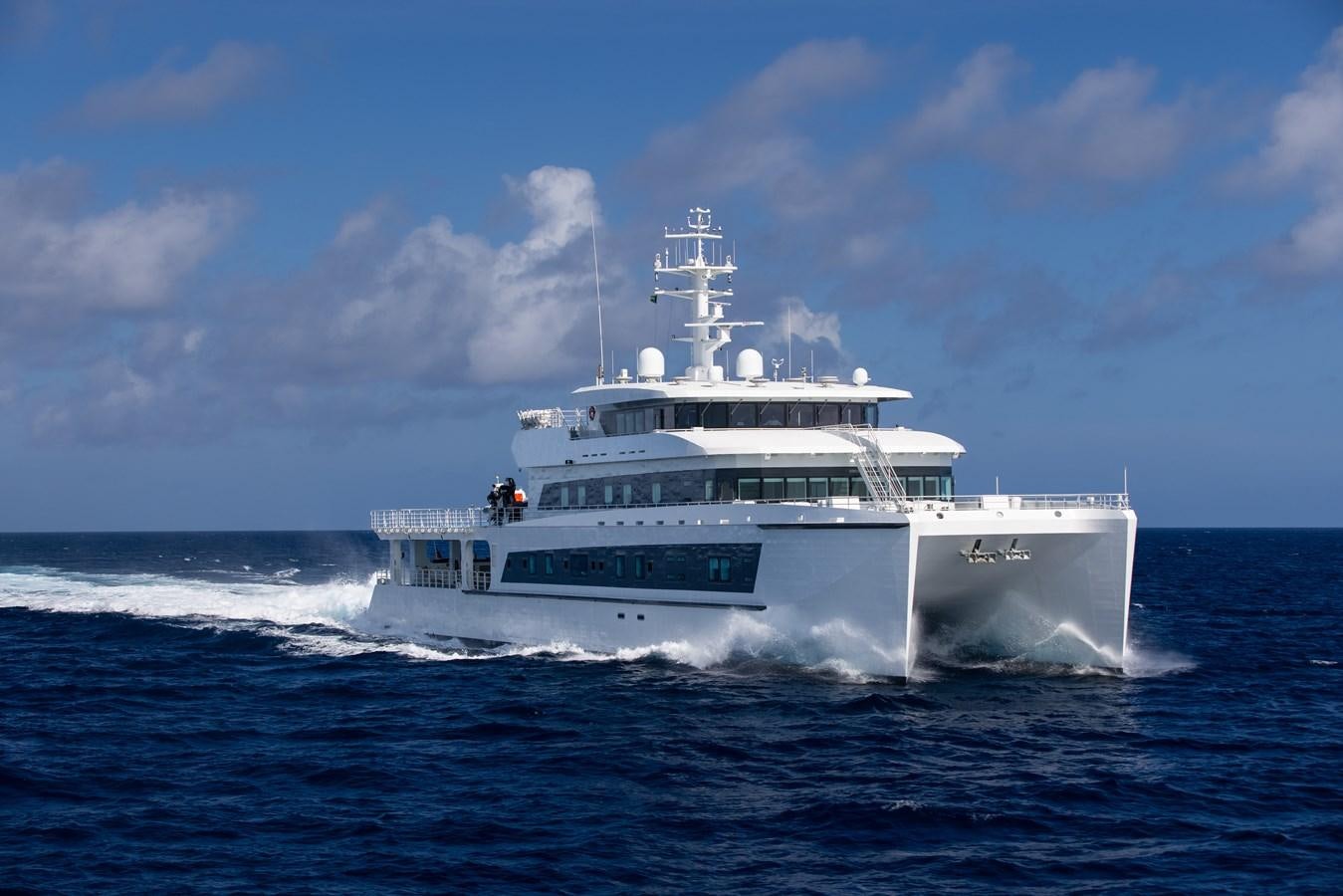

Built by Astilleros Armon, WAYFINDER is the second catamaran motor yacht to be
launched by her builder, following the launch of the 66.2-metre Hodor in 2019.

The catamaran features an exterior designed by Incat Crowther with an interior
imagined by Oliver Design. The vessel has a 14-metre beam, affording her a 1,737 GT
volume. WAYFINDER was custom-built to act as the ultimate support vessel for a large
superyacht. She can hold up to 200,000 litres of fuel, reach speeds of 20 knots, and
store vast amounts of food supplies and a full array of toys and dive equipment. In
addition to having a fully certified helideck and hangar, she features a dedicated spare
parts workshop and an onboard fully equipt medical suite.

WAYFINDER is capable of storing three tenders of up to 12 metres, as well as three
small tenders on an open deck. The vessel can accommodate up to 20 crew and 12
guests / staff. WAYFINDER is also equipped with a water level gym, medical facilities,
a large lounge, a helicopter hangar, and a fully versatile commercially certified helipad.

WAYFINDER sports twin MTU 16V 4000 M73L engines, reaching a top speed of 20
knots. Her propulsion system has been designed to reduce the vessel’s nitrogen
oxide emissions to two grams per kilowatt-hour, contributing to the vessel’s reduced
emissions.

FEATURES
• Fully Certified Helipad
• Heli re-fuelling capabilities
• Heli hanger for up to EC 145
• Fully equipped medical suite
• 12 individual en-suite guest / staff cabins
• State of the art security systems
• A fleet of 6 custom tenders + 3 Custom tenders worth 5 million USD +
• Guest / staff /crew gym with balcony
• Full dive set up including Hyperbaric Chamber and dive compressor
• Top speed of 20 knots

Amenities

Accessible
Elevator
Fishing Equipment
Gym
Helipad
Personal Watercraft
Scuba Diving
Wi-Fi

Specifications

Builder	ASTILLEROS ARMON
Length (LOA)	223' (68.2m)
Year	2021
Gross Tonn.	1,737
Draft	12' (3.5m)
Beam	47' (14.4m)
Range	5,500 NM

Accommodations

Staterooms	24

Dimensions & Capacity

LOA	223' (68.2m)
LWL	217' (66m)
Max Draft	12' (3.5m)
Fuel Tank	52,834 g (200,000 L)
Fresh Water	5,283 g (20,000 L)
Gross Tonn.	1,737

Construction

Hull Material	Aluminum
Hull Config	Catamaran
Ext. Designer	Incat Crowther
Int. Designer	Incat Crowther
Cruising Speed	14 Knots
Range	5,500 NM

Full Details

Detailed Description

MAIN CHARACTERISTICS

TYPE	Multihull Ultra support vessel
BUILDER	Astilleros Armon
IMO NUMBER	9882669
MMSI NUMBER	319191600
NAVAL ARCHITECT	Incat Crowther
EXTERIOR DESIGN	Incat Crowther
INTERIOR DESIGN	Oliver Design
YEAR	2021
CLASSIFICATION	Lloyd's Register (+100A1 SSC Support Yacht Catamaran Helicopter Landing Area, +LMC, UMS, Cayman Islands PY, ILO compliant), (Complies with latest IMO, MARPOL recommendations)
CONSTRUCTION	Aluminium Hull & Superstructure
CREW	20
FLAG	Cayman Islands
ENGINES	2 x 2,832 kW (3,798 Hp) MTU 16V 4000 M73L
GT	1,737
NT	521
CALL SIGN	ZGKU5
HELI-OPS	4,240 kg max on Helideck (Airbus H160) 1,919 kg max on Hangar (Airbus EC145 T2)
GUESTS / STAFF	12

DIMENSIONS
LOA
68.20m / 223' 9"
LWL
66.00m / 216' 6"
BEAM
14.40m / 47' 3"
DRAFT
3.50m / 11' 6" max

SPEED & RANGE UNDER POWER

MAXIMUM SPEED	20.00 knots
CRUISING SPEED	14.00 knots
ECONOMICAL SPEED	13.50 knots
RANGE	4,400nm at 13.50 knots
FUEL CONSUMPTION	521 litres/hour (138 US gallons) at 14.00 knots 500 litres/hour (132 US gallons) at 13.50 knots

CAPACITIES

ACCOMMODATION	12 guests / staff in 12 cabin(s)
CREW	20 crew and staff in 12 cabin(s)
FUEL	200,000 litres / 52,834 US gallons
FRESH WATER	20,000 litres / 5,283 US gallons
HOLDING TANK	14,408 litres / 3,806 US gallons
LUBE OIL	2,000 litres / 528 US gallons
DIRTY OIL	2,000 litres / 528 US gallons
GREY WATER	18,175 litres / 4,801 US gallons
BLACK WATER	11,375 litres / 3,005 US gallons
UREA	10,000 litres / 2,641 US gallons
POTABLE WATER	11,000 litres / 2,905 US gallons
SLUDGE	3,000 litres / 792 US gallons
BILGE TANK	1,000 litres / 264 US gallons
PETROL	7,500 litres / 1,981 US gallons
JET FUEL	15,000 litres / 3,962 US gallons

ACCOMMODATION
CREW CABINS
1 x Captain cabin

12 x Crew cabins
STAFF CABINS
12 x Staff cabins

MECHANICAL EQUIPMENT

ENGINES	2 x 2,832 kW (3,798 Hp) MTU 16V 4000 M73L Diesel (@2,050 rpm)
ENGINES HOURS	Port: 5,800 hours as of 04th Jun 2024 Starboard: 5,809 hours as of 04th Jun 2024
GENERATORS	2 x 450 kW (603 Hp) Scania 400V & 50 Hz IMO Tier III (@1,500 rpm)
GENERATORS HOURS	Port: 9,879 hours as of 04th Jun 2024 Starboard: 10,408 hours as of 04th Jun 2024
STABILISERS	Dynamic Positioning System
AIR CONDITIONING	Heinen & Hopman
BOWTHRUSTER	2 x Azimuth retractable forward of each hull
GEARBOX	2 x ZF 9355 (Ratio 4.958:1)
PROPELLERS	2 x Servogear 4 blade controllable pitch propellers, 2.05mm. NiAlBz
RIDE CONTROL	Humphree Active Intercepter Ride Control system
STEERING SYSTEM	Hidramarin 3 metric tons hydraulic steering gear: SEV-3000-2P-2B
RUDDER ANGLE	Navitron NT-920 RAI
DYNAMIC POSITIONING	Praxis
ELECTRICITY	400V AC, 3-Phase & Earth, 50Hz, 3 Wire 230V AC, 1-Phase, 50Hz, 2 Wire 24V DC Circuit
SHORE POWER	2 x Shore Power convertors ASEA AC125NVHE-32 X 50m 2 x Shore Power connection cables
BATTERIES	7 x Banks of 24 Volt AGM Batteries
BATTERY CHARGERS	Victron automatic battery charger for each battery bank
TRANSFORMERS	2 x Clarika 400 3ph/230v 1ph 99KVA
CONVERTER	1 x 120V 60Hz ASEA
HYDRAULICS	HPU's for steering system, Hull Port garage door, elevator, Upper Deck crane, hangar door, helideck fold down railings, rescue boat davit and Jet Ski crane
WATER MAKER	HEM 30F/4000 Duplex Reverse Osmosis desalination system
WATER SYSTEM	2 x Fresh water filling connections 2 x Hydrophore pumps HEM FWS 3300 Freshwater skid
HOT WATER	2 x Double walled, electrical 650L boilers 2 x Danfoss hot water circulation pumps
WATER TREATMENT	HEM Freshwater skid 10405 Silver-copper ion steriliser Automatic backwashing charcoal filter 2 x UV Sterilisers Duplex fine filters HEM Puro 30/60
TOILET SYSTEM	Jets vacuum toilet system with wall mounted toilet
SEWAGE SYSTEM	Piranha ACT2 marine sanitation devices
FUEL CENTRIFUGES	2 x Alfa Laval MAWA 10
FUEL SEPARATOR FILTERS	Parker Racor coalescer system
FUEL OIL TRANSFER PUMP	2 x 5HP, 400V

NAVIGATION EQUIPMENT

INMARSAT	2 x Furuno FELCOM-18 Inmarsat C systems
MAGNETIC COMPASS	Yes
GYRO COMPASS	Sperry Navigat-200 Raytheon STD22
SATELLITE COMPASS	Furuno SC-130
AUTOMATIC PILOT	Sperry Navipilot 4000
ECHO SOUNDER	Furuno FE-800
RADAR	Raytheon 8' X-band radar system Raytheon 12' S-band radar system
TRANSPONDER	2 Jotron
AIS	Furuno FA-170
GPS	Furuno GP-170 DGPS system
NAVTEX	Furuno NX-700A
SPEED LOG	Furuno DS-80
SEARCHLIGHTS	Luminell CL 25-11 U&D
CAMERA	Frankentek
SPEED / WIND / DEPTH LOG	B&G H5000
DISPLAYS	3 x Hatteland 26" Displays
BNWAS	Furuno BR-500
HORN SYSTEM	Zollner electronic horn system 300/310
TIME ZERO	With Thru Hull transducer in WAYFINDER WASSP Transducer, portable for Munson Tender

COMMUNICATION EQUIPMENT

SATCOM	4 x Kymeta panels on Wheelhouse roof
VHF	Icom IC-A120 Airband VHF radio 3 x Furuno FM-8900S
LOUDHAILER	Foredeck, Helideck, Aft Deck
TELEPHONE EXCHANGE	PABX Zenitel ACM-48-V10 3 x VMP-D619B desk / wall master atation 29 x DTM-800 crew cabin & public areas VMP-530 Galley 4 x VMP-530 + IRR + headset - Engine & Rudder Rooms
MF / HF	Furuno FS-1575 5 x Iridium portable Sat phones 1 x Iridium fixed unit with SIM card iPhone and iPads

DECK EQUIPMENT

ANCHOR WINDLASSES	2 x Ferri 400V / 3PH / 50Hz electric motor
ANCHOR WARPING CAPSTANS	4 x Ferri electric drive 3kW @ 1,500 RPM
ANCHORS	2 x 968kg HHP
ANCHOR CHAINS	192.5m of U3 Anchor chain
ANCHOR CHUTES	2 x Bow anchor chutes with double rollers
BOAT CRANES	2 x 5m Knuckle Boom Rescue M.O.B. cranes 2 x Guerra Telescopic Beam cranes
DAVITS	2 x Ferri 500kg Davits with electrical winch for launching of Jet Skis Atlas 500kg Davit for handling general stores
PASSERELLE	Fitted to Transom for vessel access when stern to the berth
SIDE BOARDING GANGWAY	Manual
SWIMMING PLATFORM	2
AWNINGS	1
COVERS	Basic covers for Wing Stations, Tenders etc.
ELEVATOR	Provided from Port Hull Gym to Helideck Hanger
HELIDECK	Fully certified landing pad Detegasa helicopter refuelling system with stainless steel tank Pickelball court markings provided on Helideck
HANGAR	Heli-hangar suitable for an Airbus EC145 Hangar includes workshop for helicopter maintenance Pickleball nets, screens, and court set up

ENTERTAINMENT EQUIPMENT

GALLEY	1 x TV
GYM	1 x TV
CREW	All HOD cabins have TVs
STAFF CABINS	All staff cabins except one have TVs
CREW LOUNGE	1 x TV with Xbox
STAFF LOUNGE	1 x TV
CREW MESS	1 x TV

GALLEY & LAUNDRY EQUIPMENT

GALLEY	4 Burner commercial induction cooktop 2 Burner commercial induction cooktop 2 x Stacked Combi convection ovens 2 x Deep fat friers Large commercial flat griddle Commercial microwave dual function oven Exhaust hood over cooking line and separate exhaust over Combi ovens Commercial floor to ceiling stainless steel fridge Commercial floor to ceiling stainless steel freezer Ice maker 2 x Large deep undermount single sinks Commercial stainless steel dishwasher Commercial stainless steel pot / pan washer Commercial pull-out spray faucet
SERVERY	Full height S/S fridge Full height S/S freezer 2 x Miele coffee machines Microwave oven Adjustable heat induction warmers for chafing dishes Drinking water / soda / hot water faucet Large undermount single basin sink S/S Pull-out spray faucet
STAFF PANTRY	Undercounter drawer refrigerator Miele coffee machine Undermount sink Pull-out spray faucet
LAUNDRY	3 x Miele 8kg heavy duty washer and dryer set 1 x Miele 6.5kg commercial duty washer and dryer set, iron, and ironing board

SECURITY & SAFETY EQUIPMENT

SAFETY	4 x Viking 25DK+ 25 person life raft 1 x SOLAS A pack inflatable life raftss 8 x Orange plastic SOLAS approved life rings with self-igniting lights, self-activating smoke singals and 30m buoyant lifeline 85 x Adult life jackets, SOLAS approved Jotron Tron 60GPS float-free EPIRB Jotron Tron 60HPS manual EPIRB Distress signals 2 x SARTs 45 x Immersion suits
SECURITY	Full specification of state of the art security system availlable upon request
FIRE FIGHTING	Approved multi-zoned fixed fire supression system in accordance with class regulations Ultra-fog fire suppression system Drencher system for Tender Deck Multi-zone directional smoke and fire detection panel with battery backup in Wheelhouse Heat and smoke detectors in accordance with class regulations Helideck fire fighting via a pop-up nozzle system Upper Deck fire fighting locker with approved helicopter fire extinguishing equipment Main Deck fire fighting locker Fire extinguishers in accordance with class regulations

TENDERS & WATERSPORTS EQUIPMENT

TENDERS	1 x 12.00m Compass Tenders Limo seating for 16 guests / staff and 2 crew 1 x 11.50m Zodiac Hurricane seating for 11 guests/ staff and 2 crew 1 x 11.30m Munson seating for 17 guests / staff and 2 crew 1 x 8.00m Zodiac seating 6 guests / staff and 2 crew 1 x 5.30m Zodiac Milpro mk IV seating 6 guests / staff and 2 crew 1 x 7.30m Zodiac Solas rescue Hurricane seating for 4 guests / staff and 2 crew Further information on the Limo, Beach Lander, and Dive Boat Available Upon Request
WATERSPORTS	1 x Taiga Orca Electric 2-person Jet Ski 3 x Seadoo GTX 170 2020 3-person Jet Skis 4 x Seabob F5S 2 x Lift 2 Sport E-Foil 5'0 2 x G3 Explorer Icebreaker E-Jetboard 1 x Starboard Touring Carbon Top Paddleboard 1 x Naish Glide GTX Paddleboard 2 x Naish Nalu 10'0 Paddleboard 2 x Naish Mana GTW Paddleboard 1 x Starboard Paddleboard - Windsurf edition 1 x Hyperlite PRIZM Wakeboard 1 x Hyperlite SOURCE Wakeboard 1 x HO Sports Burner Combo Waterskis 1 x HO Sports Freeride Combo Waterskis 1 x HO Sports Women's Omni Monoski 1 x HO Sports Hovercraft Slalom Monoski 3 x Single Wavesport Horizon Kayaks 2 x Double Wavesport Horizon Kayaks Fishing Equipment Snorkelling Equipment (16 full scuba kits and 32 scuba tanks) Dive Equipment
DIVING	IHC Hyperbaric chamber on board Bauer dive compressor (additional BA refills)

COMMENTS

Built by Astilleros Armon, WAYFINDER is the second catamaran motor yacht to be launched by her builder, following the launch of the 66.2-metre Hodor in 2019.

The catamaran features an exterior designed by Incat Crowther with an interior imagined by Oliver Design. The vessel has a 14-metre beam, affording her a 1,737 GT volume. WAYFINDER was custom-built to act as the ultimate support vessel for a large superyacht. She can hold up to 200,000 litres of fuel, reach speeds of 20 knots, and store vast amounts of food supplies and a full array of toys and dive equipment. In addition to having a fully certified helideck and hangar, she features a dedicated spare parts workshop and an onboard fully equipt medical suite.

WAYFINDER is capable of storing three tenders of up to 12 metres, as well as three small tenders on an open deck. The vessel can accommodate up to 20 crew and 12 guests / staff. WAYFINDER is also equipped with a water level gym, medical facilities, a large lounge, a helicopter hangar, and a fully versatile commercially certified helipad.

WAYFINDER sports twin MTU 16V 4000 M73L engines, reaching a top speed of 20 knots. Her propulsion system has been designed to reduce the vessel’s nitrogen oxide emissions to two grams per kilowatt-hour, contributing to the vessel’s reduced emissions.
- FEATURES
  - Fully Certified Helipad
  - Heli re-fueling capabilities
  - Heli hanger for up to EC 145
  - Fully equipped medical suite
  - 12 individual en-suite guest / staff cabins
  - State of the art security systems
  - A fleet of 6 custom tenders + 3 Custom tenders worth 5 million USD +
  - Guest / staff /crew gym with balcony
  - Full dive set up including Hyperbaric Chamber and dive compressor
  - Top speed of 20 knots
