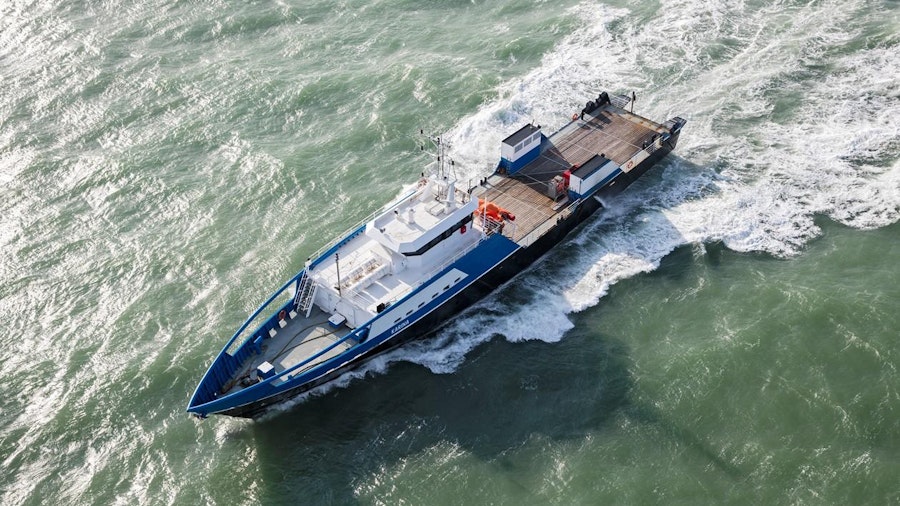

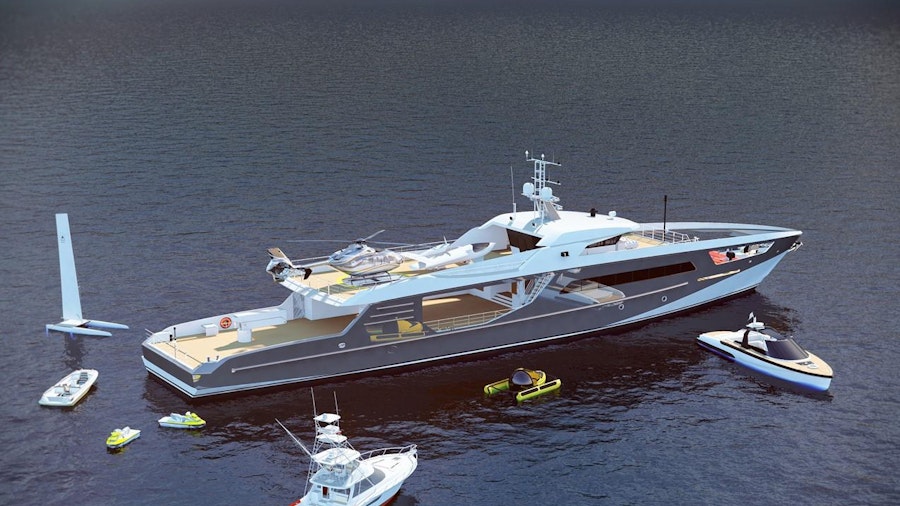

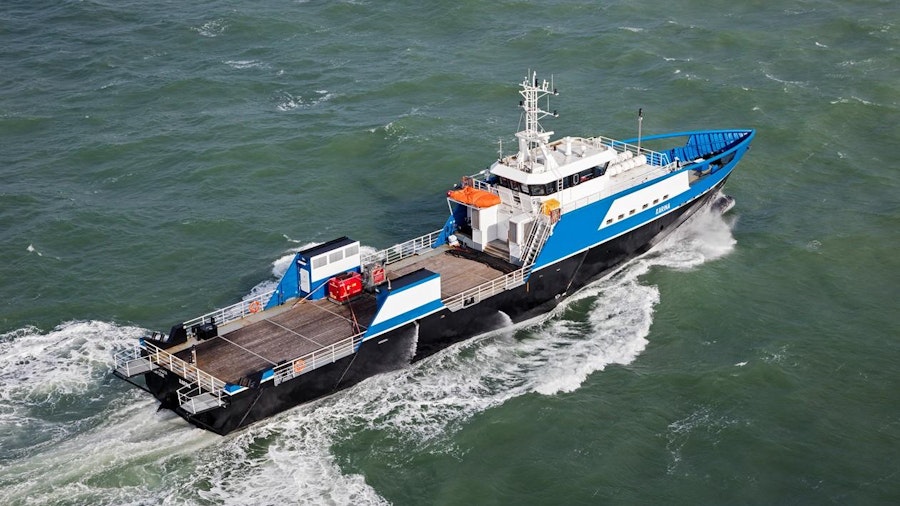

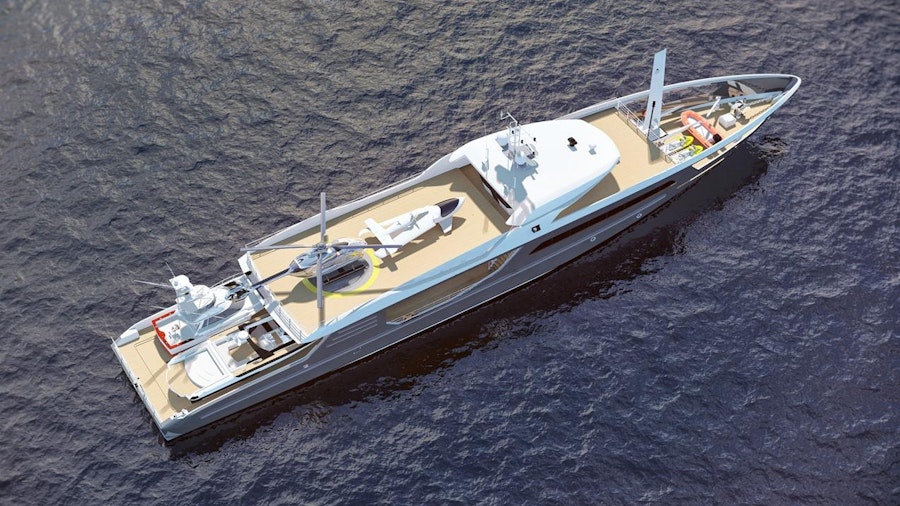

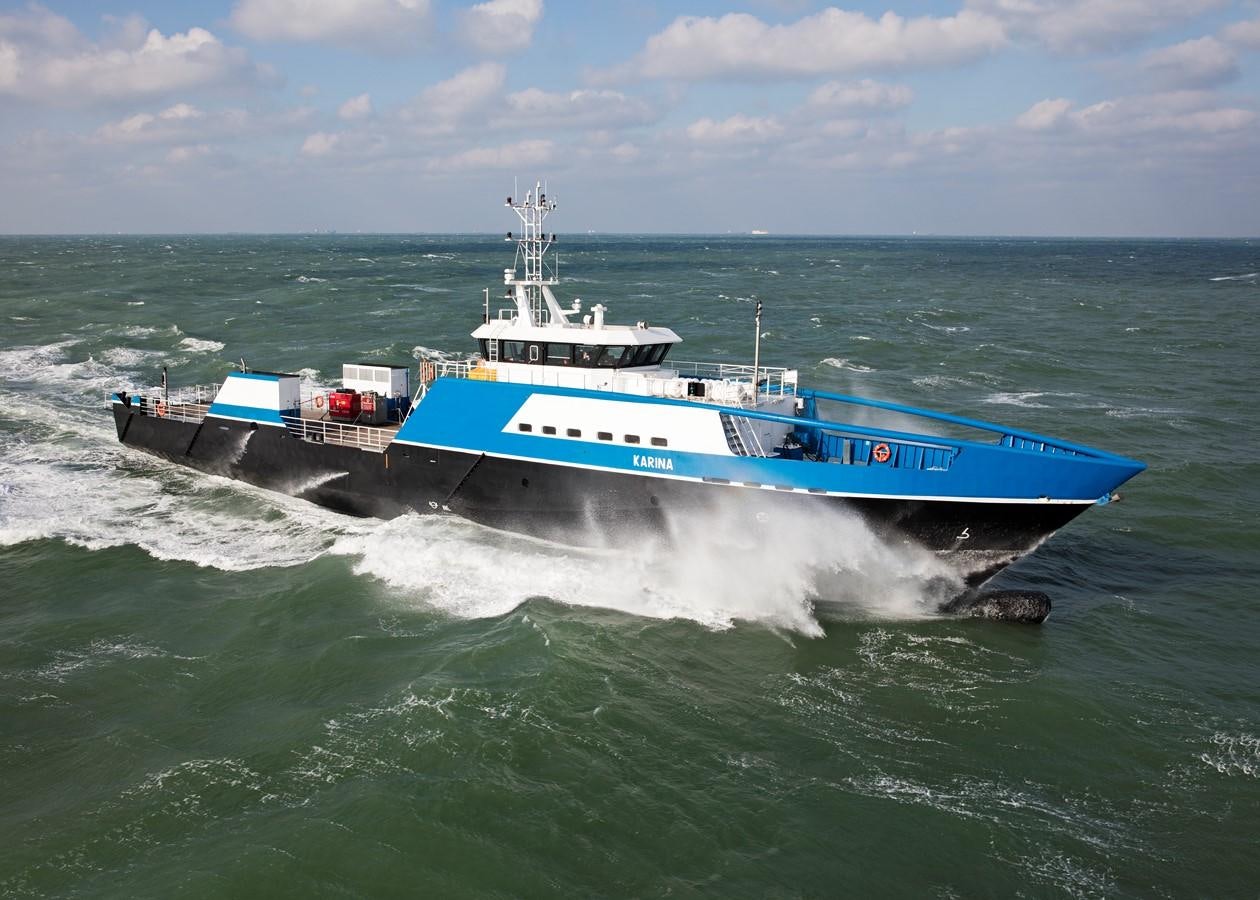

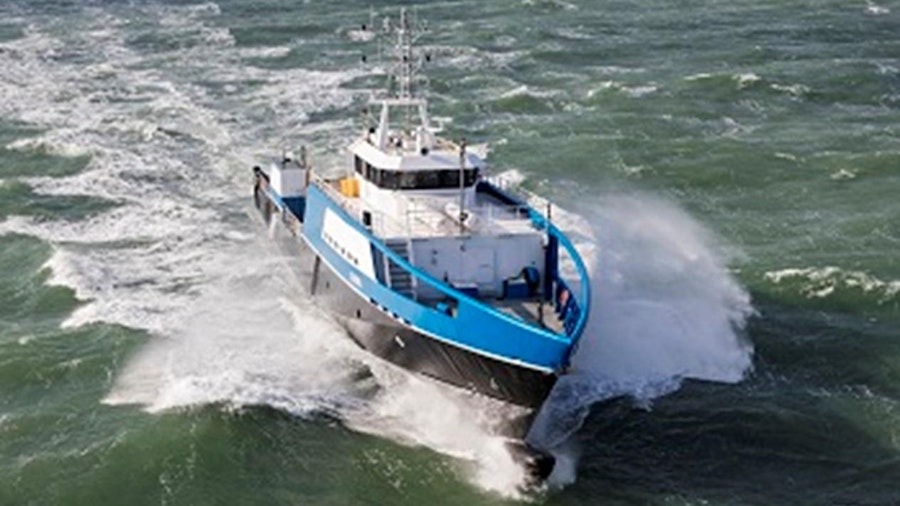

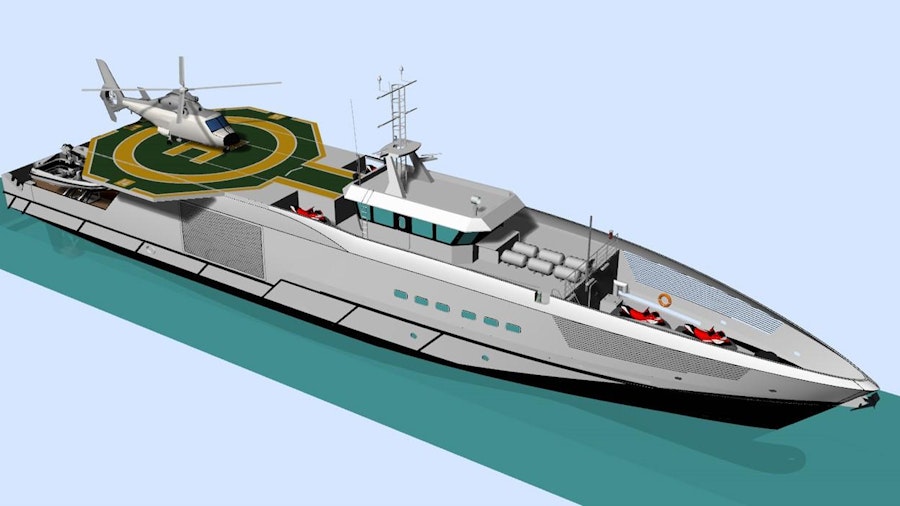

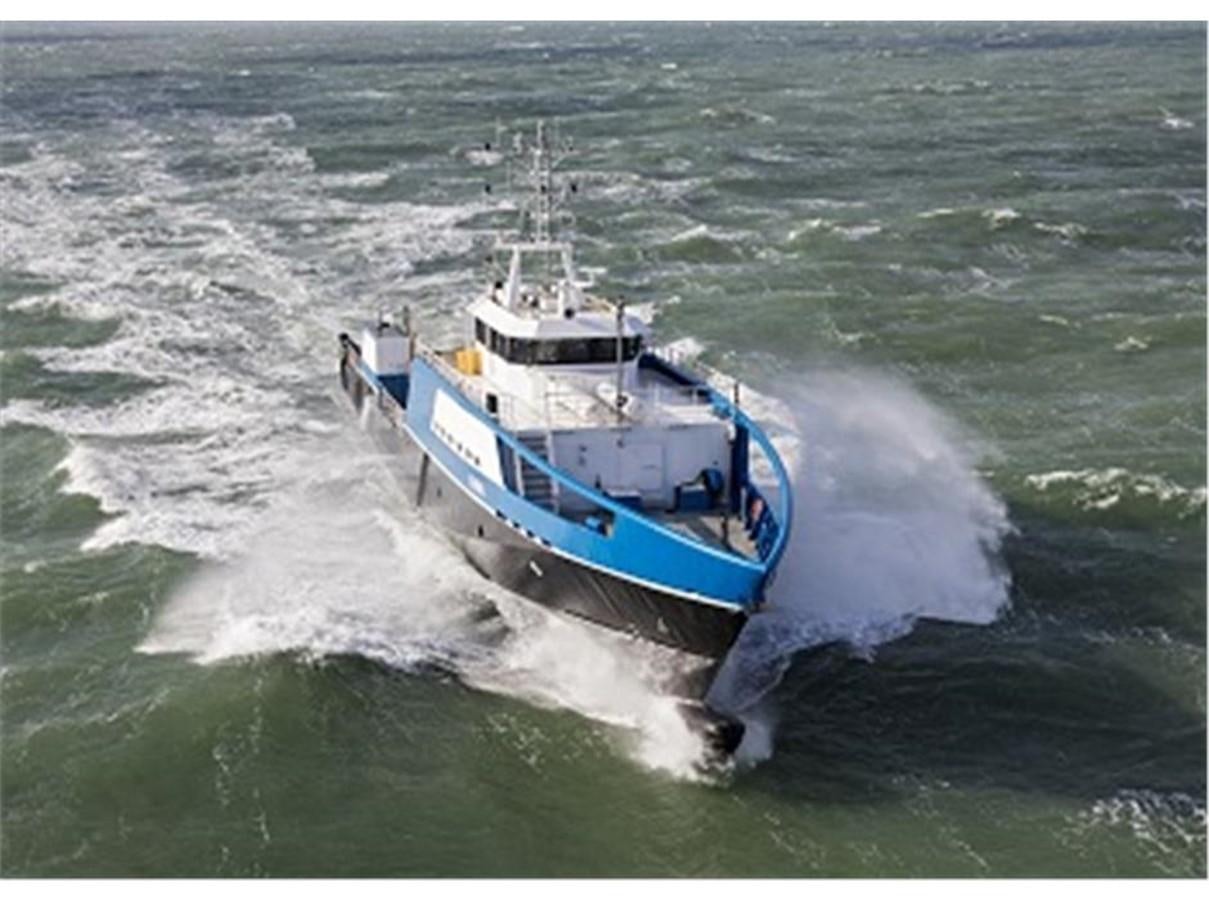

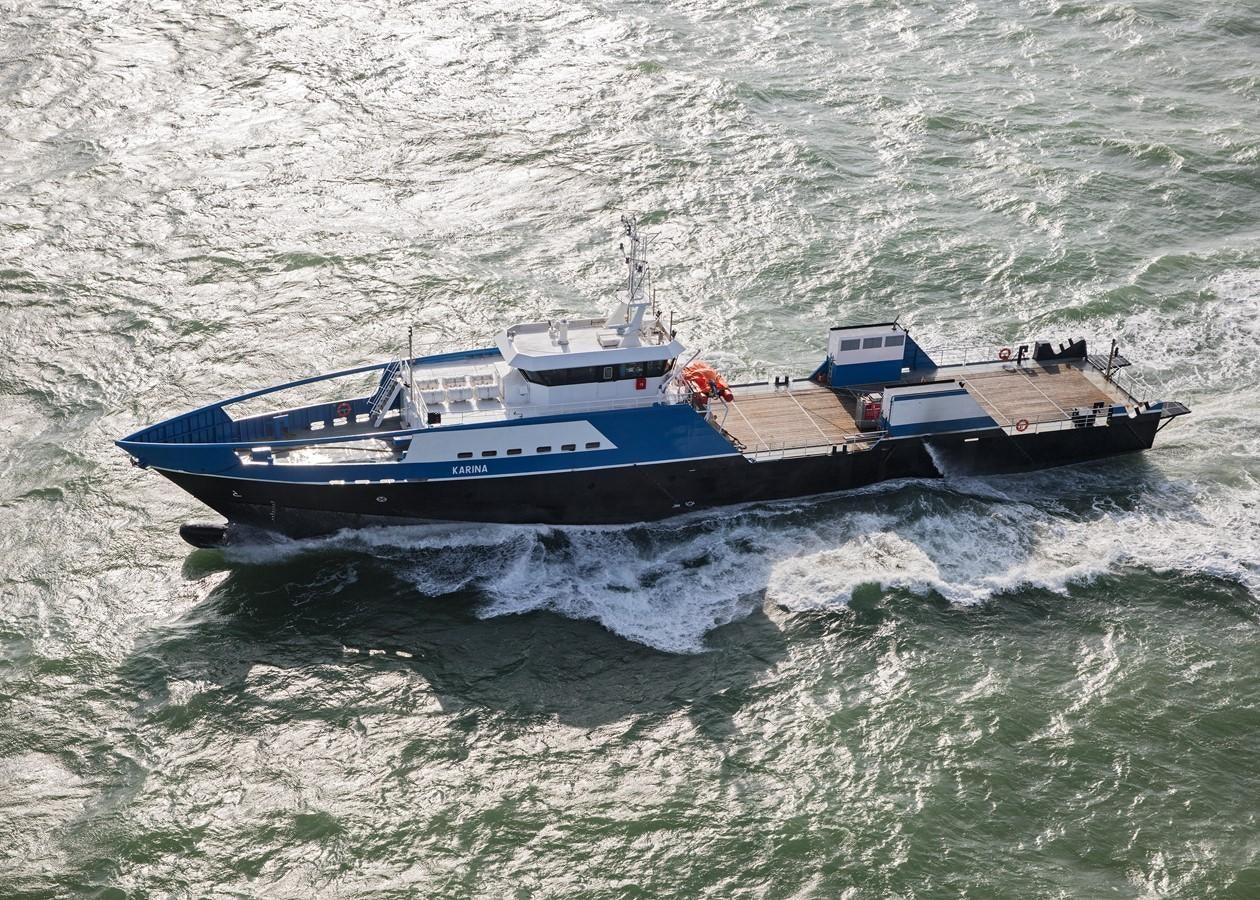

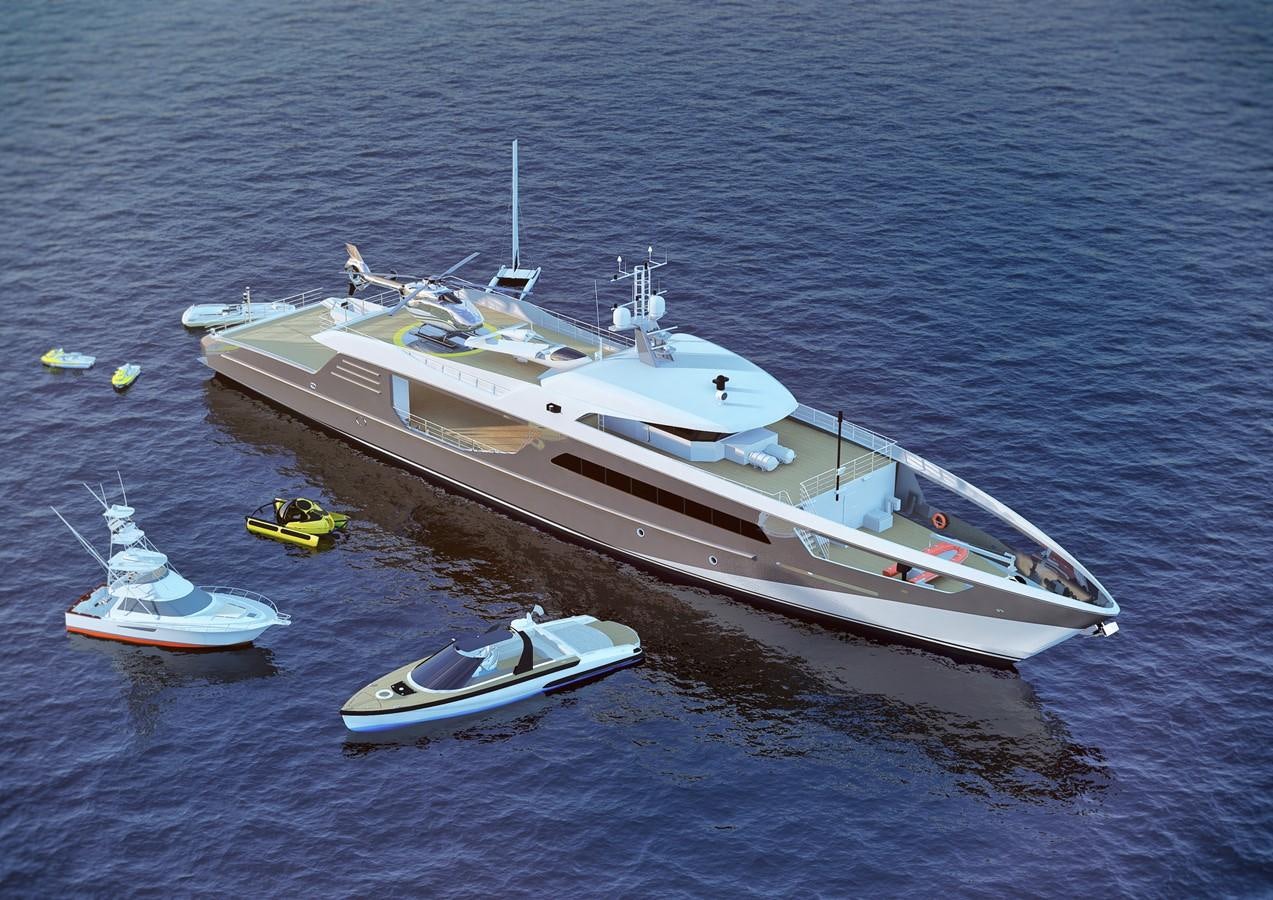

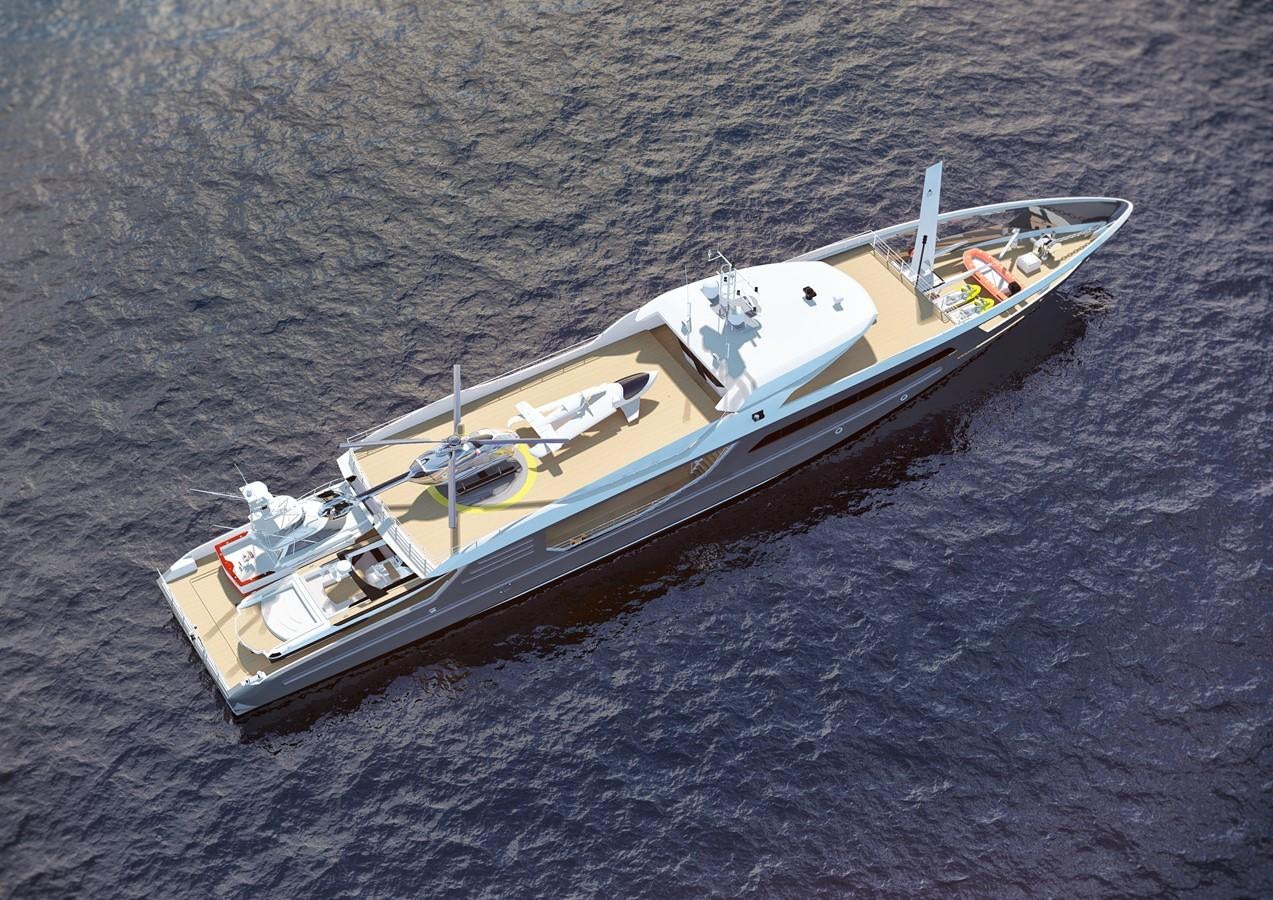

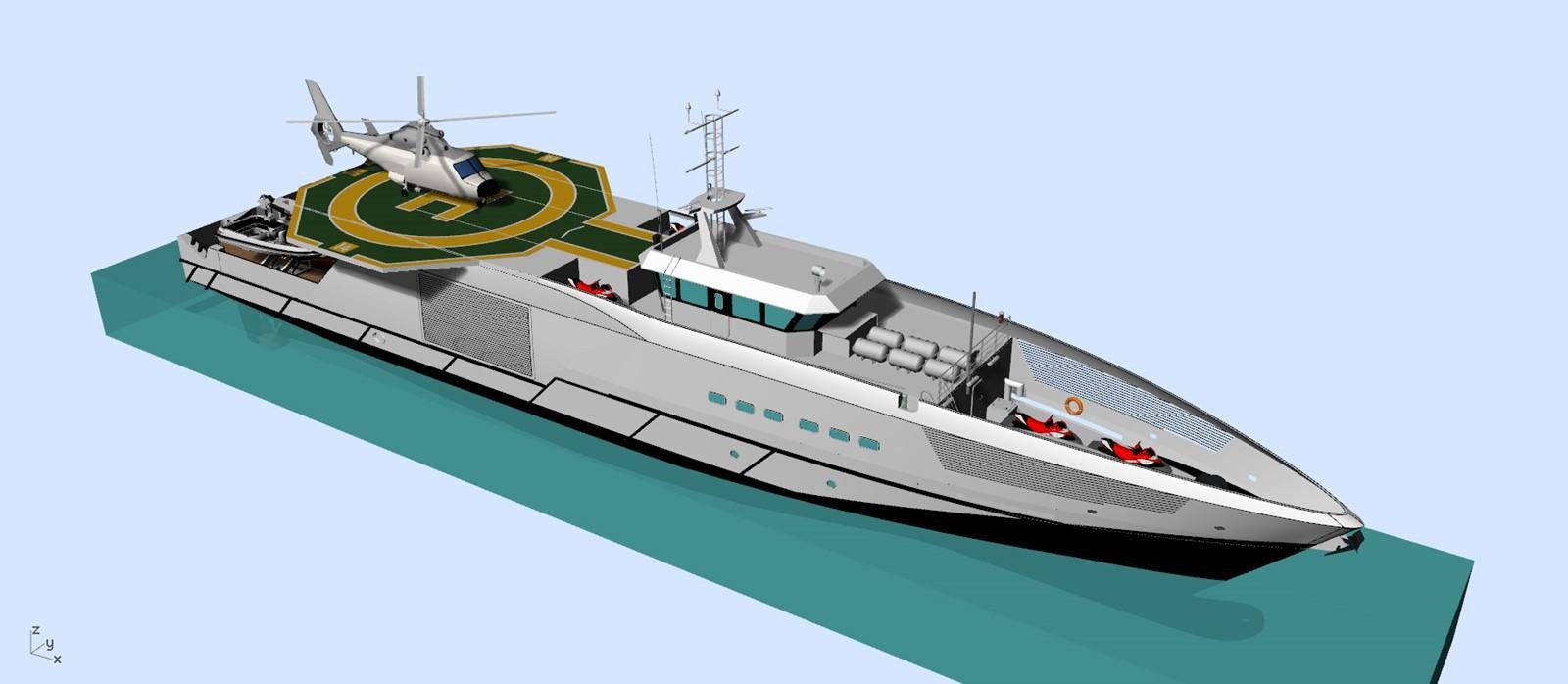

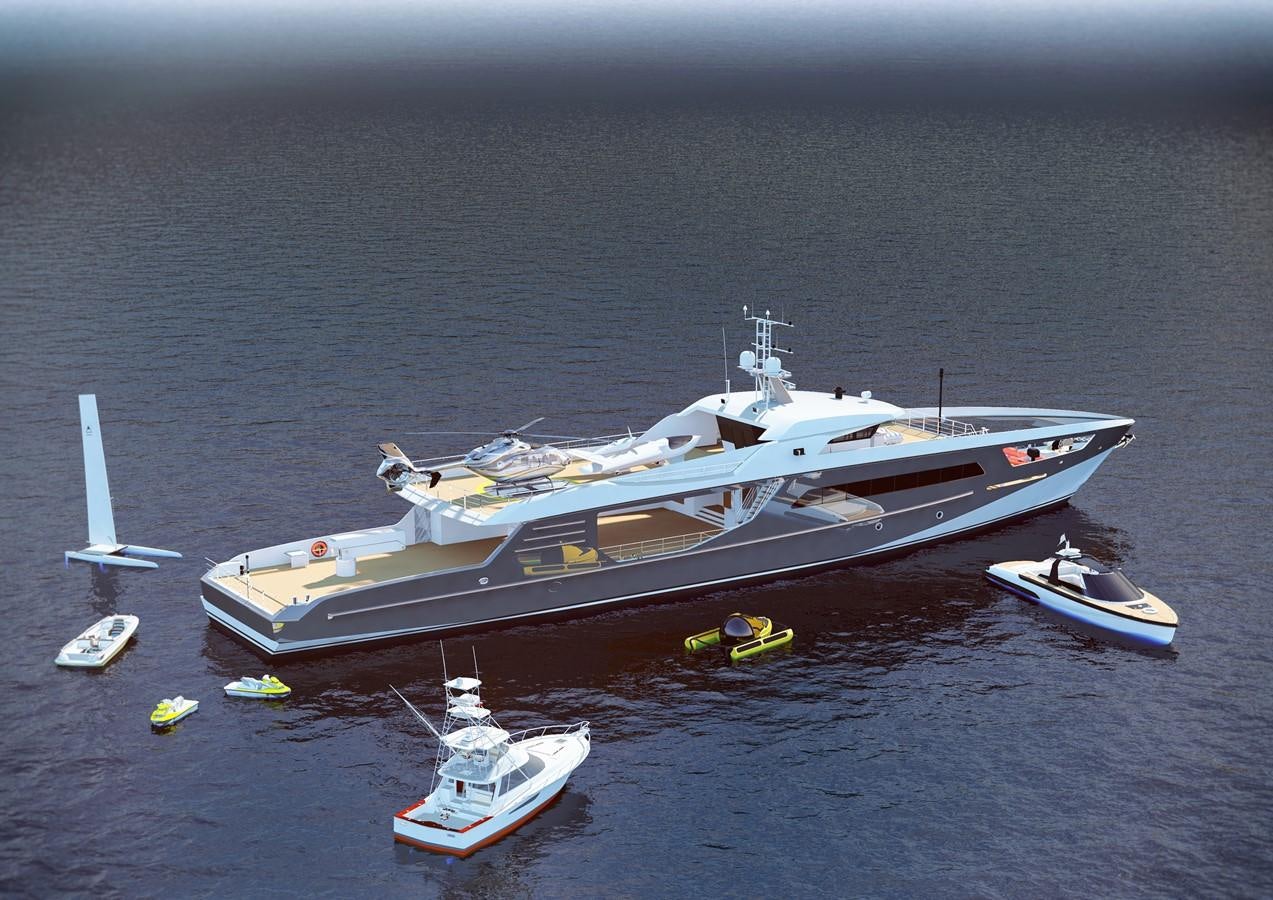

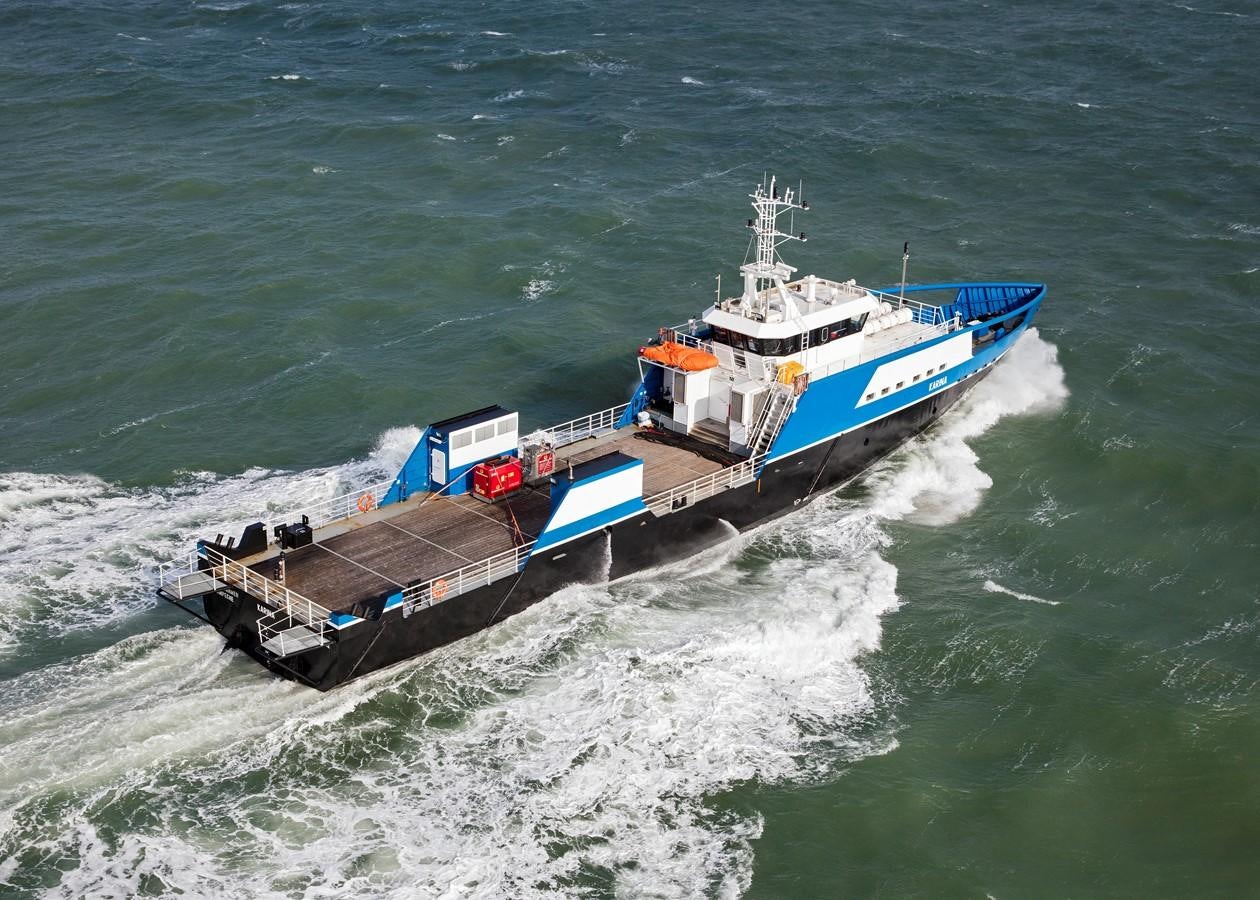

the ultimate shadow vessel Yacht for Sale

Length
181' (55.2m)
Builder
SHIPYARD DE HOOP
Build
2016

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Main particulars
\n
\n
Length overall                               55.20m
\nBreadth moulded                             9.00m
\nDepth to main deck                         4.50m
\nDesign draft                                     3.20m
\nMax. draft                                        3.50m
\nDeadweight                                      210 tons
\n
\nSpeed (D-mode)                               22 kts
\nSpeed (E-mode)                                12 kts
\n
\nClassification                                    *100 A5 RSA(200) HSDE Crew Boat Fast Crew Supply Vessel (*)
\n                                                          MC DP1
\n
\nPropulsion Machinery
\n
\n
Hybrid (Diesel Electric / Diesel Direct) with automatic system
\n
\nDiesel engines / Generator Sets          2 x Caterpillar 3516 hp each / 2350 ekW @ 1800 rpm
\nElectric propulsion motors                  300 ekW
\nCurrent                                                480V /60hz
\nMain propellors                                   2 x 1850 KW Fixed Pitch Propellers (5-blade) contra rotating
\nBow thruster unit                                 1 x 135kw Fixed Pitch Propeller
\nEmergency / harbour power set           1 x 99 eKW
\n
\nDynamic Positioning
\n
\n
Class 1 (One) Dynamic Positioning System: NAVIS DP system with combined console for forward and aft nagivation and control.
\n
\nReference system
\n
\n*    2 x DGPS Receivers
\n*    2 x Gyro Compass
\n*    2 x Motion reference units
\n*    2 x Wind sensors
\n
\nNavigation Equipment
\n
\n
*    Magnetic compass
\n*    2 x Radar (X-Band) 4ft scanners
\n*    Navtex
\n*    Echo sounder
\n*    Doppler log
\n*    2 Gyro repeater on various positions
\n*    Day signaling lamp
\n*    Air whistle with command
\n*    A.I.S.
\n
\n​Communication
\n
\n
​All according A3 regulations (world wide)
\n
\n*   2 x Inmarsat Satcom C
\n*   1 x Radio telephone installation, MF/HF DSC
\n*   2 x VHF radio - telephone transceiver DSC, full duplex
\n*   1 x SART Radar transponders
\n*   1 x Eprib hydrostatic release
\n*   2 x Porto phones CMDSS
\n
\n​Cargo / Deck Capacity
\n
\n
​Max. 200 ton deck load
\nTotal deck area                 230m2
\nRear deck                          190m2
\nDeck design                      1.5 ton /m2
\n
\nForedeck area                    40 m2
\nFuel oil capacity                40 m3
\nFreshwater capacity             5 m3
\nBelow deck storage
\nCargo tanks (optional)
\n
\nForeship mooring / anchor winch with warping head
\nbollards aftship
\n
\nLife rafts : 6 life rafts, each 20 persons
\n
\n

Specifications

Builder SHIPYARD DE HOOP
Length (LOA) 181' (55.2m)
Year 2016
Draft 12' (3.5m)
Beam 29' (9m)
Location Netherlands

Dimensions & Capacity

LOA 181' (55.2m)
Max Draft 12' (3.5m)
Fuel Tank 10,567 g (40,000 L)
Fresh Water 1,321 g (5,000 L)
Displacement 210

Construction

Hull Material Steel
Hull Config Displacement w/ Bulbous Bow
Cruising Speed 12 Knots
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Electric propulsion motors: 300 ekW
  • Current: 480 V / 60 hz
  • Main propellers: (2) 1850 Kw Fixed Pitch Propeller (5-blade) contra rotating
  • Bow thruster unit: (1) 135 kW Fixed Pitch Propeller
  • Emergency / harbor power set: (1) 99 ekw

Accommodation

Seating / Accommodation

  • Fully air conditioned & purified / standard suitable for warm climates.

Seating area:

  • Seats for 100 person in comfortable (reclining) seats
  • Separate luggage area 12.5 meter
  • Onboard video / entertainment system

Accommodations for 8 persons:

  • 2 men cabins, separate wett cells
  • Separate mess/dayroom
  • Large provision-store
  • Cooking station with fridge and freezer
  • Navigation bridge with 360-degree view

Communication Equipment

  • All according A3 regulations (worldwide)
  • (2) Inmarsat Satcom C
  • (1) Radio Telephone installation, MF/HF DSC
  • (2) VHF radio-telephone transceiver DSC, full duplex
  • (1) Epirb, hydrostatic release
  • (2) Porto phones GMDSS

Navigation Equipment

  • Magnetic compass
  • (2) Radar, (X-Band) 4 ft. scanners
  • Navtex
  • Echo sounder
  • Doppler log
  • (2) Gyro repeaters on various positions
  • Day signaling lamp
  • Air whistle with command
  • A.I.S.

Dynamic Positioning:

  • Class 1 (One) Dynamic Positioning System: NAVIS DP system with combined console for forward and aft navigation and control.
  • Reference Systems:
  • (2) DGS Receivers
  • (2) GYRO Compass
  • (2) Motion reference units
  • (2) wind sensors

Deck Equipment

  • Cargo / Deck Capacity
  • Max 200-ton deck-load
  • Total deck area:230m
  • Rear deck:
  • Deck design 1,5 ton / m
  • Wood covering
  • Foredeck area 40m
  • Fuel oil capacity:40m
  • Freshwater capacity 5m
  • Below deck storage
  • Cargo tanks (optional)
  • Depth to main deck:4.50 meters

Safety & Security

Life rafts:

  • 6 life rafts, each 20 persons

Comments

  • Originally there were 5 built in this series by the DeHoop yard in Holland for the Oil and Gas industry in the North Sea, however following completion they were not needed for service. As you review the attached information you will note that they are extremely well-equipped and built to a very high classification standard
