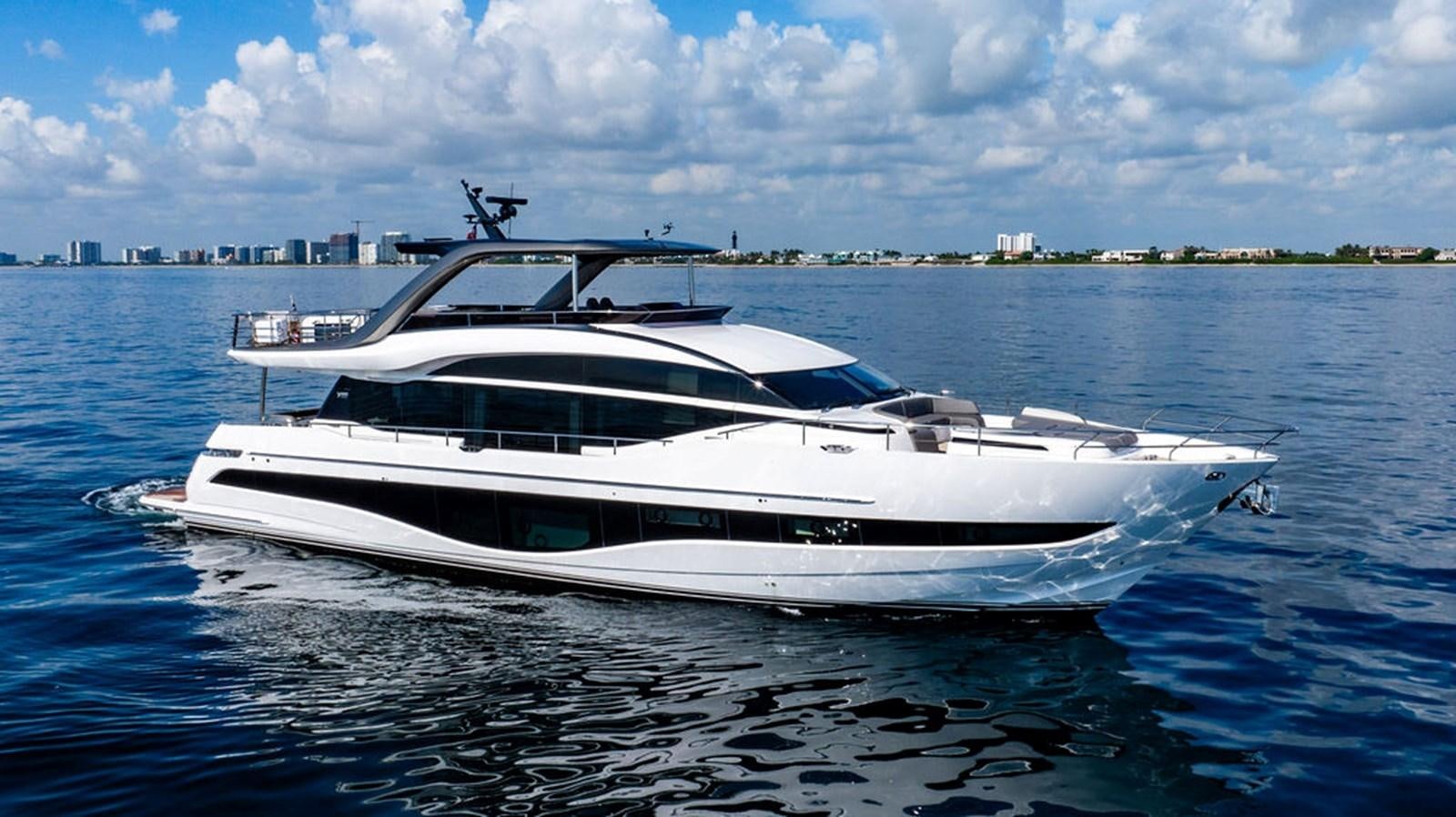

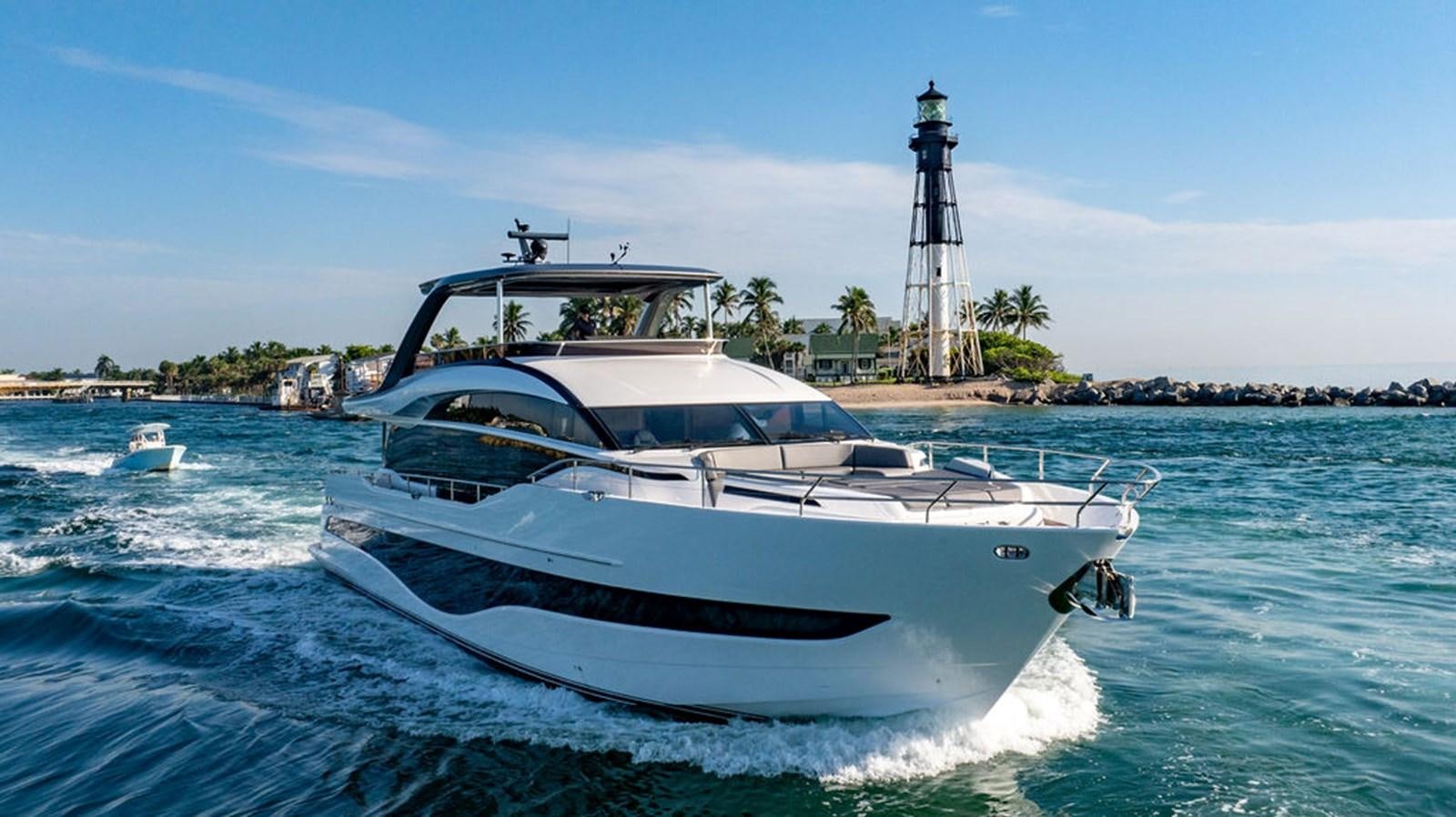

TBANK Yacht for Sale

PRINCIPAL DIMENSIONS

Length overall (incl. pulpit) 86ft 0in (26.2m)

Length overall (excl. pulpit) 84ft 6in (25.75m)

Beam 20ft 8in (6.3m)

Draft 5ft 9.5in (1.77m)

Displacement approx. 66,500kg (146,607 lbs)*

Fuel capacity 2420 gal/ 2905 US gal/ 11,000l

Water capacity (incl. calorifier) 330 gal/ 396 US Gal/1,500l

ENGINES

MAN V12-1900 (2 x 1900mhp) Speed range: 31-33 knots

DECK FITTINGS

• Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway, side decks and foredeck walkthrough

• Twin self-stowing 80kg/176lb and 50kg/110lbs Delta anchors with 100m and 70m of chain respectively

• Twin reversible hydraulic anchor winches with foredeck, main helm and flybridge controls

• Twin electric sternline mooring winches

• Stainless steel cleats, fairleads and handrails

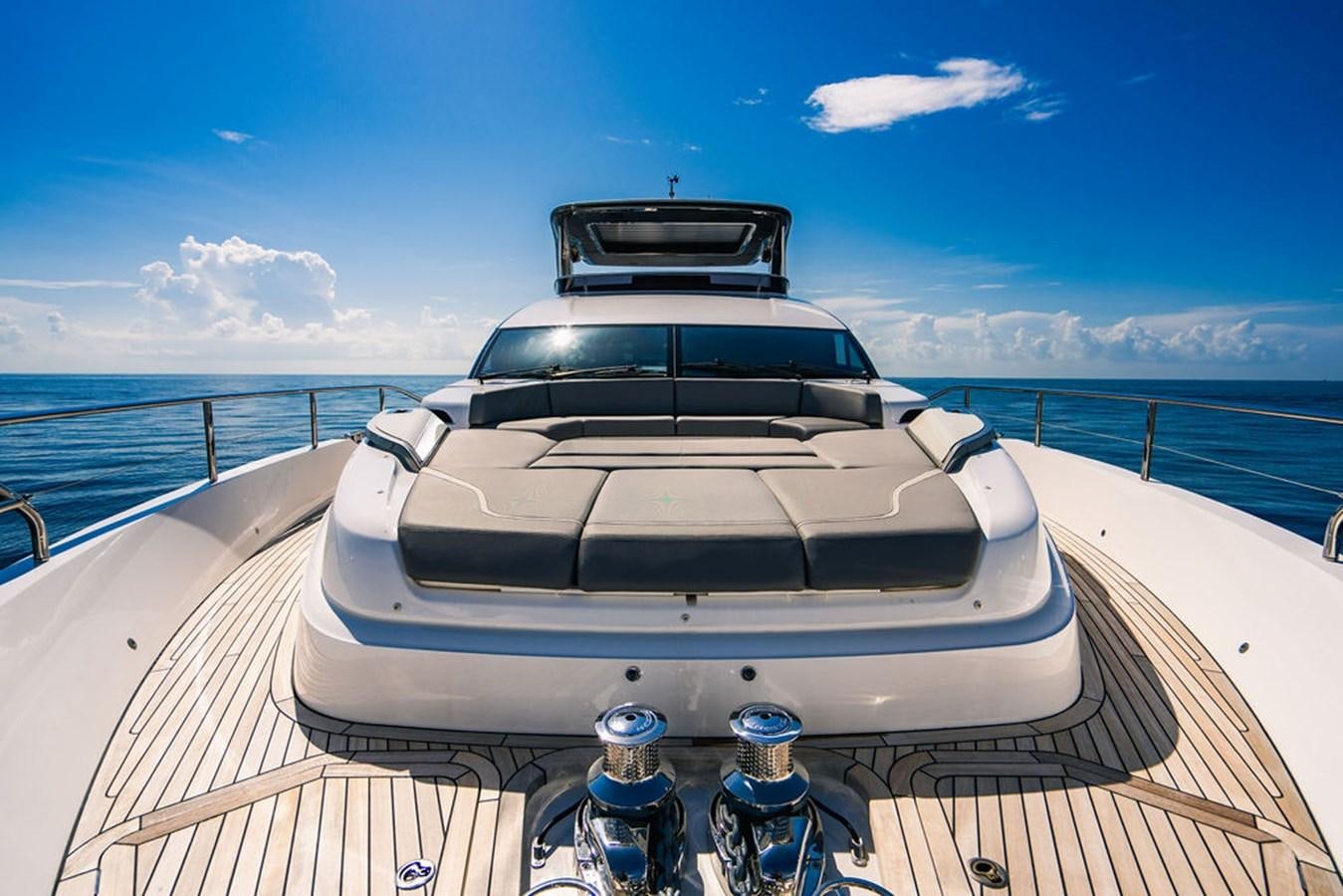

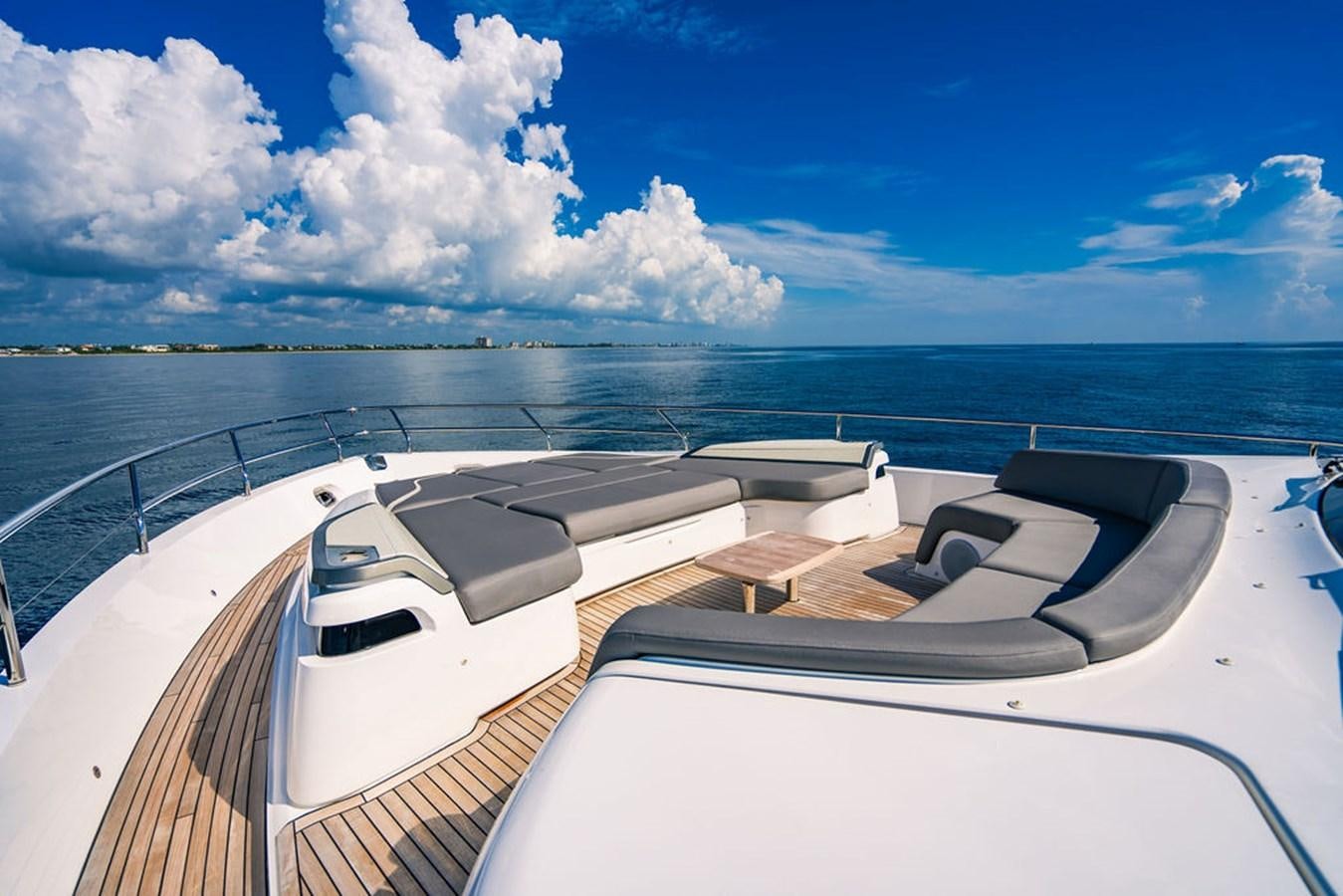

• Foredeck seating and sunbathing area

• Storage lockers for rope, fenders and foredeck sunbed cushions

• Telephone connection point

• Stern docking lights

• LED deck level lighting

• Freshwater deck/anchor wash

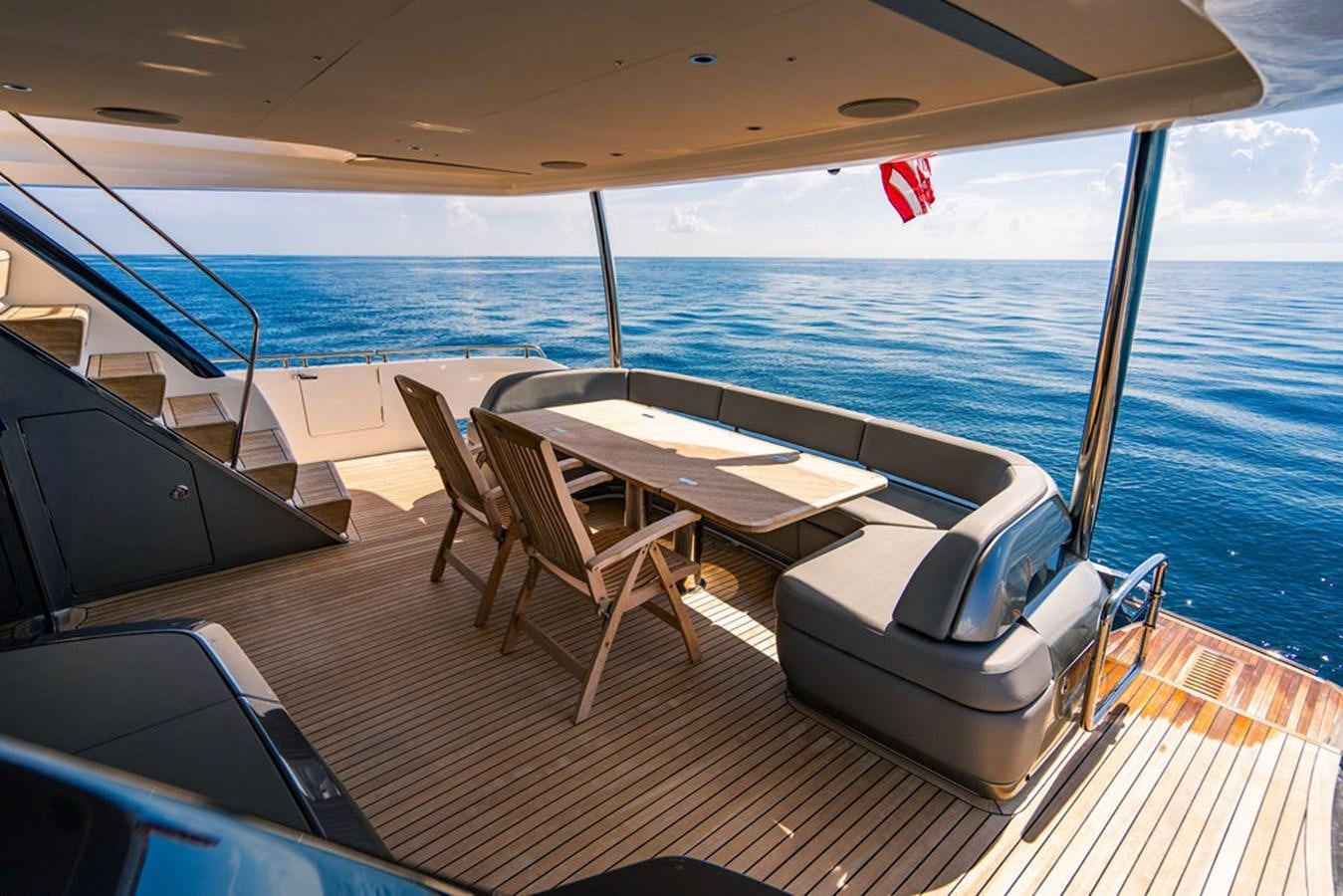

COCKPIT

• U-shaped seating with teak folding table

• Twin transom gates leading to bathing platform with electro-hydraulic raise/lower mechanism, foldaway swimming ladder, hot and cold shower

• Door leading to crew quarters and engine room from side deck

• Transom doors giving direct access to lazarette and crew area

• Remote control 4.4m telescopic passerelle with folding handrail

• Cockpit cover

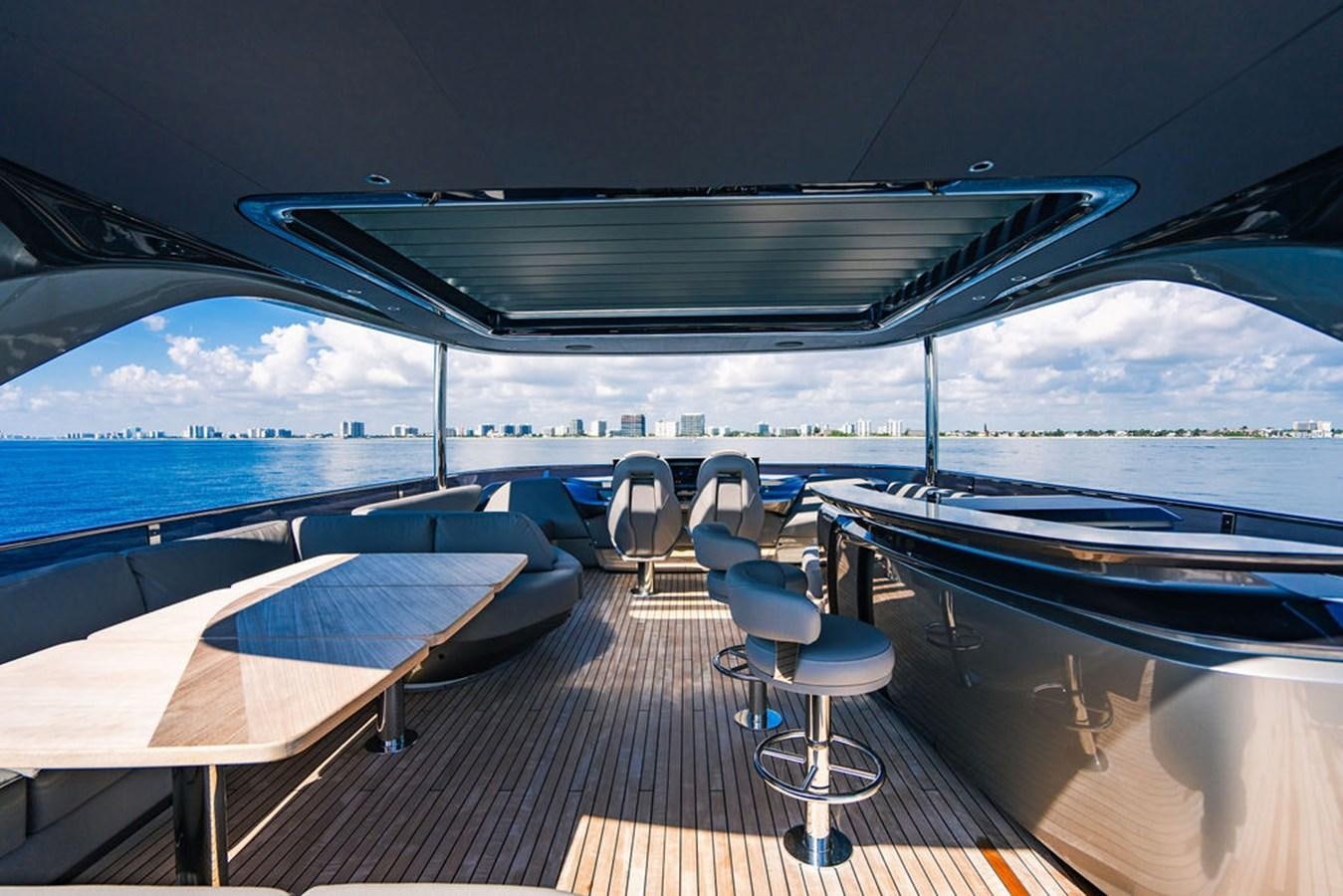

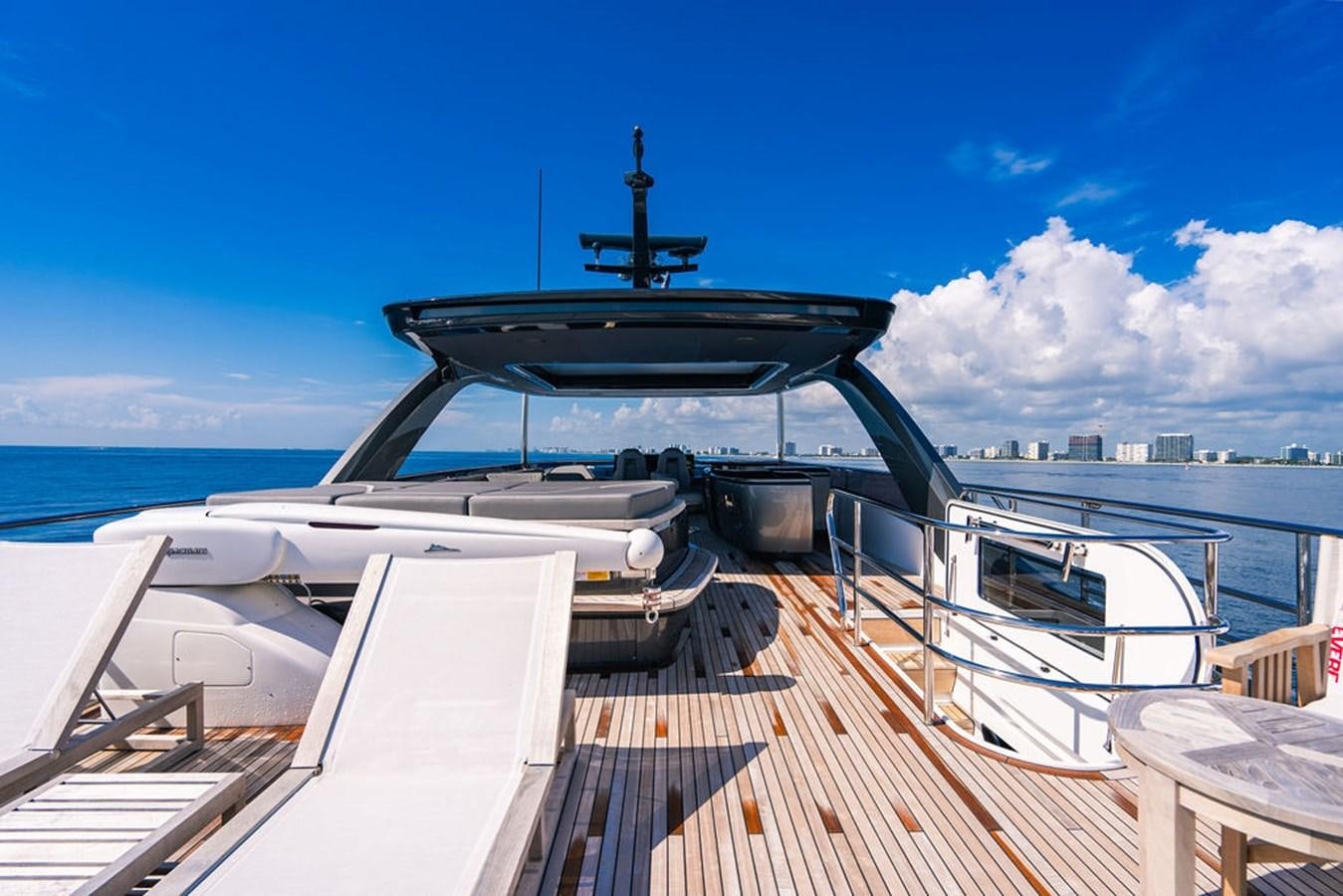

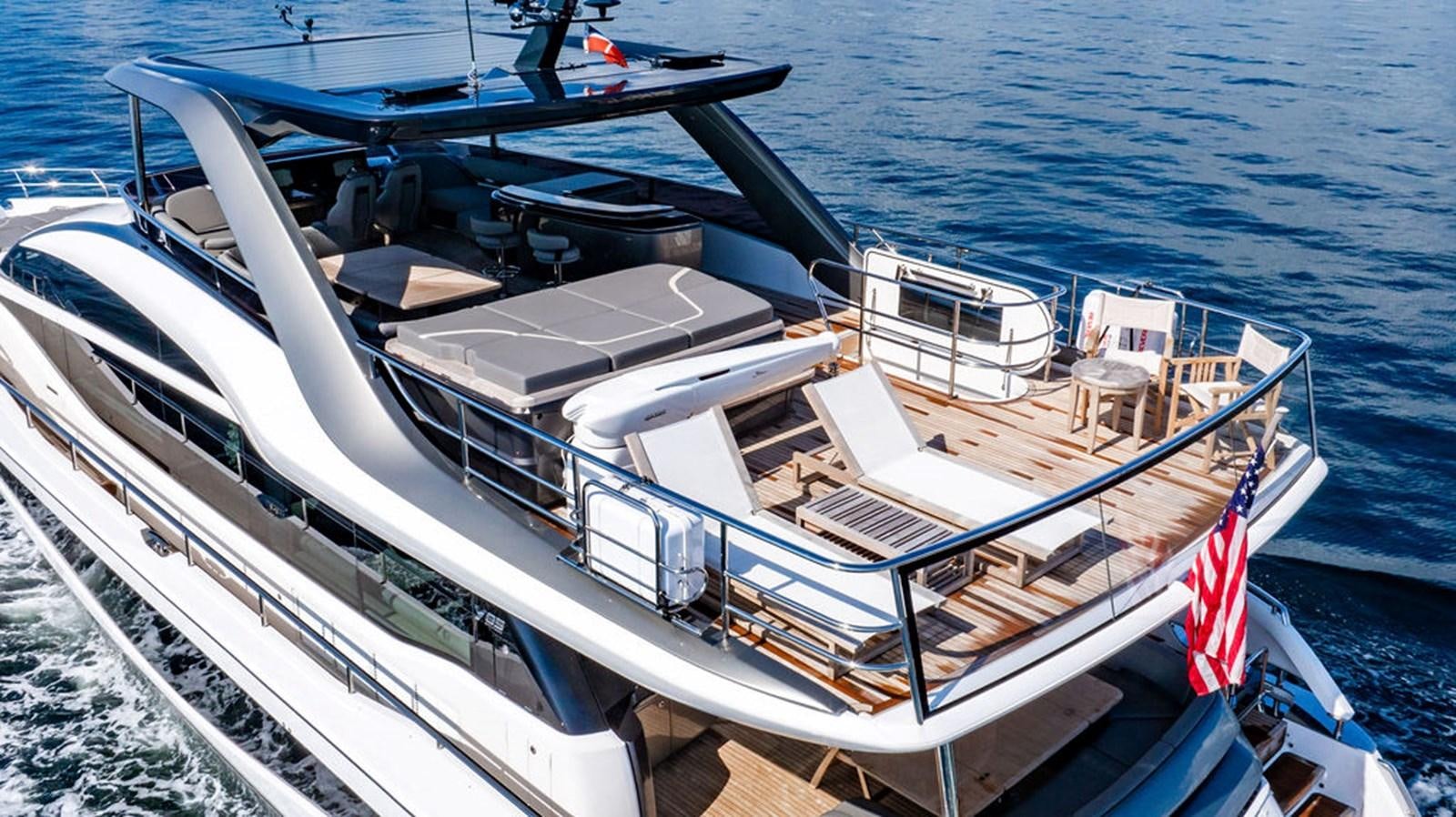

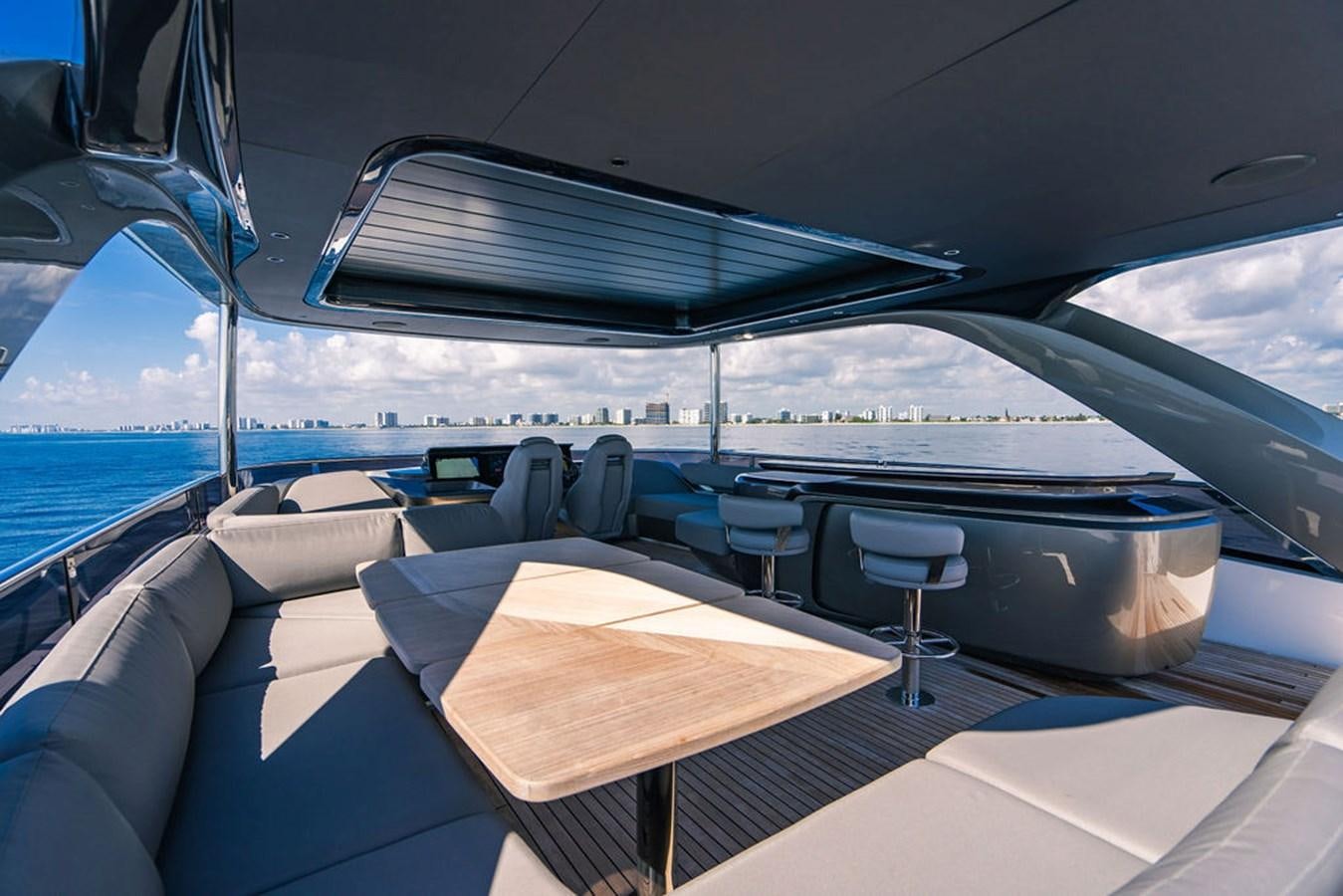

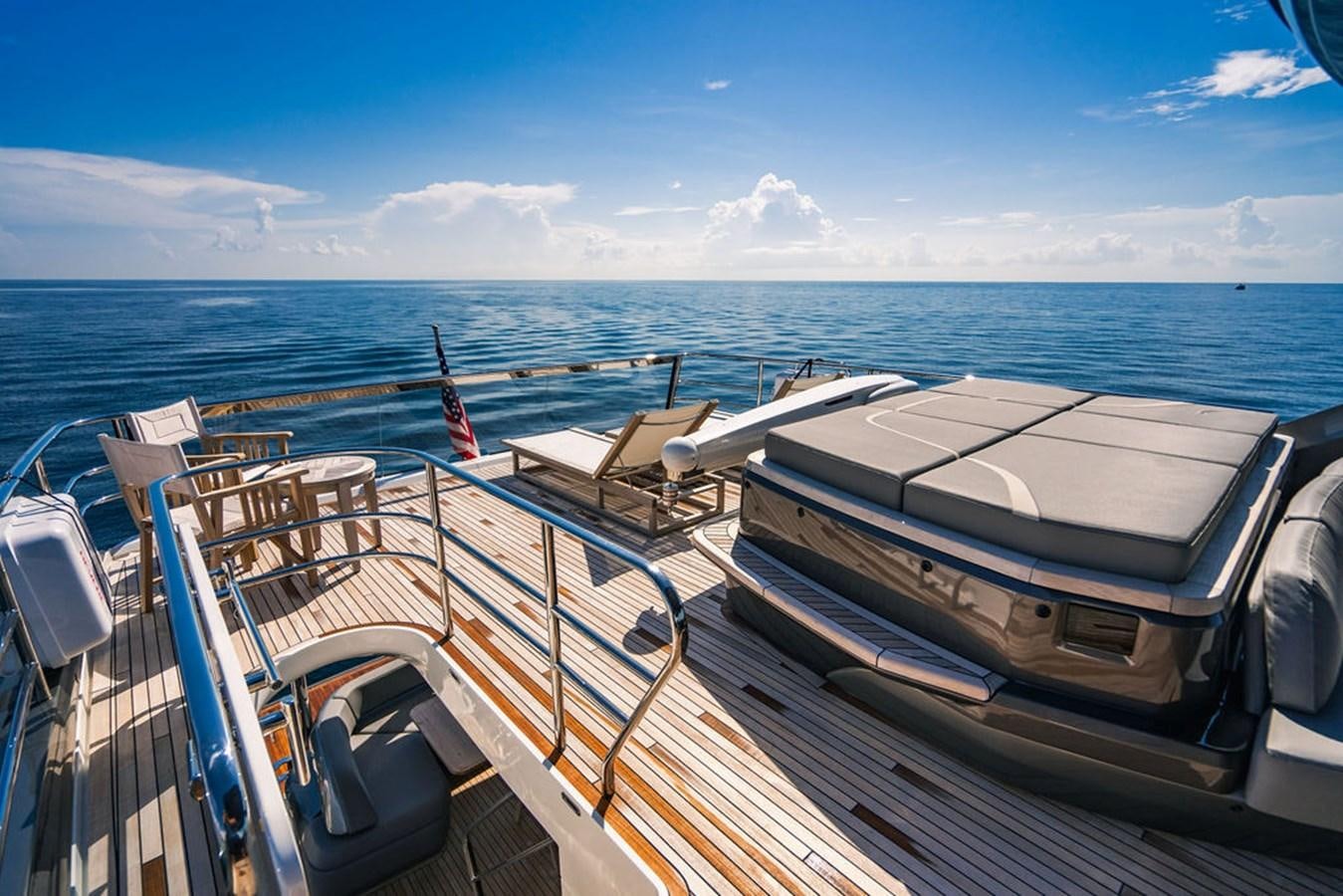

FLYBRIDGE

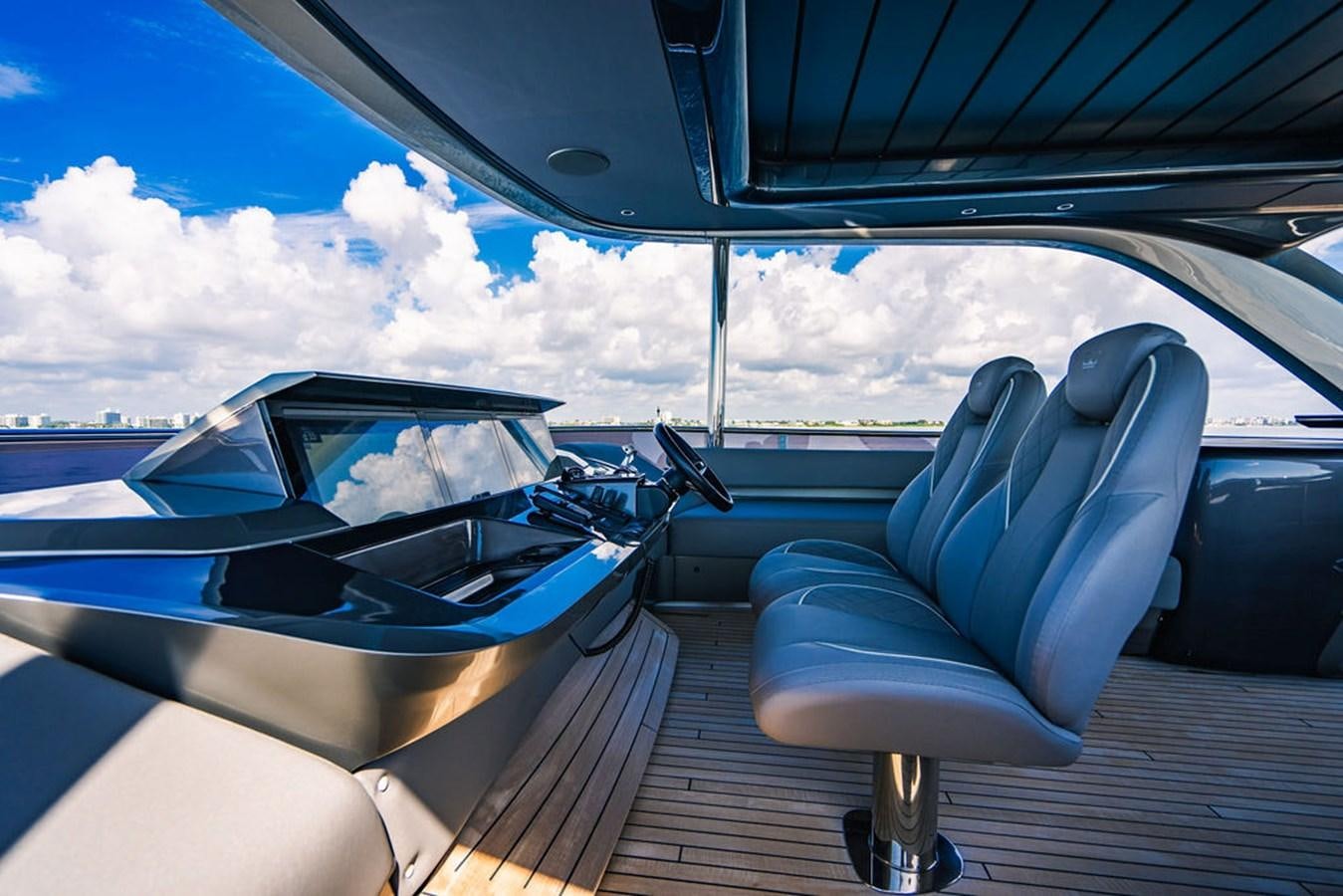

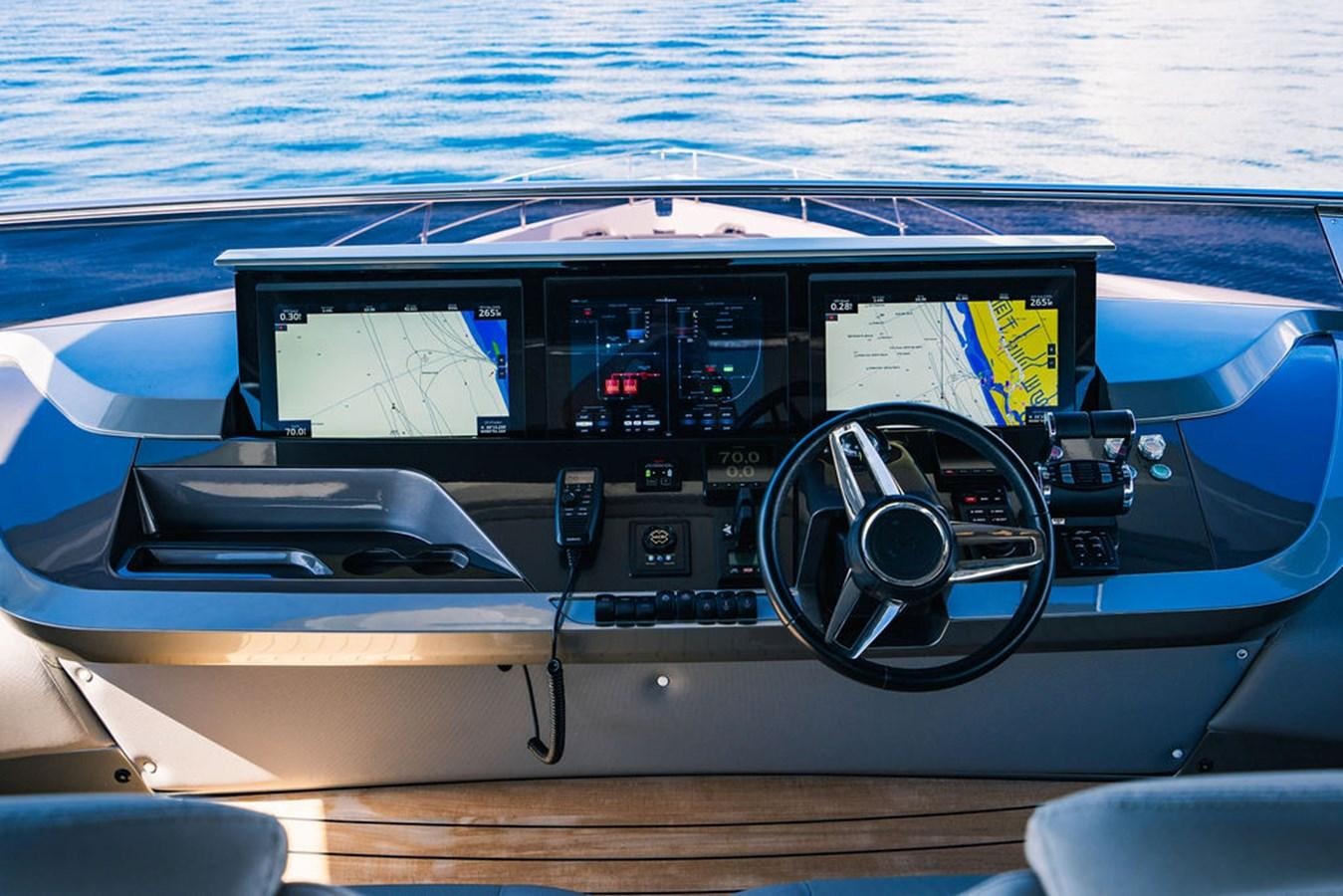

• Helm position with powered raise/lower console, repeat navigation equipment including radar/ chartplotter and engine instrumentation

• Twin adjustable helm seats

• U-shaped seating area with folding teak table

• Twin forward facing L-shaped seating

• Sunpad with storage below (option for built-in spa bath)

• Naim audio system with waterproof speakers (2)

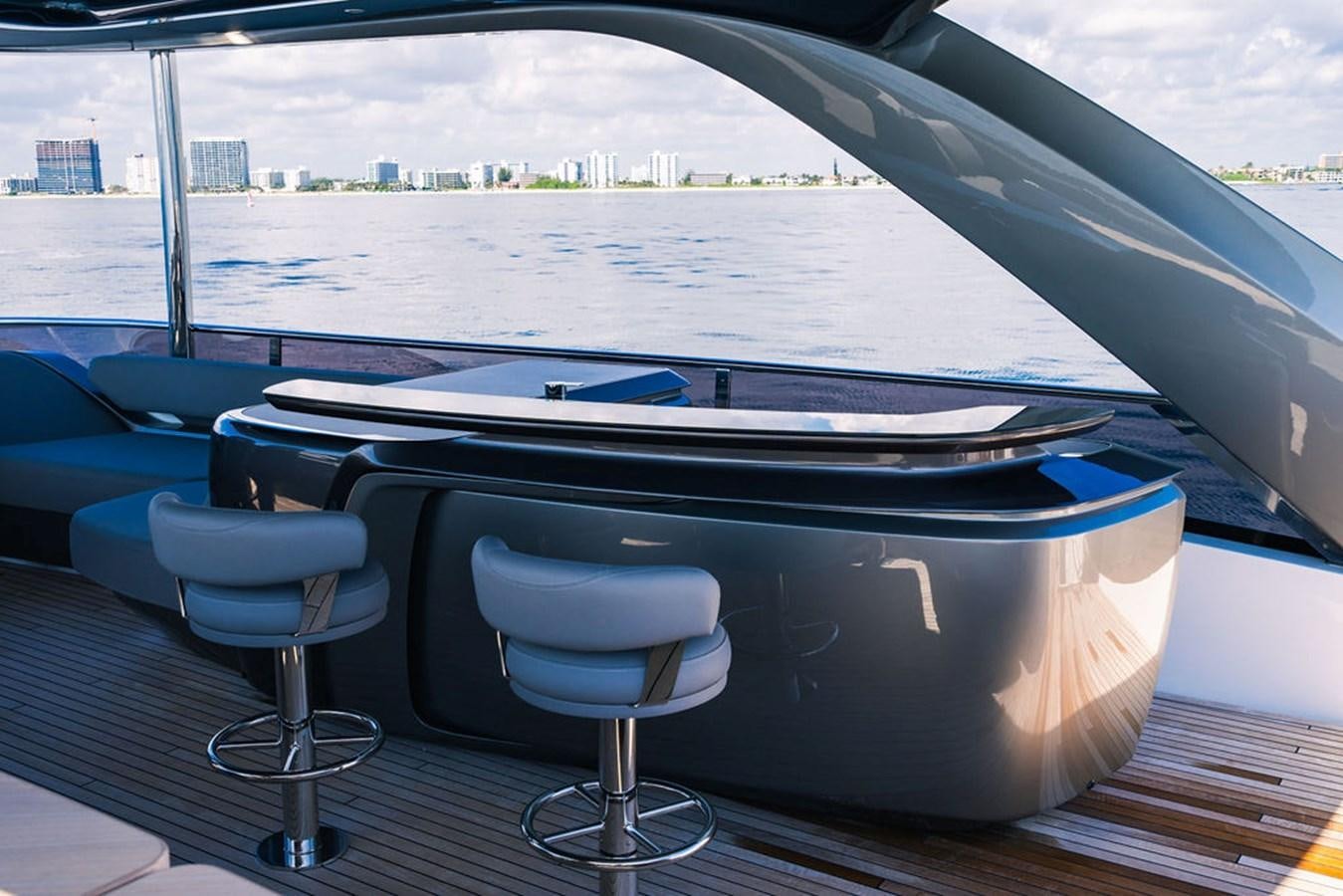

• Wetbar including sink with electric barbecue and drawer refrigerator

• Optional crane (550 kg SWL) • Life raft storage

• Console and seat covers

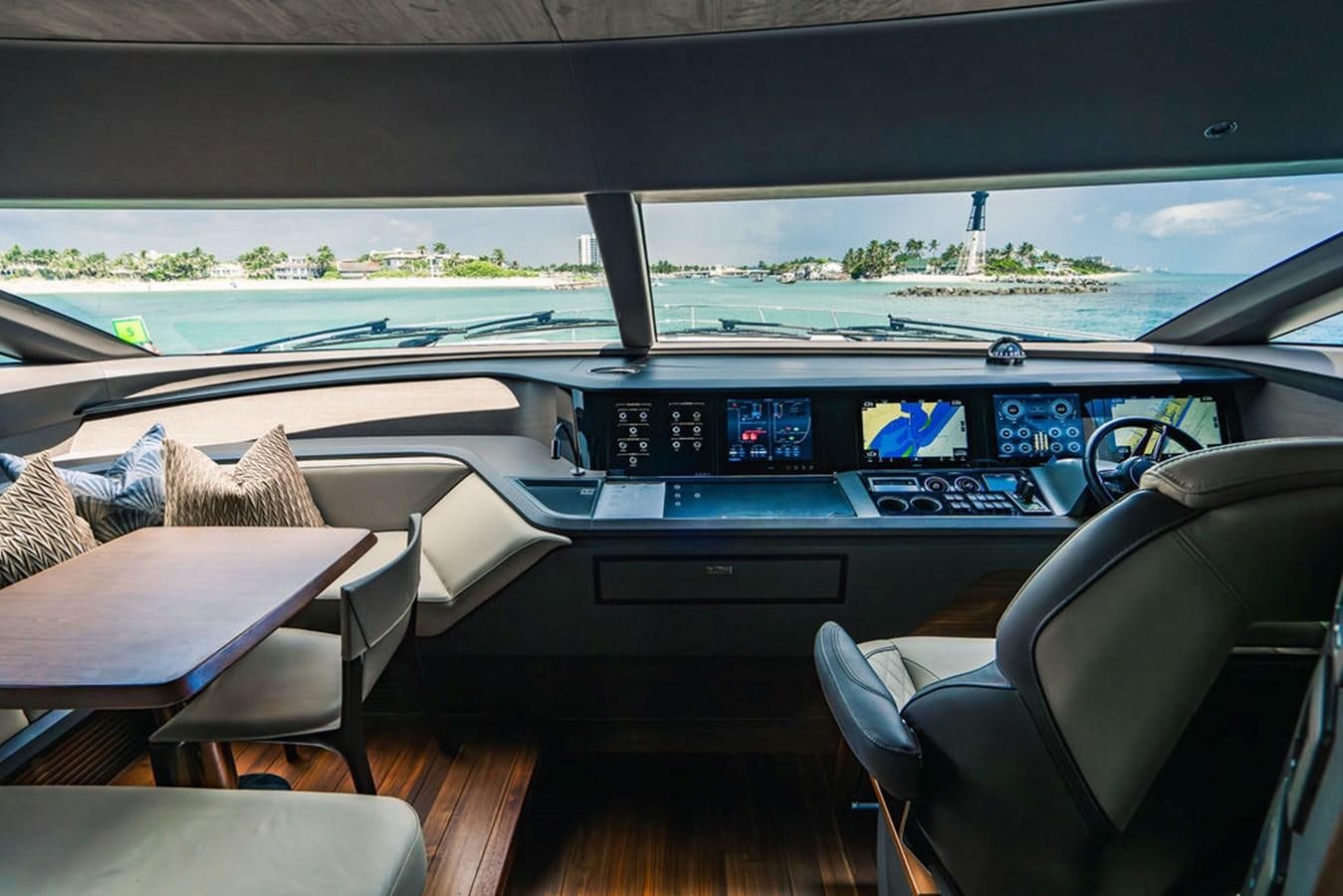

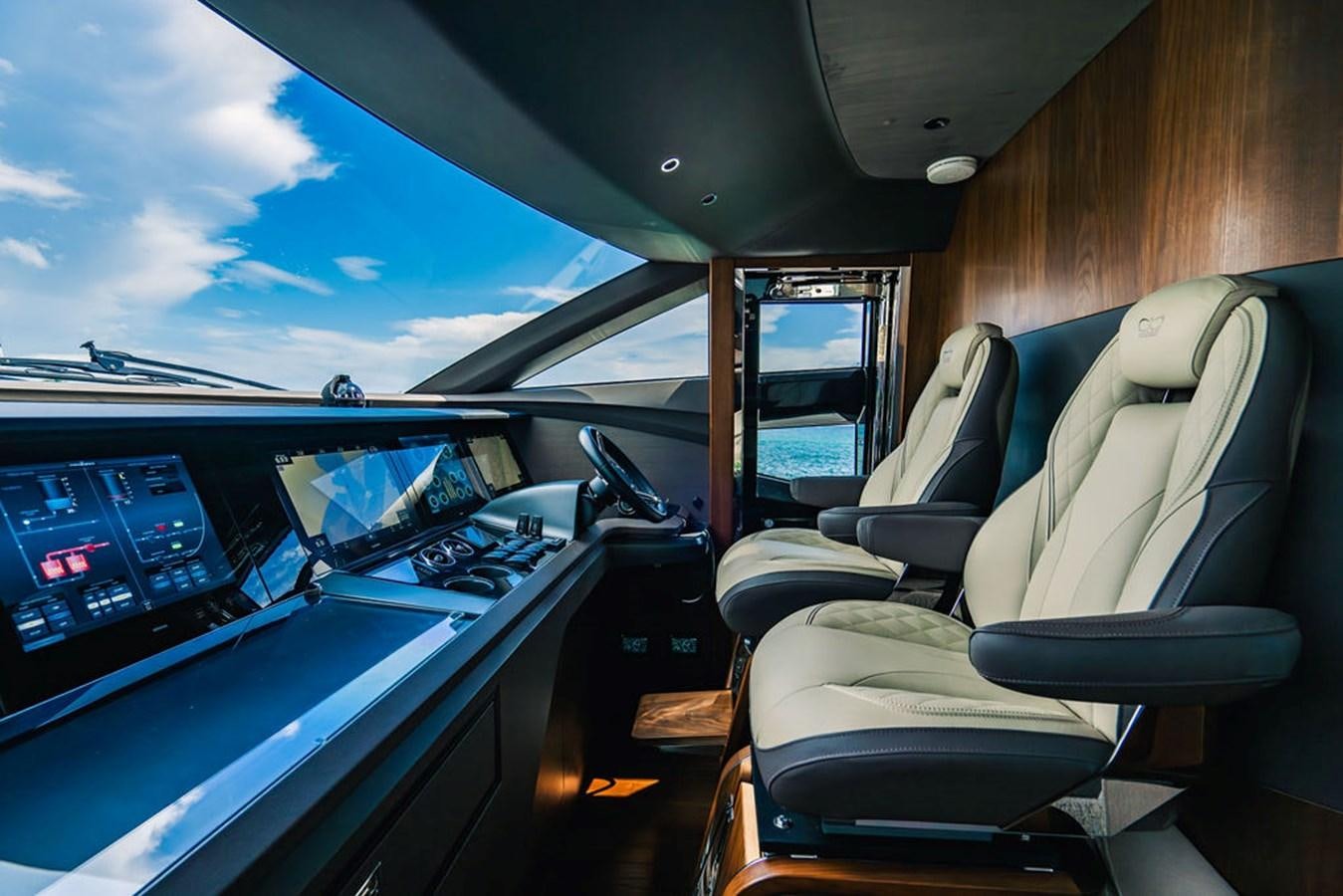

WHEELHOUSE

• Twin helm seats with electric adjustment for helmsman

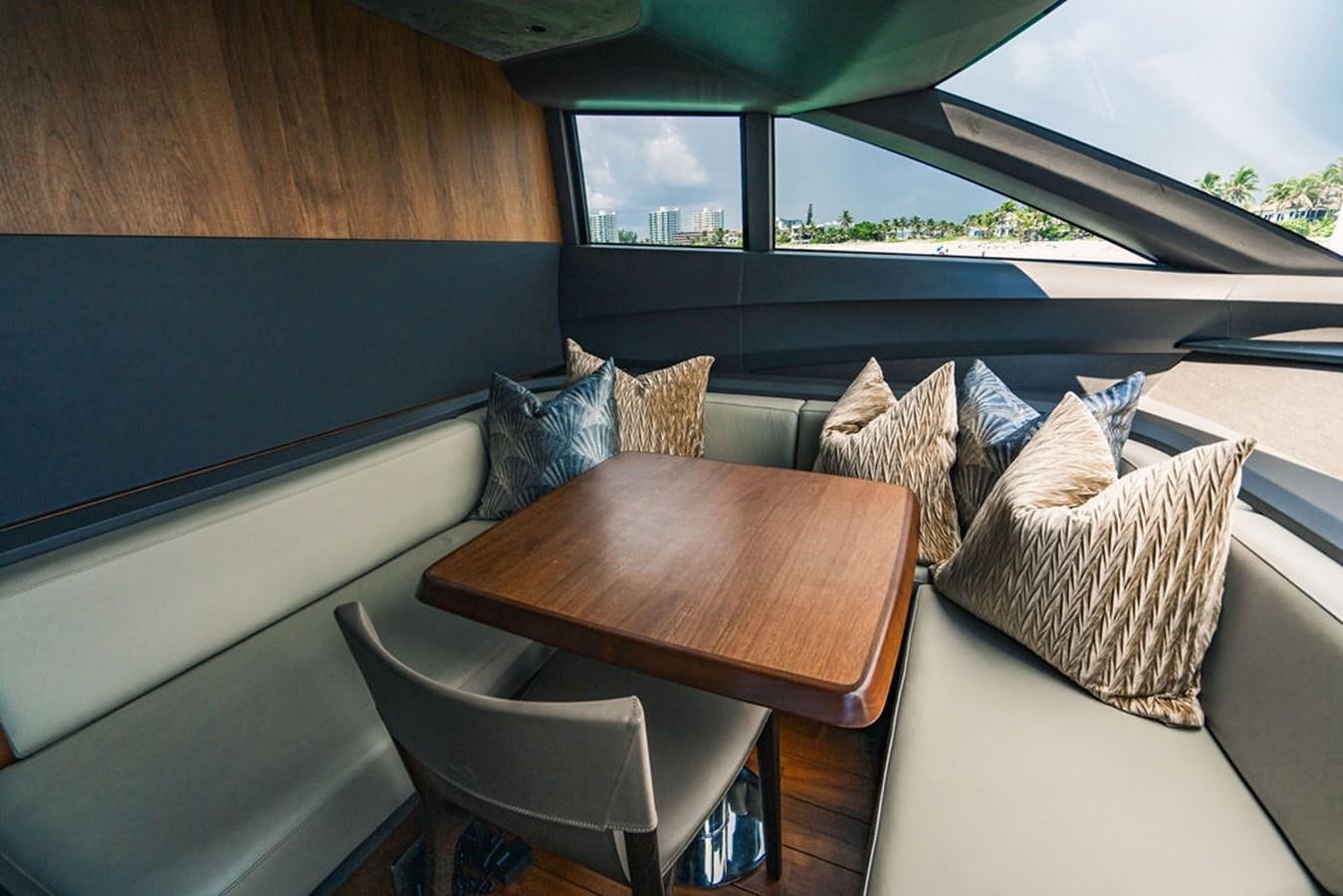

• U-shaped seating with table to port

• Helmsman’s door to side deck and electric opening window to port

• Full engine instrumentation including fuel gauges, exhaust temperature, fuel contamination alarms, rudder position indicator

• Navigation system including colour radar, GPS and chartplotter (2 displays), VHF/RT, speed and distance log, echo sounder with alarm, autopilot and high speed magnetic compass

• Controls for bow thruster, windscreen wipers, bilge pump and trim tabs (with indicator) • Intercom to flybridge • Automatic foghorn with loudhailer

• Chart storage

• 24v control panel

• Red night lighting

• Toughened glass screen (clear for night vision)

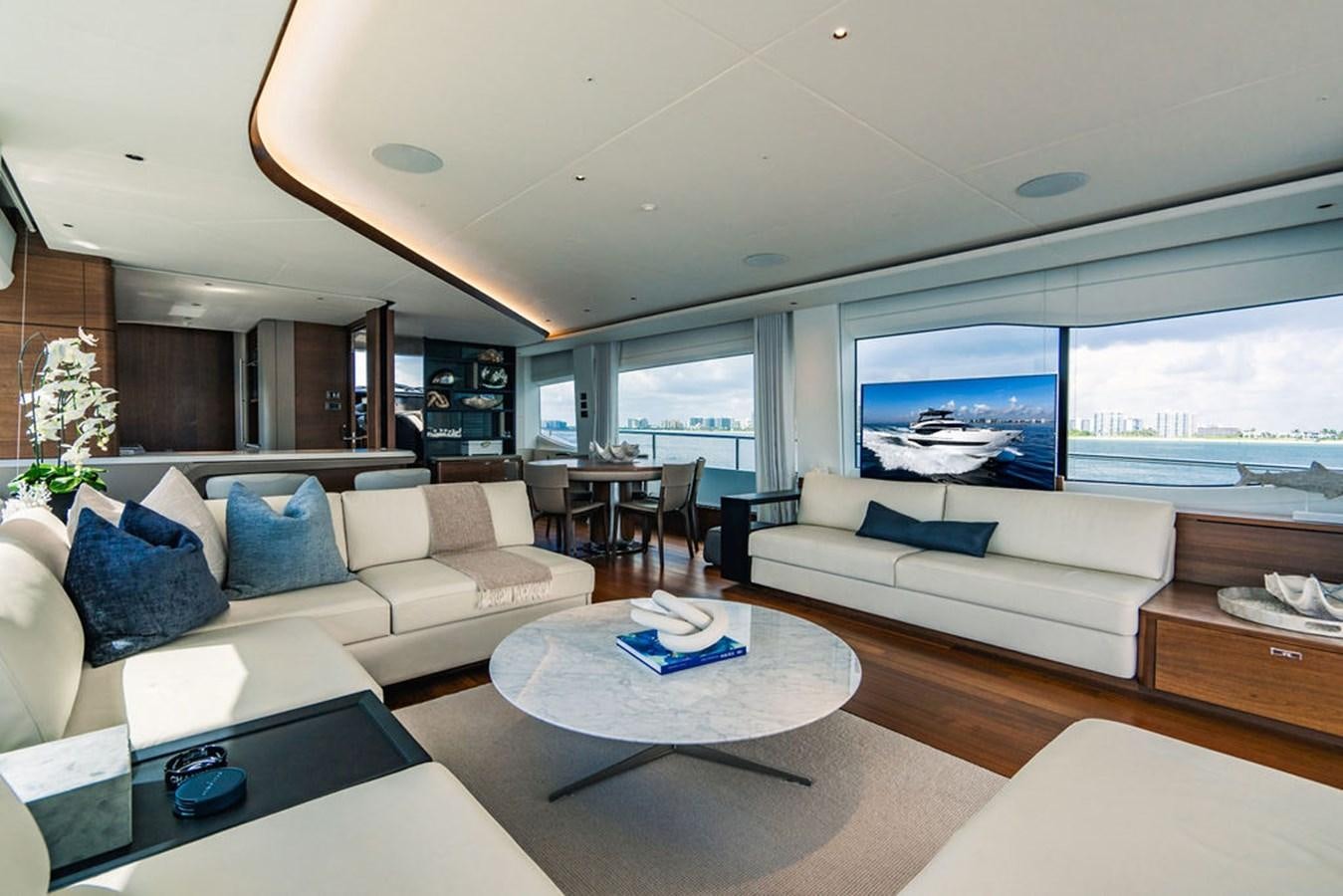

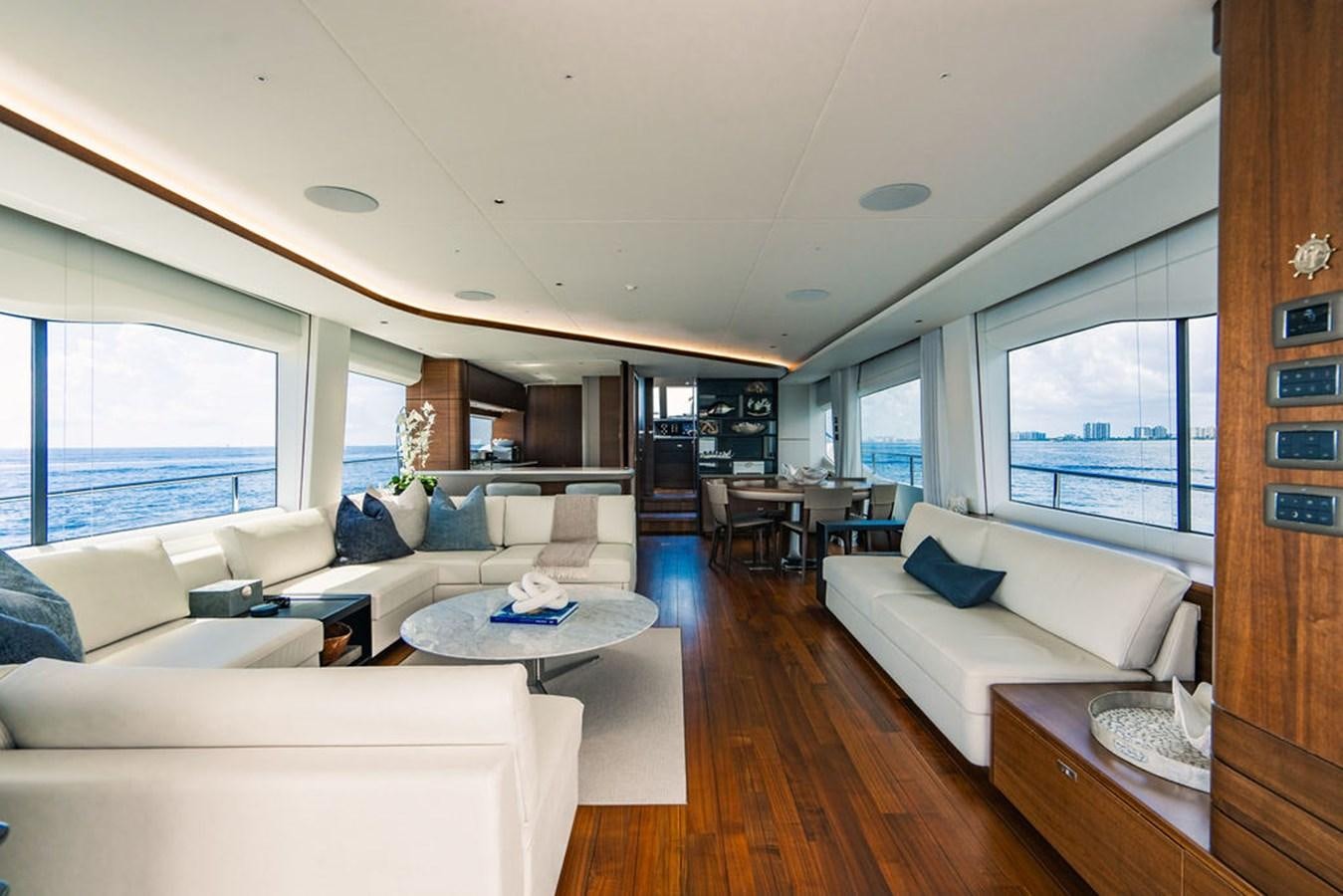

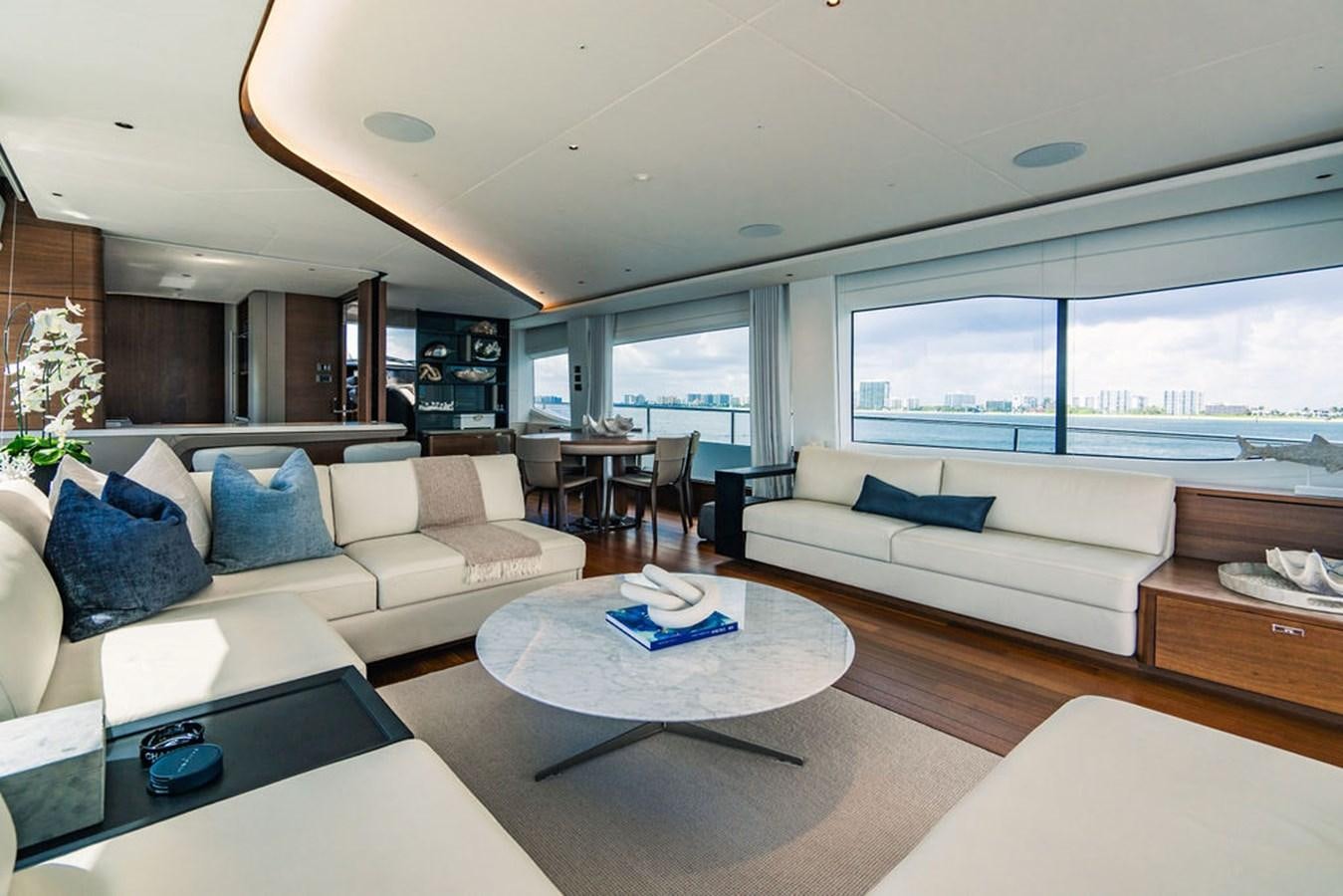

DECK SALOON

• Twin L-shaped seating area with two-seater sofa and coffee table

• Entertainment centre incorporating 55” UHD LED TV on electric raise/lower mechanism with Naim audio system and ceiling mounted speakers (4)

• Sideboard unit with bottle and glass storage and refrigerator

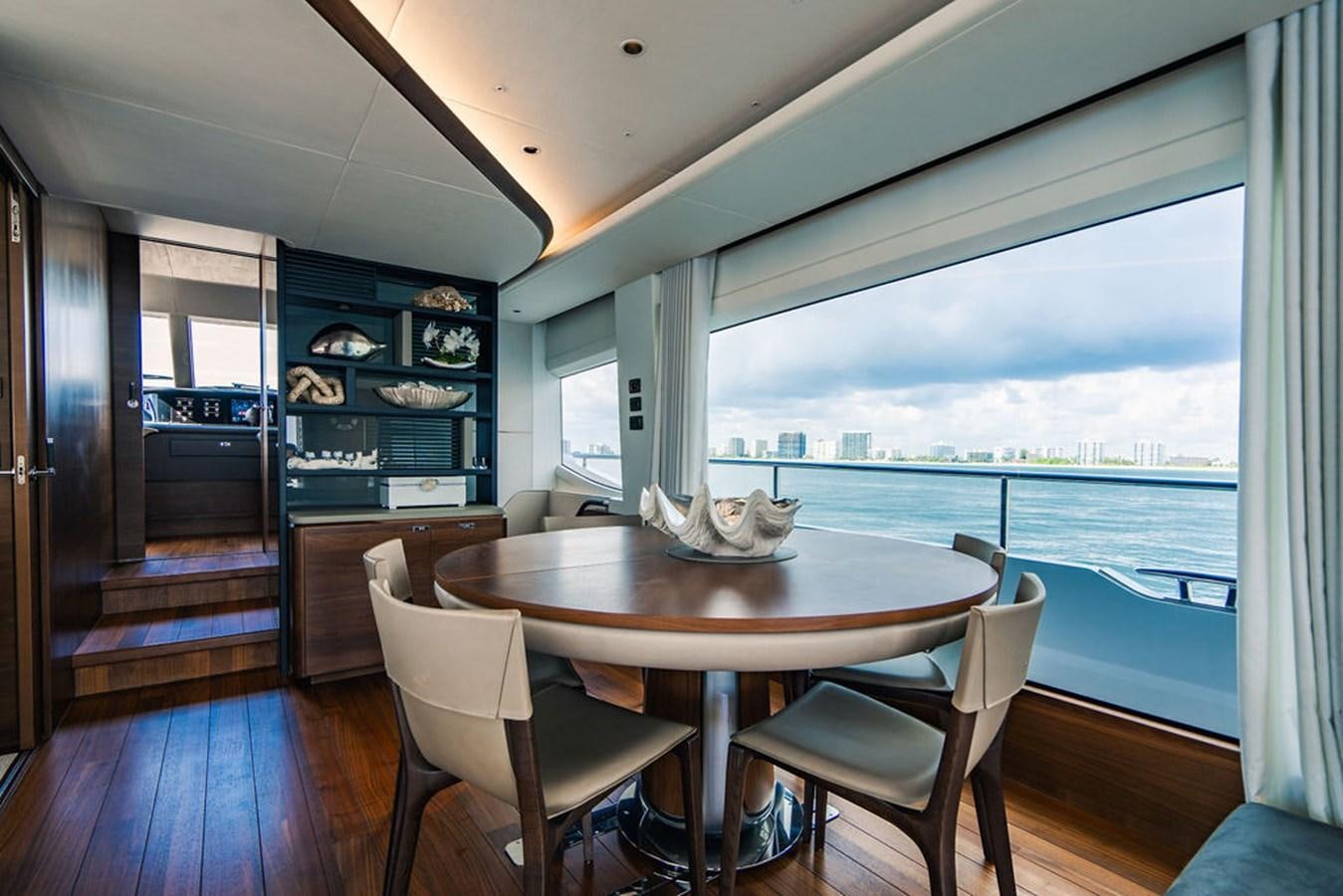

• Dining area (8 people) with full-height panoramic window

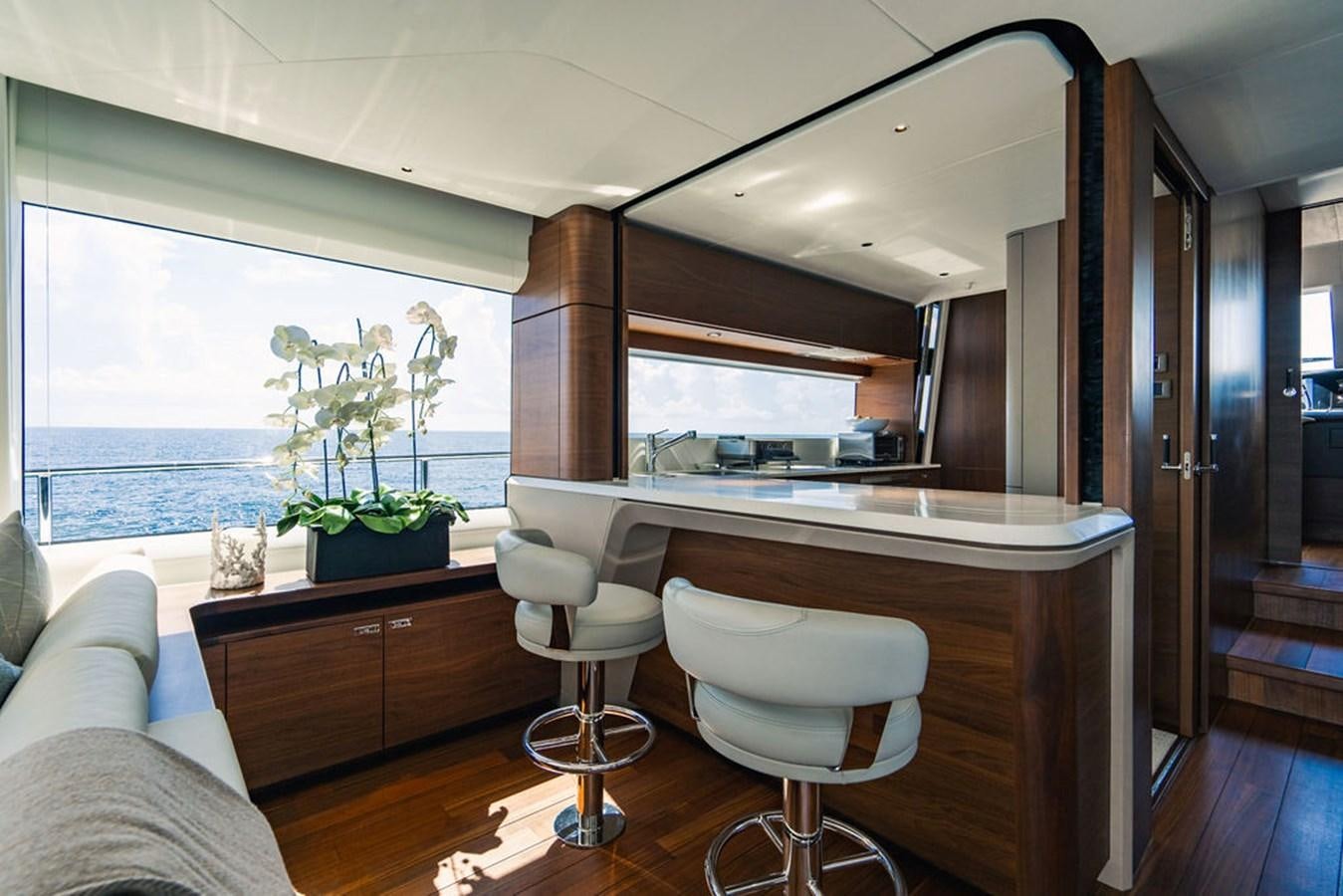

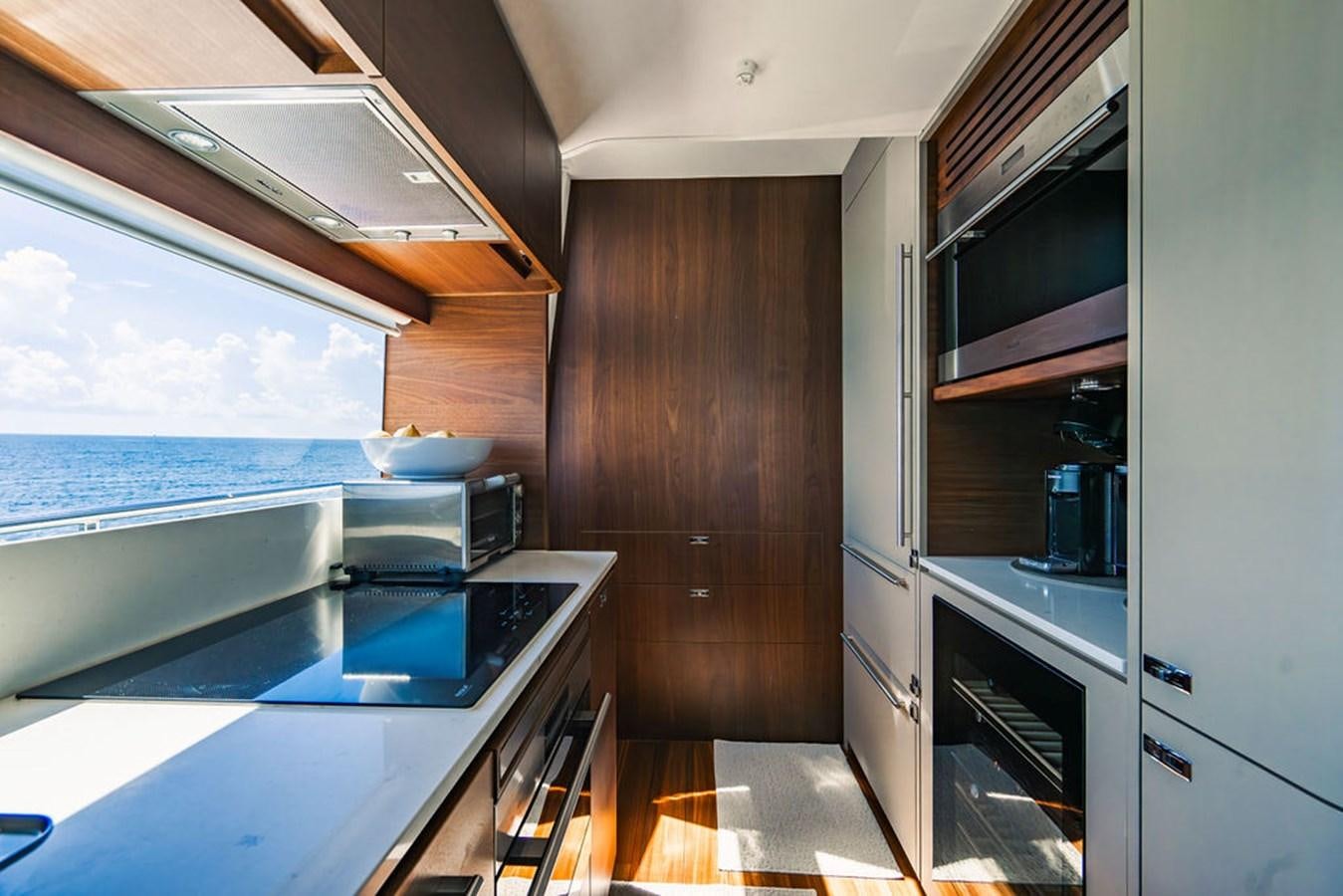

• Day head GALLEY

• 4-zone induction hob

• Combination microwave/convection oven with grill

• Twin stainless steel sinks with mixer tap

• Full-height refrigerator/deep freeze

• Icemaker

• Dishwasher

• Storage lockers, cupboards and drawers

• Access door to side deck

• Electrically operated sliding screen to fully enclose galley

ACCOMMODATION

• All cabins and bathrooms feature opening portholes and air conditioning outlets

• All cabins feature 110V power points

• All mattresses are pocket sprung

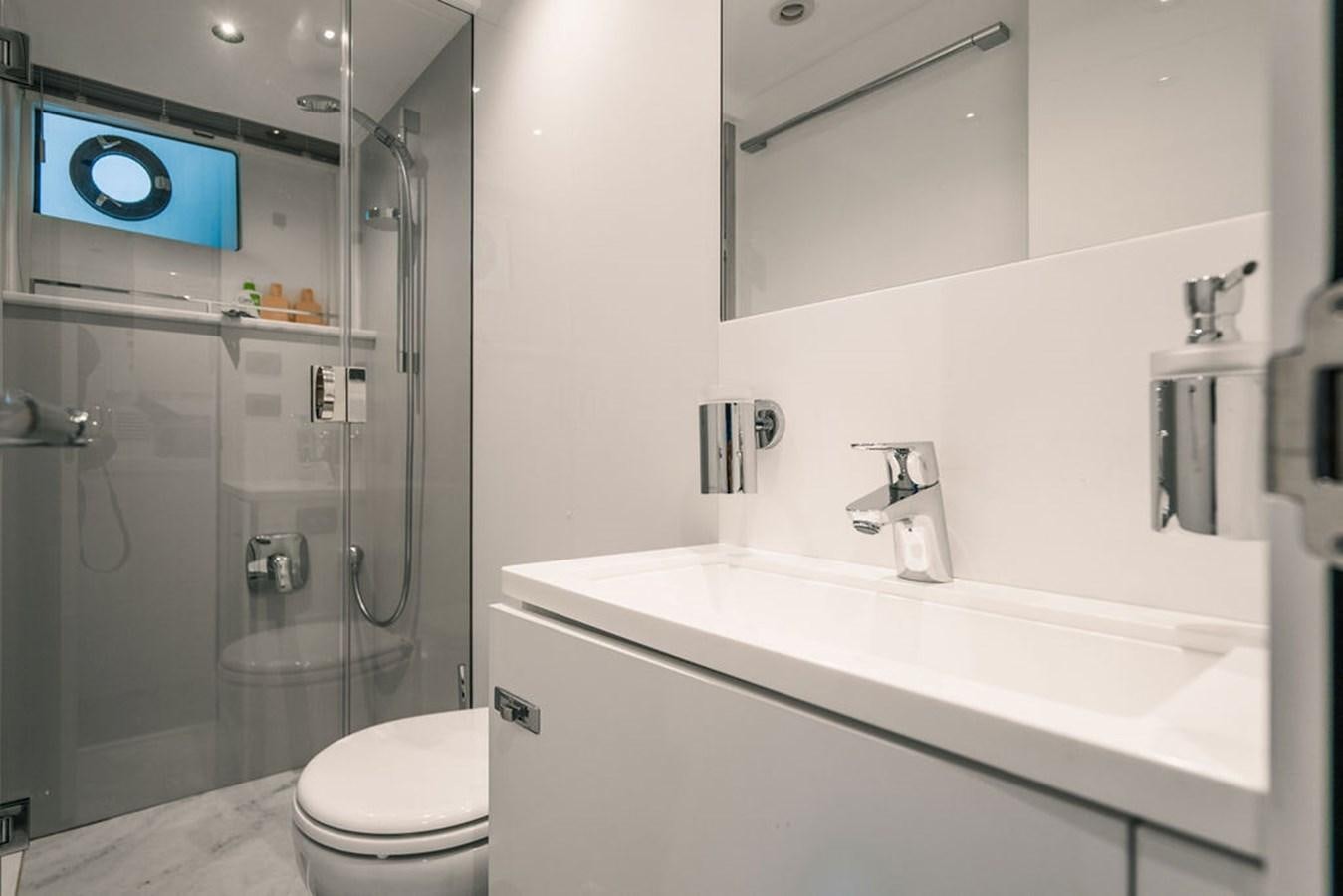

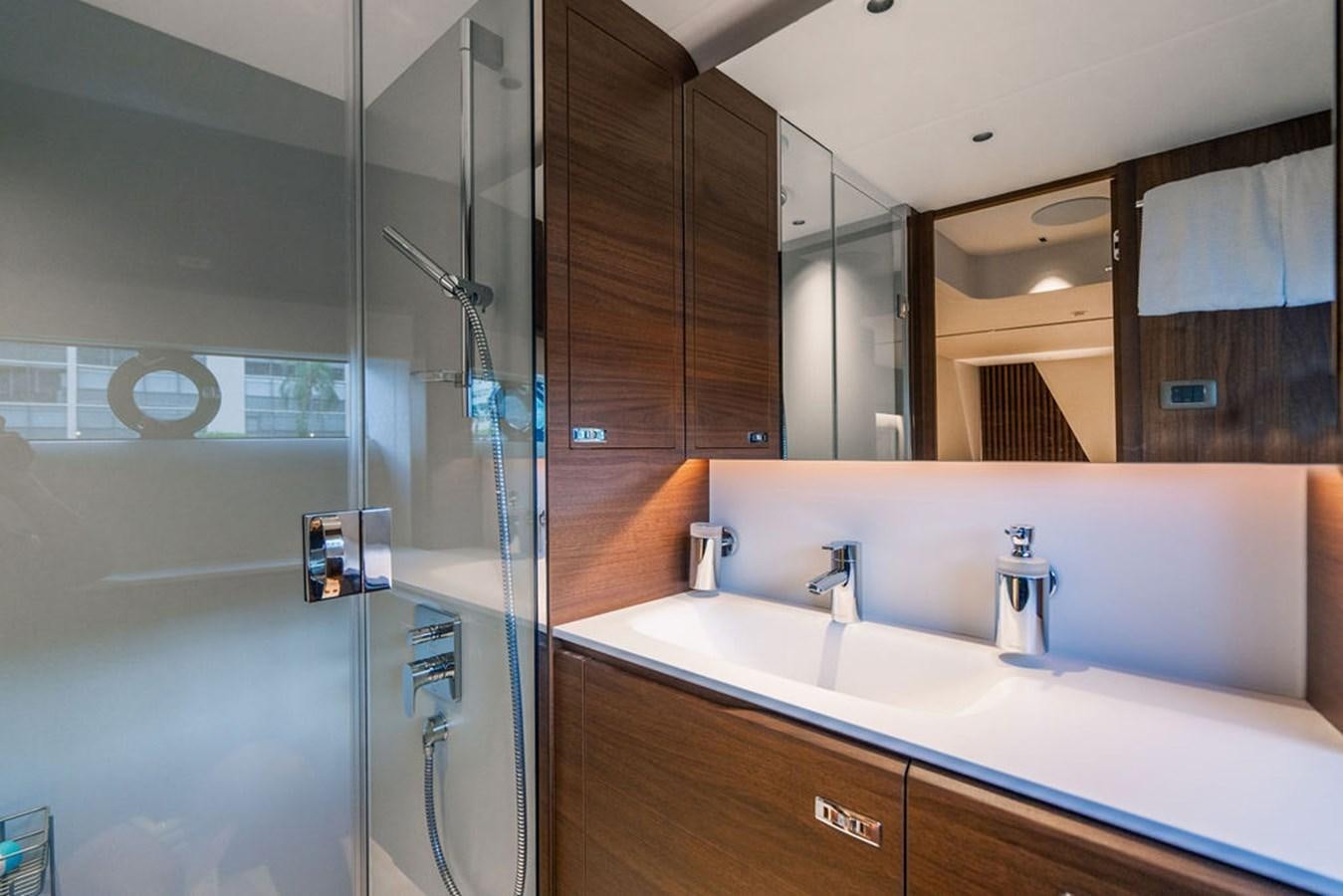

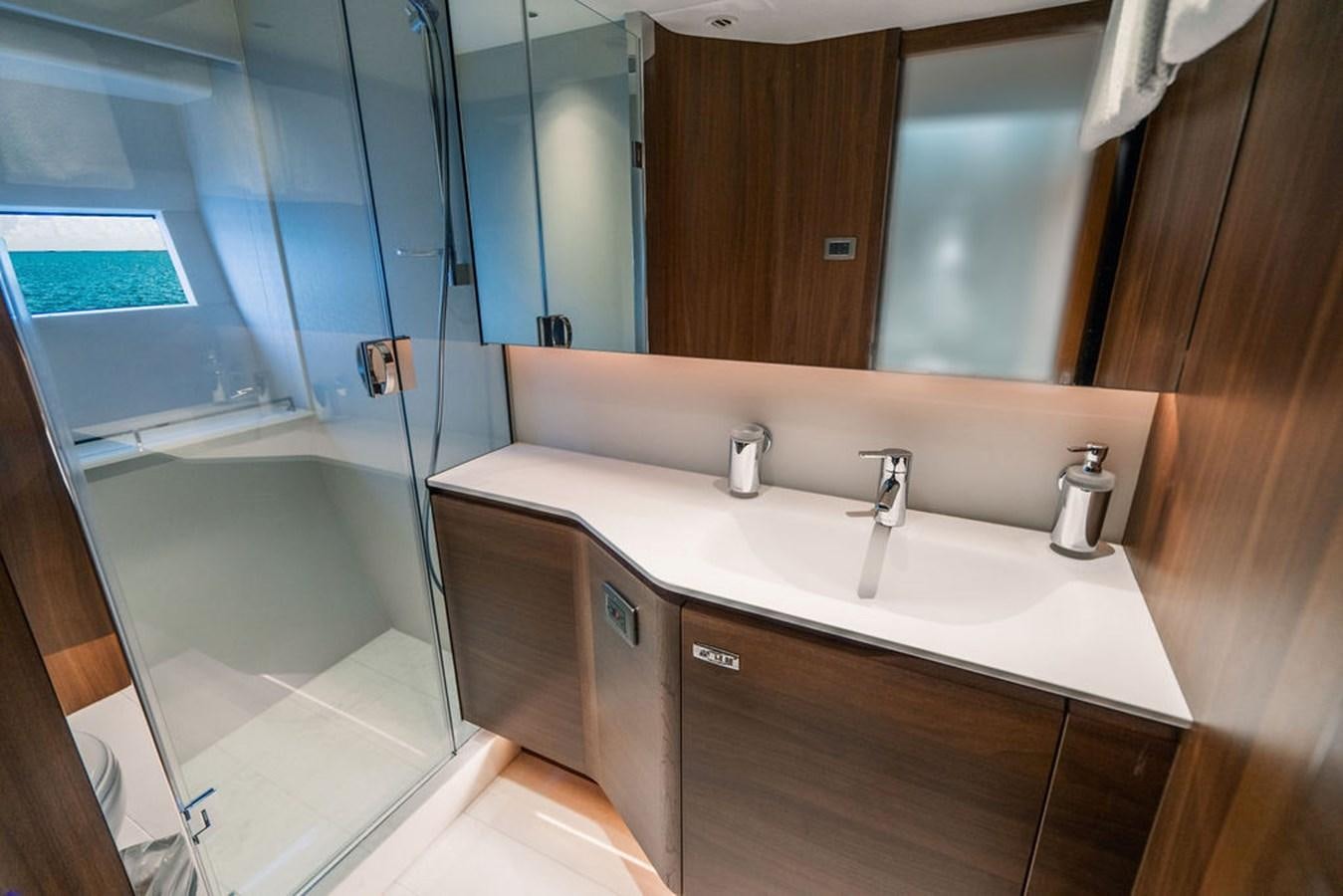

• All bathrooms feature full shower stalls, electric freshwater toilets, and extractor fan

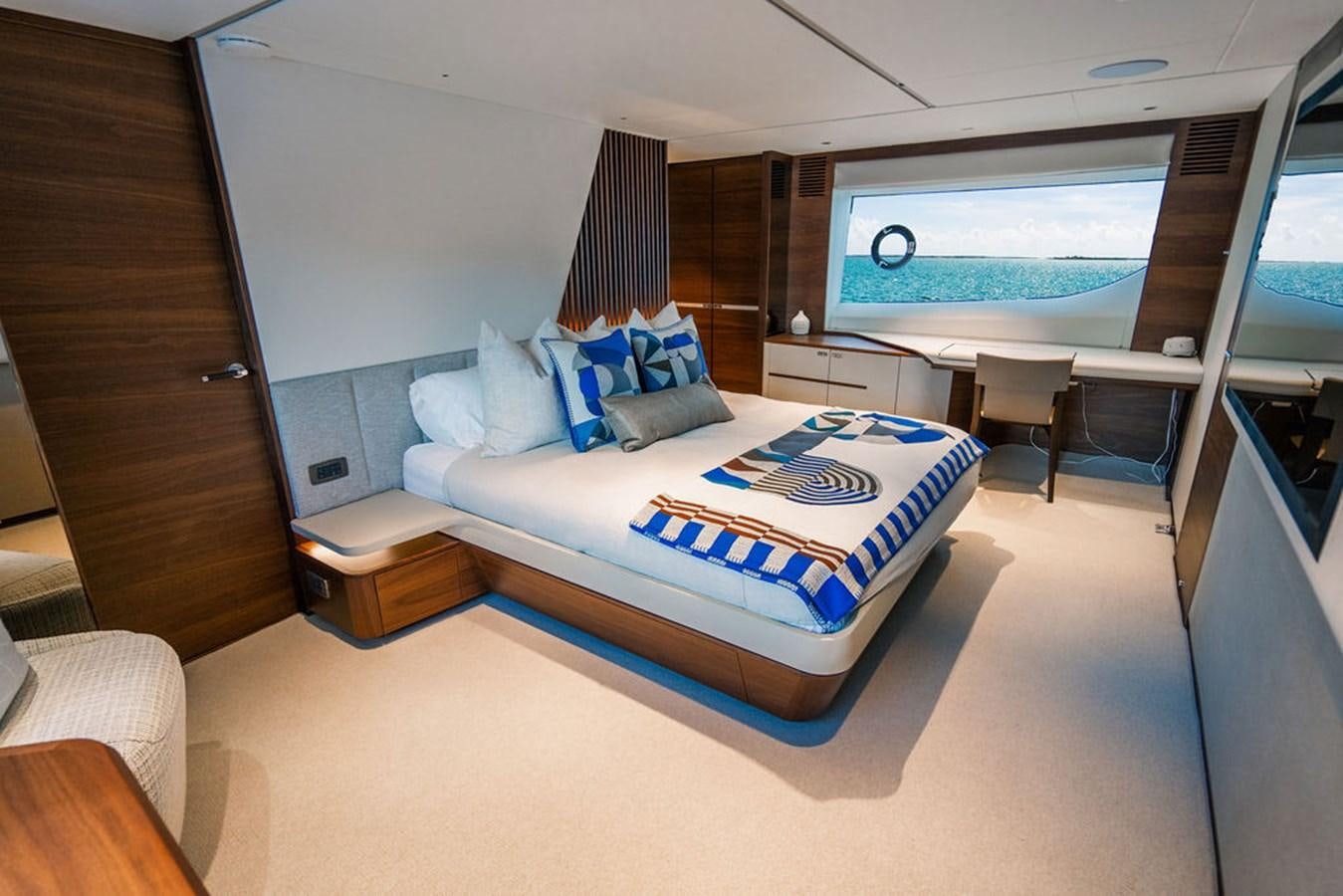

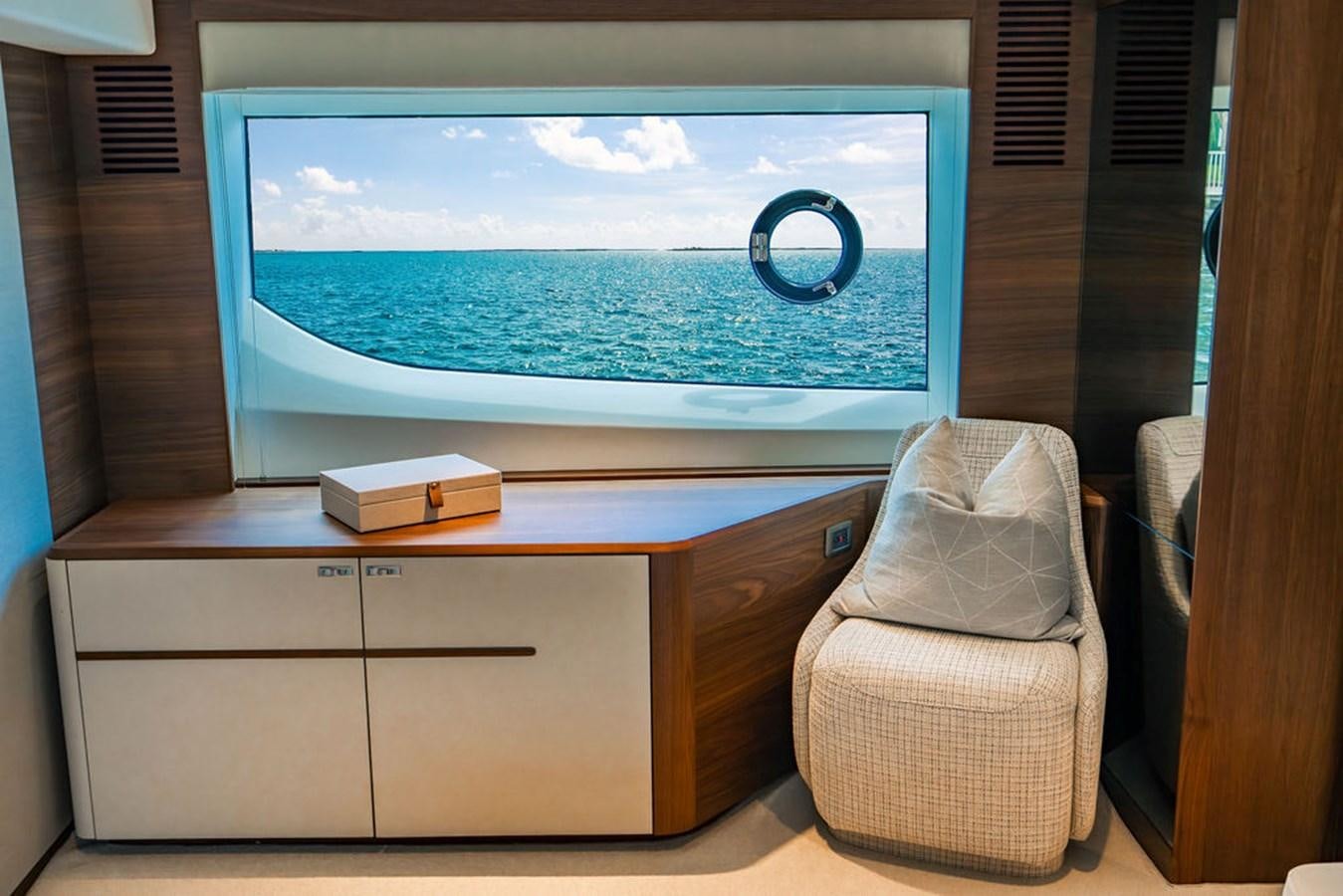

OWNERS STATEROOM

• Large double bed with bedside tables and drawers below

• Dressing area with wardrobes with hanging and drawer storage

• Dressing table with chair

• Occasional table with seats fore and aft

• Built-in safe • 55” UHD LED TV with Naim audio system with speakers (2) and subwoofer

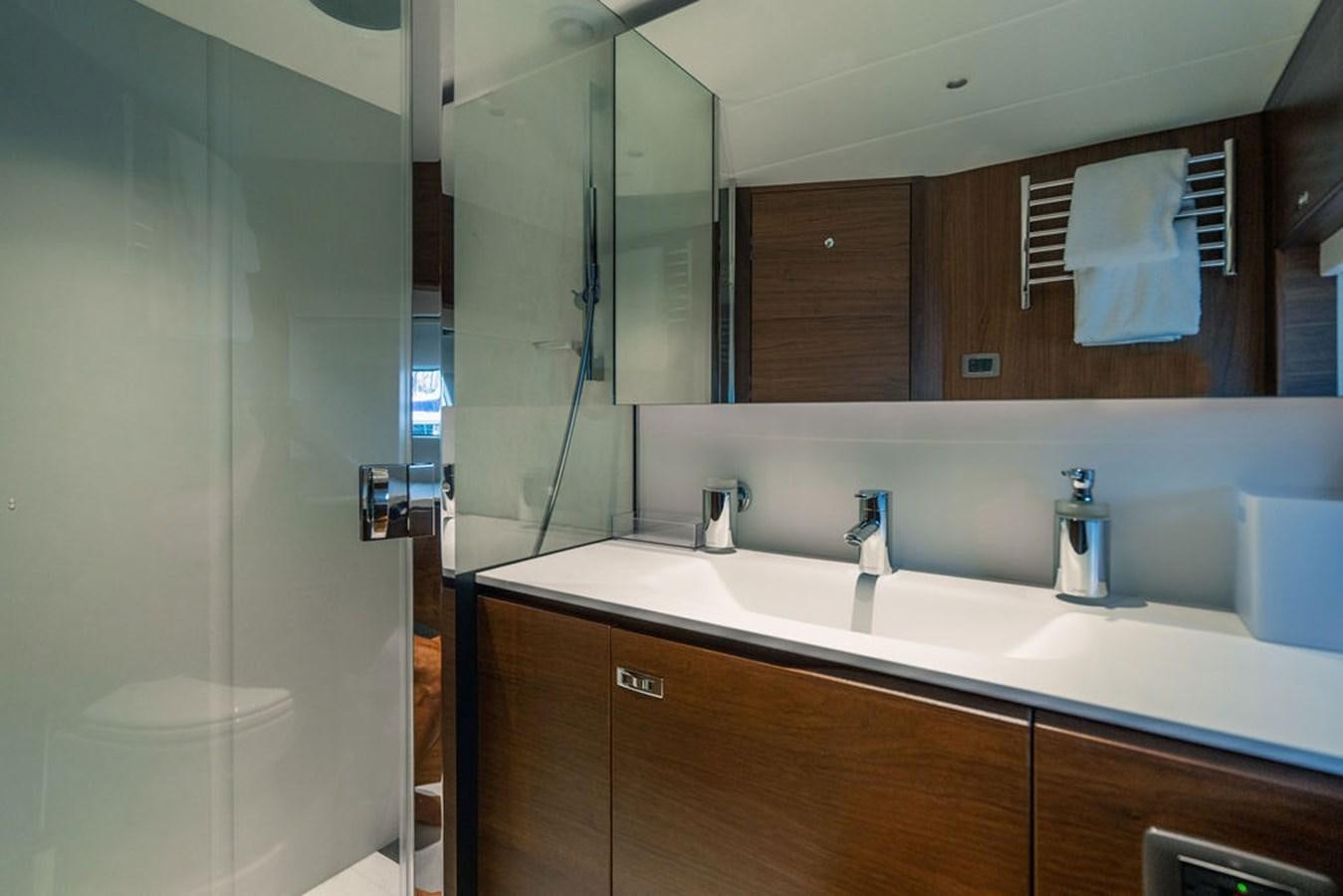

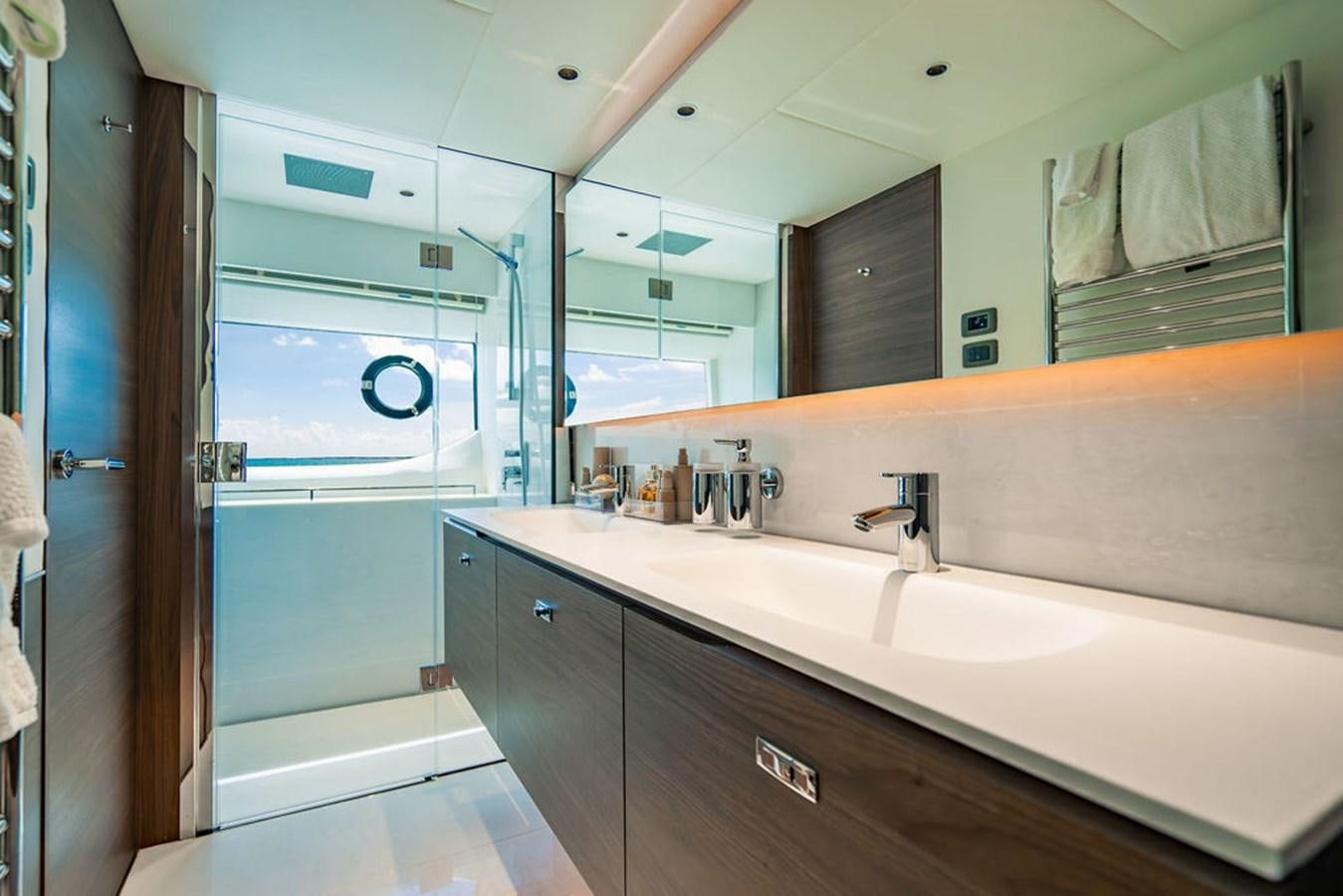

• En suite bathroom with heated towel rail

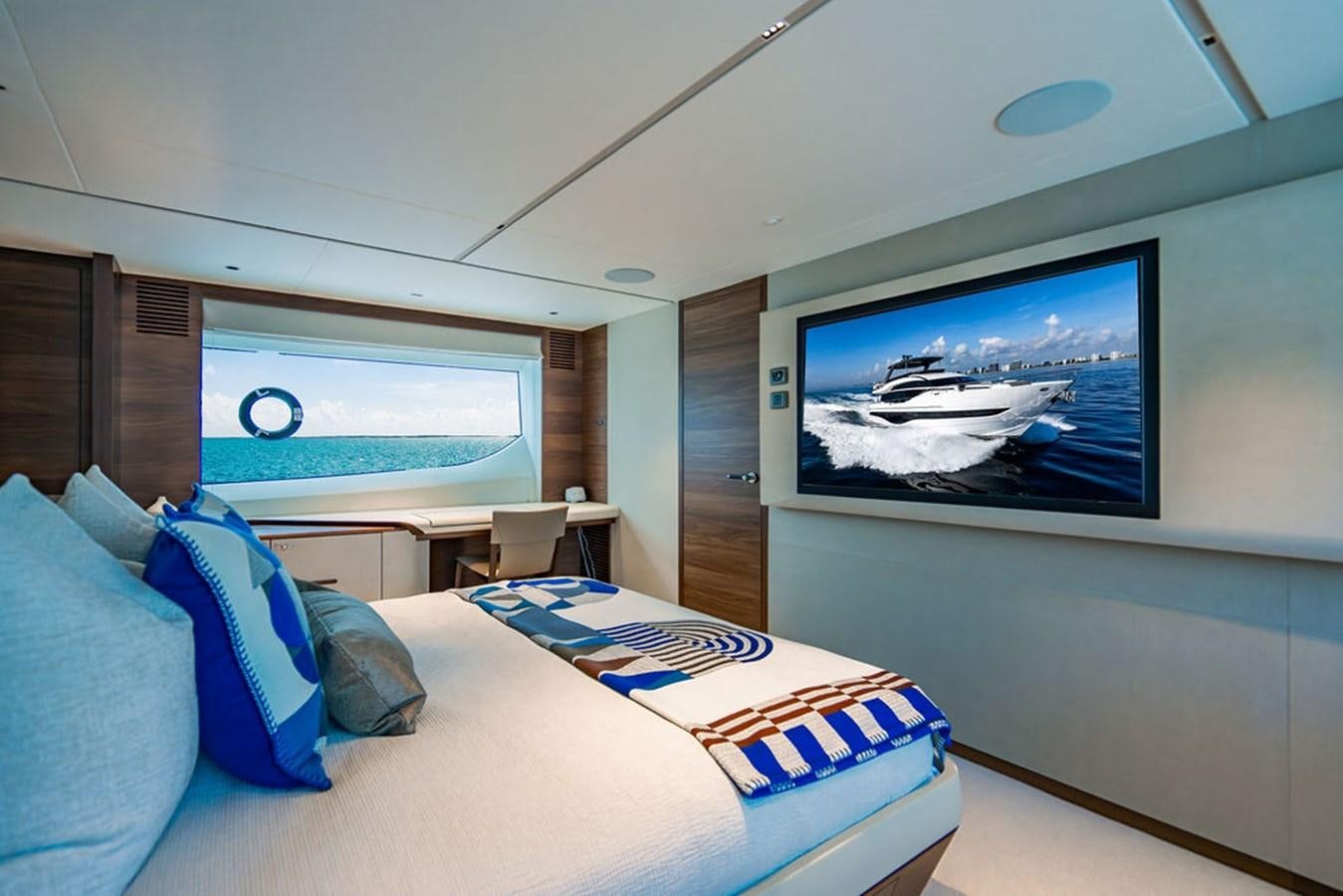

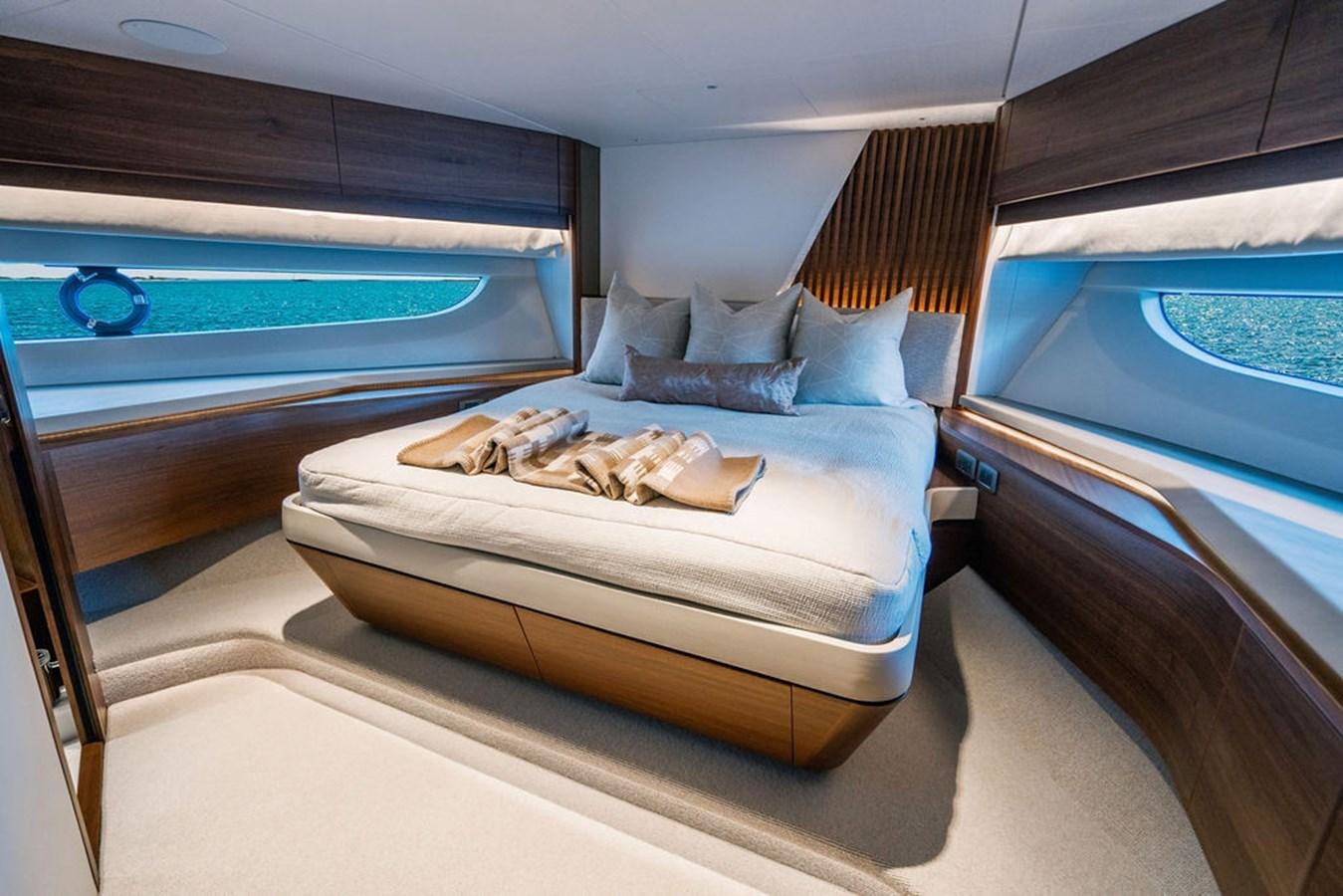

FORWARD STATEROOM

• Large double bed with drawers below

• Walk-in wardrobe with shelves

• Dressing table with stool

• 32” HD LED TV

• Naim audio system with CD/DVD paired with ceiling mounted speakers (2)

• En suite bathroom

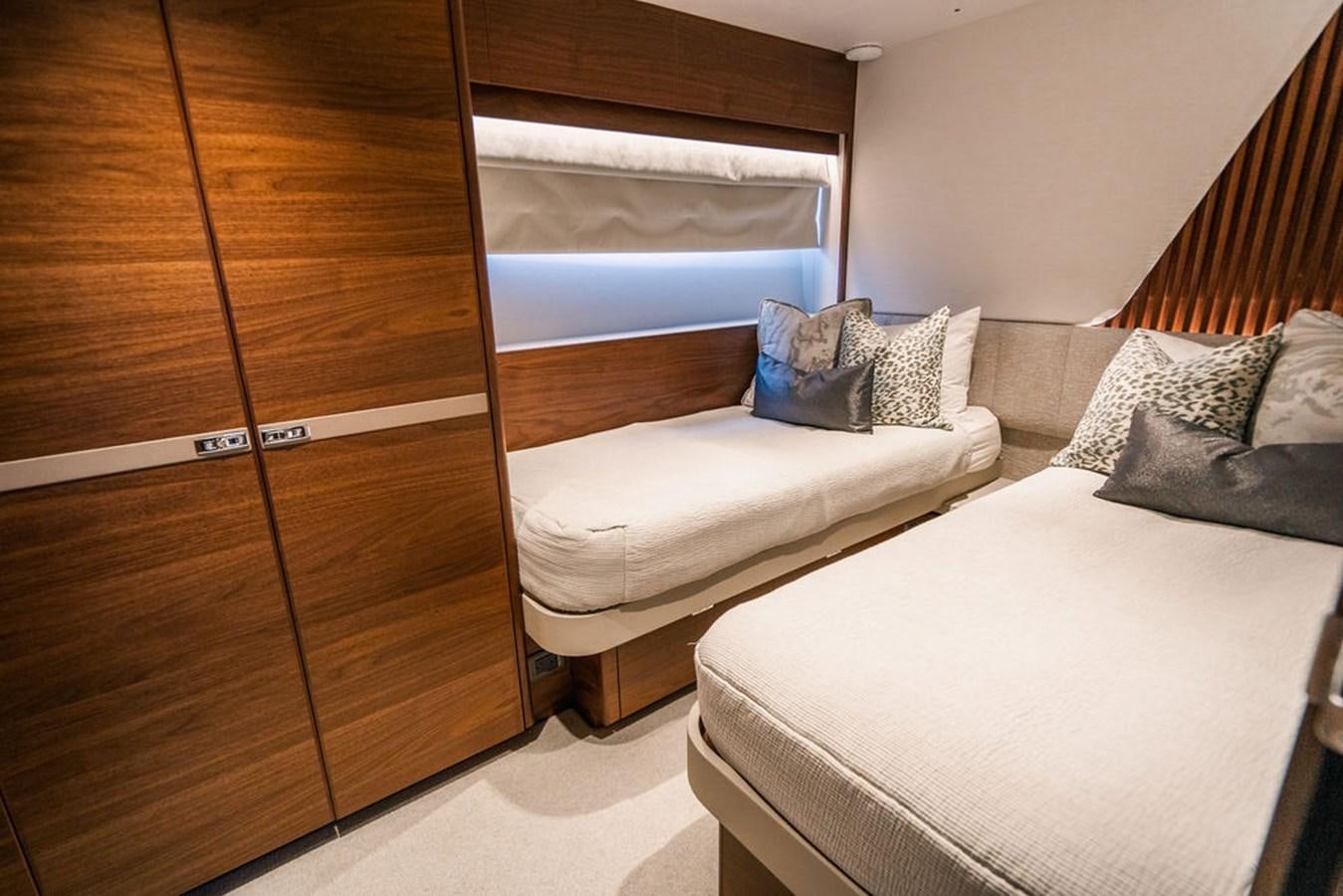

STARBOARD GUEST CABIN

• Two single beds with drawers below (with the option of powered conversion to double)

• Wardrobe with shelves

• Storage lockers

• Bedside table with storage

• Ensuite bathroom

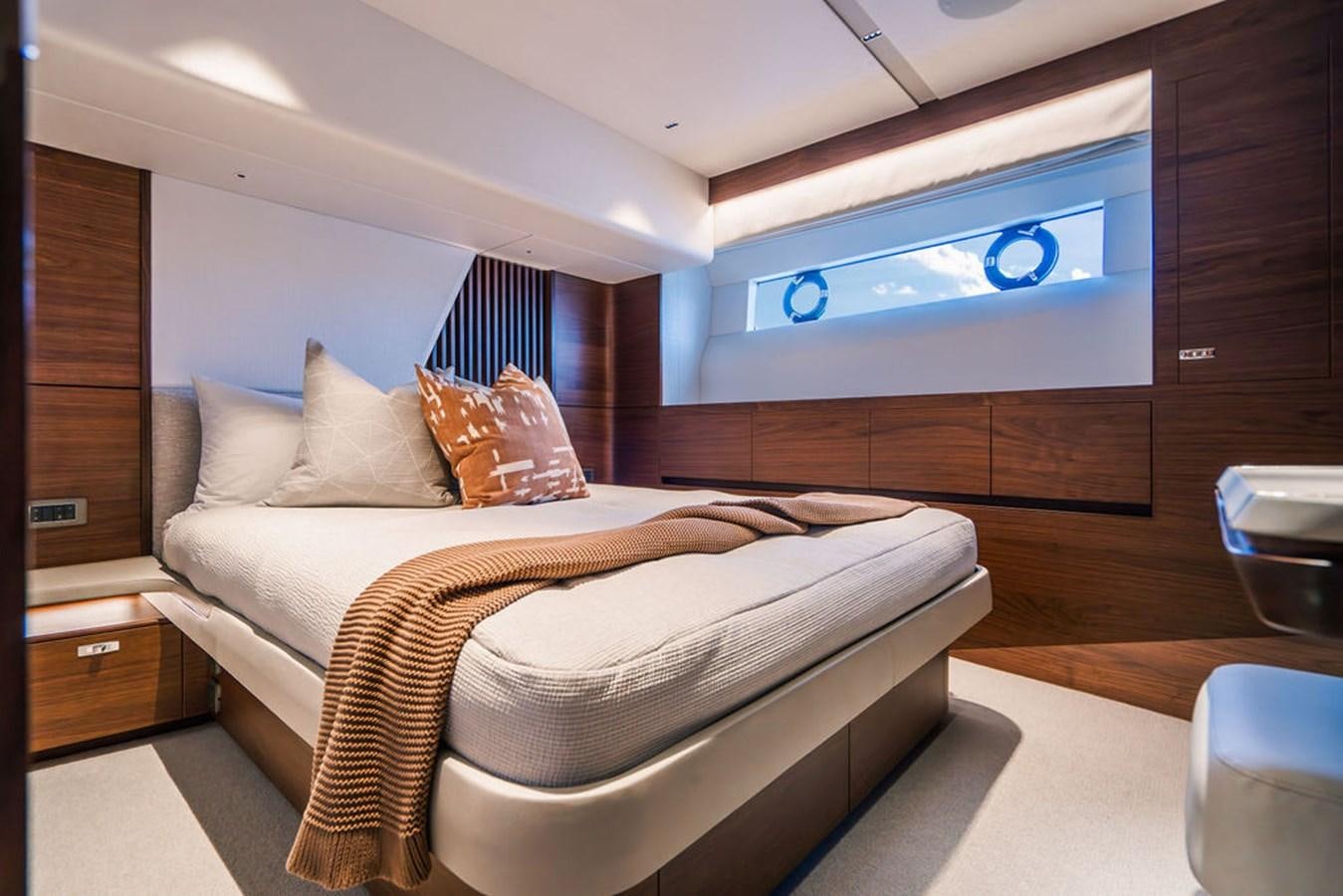

PORT GUEST CABIN

• Large double bed with drawers below

• Wardrobe with shelves

• Dressing table with stool

• Storage lockers

• Bedside tables with storage

• En suite bathroom

LOWER ACCOMMODATION LOBBY

• The lobby area has a full-height storage cupboard with the option of fitting an additional washer/dryer

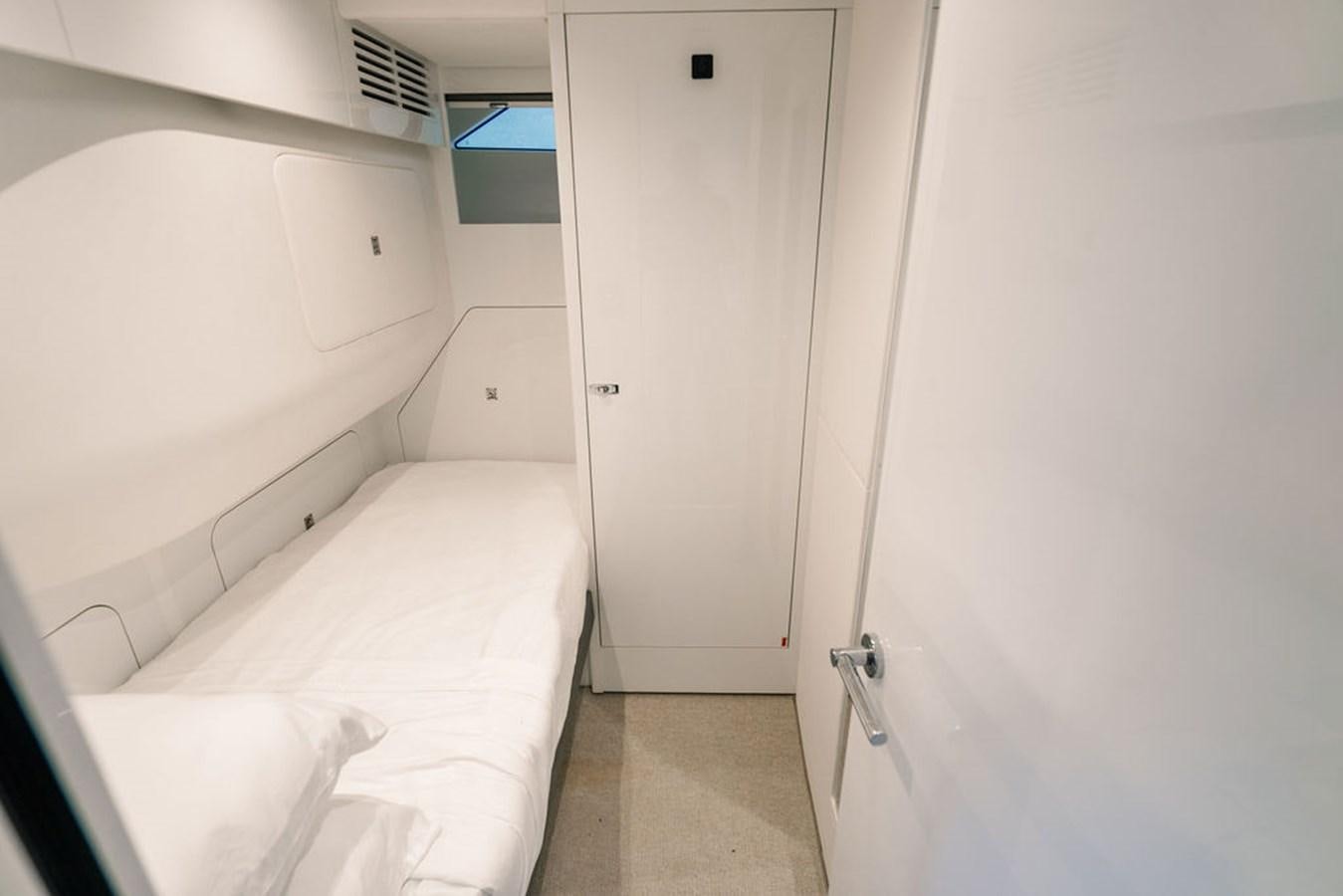

CREW QUARTERS

• Captain’s cabin with single bed, wardrobe and storage lockers

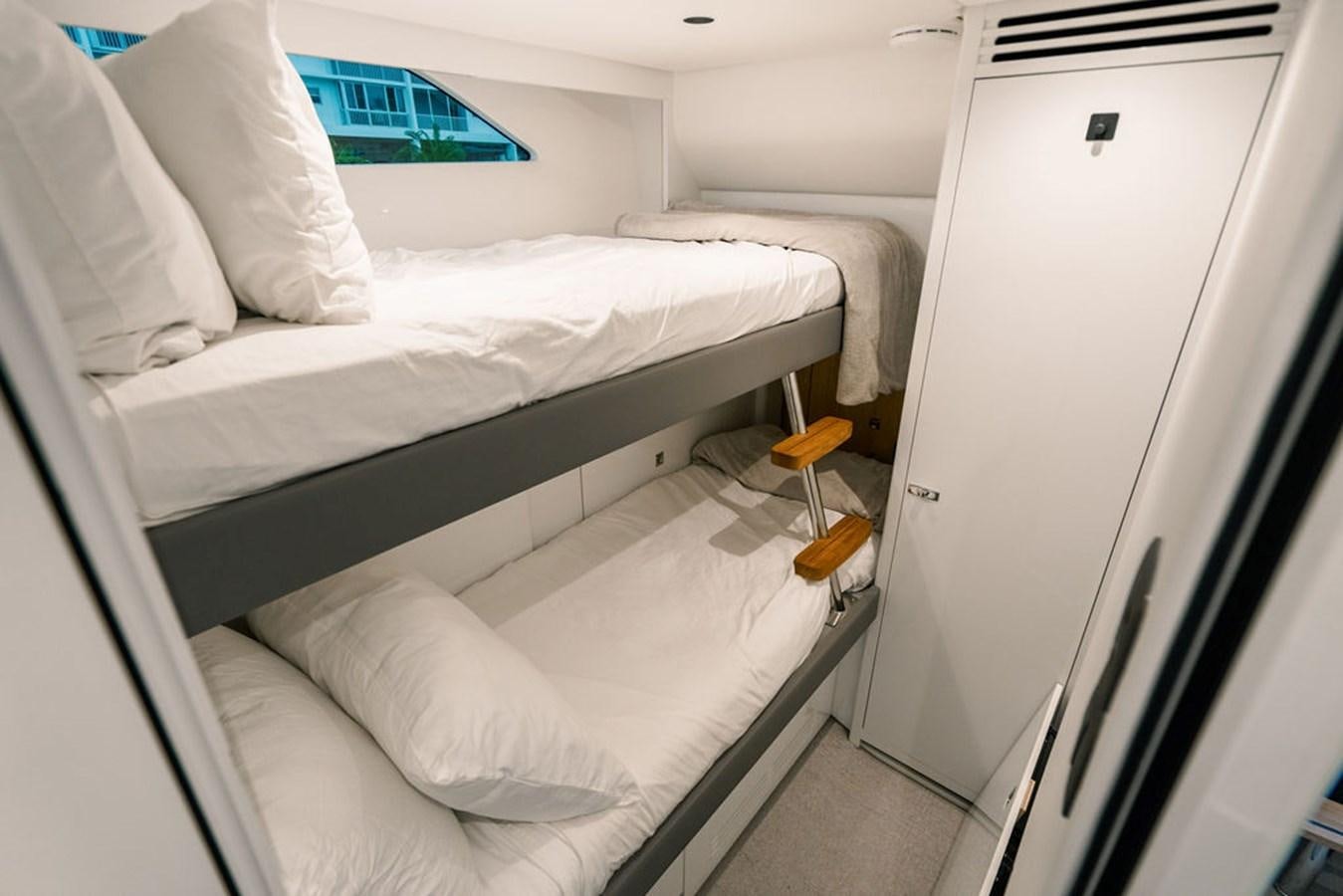

• Crew cabin with two single beds, wardrobe and storage lockers

• Bathroom with separate stall shower, electric freshwater toilet and washbasin

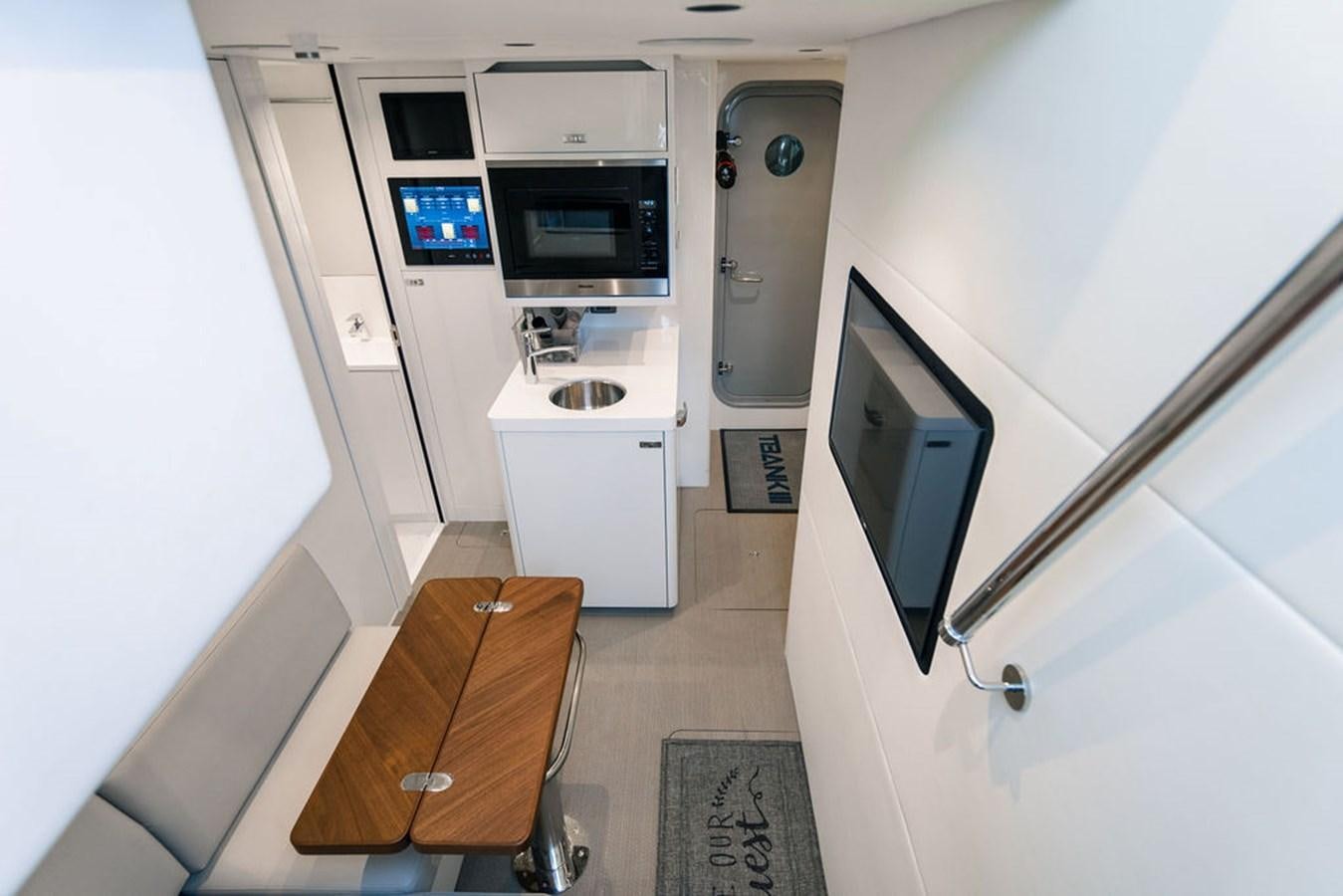

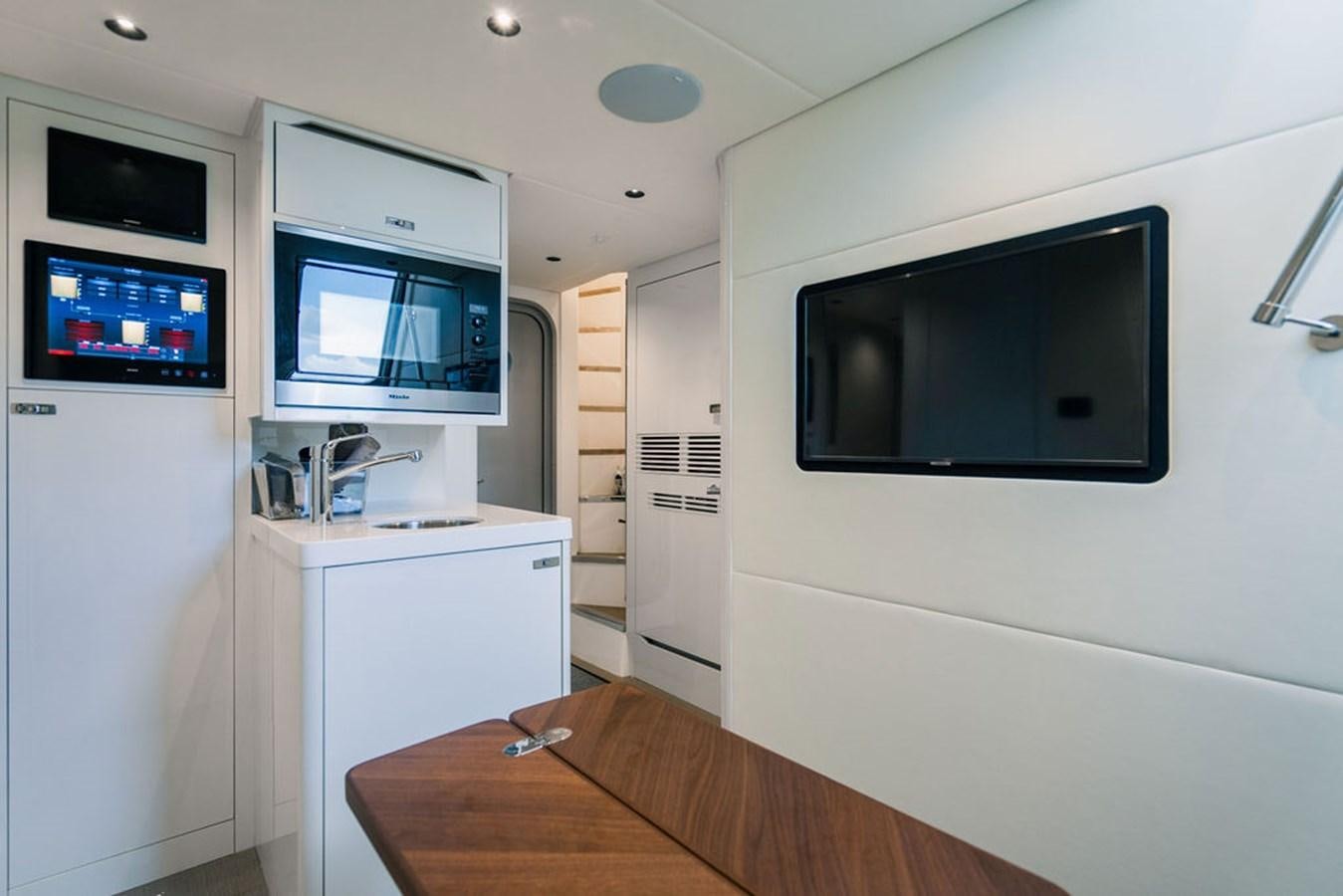

• Crew mess with microwave oven, sink, refrigerator and washing machine with separate dryer

• Access to engine room

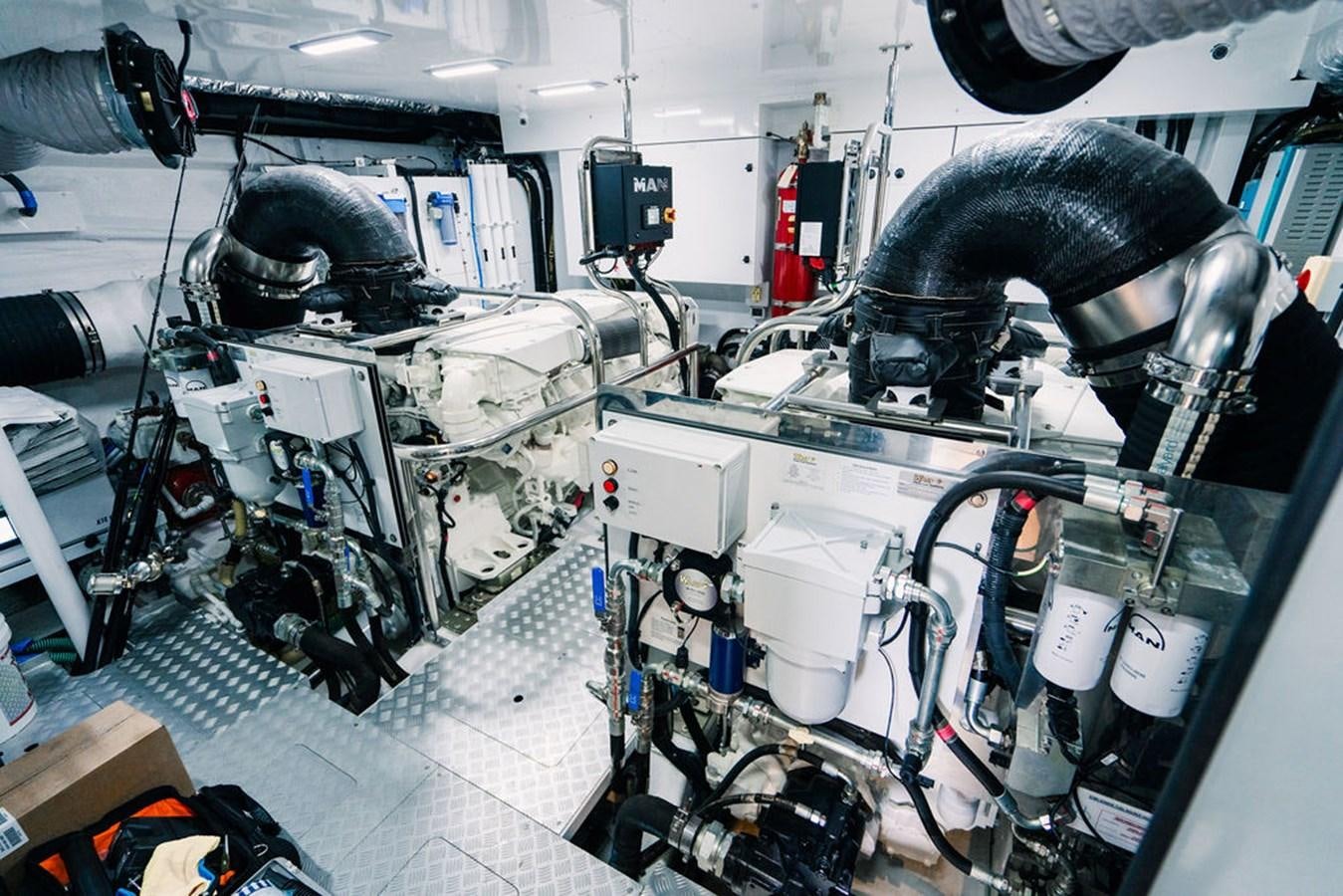

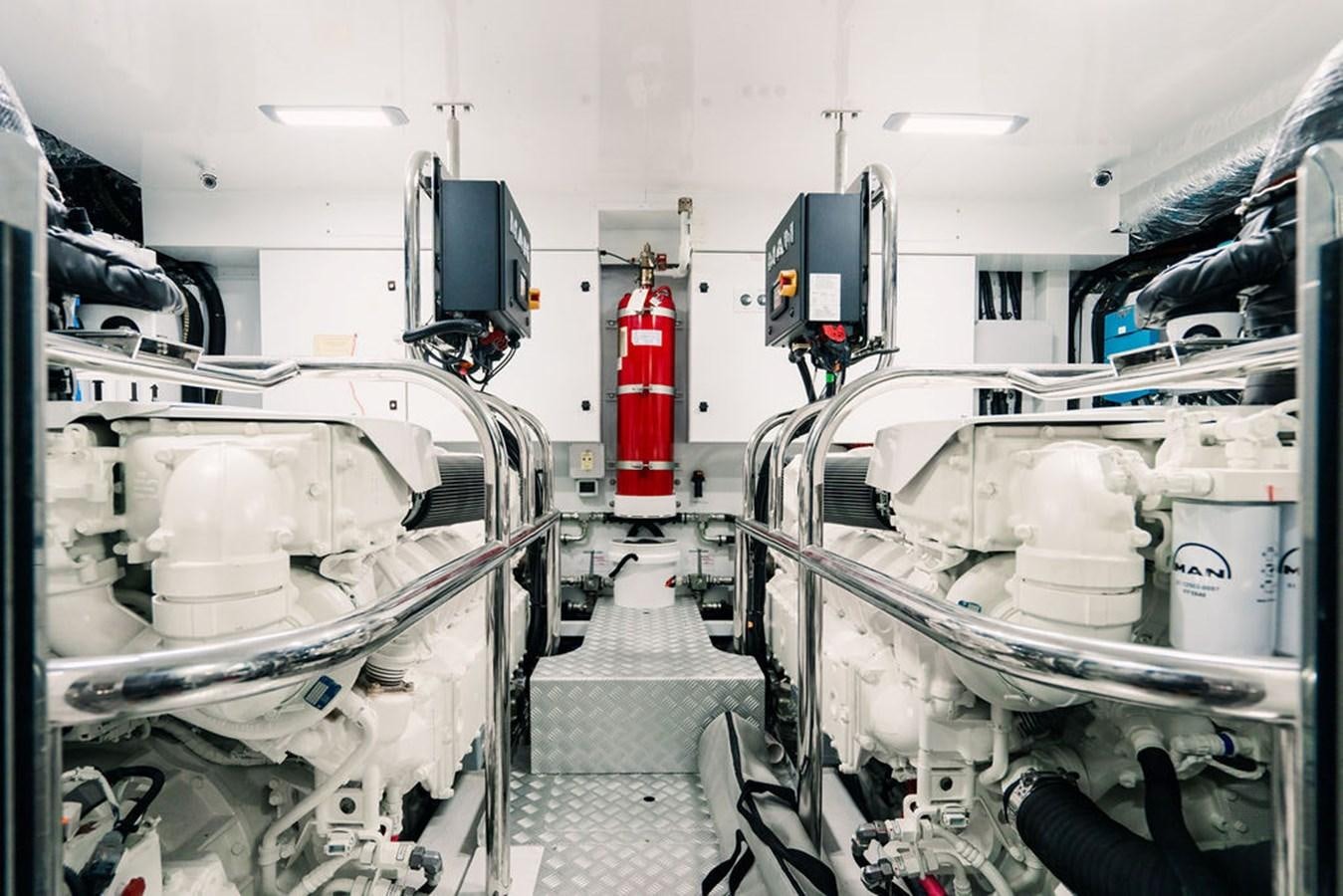

POWER AND DRIVE SYSTEMS

• 5-bladed propellers in nickel aluminium bronze

• Bow thruster (350kgf/771lbf)

• Power-assisted electro-hydraulic steering system with hydraulic back-up

• Electronic engine and gear shift control system

• Dripless shaft seals

• Engine room extractor fan with electronic time delay

ELECTRICAL STSTEM 24 Volt

• 2 x heavy duty batteries for engine starting

• 6 x heavy duty auxiliary batteries

• 2 x 60 amp battery charger charges both banks of batteries via an automatic switch charging system

• Remote battery master switches with control switch at main panel

• LED lighting throughout 220 Volt:

• 27kW generator in own sound shield with water cooled specially silenced exhaust

• 2 x 50 amp shore support inlet

• Earth leakage safety trip, polarity check system, circuit breaker on all circuits

• Power points in all areas

FUEL SYSTEM

• Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 2420 gal/2907 US gal/11000l

• Fuel fillers on port and starboard side decks

• High capacity duplex fuel filters/water traps with audible and visual fuel contamination warning system

• Remote fuel cocks in cockpit locker

WATER SYSTEM

• 285 gal/342 US gal/1295l plus 45 gal/54 US gal/205l hot water calorifier, heated by engines and 240v immersion heater

• Water level gauge

• Electric freshwater WC system with 132 gal/158 US Gal/600l holding tank

AIR CONDITIONING

• 204,000Btu chilled water system with outlets in all accommodation areas and incorporating reverse cycle heating with linked windscreen de-mist system. Suitable for tropical conditions (40°C)

FIRE EXTINGUISHERS

• Automatic/manual override fire extinguishers in engine room with warning system at both helm positions and incorporating engine air vent closure system

• Hand-operated fire extinguishers in all cabins, galley, crew and lower helm

BILGE PUMPS

• Automatic electric bilge pumps

• High capacity manual bilge pumps with valve system and suction points in same areas

ENGINES & DRIVES

Third station controls in cockpit (engine controls, thruster controls, and engine emergency stops)

Oil Changer for engines & generator

HYDRAULICS

Standard hydraulic system (consisting of separate engine driven hydraulic pumps on each engine with cross connections allowing any system to be supplied with hydraulic power from either engine) combining the bowthruster and windlass system

Hydraulic stern thruster (variable speed 340 KgF)

HULL COLOR

White Hull

INTERIOR FURNITURE

Walnut interior wood Satin finish (galley and wheelhouse floors are 'V' groove planked walnut as standard)

Salon & dining area floors to be in 'V' groove planked wood with inlaid rug* in aft salon area (wood type same as galley & wheelhouse)

* Rugs to be selected from the Quartz III carpet range

LAYOUT

Standard layout incorporates 3 staterooms, starboard side twin berth & two crew cabins

Poltrona Frau Isadora dining chairs by Roberto Lazzeroni (x8)

Starboard cabin to have double berth conversion with powered sliding mechanism inboard berth

Master Stateroom to have sideboard & armchair in place of occasional table with seats

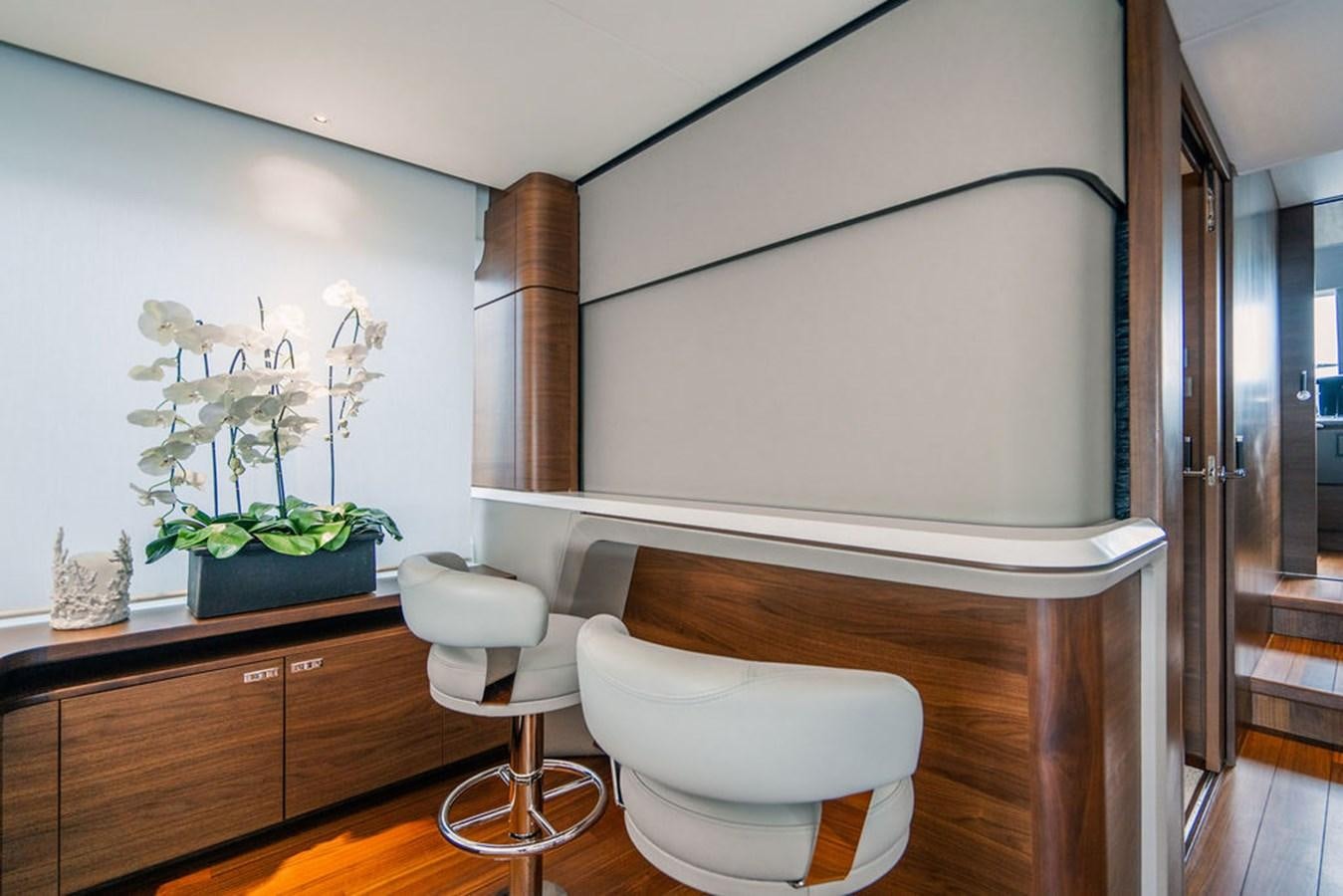

Bar stools at galley bar (2)

Additional Storage in Master Stateroom

Additional Storage in Stairwell to Lower Deck

GALLEY

Galley granite/marble: Misty Carrera

Garbage disposal

Hansgrohe faucet with pull out head to sink unit in place of standard

DECK HARDWARE

Teak laid flybridge and side decks are standard on this craft. The capacity for the standard hydraulic swim platform is 550 Kg (1,212 lbs)

Hardtop (main canopy) finished in Graphite Grey metallic with Oyster Grey metallic legs (note: radar mast & navigation equipment painted in dark grey to match hardtop

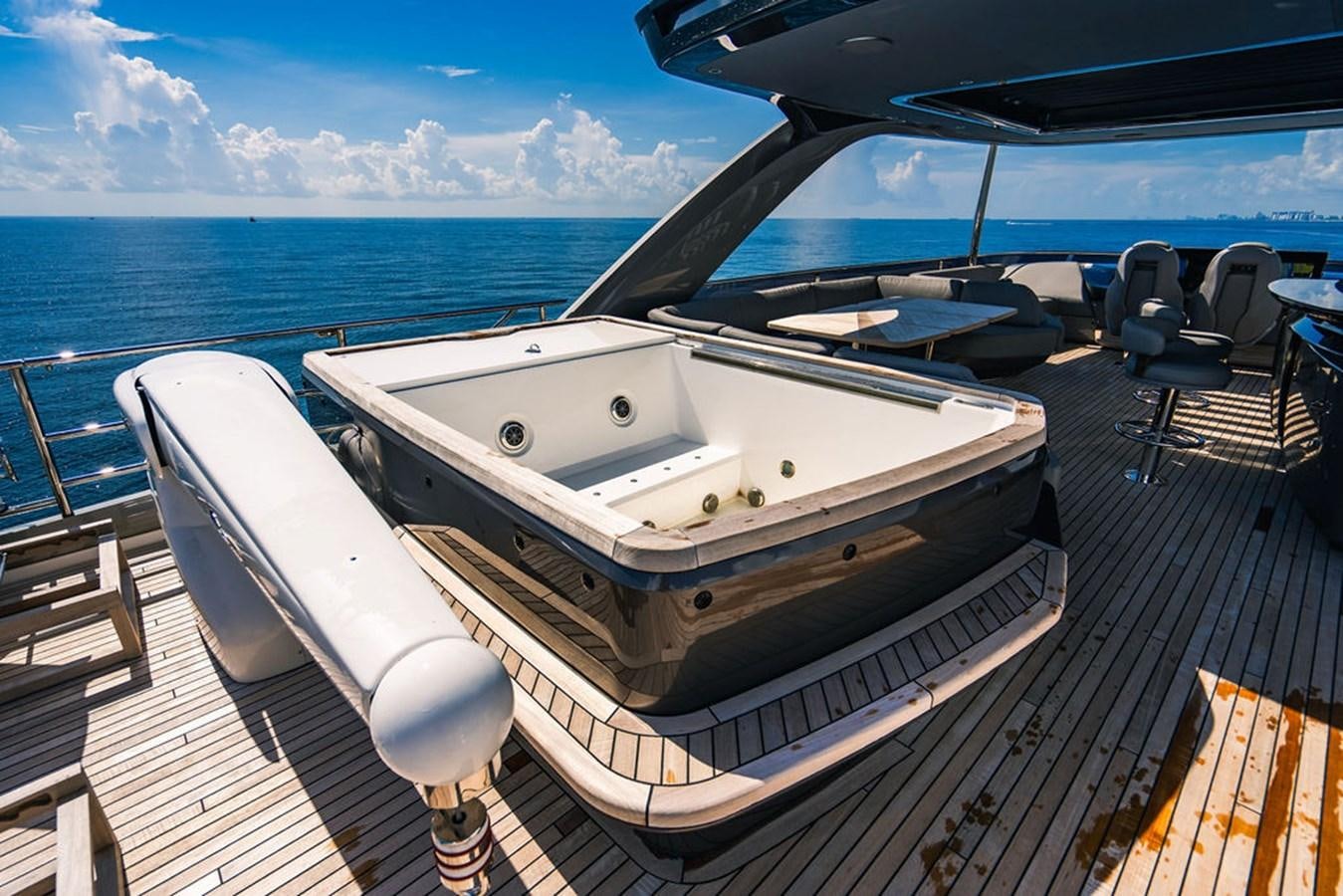

Spa bath on flybridge (includes increased water heater & water pump capacity)

Flybridge crane (550 Kg / 1,212 lbs safe working load)with tender chock mounting system on flybridge (keyway plates & slider only)

Cockpit servery unit (including top loading coolbox (100ltrs) and storage cupboard)

Side boarding gates in addition to standard passerelle

Electrically operated sun awning to aft end of hardtop in Anthracite Grey

Stainless steel anchor in place of standard (I)

Primary anchor - 80 kg ss claw anchor with 100m of 14mm galvanized chain

Secondary anchor - 50 kg ss claw anchor with 70m of 14mm galvanized chain

Stainless Steel keyway plates & slider system for later fitting of tender

Teak foredeck coffee table (with deck mounted fixing point)

2 x barstools fitted at flybridge

Plug in carbon pole transom shower and deck socket to bathing platform

GENERATOR

32 kW / 60Hz generator is standard

Additional 32kW / 60 Hz generator

ELECTRICAL

AGM 90Ah batteries in place of standard (for start, domestic & generator batteries) with additional generator option

Air horns in place of standard electric horns

Wolf induction cooktop in place of standard grill fitted in flybridge wetbar

Heated towel bar in forward cabin (fitted as standard in master)

Additional washer and dryer in forward accommodations

Combination washer/dryer in crew cabin with additional fridge/freezer in place of standard separate washer and dryer units

Icemaker in flybridge wetbar

Miele wine cooler (34 bottles) in galley replaces inboard drawer unit

Exterior lighting upgrade package

Included linear LED (x1) and fiber optic (x14) lighting to the cockpit pelmet and headlining and low level LED deck lighting (x28)

Interior lighting upgrade package

Additional fiber optic (x16) to salon & dining area

Electrically operated curtains to patio door and salon starboard side full height window

Glendinning Cablemasters (2x 100 Amp) in place of standard

24kVA / 100A ISO-Boost transformers (x2)

AUDIO VISUAL & COMMUNICATIONS

Standard system includes:

Deck Salon - 55" LED TV on a power lift. Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with Focal speakers (4) and subwoofer.

Master Stateroom - 55" LED TV w/ Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with Focal speakers (2) and subwoofer.

Forward VIP - 32" LED TV w/ Naim Uniti Atom audio system with Bluetooth, multizone streaming capability and dedicated app. Paired with Focal speakers (2)

Flybridge - Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with JL Audio waterproof speakers (2)

System includes:

•On board Ethernet network and 4G internet capability

•On board WIFI network incorporating external WIFI and 3G/4G antenna for extended range. Enabling connectivity to onshore WIFI networks throughout the vessel including crew and external guest areas. (Mobile internet connectivity requires an activated mobile data SIM card.)

Premium Audio

Deck Salon - 55" LED TV on a power lift. Naim Uniti Star audio system - Stream your favorite music in high-resolution, play, backup your CDs, store and access your music library or tune in to your favorite radio stations. Access a world of music with a host of streaming and media sources with intuitive app enabled features. Focal speakers (4) and subwoofer.

Master Stateroom - 55" LED TV with Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Focal Speakers (2) and

Forward Guest Cabin - 32" LED TV with Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Focal speakers (2) and subwoofer.

Starboard Guest Cabin - 24" LED TV with Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Focal speakers (2).

Port Guest Cabin - 27.5" LED TV with Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Focal speakers (2).

Crew Mess - 32" LED TV with Naim Uniti Atom audio system with Bluetooth, multizone streaming capability and dedicated app. Focal speakers (2).

Flybridge – Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with JL Audio M6-650XL waterproof speakers (4) and Focal subwoofer with amplifier

Cockpit seating area - Naim audio Uniti Atom system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with JL Audio waterproof speakers (2)

Foredeck seating walk-through area - Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with JL Audio waterproof speakers (2)

On board Ethernet network and 4G internet capability

• On board WIFI network incorporating external WIFI and 3G/4G antenna for extended range. Enabling connectivity to onshore WIFI networks throughout the vessel including crew and external guest areas. (Mobile internet connectivity requires an activated mobile data SIM card.)

• 256GB SD card

• Combination inverter charger fitted, providing seamless transfer between generators/shore power and inverted battery power for saloon A/V & galley fridge.

Chase tubes for later fitting of SAT TV

NAVIGATIONAL EQUIPMENT

Standard Navigation Equipment Includes:

3 x 19" Raymarine Axiom XL brilliant colour multifunction displays (two at lower helm with RMK-10 remote control & one at upper helm) with GPS and 4kw SHD 48" digital colour open array scanner. Raymarine p70Rs autopilot with rate gyro and i70s colour multifunction instruments (for speed, distance, trip, depth, depth alarm, water temperature etc) with dual station autopilot controls and 1 x i70s at lower helm. In addition engine instrumentation (including fuel levels and fuel flow) is displayed on a separate multifunction display at both helm positions

Garmin Electronics Package in place of standard. Includes (I):

Dual GPSMAP 8617 MFD displays at upper & lower helm

Fantom 124 Radar

Garmin autopilot with dual station controls

VHF315 marine radio with GHS 10 wired handset at upper helm

Garmin AIS 800

GMI 20 instruments in place of standard Raymarine i70

EXTERIOR UPHOLSTERY CANVAS/COVERS

Reticulated foam for exterior cushions and sunbeds is standard

Exterior fixed seating upholstery in Comfort Exterior III - VOGUE

Main upholstery: VOGUE EARTH

Contrast: HITCH AVALANCHE

Exterior Covers - Grey Canvas

Cockpit Seating Covers- Grey Canvas

NET OPTIONS

GRP Flybridge hardtop featuring electric opening louvre section (including dimmable lighting)

Sleipner Hydraulic system (consisting of separate engine driven hydraulic pumps on each engine with cross connections allowing any system to be supplied with hydraulic power from either engine) and incorporating SPS92/VF1350 vector fin stabilizer system. When underway fins are driven by engine powered hydraulic pumps and at zero speed by a generator powered electric motor.

This system is designed to provide roll control at speeds above 12 knots as well as zero speed stabilization. Bow and stern thrusters feature fully proportional speed control. When the main engines are turned off the hydraulics are powered by an electric motor (2x 32 kW generators are recommended)

Lumishore EOS TIX 803 underwater lights (4 across transom & 1 on port & starboard of cockpit and 1 centered under the port & stbd master windows) w/ STV2204i controller in cockpit

Gwind wireless wind/speed unit connected to Garmin equipment

Garmin GXM 54 Sirius weather antenna

Boning and Garmin screens fitted in crew mess area

Camera, pan/tilt/zoom, fitted under aft deck overhang

2 x cameras in engine room connected to Boning screens

Standard teak details on flybridge and foredeck to be replaced with solid surface

Flybridge - Neolith Cement Satin Stone (to match flybridge wetbar)

Foredeck - Horizon Grey avonite

Standard teak under flybridge stairs to be replaced with gelcoat sprayed in grey to match cockpit bar unit. Also, remove teak in cockpit headlining and replace with upholstered dark grey feature strips

Convert drawer above icemaker to a cutlery drawer

Exterior Stereo Upgrade, as follows:

All exterior speakers upgraded to 8.8" JL Audio

2x additional 8.8" JL audio speakers in cockpit

2x JL MV1000/5i amps (for cockpit & flybridge)

JL M600/2i amp for foredeck speakers

RECENT UPGRADES & WORKS

Dual star link SAT units

Bottom paint and prop speed – July 2024
