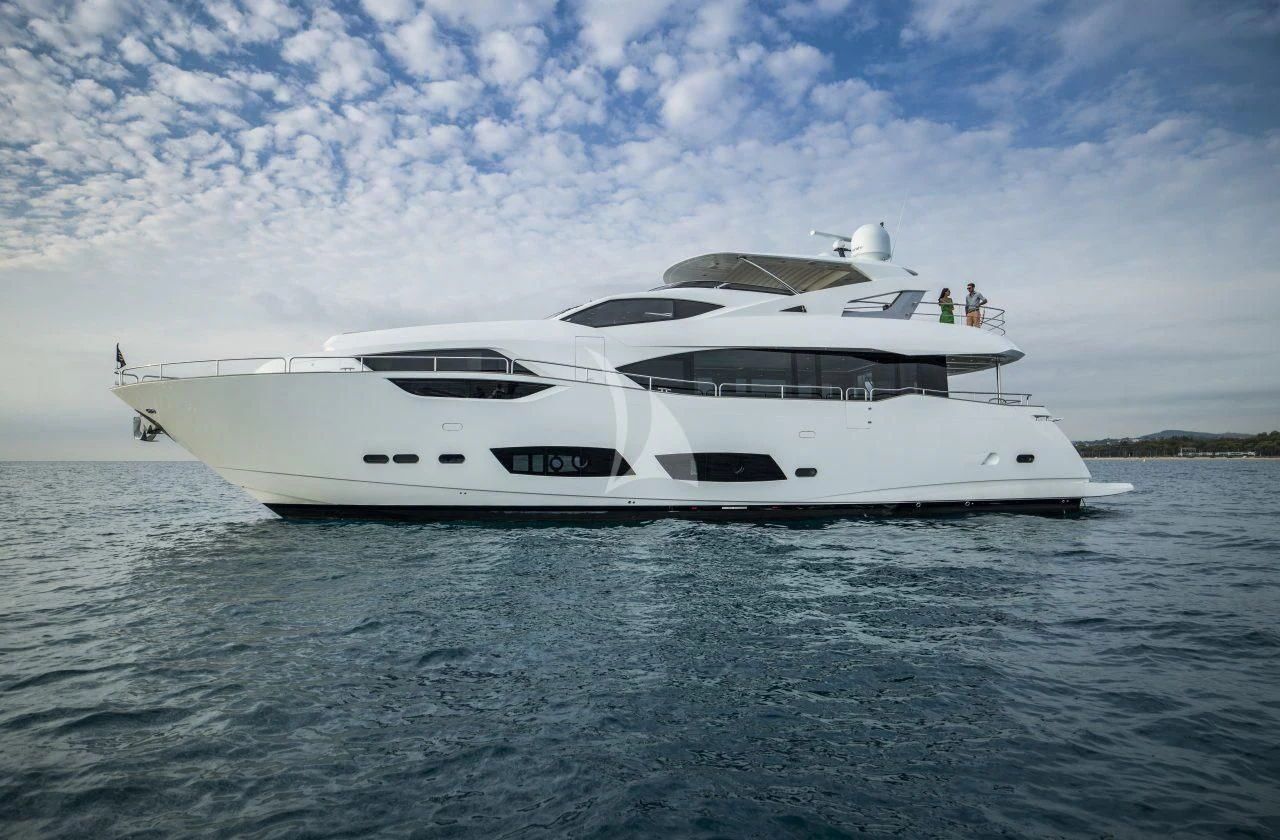

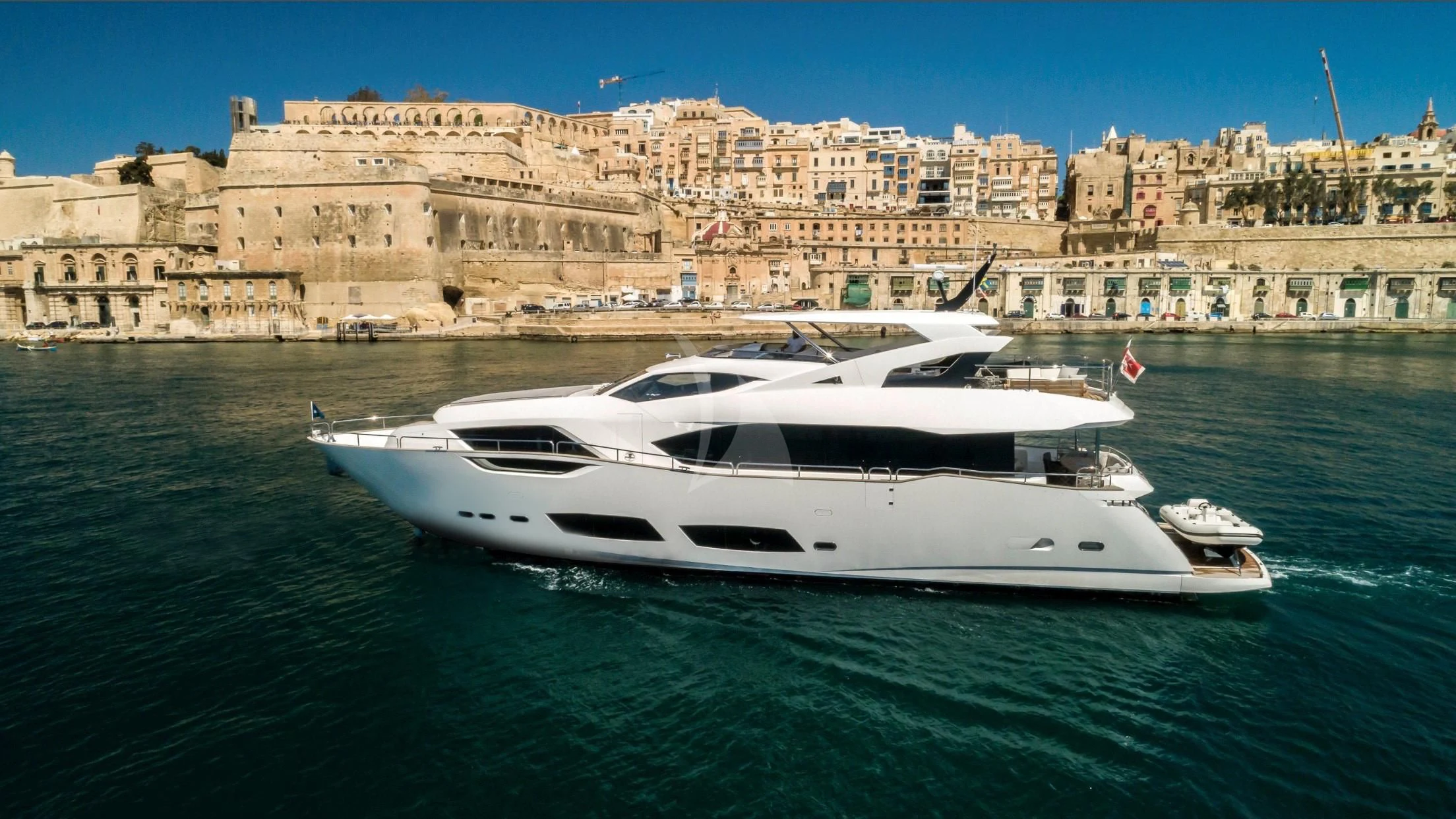

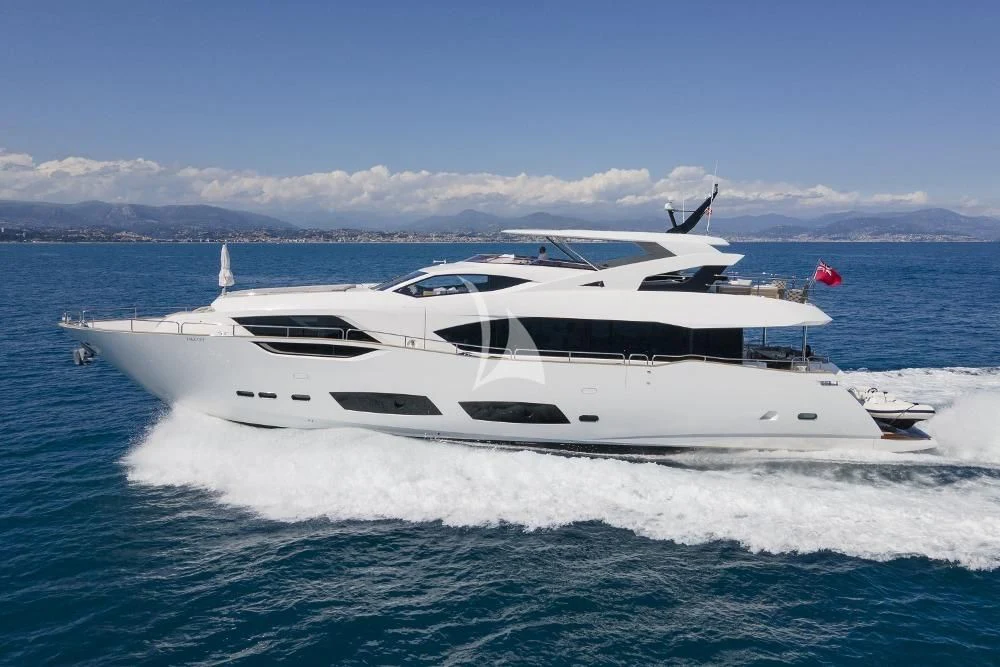

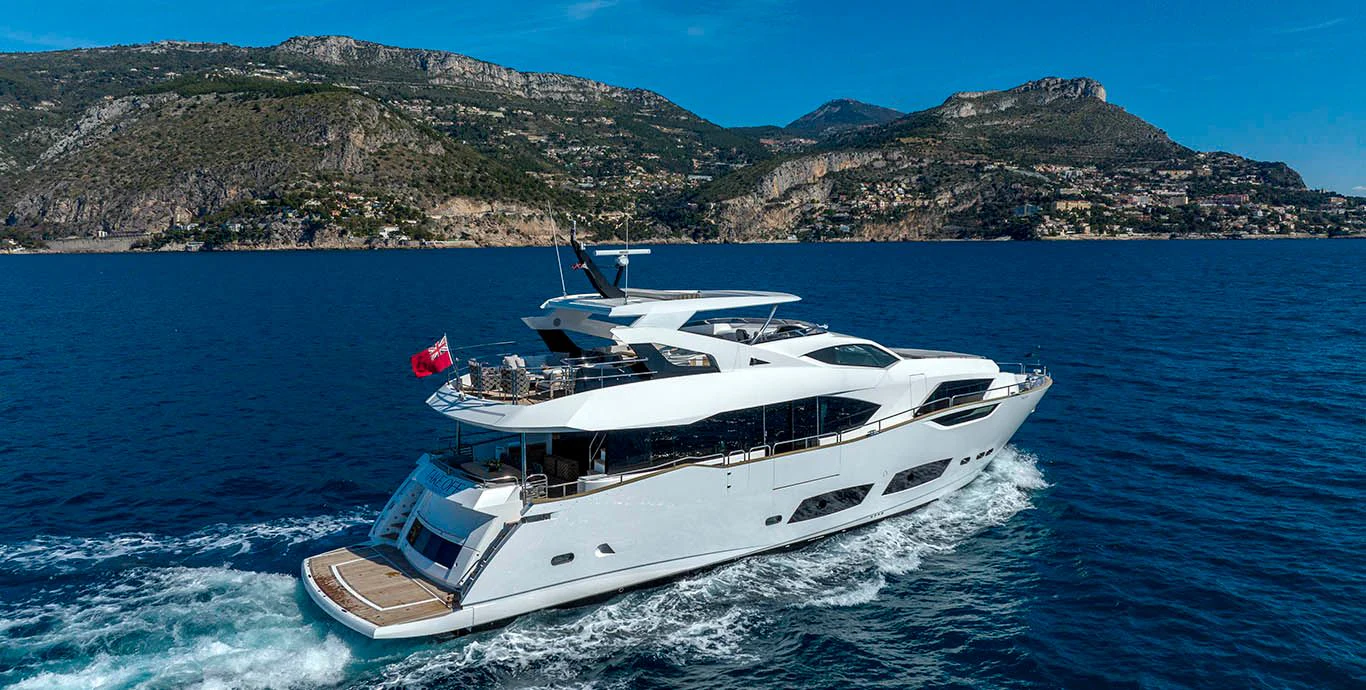

TAKE OFF Yacht for Sale

Length
92' (28.07m)
Builder
SUNSEEKER
Build
2018
Cabins
5
Crew
4

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Amenities

  • At-Anchor Stabilizers
  • Wi-Fi

Specifications

Builder SUNSEEKER
Length (LOA) 92' (28.07m)
Year 2018
Gross Tonn. 101
Draft 5' (1.33m)
Beam 21' (6.55m)
Range 545 NM
Location France

Accommodations

Staterooms 5
Sleeps 10
Heads 6
Crew Cabins 4
Crew Sleeps 4

Dimensions & Capacity

LOA 92' (28.07m)
LWL 71' (21.57m)
Max Draft 5' (1.33m)
Fuel Tank 317 g (1,200 L)
Fresh Water 462 g (1,750 L)
Holding Tank 151 g (571 L)
Gross Tonn. 101
Displacement 91

Construction

Hull Material GRP
Hull Config Planing
Ext. Designer SUNSEEKER
Int. Designer SUNSEEKER
Cruising Speed 18 Knots
Range 545 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Controlled using a Sleipner proportional jog lever panel
  • Under Water Lights:    Underwater lights. Lumishore TIX802 white LED. 8 lights with 4 across transom and 2 on either side
  • Firefighting & Bilge Pump:    Sea-Fire FM-200 H-Series fixed machinery space fire extinguishing system
  • Fire Hydrant station located in the aft cockpit staircase locker with a primary engine room pump being the Gianneschi ACB 431B self-priming centrifugal AC pump at 11.5 m3/hr.
  • A secondary Gianneschi self-priming centrifugal pump powered by an independent diesel engine with loose suction hose and strum box and located in the engine room. This unit can be used as an emergency bilge pump.
  • Fireboy-Xintex Fire alarm detection system. Model 90900 control panel with dedicated Apollo Smoke/heat detectors in all accommodation areas. Connected to Cm8 monitoring system to repeat alarm.
  • Fuel Treatment System    Fuel polishing system Separ FPS-210, to eliminate build-up of algae and water in the tank with 99 percent water and partial removal.
  • Fresh Water Makers:    Idromar, 180l/h
  • Fresh Water Treatment:    Kinetico Marine Water Softener for the domestic freshwater system
  • General Ecology Seagull IV X-2BK in-line freshwater purifier serving the galley and bar faucets.
  • General Ecology Nature Pure QC in-line freshwater purifier to all independent icemakers.
  • Fresh Water Pressure:    Pressure system via a Gianneshi AC self-priming pump 55 l/m and mounted with inlet/discharge manifold.
  • Hot Water Boilers:    2 x 200l Hot water calorifier in stainless steel cased tank with 2 x 2kW immersion heaters.
  • Black & Grey Water System
  • WC's:    Tecma Silent Plus 220Volt AC macerating toilets
  • Black Water Discharge Pumps:    Black water holding tank system using one Sealand High Density Polyethylene tank for main accommodation of 435 litres and one Sealand High Density Polyethylene tank for crew cabin of 135 litres. Discharge via a Sealand T-Series 24 Vdc self-priming diaphragm pump to either a shore facility when available or directly overboard (refer to MARPOL regulations)
  • Grey Water Discharge Pumps:    Grey water from showers, wash basins and galley services will drain to a Whale grey water transfer units 24Vdc to large diameter gravity fed pipes into the grey water integral GRP holding tank of 1,000 litre capacity.
  • Discharge is via two Whale Gulper 320 self-priming pump directly overboard or via a shore side facility when available
  • AC & Ventilation System
  • Hydraulic Power Packs:    Sleipner

Accommodation

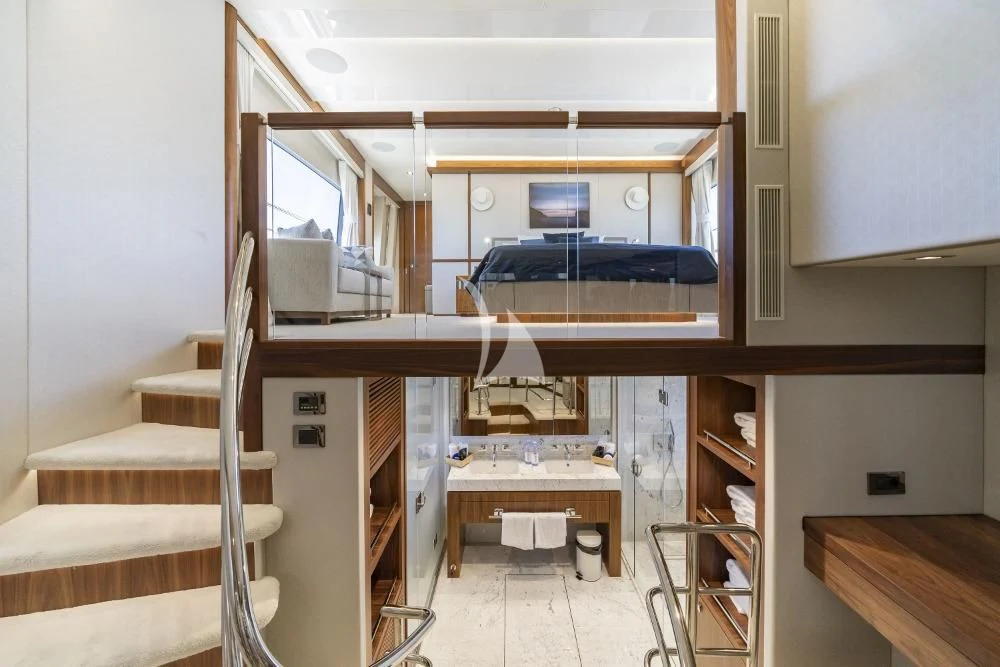

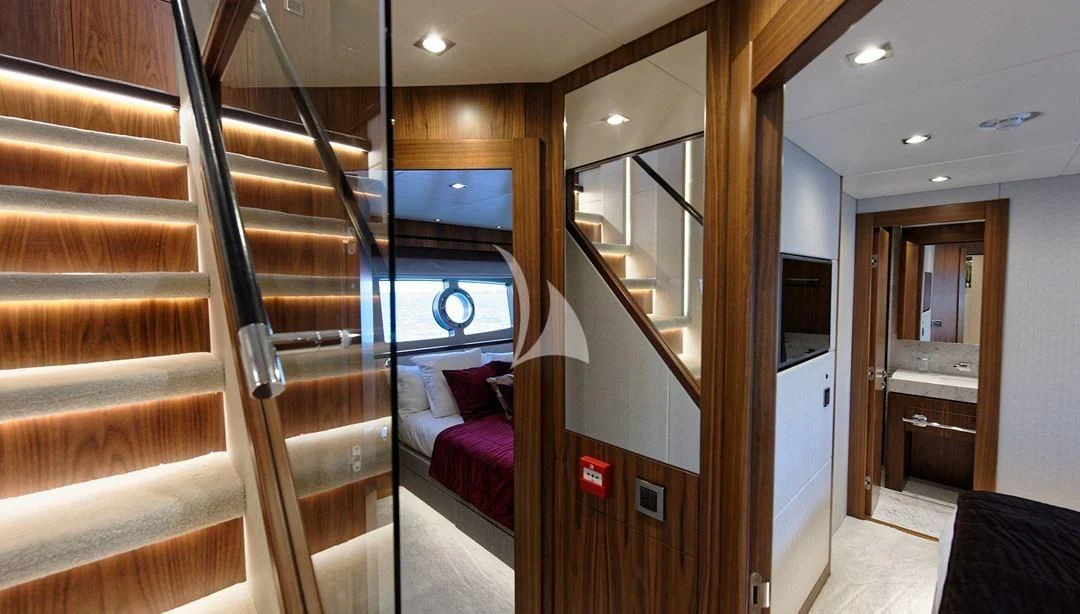

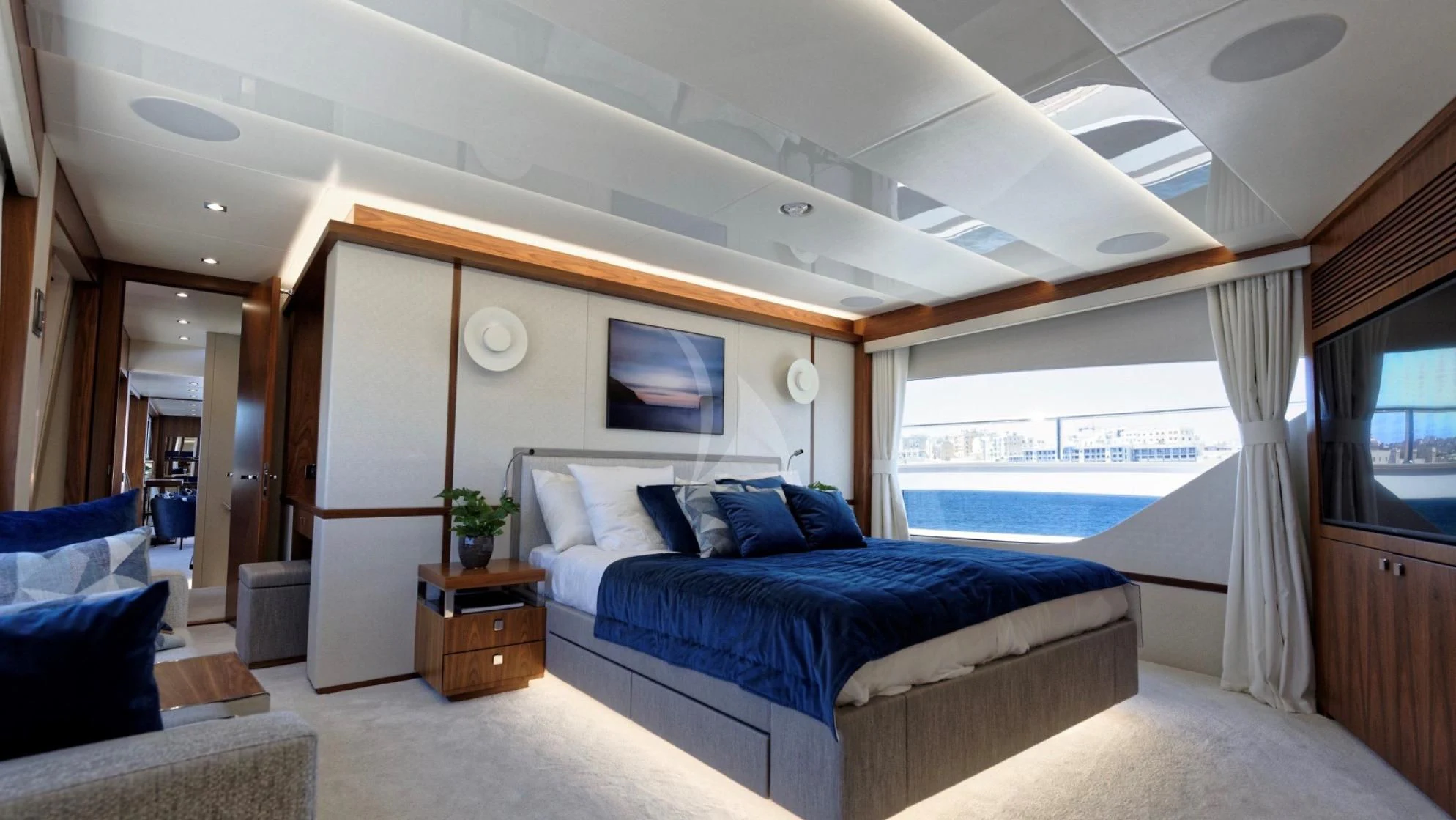

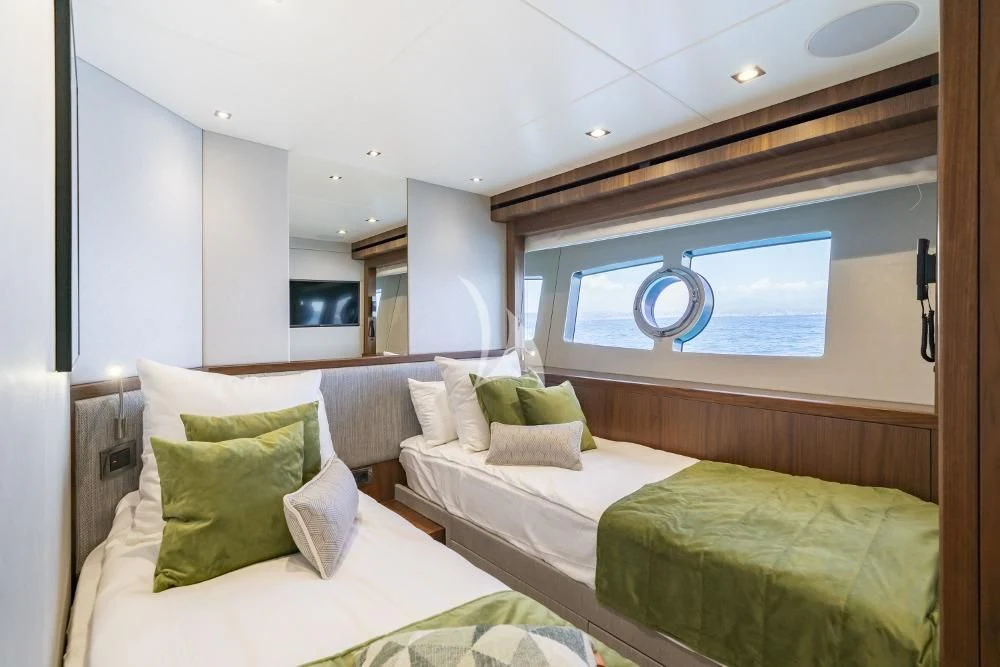

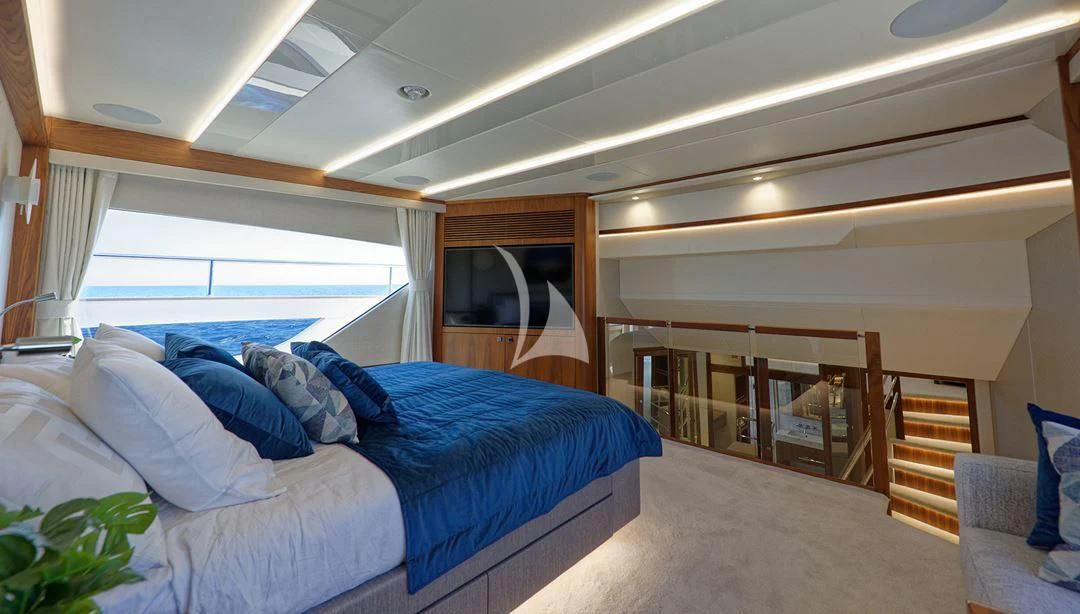

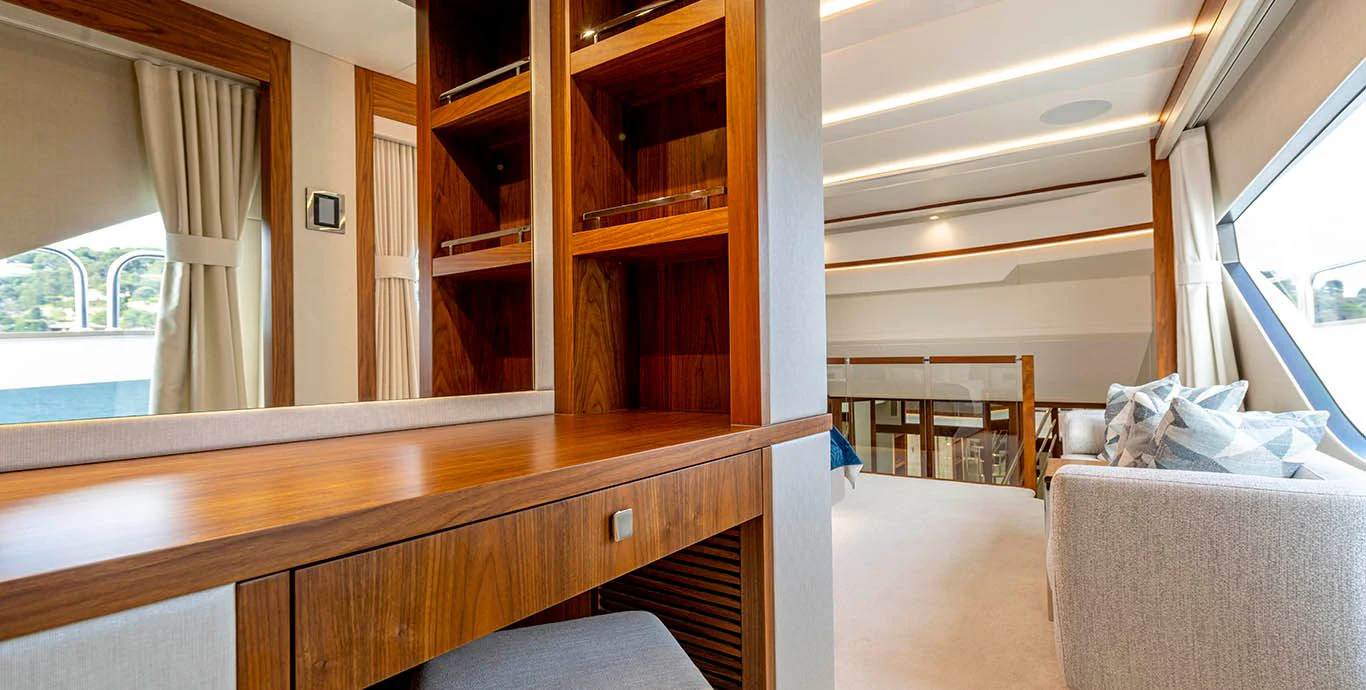

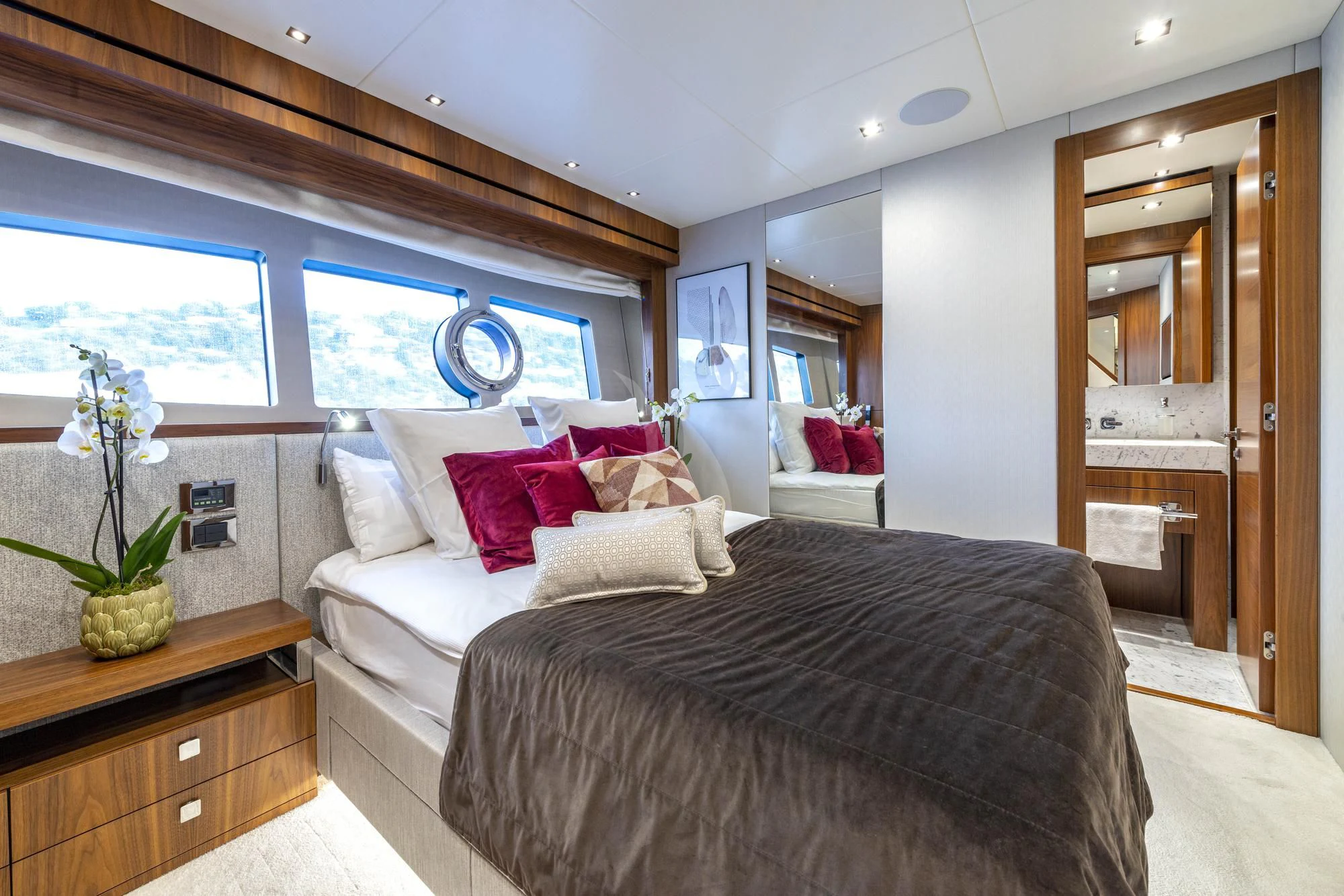

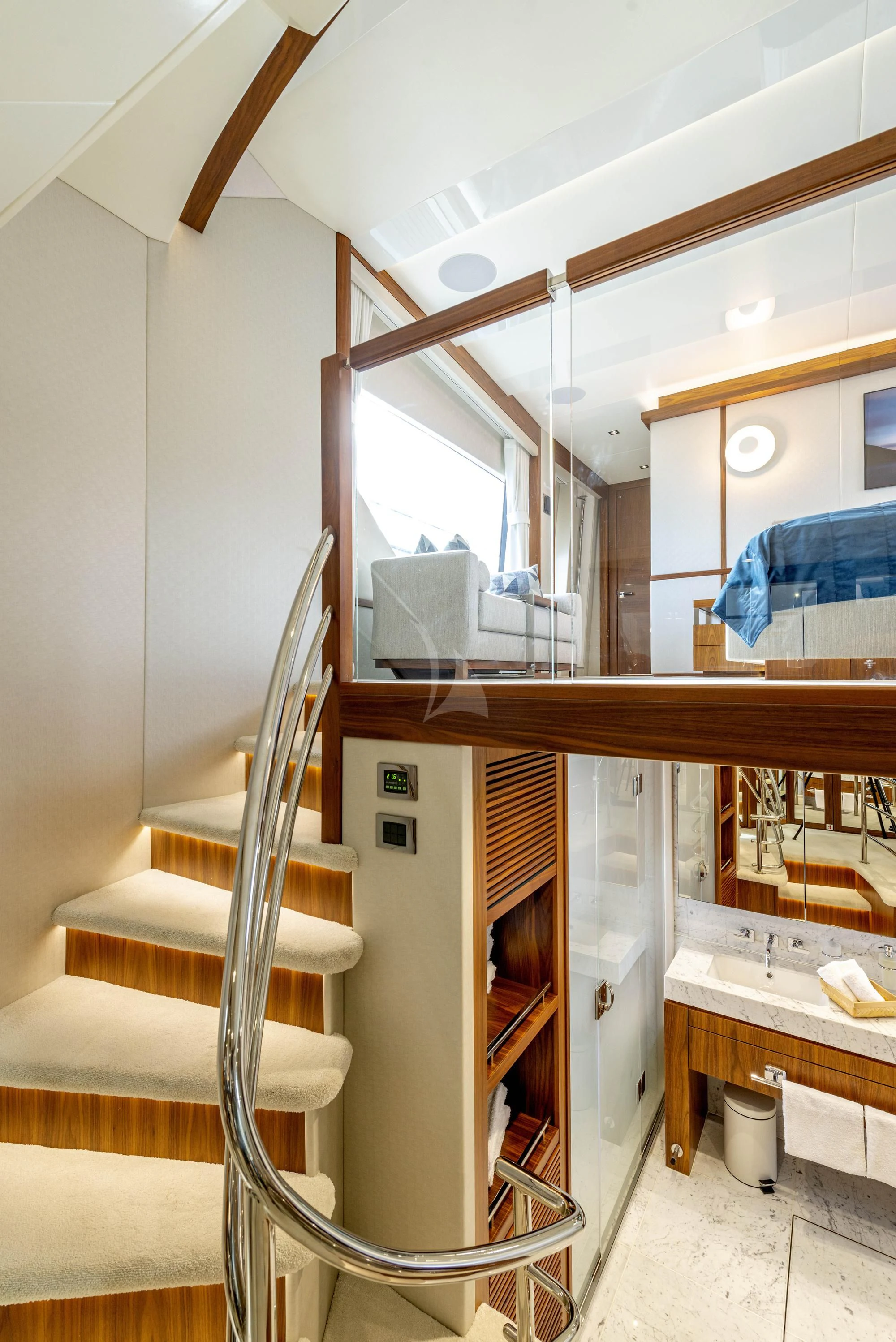

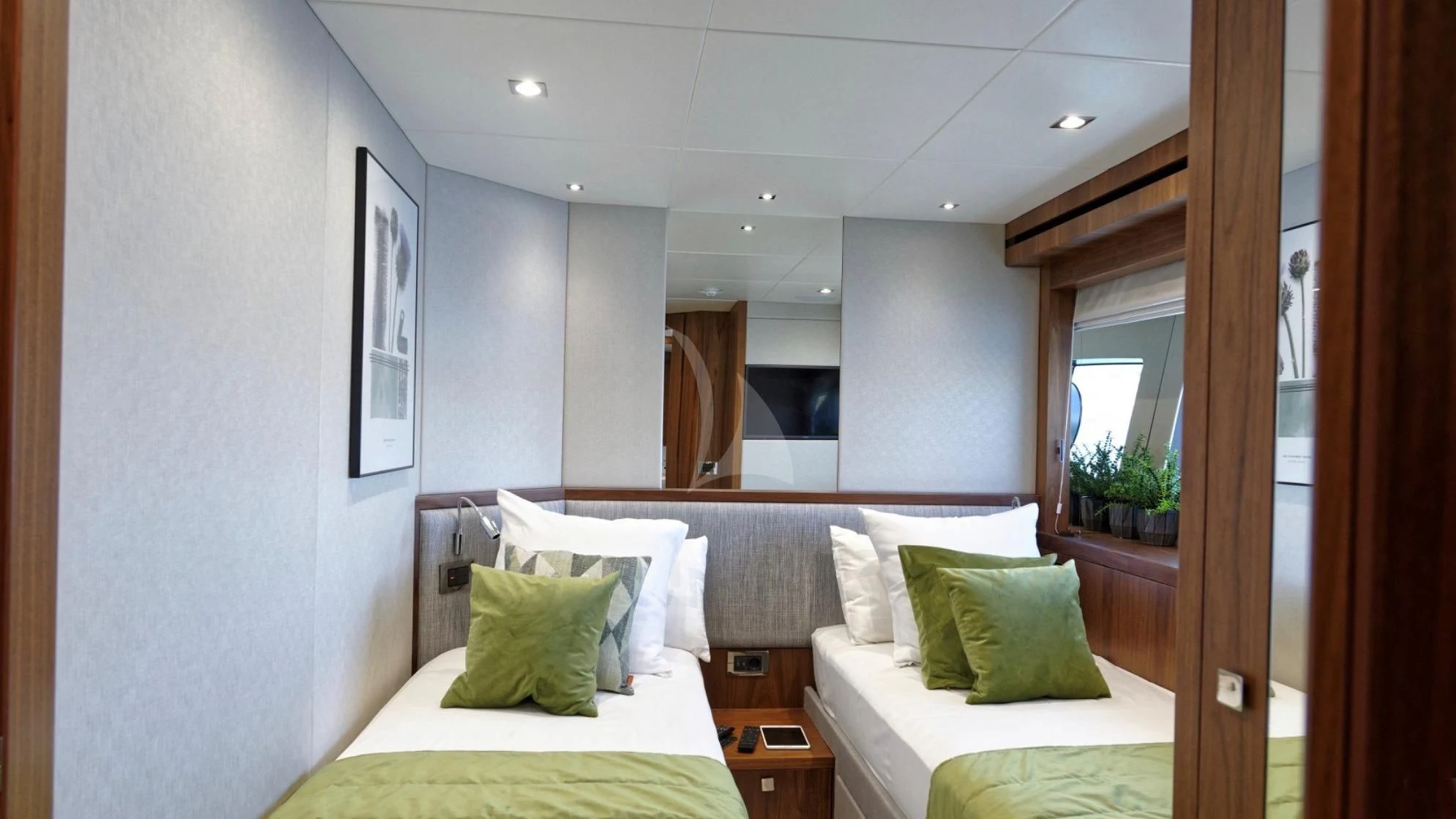

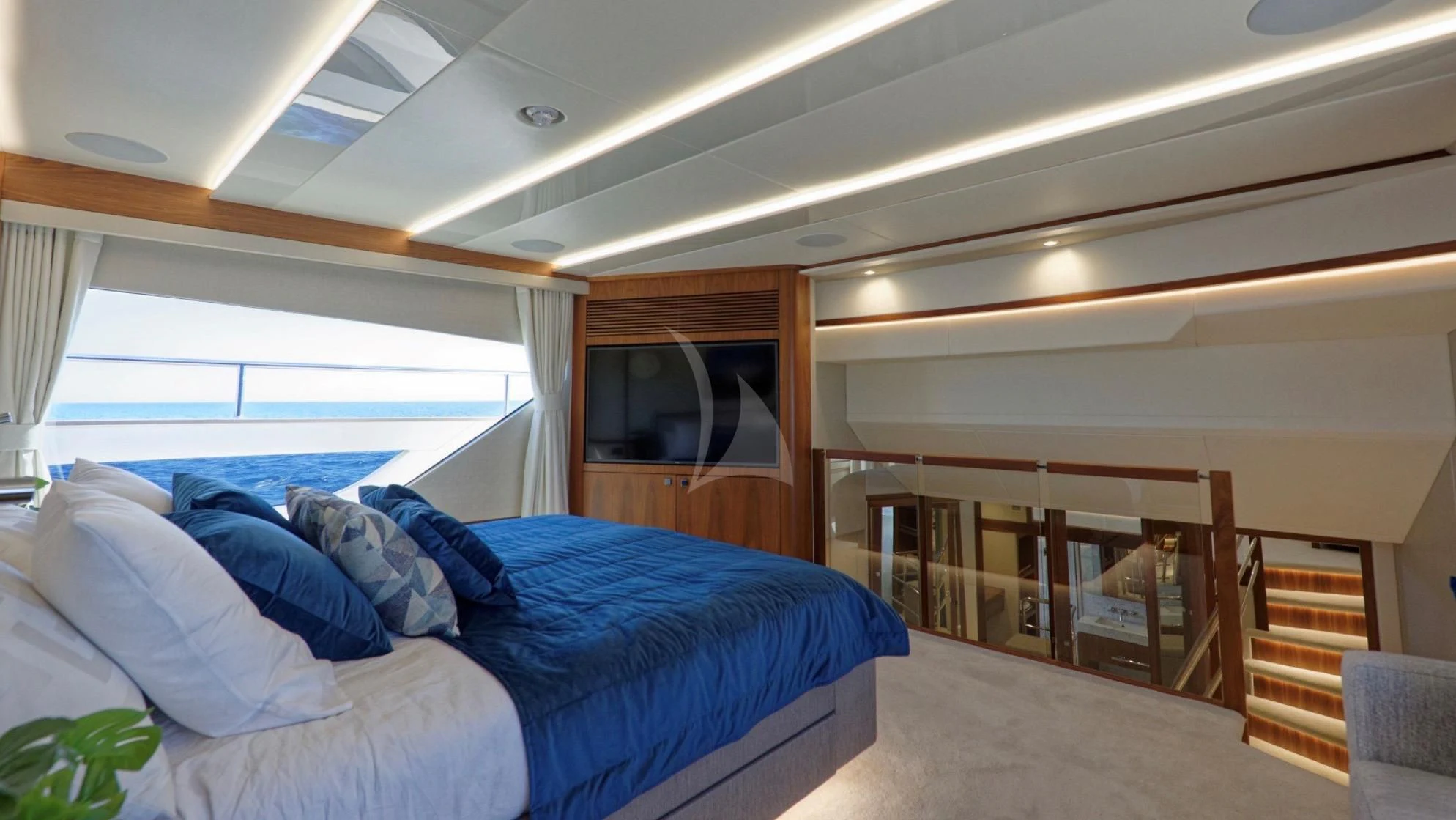

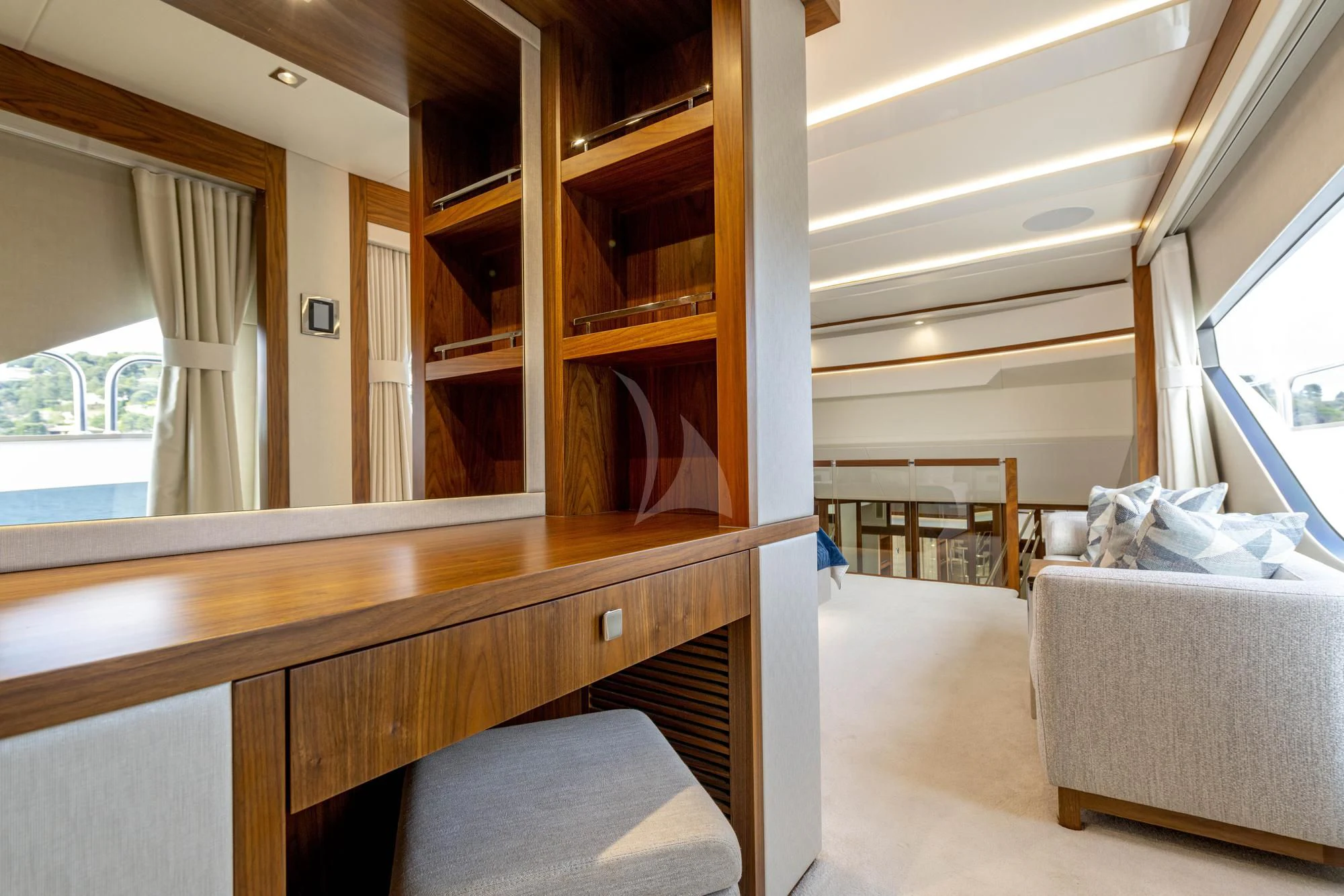

  • She is a 5 cabins layout. On the main deck, the spectacular three levels Owner’s Stateroom is filled with natural light by the use of full height windows and glass bulwarks within the hull structure. The lower deck boasts 4 staterooms each with ensuite: 2 double staterooms and 2 twin staterooms where the single beds can slide into a double one.

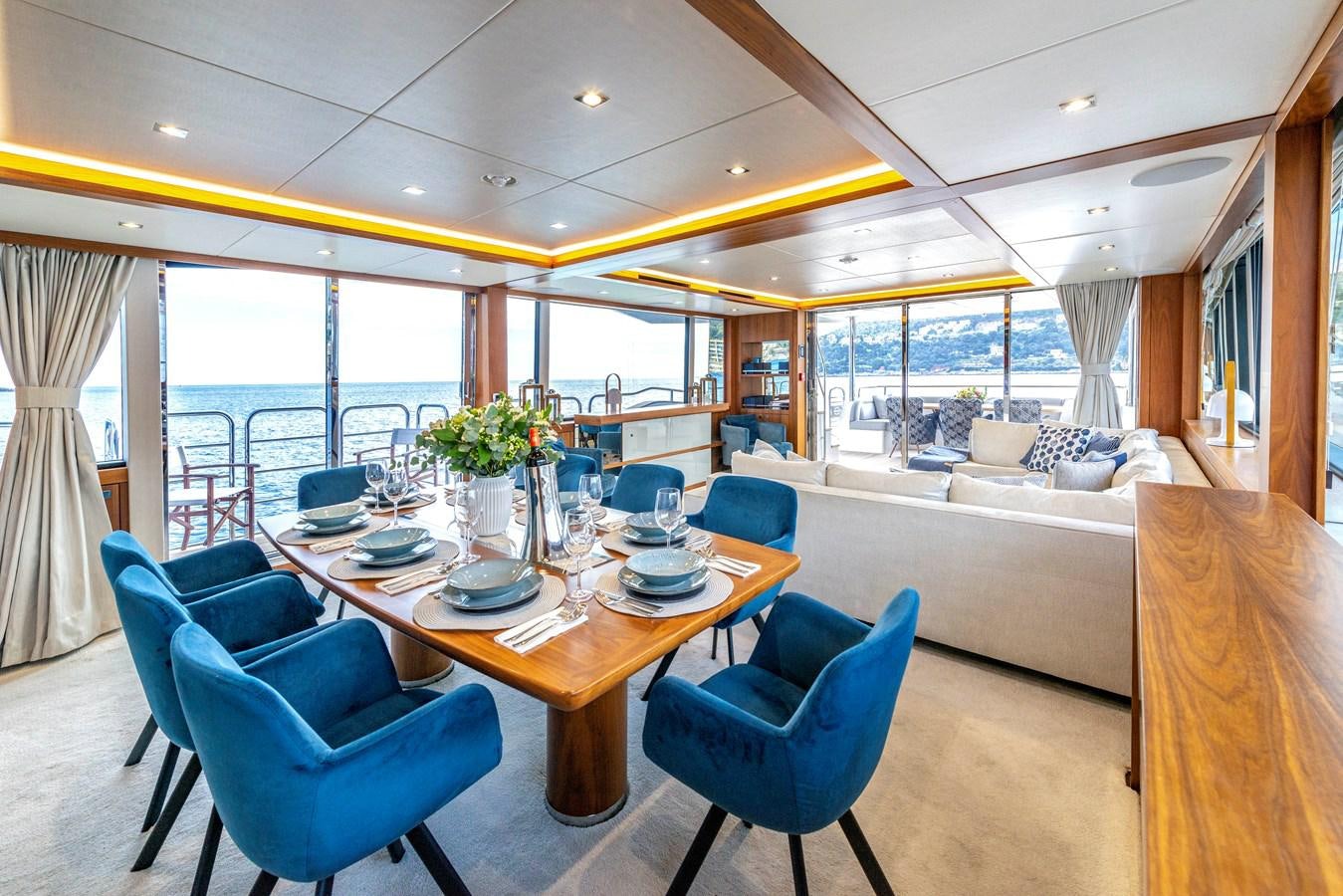

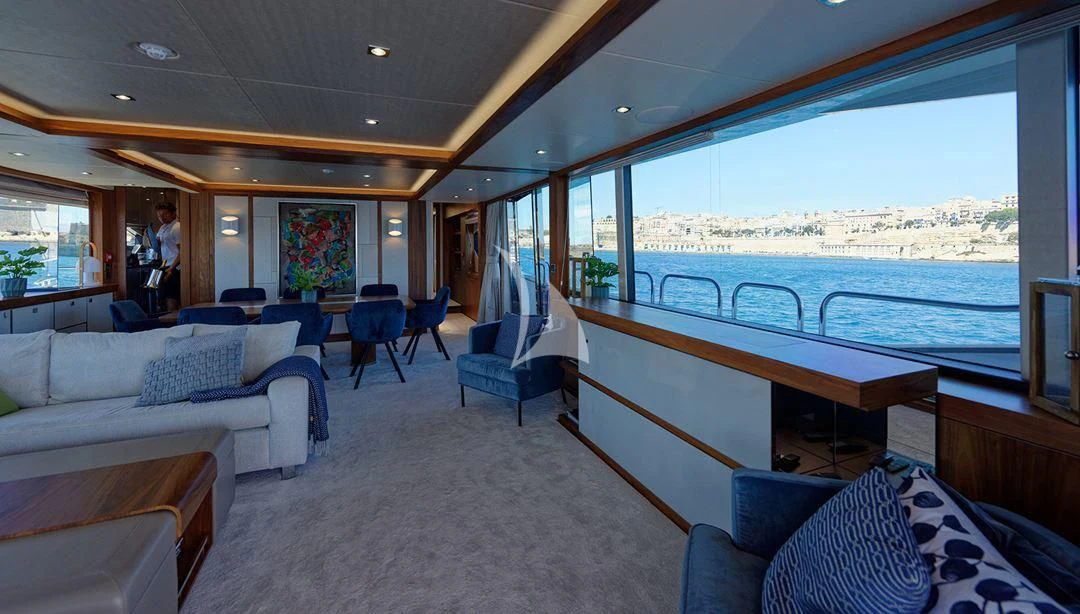

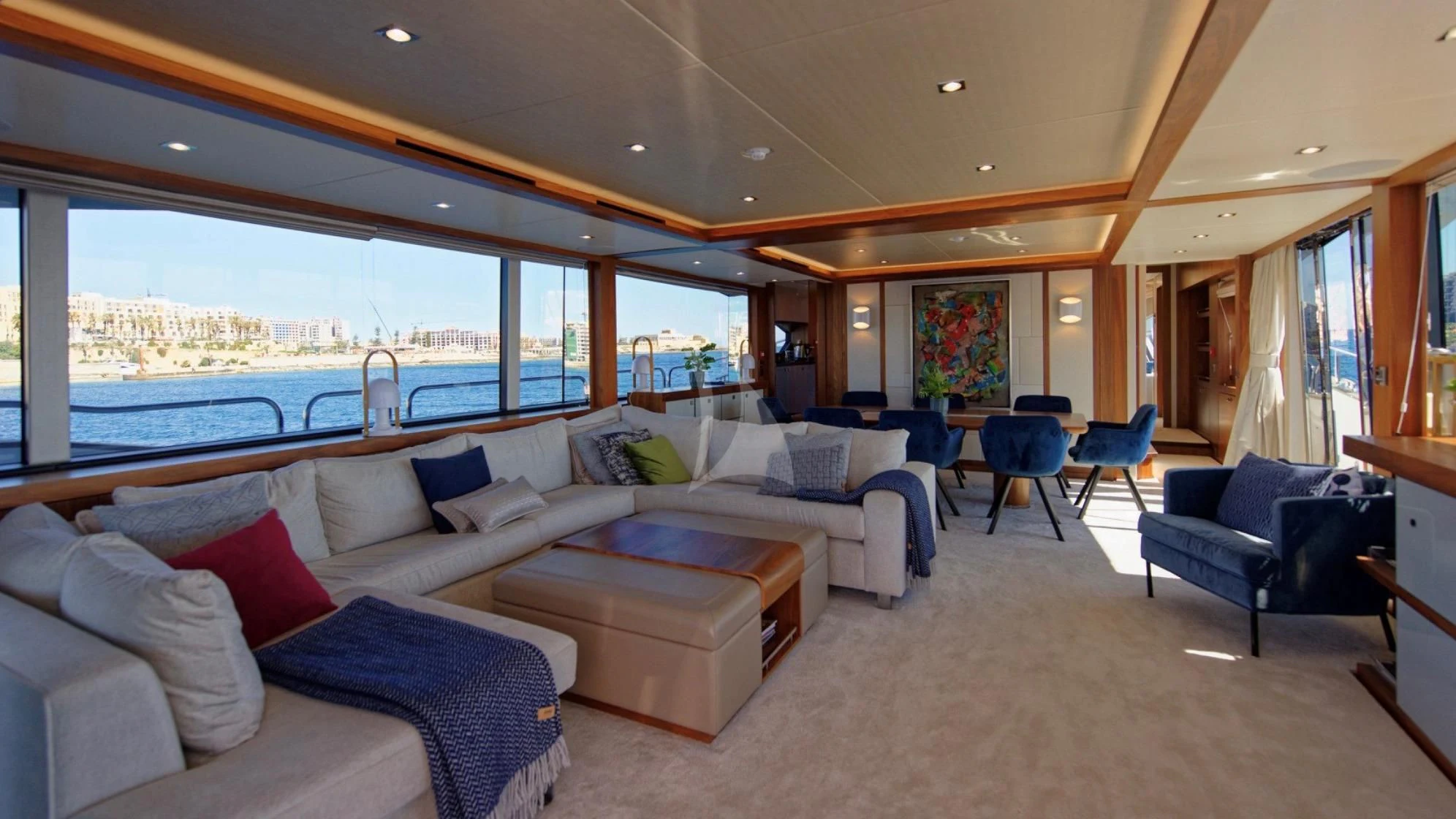

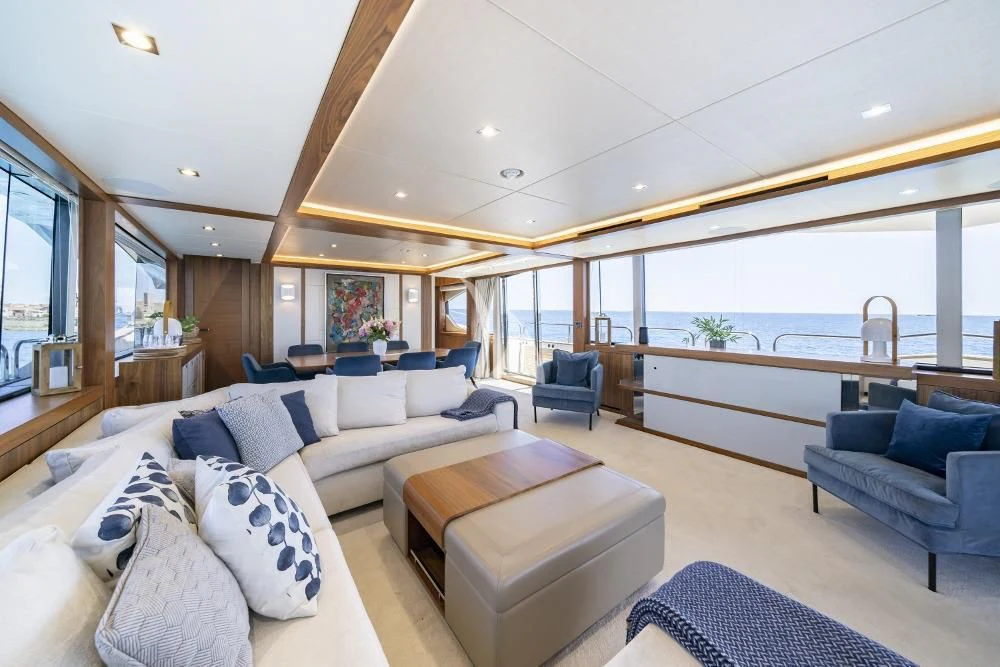

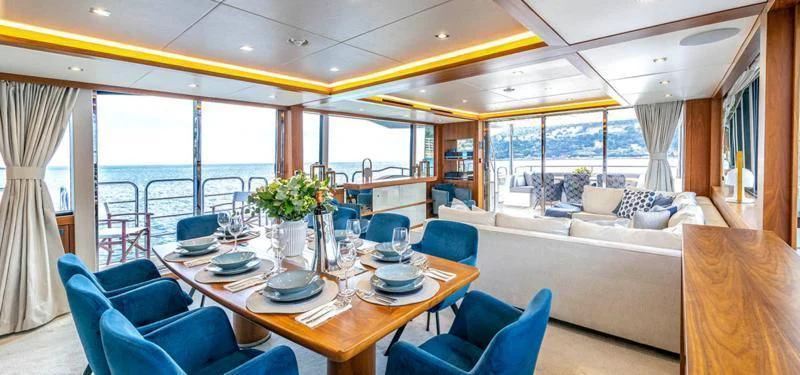

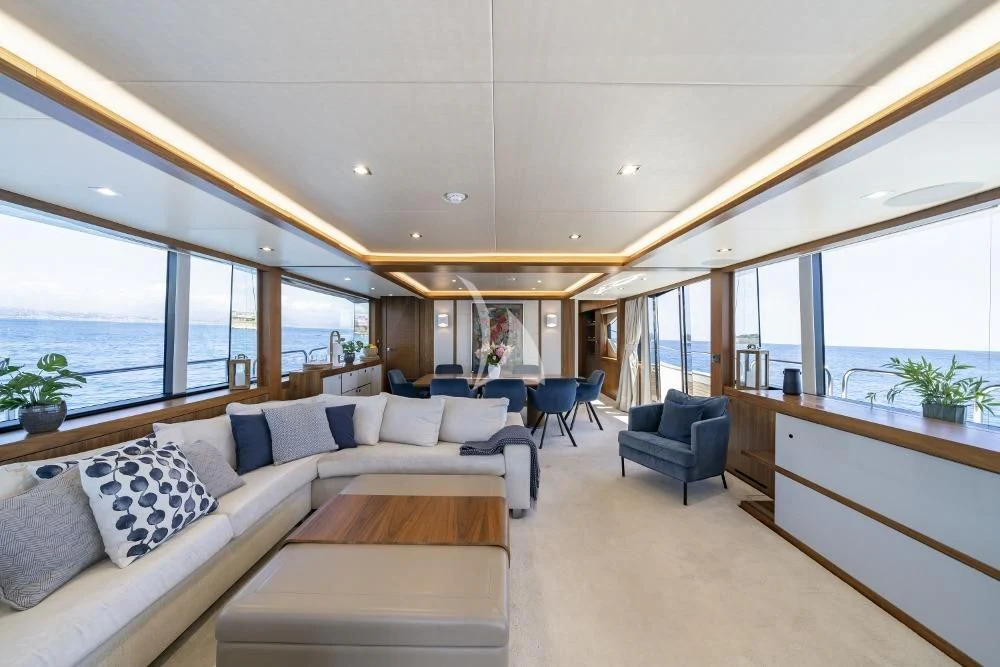

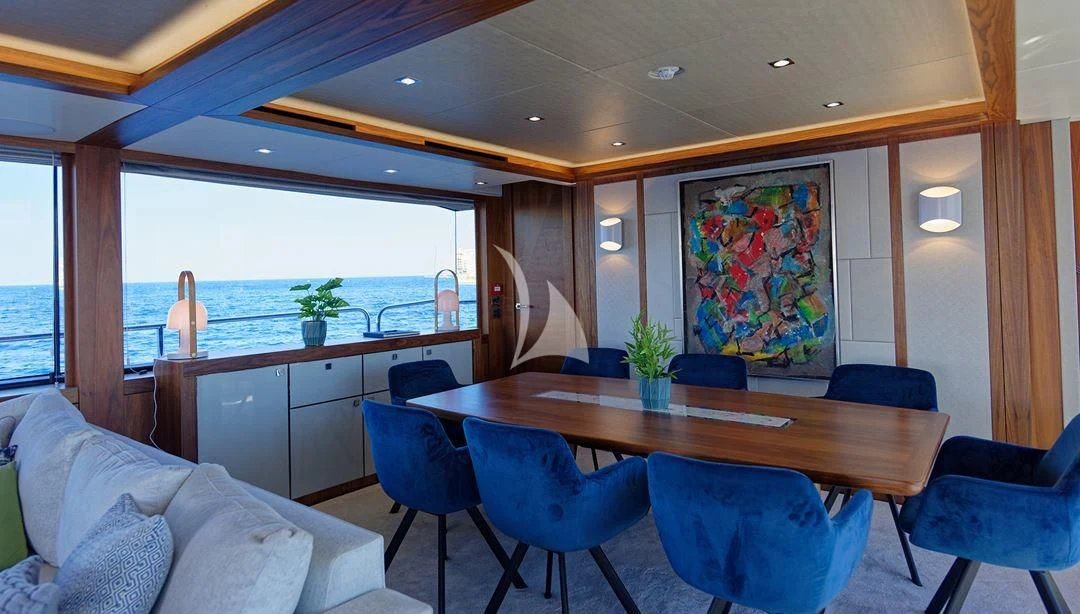

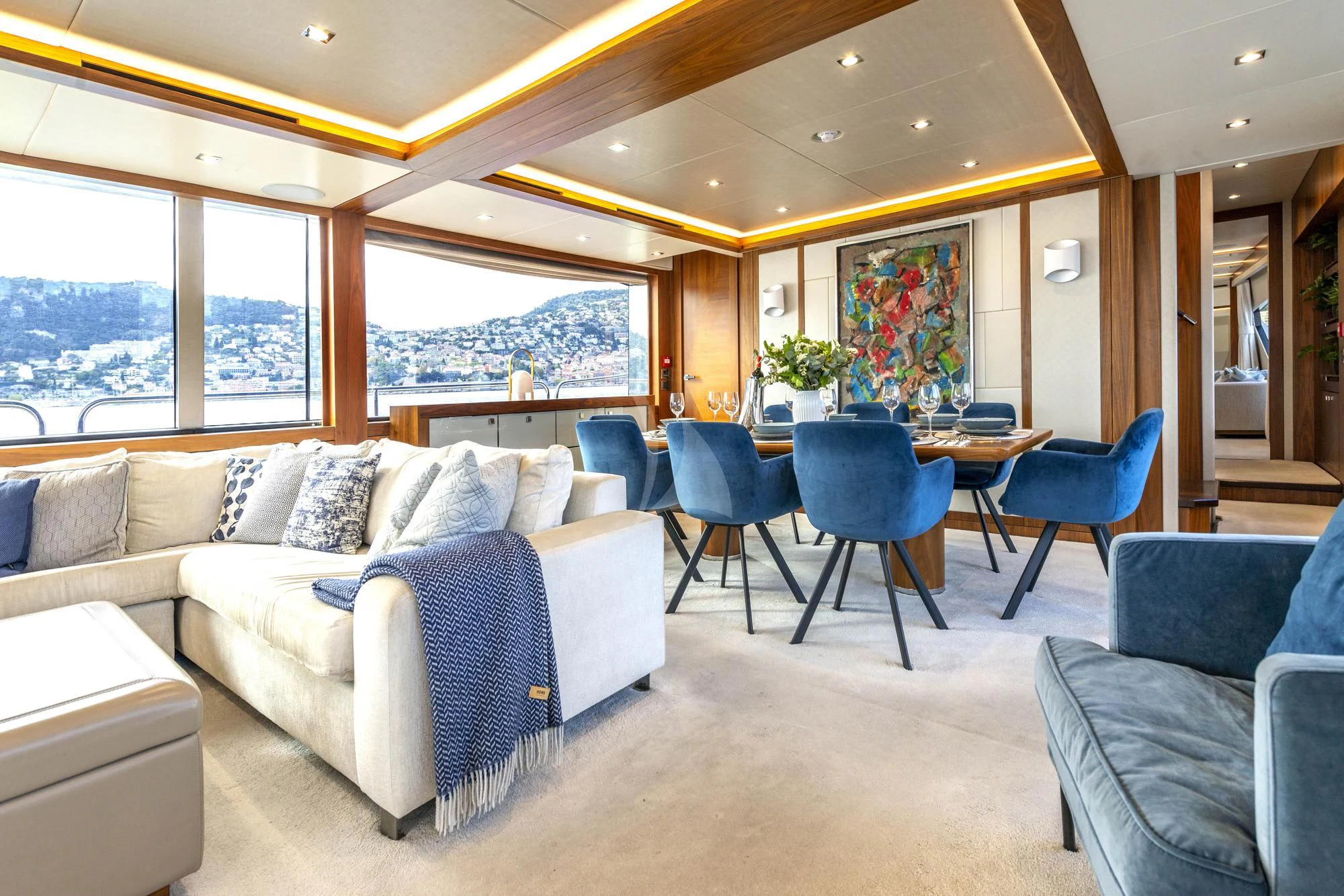

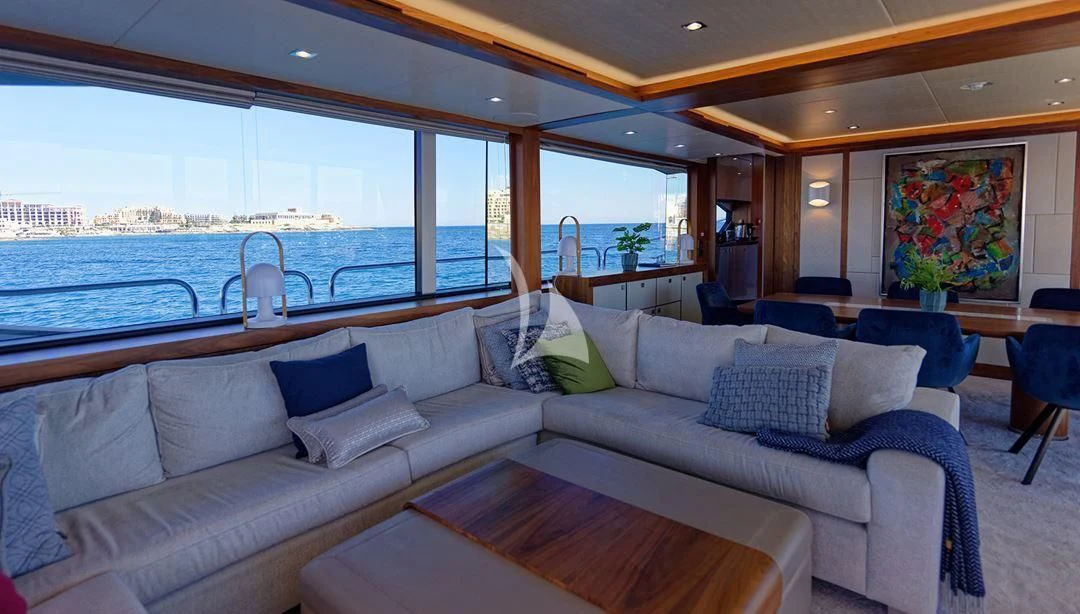

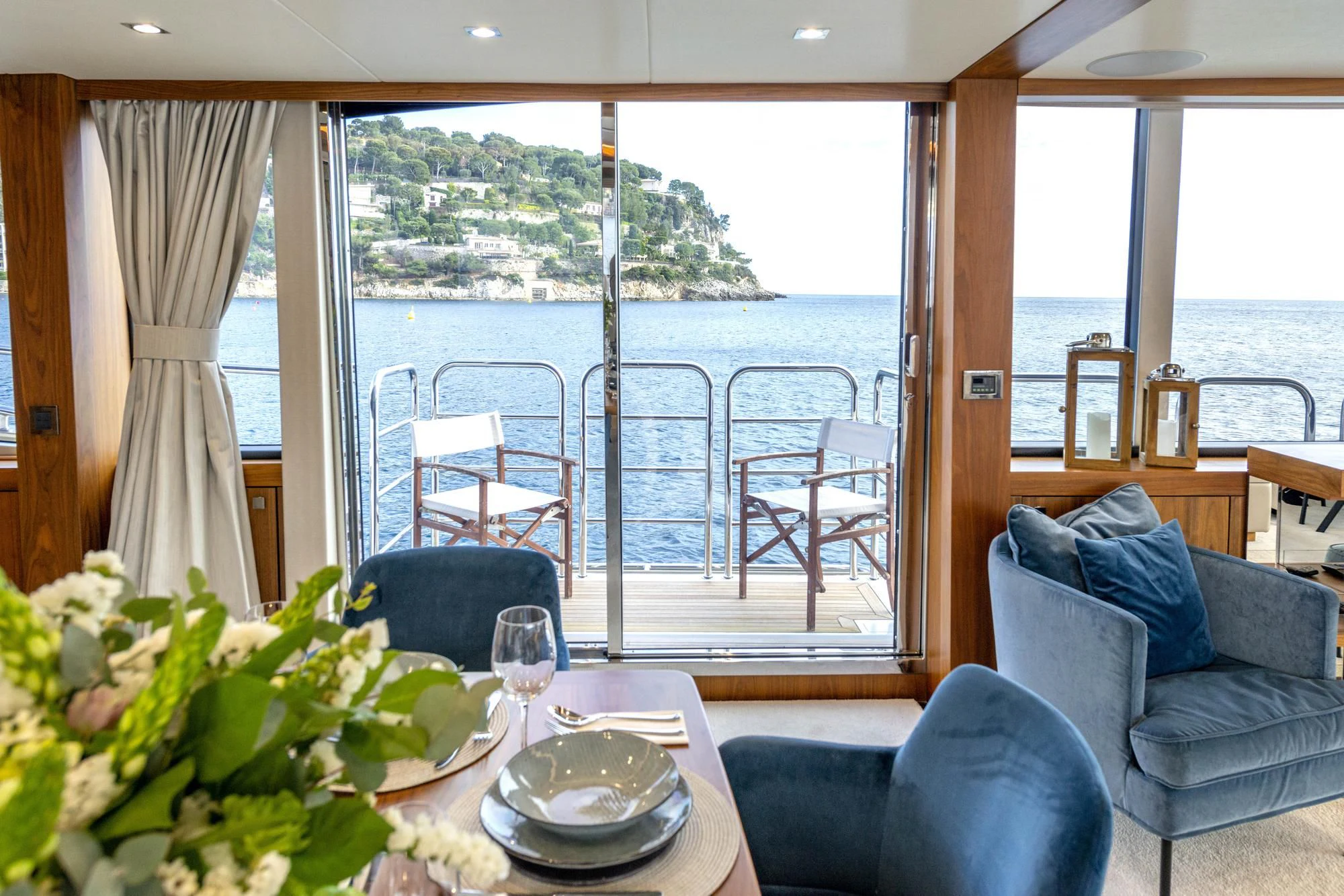

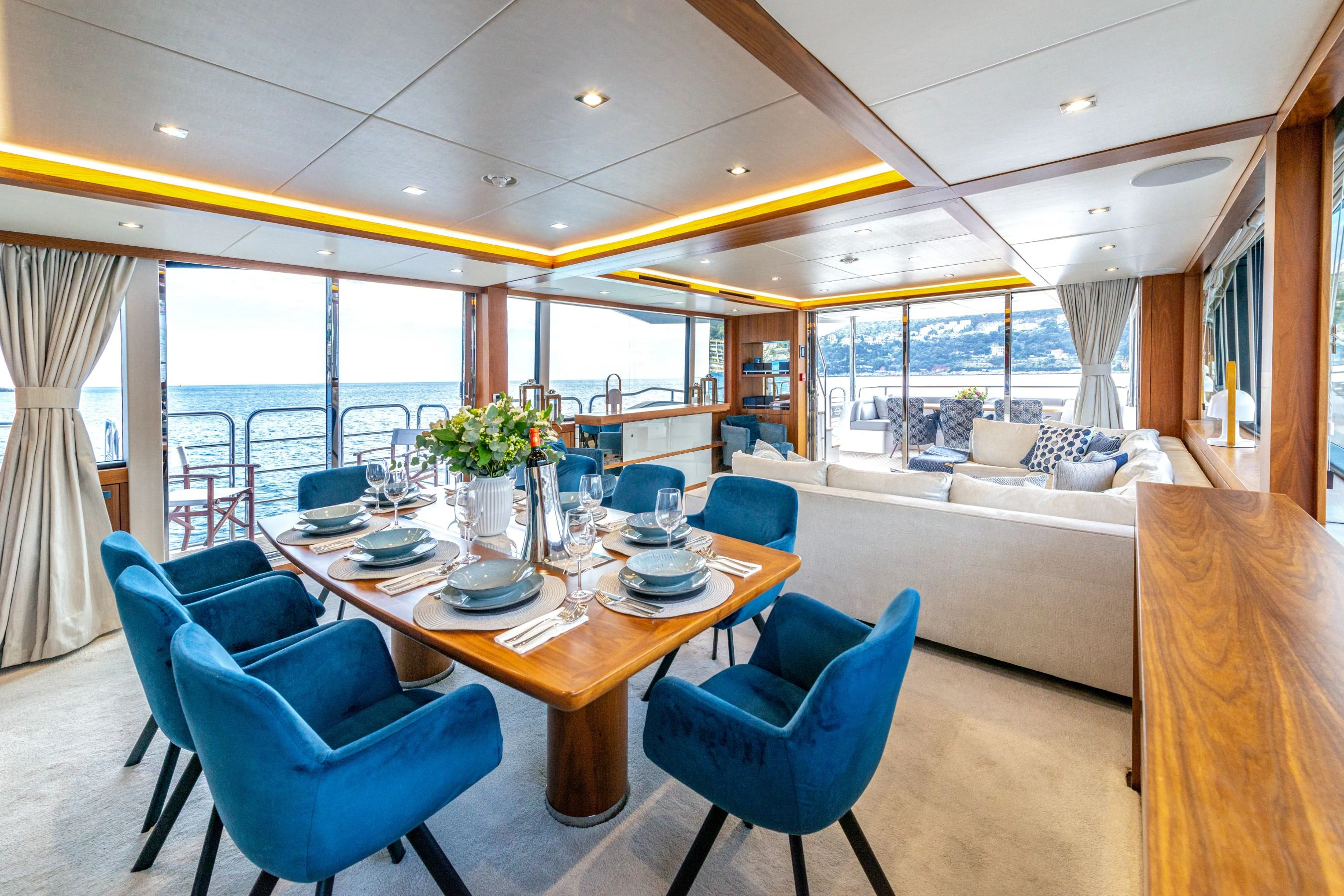

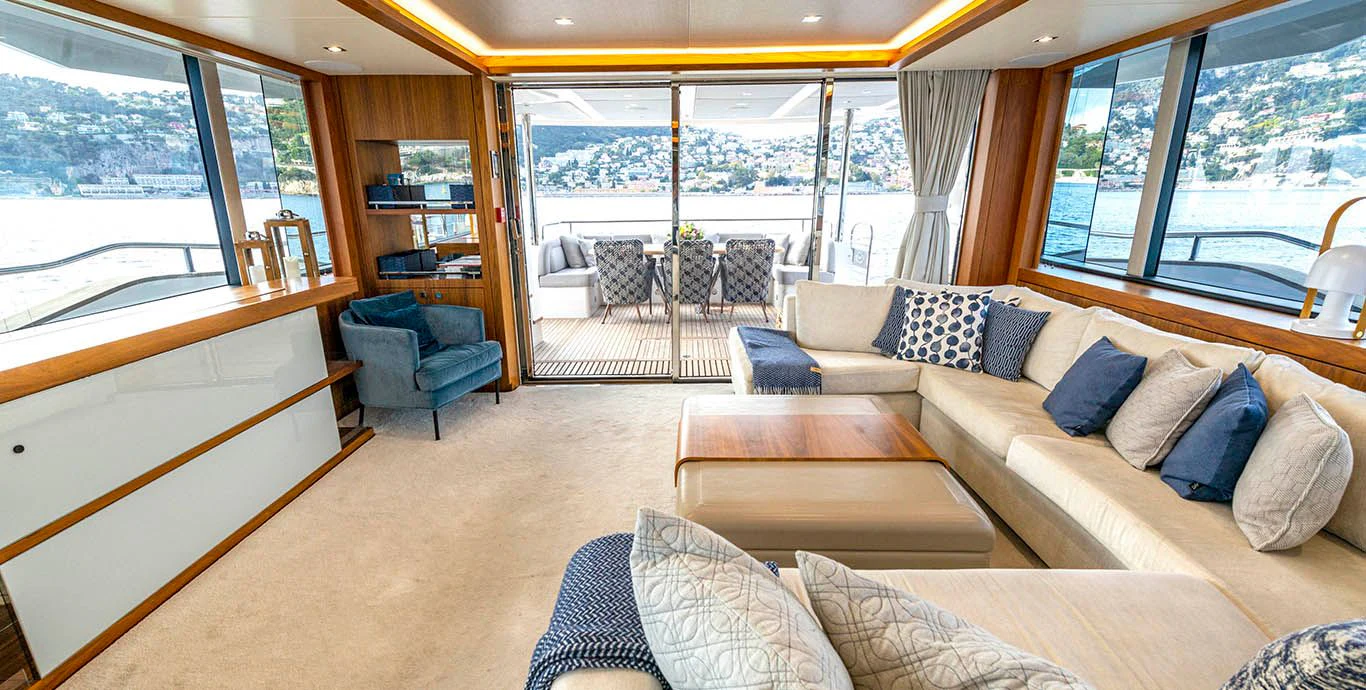

  • The very welcoming main salon offers plenty of seating, the satin walnut finish associated with cream carpet creates a very cozy environment. Next to the dining table for 10, a sliding patio door gives access to a folding side balcony, a lovely spot at anchor!
  • The separate Raised Pilot House offers a commanding view whilst underway and means the crew of 4 can move about the craft with little disturbance to Guests.

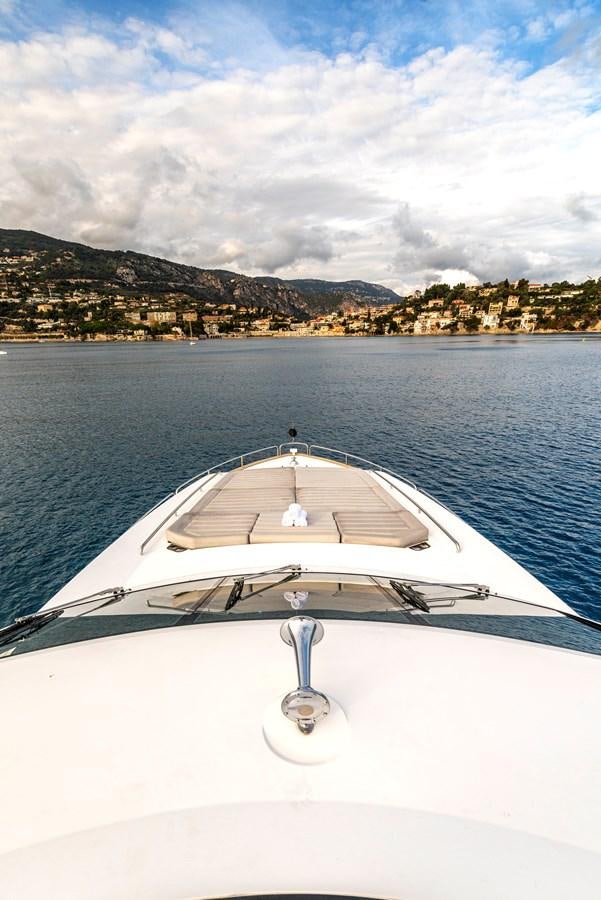

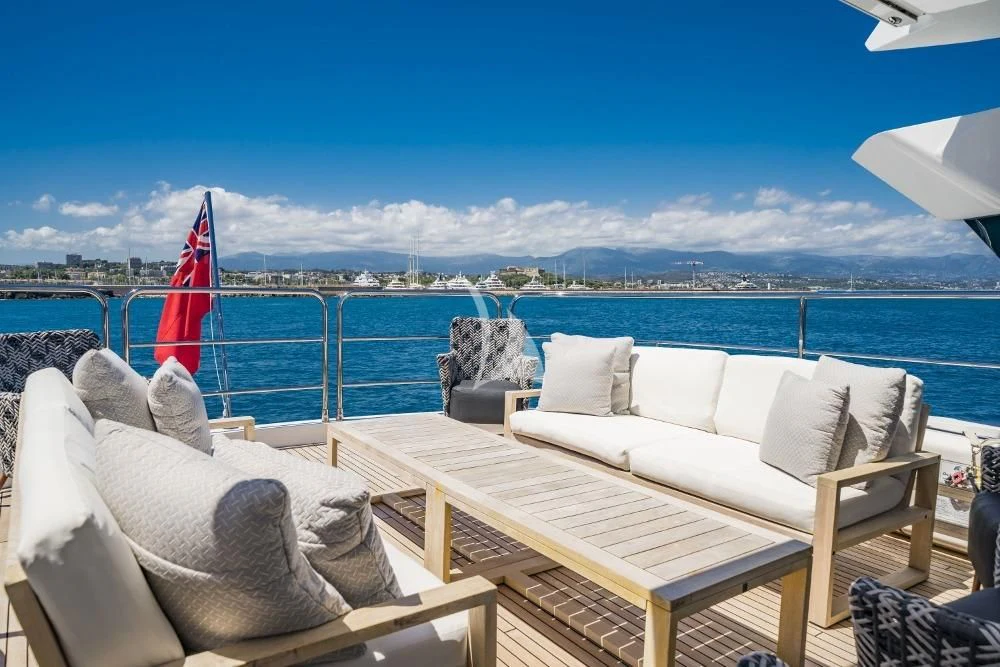

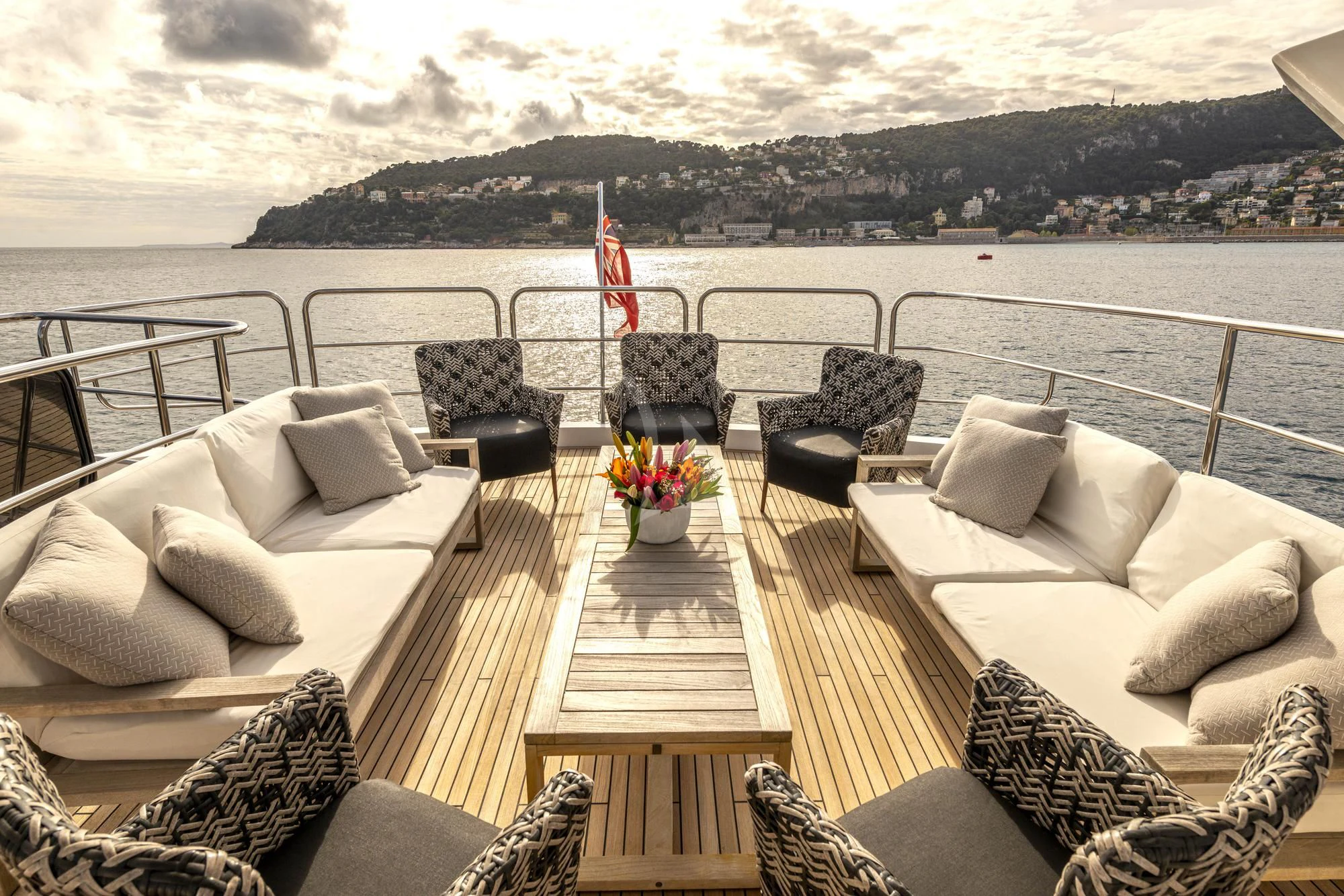

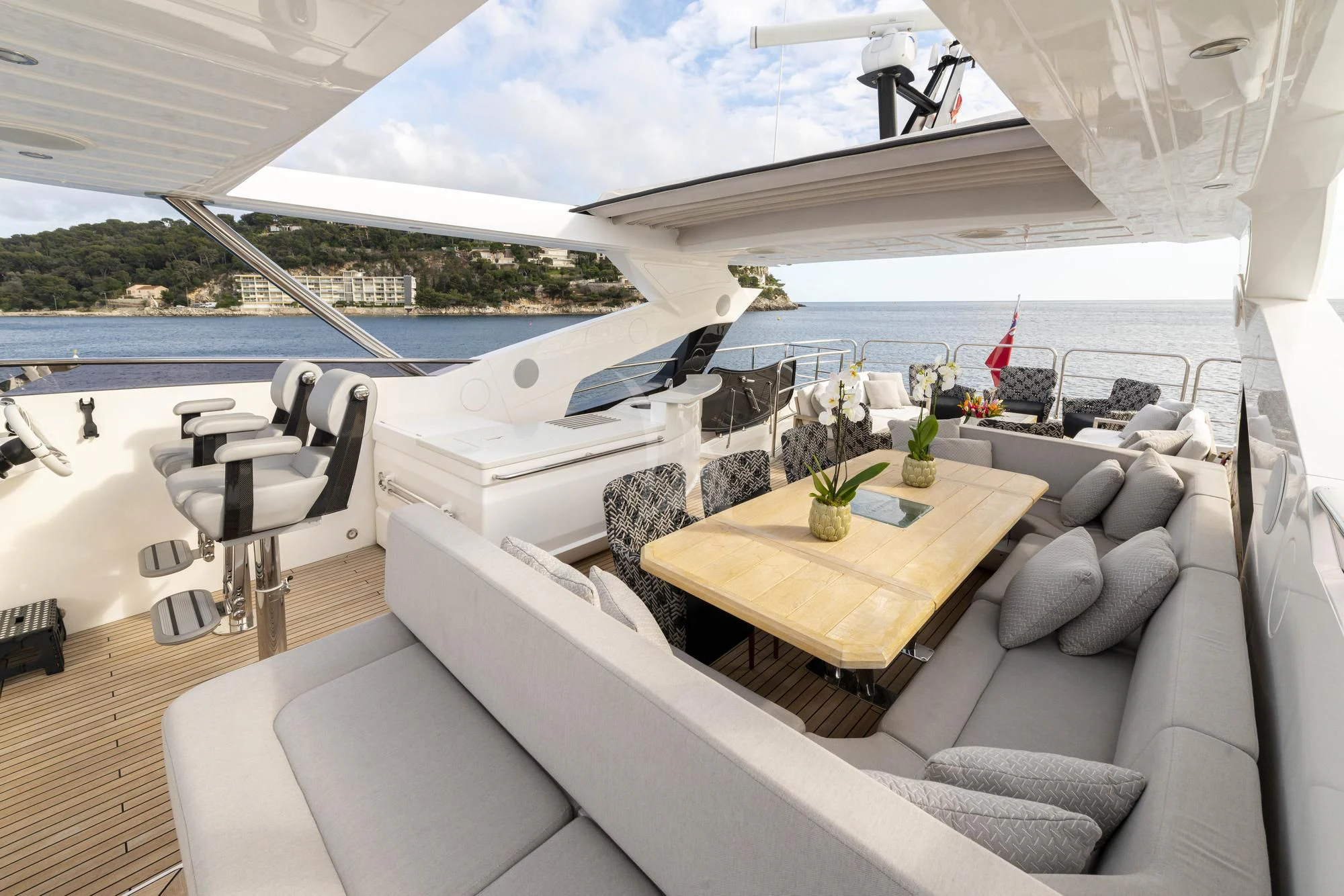

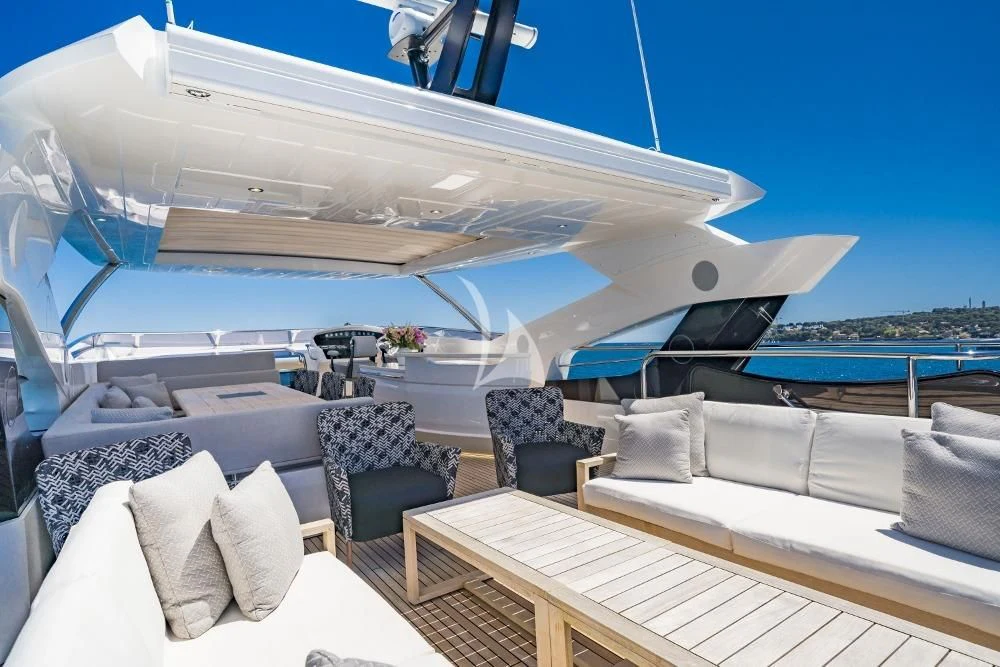

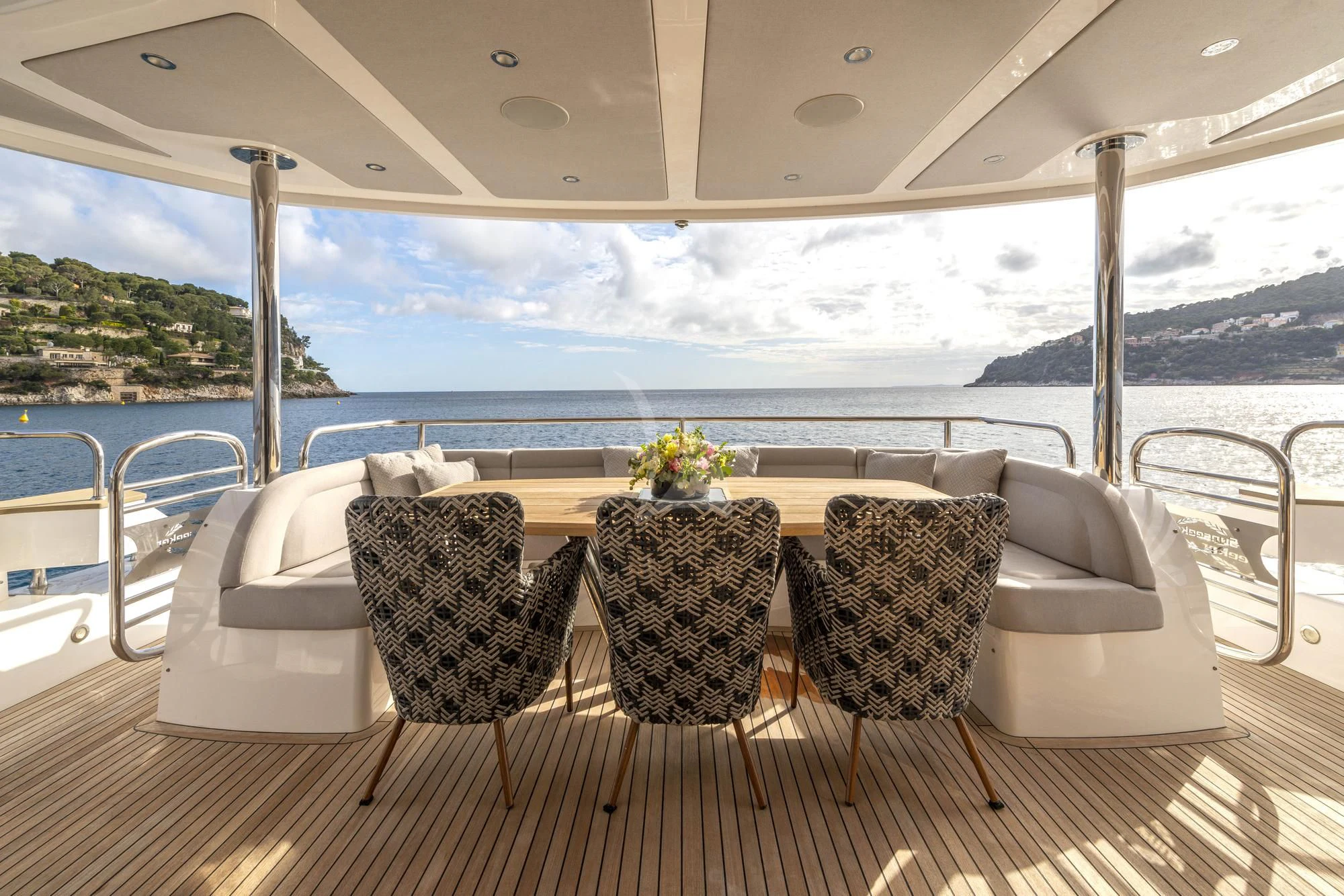

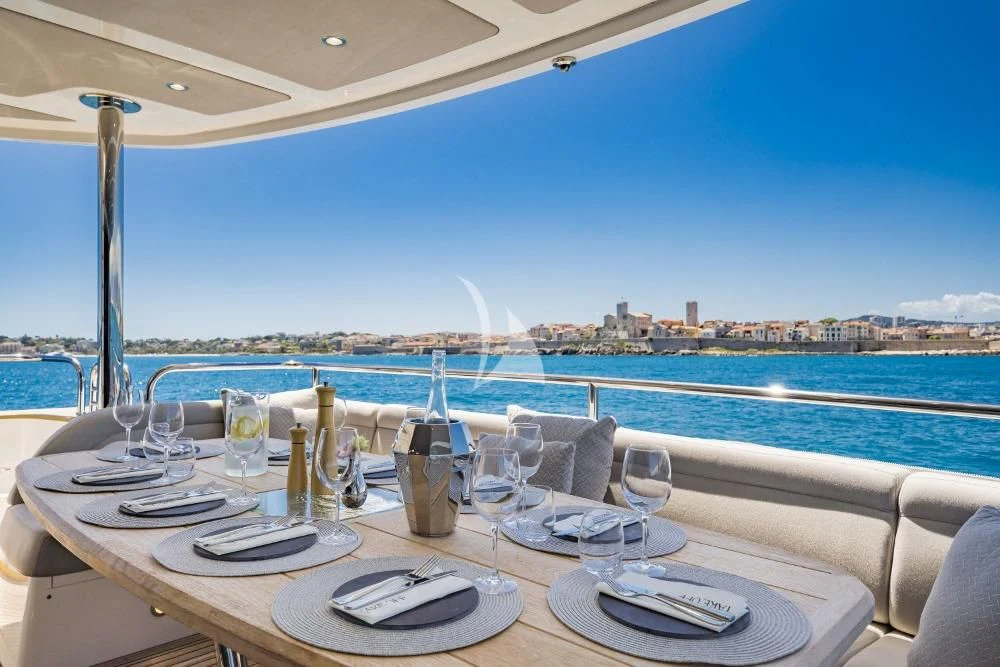

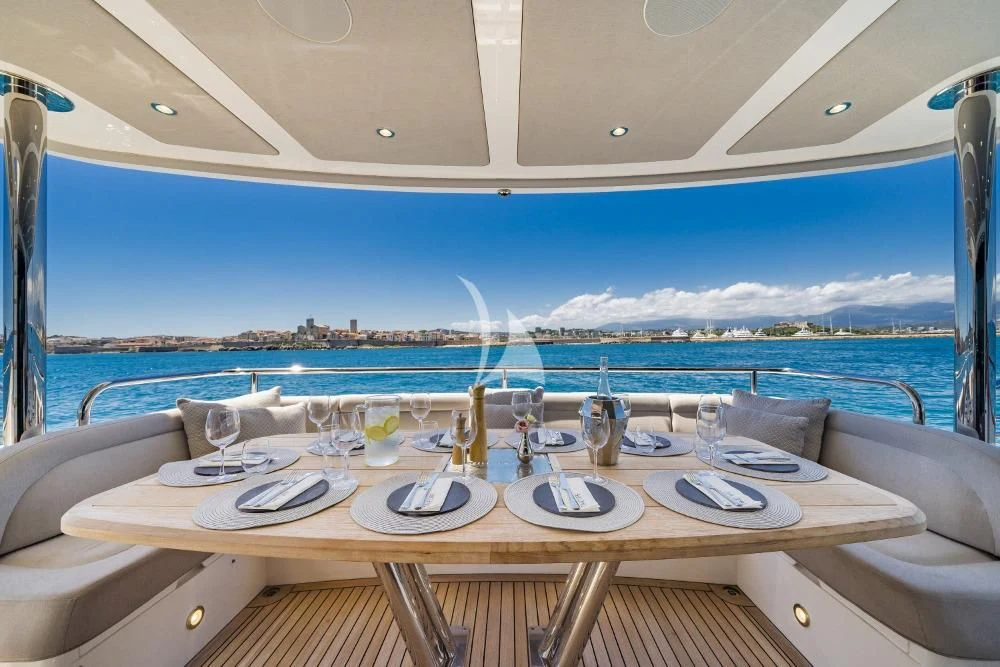

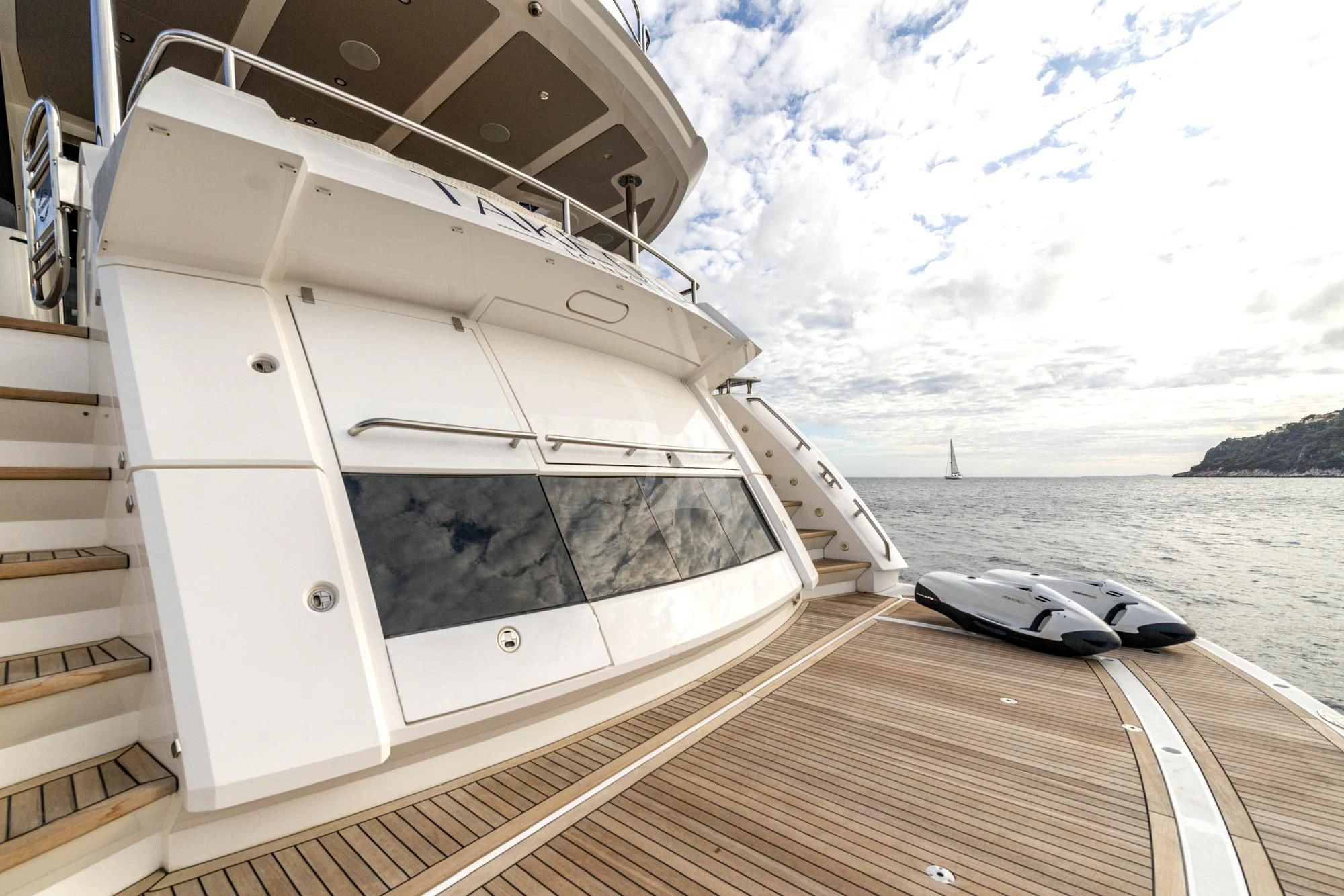

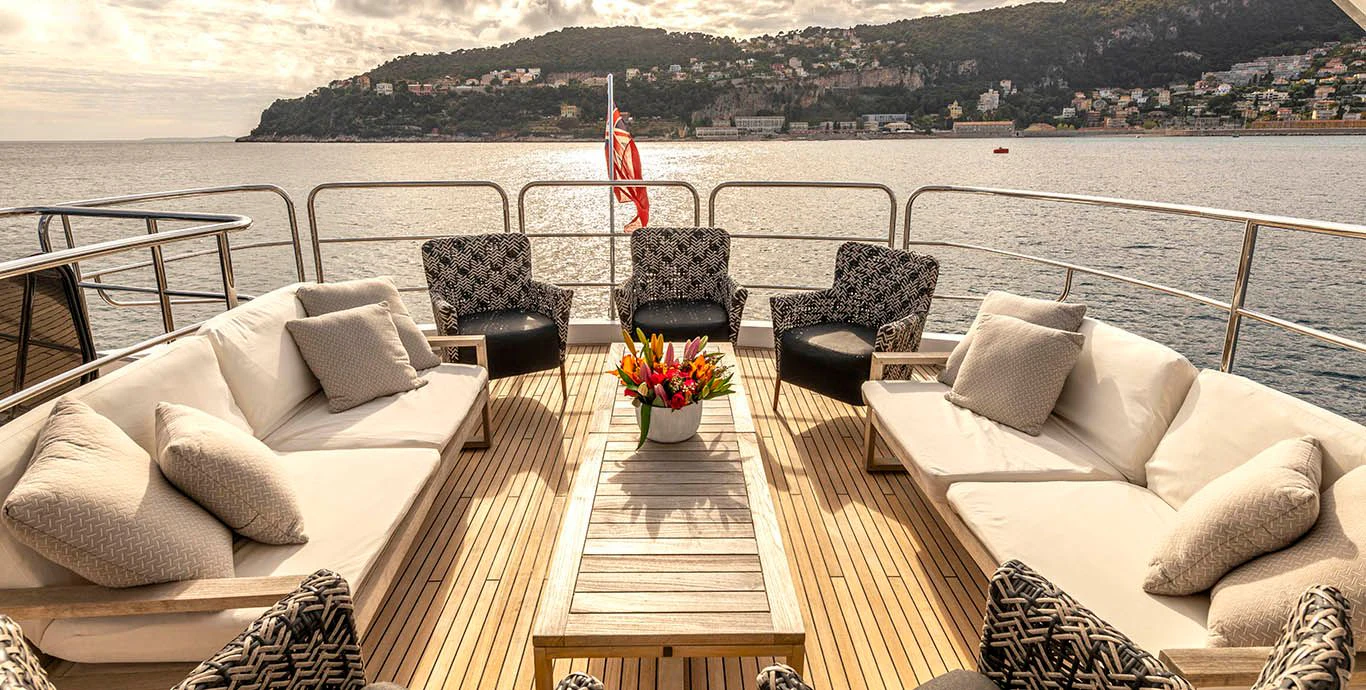

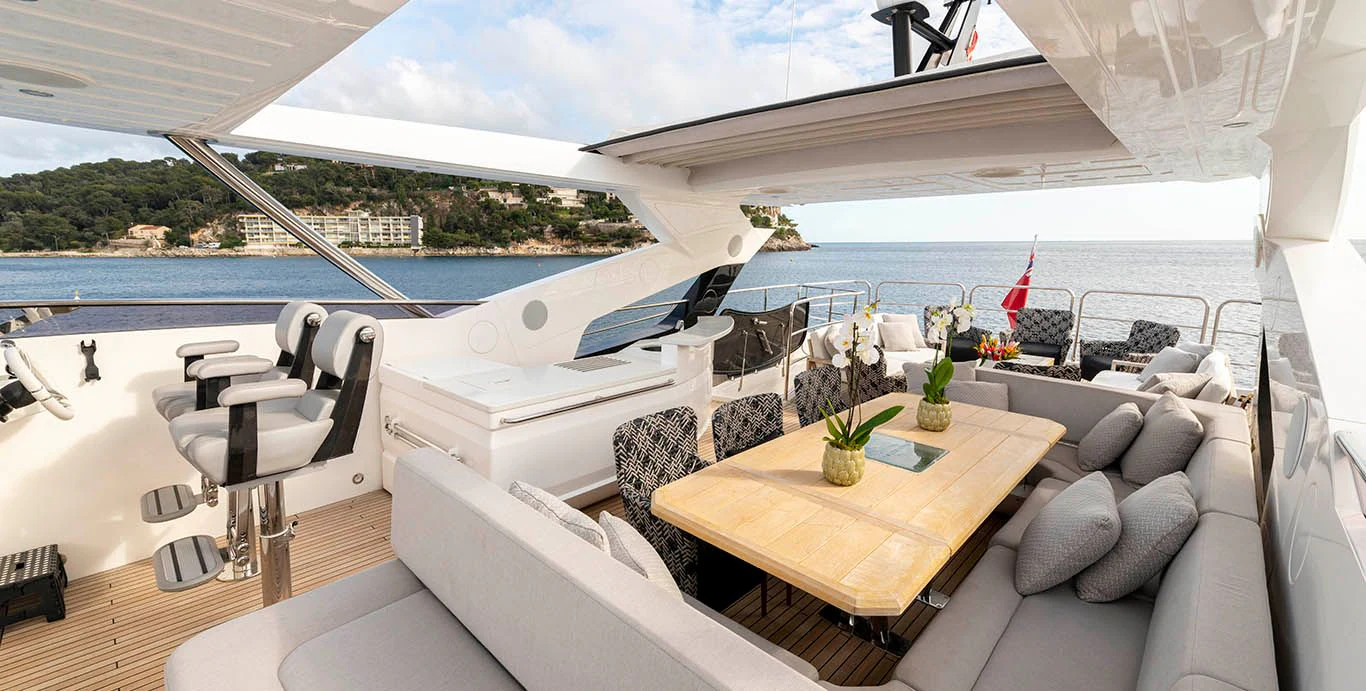

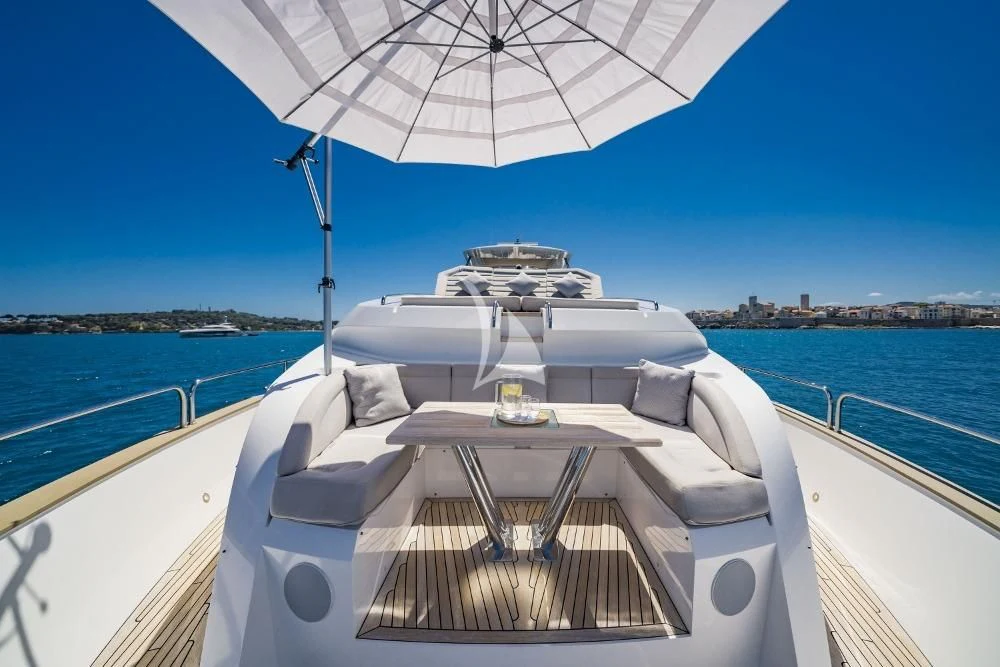

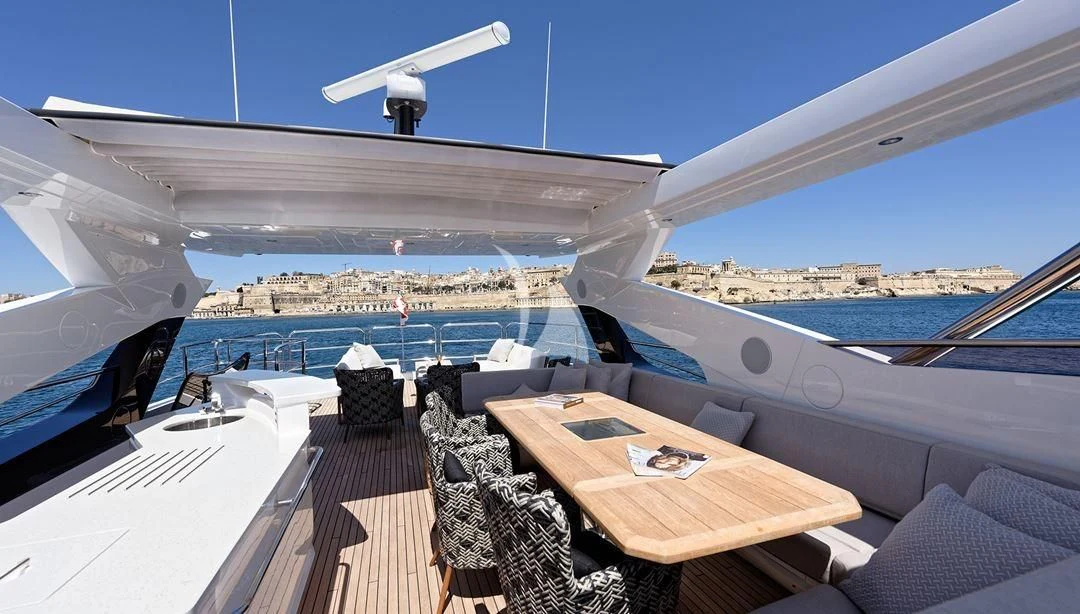

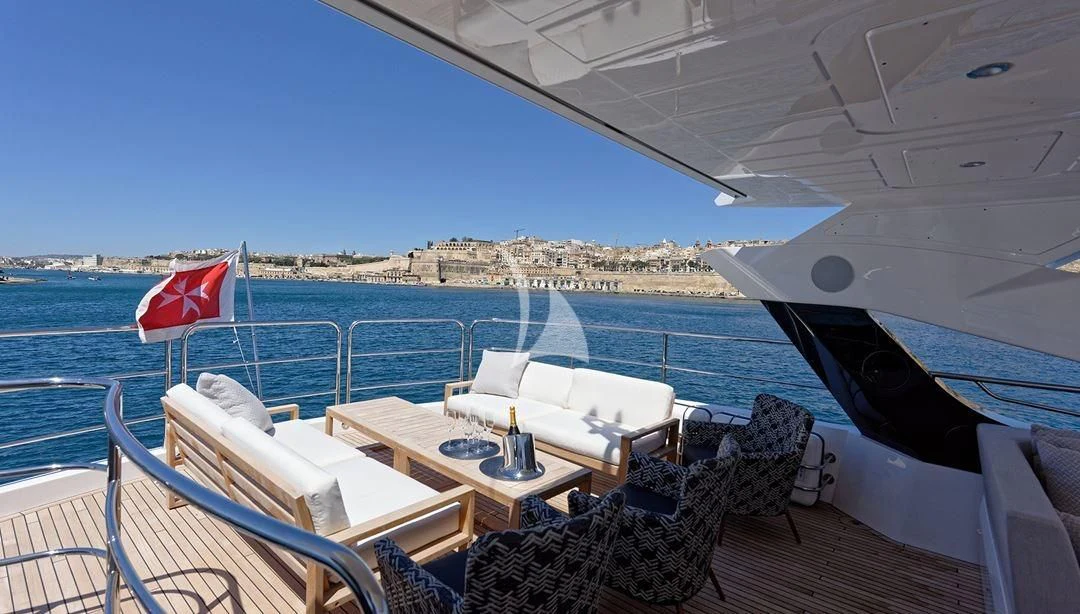

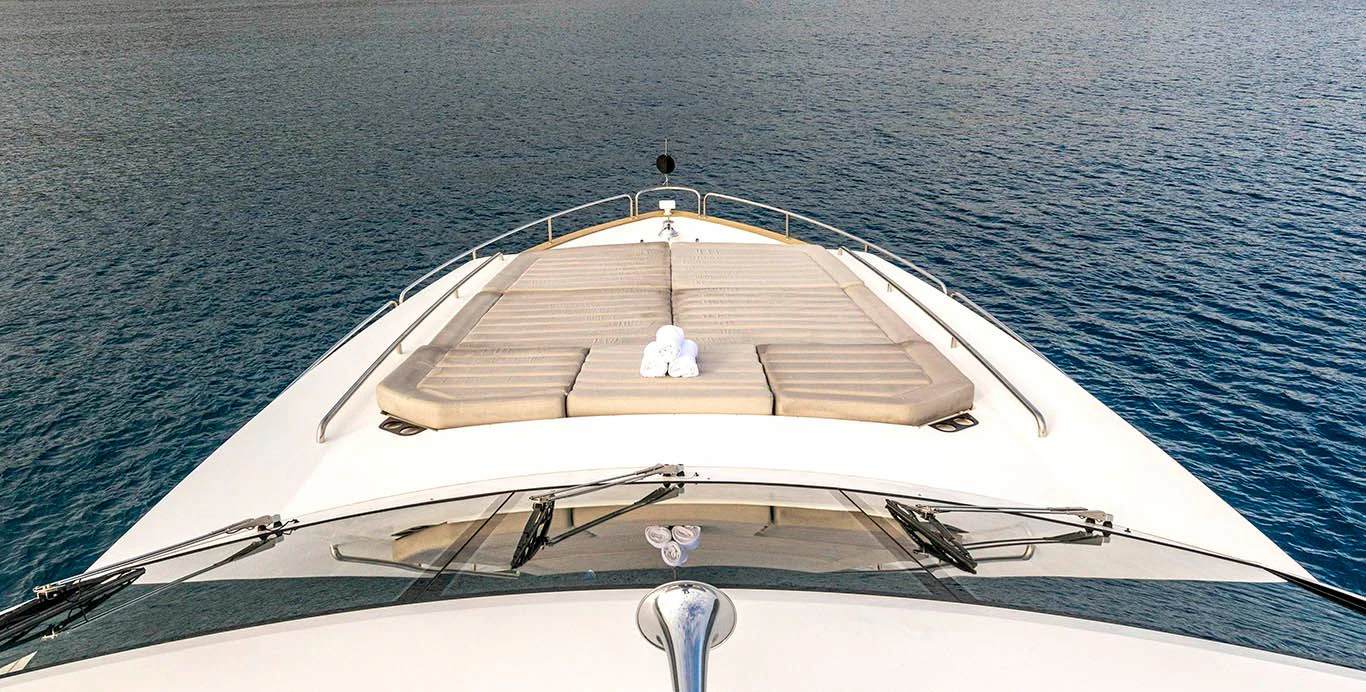

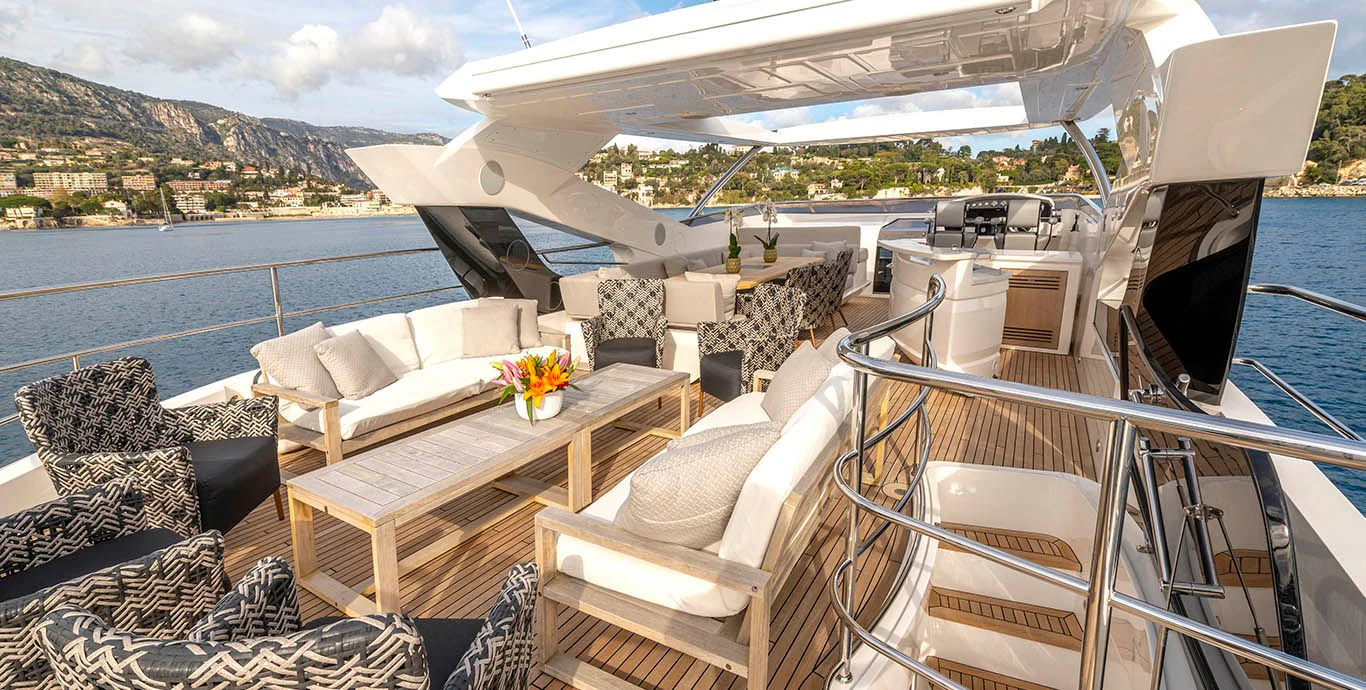

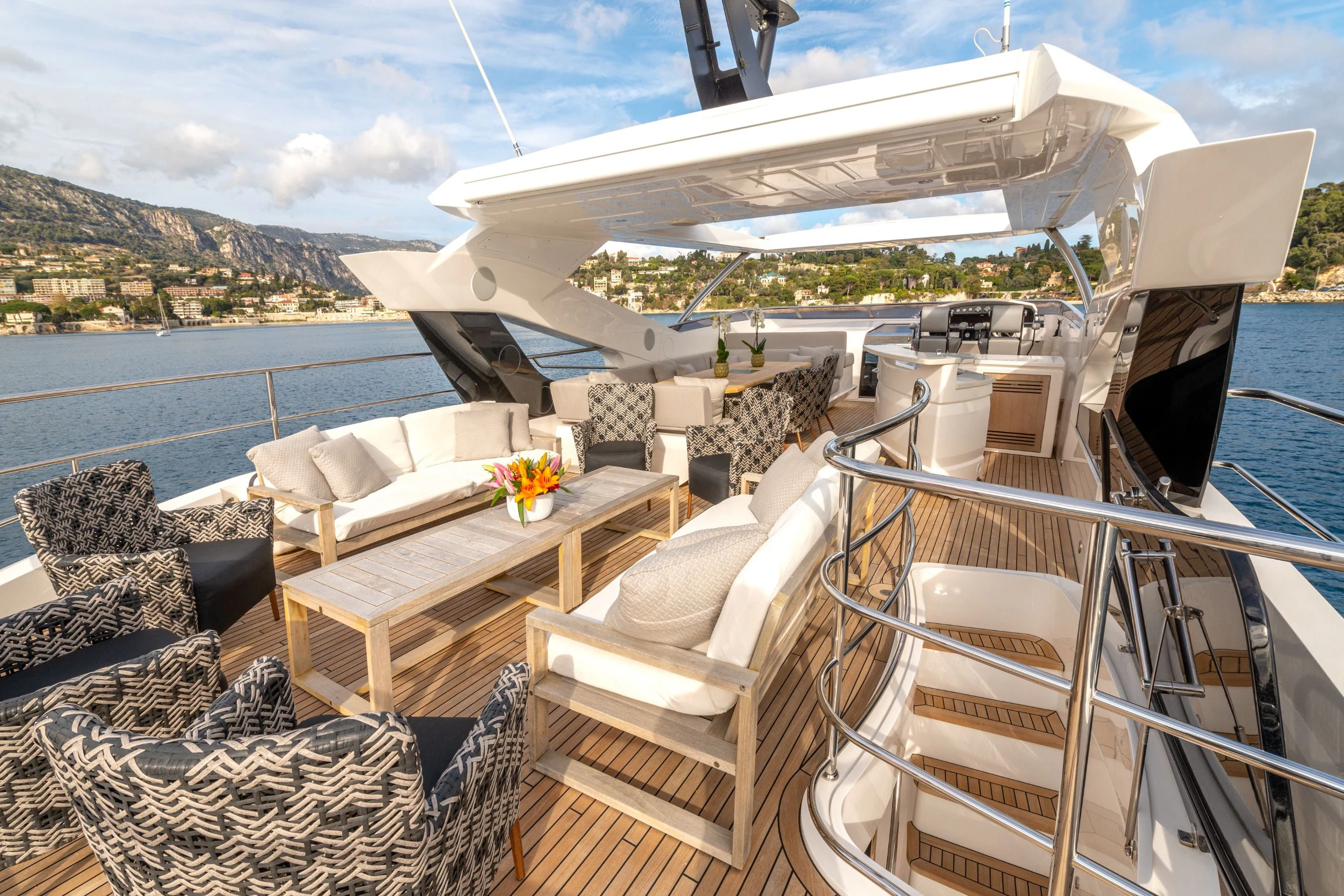

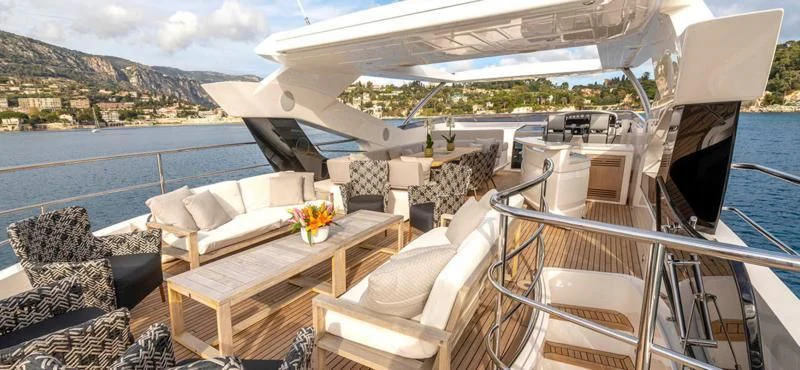

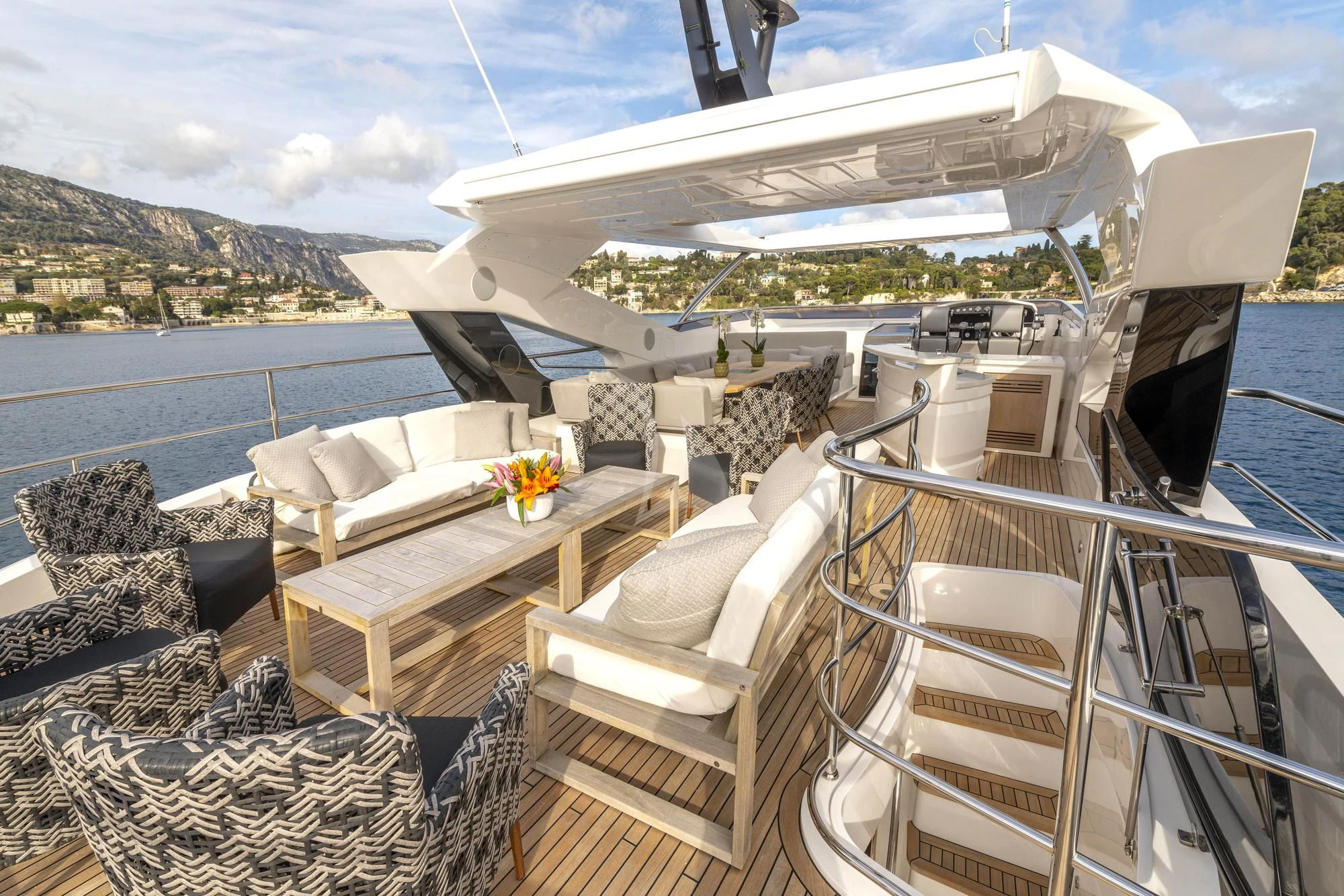

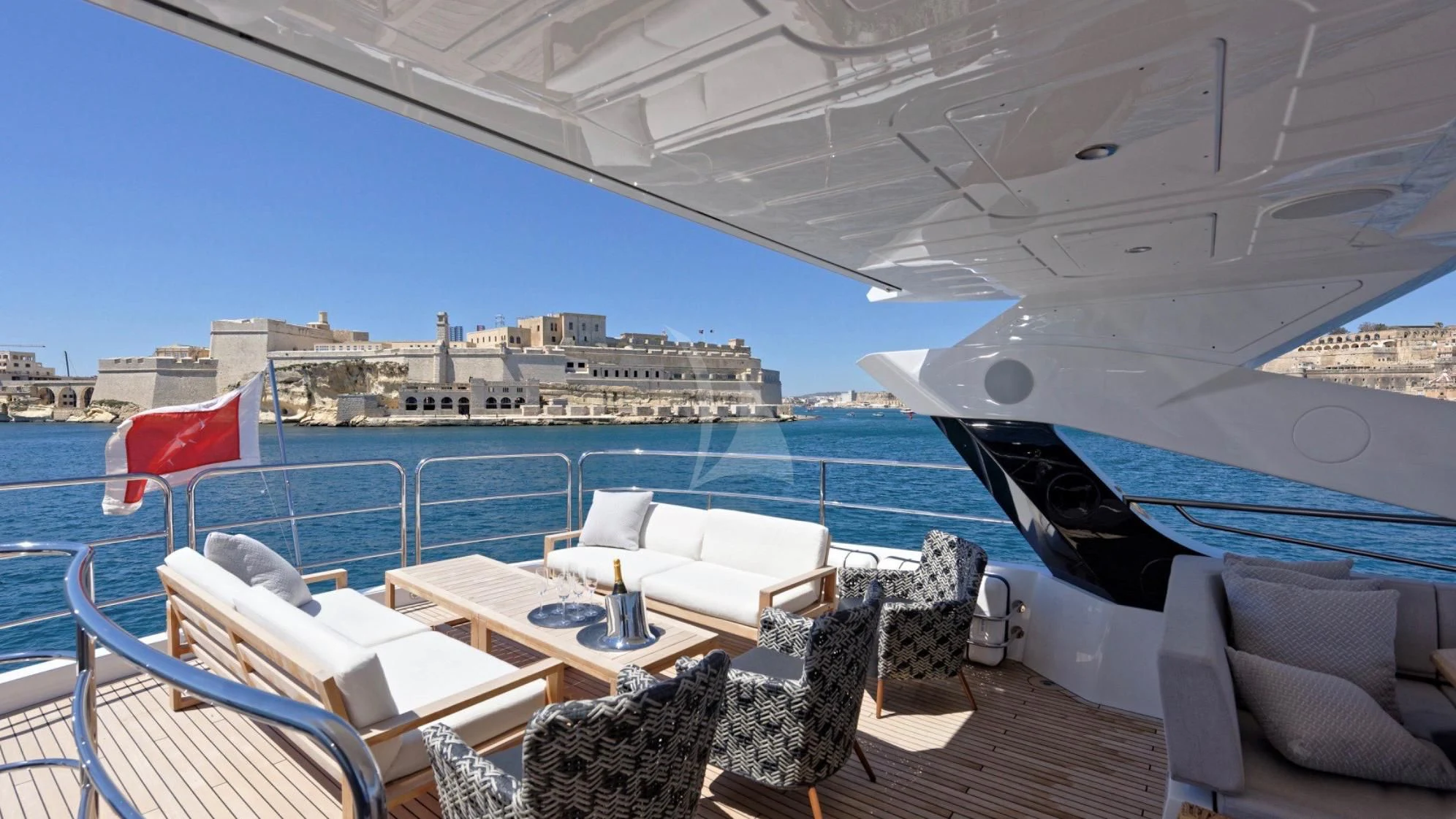

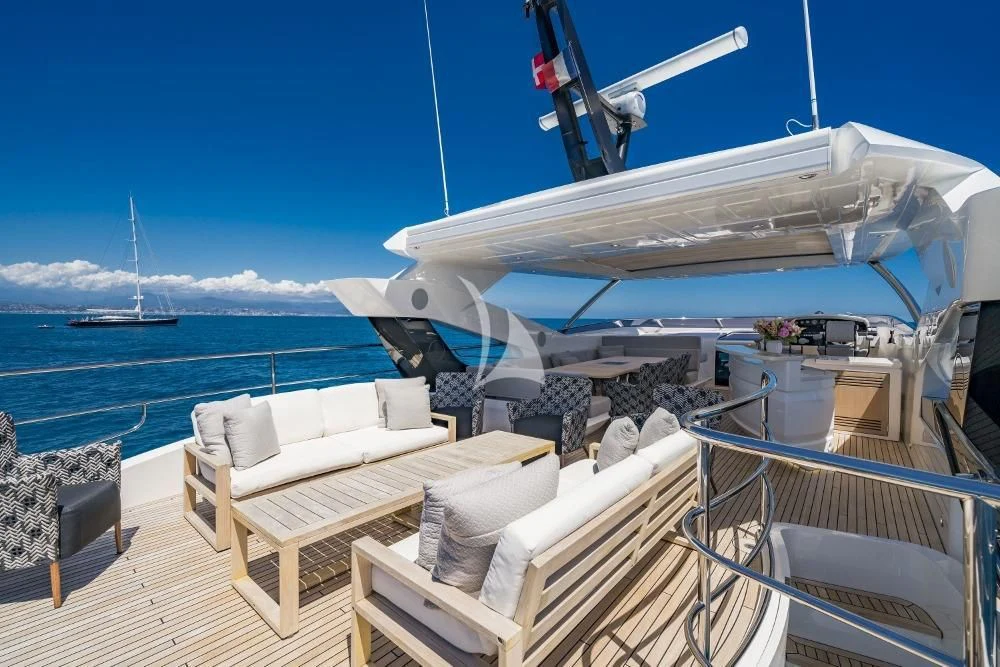

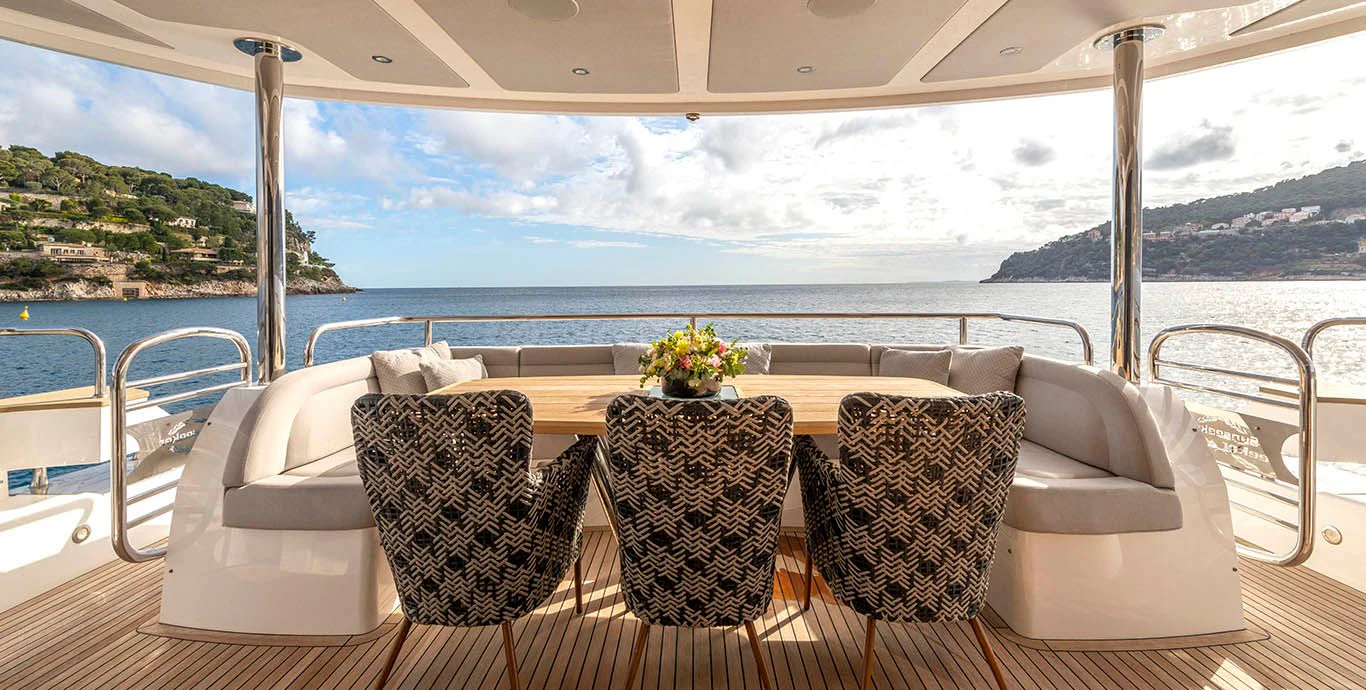

  • The aft cockpit, foredeck and flybridge offer an abundance of sunbathing areas and seating groups for al fresco lunch and dinner. The flybridge is gigantic and welcomes easily all the Guests either under the sun or under the shade of the electric sunroof

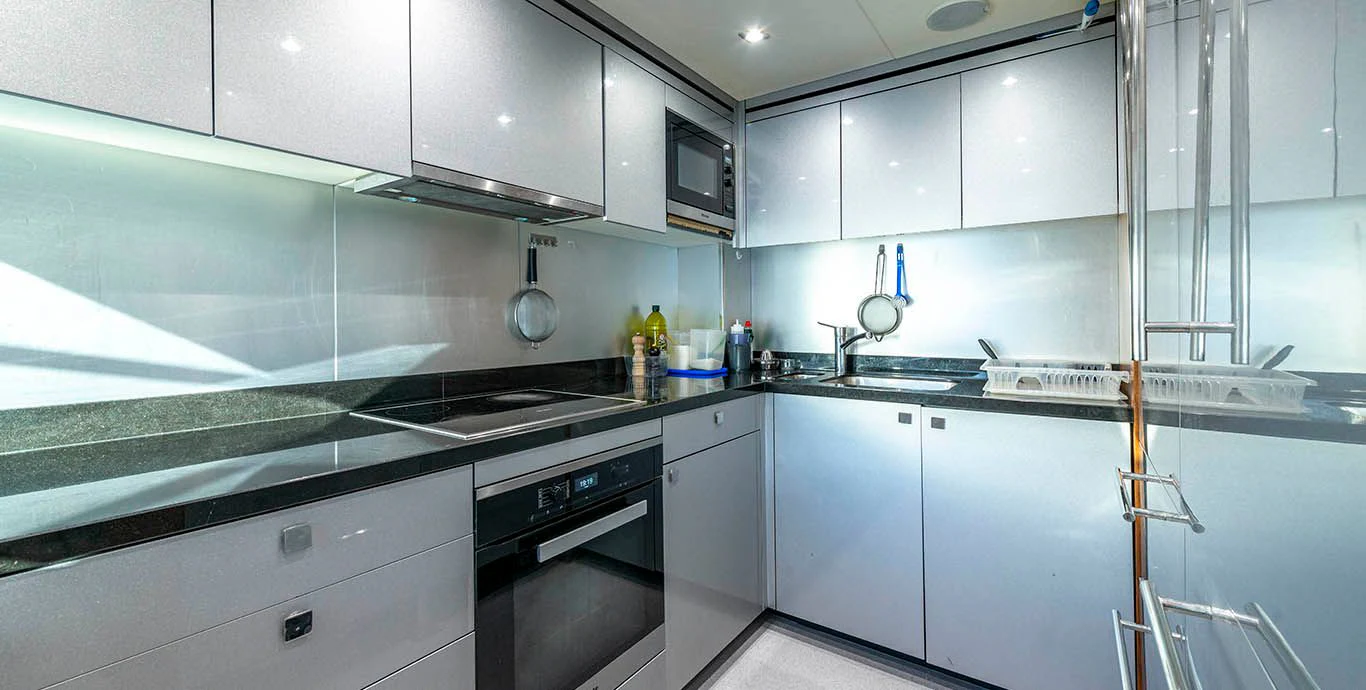

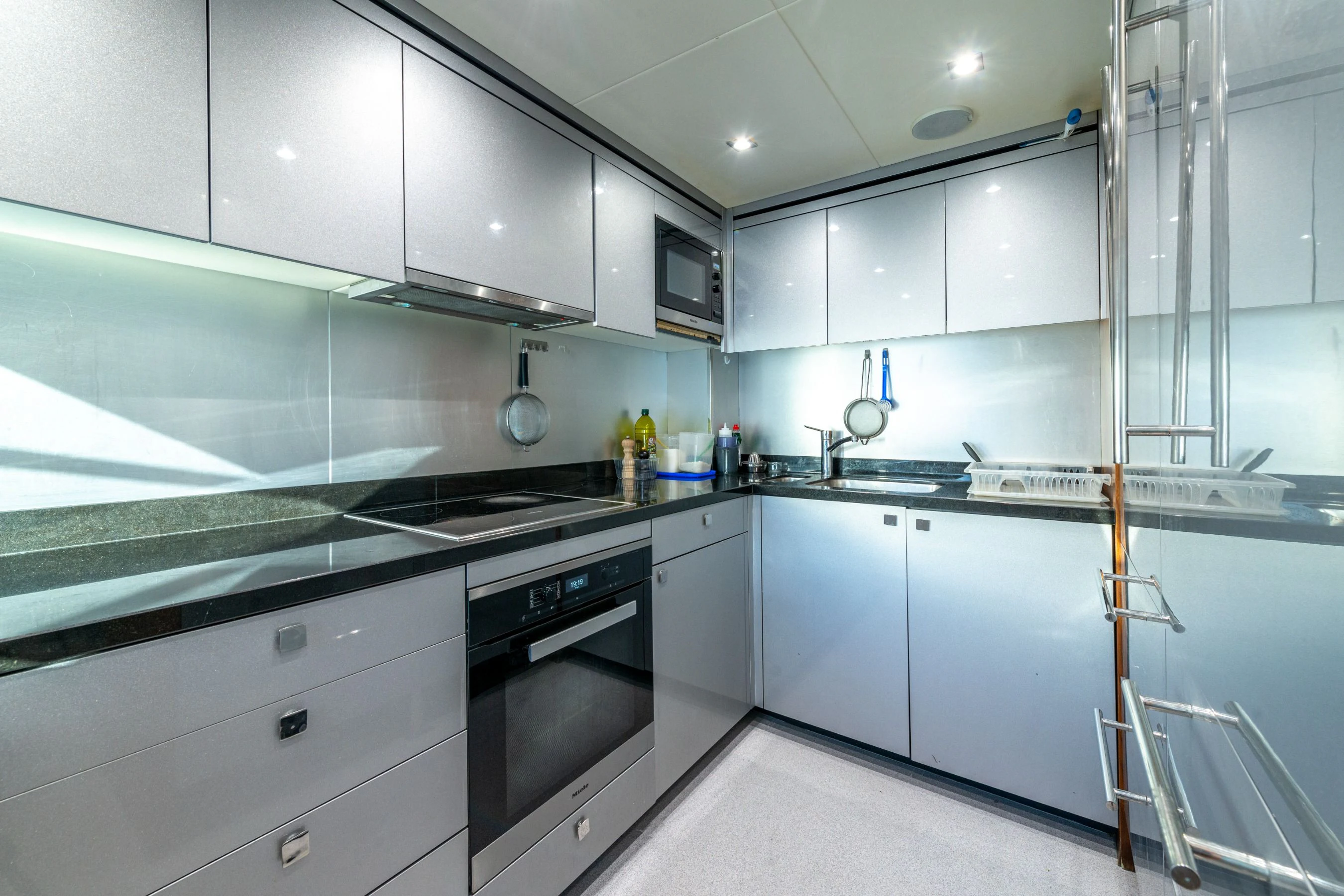

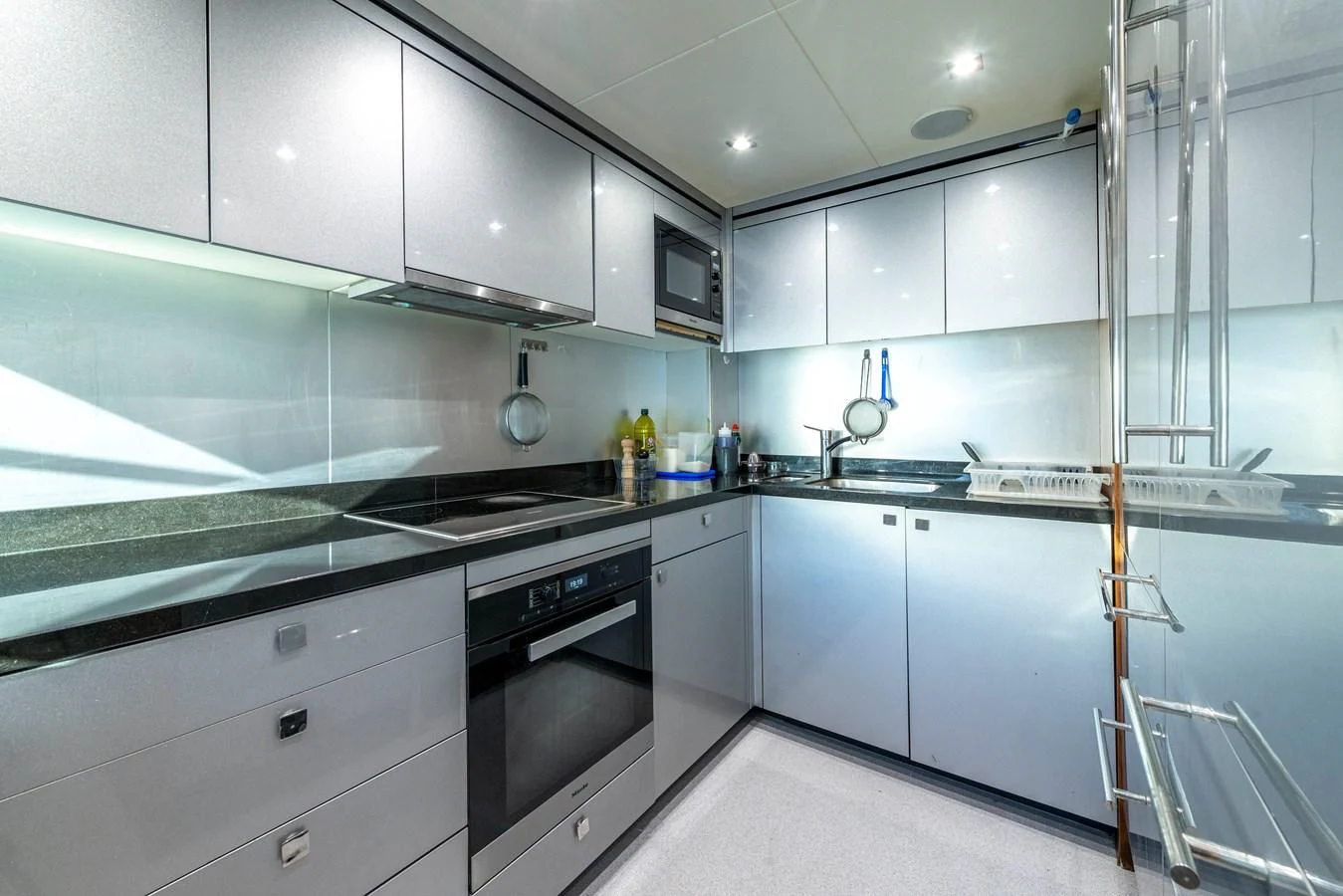

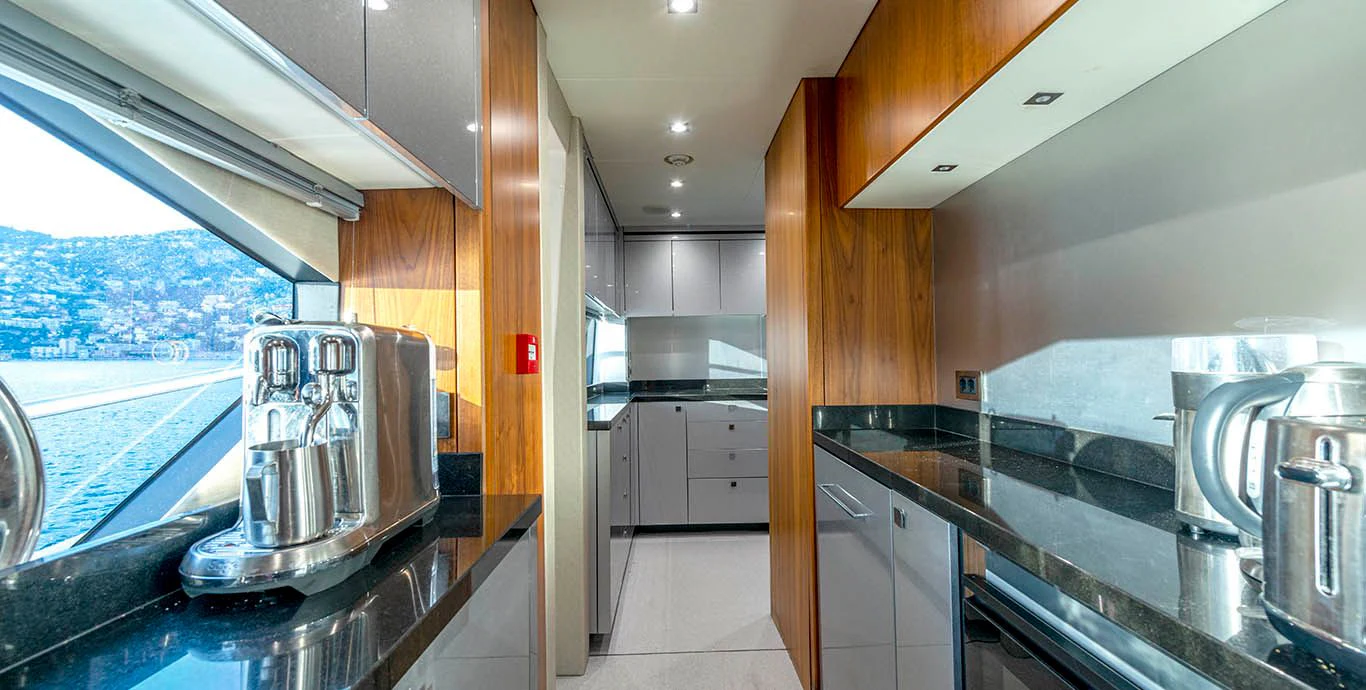

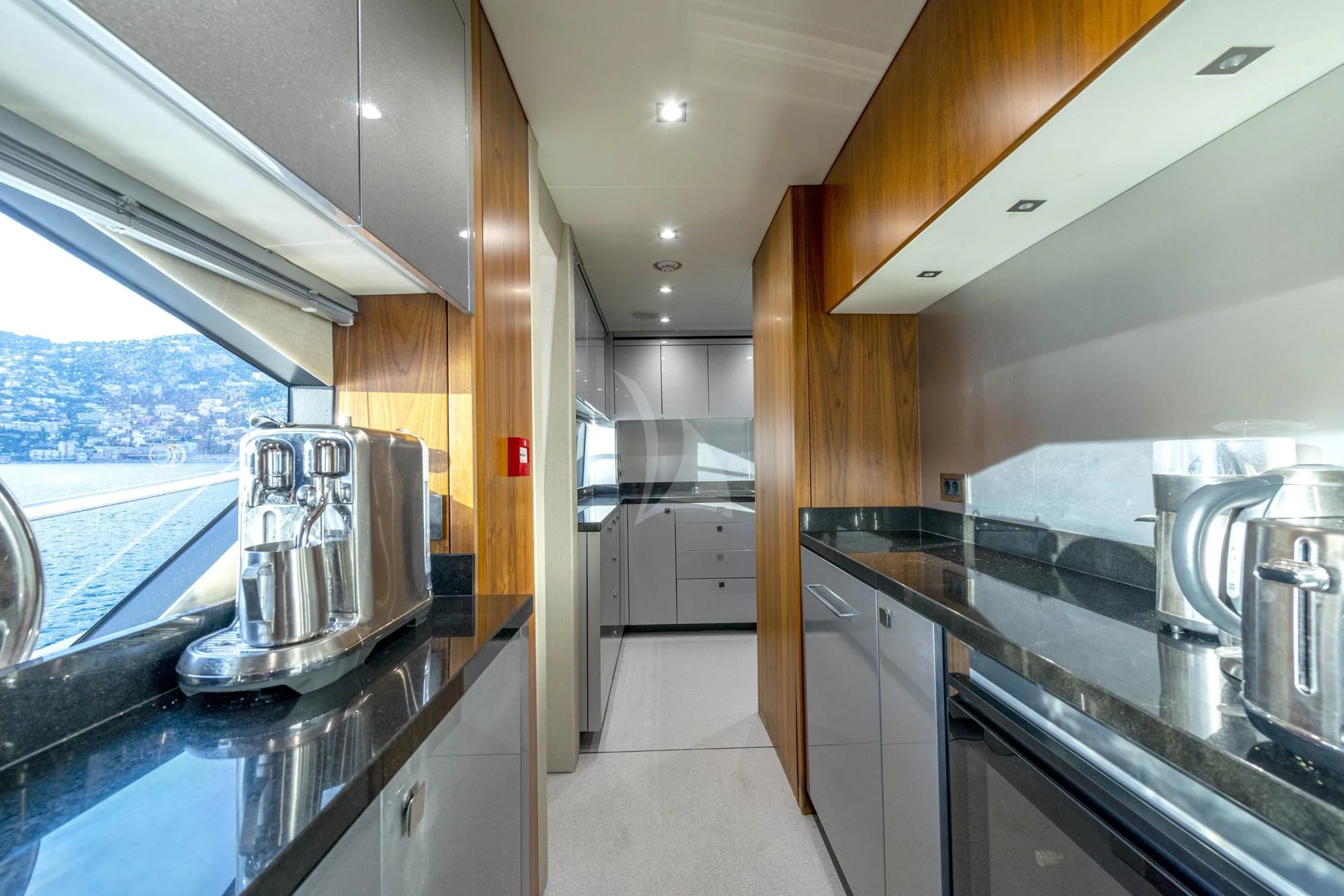

Galley And Laundry Equipment

  • Cooking Equipment:    Single convection oven Miele
  • Microwave oven Miele
  • Ceramic hob Miele 4 ring
  • Integrated extractor fan with telescopic canopy Miele
  • Refrigeration/Freezer:    2 x Sub Zero Fridges with Freezer drawers
  • Wine Cooler for 34 bottles Miele in the galley pantry
  • Dishwasher:    Dishwasher full size integrated Miele

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

  • Microwave:    Microwave oven Miele
  • Refrigeration/Freezer:    Waeco Coolmatic Refrigerator with integral Freezer box
  • Main Laundry Equipment:    Separate Miele washing machine and Miele tumble dryer in the Crew Mess

FLYBRIDGE / AFT COCKPIT EQUIPMENT

  • Refrigeration/Freezer:    Waeco Coolmatic Refrigerator with integral Freezer box on the Flybridge
  • Icemaker - Victrofrigo IM Classic Hydro on the Flybridge
  • Insulated Cool chest with Waeco Cold machine 24V cooling unit with high-performance air circulating fin evaporator on the Flybridge
  • Icemaker Victrofrigo IM Classic Hydro in the Aft Cockpit
  • Waeco Coolmatic Refrigerator with integral Freezer box in the Aft Cockpit
  • Cooking Equipment:    Kenyon Electric BBQ grill on the Flybridge

Communication Equipment

Network and Communications:

  • The boat is configured to use a router to provide access to the internet via Wi-fi or Cellular data and to allow the user to link to an available marina Wi-fi network
  • The boat can be fitted with up to 2 SIM cards (user supplied) to access the internet when in range of 3G/4G data signals
  • Note this system will give data communications only. Voice communication is not covered. Air time, service agreements and SIM cards shall be the responsibility of the Owner.
  • A Zycoo U50 Hybrid IP PBX telephone exchange system to include the following handsets:
  • Yealink W52P Dect Phone for the Main Saloon, Master Stateroom and the forward guest VIP stateroom
  • Jacob Jensen T1 Fixed Phone for the Starboard Guest Double Stateroom, Port Guest Double Stateroom, the Wheelhouse, Crew Mess and the Galley
  • A Shoreline to be provided for connection to the PBX

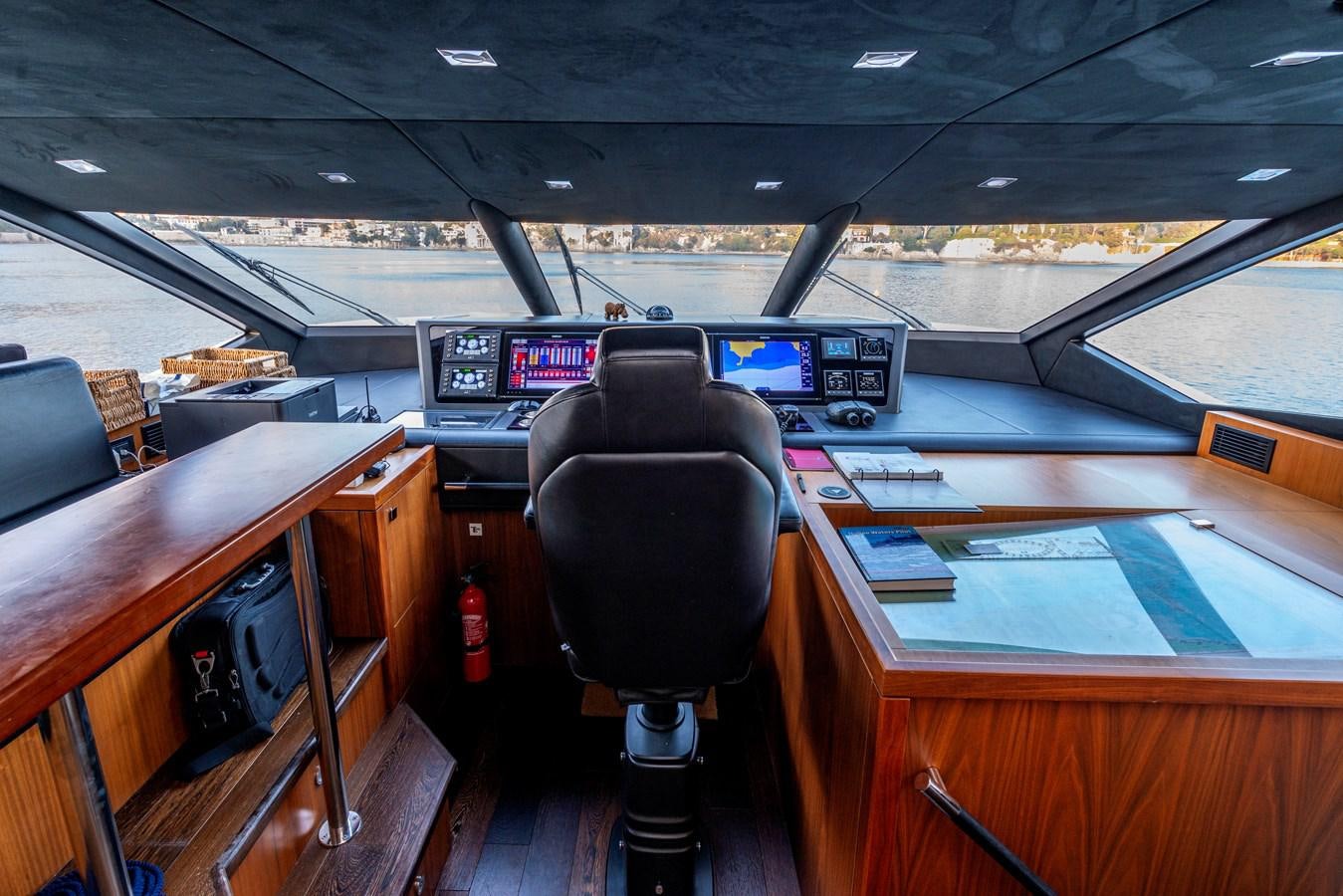

Navigation Equipment

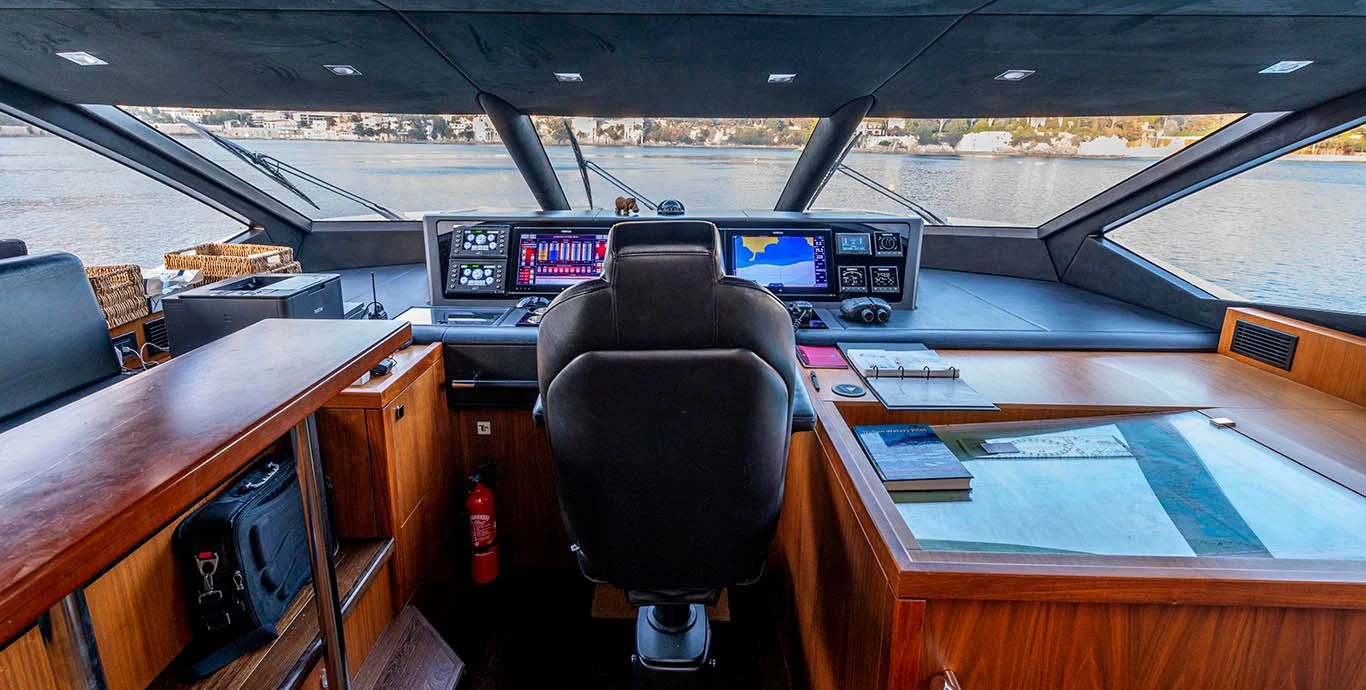

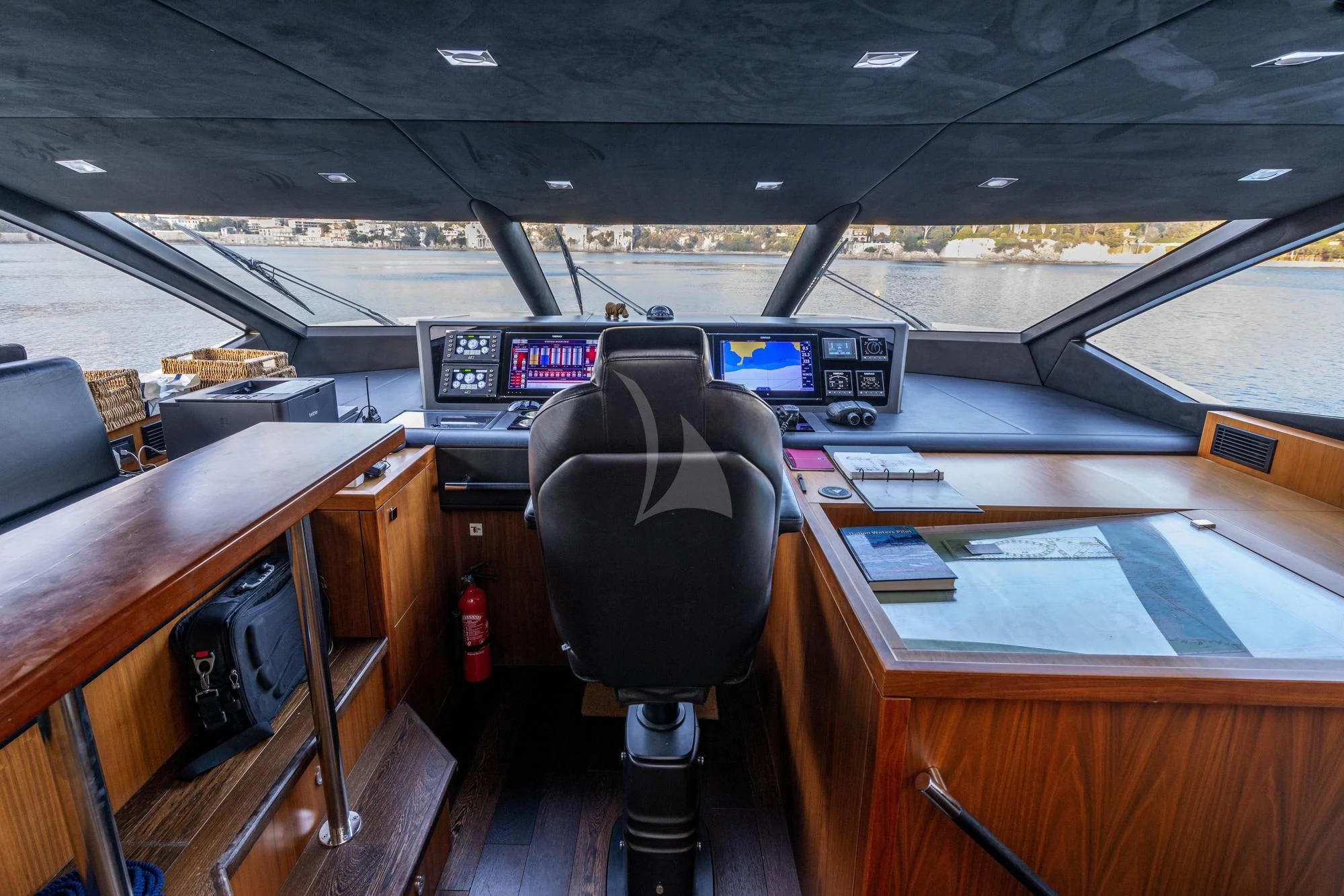

Navigation Bridge:

  • 3 x Simrad MO19-T 19" multi touch monitors. With Simrad NSO processor and OP50 keypad controller, one display used for Sunseeker monitoring
  • Simrad Halo Pulse Compression Radar 6ft 72nm
  • Simrad GS25 GPS Antenna
  • 3 x Simrad IS42 Multifunction Instruments - displaying navigation and pilot information
  • Simrad Autopilot system with QS80 control
  • Simrad depth transducer with water temp, Sonar Hub black box sounder module
  • 2 x Simrad structure scan HD side scan transducer
  • Simrad RS90 VHF with DSC. 2.4M whip VHF antenna (third station in crew cabin)
  • Simrad GoFree wireless - allowing repeat and control of Nav system via iPad
  • Simrad Automatic Identification System NAIS-400 Class B AIS Transponder system with dedicated VHF and GPS receiver
  • Simrad 110WX Ultrasonic Wind Sensor
  • Richie Helmsman HF-743B Flush Mount Magnetic Compass

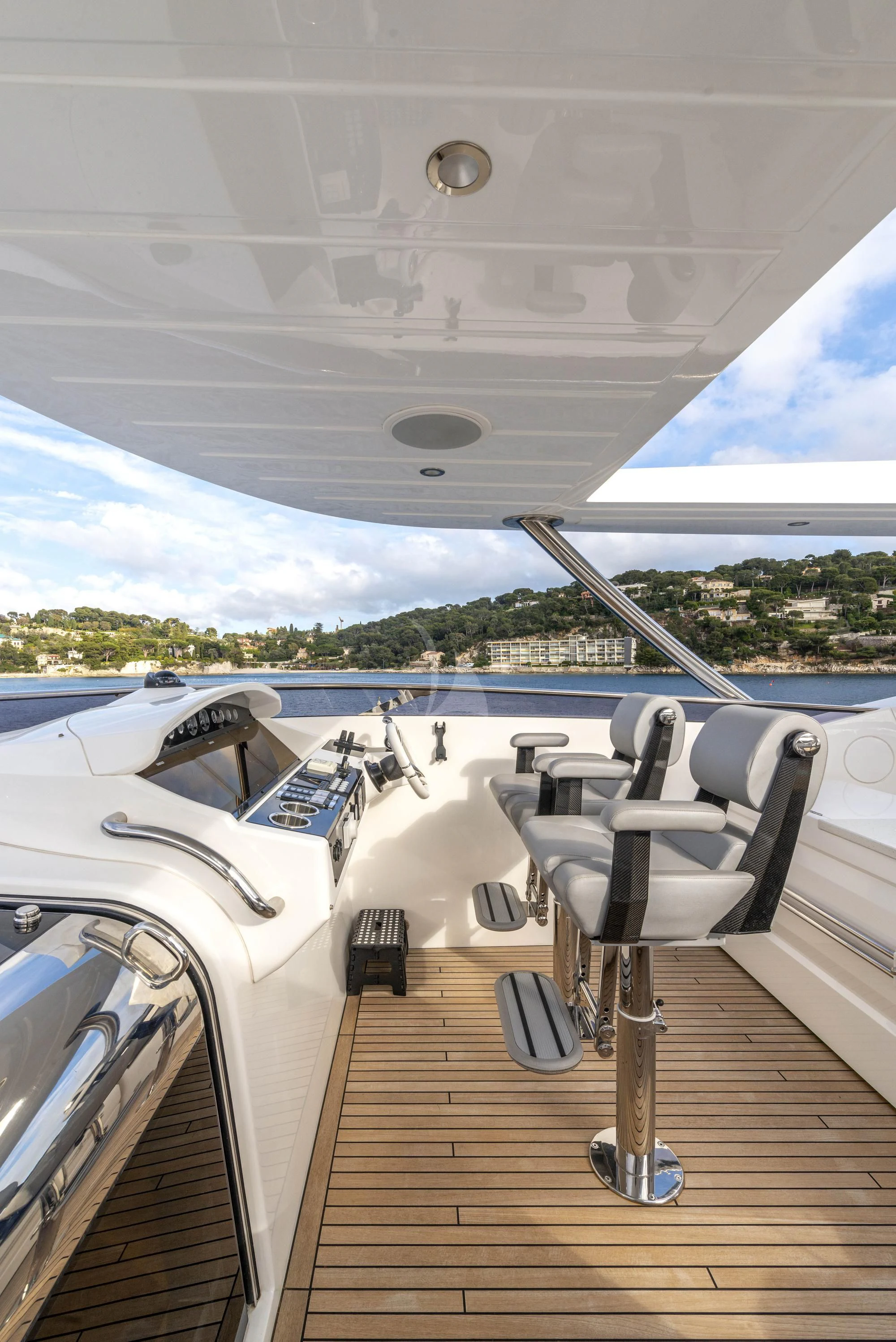

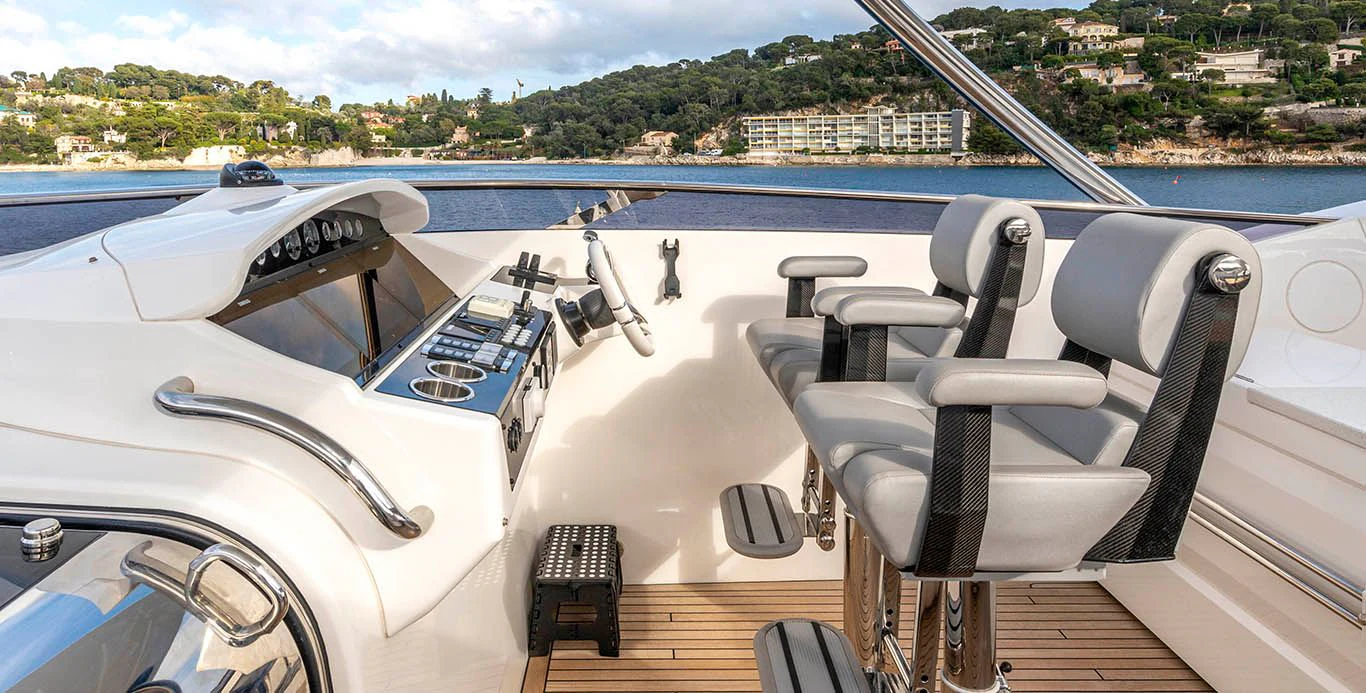

  • Flybridge Console:    3 x Simrad MO16-T 16" multi touch monitors, with Simrad NSO processor and OP50 keypad controller
  • Simrad IS42 Multifunction Instrument
  • Simrad Autopilot system with QS80 control
  • Simrad second station RS90 VHF with DSC
  • Richie Helmsman HF-743W Flush Mount Magnetic Compass
  • Emergency Steering:    Simrad rudder indicator arm for emergency steering operation
  • Simrad IS42 Multifunction Instruments configured for Rudder indicator
  • Simrad fourth station RS90 VHF with speaker to communicate with the bridge

Entertainment Equipment

Main Salon:

  •  Saloon Samsung 55" 4K UHD Smart Television on rise and fall mechanism with Harmon Kardon BDS580 5.1 3D Blu-ray Cinema surround system using Bowers & Wilkins 8" in ceiling speakers and Subwoofer.
  • Sonos Connect wireless audio streaming with Apple TV and an Auxiliary HDMI socket, all linked to AV system with a tablet to control the system

Master Stateroom:

  •  Master stateroom Samsung 55" 4K UHD Smart Television with Harmon Kardon BDS580 5.1 3D Blu-ray Cinema surround system using
  • Bowers & Wilkins 8" in ceiling speakers and Subwoofer. Sonos Connect wireless audio streaming with Apple TV and an Auxiliary HDMI
  • socket, all linked to AV system. With a tablet to control the system


VIP Staterooms:



  • VIP Guest stateroom Samsung 40" 4K UHD Smart Television with Harmon Kardon BDS580 5.1 3D Blu-ray Cinema surround system
  • using Bowers & Wilkins 6" in ceiling speakers and Subwoofer. Sonos Connect wireless audio streaming with Apple TV and an Auxiliary
  • HDMI socket, all linked to AV system. With a tablet to control the system
  • Guests Staterooms:    Port and starboard guest staterooms Samsung 32" HD LED Televisions with Harmon Kardon BDS280 2.1 3D Blu-ray Cinema system using
  • Bowers & Wilkins 6" in ceiling speakers and Subwoofer. Sonos Connect wireless audio streaming with Apple TV and an Auxiliary HDMI
  • socket, all linked to AV system

Crew Mess:

  •  Crew mess Samsung 22" HD LED Television with Fusion DVD/CD/FM Tuner, Bluetooth function, stereo speakers and Sonos Connect.
  • For each of the two crew cabins, galley and the pilot house, Fusion DVD/CD/FM Tuner, Bluetooth function, stereo speakers
  • Aft cockpit:    Aft Cockpit zone performance audio upgrade with Four Sonance Extreme Speakers with Sonos Connect and amplifier
  • Flybridge:    Flybridge zone performance audio upgrade with Eight Sonance Extreme Speakers with Sonos Connect and amplifier
  • Foredeck:    Fore deck zone performance audio upgrade with Two Sonance Extreme Speakers with Sonos Connect and amplifier.
  • The exterior zoning audio is linked to the Saloon AV system via Sonos Connect with a tablet to control the zones
  • Light Management:    Vimar ByMe Interior Lighting switches

Tenders & Toys

Tenders:

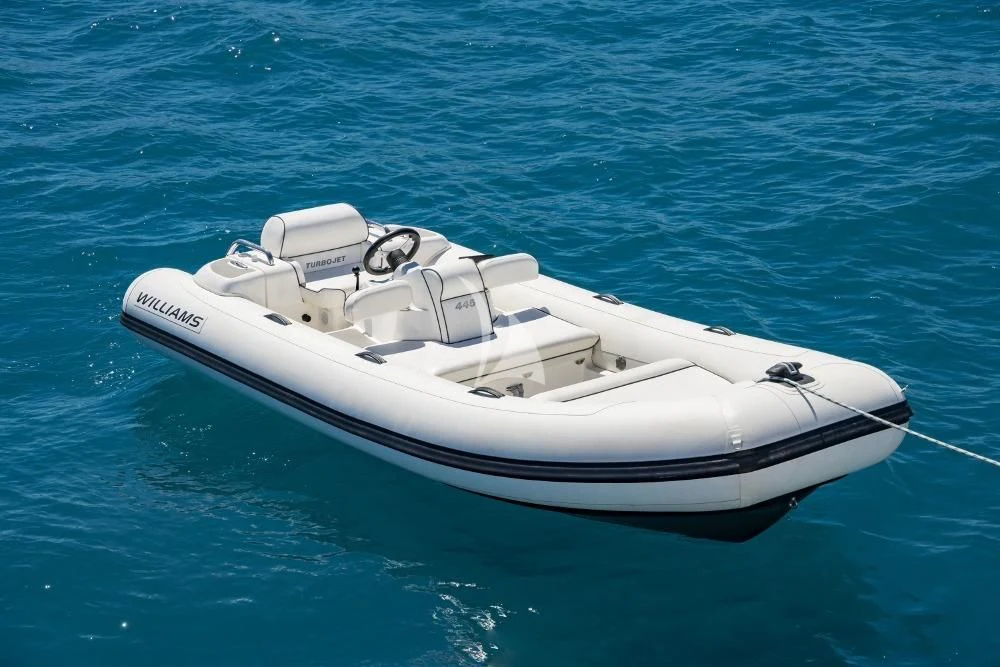

  •  Williams 445 Diesel Tender

Toys:

  •  2x Seabob F5S
  • 2x inflatable paddle boards
  • 1x donut

Deck Equipment

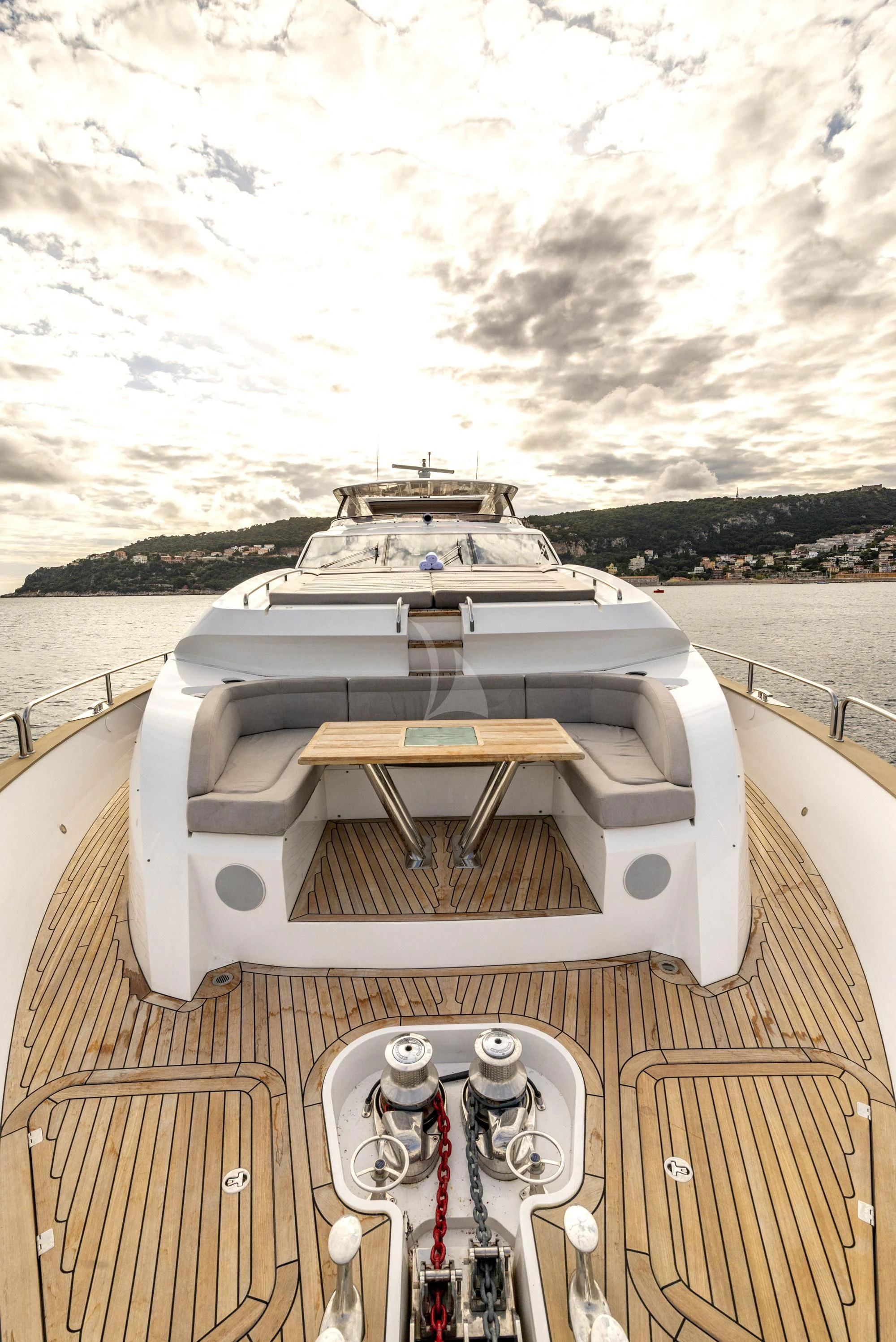

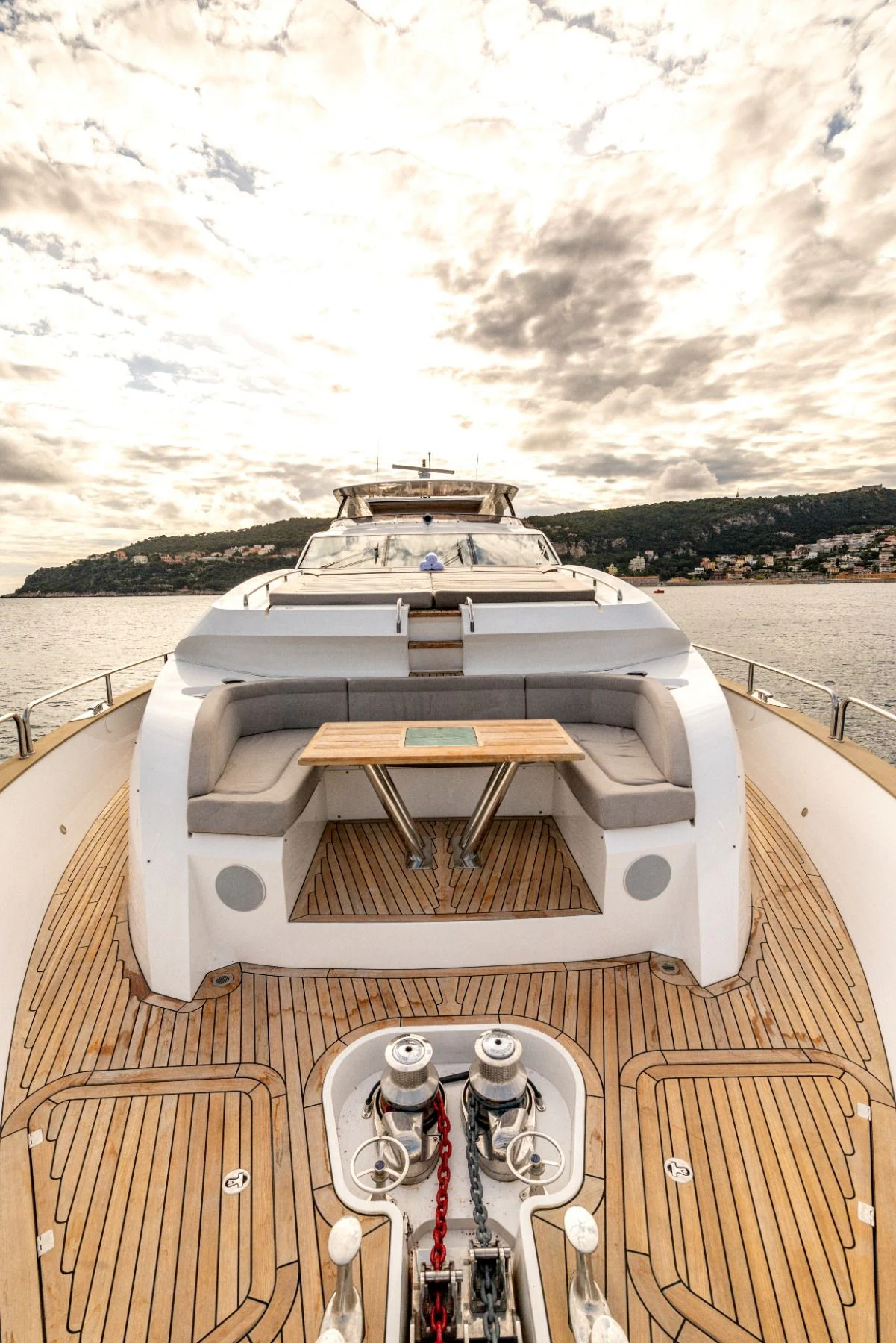

  • Anchors:    1 x Lewmar 100kg galvanised claw anchor and 1 x Lewmar 50kg galvanised claw anchor
  • Anchor Chains:    2 x 100 meters of 12mm high tensile galvanised short link chain with anchor swivel
  • Freshwater pressure washing of chain with directed outlet
  • Anchor Windlass System:    2 x Lewmar V8 24 Volt DC Windlass. Vertical Gypsy and Capstan drum. Manual hand wheel brake and Devils Claw chain stopper
  • Stern Capstan Winches:    2 x Lewmar C4 24 Volt DC vertical capstans fitted port and starboard
  • Stern Boarding Gangway:    Hydraulic Telescopic Passerelle in stainless steel with teak walkway. Besenzoni at 5 meters long

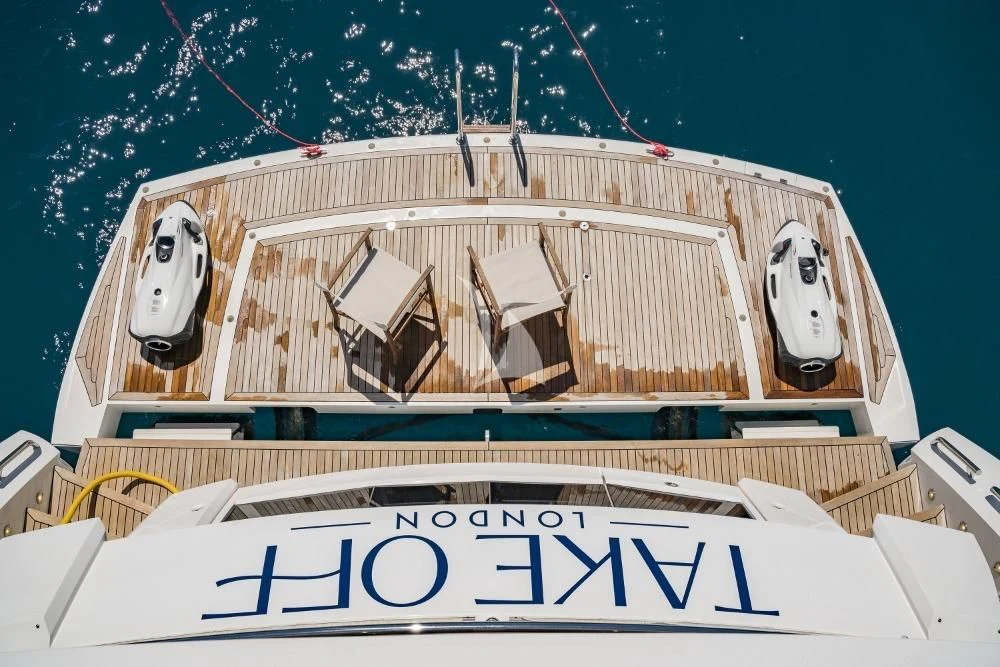

  • Swim Platform:    Hydraulically lifting platform with maximum lift capacity of 650 kg with Tender maximum weight of 550 kg

Safety And Security Equipment

CCTV:

  • CCTV with 3 Cameras: 2 x Infra-red located in the engine room plus 1 x camera located on the flybridge overhang facing aft.
  • Image to be displayed on Nav screens at the RPH helm and flybridge helm
