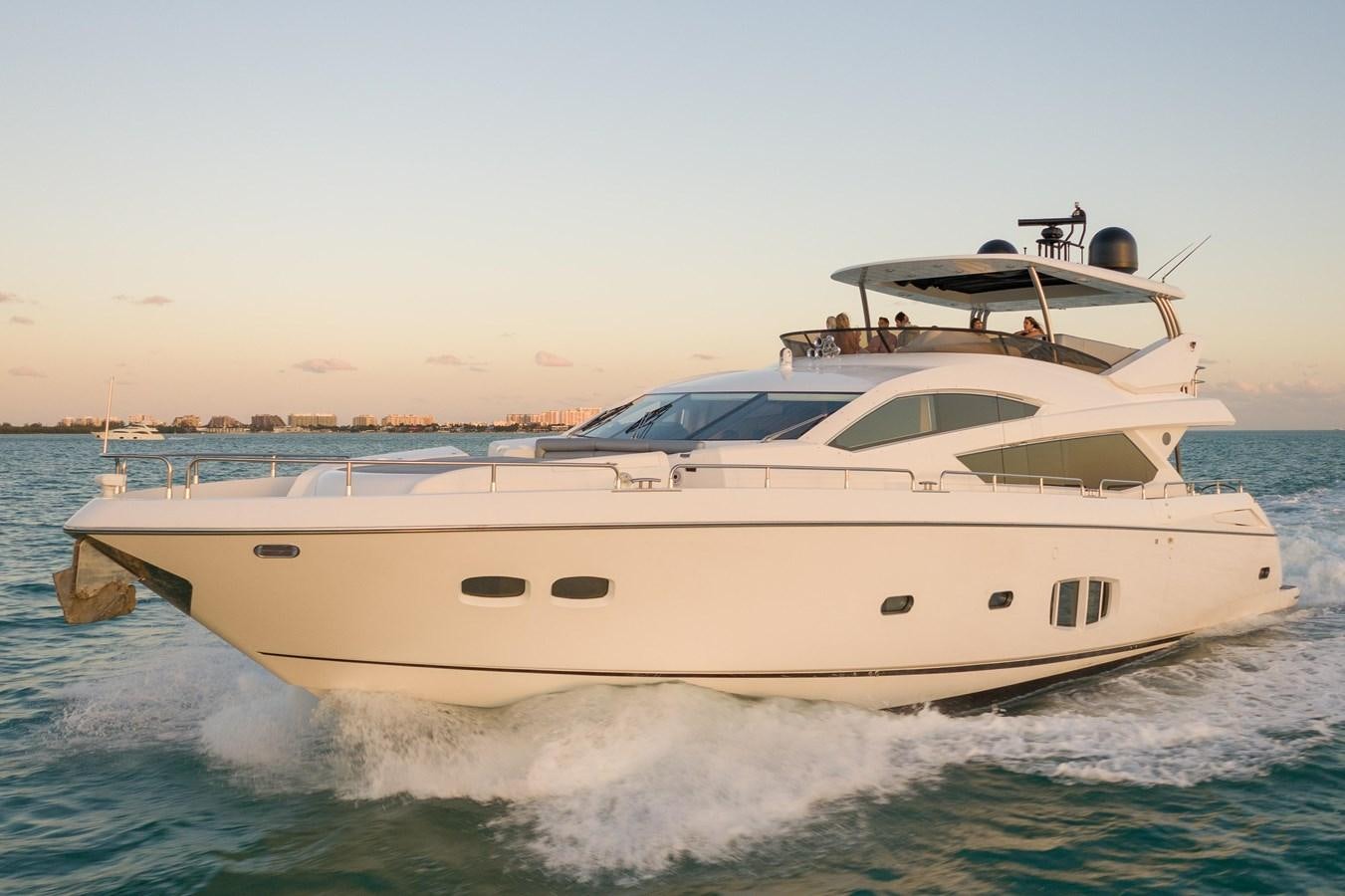

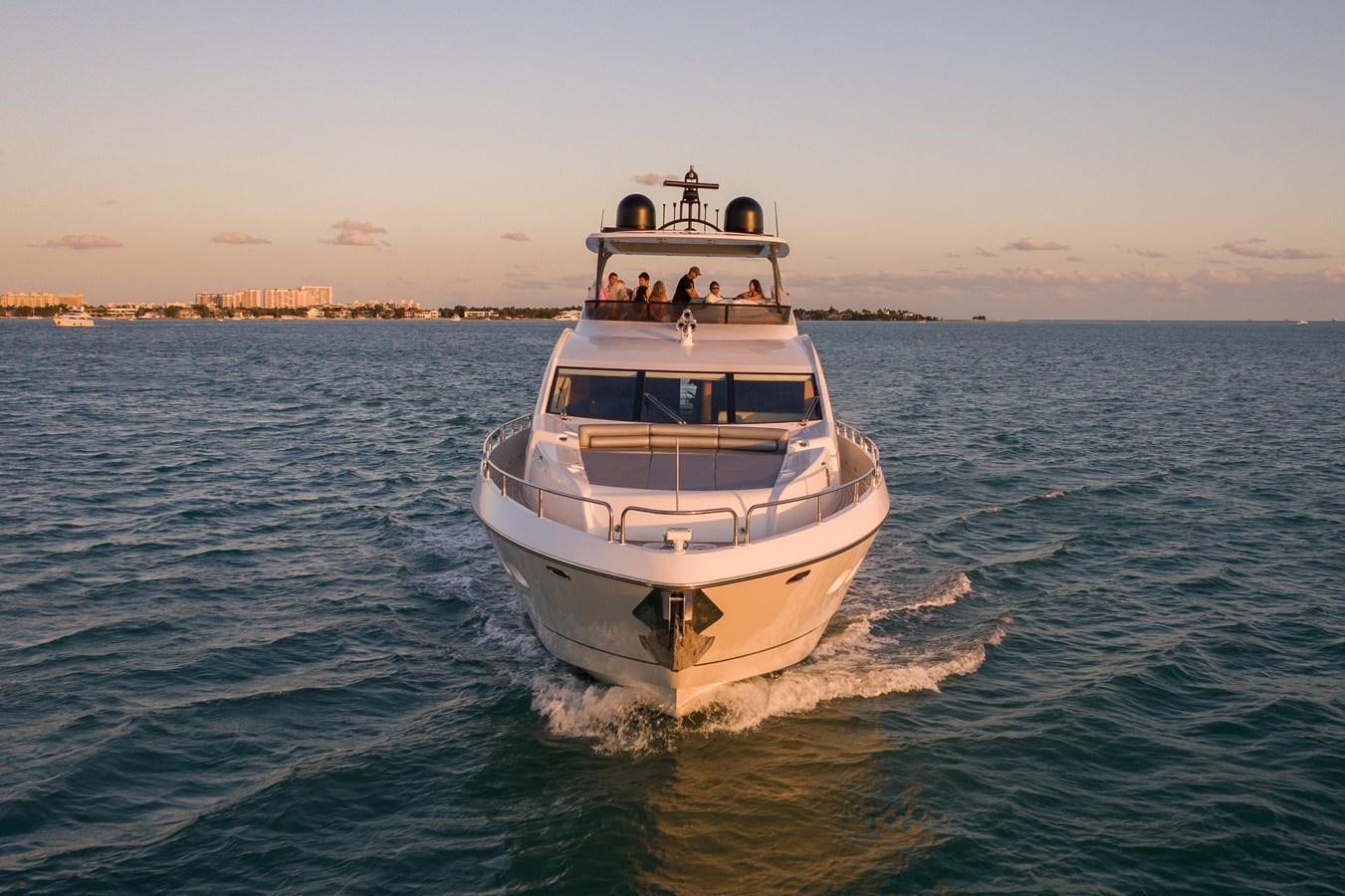

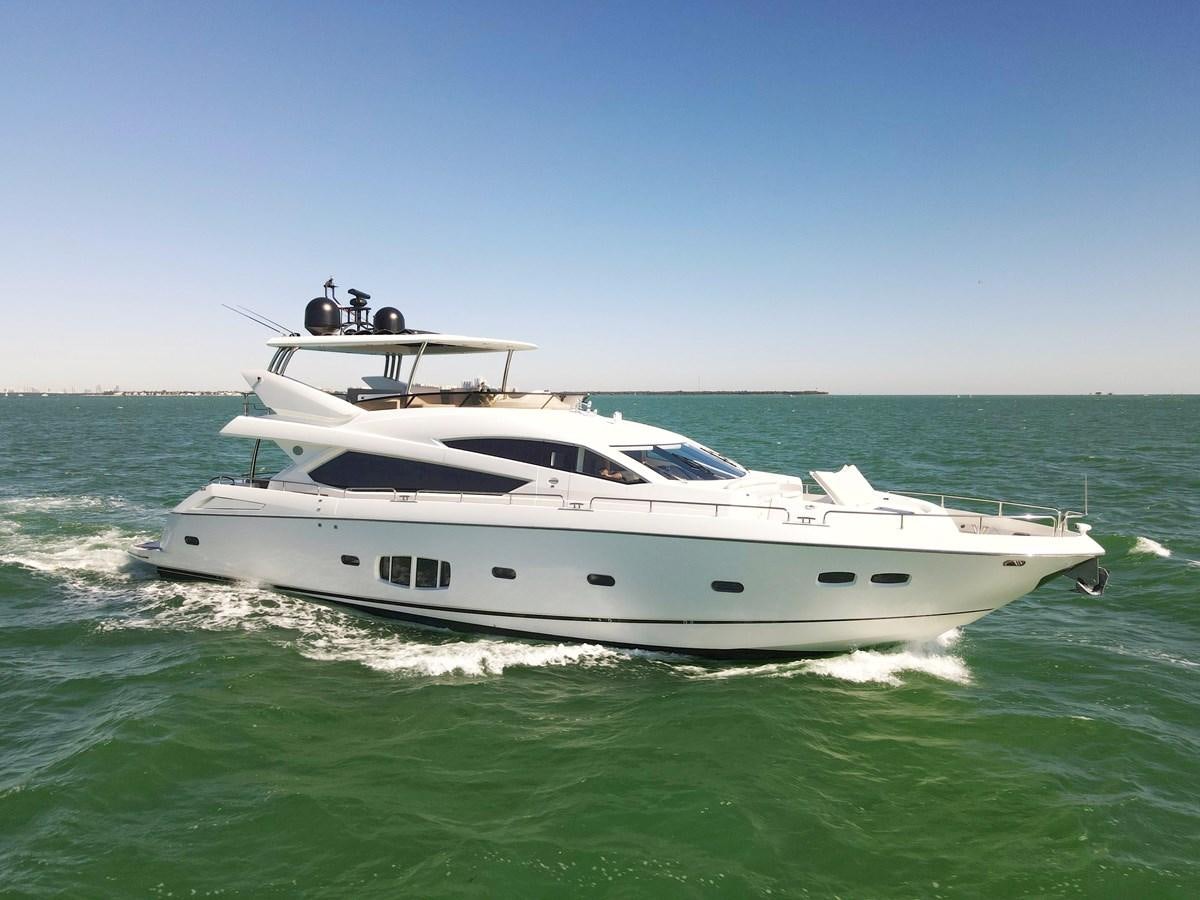

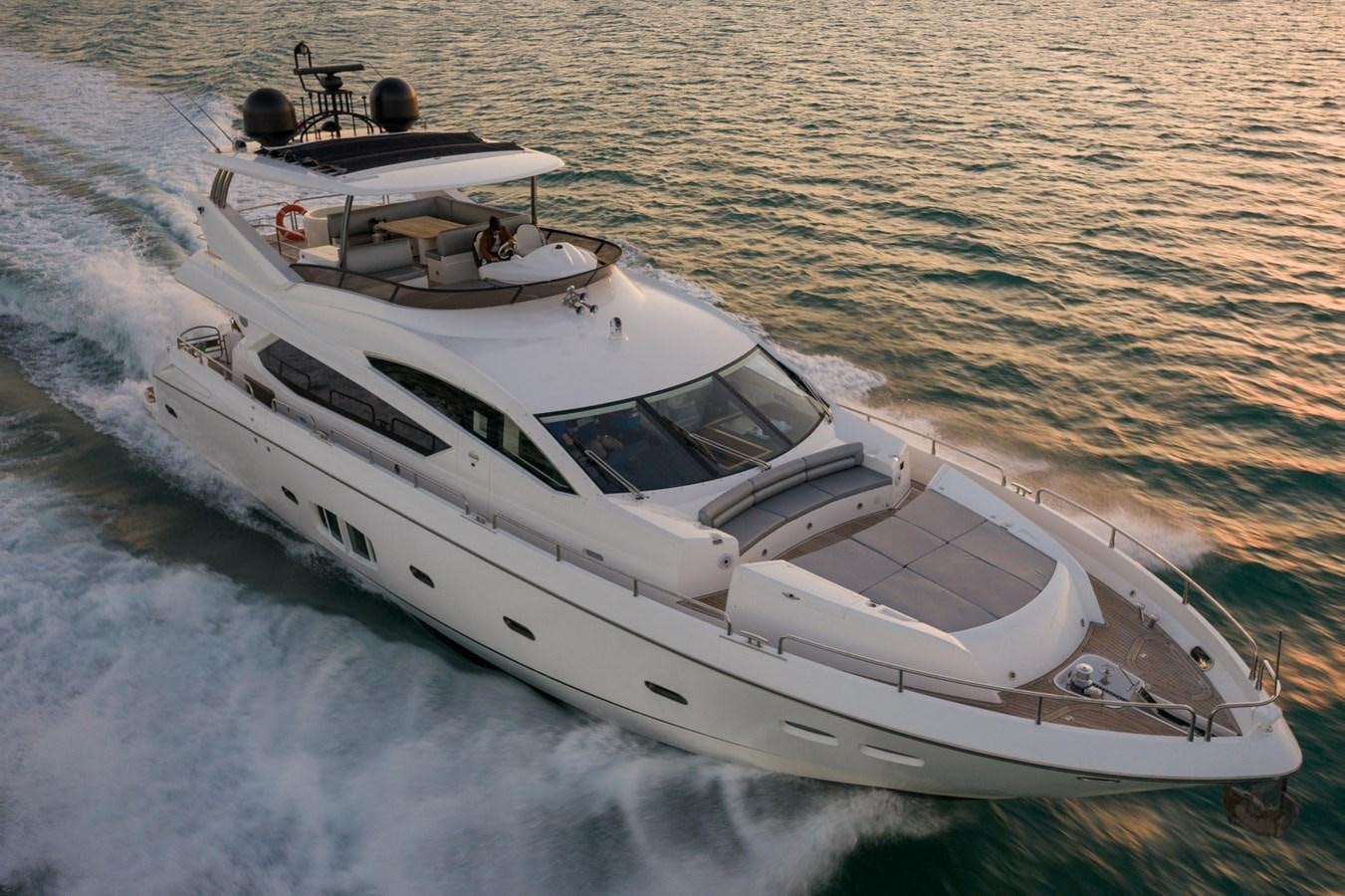

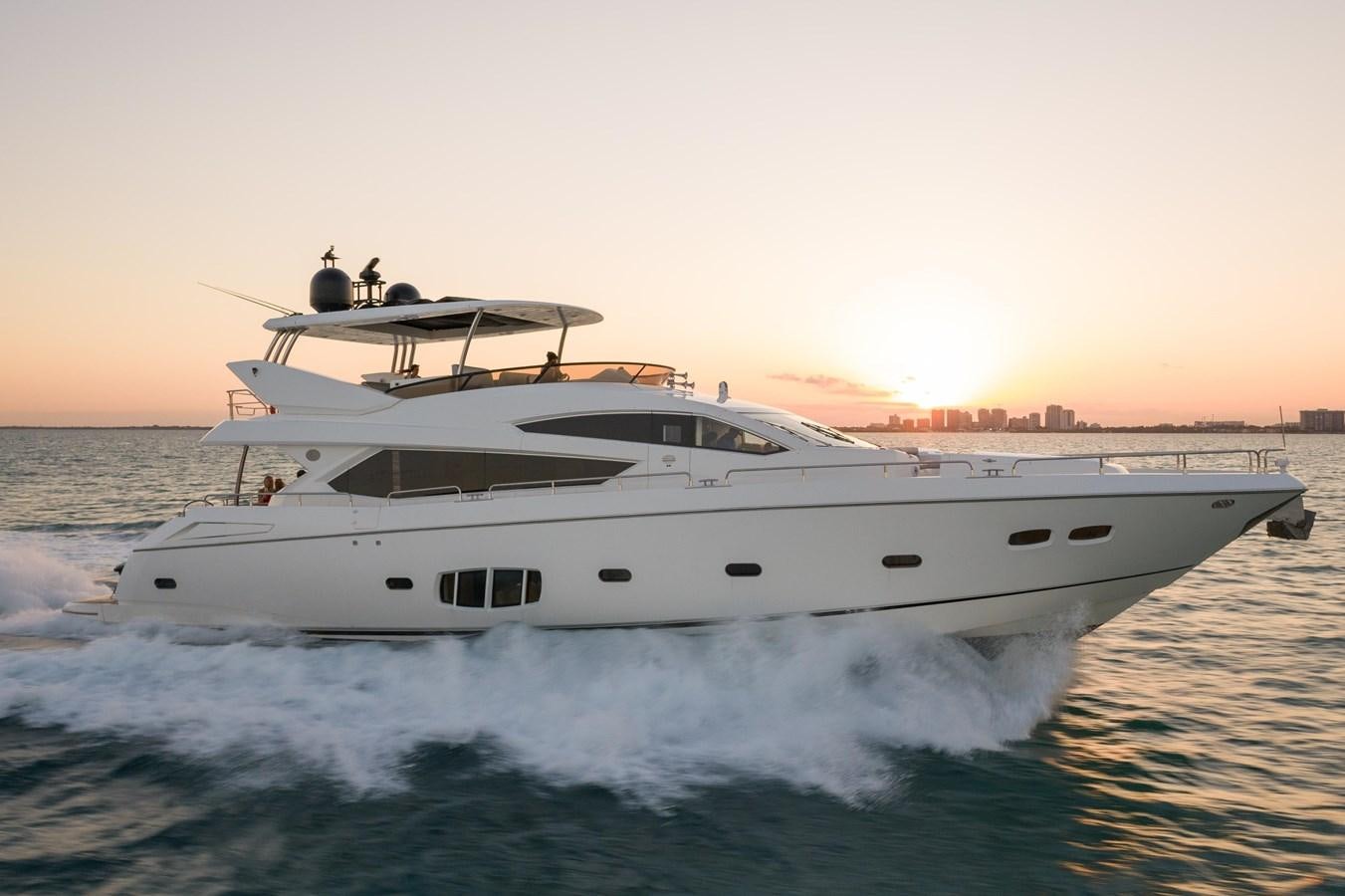

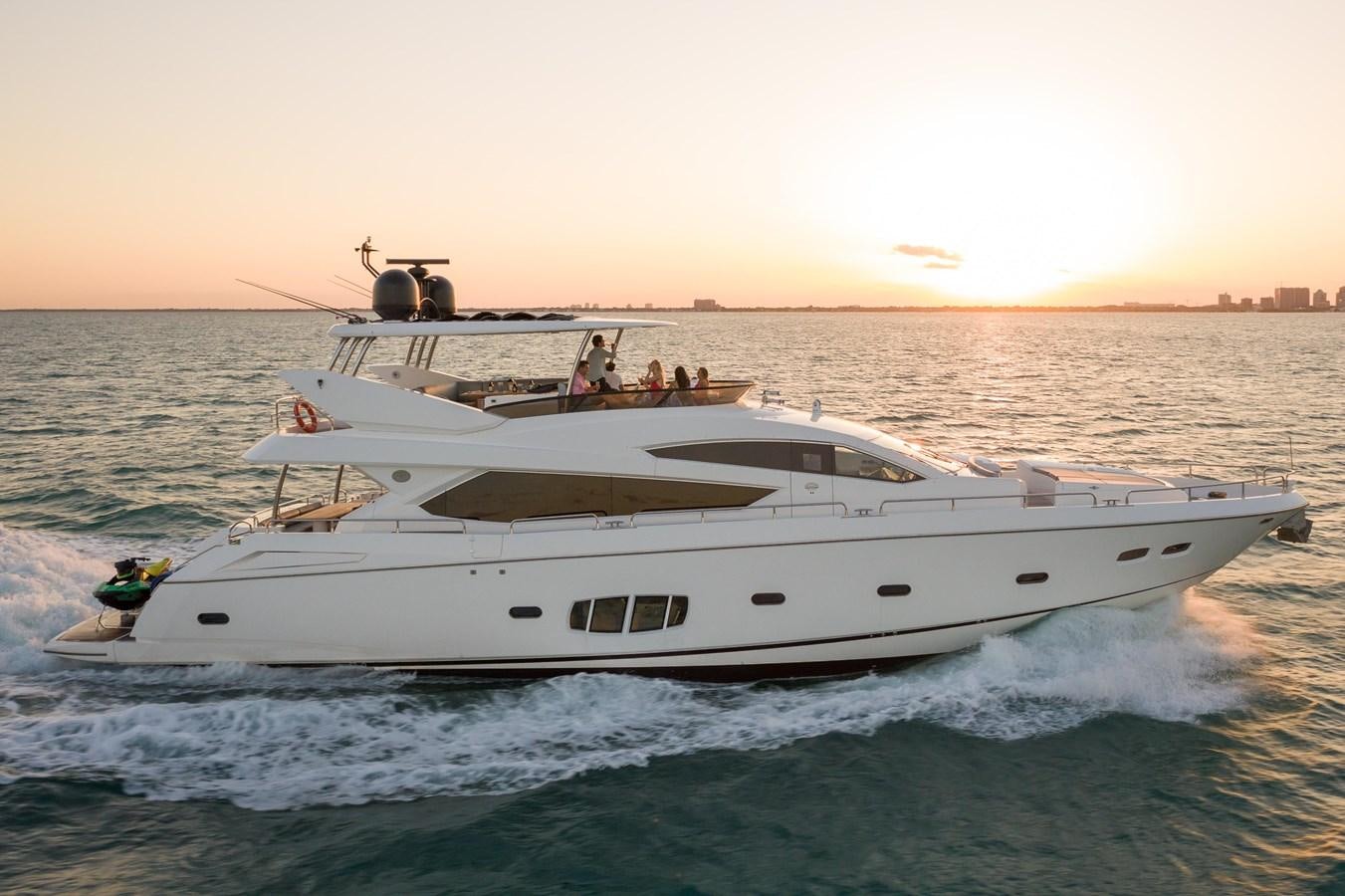

SUNSEEKER 88 Yacht for Sale

Length Overall:26.38 m -- 86' 7"
Beam (maximun): 6.47 m -- 21' 3"
Draft (@ full load incl. props) 1.95 m -- 6' 5"
This vessel will be designed under the 24
metre load line ruling.
Displacement half load: 75,400 kg -- 166,229 Ib
Fuel capacity: 11,000 litres -- 2,907 US gal
Fresh water capacity: 1,400 litres -- 370 US gal
Black water capacity: 400 litres -- 106 US gal
Crew Black water capacity: 135 litres -- 35 US gal
Hull below waterline: White - GCN 5107H
Hull above waterline to underside of hull band: White - GCN 5107H
Hull band: White - XL3000H
Boot top line: Jet Black
Boot top line style: Line to be applied level with the waterline
Bussell and bathing platform: White - XL3000H
Superstructure: White - XL3000H
Flybridge overhang ribbed feature panel Jet Black - Awlcraft F2091 LSA
Coach Roof Colour Jet Black - Awlcraft F2091 LSA
Eye Brows either side of Coach Roof: Jet Black - Awlcraft F2091 LSA
Hard Top option: Jet Black - Awlcraft F2091 LSA

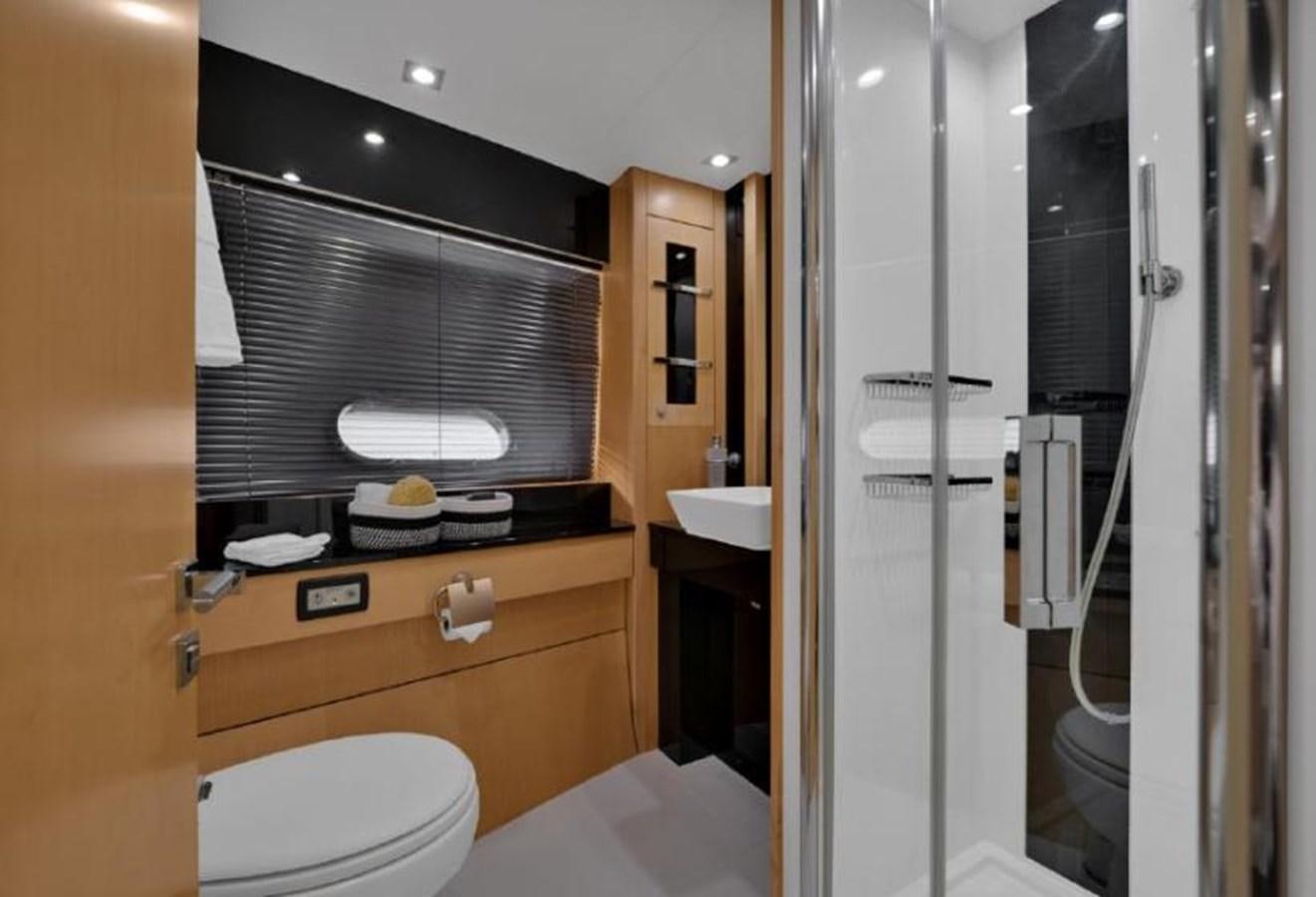

En suite shower trays: Off White (RAL 9010)
Wheelhouse console: Anthracite Light Bronze Metallic Matt
Flybridge console: White - XL3000H
Optional Flybridge Crane Required: No

EQUIPMENT
Cellular signal booster antenna. SES install, SIB to run cables.
AV EQUIPMENT
Flybridge deck zone audio with four 8'' Sonance VPXT8R and two 6'' VPXT6R Extreme Speakers with Sonos Amp.

APLLIANCES
Two Frigoboat MS130 stainless steel drawer refrigerators with water cooled compressors
Icemaker - Hoshizaki IM-30CNE
Kenyon Electric BBQ grill
EXTERIOR ELECTRICAL
Stainless steel LED down lighting on hard top or radar hoop (depending on option taken) and LED low level strip
lighting under all seating
Horn - AFI Dual trumpet -11018 XLPD/24V
INTERIOR LIGHTING
Dimmable Vimar Lighting switching on all overhead and low level lighting
FLYBRIDGE HELM
MTU BlueVision Basic New Generation ships automation systems.
MTU RCS DUO-6k Engine propulsion twin control levers dual station.
MTU PAN 9 Operating Stop-start operating panel per engine.
MTU engine data displays on the Simrad screens.
MTU-Xenta joystick manoeuvring system with dual station control.
Flybridge Console.
Two Simrad NSO evo3S 16" Touchscreen Multifunctional Displays and OP50 keypad controller.
Additional 7" touch-screen controlling the Cm8 Sunseeker monitoring.
Simrad Autopilot AP44 system.
Simrad second station HS100 VHF with DSC
Compass Swinging and adjustment with correction card
HYRAULICS
Hydraulic Sleipner Bow thruster system. Model SP550/386TC-BA40 500kg thrust in a 386mm ID GRP tunnel.
Hydraulic Sleipner Stern thruster system. Model SP550/386TC-BA40 500kg thrust in a 386mm ID GRP tunnel.
Controlled using a Sleipner proportional joystick with dual station control.
EXTERIOR ELECTRICAL
CCTV with 5 Cameras: 2 x Port and starboard docking cameras. 2 x Infra red located in the engine room plus 1 x
camera located on the flybridge overhang facing aft. Image to be displayed on Nav screens at the helm

EXTERIOR FITIINGS
Mooring Bollards in polished stainless steel fitted port and starboard.
Fore deck cushions with optional folding sunbed with material in Sunbrella - Natte Cadet Grey NAT 5073 140
AV EQUIPMENT
Fore deck zone audio with two 6.5'' Sonance VPXT6R Extreme Speakers with Sonos Amp
EXTERIOR ELECTRICAL
Twin Lewmar V8 24 Volt DC Windlass. Vertical Gypsy and Capstan drum. Manual hand wheel brake and Devils
Claw chain stopper.
One Lewmar 80kg galvanised Claw anchor and One Lewmar 50kg galvanised Claw anchor.
1 x 100 meters and 1 x 60 meters of 12mm high tensile galvanised short link chain with anchor swivel.
2 CV Freshwater pressure washing of chain with directed outlet
3 ST Stainless steel LED courtesy lighting from aft cockpit to bow on side decks and bow seating group
INTERIOR LIGHTING
Dimmable Vimar Lighting switching on all overhead lighting

EXTERIOR FITTINGS
Mooring Bollards in polished stainless steel fitted port and starboard.
Spring cleats x two sets in polished stainless steel fitted port and starboard on bulwark.

X-Tend. Sun-lounger Transforma - The platform locker door folds out electrically exposing a large sun-lounger.
Alternatively the door can fold up forming an aft deck sun-lounger thus extending the cockpit space with the stern
glazed safety rails bi-folding to the side. Sunbed material in Sunbrella - Natte Cadet Grey NAT 5073 140

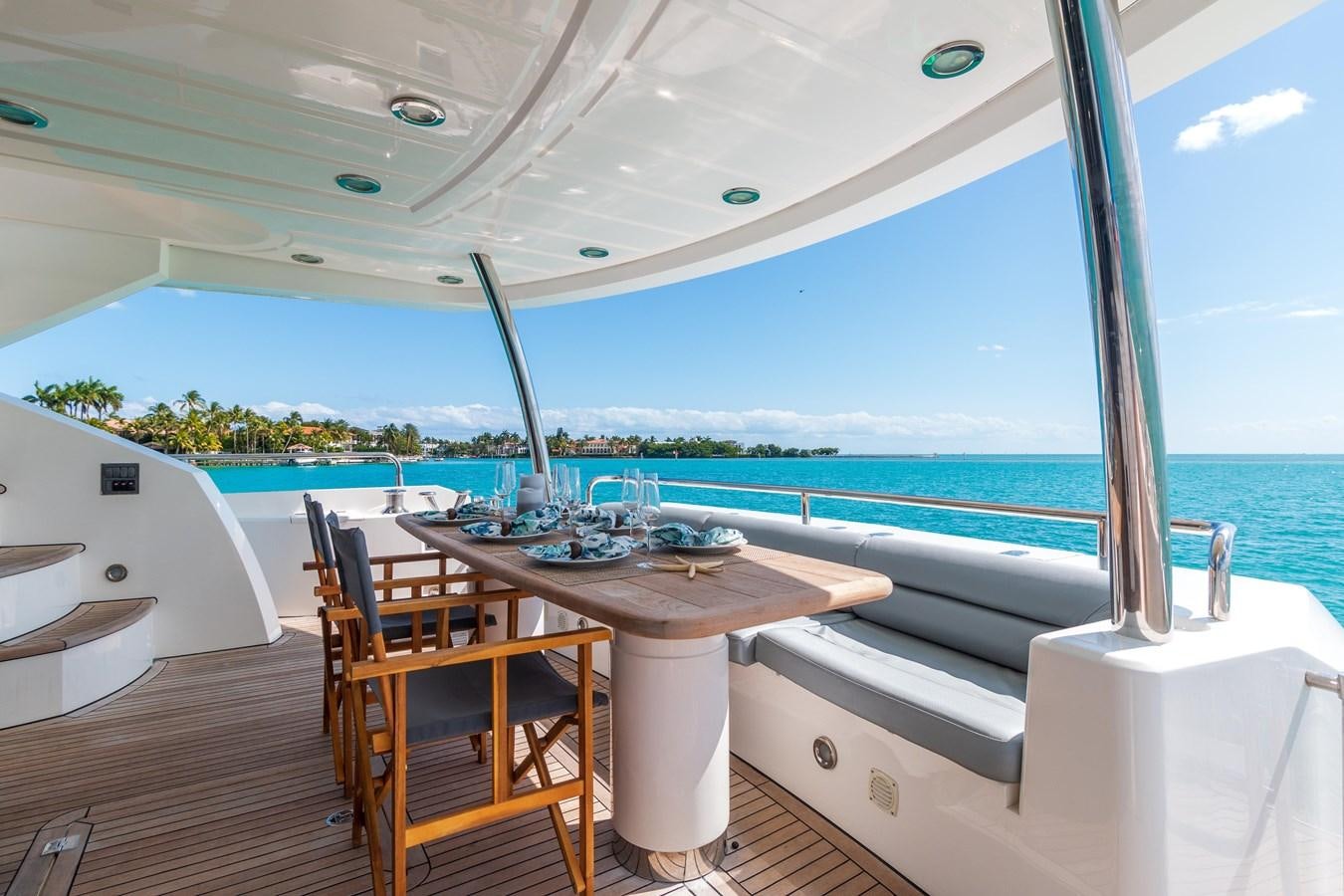

Aft deck seating cushions with bespoke Coco Wolf loose furniture for the X-Tend option. Upholstery Fiji 7 with
Ebonised legs. Bellecote Corner Chairs with 2 x Aquilla Small Coffee Tables. Table Tops - Italian Porcelain
stoneware with Iroko wooden base surround. Top - Porcelain Statuario Supremo
EQUIPMENT
Additional MTU joystick manoeuvring system control on the aft docking station.
Only available with MTU joystick manoeuvring system above. Also not available with Aft docking engine control
option.
AV EQUIPMENT
Aft Cockpit zone audio with four 8'' Sonance VPXT8R Extreme Speakers with Sonos Amp.
EXTERIOR ELECTRICAL
Stern capstan winches - two Lewmar C4 24 Volt DC vertical capstans fitted port and starboard
Stainless steel LED courtesy lighting on steps to flybridge and LED strip lighting on steps to platform
Stainless steel LED down lighting on cockpit overhead
APPLIANCES
Cockpit Refrigerator Dometic 50 ltr CR50 Behind a vented GRP door
INTERIOR LIGHTING
Overhead and low level switching in cockpit with dimmerable Vimar Lighting switching on all overhead and low level
lighting via the saloon touch screen

EXTERIOR FITTINGS
Stern spring cleats located on the aft edge of the hull for stern mooring purposes
Pair of Retractable Cleats for tender on port and stbd corners of platform
X-Tend. Sun-lounger Transforma - The platform locker door folds out electrically exposing a large sun-lounger.
Alternatively the door can fold up forming an aft deck sun-lounger thus extending the cockpit space with the stern
glazed safety rails bi-folding to the side. Sunbed material in Sunbrella - Natte Cadet Grey NAT 5073 140
INTERIOR LIGHTING
Dimmable Vimar Lighting switching on all overhead lighting
FRESH WATER
Fresh water marina connection pressure regulator
Hand held swimming shower. Whale twister
Carbon fibre and chrome overhead shower stand with socket on the stern platform
Fresh water deck wash system outlet

ELECTRICAL SOCKETS
Interior AC 220V 50Hz sockets - Euro 2 pin
INTERIOR FIT OUT

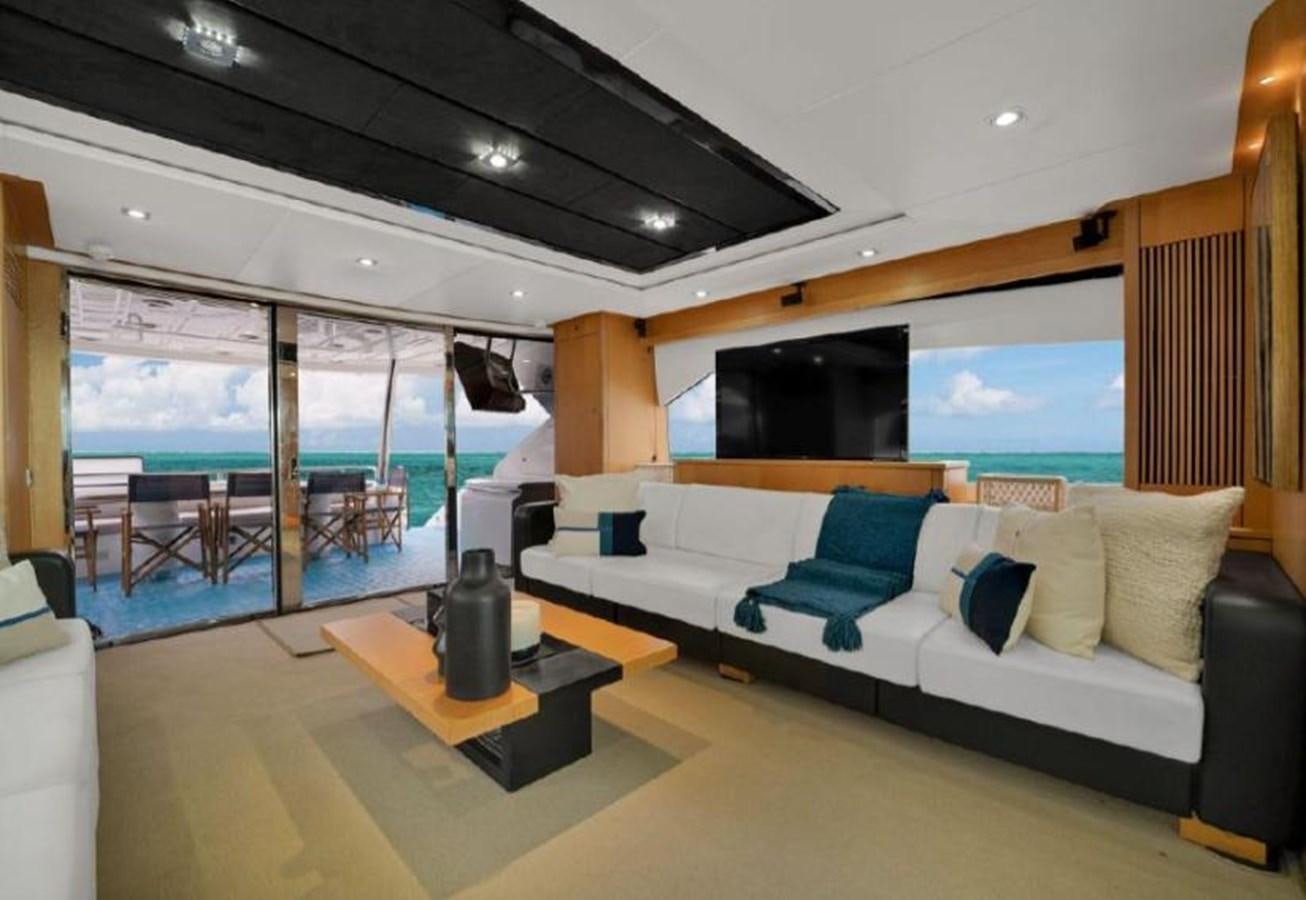

Manually operated Main Deck Saloon aft fully glazed sliding doors to cockpit
Main Deck Saloon sliding door on the starboard side
EQUIPMENT
Network system:
The boat is configured to use a Pepwave router to provide access to the internet via Wi-fi or Cellular data and to
allow the user to link to an available marina Wi-fi network. There are four wireless access points throughout the boat.
The boat can be fitted with up to 2 SIM cards (user supplied) to access the internet when in range of 3G/4G data
signals.
Note this system will give data communications only. Voice communication is not covered. Air time, service
agreements and SIM cards shall be the responsibility of the Client.
AIRCONDITIONING
Marine Air chilled water air handler with WhisperCool DC fans 2 x AU24DC - 48,000BTU, 1 x AU36DC - 36,000BTU,

INTERIOR LIGHTING
T LED feature and overhead lighting
Dimmable Vimar Lighting switching on all overhead lighting and via the saloon touch screen
SPECIAL REQUIREMENTS
All Saloon Curtains and Blinds throughout Saloon and Dining to be Electric
Carpet Upgrade to Saloon Elements - Cosmopolitan 882839 in lieu of standard as per 503/88
Saloon Outer Headlining panels to be finished in Super White Lacquer 9016 in lieu of Lining


ELECTRCIAL SOCKETS
Interior AC 220V 50Hz sockets - Euro 2 pin
SUPPLY ITEMS
Yacht Glassware to consist of Dartington Crystal 10x Double Dimple Old Fashioned Tumbler TU10/5/P. 10x
Elegance Champagne Flute SP410.
INTERIOR FIT OUT

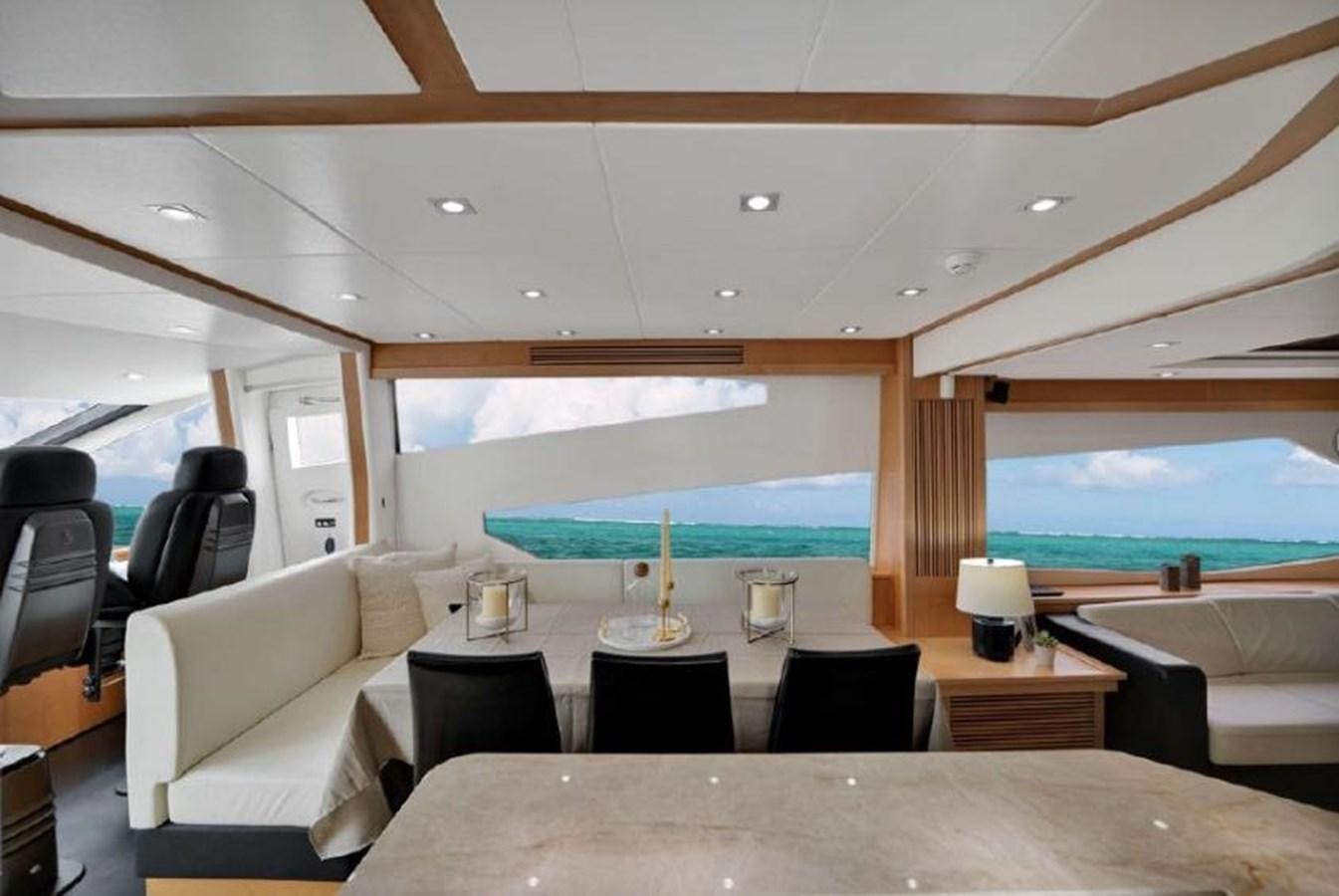

Wood flooring in dining. Flooring material in Oak - White Grey Varnished- ROESP226x (930143)
Main Deck Saloon sliding door on the starboard side

INTERIOR LIGHTING
LED feature and overhead lighting
Dimmable Vimar Lighting switching on all overhead lighting
Dining Ceiling lamp to have Chrome metal work with shades in Crepe Satin Silver - 44 with lining in Silver
SPECIAL REQUIREMENTS
All Saloon Curtains and Blinds throughout Saloon and Dining to be Electric
Dining flooring to have carpet insert in Elements - Wall Street - Cosmopolitan 882839. See GA
Dining Table to be rectangular in shape with a small stone insert in Vanilla Noir with stainless steel surround,
quartered directional grain top in Smoked Eucalyptus and stainless steel nosing detail. See drawing S256-17-930-
025
Upgraded hard surfaces to Dining storage units both Port and Starboard in lieu of standard


ELECTRICAL SOCKETS
Interior AC 220V 50Hz sockets - Euro 2 pin
INTERIOR LIGHTING
LED feature and overhead lighting
2 CV Dimmable Vimar Lighting switching on all overhead lighting

FINISHING MATERIALS
Handrail Trim-  Stainless Steel
Staircase Glass Balustrade - Bronze Tinted Glass
Flooring Oak - White Grey Varnished- ROESP226x (930143)

FINISHING MATERIALS

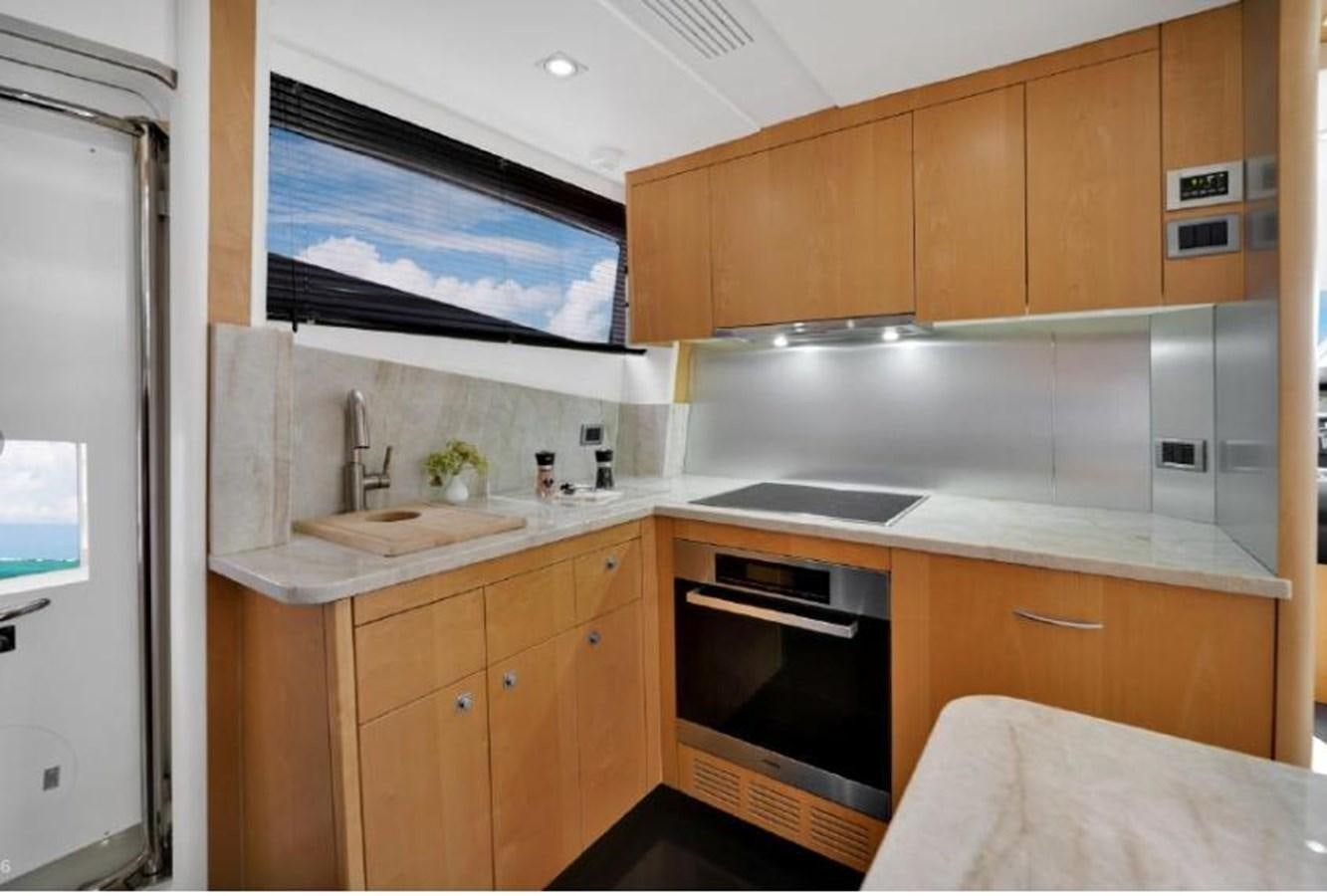

Galley Island Top P - Quartz Silestone Eternal - Marquina - Polished
Galley Worktop and Splashback P - Quartz Silestone Eternal - Marquina - Polished
Flooring Oak - White Grey Varnished- ROESP226x (930143)
ELECTRICAL SOCKETS
Interior AC 220V 50Hz sockets - Euro 2 pin
SUPPLY ITEMS
Galley pantograph style access door to the side deck
Yacht Crockery to consist of Royal Daulton Fusion White. Consisting of 10x dinner plates, 10x side plates, 10x soup
bowls with plates, 10x cups and saucers. 1x Teapot, 1x Cream/milk jug, 1x covered sugar bowl and 1x salt and
pepper pot.
Yacht Cutlery to Consist of Robert Walsh. Comprising of 10x dinner knives, 10x dinner forks, 10x desert spoons, 10x
soup spoons, 10x teaspoons and 4x serving spoons
INTERIOR FIT OUT
Wood flooring in galley and helm. Flooring material in Oak - White Grey Varnished- ROESP226x (930143)
AIR CONDITIONING
Galley and Helm - Marine Air chilled water air handler with WhisperCool DC fans 3 x AU18DC - 54,000BTU
AV EQUIPMENT
Galley TV not required. See Special Instruction
APPLIANCES
Custom Galley Integrated Refrigeration. Frigoboat G67290 with stainless steel interior. 250 litres fridge capacity and
120 litres freezer capacity
Additional under counter Custom Galley Integrated Refrigeration by Frigoboat - MS130 stainless steel drawer
refrigerator
Miele Electric oven H2265B
Microwave oven - Miele M2234SC
Ceramic hob - Miele KM6520 FR 4 ring
Miele DA2360 integrated extractor fan
Miele full size Dishwasher G7560 SCVi
Wine Cooler for 34 bottles - Miele KWT6321UG
INTERIOR LIGHTING
LED feature and overhead lighting
Dimmable Vimar Lighting switching on all overhead lighting
SPECIAL REQUIREMENTS
Galley to have additional storage locker in lieu of TV on Aft Galley bulkhead above breakfast bar. Storage to run to
the same height as the breakfast bar and to be finished in Nickel Grey Lacquer 91005 Satin. No TV required


EQUIPMENT
MTU BlueVision Basic New Generation ships automation systems.
MTU RCS DUO-6k Engine propulsion twin control levers dual station.
MTU PAN 9 Operating Stop-start operating panel per engine and dual station.
MTU engine data displays on the Simrad screens on both consoles.
MTU LOP-13 Local operating panel with display in engine room per engine.
MTU-Xenta joystick manoeuvring system with dual station control.
Additional MTU joystick manoeuvring system control on the aft docking station.
Only available with MTU joystick manoeuvring system above. Also not available with Aft docking engine control
option.
Auto Troll for Transmissions for slow speed manoeuvring
Trailing Pumps. Used to supply oil pressure for gearbox lubrication during wind-milling situations, this may include
running on one engine or when under tow.
Engine room access door from Crew cabin. Seaglaze Series 28 Ocean heavy duty watertight door.
Storage Cage located in the Engine Room
Hydraulic Sleipner Bow thruster system. Model SP550/386TC-BA40 500kg thrust in a 386mm ID GRP tunnel.
Hydraulic Sleipner Stern thruster system. Model SP550/386TC-BA40 500kg thrust in a 386mm ID GRP tunnel.
Controlled using a Sleipner proportional joystick with dual station control.
CMC Stabilis Electra Fin stabilization system HS60 - 5kW 1.20 meter square fins
Bilge arrangement is divided into three compartments. Accommodation, Machinery and Crew. Monitored by the
ships monitoring system.
Accommodation watertight space - 1 x 24V Rule 2000 bilge pump and 1 x 24V Rule 3700 bilge pump with dedicated
float switches.
In addition the space forward of engine room bulkhead and aft of water tight stabiliser compartment has 2 x 24V
Rule 500 bilge pumps with dedicated float switches that will pump the water to the watertight bilge area to be
extracted.
Machinery space - 1 x 24V Rule 2000 bilge pump and 1 x 24V Rule 3700 bilge pump with dedicated float switches.
Crew space - 1 x 24V Rule 2000 bilge pump and 1 x 24V Rule 3700 bilge pump with dedicated float switches.
FIRE SUPPRESSION AND DETECTION
Fireboy-Xintex Fire alarm detection system. Model FR-2000 control panel with dedicated Discovery Smoke/heat
detectors in all accommodation areas. Connected to Cm8 monitoring system to repeat alarm.
Fireboy GA2 Series fixed machinery space fire extinguishing system using Novec 1230 extinguishing agent. The
system is fully automatic incorporating main engine, generator and engine room ventilation shut-down with a
mechanical manual over-ride pull in the side deck fire locker.
EQUIPMENT
Standby fresh water pump Gianneschi Ecoinox 2CE 24Vdc self-priming pump, pressure controlled. Standby pump
fitted to enable both pumps to run at the same time if required.
Water Maker Idromar 250 litres per hour (MC5S-250)
FUEL SYSTEMS
Diesel fuel main tank is an integral GRP tank of 11,000 litre capacity.
Separ FPS-210 Fuel polishing system to eliminate build up of algae and water in the tank with 99.8 percent water
and partial removal.
Marco portable electric transfer pump Oil change system for engines gearboxes and generators with quick coupling
connection pipes.
AIR CONDITIONING
Credit for non supply of DCZ air handlers included in the Platinum package. HVZ air handlers fitted in Saloon, Galley
and Helm area. All other units remain as DCZ
FRESH WATER
Fresh water tank system with integral GRP tank of 1400 litres. WRAS approval for portable water. Pressure system
via a Gianneschi Ecoinox 2CE AC self priming pump and mounted with inlet/discharge manifold.
Octo Marine Compact Water Softener required for the domestic fresh water system. Fitted in-line from the vessels
fresh water shore supply. The outlet will be fitted with valves to fill either direct to tank or to the main system.
Fresh water marina connection pressure regulator
Flostream Hiflo 10 freshwater purifier serving the galley. Flostream Hiflo 2 freshwater purifier to all independent
icemakers.
Hot water calorifier. Surejust horizontal 200 litre stainless steel cased tank with 2 x 2kW immersion heaters. 60 litre
expansion tank.
Hot water circuit ring main throughout the lower and main decks with permanently running AC circulation pump.
Hand held swimming shower. Whale twister
Carbon fibre and chrome overhead shower stand with socket on the stern platform
Fresh water deck wash system with hose reel and outlets on Aft deck, Flybridge deck and Fore deck
BLACK WATER
Black water holding tank system using one Polyethylene tank for main accommodation and crew of 400 litres.
Discharge through either Sealand T-Series 24 Vdc self-priming diaphragm pump directly overboard (refer to
MARPOL regulations) or to a shore facility when available
Tecma Silent Plus 24Vdc macerating toilets
AIR CONDITIONING
Air Conditioning Marine Air chilled water system to Tropical specification and with quieter running WhisperCool DC
fans - 222,000 BTU

ELECTRCIAL SOCKETS
Interior AC 220V 50Hz sockets - Euro 2 pin
GENERATORS
One Kohler 28kW 50Hz (28EFKOZD) Generator and one 35kW 50Hz (35EFKOZD) Generator
EQUIPMENT
Sunseeker Cm8 integrated power management, boat monitoring and control system.
Lower helm 10" full system access touchscreen display.
Fly bridge helm 7" full system access touchscreen display.
The above touchscreen interfaces allow the control of the following systems.
AC Power - Generator status. Voltage measurement. Current Measurement and Frequency Measurement.
DC Power - Graphic status of Port, Starboard, Domestic Voltage and Current. Battery Switch Status and Control.
Tank Level - Graphic level of the fuel tank, Water tank, Black and Grey water tanks.
Navigation lights - Controlled.
Systems Operation - Facility to operate all of the main equipment loads. Water Heaters, Water Pumps, Chillers, ac
system, DC Systems, Navigation Lights, Bilge and flood pump systems
Alarm Handling - Crew to Bathing Platform door, Bathing Platform lowered, Shore Power MCB tripped and System
Alarms
Synchronised wiper control system.
Sunseeker Cm8 integrated power management 10" Glass touch display, boat monitoring and full access control
repeater in the crew mess
Shore power connection is via 1 x 100 Amp 250 Volt rated plugged flexible cable on a Glendinning cablemaster
motorized cable retraction system.
Second shore power connection via 1 x 63 Amp 250 Volt rated plugged flexible 3-core cable at 20m.
Victron 5kW Quattro inverters to provide a regulated and uninterrupted supply to the Audio Visual. Output Power
5KVA single phase 230V 50Hz.
Atlas Autoshore 30KVA Shore Supply Voltage Regulator. Ensures galvanic isolation from shore supply, stabilises
the onboard voltage from variations in shore supply voltage. Allows connection to 400V supplies. upgrades to 125A
Sanshin Twin Beam remote controlled Halogen Searchlight HR-1012
APPLIANCES
Custom Galley Integrated Refrigeration. Frigoboat G67290 with stainless steel interior. 250 litres fridge capacity and
120 litres freezer capacity in the Galley
Additional under counter Custom Galley Integrated Refrigeration by Frigoboat - MS130 stainless steel drawer
refrigerator
Miele Electric oven H2265B in the Galley
Microwave oven - Miele M2234SC
Ceramic hob - Miele KM6520 FR 4 ring in the Galley
Miele DA2360 integrated extractor fan in the Galley
Miele full size Dishwasher G7560 SCVi
Wine Cooler for 34 bottles - Miele KWT6321UG
Separate Miele WCA020 washing machine and Miele TCF640WP tumble dryer in the Crew Mess
Sharp Microwave R274 SLM
Dometic Coolmatic CRX80 Refrigerator with integral Freezer box in the Crew Mess
Two Frigoboat MS130 stainless steel drawer refrigerators with water cooled compressors on the Flybridge
Icemaker - Hoshizaki IM-30CNE on the Flybridge
Kenyon Electric BBQ grill on the Flybridge bar
Cockpit Refrigerator Dometic 50 ltr CR50 Behind a vented GRP door in the Aft Cockpit

Network system:
The boat is configured to use a Pepwave router to provide access to the internet via Wi-fi or Cellular data and to
allow the user to link to an available marina Wi-fi network. There are four wireless access points throughout the boat.
The boat can be fitted with up to 2 SIM cards (user supplied) to access the internet when in range of 3G/4G data
signals.
Note this system will give data communications only. Voice communication is not covered. Air time, service
agreements and SIM cards shall be the responsibility of the Client.
Cellular signal booster antenna. SES install, SIB to run cables.

Main Console.
Two Simrad NSO evo3S 24" multifunctional touchscreen control with a OP50 remote keypad controller.
Additional 10" touchscreen controlling the Cm8 Sunseeker monitoring
Simrad Halo 6 Pulse Compression Radar 6ft 72nm with velocity track.
Simrad GS25 GPS Antenna.
Simrad Autopilot AP44 system.
Simrad HS100 VHF with DSC. 2.4M whip VHF antenna.
Simrad depth Speed/Depth transducer with water temp B744V and Sonarhub module.
Simrad structure scan 3D side scan transducers and Sonarhub 3D module.
Simrad Automatic Identification System NAIS500 Class B AIS Transponder system with dedicated 2.4M whip
antenna and GPS receiver.
Simrad 110WX Ultrasonic Wind Sensor.
Richie Helmsman HF-743B Flush Mount Magnetic Compass.
Flybridge Console.
Two Simrad NSO evo3S 16" Touchscreen Multifunctional Displays and OP50 keypad controller.
Additional 7" touch-screen controlling the Cm8 Sunseeker monitoring.
Simrad Autopilot AP44 system.
Simrad second station HS100 VHF with DSC.
Compass Swinging and adjustment with correction card

1. Saloon Samsung 55'' The Frame UHD 4K QLED Television with Apple TV App and Airplay 2 included with a Ultra
HD Blu-ray player. Sonance upgraded front and rear speakers with Sonos Amps and Sonos Subwoofer. Dining area
with two additional Sonance speakers with Sonos Amp.
2. Galley TV not required. See Special Instruction
3. Master Stateroom Samsung 55'' The Frame UHD 4K QLED Television with Apple TV App and Airplay 2 included
with a Ultra HD Blu-ray player. Sonance upgraded front and rear speakers with Sonos Amps. (if 5 cabin layout then
the above will be 2 x 43'' QLED 4K Television)
4. Forward VIP cabin Samsung 55'' UHD 4K Television with Apple TV App and Airplay 2 included. Sonance
upgraded speakers with Sonos Amp.
5. Port Mid cabin Samsung 43'' UHD 4K Television with Apple TV App and Airplay 2 included. Sonance upgraded
speakers with Sonos Amp.
6. Starboard Mid cabin Samsung 32'' HD Television with Apple TV, Sonance upgraded speakers with Sonos Amp.
7 Aft Cockpit zone audio with four 8'' Sonance VPXT8R Extreme Speakers with Sonos Amp.
8 Flybridge deck zone audio with four 8'' Sonance VPXT8R and two 6'' VPXT6R Extreme Speakers with Sonos
Amp.
9 Fore deck zone audio with two 6.5'' Sonance VPXT6R Extreme Speakers with Sonos Amp.
The zoning audio to be linked via the Sonos App with one tablet supplied for control of the zones.
Crew mess 24" HD Television.
In the crew mess and each of the cabins a Fusion 770 Apollo head unit for AM/FM radio, USB input, Bluetooth and
Apple Airplay connectivity to users devise with two Fusion ceiling speakers.
