STORM Yacht for Sale

Length
103' (31.5m)
Builder
OVERMARINE GROUP
Build
2005/2022
Cabins
4
Crew
4

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Specifications

Builder OVERMARINE GROUP
Model Mangusta 105S
Length (LOA) 103' (31.5m)
Year 2005
Year Refit 2022
Gross Tonn. 167
Draft 4' (1.2m)
Beam 22' (6.93m)
Location United States

Accommodations

Staterooms 4
Sleeps 9
Crew Cabins 4
Crew Sleeps 4

Dimensions & Capacity

LOA 103' (31.5m)
LWL 84' (25.5m)
Max Draft 4' (1.2m)
Fuel Tank 3,566 g (13,500 L)
Fresh Water 489 g (1,850 L)
Holding Tank 264 g (1,000 L)
Gross Tonn. 167
Displacement 95

Construction

Hull Material GRP
Ext. Designer STEFANO RIGHINI
Cruising Speed 26 Knots
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

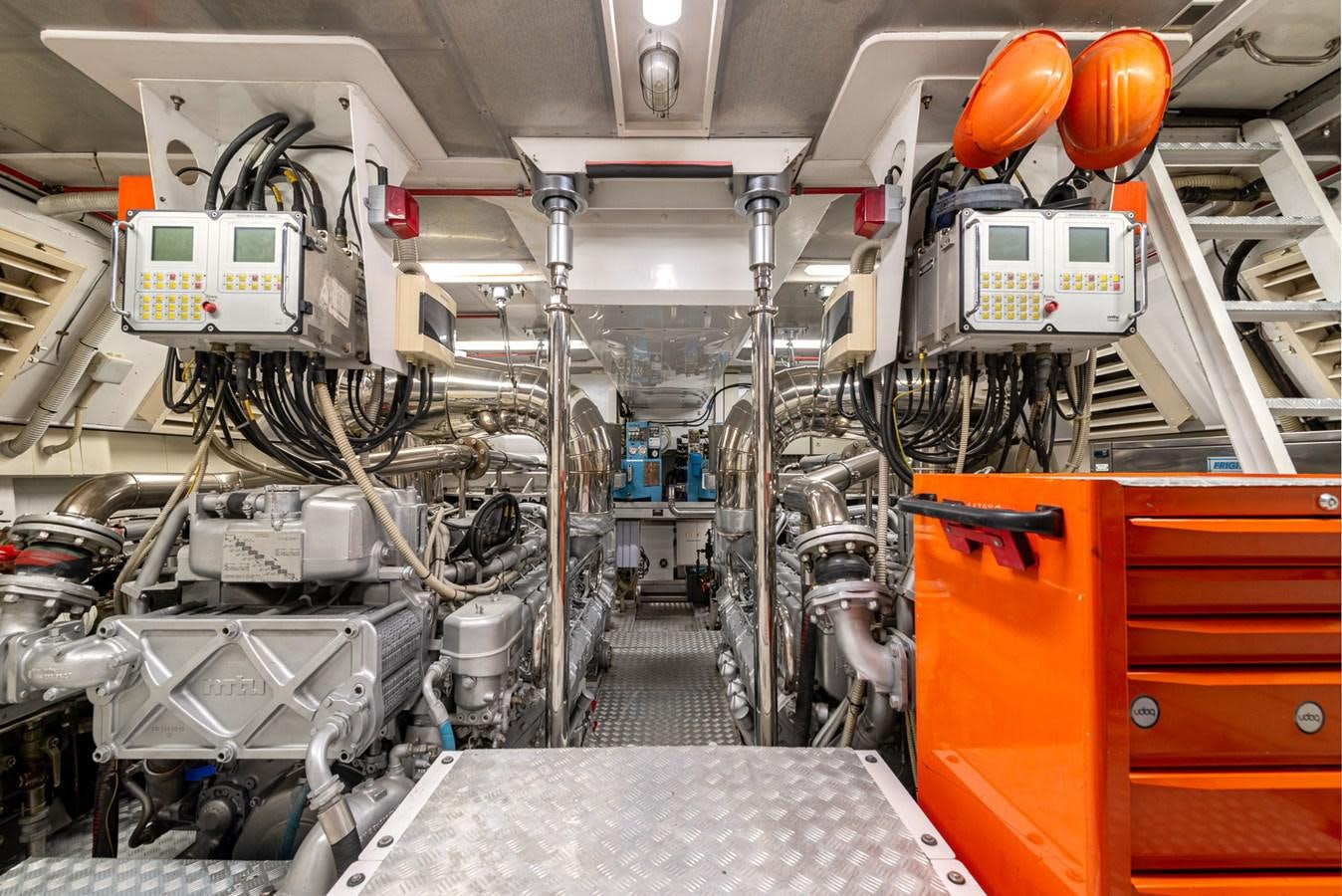

Mechanical

  • Propulsion System: 2 x Kamewa Waterjets 63 S II
  • Engine Controls: Rolls Royce
  • Engines Exhaust System: Complete reconditioning (2021) & Complete overhaul of Exhaust system motors (in 2020)
  • Transmission: 2 x Kamewa Waterjets 63 S II
  • 2020: Overhaul of 10 years’ service + Shaft Seal G2
  • Flaps: Humphree 2022 new generation

Generators & Electricity

  • Generator Fuel Consumption: 7L/H
  • Frequency Converter ASEA
  • Battery Chargers: DOLPHIN 24/160 or equivalent
  • Starter Batteries: 4 x EXIDE 800 12V or equivalent (paired in parallel)
  • Service Batteries: 4 x FIAMM 610 6V or equivalent (in parallel)
  • Generator Batteries: 2 x EXIDE 800 12V or equivalent (one per generator)
  • Electronic Propulsion Control and Monitoring System Batteries
    • 2 x EXIDE 900 12 V or equivalent (in parallel) – main power supply
    • 2 x EXIDE 900 12 V or equivalent (in parallel) – emergency power supply
  • Emergency Batteries: 6 x EXIDE 900 12 V or equivalent (in series/parallel)

Auxiliary Machinery

  • Under Water Lights: 3 x blue

Fuel & Oil System

  • Main Engine Fuel Seperator Filters: SEPAR SWK 2000/40/UMS (interchangeable)
  • Generator Fuel Seperator Filters: SEPAR SWK 2000/5/MS

Firefighting & Bilge System

  • Firefighting & Bilge Pump:
    • G&R ACM 401 BT 2.2kW 400V - Complete overhaul of fire pumps and bilges
    • G&R ACM 401 BT 2.2kW 24V DC
  • Automatic Bilge Pump: RULE mod. 2000 24V DC

Fresh Water System

  • Fresh Water Makers: IDROMAR MC55
  • Fresh Water Treatment: IDROMAR
  • Fresh Water Pressure: 2 x G&R ECOJET 4B 0.75 kW (400V/24V DC
  • Hot Water Boilers: 2 x for guests & 1 x for crew
  • Desalinator: IDROMAR MC5S 230L/h 400V 50Hz 3-phase, complete overhaul in 2021

Black & Grey Water System

  • Black & Grey Water Treatment: HAMANN Supermini 230 V - New Black Water tank (1,000L) – 2021 complete overhaul
  • WC's (toilets/bidets): New Solenoid valve for all WC cabins
  • Black & Grey Water Pumps: New Macerator pump for all WC cabins (2022)

AC & Ventilation System

  • Engine Room Ventilation: 4 x G&R ELL/R 560 0.75kW 400V reversible

Hydraulic System

  • Multifunction Hydraulic Module: BCS CO 435 A-2A 24V DC

Antifouling System

  • Type: Interspeed 6400 Black

Accommodation

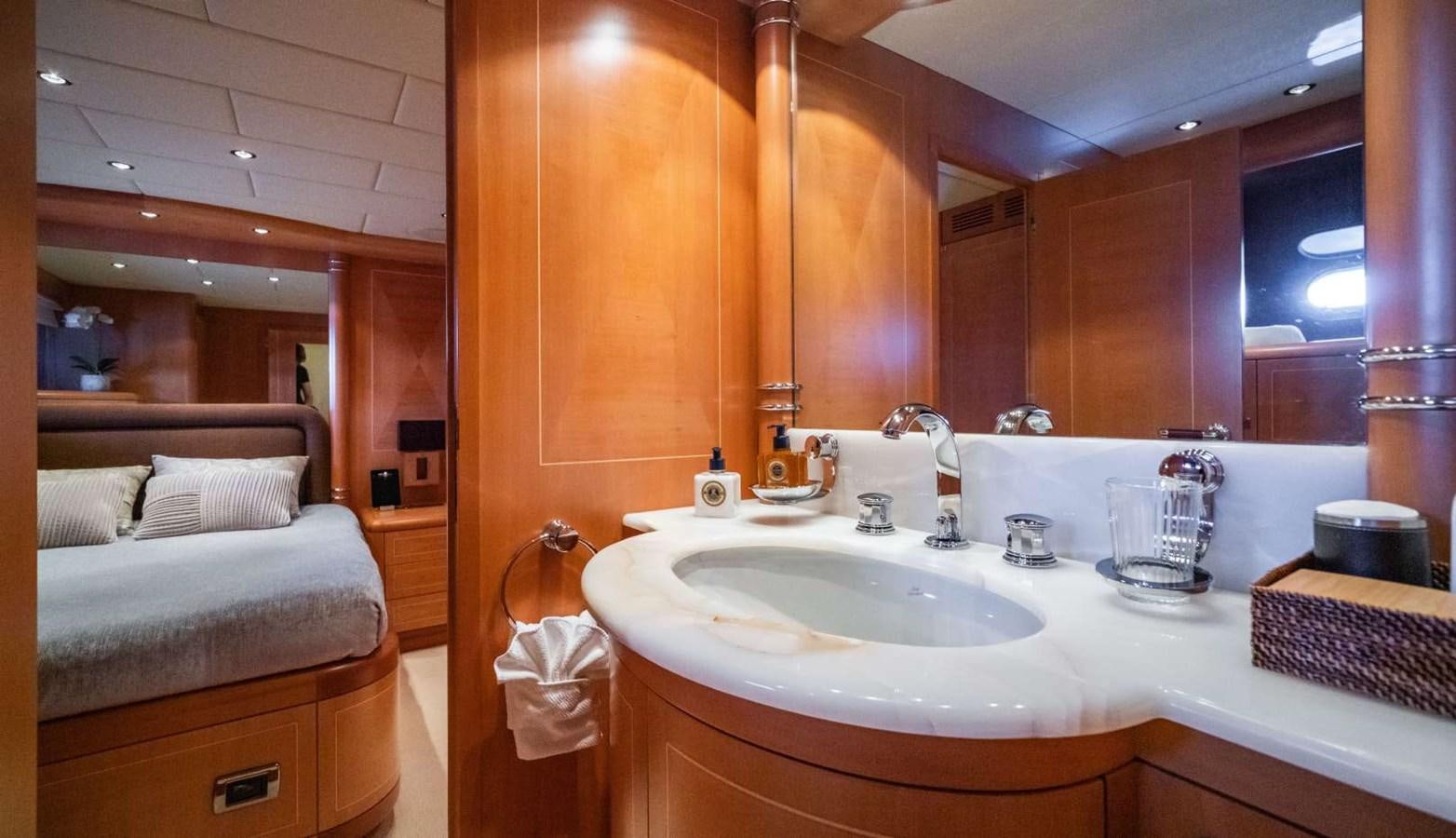

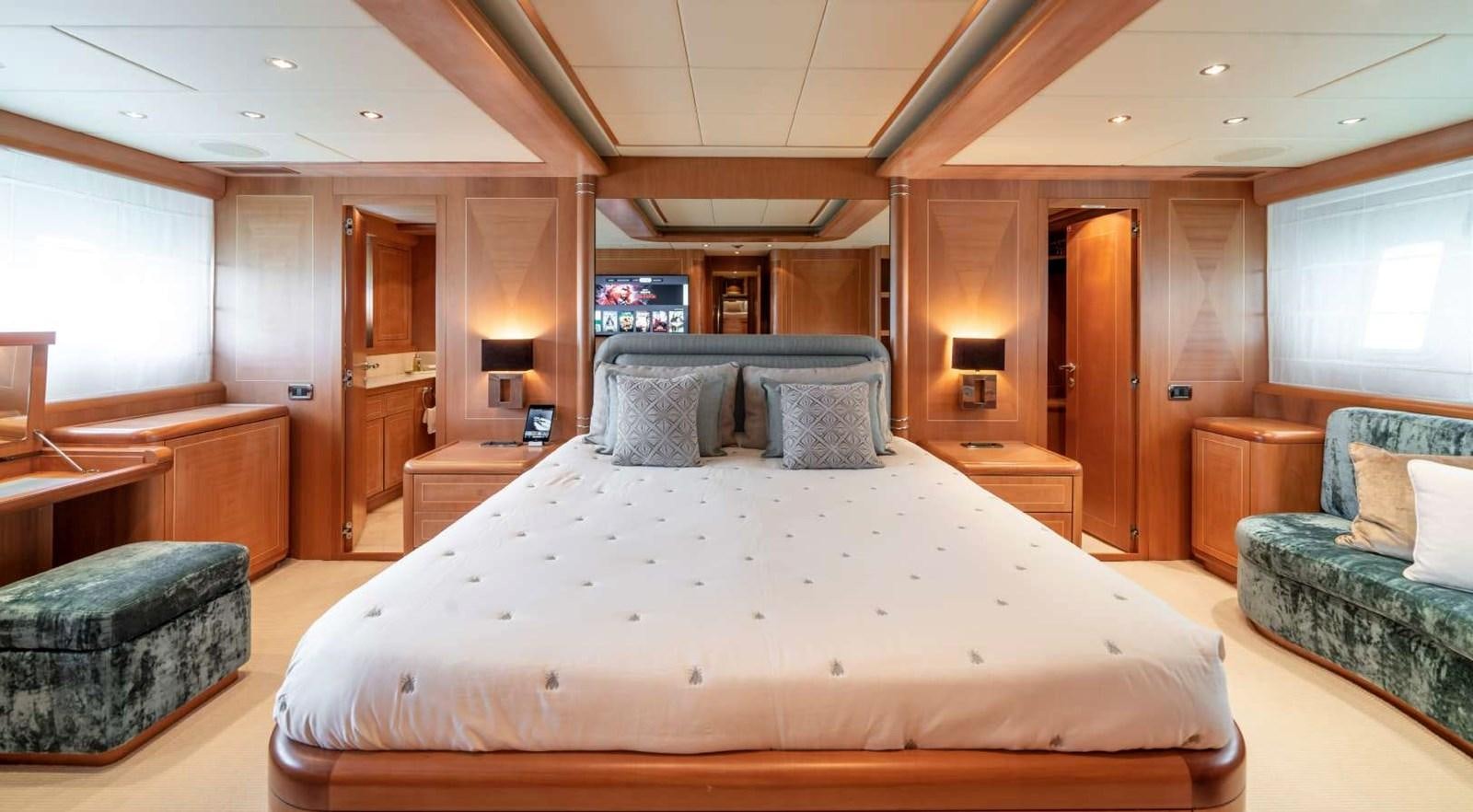

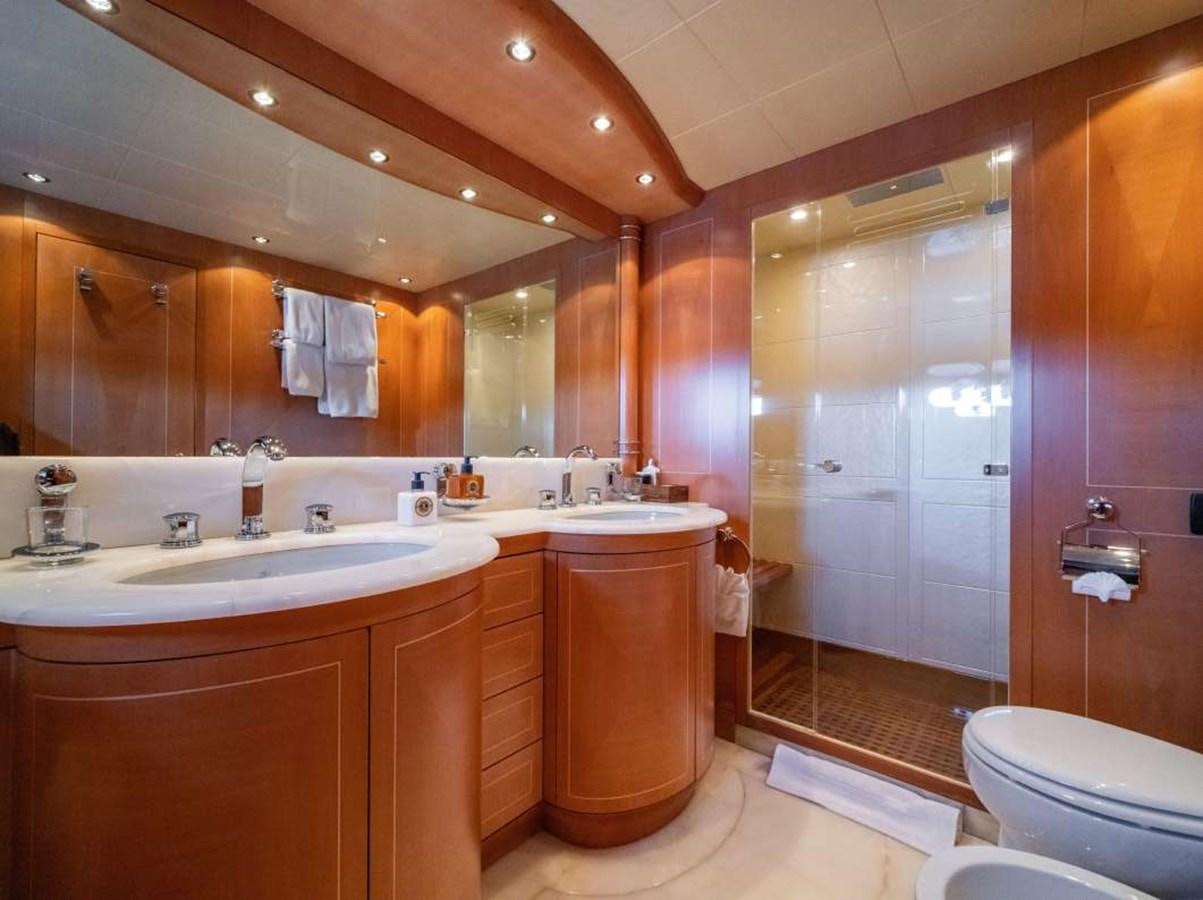

  • The night quarters are situated along the lower deck in the forward section reserved for guests and for some of the crew. These two areas are obviously separated to guarantee complete privacy. The owner’s suite is situated in the most comfortable area amidships taking up the full beam. It is very bright thanks to as many as five rectangular ports in each of the sides, with a dressing room, and a bathroom which are in line with the stateroom’s size and rank.

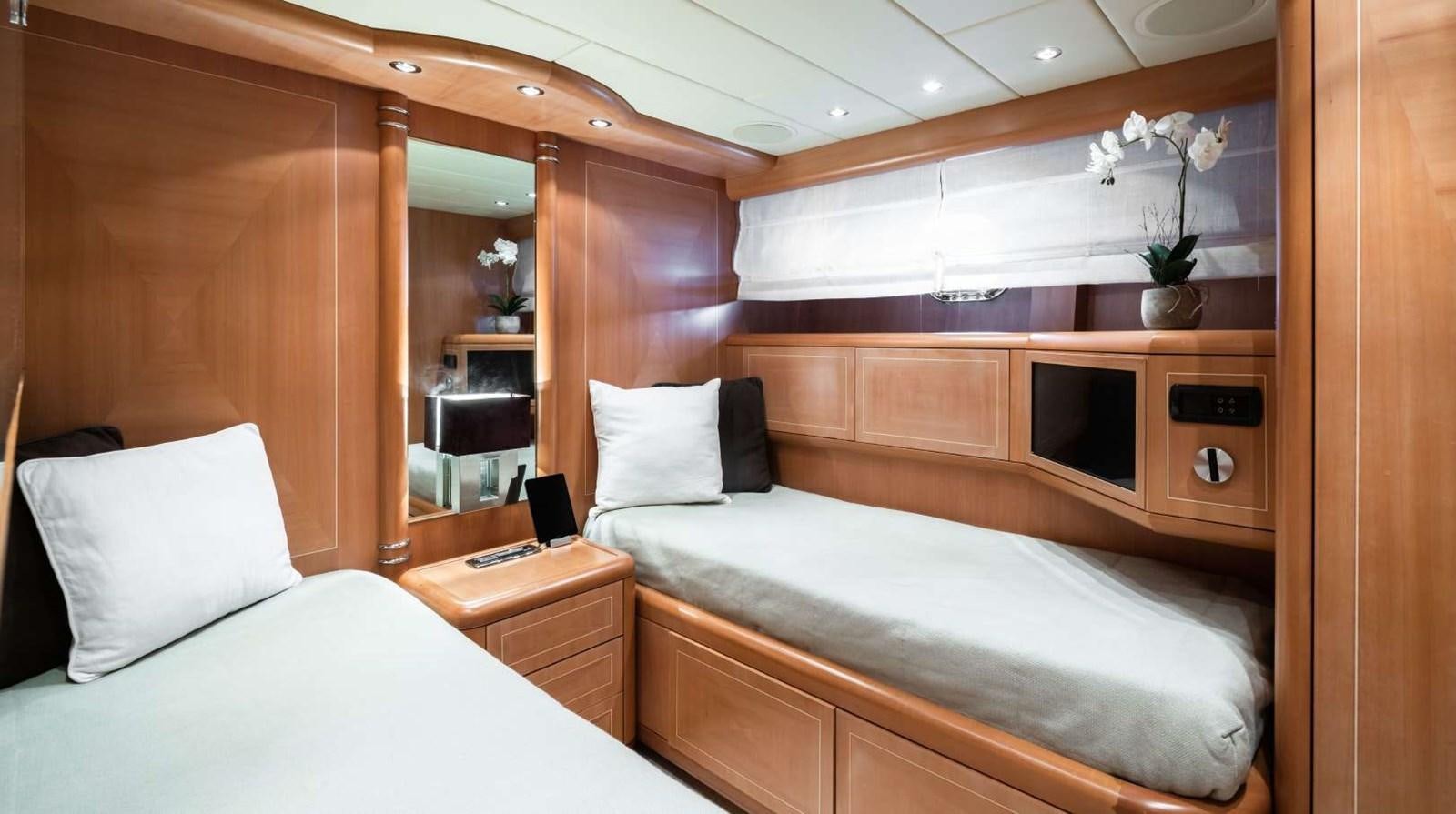

  • Forward of the Master suite there is one twin guest stateroom with ensuite, wardrobe and a pullman bed on the port side, and a double guest stateroom with ensuite and wardrobe on the starboard side. Further forward we access to one VIP stateroom with a double bed at the center, bathroom and wardrobe. In the given case, the owner requested the designers on hand at Overmarine with the shipyard defining the interiors as being “finely classic”.

Galley & Laundry Equipment

Main Galley Equipment

  • Cooking Equipment: Induction Siemens hot plates
  • Oven: Miele
  • Refrigeration/Freezer: Frigit 3 + 2
  • Dishwasher: Miele

Pantries and Others

  • Laundry Equipment: Washing dryer Miele

Crew Galley / Mess Equipment / Cooking Equipment

  • Dishwasher: Miele
  • Wine Storage: CLIMADIFF Wine cellar added in the lower deck lounge (in 2022)

Communication Equipment

  • VHF Radiotelephones: Furuno, FM4800
  • Portable VHF: 2 x IC.GM1600E/1:IGM25

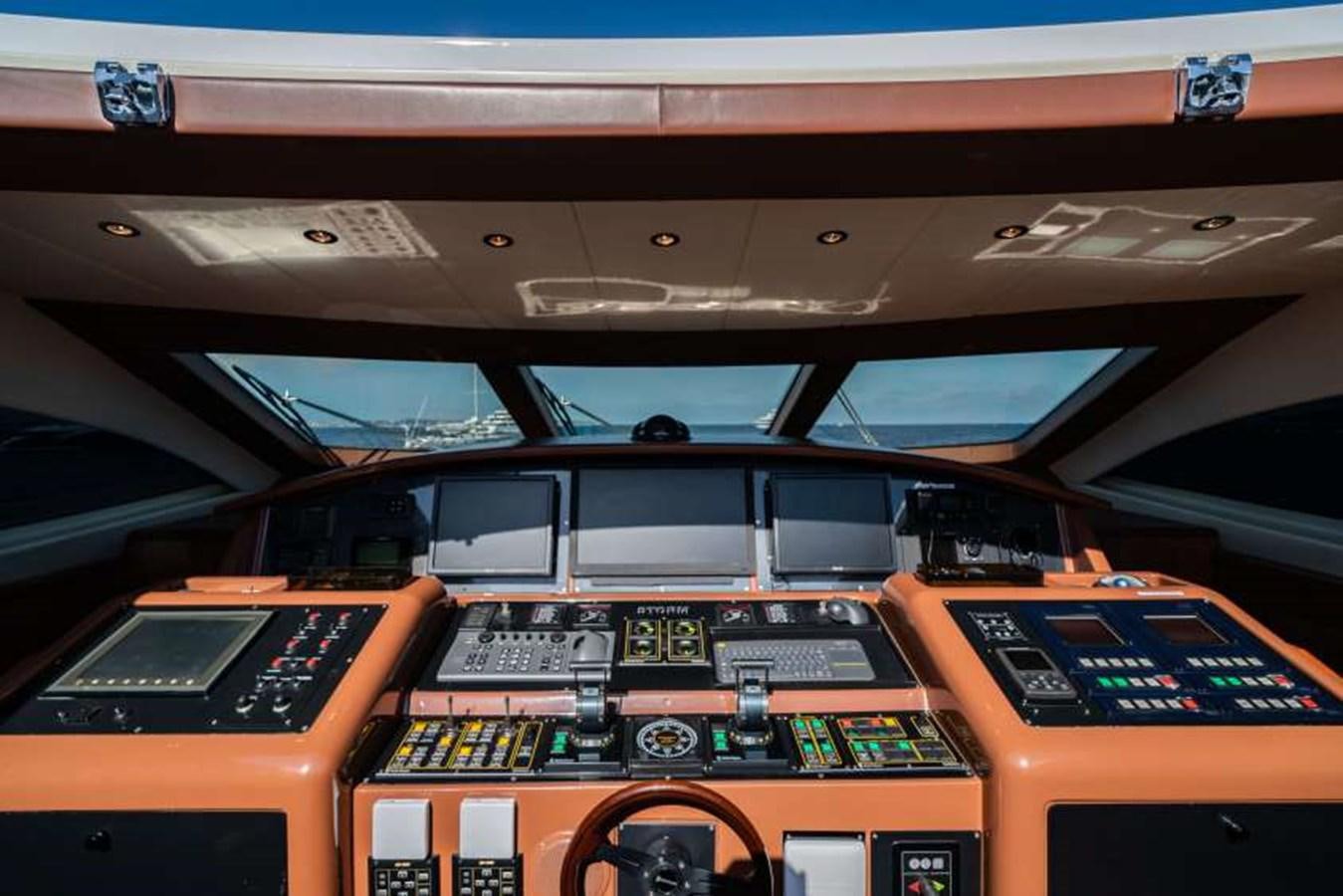

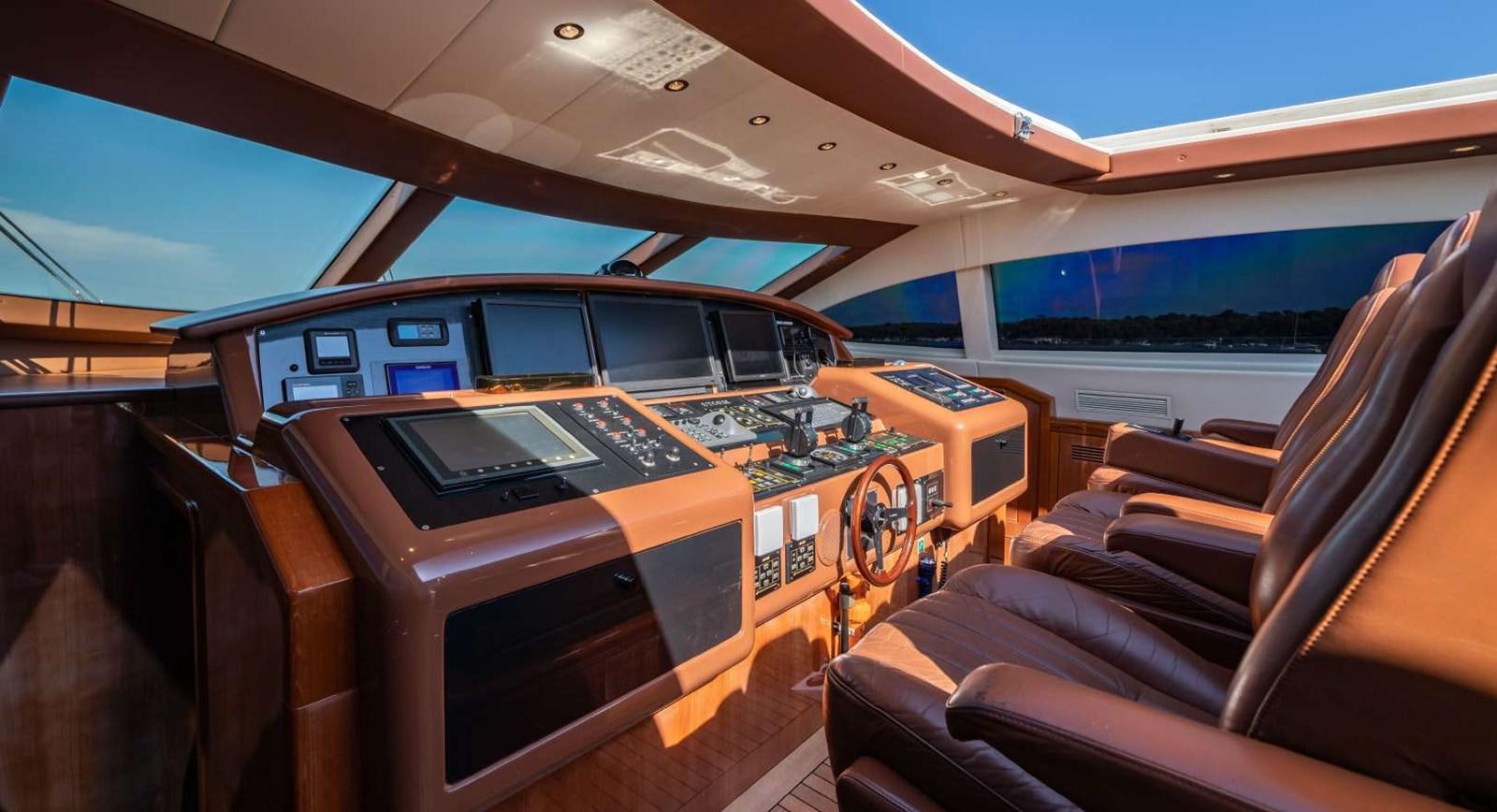

Navigation Equipment

  • Navigation System: Time Zero
  • Monitors: Overmarine
  • Radar: ARPA SimRad NSS12
  • X-Band Radar: Furuno, FR 2110
  • Gyrocompass: Simrad RGC-50
  • Auto Pilot: Robertson, AP45
  • Steering & Autopilot Hydraulic Module: KAMEWA
  • Echo Sounder: SimRad, EQ33, new as of 2022
  • GPS: Furuno, GP39, new as of 2022
  • AIS: Furuno, FM4800, new as of 2022
  • Navtex: Furuno, NX-700, new as of 2022
  • Wind Instruments: Raymarine, new as of 2022
  • Horn: Air Compressor, new as of 2022
  • Bridge Navigation Watch Alarm: Furuno, BR-500, new as of 2020

Entertainment Equipment

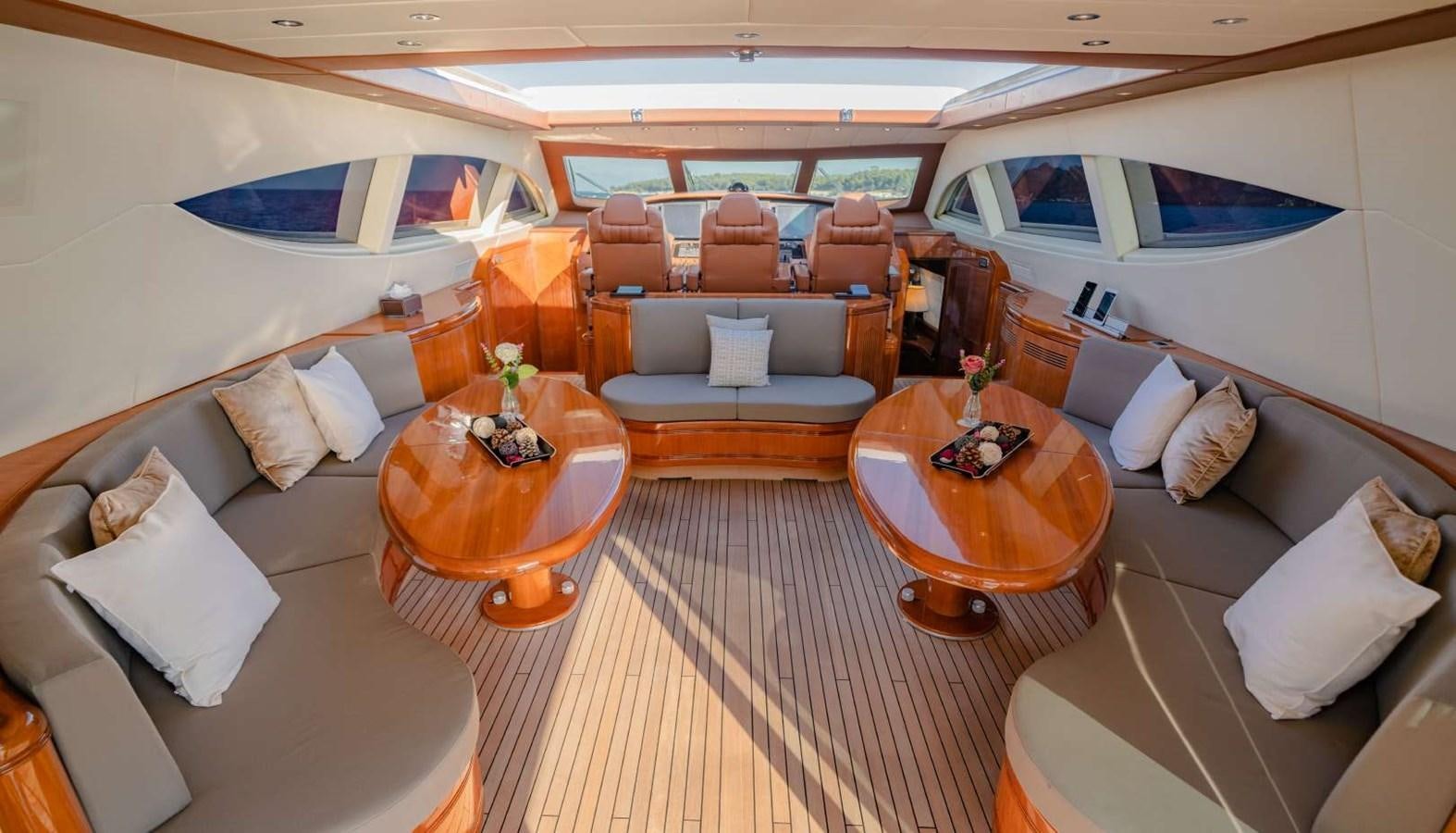

Main Salon

  • Sony 60-inch tv
  • Ampli Yamaha rxa 1080
  • Yamaha music cast sub 100
  • Built-in speaker kef c1200ql & focal 300 ic lcr5
  • Apple tv gen 4
  • Crestron 4 series control system (main controller) mc4
  • Crestron handheld remote

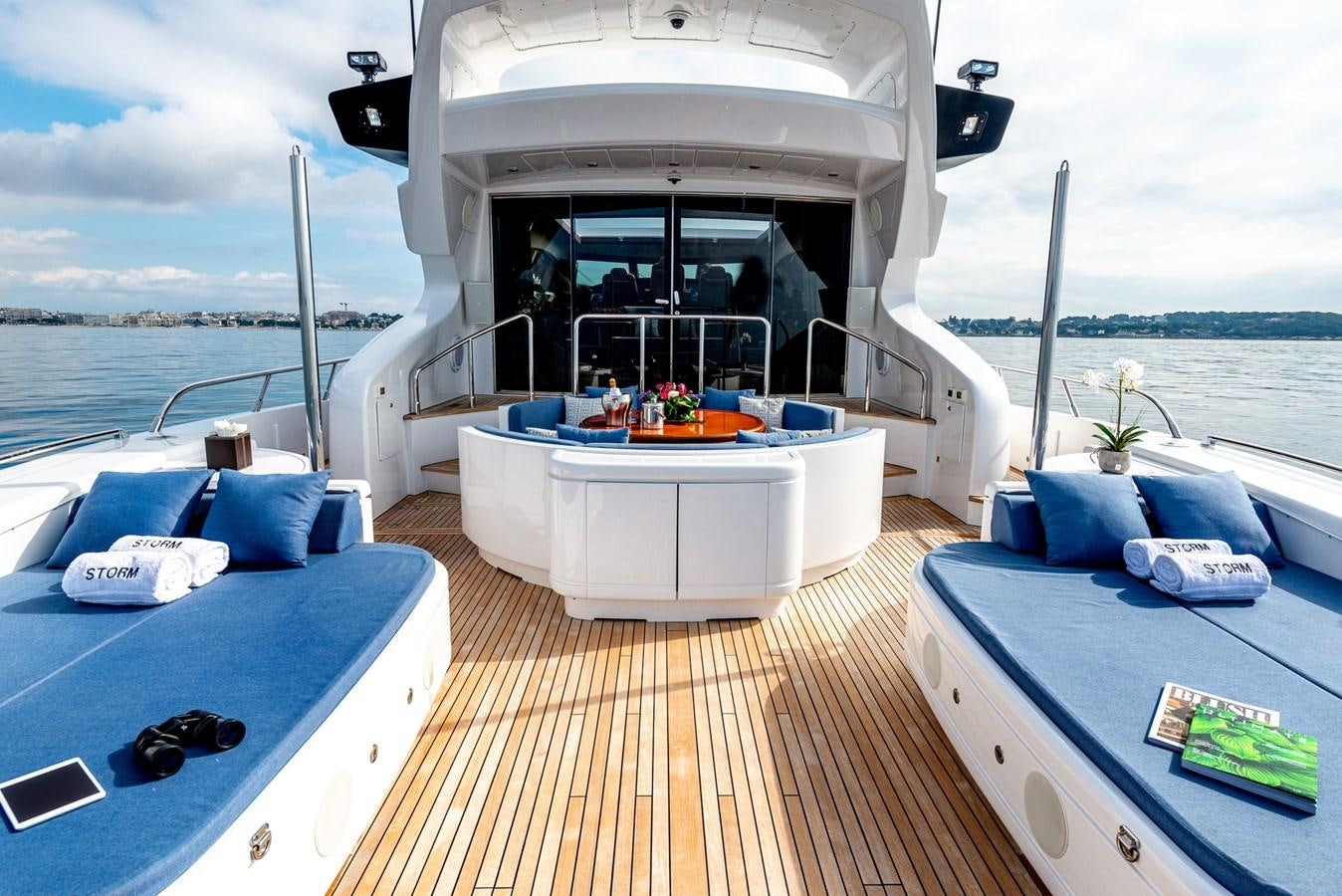

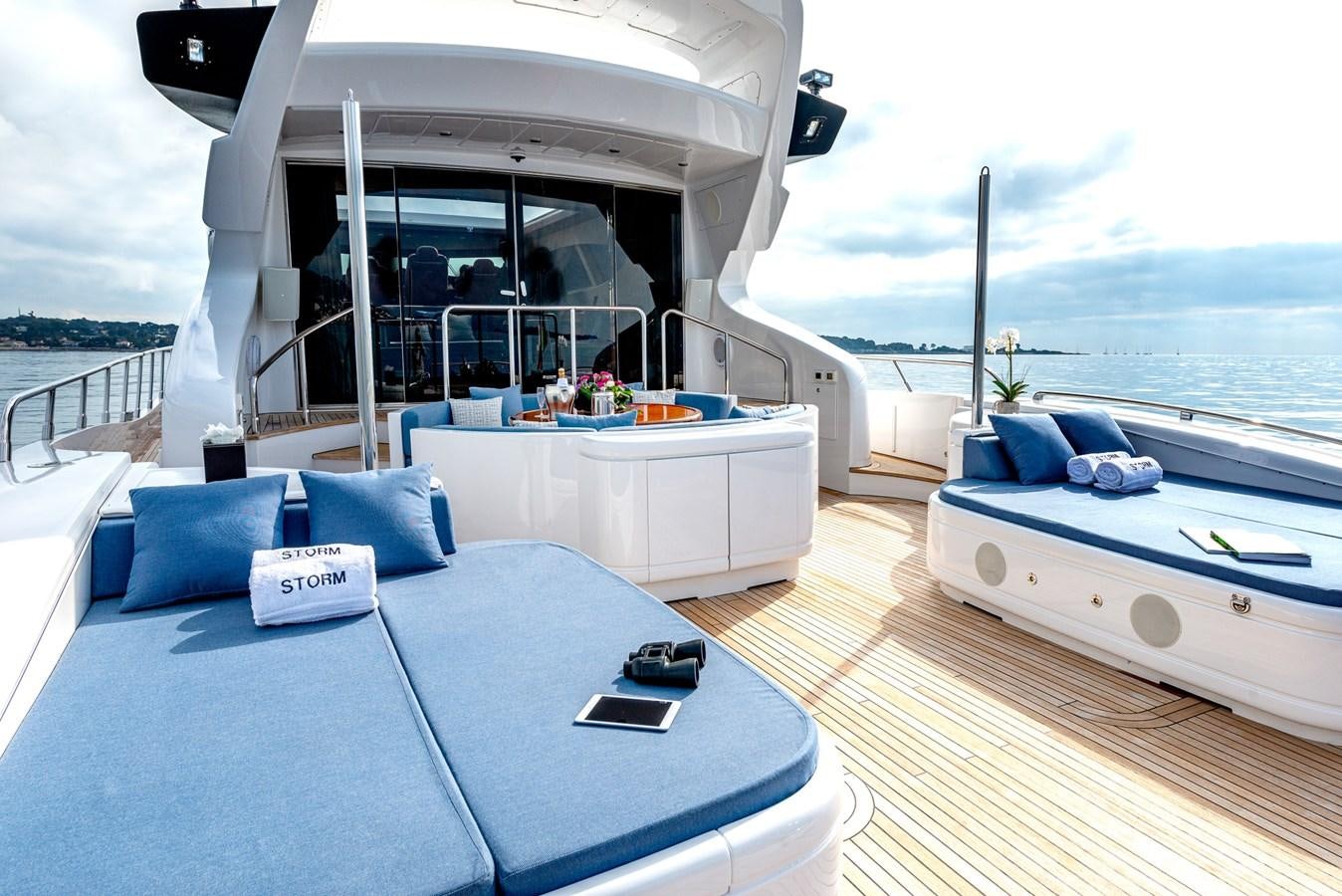

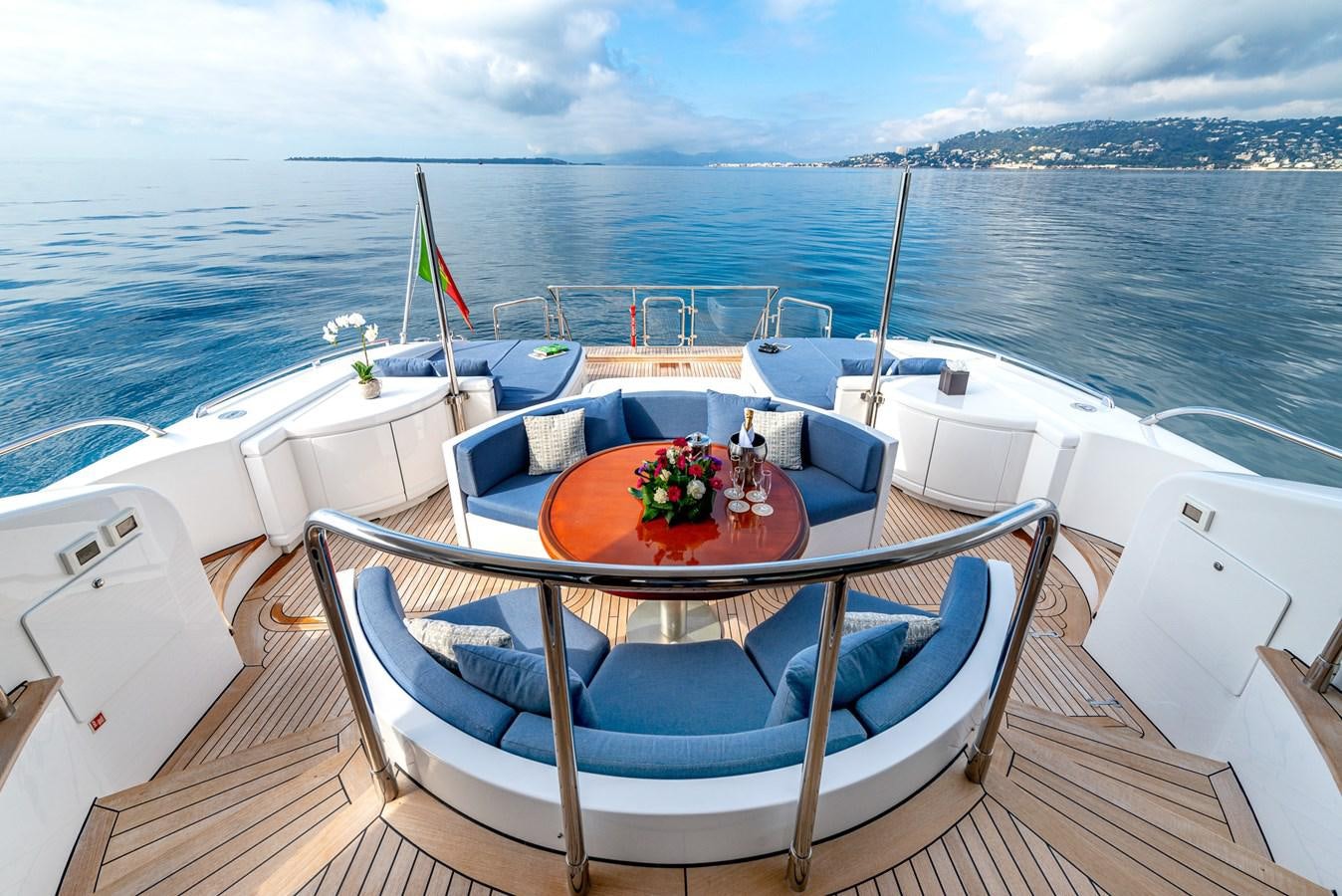

Aft Deck

  • Built-in speaker signature series3 8,5" 330 watt classic white marine speakers
  • M7 marine subwoofer driver 12" 600 watt
  • Amplifier Yamaha px10 2 channels 2 x 1200 watt
  • Seat speakers signature serie 3 6,5" 230 watt classic white marine
  • Dsp Crestron avia 8x6 digital signal processor
  • Audio player musicast Yamaha wxa

Fore Deck

  • Seat speaker signature series3 6,5" 230 watt classic white marine speakers
  • Audio player musicast Yamaha wxa

Lower Lounge

  • Amplifier Yamaha rxa2a
  • Sony 60-inch tv
  • Front speaker kef c1200ql
  • Built-in speaker kef c1200ql
  • Apple tv gen 4
  • Crestron wired ethernet module

VIP Stateroom

  • Sony 50-inch tv
  • Amplifier Yamaha rxv4a
  • Apple tv gen 4
  • Crestron wired ethernet module

Master Stateroom

  • Sony 50-inch tv
  • Amplifier Yamaha rxv4a
  • Apple tv gen 4
  • Crestron wired ethernet module

Guest Stateroom

  • Yamaha musicast wxa - 50
  • Apple tv gen 4
  • Crestron wired ethernet module
  • Crestron handheld remote hr – 310

WIFI

  • Latest network and WIFI system 5G

Tenders & Toys

Tenders

  • Williams 325 - year 2020 at 72 hours in January 2023

Jet Skis

  • Sea-Doo Spark 3 seats - year 2020 at 17 hours in January 2023

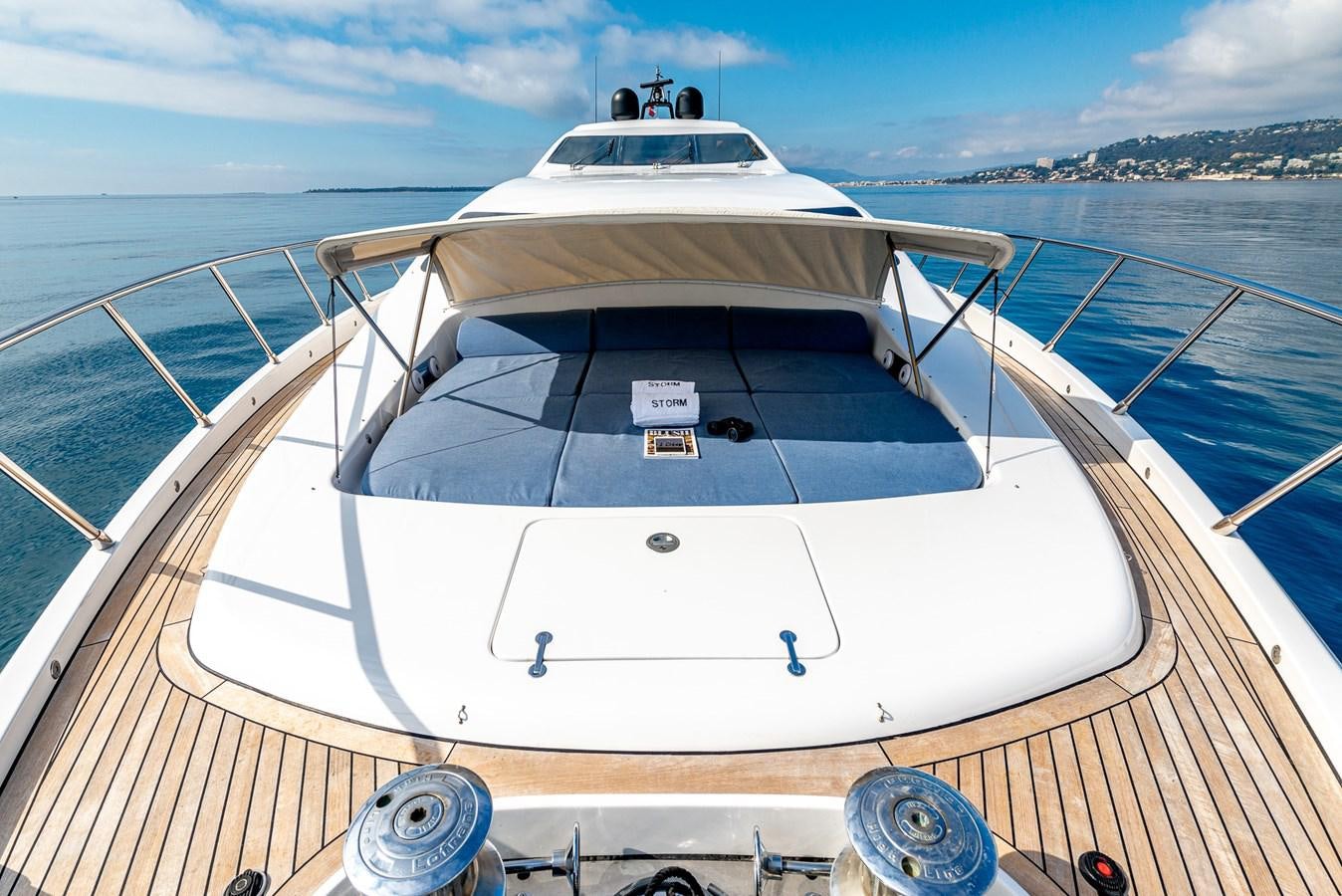

Deck Equipment

  • Anchors: 2 x S.E.C. SHHP 114kg (galvanized)
  • Anchor Chains: 2 x MAGGI – 100m, 16mm gauge (2021)
  • Anchor Windlass System: 2 x LOFRANS’ Ercole Verticale B 3.5 kW 400V (2021 complete Overhaul)
  • Warping Winches: 2 x LOFRANS’ T 2kW 400V
  • Stern Boarding Gangway: Sanguinetti art.4689 PAS 105H length 5.4m, maximum load 480 kg
  • Swimming Ladder: Inox swim ladder added (2022

Safety & Security Equipment

Installation of plexiglass for the handrails + addition of the central gate on the aft deck

  • CCTV: New system 2021
  • Fixed Firefighting System: Complete overhaul of fire pumps and bilges
  • Firefighting Equipment: New handle and fire hose
  • Gas Detection: Only for Jetski & Tender
  • Smoke Detection: Optical smoke detector
  • Fire Alarm: Electro idea
  • Life Rafts: 2 x life raft (new) - Arimar 8 pax
  • Lifejackets: 16
  • Immersion Suits: 24
  • Life Rings: 4
  • EPIRB: Ocean Signal, E100G
  • SART: Ocean Signal, S100
  • Flares and Signals: 6 x red hand flares, 3 x orange smokes & 6 x parachute rockets
  • Medical Equipment: Category C

Refit History

2022

Exterior:

  • New complete teak deck
  • Hull and superstructure painting (Snow white)
  • Illuminated ‘STORM’ sign in stainless steel
  • Gangway complete overhaul & refurbishment: Painting, axle, cylinder, flexible, belt, teak, electronic system and hydraulic pump
  • Completely redone exterior upholstery + cover protection
  • Complete overhaul of two stern winches
  • New gasket for windshields & windows
  • Strengthening or rear mooring cleats

Interior:

  • Main deck lounge new upholstery
  • New nautic instrumentation
  • New audio and video system (inside & outside) with iPad controller
  • Latest network and Wi-Fi system 5G
  • Wine cellar added in the lower deck lounge
  • New solenoid valve for all wc cabins
  • New macerator pump for all wc cabins
  • New sanispit

2021

Exterior:

  • 2 x new mooring chains - 100m
  • New cctv camera system
  • New audio system
  • Hull sanding
  • New Sabot sounder
  • Complete overhaul anchor windlass x 2
  • Complete overhaul bow thruster system
  • Complete overhaul of hardtop + belt

Interior:

  • New blackwater tank 1,000 L complete overhaul + pump
  • Complete reconditioning of exhausts: motor & group

2020

Exterior:

  • New blue sealights

Interior:

  • Complete overhaul air conditioning system
  • Complete overhaul fridge
