STELLARCAT SF2603 Yacht for Sale

Length
85' 8" (26.12m)
Builder
STELLARPM
Build
2025
Cabins
4
Crew
4
Asking Price
Request

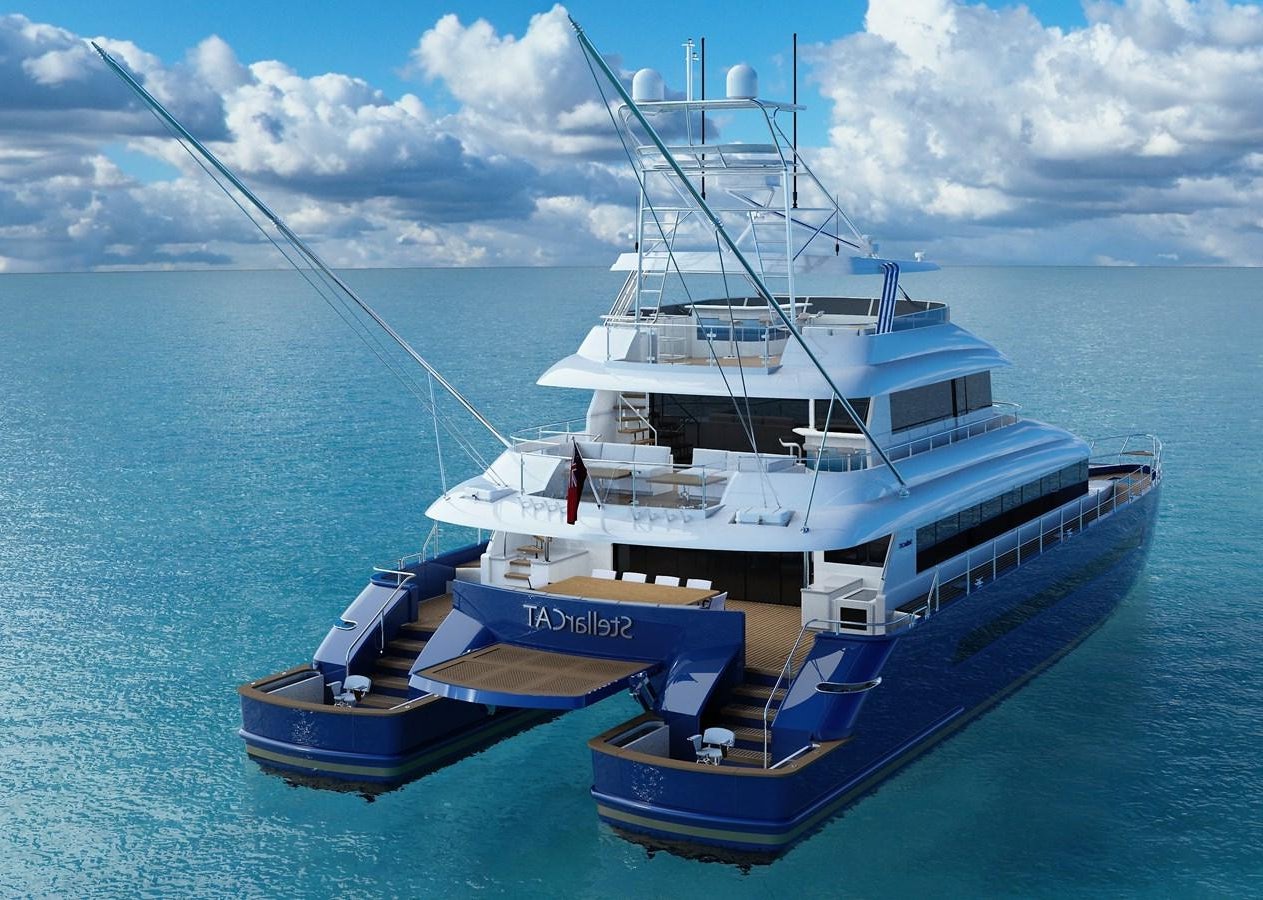

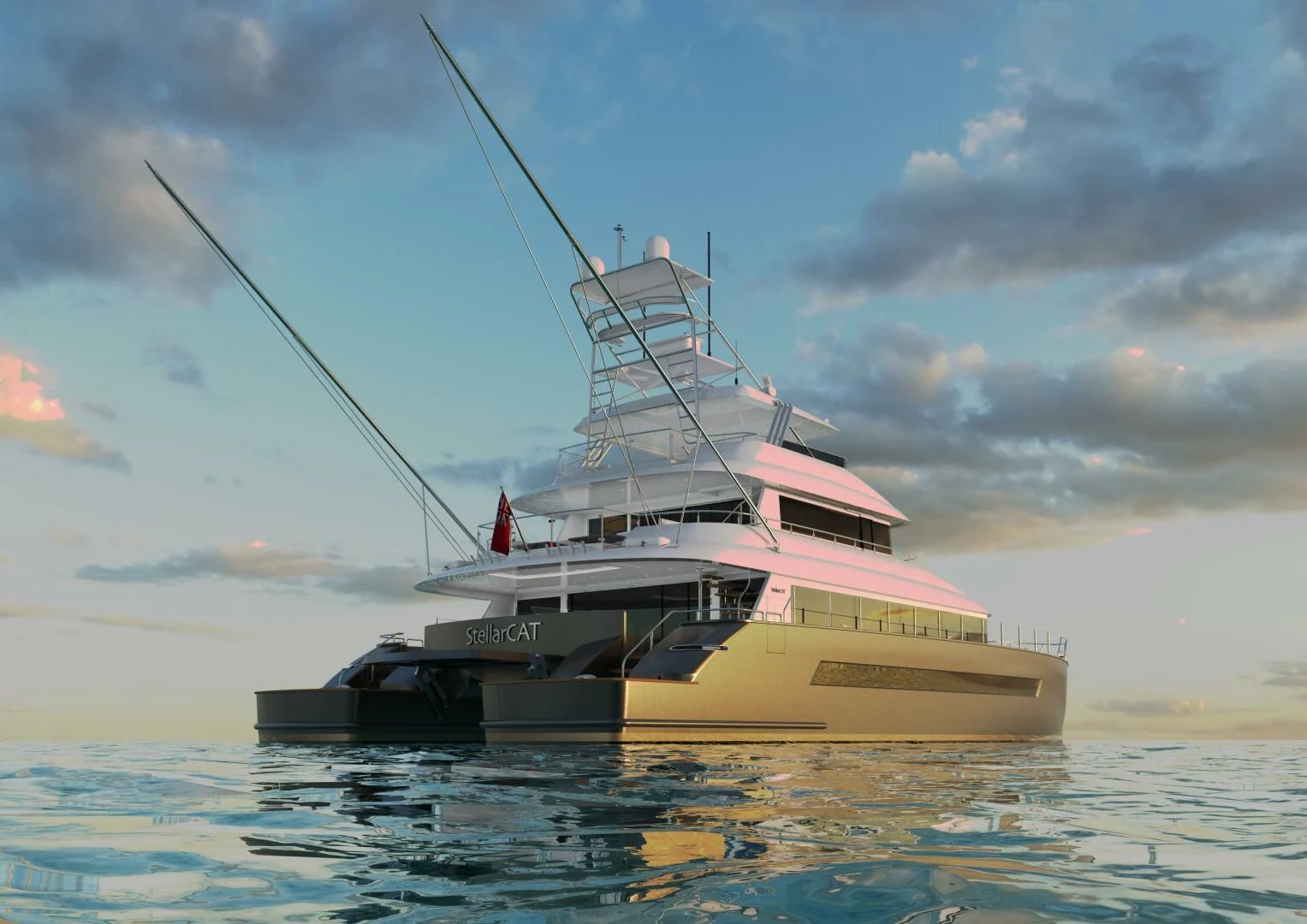

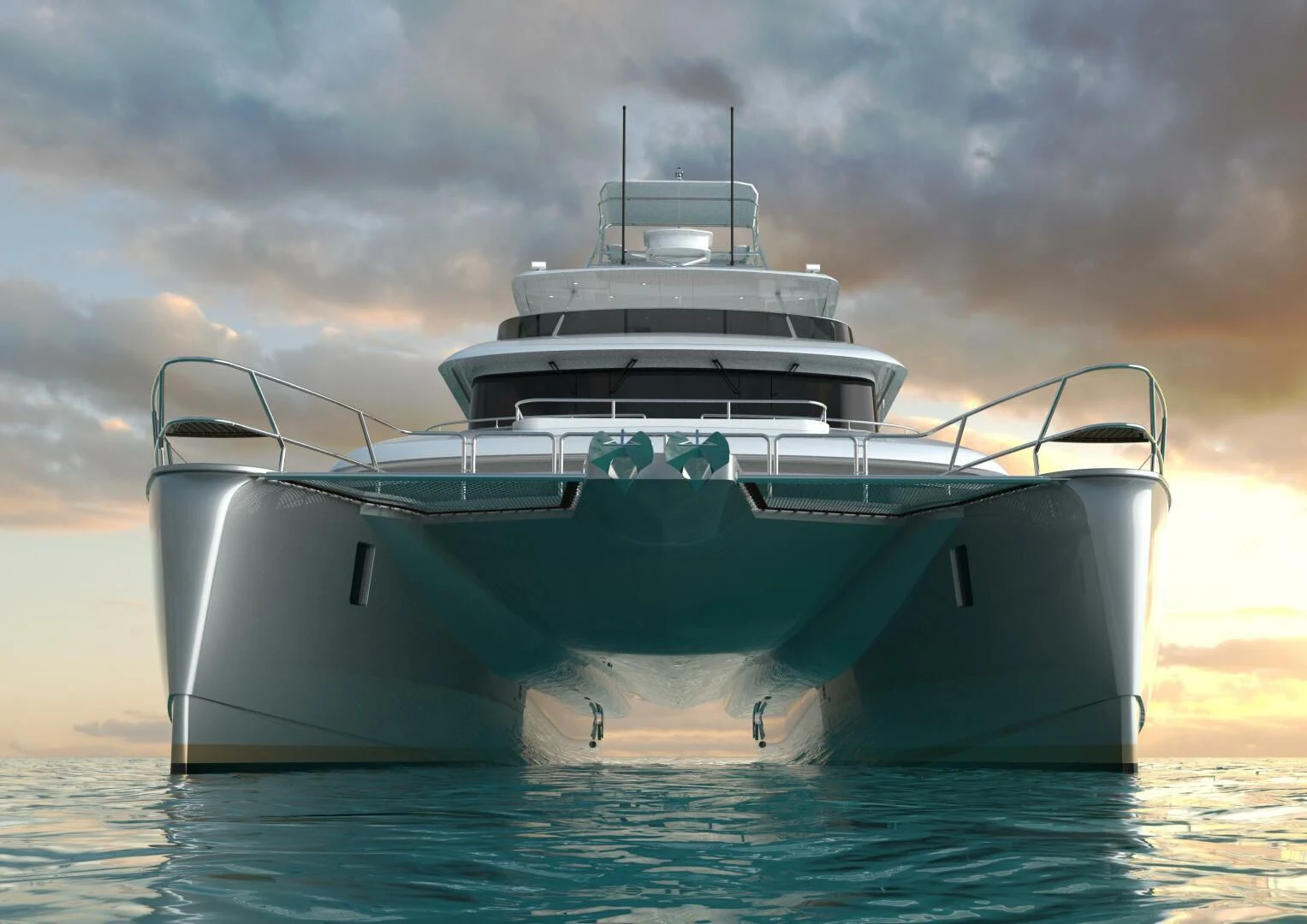

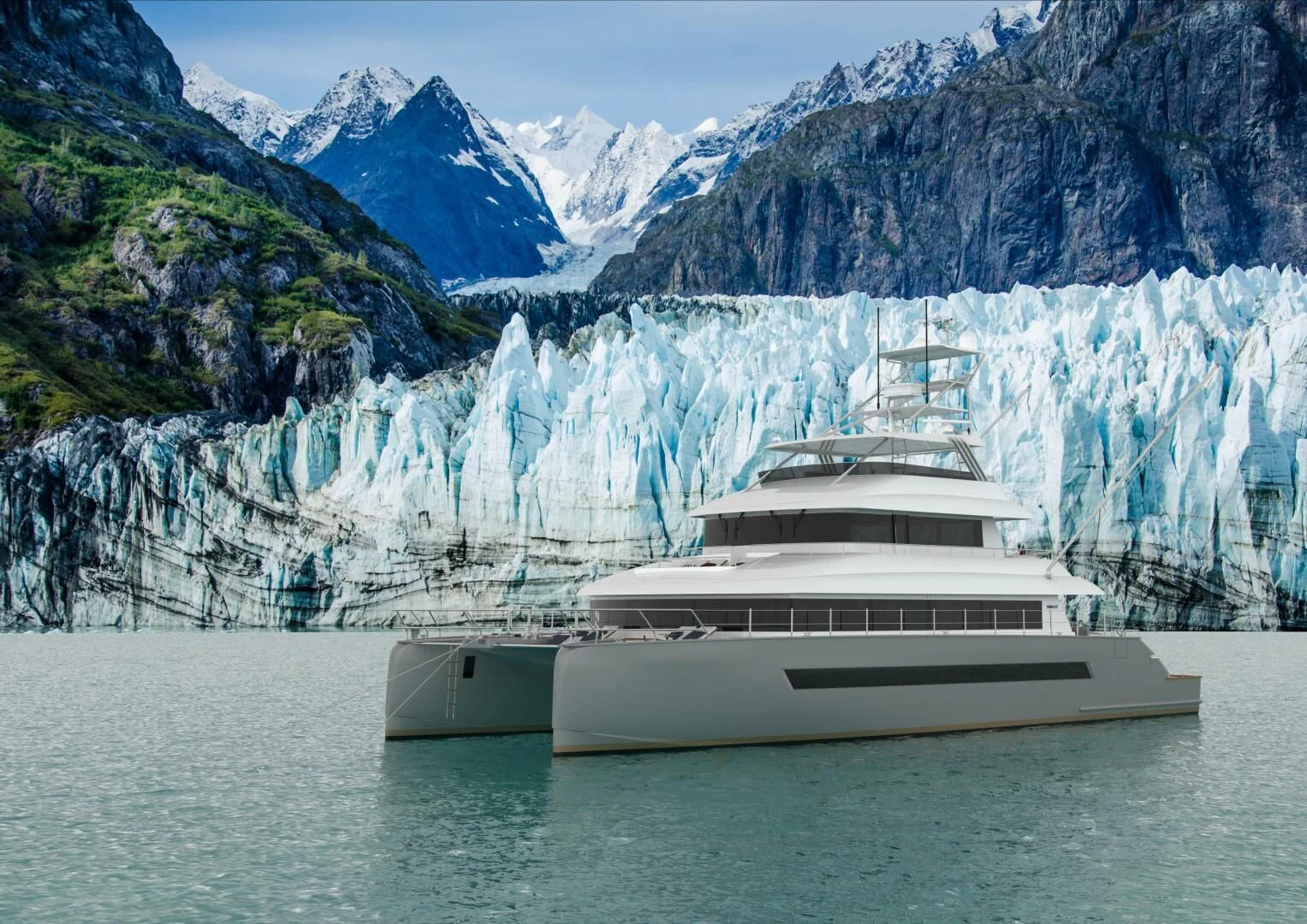

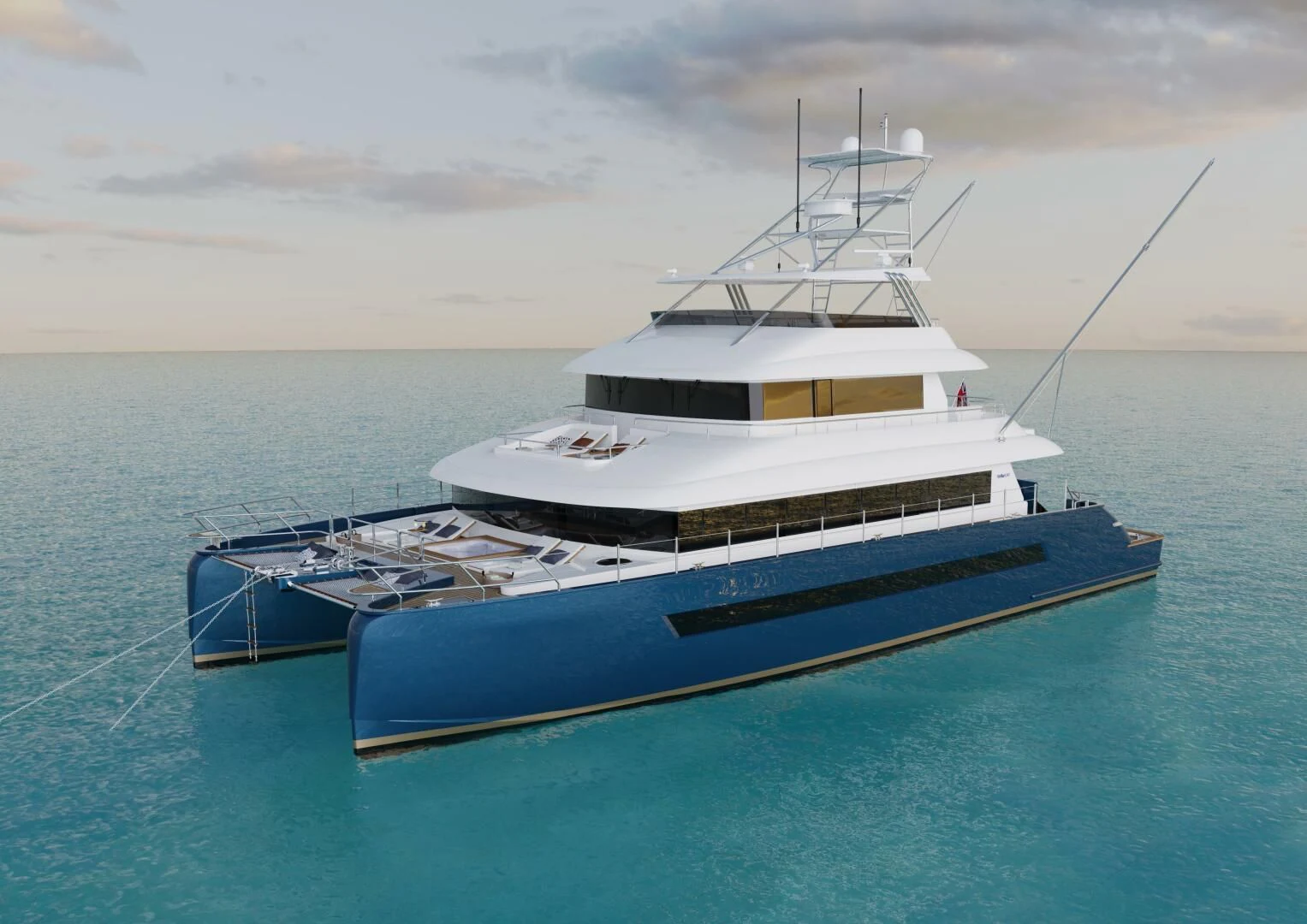

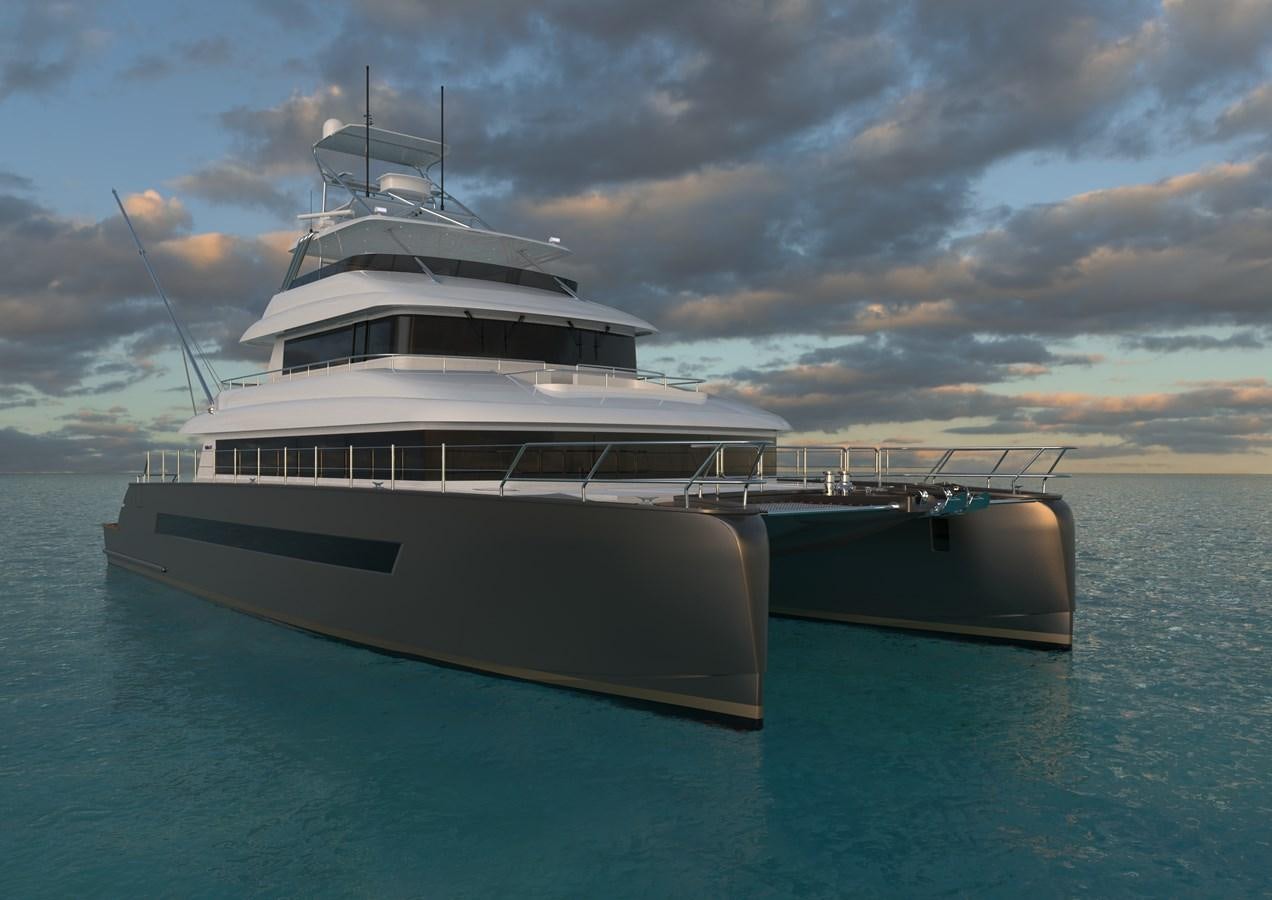

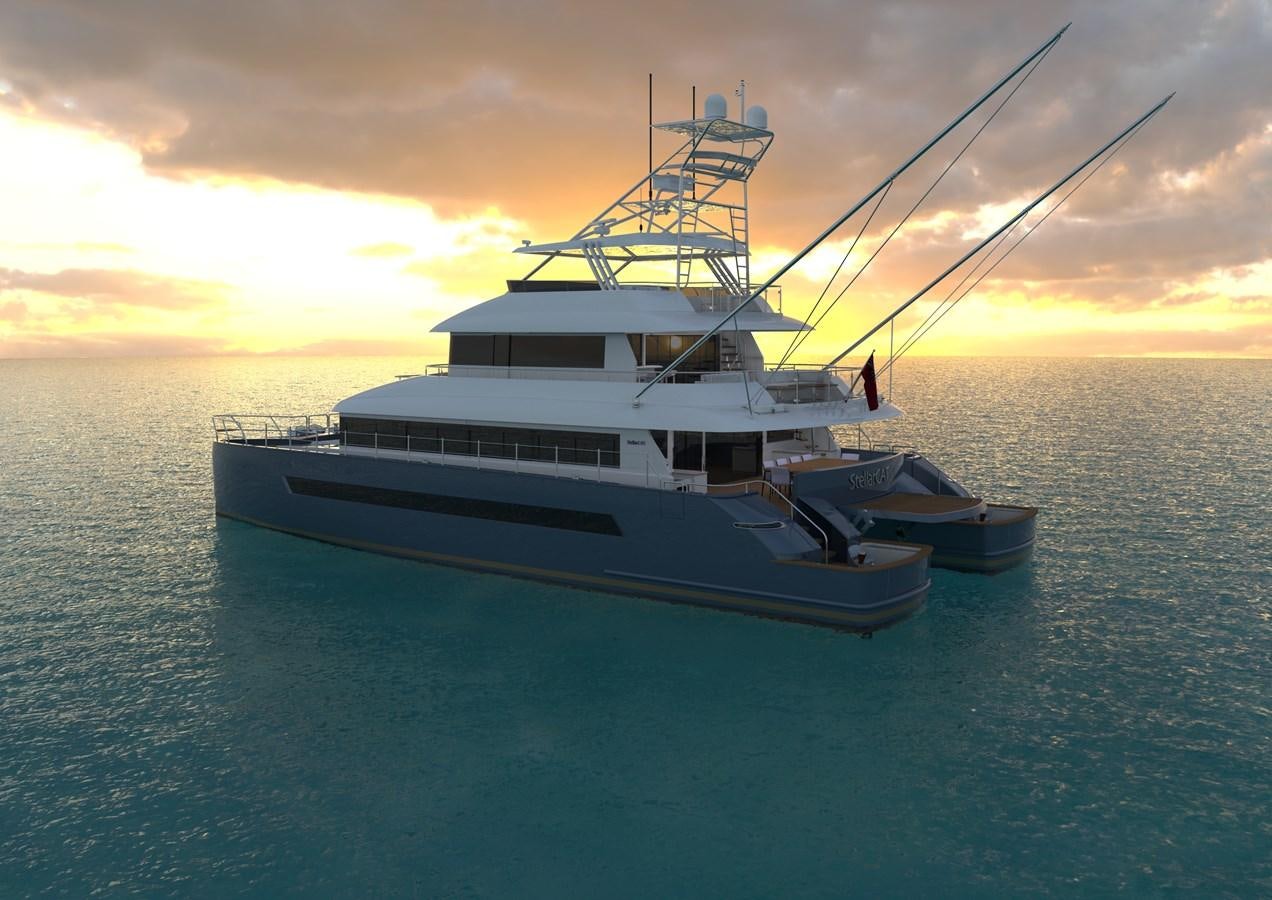

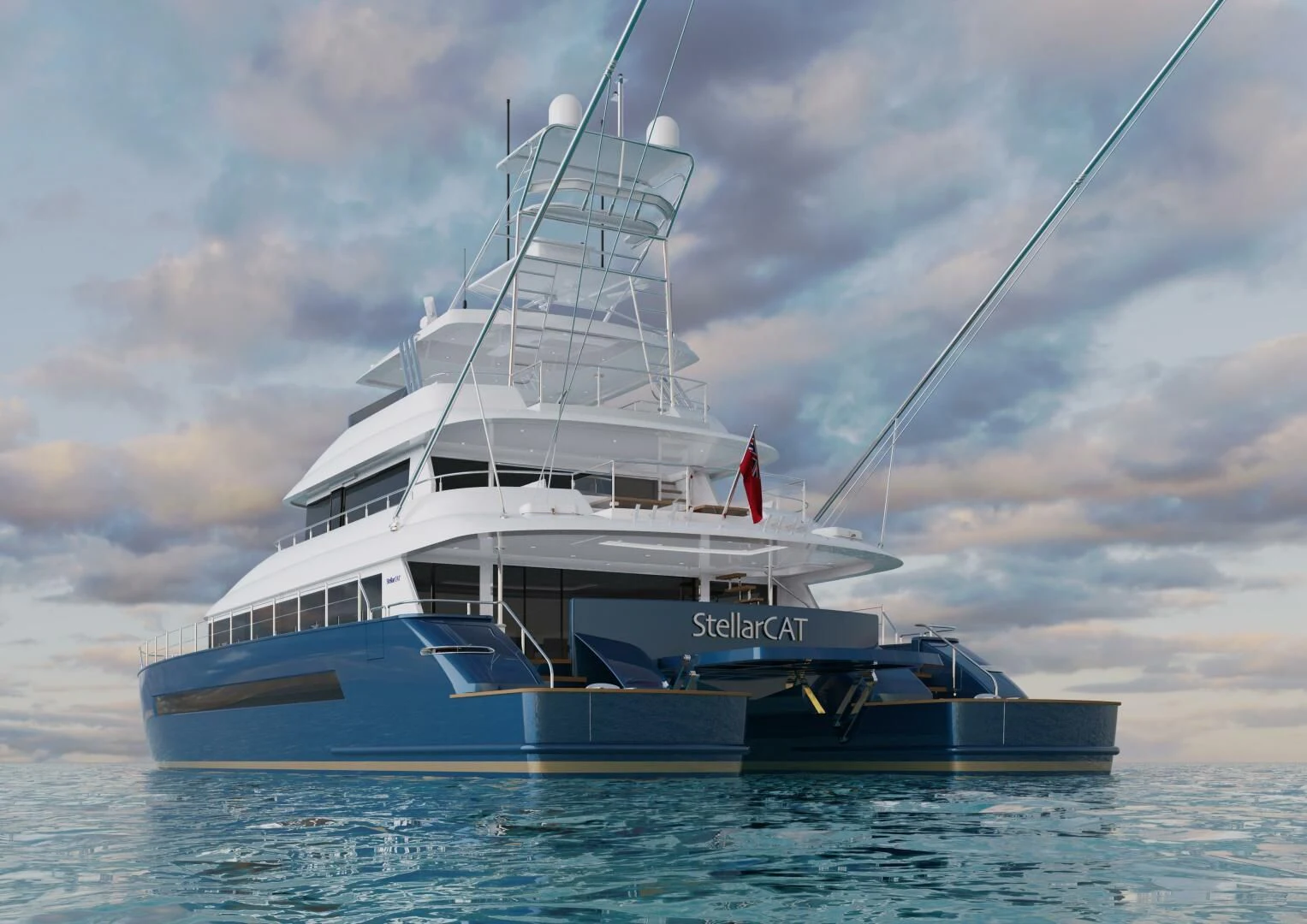

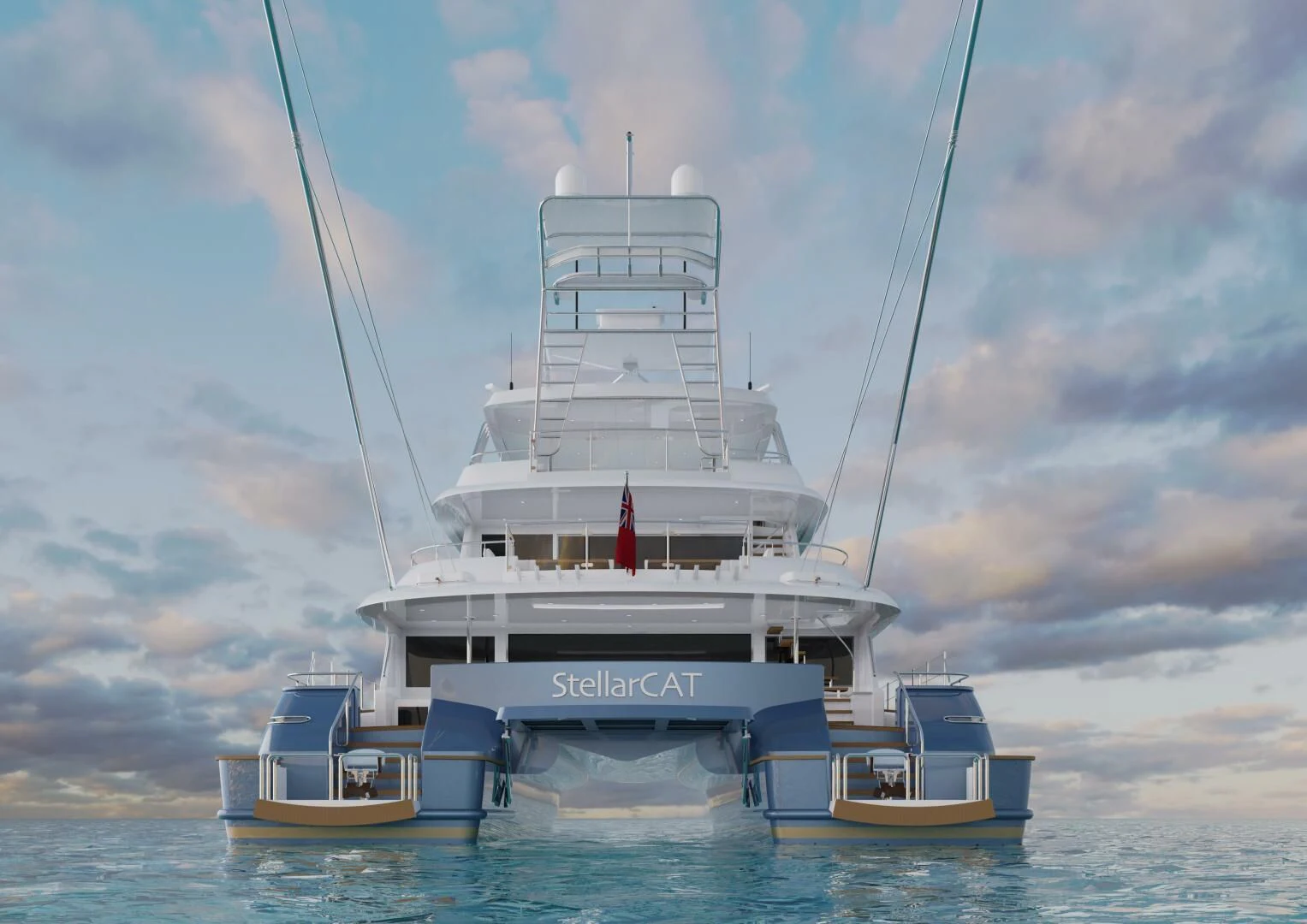

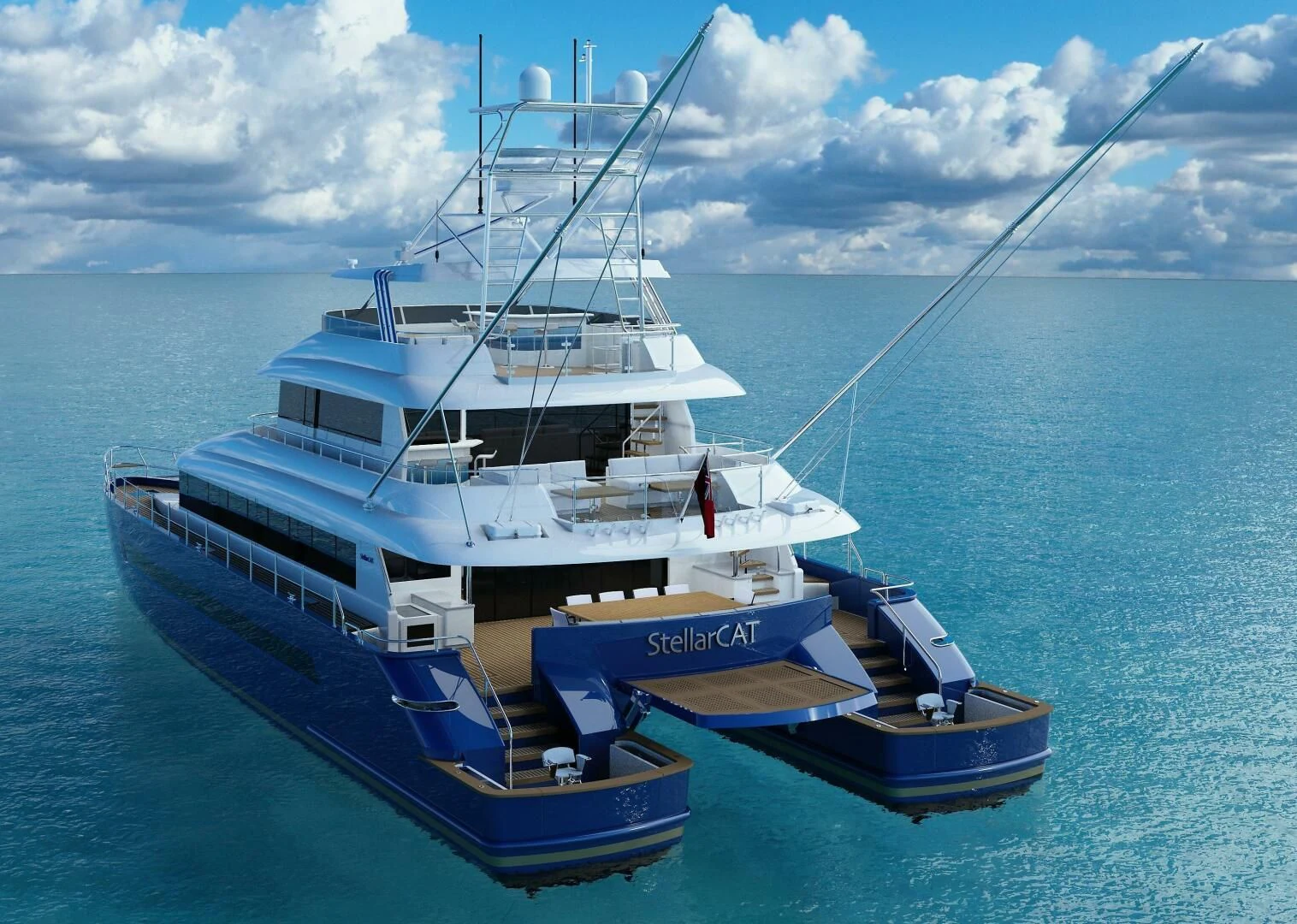

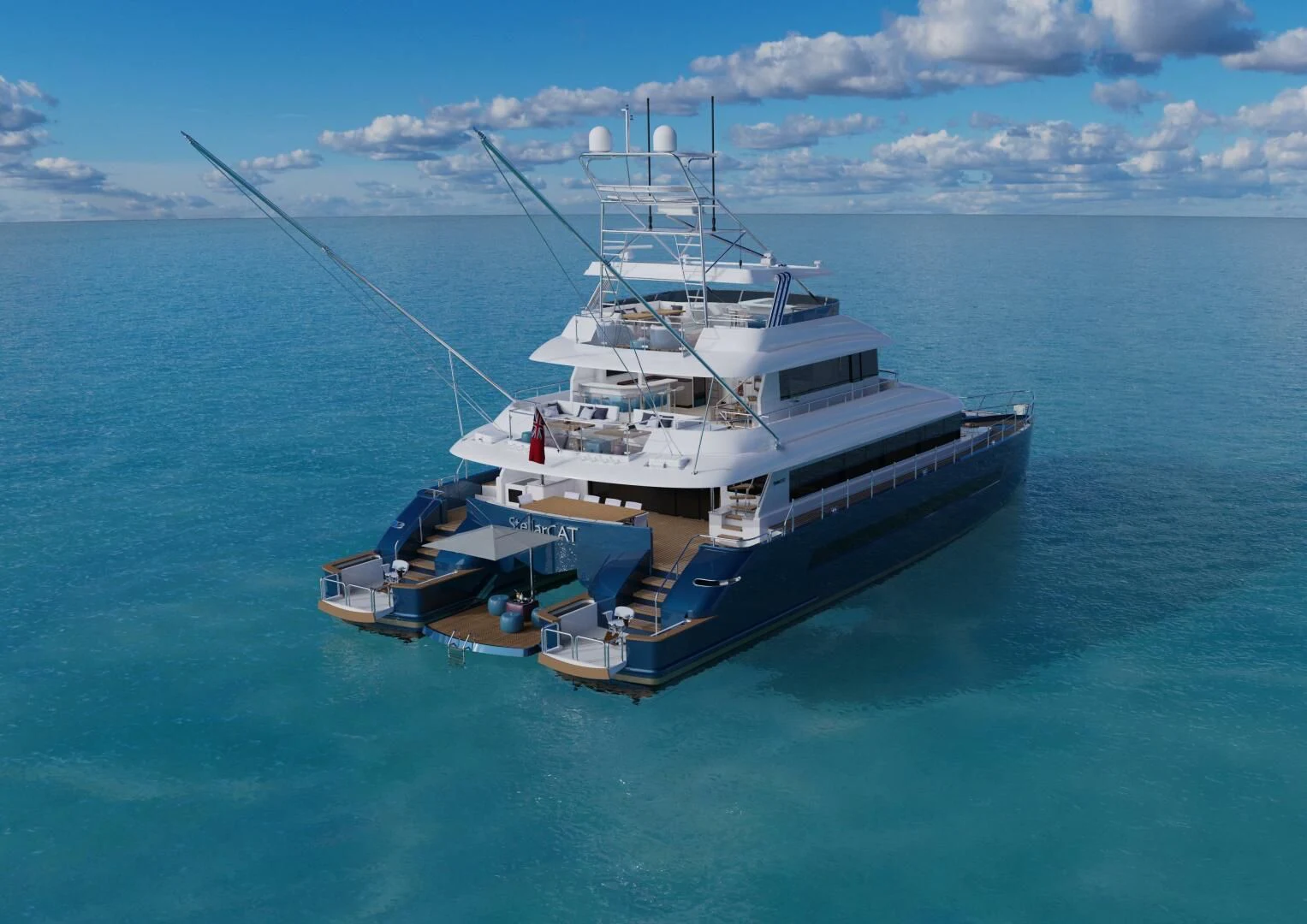

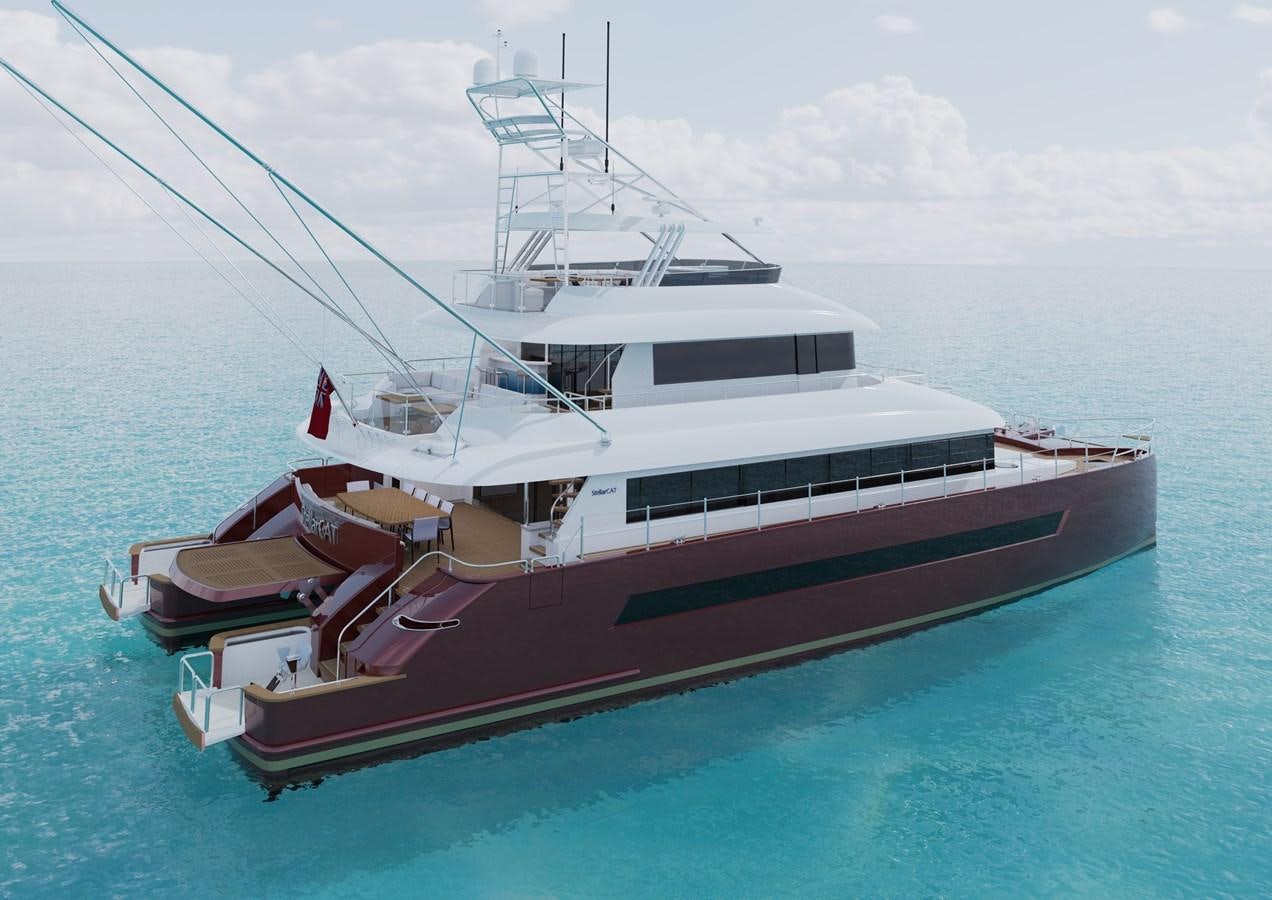

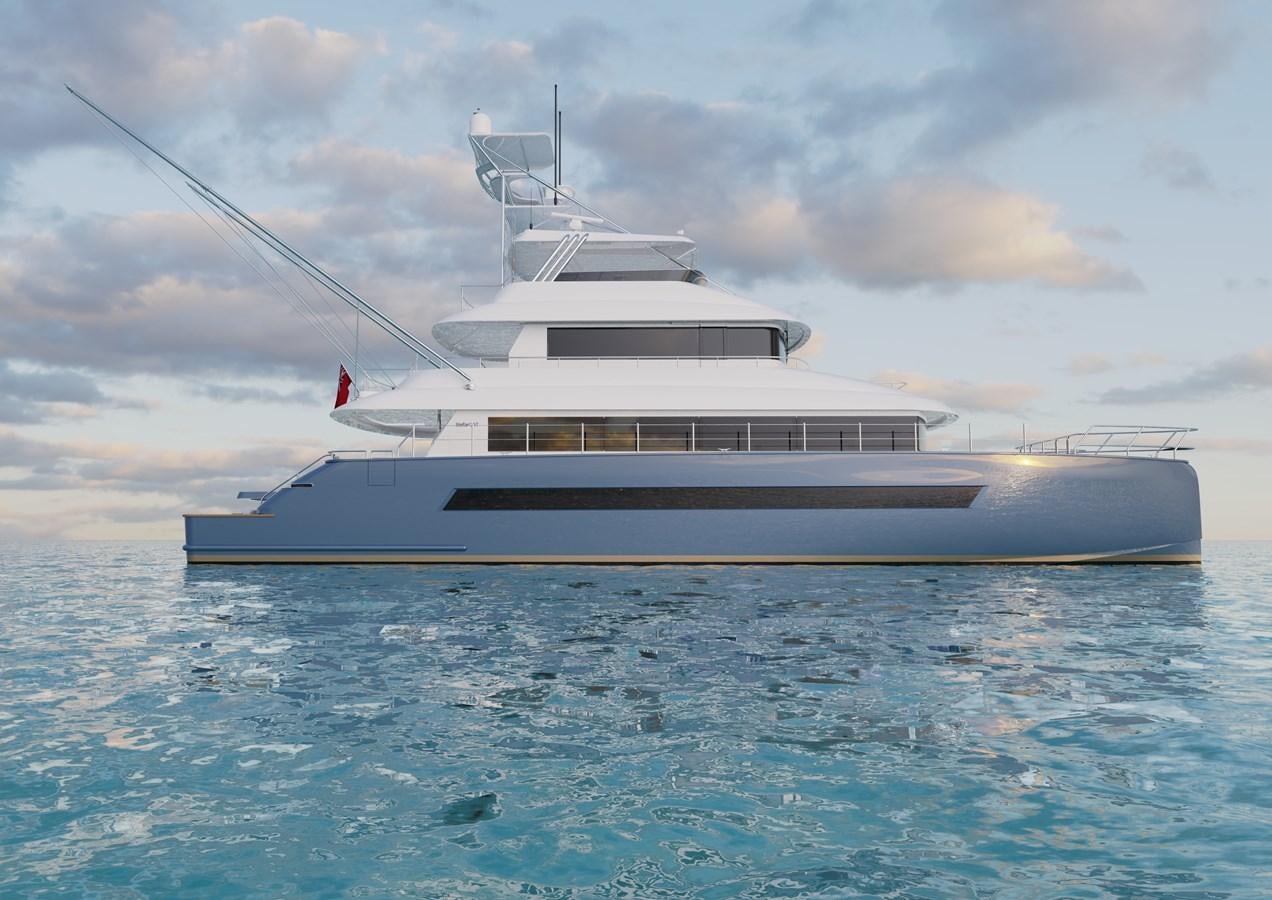

Based on the StellarCAT AL2503, the SF2603 offers the same high volume tri-deck styling but has an upgraded power option for greater speed, a tuna tower that the company claims to be a class-leading one in terms of height to boat length ratio, and near water-level extended cockpits on each hull with reinforced soles and aft-opening hydraulic transom doors.

The SF2603 is a long-range all-aluminium construction reaching a top speed of 21kts and a high cruise speed of 19 kts with its twin Volvo D13-IPS 1200 IMO Tier III compliant power arrangement. The maximum range of 2400nm is achieved through her 19,680 lt / 5200 gallon fuel capacity and 35% higher efficiency than inboard shafts with the forward facing IPS drive solution combined with the hulls being efficient flat surface planing ones.

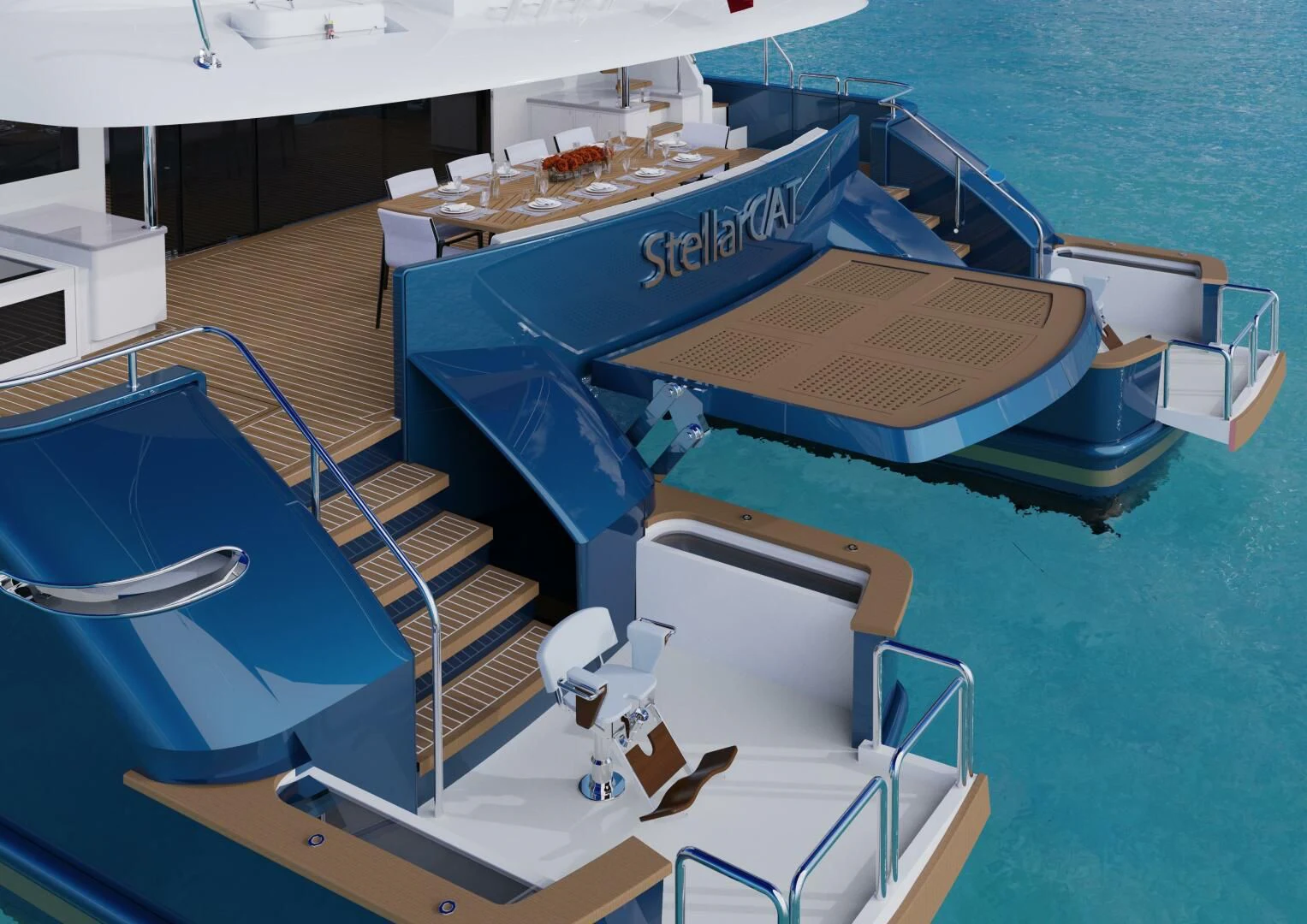

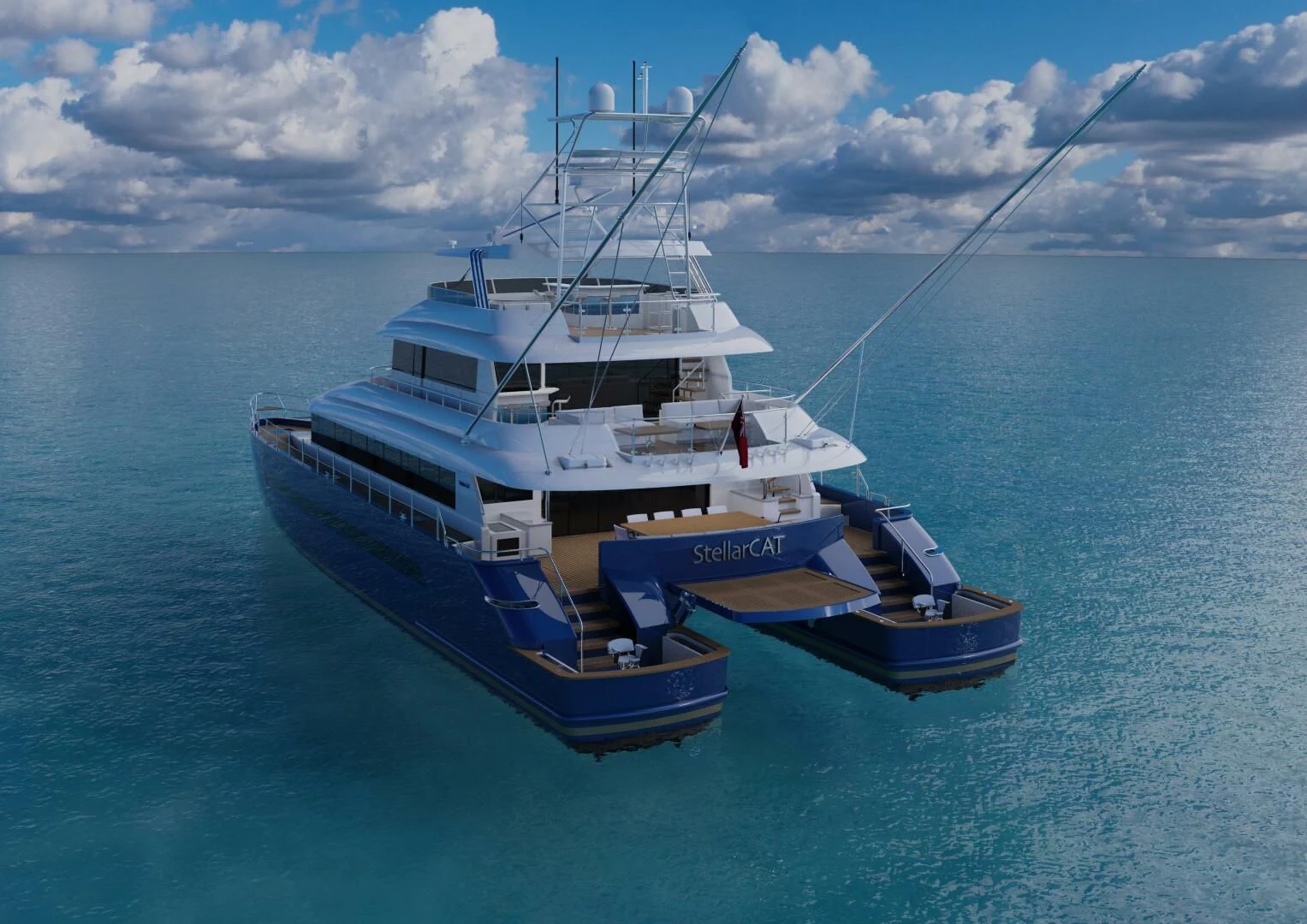

Boasting a huge 44 sqm / 473 sq ft aft cockpit the SF2603 space aplenty has been made available for refrigerated fishboxes/livewells, ice and ice slush machines, bait filet tables and freezers, rod reel and tackle storage and further storage lockers and freezer compartments.

Specifications

Builder STELLARPM
Model StellarCAT SF2603
Length (LOA) 85' 8" (26.12m)
Year 2025
Gross Tonn. 220
Draft 14' (4m)
Beam 38' 1" (11.61m)
Range 1,900 NM
Location United States

Accommodations

Staterooms 4
Sleeps 8
Crew Cabins 2
Crew Sleeps 4
Capt. Quarters No

Dimensions & Capacity

LOA 85' 8" (26.12m)
Max Draft 14' (4m)
Fuel Tank 5,200 g (19,684 L)
Fresh Water 1,200 g (4,542 L)
Holding Tank 1,800 g (6,813 L)
Gross Tonn. 220

Construction

Hull Material aluminum
Hull Config catamaran
Ext. Designer stellerpm
Int. Designer unzile acar
Cruising Speed 19 Knots
Range 1,900 NM
Stabilizers None
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Main Characteristics

• LOA - 25.12m (82’-5”)
• Beam - 11.61m (38’-1”)
• Draft - 1.48m (4’-10”)
• Fuel - 19,680L (5,200gal)
• Freshwater - 4,540L (1,200gal)
• Blackwater - 6,800L (1,800gal) total
• Greywater - 7,600L (2,000gal) total
• Lubricating Oil - 200L (52gal) total

Performance

• Maximum speed (2x IPS1050) 19 Knots
• Maximum speed (4x IPS800) 24 Knots
• High Cruise (2 x IPS1050) 16 Knots
• High Cruise (4x IPS800) 20 Knots
• Low Cruise Range (2x IPS1050) 2,400 Nm
• Low Cruise Range (4x IPS800) 1,700 Nm

Engine Room #1

• One (1) Volvo Penta D13-IPS 1050 Tier III
• One (1) Generator, Onan 30kw 1800rpm
• One (1) 10” Ventilation fan with speed control
• One (1) 900 US gallon fuel day tank
• Lube oil change system
• Automatic fire suppression system

Engine Room #2

• One (1) Volvo Penta D13-IPS 1050 Tier III
• One (1) Generator, Onan 30kw 1800rpm
• Dometic Air conditioning w/ reverse cycle
• One (1) 10” Ventilation fan with speed control
• One (1) 900 US gallon fuel day tank
• Lube oil change system
• Automatic fire suppression system

Machinery

• Hydraulic transformer platform
• Fuel tank transfer management system
• 2 x Headhunter Mach 5 freshwater pumps
• Hot water circulating system
• Watermaker; Village Marine 1200gpd
• Compressed air system

Electrical

• 220v 60hz three phase power circuits

• Lithium-iron house storage batteries

• Mastervolt Combi invertor/Charger

• C-Zone, expandable monitoring/control system

• Solar panel system. with power management

• Multi zone TV/Audio electronics package

Interior General

• Four (4) Guest staterooms

• Two (2) Crew cabins

• Walnut wood furniture

• Leather/Stone countertops in all guest area

• Indirect, toe-kick lights in all guest areas

• LED overhead lighting

Guest Area

• Fusion audio system in each cabin

• Vimar light switches and outlets

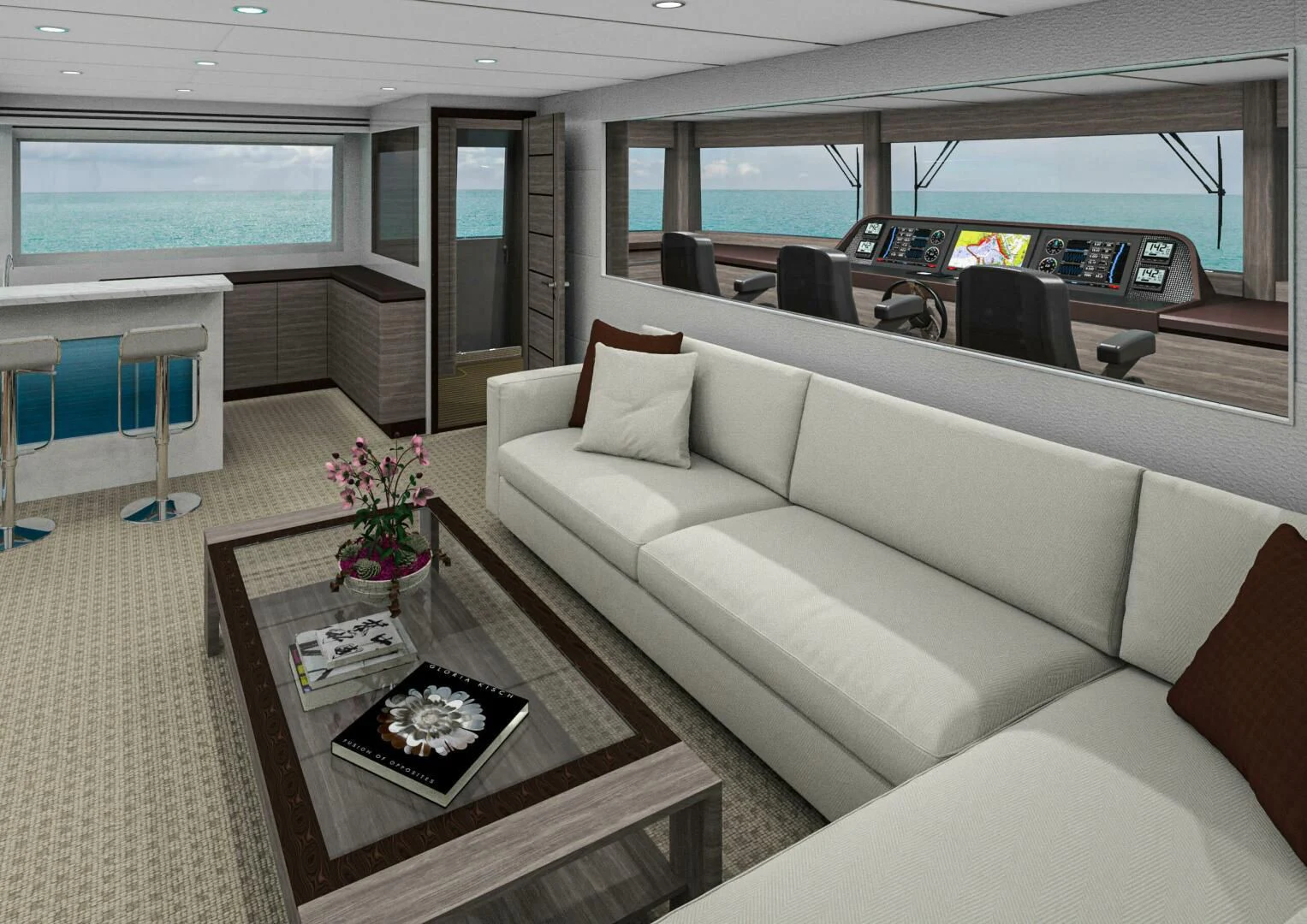

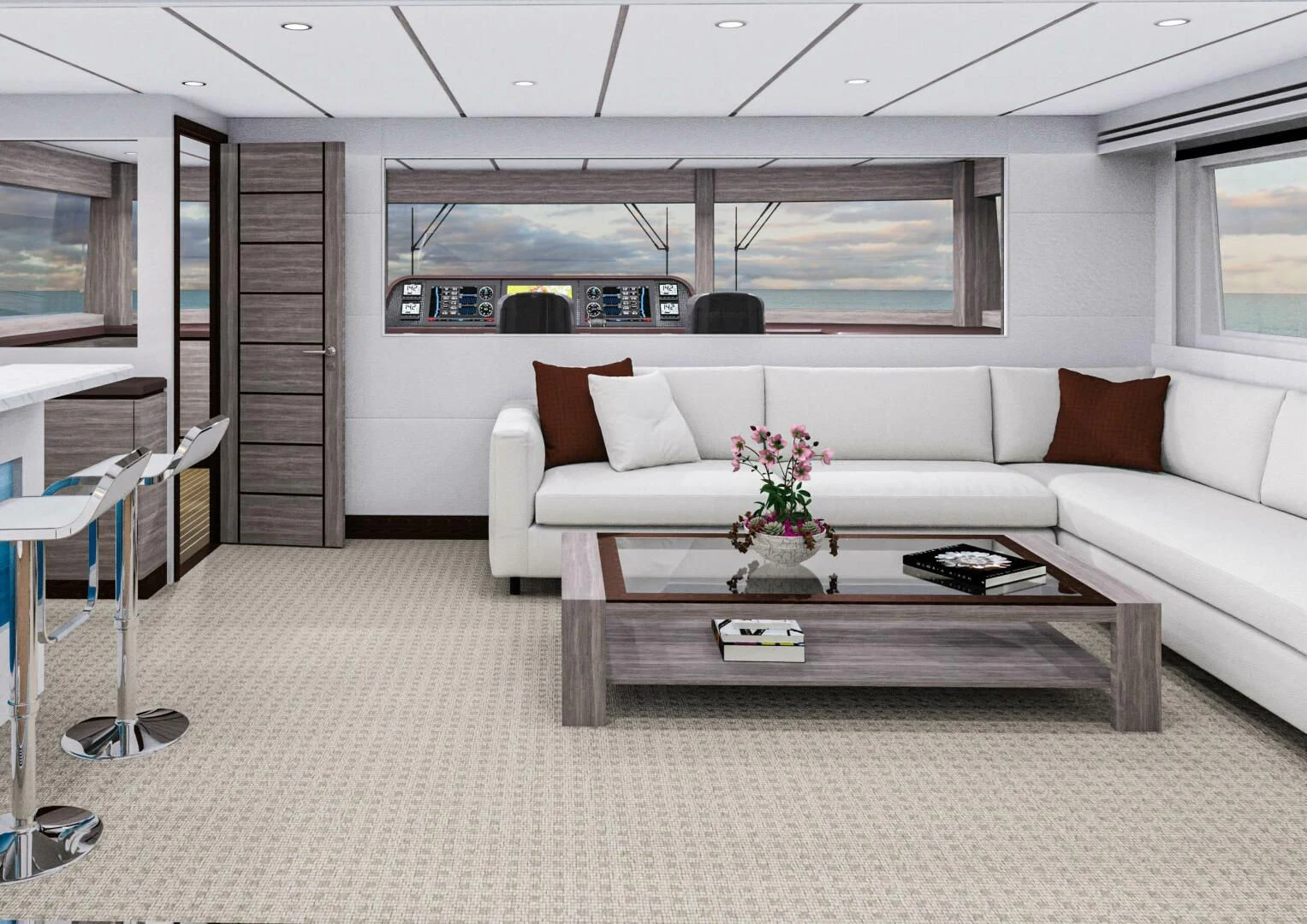

• Main Salon powered window blinds with remote

• Marble tile shower enclosures

• Headhunter Royal flush toilets

Exterior

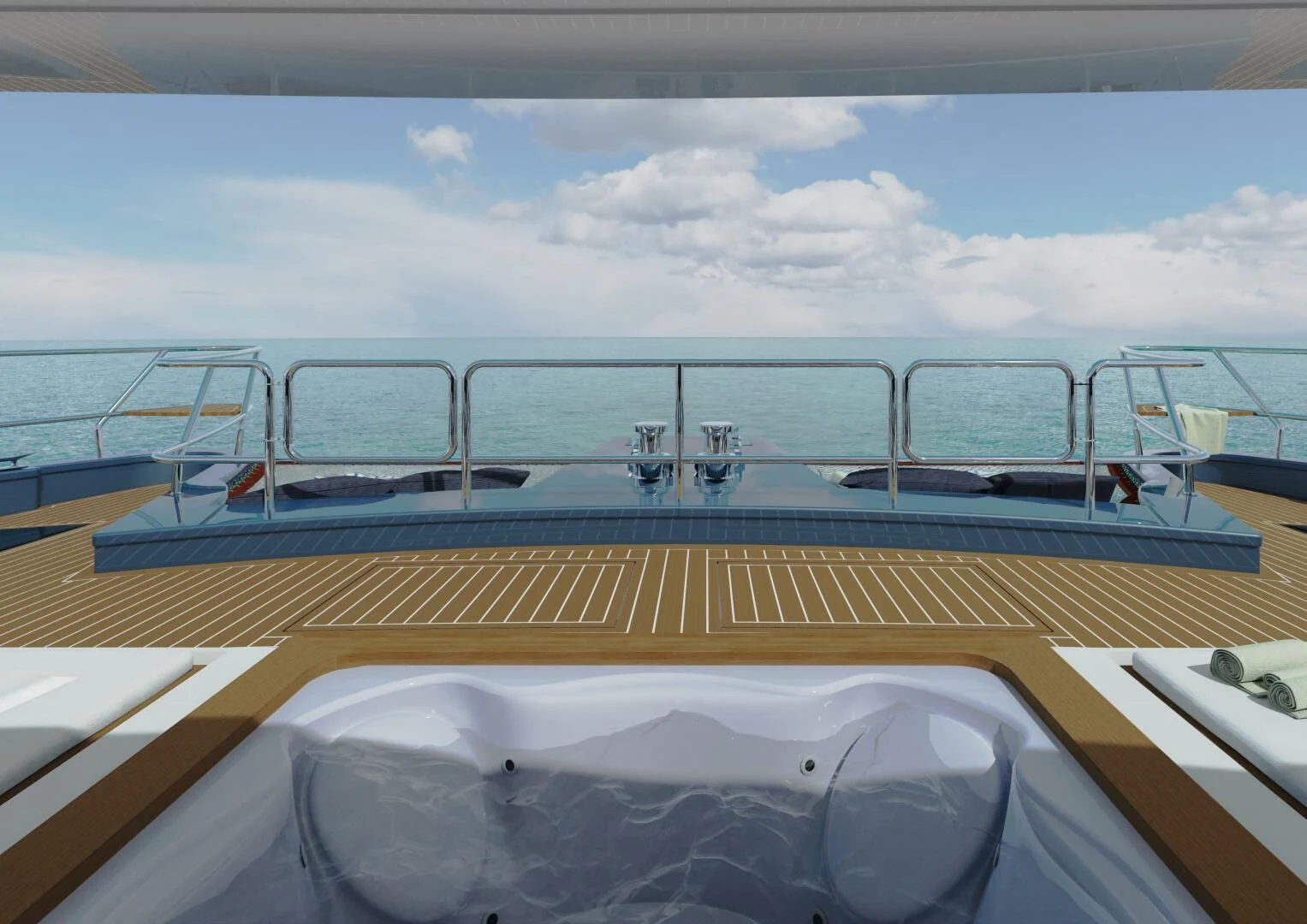

• Four person Jacuzzi

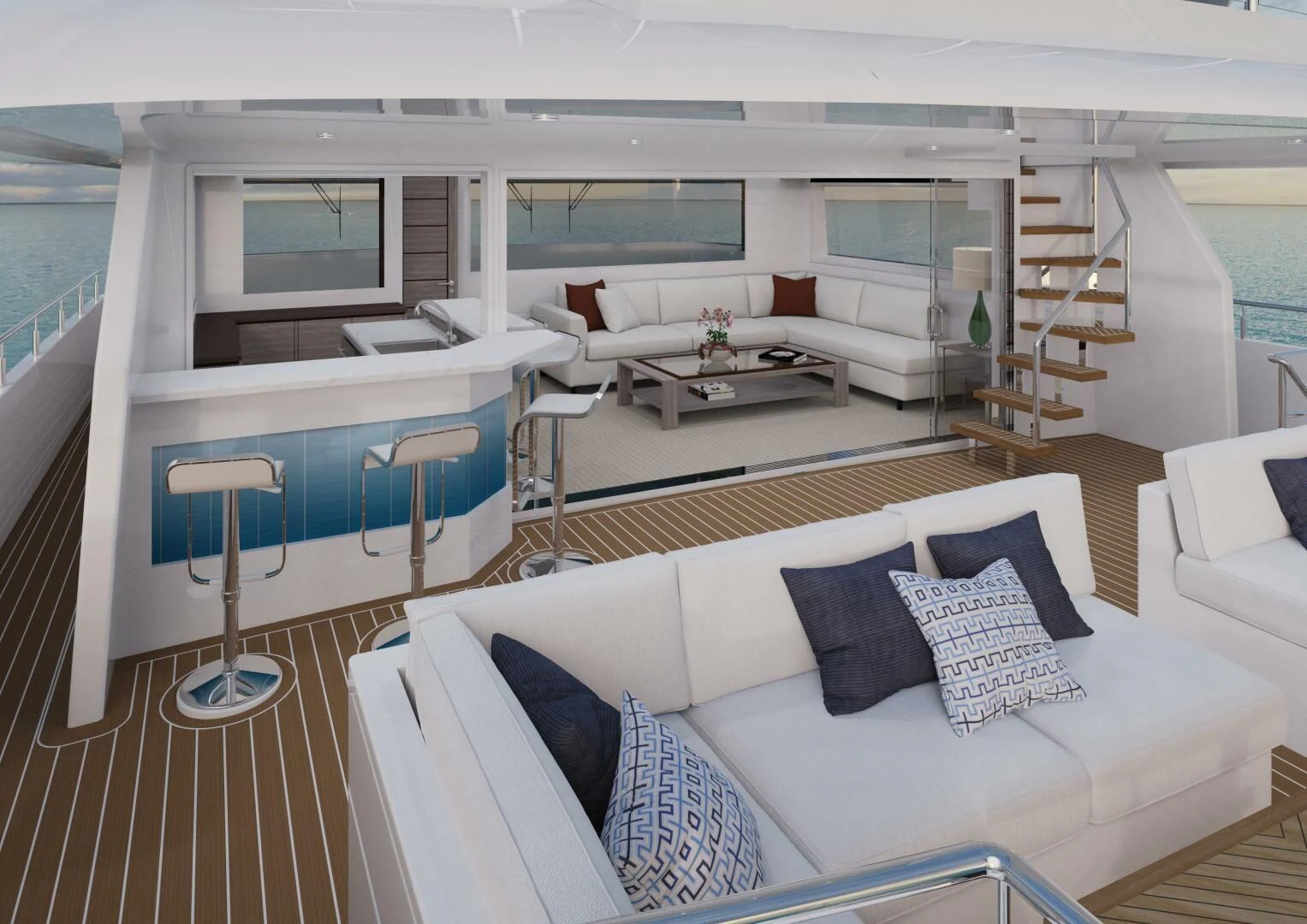

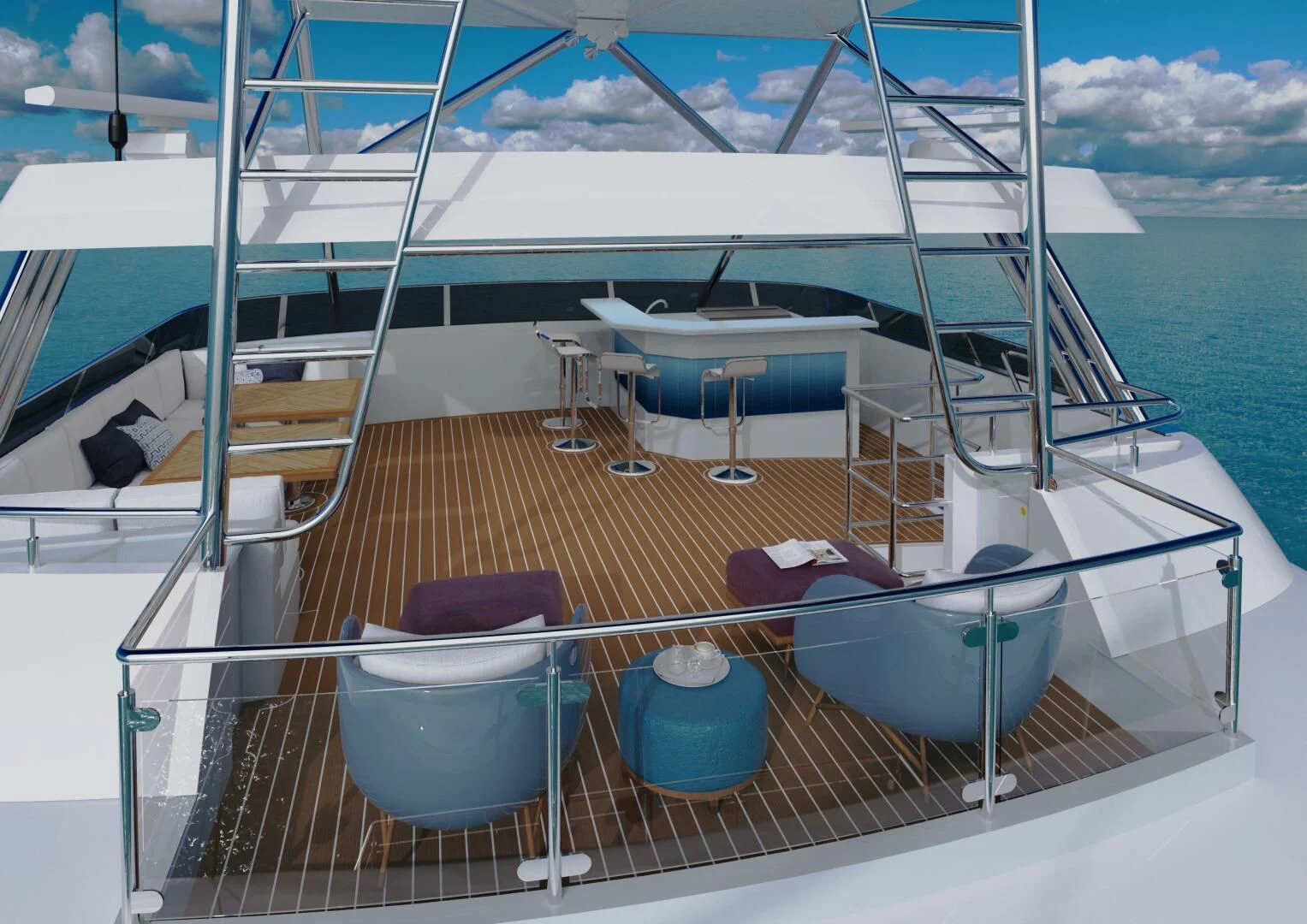

• Flybridge full wet bar & grill area

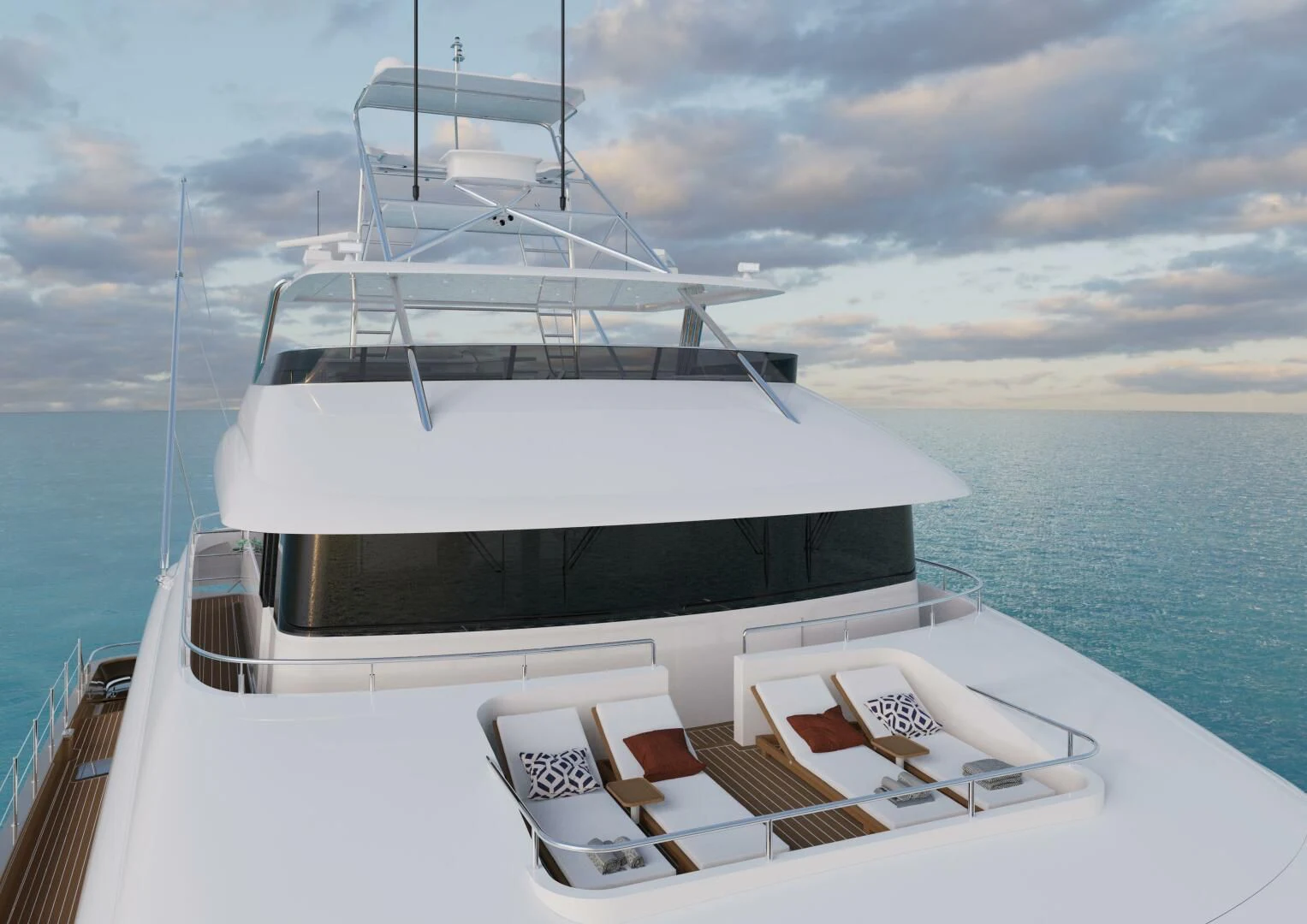

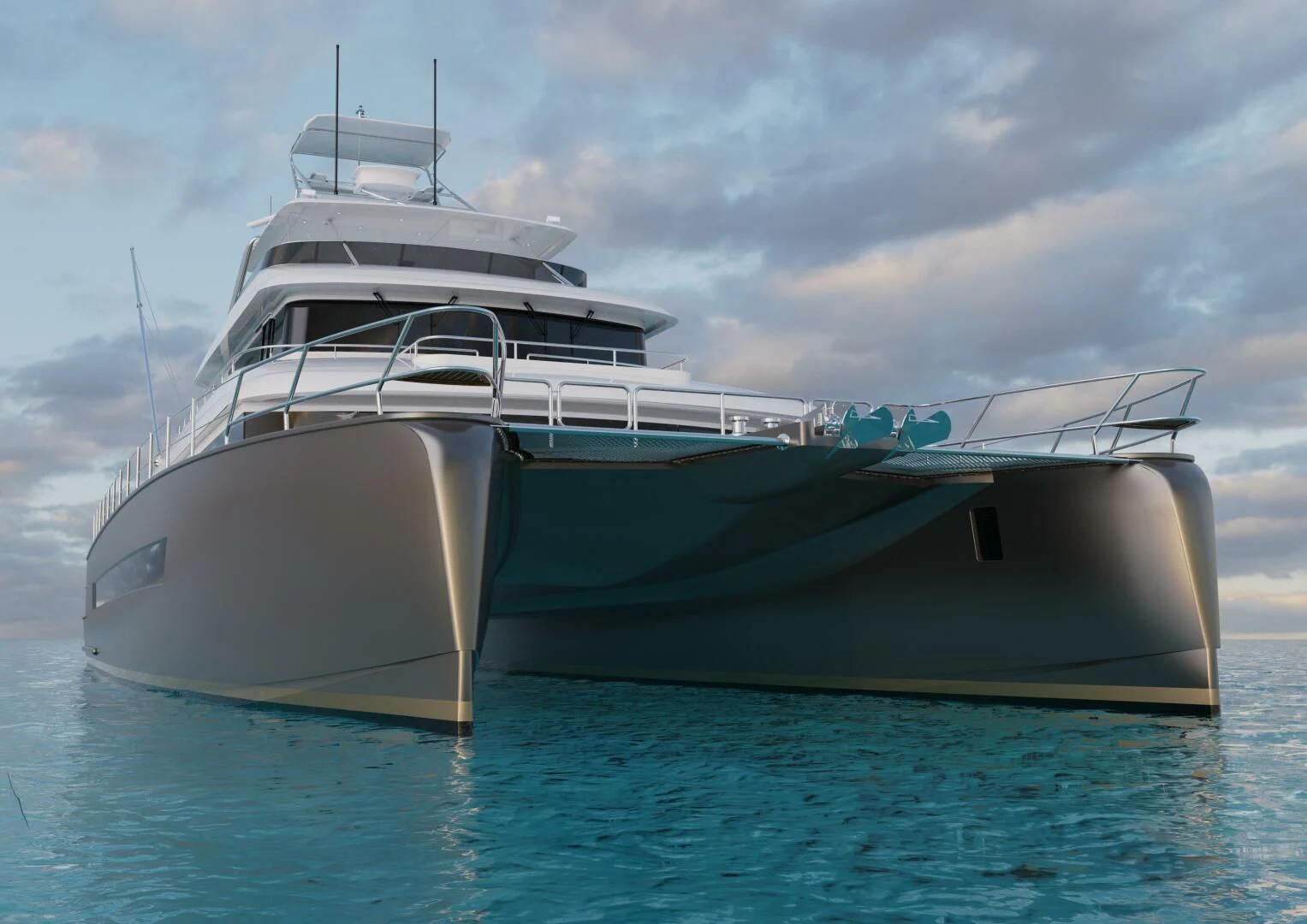

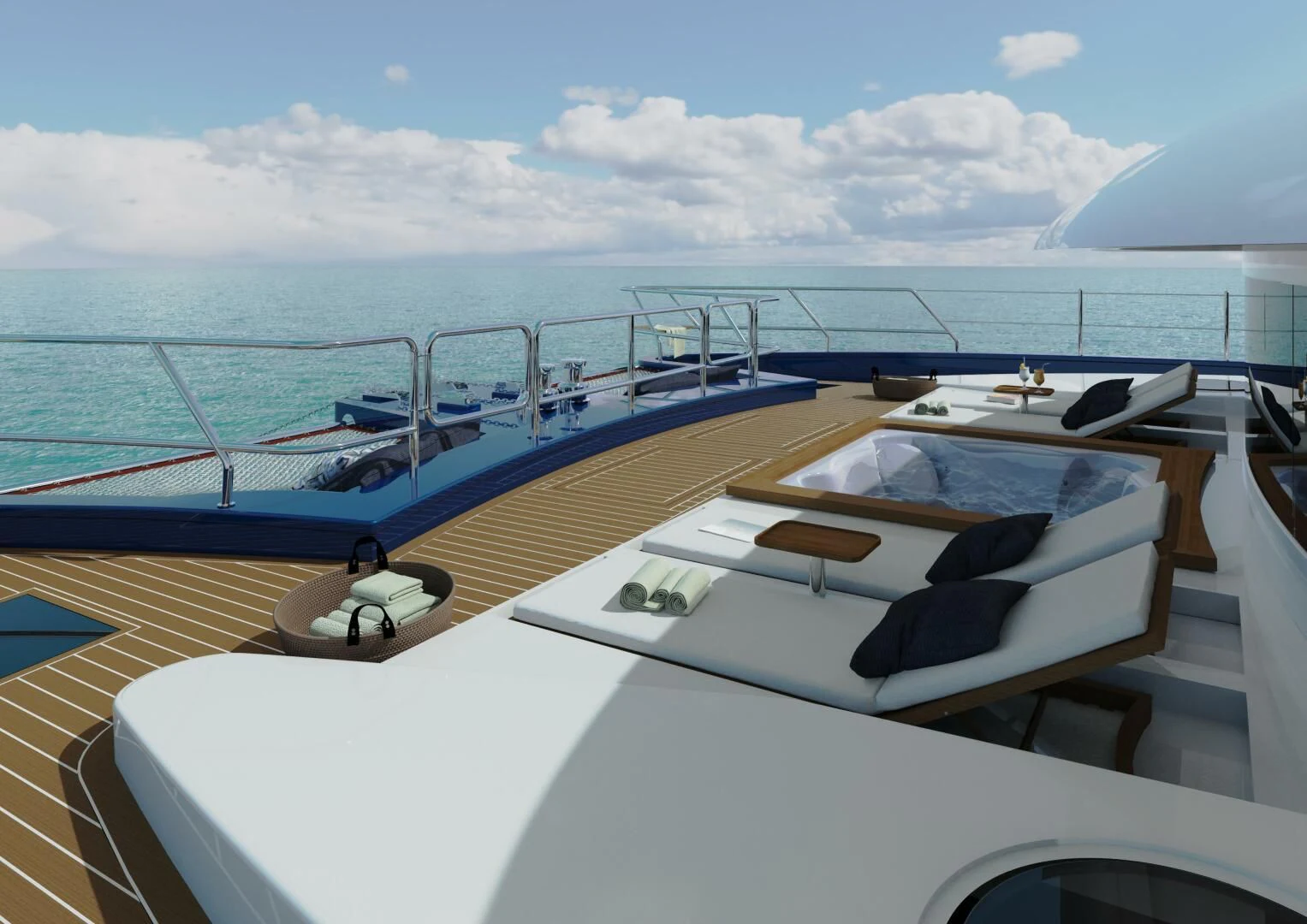

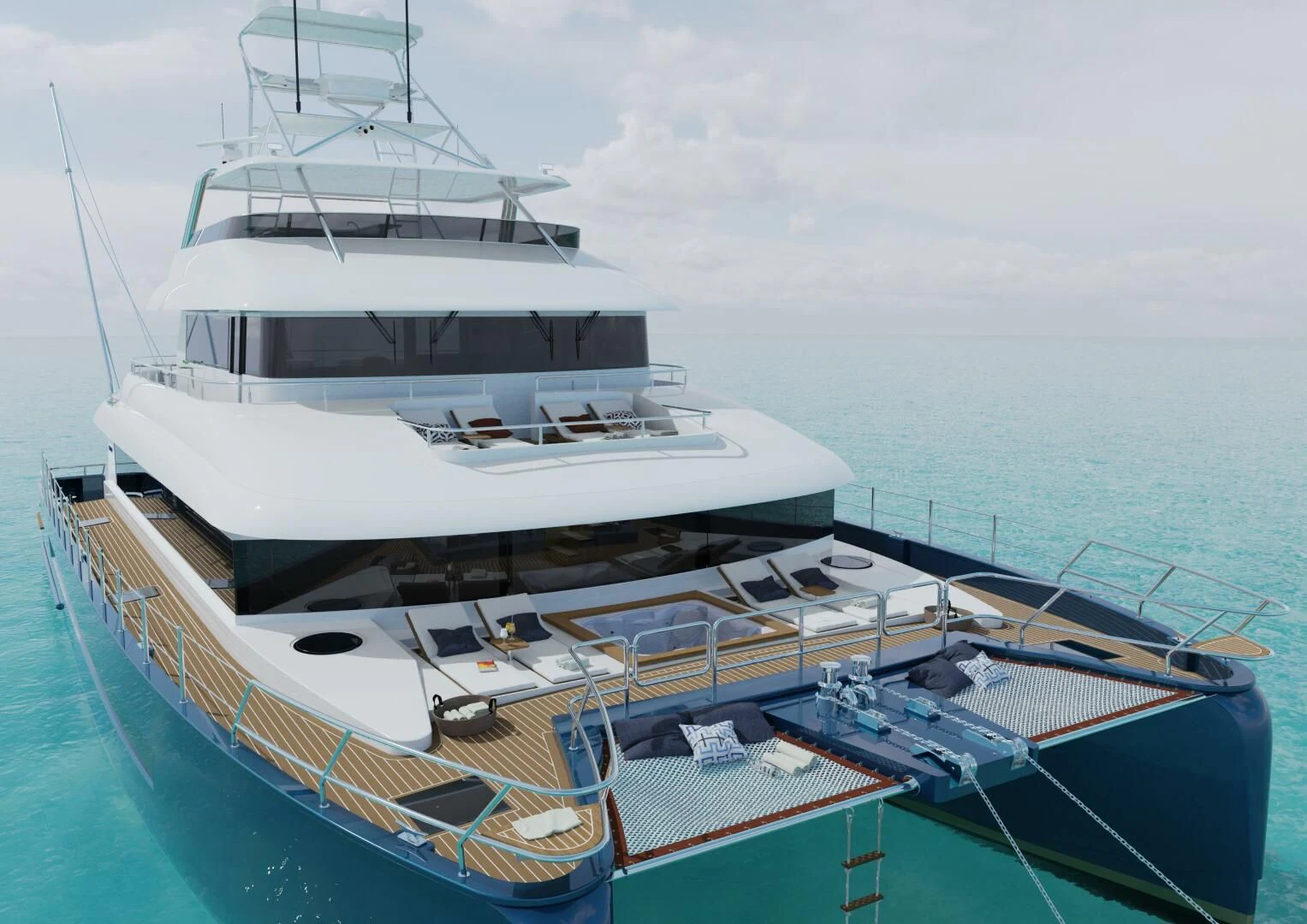

• FWD deck netted sunbed areas

• Teak decking throughout

• Freshwater deck wash down system

Deck Equipment

• Two (2) Muir 4500lb electric vertical windlass

• Two (2) Muir VC850 electric capstans

• Stainless steel bollard type cleats

• Removable stainless steel swim step rails

(major Options Available)

• Five and Six guest stateroom layouts

• Owners upper deck arrangement

• Blackwater treatment plant

• Extended Aft deck area

Increased fuel capacity for longer range

• Twin engine upgrade : Volvo D13-IPS 1350 for 25kt max speed & 2100nm range

• Quad engine upgrade : Volvo D11-IPS 800 for 28kt max speed & 1900nm range

• Titanium lifting foils

• Dive compressor
