Hull and Deck Construction
The hull, deck and superstructure is of welded aluminum construction. The yacht is built to ABS Hull Certification.

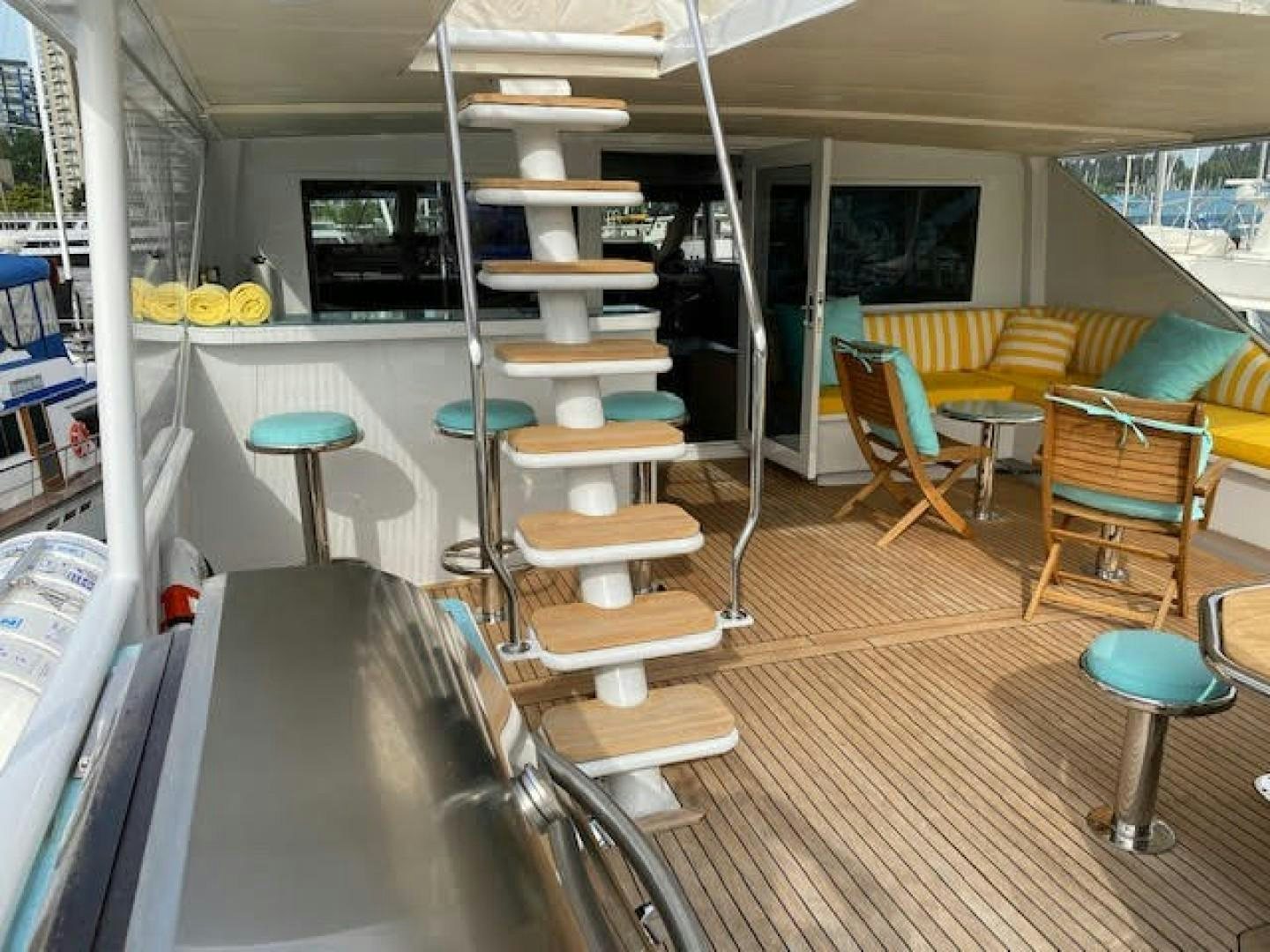

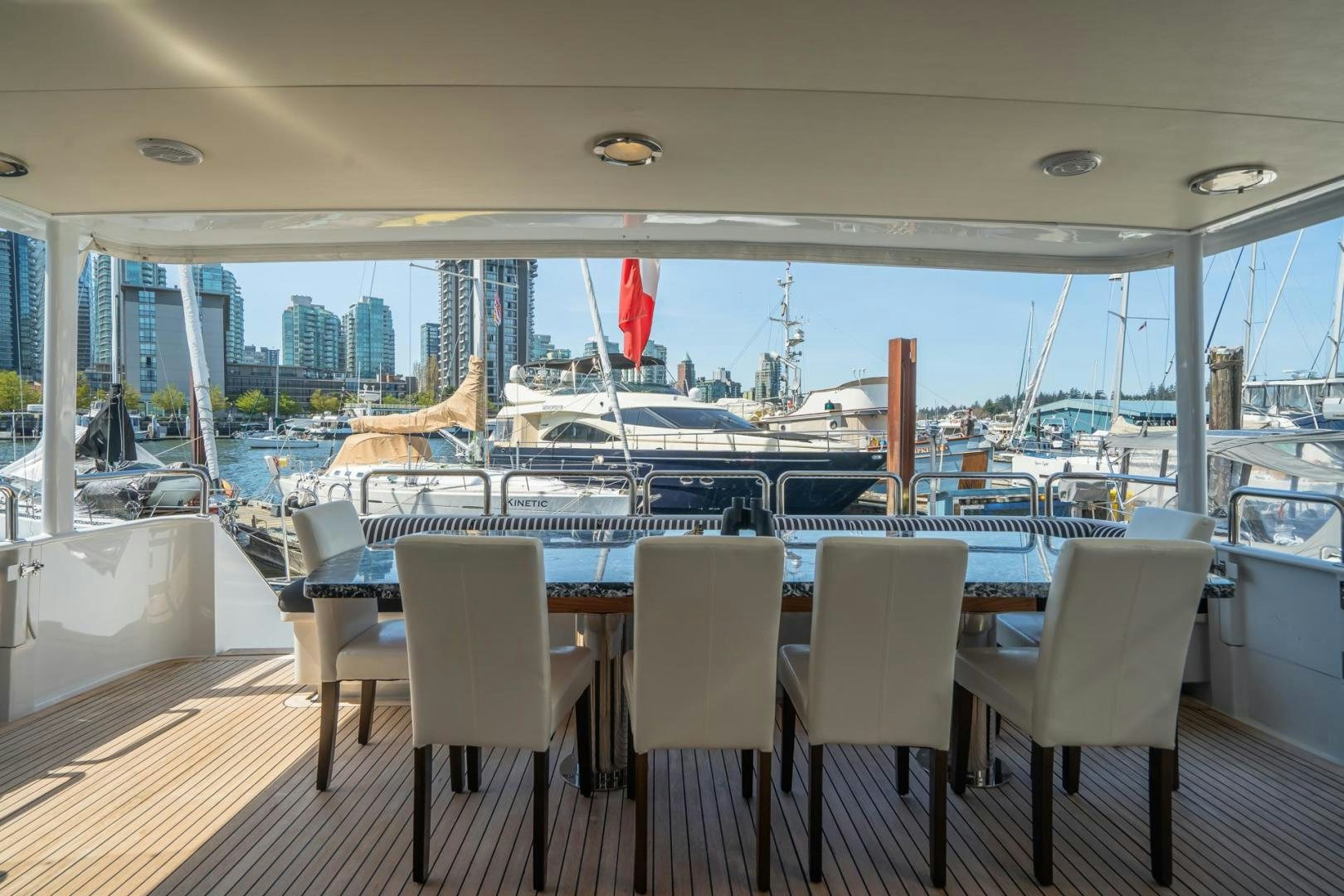

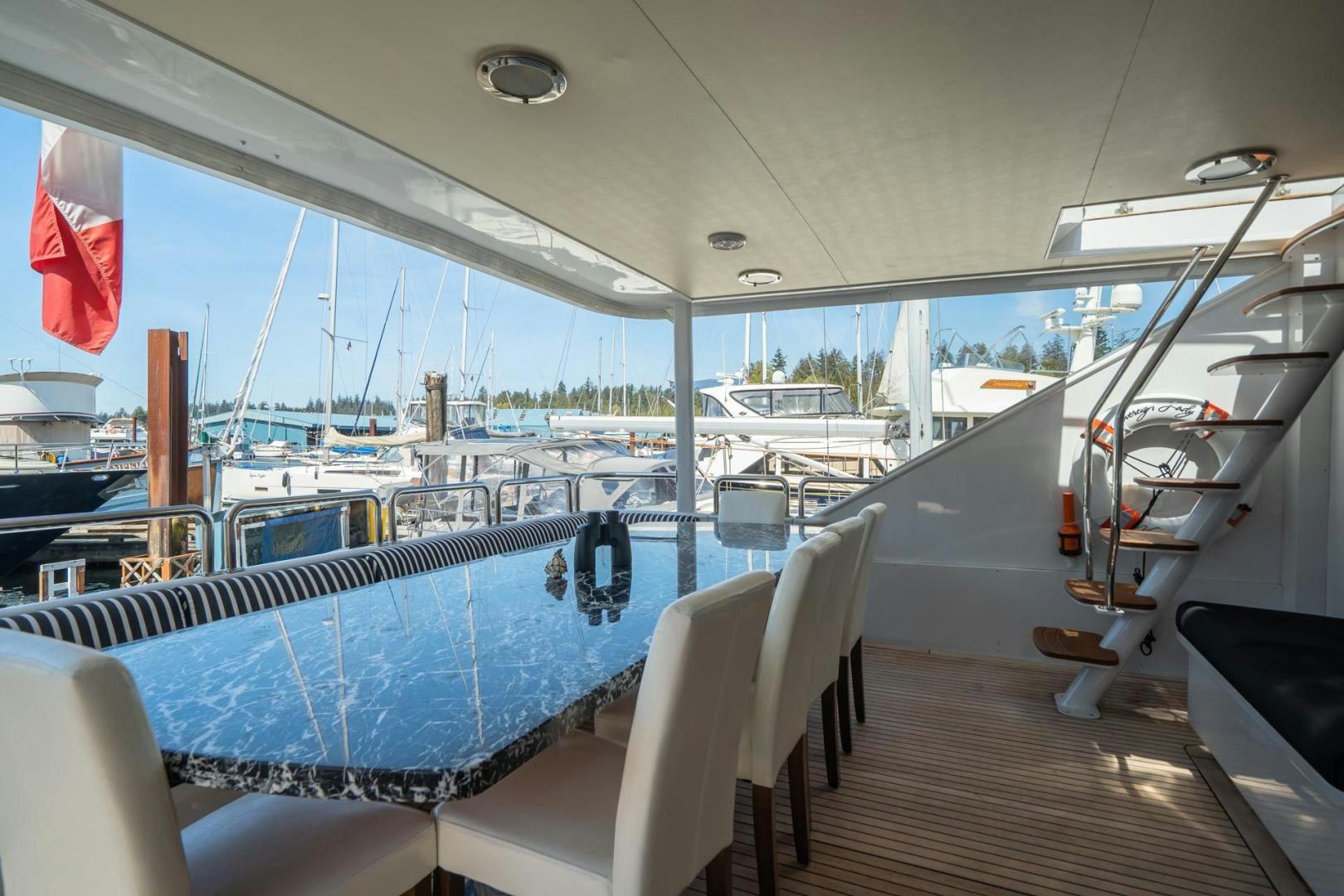

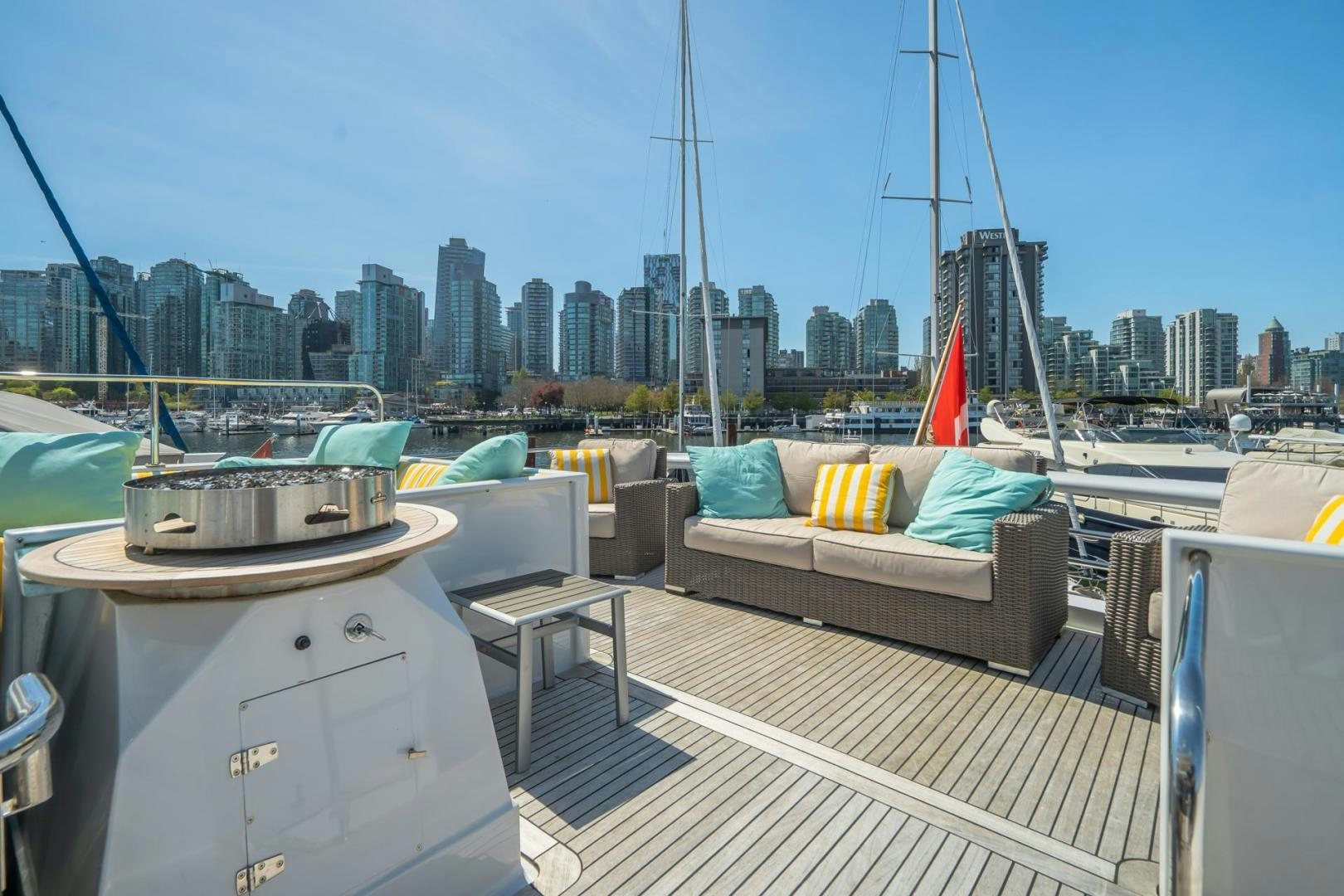

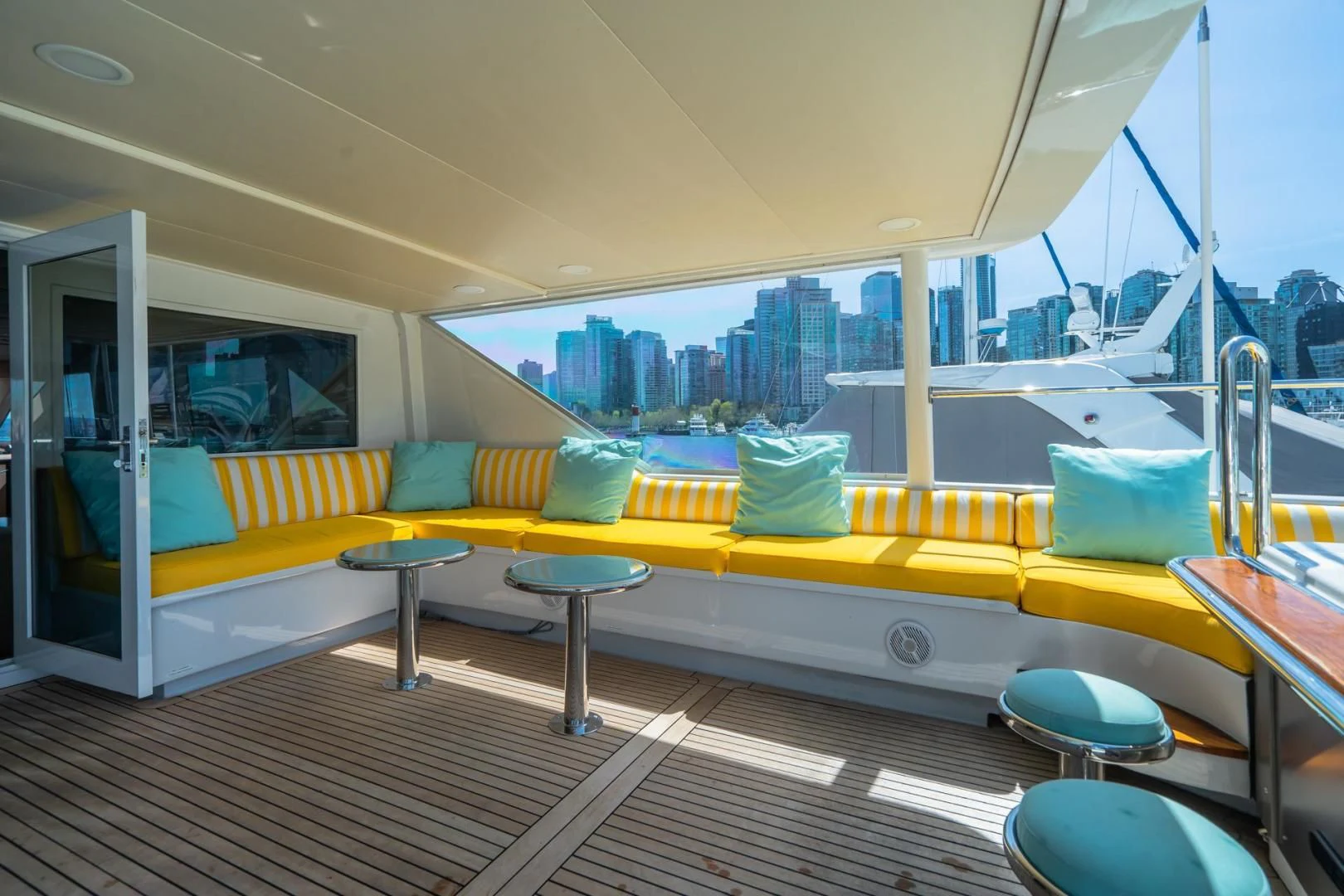

The cockpit and decks are covered with 16mm quarter-sawn teak planks 55mm wide. Guests can relax in the shade under the covered cockpit, which also provides a wonderful al fresco dining area.
Paint on hull: Awlgrip
Naval Architect Dubois Naval Architects
Builder: Alloy yachts, New Zealand
Internal Designer Redman Whitely Dixon
Displacement: 47 Nett
Gross tonnage: 157 GT
Lugger model L6140AL 570hp 6 cylinders
Steering: Dual steering positions in the cockpit have two 48in diameter teak and ash laminated wheels finished with carbon fibre driving a Wagner power-assisted steering system LA-1.83-35.
2 x three phase pumpsets which provide power and can be controlled from the cockpit, autopilot and a hand-held remote control.
Propeller: Hundested VP/FR
Gearbox: ZF BW165
Propeller Hundested VP 7 FR EL
Hydraulics: Danfoss & Rextroth 2 x PTO´s on Generator / 1 x Electric Power Pack
Fuel Separator Racor 1000 MA Duplex
Bow & Stern thruster: 50hp retractable thruster
Water maker: 2 x 1200gpd W.M.S 5000 litres each/per day
Air-conditioning: Aqua-air 144,000BTU reverse cycle unit supplying 15 air handlers
2 X Rotary VANE Hv02 Air Compressors for pneumatic systems, toilets and rams (for lifting hatches etc.)
Ventilator: Ducted forced ventilation is fitted to the galley and all bathrooms.

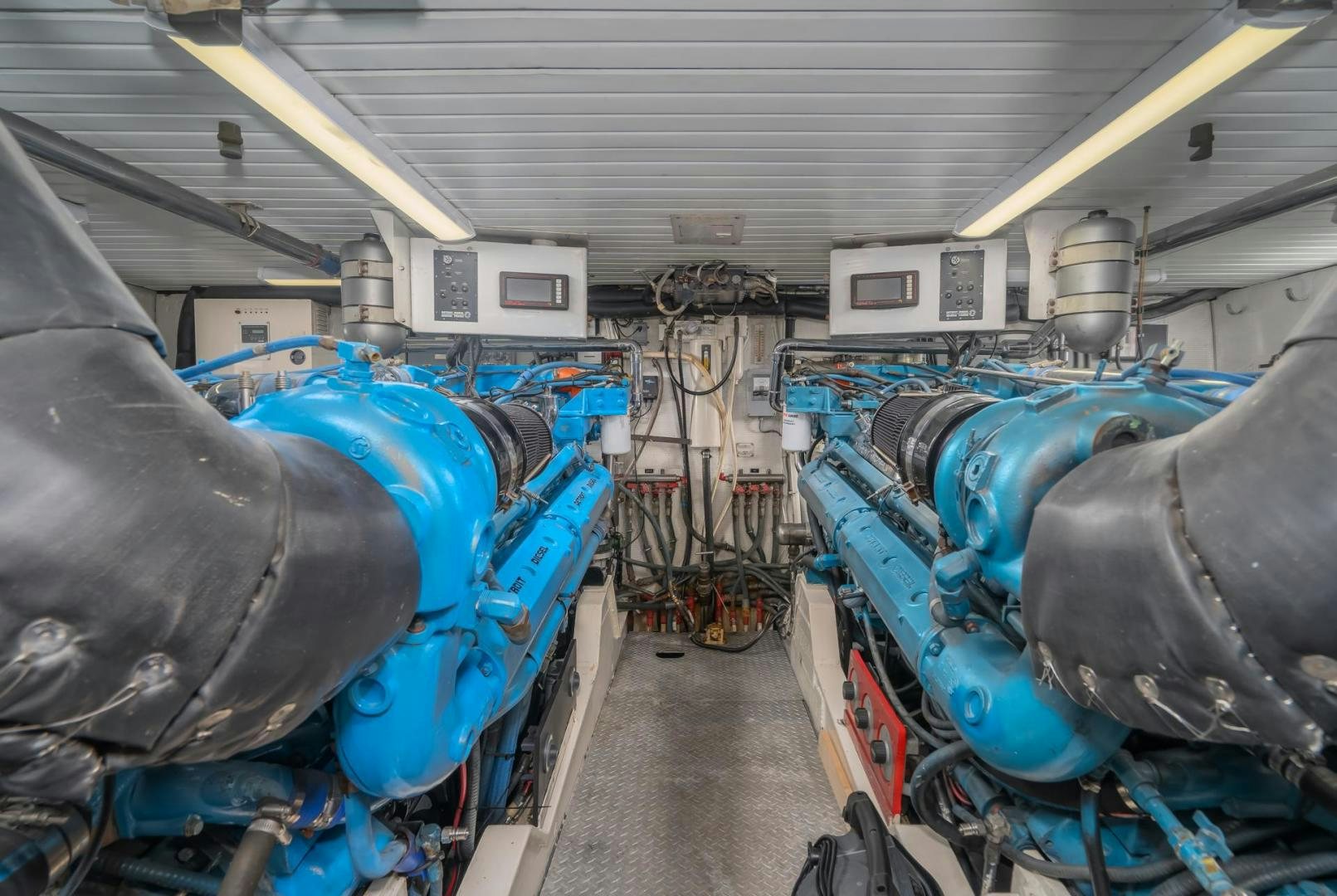

Generators: 2 x Northern Light 33kw M1064D 220/380V three-phase, 50HZ
Generator hours: STB – 4517 hrs. / PORT – 4130 hrs. (November 2017)
Consumption: approx.150 liters / per day/each 6 litres/hour each
Batteries: 32 x 12V Sonnenschien gel
Toilet system: Microphor
Boilers: two 250-litre dual element hot water cylinders, supplying hot and cold water. Make 60 litres/hour
Fuel: 6 tanks – 2 x service and 4 long range 18,000 litres
Fresh water: 2 tanks 2000 litres each
Grey water: 570 litres
Black water 570 litres
The black and grey watertanks are fitted into the keel.
Rig: Mast and boom are constructed of pre-impregnated carbon fibre cured in an autoclave and featuring five sets of carbon fibre spreaders with discontinuous rod rigging. The mainsail is
reefed and furled using the in-boom Leisurefurl system. Back stay tension is hydraulically powered.
Masts: Carbon-fibre mast reduces eight aloft, boosting performance and reducing pitching and heeling.
Mast Height from WL – I. 40.10m
Boom P. 36.70m
Spinnaker Boom E. 13.10m
Sails by: Doyle
Genoa reacher 387 m2 2011
Blade 257 m2 2012
Mainsails 285 m2 2017
Gennaker original, 1995
Winches: All halyard, sheet and runner operations are hydraulically powered.
Captive winches control main, genoa and staysail sheets, plus runners and main halyard.
Two gennaker sheet winches are located on deck aft of the cockpit.
The headsails are controlled by Reckman furlers.
2 x MPS Harken 1120 STHSS on aft deck
2 x Simpson Lawrence CRW 20 Captives for Main Halyard and Main Sheet
6 x Simpson Lawrence CRW 16 Captive winches for Genoa and Staysail Halyards and Sheets and Runners
2 x Reckman Furling Gear for Genoa on Staysail
4 x Harken winches, 2 in pit at base of mast and 2 on foredeck
Anchors CQR - 190 kg SS + 159 kg – New 2017
Chain: x 2 galvanized 120m 16mm
Passarelle: Multiplex Carbon
Shower on deck
Shore power: European – 380v 3 phase 60hz
UK – 415v 3 phase 60hz
USA – 208v 3 phase 60hz

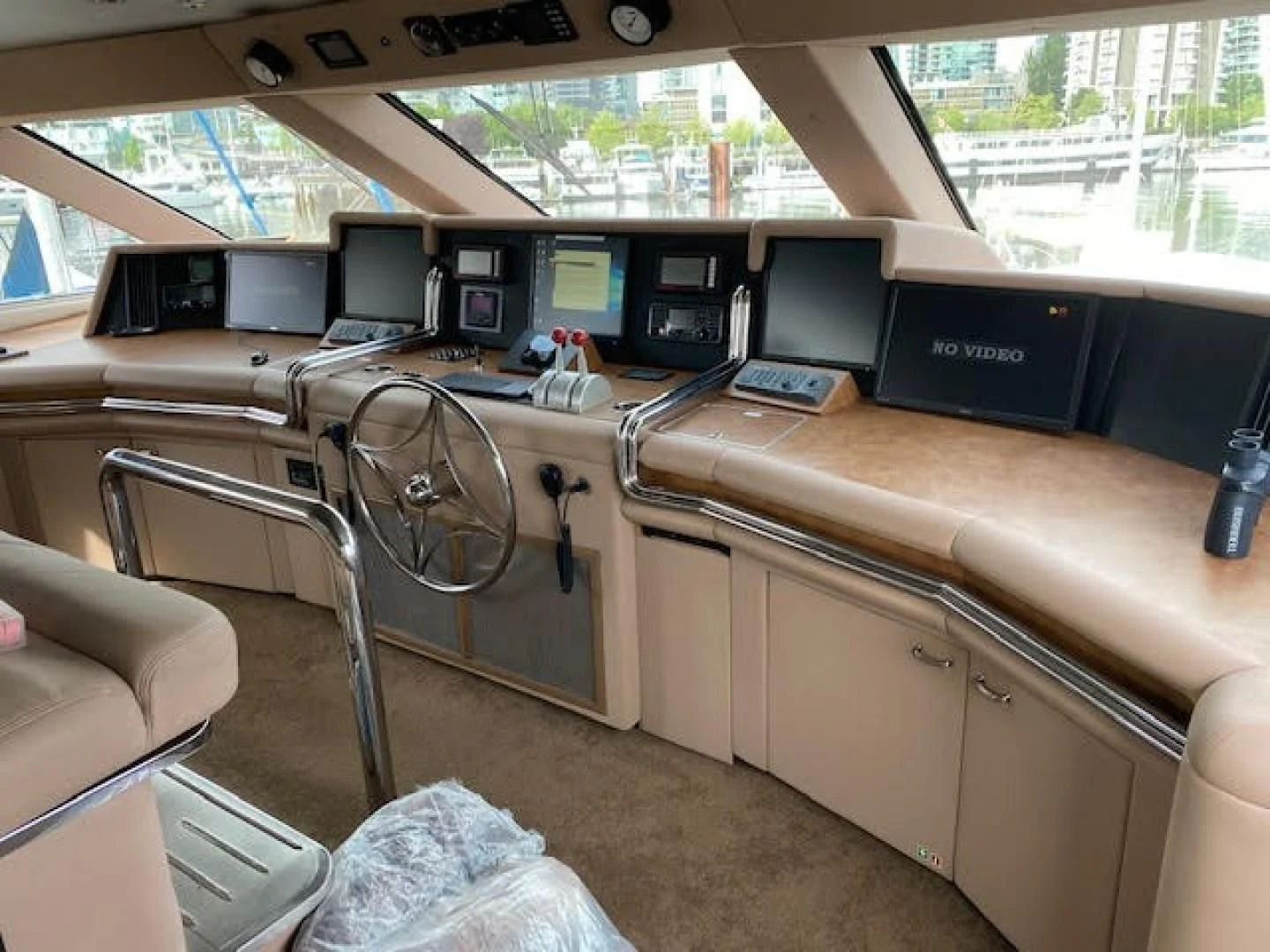

Autopilot – Robertson AP45
Compass – Halcyon x 2 magnetic, Robertson RCL50 Gyro
GPS/Plotter – Furuno GP70 MK2
SATNAV – Transas chart plotter software & PC
RADAR – Furuno RF7100/4´, SIMRAD RA40C
WEATHER FAX – Furuno FAX208
NAVTEX – 1++300
ECHO SOUNDER – Furuno FCV 581 Colour video sounder
WIND/SPEED b&g Hydra 2 system
RUDDER INDICATOR x 3
VHF – Radiotel
SOVEREIGN accommodates 8 guests in four luxuriously appointed cabins
Owners Cabin is full width aft with seating area and ensuite bathroom
VIP Cabin is queen size with ensuite bathroom

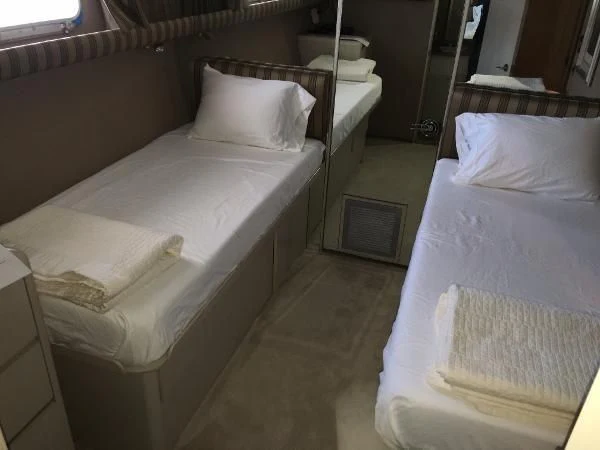

2 x Guest Cabin with ensuite bathroom
There is also a day head for guests.
Crew cabin is one double and 2 twin cabins. There is a crew mess and two bathrooms in the crew area.
Deep Freezer – 12 cubic feet floor freezer & 1 x Miele upright freezer

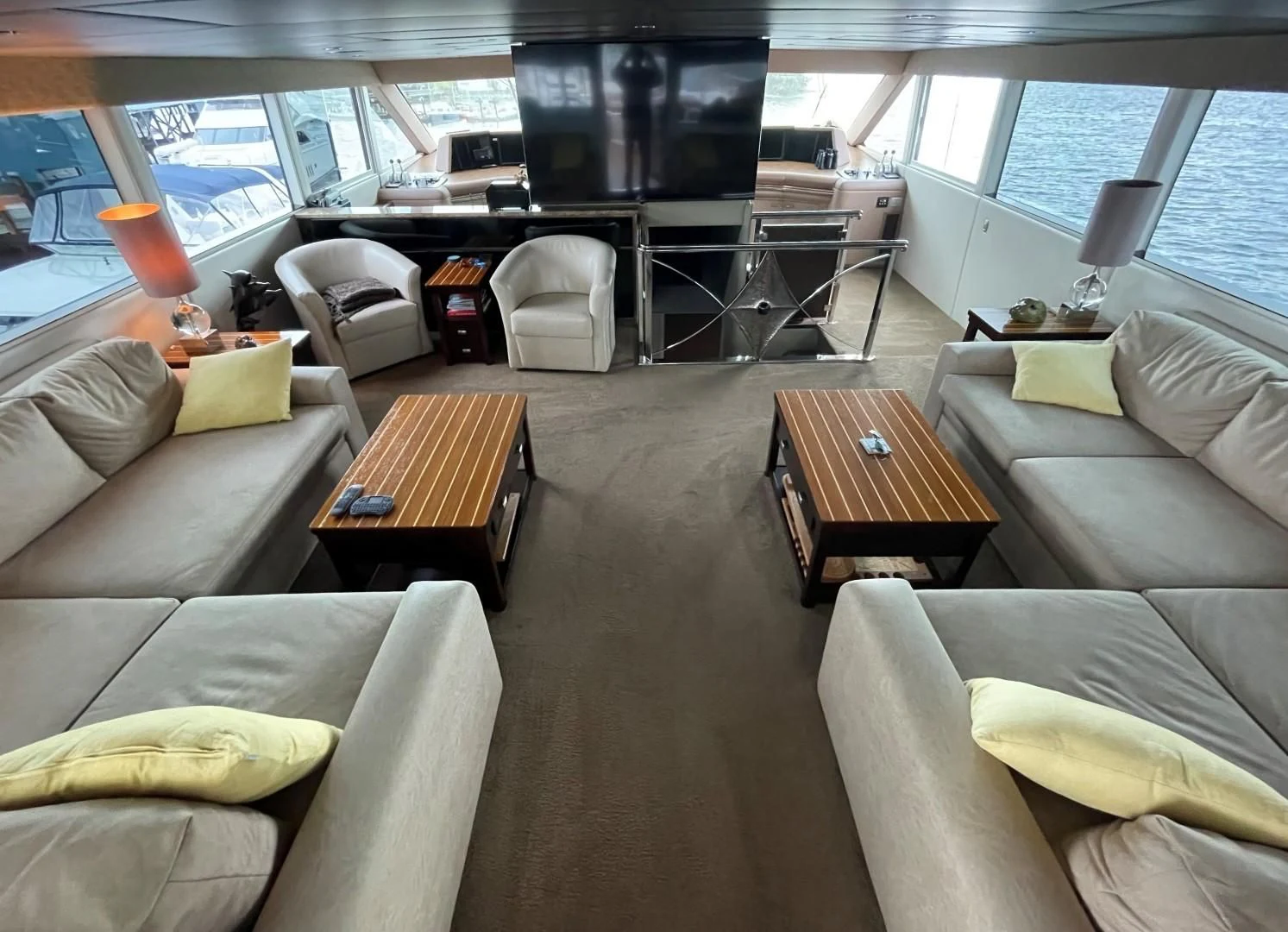

Fridge & Icemaker in the upper saloon
Wine fridge in the upper saloon

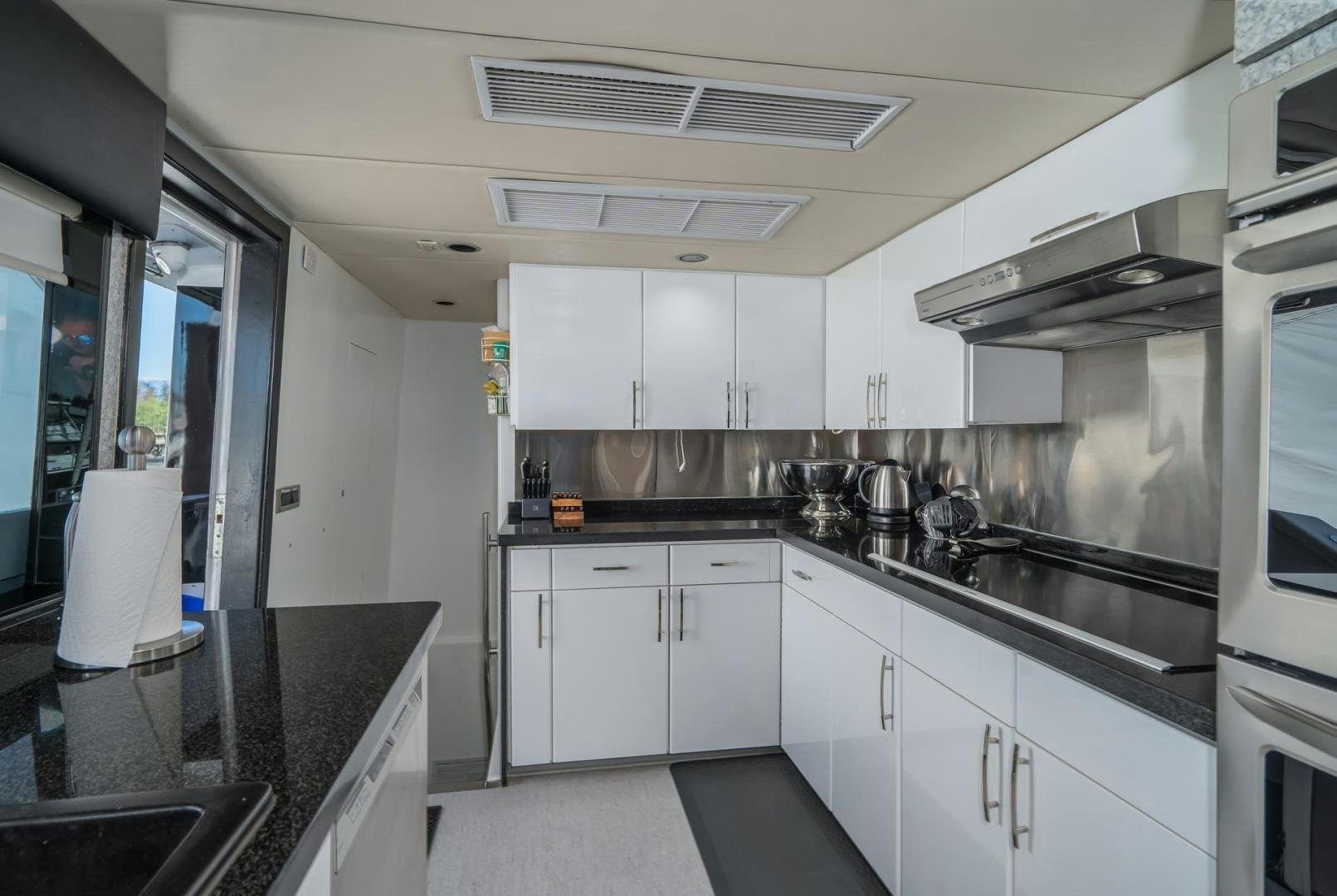

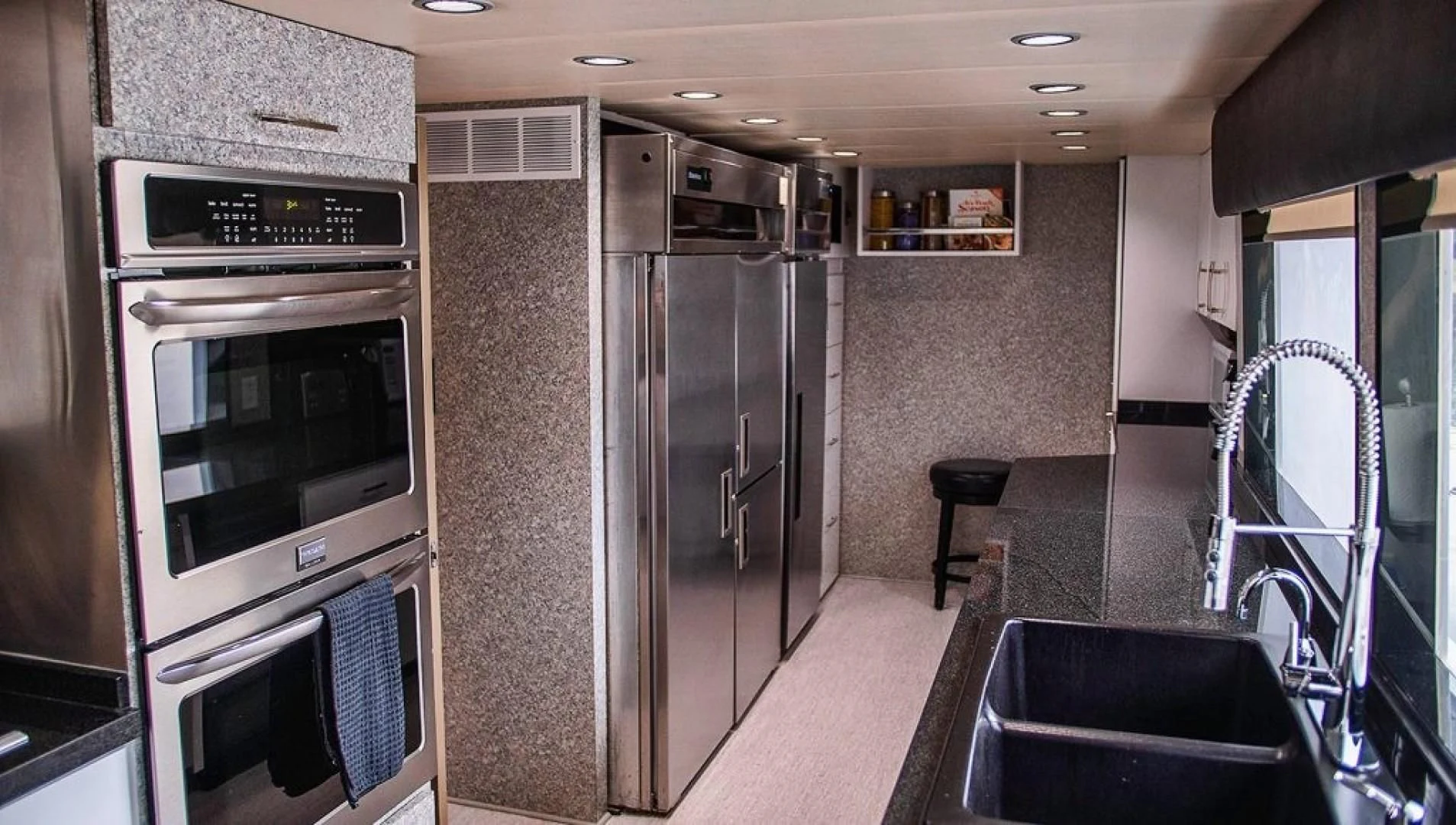

2 x Miele oven with hob and extractor
Miele washing machine
Pioneer Audio Component system consisting of
1 x VSX D702 Tuner Amplifier
1 x PDI M802 Multi CD Player
2 MR 100P Remote controller
2 x CU AV200 Smart Remote units
1 x AM7 Bose Speaker system
1 x FST Freestyle Speakers
Samsung TV and a Samsung Smart TV in Crew Mess.

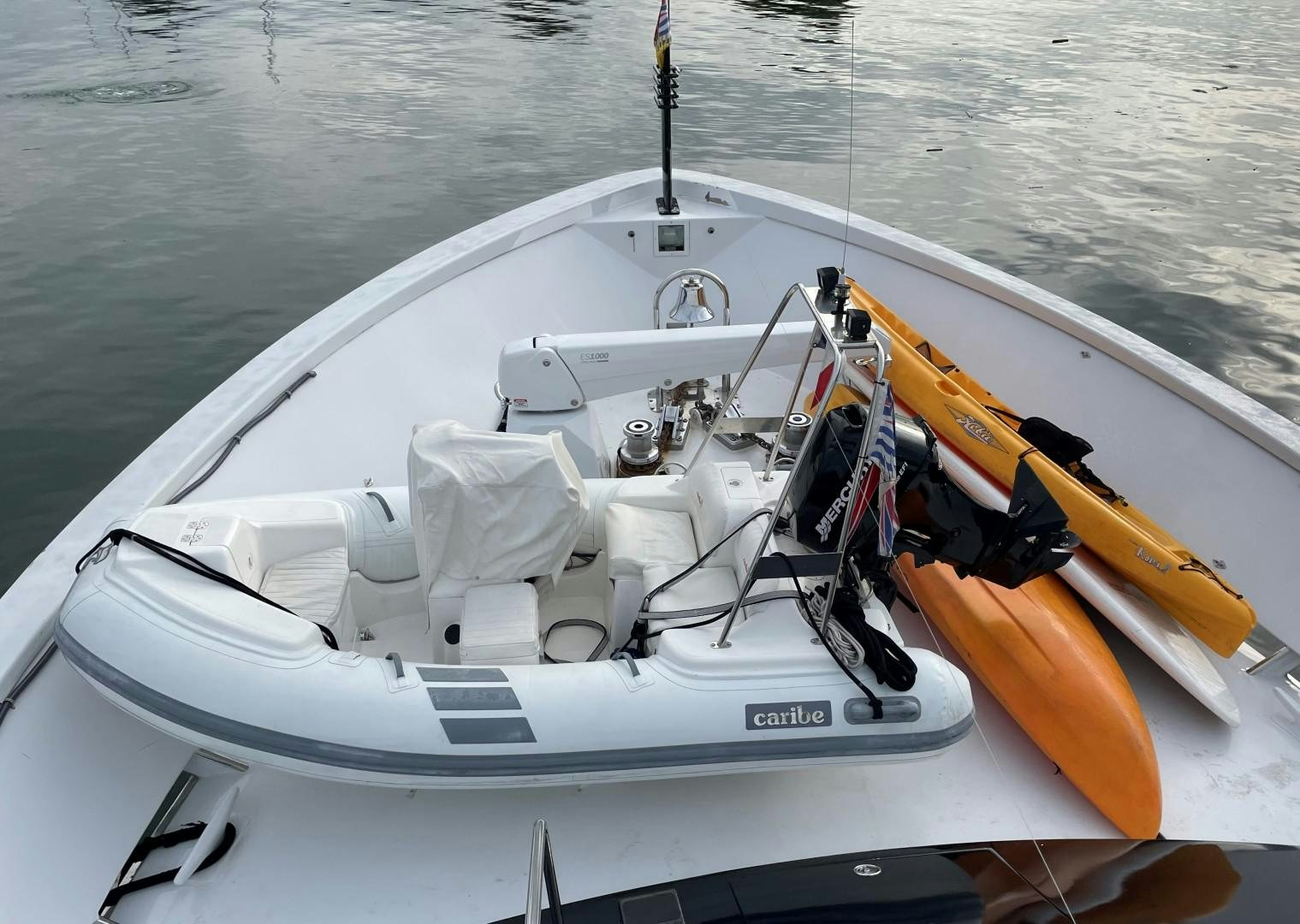

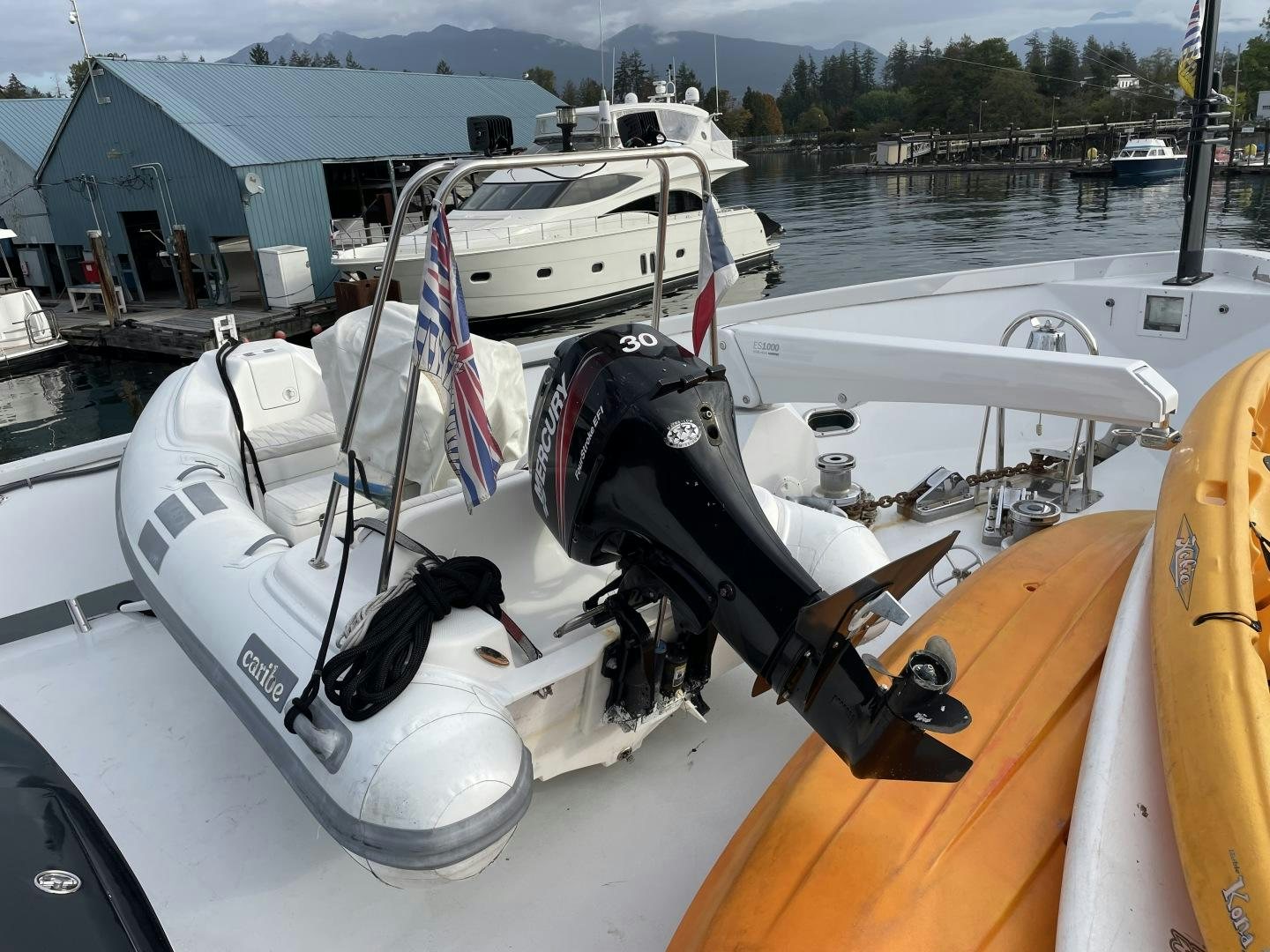

Tender – AB VST 4.50m 50hp Yamaha
2 sets of water ski´s
Assorted snorkeling equipment
2 sets of diving bottles and BCG´s plus various diving equipment
2 life rafts
13 x life jackets
2 x Security safe
Low level and high-level sensors in all bilges
3 phase AC fire pump and CO2 suppression system in engine room
All cabins, lazarette, engine room, galley and salon have fire extinguishers.
2011 – STP Palma
Hull and Superstructure repainted
Installation of 2 new generators
Overhaul of Bow & Stern thrusters
New Bimini cover
New Reacher Doyle sail
Varnished all exterior wood
Service on all main systems
New Anchor & Chains
New Sheets & Halyards
Replaced many areas of teak on the deck
New Main engine & generator exhaust
New Main engine lifting box
New inlet pipes in ER
Complete service on Propeller
Complete service of shaft, bearing and stern tube
Grey & Black tanks cleaned
New rudder bearing
New AC/Heating system
New Blade sail
Replaced 2 x Hydraulic Motors on the Mast winches
Hydraulic hoses replaced in garage
All captive winches serviced and hoses replaced
New PLC installed with VCAM
New Galley Fridge
2 new fresh water pumps
Replace Blade sheets
Reconditioned 3 x captive winches
Wall & Ceiling panels replaced in Master Cabin, Passageway and Lower Saloon
New Pneumatic lifting rams installed
New Main Sail
2 x Air compressor for Pneumatic Systems
2 x PTO pumps complete service
Hydraulic Oil replaced
