Asking
$1,295,000
SHOW ME THE MONEY Yacht for Sale
Not for sale or charter to U.S. residents while in U.S. waters.

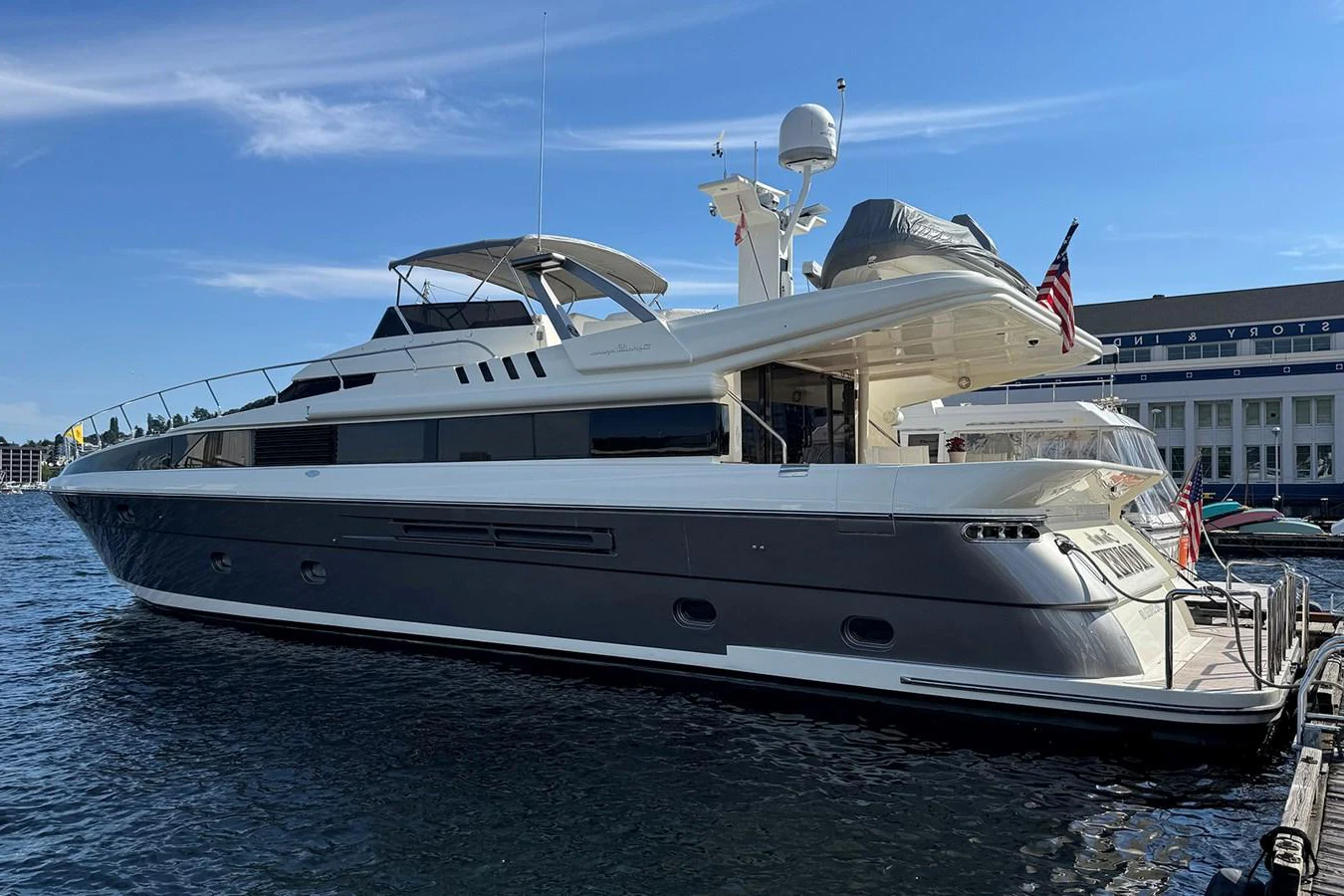

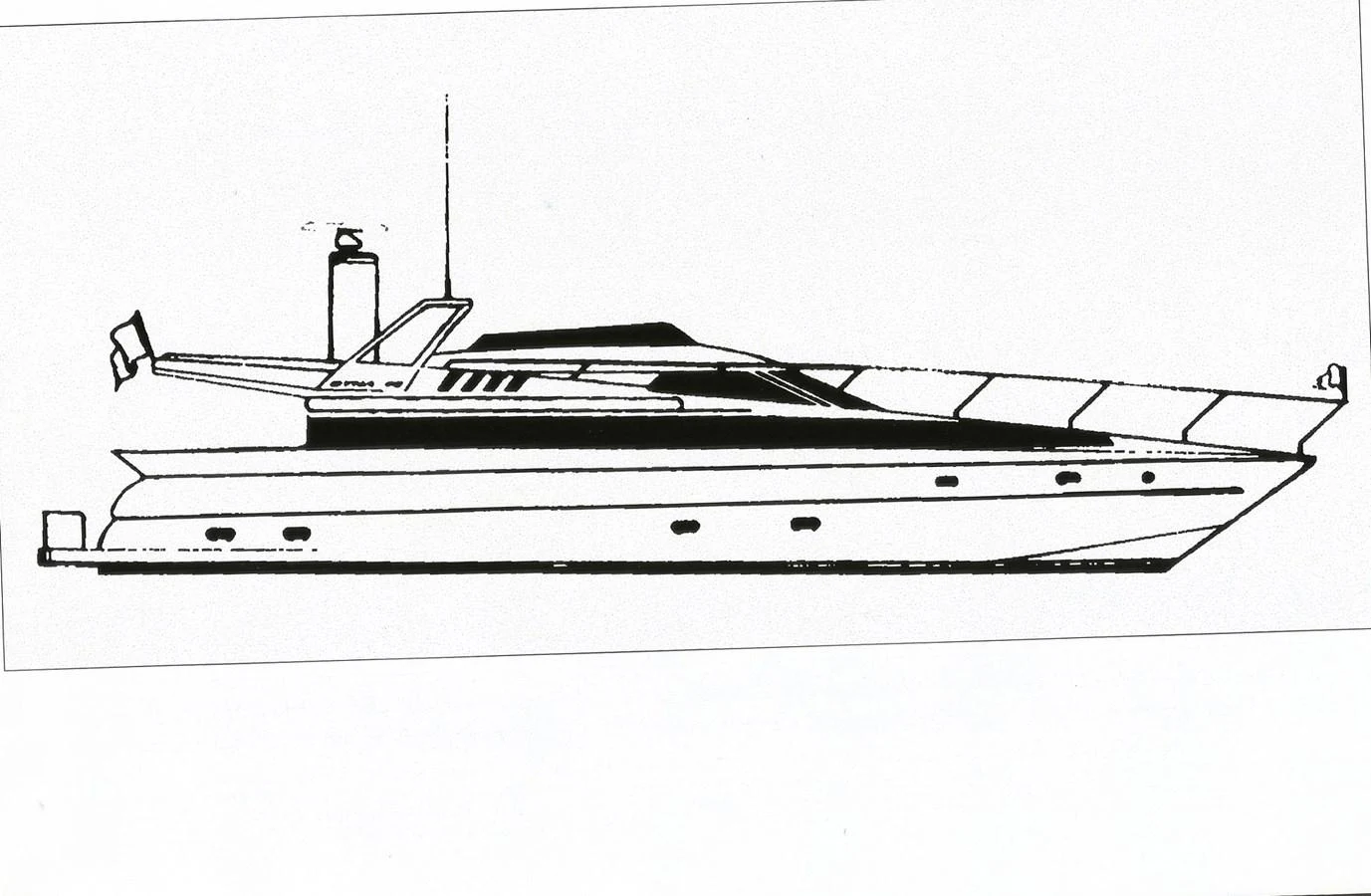

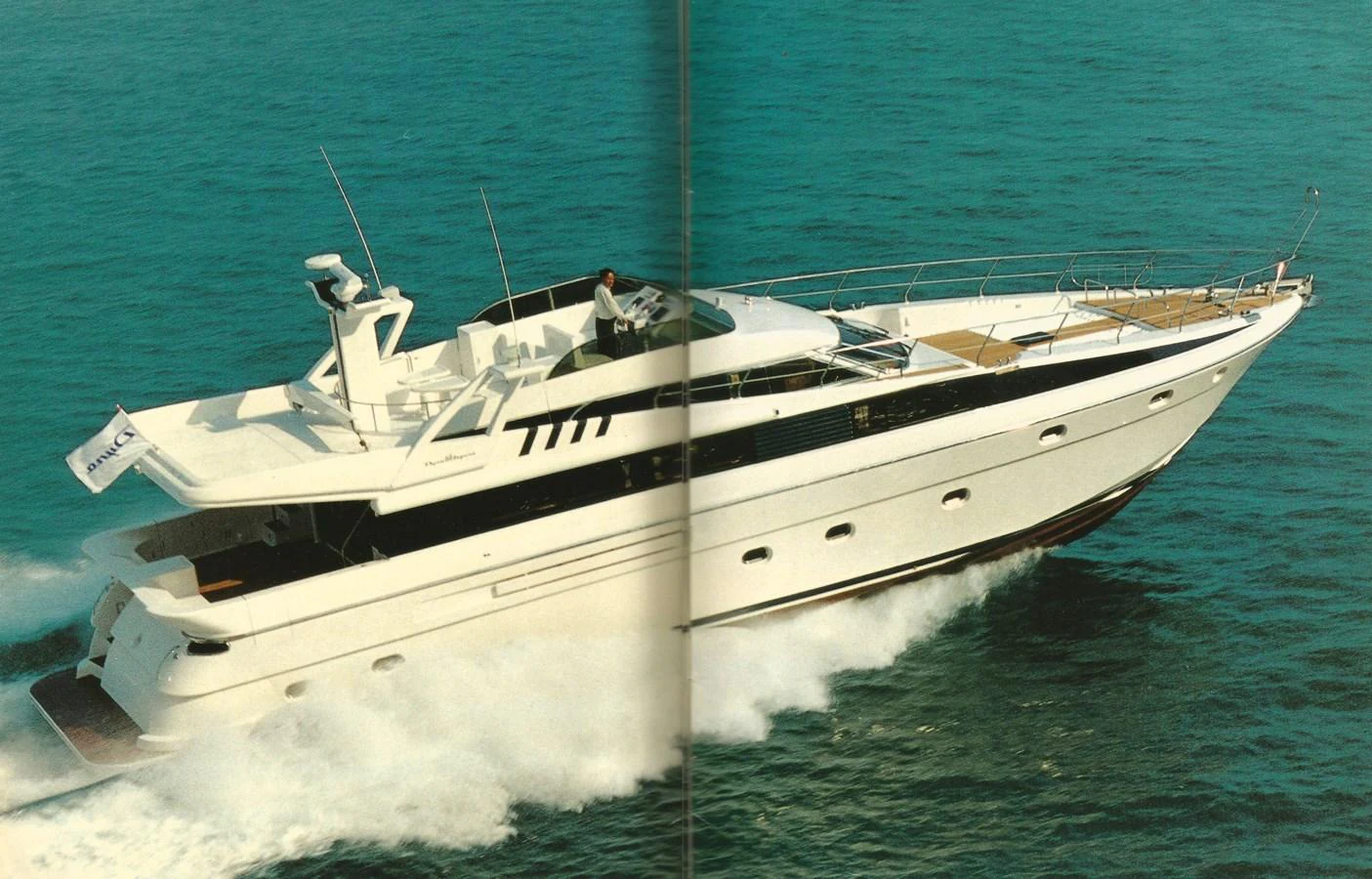

The Laguna is an Italian-designed motor yacht built by Dyna Craft Ltd. Owner will assist buyer in operation transition. Owner will furnish list of vendors who have worked on the boat. All items on the boat will stay with the boat. This vessel includes redundancy on most major systems.
68’ x 18’ beam. 5’ draft. Low profile. Extremely maneuverable for docking. Extremely good maneuverability for docking. Four staterooms. One captain’s stateroom. Walk over side decks. Large aft deck. Two helm stations (lower and fly). One remote aft deck. One wireless portable remote yacht controller for main engines and large Lewmar electric stern thrusters with large battery banks. Starlink with four streaming smart TVs and Bose system with dedicated receiver. Hot tub with 220 electric heat and Webasto hot water boiler. SCM Italian hardware and windows.
Six outside speakers with dedicated music receiver, aft deck, flybridge, and hot tub. Panda 25 kW very low sound enclosed generator, two operational control locations. 110 50 amp Glendinning powered with two remotes. Shore cord and one 50 amp AC shore cord. 100,000 btu AC and heat pump with thermostats located throughout the boat.
Always moored in Washington waters, mostly fresh water. Very low total hours. Boat has been painted using Imron paint and has a custom color hull and accent strips.
Major updating, repairs, and servicing.
Built for Northwest cruising, owner custom built, one-owner boat, excise tax, low hours, licensing very low cost.
1,500 lb hydraulic Nautical Structures crane with handheld remote.

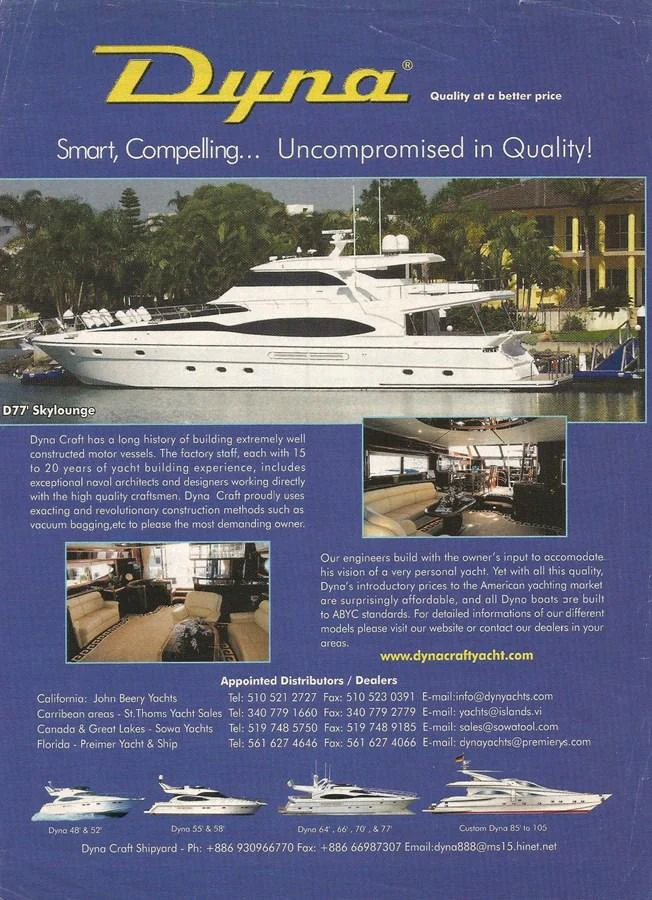

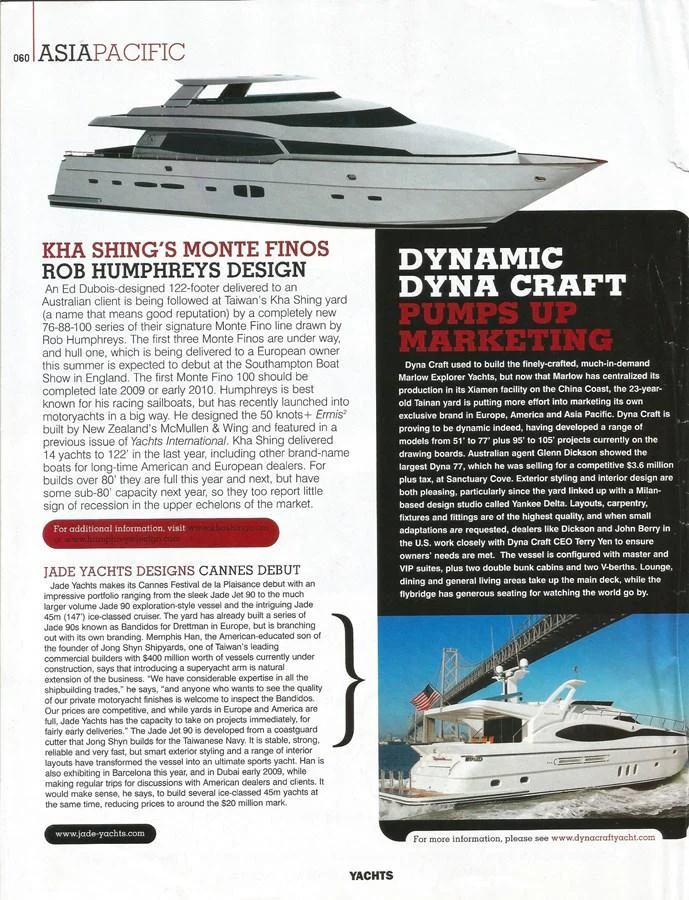

In The News
Specifications
| Builder | DYNA |
|---|---|
| Model | 68 Laguna |
| Length (LOA) | 68' (20.72m) |
| Year | 1997 |
| Draft | 5' (1.52m) |
| Beam | 18' (5.51m) |
| Range | 330 NM |
Accommodations
| Staterooms | 4 |
|---|
Dimensions & Capacity
| LOA | 68' (20.72m) |
|---|---|
| LWL | 61' (18.29m) |
| Max Draft | 5' (1.52m) |
| Fuel Tank | 1,360 g (1,360 L) |
| Fresh Water | 250 g (250 L) |
| Holding Tank | 100 g (378 L) |
| Displacement | 77,000 |
Construction
| Hull Material | Fiberglass |
|---|---|
| Hull Config | Deep Vee |
| Cruising Speed | 25 Knots |
| Range | 330 NM |
Complete the form below and one of our experienced sales brokers will be in touch soon.
Full Details
Upgrades & Repairs
2/20/2026: Two new 4,000 W Outback charger inverters with new remote panel (lower helm)
10/2025: 14 new Victron 12V house batteries, 1400 Ah X 12V 700 Ah @ 24V
9/2025: Two new Denon saloon Bluetooth receivers (audio & video)
7/2025: Starlink gen III satellite antenna, streaming, TV/music computer
2015: KVH TracVision, DTV service/receivers all cabins (can be eliminated or keep if wanted)
6/2024: New stern thruster batteries (4-12V Victron), new bow thruster batteries (4-12V Victron), Bow & stern thruster (24V)
7/5/2025: All teak decks sanded
6/2024: Some new boat lines, lightweight boat fenders
2023 June: Boat covers, flybridge and aft deck, plus sun screen S-3, King Canvas
5/2024: 8-man life raft rebuilt and certified
5/2024: New distress locator on flybridge
5/2024: Three lightweight fenders and new fender lines
6/2025: Total boat polished and waxed
6/2024: New windshield wipers and spares
6/2025: Oil service on MANs and generator + fuel filters
6/2024: New 130’ wash hose and sprayers, polished stainless steel heavy duty plow anchor (300’ chain)
2018: New upgraded flybridge air horns
2021: New black mesh shades for front window
2024: Anchor chain repainted
2025: Added 12 new boat winter heaters & dryer (100 W)
2023: Webasto rebuilt, new antifreeze, new circulation pump and hot water tank with flow control
2023/24: New Samsung smart TVs in saloon, master stateroom, and VIP
2018: New 2018 Novurania tender (Guyer Boatworks) with new 50hp Evinrude 360 E-TECH

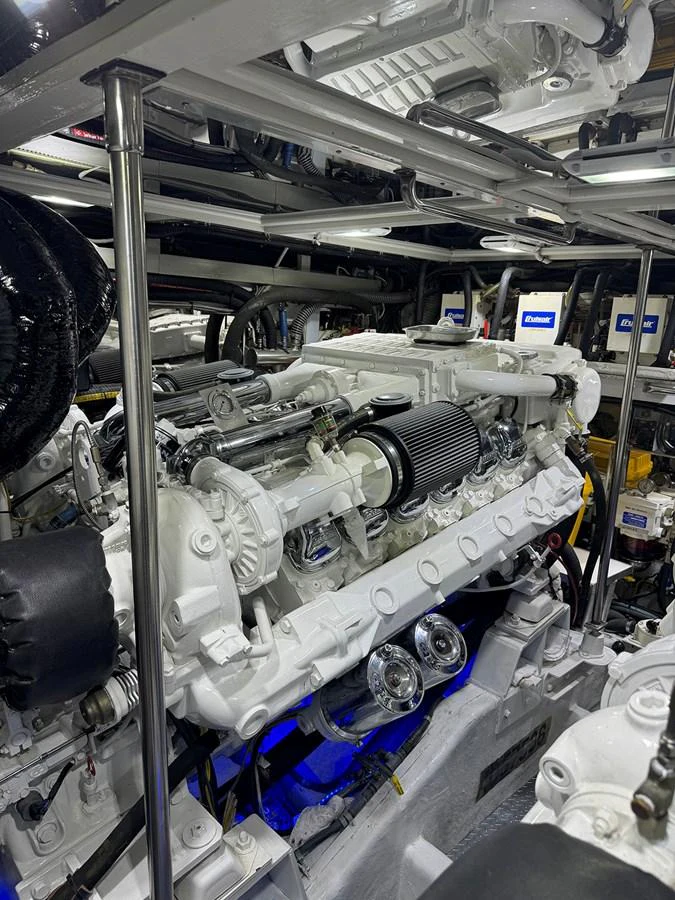

2017: Both MAN V-12 1200 hp rebuilt by RDI (new hour meters) 1951 original hour meters on boat + 369 hours on new meters
2017: Motor mounts for MAN engines upgraded to M130 in the front and 75/65 in the rear
2016/17: Upgrades to Mathers controls + new control cables and software
2018: Rubber bedding replaced on six front windows

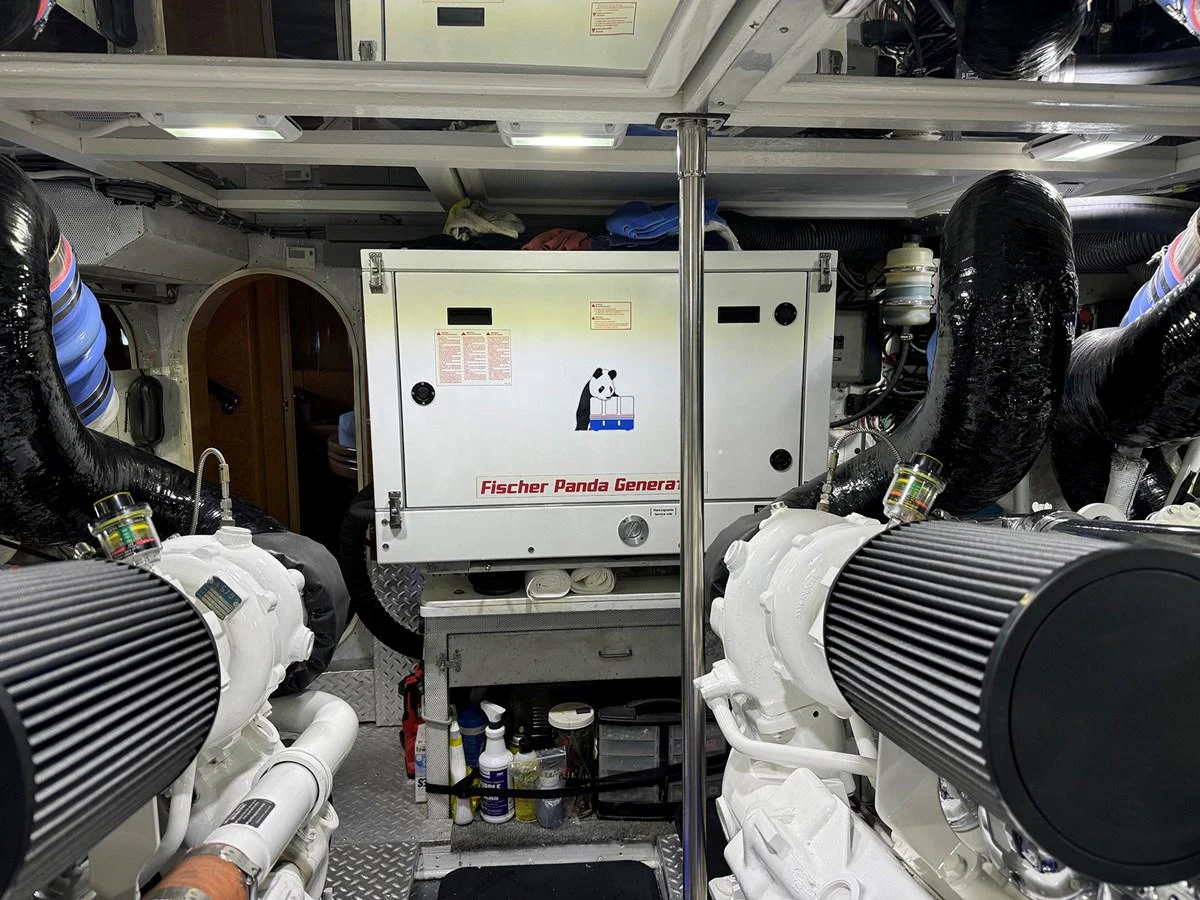

2016: New diesel generator - Panda 25 kW with sound enclosure
2016: Boat painted by YachtFish Marine - Imron Aston Martin metallic
2016/17: New canvas from Canvas Supply
2016: New DTV receivers - H-24 mod HD
2015/16: New KVH TracVision, 6 HD satellite antennas
2014: New Wolf microwave, Miele dishwasher
2020: New boat decor items (various)
2019: Large flybridge stamoid storage moor cover
2014: New Miele coffee center
2023: New aft cockpit electric heater 120V
2012/13: New Fitch 12 million candlepower Xenon search light with two station remote controls, pan + tilt
2010: New teak table on aft deck
2018: Four new Italian foldable high-back aft deck chairs
2019: Four new SCM window screens
2017/18: New panoramic window in master stateroom
2010/11: 4’ hull extension, Philbrooks, Gary Grant A.I.A.
2023: Two wireless communication headphones
2024: Complete E-TECH tender outboard motor service
2020: New Kenyon 220V/110V 3-burner ceramic cooktop
2023: Generator start battery HD 12V
2023: New tender outboard battery 12V
2019/22: Two new 275 amp high-output alternators for main engines
2021/22: New saloon under-counter refrigerator & ice maker
2022: New ice maker on flybridge
2012/13: Two new Nibral S-class propellers
2014: All halogen overhead lights replaced with LED
2014: Replaced and added new high-output LED lights in engine room
2014/2021: New Nauticomp 12” & 15” sunlight-readable touchscreen navigation screens
2020: New fog horn
2024: New EPIRP GPS locator beacon
2021: Added polished stainless steel engine ceiling and wall panels
2021: Added main engine LED colored lighting
2017: New Splendide washer/dryer combo
2015: All boat carpet replaced (Fabrica)
2009: New super yacht large stainless steel fuel fills
2024: New magnet bug screen on aft deck
2023: Serviced fire system western Fireboy
2007: New TV lift in saloon
2010: All side windows on main deck replaced
10/2025: Replaced and upgraded Ritchie compass on flybridge, sea trial certified
10/2025: All life preservers, flares, foul weather cloth

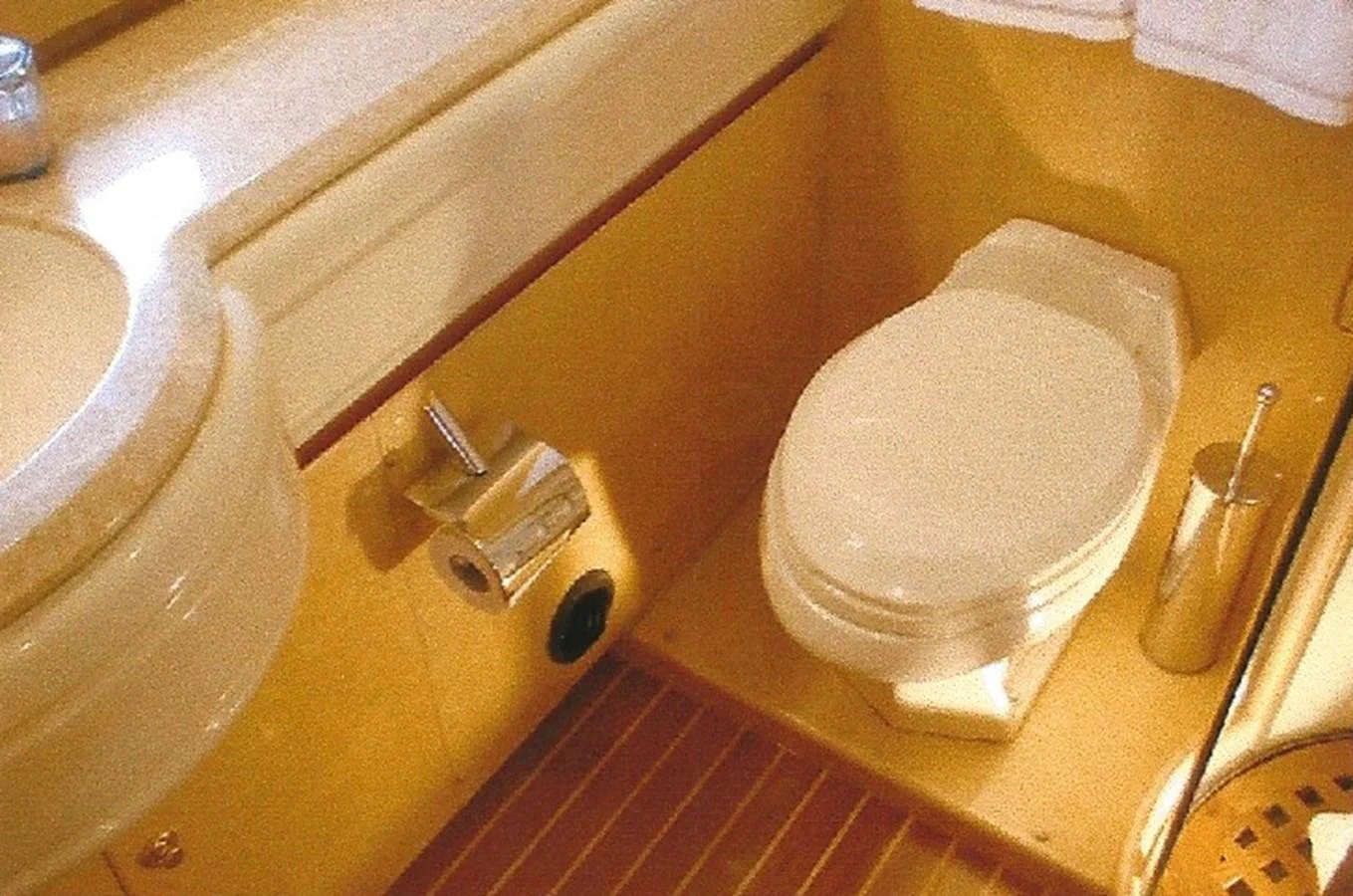

2013: New dometic toilets upgrades
2019/21: Replaced 24V Headhunter fresh water pumps
2009/2012: Replaced computer, VHF radios, radar, autopilot, steering pump, changed anchor light to LED
2010: Replaced bow and stern thrusters 24V Lewmax
2010: Upgraded garage door pump to faster pump
2013: Serviced boat crane at Campbell River Hydraulics
2015: Both engine transmissions serviced
2010: Transcoolers serviced
2010: New electric windlass
2017: New main engine exhaust piping & fiberglass wrap, marine exhaust
2009: Larger capacity stainless steel hot water tank upgrade, electric, quick recovery
2012: Flybridge windscreen upgraded to thicker bronze plexiglass
2019: Replaced and upgraded two forward deck hatches
2019: New stamoid bridge cover
2022: Replaced generator capacitors
2022: Replaced all bedding, pillows, towels, and bath mats
2015: New shaft seals and bearings, shaft alignment, Yacht Fish Marine
2016-17: Replaced seals in Miele coffee maker
2019: Two new digital smart MAN engine voltage regulators
2014/15: New bedding, pillows, designer pillows, and designer winter shades
2013/14: Yacht Controller remote control hand held
2017: Upgraded GPS
2014/18: Changed 3” raw water hoses main engines
2020/21: Main engines repainted
2008: 110’ Glendinning electric reel shore 50 amp cord, one 50 amp 50’ air condition cord
2018: New teak decks installed on bow, side deck, all deck steps
2022: New dinghy & fender portable electric air pump
2007: New granite counter tops in kitchen
2022: New STIDD flybridge bench seat cover
2019: New MAN engines blue exhaust bellow
2018: Cleaned MAN fuel magnets
2008: LED navigation lights
2008: Webasto 2020 diesel boiler, circ pump, hot water tank w/ mixing control, expansion tank, 4 stateroom air handlers (heaters), saloon heater, lower helm defroster heat, 3 large air handlers flybridge helm + passenger seat w/ auto air leaders, hot tub hot water, 2 MAN engine block heat exchangers
2008: 2 MAN electric block heaters
2008: E-meter for generator lower helm, 12V battery in engine room under generator, E-meter for house bank lower helm, 24V 14-200 amp Victron gel high performance batteries hooked up in series 24V.
2008: Pathmaker 24V charging system to charge MAN start batteries, then charge thrusters batteries, then charge house batteries
2012/13: New flybridge STIDD double seat with power up/down and front-to-back
2012: New larger stainless steel trim tabs
2015: New underwater exhaust shrouds
Elbex cameras located in engine room, flybridge, aft cockpit
Electrical panel’s indicator lights changed to LED
Installed new bow & stern thrusters 20hp electric (Maxwells) w/ fuses
Underwater lights + 2 garage LED lights

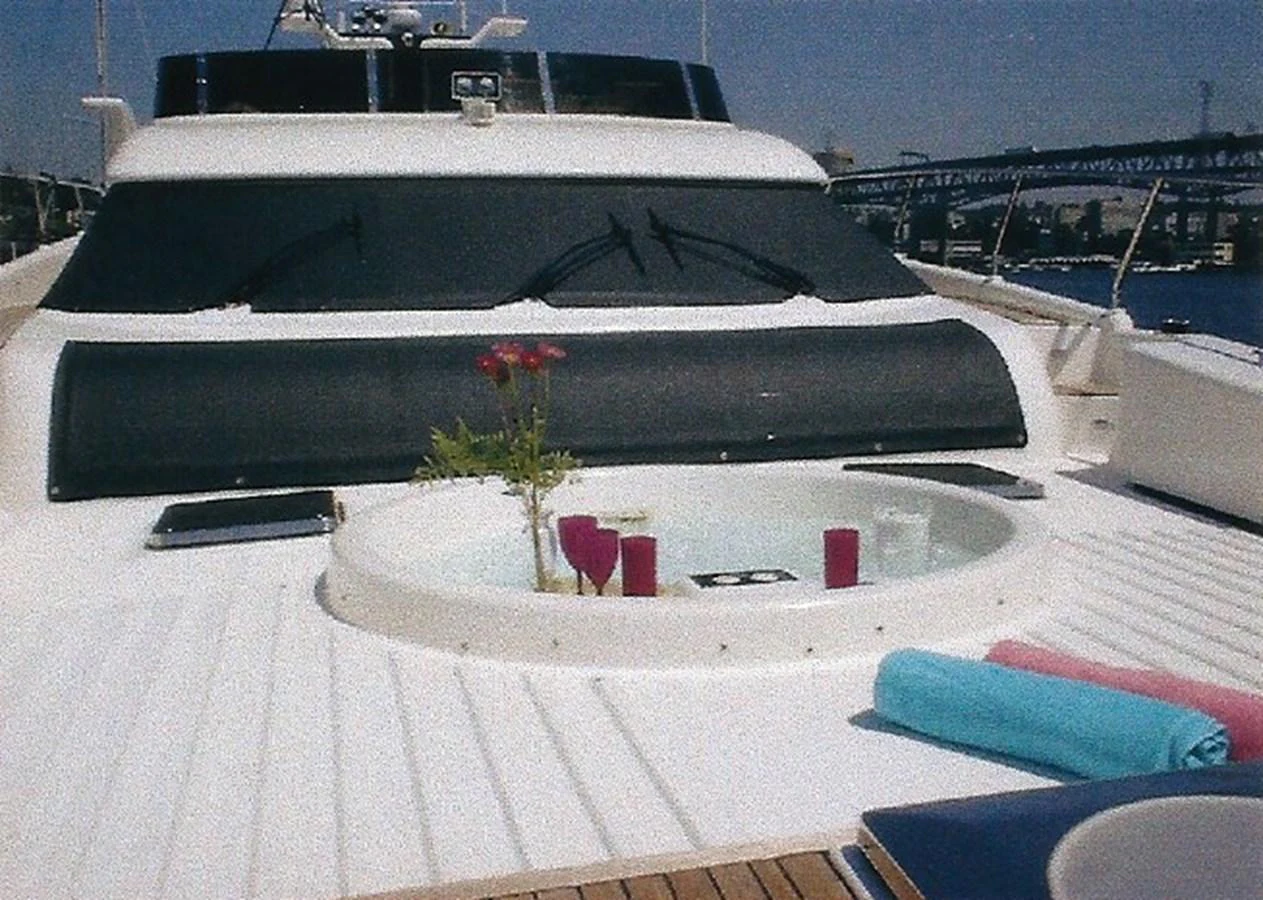

220V electric hot tub heater w/ pump used to maintain temp
HD gas shocks on master bed & VIP bed to provide access to storage
New large capacity fresh water filtering system, 1 sediment, 1 charcoal

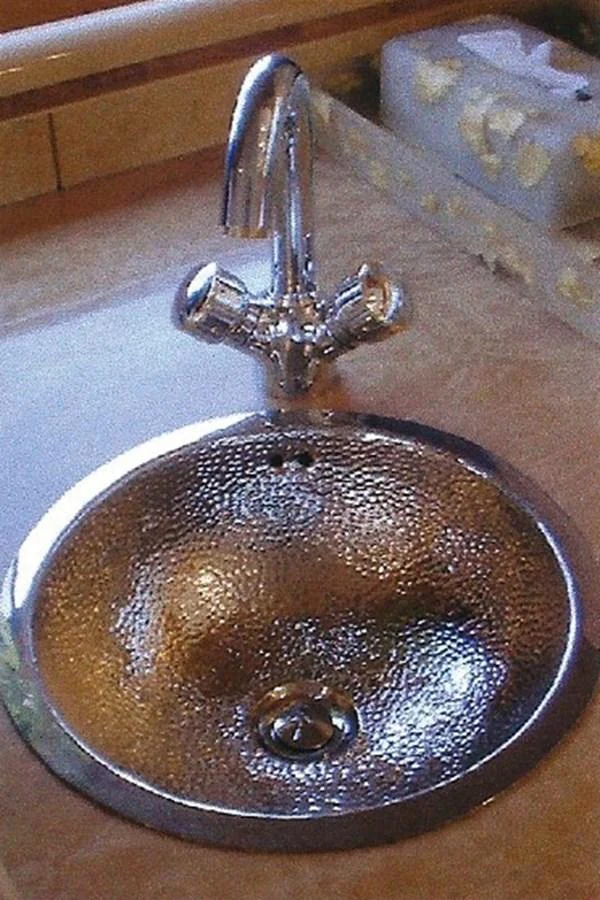

Seagull fresh water filter & filler at galley sink
3 circulation pumps w/ timers - galley sink, master stateroom sink, and bow stateroom sink
Engine room tool drawer

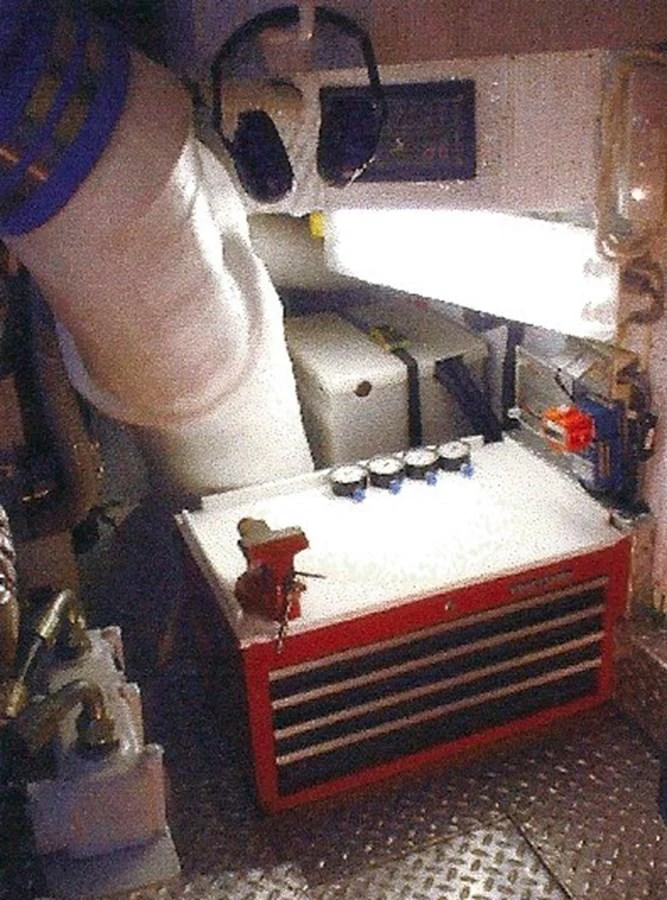

Engine room stainless steel 5-drawer tool box with all tools included
Master stateroom built-in chest of drawers custom built
2 Separ high capacity fuel filter cartridges
Fuel filters for MAN 1200 hp V-12
Lead sound dampening carpet pad
Lead-lined sound deadening sound insulation extensive locations retro fit interior
Isolation rubber mounts for pumps, motors, and inverters where accessible
Generator lift muffler w/ under water shroud
Engine room modifications, flooring & front of MAN engines storage tables
Flybridge bimini w/ large HD poles & storage bag w/ high wind storm tie-down
Two long 1” lock lines
Various new lines w/ sheep fur
Surveyed by Chubb Insurance Co approx. 12 years ago.
Lots of spare parts, mechanical, tools, power equipment, SS tool box, extra finished wood panels, hardware, etc. All glasses, dishes, silverware, kitchen supplies, appliances, etc.
Walkthrough

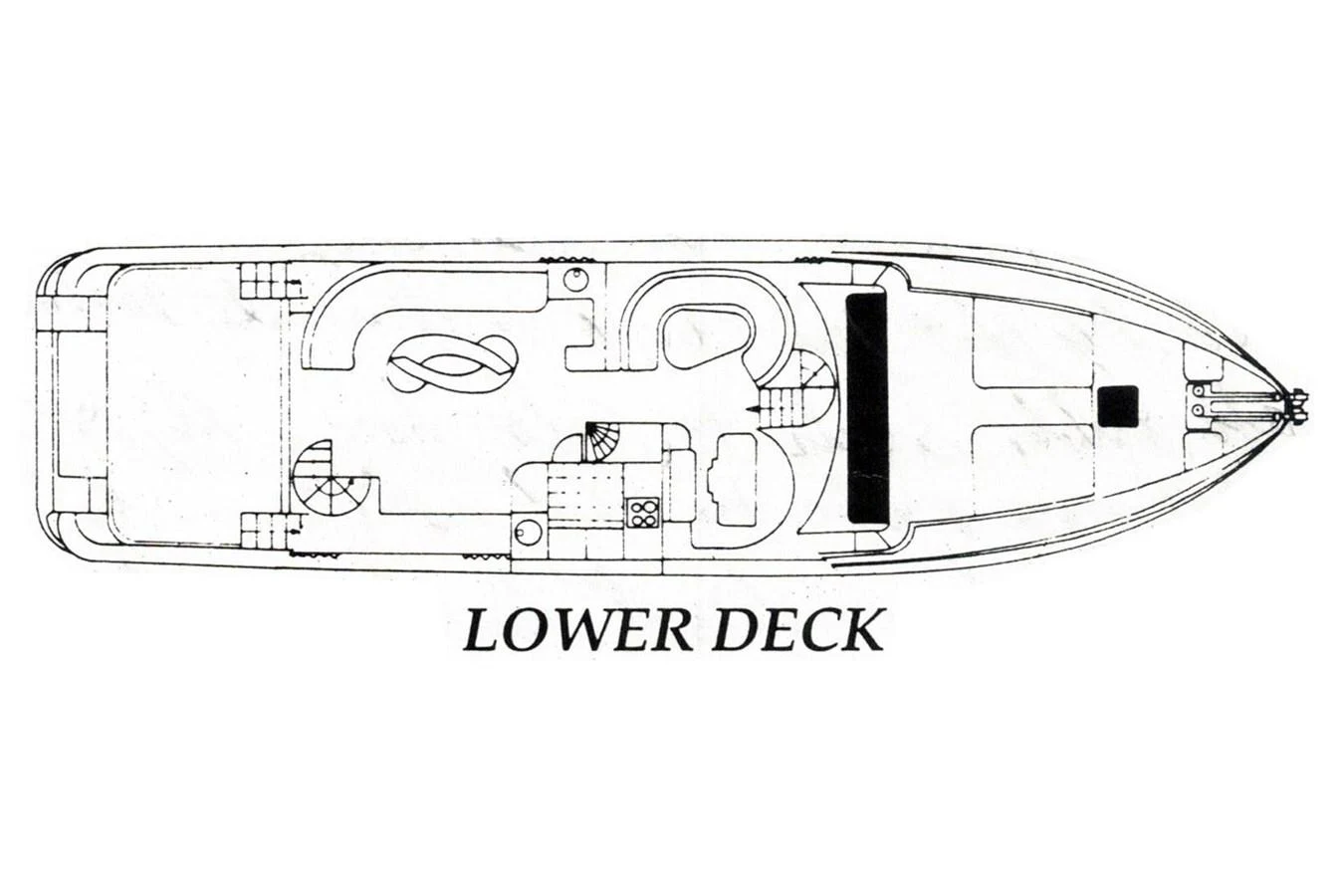

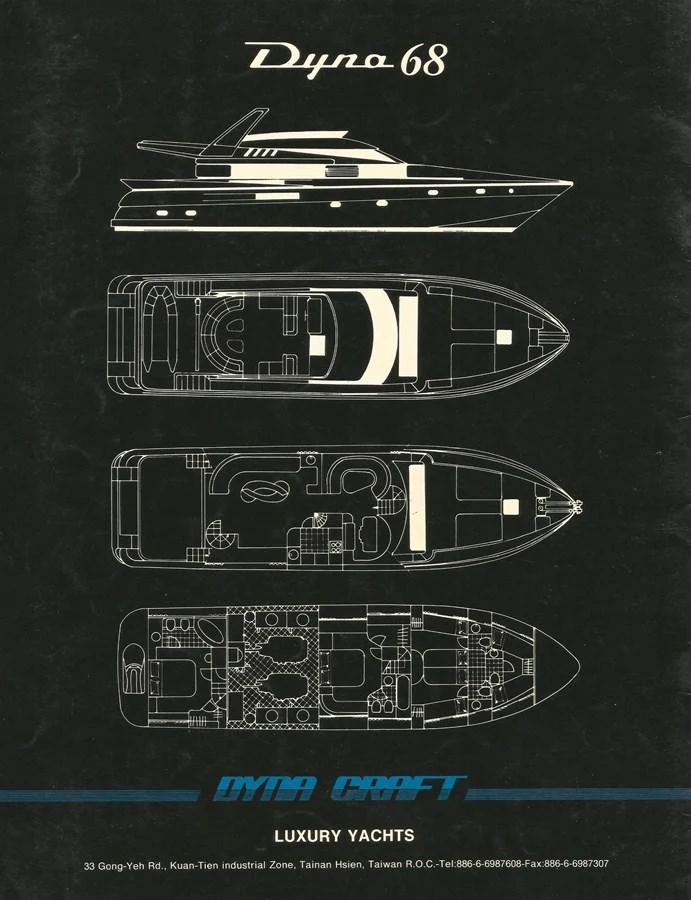

The lower deck, most forward and entered from the foredeck hatch is the air conditioned and spacious crew’s quarters with two single berths, adjoining head and shower. Next entered from the forward stairway are the two identical forward guest cabins, port and starboard, each with two single berths, adjoining head and showers, AM/FM/CD sound system, intercom, closet, and drawers. From the same stairway, the owner’s full-beam master suite is entered. There is a jacuzzi tub with 6 jets and shower, large walk-in closet and a center-line queen sized berth. Aft and entered via a circular staircase and passageway are the machinery space and aft is the VIP suite which is almost identical to the owner’s stateroom. The flying bridge is very spacious with a helm seat forward to port, a stairway into the main salon to starboard. On each side of the flying bridge are cabinets for wet bar and BBQ. The aft section of the area above is a large half round table seating six. Then on the hardtop is a 13’ Novurania DX 400 RIB inflatable with a 50 hp Evinrude E-TEC outboard, launched by a Nautical Structures electric davit. The aft deck lounge will seat 5 comfortably and adjoins the salon from aft via double sliding glass doors. The swim platform, a convenient method of boarding, is teak covered and over 3’ wide, and has a built-in and concealed swim ladder. The vessel is passenger safe from the standpoint that all weather decks have bulwarks or rails waist-high around the entire circumference of the vessel. When lit with direct and indirect lighting at night the interior is stunning. The foredeck is open for observation and with the number of large open deck areas the vessel is ideal for entertaining at the dock or underway. The entire interior is finished in very light blonde burl veneers. The yacht is completely climate controlled for the comfort of all aboard. With the bow thruster and twin screws, she handles like a 50-footer. At 20-plus knots, her MTU main engines ‘cannot even be heard’.

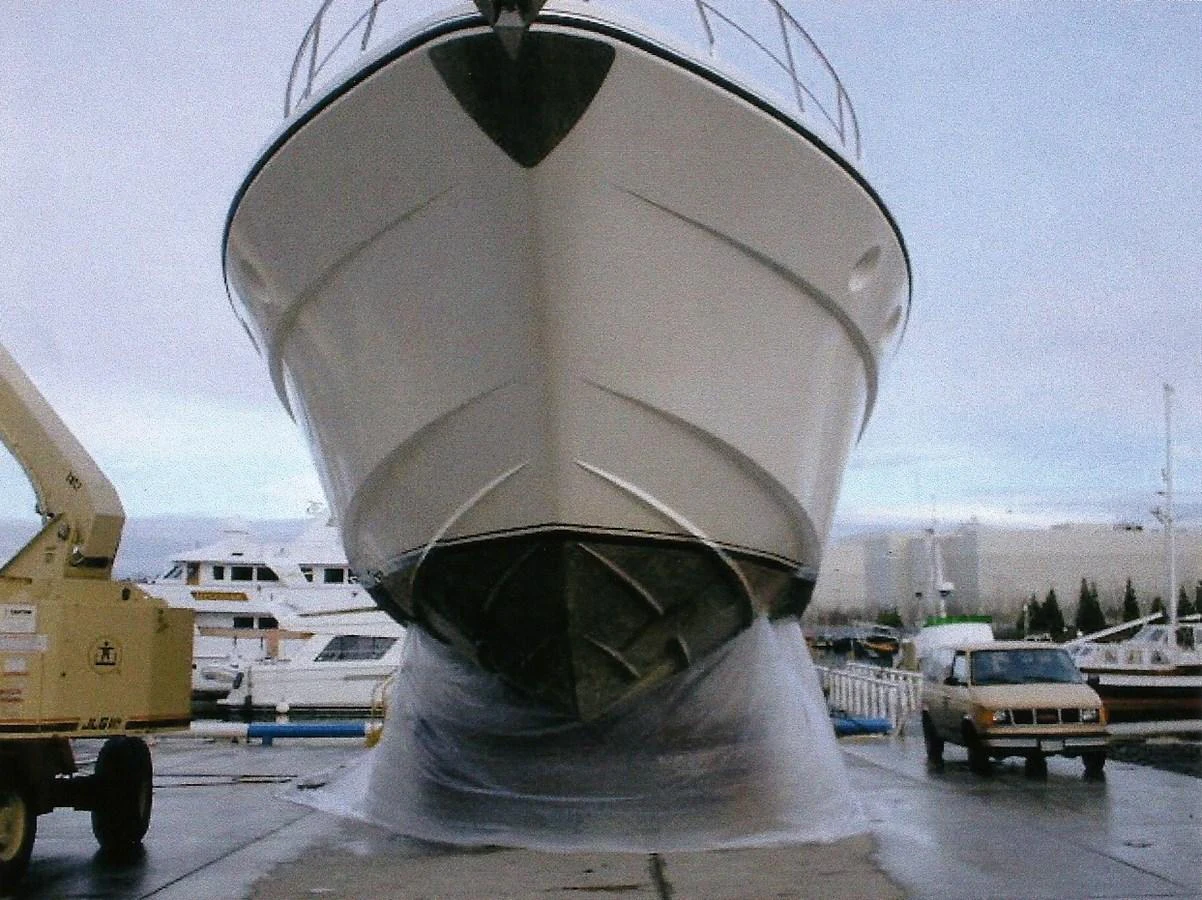

Hull
- Designer: Yankee Delta / Monza, Italy
- Builder: Dyna Yachts
- Type: Deep V forward, shallow V after
- All fiberglass is laid up by hand
- Divinycell foam core construction above water line
- Solid fiberglass construction below water line
- Transverse & longitudinal strengthening stringers throughout hull
- Interior of hull bottom is painted out in gelcoat
- Decks are foam core construction
- Deck sides are Divinycell foam core construction
- Hull & deck joint bolted & FRP bonded
- Moulded non-slip deck surface
- 42” extension
- Antifouling hull bottom paint
Deck Fittings
- 2 bow rollers

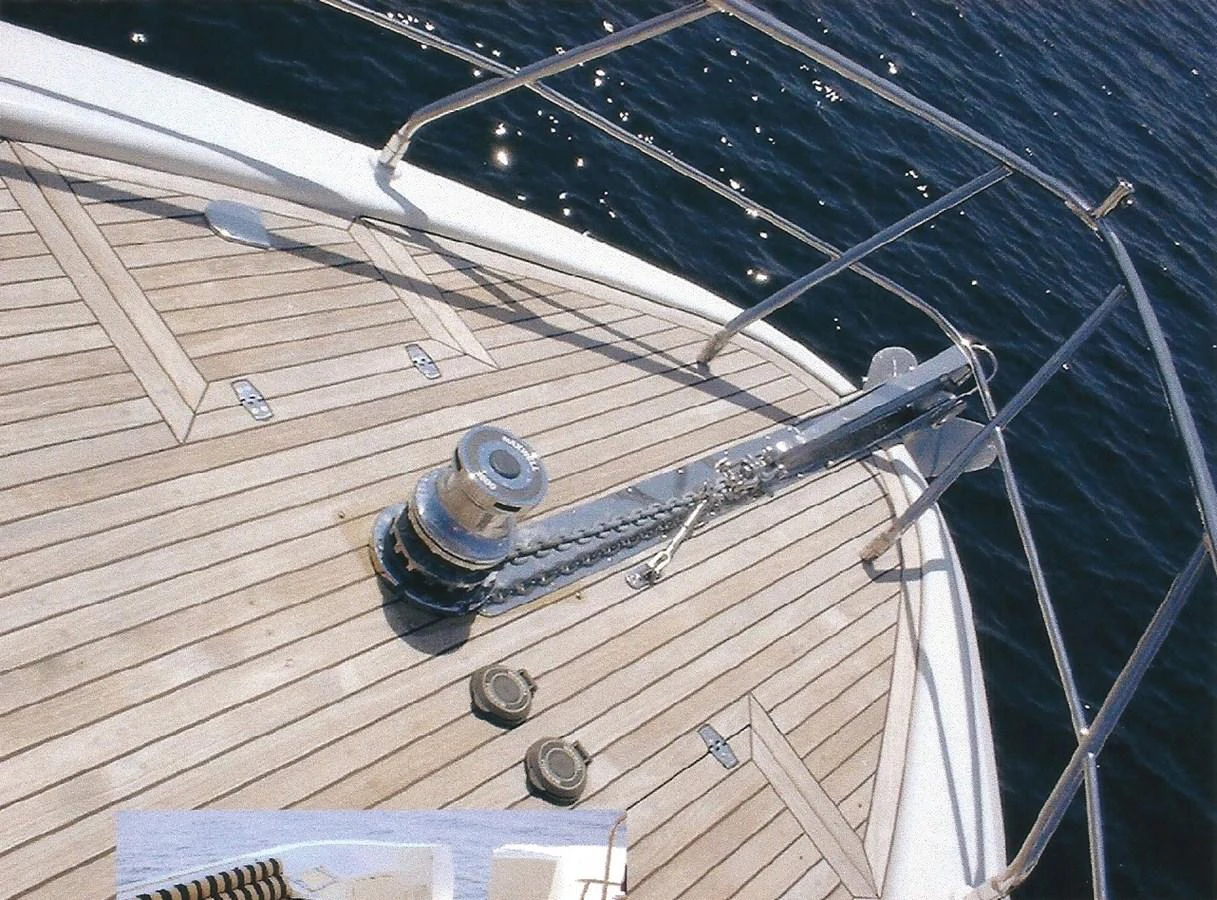

- Single chain, single anchor roller w/ recessed reversible Maxwell 3500 2000 W electric anchor windlass (3 stations control)
- 300’ of 5/16” galvanized anchor chain
- 2 chains (50 m each)
- 2 chain locker hatches
- Deck wash faucet in chain locker
- 2 fender lockers on bow
- Stainless steel hatch to crew cabin
- 2 anchors: 1X 80 lb stainless steel & 1X 77 lb
- Spare CQR anchor
- Twin pairs of stainless steel bow and stern bitts
- Twin pairs of stainless steel spring cleats/chafing plates
- Stainless steel mooring cleats/chafing plates
- Bow pulpit & rails
- Stainless steel side deck rails
- Heavy duty rubber with stainless steel flat-type rub rails
- Full set navigation lights
- Deck lights
- 2 stairs with handrail to flybridge
- Water and fuel fillers, chrome
- Stainless steel window frame with tempered glass
- Stainless steel opening portholes
- Portholes in every cabin
- Stainless steel entrance doors to saloon
- Moulded opening swimming platform stair
- Swim platform with laid teak decking

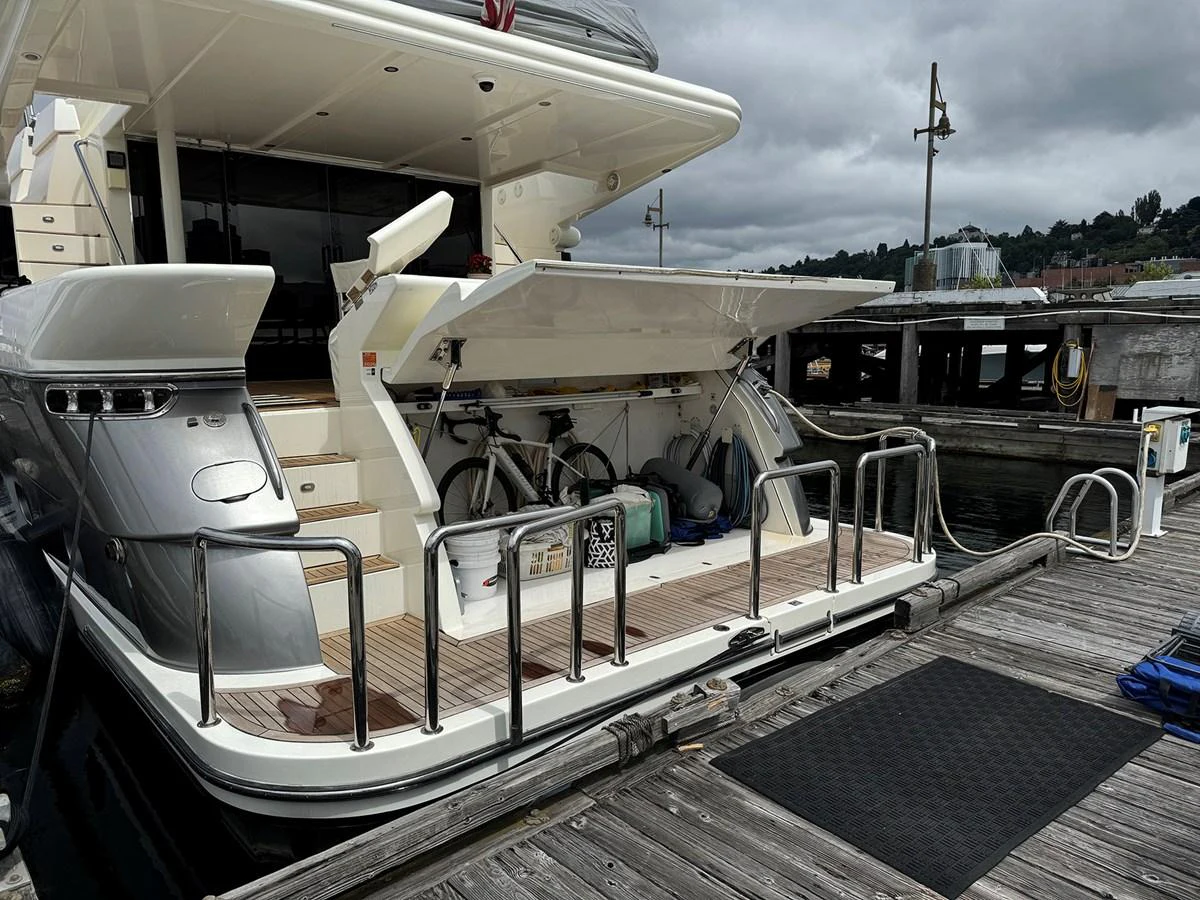

- Stern jet ski locker with hydraulic opening cover turn to wide bathing platform
- Hydraulic telescopic 3 meters gangway
- Various fenders & lines (black)
- Stainless steel salon doors
- Stainless steel bow protection plate
- Swimming stair, concealed
- F/B floor light
- Extra center radar arch w/ 2 lights
- Frameless windows directly mount and sealed on FRP, use Sika glue for window installations
- 4” drains for fwd deck inside of fender lockers
- 2 hatches for port & starboard guest cabins
Boat Deck
- 8 Person liferaft DBC Dunlop/Beaufort
- EPIRB 2025
- Nautical Structures EZ 1500 crane davit with power rotation
- Life Sling man overboard throwable ring

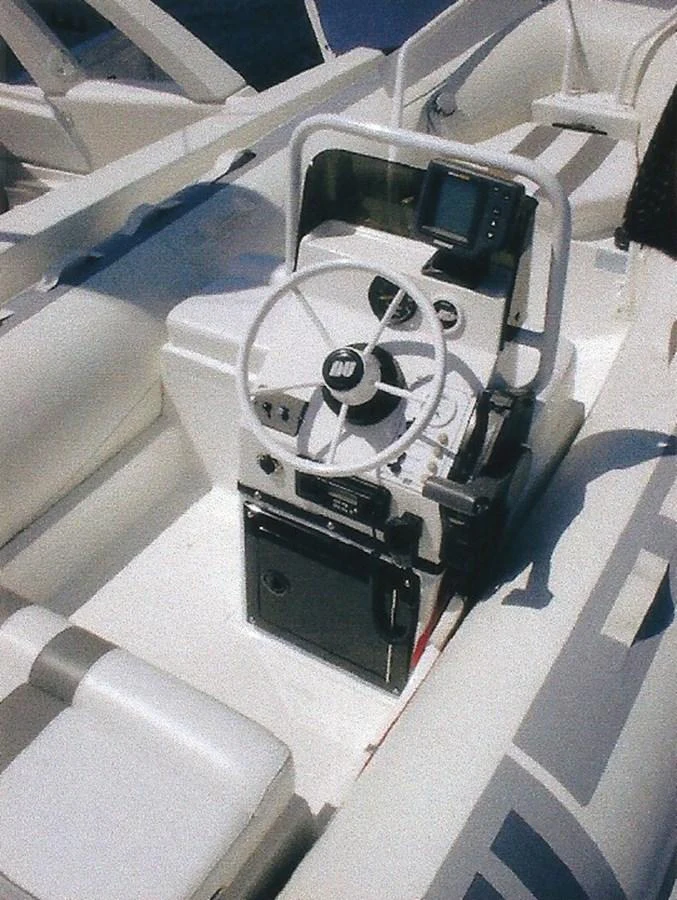

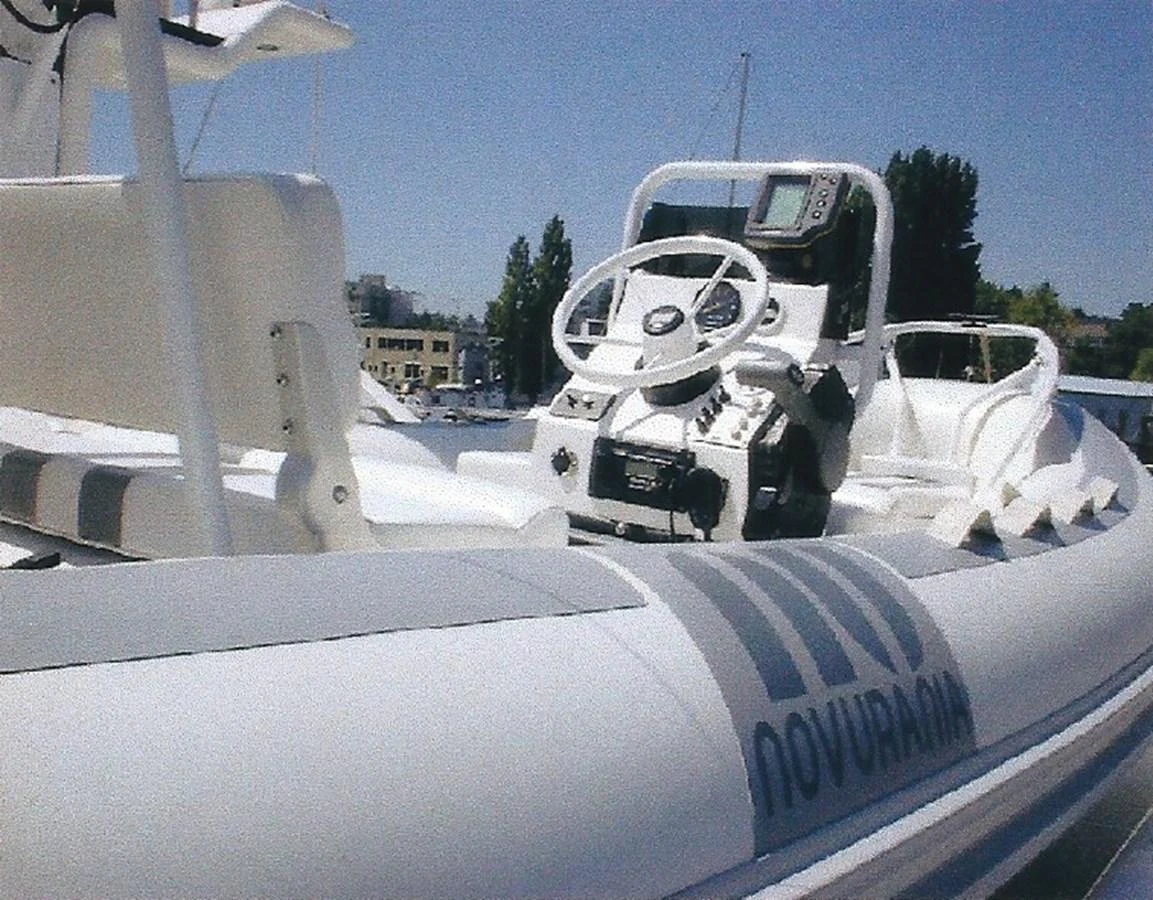

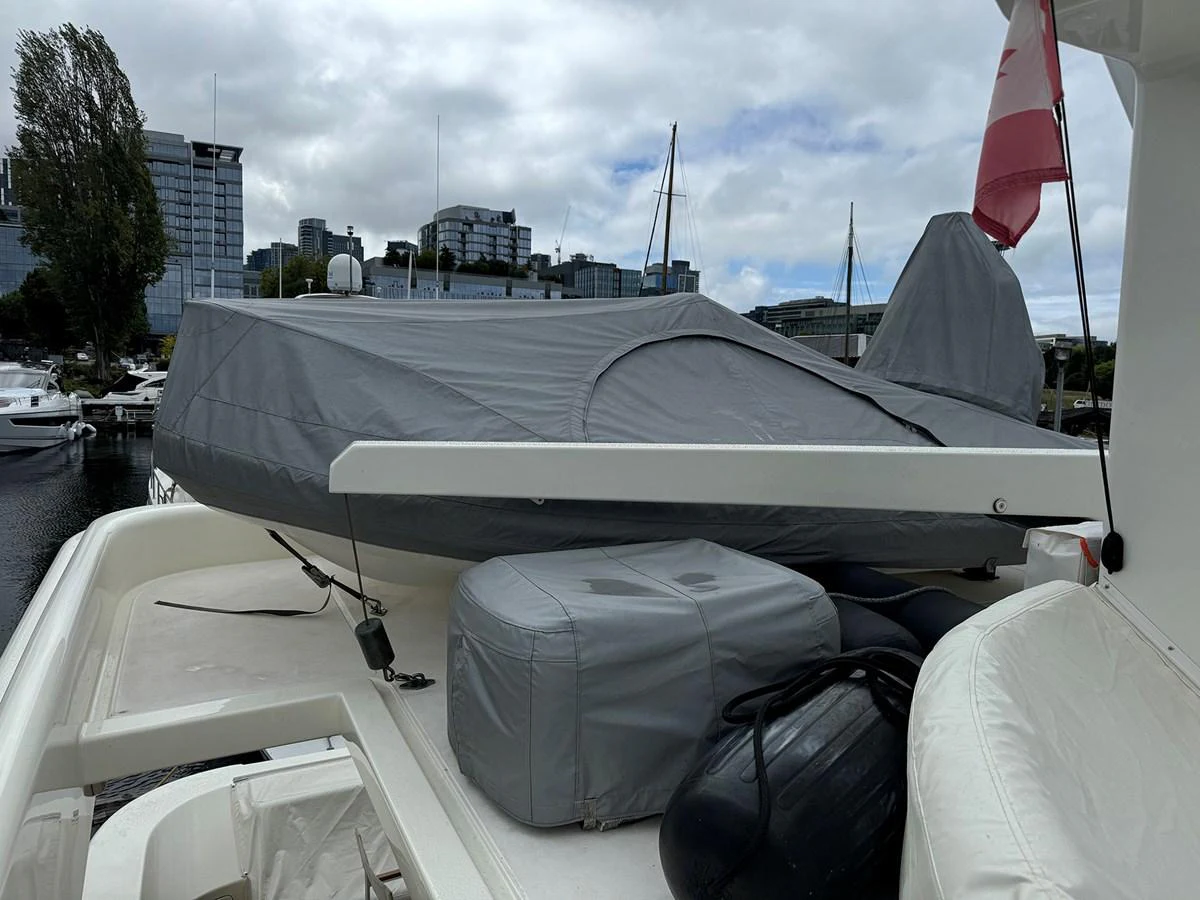

Tender
- Novurania DX 400 Deluxe 13’ 2” LOA
- Evinrude 2-stroke E-TEC
- Lightbar and remote searchlight
- Icom VHF marine transceiver IC-M59
- AM/FM cassette with 6” marine speakers
- Humminbird fish finder
- Gray Stamoid cover

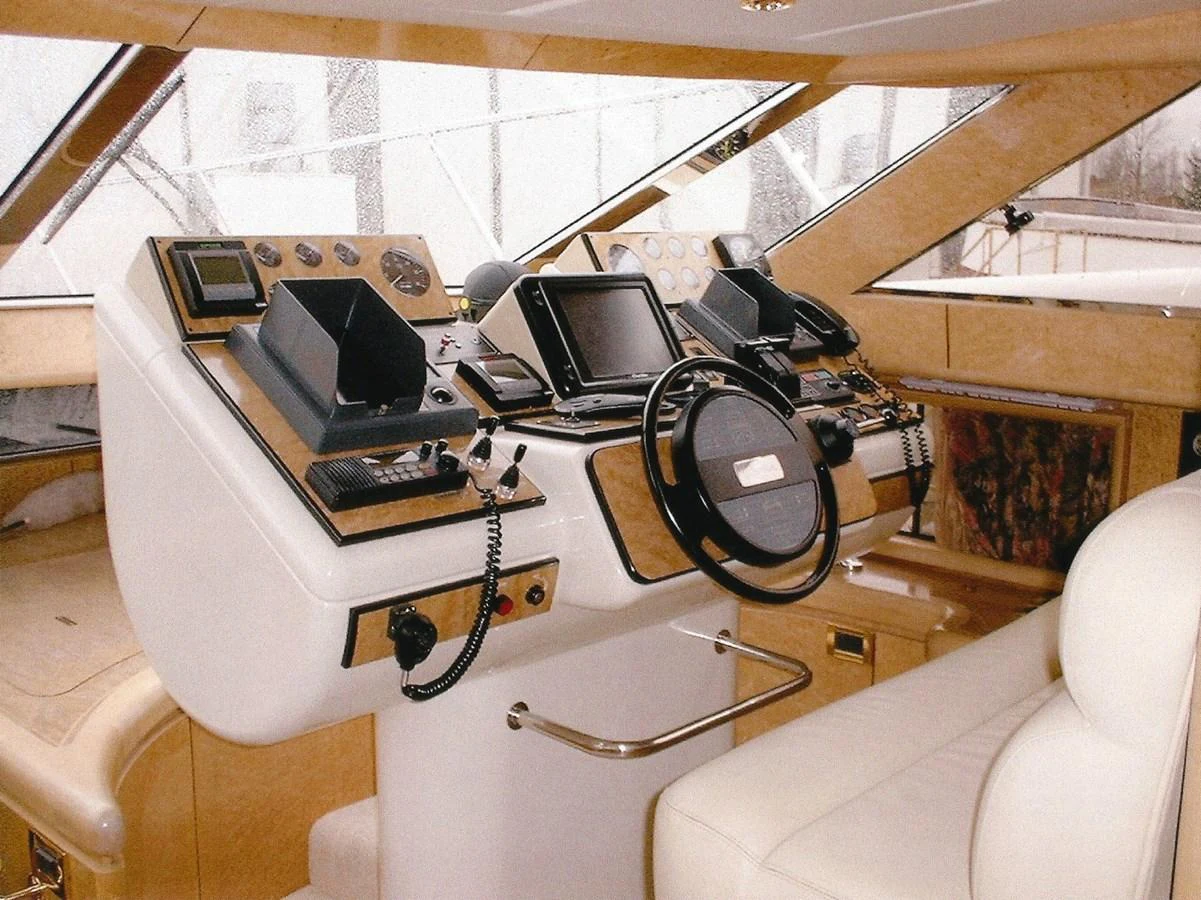

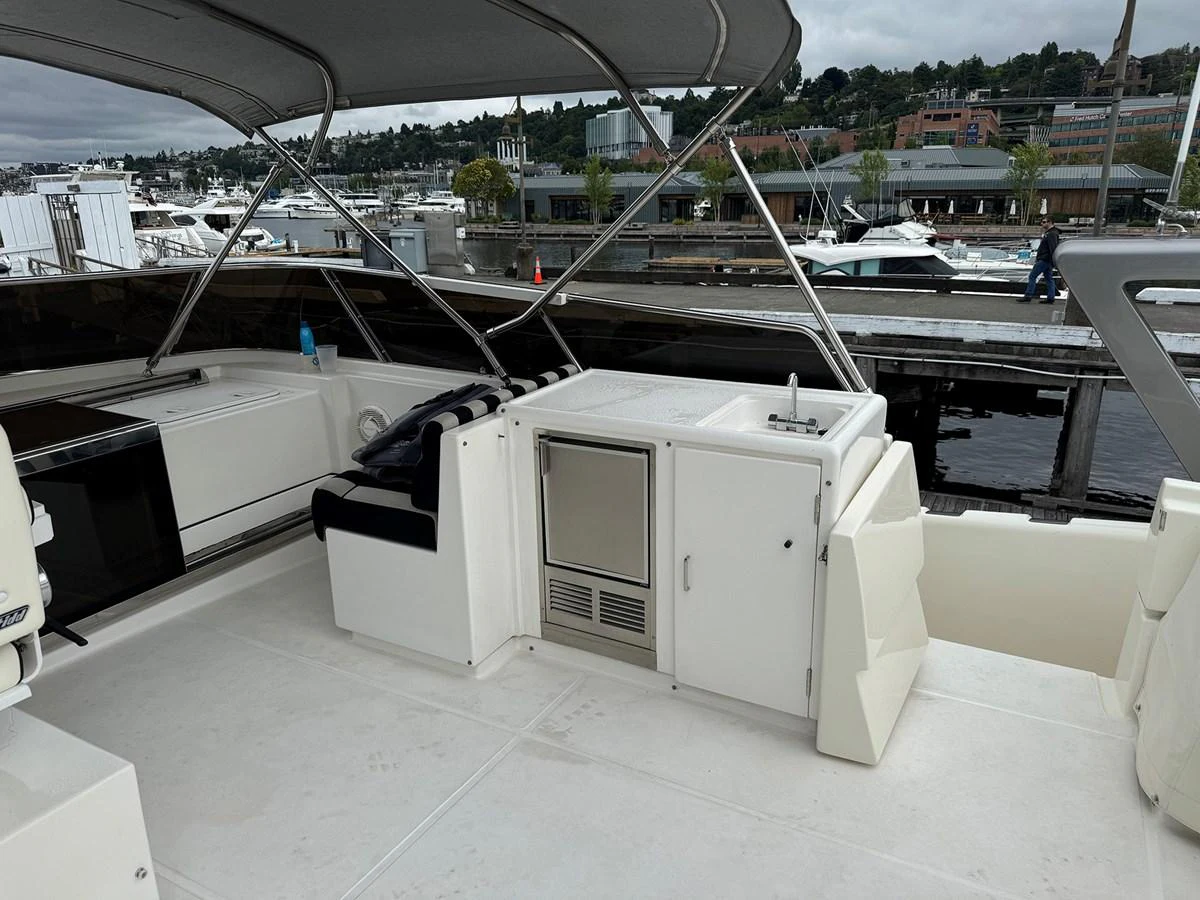

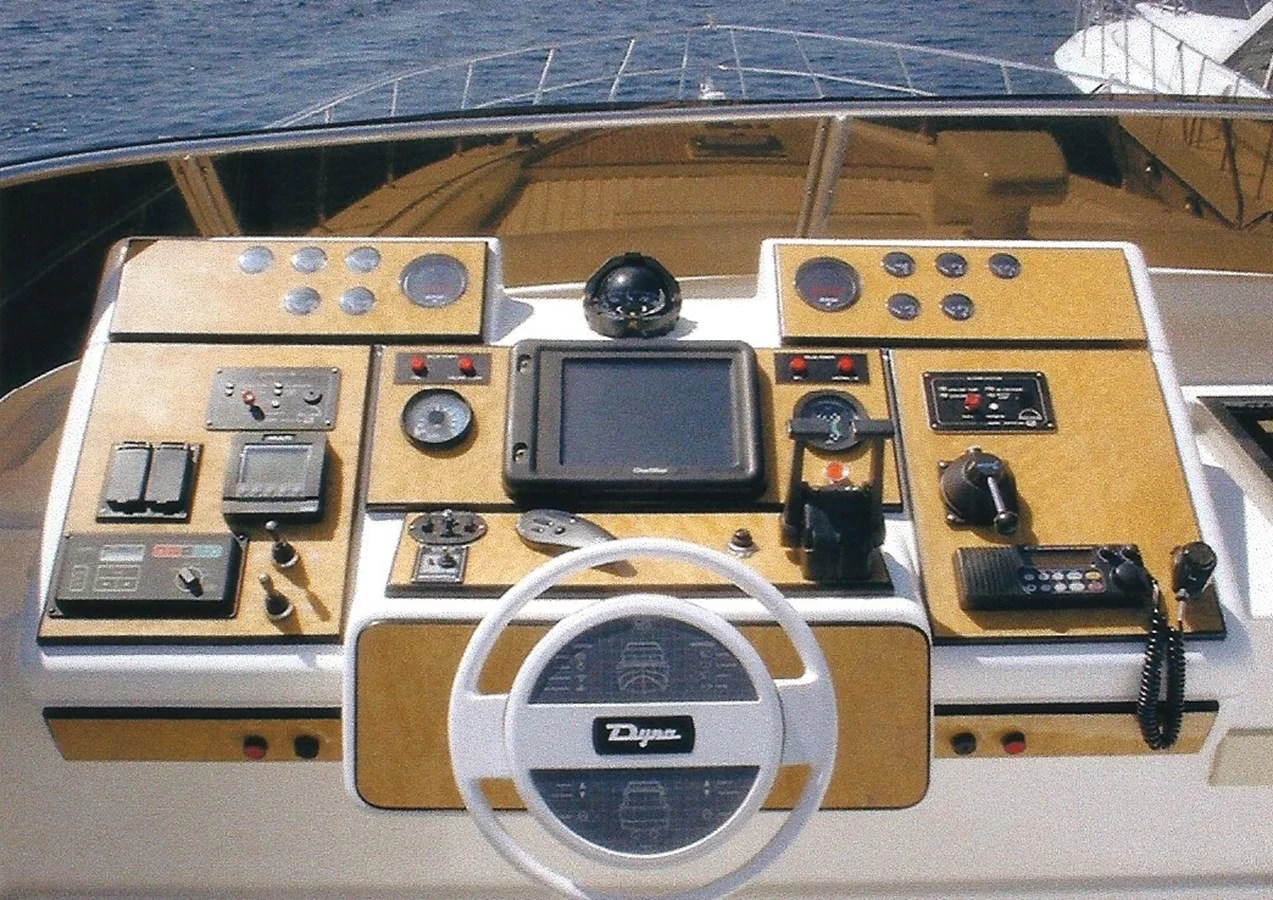

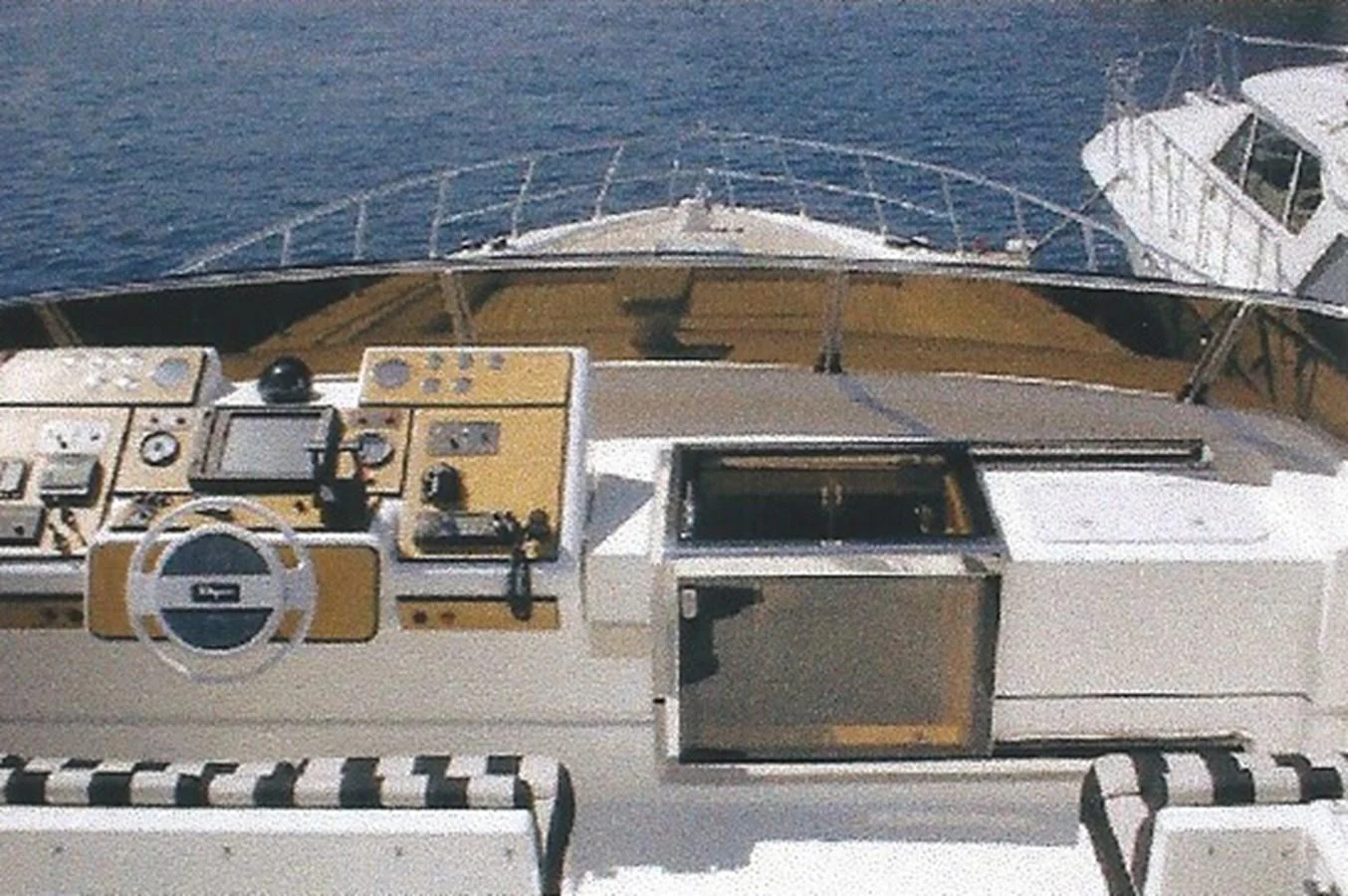

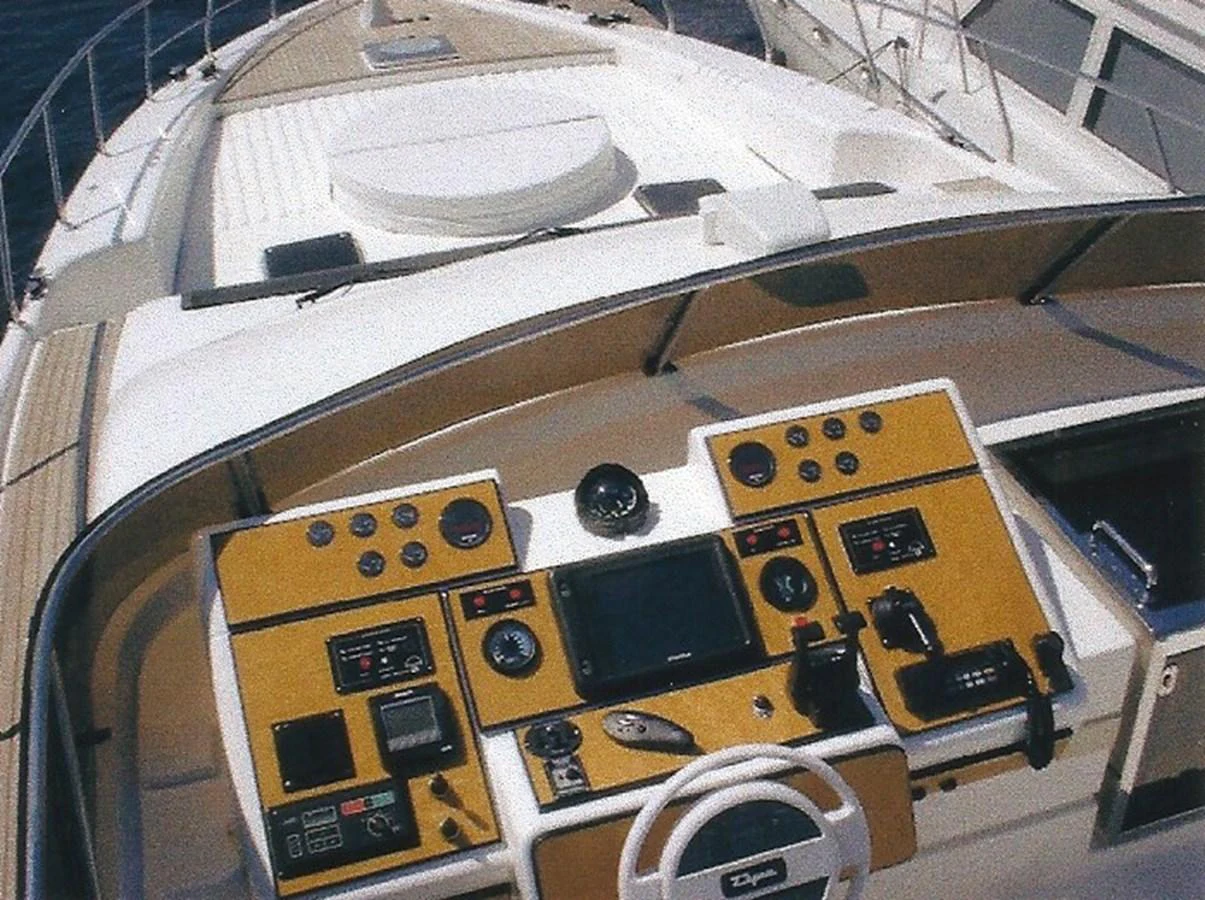

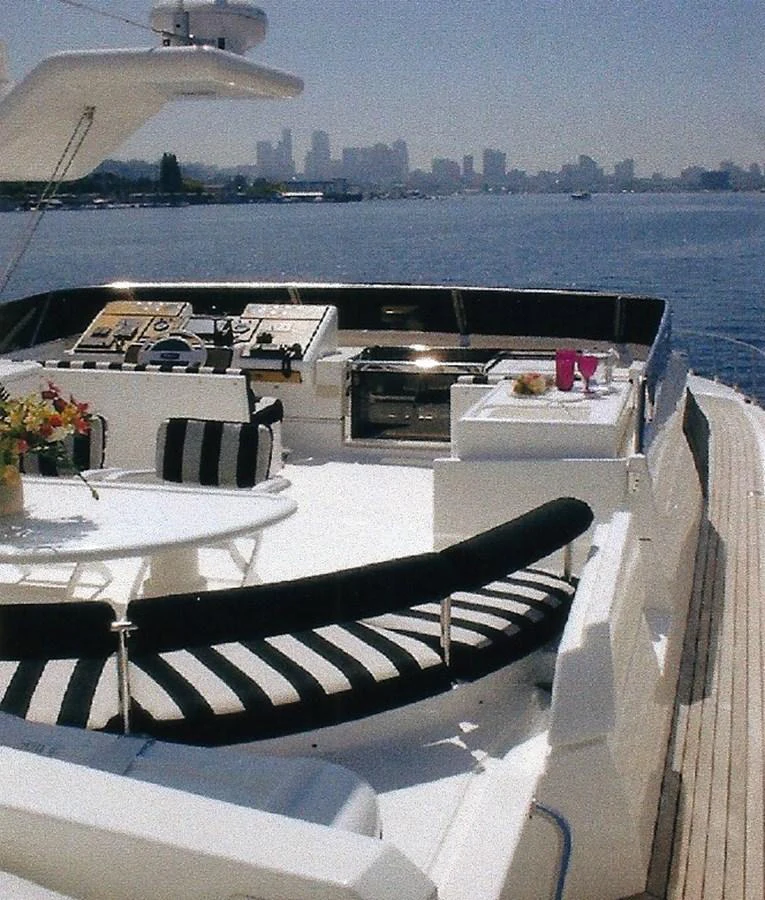

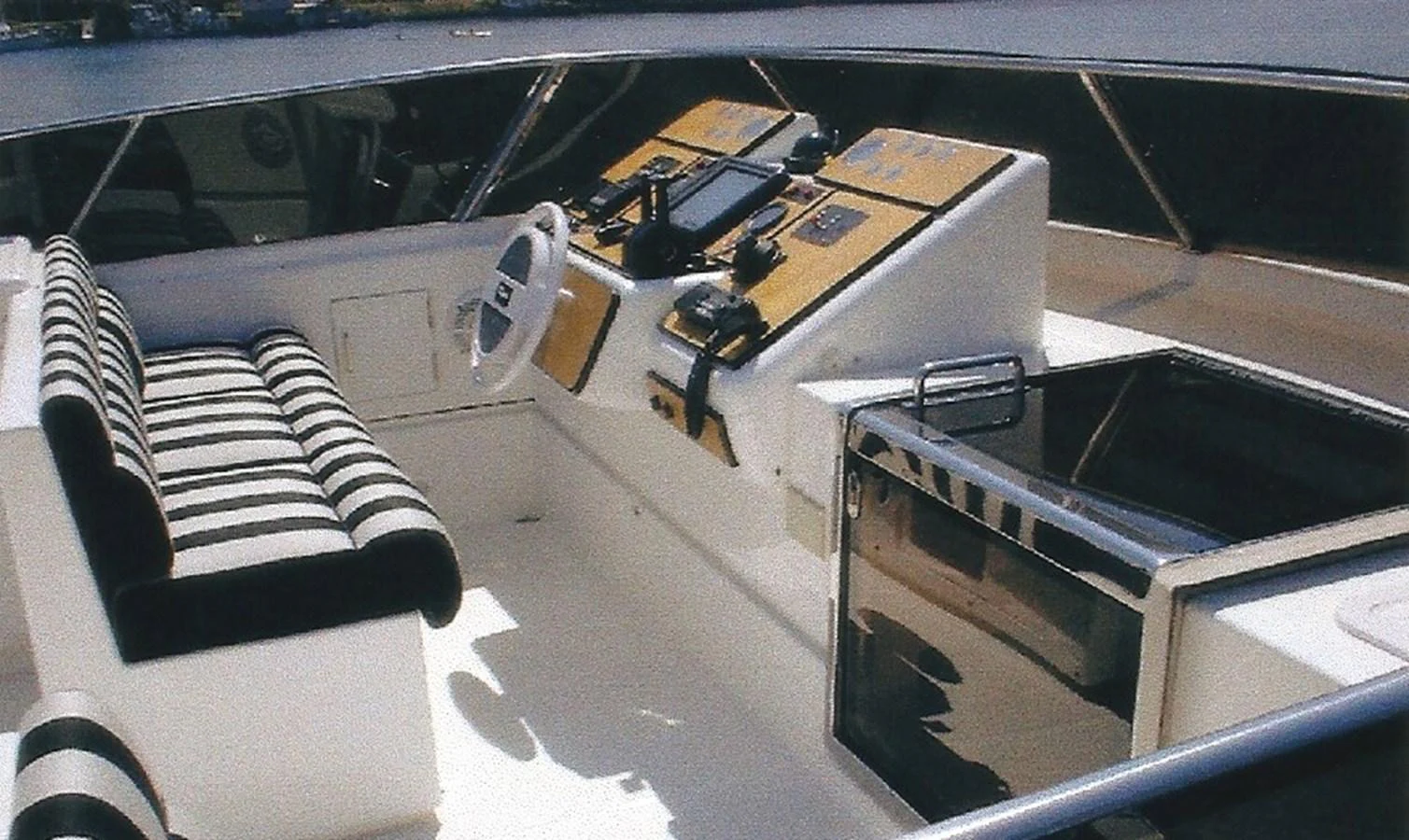

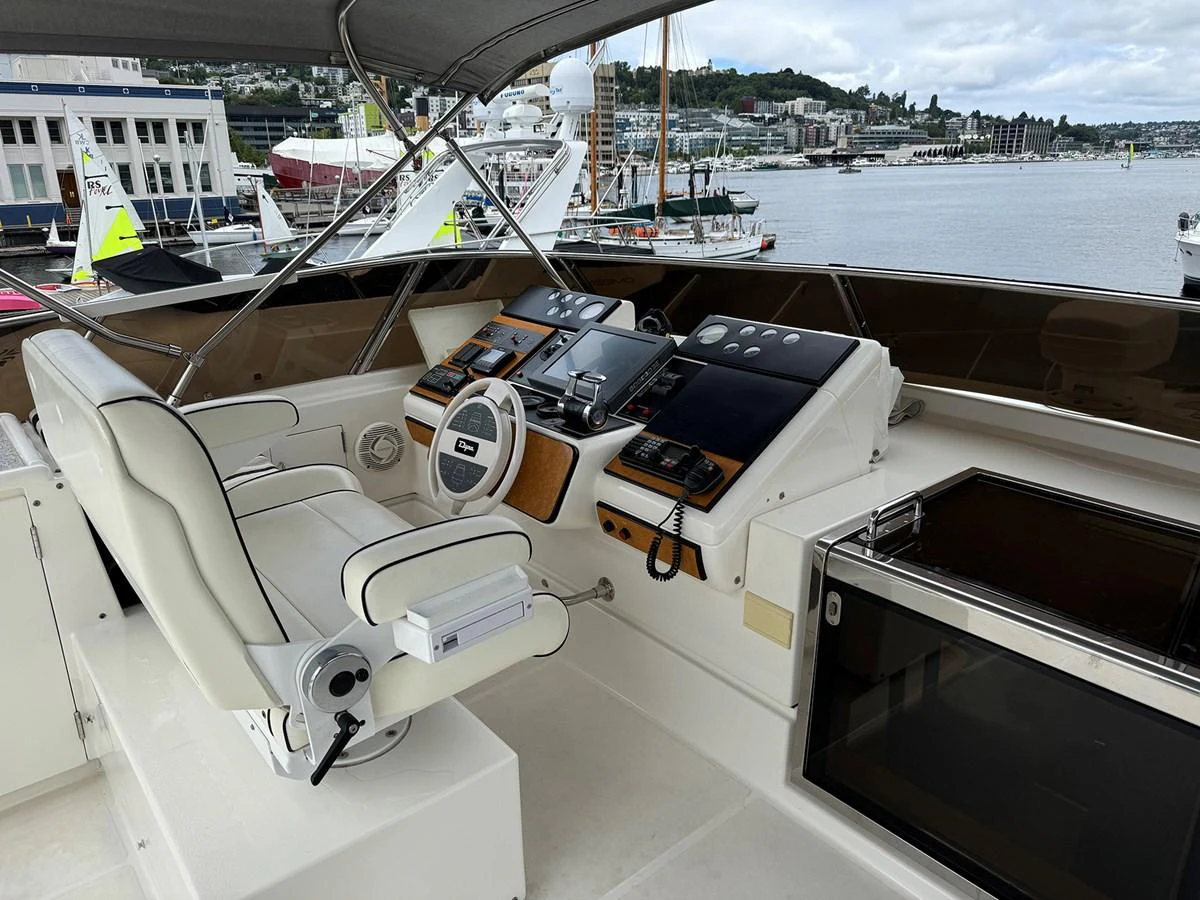

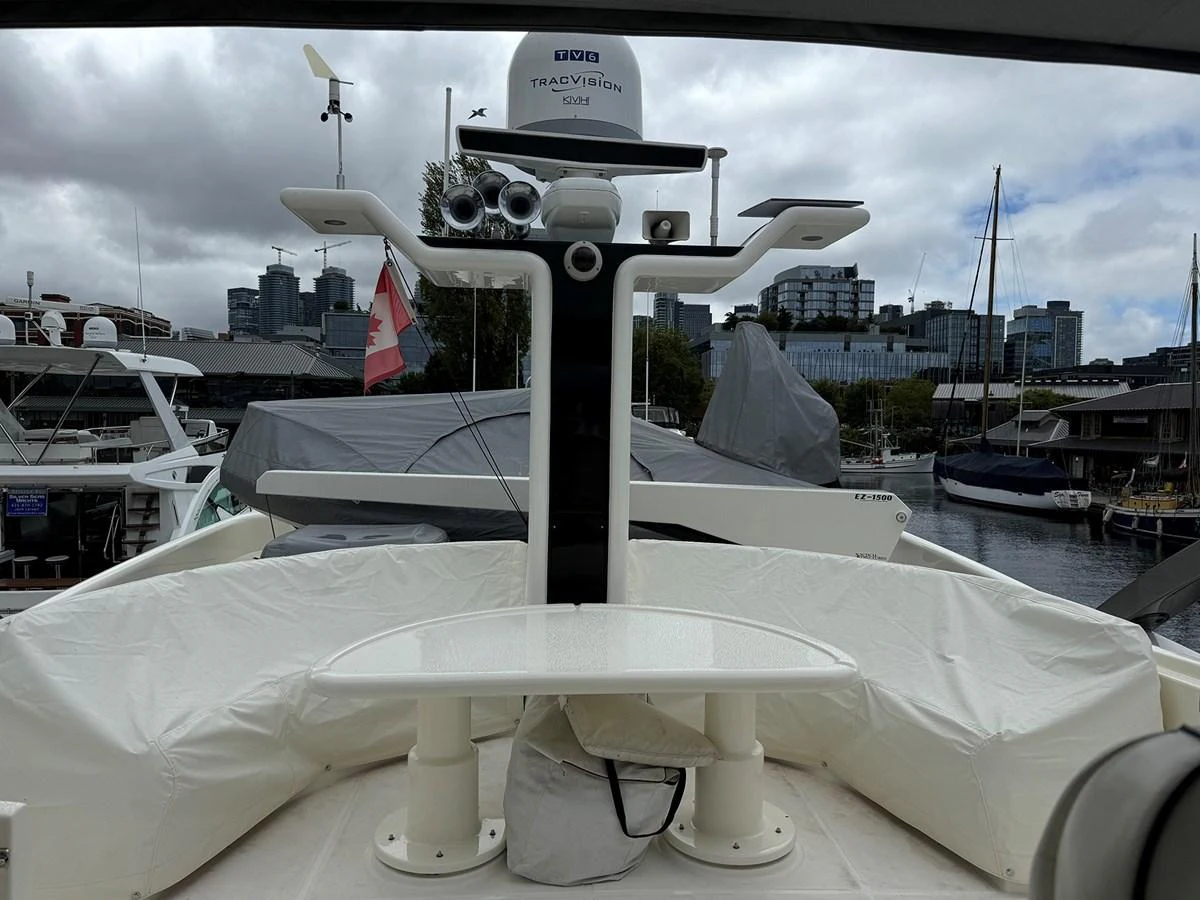

Flybridge & Second Helm
- Nautical structures 1500 lb davit and 13’ Novurania RIB dinghy

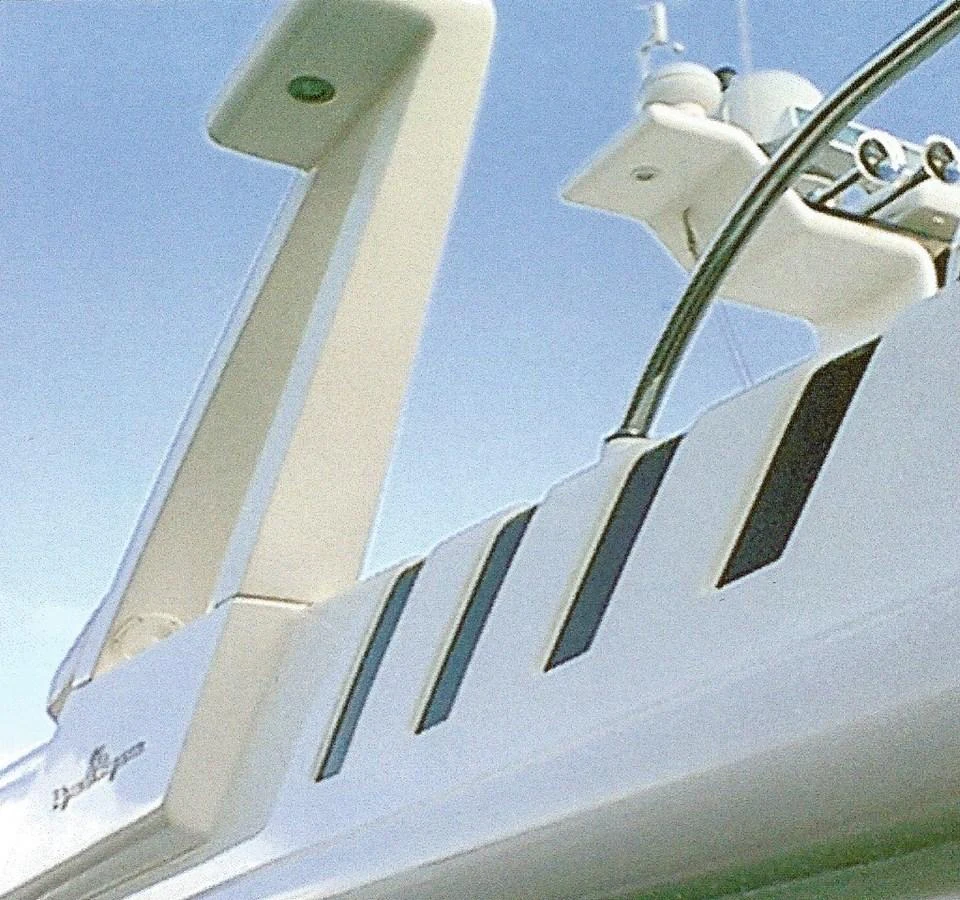

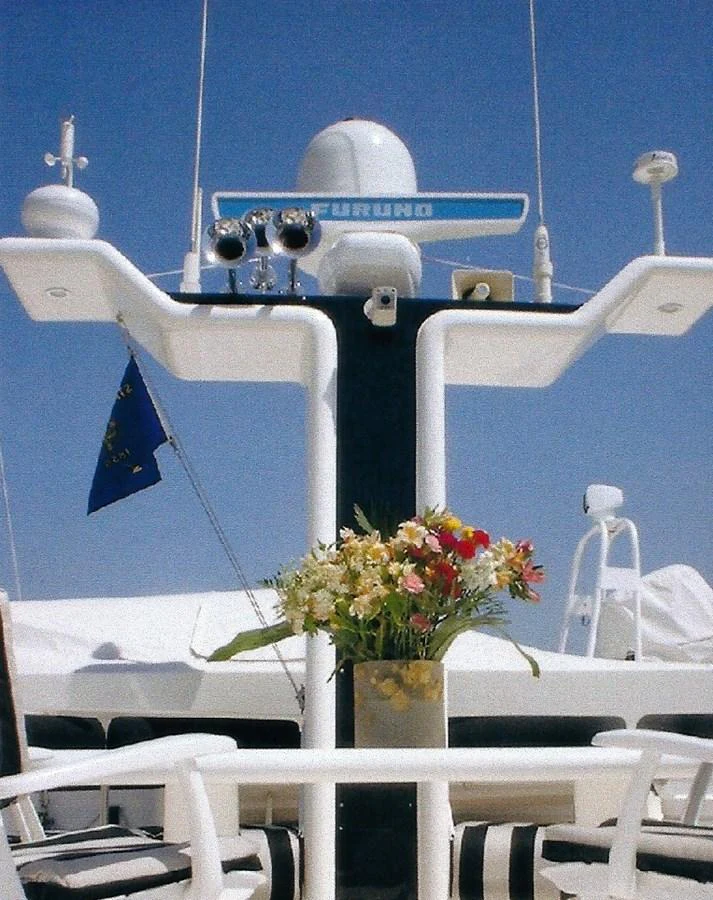

- 2 half-arches & center radar mast w/ lights and 2 speakers connected to salon stereo
- KVH Tracvision II TV dish
- Northstar DGPS antenna
- WaveTalk satellite telephone communication antenna
- Beull air horn cluster
- Sliding access hatch w/ curved ladder to lower helm
- U-Line combo 29A wet bar w/ ice maker
- Wet bar sink
- BBQ: 240V AC

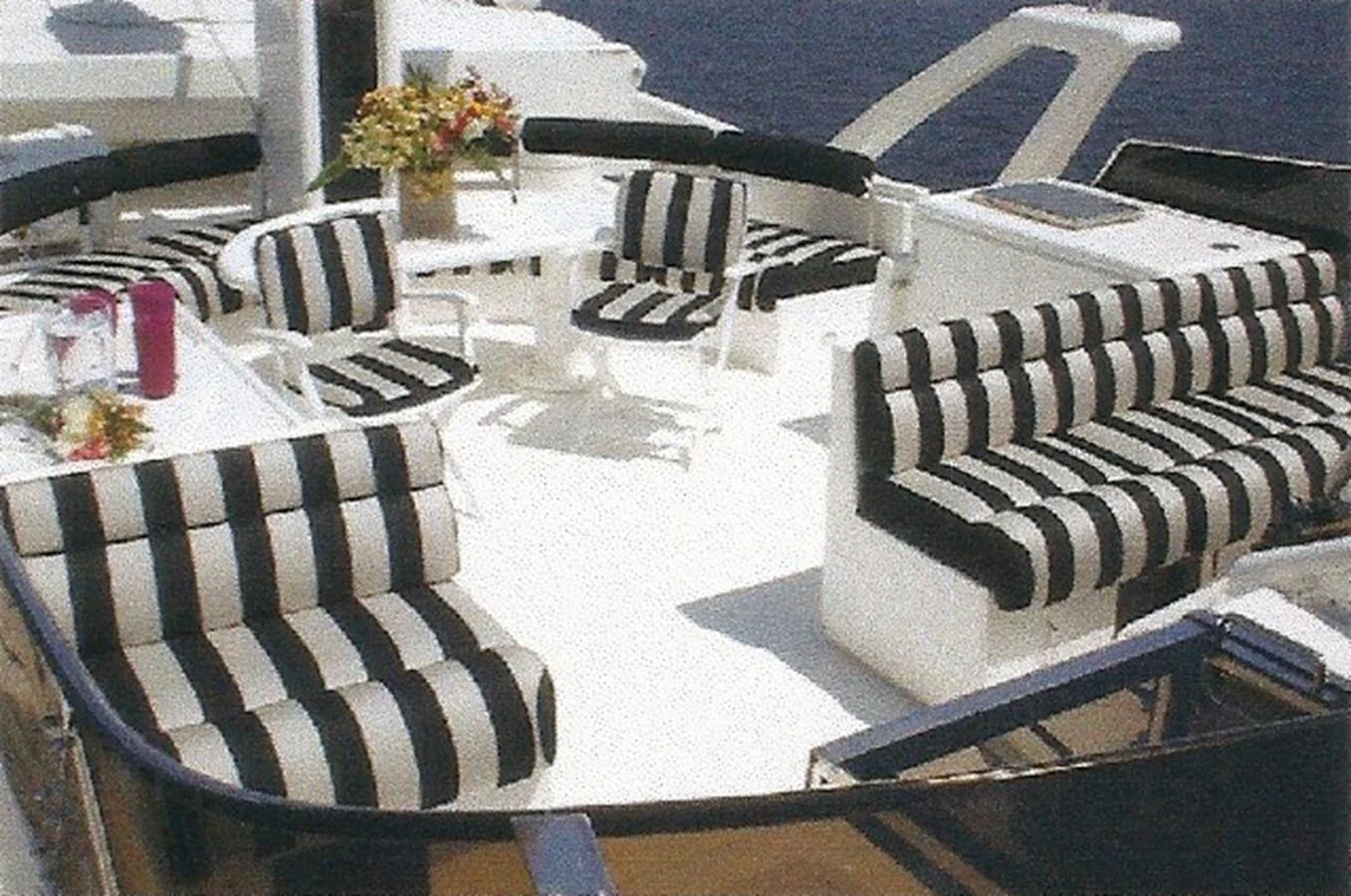

- Large oval-shaped seating w/ 2 tables
- Helm seats for 4 persons
- 316 stainless steel handrail w/ acrylic windshield
- Silent Witness color CCD surveillance camera
- FRP instruments console w/ cover for the instruments
- Complete Stamoid gray/white coverings
- Start/stop engine control (dual stations)
- Marine horn
- Micro Commander engine control systems (dual stations)
- Engine RPM guages (dual stations)
- Engine cooling water temperature guages (dual stations)
- Engine oil pressure guages (dual stations)
- Remote windlass control (dual stations)
- Bow thruster control (dual stations)
- Speed meter
- Hynautic hydraulic power steering (dual stations)
- Plastimo compass (dual stations)
- Eelecompass
- VDO rudder indicator (dual stations)
- Trim tab indicator (ITIM Australia) (dual stations)
- Trim tab controls
- Search light w/ control (dual stations)
- Marine horn w/ control (dual stations)
- Audible and visual engine alarm (dual stations)
- Depth sounder + speed log (Tridata ST50) (dual stations)
- Autopilot (Autohelm) (dual stations)
- VHF radio (GME) (dual stations)
- Watertight intercom
- Sony telephone/intercom/pbx handset
- Storage hatch added
- Access hatch to lower helm

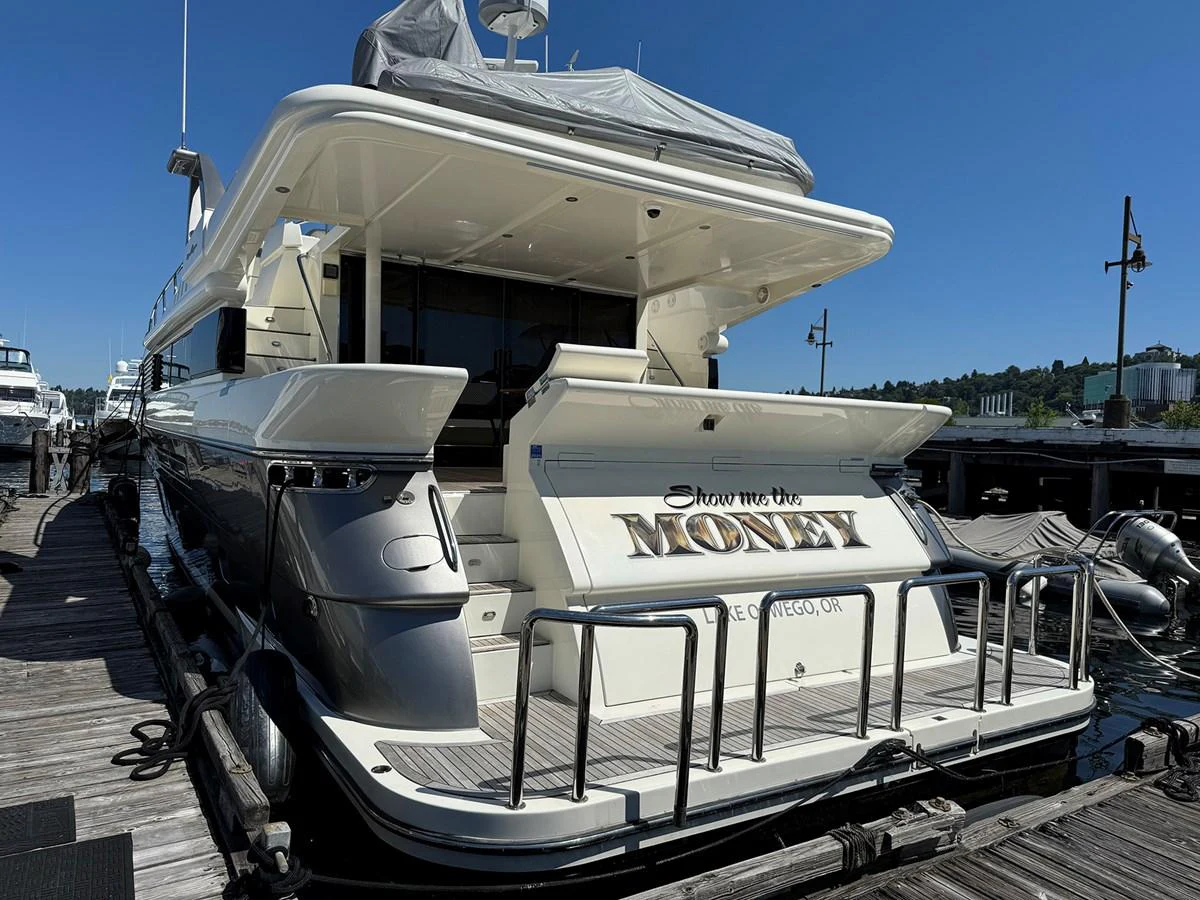

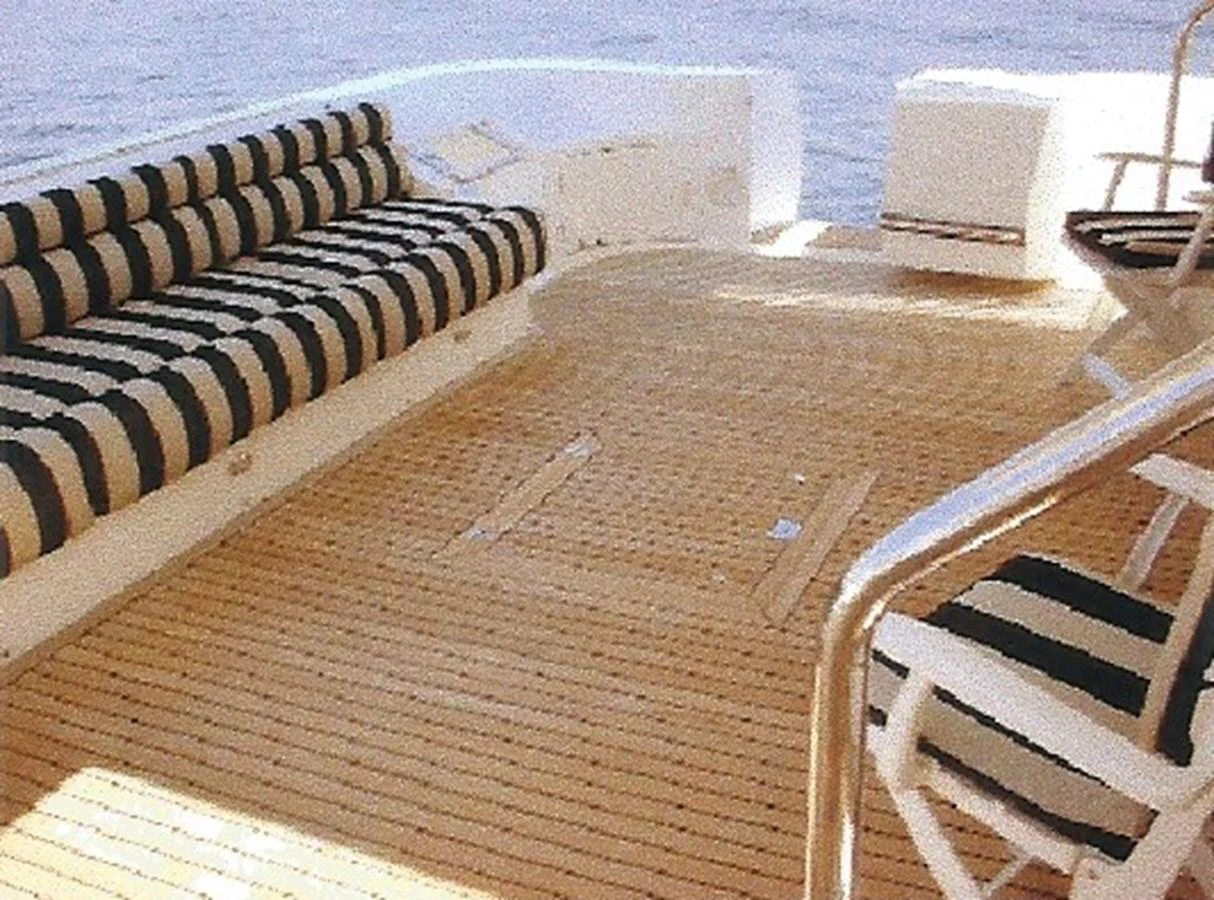

Aft Deck
- Aft deck FRP seat/cushions
- Stern rope rollers
- Transom shower (hot & cold)
- Escape hatch from aft cabin
- FRP steps to side deck with handrails at both sides
- Cockpit seating lighting
- 2 speakers connected from salon stereo
- Strategically placed step & deck lighting
- Cockpit lockers
- Lockers containing manual bilge pump with valve chest
- Lockers containing shore power inlet
- Safety door to swimming platform
- Small transom locker for inspection access
Interior
- Solid wood trimming on berth platforms
- Imported designer door hardware
- Carpet throughout
- All head & galley floors in teak & holly
- Corian countertops in all heads
- Fully air conditioned or heated, digital systems

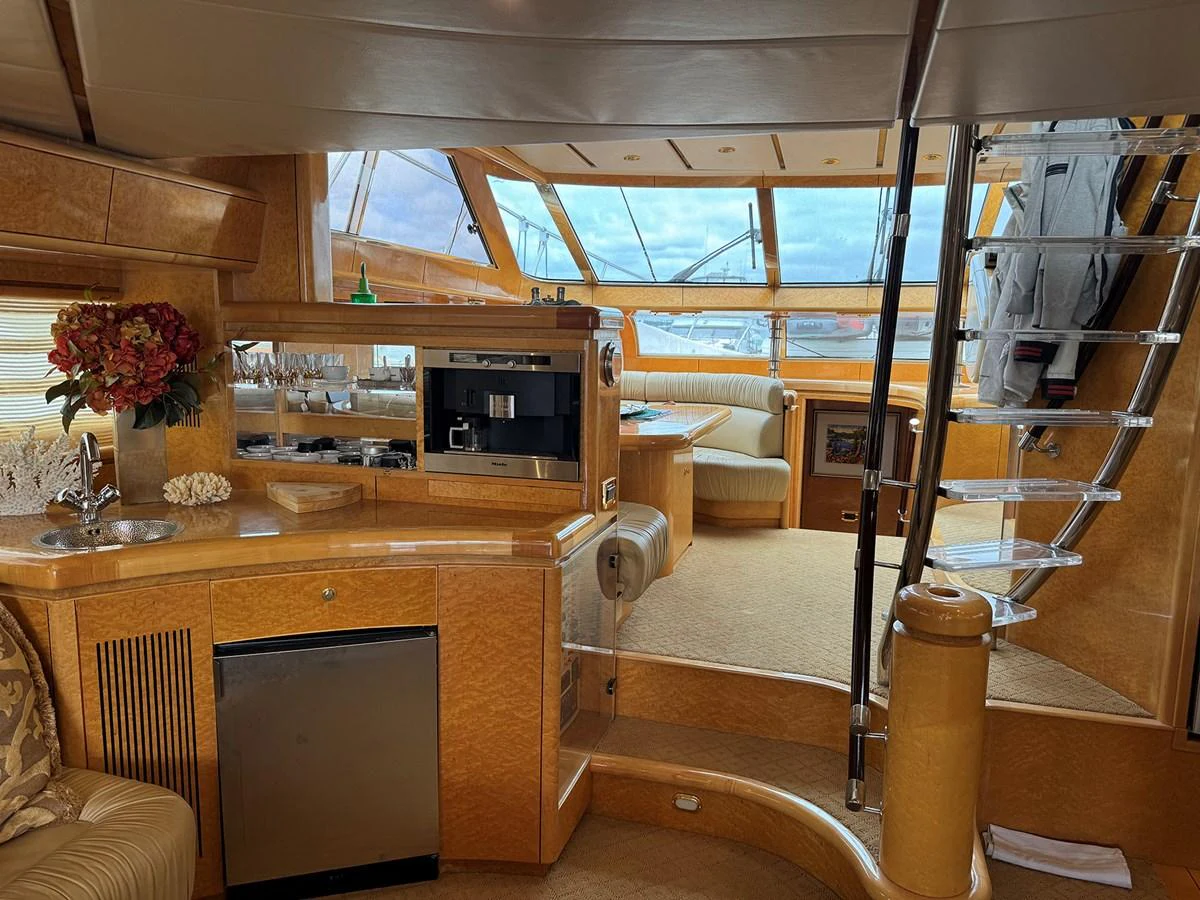

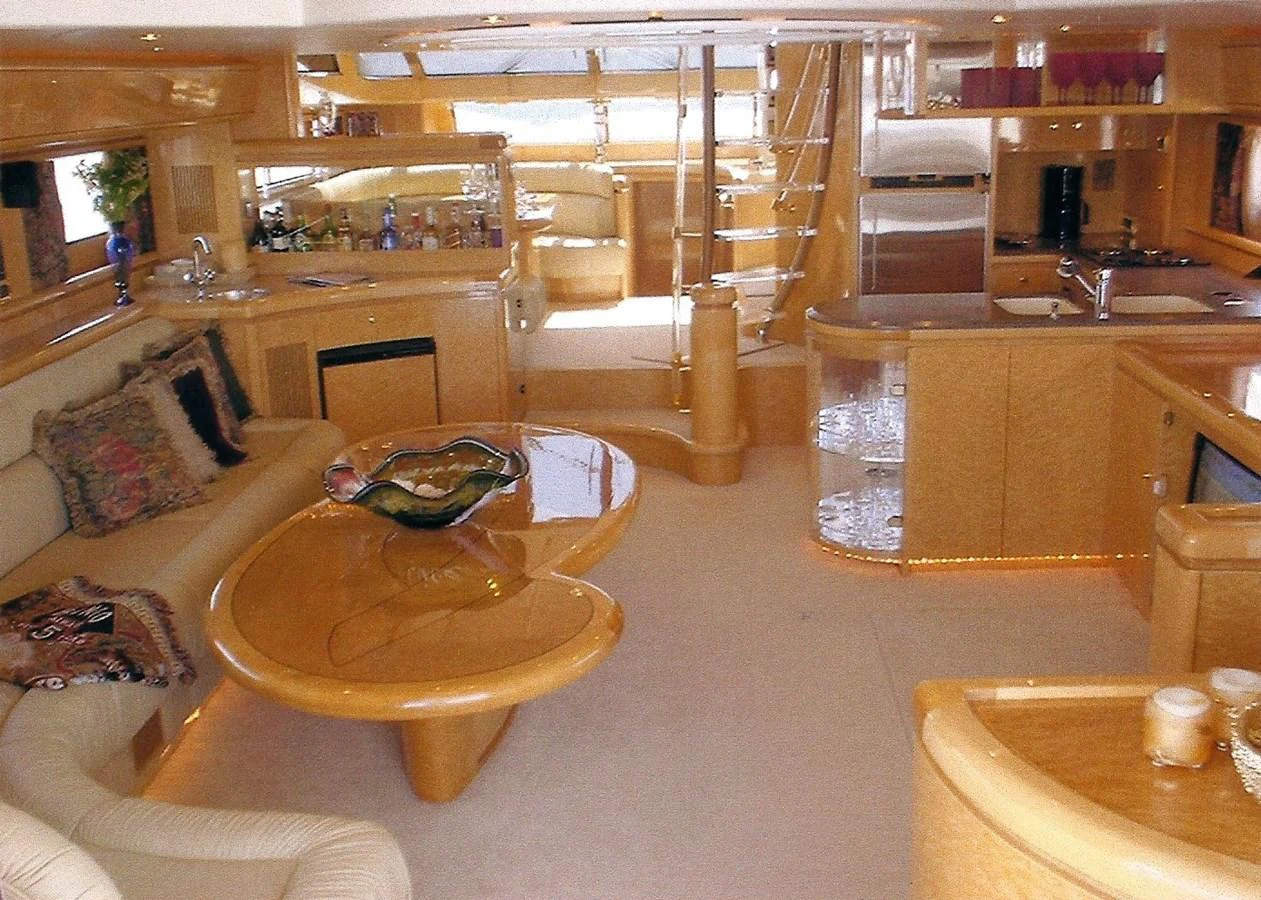

Salon
- Stainless steel frame door to aft deck
- Halogen ceiling lighting built-ins
- Overhead in synthetic leather
- Round mirror in the middle of ceiling
- Large stainless steel framed opening windows
- Curtains or drapes to all windows and doors
- Electrical sockets
- Carpet
- Floor access to engine room
- Large circular stairs 28” access down to aft cabin
- Access stairs to lower deck with lighted steps
- CruiseAir SMX II cabin air control X 3
- Webasto cabin heat control
- Intercom

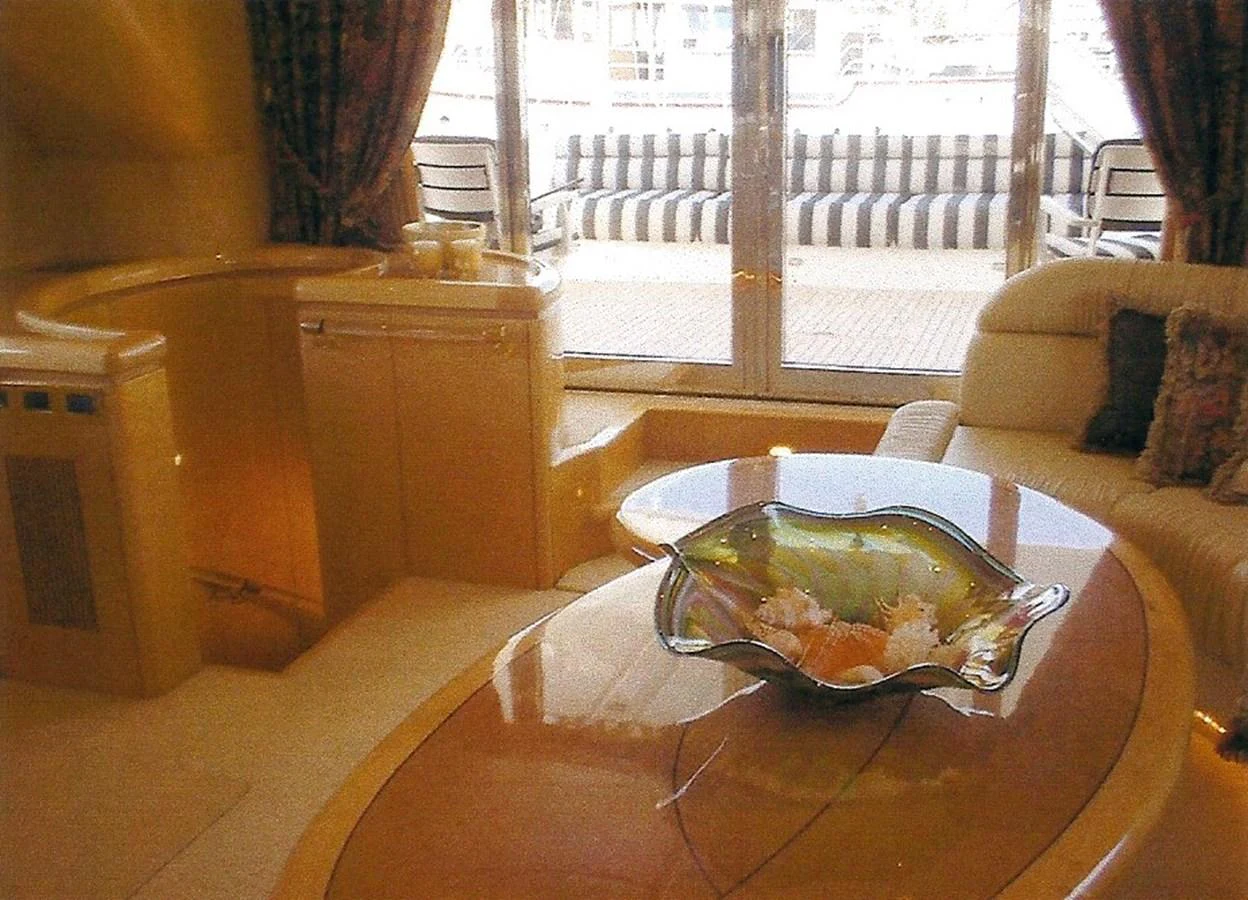

- L-shaped leather sofa with coffee table
- Concealed lighting under sofa and around overhead mirror
- L-shaped settee w/ coffee table

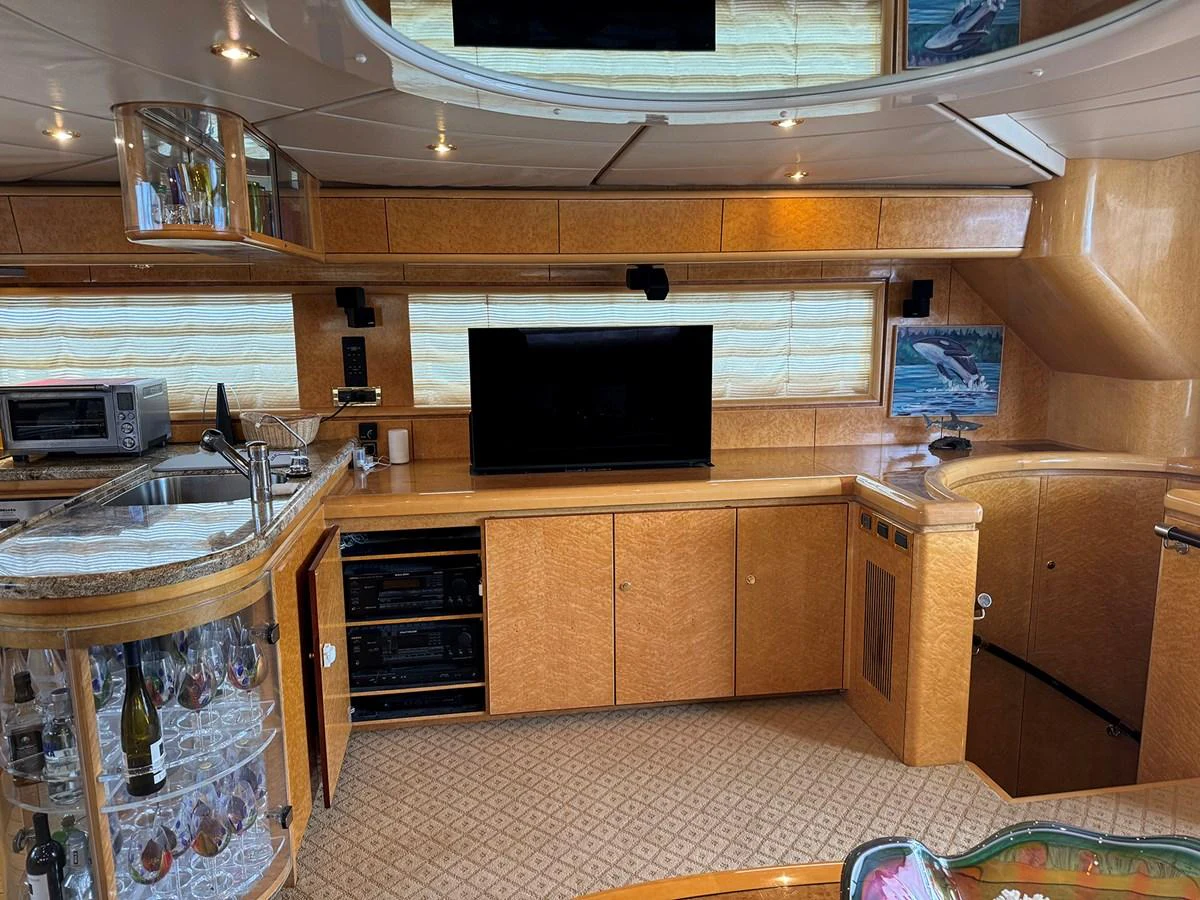

- Entertainment cabinet w/ wiring
- Samsung 40” color television
- Bose stereo CD & surround sound speaker system
- Denon audio/video switcher/amp X 2
- Salon & dinette tables in intricate inlaid wood design

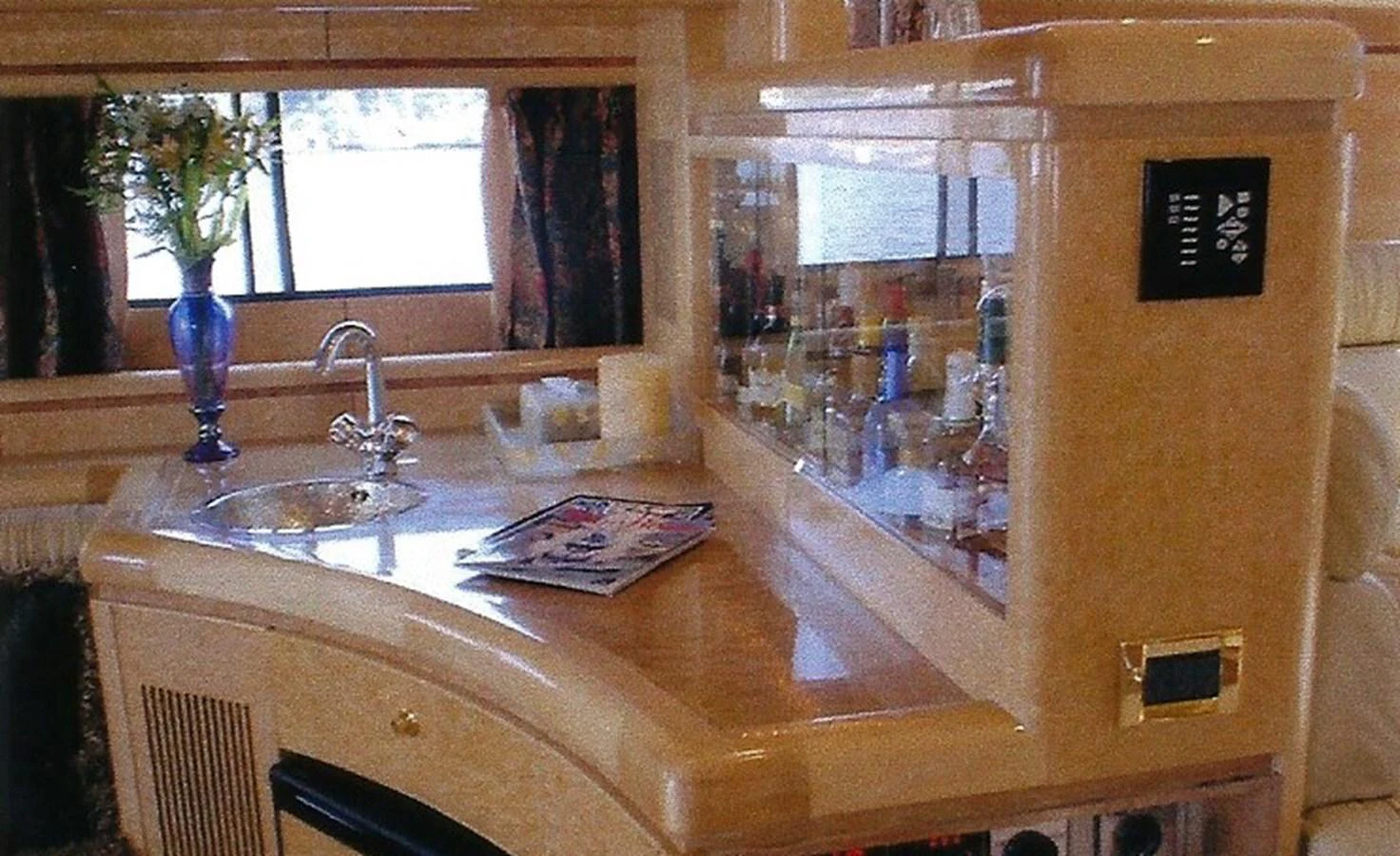

- L-shaped wet bar w/ ice maker & refrigerator (U-Line)
- Acrylic mirrors inside liquor cabinet
- Niles Intelepad audio control aft deck / flybridge

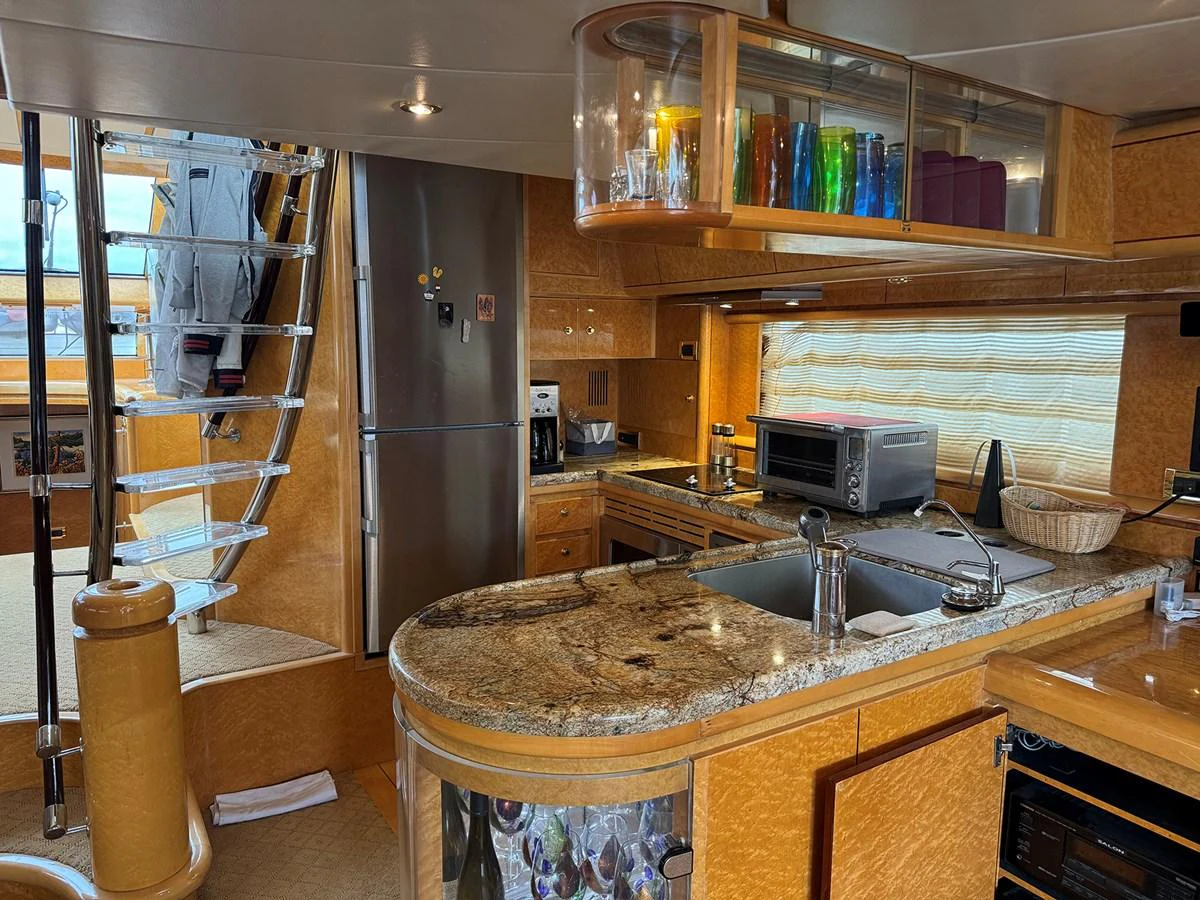

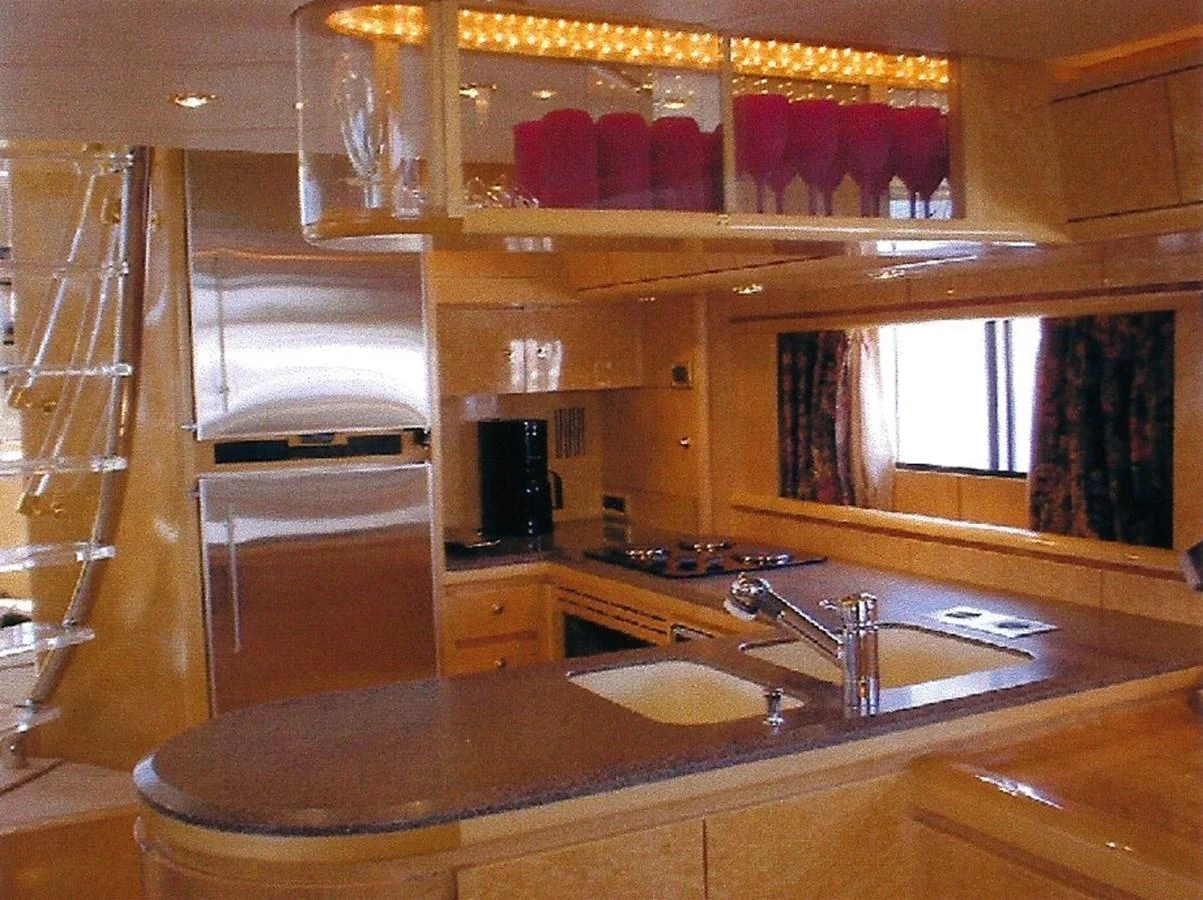

Galley
- Ceiling lights
- Electrical sockets
- Teak & holly flooring
- Refrigerator/freezer combo, stainless steel
- Countertop: Custom granite
- Sink: Large stainless steel w/ hot & cold mixer faucet
- Nutone counter flush blender
- Kenyon Eurostyle 3-burner cook top with Miele exhaust fan/filter
- Convection oven: Wolf
- Microwave oven: Wolf
- Miele dishwasher
- Trash compactor: Broan
- Whirlaway disposal
- Wema fresh water level guage
- Instant hot water circ system
- Washer/dryer combo in VIP hallway
- Lockers & drawers
- Water guage at overhead cabinet
- U-Line ice maker at wet bar
Lower Helm
- Stair to flyflybridge
- Clear forward windscreen
- Vetus windshield wipers w/ water spray
- Ceiling lights & sockets
- Chart locker
- FRP instrument console with wood burl panel
- Dashboard in burl wood material
- Chart drawers
- Lower helm seat with leather
- AC/DC control panels
- Intercom
- Start/stop engines keys
- Full engine controls and navigation instruments as upper helm
- MMC engine controls
- Speed meter
- Radar 36NM (Raytheon R40XX RasterScan)
- Chart Plotter / GPS (Raytheon RC520)
- Hydraulic power steering
- AC/DC control panels
- Autohelm Sea talk speed, depth, log
- KVH Trac Vision Satellite TV receiver
- Jensen 3000 amplifier
- Autohelm ST 6000 autopilot (2 stations)
- ComNav 1001 autopilot
- Furuno 36 mile radar 10” color display
- Furuno fish finder color display
- ComNav rudder angle indicator
- Jergens jog lever steering
- Trim tab analog angle indicator
- Trim tabs control
- RDI main engine alarm panel X 2
- VDO analog engine status guages
- Wema analog fuel level guages X 3
- Water contents gauges
- Ispro exhaust temp guages X 4
- Radios transceivers: 4 total - 1 Icom 126 VHF primary marine radio transceiver & 1 Icom 126 VHF secondary marine radio transceiver
- Bow and stern thruster control joysticks
- Brite Screen LCD chart plotter display
- Maxwell windlass remote control station
- Fitch searchlight control station
- Datamarine Link multi display speed, depth, wind direction/speed
- Outback inverter remote panel
- Wema holding tank level indicator guage
- Fire Boy Halon manual discharge & status alarm for engine room
- Panda 25 kW gen set remote panel
- Elbex CCD video camera switcher
- Sony telephone / intercom / pbx handset
- Mathers engine, sync and trolling valve
- Wet ball compass Plastimo 135
- Elecompass
- E-Meter 12V bank & 24V battery bank monitor systems
- Wind speed indicator
- Northstar DGPS satellite navigation
- Datamarine speed & distance logs, depth & wind
- Hailer
- Monitors: 2X Nauticomp (15” & 12”) bright sunlight models
- Jergens jog lever steering
- 8 station PBX
- Video cameras: 3 CCD w/ Elbex switcher
- Nav computer: Ocean PC
- Printer: PC, color
- Copier/fax: Panasonic

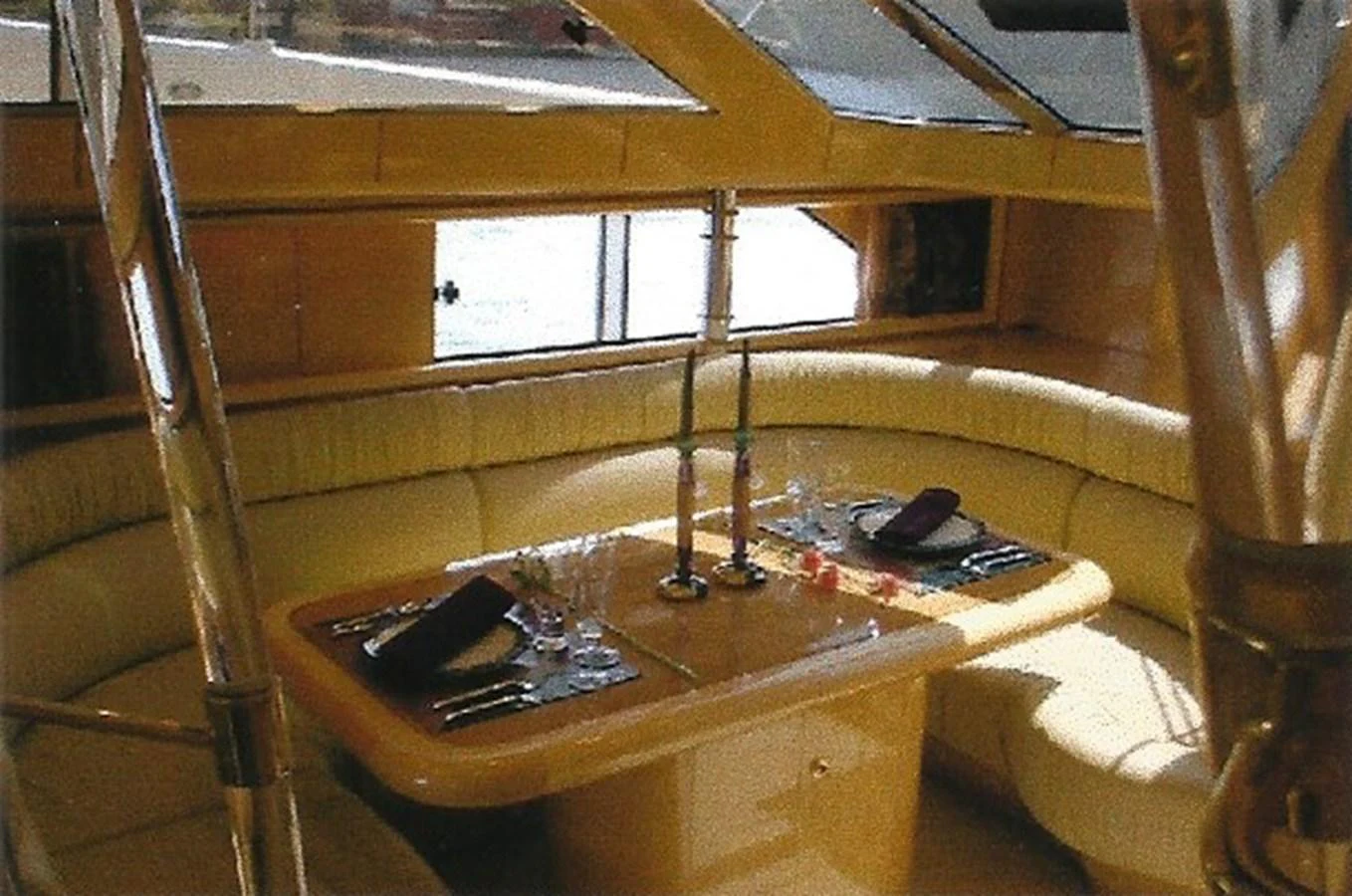

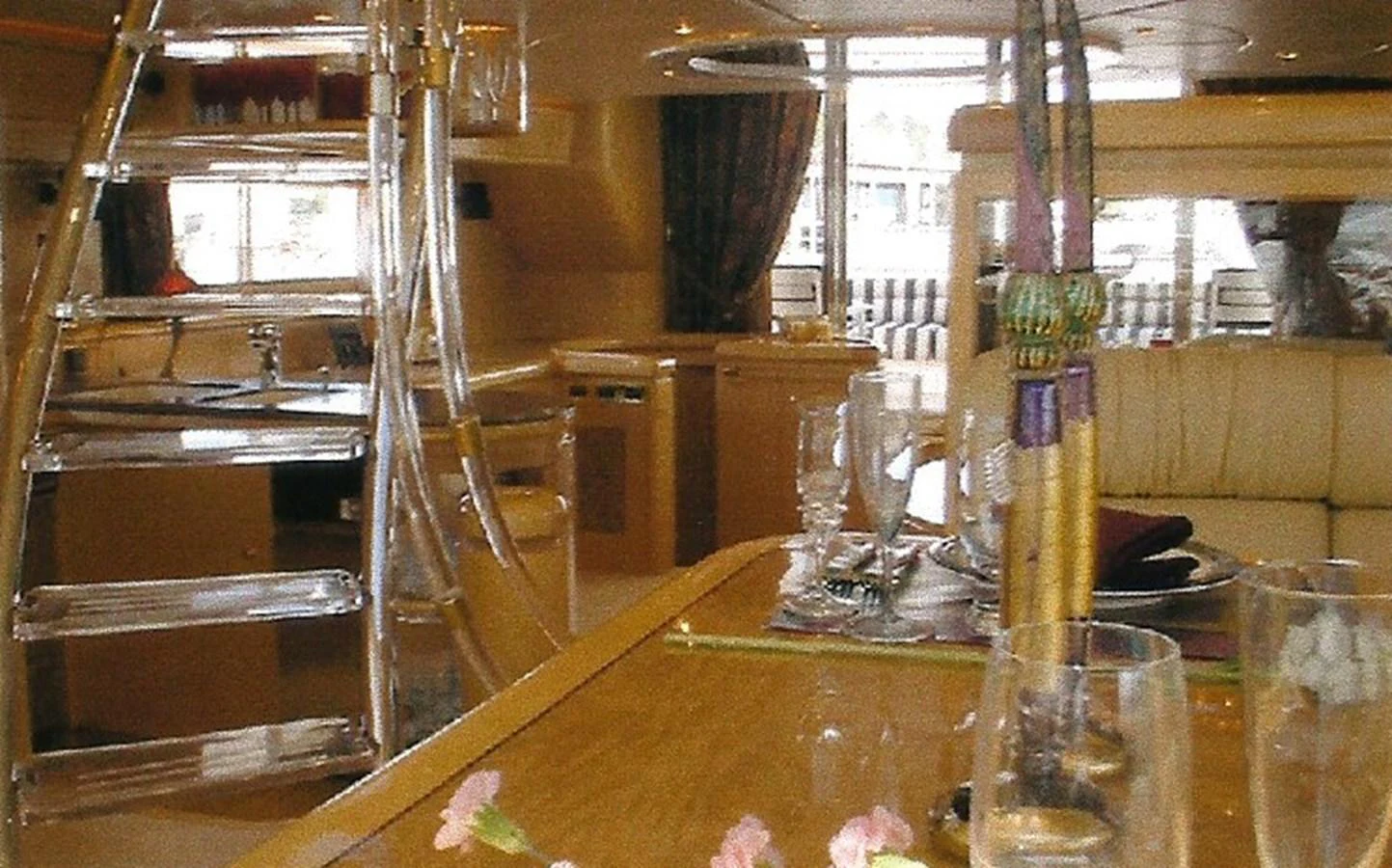

- Rectangular shaped dinette leather seating w/ dining table

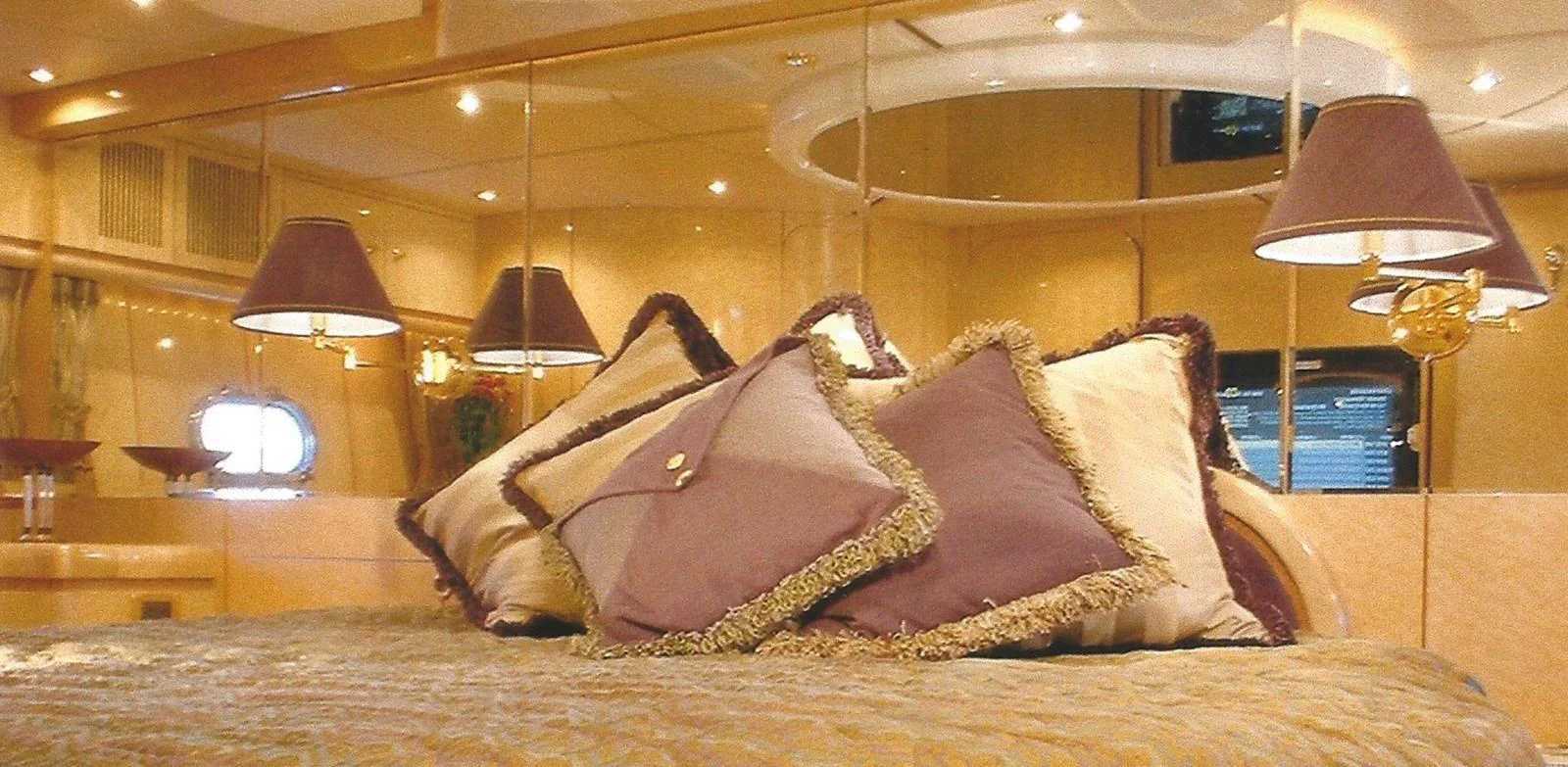

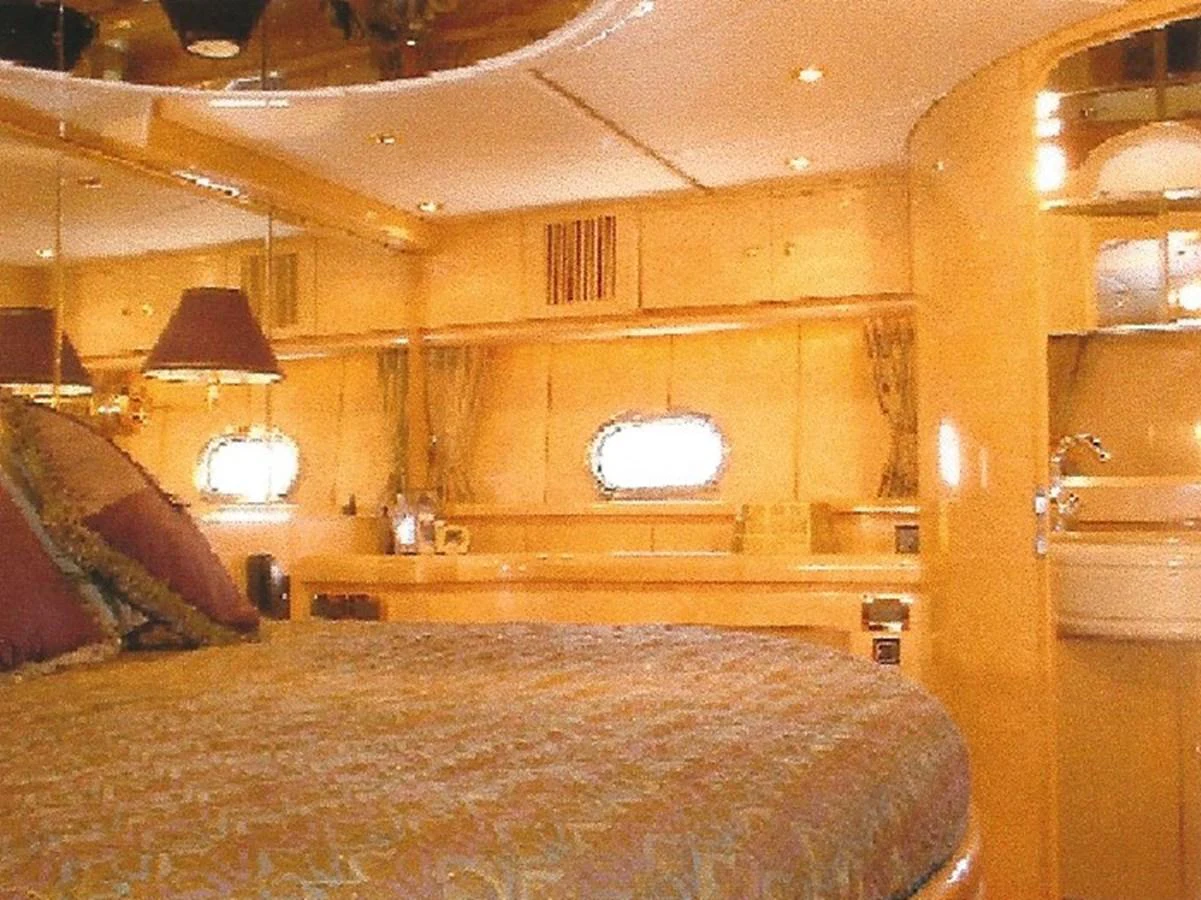

Master Stateroom
- Ceiling lights (w/ 2 separate switches) & reading lights
- 4 opening portholes
- Electrical sockets
- CruiseAir SM II cabin air control
- Webasto cabin heat control
- King size walk-around berth w/ 6” mattress & leather upholstered headboard
- L-shaped seat
- Large hanging locker (walk-in closet)
- Dressing table
- Vanity swing-out seat (1)
- Mirrors on aft cabin wall
- Safe
- Leather couch
- Samsung 40” color television
- Radio & CD player w speakers
- Datamarine Link multi display
- Vimar emergency lighting system
- Sony telephone/intercom/pbx handset
Master Head

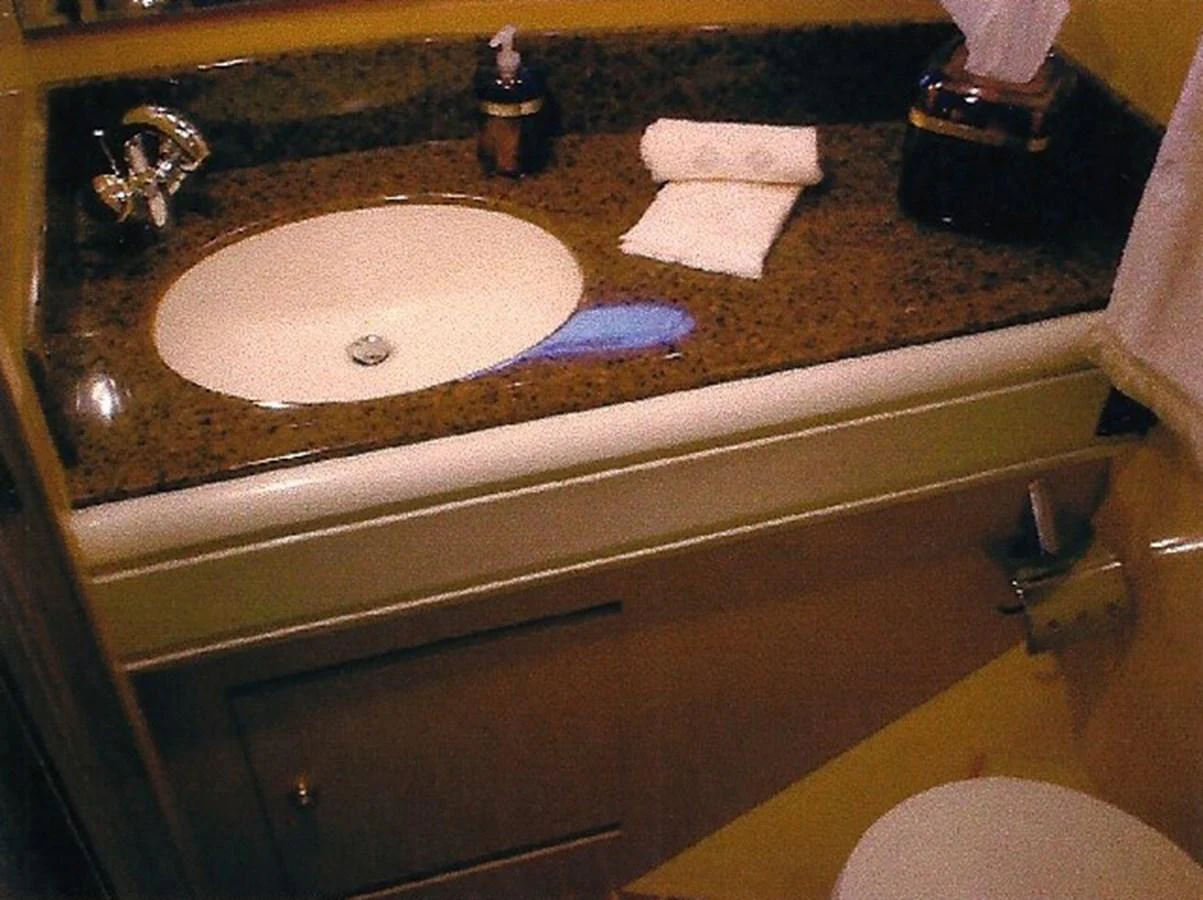

- Corian counter top w/ basin
- Instant hot water circulation system
- Jacuzzi 6 jet bathtub w/ faucet & shower
- Wood veneer for ceiling above jacuzzi tub
- Teak & holly flooring in head
Vip Stateroom (aft)
- Ceiling lights & reading lights
- 4 opening portholes
- Sockets
- CruiseAir SMX II cabin air control
- Webasto cabin heat control
- King size walk-around berth w/ mattress & leather upholstered headboard
- Walk-in closet
- Lighted vanity table
- Vanity swing-out seat
- Dressing table
- Mirror on mid-cabin wall
- TV cabinet w/ door & pre-wired for TV
- Concealed washer/dryer under TV cabinet w/ opening door in corridor
- Engine room access door in corridor with sound insulation
- Samsung 40” color television
- Sony radio & CD player w speakers
- Pioneer AM/FM/Cassette
- Sony telephone/intercom/pbx handset
- Escape hatch to aft deck
VIP Head
- Teak and holly flooring
- Toilet - Sealand Dometic VacuFlush
- Corian counter top w/ basin
- Jacuzzi bathtub w/ faucet & shower

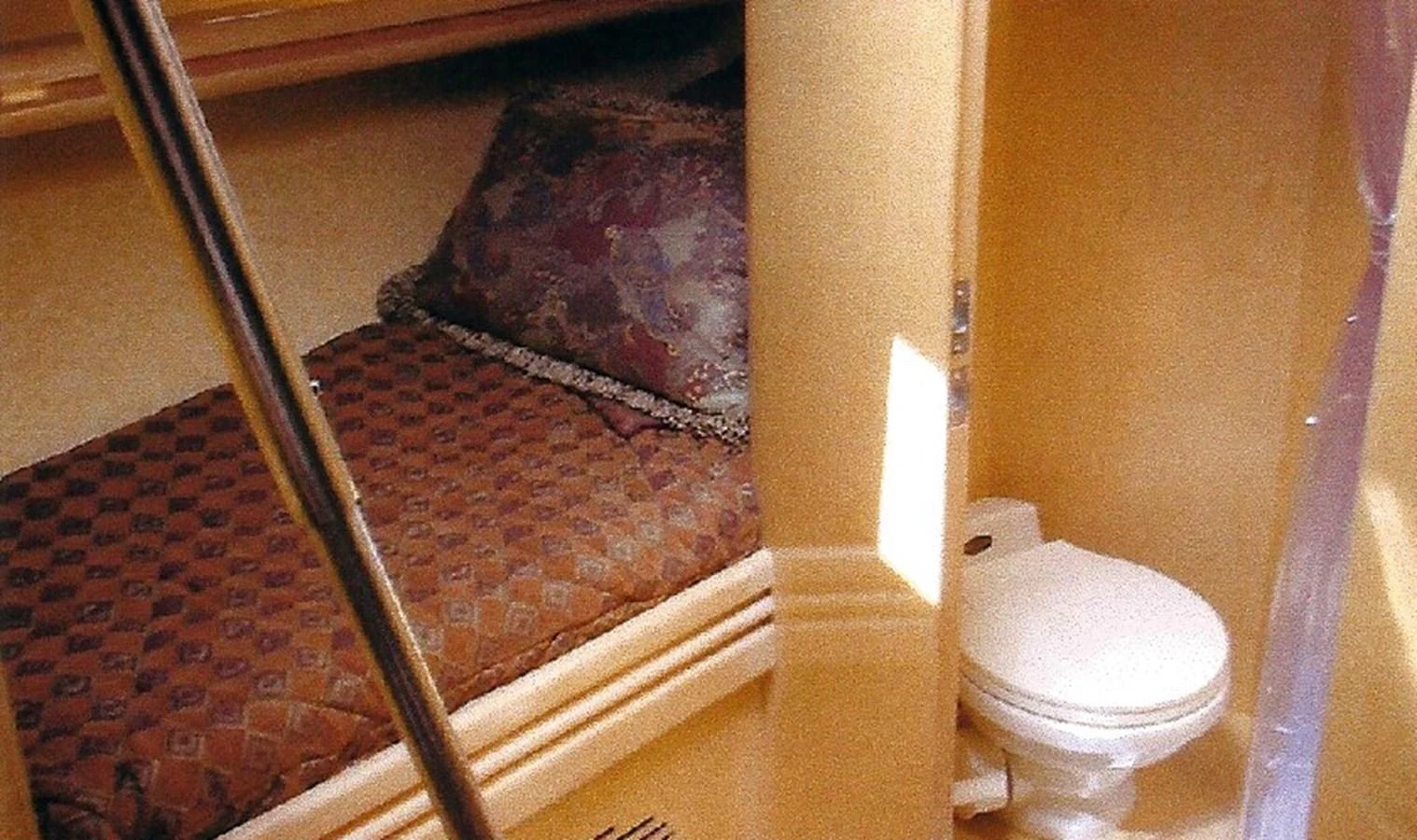

Port & Starboard Cabins & Heads
- Ceiling lights
- Reading lights
- Opening portholes
- Electrical sockets
- CruiseAir SMX II cabin air control
- Webasto cabin heat control
- Twin single berths w/ mattresses & drawers underneath
- Hanging lockers w/ lights
- Vanity swing-out seats
- Sony telephone/intercom/pbx handset
- Sony radio & CD player w/ speakers
- Pioneer AM/FM/Cassette
- Teak & holly flooring in head
- Shower & VacuFlush toilet (Sealand)
- Separate shower stalls in both guest staterooms
- Corian countertops w/ basins in both heads
- Exhaust blower
- Escape hatch w/ sliding curtains (2)
Ship’s Office
- CruiseAir SMX II cabin air control
- Webasto cabin heat control
- Single bunk
- Photo color printer
- Sony telephone/intercom/pbx handset
- Pioneer AM/FM/Cassette
- VacuFlush toilet
Crew
- Separate private entrance - stainless steel hatch & stainless steel stairs down to cabin
- Opening hatch to fore deck
- Stainless steel ladder
- Ceiling lights
- Reading lights
- 2 opening portholes
- Sockets
- Twin single berths w/ mattresses
- Hanging locker
- Sony radio & CD player w/ speakers
- Pioneer AM/FM cassette
- Sony telephone/intercom/pbx handset
- Exhaust blower
- Head w/ teak & holly flooring, VacuFlush toilet and basin
- Shower faucet hot & cold
Fuel System
- Twin 730 GALS marine aluminum alloy fuel tank
- Changeover valve system to permit each engine to draw fuel from, and return fuel to either tank
- Fuel transfer pump: Groco
- Filler and vent for each tank
- Copper fuel lines
- High capacity water separators and fuel filters
- Fuel shut off valve
Engines & Mechanical
- Watertight engine room bulkheads
- Access through saloon floor hatches
- Watertight door to engine room
- 2 layer leaded foam with aluminum plates for E/R insulation
- Engine room lighting
- Power sockets
- Intercom
- Engines number / Make / Model: 2X MTU 12V 183TE 92
- Fuel Type: Diesel
- Power (each): 1,200 hp
- Power (total): 2,400 hp
- MMC 2 station engine synchronizers - trolling, sync, w/ remote
- Engine controls: Cabin, cockpit, bridge

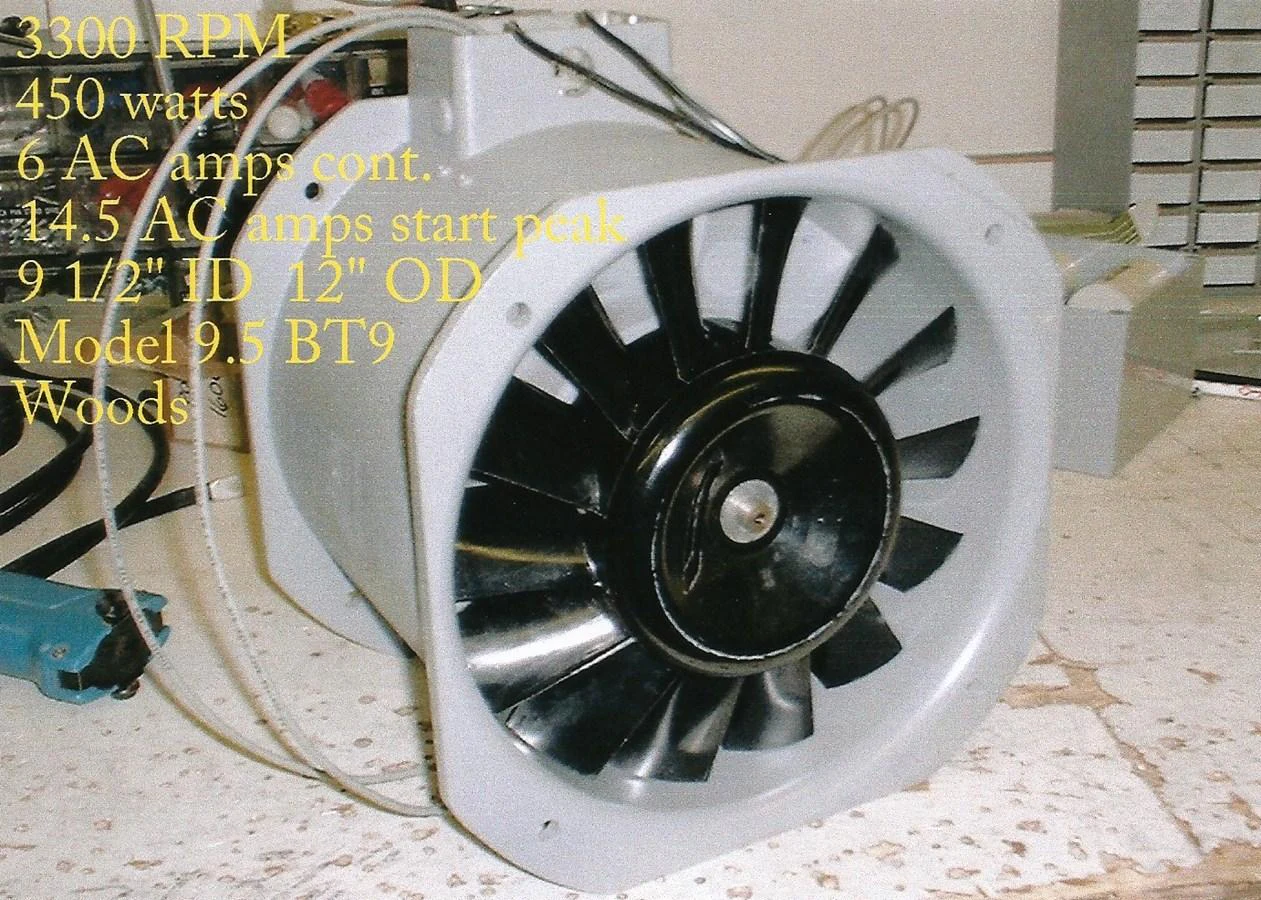

- Engine room high-volume air intake w/ blowers
- Engine room extractor fan
- Engine exhaust silencers and water-cooled exhaust
- Engine exhaust outlets under water and by pass outlets above water at transom
- Mufflers
- Engine room dynamic air outlets w/ blowers
- Water-cooled engine exhausts
- Transmissions: ZF Marine Gear 2.03:1
- Stainless steel shafts (ARMCO AQUAMET)
- Bronze stuffing box on propeller shafts
- Spare shaft
- Bronze V brackets
- Bronze V struts
- 4-blade nickel aluminum bronze propellers
- Spare propellers: 4-blade, S class
- High speed balanced stainless steel rudders w/ stainless steel posts
- Bronze rudders
- Bronze mechanical bilge pump
- Bilge pumps: 4 automatic
- High capacity engine-driven emergency manual bilge pump w/ changeover valves
- Manual bilge pump
- 4 x high capacity electrical bilge pumps w/ automatic float switches
- Bilge blowers 4
- Air conditioner: Cruisair SMX
- Air conditioning system total 88K BTU (Ocean Marine) and digital controls
- Seacocks on all inlets/outlets below water line
- Fresh water cooling system
- Lube oil transfer system
- Raw water sea strainers
- Watermaker: Spectra, 360 gallon daily capacity
- Boiler: Webasto 20-20 diesel w/ Everhot
- Bow thruster: Nobel 24V, 16hp
- Stern thruster: Nobel 24V, 16hp
- Hynautic wheel steering
- Large custom trim tabs (54” x 16”)
- Engine temperature alarm
- Thermal, acoustic insulation
- Engine monitoring guages (2)
- Shore water inlets
- Cathodic protection for sterngear
- Sterngear, engines, fuel tanks, fillers, etc all electrically bonded
- Single lever engine and gearshift controls
- Wrapped exhaust pipes from engine for additional noise insulation
- Italian contemporary steering wheels at each helm with many fingertip control buttons
- Fuel tank with side guages and electric guages
- USCG approved fuel vent & fill hose
- Armco Aquamet shaft
- Dripless shafts by Strong
- Exhaust blowers w/ tubing
- Seawater strainers
- Emergency tiller
- Aluminum fuel tanks with separate filters and vents
- Color-coded plumbing system
- Stainless steel water tank w/ filters and shore water connection
- Automatic water pressure pump for hot and cold water
- Hydraulic steering system
- MMC engines control system 2 stations with remote 3rd station on aft deck
- All thru-hull w/ seacocks
- Water heater 20 gallons under VIP head
- Large storage under VIP head
- 20 kW Northern Lights generator
- Fireboy automatic engine room fire extinguishing system
Fresh Water System
- 260 gallon stainless steel water tank w/ filler and shore water connection
- Automatic water pressure pump for hot and cold water
- Fresh water pumps: 2 Headhunter 24V
- Electric water heater
Electrical Systems
- All 24V and 240V circuits protected by circuit breakers
- Color coded wiring systems
DC 12V & 24V System
- 1,400 APH house bank; High output engine alternators
- 2X 200 A.H. batteries for engines start, charged by alternators on both engines
- 1X 120 A.H. battery for the gen set start
- Battery charger: automatic
- DC lighting throughout
- 24V can connect to Victron, stern thruster batteries (adds 400 amps to house bank)
- Pathfinder charges start bank then thrusters then house bank
AC 110V & 220V System
- Panda 25 kW generator w/ 696 hours
- 12 kW gen set
- Second gen set
- Shore power supply
- Inverters: 2X OutBack
- Battery banks: 14X Victron 12V
- 100 A.H. regulated charger for battery bank
- AC sockets throughout
- Bonding system w/ zinc plates
Electrical Appliances
- Hinged A/C breaker panel
- All 24V and 240/120V circuits protected by circuit breakers
- 12V and 24V DC to upper helm for navigation instruments
- 1 X 100 Ah battery for generator start
- 2 X 200 Ah Victron batteries start engines and are charged by engines or battery charger
- 4 x 200 service batteries
- 2 x 100 Ah battery for windlass & thruster
- Samsung 40” color television in Salon
- DC lighting throughout
- 1 shore power inlet at aft deck 2 x 50 amp circuits
- 2 X 50 amp disconnects
- Mater DC and AC circuit breaker panels in salon
- 50Ah / 24V and 25Ah / 12V regulated chargers for battery banks
- Spare circuit breakers are provided for optional equipment
- AC outlets throughout
- Color-coded wiring system
- Bonding system w/ zinc plates
- Bow thruster (16hp, 24V)
- LED anchor light
Other Features
- Raw water pump
- Grey water tank w/ pump
- Holding tank w/ macerator pump and deck discharge
- Color coded plumbing system
- Air conditioner
- Echosounder
- Bell w/ yacht name and launching date
- SSB
Other Safety Features
- Coast Guard Safety Package
- Search light: Fitch super yacht
- Halon automatic & manual fire control system w/ emergency engine stop
- Life rings (2)
Full Details
Upgrades & Repairs
2/20/2026: Two new 4,000 W Outback charger inverters with new remote panel (lower helm)
10/2025: 14 new Victron 12V house batteries, 1400 Ah X 12V 700 Ah @ 24V
9/2025: Two new Denon saloon Bluetooth receivers (audio & video)
7/2025: Starlink gen III satellite antenna, streaming, TV/music computer
2015: KVH TracVision, DTV service/receivers all cabins (can be eliminated or keep if wanted)
6/2024: New stern thruster batteries (4-12V Victron), new bow thruster batteries (4-12V Victron), Bow & stern thruster (24V)
7/5/2025: All teak decks sanded
6/2024: Some new boat lines, lightweight boat fenders
2023 June: Boat covers, flybridge and aft deck, plus sun screen S-3, King Canvas
5/2024: 8-man life raft rebuilt and certified
5/2024: New distress locator on flybridge
5/2024: Three lightweight fenders and new fender lines
6/2025: Total boat polished and waxed
6/2024: New windshield wipers and spares
6/2025: Oil service on MANs and generator + fuel filters
6/2024: New 130’ wash hose and sprayers, polished stainless steel heavy duty plow anchor (300’ chain)
2018: New upgraded flybridge air horns
2021: New black mesh shades for front window
2024: Anchor chain repainted
2025: Added 12 new boat winter heaters & dryer (100 W)
2023: Webasto rebuilt, new antifreeze, new circulation pump and hot water tank with flow control
2023/24: New Samsung smart TVs in saloon, master stateroom, and VIP
2018: New 2018 Novurania tender (Guyer Boatworks) with new 50hp Evinrude 360 E-TECH
2017: Both MAN V-12 1200 hp rebuilt by RDI (new hour meters) 1951 original hour meters on boat + 369 hours on new meters
2017: Motor mounts for MAN engines upgraded to M130 in the front and 75/65 in the rear
2016/17: Upgrades to Mathers controls + new control cables and software
2018: Rubber bedding replaced on six front windows
2016: New diesel generator - Panda 25 kW with sound enclosure
2016: Boat painted by YachtFish Marine - Imron Aston Martin metallic
2016/17: New canvas from Canvas Supply
2016: New DTV receivers - H-24 mod HD
2015/16: New KVH TracVision, 6 HD satellite antennas
2014: New Wolf microwave, Miele dishwasher
2020: New boat decor items (various)
2019: Large flybridge stamoid storage moor cover
2014: New Miele coffee center
2023: New aft cockpit electric heater 120V
2012/13: New Fitch 12 million candlepower Xenon search light with two station remote controls, pan + tilt
2010: New teak table on aft deck
2018: Four new Italian foldable high-back aft deck chairs
2019: Four new SCM window screens
2017/18: New panoramic window in master stateroom
2010/11: 4’ hull extension, Philbrooks, Gary Grant A.I.A.
2023: Two wireless communication headphones
2024: Complete E-TECH tender outboard motor service
2020: New Kenyon 220V/110V 3-burner ceramic cooktop
2023: Generator start battery HD 12V
2023: New tender outboard battery 12V
2019/22: Two new 275 amp high-output alternators for main engines
2021/22: New saloon under-counter refrigerator & ice maker
2022: New ice maker on flybridge
2012/13: Two new Nibral S-class propellers
2014: All halogen overhead lights replaced with LED
2014: Replaced and added new high-output LED lights in engine room
2014/2021: New Nauticomp 12” & 15” sunlight-readable touchscreen navigation screens
2020: New fog horn
2024: New EPIRP GPS locator beacon
2021: Added polished stainless steel engine ceiling and wall panels
2021: Added main engine LED colored lighting
2017: New Splendide washer/dryer combo
2015: All boat carpet replaced (Fabrica)
2009: New super yacht large stainless steel fuel fills
2024: New magnet bug screen on aft deck
2023: Serviced fire system western Fireboy
2007: New TV lift in saloon
2010: All side windows on main deck replaced
10/2025: Replaced and upgraded Ritchie compass on flybridge, sea trial certified
10/2025: All life preservers, flares, foul weather cloth
2013: New dometic toilets upgrades
2019/21: Replaced 24V Headhunter fresh water pumps
2009/2012: Replaced computer, VHF radios, radar, autopilot, steering pump, changed anchor light to LED
2010: Replaced bow and stern thrusters 24V Lewmax
2010: Upgraded garage door pump to faster pump
2013: Serviced boat crane at Campbell River Hydraulics
2015: Both engine transmissions serviced
2010: Transcoolers serviced
2010: New electric windlass
2017: New main engine exhaust piping & fiberglass wrap, marine exhaust
2009: Larger capacity stainless steel hot water tank upgrade, electric, quick recovery
2012: Flybridge windscreen upgraded to thicker bronze plexiglass
2019: Replaced and upgraded two forward deck hatches
2019: New stamoid bridge cover
2022: Replaced generator capacitors
2022: Replaced all bedding, pillows, towels, and bath mats
2015: New shaft seals and bearings, shaft alignment, Yacht Fish Marine
2016-17: Replaced seals in Miele coffee maker
2019: Two new digital smart MAN engine voltage regulators
2014/15: New bedding, pillows, designer pillows, and designer winter shades
2013/14: Yacht Controller remote control hand held
2017: Upgraded GPS
2014/18: Changed 3” raw water hoses main engines
2020/21: Main engines repainted
2008: 110’ Glendinning electric reel shore 50 amp cord, one 50 amp 50’ air condition cord
2018: New teak decks installed on bow, side deck, all deck steps
2022: New dinghy & fender portable electric air pump
2007: New granite counter tops in kitchen
2022: New STIDD flybridge bench seat cover
2019: New MAN engines blue exhaust bellow
2018: Cleaned MAN fuel magnets
2008: LED navigation lights
2008: Webasto 2020 diesel boiler, circ pump, hot water tank w/ mixing control, expansion tank, 4 stateroom air handlers (heaters), saloon heater, lower helm defroster heat, 3 large air handlers flybridge helm + passenger seat w/ auto air leaders, hot tub hot water, 2 MAN engine block heat exchangers
2008: 2 MAN electric block heaters
2008: E-meter for generator lower helm, 12V battery in engine room under generator, E-meter for house bank lower helm, 24V 14-200 amp Victron gel high performance batteries hooked up in series 24V.
2008: Pathmaker 24V charging system to charge MAN start batteries, then charge thrusters batteries, then charge house batteries
2012/13: New flybridge STIDD double seat with power up/down and front-to-back
2012: New larger stainless steel trim tabs
2015: New underwater exhaust shrouds
Elbex cameras located in engine room, flybridge, aft cockpit
Electrical panel’s indicator lights changed to LED
Installed new bow & stern thrusters 20hp electric (Maxwells) w/ fuses
Underwater lights + 2 garage LED lights
220V electric hot tub heater w/ pump used to maintain temp
HD gas shocks on master bed & VIP bed to provide access to storage
New large capacity fresh water filtering system, 1 sediment, 1 charcoal
Seagull fresh water filter & filler at galley sink
3 circulation pumps w/ timers - galley sink, master stateroom sink, and bow stateroom sink
Engine room tool drawer
Engine room stainless steel 5-drawer tool box with all tools included
Master stateroom built-in chest of drawers custom built
2 Separ high capacity fuel filter cartridges
Fuel filters for MAN 1200 hp V-12
Lead sound dampening carpet pad
Lead-lined sound deadening sound insulation extensive locations retro fit interior
Isolation rubber mounts for pumps, motors, and inverters where accessible
Generator lift muffler w/ under water shroud
Engine room modifications, flooring & front of MAN engines storage tables
Flybridge bimini w/ large HD poles & storage bag w/ high wind storm tie-down
Two long 1” lock lines
Various new lines w/ sheep fur
Surveyed by Chubb Insurance Co approx. 12 years ago.
Lots of spare parts, mechanical, tools, power equipment, SS tool box, extra finished wood panels, hardware, etc. All glasses, dishes, silverware, kitchen supplies, appliances, etc.
Walkthrough
The lower deck, most forward and entered from the foredeck hatch is the air conditioned and spacious crew’s quarters with two single berths, adjoining head and shower. Next entered from the forward stairway are the two identical forward guest cabins, port and starboard, each with two single berths, adjoining head and showers, AM/FM/CD sound system, intercom, closet, and drawers. From the same stairway, the owner’s full-beam master suite is entered. There is a jacuzzi tub with 6 jets and shower, large walk-in closet and a center-line queen sized berth. Aft and entered via a circular staircase and passageway are the machinery space and aft is the VIP suite which is almost identical to the owner’s stateroom. The flying bridge is very spacious with a helm seat forward to port, a stairway into the main salon to starboard. On each side of the flying bridge are cabinets for wet bar and BBQ. The aft section of the area above is a large half round table seating six. Then on the hardtop is a 13’ Novurania DX 400 RIB inflatable with a 50 hp Evinrude E-TEC outboard, launched by a Nautical Structures electric davit. The aft deck lounge will seat 5 comfortably and adjoins the salon from aft via double sliding glass doors. The swim platform, a convenient method of boarding, is teak covered and over 3’ wide, and has a built-in and concealed swim ladder. The vessel is passenger safe from the standpoint that all weather decks have bulwarks or rails waist-high around the entire circumference of the vessel. When lit with direct and indirect lighting at night the interior is stunning. The foredeck is open for observation and with the number of large open deck areas the vessel is ideal for entertaining at the dock or underway. The entire interior is finished in very light blonde burl veneers. The yacht is completely climate controlled for the comfort of all aboard. With the bow thruster and twin screws, she handles like a 50-footer. At 20-plus knots, her MTU main engines ‘cannot even be heard’.
Hull
- Designer: Yankee Delta / Monza, Italy
- Builder: Dyna Yachts
- Type: Deep V forward, shallow V after
- All fiberglass is laid up by hand
- Divinycell foam core construction above water line
- Solid fiberglass construction below water line
- Transverse & longitudinal strengthening stringers throughout hull
- Interior of hull bottom is painted out in gelcoat
- Decks are foam core construction
- Deck sides are Divinycell foam core construction
- Hull & deck joint bolted & FRP bonded
- Moulded non-slip deck surface
- 42” extension
- Antifouling hull bottom paint
Deck Fittings
- 2 bow rollers
- Single chain, single anchor roller w/ recessed reversible Maxwell 3500 2000 W electric anchor windlass (3 stations control)
- 300’ of 5/16” galvanized anchor chain
- 2 chains (50 m each)
- 2 chain locker hatches
- Deck wash faucet in chain locker
- 2 fender lockers on bow
- Stainless steel hatch to crew cabin
- 2 anchors: 1X 80 lb stainless steel & 1X 77 lb
- Spare CQR anchor
- Twin pairs of stainless steel bow and stern bitts
- Twin pairs of stainless steel spring cleats/chafing plates
- Stainless steel mooring cleats/chafing plates
- Bow pulpit & rails
- Stainless steel side deck rails
- Heavy duty rubber with stainless steel flat-type rub rails
- Full set navigation lights
- Deck lights
- 2 stairs with handrail to flybridge
- Water and fuel fillers, chrome
- Stainless steel window frame with tempered glass
- Stainless steel opening portholes
- Portholes in every cabin
- Stainless steel entrance doors to saloon
- Moulded opening swimming platform stair
- Swim platform with laid teak decking
- Stern jet ski locker with hydraulic opening cover turn to wide bathing platform
- Hydraulic telescopic 3 meters gangway
- Various fenders & lines (black)
- Stainless steel salon doors
- Stainless steel bow protection plate
- Swimming stair, concealed
- F/B floor light
- Extra center radar arch w/ 2 lights
- Frameless windows directly mount and sealed on FRP, use Sika glue for window installations
- 4” drains for fwd deck inside of fender lockers
- 2 hatches for port & starboard guest cabins
Boat Deck
- 8 Person liferaft DBC Dunlop/Beaufort
- EPIRB 2025
- Nautical Structures EZ 1500 crane davit with power rotation
- Life Sling man overboard throwable ring
Tender
- Novurania DX 400 Deluxe 13’ 2” LOA
- Evinrude 2-stroke E-TEC
- Lightbar and remote searchlight
- Icom VHF marine transceiver IC-M59
- AM/FM cassette with 6” marine speakers
- Humminbird fish finder
- Gray Stamoid cover
Flybridge & Second Helm
- Nautical structures 1500 lb davit and 13’ Novurania RIB dinghy
- 2 half-arches & center radar mast w/ lights and 2 speakers connected to salon stereo
- KVH Tracvision II TV dish
- Northstar DGPS antenna
- WaveTalk satellite telephone communication antenna
- Beull air horn cluster
- Sliding access hatch w/ curved ladder to lower helm
- U-Line combo 29A wet bar w/ ice maker
- Wet bar sink
- BBQ: 240V AC
- Large oval-shaped seating w/ 2 tables
- Helm seats for 4 persons
- 316 stainless steel handrail w/ acrylic windshield
- Silent Witness color CCD surveillance camera
- FRP instruments console w/ cover for the instruments
- Complete Stamoid gray/white coverings
- Start/stop engine control (dual stations)
- Marine horn
- Micro Commander engine control systems (dual stations)
- Engine RPM guages (dual stations)
- Engine cooling water temperature guages (dual stations)
- Engine oil pressure guages (dual stations)
- Remote windlass control (dual stations)
- Bow thruster control (dual stations)
- Speed meter
- Hynautic hydraulic power steering (dual stations)
- Plastimo compass (dual stations)
- Eelecompass
- VDO rudder indicator (dual stations)
- Trim tab indicator (ITIM Australia) (dual stations)
- Trim tab controls
- Search light w/ control (dual stations)
- Marine horn w/ control (dual stations)
- Audible and visual engine alarm (dual stations)
- Depth sounder + speed log (Tridata ST50) (dual stations)
- Autopilot (Autohelm) (dual stations)
- VHF radio (GME) (dual stations)
- Watertight intercom
- Sony telephone/intercom/pbx handset
- Storage hatch added
- Access hatch to lower helm
Aft Deck
- Aft deck FRP seat/cushions
- Stern rope rollers
- Transom shower (hot & cold)
- Escape hatch from aft cabin
- FRP steps to side deck with handrails at both sides
- Cockpit seating lighting
- 2 speakers connected from salon stereo
- Strategically placed step & deck lighting
- Cockpit lockers
- Lockers containing manual bilge pump with valve chest
- Lockers containing shore power inlet
- Safety door to swimming platform
- Small transom locker for inspection access
Interior
- Solid wood trimming on berth platforms
- Imported designer door hardware
- Carpet throughout
- All head & galley floors in teak & holly
- Corian countertops in all heads
- Fully air conditioned or heated, digital systems
Salon
- Stainless steel frame door to aft deck
- Halogen ceiling lighting built-ins
- Overhead in synthetic leather
- Round mirror in the middle of ceiling
- Large stainless steel framed opening windows
- Curtains or drapes to all windows and doors
- Electrical sockets
- Carpet
- Floor access to engine room
- Large circular stairs 28” access down to aft cabin
- Access stairs to lower deck with lighted steps
- CruiseAir SMX II cabin air control X 3
- Webasto cabin heat control
- Intercom
- L-shaped leather sofa with coffee table
- Concealed lighting under sofa and around overhead mirror
- L-shaped settee w/ coffee table
- Entertainment cabinet w/ wiring
- Samsung 40” color television
- Bose stereo CD & surround sound speaker system
- Denon audio/video switcher/amp X 2
- Salon & dinette tables in intricate inlaid wood design
- L-shaped wet bar w/ ice maker & refrigerator (U-Line)
- Acrylic mirrors inside liquor cabinet
- Niles Intelepad audio control aft deck / flybridge
Galley
- Ceiling lights
- Electrical sockets
- Teak & holly flooring
- Refrigerator/freezer combo, stainless steel
- Countertop: Custom granite
- Sink: Large stainless steel w/ hot & cold mixer faucet
- Nutone counter flush blender
- Kenyon Eurostyle 3-burner cook top with Miele exhaust fan/filter
- Convection oven: Wolf
- Microwave oven: Wolf
- Miele dishwasher
- Trash compactor: Broan
- Whirlaway disposal
- Wema fresh water level guage
- Instant hot water circ system
- Washer/dryer combo in VIP hallway
- Lockers & drawers
- Water guage at overhead cabinet
- U-Line ice maker at wet bar
Lower Helm
- Stair to flyflybridge
- Clear forward windscreen
- Vetus windshield wipers w/ water spray
- Ceiling lights & sockets
- Chart locker
- FRP instrument console with wood burl panel
- Dashboard in burl wood material
- Chart drawers
- Lower helm seat with leather
- AC/DC control panels
- Intercom
- Start/stop engines keys
- Full engine controls and navigation instruments as upper helm
- MMC engine controls
- Speed meter
- Radar 36NM (Raytheon R40XX RasterScan)
- Chart Plotter / GPS (Raytheon RC520)
- Hydraulic power steering
- AC/DC control panels
- Autohelm Sea talk speed, depth, log
- KVH Trac Vision Satellite TV receiver
- Jensen 3000 amplifier
- Autohelm ST 6000 autopilot (2 stations)
- ComNav 1001 autopilot
- Furuno 36 mile radar 10” color display
- Furuno fish finder color display
- ComNav rudder angle indicator
- Jergens jog lever steering
- Trim tab analog angle indicator
- Trim tabs control
- RDI main engine alarm panel X 2
- VDO analog engine status guages
- Wema analog fuel level guages X 3
- Water contents gauges
- Ispro exhaust temp guages X 4
- Radios transceivers: 4 total - 1 Icom 126 VHF primary marine radio transceiver & 1 Icom 126 VHF secondary marine radio transceiver
- Bow and stern thruster control joysticks
- Brite Screen LCD chart plotter display
- Maxwell windlass remote control station
- Fitch searchlight control station
- Datamarine Link multi display speed, depth, wind direction/speed
- Outback inverter remote panel
- Wema holding tank level indicator guage
- Fire Boy Halon manual discharge & status alarm for engine room
- Panda 25 kW gen set remote panel
- Elbex CCD video camera switcher
- Sony telephone / intercom / pbx handset
- Mathers engine, sync and trolling valve
- Wet ball compass Plastimo 135
- Elecompass
- E-Meter 12V bank & 24V battery bank monitor systems
- Wind speed indicator
- Northstar DGPS satellite navigation
- Datamarine speed & distance logs, depth & wind
- Hailer
- Monitors: 2X Nauticomp (15” & 12”) bright sunlight models
- Jergens jog lever steering
- 8 station PBX
- Video cameras: 3 CCD w/ Elbex switcher
- Nav computer: Ocean PC
- Printer: PC, color
- Copier/fax: Panasonic
- Rectangular shaped dinette leather seating w/ dining table
Master Stateroom
- Ceiling lights (w/ 2 separate switches) & reading lights
- 4 opening portholes
- Electrical sockets
- CruiseAir SM II cabin air control
- Webasto cabin heat control
- King size walk-around berth w/ 6” mattress & leather upholstered headboard
- L-shaped seat
- Large hanging locker (walk-in closet)
- Dressing table
- Vanity swing-out seat (1)
- Mirrors on aft cabin wall
- Safe
- Leather couch
- Samsung 40” color television
- Radio & CD player w speakers
- Datamarine Link multi display
- Vimar emergency lighting system
- Sony telephone/intercom/pbx handset
Master Head
- Corian counter top w/ basin
- Instant hot water circulation system
- Jacuzzi 6 jet bathtub w/ faucet & shower
- Wood veneer for ceiling above jacuzzi tub
- Teak & holly flooring in head
Vip Stateroom (aft)
- Ceiling lights & reading lights
- 4 opening portholes
- Sockets
- CruiseAir SMX II cabin air control
- Webasto cabin heat control
- King size walk-around berth w/ mattress & leather upholstered headboard
- Walk-in closet
- Lighted vanity table
- Vanity swing-out seat
- Dressing table
- Mirror on mid-cabin wall
- TV cabinet w/ door & pre-wired for TV
- Concealed washer/dryer under TV cabinet w/ opening door in corridor
- Engine room access door in corridor with sound insulation
- Samsung 40” color television
- Sony radio & CD player w speakers
- Pioneer AM/FM/Cassette
- Sony telephone/intercom/pbx handset
- Escape hatch to aft deck
VIP Head
- Teak and holly flooring
- Toilet - Sealand Dometic VacuFlush
- Corian counter top w/ basin
- Jacuzzi bathtub w/ faucet & shower
Port & Starboard Cabins & Heads
- Ceiling lights
- Reading lights
- Opening portholes
- Electrical sockets
- CruiseAir SMX II cabin air control
- Webasto cabin heat control
- Twin single berths w/ mattresses & drawers underneath
- Hanging lockers w/ lights
- Vanity swing-out seats
- Sony telephone/intercom/pbx handset
- Sony radio & CD player w/ speakers
- Pioneer AM/FM/Cassette
- Teak & holly flooring in head
- Shower & VacuFlush toilet (Sealand)
- Separate shower stalls in both guest staterooms
- Corian countertops w/ basins in both heads
- Exhaust blower
- Escape hatch w/ sliding curtains (2)
Ship’s Office
- CruiseAir SMX II cabin air control
- Webasto cabin heat control
- Single bunk
- Photo color printer
- Sony telephone/intercom/pbx handset
- Pioneer AM/FM/Cassette
- VacuFlush toilet
Crew
- Separate private entrance - stainless steel hatch & stainless steel stairs down to cabin
- Opening hatch to fore deck
- Stainless steel ladder
- Ceiling lights
- Reading lights
- 2 opening portholes
- Sockets
- Twin single berths w/ mattresses
- Hanging locker
- Sony radio & CD player w/ speakers
- Pioneer AM/FM cassette
- Sony telephone/intercom/pbx handset
- Exhaust blower
- Head w/ teak & holly flooring, VacuFlush toilet and basin
- Shower faucet hot & cold
Fuel System
- Twin 730 GALS marine aluminum alloy fuel tank
- Changeover valve system to permit each engine to draw fuel from, and return fuel to either tank
- Fuel transfer pump: Groco
- Filler and vent for each tank
- Copper fuel lines
- High capacity water separators and fuel filters
- Fuel shut off valve
Engines & Mechanical
- Watertight engine room bulkheads
- Access through saloon floor hatches
- Watertight door to engine room
- 2 layer leaded foam with aluminum plates for E/R insulation
- Engine room lighting
- Power sockets
- Intercom
- Engines number / Make / Model: 2X MTU 12V 183TE 92
- Fuel Type: Diesel
- Power (each): 1,200 hp
- Power (total): 2,400 hp
- MMC 2 station engine synchronizers - trolling, sync, w/ remote
- Engine controls: Cabin, cockpit, bridge
- Engine room high-volume air intake w/ blowers
- Engine room extractor fan
- Engine exhaust silencers and water-cooled exhaust
- Engine exhaust outlets under water and by pass outlets above water at transom
- Mufflers
- Engine room dynamic air outlets w/ blowers
- Water-cooled engine exhausts
- Transmissions: ZF Marine Gear 2.03:1
- Stainless steel shafts (ARMCO AQUAMET)
- Bronze stuffing box on propeller shafts
- Spare shaft
- Bronze V brackets
- Bronze V struts
- 4-blade nickel aluminum bronze propellers
- Spare propellers: 4-blade, S class
- High speed balanced stainless steel rudders w/ stainless steel posts
- Bronze rudders
- Bronze mechanical bilge pump
- Bilge pumps: 4 automatic
- High capacity engine-driven emergency manual bilge pump w/ changeover valves
- Manual bilge pump
- 4 x high capacity electrical bilge pumps w/ automatic float switches
- Bilge blowers 4
- Air conditioner: Cruisair SMX
- Air conditioning system total 88K BTU (Ocean Marine) and digital controls
- Seacocks on all inlets/outlets below water line
- Fresh water cooling system
- Lube oil transfer system
- Raw water sea strainers
- Watermaker: Spectra, 360 gallon daily capacity
- Boiler: Webasto 20-20 diesel w/ Everhot
- Bow thruster: Nobel 24V, 16hp
- Stern thruster: Nobel 24V, 16hp
- Hynautic wheel steering
- Large custom trim tabs (54” x 16”)
- Engine temperature alarm
- Thermal, acoustic insulation
- Engine monitoring guages (2)
- Shore water inlets
- Cathodic protection for sterngear
- Sterngear, engines, fuel tanks, fillers, etc all electrically bonded
- Single lever engine and gearshift controls
- Wrapped exhaust pipes from engine for additional noise insulation
- Italian contemporary steering wheels at each helm with many fingertip control buttons
- Fuel tank with side guages and electric guages
- USCG approved fuel vent & fill hose
- Armco Aquamet shaft
- Dripless shafts by Strong
- Exhaust blowers w/ tubing
- Seawater strainers
- Emergency tiller
- Aluminum fuel tanks with separate filters and vents
- Color-coded plumbing system
- Stainless steel water tank w/ filters and shore water connection
- Automatic water pressure pump for hot and cold water
- Hydraulic steering system
- MMC engines control system 2 stations with remote 3rd station on aft deck
- All thru-hull w/ seacocks
- Water heater 20 gallons under VIP head
- Large storage under VIP head
- 20 kW Northern Lights generator
- Fireboy automatic engine room fire extinguishing system
Fresh Water System
- 260 gallon stainless steel water tank w/ filler and shore water connection
- Automatic water pressure pump for hot and cold water
- Fresh water pumps: 2 Headhunter 24V
- Electric water heater
Electrical Systems
- All 24V and 240V circuits protected by circuit breakers
- Color coded wiring systems
DC 12V & 24V System
- 1,400 APH house bank; High output engine alternators
- 2X 200 A.H. batteries for engines start, charged by alternators on both engines
- 1X 120 A.H. battery for the gen set start
- Battery charger: automatic
- DC lighting throughout
- 24V can connect to Victron, stern thruster batteries (adds 400 amps to house bank)
- Pathfinder charges start bank then thrusters then house bank
AC 110V & 220V System
- Panda 25 kW generator w/ 696 hours
- 12 kW gen set
- Second gen set
- Shore power supply
- Inverters: 2X OutBack
- Battery banks: 14X Victron 12V
- 100 A.H. regulated charger for battery bank
- AC sockets throughout
- Bonding system w/ zinc plates
Electrical Appliances
- Hinged A/C breaker panel
- All 24V and 240/120V circuits protected by circuit breakers
- 12V and 24V DC to upper helm for navigation instruments
- 1 X 100 Ah battery for generator start
- 2 X 200 Ah Victron batteries start engines and are charged by engines or battery charger
- 4 x 200 service batteries
- 2 x 100 Ah battery for windlass & thruster
- Samsung 40” color television in Salon
- DC lighting throughout
- 1 shore power inlet at aft deck 2 x 50 amp circuits
- 2 X 50 amp disconnects
- Mater DC and AC circuit breaker panels in salon
- 50Ah / 24V and 25Ah / 12V regulated chargers for battery banks
- Spare circuit breakers are provided for optional equipment
- AC outlets throughout
- Color-coded wiring system
- Bonding system w/ zinc plates
- Bow thruster (16hp, 24V)
- LED anchor light
Other Features
- Raw water pump
- Grey water tank w/ pump
- Holding tank w/ macerator pump and deck discharge
- Color coded plumbing system
- Air conditioner
- Echosounder
- Bell w/ yacht name and launching date
- SSB
Other Safety Features
- Coast Guard Safety Package
- Search light: Fitch super yacht
- Halon automatic & manual fire control system w/ emergency engine stop
- Life rings (2)
