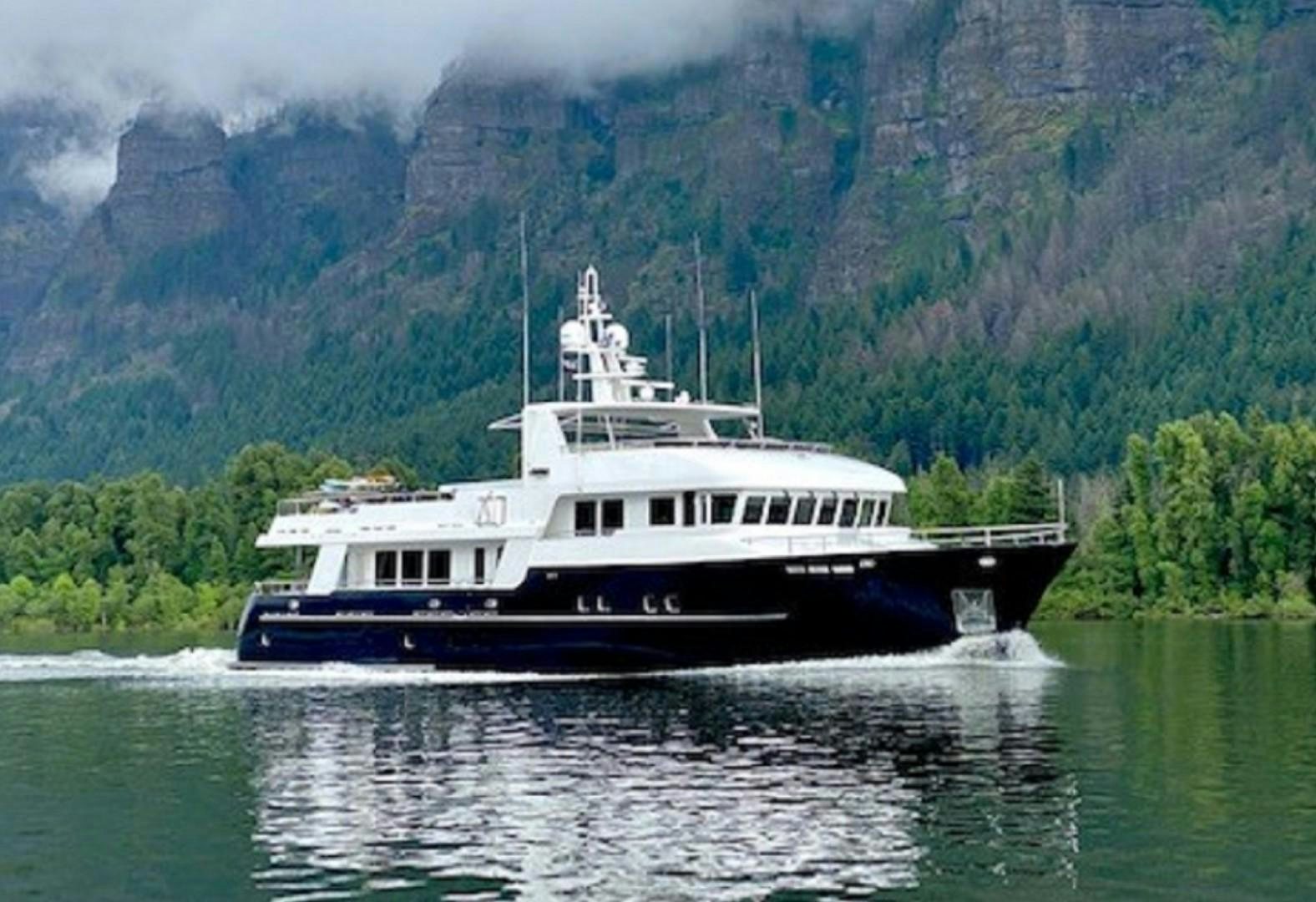

SAMSARA Yacht for Sale

100' (30.48m)
Custom
2017

Not for sale or charter to U.S. residents while in U.S. waters.

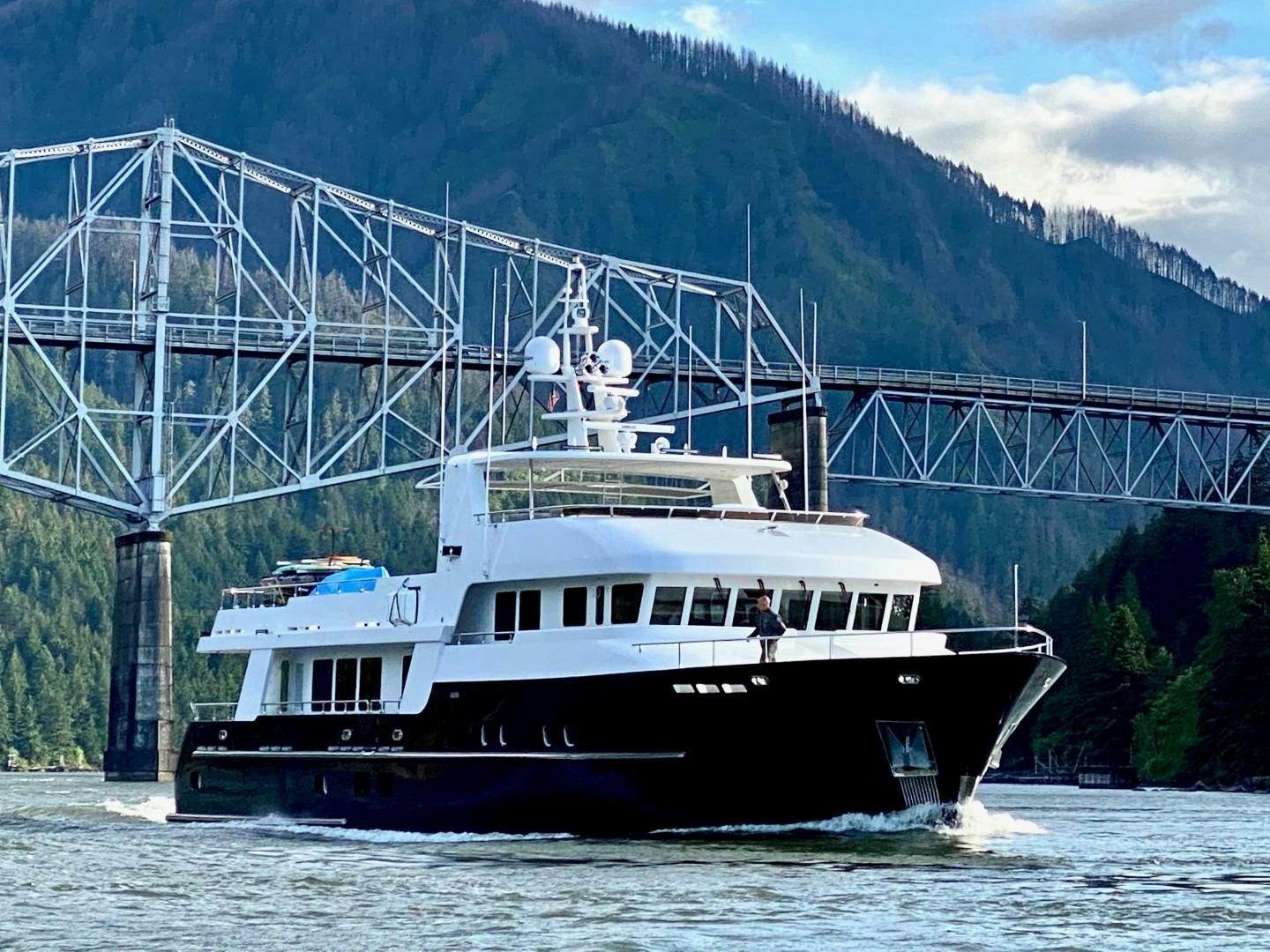

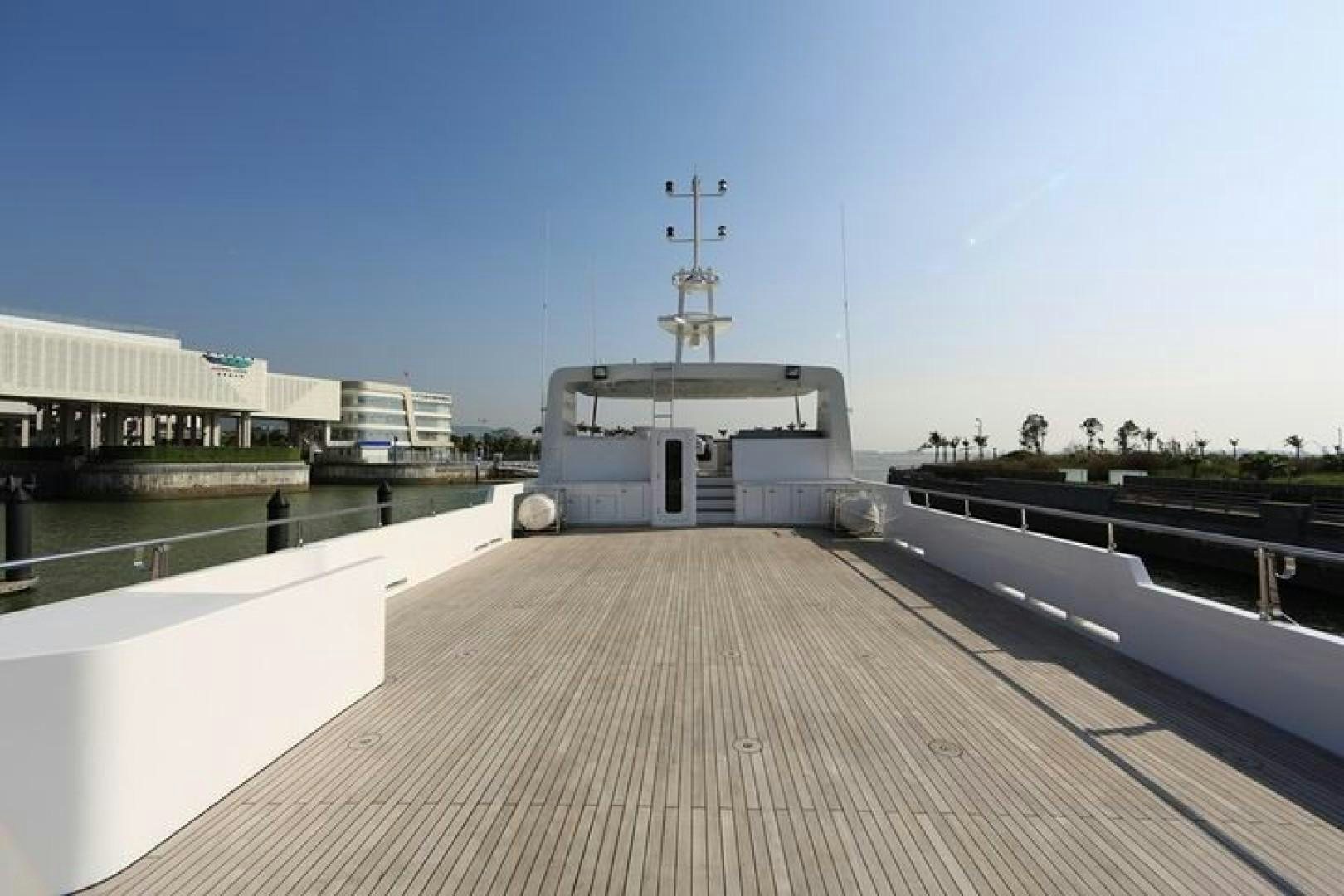

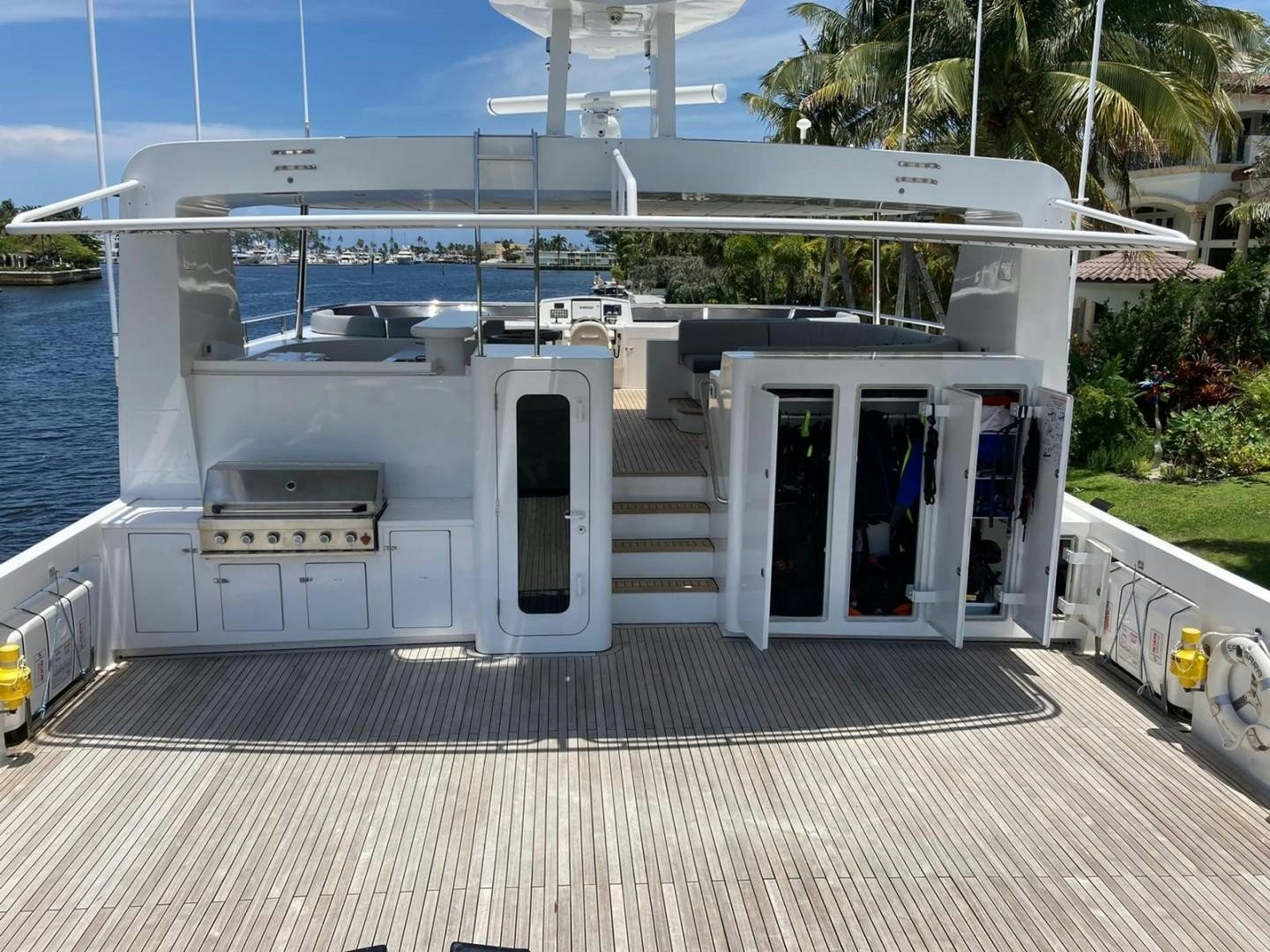

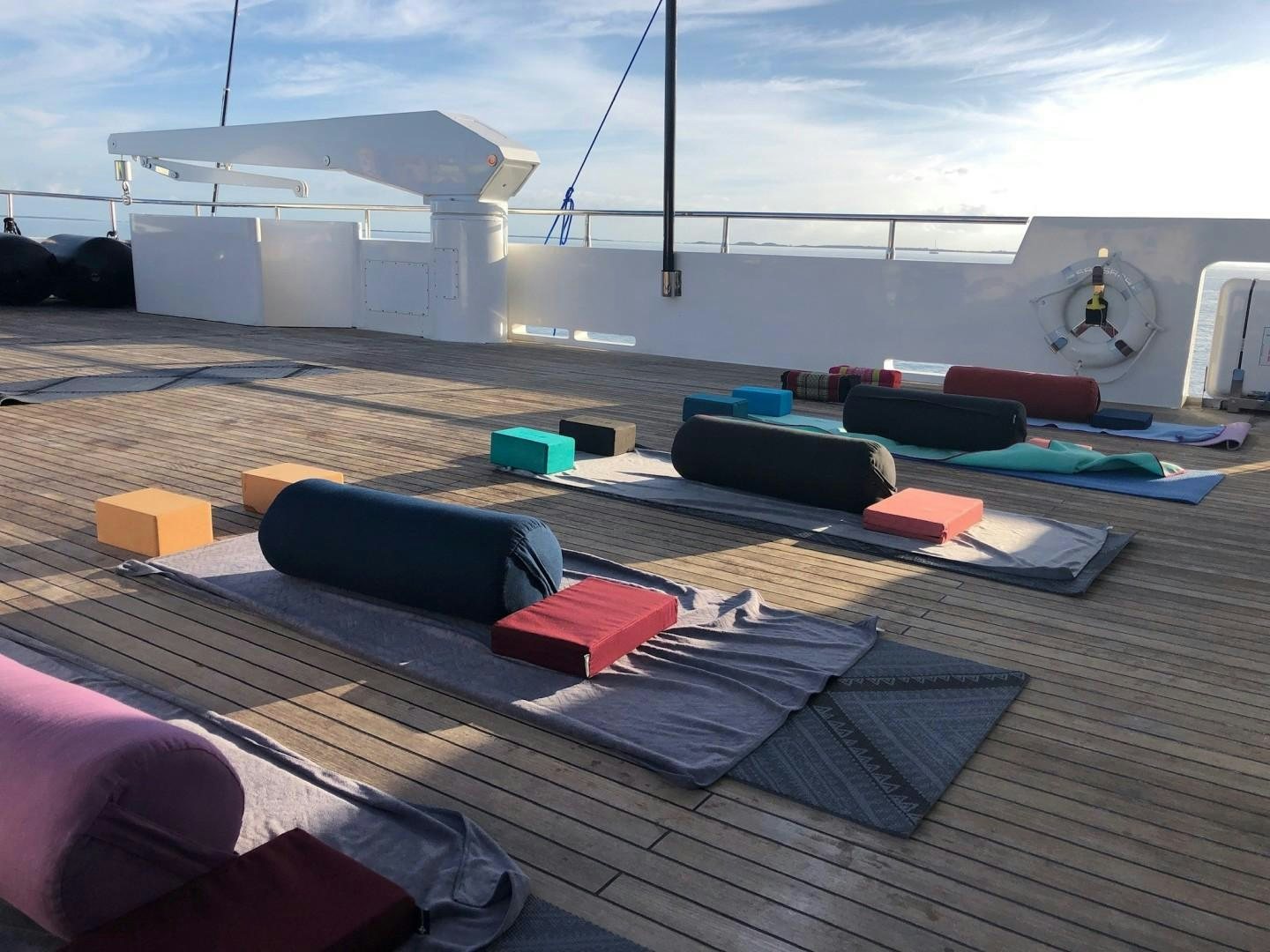

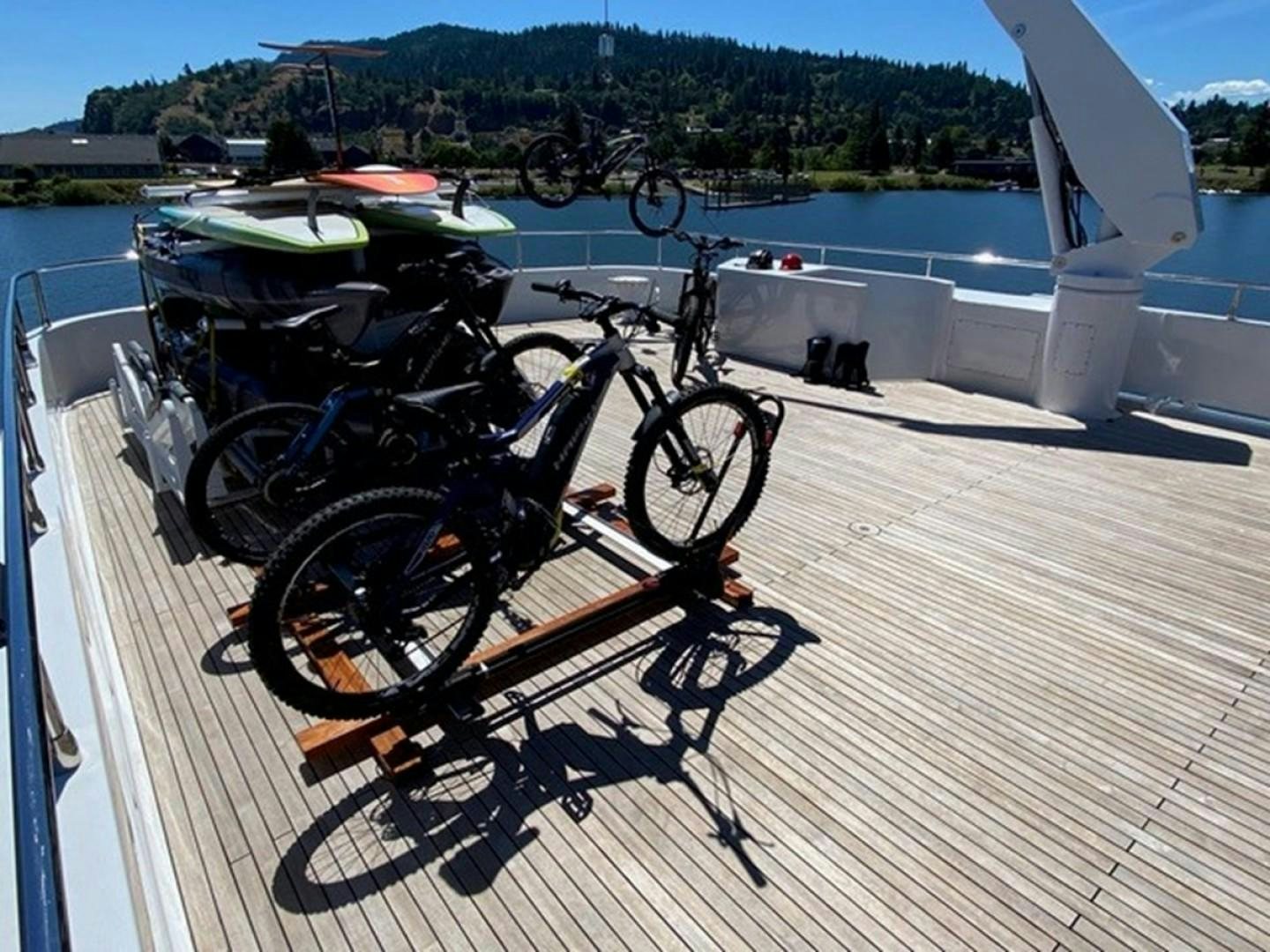

Outstanding Explorer Yacht with huge 50' clear boat deck, designed by renowned Explorer Yacht designer Jon Overing. Samsara is unique in her size class; raised pilothouse design with 4 deck levels. There is a 4th deck forward with an engineering area and full-service area/Laundry, a large built-in freezer, extensive storage, and a wine cooler. Her low hour 3406 cat engines are under warranty and provide a 4500nm range at 10 knots. She easily cruises at 12 knots and reaches speeds of 14 knots.

Hull built at a military shipyard and started in 2003 under Lloyds with all American top-quality equipment. She was placed in storage and finished in 2017 by long-time trawler builder Island Gypsy.

Inquire Now

Details

Length 100 FT (30.48 M)
Beam 25 FT (7.62 M)
Draft 8 FT (2.36 M)
Gross Tonnage 224 Ton
Guests 8
Crew 5
Builder Custom
Designer Jon Overing
Year Built 2017
Construction Steel
Cruising Speed 10 Knots
LOA 100 FT (30.48 M)
LWL 94 FT (28.35 M)
Beam 25 FT (7.62 M)
Min Draft 7 FT (2.13 M)
Max Draft 8 FT (2.36 M)
Cruising Speed 10 Knots
Max Speed 14 Knots
Gross Tonnage 224 Ton
Water Capacity 11,402 Liters
Fuel Capacity 35,999 Liters
Hull Material Steel
Designer Jon Overing
Details for SAMSARA Private Luxury Yacht For sale

Full Specifications


SAMSARA is a RINA classed expedition motor yacht with an unrestricted navigational notation. She was commissioned in 2017/18 in Fort Lauderdale. She was designed to MCA / Lloyds Class 100A1 by noted naval architect John Overing. Samsara is an extremely efficient, stable, and safe boat due to her full displacement, hydrodynamic efficient, round bottom, steel hull (LR steel, 8 -16mm) and the light-weight marine grade aluminum superstructure.

Samsara was designed for the worst of inclement conditions, with positive righting inertia after a full 90 degree knock down, and in addition she has an idyllic roll period of 6.5 sec.

The keel was laid July 2003, the hull, superstructure, mechanical/plumbing fit out was built by the leading shipyard/defense contractor in China, CSSC Huangpu Shipbuilding. All work was completed under Lloyds supervision. (Every weld is flawless!) Kirschstein Interior Designs of London was used for the interior design which is a traditional dark stained North America cherry. The first and only owner bought Samsara from Maxi Marine late 2018 and shipped her to Fort Lauderdale for final commissioning.

SAMSARA’s (2) 3406 Caterpillar deep sump main engines (605hp/825 Kw) are coupled to Twin Disk gear boxes (MG 5114DC) with Parker PTO’s, 4inch QuaTech shafts, DuraMax seals, turning 50” Bird-Johnson nickel/alum/bronze 5 blade propellers assure un-compromised propulsion reliability. Rounding out the engine room equipment are two KILOPAK 45kw generators (John Deere engines/Stanford Gen), Headhunter MSD (TW-200B) QUANTUM (QT-60 w / zero speed stabilizers) two NACHI steering pumps, AQUA AIR (16 tons AC & heat), Quincy (air compressor) are all arguably best in class. Aft of the ER in a separate watertight compartment, is located ship’s electrical room complete with Lloyds/RINA class Atlas Marine Systems. The Atlas TecPower split buss, three phase electrical panel also has a generator synchronization/seamless transfer feature. The Atlas ShorPower Marine Frequency transformer/inverter is located within this watertight compartment. The SHF will automatically connect to any supply source worldwide, (from Japan’s 100VAC 50Hz to USA 480VAC 60Hz and everywhere in between) and provide clean, stable and reliable power for the yacht (3 phase, 208VAC 60Hz). This is especially important due to ever-increasing regulations regarding the use of onboard diesel engine generators while docked at a marina. Noise and air pollution caused by these generators, coupled with increased operational and maintenance costs, make the use of the SHF frequency converter a must for those that choose to wander farther afield.

Across to port from the ship’s electrical room and also accessed via the swim platform is located the ship’s engineer’s cabin with en-suite head. This cabin is also a perfect place for the temporary housing of visiting guides, naturalists, pilots, etc.

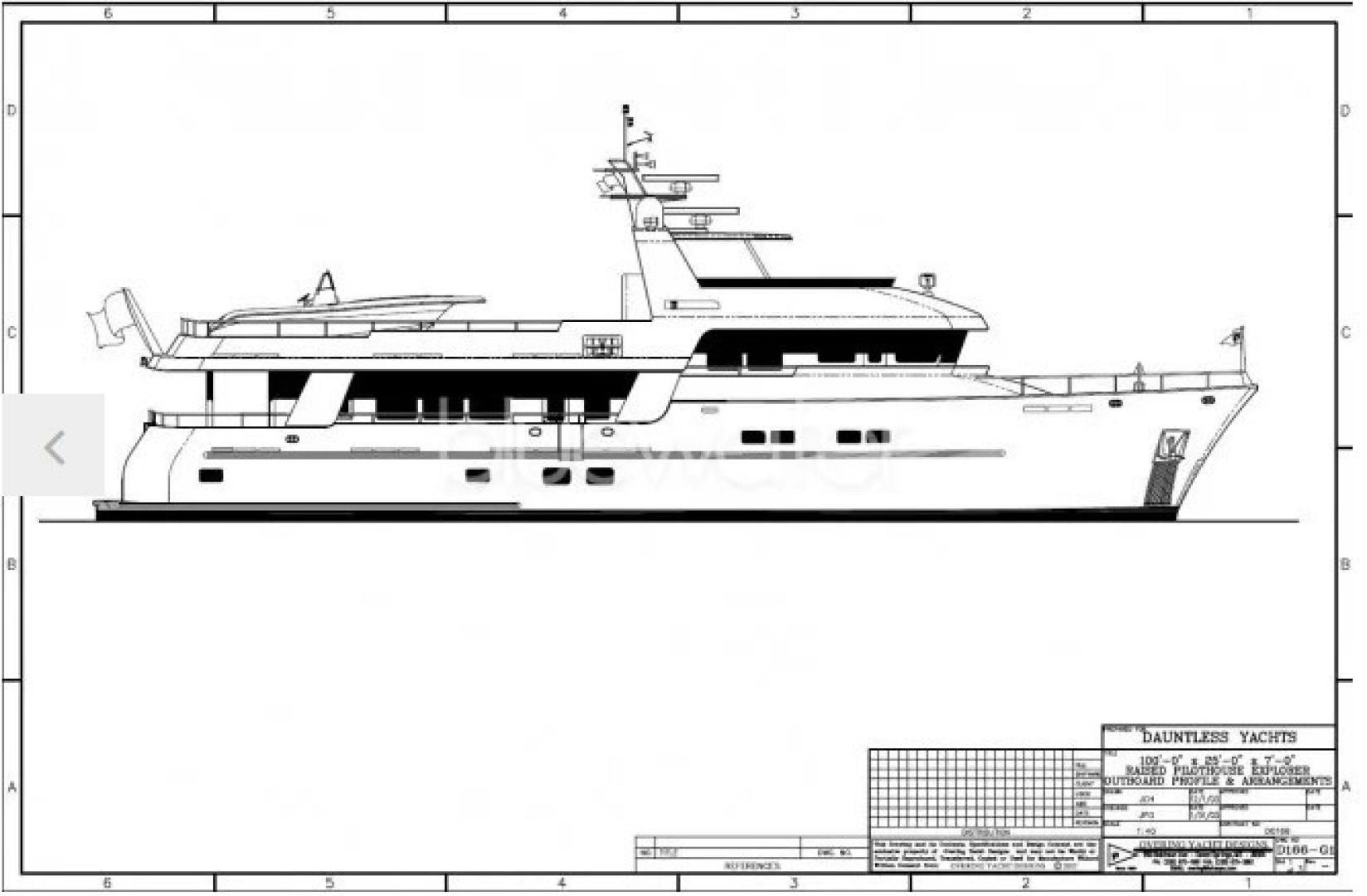

SAMSARA was meticulously designed by Overing Yacht Design, which included tank testing. She is the second hull in the series and has several sister ships in various sizes plying the oceans of the world (LOA’s from 80-150ft. 25-40m). Her steel hull affords huge integral tankage for all fluids. SAMSARA moves through the water effortlessly which is evident by the lack of wake at +7 knots. The technical spaces (engine, electrical, pump rooms and bilge/void spaces) are all designed and built for safety /serviceability and reflect the dead serious commitment to the vessel’s proven ocean going, long range, expedition pedigree.

SAMSARA has just returned to Fort Lauderdale after completing her 16,000 mile maiden voyage (2020/21). The epic journey over two transits of the Panama Canal and the west coast of North/Central America included the Columbia River Gorge, the San Juan Islands, the Sea of Cortez, the Canadian inside passage, and months of fishing /crabbing/ exploring the Alaskan wilderness. Samsara’s world class social distancing capabilities are undisputed! She traveled for weeks during the year of Covid without encountering another vessel, and only sharing the waterways with countless whales, dolphins, and other marine life.

Island Gypsy, a long-established trawler builder, purchased the Maxi Marine name, and completed the vessel in 2017. She accommodates eight guests in four cabins consisting of a master suite, VIP suite, starboard twin, and port double, all with entertainment centers, Sony television screens, and en-suite bathroom facilities. In addition, there are quarters for five crew.

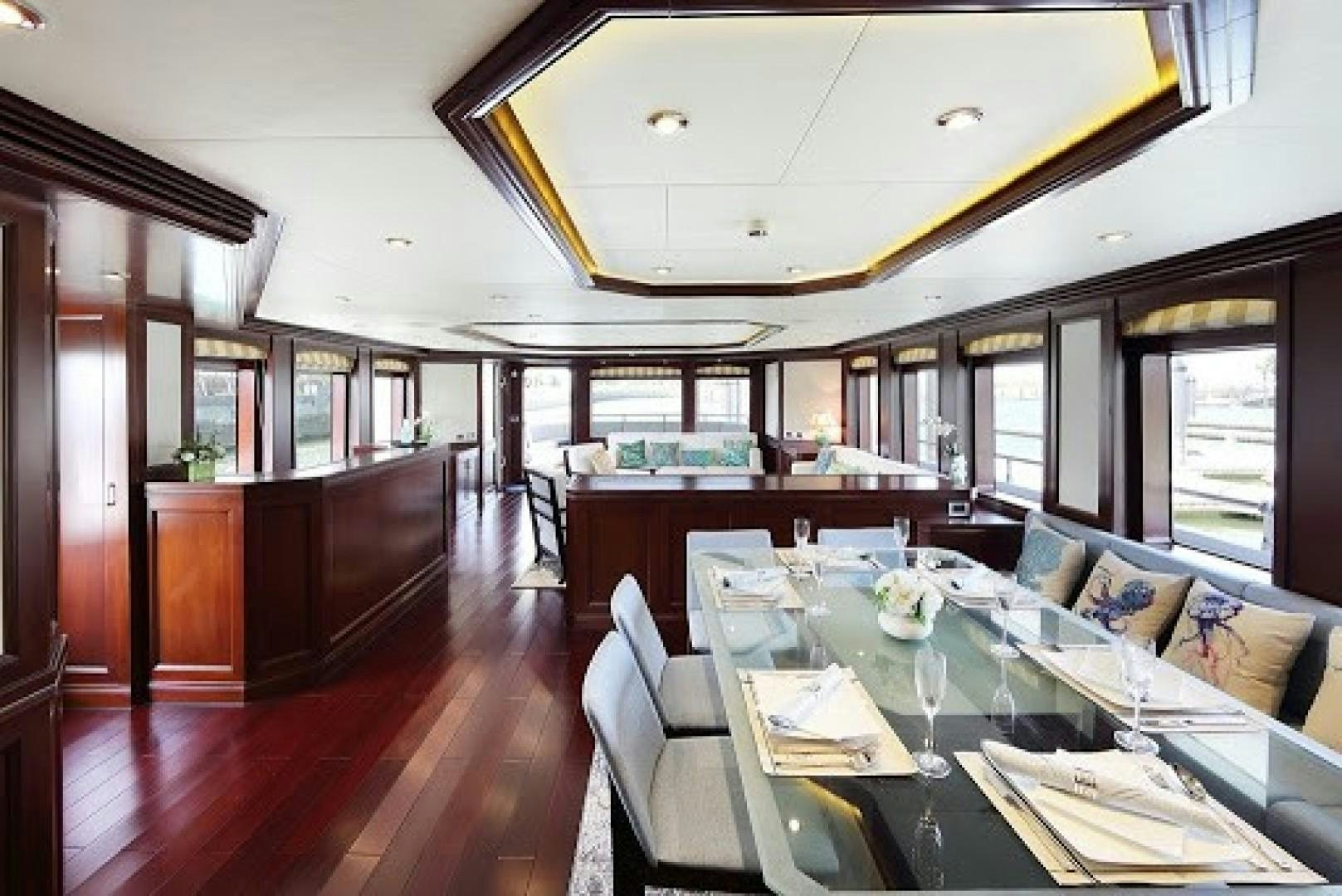

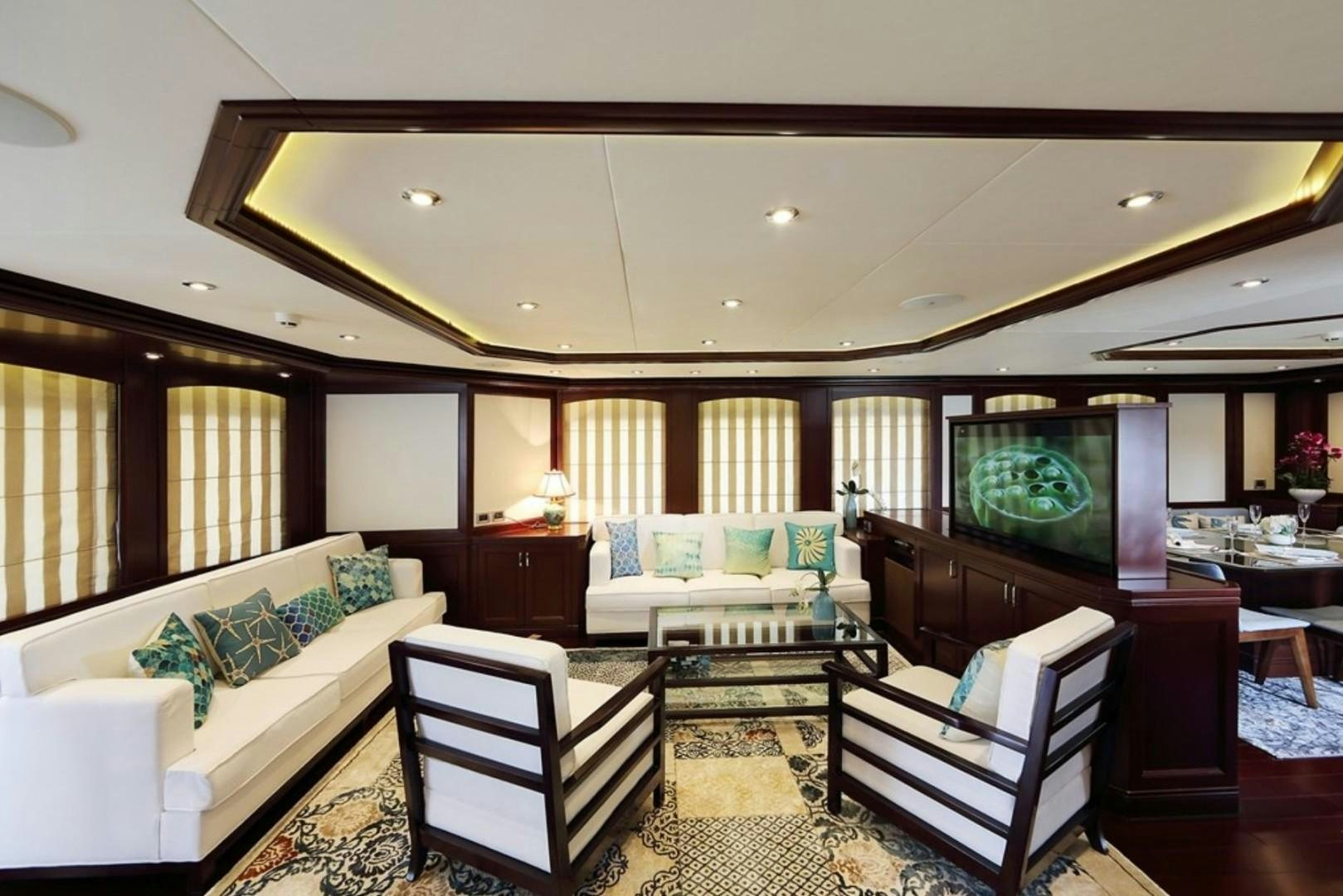

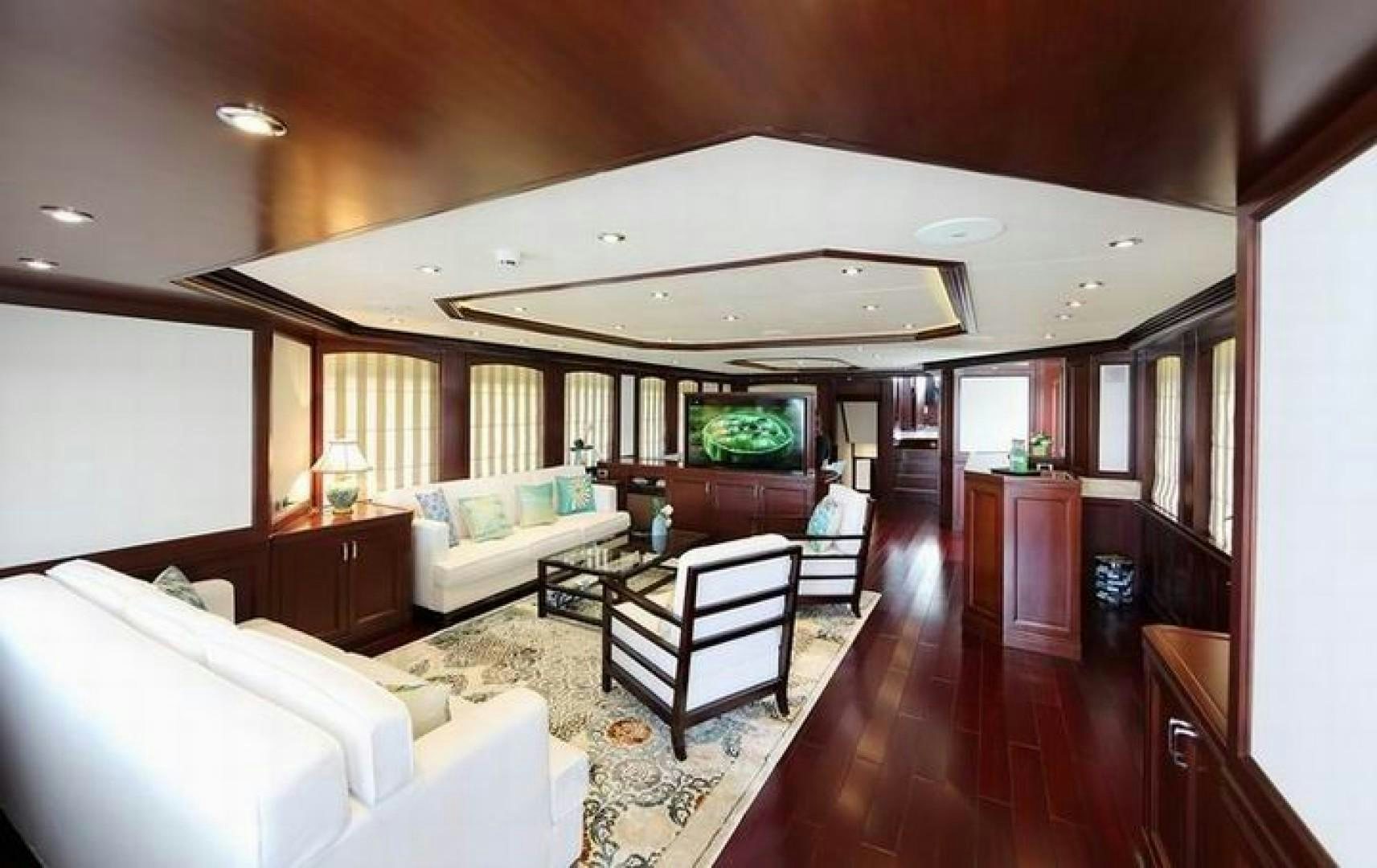

The saloon comes with 2 three-seater settees, 2 armchairs, coffee tables, a bar, fridge, and an entertainment center including a 55" Sony television screen and a Yamaha stereo surround sound system. Forward is a dining area with seating for six guests and storage cabinets for china, glassware, and cutlery.

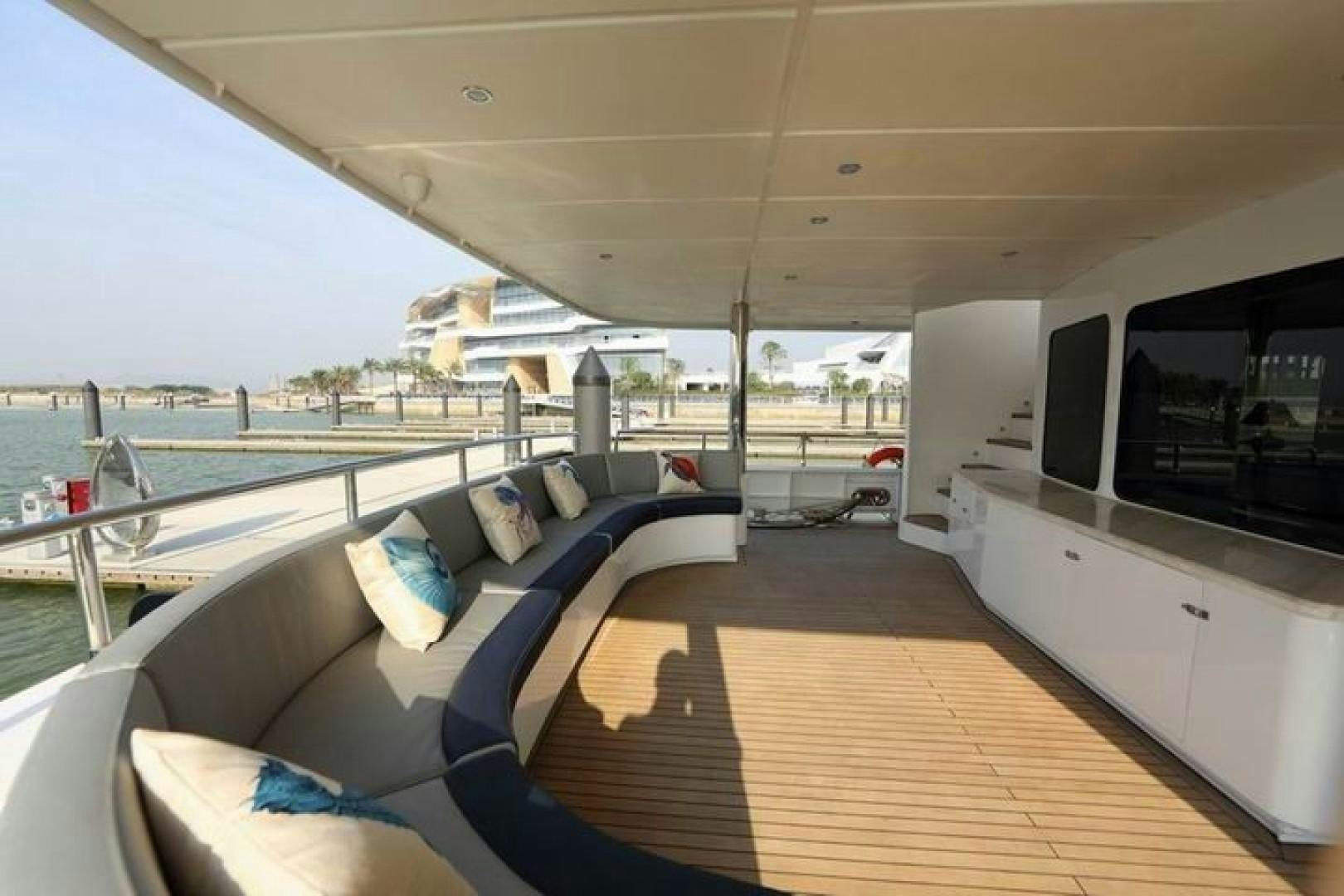

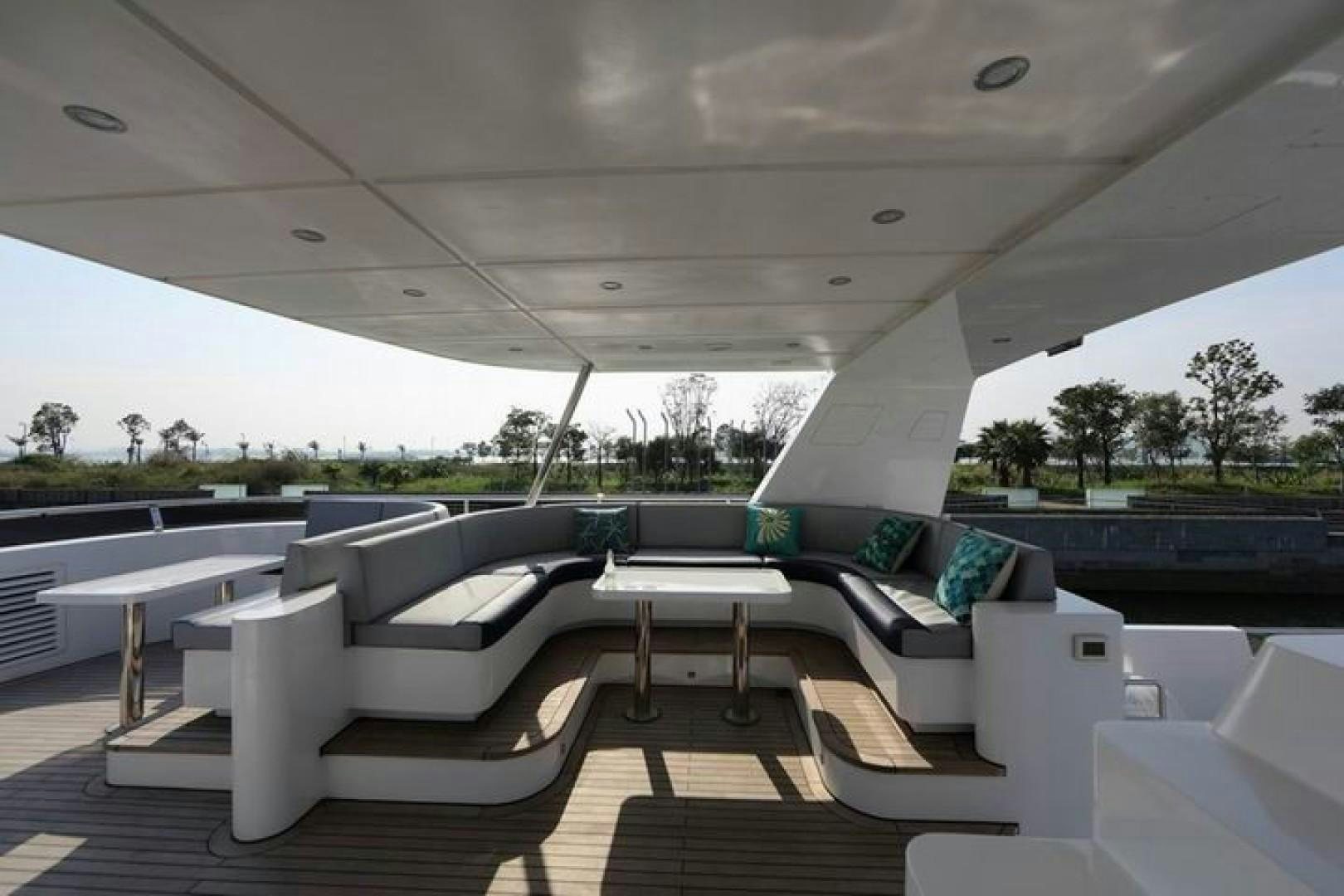

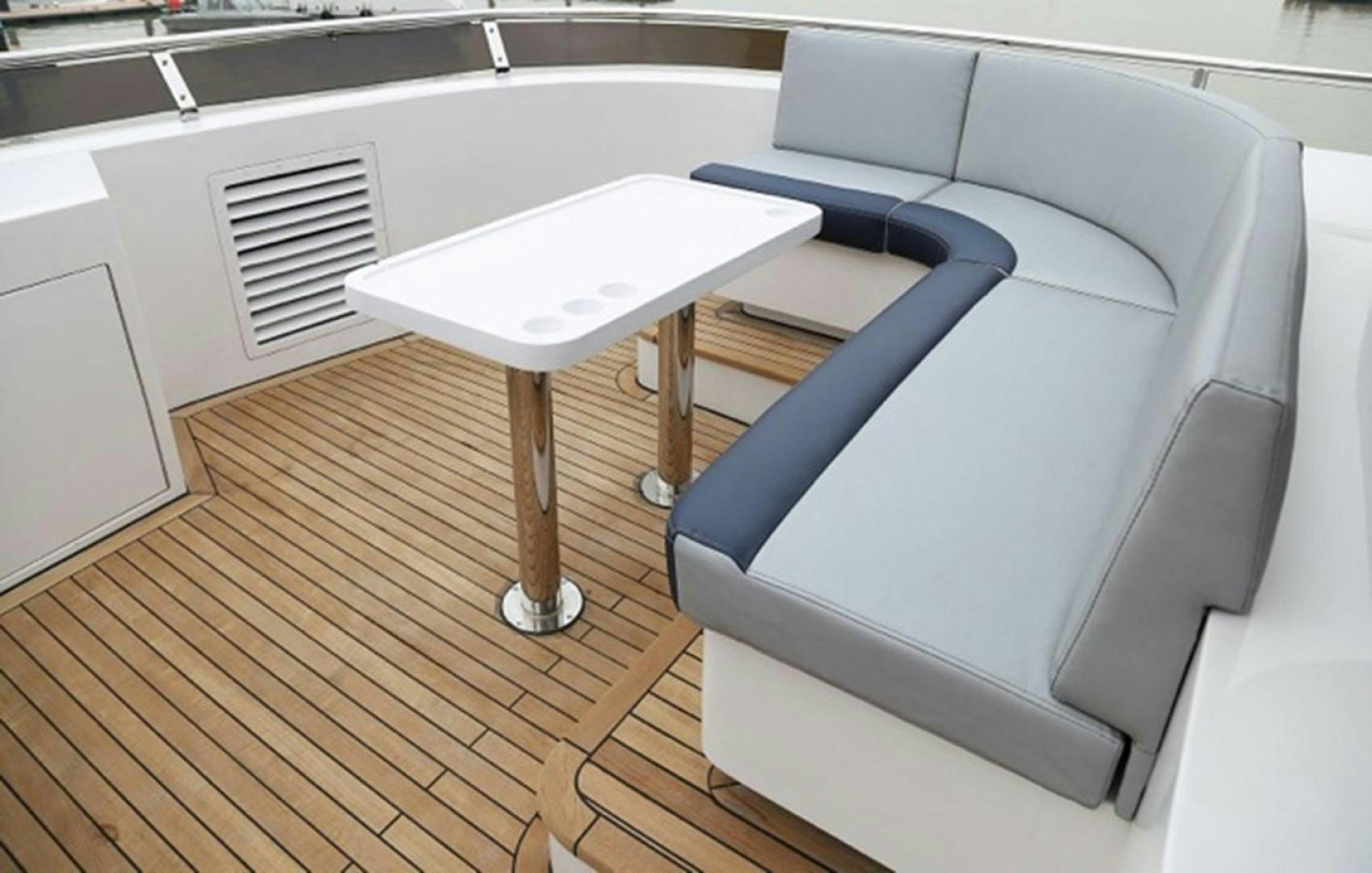

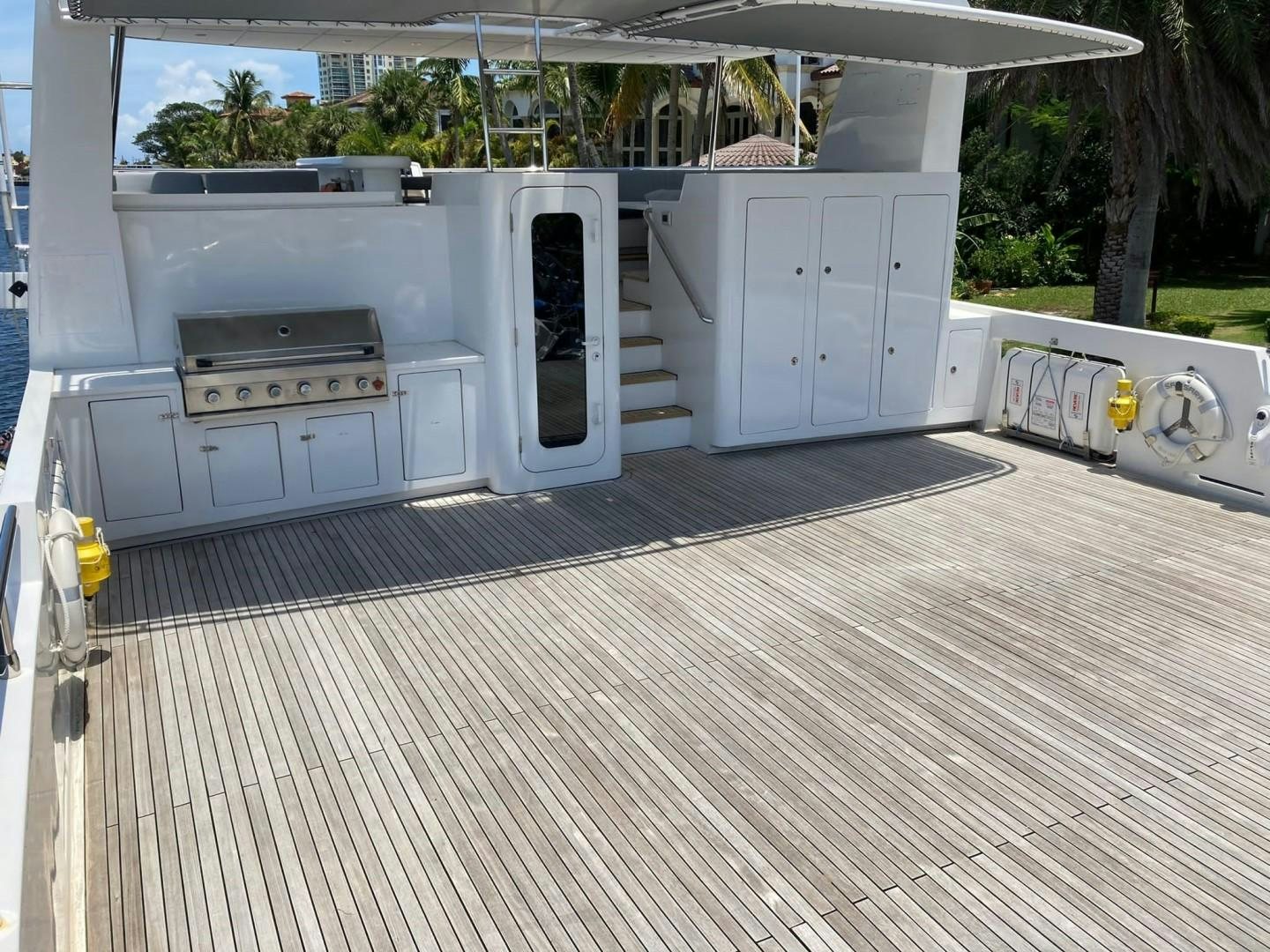

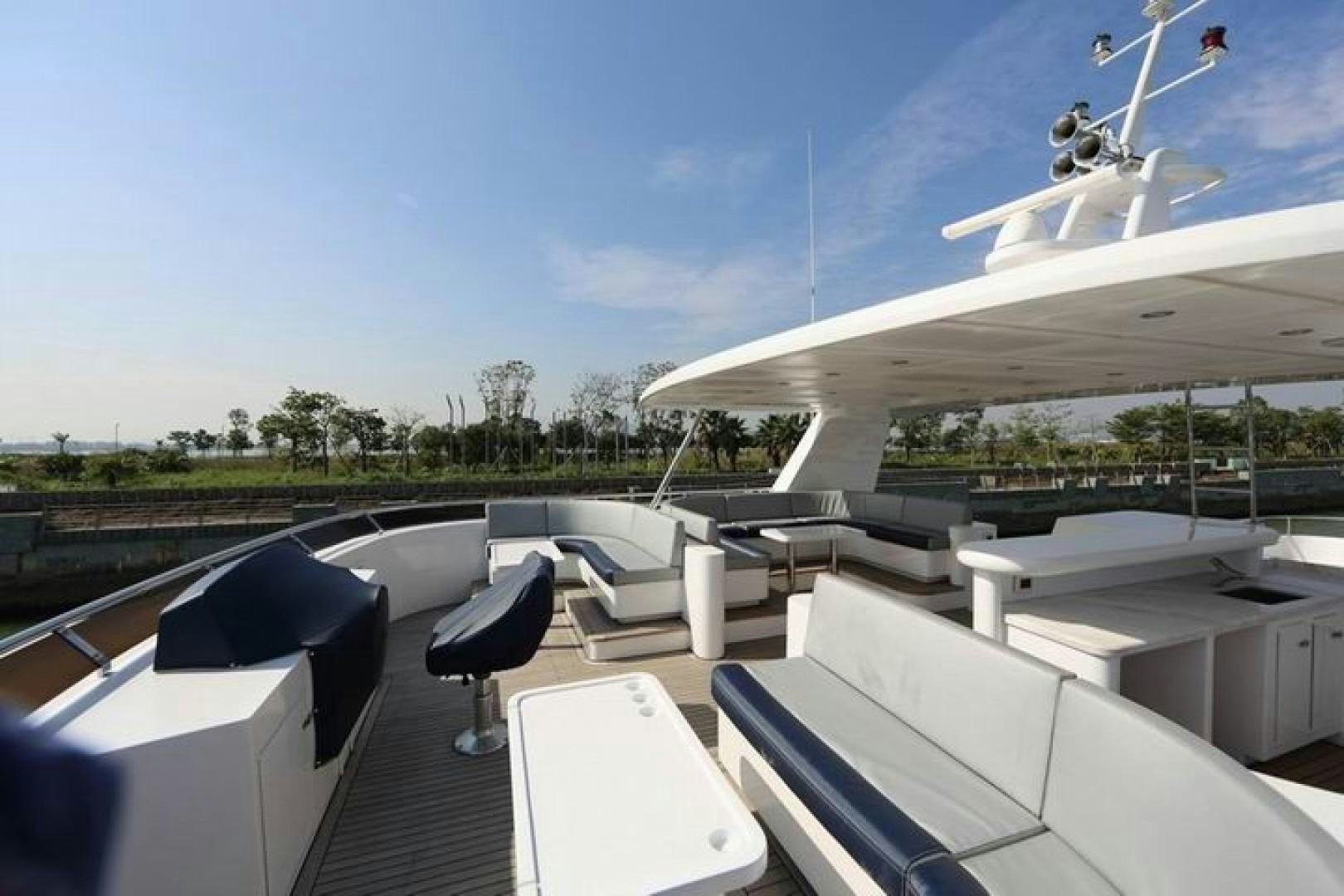

Alfresco entertainment and dining is available on the large aft deck offering a U-shaped settee, table, and chairs along with port and starboard stairs to the wide swim platform. More outdoor living is close at hand on the flybridge, with a bar, fridge, two L-shaped settees, and two tables, all sheltered from the sun by a custom aluminum hard top.

5 year Rina survey completed in March 2021 with Marshall Island PYLC.

Twin Caterpillar 600hp diesel engines give her a trans-Atlantic range of 4,530 nautical miles at her cruising speed of 10 knots. She is fitted with Quantum zero speed stabilizers.

In 2019 Samsara had comprehensive ship systems inspections, service, and upgrades. A partial list is below.

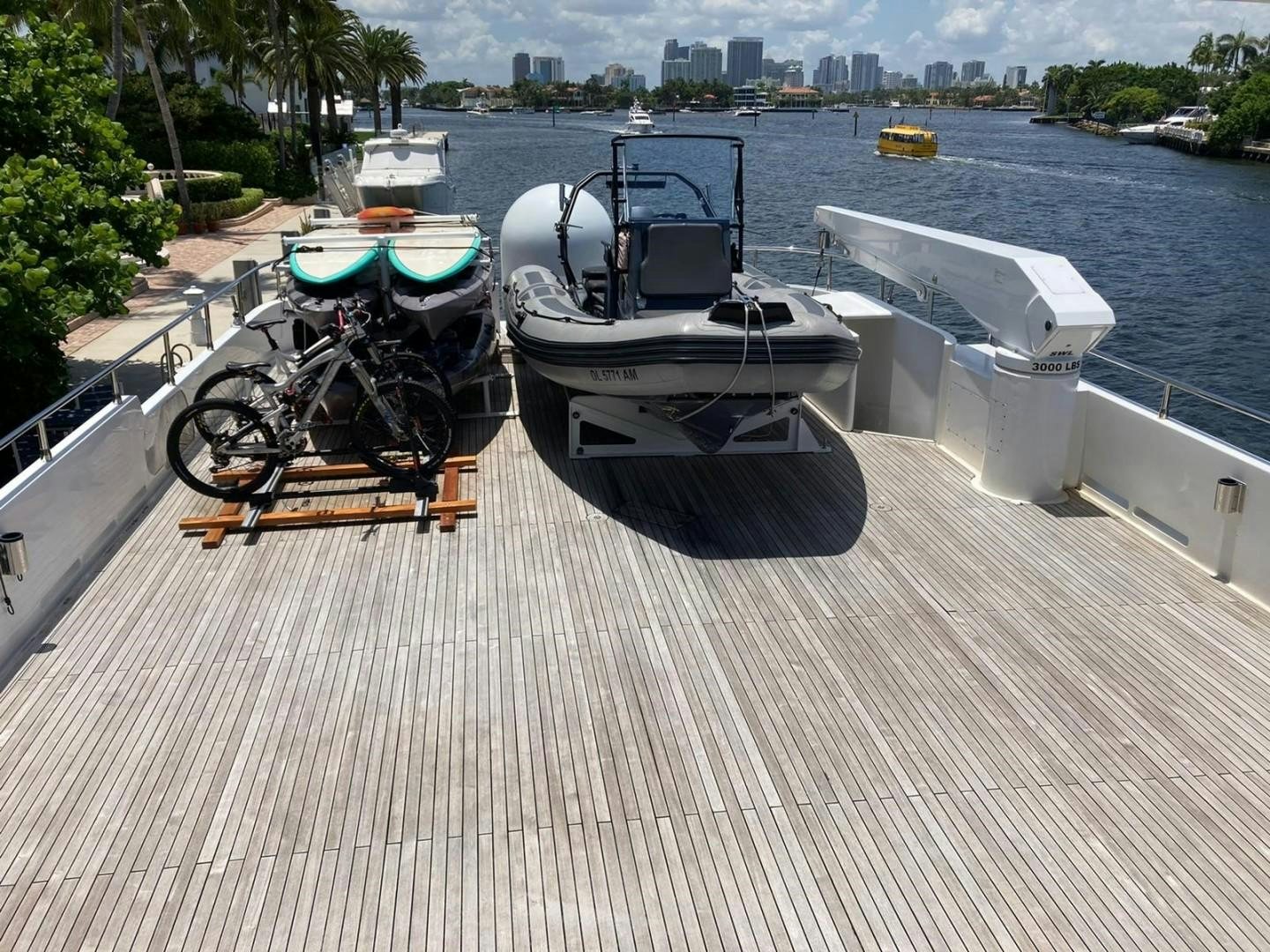

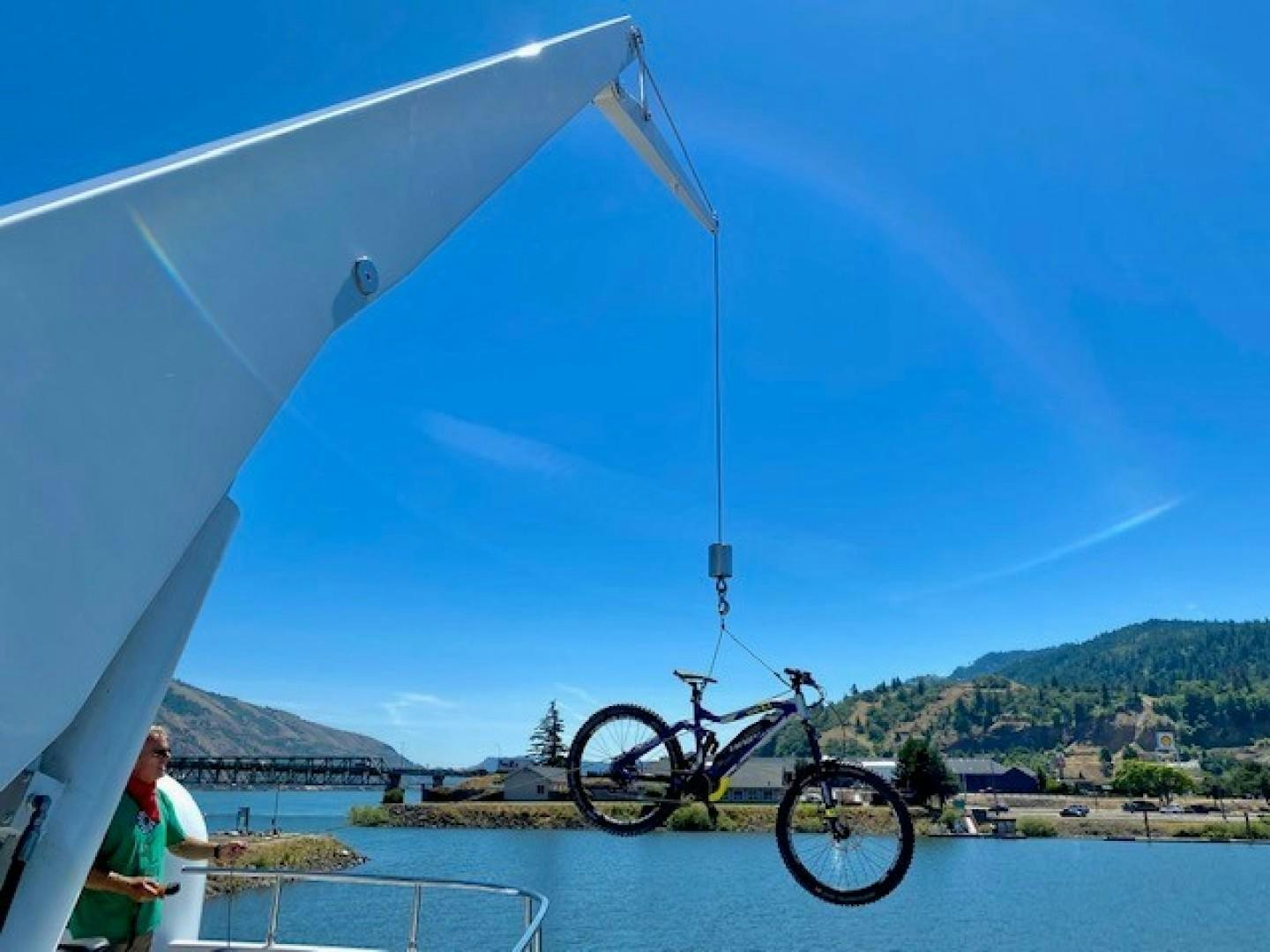

Crane upgraded to Nautical Structure 3000 pound davit / 1.5 tons, with extended reach option.

All New Galley, including new floors, additional refrigeration, new stove, new oven, new sink, additional pantry storage, extended counter space, and settee to create a full-beam arrangement.

All AC units inspected, serviced as needed, and double drains redone.

New fire/smoke/entry alarm system installed

New fire system installed in the engine room

Atlas power system inspected and serviced

Electrical panel inspected and cleaned

The hydraulic system fully inspected, one pump installed, all fittings checked and replaced as needed.

Quantum zero speed stabilizer system, inspected and upgraded

Cat engines inspected and under extended warranty

Port engine has 2571.5 hours as of March 1, 2021, note transmission removed and inspected 2020

STB engine has 1842.5 hours as of March 1, 2021. note: transmission replaced 2020

Life rafts replaced 2020

Additional electronics added 2019 including full vessel WiFI

All exterior countertops replaced

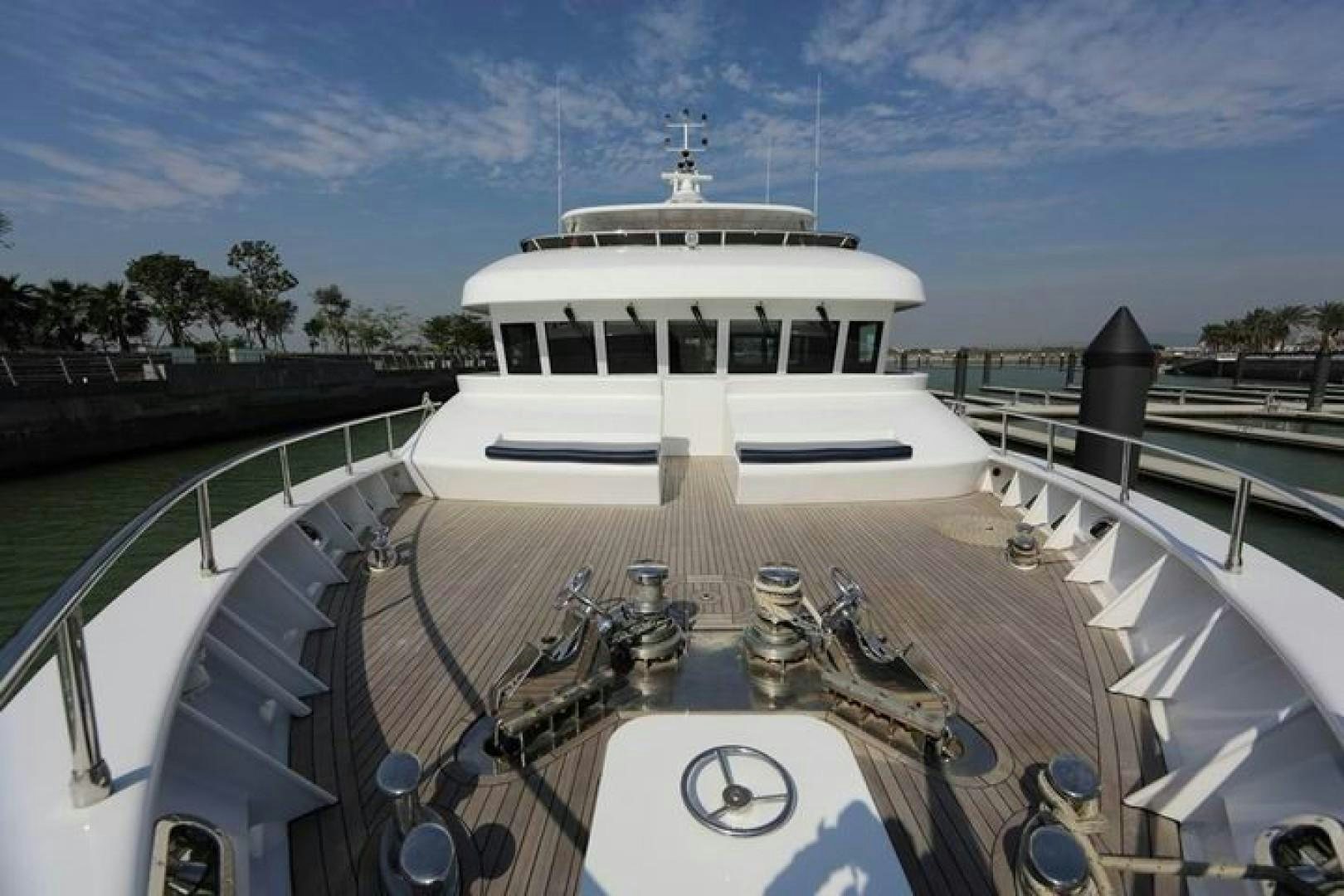

Windlasses inspected and serviced

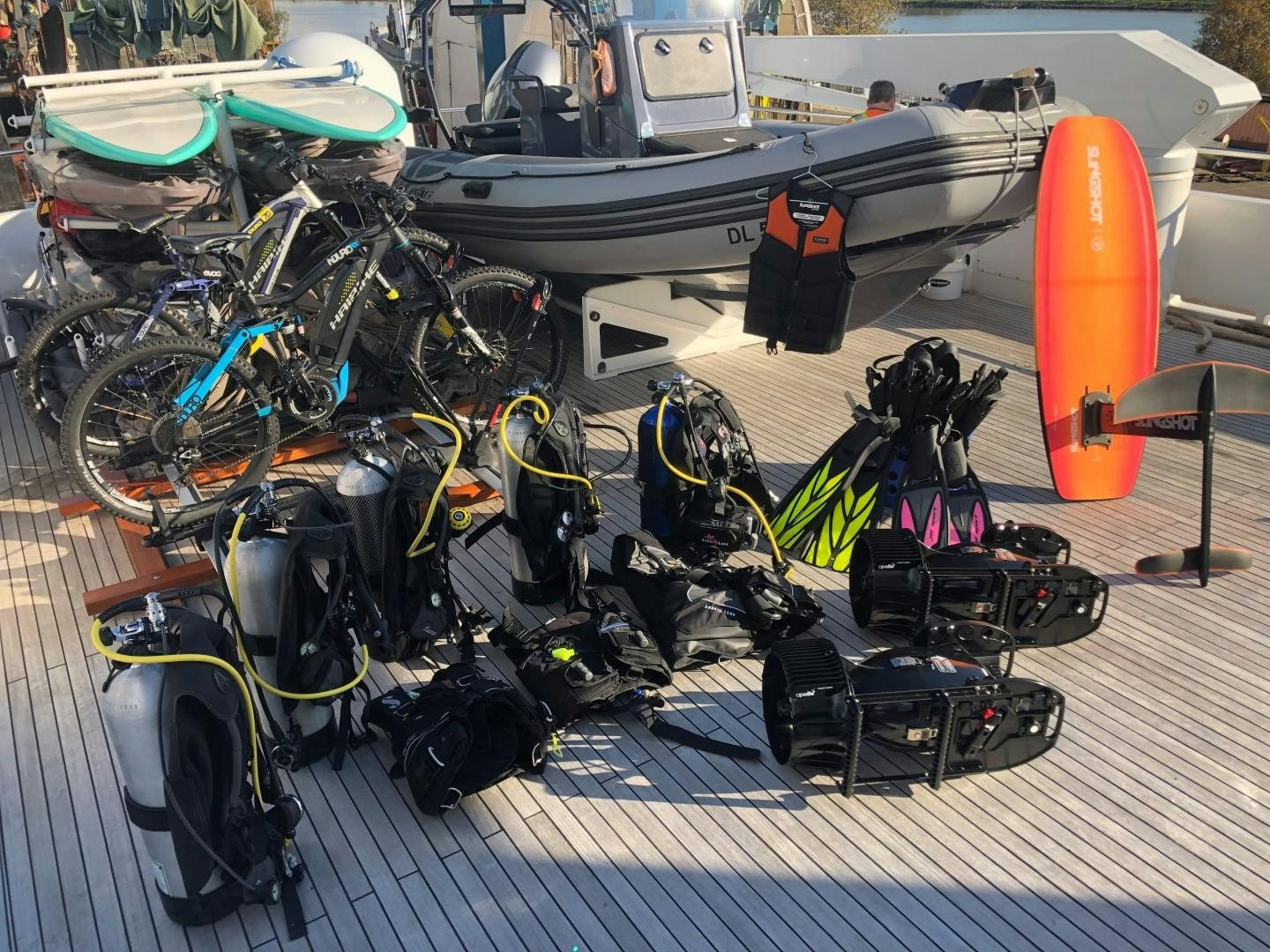

Boat deck locker enlarged to create dive gear locker

New washer and dryer

Water Makers fully serviced and membranes replaced

Head Hunter MSD inspected and serviced

New fire system installed in the engine room.

NOT AVAILABLE FOR SALE TO U.S RESIDENTS WHILE IN U.S. WATERS.

Cherry interior & furniture with satin finish for saloon, galley, forward lounge, pilothouse, master and guest staterooms

Oak interior & furniture for crew area

White head lining vinyl panels with LED flush mounted overhead lighting

White flame-retardant wall cloth and cherry-wood chair rails

Cotton curtains to all windows and portholes

2 three seater white fabric sofas and 2 single armchairs

Cherry wood rectangular tea table with glass top

Bar counter with marble top, S/S sink and single faucet,

HUSKY counter fridge

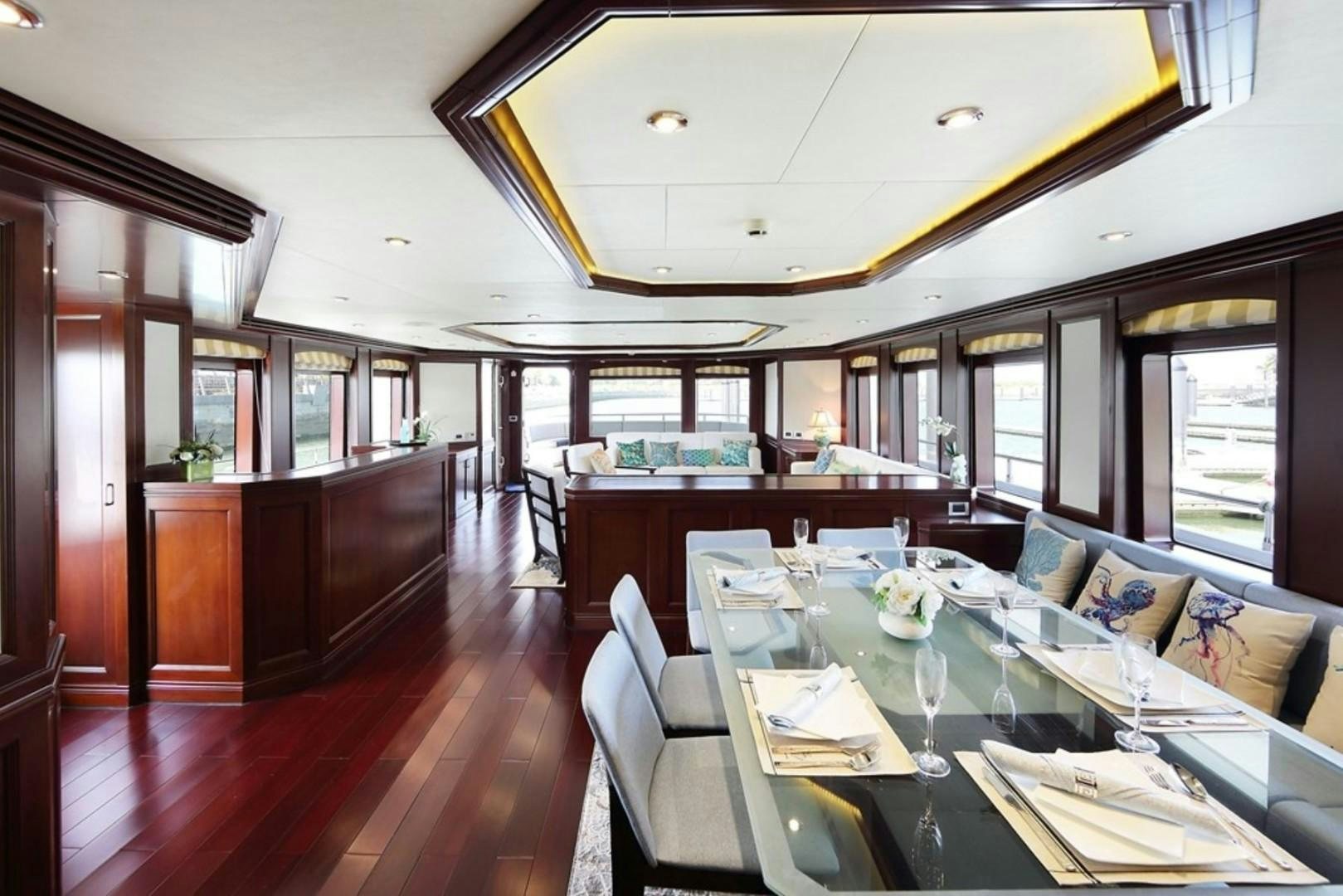

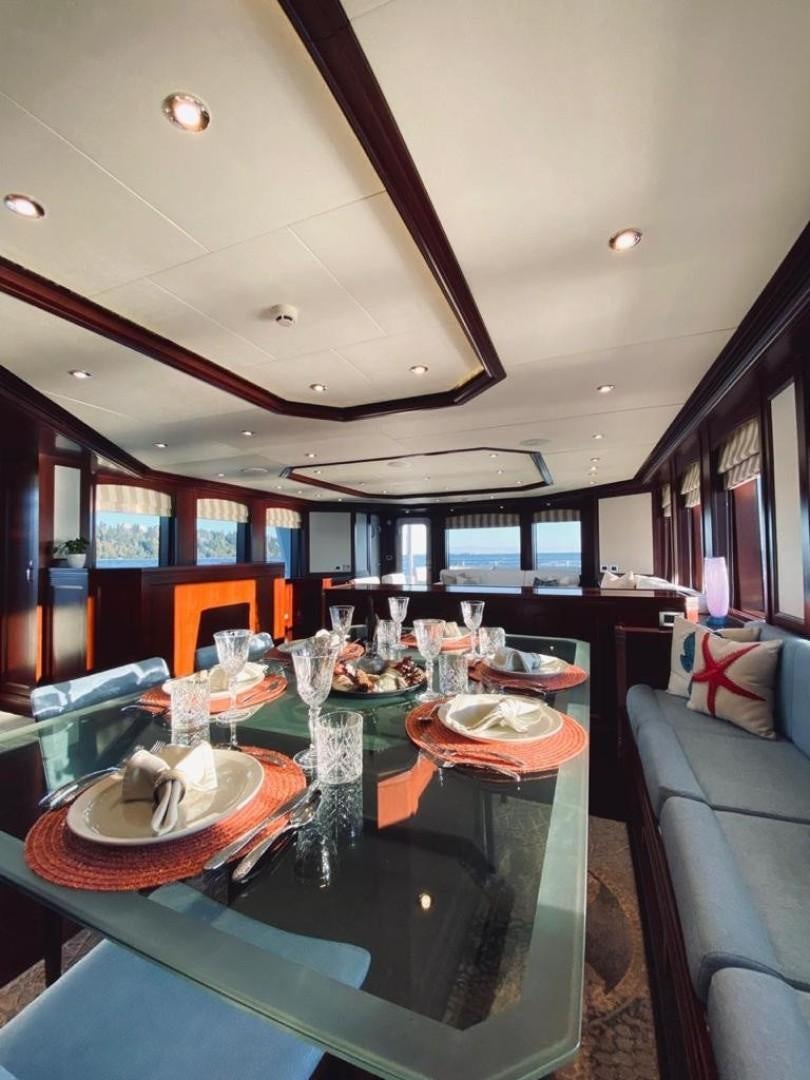

Built-in “U”-shape settee on port side and 4 dining chairs, light-blue fabric

Cherry wood rectangular dining table with glass top

Large cabinet for storage of wines and dinnerware

Solid wood floor

3 weather-tight doors to aft deck, side deck stbd and switchboard room

220V and 120V AC sockets

Entertainment cabinet with:

55” Pop-up SONY TV

YAMAHA Radio/CD/DVD player

5 YAMAHA ceiling speakers and 1 YAMAHA Sub-woofer for a 5.1 studio system

Cherry vanity unit with marble counter top and mirror

1 HEADHUNTER toilet

Exhaust fan system

Solid wood floor

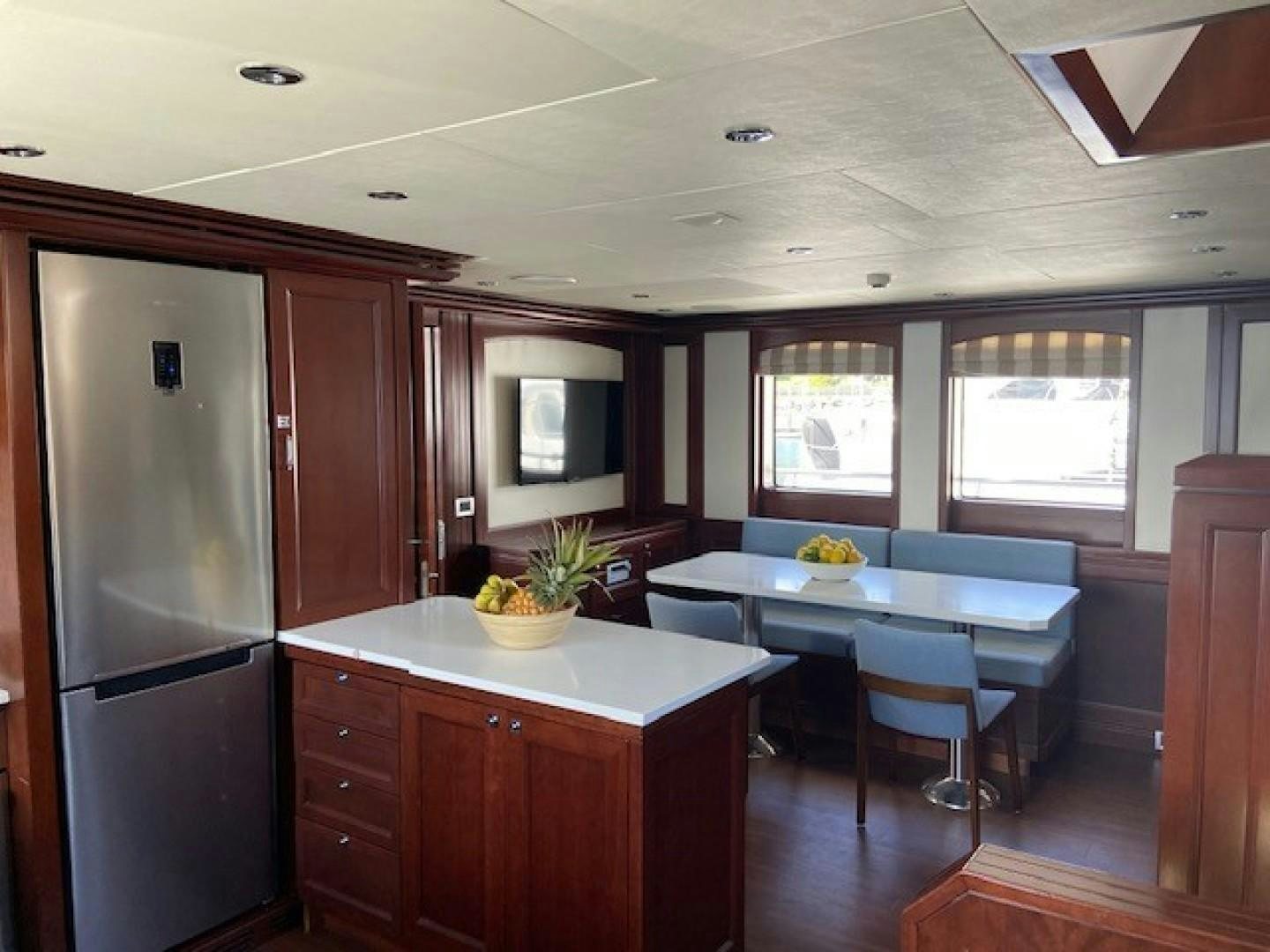

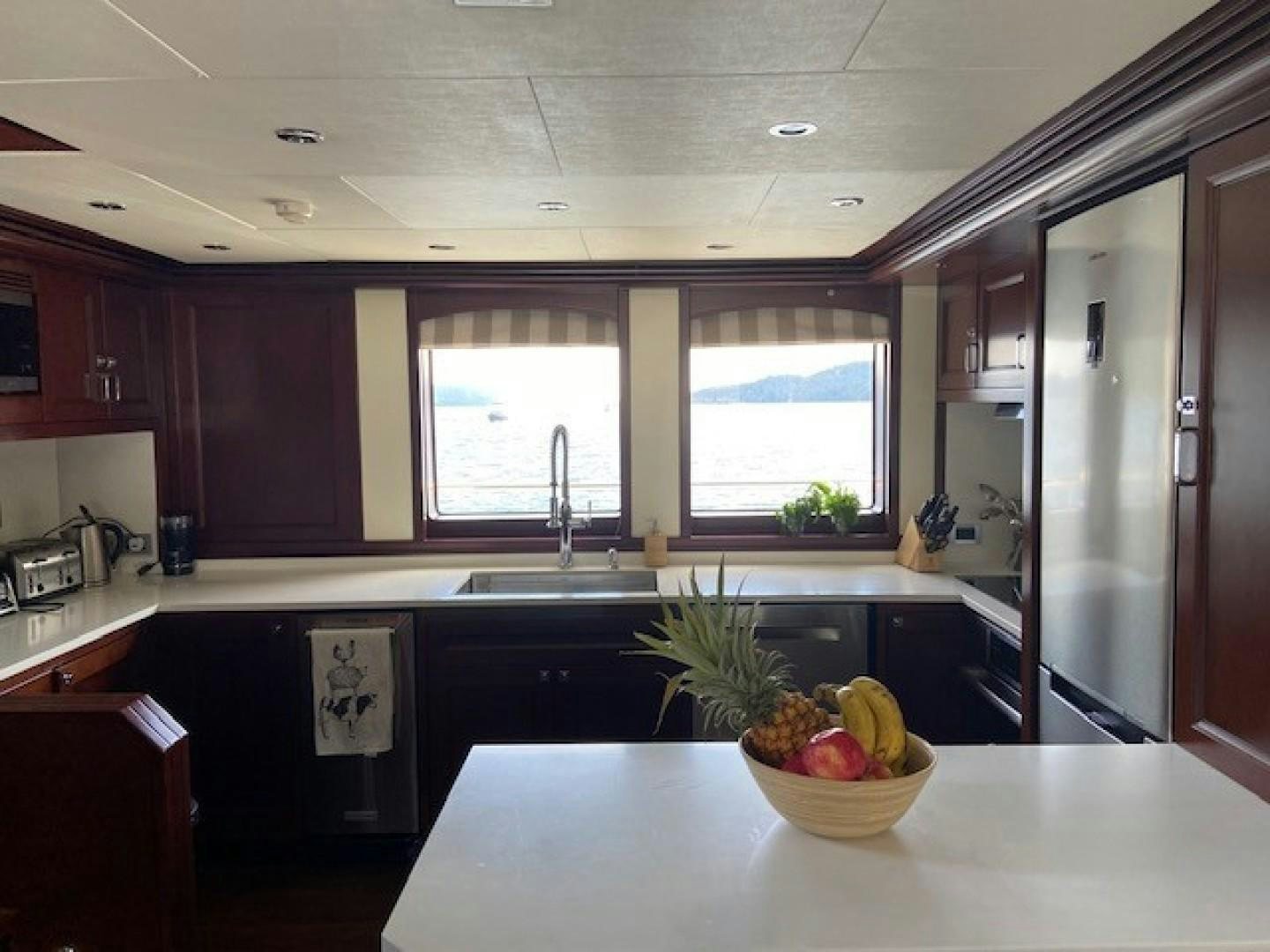

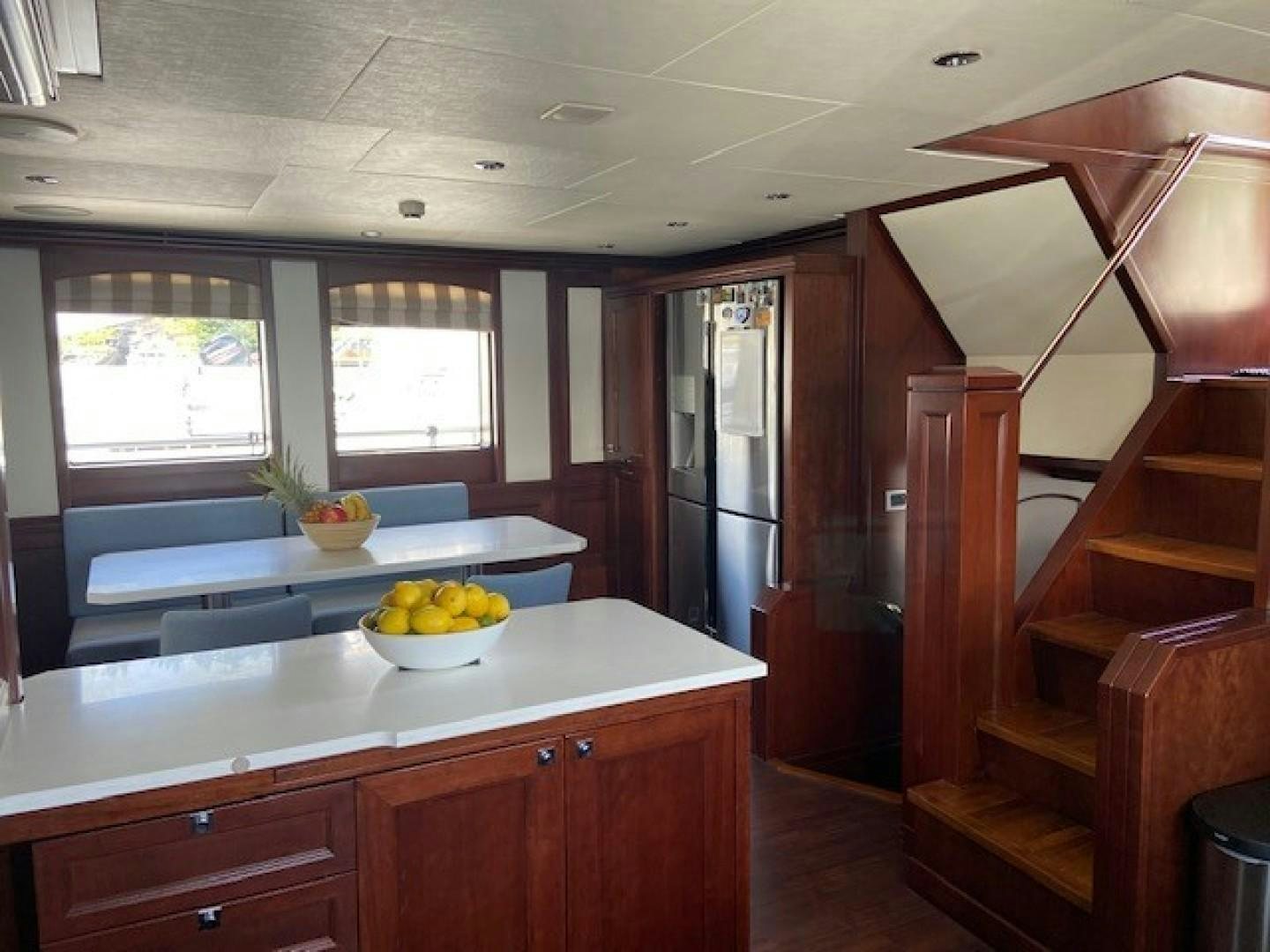

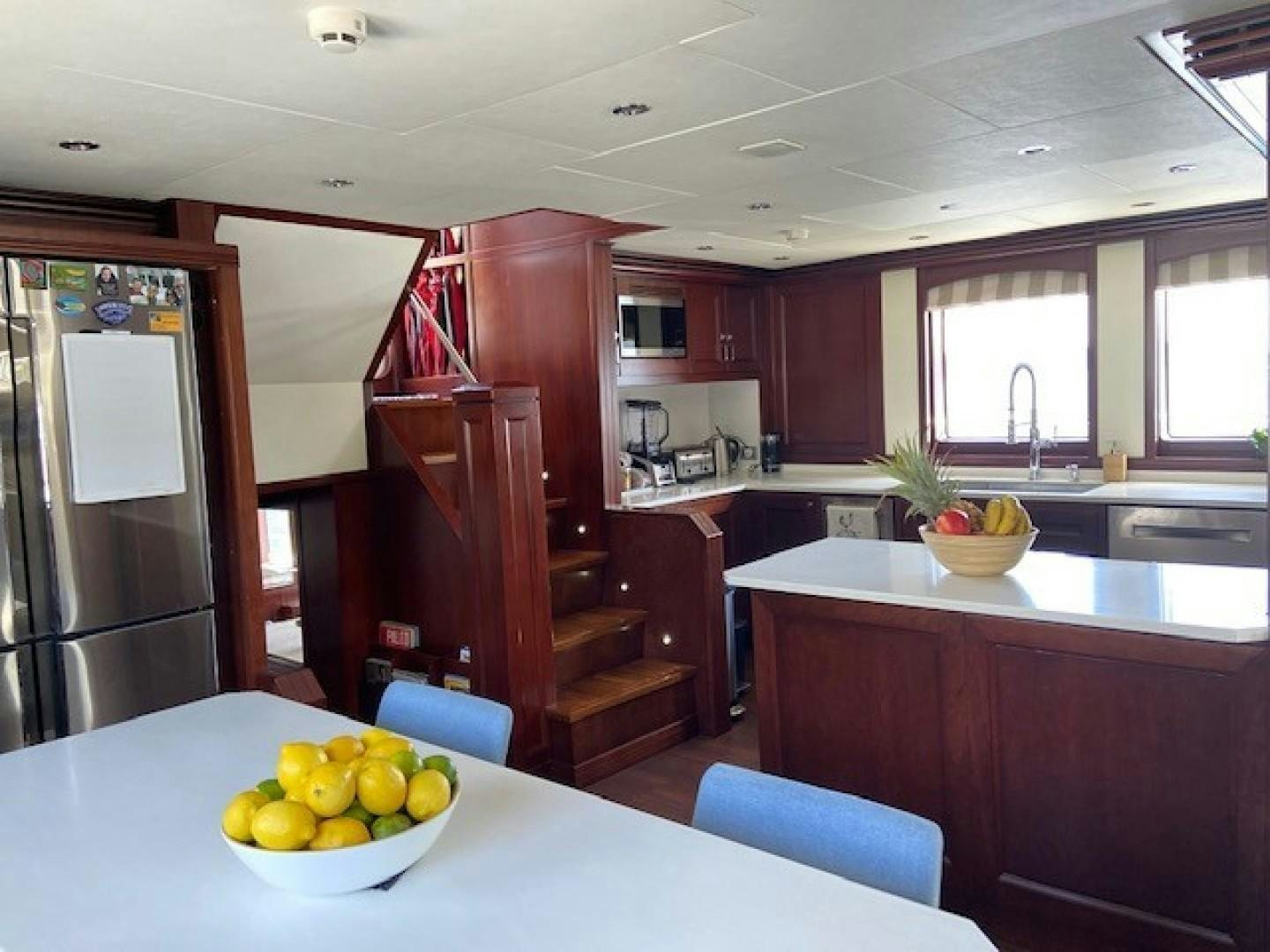

Galley rebuilt in 2019 to add additional refrigeration, freezer and pantry space, additional counter space, and a built-in settee making it a full-beam galley.

Built-in “U” shape galley unit with grey Corian cabinet top

Stainless steel sink – double, deep

Samsung Double door refrigerator. # RF23J011SR

Samsung 7.7 Cu.ft bottom freezer w/digital inverter #Rb21KMFH5SE/TC

Husky single door back bar cooler

LG-NeoChef.9 Cu.ft Compact Microwave with easy clean

Kitchen Aid trash Comparator #KTTS 505ESS0

BOSH Series 8 Ceramic induction cooktop #HBN8451UC/03

Copper Chef induction cooktop #KC16067-00300

Siemens Microwave Oven #HF15G541W

Siemens hood vent # LD12720TI/01

Built-in “U” shape settee with light blue cushion

Cherry round tea table with 2 chairs

SONY TV with a 40” display

PIONEER” DVD/CD/USB player, compatible with Iphone/Ipad, 2.0 studio system

Ceramic tile floor

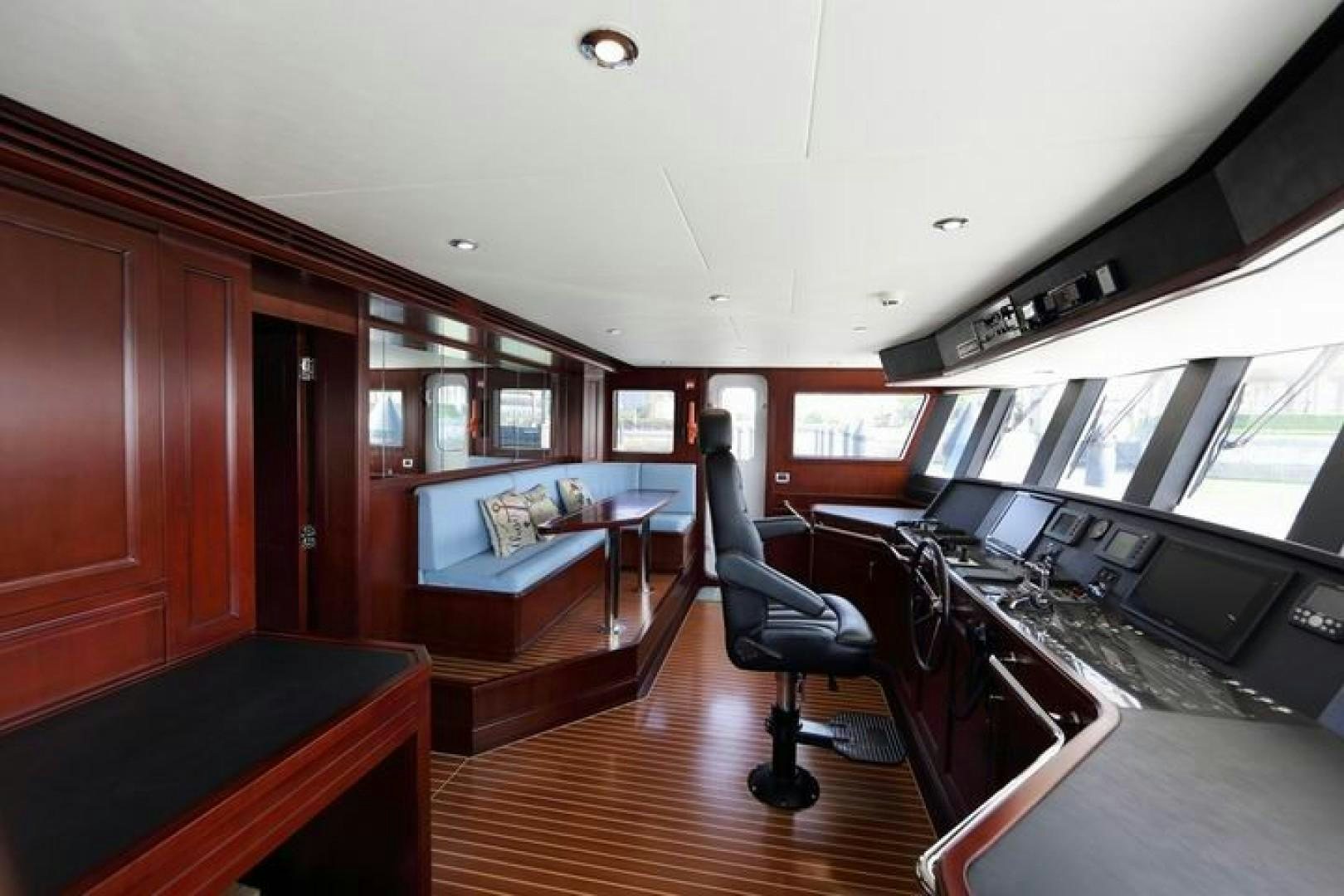

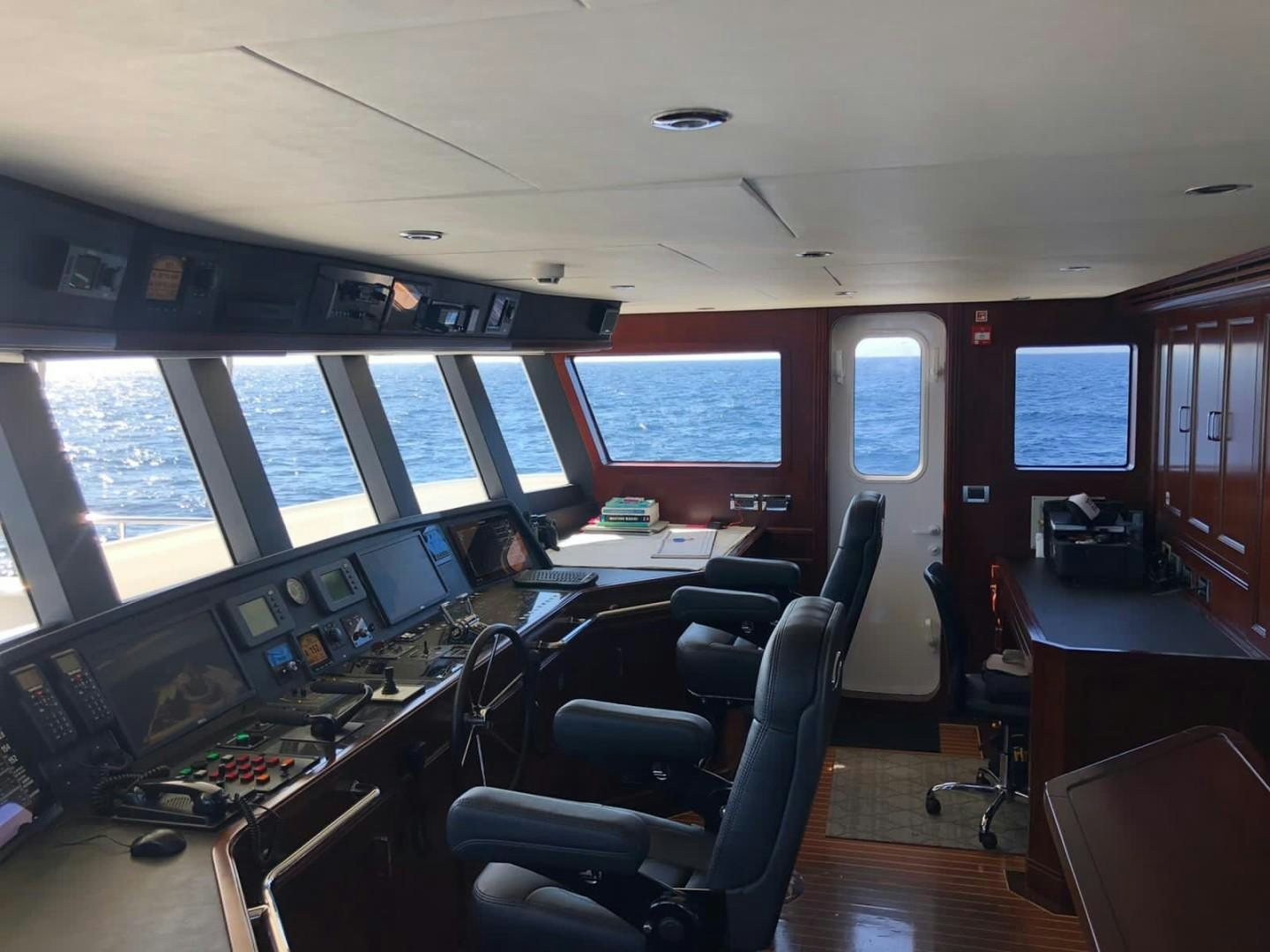

Built-in “L” shape settee with a table on port side

Built-in chart table on stbd side

Black upholstered captain’s helm seat

Cherry wood helm station with black leather top, with gauges, control equipment, monitoring panels, etc. installed

Stairs down to forward crew area

Weather-tight door doors port & stbd.

120.220V AC sockets

Teak and holly floor

Simrad Las

Simrad Nss evo3

Simrad NSS evo3

Simrad IS42

Simrad AP80

Simrad AP80

Simrad NSO evo3

Nobeltec navigation software

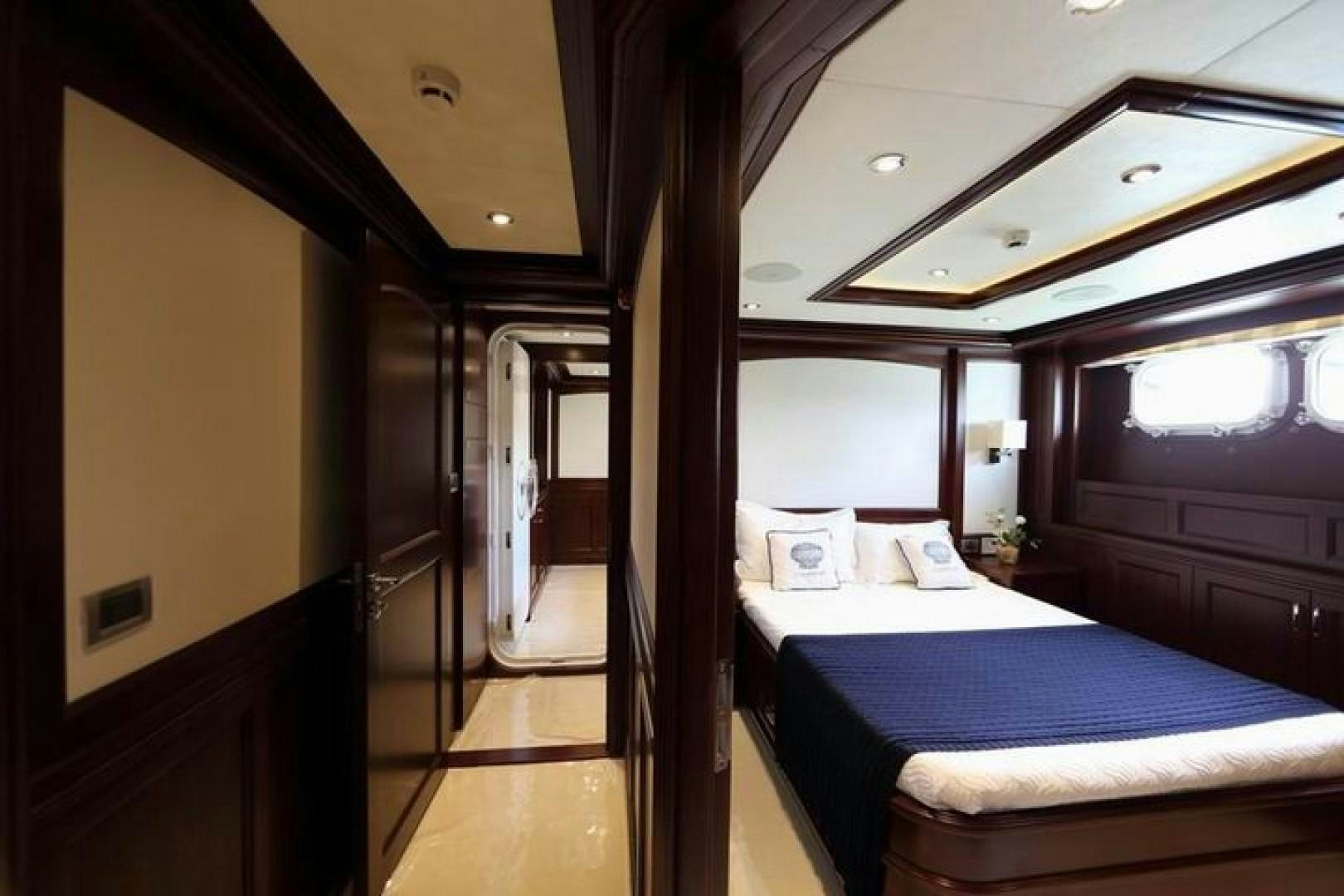

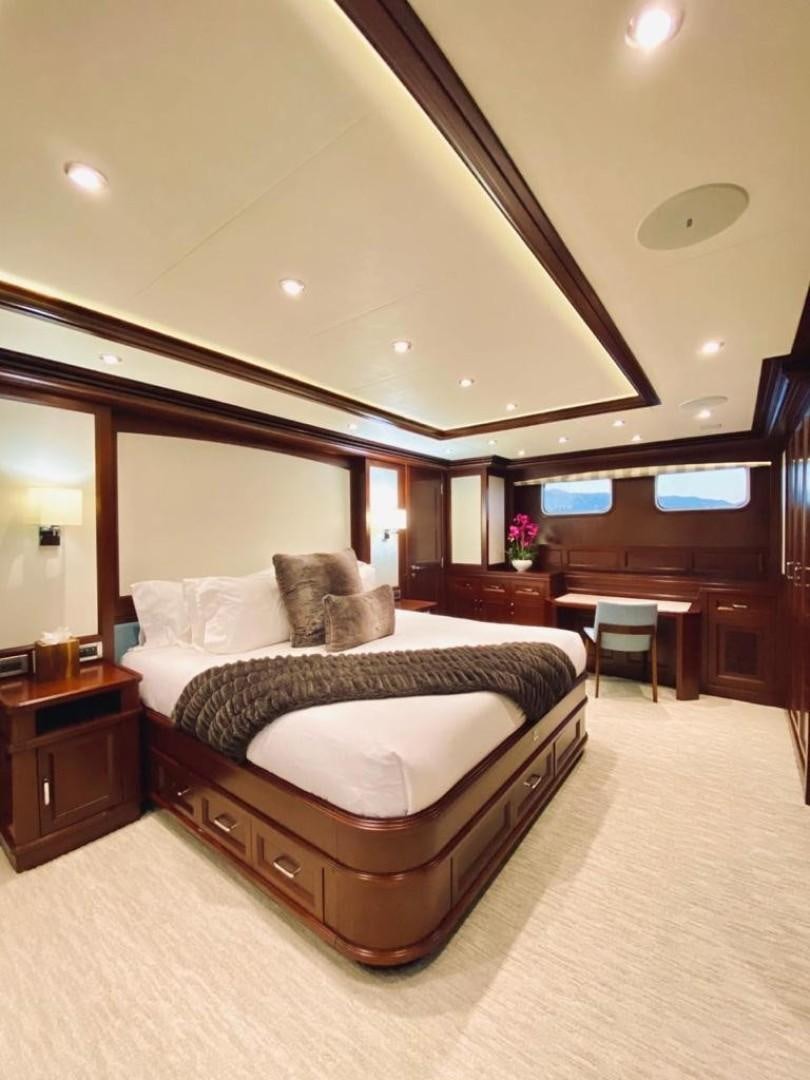

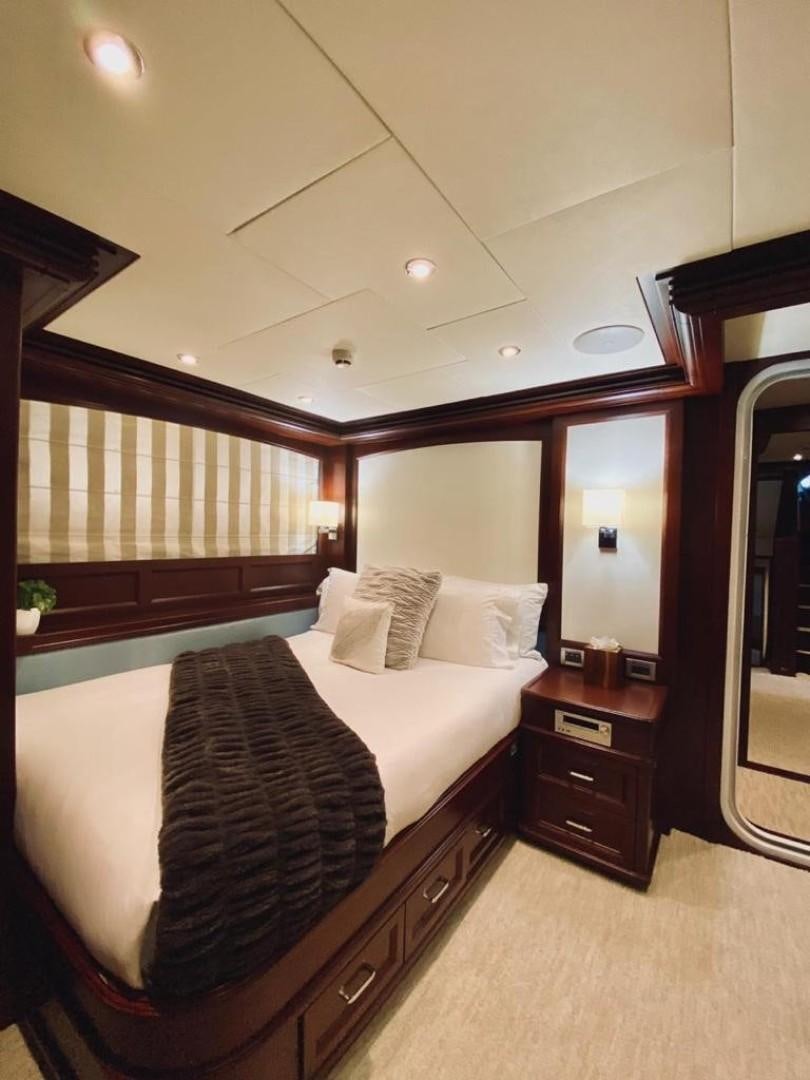

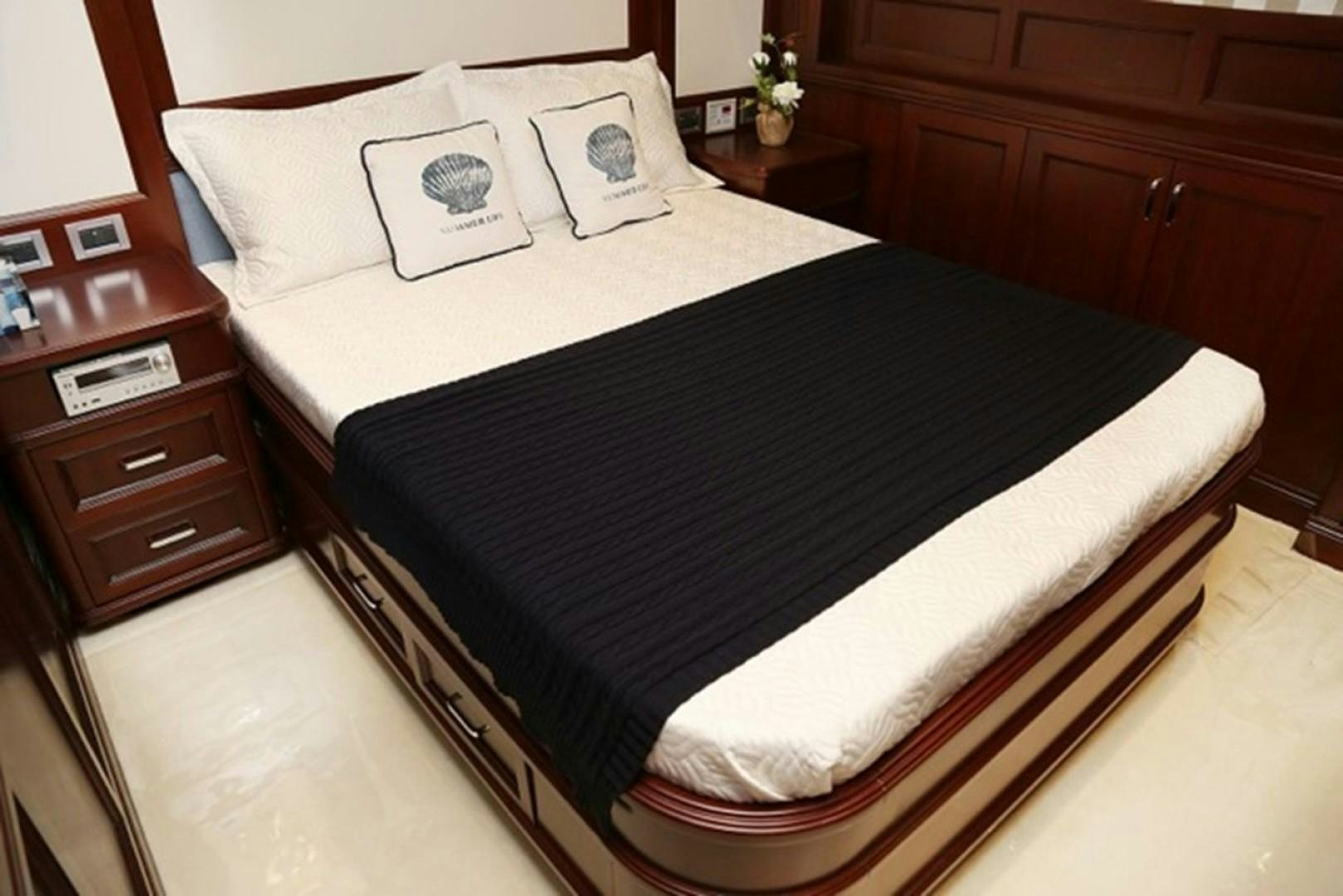

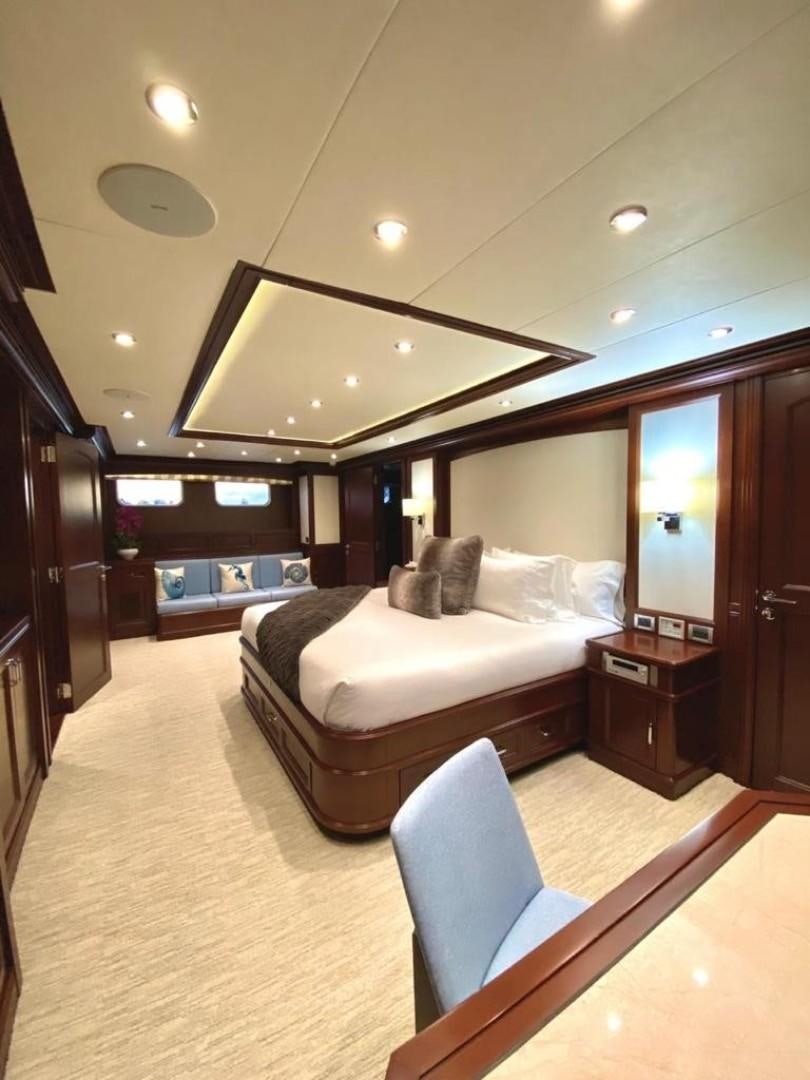

King size berth with under berth storage

2 built-in nightstands

2 bed lamps

Built-in dresser with chair and cabinets at port side

Built-in settee at stbd side

Cedar lined wardrobes with lights for a full wall

48” SONY TV

PIONEER DVD/CD/USB player, compatible with Iphone/Ipad, 2.0 studio system

4 fixed portholes

220V AC sockets

White wool carpet

Master Stateroom Walk-in Closet:

Cherry cabinets with drawers and lights

Full-length mirror

Porthole

Solid wood floor

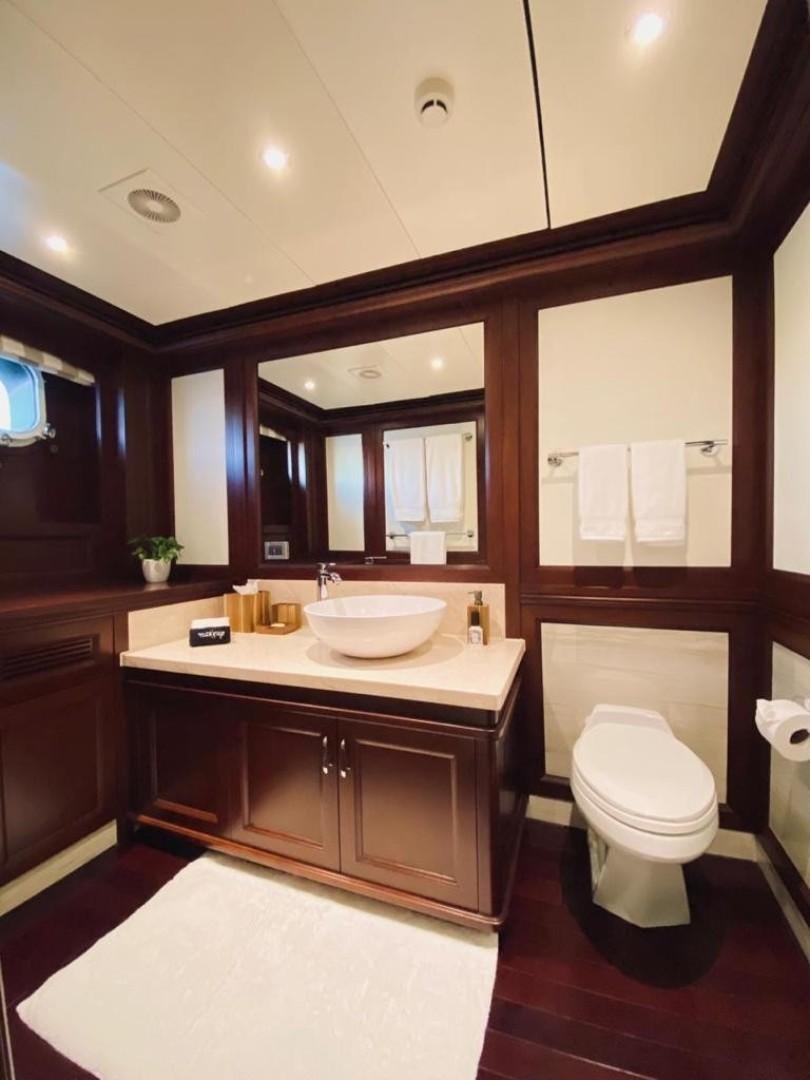

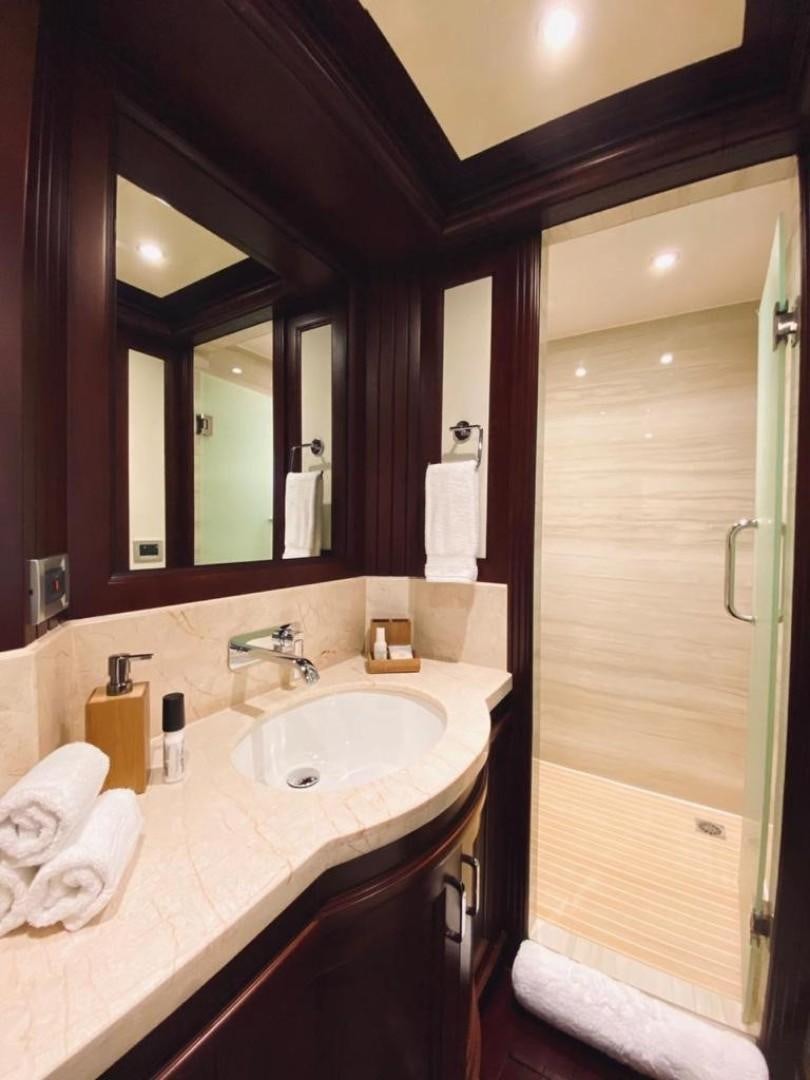

Cherry vanity unit with marble counter top and mirror

White decorative sink with tall spout faucet

HEADHUNTER toilet

Exhaust fan system

Porthole

Solid wood floor

220V AC sockets

Shower area with a frosted-glass door and Flexiteek floor

Exposed shower set

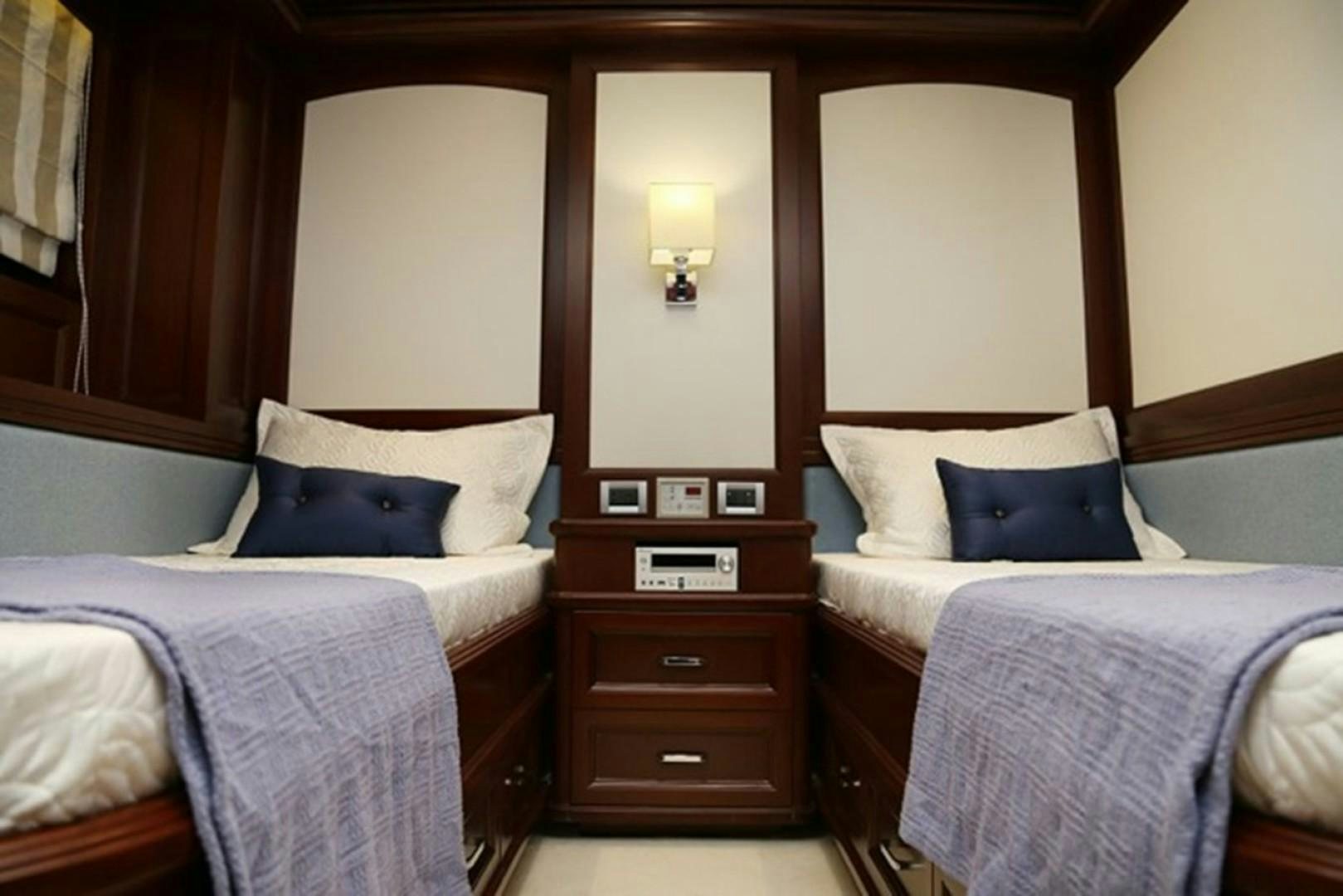

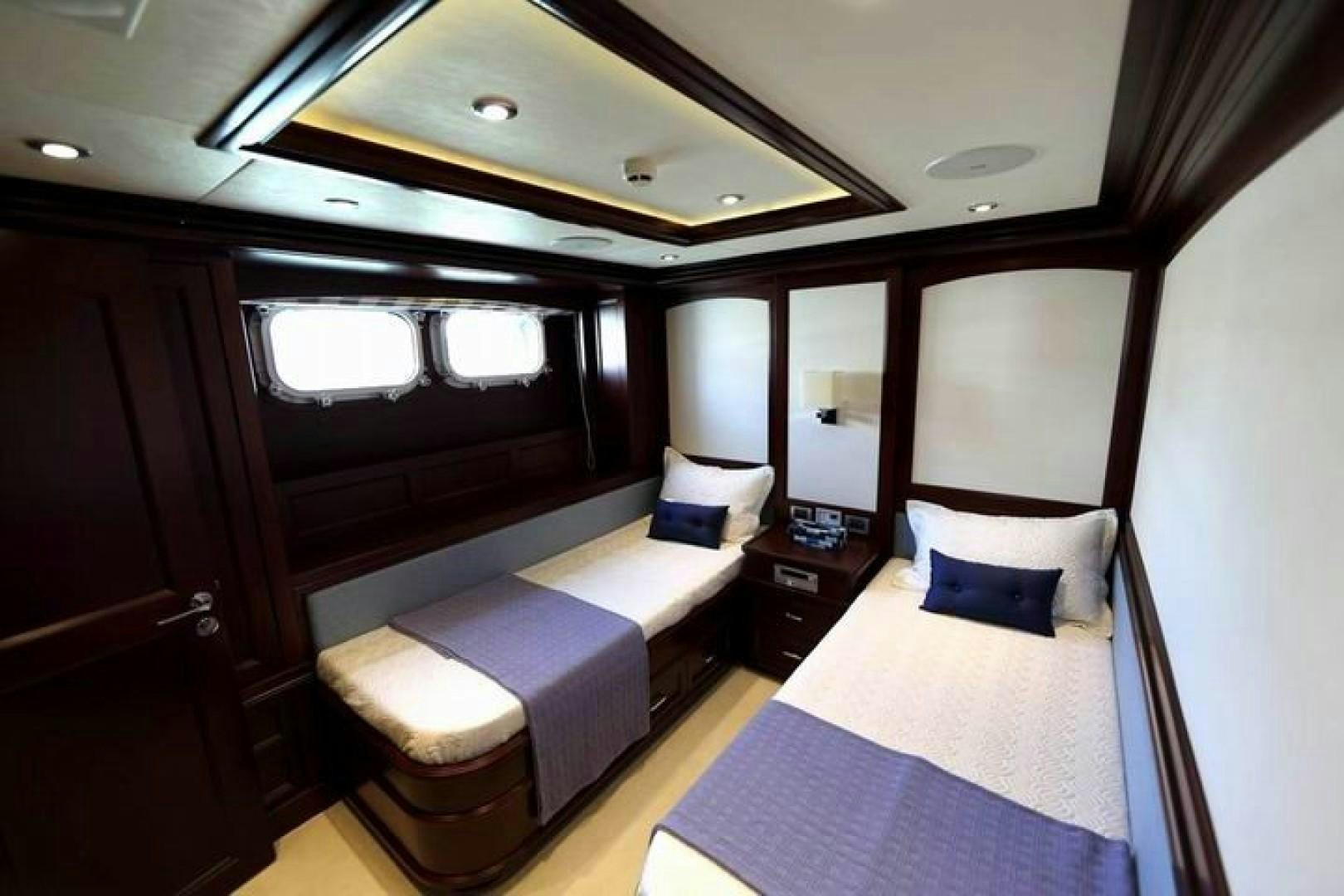

2 single berths with built-in nightstand between

1 bed lamp

Cedar lined wardrobe with lights

32” SONY TV

PIONEER DVD/CD/USB player

2 portholes

220V and 120V AC sockets

White wool carpet

Cherry vanity unit with marble counter top and mirror

White under-mount basin with wall-mount sink faucet

HEADHUNTER toilet

Exhaust fan system

Solid wood floor

220V AC sockets

Shower area with a frosted-glass door and Flexiteek floor

1 exposed shower set

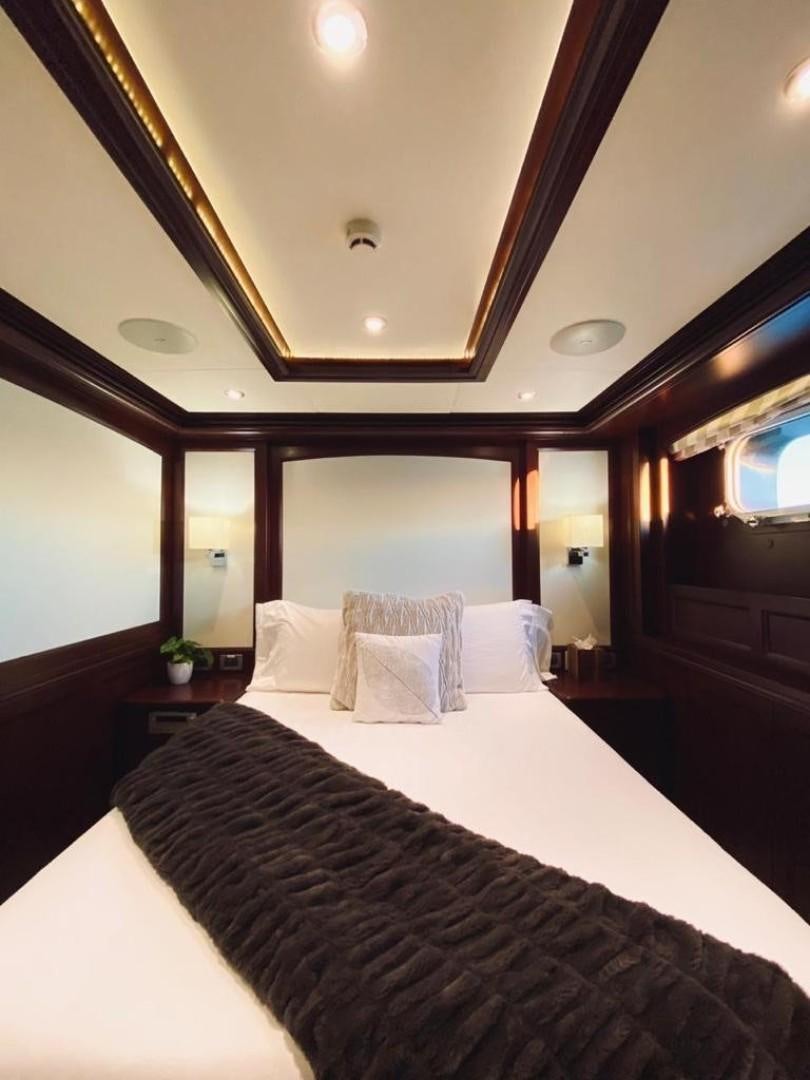

Queen size berth with 2 built-in nightstands

2 bed lamps

Cedar lined wardrobes with lights

32” SONY TV

PIONEER DVD/CD/USB player

2 portholes

220V and 120V AC sockets

White wool carpet

Cherry vanity unit with marble counter top and mirror

White under-mount basin with wall-mount sink faucet

HEADHUNTER toilet

Exhaust fan system

Solid wood floor

220V AC sockets

Shower area with a frosted-glass door and Flexiteek floor

1 exposed shower set

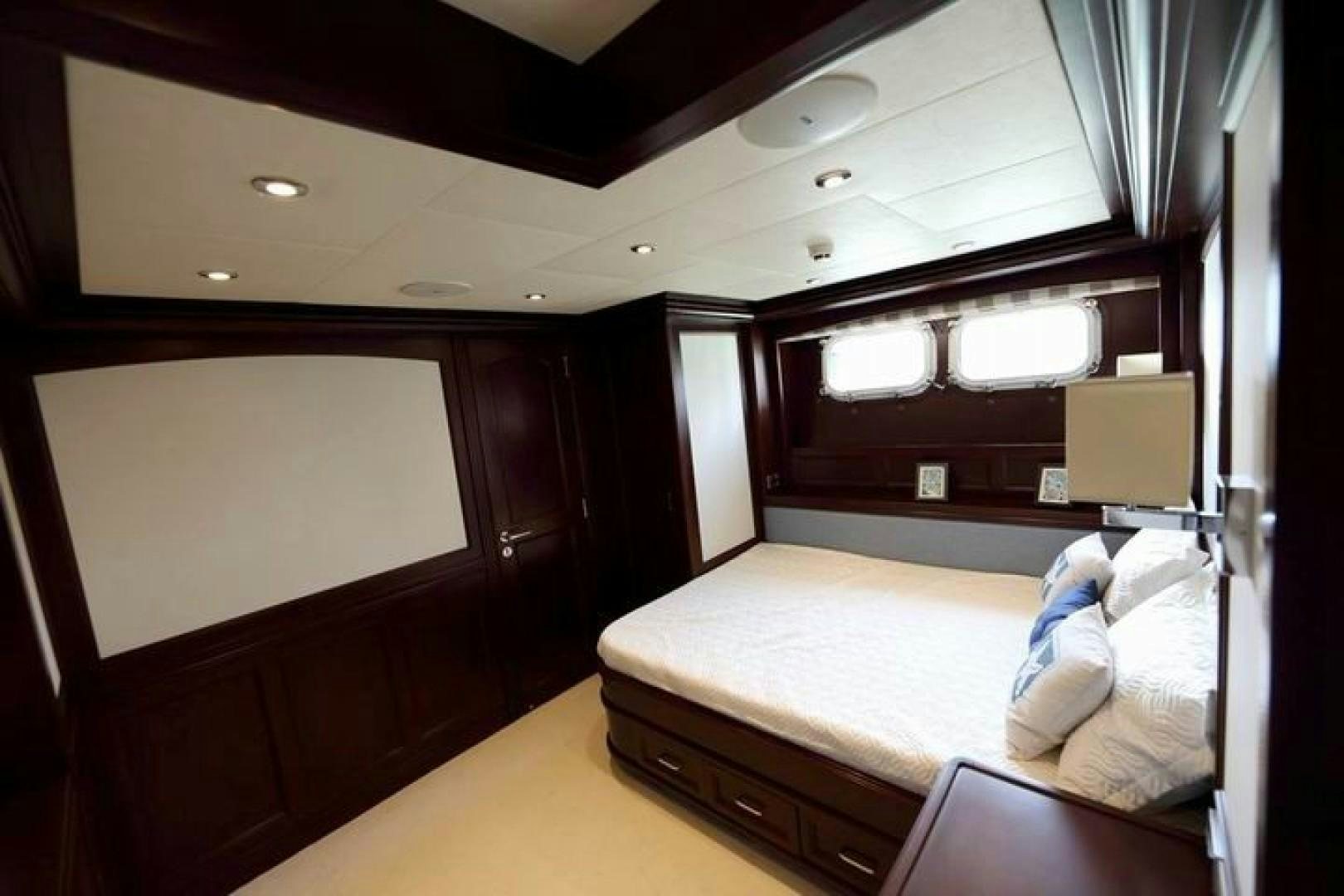

Queen size berth with 1 built-in nightstand

2 bed lamps

Cedar lined wardrobes with lights

32” SONY TV

PIONEER DVD/CD/USB player

2 portholes

220V and 120V AC sockets

White wool carpet

Hidden water-tight door

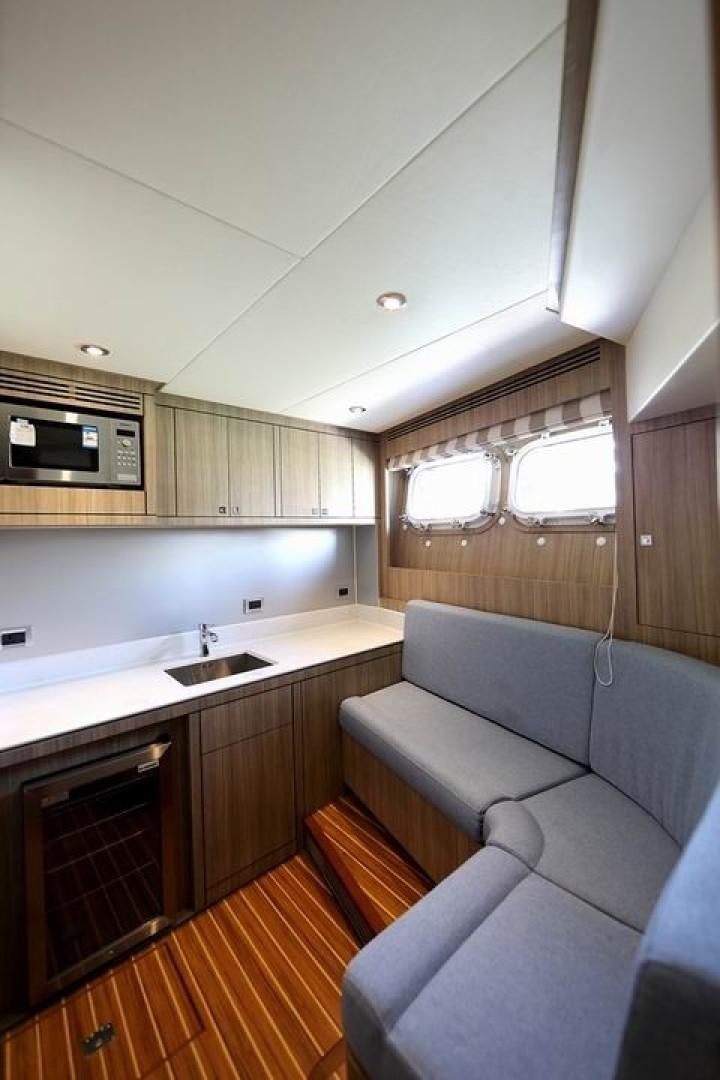

Crew Lounge

“L” shape settee

Oak galley cabinets with Corian counter top

S/S sink and faucet

Fire alarm panel

HUSKY counter fridge

SIEMENS microwave

220V and 120V AC sockets

Teak and holly floor

2 berths & oak cabinets

2 reading lamps

Bilge water alarm panel

Teak and holly floor

220V and 120V AC sockets

TMC toilet

White decorative sink with faucet

Grey anti-skid PVC floor

Separate shower area with a frost glass door

Berth

TMC toilet

White decorative vessel and faucet

Grey anti-skid PVC floor

Separate shower area with a frost glass door

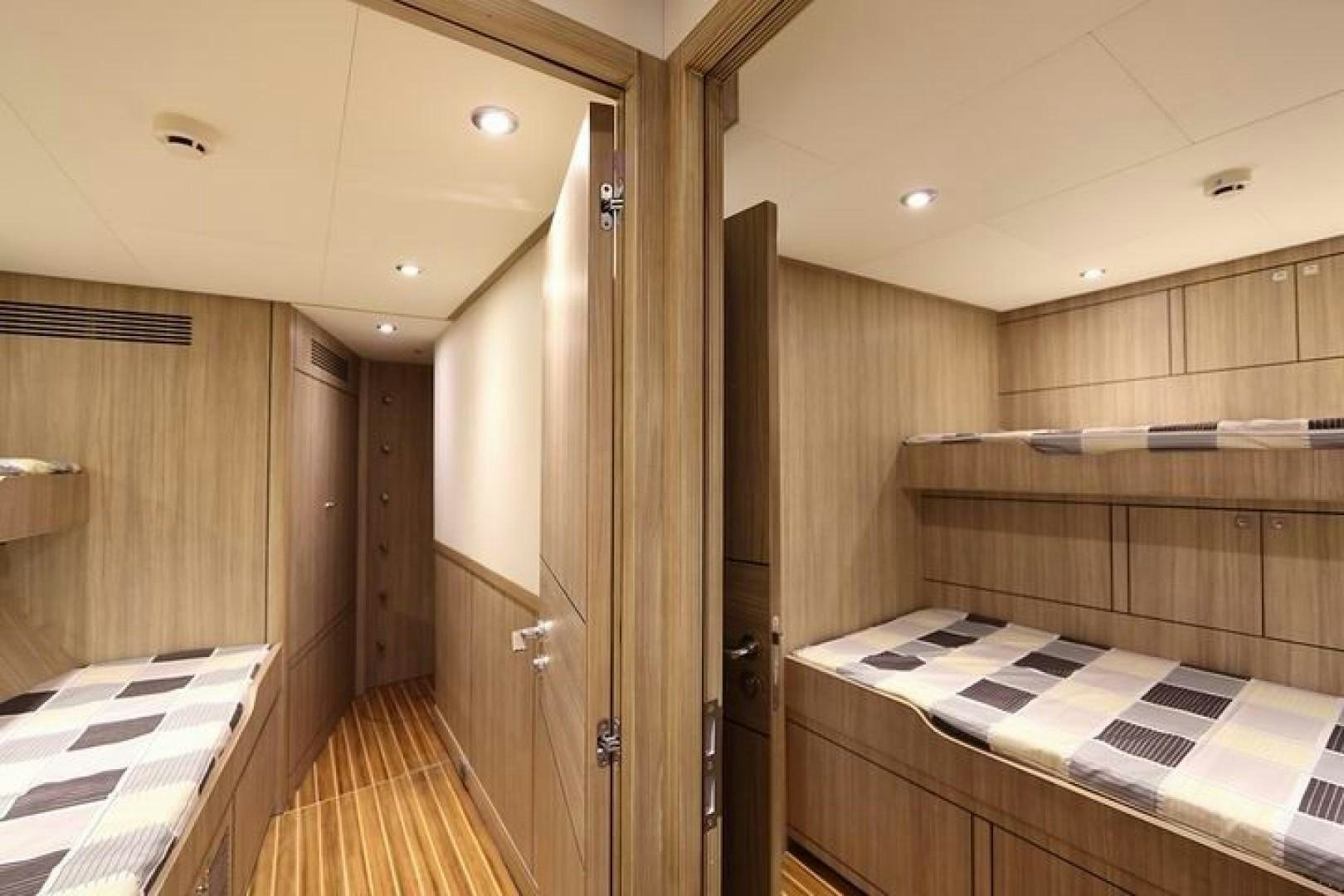

Crew Cabin

2 berths & oak cabinets

2 reading lamps

Teak and holly floor

220V and 120V AC sockets

TMC toilet

White decorative vessel with faucet

Grey anti-skid PVC floor

Separated shower area with a frost glass door

Storage cabinets and wine cooler

White decorative sink and faucet

LG Washer with a capacity of 5.2kg x2

LG Dryer with a capacity of 4.5kg x 2

S/S food freezer with a capacity of 2,350 litre

Water-tight door

Grey anti-skidding PVC floor

SIMRAD BRIDGE EQUIPMENT (All devices and Components of the SIMRAD system)

Simrad Las

Simrad Nss evo3

Simrad NSS evo3

Simrad IS42

Simrad AP80

Simrad AP80

Simrad NSO evo3

Nobeltec navigation software

--------------------------

AP70 Pilot Controller

GN70 Navigator

GS25 Antenna

GS25-3 Compass

GS25-4 Compass

IS42 Instrument

NMEA 2000 <-> 0183 Gateway (NGW-1)

NR7 ev3 MFD

NR7 ev3 Navigator

NR7 ev3 Pilot Controller

NR7 ev3 iGPS

NS03 16 Echo (S5100:CH1-64.3.46)

NS03 16 MFD

NS03 16 Navigator

NS03 16 Pilot Controller

NS03S MFD16 MFD PORT-NSO

NS03S MFD16 Navigator PORT-NSO

NS03S MFD16 Pilot Controller PORT

Precision-9 Compass (1)

RI12-HALO Radar

SD80 Autopilot

SD80 Pilot controller

SD80 Rudder feedback

SD80 Speed log

SI80-Ch1 VDR

SI80-Ch2 GYRO

SI80-Ch3 ECDIS

SI80-Ch4 BAM

SI80 Pilot Controller

V5035 AIS

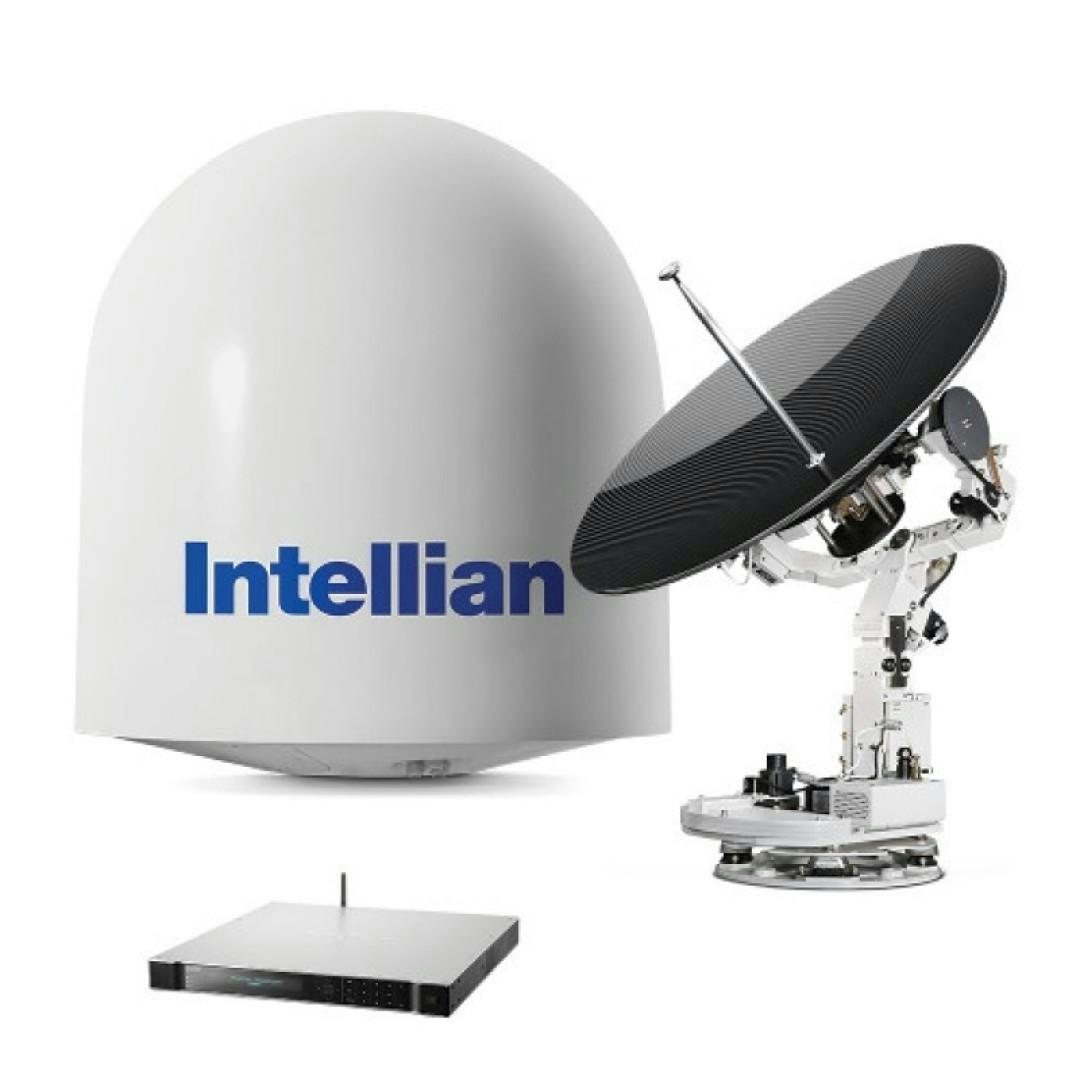

Intellian v100NX is a Future proof Ku- to Ka-band convertible maritime VSAT antenna system supporting future 2.5Ghz Ka- Wideband networks with a tuned radome and reflector. The 100NX's new operation platform enables GEO/MEO/LEO satellite tracking ensuring the antenna is ready for all future networks. v100NX.



Intellian i6W (explorer product) The Intellian i6 is ideal for larger yachts or commercial vessels traveling across different global regions. With its highly accurate satellite tracking capability, the i6 outperforms in all conditions. Equipped with Intellian’s proprietary WorldView LNB, the i6 can operate in any global coverage area without manual intervention

Port gen-set hours 2571 March 1, 2021

STB gen-set hours 3192 March 1, 2021

120/208VAC, 3-phase, 4-wire, 60 Hz with grounded neutral.

Three sources for the power: 2 KILOPAK diesel gensets rated 45KW each and 1 ATLAS ShorPOWER frequency converter rated 50KVA.

2 KILOPAK 45 KW @ 1800 RPM, 3 phase, in sound shield

WOODWARD generator governor

4 x 195Ah/12V batteries for generator start

CHARLES 24V/60A charger

RACOR 500MA fuel filter between day tank and generators.

2 CENTEK wet exhaust silencers and 2 water/gas separator units

2 locations (port & stbd); 2 - 125 amp inlets at each location

ATLAS Energy Systems ShorPOWER Frequency and Power Converter installed between the inlet and main panel, accepting any frequency, any voltage, single or three-phase power and provides 120/208VAC, 3-phase, 60 Hz power directly to the main panel

ATLAS TecPOWER ASeries, “generator paralleling split-bus” type, rated at 500 Amps (250 Amps each bus).

6* branch AC distribution panels located throughout the vessel, each supplied from the main panel by a main distribution breaker

Each of the 6 AC distribution panel equipped with a voltage transformer

24VDC with grounded negative

3 - 24VDC distribution boxes; 1 in engine room to support generator paralleling function; 1 in pilothouse and 1 in aft deck cabinet; the latter two are both with chargers

8 starting batteries for engines and generators; 8 batteries for household usage

Engines

2 CATERPILLAR 3406E 600 BHP @ 2100 RPM, C-rating

2 TWIN DISC MG5114-DC, 4.591:1 gearbox with FastShift and Vulcan coupling

4 195Ah/12V batteries for main engine start

1 CHARLES 24V/60A charger

2 RACOR 1000MA (Dual) fuel filters between day tank and main engines

2 CENTEK COMBO fiberglass 8” wet-type silencer/gas separator

Engine control and full engine instrumentation in pilothouse, electrical gauges

Engines control on flybridge.

Engine control box in engine room

Engine Room

DELTA-T 21” 5HP intake fan and DELTA-T 19” 3HP exhaust fan for engine room ventilation

SEAFIRE FM-200 160L/DN50 automatic fire extinguishing system with alarm panels located in pilothouse/crew lounge and manual controls located on main deck, stbd side

Vibration mounts on engines, gear boxes and generators

Engine room insulated with ceramic wool as sound and heat proofing material and perforated aluminum fascia

Emergency cut-off remote control system for ventilation fans and oil pumps

Engine Hours

Main Engines (Caterpillar 3406E)

Port: 2455 hours

Starboard: 2395 hours

Gensets (kilopak 45 kw)

Port 3290 hours

Starboard 3600 hours

Speed         RPM   Fuel Consumption   Hours  Range KM

13.8 knots (max.) 2,100  222 liters/hr      160    2,048 miles

11.5 knots      1,900  162 liters/hr      220    2,530 miles (trans Atlantic)

10.0 knots      1,450   80 liters/hr      445    4,450 miles Trans Pacific)

 8.5 knots       1,250   50 liters/hr      712    6,052 miles (end of the earth)

All speed and distance calculations are dependent on sea/wind conditions. Numbers are approximate.

Fuel Oil (6 tanks)      36,000 L / 9,510 G

Fresh Water (4 tanks)   12,000 L / 3,000 G

Black water            2,800 L /  700 G

Gray water            2,800 L /  700 G

Fresh Oil               400 L /  100 G

Dirty oil                 400L  /  100 G

* Note all tanks are steel and integral to the steel hull. All volumes are approximate.

Hydraulic oil (steering)     55 L / 12 G

Hydraulic oil (Quantum)    46 L / 10 G

H2O heaters each (2)     160 L  / 40 G

Chlorine (MSD)            4 L  /  1 G

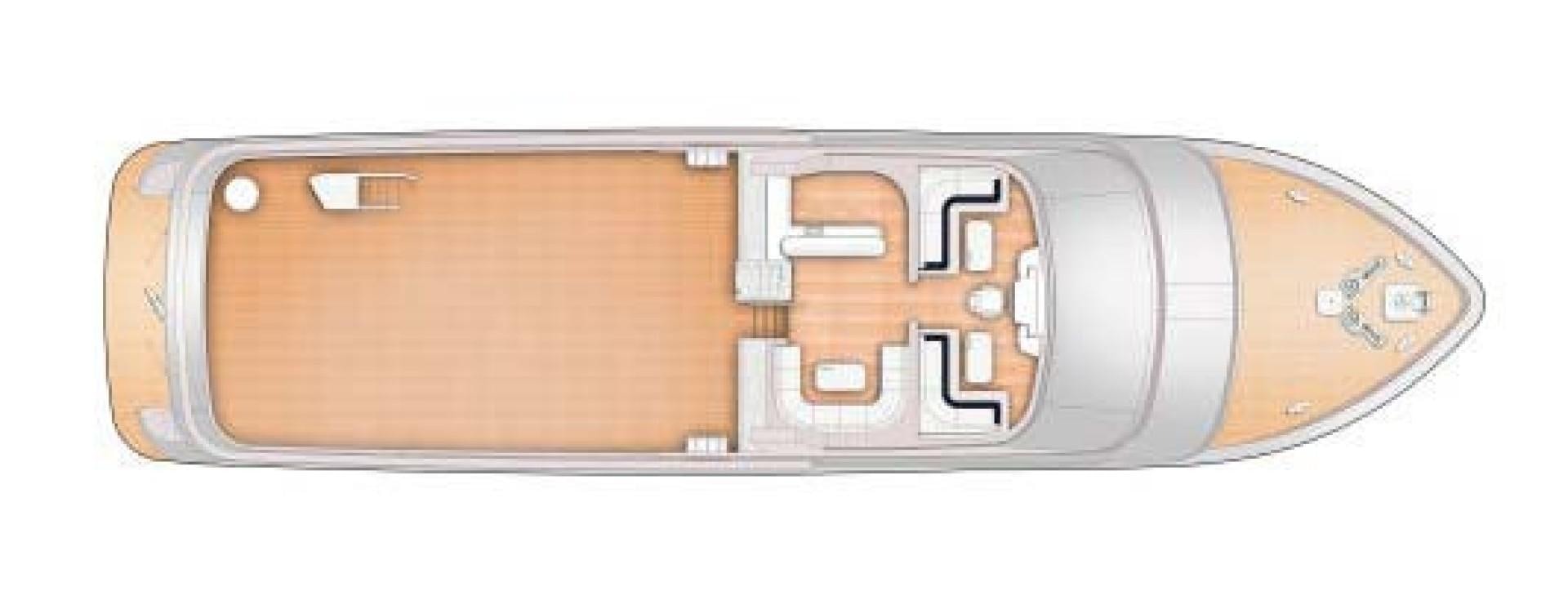

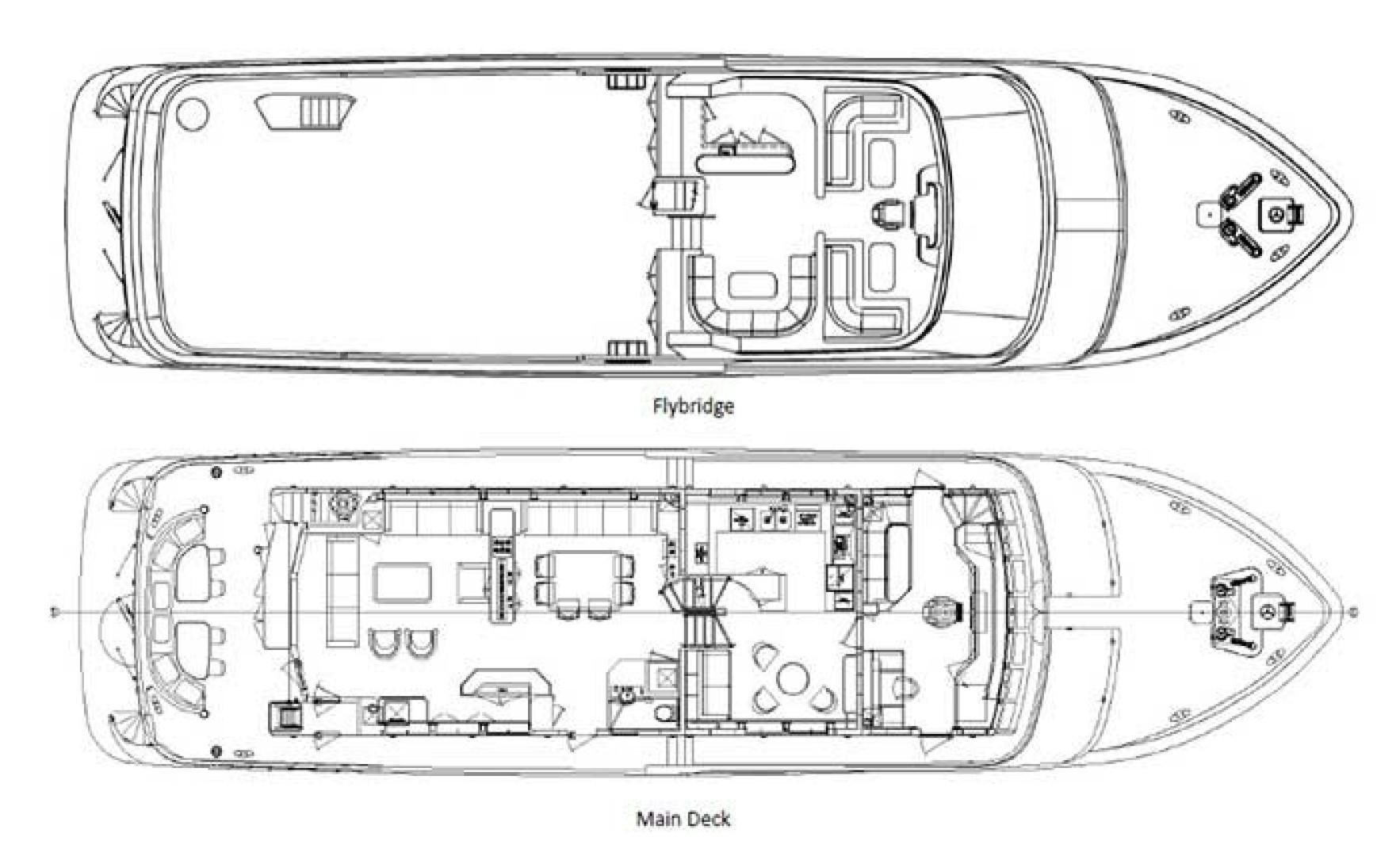

Spacious teak-covered sundeck

Weather-tight door with stairs down to the galley

2 “I” shape aluminum cabinets with white marble counter top, port & stbd

Bar area with S/S sink and faucet, white marble counter top

“U” shape settee with grey & blue water-proof cushion, with 1 FRP table

2 “L” shape settees with grey & blue water-proof cushion, with 2 FRP tables

White water proof upholstered captain’s helm seat

FRP helm station with control equipment & gauges

Flybridge Hard Top

Aluminum hard top with FRP ceiling panels and recessed LED lights

Portable S/S ladder to hard top

Dismountable mast with the following installations: lightning rod, horn, navigation lights, radar, outward speaker, VHF antenna, medium-high frequency antenna, GPS antenna, camera

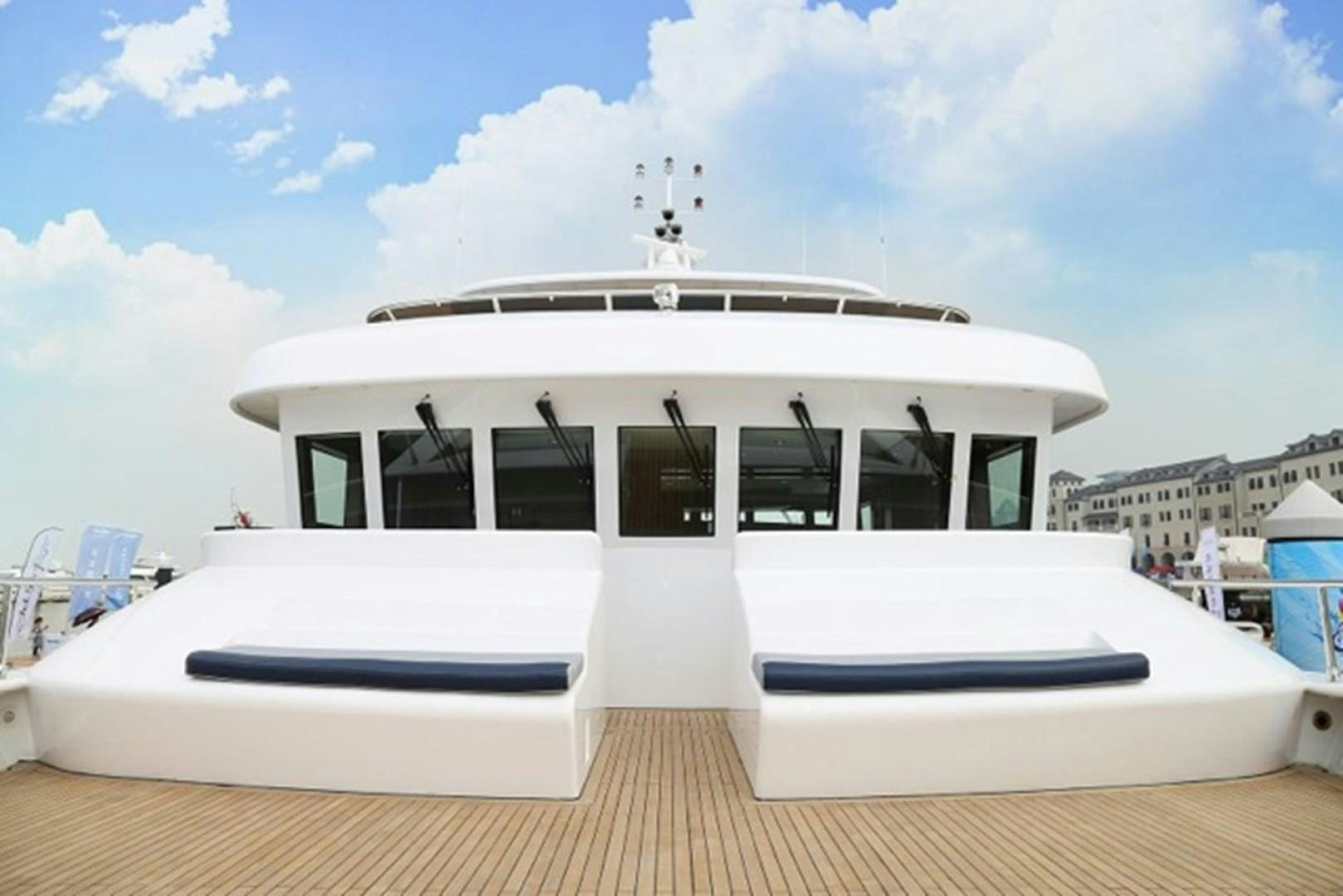

Spacious “U” shape settee with grey & blue water-proof cushion

“I” shape long aluminum cabinets with white marble counter top, with AC branch panel installed inside

FRP ceiling panels and recessed LED lights

Stairs down to swim platform port & stbd

Water-tight door to engine, engineer, switchboard room from swim platform

2018 Zodiac Pro 5.5

Custom T top

Depthsounder with fishfinder

Icom VHF Marine radio IC-M505

Simrad touch screen NSS Evo 3

Anchor

Foot pump

2 fishing rod holders

LED Aft spotlight

Yamaha 90 hp 4 stroke engine with 349 hours as of 3/10/21

The boat deck on Samsara is one of her main features with over 50' of clear teak-covered deck with a large crane with extended reach feature. There is a toy rack for kayaks, paddleboards, and bike storage. The vessel has the stability to carry a larger tender than is presently onboard.

Foundation support and wirings pre-embedded for second crane installation.

There are large LED light bars that encircle the boat deck and forward deck, capable of fully encircling the vessel in light, plus LED spotlights to light the boat deck.

Have Questions?

Ask our experienced sales brokers about this yacht

Related Yachts for Sale
