Asking
€ 5,550,000

QUEEN ANA Yacht for Sale

Length
87' (26.78m)
Builder
AZIMUT YACHTS
Build
2019
Cabins
5
Crew
4
Asking Price
€ 5,550,000

Not for sale or charter to U.S. residents while in U.S. waters.

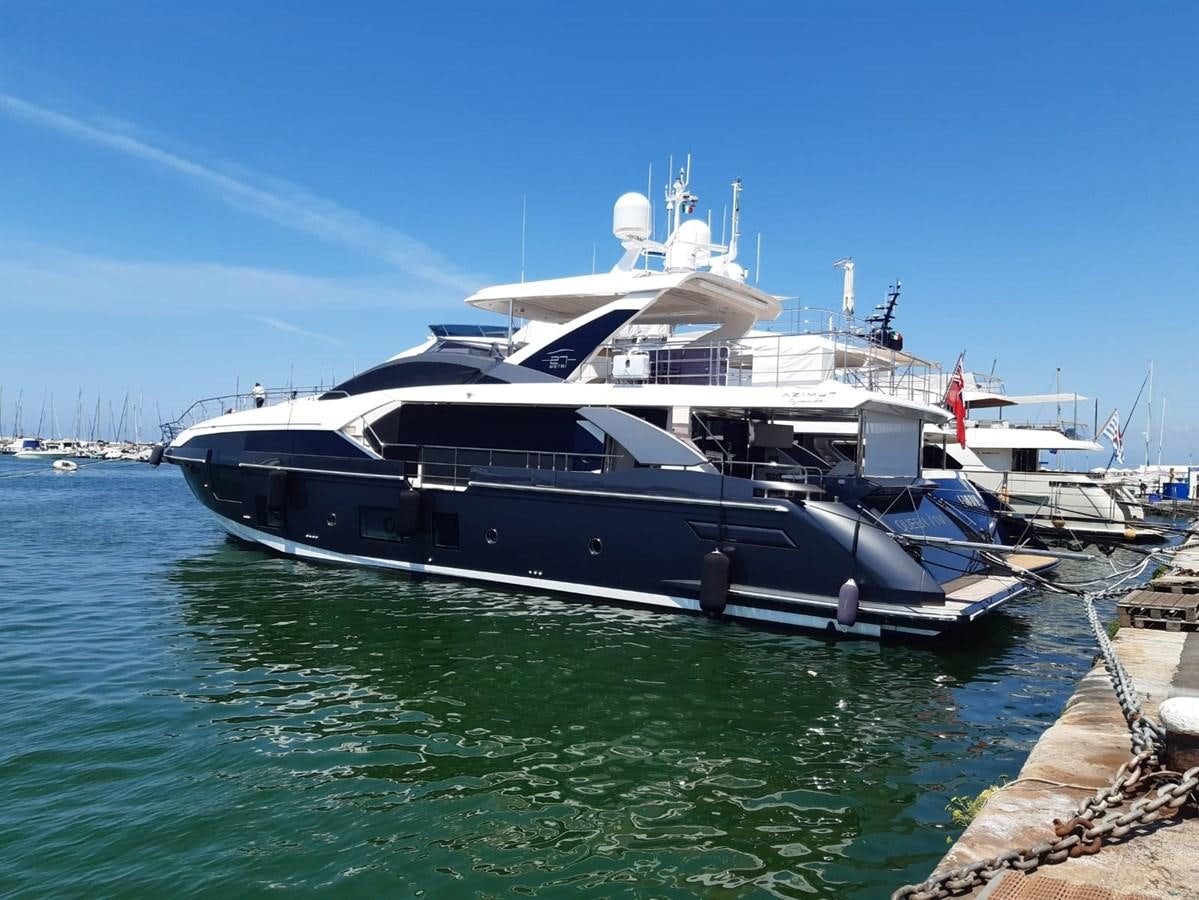

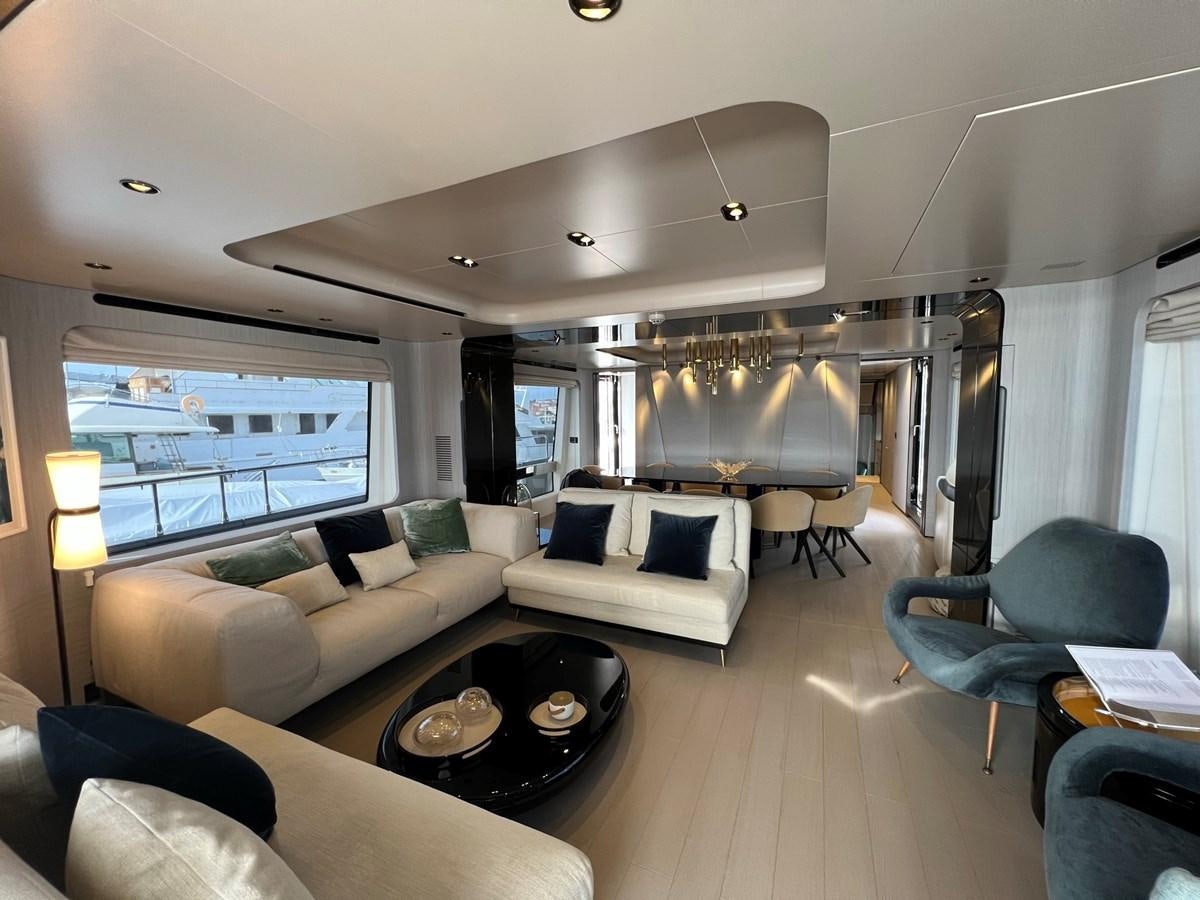

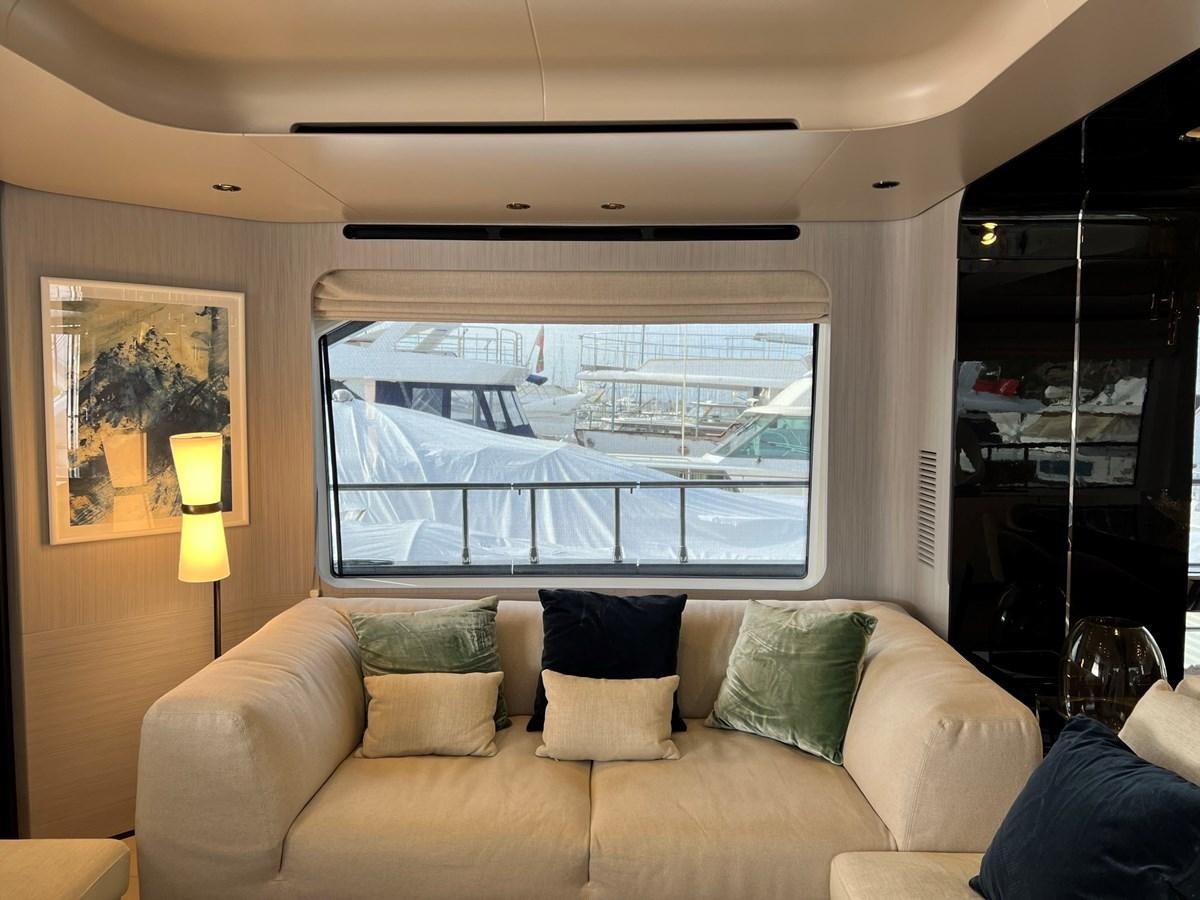

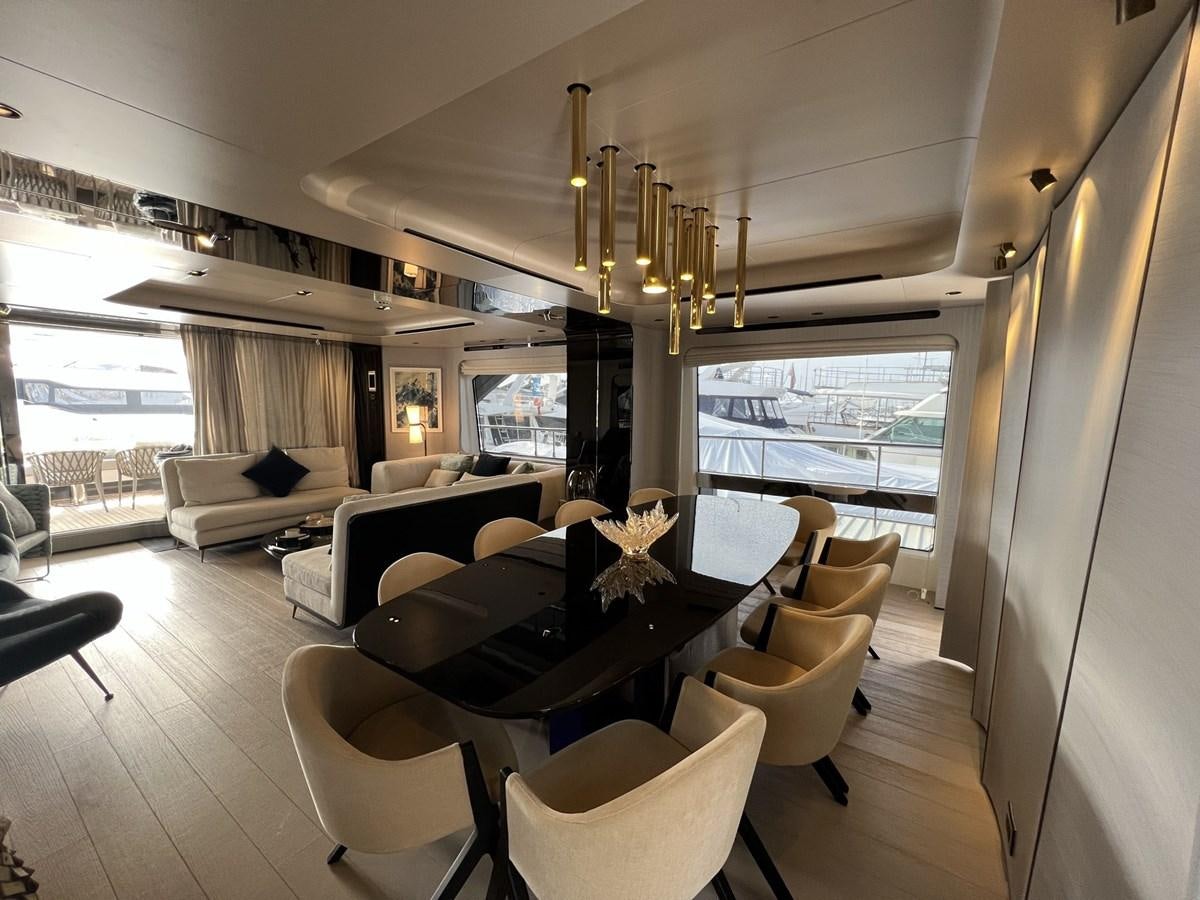

Built by Azimut in Italy and delivered in 2019. Her interior is styled by design house Achille Salvagni while the exterior design is the work of Stefano Righini.

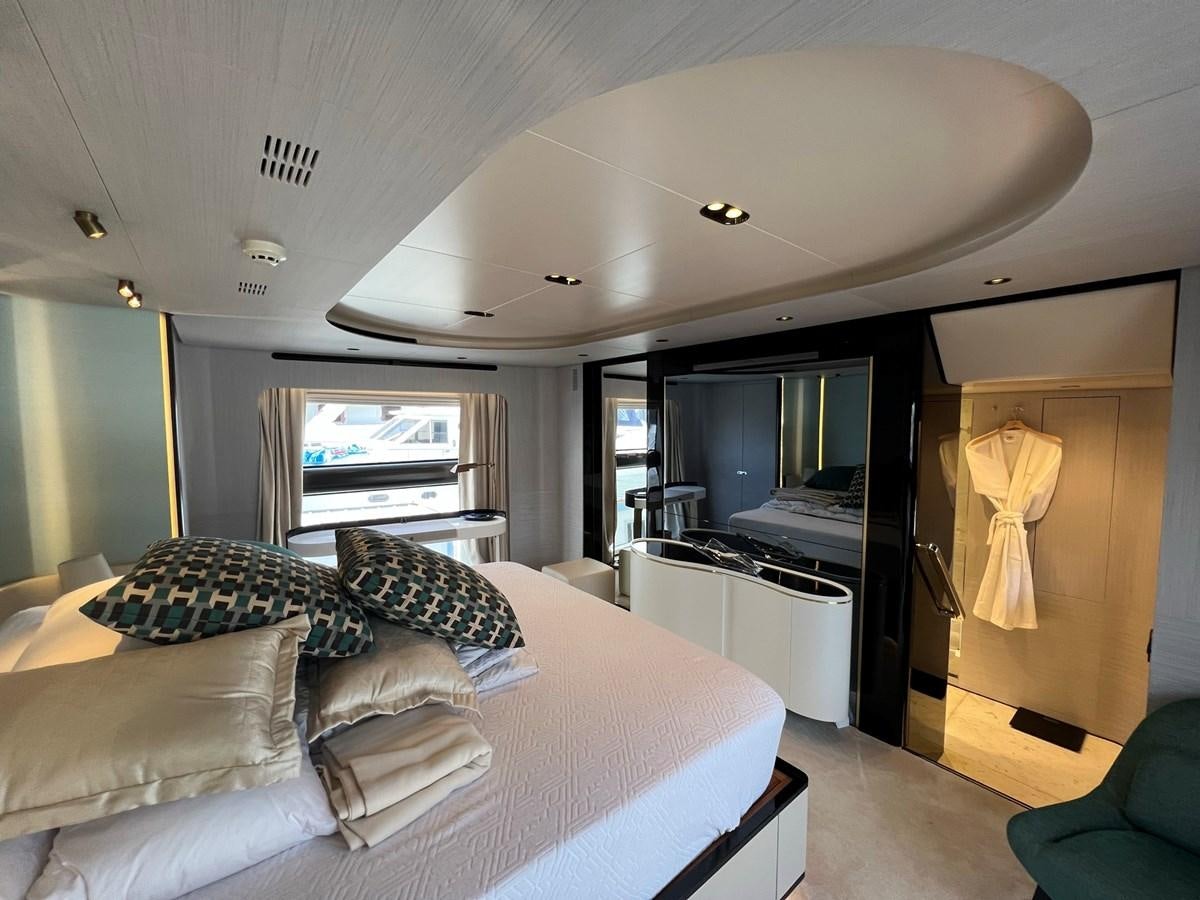

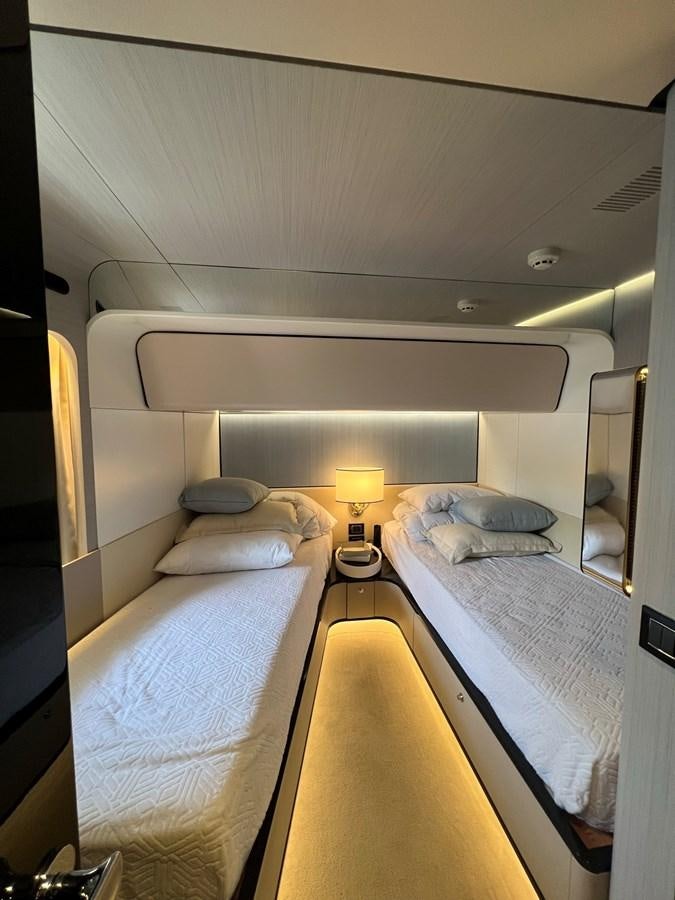

The Azimut 27 Metri has been designed to comfortably accommodate up to 10 guests in 5 suites. She is also capable of carrying up to 4 crew onboard to ensure a relaxed luxury yacht experience.

Powered by twin diesel MAN 1,900hp engines, she comfortably cruises at 24 knots, reaches a maximum speed of 28 knots.

Key Features

Specifications

Builder AZIMUT YACHTS
Model 27 Grande
Length (LOA) 87' (26.78m)
Year 2019
Gross Tonn. 145
Draft 7' (1.93m)
Beam 21' (6.59m)
Range 360 NM
Location Italy

Accommodations

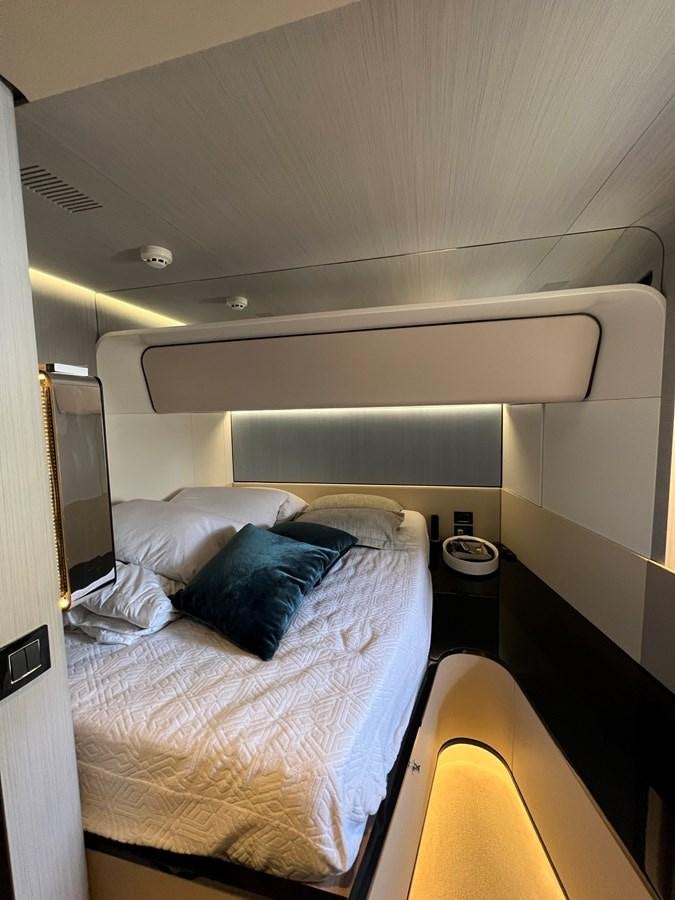

Staterooms 5
Sleeps 10
Heads 5
Crew Cabins 4
Crew Sleeps 4

Dimensions & Capacity

LOA 87' (26.78m)
LWL 75' (22.62m)
Min Draft 5' (1.45m)
Max Draft 7' (1.93m)
Fuel Tank 2,510 g (9,500 L)
Fresh Water 528 g (2,000 L)
Holding Tank 225 g (850 L)
Gross Tonn. 145
Displacement 92

Construction

Hull Material GRP
Hull Config Planing
Ext. Designer Stefano Righini
Int. Designer Achille Salvagni
Cruising Speed 24 Knots
Range 360 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Main Characteristics

  • TYPE: Motor Yacht
  • YEAR: 2019
  • FLAG: Cayman Island
  • LOA:  26.78m (87.1ft)
  • LH:  23.95m (78.7ft)
  • LWL:  22.62m (74.3ft)
  • BEAM:  6.59m (21.7ft)
  • DRAFT:  1.93m (6.4ft)
  • GROSS TONNAGE: 145
  • DISPLACEMENT: Full Load – 93 Ton / Dry Load – 75.9 Ton

Capacities

SPEED

  • Cruising: 24 Knots
  • Maximum: 28 Knots
  • Economical: 11 Knots

FUEL CONSUMPTION

  • @ Cruising Speed 580 litres/hr
  • @ Maximum Speed 700 litres/hr
  • @ Economical Speed 100 litres/hr

RANGE

  • @ Cruising Speed 360 nm
  • @ Maximum Speed 320 nm
  • @ Economical Speed 880 nm

FUEL CAPACITY: 9,500 litres / 2,509 US gallons

WATER CAPACITY: 2,000 litres / 528 US gallons

BLACK WATER CAPACITY: 850 litres /  224.5 US gallons

GREY WATER CAPACITY: 850 litres /  224.5 US gallons

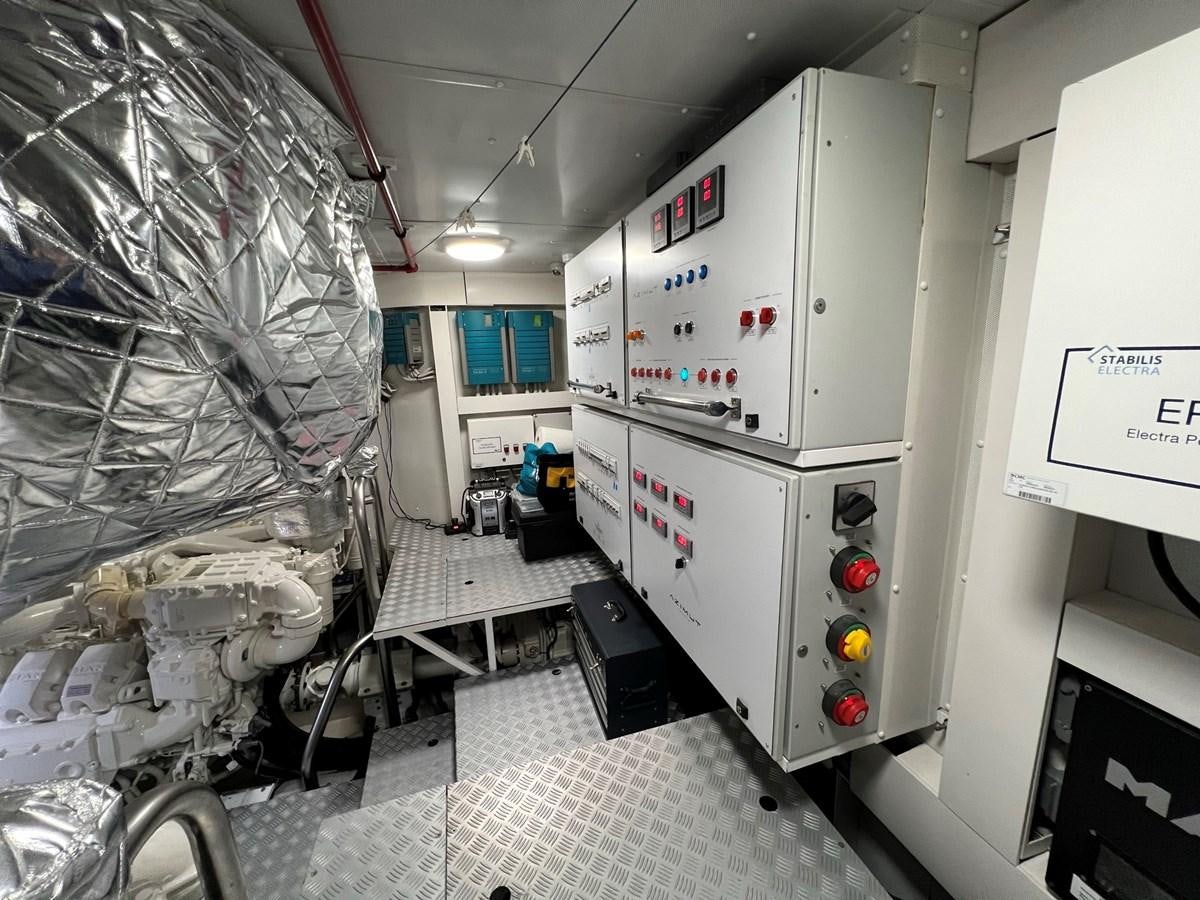

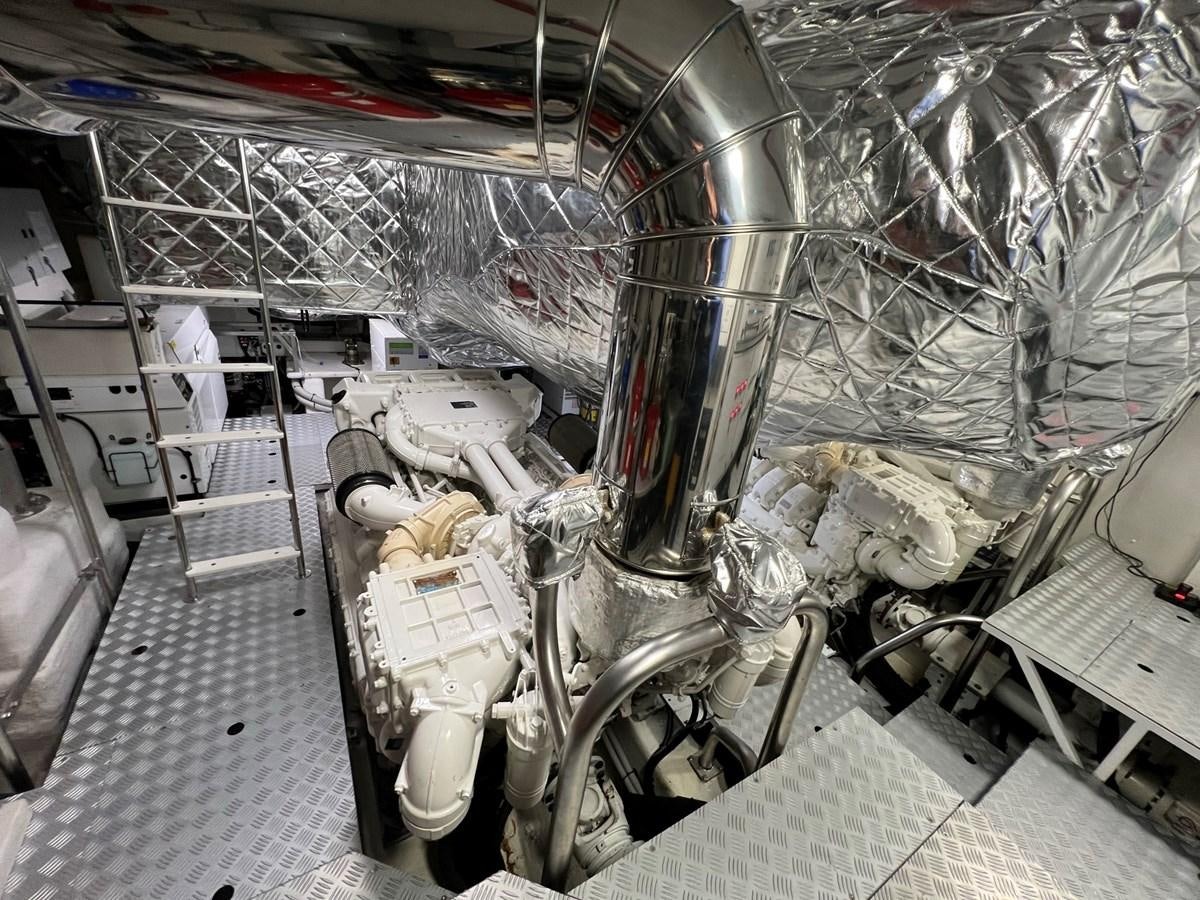

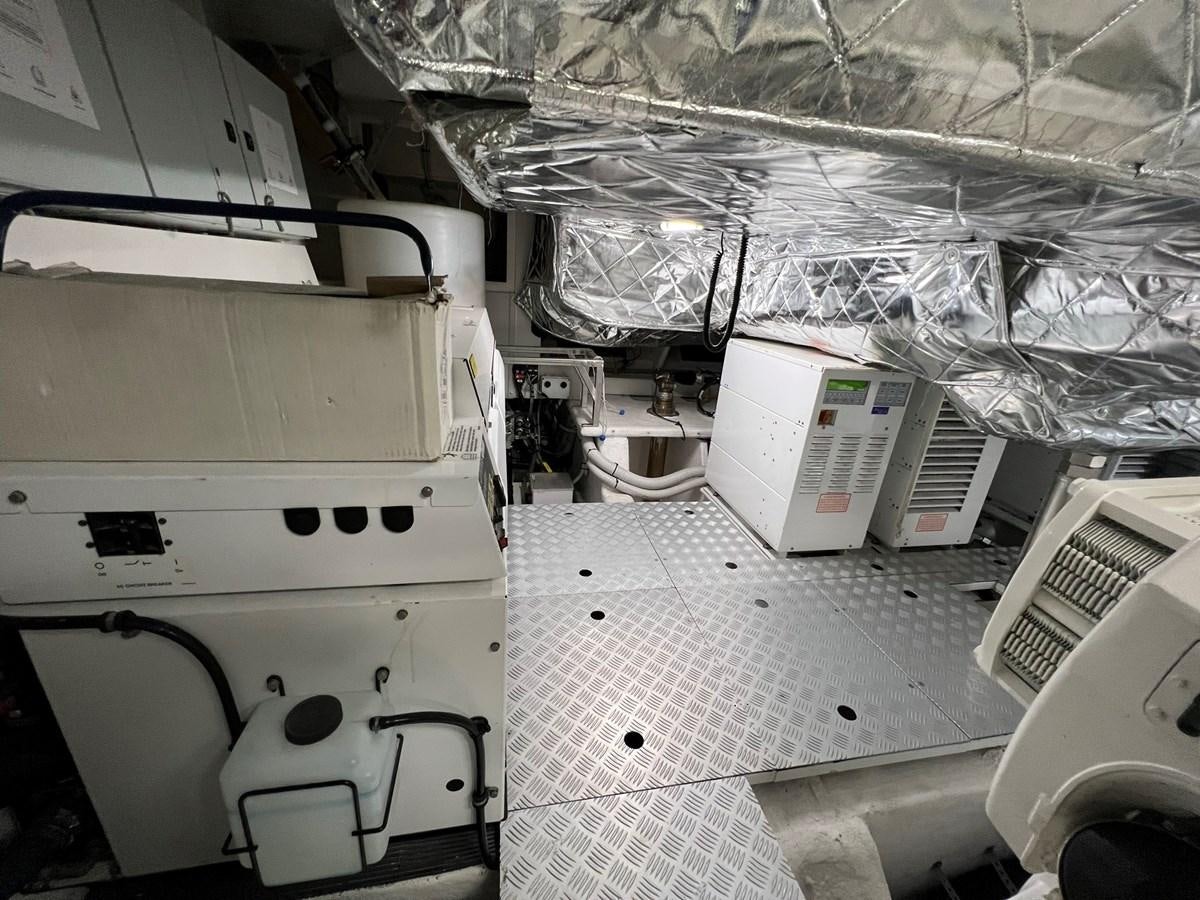

Machinery

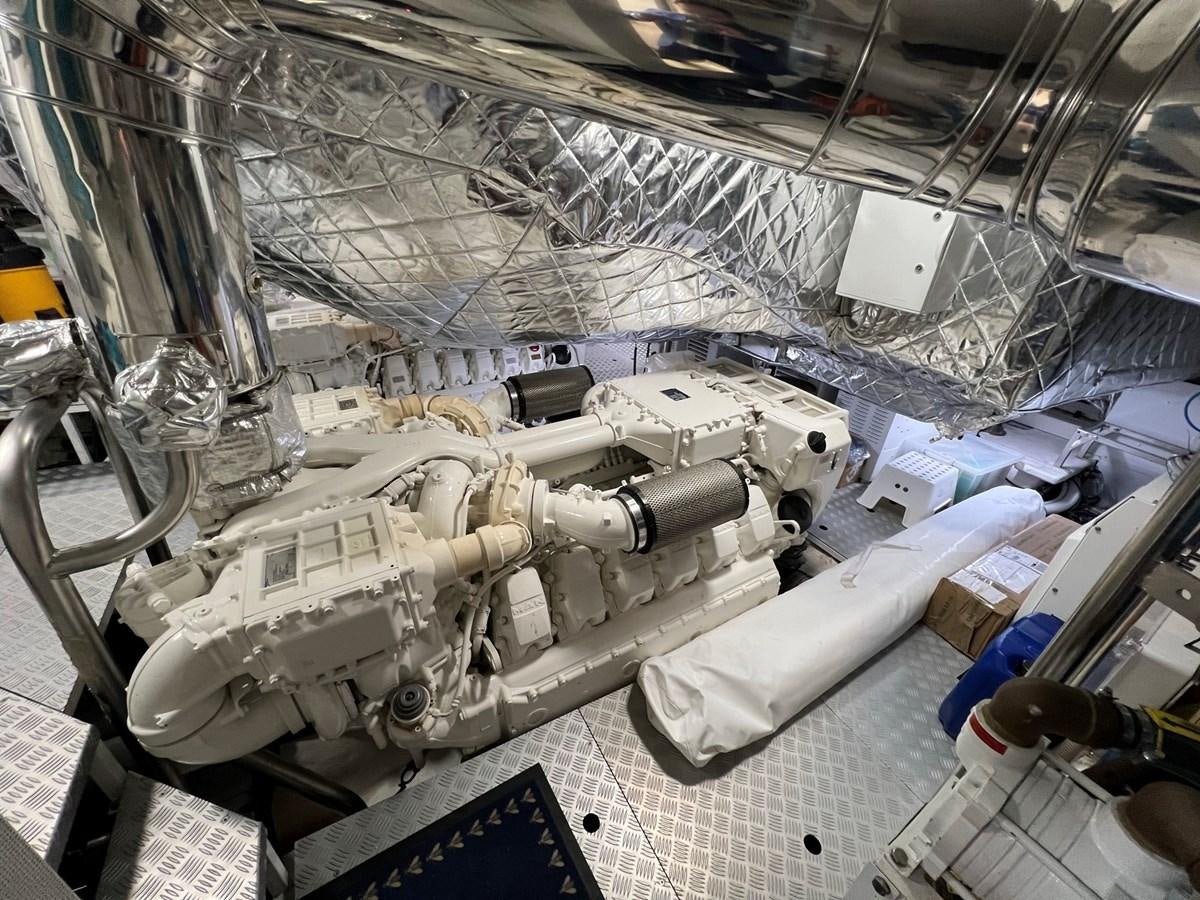

  • ENGINES: 2x MAN 1900HP
  • ENGINES MODEL: V12-1900 TIER III
  • REDUCTION GEAR: ZF – 3050V – 3:1
  • PROPULSION: 5-blades NiBrAl
  • TRANSMISSION: Shaft line mechanical seal MTM900
  • STEERING SYTEM: Stainless steel rudders
  • FUEL TYPE: Diesel
  • FUEL FILTRATION SYSTEM: Racor filters
  • BOW THRUSTER: CMC BTM30H hydraulic
  • STERN THRUSTER: CMC hydraulic
  • STABILIZERS: CMC
  • AIR CONDITIONING: 180,000 BTU
  • WATERMAKER: Idromar 130 litres/hr

Electrical

  • GENERATORS: 2x 29kW – 60Hz
  • ELECTRICITY: 110V – 60Hz / 24V / 12V
  • POWER CONVERTER: 2x ASEA
  • BATTERIES CHARGER:
  • 2x Mastervolt 80 Ah (service batteries)
  • 1x Mastervolt 30 Ah (engine batteries)
  • 1x Mastervolt 10 Ah (generator batteries)

BATTERIES

  • Service Batteries: 10x 90 Ah – 12V DC
  • Engines Starter: 6x 90 Ah – 12V DC
  • Generator Batteries: 2x 90 Ah – 12V DC

Electronics

  • VHF: 2x Simrad RS90
  • INTERPHONE: Yes
  • ANTENNA SAT: KVH TV6
  • WI-FI: LTE router with 4 bonding radios
  • AUTOPILOT: Simrad IS40 with Simrad OP10 keyboard
  • GPS: Simrad

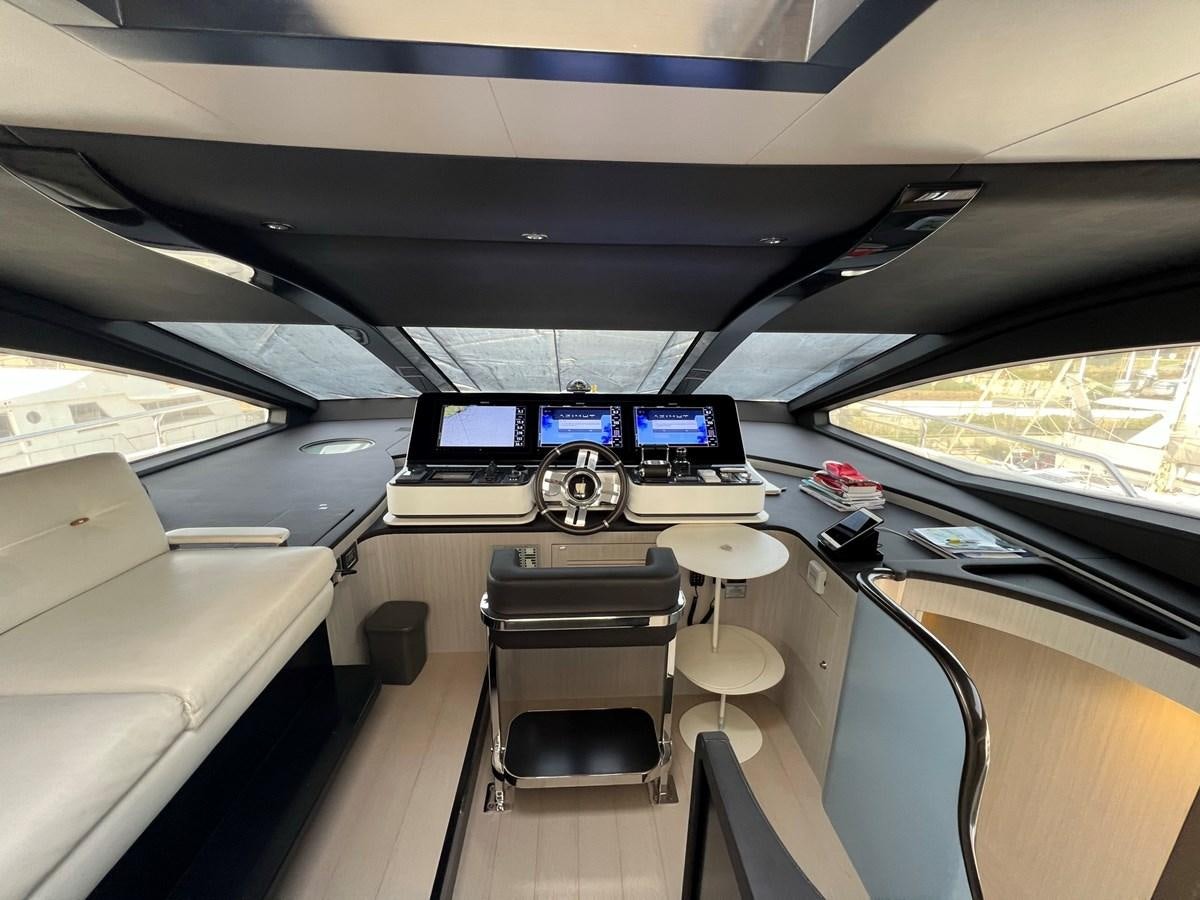

  • CHART PLOTTER: 4x Simrad NSS-16 Evo 2 multifunctional displays
  • ECHOSOUNDER: Simrad DST800
  • RADAR: Simrad broadband 4G 36nm
  • LOG: Simrad DST800
  • OTHERS:
  • FLIR camera
  • CCTV system
  • Simrad GOFREE WiFi wireless module

Deck

  • ANCHOR WINDLASS: 2x 4000W / 110V – 60Hz 3-phases
  • ANCHOR SYSTEM: 2x 79Kg anchors with 2x 12mm -100m (each) chains
  • CAPSTANS: 2x 3600W / 110V 60Hz 3-phases
  • PASSERELLE: Max capacity 150Kg 24V DC electro-hydraulic
  • SWIMMING PLATFORM: Rated capacity 1000Kg – dimensions: 3811x2555mm

Tender & Toys

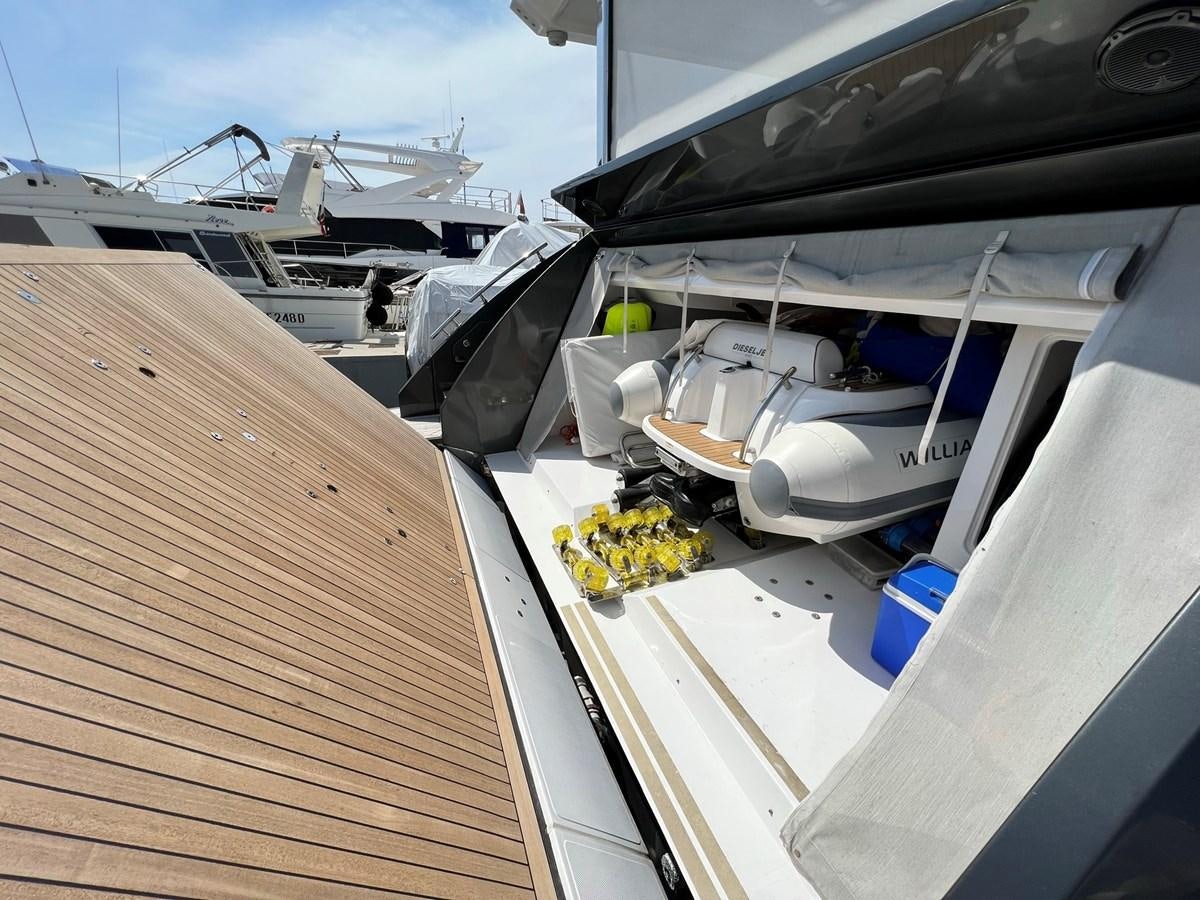

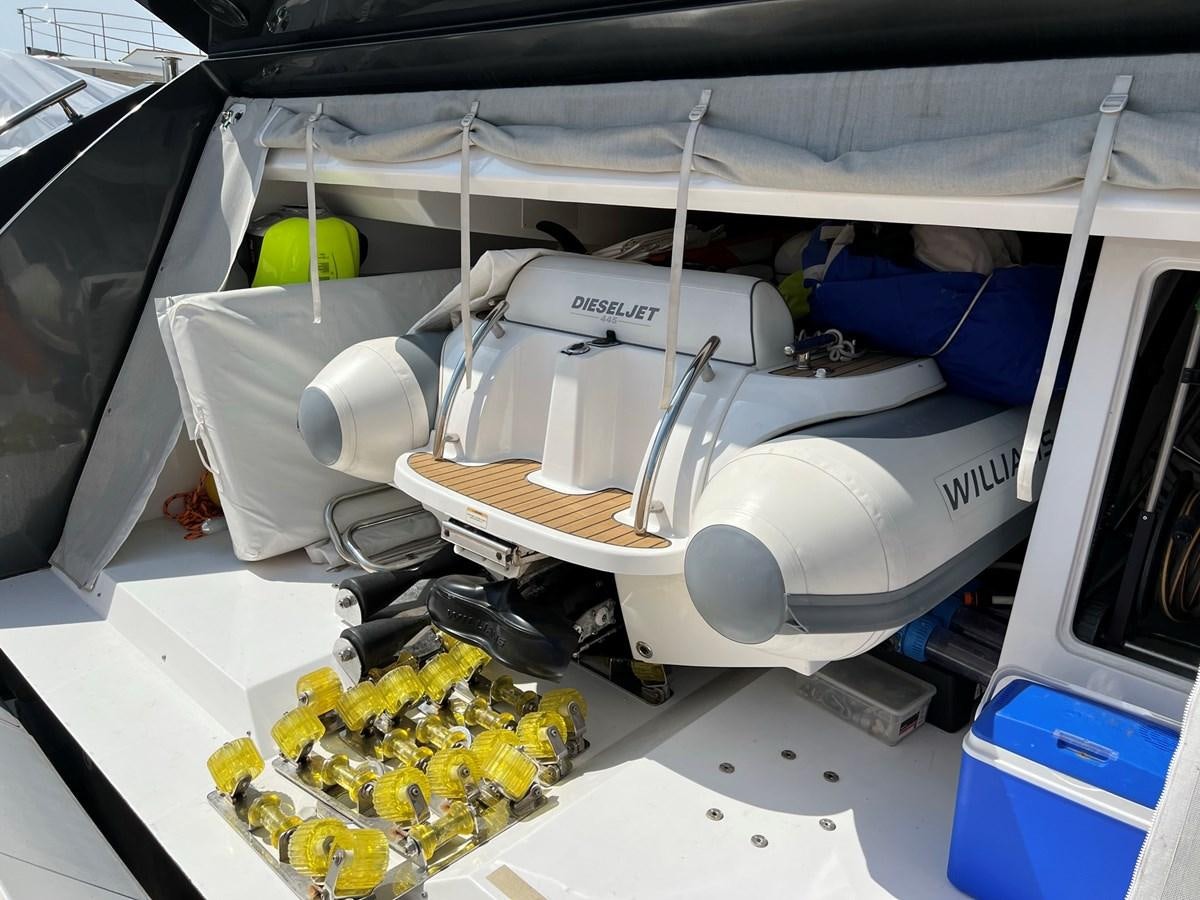

  • TENDER: Williams DJ445
  • TOYS: Seabob F5, SUP, Wakeboard, Donut, Snorkelling equipment, Pool with net

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. Hours listed may vary from actual hours due to recent use. Purchaser is encouraged to verify hours prior to purchase. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
