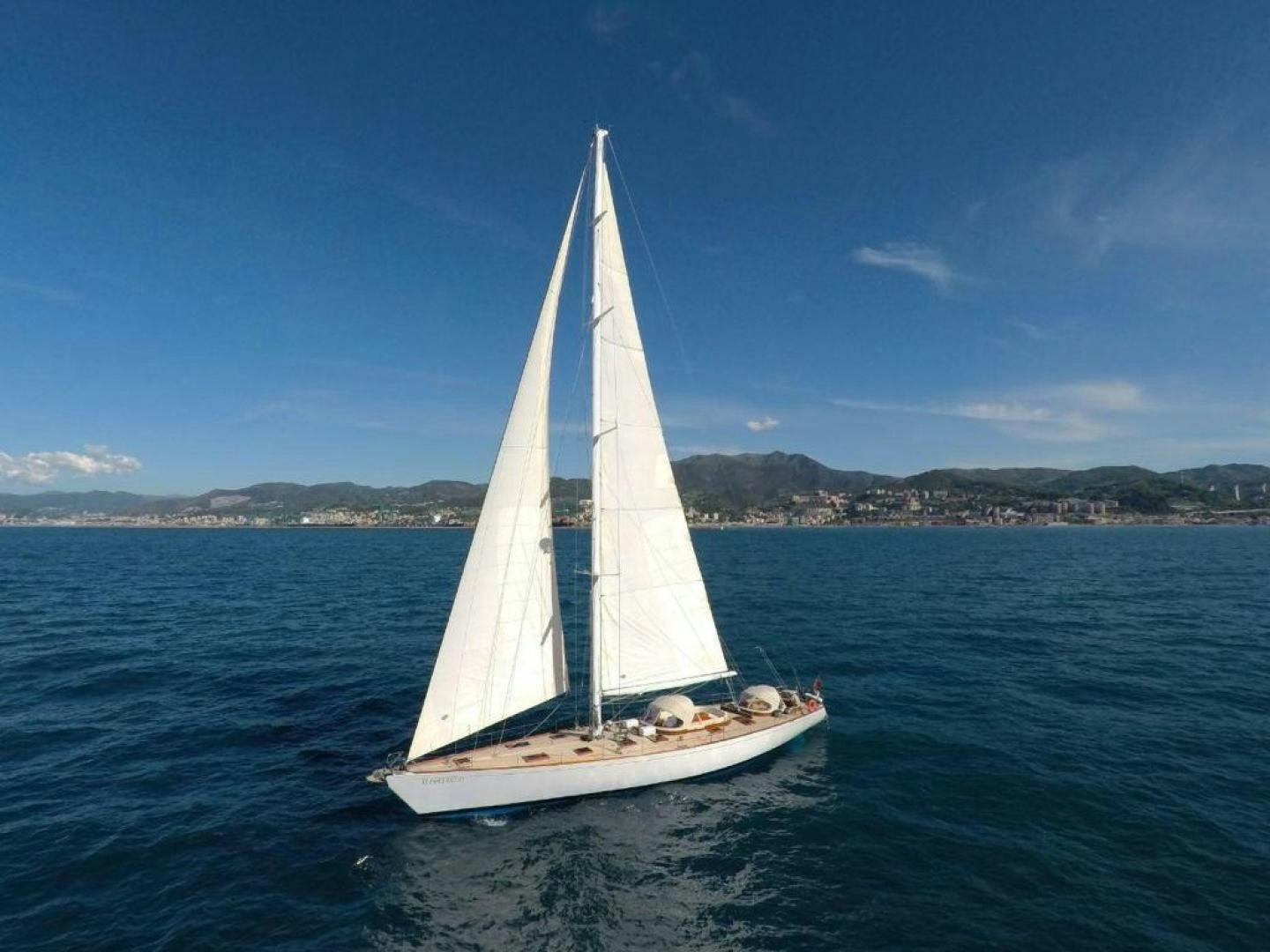

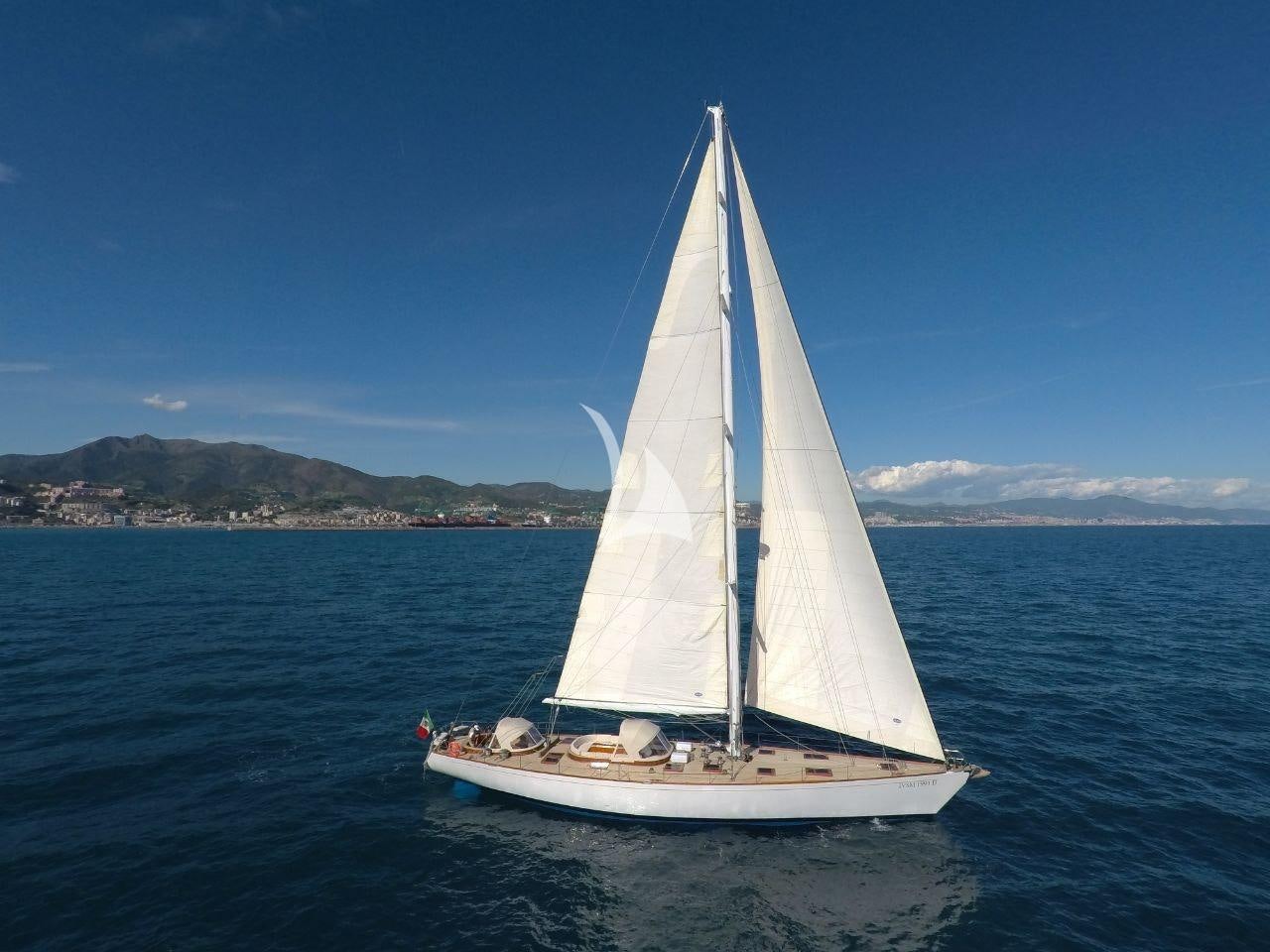

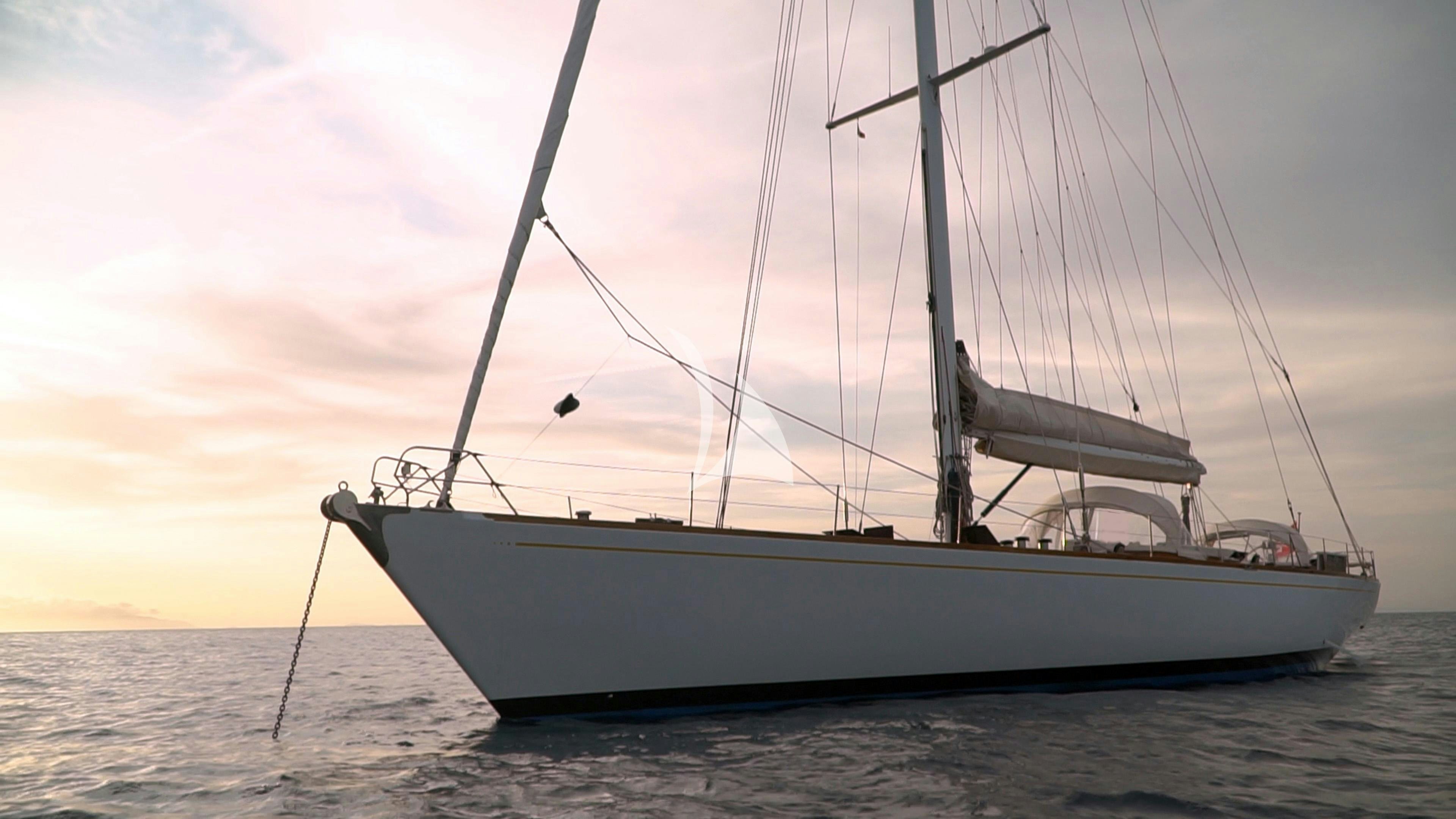

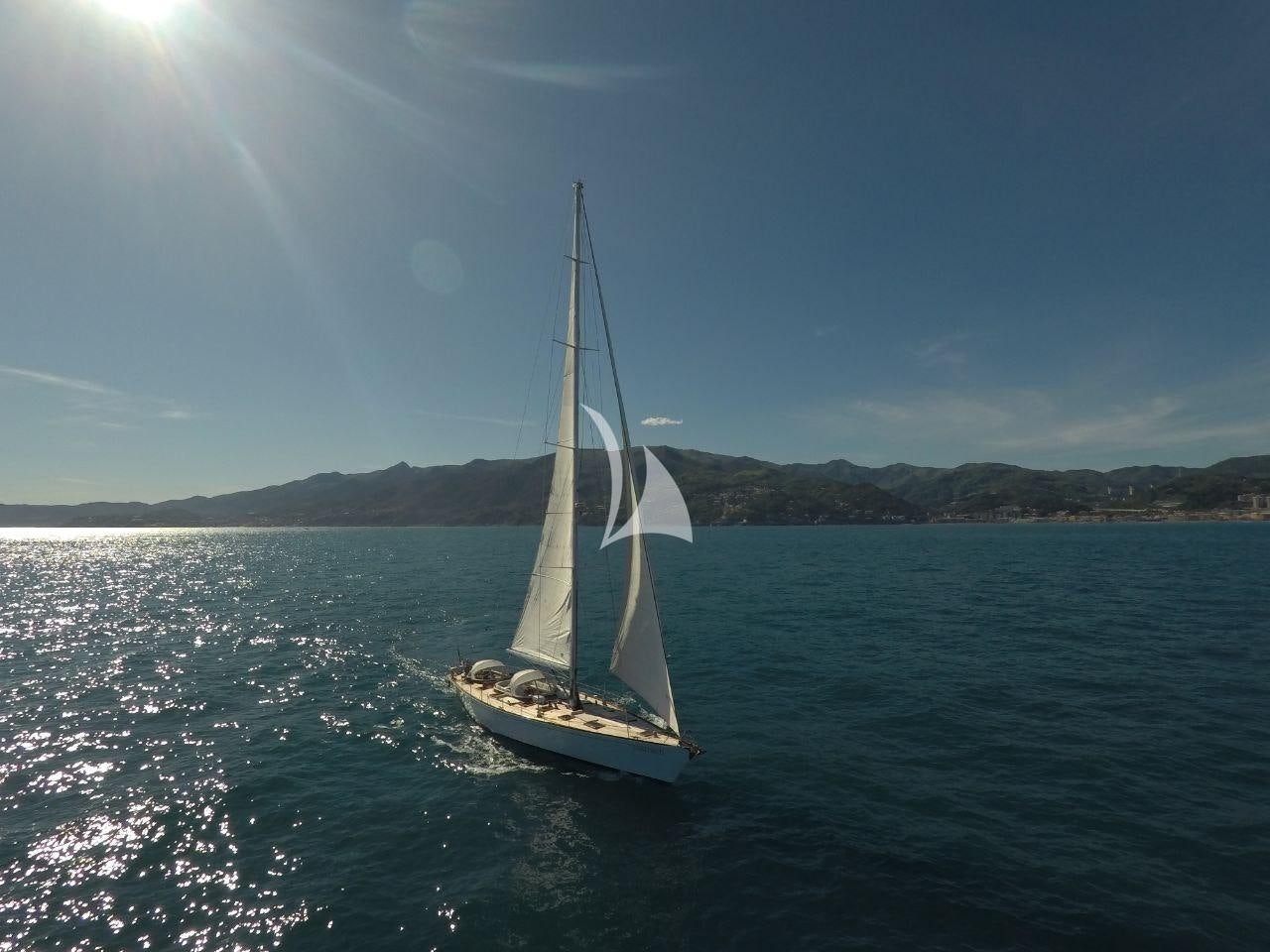

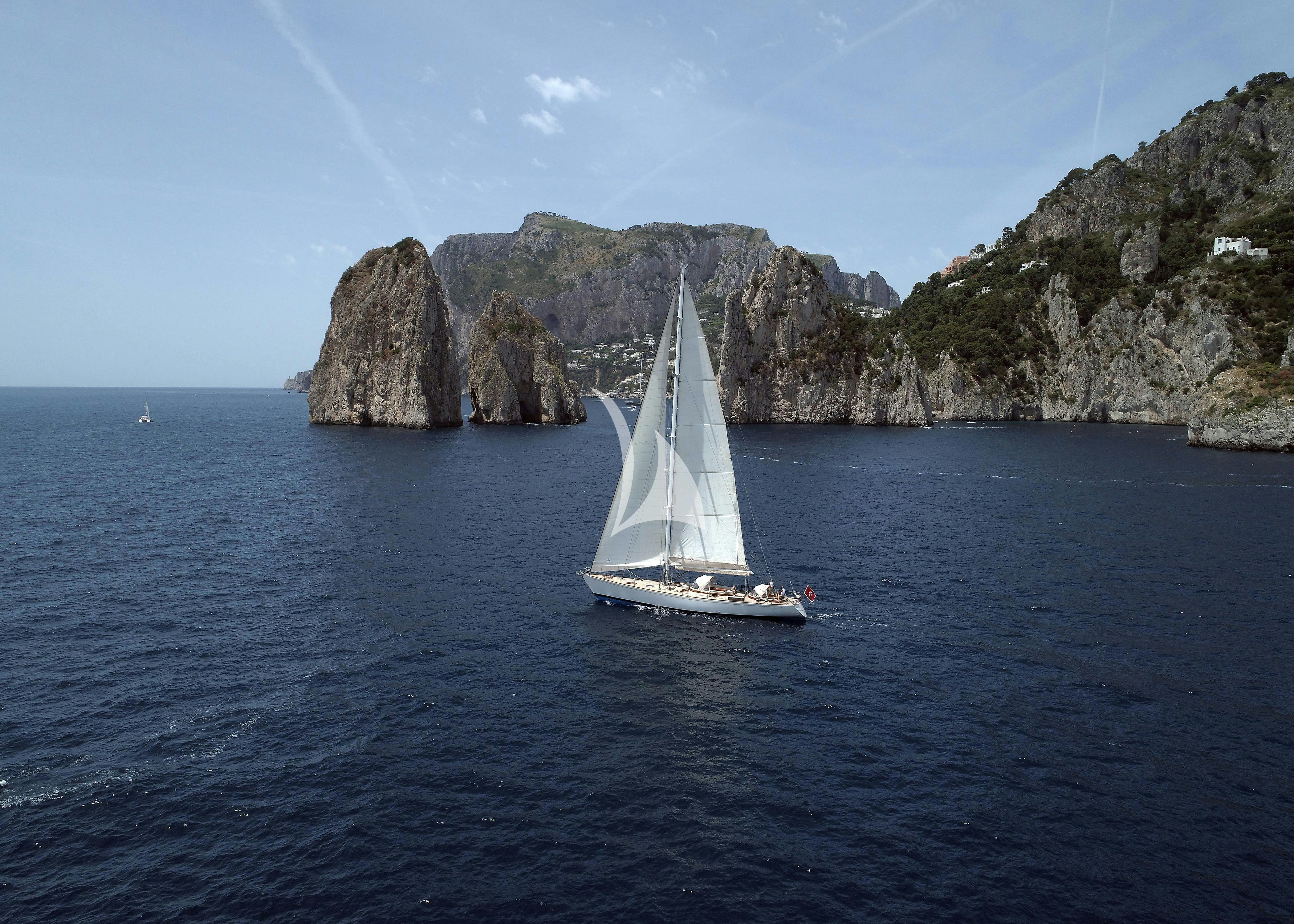

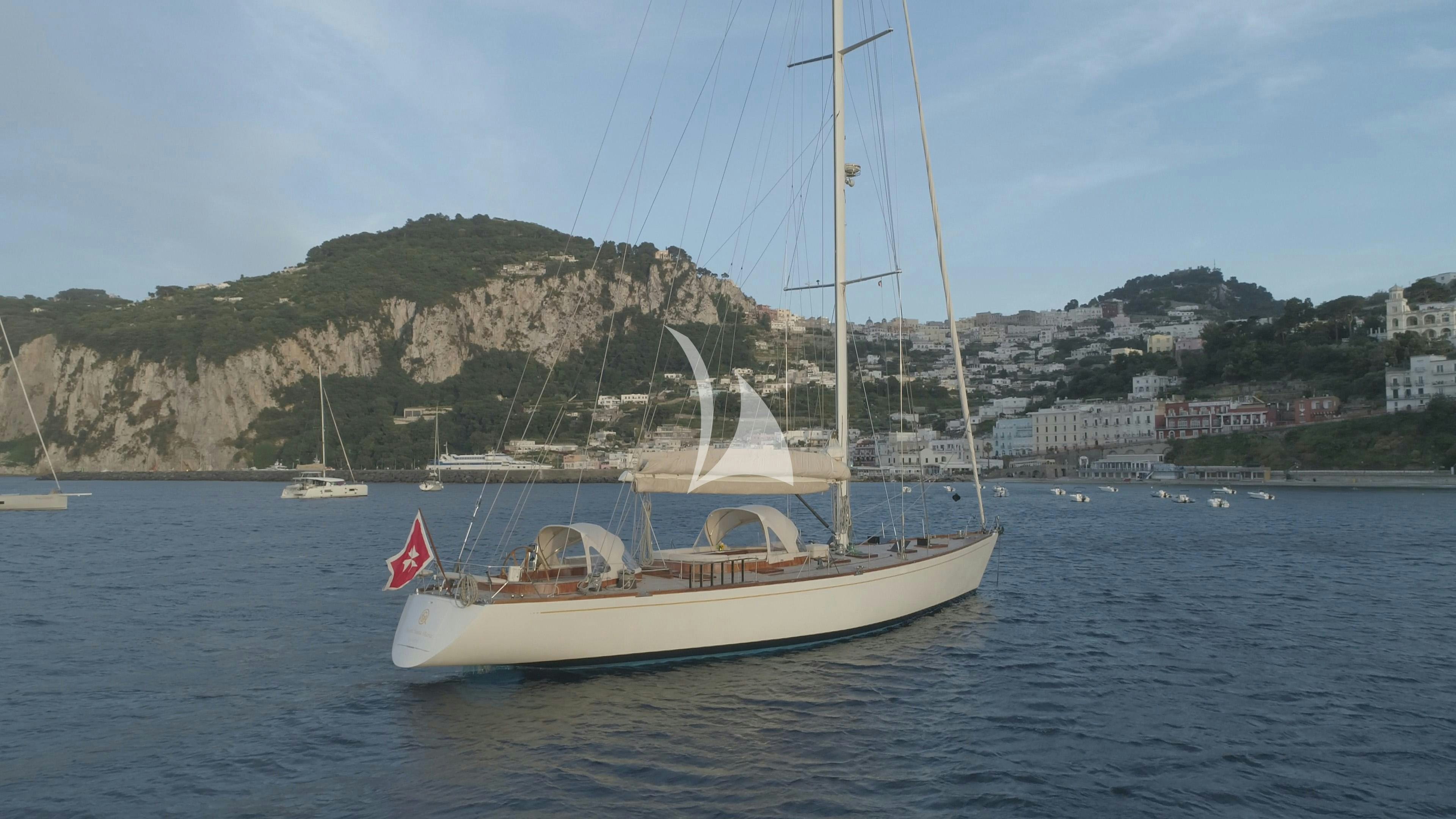

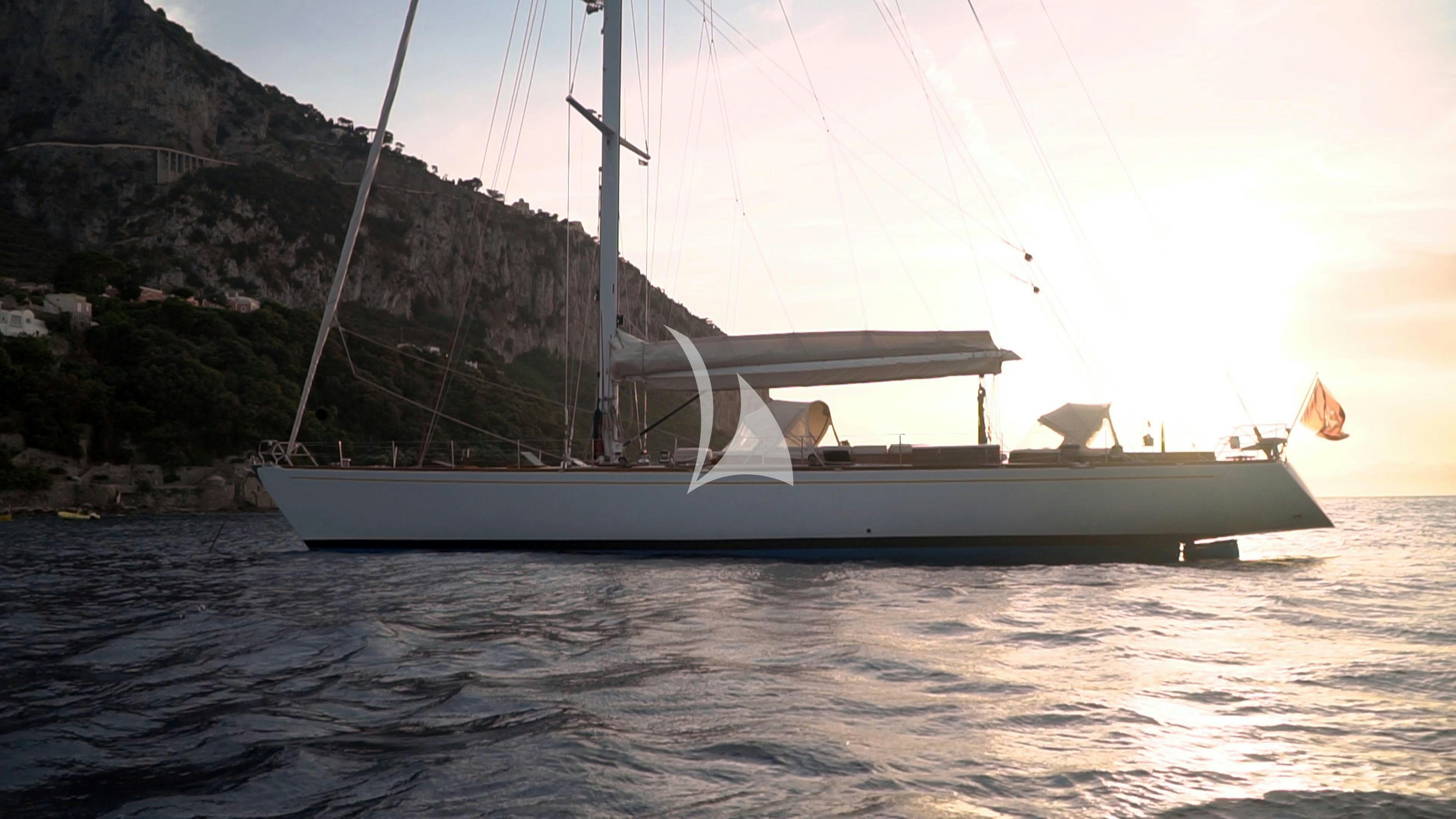

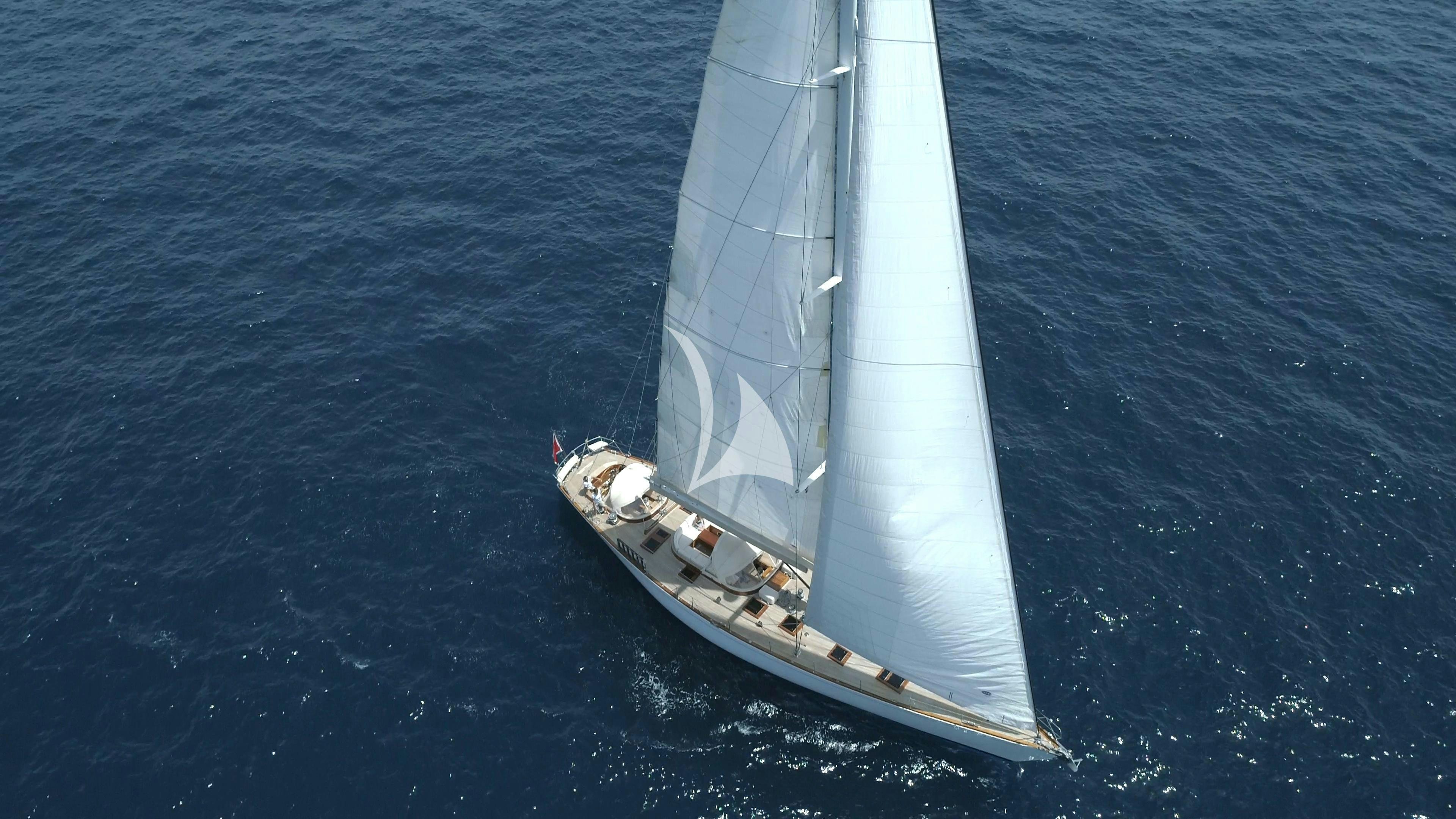

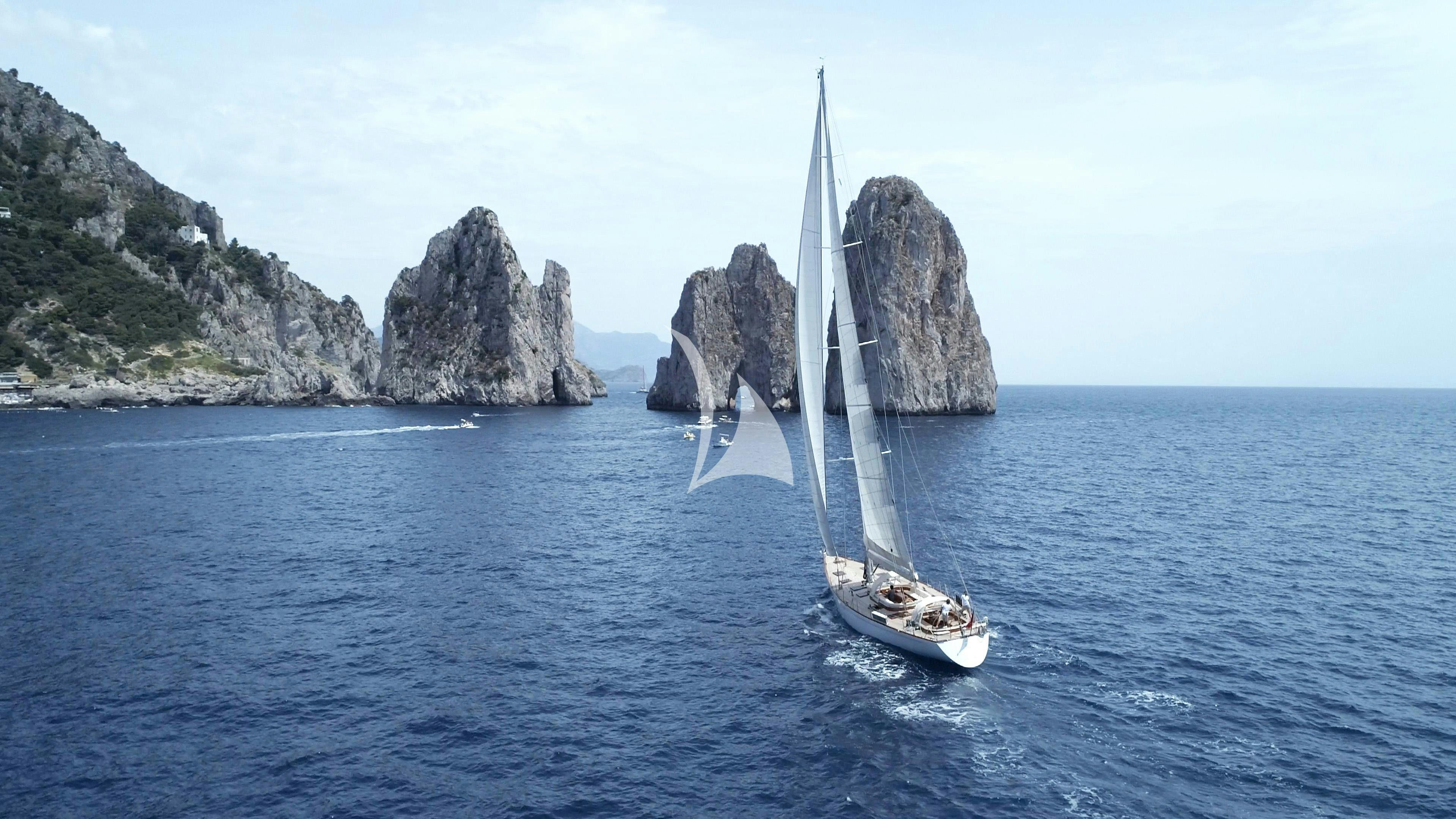

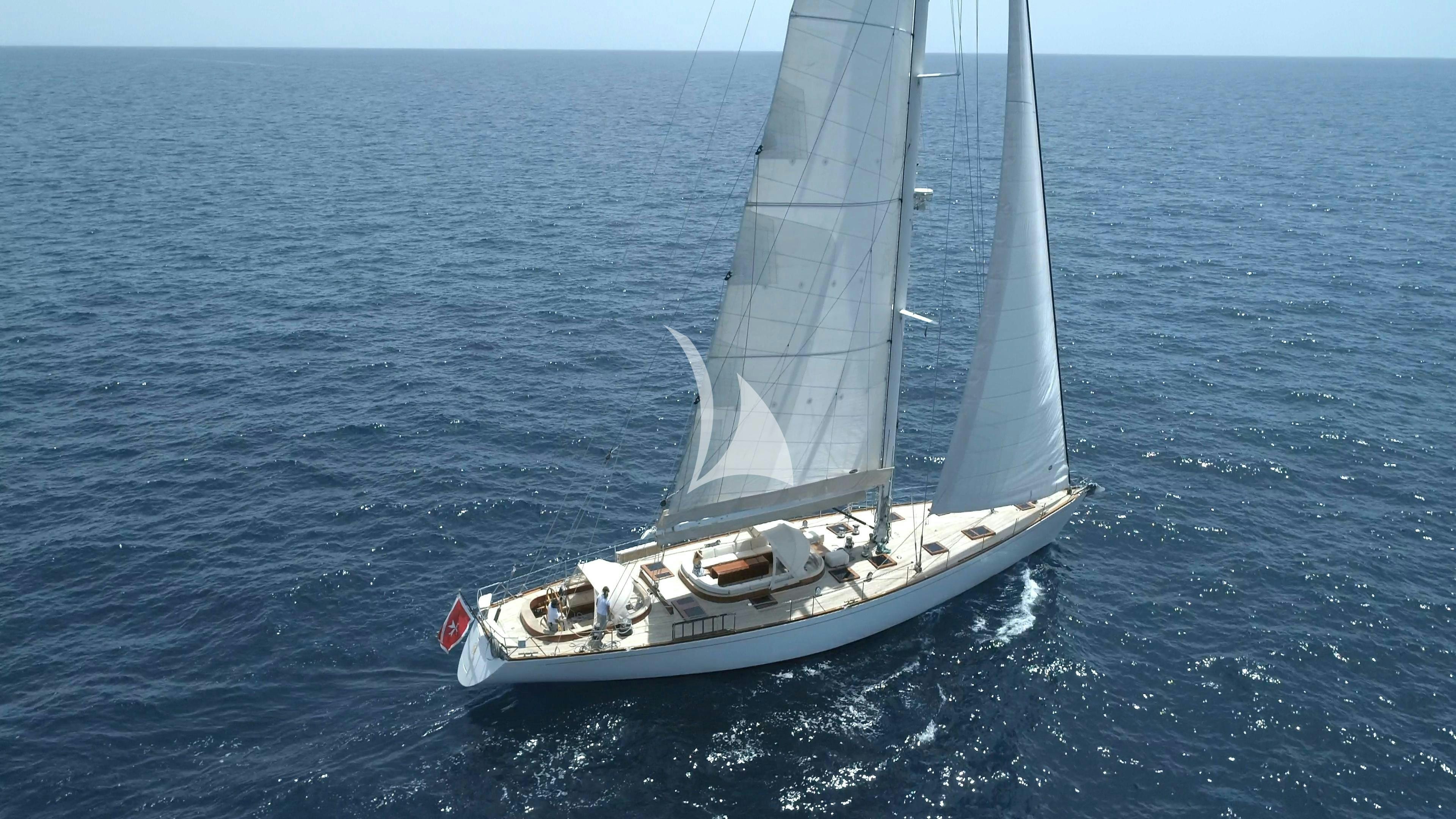

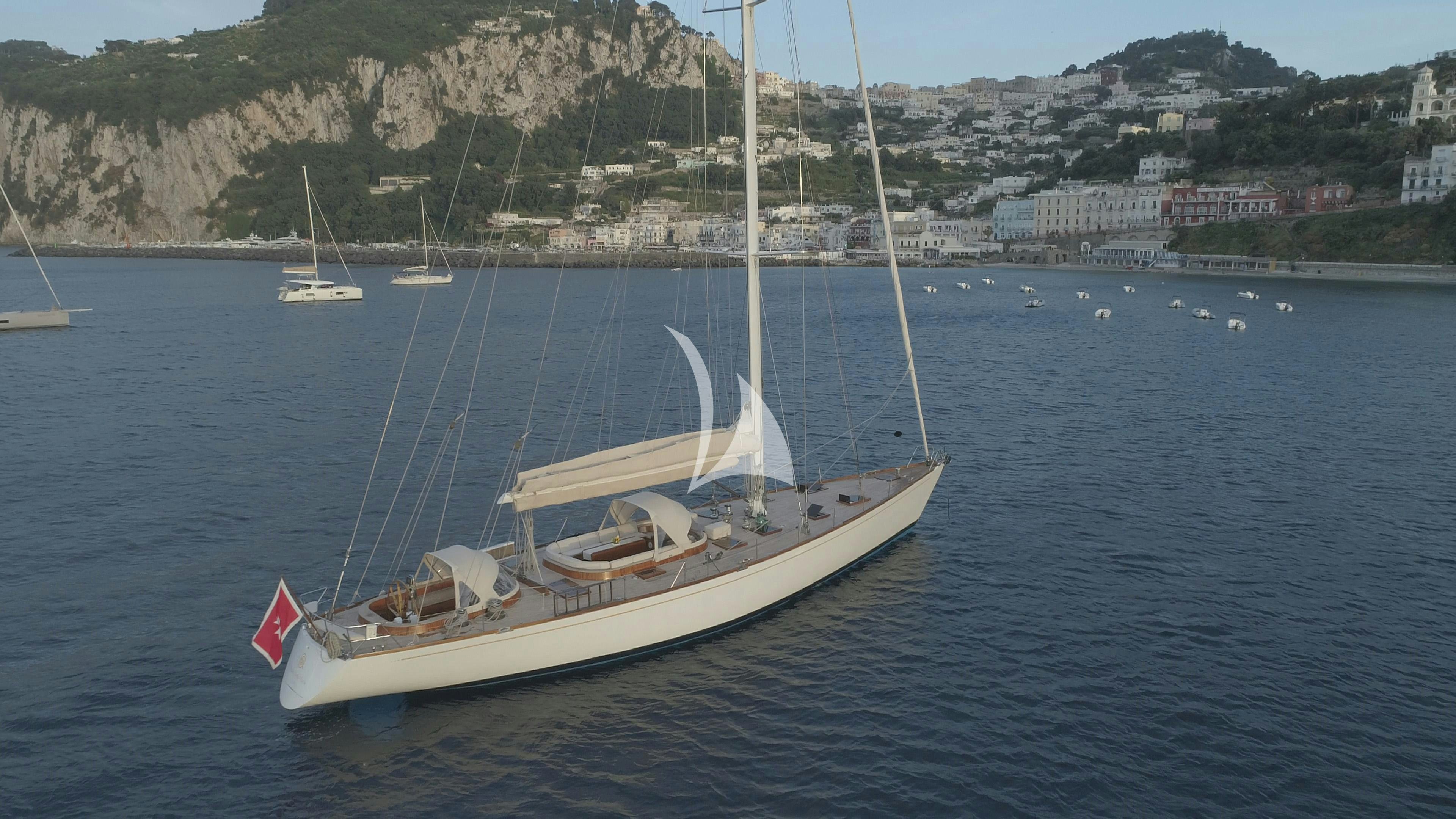

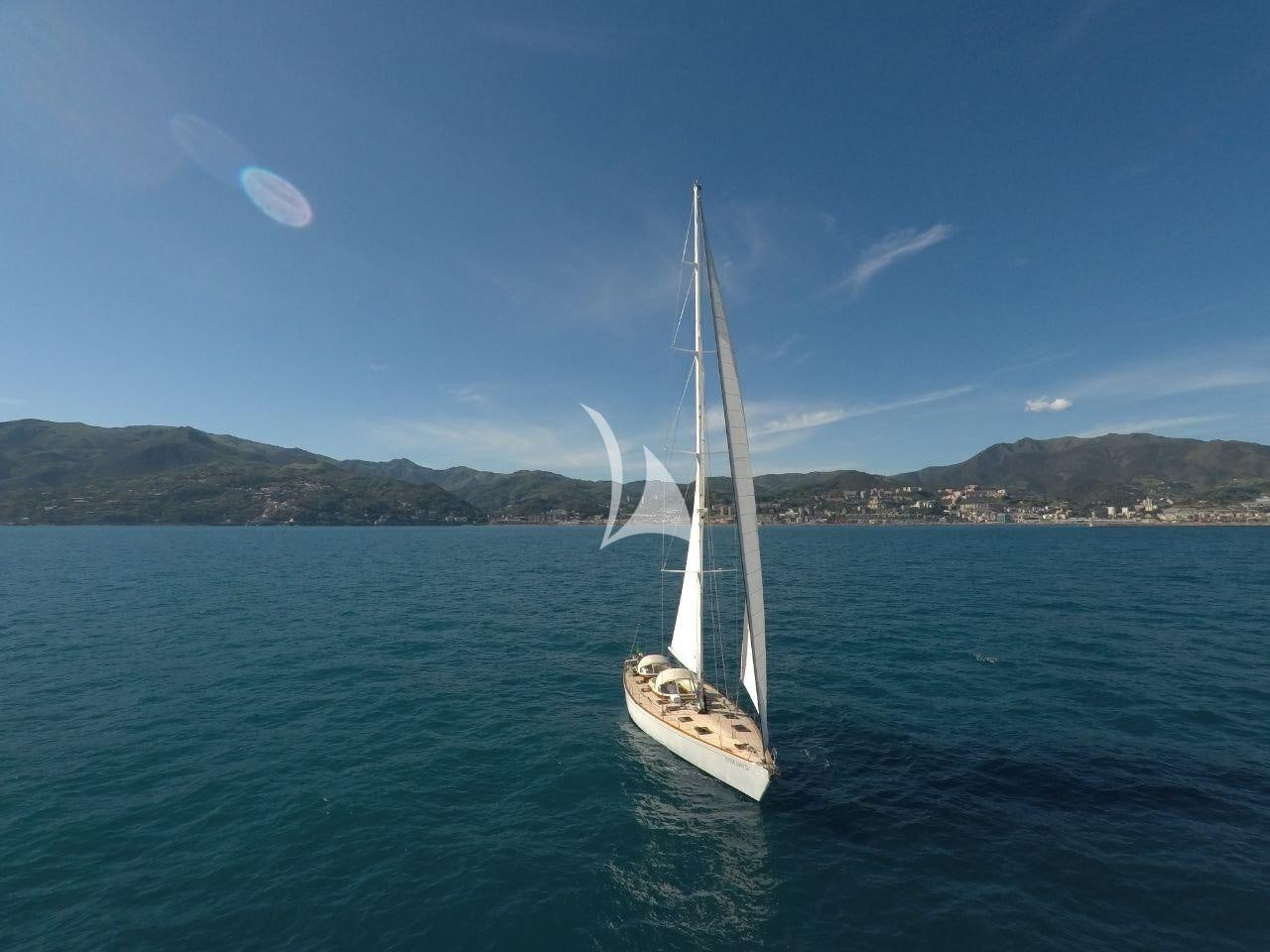

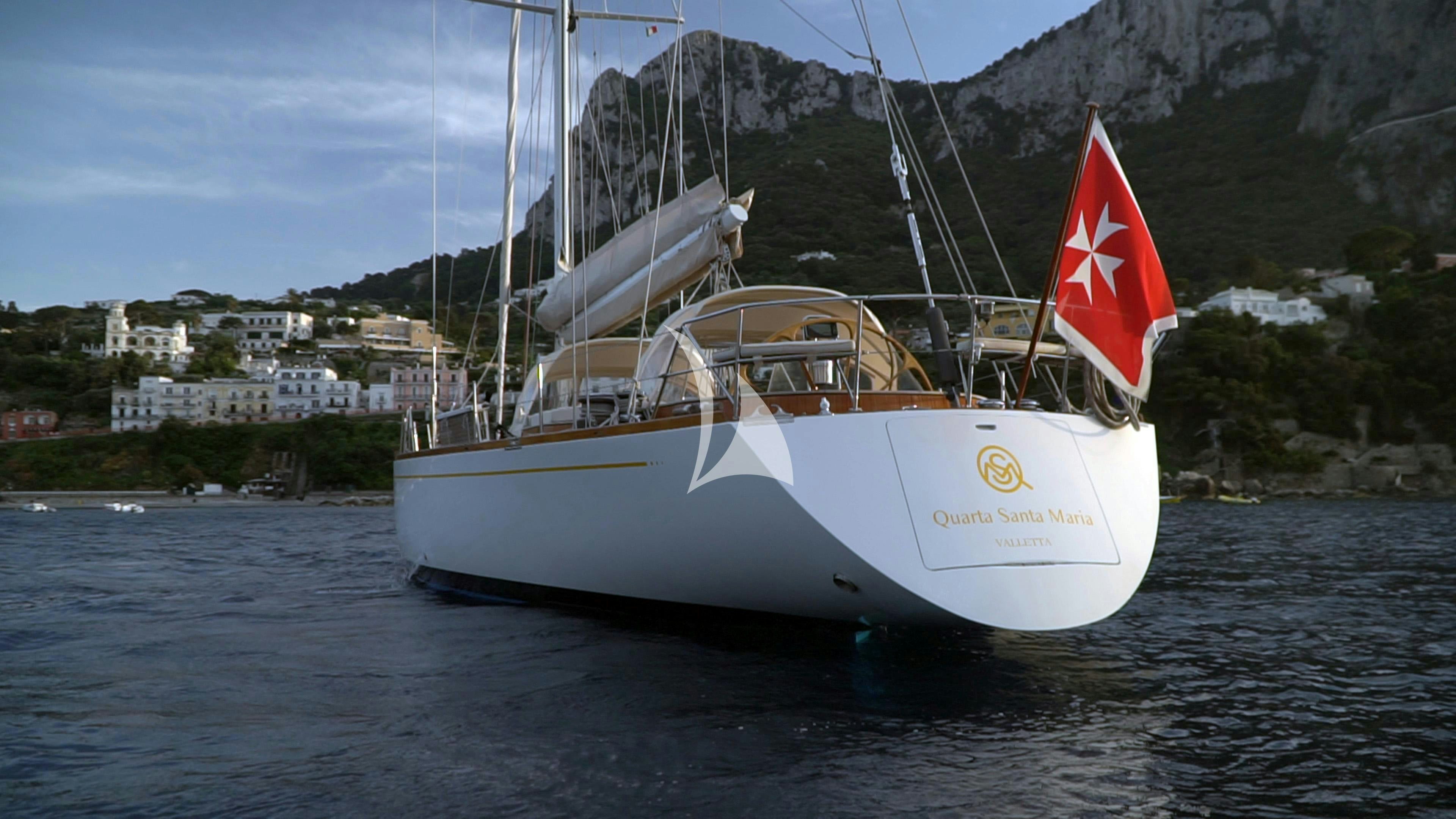

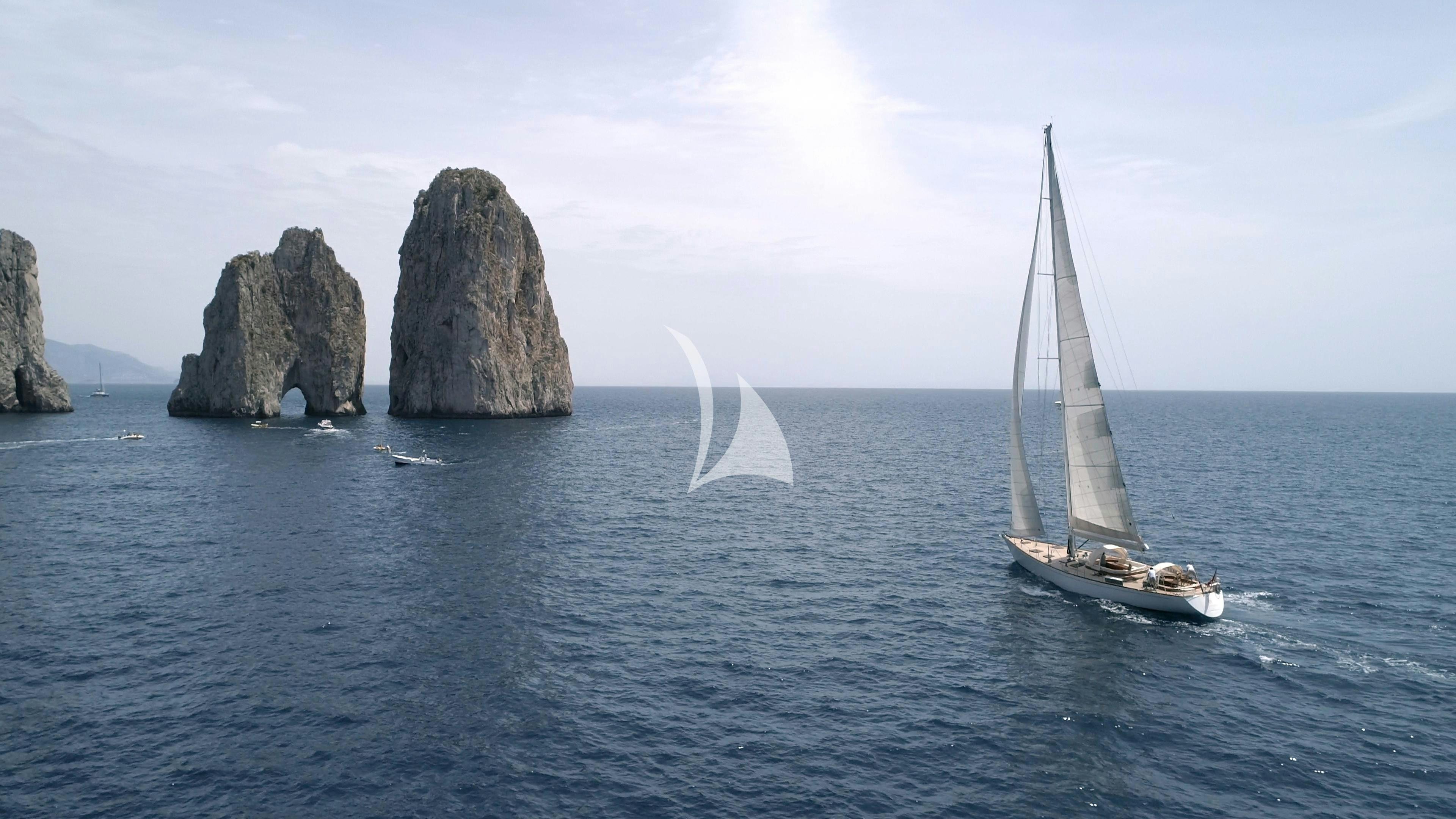

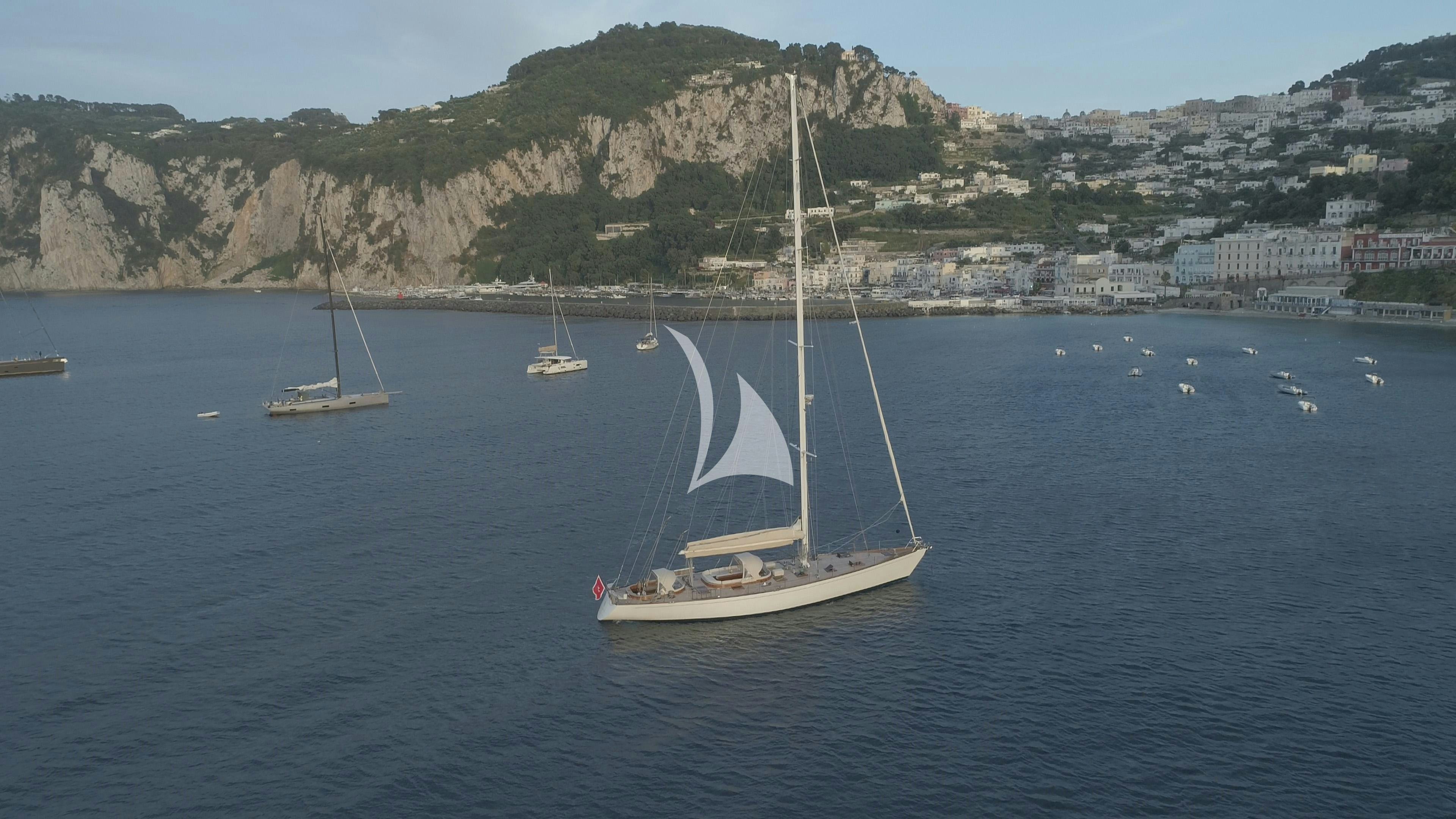

Quarta Santa Maria showcases dynamic lines while retaining the elegance of a classic sailing yacht.
Quarta Santa Maria paved the way for a new generation of yachts thanks to sophisticated technology in its construction. The hull was built with reinforced carbon composite laminated wood to meet RINA and American Bureau of Shipping construction standards. The teak flush deck has been redesigned with an additional cockpits one for navigation and the other for guests to enjoy for down time or while under way.

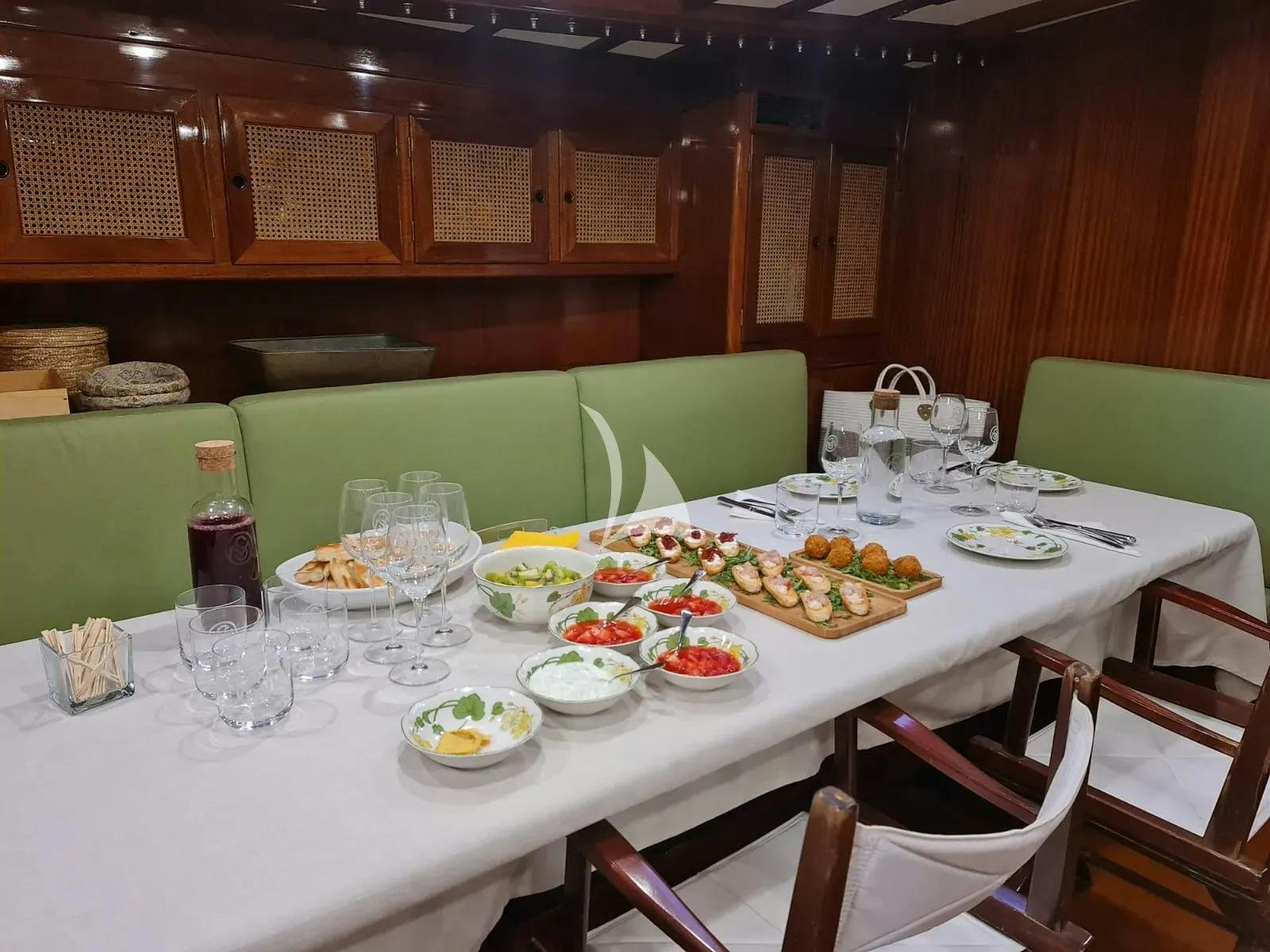

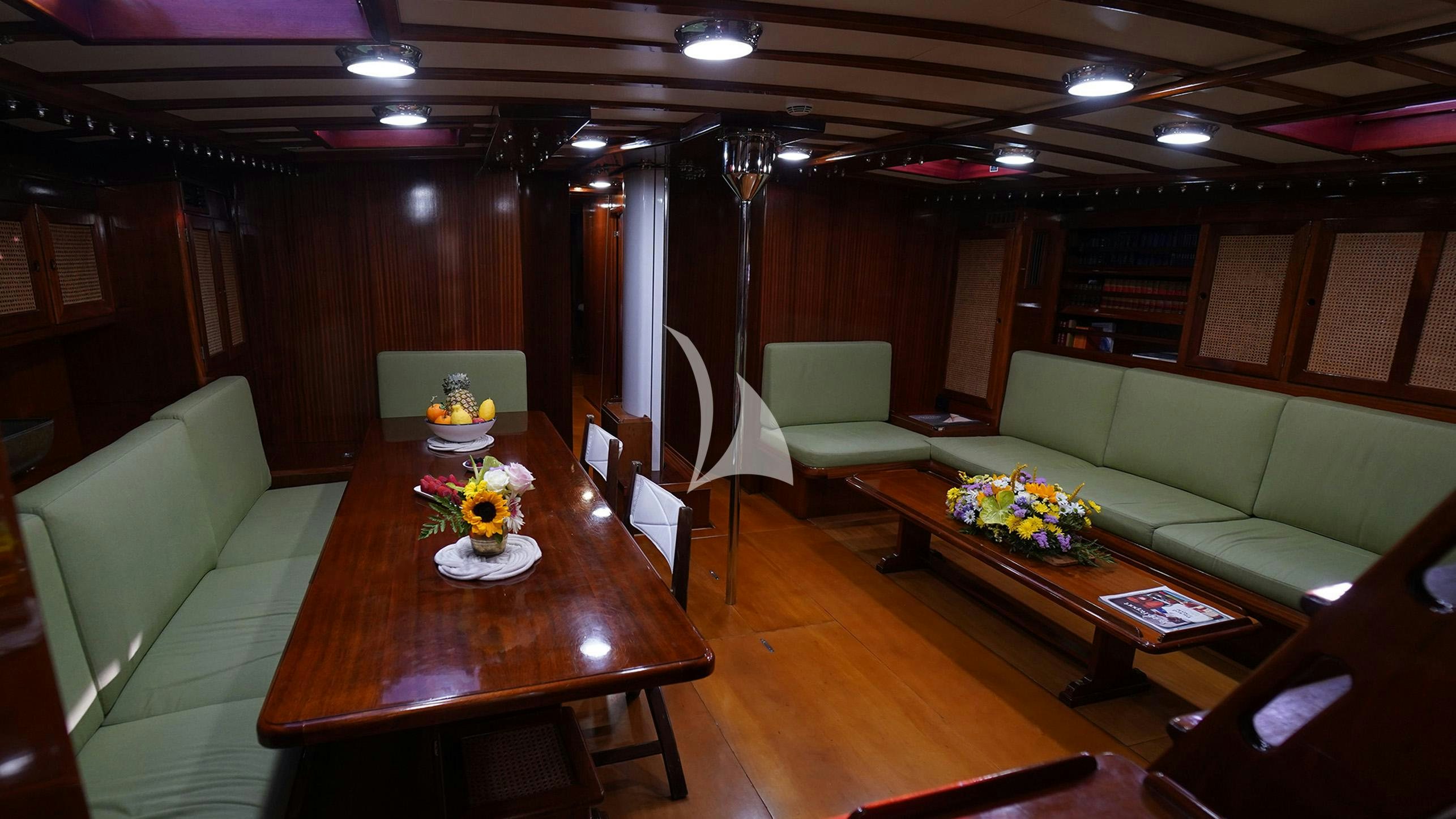

In 2020 and 2021 the vessel went through a full refit in order to make the boat suitable also for charter. For the partial reconstruction of the interiors and exteriors, the restoration took place using the same materials of the original project, thus preserving the original style of the boat. The interior layout has been refitted with 5 staterooms each with en suite head and two for crew also with en suite head. In short, the distinctive signs of Sangermani are all there. Now all that remains is to get on board and discover the pleasure of navigating a classic masterpiece!
QUARTA SANTA MARIA SPECIFICATIONS
Type of vessel: Sailing IMS maxi racer - cruiser
Hull type: Mono hull
Year: 1993
Overall length: m 25,40/ 83’4” ft.
Waterline length: m 20,50/67’3 ft.
Maximum beam: m 6,16/21’6 ft.
Draft: m 2,85/9’3ft
Full load displacement: 46 T
Sail area: sqm 642/ 6910 sq. ft.
Engine: Caterpillar 3208 TA 320 HP

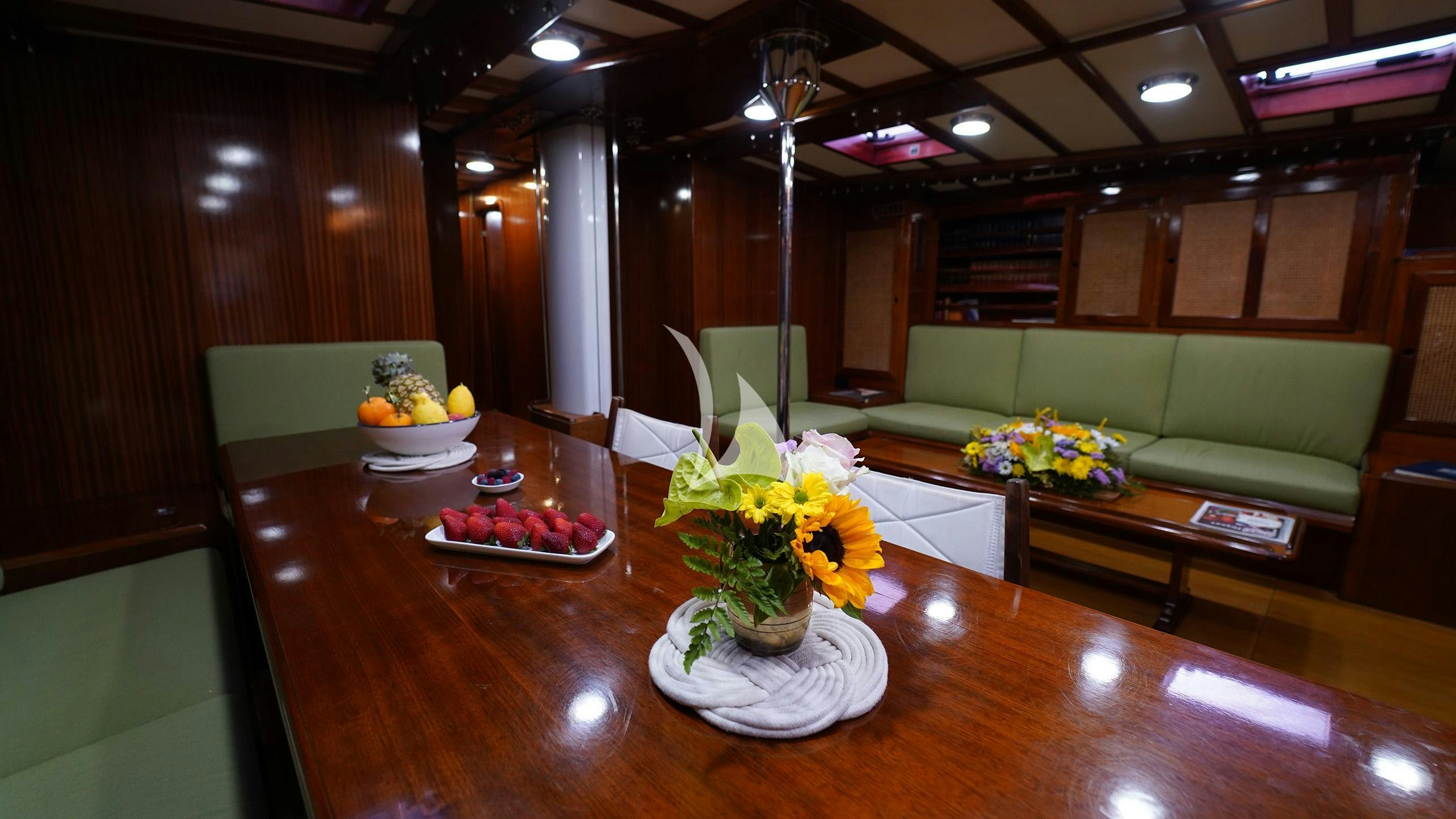

Accommodations: 10 Guests 5 cabins with en suite heads
Crew: 3 in 2 cabins with en suite head
Max speed: 11.0 kn.
Cruise speed: 10.0 kn.
Range: 1.500 n/M
Builder: Cantieri Sangermani - Lavagna - Italy
Naval Architect: Sparkman & Stephens – Newport - Rhode Island - USA
Refit: 2020 – 2021 Cantieri Mostes - Genova Prà - Italy
Interior Design: Lucio Micheletti & Partners
Exterior Design: Lucio Micheletti & Partners
SAFETY AND NAVIGATION
• Fixed + handheld B&G 16ʺ Integrated Chart plotter
• 4G radar
• Autopilot
• GPS
• AIS
• EPIRB (Emergency Position-Indicating Radio Beacon)
• Depth sounder, log, wind direction and strength, air and water temperature
• Fixed + handheld VHF radio with DSC
• Life jackets and 2 offshore category life rafts for total of 16 people
• Automatic fire extinguishing system in engine room
• Fire extinguishers in all cabins and saloon
• Fire detectors in all compartments TECHNICAL EQUIPMENT

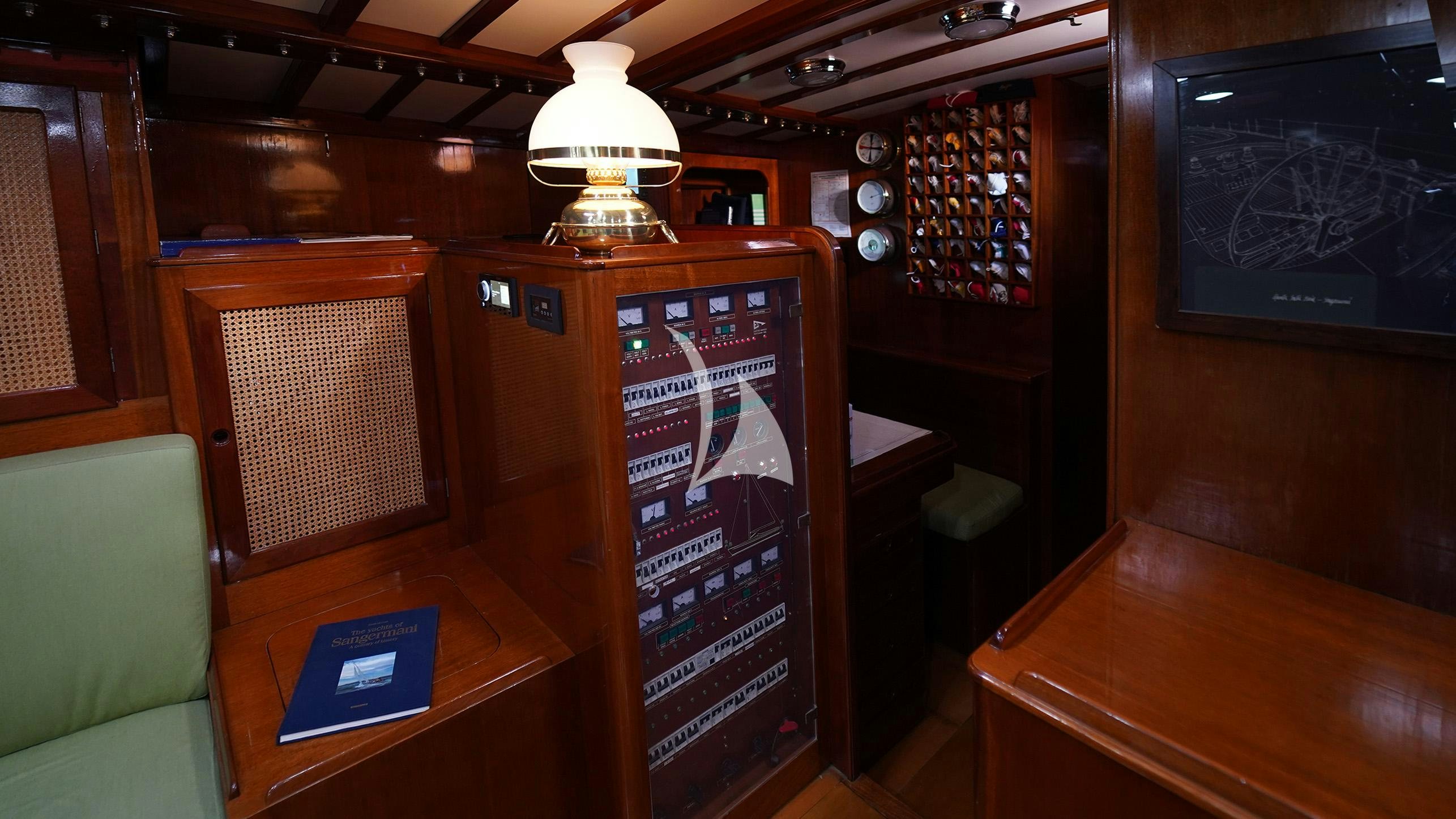

• Onboard electric system 24 V/230 V and USB outlets in all compartments
• 18 kVA Kohler generator
• Air conditioning Climma 60K BTU in all compartments including crew cabins.
• Connectivity 4G+WiFi booster
• TV Samsung the frame 32”
• Marine Hi fi Fusion Apollo MS-RA 770 Touchscreen, 4 Zone DSP
• Mechanic steering system with autopilot
• On-board desalination capacity 160 l/h/40g
• Still and sparkling water purifier
• Wastewater 2 x 220 l/58g tanks
• Fresh water 2 x 800 l/211g tanks
• Washing machine/dryer 13 kg
• 12 covered dishwashing machine
• Engines – Caterpillar 3208 V 8 four stroke 320 HP
• Fuel capacity 2 x 1.300 l /343g tanks
• 3 fridges total capacity 500 l/132g
• Harken Winches with electric functionality
• Rolller Furler

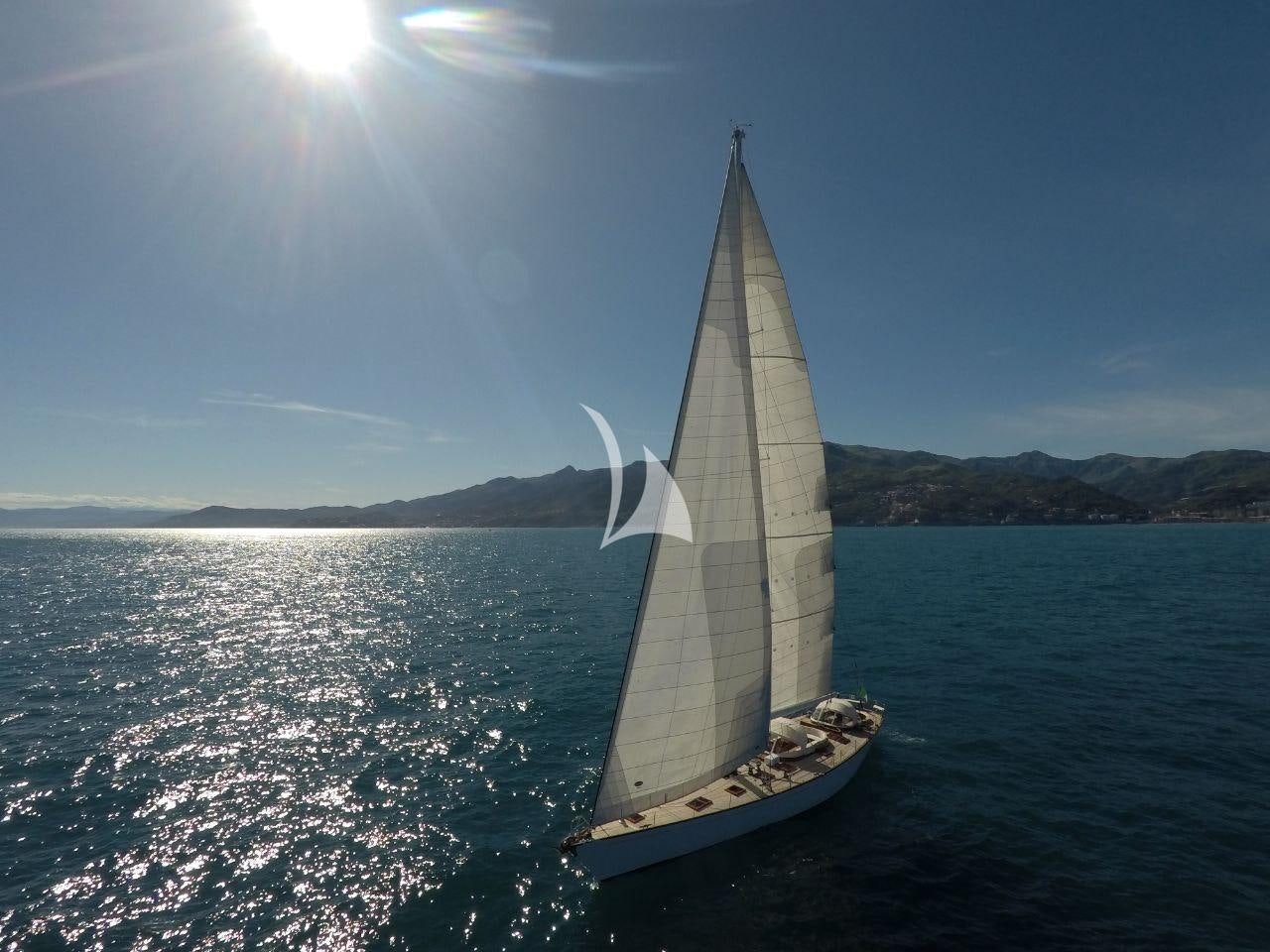

• Sails: Main, Genoa, Storm Jib, Yankee, Gennaker
AMENITIES & TOYS

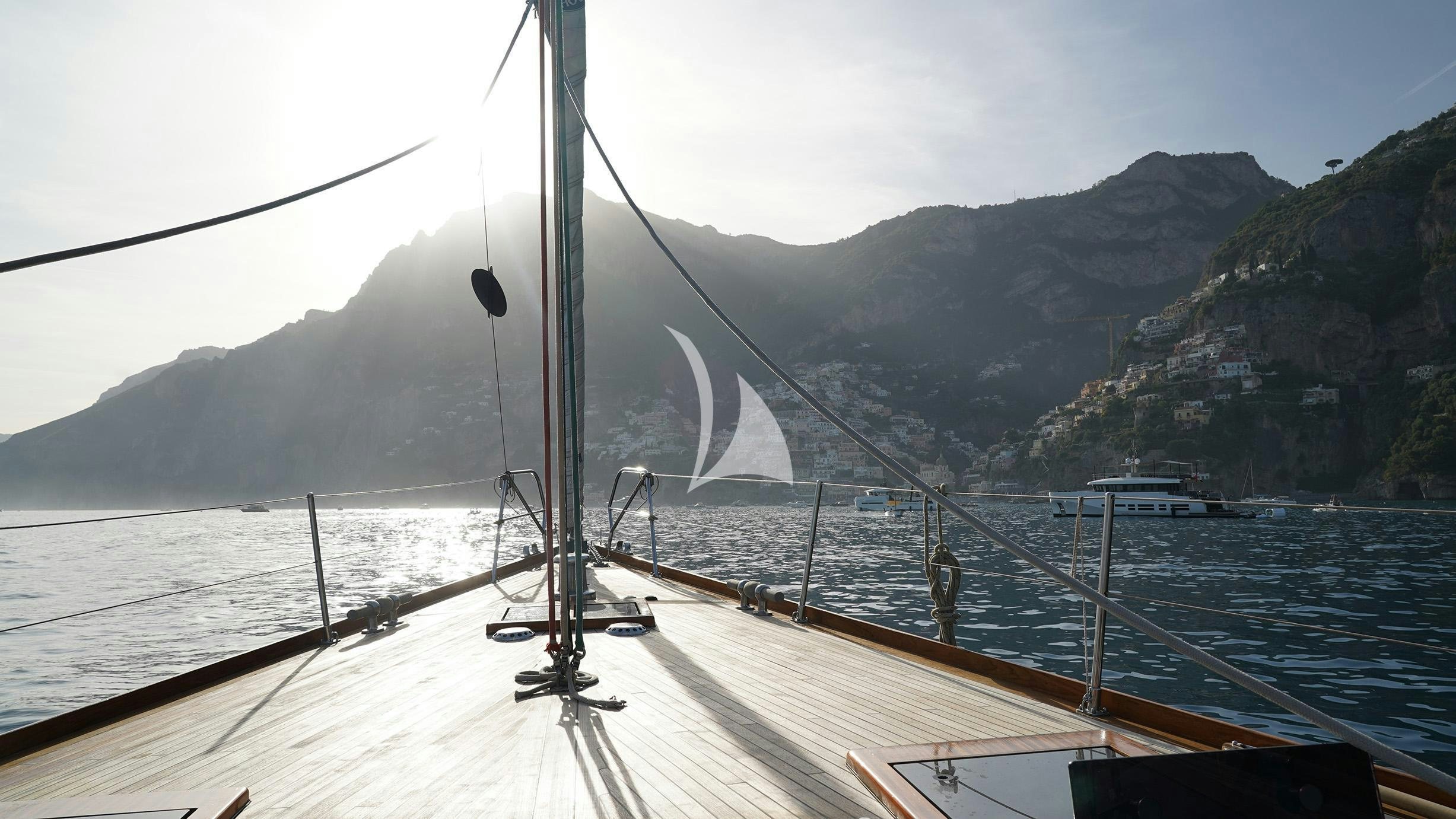

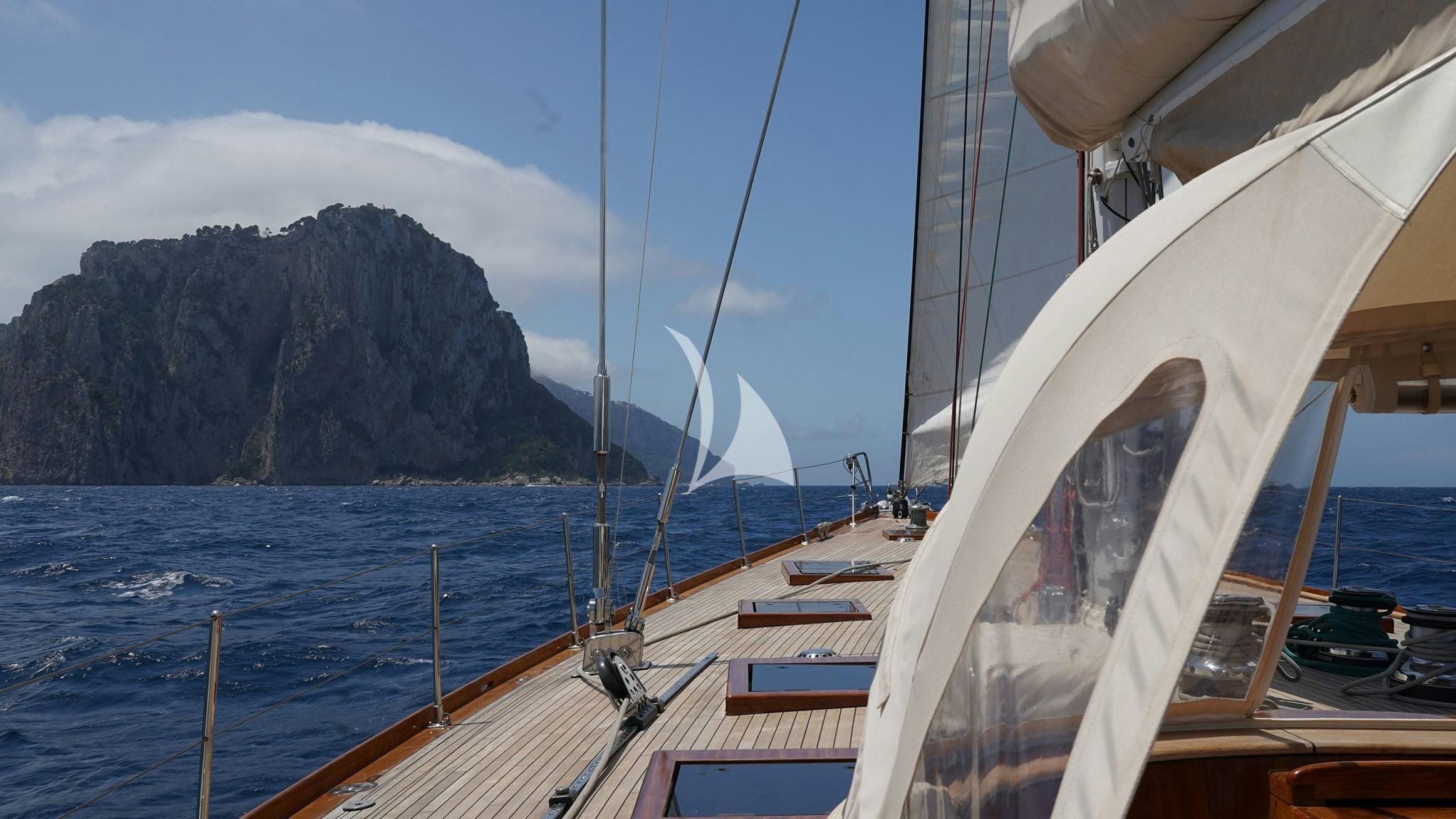

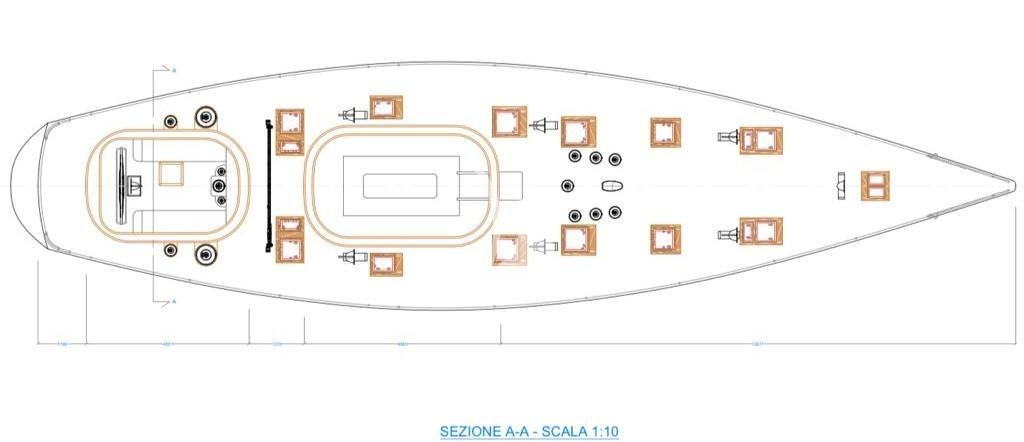

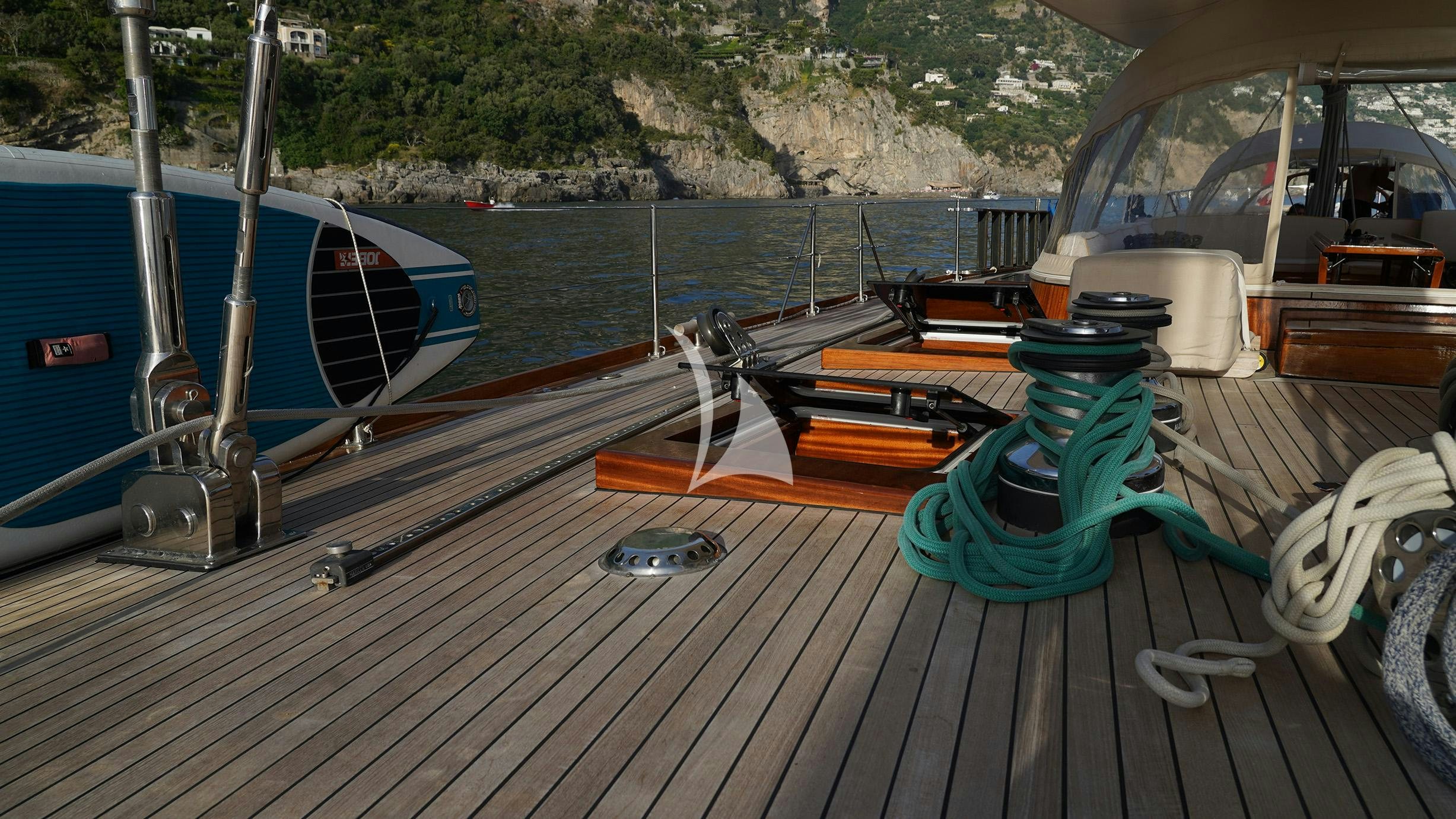

• 85 sqm teak flush deck

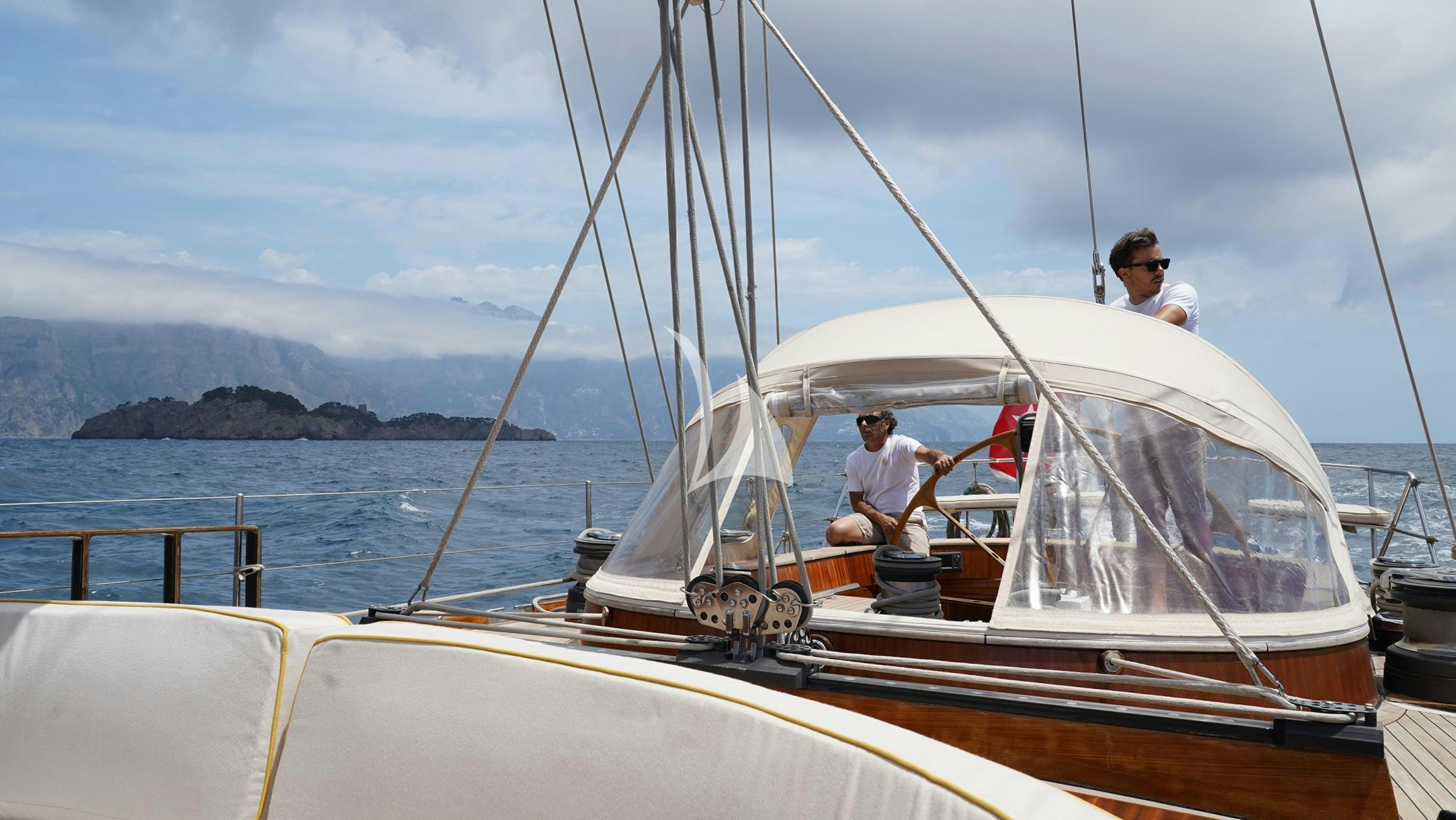

• Crew cockpit with spray hood

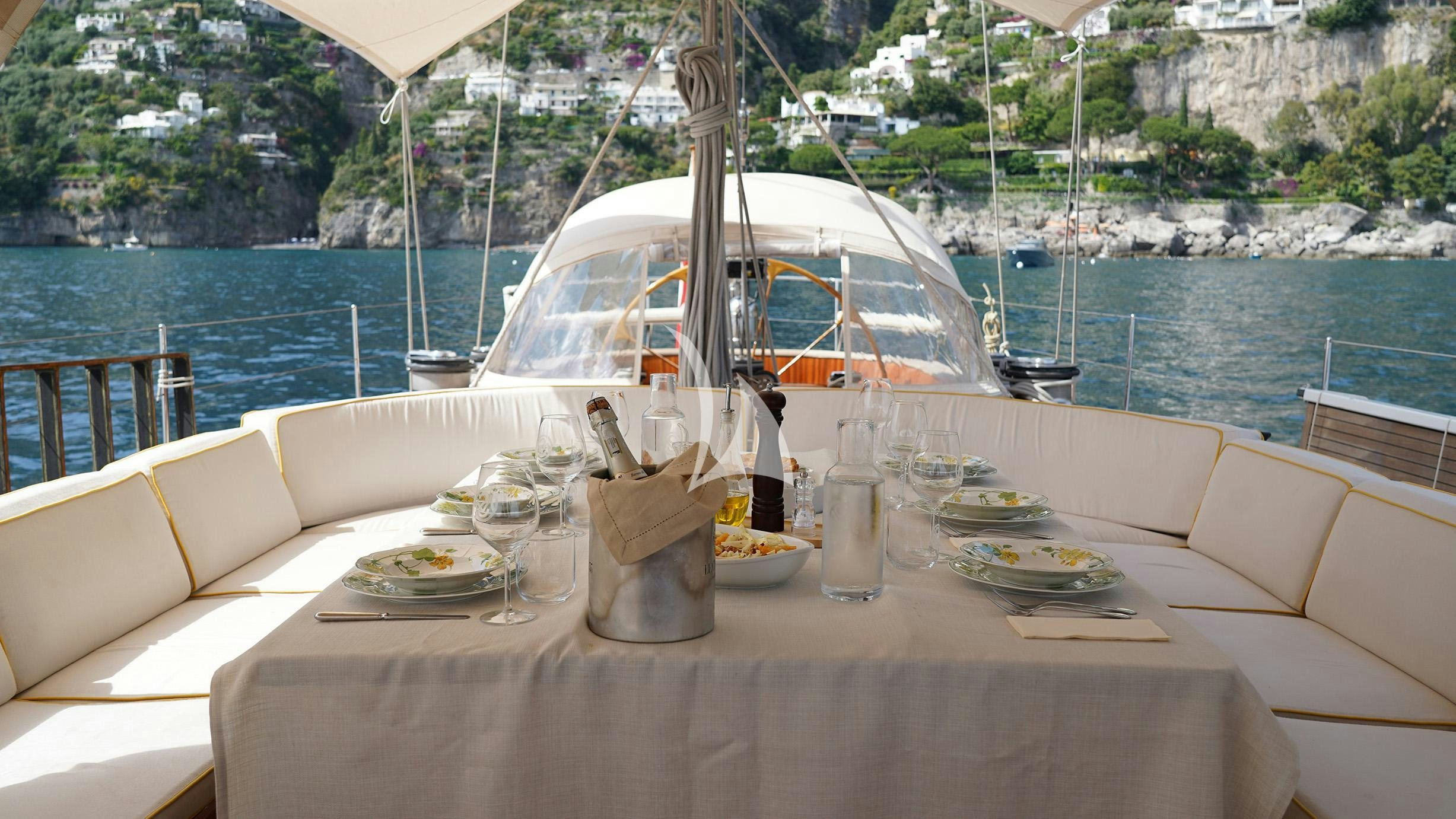

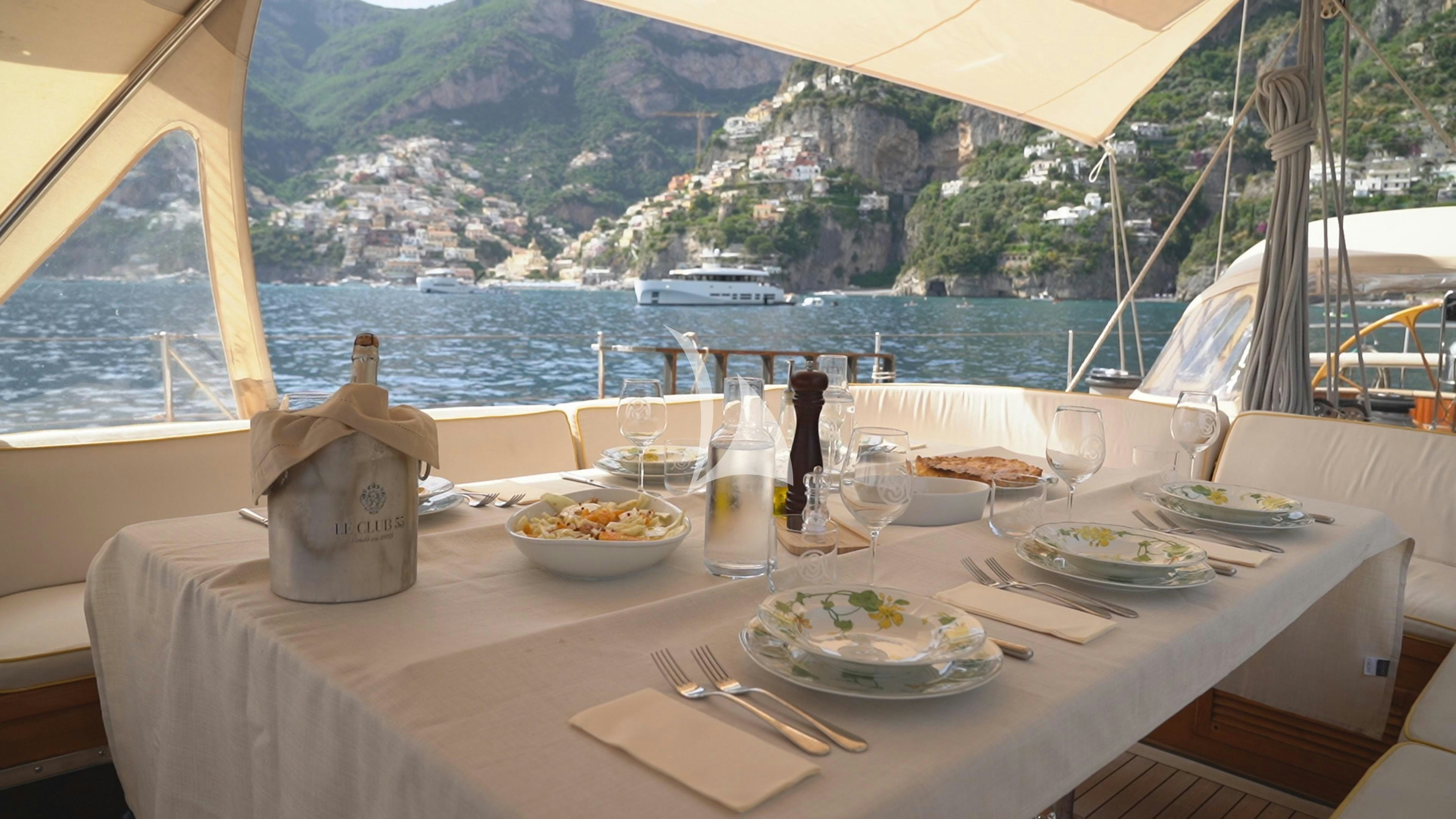

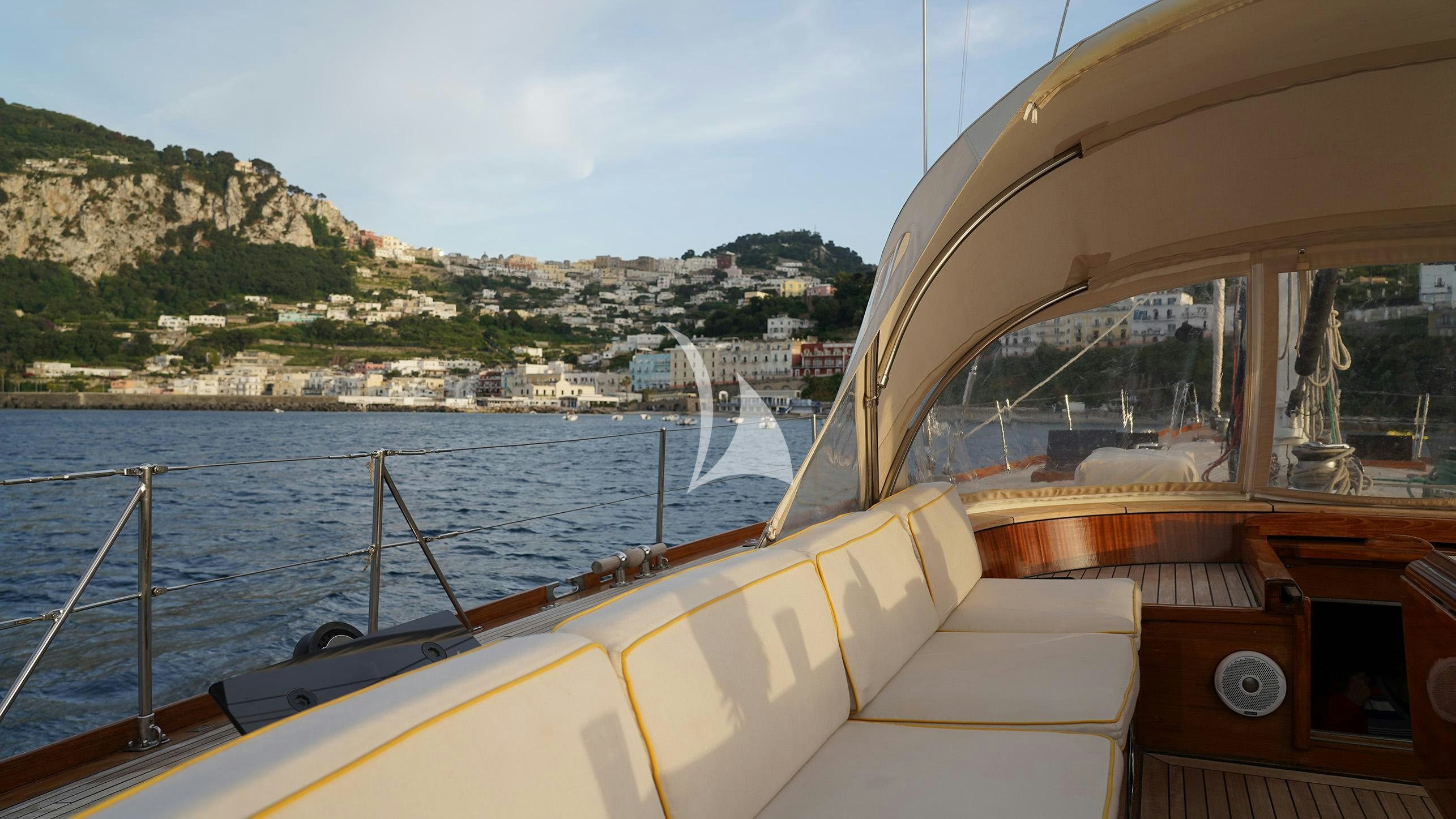

• Guest cockpit with ( approx. 12 sqm) with 2,5m/8’2ft table, U shaped seating , spray hood and Bimini top

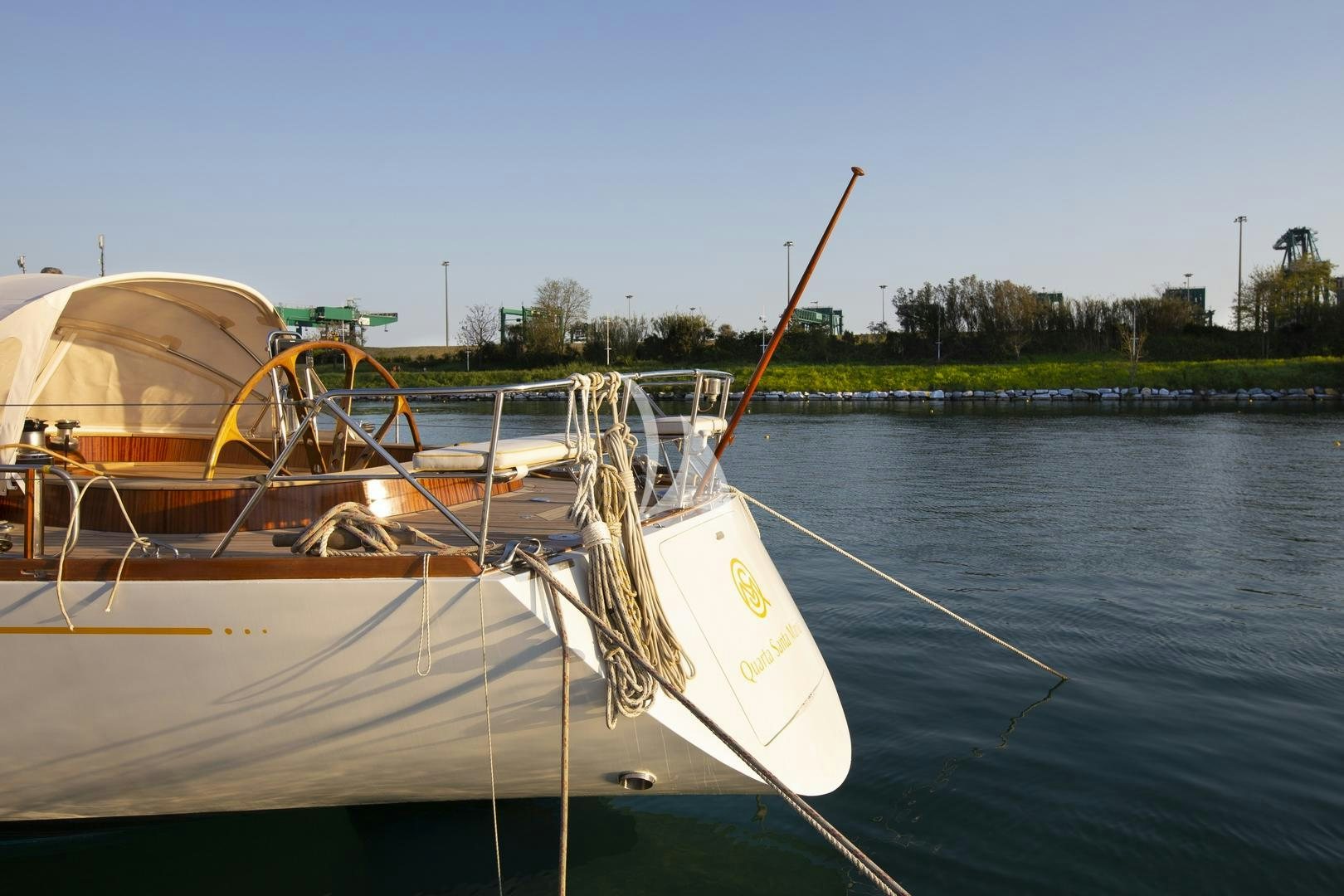

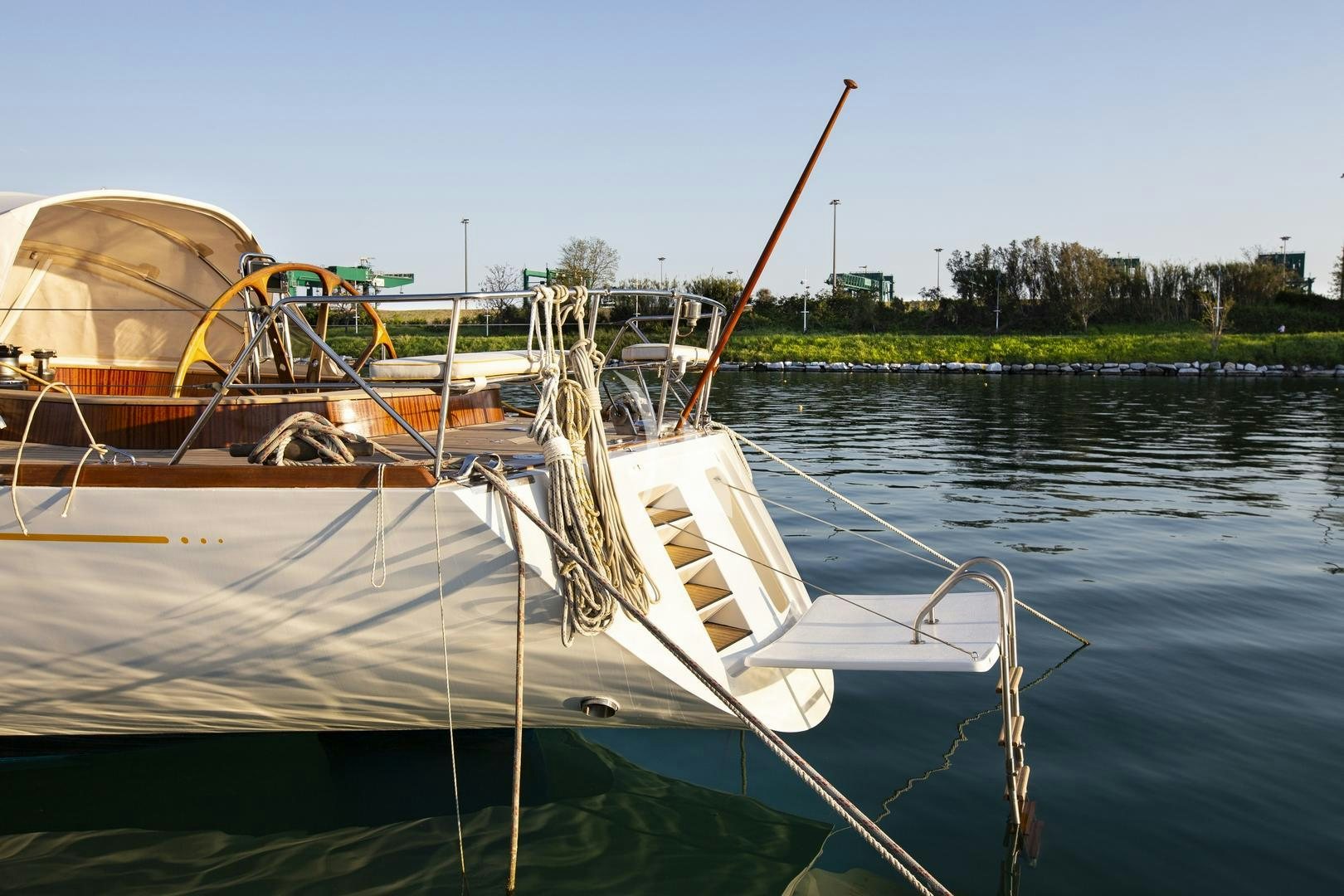

• Folding transom with swim ladder

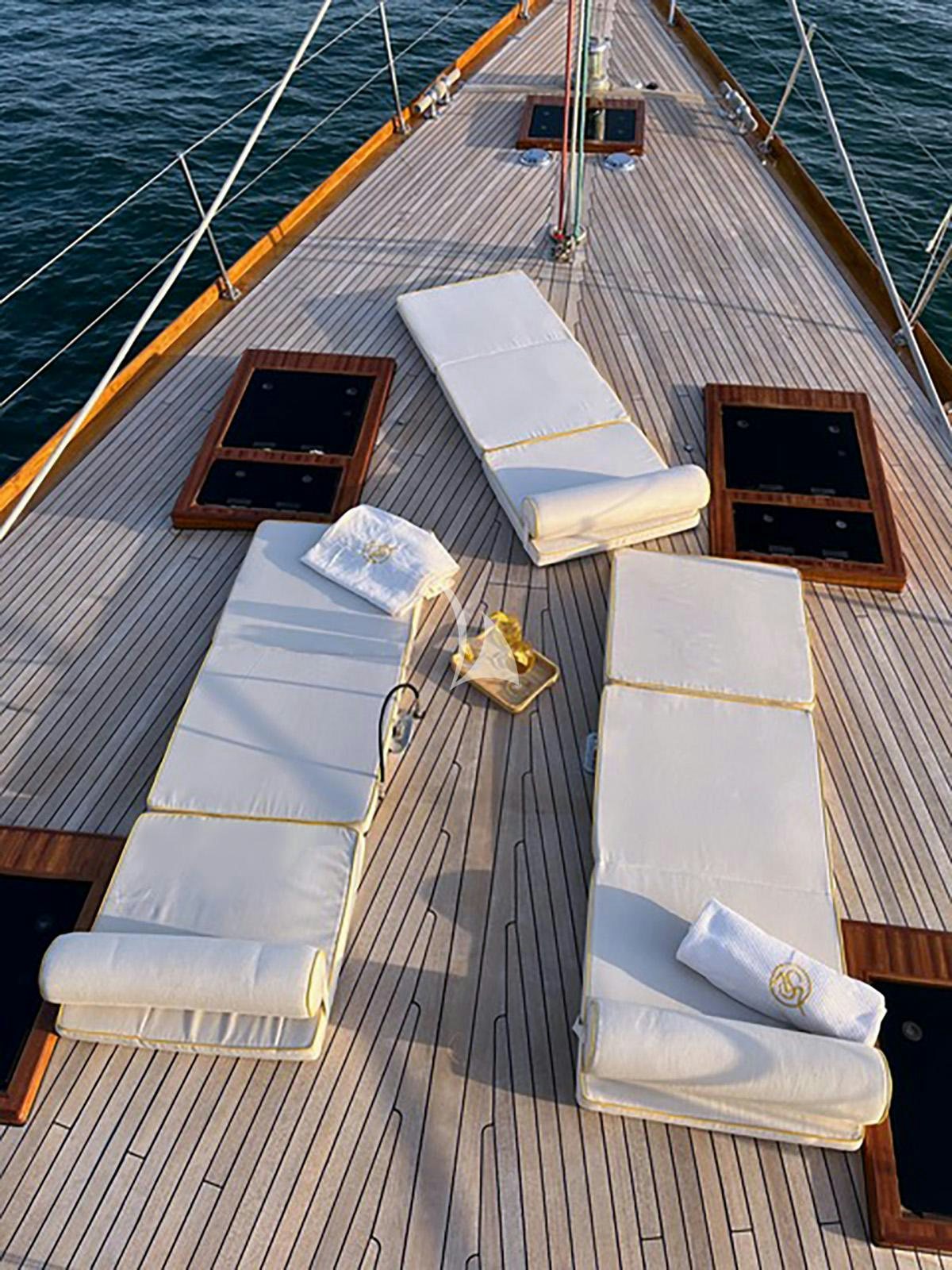

• 10 sunbeds with headrest
• AB inflatable tender 14 AL - Aluminum Deep V Hull - 4.3m./14 ft. (8 person capacity) with Yamaha outboard engine 40 hp.
• 1 wakeboard
• 2 water skis
• 3 sea scooters
• 2 deep fishing rods
• Full set of snorkeling gear and fins
