PAULINE AF SKANOR Yacht for Sale

• Forced air ventilation in all cabins.
• Exhaust ventilators in heads and galley.
• New 24V hydraulic pumps installed in Las Palmas – 2018-19.
• New air pressure pump for pneumatic systems installed in Cascais, 2019 and 2023.
• Coaming doors + companionway and gasket for side boarding ladder.

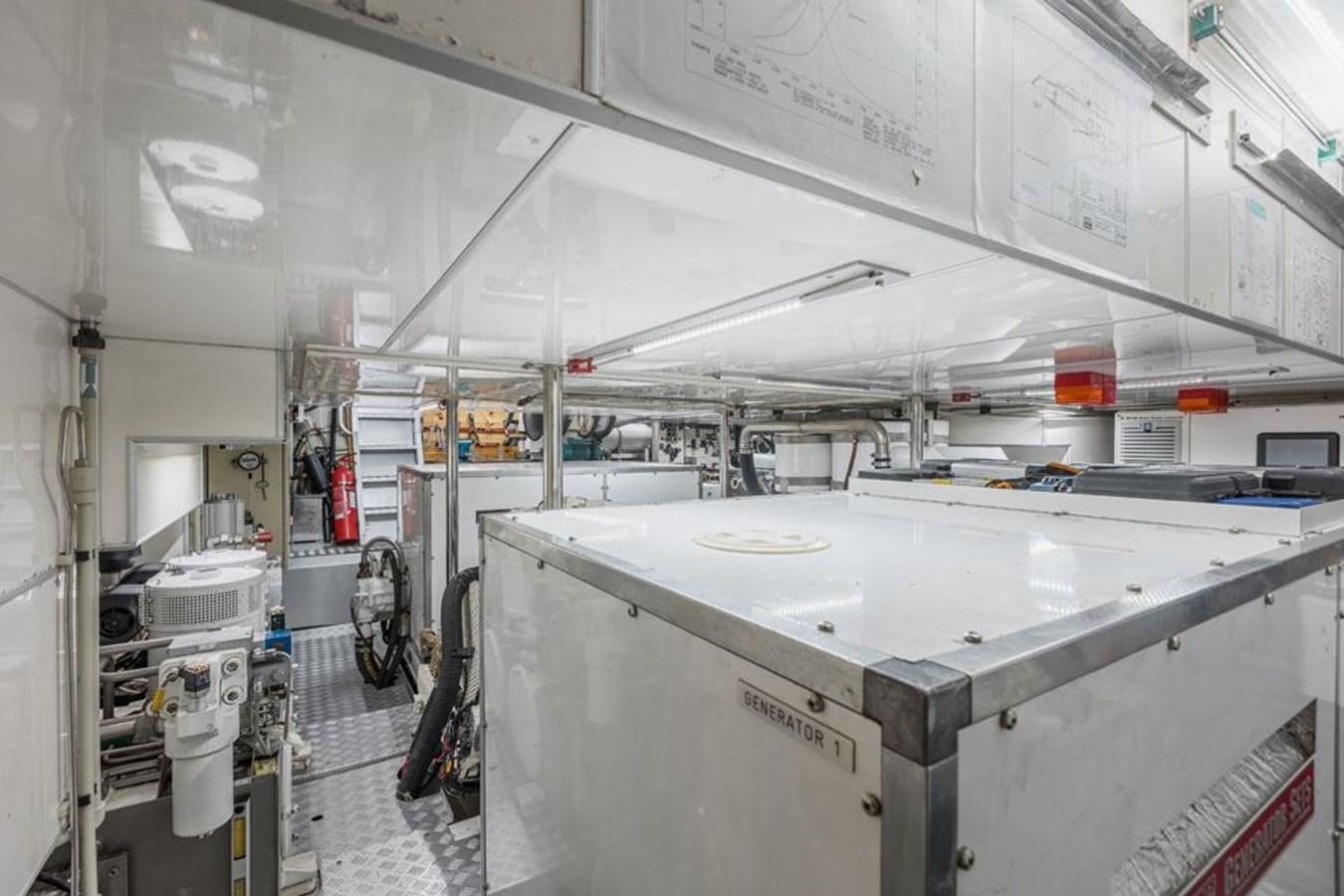

• Main hydraulic system has five power sources: PTO on engine, PTO on each gen set, 2 x DC electric motors. Oil reservoir.

• 2 x Gianneschi & Rammacciotti calorifier water heaters, 150 litres each – 2016.
• Each calorifier has a 5kW electric element and one heat exchanger (one exchanger is connected to gen 1 and other to gen 2).
• Hot water re-circulating pump.
• Elements for electric immersion changed.
• 24vDC Gianneschi pump – rebuilt 2016.
• AC driven pressure pump.
• 100 litres pressure vessel.
• 1 x 220vAC Grundfos bilge pump – rebuilt 2016.
• New hot water pressure tank, 24 litres – 2020.
• 24v and 230v pressure pumps – changed 2022.
• Viqua D4 Premium UV water filter system, 2018.
• 2 x seawater systems – one for engine, gensets and hydraulic power pack cooling, the other for deckwash / fire pump, watermaker and air conditioning.
• City water connection on deck.


Watermaker:

• Idromar watermaker, approx. 800 litres per hour, completely rebuilt 2016 – full service 2020.
• 1,380 hours @ March 2023.


Bilge Pumps:

• Gianneschi bilge pumps – new or rebuilt 2016 and/or later.
• 2 x manual pumps.
• Submersible pumps for forepeak, forward bilge, engine room bilge, aft bilge, lazarette bilge.
• Engine driven bilge pump in engine room.
• Extra electric pump added for bilge by mast, hose loose, put to galley sink.


Grey & Black Water:

• Pumps and gauges for grey and black water tanks changed when needed – 2018-2022.

Summary of Accommodation:

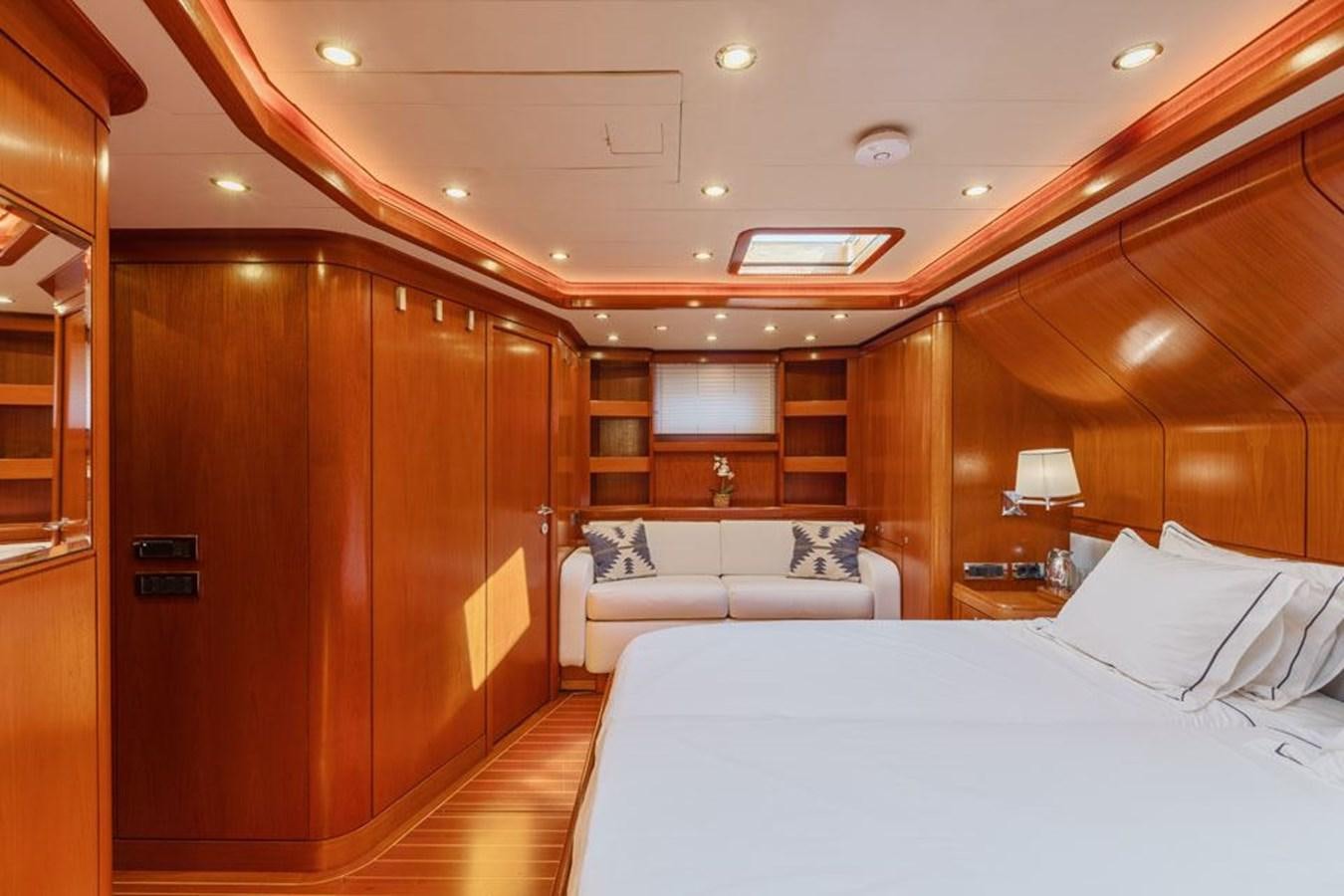

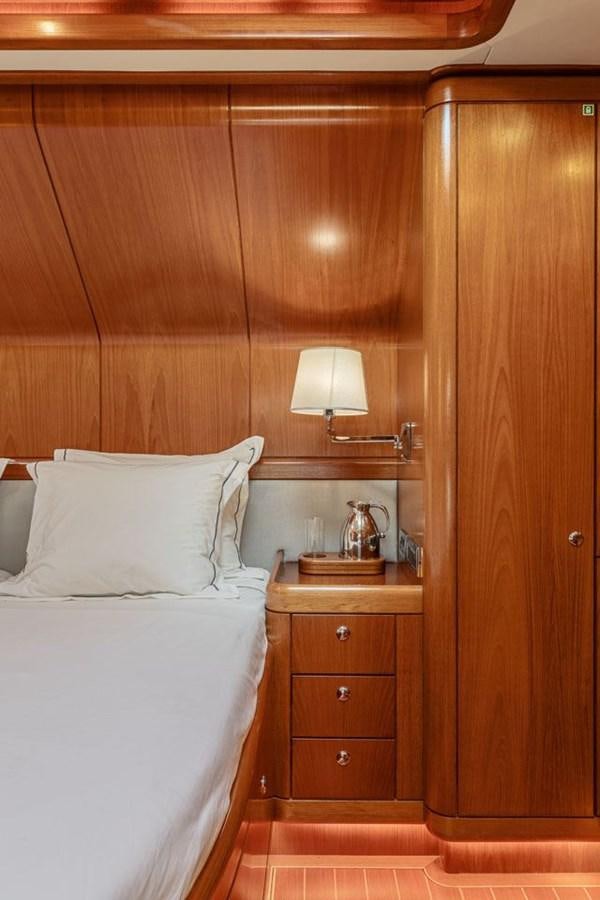

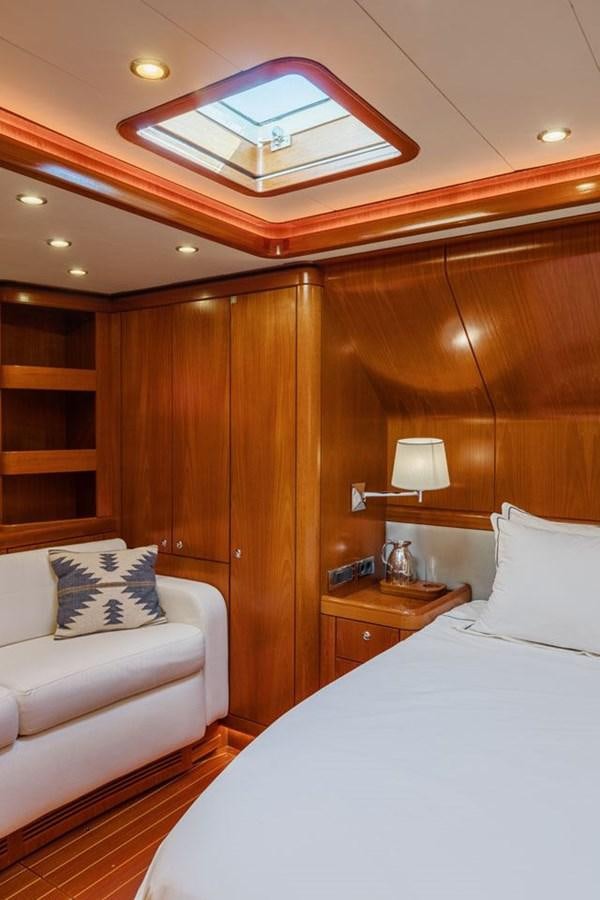

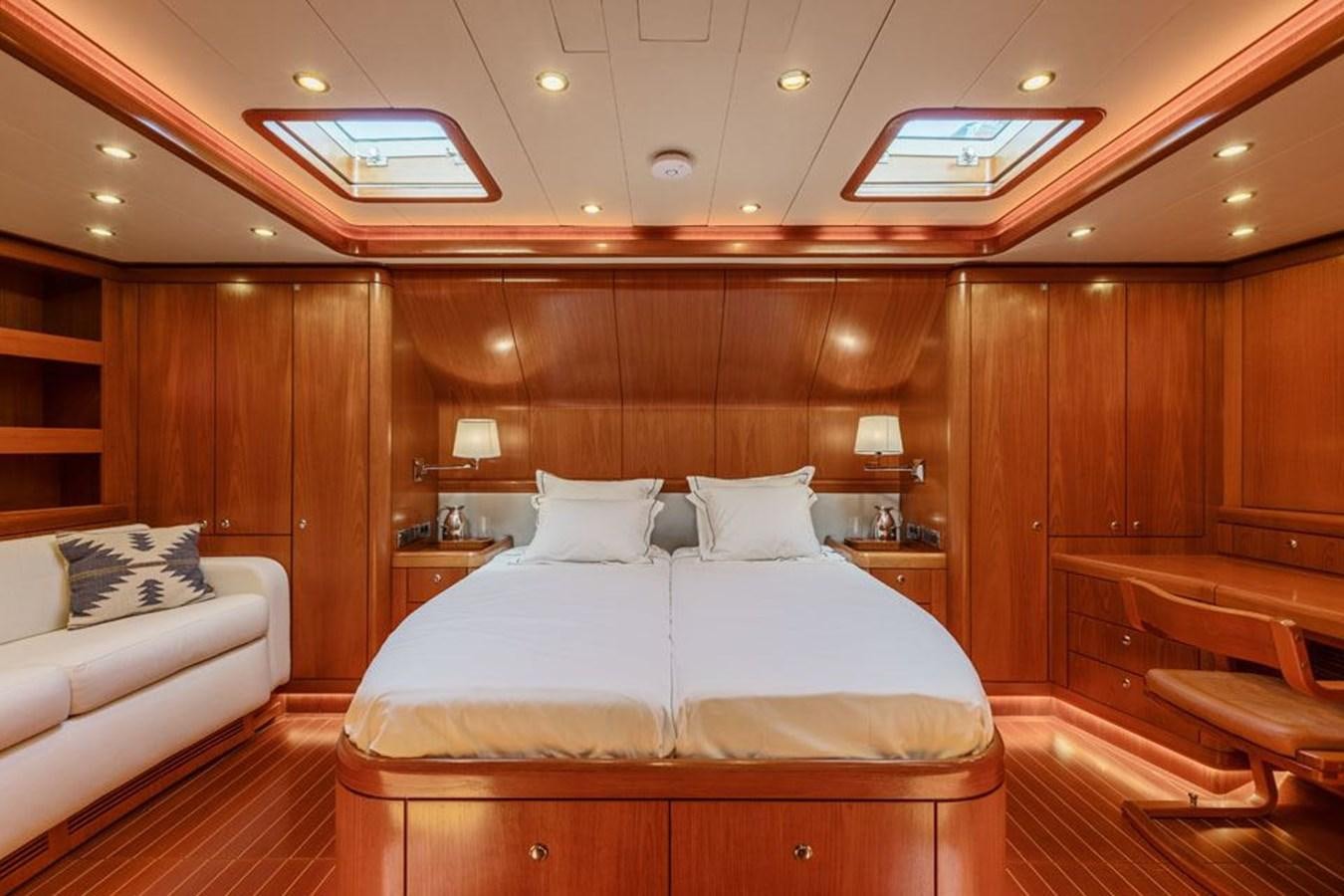

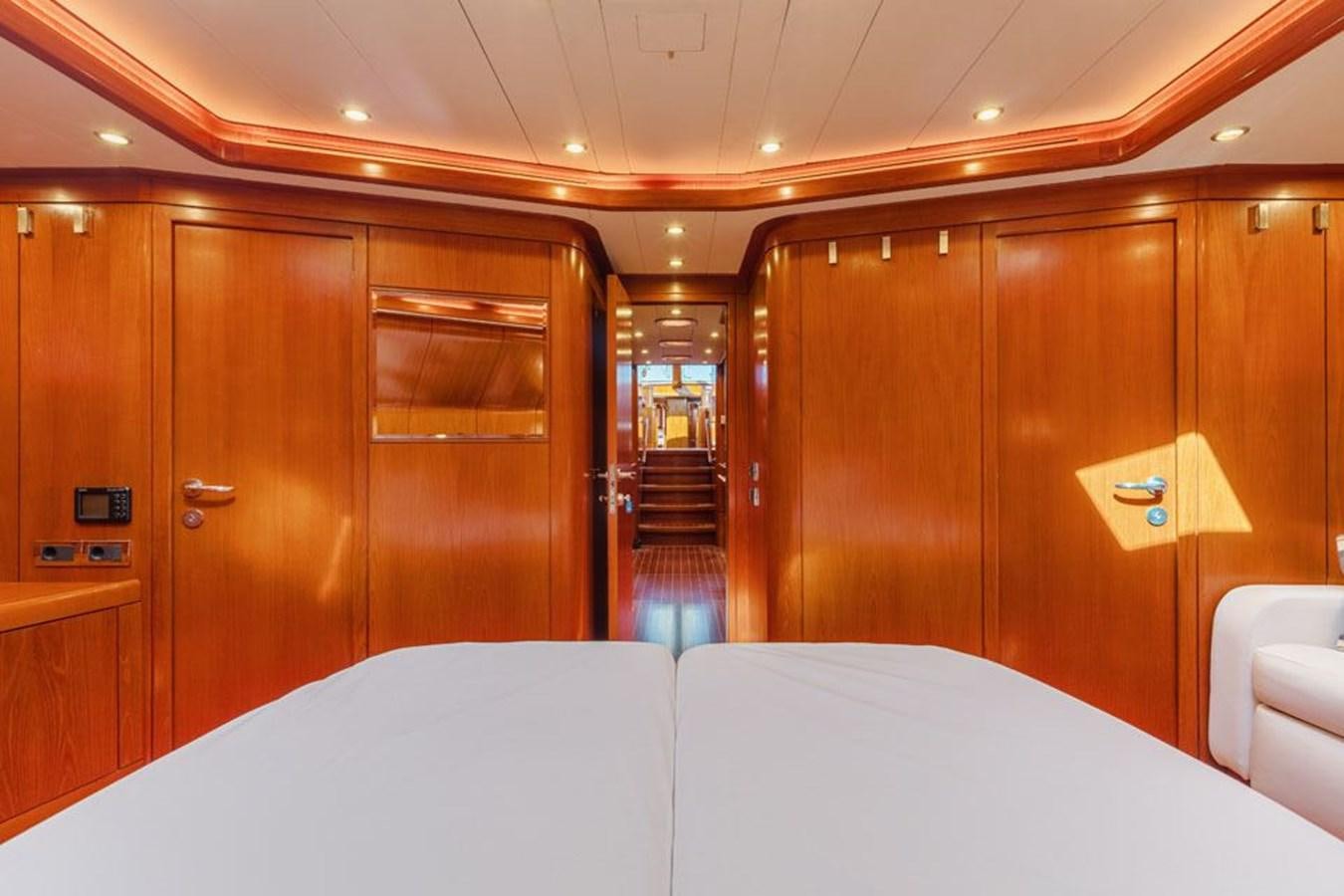

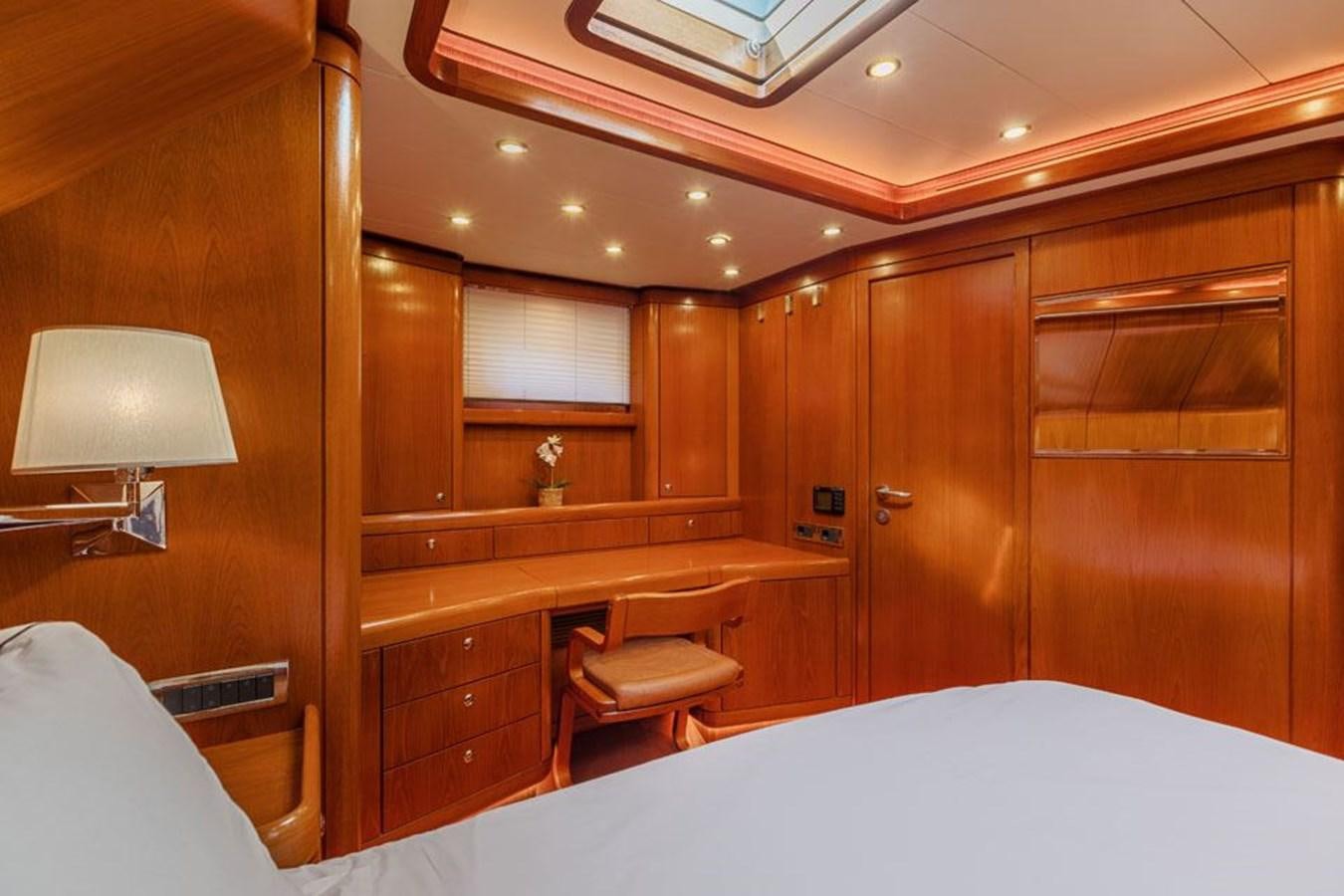

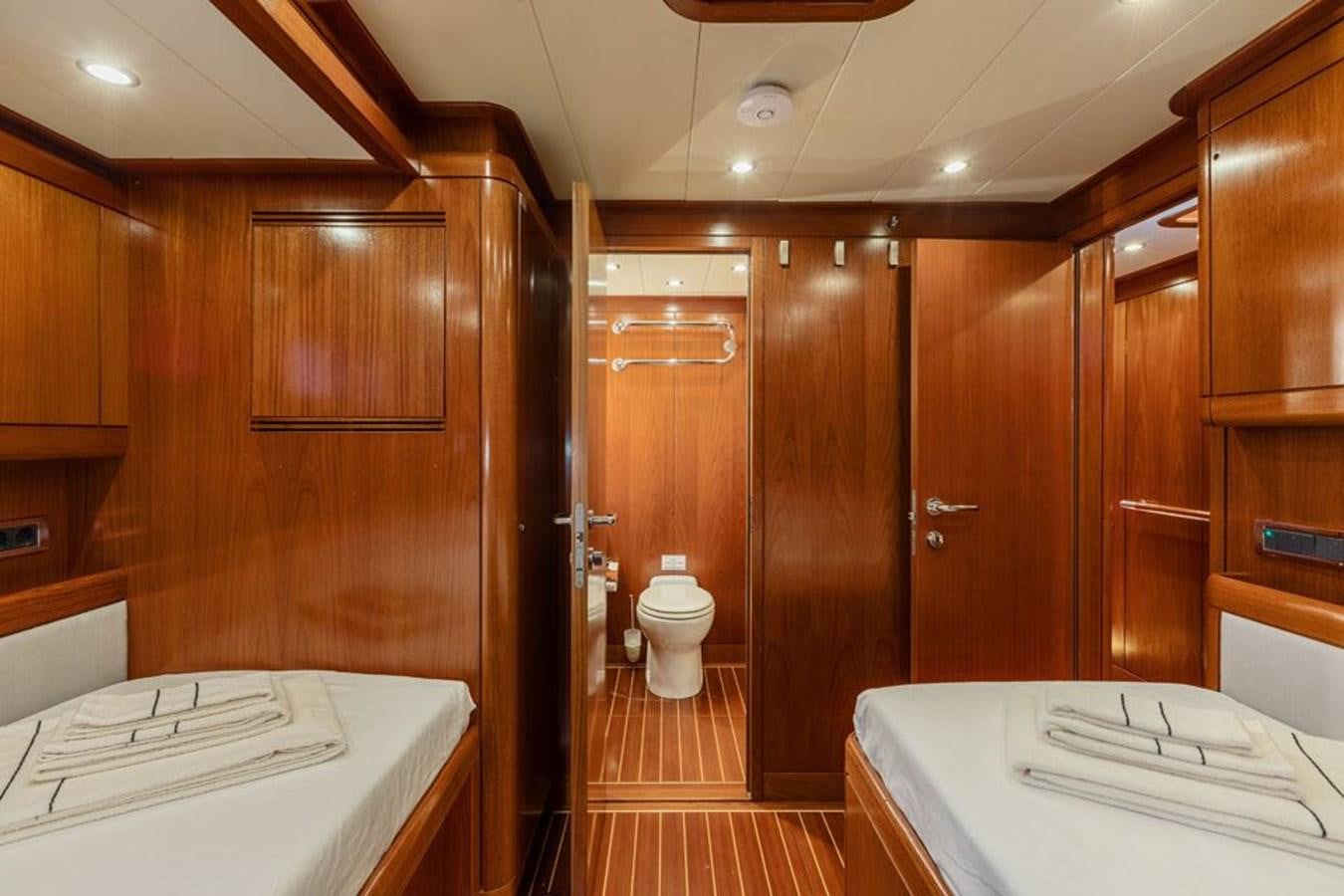

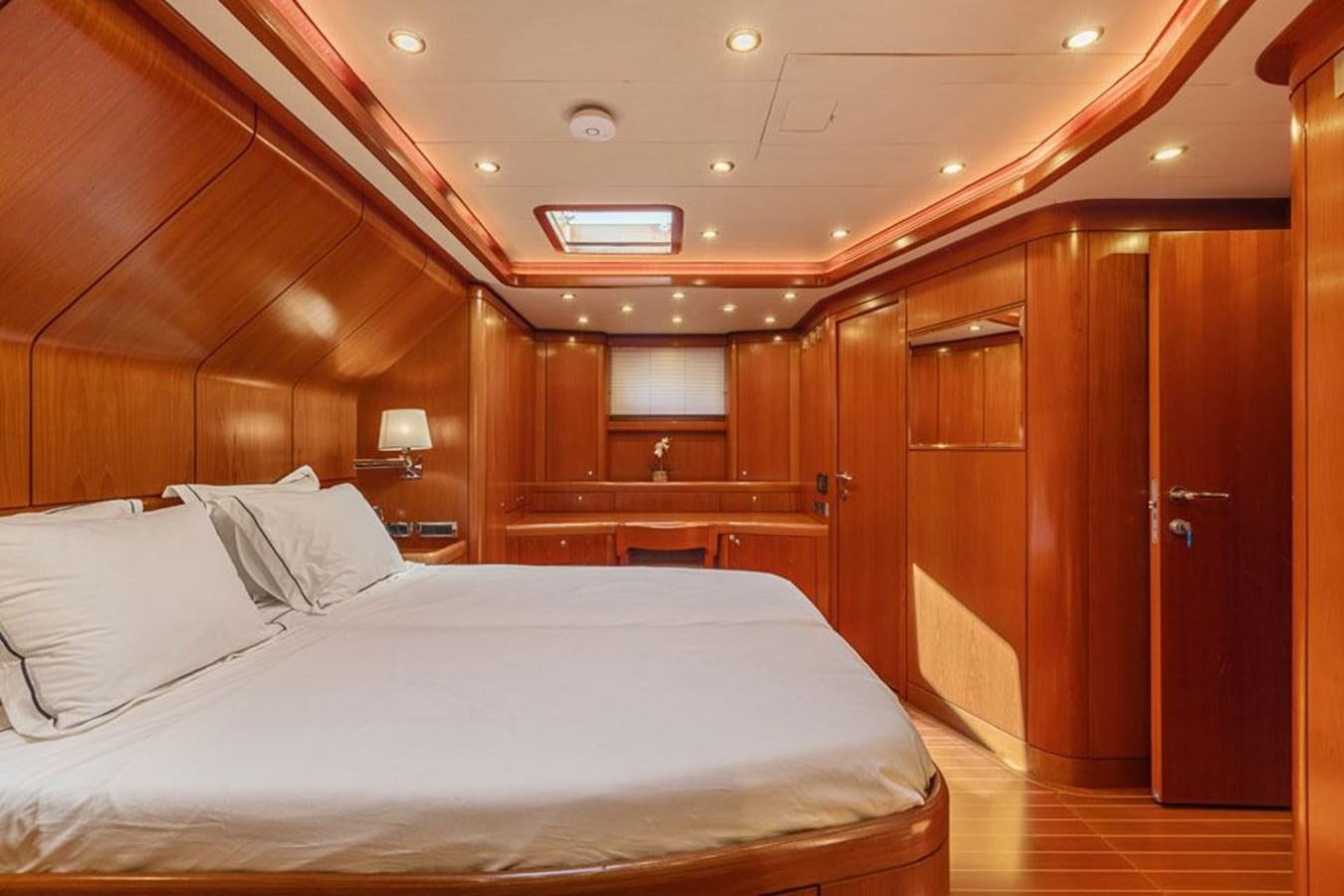

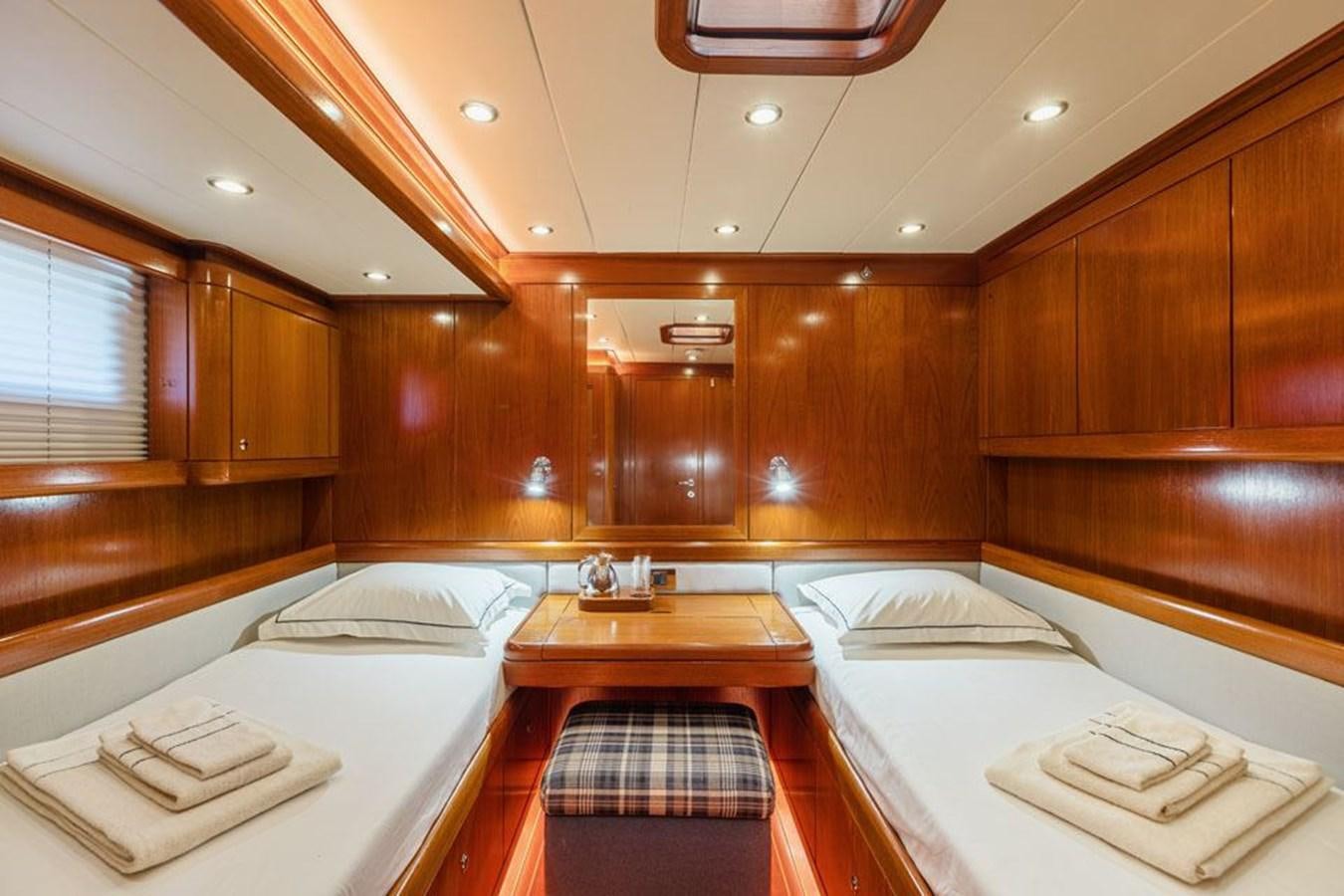

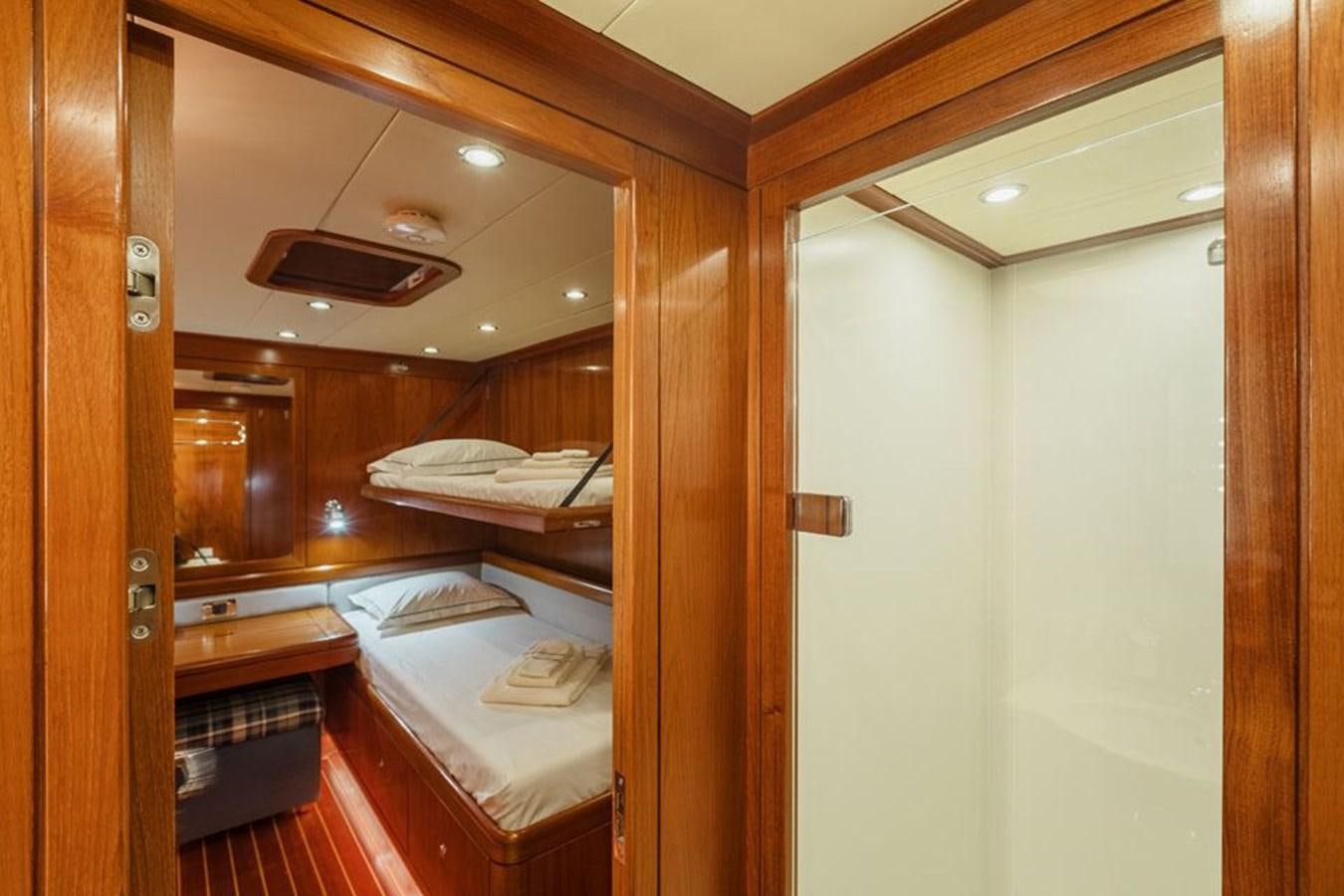

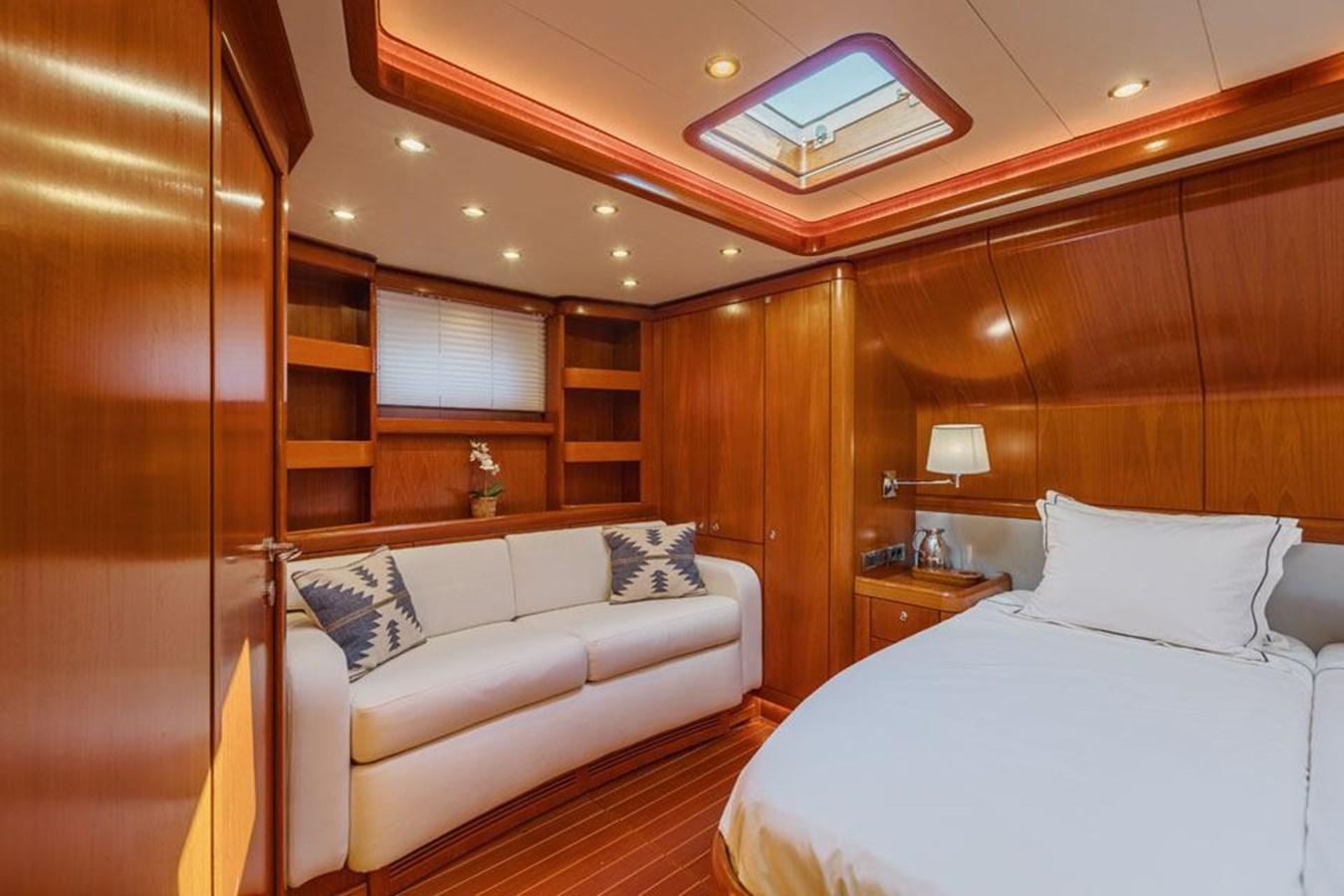

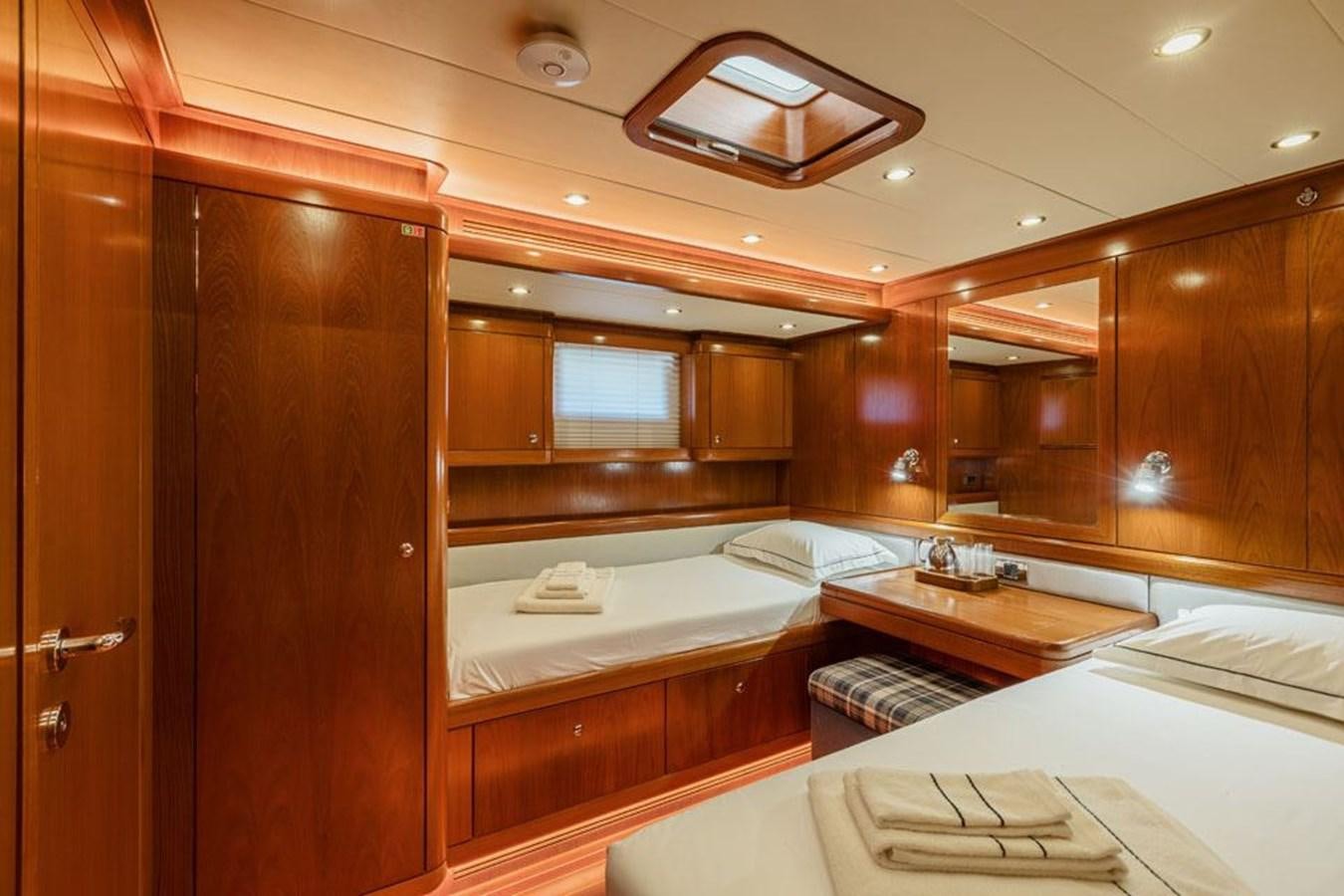

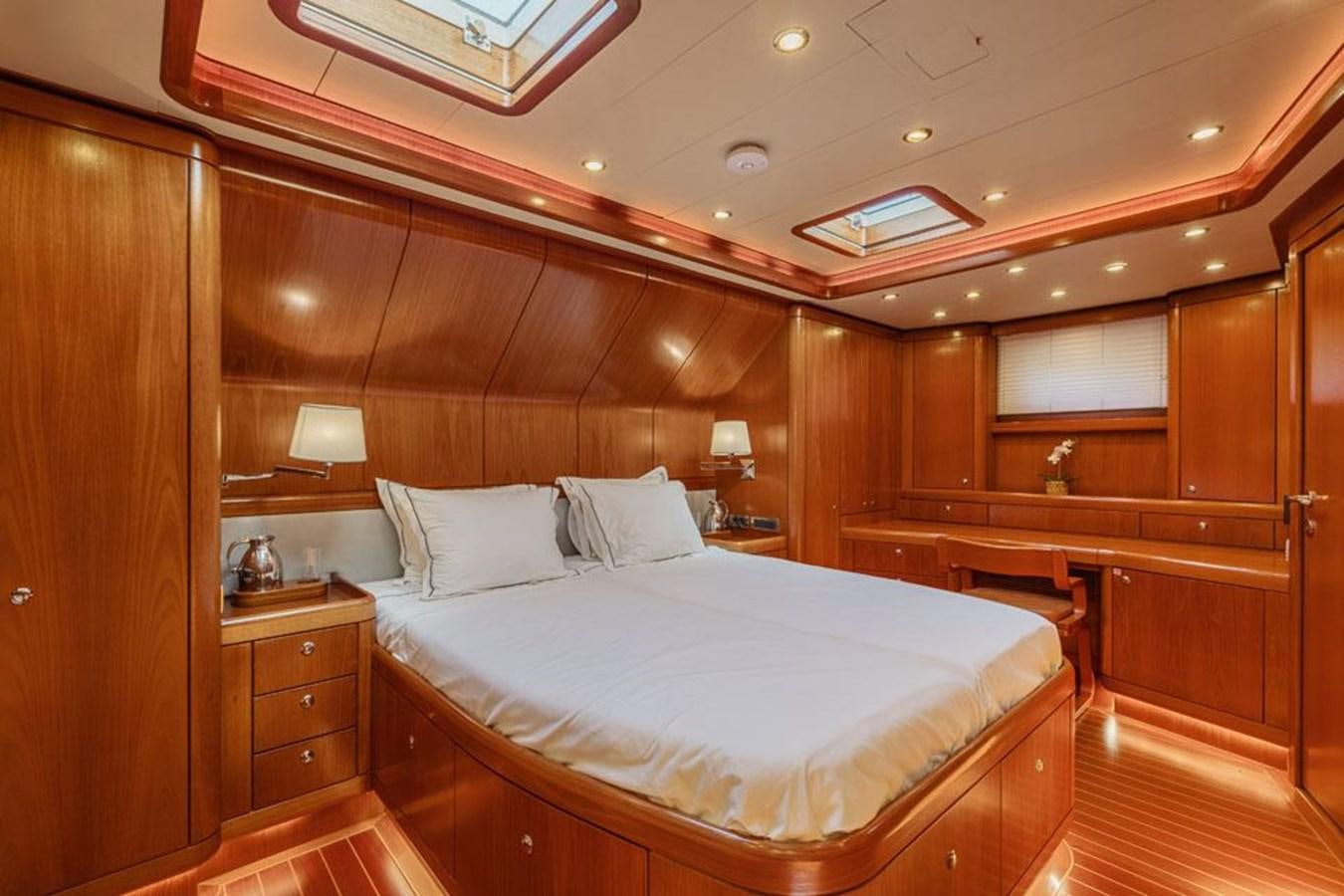

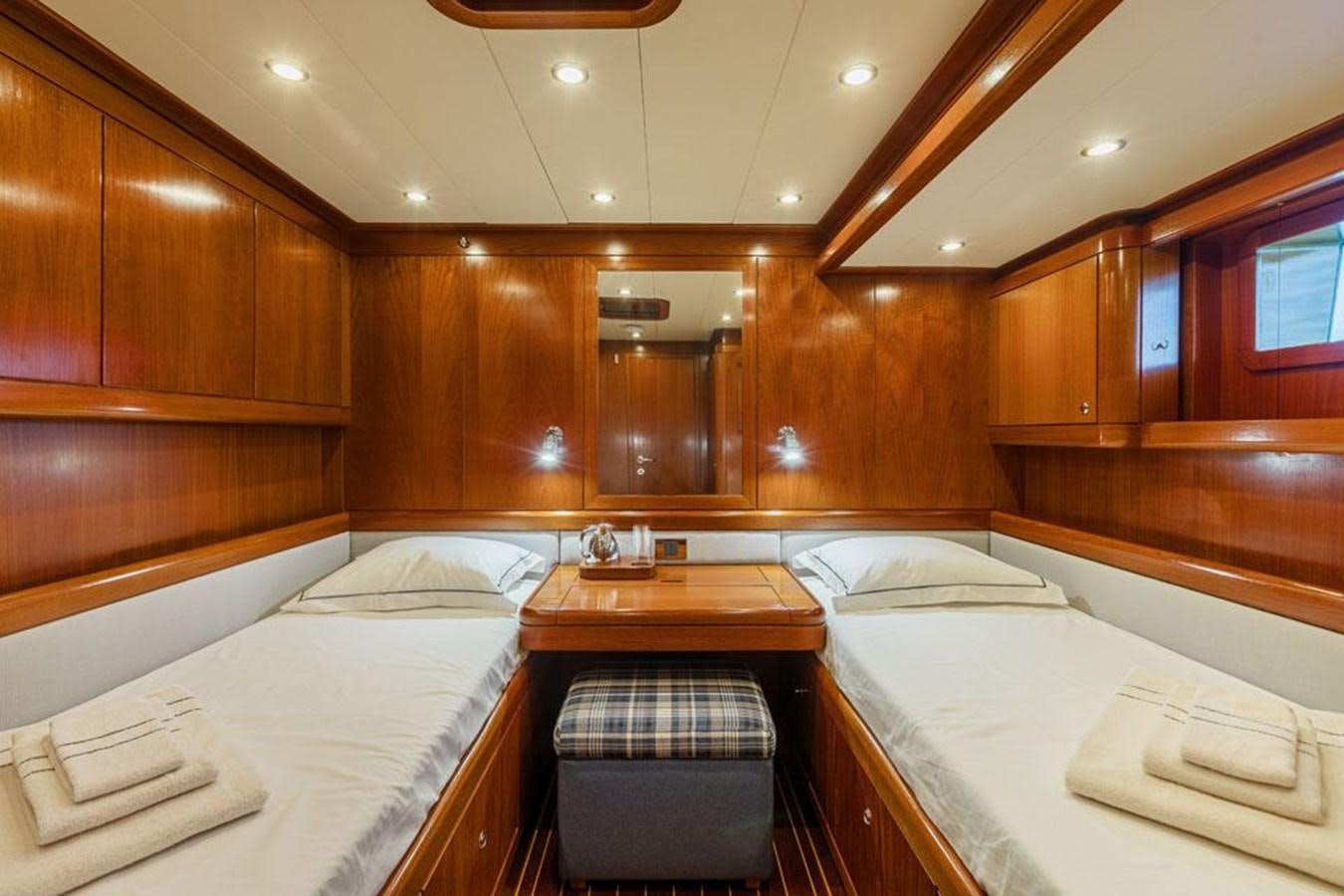

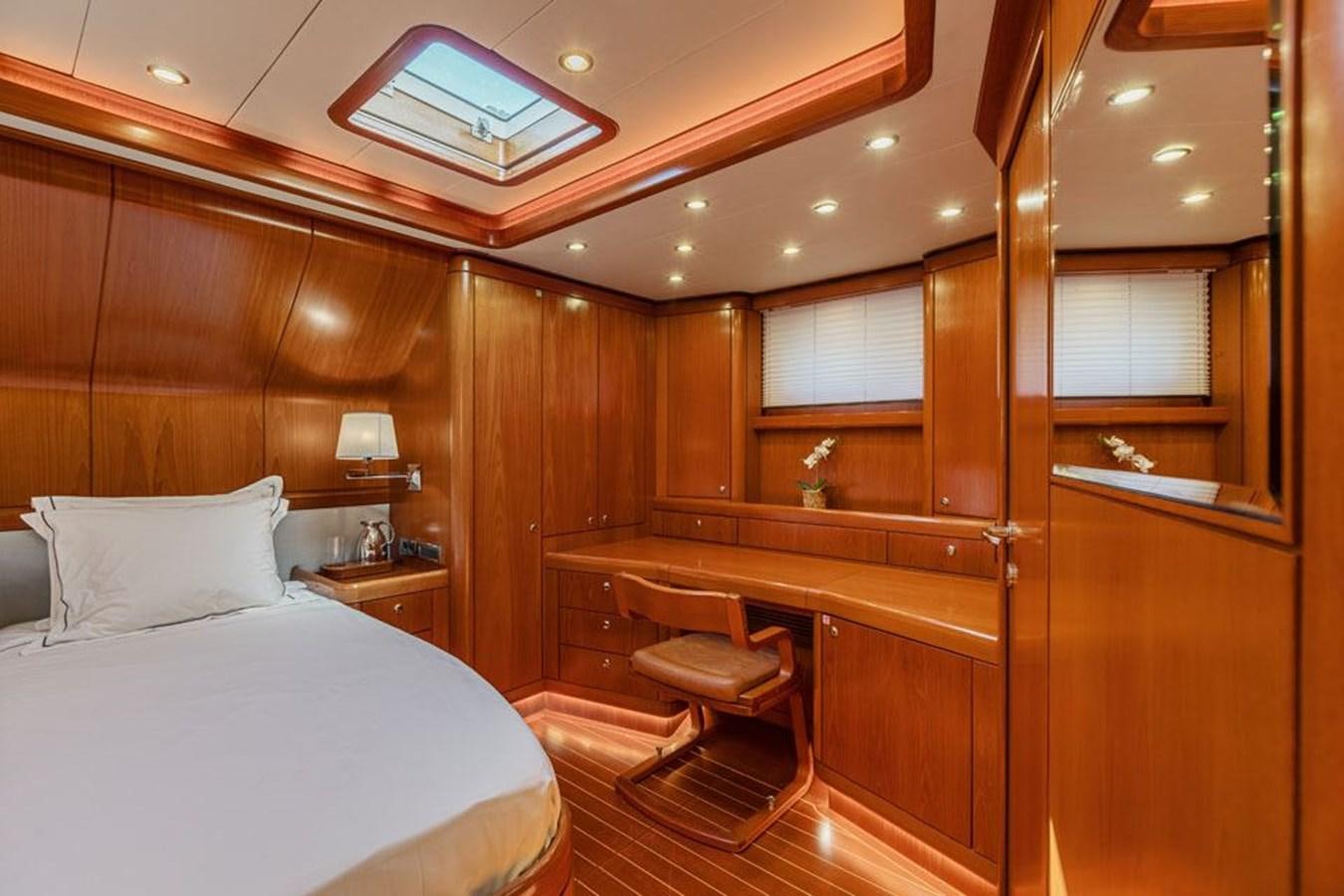

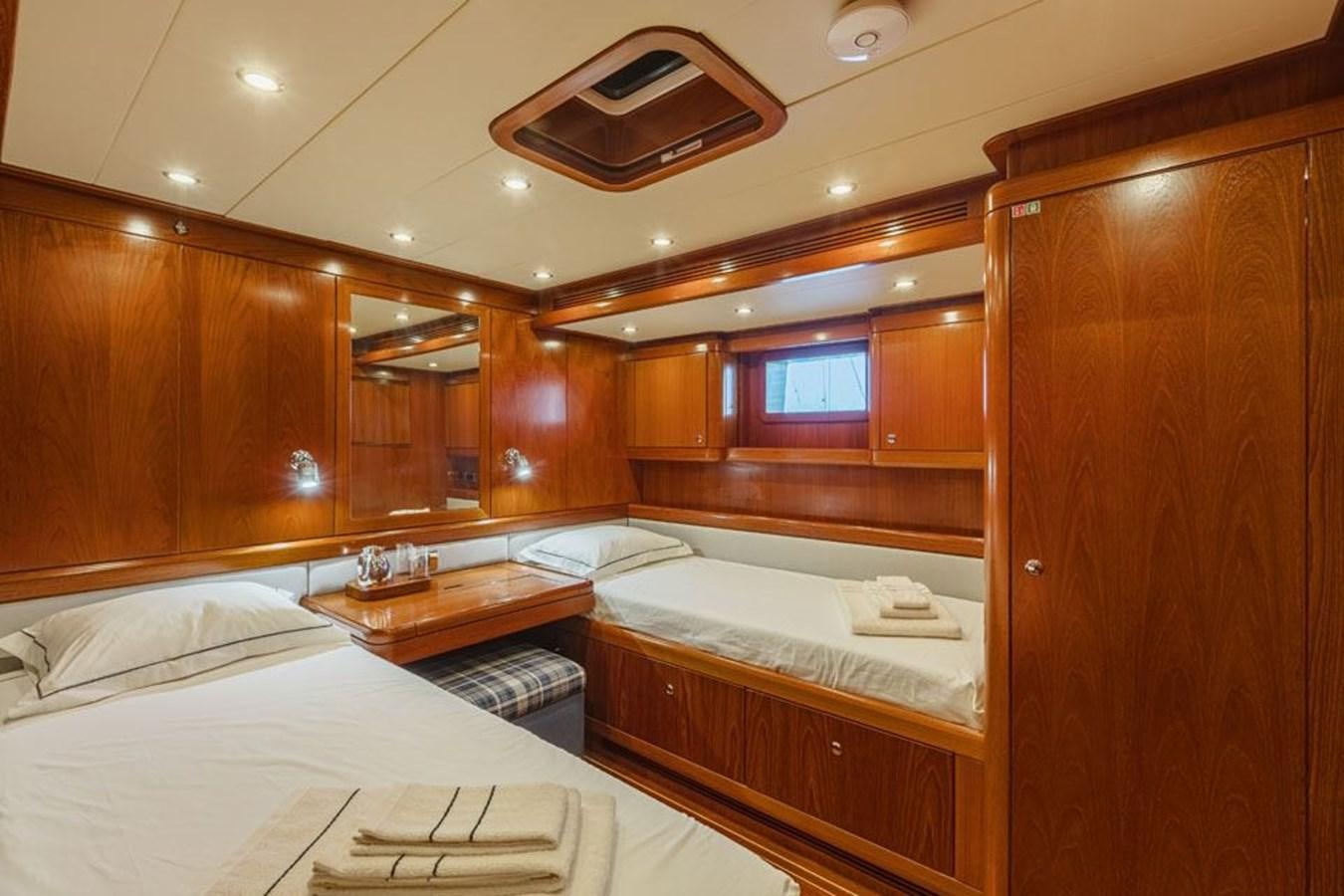

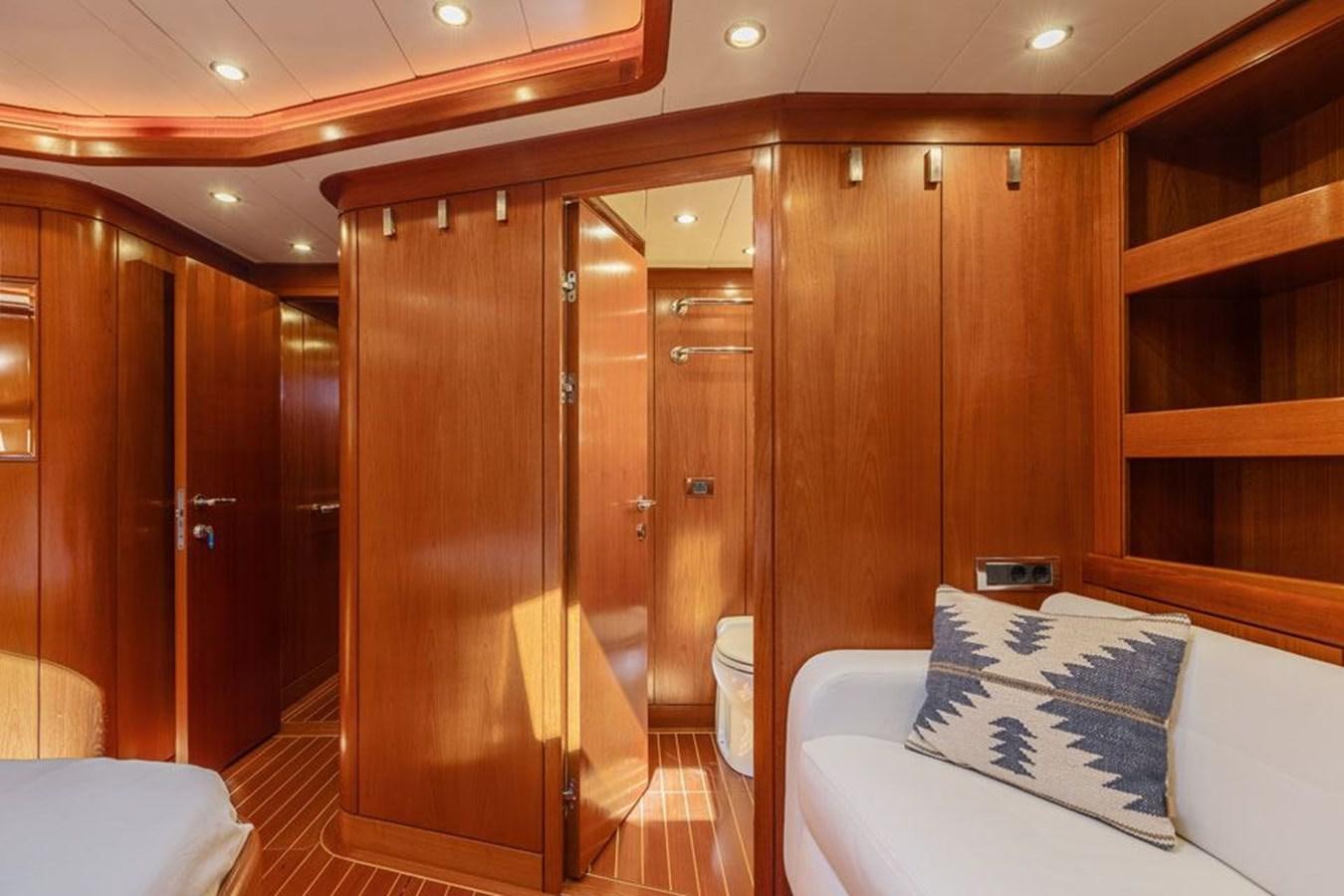

• Designed for 6/8 owners / guests in 3 double cabins aft (1 x master queen, 2 x twins).
• Crew accommodation for 6 crew in 2 cabins (3 bunks per cabin).
• Interior finished in finest light Burmese teak, hand rubbed and varnished.
• No artwork or attachments in the wood.
• High quality fittings and marbles throughout.
• Floors are plywood/polymer sandwich with top face in teak and holly.

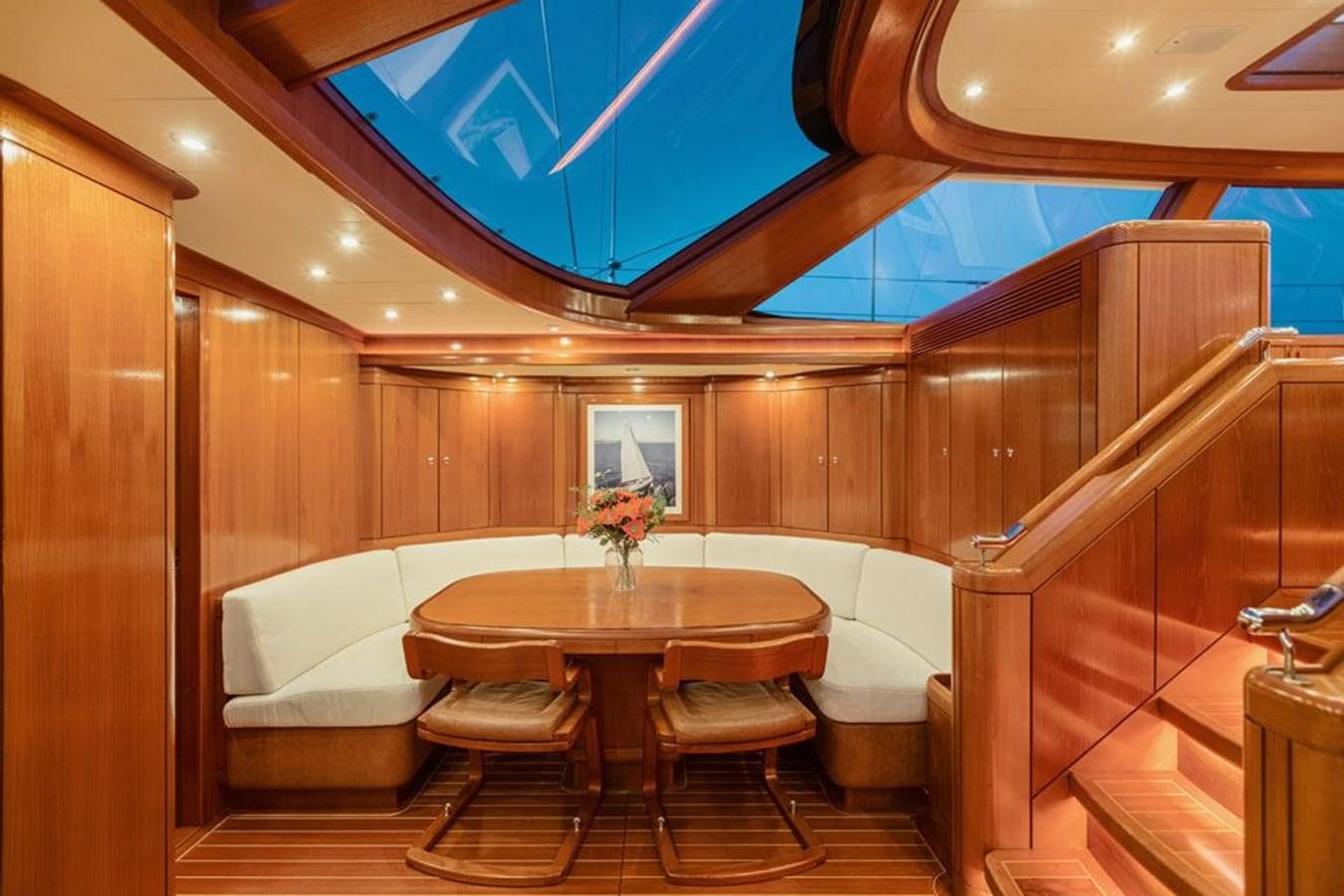

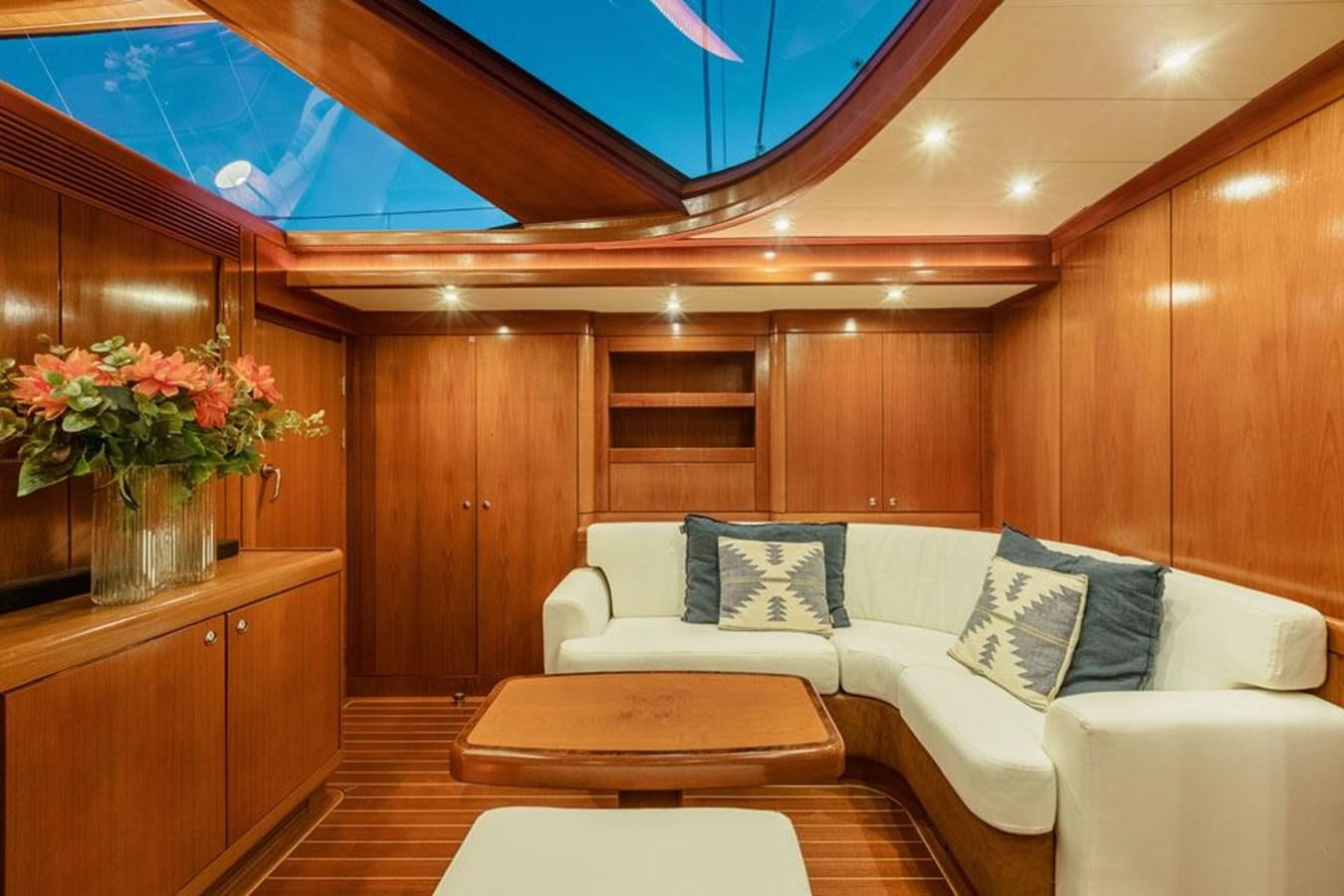

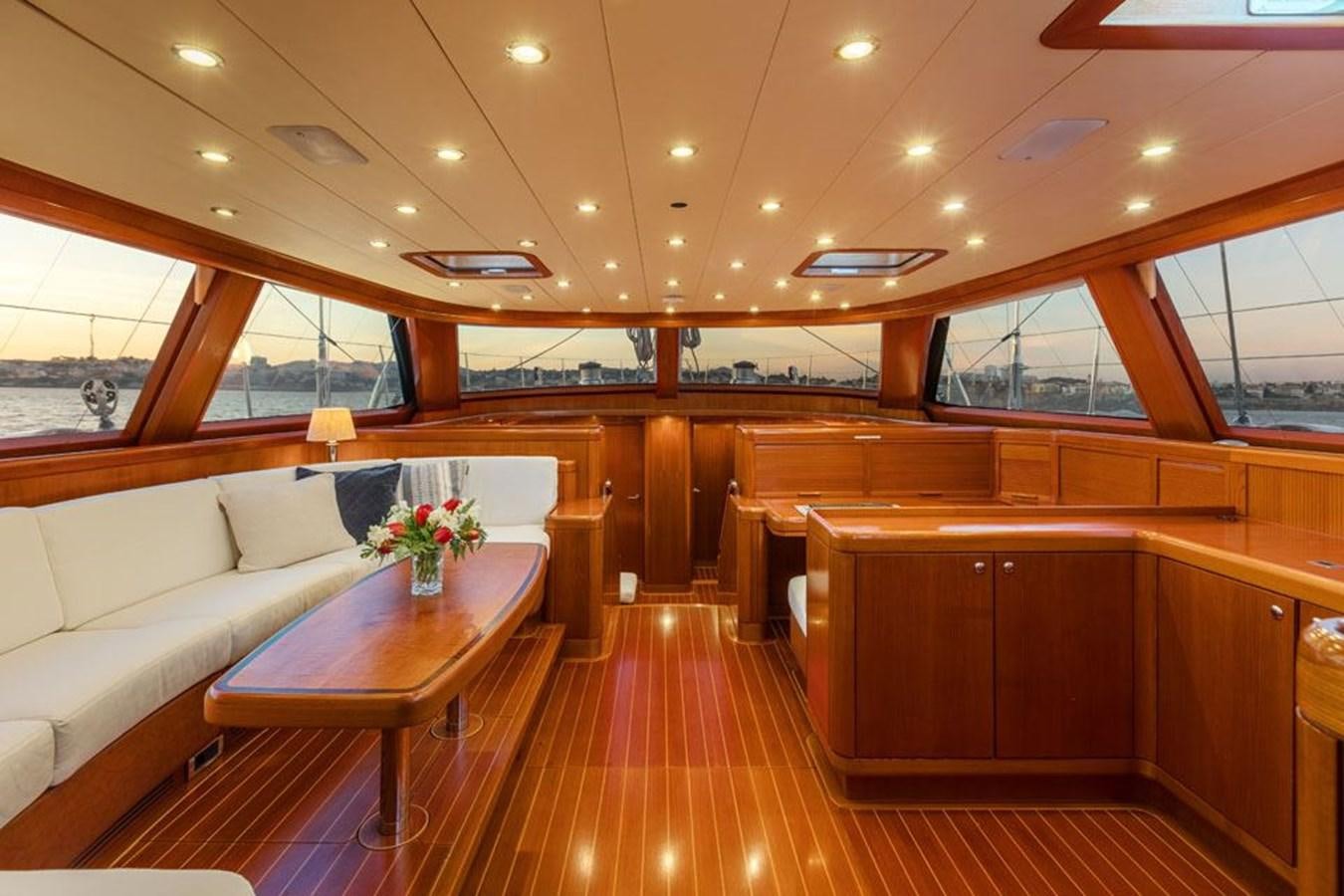

• Interior décor and finish are classically nautical and elegant.
• New white upholstery covers for interior seating – 2023.
• Overhead hatches fitted with OceanAir mosquito and blackout screens.

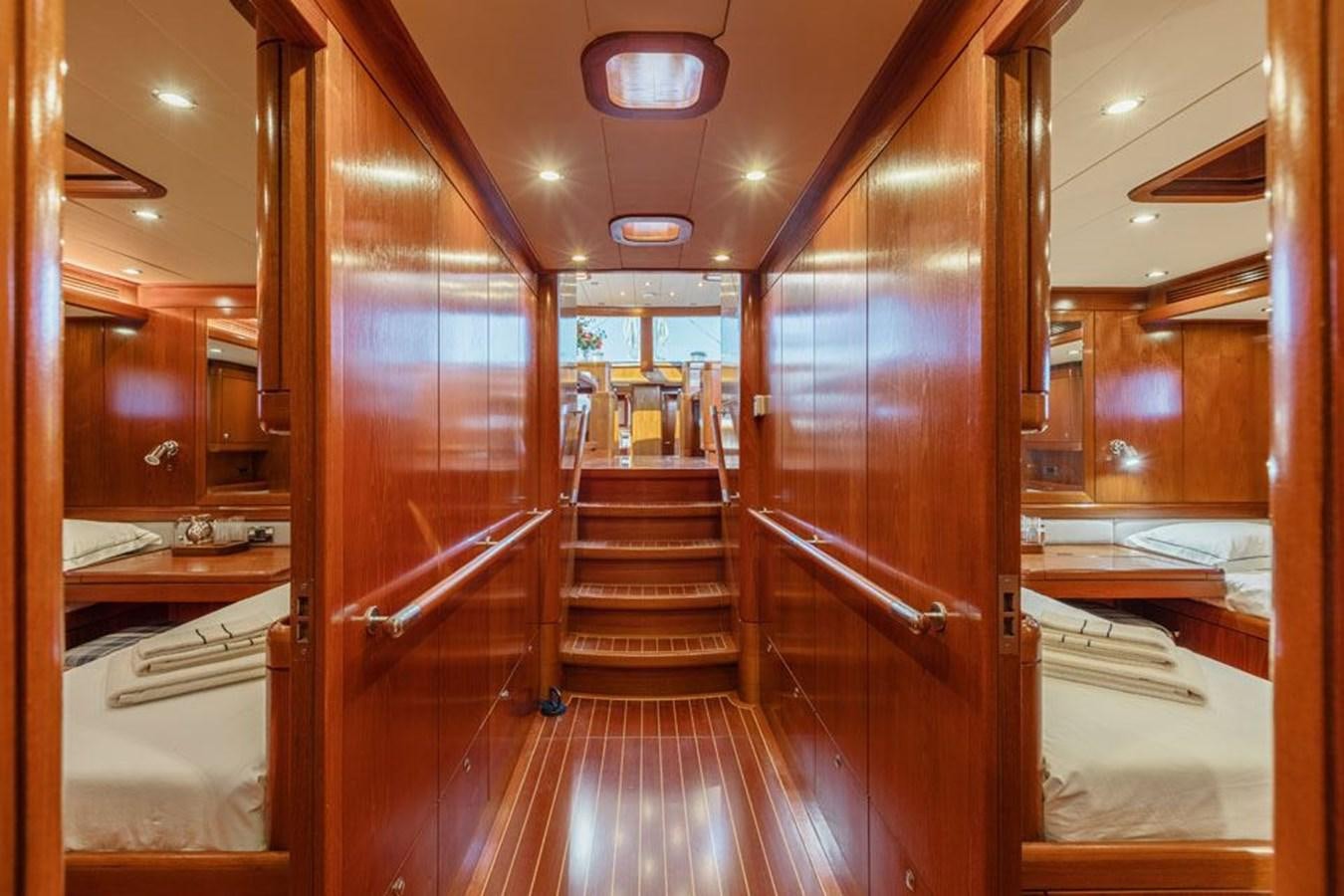

Description of layout from forwards:

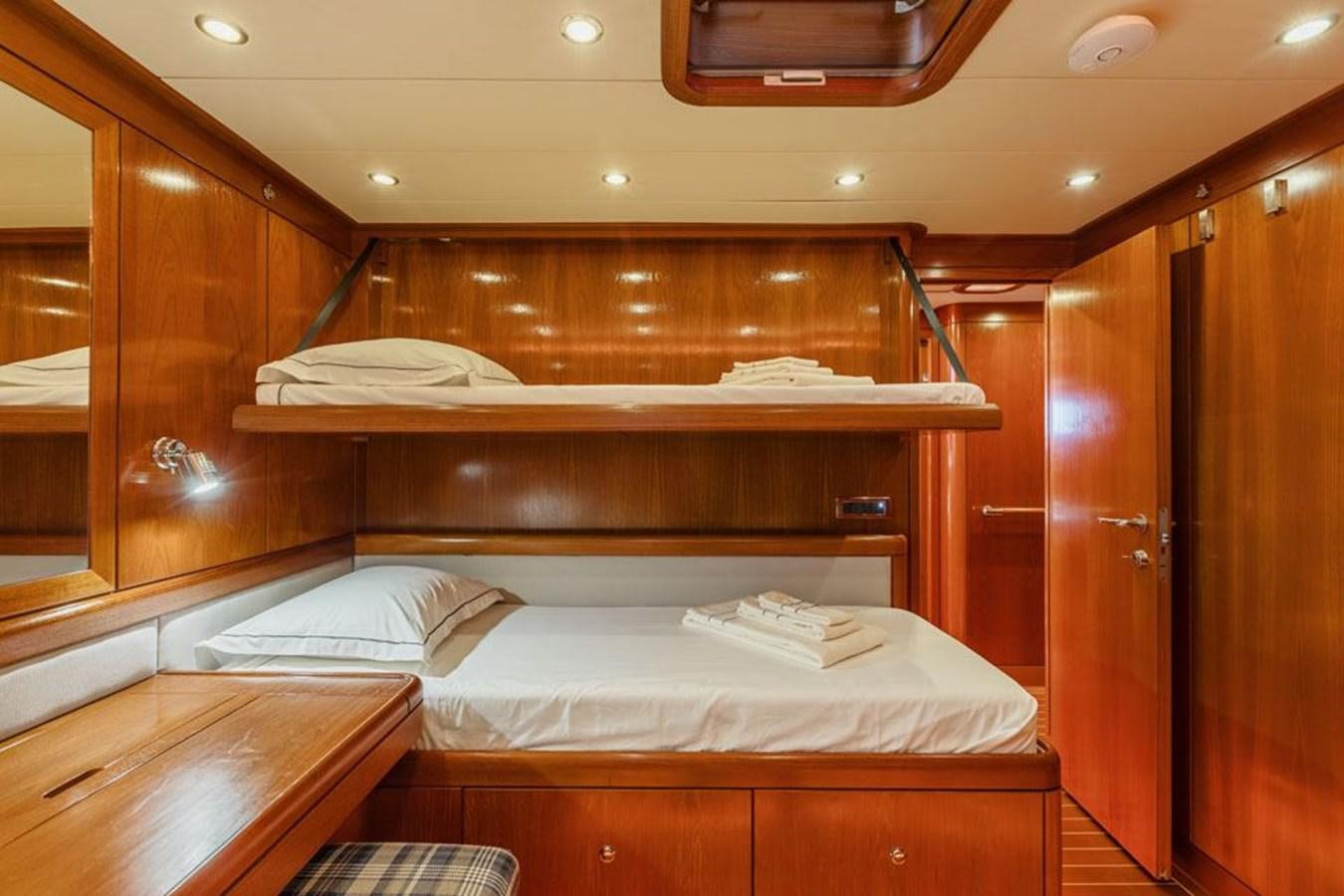

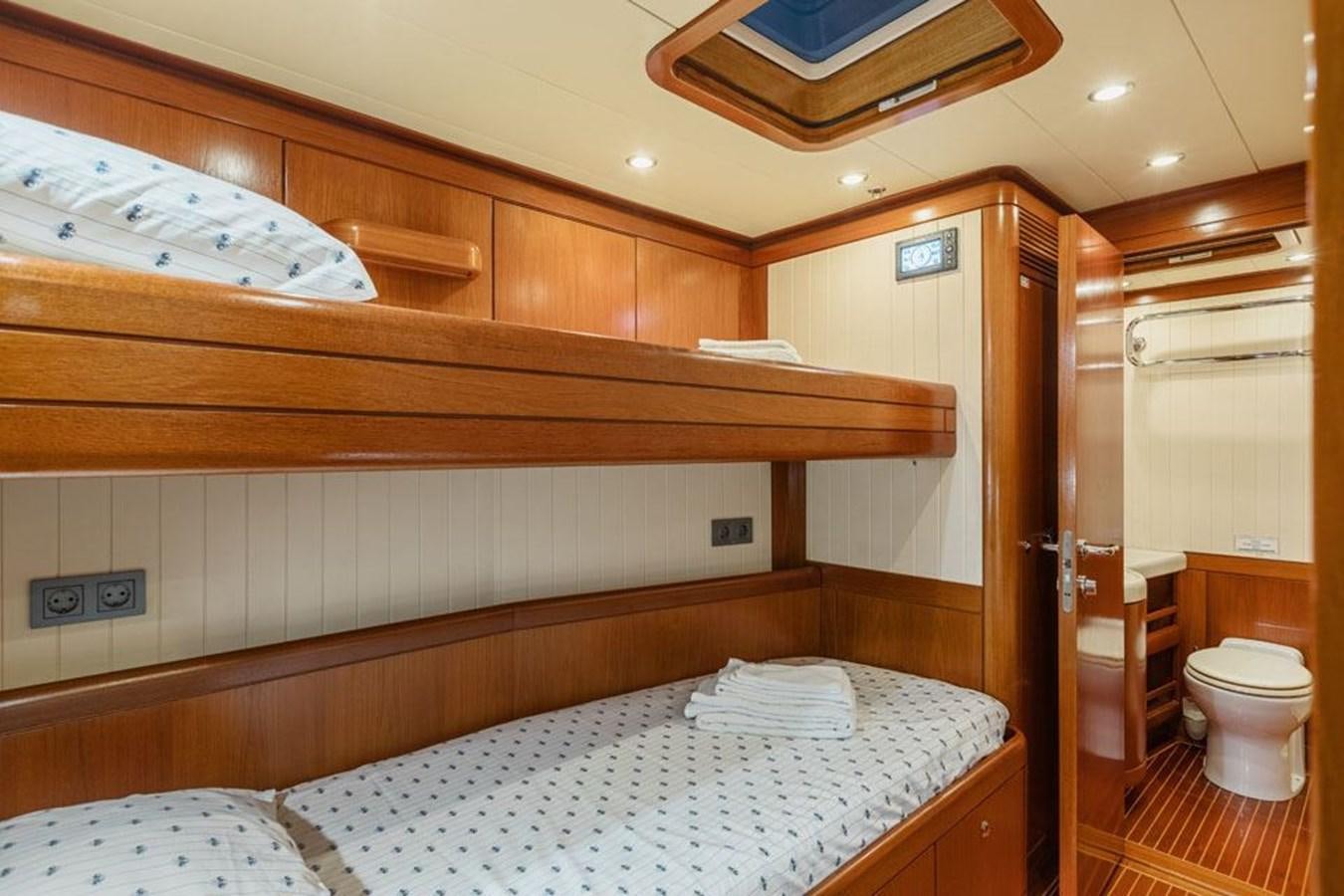

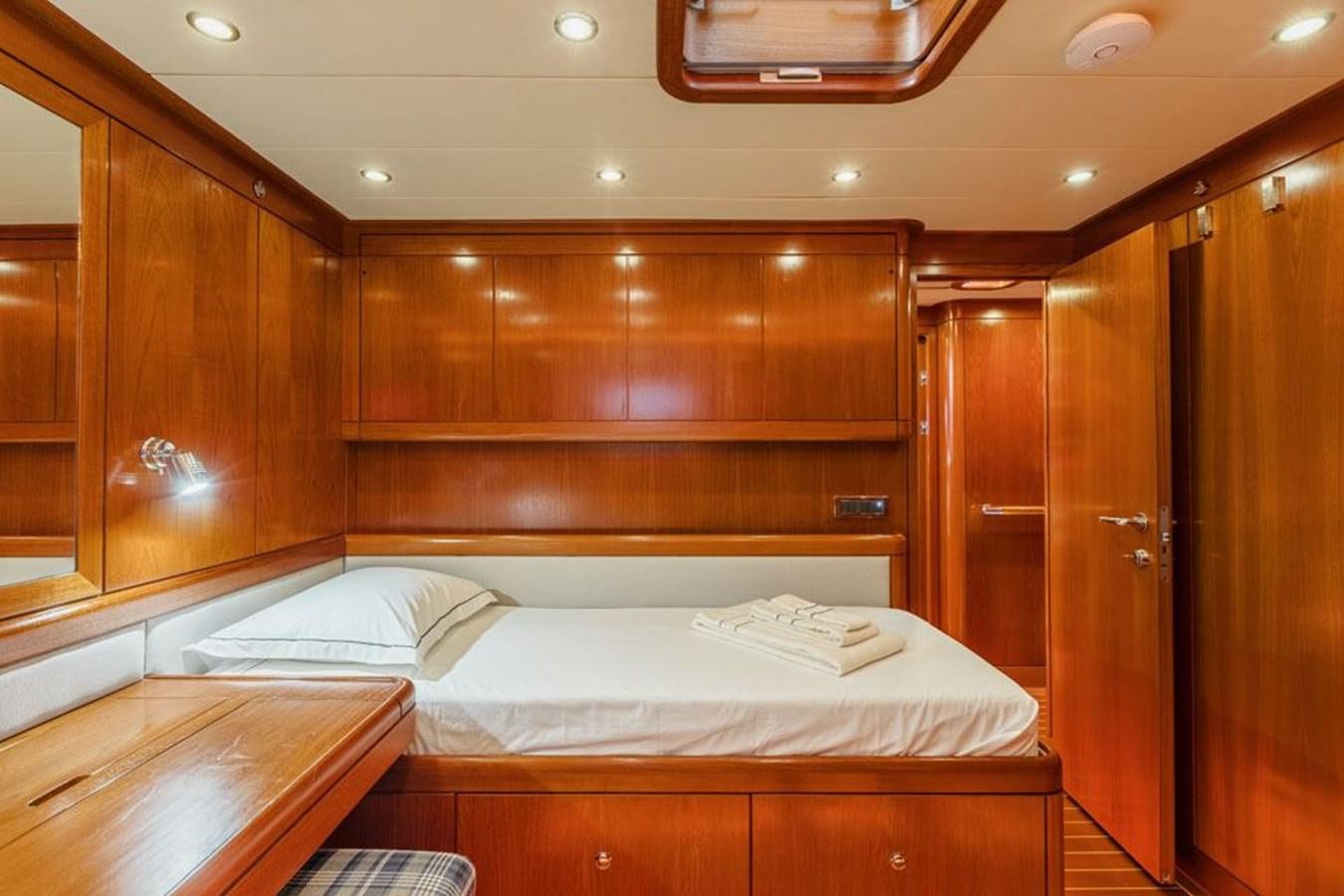

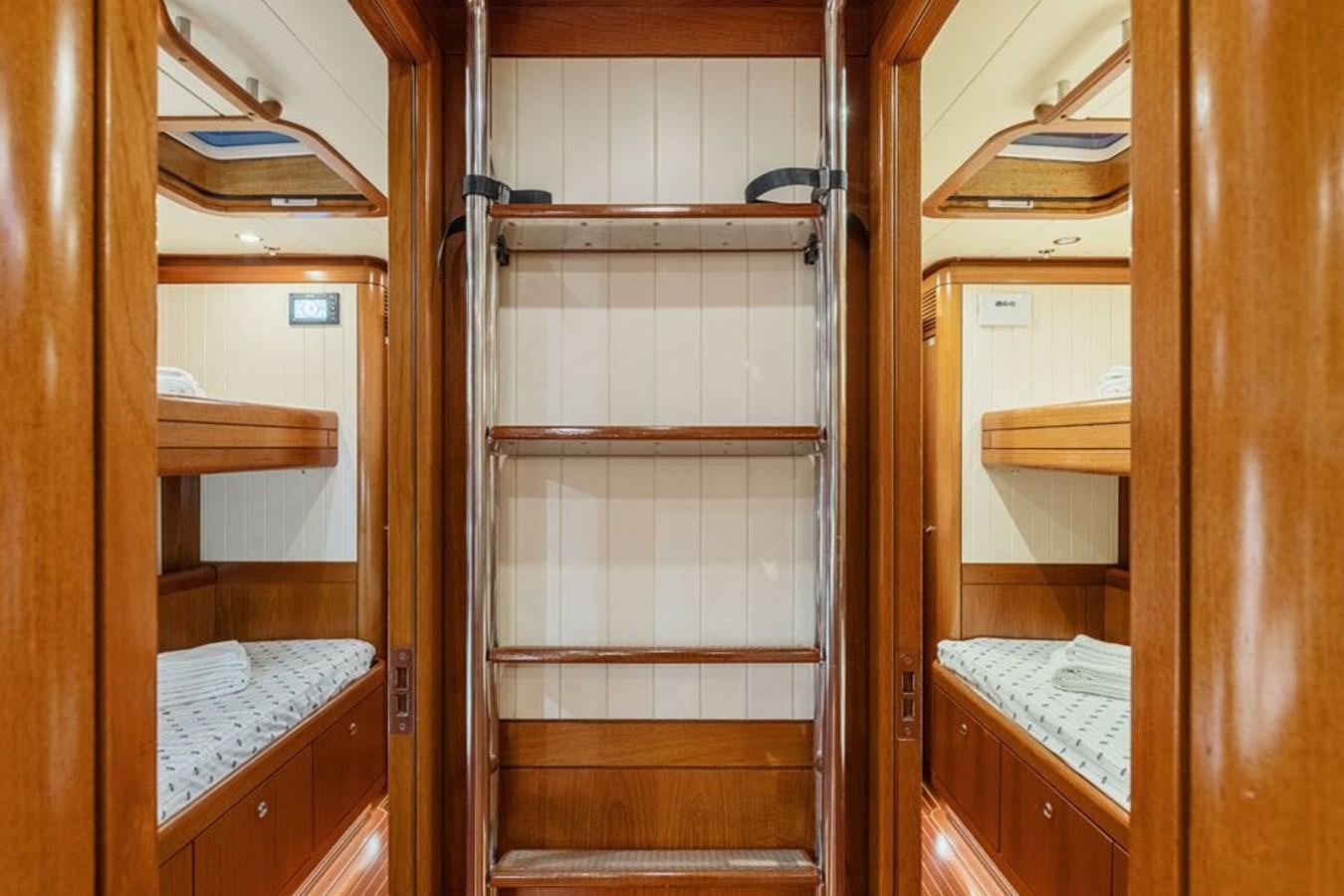

Crew Cabins:

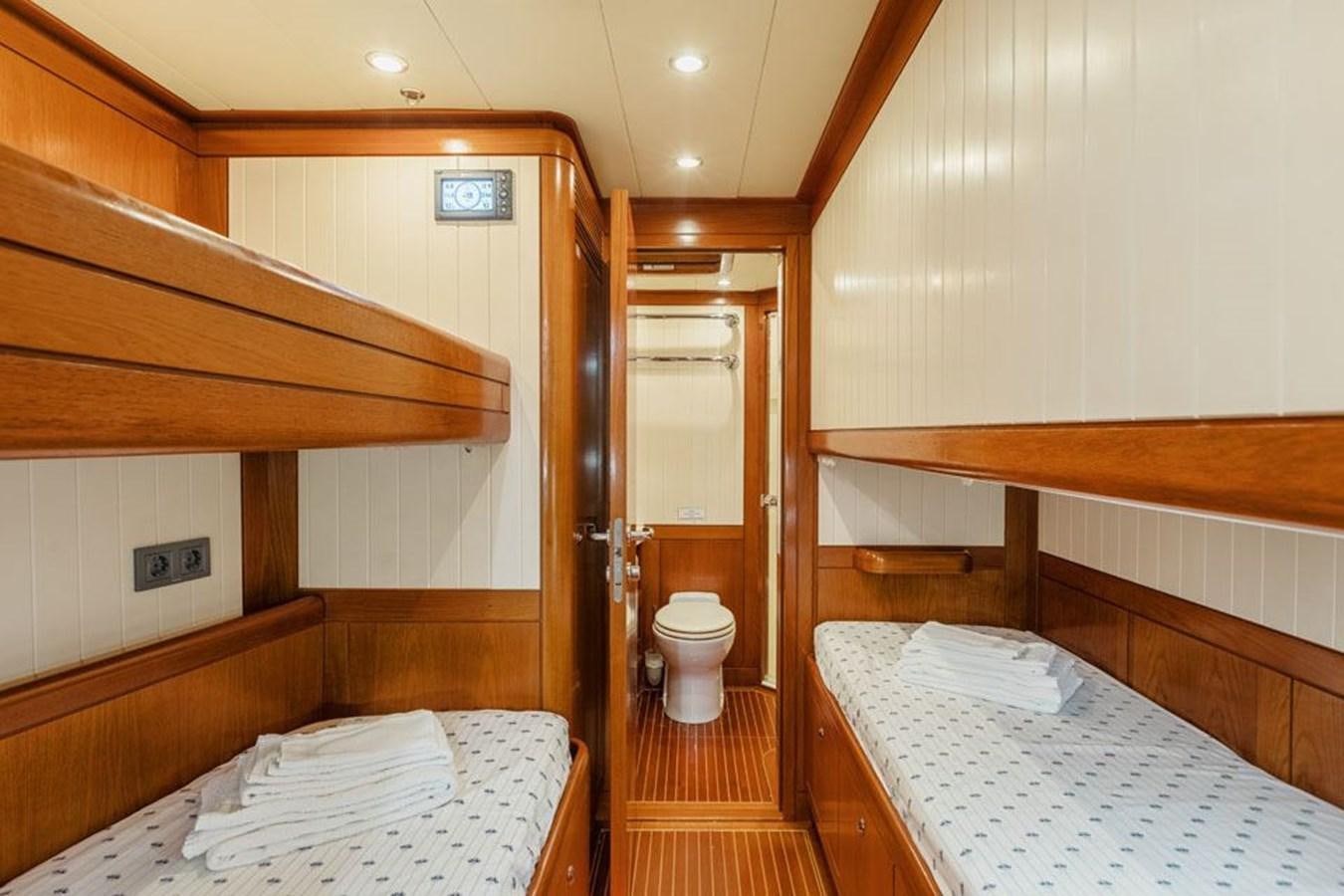

• 2 x crew cabins with 3 single berths in each.
• Lockers. Wardrobe. Drawers under bed.
• Reading lights. Overhead lights.

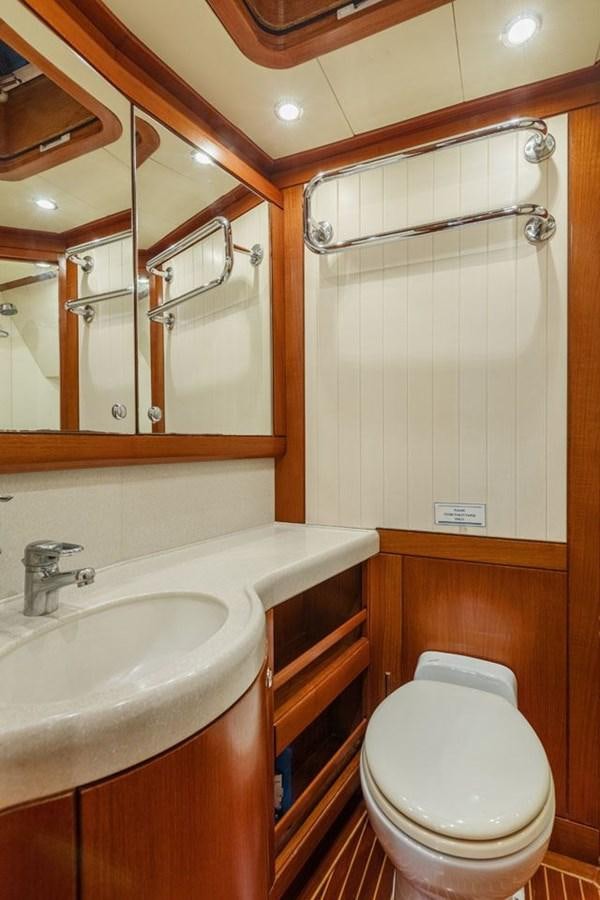

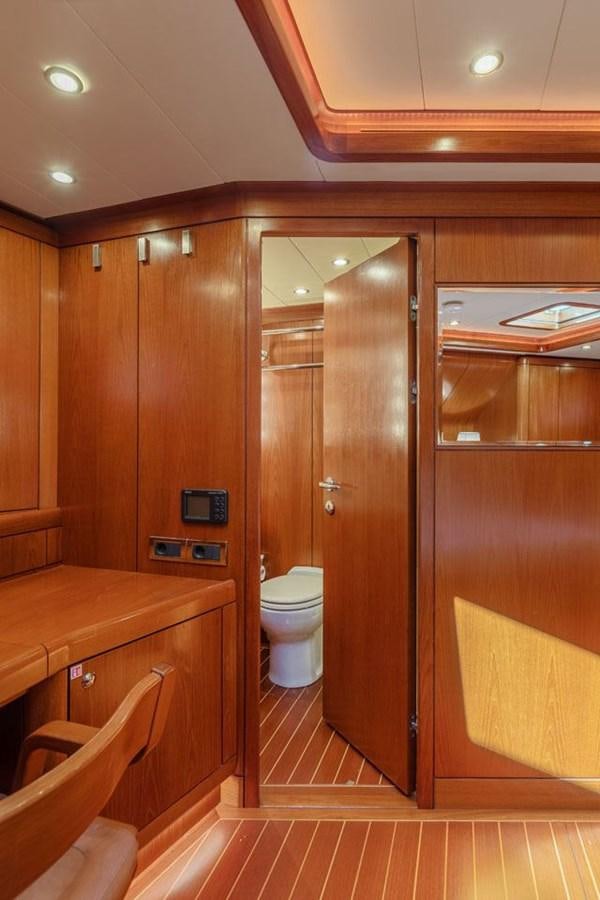

Crew Heads:

• 2 x heads. 2 x showers.
• Each head area with towel rail, lockers, overhead hatch.

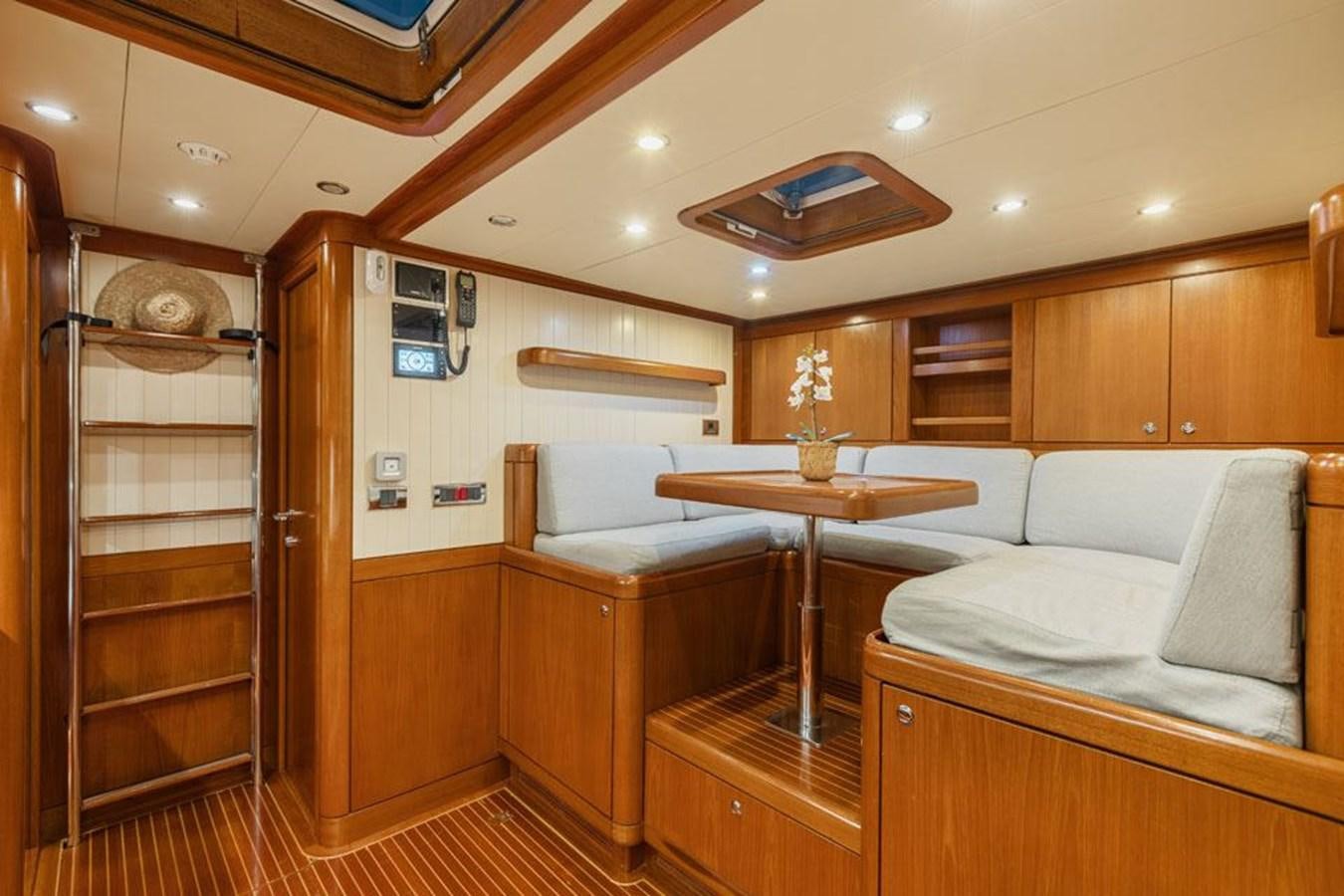

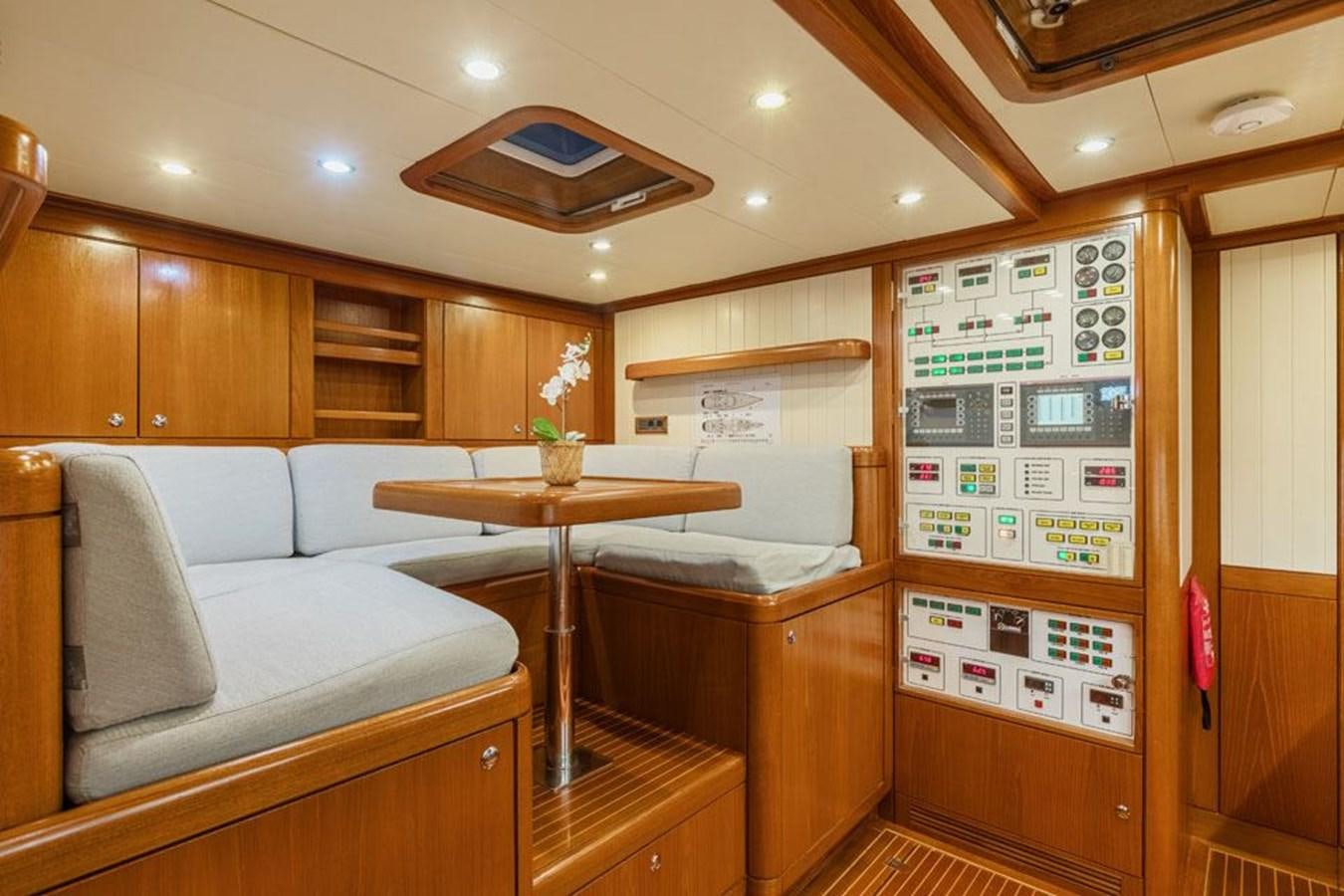

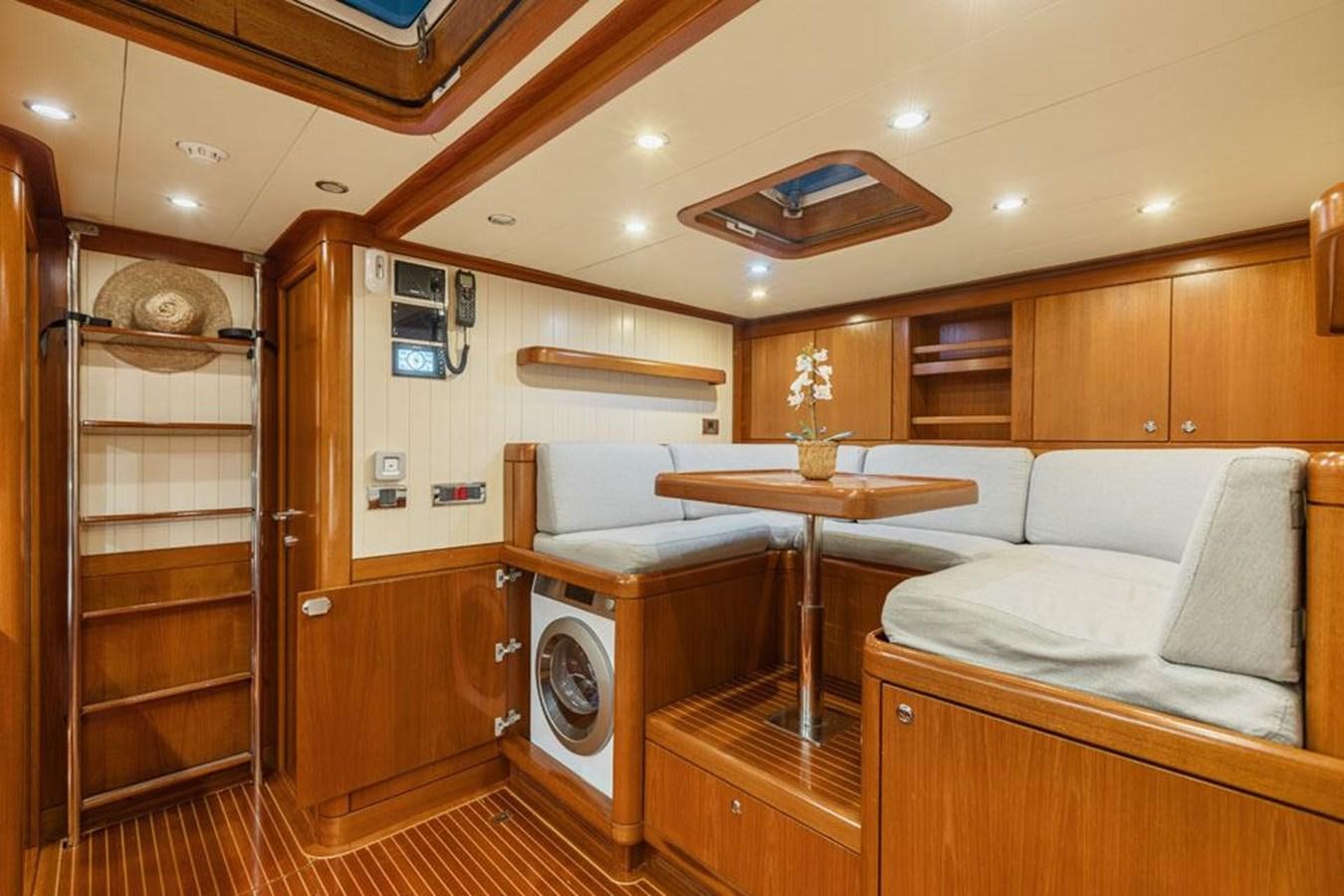

Crew Mess:

• Located to starboard.
• Seating for 5 crew with table.
• Washer and dryer fitted under seating.
• Dishwasher inboard under central countertop.
• Icemaker fitted under central countertop.
• Large overhead hatch.
• Removable stainless steel ladder for access to deck (stows forward when not in use).

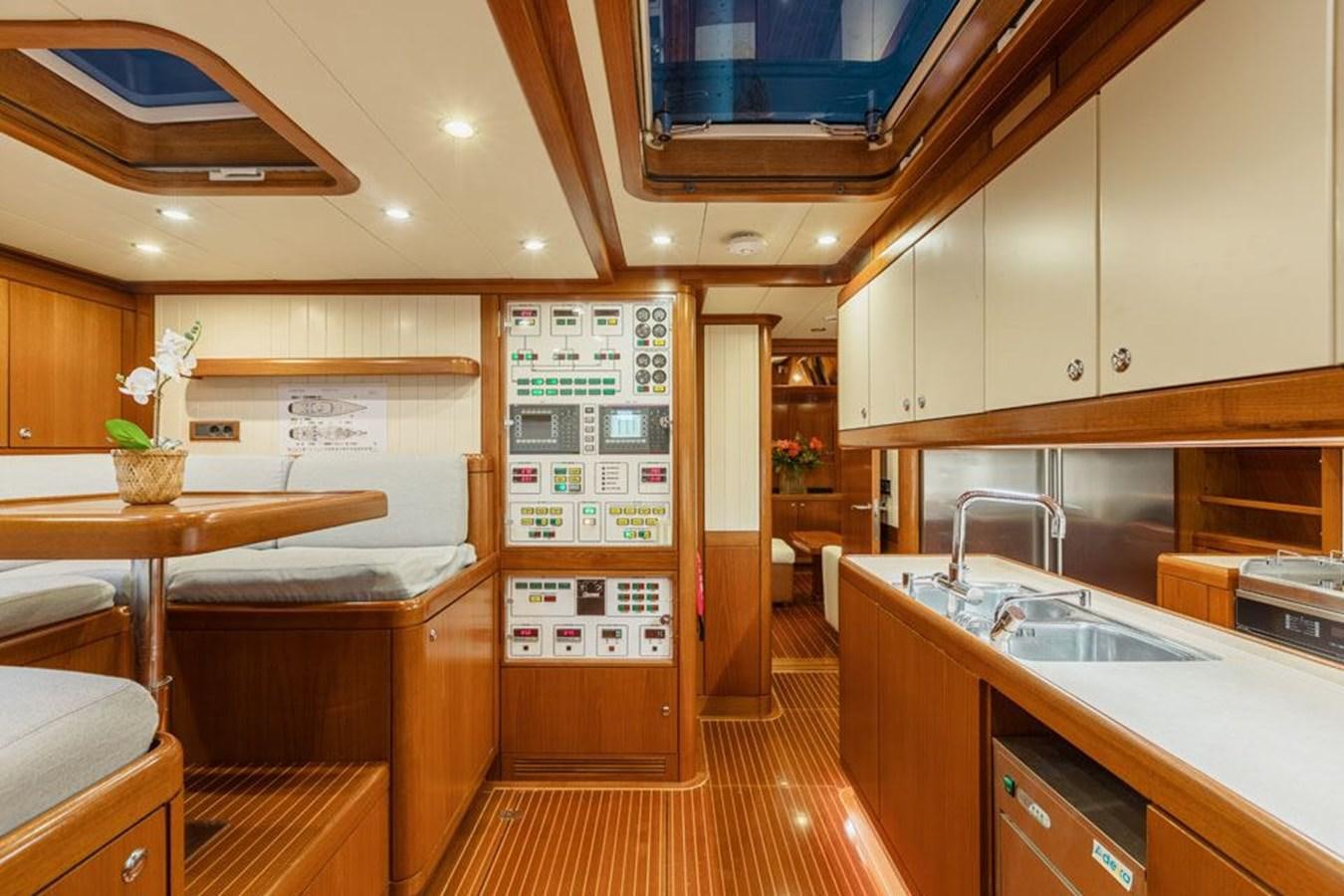

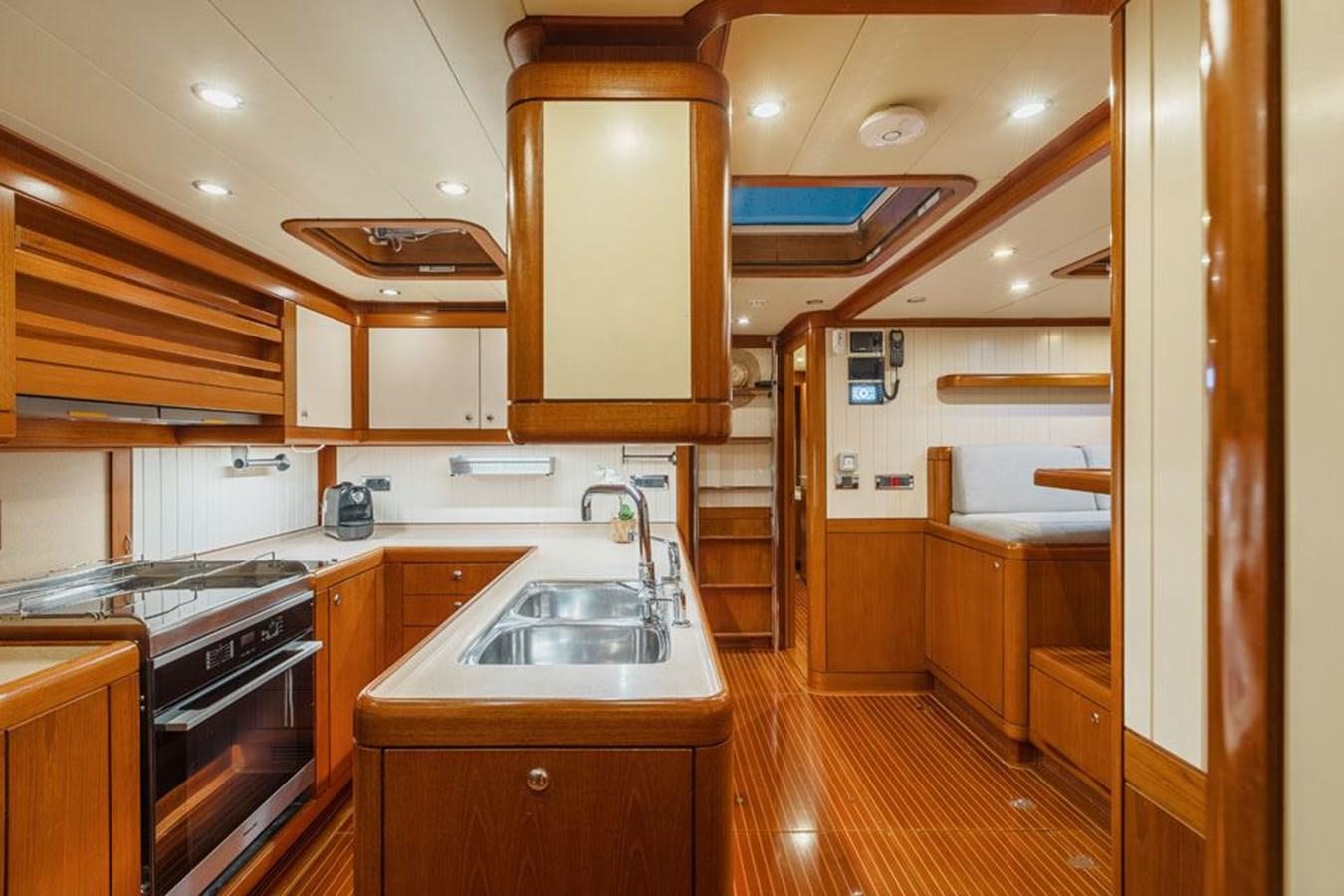

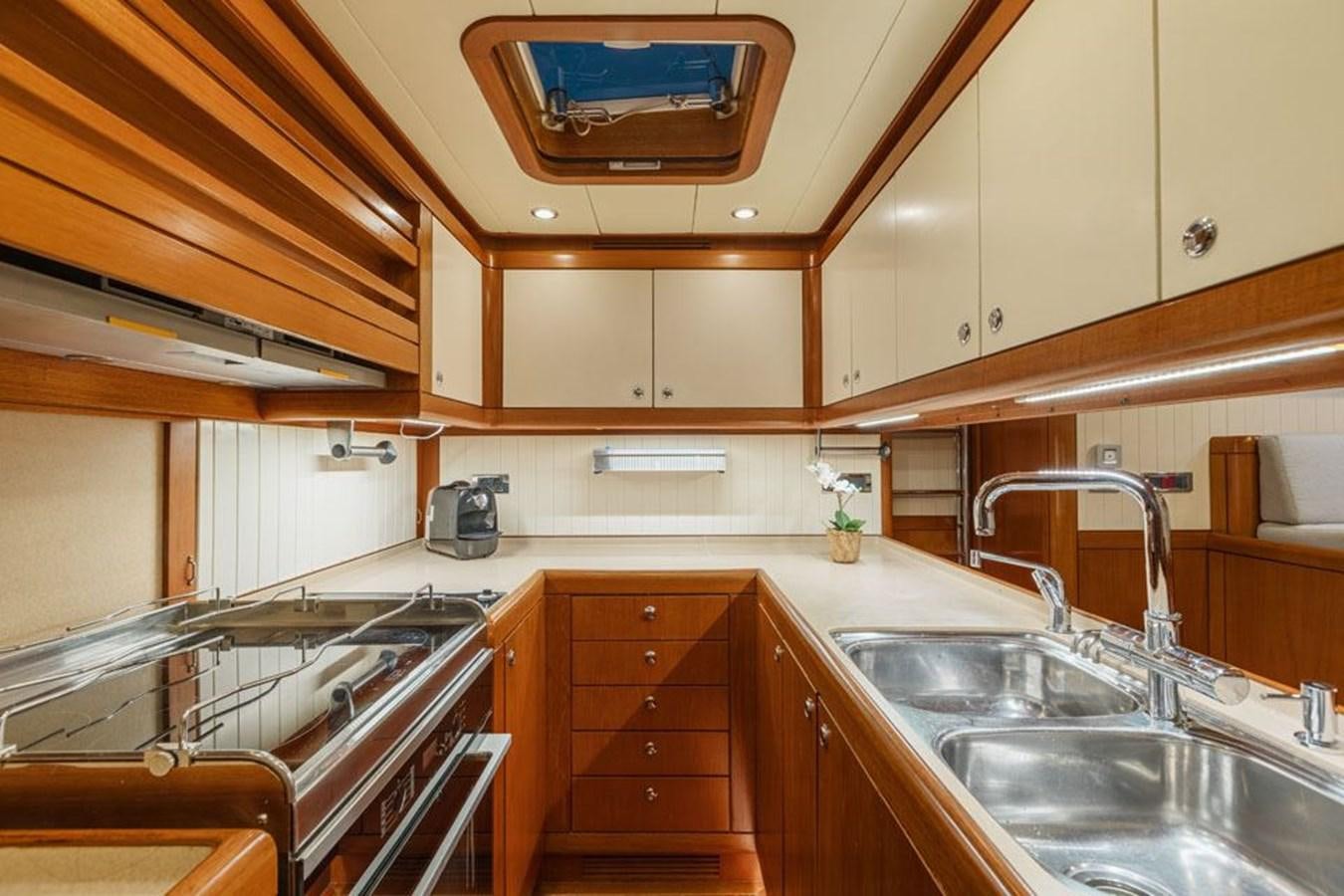

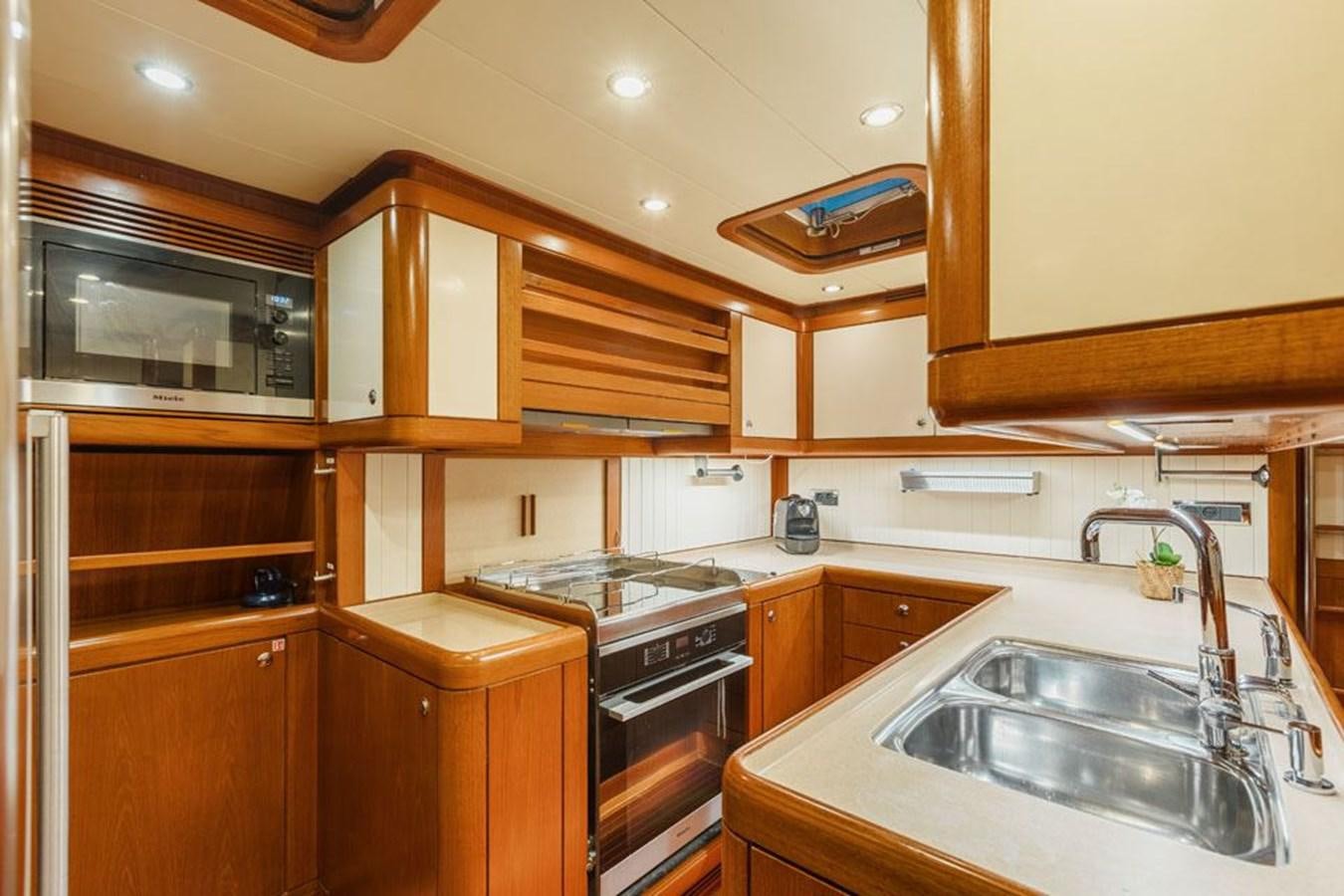

Galley:

• Miele 2 burner ceramic hob.
• Gimbaled Miele 4 burner induction cook top with Miele oven – new 2016.
• Miele extractor over cooker.
• Miele microwave oven – new 2016.

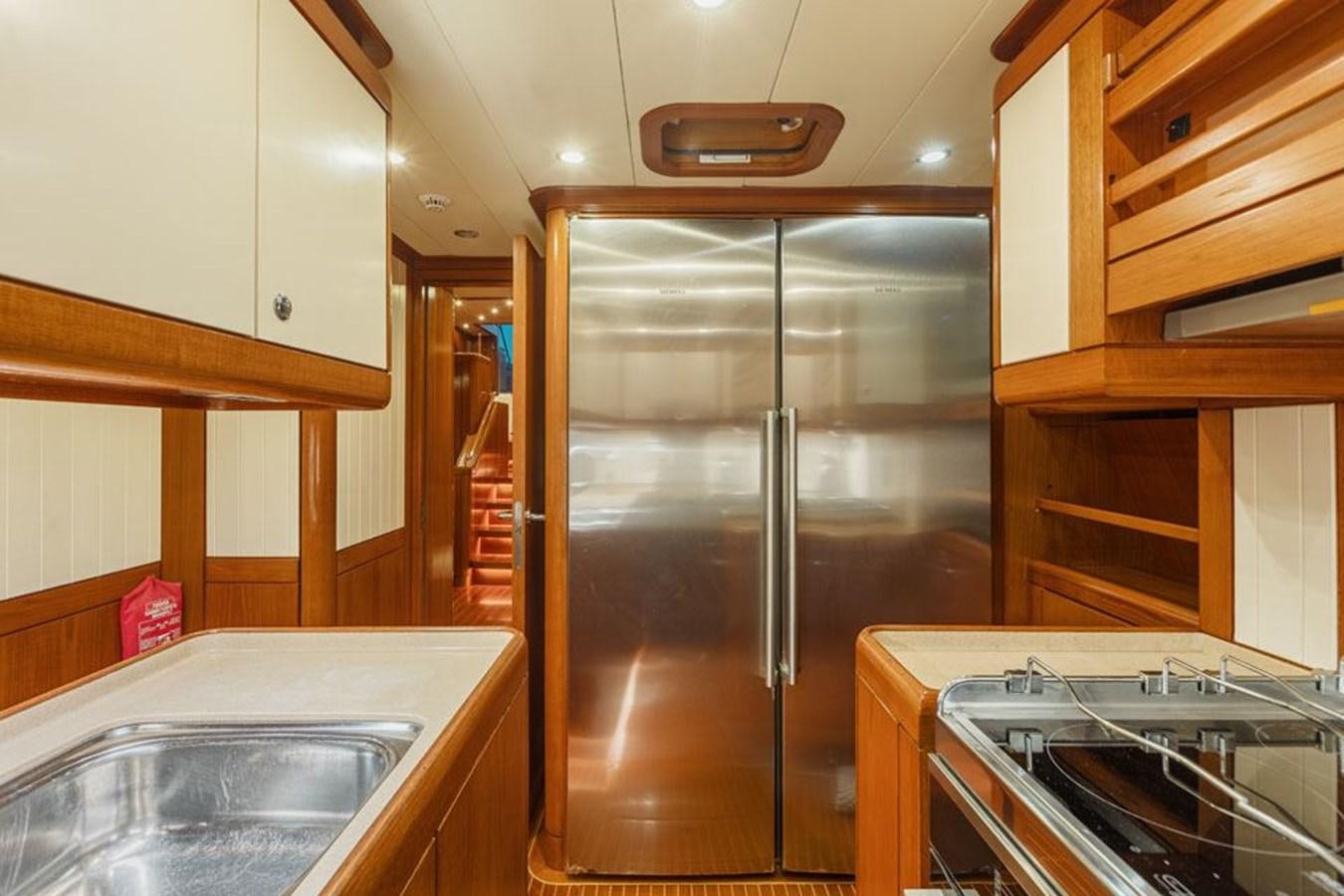

• Siemens fridge and freezer – new 2016.
• Iceberg 200 litre under floor fridge – serviced 2016.
• Atexa 230V icemaker – new 2021.
• Professional 7855 Miele dishwasher.
• Insinkerator waste disposal.
• Quooker instant hot water heater.
• Grohe Blue for filtered, cold and fizzy water – new 2019.
• Fridge under floor at crew mess, 230V.
• 2 x 230V fridge in cockpit.
• Coffee machine.
• Crockery and cutlery.
• Glassware.
• Galley equipment, pots and pans, all “as on board”.

Laundry Equipment:

• Miele Professional WS 5425 washer.
• Miele Professional SmartBiz dryer – new 2022.

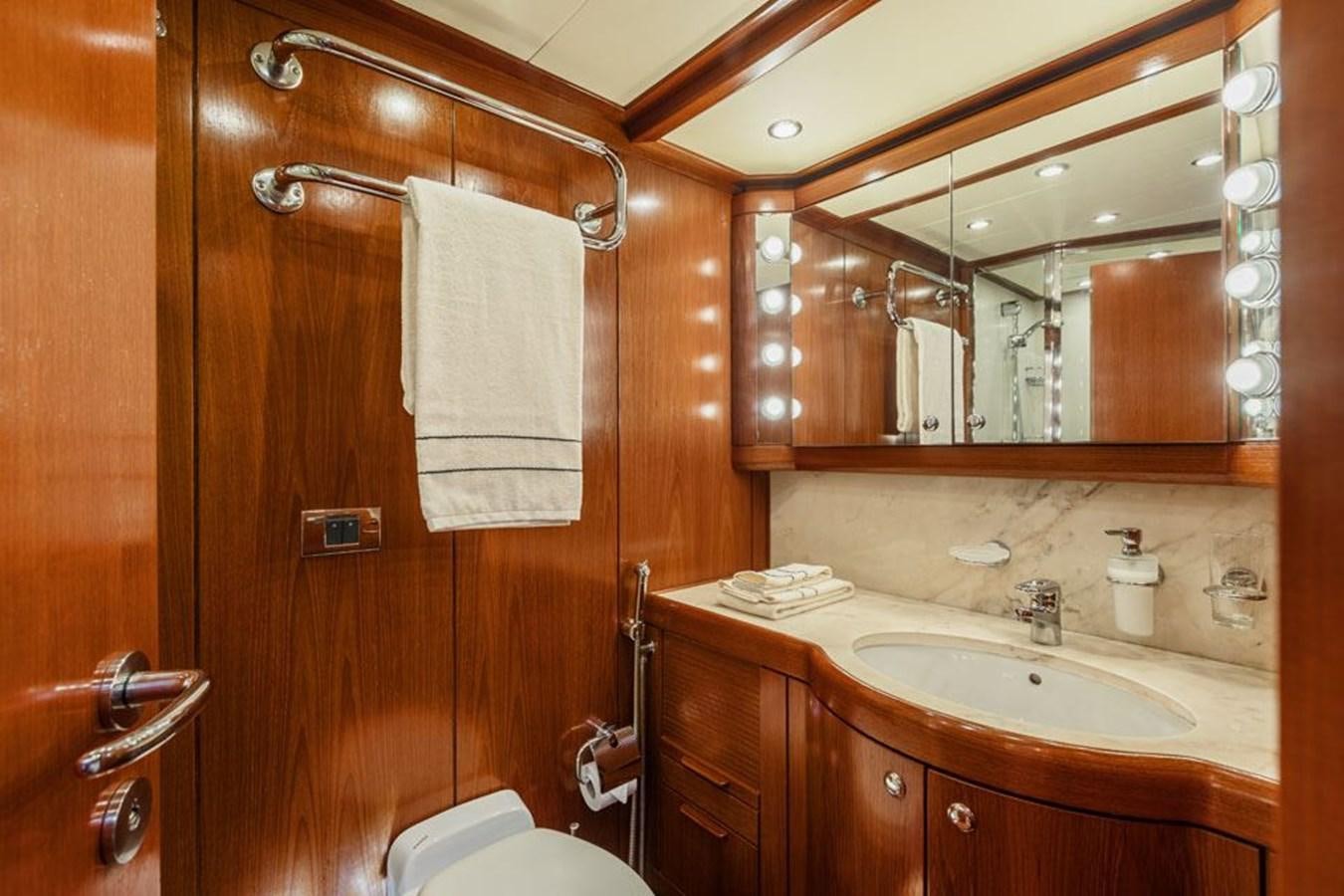

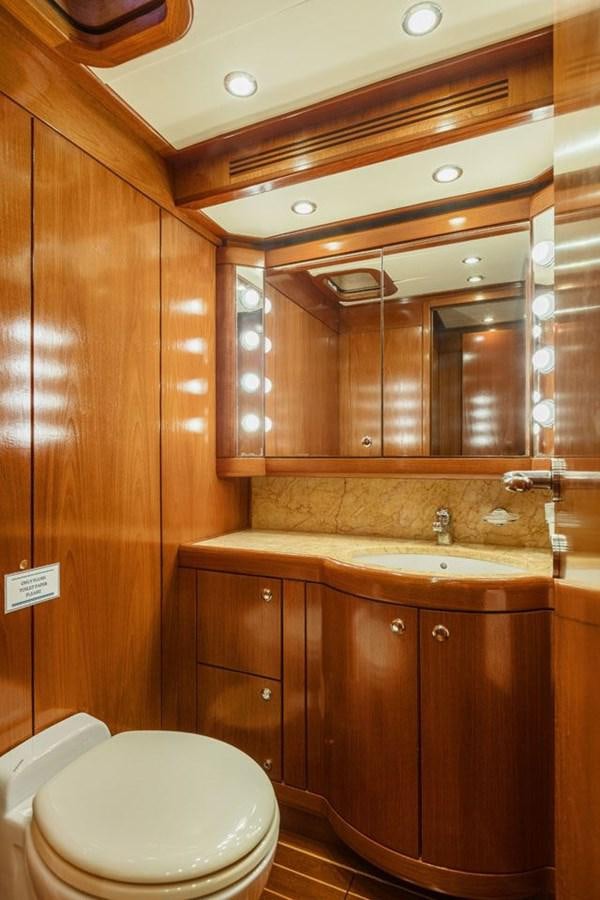

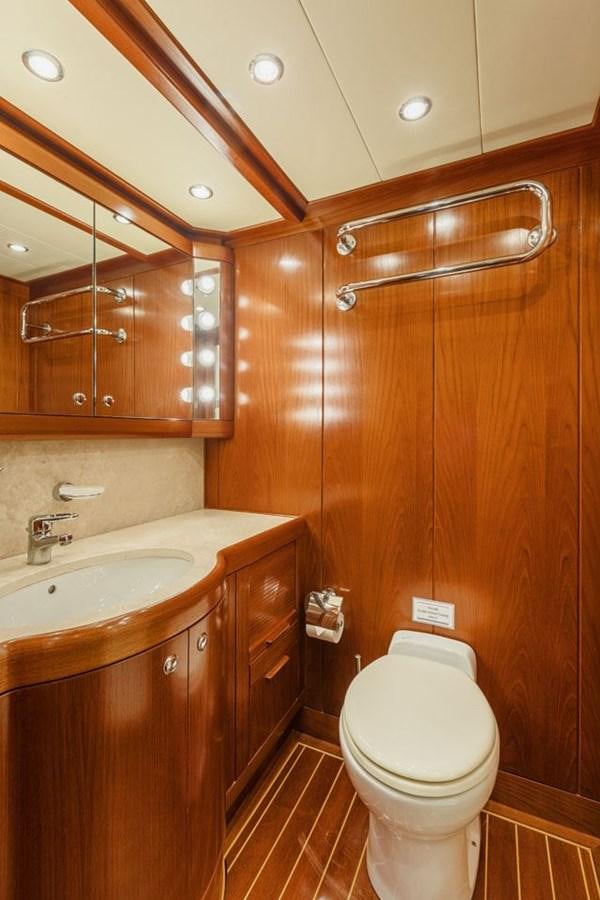

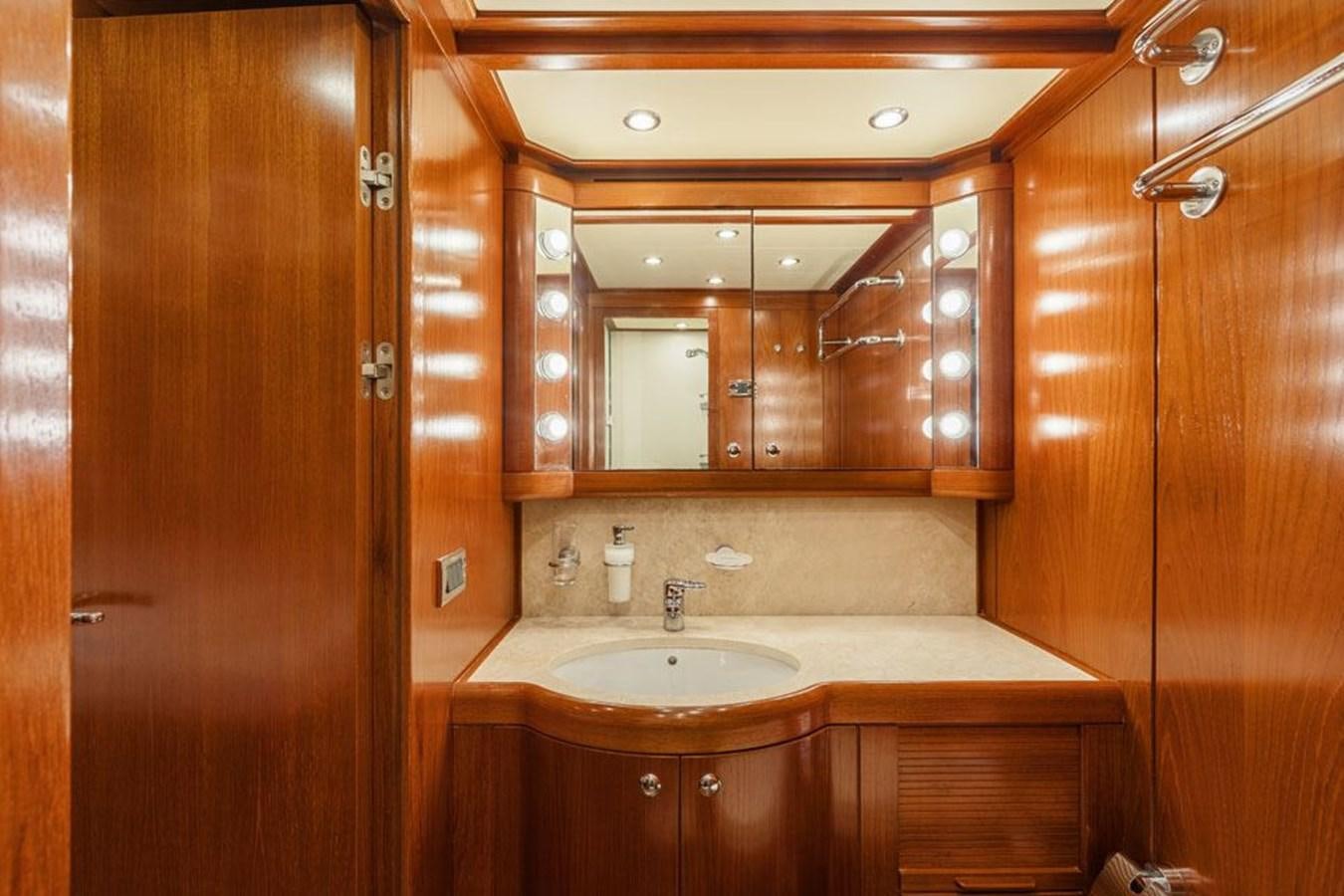

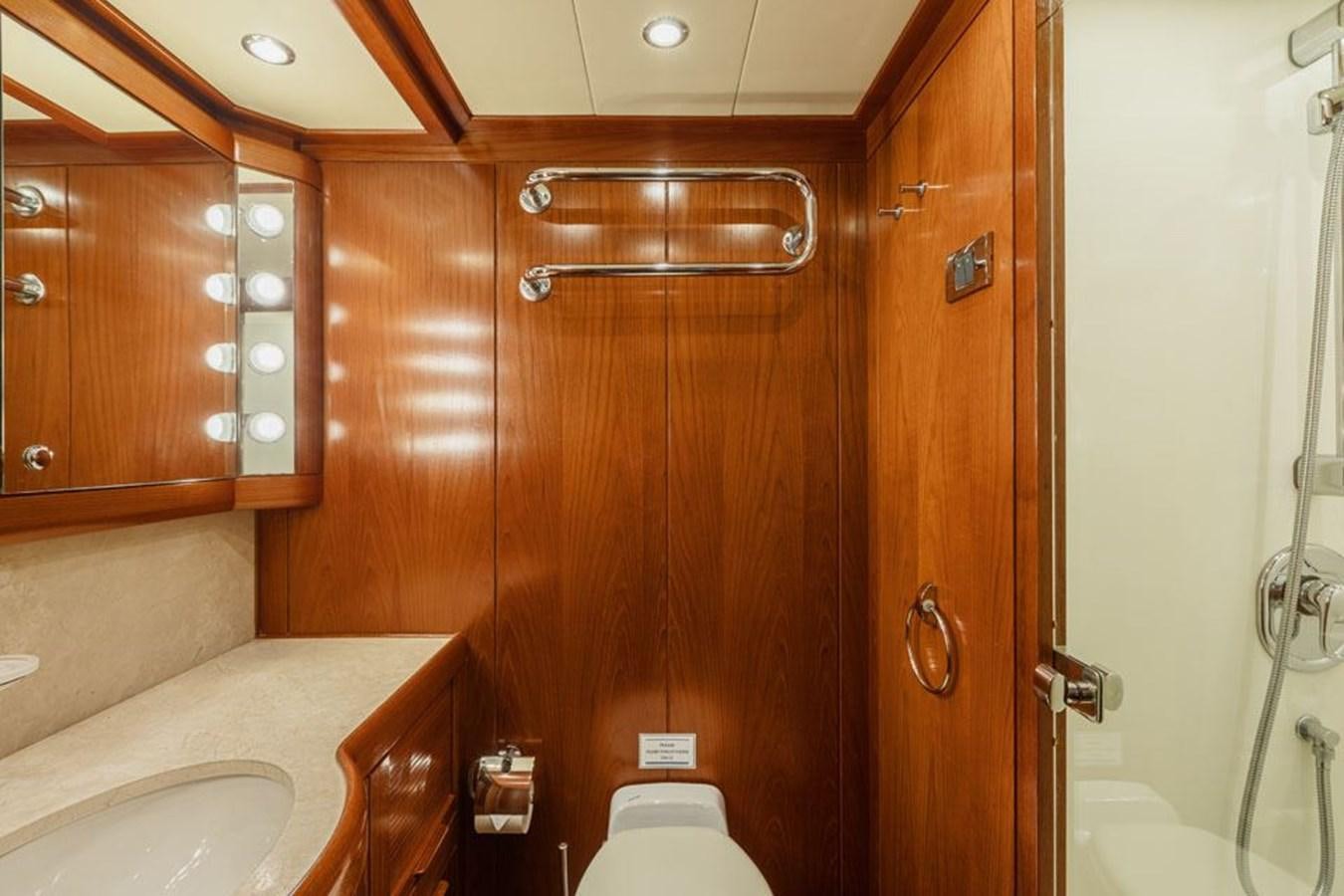

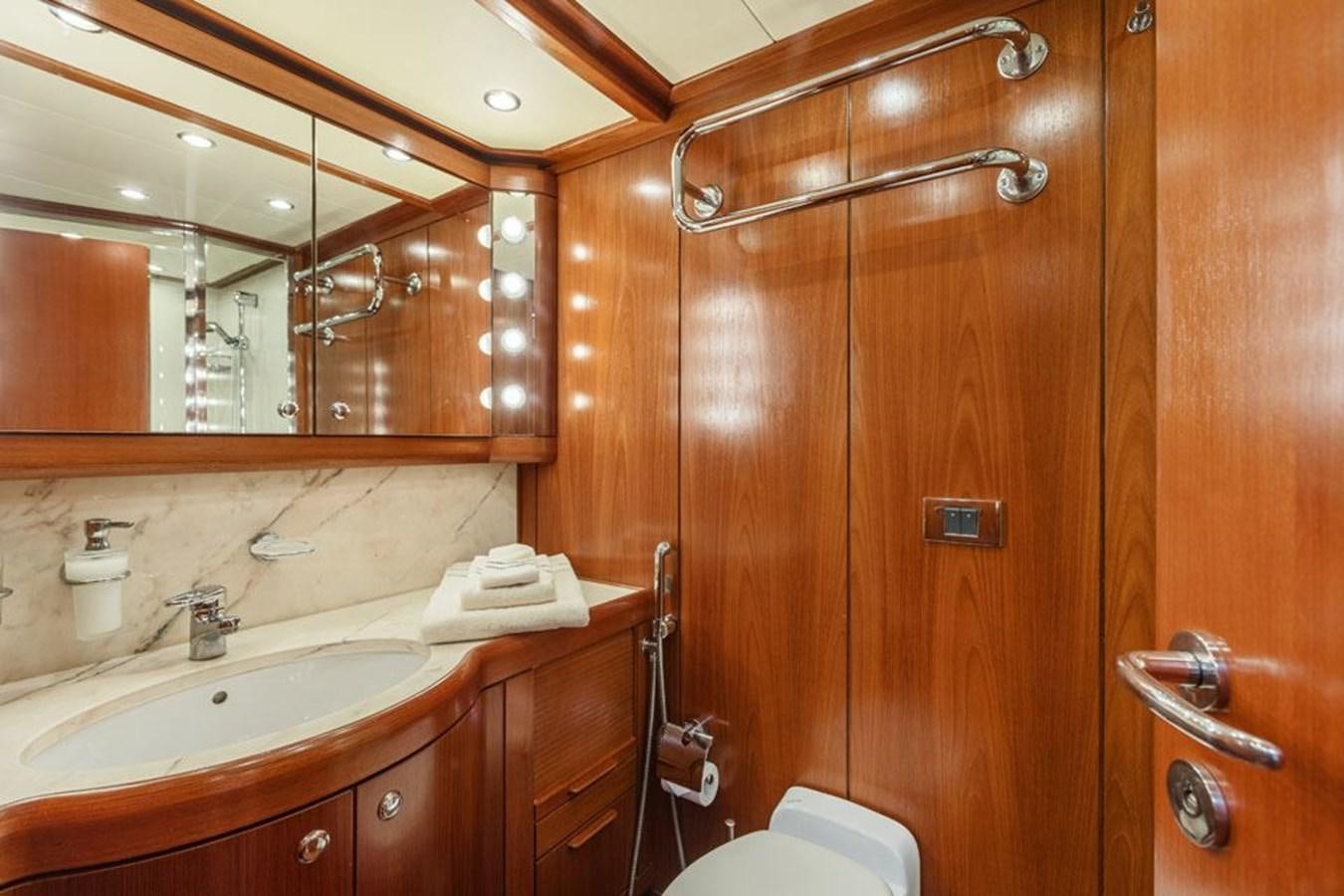

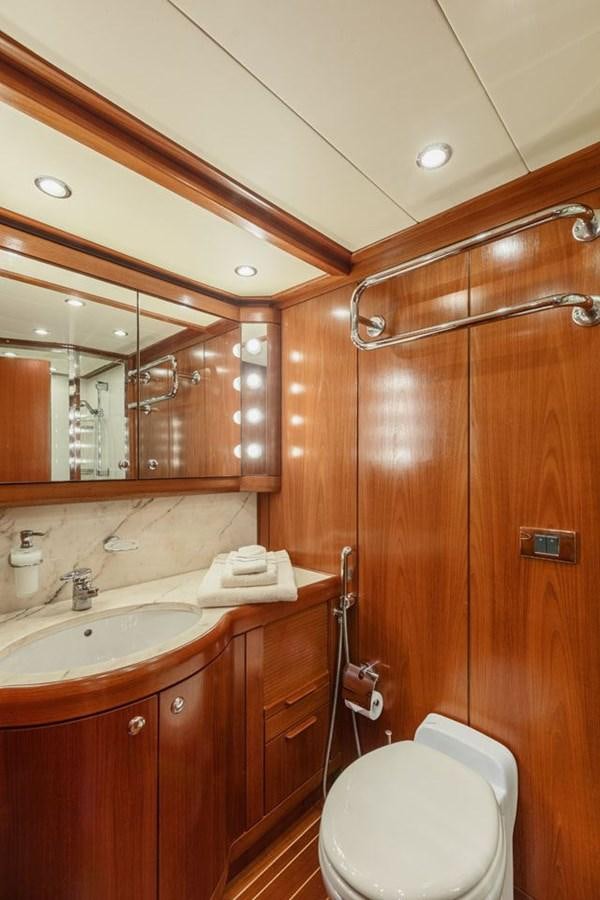

Heads/Showers:

• 7 x Tecma toilets – completely rebuilt 2016. Serviced since.

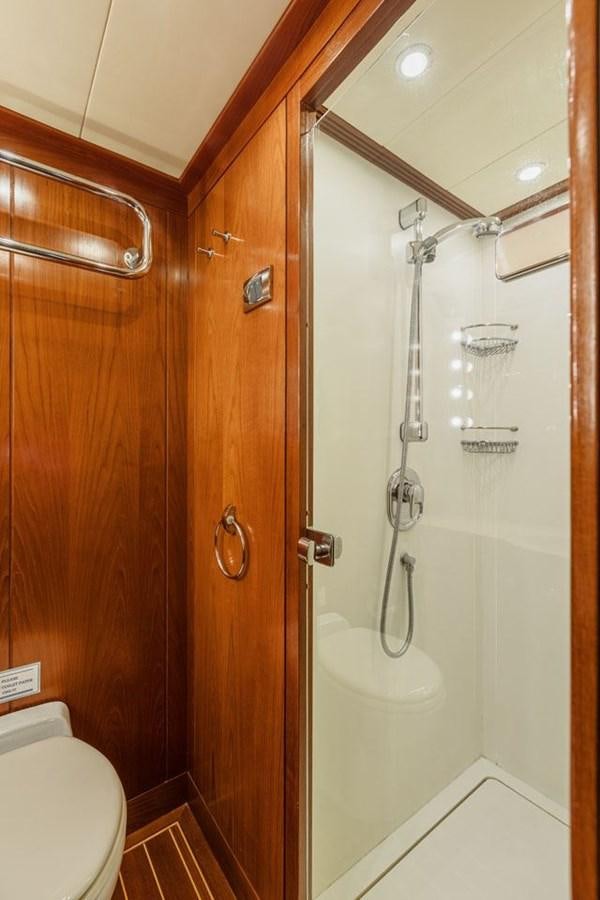

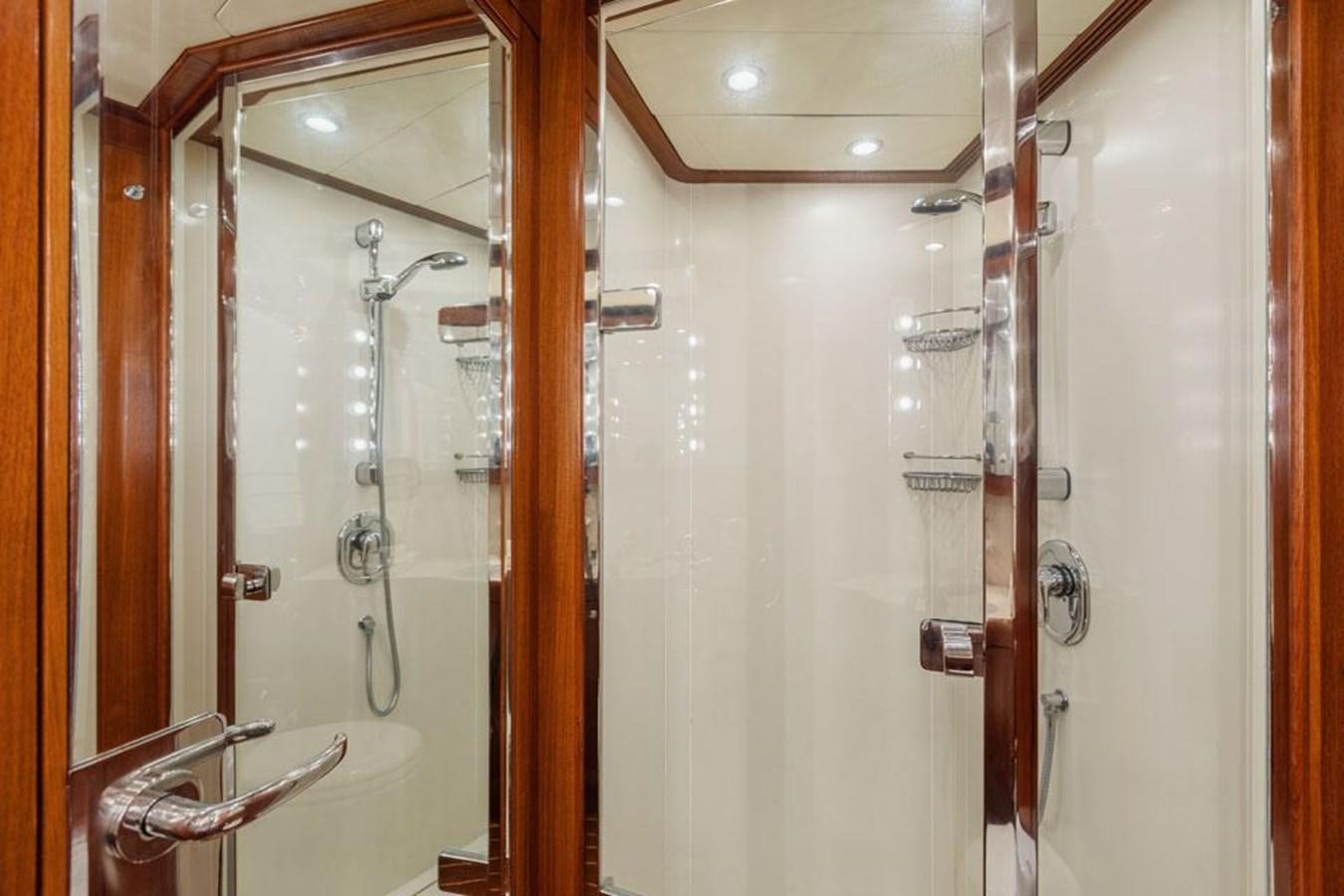

• 6 x showers.

Heating & Ventilation:

• New Climma AC CWS DC 130 (130 BTU per hour) heat pump/cooler system, made by Vecco.
• Every cabin air handler was rebuilt or replaced with new ducting and insulation in 2016 or later.

• New Satphone KVH MiniSat – 2022. Hand unit at chart table.
• SSB Furuno 250 watt.
• VHF Simrad HS90 / DSC + backup AIS. 1 x at chart table, 1 x at crew mess, 1 x at port helm.
• New VHF antenna cables – 2022.
• 2 x Icom IC-M93D handheld VHF.
• 2 x Icom IC-M23 handheld VHF.
• 2 x Suunto binnacle compass.
• 4 x walkie talkie.

• B&G plotter – new system 2018, new Zeus³ screen on port helm 2022, new sensors 2022.
• B&G H3000 MFD by companionway.
• 2 x B&G MFD at each helm.
• B&G MFD at crew mess.
• B&G MFD in each crew cabin.
• 1 x Furuno TZ Touch BB radar – 2016.

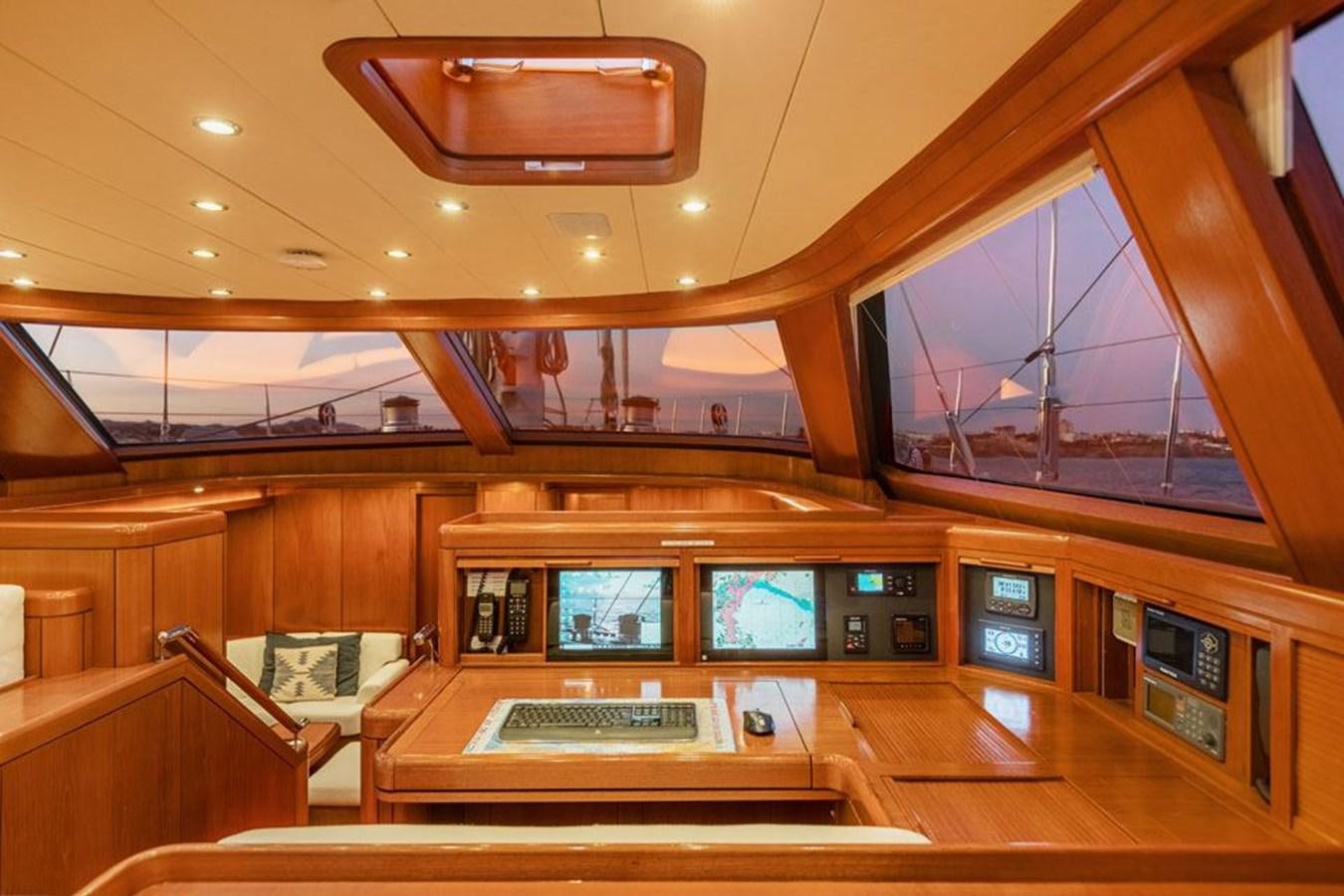

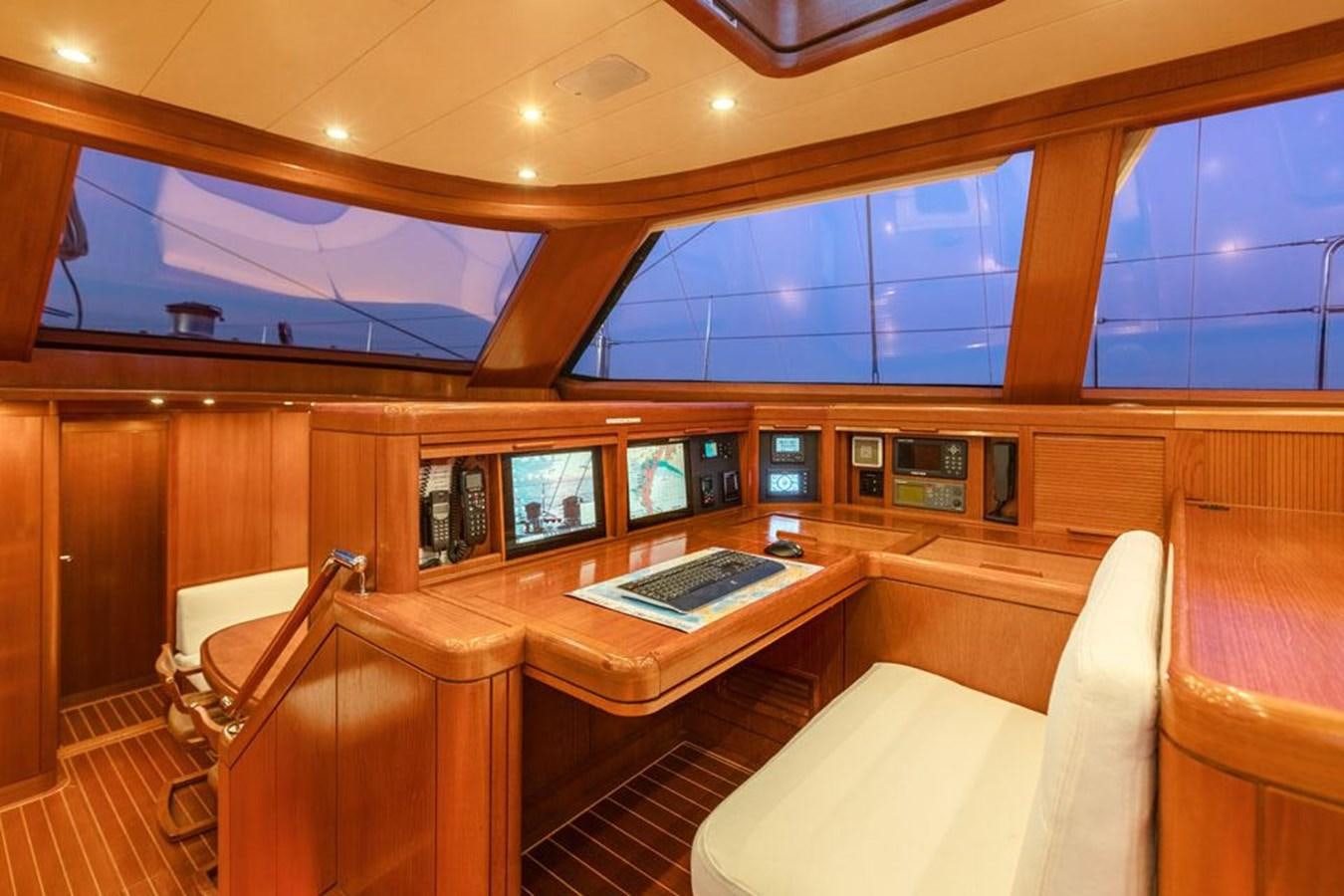

• 2 x screens at chart table (starboard Furuno radar monitor, port plotter/PC).
• 1 x Furuno GP33 GPS – 2016.
• Furuno PG700 HDT GPS compass – 2016.
• Simrad H570 compass/GPS positioning system – new 2019.
• New TZT touch Furuno screen control at port helm – 2022.
• New AIS class A Simrad V5035 – 2022.
• New Navtex Sealink HX2600 – 2021.
• New B&G H5000 autopilot – 2022. Control panel at chart table and at starboard helm.
• New Mareton fuel consumption meter 2020.
• Intranet (navnet/R145) wifi.
• NMEA 2000 system connecting B&G.
• Navnet (Furuno) network.

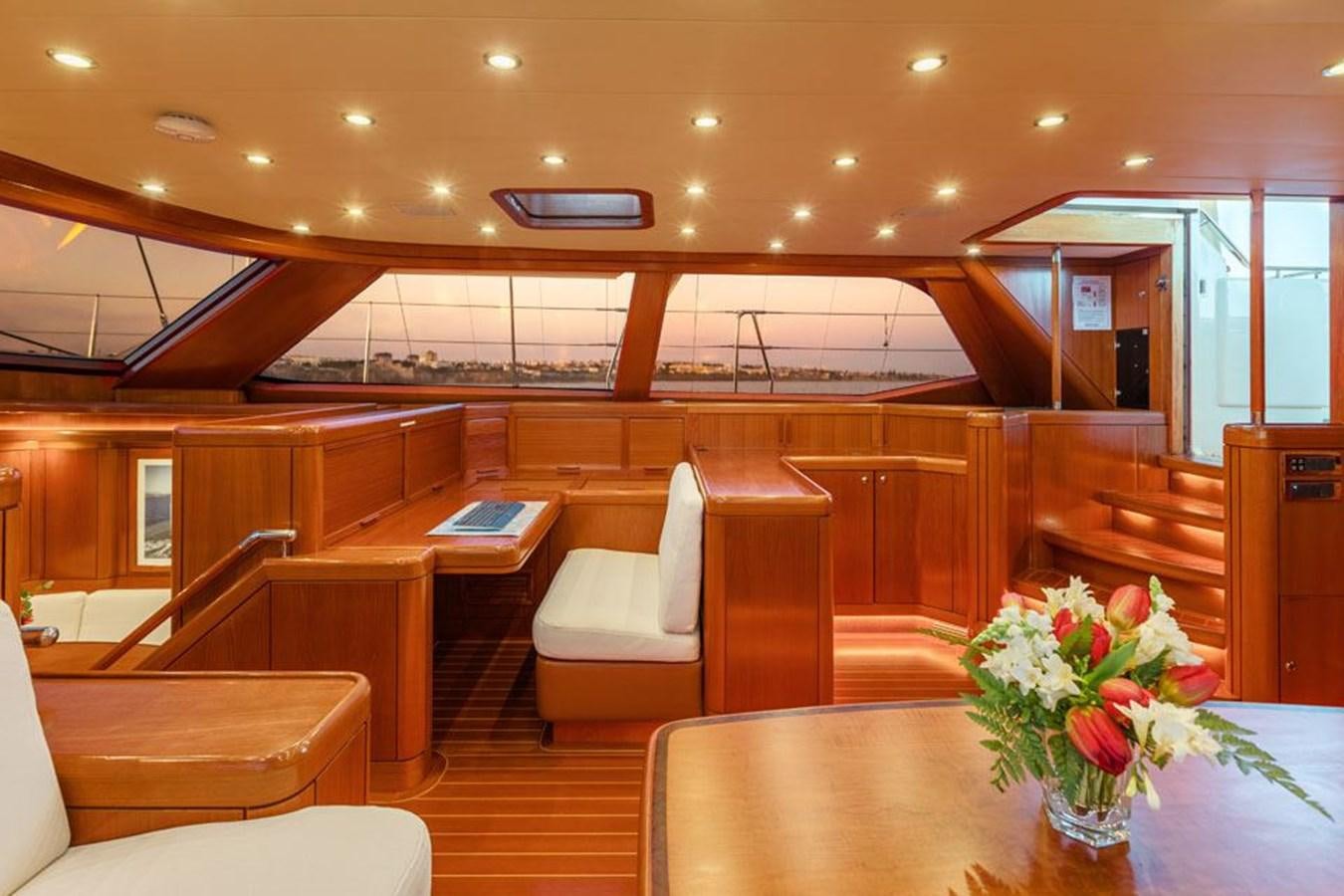

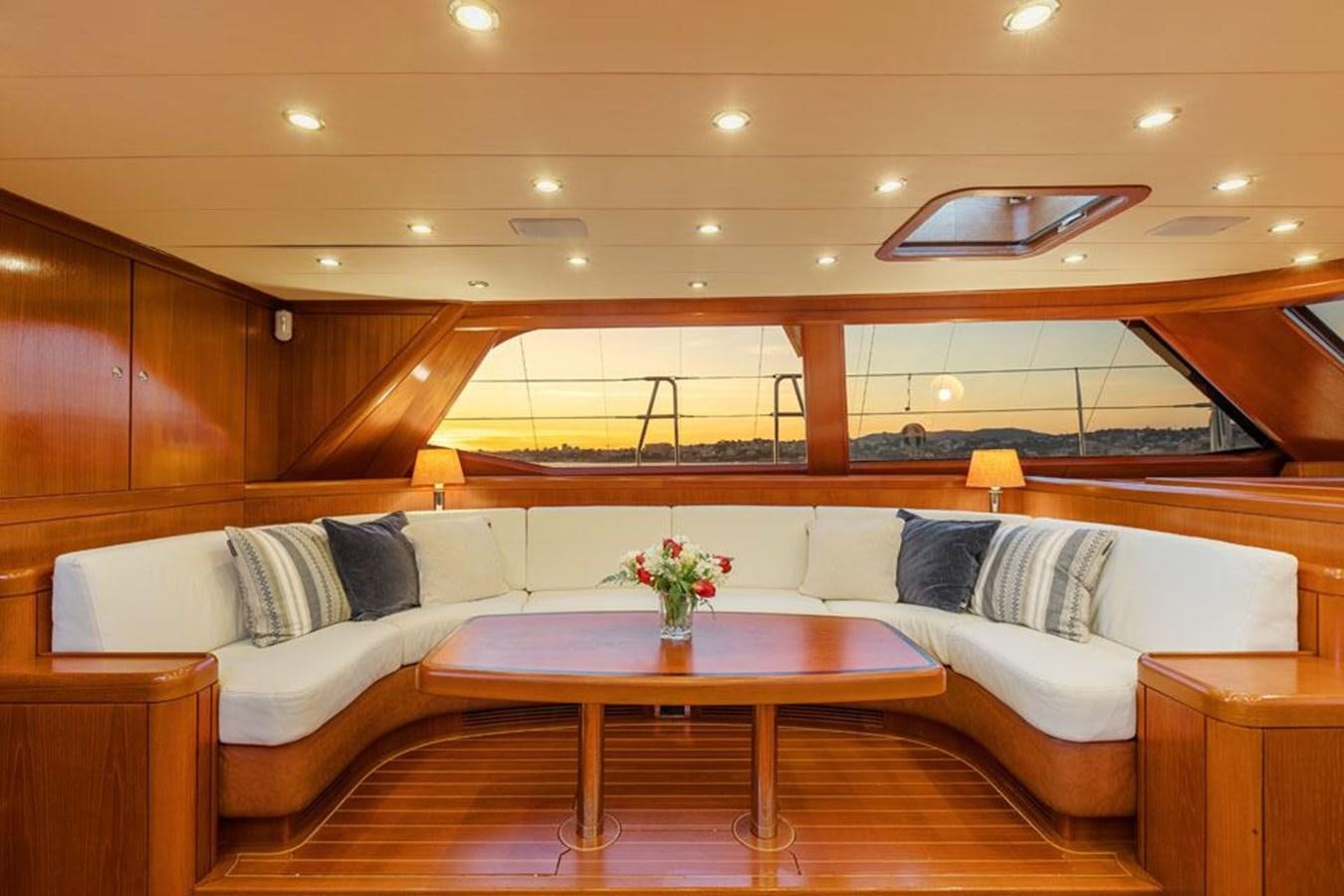

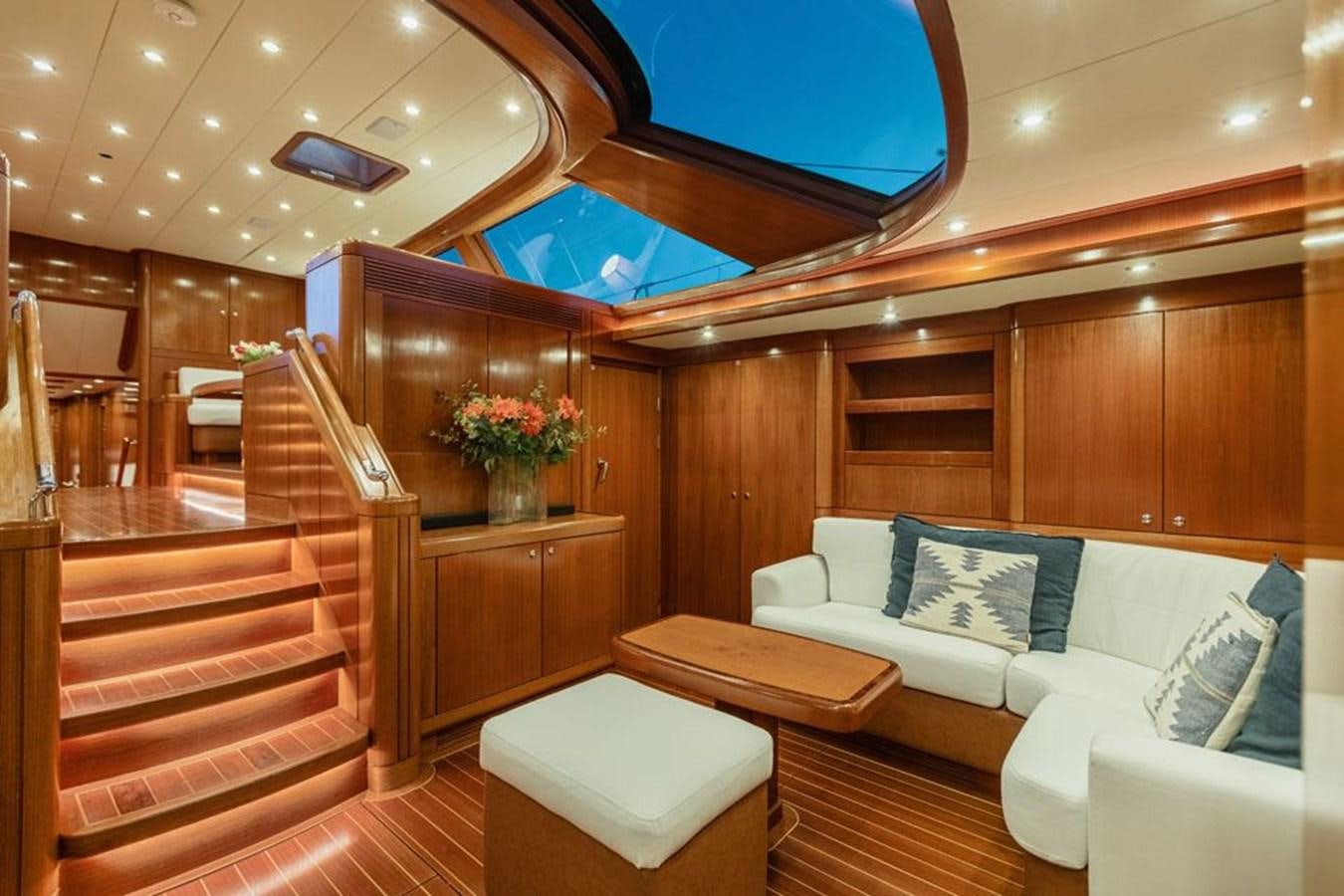

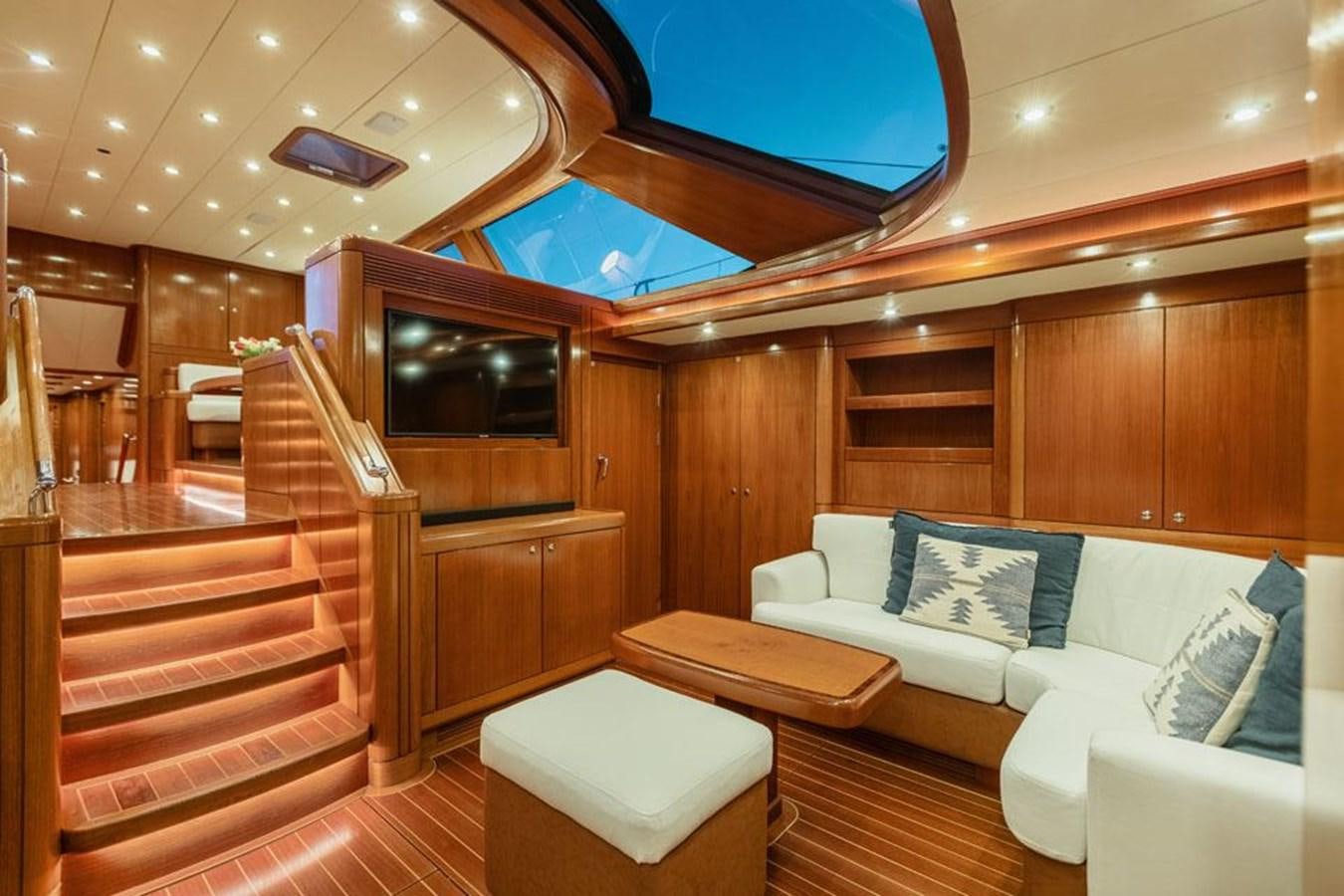

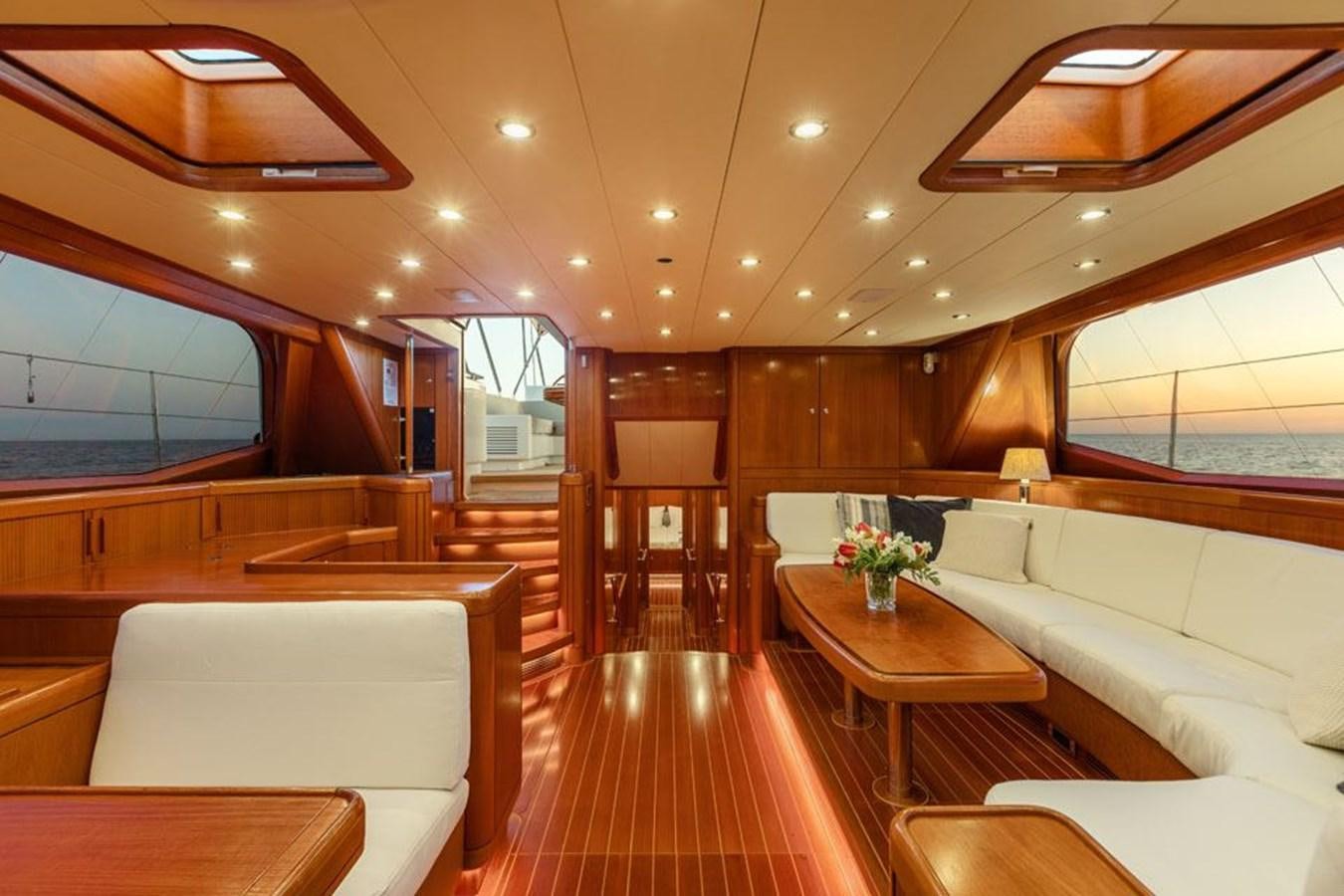

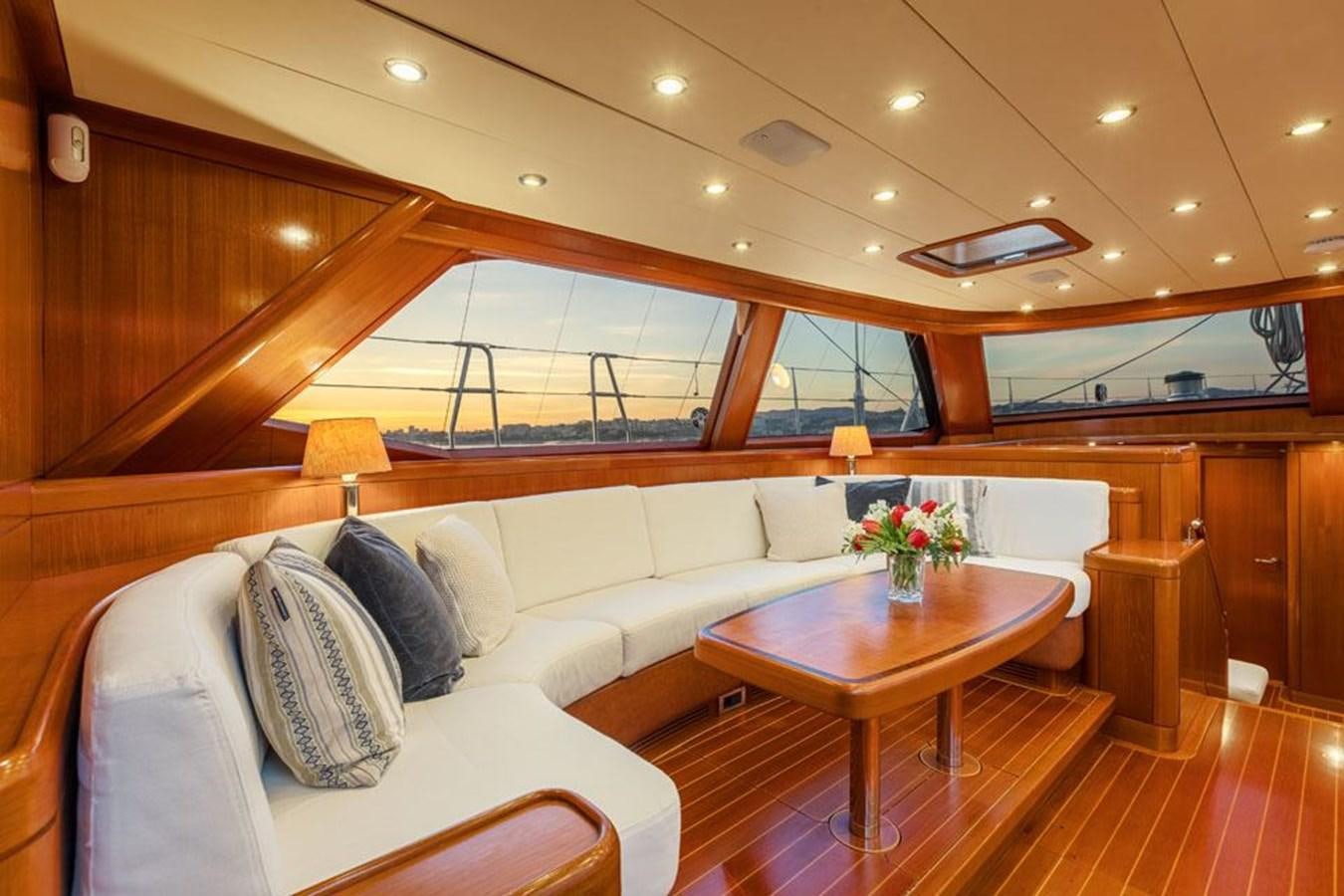

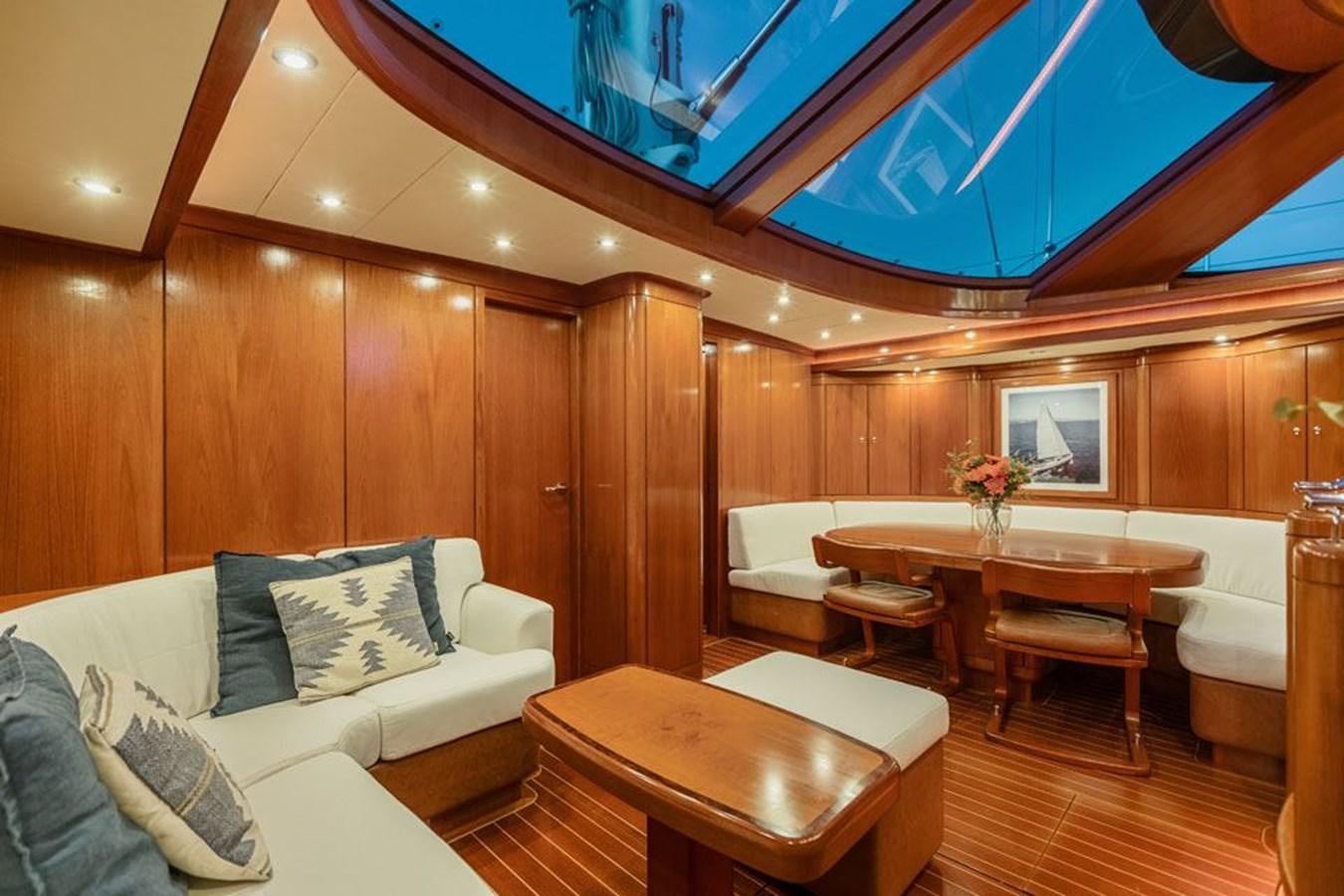

• Main salon: Samsung 40” Full HD Smart LED TV and sound bar, multimedia server 8TB QNAP 13 NAS drive with capacity for 5000 movies.
• Sonos stereo system for saloon and cockpit. 4 x speakers in saloon, 4 x speakers in cockpit.

• Lighting: LED interior lights. Cockpit lights. Boom lights. Flood lights.

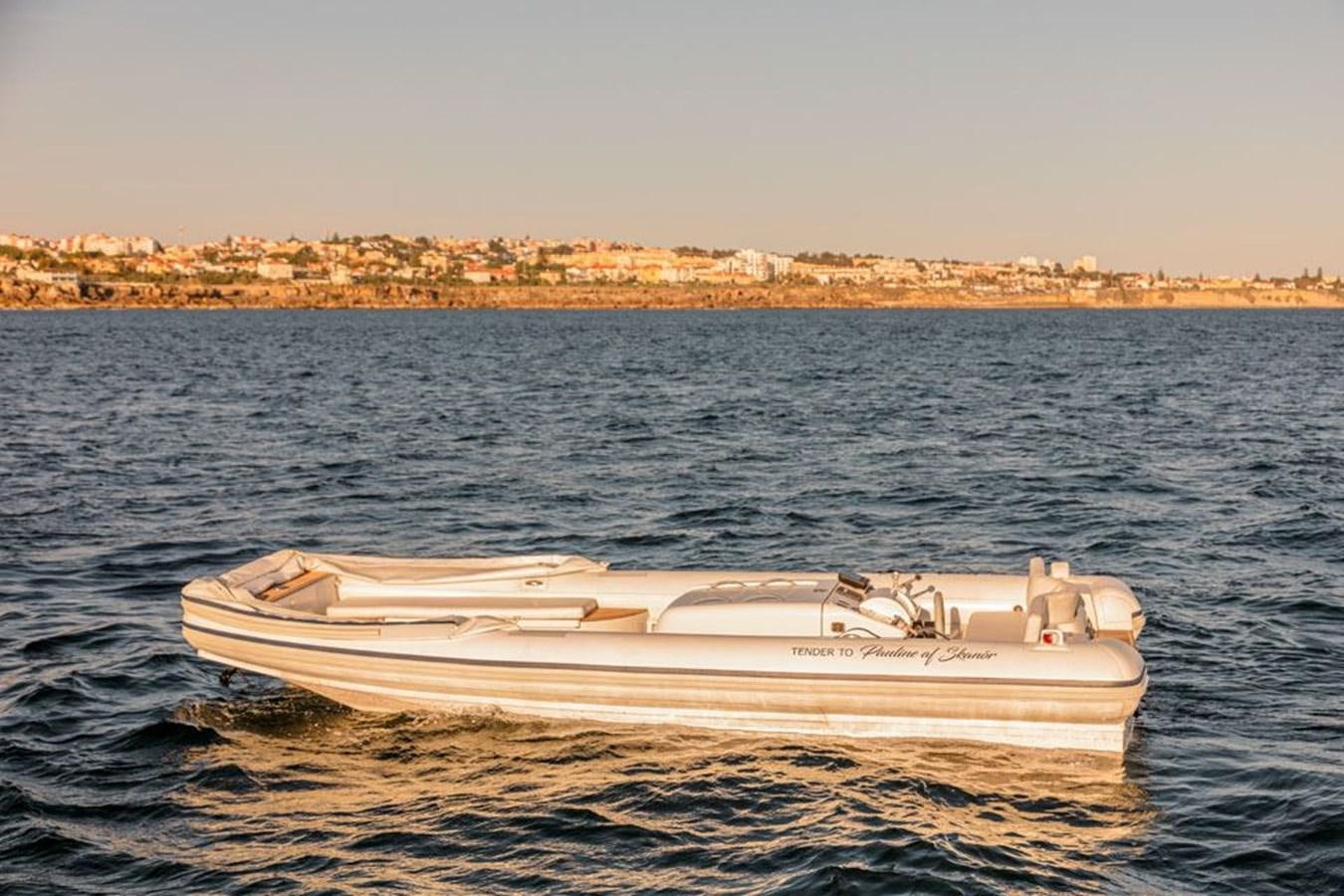

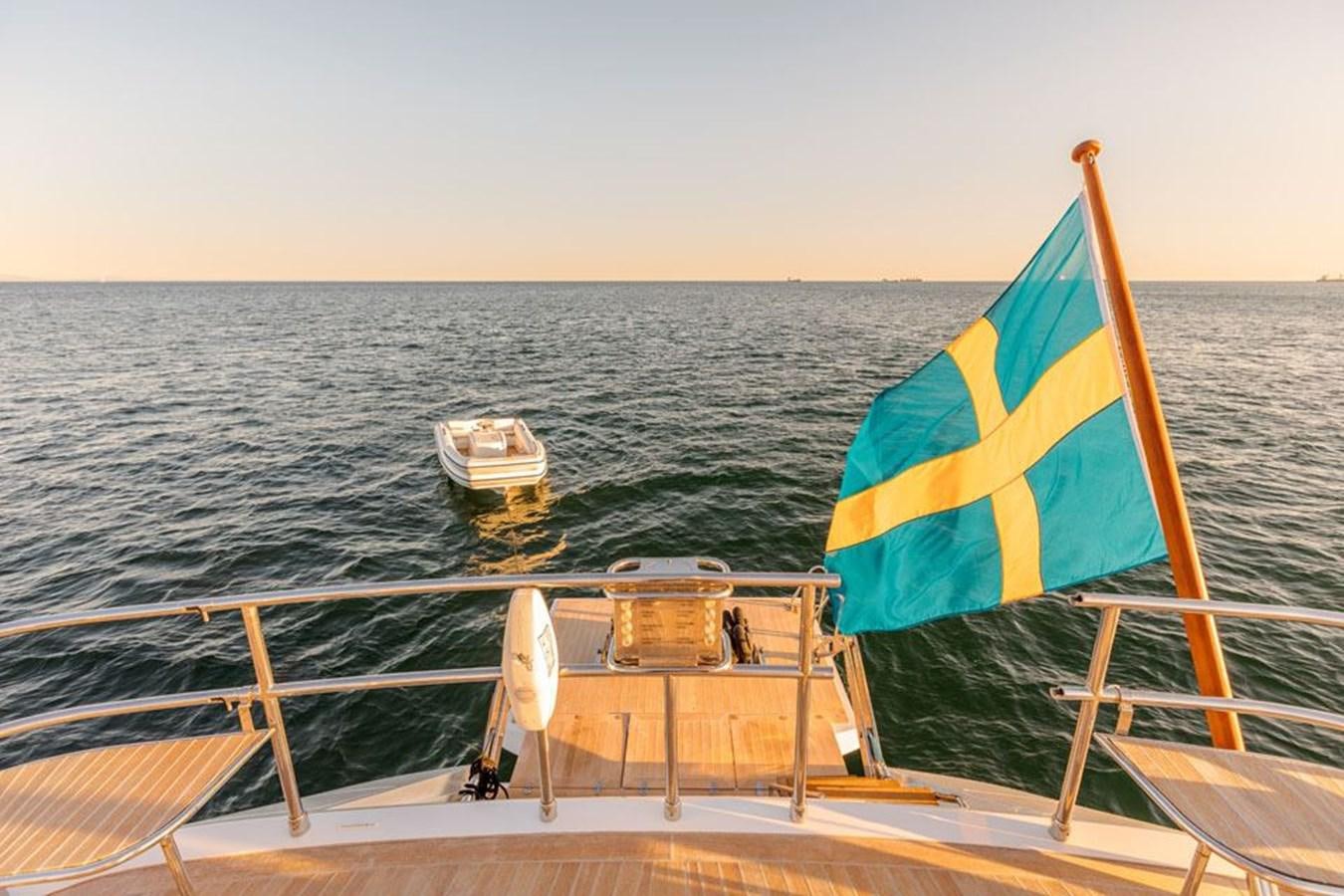

• Castoldi 15 tender – second hand bought 2018, renovated 2019, full service 2023.
• Yanmar inboard diesel engine – out and overhauled for full service 2023.

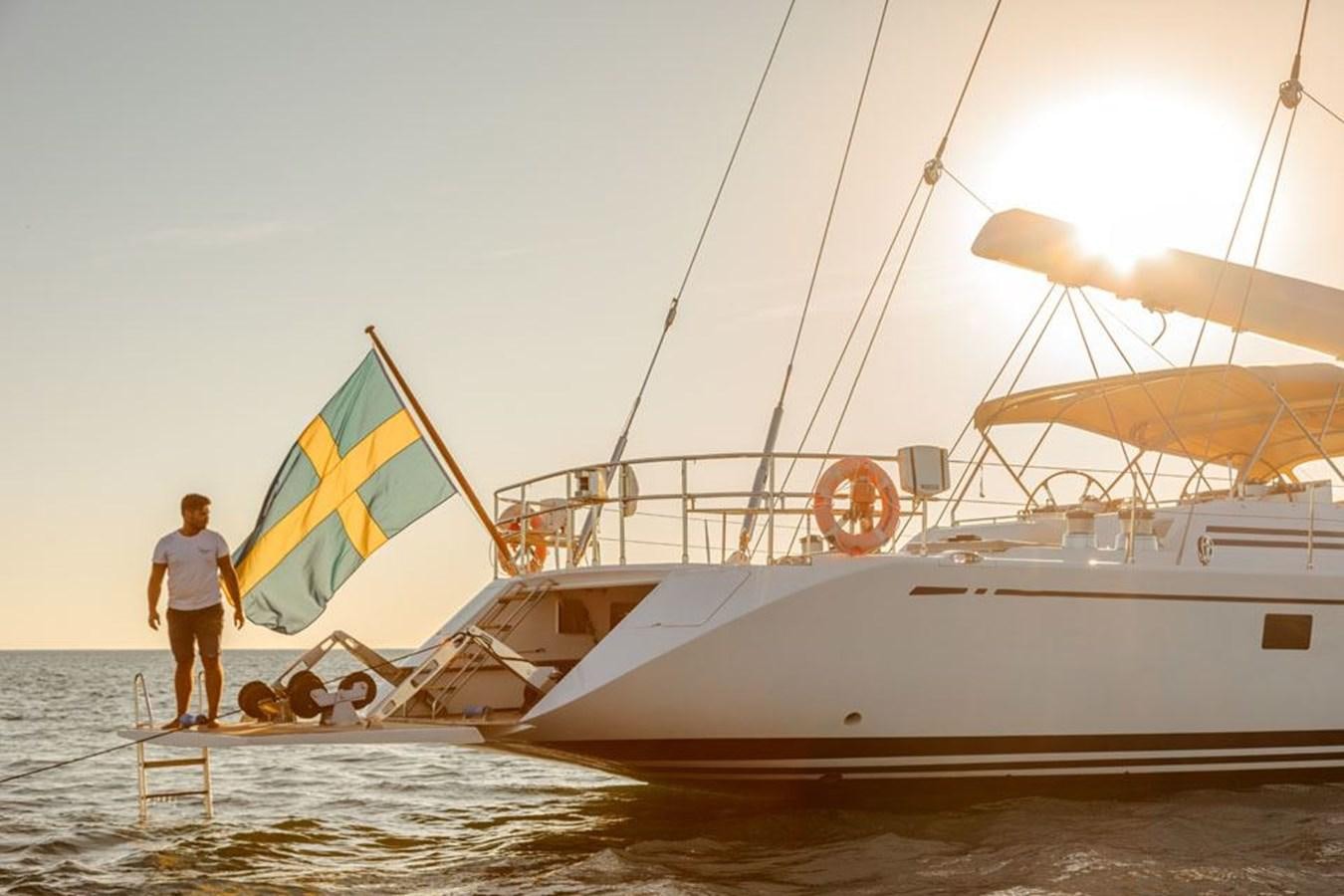

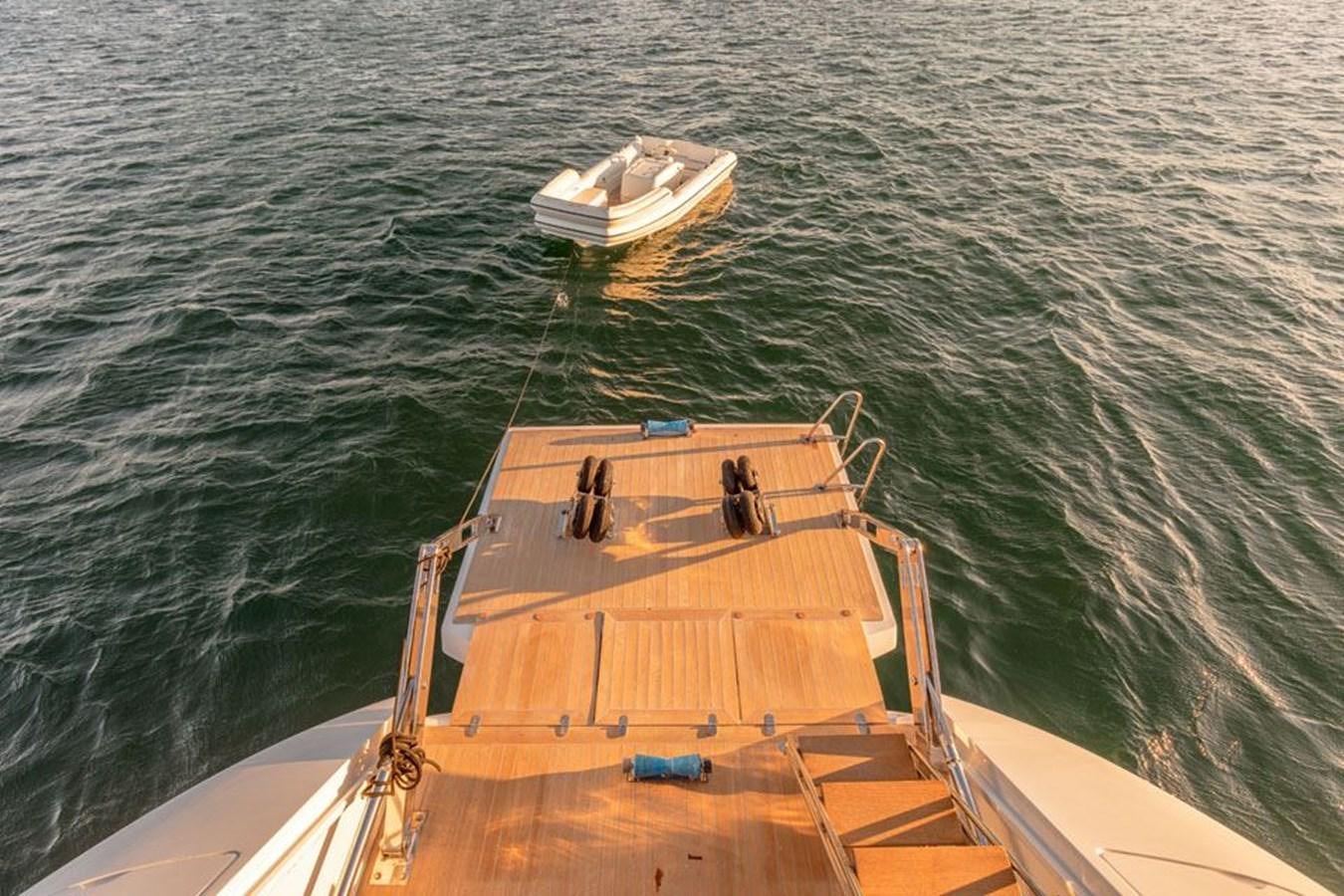

• Tender stows in transom.
• 1 x Zodiac Mk I 12ft crew tender.

Winches

• 2 x CQR anchors.
• 2 x 16mm stud link chain, 120m each.
• Fold out anchor arm system.
• Hydraulic chain wash system.
• 2 x Lewmar 6000 hydraulic windlass – refurbished 2016. Foot switches and wandering leads.
• 2 x Lewmar chain counter located in top of sail locker.
• Backup hydraulic hand pump for the anchor arms.
• Fortress anchor in port side lazarette.

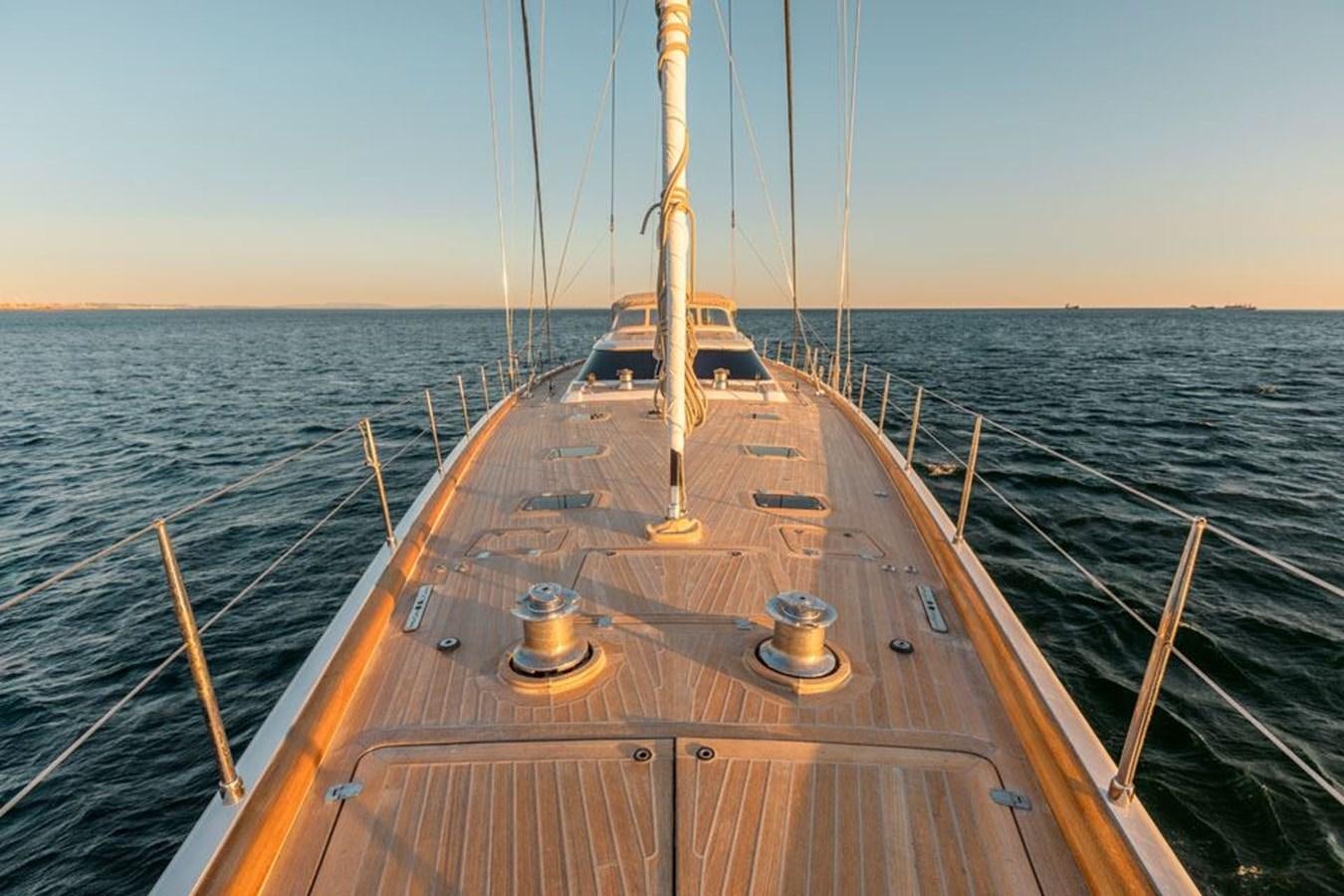

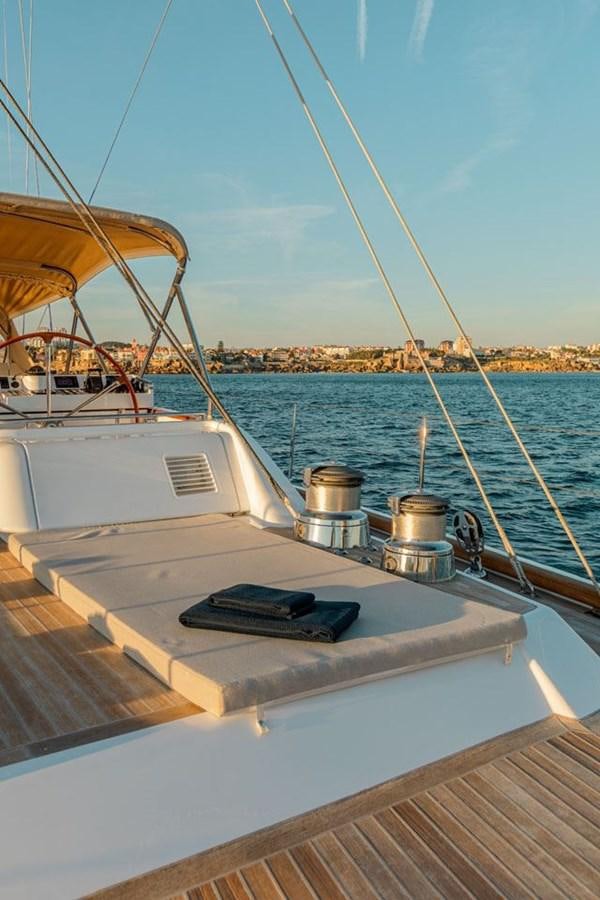

All drum winches by Lewmar and self-tailing:

• 2 x Lewmar 88 hydraulic halyard winches, port and starboard of mast – refurbished 2016.
• 2 x Lewmar 111 hydraulic primary winches, on aft coaming (reacher / spi sheets) – refurbished 2016.
• 2 x Lewmar 88 utility winches for runners, on aft coaming – refurbished 2016.
• 1 x Lewmar 88 winch under floor near mast.

Captive winches by Rondal:

• 2 x Rondal 6000 captive genoa sheet winches, in side deck lockers – rebuilt 2016.
• 2 x Rondal 4000 captive main sheet winches, in lockers at cockpit – refurbished 2016.
• 2 x Rondal 4000 runner captive winches, in lazarette – refurbished 2016.
• 1 x Rondal 4000 main halyard winch, under cabin floor near the mast.
• 2 x Rondal spool runner retrieval winches, in deck lockers near shrouds.

Anchoring & Mooring Equipment:

• 2 x CQR anchors.
• 2 x 16mm stud link chain, 120m each.
• Fold out anchor arm system.
• Hydraulic chain wash system.
• 2 x Lewmar 6000 hydraulic windlass – refurbished 2016. Foot switches and wandering leads.
• 2 x Lewmar chain counter located in top of sail locker.
• Backup hydraulic hand pump for the anchor arms.
• Fortress anchor in port side lazarette.

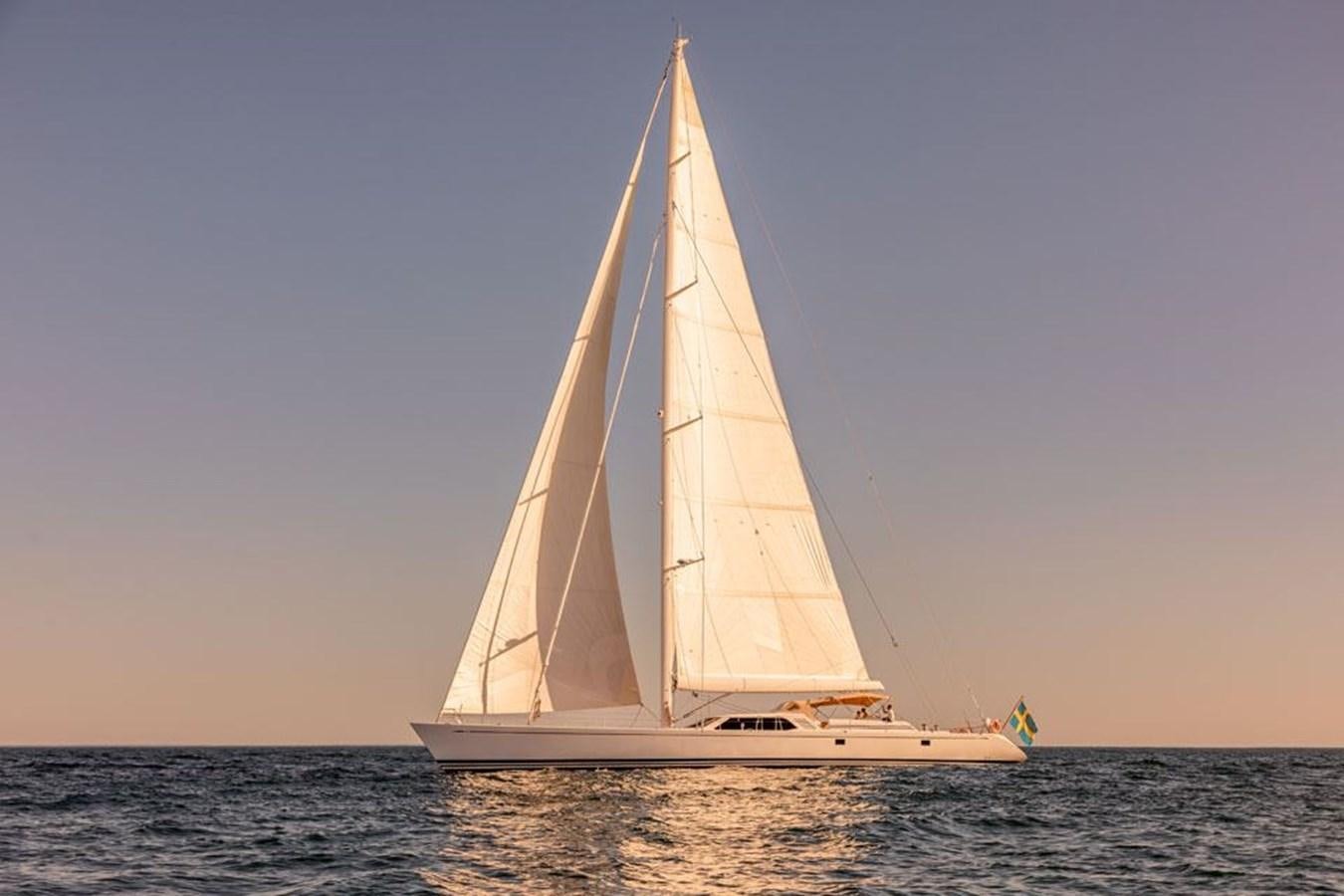

Rig:

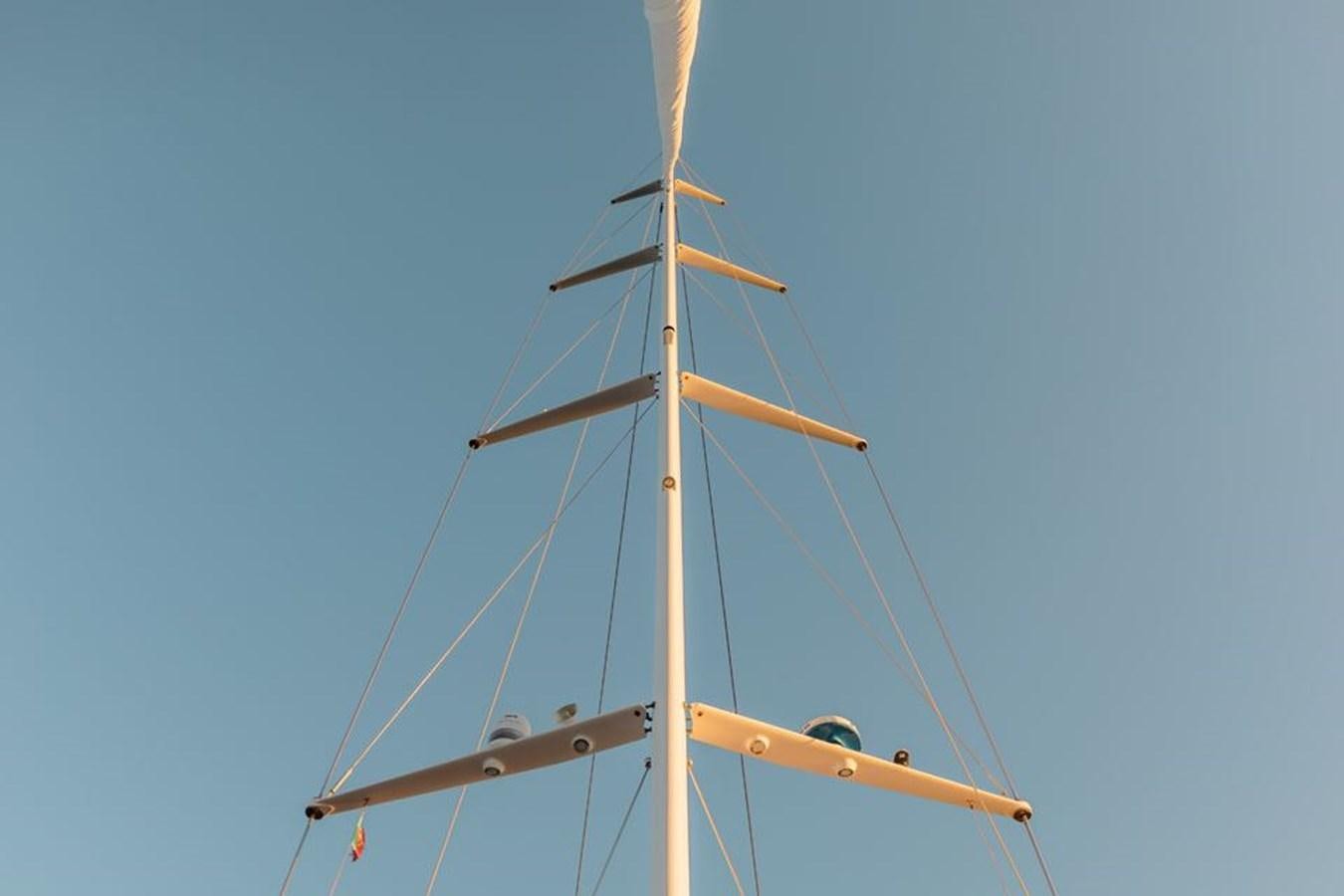

• Southern Spars mast with 4 spreader standard modulus carbon – refurbished and painted 2016.
• Southern Spars boom with in-boom furling – refurbished and painted 2016.
• BSI rod rigging – all new 2016.
• Reckmann genoa furler and staysail furler – both refurbished 2016, jib unit sent to Reckmann for full overhaul 2022.
• Gleinstein running rigging – most new 2016.
• Halyards and sheets renewed 2020.
• Jib sheets and gennaker halyard new Jan 2023.
• Future Fibres Kevlar 49 runners – new 2023.

Sails:

• Sails serviced by North Sails in January 2023.
• North Sails mainsail – new 2018.
• North Sails genoa / jib – new 2019.
• Evolution Element Carbon furling staysail – new 2016-17.

Sail Controls:

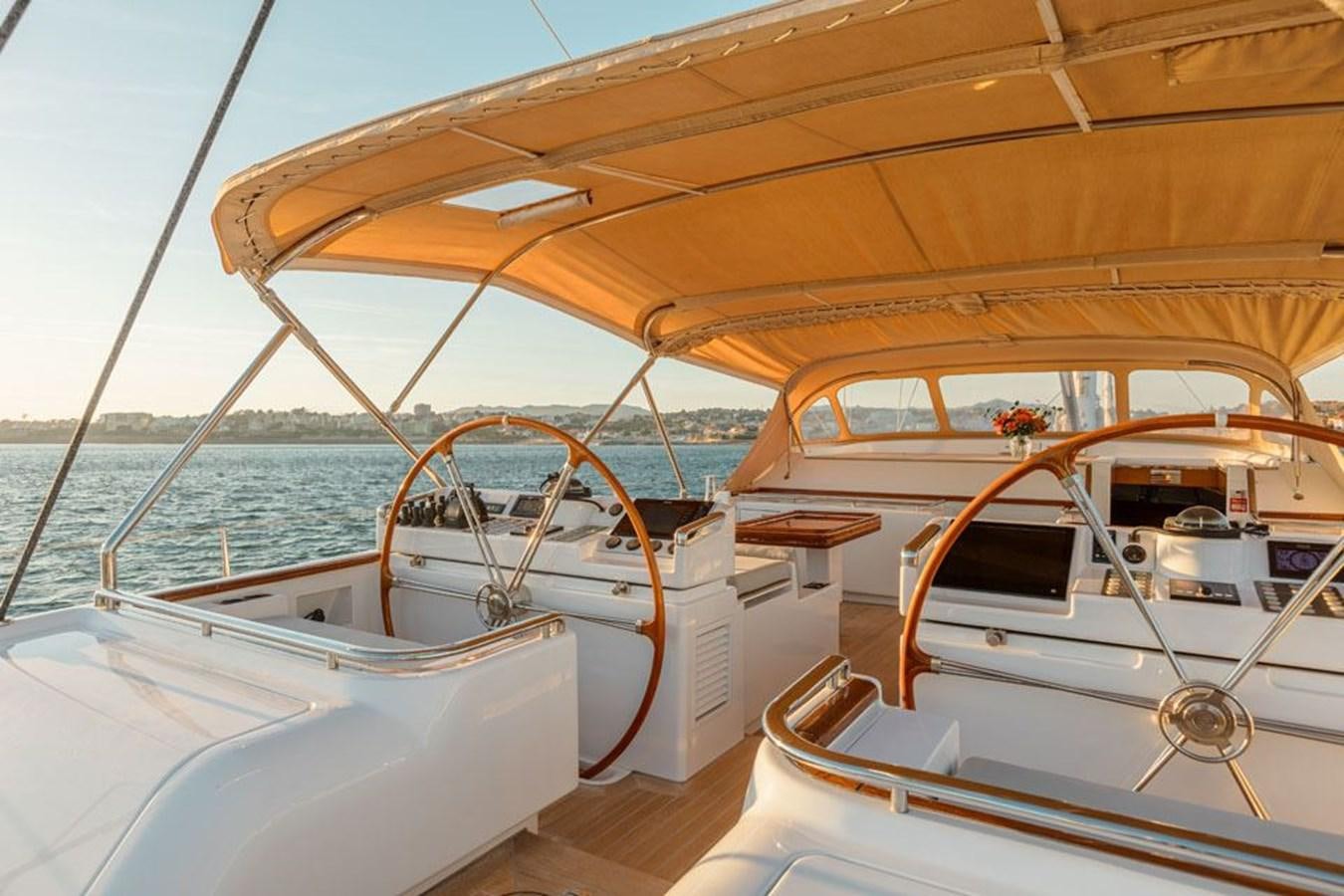

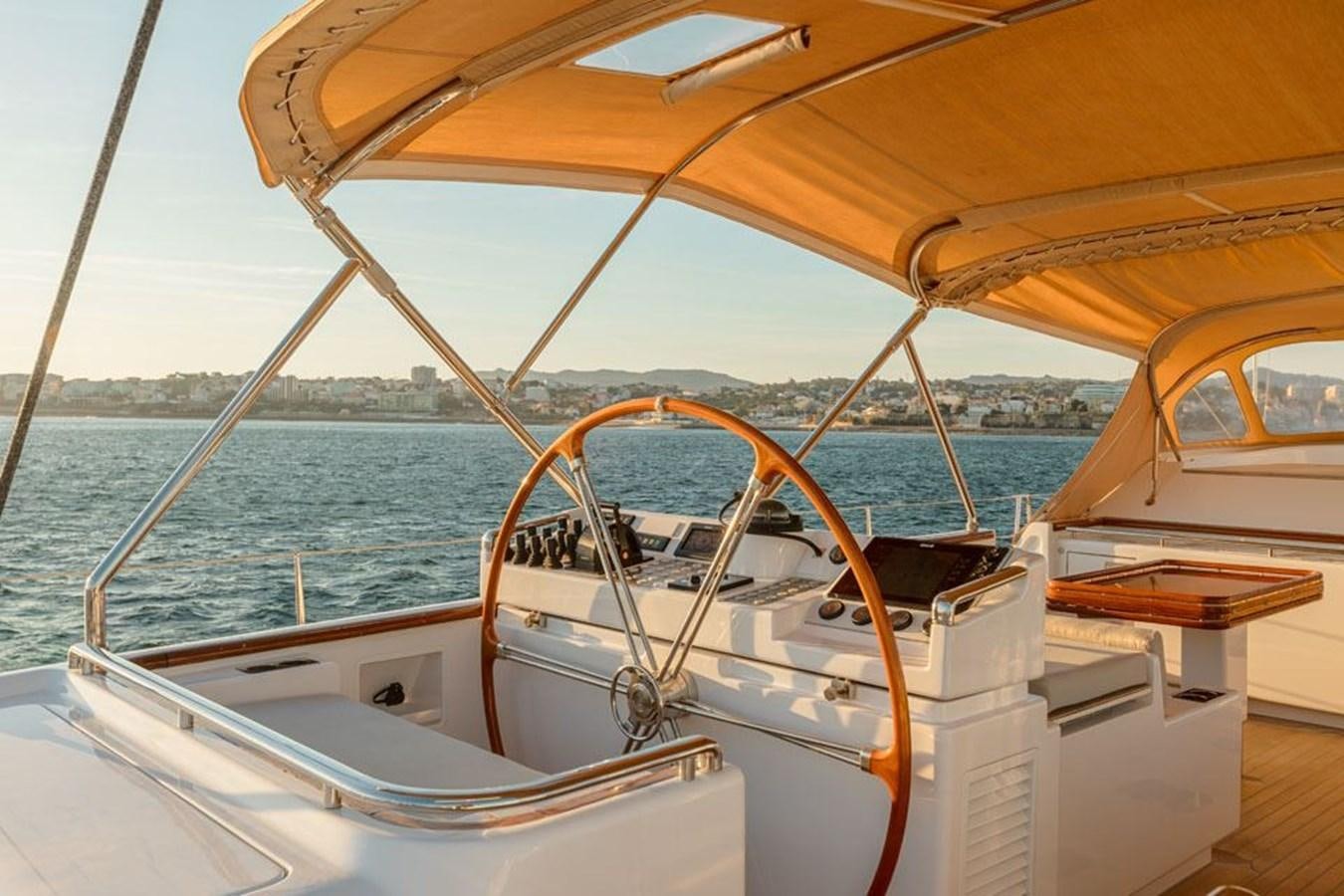

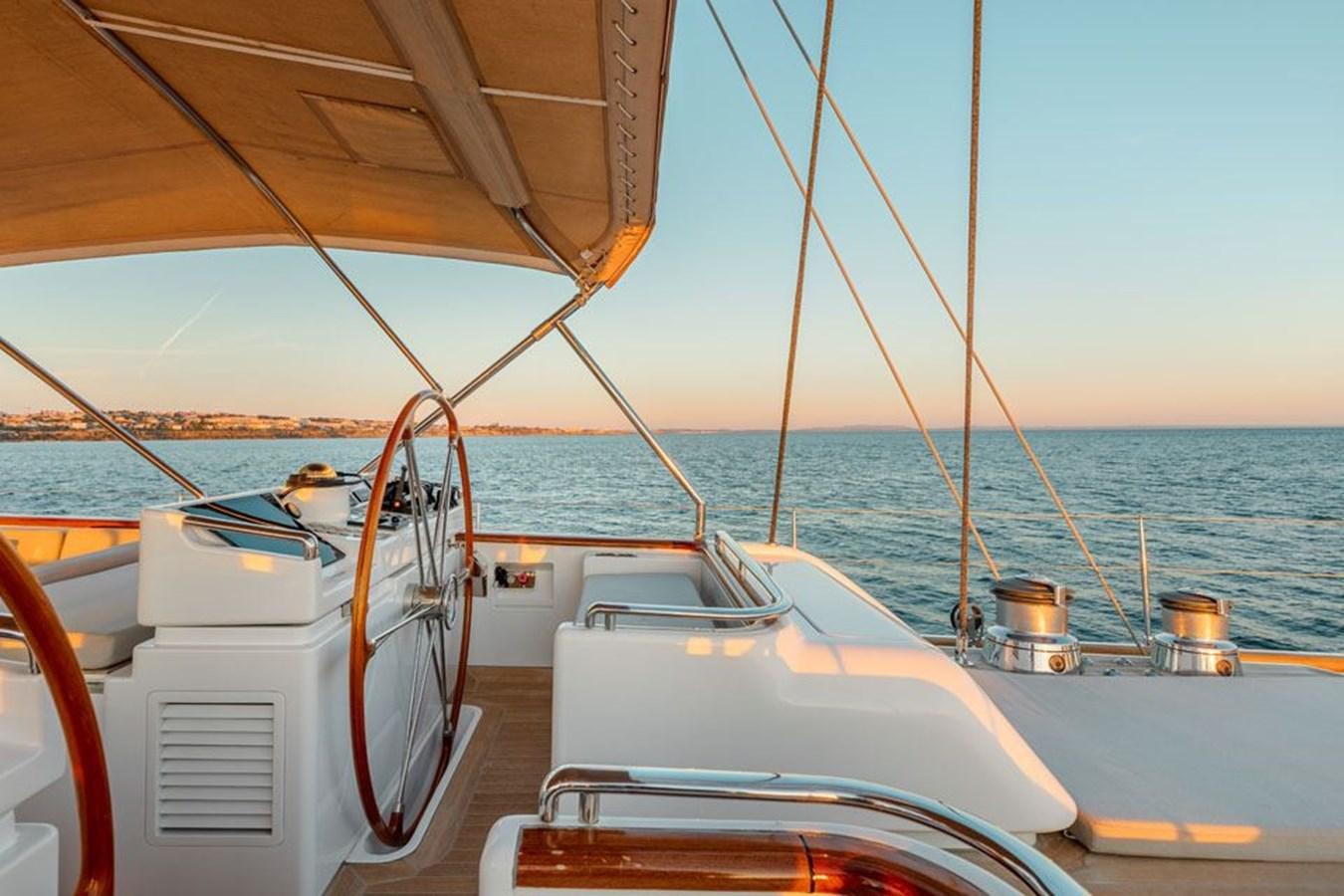

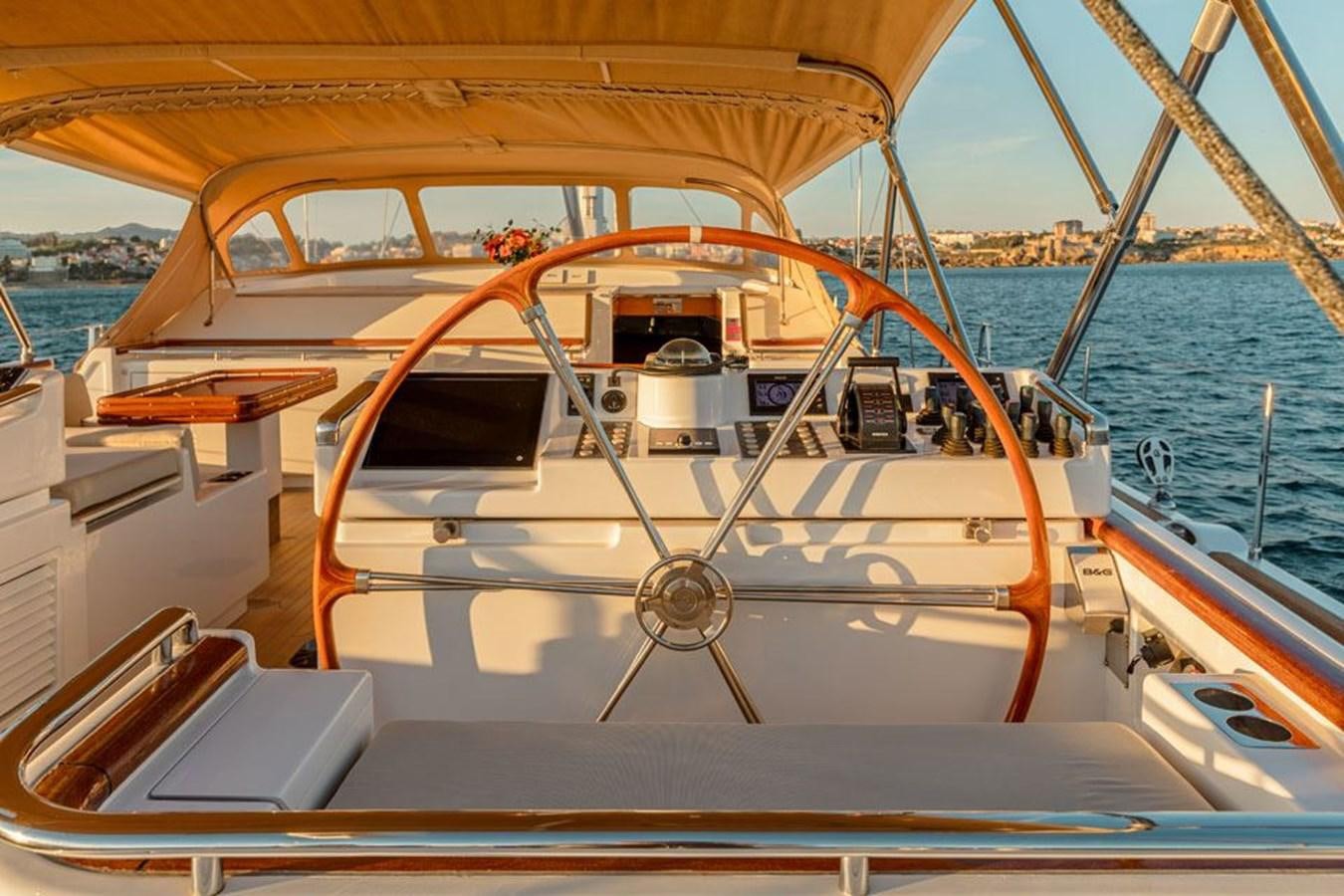

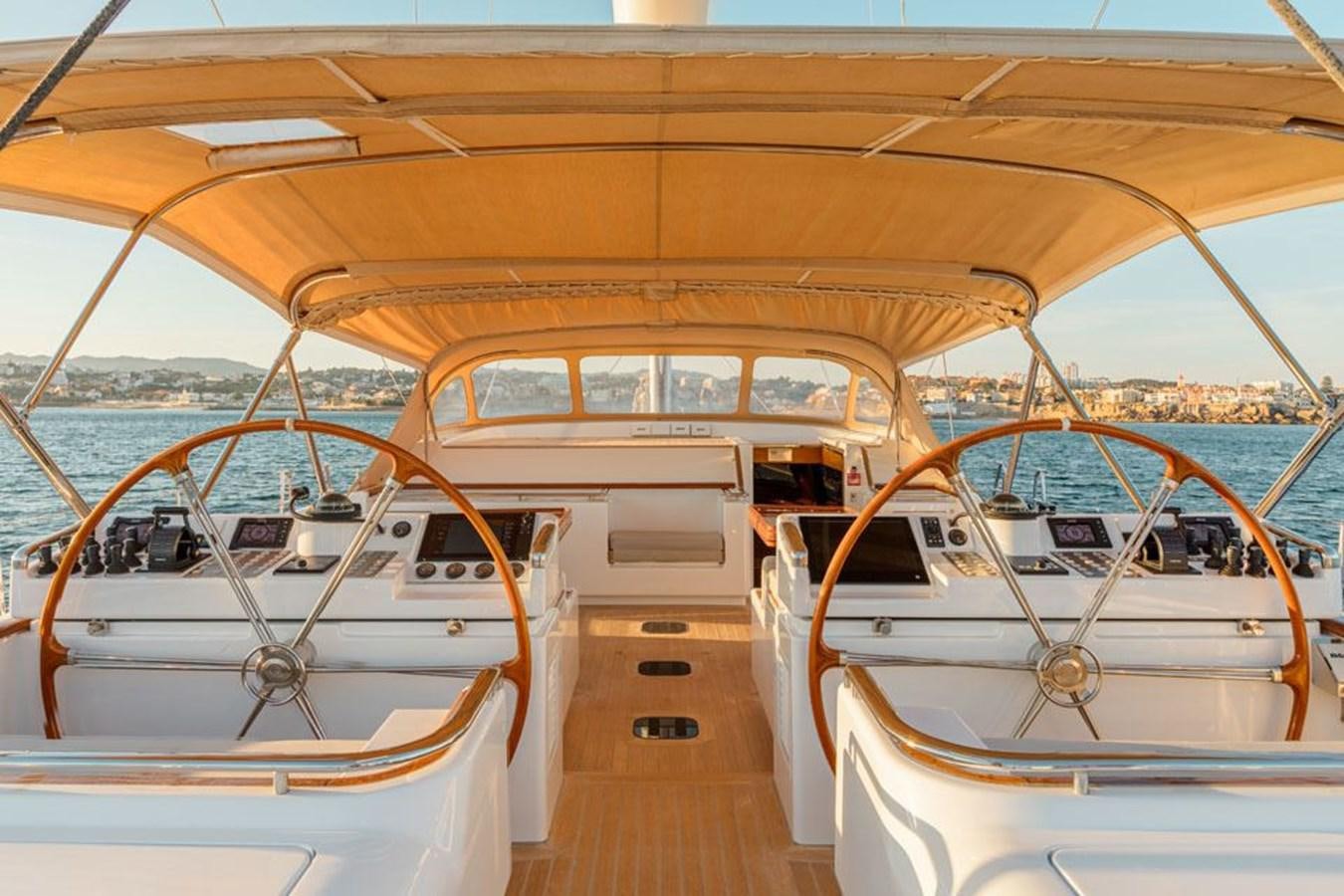

• Starboard and port side helm: joystick for jib sheets, jib furler, inner furler, mainsheet, main furler, bow furler, runners.
• At starboard helm: controls for tension on staysail and jib halyards, backstay and outhaul.

• All safety gear updated 2022, including 2 liferafts, life vests, personal AIS system for crew, grab bags, etc.
• 2 x liferaft 9650-1, stow in lockers in aft of deck coaming.
• 2 x Solas grab bag.
• 1 x EPIRB 406+121,5.
• 10 x personal AIS for crew.
• Handheld flares (4 x red, 2 x orange smoke).
• 2 x crew overboard recovery sling.
• 2 x 50m floating throwing line.
• 12 x life jacket harness
• 12 x safety lines.
• Search light in cockpit.
• Medical kit and handbook.
• Foghorn.
• New Securitas intruder alarm.
• Stainless fittings for jacklines on deck.

Fire-Fighting Equipment:

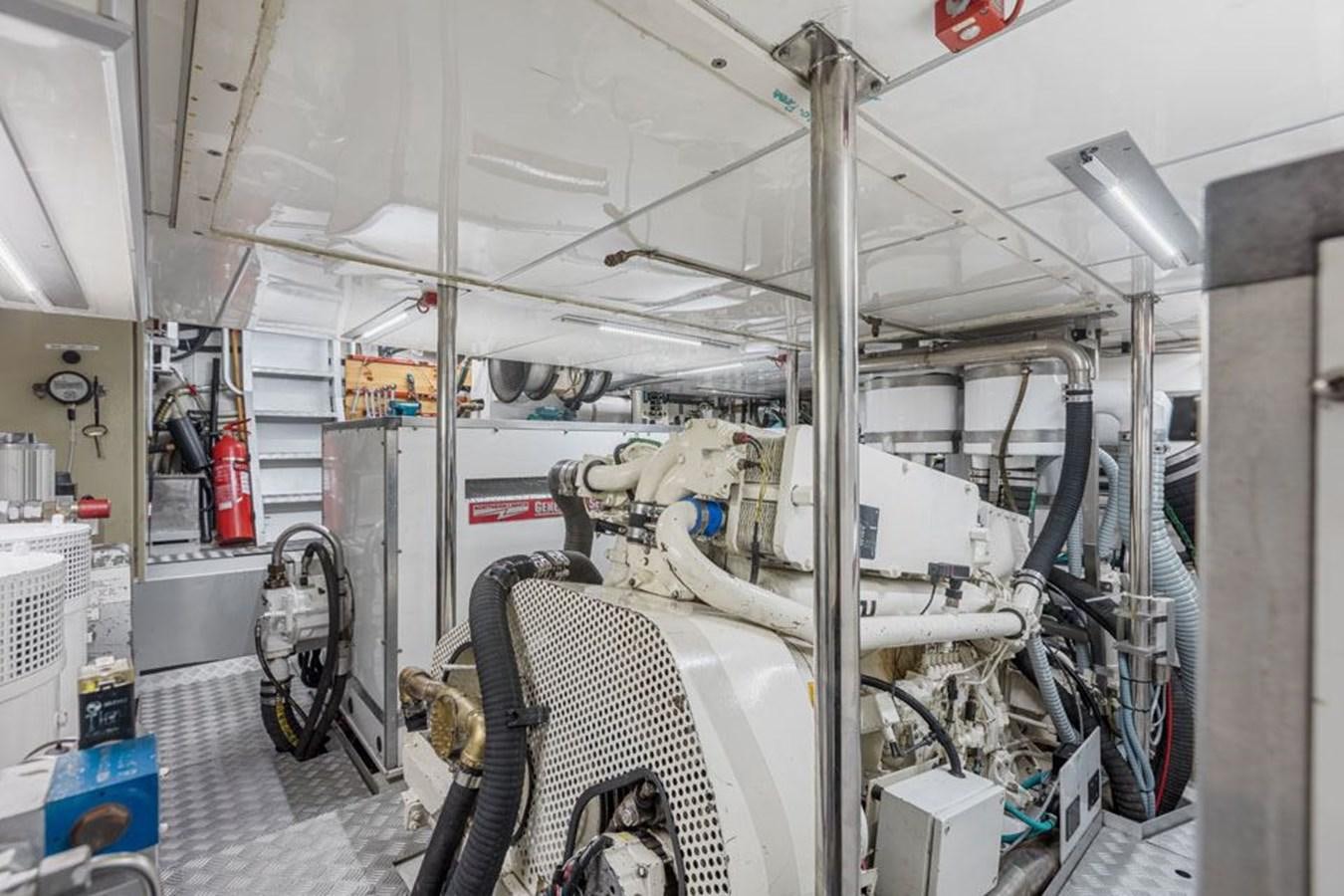

• SOFTEX engine room fire extinguishing system.

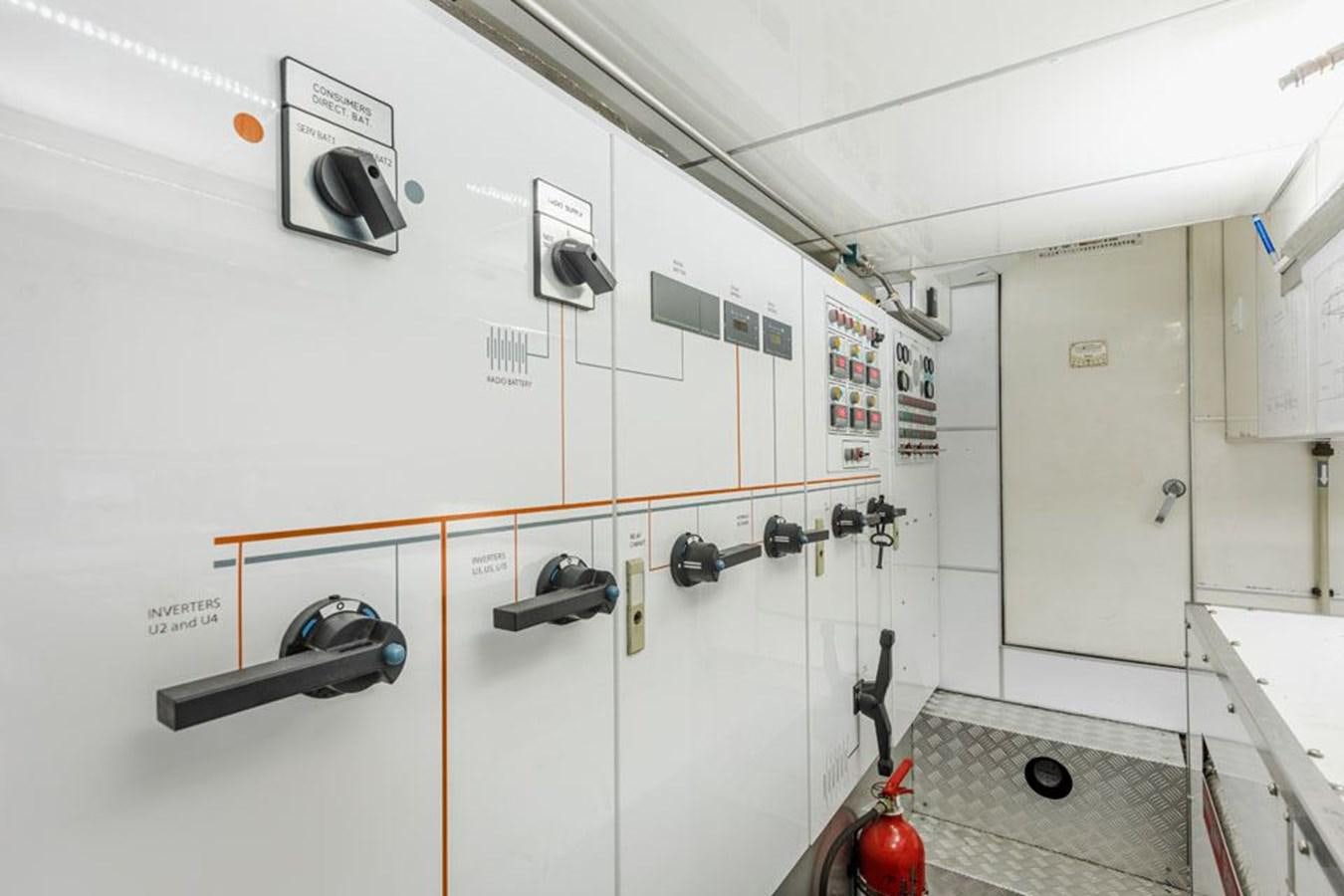

• Auto pyrogen extinguishers in relay + light cabinets and behind main switch board.
• 12 x fire extinguisher, throughout interior – new 2016.
• 3 x fire blanket (one in galley).
• New Securitas fire alarm.
