PATEA Yacht for Sale

Engine & gearbox

• Volvo D9 425 inline 6-cylinder 9.4 litre turbo-charged diesel engine producing 425hp @ 2,200rpm
• Fresh water engine cooling via raw water intake and heat exchanger
• Electronic throttle system

Systems monitoring

• 2 x PLC based vessel alarm monitoring information and control system VAMIC, comprising a FUJI SPH
• Series PLC and one 15’ LCD touch screen located at the navigation station in the saloon and one in the crew mess.

Voltage systems

• 24vDC primary domestic system with 220vAC and 110vAC AC via generators, shorepower or inverters

Battery Banks

• 24v house battery bank from 12 x 2V Sonneinstein heavy duty industrial service house system batteries with a capacity of 1250 Amp per hour at 10-hour rate
• 2 x 12v Mastervolt AGM 12/160 12-volt maintenance free batteries each rated at 1580cca (30 sec to 9.0v @ 18 degrees Celsius) One to start the main engine and one to start the generator.
• 2 x EXIDE AGM 96Ah 850 A Batteries for main engine start batteries
• 12v Radio Communications Battery 1 x Mastervolt MVG 12/140 12-volt Gel Block.
• 24v Bufer Emergency Battery Bank @ 2 x Mastervolt AGM70 12-volt AGM blocks rated at 50AMP hours C3 to 1.75VPC
• Mastervolt BTM III battery monitoring systems

Inverter chargers

• 3 x 100-amp Mastervolt House bank MASS 24/100 Automatic 3 step chargers with battery temperature and output voltage compensation. The output of each charger is controlled by a single remote charge rate controller installed on the main switchboard.
• 2 x Mastervolt Radio Communications Battery Magic 24/240-amp 3 step chargers supplied from the 24v service battery.
• 1 x Mastervolt IVO Compact 12/253 3 step temperature-controlled charger is installed
• 1 x 24v to 230v AC Mastervolt Inverter rated at 2.5KW supplies computers, navigation, communication and stereo equipment charger

Alternators

• Services bank charging by the engine driven alternator charges each battery

Shorepower

• 2x 20m fexible shore power cables with UV stabilized and non-marking covers ftted with HUBBEL 100 amp plug tops and connectors
• Shore power converter ASEA 24Kva Dual input power conditioner allows the vessel to operate from shore power voltages between 170 and 520 volts at frequencies between 45 to 64 HZ
• Mastervolt single phase shore power isolator

Heating & Ventilation

• Webasto air-conditional system - WBCP 114 Tri Chiller supplying 126,000 BTU comprising of:
• 2 x 24,000 BTU in main saloon
• 2 x 9,000 BTU in master cabin and ensuite heads
• 12,000 BTU in each of the three further guest cabins and ensuite heads
• 9,000 BTU in laundry
• 9,000 BTU in galley
• 9,000 BTU in crew mess area
• 4,500 BTU in each of the two crew twin cabins and ensuite heads

PLUMBING & HYDRAULIC SYSTEMS

Heads

• 7 x Tecma 24vDC freshwater heads
• Hot & cold pressurised showers in heads

Fresh Water

• 24vDC pressure system
• Hot water supplied via engine cooling with 2x 80 litre stainless steel well-insulated hot water tank with 220vAC immersion heater elements
• Hot & cold pressurised water to galley, heads and shower in cockpit

Watermaker

• Horizon Seafari SFC-1400-2
• 75 Gallons per hour / 284 litres per hour – 1800 Gallons per day / 6814 litres per day
• Watermaker hours: approx. 3,385 as of Winter 2021
• Multimedia Filter assembly
• Commercial preflter cannister
• Oil / Water separator
• pH Neutralizer
• Remote control and remote monitor

Bilge Pumps

• Electric and engine-driven bilge pump systems
• Bilge and DC bilge monitoring and control
• 14x highwater alarms
• 8x DC bilge pump run on alarms
• 8x DC bilge pump run indicators
• 2x Main engine bilge / fre pump run indicator

Water Pump

• Multinox-N-80/48-M Boreak for water system 230V/50Hz Protection IP44

Black & Grey Water

• Grey and black water discharges to holding tanks

Hydraulic Systems

• Hydraulic power system by Maxpower 20-gallon reservoir
• Rexroth Variable displacement hydraulic pump genset PTO
• Oil cooling system / heat exchanger dual thruster control stations
• 3 x 24v DC Hydraulic Pump sets with 5kw motor and contractor commercial duty cooling pump 24v

TANKAGE
Fuel

• Fuel capacity: approx. 6,000 litres
• 2 x fuel storage tanks, contents display, low level and manually activated high level alarm

Fresh Water

• Freshwater capacity: approx. 2,500 litres
• 2 x freshwater tanks, contents display, low level alarm

Holding Tanks

• Black and grey water holding tanks
• Grey water tank contents display, high level alarm and pump – shut of control at low level
• Black water tank contents display, high level alarm and pump – shut of control at low level

• At the rear of the Main Saloon, a staircase leads guests down to a spacious passageway to the beautifully appointed staterooms. The truly luxurious Master Stateroom features a king size bed and leather couch along with an office area and ensuite. A spacious Aft Port Double guest stateroom and ensuite provides a haven of comfort and style for the guests. The Aft Starboard guest stateroom is designed to be arranged as two twins but easily converts to a double stateroom complete with its own ensuite.
• The third multipurpose guest stateroom/media room can be used as a further double cabin (the 4th one) with ensuite facilities or as a lounge/study area providing peace and quiet.

Galley

• Miele hob with 3x gas burners and 1x 220vAC Induction burner
• Miele S241 BP oven
• Blanco range hood extractor
• Miele M 8261 microwave oven
• Weber BBQ
• 2 x fridge freezers
• 2 x large underfoor freezer/refrigerators
• 2 x ice makers
• 2 x drink fridges
• 1 x wine fridge
• Miele G5510 Scvi dishwasher
• Broan Elite trash compactor

Laundry

• Siemens 8kg iSensoric IQ300 front-loading washing machine
• Beko 8kg DRX822W clothes dryer

• Furuno LH3000VHF Loudhailer
• ICOM M 505 VHF
• ICOM IC-M37 Handheld VHF
• ICOM 801 HF Radio
• Furuno Flush Mount Kit Horn

• 3 x 16” Furuno Colour LCD Displays
• Furuno GP330, AIS FA 150 Radar
• Furuno DGPS GP37
• Furuno Digital fsh fnder DFF
• B&G Hercules Performance Base Pack Speed/Wind/Nav
• 5 x B&G H3000 GFD Pack Units
• 2 x B&G Analogue Display AWA 360
• B&G ACP Auto Pilot Pack
• B&G Gimbaled rate compass
• 3 x B&G 30/30 HV displays
• B&G Rudder Reference Unit Angle Indicator
• 3 x B&G Display Control and MOB
• B&G Wireless Remote Vision Pack

• Samsung Flat screen Tv’s for salon and all cabins
• BOSE Sound systems for Salon and all cabins

Tender

• Caribe 8-passenger tender with 50hp Evinrude 2 stroke outboard

Toys

• 2 x infatable stand-up paddle boards
• Wakeboard
• 2 x folding electric bicycles
• 1 x folding bicycle
• 1 x electric scooter

Note: Subject to change and/or negotiation during the buying process.

Diving

• 2 x dive tanks
• BCD’s, BOU
• Air compressor
• Snorkelling sets

Hull, Deck & Superstructure Construction

• Carbon fbre and composite hull, deck and superstructure construction

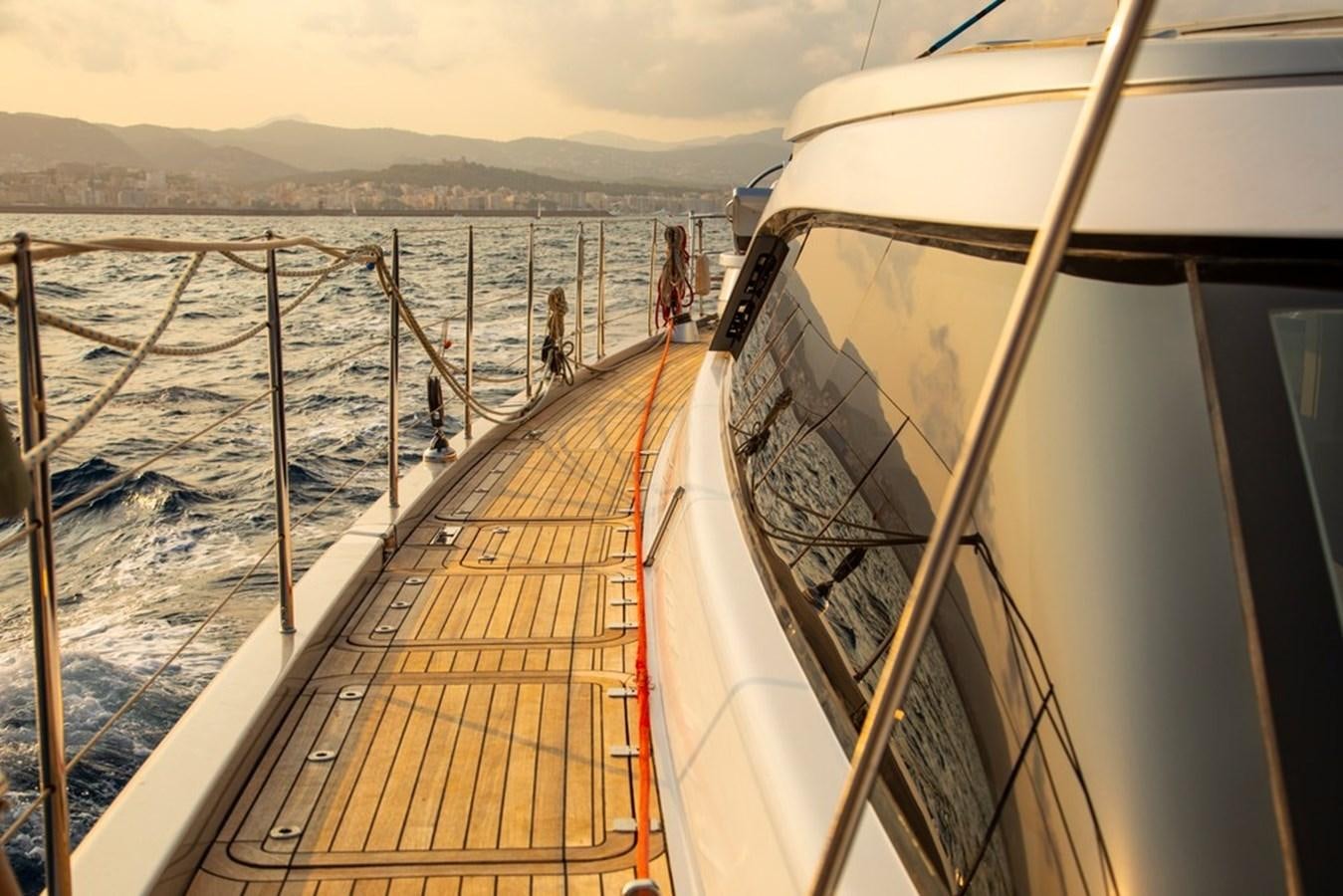

• Teak over fberglass decks
• Dark blue AWL Grip painted topsides

General

• Hydraulic opening transom door creating large swimming platform
• Custom carbon davits for tender retrieval and storage.

Anchoring & Mooring

• Maxwell VWCLP 4500 hydraulic anchor windlass with gypsy
• Anchor Windlass Control/Dual Direction Single speed
• Manson 150kg SS Plough primary anchor with 100m of ACCO 14mm high tensile chain
• Fortress with 80m of Spectra warp and 10m of chain
• Jabsco Centramax 304501024 24v 38lpm (salt and fresh water washdown)
• Swim/boarding Ladder - that can be used port or starboard side or on swimming platform
• Carbon Fibre Passarelle

Rig

• Southern Spars white-painted carbon fbre keel-stepped mast with 4-sets of spreaders
• Southern Spars white-painted carbon fbre in-boom furling boom with carbon fbre mandrel
• Nitronic stainless steel standing rigging – serviced and reheaded – 2021
• Southern Spars white-painted carbon fbre spinnaker pole – mast mounted
• Reckman hydraulic genoa and jib furlers
• Hydraulic vang and split backstays
• Checkstay
• Adjustable genoa tracks

Winches

• 2 x Lewmar 2-speed dual-direction powered mainsheet captive reel winches
• Lewmar 2-speed dual-direction powered main halyard captive reel winch
• 2 x 111 Lewmar powered cockpit genoa winches
• 2 x 88 Lewmar powered cockpit blade jib winches
• 2 x 88 Lewmar powered halyard winches at mast base

Sails

• Evolution Sails (NZ) carbon/vectran membrane fully battened performance cruising 317sqm mainsail -2020
• Evolution Sails (NZ) carbon/vectran membrane performance cruising furling 330sqm genoa - 2020
• Evolution Sails (NZ) carbon/vectran membrane performance cruising furling 179sqm blade jib - 2020
• Doyle Sails (NZ) AP spinnaker – 2012
• Doyle cruising mainsail 260 sqm – 2012


Life Saving

• 2 x 10-man canister liferafts
• 4 x lifebuoys
• 14 x lifejackets
• SART rescue transponder

Fire control

• Automatic fre extinguishing system in engine room
• 8x 1kg fre extinguishers
• 4x 6kg fre extinguishers
• Record of safety equipment certifcate – updated August 2021
