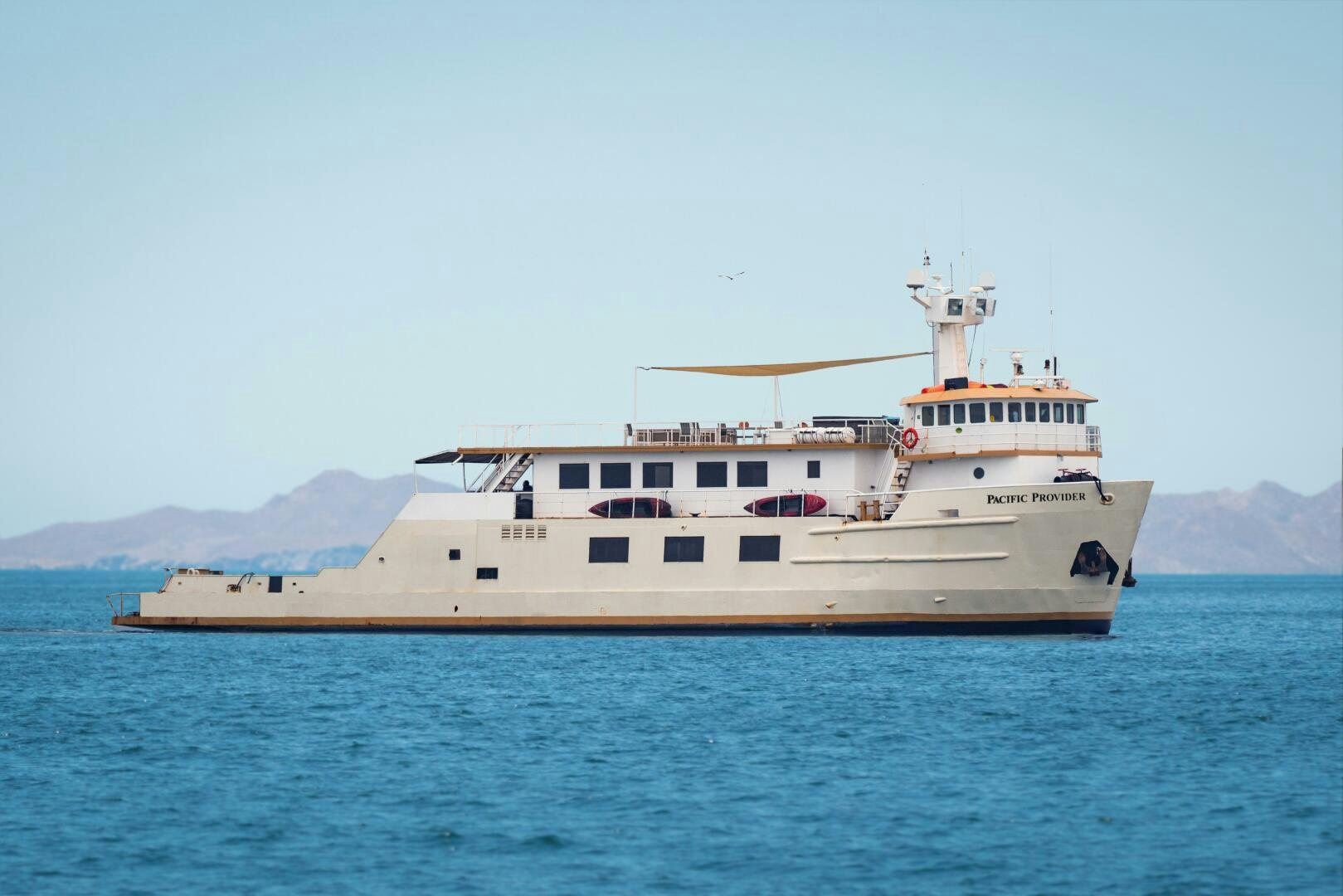

PACIFIC PROVIDER Yacht for Sale

ELECTRICAL:

• 3- Phase 100-amp 480 VAC
• AED 3 Phase 75Kva Isolation transformer
• 5- Eight-D batteries for starting
• 2- Eight-D batteries at wheelhouse for electronics

AIR COMPRESSORS:

• Quincy 325 with independent 150-gal pressure tank

WATER TREATMENT AND SANITATION SYSTEM:

• 1- Headhunter HMX MSD 2,000 gpd, black & grey water 40 person/day
• 10- Royal flush freshwater toilets

HOUSE WATER PUMPS:

• 2- EBARA Multistage EVMN56 pump 3 hp w/pressure regulator
• 3- Hot water heaters: A.O. Smith 40 Gal, 480V
• 1- Hot water circ pump, Grundfoss UP15-24, 1/25 hp

LUBE OIL TRANSFER PUMP:

• Baldor 1.5 hp, 5 gpm

FUEL OIL TRANSFER PUMP:

• 1- Roper 22 gpm, 2hp Baldor
• 1- Goulds 300 gpm, 25 hp
• 1- 1.5 hp Baldor, 9 gpm
• Fueling stations port & starboard aft
• 2- Steering pumps: 10 hp, hydraulic
• 1- Bilge pump Baldor 25 hp driving Goulds pump, 400+ gpm world energy

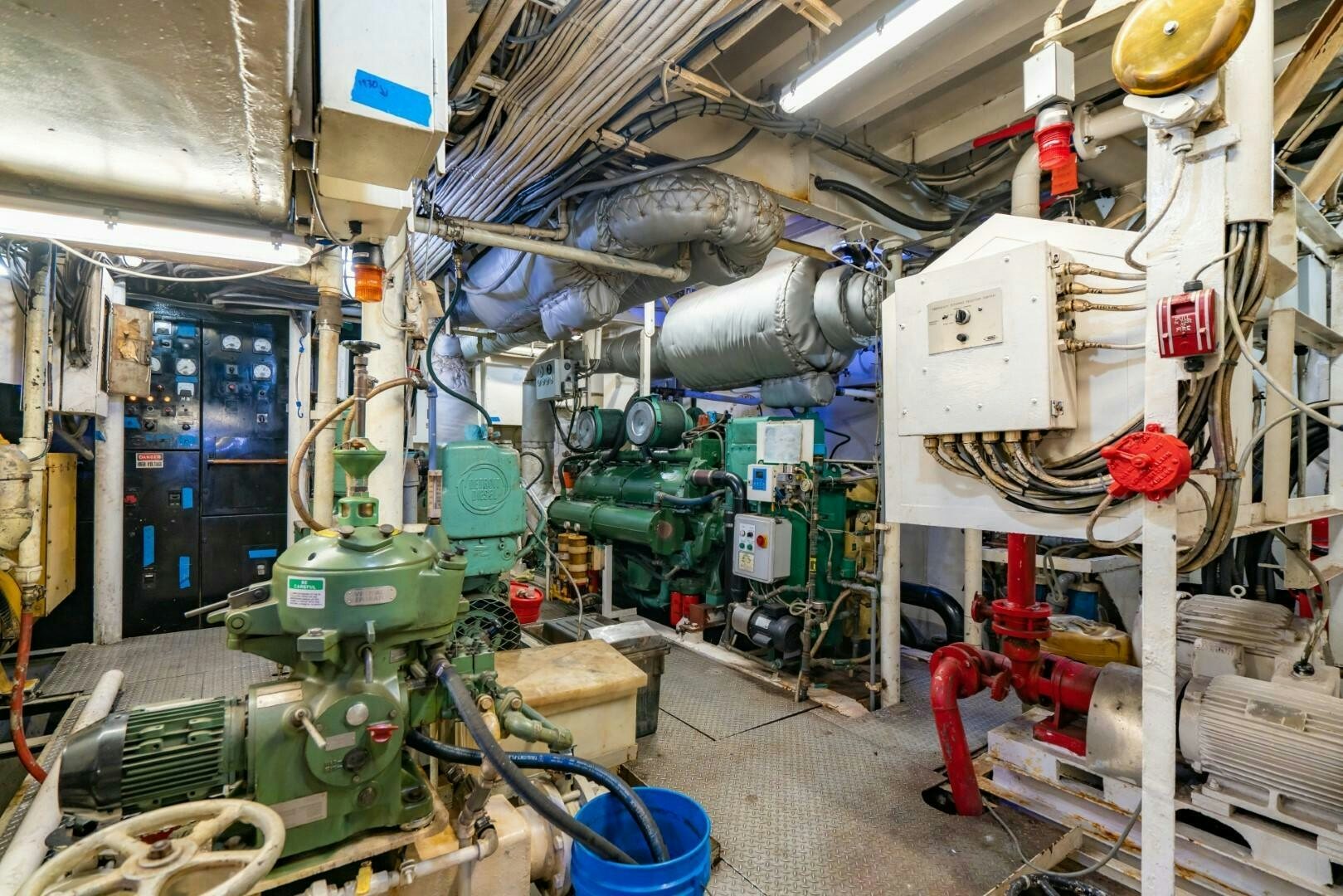

CENTRIFUGE:

• Westfalia OTB 200 066, 30 gpm

HYDRAULIC SYSTEM:

• 1- 100 hp Electric-Hydraulic
• 1- PTO from Bow Thruster

RUNNING GEAR:

• 2- 70" 4 Blade rops
• 2- 6" diameter shafts

GROUND TACKLE:

• 1- 1 1/4 hydraulic dual anchor winch
• 2- 720' x 1.25" chain P/S
• 2,000 lb anchor
• 1,500 lb anchor

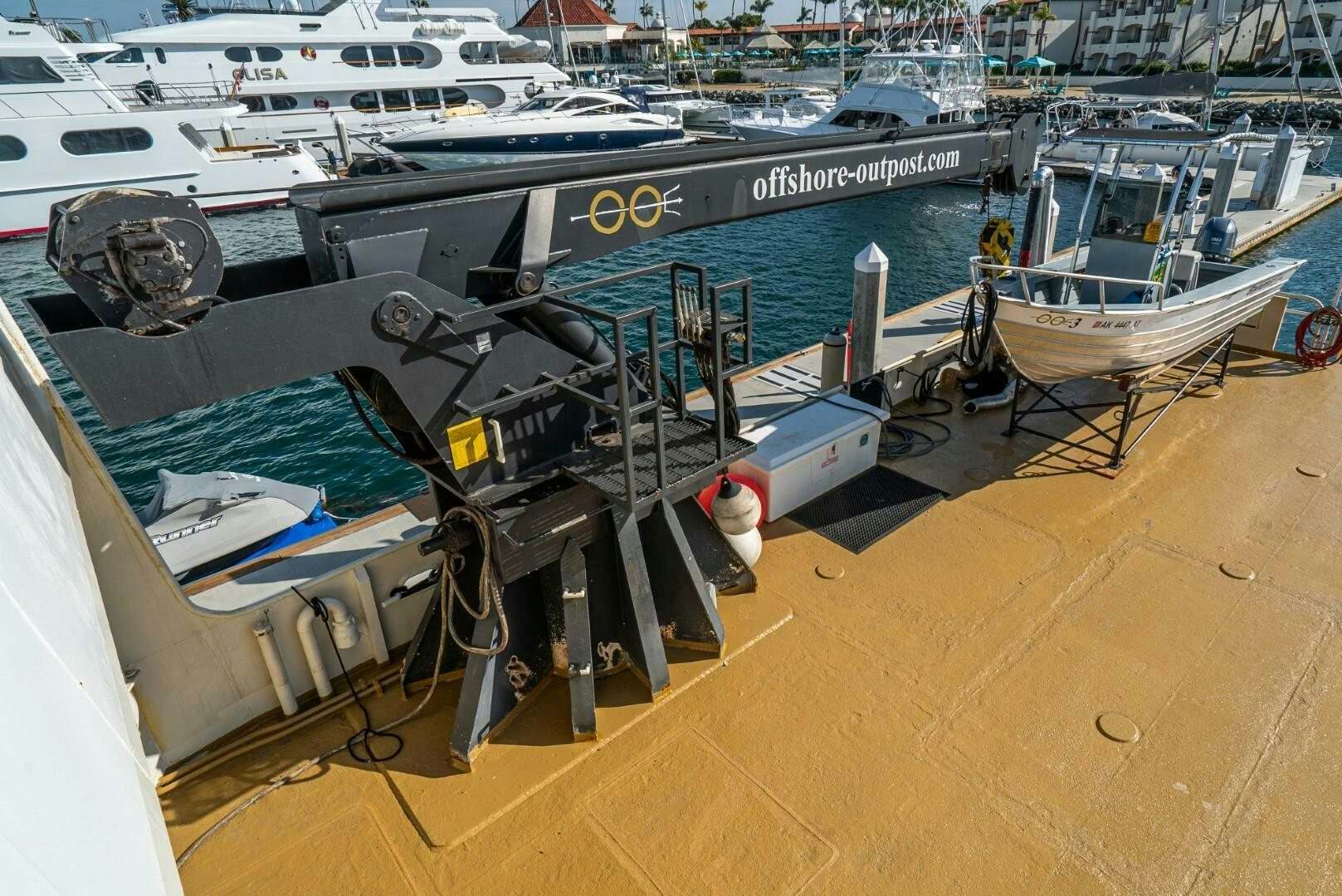

CRANE:

• Grove RT 60 pedestal crane 17 Ton lifting capacity, booms out 51’

ICE MAKERS:

• 1- Manitowoc 500 lbs/day in garage
• 1- Manitowoc 400 lbs/day in galley
• 1- Manitowoc QM45 45 lbs/day in both bar

OILY WATER SEPARATOR:

• Recovered energy, Boss 107 @ 15 ppm

WATER MAKER:

• Village Marine PW 5000 with media filter 5 membrane, 7,000 gpd

DIVE COMPRESSOR:

• Nuvair 5.5hp, model MCH-13, fills standard dive bottle in 7 mins

ACCOMMODATIONS:

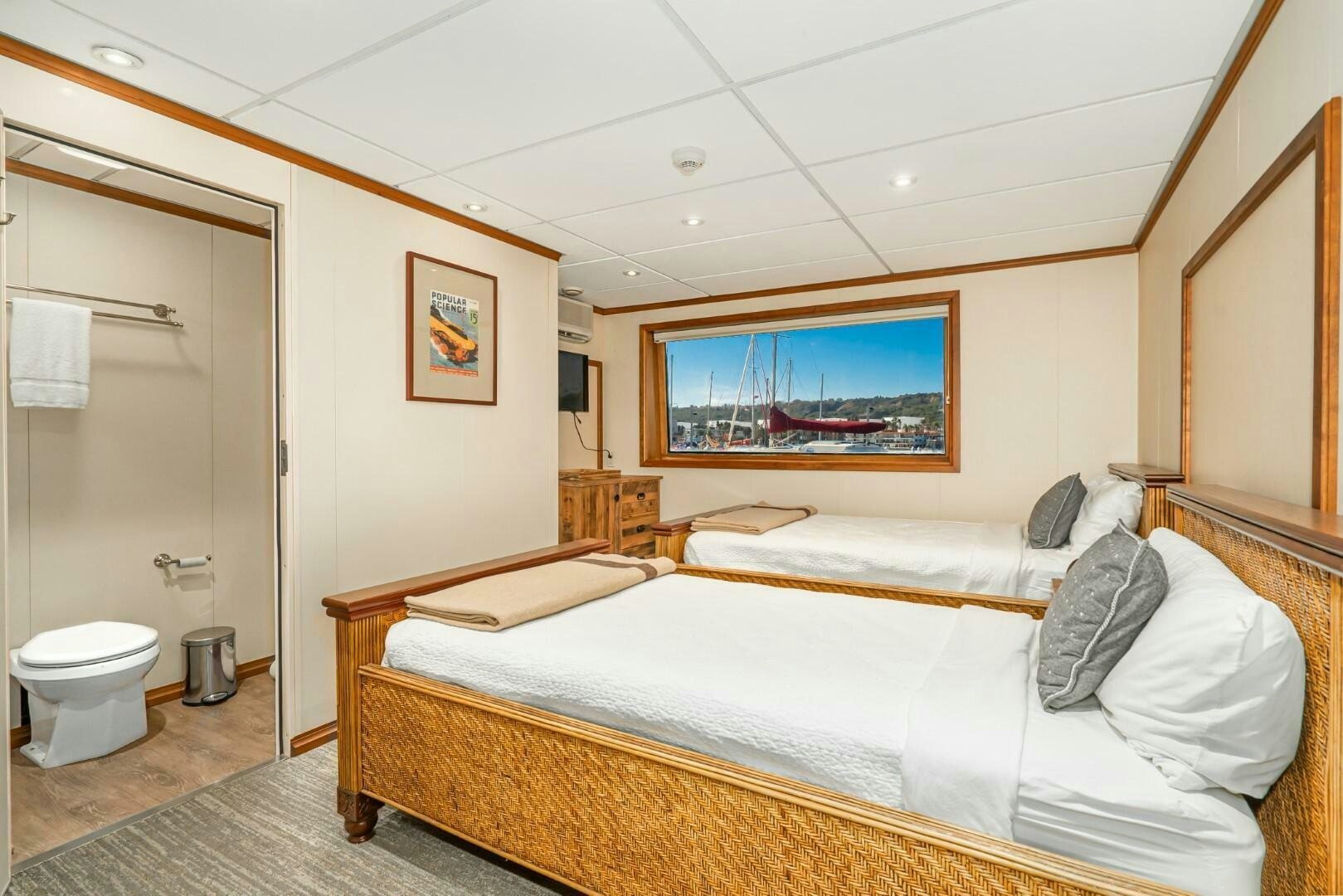

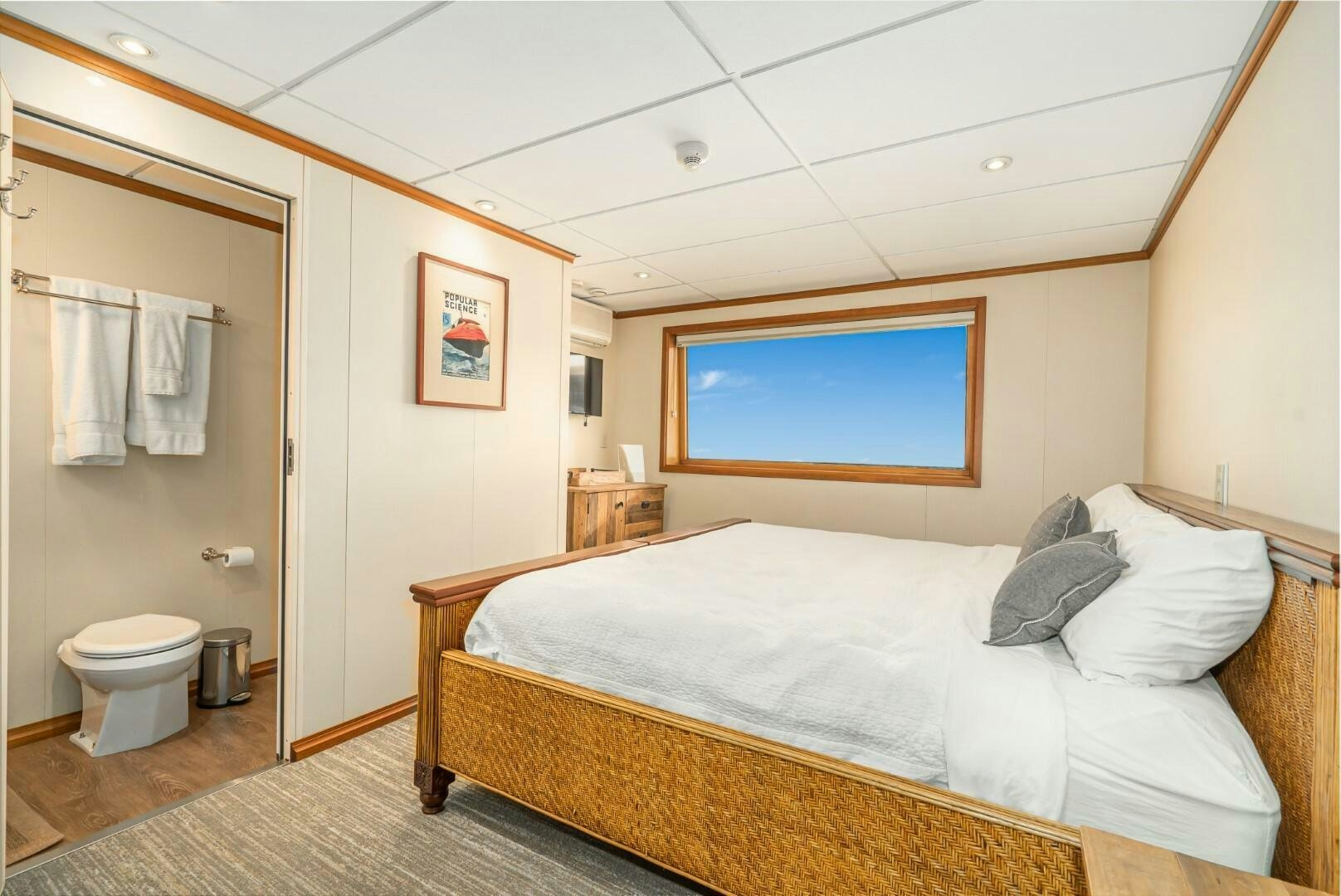

• There are 6 equal staterooms for guests refurbished in 2017.

Each stateroom includes:

• Private en-suite bathroom with shower
• Twin or King bed flexible configuration
• Flat screen TV and stereo
• Large Armoire
• Natural wood nightstand and dresser
• Large picture windows (1/2” tempered glass)
• Individual room-controlled A/C and heat
• Nautical themed artwork
• Ensuite Heads with sink, mirror, stall shower and toilet

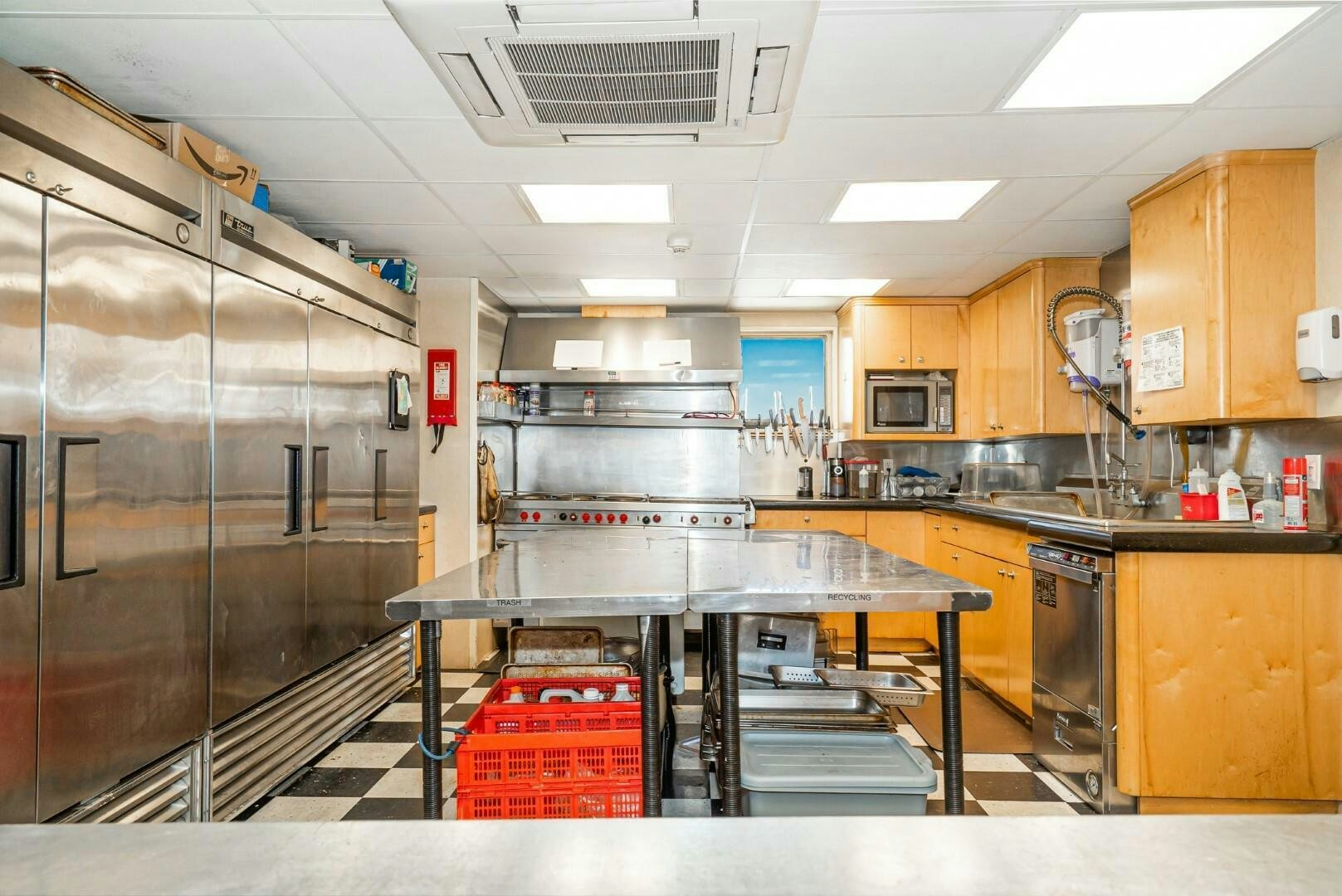

• Located forward of the salon, huge commercial galley
• 4 ½’ x 8’ S/S Island with shelving below
• 2- Double S/S sinks
• Viking commercial grade stove with double oven
• 2- Four-minute commercial grade dishwasher
• Reach-in refrigeration (True 3 door)
• Reach-in freezers (True 2 door)
• 3- Wine coolers
• Extensive dry storage capacity
• Spacious galley cabinetry
• Commercial kitchen tools
• 2- Amanda microwave ovens
• 2- Ice makers (400lbs/day)
• Extensive number of utensils, pots, pans, flatware
• Large walk-in refrigerator and freezer (located on main deck below galley)
• Three full sets of commercial laundry washers and dryers (located at lower deck)

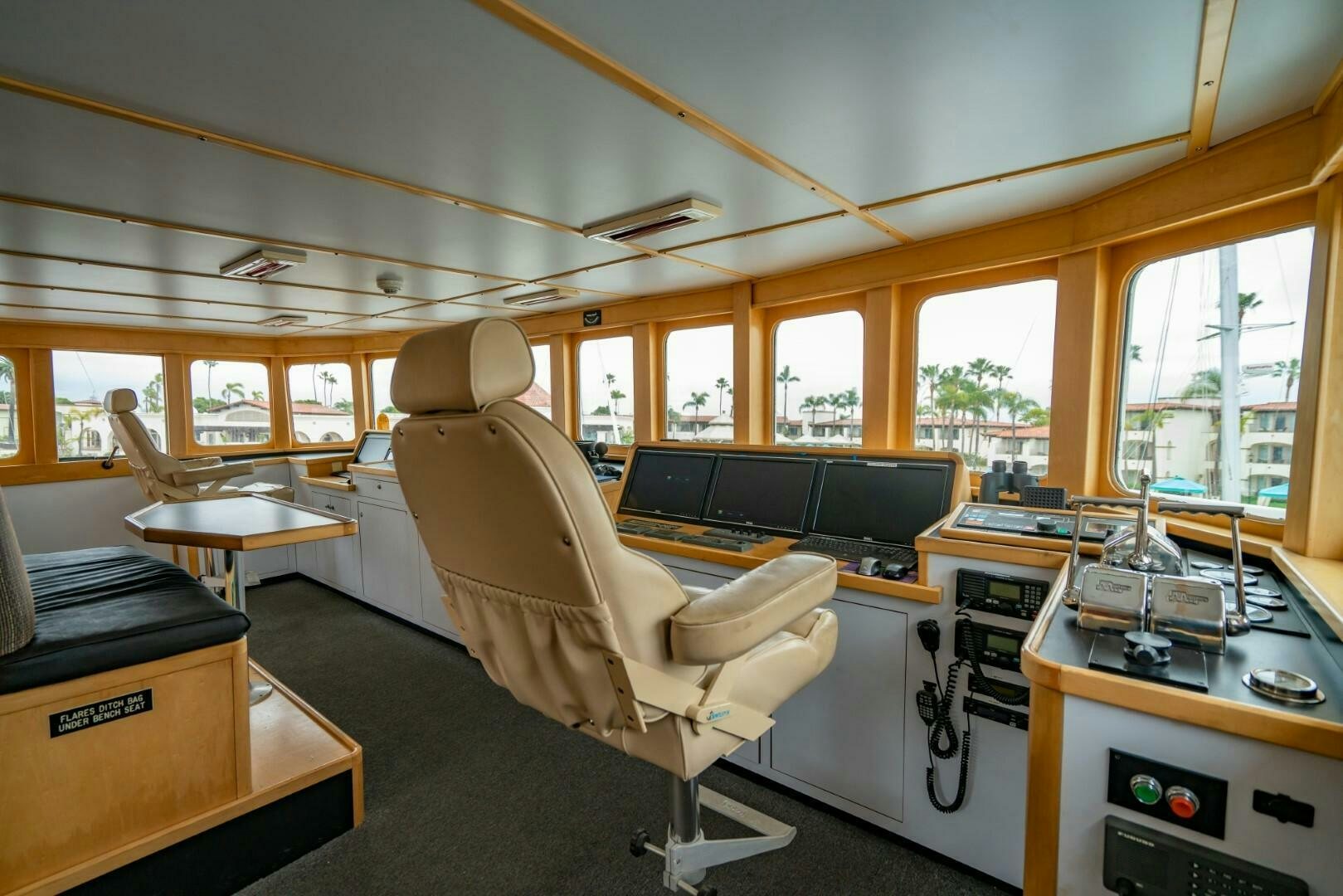

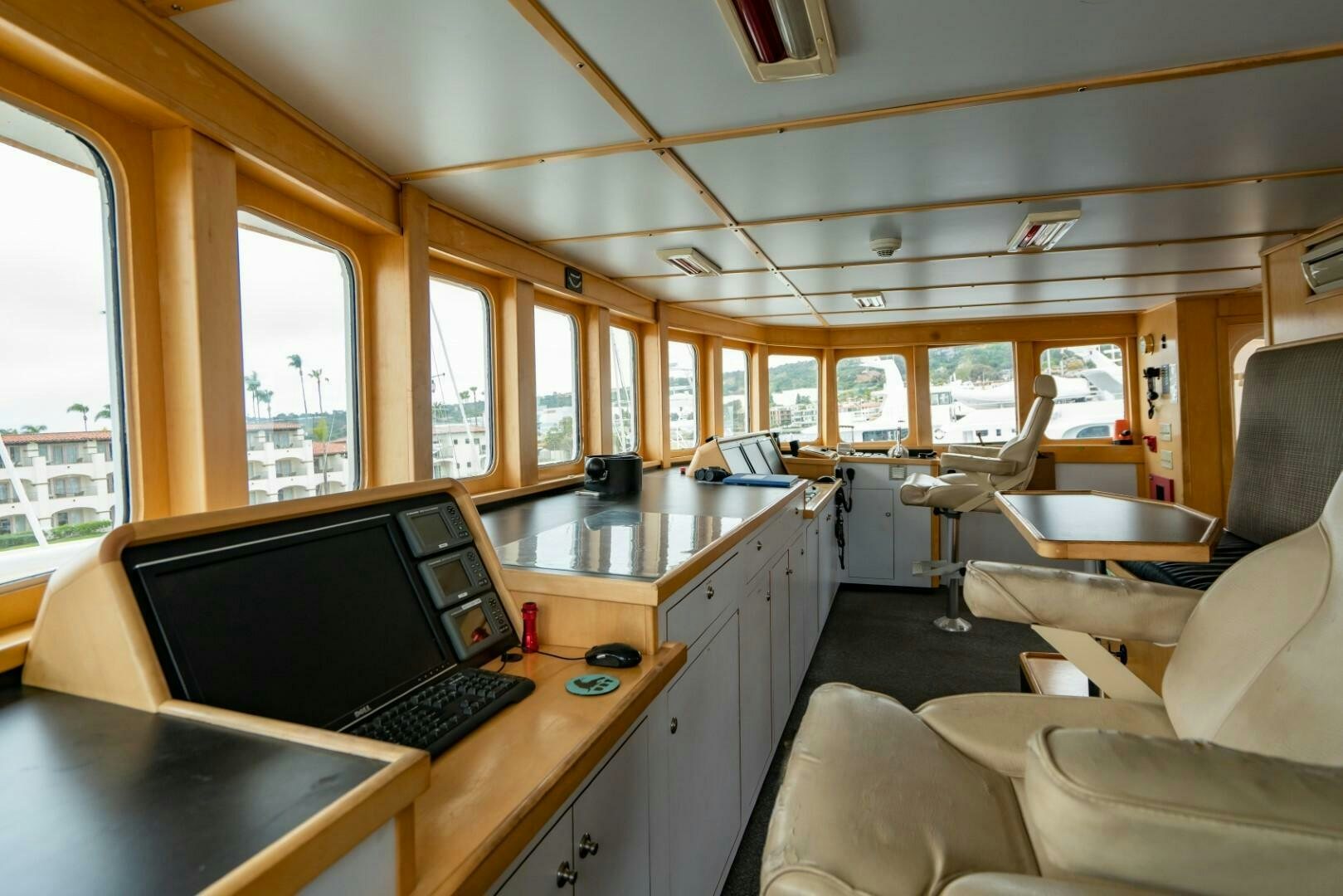

• VHF ICOM 604
• 1- Two meter - ICOM IC-2200H
• 1- Air Band - ICOM IC-A210
• 1- Sat Phone - KVH TracPhone V7 with 26" Dome (VSAT)
• 1- Sat TV - KVH M7 with 26" Dome
• 1- KVH M7 with 26" Dome

• 1- Chart Plotter - Dell PC,2.4 GHZ driving Nobletec software
• 1- Radar 1 - Furuno 1964 BB
• 1- Radar 2 - Furuno FR-8051
• 1- Sounder 1 - Furuno 1200 BB, 50/200 KHz
• 1- Sounder 2 - Furuno RD-30
• 1- Auto Pilot - Robertson AP-45
• 1- Compass 1 - Furuno SC-50 Satellite Gyro
• 1- Compass 2 - Dirigo 6" Magnetic
• 1- AIS - Furuno FA-150
• 1- Camera System - Elbex P/T/Z, Color - E-room and Aft Deck
• 2- GPS - 2 each, Furuno GP-32
• 1- Weather Station - Furuno PB100
• 1- Sea Temp - Furuno RD-30
• 4- Monitors - Dell 20" - 4
• 1- Hailer - Furuno LH-3000

• Samsung TV
• 65” Samsung HDTV
• Yamaha RX-V1800 surround sound

Office:

• 1- Dell PC, 2.4 GHZ with 20" Dell Screen
• 1- HP Color Copier / Fax

• 1- 16’ aluminum hulled “Zodiac”
• Standup Paddle boards
• Kayaks
• Fishing equipment and snorkel gear
• Dive Compressors: (1) Nuvair 5.5hp, model MCH13
• Stnd. (Serviced 11/18) Fills dive bottle in 7min

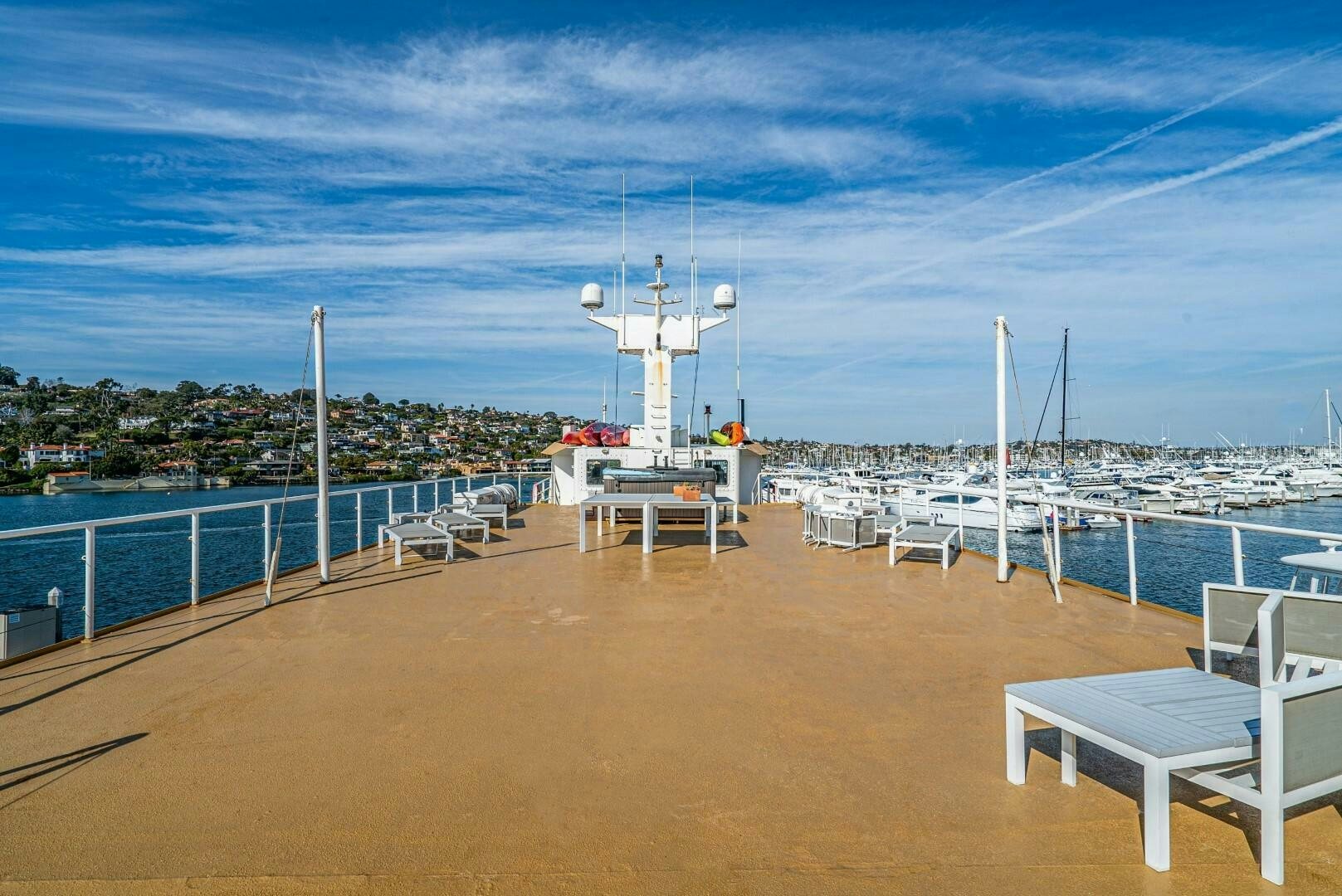

SUN DECK:

• Located aft of the wheelhouse, large open area for lounging and sunning.
• 7- Person hot tub
• 2- Dining tables
• 12- Person dining capacity
• Triangular sail shade
• 6- Chaise lounge
• 4- Outdoor sofas
• 2- Coffee tables
• 4- Outdoor sofas

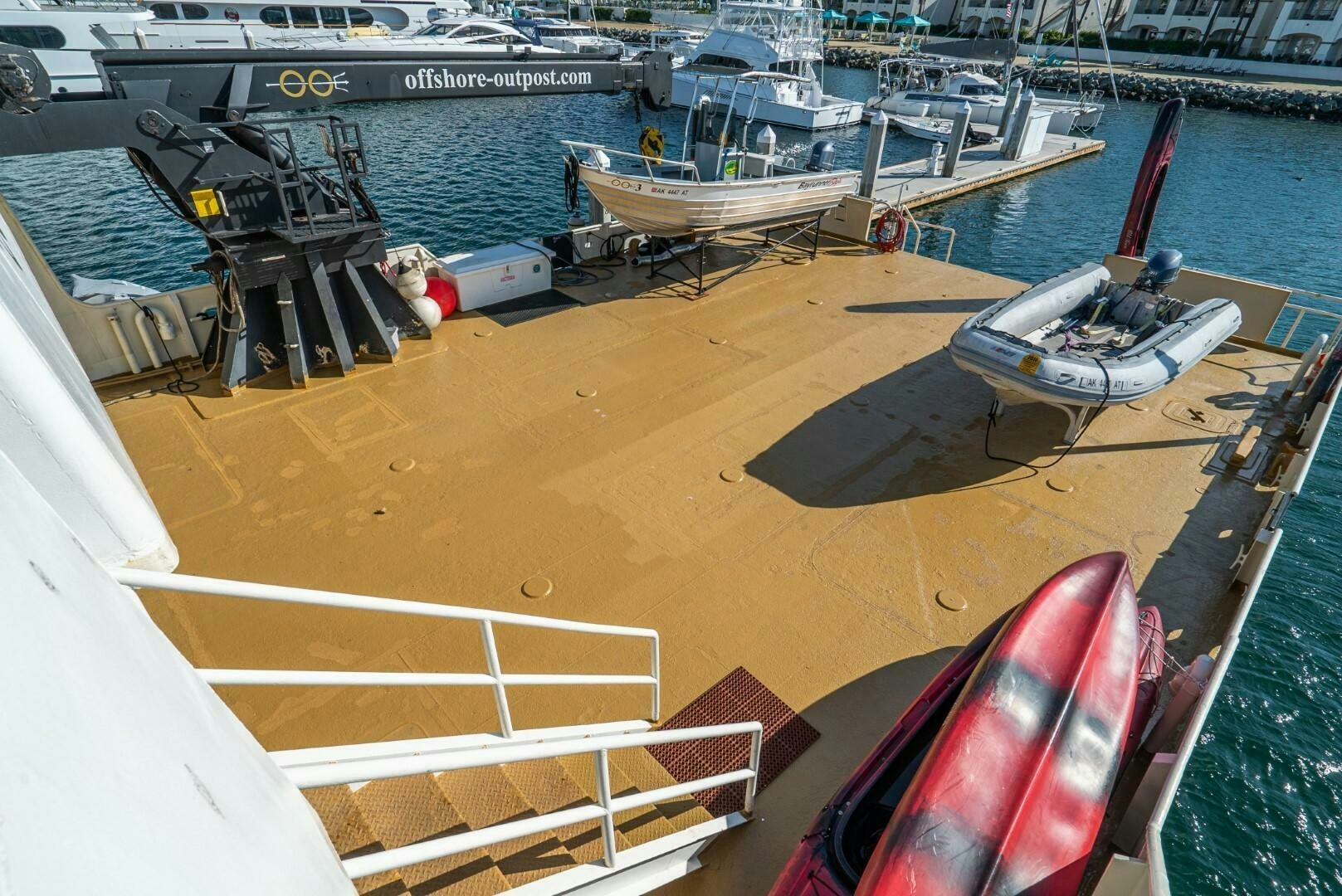

AFT DECK:

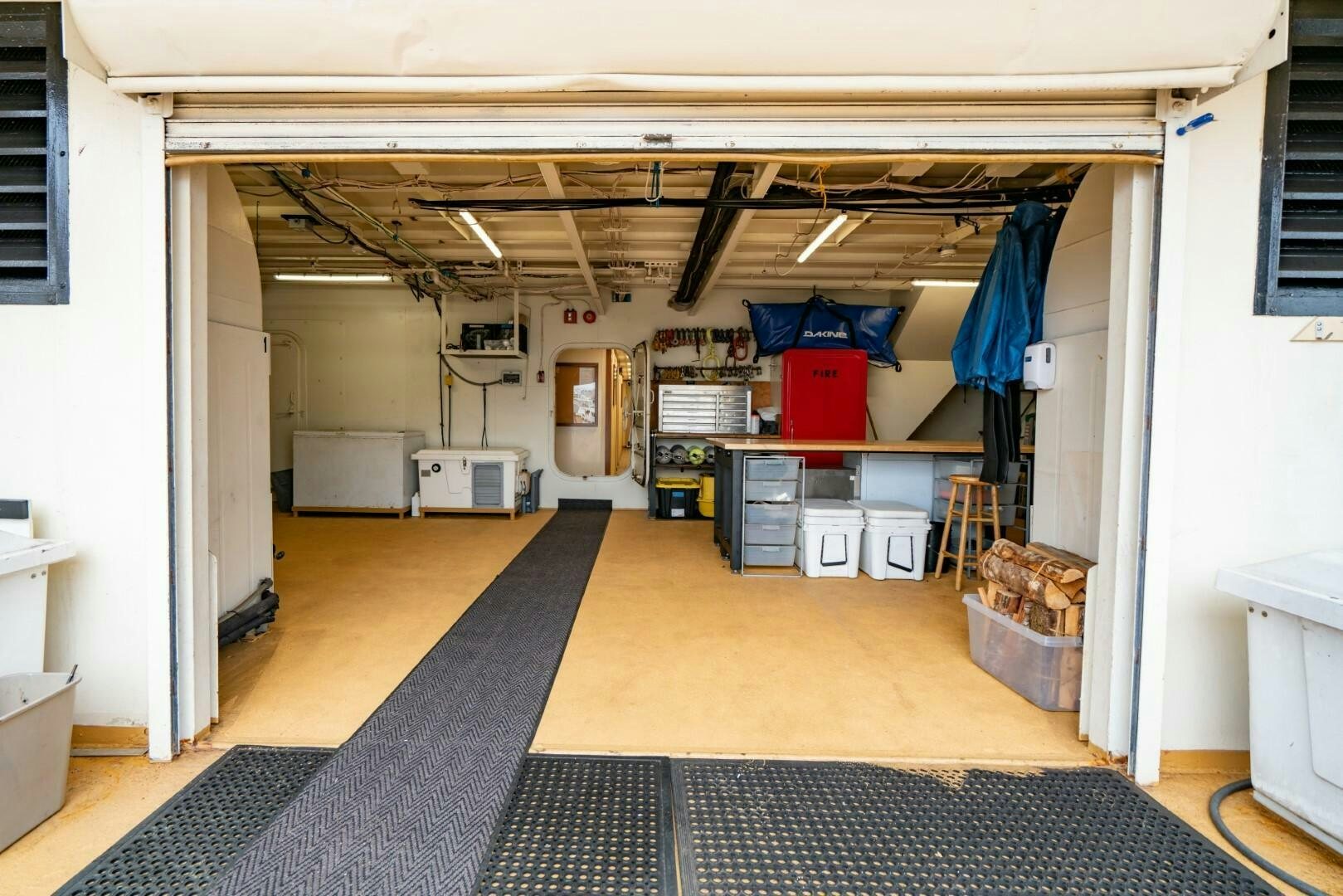

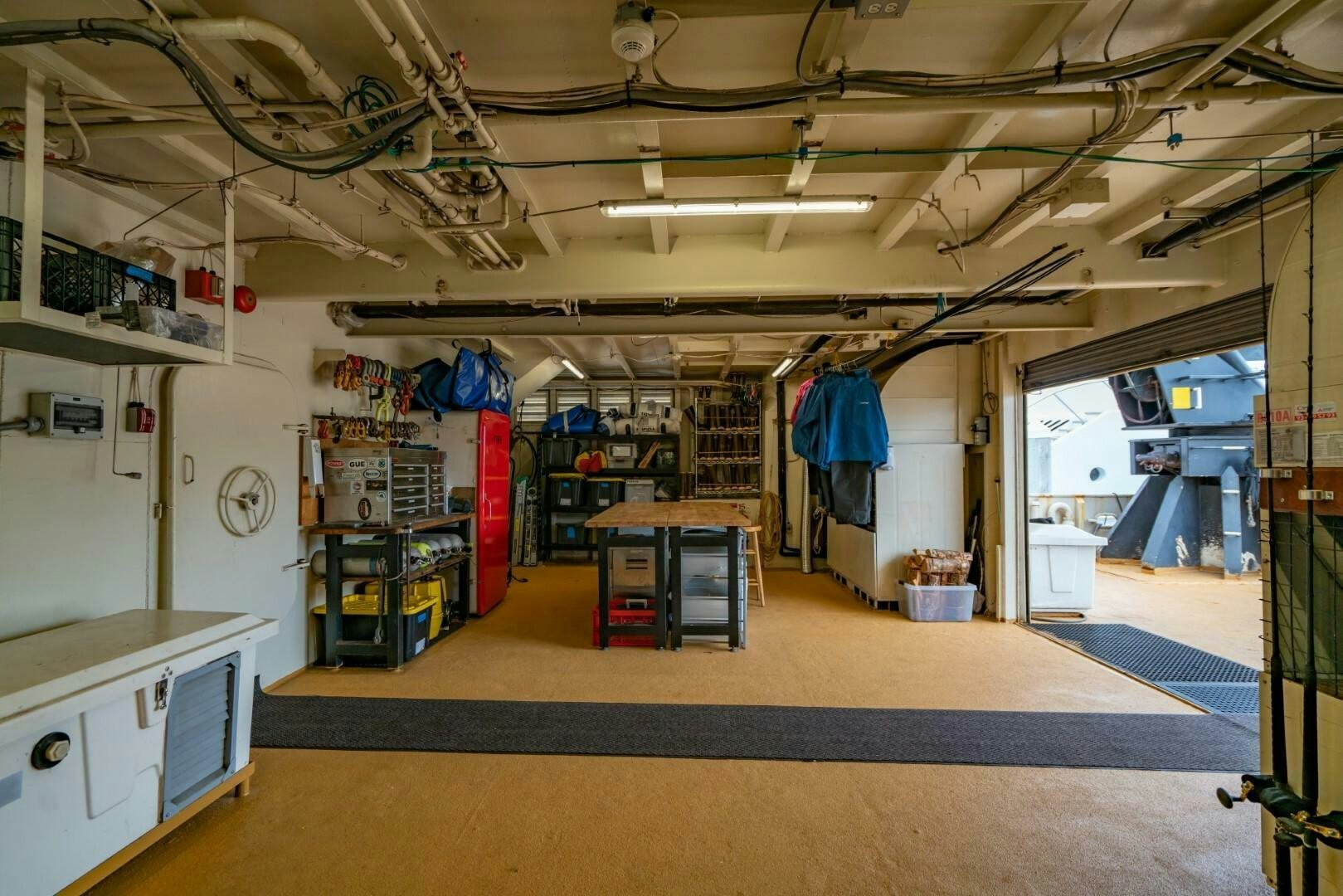

• The work / boat deck of this vessel is designed for maximum function in a defined space. It measures 45 feet long by 35 feet wide. The 17-ton telescoping crane booms out to 51 feet. It is a work horse and can securely lift game boats and the ship’s tenders onto and off the deck. The “garage” is located forward of the deck and has a large roller door giving excellent access. The garage holds everything from maintenance equipment to safety equipment, adventure gear and fishing & tackle supplies. Air-conditioned tackle center accessed from the garage. It also serves as a necessary staging point for the ship’s maintenance. At the aft end of the work deck, across the transom are stairs to the large swim platform.

Fire Systems

• 1- Fire alarm system FireShield
• 1- Eroom
• Fixed Halon 1301, 285 lb
• Portable fire extinguishers throughout, various 26 types
• 1- Fire suit and OBA
• 2- Axe
• 4- Escape hoods
• 1- Fire blanket
• 6- Fixed water mains, bronze nozzles, 50' hose
• 1- Fire pump 20 hp driving frame pump, 400+ gpm

General

• 1- EPIRB – McMurdo G5
• 2- SARTS, McMurdo S4 & SIMRAD SA50
• 6- Hand held flares, Pains Wessex MK 8
• 3- Parachute flares, MK 8
• 3- Floating smoke – Pains Wessex MK 5
• 1- Rocket launching gun - Comet
• 4- Rockets, #9112700
• 2- 30” Solas life rings with Pains – Wessex strobe and smoke
• 1- Signal Lamp, Hella 55/100 WATT
• 1- 17’ Jacobs ladder
• 4- Zodiac SOLAS a life raft – 16 person

2015 – REFIT WORK

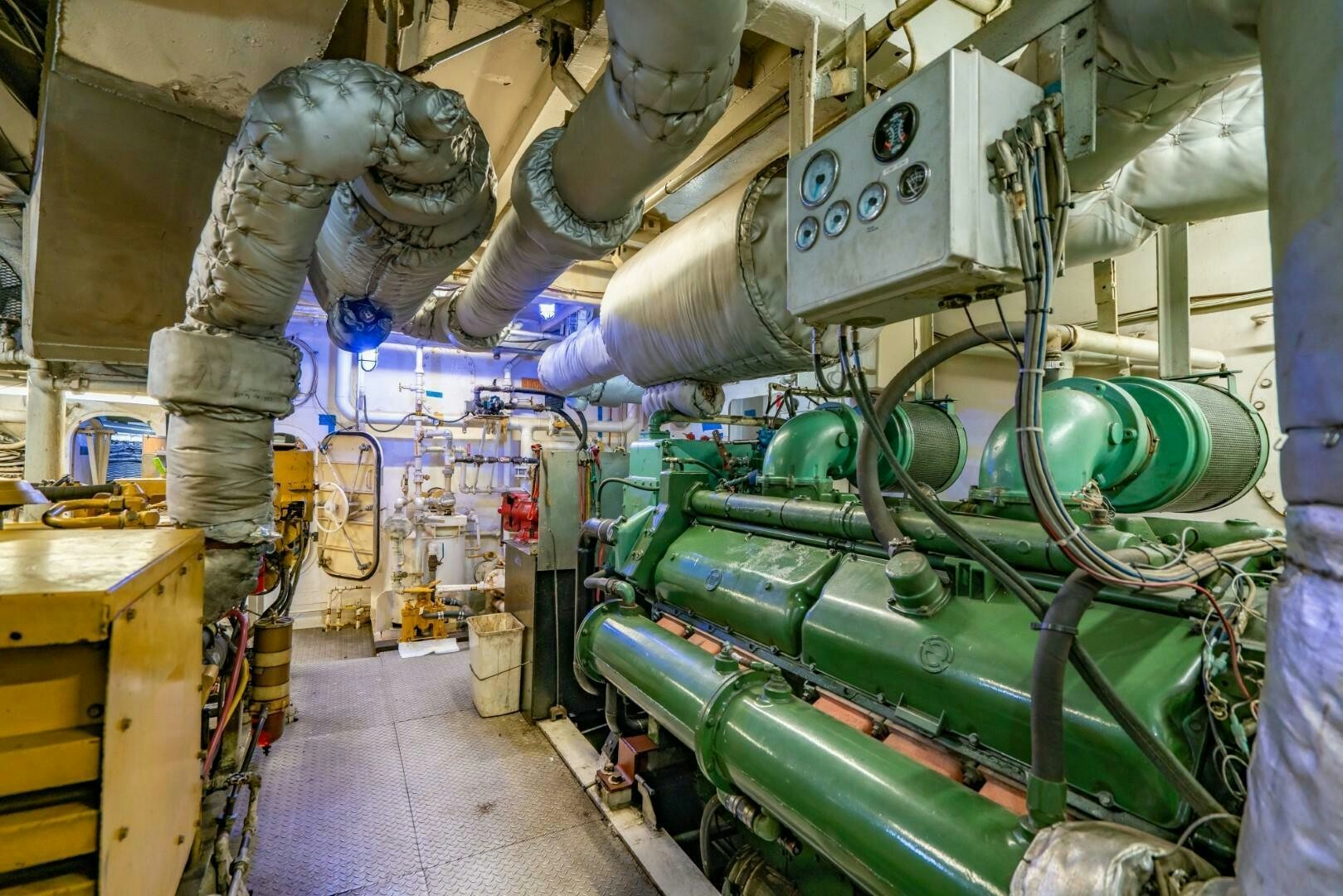

• Replaced both main engines in December 2014 with newly factory rebuilt D149’s
• New communication computer, Navigation computer and MaxSea software
• Applied Propspeed to propellers
• Painted entire hull and top sides
• New electronics mast
• New GPS antennas
• Installed new V7 antenna
• Serviced and renewed Vulcan Range
• Replaced refer compressor
• Replaced MSD saltwater supply pump
• Renewed Deckma cell in MSD and recertified
• Renewed and serviced water maker
• Converted ship’s interior and exterior lighting to LED
• Replaced crane wire with new 9/16” cable
• Rebuilt starboard gearbox
• Extended Bulwark aft for greater wave protection of working deck
• Complete overhaul of ships running gear in drydock: new bearings, straightened shafts, balanced props, replaced one coupler, new packing, and new rudder packing
• Pulled and straightened shafts
• Trued both propellers
• Replaced intermediate and strut bearings
• Refloated new bearings in new Chockfast
• Laser aligned drive train
• Complete service of crane block and hydraulics
• Hydrablasted hull to bare steel and applied new antifouling paint
• Cropped and renewed steel throughout the vessel based on audio gauging reports – under ABS surveyor’s inspection
• Cleaned chip and paint tanks
• Installed jacuzzi on sun deck

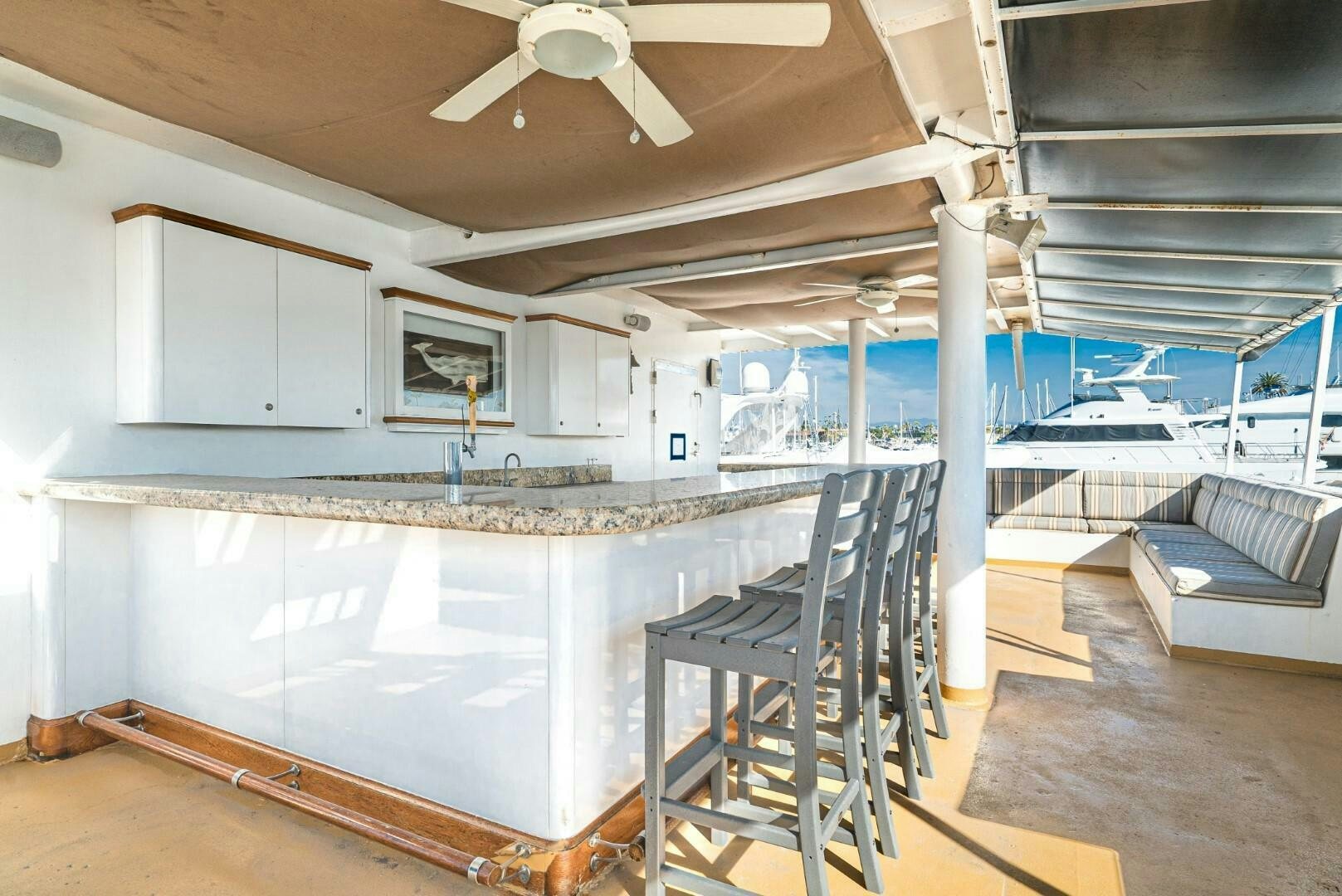

• Installed steel structure and shade above outdoor bar seating to protect them from elements
• Servicing of anchor windlass
• Replacement of MSD tank motor
• Top-end servicing of CAT Diesel 3306 generators
• Crane load testing, wire inspection and certification
• Dive compressor full servicing

REFIT 2020 IN SAN DIEGO, CA & ENSENADA, MX

• Vessel was changed from St Vincent registry to US allowing GT to be measured under 284 GRT (Note: ITC GT is 654)
• Complete audio gaging of hull, decks, superstructure under Lloyds supervision
• All plating needing replacement was completed using a Lloyds certified welder
• Bottom sanded, primed and antifouling applied
• All safety equipment brought up to date and certified
• Shaft packings inspected and condition approved
• Underwater valves tested for operation
• 43 of 55 zincs replaced

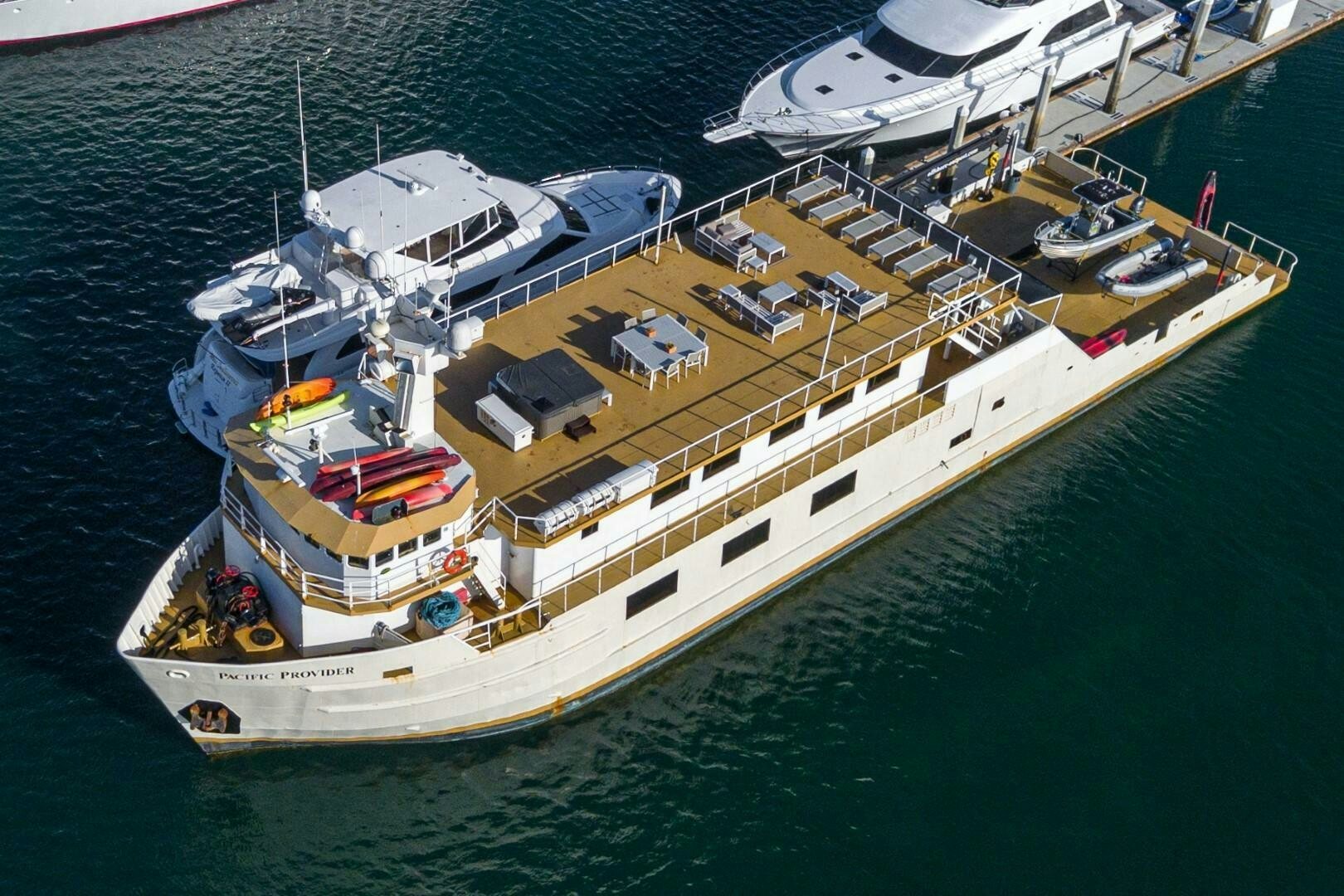

• The 2008 retrofit transformed the Lloyds certified 1978 offshore supply vessel into this expedition yacht by adding a superstructure to include: guest staterooms, additional crew quarters, restaurant sized galley, lounge, dining room, indoor and outdoor bar areas and sun deck. This retrofit was supervised by Stan Antrim, founder of Shadow Marine and Yacht Escort Ships. Boris Krilloff and Associates served as Naval Architect ensuring a high-quality build and design for long term performance. The work was done at the Stabbert Maritime shipyard in Seattle.
• This vessel is designed to provide guests all the comforts of home and transport them safely offshore, providing new places and experiences with nearly any limitations. With a 91,000-gallon fuel capacity, this vessel can reach further than most ships of its kind and stay there for extended periods of time. Her 12,000-mile range can make the most remote atoll or island easily accessible.
• With a capacity to make 7,000 gallons of fresh water a day, 4 ice makers, and power to support several game boats and watercraft, she can do it all. Her tough commercial exterior can withstand the rigors of hurricane force winds, driving rain, or blistering heat without damage to materials used on a typical “megayacht.” Her interior accommodations for 12 guests plus up to 12 crew are luxurious, special and provide a feeling of being at home while miles offshore.
• With little preparation needed, she stands ready to head out on an adventure.
