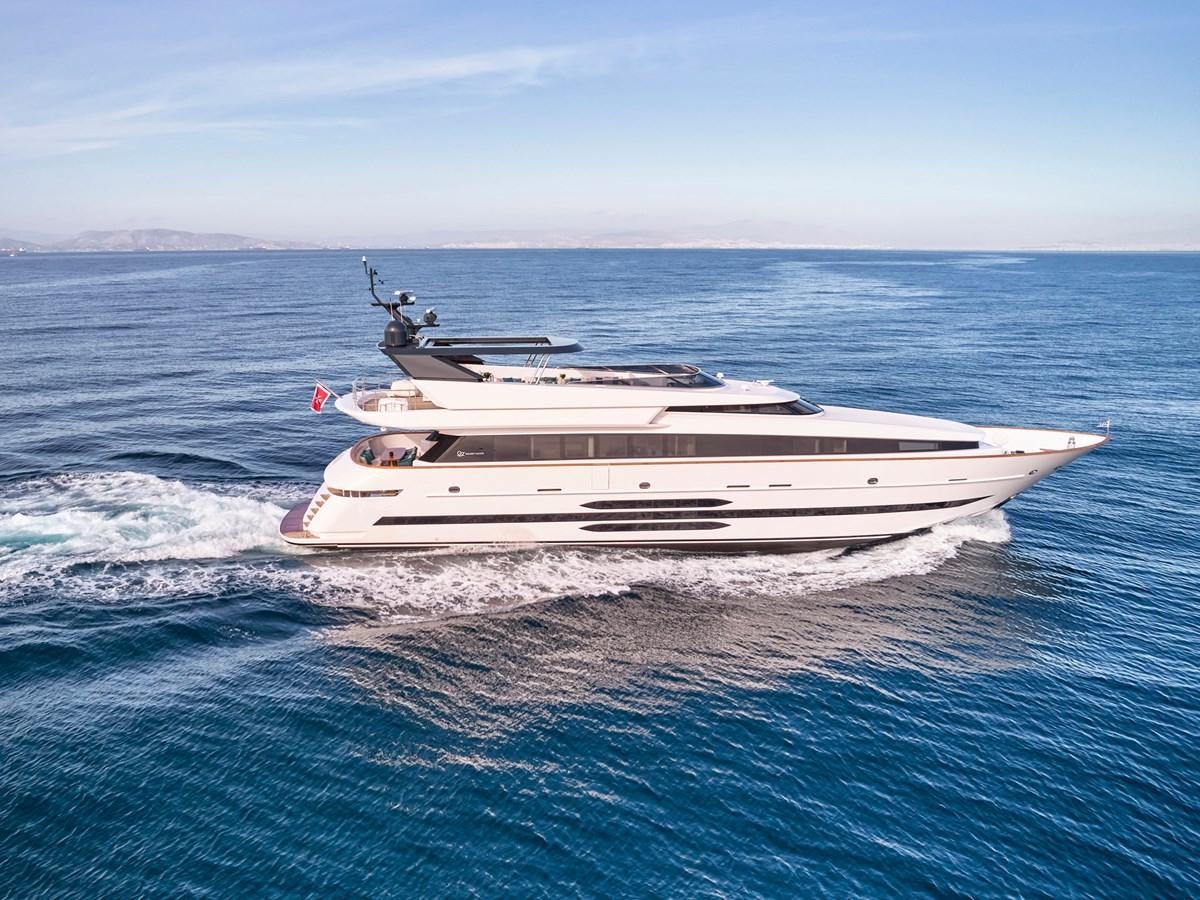

O'RIANA Yacht for Sale

Length
108' (32.96m)
Builder
GOLDEN YACHTS
Build
2023
Cabins
5
Crew
5

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Specifications

Builder GOLDEN YACHTS
Length (LOA) 108' (32.96m)
Year 2023
Gross Tonn. 163
Draft 5' (1.26m)
Beam 22' (7m)
Location Greece

Accommodations

Staterooms 5
Sleeps 10
Crew Cabins 5
Crew Sleeps 5

Dimensions & Capacity

LOA 108' (32.96m)
LWL 84' (25.46m)
Max Draft 5' (1.26m)
Fuel Tank 4,359 g (16,500 L)
Fresh Water 793 g (3,000 L)
Holding Tank 211 g (800 L)
Gross Tonn. 163
Displacement 124

Construction

Hull Material GRP
Hull Config Planing
Ext. Designer Cantieri Di Pisa
Int. Designer Golden Yachts
Cruising Speed 23 Knots
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Fuel Transfer Pump: 1 x Gianneschi CP50/160B , 400V, 50Hz
  • Fuel Transfer Service: 1 x Gianneschi CP32A, 400V, 50Hz
  • Oily Bilge Water Separator: 2 x Gianneschi ACM 501 BT/K3 400V, 50Hz
  • Dirty Oil Pump: 1 x Gianneschi FQ 15 GH, 400V, 50Hz
  • Firefighting & Bilge Pump: 2 x Gianneschi ACM 501 BT/K3 400V
  • Fresh Water Makers: Idromar MC3J Compact System 180lt/hr
  • Fresh Water System: 1 x Gianneschi group of two pumps, ECOJET 4’’CE’’ B, 400V
  • Water Filtration:    UV sterilizer 5000LT/H
  • Hot & Cold Circulation Pump: 1 x Gianneschi Z 30 top(180)
  • Hot Water Boilers: 2 x Gianneschi Boilers 120lt
  • Black & Grey Water Treatment:    Hamman treatment plant
  • WC's (toilets/bidets): Tecma evolution toilets with smart flush touch panels in all bath areas and bidet
  • Exterior Shower:  1 x Inox style AISI 316L model Doccia Interlude Y
  • Engine Room Ventilation: Gianneschi reversible fan
  • Hydraulic Power Packs:  Pin-Craft 3KW
  • Generator Fuel Consumption: 9lt/hr
  • Shore Connection:  400 V/AC 50Hz – 3-phase+N – 90 Amp
  • Shore Isolation Transformer:  400 V/AC / 3 phase / 50 KVA
  • Generator Start: electric starter
  • UPS (uninterruptible power supplies): 400 V/AC 50Hz – 3-phase+N– 10 Kw

Battery Charger
2 x Automatic 50 Amph/ 24 V/DC main engine batteries
1 x Automatic 50 Amph A/ 24 V/DC generator batteries
1 x Automatic 75 Amph/ 24 V/DC service batteries
1 x Automatic 25 Amph A/ 24 V/DC GMDSS batteries

Batteries:
Service: 12 x 640 Amph/24 V/DC PzS 640 - 2V 640Ah (C5)
Main Engines start: 2 x 240 Amph/24 V/DC lead
Generator start: 2 x 140 Amph/24 V/DC lead
GMDSS : 2 x 120 Amph/24 V/DC gel/AGM banks

Accommodation

OVERWIEW:

  • She brings a fresh new vision to the Akhir’s timeless elegance, with exterior colours that enhance her lines with a modern “twist”; including the furnishing design that compliments her “welcoming” interior. An exquisite combination of palettes, from calming beige/white hues to contrasting darker veneer, ultramarine, and bronze details. Natural waxed oak flooring and bulkheads, fused with subtle materialistic lacquers, marbles and silk/cotton fabrics offers one-of-a-kind experience for her clients.
  • One of the key features of her design is the “curvy edges” of the “dome-like” ceiling in the Main salon, the bulkheads and furniture provides a feeling of tranquillity amplified by the soft diffused indirect lighting.


LOWER DECK:

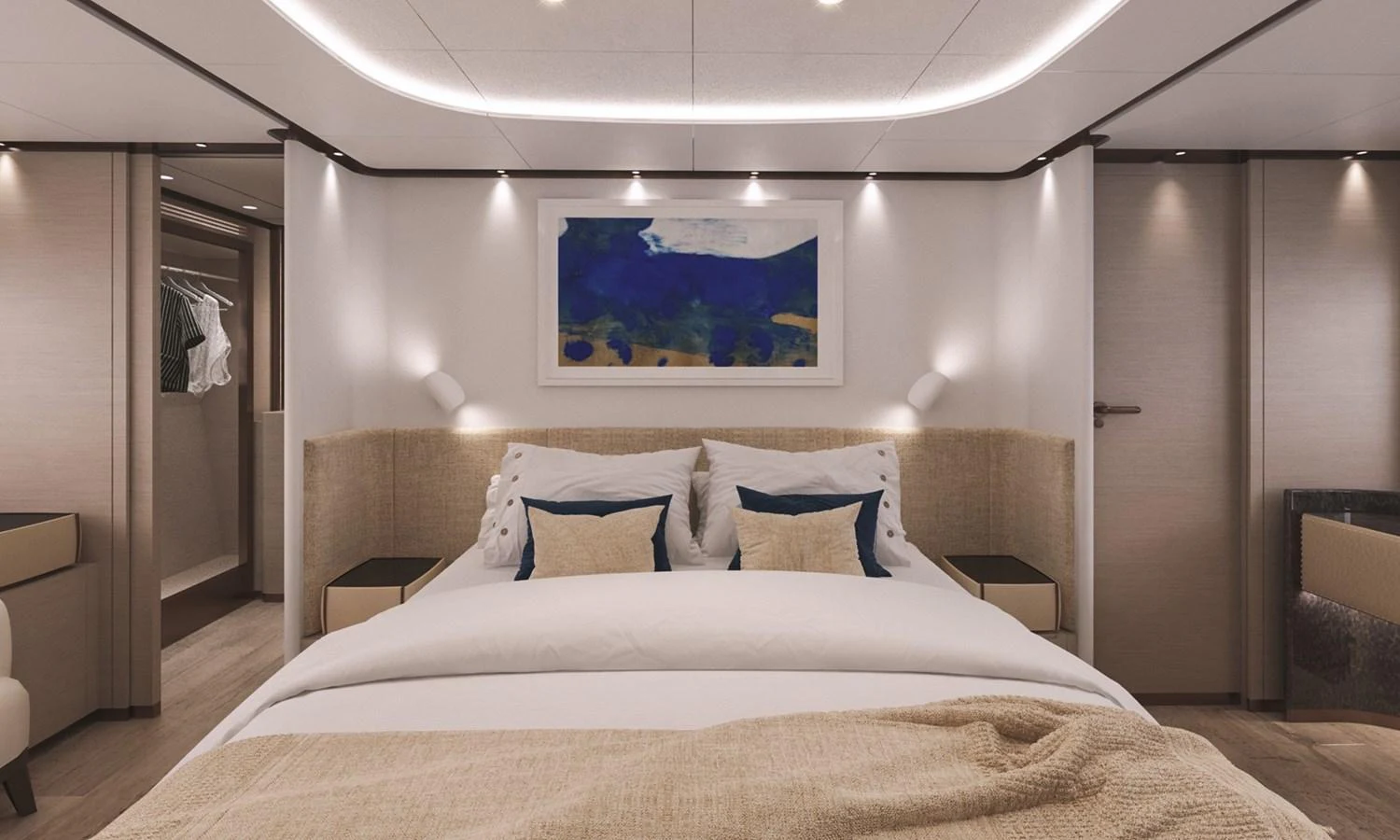

  • A full beam aft Owner’s Stateroom with an en suite walk-in closet and opening windows on the sides.
  • A 32” TV with a rotating arm and soundbar system completes the entertainment along with mini iPads at the disposal of guests for music. Overall lighting and curtain movements can be controlled with one touch.

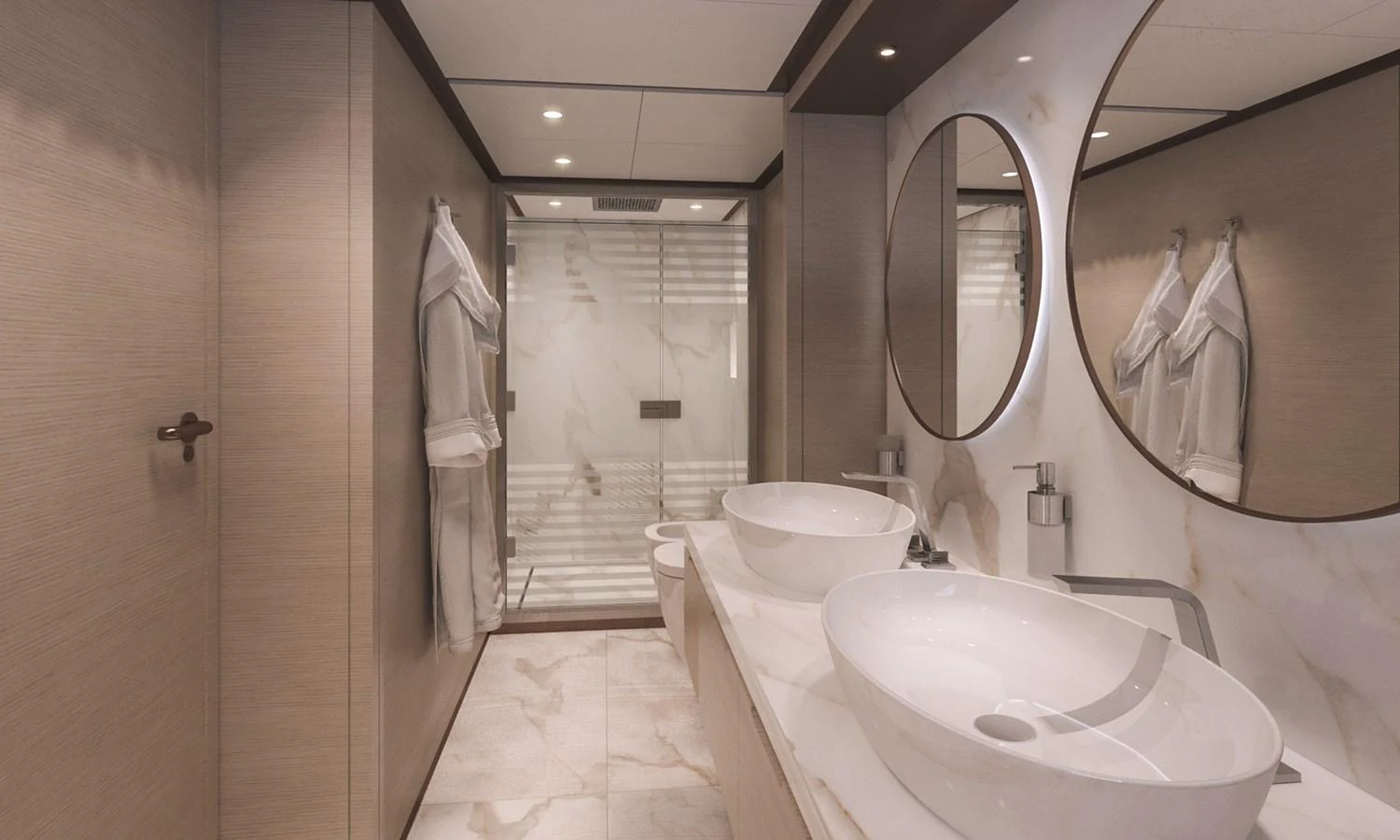

  • The bathroom is equipped with two separate sinks, a shower, a WC and a bidet.
  • At the sides a vanity with lightening mirror and a sofa with two side tables complete the Stateroom.
  • 2x Twin en suite Staterooms can be found on the Port and Starboard sides, both with two single beds and a wardrobe.
  • A full beam VIP en suite Stateroom with a walk-in closet can be found towards the bow. A 32” TV with a rotating arm and soundbar system completes the entertainment system with a separate mini iPad.
  • A console with lightening mirror and a sofa with two side tables complete the Stateroom.


MAIN DECK:

  • An open dining area with a built-in sofa, loose chairs, and an elaborate teak table.
  • A Large Electric Sliding Glass doors distinguishes the interior from the exterior areas.

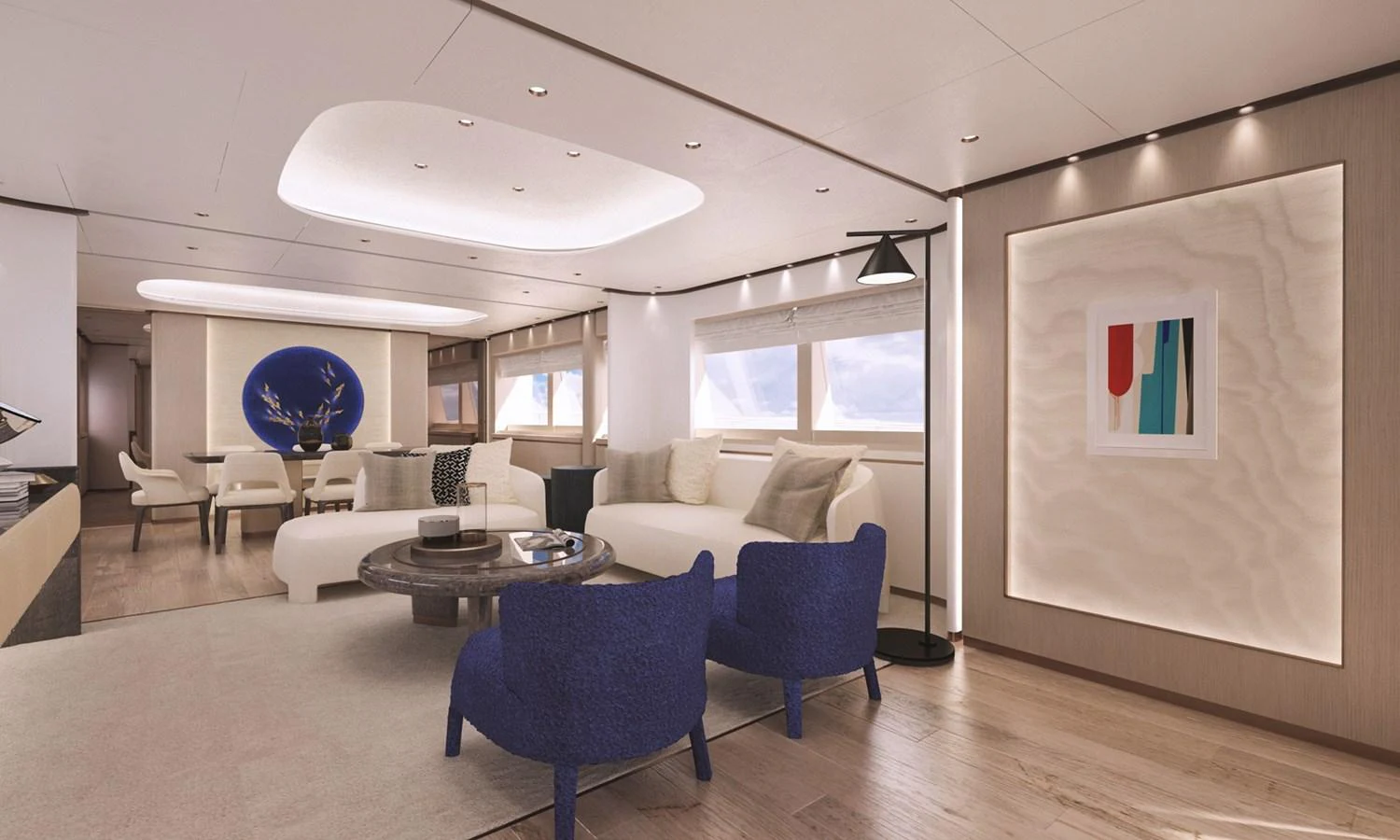

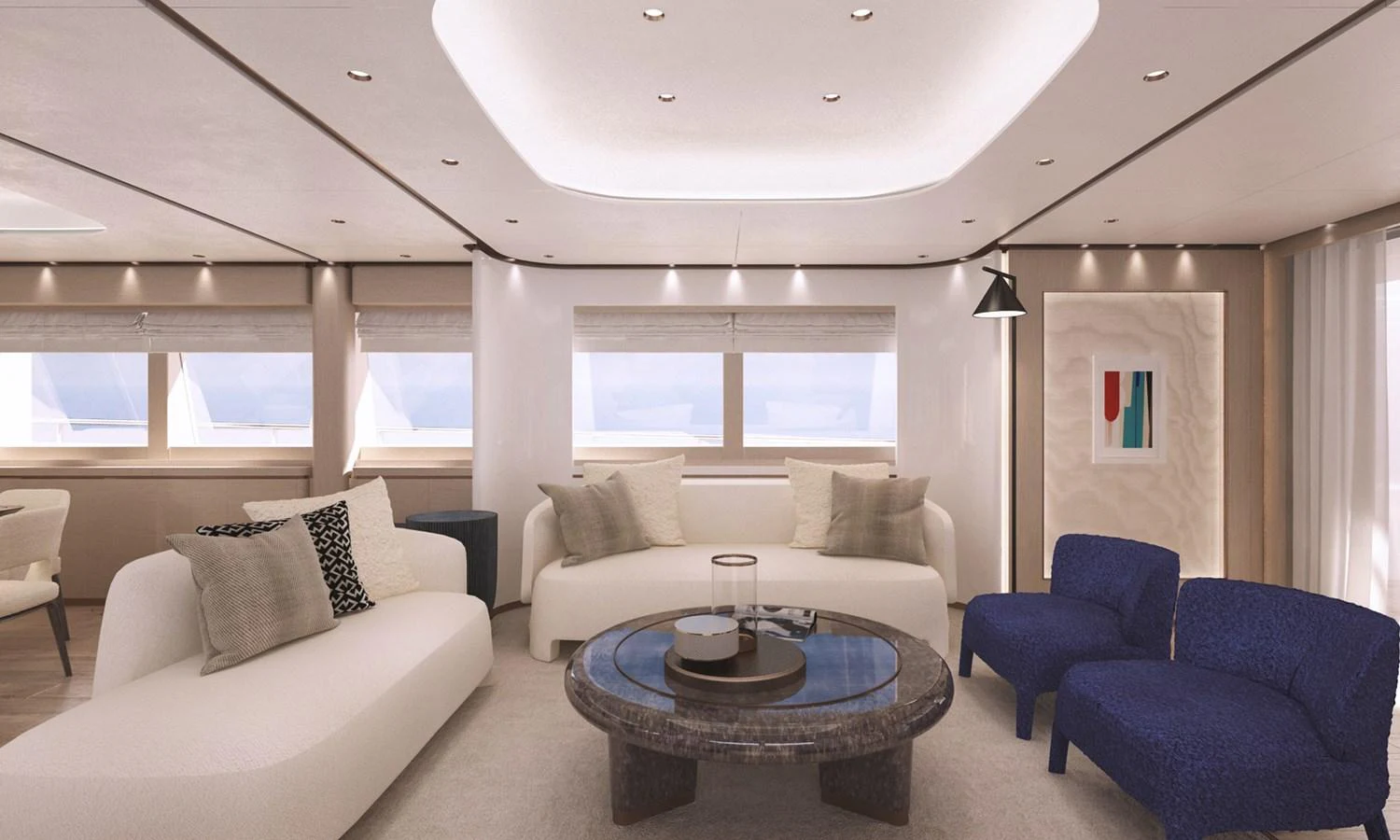

  • In the main deck salon, there are two curved sofas and a custom-made console with leather details above of which a 55” TV with an electric lift is concealed.

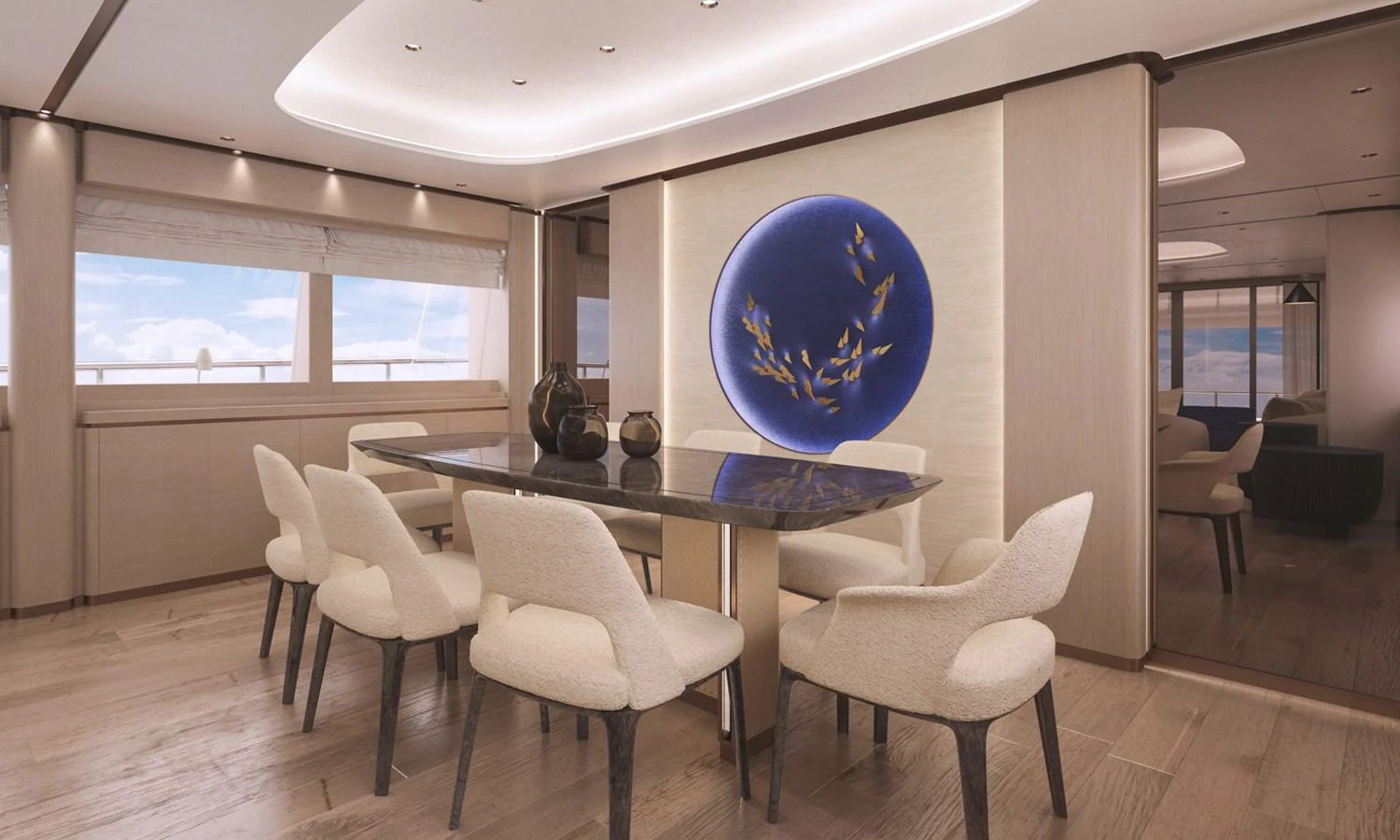

  • Across the salon is a Dining table that comfortably seats 10 guests.
  • Sliding doors to Port side leads to the galley, crew area, wheelhouse and the lower deck through a luminous corridor.
  • A technical space can be found below the raised Wheelhouse.
  • Moving forward is a comfortable Office with a sofa-bed which can be converted into an additional Stateroom with fully equipped bathroom and shower.
  • The Galley is equipped with state of the art “Miele” appliances.

SUN DECK:

  • The Sun deck provides ample space for sunbathing and dining for all 10 guests on board. The comfortable sofas from “Talenti” combined with outdoor fabrics and stainless steel, with the teak dining table and metallic perforated coffee tables from Kettal, adds to the contemporary design on board. The interior colours vary from the beige/warm palettes to teal and blue details.

Galley & Laundry Equipment

MAIN GALLEY EQUIPMENT

  • Fridge:  2 x Miele model K28202DEDT/CS
  • Freezer:  1 x Miele model FN28262EDT/CS
  • Dishwasher:  1 x Miele model G7310SC
  • Microwave:  1 x Miele model M2230SC
  • Oven:  1 x Miele model H2890B
  • Hob:  1 x Miele model KM7210FR
  • Wine Cooler:  1 x Morris model MFC46203
  • Hood:  1 x Miele model DA3496
  • Icemaker:  1 x Masterfrost 60kg model M-600
  • Coffee Machine:  1 x Illy
  • Washing Machine:  1 x Miele 9kg model WWI860WPS
  • Dryer:  1 x Miele 9kg model TWJ660WP


SUN DECK BAR EQUIPMENT

  • Icemaker:  1 x Master frost 25kg model C-250FA
  • Fridge:  1 x Morris mini bar model S7368SP

OTHER EQUIPMENT

  • Sun Awning: Electrical awning system on sun deck
  • Umbrella:    1 x Garden Art square type with dr arm and inox frame, dimensions 2.10m x 2.10 at lower deck beach house area


Communication Equipment

  • VSAT:  2 x Intellian dome model V60E, 6W, BUC
  • INMARSAT – C: Furuno FELCOM-18
  • SSAS:  Furuno IC-307
  • Bridge Monitors: 4 x Hatteland 19’’
  • Flybridge Monitors: 2 x Furuno 16’’
  • VHF Radiotelephones: Furuno VHF radiotelephone, 2 x Two-way VHF radiotelephone apparatus
  • Portable VHF: Furuno Primary VHF/DSC A Class & Secondary VHF/DSC D Class
  • Portable GMDSS VHF: Furuno compliant class A DSC radio
  • Intercom – Talk Back:  2 x Furuno LH-5000
  • Intercom System:  5 x Furuno ISP-5000
  • EPRIB: Ocean Signal 50 channel GPS receiver
  • Radar Transponders: Furuno
  • Navtex Receiver: Furuno NX-700A
  • GMDSS Battery Plant: Furuno PR-240

Navigation Equipment

  • Navigation Bridge:  Furuno
  • Monitors:  4 x 19’’ Hatteland & 2 x 16’’
  • X-Band Radar:  12kw XBand (IMO)
  • S-Band Radar:  Furuno Radar
  • Multifunctional Workstation:  MaxSea TZ professional
  • Chart Plotter: Furuno NavNet TZtouch 3  Chart Plotter 16inch
  • UPS Unit:  Power Walker VFI 10K CPH
  • UPS Battery pack:  Power Walker BPH384R-32 x 5Ah (CPH)
  • Magnetic Compass: 2 x C-Plath venus H type 2795
  • Gyrocompass:  Furuno and AC Antennas
  • Auto Pilot:  1 x Furuno
  • Rudder Angle Indicator System:  BCS Steering
  • Echo Sounder: Furuno FCV-628
  • Speed Log: Furuno
  • GPS:  Primary GP-170 & Secondary GP-33 all Furuno
  • AIS:  1 x EM-TRAK
  • Navtex:  Furuno NX-700A
  • Wind Instruments:  Airmar FI-70
  • Horn: 1 x Kahlenberg D-330 with compressor/tank kit 24V DC & M-512 controller
  • Search Lights:  1 x Sanshin HR-1012U 24V
  • Night Vision Camera:  HIKVISION CCTV system
  • Bridge Navigation Watch Alarm:  1 x Furuno
  • Ships Computer:  Various laptops

Entertainment Equipment

The yacht is equipped with a brand-new Crestron automation system that controls lighting, climate, blinds/shades. A dedicated wired or wireless user interface (touch panel) in every area of the yacht makes the user experience more than easy.
For music distribution a Sonos system works in cooperation with the Crestron system.
High power speakers are installed in sun deck area and main deck aft capable to deliver high power and excellent quality for background music and party time.
Main salon area has a 5.1 home cinema system and 4k large format display.
High speed internet connections can be established through the new generation wi-fi 6 access points that cover all areas of the yacht.

Light Management:

  • KNX interface


201 Main Salon Aft:

  • 4 x JL Audio 7.7’’coaxial ceiling speaker system
  • JL Audio rack
  • HP/ARUBA wifi access point AP-22
  • SONOS digital music player , tune in, Spotify, airplay 2, music library

201 Main Salon /Dinning:

  • ART Sound in ceiling 2-way speaker 80W round
  • Focal active subwoofer 8’80W
  • Denon cinema amplifier DOLBY ATMOS 7 x 100W, zone 2
  • Sonos digital music player , tune in, Spotify, airplay 2, music library
  • 55’’ Smart TV OLED with TV lift mechanism
  • Crestron touch screen for audio, video, lighting, climate control
  • Wi-Fi access point AP-22
  • Apple Retina display user interface
  • Launchport base station and charging sleeve for mini iPad


203 Office:

  • Sonos soundbar system
  • LG 43’ Smart TV
  • Crestron wired Ethernet module
  • Apple retina display user interface
  • Launchport base station and charging sleeve for mini iPad


205 Galley:

  •  LG 24’ Smart TV HD
  •  TV wall mount bracket
  •  Wi-Fi access point AP-22

101 Master Stateroom:

  • Sonos soundbar system
  • Sonos wireless subwoofer
  • LG 32’ Smart TV full HD
  • Wired Ethernet module with 4 IR
  • Wi-Fi access point AP-22
  • Apple 7.9’ retina display user interface
  • Launchport base station and charging sleeve for mini iPad

103 Twin Stateroom:

  • Sonos wi-fi speaker and music streaming Spotify-tune in air-play
  • Apple 7.9’ retina display user interface
  • Launchport base station and charging sleeve for mini iPad

105 Twin Stateroom:

  • Sonos wi-fi speaker and music streaming Spotify-tune in air-play
  • Apple 7.9’ retina display user interface
  • Launchport base station and charging sleeve for mini iPad


107 Vip Stateroom:

  • Sonos soundbar system
  • Sonos wireless subwoofer
  • LG 32’ Smart TV full HD
  • Wired Ethernet module with 4 IR
  • Wi-Fi access point AP-22
  • Apple 7.9’ retina display user interface
  • Launchport base station and charging sleeve for mini iPad


111 Captain’s Cabin:

  • LG 24’ Smart TV HD

Crew Cabins:

  • HP/ARUBA wi-fi access point AP-22

Sun Deck:

  • 4 x JL Audio 7.7’’coaxial ceiling speaker system
  • Sonos digital music player, tune in, Spotify, airplay 2, music library
  • Wifi access points
  • Apple ipad mini display user interface

Deck Equipment

  • Anchors: Posidonia HV HHP 145KG ABS Certified
  • Anchor Chains: Galvanized steel stud chain U2 grade 14mm ABS certified
  • Anchor Windlass System:  2 x Hydraulic windlasses DZC 2200 HKR
  • Garage crane: Pin-Craft loading capacity 1000kg
  • Warping Capstans:  2 x Hydraulic capstans DHC 1500H
  • Flybridge crane: 1 x Besenzoni model G509, lifting capacity 480kg
  • Passerelle:  Pin-Craft model gemini plus 5000x550 2 sections s.s. inox and teak with manual hand rail
  • Side Boarding Ladder: n/a
  • Sea-stair: Swimming ladder Pin-Craft
  • Spotlights:  Cantalupi

Tenders & Toys

Tenders:

  • 1 x Williams sportjet 395, engine BRP Rotax Ace 903-90hp, petrol
  • 1 x dinghy tender

Safety & Security Equipment

Security System:

  • HIKVISION CCTV system

Cameras:

  • 2 x fixed dome cameras on engine room,
  • 1 x speed dome camera on engine room,
  • 1 x wide angle fixed camera on aft deck and
  • 2 x fixed dome cameras for ps and stb corridors

Control & Monitoring:

  • Siemens and Selco power management


Fixed Firefighting System:

  • Apollo smoke and heat detectors. Control Panel Marinelec technologies

Firefighting Equipment:

  • CO2 system fixed in engine room

Alarms:

  • AJAX system

Life rafts:

  • 2 x Inflatable life raft, float free launching 12pax each

Breathing Apparatus:

  • 9 x Emergency escape breathing device

Lifejackets:

  • 22 x Adult’s Life jackets & 4 x Child’s Life jackets

Immersion suits:

  • 2 x Immersion suits

Life Rings:

  • 2 x Lifebuoy with light, 2 x lifebuoy with line 25m & 1 x Lifebuoy with light and smoke

EPIRBs:

  • 1 x Emergency position indicating radio beacon

SART:

  • 1 x Search and rescue transponder

Flares:

  • 6 x Red hand flares & 6 x rocket parachute flares

Medical Equipment:

  • 1 x First aid box, fully equipped as per Malta requirements
