NO.6 TEXEL Yacht for Sale

Length
109' (33.5m)
Builder
PIET SMIT JR
Build
1921/2006
Cabins
4
Crew
5

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Specifications

Builder PIET SMIT JR
Length (LOA) 109' (33.5m)
Year 1921
Year Refit 2006
Gross Tonn. 96
Draft 13' (3.8m)
Beam 20' (6.4m)
Range 1,400 NM
Location Italy

Accommodations

Staterooms 4
Sleeps 7
Crew Cabins 5
Crew Sleeps 5

Dimensions & Capacity

LOA 109' (33.5m)
Max Draft 13' (3.8m)
Fuel Tank 1,902 g (7,200 L)
Fresh Water 1,057 g (4,000 L)
Gross Tonn. 96
Displacement 170

Construction

Hull Material Steel
Cruising Speed 8 Knots
Range 1,400 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Water Makers: 600 Litres/hour 158 Gallons
  • Engine Ventilation: CASAL 5200 cubic meters/h
  • Battery Chargers: 4 X MASTERVOLT charger
  • Generator Start: 2 x AGM batt 800 Ah each
  • Steering Gear: J. HASTIE & CO LTD
  • Emergency Steering: Yes
  • Fuel Filters: 2 X RACOR parker filter
  • Fuel Oil Separator: 1 X ALFA LAVAL Centrifugal separator
  • Fuel Transfer Pump: 2 X JONSHON pump
  • Fuel Filling Pump: 1 X JONSHON pump
  • Dirty Oil Pump: 1 X JONSHON pump
  • Firefighting & Bilge Pump: 12 x port extinguisher/E.R. Co2 remote system/2 x FM200/Sea water
  • pump 24v/firefighting and bilge pump Desmi hydraulic.
  • E.R x 1 auto bilge pump + 1 manual bilge pump
  • Fresh Water Makers: 1 x TECNICOMAR 600l x h
  • Fresh Water Treatment: Fresh water treatment plant TECNICOMAR
  • Fresh Water Pressure: 1 x water pump 220v, 1x water pump 24v UFlex
  • Hot & Cold Circulation Pump: DANFOSS pump
  • Hot Water Boilers: 1 x electric heater ISOTEMP + 1 x boiler diesel KABOLA
  • Sea Water Pumps: 1 x DESMI pump + 1x GIANESCHI 24v pump
  • Black & Grey Water Treatment: CRUSHER TECMA
  • WC's (toilets/bidets): 5 x WC TECMA macerator
  • Black & Grey Water Pumps: 3 x RHEINSTORM pumps M50 & M60
  • Capacity: 300l
  • Fast Freezer Locker: 1 x fast freezer IRINOX
  • Air Compressor: BAUER compressor
  • Air Handling Units: 11
  • Hydraulic Power Packs: 2 x electropumps 24v
  • Emergency Power Pack: 1 x DESMI hydraulic Pump
  • Type: Jotun Megayacht Imperial

Accommodation

OVERWIEW:

  • Aft sun deck/ Helm + central deck (lunch/dinner table) + bow deck

ACCOMMODATIONS:

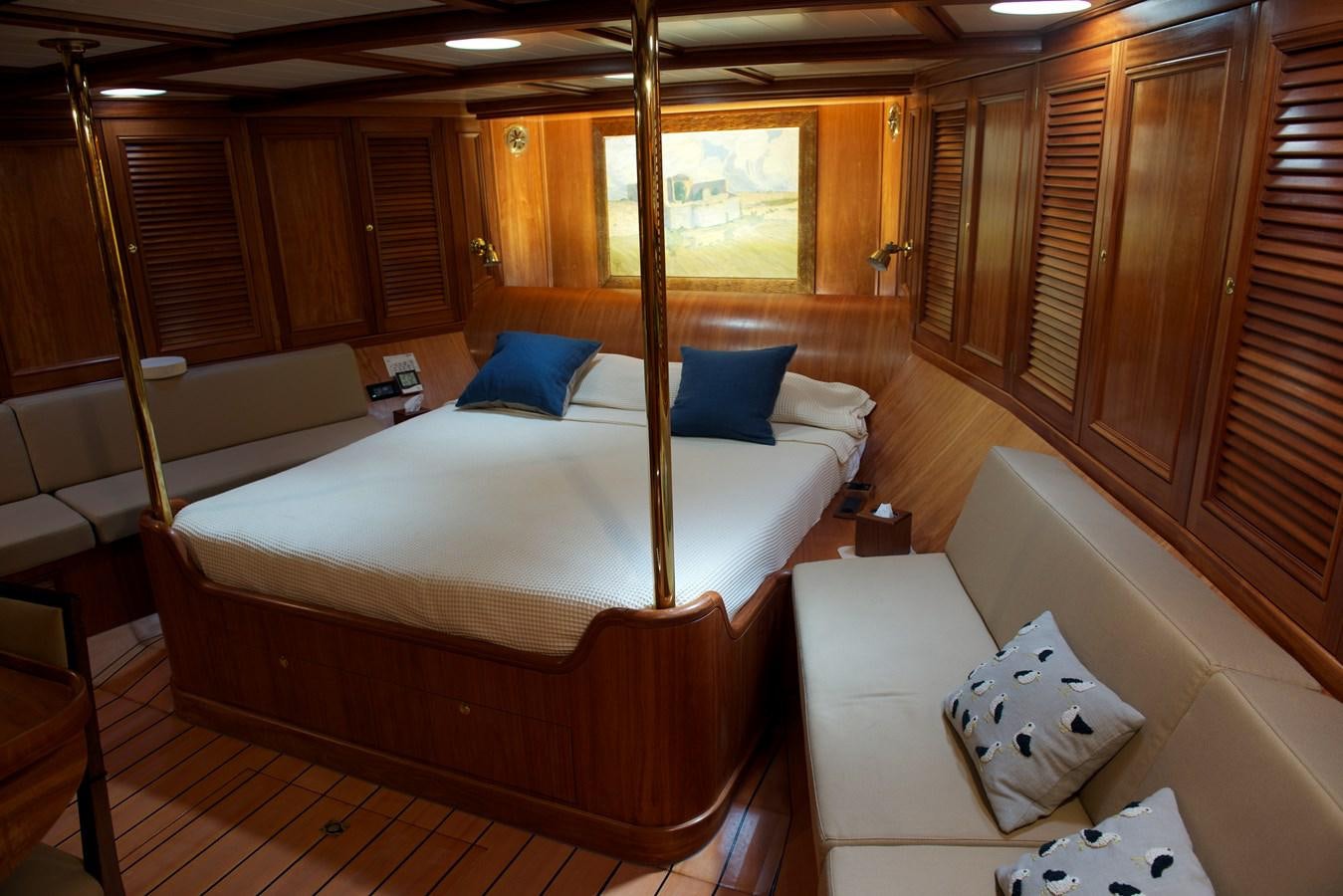

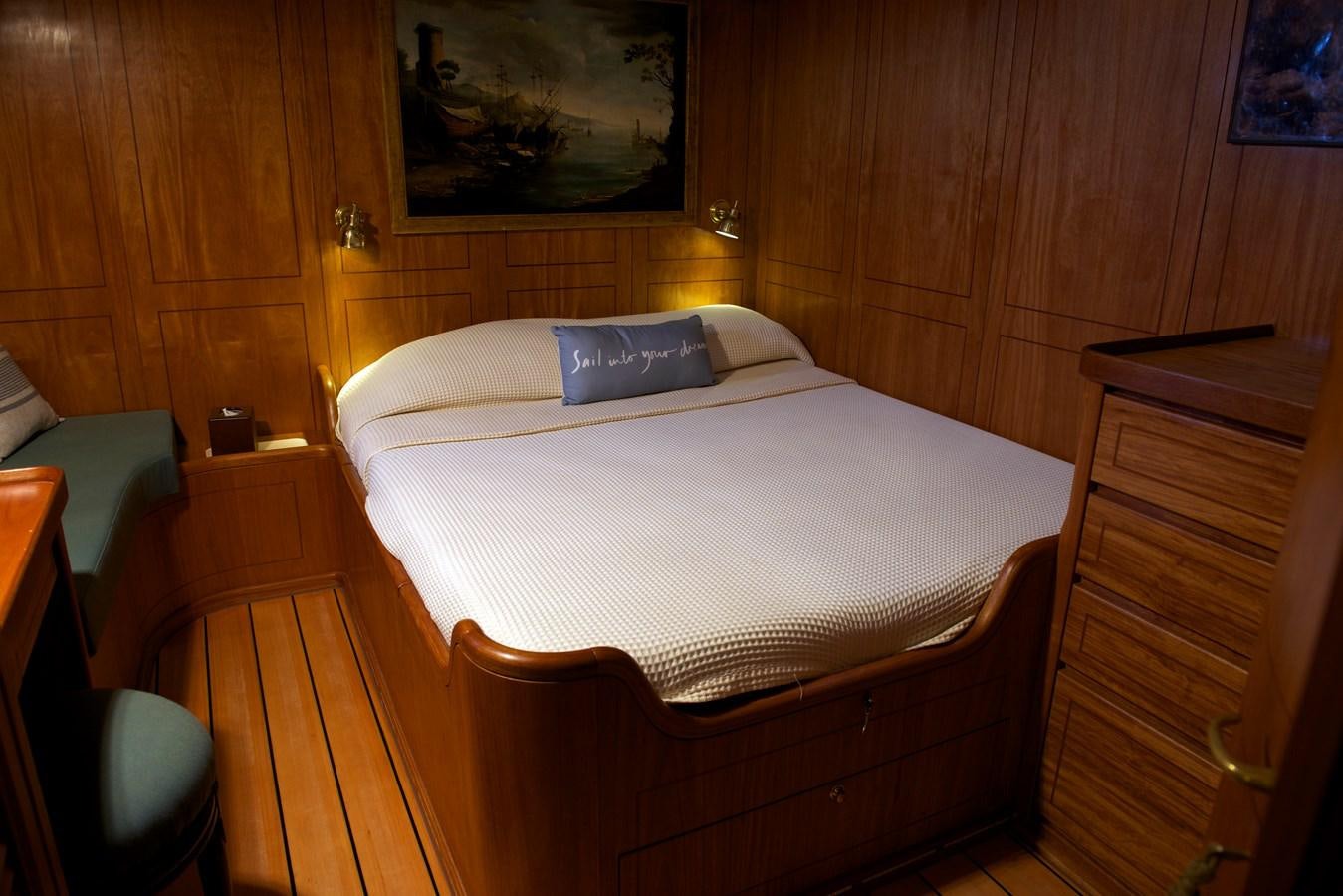

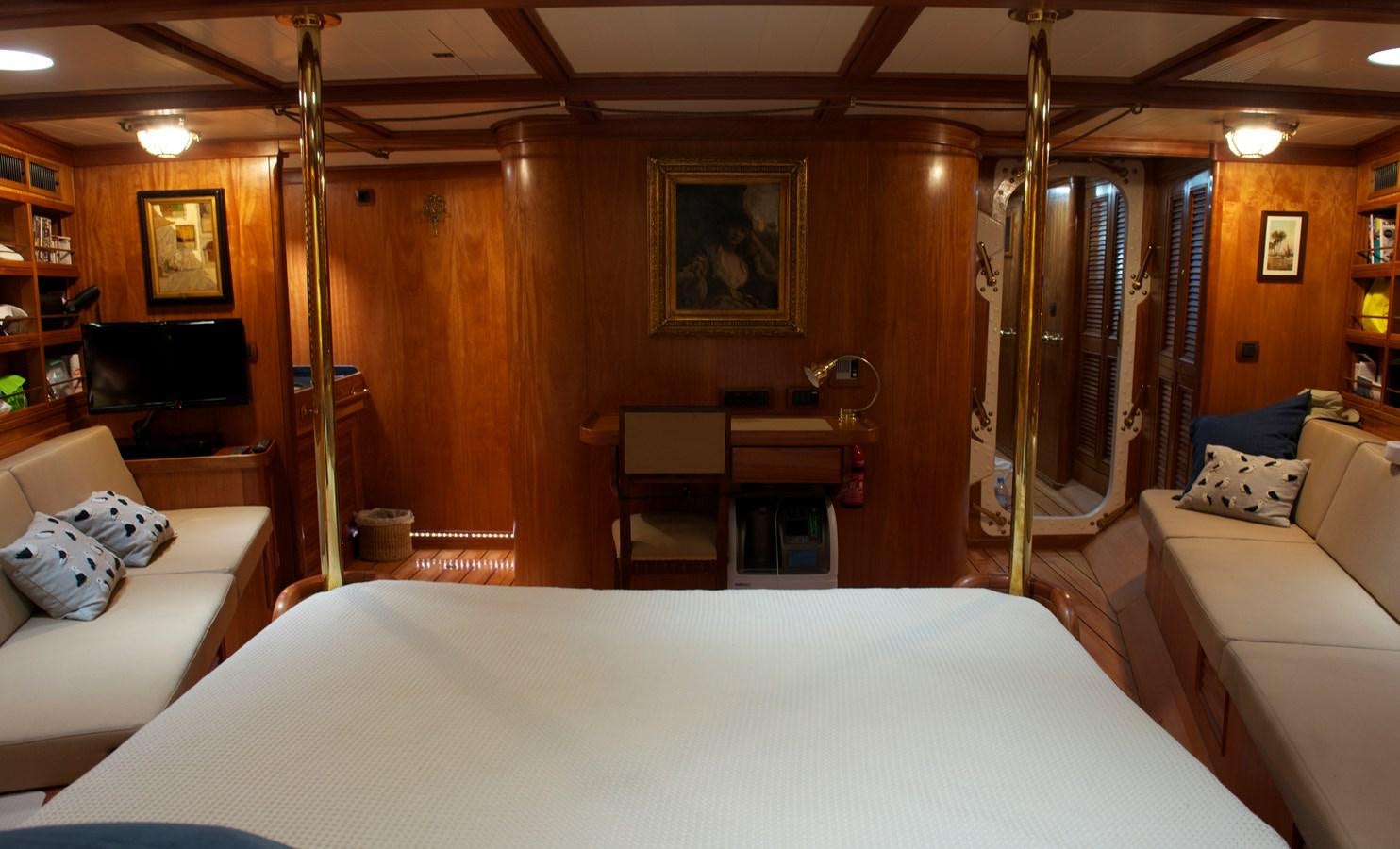

  • 1 x Master stateroom, 1 x VIP stateroom, 1 x twin stateroom, 1 x single stateroom

LOWER DECK:

  • All cabins + engine room + galley

MAIN DECK:

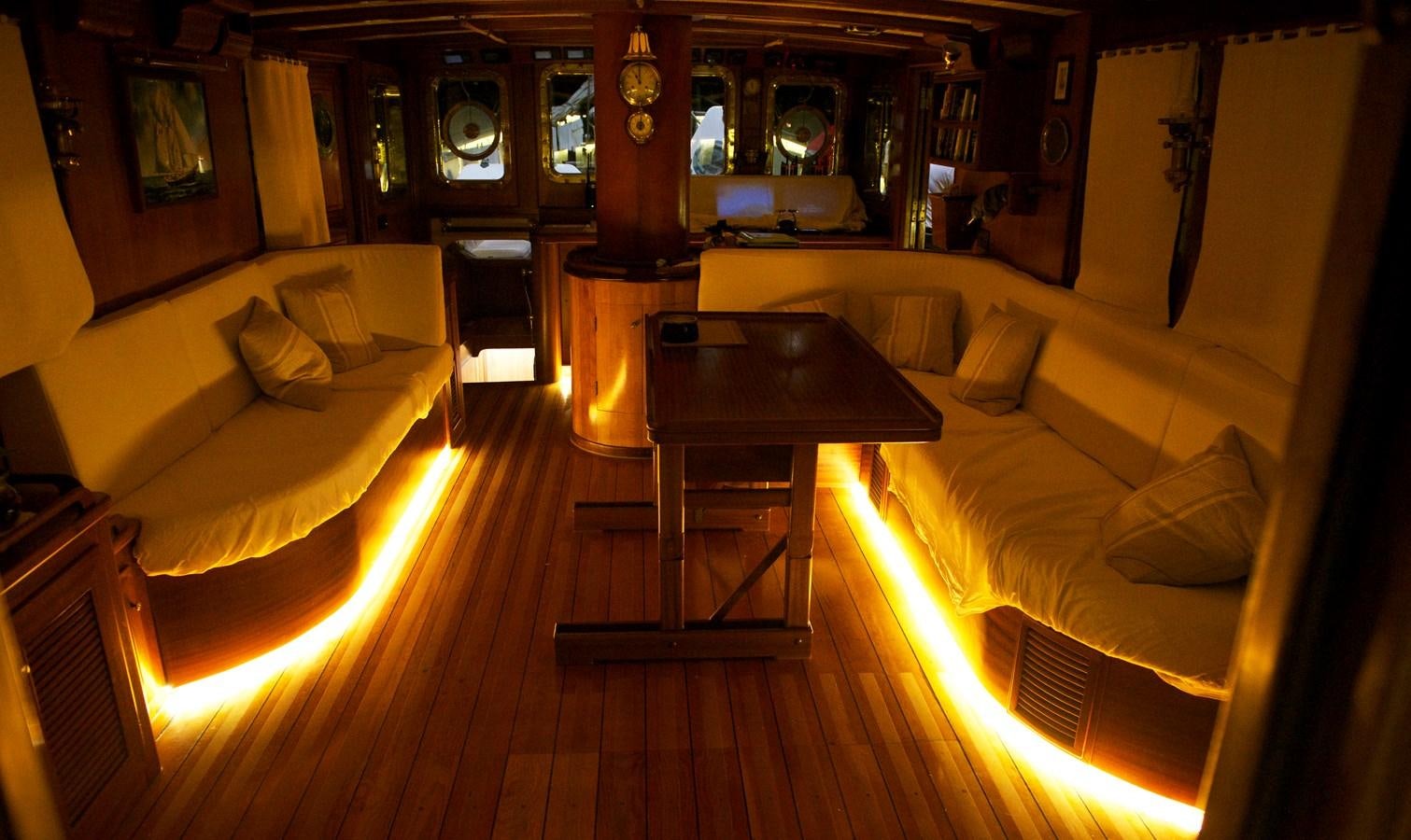

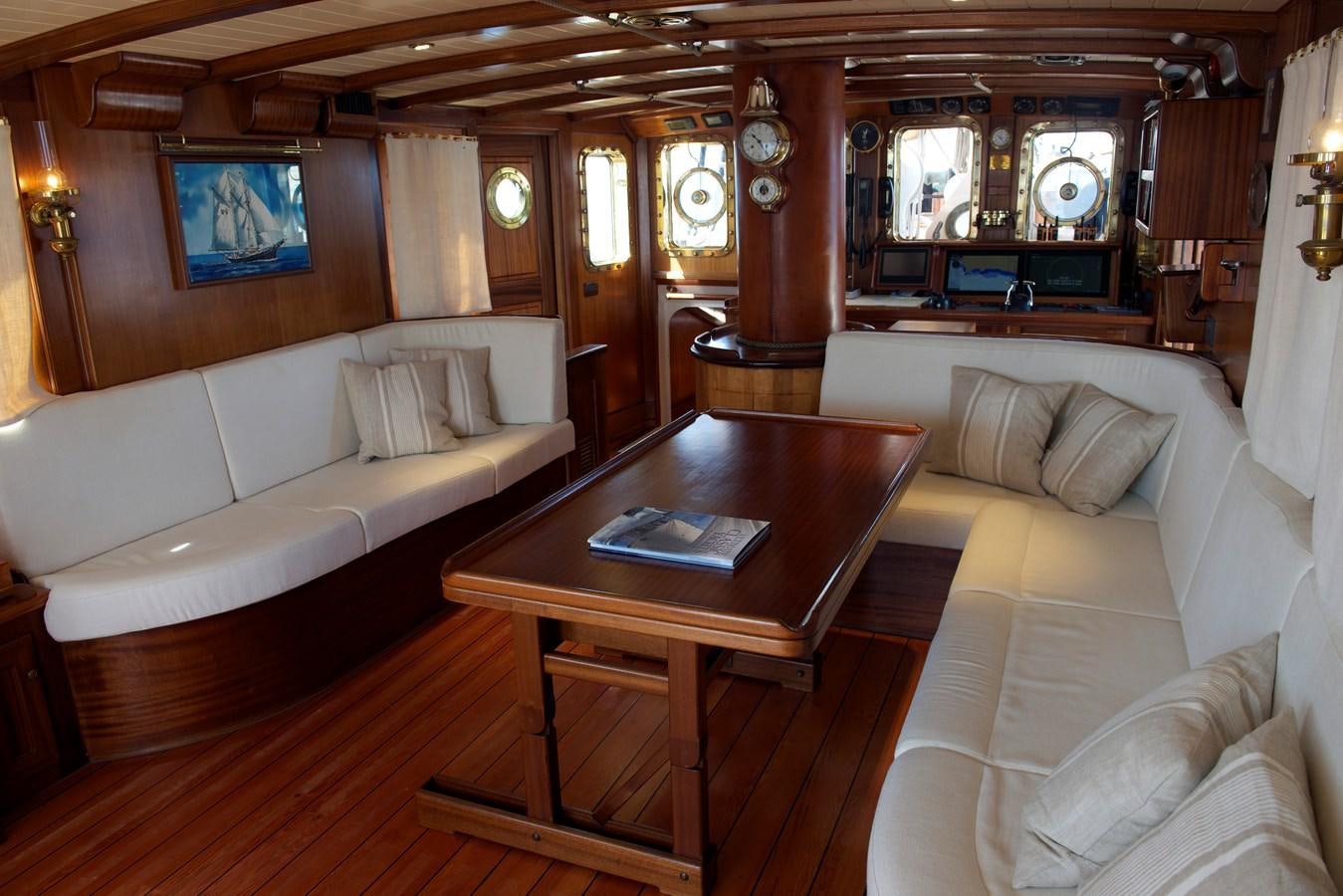

  • Saloon / bridge

CREW ACCOMODATION:

  • Captain’s cabin, crew cabin (4 crew)

Galley & Laundry Equipment

MAIN GALLEY EQUIPMENT

  • Cooking Equipment: Gas cooker plate (3 stoves) Induction plate (3 stoves) BOSCH
  • 1 x WHIRPOOL Oven
  • 1 x microwave SAMSUNG
  • Refrigeration/Freezer: Refrigerator LIEBHERR Up right Bio Fresh
  • Freezer LIEBHERR No frost side by side
  • Dishwasher: 1 x COLGED
  • Other: Coffee machine, bread toaster, boiler

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

  • Sun Deck: 1 x Fast Freezer IRINOX
  • 1 x Freezer FRIGOMAR
  • 2 x Fridge FRIGOMAR
  • 1 x Icemaker FRIGOMAR
  • Main Laundry Equipment: 1 x Hoover Dry & Wash machine

Communication Equipment

  • SAT com: 1 x Sat phone TrackPhone THRANE & THRANE
  • VHF Radiotelephones: 1 x radio telephone FURUNO Rb 2721
  • Portable VHF: 2 x SIMRAD IcM25, 1 x COBRA MARINE HH330
  • Intercom – Talk Back: Airphone lef 5
  • Intercom System: 4 x MOTOROLA talkabout
  • VHF Digital Radios: SAILOR RT 5022
  • SSB: 1 X SAILOR 4500 THRANE & THRANE
  • Navtex Receiver: FURUNO NX 300
  • Internal Ship’s Communication: Airphone lef 5

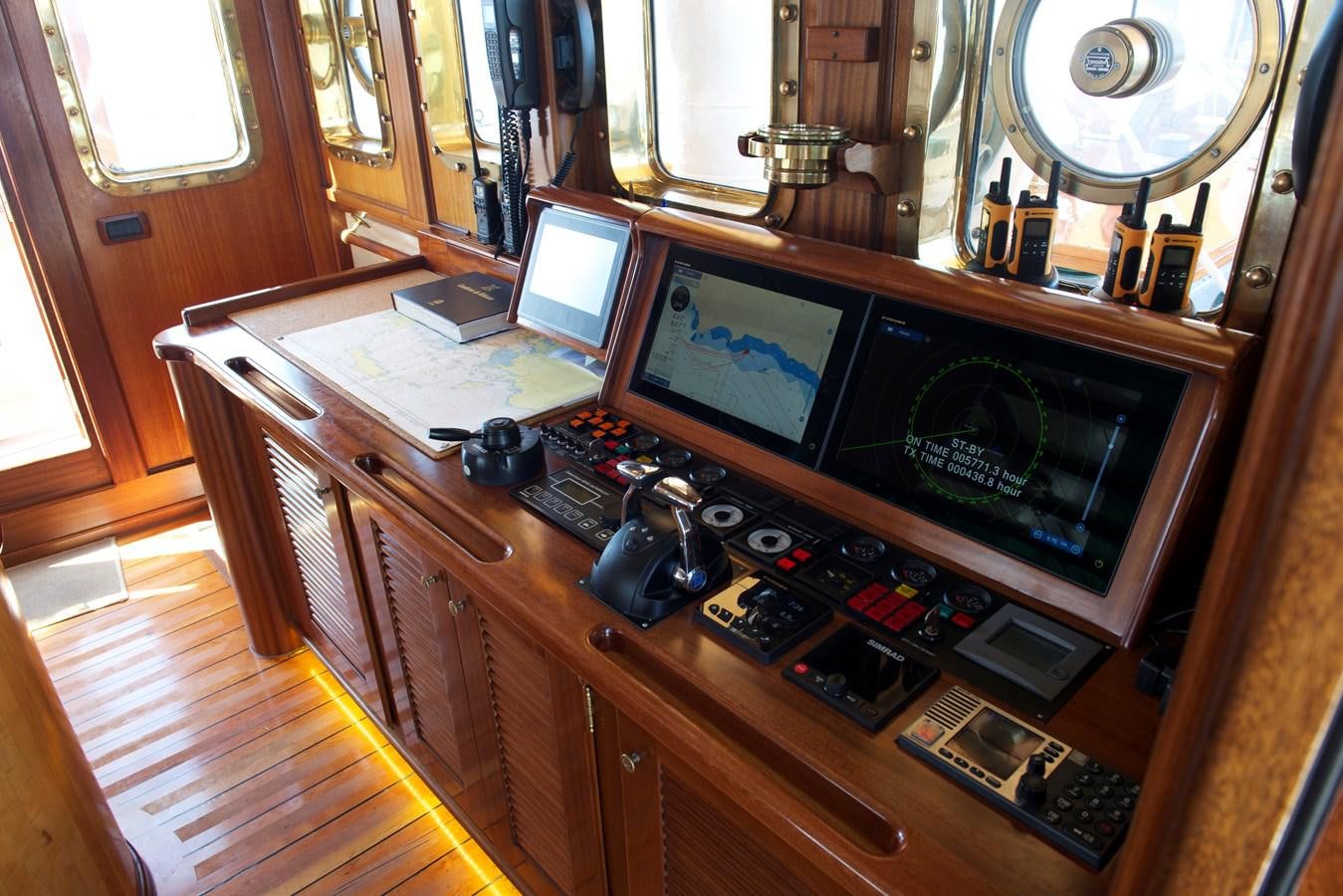

Navigation Equipment

  • Navigation Bridge: Central display LCD Touch control panel M PX 100
  • Monitors: 2 x FURUNO TZ
  • Multifunctional Workstation: 2 X multifunction TZTL 15F FURUNO
  • Chart Plotter: Navnet Tz touch2 FURUNO
  • Magnetic Compass: 2 x F. FUSELLI
  • Auto Pilot: 2 x SIMRAD ROBERTSON AP35 & SIMRAD AP44
  • Rudder Angle Indicator System: 2
  • Echo Sounder: Fish finder FURUNO DFF1 - VHD
  • Speed Log: BROOKS & GATEHOUSE
  • Depth Sounder: BROOKS & GATEHOUSE
  • Video Sounder: OSPREY tritech international
  • GPS: FURUNO SC 50
  • AIS: UAIS transponder FA 150 FURUNO
  • Navtex: FURUNO NX 300
  • Wind Instruments: B & G HERCULES 2000
  • Horn: 1 by compressed air
  • Search Lights: 1 x WISKA SW 300

Entertainment Equipment

  • Video Equipment: DVD SONY
  • Audio Equipment: CLARION / PIONER
  • Main Salon: TV SAMSUNG /DVD DOLBY SONY/ TV SAT HD I can
  • Master Stateroom: PANASONIC TV / BLUE RAY SAMSUNG
  • Guest Staterooms: TV JVC
  • Exterior, Aft Deck, Bar: 2 x speakers PIONER aft deck
  • Captain’s Cabin: Alarms panel / GPS plotter Garmin
  • Crew Mess: SAMSUNG TV

Tenders & Toys

Tenders:

  • 2 x ALU AB 4,20m outboards motors (1 x TOHATSU 40HP)
  • 1 x SUZUKI 30 HP

Toys:

  • 1 x Donut
  • 1 x Water sky
  • 2 x Inflatable paddle surf

Diving Compressor:

  • 1 x BAUER compressor

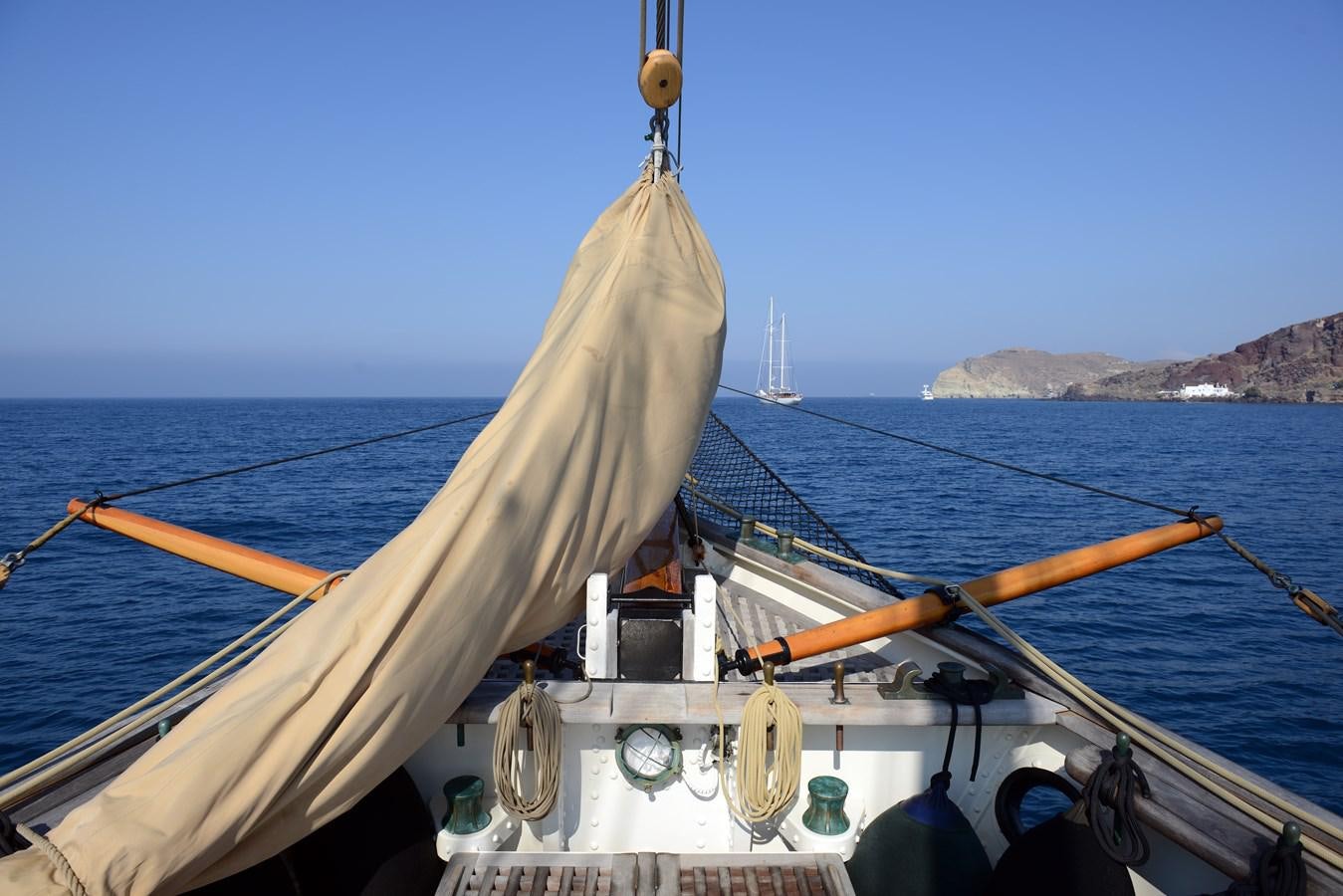

Deck Equipment

  • Anchors: 1 x 270 kg, 1 x 185 kg

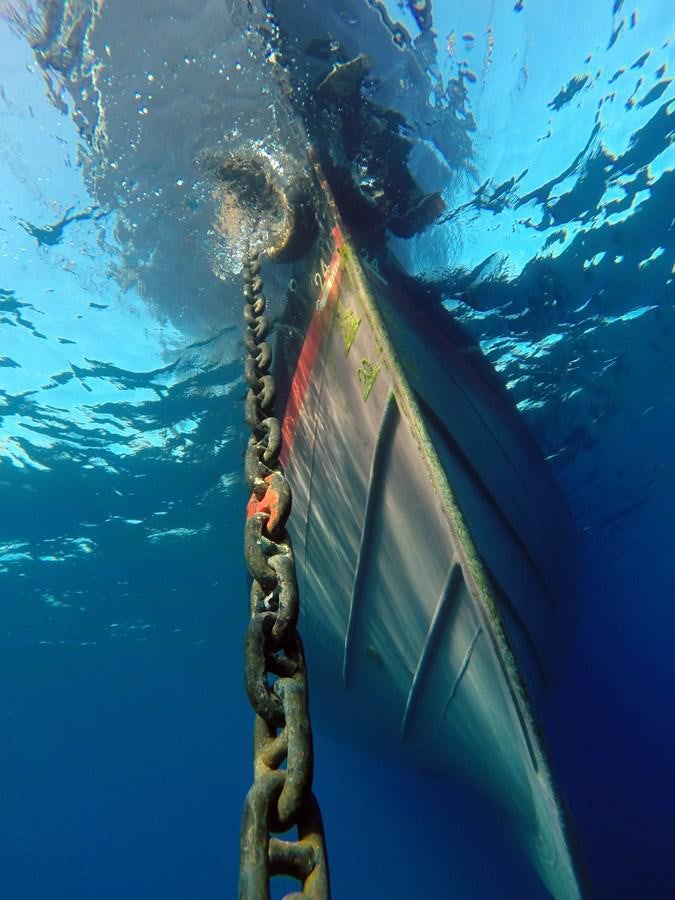

  • Anchor Chains: 2 x 24mm x 130m each
  • Anchor Windlass System: Hydraulic IBERCISA MAN H/H/24D
  • Cranes: 6 X VICALSA
  • Warping Capstans: Hydraulic IBERCISA MAN H/H/24D
  • Ground Tackle: 2 X VICALSA max load 1000kg each

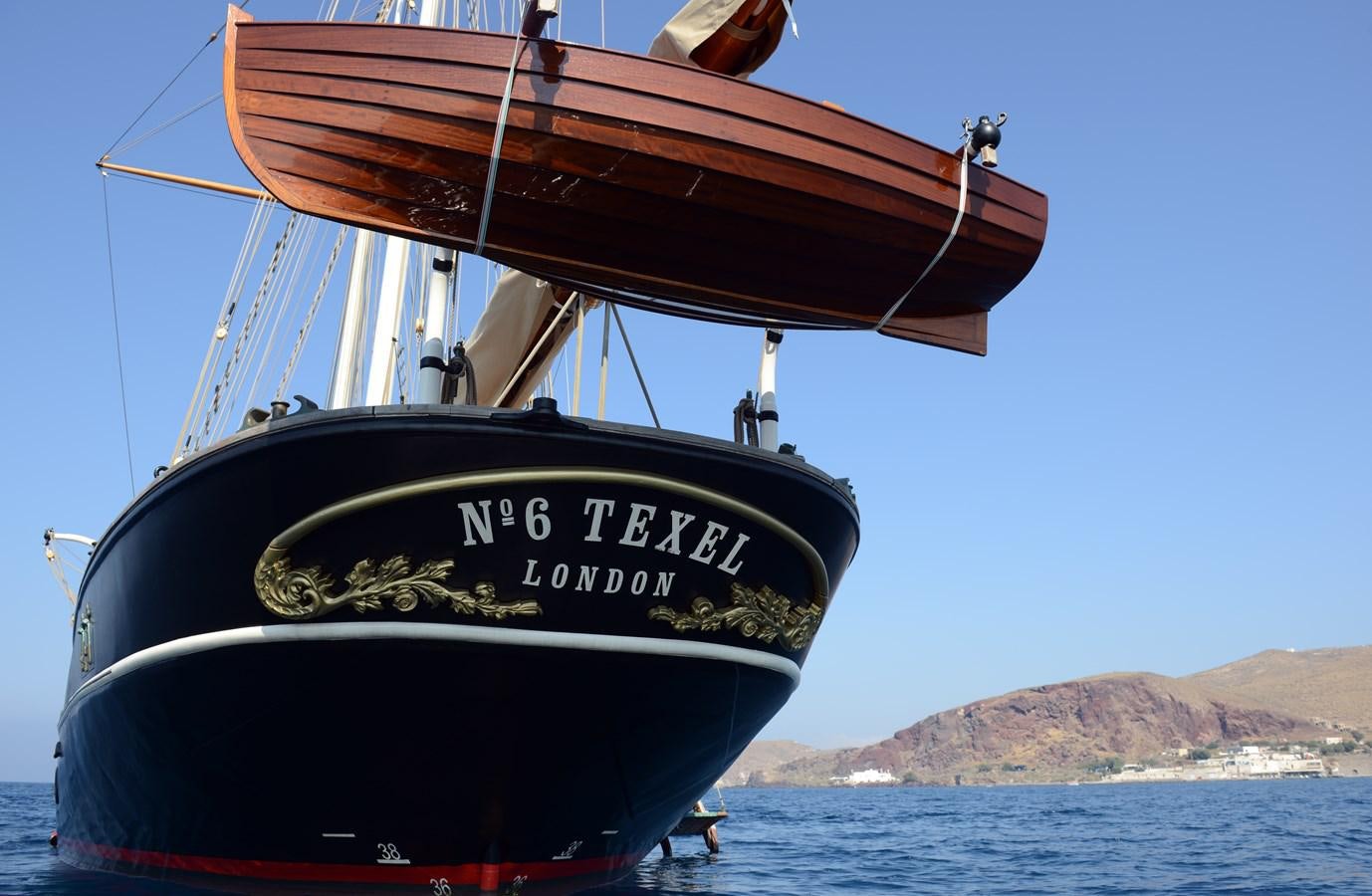

  • Davits: 1 x hydraulic system Meta Hydraulic, 1 x VICALSA manual system
  • Passerelle: Manual wood/bronze
  • Side Boarding Ladder: Manual wood/bronze
  • Sea-stair: Manual wood/bronze
  • Stern Boarding Gangway: Manual wood/bronze
  • Swimming Ladder: Manual wood/bronze
  • Spotlights: 2 x bow mast,2 x aft mast
  • Paint Exterior: Jotun 2 comp
  • Paint Interior: Jotun 2 comp/ varnish wood
  • Paint Underwater: Jotun antifouling

Rigs & Sails

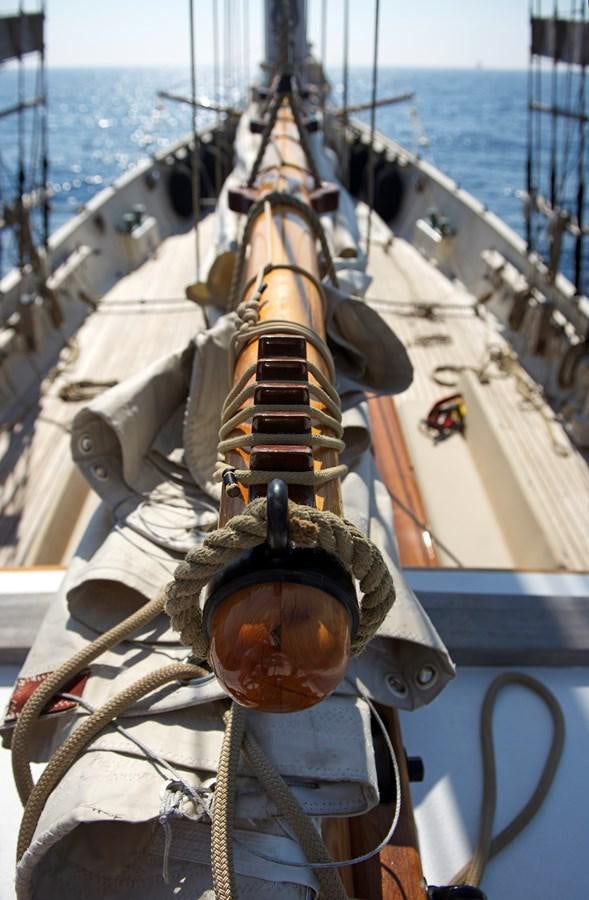

  • Masts: 2 x Steel
  • Type of masts: Schooner masts to keel
  • Booms: 2 x wood

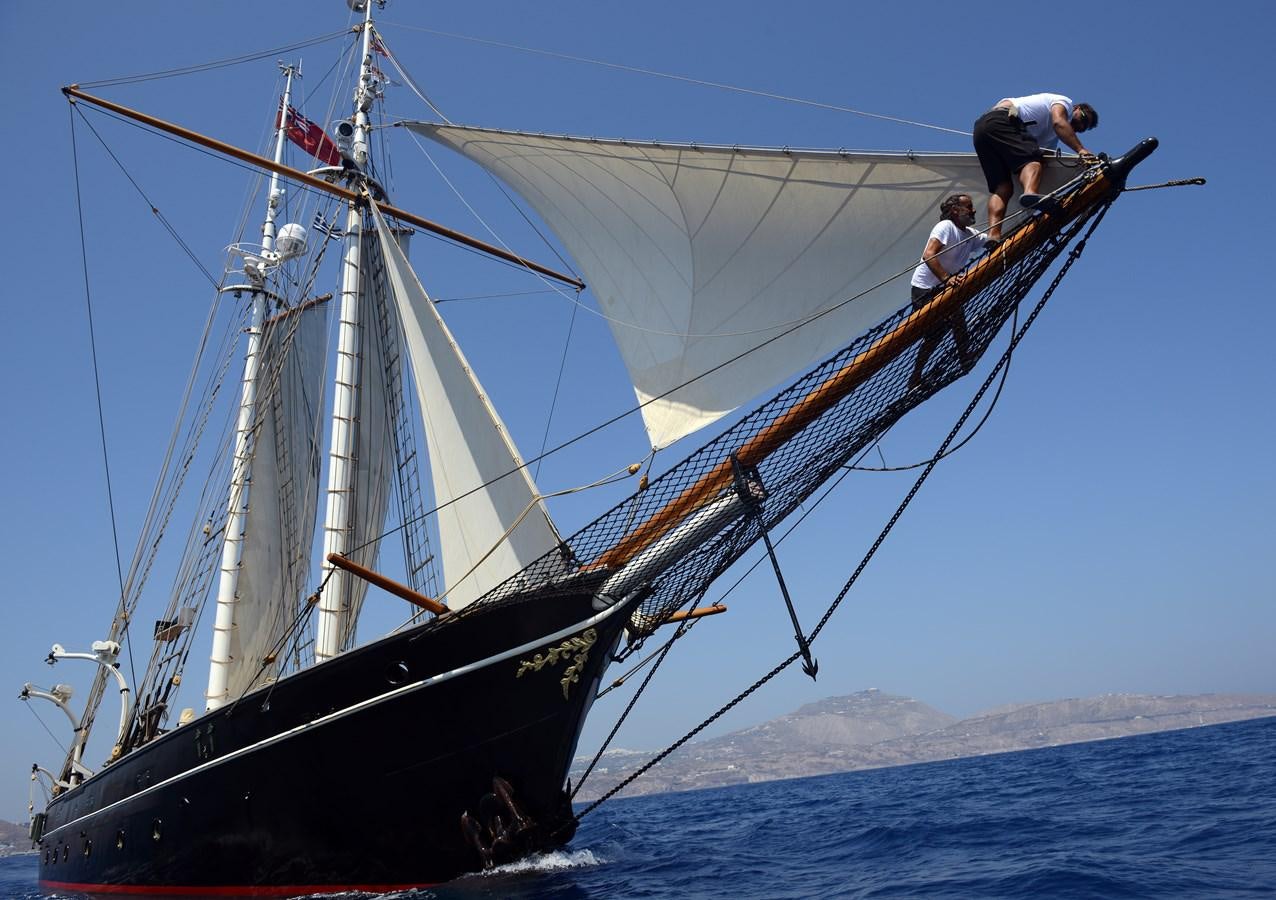

  • Standing rigging: 1 x Flying jib stay, 1 x jib stay, 1 x storm sail stay,12 x low shroud,4 x top  back shroud
  • Sails: 9 + 5 extra
  • Sail area: 3 x hydraulic/manual LVJ winch, 2 x electric 24v, 1 x original bronze manual

Safety & Security Equipment

  • Fixed Firefighting System: Co2 system + FM200 fixed on Engine Room
  • Firefighting Equipment: 1 x hydraulic pump, 1 x sea water pump/+12 fire extinguisher portable/30m
  • fire hose
  • Gas Detection: 1 x sensor on Galley / 1 x system alarm SENSITRON on Engine room
  • Smoke Detection: 1 x galley +3 x on Engine room
  • Fire Alarm: 3 x acoustic and optical fire alarm
  • Alarms: 11
  • MOB Boat: 1 x 4,20m 30Hp
  • Life Rafts: 2 x zodiac XTREM 16 pax each
  • Lifejackets: 16 x SOLAS
  • Life Rings: 2 x SOLAS
  • EPIRB: 2 x ACR Global fix pro RLB
  • Flares and Signals: 15 total
  • Medical Equipment: Medical Kit B

Refit History

2022

  • Exterior: 18,946€ Deck & top side: €9,146/ Fire & Safety: €5,500/Sail & Rig: €4,300
  • Interior: 38,450€ Engine room & tenders: €14,050/Electricity & electronic: €20,190
  • Interior: €4,210

2021

  • Exterior: 72,590€ Deck & top side: €21,460 / Fire & Safety €4,100 / Sails & Rig: €47,030

2020

  • Exterior: 22,650€ Deck & top side: €18,150 / Fire & Safety: €4,500
  • Interior: 103,075€ Engine room & tenders: €77,475/Electricity & electronic: €23,000/
  • Interior: €2,600
