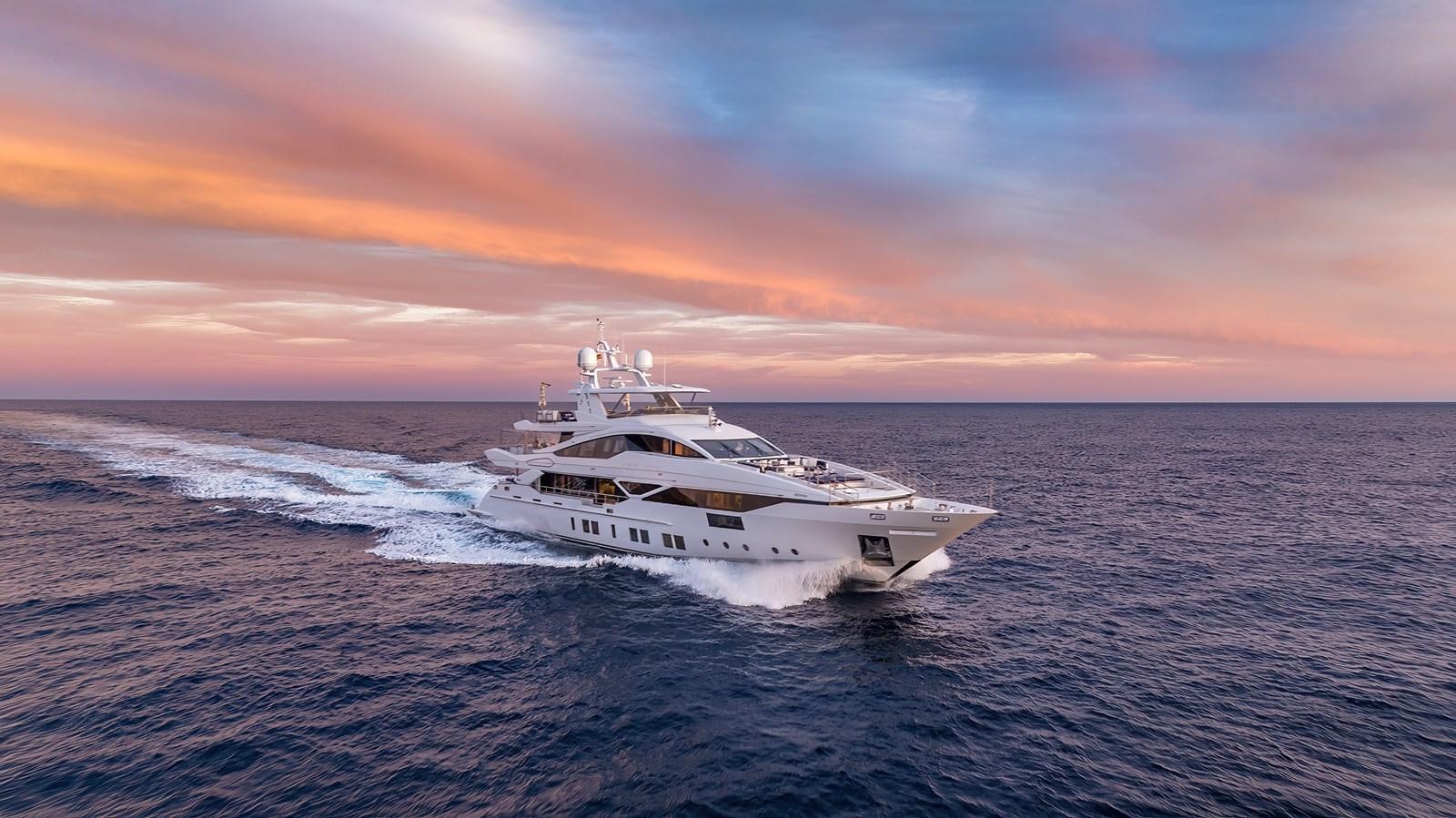

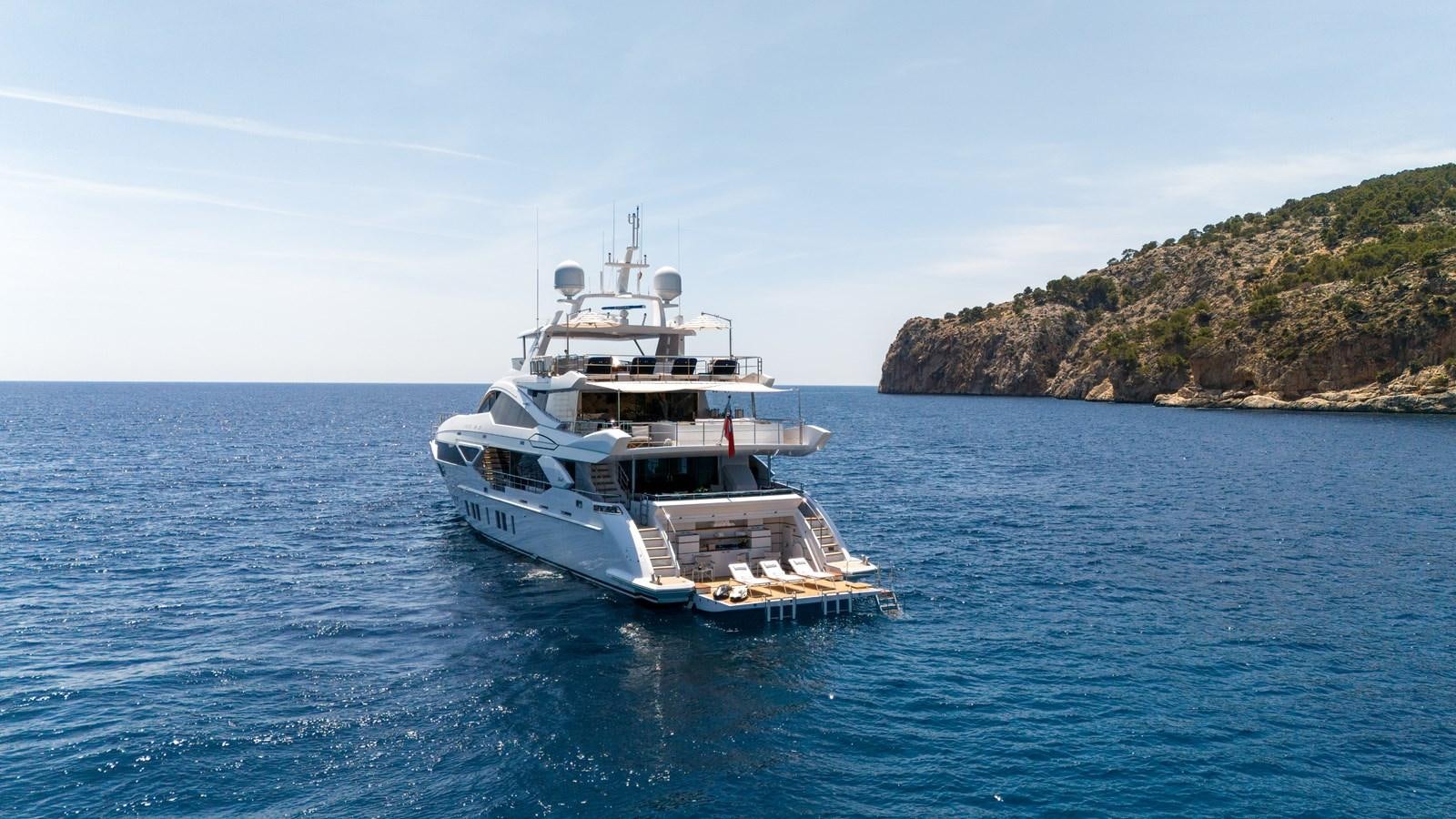

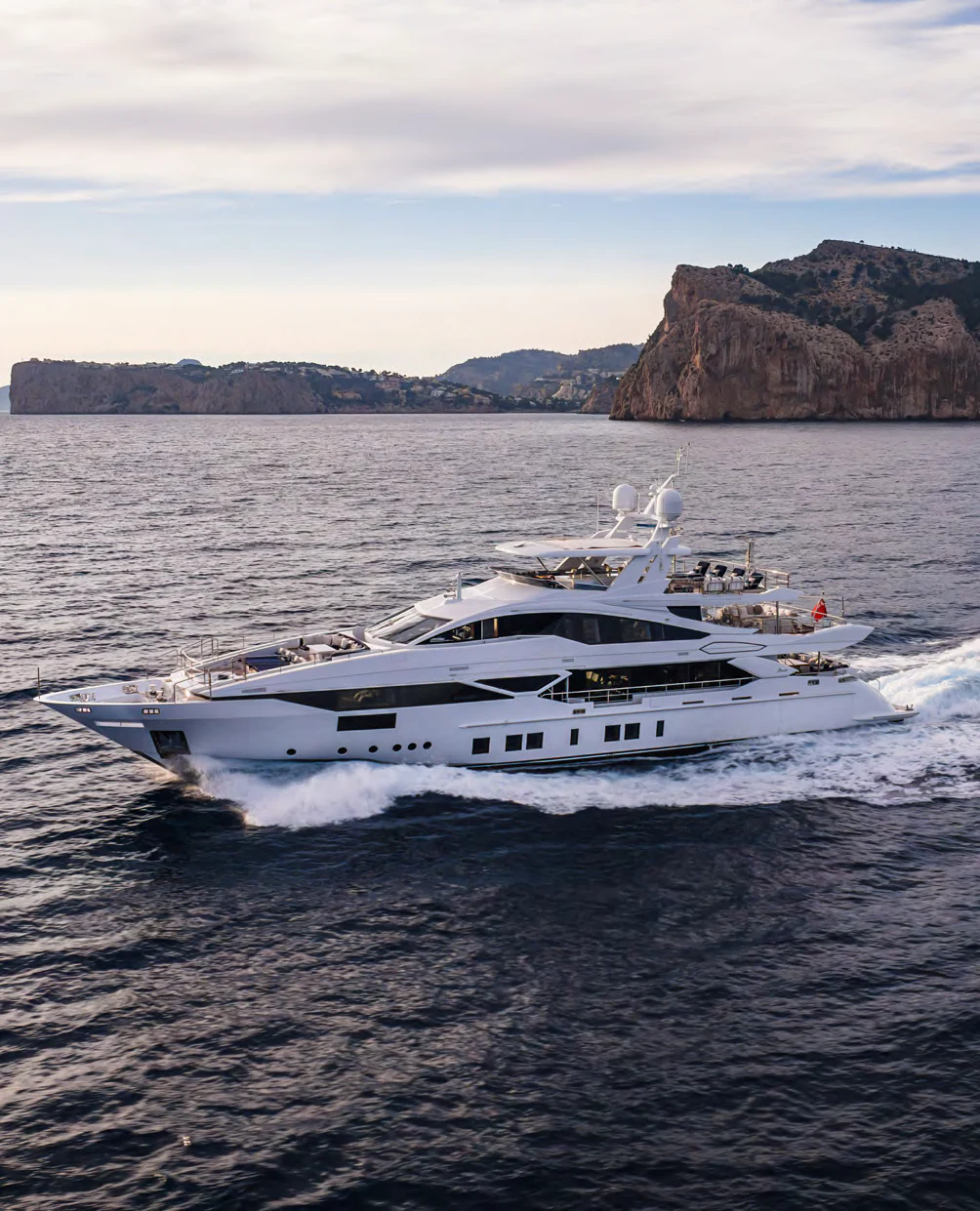

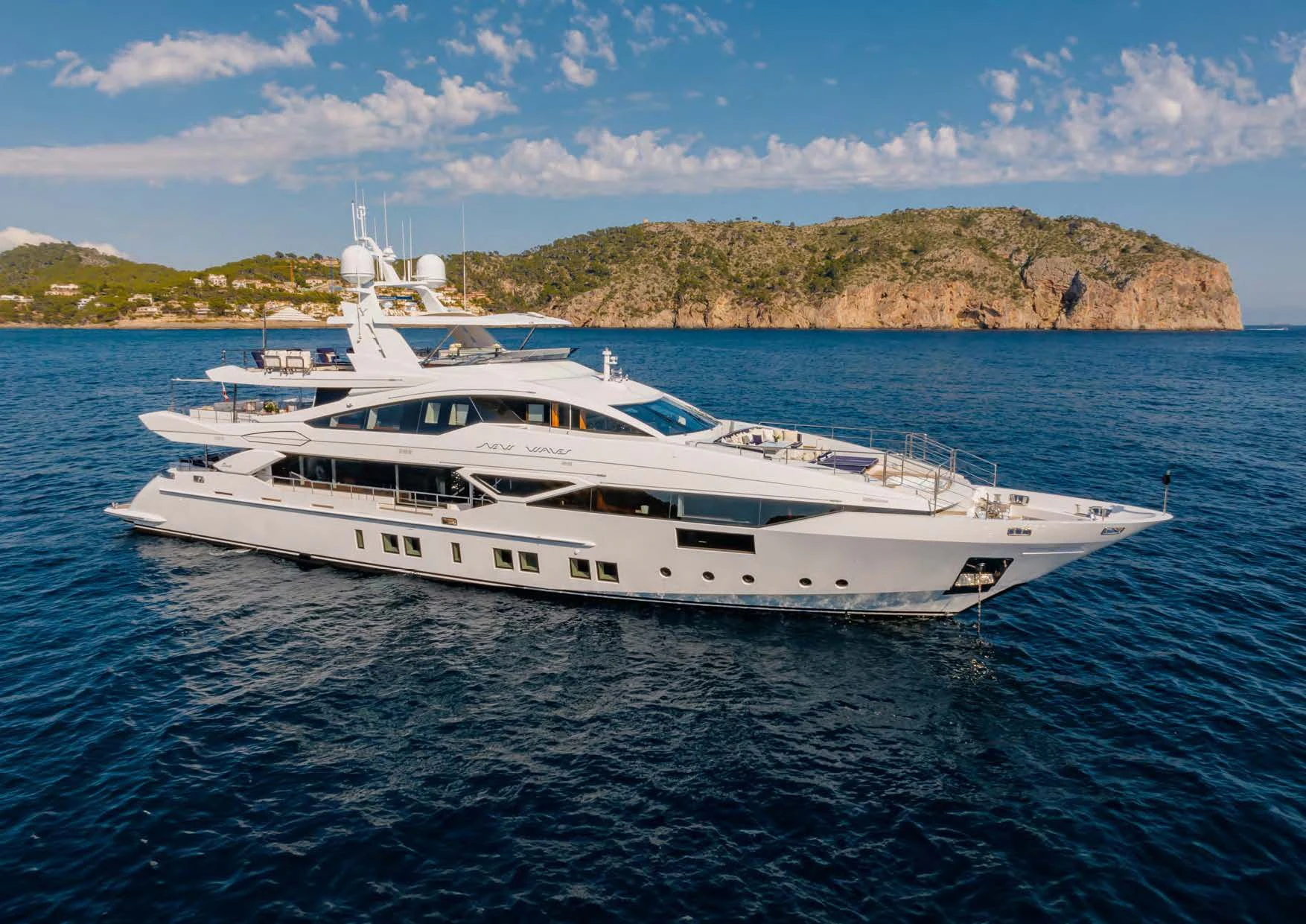

NEW WAVES Yacht for Sale

• 2x High skewed propellers, diameter 1500mm, designed to obtain high efficiency and low noise
• Tecnicomar ECOmar waste treatment plant - capacity 6000 litres p/day
• UV water filtration and 2x water softner
• Fuel oil electric transfer pump Gianneschi ACB 331/B
• Fuel manual transfer pump Gianneschi Excelsior 5
• Grey/Black waters pump Gianneschi MVI60
• Fresh water pumps 2x Gianneschi ACB332
• Hot water pumps 2x Gianneschi Z30
• Air compressor Gianneschi CT2 fitted in garage
• E/Hydraulic power pack in aft technical space
• Watermaker reverse osmosis Idromar MC5S - 6000L per day
• Two hot water heaters 200L
• Jacuzzi Delos on the forward area
• Alfa Laval MB3035 for fuel polishing

Propulsion:

• Prop Shaft

Gearboxes:

• Reduction gearbox ZF 7600A
• Reduction ratio determined on relation to the propeller design and propulsion set is 3.45:1.

Shore power:

• 2 x ASEA AC54V (54kVA) shore power converters
• 2 x 25m 125A shore power cables
• 2x 50 kVA 400V shore insulating transformers
• A combination of European, U.S and USB outlets are found throughout the boat.

Batteries:

• All batteries are GEL or AGM according to their usage
• One group of 24V DC batteries for radio equipments
• One group of 24V DC batteries for service
• Two groups of 24V DC batteries for main engines starting
• Two groups of 24V DC batteries for generators starting
• One group of 24V DC batteries for main engines electronic
• Alternator on each main engine and generator to charge the batteries.
• All batteries group with dedicated batteries charger.

Air Conditioning:

• A Condaria chilled water system is installed in the engine room, serving the makeup air units and fan coil units throughout the Yacht. The total installed chilled water cooling capacity is 432,000 BTU/h using three (3) hermetic compressors, three (3) sea water cooled condensers with connection to the main manifold, three (3) frequency converters. The three compressor/condenser systems are fully independent, so that one system can run while the other is being serviced/repaired. All air handlers have heating strip elements for cold weather as needed.
• 2 x Sea water pumps are provided for the chiller system.
• 2x Fresh water pumps allow chiller water circulation.
• 4 x Units for the primary treatment of the air are fitted onboard. They are equipped with filter, damper, heat exchanger and fan.

• Accommodation for up to 10 guests in 5 cabins:

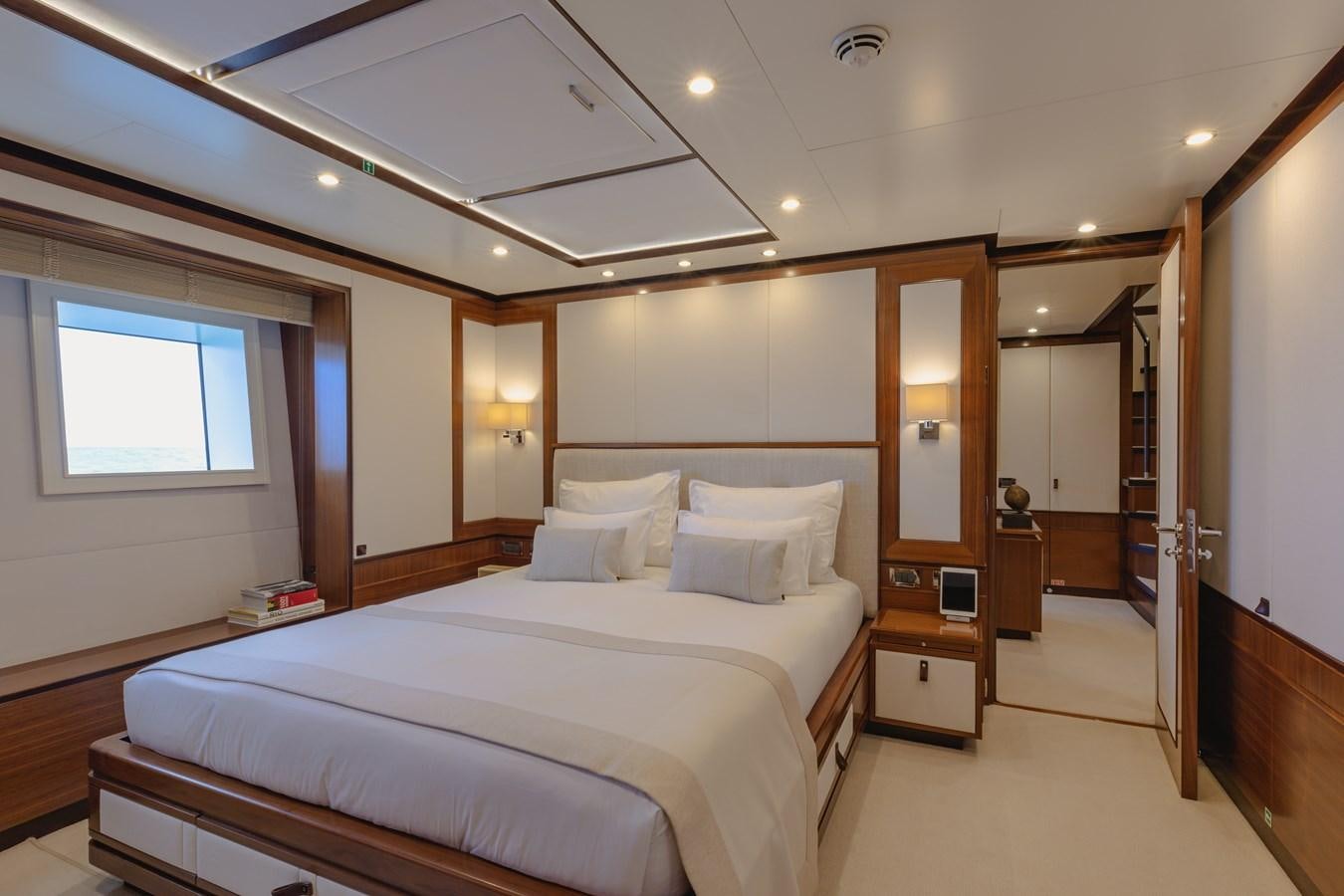

• One master on main deck forward

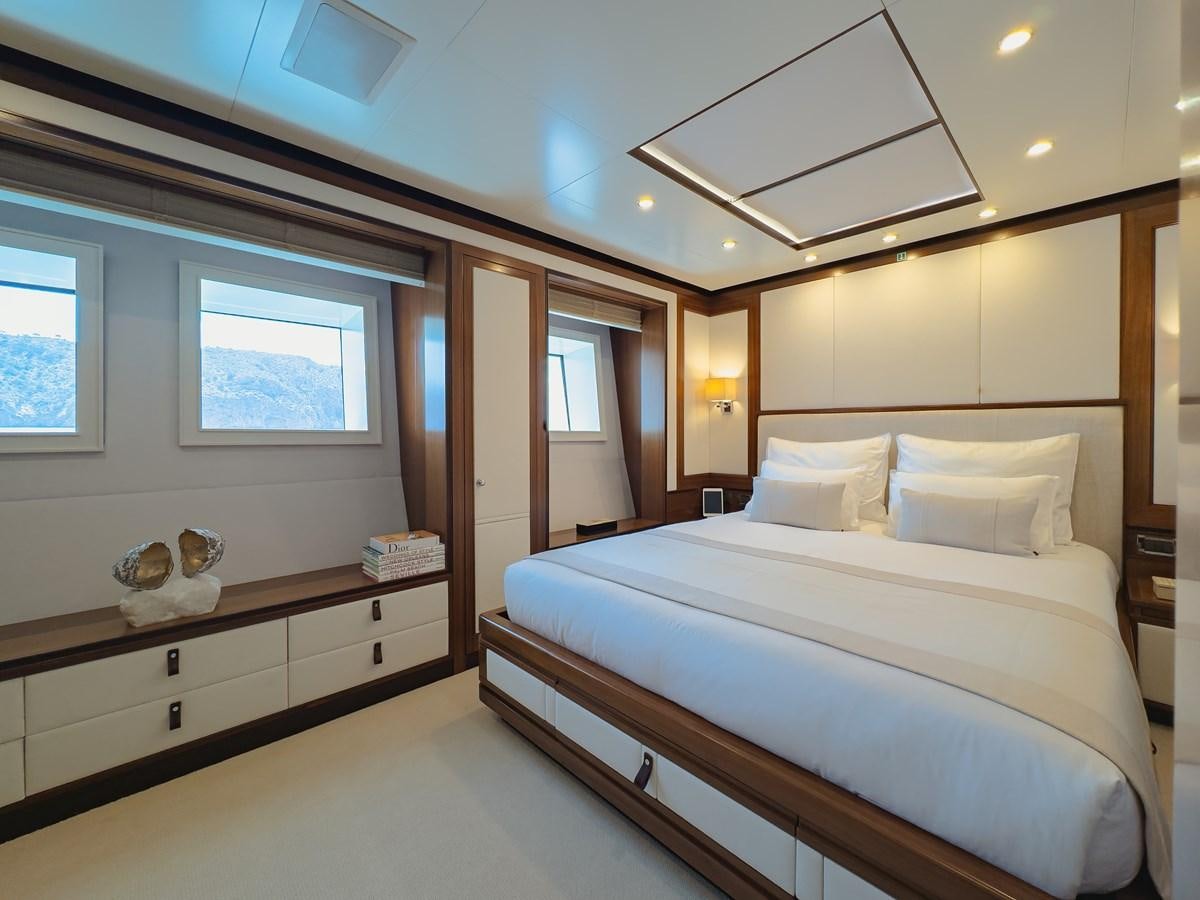

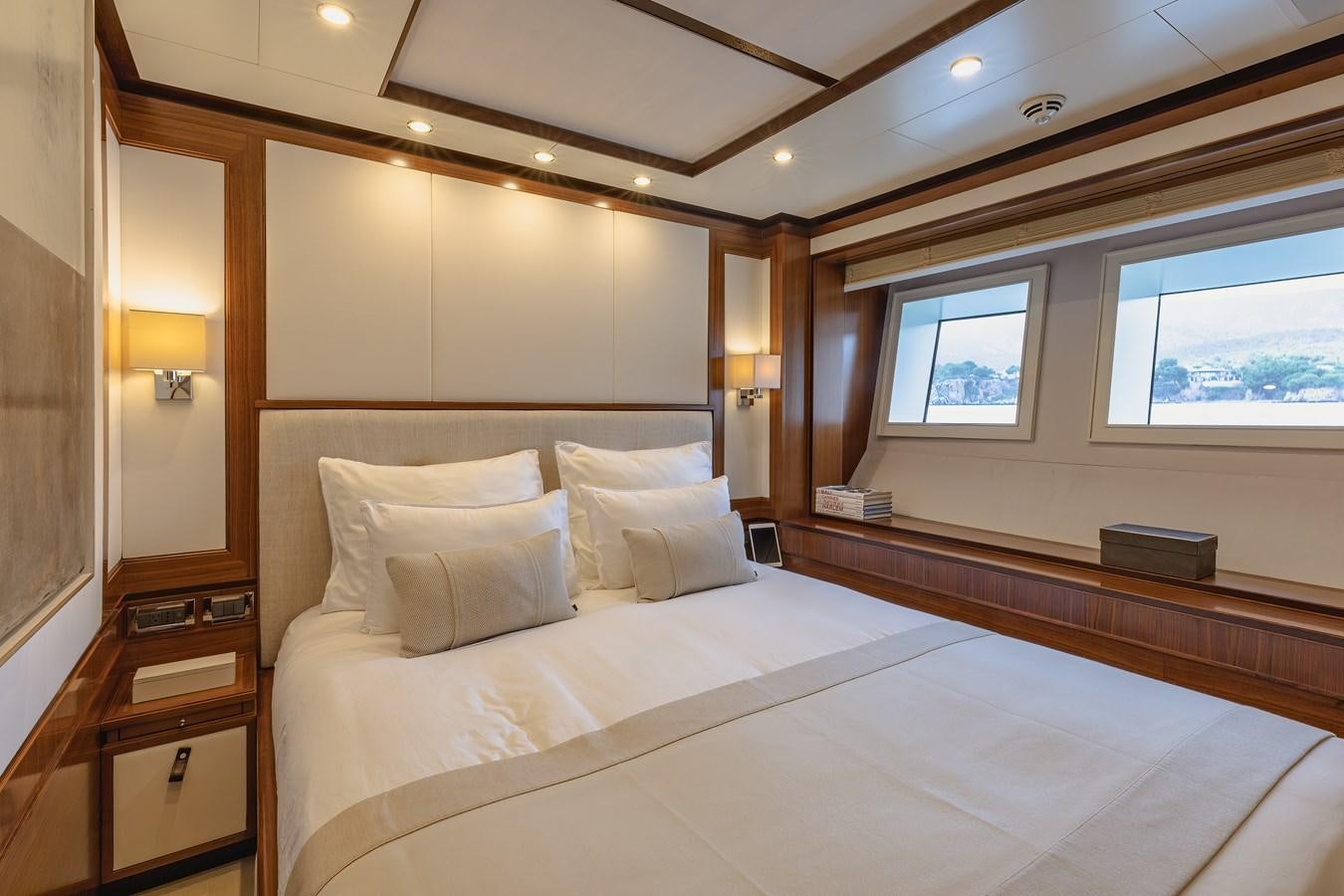

• Two VIP on lower deck

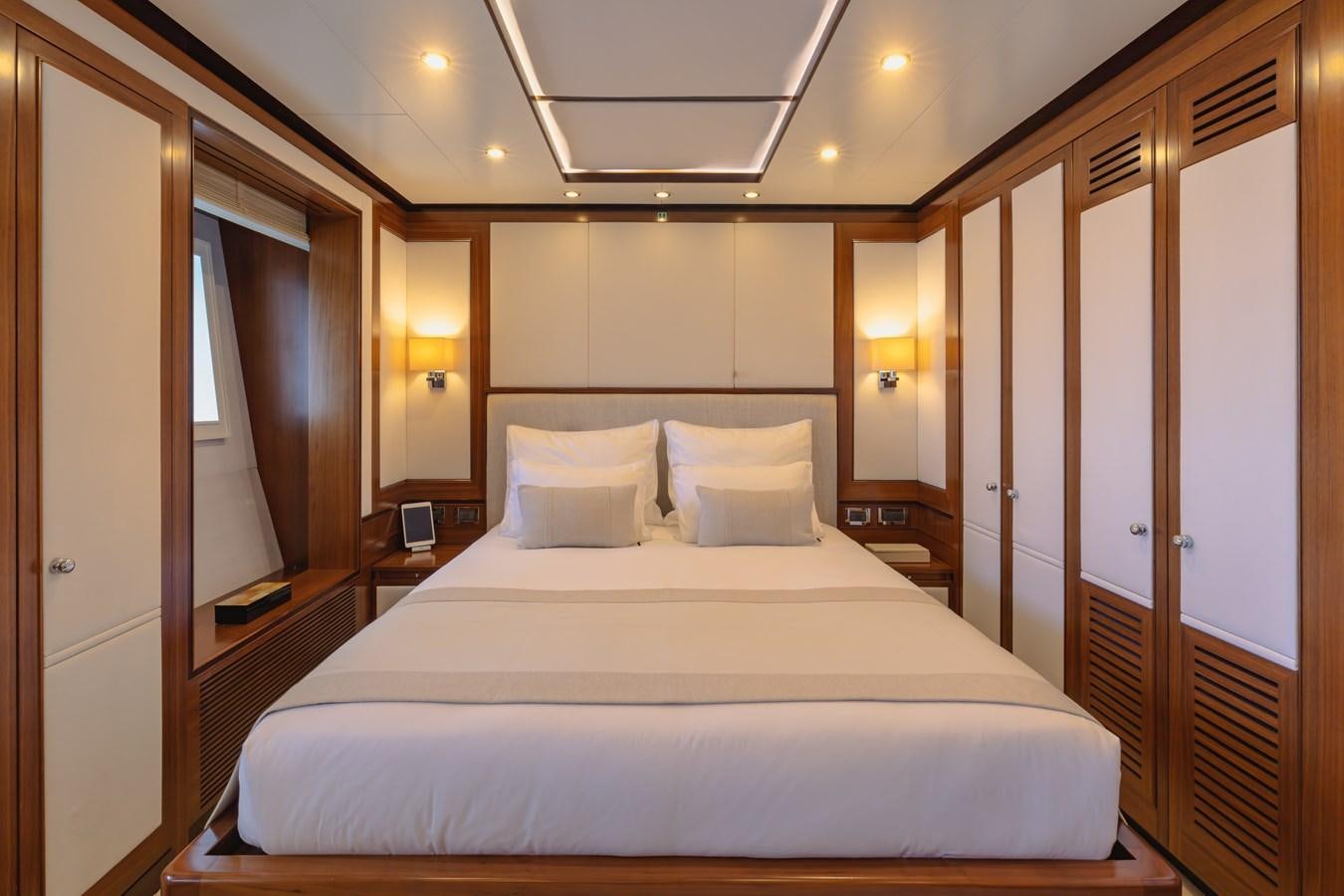

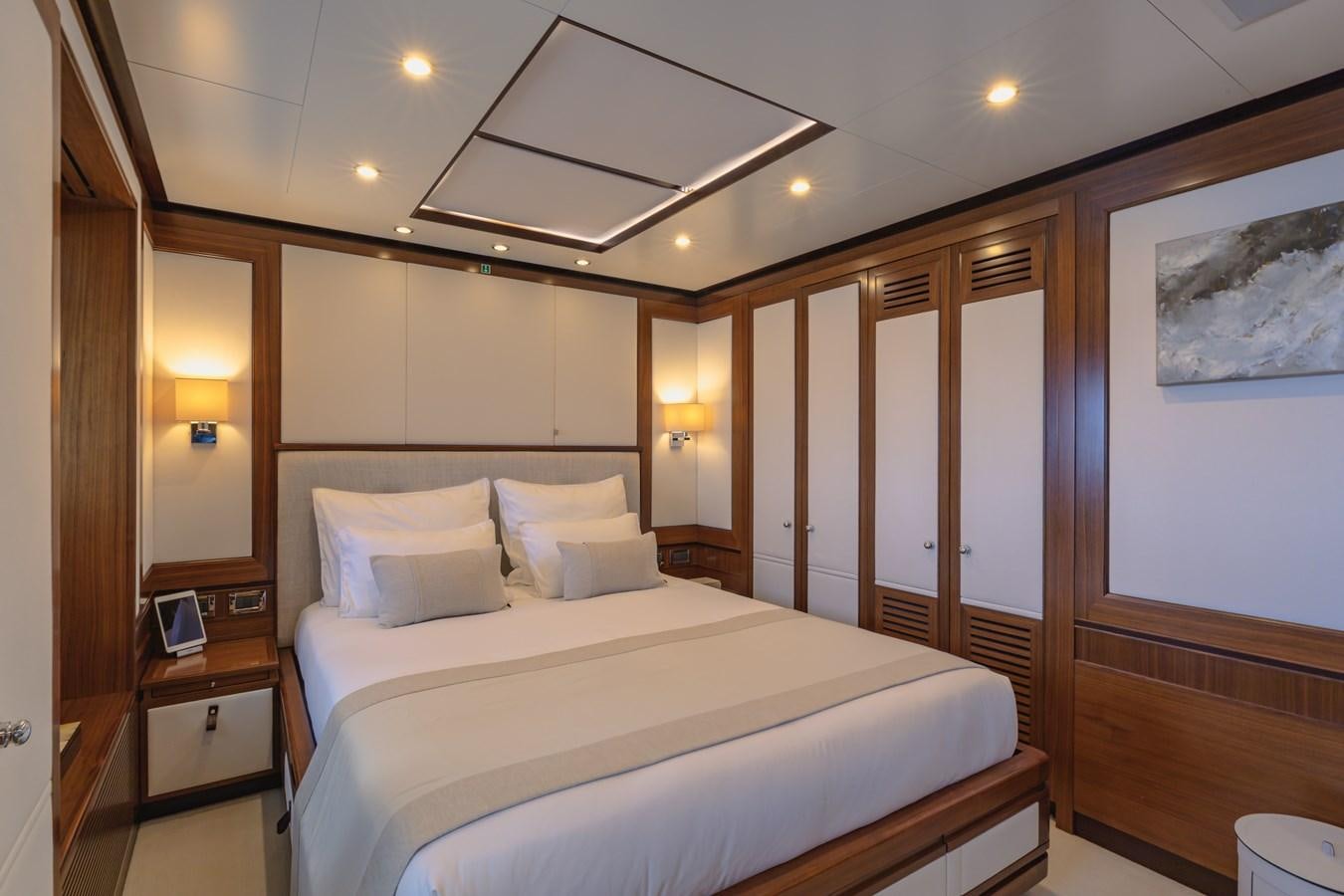

• Two Doubles on lower deck

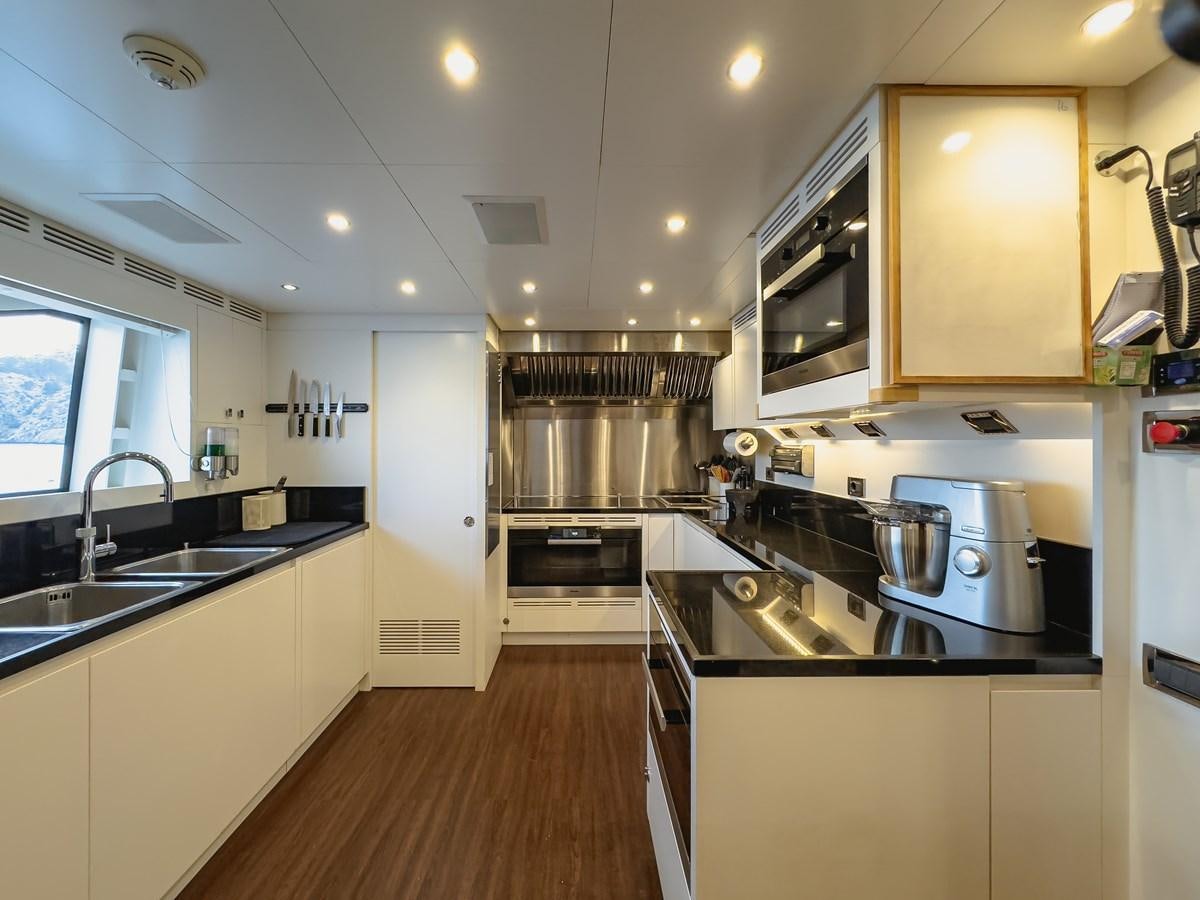

Galley

• Miele 5 burner cooktop with Miele extraction fan
• Miele warmer on cooktop
• Miele oven
• Stainless steel double sink
• Miele microwave
• 3 x Miele refrigerators
• Miele freezer + chest freezer in garage
• Full height Miele wine chiller - 178 bottle capacity

Laundry

• Washing Machine : Miele
• Dryer Machine : Miele

Other areas

• Ice Maker and Minifridge in the main saloon
• Dumbwaiter in pantry
• Minifridge in owner's study
• Ice Maker and Minifridge in the upper deck saloon
• Ice Maker and Minifridge in the beach club
• Ice Maker and Minifridge in the sundeck bar
• Extra freezer in Main Deck storage
• Extra wine cellar in beach club area

• VHF Sailor Mod RT 6210
• VHF Remote control unit (Crew mess , Galley)
• Four (4) Portable VHF Sailor Sp3510
• RADIO TELEPHONE SSB SAILOR6301 HF/MF
• 5G Pepwave router
• VSAT KVH V11, Wi fi throughout the vessel, VOIP server integration.
• 1 x PABX system with 12 telephone units is provided.
• Starlink System with relevant connectivity
• Brand new 2024 UHF radio system with 10x portable units for the crew

• This vessel has has an Integrated Bridge Control and Navigation System and an integrated Yacht monitoring system.

1st Touch panel control LCD 15” to manage the following:

• Navigation Monitors configuration Management
• Horn control**
• Wiper control**
• Chart control
• Radar control
• Eco control
• Search light control
• Fog Horn signaling
• Wind
• Depth
• Speed
• Windlass and counter
• Wheel House Light control
• Navigation Light control
• Compass lightcontrol and dimmer
• Wipers and horn will have also physical buttons available on console

2nd Touch panel control LCD 15” to manage the following:

• Monitoring and Automation system
• Alarms
• Electric Power Station
• Main Engines data Conning
• Bilges levels and pumps
• Doors and Hatches.

3rd Touch panel control LCD 15” to manage the following:

• Autopilot control
• Steering control panel
• Rudder pump
• Steering mode and take over
• Take over
• Heading
• Gyrocompass
• Rudder position (RAI)
• Boat Speed

Monitors to observe radars,chart plotter, CCTV, and other navigation equipment:

• Four LCD Monitor 19” IP 65 for display of charts,radars, cameras, etc
• Two LCD Monitors 10” IP 65 for Wings

Equipments:

• RADAR FURUNO, FR BB 2117 X band, 12 Kw, 96 nm,
• ARPA RADAR/VIDEO PLOTTER/CHART
• FURUNO NAVNET 3D
• Blackbox graphic Echosounder DFF 1, with dual frequency traducer (depth, log, water
• temp) Speed log, integrated in NAVNET 3D B744V Transducers
• GP150 Furuno GPS
• Navnet 3D BB MPU 001
• Cartography system, Arpa card, AIS TRANSAS ECS 4000 (ECDIS Compliant) CHART PLOTTER
• Wind Multi NMEA System
• RudderAngle Indicator for steering room
• FURUNO Satellite Gyrocompass SC 30 VHF Sailor Mod RT 6222 CL A GMDSS
• NAVTEX NX700
• AIS FURUNOFA150
• SAILOR 406 EPIRB
• Two (2) SART S4 MCMURDOunits
• BNWAS SYSTEM, Including2 motion sensors in WH
• Closed circuit TV (CCTV) and camerasfor security is integrated (controlled in Bridge and Crew Quarters)
• *Cameras in Engine Room, port walkway, starboard walkway, sundeck, garage,aft deck and bridge deck aft (7 total)
• 1 x Pneumatic
• horn controlled by the integrated navigation system is provided. Buttonsare available on the wings, it can be operated in emergency in the wheelhouse.

Wing Stations:

• 2 x Control stations are positioned externally at both sides of the wheelhouse and include all the necessary commands and instruments for maneuvering the Yacht in mooring operations, including steering tiller,slave bow thruster control lever, horn, main engine throttles, MMEE start/stop buttons and alarm signal,emergency stops.

• This vessel is equipped with Benetti Exclusive Sea Technology (BEST) integrated audio visual system.
• IPAD and IPAD mini units are used as remote controls for all areas.

GUEST CABINS

• 1 x Samsung 46’’ LED TV full HD 1080P
• 1 x Networks BEST Client
• 1 x Denon X3000 Amplifier with Airplay
• 1 x Apple TV
• 1 x Satellite TV decoder
• 1 x Apple Ipad Mini controller
• 2 x Promar marine speakers
• 1 x Unidata Wifi

OWNER’S CABIN

• 1 x Networks BEST V.O.D.
• 1 x Denon X4000 Amplifier with Airplay
• 1 x Satellite TV decoder
• 1 x Apple Ipad Mini controller
• 5 x Promar marine speakers 8”
• 1 x B & W Subwoofer
• **lights, air conditioning, and shade controls are integrated into Ipad for Owner's cabin

MAIN SALOON

• 1 x Samsung 65’’ LED TV full HD 1080P with built in mechanism
• 1 x Hush BEST V.O.D.
• 1 x Denon X4000 Amplifier with Airplay
• 1 x Apple TV
• 1 x Satellite TV decoder
• 1 x Apple Ipad Mini controller
• 5 x Promar marine speakers 8”
• 1 x B & W Subwoofer

GALLEY and PANTRY

• 1 x Samsung TV 27’’ LCD HD ready 16:9 (Slave of Crew Mess TV)
• 1 x Satellite TV Decoder
• 1 x Teac Amplifier AM/FM tuner DVD player + Ipod station
• 2 x Pair of Promar loudspeakers

AFT DECK

• 4 x B&W Speakers (new 2024)
• 1 x volume control

WHEELHOUSE

• 1 x Teac Receiver/Amplifier CD Player + Ipod Interface
• 1 x pair of Promar speakers

UPPER DECK SALOON

• 1 x Samsung 55’’ LED TV full HD 1080P 16:9
• 1 x Hush BEST V.O.D.
• 1 x Denon X4000 Amplifier with Airplay
• 1 x Apple TV
• 1 x Satellite TV decoder
• 1 x Apple Ipad Mini controller
• 5 x Promar marine speakers 8”
• 1 x B & W Subwoofer

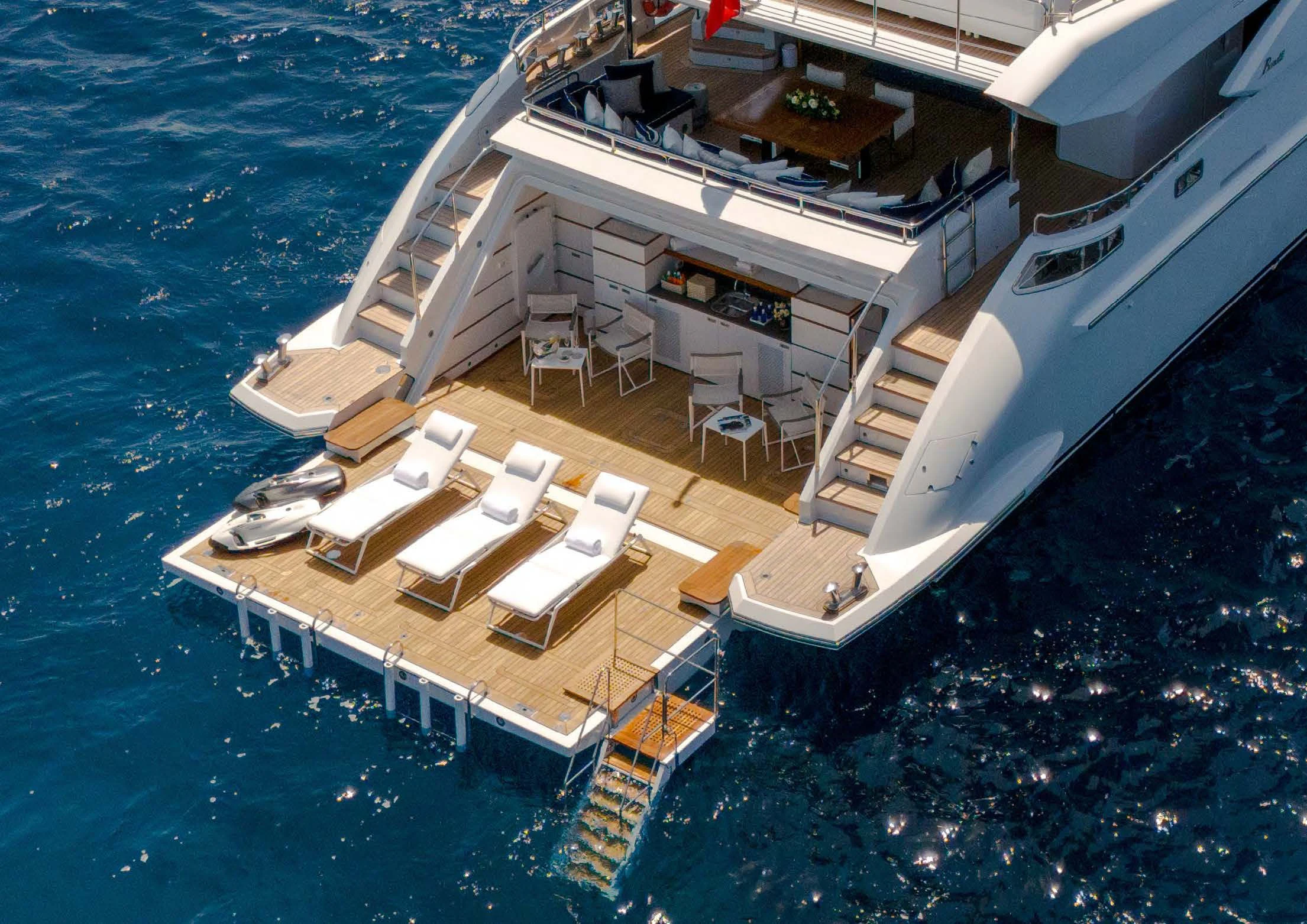

BEACH CLUB

• 1 x Teac AM/FM tuner DVD player + Ipod station
• 2 x B&W Speakers (new 2024)

UPPER DECK AFT

• 1 x Volume control
• 4 x B&W Speakers (new 2024)

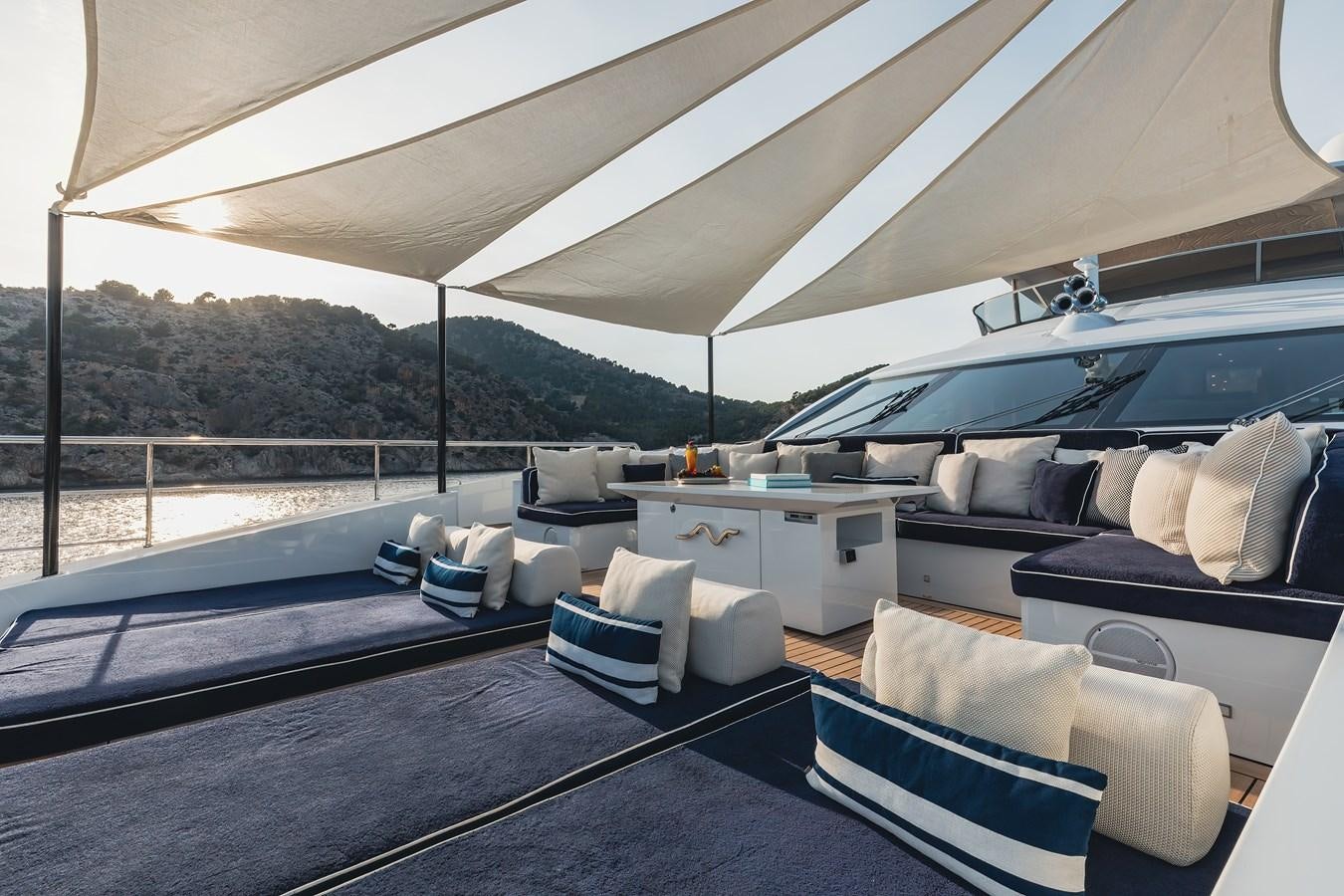

FORWARD SUN DECK

• 1 x Networks BEST Audio Client
• 1 x Denon X3000 Amplifier with Airplay
• 1 x Apple Ipad Mini controller
• 4 x B&W Speakers (new 2024)

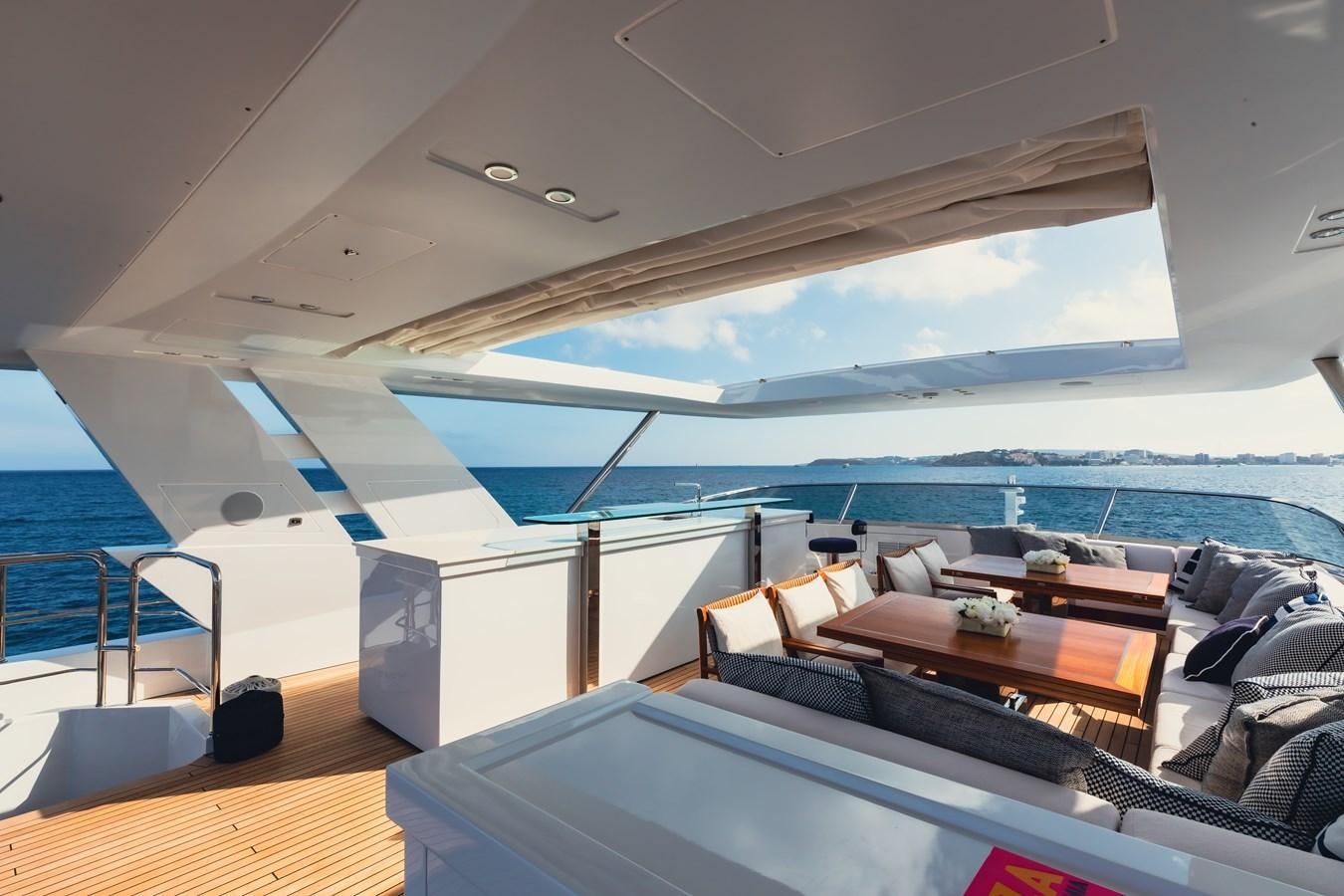

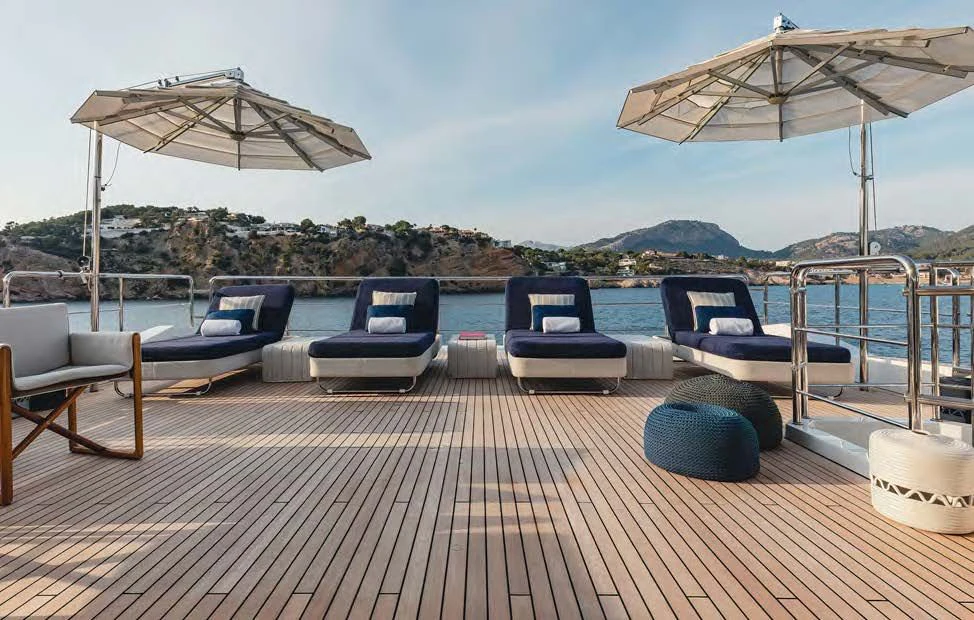

SUN DECK

• 1 x Networks BEST Audio Client
• 1 x Denon X3000 Amplifier with Airplay
• 1 x Apple Ipad Mini controller
• 8 x B&W Speakers (new 2024)

CAPTAIN CABIN

• 1 x Samsung TV 27’’ LCD HD ready 16:9
• 1 x Satellite TV Decoder
• 1 x Teac AM/
• FM tuner DVD player + Ipod station
• 1 x Pair of Promar loudspeakers

CREW CABINS

• 1 x Flip down TV with DVD Player

CREW MESS

• 1 x Samsung TV 27’’ LCD HD ready 16:9
• 1 x Satellite TV Decoder
• 1 x Teac Amplifier AM/FM tuner DVD player + Ipod station
• 2 x Pair of Promar loudspeakers
• 1 x CCTV Controller

• Williams 565 diesel jet tender
• Jetski SeaDoo GRT230
• 2x Seabob
• Paddle Boards
• Never used brand new Fliteboard eFoil
• Full set of diving gears
• Equipments for wakeboard

ANCHORING

• The Yacht is equipped with galvanized steel HHP (high holding power) anchors of 240 kg each according to rules. The anchors are connected to the yacht with galvanized steel, 17.5 mm diameter chain with stud link DIN 766 for U2 grade length of 165 m each side.
• 2 x Ital electric windlasses (400 Vac/3phase/50Hz/5.5kW) of the vertical type are installed. The windlasses are mounted with recessed stainless steel plates of the main deck floor and locally controlled.
• New anchor swivels installed and full system inspection completed in 2024.

CAPSTANS

• 2 x Ital electric foot operated vertical capstans are fitted on aft deck. The capstans is raised from deck level on dedicated maneuvering area each side and locally controlled. Voltage is 400 Vac, 3 phases, 50Hz, 4 kW.

GANGWAY

• A telescopic, hydraulic stern gangway is provided, capable to move up and down 15°. The gangway extends 6.5 m and is painted using Snow White with teak grating. Removable handrails are provided at gangway, and a radio operated remote control system for extension and retraction of the gangway from the quay is supplied.

SWIMMING LADDER

• 1 x Manual swimming ladder in AISI 316 stainless steel, with teak steps.
• 1x Custom swimming ladder for easy and safe access in the water

AWNING

• A motorized awning is fitted on the sun deck, forward of the mast, to cover the forward seating and bar of the upper sun deck area.
• A manual awning can be put in place on the upper aft deck as well as the forward sun deck.

GARAGE

• 1 x Electrohydraulic telescopic crane is provided in the garage for Williams 565 diesel jet tender and one large jet ski

• All safety equipments according to flag and classification society.

FIREHOSES HOUSING

• Fire hoses, fire nozzles, fire extinguishers, and fire axe

FIRE PUMP

• 1 x Electric self priming pump (Gianneschi ACM 531 400Vac, flow rate 300lt/min, 79 usg/min at 18m H2O), is provided in the engine room for fire extinguishing system. The pump is connected with the motor pump.

ENGINE ROOM FIRE EXTINGUISHING SYSTEM

• A fixed fire extinguishing system is installed according to Manufacturer requirements, with adequate nozzles and a release handle situated in the emergency control panel in the aft port locker in the main deck.

FIRE ALARM SYSTEM

• A fire alarm system is installed with sensors fitted throughout the Yacht of a type as per
• Classification Society requirements. The control unit is fitted in wheelhouse. A heat or smoke detector is fitted in each cabin, room and technical space according to Classification Society. They will actuate an audible and visible alarm in wheelhouse.

BILGE PUMPS

• 1 x Electric self priming pump (Gianneschi ACM 531 400Vac, flow rate 300lt/min 79usg/min at 18m H2O), is provided in the engine room for main bilge system.
• 1 x Electric pump (Gianneschi CP30 400Vac, flow rate 75lt/min, 20usg/min at 11m H2O) is provided for the garage bilge systems.

MOTORPUMPS

• 1 x Motor pump (Gianneschi M ACB 531, flow rate 150lt/min, 39usg/min at 40m H2O), is provided on main deck for bilge and fire system.

LIFE RAFTS

• 4 x Life rafts for ten (10) people each, fitted with hydrostatic release, is provided on sun deck (two on each side)

• The yacht is maintained by a permanent full crew, ensuring that all maintenance is performed with great care and through a preventive program, resulting in an excellent yacht condition. All machinery is serviced annually according to best practices and manufacturer, class, and flag recommendations.

2017

• Interior/Exterior layout refit and upgrades including new fabrics, new lighting, new carpets, new custom built furnitures. In addition, the designer Wolterinck worked with the owner to elevate the interior design.
• Installation of new bridge alarm control system

2020

• RINA 5-years special survey
• Bowthruster complete overhaul
• New Bridge Screen
• New Sundeck Umbrellas

2021

• PepWave 5G router system installed
• Conning computer re-conditioning
• Installation of an additional water softner

2023

• Both CMC stabilisers fins fully replaced (one in 2018 / one in 2023) and changed with a complete overhaul of all related systems, including oil and seals replacements
• Installation of Marine Starlink system
• New sundeck furnitures and table
• Fresh water tanks inspected and repainted
• New battery charger

2024

• Full repainting of hull and superstructure - AWLcraft 3000 Matterhorn Whit
• Full service of both engines and generators, including oil analysis
• Heat exchanger changed on main engines
• Generators top overhaul (MTU 5000 hours), including new particle filters to protect the new paint
• Generators injectors changed (3 out of 6 for each generators)
• Gearboxes oil changed
• Alfa Laval serviced
• ACSEA serviced
• Engine room ventilation improved and upgraded
• All valves controlled and changed when needed (class approved)
• HVAC system refit with all handlers and fancoils dismounted for maintenance, and replace when needed, as well as piping and insulation. Refit of the chillers units. New motor fitted and new salt water pipes fitted
• Full service of all electronics on board, including detailed survey and preventive maintenance
• UHF brand new system for efficient crew communications with 10x portable units
• All carpets professionally cleaned
• Brand new custom side wind protective glasses on the upper deck
• New Beach Club furnitures B&B
• New 5G Antenna
• Full resand, repairs, and deep cleaning of the teak on all decks
• Foredeck teak recaulking
• Brand new B&W speakers in all exterior decks
• All custom furnitures repainted, details included
• Gangway complete overhaul with hydraulic/electric refit and new paint
• Full repaint of garage and beach club
• Garage and Beach Club doors overhaul including hydraulic and rams serviced
• New anchors swivles
• Overhaul of the watermakers, with new membranes, new high pressure pumps, new sandfilter, new high pressure hoses
• Within the last two years, every pumps on board has been changed
• New galley extractor
• Technomar Sewage treatment upgrade for new regulation
• Two boilers cleaned and inspected
• Fuel tanks inspection and recaught with appropriated epoxy
• The above list is non-exhaustive
