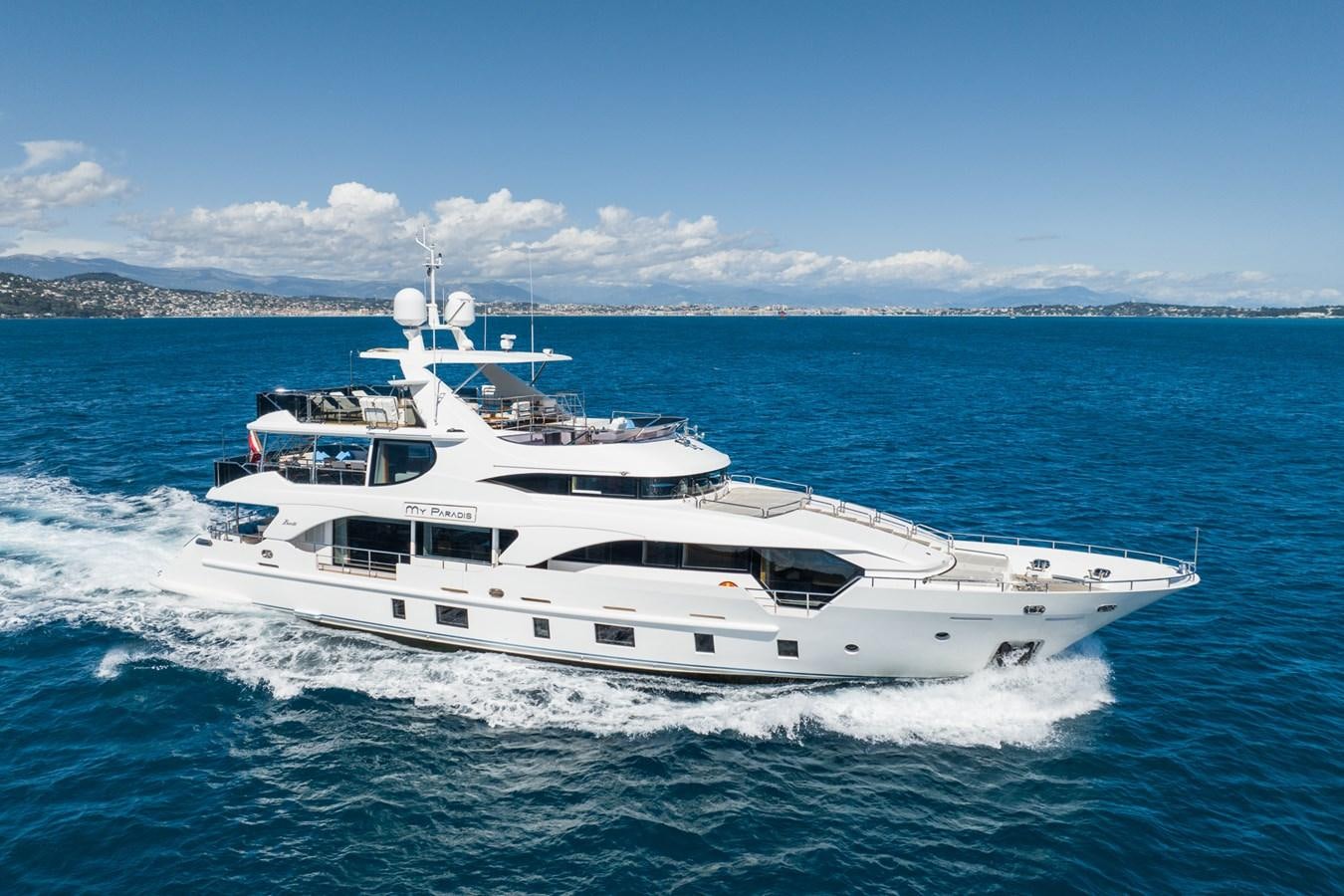

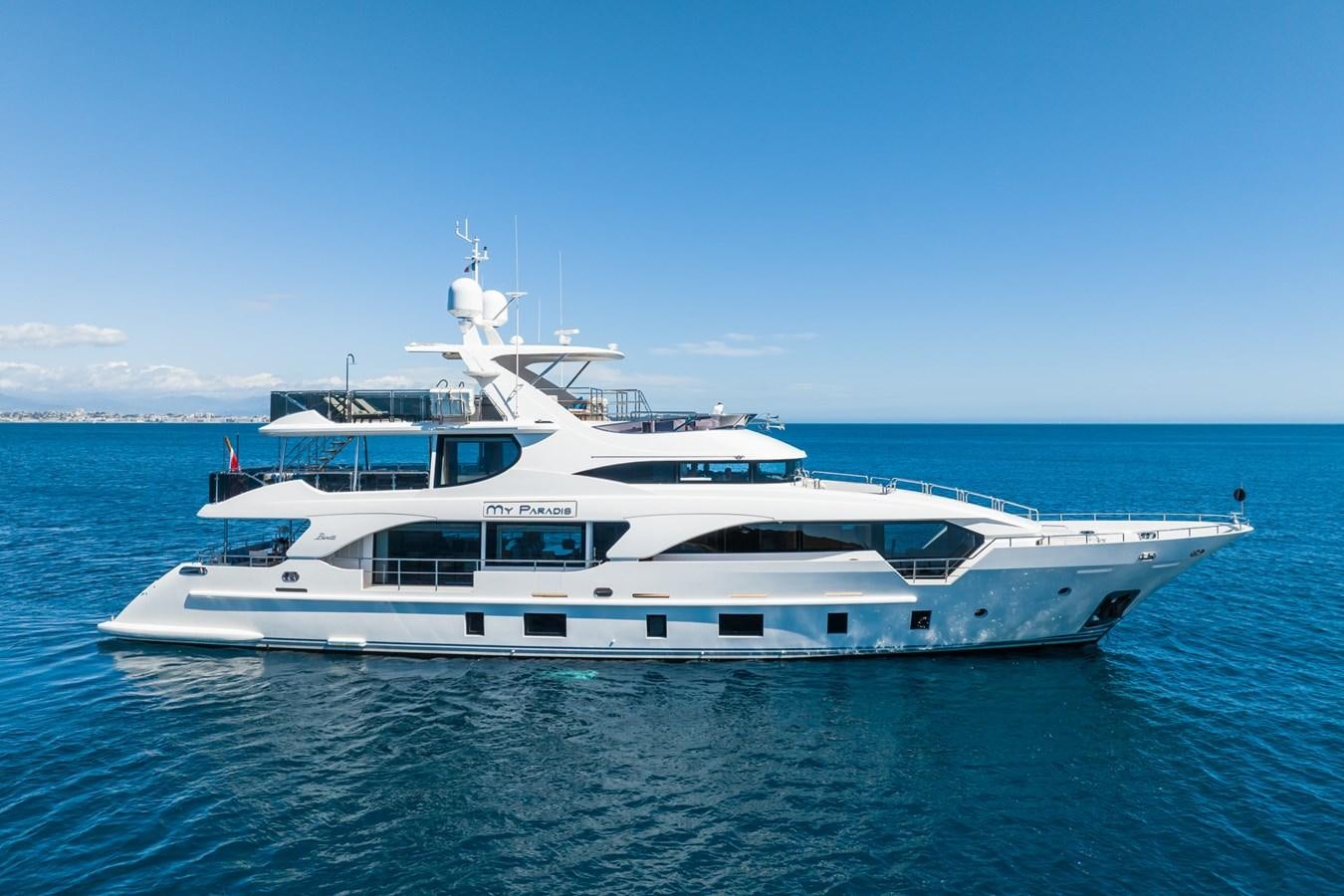

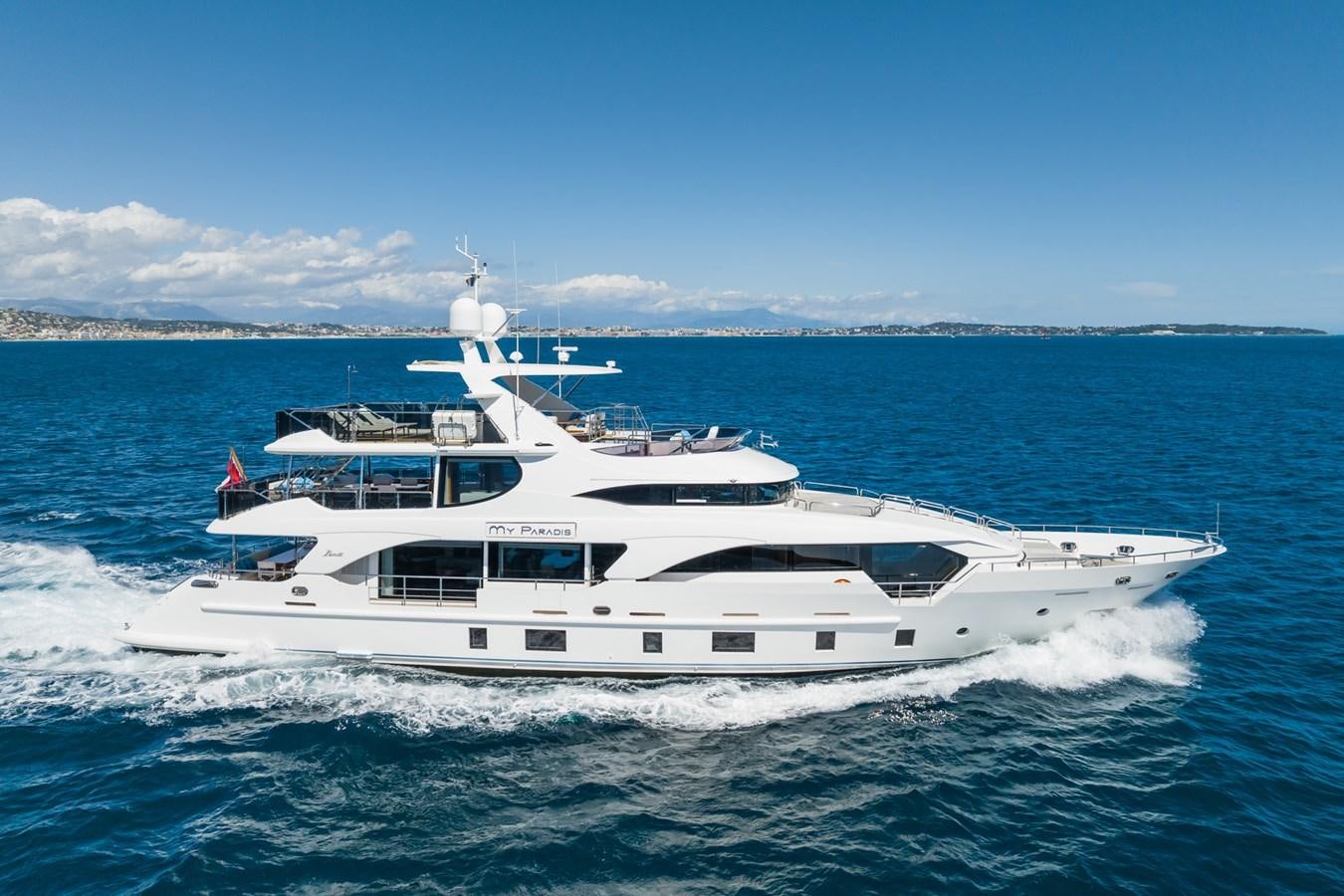

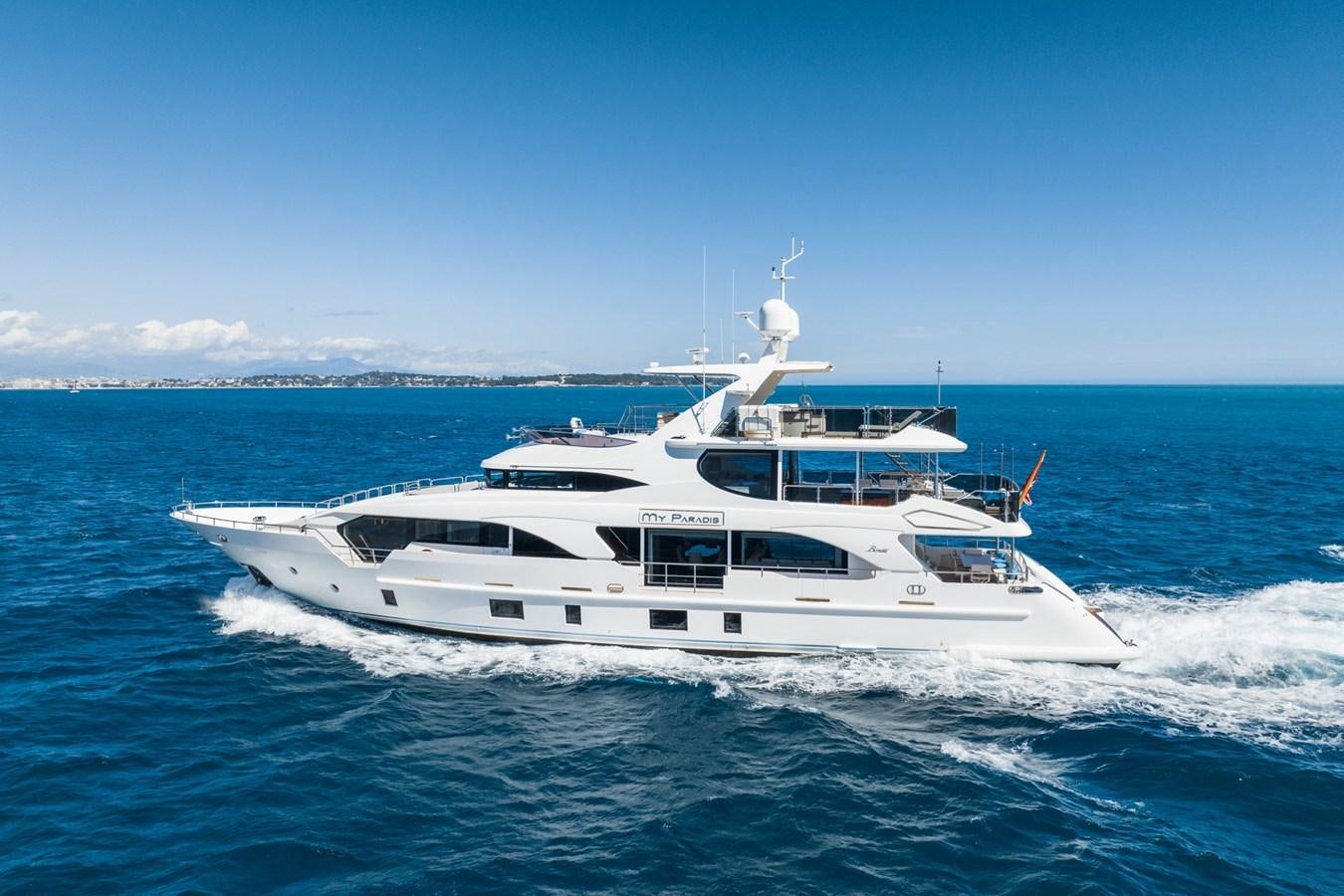

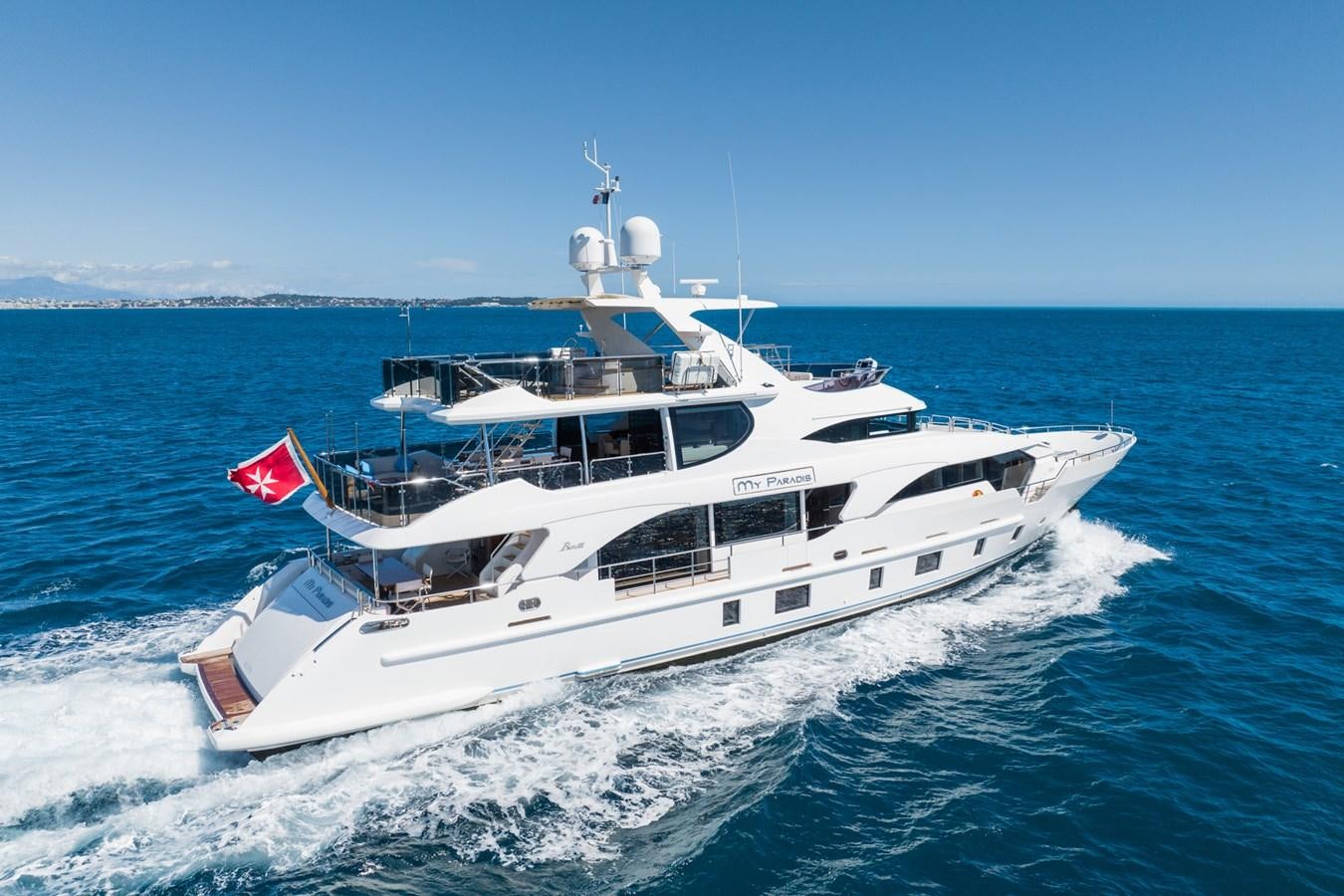

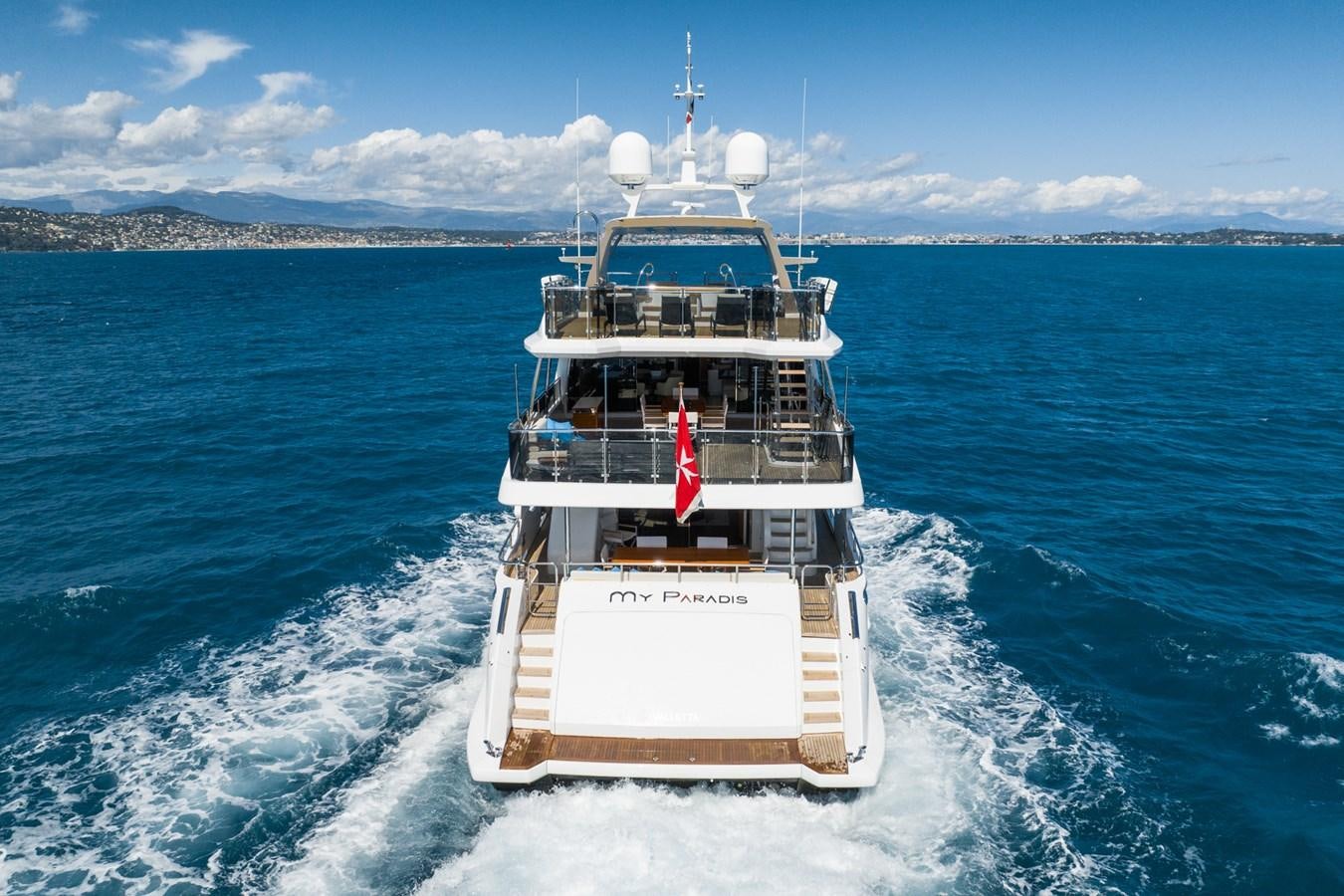

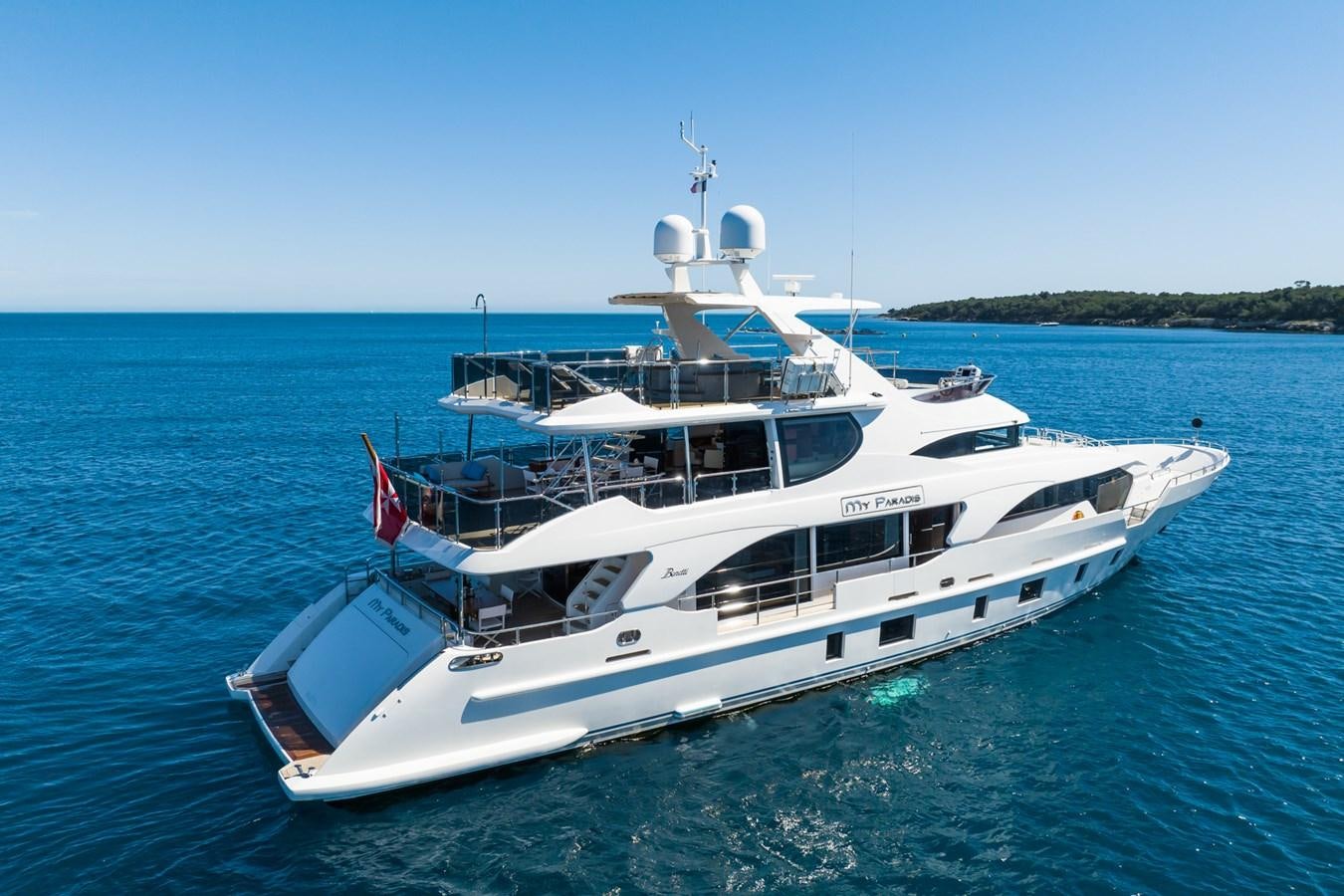

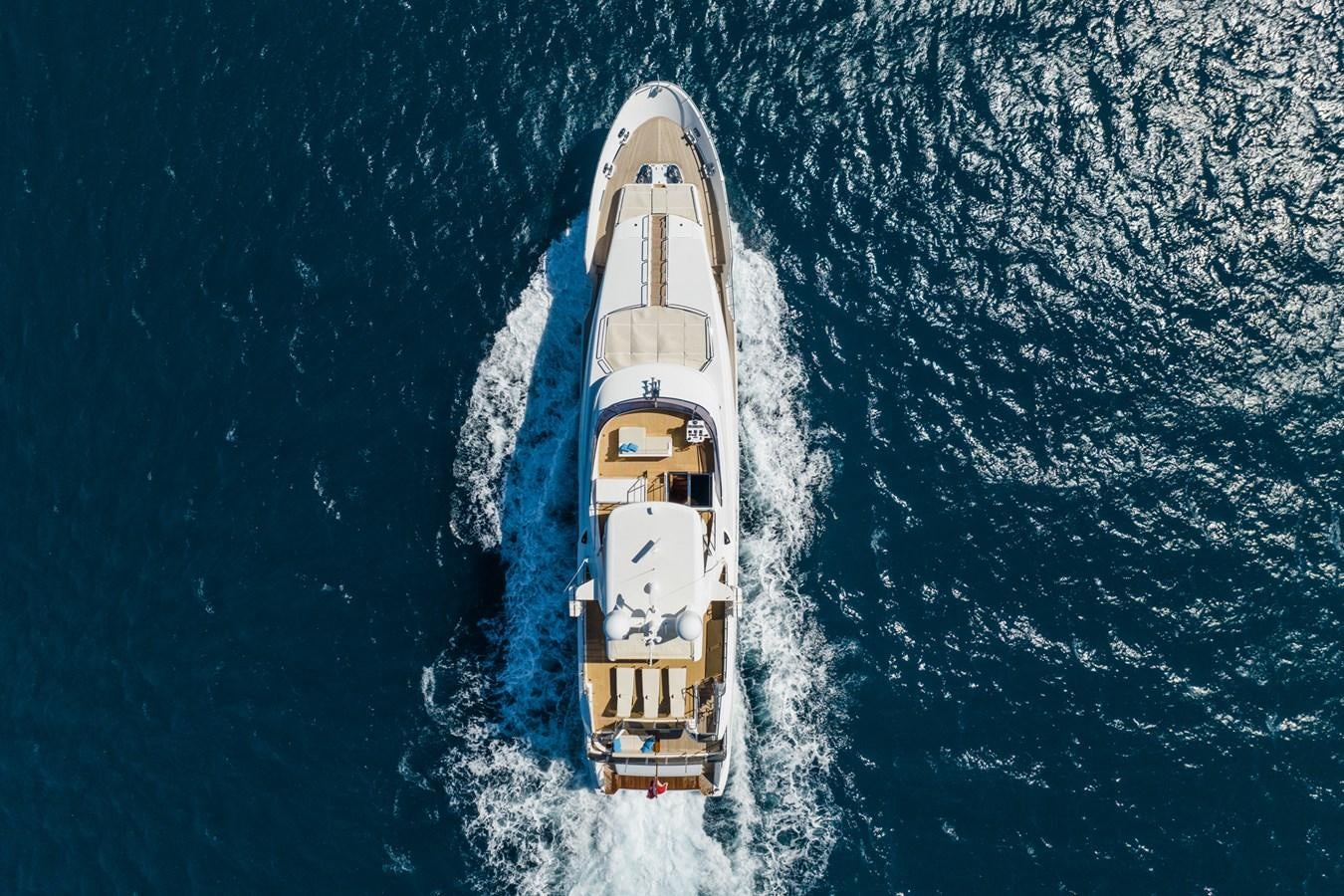

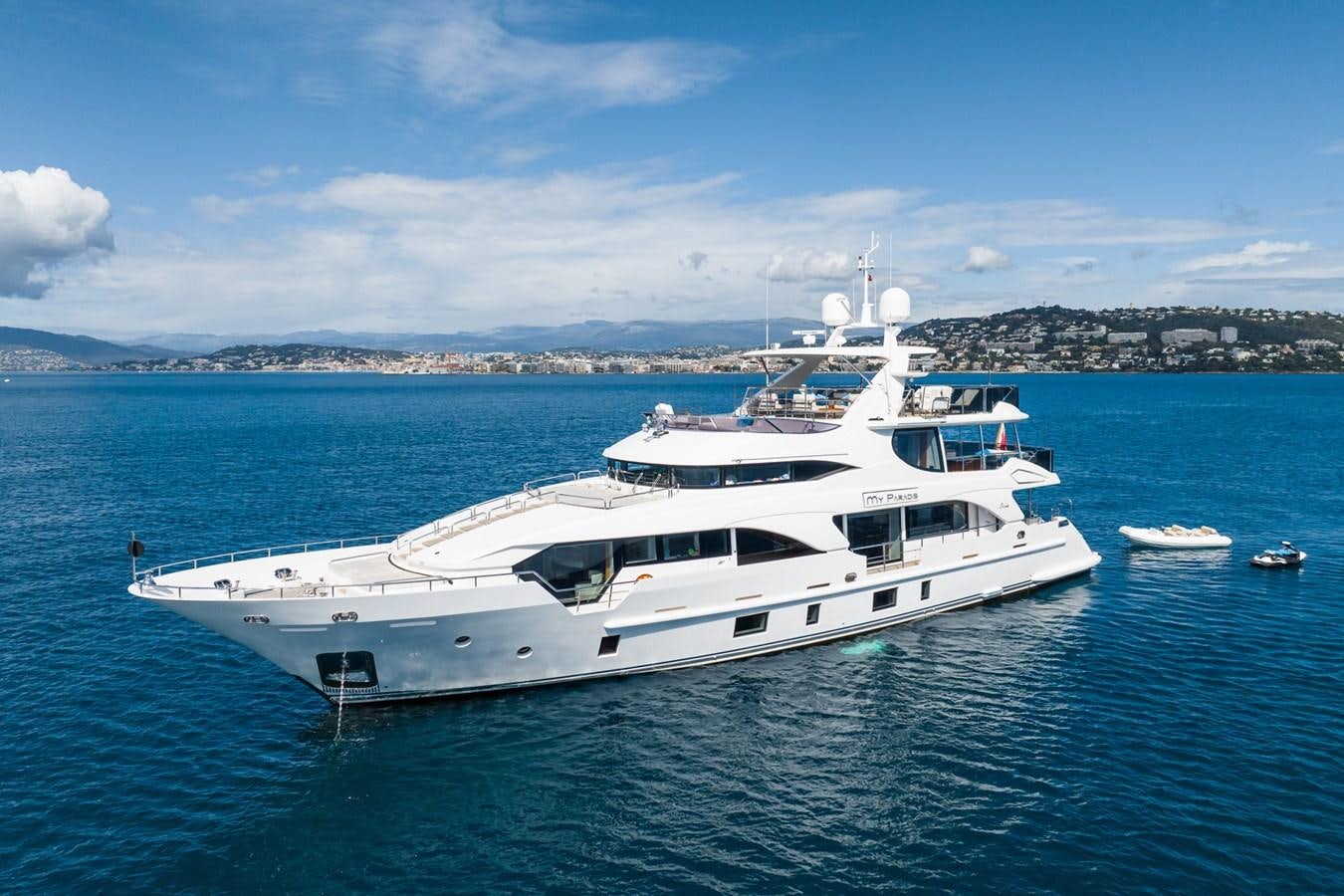

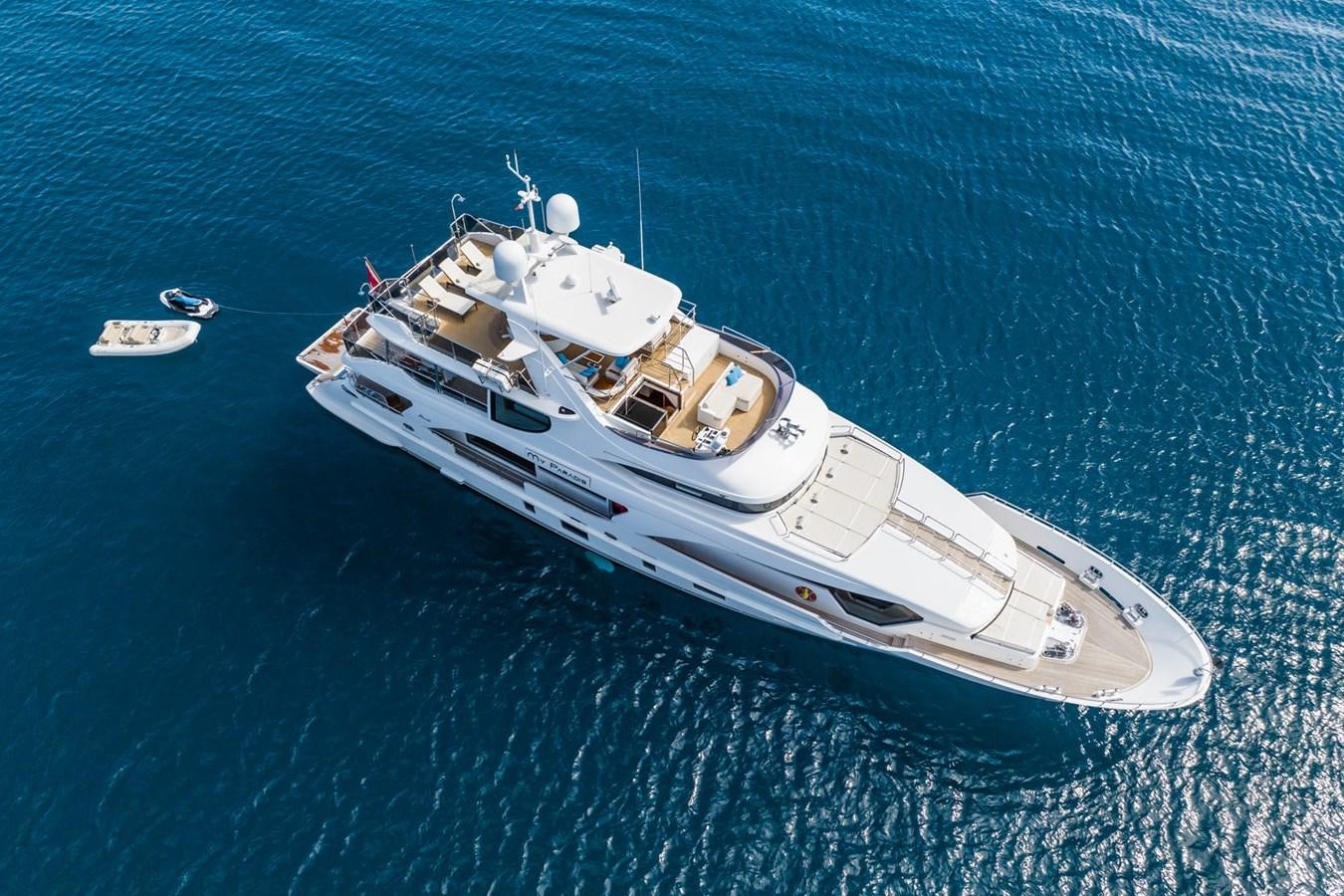

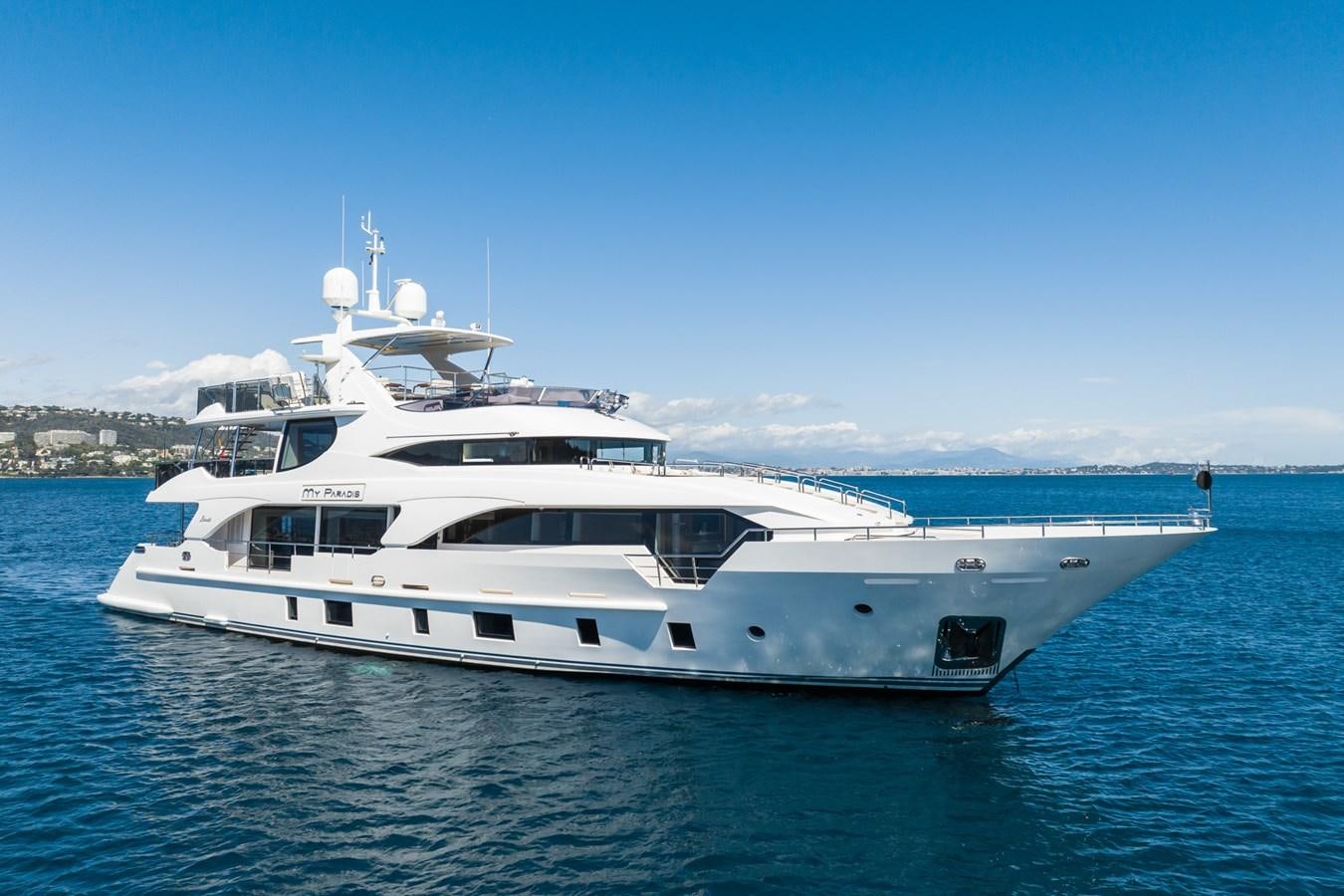

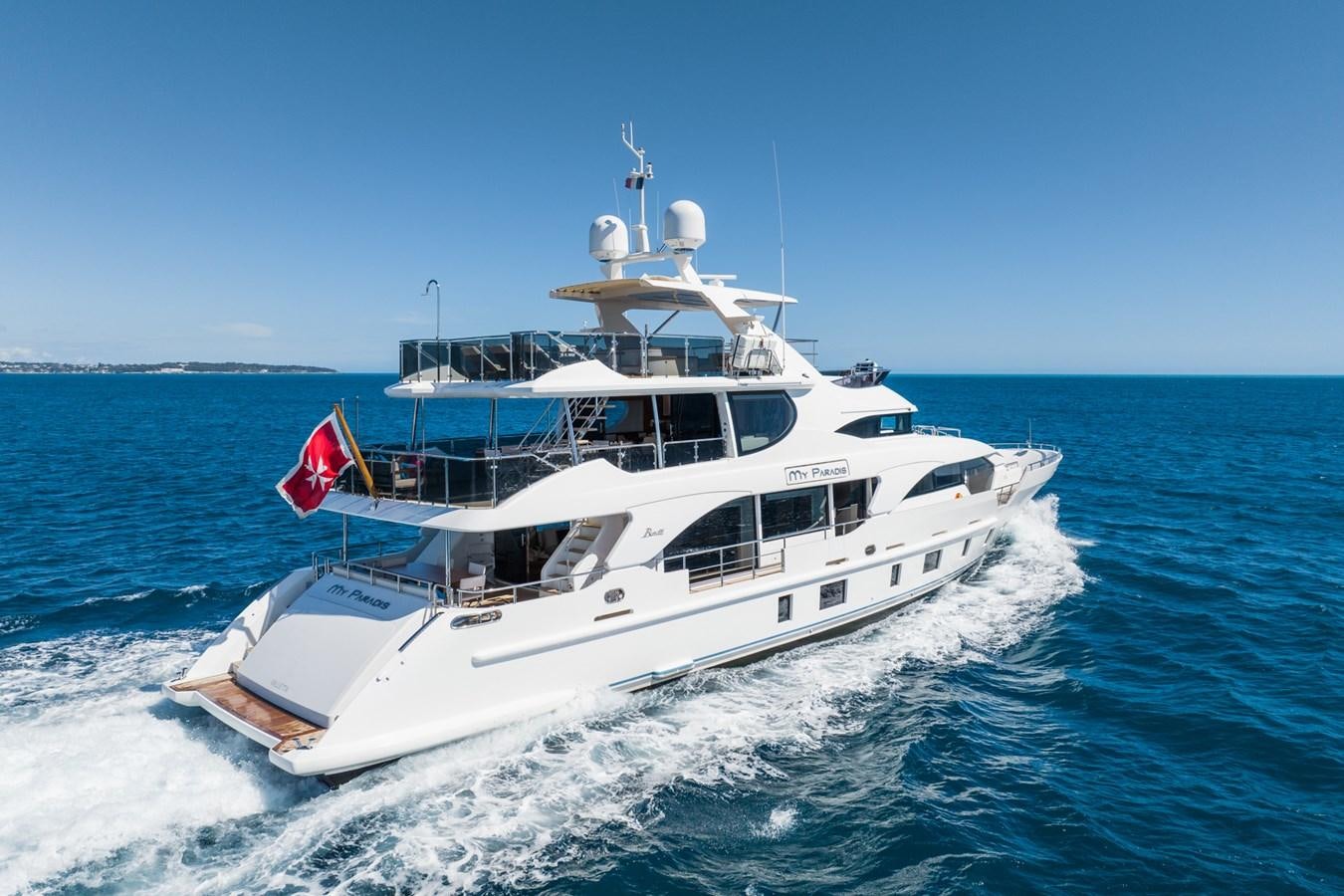

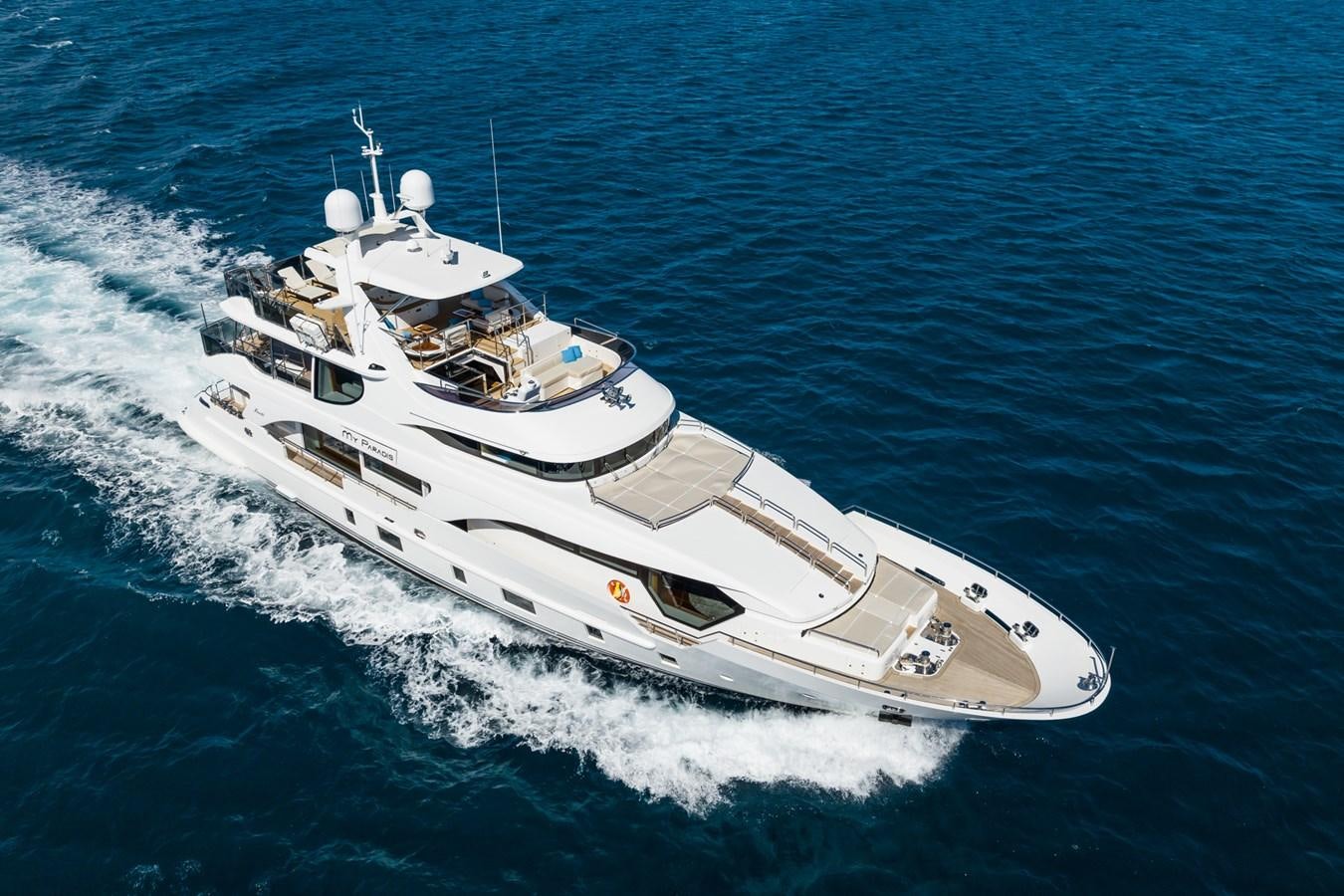

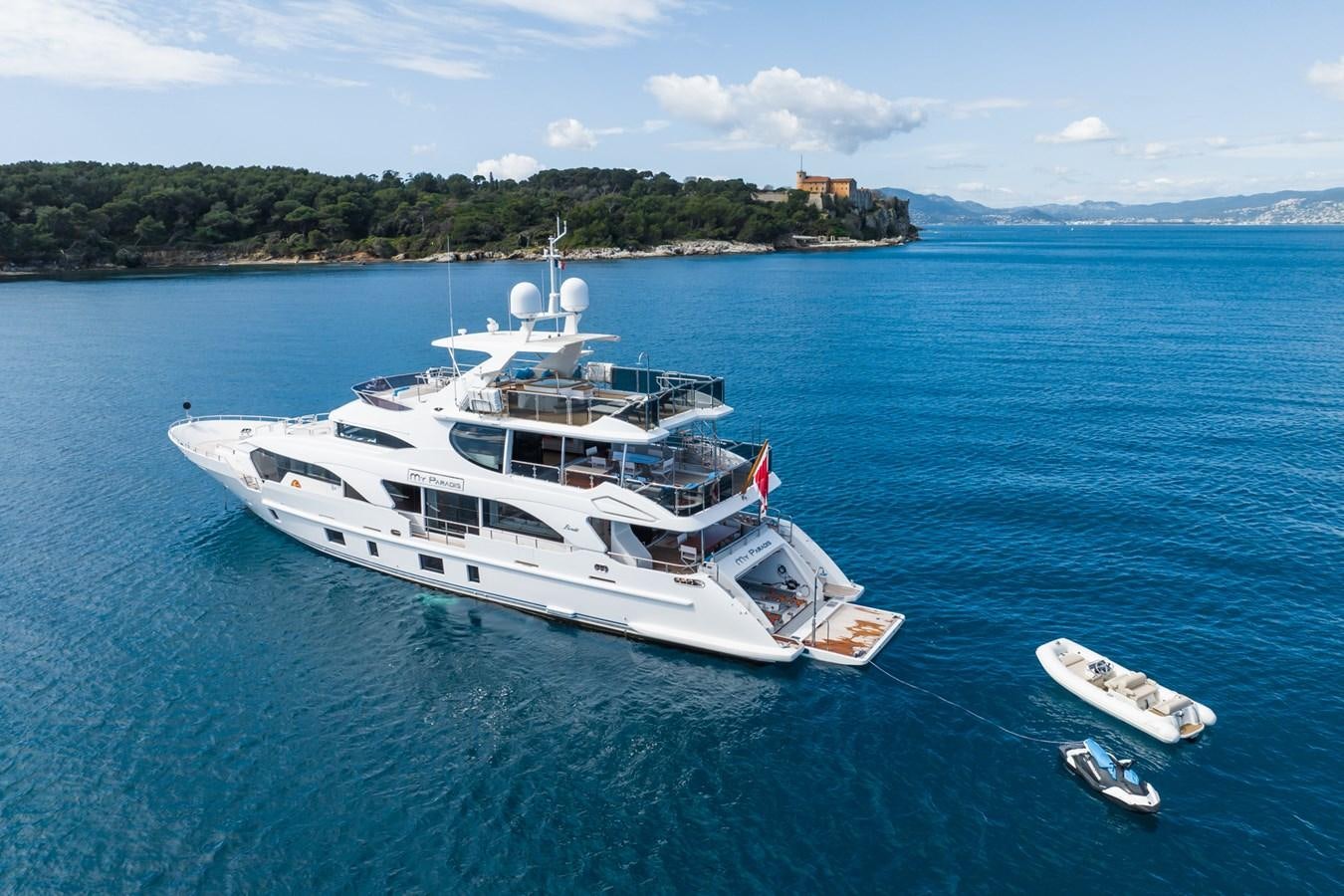

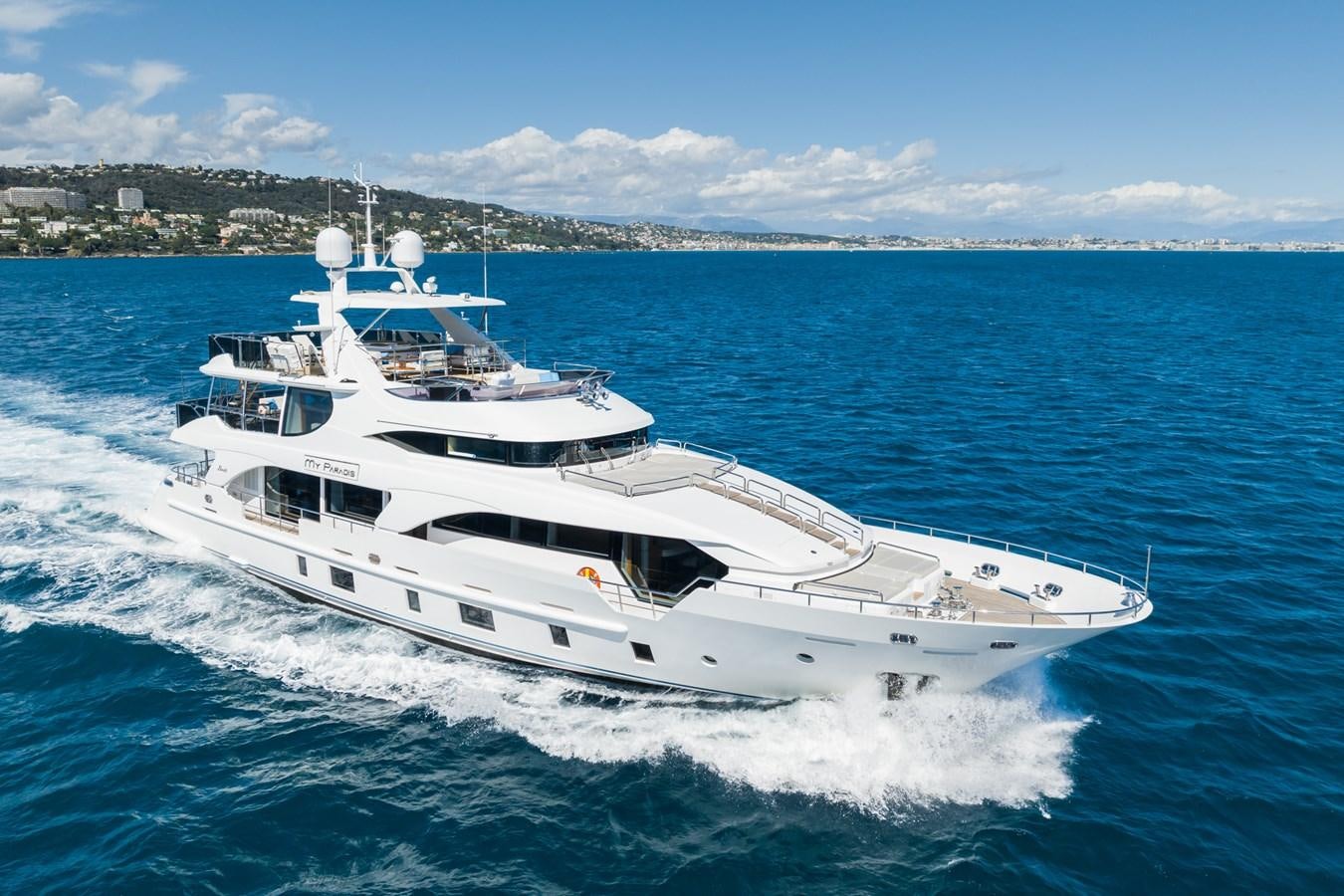

MY PARADIS Yacht for Sale

• Safety Certification: LY2 short range
• Water maker One reverse osmosis (capacity 180 liters per hour)

ELECTRIC AND ELECTRONIC SYSTEM

• The electrical equipment, wiring, fixtures, boards, switches etc. is designed located installed and tested according to the Classification Society rules.
• The electrical system installed shall be to the requirements of the Classification Society and it will generally consist of a 400 Vac / 3 phases / 50 Hz system, a 220 Vac / 1 phase / 50 Hz system and a 24 VDC.

Air Conditioning System
The air conditioning system is designed on the following data:
Summer:

• Outside air 35 °C - 95 F - R.H. 90%
• Inside air 22 °C - 72 F - R.H. 55%
• Sea water temperature 32 °C - 90 F

Winter:

• Outside air 0 °C - 32 F
• Inside air 22 °C - 72 F
• Sea water temperature 0 °C - 32 F

Ventilation System

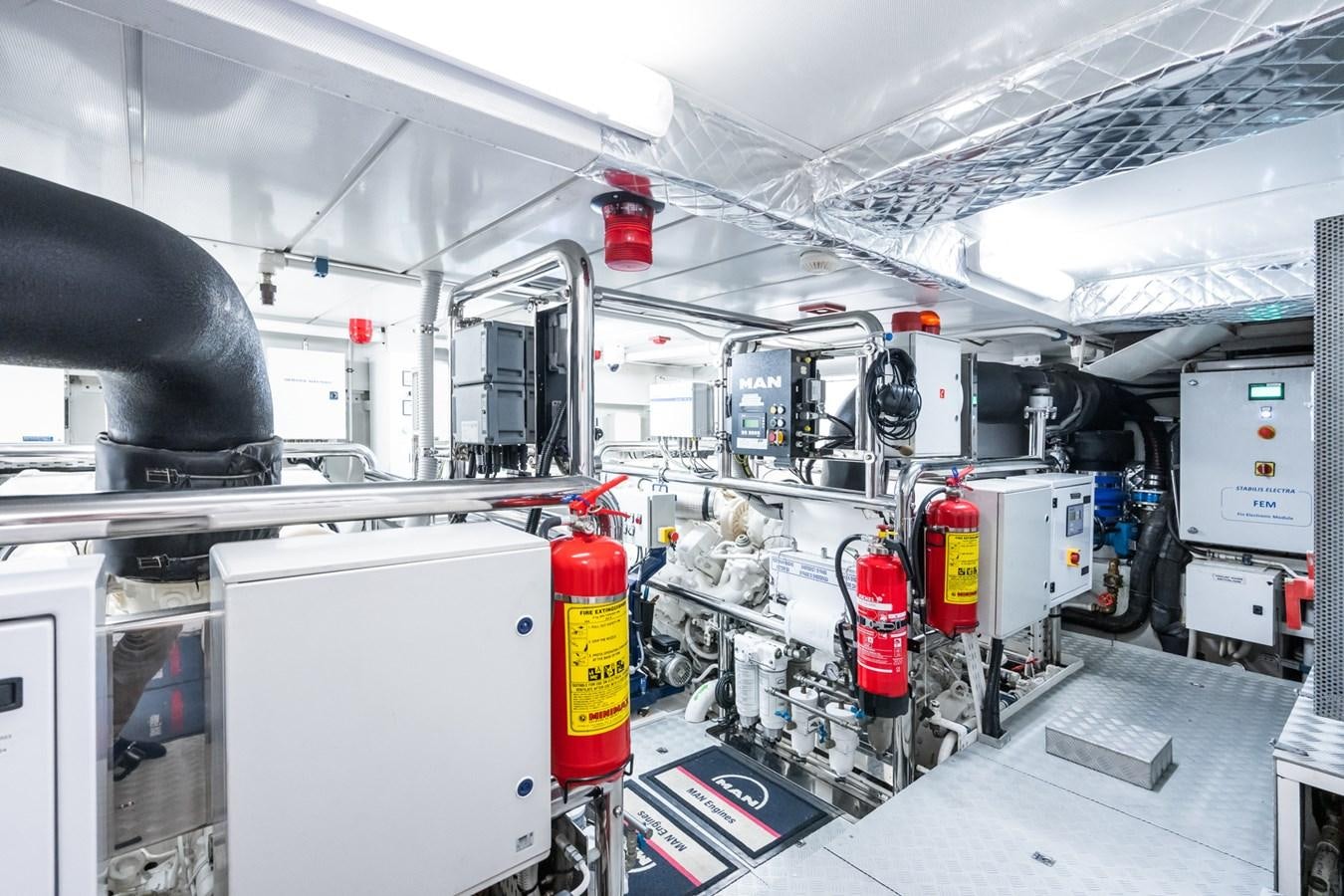

Engine Room:

• A supply and extraction fans system will be installed for engine room ventilation. The fans will be of the axial flow type, flexibly mounted in the ventilation trunks or in the engine room

Out Engine Room:

• In general, technical compartments and storages will be naturally ventilated to ensure adequate ventilation of each space to avoid overheating and condensation. The following compartments will have forced extraction: garage, laundry, sun deck radio batteries storage, fore technical space.

Auxiliary Machinery:

• Auxiliary machinery will be supplied and installed by the Builder in accordance to the General Arrangement and to the Technical Specification, as per Benetti standard

Piping:

• Piping will be supplied and installed by the Builder in accordance to the Technical Specification, as per Benetti standard

CLASSIFICATION & CERTIFICATES
The Yacht including its machinery, equipment and systems will be in compliance with the following:

• Flag Authority requirements, additional to Class Notation and to the Specification, will be evaluated case by case and quoted accordingly if feasible.
• As option, the Code for large yachts (24 mt and over in load line length) in commercial use for sport or pleasure, which do not carry cargo and do not carry more than 12 passengers, by the British Mariti 01.

STRUCTURE

• Hull and deck are entirely built in GRP (Glass Reinforced Plastic) with combination of foam core sandwich and single skin fiberglass construction.
• Superstructure is built with a cored sandwich structure in the decks and on the sides with mat, unidirectional, biaxial and woven E-glass.
• The connection between the superstructure and the main deck will be obtained by means of stainless steel bolts and flanges and an adequate number of GRP layers in accordance with the Classification Society rules.

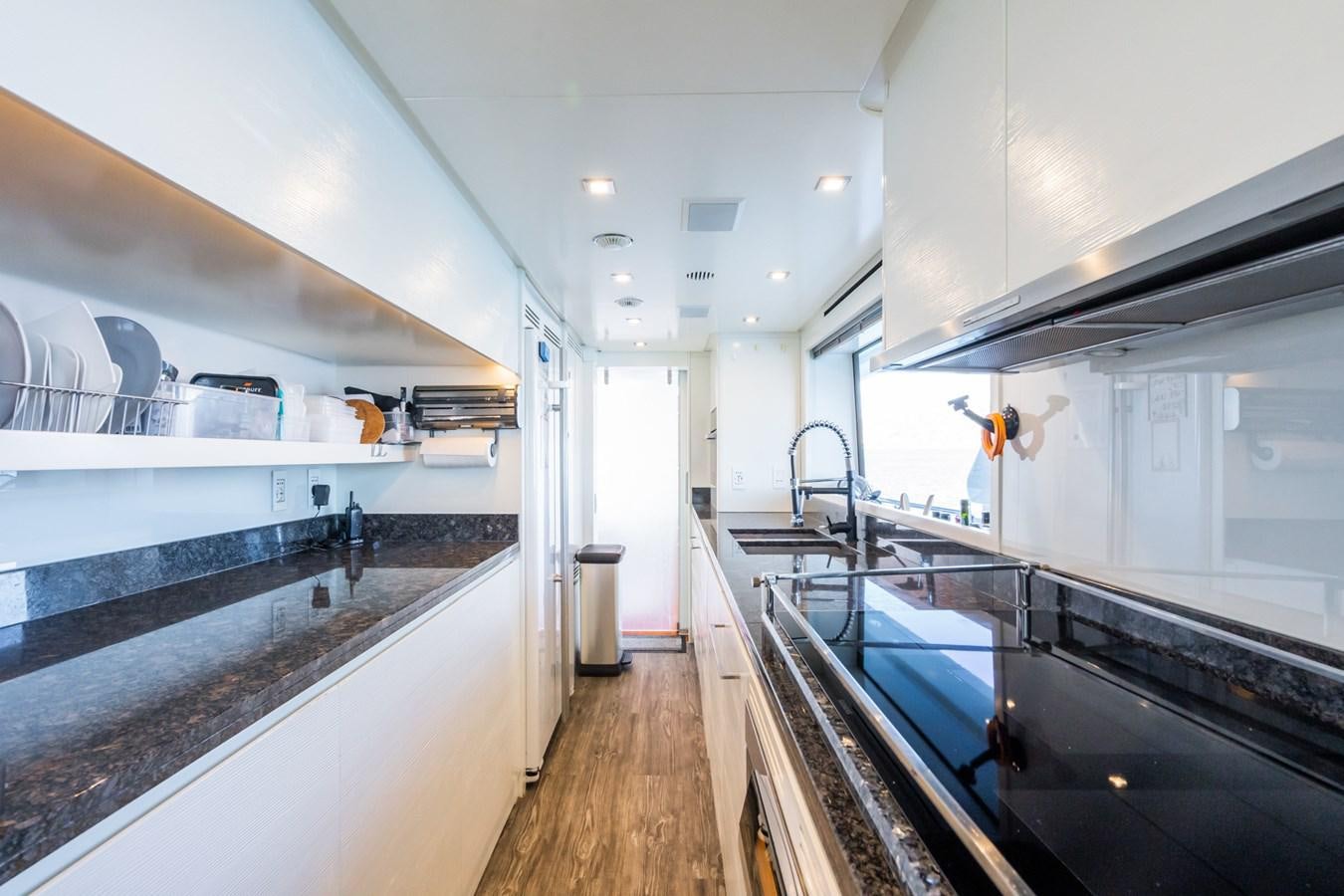

Main Deck Galley

• n° 1 4-burner range
• n° 1 exhaust hood over range
• n° 1 commercial electric oven
• n° 1 commercial microwave oven
• n° 1 dish washer
• n° 1 garbage macerator for the sink
• n° 1 fridge - n° 1 freezer

Upper deck pantry

• n° 1 mini-fridge
• n° 1 ice-maker

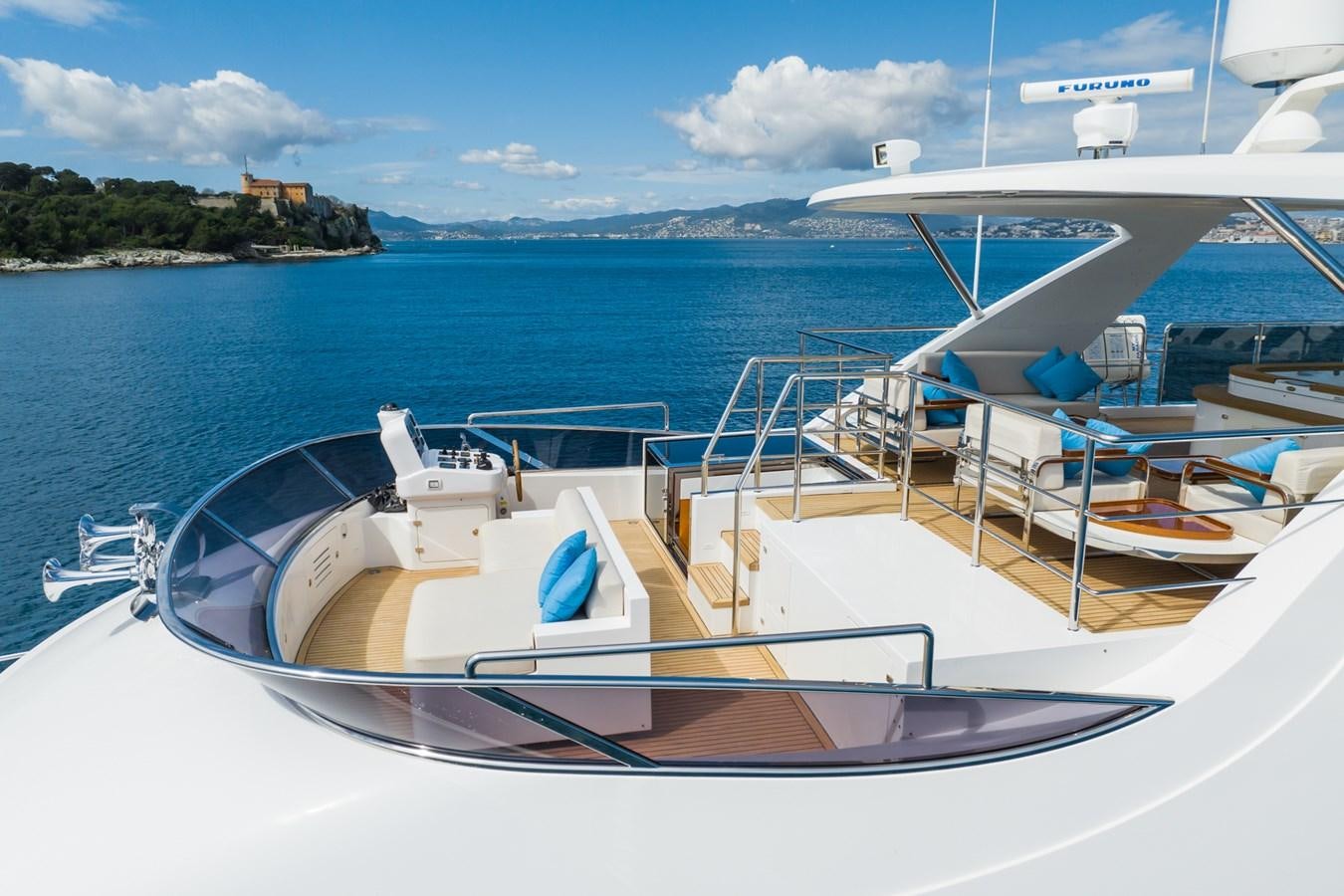

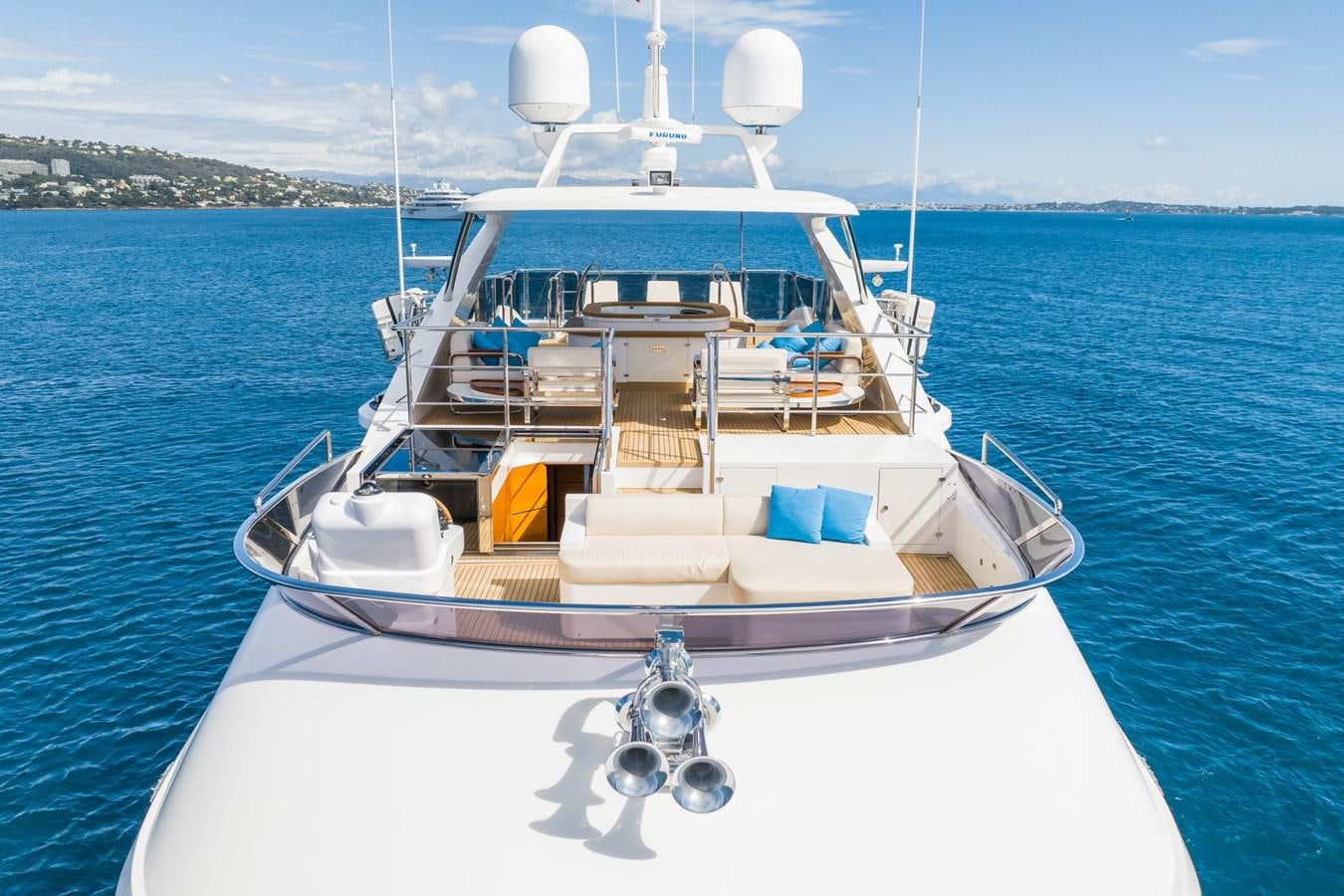

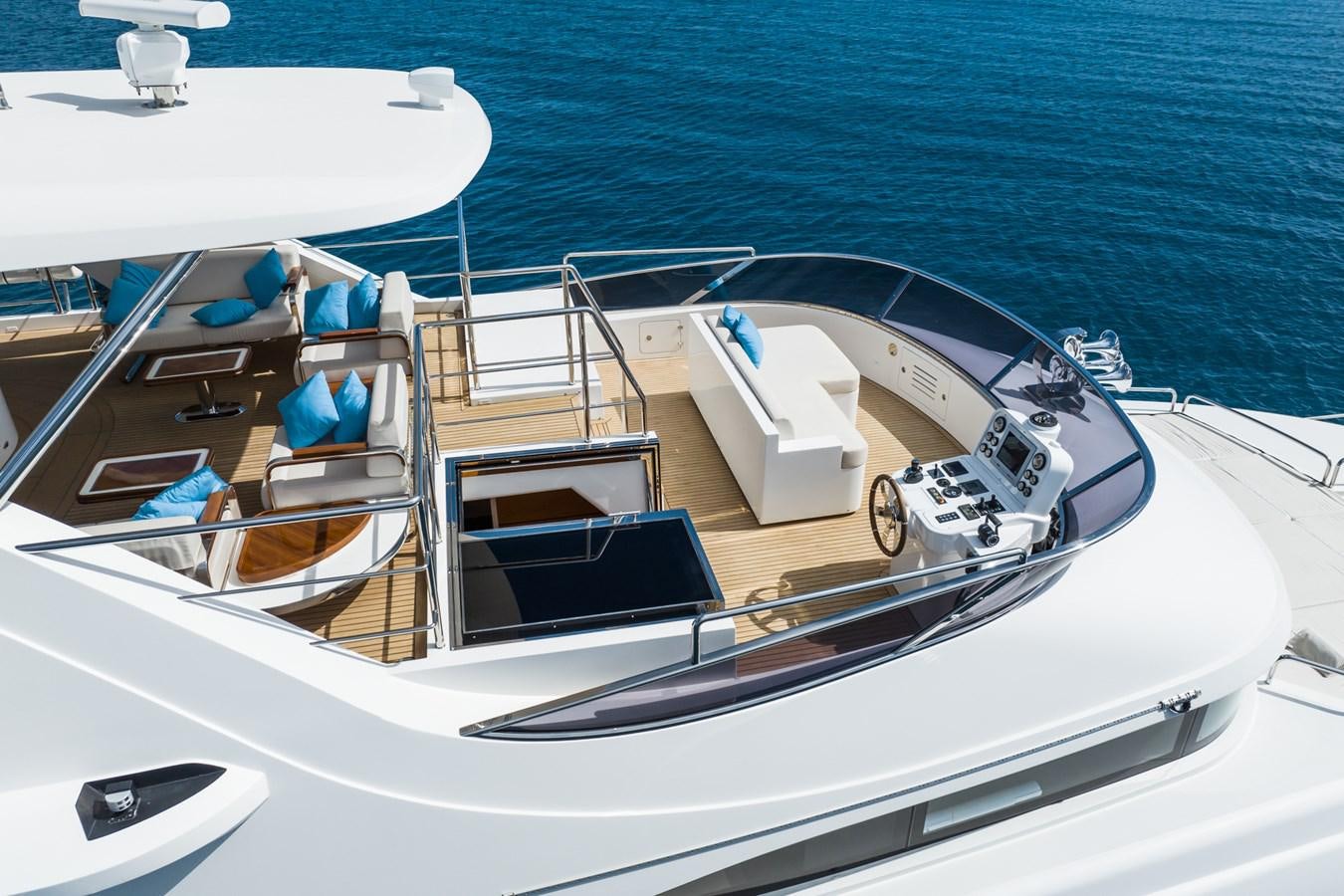

Flying bridge

• n° 1 mini-fridge

Laundry / Crew Area

• n° 1 commercial washing machine
• n° 1 commercial dryer machine
• n° 1 commercial fridge

VHF system comprising of:

• n° 1 VHF class D (wheelhouse)
• n° 1 remote unit for Fly

Visualizing system comprising of:

• n° 2 LCD monitor (standard) 19 “ IP 65 marinized
• n° 1 NMEA Display 3,5” for Fly Bridge
• n° 2 cartography systems (charts excluded) - n° 2 cartography softwares

Control system comprising of:

• n° 1 Control trackball
• n° 2 touch panel control LCD 15’’,

for the control of the following users:

• Radars
• Echo sounder - CCTV (Option)
• Wipers
• Horn
• Steering pumps
• Monitors dimming
• Search lights
• Steering mode
• Monitoring system

Navigation sensors comprising of:

• n° 1 radar, 64mn, 6 kW
• n° 1 depth / log transducer
• n° 1 GPS
• n° 1 Overhead mounting magnetic compass
• n° 1 Magnetic compass for Fly

Charting plotter system comprising of:

• n° 1 Chart Plotter integrated with radar / echo system + charting software (charts excluded)
• n° 1 Independent Chart System + charting software (charts excluded)

Weather station comprising of:

• Transducers interface
• Ultrasonic wind and pressure / temperature sensor on mast (integrated) - Integrated GPS
• Autopilot and manoeuvring system comprising of:
• n° 1 autopilot system, micro-processor controlled, with feedback system
• n° 1 autopilot remote control station for Fly
• n° 1 Rudder angle indicator
• n° 1 Rudder angle indicator for Fly
• n° 1 feedback unit

• The core of the entertainment / domotic is the B.E.S.T. system which is a complete and modular solution for the distribution of digital services over a single physical infrastructure (Ethernet Cat 5E cabling).
• The system replaces the infrastructures traditionally employed to provide similar services, enhancing their functionality and simplifying their integration.

The services supervisioned by B.E.S.T. system include:

• Audio video functionality: Distribution of audio video streams coming from an internal storage system (video on demand). Function like audio video and images archival and indexing are available.
• Automation and control functionality (OPTION): Any authorized terminal (like touch screens, PDAs, AV clients) can manage lighting, temperature and curtains. The system is composed of some central racks where all the servers and the storage system devices are integrated; access to services goes through diverse terminals including
• AV entertainment clients, mobile and handheld devices, phone terminals.
• n° 1 TV antenna system for terrestrial broadcasting reception
• n° 1 radio antenna system for terrestrial broadcasting reception
• “BEST” Integrated Entertainment System

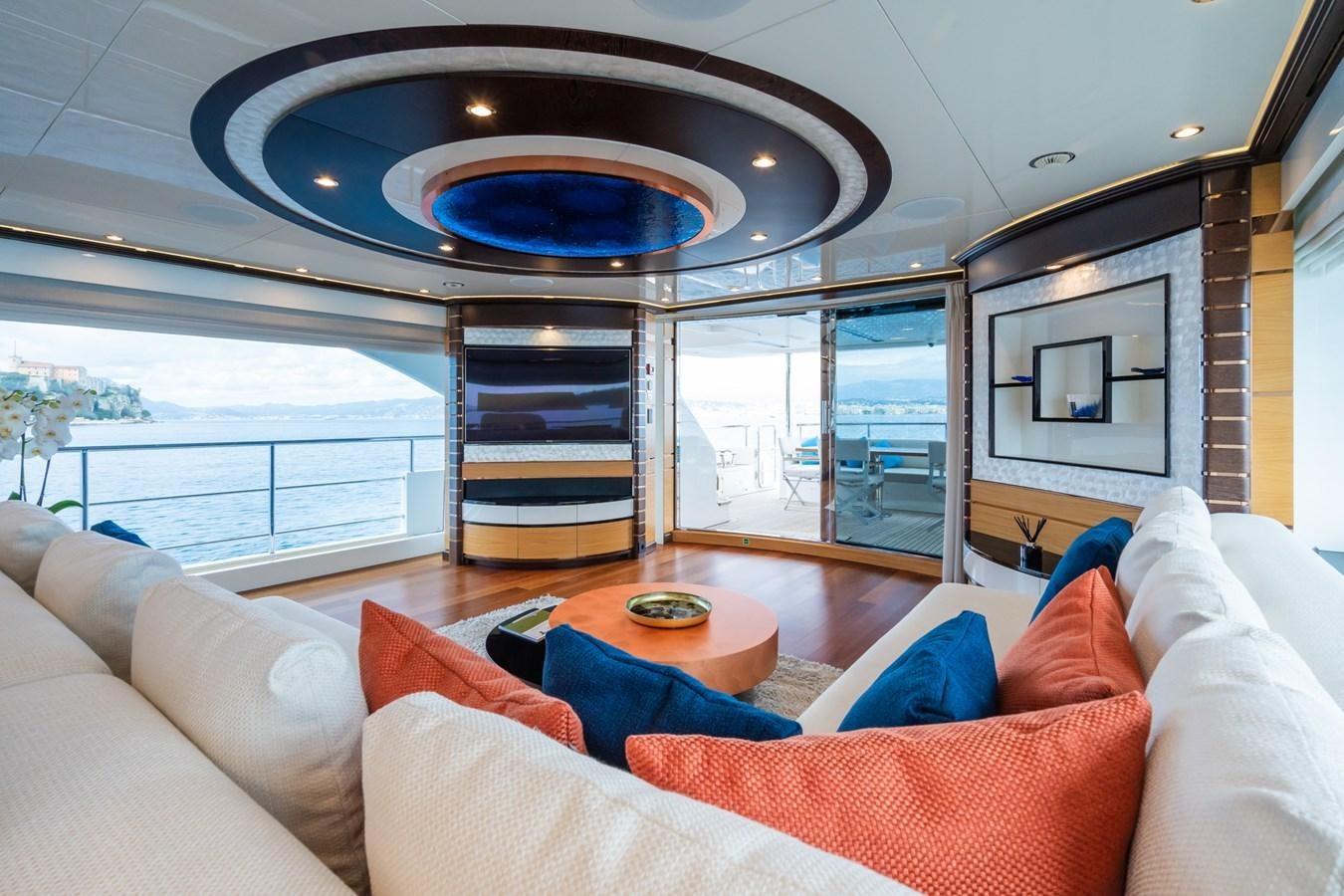

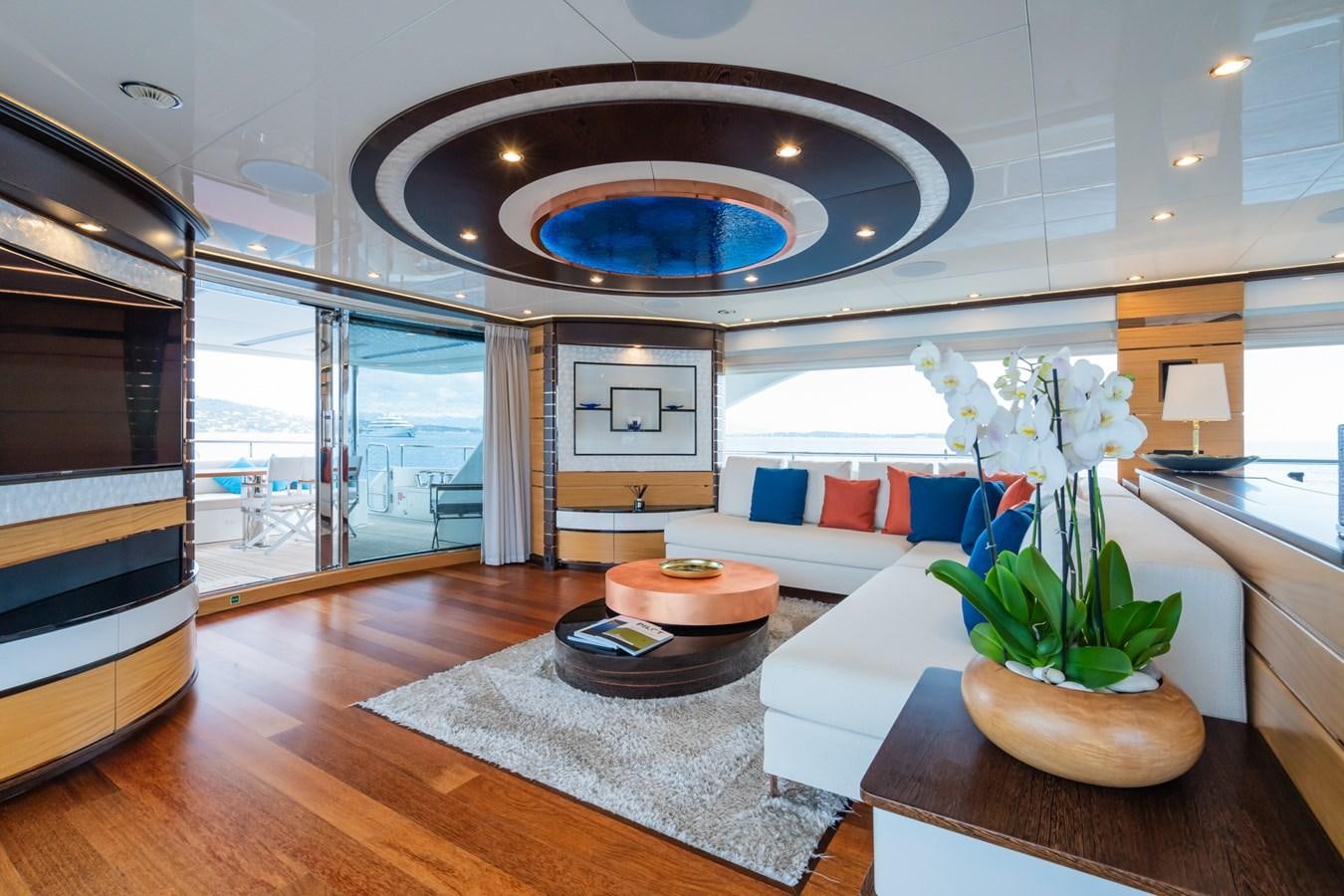

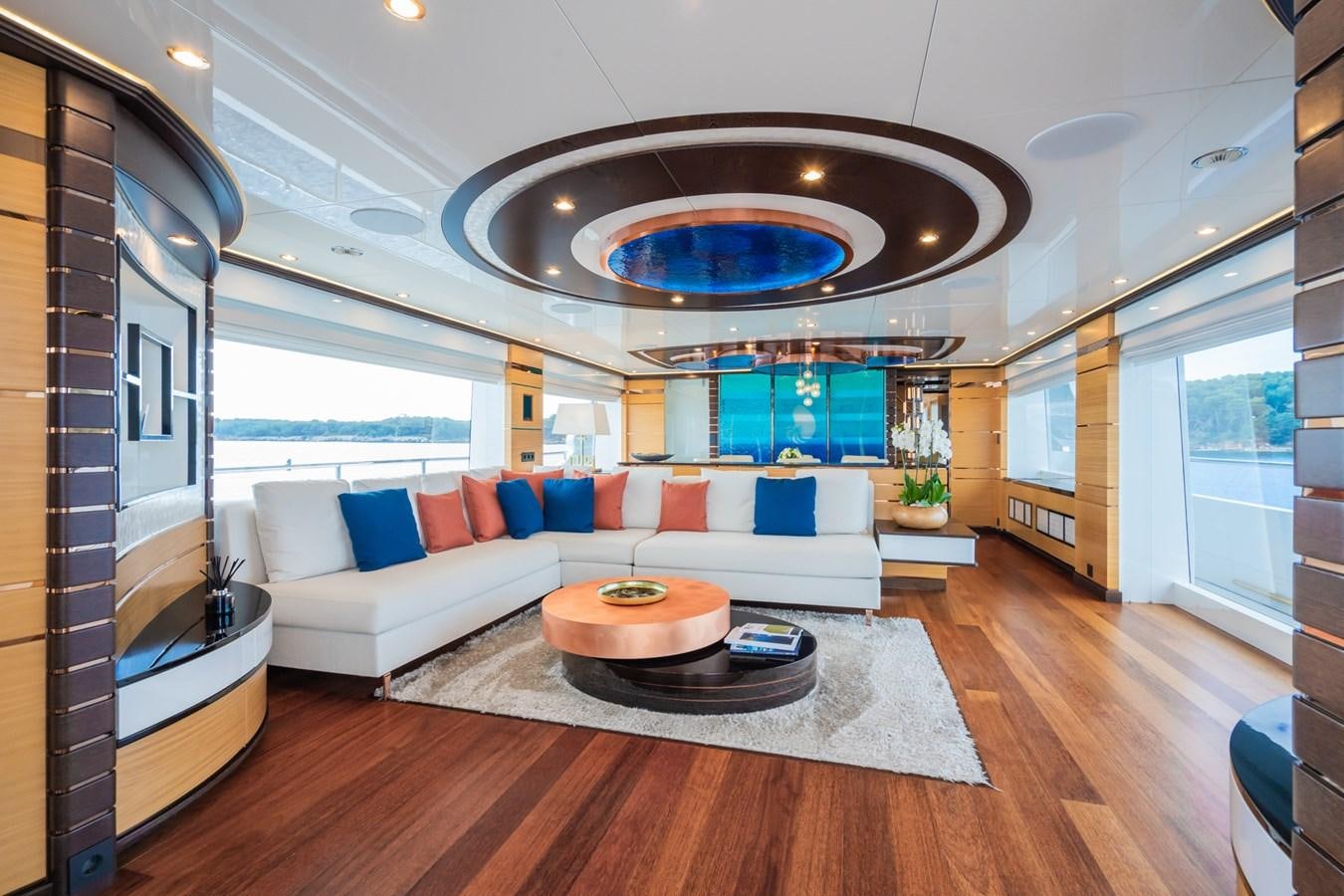

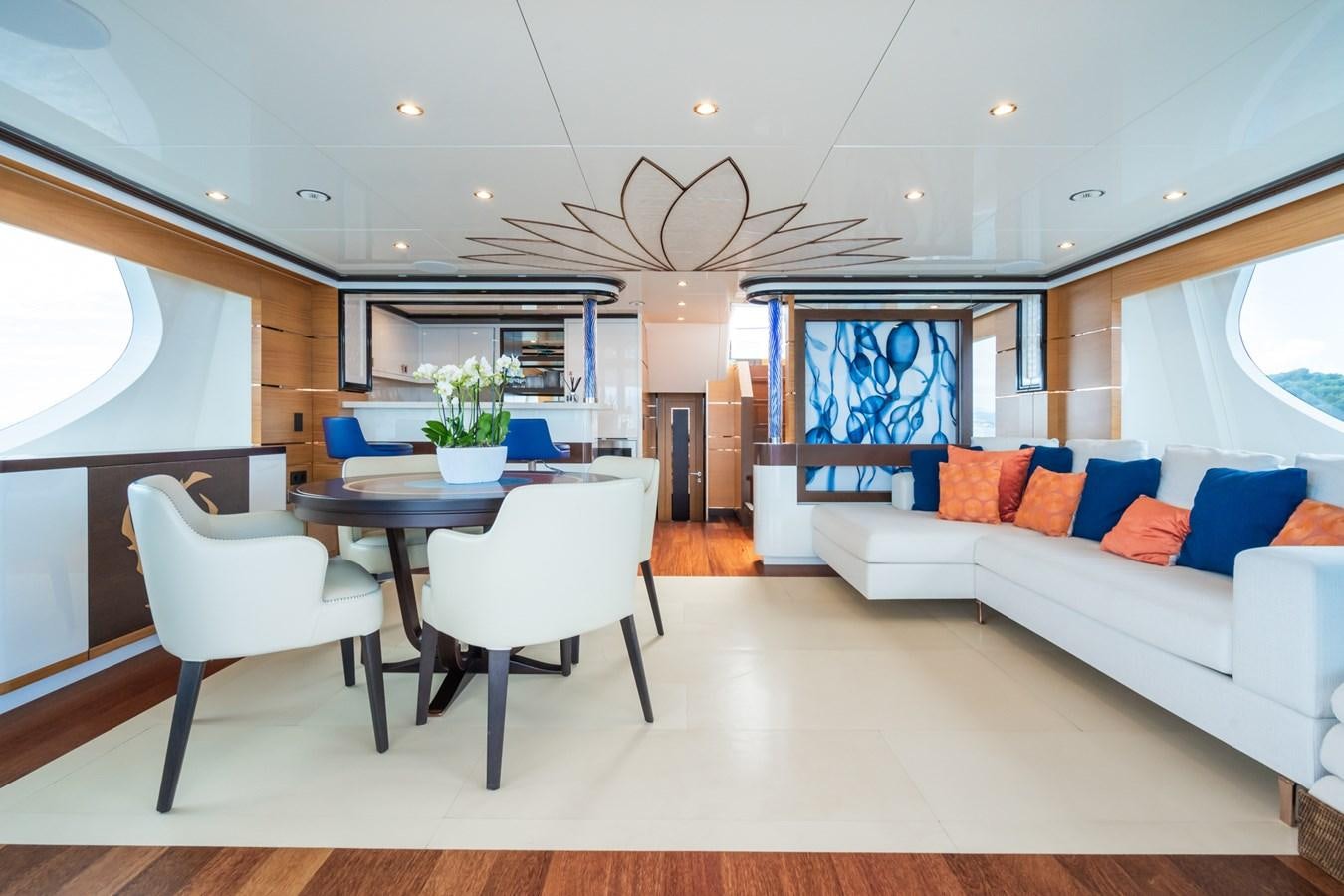

Main Saloon

• n° 1 TV 40’’ LED full HD 1080P - 16:9
• n° 1 Audio Video Receiver - AM / FM Tuner - HDMI

Input / Output

• n° 1 “BEST” Audio - Video Client
• n° 1 High quality speaker system surrounds 5.1 with powered subwoofer
• n° 1 Integrated Wi-Fi remote control
• n° 1 iPod Docking Station

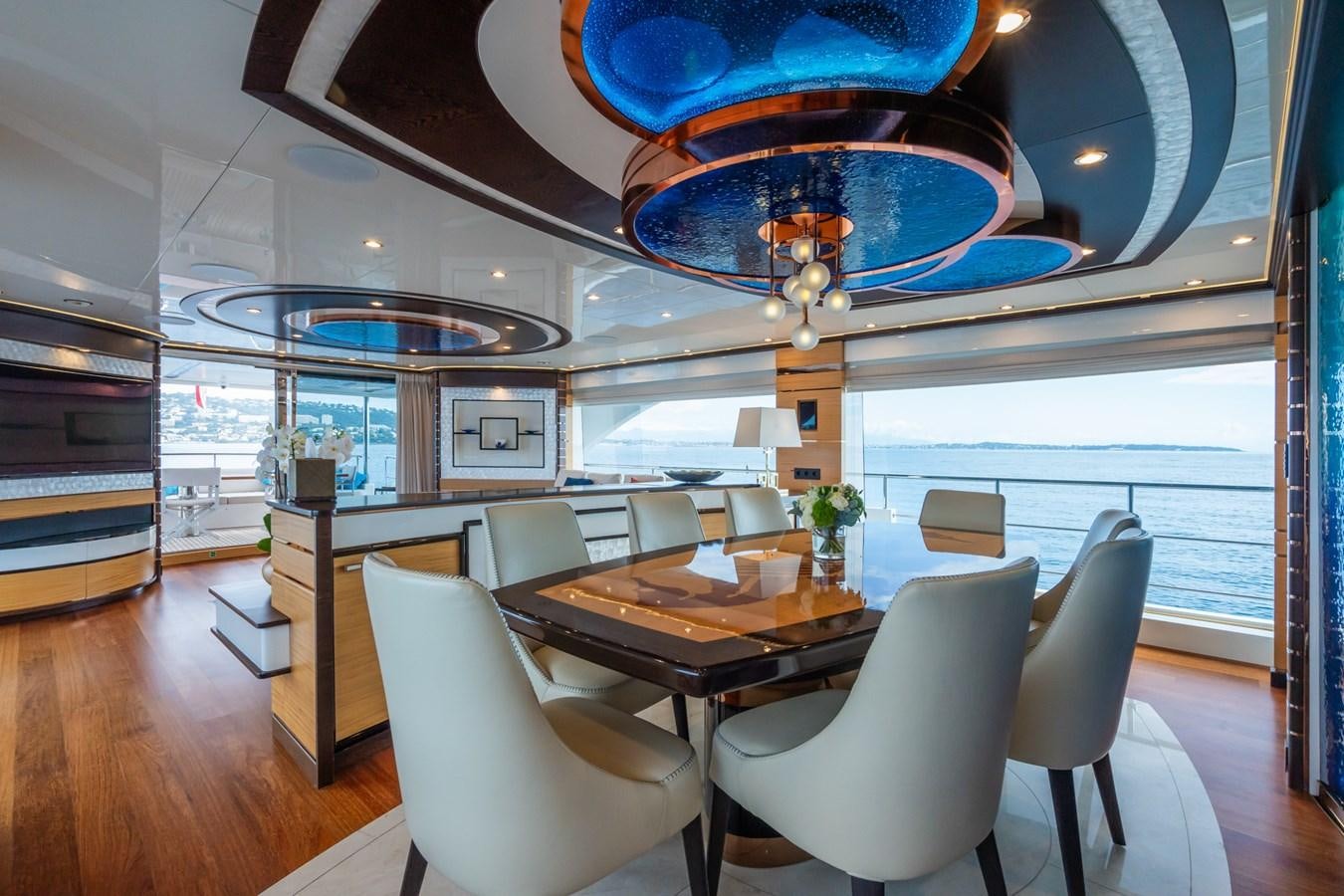

Dining Area (slave from main saloon)

• n° 1 Keyboard for volume control
• n° 1 Pair of loudspeakers

The services supervisioned by B.E.S.T. system include:

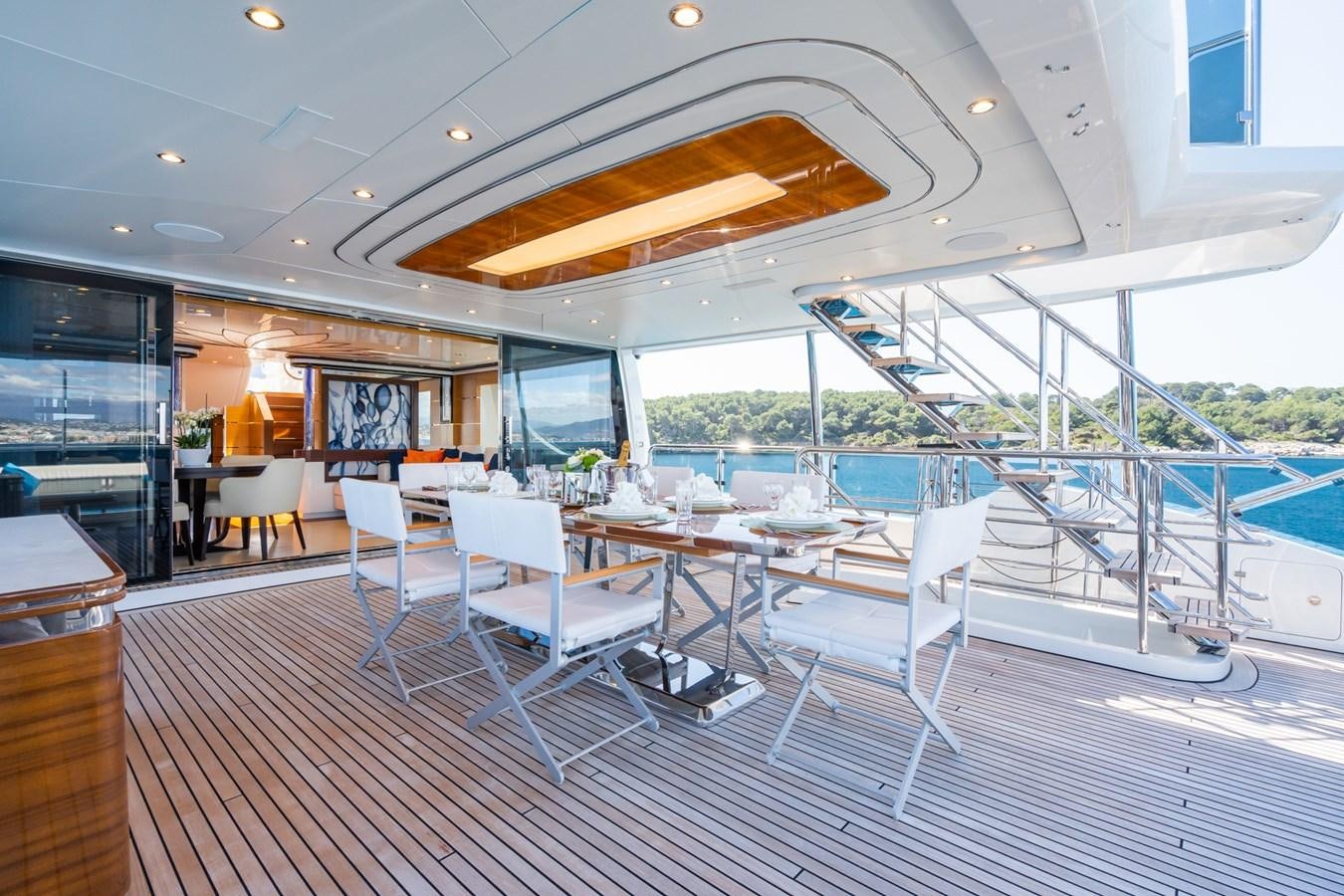

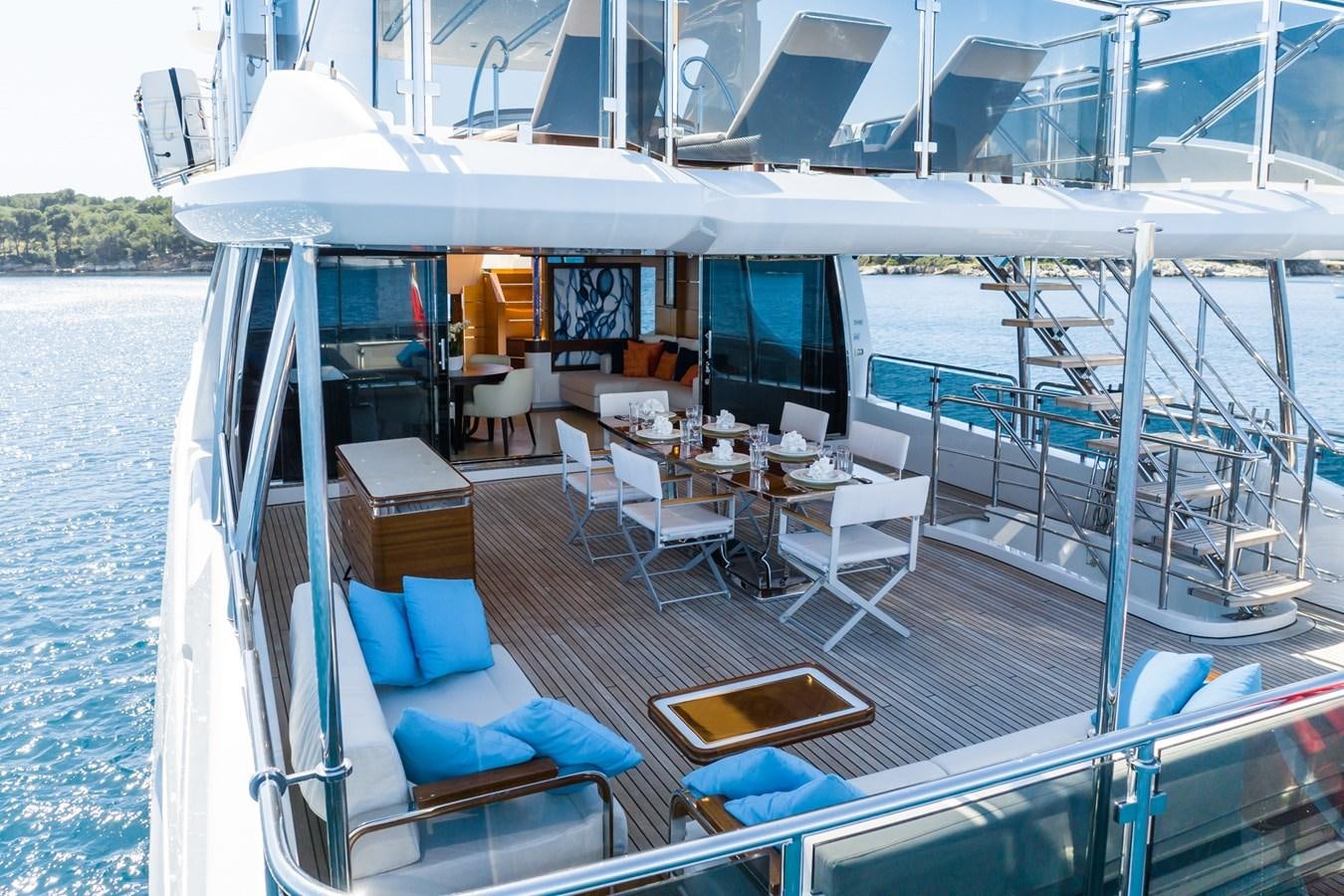

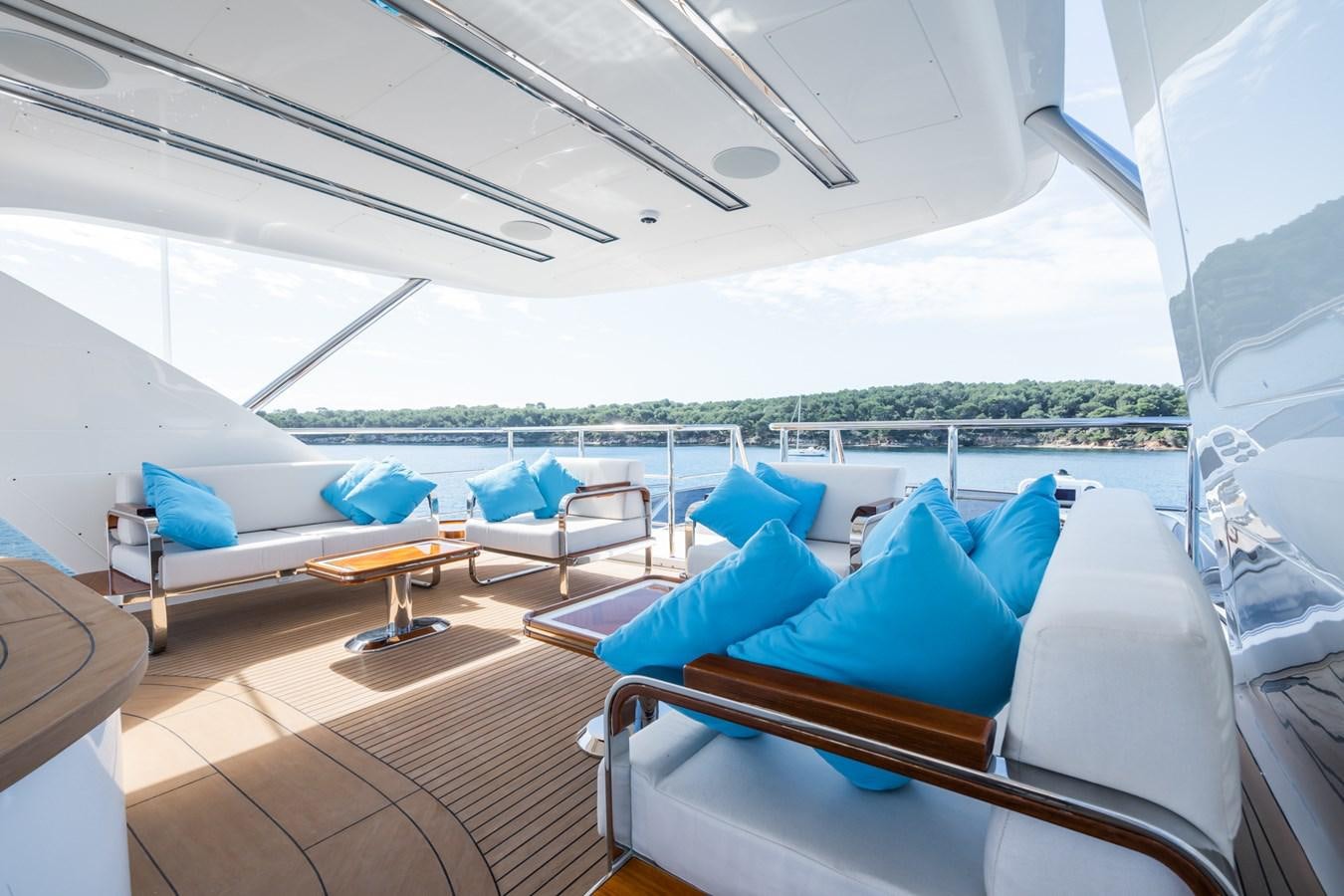

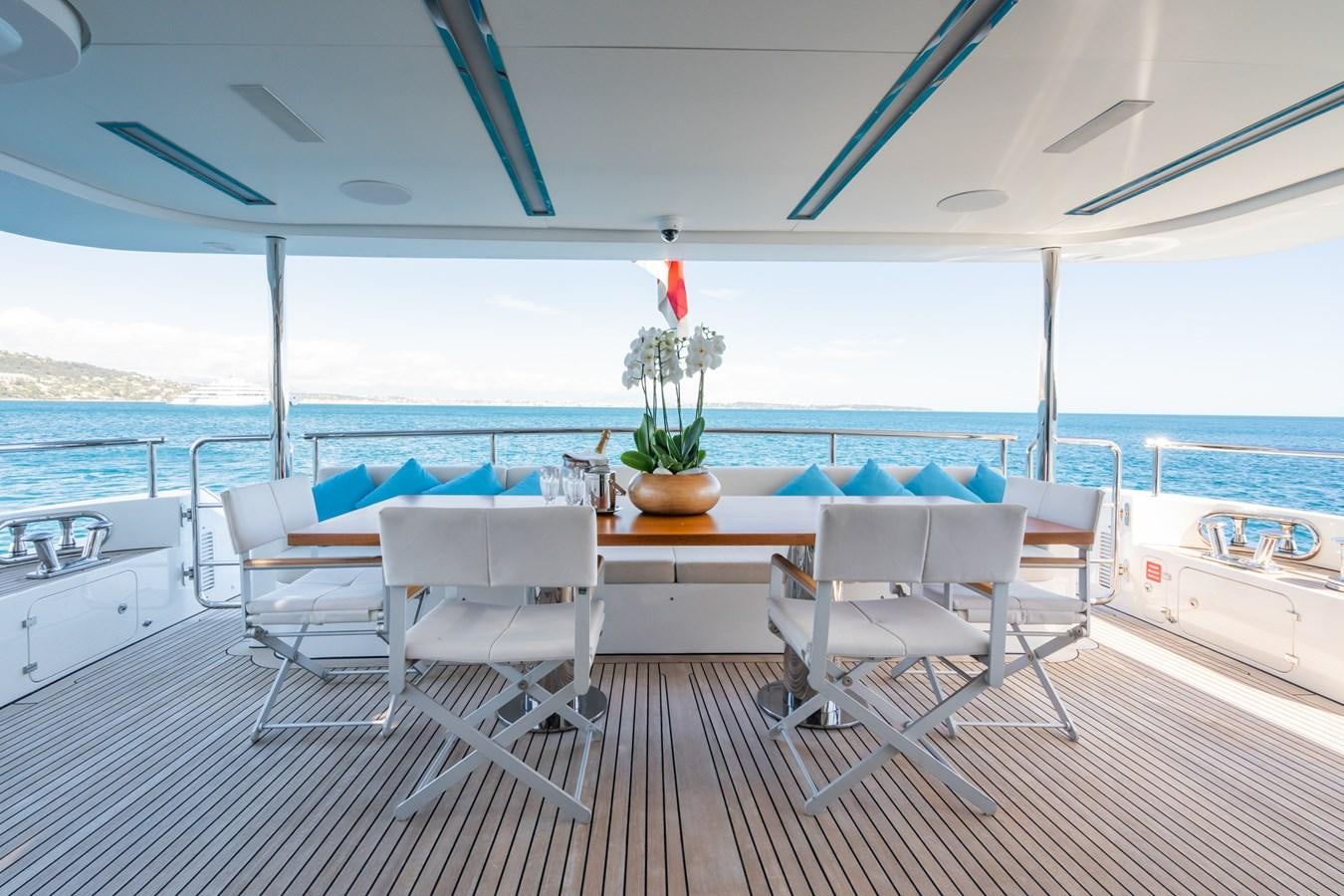

External main deck aft (slave of main saloon)

• n° 1 Keyboard for volume control
• n° 2 pair of marinized speakers

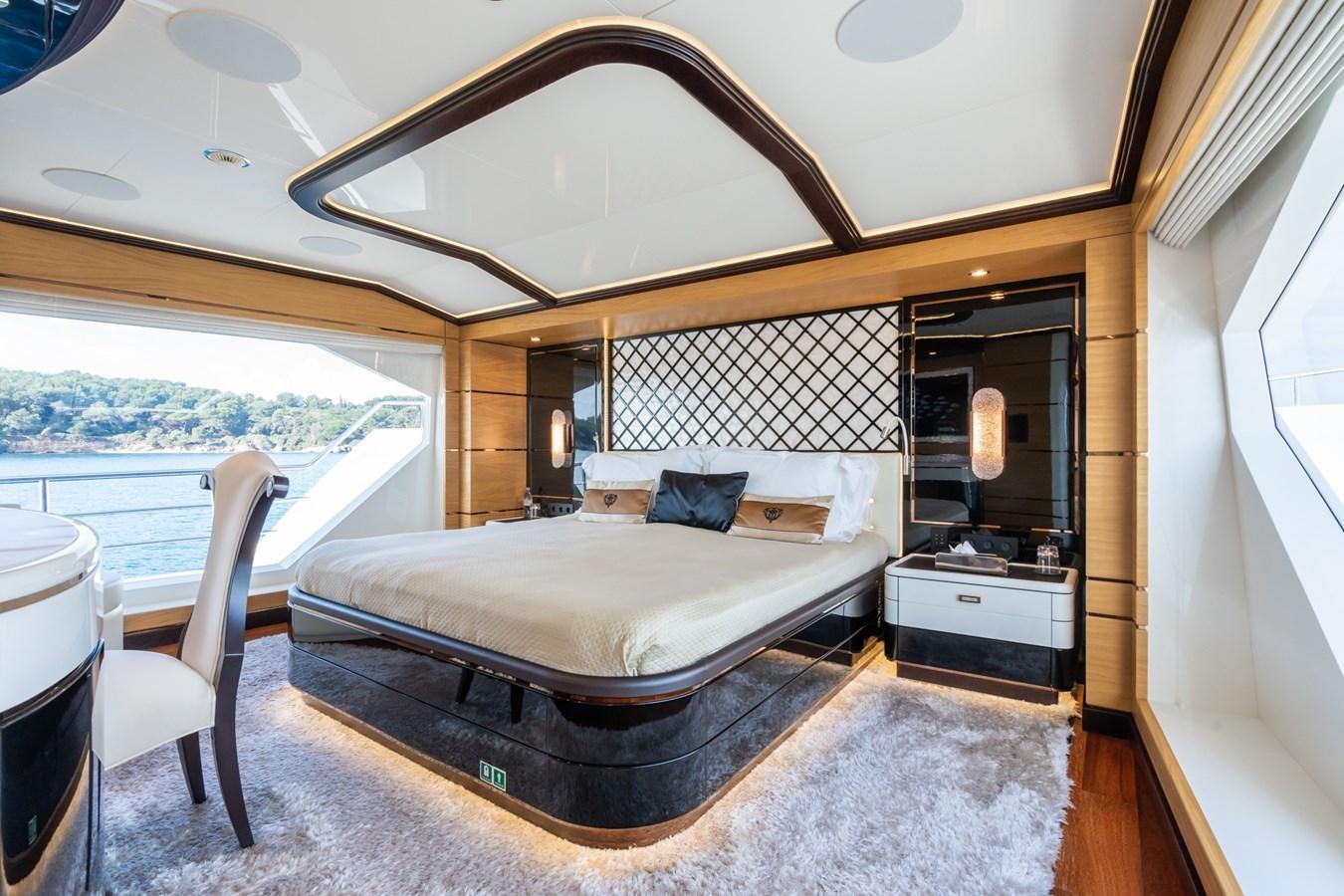

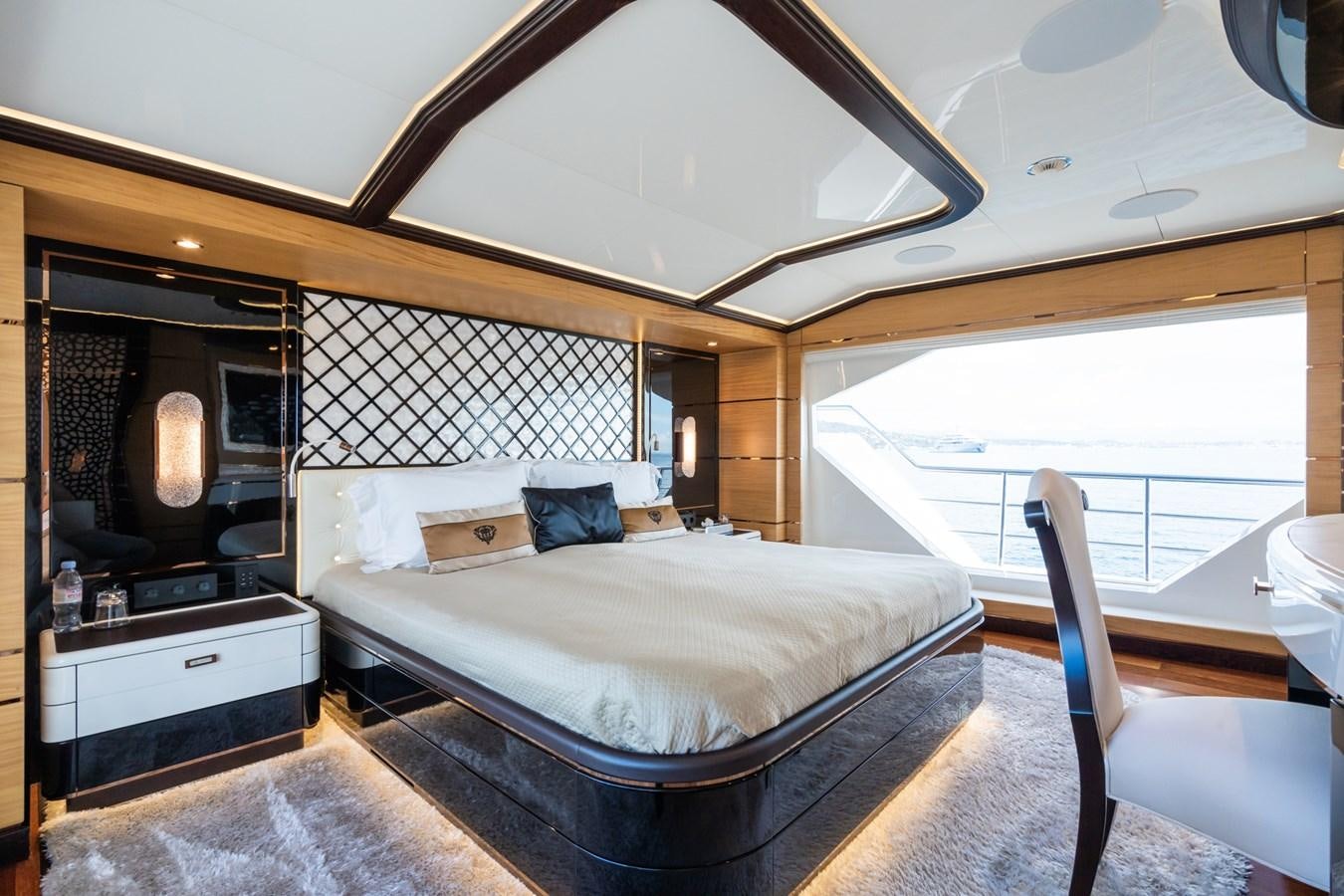

Owner’s cabin

• n° 1 TV 40’’ LED full HD 1080P - 16:9
• n° 1 Audio Video Receiver - AM / FM Tuner - HDMI

Input / Output

• n° 1 “BEST” Audio - Video Client
• n° 1 High quality speaker system surrounds 5.1 with powered subwoofer
• n° 1 Integrated Wi-Fi remote control
• n° 1 iPod Docking Station

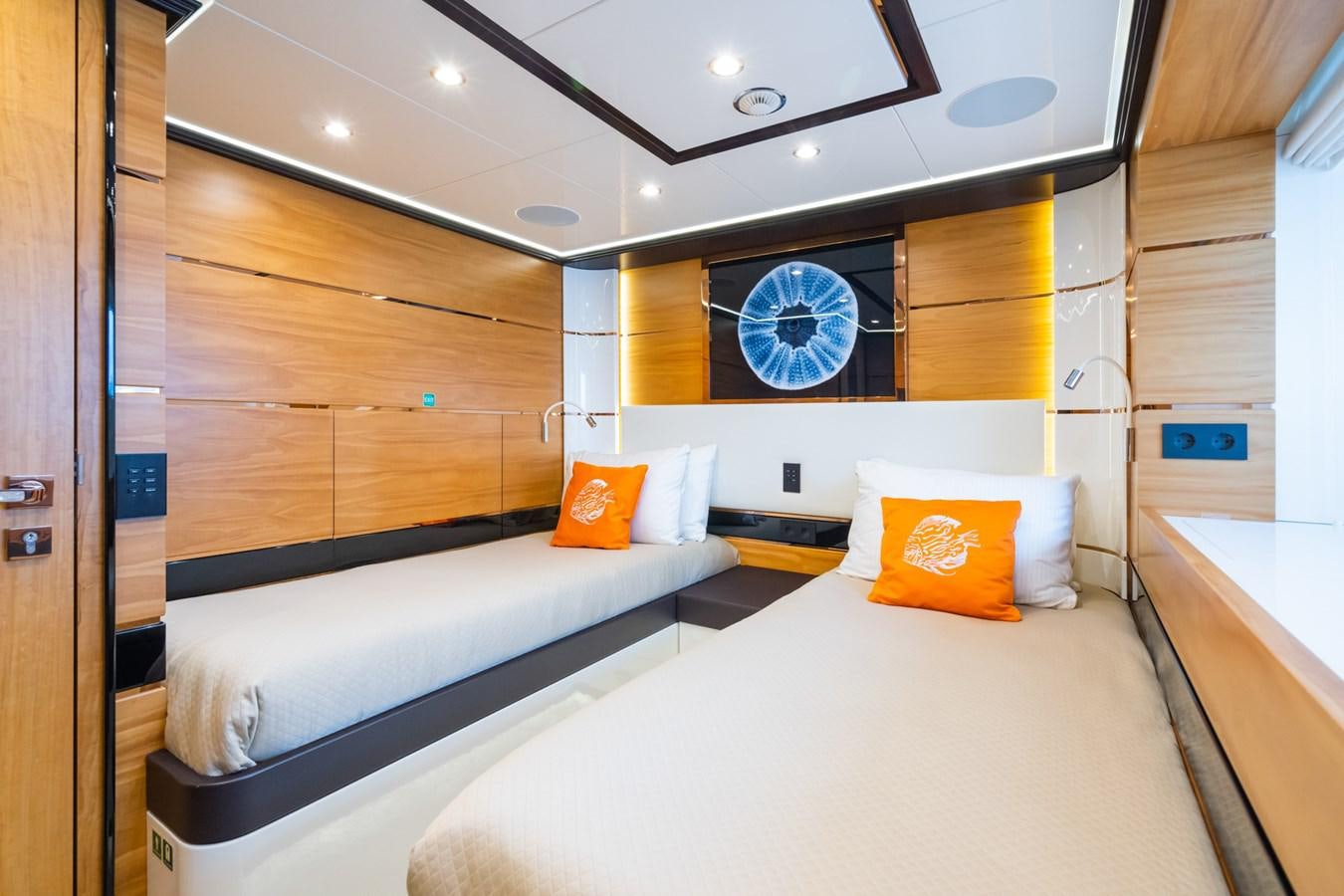

Guest Cabins (x2)

• n° 1 TV 22’’ LCD HD ready - 16:9
• n° 1 Micro Hi-Fi - AM / FM Tuner - DVD player
• n° 1 Pair of loudspeakers
• n° 1 Integrated Wi-Fi remote control
• n° 1 iPod docking station

VIP Cabins (x2)

• n° 1 TV 32’’ LCD HD ready - 16:9
• n° 1 Micro Hi-Fi - AM / FM Tuner - DVD player
• n° 1 Pair of loudspeakers
• n° 1 Integrated Wi-Fi remote control
• n° 1 iPod docking station

Crew Cabins (x3)

• n° 1 AM / FM Tuner - CD player - iPod Ready
• n° 1 pair of loudspeakers

Crew Mess

• n° 1 TV 22’’ LCD HD ready - 16:9
• n° 1 Micro Hi-Fi - AM / FM Tuner - DVD player
• n° 1 pair of loudspeakers
• n° 1 iPod docking station

The services supervisioned by B.E.S.T. system include:
Galley

• n° 1 Micro Hi-Fi - AM / FM Tuner - CD player
• n° 1 Pair of loudspeakers - n° 1 iPod docking station

External pantry

• n° 1 Micro Hi-Fi - AM / FM Tuner - CD player
• n° 2 Pairs of marinized speakers
• n° 1 iPod docking station

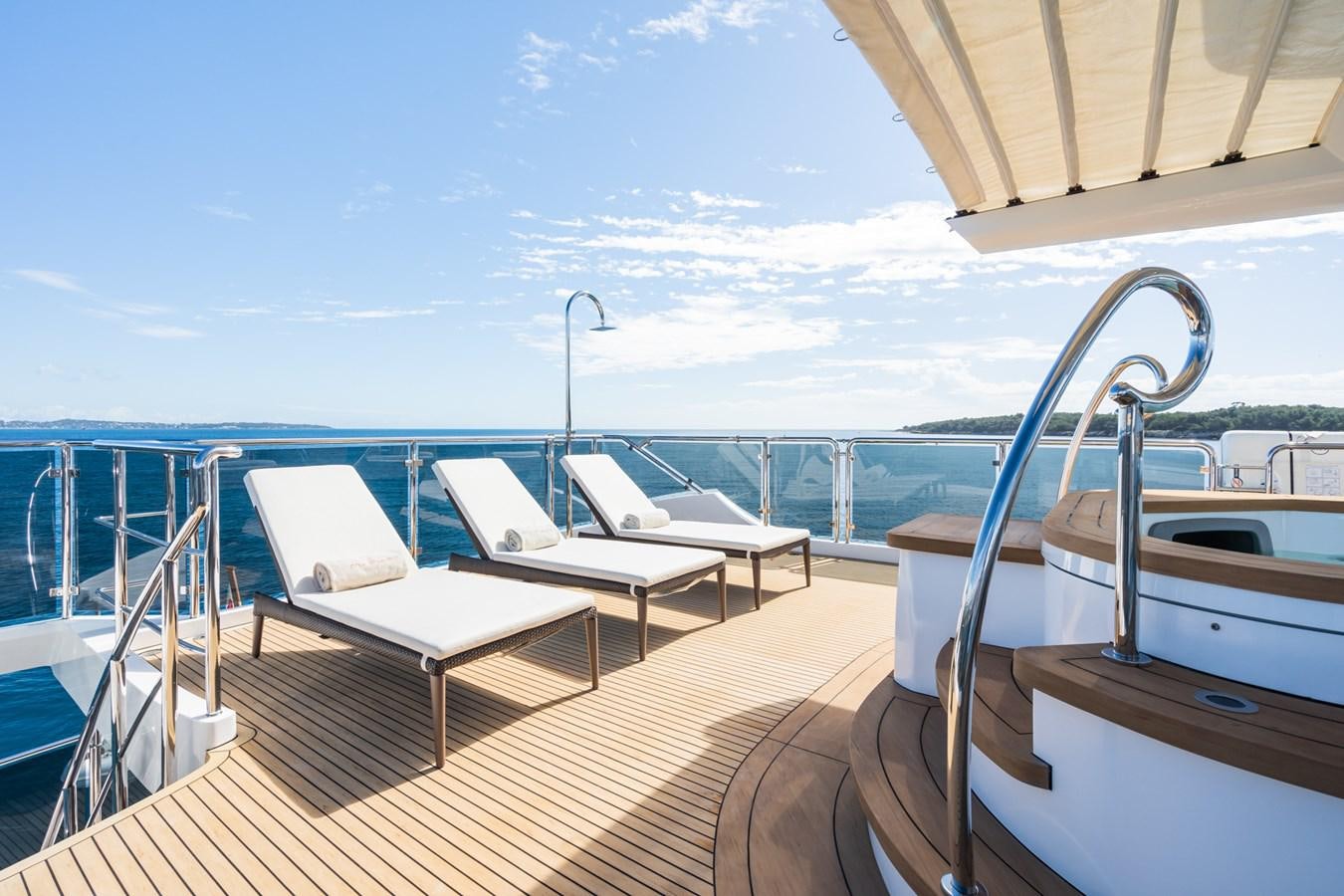

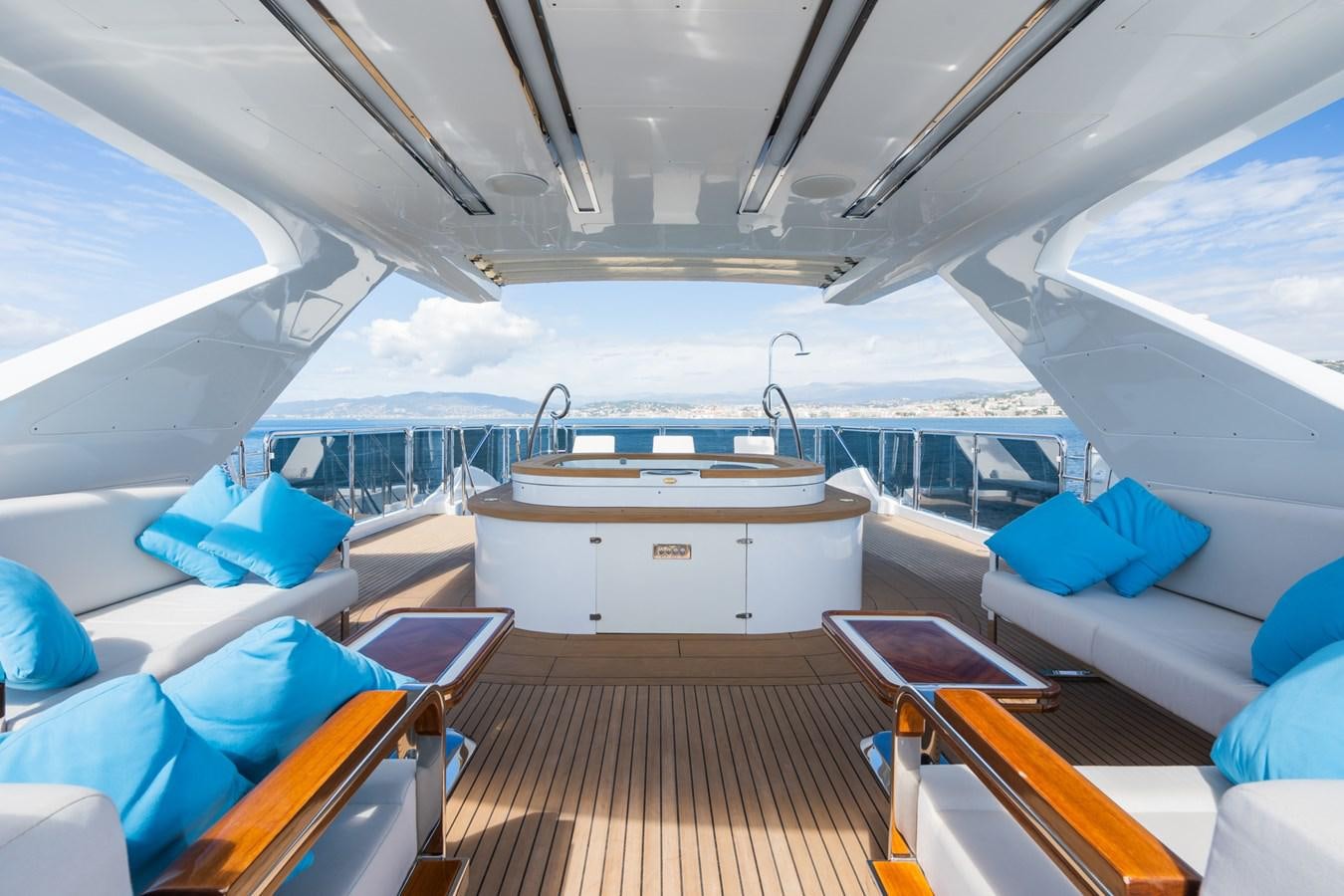

Sun deck

• n° 1 Marine CD / mp3 Player - Radio Tuner
• n° 2 Pairs of marine speakers

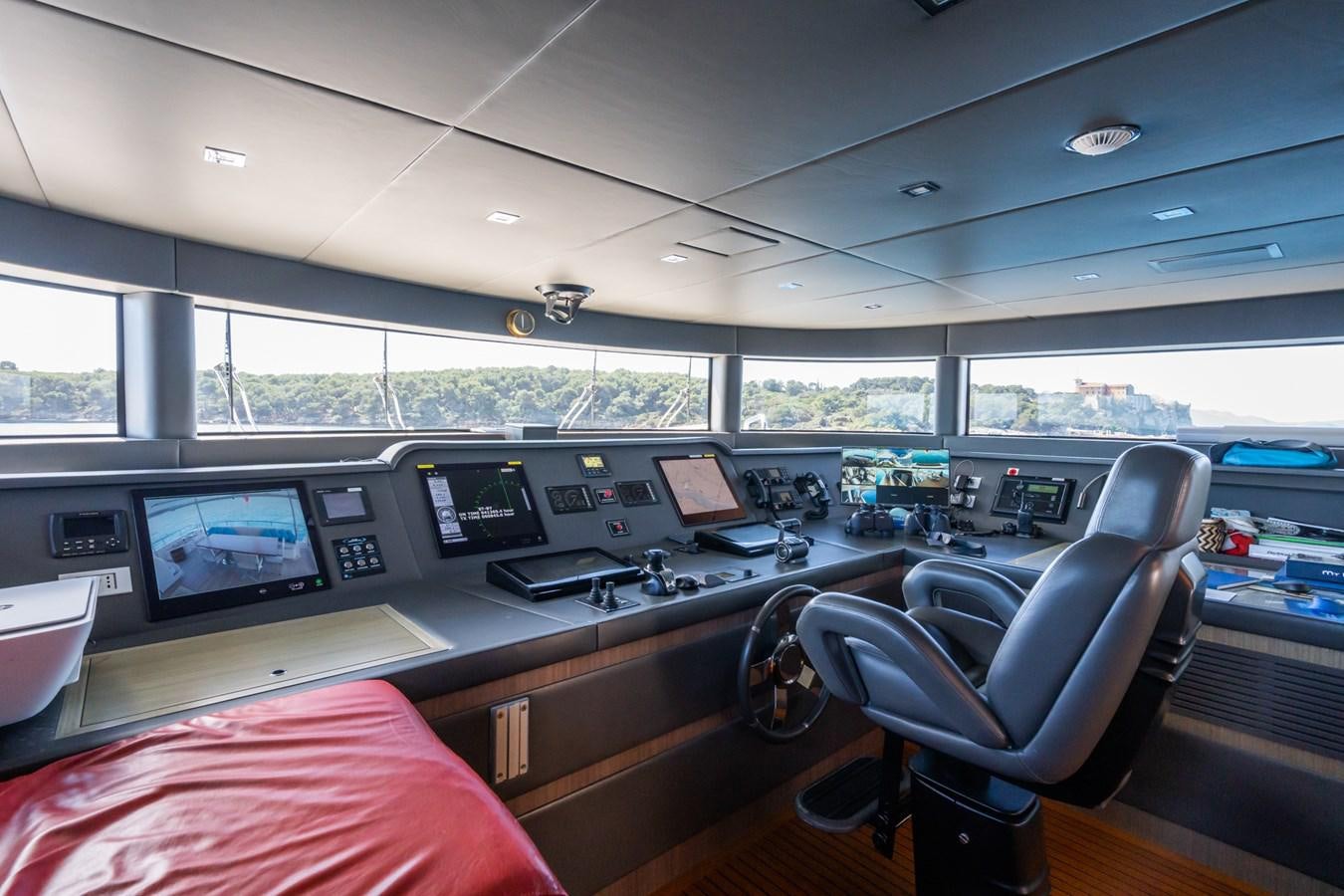

Wheelhouse

• n° 1 Micro Hi-Fi - Sint amplifier - CD player
• n° 1 Pair of loudspeakers

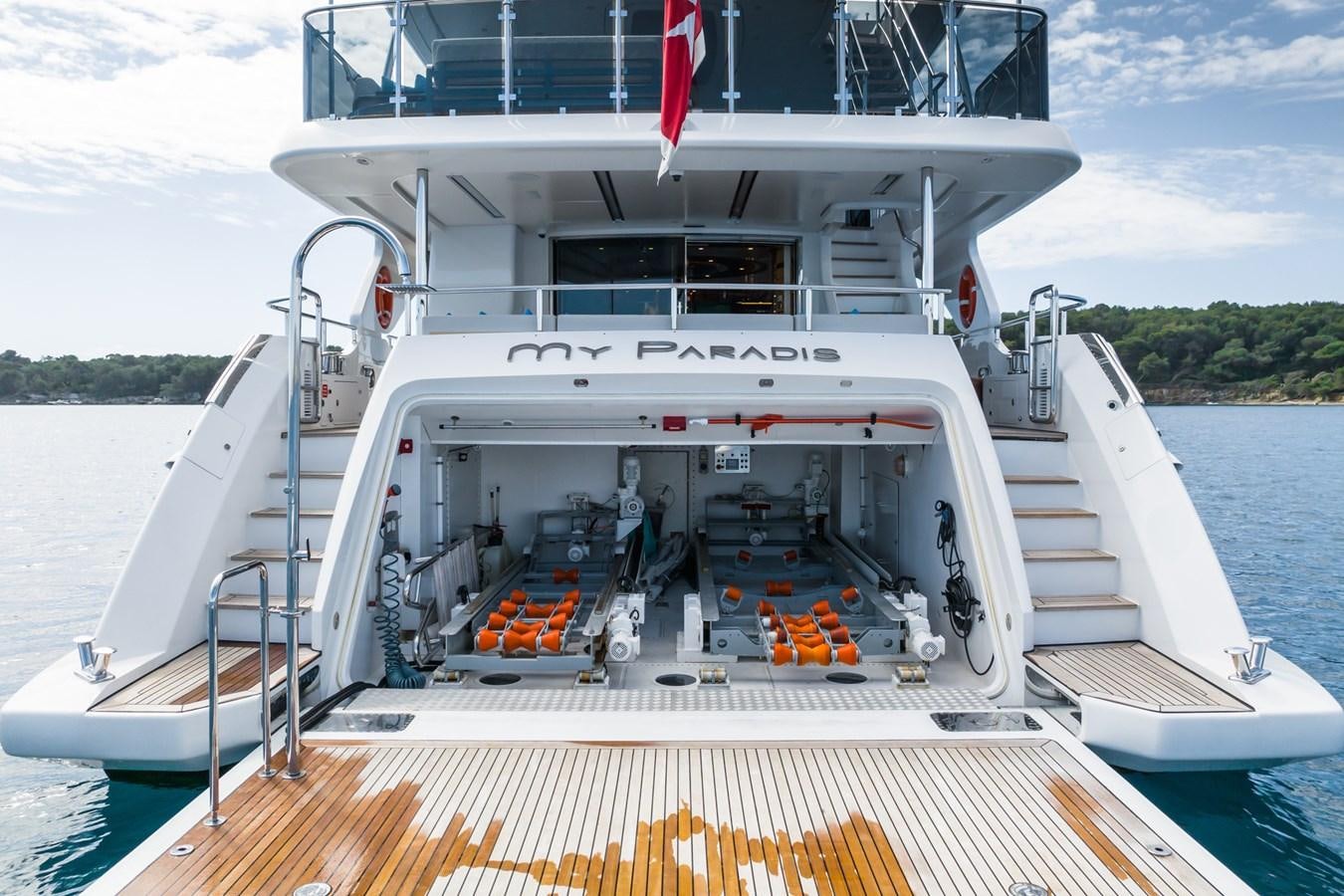

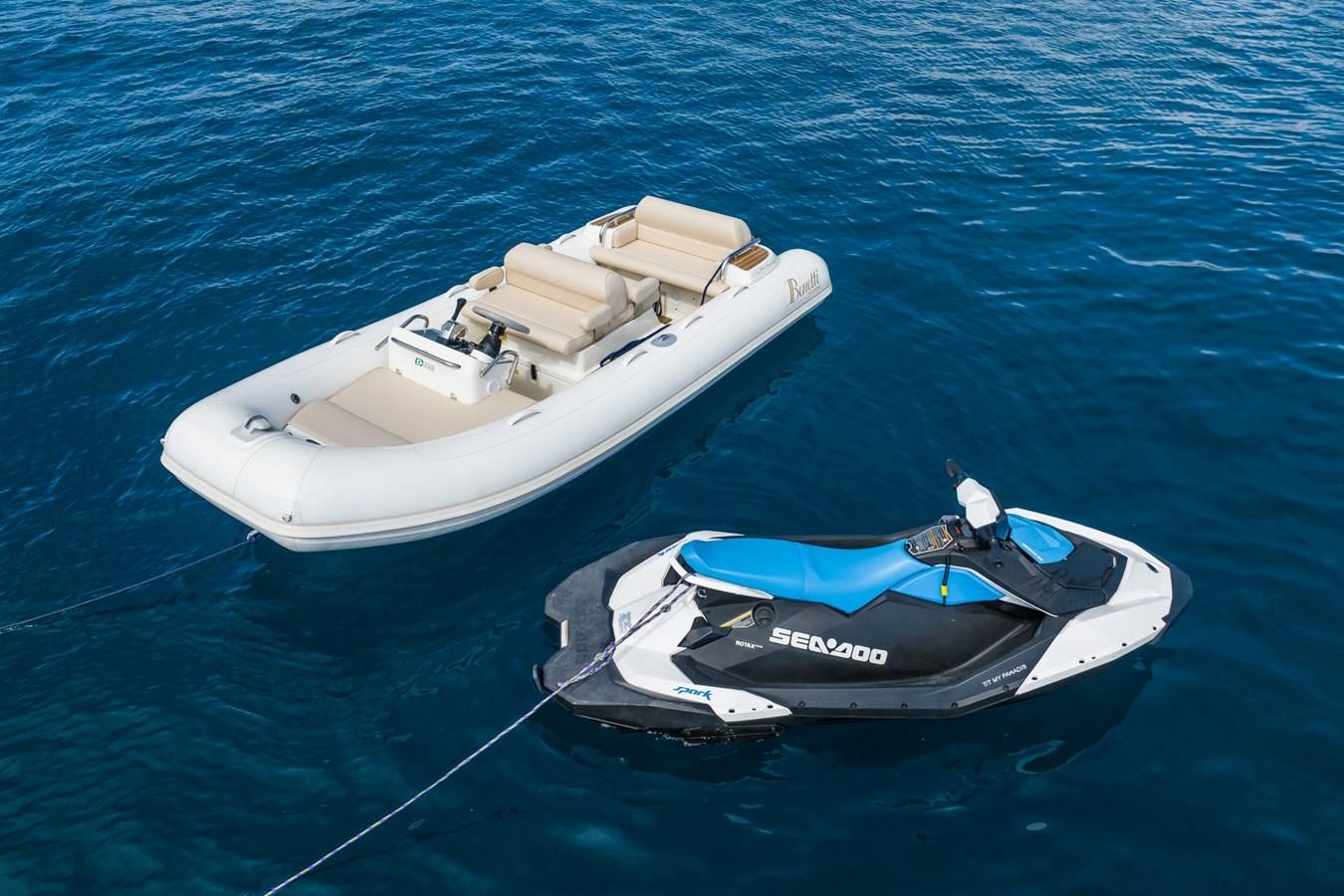

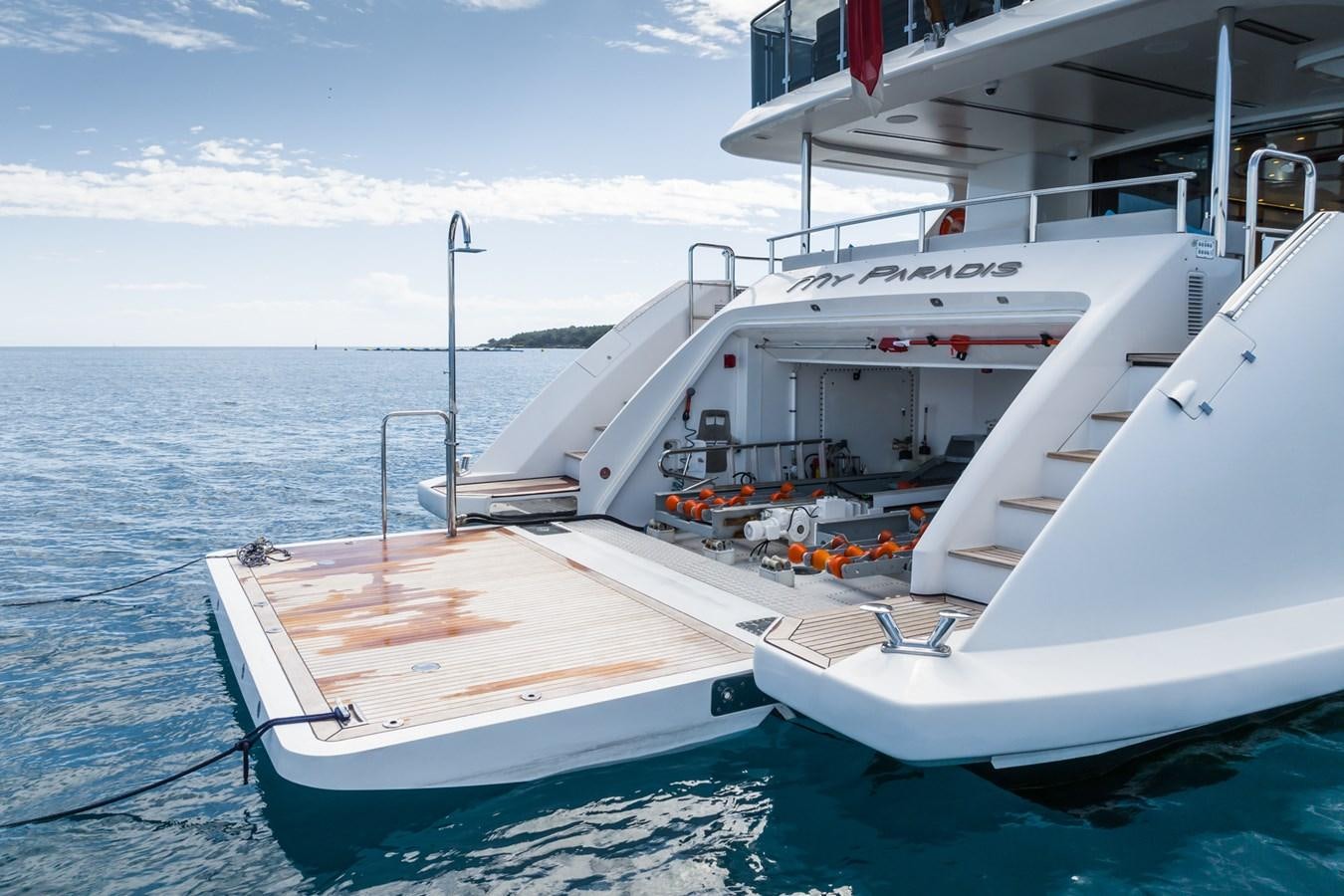

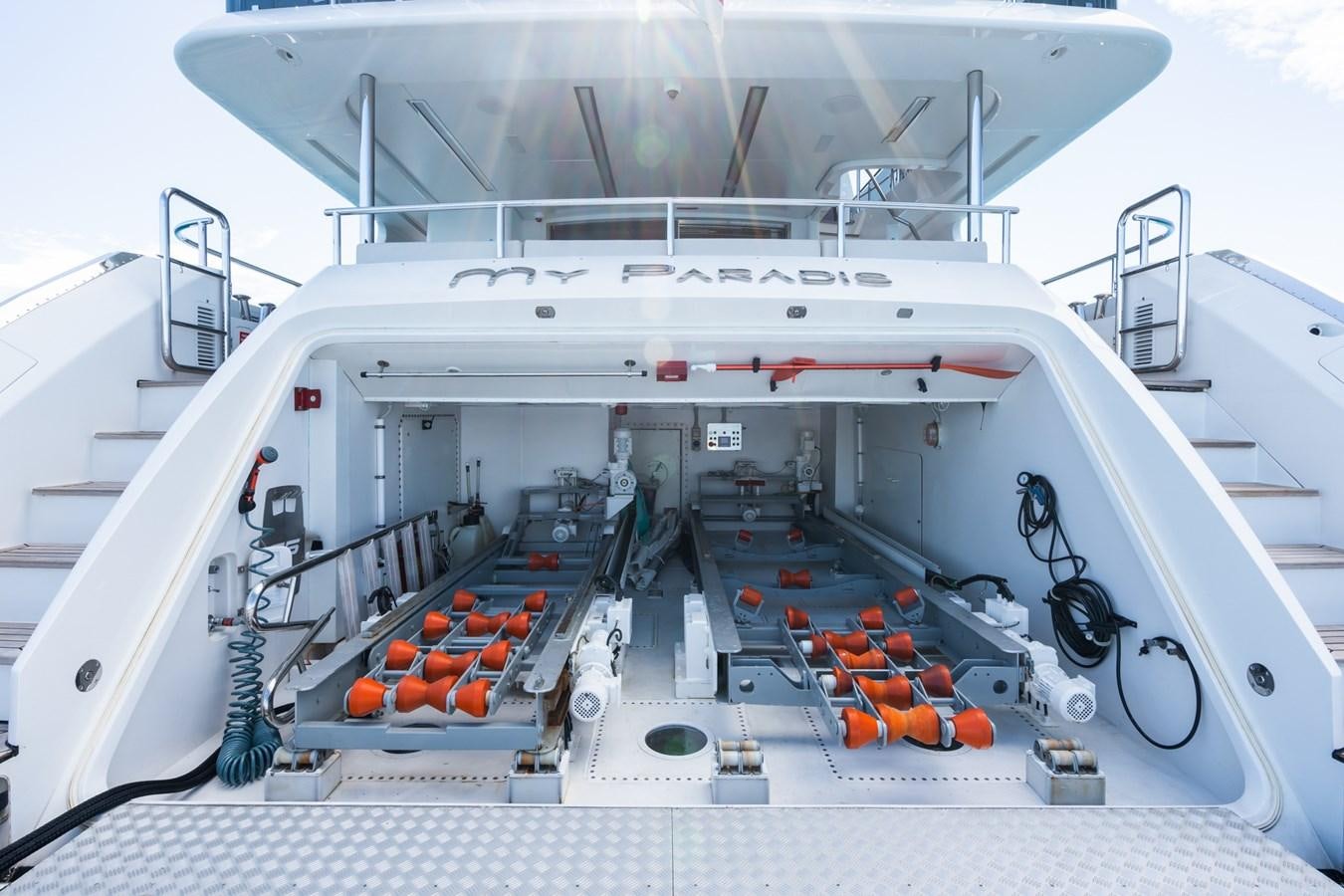

• Tender and water toys storage Located on the aft garage n.1 Tender of 4.6 mt and n.1 jet-ski

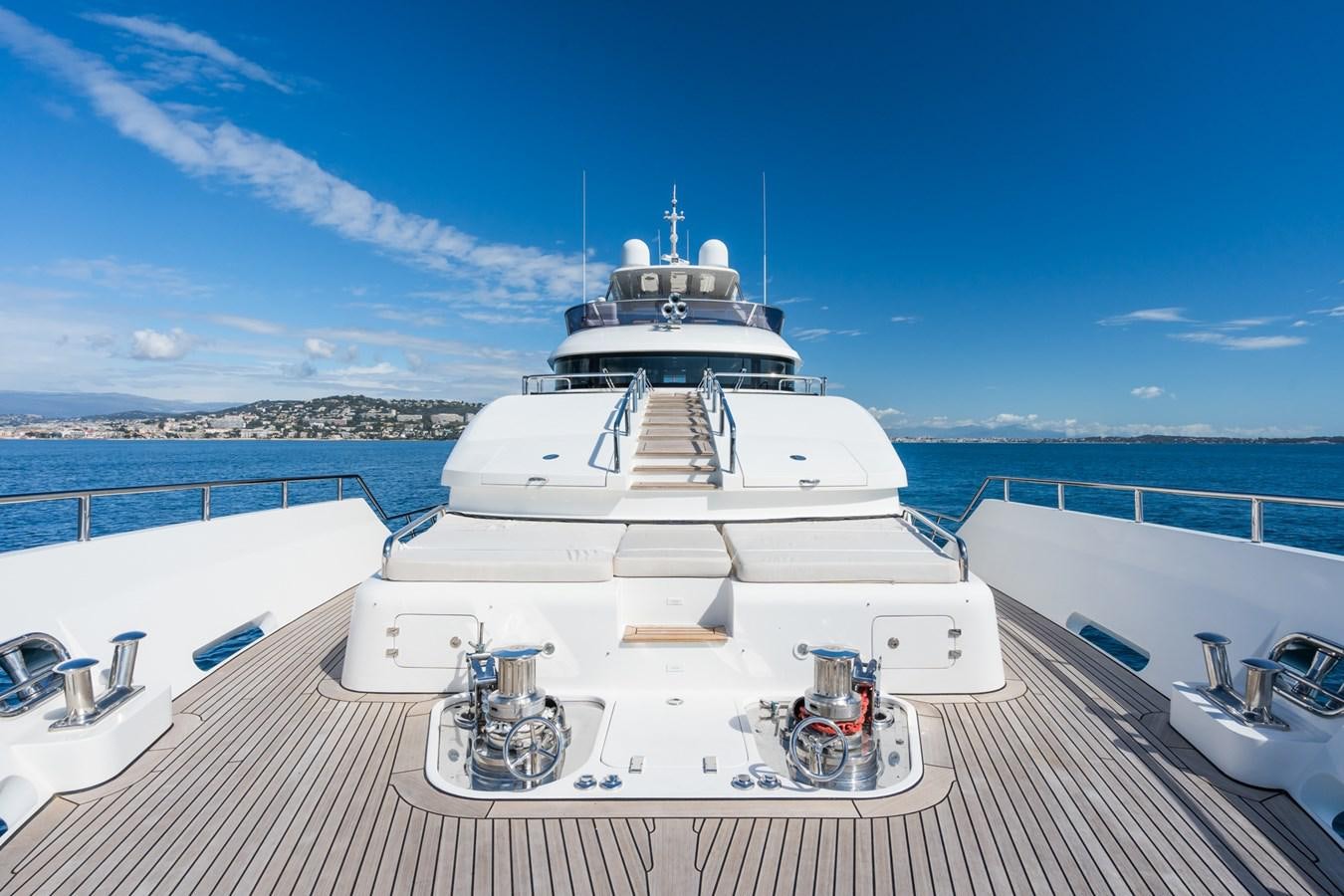

• Windlasses 2 x 230 Vac / 3 phases / 50 Hz
• Capstans 2 x 230 Vac / 3 phases / 50 Hz
• Anchors 2 x 190 kg galvanised steel High Holding Power HHP
• Chains 2 x 110 mt galvanized steel of 14 mm diameter for U2 grade with stud link
• Gangway 1 x hydraulic retractable telescopic 3-stage


IMPORTANT WORKS
2023:

• CMC Stabilizers 6-year service
• Disassembly of propeller shafts and inspection
• replacement of waterlub bush
• replacement of Chock-fast

2022:

• Team Itaia Workstation monitoring upgrade (screen replacement)

2021:

• Upgrade GSM from 4G to 5G change antennas and modules

2020:

• Deck complete Recaulking.
• Replacement of stern garage gearboxes
• Replacement anchor (180Kg)
• Replacement studlink galvanized chain 14mm

2019:

• Interior refit EKINOX

2018:

• Flexiteek on sun deck
• CMC Stabilizers 6-year service
