Asking
€ 22,500,000

MOUSETRAP Yacht for Sale

Length
110' (33.53m)
Builder
JFA
Build
2012/2023
Guests
9
Cabins
4
Crew
6
Asking Price
€ 22,500,000

Not for sale or charter to U.S. residents while in U.S. waters.

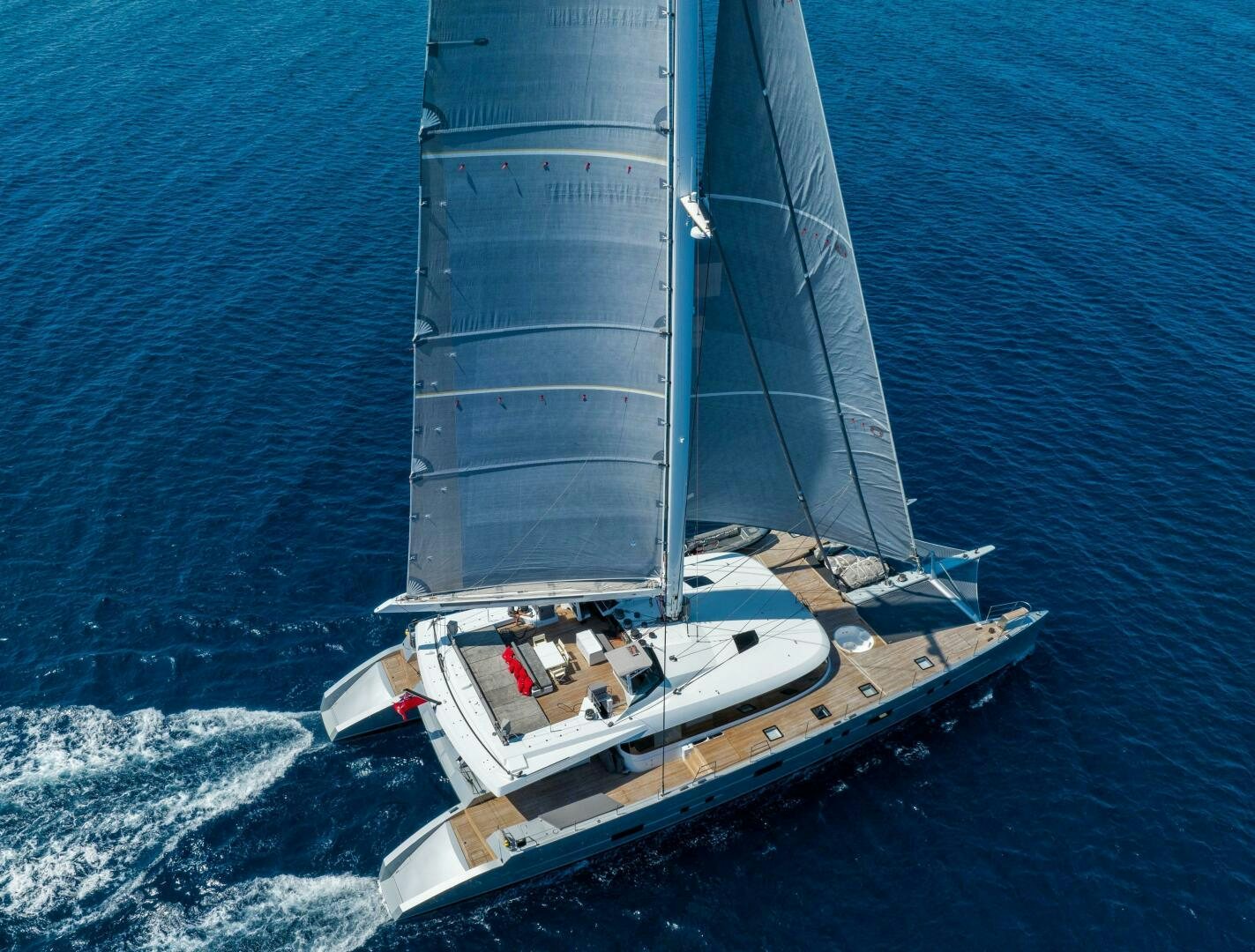

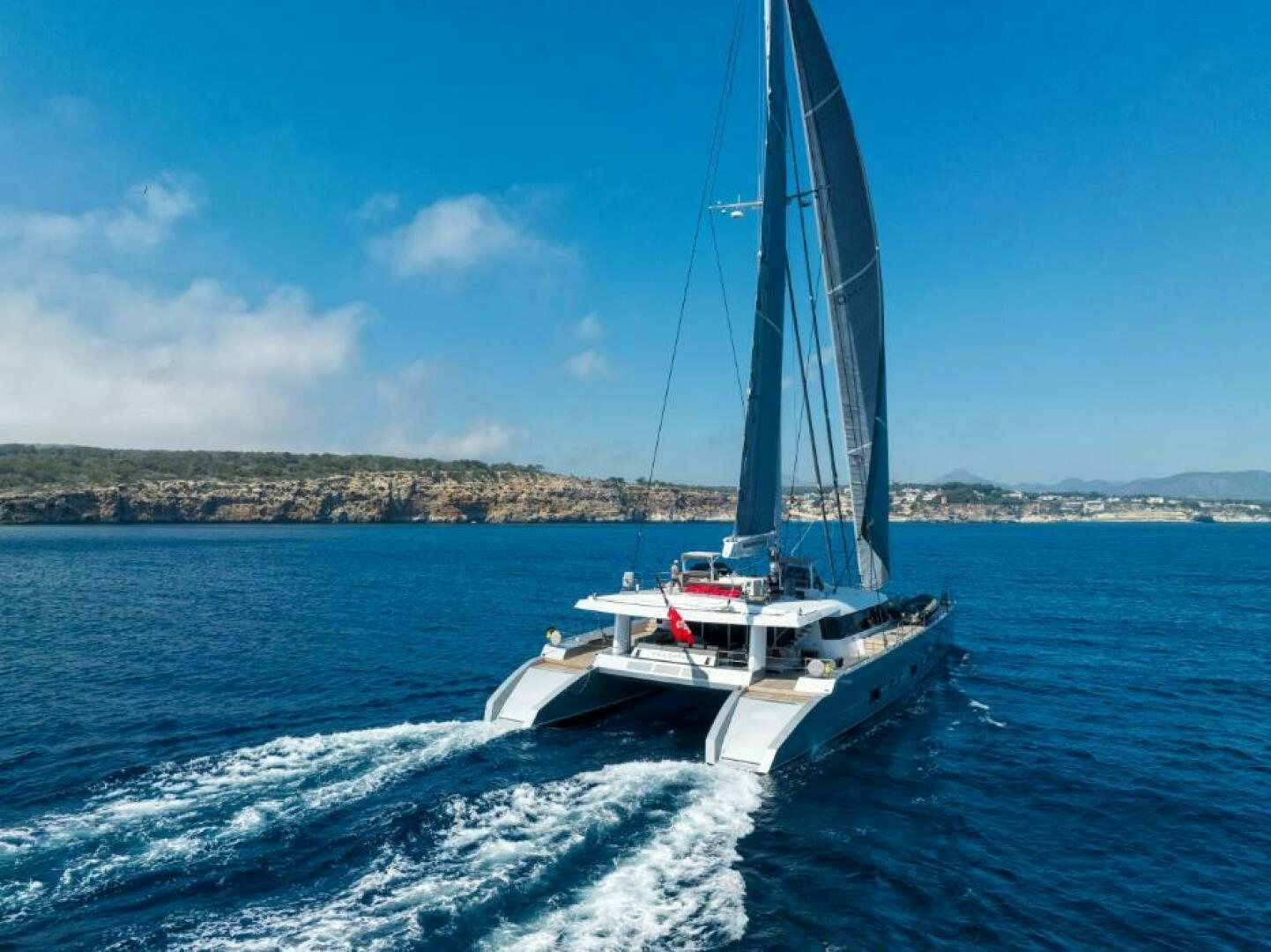

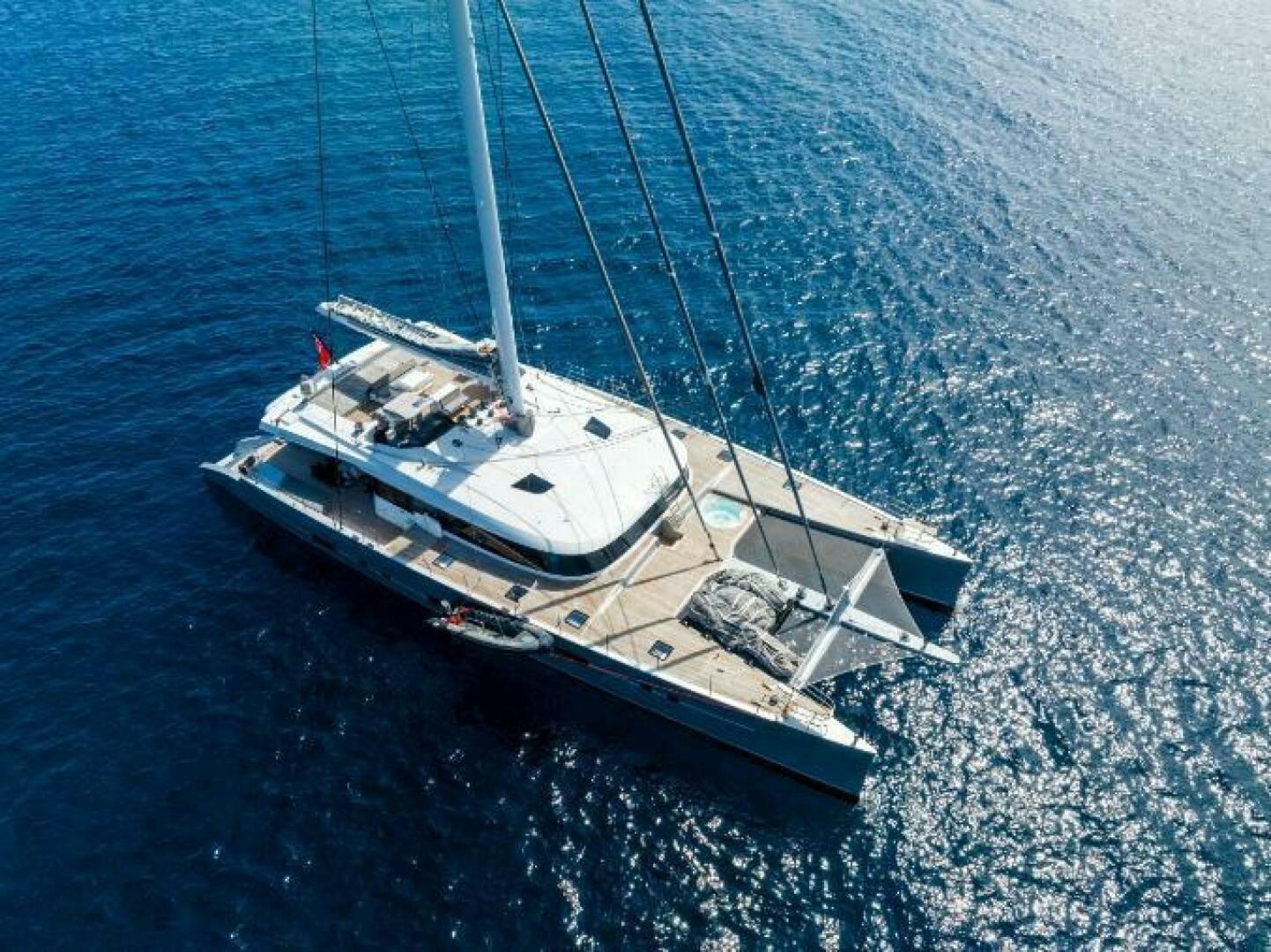

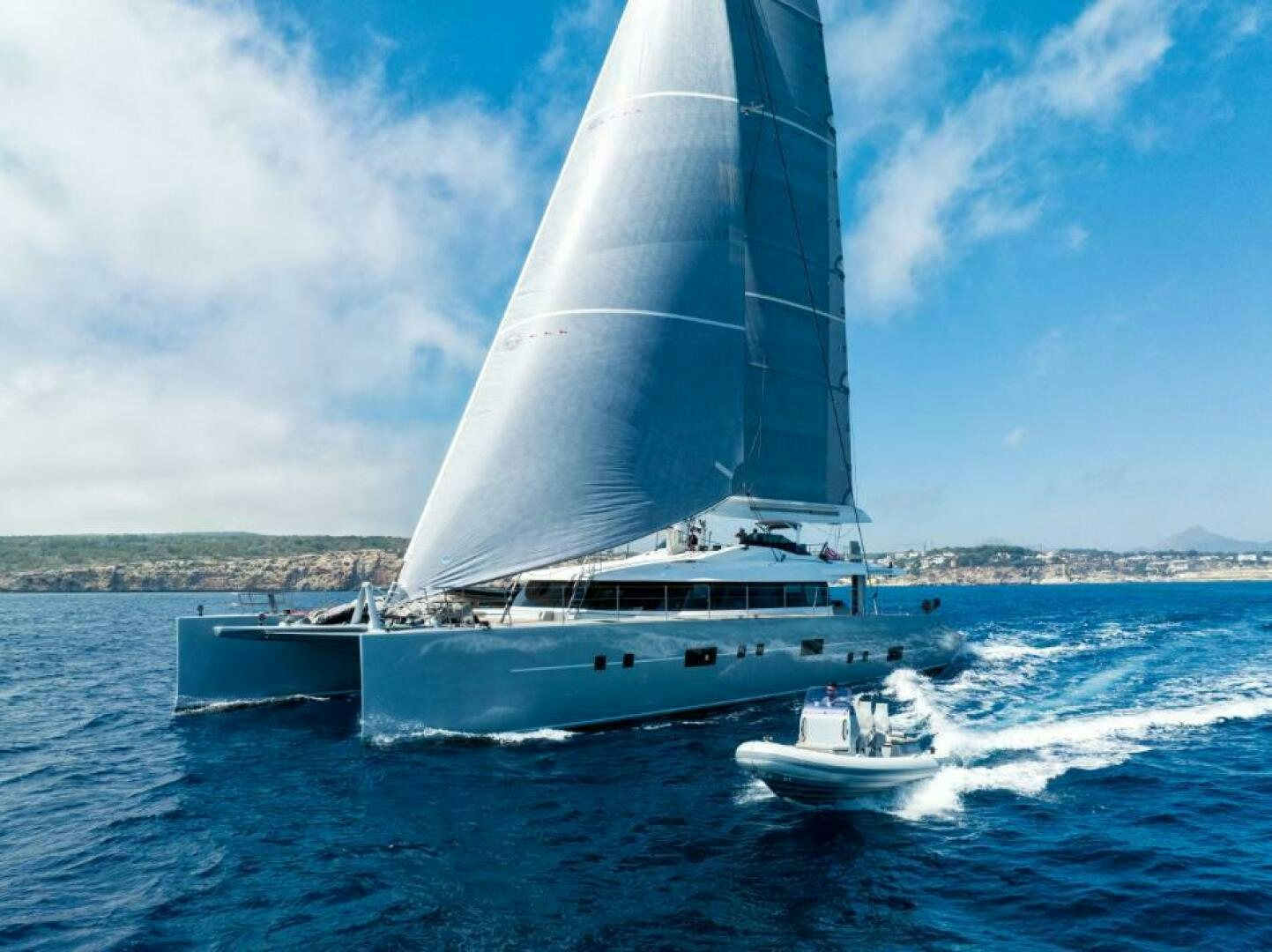

The largest Carbon sailing Catamaran in the world designed by internationally renowned naval architect VPLP Design and built as a fully custom project by JFA shipyard. “MOUSETRAP” was purposefully and meticulously designed and built by a tech entrepreneur for world exploration with his family. Her impressive dimensions and fastidious “as new” condition make “MOUSETRAP” the best large sailing catamaran available today!

Seriously for sale and offers are encouraged!

Northrop and Johnson is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Fraser Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Specifications

Builder JFA
Length (LOA) 110' (33.53m)
Year 2012
Year Refit 2023
Gross Tonn. 240
Draft 7' 10" (2.40m)
Beam 46' 1" (14.05m)
Location Cayman Islands

Accommodations

Staterooms 4
Sleeps 9
Crew Cabins 4
Crew Sleeps 6
Crew Mess 1
Capt. Quarters Yes

Dimensions & Capacity

LOA 110' (33.53m)
Max Draft 7' 10" (2.40m)
Fuel Tank 2,214 g (8,380 L)
Fresh Water 3,600 g (13,627 L)
Holding Tank 528 g (2,000 L)
Gross Tonn. 240
Displacement 120

Construction

Hull Material Carbon Fiber
Hull Config Catamaran

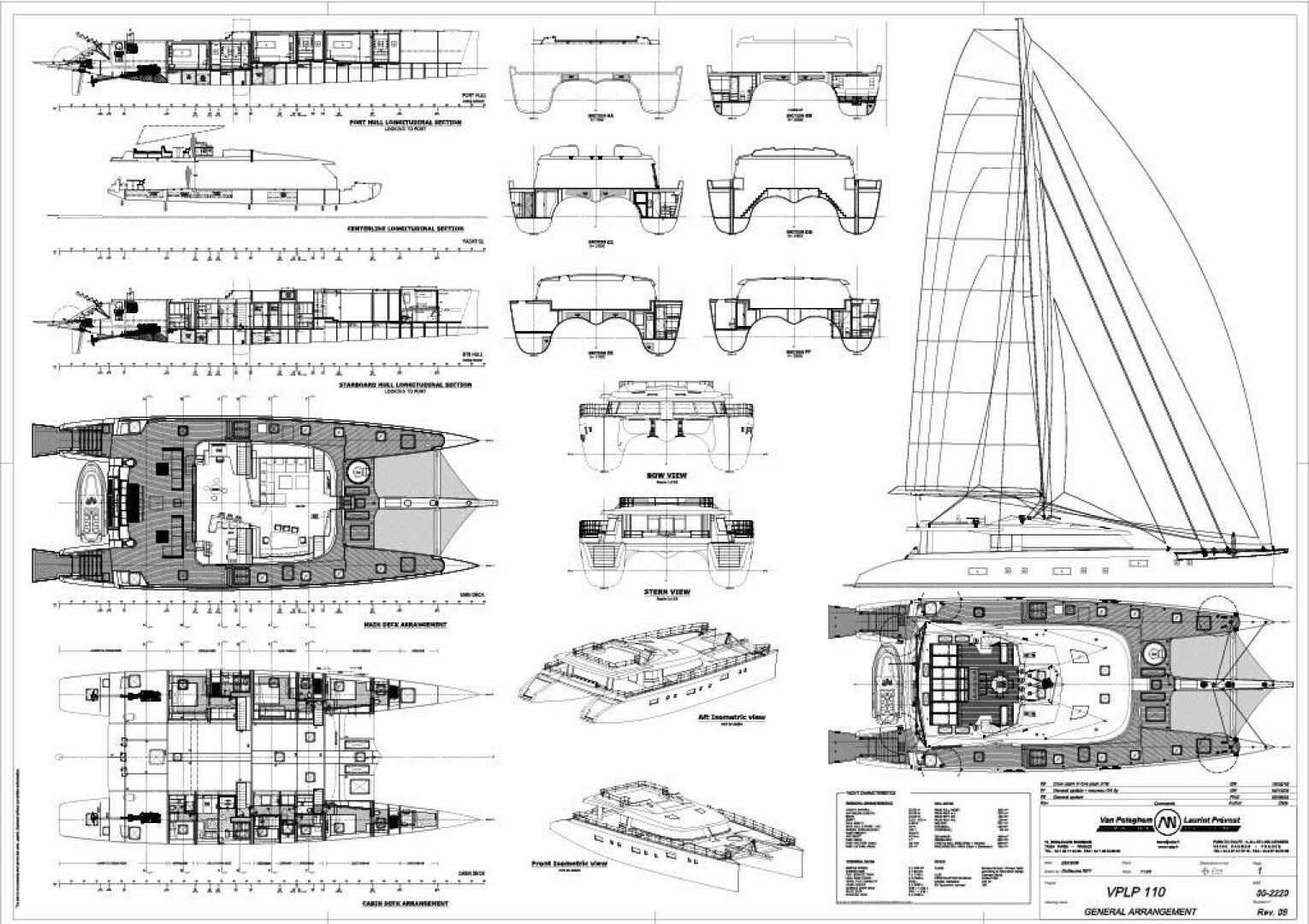

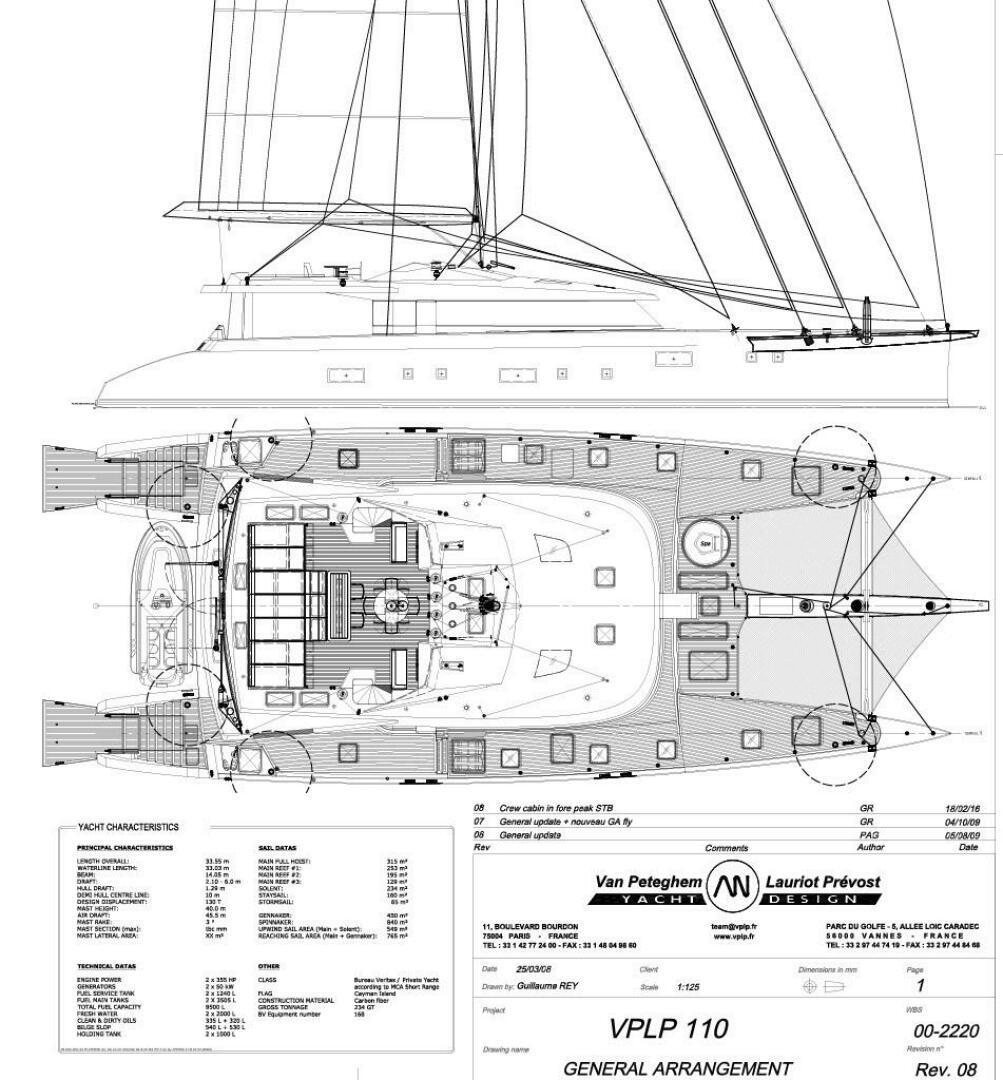

Ext. Designer VPLP Design
Int. Designer Cittolin Polli
Max Speed 12 Knots
Cruising Speed 10 Knots
Stabilizers None

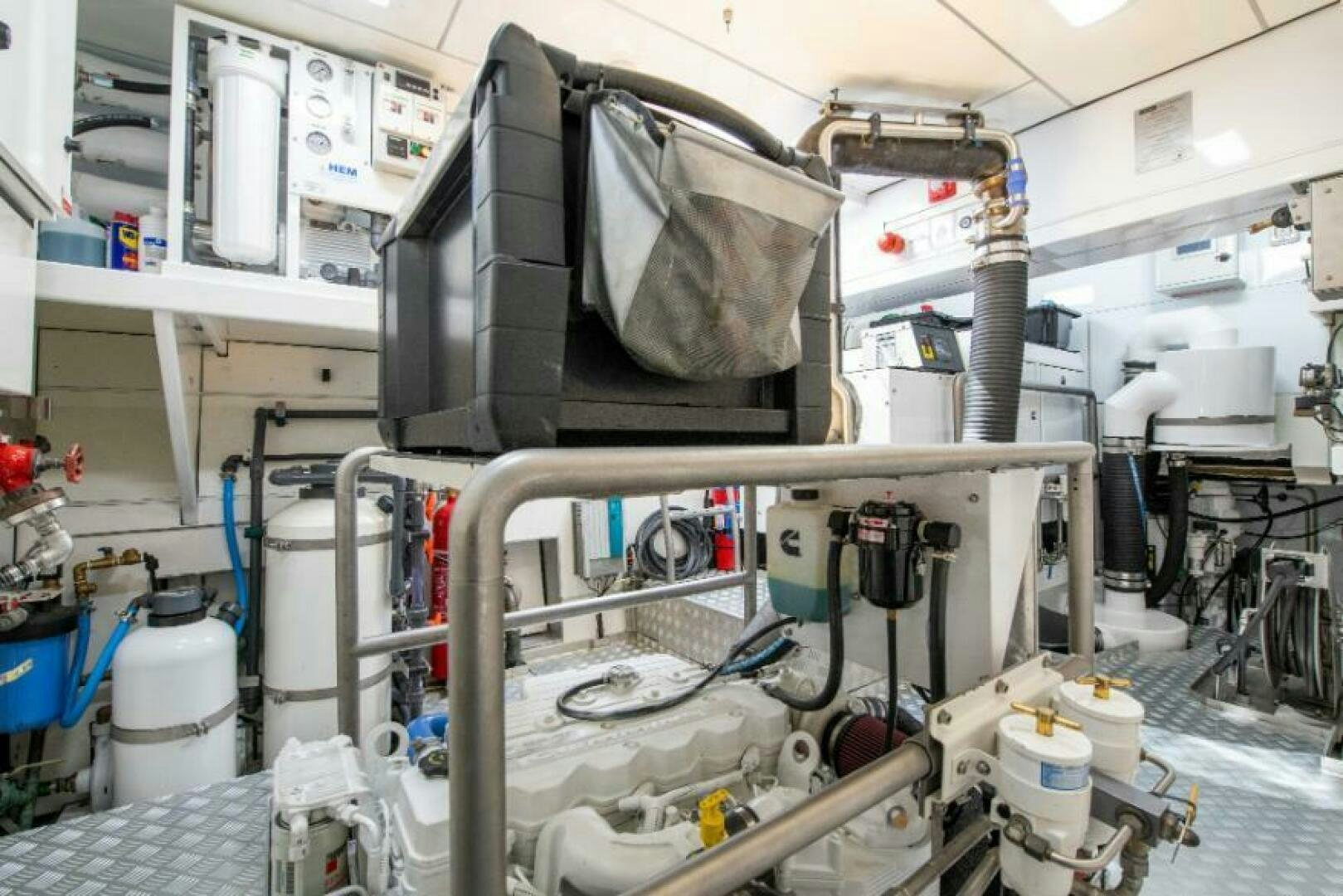

Engines (x2)

Engine Make Cummins
Engine Model QSB 5.9-M, 4T, 6 Cyl
Engine Year 2022
Engine Type Inboard
Power HP 355
Power KW 265
Fuel Type Diesel
Engine Location Port
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

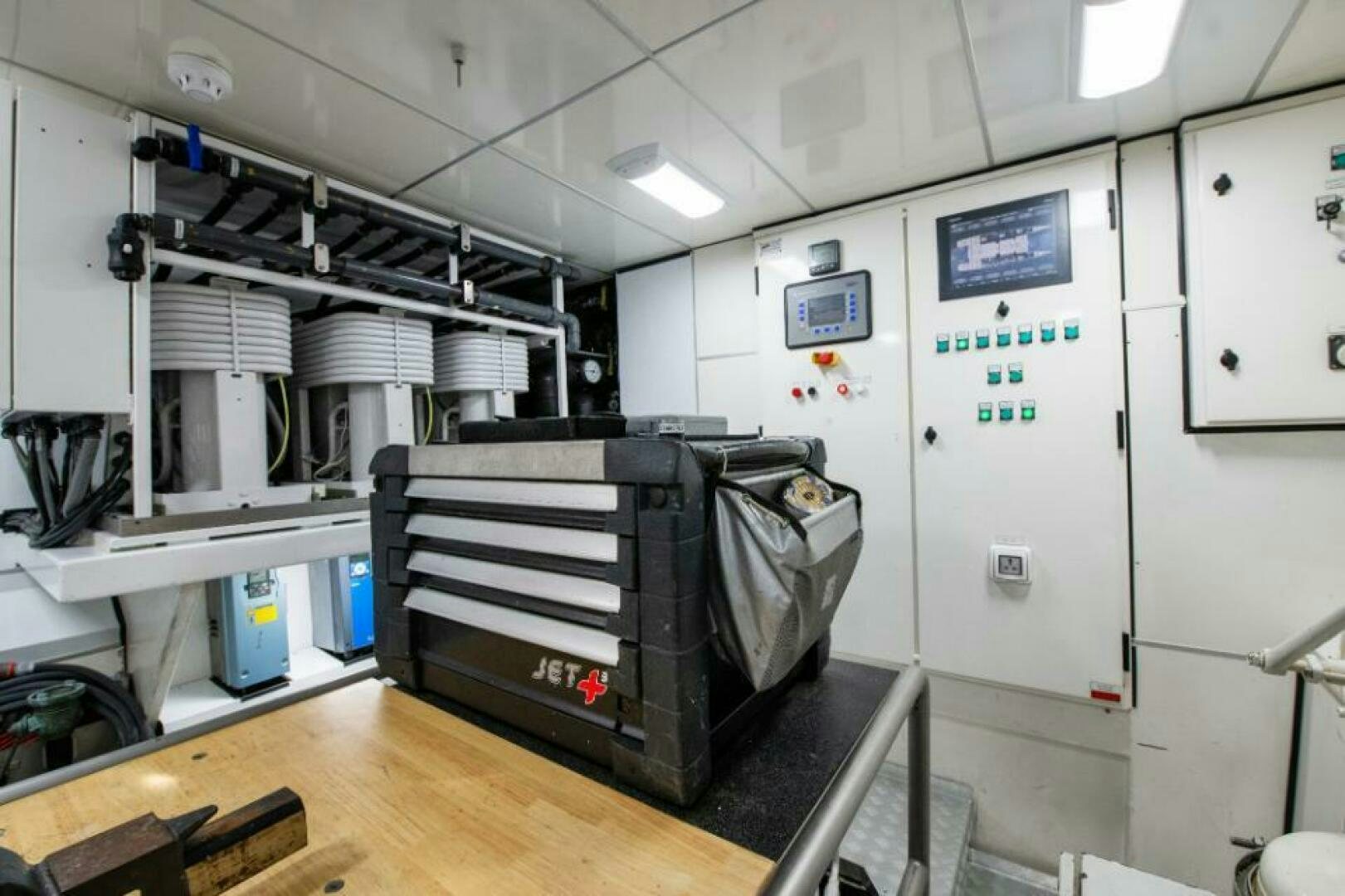

Other Machinery

  • Clean Oil 200 liters (53 gallons)
  • Dirty Oil 200 liters (53 gallons)
  • Slop Tanks 900 liters (238 gallons)
  • Fuel Separator & Filters Alfa Laval IB 303S Fuel Polisher & Facet MV BT37 Fuel Filter System
  • Bilge Pump x2 400V Gianneschi ACB 431 Bilge Pumps
  • x2 Engine-driven Forani & Pecorari B-40 Bilge Pumps
  • Sewage Treatment Systems Headhunter TW-HMX-512LP
  • WC’s Tecma Privilege’s
  • Ventilation x2 Heinen & Hopman Makeup Air Units
  • Air-Conditioning: Dometic MCGX216 (019) 3 Stage YM Chiller Plant (New Jan 2022) x16 Dometic Air Handlers w, Heating function (New Feb 2020)

Hot Water:

  • Port & Stbd boilers: 9kW heating capacity each with selective power cut

Fresh water:

  • x2 Watermakers - HEM H30/4000 Watermakers (600L/hour each or 15,200L/day each)
  • Silver Ion Sterilizer - HEM SIS20A
  • UV water sterilization
  • Mineral Pro 3-Stage Water Filtration System

Accommodation

  • Owner: x1 VIP queen bed with his/her sinks and shower room ensuite
  • Guests: x2 queen bed with shower room ensuite, x1 queen bed with additional fold-out single berth and shower room ensuite
  • Crew: x3 crew cabins accommodating 6 crew

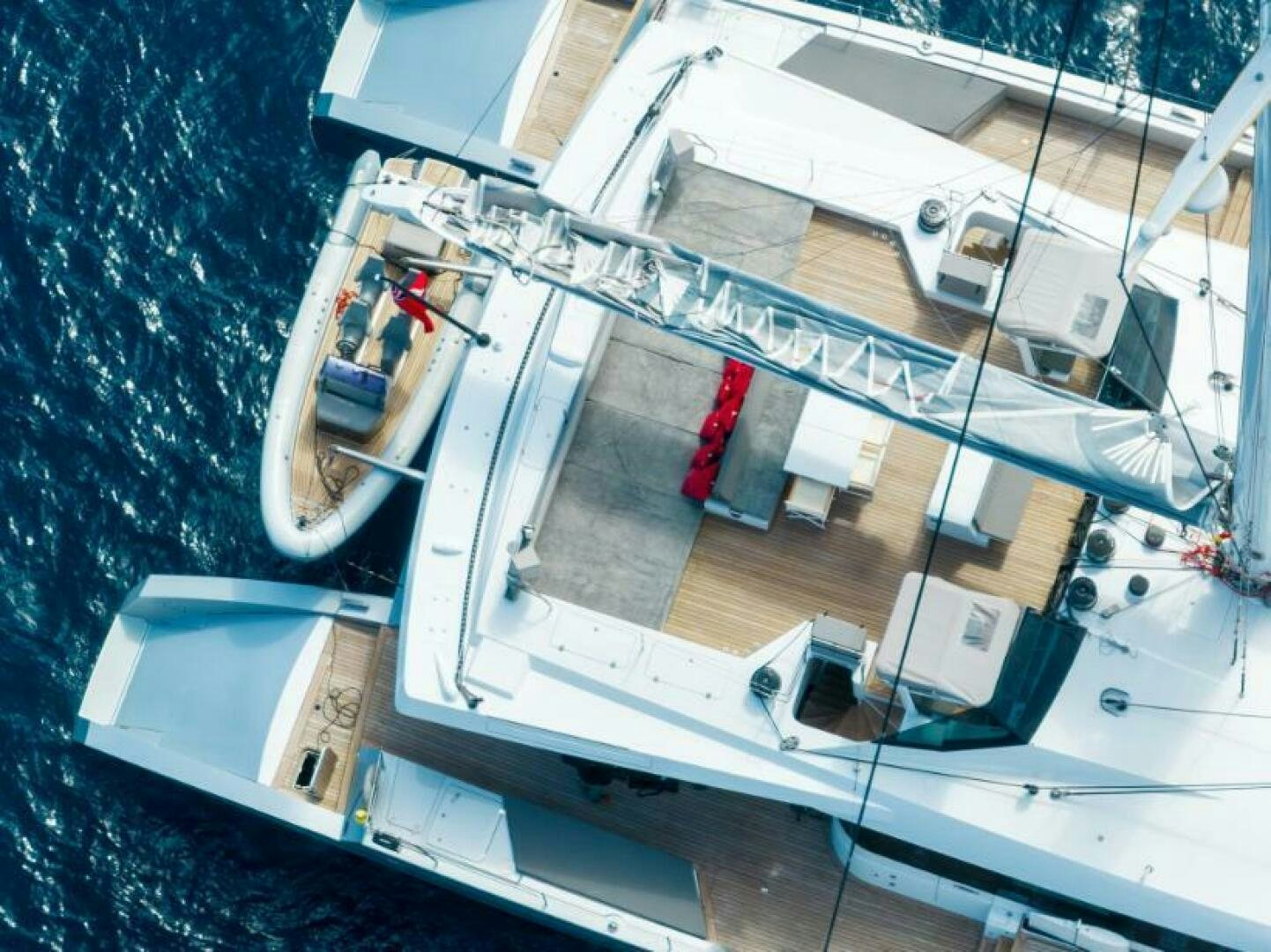

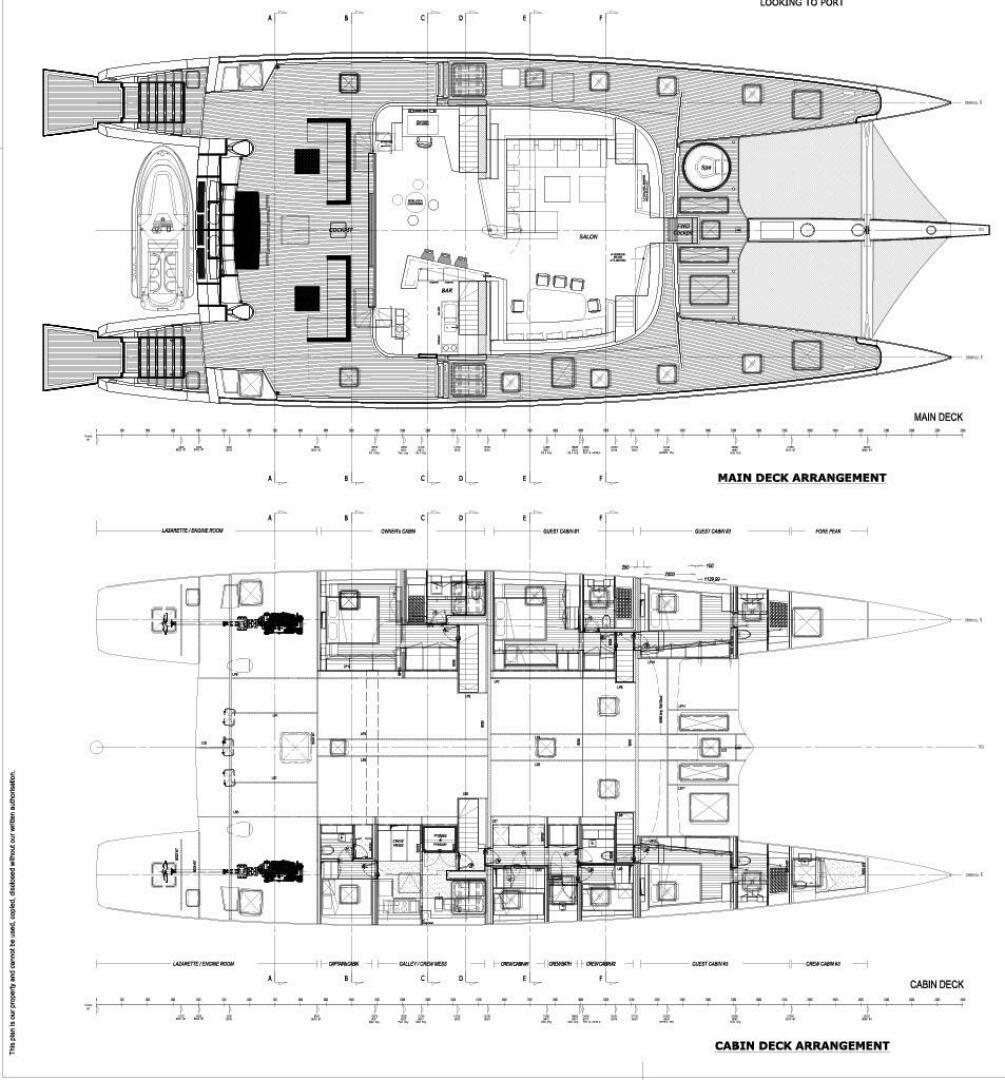

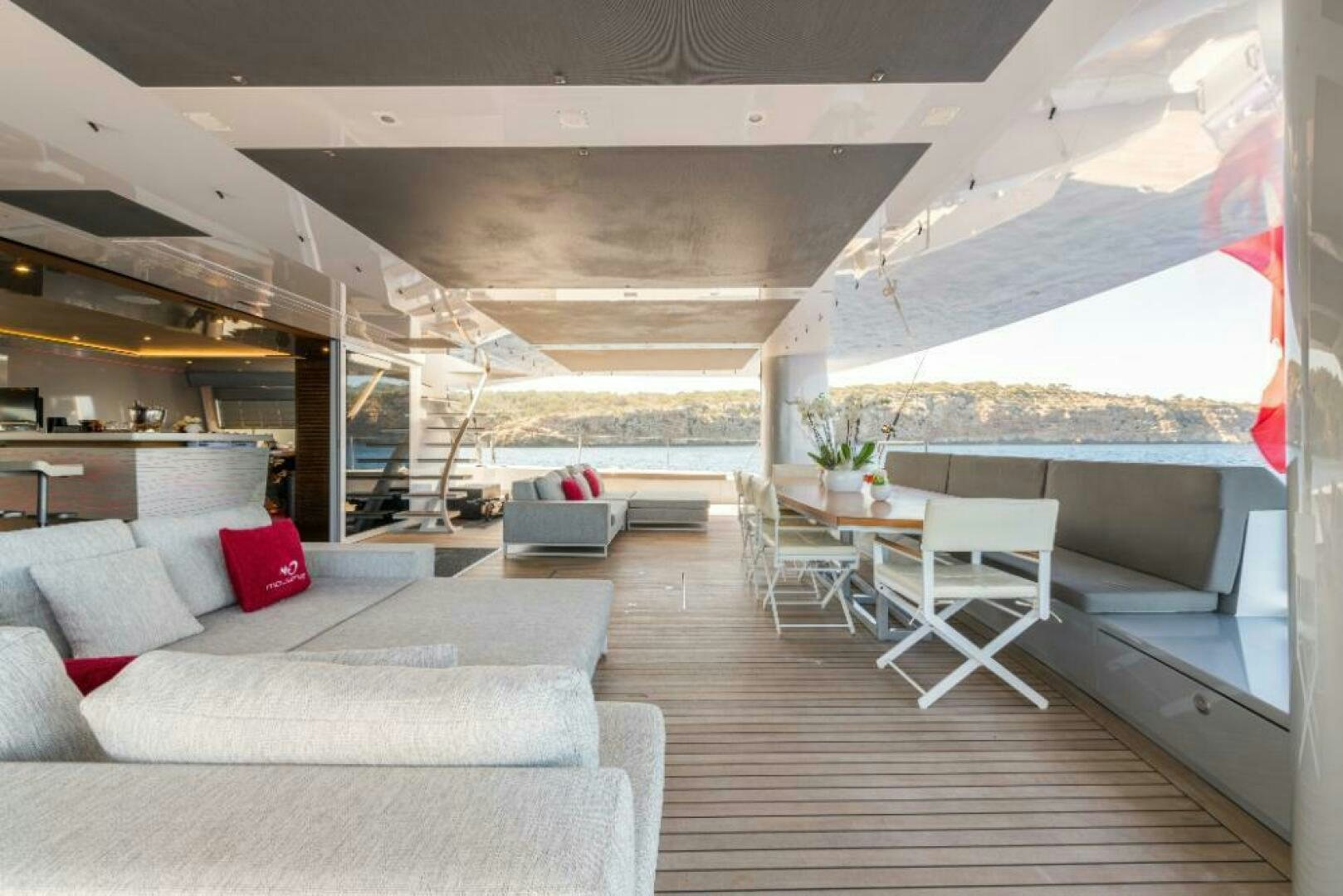

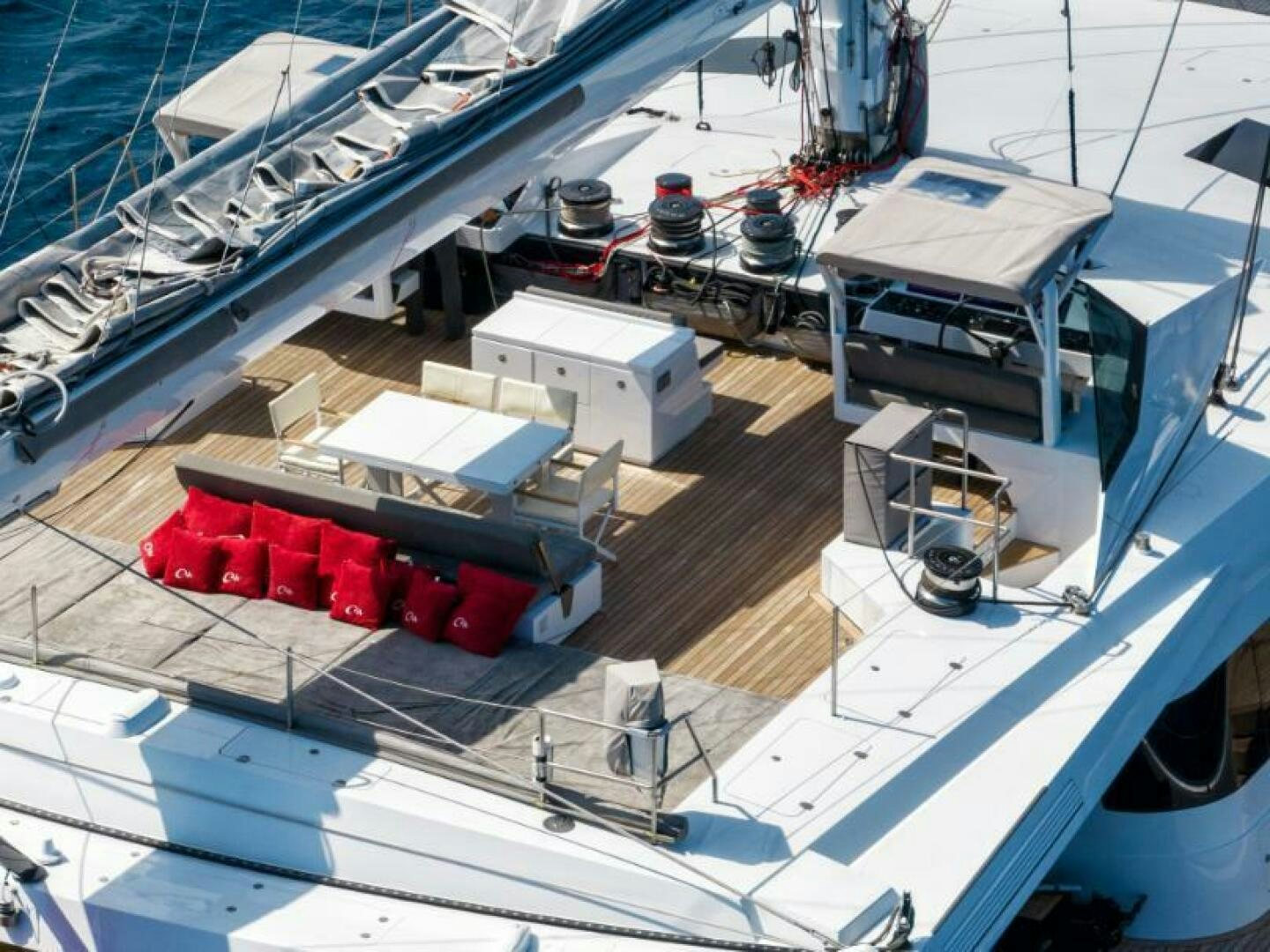

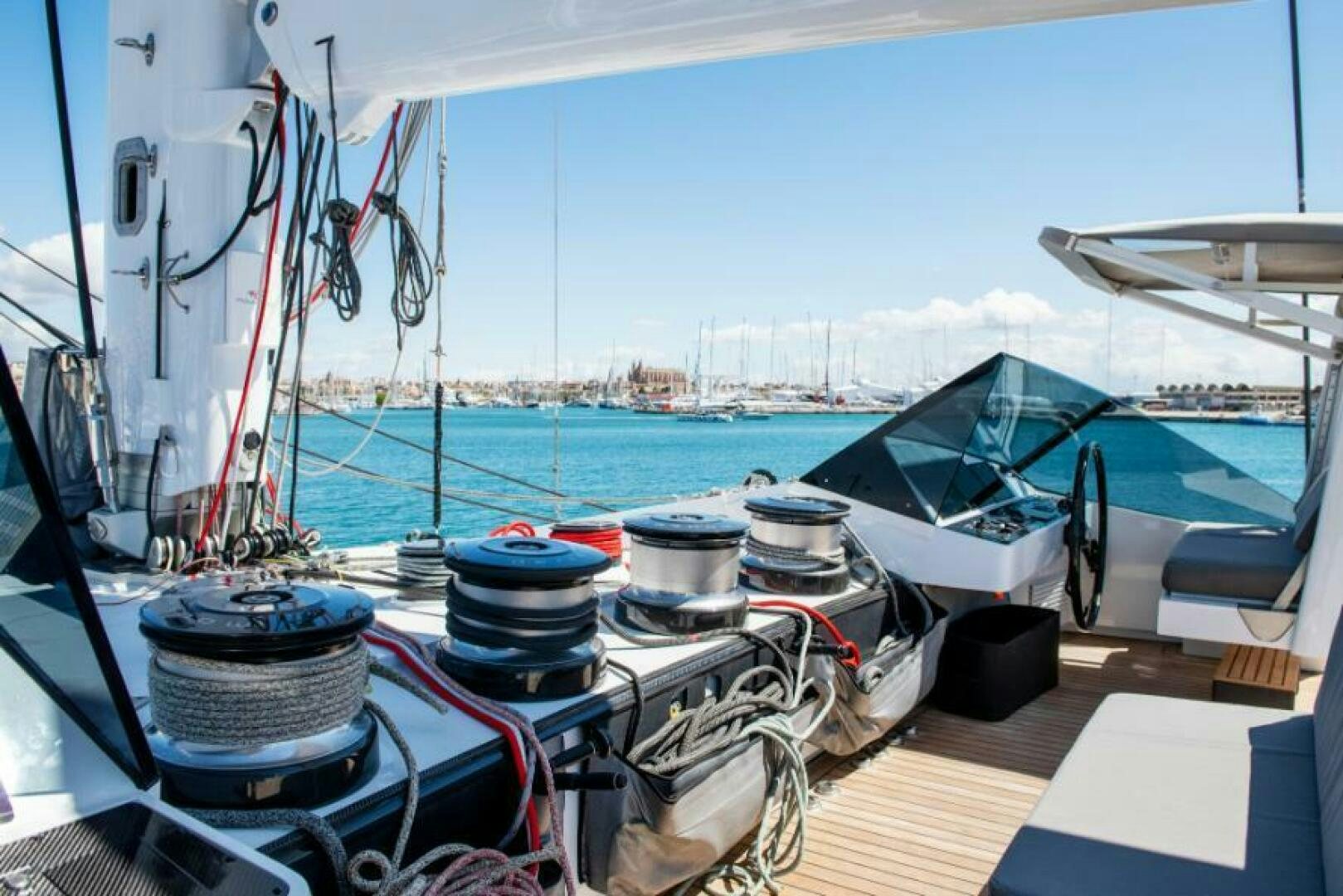

  • Boarding this vessel from her generous deployable stern platforms and up 4 steps to a massive aft deck area which encompasses the entire 46’ beam and has generous lounge seating on 2 settees forward plus an 8/10 seated dining table aft. Access the Flybridge is from both port and starboard sides of the aft deck.

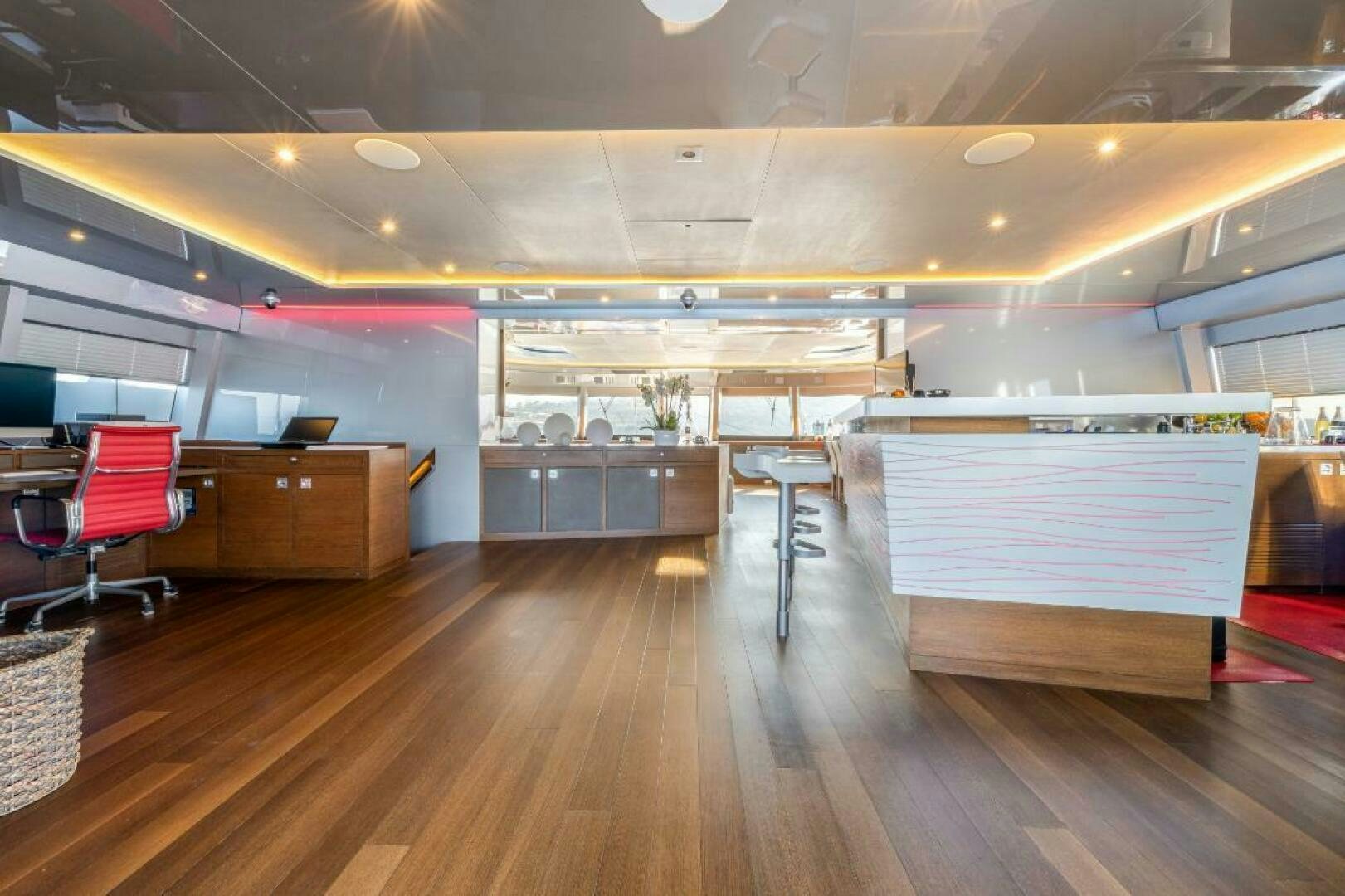

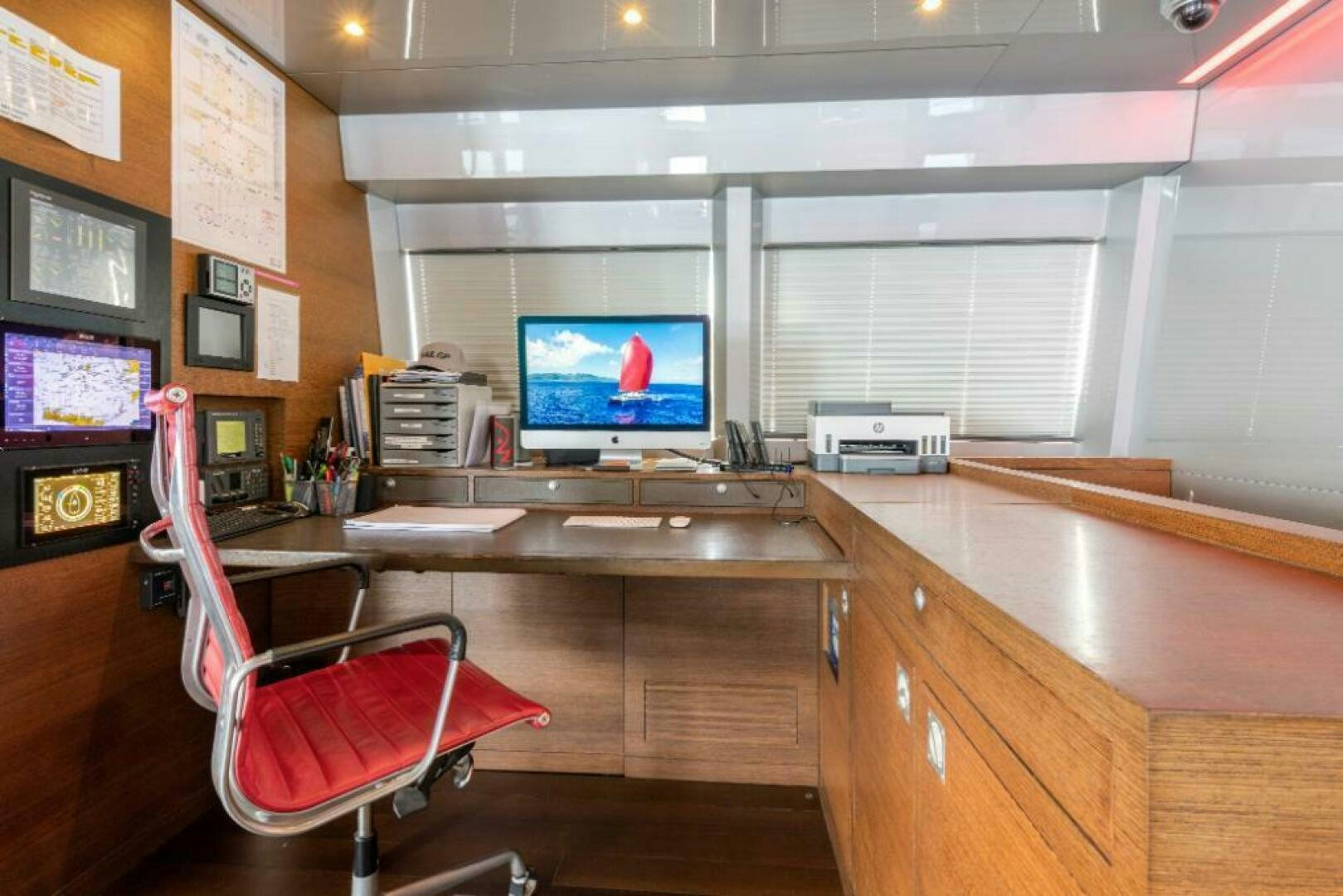

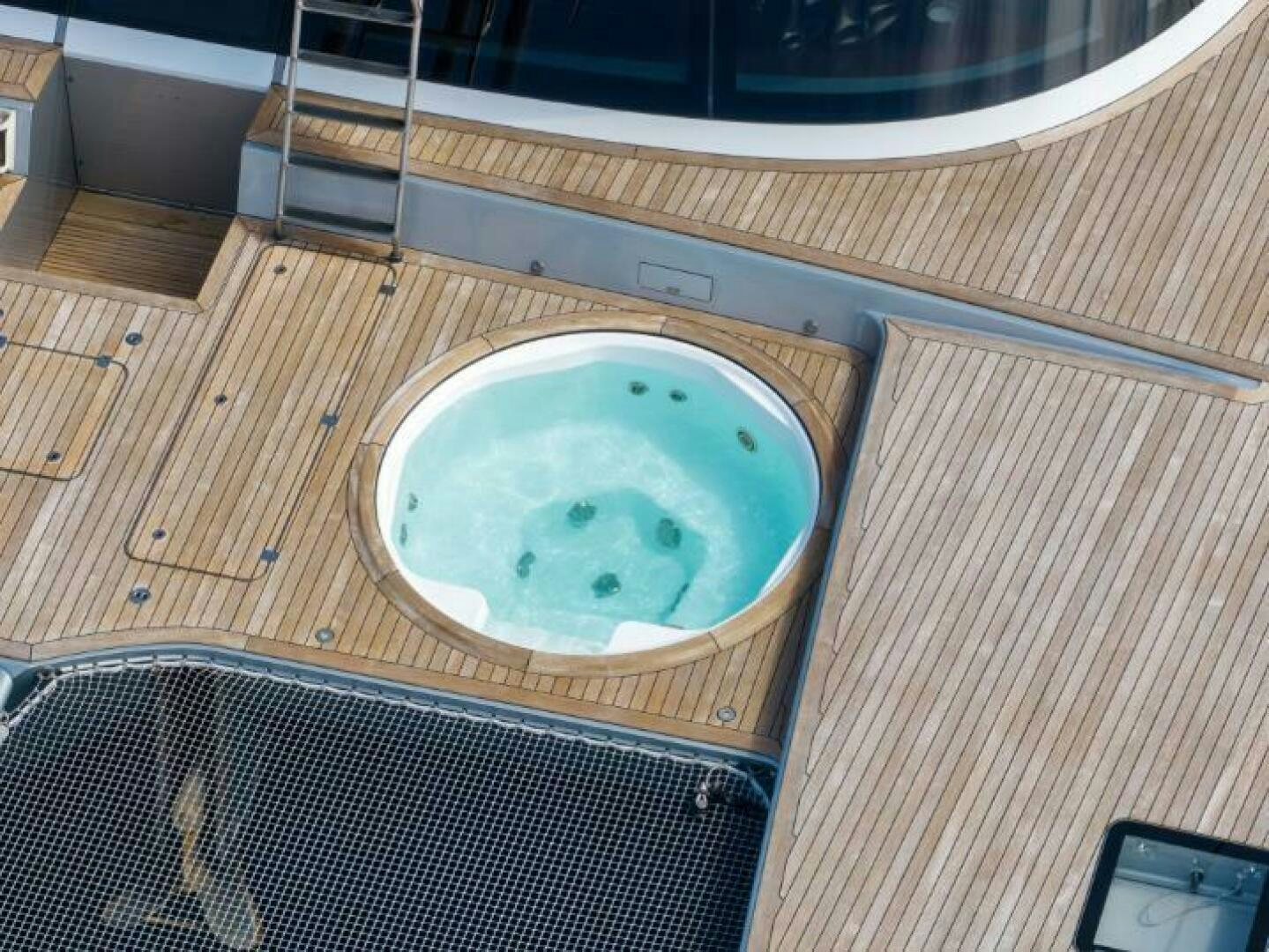

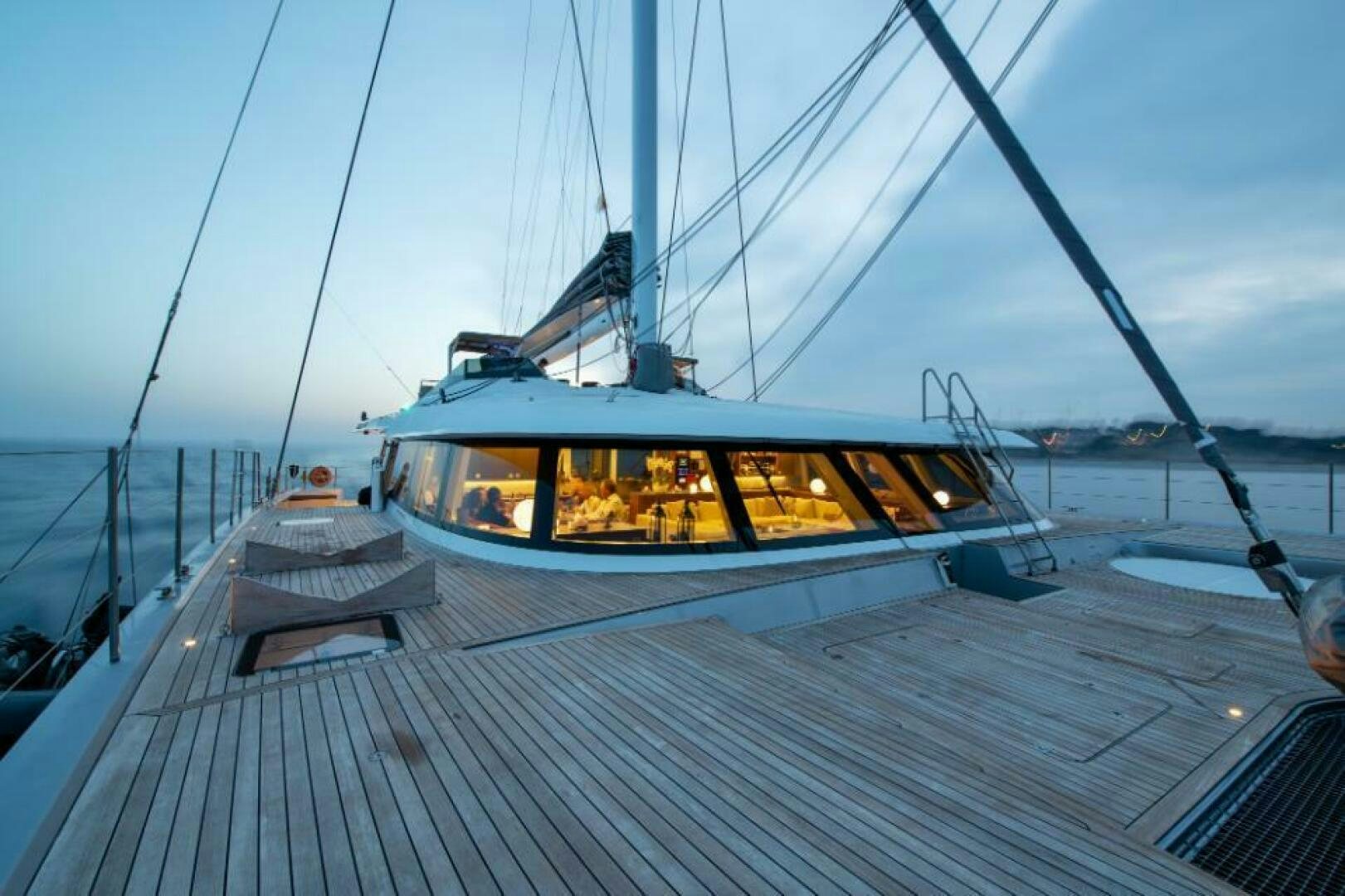

  • A large sliding door from the aft deck reveals the huge saloon spaces with uninterrupted views forward over the foredeck. The main saloon and dining areas are generous overall and divided in 4 sections while remaining an open plan design. Aft on port side is the ships office area with a work desk and all communications and computer services as well as stairs down to the owner’s stateroom. Opposite on starboard is a large bar and crew service area with access down to the galley and crew accommodations. The forward section of the saloon includes a very generous lounging area with wrap around sofa allowing 180 degree views out while seated and a formal dining table and seating for 8/10 on the starboard side. There is access down to a day head on the starboard forward side of the saloon. Saloon offering lounging areas and a custom jacuzzi outside on the foredeck. This allows uninterrupted views and ventilation through the yacht from the foredeck to the aft deck though the interior.

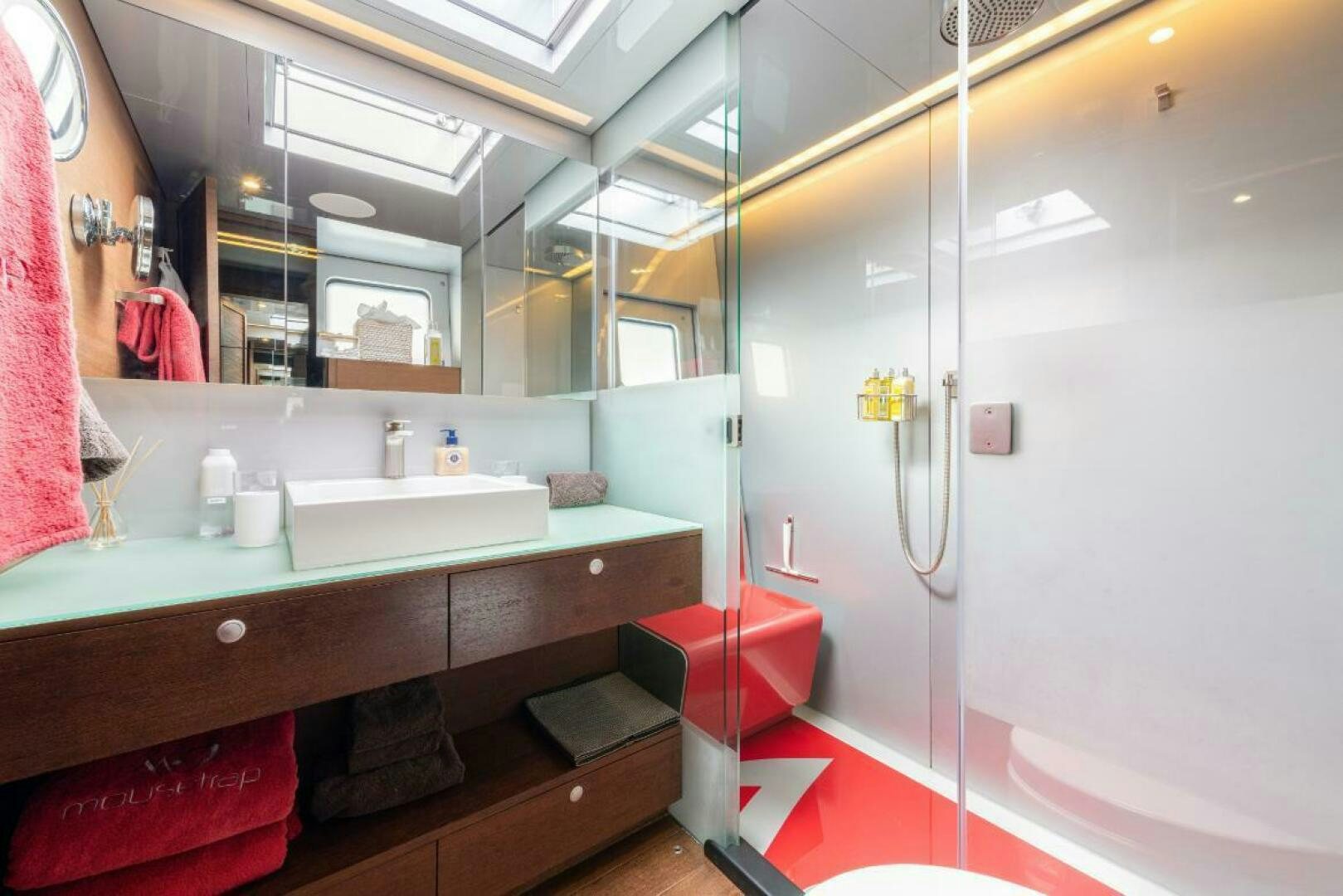

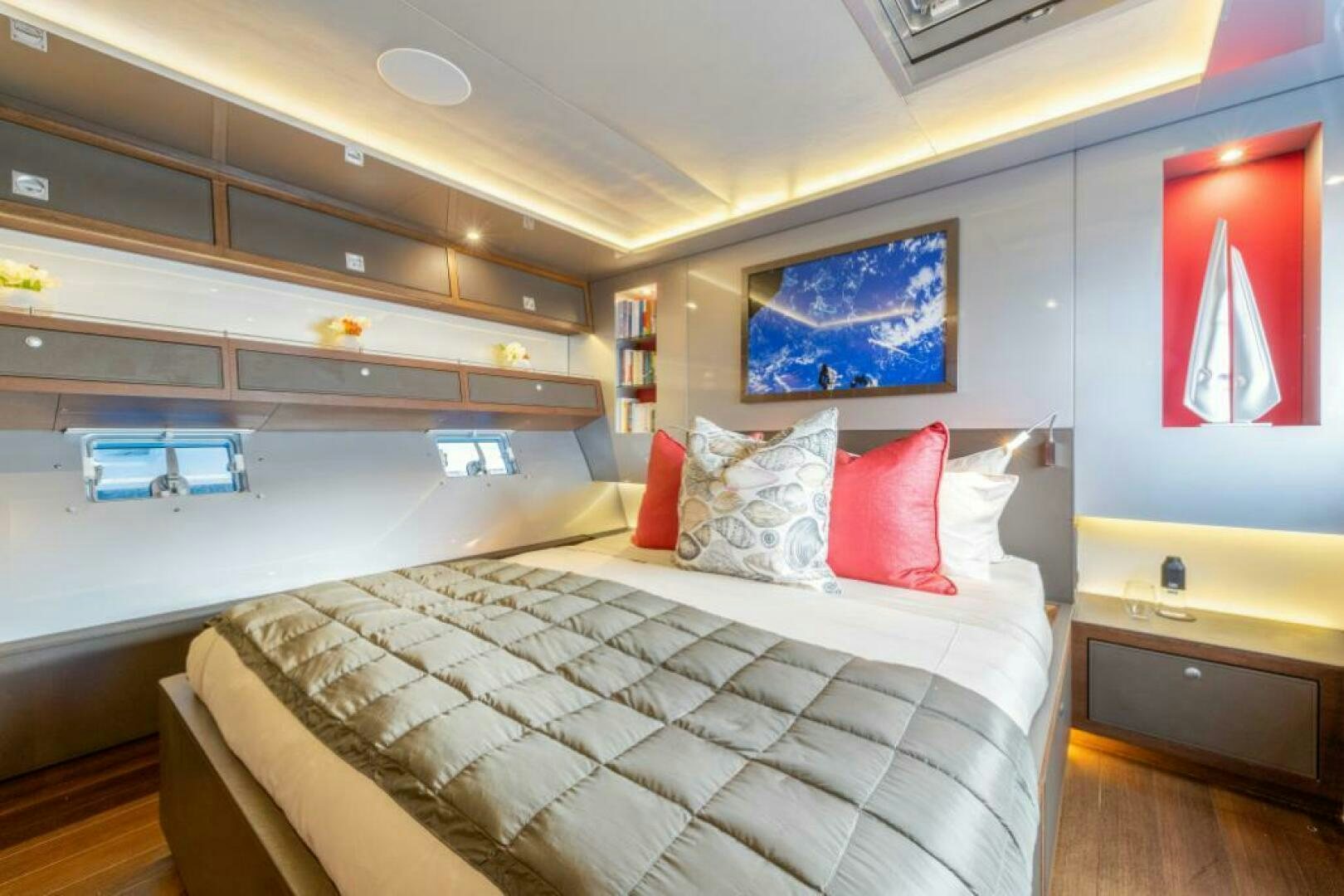

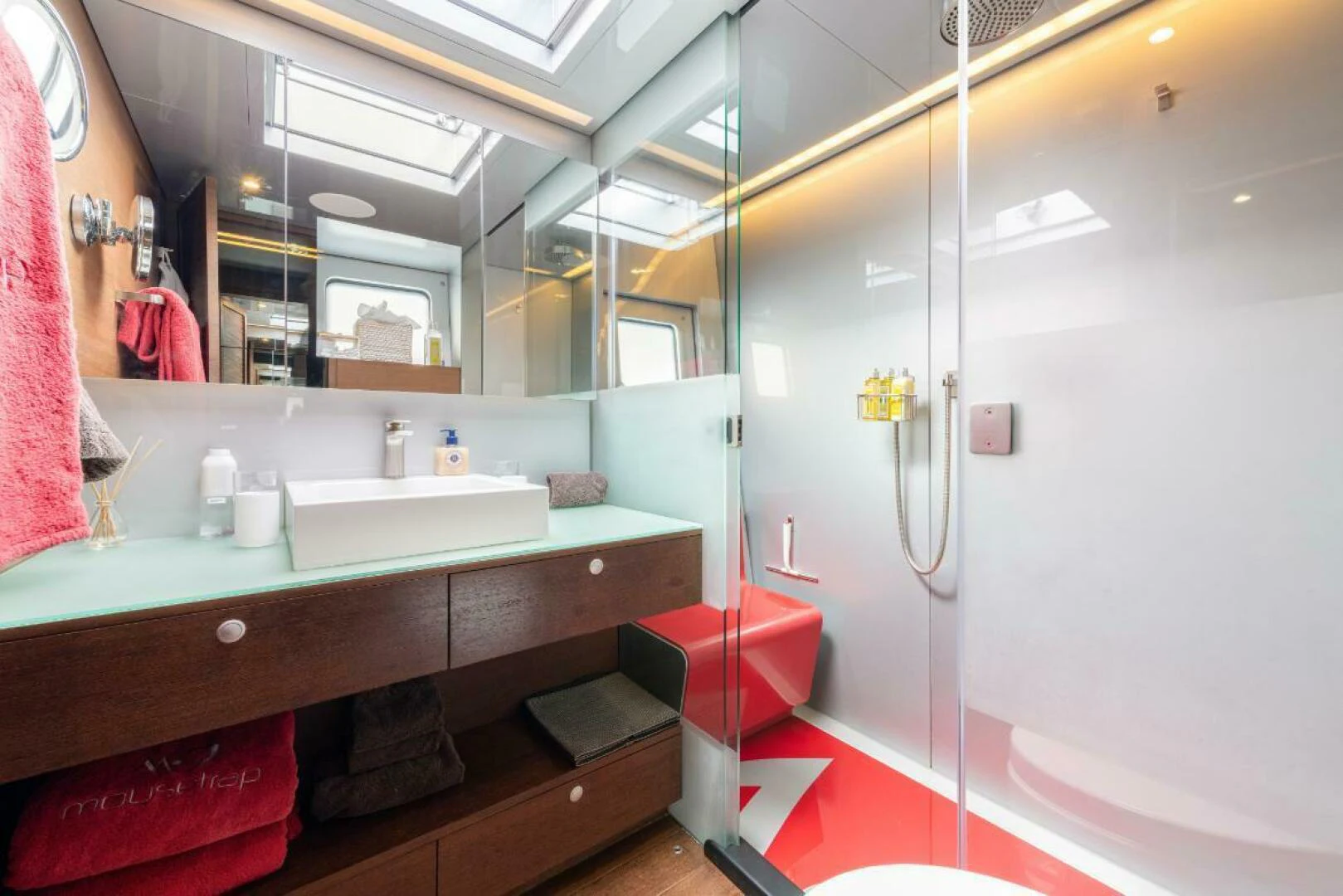

  • There are 4 owner and guest double ensuite staterooms. The owner’s accommodations have a private stairway down from the ships office area and includes a generous double stateroom aft in the port hull with queen berth, ensuite his/her head area and shower room. The 2 double guest staterooms also in the port hull are accessed downstairs from the forward saloon and a fourth guest double guest stateroom is situated in the starboard hull forward and access downstairs from the saloon. All owner and guest staterooms are generously appointed with 7’ headroom, large portlights in the hull allowing views out to the sea, and ensuite head and showers in all staterooms. Natural and forced ventilation. State of the art audio visual systems. Ample hanging and drawer storage. The décor is inviting and tranquil while also being luxuriously detailed.

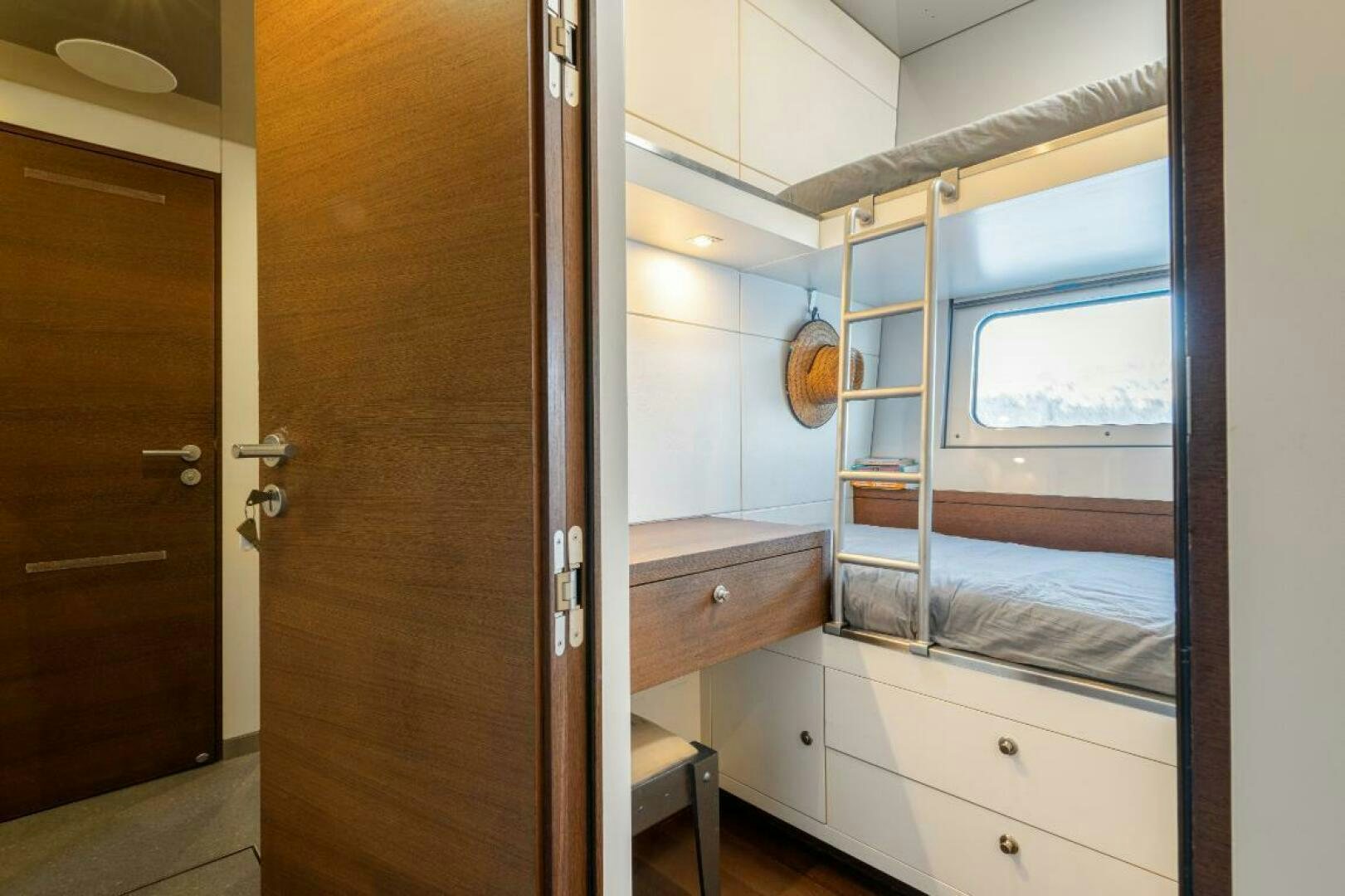

  • The Crew accommodations are in the starboard hull and arranged in 3 double cabins aft plus 1 single cabin forward for total of 6 crew with a private Capt.’s cabin aft. The Crew mess is opposite the Galley. Portlights out allow light and views into the accommodations.

Galley & Laundry Equipment

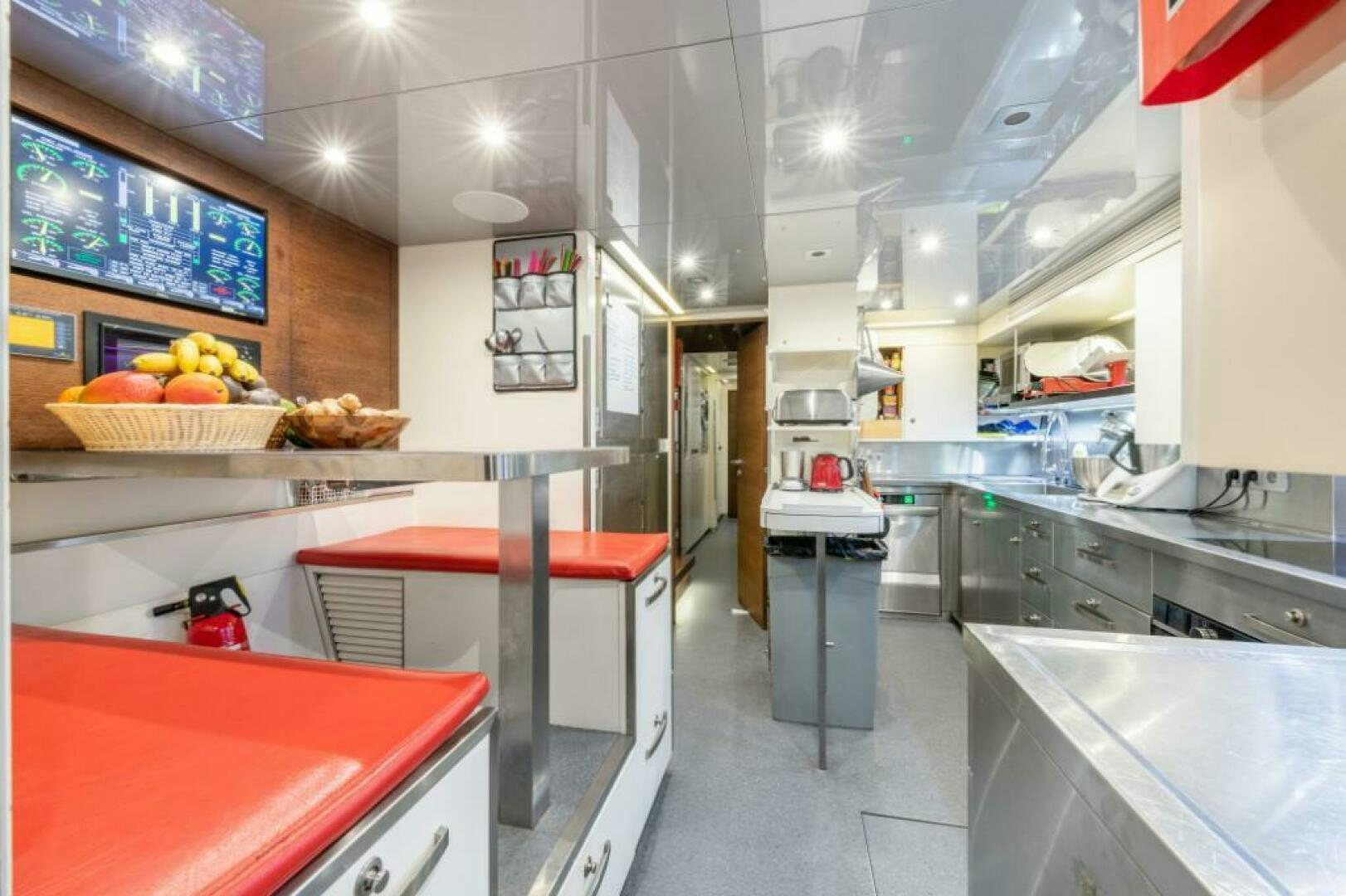

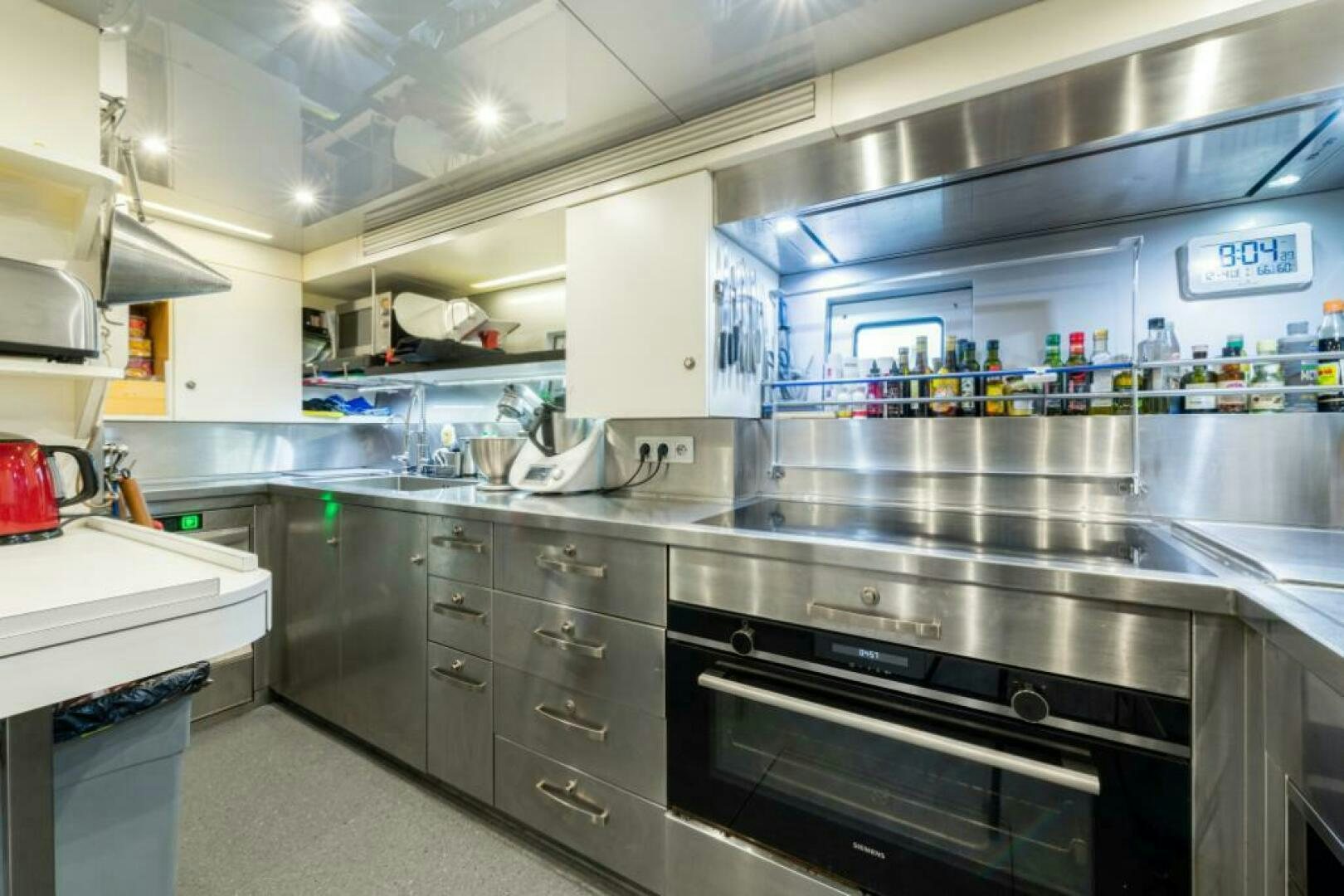

Main Galley

  • Miele Steam Oven DGC 6805, Siemens VB558C0S0 Oven
  • Frigomar Refrigeration System: 2x Undersole Freezers 4x Fridges and Wine Fridge

Communication Equipment

Satcom:

  • x2 Starlink CYZ maritime (new Jan 2023)
  • Download speed 350 Mbps Peak
  • Upload speeds 40 Mbps
  • Latency 99ms average

Cellular System:

  • x3 cellular interfaces for connectivity redundancy (5G, LTE-A, and
  • dual LTE w/ amplifier)

Wifi:

  • x13 Wifi 6 Access Points for onboard Wifi (New Oct 2022)

VHF Radiotelephones:

  • SIMRAD RS100

Telephone Exchange:

  • VOIP UK Number with Soft phone Integration (New 2023)

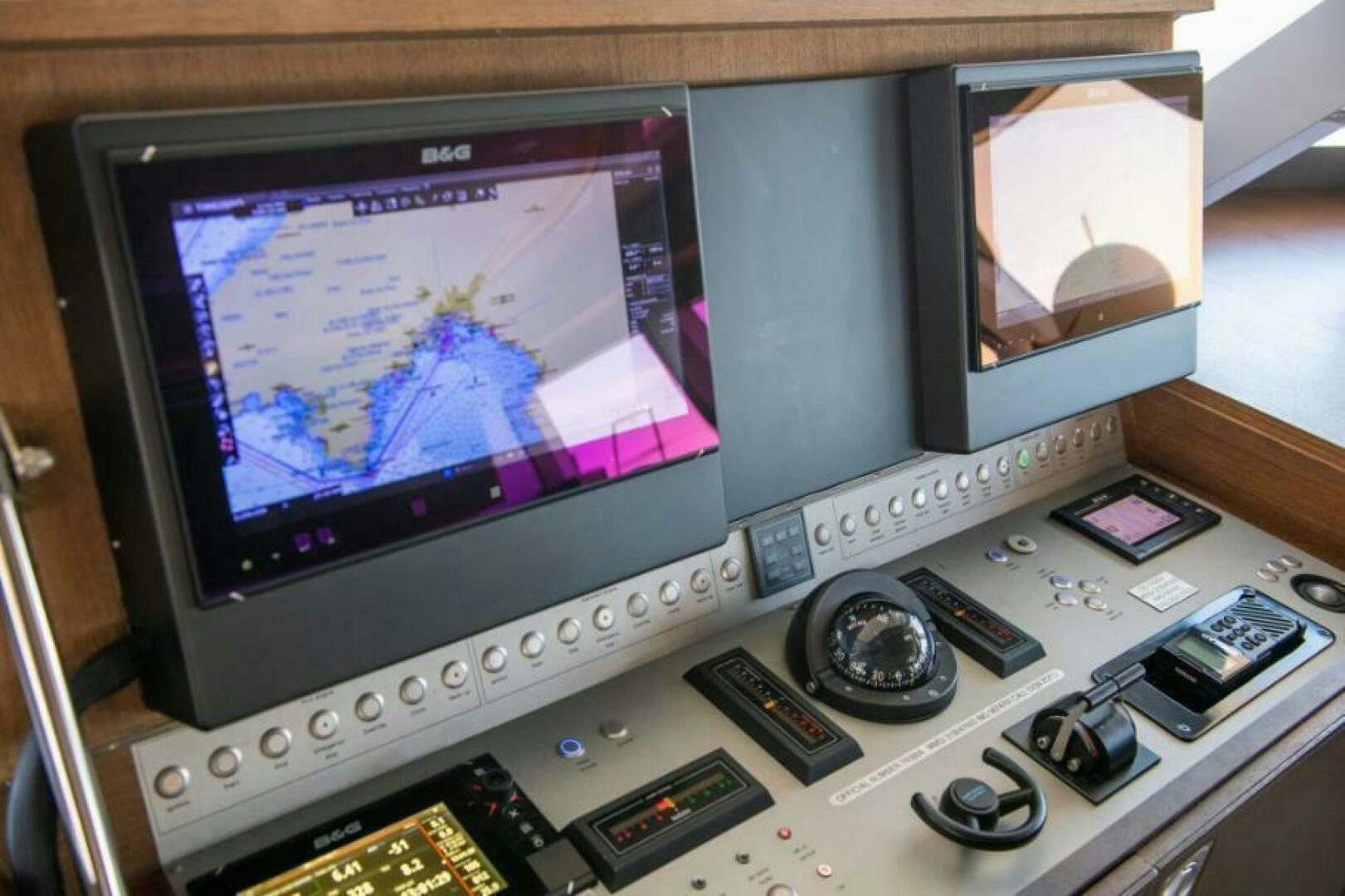

Navigation Equipment

  • Chart Plotter: B&G Zeus Screens and Time Zero MaxSea PCs
  • Automatic Pilot: B&G Including Adrena Sail Software
  • Gyro Compass: HS70 B&G
  • Radars: Simrad Radars, 1 x B&G 36 miles
  • GPS: HS70 B&G GPS
  • Navtex: B&G H5000
  • Echo Sounder: B&G DST810 (Depth Speed Temperature Transducers)
  • Wind Instruments: x2 B&G MHU & AT+ Wind Speed Unit
  • Log: Timezero & HS000 B&G

Entertainment Equipment

  • x8 TVs integrated with Crestron custom infotainment system with Plex Media Server providing video and audio throughout the vessel
  • Drop-down projector for movie nights

Tenders & Toys

Guest Tender

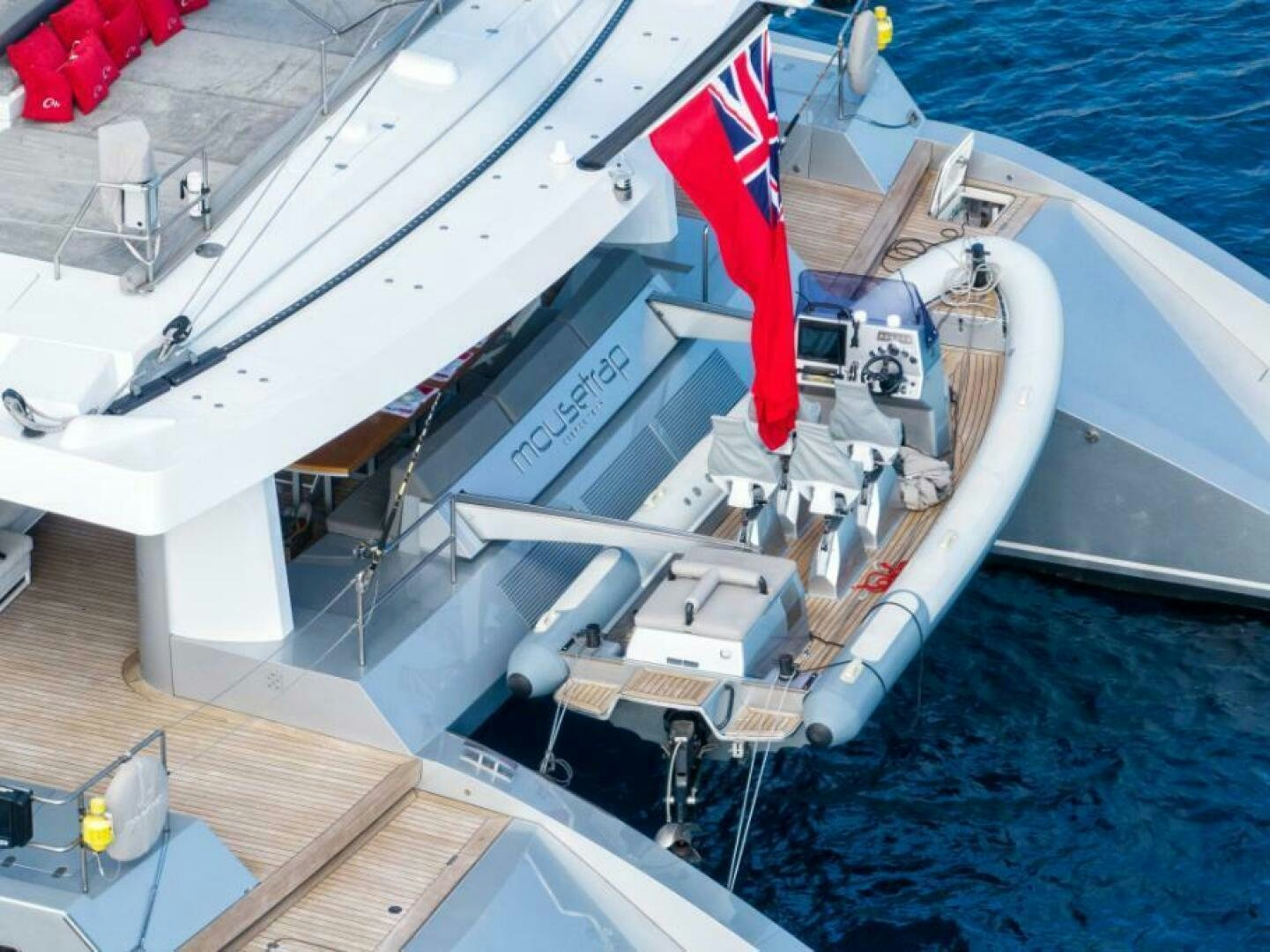

  • Custom 6.3m (20.7ft) X-Tender
  • Material: Carbon Fiber hull with RIB
  • Engine: 168HP Cummins QSD 2.0 Diesel with Mercury Bravo leg
  • Max speed: 36kts

Crew Tender

  • Custom 5m (16.4ft) Southern Pacific Tender
  • Material: Aluminum hull with RIB
  • Engine: 50HP Yamaha 2-stroke outboard

Diving Equipment

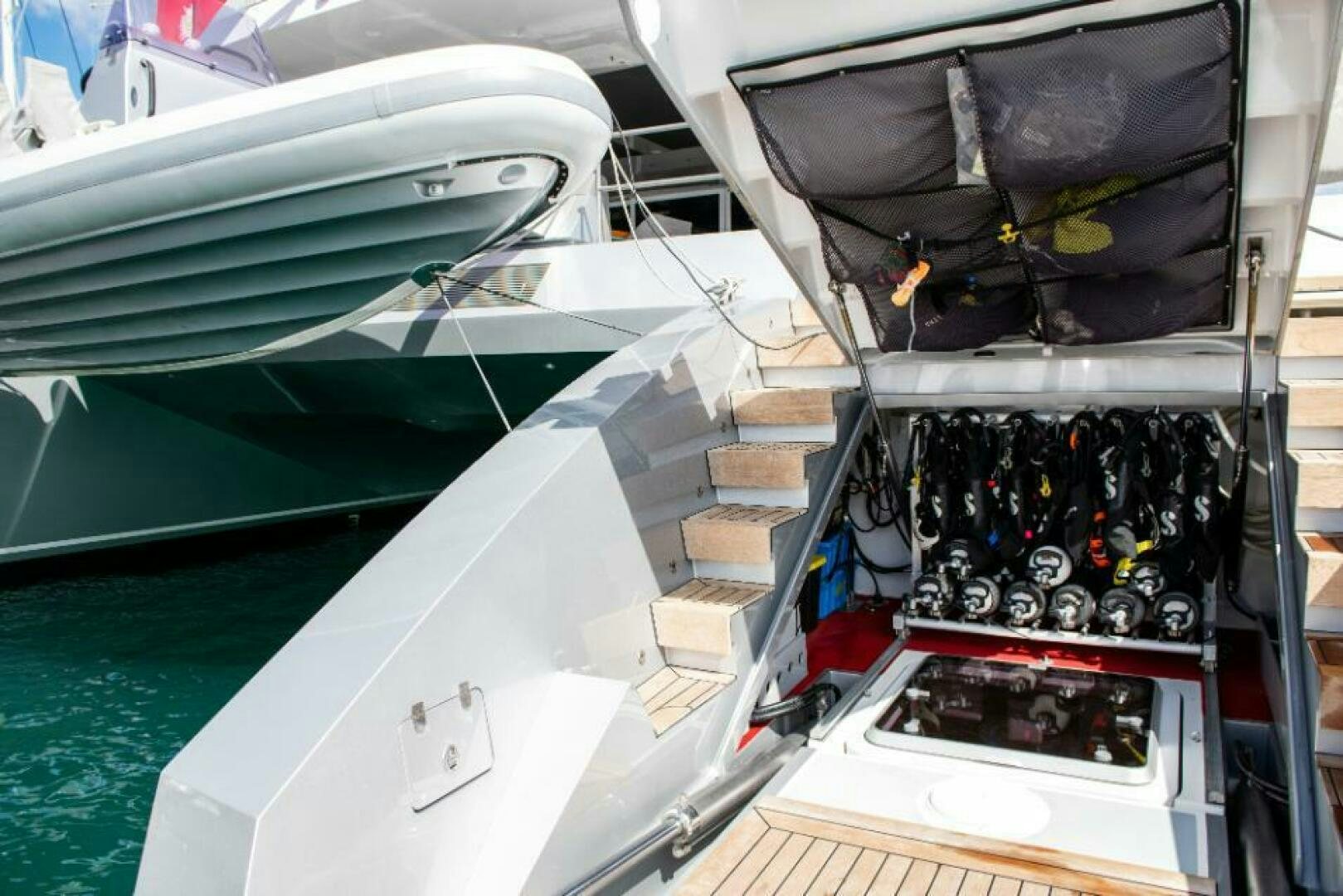

  • x10 Scuba tanks, x7 BCDs, and onboard air compressor
  • Snorkel & freediving equipment

Watersports equipment

  • Fliteboard AIR eFoil Series 2.2 (NEW Aug 2022)
  • x2 Flitecell Explore Batteries
  • x1 Flitecell Premium 25A Charger
  • Wakeboard, skis, tubes and foilboard
  • 2022 Cabrinha kiteboarding gear
  • 6m, 8m, 9m, 10m, & 12m kites
  • x3 kiteboards
  • x2 bars
  • x2 Wingfoils
  • x5 Inflatable paddle boards
  • Fishing gear

Deck Equipment

STORAGE

  • x2 40-foot Maritime fret containers located in Barcelona

Container 1

  • Workshop/boat spares parts and all tools to achieve yard periods

Container 2

  • Standing cradle to seat the boat on the hard for yard period (with the mast on lifting sling to lift the boat without mast)
  • X-Tender road trailer

Rigs & Sails

  • Spars:Southern Spars new carbon high modulus mast and boom new 2016
  • Material: Carbon fiber
  • SOLENT: Reckman: CZ-64-S CUSTOM: Swivel – Reckman TS-64-L
  • STAYSAIL: Reckman: UD-5SCTC CUSTOM: Swivel – Reckman TS-50-L
  • ORC; Reckman: RF90-3 RTTC.: Swivel – Karver KF20
  • Sail Wardrobe: North Sails 3Di OCEAN (New 2021-2022)
  • Mainsail: 295 m2 (reefing to 249m2, 193m2, or 130m2) (2022)
  • Code Zero: 480 m2
  • Staysail: 159 m2
  • ORC (Storm Jib): 64 m2
  • Spinnaker: 800 m2
  • Storm Spinnaker: 600 m2
  • Sails Rack carbon over trampoline (new 2022)
  • Running Rigging: New 2022 and constantly serviced

Furling Gear:

  • Reckman hydraulic furling systems x 3 (Solent, Staysail, ORC)
  • All new in 2016 and serviced April 2023.

Safety & Security Equipment

  • Safety: x4 Liferafts (8 people)
  • Alarms: Apollo Fire System - Marinelec Athena Central Fire System
  • Fire Fighting: x2 Full Firefighting Apparel, NOVEC2000 Fire Suppression System
  • Security: CCTV system with 10x cameras throughout vessel

Refit History

  • This vessels 10 year BV certified (10 years certification which needs a final stamping with control in August, (95% complete, 2 days check)
  • Her Southern Spar mast revised and good for another 10 year (The standing rigging is revised for 10 years but the mast will need a technical dismounting in 5 years as required, but only for the mechanical check)
  • New Cummins remanufactured engines installed in January 2022
  • New Cummins generators installed in January 2020 (both fully rebuilt in Jan 2022 @ 10K hrs)
  • New teak installed in February 2021
  • New paint done in February 2021
  • 7 North Sails sails of which 6 new ones (one year of use), fully tested.
  • Guaranteed her full annual refit year after year at about 2M EUR per year i.e 10M EUR over the last 5 years
  • Constant upgrades to electronics and Audio-Visual systems for “state of the art”
  • Annual service and shipyard periods
