- Settling Tanks: 3.210 Litres, 8614.6 Gallons
- Storage Tanks: 221.640 Litres, 848 Gallons
- Technical Fresh Water: 57350 Litres, 13869.03 Gallons
- Water Makers: 7130 Litres,15150.26 Gallons
- Bilge Water Tanks: 9920 Litres, 2620.5 Gallons
- Ballast Water Tanks: 224870 Litres, 2620.5 Gallons
- Waste Oil Tanks: 4560 Litres, 618.16 Gallons
- Consumption at Anchor: 1700-1800L/day for 1 DG; 3000 L/day for 2 DG
- Engines Exhaust System: 2 x Main engine exhaust silencers
- Coupling: Flexible couplings
- Stern Tubes: Oil Filled stern tubes
- Diesel Alternators: Caterpillar Type 3412
- Emergency Diesel Alternator: Caterpillar Type 3412
- Generator Fuel Consumption: 1700-1800 L/day for each generator
- Generator Exhaust System: 3 x Auxiliary engine exhaust silencers
- Main Lighting Transformer: 3 x 65 KVA, 380V/220V; 3x 45kVA, 380V/380 1 x 100kVa 380/380
- Emergency Lighting: 3 x 25 KVA, 380V/220V
- Shore Power Converter: 380V ac 50Hz to 110V ac 60Hz
- Shore Power Transformer: NIL
- Battery Chargers: NIL
- Generator Start: Battery starter
Vessel Registration:
- Registered Owner: Sbk Marine Ltd
- Wcn: 456583
- Address: The Hub E302, Triq San Andrija, San Gwann, Sgn1612,
- Sgn1612 Malta
MARPOL Code:
- COMPLIANT With MALTA Regulations, Certified By ABS
Full ISM:
- COMPLIANT With MALTA Regulations, Certified By ABS
ISPS:
- COMPLIANT With MALTA Regulations, Certified By ABS
MLC:
- COMPLIANT With MALTA Regulations, Certified By ABS
Power distribution:
Main Power:
- MSB 380/220/24V MARINE SBS404
Emergency Power:
UPS (uninterruptible power supplies):
Steering Gear:
- 2 x independent twin rudder, max angle 70deg
Emergency Steering:
- 2 x independent twin rudder, max angle 70deg
Under Water Lights:

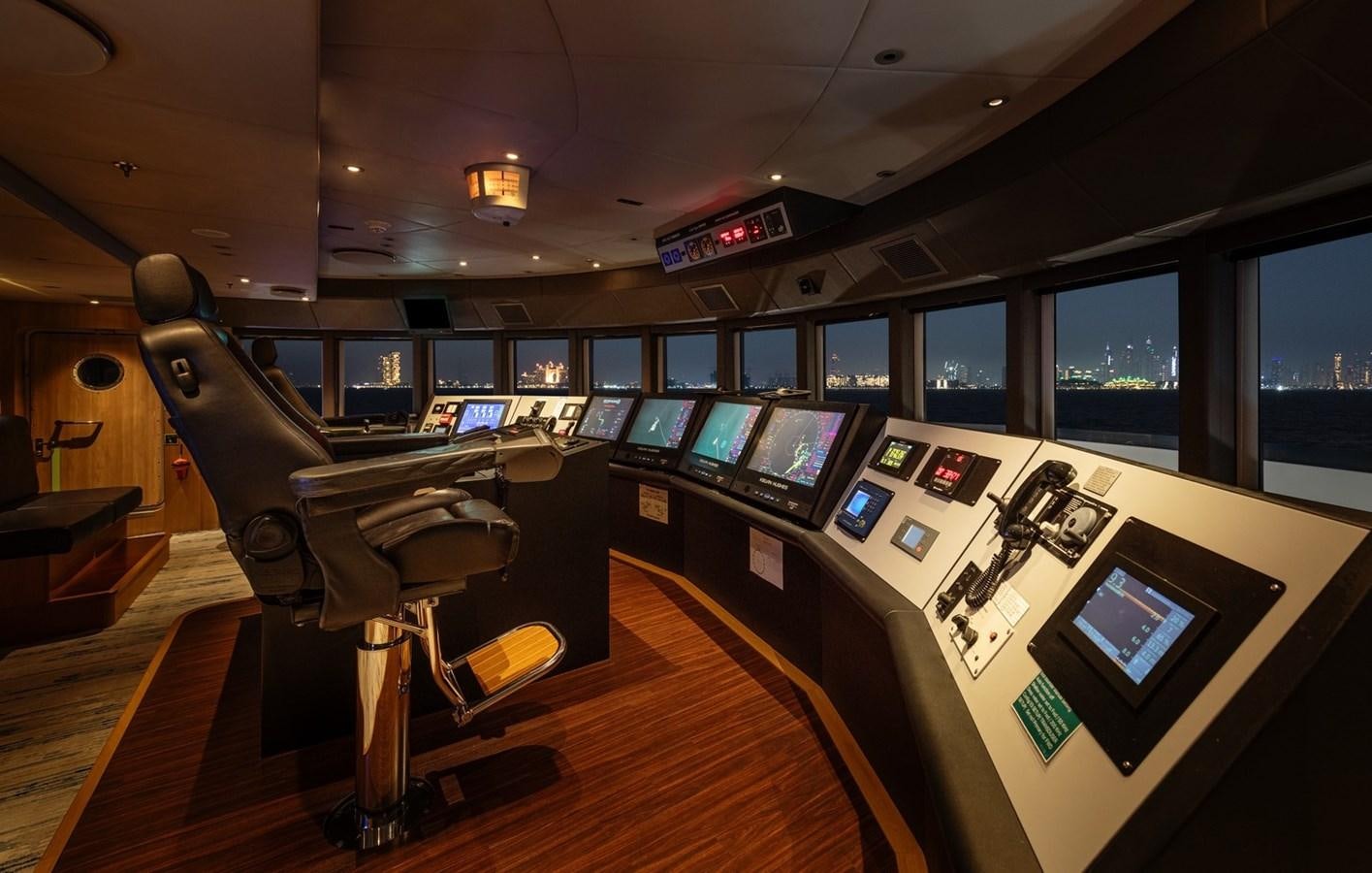

Helm/Wing Station Controls:
Fuel & Oil System
Fuel Filters:
Fuel Oil Separator:
Fuel Oil Transfer Pump:
- 2 x “ALLWEILER AG” Type: TRL 80R46 U8.6 V W115
Diesel Oil Separator:
- 2 x Diesel Oil separators: “GEA WESTFALIA” Type: OSC 5-02-066
- Flow rate: 1200 L/hr
- 2 x Diesel Oil separator pumps: “ALLWEILER AG” Type: TRL 80R46 U18US
- Capacity: 160.2 L/min Pump Power: 1.04 KW
Oily Bilge Water Separator:
- 1 x Oily Water separator:
- “POSEIDON” Type: 2000 SP 2.5
- Capacity: 2.5 m3/hr
Dirty Oil Pump:
- 1 x Main Sludge pump: “ALLWEILER AG” Type: TECFLOW 381
- Capacity: 385 L/min
Lubrication Oil Pump:
- 2 x pre-Lub pumps: ‘’CATERPILLAR”
- 2 x Stand-by Lub oil pumps: “ALLWEILER AG” Type: SN3 940ER42U12-W1
- Capacity: 783 - 792 L/min
Firefighting & Bilge System
Firefighting & Bilge Pump:
- 1 x Bilge/Ballast and Fire pump: “ALLWEILER AG”
- Type: NAM 65-250/01 S U 3.1 D W3
- Capacity: 55-62 m3/hr Pump power: 19.1 KW
- 1 x Bilge and Fire pump: “ALLWEILER AG”
- Type: NAM 65-250/01 S U 3.1 D W3 V5
- Capacity: 55-62 m3/hr Pump power: 19.1 KW
- 1 x Emergency Bilge pump “ALLWEILER AG”
- Type: NISM 65-160/01 U3.1 D W3
- Capacity: 62 m3/hr Pump power: 11 KW
- 1 x Emergency Fire pump “ALLWEILER AG”
- Type: NAM 65-250/01 S U 3.1 D W3 V5
- Capacity: 62 m3/hr Pump power: 19.1 KW
- 1 x Pressure keeping pump for fire line “ALLWEILER AG”.
- Type : SON 103W G2B/IV.22
- Capacity: 0.5 m3/hr Pump power: 0.75 KW
Ballast System
Ballast Pump:
- 1 x Bilge and Ballast pump “ALLWEILER AG”
- Type: NAM 65-250/01 S U 3.1 D W3 V5
- Capacity: 62 m3/hr Pump power: 7.3 KW
Fresh Water System
Fresh Water Makers:
- 2 x Reverse Osmosis plants “SELMAR” Type: TWIN 4000 Capacity: 1.5m3/hr each unit.
Fresh Water Treatment
Fresh Water Pressure:
- 1 x Hydrophore pressure tank for potable water “VAREM”
- Type: MAXIVAREM US Vol. 500L PS 10.0 bar PT 15.0
- 1 x Hydrophore pressure tank for technical water “VAREM” Type: MAXIVAREM US Vol. 300L PS 10.0 bar PT 15.0
Hot & Cold Circulation Pump:
- 3 x Hot Water circulating pumps for potable and technical water
- ‘’EPTEC” Type: FCVS 10x1-2.5 Capacity: 100m3/hr 2 x Chilled Fresh Water pumps ‘’IRON PUMP A/S” Type: CNL 125-125/315.
- Capacity: 135 m3/hr
- 2 x Hydrophore pressure unit pumps for potable water “EPTEC” Type: FSO 11B x 1-2.5 Capacity: 8.4m3/hr
- 2 x Hydrophore pressure unit pumps for technical water
- “EPTEC” Type: FSO 13B x 1-2.5 Capacity: 8.4m3/hr
- 2 x Stand-by Jacket water cooling pumps
- “EPTEC” Type: ELB 80 - 160 G2 / 160 2 x Stand-by A/C cooler pumps
- “STANDART” Type: ECO SNL Capacity 200m3/hr
Tanks:
- 2 x FW cooling systems header tanks
Sea Water System
Sea Water Pumps:
- 2 x Sea Water A/C pumps: “STANDART ECO SNL”
- Type: Single Stage Norm Centrifugal
- Capacity: 120 m3/hr Pump Power 30 KW
- 2 x Auxiliary Sea Water M/E/GS pump: “ALLWEILER AG”
- Type: NISM 80-200/01 U3.1D W3 V5
- Capacity: 120 m3/hr
- 2 x Sea Water cooling pump for gear cooling: “ALLWEILER AG”
- Type: NB 20-160/01 V3.1D W3
- Capacity: 5 m3/hr
Black & Grey Water System
Black & Grey Water Treatment:
- 1 x Sewage Treatment plant: “AQUAMAR GmbH” Type: MSP60
- Capacity: 10.5 m3/day
WC's (toilets/bidets):
Sanitary Vacuum System:
- 2 x Vacuum sewage transport system
Sanitary Water System:
Black & Grey Water Pumps:
- 2 x Discharge pumps for sewage system: “HARBORNER”
- Type: 4HK50-1-120F Capacity: 12m3/hr
- 2 x Grey Water transfer pump: “TECFLOW”
- Type: 381/11 P1 4P Capacity: 250L/min
Garbage Management System
- Capacity: 25L
- Garbage Compactor: ‘’EXPLECO” Type: GL1750
- Fast Freezer Locker: NIL
- Garbage Cold Storage Room: ‘’BITZER” Type: 2HC-2-2Y-40S Capacity: 7.9 m3/hr
- Automatic Grease Trap: 1 x GREASE TRAP
AC & Ventilation System
Air Compressor:
- 2 x Air Compressors: “SPERRE INDUSTRIES AS” Type: HV2/200
- Capacity: 150m3/hr Power: 28KW WP: 35 bars
- 3 x Air Receivers tanks:” SPERRE INDUSTRIES AS” SN: 5471
- Capacity/Volume: 900Liters WP: 47 bars DNV Class-I
Air Handling Units:
- ‘’CARRIER” Type: 30HXC110-A0190-PEE- Max. Power Output: 119KW
Provision Refrigeration:
- ‘’BITZER” type: 4FES-3Y-40S Capacity: 18.1 m3/hr
Engine Room AC:
- ‘’BITZER” type: CSH7553-70 (Y)-40P Capacity: 197 m3/hr
Engine Room Ventilation:
- 2 x Supply fans, 2 x Supply/Exhaust Fans “SIEMENS”
Galley Ventilation & Extraction:
- 1 x Supply fan, 1 x Exhaust fan “CARRIER”
Chilled Water:
- 2 x R134A water chiller units (500kW cooling capacity each)
Hot Water:
- 3 x Hot Water heaters (410kW heating capacity)
Re-Heating Water System:
Steam Humidification System:
Condensed Water Drainage Piping:
Hi-Fog System
Hi-Fog Pump:
- 1 x Hi-Fog System pum: ‘’MARIOFF” Type: NP25/50 - 140
- Capacity: 48.7L/min
Emergency Power Pack:
Antifouling System
Type:
- CATHELCO (Marine Growth Prevention System) Ref.No.CA63418 / In Operation Current Settings = 1.46 amps / Not in Operation Current Settings = 0.40 amps / 2 x Sea Chest flow rate = 863 m3/hr (max)
Workshop Tools:
- 1 x Twin wheel grinder
- “BOSCH” 0 601 277 003
- 1 x Bench drilling machine
- Model: CH-16N, 12 Speed drill press, Capacity 5/8 (16mm)
- 1 x Electrical test panel = N/A
- 1 x Arc welding set “TELWIN” inverter AC/DC HF/LIFT VRD
- 1 x Oxy-acetylene welding set
- “UNITOR” 5kg oxygen & 8kg acetylene
- 1 x Heavy duty vice
- 1 x Compactor = N/A
- 1 x Shredder = N/A
- 1 x Bottle crusher = N/A
- 3 x Hand operated hoists and trolleys = N/A
- 1 x LATHE MACHINE
- 1 x Portable drilling machine “MAKITA”
- 1 x Portable Impact Power Tool “DEWALT”
- 1 x Portable Grinder “DEWALT”
OTHER EQUIPMENT
JACUZZI DIP POOL
SHIP'S SAFES
- 22 pcs, various locations
ELEVATOR
- 1 x passenger elevator Kleemann system 6798, 400kg max
- 1 x food elevator Kleeman
