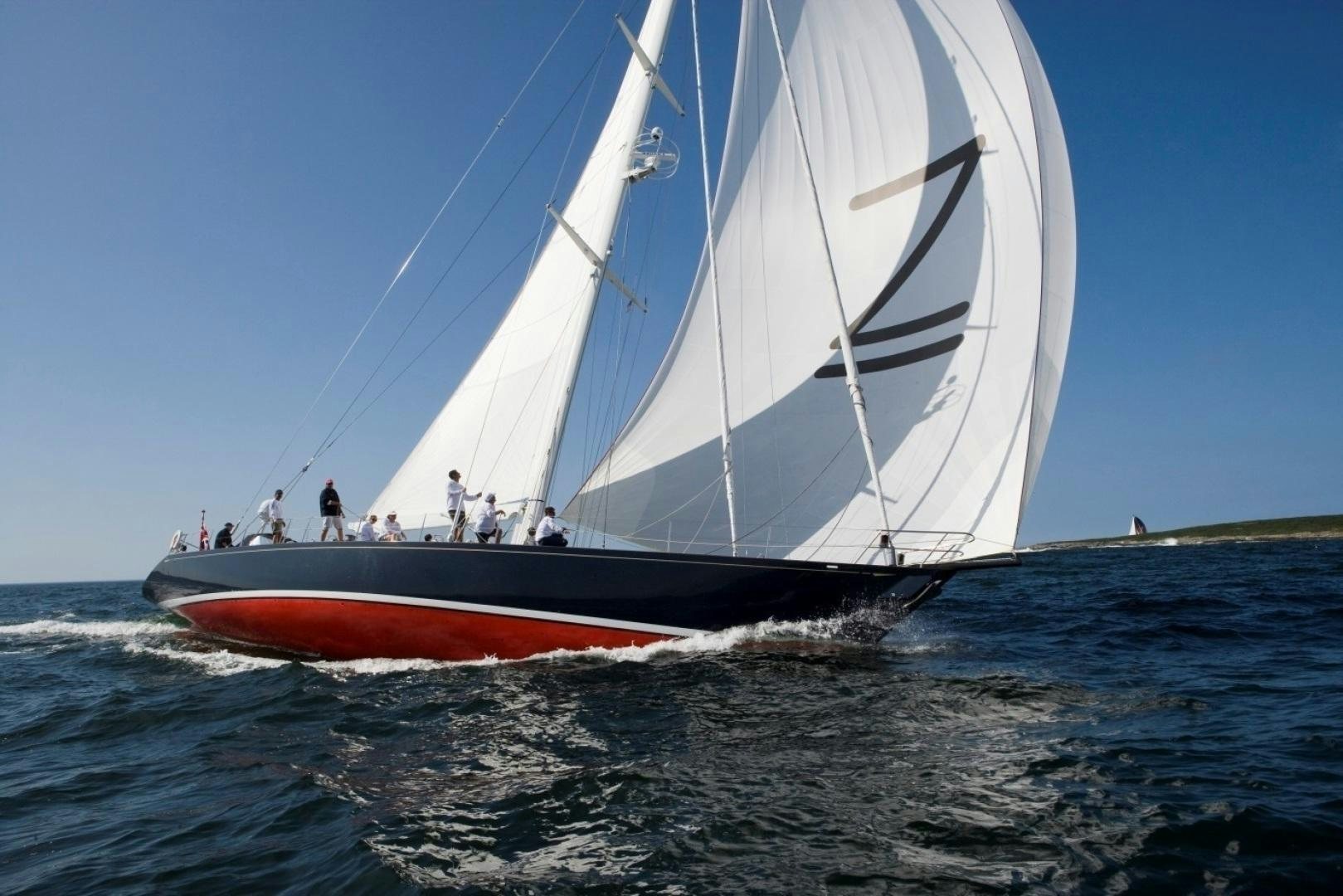

METOLIUS was designed as a high-performance sailing yacht that could suitably sail all oceans regardless of the conditions while providing the comforts and amenities of home. The collaboration of the Royal Huisman Shipyard, German Frers and interior design by Peter Beeldsnijder resulted in a yacht that fulfilled the design brief flawlessly. The sailing yacht has proven her reliability and comfort traveling from the cold and boisterous North Sea, to ghosting through the doldrums, from the varied Alaska breezes to Cape Horn, the Antarctic, the wild Southern Ocean to the trade winds and the Caribbean and mixed conditions of the Mediterranean.
The yacht is a true offshore voyager, with an easily driven hull form and a powerful sailplan engineered to be easily managed by a minimal crew. METOLIUS features a Rondal hydraulic furling spar, headstay and staysail stay as well as hydraulic winches. The sailing yacht has a functional and simple deck layout with a well-protected cockpit.
METOLIUS showcases a timeless interior with an open-plan layout that enhances the sense of space. The interior detailed in varnished teak with an ambiance that exudes elegant warmth with exceptional functionality. The main salon provides the ideal retreat after a day of sailing and her well-equipped galley allows for easy food preparation.
The sailing yachtās accommodations make her ideal for family living. The yachtās staterooms include a double-bed master suite, two staterooms with upper and lower berths, and separate crew quarters and head, all crafted to the highest Huisman standards.
METOLIUS has had the benefit of outstanding preventative maintenance, and continual refitting. Ā Most recently many upgrades 2019 and in spring 2020 a mast paint and full rig overhaul, underwater service, interior upgrade and many more maintenance and service items.
COMMENTS
ACCOMMODATION

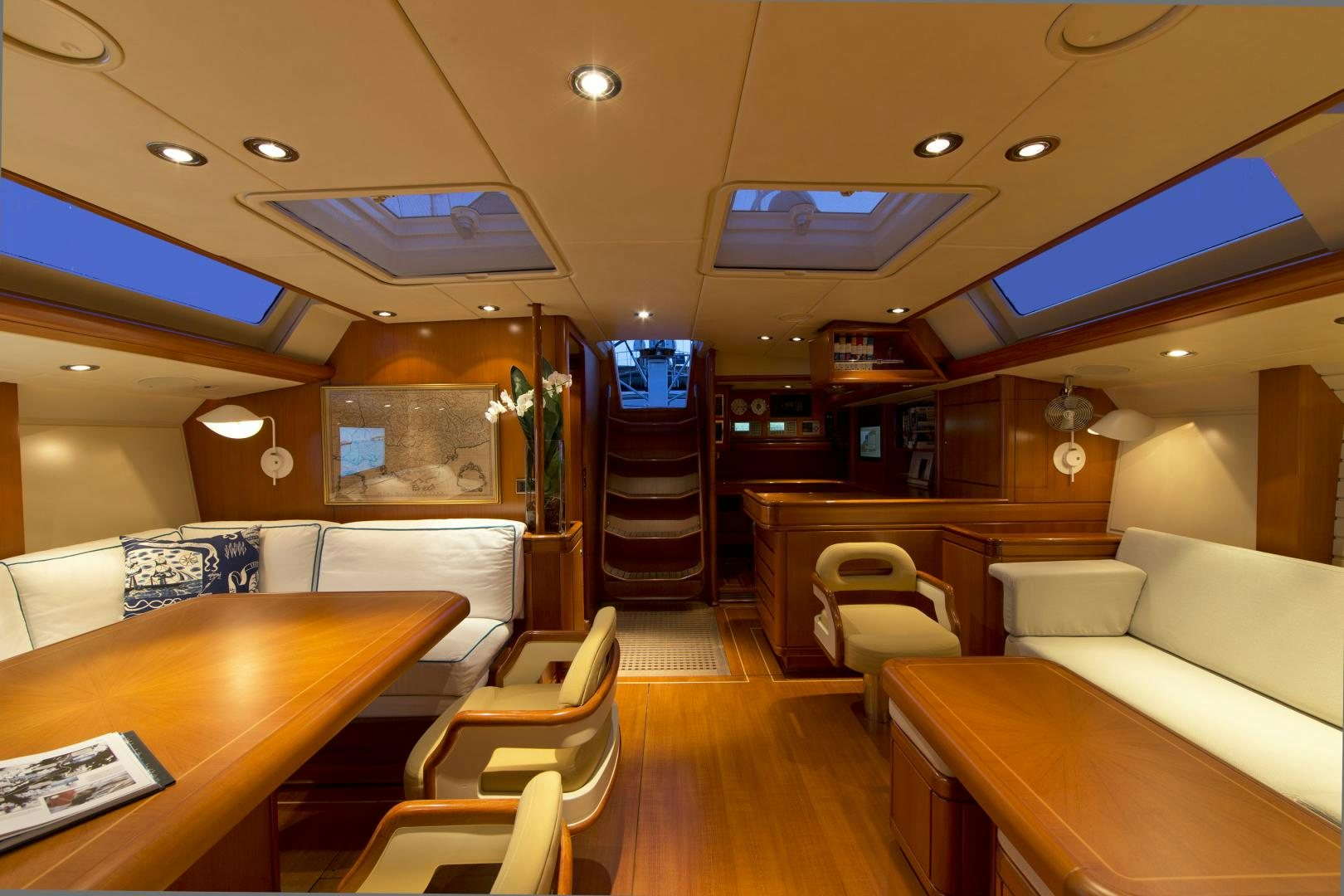

The MAIN SALON aboard METOLIUS is very large with an open plan that enhances the sense of spaciousness.Ā The teak inlaid dining table and āLā shaped settee area are to starboard, with two custom dining seats inboard.Ā Outboard to port is a large and comfortable sofa, facing a hi/low cocktail/game table which, in the lower position, secures two custom teak stools.Ā Aft in this area is another custom swivel seat.Ā The main salon is truly a comfortable family living room.

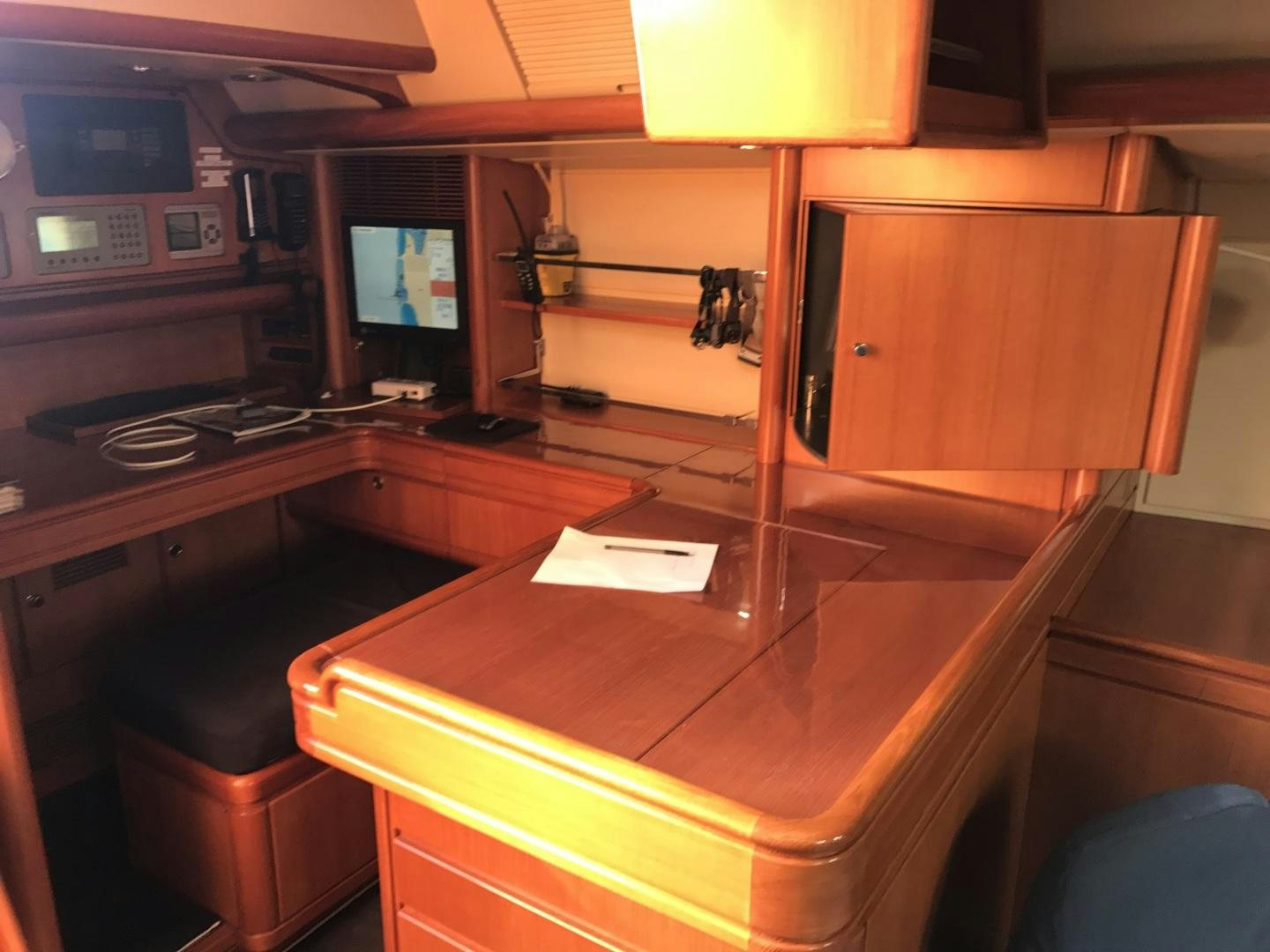

The NAVIGATION STATION adjoins the salon aft to port, with a bench seat that allows the navigator to face forward or aft.Ā The aft area houses the electronics and communications equipment, with a workspace below.Ā The radar and computer are outboard, adjacent to a two-tier bookshelf, plus valence bookshelf above.Ā When facing forward, the navigator sits at a large chart table/office desk, which offers chart storage, filing cabinets and additional storage drawers inboard.

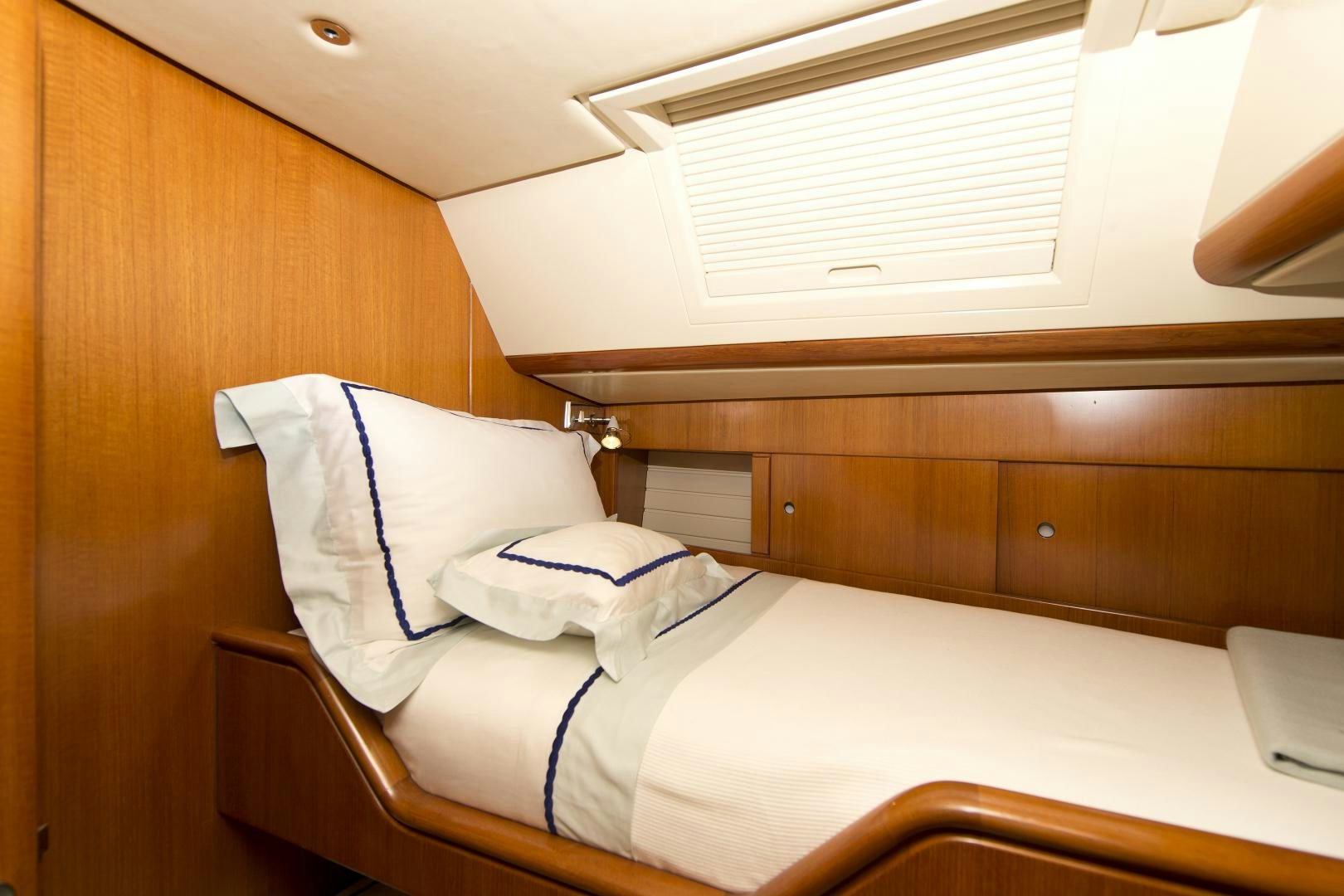

Immediately to starboard of the companionway is a GUEST STATEROOM, with upper and lower single berths and ample storage in drawers, cabinets and a large hanging locker.

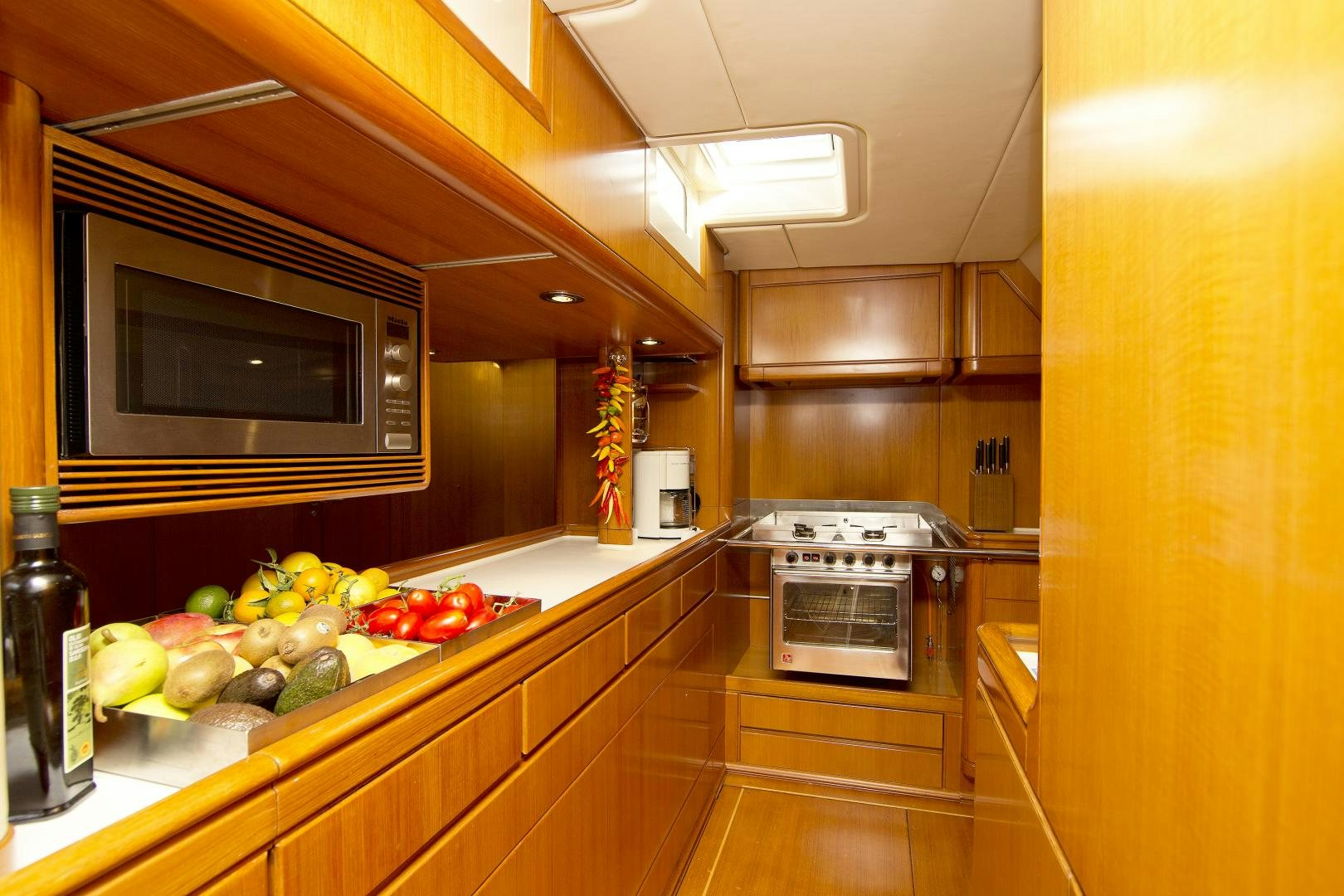

Adjoining the main salon, forward to starboard is the well-appointed GALLEY, which has an abundance of cabinet and counter space, beautifully detailed.Ā Refrigeration is a custom fabricated RHS cold bank refrigerator and freezer system, with refrigerator in the galley, drinks refrigeration in the adjoining area of the salon and a separate deep freeze forward.Ā Ā The propane stove is a Huisman modified Alpes Mariner, with solenoid shut off and gas alarm.Ā In addition, there are deep ss sinks, custom fixtures, a Miele microwave oven and abundant storage space.Ā There are clever details like sliding locker unit allowing easy access to engine space that is positioned centrally.

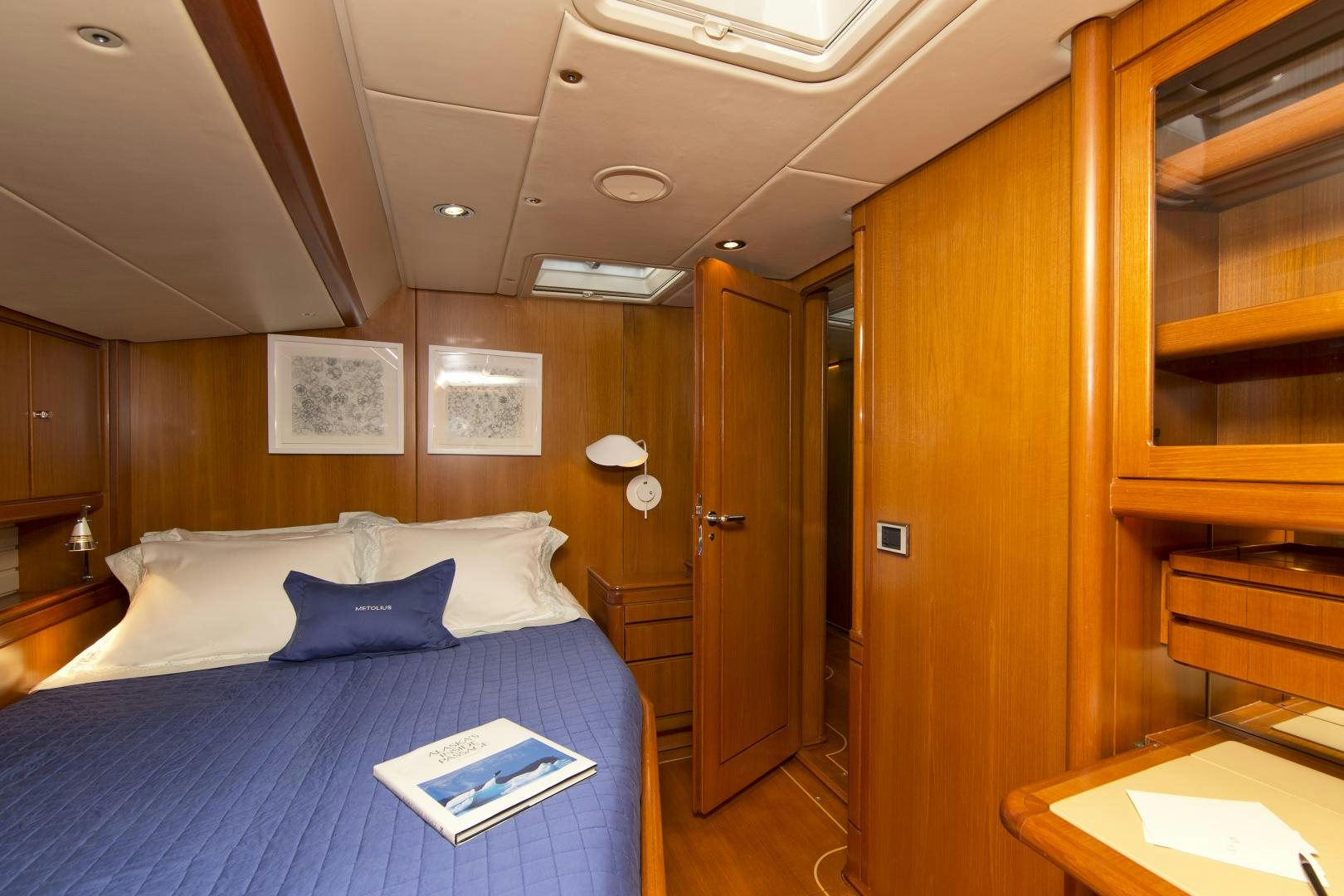

The OWNERās STATEROOM is forward to starboard, with a double berth, ample stowage in drawers and lockers, writing desk and foldaway seat, and an ensuite head with stall shower.Ā

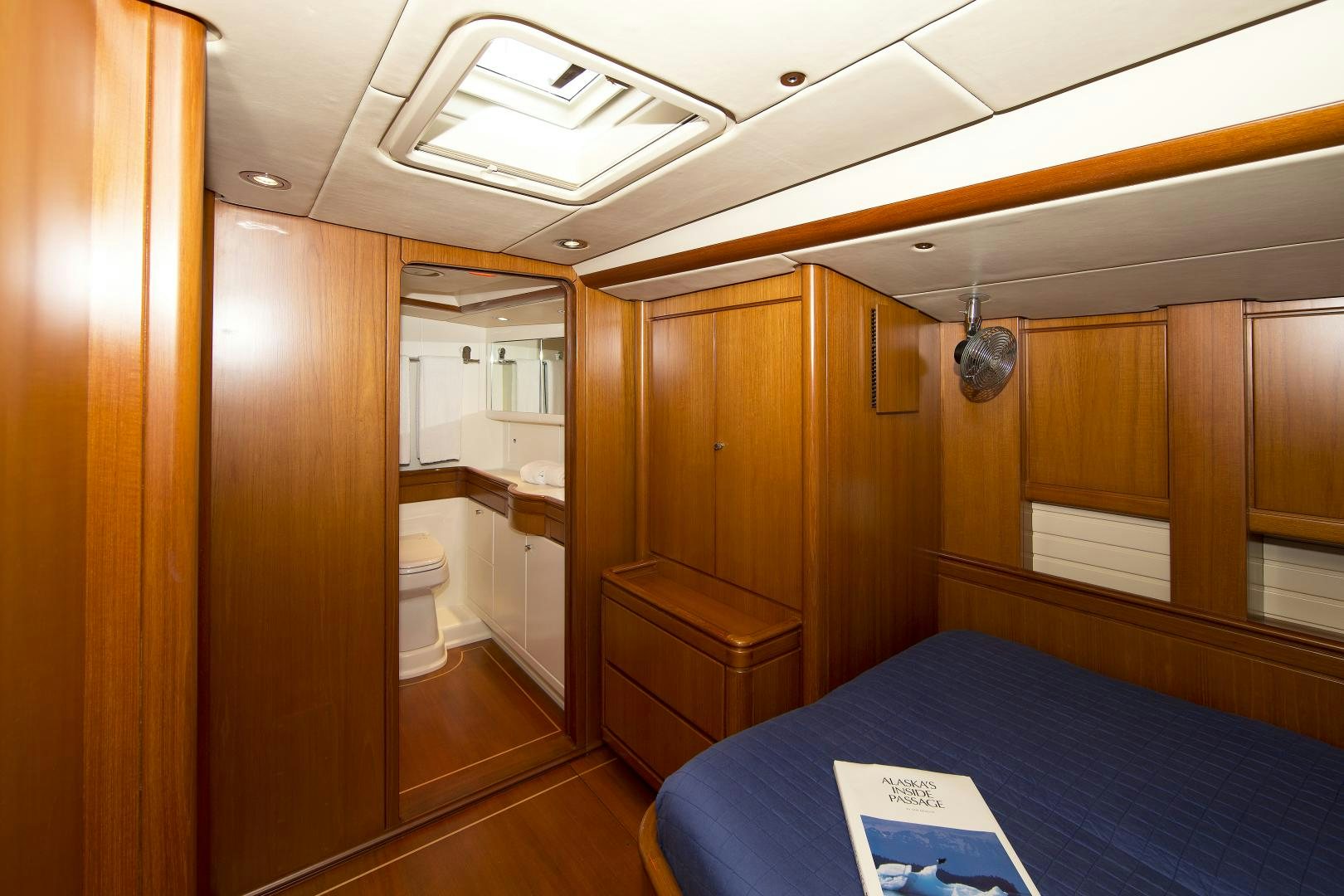

The SECOND GUEST STATEROOM is forward of the salon to port, also with two good size upper and lower single berths, plenty of stowage and an opening hatch to the mid deck.Ā The GUEST HEAD / day head is aft of the stateroom and complete with a full stall shower.
CREW QUARTERS for two, are forward to port, with upper and lower single berths and ample stowage in lockers and drawers, and an ensuite head and shower compartment that is to starboard.Ā Crew have their own access to deck through the fore hatch in the foācāsle workshop.
Immediately forward of the crew quarters is a large WORKSHOP/STORAGE AREA, with separate Miele washer and drier, custom fabricated SS freezer, workbench with detachable vice and ample custom storage for hand and power tools. Also, in this area, just below the large foredeck hatch, is a custom sail stowage cabinet for the asymmetrical spinnaker.
The engine is on centreline, between the galley and pump room and cleverly installed below a lead sound-shielded teak engine cover that retracts electrically.Ā
Outboard to port, forward of the salon is a full pump room, where much of the engineering and mechanical equipment aboard is installed, along with the 100-litre diesel day tank.Ā
Behind a hatch, aft at the companionway, is a full wet locker, with access to additional machinery further aft.
DECK LAYOUT
The deck layout aboard METOLIUS was engineered with safety, seamanship and ease of sail handling as primary requirements.Ā

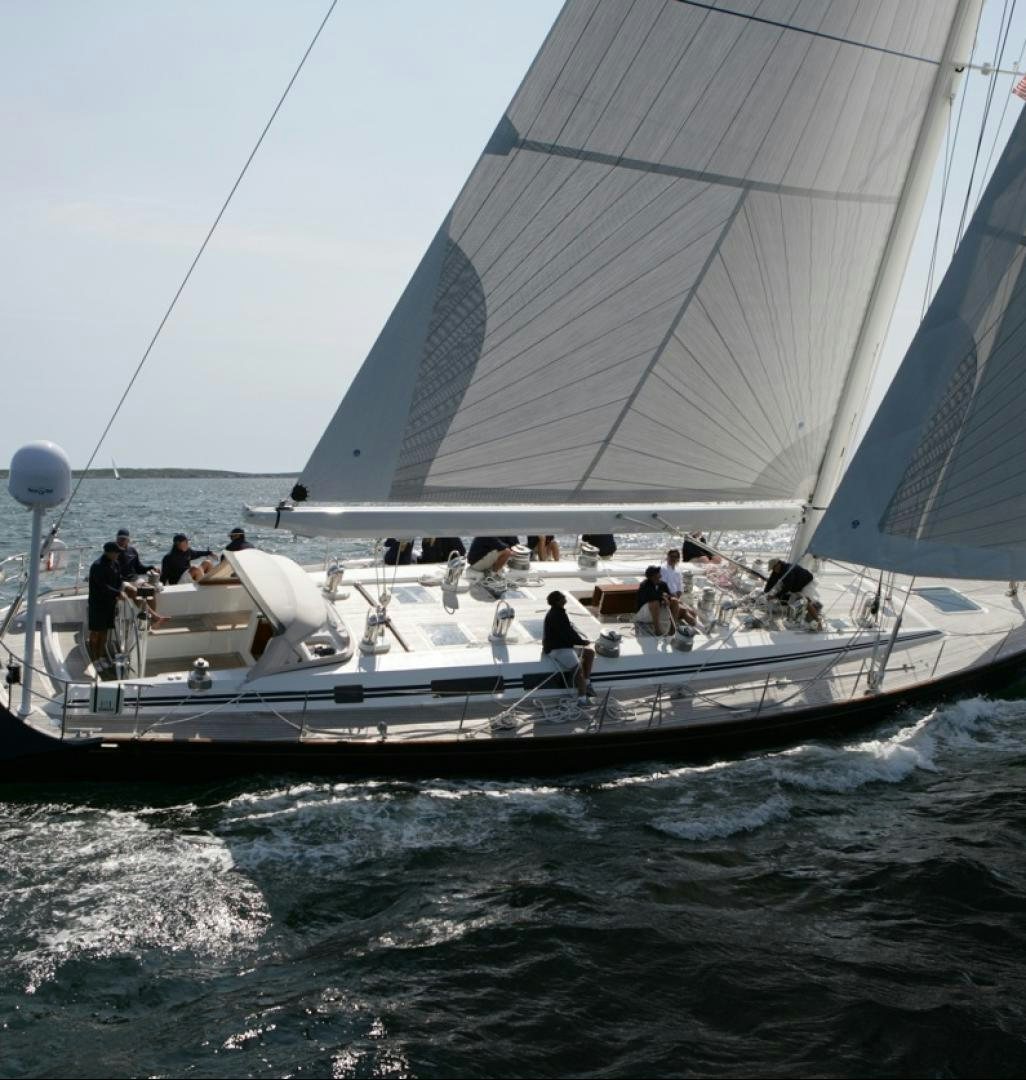

The aft cockpit is deep and well protected by the sprayhood / dodger, with seating port and starboard, as well as aft of the 70ā SS destroyer wheel. The binnacle houses both the steering compass as well as the external VHF handset.Ā
Lifting the cockpit seats provides access to general storage areas, generally used for safety equipment.Ā
There is a custom teak dining table that fits in the cockpit sole, which can be in place while sailing.Ā Removable foot braces fit in both cockpits.Ā
Running backstay winches are fitted on the cockpit coaming, within easy reach of the helmsman.
The engine control panel is to starboard with two deck mounted foot switches for the bow thruster.
To port of the helm is a panel for the deck lights and a Simrad autopilot control unit.
The control panel for the Rondal rig hydraulics (backstay and vang) is also to port, just forward of the helm.

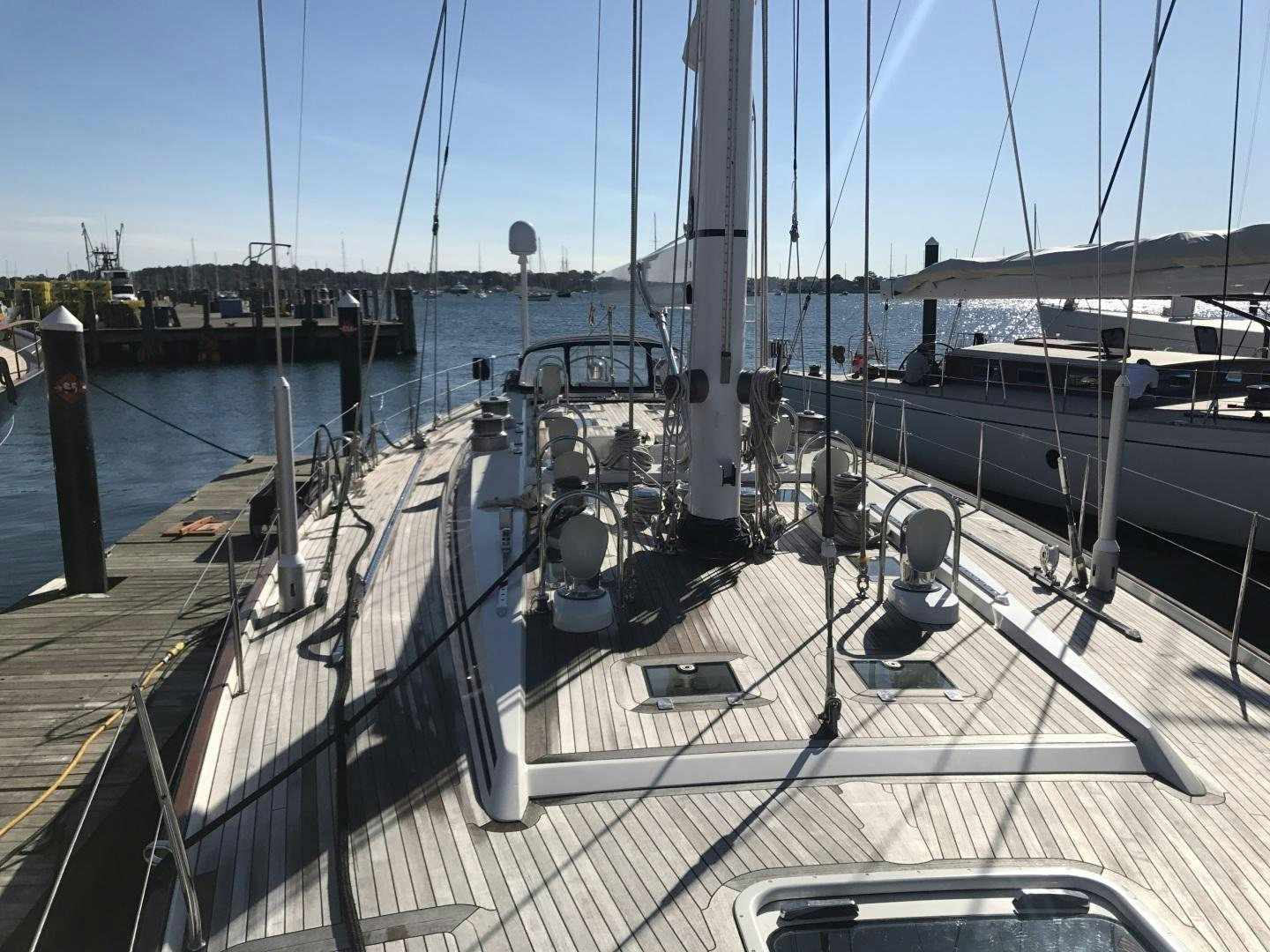

A well-protected working cockpit aft of the mast has Lewmar 1100 SST/hydraulic primary winches and Lewmar 900 SST/hydraulic secondary winches.Ā Just forward of the cockpit are two Lewmar 650ST (one 3 speed) winches for handling the mainsail.
Just aft of the mast, there is a grouping of 3 x Rondal stainless steel SW 2000, and 2 x Lewmar 650 SST/hydraulic winches that operate all halyards.Ā Also, in this area are two Lewmar 460 AST winches on the mast.
This working / crew cockpit also has a teak table and cushions for dining / relaxing when at rest.
Immediately aft of this cockpit are four flush mounted hatches with four sensibly sized Dorade vents, protected by stainless steel grab rails.Ā The stainless-steel traveller is located just forward of the dodger, well positioned for proper leverage for the main sheet, while keeping the sheet clear of both cockpits.
Stainless genoa and staysail tracks are mounted on the deck.
The clean foredeck has a low bulwark that affords protection with the only protrusions being the Steen windlass and a Dorade vent immediately forward of the inner forestay.Ā
To starboard of the foredeck hatch are two, in deck storage lockers with flush, teak laid hatches, one for the outboard engines and fuel tanks, the other for two aluminium propane tanks.Ā The outboard locker has a bilge pump and extractor fan; the gas locker drains directly overboard.
The recessed foredeck hatch is sealed by a compressed air activated gasket and immediately aft of this are two recessed hatches.
MACHINERY
Main EngineĀ Ā Ā Ā Ā
Mercedes MTU 200 hp inline, six cylinder, naturally aspirated marine diesel. W 5 overhaul by Certified MTU Technicians, USA 2019, and services since as per schedule.
Engine Hours: 12,200 (February 2020)
Speed: 10 Knots cruising /11 Knots Top Speed.
Range : 2,200 NM.
Auxiliary PTO
Continuous hydraulic PTO generates power to supply the bow thruster,
Water-maker and refrigeration systems.
Belt driven Steimel water pump for engine raw water circulation and
emergency bilge pumping.
Propeller Shaft
Hundested two-piece shaft with flexible coupling.
Hollex drip free stern seal and P bracket with water lubricated cutlass bearing. Cutlass bearing and PSS stern gland replaced in 2020.
Propeller
Hundested 3 blade 900 mm variable pitch propeller, adjusted by electric Motor.
Engine room: Air extractor, serviced 2019
ELECTRICAL SYSTEMS
Generator
Northern Lights Lugger 20 KWH, 2005, fully serviced 2019.
New alternator & new stop solenoid 2019. Rebuilt raw water pump 2020.
Generator hours; 5340 (January 2020).
Electricity
230 V 50 Hz single-phase three-wire system powered by diesel generator or shore power.Ā Two DC/AC inverters generate a continuous supply of AC power to the appliances and outlets.
Shore Power
220V / 50 Hz or 110V / 60 Hz input via shore power isolation transformer.
Inverter
2x Victron Energy Multiplus DC/AC inverters; 24V, 3000 VA, 70 AMP, 2010.
Batteries
2x Sonnenschein AGM 12V 140 ah main engine start batteries, 2013.
2x Tudor Maintenance free 12V 135 ah generator start batteries, 2013.
12x Mastervolt MVSV 1650, 1650 ah, 2V, deep cycle gel cell service Batteries, 2009.
2x Victron Skylla ā TG 24V 100-amp service battery chargers.
Custom Ricom battery monitoring system with panel readout and alarms.
Emergency link switch between main engine and generator start batteries.
Earth fault detection circuit on each battery bank.
Interior lightsĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
Interior lights changed to LED in 2019
SHIPāS SYSTEMS
Bow Thruster
Hundested 35 hp hydraulic retractable bow thruster.
Steering system
Single destroyer type wheel with 1800 mm diameter linked to rudder by 1ā stainless steel chain and 7 X19 wire steering cables.Ā
Gear ratio of 2:5:1 and swing of 35 degrees port and starboard.Ā
Hydraulic clutch disengages wheel when autopilot is engaged.
Rudder
Foil shape spade rudder, shaped on aluminium frames with aluminium skins and solid aluminium rudder stock.Ā
Twin rudder bearings are lubricated by grease fittings. Bearings replaced 2020.
Fuel Filters
Racor 2010 series; 2 x Engine filters in Duplex arrangement.
1x Generator filter.
Fire/Anchor Wash PumpĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
Spec BADU 40-15 seawater pump with two deck hydrants.
Bilge Pump
1 x G+R MV64.Ā One additional rebuilt spare aboard in reserve.
Emergency Bilge Pump
Steimel water pump belt driven from main engine.
Sewage Treatment
200 Litre holding tank.Ā
Electrical overboard pump with thru hull isolation valve.Ā
Medium & high-level alarms.
Waste Pump
2 x G+R ECO MV44 to discharge black and grey tanks. Both rebuilt in 2013.
A rebuilt spare pump is kept onboard. Holding + sump tanks cleaned 2020.
Heads

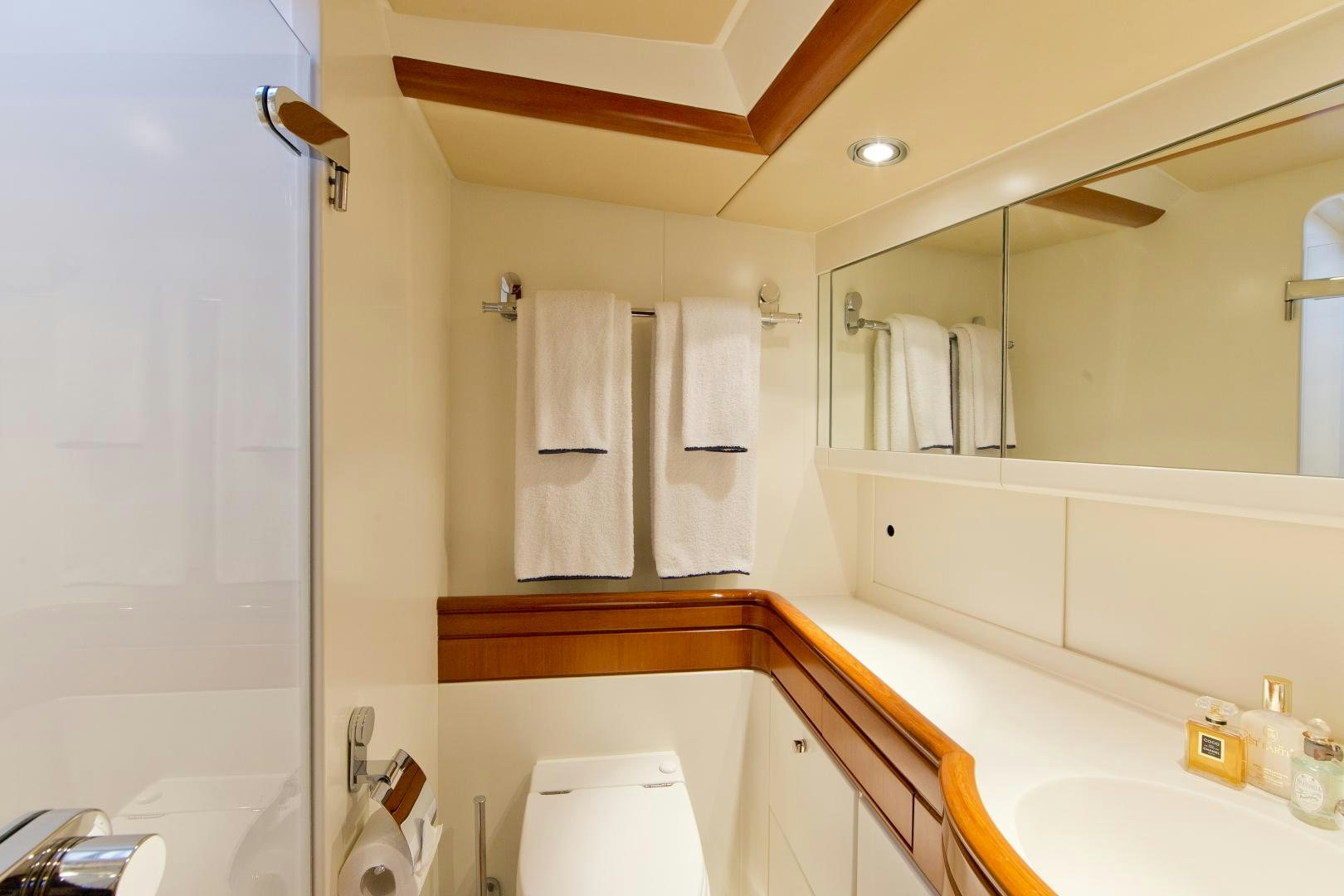

3 x Altena Waterflash electric toilets with freshwater flush.Ā
Forward head has option for saltwater feed.
Water Maker
HEM series 20, 5,500 litres per day.Ā
Full check and overhaul 2020 including new membranes
Air Conditioning
2x Marine Air Systems, 2005.
1x Free standing units in forepeak and master cabin.
1x Indirect chilled water loop system in salon.
Heating
Heating throughout the boat is provided by four independent sources.
A hot water circulation system delivers heat to air handlers with independent temperature control in each cabin and the salon.Ā
Heat sources;
1x Webasto diesel fired system;
1x 220v immersion heater;
1x engine jacket water cooling system.Ā
Furthermore, the three air conditioning units can be operated on reverse cycle delivering heat to the salon, master cabin and forepeak.
Note: Air-conditioning and heating systems checked, serviced and overhauled 2020, including fan coils.
RefrigerationĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
Engine driven system (serviced 2020)
220v system (check + service 2020)
ENTERTAINMENT SYSTEMS
Audio System
Fusion hi-fi with speaker system in main salon.
Apple iTunes, airplay and Apple TV connected to this system.Ā
Apple TV. New LG Smart TV 2019.
Satellite Television
Seatel TVatSea, 18ā dome with Sky (UK) & DTV (USA) decoders.
VideoĀ Recorders & Players:
DVD player and 5.1 surround sound.
Entertainment
Apple Mac mini with connection to TV and Wi-Fi.
Internet
Wave Wi-Fi rogue antenna connected to internal Wi-Fi network with 3x Apple airport express serving salon and cabins.
COMMUNICATION EQUIPMENT
Satcom
Sailor Satcom C with data connection.
VHF
Simrad R582 with second cockpit handset and data connection.
SSB
ICOM IC-M802 with removable antenna, 2011.
Satellite phoneĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
Inmarsat Fleet Onenew 2019
OFFICE EQUIPMENT
Computer
Mini Mac. New PC display 2019.
PC displayĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
New 2019 in sliding cupboard at chart table
Printer/Scanner/Fax
HP HENVY 250 with wireless printing.
NAVIGATION EQUIPMENT
Sailing Instruments
Brookes & Gatehouse Hydra 2000 system with comprehensive 20/20 layout.
9x displays on deck in steering and sailing cockpits.Ā (4) in navigation area,
4x Hercules 690 multi display being one in each cabin.
AIS
Furuno FA-150 Universal AIS transceiver with NMEA output, 2005
Radars + Chartplotter
1x Furuno NavNet Vx2 chart plotter / radar display in custom cabinet in navigation area.Ā Mast mounted 24ā closed array.Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
GPS
2x Magnavox MX200gps due to be replaced, by Buyer.
Navtex
Navtex Nav6 electronic display not working, due to be replaced, by Buyer.
Autopilot
2x Simrad AP26 control heads including separate processors and controlĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā panels, for redundancy.
Segatronic hydraulic power pack with (2) RexRoth rams.Ā
Hydraulic pump will be overhauled 2020.
Gyro Compass
B + G Super Halcyon III.
Magnetic Compass
Danforth Constellation, 150 mm diameter backlit steering compass in binnacle
Navigation SoftwareĀ Ā Ā Ā Ā
New TimeZero Professional software 2019, with collection of digital charts: Mediterranean, USA.
Computer
HP PC with LCD colour monitor running Windows 8 with full NMEA input from AIS, B&G, GPS, etc.Ā This computer also is used to access the Fleet 33 and Satcom-C data connections.
Barometer
2x barometers; 1x electronic weather station with exterior probe, 1x Schatz hermetic type with matching shipās clock.
MAST, RIGGING AND SAIL HANDLING
Mast
Triple spreader Rondal Hydrofurl aluminium mast and boom.
Navtec rod standing rigging (2020)
Hydrofurl headstay & staysail stay.
BoomĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
Rondal, aluminium with integrated boom preventer.
Rigging Hydraulics
Rondal type 90 hydraulic boom vang and backstay adjuster with two-function Panel, serviced 2019.Ā
Bowsprit
Removable, un-stayed 2m carbon bowsprit for Asymmetric spinnaker.
Winches
10 x Lewmar hydraulic deck winches, with custom DC power packs.
Halyards
Ā (Genoa, staysail, mainsail, spinnaker, main outhaul) New 2019
Rig measurements
I = 31.5m, P = 28.8m, E = 9.4m, J = 9.1m
Note: Mast unstepped December 2019 for full service, new rigging, overhaul and repaint. First section of main furler foil replaced 2019.
Sails
GenoaĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
Evolution Sails Membranes sails in Carbon/Technora, New 2019
StaysailĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
Evolution Sails Membranes sails in Carbon/Technora, New 2019
Mainsail
North 2005 Spectra / carbon
Genoa 120%
North 2005 Spectra / carbon
Asymmetrical Spinnaker MPS
North 2005 Code 2A, Norlan 75
Storm Staysail
North Sails
Storm Jib
North Sails
(Note: The Main is in fair condition. The 120% Genoa is below average condition as well is the MPS.)
DECK EQUIPMENT
Anchor Windlass
Steen Type 23.06 horizontal windlass with chain gypsy and warping drum driven by 24V DC motor with foot switches & remote.Ā Overhauled 2020.
Anchor & ChainĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
CQR 180 lb Galvanized anchor on bow roller.
130M galvanized anchor chain.
1x 100m/22mm nylon anchor rode with 10m/13mm chain.
2x folding aluminium Fortress anchors.
Passarelle
Custom built folding carbon with handrail and case.
Boarding Ladder
