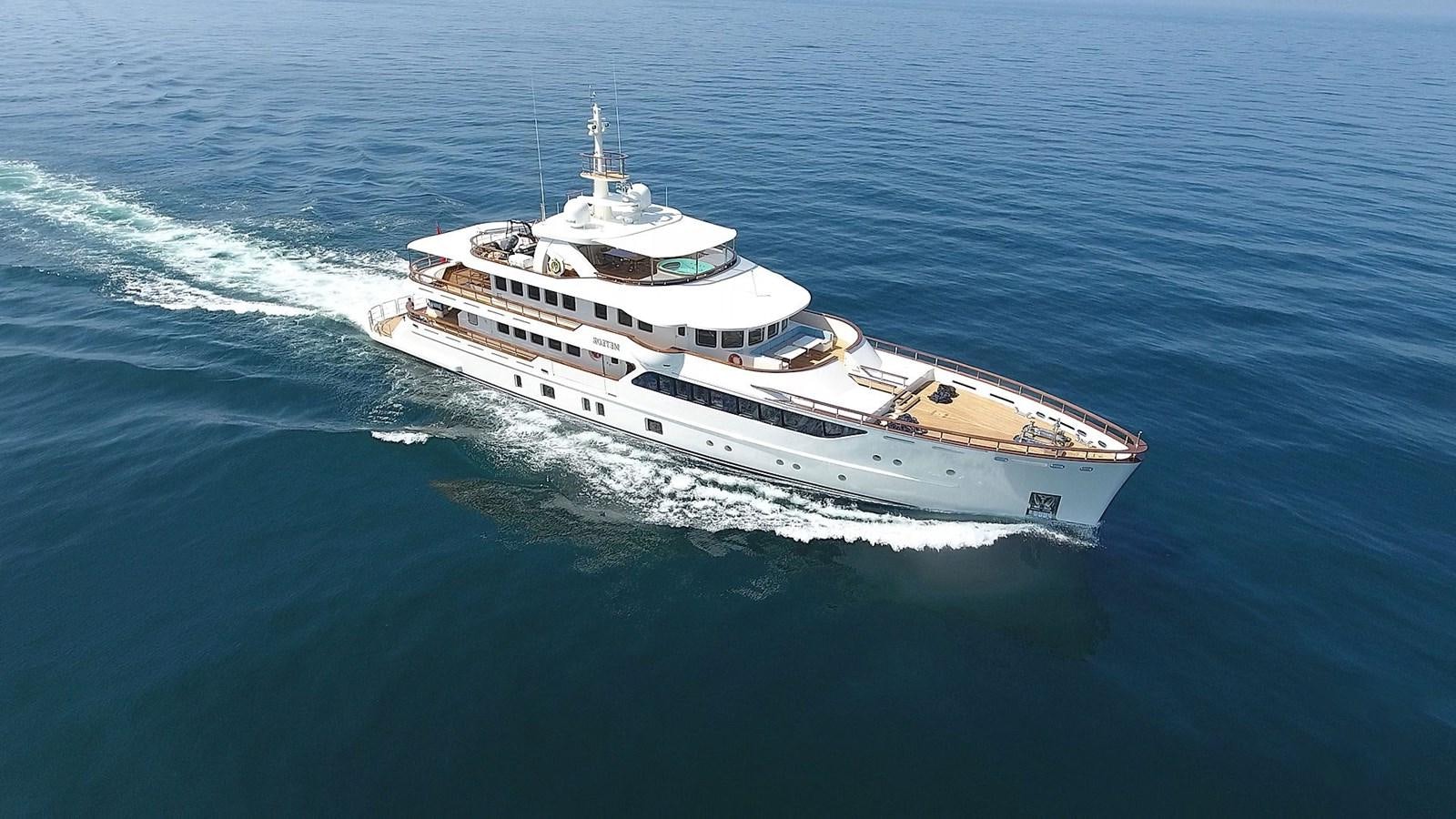

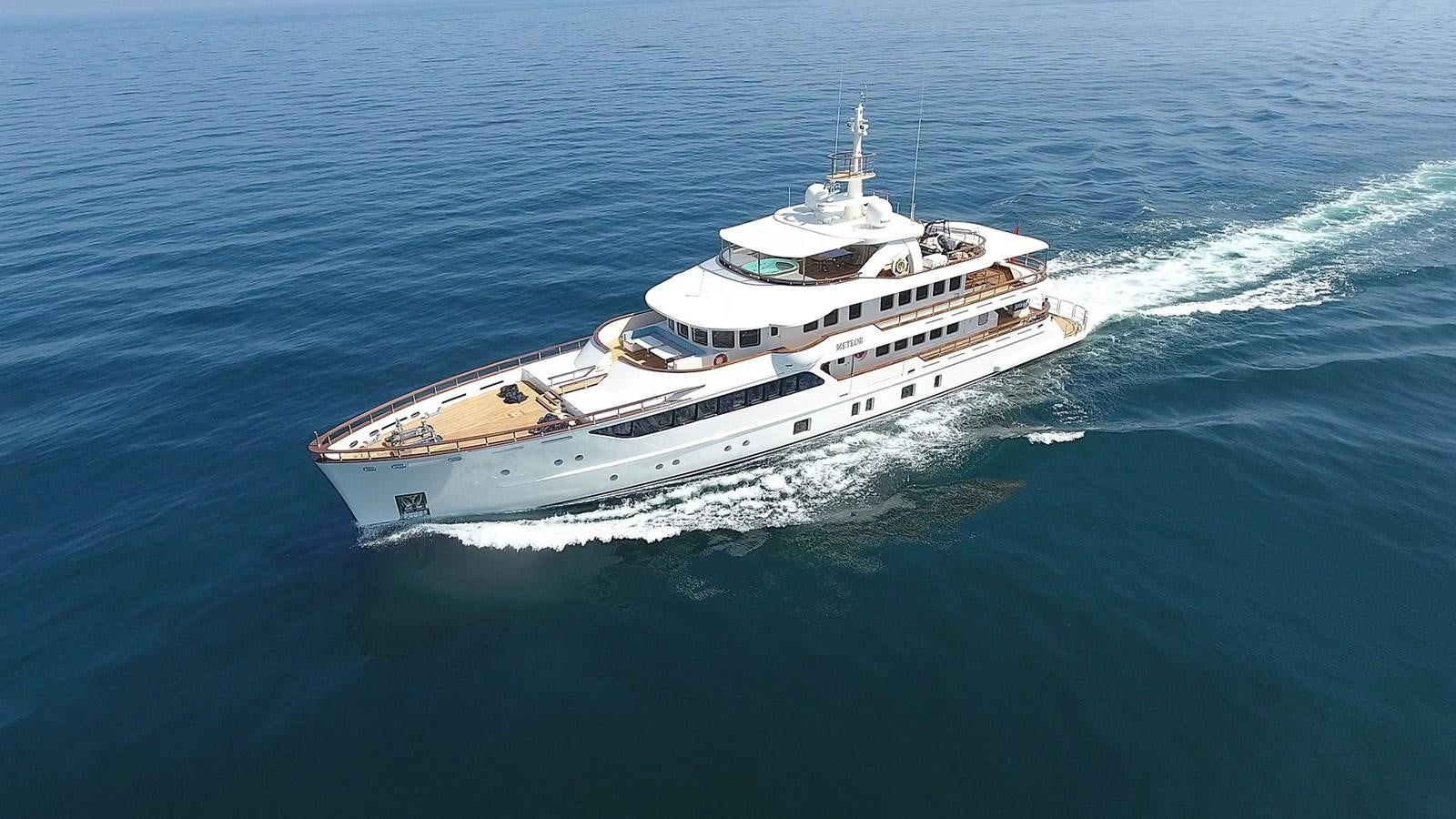

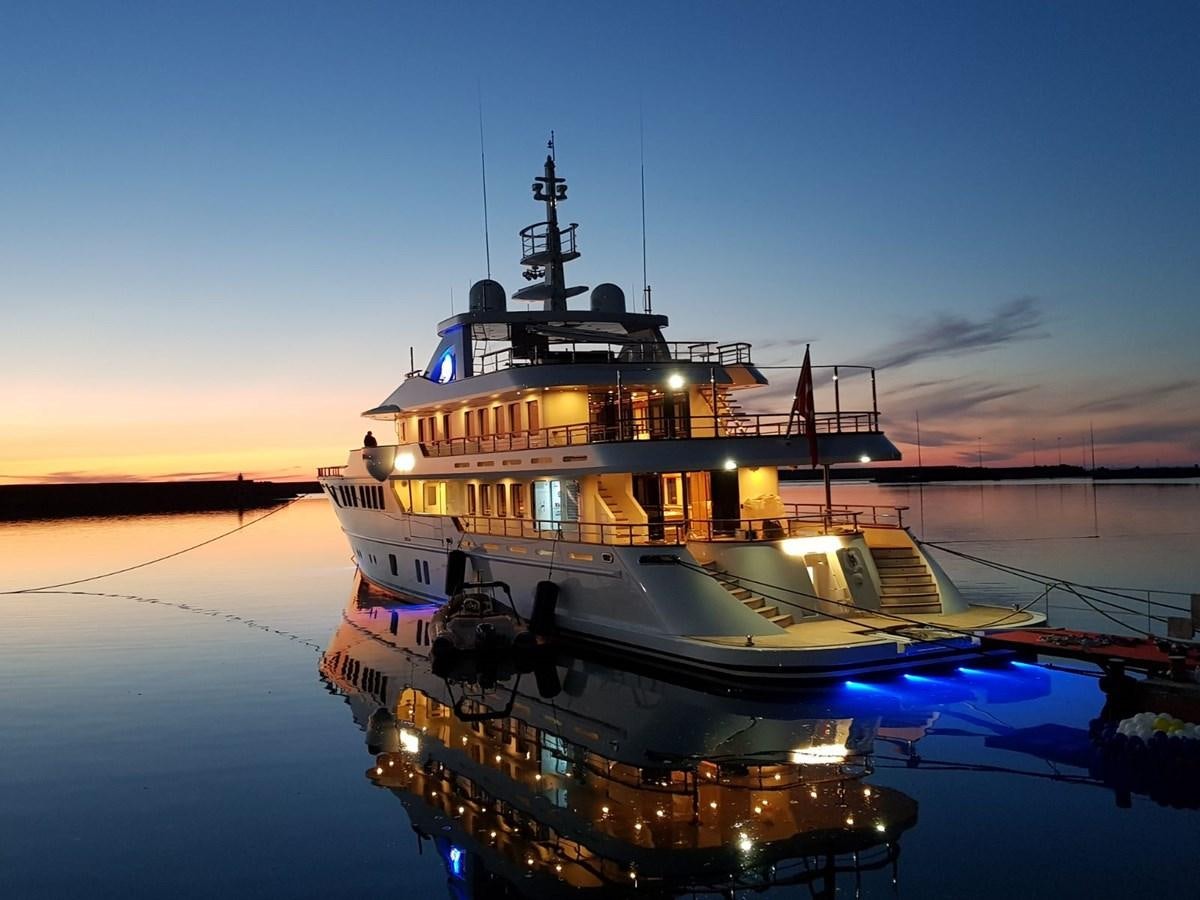

METEOR Yacht for Sale

Length: 152' (46.35m)
Builder: CUSTOM BUILT
Build: 2018

Cabins: 5
Crew: 9

Amenities

Specifications

Inquire

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Amenities

At-Anchor Stabilizers
Wi-Fi

METEOR in the News

Specifications

Builder	CUSTOM BUILT
Length (LOA)	152' (46.35m)
Year	2018
Beam	29' (8.95m)
Range	4,800 NM
Location	Turkey

Accommodations

Staterooms	5
Sleeps	10
Heads	6

Crew Cabins	9
Crew Sleeps	9
Capt. Quarters	Yes

Dimensions & Capacity

LOA	152' (46.35m)
LWL	147' (44.65m)
Min Draft	10' (2.75m)
Fuel Tank	14,815 g (56,081 L)
Fresh Water	3,918 g (14,831 L)
Holding Tank	3,380 g (12,796 L)
Displacement	440

Construction

Hull Material	Steel
Hull Config	Round Bilged Displacement
Cruising Speed	12 Knots
Range	4,800 NM

Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

How to Buy a Yacht Our experienced brokers will assist you throughout your yacht buying journey

Yacht Buying Guide

Full Details

Other Machinery

Propulsion System

Gas throttle – zf smart command 3 stations (wheelhouse + 2 wing
stations)
Flexible coupling – rubber design rd210ga
thrust bearing – rubber design slb4a00
Shaft seal – eliche radice
Sterntube – steel od 244mm
Shaft bearings – nitrile rubber bearings
Shaft brackets – steel v-bracket
Exhaust type – wet exhaust with bypass system mes
Exhaust hoses – trident or scamo
Silencers – mes

Steering

Rudder – 2 x steel semi spade rudders
Electric motor – 2 x 20hp ac motors

Fuel system

Fuel transfer – gianneschi acb 331/b B 1.5kw
Fuel filter – separ or racor (for engines and gensets)
Piping/valve material – 304 stainless steel
Valves – electronic valves in transfer system
Fuel filtration – alfa laval MIB 303

Lube oil system

Lube oil pump – gianneschi fq15 0.37kW, 380V

Sludge system

Transfer pump – gianneschi fq15 0.37kW, 380V

Fresh water system

Hydrophore – Gianneschi jet 2 518B el 24V+380V 1.1+1.1kW
Water maker – 2 x sea recovery aqua whisper 1800-2 380V
Boiler – 2 x gianneschi 200ltr 3+3kW 380V
Hot water circulation pump – gianneschi Z30top 0.18kW, 380V
Piping/valve material – ppp-r

Dirty water system

Macerator pumps – gianneschi mv180 1.5kW, 380V
Tank wash pump – gianneschi acb331B 1.5kW, 380V
Sewage treatment – hamann hlcp 02 slim 5200ltr/day 380V, 3kW
Multiphase pump – hamann 1.5kW
Sludge pump – hamann 0.75kW
Effluent pump – 0.75kW
Toilets – 11 x tecma privilege, soft close, 230v 0.7kW
Piping/valve material - pvc

Bilge/Fire system

Bilge pump – gianneschi acb631/B 9.2kW, 380V
Fire pump – gianneschi m-acb531 9kW diesel pump
Automatic bilge pumps – rule
Piping/valve material – underwater CuNiFe, elsewhere 316 stainless steel
Valves – electronic valves in bilge system

Raw water cooling system

Piping – CuNiFe
Scupper system
Piping – 304 stainless steel
Deck wash system
Pump – gianneschi idro ecojet 2 0.37kW, 380V

Fixed fire fighting system

System type – ultrafog
HVAC system
Brand – cruisair
Chiller – 6 x twc72eck-ddc 380V, 72000btu/hr, total 432000btu/hr
Cooling 9A, heating 11.7a
Fancoils
- Guest cabin 1 – at12hvz, 12000btu/hr, 0.7a
- Guest cabin 2 – at12hvz, 12000btu/hr, 0.7a
- Guest cabin 3 – at12hvz, 12000btu/hr, 0.7a
- Guest cabin 4 – at12hvz, 12000btu/hr, 0.7a
- Crew mess – at18hvz, 18000btu/hr, 1a
- laundry – at12hvz, 12000btu/hr, 0.7a
- crew 1 – at9hvz, 9000btu/hr, 0.7a
- crew 2 – at9hvz, 9000btu/hr, 0.7a
- crew 3 – at9hvz, 9000btu/hr, 0.7a
- crew 4 – at9hvz, 9000btu/hr, 0.7a
- master cabin – 3 x at18hvz, 54000btu/hr, 3a
- dressing room – at18hvz, 18000btu/hr, 1a
- galley – at24hvz, 24000btu/hr, 1a
- main saloon – 4 x at24hvz, 96000btu/hr, 4a
- Wheelhouse – 2 x at18hvz, 18000btu/hr, 2a
- Corridor – at12hvz, 12000btu/hr, 0.7a
- Upper saloon – 3 x at24hvz, 72000btu/hr, 3a
- Captains cabin – at12hvz, 12000btu/hr, 0.7a
Fresh air unit – 2 x AT24HVZ-1.5kW + at36hvz-fc-1.5kW 84000btu/hr
Sea water pump – 2 x p711380V
Circulation pump – p715 3HP
Digital controller kit – 23 x pltx-hvstat
Er fans – 1 x gianneschi ell/ap 805, 1 x gianneschi ell/ap715 -380V with
24V fire damper and mist eliminator
Lazarette fans – 1 x feit fv250-380V with 24V fire damper and mist eliminator

Batteries

Engine starter batteries – 8 x mastervolt agm 160ah 24V
Generator starter batteries – 4 x mastervolt agm 130ah 24V
Night generator starter batteries – 2 x mastervolt agm 130ah 24V
Service batteries – 4 x mastervolt mvg 200ah 24V
Emergency batteries – 4 x mastervolt mvg 200ah 12V
VHF batteries – 4 x mastervolt mvg 200ah 12V

Charger

Engine starter – 2 x mastervolt mass 24/50a 220V
Generator starter – 3 x mastervolt mass 24/25a 220V
Service – mastervolt mass 24/75a 220V
Emergency – mastervolt mass 24/75a 220V
VHF – mastervolt mass 24/50a 220V Frequency Convertor – custom

Frequency convertor – atlas 90kVa Shorpower spa
Cathodic protection – cathelco iccp 20a minitek, current density 35mA/m2
Antifouling system – cathelco antifouling system

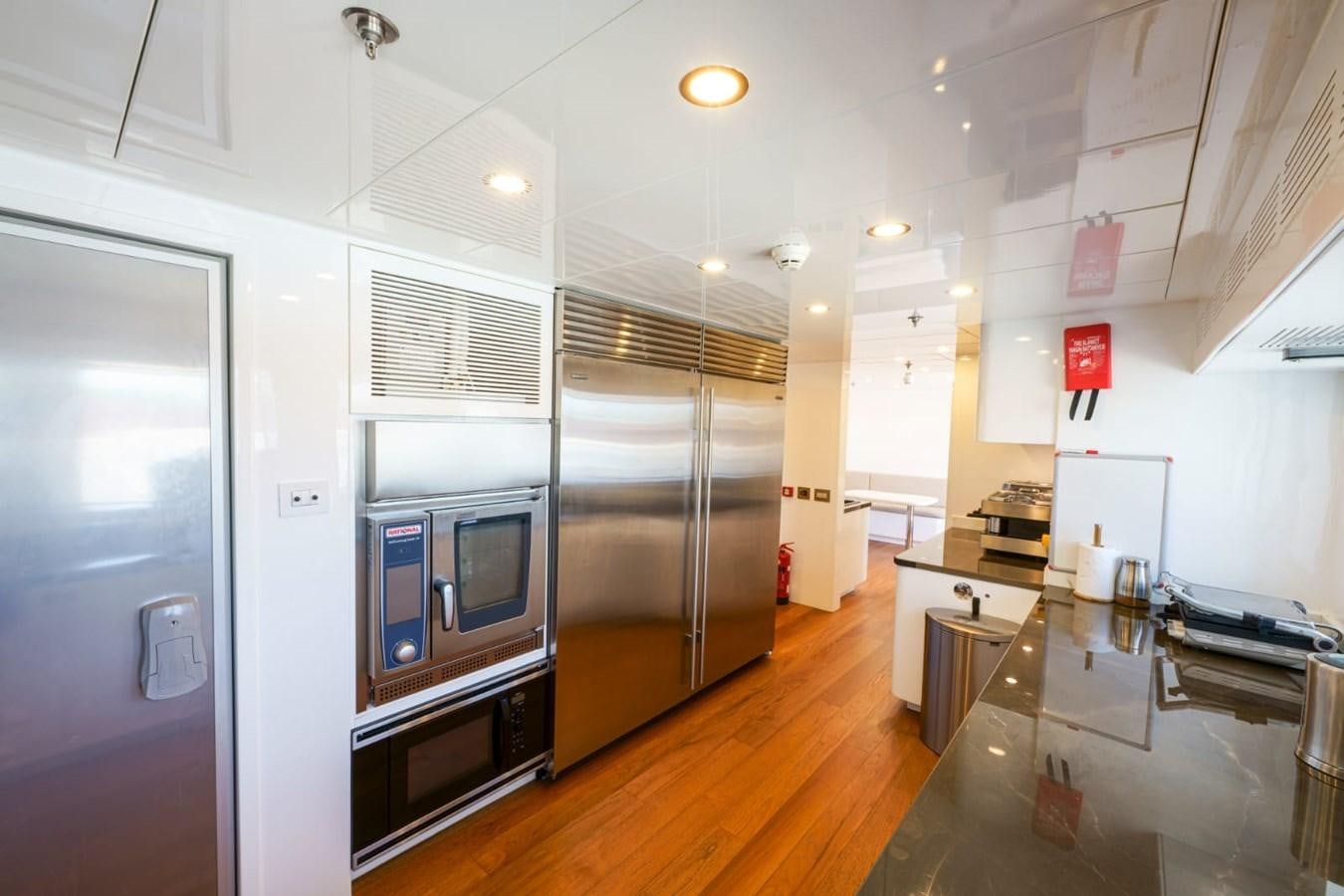

Galley & Laundry Equipment

Communication Equipment

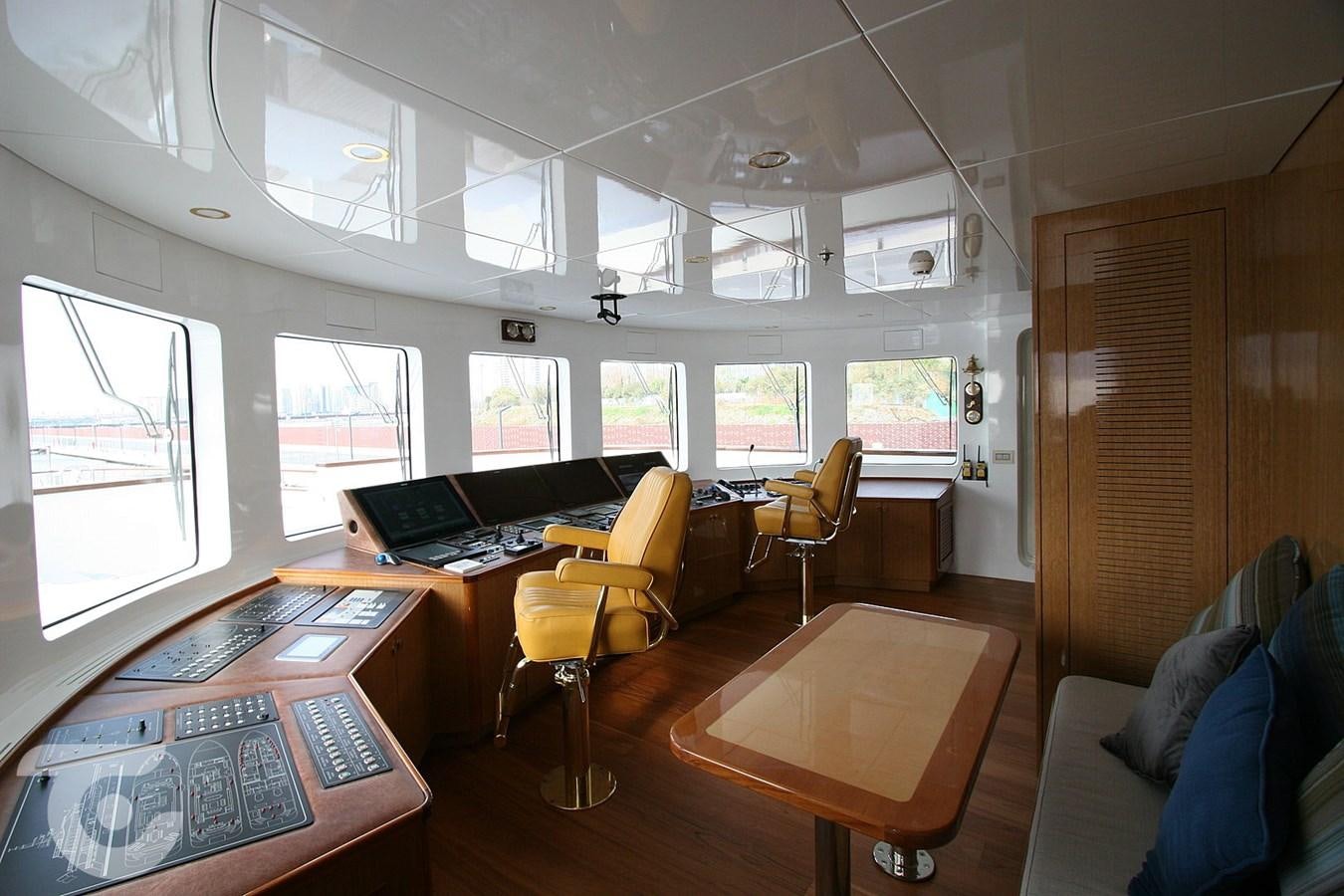

Navigation Equipment

Wheelhouse – simrad argus 19” approved display
GPS – simrad mx6xx
Echosounder – skipper gds101
Speedlog – skipper eml224
Autopilot system – simrad ap70 imo s
Inmarsat – sailor 6110 mini-c gmdss system
Mf/hf – sailor 6000series 150Wdsc class a
Printer for gmdss – sailor h1252b/tt-3608a
Alarm panel – sailor 6101
Weather station – airmar 150wx
Loudhailer – simrad
Watch alarm system – Raytheon bnwas
AIS – simrad mx535 class a
SART – 2 x simrad sa70 sart
EPIRB – simrad eg70 auto gps epirb
Radar 1 – simrad argus 12u6xp 12kW
Radar 2 – simrad broadband 4g radar closed dome
Navtex – jrc ncr333
Overhead magnetic compass – cassen & plath type 21
Gyro compass – simradgc80 exp
Gyro repeater analogue – simrad hr80
Gyro repeater digital – simrad dr76
Cctv system cameras – 4 x navico mini camera with ir
Cctv switch – dayline dl104
Cctv video buffer – dayline sl-18av
Intercom system – zenitel etb-5 pack

Entertainment Equipment

Satellite TV antenna – Intellian i9W
Internet antenna – intellian VSAT v80G
TV´s:
- Owners cabin – 32” (ceiling lift)
- Guest cabin 1 – 32” (ceiling lift)
- Guest cabin 2 – 32” (ceiling lift)
- Guest cabin 3 – 32” (ceiling lift)
- Guest cabin 4 – 32” (ceiling lift)
- Crew mess – 32” (fıxed)
- Main Saloon – 65”(fıxed)
- Upper saloon – 55” (fıxed)
- Sun deck – 55” (ceiling lift)
Decoders – 9 x next hd satellite receiver
Ipod docks – 2 x mode base ipod docks in salon
1 ipod dock in each cabin
DVD – all tv’s to be connected to dvd player (blue ray)
Speakers:
- ınteriors – speakercraft or sımılar
- Exteriors - bose
