MAYA RAY is a 95-foot (28.95m) sailing yacht built to be a performance world cruiser.

This modern classic with light weight sandwich construction was launched in 1999 by Southern Wind Shipyard. The sailing yacht was designed and constructed to be fast as well as provide comfort to owners and guests.

Her interior is timeless with stunning wood throughout. The sailing yacht’s pilot house provides panoramic views and a navigation station. MAYA RAY’s salon features a lounge area to starboard and dining table to port. Forward of the salon is a galley and dinette.

She has accommodations for eight guests in four beautiful staterooms. MAYA RAY features an owner’s stateroom with a centerline king-size bed and a generous en-suite with shower. The sailing yachts guest’s staterooms include two staterooms with queen-size beds and spacious drawers and lockers as well as a single cabin with en-suite bath that can be found to starboard of the steps in the main salon via a small lobby. She also has an upper Pullman berth can also add an extra accommodation.

She was refitted in 2015 in New Zealand and received new paint, rigging and mechanical systems.


Builder Other
Model sws 95
Length (LOA) 95' (28.96m)
Year 2000
Location Palma de Mallorca, Spain


Capt. Quarters No

Dimensions & Capacity

LOA 95' (28.96m)


Hull Material Composite
Hull Config SWS 95
Stabilizers None


Engine Make MAN
Engine Model D-2855 LXE
Engine Type Inboard
Power KW 0
Fuel Type Diesel
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details


Launched in 2000, MAYA RAY accommodates up to eight guests in four staterooms aft, and up to five crew in two cabins forward.

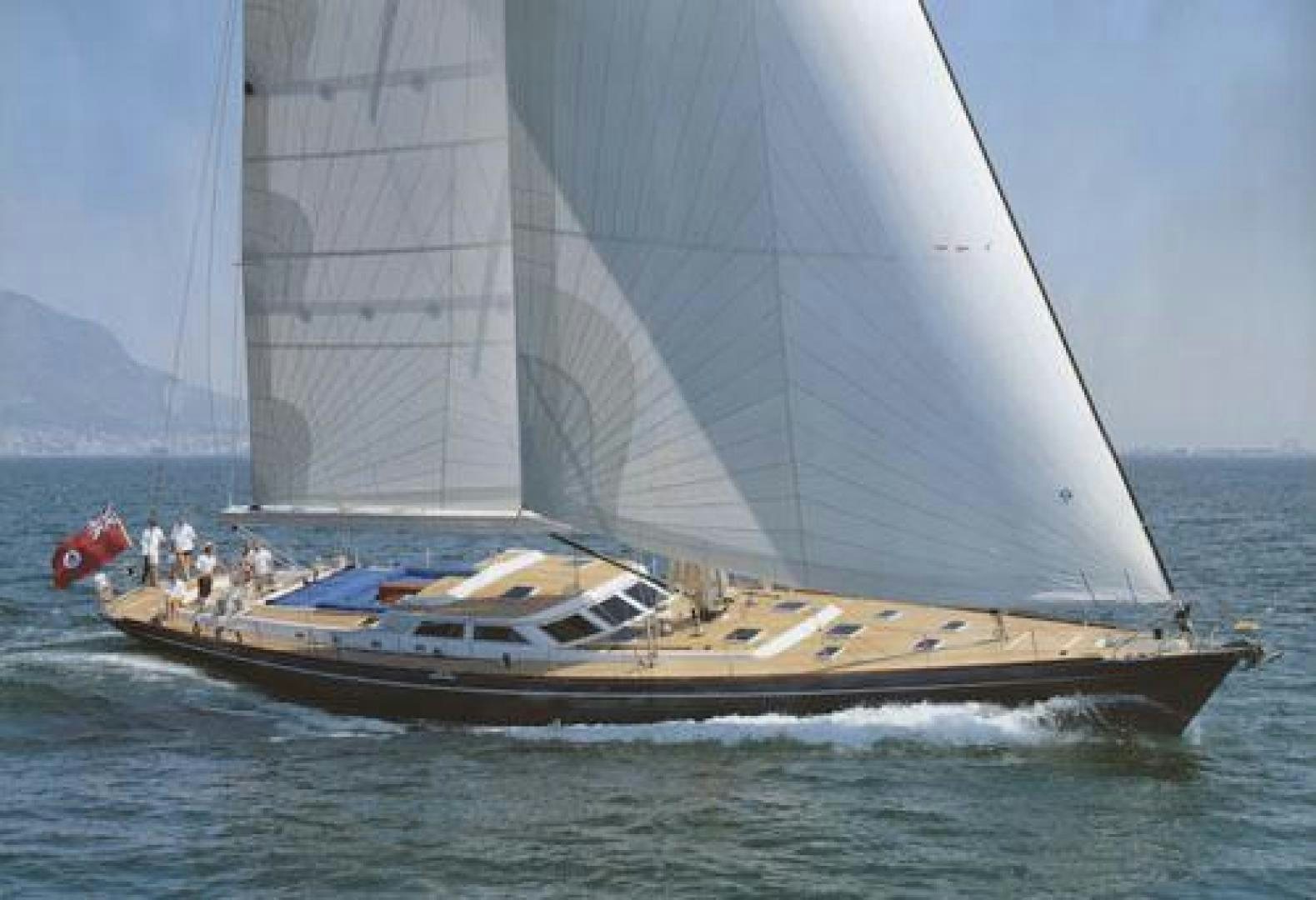

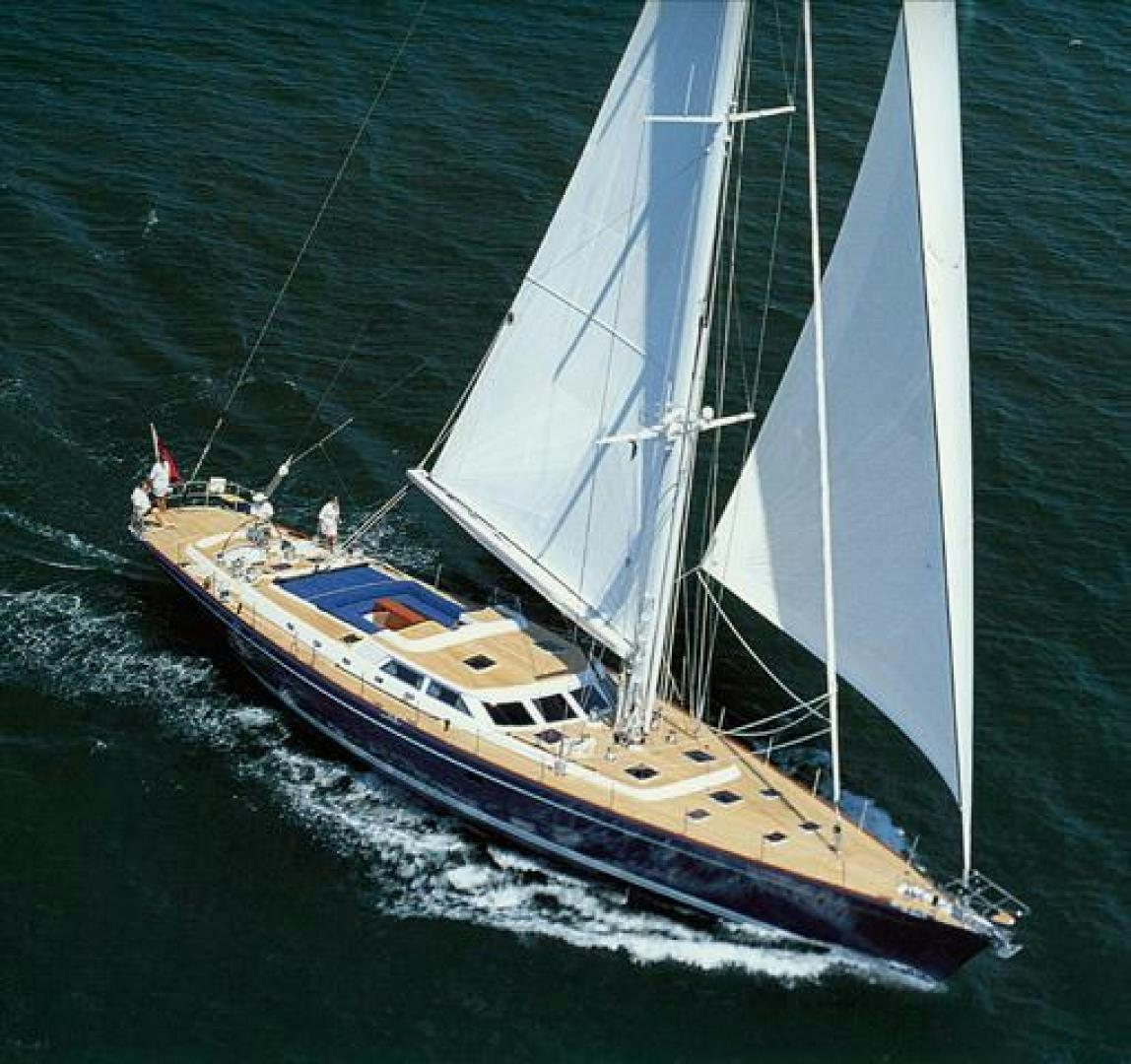

MAYA RAY is a cutter rigged sloop with roller furling on the genoa and staysail, and a conventional Park Avenue boom controlling the fully battened mainsail. Although she is relatively light, she is not overly “high tech”, (for instance all her winches are conventional hydraulic Lewmar self tailers), as the owner’s requirement was for a fast, comfortable world cruiser that can be maintained by an experienced crew in remote cruising areas without the need to find “repair technicians”.

This goal has been admirably achieved. MAYA RAY was sailed from her builders in Cape Town, South Africa to the Caribbean in early 2000. She then cruised the Mediterranean, Caribbean, Pacific, and Indian Oceans, and stopped in Cape Town in 2005/2006 for a refit by her builder. Then a return to the Mediterranean again for 3 years followed by a trip to the USA, into the Pacific once again, onto Asia, back into the Pacific and a return to the USA in 2016. In this time she has had exceptional care by a knowledgeable and experienced owner. The entire rig has been replaced, all systems regularly serviced, and MAYA RAY is presented for sale in superb condition.

The entire interior of MAYA RAY is in foam cored blond teak paneling, grain matched to perfection. Cabin soles are teak and holly, and deckhead liners are white ultra suede.

Upper Saloon

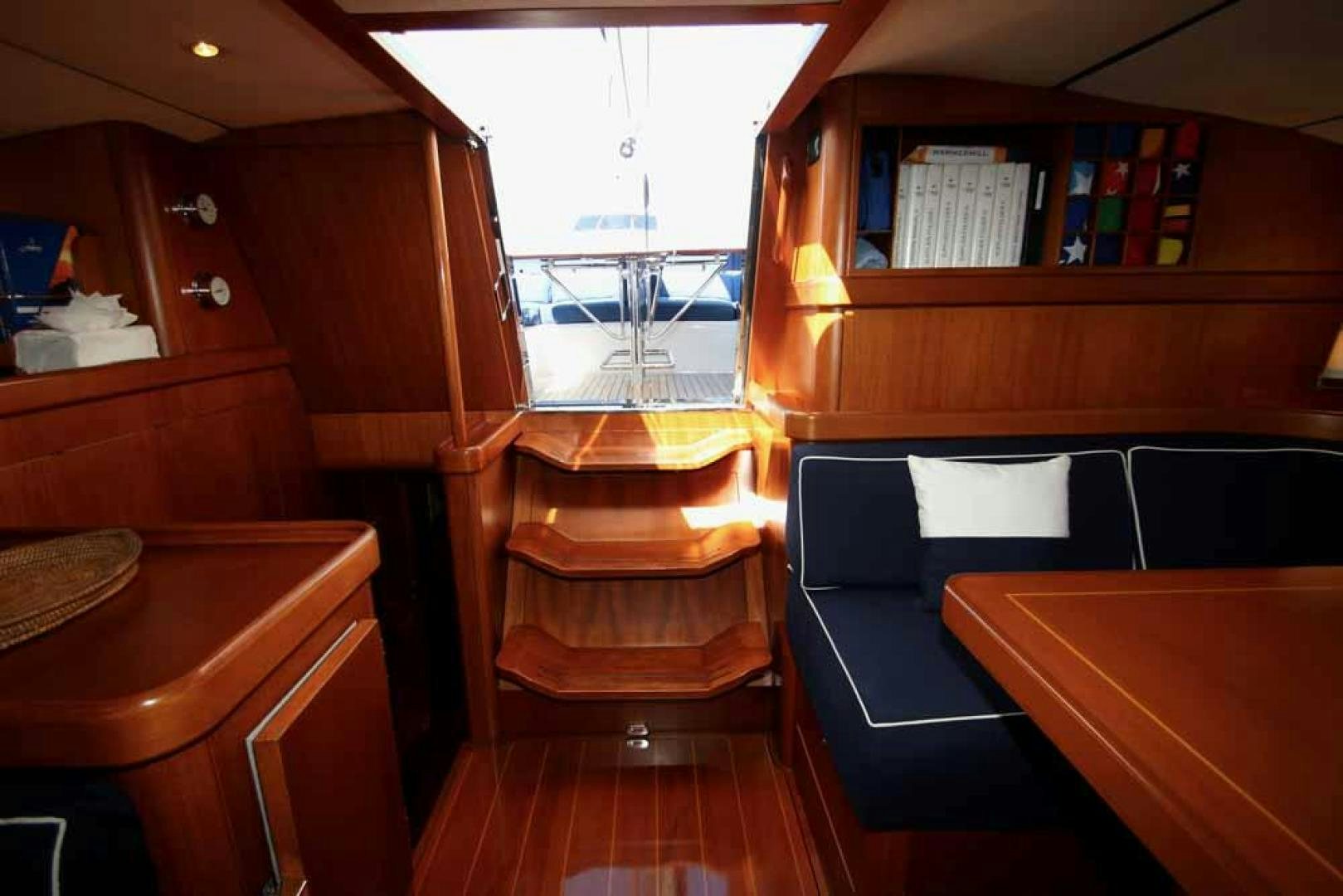

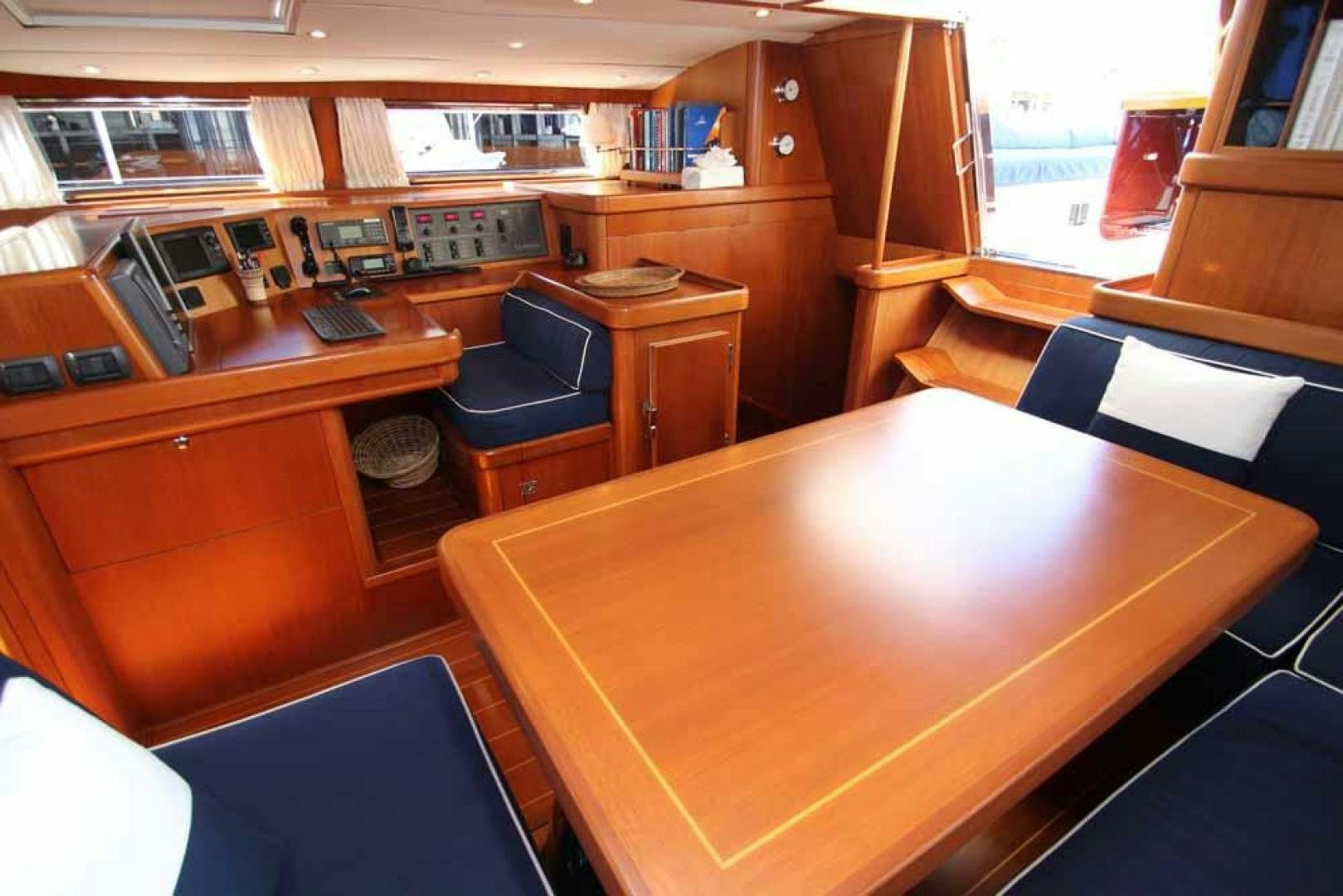

A sliding glass panel door leads from the center cockpit to the upper saloon, which is fitted with a breakfast table with a C-shaped bench settee to port, raised to a suitable height to give a panoramic view.  The impressive navigation station is to starboard, aft of which is the stairway to the owner and guest accommodations.

Main Saloon

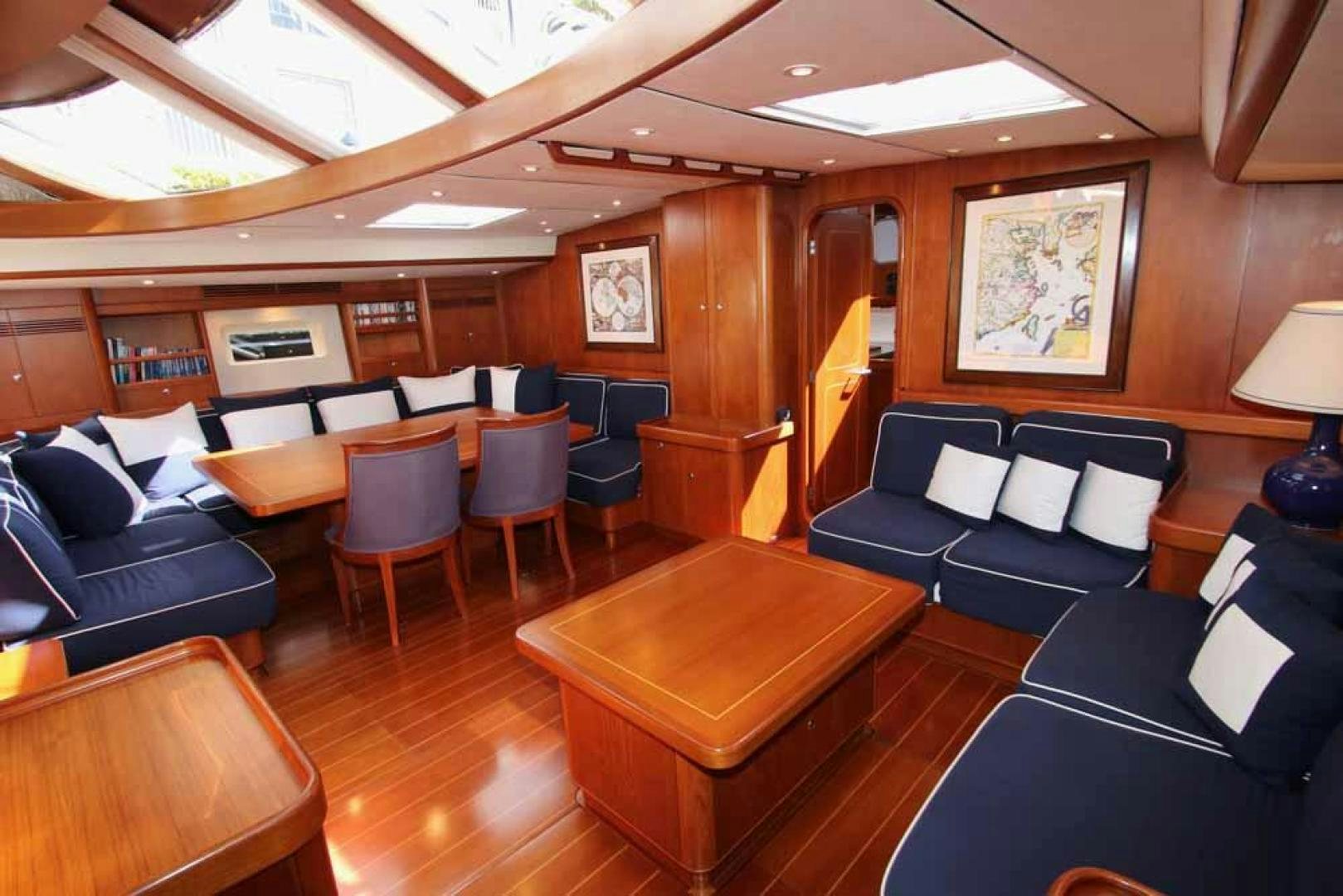

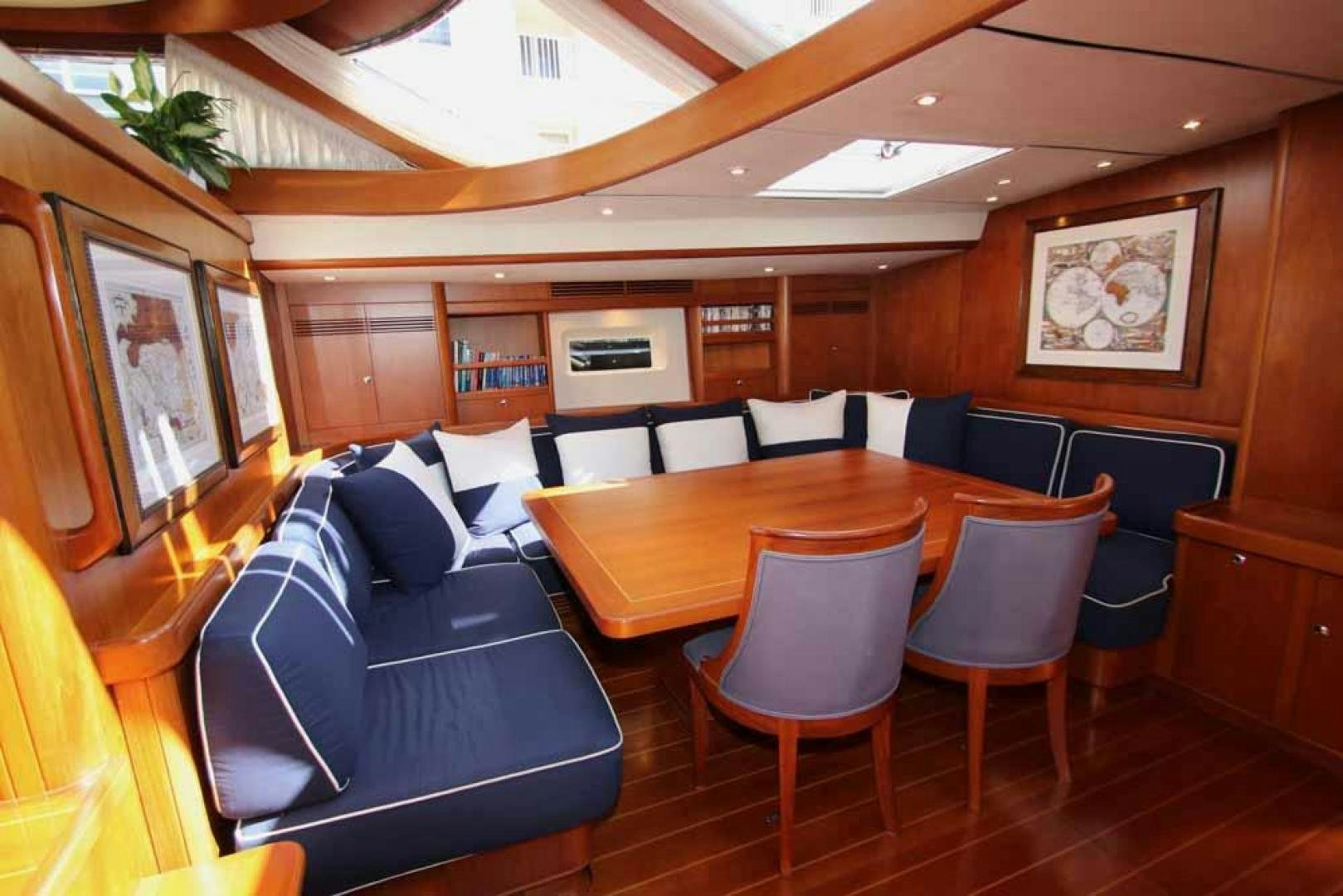

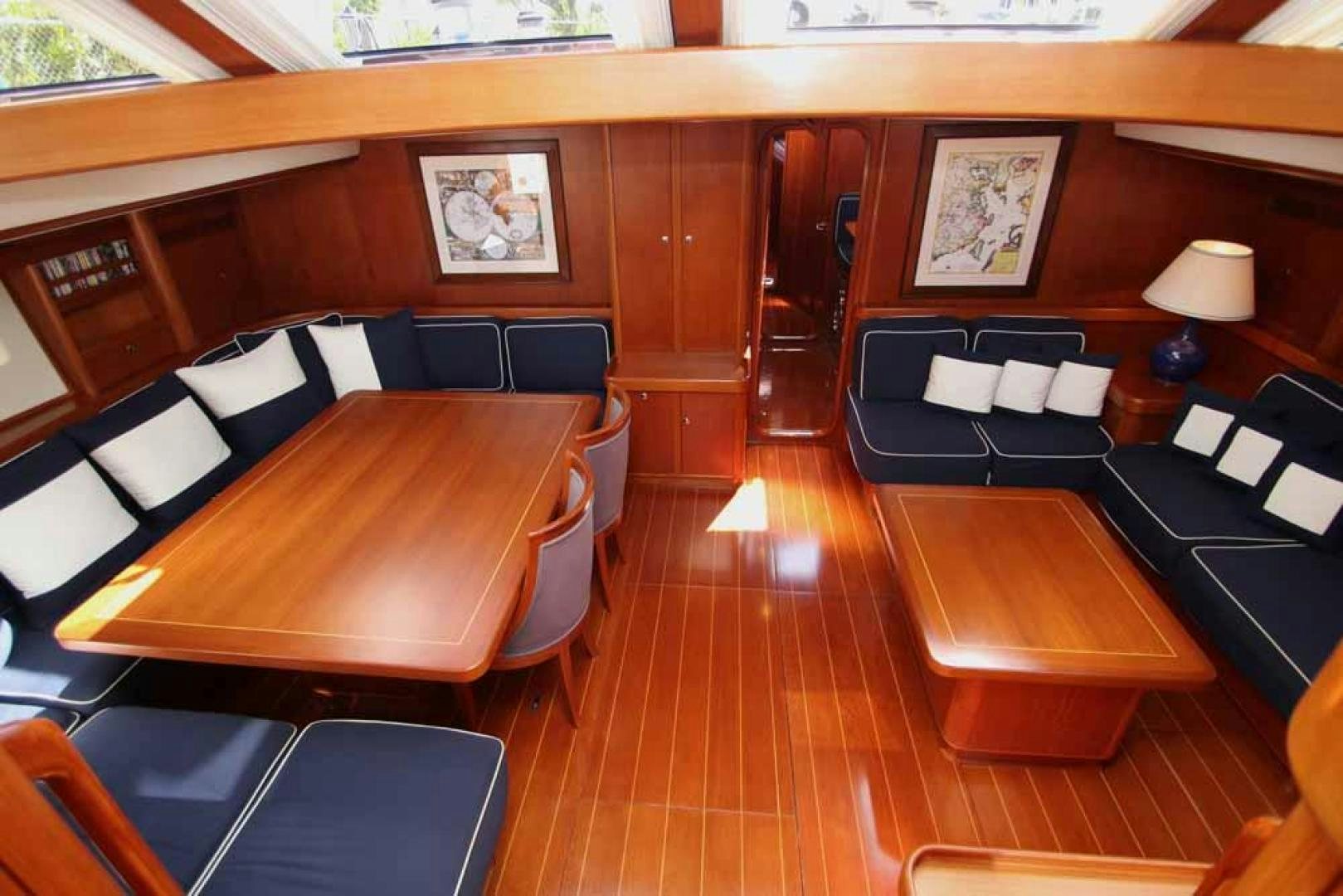

The full beam saloon is open to the deckhouse only three steps above. The owner's preference for large, plump, comfortable seating is evident in the huge settee around the beautifully made but simply designed dining table to port. A coffee table to starboard is flanked by two smaller settees which conceal two stainless steel lined wine chillers with a capacity for ten cases.

A television is against the aft bulkhead just to starboard of the steps to the upper saloon.

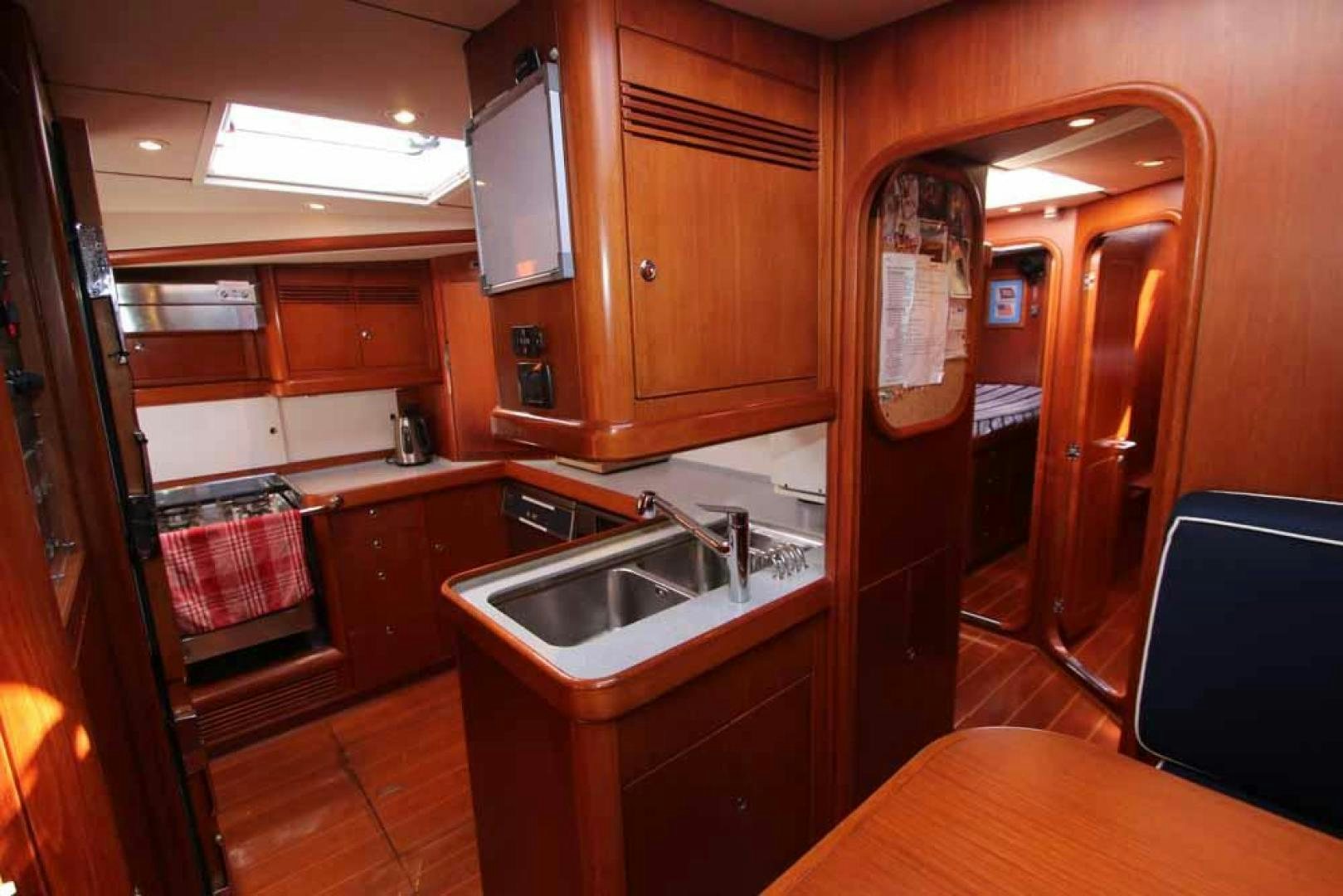

The large and well equipped galley, forward of the main saloon and opposite the crew mess, has enough preparation surfaces to feed up to 16 people at a time. Galley and laundry equipment includes:

 Alpes Inox propane gimbaled stove and oven
 Miele electric two burner stove top
 Miele Oven – new 2013
 Miele stainless steel dishwasher -new 2013
 (2) Frigomar upright refrigerator (galley)
 Frigomar upright freezer (galley)
 Frigomar chest freezer (galley sole)
 Frigomar drinks fridge (upper saloon)
 New Fridge & Freezer Compressors April 2012
 (2) Ten case capacity wine chiller (Saloon)
 Miele stainless steel clothes washer – new 2013
 Miele stainless steel clothes dryer – new 2013
 Nespresso Coffee machine
 Food Processor

Master Stateroom

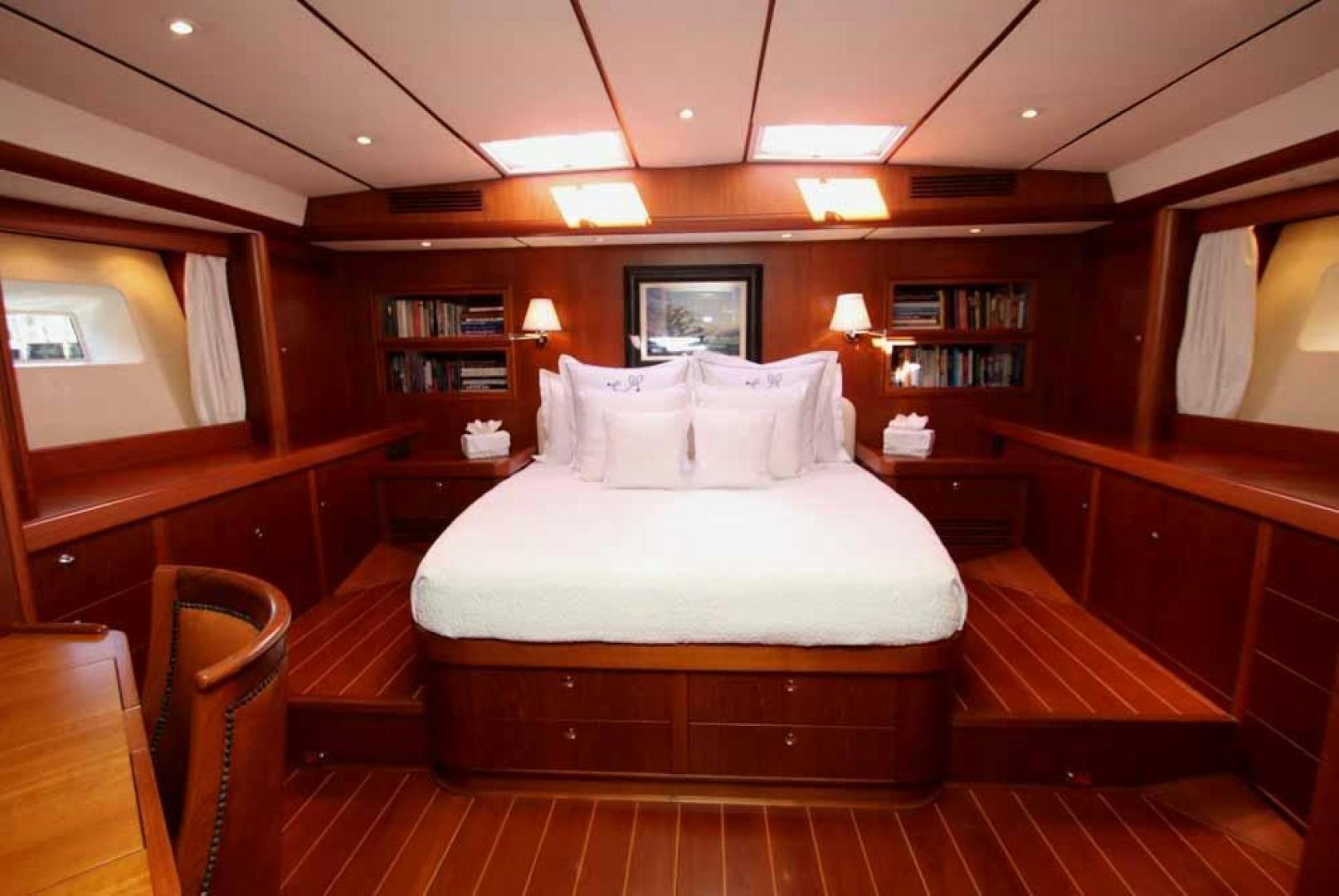

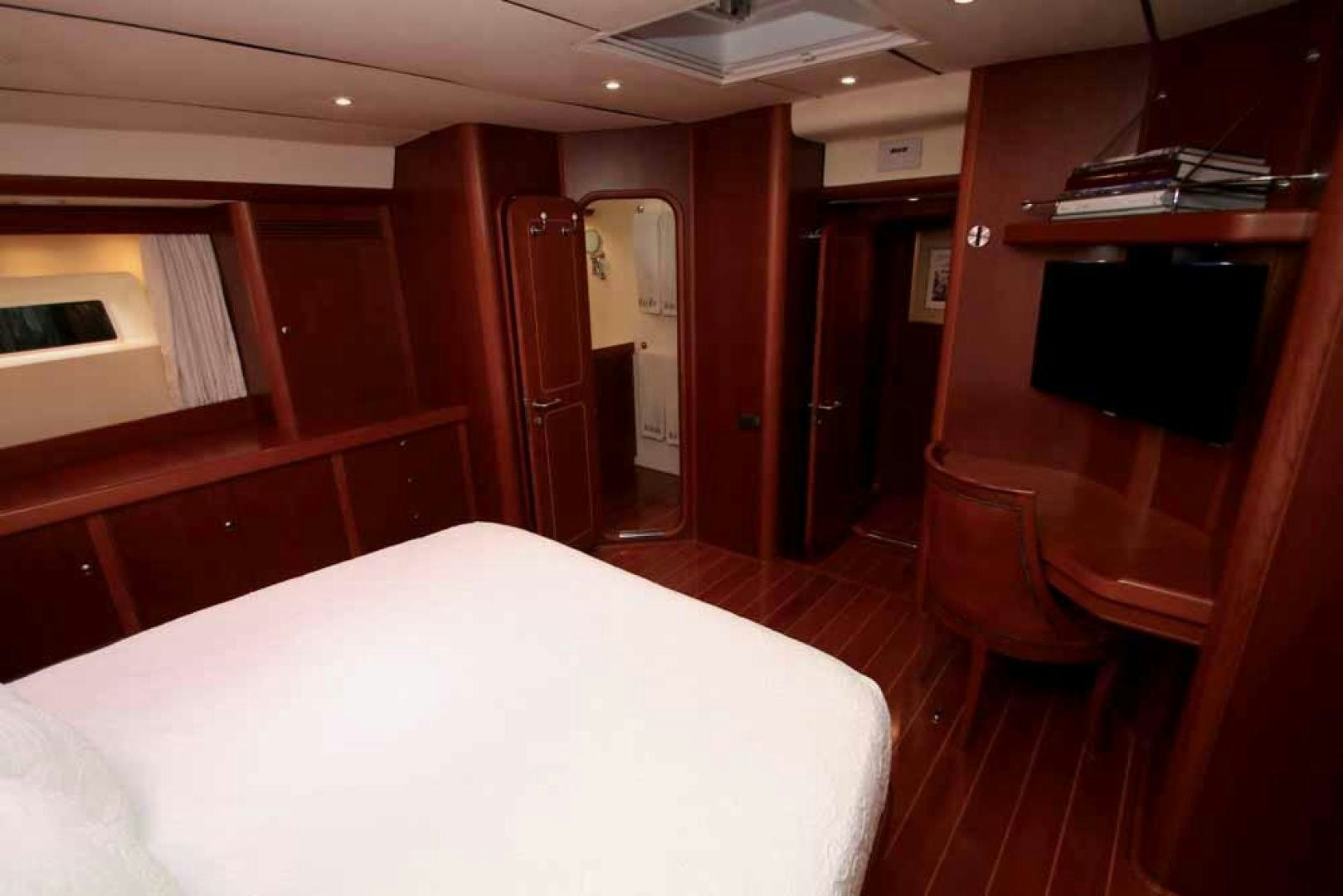

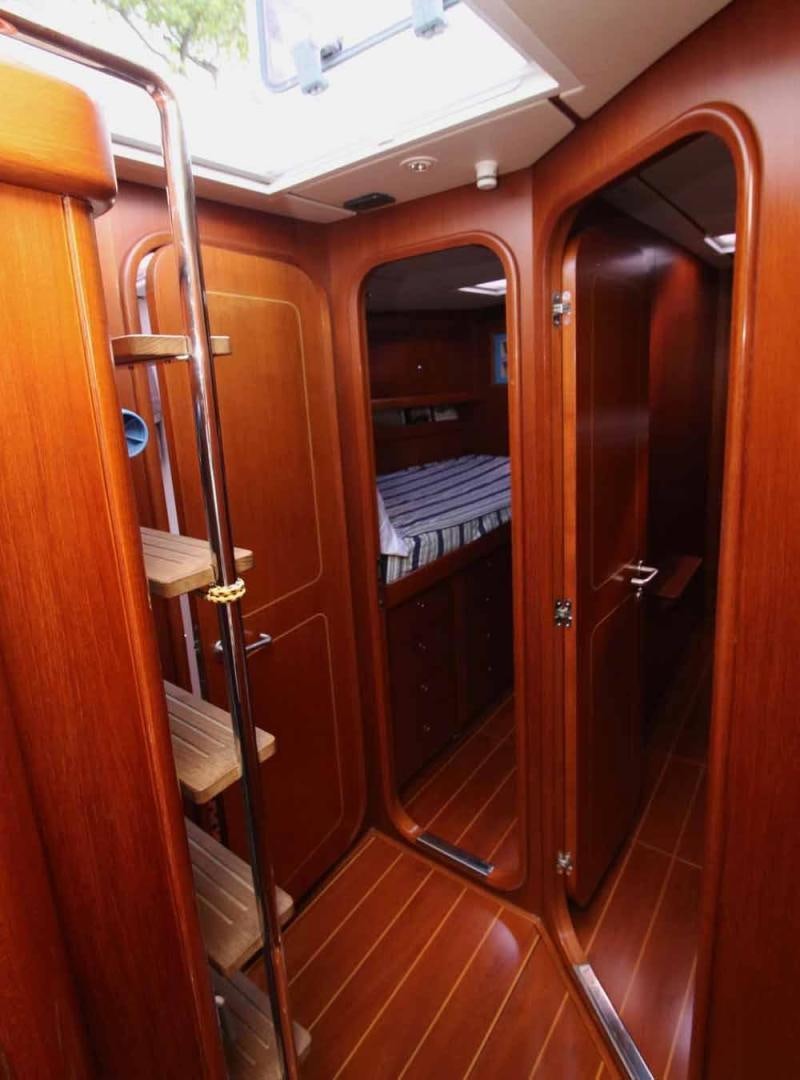

All the way aft, and accessed from a companionway in the upper saloon to the lower lobby, the handsome owner's stateroom has a centerline king sized berth, and all of the facilities that one would expect including a writing desk, hull ports, and a generous head and shower.

Guest Staterooms

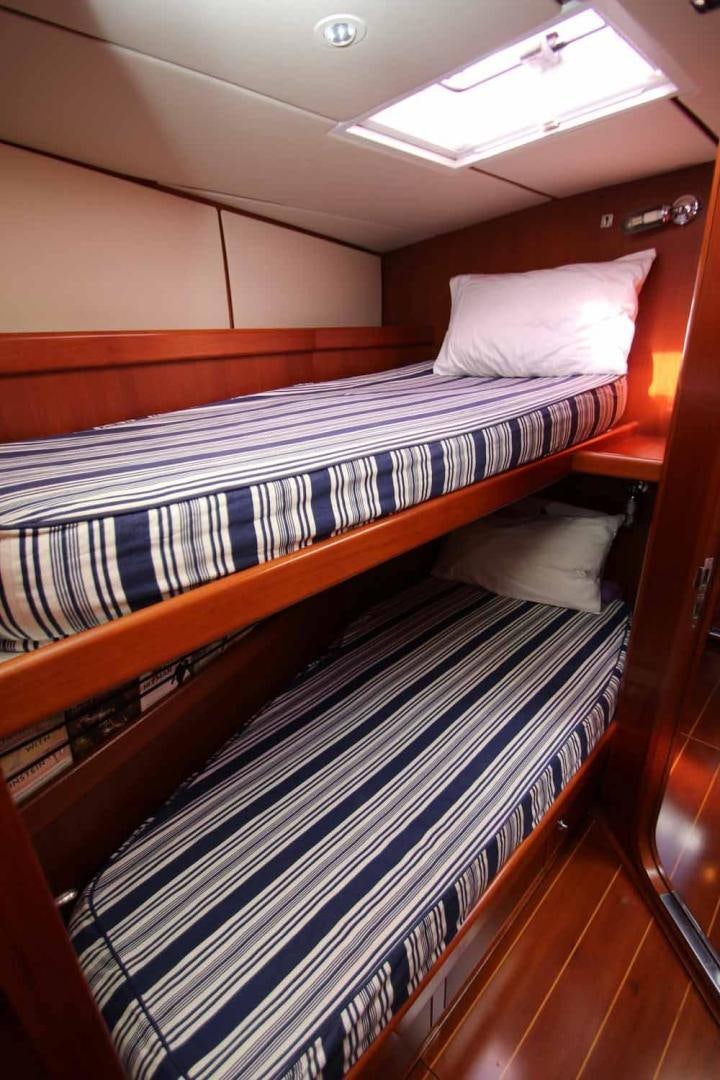

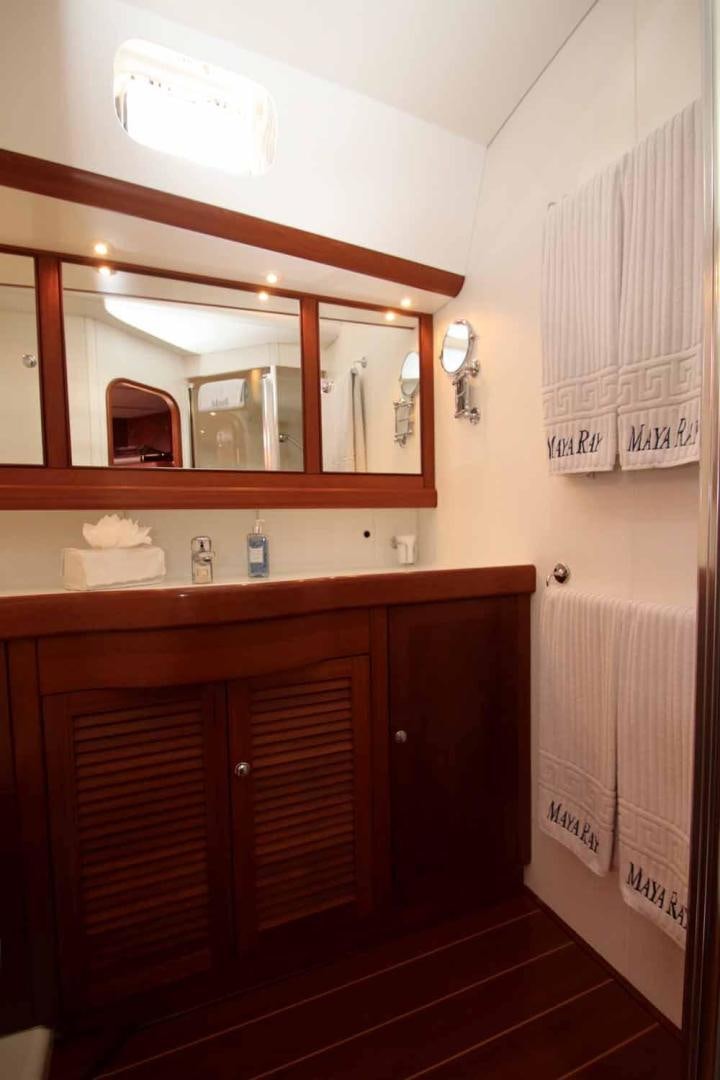

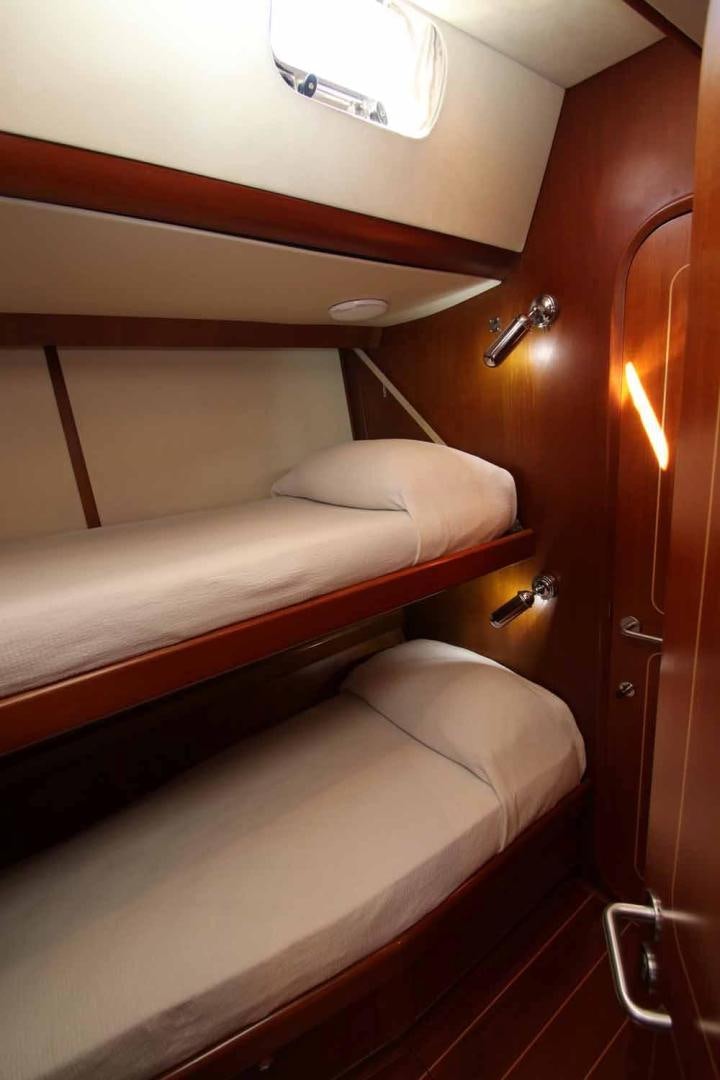

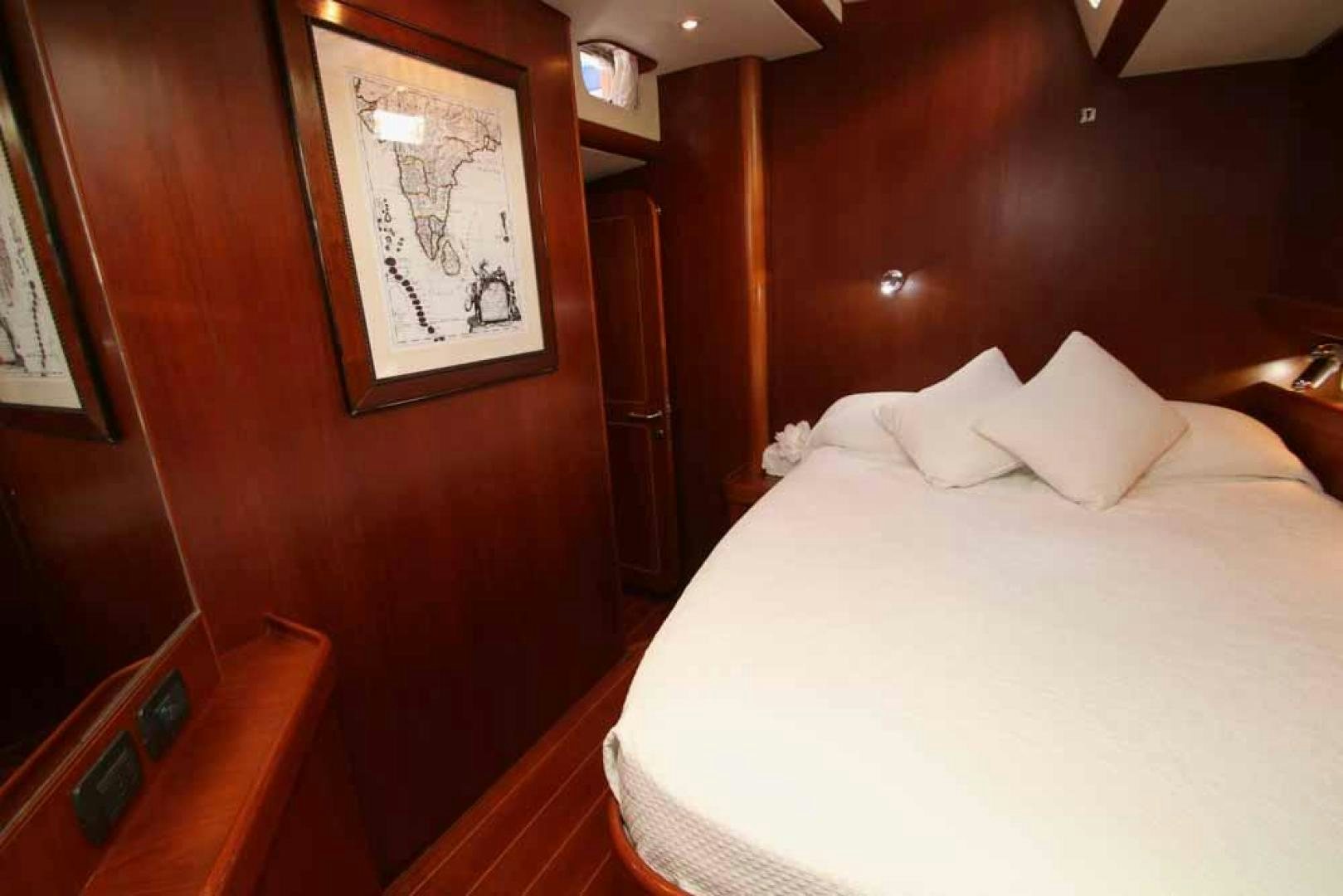

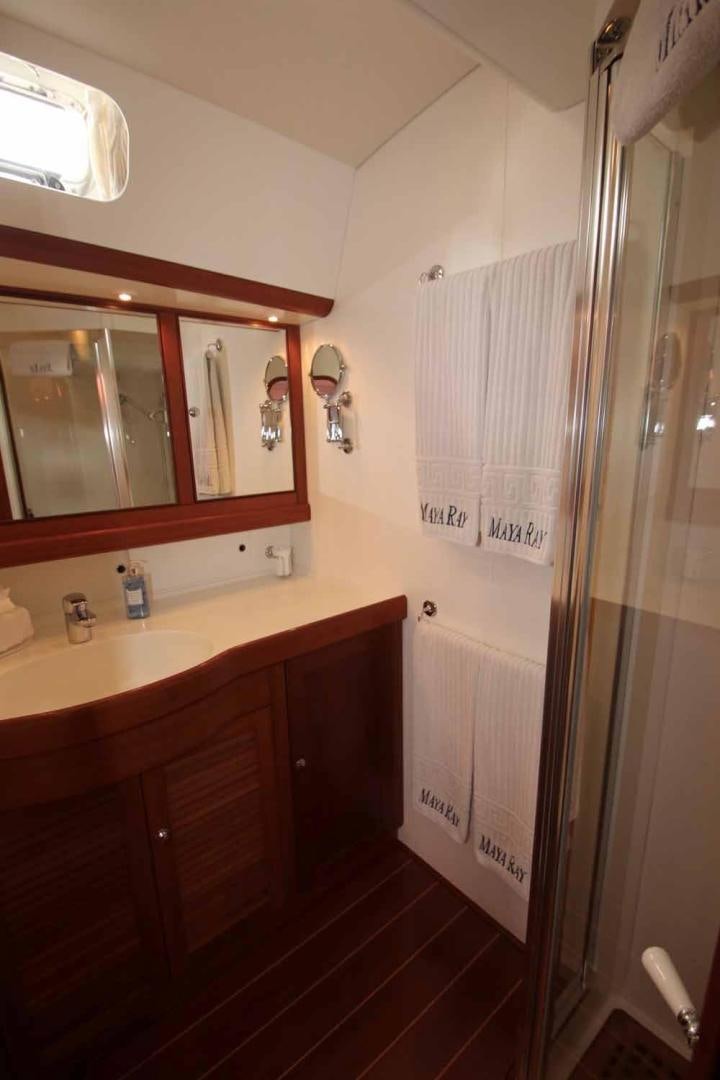

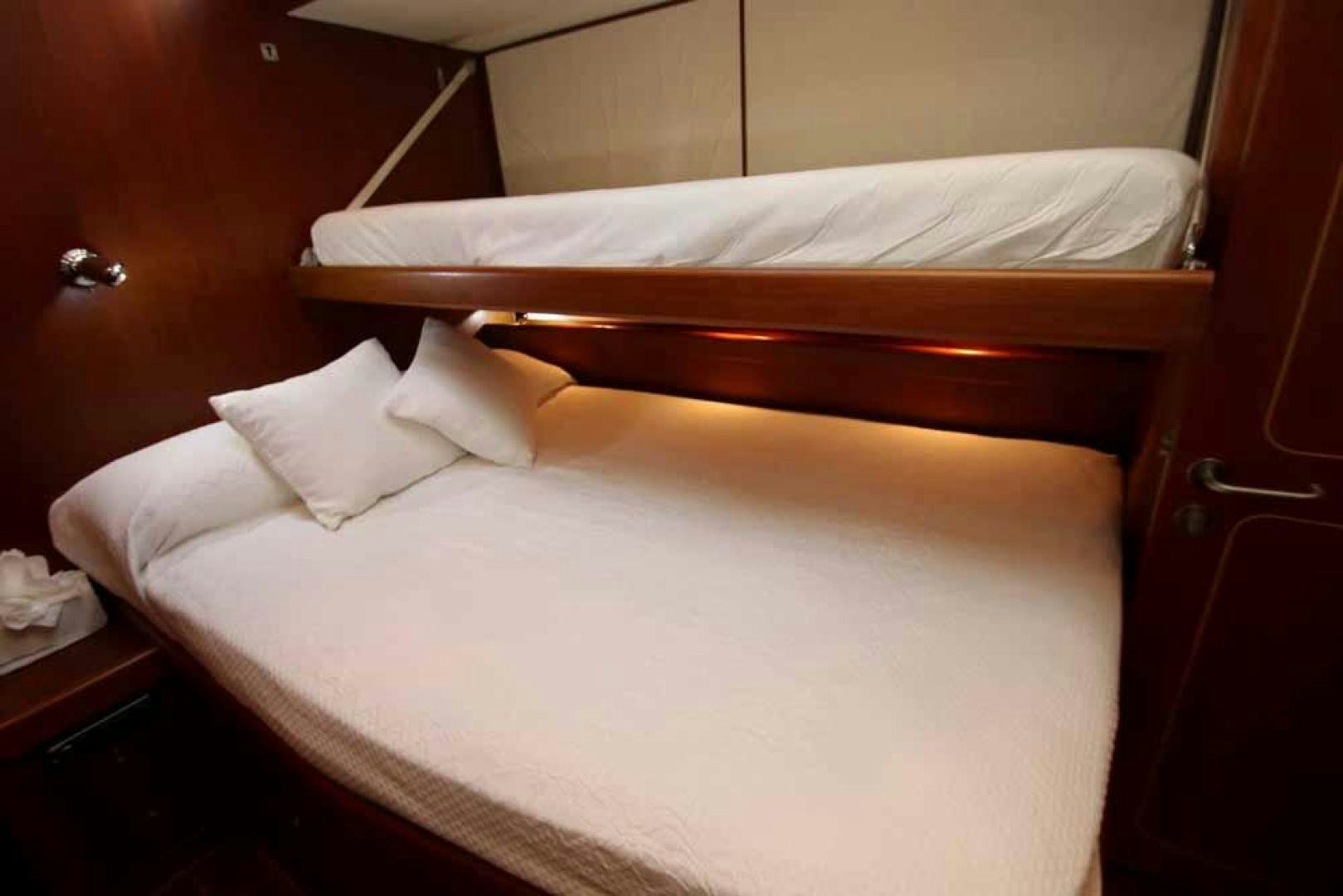

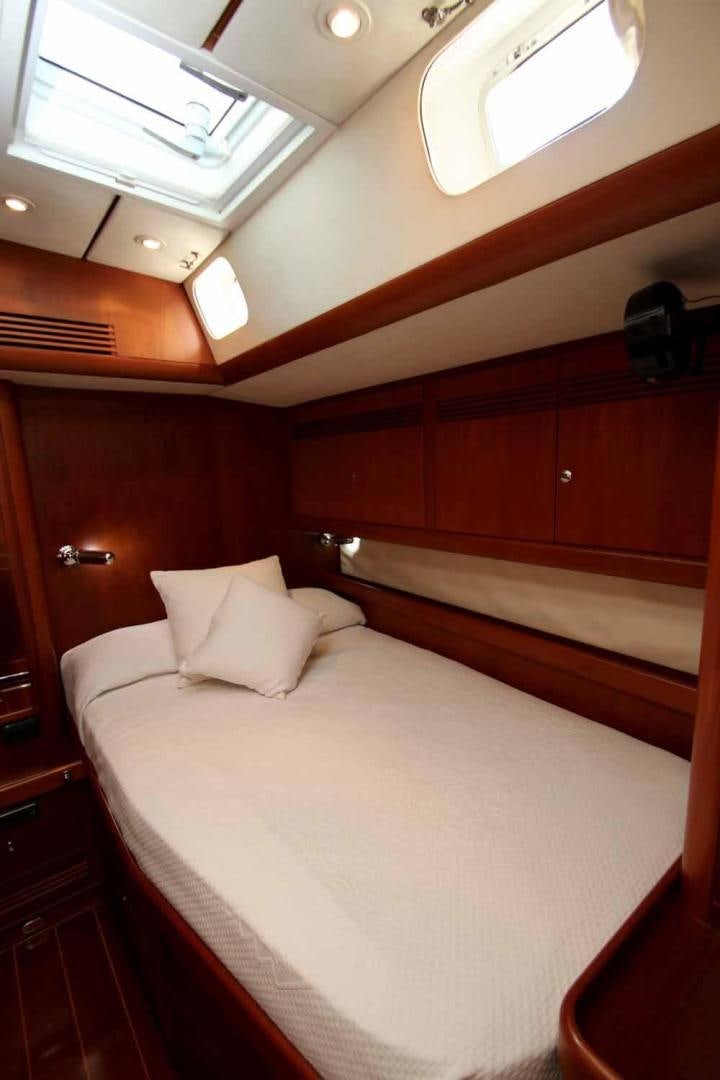

The two guest staterooms have queen sized berths, plenty of drawer and locker space, and roomy head and shower cubicles. The starboard cabin also has an upper Pullman berth cleverly disguised with false locker doors.

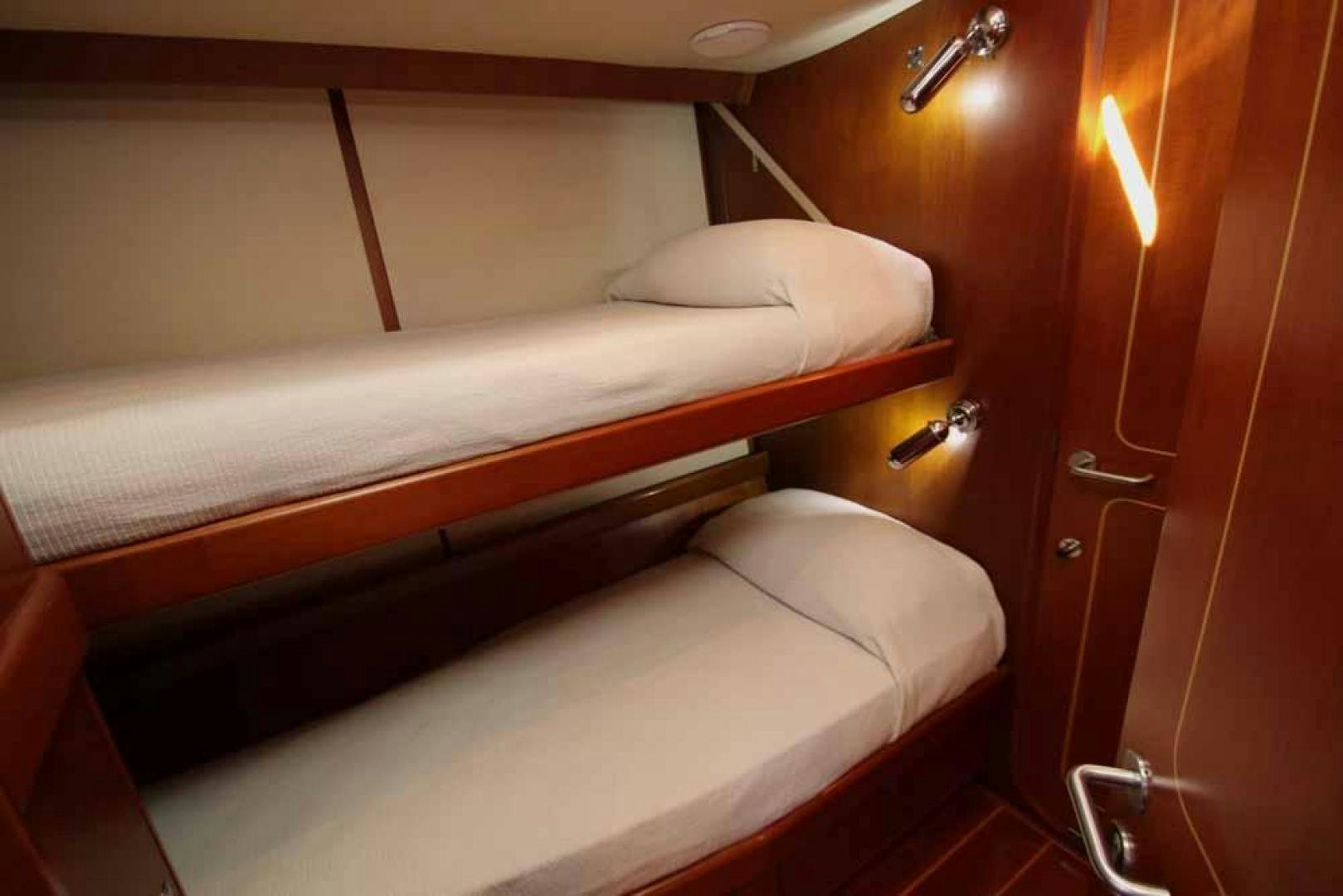

To starboard of the steps in the main saloon is a small lobby leading to a small but useful single cabin with ensuite head and shower. This serves as a day head when the cabin is not in use, and the cabin, with an upper Pullman berth, can double as overflow crew accommodation on delivery trips, and for the owner's children's friends, or for a diving instructor.

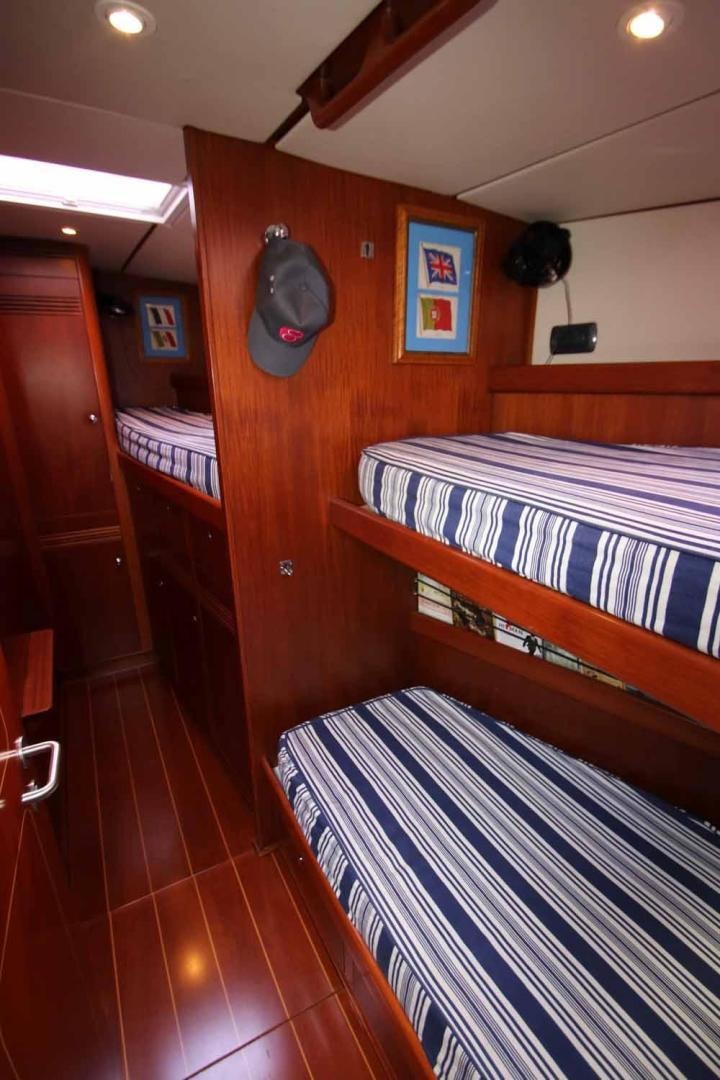

Crew Quarters

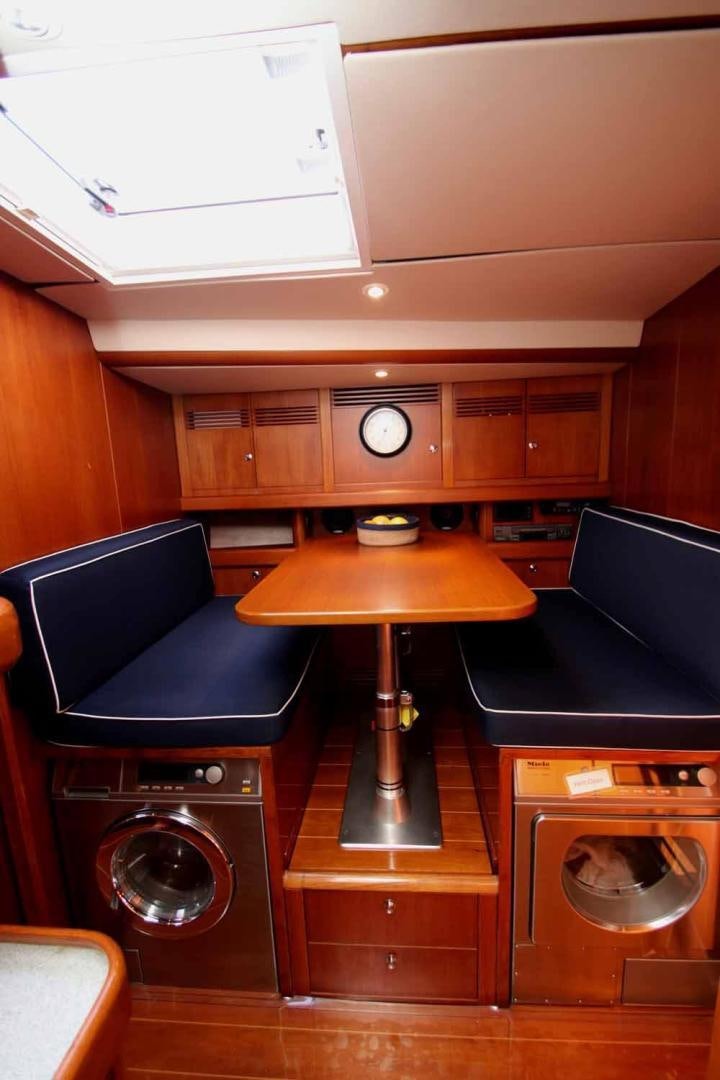

The crew quarters forward has a comfortable crew mess with Miele clothes washer and dryer positioned beneath the benches. Opposite to port is the galley.

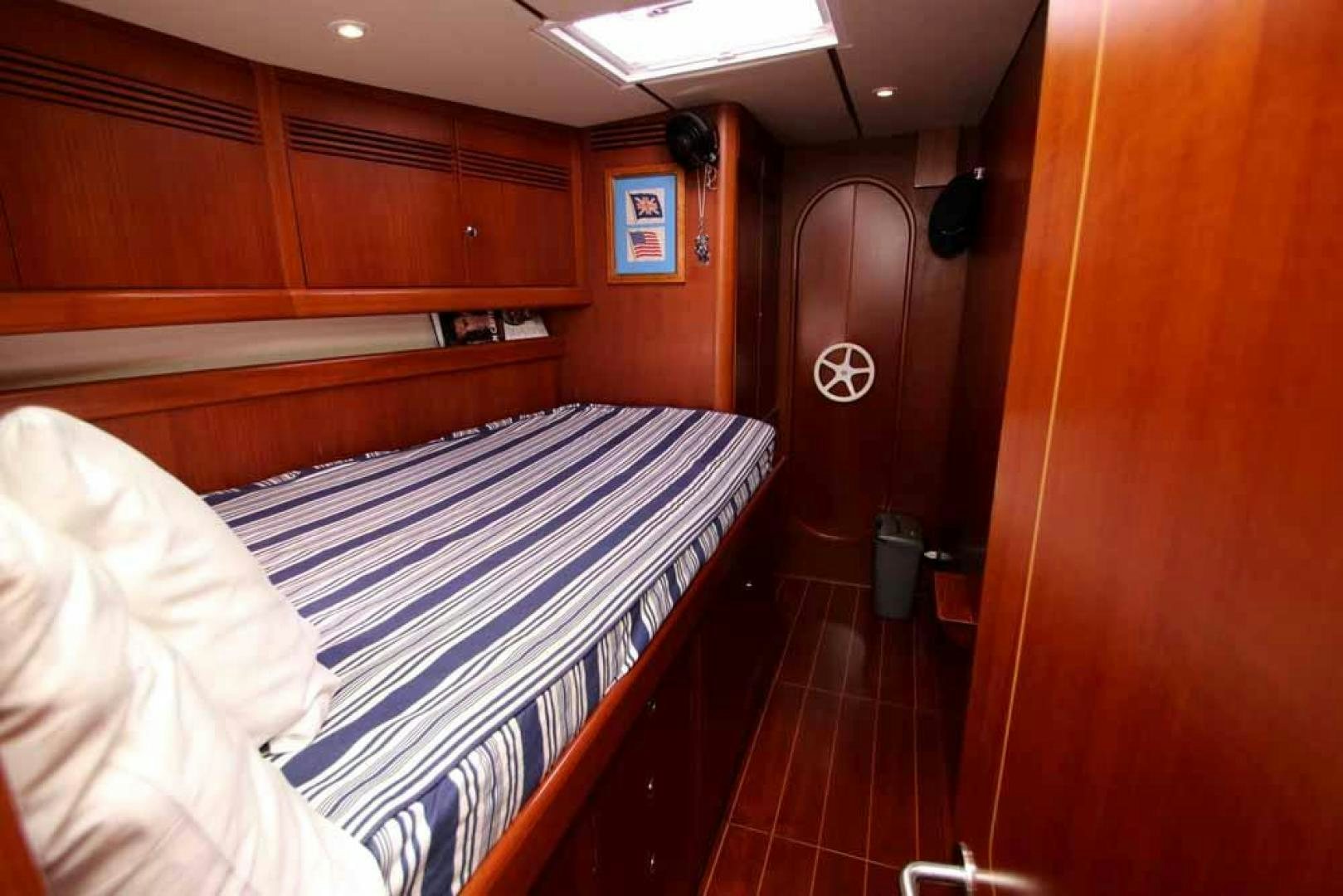

Forward to port is a crew head and shower, forward of which is the captain's cabin with double berth, and with access, via a watertight door, to the forepeak sail locker. On the starboard side is another crew shower and a long cabin with three single berths.

The crew quarters are fitted out in the same style and finish as the owner's quarters aft.

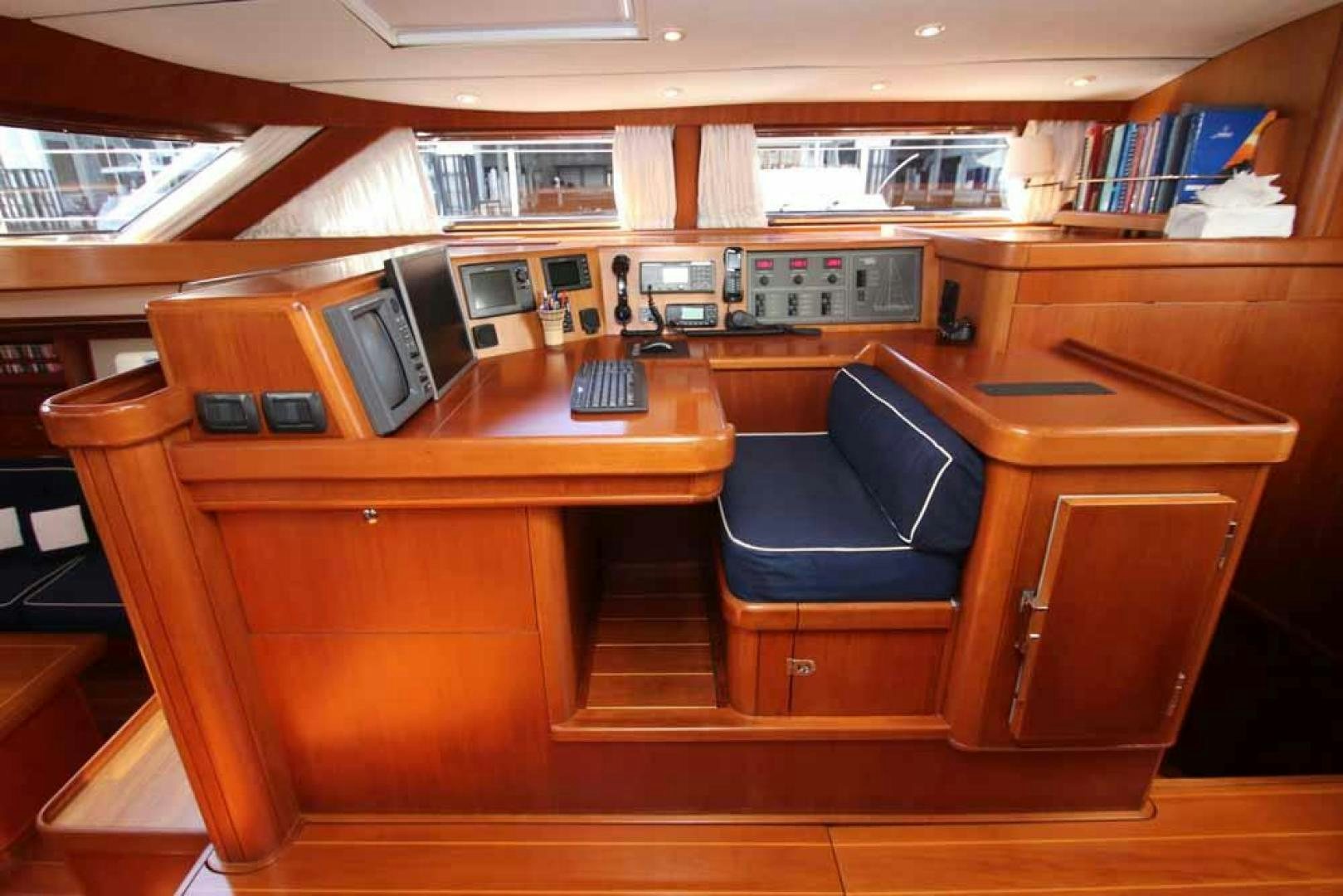

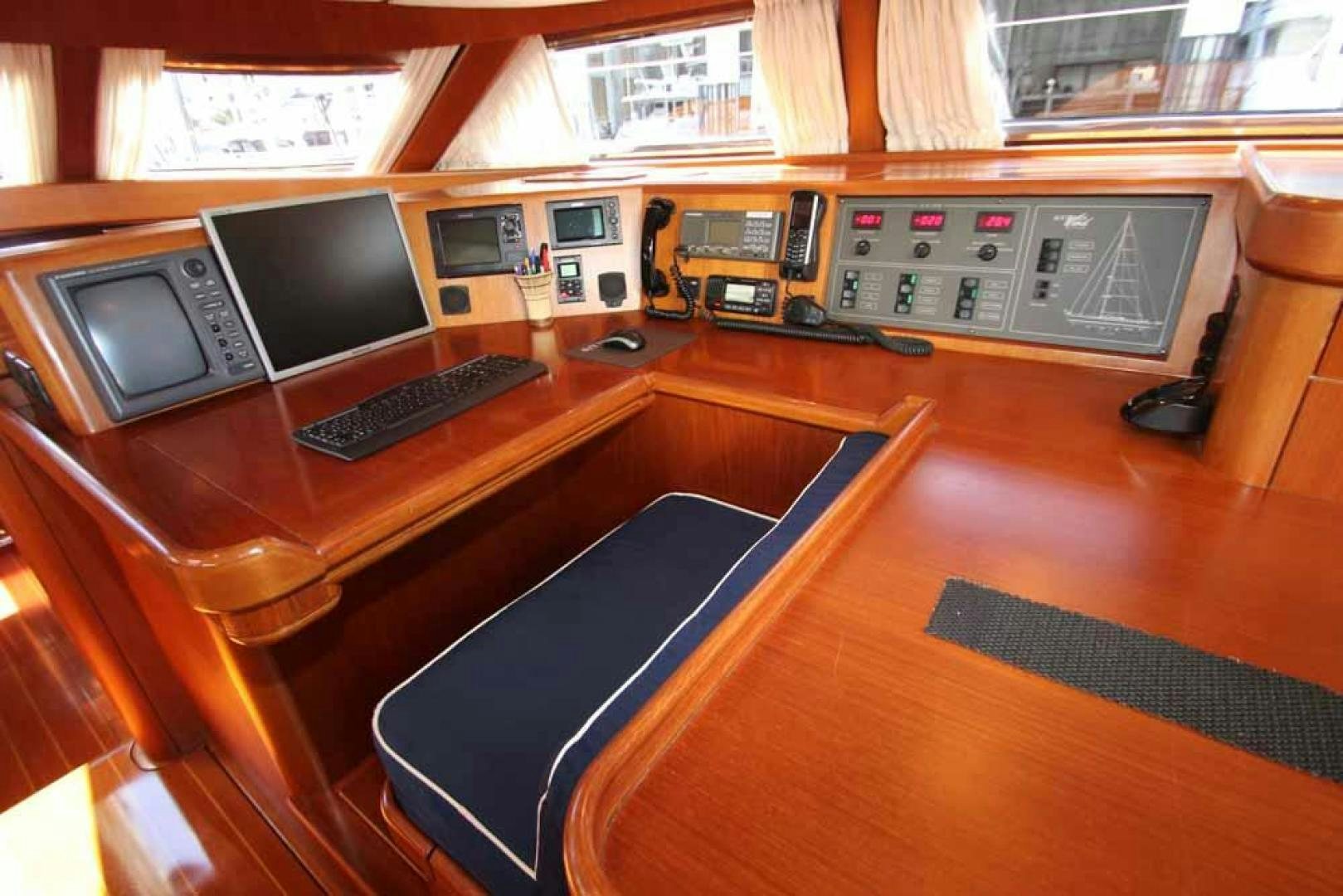

Navigation And Communication Equipment

Furuno 64 mile radar
 B&G T7 GPS Plotter – New 2015
 B&G Hydra 5000 Systems w/7 MFDs, 2 x 2020, 2 analog displays
 B&G Autopilot
 Navigation computer system integrated to all systems with chart plotting software.
 Communication computer system
 Furuno SSB radio
 Icom VHF radio (cockpit remote handset, nav station base unit)
 Horizon VHF – Crew Mess
 Sailor Fleet Broadband 250 satellite phone
 Iridium Satellite Phone
 Netcomm 4G Router

Entertainment Electronics

Bang & Olafsen
Stereo throughout
Televisions in saloon & Owners Cabin


The hull is built in a composite material with a sandwich structure over a male mold. Unidirectional and triaxial glass and Kevlar with local reinforcements in carbon fiber, over a core of PVC closed cell foam, wetted with epoxy resin vacuum bagged and oven cured, filled, faired, and painted with Awlgrip Endeavour blue. - New paint 2015.

The deck and superstructure is built in the same materials and method in a female mold, and painted (where not sheathed in teak) in Awlgrip 2000 Matterhorn White - New paint 2015.

The keel upper section is a steel spacer foil with a lower bulb and wing section cast from 20.3 tons of lead.

The rudder is in fiberglass with closed cell foam core with an elliptical profile.  The lower part of the blade is sacrificial and replaceable. The rudder shaft is carbon fiber. Steering is by cable to a quadrant driven by a two meter diameter stainless steel spoked, varnished teak rim wheel on a Solimar double pedestal.

Mechanical And Electrical Equipment

The engineroom, entered through a soundproof door from the lobby, has bright lighting, white surfaces, polished stainless steel, logically placed machinery, and an absence of clutter. Access to all sides of the 400hp MAN diesel, the two gensets, the air conditioning system, watermakers, pumps, and motors is easy. A proper workbench with full standing headroom is outboard to port.

 MAN D-2866 LXE 400hp main engine
 Brunton’s 4 Bladed Varifold 36" x 23"
 Northern Lights 25kW 50 hertz generator
 Northern Lights 12Kw 50 hertz generator
 Max Power retractable 19kW (25hp) bow thruster
 Frigomar chilled water system air conditioning w/two compressors 62000 BTU each and individual thermostatically controlled air handlers throughout the yacht – All new 2015/2016.

 (3) Compressors – New 2012
 (2) Frigomar 500 liter (18 cubic feet) upright refrigerator – galley
 Frigomar 200 liter (7 cubic feet) upright freezer – galley
 Frigomar 200 liter (7cubic feet) chest freezer – galley sole
 Frigomar 300 liter (10 cubic feet) wine chiller – saloon
 Frigomar 85 liter (3 cubic feet) drinks fridge - pilothouse
 Techma Jet Flush fresh water 24 volts
 (3) Black water tanks 100 liters each
 (2) HEM 187 liters (50 gallons) per hour watermakers

 Batteries - All service and engine/generator start batteries replaced April 2017:
 House service:   2 banks of 24 volt 840 amp hours (1680 amp hours total)
                           Sonneschein Dry Fit Traction 2 volt cells.
 Engine start:      2 banks of 24 volt 200 amp hours
                           Sonneschein Dry Fit A200 12 volt cells.
 Communication: 1 bank 12 volt 320 amp hours
                            Sonneschein Dry Fit 12 volt cell.
 Battery banks can be paralleled via battery panel in any configuration.

Battery Chargers:
 (3) Mastervolt 100 amp 24 volt
 (1) Mastervolt 50 amp 12 volt
 Mastervolt 24/3000 inverter feeding:
 Entertainment systems
 Selected 220 volt sockets
 Galley extractor fan

Safety Equipment

CO2 engine room fire extinguishing system
 Fire Hose
 8 x Hand held fire extinguishers
 Fire escapes from all compartments
 (2) 10 man life rafts
 Safety harnesses and lifejackets

Deck Equipment

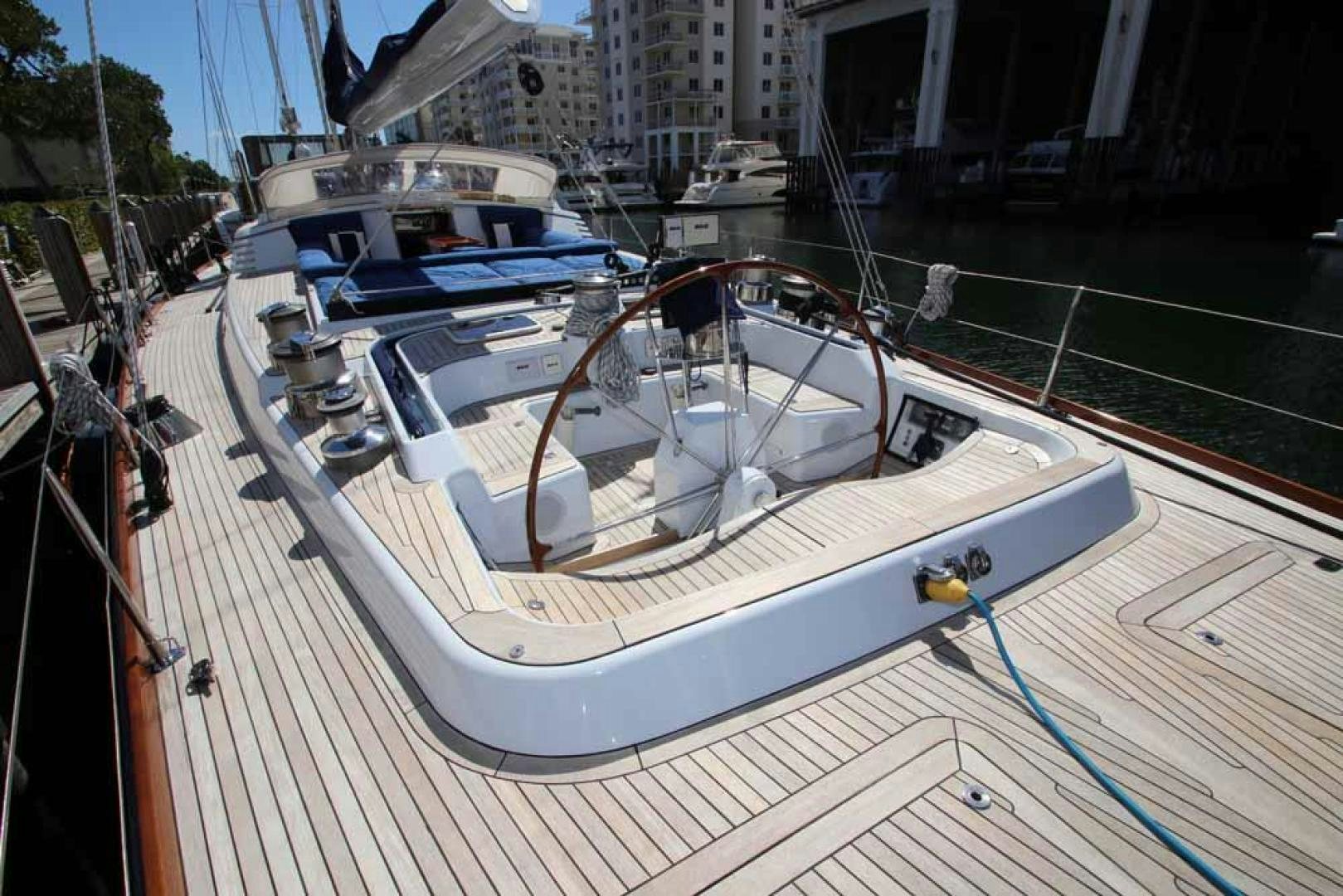

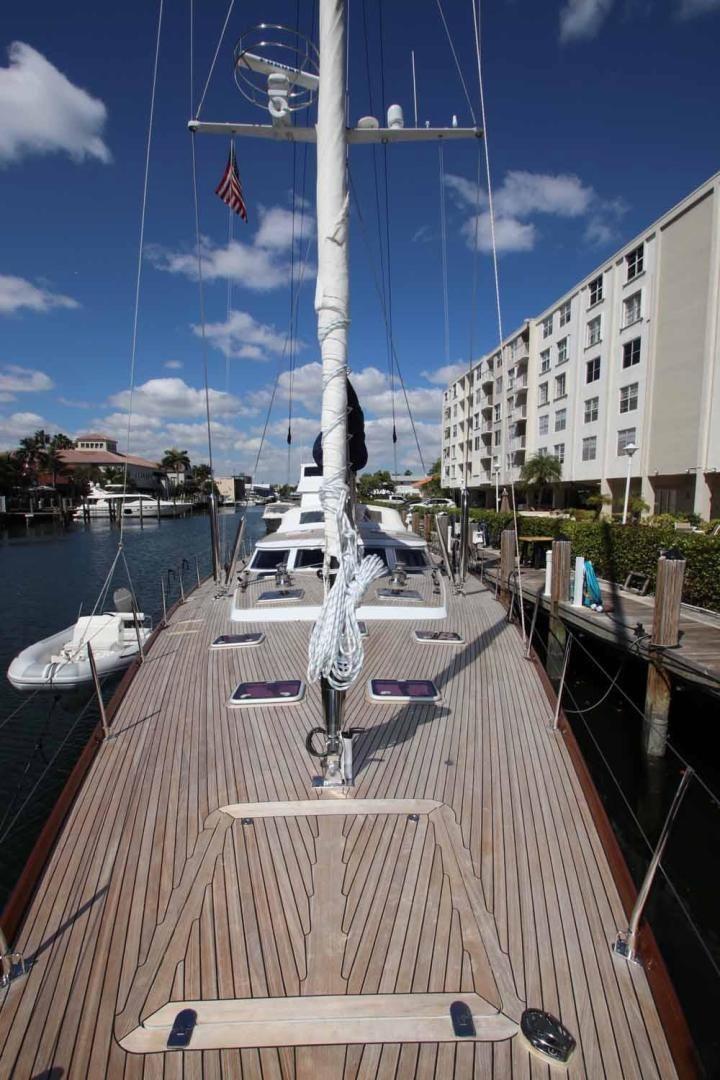

All weather decks are sheathed in seasoned teak laid to a king plank. All joints are 20:1 scarfs; there are no butt joints.

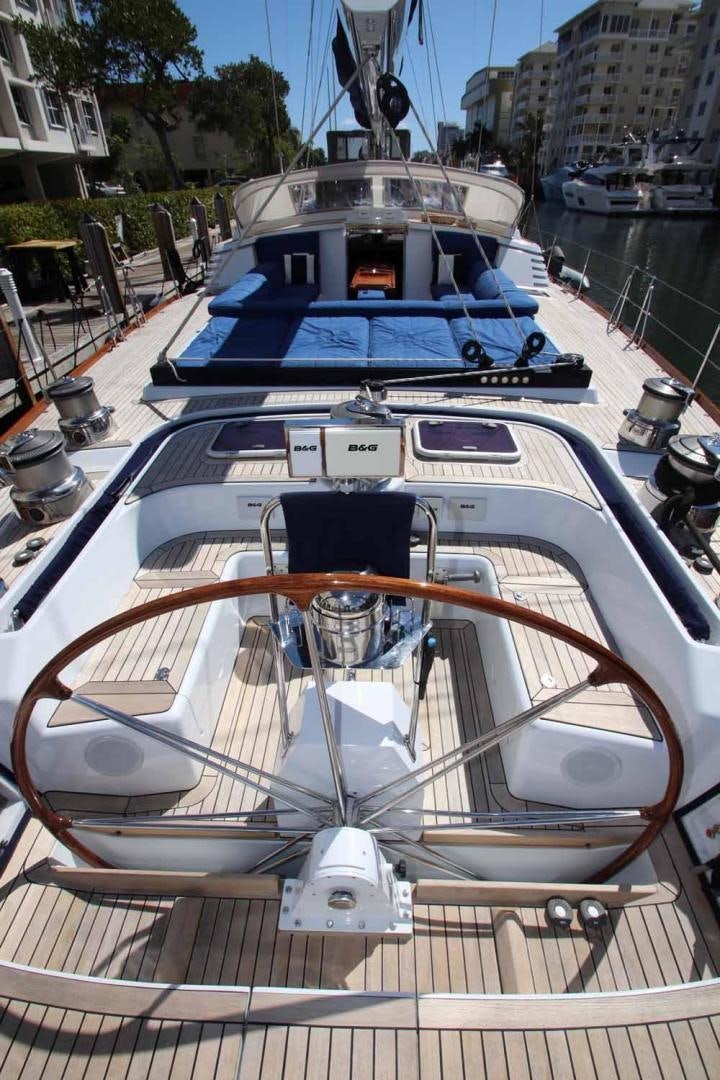

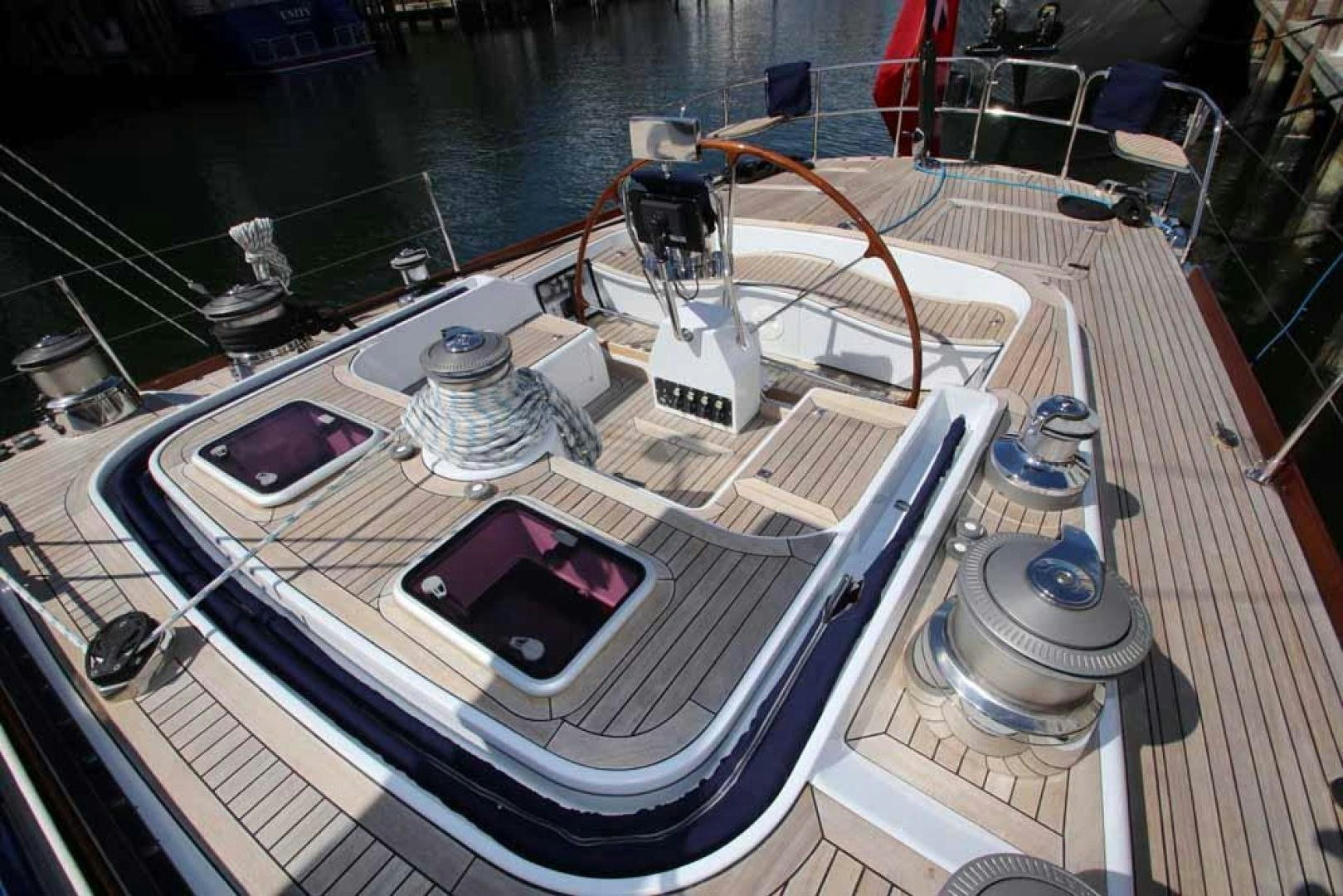

All controls are lead to the aft steering cockpit.

Multi stainless steel spoke 2m diameter steering wheel w/varnished teak rim.
 Sailing dodger recessed into coaming.
 Huge lazzarette with two 95cm x 95cm teak deck hatches.
 Lewmar Ocean Series low profile hatches.
 Varnished teak toerail.
 SS stanchions with ss wire lifelines.
 Sun lounger cushions on bridge deck.

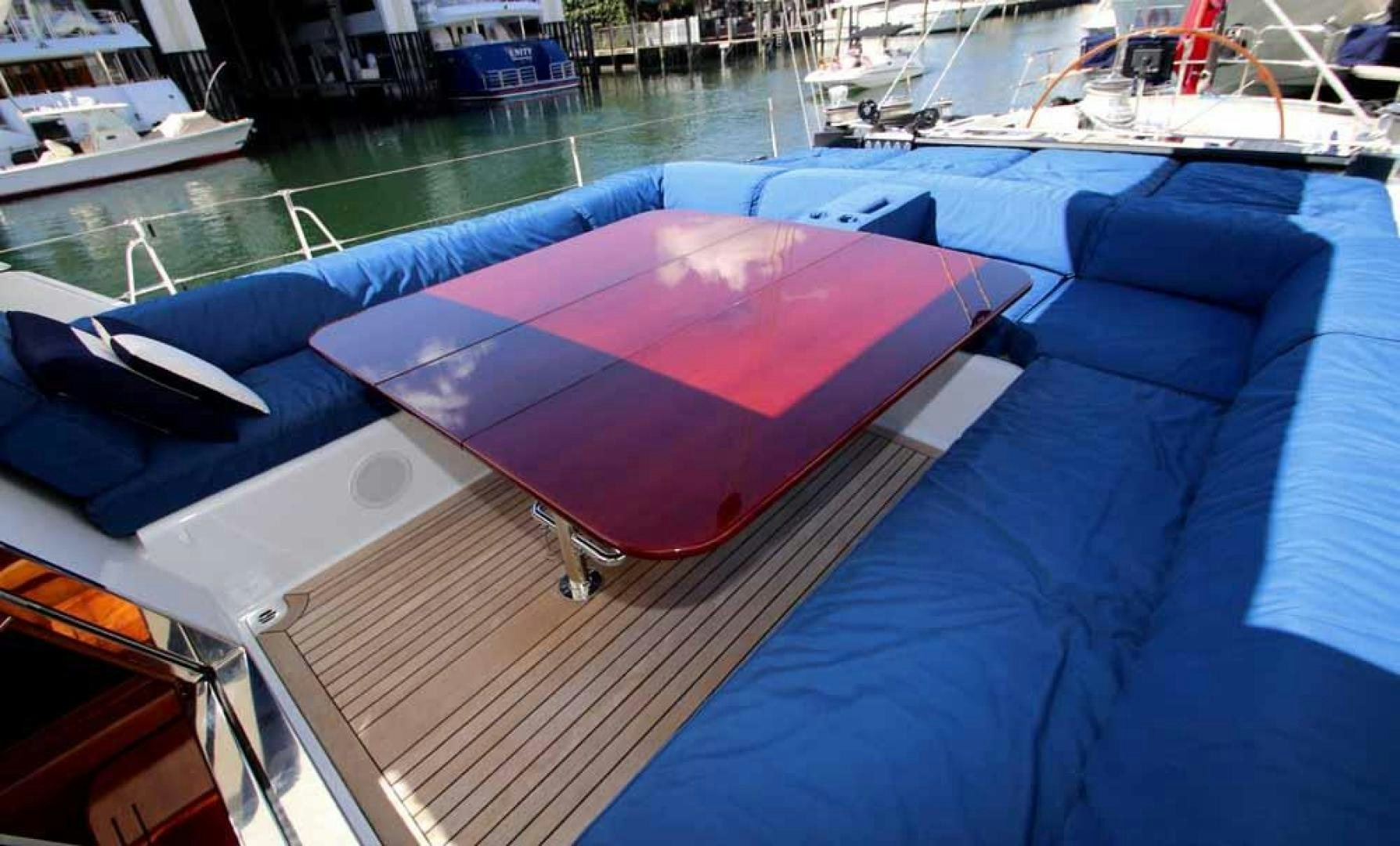

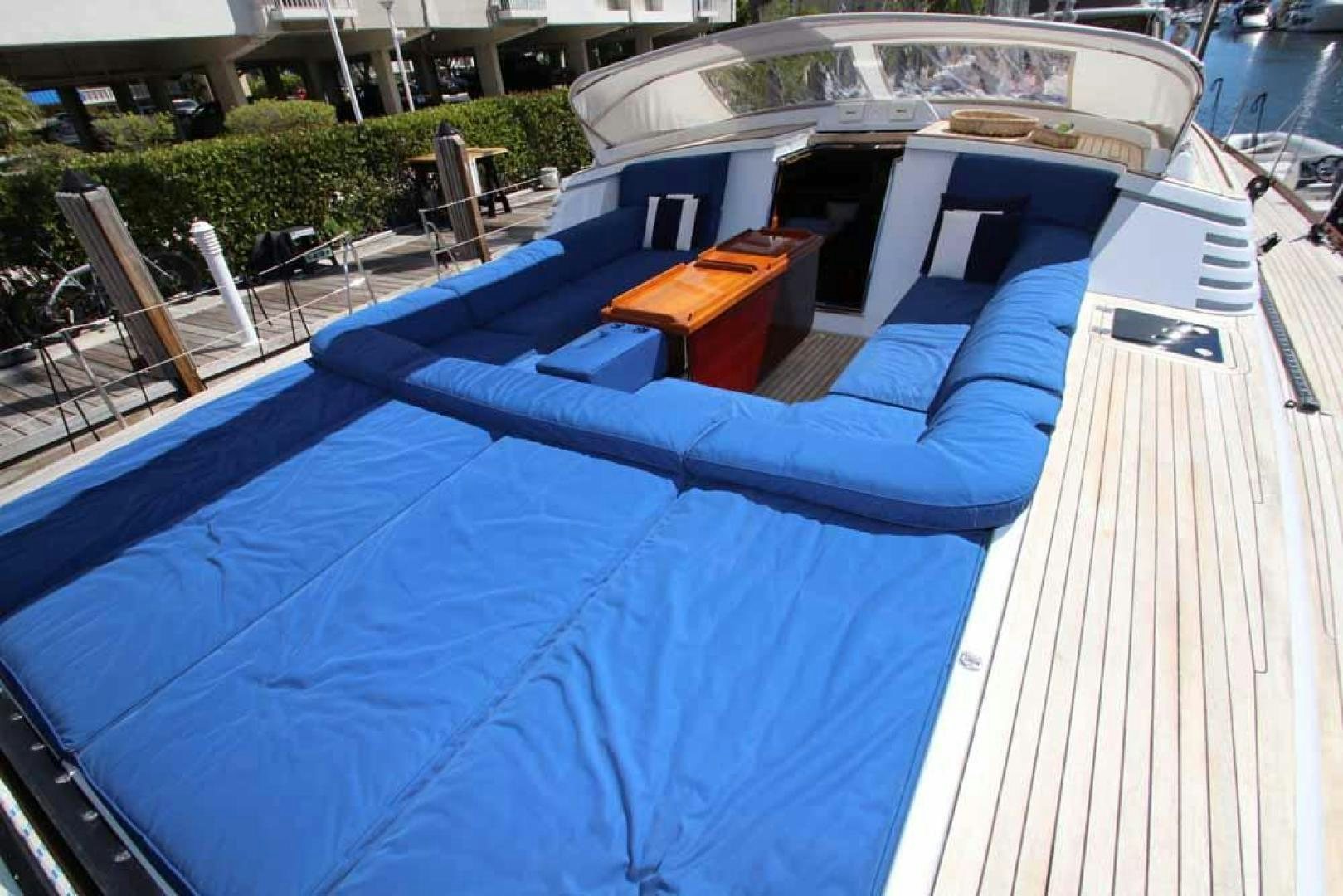

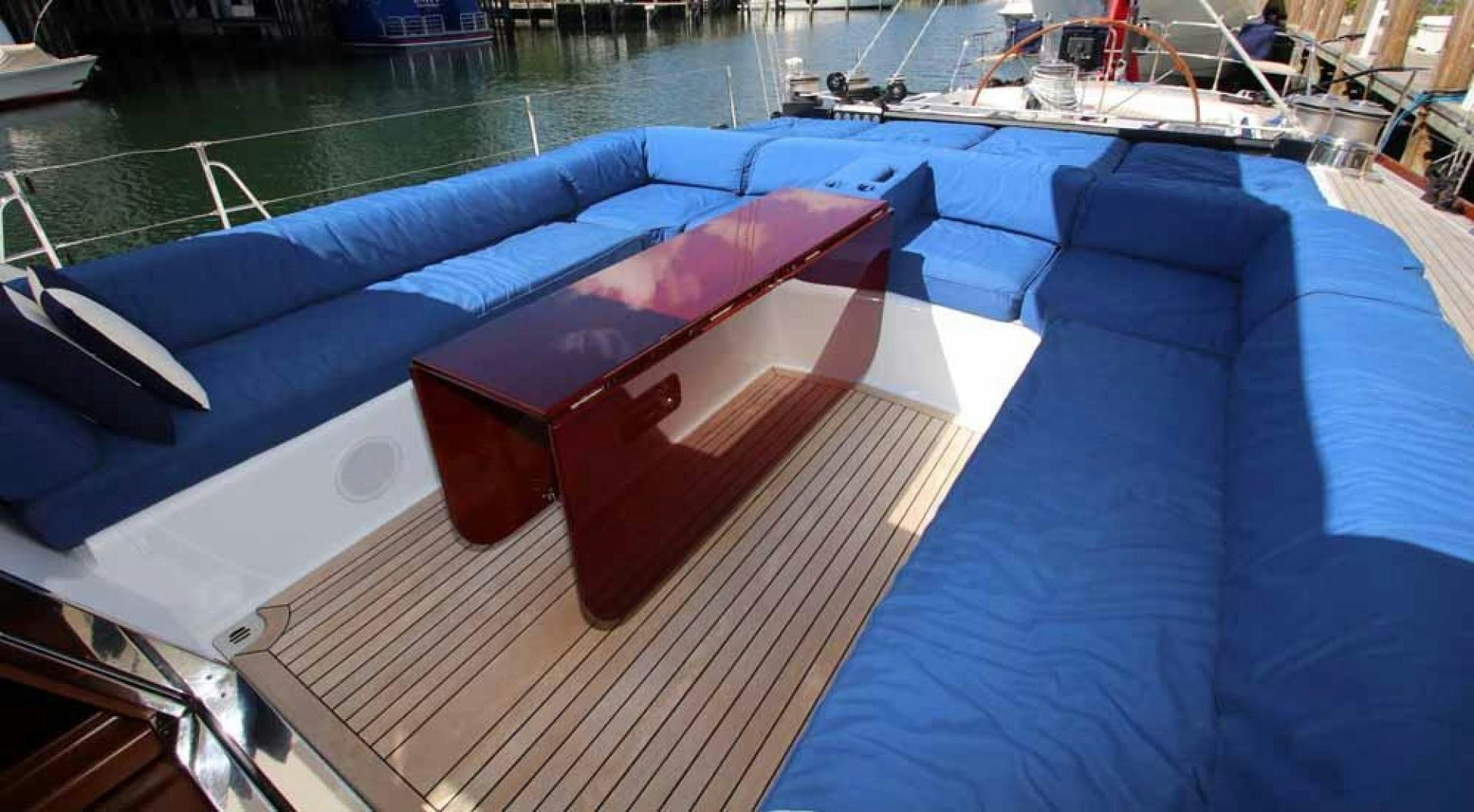

 Center lounging cockpit with varnished teak table.
 Center Bimini recessed into cockpit cushions.
 Center cockpit dodger recessed into deckhouse.
 NE44 Nova Marine 4.5m tender with 60Hp, cradles on foredeck.
 Zodiac fast roller 4.2m crew tender w/25hp outboard
 100cm x 100cm foredeck teak hatch to sail locker.
 Recessed windlass and chain way to keep dirt off the deck.

Rig And Sailing Equipment

I = 33.8 m  (111 feet)
J = 10.2 m  (33'6")
P = 30.58m  (100'4")
E = 10.4 m  (34'2")
100% Sail Area  356m2  (3,832 sq ft)
Main Sail  184m2  (1,980 sq ft)


 Sparcraft light alloy extrusion
 4 “wing profile” sets of spreaders perpendicular to centerline – New paint 2015
 Light alloy “Park Avenue” boom
 Carbon fiber spinnaker pole - stows against forward face of mast
 Reckmann RF90-5 hydraulic genoa furler
 Reckmann RF90-4 hydraulic staysail furler
 OYS discontinuous stainless steel rod standing rigging
 Spectra double braid pre-stretched running rigging

Navtec hydraulics:

 Cockpit: four function unit – backstay, vang, main outhaul, cunningham.
 Mast: genoa halyard tension, staysail halyard tension.
 Lewmar stainless steel 2 & 3 speed self-tailing winches

Hydraulic power:

 (4) 3kW 24 volt pumps, sequentially initiated to allow four hydraulic power sailing functions to be carried out simultaneously. System is fully backed up by hydraulic pump driven by 25kW genset (normally used for bow thruster).

Doyle Sails Spectra sails:

 Fully battened mainsail
 Furling genoa 120%
 Furling staysail
 MPS (nylon)


MAYA RAY is a singularly beautiful yacht. She has served her first and only owner and his family well over the past 16 years in all oceans of the world. She is a fast cruising yacht deliberately designed to be serviced and maintained by her crew. Systems are simple to understand, and care has been taken to provide easy access. She has been meticulously looked after with regular yard periods and refits.

MAYA RAY is now offered for the first time on the brokerage market, and has been realistically priced for a quick sale.

Owner's Comments

The time my family and I have spent on Maya Ray is priceless. For 16 years I have been fortunate enough to spend many holidays visiting some of the most beautiful locations around the world including Tahiti, New Zealand, Greece, and the Caribbean. My children and I have loved snorkeling, diving, swimming with marine life, and paddle boarding while on board. Diving has been more than exceptional. The convenience of full service quarters makes for the most relaxing vacation, allowing for uninterrupted family time. It has been a joy watching my children learn about and develop a love for sailing. We played, swam, explored, talked, laughed, and rested as a family  and the boat has always been home away from home.
