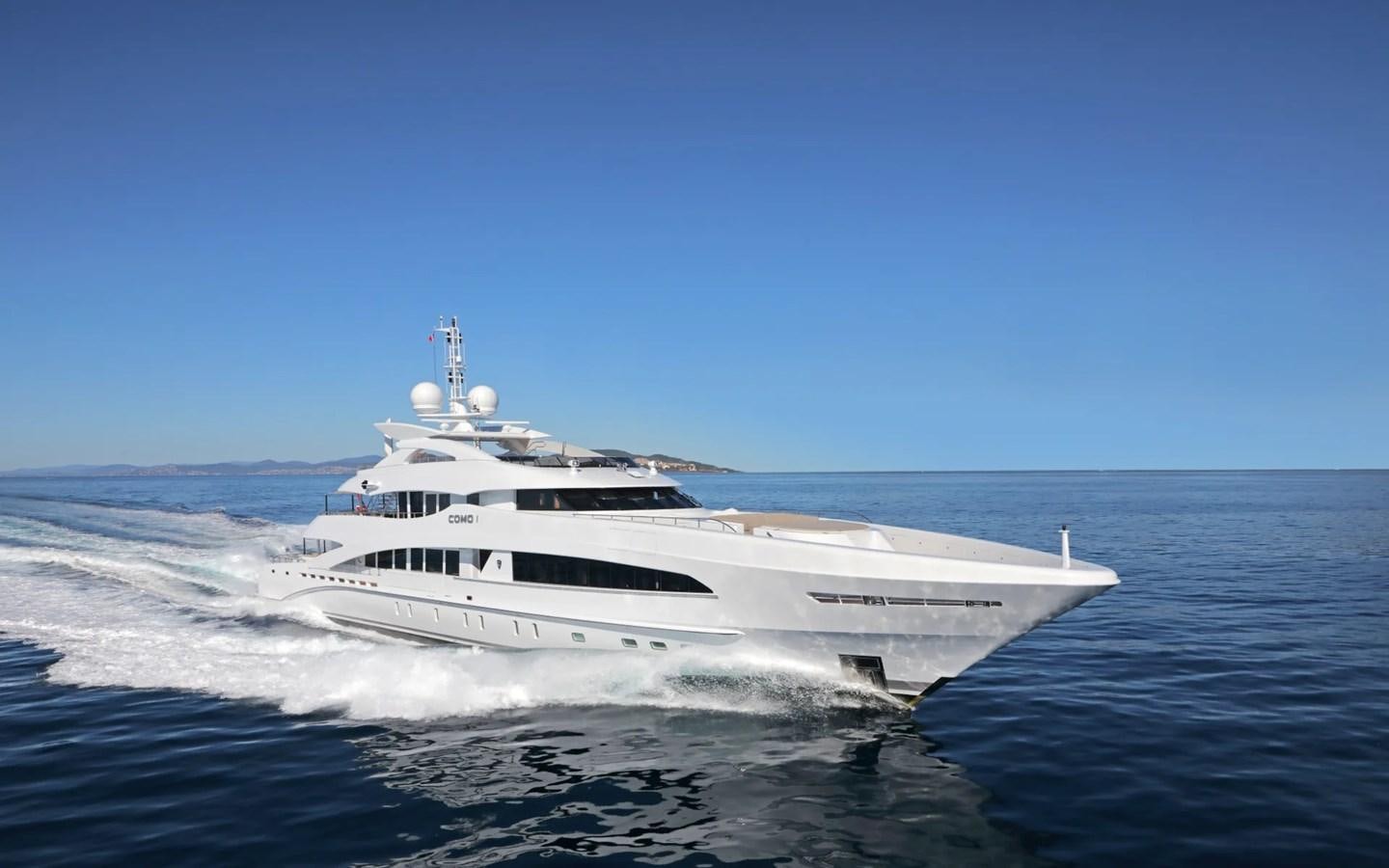

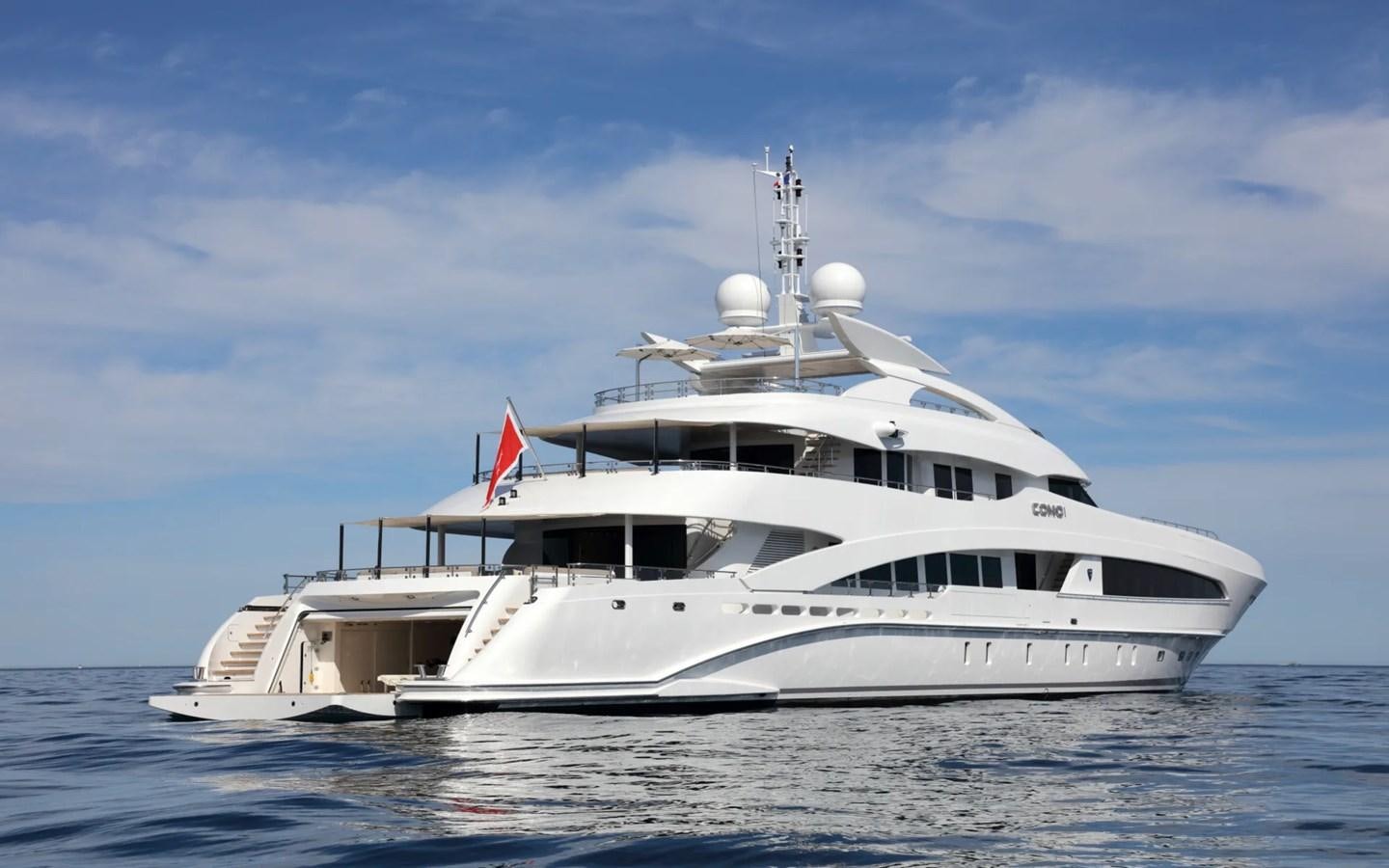

MADO Yacht for Sale

Length: 163' (49.8m)
Builder: HEESEN YACHTS
Build: 2014/2023

Cabins: 6
Crew: 10

Amenities

Specifications

Inquire

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Amenities

Conference room
Crane
Jacuzzi
Passarelle
Stabilizers
Tender Garage
Wi-Fi

In The News

Specifications

Builder	HEESEN YACHTS
Model	5000 Semi-Displacement yachts
Length (LOA)	163' (49.8m)
Year	2014
Year Refit	2023
Gross Tonn.	497
Draft	9' (2.57m)
Beam	29' (9m)

Accommodations

Staterooms	6
Sleeps	12

Crew Cabins	10
Crew Sleeps	10

Dimensions & Capacity

LOA	163' (49.8m)
Max Draft	9' (2.57m)
Fuel Tank	18,681 g (70,716 L)
Fresh Water	4,544 g (17,200 L)
Gross Tonn.	497

Construction

Hull Material	Aluminum
Ext. Designer	Frank Laupman, Omega Architects
Int. Designer	Francesco Paszkowski Design
Cruising Speed	17 Knots

Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

RUDDERS

2 x Stainless steel AISI 316L with stainless steel shafts AISI 431

STEERING SYSTEM

Litton Marine Systems, electrically controlled hydraulic with orbital emergency steering in tender garage

SHORE POWER

2 x Outlets - Marinco 3-phase for 180v to 540V/50/60Hz 100A 2 x 98ft/30m shore cables (2.76”/70mm diameter) incl. male and female plug

DIRTY OIL

886 litres / 234 US gallons

MAIN ENGINE START

2 x Optima sets of 24V-100Ah starting batteries

BATTERIES

850S gel for port & stbd main engines & generators
Charged by alternator on the generators
8 x Batteries of 12V DC-50Ah, in engine room

SERVICE BATTERIES

1 x Sonneschein service battery set 24v-600Ah, Gel for navigation lights, auxiliary circuits, electronic / nautical equipment & 24v DC lighting charged by alternators from main engine or battery charger
6 x Batteries of 12V DC-200Ah, in engine room 1

CHARGERS

1 x Charger 24VDC-75 Amp for the service battery in the engine room
2 x Chargers 24VDC-25 Amp for the start batteries in the engine room
1 x Charger 24VDC-50 Amp for the emergency battery in the wheelhouse
1 x Charger 24VDC-15 Amp for the emergency GMDSS battery in the wheelhouse

CONVERTERS

AC100-3/2-I with input voltage 3-phase, 170v-520v AC, 40Hz-70Hz &
output power
3-phase 400V/230V AC & frequency 50Hz
Power: 100KVA/85KW

EMERGENCY BATTERIRES

1 x Sonneschein emergency set 24V-600Ah for radio/emergency service; charged by battery charger
6 x Batteries of 12V DC-200Ah, in wheelhouse
1 x Sonneschein emergency GMDSS battery set

AIR CONDITIONING

Chilled watersystem:
40 x Fancoils throughout interior
Summer Outside: 35°C 90% RH or 40°C 65% RH / Inside: 23°C 50% RH
Seawater inlet: 32°C
Winter Outside: 0°C / Inside: 20°C
Seawater inlet: 5°C

WATER MAKER

2 x Hydro Electrique Marine reverse osmosis desalination systems
(400v/3p /50Hz) 25/1600 (6,000 litres / 1,585 US gallons per day each)

BILGE/WATER SEPARATOR

1 x Rossmark OWS SKIT S-DEB (500 litre) per hour - 400V AC, 50Hz

BOILERS

2 x Electric - 200 l each, 13kW electric heating, Nibe - 400V AC, 50 Hz

TOILET SYSTEM

Jets vacuum flush freshwater system

VENTILATION

2 x Sailor reversible supply fans, each 25,000m3/hour with suitable air ducts, variable speed, pressure & temperature related control
Emergency control of fans & inlet ducts above main deck level in the engine room entrance
Fans installed on anti-vibration dampers
Water splash plate installed to prevent water entering the engine room
Tender garage w/ independent forced ventilation
6 x Air changes per hour with grills in main deck overhead ceiling
Separate forced ventilation with air from tender for fresh air supply of minimum 25 m3/hour per person
Air handling unit with filter, preheating, cooling & fan, approx 2,500m3/hour

SEWAGE SYSTEM

Hamann THL-Cont Plus 5 with 12,000 litres per day capacity

FUEL SEPARATOR

Westfalia OTC 2-02-137 - 400V, 3-phase (1,150 litres / 304 USG p/h)

FUEL FILTERS

Racor for engines and generators:
Main engines: 4 x 1,000 per engine
Generators: 1 x 1,000 per generator

FUEL CONSUMPTION

Including 1 x Generator and 10% reserve
1,450 litres / 384 US gallons per hour @ 23 knots
1,100 litres / 290 US gallons per hour @ 20 knots
800 litres / 211 US gallons per hour @ 18 knots
380 litres / 100 US gallons per hour @ 14 knots
200 litres / 53 US gallons per hour @ 11 knots

Galley & Laundry Equipment

GALLEY

1 x Miele deep pan fryer KM 403
1 x Miele induction cooking plate 4-zone KM 5940
1 x Miele induction cooking plate 2-zone CS 1212
1 x Miele grill KM 411
1 x Miele steam oven (without elevation door) DG 4064
1 x Miele oven H 4681 B
1 x Miele microwave combi H 4082 BM
1 x Miele drawer type plate warmer EGW 4060-29
1 x Miele dishwasher G7856
2 x Foster Gastro refrigerator 600 litres
2 x Foster Gastro freezer 600 litres
1 x Foster under counter refrigerator HR 150
1 x Sink with Erator ISE 75

PANTRY MAIN DECK

1 x Eurocave Wine cooler 167 bottles S259
1 x Miele dishwasher G7856
1 x Frigonautica refrigerator serie 80
1 x Miele Coffee machine CVA 4085

OWNER’S OFFICE

1 x Frigonautica refrigerator serie 80
1 x Hoshizaki icemaker, air cooled IM 30CLE 25

SKYLOUNGE BAR

1 x Frigonautica refrigerator serie 80
1 x Hoshizaki icemaker, air cooled IM 30CLE 25

EXTERIOR SUN DECK

1 x Frigonautica refrigerator serie 80
1 x Hoshizaki icemaker, water cooled IM 30WLE 25
1 x Gaggenau Teppanyaki grill VP 421-111

TENDER GARAGE

1 x Liebherr Freezer GG 4360

CREW MESS

1 x Foster under counter refrigerator HR 150
1 x Miele microwave M 8261

GARBAGE STORE

1 x Chilled garbage store on main deck PS approx 470 litres

CREW QUARTERS

1 x Foster under counter refrigerator HR 150
1 x Miele microwave M 8261

LAUNDRY EQUIPMENT EQUIPMENT

2 x Miele washer PW 6065
2 x Miele dryer PT 7136
1 x Miele iron machine B890

Communication Equipment

SATCOM

Sailor 6110 Mini-C GMDSS System
Sea Tel 4012GX Ku-Band Maritime VSAT Antenna
Sailor 250 Fleet Broadband

VHF

2 x Jotron GMDSS portable VHFs TR-20
2 x Portable Motorola VHF GP-340
2 x SP Radio (Sailor) VHF w/ DSC A, 6222 (wheelhouse & crew mess)

TELEPHONE EXCHANGE

Panasonic telephone / intercom system including:
1 x Central unit KXTD-100
24 x stations & 8 x outside lines
18 x Digital phones
1 x Hands free phone, KXT 7630SPB display in wheelhouse
1 x Panasonic KXT 7665SPB single line phone for control room
1 x Wireless headset with interface & ring detector for engine room & steering room
1 x Patch panel for 48 x jacks
26 x Telephone connection boxes make Ticino

CELLULAR SYSTEM

1 x UMTS solution, Globesurfer III, 3G+ data & voice wireless broadband router

INTERNET

Starlink fitted November 2023

LANDLINE/INTERCOM

Panasonic on gangway, connected to PABX

Navigation Equipment

MAGNETIC COMPASS

Spherical Venus Electronic magnetic fluxgate compass w/ NMEA0183 interface

GYRO COMPASS

Navigat X MK1, model 10

AUTOMATIC PILOT

Navipilot 4000

ECHO SOUNDER

Furuno FE-700 Dual View

RADAR

1 x Arpa X-band Furuno FAR-2117 black box version, 24v DC - max. range 96nm
Relative and True Motion
Gyro / log interface & interfacing for GPS & ECDIS
1 x 1 x ARPA X-band radar make Furuno, FAR-2117 black box version,
230v AC – max range 96nm
Relative- and True Motion
Gyro/log interfacing for GPS & ECDIS
AIS 1 x Furuno, FA-150

BNWAS

1 x BNWAS Furuno type BR-500

GPS

1 x Dual DGPS navigation system, Furuno, GP-150

CHART PLOTTER

Transas electronic chart software, type NS-4000

NAVTEX

Furuno NX-700 (display with built-in printer) Vaisala, Weather Transmitter
WXT520

LOG

Furuno, model DS-80

WIND INSTRUMENTS

Vaisala, Model WXT 520

WINDSCREENS

5 x Marine type windscreen Hollex 235 KS Wipers, two speed 24v DC electric motors & interval switches
Wash system mounted on wipers & connected to ships freshwater system operated by solenoid valve 24v DC type 235 KS

SEARCHLIGHTS

2 x Sanshin electric 24 VDC ARC/RCL 600 – 24v DC Xenon lamp & parabolic reflector providing hyper-intense 6,000,000 candela spotlight beam

AIRHORN

1 x Kahlenberg model T1 with 1 x M-511A Controller in wheelhouse
1 x Pushbutton on each wingstation

Entertainment Equipment

GENERAL

1 x Seatel DAC220X marine stabilised antenna (4004) installed in the mast for the purpose of receiving satellite TV almost anywhere in the world.
Every TV has a dedicated satellite receiver except the Crew Cabins
1 x FM antenna installed in the mast to receive FM radio

CONTROL

A Crestron control system is used throughout to provide device control from a simple user interface on the iPad touch panel.
This system allows for the control of any number of devices - which would normally require a separate remote control, all through a single User
Interface Device, even if the devices are not in the same area / cabin

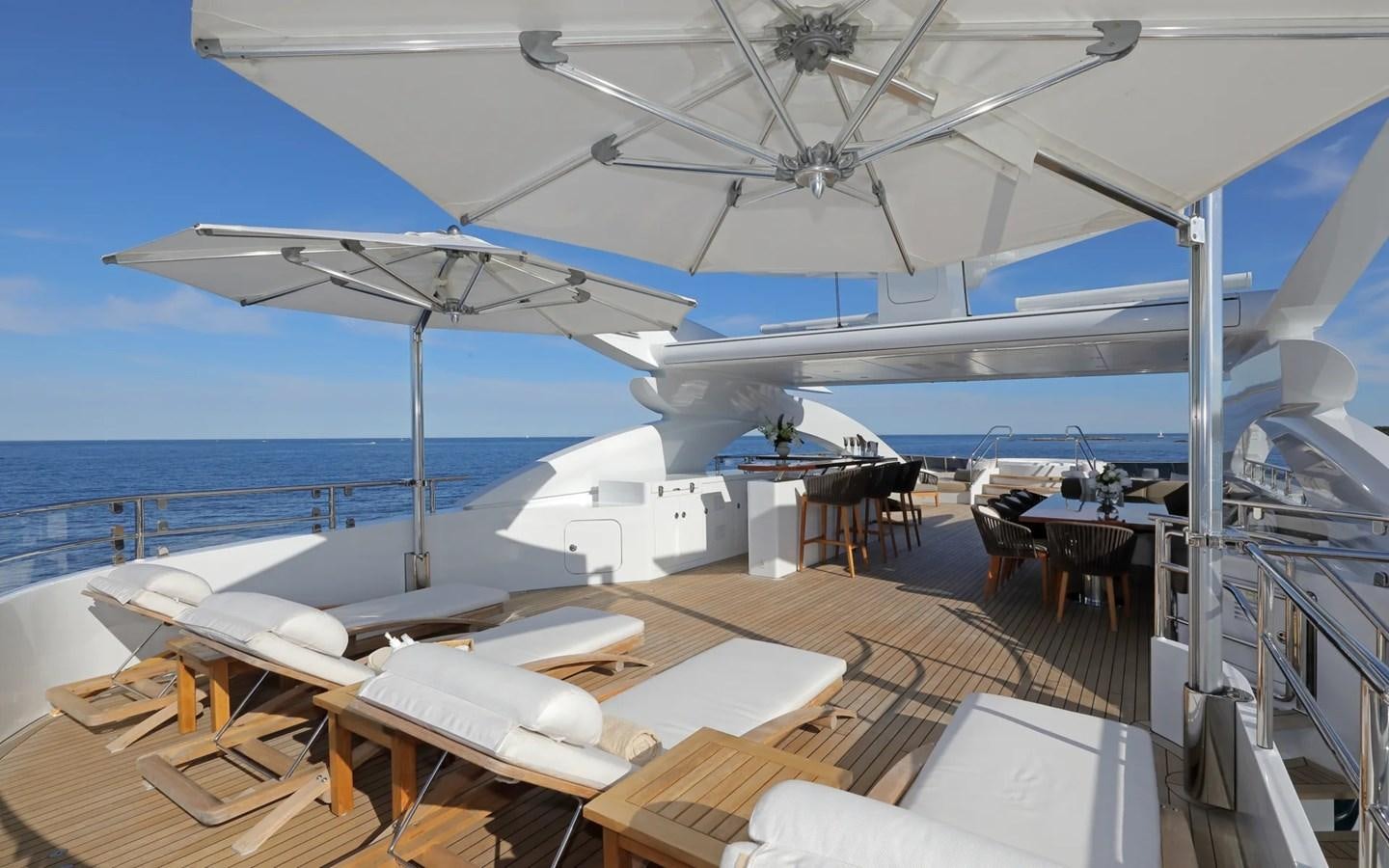

SUNDECK

The Sundeck with 6 built-in high quality outdoor speakers powered by a local amplifier.
A wall mount docking station for an Apple iPod is the main audio source for this area

WHEELHOUSE

The Wheelhouse is an audio only area with its own Pioneer car radio with built in CD player and USB to plug in personal iPod / iPhone

CAPTAIN’S CABIN

The Captain’s cabin is the same as the Guest Cabins & has its own satellite receiver, DVD-player & surround sound system, controlled by iPad plus 22” / 56cm LCD TV
The Wheelhouse deck aft is an audio only area that follows the Sky
Lounge audio, volume can be controlled separately

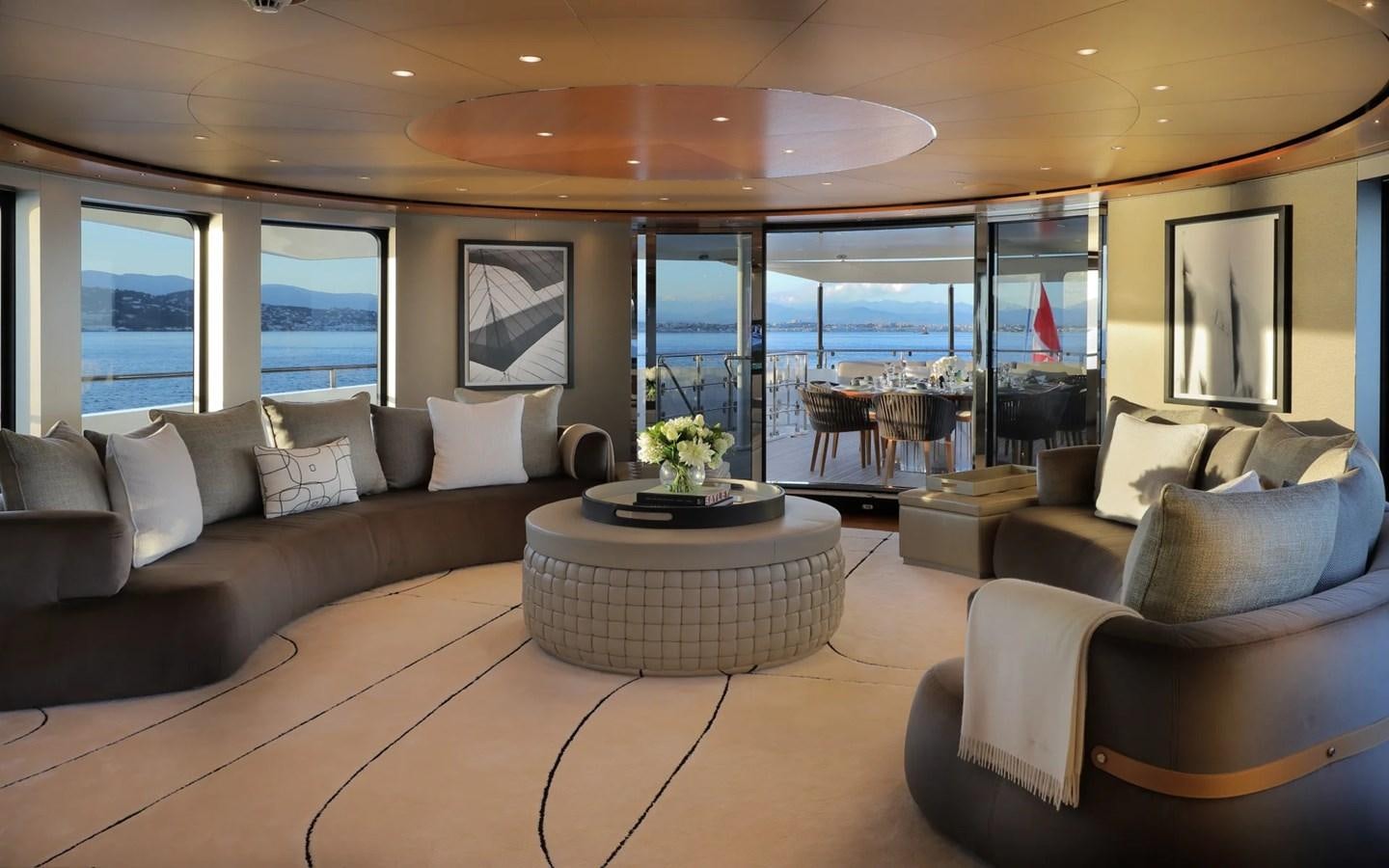

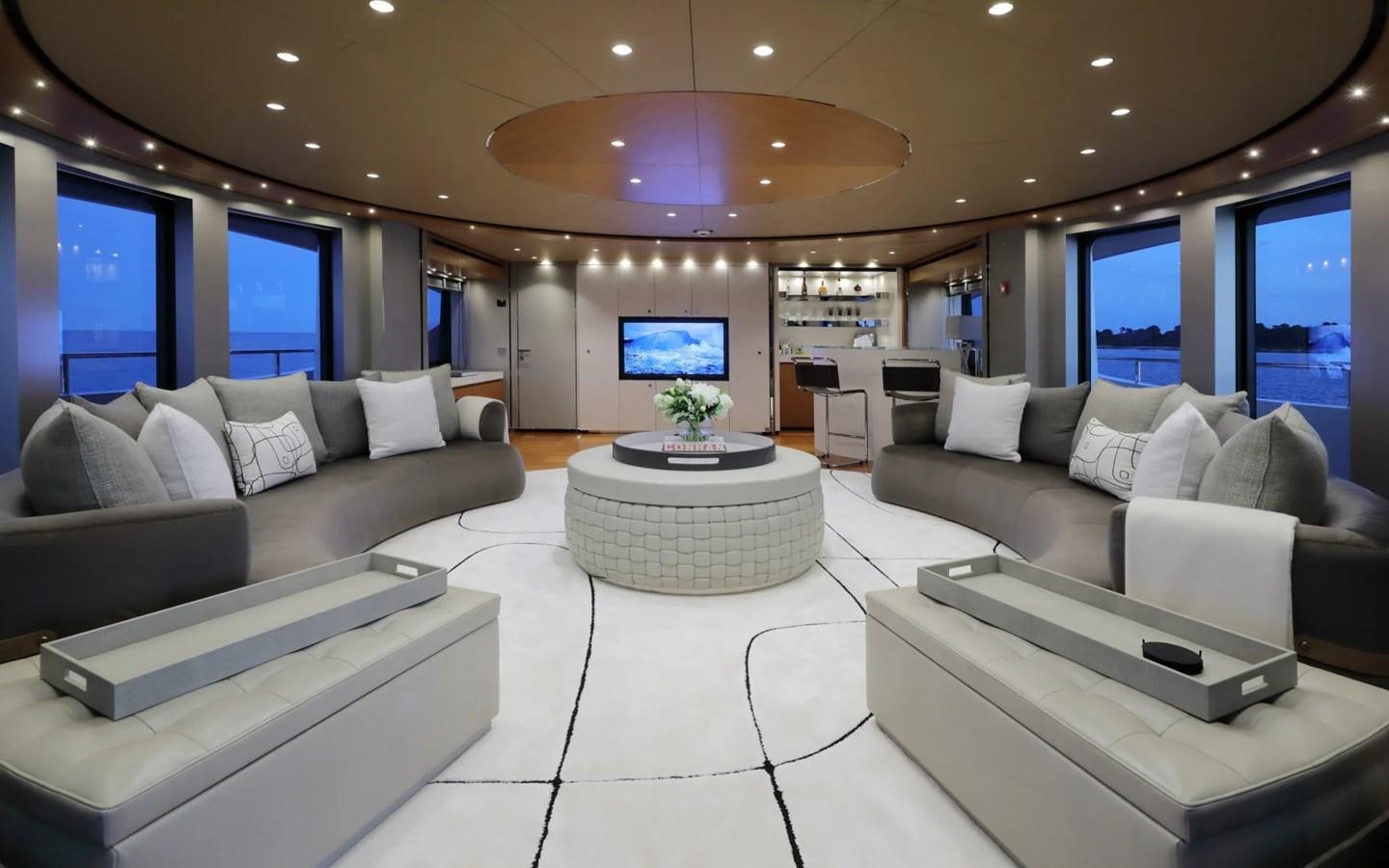

SKY LOUNGE

The Sky Lounge is one of the three principal luxury areas on board.
Equipped with 50”/127cm full HD plasma TV and a Blu-ray player
5 x High-end in-ceiling mounted loudspeakers for a 5.1 surround sound setup with a subwoofer controlled by iPad

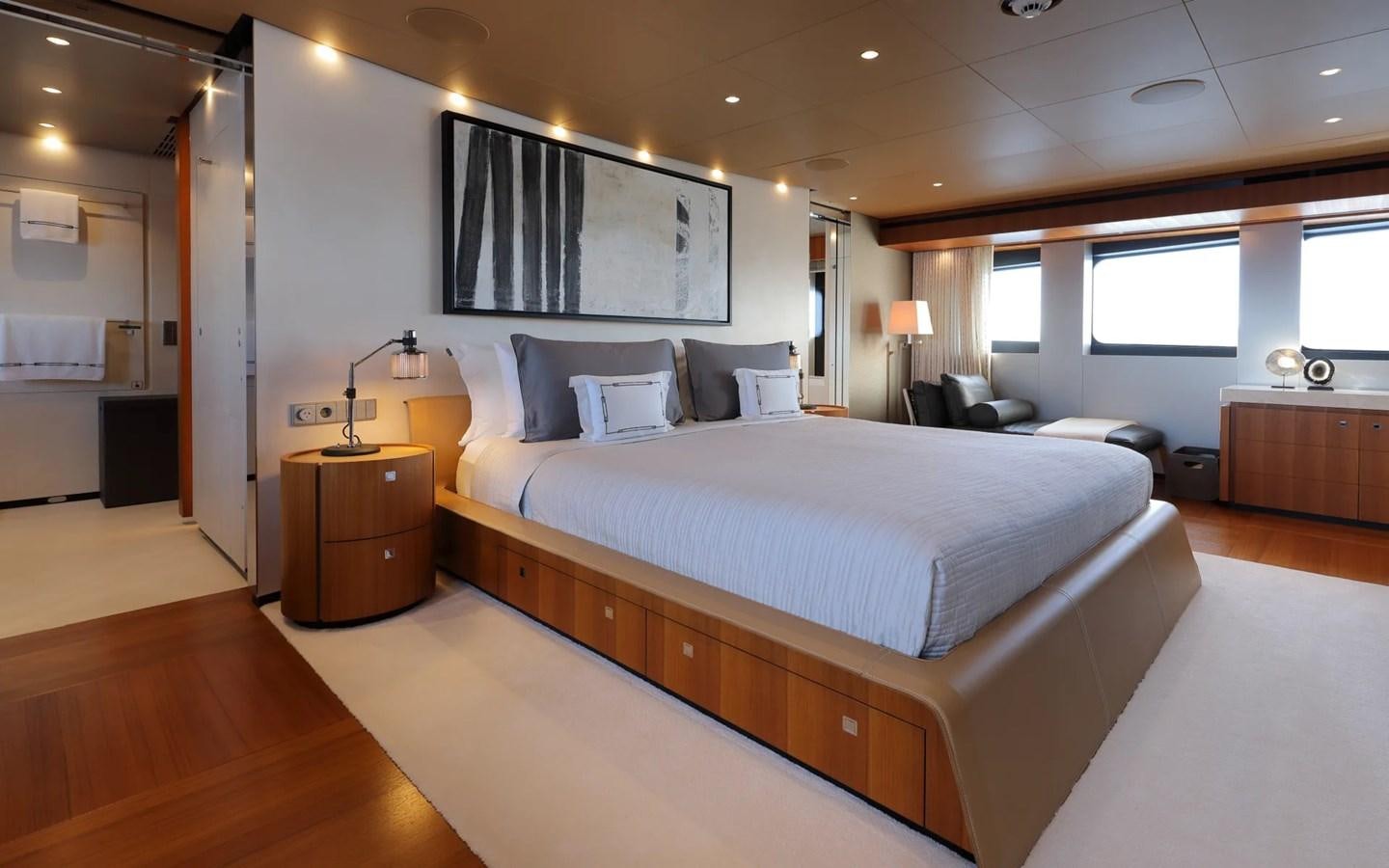

MAIN DECK MASTER SUITE

The Owner’s cabin - 42”/107cm full HD plasma TV & Blu-ray player
5 x High-end in-ceiling mounted loudspeakers for a 5.1 surround sound setup with a subwoofer Controlled by iPad
The Owner’s Bathroom is able to follow the audio of the selected source in the Owner’s cabin. Volume can be separately controlled with a local volume control unit also via the iPad of the Owner’s cabin.
The Owner’s study is able to follow the audio of the selected source in the
Owner’s cabin. Volume can be separately controlled with a local volume control unit also via the iPad in the Owner’s cabin.

GALLEY

The Galley is an audio only area with its own Pioneer car radio with built in CD player and USB to plug in your own iPod / iPhone.

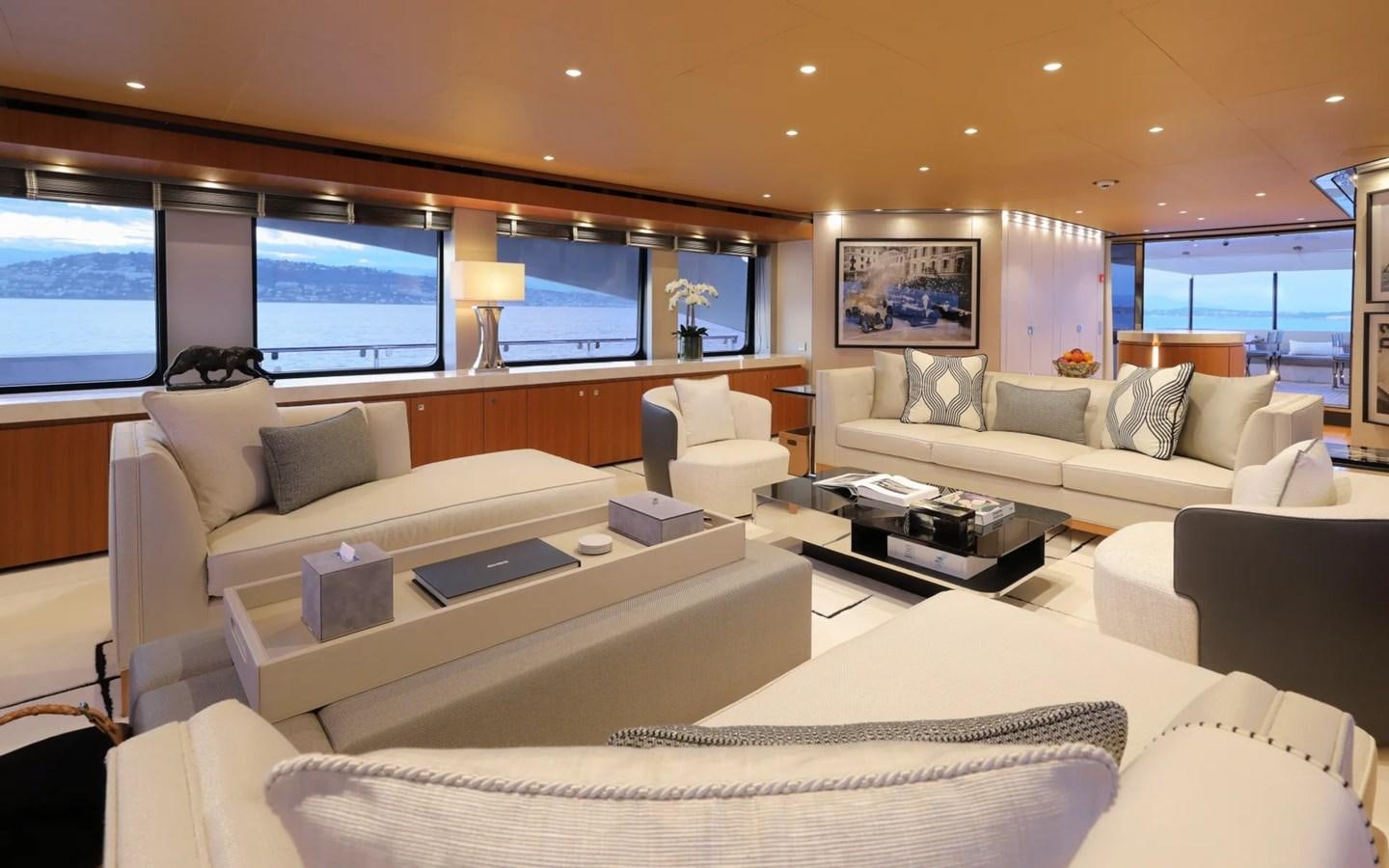

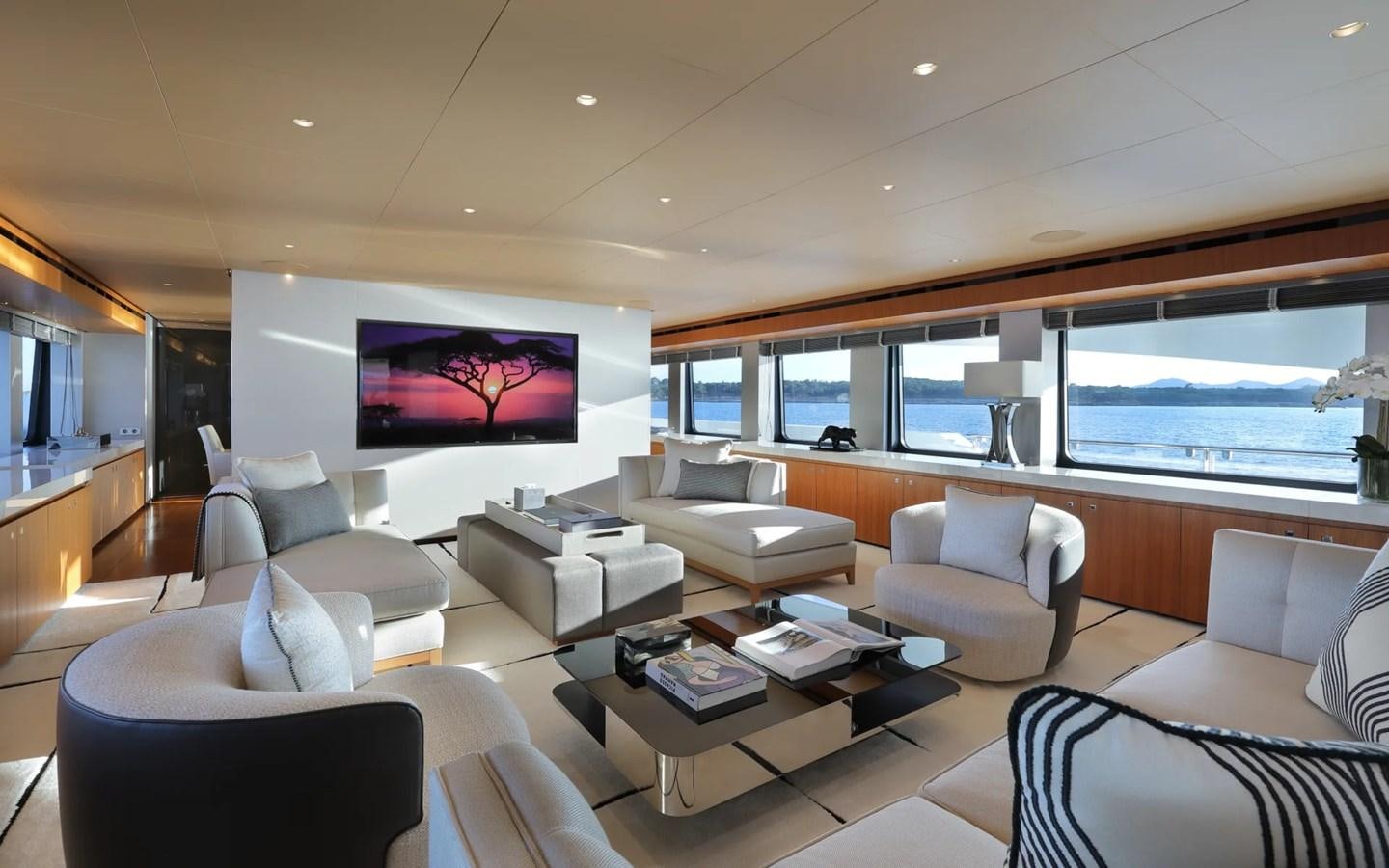

MAIN SALON

The Main salon is equipped as a higher level main area much like the Owner’s cabin and has the same functionality. The only difference being that the 50” / 127cm full HD plasma TV is mounted on a pop-up lift.
5 x High-end ceiling mounted loudspeakers for a 5.1 surround sound setup with a subwoofer controlled via iPad.

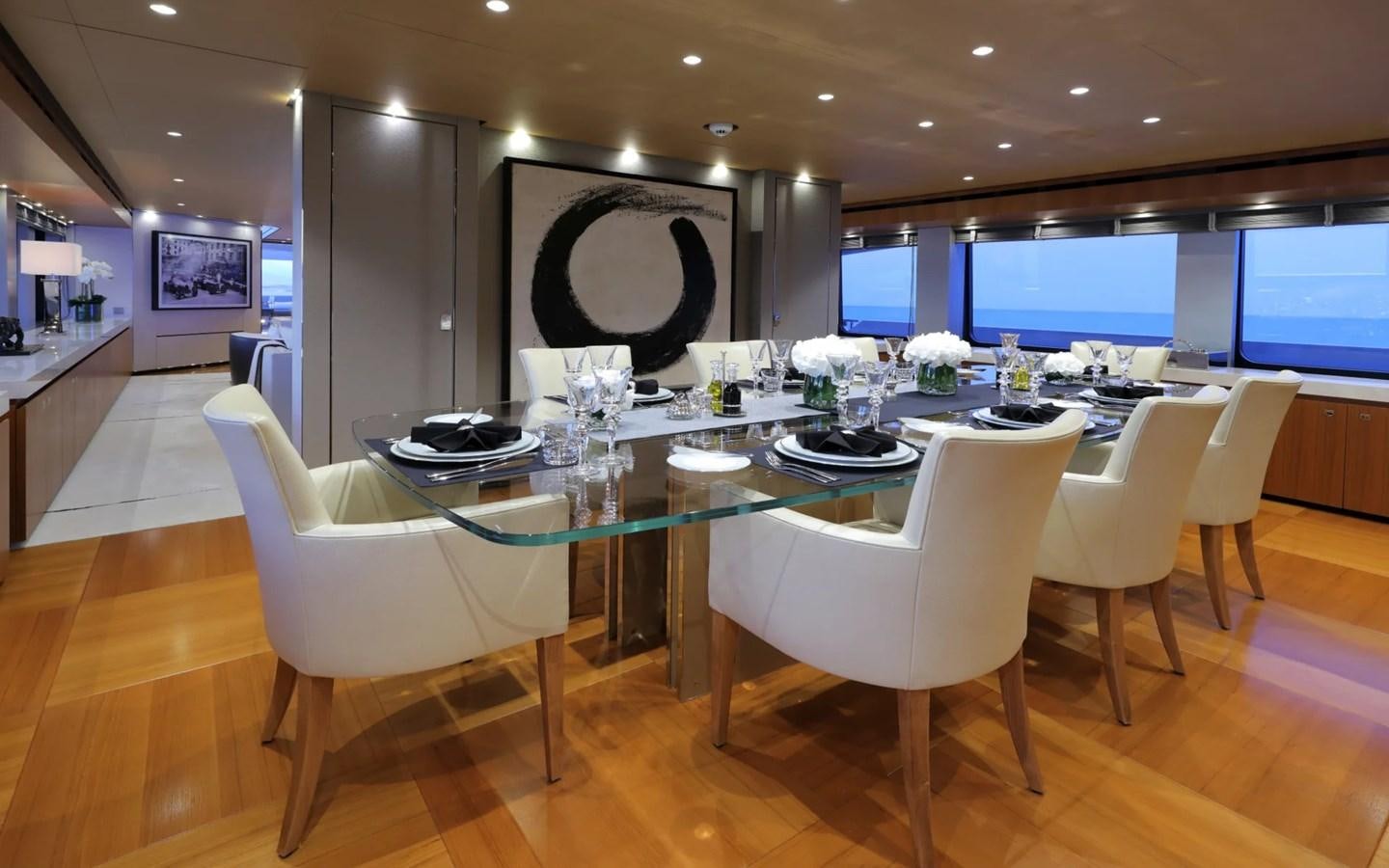

DINING ROOM

The Main dining room is an audio only area that follows the Main salon audio, volume can be separately controlled with a local volume control unit also via the iPad in the Main Salon.

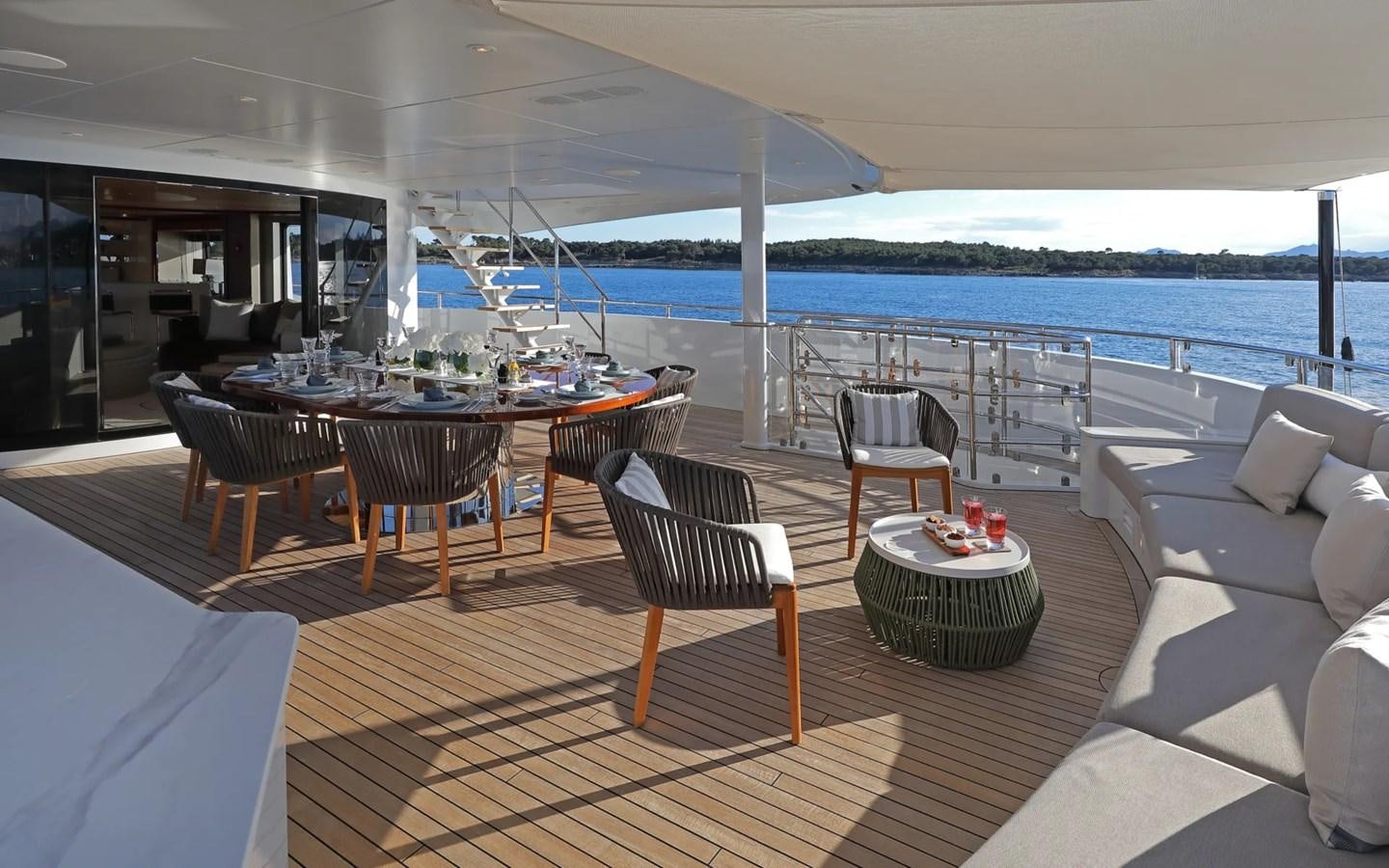

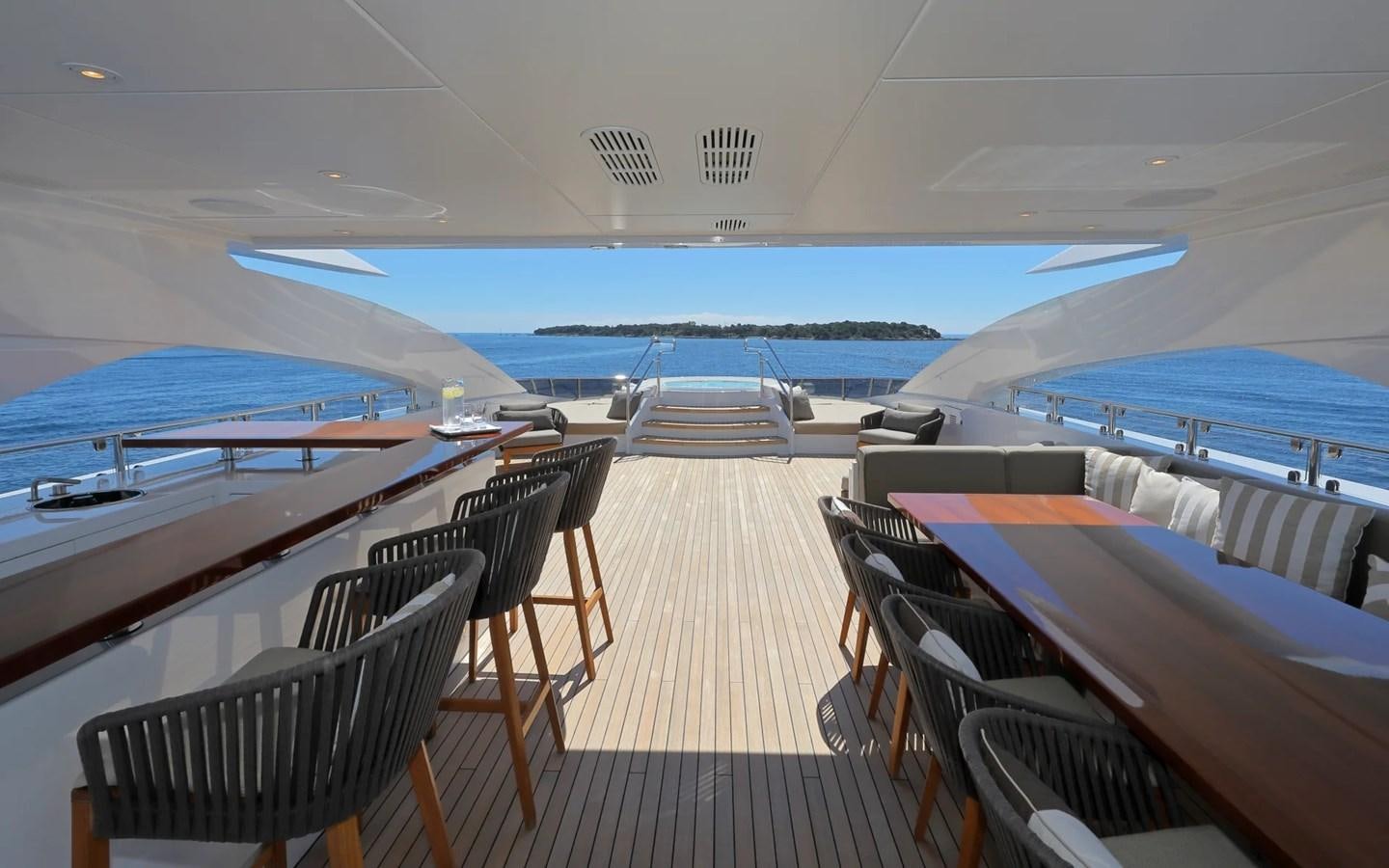

AFT DECK

The Main deck aft is equipped with 2 x ceiling mounted speakers which can follow the Main salon.
Volume can be separately controlled with a local volume control unit or with the new iPad in the Main Salon.

LOWER DECK GUEST
CABINS

The Guest cabins each equipped with a 32” / 81cm full HD LCD TV.
5 x High-end ceiling mounted loudspeakers for a 5.0 surround sound setup controlled by iPad.

LOWER DECK CREW

Each crew cabin has one region free DVD player with flip down 10.2”/26cm LCD screen per bunk
1 x Satellite receiver per crew cabin
The Crew mess has the same equipment as the guest cabins
The Laundry is an audio only area with its own Pioneer car radio with built in CD player & USB to plug in your own iPod / iPhone

Tenders & Toys

Deck Equipment

ANCHOR WINDLASSES

2 x Staalart electric (400v AC) stainless steel anchor winches CAS23- 17,5.ED w/ capstan & chain cable lifter

AFT WARPING CAPSTANS

2 x Staalart electric (400v AC) vertical stainless steel CR23-00

ANCHORS

2 x Original Pool Super High Holding Power TW 260kg

ANCHOR CHAINS

2 x 150m 5.5 shackles/150m x 17.5mm galvanised

ANCHOR CHAIN WASH

2 x Econosto Marine bronze valves, ND 40 (38mm) hooked up to the main firefighting line
Chain wash by means of three nozzles each

BOAT CRANE & DAVITS

Hydromar rescue boat crane (foredeck) 1,102Lb/ 500kg Safe Working Load (SWL)

PASSERELLE

1 x Hydromar aluminium electric / hydraulic operated telescopic

SIDE BOARDING LADDER

1 x Electric/hydraulic operated in starboard bulwark

JACUZZI

Hexagonal 2.4m x 1.98m 7 / 8 persons
Pool temperature 30º C
Fresh water tank temperature 20º C
Heating time 30 to 40 minutes
4,000 litres per hour filling capacity

AWNINGS

2 x Electrical knuckle beam sun awnings on sundeck, front & aft end of mast
Maximum reach 3.20m, Beam approx 15.1ft/ 4.60m

Safety & Security Equipment

SAFETY

4 x Zodiac 12-person life rafts
4 x Lifesaving rings recessed (2 x main deck, 2 x wheelhouse deck) all with 98ft/ 30m line, MOB light & orange smoke signal
24 x Inflatable adult life jackets
4 x Children’s life jackets
All life jackets with light and whistle
1 x Jotron EPIRB, Tron-40GPS MKII (121,5 & 406 MHz)
2 x Jotron Sarts, Tron-Sart 20 (operating in 9GHz band)

FIREFIGHTING

Fixed engine room firefighting system with CO2 bottle & separate nozzles in the extraction ducting & galley hood
1 x Electric self-priming bilge pump, make Sterling/Sihi, 400v, 3-phase with capacity of 15,000 litres (3,963 US gallons) per hour
1 x Electric self-priming firefighting pump, make Sterling/Sihi, 400v, 3- phase with
capacity of 15,000 litres (3,963 US gallons) per hour

FIREFIGHTING PUMPS

Firefighting pump connected to outlets with quick release hydrants with
hose and nozzle as follows:
1 x In the engine room with dual function nozzle - straight/screen spray
1 x In the tender garage with dual function nozzle - straight/screen spray
1 x On the foredeck
3 x On main deck: aftdeck & 1 x each on port & stbd side
2 x On wheelhouse deck (1 x aft deck, 1 x in front of wheelhouse)
1 x On sun deck
Firefighting pump can also be switched on to the bilge manifold for emergency use & vice versa
1 x Emergency diesel driven self-priming bilge / firefighting pump, Sterling / Sihi
17 x Bilge float switches, make Kubler type PO-L100-SP44

FIRE ALARMS

Eltec fire alarm system with:
1 x Fire alarm system, English version
27 x Smoke detectors, one for each accommodation
2 x Smoke detectors in E/R
2 x Heat detectors in E/R
1 x Smoke detector in steering room/ tender garage
1 x Smoke detector in fore peak
1 x Rise of heat detector 90 degrees in galley
10 x Indoor call point
2 x Indoor call point watertight
2 x Slow hoop watertight
12 x Slow hoop in accommodation
1 x Flashlight in engine room
3 x Gas detector S500-330N explosion proof, calibrated & certified for tender garage

SECURITY

2 x Video server w/ 4 x CCTV camera connections on each server for security (images of these cameras can be monitored on the entire ships monitoring system)
Samsung / Elbex colour CCTV camera system including:
1 x Camera with pan/tilt/zoom function for aft deck & passarelle
1 x Camera with pan/tilt/zoom function mounted in the mast
1 x Camera with pan/tilt/zoom function for engine room
1 x Camera with pan/tilt/zoom function for tender garage
1 x Camera with preset focus EX 430/3 with wide angle lens for gangway (starboard aft, looking forward)
1 x Camera with preset focus EX 430/3 with wide angle lens for gangway (port forward, looking aft)
Camera heating for outside cameras
1 x Power supply 12v DC 10 Amp
Multi cable coaxial with 8 wires cable
2 x Axis webcam server from the cameras into the ships monitoring system
Ship's Safes in Owner, Guest & Captain’s cabins
