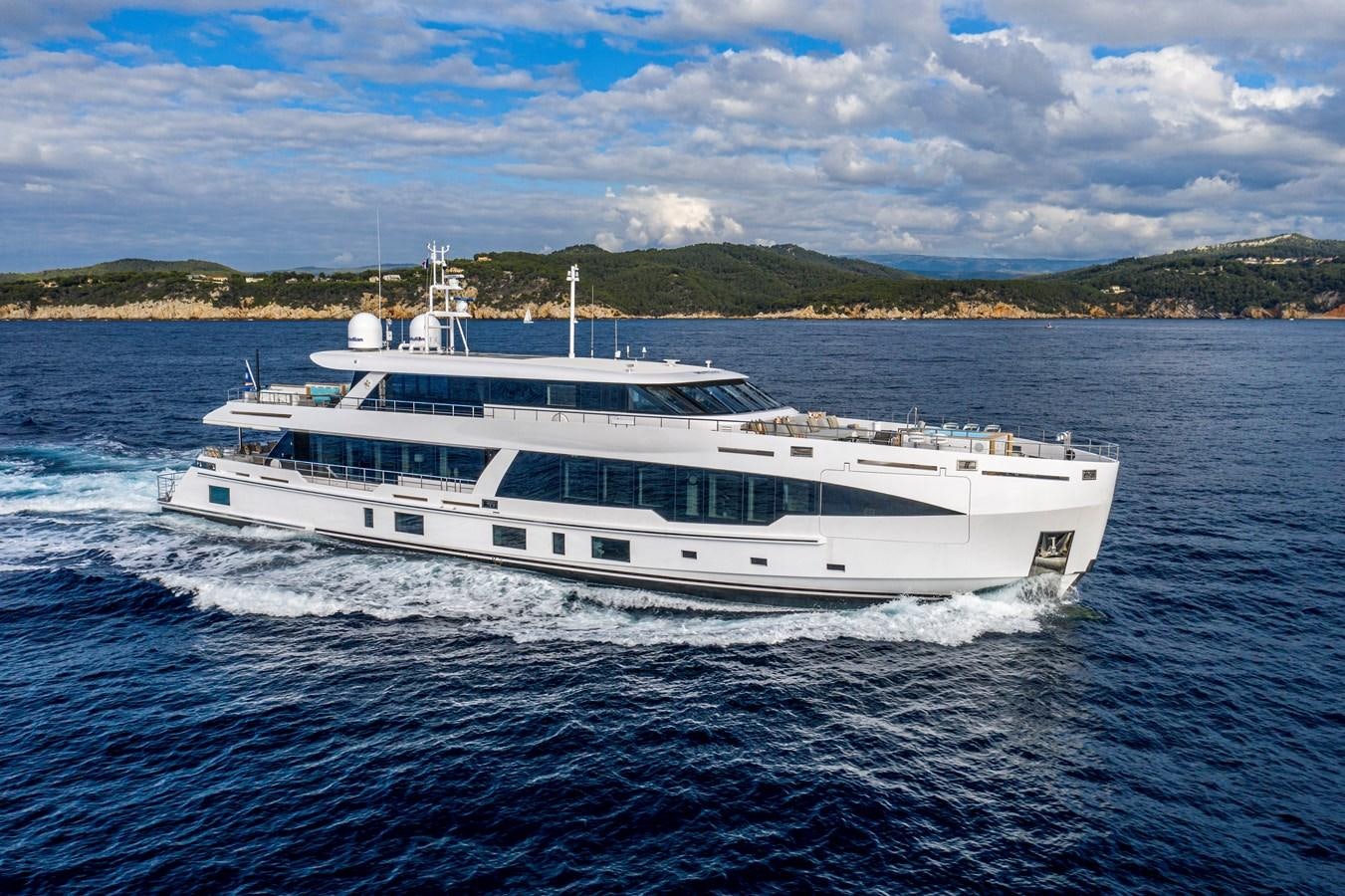

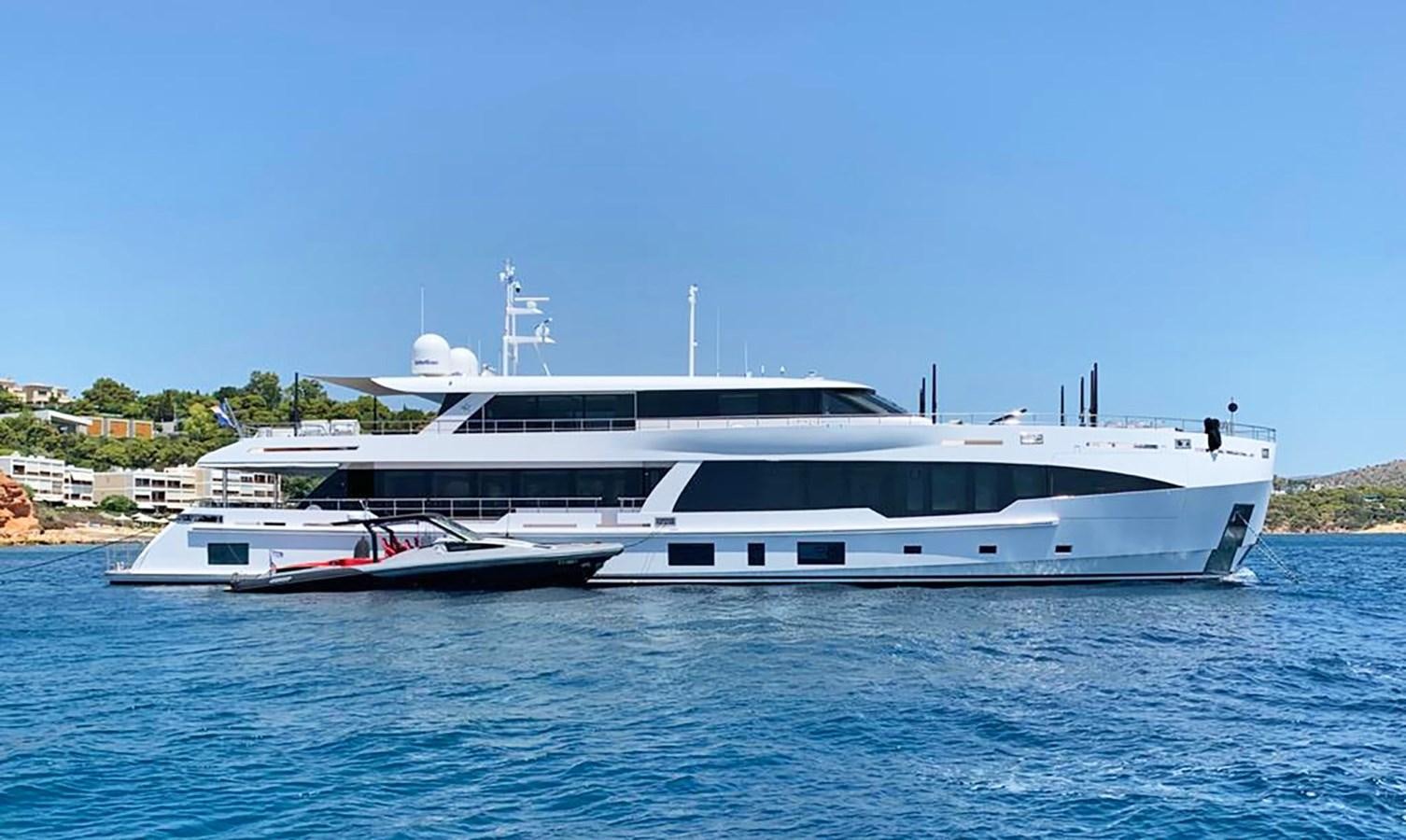

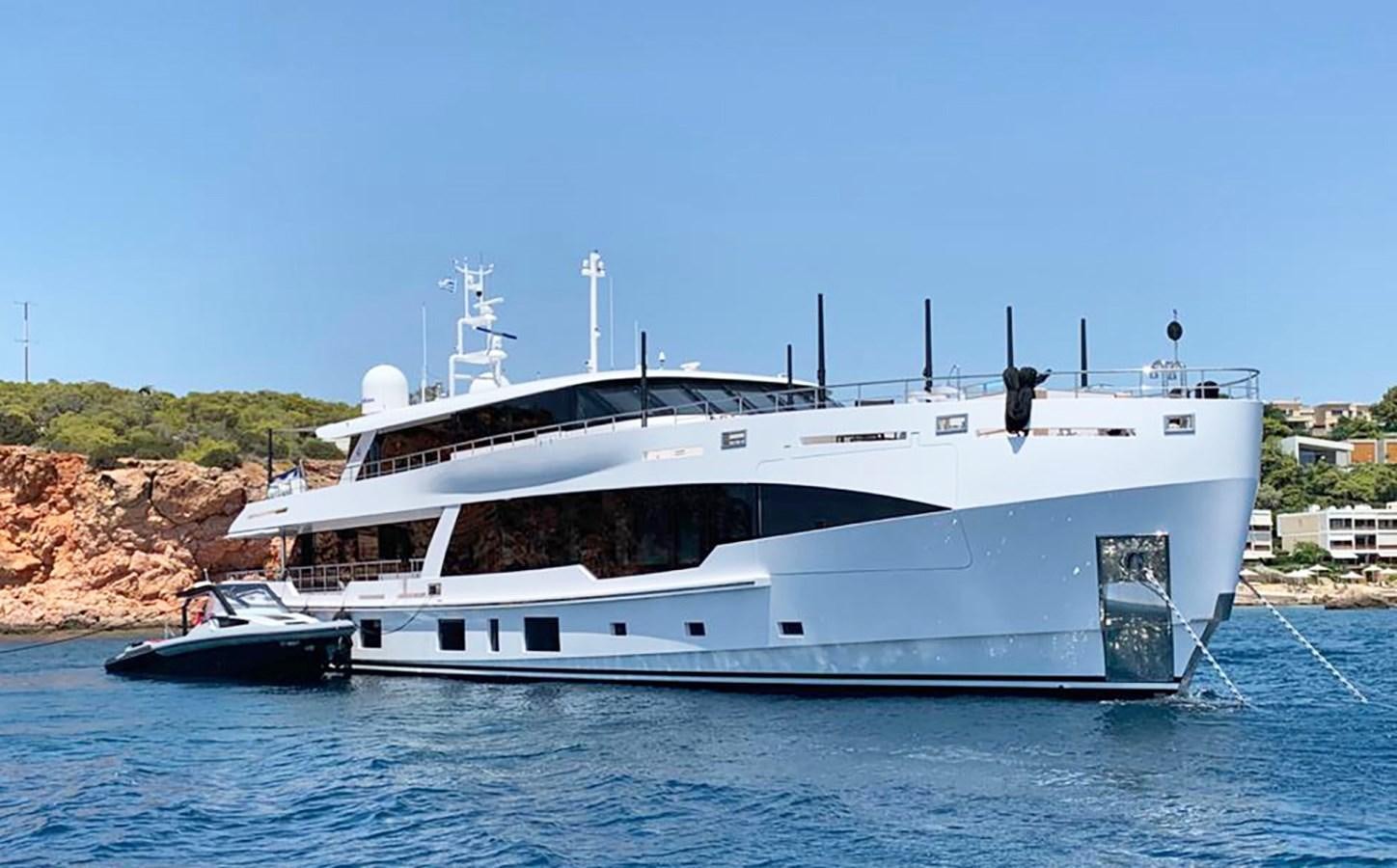

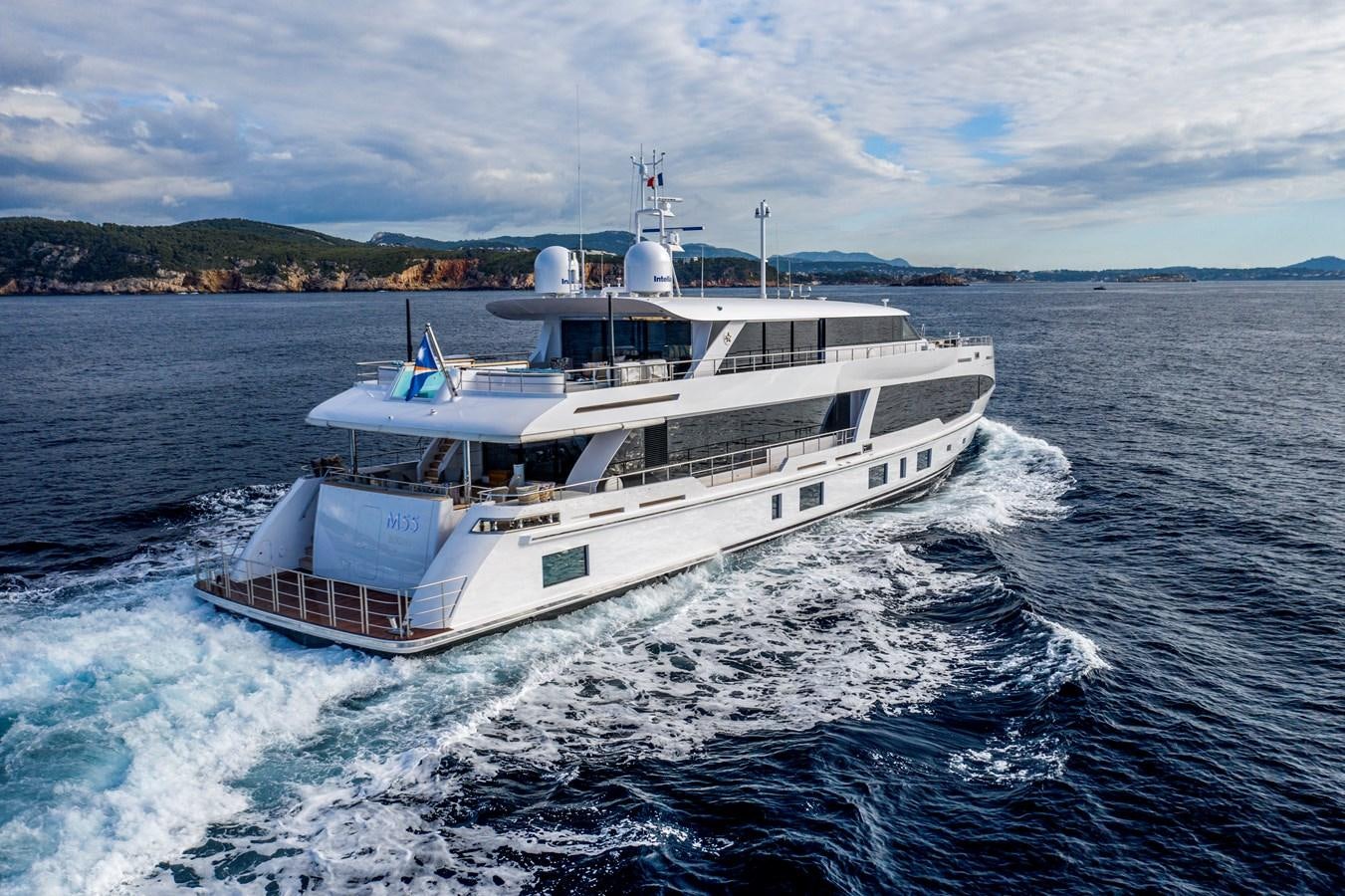

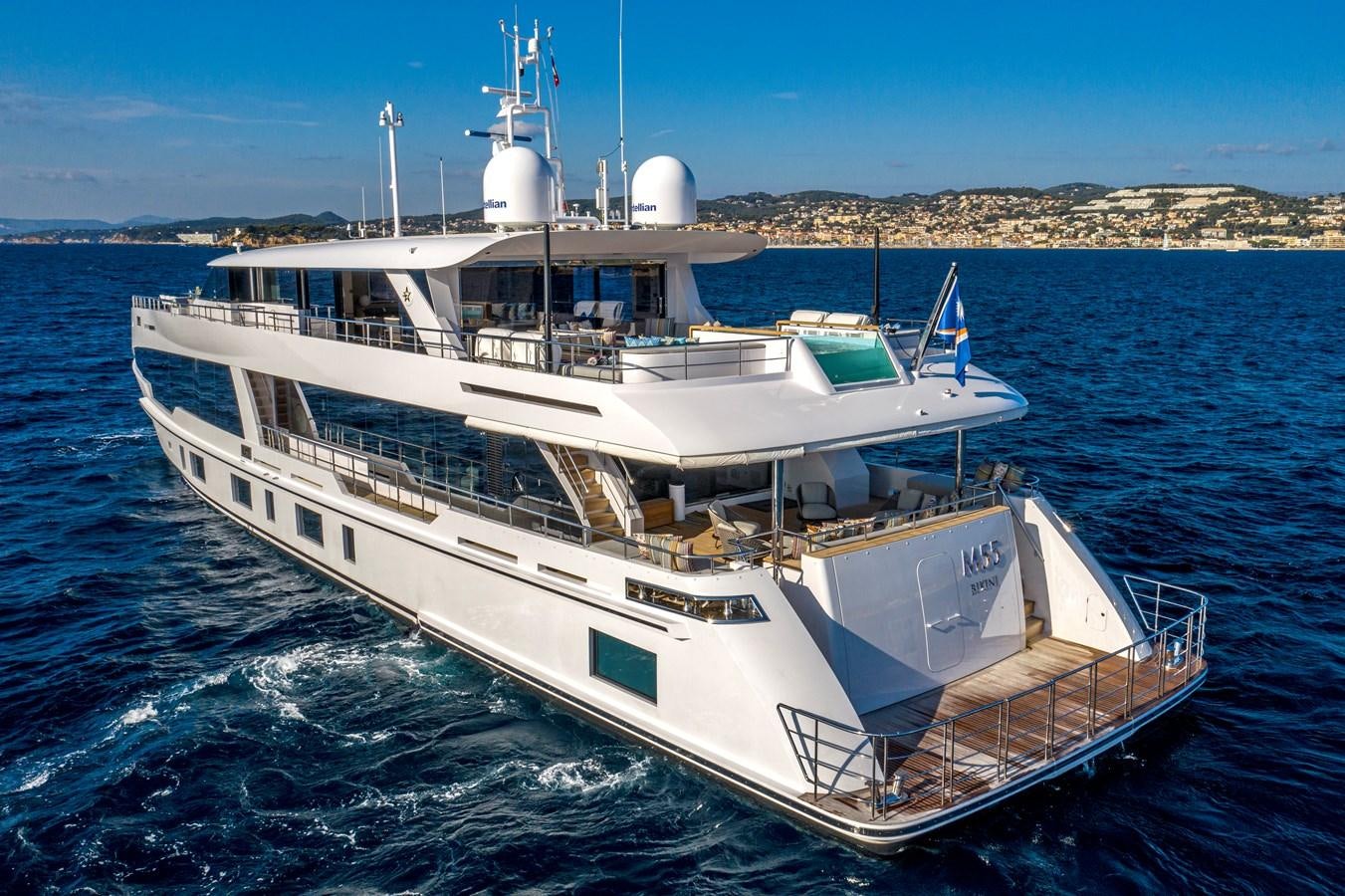

M55 Yacht for Sale

Length
135' (41.18m)
Builder
CUSTOM
Build
2020
Cabins
6
Crew
7

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Specifications

Builder CUSTOM
Model Yildiz Shipyard
Length (LOA) 135' (41.18m)
Year 2020
Gross Tonn. 487
Draft 10' (2.9m)
Beam 29' (9.1m)
Range 2,818 NM
Location Italy

Accommodations

Staterooms 6
Sleeps 12
Crew Cabins 7
Crew Sleeps 7

Dimensions & Capacity

LOA 135' (41.18m)
LWL 131' (39.87m)
Min Draft 9' (2.7m)
Max Draft 10' (2.9m)
Fuel Tank 13,209 g (50,000 L)
Fresh Water 1,849 g (7,000 L)
Gross Tonn. 487
Displacement 421

Construction

Hull Material Steel
Hull Config Full Displacement
Ext. Designer GINTON
Int. Designer HOT LAB
Cruising Speed 11 Knots
Range 2,818 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Night Generator: Caterpillar C4.4 at 51.5 kW
  • Night Generator Hours (09.2022): 0 hours (new in September 2022)
  • Shore Power Transformer: ASEA
  • Shore power Converter: ASEA
  • Generator Start: Electric Moto
  • Steering Gear: DATA
  • Under Water Lights: Ocean Led M3130w & M3118w
  • Helm/Wing Station Controls: AAA Propulsion
  • Fuel Filters: 3 x Racor 75500 Max M10, CPO 3
  • Fuel Oil Separator: Alfa Laval MIB 303
  • Fuel Oil Separator Filter: Racor FBO-14-MA
  • Fuel Transfer Pump: Gianneschi CP 30 A1
  • Oily Bilge Water Separator: DVZ 250FSU OIL CHIEF
  • Dirty Oil Pump: Gianneschi FQ 15T
  • Lubrication Oil Pump: Gianneschi FQ15T
  • Firefighting & Bilge Pump: 2 x Giannechi CP30A1
  • Local Bilge Pump: Gianneschi SUB
  • Fresh Water Makers: Idromar MSE300 Duplex
  • Fresh Water Pressure: 4 bars
  • Fresh Water Pump: 2 x Gianneschi JET 622 BTE
  • Water Softener & Salt Tank: Idromar Idrofast 9100
  • UV Sterilizer: Idromar SH5000
  • Water Maker Filter: 2 x 5 MC, 2 x 20MC short size
  • Hot & Cold Circulation Pump: 2 x Wilo TOP-Z30/7RG
  • Hot Water Boilers: 2 x Gianneschi 200L. Inox Horizontal
  • Black & Grey Water Treatment: Tecnicomar Ecomar 70
  • WC's (toilets/bidets): Tecnicomar
  • Grey Water Discharge Pumps: 2 x Gianneschi CP30A1
  • AC & Ventilation System
  • Air Compressor: Dalgakıran DAT120-80 litres / Gianneschi 18SA 100 litres
  • Engine Room Ventilation: 3 x Gianneschi ELL-215/2,2 / Gianneschi ELL/AP-569/1-B4
  • Fresh Air Unit: 2 x Dometic Condaria-AHU-T-1000-TRSTD-H
  • Hydraulic Power Packs: Data / Hydromar
  • Antifouling System: Cathelco / International

Exhaust:

  • 1 x Dometic Condaria-ECS-T400-DRAPS
  • 1 x Dometic Condaria-ECS-T600-DRAPS
  • 1 x Dometic Condaria-DIC-100

Engine Ventilation:

  • 3 x Gianneschi ELL-215/2-2
  • 1 x Gianneschi ELL/AP-569/1-B4

Fancoil:

  • 1 x Condaria AP5
  • 1 x Condaria AP8
  • 1 x Condaria AP10
  • 1 x Condaria AP12

Galley & Laundry Equipment

MAIN GALLEY EQUIPMENT

  • Refrigeration/Freezer: Liebherr 4350
  • Dishwasher: Miele G 6660 SCVI
  • Hub Cooker Induction: Miele
  • Hub Extractor Fan: Miele
  • Oven: Miele

PANTRIES AND OTHERS

  • Refrigeration/Freezer: Liebherr CMes-502
  • Liebherr IK 2320
  • Wine Fridge: Liebherr HSW 1800
  • Icemaker: 2 x Icetech ESA46152336
  • Kettle: Tefal KI240D10

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

  • Refrigeration: Liebherr 4350
  • Freezer: Liebherr 4355

LAUNDRY EQUIPMENT

  • Dryer: 1 x Miele PT5135C
  • 1 x Miele TCE620WP
  • Washing Machine: 1 x Miele PW 5056 LP
  • 1 x Miele VCE 320
  • Iron: Miele B 995 D
  • Vacuum Cleaner: Dyson V11

Communication Equipment

  • Mini VSAT: Intellian
  • INMARSAT – C: Furuno FELCOM 18
  • SSAS: Number, Quantity, Brand, Model
  • ECDIS: 2 x Furuno FMD3300
  • VHF Radiotelephones: 2 x Furuno FM8900S
  • SAT Phone: Yes
  • Portable VHF: 8 x ICOM IC-M37
  • Portable GMDSS VHF: 3 x Sailor 3520
  • Intercom – Talk Back: Furuno
  • VHF Digital Radios: 2 x Furuno FM8900S
  • SSB Furuno FS1575
  • EPRIB: Furuno FMD3300
  • Radar Transponders: Sailor SART2
  • Navtex Receiver: Furuno NX700A
  • GMDSS Battery Plant: Varta
  • Internet Router: Yes

Navigation Equipment

  • Navigation Bridge: Yes
  • Monitors: Furuno
  • X-Band Radar: Yes
  • S-Band Radar: Furuno
  • Radar Reflector: Yes
  • Multifunctional Workstation: Furuno
  • Chart Plotter: Furuno ECDIS - Multiscreen
  • Magnetic Compass: Cassens Plath TYPE 21
  • Gyrocompass: Anschhütz STS 22
  • Rudder Angle Indicator System: DATA
  • Echo Sounder: Furuno FE-800
  • Speed Log: Furuno
  • Depth Sounder: Furuno FE-800
  • GPS: Furuno GP170
  • AIS: Furuno FA-170
  • Navtex: Furuno NX700A
  • Wind Instruments: Furuno
  • Thermal Night Vision Camera: Flir
  • Bridge Navigation Watch Alarm: Furuno BR500
  • Alarm + Light Panel: Yes
  • Intercom Emergency Point: Yes
  • Nav Light: Yes
  • Ships Computer: Automation PC 3100
  • DSM: Yes
  • Autopilot: Yes
  • Camera: Yes
  • Horn: Yes

Entertainment Equipment

  • Audio Equipment: B&W
  • Control: Control 4
  • Light Management: Control 4

Main Deck Saloon

  • TV: Samsung QE65Q90RAT
  • Active Sub-Woofer: B&W ASW-610
  • Speaker: B&W CCM282 8"

Main Deck Aft

  • TV: Samsung QE65Q90RAT
  • Speaker: B&W Marine 8"
  • Subwoofer: Rockford Fosgate Punch Marine 10”

Upper Deck Saloon

  • TV: Samsung QE65Q90RAT
  • Speaker: B&W CCM282 8"
  • Active Sub-Woofer: B&W ASW-610

Upper Deck Aft

  • TV: Samsung QE65Q90RAT
  • Speaker: B&W Marine 8"
  • Active Sub-Woofer: Rockford Fosgate Punch Marine 10"

Master Stateroom

  • TV: Samsung
  • Speaker: B&W CCM282 8''
  • Active Suboofer: B&W ASW-608

Guest Staterooms

  • TV: 6 x 55” Samsung
  • Speaker: 12 x B&W CCM282 8”
  • Receiver Home Cinema: 5 x Integra DSX 3
  • System Remote Control: 5 x Control4® SR-260
  • Entertainment and Automation: 5 x Control4® EA-1
  • Media Player: 5 x Apple TV 4K

Captain’s Cabin

  • TV: Samsung 32''

Crew Mess

  • TV: Samsung QE49Q60RAT

Jacuzzi FWD

  • Speaker: B&W Marine 8''
  • Subwoofer: Rockford Fosgate Punch Marine 10"

Deck Equipment

  • Anchors: 2 x 260 kg Stainless Steel
  • Anchor Chains: x 2
  • Anchor Windlass System: Lewmar V10-36111
  • Cranes: Hydromar Marine H181058
  • Capstans: 2 x LEWMAR C10 - 26825 - 5.5 kW
  • Side Boarding Ladder: Custom
  • Stern Boarding Gangway: Idromar
  • Swimming Ladder: Idromar
  • Paint Exterior: Awlgrip
  • Paint Underwater: International

OTHER EQUIPMENT
Jacuzzi:

  • 1 x Aft
  • 1 x Forward

Gym Equipment:

  • 2 x Technogym Runpersonal
  • 1 x Technogym Unica


Safety & Security Equipment

  • Fixed Firefighting System: Fireboy NOVEC - 1230 FES-390-NV
  • Dampers: ER: Gianneschi 1040 x 640
  • ER: Gianneschi 540 x 540
  • Galley: Gianneschi 150 x 150
  • Garage: Gianneschi 150 x 150
  • Life rafts: Survitec SAS 4 x 12 SOLAS Type A
  • Breathing Apparatus: x 2
  • EPIRBs: Sailor SE405 2
