LORETTA ANNE Yacht for Sale

• Water Makers: 6,000 LPD, 1,585 GPD
• Hydraulic Oil Tank: 1,354 Liters, 357 Gallons
• Sludge Tank: 1,325 Liters, 350 Gallons
• Oily Water Tank: 1,605 Liters, 423 Gallons
• Propulsion Type: Twin-screw
• Engine Controls: (6) Stations – 6 electronic and 1 manual in the engine room
• Engines Exhaust System: Dry-risers to overhead collectors covered with stainless steel shrouds, saltwater injected mufflers underwater exhaust with butterfly valve and water drop exhaust system by Sound-down
• Engine Ventilation:  Electric CMG Australia

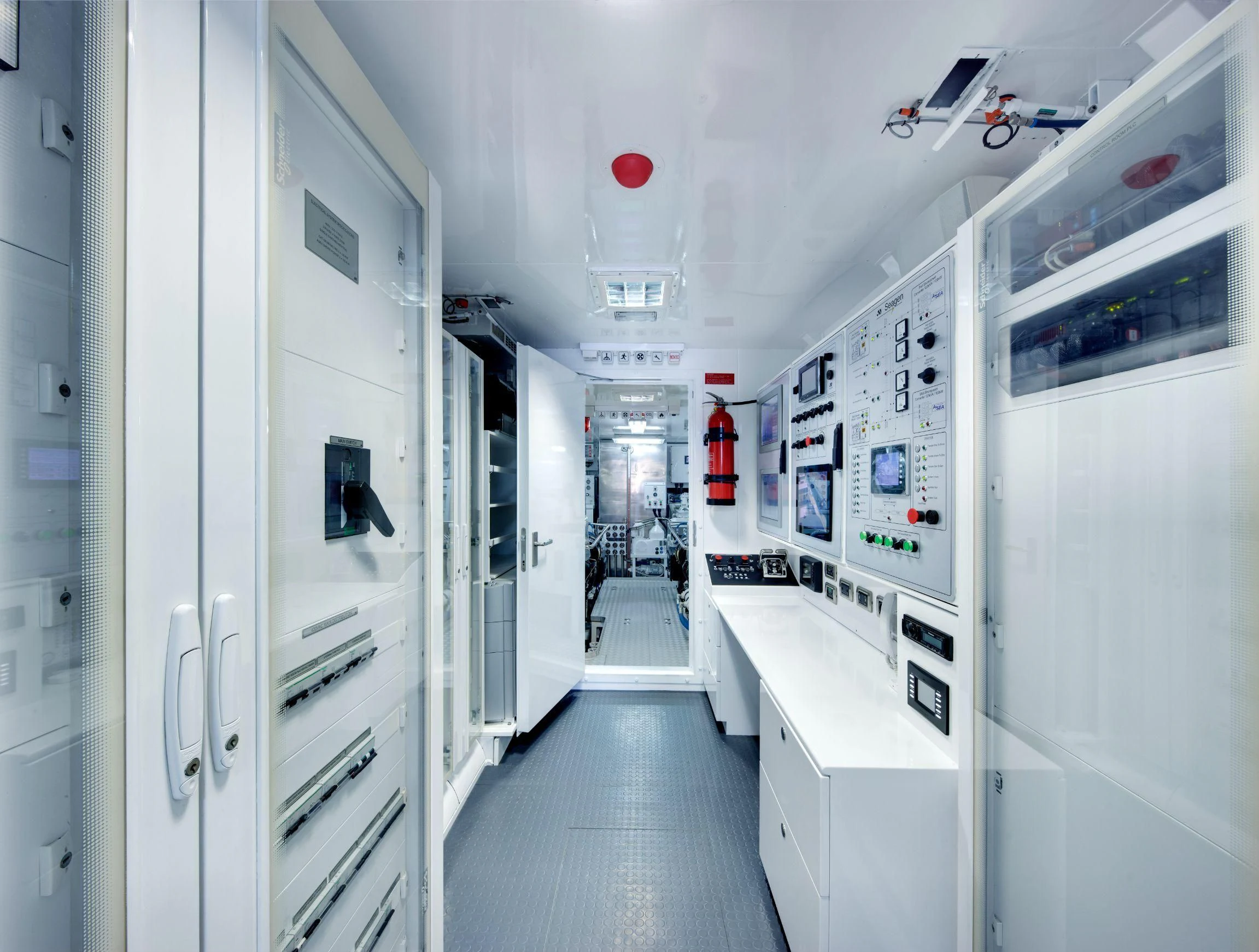

• Output/Electricity: 400v AC 50 Hz and 24v DC. Main distribution panel is in the ECR, aft of engine room with electrical system by SEAGEN for generator controls and ASEA touch. Additional sub-panels throughout the interior
• Generator Fuel Consumption: 30 Litres/hour
• Generator Exhaust System: Clean burn MMX design with DFP Heaters
• Emergency Steering: Winch-handle in a positive displacement helm pump (in lazarette)
• Under Water Lights: (6) Sea Vison
• Helm/Wing Station Controls: Twin Disk
• Fuel Oil Separator: Westfalia
• Fuel Transfer Pump: Pneumatic
• Fuel Filling Pump: Pneumatic
• Bunkering Station: 2” cam fittings
• Oily Bilge Water Separator & Dirty Oil Pump: (2) pneumatic diaphragm pumps for discharging of dirty oil and transferring of clean oil and RWO Skit / S DEE Oil Water Separator
• Lubrication Oil Pump:Pneumatic
• Bilge System: There are twelve (12) main bilge compartments, each fitted with a high-water bilge alarm with additional bilge alarms in the engine room
• Primary Bilge Pump: Hydraulic/Electric/Diesel Crash Pump
• Firefighting & Bilge Pump: 400v AC electric located in the starboard aft main deck locker and diesel Crash Pump
• Fresh Water Makers: HEM 25/1600, 6,000 LPD
• Fresh Water Treatment: Domestic Spot-Zero Filter System
• Sea Water Pumps: Calpeda
• Black & Grey Water Treatment: Headhunter Tidal Wave
• WC's (toilets): (11) ACTANA marine toilets
• Sanitary Vacuum System: None
• Black & Grey Water Pumps: Pneumatic Edson diaphragm pumps
• Garbage Management System, Automatic Grease Trap: Galley sink trap
• Air Compressor: (2) Port side engine room and forward
• Air Handling Units: (29) AC fan coil units
• Engine Room AC: (2) Condaria air handlers
• Galley Ventilation & Extraction: Electric hood range extraction
• Antifouling System Type: Micron ZF

Steering Gear:

• Ship’s wheel in bridge and flybridge helm station
• Jog steering at bridge and flybridge helm station

Fresh Water Pumps:

• Grundfos stainless-steel jet pump
• (4) 10-liter expansion tanks
• (2) 350-liter hot water heaters
• (2) hot water circulating pumps

Batteries:

• All batteries are AGM / Gel. Batteries are properly secured in enclosed battery boxes, which are well-labelled
• House Service Battery Banks: 2 x 12 volt in series to give 24v
• Emergency Battery Bank: 2 x 12 volt in series to give 24v
• Electronics and Radio Bank: 2 x 12 volts in series to give 24v
• Port and starboard main engine: 2 x 12 volts in series to give 24v
• Port and starboard generators: 2 x 12 volts in series to give 24v
• Battery Chargers:
• Battery chargers by MASTER VOLT for all battery banks with engines and generators independently charged start batteries via alternators
• UPS (uninterruptible power supplies):
• (1) UPS backup installed new October, 2019 LP Series. The UPS back up system is for computers and audio, video systems

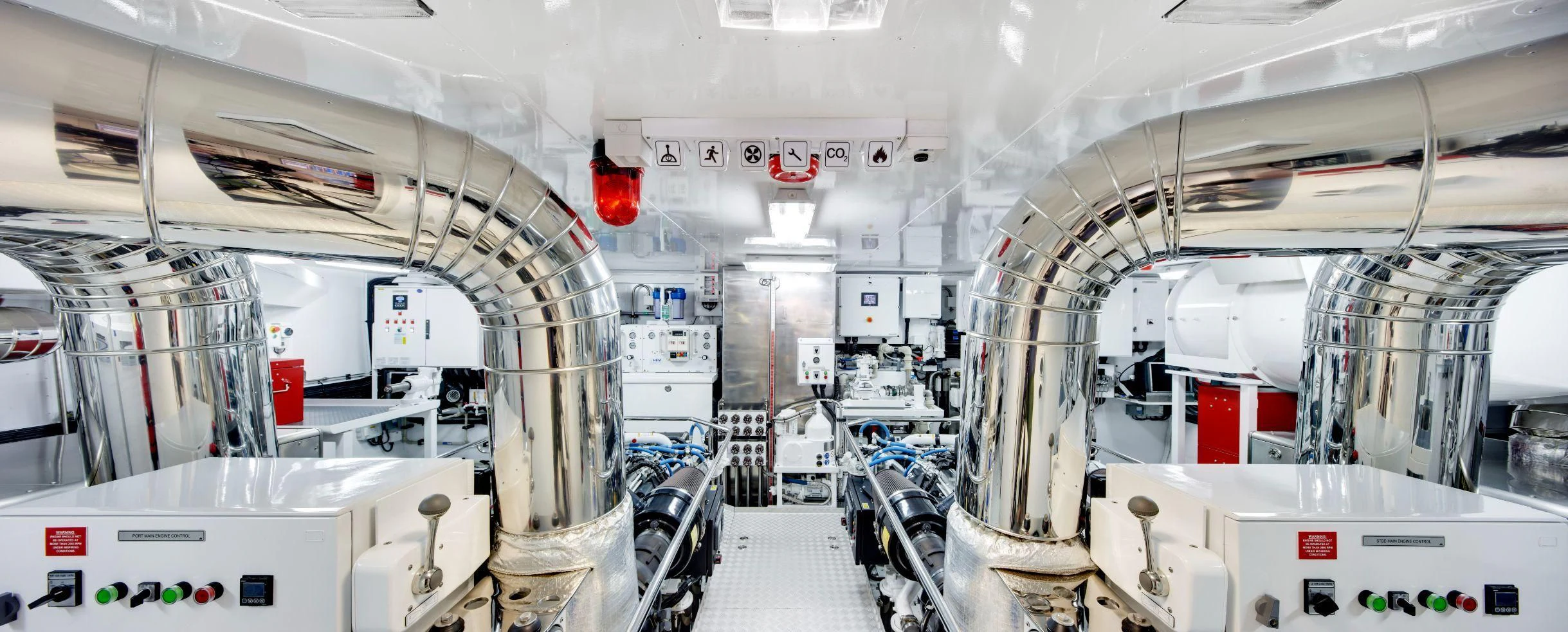

Engine Room Ventilation:

• Engine room ventilation is fitted with mist eliminator filters, large axial blower on the starboard side to extract engine room air and naturally draw in fresh air in from the port side
• The ventilation system is fitted with emergency shut-down and shut-down flaps

Hydraulic Power Packs:

• Custom by Alloy Yachts. The hydraulic system controls the bow thruster, stern thruster, stabilizers, cranes for tenders, shell doors, anchor windlass, aft deck roof and swim ladder
• The system is integrated with (2) stabilizer hydraulic pumps and (2) main engine PTOs. One (1) main general power pack

OVERVIEW:

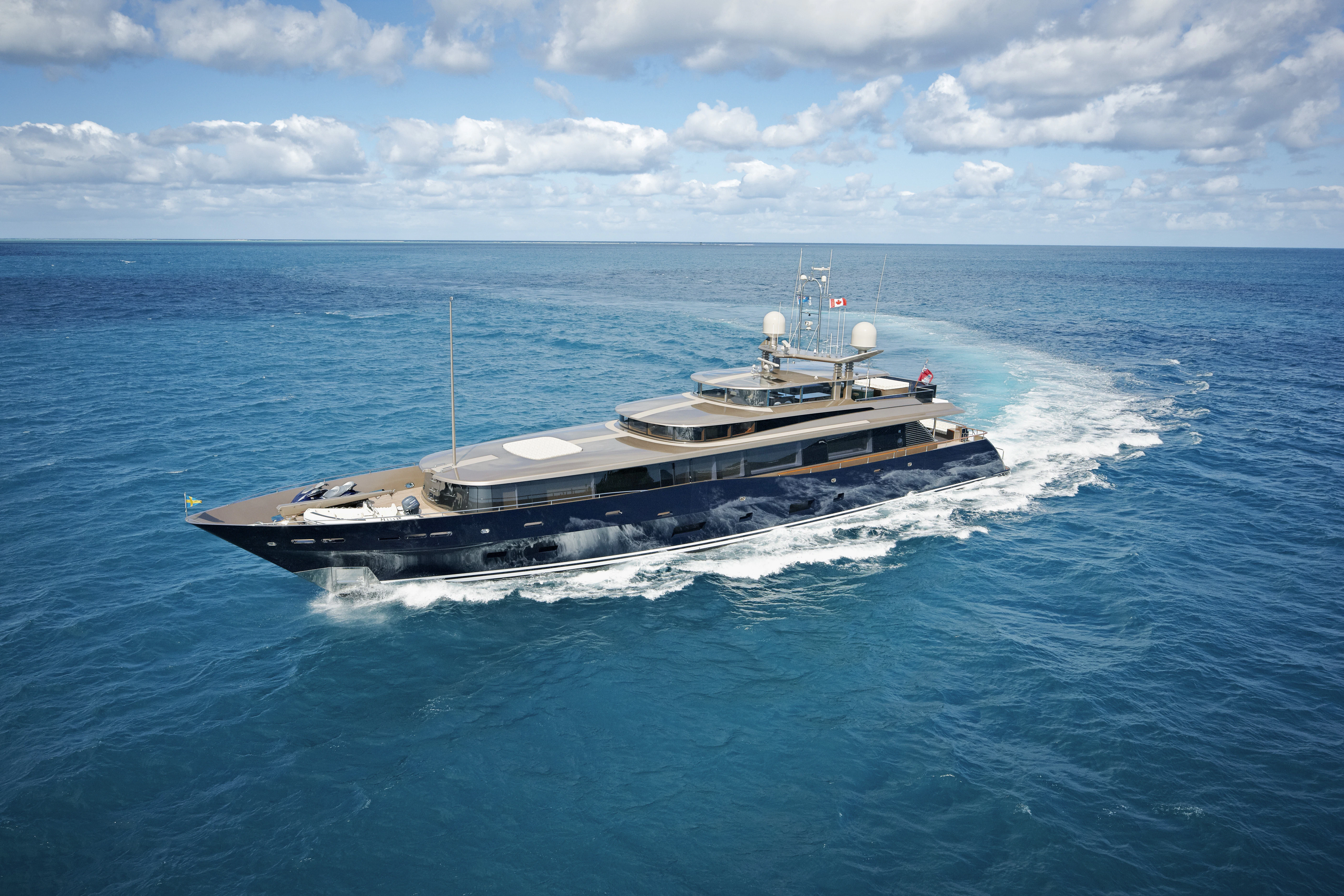

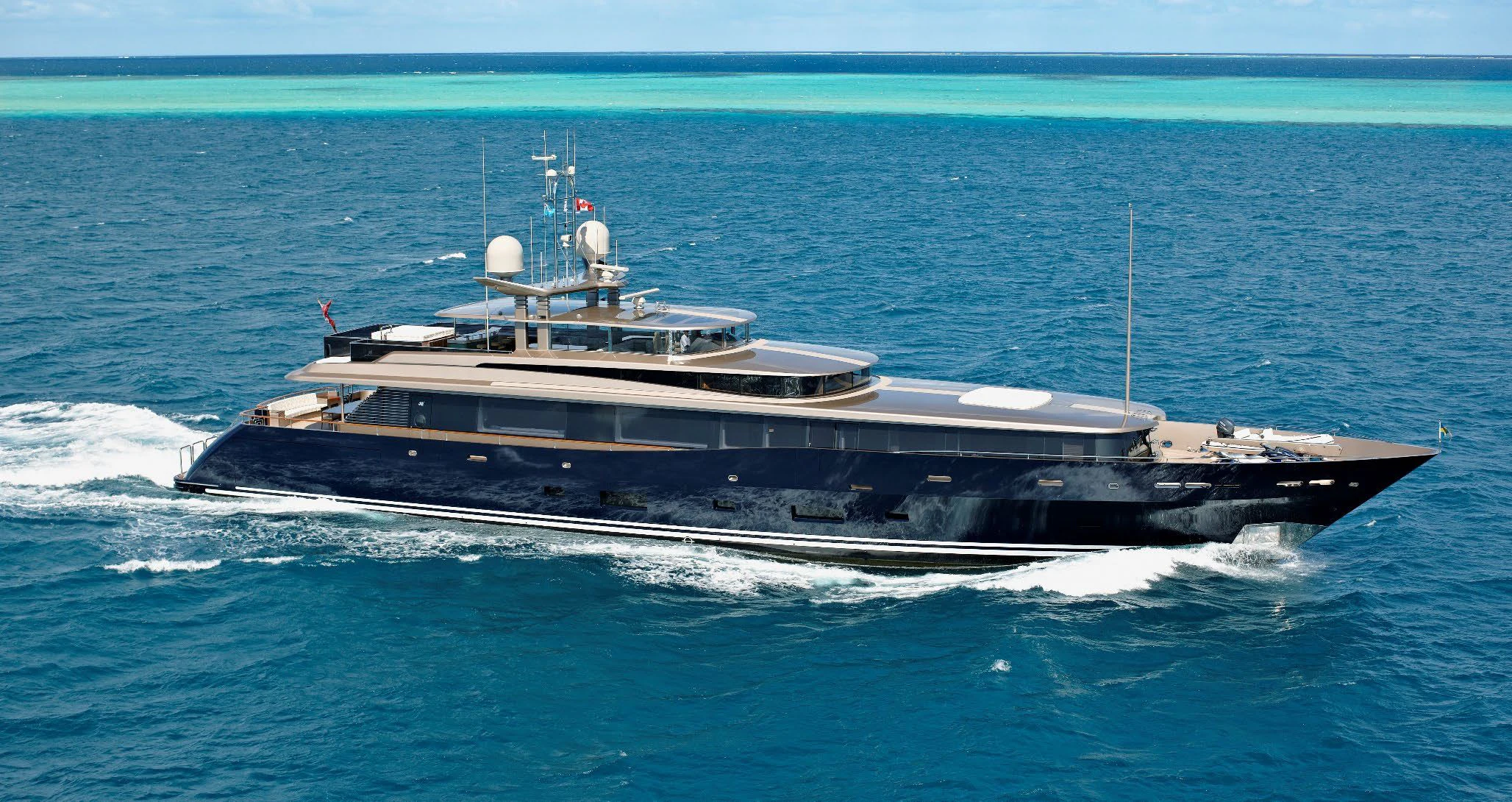

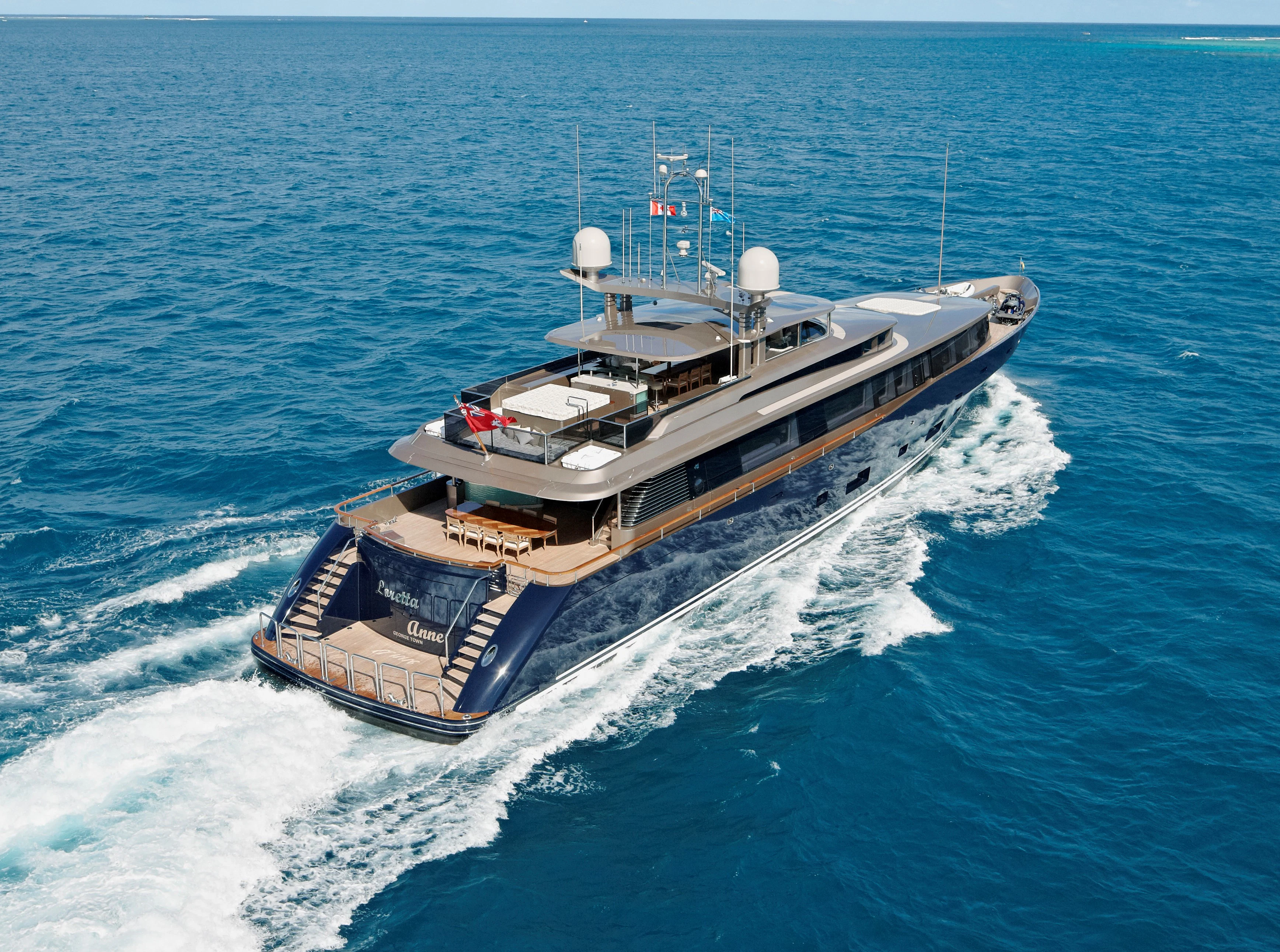

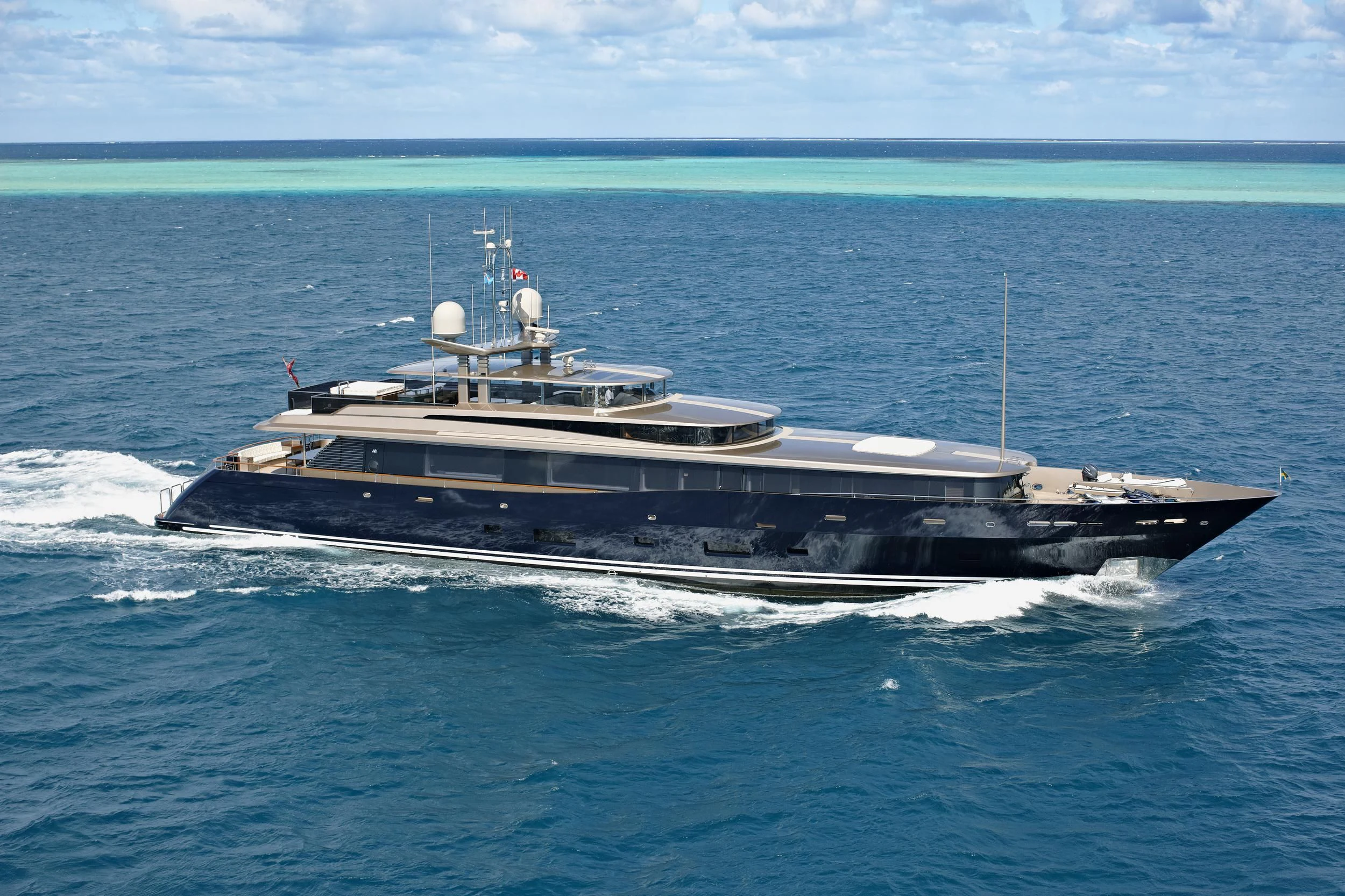

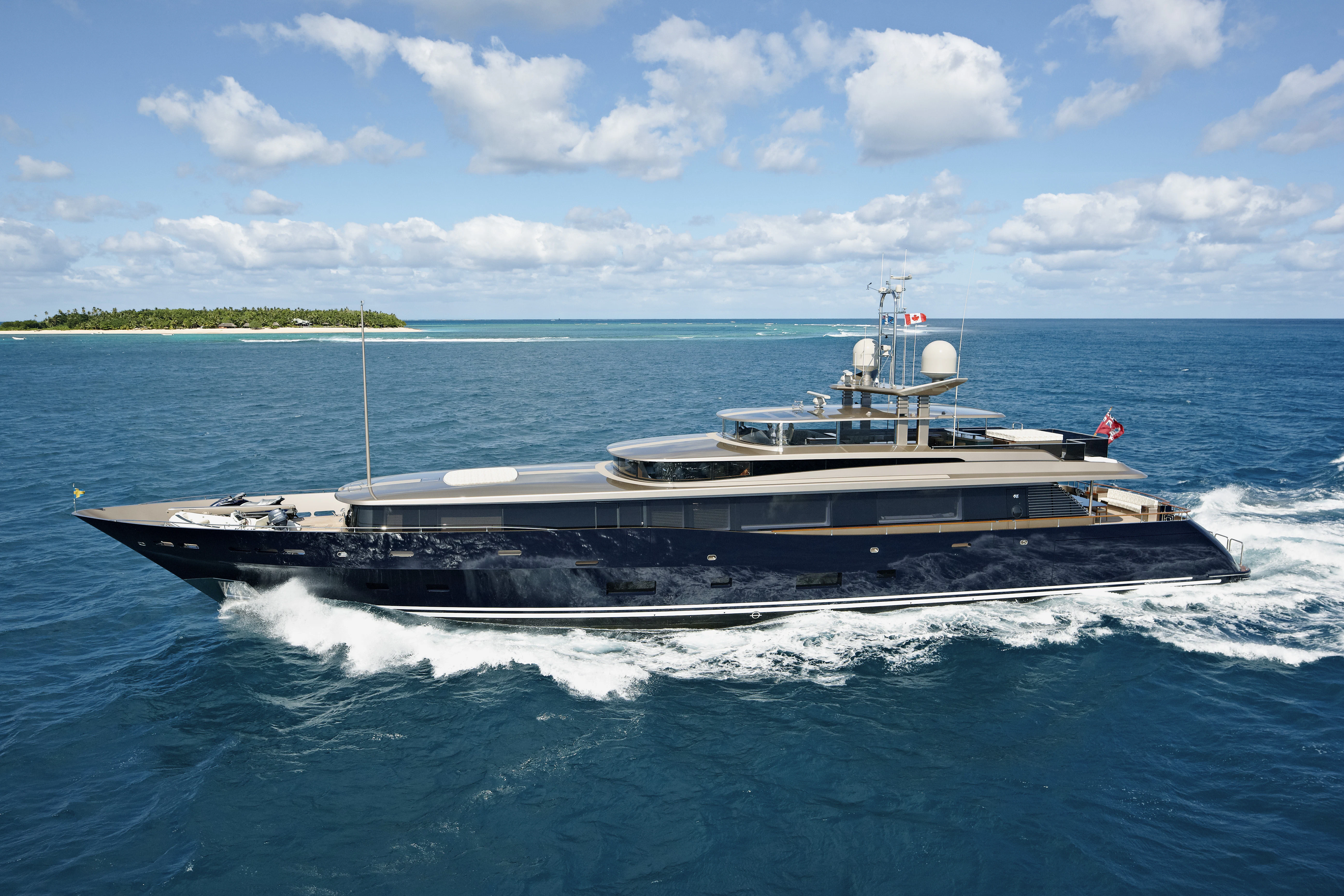

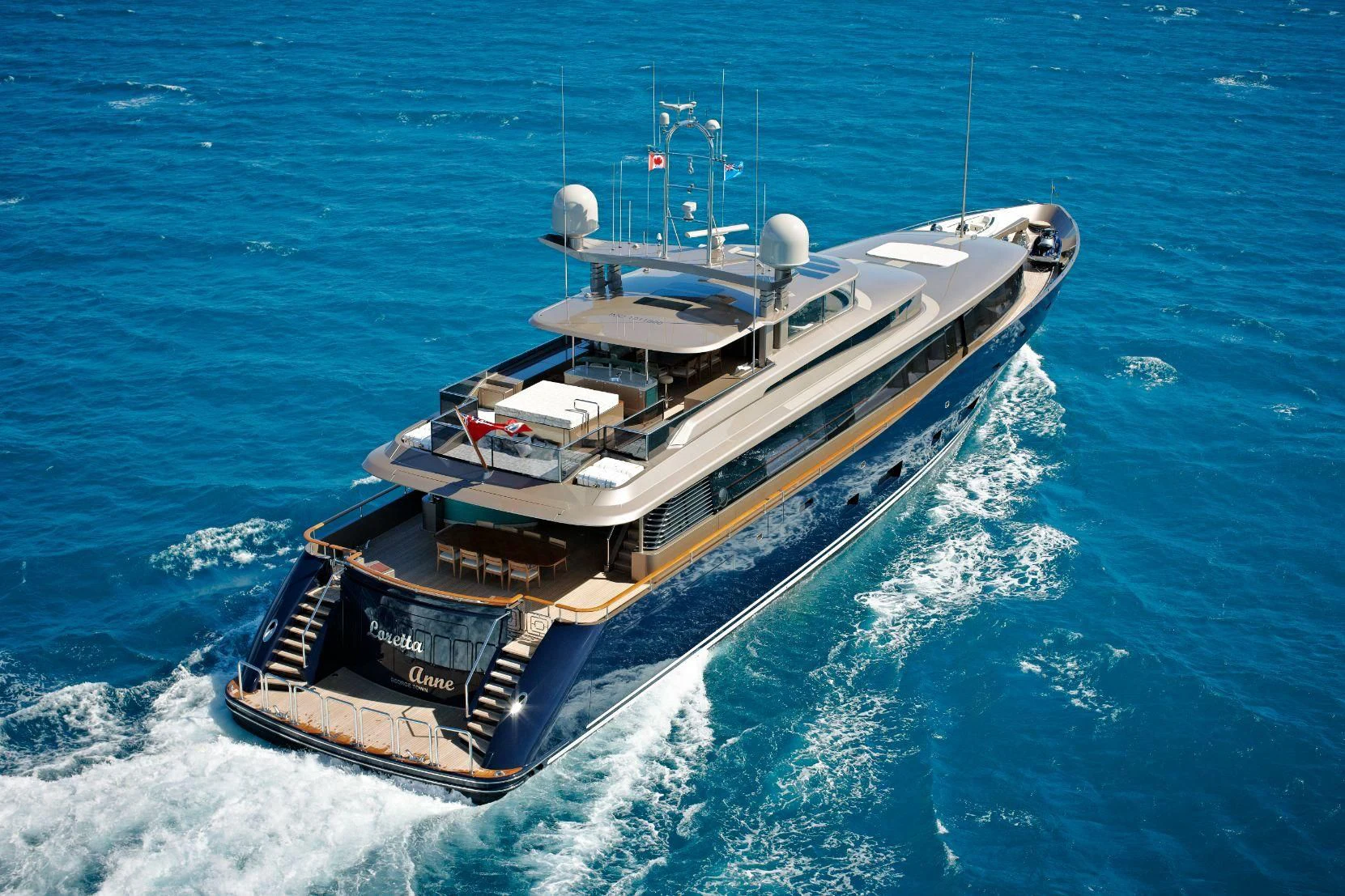

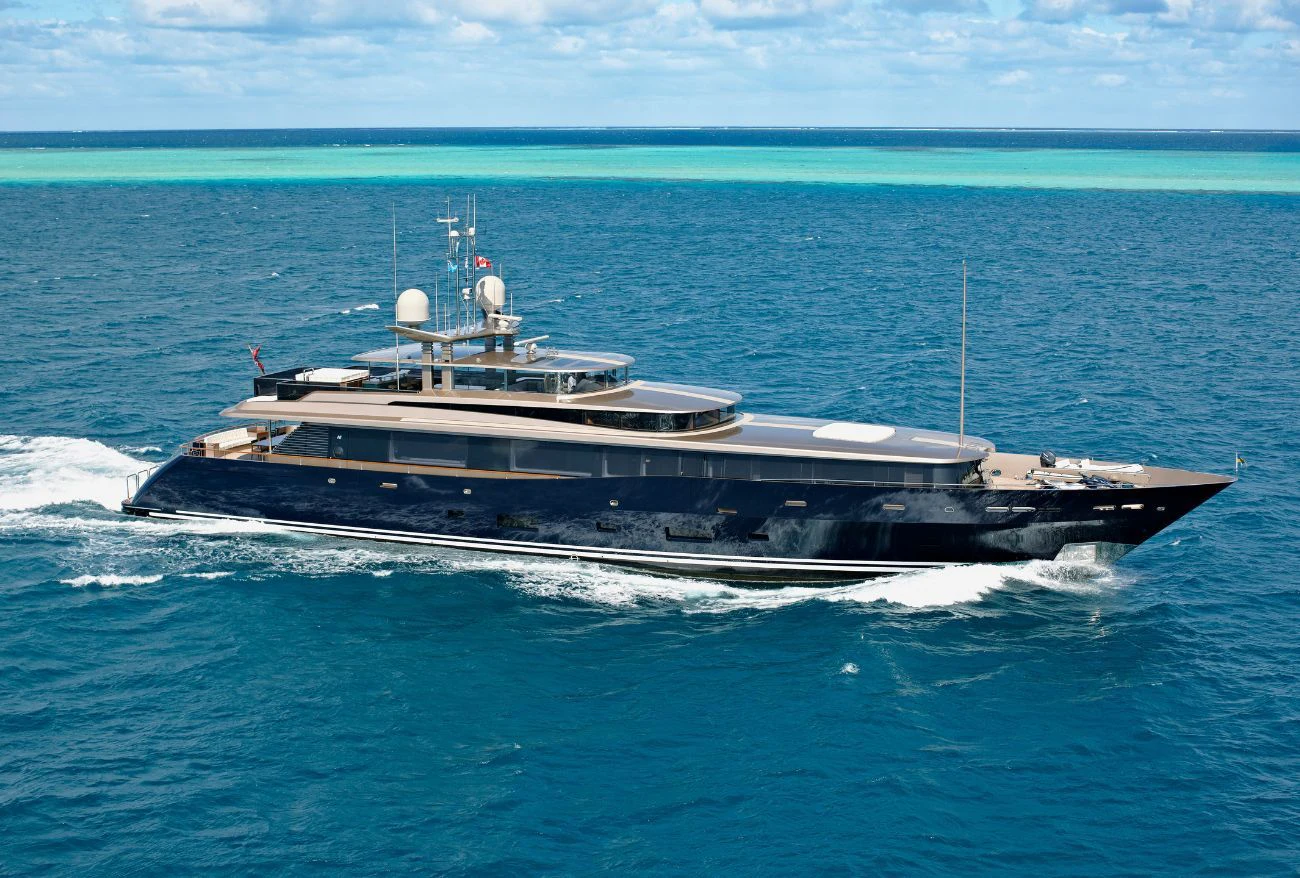

• This yacht was launched in 2012 by Alloy Yachts in New Zealand. Naval Architecture and exterior styling are by Dubois N.A. This was the 22nd Alloy/Dubois collaboration and is a testament to the successful partnership between the two leaders in their respective fields. The yacht has a contemporary and sporty exterior, with a timeless design that combines excellent seakeeping and efficiency.

ACCOMMODATIONS:

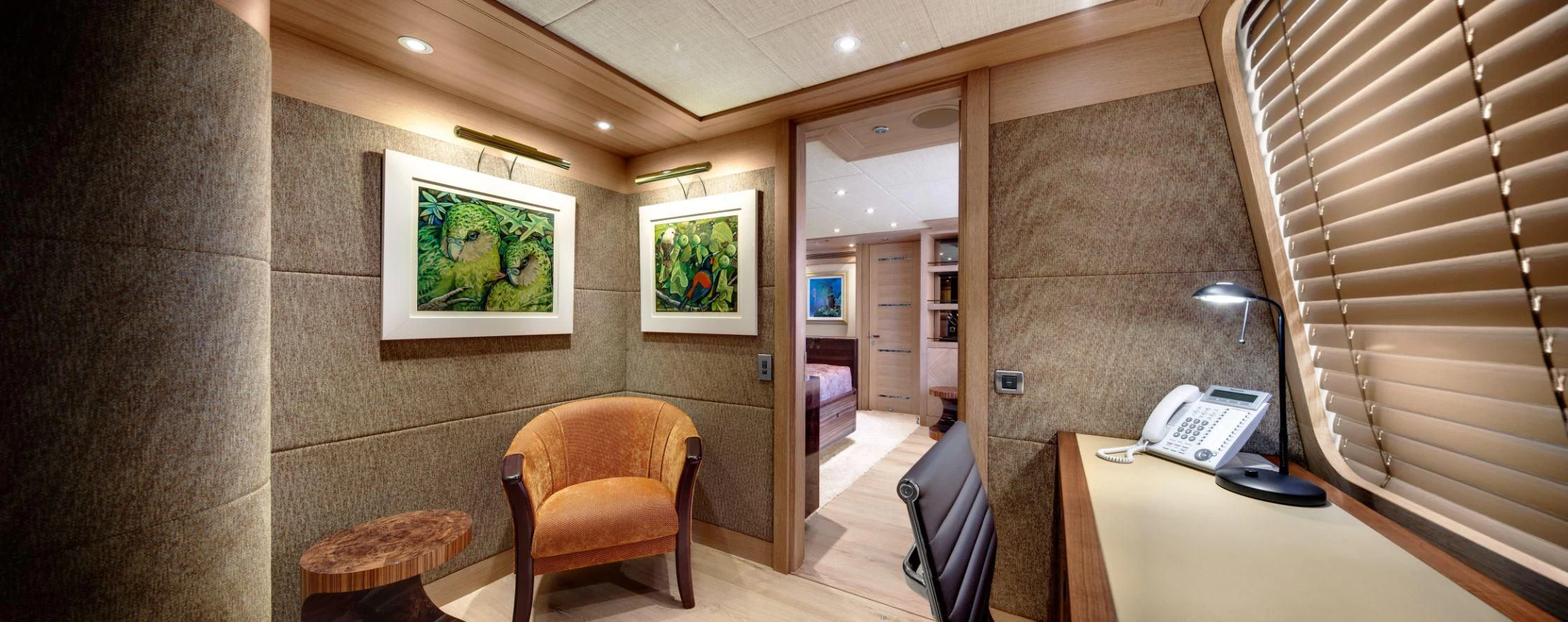

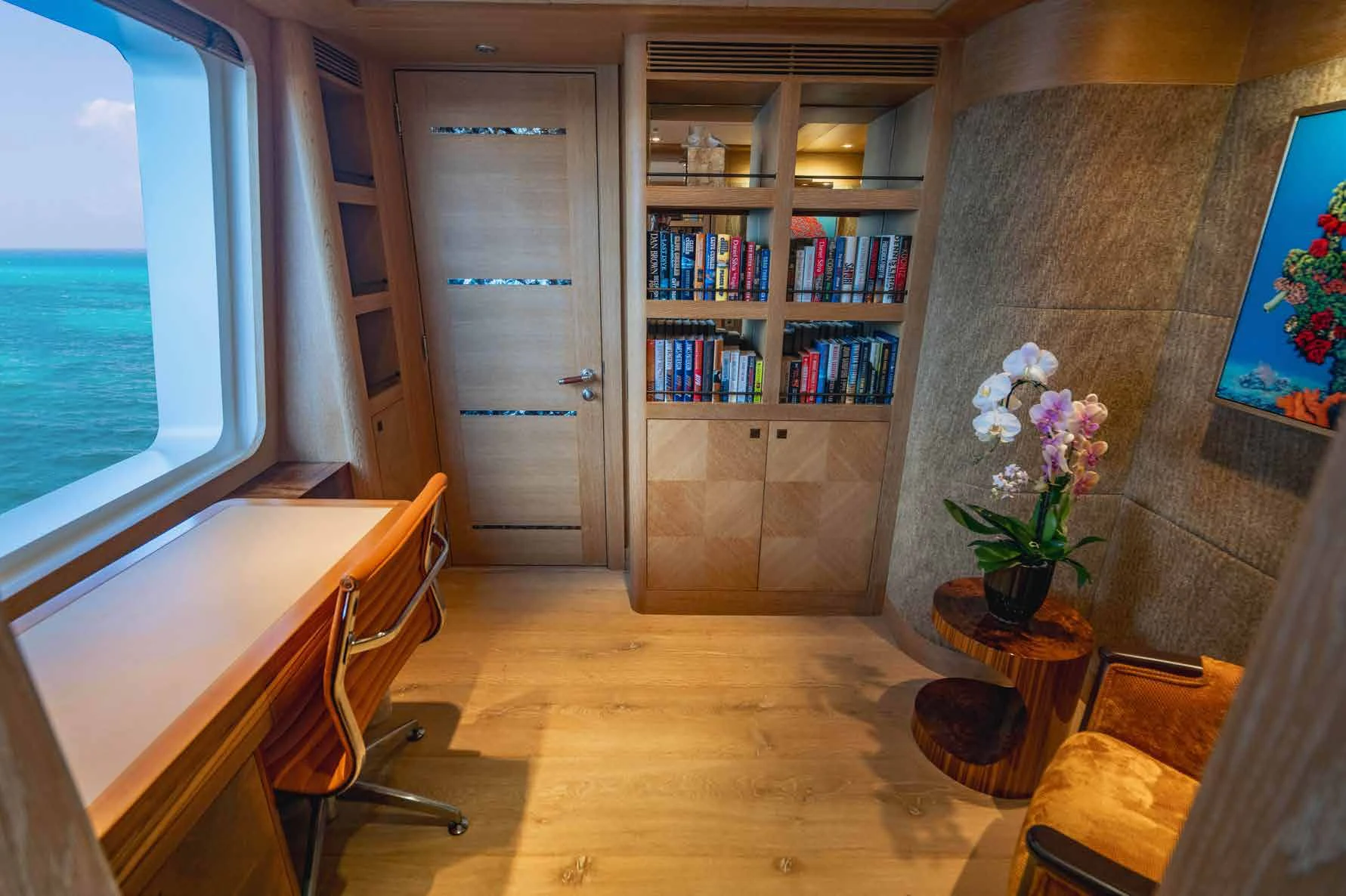

• This vessel is a two and a half deck yacht that has the master suite and study on the main deck, two VIP staterooms and a twin cabin with a Pullman berth are on the lower deck. A gym with ensuite and two pullman berths is also on the lower deck and easily transforms into additional accommodation. The yacht can easily accommodate 8 guests or up to 11 with the use of the 3 additional Pullman berths. All cabins have extra-large port lights which provide generous amounts of natural light and of course great views. The twin cabin has a bathtub for either bathing small children or if an adult needs a good hot soak.

MAIN DECK:

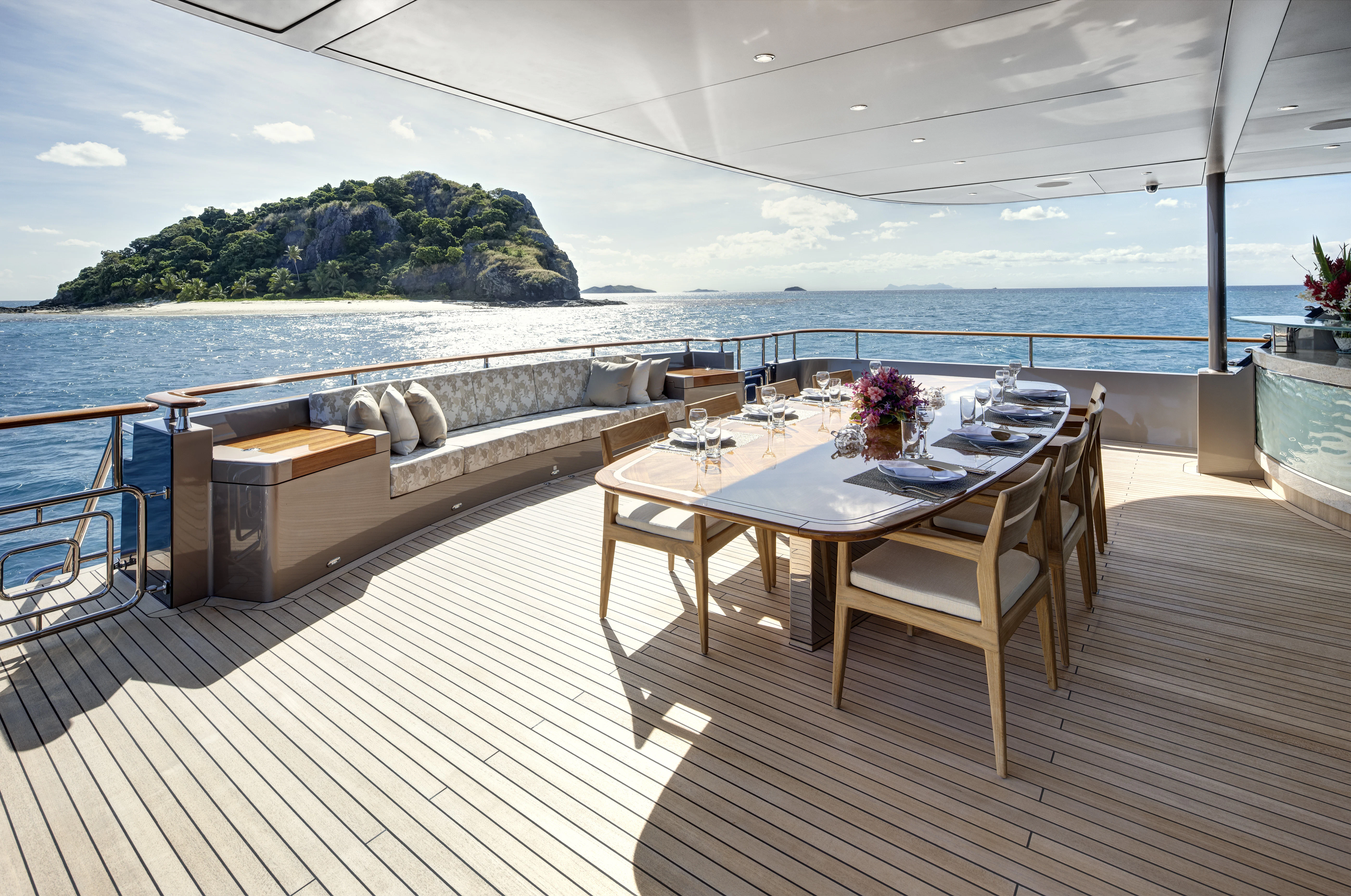

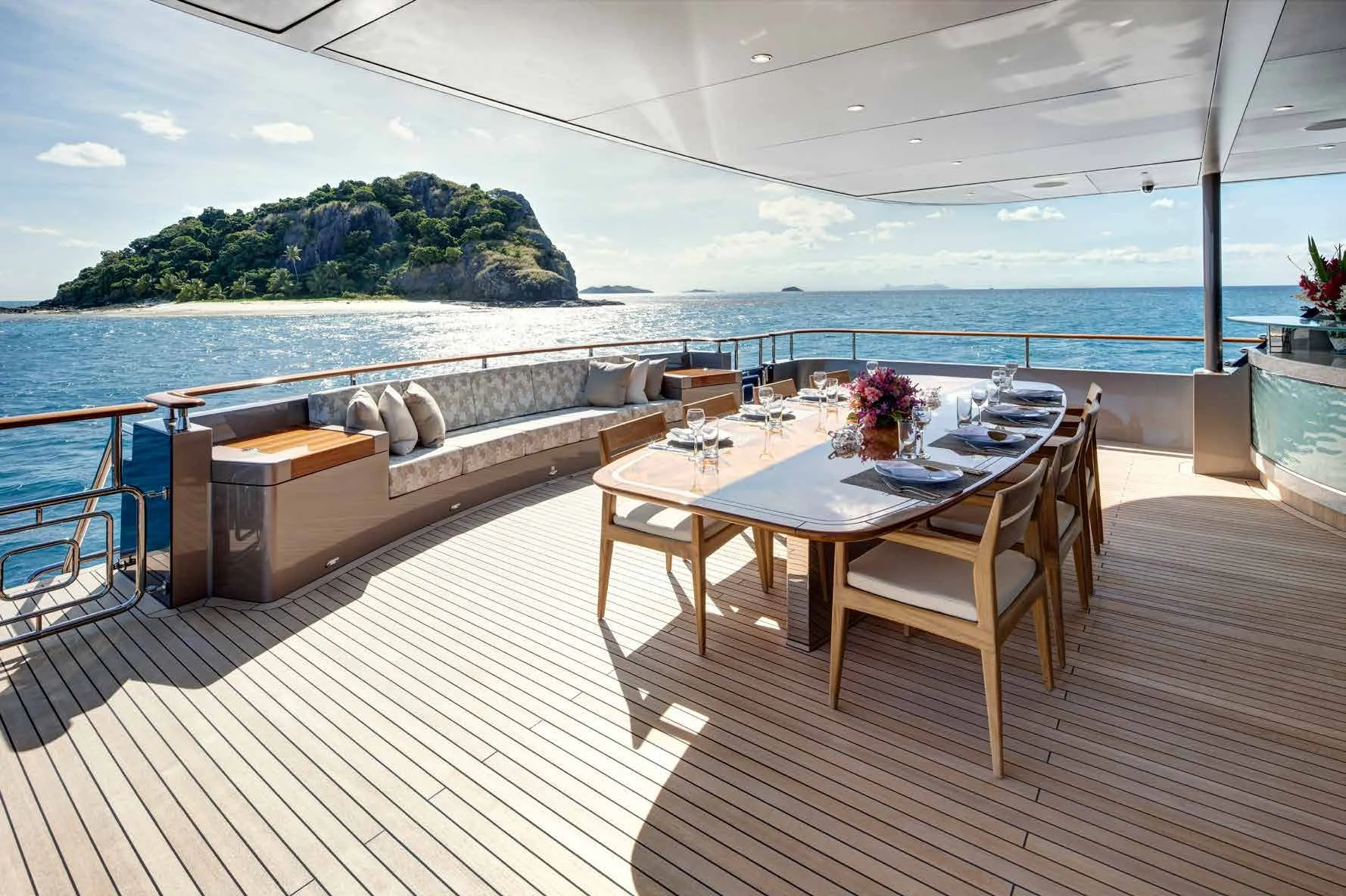

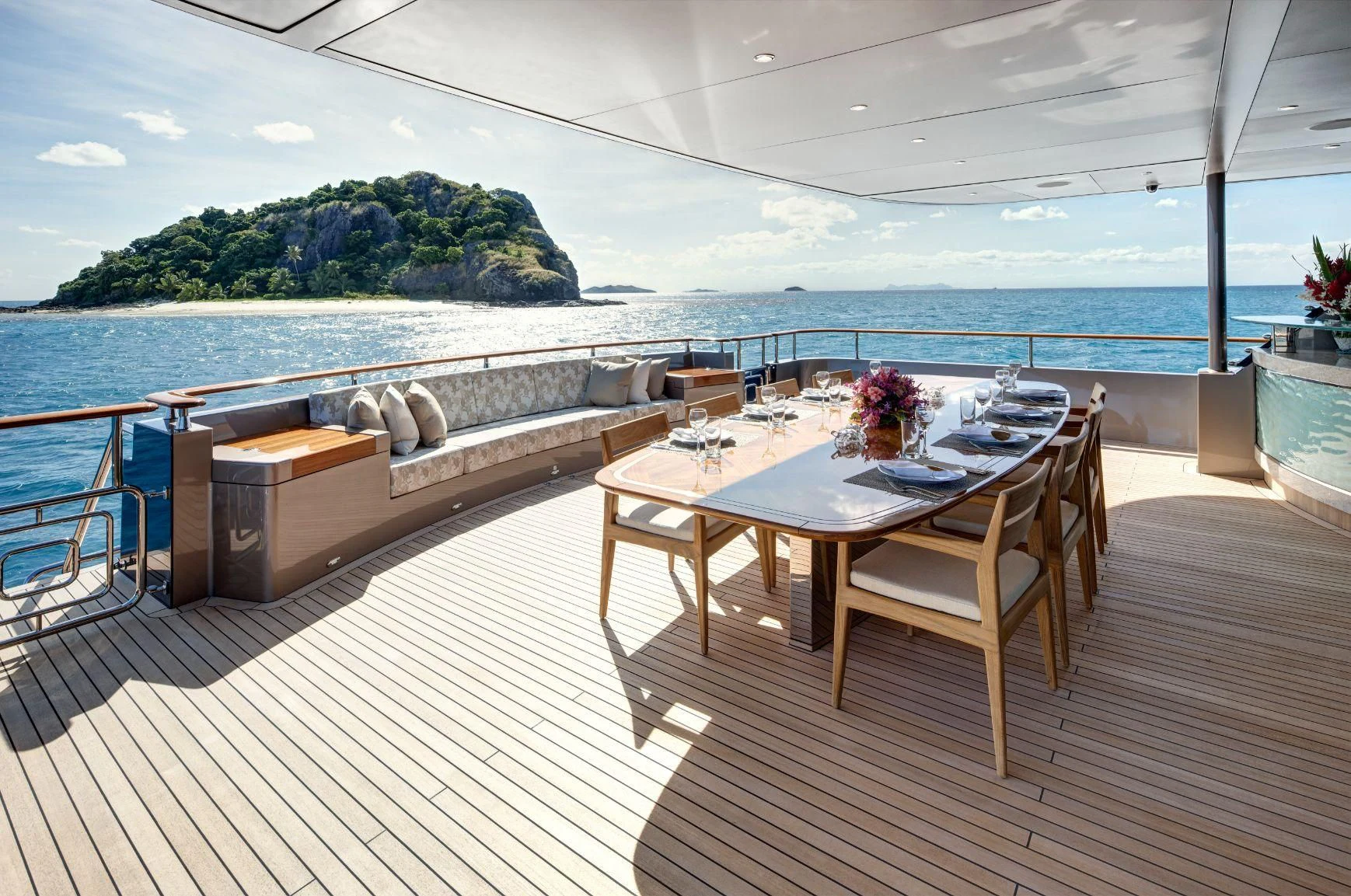

• Upon boarding, the main aft deck gives a proper impression of her sense of style, with a spacious al fresco dining table and fixed aft lounging sofa. The design features elegant, curved furnishings in a light brown, grey, and white color palette. The overall atmosphere has a subtle classic retro feel, reminiscent of Danish design.

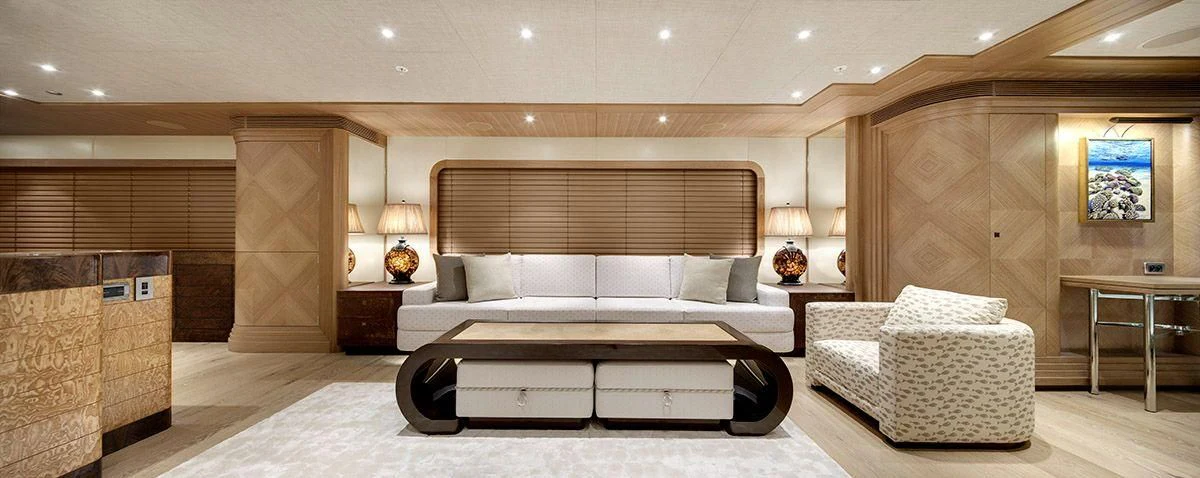

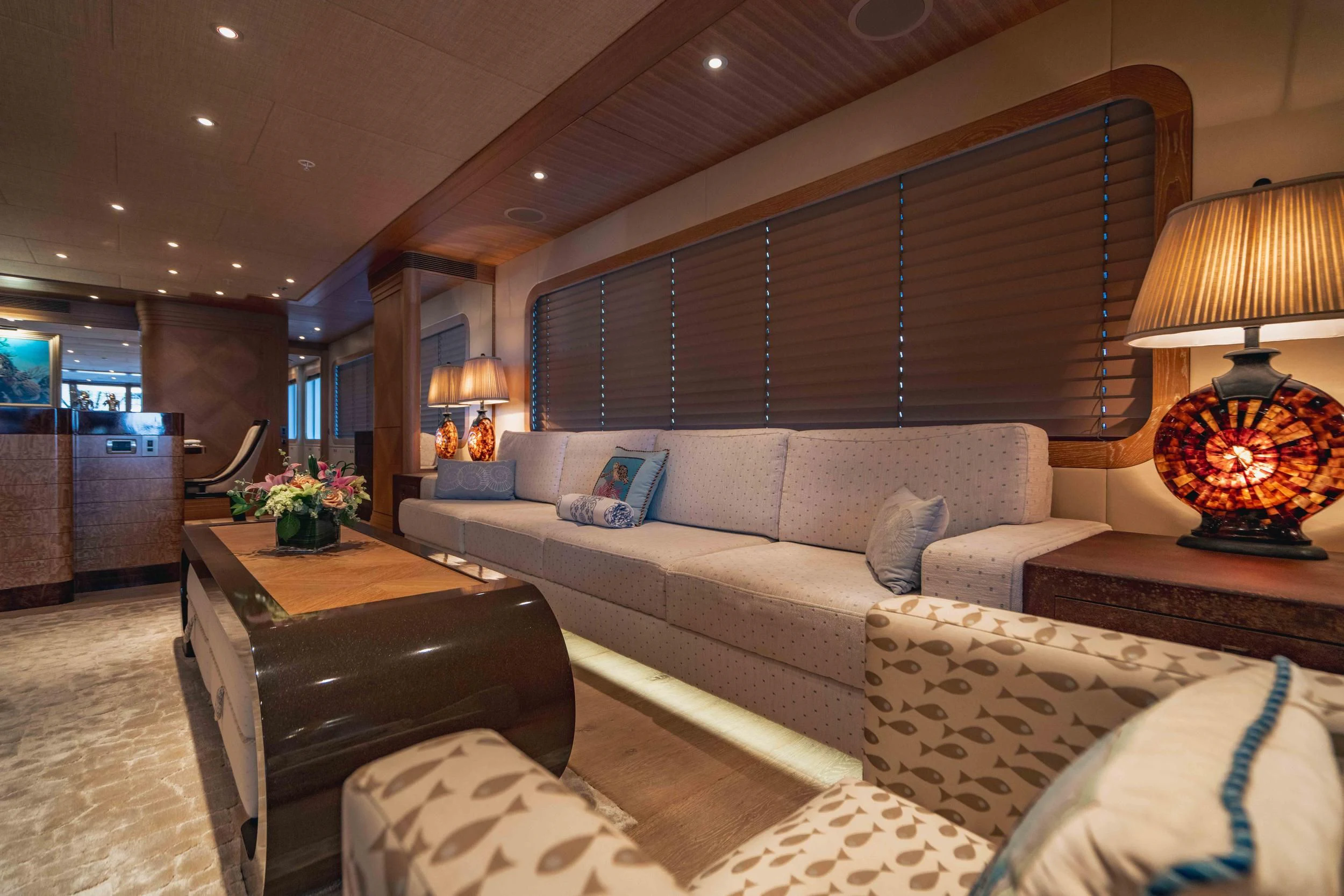

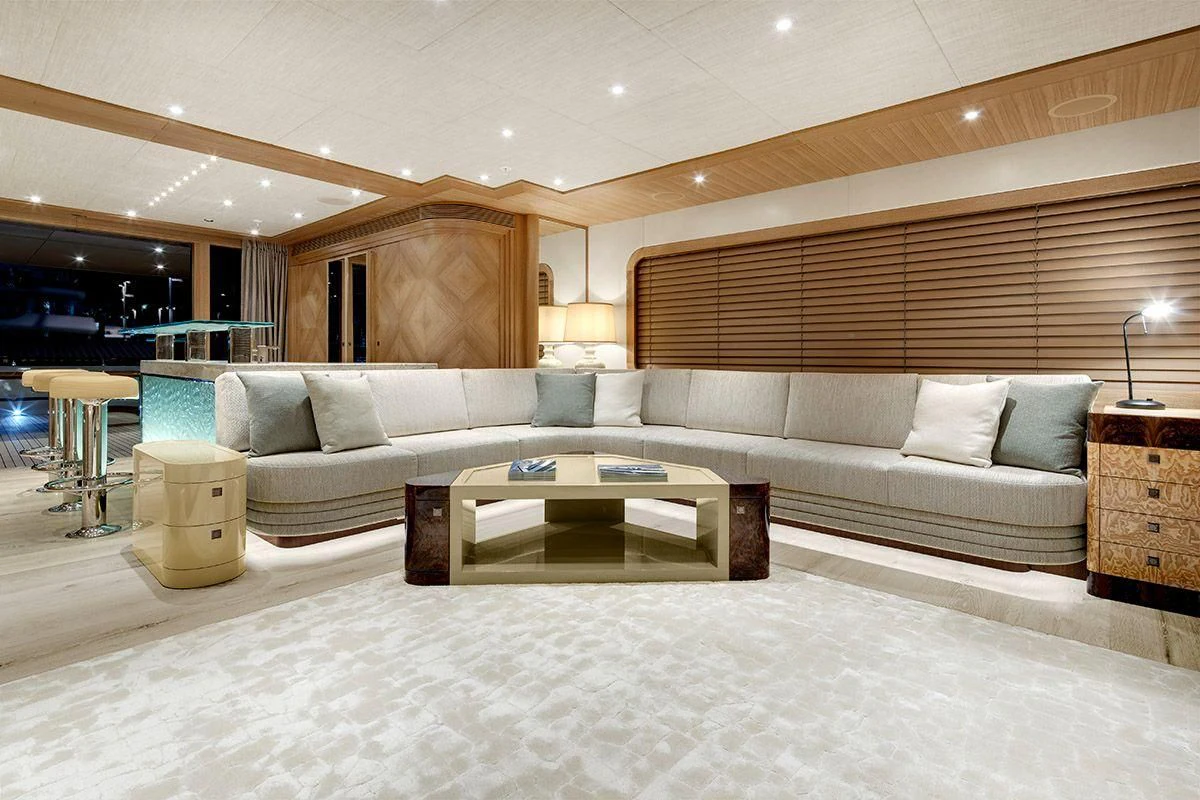

• The design scheme of the main saloon is based on modern curves, light colors, and a sense of timeless hospitality. It has a minimal approach but with ample textures and details to create a warm and light ambiance. The main seating area is connected to an elegant bar setting, leading to the al fresco dining area while maintaining privacy. A large L-shaped sofa is the centerpiece of the main saloon, with a starboard seating arrangement that creates a relaxing lounging area. Forward of the main saloon is a statement stairway to the lower deck and the passageway forward to the day head, study, and on-deck master stateroom.

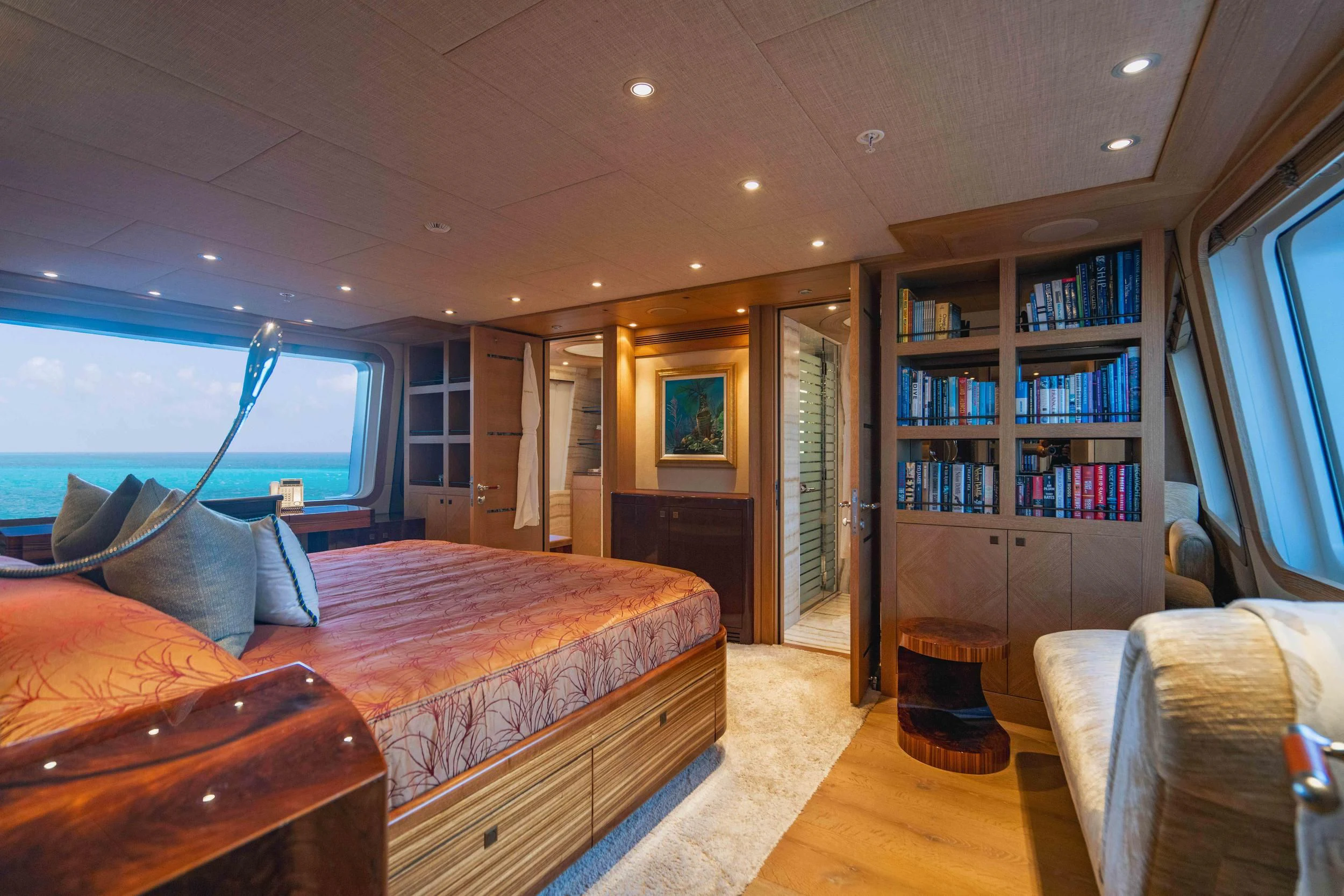

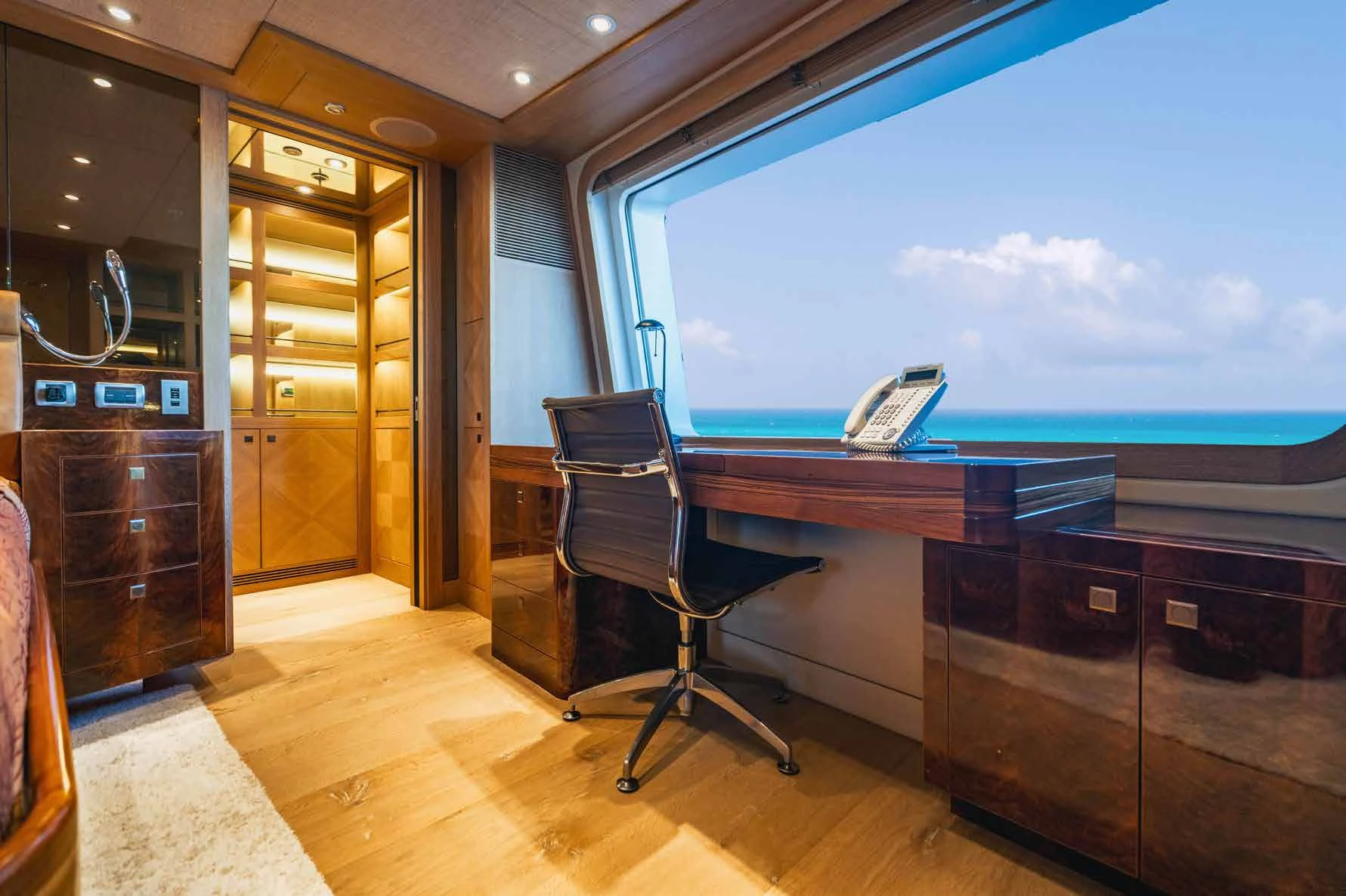

• The owner’s suite features a warm color palette and soft curves, and large windows that ensure plenty of natural light while still maintaining privacy. A king-sized berth sits centerline with storage drawers underneath and built-in nightstands on each side. There is a private office, walk-in wardrobe, and ample storage space. The ensuite offers his-and-hers private bathrooms separated by a large central shower area.

LOWER DECK:

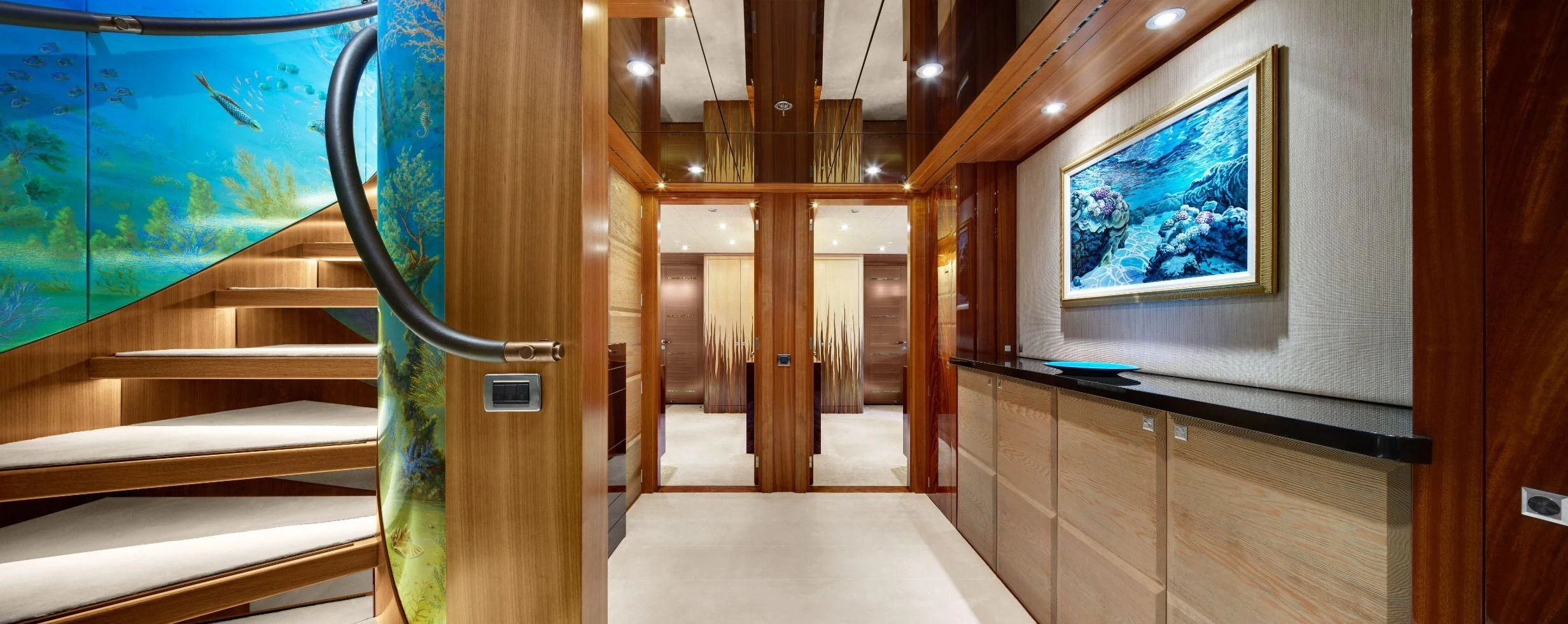

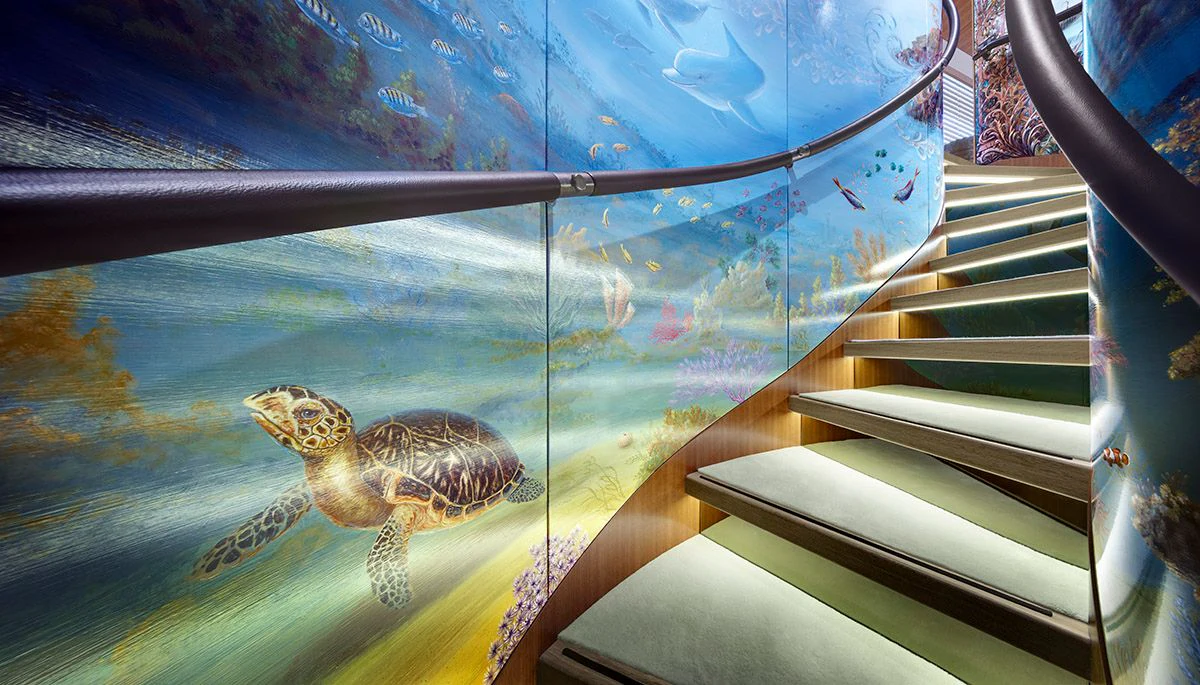

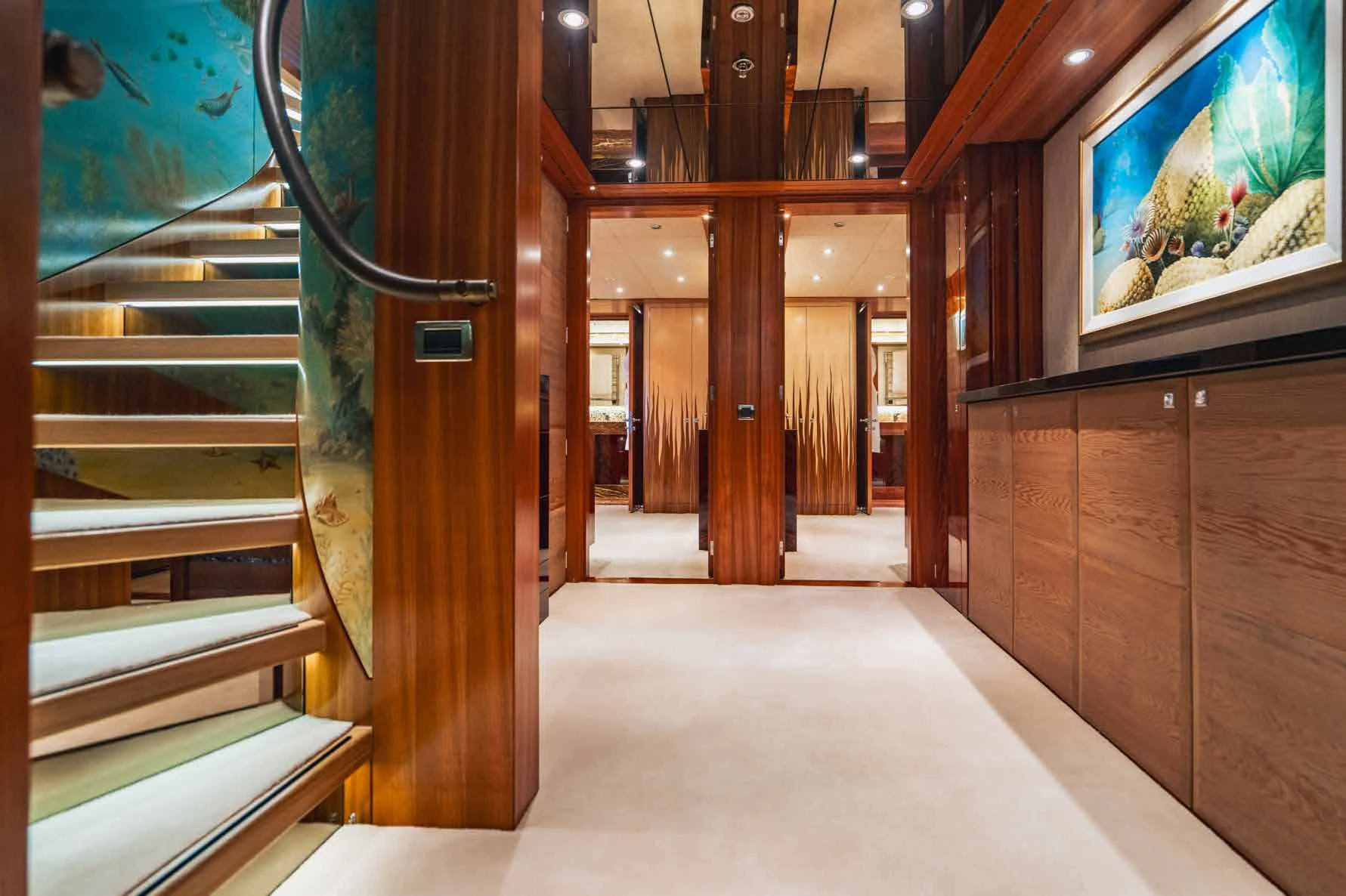

• From the main guest foyer are curved stairs leading below deck to the central lobby, remaining guest staterooms and gym. The two VIP staterooms are situated aft, each with a centerline queen berth. The twin guest stateroom offers a pullman. The staterooms also include large wardrobes for guest convenience and the ensuite bathrooms are spacious and feature large shower areas, providing a comfortable and stylish accommodation for guests. Additionally, there is a fully equipped gym on board next to the twin stateroom that can be converted into an extra guest cabin as needed with the use of two pullmans and ensuite.

BRIDGE & FLYBRIDGE DECK:

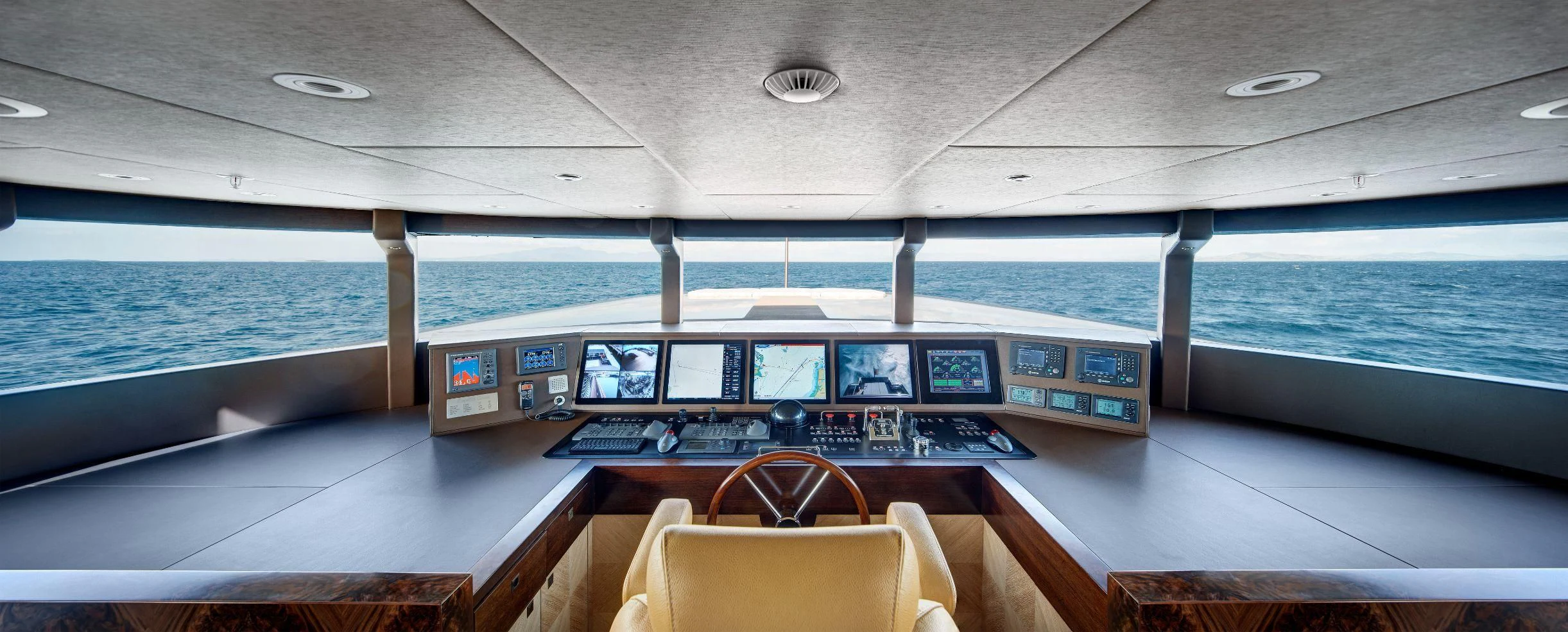

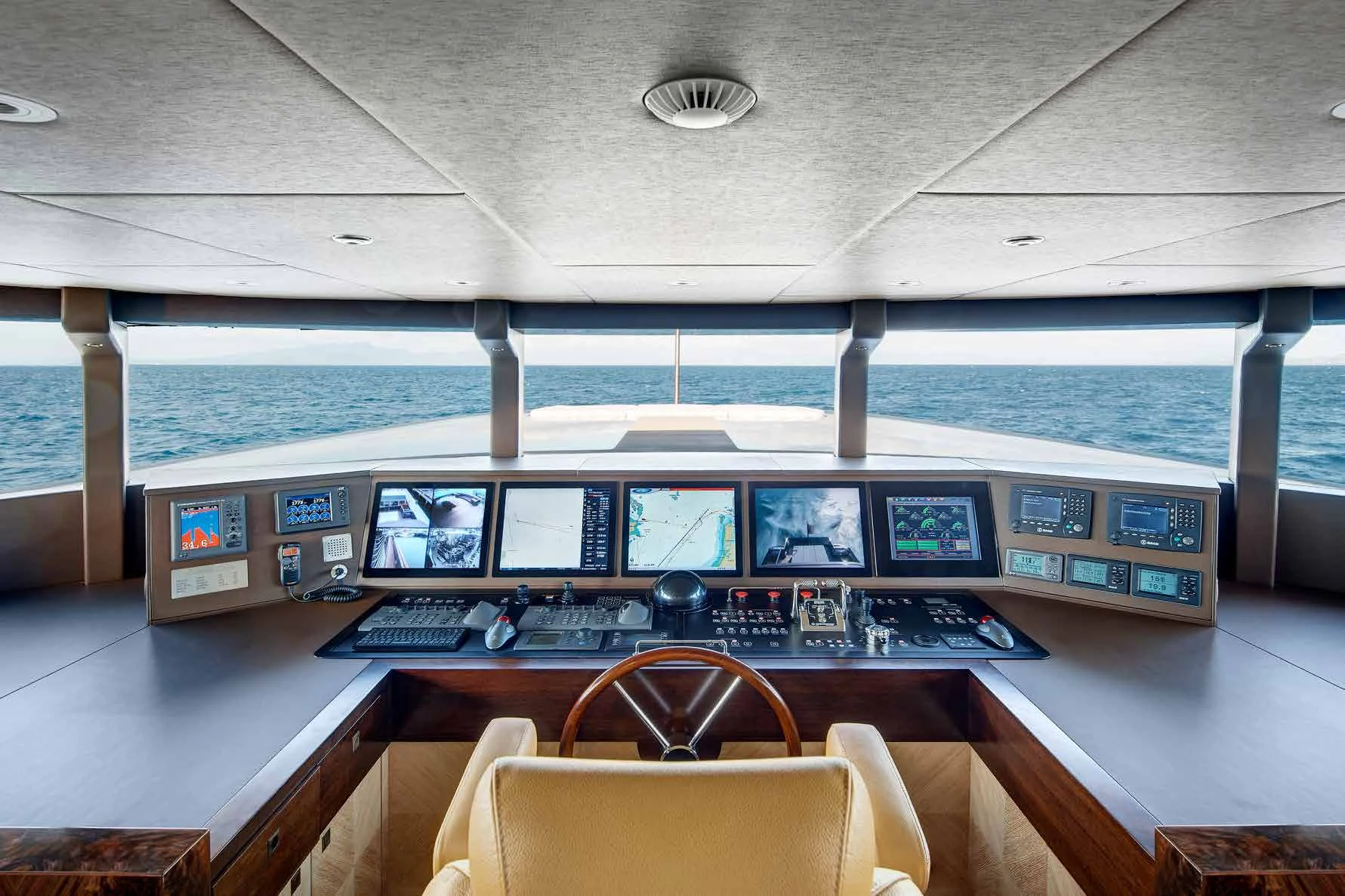

• The main deck foyer offers stairs leading upward to the raised pilot house, with full navigational electronics and center helm seat, 180° view through-vertical windows, and bench seating aft with navigational stations to starboard.

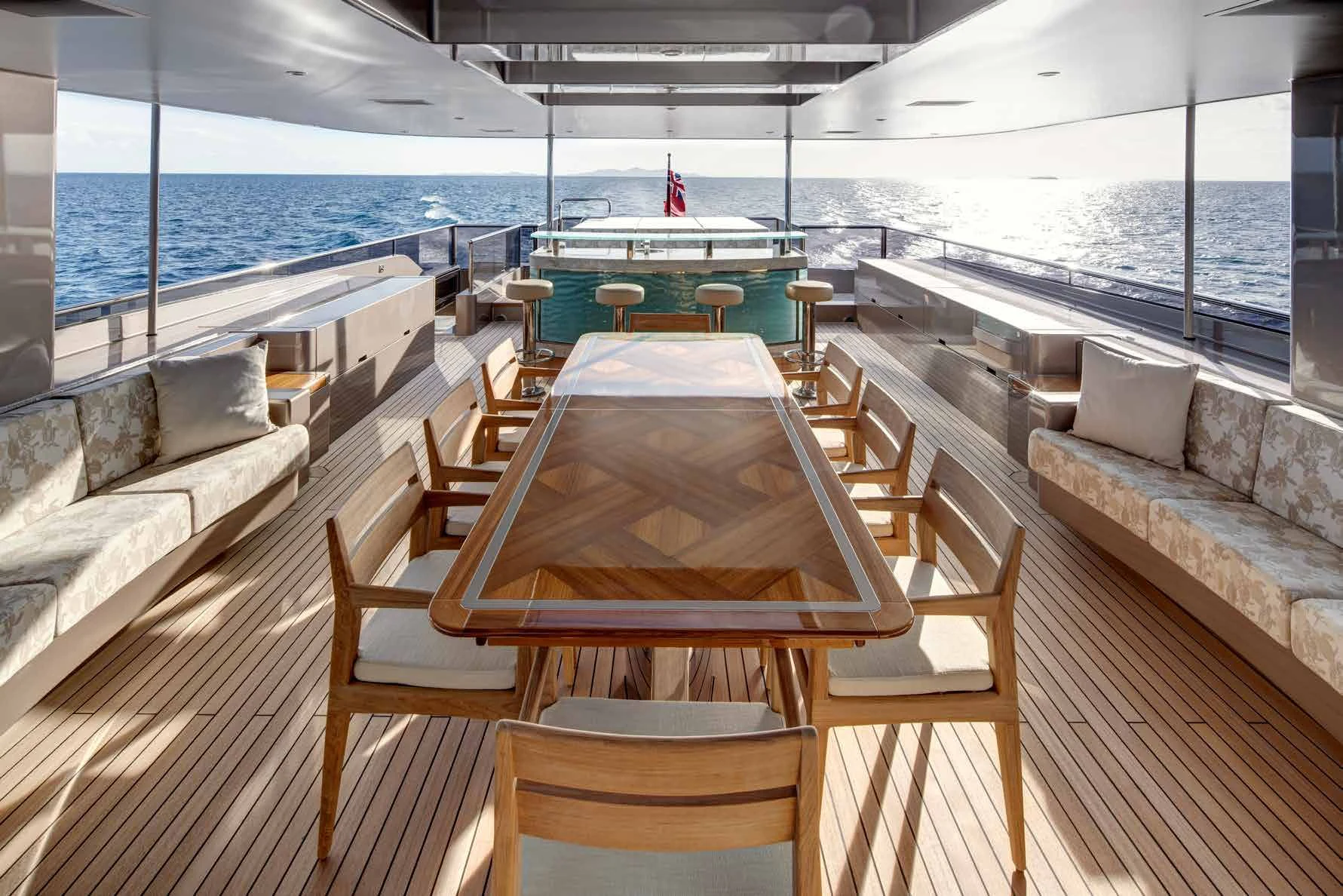

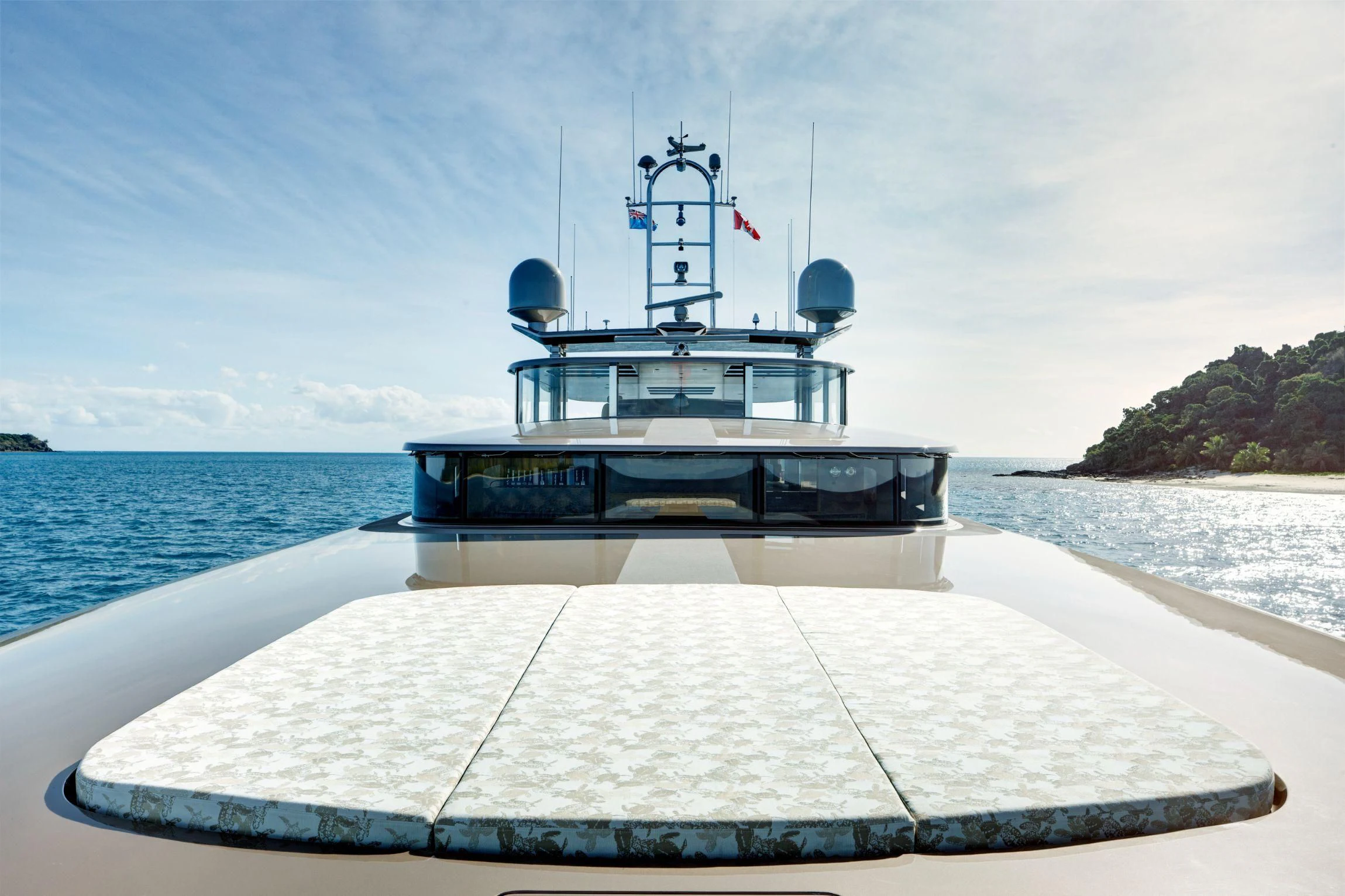

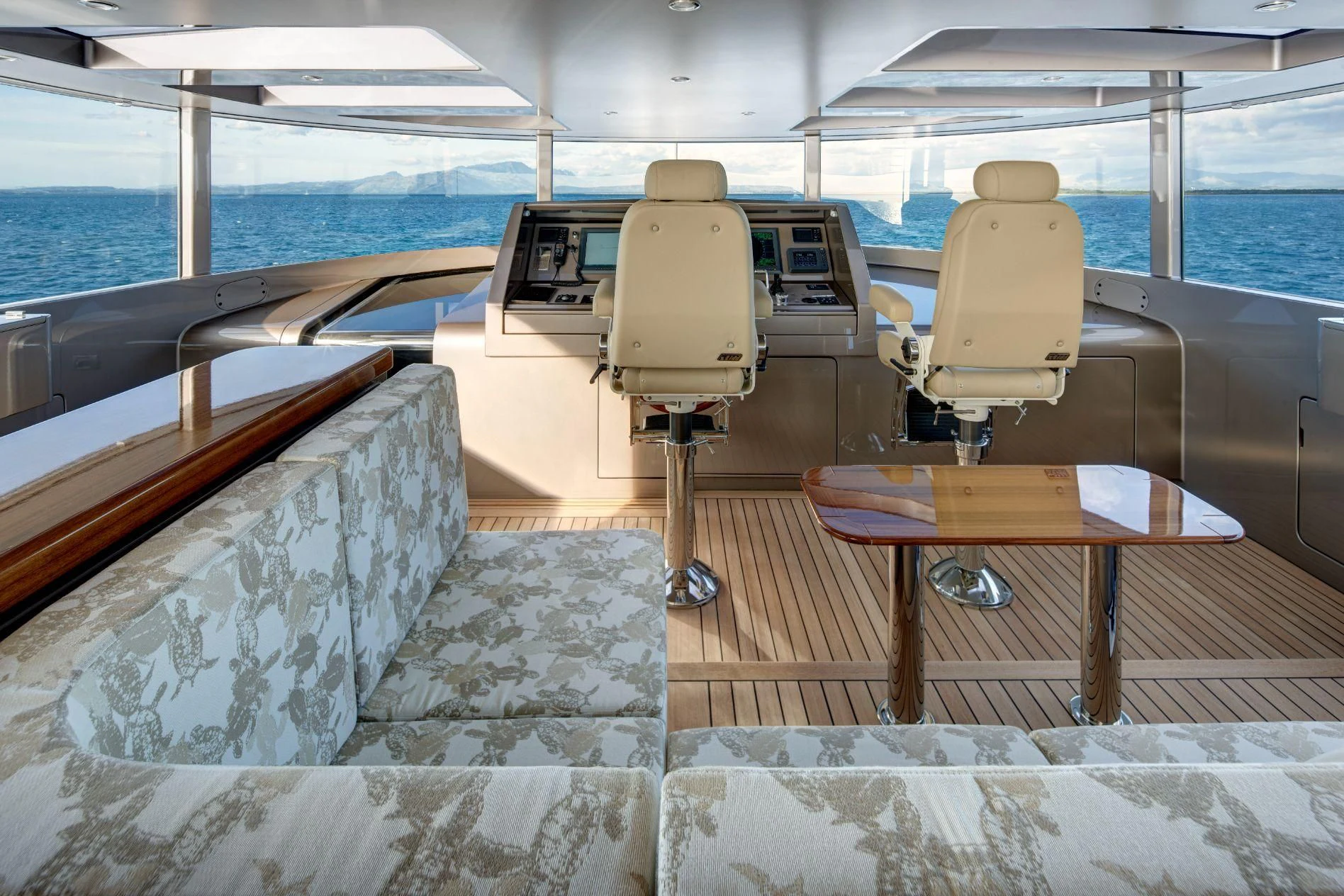

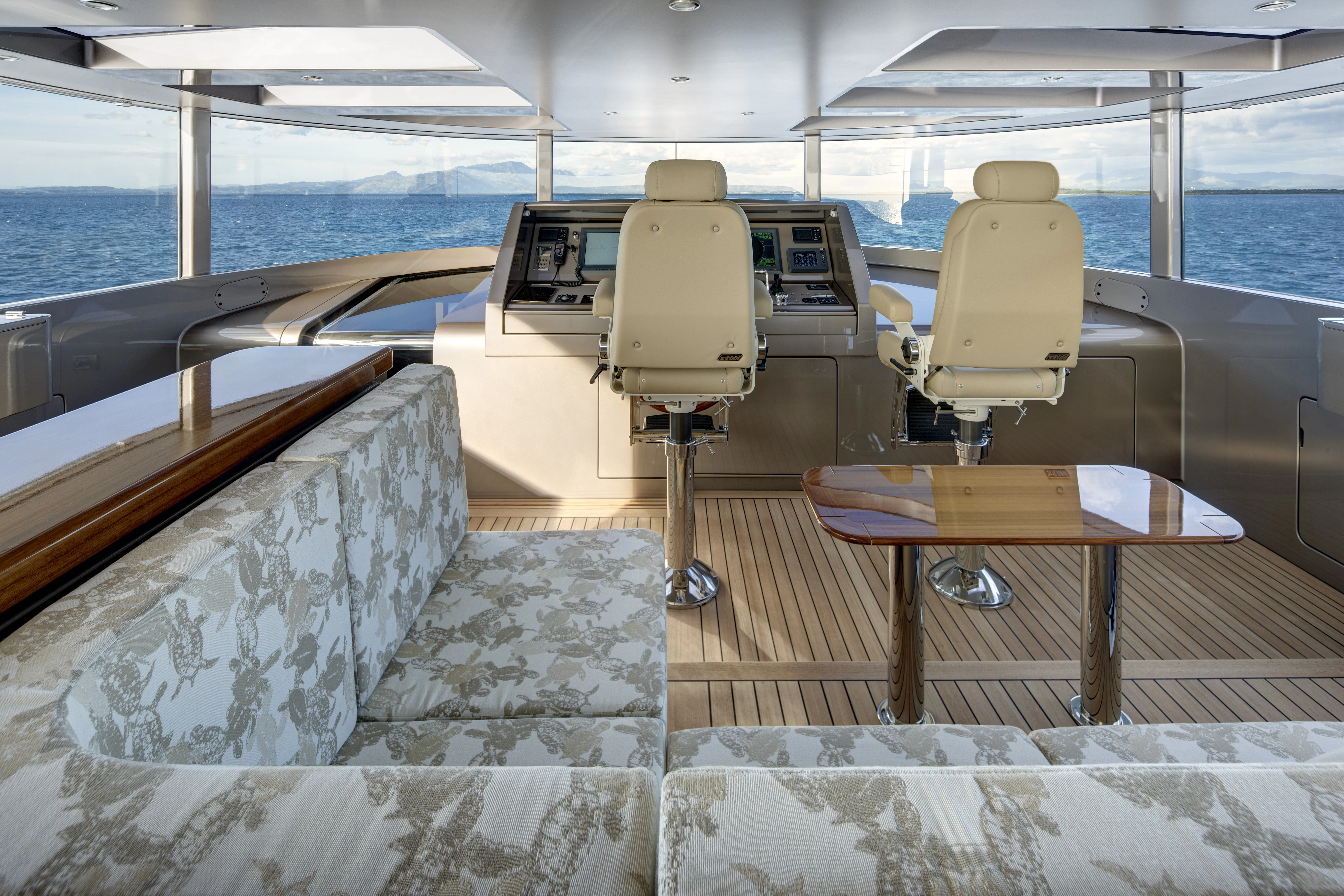

• Further stairs lead to the flybridge deck that can be transformed from an indoor dining area to an open-air lounge deck. The all-around windows can be lifted or lowered to create a weatherproof indoor space or a breezy outdoor area. The deck features a full bar, built-in large BBQ, large lounging sofas, a hidden Jacuzzi under sun pads, and stunning views. It provides guests with ample amenities and comfort, whether they want to dine indoors, relax in the sun, or enjoy the scenery.

SWIM PLATFORM & LAZARETTE:

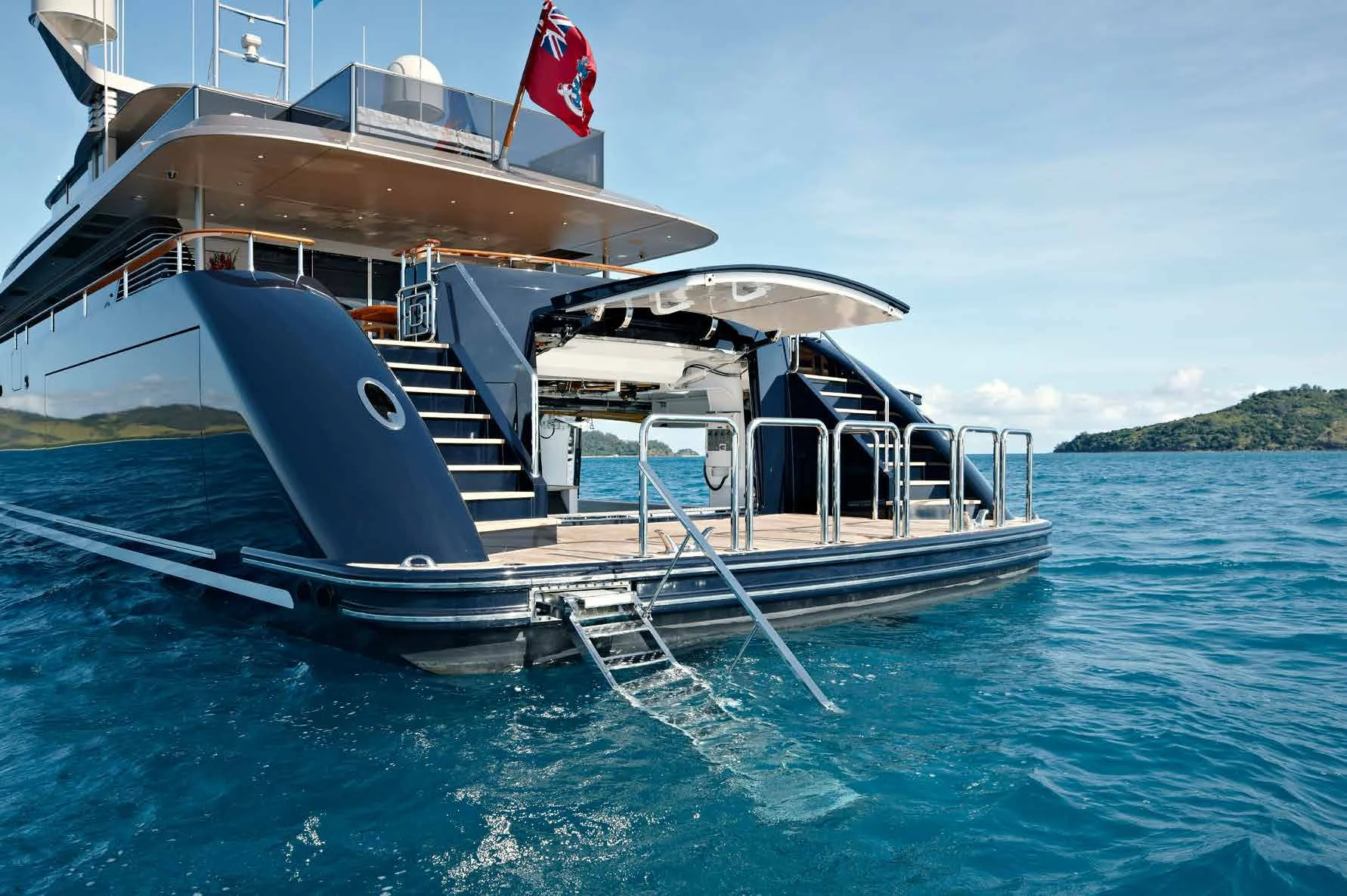

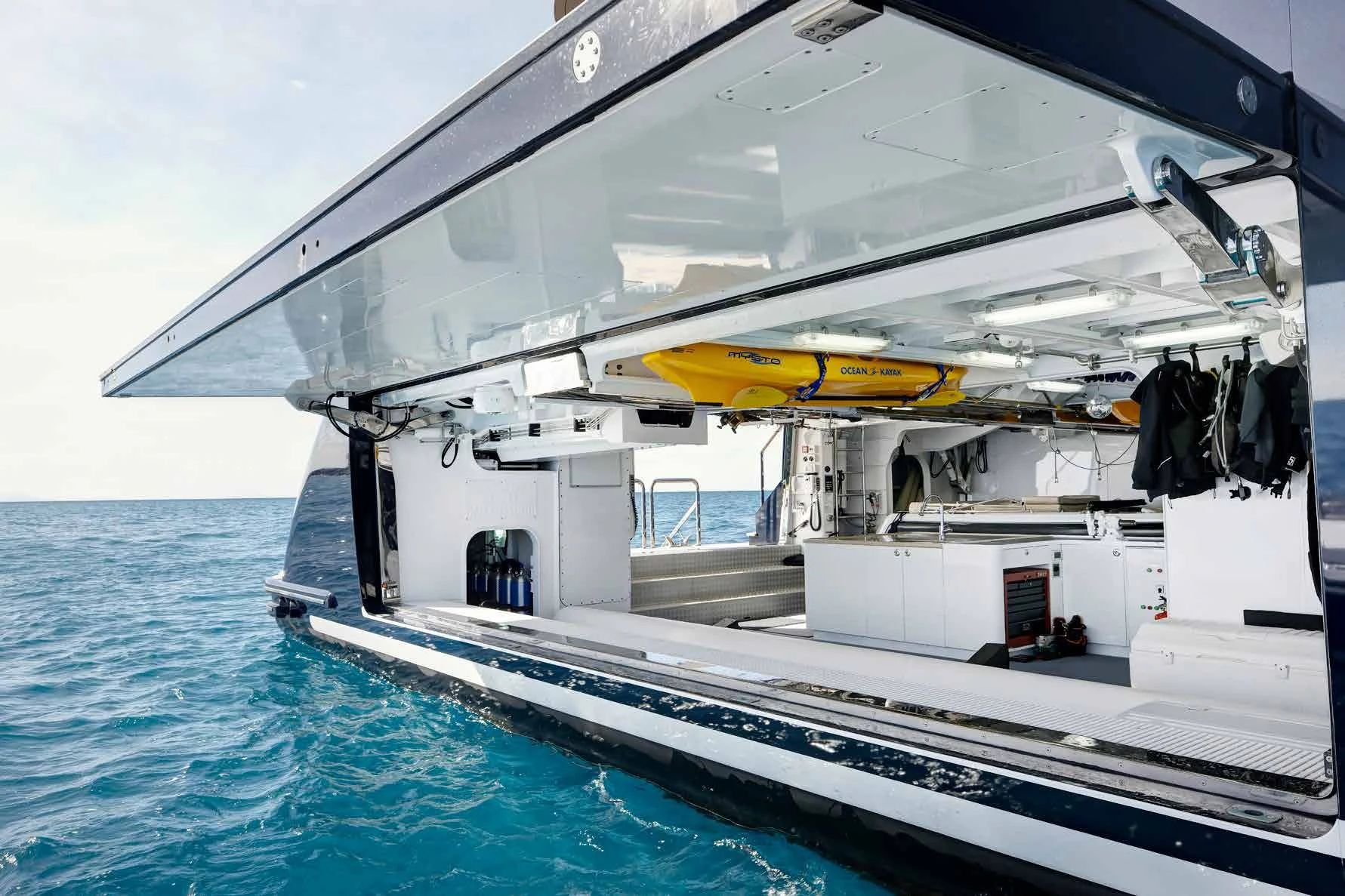

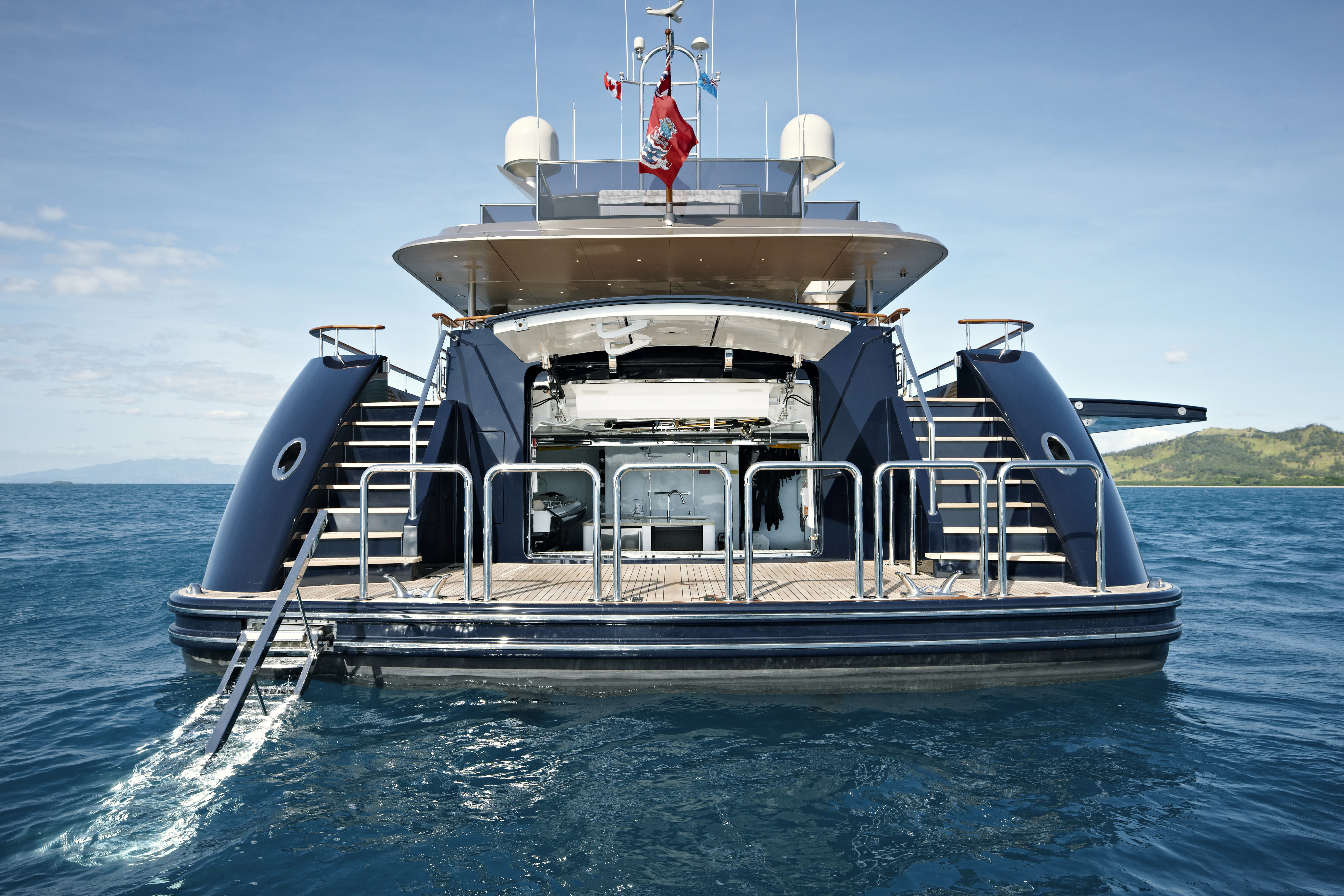

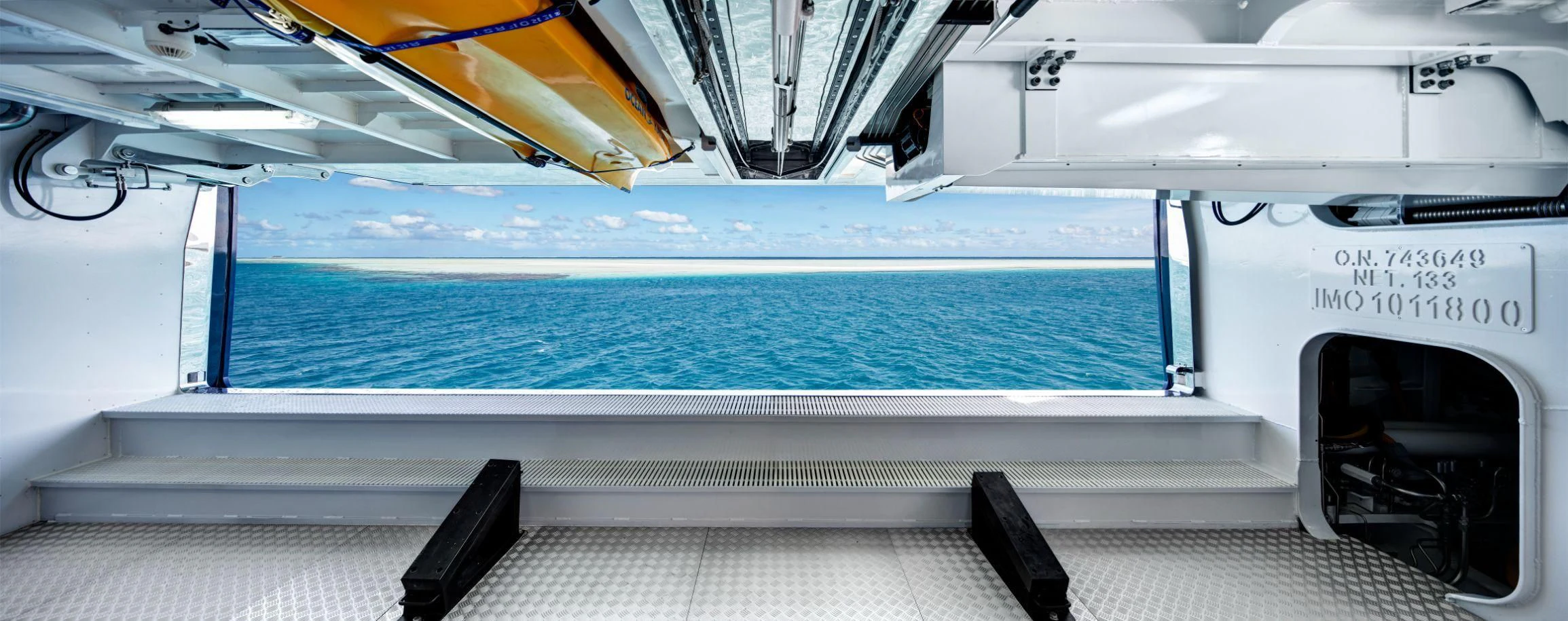

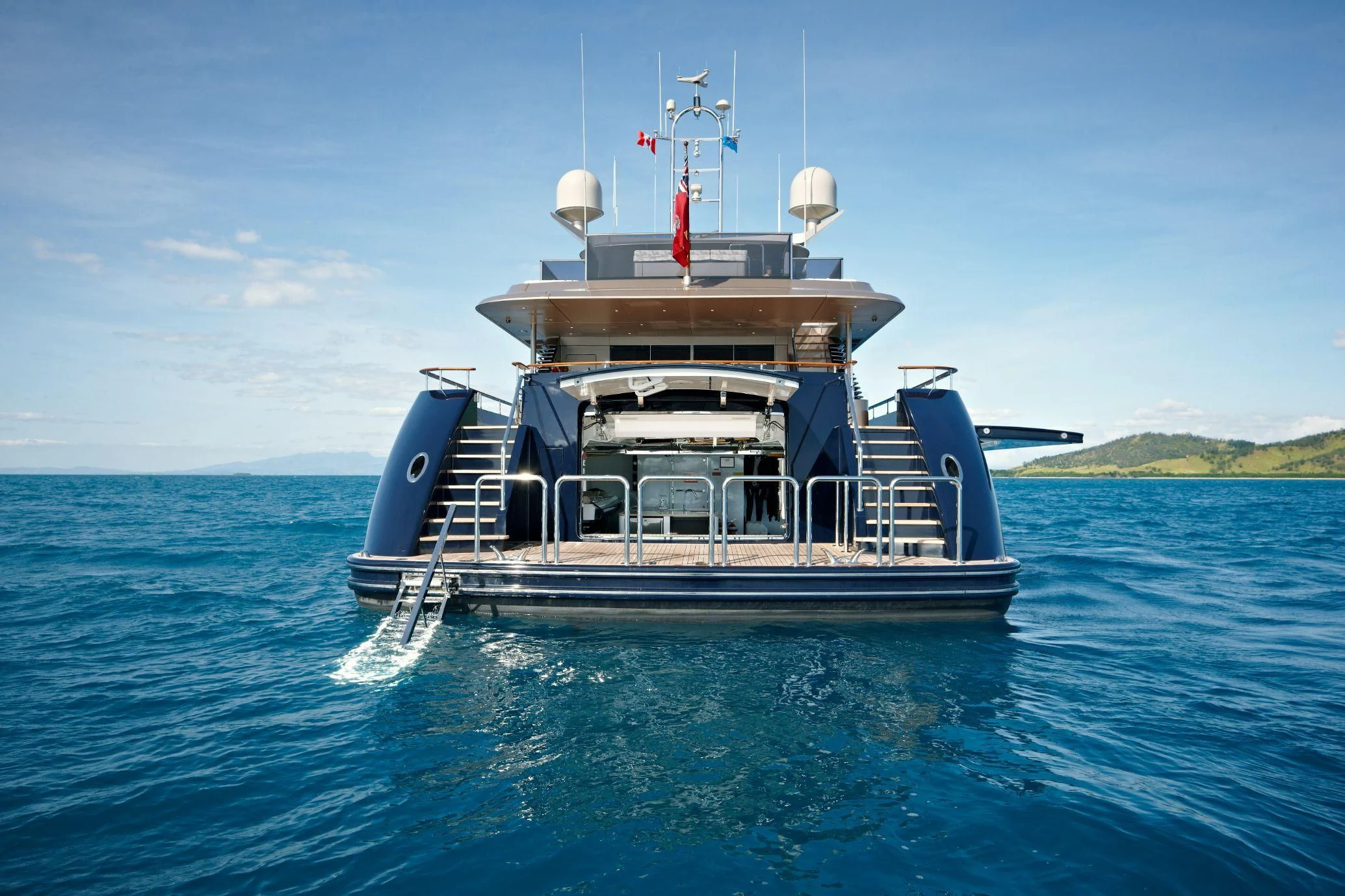

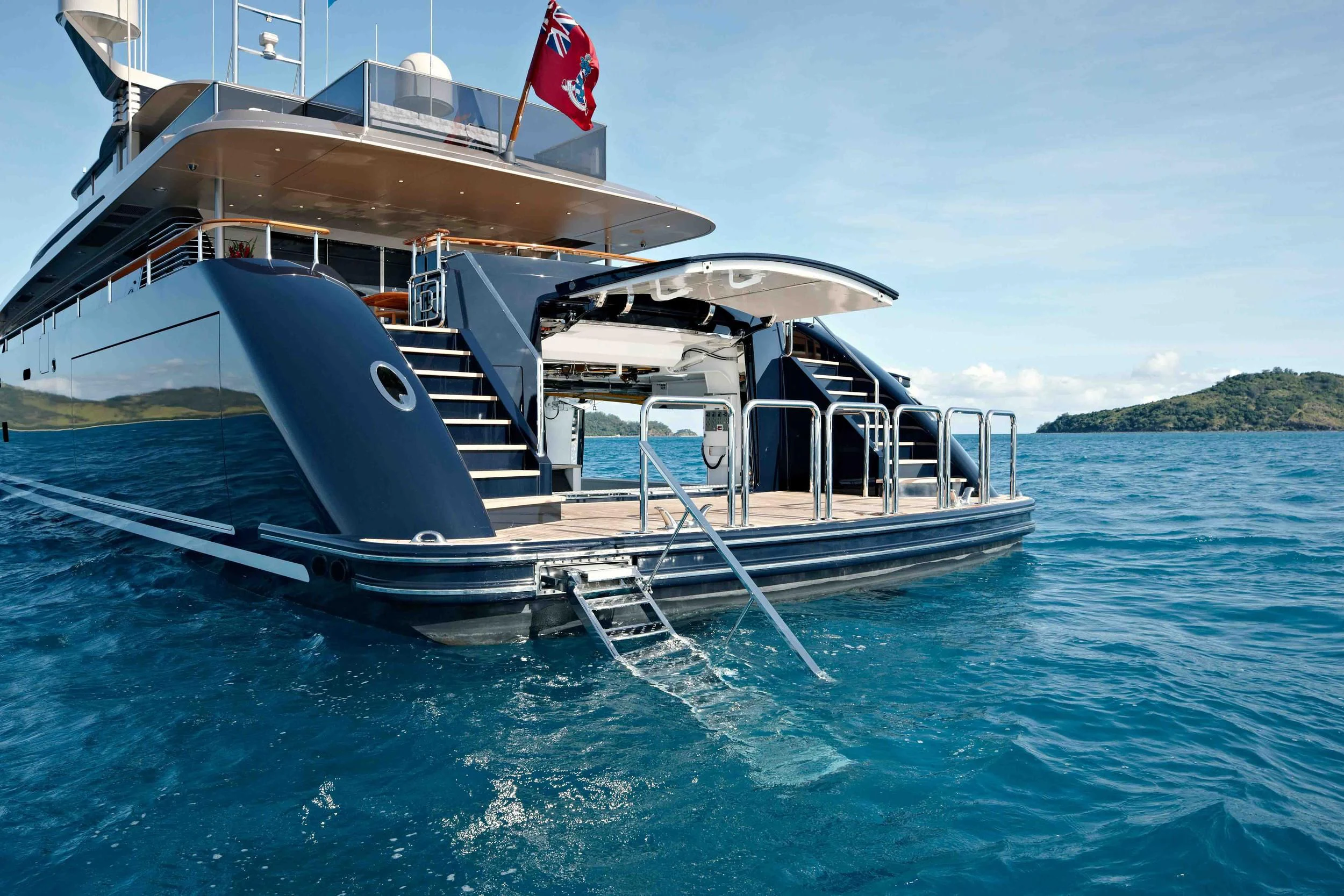

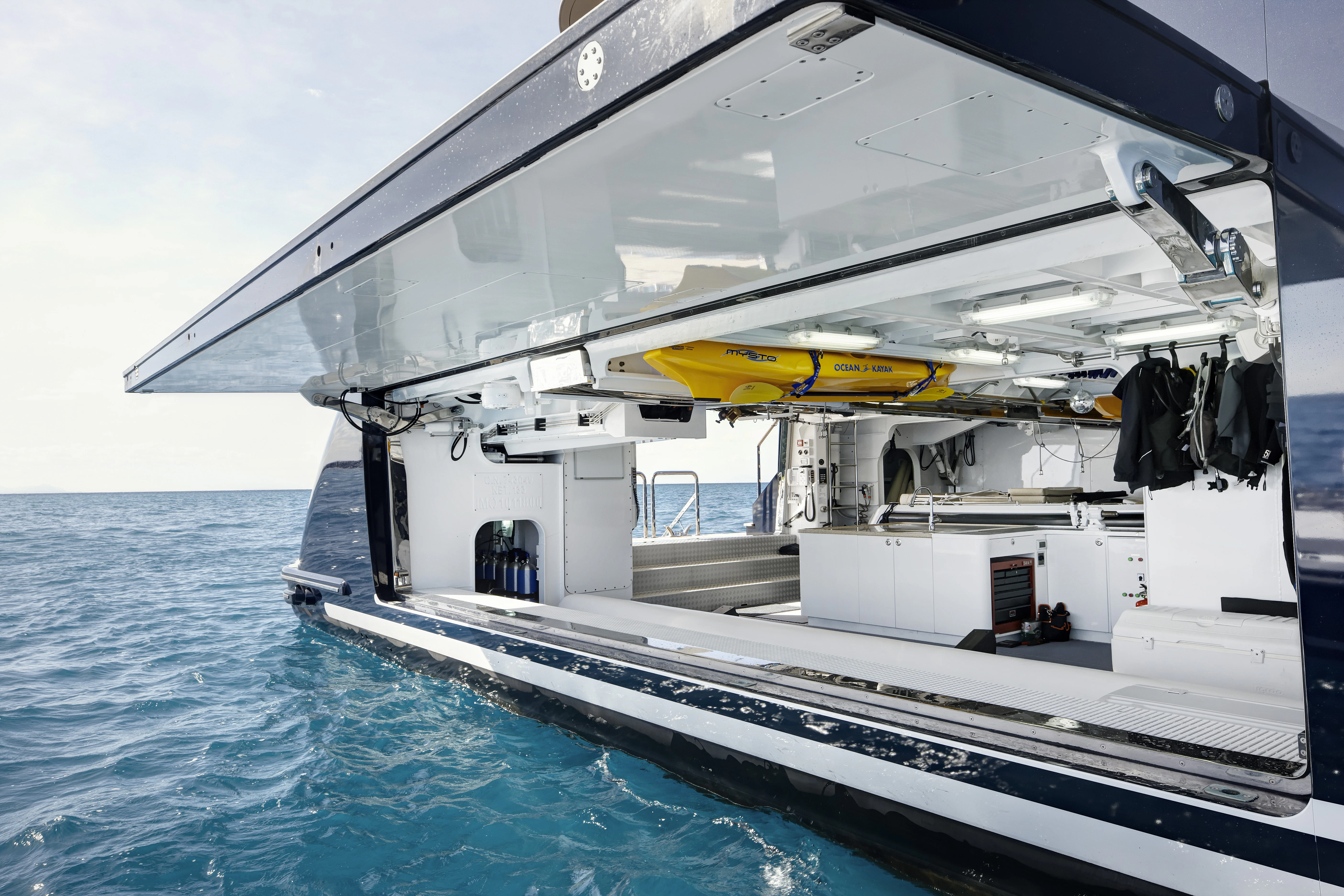

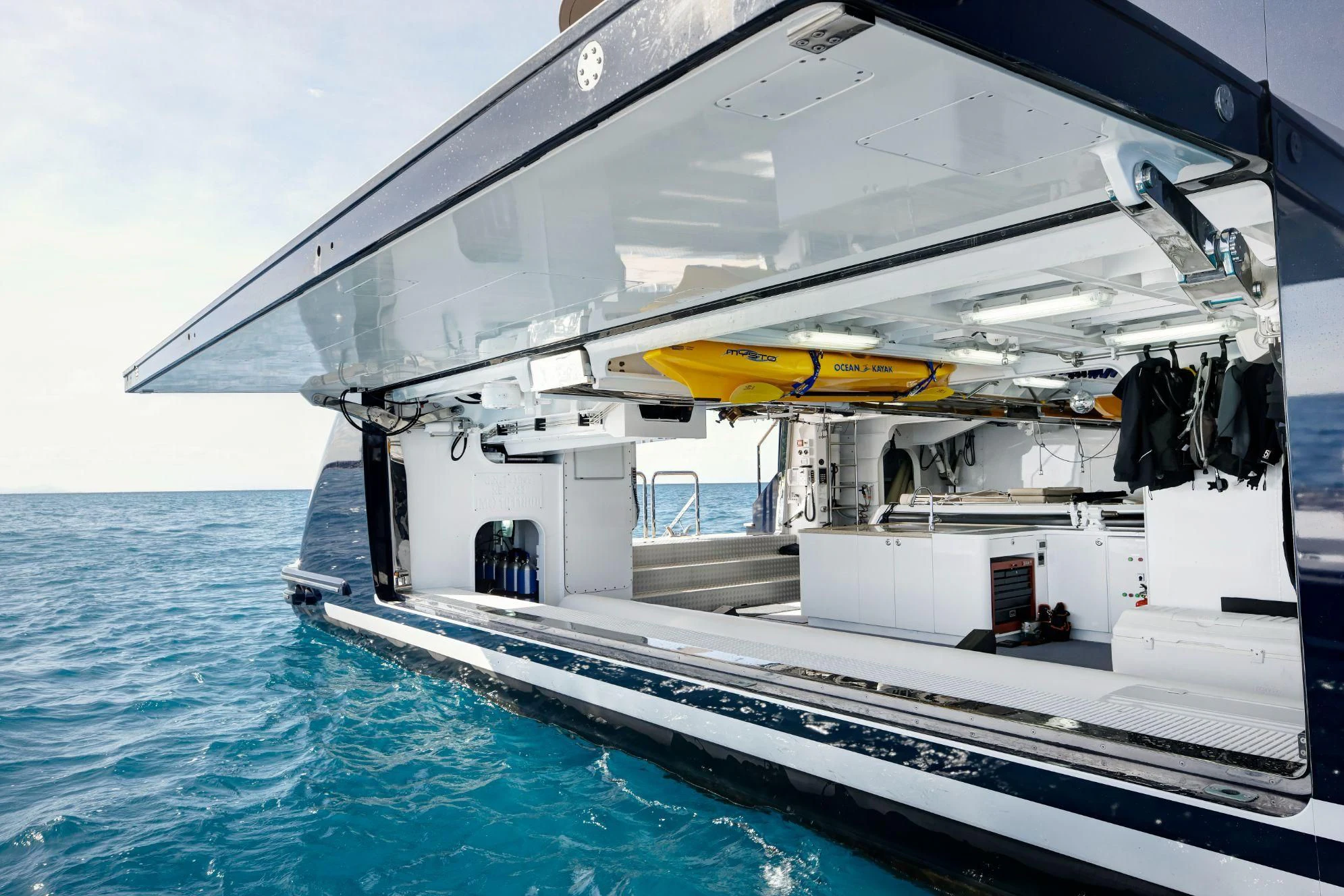

• Port and starboard stairs lead down from the aft deck to a large and sheltered swim platform. A set of custom and elegant sea stairs allow guests to have a dip on their terms and easily return for a freshwater shower on the swim platform. This safe and well-designed area has direct access to the generous lazarette where the two-award winning custom tenders are kept out of the weather. Multiple toys are stored here and with a commercial ice maker, fridge, dive equipment and sea bobs. This is a fun central area for water born activities. Seven-metre-long hull doors open on both sides of the yacht and work with the opening transom door to make this area into a very spacious and airy beach club style fun zone.

CREW ACCOMODATION:

• Located forward on the lower deck is the crew mess and four cabins (3 twin and 1 double) each with an ensuite accommodating 8 crew.

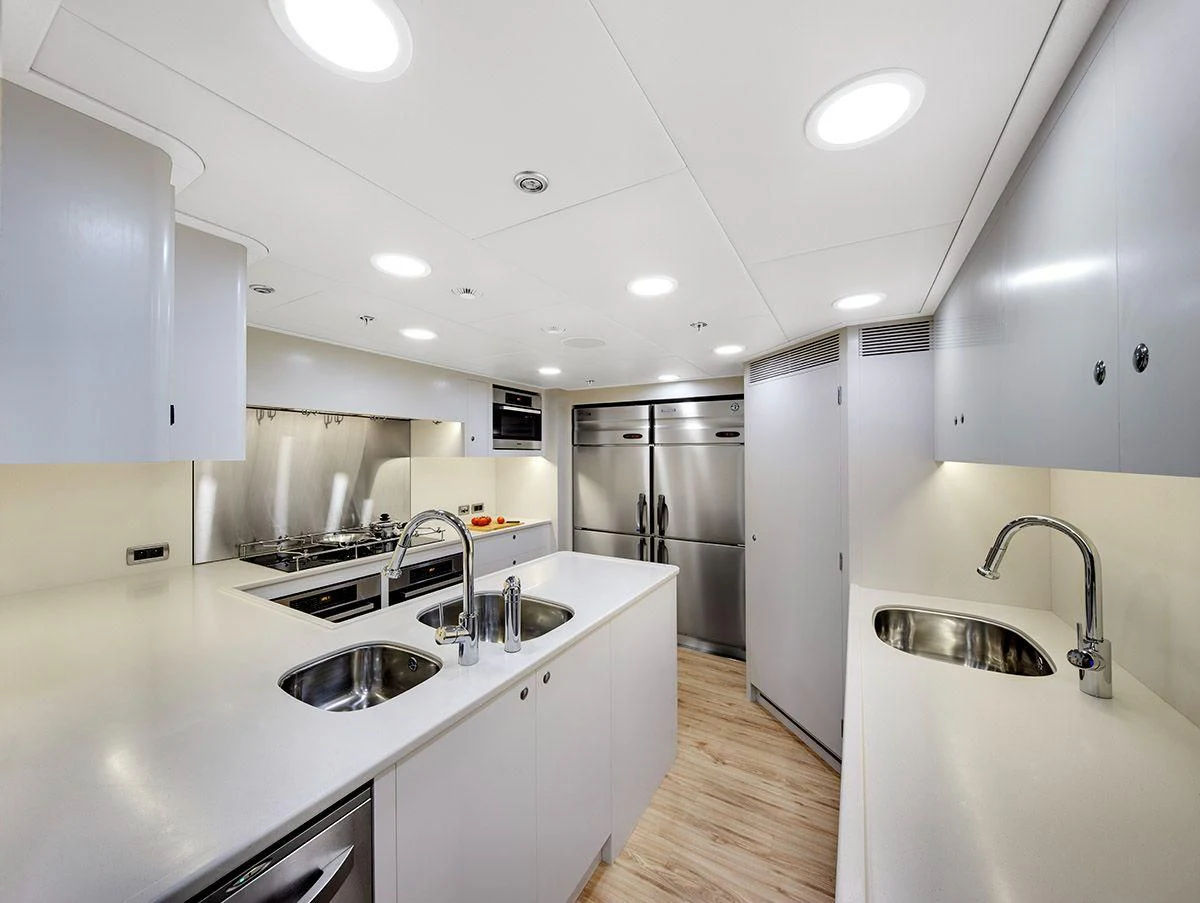

Main Galley Equipment
Cooking Equipment:

• (2) Miele Ovens (New 2018)
• Miele 5-burner induction stover-top (New 2017)
• Custom Hood Extractor
• Miele Microwave / Convection Oven
• Refrigeration/Freezer: (2) Hoshizaki refrigerator / freezer
• Dishwasher: (2) Miele (2 new 2019)
• Other: Galley sink drain w/ grease trap

Pantry & Other

• Refrigeration/Freezer: ULINE refrigerator

Other:

• Franky cappuccino maker
• Eurocave wine cooler

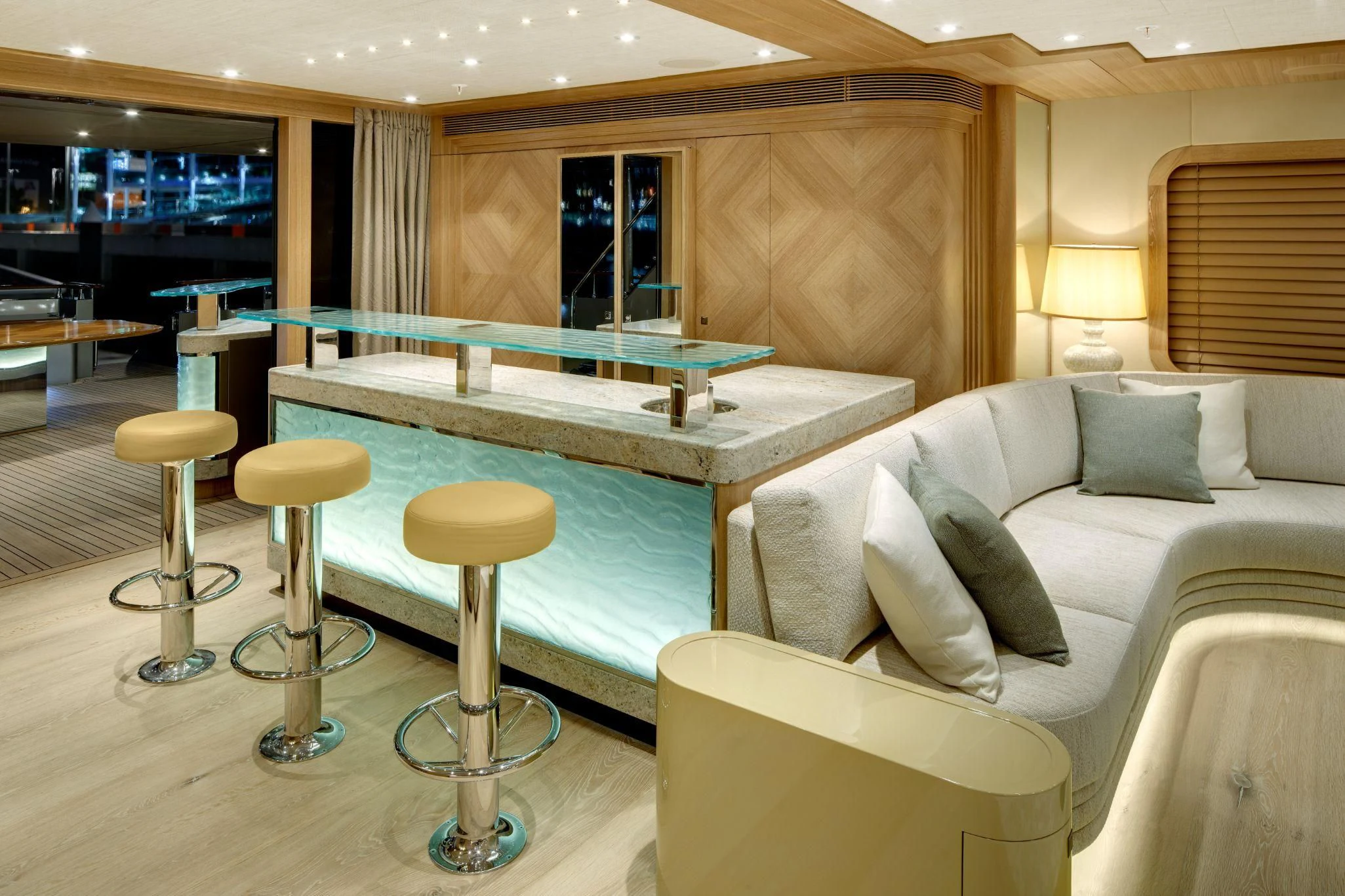

Main Salon Bar:

• ULINE refrigerator
• ULINE icemaker

Aft Deck Bar:

• ULINE refrigerator

Flybridge / Sundeck:

• ULINE icemaker
• EUROCAVE wine cooler

Lazarette:

• ULINE refrigerator
• Hosgizaki commercial icemaker

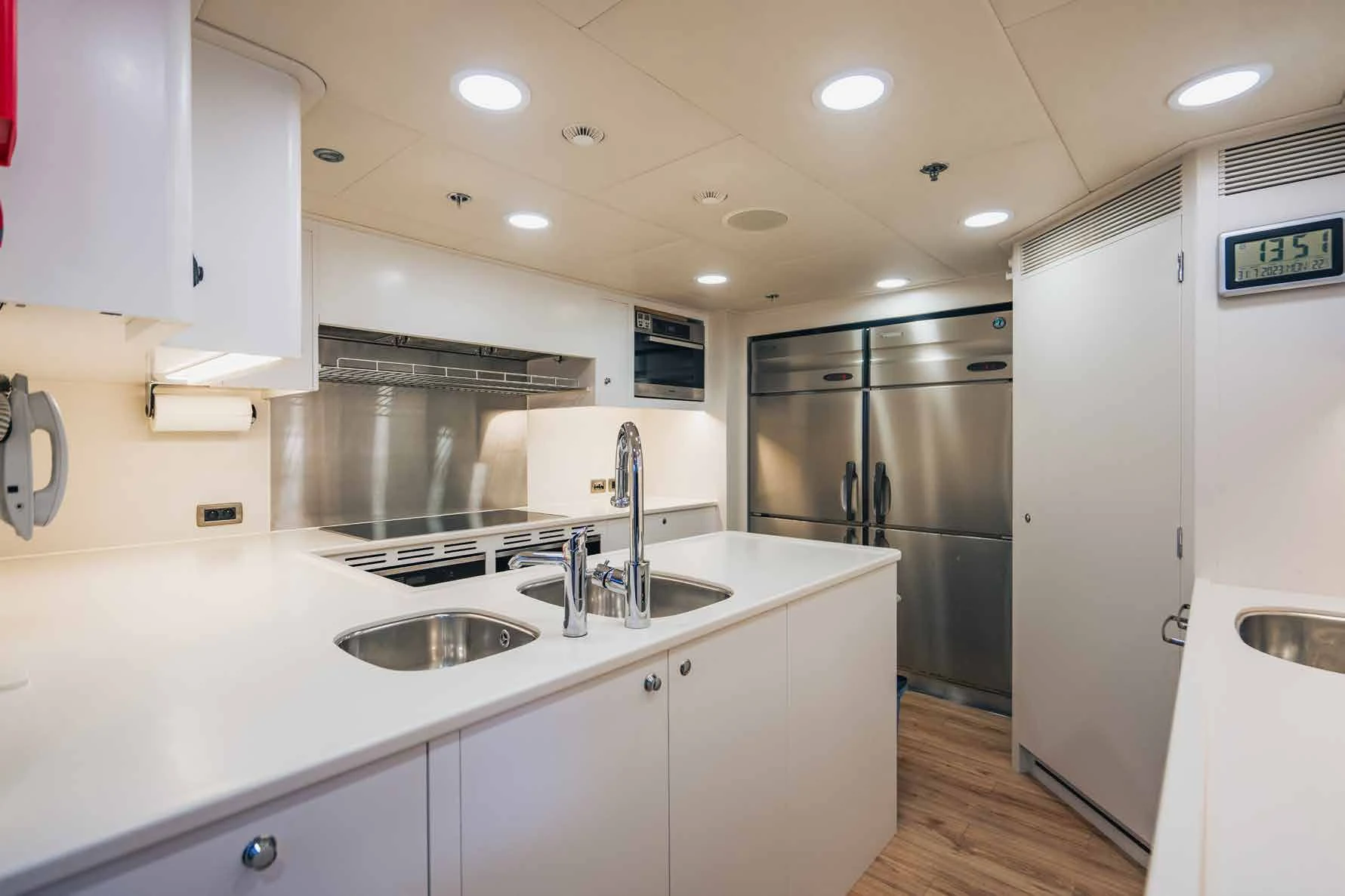

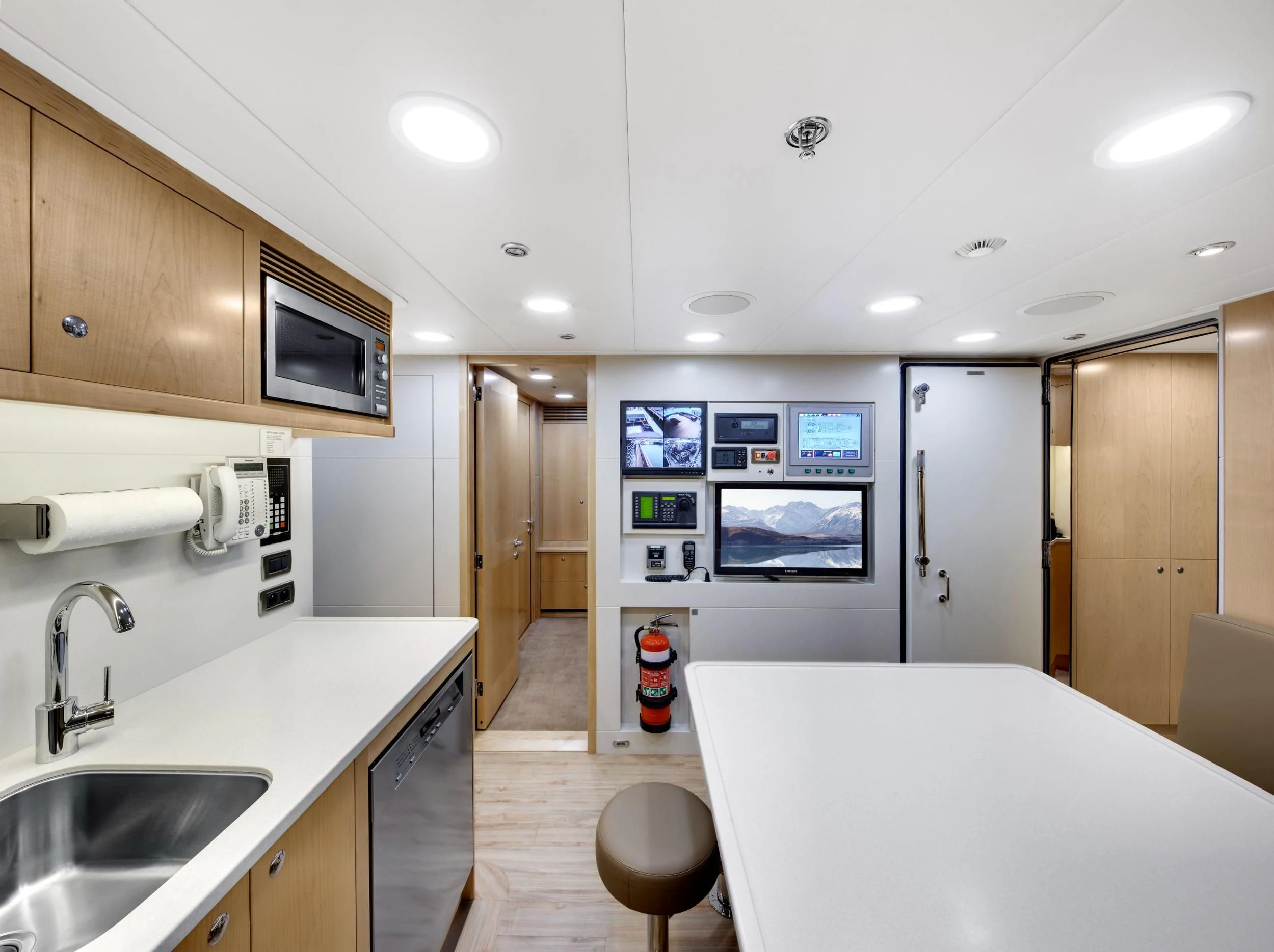

Crew Galley / Mess Equipment / Cooking Equipment

• Refrigeration/Freezer: Hoshizaki
• Dishwasher: Miele (New Sep 2019)
• Other: Custom Bilge Freezer
• Laundry Equipment: (2) Miele Professional washer/dryer

Bridge

• VHF Radio: ICOM

Nav-Station

• Telephone System: Panasonic Hybrid KXDT-343 w/ 15 extensions
• VHF Fixed Radio: ICOM IC-M604
• Satellite Phone: Thrane & Thrane 773672A
• Fleet Broadband: 250FB
• Handheld VHF Radios: (2) ICOM 1600D
• Handheld UHF Radios: (10)

Flybridge

• VHF Fixed Radio: ICOM

Other

• Crew Mess: ICOM VHF

Bridge

• Radar: (2) X-BAND, 64 Nautical Mile Range
• Ship’s Compass: SIRS NAV, 5’ Card
• Satellite Compass: Furuno
• Auto Pilot:Furuno Nav Pilot
• Wind, Speed and Direction: B&G H3000
• Boat, Speed and Depth: B&G H3000
• GPS: (2) SAAB R4
• AIS: SAAB R4
• Echo-sounder: Furuno FE-700
• BNWAS: Furuno BR-460

Nav-Station

• Telephone System: Panasonic Hybrid KXDT-343 w/ 15 extensions
• SSB: ICOM IC-M801
• SAT C: Furuno
• NAVTEC: Furuno
• Monitors: (4) KEP Marine 15” Screens
• Printer: HP Envy 7640
• Searchlight: ACR
• Ship’s Clock and Barometer: SALEN

Computers:

• (3) Custom
• (1) for Chart-System Transit
• (1) by Chart-System Mobile Tech
• (1) for Ship’s Service Use

Flybridge

• Ship’s Compass: SIRS NAV 5” Card
• Auto-pilot Repeater: Furuno
• Wind, Speed and Direction: B&G H3000
• Boat, Speed and Depth: B&G H3000
• Monitors: (3) KBP Marine 13” Screens
• Searchlight Controls: ACR

Other

• Captain’s Cabin: B&G H3000 Boat speed and wind direction
• Navigation Chart Screens and Information can be brought up on any of the interior television sets

• Video Equipment: Direct TV for U.S. and Caribbean with (9) HD receivers
• Control: Crestron / iPad

Main Salon:

• Samsung 49NU8000 LED TV
• MARANT’S 160A AVR
• iPort Launch Base Station
• Apple iPad MINI-4
• Apple TV w/ stereo speaker system

Master Stateroom:

• Samsung 40MU6290 LED TV
• iPort Launch Port Base Station
• Apple iPad MINI-4
• Apple TV w/ surround sound speaker system

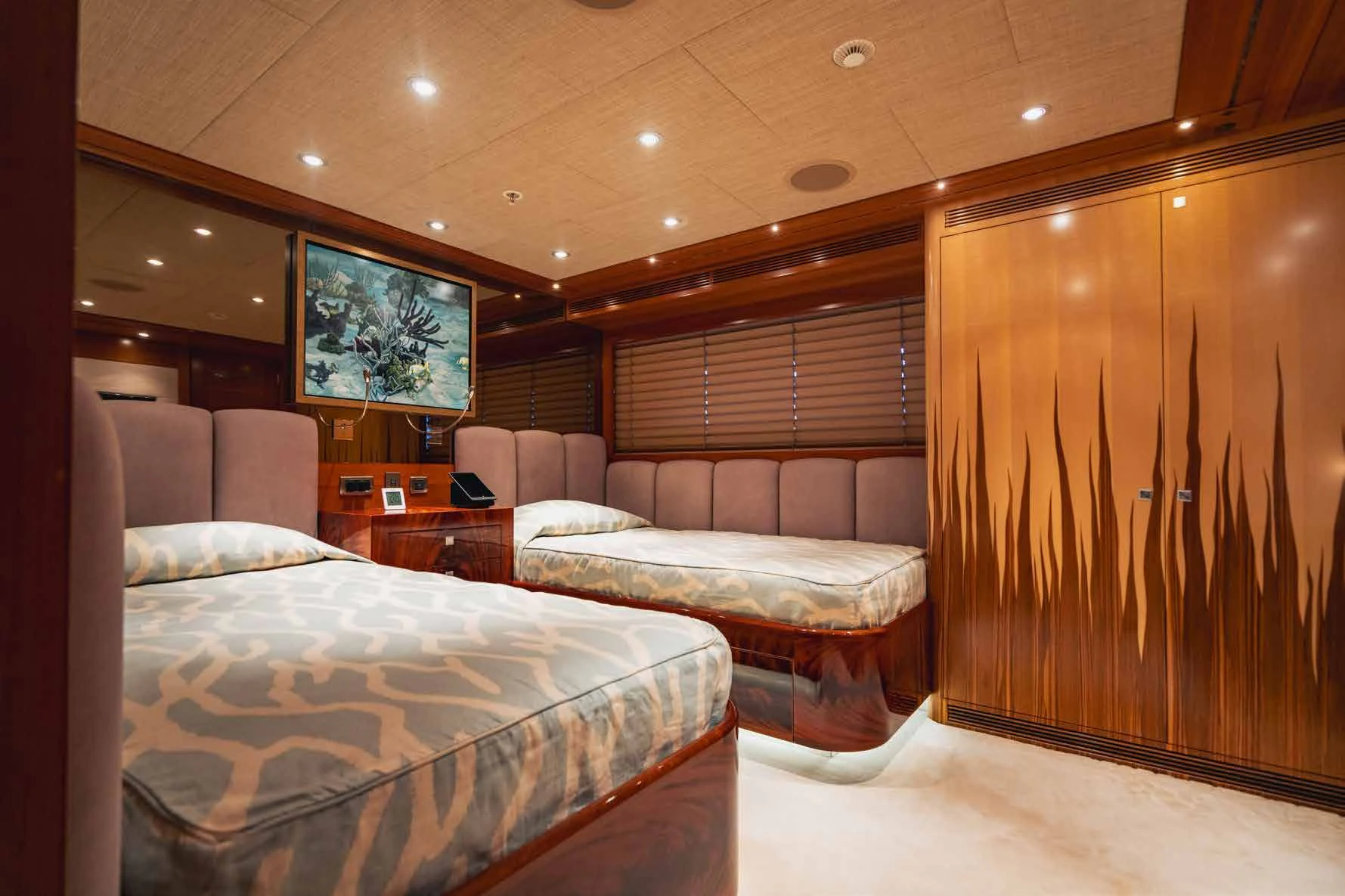

Guest Staterooms:

• Each of the three (3) guest cabins is fitted with the following;
• Samsung 40MU6290 LED TV
• iPort Launch Port Base Station
• Apple iPad MINI-4
• Apple TV w/ Stereo Speakers

Flybridge / Sundeck:

• Samsung UHD434K LED TV
• SONANCE VP65RXT Weather Proof Speaker
• iPort Launch port Base Station
• Apple iPad MINI-4
• Apple TV

Gym:

• Samsung 40MU6290 LED TV
• iPort Launch Port Base Station
• Apple iPad MINI-4
• Apple TV w/ stereo speaker system

Bridge:

• iPort Launch Port Base Station
• Apple iPad MINI-4

Crew Mess:

• Samsung 40MU6290 LED TV
• iPort Launch Port Base Station
• Apple iPad MINI-4
• Apple TV

Crew Cabins:

• Up-down Televisions
• Apple iPad AIR 9.7
• Apple iPad Pro

Tenders:

• (2) Ted Fontaine designed, Lloyd Stevenson Boat Builders custom tenders. Winners of the 2013 Showboats Tender Design Award. 6.2M
• (1) Novurania DL 430 14ft with Yamaha 60HP

Jet Skis:

• (1) 2021 Yamaha SVHO

Toys:

• (2) SeaBob
• (2) kayaks

Diving Compressor:

• (1) Brownies in port aft lazarette

• Anchors: (2) Mason HHP 360kg
• Anchor Chains: (2) 148m, 22mm stud-link galvanized chain
• Anchor Windlass System: Maxwell 11000 - Hydraulic
• Aft Deck Warping Winches: Maxwell 600. Electric over hydraulic with foot switch operation
• Cranes: 2 x Custom Alloy overhead lazarette cranes
• Bow Crane: Nautical structures
• Passerelle: Alloy Yachts custom
• Side Boarding Ladder: (2) C-Quip Custom Carbon Fibre
• Sea-stair: Alloy yachts custom
• Swimming Ladder: 1 Manual ladder with hoops and one hydraulic sea stairs both from stern platform
• Spotlight: ACR RCL-600A
• Paint Exterior: Alexseal Majestic Blue/Alexseal Hazelnut Metallic
• Paint Underwater: Micro ZF/Prop speed

OTHER EQUIPMENT

• Spa pool: Alloy Custom 8 person

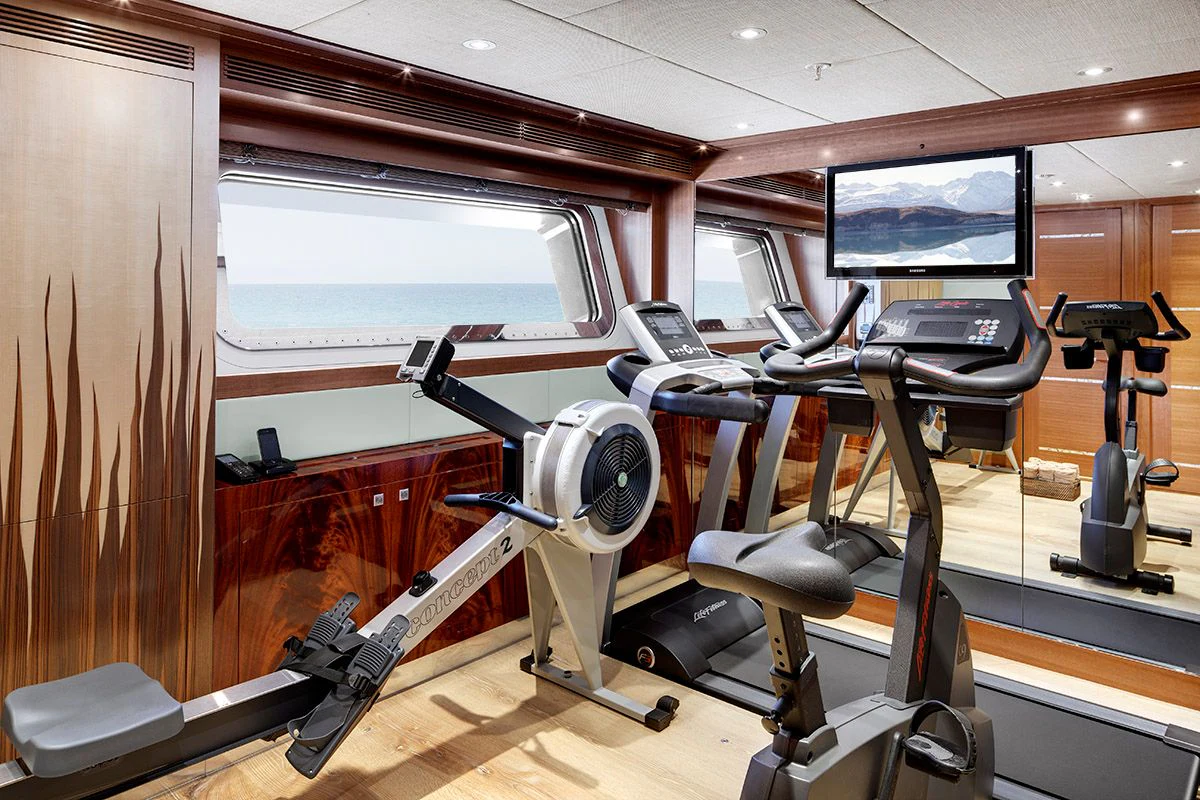

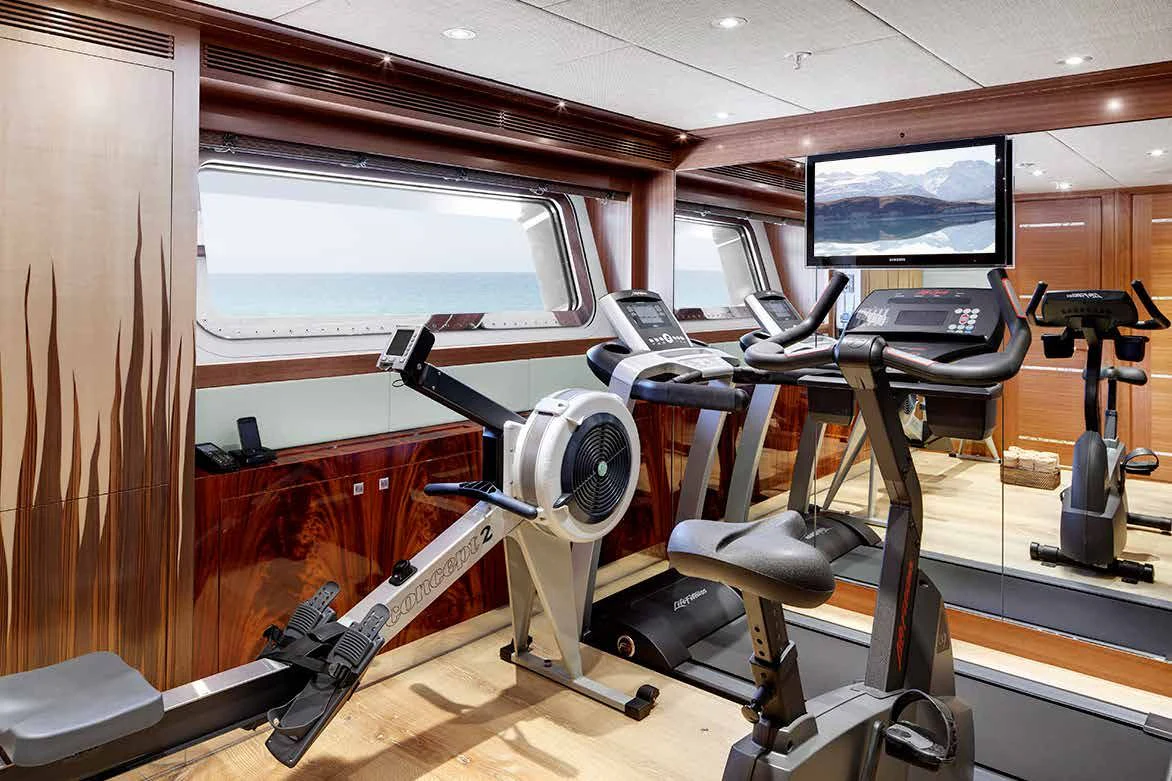

• Gym Equipment: (1) stationary bike/1 x treadmill/1 x rowing machine
• Sun Awnings: Alloy Custom retractable hard awning

• Security System: Bosch
• CCTV: (4) fixed cameras plus 1 mast camera
• Monitors: (1) dedicated plus can be transmitted to all seatouch and television screens
• Ship’s Safe: (6) SAFEGUARD safes onboard
• Doorbell: Alloy Custom
• Fixed Firefighting System: Manually deployed C02 fire-suppression system
• Firefighting Equipment: (2) full FF suits
• Fire Extinguishers: (12) drychem/5co2/3foam
• Gas Detection: None
• Smoke/heat Detection: (32) total
• Fire Alarm: Autoprime
• Alarms: (20) audible fire bells
• MOB Boat: 14ft Novurania
• Life Rafts: (4) 10 person with Solas A-packs
• Breathing Apparatus: (2) BA’s
• Lifejackets: (24) adult / (4)children
• Immersion Suits: (20) suits
• Life Rings: (4) life rings
• EPIRB: (1) fixed and (3) portable
• SART: (1)
• Flares and Signals: Full compliant kit
• Medical Equipment: Full Medaire compliant equipment and medical

2023 Yard Period

• All 4 stabilizers and 2 thrusters have had a full 5-year service completed.
• Further information available upon request.

2019 Yard Period

• Both propeller shafts were drawn, sent out and checked for true
• New cutlass bearings installed on both port and starboard side
• Propeller shafts and propellers are coated with Prop-Speed
• Stabilizers fitted with new upgraded fin heads, new seals and new bearings
• ENGINES - New after-coolers fitted
• New raw water pumps fitted September, 2019
