LAMADINE Yacht for Sale

Batt. Charger

• 1pc Victron Energy Skylla TG24/100 1pc RI-MET SA type 24/100 - 100 A.

Inverter

• 1pc Paco 1200W, 1pc Paco 2000W, 1pc Paco 600W, 2pcs Waeco Perfect Power PP2000W

HVAC

• Marine Air Systems btu’s: 16,000 2pcs
• Marine Air Systems btu’s: 7,000 2pcs
• Marine Air Systems btu’s: 12,000 1pc

Other

• HRO Horizon Seafari 900-2 watermaker - 142 l/hr
• Waterheating: Inox custom made 80 lt.
• Sanitary System: Mini-Biocon treatment system 847 l/day and holding tank. Tecma toilets with electric macerator

Sails

• Crosscut with acrylic UV protection Mainsail, mizzen, genoa, jib

Rigging

• Furling System: Reckmann electric in-mast furlers for mainsail and mizzen
• Reckmann hydraulic furler for the forestay
• Reckmann manual furler for the inner stay*

Type of rig

• Cutter rigged

Masts and Spars

• Hood Yacht Spars, aluminium Last revision / paint: 2021


Rigging (type and material)

• Standing rigging of stainless steel with swaged ends and Norseman terminals, Holmarto hydraulic backstays. Running rigging made of dyneema and polyester braid on braid Holmarto hydraulic boomwangs for main and mizzen

Winches & Sail Equipment

• Antal blocks and winches by Lewmar

2022

• Hull paint removed to bare hull, inspected, protected, & fully repainted
• New decks
• New bathrooms
• Machinery overhaul
• Navigation equipment

2017/2018

• Full teak replacement
• Entire interior refurbishment including wall panels, wooden flooring & carpets, re-varnishing, new upholstery, etc.
• New sail wardrobe & rigging
• Winches overhauled
• Exterior seating area refurbishment, new awnings, & loose furniture
• New generators & main engines overhauled


2012

Hull

• The hull paint was removed to bare wood by scraping & sanding; no heat/flame applied
• The hull was ‘faired’ with sandpaper
• Old screws were removed & replaced
• New pilot holes were drilled, & additional screws fitted
• Screws fitted were Silicon Bronze cut-thread, countersunk Frearson woodscrews
• The hull planking was thoroughly inspected, & maintenance carried out
• The hull was sanded, primed, ‘faired’ & painted

Electrical

• Complete refurbishment of the electrical installation
• All wiring removed & replaced. Installation updated
• New switchboards for 220VAC & 24VDC
• New service batteries, engine batteries, generator batteries, chargers & inverters
• Design & equipment approved by class

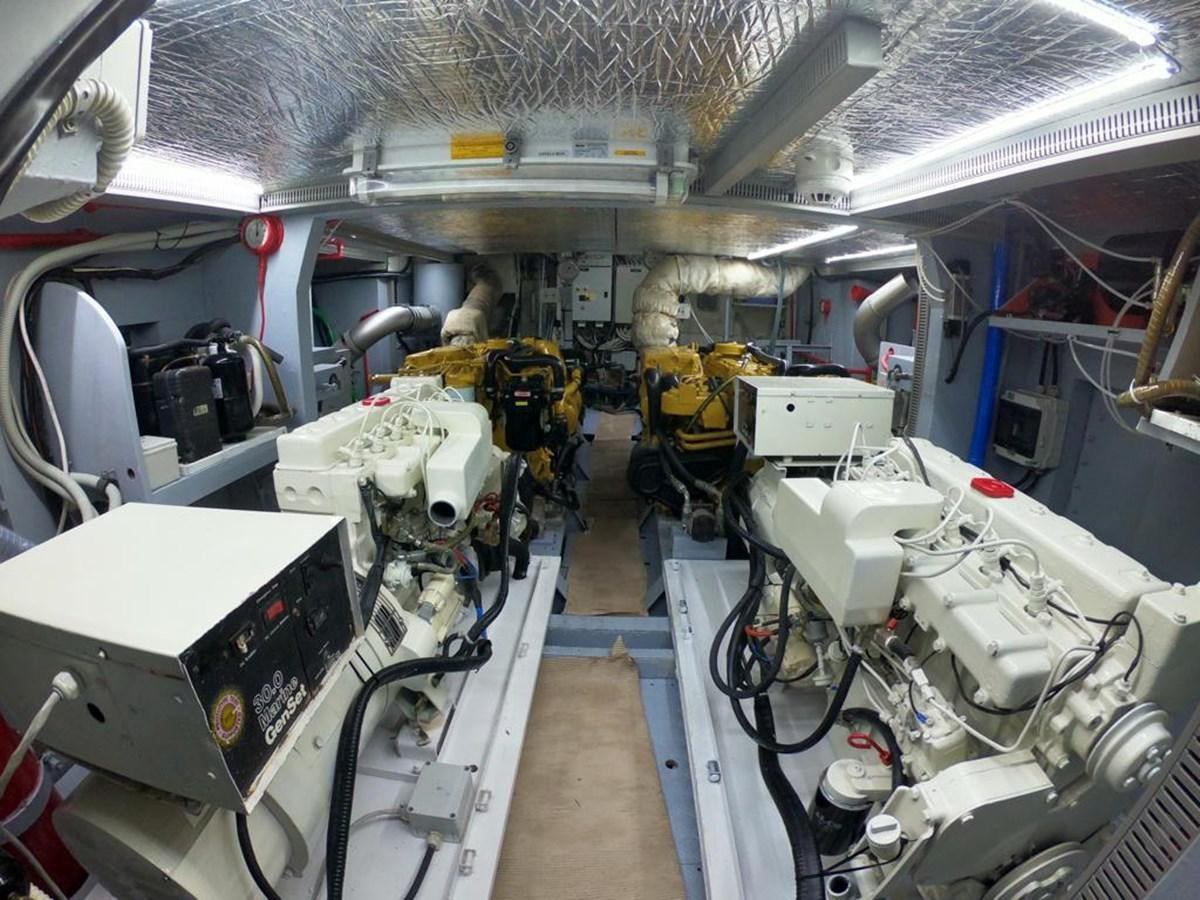

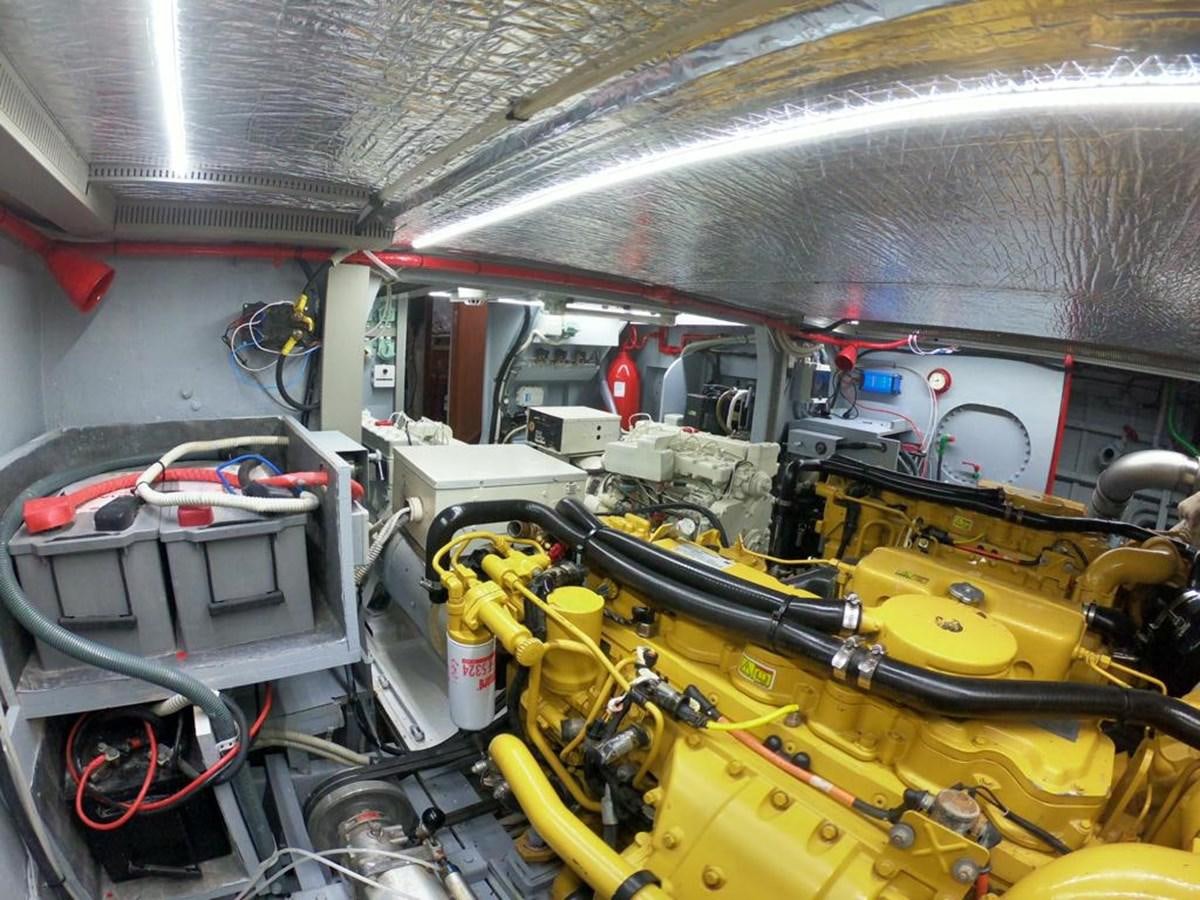

Machinery

• New propulsion engine (Caterpillar C7 254 bhp / 189 kW) fitted.
• CPP hydraulic units completely overhauled with new ball bearings & gears

Piping System

• The bilge, fire, fresh water & HVAC piping systems were completely renewed with new pumps, piping, valves & fittings
• The water tanks were opened, cleaned, & disinfected
• The grey water system was totally renewed
• The crew WC & associated piping was totally refitted
• All fuel piping was dismantled, cleaned, & refitted
• Fuel tanks were opened & cleaned

Masts – Rigging

• The aluminium masts & booms were removed & stripped of all fittings & accessories for treatment & painting. Complete refurbishment & upgrading of rigging & sailing equipment was carried out: New modern rigging, terminals, sheets, clutches, runners, halyard tensioners, hydraulic backstays, boom vangs for main & mizzen booms, genoa & jib roller furlers, in-mast furlers for main & mizzen mast, new chainplates, new sails

Superstructure

• Complete maintenance & coating of aluminium superstructure was carried out, including sanding to bare metal & coating.
• The Inox side windows & Inox deck fittings were removed & polished


Carpentry

• New capping rails were fitted
• Reconstruction of aft deck settee
• All wooden structures on deck were varnished & the teak deck was recaulked & sanded

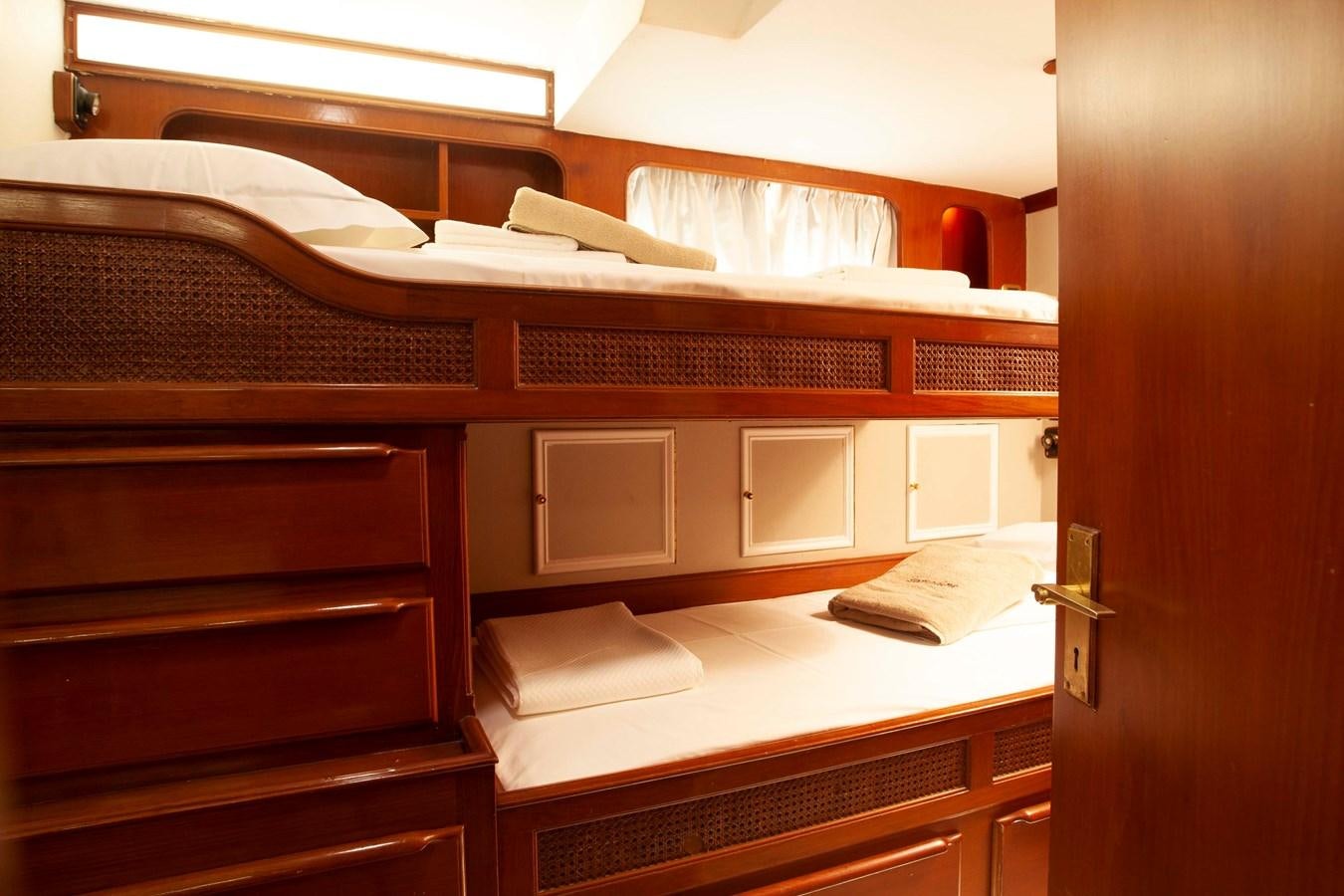

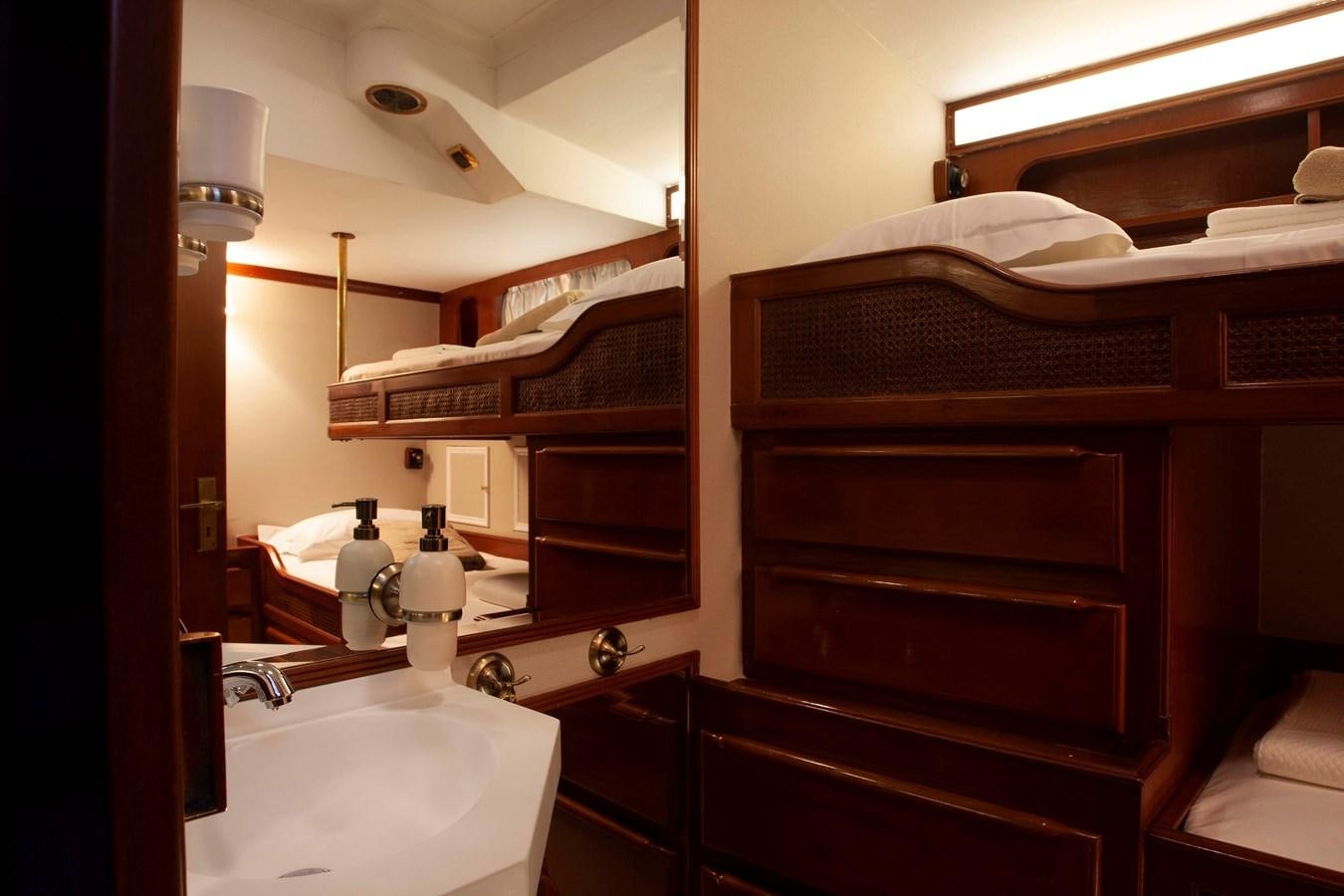

Accommodation

• Complete varnishing of all furniture

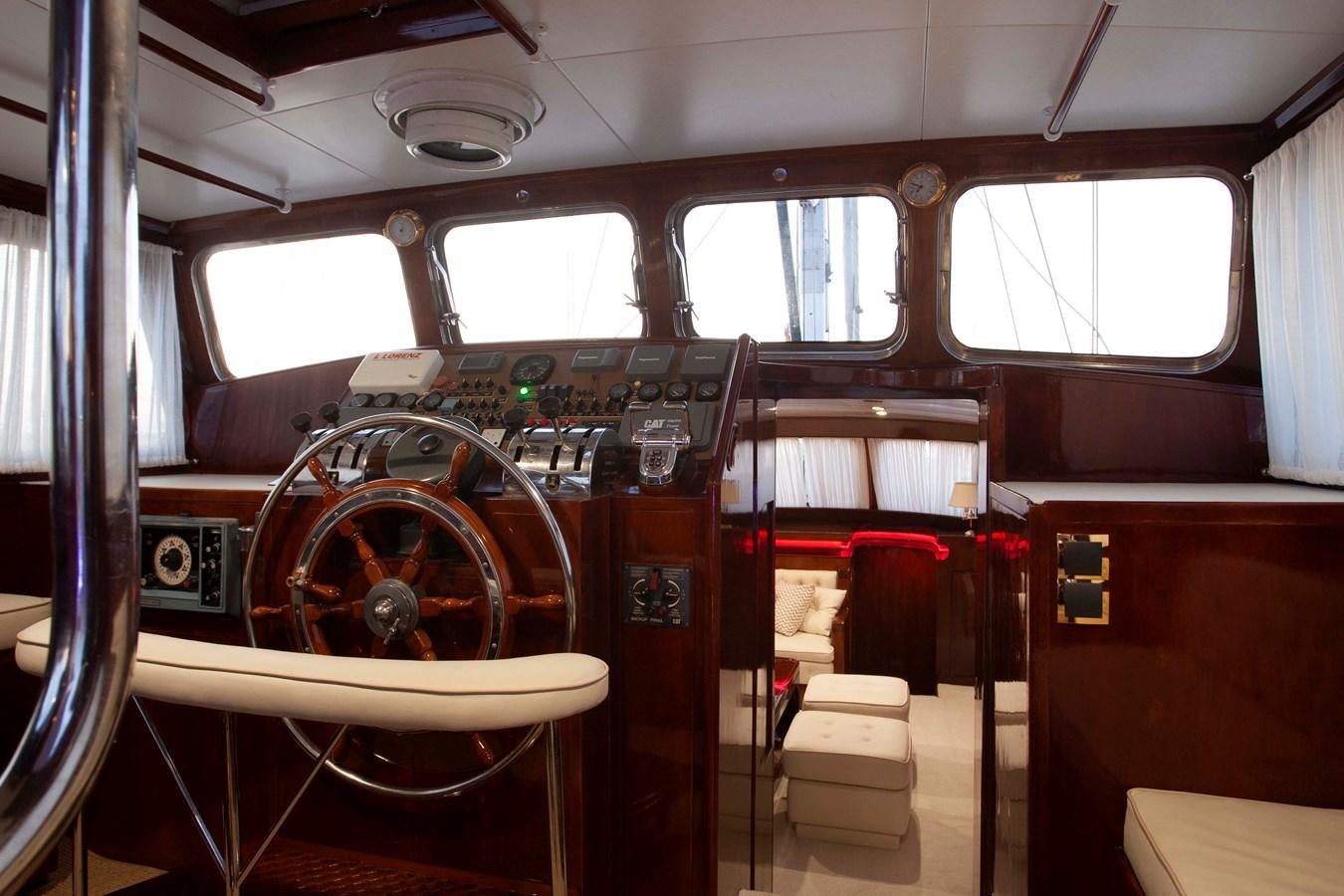

• Refurbishment of wheelhouse with new wooden panels & fabrication of new ceiling
• New ceiling for main saloon was fitted plus new wallpaper in all passenger accommodation areas
• Replacement of taps in showers & WCs & installation of a new freezer in galley
• New interior lighting was installed
