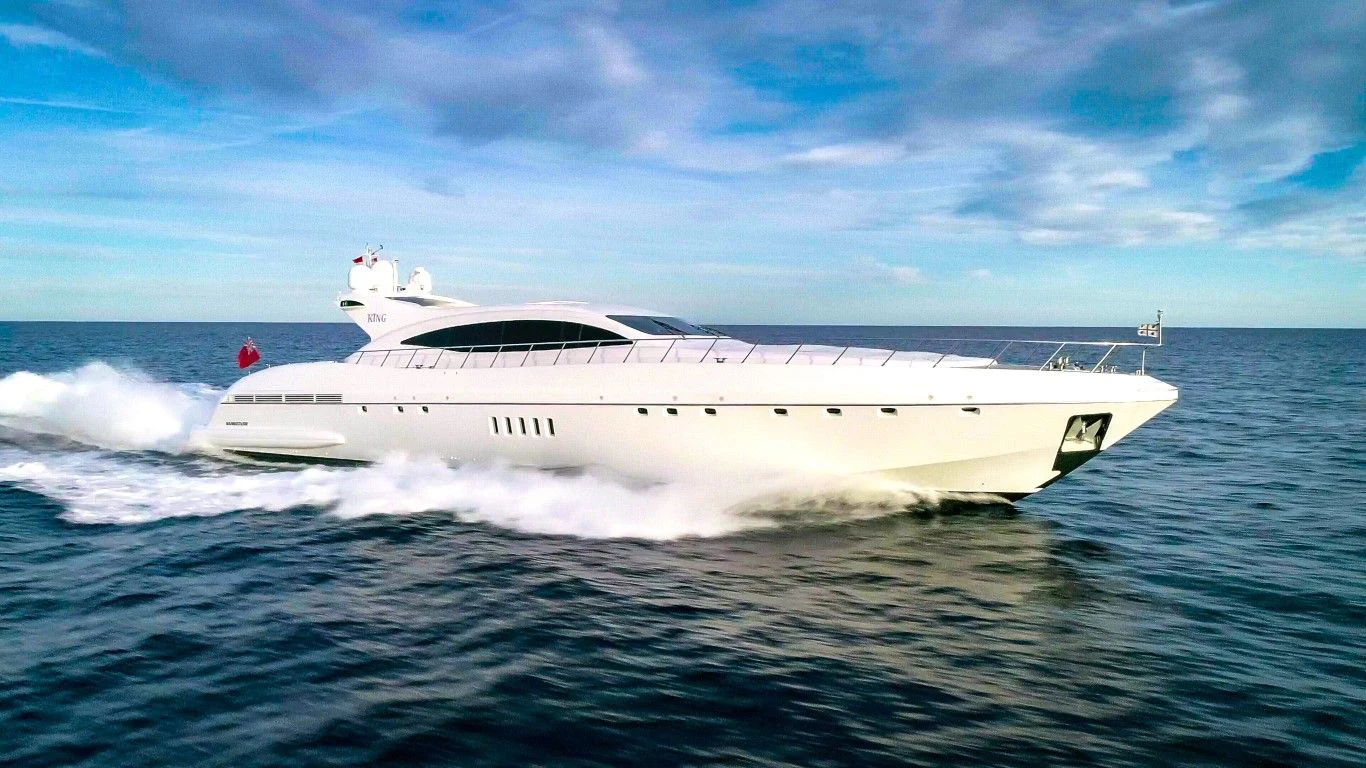

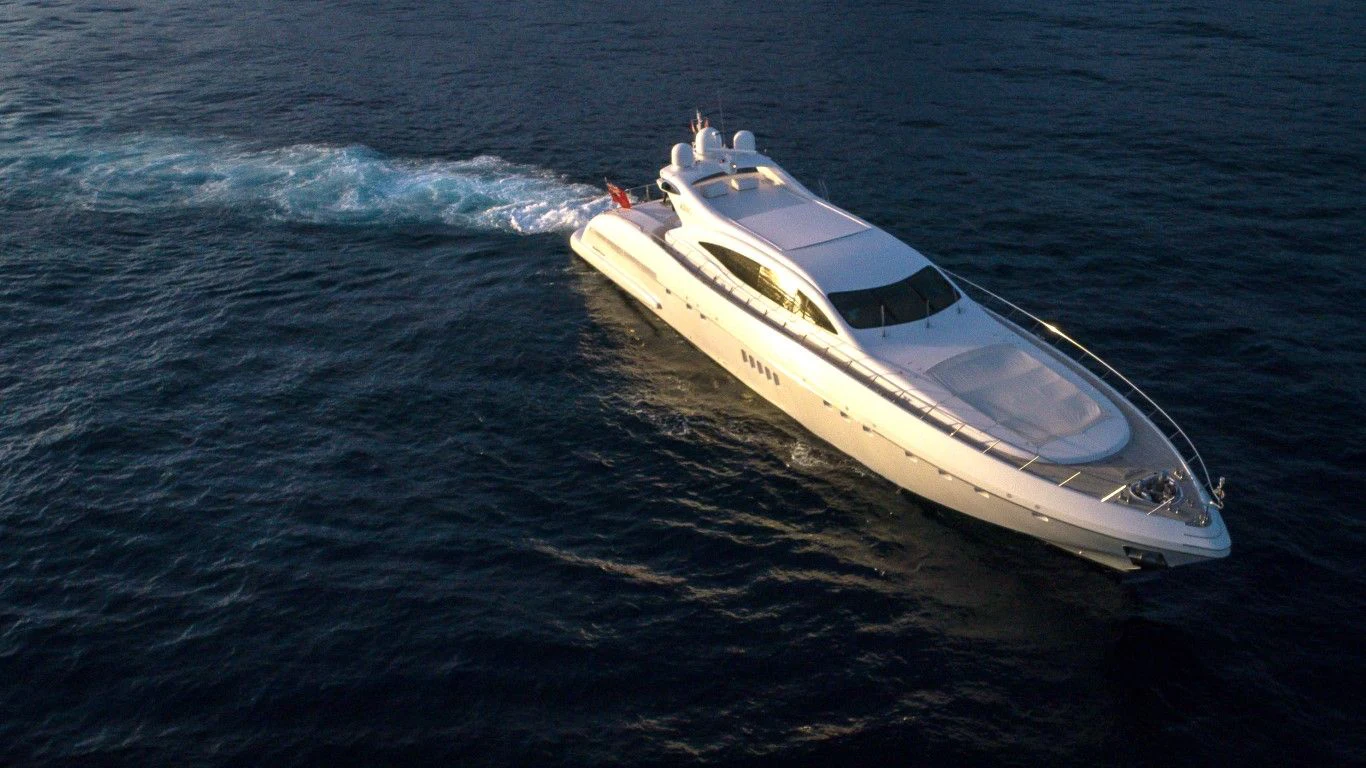

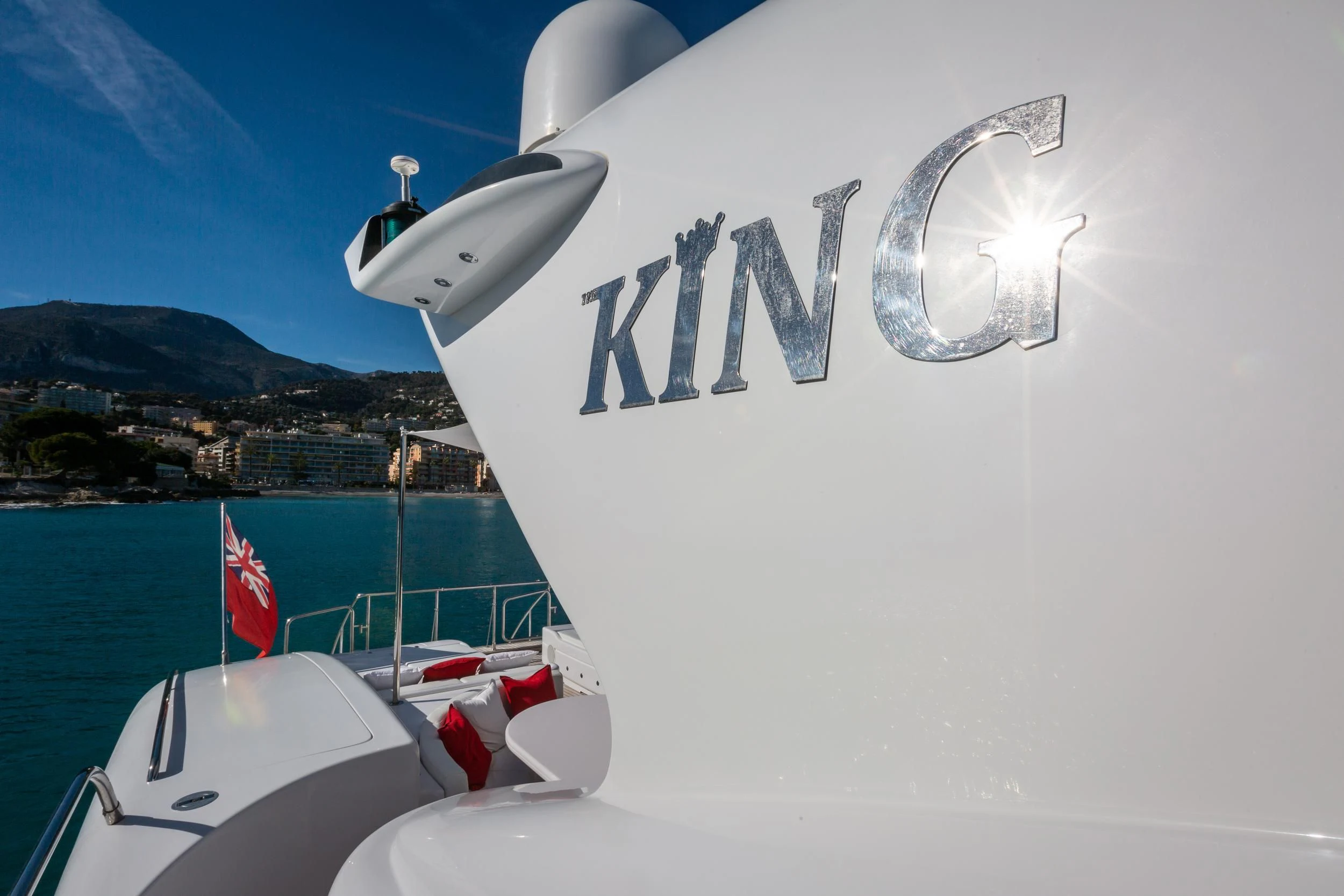

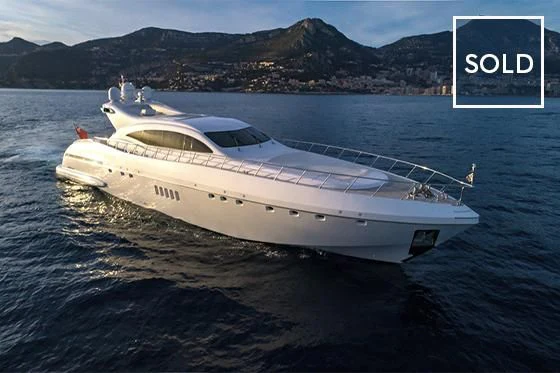

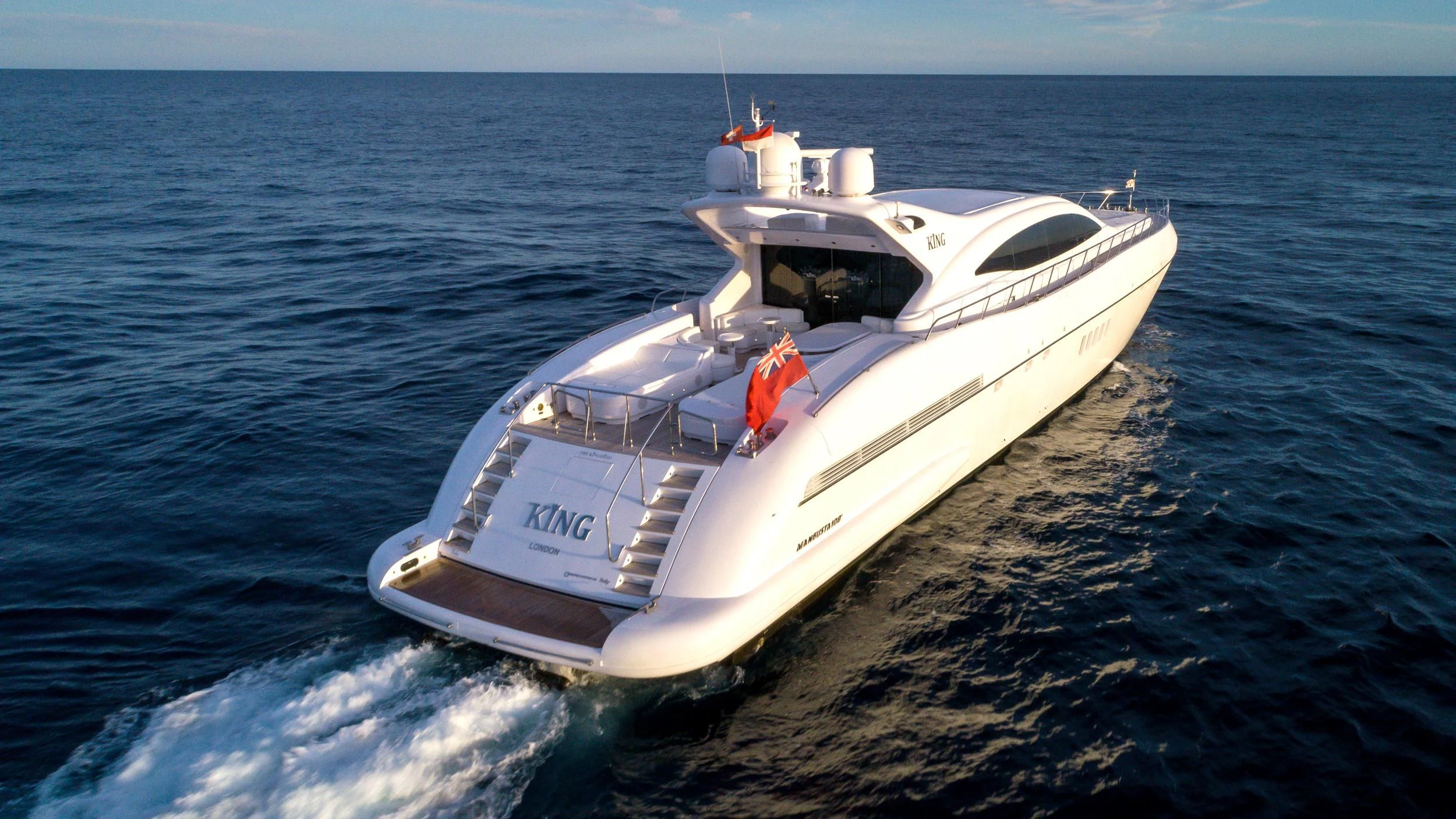

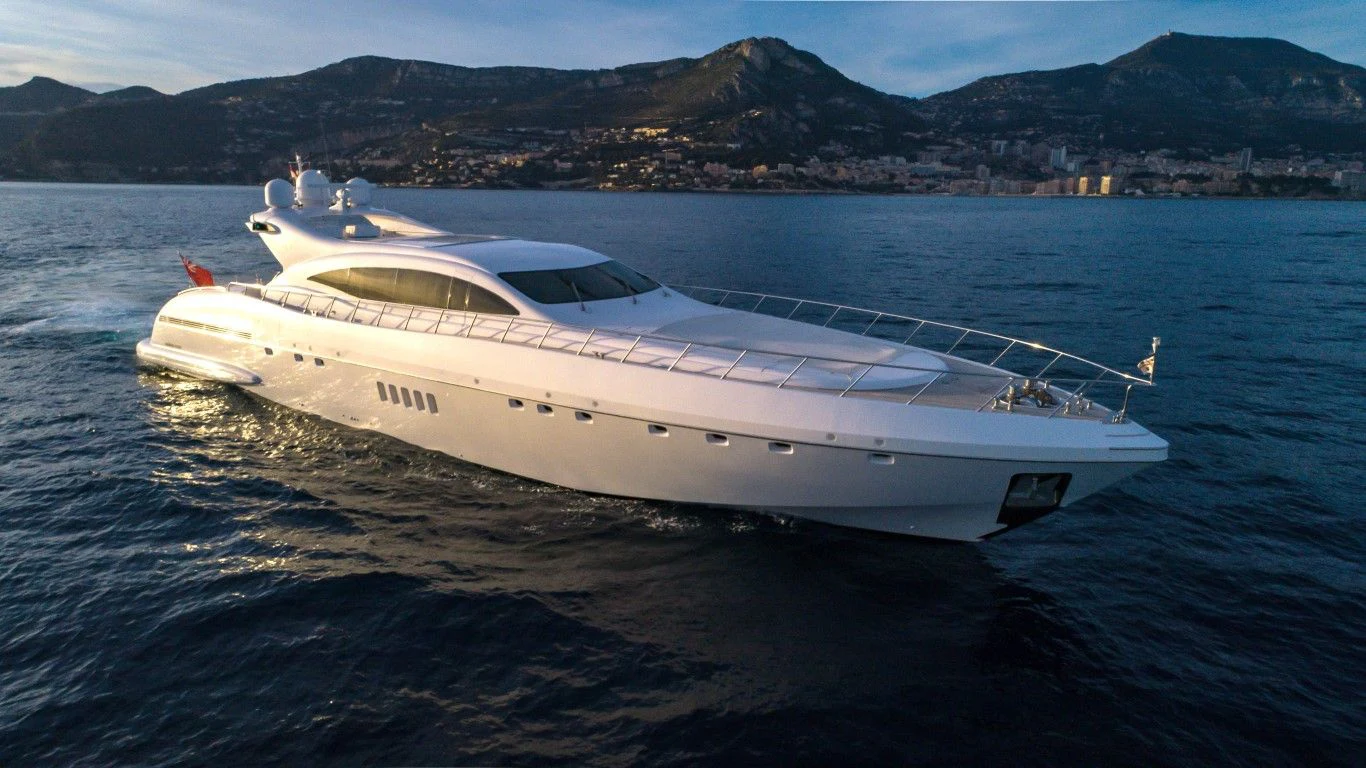

KING Yacht for Sale

Length
109' (33.48m)
Builder
OVERMARINE GROUP
Build
2004/2018
Cabins
4
Crew
5

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Amenities

  • Personal Watercraft
  • Tender Garage

Specifications

Builder OVERMARINE GROUP
Model Mangusta Open 108
Length (LOA) 109' (33.48m)
Year 2004
Year Refit 2018
Gross Tonn. 181
Draft 5' (1.22m)
Beam 22' (7.01m)
Range 400 NM
Location United States

Accommodations

Staterooms 4
Sleeps 9
Heads 8
Crew Cabins 5
Crew Sleeps 5

Dimensions & Capacity

LOA 109' (33.48m)
Max Draft 5' (1.22m)
Fuel Tank 3,700 g (14,005 L)
Fresh Water 530 g (2,006 L)
Holding Tank 66 g (250 L)
Gross Tonn. 181
Displacement 105

Construction

Hull Material GRP
Ext. Designer Stefano Righini Design
Int. Designer Stefano Righini Design
Cruising Speed 32 Knots
Range 400 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Starter batteries: 4 x 850 12 V (pairs in parallel)
  • Service batteries: 4 x 610 6 V (in parallel)
  • Generator batteries: 2 x 850 12 V (one for each generator)
  • Engine electronic control system batteries: 2 x 750 12 V (in parallel)
  • Engine Fuel Separator Filters:
  • Separ SWK 2000/40/UMS (switchable unit)
  • Generator Fuel Separator Filters:
  • Separ SWK 2000/5/50 MK
  • Multifunctional Hydraulic Box:
  • Besenzoni art. 82002342 24 V DC (aft hatch, gangway, swimming ladder)
  • Fresh Water Pressure:
  • 2 x Gianneschi & Ramacciotti 2 JET 4 0.75 kW (380 V/24 VDC)

Black & Grey Water Treatment:

  • 2 x Jets MB 25 3 kW 380 V

Sewage Treatment System:

  • HAMANN Supermini 24 V DC (grey and black water)

Engine Room Blower / Extractors:

  • 2 x Gianneschi & Ramacciotti ELL/R 560 0.5 kW 380 V reversibile

Hydraulic Box:

  • Besenzoni art. 82002342 24 V DC (aft hatch, gangway, swimming ladder)

Jet Ski Davit Hydraulic Boxes:

  • 2 x Besenzoni art 9DFFZZ1569 – 24 V DC

Jet Ski Davit:

  • 2 x Besenzoni mod. G304 max load 300 kg

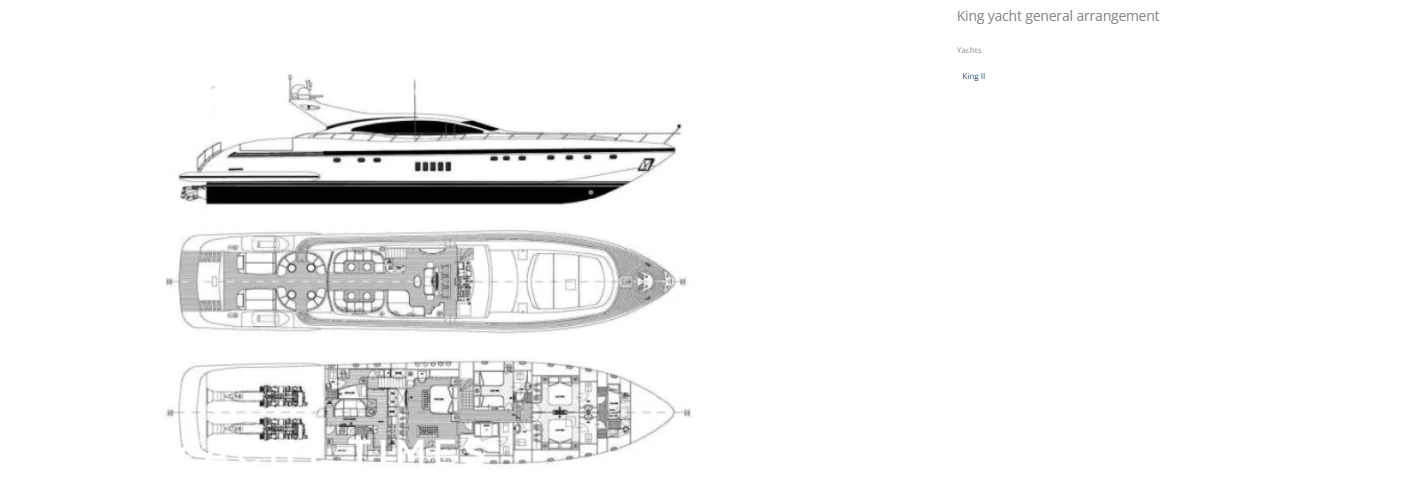

Accommodation

LOWER DECK:

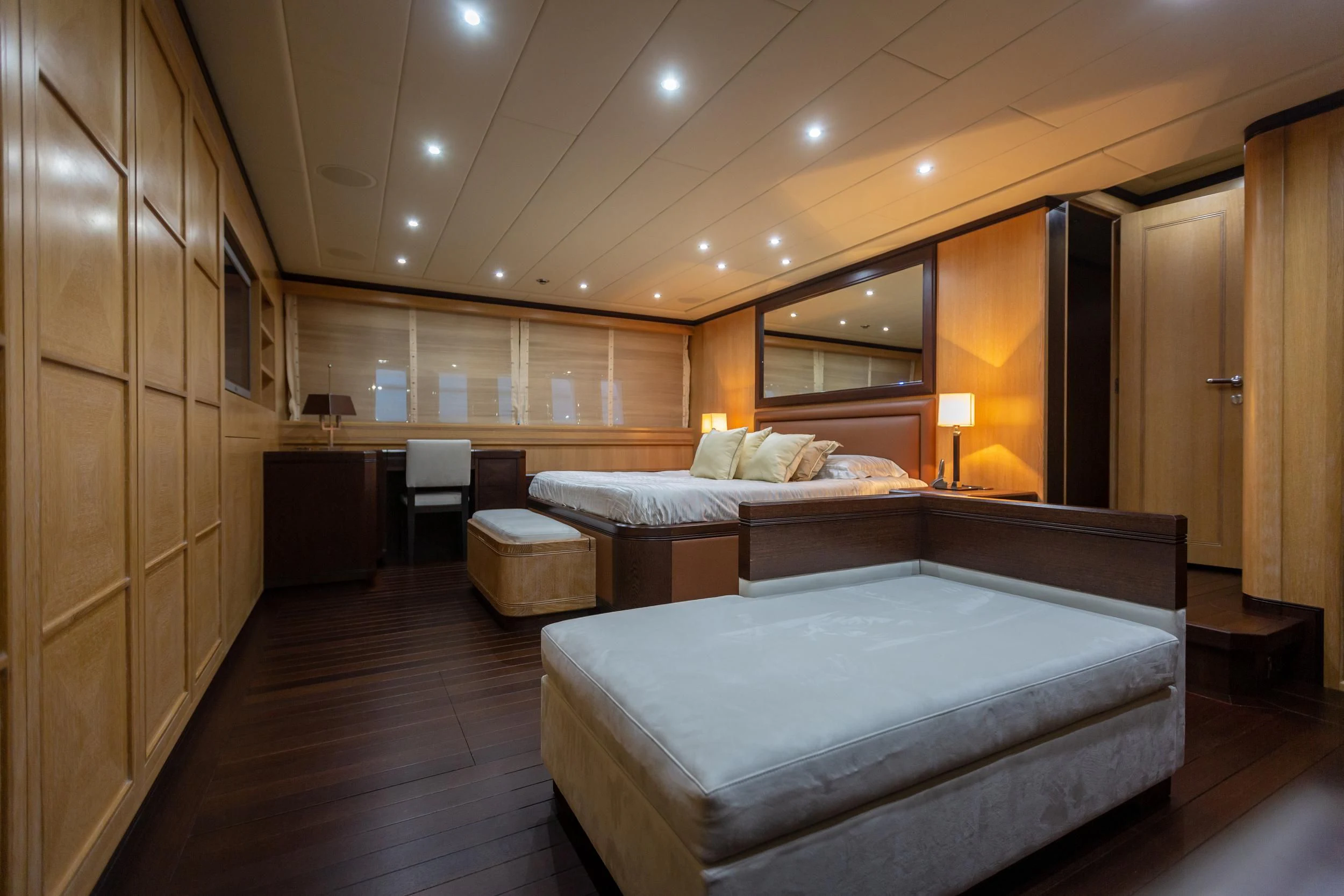

  • 1 x Master / Owner’s stateroom
  • 2 x VIP staterooms
  • 1 x Twin stateroom with an additional pullman

Galley & Laundry Equipment

Refrigeration/Freezer:

  • 2 x Besenzoni mod. G304 max load 300 kg
  • 2 x Freezer
  • 2 x Frigit (main saloon)

Other:

  • 2 x Icemakers

Main Laundry Equipment:

  • 1 x Miele washing machine
  • 1 x Miele dryer

Communication Equipment

  • VHF Radiotelephones: Sailor 6215
  • Satellite: Gyrotrack
  • Radar: Furuno
  • GSM: Telephone Satellite Iridium
  • Printer / Fax: HP 5522

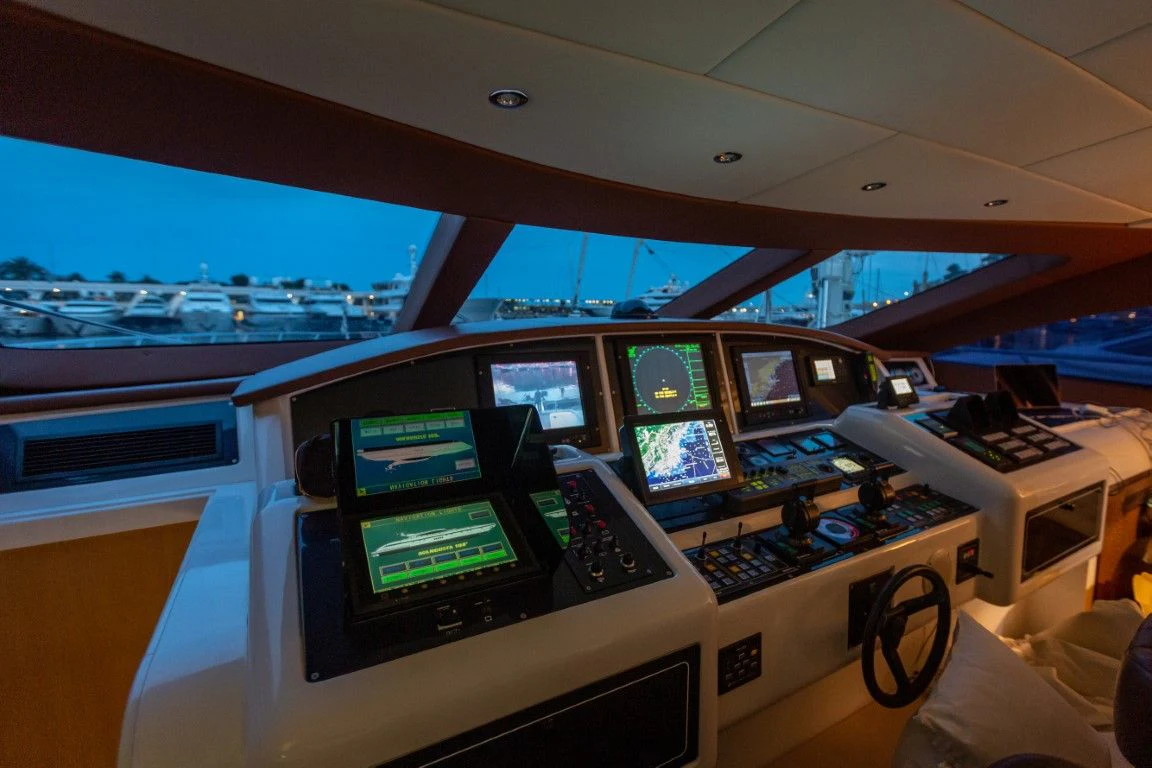

Navigation Equipment

  • Magnetic Compass: KVH
  • Auto Pilot: Simrad AP 70
  • Depth Sounder: Raymarine
  • GPS: Furuno
  • Electronic Chart System: Garmin Timezero GPS with 3D Navigation

Entertainment Equipment

  • Audio Equipment: Ampli Marantz / Bose speaker

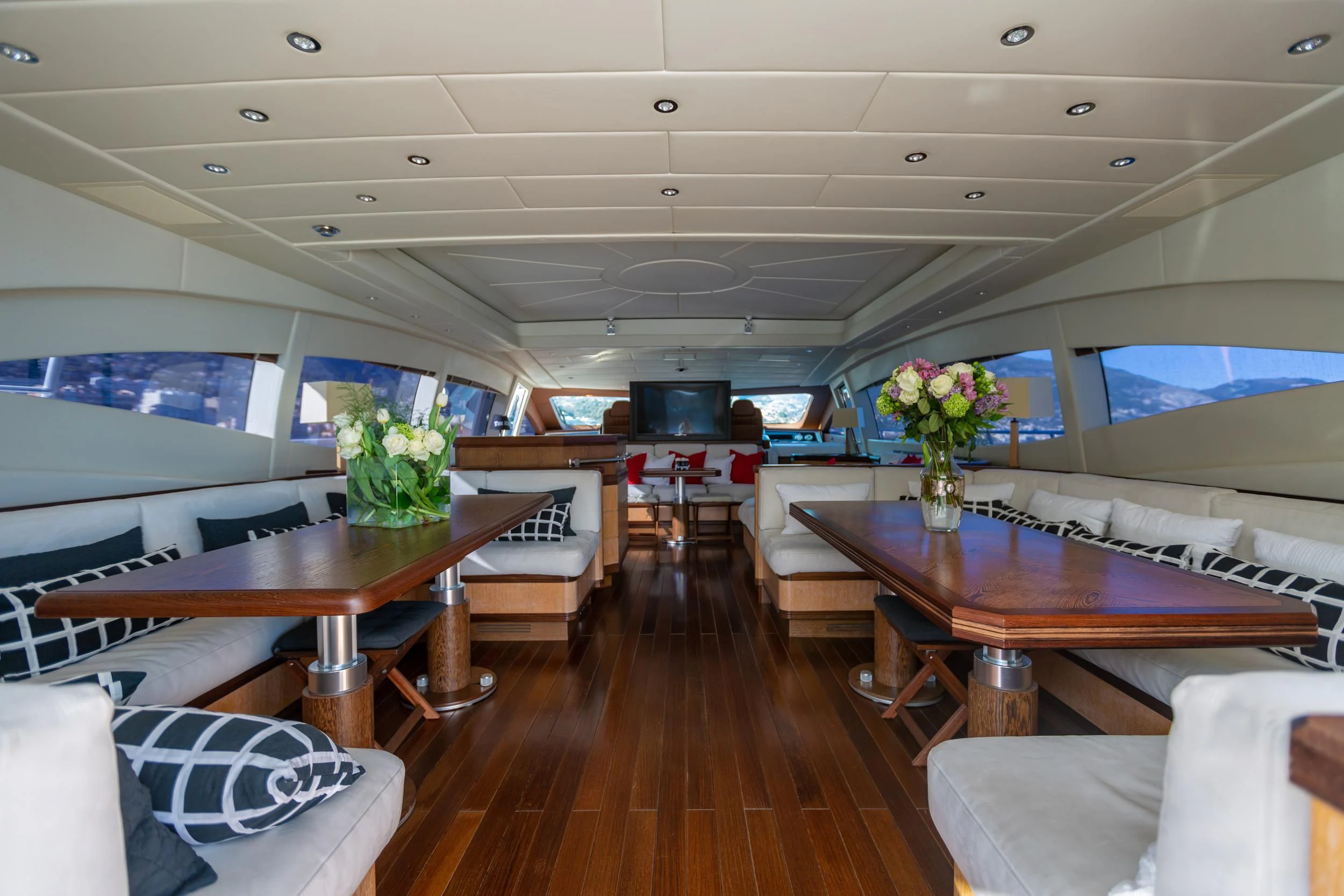

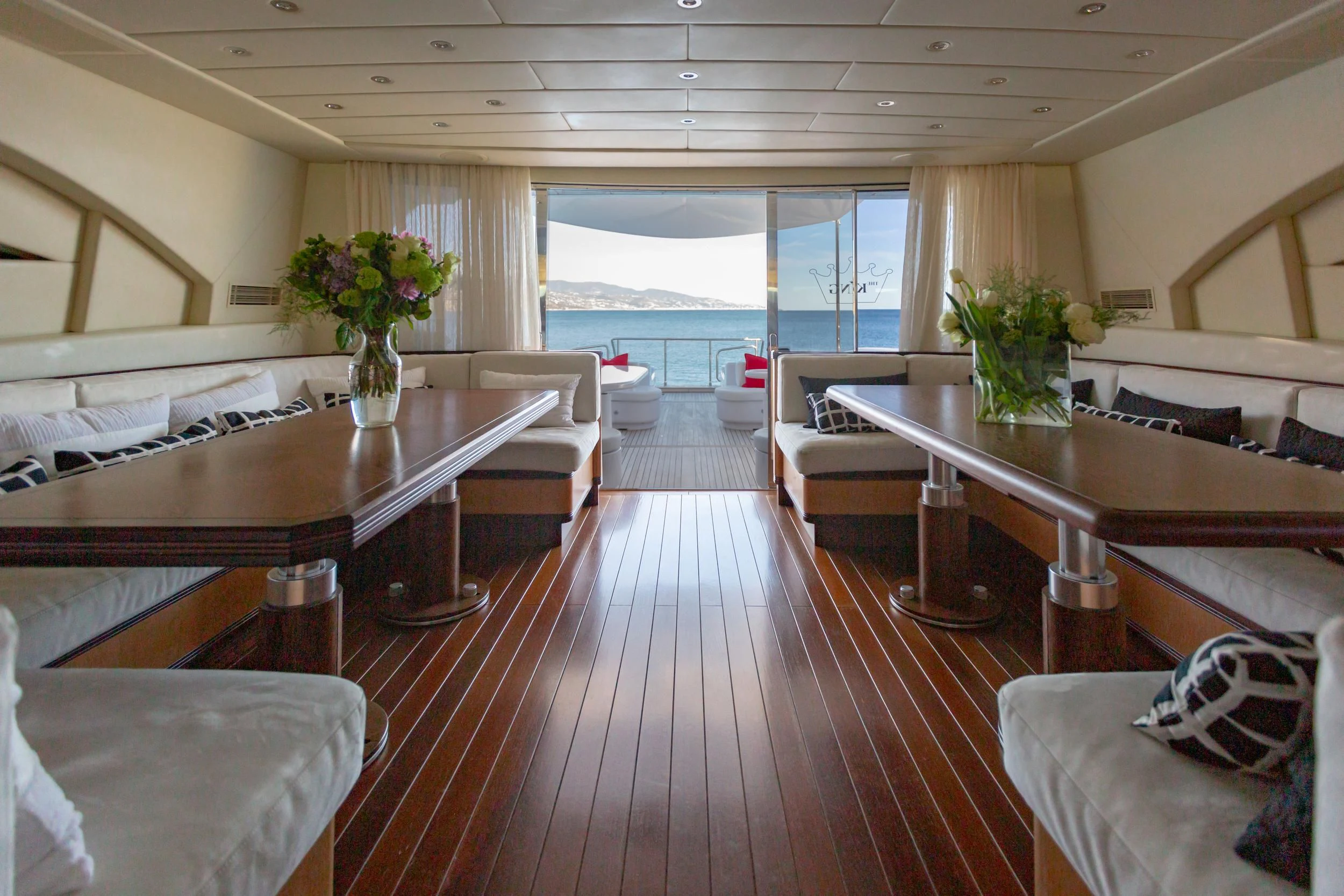

  • Main Saloon: Audio system, 50' Plasma TV, DVD, iPod dock and surround system

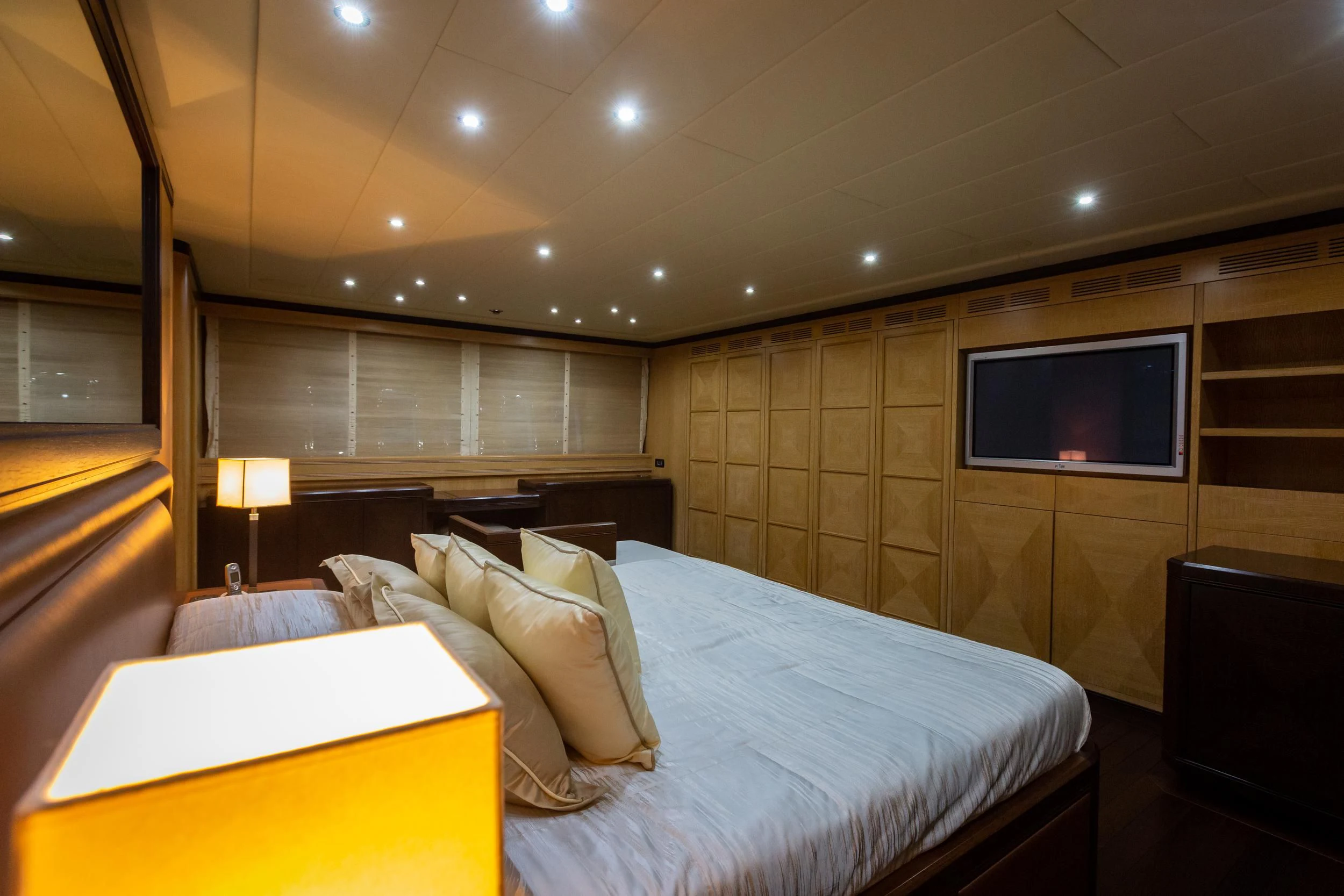

  • Master Stateroom: 42” Plasma TV, DVD, iPod dock and surround system
  • VIP Staterooms: 30” TV, DVD and iPod dock
  • Guest Stateroom: 30” TV, DVD and iPod dock

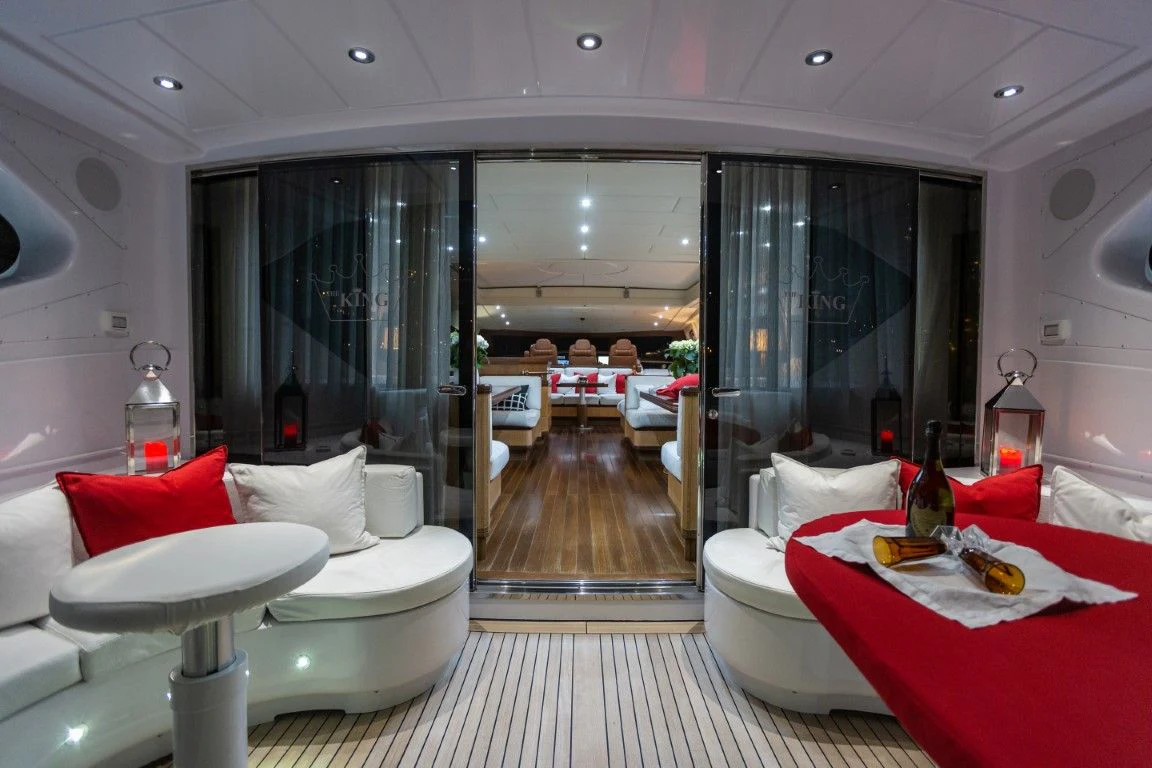

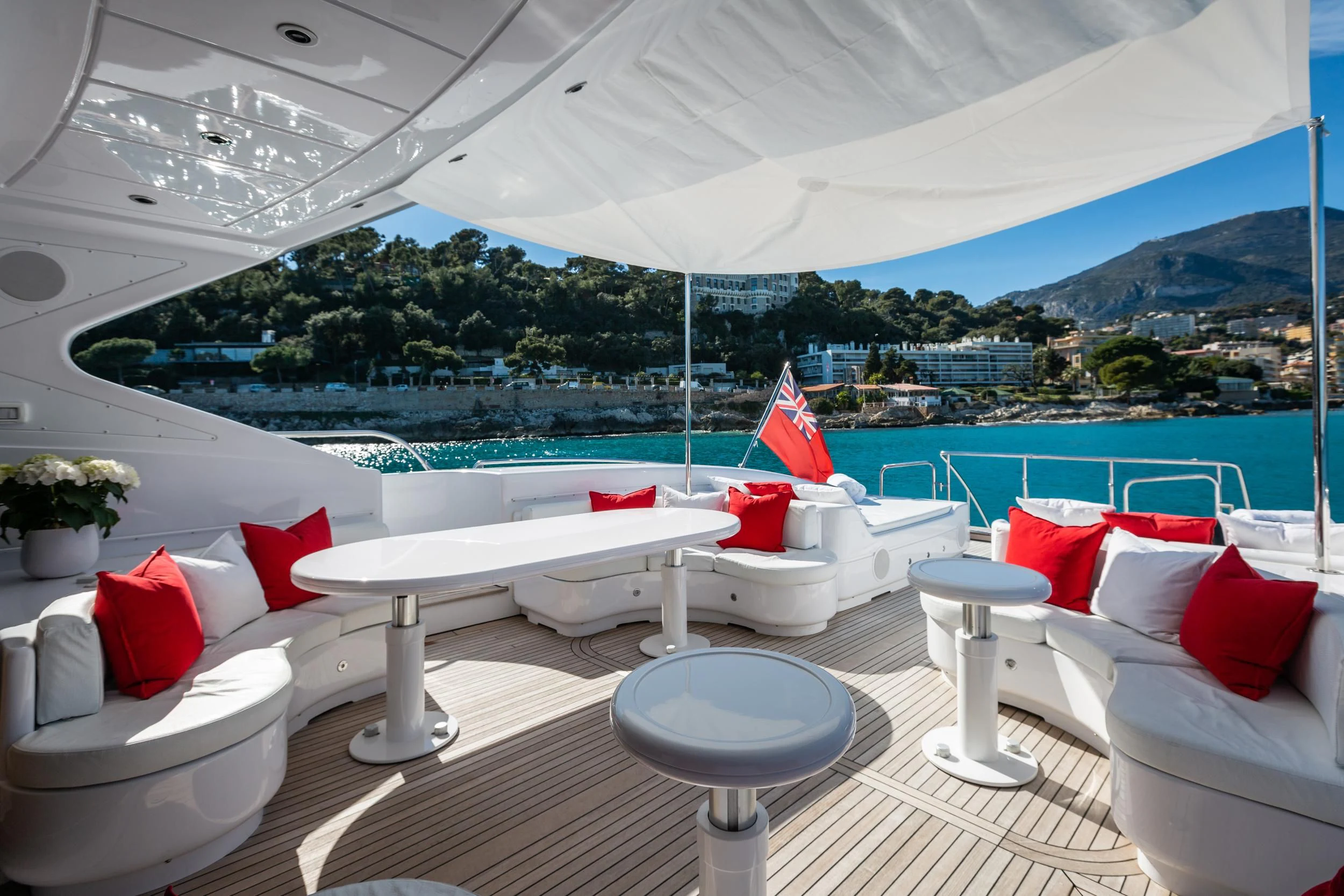

  • Aft Deck: 4 x Bose speaker
  • Sun and Main Deck: Audio system
  • Other Equipment: Music system: Ampli Marantz / Bose speaker

Deck Equipment

  • Anchors: 2 x S.E.C 125 kg (galvanized)
  • Anchor Chains: 2 x Diametre 16 mm MAGGI – 125 m
  • Cranes Tender: Bensenzoni mod.376.51 length 5.1 m - max load 550 kg
  • Cranes Jet Ski: 2 x Besenzoni (Jet ski)
  • Windlasses: 2 x Lofrans’ Ercole vertical B 3.5 kW 380 V
  • Warping Winches: 2 x Lofrans’ T2000 2 kW 380 W
  • Passerelle: Besenzoni
  • Stern Capstans: x 2
  • Underwater Lighting: x 3

Tenders & Toys

Tenders:

  • Tender Avon 350 eng. Yamaha jet prop.

Jet Skis:

  • New

Safety & Security Equipment

  • Security System: 3 x Cameras
  • Ship’s Safe: General fire alarm
  • Firefighting Equipment: 17 + 4 automatics in the engine room
  • Automatic Bilge Pump: Gianneshi & Ramacciotti Minisub 3700 24 V
  • Alarms: General fire alarm
  • Life Rafts: Arimar (type 1 = 8 persons)
  • Lifejackets: x 30
  • EPIRB: Sailor
  • Blige/Chain/Fire Pump: Gianneschi Ramacciotti ACM 401 BT 2.2 kW 380 V

Refit History

2022:

  • Rollbar antenna operation tests: Radar OK / GPS OK / Satellite antenna OK
  • Replacement of 6 lights points on rollbar sides (where the lights for cockpit lighting are located), supply and installation of new lights, new perimeter silicone coating
  • Overhauling and boarding of all anchors and chains
  • 2 x new 40 mm resin wooden sides in the chain locker, with draining holes for the two chains
  • New Painting of the chain locker
  • New hydraulic pistons of the foredeck locker
  • New wiper blades
  • Full cleaning of the lockers
  • Carpentry work on the teak deck: replacement of some teak areas and new rubberizing in the aft cockpit and starboard walkway
  • Full overhauling of the garage’s stuff
  • Tender and soft covers washing
  • Full cleaning of the garage
  • Sealing of starboard ventilation lockers in the engine room (also check for portside one to prevent saltwater infiltration when cruising)
  • New paint of the external exhaust’s protections
  • New zincs of the transom, water jets, bow thruster, black water tanks
  • Full clean of the waterjet’s propellers with acid and pressurized water
  • Outdoor cushions full maintenance, stored in the staterooms
  • Total polishing of all exterior: hull and superstructure
  • Inflating of all fenders in preparation for the yacht launching
  • Stainless steel handrail on the starboard side of the transom fixed and restored
  • Full maintenance of the hatch to the tender garage
  • Sanding of the entire teak deck
  • Total exterior hull and superstructure wash
  • Antifouling to hull and waterjets
  • Full maintenance to the Besenzoni gangway

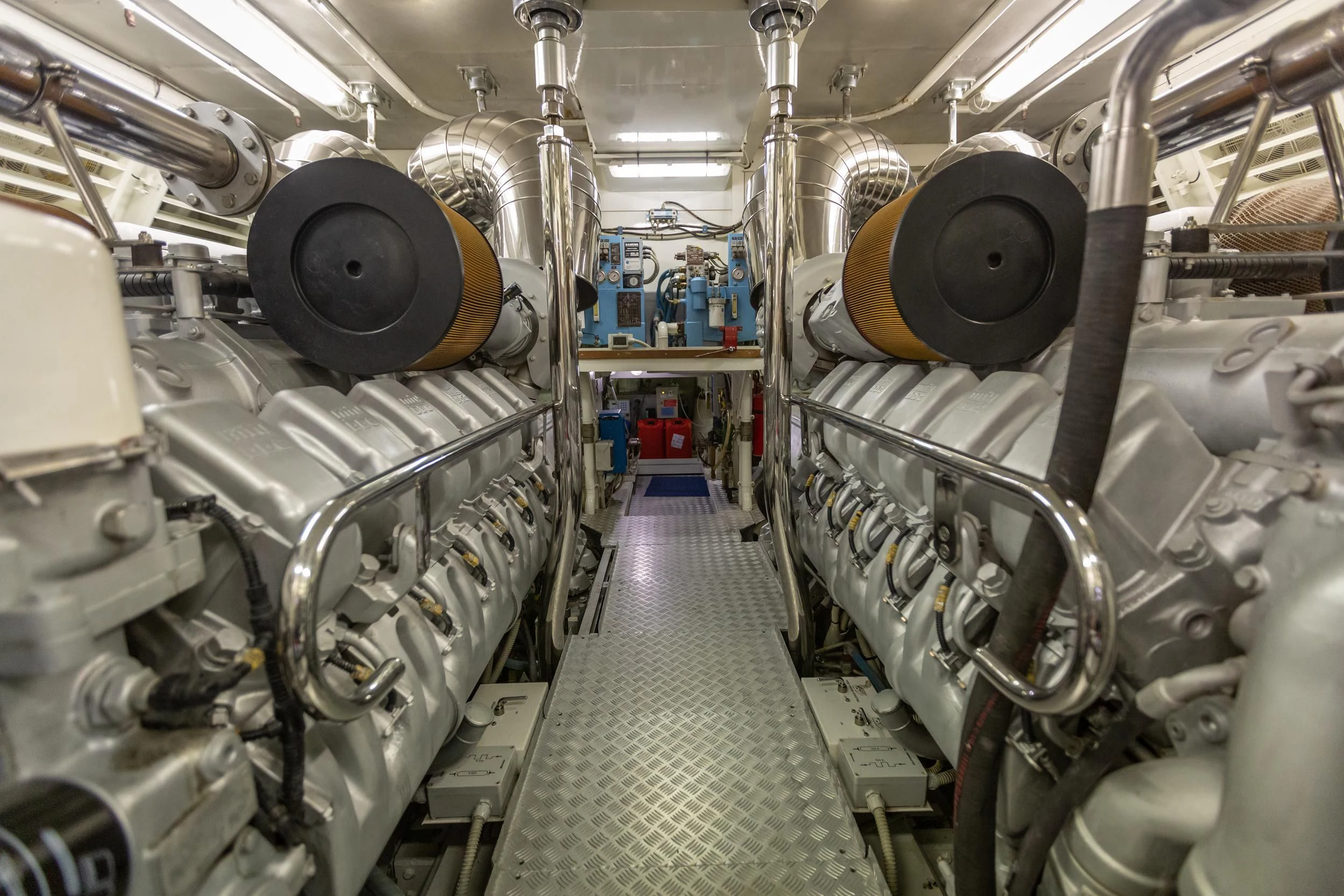

  • Service to main MTU engines mod. 12V 4000 M90
  • Service to the two Kohler 33 kW generators
  • Full maintenance to KaMeWa Kongsberg waterjets including:
  • - New pistons, new steering and reversing stems
  • - New high-pressure hydraulic piping of pistons
  • New Humphree stabilizer gaskets

INTERIOR & ENGINE

  • Full maintenance to the black water system
  • New overboard exhaust of the grey water system
  • New freshwater filters
  • Fully AC system maintenance, filters, and fan coils clean-up
  • New batteries for main engines, services, and generators
  • Bilge pump checked, firefighting pump checked, chain cleaning pump checked
  • New ventilation propeller of the electrical panel in the engine room
  • Total clean-up of the engine room and bilges
  • Cleaning of black water tanks filters, generators filters, water maker filters, A/C system filters, and firefighting pump filters
  • New limber hole boxes for the engine room ceilings, for the exhausts, for jet hydraulic power units, for main electrical panel
  • TV SAT antenna full maintenance

2018:

  • New batteries
  • Replacement Stuffing box (shaft line)
  • Removal and replacement of the MTU’s exhausts
  • Replacement AC cooler
  • Replacement HAMANN system treatment + (one tank built)
  • New batteries service
  • New sea water pump (both engines)
  • New batteries (x 2) for the electronic
  • New alternator (stbd engine)
  • New hoses (KaMeWa)
  • Oil changed (centre KaMeWa)
  • New hull valves/valves aircon
  • New AC ventilator
  • Annual service (engines, generators)
  • Replacement of the interior KaMeWa’s cylinders
  • New hoses on KaMeWa
  • New painting total Awlgrip: Direct glossy polished
  • Complete electronics update
  • Timezero GPS with 3D Navigation
  • Joystick control on wheelhouse sport seat
  • Water maker: Idromar 300 litres
  • A/C – fridge: Frigit
  • SAT Antenna Navi System
  • New audio sys. int / ext. wireless control
  • New teak
  • New LED lighting system inside
  • New and upgraded LED lighting system outside

2017:

  • Seawater and freshwater exchanger serviced
  • Sea water pump
  • Fresh water pump
  • Starter
  • Alternator
  • Exchanger inverter + oil
  • Air filter
  • Full service on both generators
  • Starter
  • Alternator
  • Injector pumps
  • Injectors
  • Fresh water pump
  • Sea water pump
  • Exhaust manifold
  • Air filters
  • Replacement AC compressor
  • Replacement of the ventilators (Master stateroom)
  • Service pump HAMANN
  • Service bow thruster
  • Hull sandblasted + antifouling

2016:

  • Full service (10 years) on both KaMeWa
