Asking
$6,950,000
JOHNSON 83’ SKYLOUNGE W/FISHING COCKPIT Yacht for Sale
Not for sale or charter to U.S. residents while in U.S. waters.
Price is FOB Taiwan. Neither duty nor tariffs are included in the price.
In The News
Specifications
| Builder | JOHNSON |
|---|---|
| Model | 83' SKYLOUNGE W/FISHING COCKPIT |
| Length (LOA) | 83' (25.29m) |
| Year | 2026 |
| Gross Tonn. | 63 |
| Draft | 7' (1.85m) |
| Beam | 20' (6.32m) |
| Location | Taiwan |
Accommodations
| Staterooms | 4 |
|---|---|
| Sleeps | 8 |
| Heads | 4 |
Dimensions & Capacity
| LOA | 83' (25.29m) |
|---|---|
| LWL | 66' (19.89m) |
| Min Draft | 6' (1.82m) |
| Max Draft | 7' (1.85m) |
| Fuel Tank | 1,600 g (1,600 L) |
| Fresh Water | 350 g (350 L) |
| Holding Tank | 100 g (378 L) |
| Gross Tonn. | 63 |
Construction
| Hull Material | Fiberglass |
|---|---|
| Hull Config | Semi-Displacement |
| Ext. Designer | Dixon Yacht Design |
| Int. Designer | Johnson Yachts |
| Cruising Speed | 21 Knots |
Complete the form below and one of our experienced sales brokers will be in touch soon.
Full Details
I. Hull & Deck-exterior General
1. MAIN DECK-TEAK 14MM
2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER
3. 250 FEET GALVANIZED CHAIN (3/8")
4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)
5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)
6. FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT
7. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S
8. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM
9. BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS
10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS
11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)
12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS
13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT
14. STERN CAPSTAN MAXWELL VC1500 24V x 2

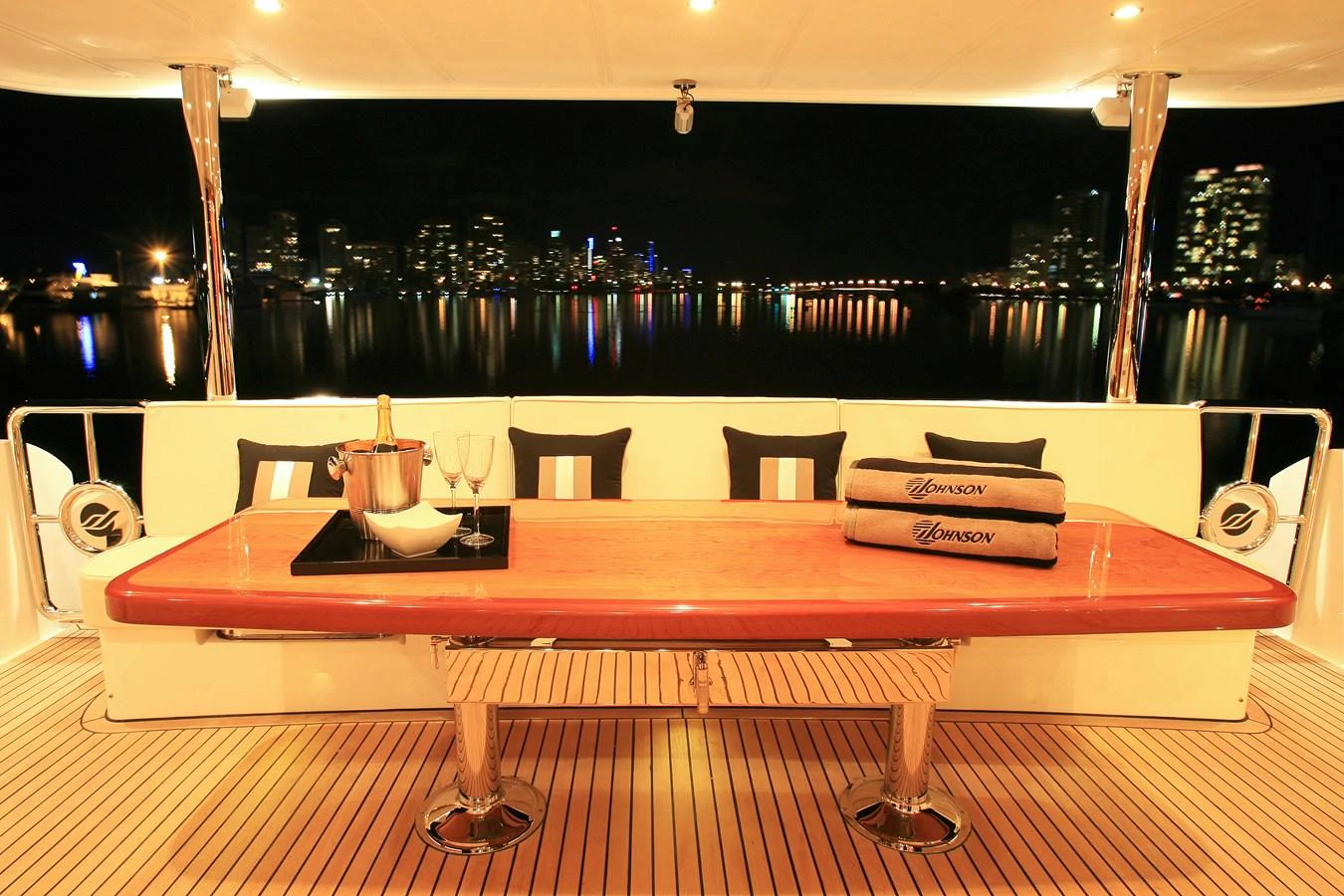

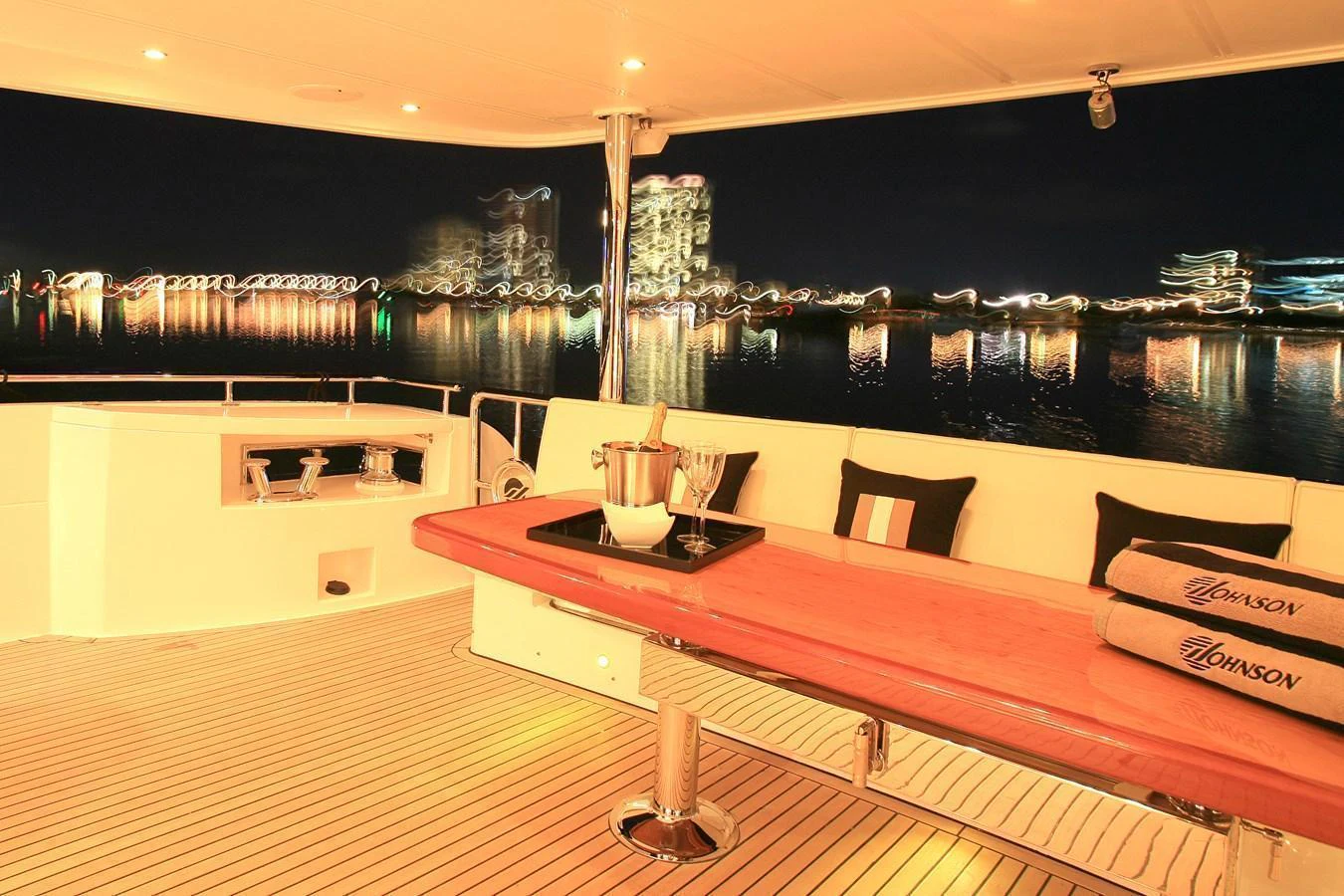

15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC
16. AFT DECK TABLE WITH PROTECTIVE COVER
17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK
18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK
19. STAIRS TO FLYBRIDGE WITH TEAK LAID DECKING TREADS
20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK
21. HOT & COLD SWIM SHOWER
22. S/S SWIM LADDER
23. LAZARETTE STORAGE FOR FENDERS
24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING
25. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/1873 LBS.LIFTING CAPACITY
Ii. Underwater Gear
1. 5 BLADE BRONZE PROPELLERS x 2
2. BRONZE P-BRACKETS x 2
3. S/S AQUATECH 22HS SHAFTS 3 ½" DIAMETER x 2
4. SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½" x 5 ½" AND DURAMAX MARINE CUTLASS BEARINGS
5. HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL
STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING
6. ANTI-FOULING BOTTOM PAINT
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK
OR 3430 DARK BLUE
7. BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED
8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES
9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER
10. SEACOCKS ON ALL UNDERWATER FITTINGS
11. HYDRAULIC BOW THRUSTER
12. HYDRAULIC STERN THRUSTER
13. "AT REST" STABILIZERS
14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS
15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING

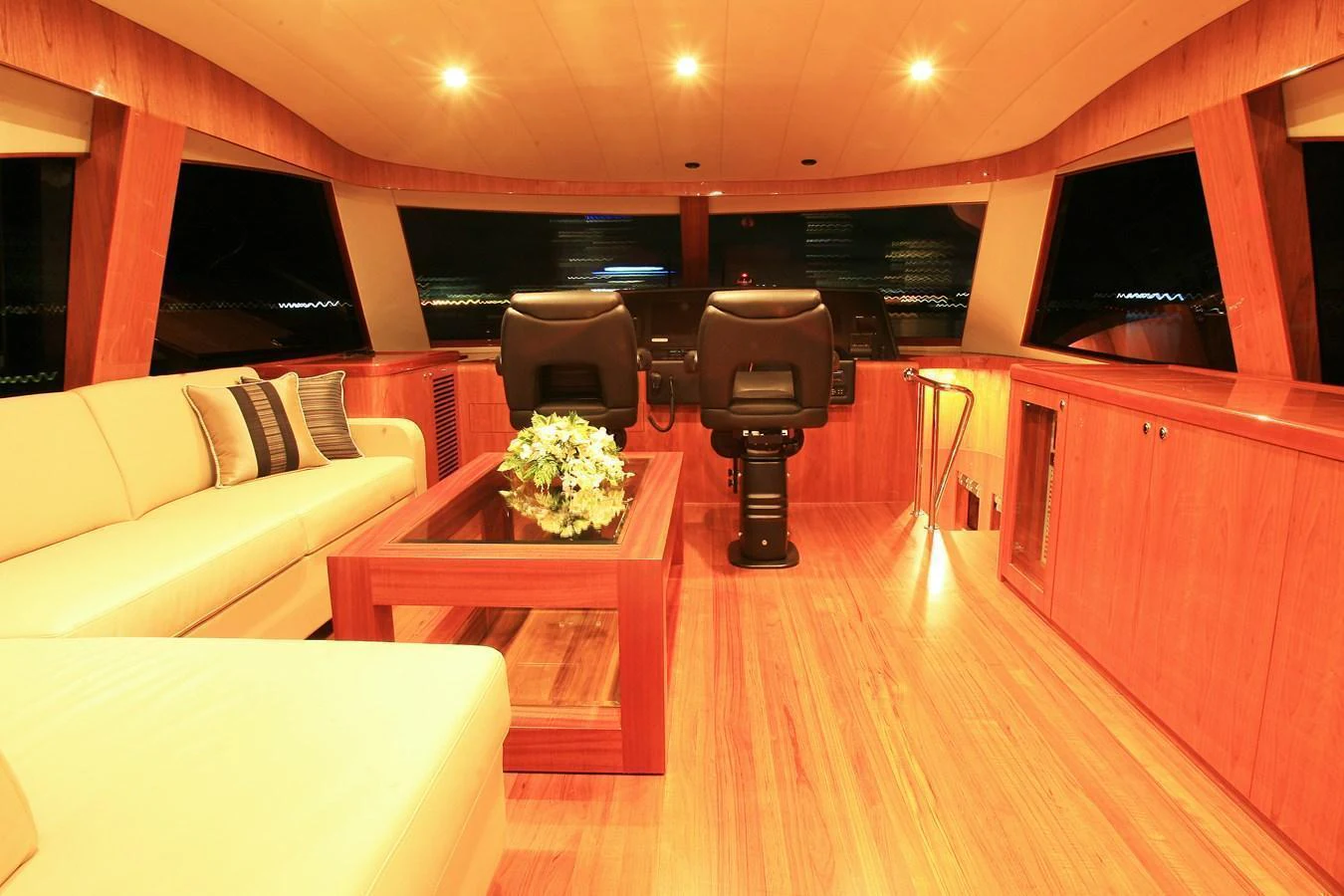

Iii. Skylounge
1. TEAK FLOOR WITH 14MM TEAK AND HOLLY WITH MATT FINISH
2. INSTRUMENT CONSOLE UPHOLSTERED WITH LEATHER
3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS
4. HIGH QUALITY BUILT IN LEATHER COUCH & SMALLER COFFEE TABLE
5. HYDRAULIC STEERING HYNAUTIC PSHC5803
6. ENGINE CONTROL AND INSTRUMENTATION
7. MAGNETIC COMPASS
8. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1
II. RAYMARINE
RAYMARINE GS15.4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400
ACTUATOR CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1
9. STABILIZER CONTROL AND MONITORING DISPLAY
10. ABT BOW & STERN THRUSTER CONTROL PANEL
11. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH
12. RUDDER INDICATOR
13. FUEL GAUGE HEADHUNTER TS-3000 SERIES
14. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL
15. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER–WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
16. POP UP TV CABIN W/ 32" LCD TV
17. APPLE TV
18. LOW LEVEL LED COURTESY LIGHTS 24V
19. LIGHTS UNDER RADAR ARCH LED 24V
20. S/S GRAB RAIL AROUND BAR UNIT
21. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING
22. BUELL AIR HORN
23. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT
24. S/S STEERING WHEEL

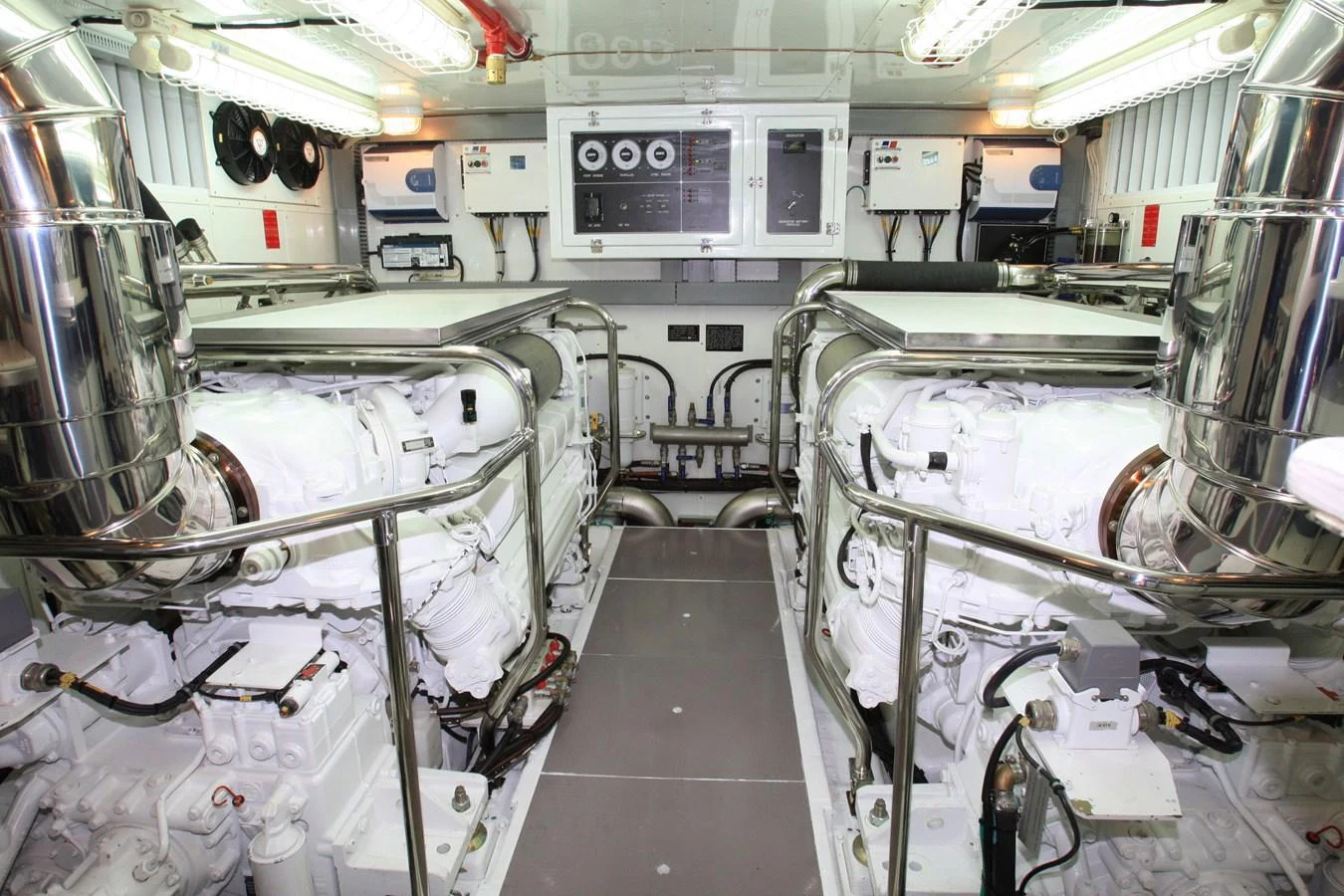

Iv. Engine Propulsion & Engine Room Equipment
1. MAN D2842 LE433 1550HP/2300RPM ENGINE
ZF TRANSMISSION ZF2050A, 2.029:1 RATIO
2. ONE DUAL RACOR FILTER FOR EACH ENGINE
3. GENERATOR RACOR FILTER FOR EACH GENSET
4. VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL
WITH FOAM & LEAD COMBINATION THRUOUGHOUT ENGINE ROOM
5. WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY
NON-SKID RUBBER FLOORING
6. FUEL TANKS WITH ELECTRIC SENDING UNITS
HEADHUTER TS-3000 SERIES
7. AUTOMATIC FIRE EXTINGUISHER
SEAFIRE FM-200
8. EXTRACTOR FANS
DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE
9. E/R AC FLOURESCENT LIGHTS & LED DC DOME LIGHTS
10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL
IS AT REST
11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
HEADHUNTER MARCH 5 M5-115 AC PUMP
GROCO PSR 4000004-24 24V DC PUMP
12. CHILLED WATER AIR CONDITIONING
CRUISAIR AIR CONDITIONING 96,000 BTU
13. WATER MAKER - AQUA WHISPER DX 450 450GPD x 2
14. OIL CHANGING PUMP FOR ENGINES, GENERATORS AND TRANSMISSIONS
15. GENERATOR 1 ONAN QD MDKDS 29 KW 60HZ
GENERATOR 2 ONAN QD MDKBU 29 KW 60HZ (OPTION)
16. WATER HEATERS - TORRID 20 GALLONS x 2
17. EMERGENCY TILLER
18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS, STABILIZERS AND STEERING
19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)
V. Electrical
1. 110V/220 AC ELECTRICAL SYSTEM
2. DC 24V SYSTEM
3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS
4. BATTERY CHARGER FOR 24V CIRCUIT
5. BATTERY CHARGER FOR 12V CIRCUIT
6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS
WITH BEP HIGH CHARGE REGULATORS FITTED
7. 4 x 255AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE
8. 225AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4
9. 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1
10. AC SOCKETS THROUGHOUT THE BOAT
11. GFI PROTECTION FOR AC REQUIRED SOCKETS
12. BEP BATTERY SELECT SWITCH
13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4
PANELS (E/R, HELM, A/C AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS
14. ANTI-ELECTROLOSIS BONDING SYSTEM
15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2
16. GENERATORS: (2) Onan QD MKKDS 29kW
Vi. Plumbing System
1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP
2. “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT
3. HOLDING TANK LEVEL INDICATOR HEADHUNTER
4. SUMP PUMP FOR SHOWER
5. MARINE GRADE LINES FOR FRESH WATER SYSTEM
6. S/S WATER TANK WITH SENDING UNI- 350 GALLONS
7. SIGHT GAUGES FOR FUEL AND WATER TANKS
8. DOCKSIDE FRESH WATER INLET
9. COLOR CODED PIPING FOR EASY IDENTIFICATION
10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS
11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF
THRU-HULL FITTINGS
12. FRESH WATER SEALAND VACUUM TOILET SYSTEM
13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND
LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM
14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH
HIGH WATER ALARMS
Vii. Interior Finish
1. INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER
WITH A CHOICE OF UPHOLSTERY FABRICS

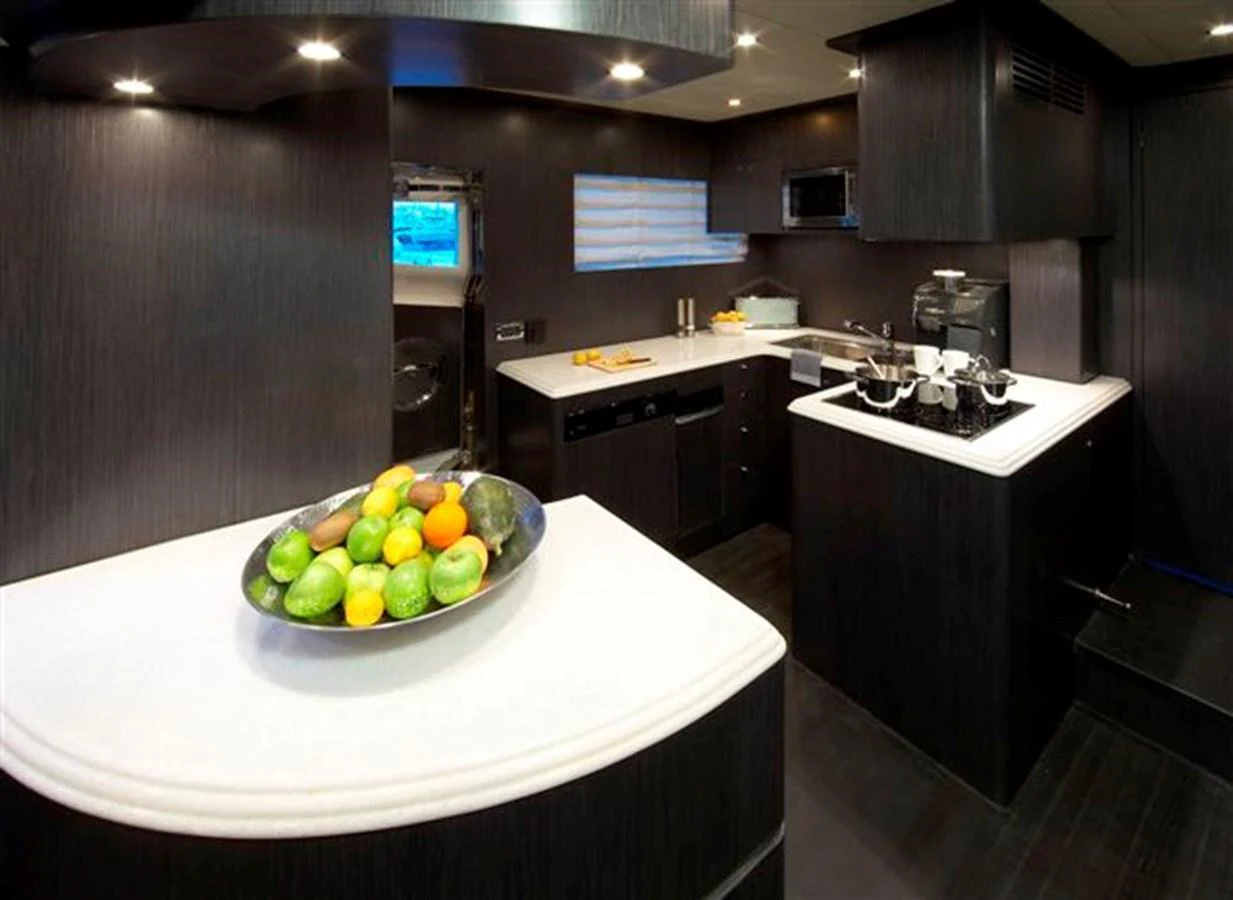

Viii. Galley
1. ELECTRIC REFRIGERATOR/FREEZER - G.E. LATEST MODEL
2. COOKTOP - G.E. LATEST MODEL
3. OVEN - G.E. LATEST MODEL
4. MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL
5. S/S SINK
6. HOT AND COLD WATER
7. TRASH COMPACTOR - G.E. LATEST MODEL
8. DISHWASHER - G.E. LATEST MODEL
9. DOUBLE AC SOCKETS x 2
10. CUPBOARD,DRAWERS AND STOWAGE
11. TEAK FLOOR OR MARBLE FLOOR
12. OVERHEAD STORAGE ABOVE GALLEY BENCH

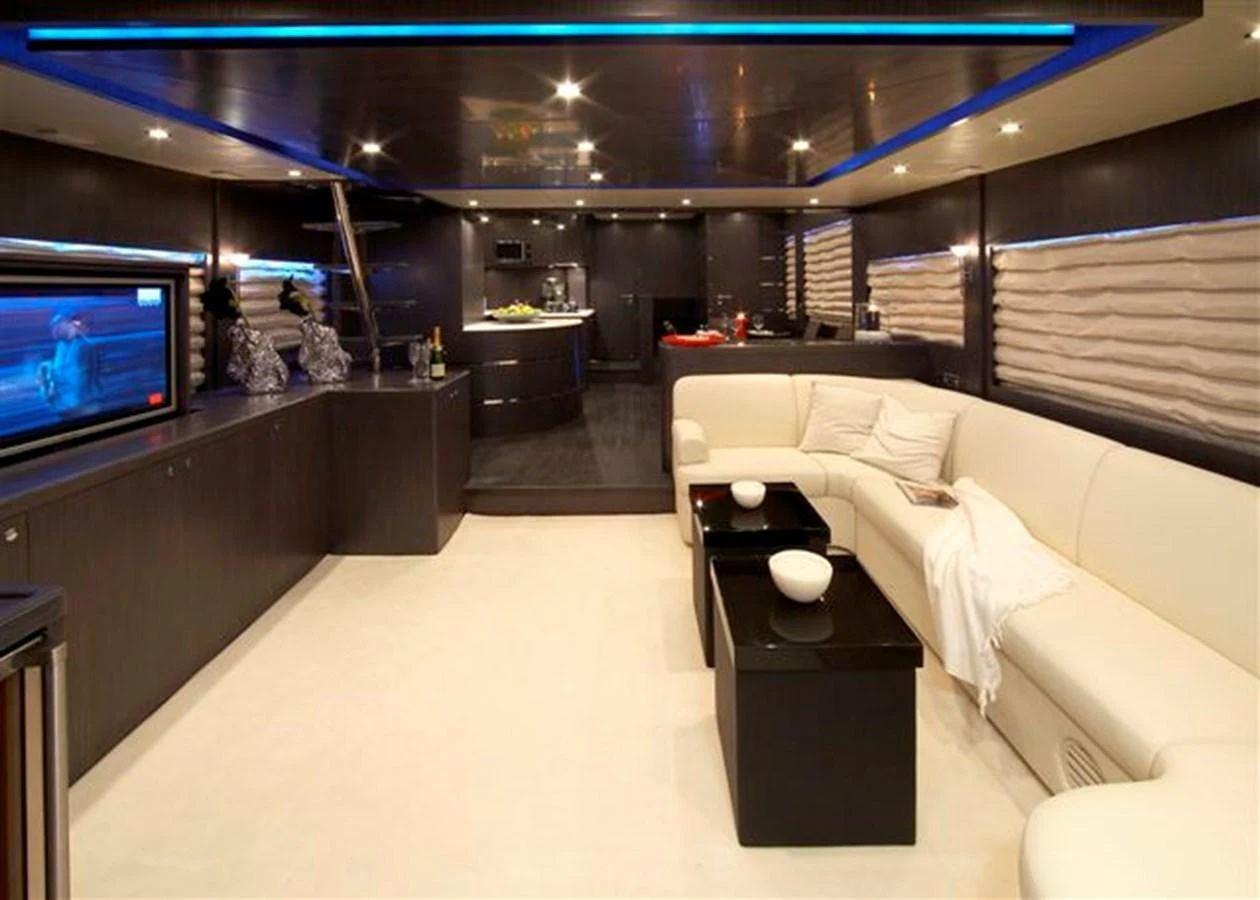

Ix. Saloon
1. DINING AREA IN UPPER SALOON
2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSOR DEVICE
3. 42" LCD TV
4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM
5. PIONEER BDP-160 BLU-RAY DISC PLAYER
6. APPLE TV
7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN CURVED SEATING
8. MAIN CONTROL PANEL AC/DC
9. LOW LEVEL LIGHTS 24V LED
10. CEILING LED LIGHTING 24V
11. COFFEE TABLE
X. Master Stateroom
1. KING SIZE BERTH
2. STORAGE BENEATH BERTH
3. DRAWERS IN BASE OF BERTH
4. VANITY
5. COUCH
6. WALK-IN CLOSET FINISHED IN CEDAR WOOD
7. LED CEILING LIGHTING 24V
8. READING LIGHTS 24V x 2
9. LARGE SIDE WINDOWS 3 x MANSHIP S/S W/ 2 FIXED AND ONE OPENING
10. 42" LCD TV
11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
12. PIONEER BDP-160 BLU-RAY DISC PLAYER
13. APPLE TV
Xi. Master En Suite Shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. LACQUER FINISH ABOVE BASIN COUNTERTOP
7. VENEER FINISH BELOW BASIN COUNTERTOP
8. EXTRACTOR FAN
9. AC DOUBLE SOCKET WITH GFI
10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
11. LED CEILING LIGHTS 24V
12. MARBLE FLOOR

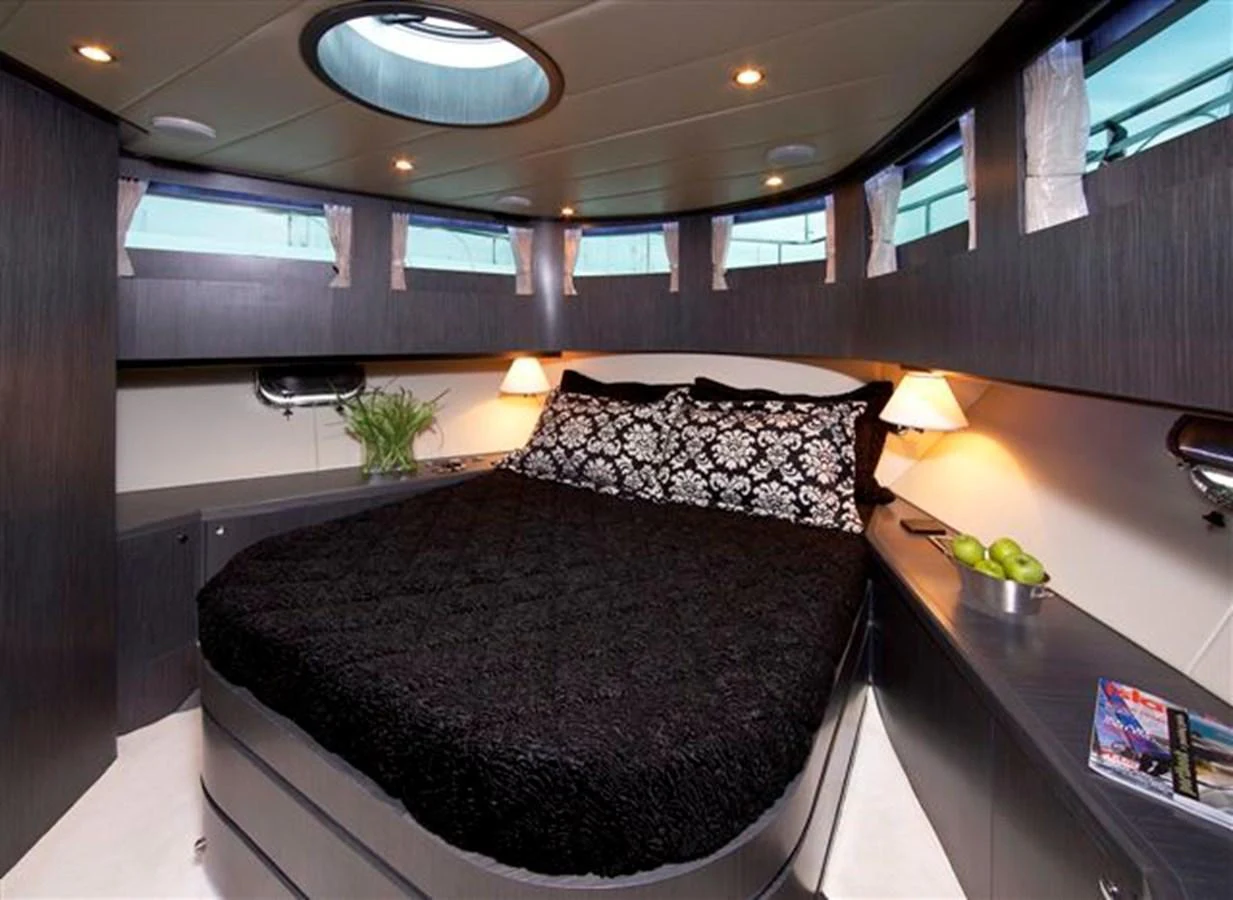

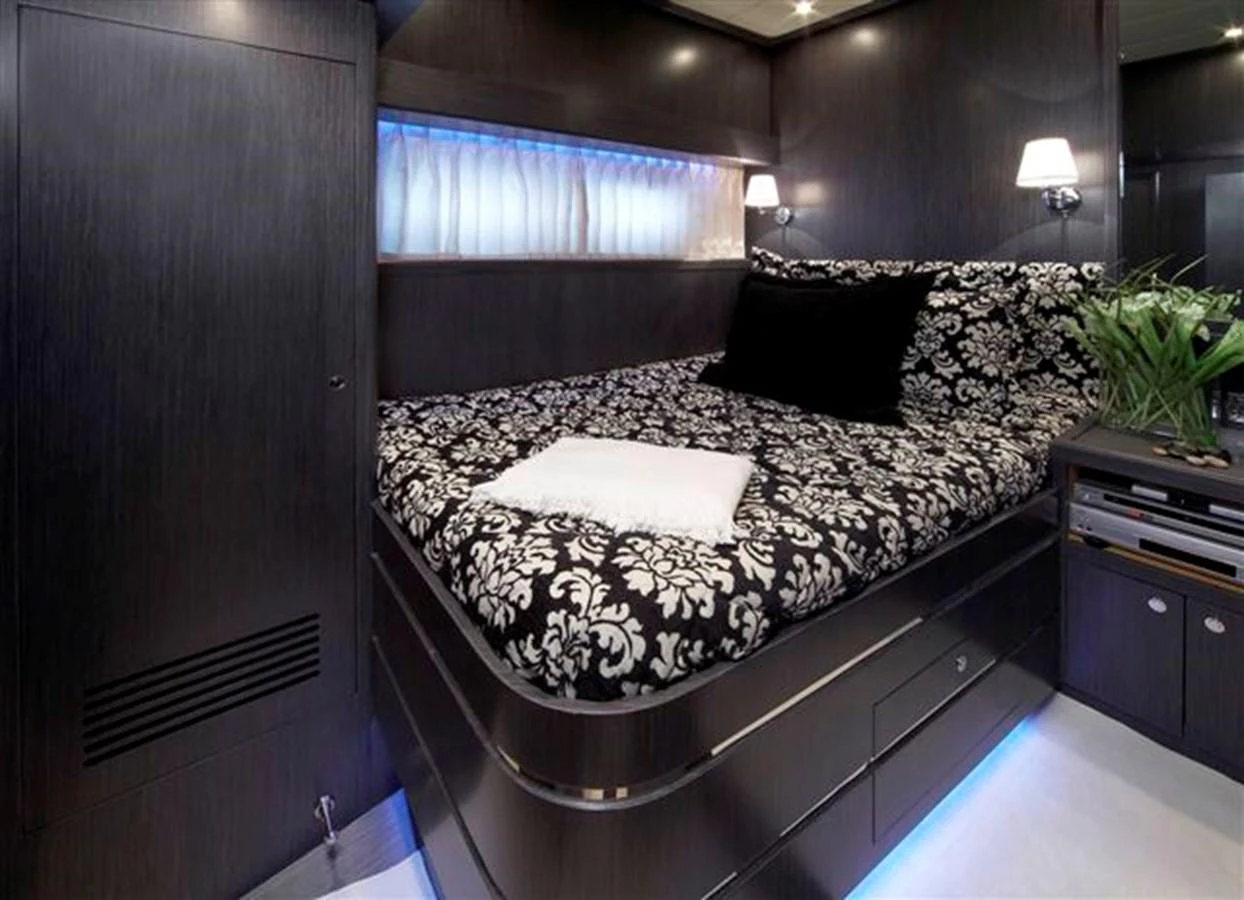

Xii. Forward (vip) Stateroom
1. DOUBLE BERTH
2. STORAGE BENEATH BERTH
3. DRAWERS IN BASE OF BERTH
4. WALK-IN CLOSET FINISHED IN CEDAR WOOD
5. DRESSING TABLE W/STOOL
6. READING LIGHTS 24V x 2
7. LED CEILING LIGHTS 24V
8. AC DOUBLE SOCKETS
9. 32" LCD TV
10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
11. APPLE TV
Xiii. Forward (vip) En Suite Shower Room:
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. LACQUER FINISH ABOVE BASIN COUNTERTOP
7. VENEER FINISH BELOW BASIN COUNTERTOP
8. EXTRACTOR FAN
9. AC DOUBLE SOCKET WITH GFI
10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
11. LED CEILING LIGHTS 24V
12. MARBLE FLOOR
Xiv. Port Guest Cabin
1. TWO SINGLE BERTHS
2. UNDER BERTH STORAGE
3. READING LIGHTS 24V x 2
4. LED CEILING LIGHTS 24V x 2
5. HANGING LOCKER
6. PULLMAN BERTH
7. 32" LCD TV
8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
9. APPLE TV
Xv. Port Toilet/shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3 HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
7. AC DOUBLE SOCKET WITH GFI
8. LACQUER FINISH ABOVE BASIN COUNTERTOP
9. VENEER FINISH BELOW BASIN COUNTERTOP
10. EXTRACTOR FAN
11. LED CEILING LIGHTS
12. MARBLE FLOOR
13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL
Xvi. Starboard Guest Cabin
1. DOUBLE BERTH
2. UNDER BERTH STORAGE
3. READING LIGHTS 24V x 2
4. LED CEILING LIGHTS 24V x 2
5. HANGING LOCKER
6. 32" LCD TV
7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
8. APPLE TV
Xvii. Starboard Toilet/shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
7. AC DOUBLE SOCKET WITH GFI
8. LACQUER FINISH ABOVE BASIN COUNTERTOP
9. VENEER FINISH BELOW BASIN COUNTERTOP
10. EXTRACTOR FAN
11. LED CEILING LIGHTS 24V
12. MARBLE FLOOR
Xviii. Crew Quarters
1. ENTRANCE DOOR FROM TRANSOM
2. TWO SINGLE BERTHS
3. READING LIGHTS 24V x 2
4. LED CEILING LIGHTS
5. AC DOUBLE SOCKET
6. HANGING LOCKER
7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR
8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
9. 24" LCD TV
10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
11. APPLE TV
Xix. Fishing Cockpit
1. CATCH WELL, UNDER DECK
2. LIVE BAIT WELL WITH PUMP AND LIGHT
3. 8 FLUSH MOUNTED ROD HOLDERS SURROUND THE FISHING COCKPIT AND ROCKET LAUNCHER
4. NON-SKID DECKS
Xx. Remarks
Please note, this is an unbuilt new construction project which has not yet been started.
Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 9-12 months depending on other yard projects.
**OPTIONS UPON REQUEST**
**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **
Price is FOB Taiwan. Neither duty nor tariffs are included in the price.
Comments
Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.
Price is FOB Taiwan. Neither duty nor tariffs are included in the price.
Disclaimer
Specifications are provided for informational purposes only. Data was obtained from sources believed reliable but is not guaranteed by owner or brokers. Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase. Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.
Full Details
I. Hull & Deck-exterior General
1. MAIN DECK-TEAK 14MM
2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER
3. 250 FEET GALVANIZED CHAIN (3/8")
4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)
5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)
6. FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT
7. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S
8. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM
9. BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS
10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS
11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)
12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS
13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT
14. STERN CAPSTAN MAXWELL VC1500 24V x 2
15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC
16. AFT DECK TABLE WITH PROTECTIVE COVER
17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK
18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK
19. STAIRS TO FLYBRIDGE WITH TEAK LAID DECKING TREADS
20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK
21. HOT & COLD SWIM SHOWER
22. S/S SWIM LADDER
23. LAZARETTE STORAGE FOR FENDERS
24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING
25. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/1873 LBS.LIFTING CAPACITY
Ii. Underwater Gear
1. 5 BLADE BRONZE PROPELLERS x 2
2. BRONZE P-BRACKETS x 2
3. S/S AQUATECH 22HS SHAFTS 3 ½" DIAMETER x 2
4. SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½" x 5 ½" AND DURAMAX MARINE CUTLASS BEARINGS
5. HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL
STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING
6. ANTI-FOULING BOTTOM PAINT
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK
OR 3430 DARK BLUE
7. BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED
8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES
9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER
10. SEACOCKS ON ALL UNDERWATER FITTINGS
11. HYDRAULIC BOW THRUSTER
12. HYDRAULIC STERN THRUSTER
13. "AT REST" STABILIZERS
14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS
15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING
Iii. Skylounge
1. TEAK FLOOR WITH 14MM TEAK AND HOLLY WITH MATT FINISH
2. INSTRUMENT CONSOLE UPHOLSTERED WITH LEATHER
3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS
4. HIGH QUALITY BUILT IN LEATHER COUCH & SMALLER COFFEE TABLE
5. HYDRAULIC STEERING HYNAUTIC PSHC5803
6. ENGINE CONTROL AND INSTRUMENTATION
7. MAGNETIC COMPASS
8. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1
II. RAYMARINE
RAYMARINE GS15.4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400
ACTUATOR CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1
9. STABILIZER CONTROL AND MONITORING DISPLAY
10. ABT BOW & STERN THRUSTER CONTROL PANEL
11. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH
12. RUDDER INDICATOR
13. FUEL GAUGE HEADHUNTER TS-3000 SERIES
14. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL
15. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER–WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
16. POP UP TV CABIN W/ 32" LCD TV
17. APPLE TV
18. LOW LEVEL LED COURTESY LIGHTS 24V
19. LIGHTS UNDER RADAR ARCH LED 24V
20. S/S GRAB RAIL AROUND BAR UNIT
21. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING
22. BUELL AIR HORN
23. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT
24. S/S STEERING WHEEL
Iv. Engine Propulsion & Engine Room Equipment
1. MAN D2842 LE433 1550HP/2300RPM ENGINE
ZF TRANSMISSION ZF2050A, 2.029:1 RATIO
2. ONE DUAL RACOR FILTER FOR EACH ENGINE
3. GENERATOR RACOR FILTER FOR EACH GENSET
4. VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL
WITH FOAM & LEAD COMBINATION THRUOUGHOUT ENGINE ROOM
5. WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY
NON-SKID RUBBER FLOORING
6. FUEL TANKS WITH ELECTRIC SENDING UNITS
HEADHUTER TS-3000 SERIES
7. AUTOMATIC FIRE EXTINGUISHER
SEAFIRE FM-200
8. EXTRACTOR FANS
DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE
9. E/R AC FLOURESCENT LIGHTS & LED DC DOME LIGHTS
10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL
IS AT REST
11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
HEADHUNTER MARCH 5 M5-115 AC PUMP
GROCO PSR 4000004-24 24V DC PUMP
12. CHILLED WATER AIR CONDITIONING
CRUISAIR AIR CONDITIONING 96,000 BTU
13. WATER MAKER - AQUA WHISPER DX 450 450GPD x 2
14. OIL CHANGING PUMP FOR ENGINES, GENERATORS AND TRANSMISSIONS
15. GENERATOR 1 ONAN QD MDKDS 29 KW 60HZ
GENERATOR 2 ONAN QD MDKBU 29 KW 60HZ (OPTION)
16. WATER HEATERS - TORRID 20 GALLONS x 2
17. EMERGENCY TILLER
18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS, STABILIZERS AND STEERING
19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)
V. Electrical
1. 110V/220 AC ELECTRICAL SYSTEM
2. DC 24V SYSTEM
3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS
4. BATTERY CHARGER FOR 24V CIRCUIT
5. BATTERY CHARGER FOR 12V CIRCUIT
6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS
WITH BEP HIGH CHARGE REGULATORS FITTED
7. 4 x 255AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE
8. 225AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4
9. 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1
10. AC SOCKETS THROUGHOUT THE BOAT
11. GFI PROTECTION FOR AC REQUIRED SOCKETS
12. BEP BATTERY SELECT SWITCH
13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4
PANELS (E/R, HELM, A/C AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS
14. ANTI-ELECTROLOSIS BONDING SYSTEM
15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2
16. GENERATORS: (2) Onan QD MKKDS 29kW
Vi. Plumbing System
1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP
2. “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT
3. HOLDING TANK LEVEL INDICATOR HEADHUNTER
4. SUMP PUMP FOR SHOWER
5. MARINE GRADE LINES FOR FRESH WATER SYSTEM
6. S/S WATER TANK WITH SENDING UNI- 350 GALLONS
7. SIGHT GAUGES FOR FUEL AND WATER TANKS
8. DOCKSIDE FRESH WATER INLET
9. COLOR CODED PIPING FOR EASY IDENTIFICATION
10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS
11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF
THRU-HULL FITTINGS
12. FRESH WATER SEALAND VACUUM TOILET SYSTEM
13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND
LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM
14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH
HIGH WATER ALARMS
Vii. Interior Finish
1. INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER
WITH A CHOICE OF UPHOLSTERY FABRICS
Viii. Galley
1. ELECTRIC REFRIGERATOR/FREEZER - G.E. LATEST MODEL
2. COOKTOP - G.E. LATEST MODEL
3. OVEN - G.E. LATEST MODEL
4. MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL
5. S/S SINK
6. HOT AND COLD WATER
7. TRASH COMPACTOR - G.E. LATEST MODEL
8. DISHWASHER - G.E. LATEST MODEL
9. DOUBLE AC SOCKETS x 2
10. CUPBOARD,DRAWERS AND STOWAGE
11. TEAK FLOOR OR MARBLE FLOOR
12. OVERHEAD STORAGE ABOVE GALLEY BENCH
Ix. Saloon
1. DINING AREA IN UPPER SALOON
2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSOR DEVICE
3. 42" LCD TV
4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM
5. PIONEER BDP-160 BLU-RAY DISC PLAYER
6. APPLE TV
7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN CURVED SEATING
8. MAIN CONTROL PANEL AC/DC
9. LOW LEVEL LIGHTS 24V LED
10. CEILING LED LIGHTING 24V
11. COFFEE TABLE
X. Master Stateroom
1. KING SIZE BERTH
2. STORAGE BENEATH BERTH
3. DRAWERS IN BASE OF BERTH
4. VANITY
5. COUCH
6. WALK-IN CLOSET FINISHED IN CEDAR WOOD
7. LED CEILING LIGHTING 24V
8. READING LIGHTS 24V x 2
9. LARGE SIDE WINDOWS 3 x MANSHIP S/S W/ 2 FIXED AND ONE OPENING
10. 42" LCD TV
11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
12. PIONEER BDP-160 BLU-RAY DISC PLAYER
13. APPLE TV
Xi. Master En Suite Shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. LACQUER FINISH ABOVE BASIN COUNTERTOP
7. VENEER FINISH BELOW BASIN COUNTERTOP
8. EXTRACTOR FAN
9. AC DOUBLE SOCKET WITH GFI
10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
11. LED CEILING LIGHTS 24V
12. MARBLE FLOOR
Xii. Forward (vip) Stateroom
1. DOUBLE BERTH
2. STORAGE BENEATH BERTH
3. DRAWERS IN BASE OF BERTH
4. WALK-IN CLOSET FINISHED IN CEDAR WOOD
5. DRESSING TABLE W/STOOL
6. READING LIGHTS 24V x 2
7. LED CEILING LIGHTS 24V
8. AC DOUBLE SOCKETS
9. 32" LCD TV
10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
11. APPLE TV
Xiii. Forward (vip) En Suite Shower Room:
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. LACQUER FINISH ABOVE BASIN COUNTERTOP
7. VENEER FINISH BELOW BASIN COUNTERTOP
8. EXTRACTOR FAN
9. AC DOUBLE SOCKET WITH GFI
10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
11. LED CEILING LIGHTS 24V
12. MARBLE FLOOR
Xiv. Port Guest Cabin
1. TWO SINGLE BERTHS
2. UNDER BERTH STORAGE
3. READING LIGHTS 24V x 2
4. LED CEILING LIGHTS 24V x 2
5. HANGING LOCKER
6. PULLMAN BERTH
7. 32" LCD TV
8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
9. APPLE TV
Xv. Port Toilet/shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3 HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
7. AC DOUBLE SOCKET WITH GFI
8. LACQUER FINISH ABOVE BASIN COUNTERTOP
9. VENEER FINISH BELOW BASIN COUNTERTOP
10. EXTRACTOR FAN
11. LED CEILING LIGHTS
12. MARBLE FLOOR
13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL
Xvi. Starboard Guest Cabin
1. DOUBLE BERTH
2. UNDER BERTH STORAGE
3. READING LIGHTS 24V x 2
4. LED CEILING LIGHTS 24V x 2
5. HANGING LOCKER
6. 32" LCD TV
7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
8. APPLE TV
Xvii. Starboard Toilet/shower Room
1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
2. WASH BASIN WITH MABLE COUNTERTOP
3. HOT & COLD WATER
4. FAUCET AND FITTINGS
5. MIRROR AND MIRROR CEILING
6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
7. AC DOUBLE SOCKET WITH GFI
8. LACQUER FINISH ABOVE BASIN COUNTERTOP
9. VENEER FINISH BELOW BASIN COUNTERTOP
10. EXTRACTOR FAN
11. LED CEILING LIGHTS 24V
12. MARBLE FLOOR
Xviii. Crew Quarters
1. ENTRANCE DOOR FROM TRANSOM
2. TWO SINGLE BERTHS
3. READING LIGHTS 24V x 2
4. LED CEILING LIGHTS
5. AC DOUBLE SOCKET
6. HANGING LOCKER
7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR
8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
9. 24" LCD TV
10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
11. APPLE TV
Xix. Fishing Cockpit
1. CATCH WELL, UNDER DECK
2. LIVE BAIT WELL WITH PUMP AND LIGHT
3. 8 FLUSH MOUNTED ROD HOLDERS SURROUND THE FISHING COCKPIT AND ROCKET LAUNCHER
4. NON-SKID DECKS
Xx. Remarks
Please note, this is an unbuilt new construction project which has not yet been started.
Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 9-12 months depending on other yard projects.
**OPTIONS UPON REQUEST**
**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **
Price is FOB Taiwan. Neither duty nor tariffs are included in the price.
Comments

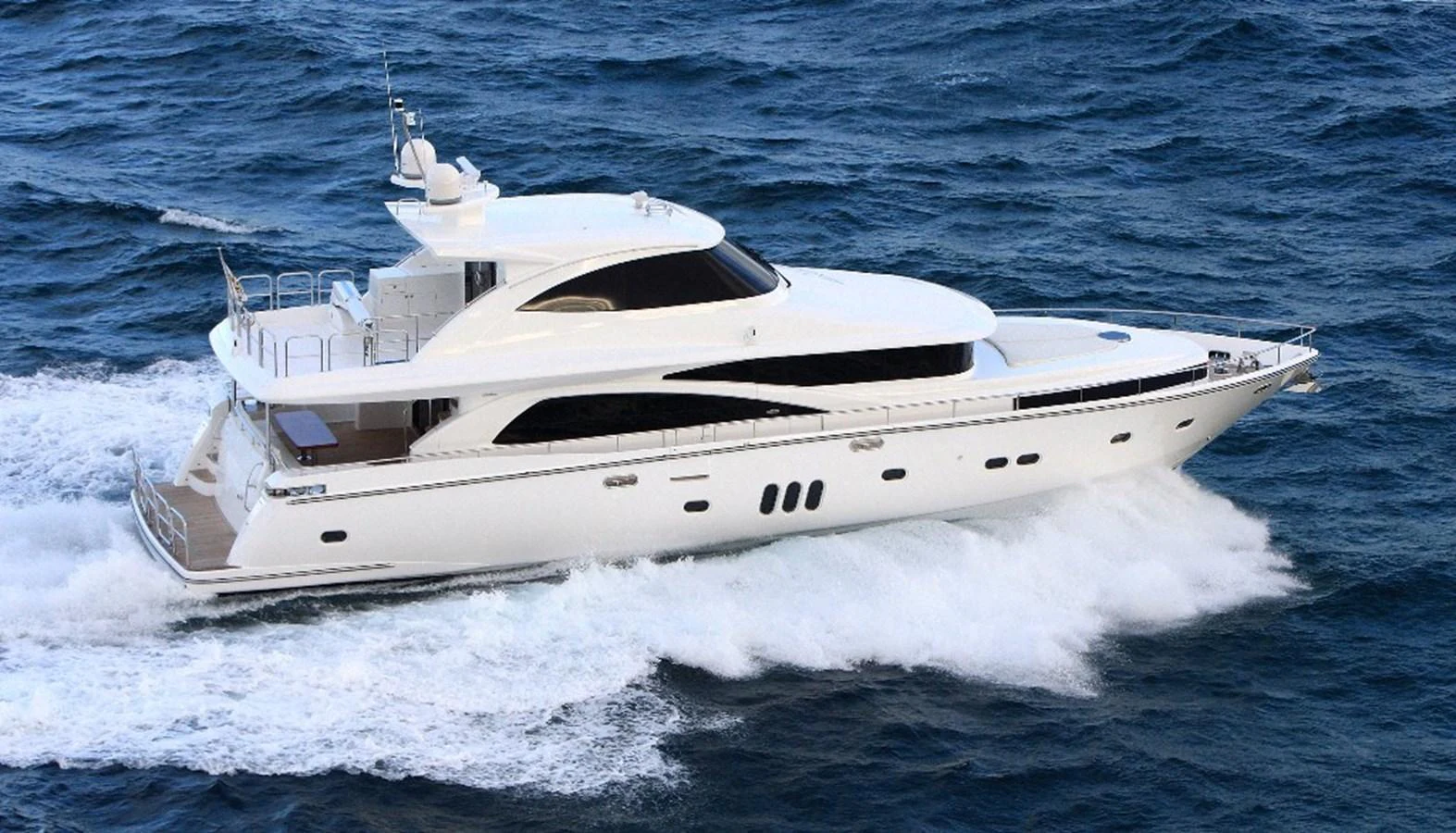

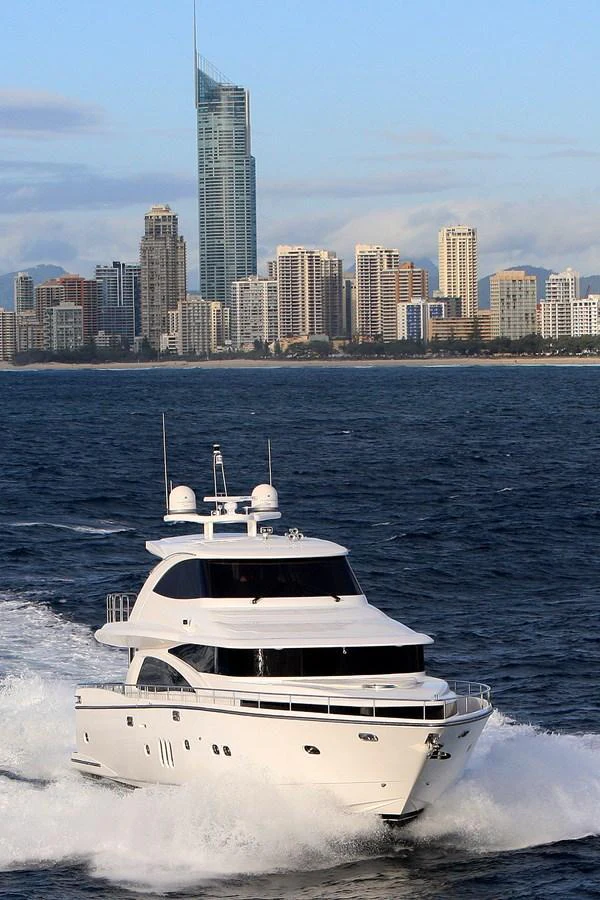

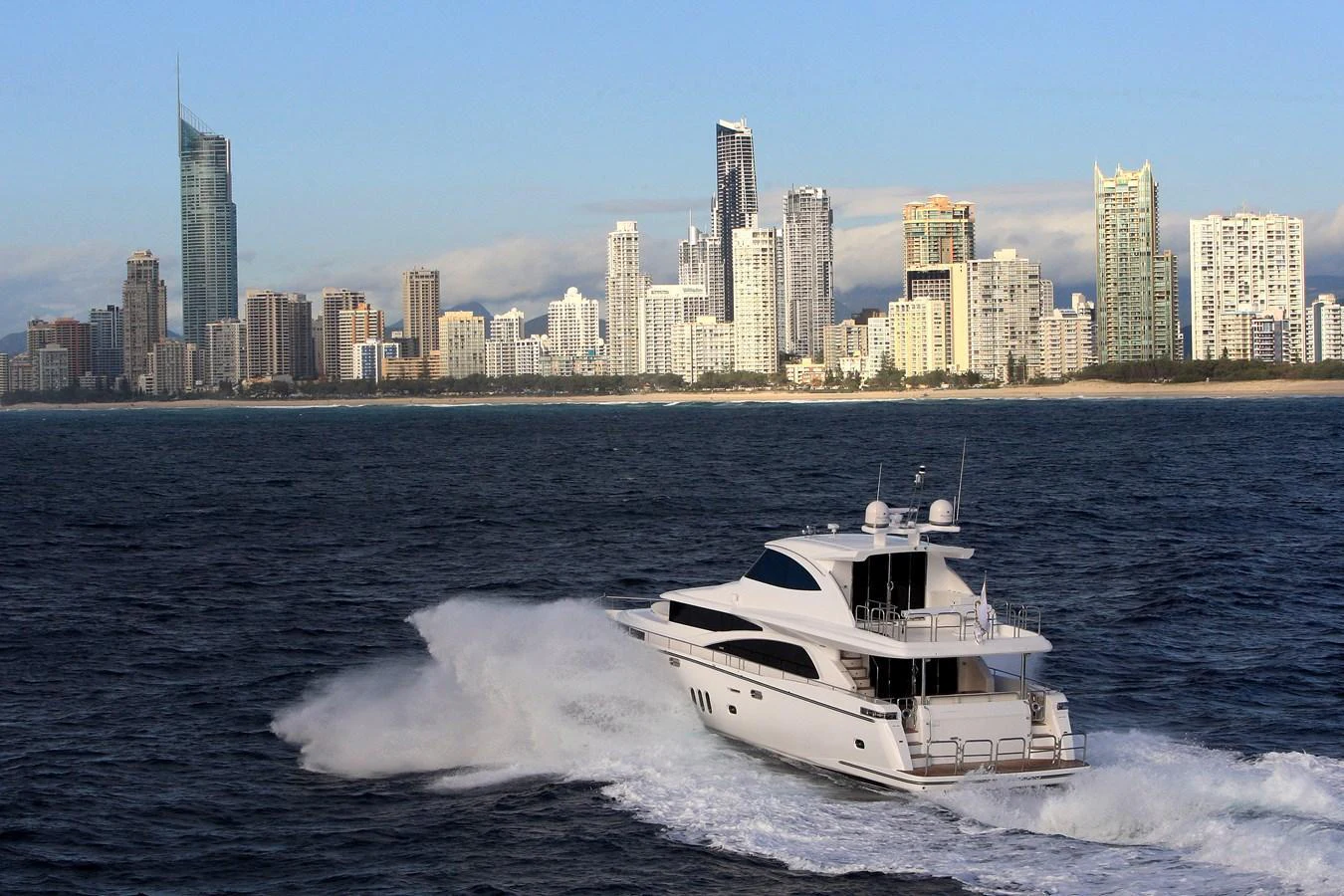

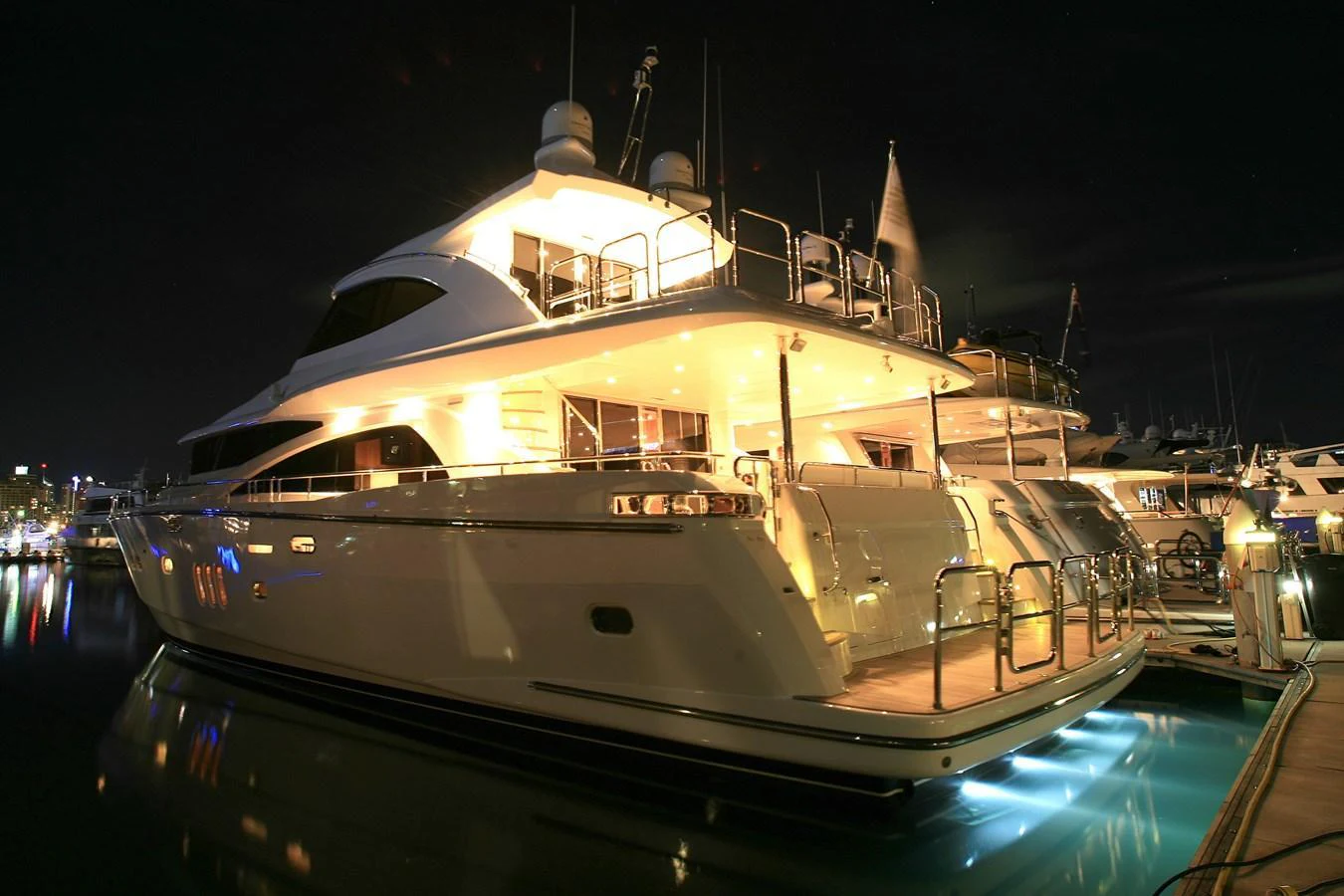

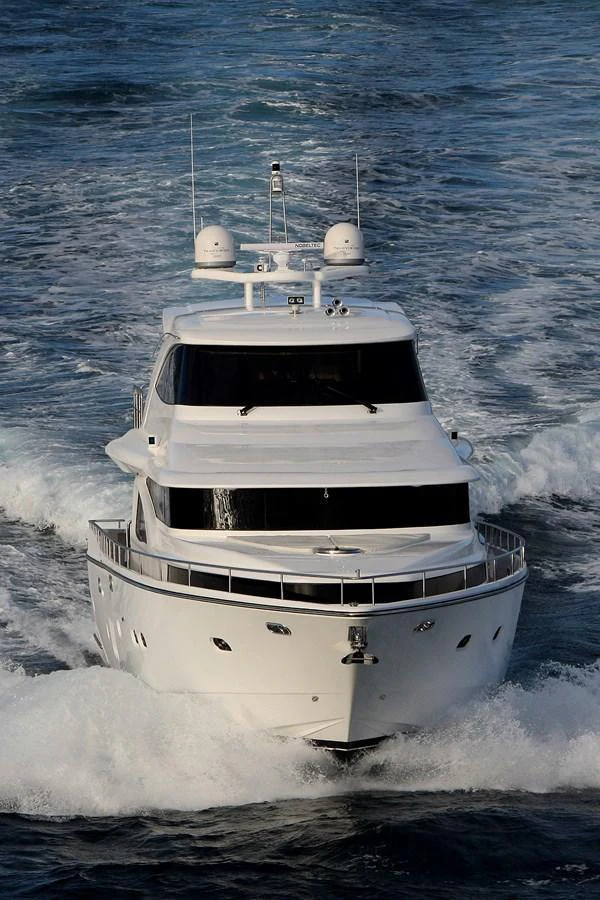

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.
Price is FOB Taiwan. Neither duty nor tariffs are included in the price.
Disclaimer
Specifications are provided for informational purposes only. Data was obtained from sources believed reliable but is not guaranteed by owner or brokers. Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase. Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.
