JOHNSON 80' SKYLOUNGE W/HYDRAULIC PLATFORM Yacht for Sale

80' (24.38m)
JOHNSON
2022

Not for sale or charter to U.S. residents while in U.S. waters.

Length 80 FT (24.38 M)
Beam 20 FT (6.32 M)
Draft 7 FT (1.85 M)
Gross Tonnage 63 Ton
Builder JOHNSON
Designer Dixon Yacht Design
Year Built 2022
Construction Fiberglass
LOA 80 FT (24.38 M)
LWL 63 FT (19.15 M)
Beam 20 FT (6.32 M)
Min Draft 6 FT (1.82 M)
Max Draft 7 FT (1.85 M)
Max Speed 25 Knots
Gross Tonnage 63 Ton
Water Capacity 350 Liters
Fuel Capacity 1,600 Liters
Hull Material Fiberglass
Designer Dixon Yacht Design

Full Specifications


1. MAIN DECK-TEAK 14MM

2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER

3. 250 FEET GALVANIZED CHAIN (3/8”)

4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)

5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)

6. FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT

7. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S

8. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM

9. BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS

10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON  AND SAFETY SENSORS

11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)

12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS

13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT

14. STERN CAPSTAN MAXWELL VC1500 24V x 2

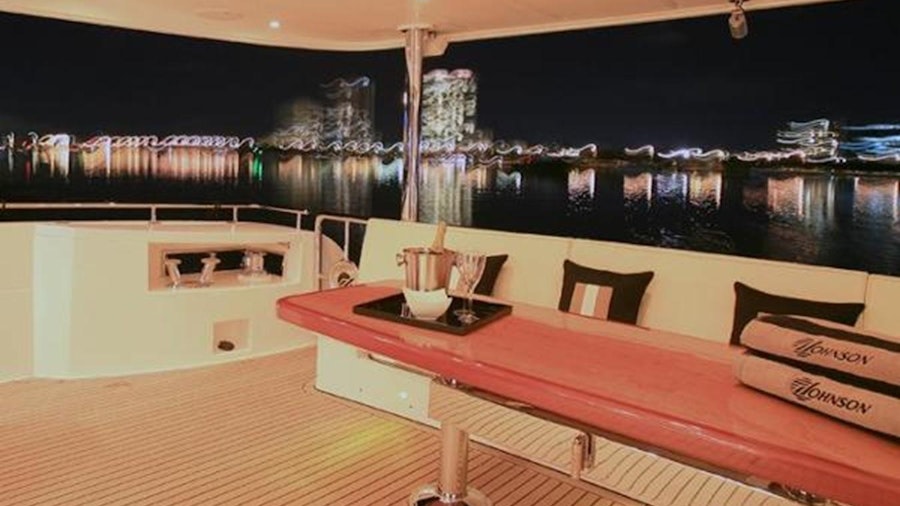

15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC AND REMOVABLE COVER

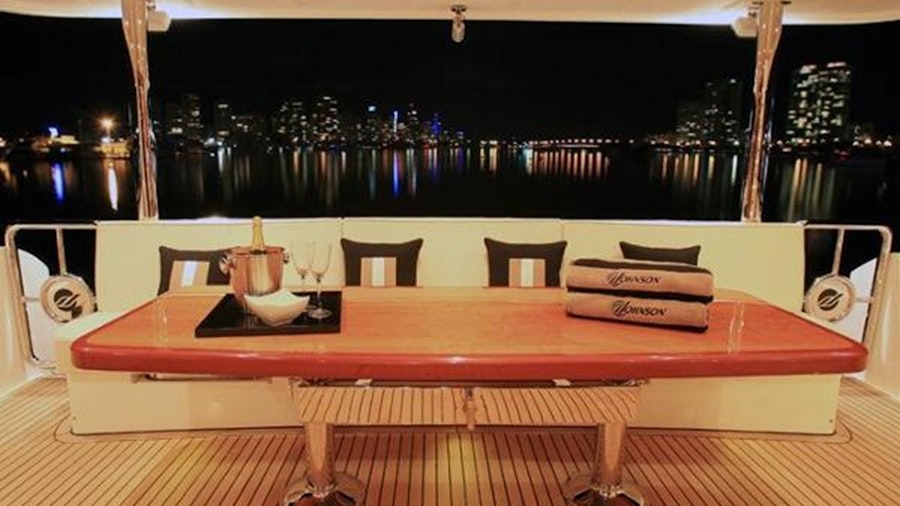

16. AFT DECK TABLE WITH PROTECTIVE COVER

17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK

18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK

19. STAIRS TO FLYBRIDGE WITH TEAK LAID TREADS

20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK

21. HOT & COLD SWIM SHOWER

22. S/S SWIM LADDER

23. LAZARETTE STORAGE FOR FENDERS

24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING

25. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS. LIFTING CAPACITY


1. 5 BLADE BRONZE PROPELLERS x 2

2. BRONZE P-BRACKETS x 2

3. S/S AQUATECH 22HS SHAFTS 3 ½" DIAMETER x 2

4. SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½" x 5 ½" AND DURAMAX MARINE CUTLASS BEARINGS

5. HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING

6. ANTI-FOULING BOTTOM PAINT
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE
3445 BLACK OR 3430 DARK BLUE

7. BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED

8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER

10. SEACOCKS ON ALL UNDERWATER FITTINGS

11. HYDRAULIC BOW THRUSTER - ABT 12"-38HP

12. HYDRAULIC STERN THRUSTER - ABT 12"-38HP

13. STABILIZERS - ABT 250/6 SQUARE FOOT FINS

14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS

15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING

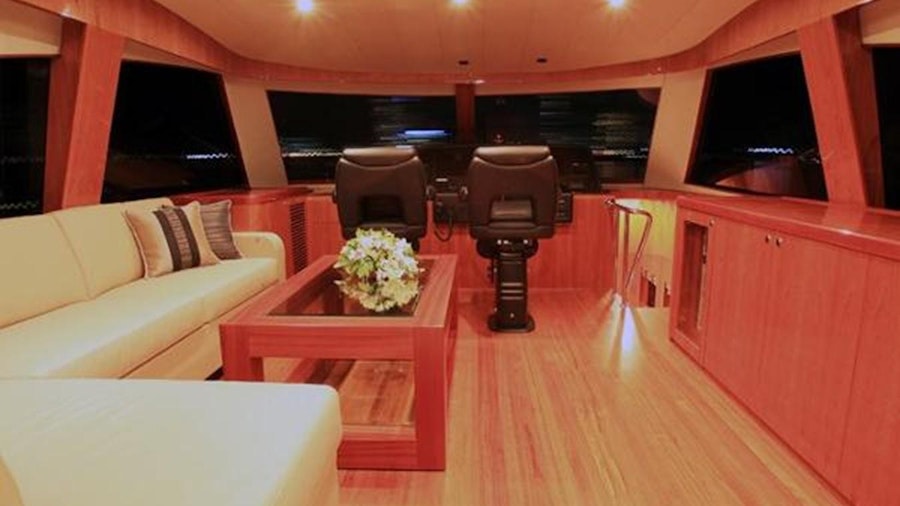

1. TEAK FLOOR WITH 14 MM TEAK AND HOLLY WITH MATT FINISH

2. INSTRUMENT CONSOLE UPHOLSTERED WITH LEATHER

3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS

4. HIGH QUALITY BUILT IN LEATHER COUCH & SMALLER COFFEE TABLE

5. ICE MAKER & REFRIGERATOR COMBO UNIT

6. HYDRAULIC STEERING HYNAUTIC PSHC5803

7. ENGINE CONTROL AND INSTRUMENTATION

8. MAGNETIC COMPASS

9. WIPERS EXALTO MODEL 250BS 24 V 950 MM ARM LENGTH WIPERS x 2

10. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM

I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x1

II. RAYMARINE
RAYMARINE GS15,4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400
ACTUATOR CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

11. STABILIZER CONTROL AND MONITORING DISPLAY

12. ABT BOW & STERN THRUSTER CONTROL PANEL

13. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE
ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

14. RUDDER INDICATOR

15. FUEL GAUGE HEADHUNTER TS-3000 SERIES

16. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL

17. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER–WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

18. POP UP TV CABIN W/ 32" LCD TV

19. APPLE TV

20. LOW LEVEL LED COURTESY LIGHTS LED 24V

21. LIGHTS UNDER RADAR ARCH LED 24V

22. S/S GRAB RAIL AROUND BAR UNIT

23. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING

24. S/S STEERING WHEEL

25. BUELL AIR HORN

26. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT

27. STARBOARD SETTEE TO PULL OUT WITH CUSHION INSERT TO CONVERT TO A SKIPPERS BERTH


1. MAN D2842 LE433 1550HP/2300RPM ENGINE x 2
ZF TRANSMISSION ZF2050A, 2.029:1 RATIO x 2

2. ONE DUAL RACOR FILTER FOR EACH ENGINE x 1

3. GENERATOR RACOR FILTER FOR EACH GENSET

4. VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL WITH FOAM & LEAD COMBINATION THRUOUGHOUT ENGINE ROOM

5. WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY NON-SKID RUBBER FLOORING

6. FUEL TANKS WITH ELECTRIC SENDING UNITS - HEADHUNTER TS-3000 SERIES

7. AUTOMATIC FIRE EXTINGUISHER - SEAFIRE FM-200

8. EXTRACTOR FANS - DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE

9. E/R AC FLOURESCENT LIGHTS & DC LED DOME LIGHTS

10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL IS AT REST

11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
HEADHUNTER MARCH 5 M5-115 AC PUMP
GROCO PSR 4000004-24 24V DC PUMP

12. CHILLED WATER AIR CONDITIONING
CRUISAIR AIR CONDITIONING 96,000 BTU

13. WATER MAKER
AQUA WHISPER DX 450 450GPD x 2

14. OIL CHANGING PUMP FOR ENGINES, GENERATORS AND TRANSMISSIONS

15. GENERATOR 1 * ONAN QD MDKBU 29 KW 60HZ
GENERATOR 2 * ONAN QD MDKBU 29 KW 60HZ (OPTION)

16. WATER HEATERS - TORRID 20 GALLONS x 2

17. EMERGENCY TILLER

18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS,STABILIZERS AND STEERING

19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)

1. 110V/220 AC ELECTRICAL SYSTEM

2. DC 24V SYSTEM

3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS

4. BATTERY CHARGER FOR 24V CIRCUIT

5. BATTERY CHARGER FOR 12V CIRCUIT

6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP HIGH CHARGE REGULATORS FITTED

7. 4 x 255AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE

8. 225AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4

9. 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1

10. AC SOCKETS THROUGHOUT THE BOAT

11. GFI PROTECTION FOR AC REQUIRED SOCKETS

12. BEP BATTERY SELECT SWITCH

13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4 PANELS (E/R, HELM, A/C AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS

14. ANTI-ELECTROLOSIS BONDING SYSTEM

15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2



1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP

2. “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT

3. HOLDING TANK LEVEL INDICATOR HEADHUNTER

4. SUMP PUMP FOR SHOWER

5. MARINE GRADE LINES FOR FRESH WATER SYSTEM

6. S/S WATER TANK WITH SENDING UNIT - 350 GALLONS

7. SIGHT GAUGES FOR FUEL AND WATER TANKS

8. DOCKSIDE FRESH WATER INLET

9. COLOR CODED PIPING FOR EASY IDENTIFICATION

10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS

11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER
OF THRU-HULL FITTINGS

12. FRESH WATER SEALAND VACUUM TOILET SYSTEM

13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM

14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH HIGH
WATER ALARMS

1.  INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER
WITH A CHOICE OF UPHOLSTERY FABRICS

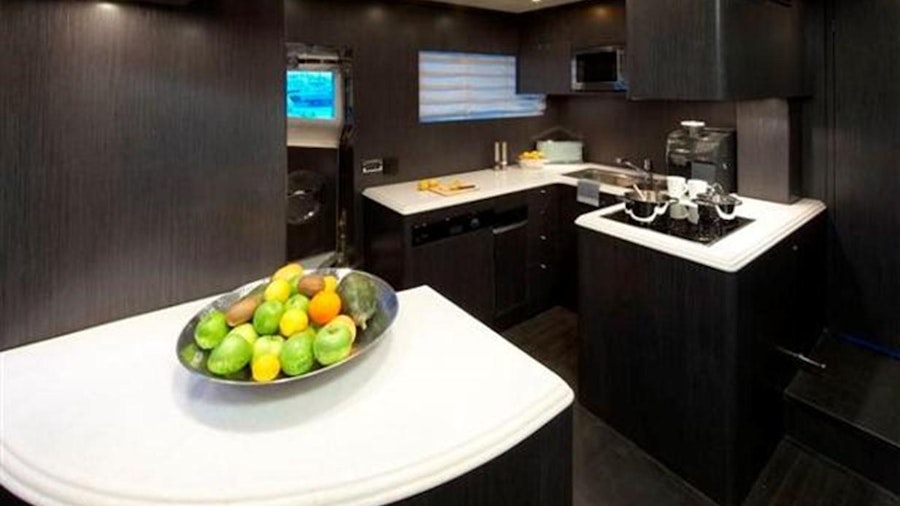

1. ELECTRIC REFRIGERATOR/FREEZER- G.E. LATEST MODEL

2. COOKTOP - G.E. LATEST MODEL

3. OVEN - G.E. LATEST MODEL

4. MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL

5. S/S SINK

6. HOT AND COLD WATER

7. TRASH COMPACTOR - G.E. LATEST MODEL

8. DISHWASHER - G.E. LATEST MODEL

9. DOUBLE AC SOCKETS x 2

10. CUPBOARD,DRAWERS AND STOWAGE

11. TEAK FLOOR OR MARBLE FLOOR

12. OVERHEAD STORAGE ABOVE GALLEY BENCH

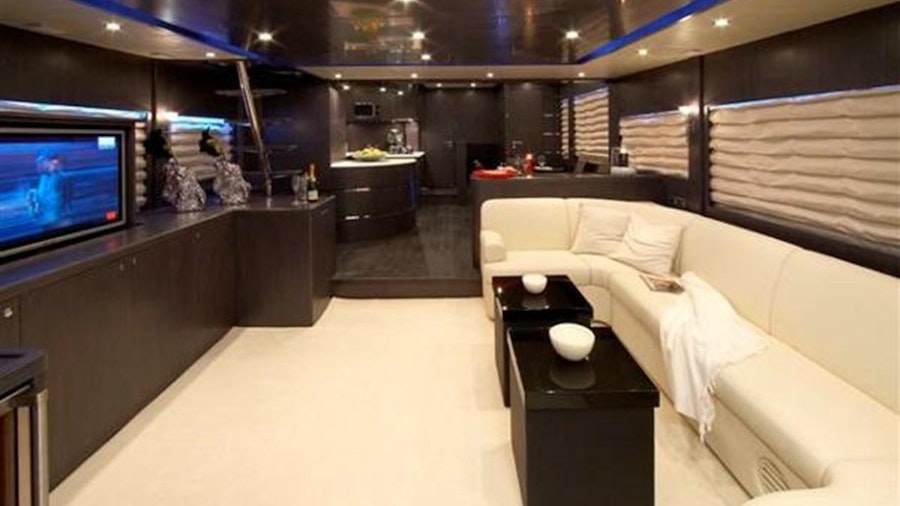

1. DINING AREA IN UPPER SALOON

2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND
SAFETY SENSOR DEVICE

3. 42" LCD TV

4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM

5. PIONEER BDP-160 BLU-RAY DISC PLAYER

6. APPLE TV

7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN
CURVED SEATING

8. MAIN CONTROL PANEL AC/DC

9. LOW LEVEL LIGHTS 24V LED

10. CEILING LED LIGHTING 24V LED

11. COFFEE TABLE

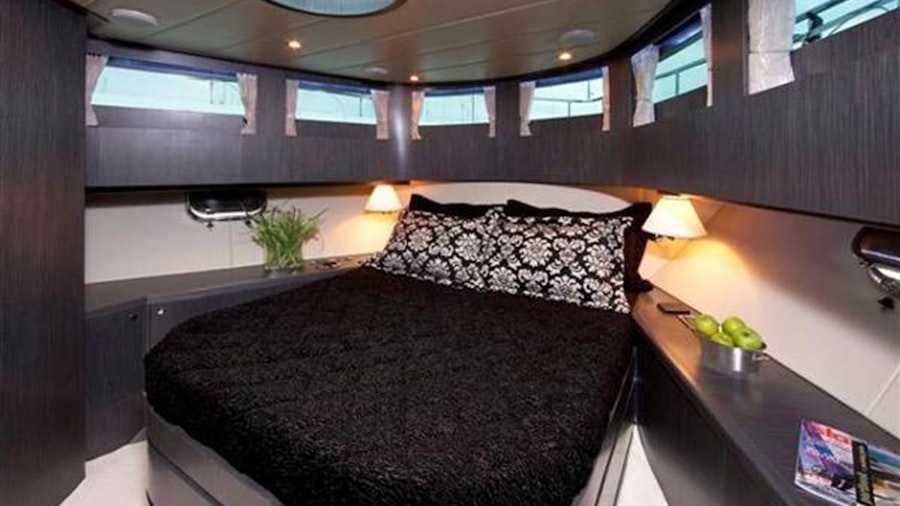

1. KING SIZE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. VANITY

5. COUCH

6. WALK-IN CLOSET FINISHED IN CEDAR WOOD

7. LED CEILING LIGHTING 24V

8. READING LIGHTS 24V x 2

9. LARGE SIDE WINDOWS 3 x MANSHIP S/S W/ 2 FIXED AND ONE OPENING

10. 42" LCD TV

11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL
MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

12. PIONEER BDP-160 BLU-RAY DISC PLAYER

13. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

13. MARBLE FLOOR

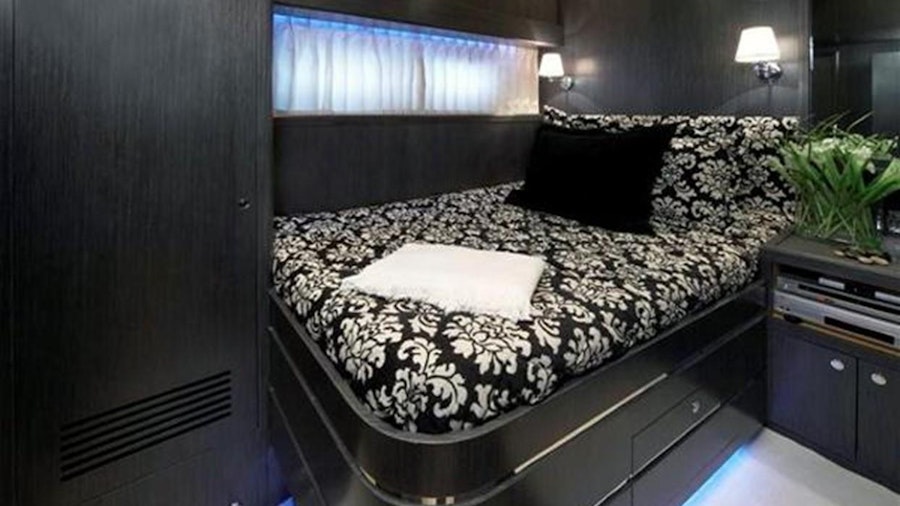

1. DOUBLE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. WALK-IN CLOSET FINISHED IN CEDAR WOOD

5. DRESSING TABLE W/STOOL

6. READING LIGHTS 24V x 2

7. LED CEILING LIGHTS 24V

8. AC DOUBLE SOCKETS

9. 32" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV



1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

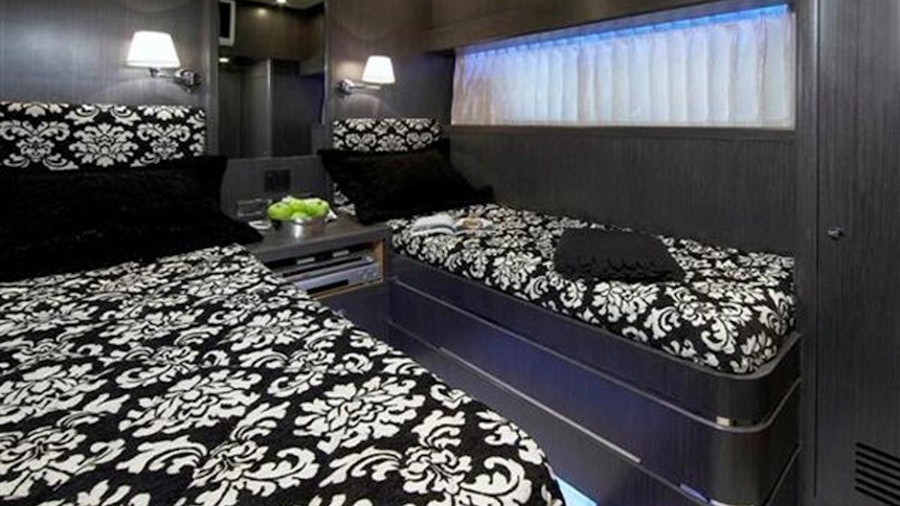

1. TWO SINGLE BERTHS

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. PULLMAN BERTH

7. 32" LCD TV

8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

9. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS

12. MARBLE FLOOR

13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL

1. DOUBLE BERTH

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. 32" LCD TV

7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

8. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. ENTRANCE DOOR FROM TRANSOM

2. TWO SINGLE BERTHS

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS

5. AC DOUBLE SOCKET

6. HANGING LOCKER

7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR

8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

9. 24" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV



Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!  Completion time is approximately 9-12 months depending on other yard projects.

**OPTIONS UPON REQUEST**

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

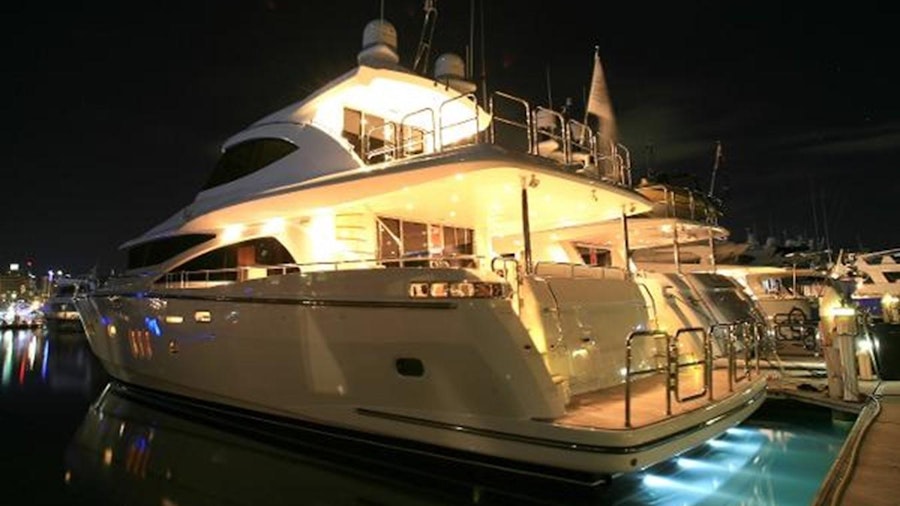

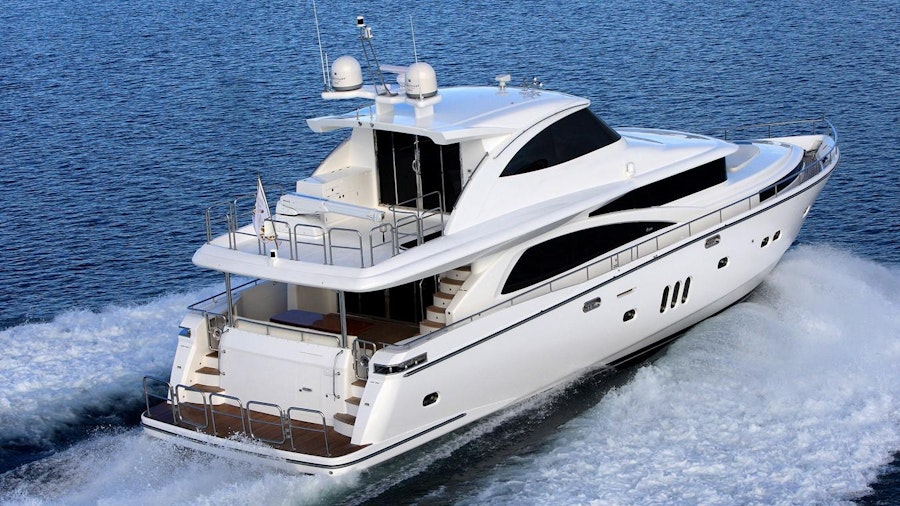

Since this is a new build offering, all photos are of previous projects.  Exact layout, wood and stone selection are buyer's choice.

Specifications are provided for informational purposes only.  Data was obtained from sources believed reliable but is not guaranteed by owner or brokers.  Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase.  Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.

1.  DNV Type approved fiber/resin & sandwich core material applied.

2.  Isophthalic white gelcoat finish for hull above waterline, exterior decks and furniture.

3.  High-density foam cored hull sides, decks, and superstructure.

4.  High-density foam cored hull sides, decks and superstructure.

5.  Stringers with high density form coring.

6.  Interior structural components all properly bonded to hull.

7.  Anti-fouling bottom paint, Sea Hawk Cukote, over Sea Hawk Tuff Stuff epoxy prime

8. Tunnels for reduced draft.


1.  MAIN DECK TEAK DECK.

2.  STAINLESS INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN.

3.  250 FEET GALVANIZED CHAIN (3/8”).

4.  MAXWELL HYDRAULIC WINDLASS RC 12-12/HYD.

5.  STAINLESS STEEL 130 LB ANCHOR X 1.

6.  HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS.

7.  HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS .

8.  MEDIUM TINTED SAFETY GLASS.

9.  MANUALLY OPERATED STAINLESS STEEL SALOON SLIDING DOOR.

10. STAINLESS STEEL RUBRAIL WITH RUBBER INSERT AROUND HULL & DECK JOINT

11. AFT DECK SEATING BUILT-IN WITH CUSHIONS.

12. AFT DECK TABLE WITH PROTECTIVE COVER.

13. LED LOW LEVEL COURTESY LIGHTS ON SIDE DECK.

14. LED LOW LEVEL COURTESY LIGHTS ON AFT DECK.

15. STAIR TO FLYBRIDGE.

16. HOT AND COLD TRANSOM SHOWER, SSI.

17. STAINLESS STEEL SWIMMING LADDER, ARMSTRONG.

18. WATER FILL DECK FITTING.

19. DIESEL FILL DECK FITTING.

20. FLOJET 4325-3431 DECK WASH DOWN PUMP.

21. LED FLOODLIGHTS FOR COCKPIT.

22. STERN CAPSTAN MAXWELL VC2500 24V.

23. HYDRAULIC SWIMMING PLATFORM (ARITEX W/2000 LBS LIFTING CAPACITY).

1.  5 BLADE BRONZE PROPELLERS x 2

2.  BRONZE P-BRACKETS

3.  S/S AQUATECH 22HS SHAFTS 3 ½” DIAMETER SHAFTS

4.  3 1/2" TIDES SHAFT AND RUDDER SEALS

5.  BOOT TOP STRIPE SIZE 3" COLOR BLACK

6.  FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

7.  SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR CONDITIONING.

8.  SEACOCKS ON ALL UNDERWATER FITTINGS.

9.  UNDERWATER EXHAUST WITH BYPASS.

10. OCEAN LED UNDERWATER  NIGHT SPORT SERIES X 4

1.  NON-SKID FLYBRIDGE DECK ON ENTIRE DECK AREA

2.  INSTRUMENT CONSOLE

3.  BUILT-IN SEATING W/CUSHION AND HEIGHT ADJUSTABLE TABLE

4.  ISOTHERM CR 130 IN BOX REFRIGERATOR

5.  ISOTHERM 5W08A141MN000 ICE MAKER

6.  RUDDER INDICATOR

7.  MAGNETIC COMPASS

8.  STAINLESS STEEL GUARD RAILS AND GRAB RAILS

9.  LOW LEVEL COURTESY LED LIGHTS 24V

10. ACR SEARCHLIGHT   RCL - 100 D 24V LED

11. BUELL TRIPLEX AIR HORN

12. MANUAL PILOT CHAIR

13. STAINLESS STEEL STEERING WHEEL

14. CCTV SYSTEM x 5 CAMERAS (ENGINE ROOM, AFT DECK PORT & STBD / FWD DECK).

15. FUEL GAUGE HEADHUNTER TX-3000 SERIES

16. ONE SHIP SET LED NAVIGATION LIGHTS

17. FUSION STEREO SYSTEM

1.   ENGINE ROOM CLEAN DESIGNED W/LIGHTWEIGHT HONEYCOMB FLOOR.

2.   SOUNDPROOFING THROUGHOUT ENGINE ROOM.

3.   HEAVY-DUTY INSULATED ENGINE ROOM DOOR.

4.   STAINLESS STEEL GRAB RAILS ON EACH SIDE OF ENGINE

5.   ENGINE ROOM LED CEILING LIGHTS

6.   ENGINE COMPARTMENT VENTILATION BLOWERS

7.   ENGINE ROOM DEMISTERS

8.  MAN D2842 LE433 1550 HP ENGINE X 2

9.  HYDRAULIC STEERING SYSTEM

10. ENGINE LOAD DISTRIBUTED THROUGH FLEXIBLE MOUNTINGS ON STAINLESS STEEL ENGINE BED BONDED TO FRP HULL GIRDER

11. ENGINE ROOM ALARM SYSTEM

12. AIR COMPRESSOR

13. TRIDENT HOSE OR EQUIVALENT FOR ENGINE EXHAUST

14. SIDE POWER STABILIZER

15. SIDE POWER HYDRAULIC BOW AND STERN THRUSTERS

1.   110V/220 AC ELECTRICAL SYSTEM

2.   DC 24V SYSTEM

3.   COLOR CODED WIRING FOR EASY IDENTIFICATION

4.   MAIN ELECTRIC PANEL INCLUDES A/C & D/C CIRCUIT BREAKERS

5.   A/C VOLT RECEPTACLES LOCATED SOCKETS THROUGHOUT THE BOAT

6.   GFI PROTECTION FOR ALL A/C OUTLETS IN EXTERIOR, HEADS, GALLEY AND ENGINE ROOM.

7.  FIBERGLASS WATER/EXHAUST SEPARATOR FOR GENERATOR.

8.  ELECTROLYSIS BONDING SYSTEM.

9.  CATHODIC PROTECTION W/ZINC ANODES FOR SHAFTS, STRUTS, ETC.

10. INDIRECT LIGHTING UNDER VALANCE IN SALOON, STATEROOMS AND GALLEY.

11.  ITALIAN VIMAR SWITCHES FOR LIGHTING SYSTEM.

12.  ANTI-ELECTROLYSIS BONDING SYSTEM.

12a. 24V 50 AMP 220 VOLT CABLEMASTER WITH 85' OF 50 AMP SHORECORD

A/C D/C MAIN POWER SYSTEM

13. KOHLER GENERATOR 32KW (60HZ) WITH SOUND SHIELD X1, AND 9KW (60H) X1

14.  BATTERY CHARGER FOR 24V

15. BATTERY CHARGER FOR 12V

16. ALTERNATOR SPLIT CHARGING SYSTEM

17. 255 AMP/HR AGM SHIP SERVICE BATTERIES X 4 LIFELINE 8D

18. 255 AMP/HR AGM ENGINES START BATTERIES X 4 LIFELINE 8D

19. 210 AMP/HR AGM GENERATOR START BATTERIES X 2 LIFELINE

20. ALL BATTERIES ENCLOSED WITH PROPER FIXTURES

21. 2 SHORE POWER CONNECTIONS WIRED WITH 2 UNITS OF 50 AMP AUTOMATIC ISOLATING & BOOSTER ANG ISOLATION TRANSFORMERS AB 12.5 KVA

22. BEP BATTERY SELECT SWITCH

23. 3KW INVERTER

1.  GARMIN GPS

2.  GARMIN COMPRESSION RADAR

3.  GARMIN 17" MULTIFUNCTION DISPLAYS X 2

4.  GARMIN AUTOPILOT SYSTEM

5.  GARMIN AIS

6.  GARMIN VHF RADIO X 2

7. RITCHIE MAGNETIC COMPASS

FUEL OIL SYSTEM

1.  FUEL TANKS WITH SIGHT AND ELECTRIC GAUGES AND CAPACITY AS SPECIFIED IN PRINCIPAL DIMENSION ABOVE

2.  RACOR DUAL FUEL FILTER/WATER SEPARATOR FOR EACH ENGINE.

3.  RACOR FUEL FILTER/WATER SEPARATOR FOR GENERATOR.

4.  OIL CHANGING PUMP FOR ENGINE, GENERATOR AND CLUTCHES.

FRESH WATER SYSTEM

5.  STAINLESS STEEL WATER TANK WITH ELECTRIC GAUGE AND CAPACITY AS SPECIFIED IN PRINCIPAL DIMENSION ABOVE.

6.  HEADHUNTER MARCH 5 M5-230 A/C PUMP

7.  HEADHUNTER XRS-124 X-CALIBER 12-24V D/C PUMP FOR BACK UP.

8.  MARINE GRADE LINES FOR FRESH WATER SYSTEM.

9.  SEAWARD HF 2250 20 GALLONS WATER HEATER X 2

10. HOT WATER CIRCULATION PUMP.

11. DOCKSIDE FRESH WATER INLET

12. WATER MAKER 900 GPD, AQUA WHISPER COMPACT

SANITARY SYSTEM

13.  HOLDING TANK WITH SEALAND MACERATOR PUMP X 2

14. HOLDING TANK LEVEL INDICATOR, HEADHUNTER

15. Y-VALVE FOR HOLDING TANK W/DECK FITTING FOR DOCKSIDE PUMP OUT.

16. TECMA TOILET SYSTEM

17. SUMP PUMPS FOR SHOWER WATER

17a. SEALAND HOLDING TANK VENT FILTER

BILGE WATER SYSTEM

18.  D/C 24V RULE 3700 BILGE PUMPS X 7

19. PAR JABSCO 29270-0000 MANUAL BILGE PUMP IN ENGINE ROOM

20. HIGHWATER LEVEL BILGE ALARM SYSTEM X 7

21. BILGE EXHAUST VENTILATION FANS

AIR CONDITIONING SYSTEM

22. CRUISAIR CHILLED WATER AIR CONDITIONING SYSTEM WITH 60,000 BTU COMPRESSOR X 2

23. AIR HANDLERS THROUGHOUT.

FIRE SAFETY SYSTEM

24. FIRE INSULATION IN ENGINE ROOM

25. AUTO SHUTDOWN SYSTEM

26. AUTOMATIC MANUAL SEA-FIRE FIRE EXTINGUISHER SYSTEM NFD 1700

27. INTEGRATED FIRE ALARM SYSTEM IN HELM STATION, WITH SMOKE DETECTOR IN EACH CABIN


1.  STANDARD LAYOUTS: MASTER STATEROOM, VIP PLUS 2 GUEST CABINS AND 1 CREW CABIN

2.  CUSTOM ROSEWOOD JOINERY

3.  STANDARD SELECTION OF CARPET EXCEPT IN WOOD FLOOR AREAS.

4.  STANDARD SELECTION OF INTERLOCKING VINYL CEILING PANELS THROUGHOUT MAJALITE

5.  CHOICE OF MARBLE, GRANITE, WOOD FLOORS IN GALLEY FROM STANDARD COLLECTION.

6.  CHOICE OF GRANITE, GLASS, QUARTZ STONE FOR GALLEY

7.  STANDARD CHOICE OF FABRICS FOR BEDSPREADS, DECORATIVE PILLOWS AND SHEET SET (FLAT SHEET, FITTED SHEET, PILLOW CASES) ONE SET PER BERTH.

8.  KING SIZE BED IN MASTER STATEROOM.

9.  UPHOLSTERED HEADBOARD FOR MASTER STATEROOM, VIP STATEROOM AND GUEST CABINS.

10. WOOD OR UPHOLSTERED BED FRAMES IN ALL CABINS.

11. HANGING LOCKERS IN ALL STATEROOMS

12. QUICK KAI XP-LP 4W LED CEILING LIGHTS

13. INDIRECT LIGHTING SYSTEM UNDER BED AND VALANCES

14. 24V READING LIGHTS IN EACH CABIN

15. CHOICE OF MARBLE, GRANITE, MOSAIC, GLASS, QUARTZ, STONE FOR COUNTERTOP AND BACK-SPLASH IN ALL HEADS FROM SHIPYARD COLLECTION.

16. CHOICE OF MARBLE, GRANIT,WOOD FLOOR IN ALL HEADS FROM SHIPYARD COLECTION.

17. GLASS, DISHES, PLATE HOLDERS IF SAMPLE PROVIDED

18. GROHE FAUCETS, TOWER BARS, TOWEL RINGS, CUP, BRUSH, SOAP HOLDERS, TOILET ROLL HOLDERS ALL HEADS.

19. TOTO OR EQUIVALENT BASINS

20. LACQUER FINISH ABOVE BASIN COUNTERTOP

21. WOOD FINISH BELOW BASIN COUNTERTOP

22. EXHAUST BLOWER FOR EACH HEAD.

23. EXHAUST BLOWER FOR EACH HEAD.

STANDARD CHOICES OF MOSAIC FINISH FOR ALL SHOWER WALLS EXCEPT FOR CREW WHICH IS TO BE FINISHED IN LACQUER.

24. MIRROR AND MIRROR CEILING FOR ALL HEADS.

25. HUNTER DOUGLAS AIR BLIND THROUGHOUT

APPLIANCES

26. GE - GZS22DSJ/DMJ SIDE-BY-SIDE REFRIGERATOR

27. GE - PDT825SSJSS DISHWASHER

28. GE - PEB9159SJSS MICROWAVE

29. KITCHEN AID KECC607BBL INDUCTION COOK TOP

30. BOSCH HUI50351UCPULL-OUT HOOD VENTILATION

31. STAINLESS STEEL SINKS PER LAYOUT

32. ELECTROLUX ELFS210TIW WASHER

33. ELECTROLUX EFDE210TIW DRYER

34. GE - PT7050SFSS OVEN

35. CREW'S GALLEY - GE MICROWAVE AND ISOTHERM REFRIGERATOR

STEREO SYSTEM

36. TV ANTENNA ON TOP OF RADAR ARCH

37. WI-FI BOOSTER SYSTEM WITH WIRELESS ROUTERS ONBOARD

38. FLYBRIDGE FUSION MARINE STEREO X 1 AND SPEAKERS X 4

39. SALOON: POP-UP SONY 55" LCD TV WITH BOSE LIFESTYLE HOME ENTERTAINMENT SYSTEM AND SEPARATE BLU-RAY DISC PLAYER

40. GALLEY: SONY 43" LCD TV WITH FUSION MARINE STEREO SYSTEM AND SEPARATE BLU-RAY DISC PLAYER

41. MASTER STATEROOM: SONY 32" LCD TV WITH FUSION MARINE STEREO SYSTEM AND SEPARATE BLU-RAY DISC PLAYER

42. VIP STATEROOM: SONY 32" LCD TV WITH FUSION MARINE STEREO SYSTEM

43. GUEST STATEROOM: Philips 24" LCD TV WITH FUSION MARINE SYSTEM

44. EXTERIOR CONNECTOR FOR SHORE PHONE AND CABLE TV

Not included are pieces of free standing furniture and lamps, special designer-specified lighting, art work, cooking utensils, cutlery and flatware, soft goods and the design fees attendant to personalizing the owner's interior arrangement plan and design.

Performance statistics, weight, draft, free-board and height are estimated only and are not warranted, and actual figures will vary depending on tolerances achieved during the vessel's construction process and the equipment, supplies and stores on board, as well as operational and sea conditions.  Johnson Yachts reserves the right to substitute equipment and materials stated herein to others which it believes to be of equal or superior quality and to make such design and dimensional changes as it believes are necessary to improve the vessel's performance and function.  Special treatment of interior fit-out and/or use of non-standard soft furnishings required by the purchaser may be subject to additional charges.

Specifications are provided for informational purposes only.  Data was obtained from sources believed reliable but is not guaranteed by owner or brokers.  Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase.  Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.


1.  MAIN DECK-TEAK 14MM

2.  STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER

3.  250 FEET GALVANIZED CHAIN (3/8")

4.  MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)

5.  STAINLESS STEEL 120 LB ANCHOR (SINGLE)

6.  FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE  ATTACHMENT

7.  HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S

8.  HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM

9.  BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS

10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON  AND SAFETY SENSORS

11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)

12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS

13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT

14. STERN CAPSTAN MAXWELL VC1500 24V  x 2

15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC

16. AFT DECK TABLE WITH PROTECTIVE COVER

17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK

18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK

19. STAIRS TO FLYBRIDGE WITH TEAK LAID DECKING TREADS

20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK

21. HOT & COLD SWIM SHOWER

22. S/S SWIM LADDER

23. LAZARETTE STORAGE FOR FENDERS

24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING

25. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/1873 LBS.LIFTING CAPACITY

1. 5 BLADE BRONZE PROPELLERS x 2

2. BRONZE P-BRACKETS x 2

3. S/S AQUATECH 22HS SHAFTS 3 ½" DIAMETER x 2

4. SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½" x 5 ½" AND DURAMAX MARINE CUTLASS BEARINGS

5. HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL
STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING

6. ANTI-FOULING BOTTOM PAINT
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK
OR 3430 DARK BLUE

7. BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED

8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER

10. SEACOCKS ON ALL UNDERWATER FITTINGS

11. HYDRAULIC BOW THRUSTER - ABT 12"-38HP

12. HYDRAULIC STERN THRUSTER - ABT 12"-38HP

13. STABILIZERS - ABT 250/6 SQUARE FOOT FINS

14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS

15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING



1. TEAK FLOOR WITH 14MM TEAK AND HOLLY WITH MATT FINISH

2. INSTRUMENT CONSOLE UPHOLSTERED WITH LEATHER

3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS

4. HIGH QUALITY BUILT IN LEATHER COUCH & SMALLER COFFEE TABLE

5. HYDRAULIC STEERING HYNAUTIC PSHC5803

6. ENGINE CONTROL AND INSTRUMENTATION

7. MAGNETIC COMPASS

8. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1

II. RAYMARINE
RAYMARINE GS15.4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400
ACTUATOR CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

9. STABILIZER CONTROL AND MONITORING DISPLAY

10. ABT BOW & STERN THRUSTER CONTROL PANEL

11. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

12. RUDDER INDICATOR

13. FUEL GAUGE HEADHUNTER TS-3000 SERIES

14. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL

15. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER–WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

16. POP UP TV CABIN W/ 32" LCD TV

17. APPLE TV

18. LOW LEVEL LED COURTESY LIGHTS 24V

19. LIGHTS UNDER RADAR ARCH LED 24V

20. S/S GRAB RAIL AROUND BAR UNIT

21. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING

22. BUELL AIR HORN

23. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT

24. S/S STEERING WHEEL

1.  MAN D2842 LE433 1550HP/2300RPM ENGINE
    ZF TRANSMISSION  ZF2050A, 2.029:1 RATIO

2.  ONE DUAL RACOR FILTER FOR EACH ENGINE

3.  GENERATOR RACOR FILTER FOR EACH GENSET

4.  VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL
       WITH FOAM & LEAD COMBINATION THRUOUGHOUT ENGINE ROOM

5.  WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY
     NON-SKID  RUBBER FLOORING

6.  FUEL TANKS WITH ELECTRIC SENDING UNITS
     HEADHUTER TS-3000 SERIES

7.  AUTOMATIC FIRE EXTINGUISHER
     SEAFIRE FM-200

8.  EXTRACTOR FANS
     DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE

9.  E/R AC FLOURESCENT LIGHTS & LED DC DOME LIGHTS

10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL
      IS AT REST

11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
     HEADHUNTER MARCH 5 M5-115 AC PUMP
     GROCO PSR 4000004-24 24V DC PUMP

12. CHILLED WATER AIR CONDITIONING
      CRUISAIR AIR CONDITIONING 96,000 BTU

13. WATER MAKER - AQUA WHISPER DX 450 450GPD x 2

14. OIL CHANGING PUMP FOR ENGINES, GENERATORS AND TRANSMISSIONS

15. GENERATOR 1  ONAN QD MDKDS 29 KW 60HZ
       GENERATOR 2  ONAN QD MDKBU 29 KW 60HZ (OPTION)

16. WATER HEATERS - TORRID 20 GALLONS x 2

17. EMERGENCY TILLER

18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS, STABILIZERS AND STEERING

19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)



1. 110V/220 AC ELECTRICAL SYSTEM

2. DC 24V SYSTEM

3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS

4. BATTERY CHARGER FOR 24V CIRCUIT

5. BATTERY CHARGER FOR 12V CIRCUIT

6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP HIGH CHARGE REGULATORS FITTED

7. 4 x 255AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE

8. 225AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4

9. 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1

10. AC SOCKETS THROUGHOUT THE BOAT

11. GFI PROTECTION FOR AC REQUIRED SOCKETS

12. BEP BATTERY SELECT SWITCH

13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4
PANELS (E/R, HELM, A/C AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS

14. ANTI-ELECTROLOSIS BONDING SYSTEM

15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2

1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP

2. “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT

3. HOLDING TANK LEVEL INDICATOR HEADHUNTER

4. SUMP PUMP FOR SHOWER

5. MARINE GRADE LINES FOR FRESH WATER SYSTEM

6. S/S WATER TANK WITH SENDING UNI- 350 GALLONS

7. SIGHT GAUGES FOR FUEL AND WATER TANKS

8. DOCKSIDE FRESH WATER INLET

9. COLOR CODED PIPING FOR EASY IDENTIFICATION

10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS

11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF
THRU-HULL FITTINGS

12. FRESH WATER SEALAND VACUUM TOILET SYSTEM

13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND
LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM

14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH
HIGH WATER ALARMS

1.  INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER WITH A CHOICE OF UPHOLSTERY FABRICS


1. ELECTRIC REFRIGERATOR/FREEZER - G.E. LATEST MODEL

2. COOKTOP - G.E. LATEST MODEL

3. OVEN - G.E. LATEST MODEL

4. MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL

5. S/S SINK

6. HOT AND COLD WATER

7. TRASH COMPACTOR - G.E. LATEST MODEL

8. DISHWASHER - G.E. LATEST MODEL

9. DOUBLE AC SOCKETS x 2

10. CUPBOARD,DRAWERS AND STOWAGE

11. TEAK FLOOR OR MARBLE FLOOR

12. OVERHEAD STORAGE ABOVE GALLEY BENCH

1. DINING AREA IN UPPER SALOON

2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSOR DEVICE

3. 42" LCD TV

4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM

5. PIONEER BDP-160 BLU-RAY DISC PLAYER

6. APPLE TV

7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN CURVED SEATING

8. MAIN CONTROL PANEL AC/DC

9. LOW LEVEL LIGHTS 24V LED

10. CEILING LED LIGHTING 24V

11. COFFEE TABLE

1. KING SIZE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. VANITY

5. COUCH

6. WALK-IN CLOSET FINISHED IN CEDAR WOOD

7. LED CEILING LIGHTING 24V

8. READING LIGHTS 24V x 2

9. LARGE SIDE WINDOWS 3 x MANSHIP S/S W/ 2 FIXED AND ONE OPENING

10. 42" LCD TV

11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

12. PIONEER BDP-160 BLU-RAY DISC PLAYER

13. APPLE TV

1.  VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.  WASH BASIN WITH MABLE COUNTERTOP

3.  HOT & COLD WATER

4.  FAUCET AND FITTINGS

5.  MIRROR AND MIRROR CEILING

6.  LACQUER FINISH ABOVE BASIN COUNTERTOP

7.  VENEER FINISH BELOW BASIN COUNTERTOP

8.  EXTRACTOR FAN

9.  AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1.  DOUBLE BERTH

2.  STORAGE BENEATH BERTH

3.  DRAWERS IN BASE OF BERTH

4.  WALK-IN CLOSET FINISHED IN CEDAR WOOD

5.  DRESSING TABLE W/STOOL

6.  READING LIGHTS 24V x 2

7.  LED CEILING LIGHTS 24V

8.  AC DOUBLE SOCKETS

9.  32" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
      MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
      MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1.  VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.  WASH BASIN WITH MABLE COUNTERTOP

3.  HOT & COLD WATER

4.  FAUCET AND FITTINGS

5.  MIRROR AND MIRROR CEILING

6.  LACQUER FINISH ABOVE BASIN COUNTERTOP

7.  VENEER FINISH BELOW BASIN COUNTERTOP

8.  EXTRACTOR FAN

9.  AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1.  TWO SINGLE BERTHS

2.  UNDER BERTH STORAGE

3.  READING LIGHTS 24V x 2

4.  LED CEILING LIGHTS 24V x 2

5.  HANGING LOCKER

6.  PULLMAN BERTH

7.  32" LCD TV

8.  FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
     MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
     MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

9.  APPLE TV

1.  VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.  WASH BASIN WITH MABLE COUNTERTOP

3   HOT & COLD WATER

4.  FAUCET AND FITTINGS

5.  MIRROR AND MIRROR CEILING

6.  SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7.  AC DOUBLE SOCKET WITH GFI

8.  LACQUER FINISH ABOVE BASIN COUNTERTOP

9.  VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS

12. MARBLE FLOOR

13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL

1.  DOUBLE BERTH

2.  UNDER BERTH STORAGE

3.  READING LIGHTS 24V x 2

4.  LED CEILING LIGHTS 24V x 2

5.  HANGING LOCKER

6.  32" LCD TV

7.  FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
     MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
     MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

8.  APPLE TV

1.  VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.  WASH BASIN WITH MABLE COUNTERTOP

3.  HOT & COLD WATER

4.  FAUCET AND FITTINGS

5.  MIRROR AND MIRROR CEILING

6.  SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7.  AC DOUBLE SOCKET WITH GFI

8.  LACQUER FINISH ABOVE BASIN COUNTERTOP

9.  VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1.  ENTRANCE DOOR FROM TRANSOM

2.  TWO SINGLE BERTHS

3.  READING LIGHTS 24V x 2

4.  LED CEILING LIGHTS

5.  AC DOUBLE SOCKET

6.  HANGING LOCKER

7.  HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR

8.  VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

9.  24" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
      MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
      MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1.  CATCH WELL, UNDER DECK

2.  LIVE BAIT WELL WITH PUMP AND LIGHT

3.  8 FLUSH MOUNTED ROD HOLDERS SURROUND THE FISHING COCKPIT AND ROCKET LAUNCHER


Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!  Completion time is approximately 9-12 months depending on other yard projects.

**OPTIONS UPON REQUEST**

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Since this is a new build offering, all photos are of previous projects.  Exact layout, wood and stone selection are buyer's choice.

Specifications are provided for informational purposes only.  Data was obtained from sources believed reliable but is not guaranteed by owner or brokers.  Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase.  Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.


1. MAIN DECK - TEAK 14MM

2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER

3. 250 FEET GALVANIZED CHAIN (3/8”)

4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)

5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)

6. FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT

7. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S

8. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM

9. BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS

10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS

11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)

12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS

13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT

14. STERN CAPSTAN MAXWELL VC1500 24V x 2

15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC AND REMOVABLE COVER

16. AFT DECK TABLE WITH PROTECTIVE COVER

17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK

18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK

19. STAIRS TO FLYBRIDGE WITH TEAK TREADS

20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK

21. HOT & COLD SWIM SHOWER

22. S/S SWIM LADDER

23. LAZARETTE STORAGE FOR FENDERS

24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING



1.  5 BLADE BRONZE PROPELLERS x 2

2.  BRONZE P-BRACKETS x 2

3.  S/S AQUATECH 22HS SHAFTS 3½” DIAMETER x 2

4.  SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS
       3 1/2" x 5 1/2” AND DURAMAX MARINE CUTLASS BEARINGS

5.  HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS
      STEEL STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS
       AND BRONZE BEARING

6.  ANTI-FOULING BOTTOM PAINT
     SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
     SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445
       BLACK OR 3430 DARK BLUE

7.  BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED

8.  FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

9.  SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER

10. SEACOCKS ON ALL UNDERWATER FITTINGS

11. HYDRAULIC BOW THRUSTER - ABT 12”-38HP

12. HYDRAULIC STERN THRUSTER - ABT 12”-38HP

13. STABILIZERS - ABT 250/6 SQUARE FOOT FINS

14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS

15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH
      POWER STEERING



1. FRP NON-SKID DECK

2. INSTRUMENT CONSOLE W/PERSPEX COVER

3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS

4. FRP SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC & TABLE

5. WET BAR WITH SINK AND ICE MAKER & REFRIGERATOR

6. HYDRAULIC STEERING HYNAUTIC PSHC5803

7. ENGINE CONTROL AND INSTRUMENTATION

8. MAGNETIC COMPASS

9. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1

II. RAYMARINE
RAYMARINE GS15.4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR
CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

10. STABILIZER CONTROL AND MONITORING DISPLAY

11. ABT BOW & STERN THRUSTER CONTROL PANEL

12. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

13. RUDDER INDICATOR

14. FUEL GAUGE HEADHUNTER TS-3000 SERIES

15. ACRYLIC DEFLECTING WIND SCREEN

16. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL

17. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER - WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

18. POP UP TV CABIN W/ 32" LCD TV

19. APPLE TV

20. LOW LEVEL LED COURTESY LIGHTS 24V

21. LIGHTS UNDER RADAR ARCH LED 24V

22. S/S GRAB RAIL AROUND BAR UNIT

23. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING

24. BUELL AIR HORN

25. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT

26. S/S STEERING WHEEL

27. HYDRALIC DAVIT - BENSENZONI 1322 LBS LIFTING CAPACITY 24V



1. MAN D2842 LE433 1550HP/2300RPM ENGINE x 2
ZF TRANSMISSIONS ZF2050A, 2.029:1 RATIO x 2

2. ONE DUAL RACOR FILTER FOR EACH ENGINE

3. GENERATOR RACOR FILTER FOR EACH GENSET

4. VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL WITH FOAM & LEAD COMBINATION THROUGHOUT ENGINE ROOM

5. WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY NON-SKID RUBBER FLOORING

6. FUEL TANKS WITH ELECTRIC SENDING UNITS - HEADHUNTER TS-3000 SERIES

7. AUTOMATIC FIRE EXTINGUISHER - SEAFIRE FM-200

8. EXTRACTOR FANS - DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE

9. E/R AC FLOURESCENT LIGHTS & DC LED DOME LIGHTS

10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL IS AT REST

11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
HEADHUNTER MARCH 5 M5-115 AC PUMP
GROCO PSR 4000004-24 24V DC PUMP

12. CHILLED WATER AIR CONDITIONING - CRUISAIR AIR CONDITIONING 96,000 BTU

13. WATER MAKER - AQUA WHISPER DX 450 450GPD x 2

14. OIL CHANGING PUMP FOR ENGINES, GENERATOR AND TRANSMISSIONS

15. GENERATOR 1 - ONAN QD MDKDS 29 KW 60HZ
GENERATOR 2 - ONAN QD MDKBU 29 KW 60HZ (OPTION)

16. WATER HEATERS - TORRID 20 GALLONS x 2

17. EMERGENCY TILLER

18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS, STABILIZERS AND STEERING

19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)

1. 110V/220V AC ELECTRICAL SYSTEM

2. DC 24V SYSTEM

3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2

4. BATTERY CHARGER FOR 24V CIRCUIT

5. BATTERY CHARGER FOR 12V CIRCUIT

6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP
HIGH CHARGE REGULATORS FITTED

7. 4 x 255 AMP/HR 12V GELL CELL SEALED BATTERIES FOR SHIP's SERVICE

8. 225 AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4

9. 210 AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1

10. AC SOCKETS THROUGHOUT THE BOAT

11. GFI PROTECTION FOR AC REQUIRED SOCKETS

12. BEP BATTERY SELECT SWITCH

13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4 PANELS (E/R, HELM,
AC AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS

14. ANTI-ELECTROLYSIS BONDING SYSTEM

15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2

1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP

2. "Y" VALVE FOR HOLDING TANK OVERBOARD PUMP OUT

3. HOLDING TANK LEVEL INDICATOR HEADHUNTER

4. SUMP PUMP FOR SHOWER

5. MARINE GRADE LINES FOR FRESH WATER SYSTEM

6. S/S WATER TANK WITH SENDING UNIT - 350 GALLONS

7. SIGHT GAUGES FOR FUEL AND WATER TANKS

8. DOCKSIDE FRESH WATER INLET

9. COLOR CODED PIPING FOR EASY IDENTIFICATION

10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS

11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS

12. FRESH WATER SEALAND VACUUM TOILET SYSTEM

13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM

14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH HIGH WATER ALARMS

1.  INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER WITH A CHOICE OF UPHOLSTERY FABRICS




1.  ELECTRIC REFRIGERATOR/FREEZER - G.E. LATEST MODEL

2.  COOKTOP - G.E. LATEST MODEL

3.  OVEN - G.E. LATEST MODEL

4.  MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL

5.  S/S SINK

6.  HOT AND COLD WATER

7.  TRASH COMPACTOR - G.E. LATEST MODEL

8.  DISHWASHER - G.E. LATEST MODEL

9.  DOUBLE AC SOCKETS x 2

10.  CUPBOARD, DRAWERS AND STOWAGE

11. TEAK FLOOR OR MARBLE FLOOR

12. OVERHEAD STORAGE ABOVE GALLEY BENCH



1. DINING AREA IN UPPER SALOON

2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS

3. 42" LCD TV

4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM

5. PIONEER BDP-160 BLU-RAY DISC PLAYER

6. APPLE TV

7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN CURVED SEATING

8. MAIN CONTROL PANEL AC/DC

9. LOW LEVEL LIGHTS LED 24V

10. CEILING LED LIGHTING 24V

1.  KING SIZE BERTH

2.  STORAGE BENEATH BERTH

3.  DRAWERS IN BASE OF BERTH

4.  VANITY

5.  COUCH

6.  WALK-IN CLOSET FINISHED IN CEDAR WOOD

7.  LED CEILING LIGHTING 24V

8.  READING LIGHTS 24V x 2

9.  LARGE SIDE WINDOWS 3 x MANSHIP S/S WITH 2 FIXED AND
       ONE OPENING

10. 42" LCD TV

11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL
         IPOD/IPHONE CONTROL
      MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
      MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

12. PIONEER BDP-160 BLU-RAY DISC PLAYER

13. APPLE TV



1. VACUUM TOILET- SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. DOUBLE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. WALK-IN CLOSET FINISHED IN CEDAR WOOD

5. DRESSING TABLE W/STOOL

6. READING LIGHTS 24V x 2

7. LED CEILING LIGHTS 24V

8. AC DOUBLE SOCKETS

9. 32" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1.   VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.   WASH BASIN WITH MABLE COUNTERTOP

3.   HOT & COLD WATER

4.   FAUCET AND FITTINGS

5.   MIRROR AND MIRROR CEILING

6.   LACQUER FINISH ABOVE BASIN COUNTERTOP

7.   VENEER FINISH BELOW BASIN COUNTERTOP

8.   EXTRACTOR FAN

9.   AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR


1. TWO SINGLE BERTHS

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. PULLMAN BERTH

7. 32" LCD TV

8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

9. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS

12. MARBLE FLOOR

13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL

1. DOUBLE BERTH

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. 32" LCD TV

7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

8. APPLE TV



1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. ENTRANCE DOOR FROM TRANSOM

2. TWO SINGLE BERTHS

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS

5. AC DOUBLE SOCKET

6. HANGING LOCKER

7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR

8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

9. 24" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1.  CATCH WELL, UNDER DECK

2.  LIVE BAIT WELL WITH PUMP AND LIGHTS

3.  FLUSH MOUNT 8 ROD HOLDERS SURROUND THE FISHING COCKPIT AND ROCKET LAUNCHER

4.  NON-SKID DECKS


Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!  Completion time is approximately 9-12 months depending on other yard projects.

**OPTIONS UPON REQUEST**

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Since this is a new build offering, all photos are of previous projects.  Exact layout, wood and stone selection are buyer's choice.

Specifications are provided for informational purposes only.  Data was obtained from sources believed reliable but is not guaranteed by owner or brokers.  Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase.  Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.


1.  MAIN DECK - TEAK 14MM

2.  STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER

3.  250 FEET GALVANIZED CHAIN (3/8”)

4.  MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)

5.  STAINLESS STEEL 120 LB ANCHOR (SINGLE)

6.  FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT

7.  HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S

8.  HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM

9.  BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS.

10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS

11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)

12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS

13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT

14. STERN CAPSTAN MAXWELL VC1500 24V x 2

15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC AND REMOVABLE COVER

16. AFT DECK TABLE WITH PROTECTIVE COVER

17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK

18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK

19. STAIRS TO FLYBRIDGE WITH TEAK TREADS

20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK

21. HOT & COLD SWIM SHOWER

22. S/S SWIM LADDER

23. LAZARETTE STORAGE FOR FENDERS

24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING

25. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT WITH 1873 LBS. LIFTING CAPACITY

1. 5 BLADE BRONZE PROPELLERS x 2

2. BRONZE P-BRACKETS x 2

3. S/S AQUATECH 22HS SHAFTS 3 ½” DIAMETER x 2

4. SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½” x 5 ½” AND DURAMAX MARINE CUTLASS BEARINGS

5. HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING

6. ANTI-FOULING BOTTOM PAINT
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE

7. BOOT TOP STRIPE SIZE 3”; COLOR: BLACK, BLUE OR RED

8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONING

10. SEACOCKS ON ALL UNDERWATER FITTINGS

11. HYDRAULIC BOW THRUSTER - ABT 12”-38HP

12. HYDRAULIC STERN THRUSTER - ABT 12”-38HP

13. STABILIZERS - ABT 250/6 SQUARE FOOT FINS

14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS

15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING

1. FRP NON-SKID DECK

2. INSTRUMENT CONSOLE W/PERSPEX COVER

3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS

4. FRP SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC & TABLE

5. WET BAR WITH SINK AND ICE MAKER & REFRIGERATOR

6. HYDRAULIC STEERING HYNAUTIC PSHC5803

7. ENGINE CONTROL AND INSTRUMENTATION

8. MAGNETIC COMPASS

9. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1

II. RAYMARINE
RAYMARINE GS15.4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR
CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

10. STABILIZER CONTROL AND MONITORING DISPLAY

11. ABT BOW & STERN THRUSTER CONTROL PANEL

12. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

13. RUDDER INDICATOR

14. FUEL GAUGE HEADHUNTER TS-3000 SERIES

15. ACRYLIC DEFLECTING WIND SCREEN

16. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL

17. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER - WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

18. POP UP TV CABIN W/ 32" LCD TV

19. APPLE TV

20. LOW LEVEL LED COURTESY LIGHTS 24V

21. LIGHTS UNDER RADAR ARCH LED 24V

22. S/S GRAB RAIL AROUND BAR UNIT

23. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING

24. BUELL AIR HORN

25. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT

26. S/S STEERING WHEEL

27. HYDRALIC DAVIT - BENSENZONI 1322 LBS LIFTING CAPACITY 24V



1.   MAN D2842 LE433 1550HP/2300RPM ENGINE x 2
      ZF TRANSMISSIONS ZF2050A, 2.029:1 RATIO x 2

2.   ONE DUAL RACOR FILTER FOR EACH ENGINE

3.   GENERATOR RACOR FILTER FOR EACH GENSET

4.   VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL WITH FOAM & LEAD COMBINATION THROUGHOUT ENGINE ROOM LEAD COMBINATION THROUGHOUT ENGINE ROOM

5.   WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY NON-SKID RUBBER FLOORING

6.   FUEL TANKS WITH ELECTRIC SENDING UNITS - HEADHUNTER TS-3000 SERIES

7.   AUTOMATIC FIRE EXTINGUISHER - SEAFIRE FM-200

8.   EXTRACTOR FANS - DELTA "T" SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE

9.   E/R AC FLUORESCENT LIGHTS & DC LED DOME LIGHTS

10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL IS AT REST

11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
      HEADHUNTER MARCH 5 M5-115 AC PUMP
      GROCO PSR 4000004-24 24V DC PUMP

12. CHILLED WATER AIR CONDITIONING
      CRUISAIR AIR CONDITIONING 96,000 BTU

13. WATER MAKER  -  AQUA WHISPER DX 450 450GPD x 2

14. OIL CHANGING PUMP FOR ENGINES,GENERATOR AND TRANSMISSIONS

15. GENERATOR 1 - ONAN QD MDKDS 29 KW 60HZ
      GENERATOR 2 - ONAN QD MDKBU 29 KW 60HZ (OPTION)

16. WATER HEATERS - TORRID 20 GALLONS x 2

17. EMERGENCY TILLER

18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS, STABILIZERS AND STEERING

19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)



1.   110V/220 AC ELECTRICAL SYSTEM

2.   DC 24V SYSTEM

3.   75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS

4.   BATTERY CHARGER FOR 24V CIRCUIT

5.   BATTERY CHARGER FOR 12V CIRCUIT

6.   ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP HIGH CHARGE REGULATORS FITTED

7.   4 x 255 AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE

8.   225 AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4

9.   210 AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1

10. AC SOCKETS THROUGHOUT THE BOAT

11. GFI PROTECTION FOR AC REQUIRED SOCKETS

12. BEP BATTERY SELECT SWITCH

13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4 PANELS (E/R, HELM, AC AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS

14. ANTI-ELECTROLYSIS BONDING SYSTEM

15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50 AMP X 2



1.   100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP

2.   “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT

3.   HOLDING TANK LEVEL INDICATOR HEADHUNTER

4.   SUMP PUMP FOR SHOWER

5.   MARINE GRADE LINES FOR FRESH WATER SYSTEM

6.   S/S WATER TANK WITH SENDING UNIT - 350 GALLONS

7.   SIGHT GAUGES FOR FUEL AND WATER TANKS

8.   DOCKSIDE FRESH WATER INLET

9.   COLOR CODED PIPING FOR EASY IDENTIFICATION

10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS

11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS

12. FRESH WATER SEALAND VACUUM TOILET SYSTEM

13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM

14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH HIGH WATER ALARMS




1. INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER WITH A CHOICE OF UPHOLSTERY FABRICS

1.   ELECTRIC REFRIGERATOR/FREEZER - G.E. LATEST MODELS

2.   COOKTOP - G.E. LATEST MODEL

3.   OVEN - G.E. LATEST MODEL

4.   MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL

5.   S/S SINK

6.   HOT AND COLD WATER

7.   TRASH COMPACTOR - G.E. LATEST MODEL

8.   DISHWASHER - G.E. LATEST MODEL

9.   DOUBLE AC SOCKETS x 2

10. CUPBOARD, DRAWERS AND STOWAGE

11. TEAK FLOOR OR MARBLE FLOOR

12. OVERHEAD STORAGE ABOVE GALLEY BENCH




1. DINING AREA IN UPPER SALOON

2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS

3. 42” LCD TV

4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM

5. PIONEER BDP-160 BLU-RAY DISC PLAYER

6. APPLE TV

7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN CURVED SEATING

8. MAIN CONTROL PANEL AC/DC

9. LOW LEVEL LED LIGHTS 24V

10. CEILING LED LIGHTING 24V

11. COFFEE TABLE

1.   KING SIZE BERTH

2.   STORAGE BENEATH BERTH

3.   DRAWERS IN BASE OF BERTH

4.   VANITY

5.   COUCH

6.   WALK-IN CLOSET FINISHED IN CEDAR WOOD

7.   LED CEILING LIGHTING 24V

8.   READING LIGHTS 24V x 2

9.   LARGE SIDE WINDOWS 3 x MANSHIP S/S WITH 2 FIXED AND ONE OPENING

10. 42" LCD TV

11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL:
      MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
      MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
      PIONEER BDP-160 BLU-RAY DISC PLAYER

12. APPLE TV



1.   VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.   WASH BASIN WITH MABLE COUNTERTOP

3.   HOT & COLD WATER

4.   FAUCET AND FITTINGS

5.   DRESSING MIRROR AND MIRRORED CEILING

6.   LACQUER FINISH ABOVE BASIN COUNTER-TOP

7.   VENEER FINISH BELOW BASIN COUNTERTOP

8.   EXTRACTOR FAN

9.   AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1.   DOUBLE BERTH

2.   STORAGE BENEATH BERTH

3.   DRAWERS IN BASE OF BERTH

4.   WALK-IN CLOSET FINISHED IN CEDAR WOOD

5.   DRESSING TABLE W/STOOL

6.   READING LIGHTS 24V x 2

7.   LED CEILING LIGHTS 24V

8.   AC DOUBLE SOCKETS

9.   32" LCD TV

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR


1.   VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.   WASH BASIN WITH MABLE COUNTERTOP

3.   HOT & COLD WATER

4.   FAUCET AND FITTINGS

5.   DRESSING MIRROR AND MIRRORED CEILING

6.   LACQUER FINISH ABOVE BASIN COUNTERTOP

7.   VENEER FINISH BELOW BASIN COUNTERTOP

8.   EXTRACTOR FAN

9.   AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR



1.  TWO SINGLE BERTHS

2.  UNDER BERTH STORAGE

3.  READING LIGHTS 24V x 2

4.  LED CEILING LIGHTS 24V x 2

5.  HANGING LOCKER

6.  PULLMAN BERTH

7.  32" LCD TV

8.  FUSION MS-AV700I DVD / RECEIVER WITH FUSION LINK
     MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
     MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

9.  APPLE TV



1.   VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.   WASH BASIN WITH MABLE COUNTERTOP

3.   HOT & COLD WATER

4.   FAUCET AND FITTINGS

5.   MIRROR AND MIRROR CEILING

6.   SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7.   AC DOUBLE SOCKET WITH GFI

8.   LACQUER FINISH ABOVE BASIN COUNTERTOP

9.   VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS

12. MARBLE FLOOR

13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL



1.  DOUBLE BERTH

2.  UNDER BERTH STORAGE

3.  READING LIGHTS 24V x 2

4.  LED CEILING LIGHTS 24V x 2

5.  HANGING LOCKER

6.  32" LCD TV

7.  FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
     MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
     MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

8.  APPLE TV



1.   VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.   WASH BASIN WITH MABLE COUNTERTOP

3.   HOT & COLD WATER

4.   FAUCET AND FITTINGS

5.   DRESSING MIRROR AND MIRRORED CEILING

6.   SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7.   AC DOUBLE SOCKET WITH GFI

8.   LACQUER FINISH ABOVE BASIN COUNTERTOP

9.   VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR



1.  ENTRANCE DOOR FROM TRANSOM

2.  TWO SINGLE BERTHS

3.  READING LIGHTS 24V x 2

4.  LED CEILING LIGHTS

5.  AC DOUBLE SOCKET

6.  HANGING LOCKER

7.  HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR

8.  VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

9.  24" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
      MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
      MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV



1. CATCH WELL, UNDER DECK

2. LIVE BAIT WELL WITH PUMP AND LIGHTS

3. FLUSH MOUNT 8 ROD HOLDERS SURROUND THE FISHING COCKPIT AND ROCKET LAUNCHER

4. NON-SKID DECKS

Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!  Completion time is approximately 9-12 months depending on other yard projects.

**OPTIONS UPON REQUEST**

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Since this is a new build offering, all photos are of previous projects.  Exact layout, wood and stone selection are buyer's choice.

Specifications are provided for informational purposes only.  Data was obtained from sources believed reliable but is not guaranteed by owner or brokers.  Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase.  Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.


1. MAIN DECK - TEAK 14MM

2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER

3. 250 FEET GALVANIZED CHAIN (3/8”)

4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)

5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)

6. FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT

7. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S

8. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM

9. BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS

10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS

11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)

12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS

13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT

14. STERN CAPSTAN MAXWELL VC1500 24V x 2

15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC AND REMOVABLE COVER

16. AFT DECK TABLE WITH PROTECTIVE COVER

17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK

18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK

19. STAIRS TO FLYBRIDGE WITH TEAK TREADS

20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK

21. HOT & COLD SWIM SHOWER

22. S/S SWIM LADDER

23. LAZARETTE STORAGE FOR FENDERS

24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING



1.  5 BLADE BRONZE PROPELLERS x 2

2.  BRONZE P-BRACKETS x 2

3.  S/S AQUATECH 22HS SHAFTS 3½” DIAMETER x 2

4.  SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS
     3 1/2" x 5 1/2” AND DURAMAX MARINE CUTLASS BEARINGS

5.  HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS
     STEEL STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS
     AND BRONZE BEARING

6.  ANTI-FOULING BOTTOM PAINT
     SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
     SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445
     BLACK OR 3430 DARK BLUE

7.  BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED

8.  FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

9.  SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER

10. SEACOCKS ON ALL UNDERWATER FITTINGS

11. HYDRAULIC BOW THRUSTER - ABT 12”-38HP

12. HYDRAULIC STERN THRUSTER - ABT 12”-38HP

13. STABILIZERS - ABT 250/6 SQUARE FOOT FINS

14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS

15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH
      POWER STEERING



1. FRP NON-SKID DECK

2. INSTRUMENT CONSOLE W/PERSPEX COVER

3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS

4. FRP SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC & TABLE

5. WET BAR WITH SINK AND ICE MAKER & REFRIGERATOR

6. HYDRAULIC STEERING HYNAUTIC PSHC5803

7. ENGINE CONTROL AND INSTRUMENTATION

8. MAGNETIC COMPASS

9. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN:
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1

II. RAYMARINE:
RAYMARINE GS15.4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR
CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

10. STABILIZER CONTROL AND MONITORING DISPLAY

11. ABT BOW & STERN THRUSTER CONTROL PANEL

12. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

13. RUDDER INDICATOR

14. FUEL GAUGE HEADHUNTER TS-3000 SERIES

15. ACRYLIC DEFLECTING WIND SCREEN

16. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL

17. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER - WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

18. POP UP TV CABIN W/ 32" LCD TV

19. APPLE TV

20. LOW LEVEL LED COURTESY LIGHTS 24V

21. LIGHTS UNDER RADAR ARCH LED 24V

22. S/S GRAB RAIL AROUND BAR UNIT

23. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING

24. BUELL AIR HORN

25. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT

26. S/S STEERING WHEEL

27. HYDRALIC DAVIT - BENSENZONI 1322 LBS LIFTING CAPACITY 24V



1. MAN D2842 LE433 1550HP/2300RPM ENGINE x 2
ZF TRANSMISSIONS ZF2050A, 2.029:1 RATIO x 2

2. ONE DUAL RACOR FILTER FOR EACH ENGINE

3. GENERATOR RACOR FILTER FOR EACH GENSET

4. VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL WITH FOAM & LEAD COMBINATION THROUGHOUT ENGINE ROOM

5. WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY NON-SKID RUBBER FLOORING

6. FUEL TANKS WITH ELECTRIC SENDING UNITS - HEADHUNTER TS-3000 SERIES

7. AUTOMATIC FIRE EXTINGUISHER - SEAFIRE FM-200

8. EXTRACTOR FANS - DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE

9. E/R AC FLOURESCENT LIGHTS & DC LED DOME LIGHTS

10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL IS AT REST

11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
HEADHUNTER MARCH 5 M5-115 AC PUMP
GROCO PSR 4000004-24 24V DC PUMP

12. CHILLED WATER AIR CONDITIONING - CRUISAIR AIR CONDITIONING 96,000 BTU

13. WATER MAKER - AQUA WHISPER DX 450 450GPD x 2

14. OIL CHANGING PUMP FOR ENGINES, GENERATOR AND TRANSMISSIONS

15. GENERATOR 1 - ONAN QD MDKDS 29 KW 60HZ
GENERATOR 2 - ONAN QD MDKBU 29 KW 60HZ (OPTION)

16. WATER HEATERS - TORRID 20 GALLONS x 2

17. EMERGENCY TILLER

18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS, STABILIZERS AND STEERING

19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)

1. 110V/220V AC ELECTRICAL SYSTEM

2. DC 24V SYSTEM

3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2

4. BATTERY CHARGER FOR 24V CIRCUIT

5. BATTERY CHARGER FOR 12V CIRCUIT

6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP HIGH CHARGE REGULATORS FITTED

7. 4 x 255 AMP/HR 12V GELL CELL SEALED BATTERIES FOR SHIP's SERVICE

8. 225 AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4

9. 210 AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1

10. AC SOCKETS THROUGHOUT THE BOAT

11. GFI PROTECTION FOR AC REQUIRED SOCKETS

12. BEP BATTERY SELECT SWITCH

13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4 PANELS (E/R, HELM, AC AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS

14. ANTI-ELECTROLYSIS BONDING SYSTEM

15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2

1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP

2. "Y" VALVE FOR HOLDING TANK OVERBOARD PUMP OUT

3. HOLDING TANK LEVEL INDICATOR HEADHUNTER

4. SUMP PUMP FOR SHOWER

5. MARINE GRADE LINES FOR FRESH WATER SYSTEM

6. S/S WATER TANK WITH SENDING UNIT - 350 GALLONS

7. SIGHT GAUGES FOR FUEL AND WATER TANKS

8. DOCKSIDE FRESH WATER INLET

9. COLOR CODED PIPING FOR EASY IDENTIFICATION

10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS

11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS

12. FRESH WATER SEALAND VACUUM TOILET SYSTEM

13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM

14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH HIGH WATER ALARMS

1.  INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND
     IVORY LACQUER WITH A CHOICE OF UPHOLSTERY FABRICS



1.  ELECTRIC REFRIGERATOR/FREEZER - G.E. LATEST MODEL

2.  COOKTOP - G.E. LATEST MODEL

3.  OVEN - G.E. LATEST MODEL

4.  MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL

5.  S/S SINK

6.  HOT AND COLD WATER

7.  TRASH COMPACTOR - G.E. LATEST MODEL

8.  DISHWASHER - G.E. LATEST MODEL

9.  DOUBLE AC SOCKETS x 2

10. CUPBOARD, DRAWERS AND STOWAGE

11. TEAK FLOOR OR MARBLE FLOOR

12. OVERHEAD STORAGE ABOVE GALLEY BENCH



1. DINING AREA IN UPPER SALOON

2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS

3. 42" LCD TV

4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM

5. PIONEER BDP-160 BLU-RAY DISC PLAYER

6. APPLE TV

7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN CURVED SEATING

8. MAIN CONTROL PANEL AC/DC

9. LOW LEVEL LIGHTS LED 24V

10. CEILING LED LIGHTING 24V

1.  KING SIZE BERTH

2.  STORAGE BENEATH BERTH

3.  DRAWERS IN BASE OF BERTH

4.  VANITY

5.  COUCH

6.  WALK-IN CLOSET FINISHED IN CEDAR WOOD

7.  LED CEILING LIGHTING 24V

8.  READING LIGHTS 24V x 2

9.  LARGE SIDE WINDOWS 3 x MANSHIP S/S WITH 2 FIXED AND
     ONE OPENING

10. 42" LCD TV

11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL
      IPOD/IPHONE CONTROL
      MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
      MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

12. PIONEER BDP-160 BLU-RAY DISC PLAYER

13. APPLE TV



1. VACUUM TOILET- SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. DOUBLE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. WALK-IN CLOSET FINISHED IN CEDAR WOOD

5. DRESSING TABLE W/STOOL

6. READING LIGHTS 24V x 2

7. LED CEILING LIGHTS 24V

8. AC DOUBLE SOCKETS

9. 32" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. TWO SINGLE BERTHS

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. PULLMAN BERTH

7. 32" LCD TV

8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

9. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS

12. MARBLE FLOOR

13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL

1. DOUBLE BERTH

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. 32" LCD TV

7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

8. APPLE TV



1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. ENTRANCE DOOR FROM TRANSOM

2. TWO SINGLE BERTHS

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS

5. AC DOUBLE SOCKET

6. HANGING LOCKER

7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR

8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

9. 24" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1.  CATCH WELL, UNDER DECK

2.  LIVE BAIT WELL WITH PUMP AND LIGHTS

3.  FLUSH MOUNT 8 ROD HOLDERS SURROUND THE FISHING COCKPIT AND ROCKET LAUNCHER

4.  NON-SKID DECKS

Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!  Completion time is approximately 9-12 months depending on other yard projects.

**OPTIONS UPON REQUEST**

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **


Since this is a new build offering, all photos are of previous projects.  Exact layout, wood and stone selection are buyer's choice.

Specifications are provided for informational purposes only.  Data was obtained from sources believed reliable but is not guaranteed by owner or brokers.  Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase.  Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.


1. MAIN DECK-TEAK 14MM

2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER

3. 250 FEET GALVANIZED CHAIN (3/8”)

4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)

5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)

6. FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT

7. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S

8. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM

9. BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS

10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON  AND SAFETY SENSORS

11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)

12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS

13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT

14. STERN CAPSTAN MAXWELL VC1500 24V x 2

15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC AND REMOVABLE COVER

16. AFT DECK TABLE WITH PROTECTIVE COVER

17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK

18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK

19. STAIRS TO FLYBRIDGE WITH TEAK LAID TREADS

20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK

21. HOT & COLD SWIM SHOWER

22. S/S SWIM LADDER

23. LAZARETTE STORAGE FOR FENDERS

24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING

25. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS. LIFTING CAPACITY

1. 5 BLADE BRONZE PROPELLERS x 2

2. BRONZE P-BRACKETS x 2

3. S/S AQUATECH 22HS SHAFTS 3 ½" DIAMETER x 2

4. SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½" x 5 ½" AND DURAMAX MARINE CUTLASS BEARINGS

5. HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING

6. ANTI-FOULING BOTTOM PAINT
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE
3445 BLACK OR 3430 DARK BLUE

7. BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED

8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER

10. SEACOCKS ON ALL UNDERWATER FITTINGS

11. HYDRAULIC BOW THRUSTER - ABT 12"-38HP

12. HYDRAULIC STERN THRUSTER - ABT 12"-38HP

13. STABILIZERS - ABT 250/6 SQUARE FOOT FINS

14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS

15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING

1. TEAK FLOOR WITH 14 MM TEAK AND HOLLY WITH MATT FINISH

2. INSTRUMENT CONSOLE UPHOLSTERED WITH LEATHER

3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS

4. HIGH QUALITY BUILT IN LEATHER COUCH & SMALLER COFFEE TABLE

5. ICE MAKER & REFRIGERATOR COMBO UNIT

6. HYDRAULIC STEERING HYNAUTIC PSHC5803

7. ENGINE CONTROL AND INSTRUMENTATION

8. MAGNETIC COMPASS

9. WIPERS EXALTO MODEL 250BS 24 V 950 MM ARM LENGTH WIPERS x 2

10. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM

I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x1

II. RAYMARINE
RAYMARINE GS15,4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400
ACTUATOR CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

11. STABILIZER CONTROL AND MONITORING DISPLAY

12. ABT BOW & STERN THRUSTER CONTROL PANEL

13. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE
ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

14. RUDDER INDICATOR

15. FUEL GAUGE HEADHUNTER TS-3000 SERIES

16. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL

17. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER–WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

18. POP UP TV CABIN W/ 32" LCD TV

19. APPLE TV

20. LOW LEVEL LED COURTESY LIGHTS LED 24V

21. LIGHTS UNDER RADAR ARCH LED 24V

22. S/S GRAB RAIL AROUND BAR UNIT

23. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING

24. S/S STEERING WHEEL

25. BUELL AIR HORN

26. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT

27. STARBOARD SETTEE TO PULL OUT WITH CUSHION INSERT TO CONVERT TO A SKIPPERS BERTH

1. MAN D2842 LE433 1550HP/2300RPM ENGINE x 2
ZF TRANSMISSION ZF2050A, 2.029:1 RATIO x 2

2. ONE DUAL RACOR FILTER FOR EACH ENGINE x 1

3. GENERATOR RACOR FILTER FOR EACH GENSET

4. VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL WITH FOAM & LEAD COMBINATION THRUOUGHOUT ENGINE ROOM

5. WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY NON-SKID RUBBER FLOORING

6. FUEL TANKS WITH ELECTRIC SENDING UNITS - HEADHUNTER TS-3000 SERIES

7. AUTOMATIC FIRE EXTINGUISHER - SEAFIRE FM-200

8. EXTRACTOR FANS - DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE

9. E/R AC FLOURESCENT LIGHTS & DC LED DOME LIGHTS

10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL IS AT REST

11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
HEADHUNTER MARCH 5 M5-115 AC PUMP
GROCO PSR 4000004-24 24V DC PUMP

12. CHILLED WATER AIR CONDITIONING
CRUISAIR AIR CONDITIONING 96,000 BTU

13. WATER MAKER
AQUA WHISPER DX 450 450GPD x 2

14. OIL CHANGING PUMP FOR ENGINES, GENERATORS AND TRANSMISSIONS

15. GENERATOR 1 * ONAN QD MDKBU 29 KW 60HZ
GENERATOR 2 * ONAN QD MDKBU 29 KW 60HZ (OPTION)

16. WATER HEATERS - TORRID 20 GALLONS x 2

17. EMERGENCY TILLER

18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS,STABILIZERS AND STEERING

19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)

1. 110V/220 AC ELECTRICAL SYSTEM

2. DC 24V SYSTEM

3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS

4. BATTERY CHARGER FOR 24V CIRCUIT

5. BATTERY CHARGER FOR 12V CIRCUIT

6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP HIGH CHARGE REGULATORS FITTED

7. 4 x 255AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE

8. 225AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4

9. 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1

10. AC SOCKETS THROUGHOUT THE BOAT

11. GFI PROTECTION FOR AC REQUIRED SOCKETS

12. BEP BATTERY SELECT SWITCH

13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4 PANELS (E/R, HELM, A/C AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS

14. ANTI-ELECTROLOSIS BONDING SYSTEM

15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2



1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP

2. “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT

3. HOLDING TANK LEVEL INDICATOR HEADHUNTER

4. SUMP PUMP FOR SHOWER

5. MARINE GRADE LINES FOR FRESH WATER SYSTEM

6. S/S WATER TANK WITH SENDING UNIT - 350 GALLONS

7. SIGHT GAUGES FOR FUEL AND WATER TANKS

8. DOCKSIDE FRESH WATER INLET

9. COLOR CODED PIPING FOR EASY IDENTIFICATION

10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS

11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER
OF THRU-HULL FITTINGS

12. FRESH WATER SEALAND VACUUM TOILET SYSTEM

13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM

14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH HIGH
WATER ALARMS

1.  INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER WITH A CHOICE OF UPHOLSTERY FABRICS



1. ELECTRIC REFRIGERATOR/FREEZER- G.E. LATEST MODEL

2. COOKTOP - G.E. LATEST MODEL

3. OVEN - G.E. LATEST MODEL

4. MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL

5. S/S SINK

6. HOT AND COLD WATER

7. TRASH COMPACTOR - G.E. LATEST MODEL

8. DISHWASHER - G.E. LATEST MODEL

9. DOUBLE AC SOCKETS x 2

10. CUPBOARD,DRAWERS AND STOWAGE

11. TEAK FLOOR OR MARBLE FLOOR

12. OVERHEAD STORAGE ABOVE GALLEY BENCH



1. DINING AREA IN UPPER SALOON

2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND
SAFETY SENSOR DEVICE

3. 42" LCD TV

4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM

5. PIONEER BDP-160 BLU-RAY DISC PLAYER

6. APPLE TV

7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN
CURVED SEATING

8. MAIN CONTROL PANEL AC/DC

9. LOW LEVEL LIGHTS 24V LED

10. CEILING LED LIGHTING 24V LED

11. COFFEE TABLE

1. KING SIZE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. VANITY

5. COUCH

6. WALK-IN CLOSET FINISHED IN CEDAR WOOD

7. LED CEILING LIGHTING 24V

8. READING LIGHTS 24V x 2

9. LARGE SIDE WINDOWS 3 x MANSHIP S/S W/ 2 FIXED AND ONE OPENING

10. 42" LCD TV

11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL
MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

12. PIONEER BDP-160 BLU-RAY DISC PLAYER

13. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

13. MARBLE FLOOR

1. DOUBLE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. WALK-IN CLOSET FINISHED IN CEDAR WOOD

5. DRESSING TABLE W/STOOL

6. READING LIGHTS 24V x 2

7. LED CEILING LIGHTS 24V

8. AC DOUBLE SOCKETS

9. 32" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV



1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. TWO SINGLE BERTHS

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. PULLMAN BERTH

7. 32" LCD TV

8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

9. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS

12. MARBLE FLOOR

13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL

1. DOUBLE BERTH

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. 32" LCD TV

7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

8. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. ENTRANCE DOOR FROM TRANSOM

2. TWO SINGLE BERTHS

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS

5. AC DOUBLE SOCKET

6. HANGING LOCKER

7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR

8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

9. 24" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV



Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!  Completion time is approximately 9-12 months depending on other yard projects.

**OPTIONS UPON REQUEST**

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **



Since this is a new build offering, all photos are of previous projects.  Exact layout, wood and stone selection are buyer's choice.

Specifications are provided for informational purposes only.  Data was obtained from sources believed reliable but is not guaranteed by owner or brokers.  Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase.  Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.


1.  MAIN DECK-TEAK 14MM

2.  STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER

3.  250 FEET GALVANIZED CHAIN (3/8")

4.  MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)

5.  STAINLESS STEEL 120 LB ANCHOR (SINGLE)

6.  FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE  ATTACHMENT

7.  HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S

8.  HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM

9.  BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS

10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON  AND SAFETY SENSORS

11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)

12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS

13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT

14. STERN CAPSTAN MAXWELL VC1500 24V  x 2

15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC

16. AFT DECK TABLE WITH PROTECTIVE COVER

17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK

18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK

19. STAIRS TO FLYBRIDGE WITH TEAK LAID DECKING TREADS

20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK

21. HOT & COLD SWIM SHOWER

22. S/S SWIM LADDER

23. LAZARETTE STORAGE FOR FENDERS

24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING

25. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/1873 LBS.LIFTING CAPACITY

1. 5 BLADE BRONZE PROPELLERS x 2

2. BRONZE P-BRACKETS x 2

3. S/S AQUATECH 22HS SHAFTS 3 ½" DIAMETER x 2

4. SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½" x 5 ½" AND DURAMAX MARINE CUTLASS BEARINGS

5. HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL
STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING

6. ANTI-FOULING BOTTOM PAINT
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK
OR 3430 DARK BLUE

7. BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED

8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER

10. SEACOCKS ON ALL UNDERWATER FITTINGS

11. HYDRAULIC BOW THRUSTER - ABT 12"-38HP

12. HYDRAULIC STERN THRUSTER - ABT 12"-38HP

13. STABILIZERS - ABT 250/6 SQUARE FOOT FINS

14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS

15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING



1. TEAK FLOOR WITH 14MM TEAK AND HOLLY WITH MATT FINISH

2. INSTRUMENT CONSOLE UPHOLSTERED WITH LEATHER

3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS

4. HIGH QUALITY BUILT IN LEATHER COUCH & SMALLER COFFEE TABLE

5. HYDRAULIC STEERING HYNAUTIC PSHC5803

6. ENGINE CONTROL AND INSTRUMENTATION

7. MAGNETIC COMPASS

8. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1

II. RAYMARINE
RAYMARINE GS15.4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400
ACTUATOR CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

9. STABILIZER CONTROL AND MONITORING DISPLAY

10. ABT BOW & STERN THRUSTER CONTROL PANEL

11. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

12. RUDDER INDICATOR

13. FUEL GAUGE HEADHUNTER TS-3000 SERIES

14. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL

15. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER–WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

16. POP UP TV CABIN W/ 32" LCD TV

17. APPLE TV

18. LOW LEVEL LED COURTESY LIGHTS 24V

19. LIGHTS UNDER RADAR ARCH LED 24V

20. S/S GRAB RAIL AROUND BAR UNIT

21. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING

22. BUELL AIR HORN

23. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT

24. S/S STEERING WHEEL

1.  MAN D2842 LE433 1550HP/2300RPM ENGINE
    ZF TRANSMISSION  ZF2050A, 2.029:1 RATIO

2.  ONE DUAL RACOR FILTER FOR EACH ENGINE

3.  GENERATOR RACOR FILTER FOR EACH GENSET

4.  VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL
       WITH FOAM & LEAD COMBINATION THRUOUGHOUT ENGINE ROOM

5.  WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY
     NON-SKID  RUBBER FLOORING

6.  FUEL TANKS WITH ELECTRIC SENDING UNITS
     HEADHUTER TS-3000 SERIES

7.  AUTOMATIC FIRE EXTINGUISHER
     SEAFIRE FM-200

8.  EXTRACTOR FANS
     DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE

9.  E/R AC FLOURESCENT LIGHTS & LED DC DOME LIGHTS

10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL
      IS AT REST

11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
     HEADHUNTER MARCH 5 M5-115 AC PUMP
     GROCO PSR 4000004-24 24V DC PUMP

12. CHILLED WATER AIR CONDITIONING
      CRUISAIR AIR CONDITIONING 96,000 BTU

13. WATER MAKER - AQUA WHISPER DX 450 450GPD x 2

14. OIL CHANGING PUMP FOR ENGINES, GENERATORS AND TRANSMISSIONS

15. GENERATOR 1  ONAN QD MDKDS 29 KW 60HZ
      GENERATOR 2  ONAN QD MDKBU 29 KW 60HZ (OPTION)

16. WATER HEATERS - TORRID 20 GALLONS x 2

17. EMERGENCY TILLER

18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS, STABILIZERS AND STEERING

19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)



1. 110V/220 AC ELECTRICAL SYSTEM

2. DC 24V SYSTEM

3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS

4. BATTERY CHARGER FOR 24V CIRCUIT

5. BATTERY CHARGER FOR 12V CIRCUIT

6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS

WITH BEP HIGH CHARGE REGULATORS FITTED

7. 4 x 255AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE

8. 225AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4

9. 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1

10. AC SOCKETS THROUGHOUT THE BOAT

11. GFI PROTECTION FOR AC REQUIRED SOCKETS

12. BEP BATTERY SELECT SWITCH

13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4
PANELS (E/R, HELM, A/C AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS

14. ANTI-ELECTROLOSIS BONDING SYSTEM

15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2

1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP

2. “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT

3. HOLDING TANK LEVEL INDICATOR HEADHUNTER

4. SUMP PUMP FOR SHOWER

5. MARINE GRADE LINES FOR FRESH WATER SYSTEM

6. S/S WATER TANK WITH SENDING UNI- 350 GALLONS

7. SIGHT GAUGES FOR FUEL AND WATER TANKS

8. DOCKSIDE FRESH WATER INLET

9. COLOR CODED PIPING FOR EASY IDENTIFICATION

10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS

11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF
THRU-HULL FITTINGS

12. FRESH WATER SEALAND VACUUM TOILET SYSTEM

13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND
LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM

14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH
HIGH WATER ALARMS

1.  INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER
     WITH A CHOICE OF UPHOLSTERY FABRICS


1. ELECTRIC REFRIGERATOR/FREEZER - G.E. LATEST MODEL

2. COOKTOP - G.E. LATEST MODEL

3. OVEN - G.E. LATEST MODEL

4. MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL

5. S/S SINK

6. HOT AND COLD WATER

7. TRASH COMPACTOR - G.E. LATEST MODEL

8. DISHWASHER - G.E. LATEST MODEL

9. DOUBLE AC SOCKETS x 2

10. CUPBOARD,DRAWERS AND STOWAGE

11. TEAK FLOOR OR MARBLE FLOOR

12. OVERHEAD STORAGE ABOVE GALLEY BENCH

1. DINING AREA IN UPPER SALOON

2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSOR DEVICE

3. 42" LCD TV

4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM

5. PIONEER BDP-160 BLU-RAY DISC PLAYER

6. APPLE TV

7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN CURVED SEATING

8. MAIN CONTROL PANEL AC/DC

9. LOW LEVEL LIGHTS 24V LED

10. CEILING LED LIGHTING 24V

11. COFFEE TABLE

1. KING SIZE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. VANITY

5. COUCH

6. WALK-IN CLOSET FINISHED IN CEDAR WOOD

7. LED CEILING LIGHTING 24V

8. READING LIGHTS 24V x 2

9. LARGE SIDE WINDOWS 3 x MANSHIP S/S W/ 2 FIXED AND ONE OPENING

10. 42" LCD TV

11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

12. PIONEER BDP-160 BLU-RAY DISC PLAYER

13. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. DOUBLE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. WALK-IN CLOSET FINISHED IN CEDAR WOOD

5. DRESSING TABLE W/STOOL

6. READING LIGHTS 24V x 2

7. LED CEILING LIGHTS 24V

8. AC DOUBLE SOCKETS

9. 32" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. TWO SINGLE BERTHS

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. PULLMAN BERTH

7. 32" LCD TV

8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

9. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3 HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS

12. MARBLE FLOOR

13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL

1. DOUBLE BERTH

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. 32" LCD TV

7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

8. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. ENTRANCE DOOR FROM TRANSOM

2. TWO SINGLE BERTHS

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS

5. AC DOUBLE SOCKET

6. HANGING LOCKER

7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR

8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

9. 24" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1.  CATCH WELL, UNDER DECK

2.  LIVE BAIT WELL WITH PUMP AND LIGHT

3.  8 FLUSH MOUNTED ROD HOLDERS SURROUND THE FISHING COCKPIT AND ROCKET LAUNCHER

4.  NON-SKID DECKS

Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!  Completion time is approximately 9-12 months depending on other yard projects.

**OPTIONS UPON REQUEST**

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Since this is a new build offering, all photos are of previous projects.  Exact layout, wood and stone selection are buyer's choice.

Specifications are provided for informational purposes only.  Data was obtained from sources believed reliable but is not guaranteed by owner or brokers.  Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase.  Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.

Have Questions?

Ask our experienced sales brokers about this yacht

Related Yachts for Sale
