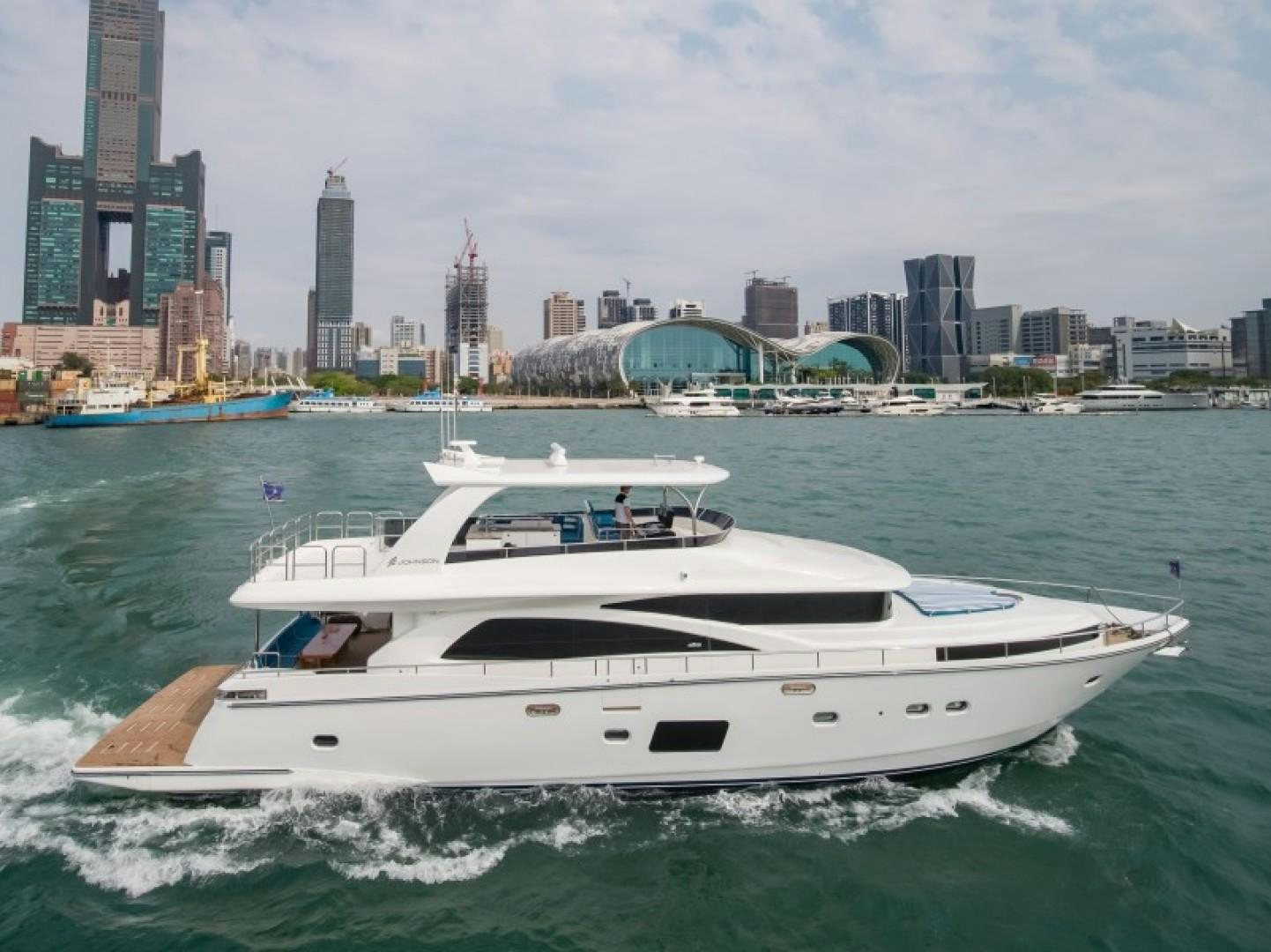

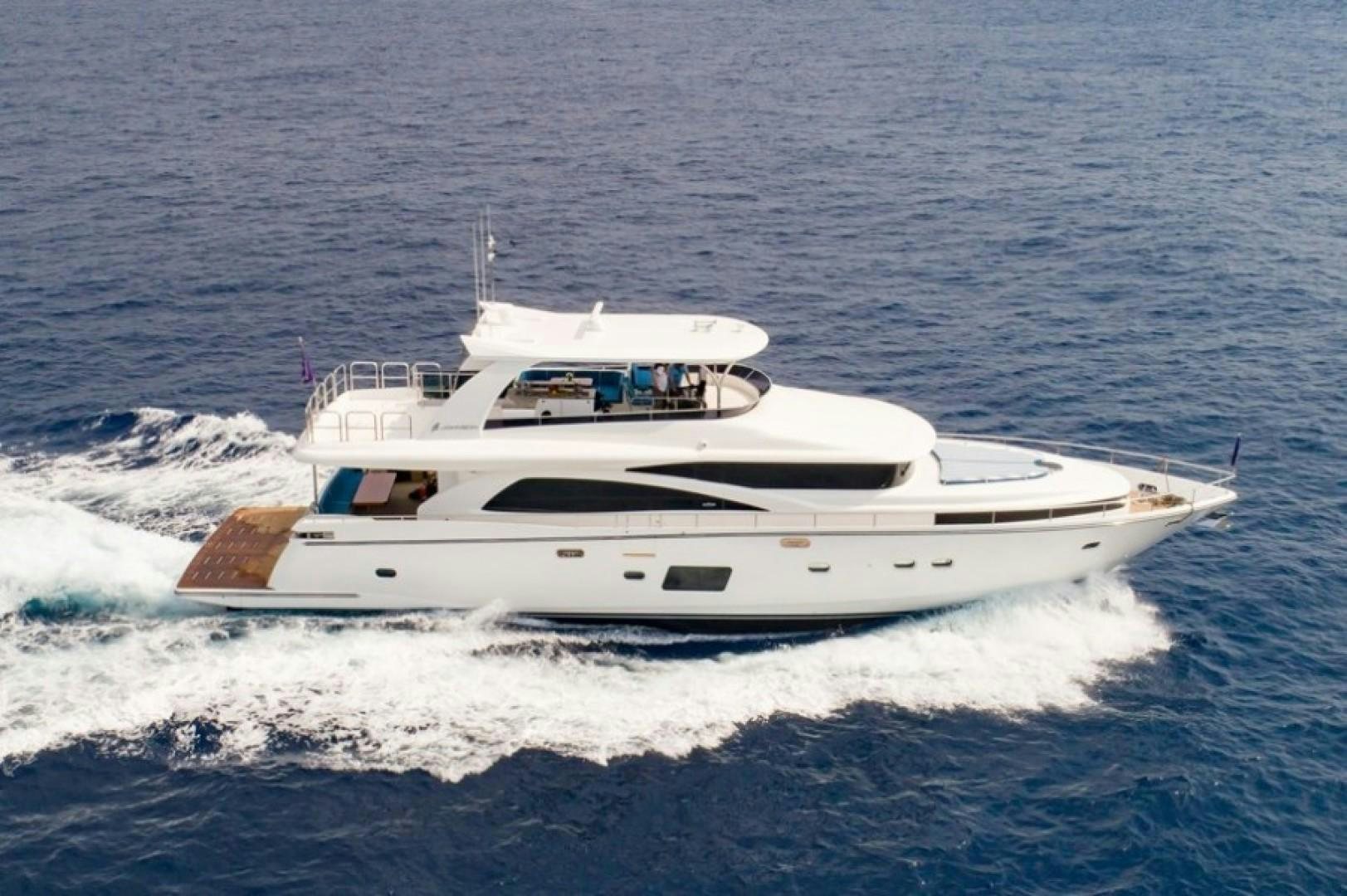

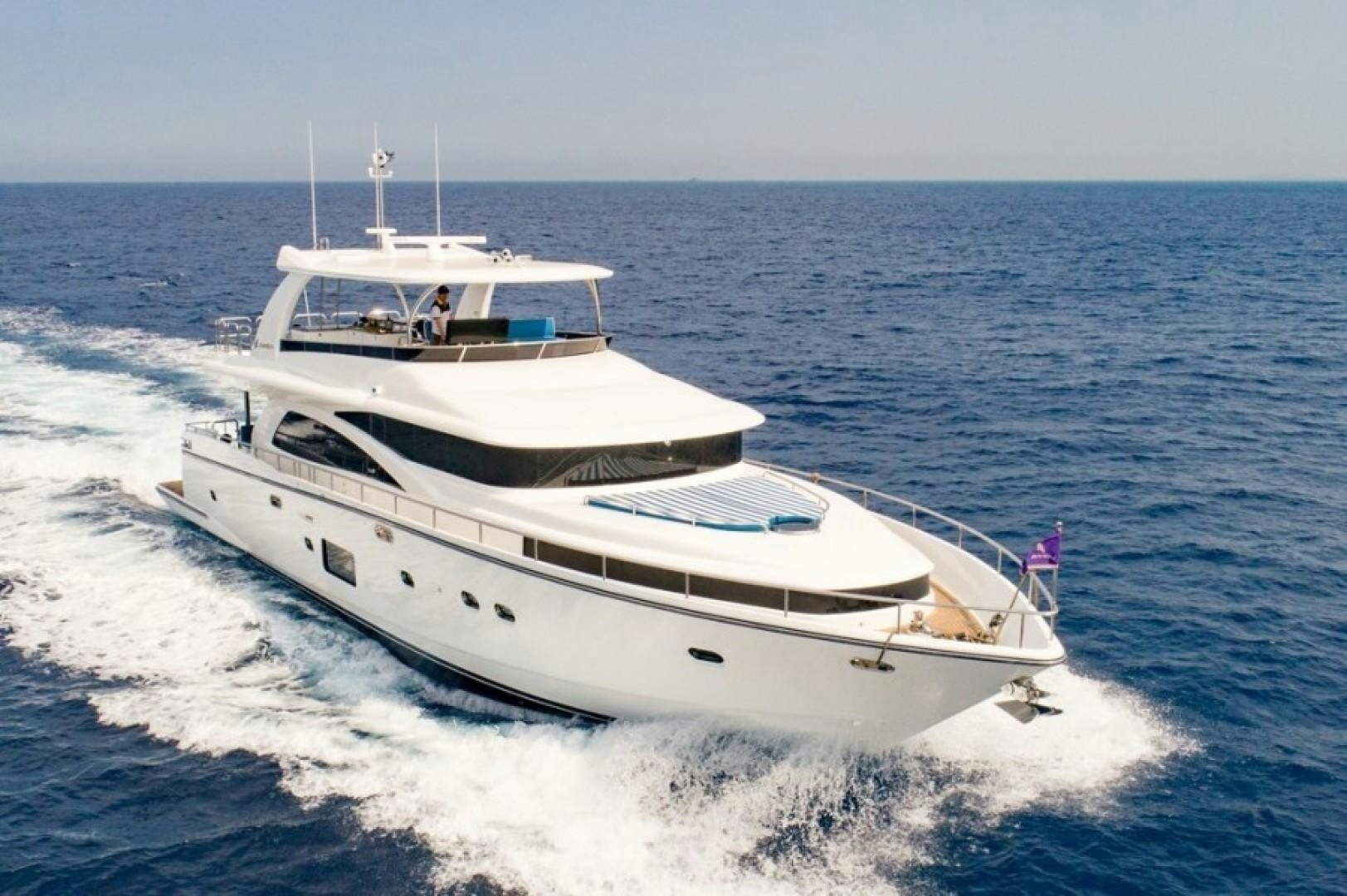

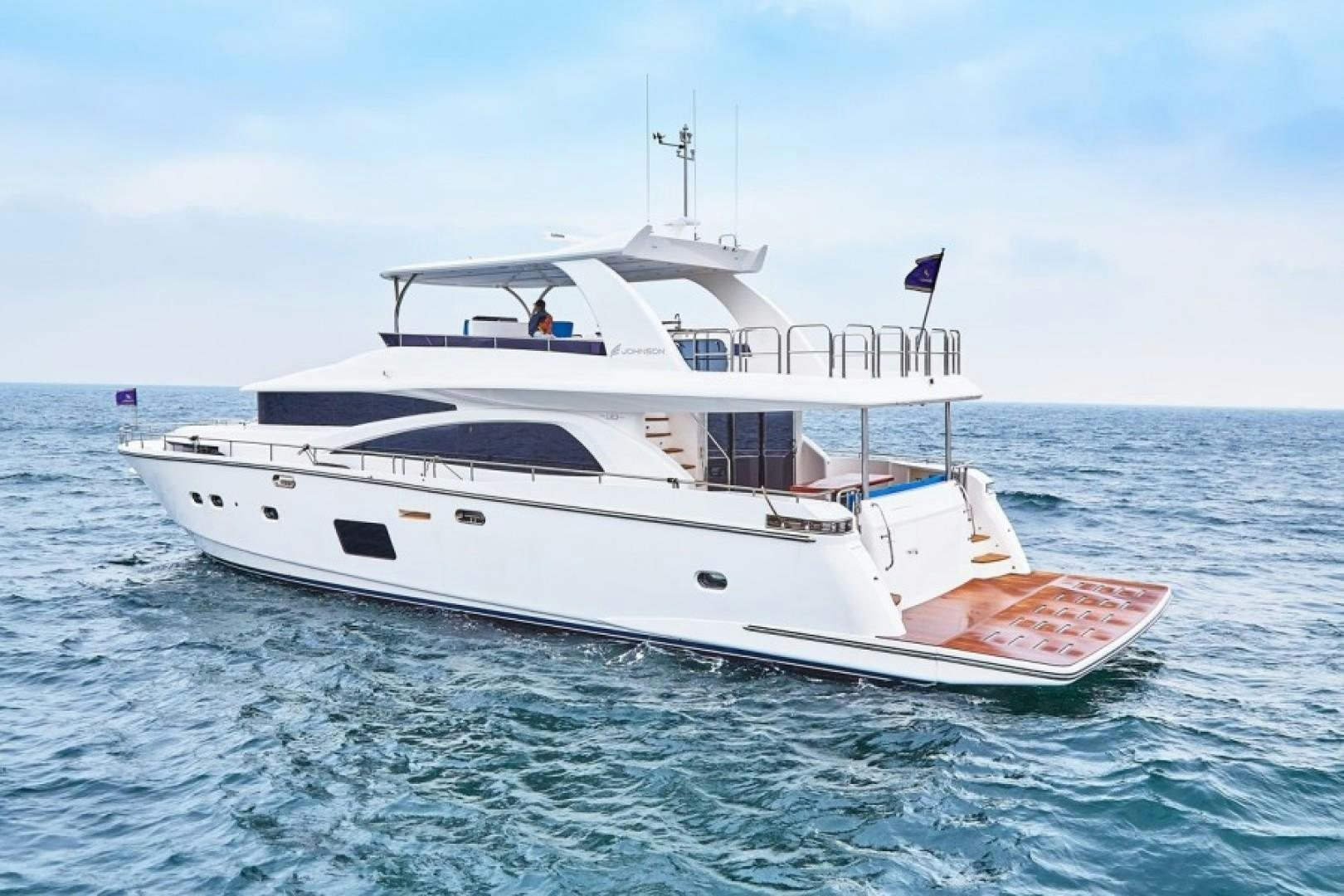

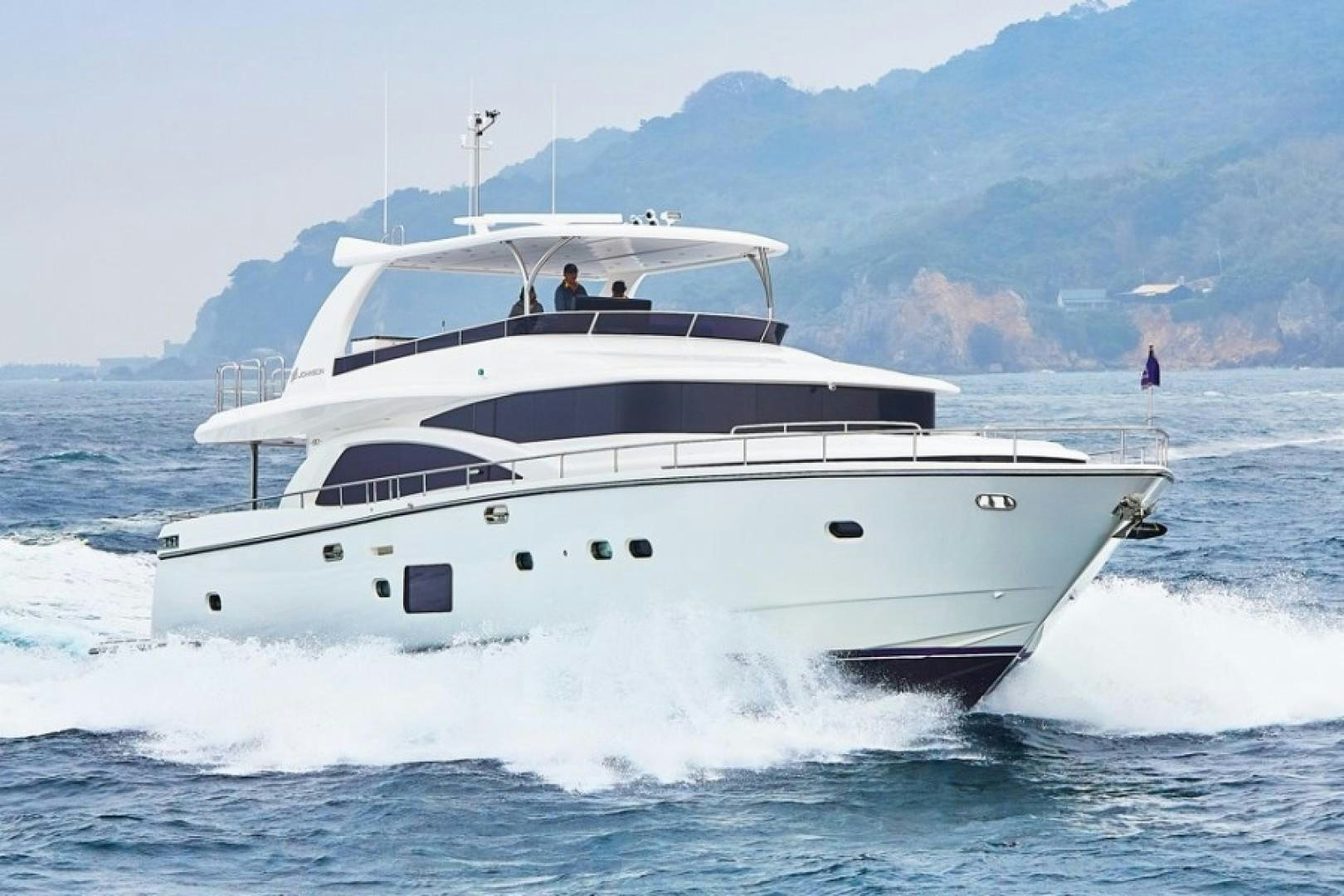

JOHNSON 80' FLYBRIDGE W/FISHING COCKPIT Yacht for Sale

1. MAIN DECK - TEAK 14MM

2. STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER

3. 250 FEET GALVANIZED CHAIN (3/8”)

4. MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)

5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)

6. FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT

7. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S

8. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM

9. BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS

10. STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS

11. PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)

12. MANSHIP ELLIPTICAL STAINLESS STEEL PORT LIGHTS

13. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT

14. STERN CAPSTAN MAXWELL VC1500 24V x 2

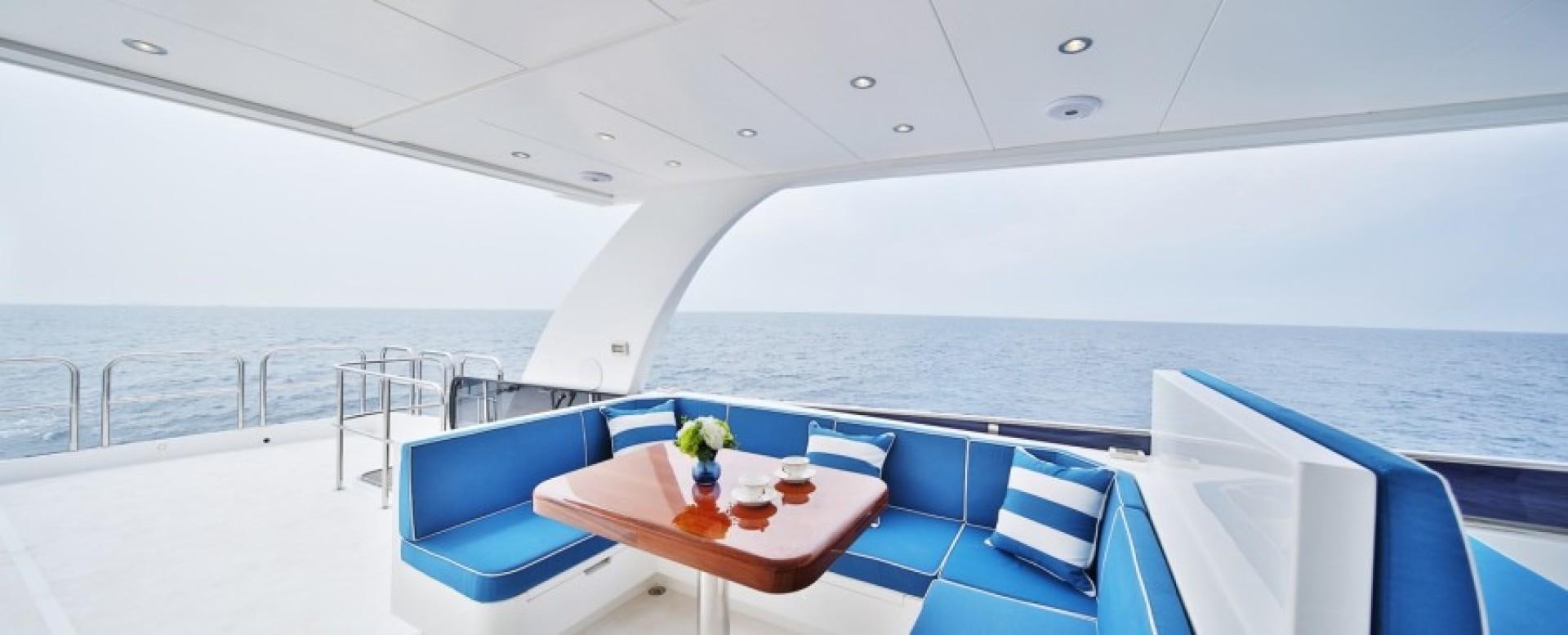

15. AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC AND REMOVABLE COVER

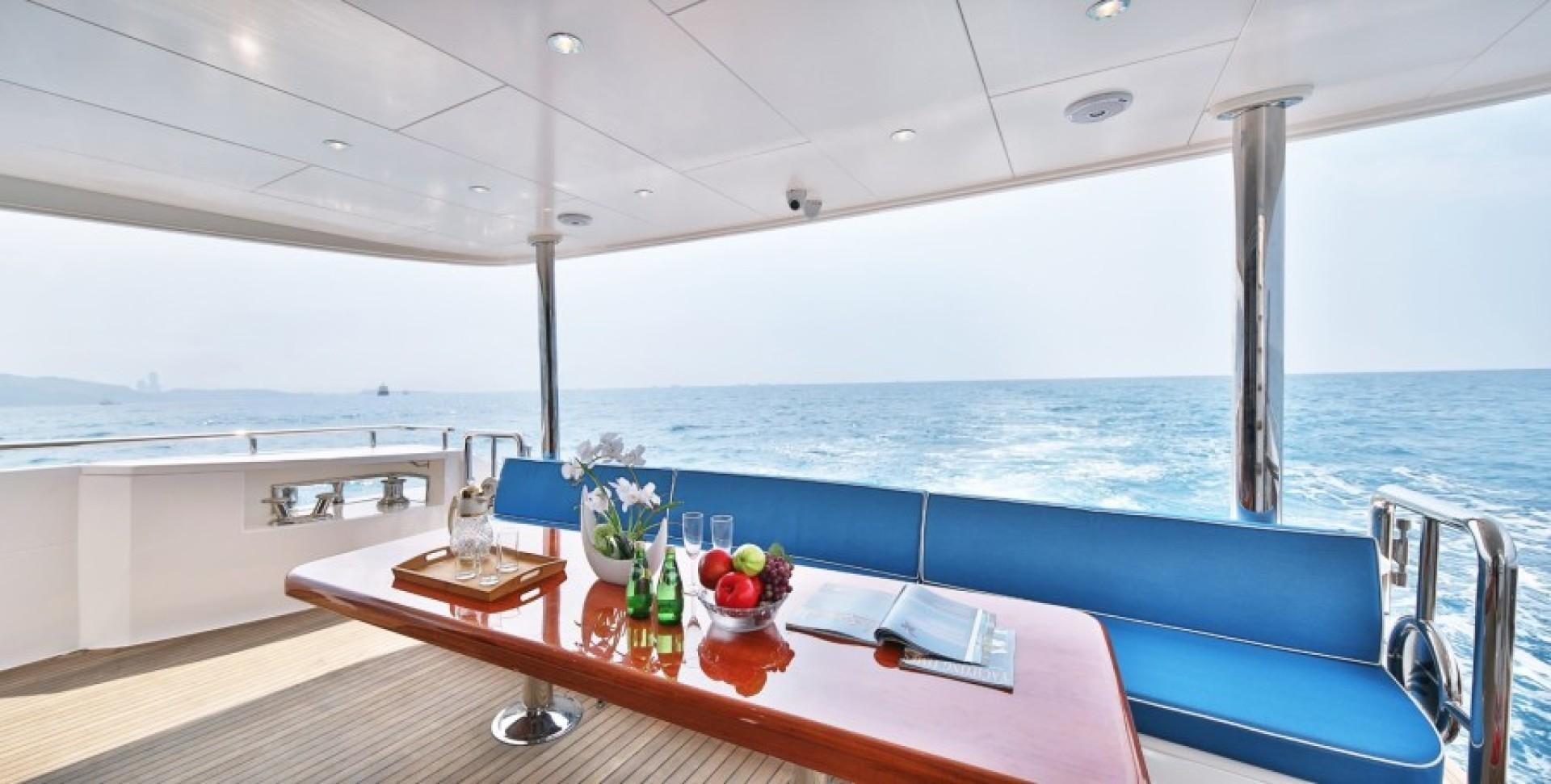

16. AFT DECK TABLE WITH PROTECTIVE COVER

17. LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK

18. LOW LEVEL LED COURTESY LIGHTS ON AFT DECK

19. STAIRS TO FLYBRIDGE WITH TEAK TREADS

20. LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK

21. HOT & COLD SWIM SHOWER

22. S/S SWIM LADDER

23. LAZARETTE STORAGE FOR FENDERS

24. ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING

1.  5 BLADE BRONZE PROPELLERS x 2

2.  BRONZE P-BRACKETS x 2

3.  S/S AQUATECH 22HS SHAFTS 3½” DIAMETER x 2

4.  SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS
       3 1/2" x 5 1/2” AND DURAMAX MARINE CUTLASS BEARINGS

5.  HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS
      STEEL STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS
       AND BRONZE BEARING

6.  ANTI-FOULING BOTTOM PAINT
     SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
     SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445
       BLACK OR 3430 DARK BLUE

7.  BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED

8.  FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

9.  SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER

10. SEACOCKS ON ALL UNDERWATER FITTINGS

11. HYDRAULIC BOW THRUSTER - ABT 12”-38HP

12. HYDRAULIC STERN THRUSTER - ABT 12”-38HP

13. STABILIZERS - ABT 250/6 SQUARE FOOT FINS

14. UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS

15. HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH
      POWER STEERING

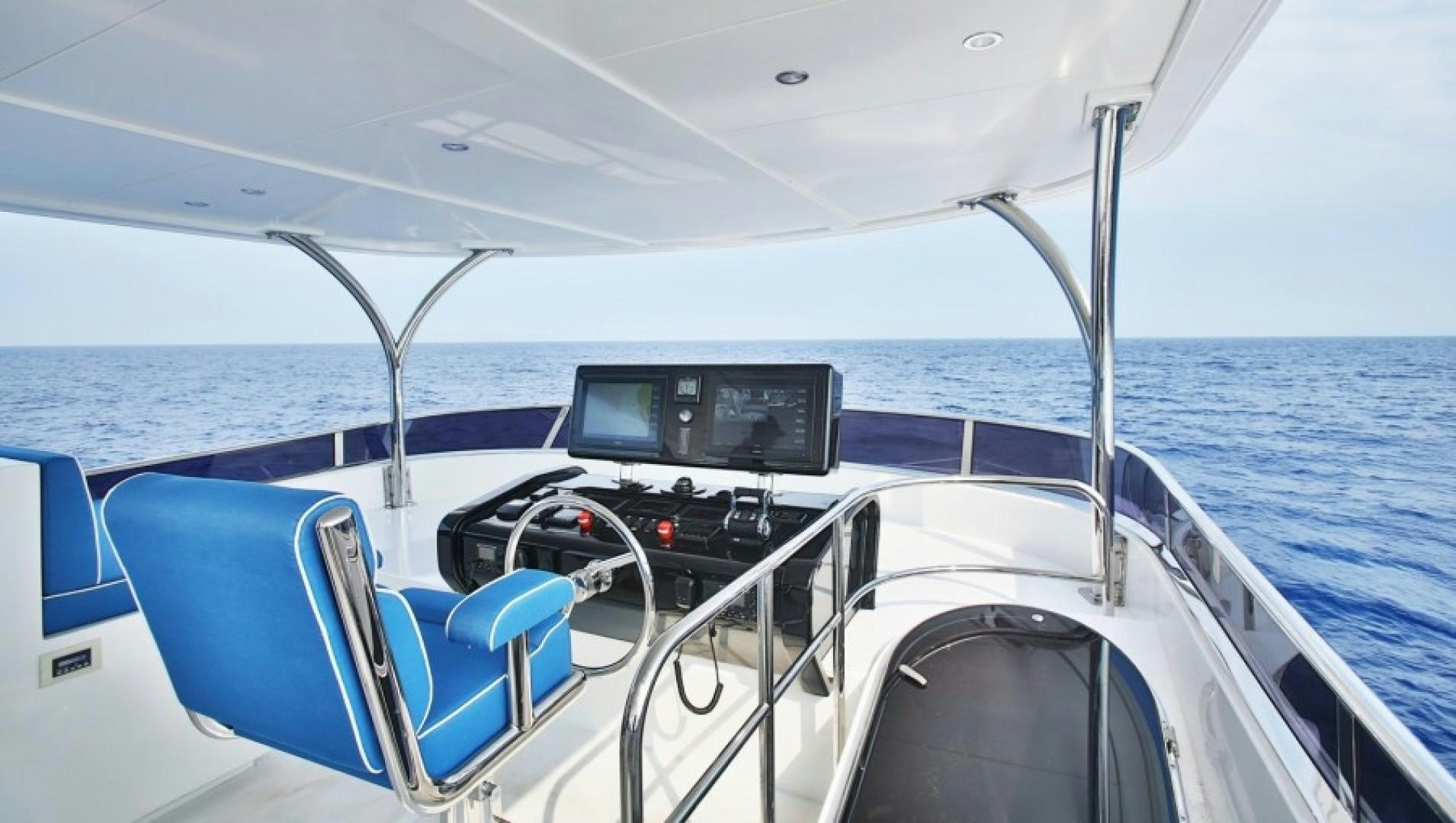

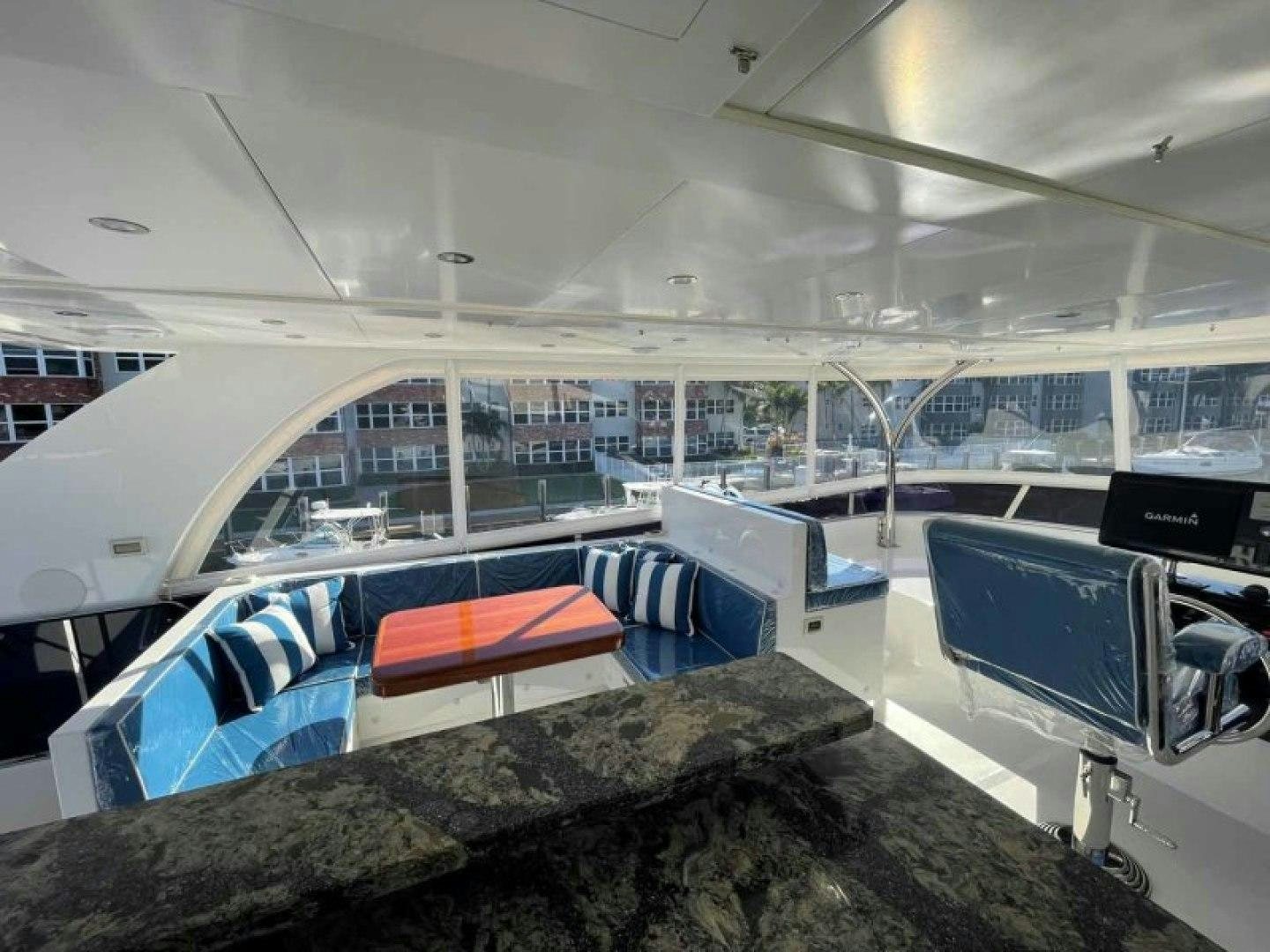

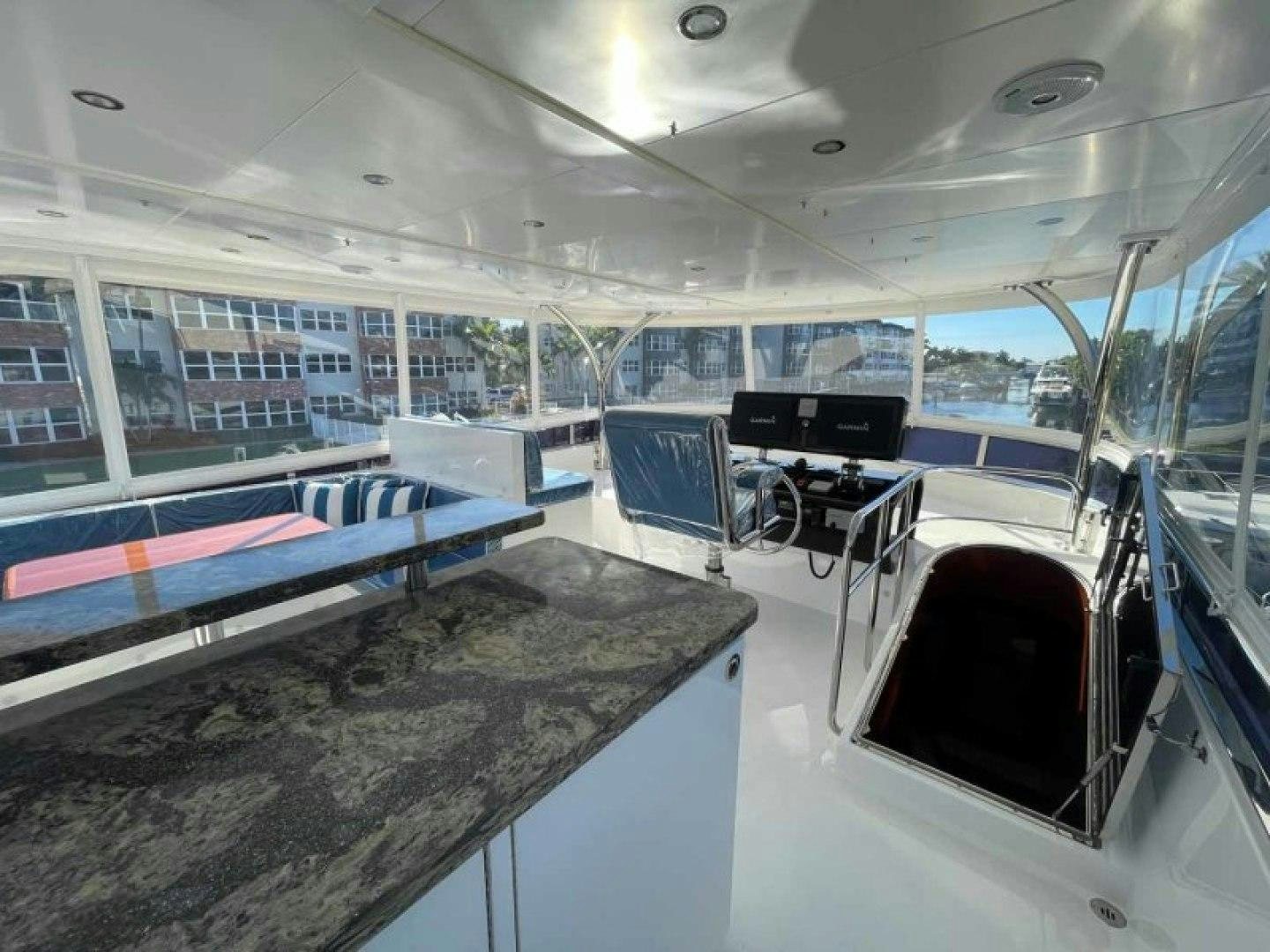

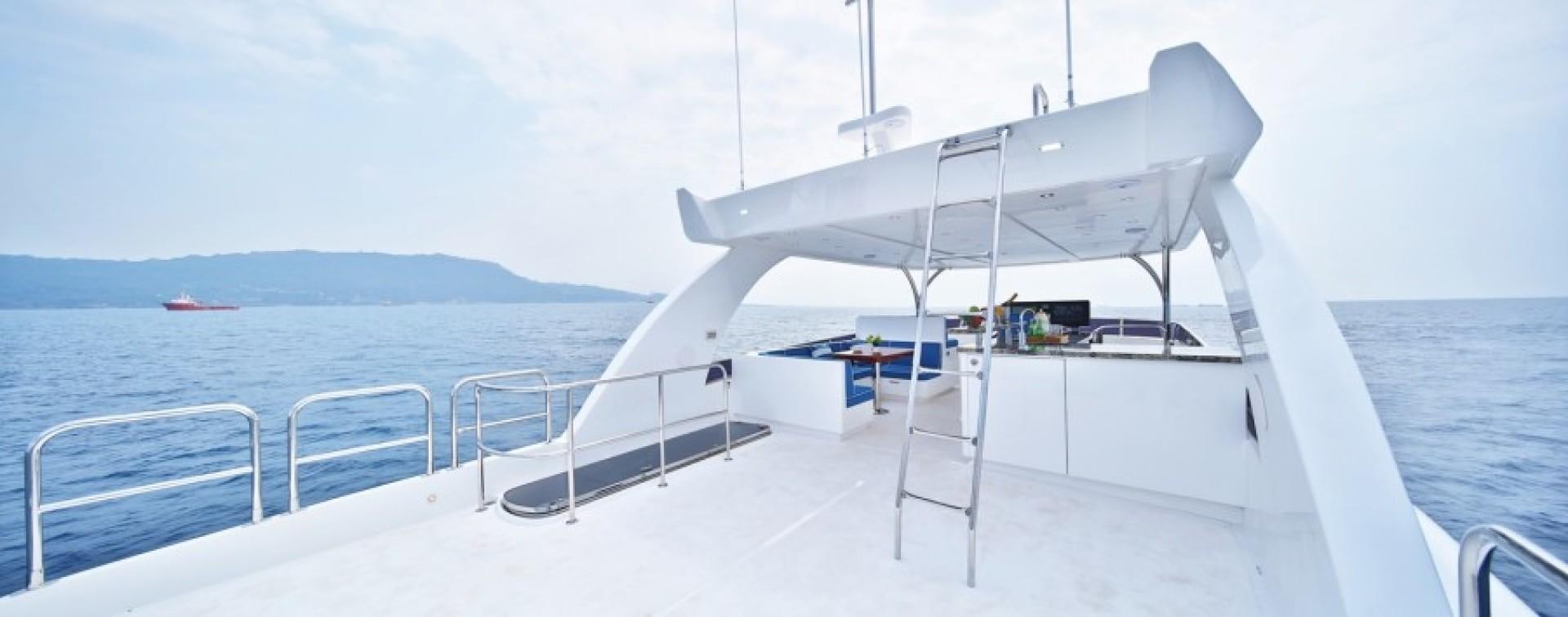

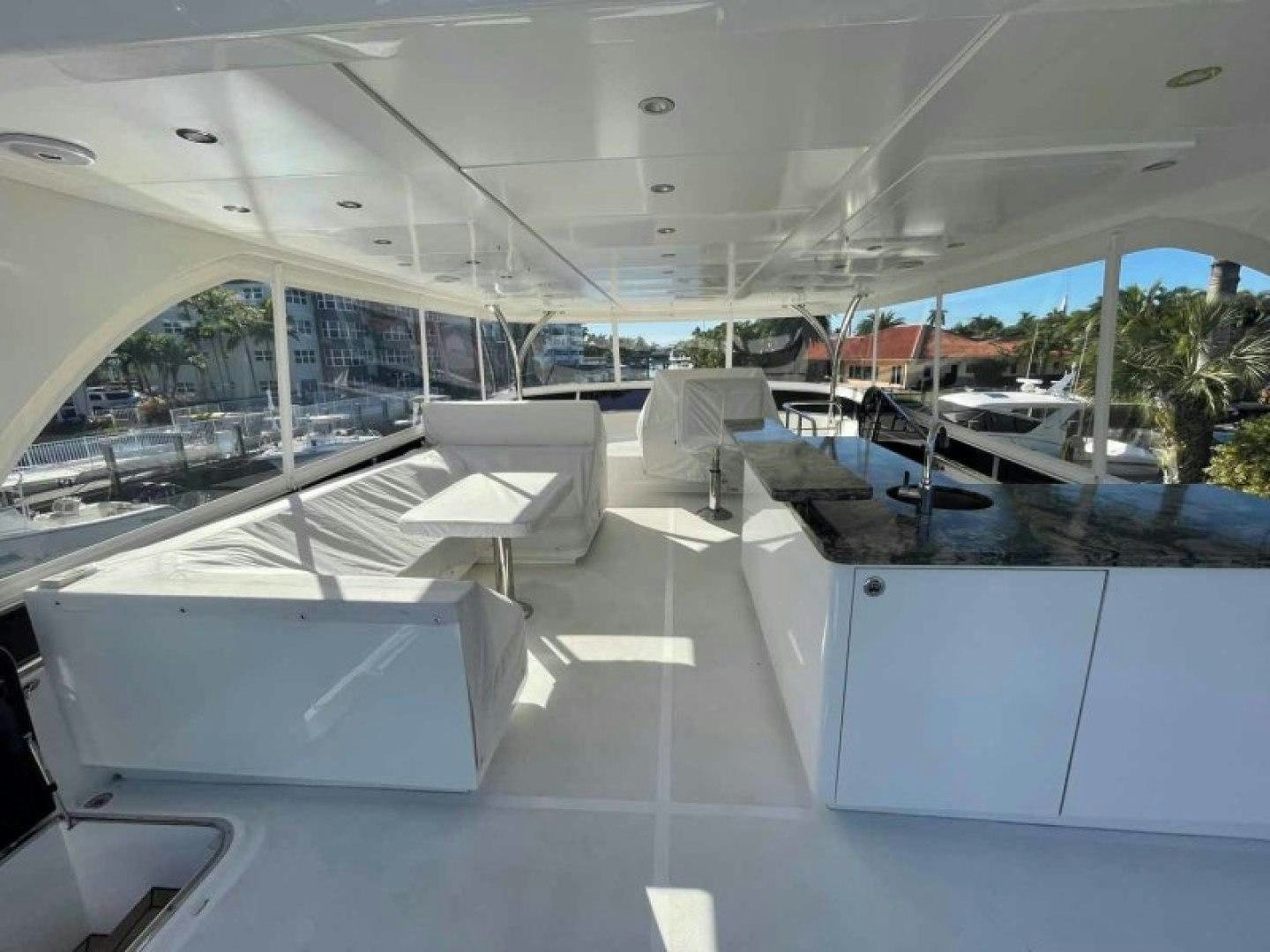

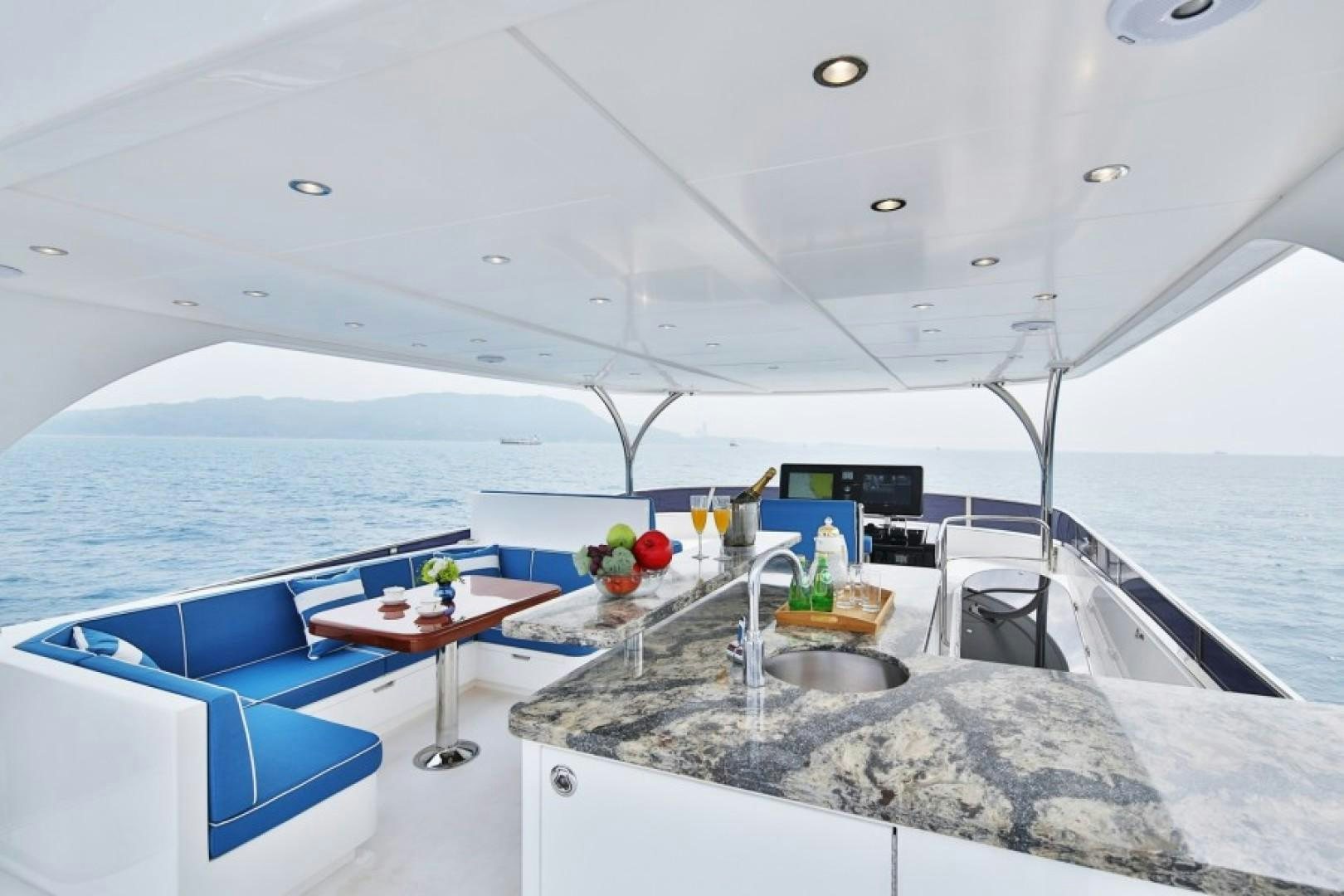

1. FRP NON-SKID DECK

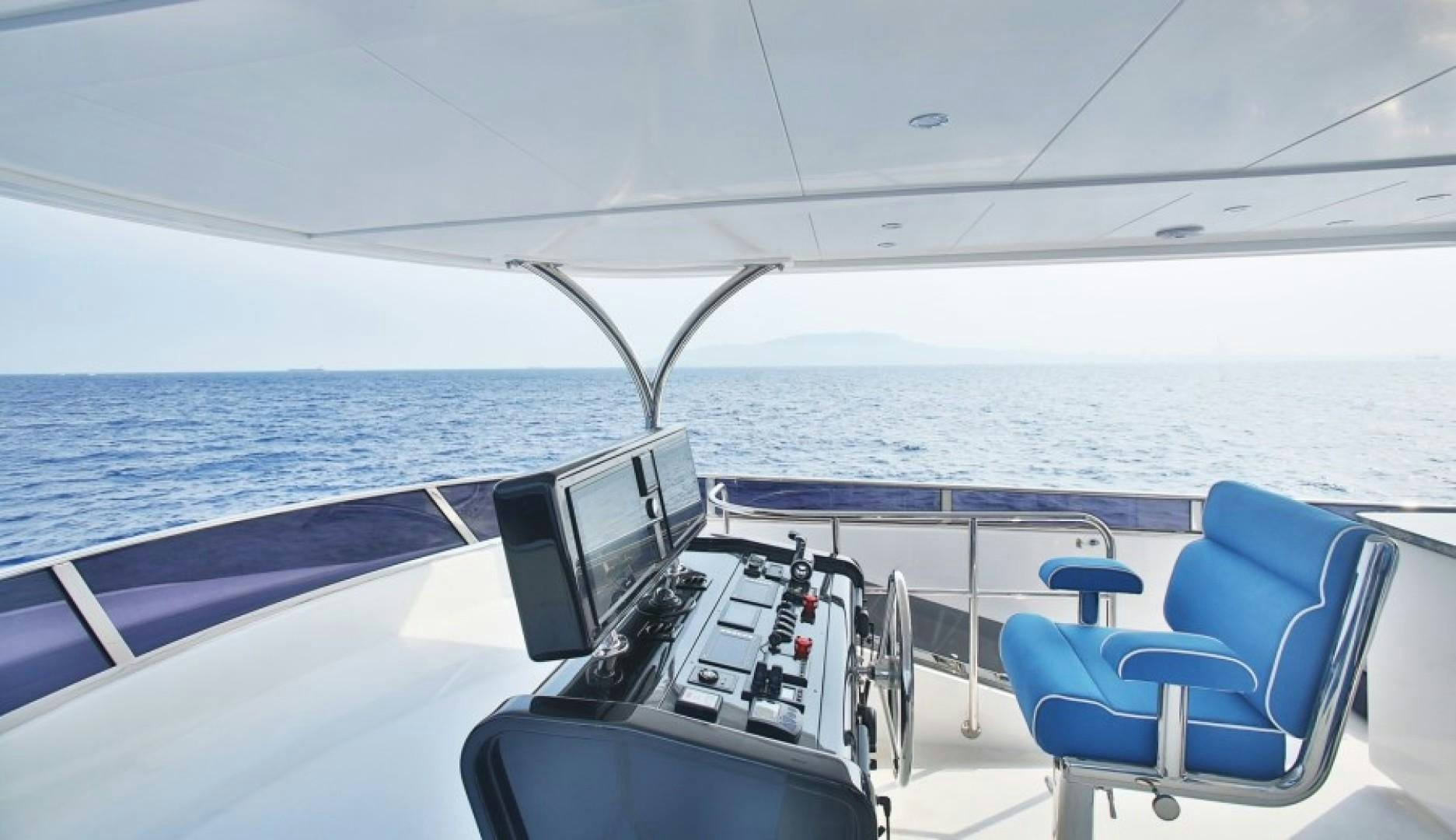

2. INSTRUMENT CONSOLE W/PERSPEX COVER

3. ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS

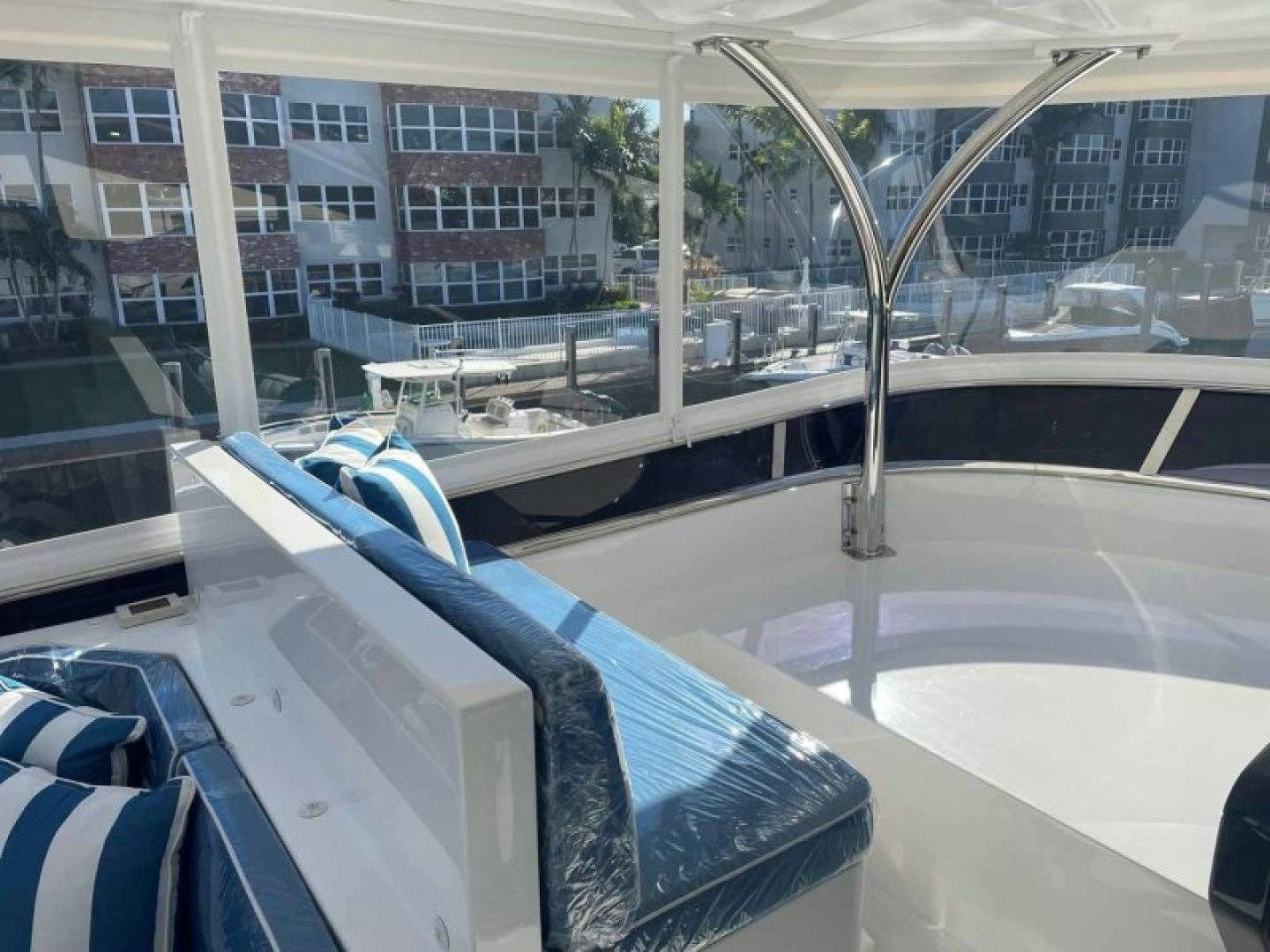

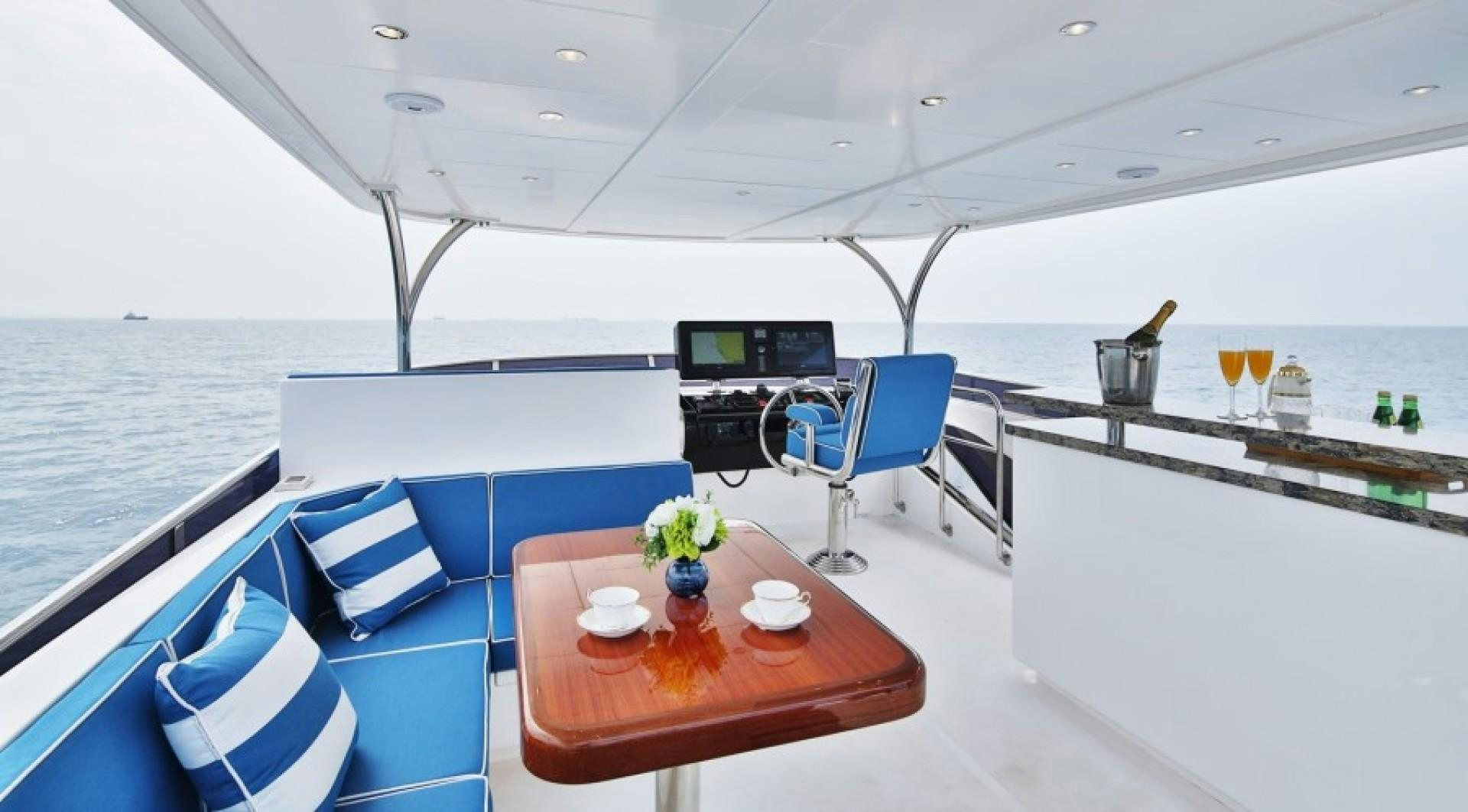

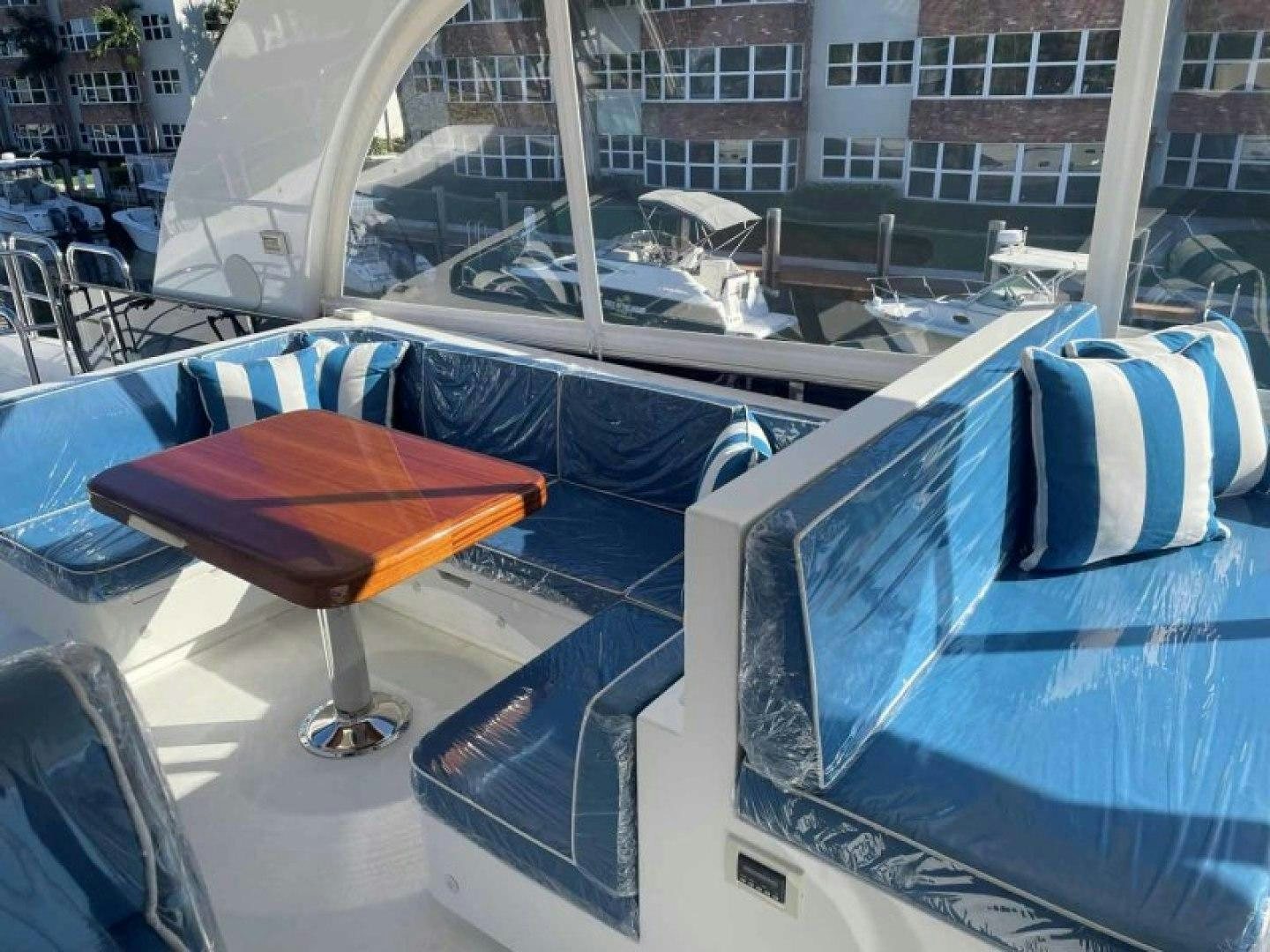

4. FRP SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC & TABLE

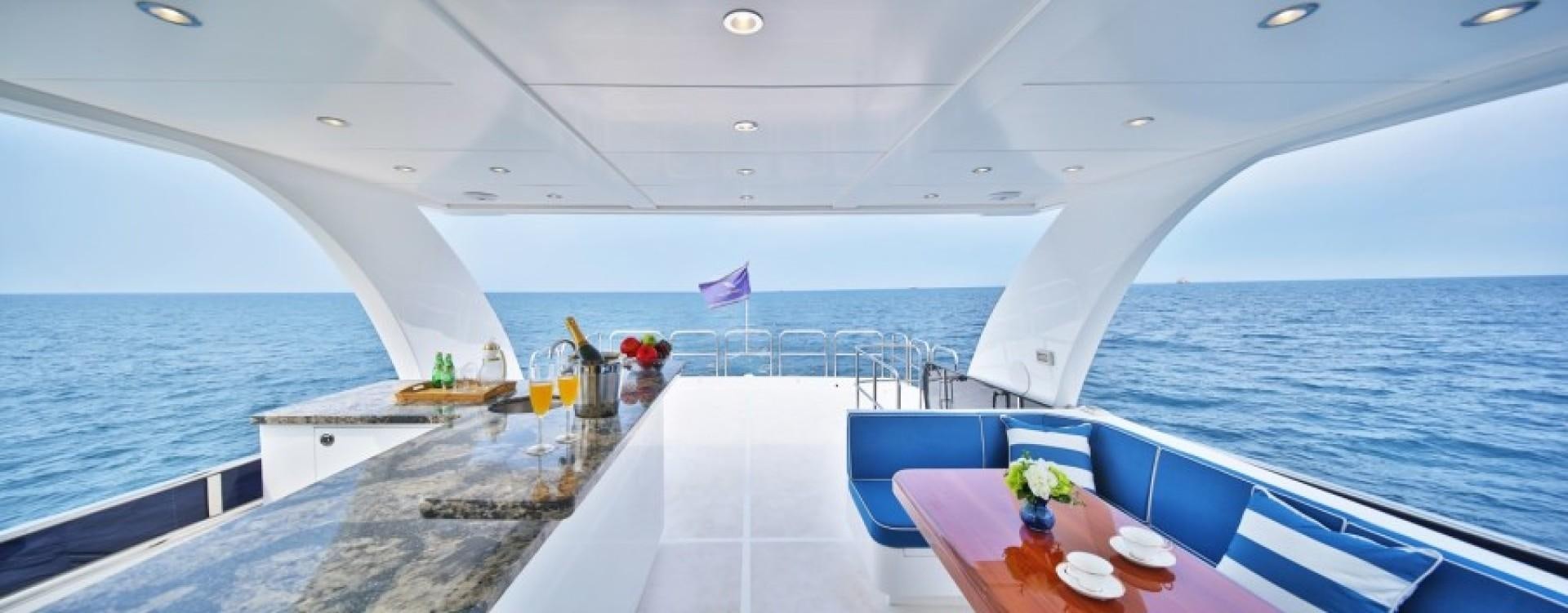

5. WET BAR WITH SINK AND ICE MAKER & REFRIGERATOR

6. HYDRAULIC STEERING HYNAUTIC PSHC5803

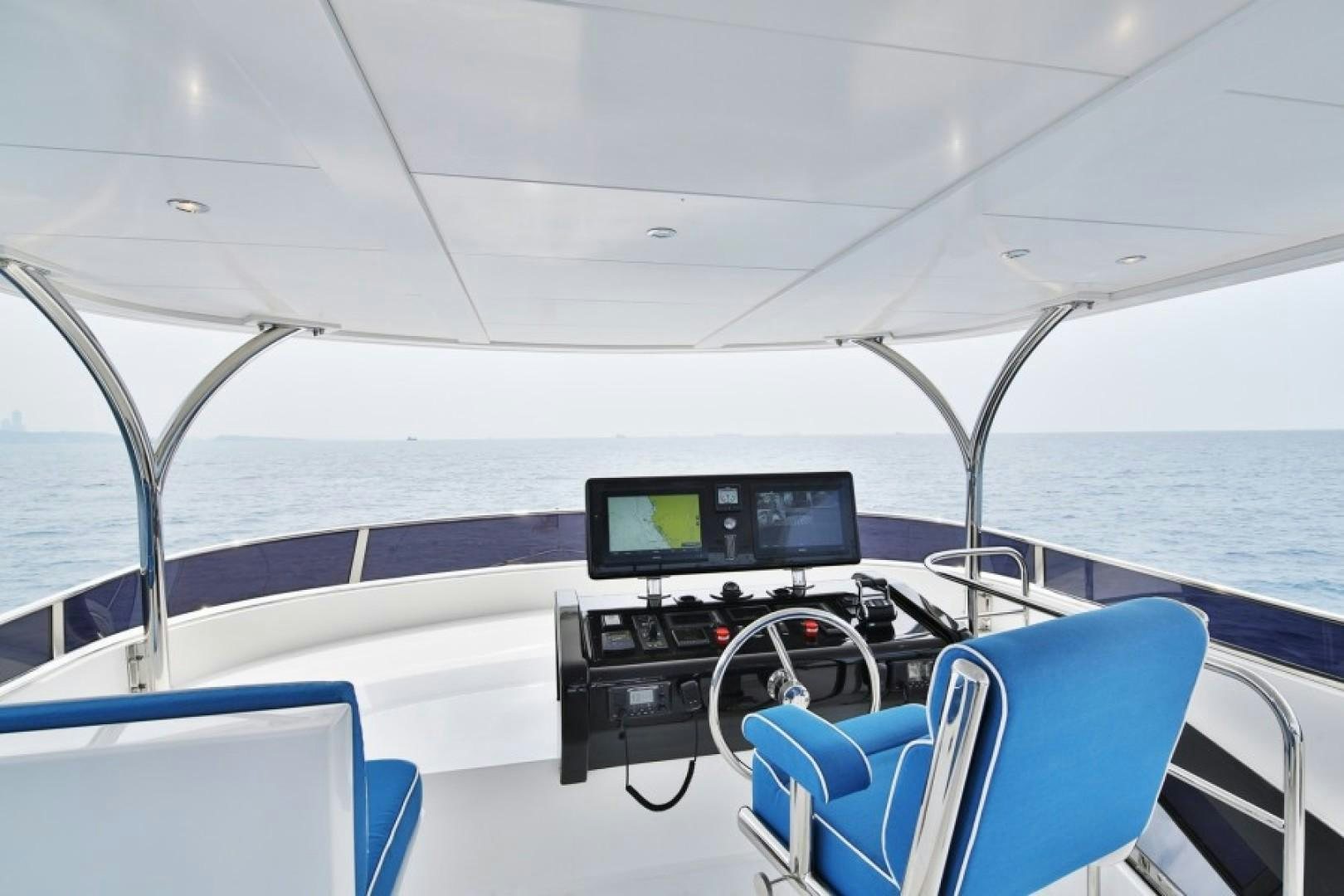

7. ENGINE CONTROL AND INSTRUMENTATION

8. MAGNETIC COMPASS

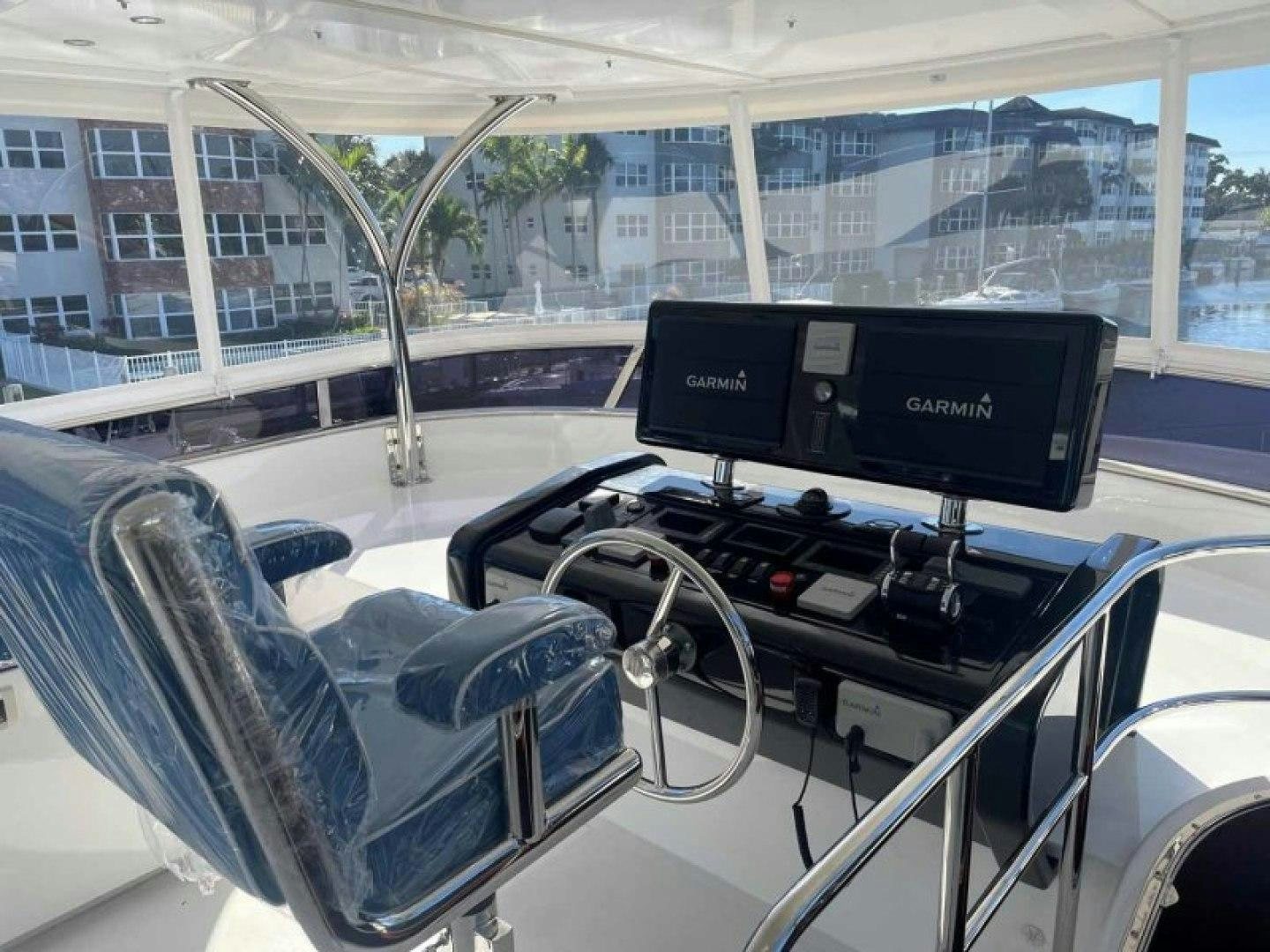

9. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
I. GARMIN
GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1
GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1

II. RAYMARINE
RAYMARINE GS15.4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR
CONTROL UNIT x 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1

10. STABILIZER CONTROL AND MONITORING DISPLAY

11. BOW & STERN THRUSTER CONTROL PANEL

12. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

13. RUDDER INDICATOR

14. FUEL GAUGE HEADHUNTER TS-3000 SERIES

15. ACRYLIC DEFLECTING WIND SCREEN

16. SEARCH LIGHT PAR 60010-2024 WITH JOYSTICK CONTROL

17. FUSION STEREO SYSTEM
MS-AV700I DVD / RECEIVER - WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

18. POP UP TV CABIN W/ 32" LCD TV

19. APPLE TV

20. LOW LEVEL LED COURTESY LIGHTS 24V

21. LIGHTS UNDER RADAR ARCH LED 24V

22. S/S GRAB RAIL AROUND BAR UNIT

23. LED INDIRECT LIGHTING UNDER WET BAR AND SEATING

24. BUELL AIR HORN

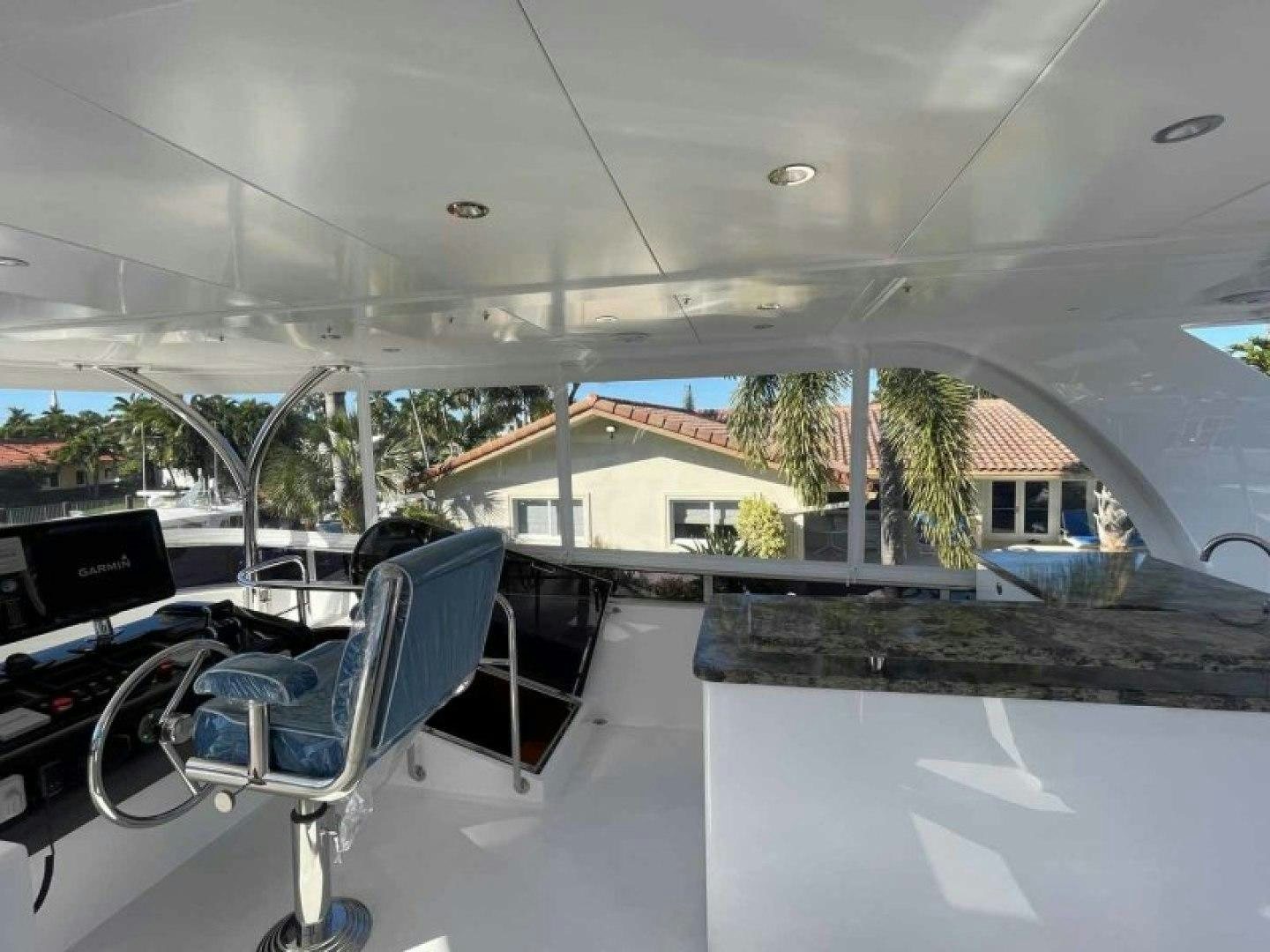

25. LEBROC LX DOUBLE WIDE TWO SEATER HELM SEAT

26. S/S STEERING WHEEL

27. HYDRALIC DAVIT - BENSENZONI 1322 LBS LIFTING CAPACITY 24V

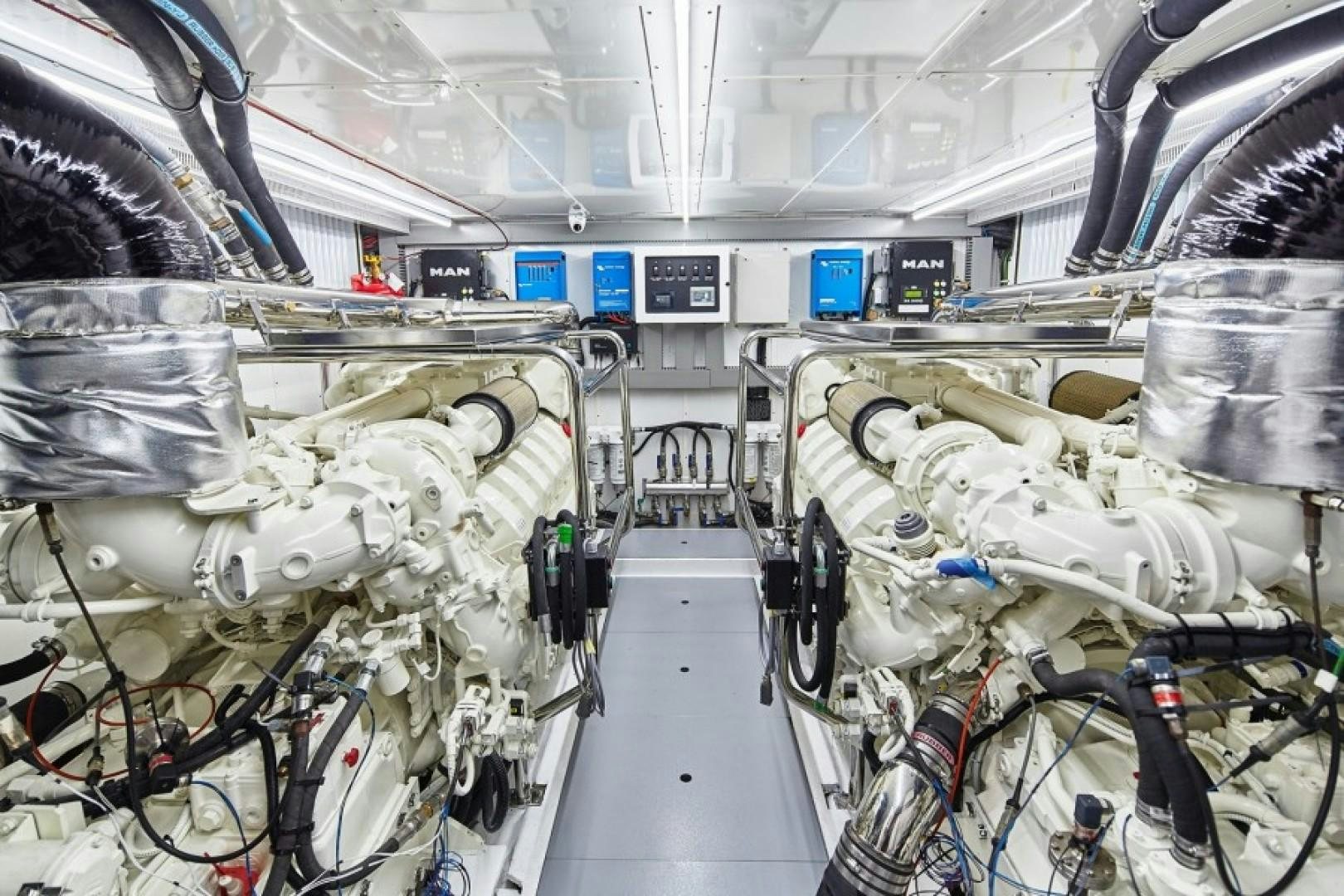

1. MAN D2842 LE433 1550HP/2300RPM ENGINE x 2
ZF TRANSMISSIONS ZF2050A, 2.029:1 RATIO x 2

2. ONE DUAL RACOR FILTER FOR EACH ENGINE

3. GENERATOR RACOR FILTER FOR EACH GENSET

4. VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL WITH FOAM & LEAD COMBINATION THROUGHOUT ENGINE ROOM

5. WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY NON-SKID RUBBER FLOORING

6. FUEL TANKS WITH ELECTRIC SENDING UNITS - HEADHUNTER TS-3000 SERIES

7. AUTOMATIC FIRE EXTINGUISHER - SEAFIRE FM-200

8. EXTRACTOR FANS - DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE

9. E/R AC FLOURESCENT LIGHTS & DC LED DOME LIGHTS

10. MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL IS AT REST

11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
HEADHUNTER MARCH 5 M5-115 AC PUMP
GROCO PSR 4000004-24 24V DC PUMP

12. CHILLED WATER AIR CONDITIONING - CRUISAIR AIR CONDITIONING 96,000 BTU

13. WATER MAKER - AQUA WHISPER DX 450 450GPD x 2

14. OIL CHANGING PUMP FOR ENGINES, GENERATOR AND TRANSMISSIONS

15. GENERATOR 1 - ONAN QD MDKDS 29 KW 60HZ
GENERATOR 2 - ONAN QD MDKBU 29 KW 60HZ (OPTION)

16. WATER HEATERS - TORRID 20 GALLONS x 2

17. EMERGENCY TILLER

18. HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS, STABILIZERS AND STEERING

19. CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)

1. 110V/220V AC ELECTRICAL SYSTEM

2. DC 24V SYSTEM

3. 75’ GLENDINNING CABLE MASTER - 50 AMP x 2

4. BATTERY CHARGER FOR 24V CIRCUIT

5. BATTERY CHARGER FOR 12V CIRCUIT

6. ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP
HIGH CHARGE REGULATORS FITTED

7. 4 x 255 AMP/HR 12V GELL CELL SEALED BATTERIES FOR SHIP's SERVICE

8. 225 AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4

9. 210 AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1

10. AC SOCKETS THROUGHOUT THE BOAT

11. GFI PROTECTION FOR AC REQUIRED SOCKETS

12. BEP BATTERY SELECT SWITCH

13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4 PANELS (E/R, HELM, AC AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS

14. ANTI-ELECTROLYSIS BONDING SYSTEM

15. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2

16. GENERATORS:  (2) Onan QD MDKDS 29kW

1. 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP

2. "Y" VALVE FOR HOLDING TANK OVERBOARD PUMP OUT

3. HOLDING TANK LEVEL INDICATOR HEADHUNTER

4. SUMP PUMP FOR SHOWER

5. MARINE GRADE LINES FOR FRESH WATER SYSTEM

6. S/S WATER TANK WITH SENDING UNIT - 350 GALLONS

7. SIGHT GAUGES FOR FUEL AND WATER TANKS

8. DOCKSIDE FRESH WATER INLET

9. COLOR CODED PIPING FOR EASY IDENTIFICATION

10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS

11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS

12. FRESH WATER SEALAND VACUUM TOILET SYSTEM

13. HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM

14. BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH HIGH WATER ALARMS

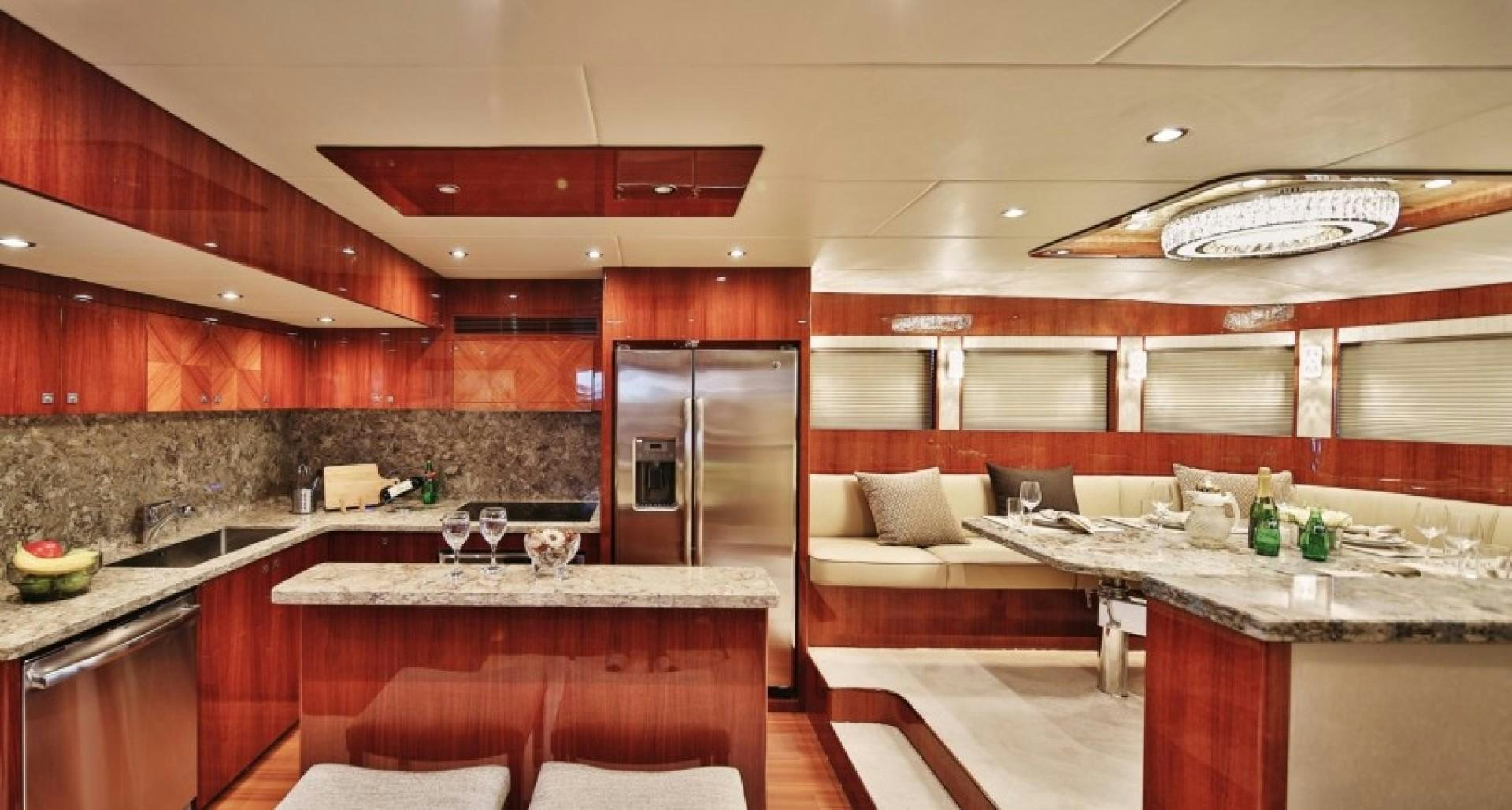

1.  INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER WITH A CHOICE OF UPHOLSTERY FABRICS

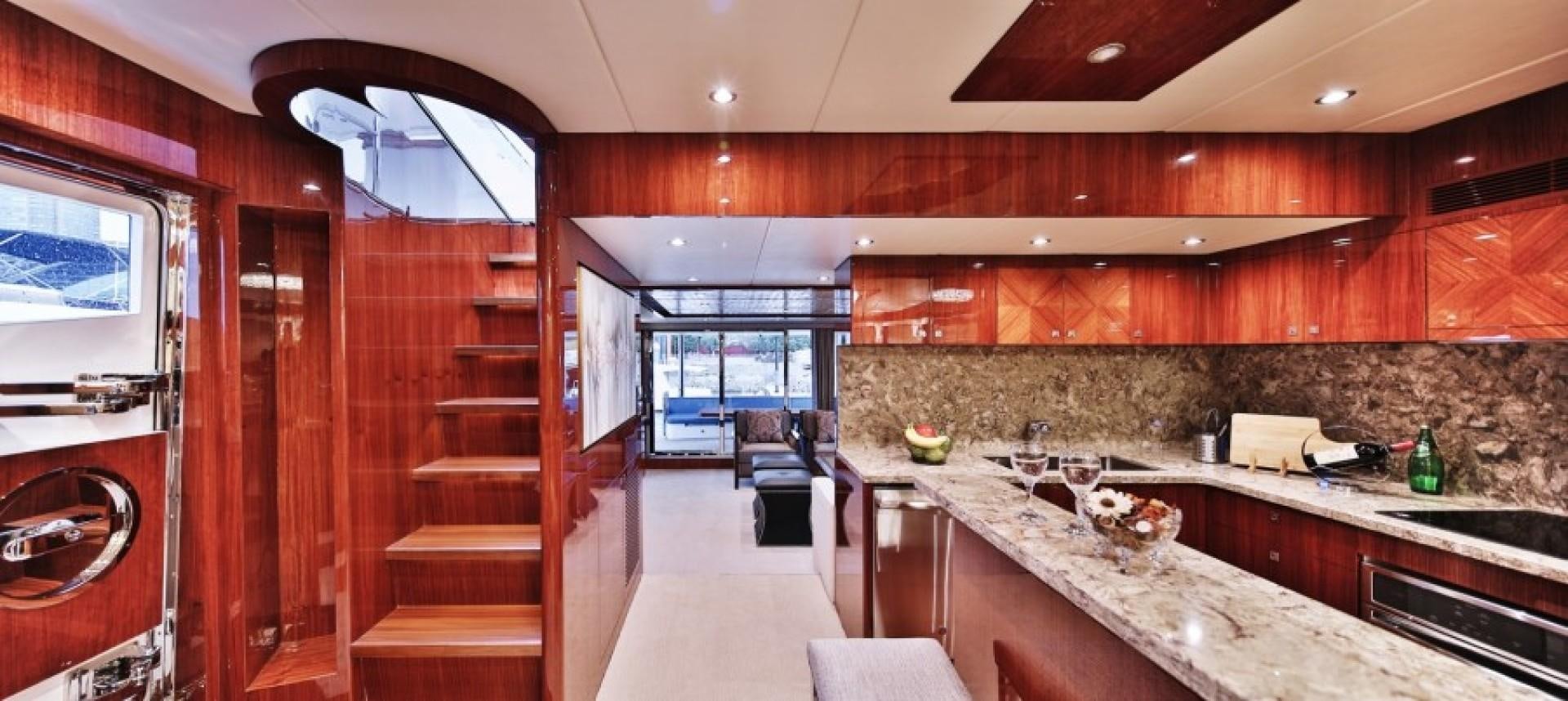

1.  ELECTRIC REFRIGERATOR/FREEZER - G.E. LATEST MODEL

2.  COOKTOP - G.E. LATEST MODEL

3.  OVEN - G.E. LATEST MODEL

4.  MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL

5.  S/S SINK

6.  HOT AND COLD WATER

7.  TRASH COMPACTOR - G.E. LATEST MODEL

8.  DISHWASHER - G.E. LATEST MODEL

9.  DOUBLE AC SOCKETS x 2

10.  CUPBOARD, DRAWERS AND STOWAGE

11. TEAK FLOOR OR MARBLE FLOOR

12. OVERHEAD STORAGE ABOVE GALLEY BENCH

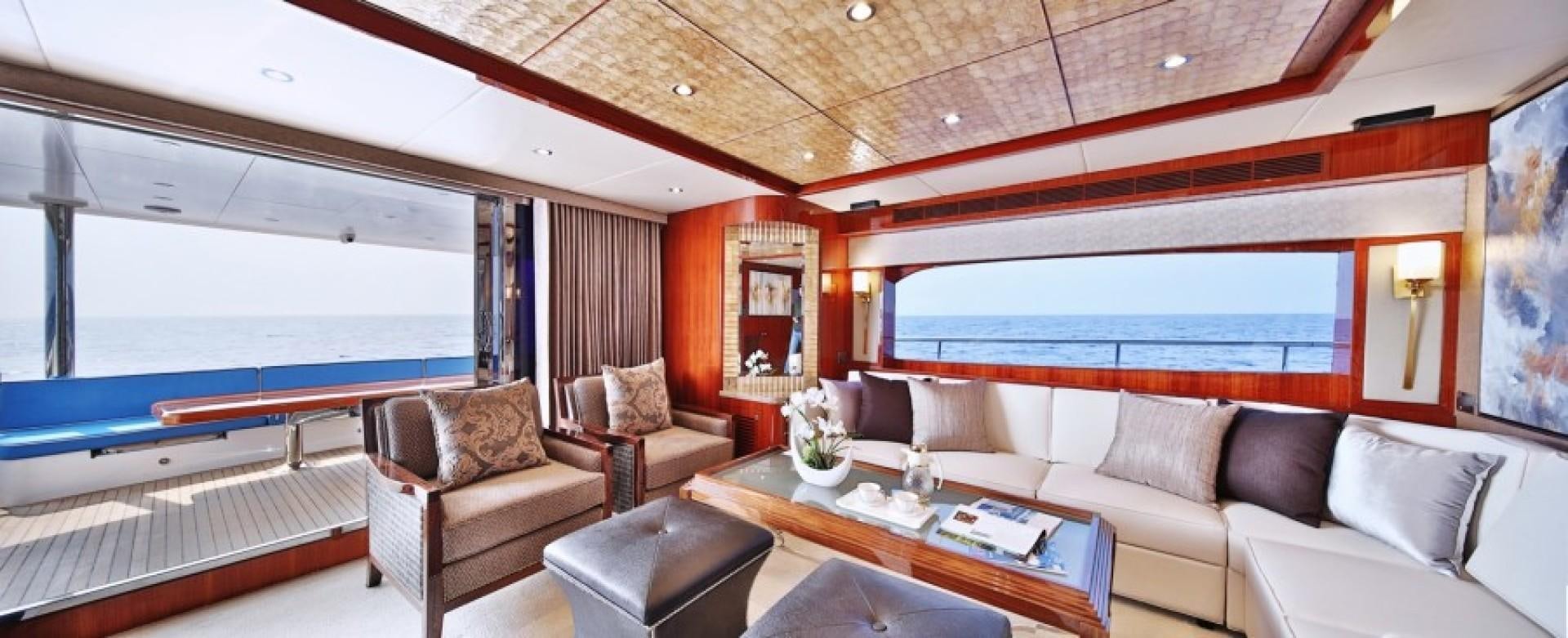

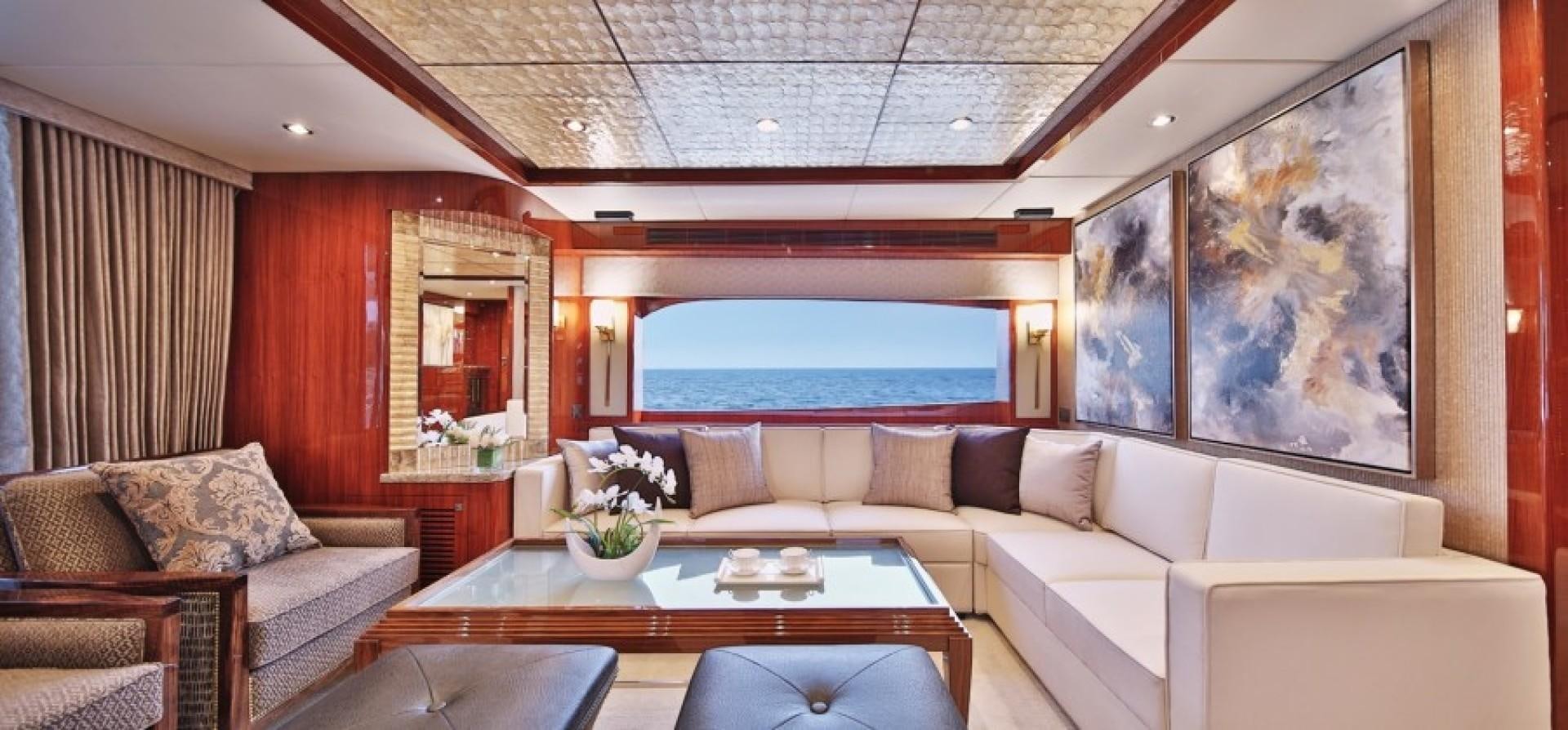

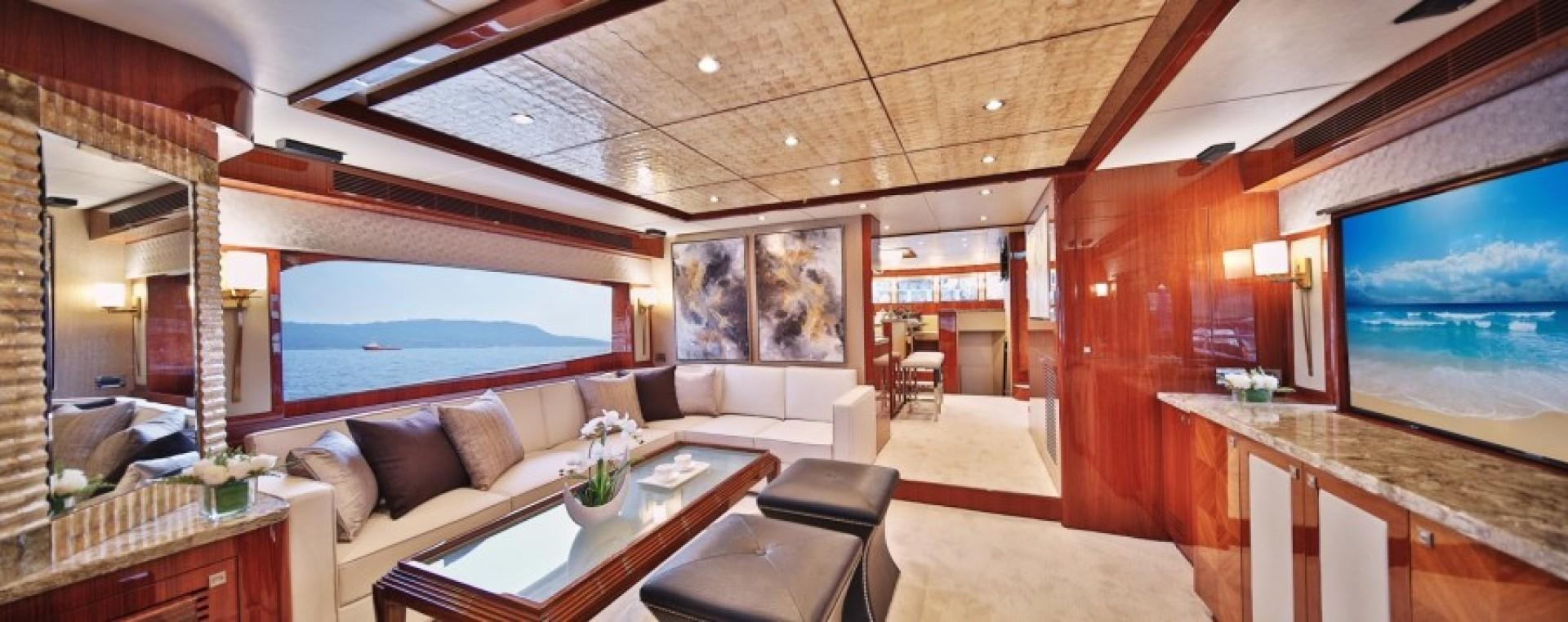

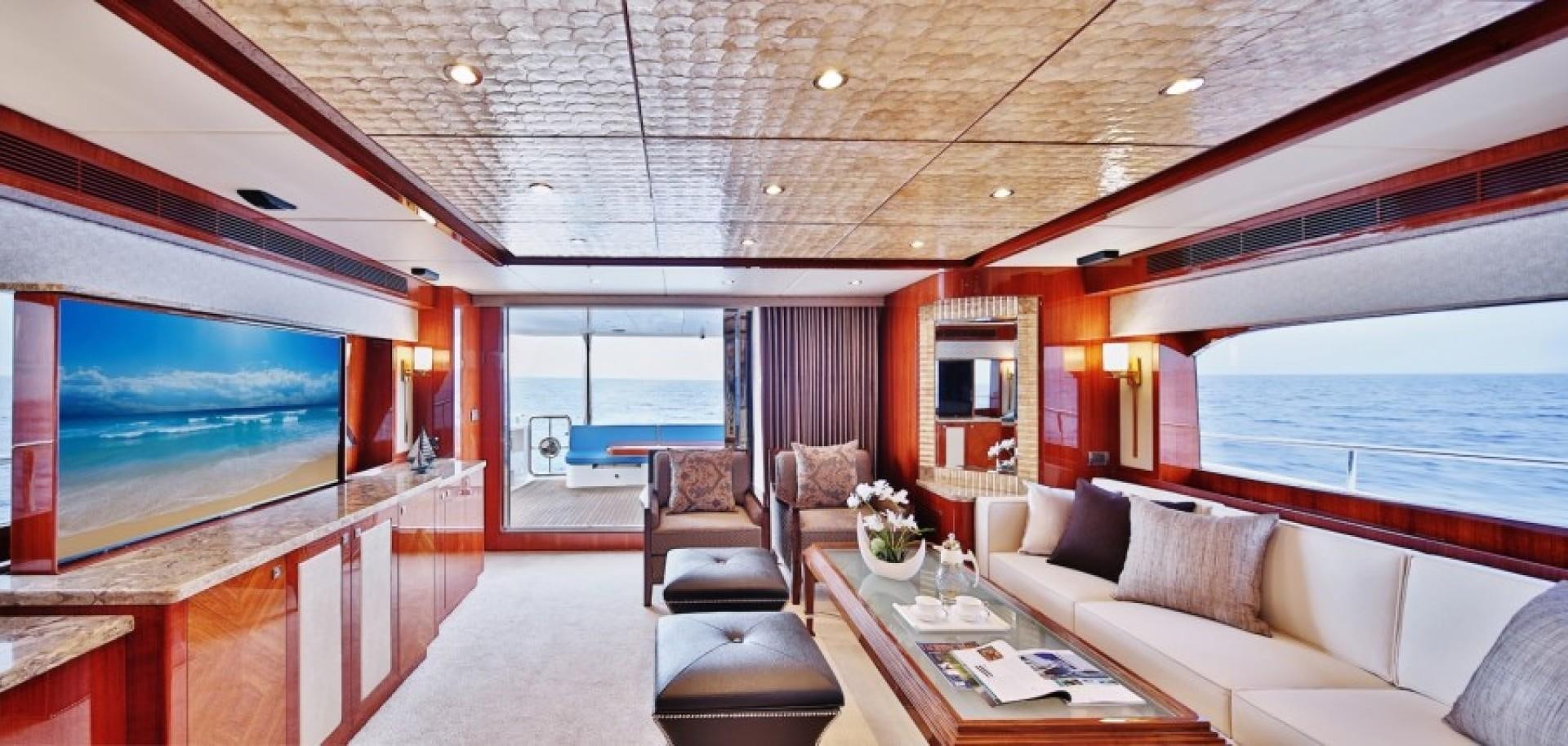

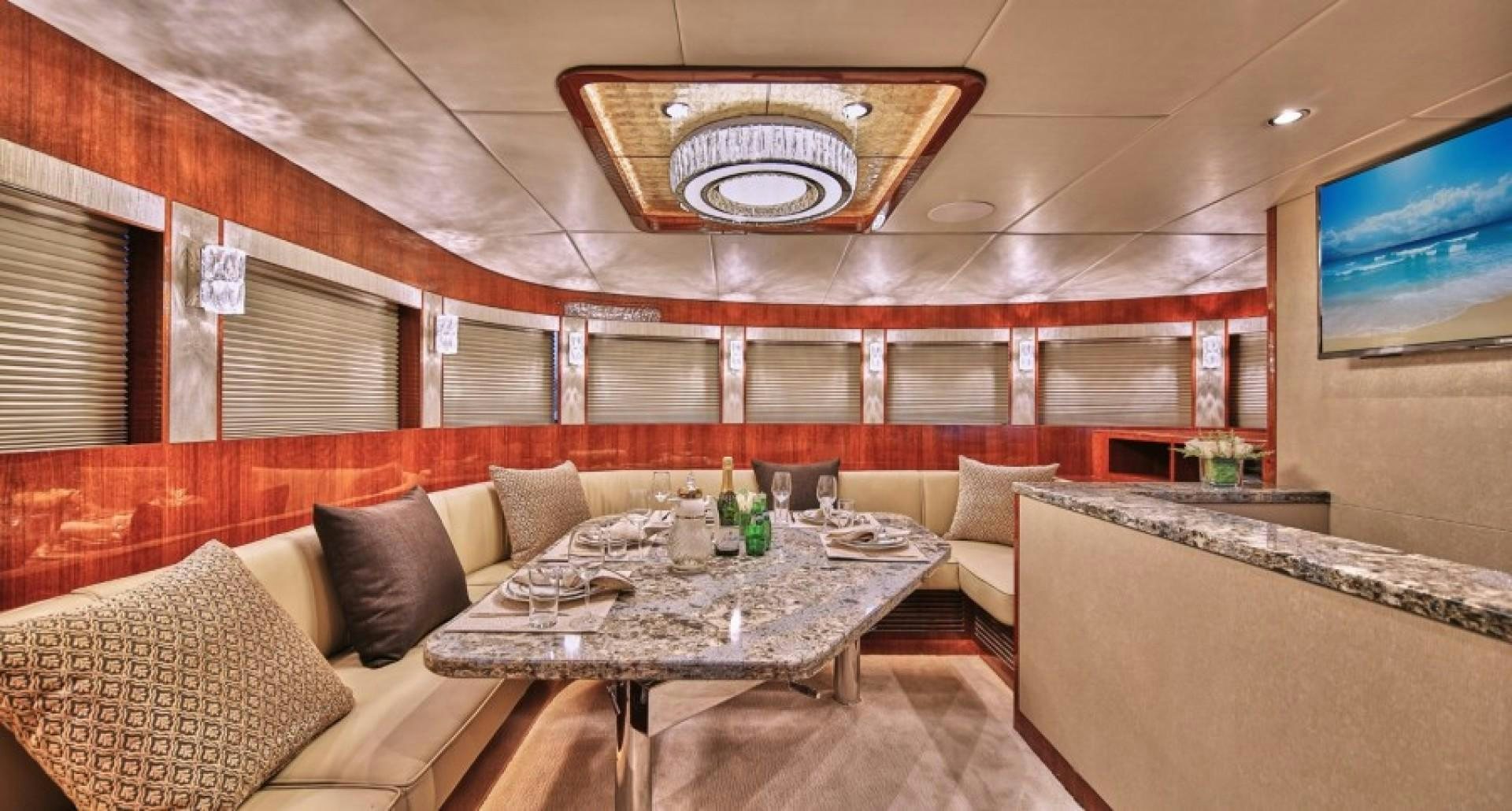

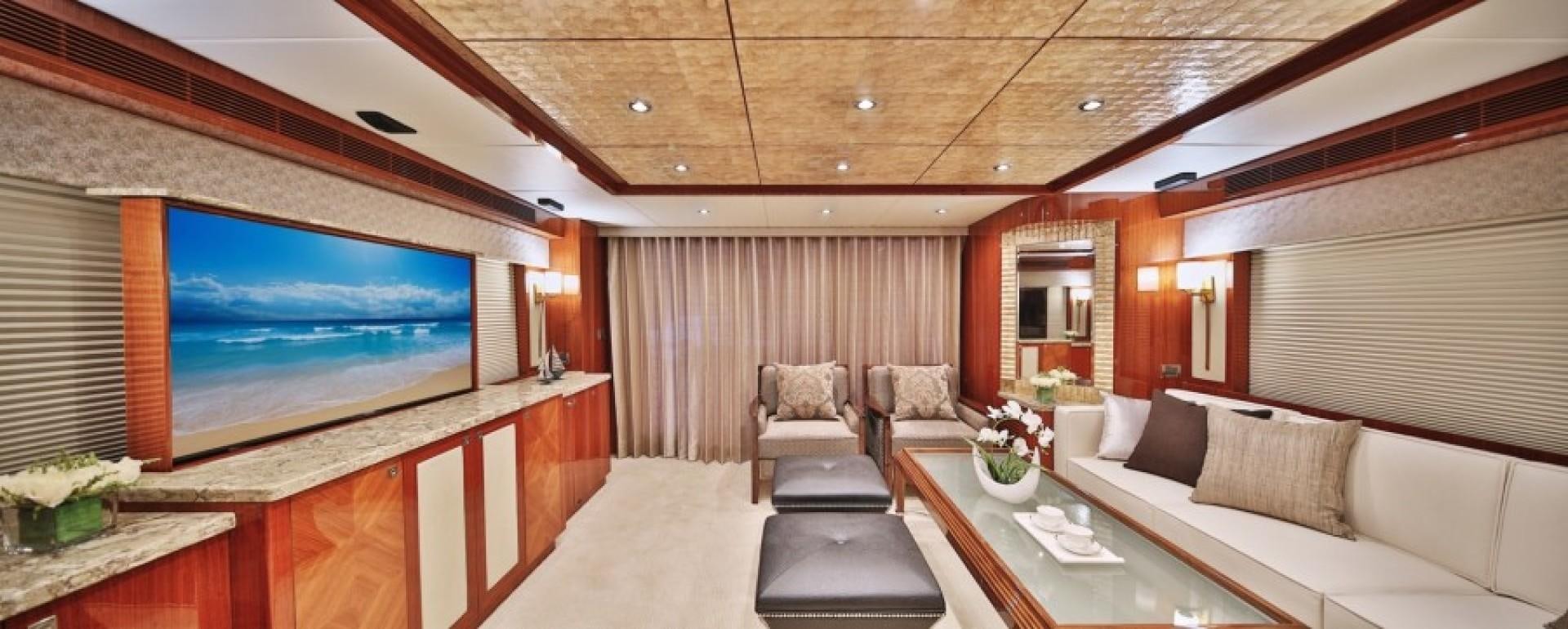

1. DINING AREA IN UPPER SALOON

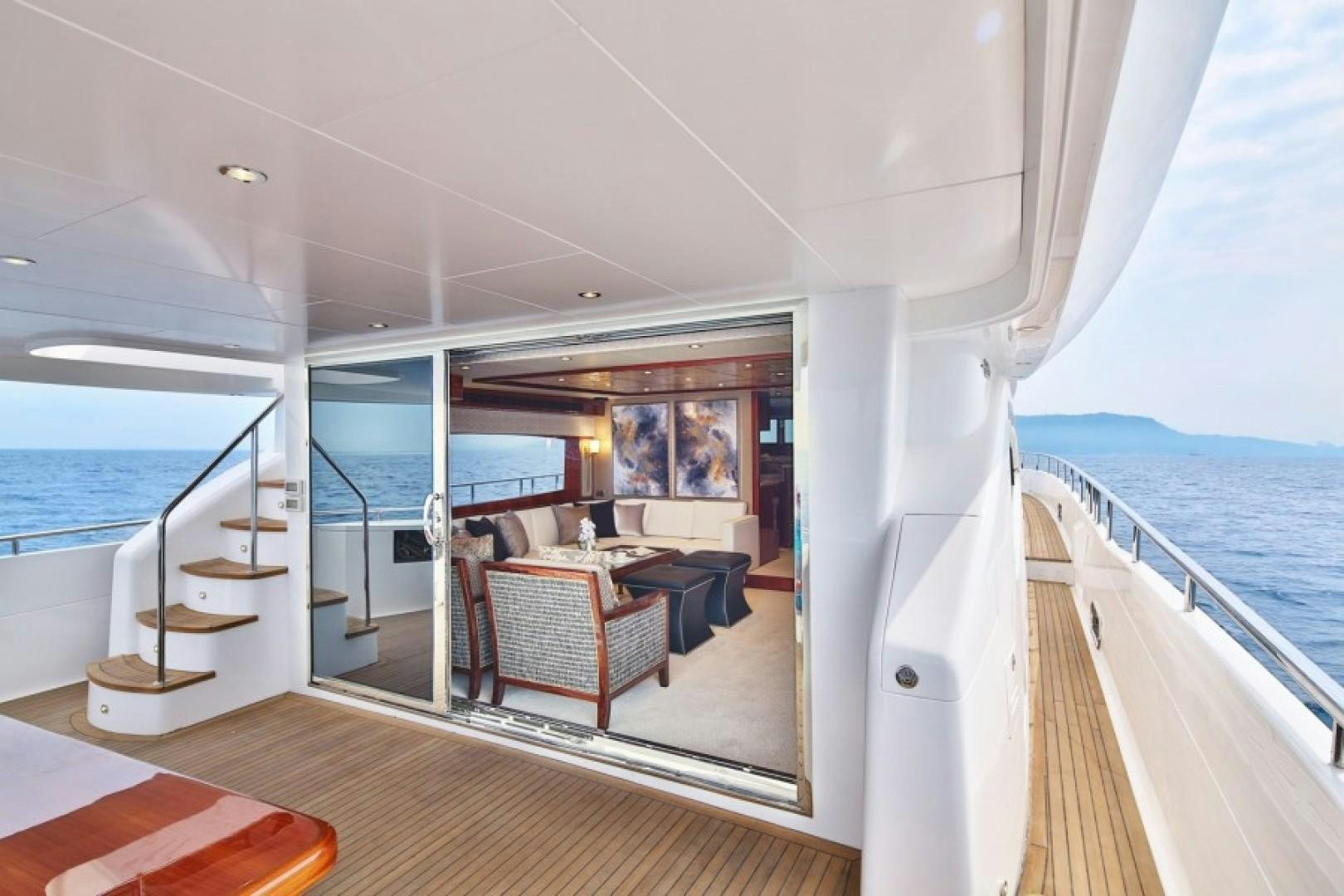

2. PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS

3. 42" LCD TV

4. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM

5. PIONEER BDP-160 BLU-RAY DISC PLAYER

6. APPLE TV

7. HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN CURVED SEATING

8. MAIN CONTROL PANEL AC/DC

9. LOW LEVEL LIGHTS LED 24V

10. CEILING LED LIGHTING 24V

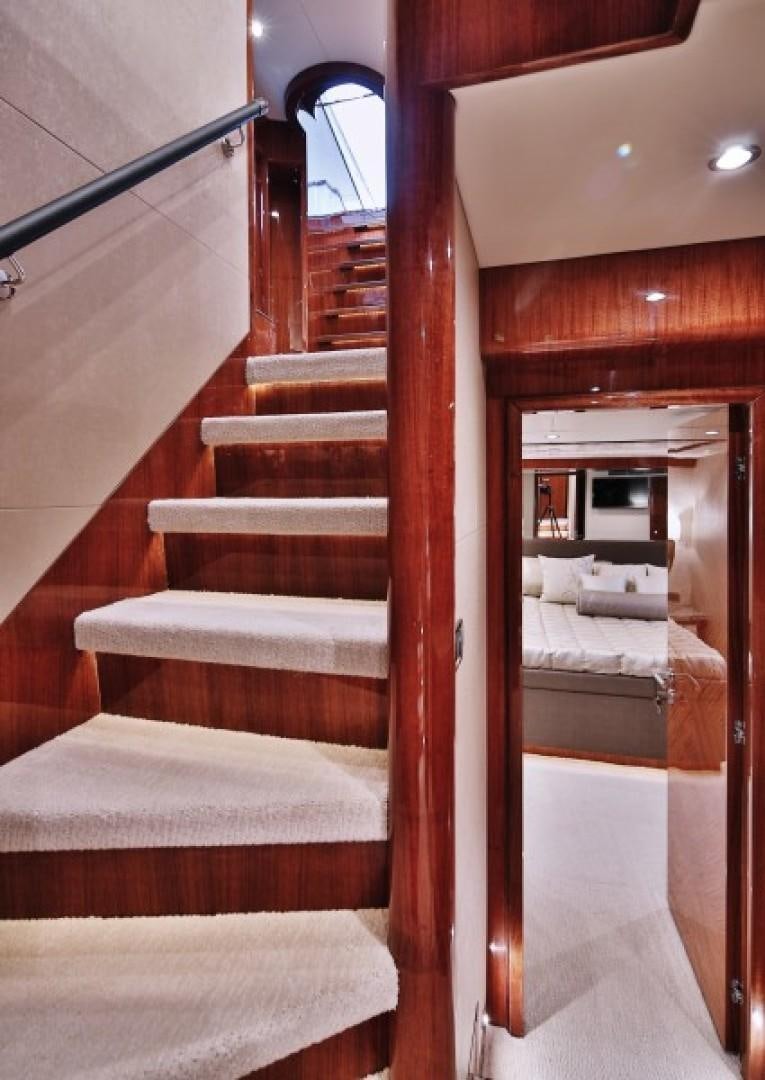

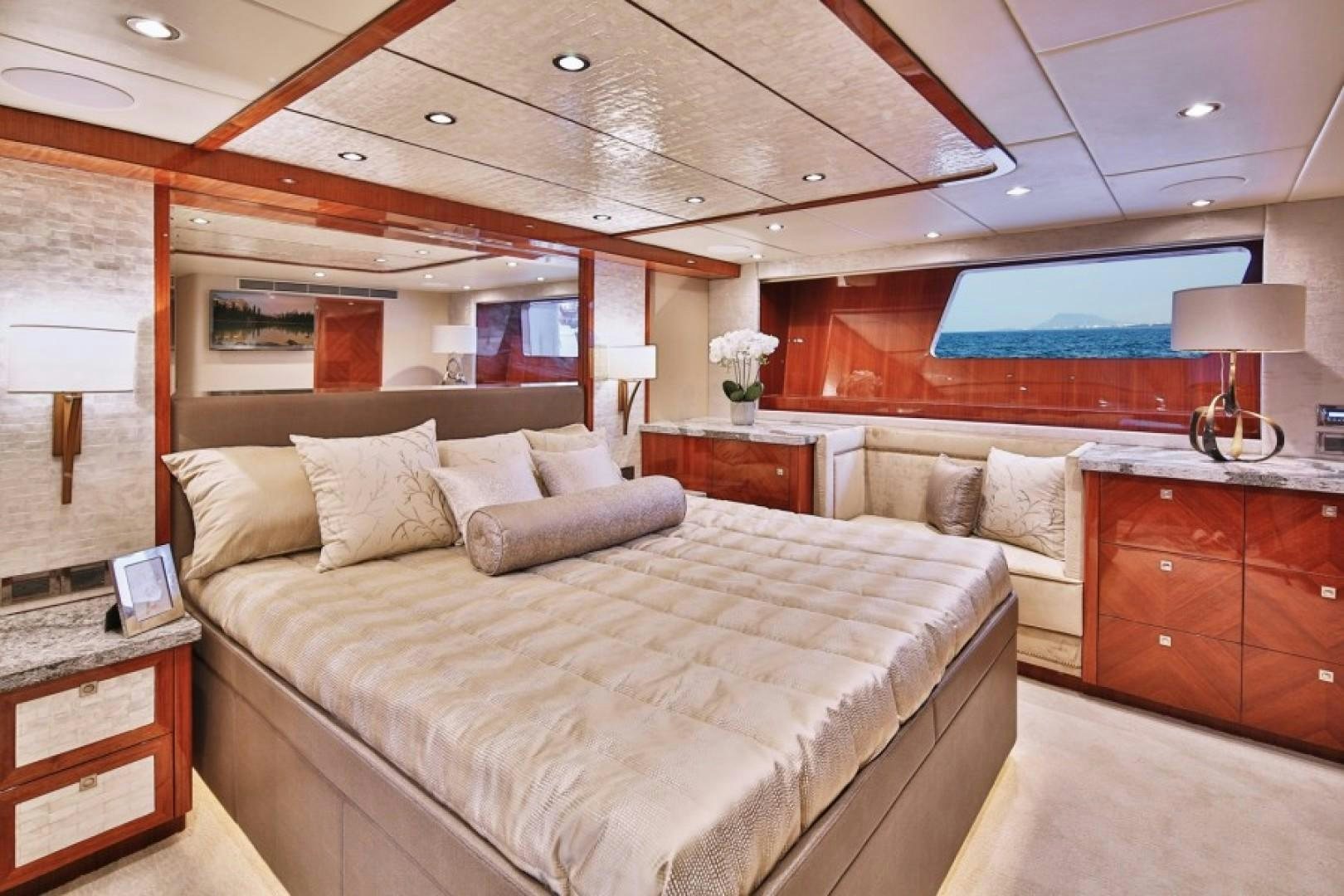

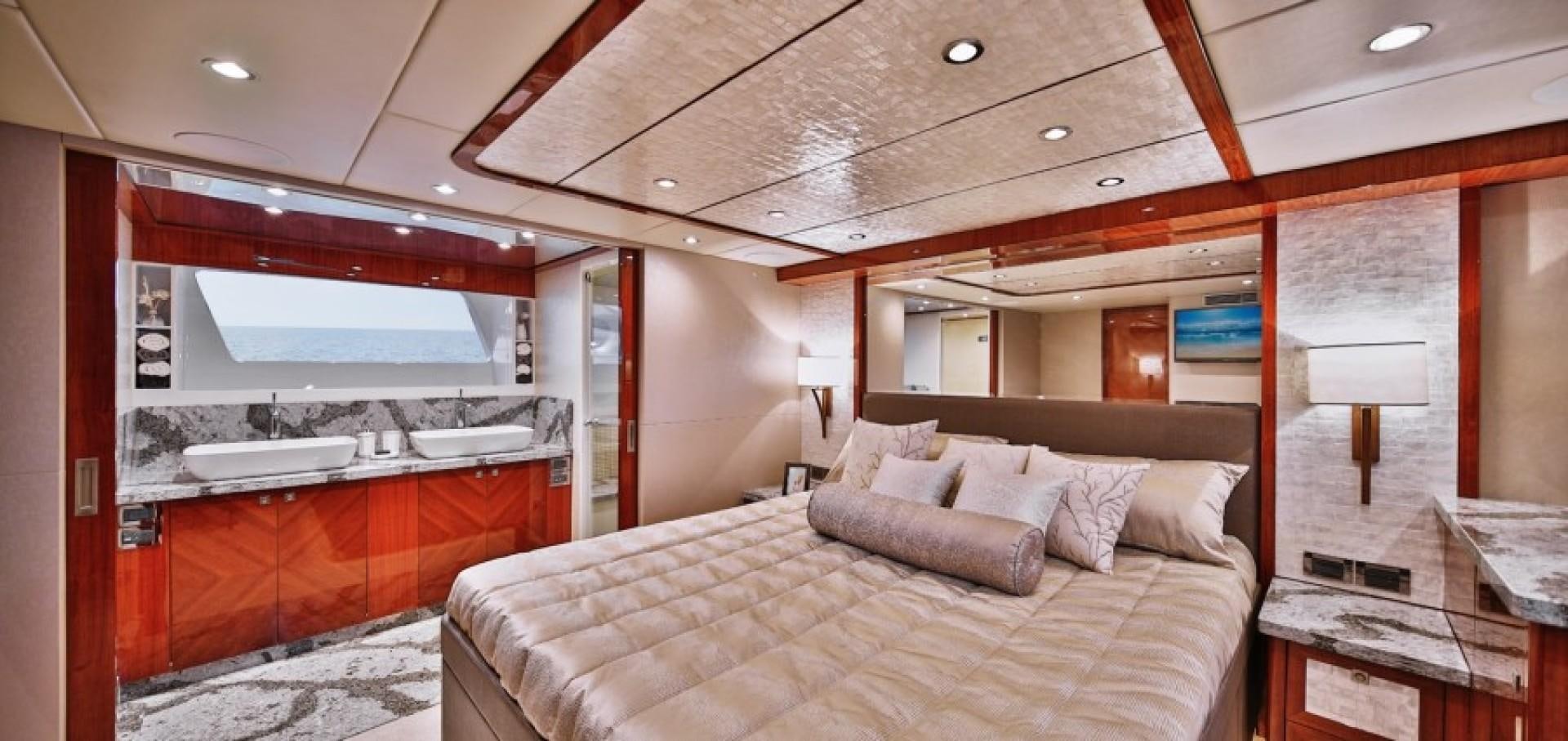

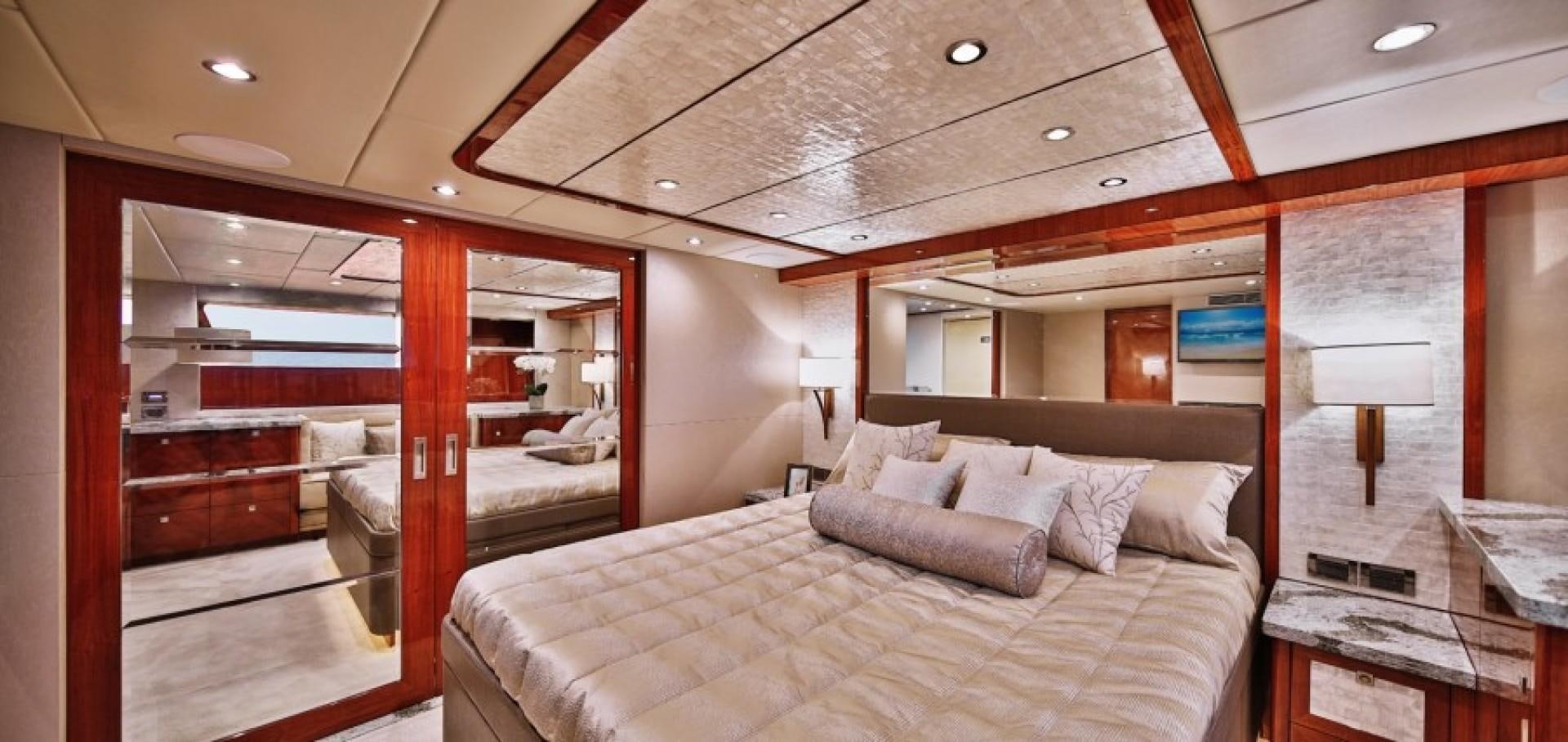

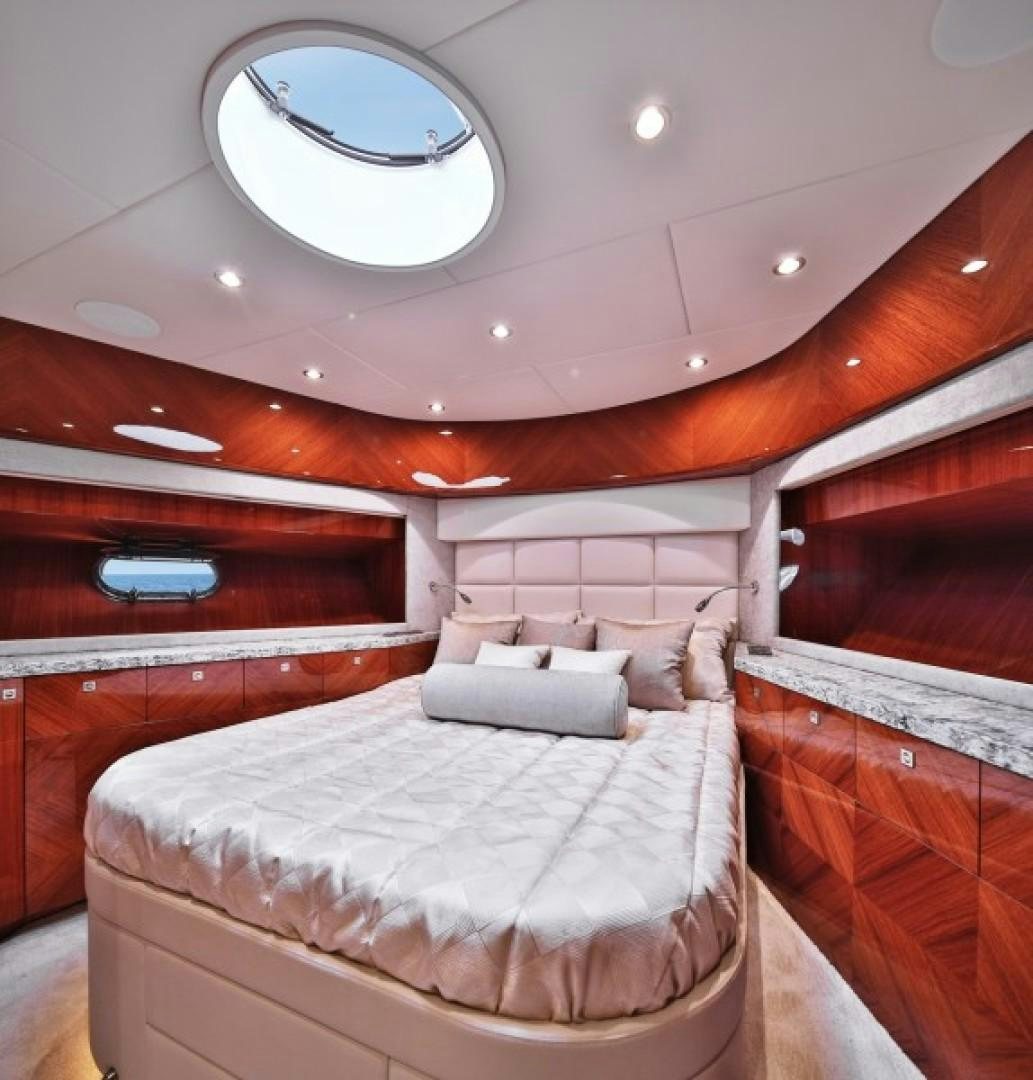

1.  KING SIZE BERTH

2.  STORAGE BENEATH BERTH

3.  DRAWERS IN BASE OF BERTH

4.  VANITY

5.  COUCH

6.  WALK-IN CLOSET FINISHED IN CEDAR WOOD

7.  LED CEILING LIGHTING 24V

8.  READING LIGHTS 24V x 2

9.  LARGE SIDE WINDOWS 3 x MANSHIP S/S WITH 2 FIXED AND
       ONE OPENING

10. 42" LCD TV

11. FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL
         IPOD/IPHONE CONTROL
      MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
      MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

12. PIONEER BDP-160 BLU-RAY DISC PLAYER

13. APPLE TV

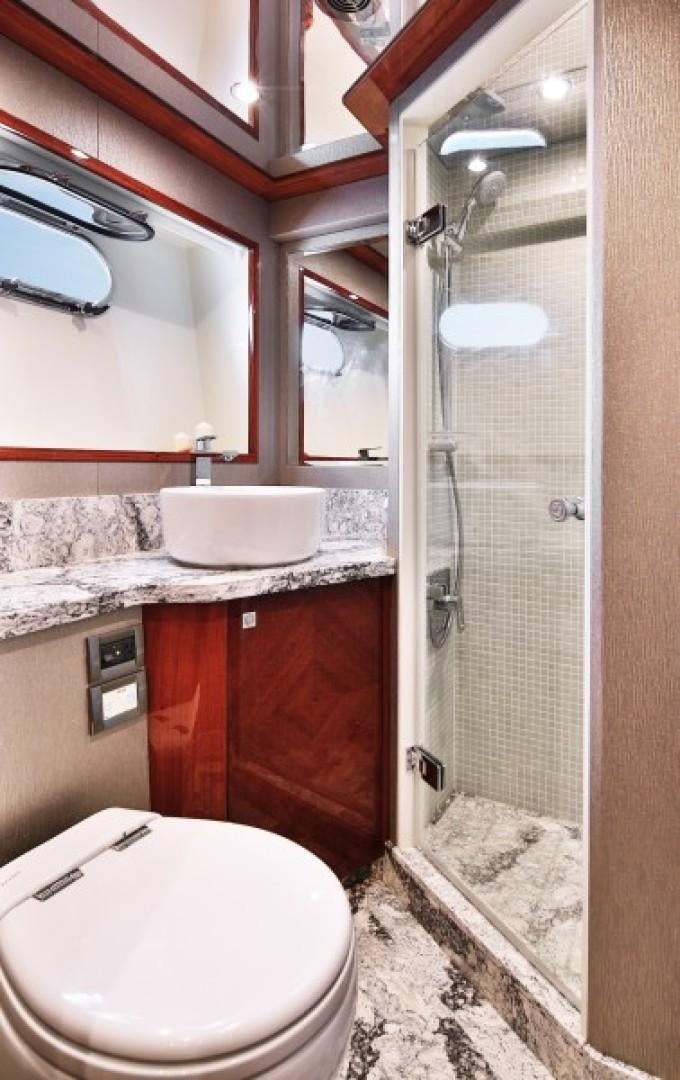

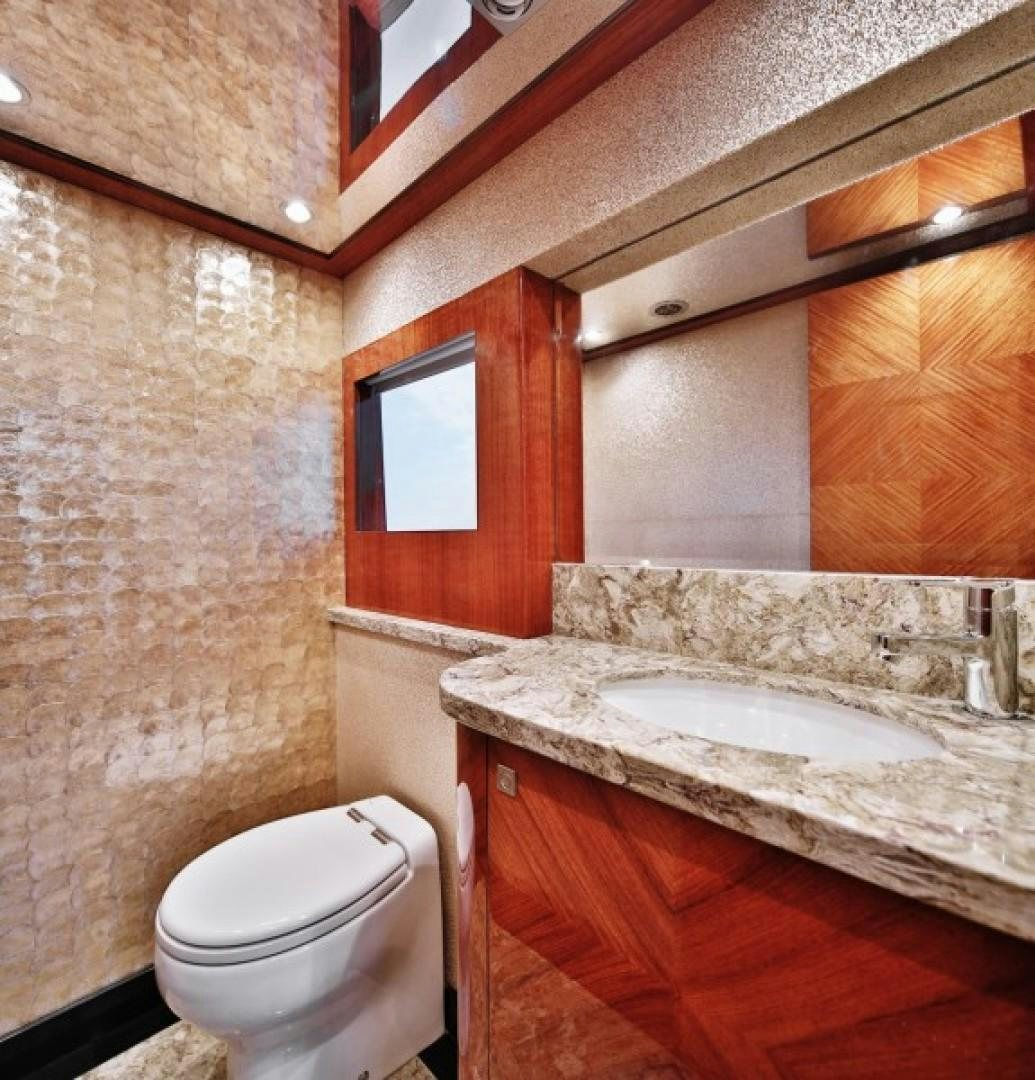

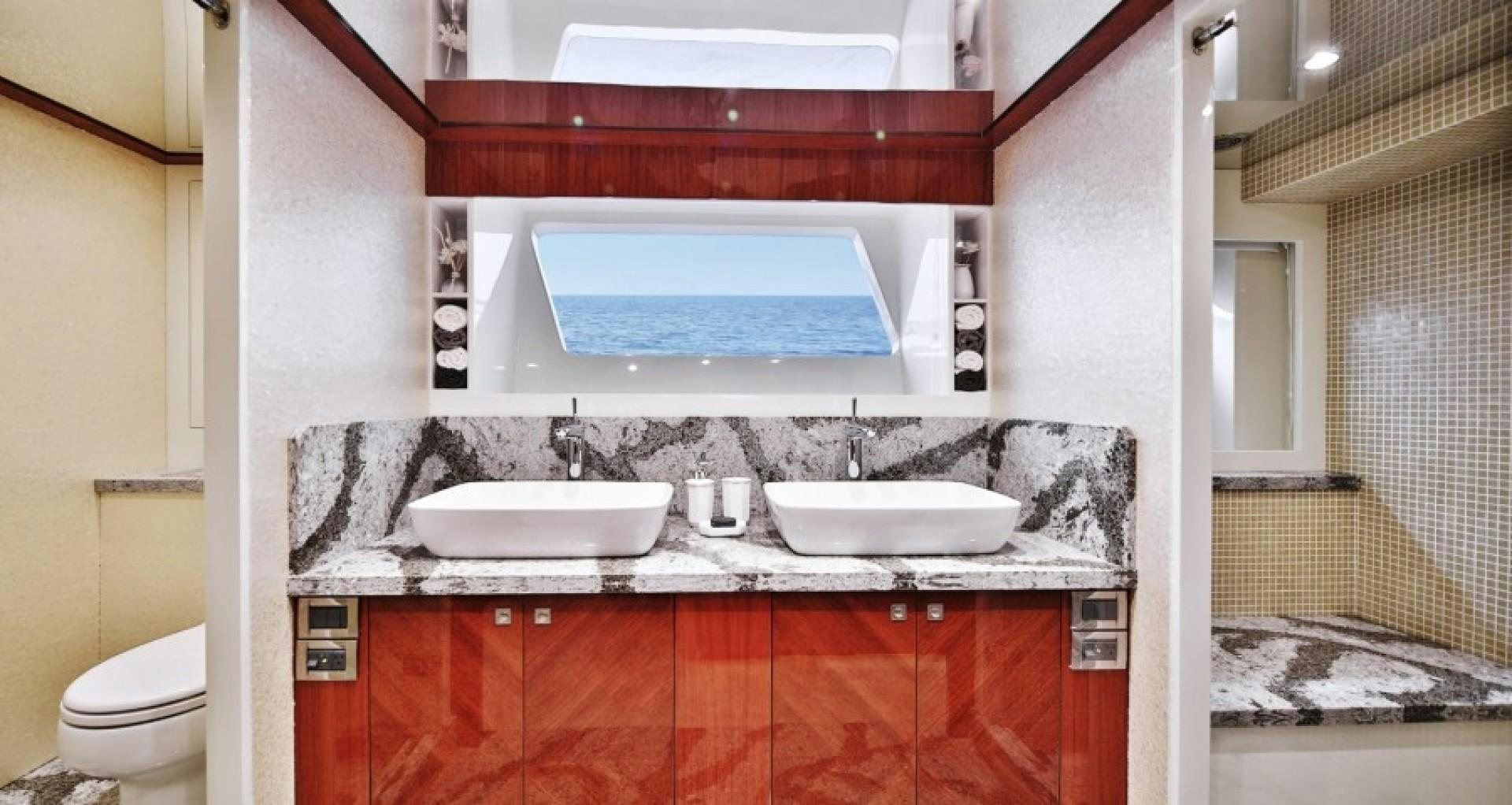

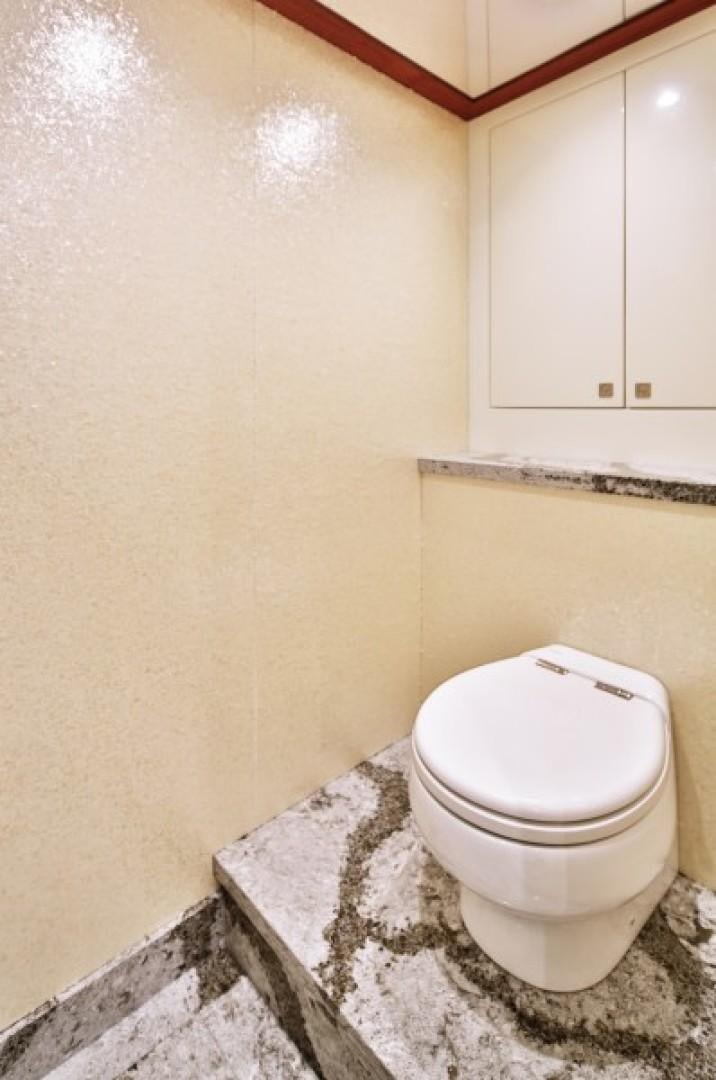

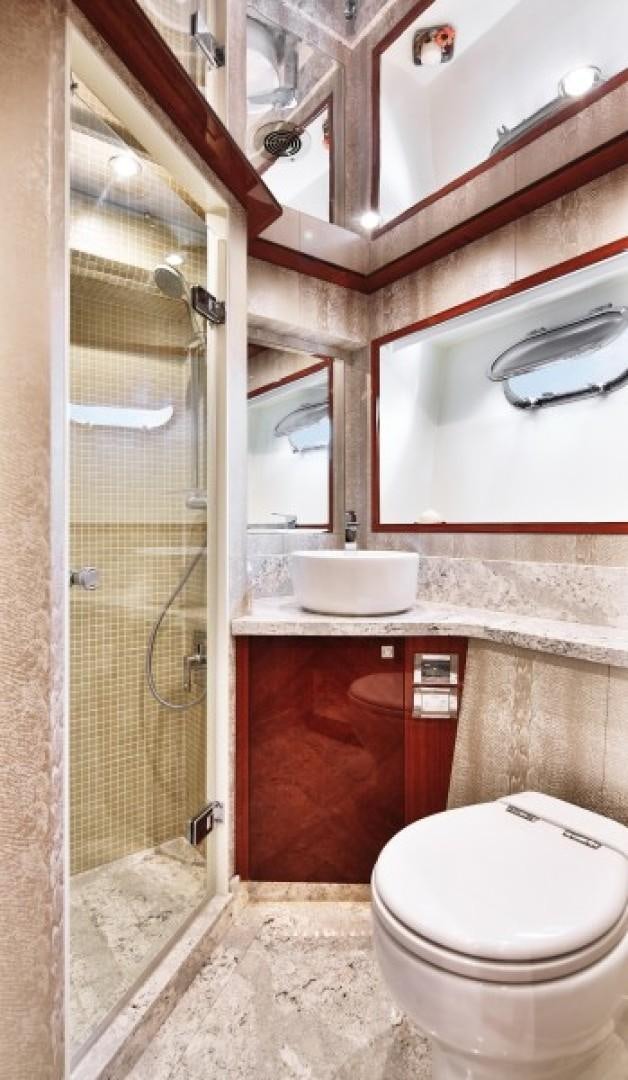

1. VACUUM TOILET- SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

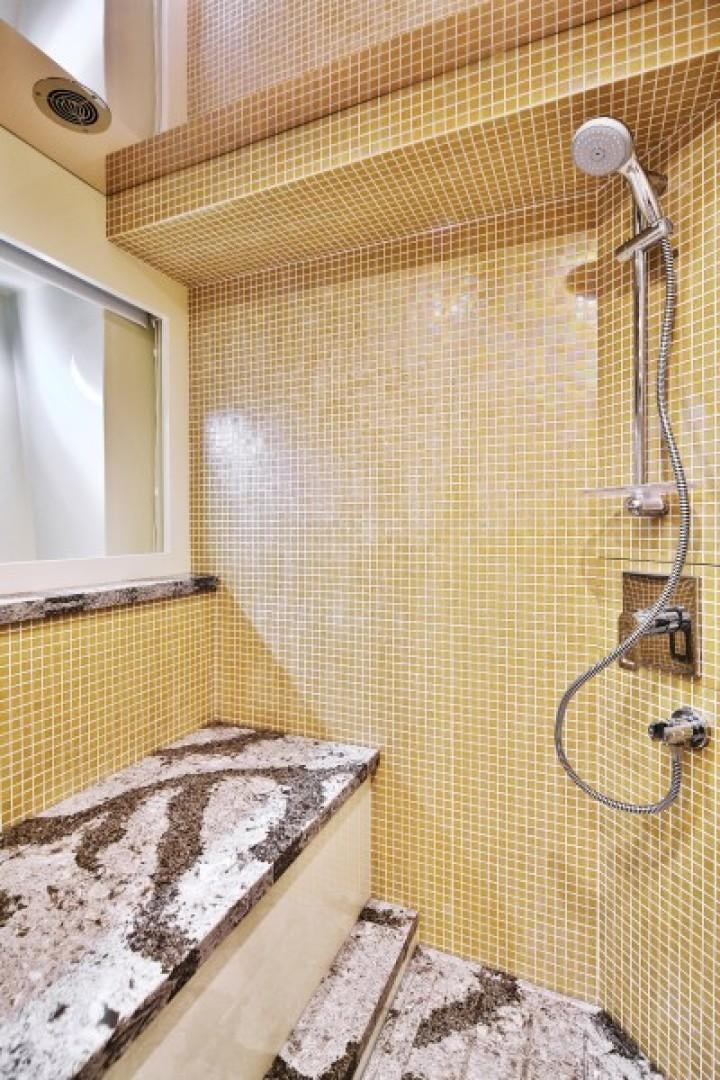

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

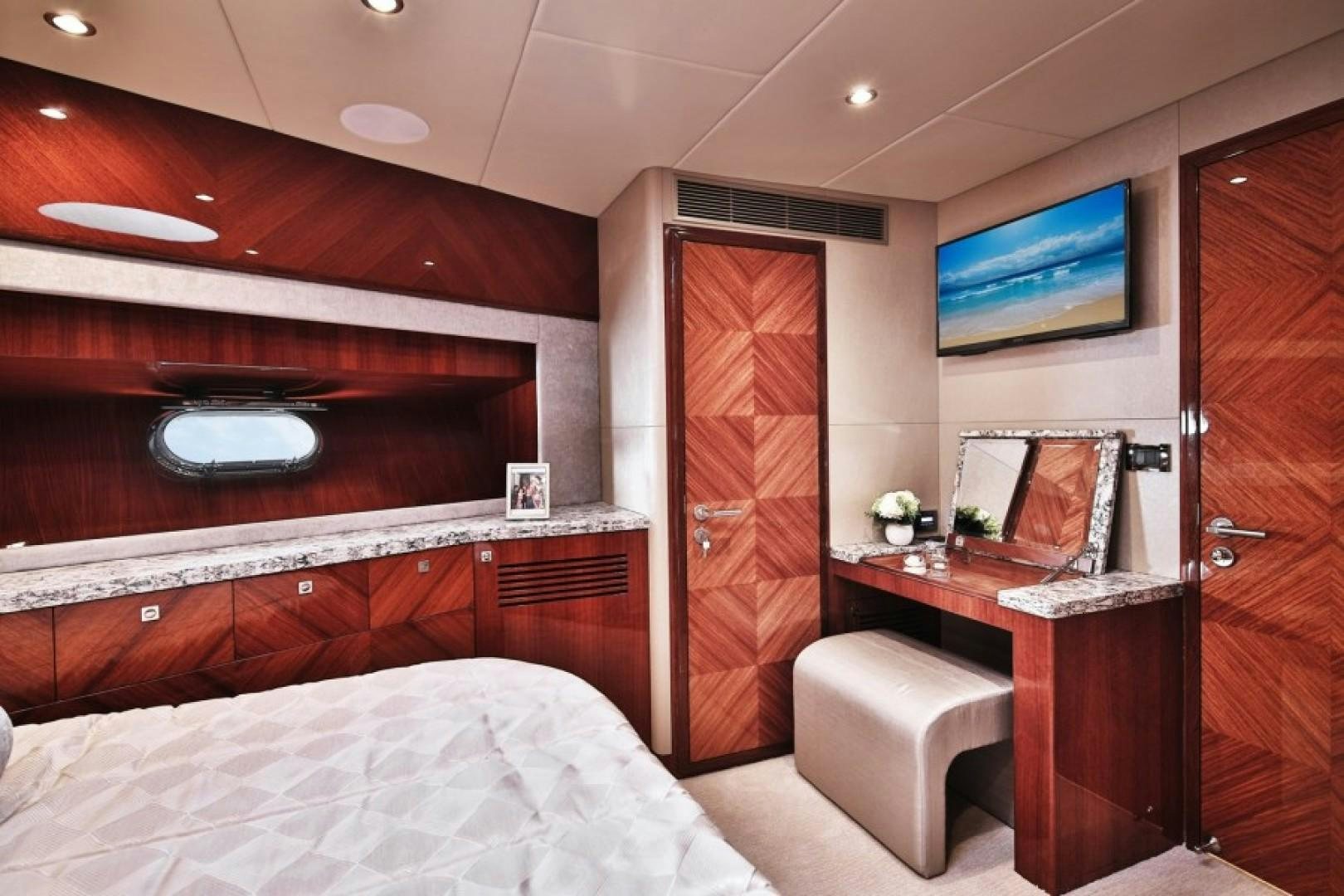

1. DOUBLE BERTH

2. STORAGE BENEATH BERTH

3. DRAWERS IN BASE OF BERTH

4. WALK-IN CLOSET FINISHED IN CEDAR WOOD

5. DRESSING TABLE W/STOOL

6. READING LIGHTS 24V x 2

7. LED CEILING LIGHTS 24V

8. AC DOUBLE SOCKETS

9. 32" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1.   VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2.   WASH BASIN WITH MABLE COUNTERTOP

3.   HOT & COLD WATER

4.   FAUCET AND FITTINGS

5.   MIRROR AND MIRROR CEILING

6.   LACQUER FINISH ABOVE BASIN COUNTERTOP

7.   VENEER FINISH BELOW BASIN COUNTERTOP

8.   EXTRACTOR FAN

9.   AC DOUBLE SOCKET WITH GFI

10. LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

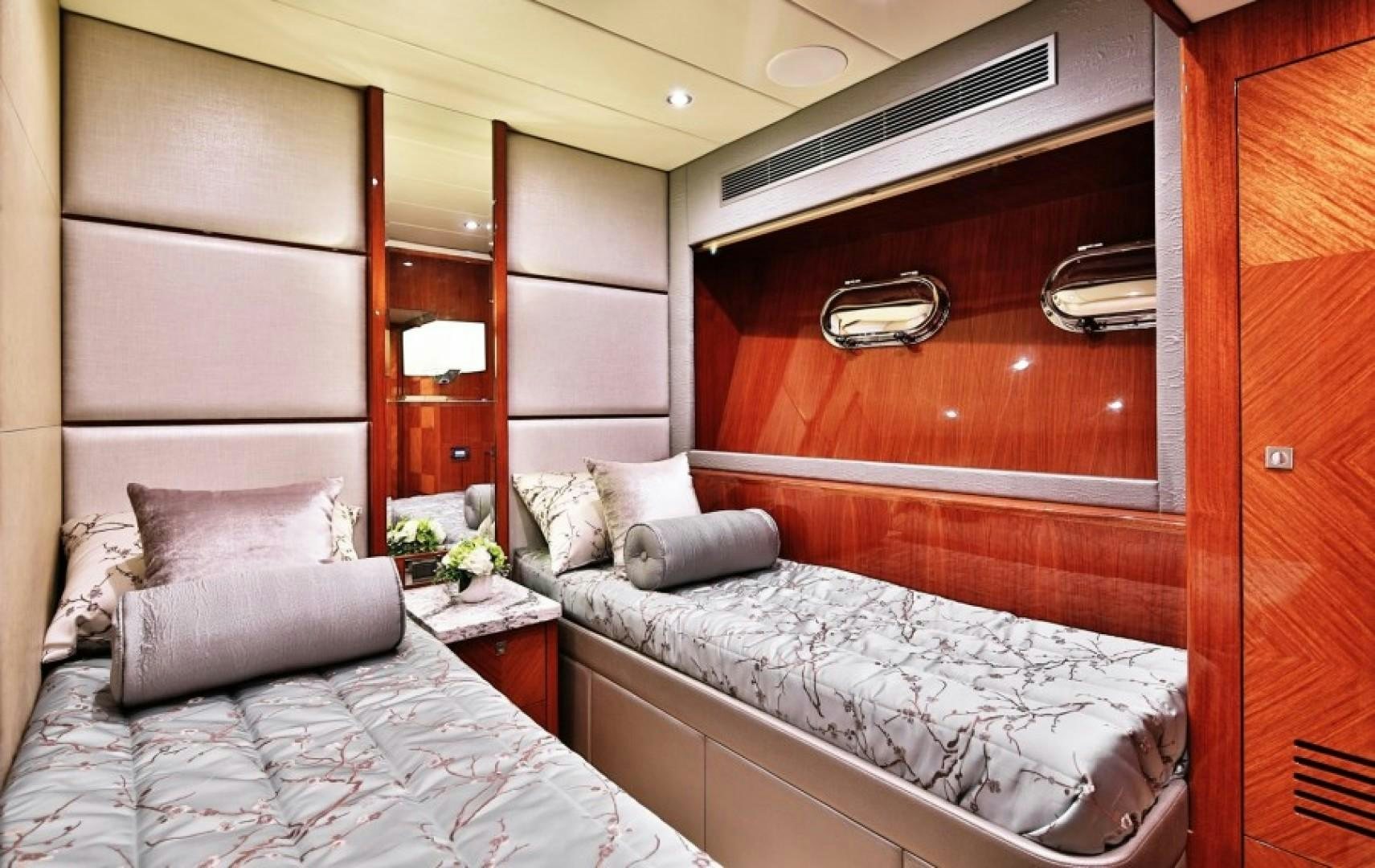

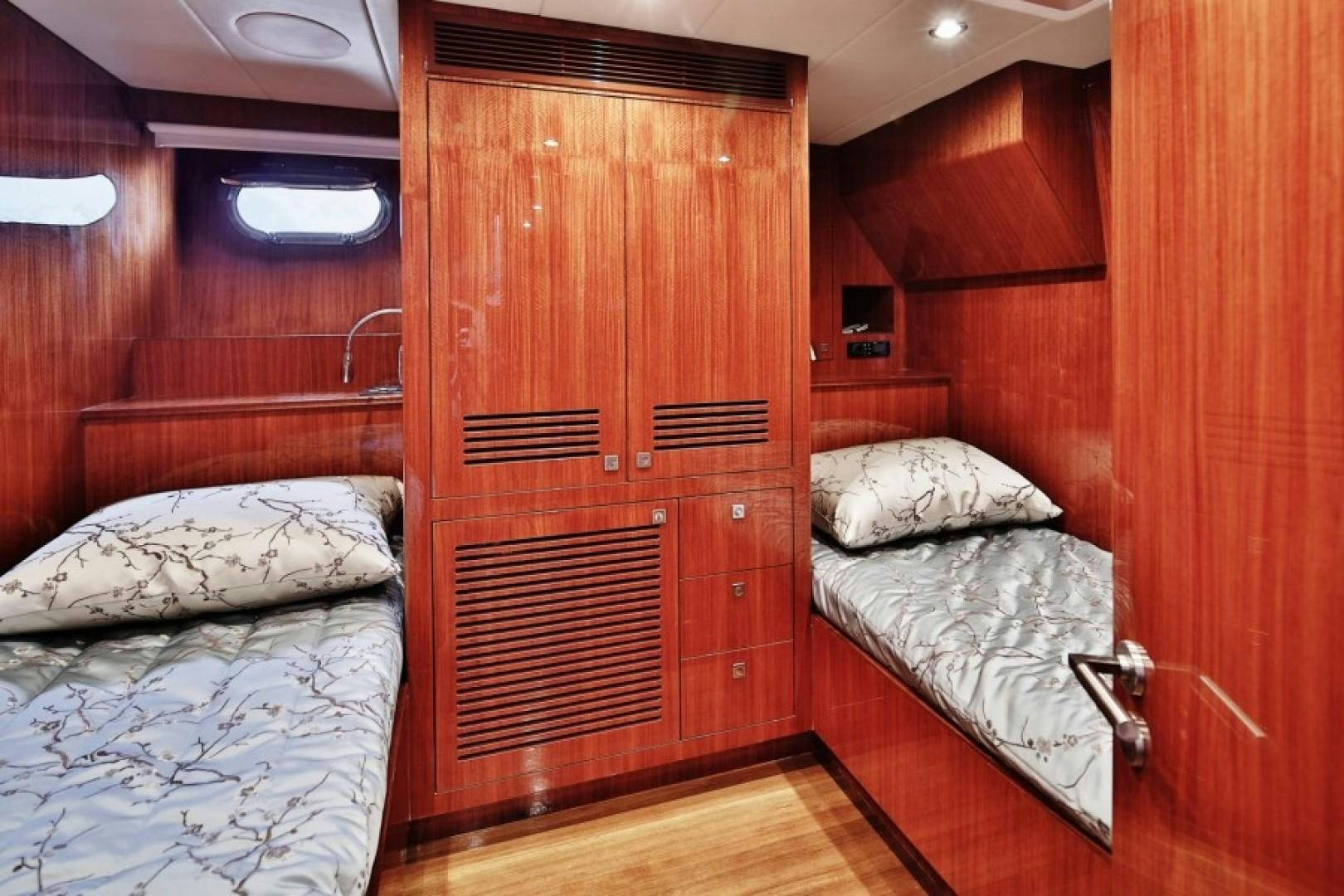

1. TWO SINGLE BERTHS

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. PULLMAN BERTH

7. 32" LCD TV

8. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

9. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

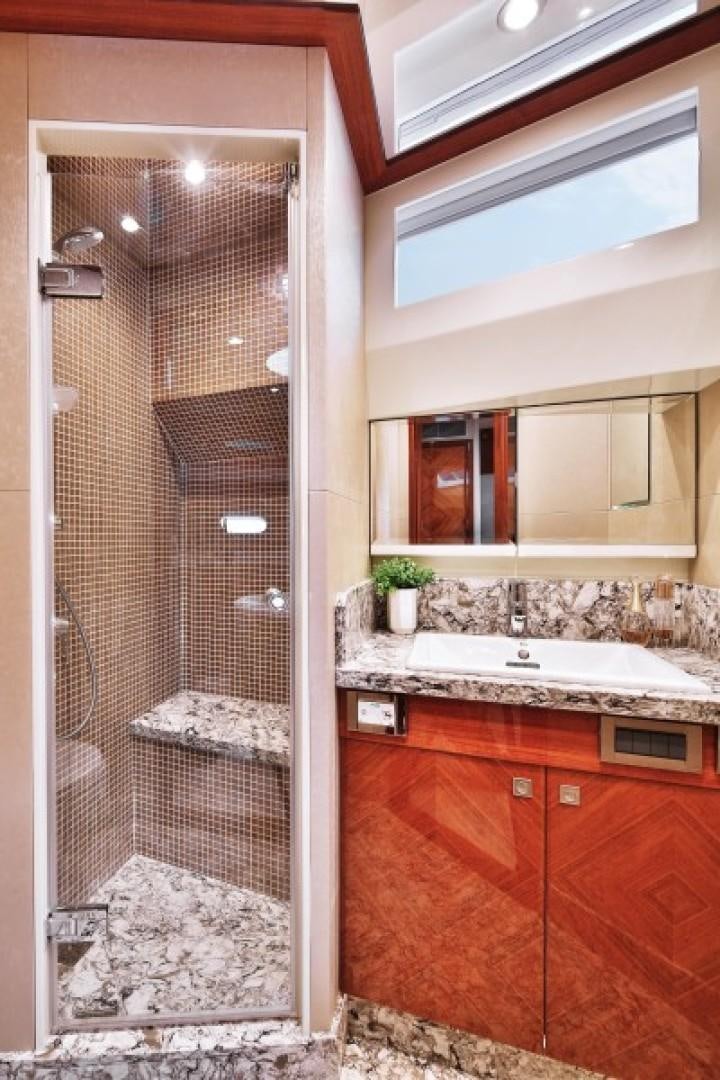

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS

12. MARBLE FLOOR

13. FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL

1. DOUBLE BERTH

2. UNDER BERTH STORAGE

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. 32" LCD TV

7. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

8. APPLE TV

1. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRROR CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

1. ENTRANCE DOOR FROM TRANSOM

2. TWO SINGLE BERTHS

3. READING LIGHTS 24V x 2

4. LED CEILING LIGHTS

5. AC DOUBLE SOCKET

6. HANGING LOCKER

7. HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR

8. VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)

9. 24" LCD TV

10. FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6 ” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

11. APPLE TV

1.  CATCH WELL, UNDER DECK

2.  LIVE BAIT WELL WITH PUMP AND LIGHTS

3.  FLUSH MOUNT 8 ROD HOLDERS SURROUND THE FISHING COCKPIT AND ROCKET LAUNCHER

4.  NON-SKID DECKS


Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!
Completion time is approximately 9-12 months depending on other yard projects.

**OPTIONS UPON REQUEST**

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

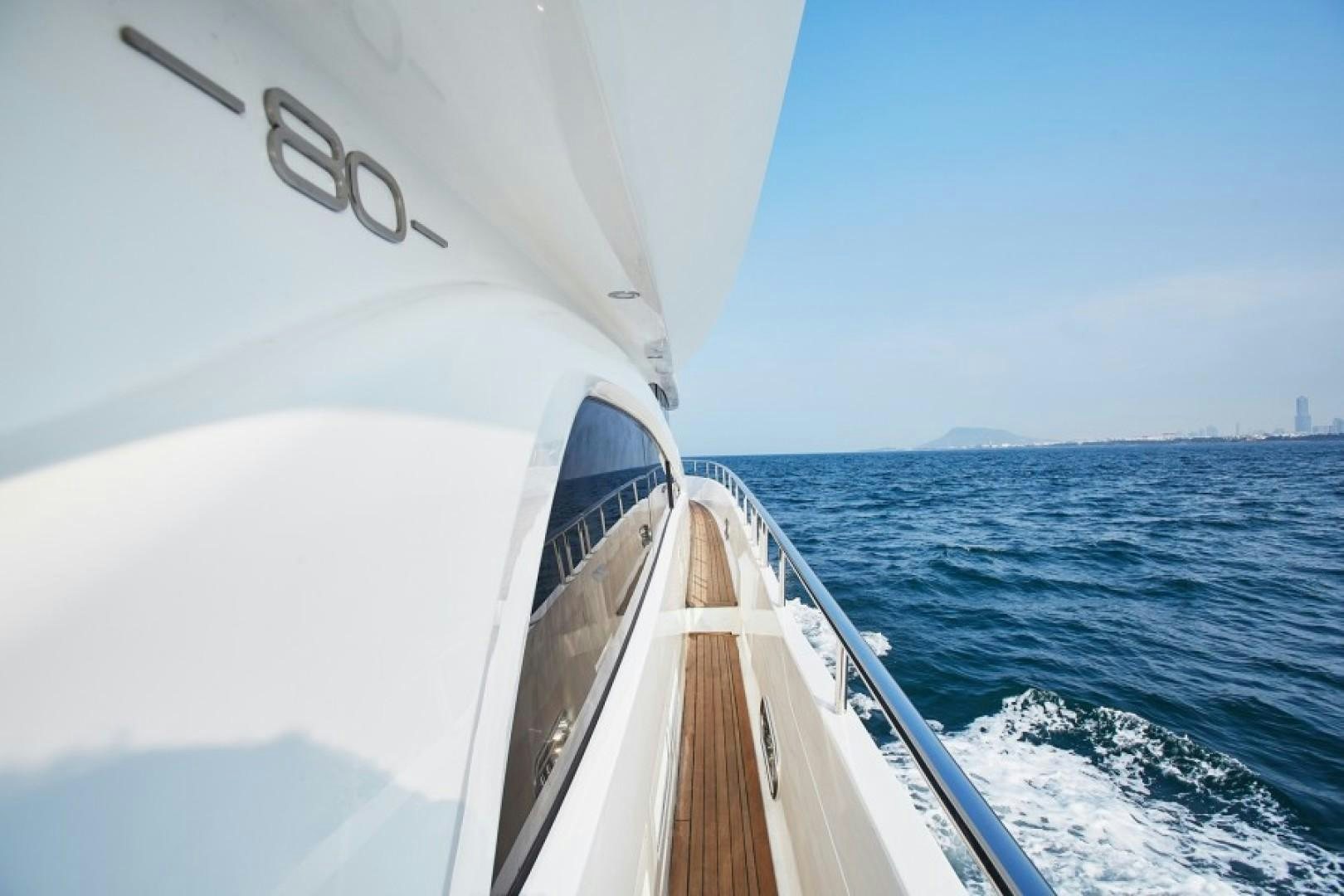

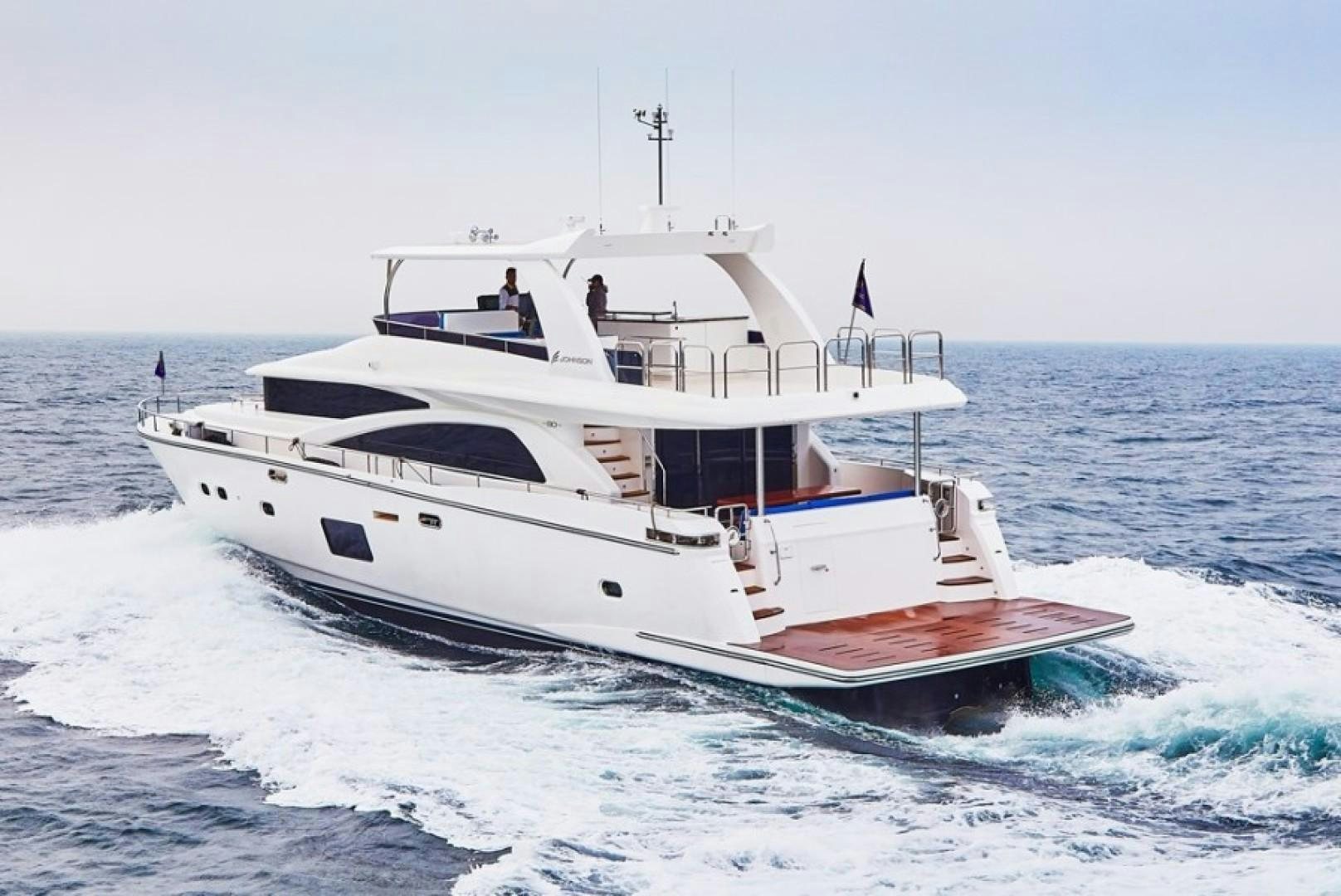

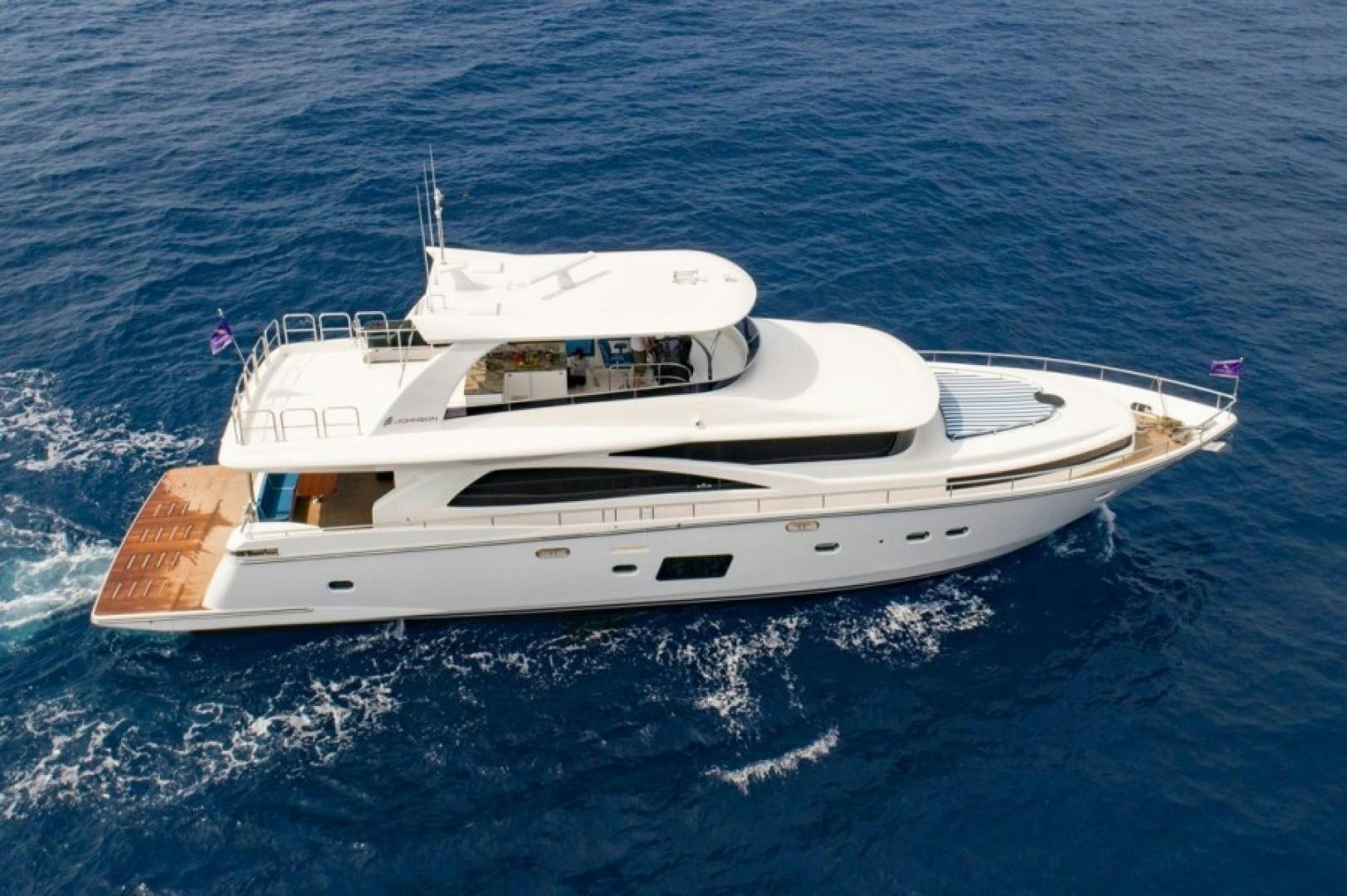

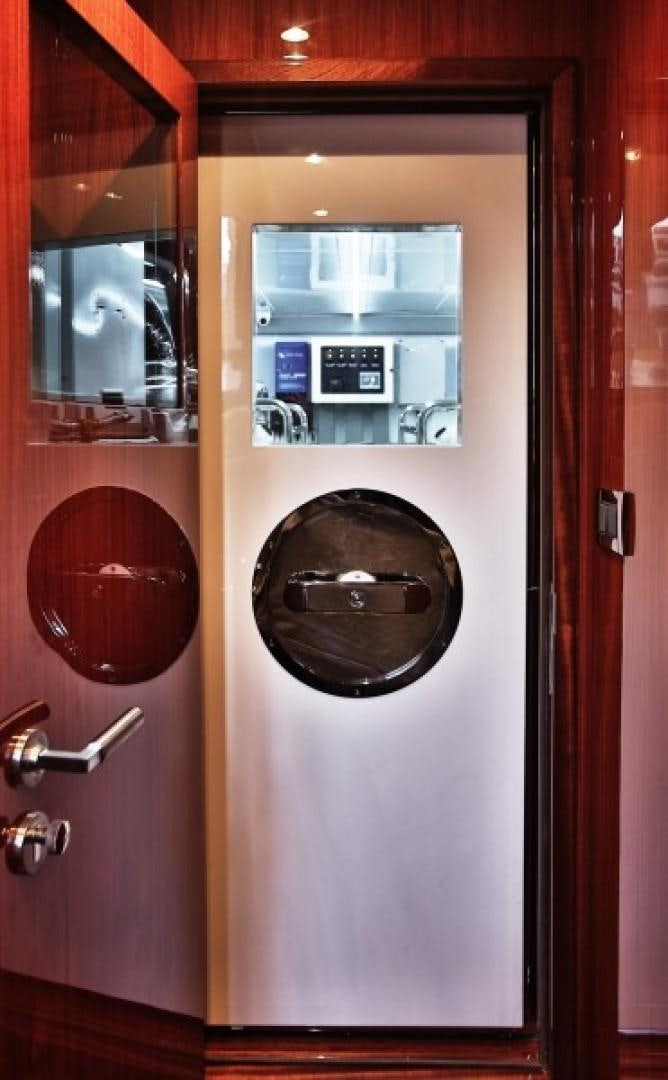

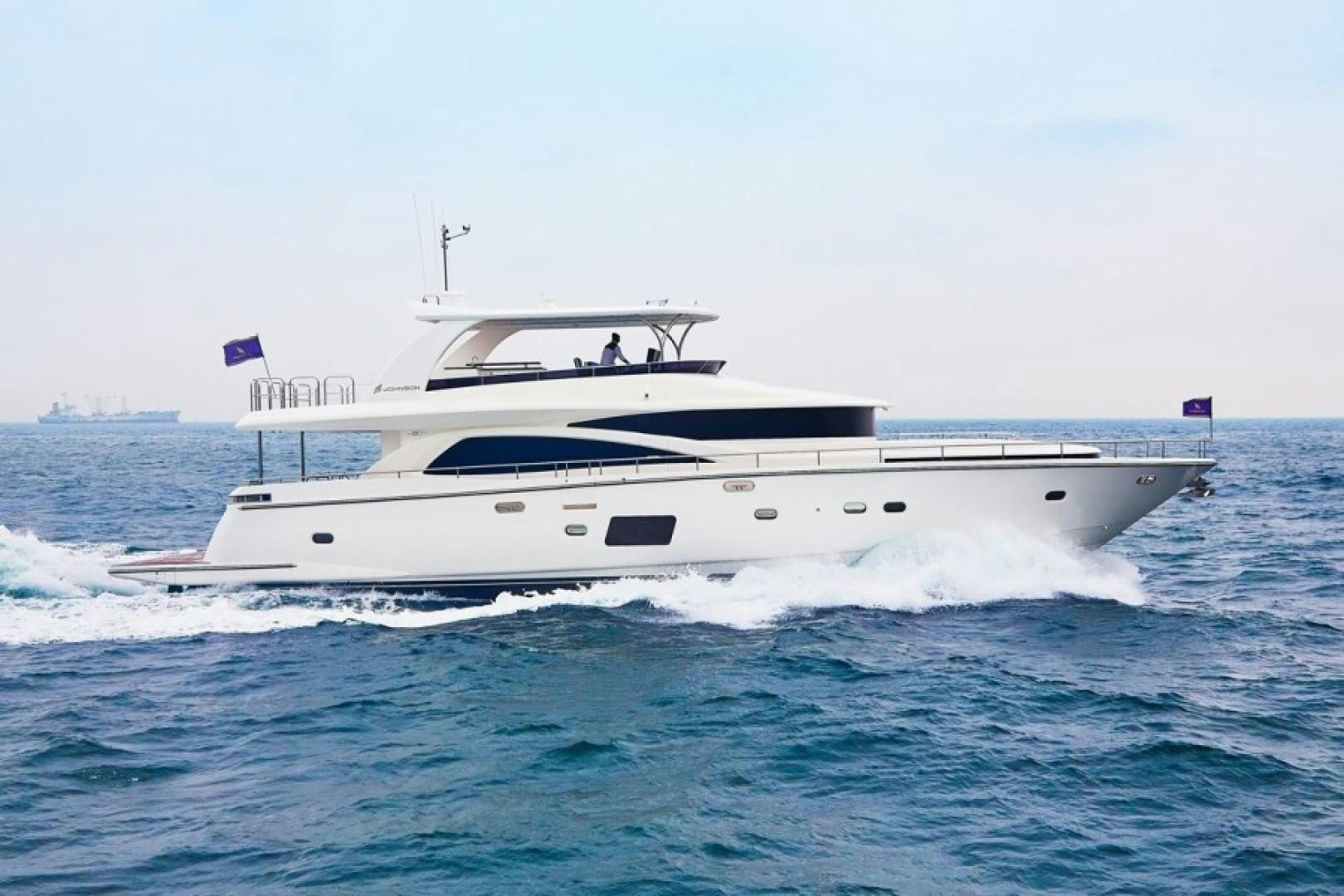

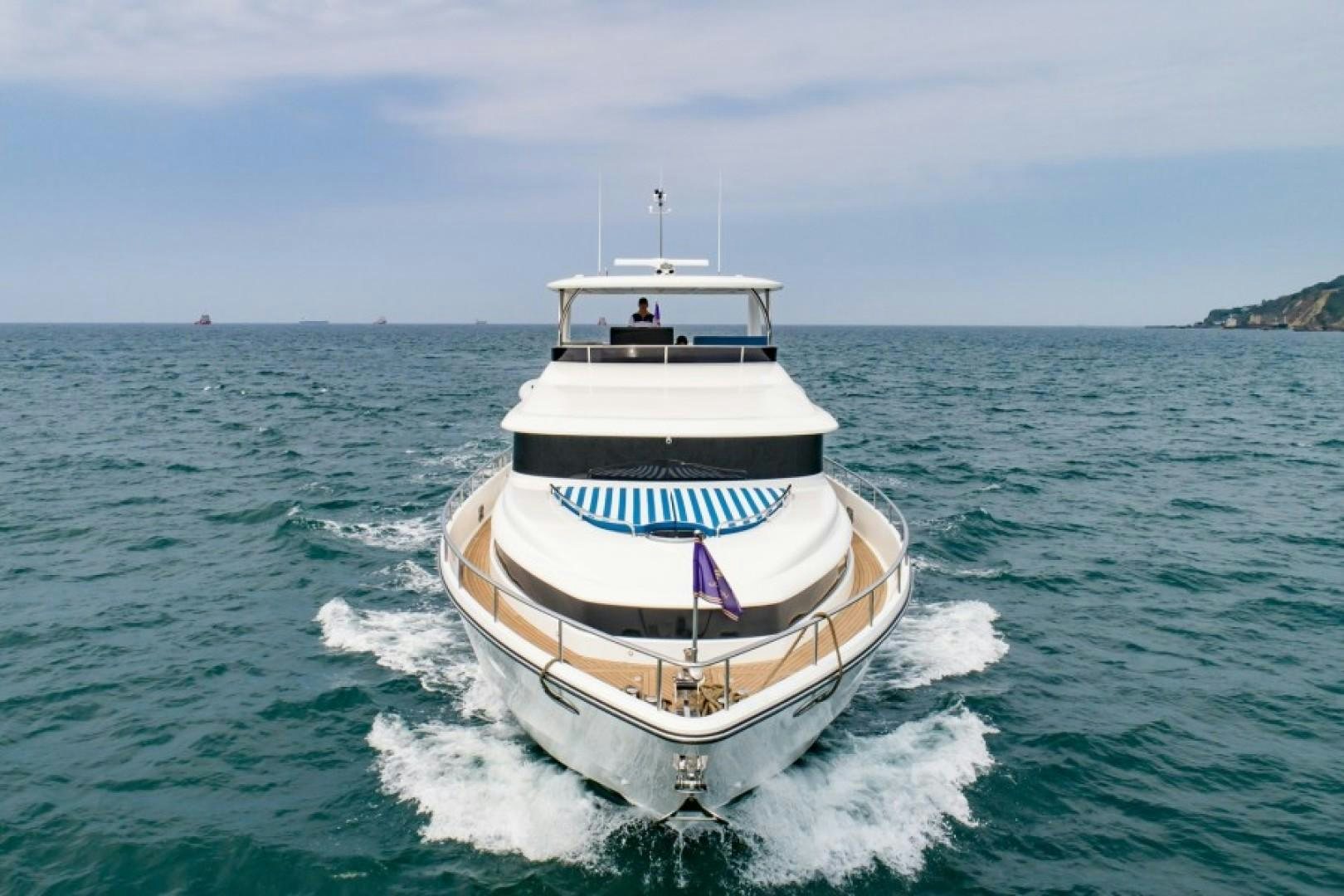

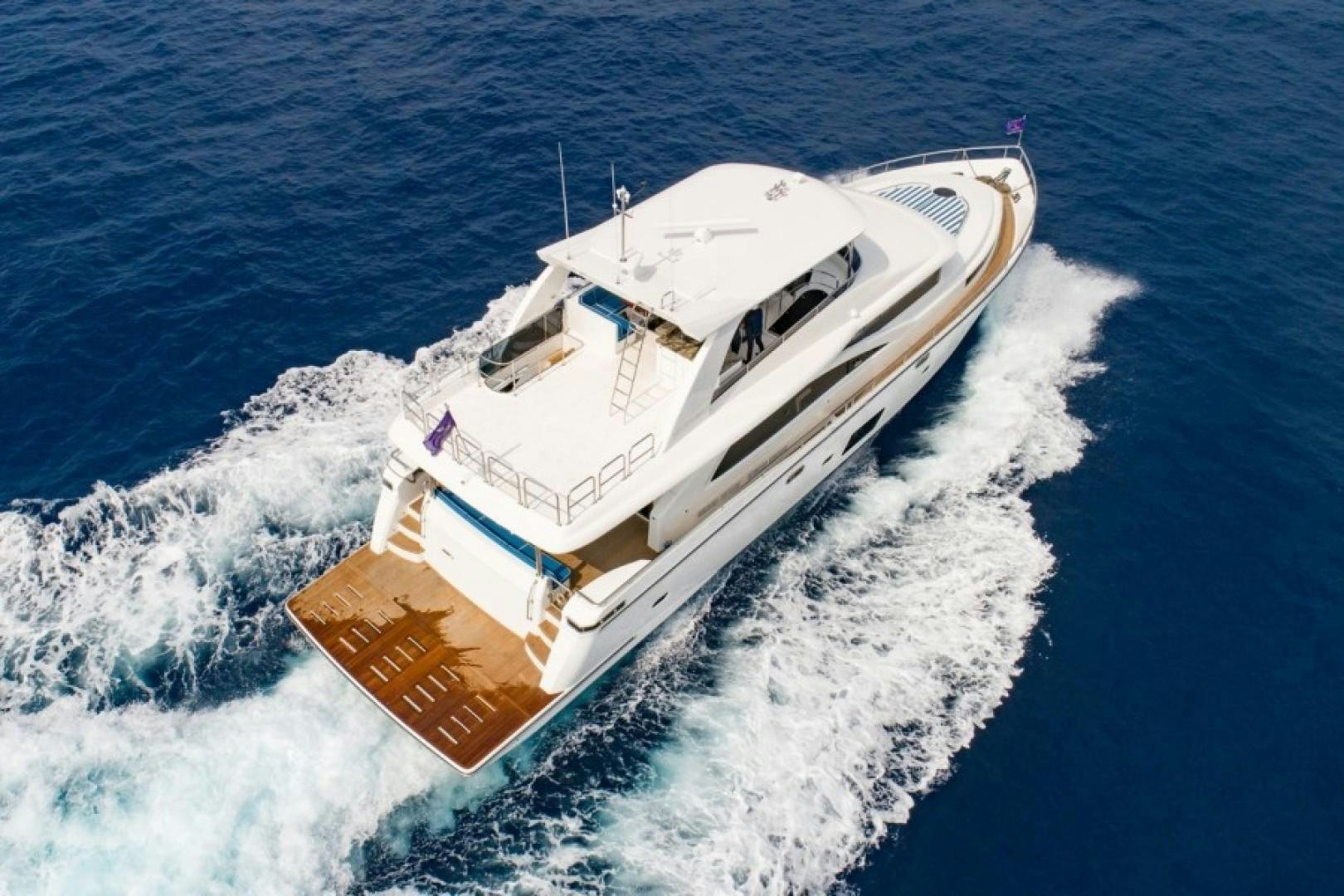

Since this is a new build offering, all photos are of previous projects.  Exact layout, wood and stone selection are buyer's choice.

Price FOB Taiwan and includes U.S. Duty and Pre-Delivery Commissioning

Specifications are provided for informational purposes only.  Data was obtained from sources believed reliable but is not guaranteed by owner or brokers.  Buyer assumes responsibility to verify all speeds, capacities, consumption’s and other measurements contained herein and otherwise provided and agrees to instruct his agents to confirm such details prior to purchase.  Vessel is subject to prior sale, price and inventory changes and withdrawal from market without notice.
